Ashikatame Beam Joint
Advertisement

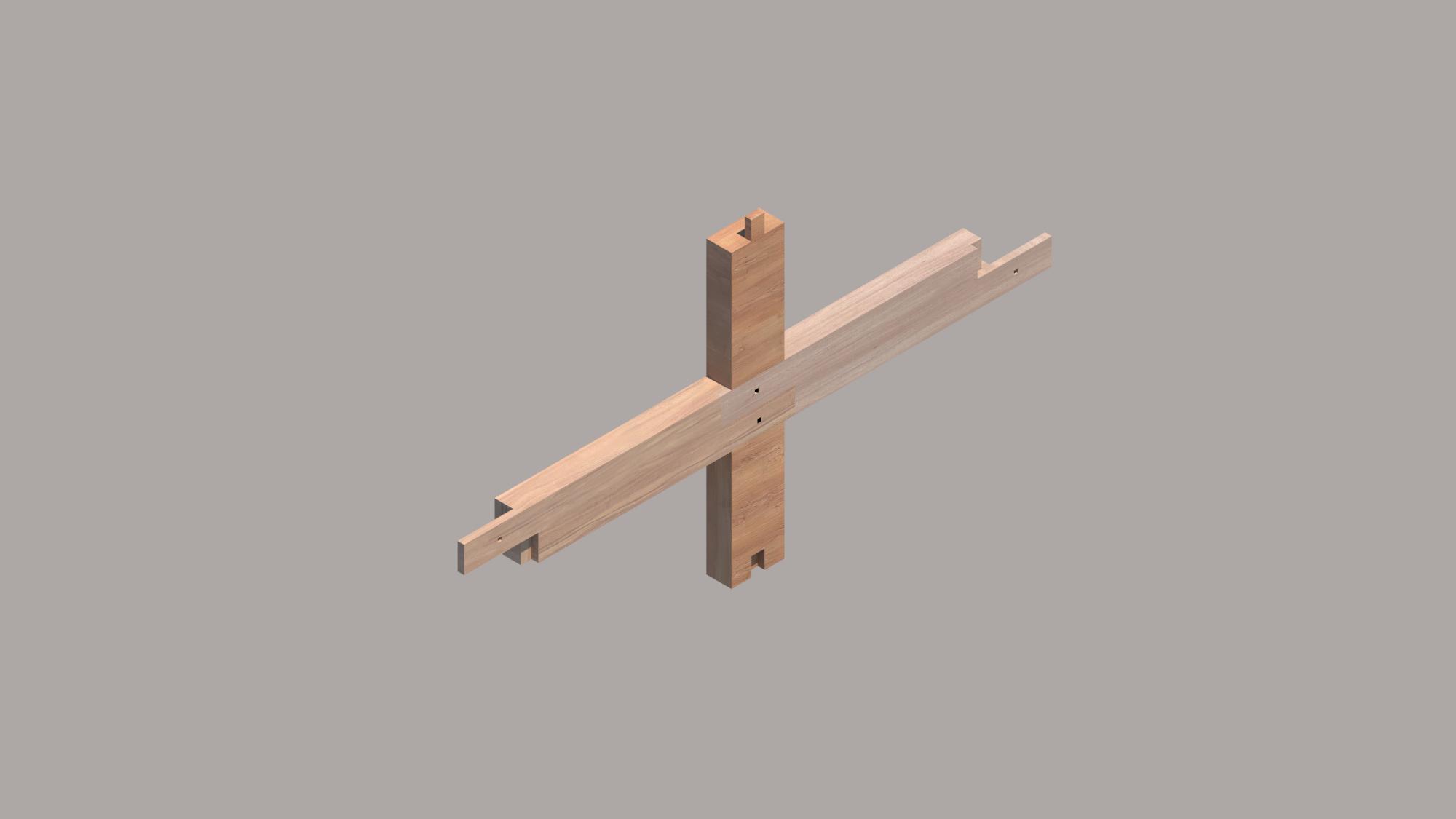

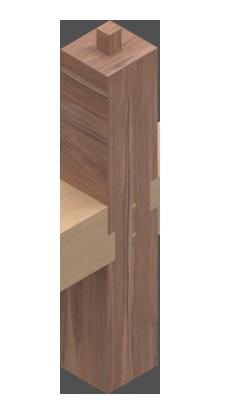

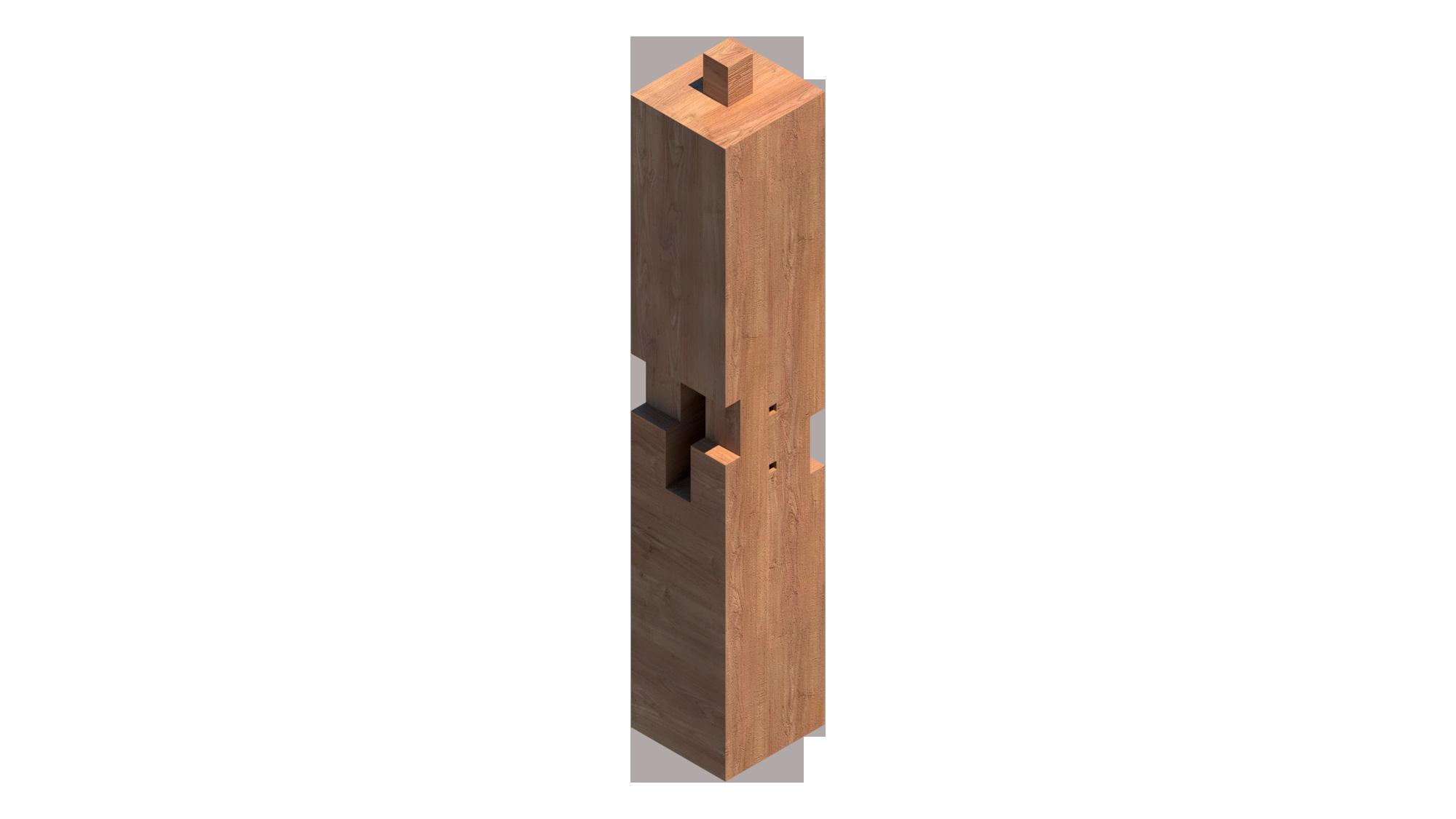

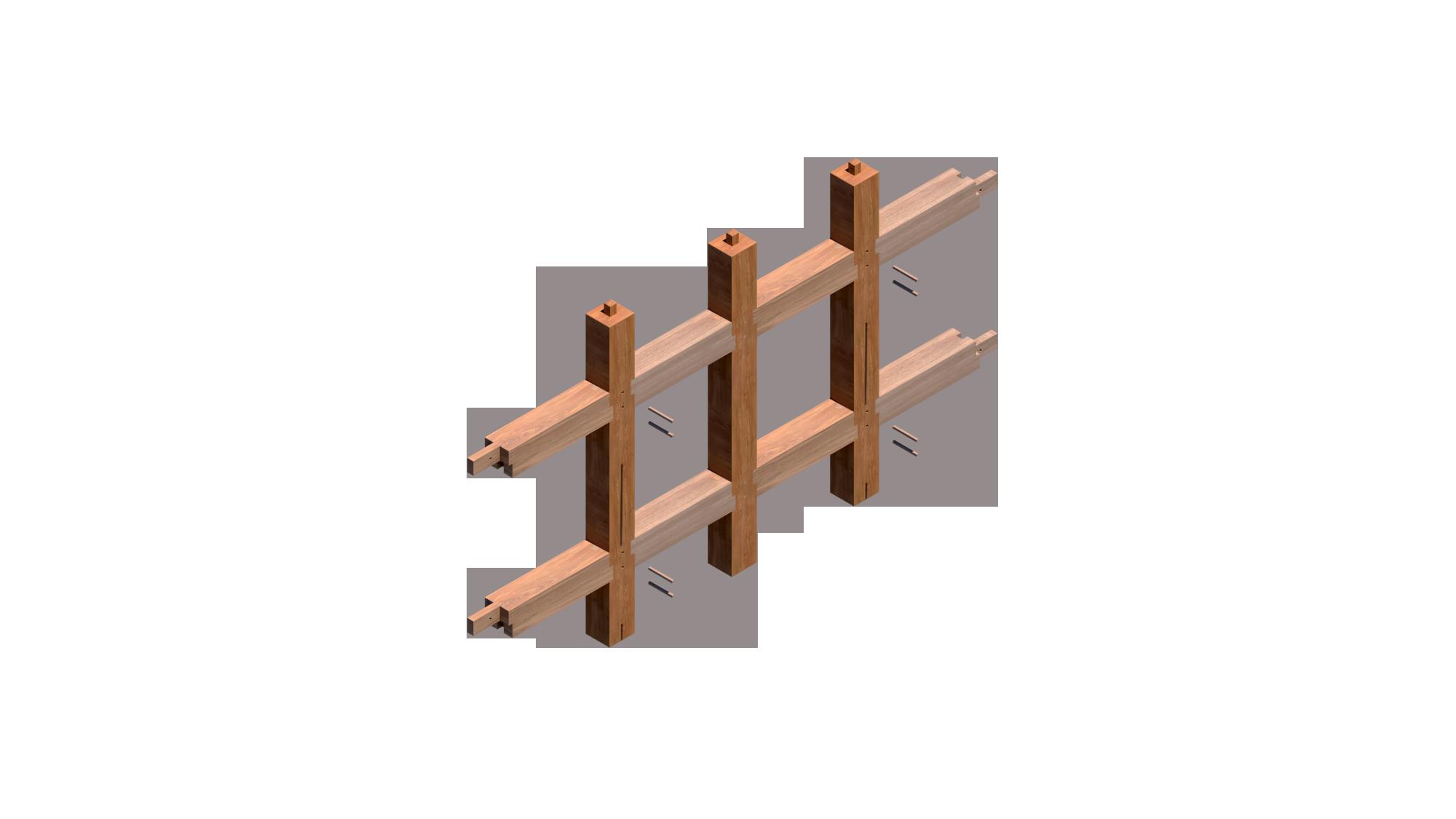

TheAshikatame beam joint is a traditional Japanese woodworking joint used in timber framing. It is a type of mortise-and-tenon joint that is commonly used to join beams at right angles, such as in the construction of post-and-beam structures or traditional Japanese timber buildings. In cases when there isn't a continuous ground sill to sustain the loads on the floor, an ashikatame beam joins posts and beams.The lengthy tenons glide past and over one another, increasing the surface area in contact and hence the resistance to twisting. With the help of two square hardwood pins, the beams are fastened to the column. One notable feature of the Ashikatame joint is its aesthetic appeal, as it often results in a clean and elegant joint that showcases the natural beauty of the wood. It also provides good structural stability and can withstand the loads and stresses placed on beams in timber-framed structures.
THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.
Client- Igor Peraza
Project- A3 japanese joint
Drawing title- Elevations
Drawing no.1
Drawing unit: Milimeters
Scale-1:6
Element B of the joint
THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ. Client-
THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.

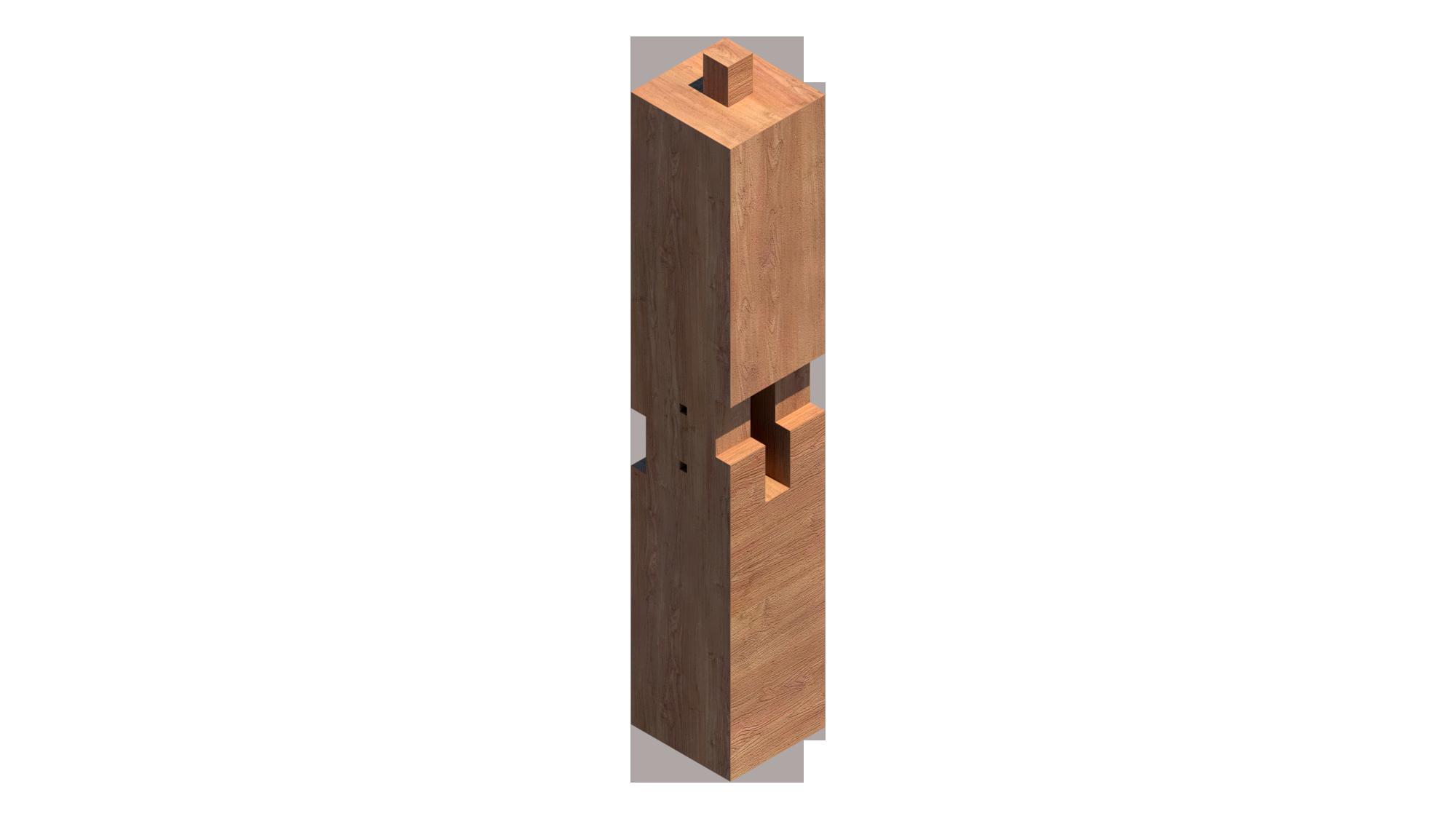

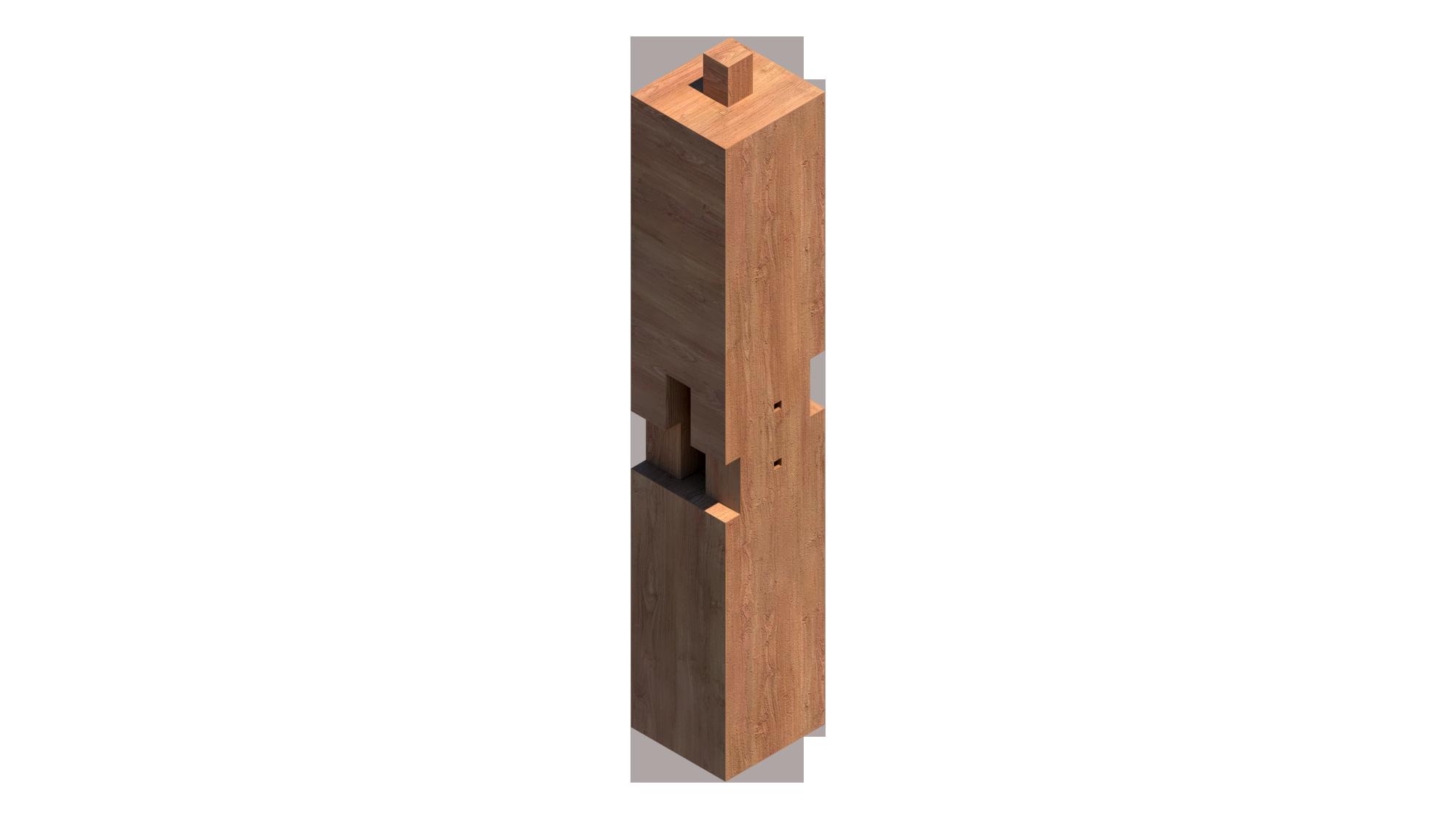

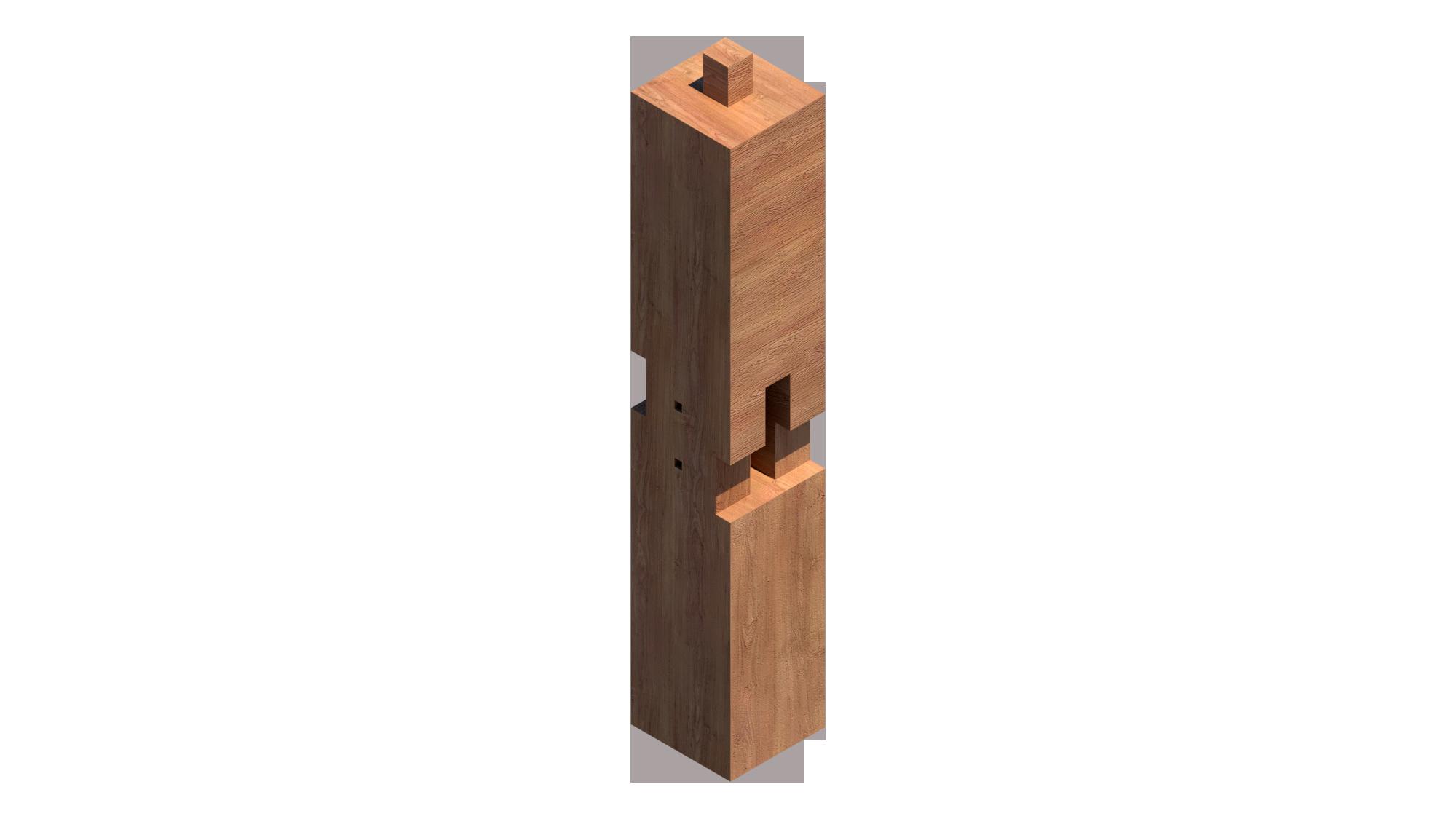

Vertical Element
South westSouth eastNorth eastNorth west
21

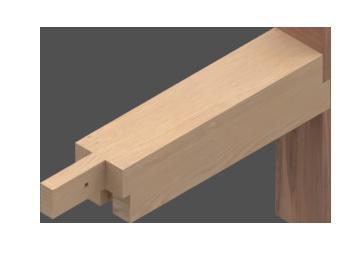

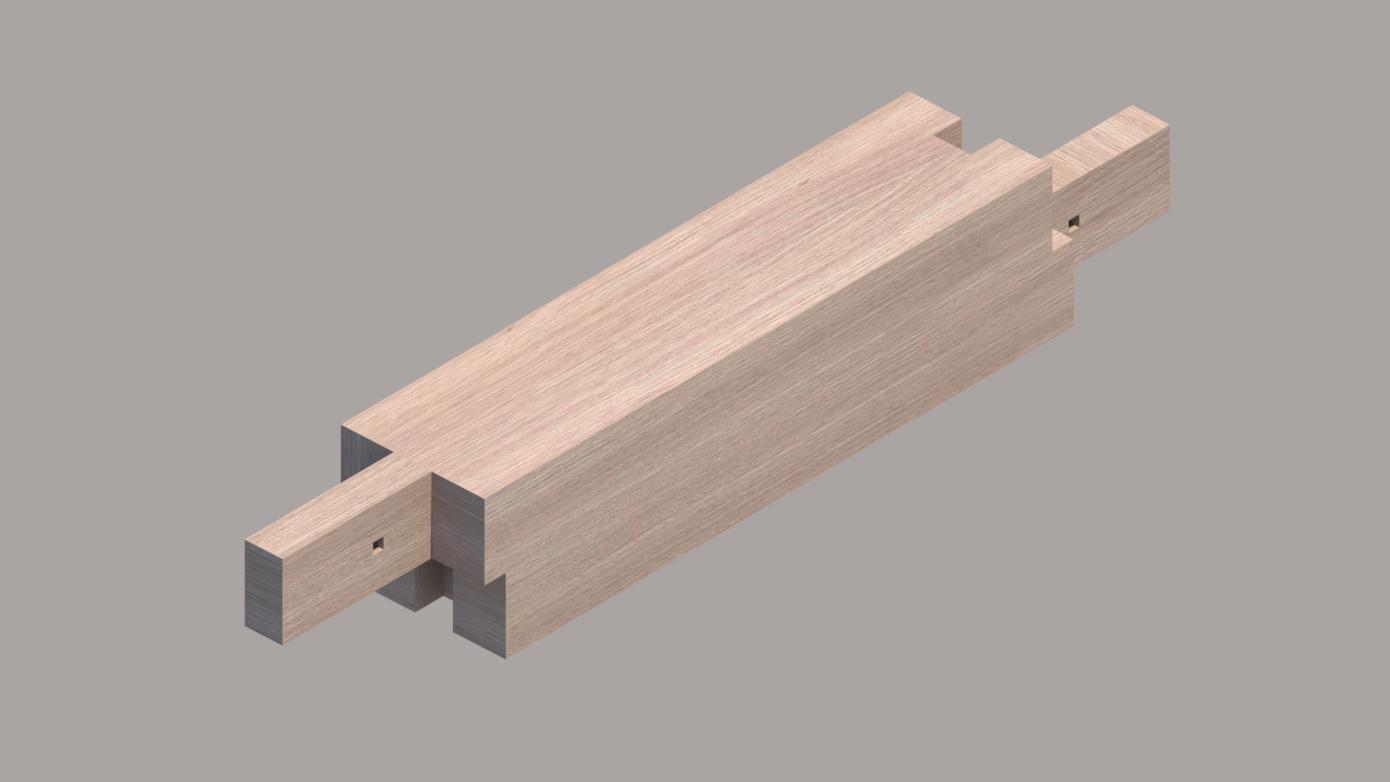

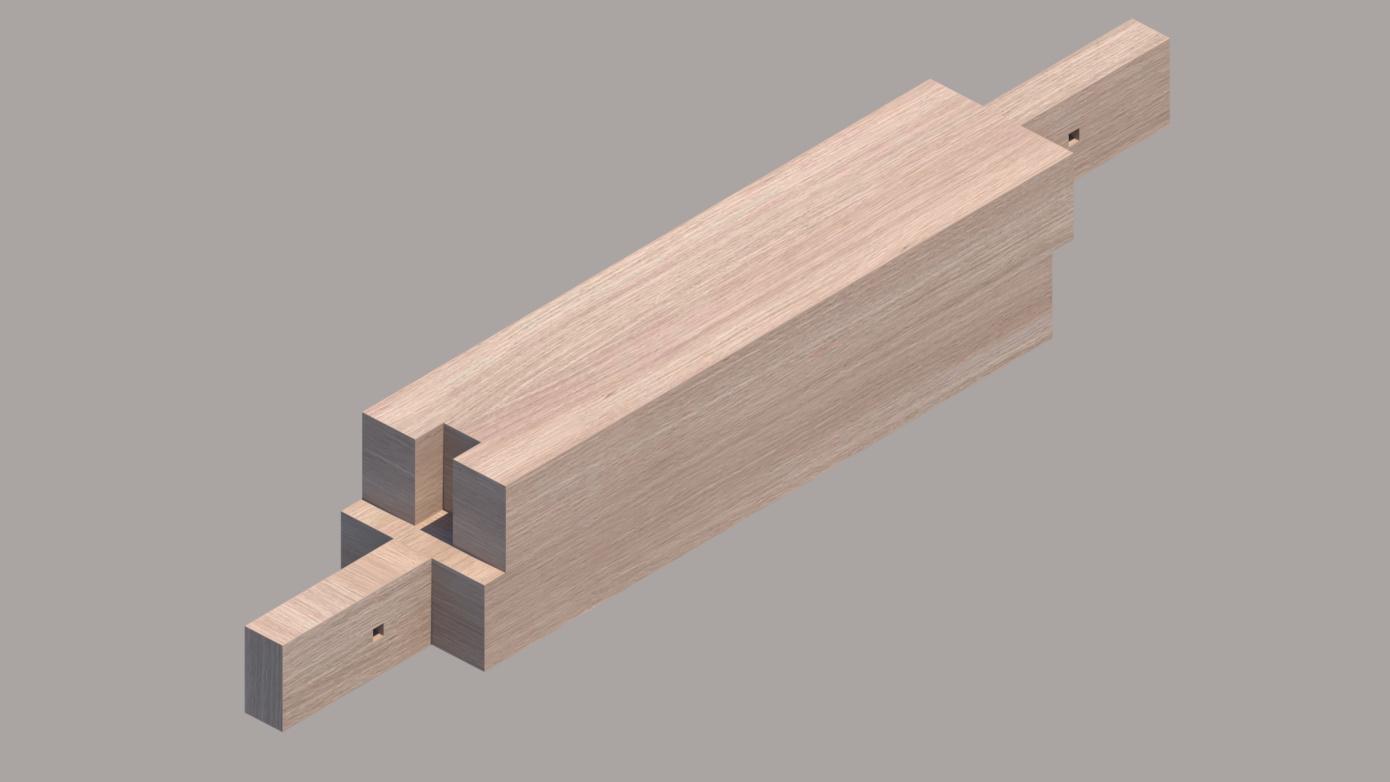

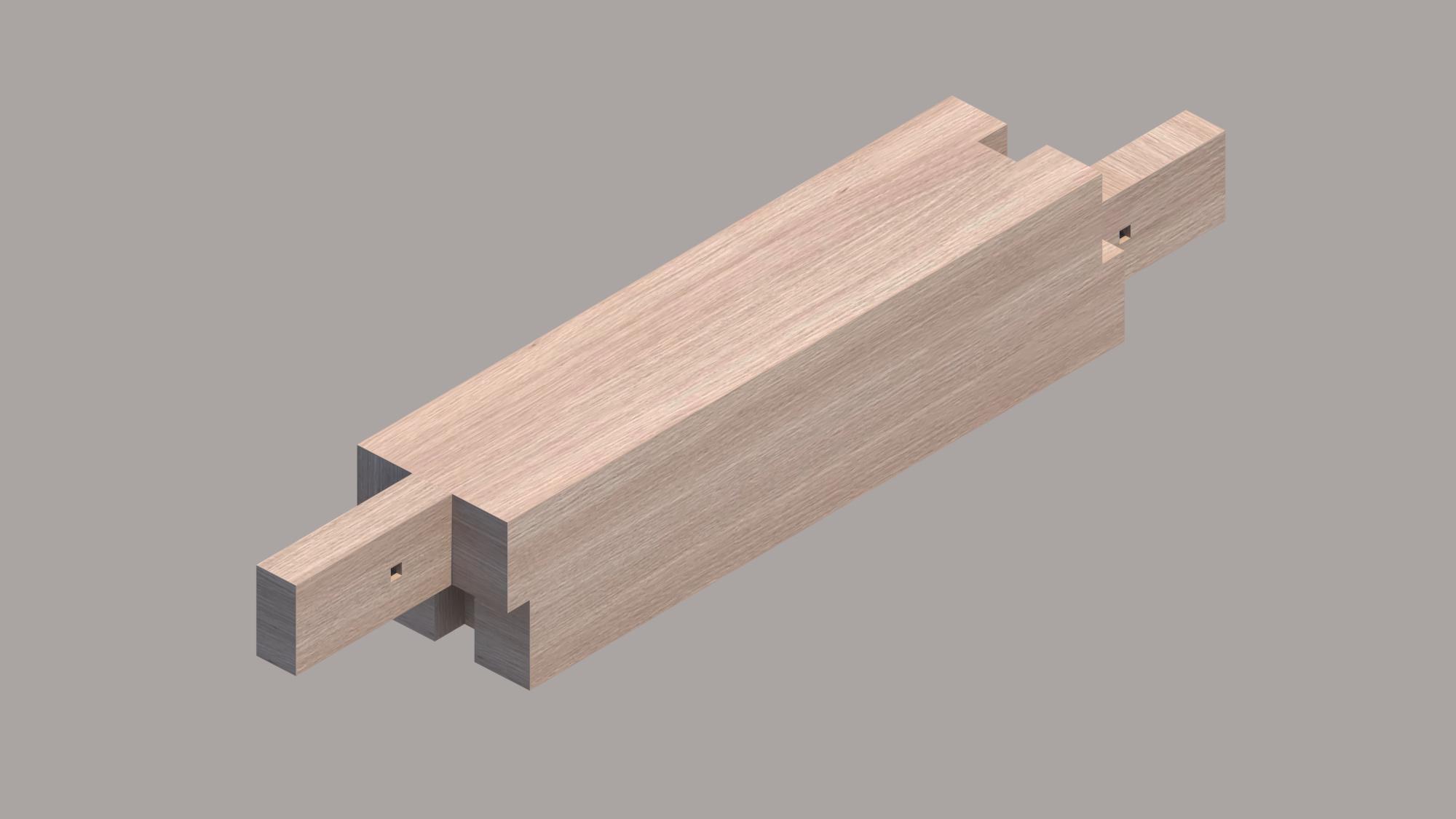

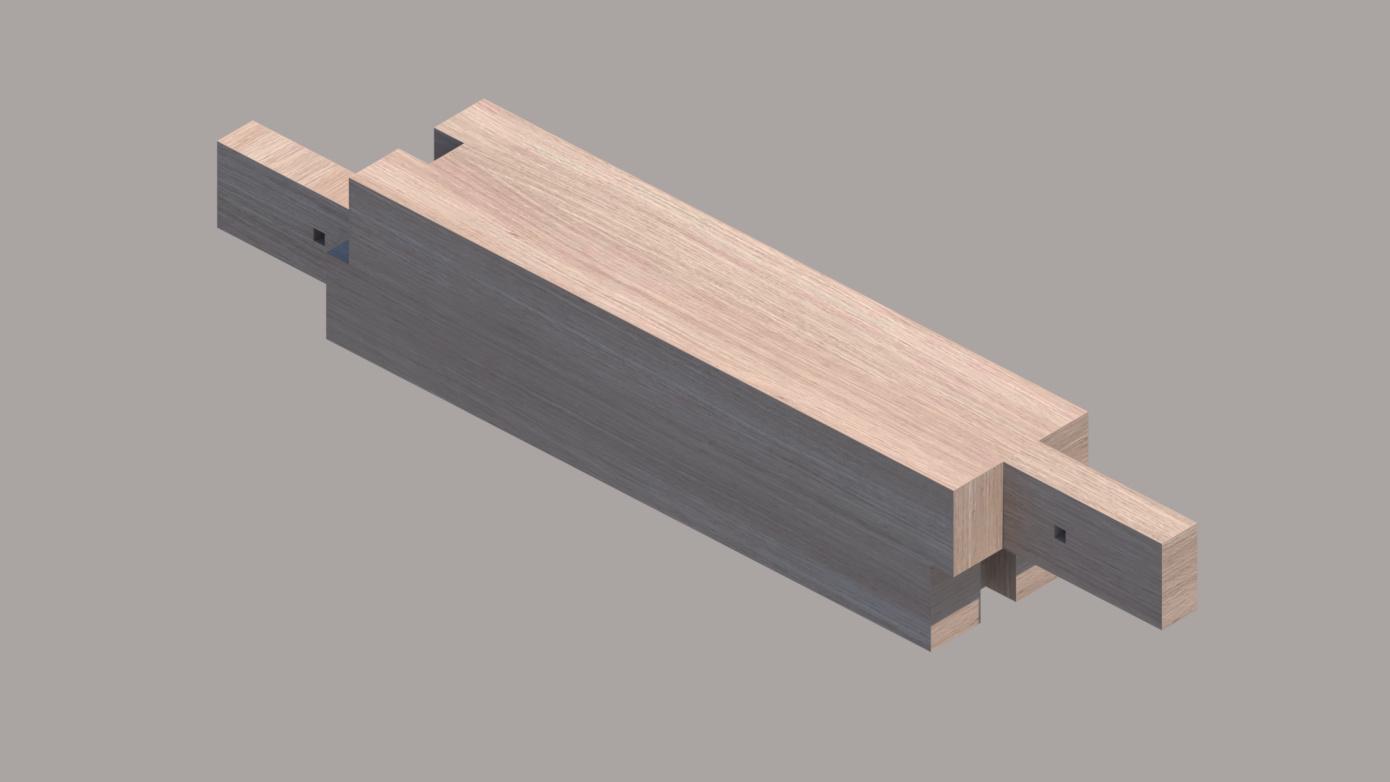

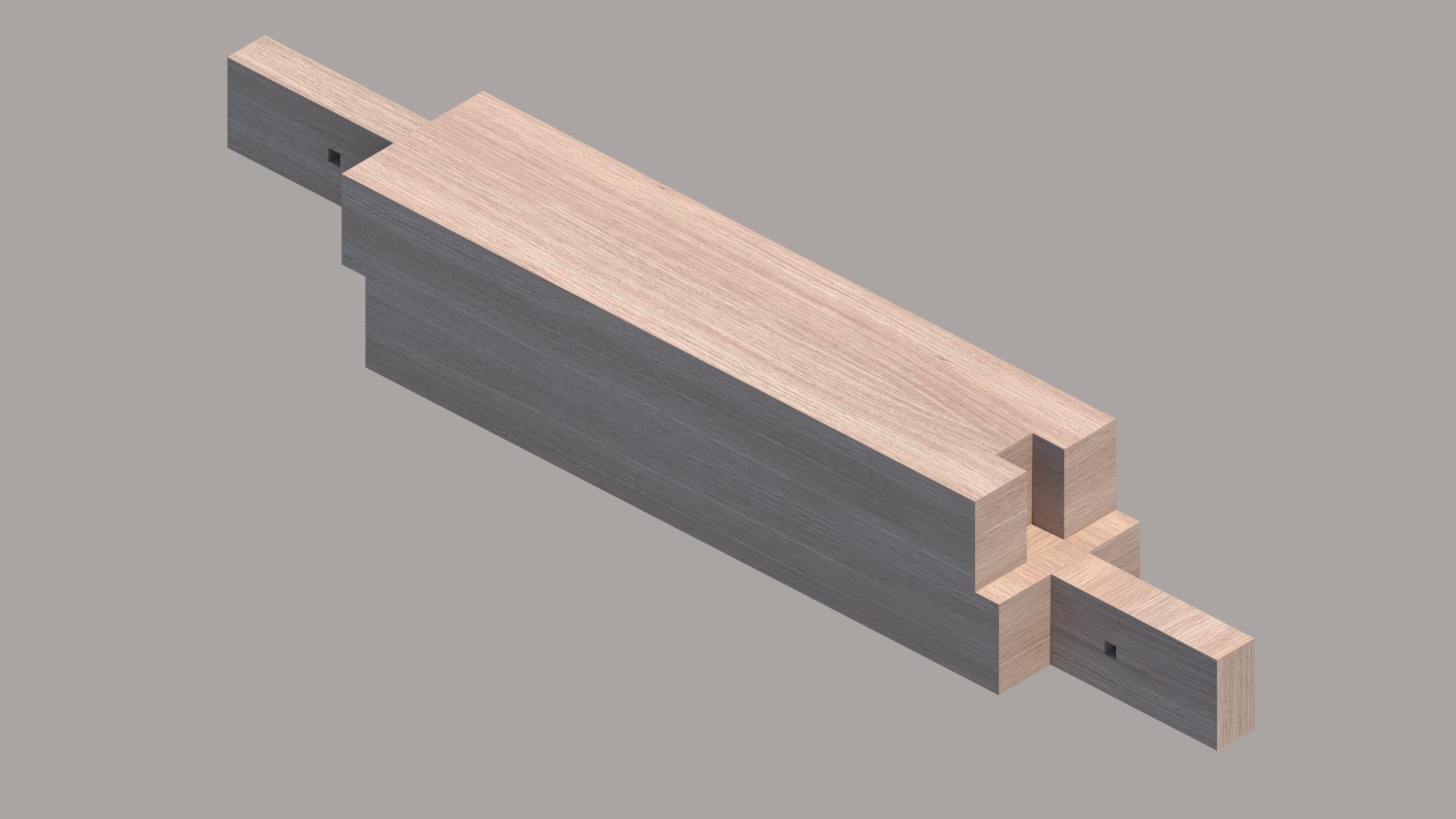

Horizontal Element
South westSouth east
North eastNorth west
WHICH IT IS SUPPLIED WITHOUT

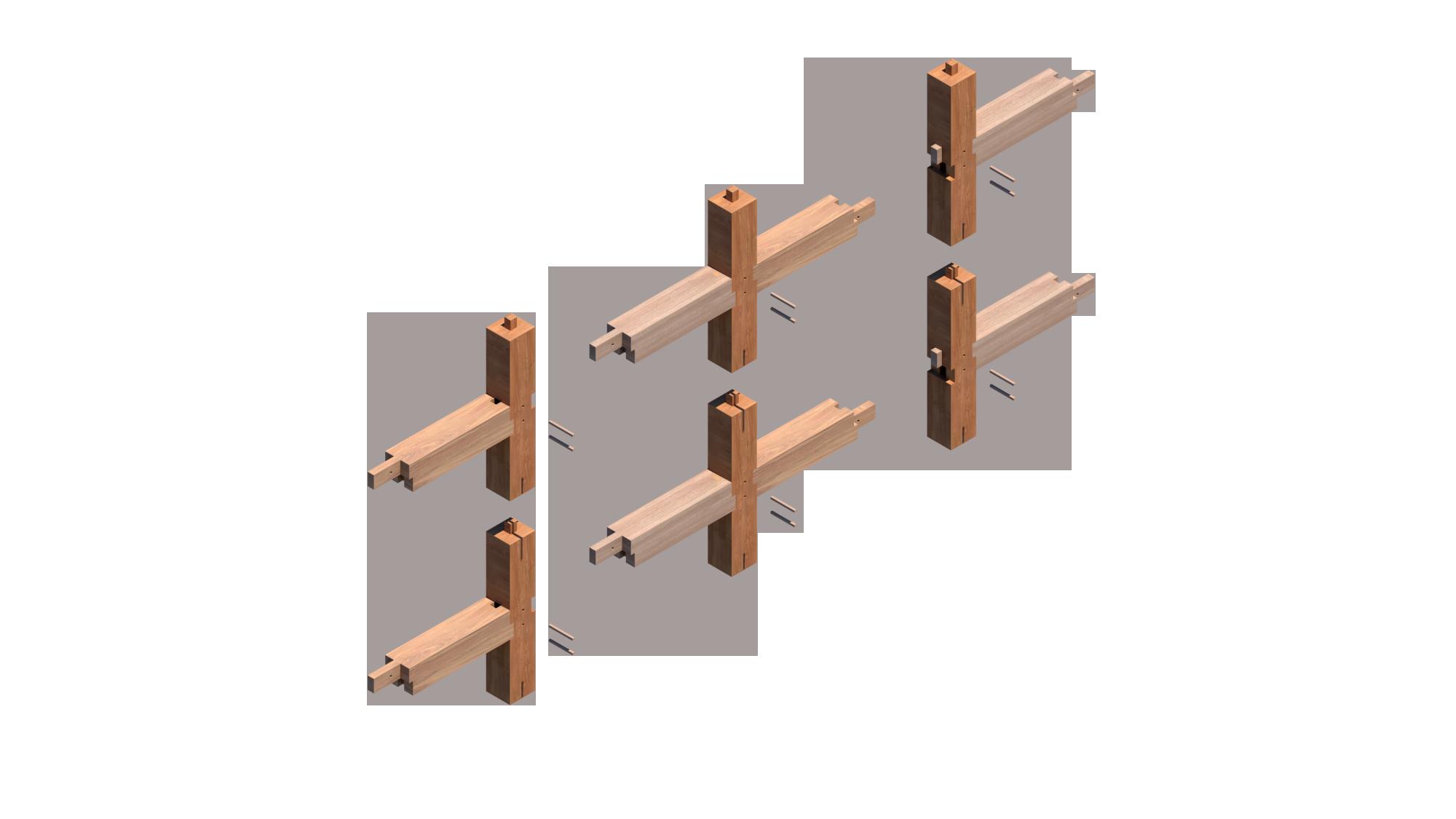

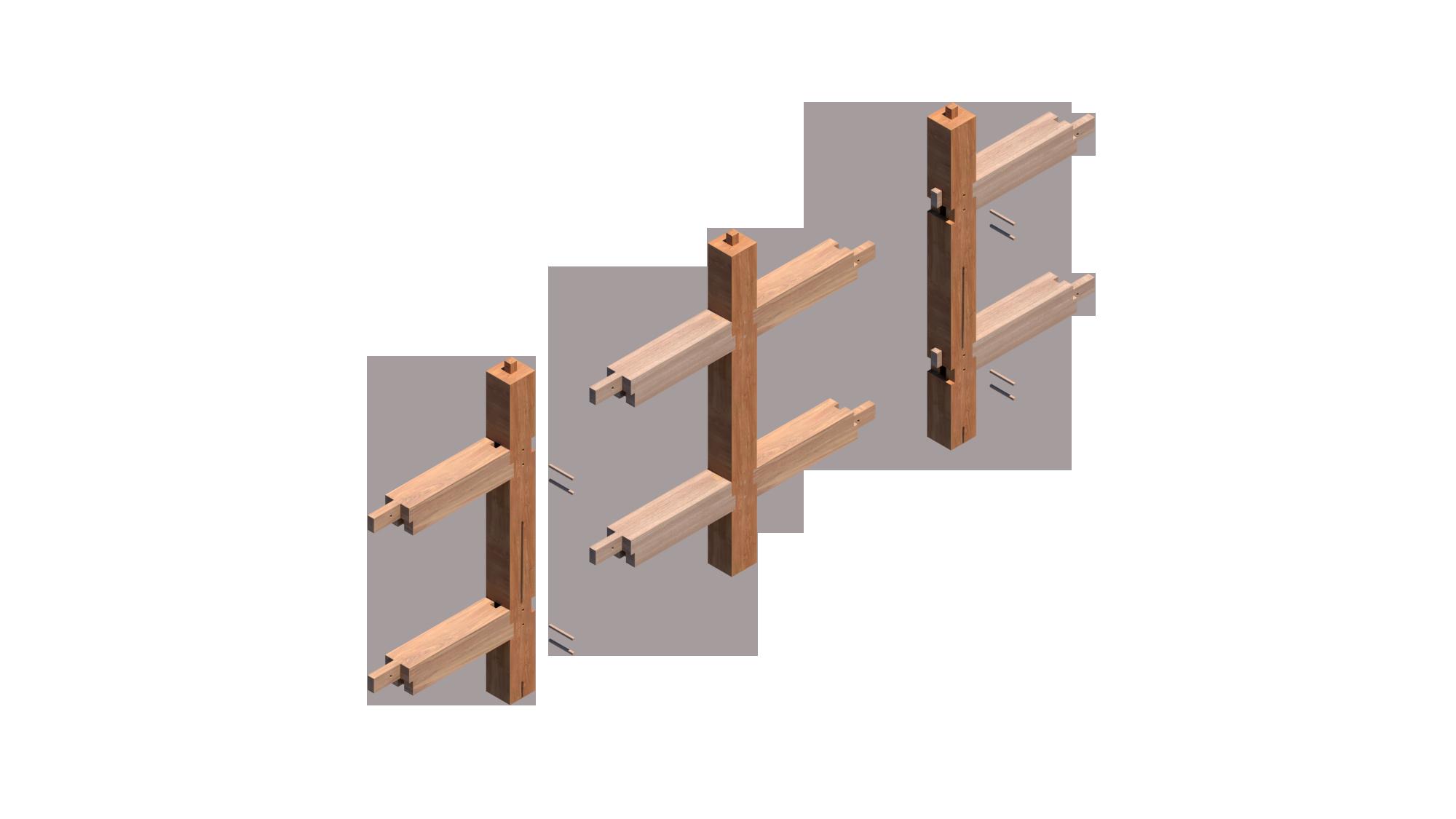

4 Step Diagram 34
Notes: THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.
Client- Igor Peraza
Project- A3 japanese joint
Drawing title- Joint diagram
Drawing no.5
Format- A3

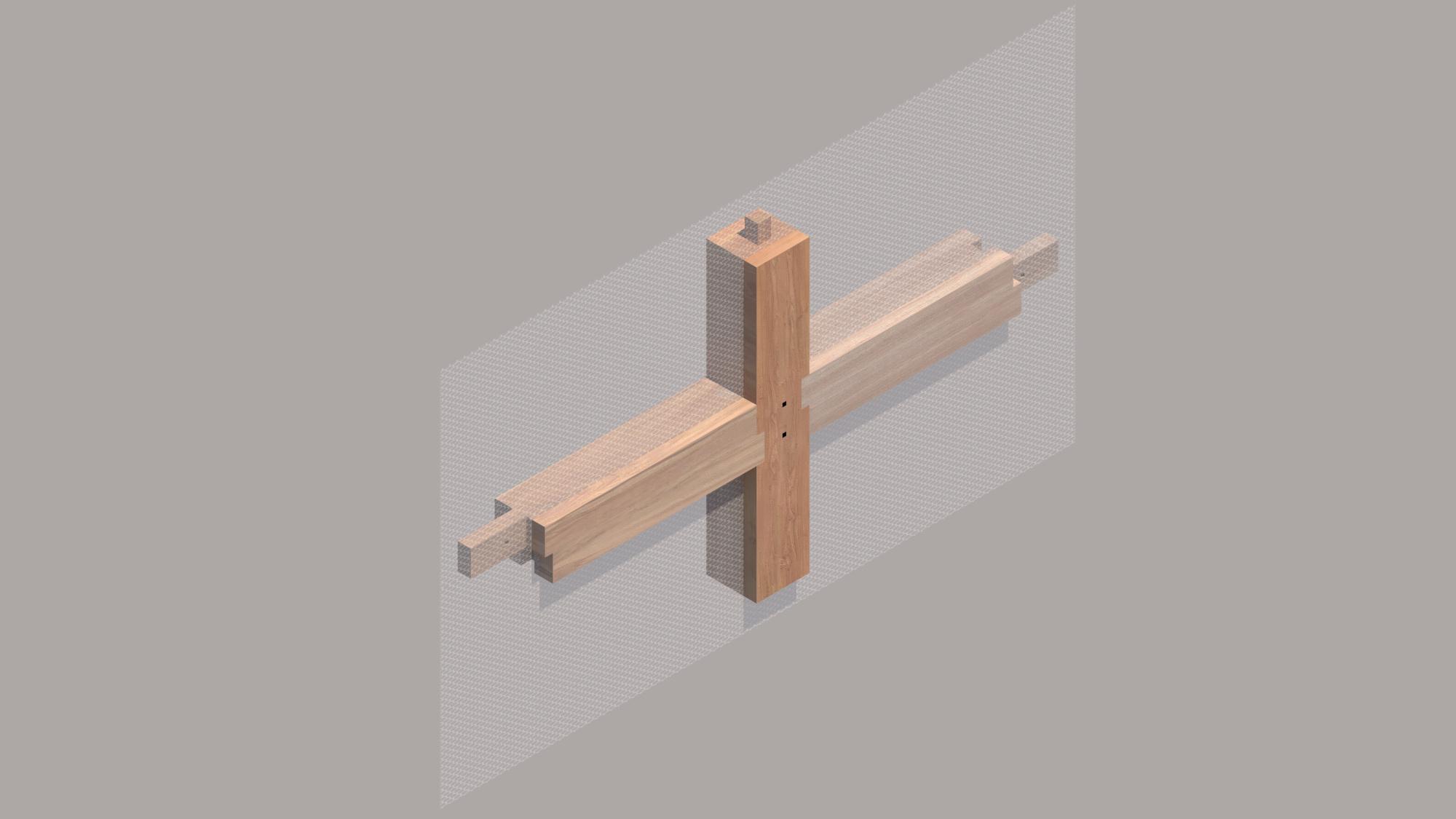

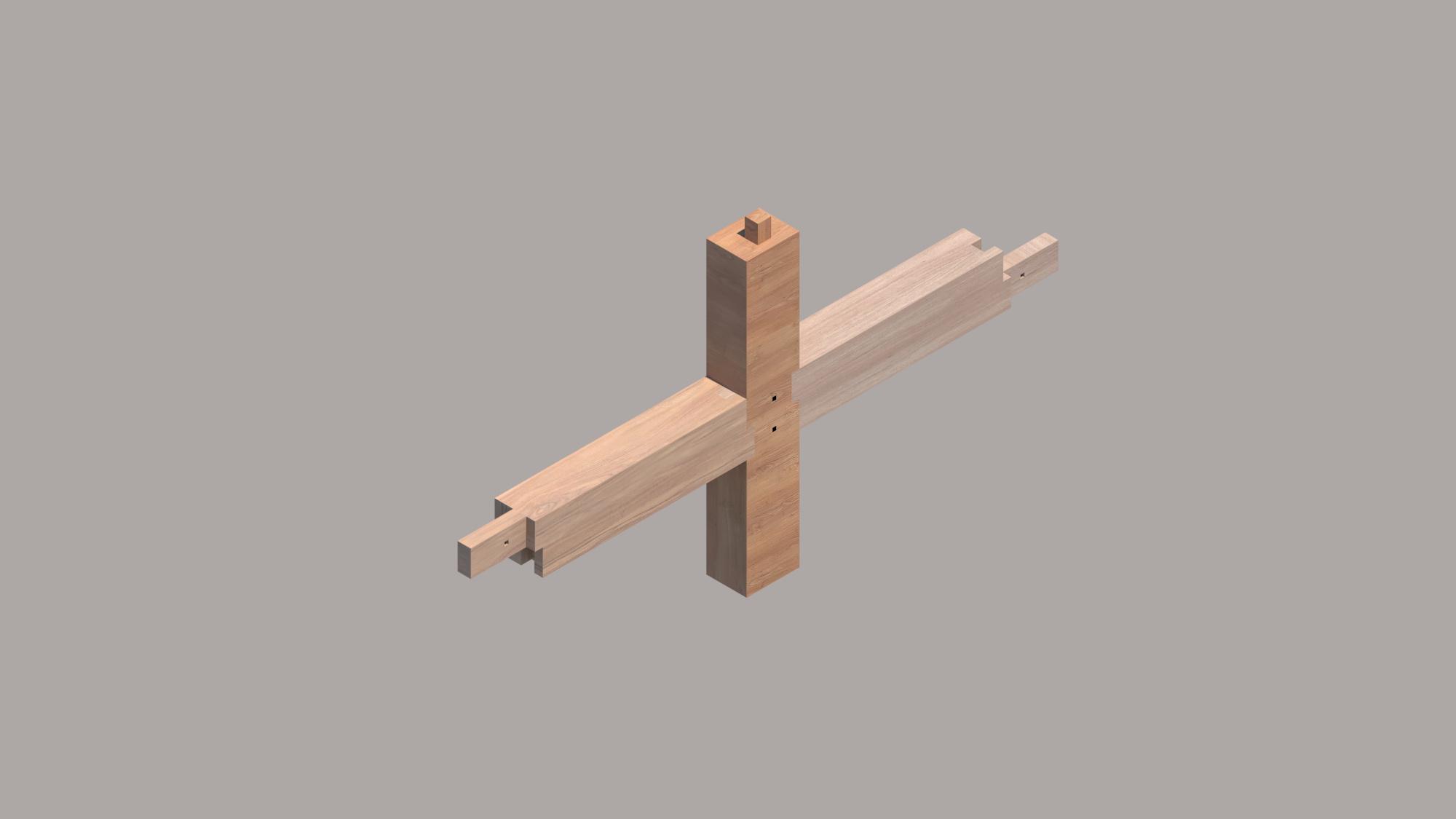

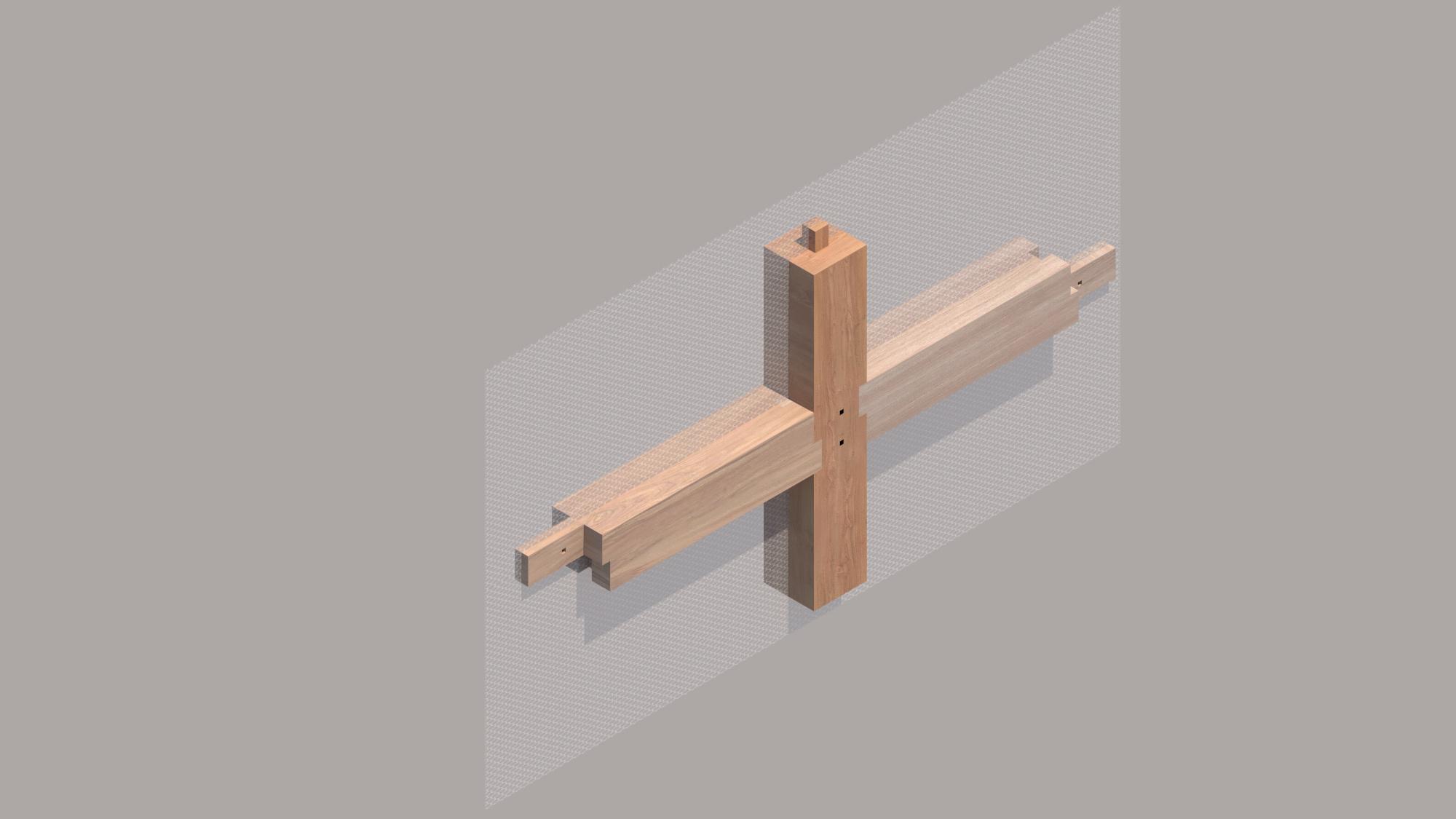

Section of complete joint
Notes: THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN
THIS DRAWING IS COPYRIGHT OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT
Over a thousand years ago, Japanese carpentry was shaped and evolved by adopting architectural influences from China starting in the 12th century. This traditional practice of woodworking draws inspiration from ancient Chinese wooden architecture and employs intricate joinery techniques. Notably, it involves constructing wooden furniture without relying on nails, screws, glue, or modern electric tools.Although construction methods that exclude nails and fasteners are not exclusive to Japan, the distinctive feature of Japanese joinery lies in the specific types of joints employed, the exceptional durability of the resulting structures, and the complete absence of iron.Apart from enabling convenient repairs, the absence of nails in construction not only enhances the resilience of buildings against Japan's frequent earthquakes but also allows the joints to flex and withstand seismic forces while retaining their structural integrity. While this is not the sole factor contributing to the longevity of these buildings over centuries, it undeniably plays a crucial role. Such techniques persist in modern construction practices as well.
Similar to various traditional Japanese arts like sushi-making or flower arranging, the realm of Japanese carpentry is teeming with individuals who have devoted their lives, spanning generations, to pursue an elusive state of perfection.In Japan, elaborate joinery techniques are utilized not solely for their practical benefits but also to emphasize the artistry involved and elevate the overall aesthetic appeal.
Tools Used
Artisans practicing traditional Japanese techniques rely on an extensive assortment of tools, with each tool having numerous sizes and variations, all meticulously sharpened to razor-like precision. Although power tools are sporadically employed for larger undertakings, it is the delicate hand-tools that take center stage in crafting the intricate joints essential to their projects.

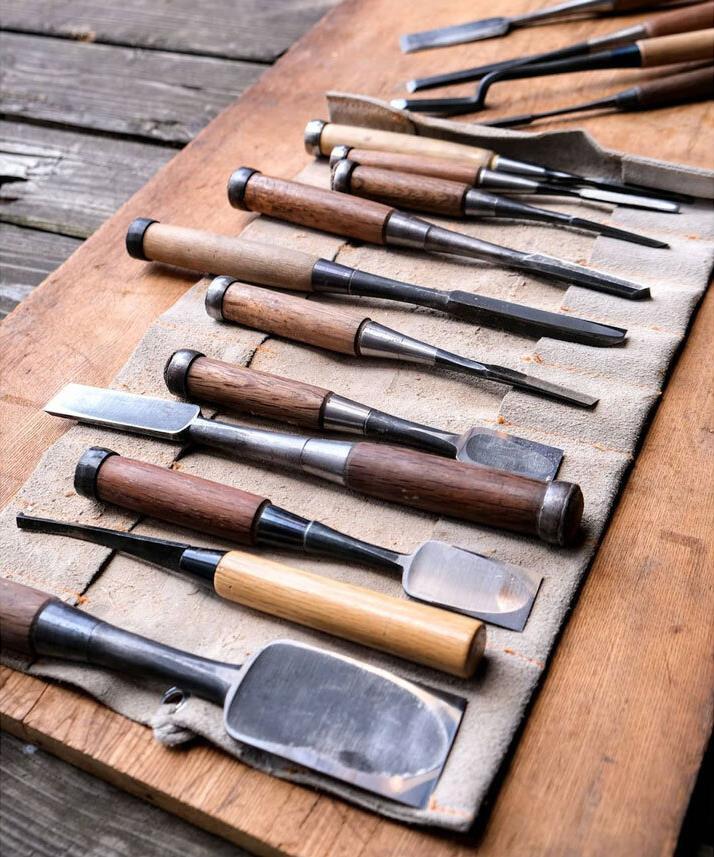

Japanese chisels, known as "nomi," (image referenced below) feature slender blades designed for material removal, creating notches, or drilling holes in wood. Available in a vast range of shapes and sizes, these chisels possess exceptional sharpness due to their hardened steel construction, enabling effortless woodcutting. While a traditional Japanese craftsperson's workbench typically hosts numerous tools, these instruments hold paramount importance in Japanese joinery as they are the primary and frequently utilized tools.
Notes: THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.
Idea of the Pavilion

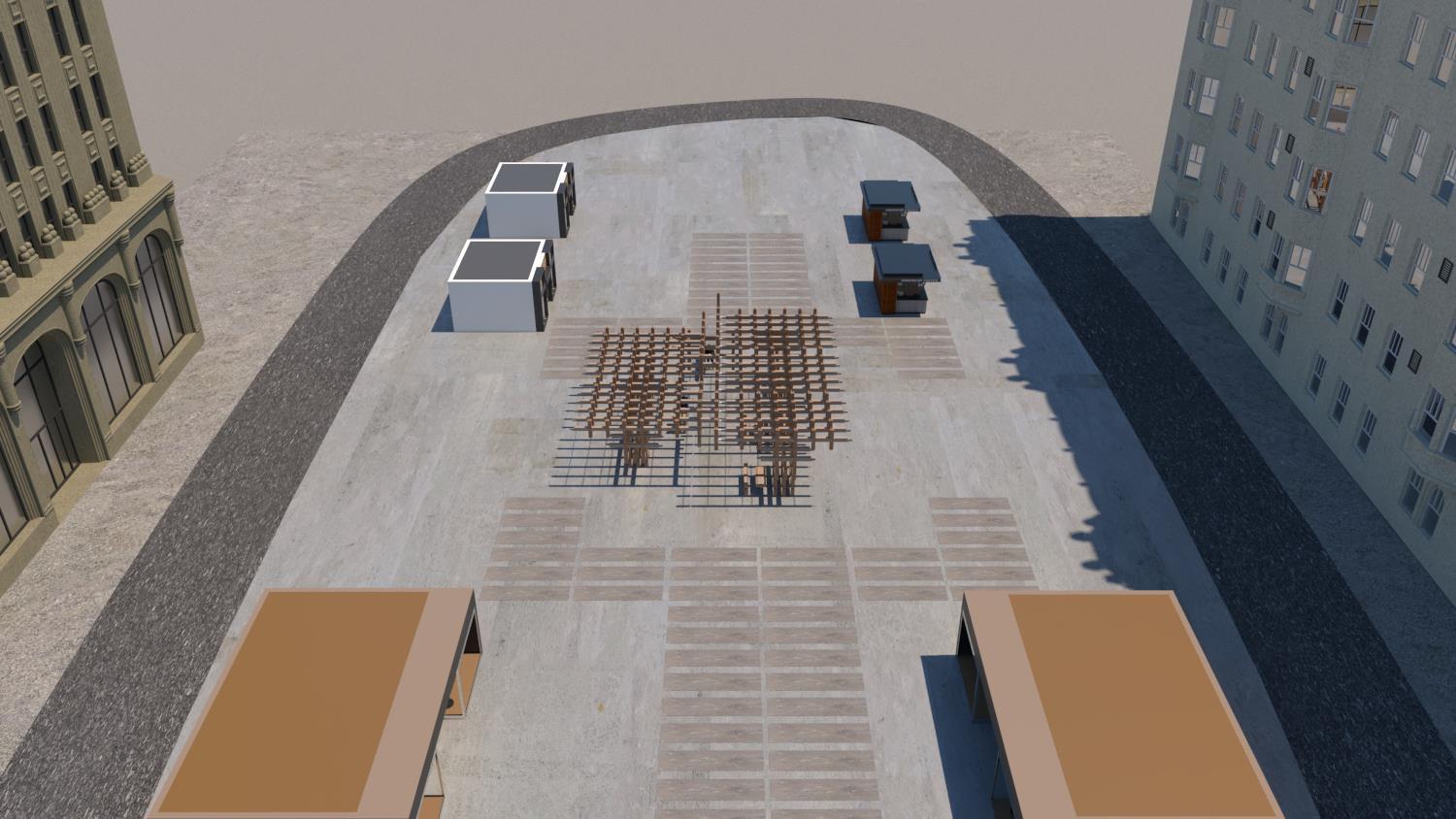

The pavilion is set to be a type of a japanese restaurant which embraces the different types of seating with the help of the joint The pavilion is set in the middle of a plaza, makes it a prominent place for encouraging daily interaction between the people in the community

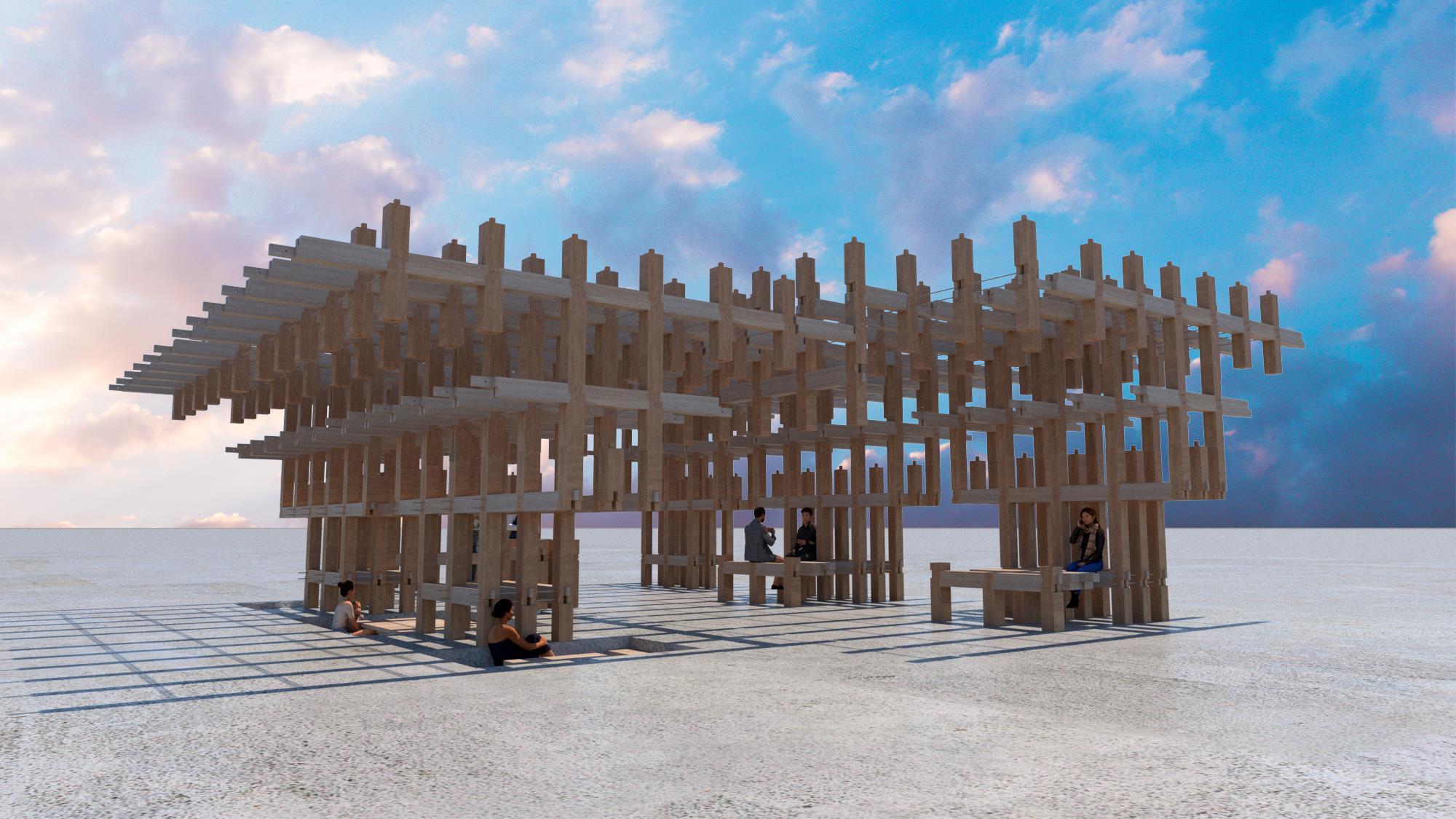

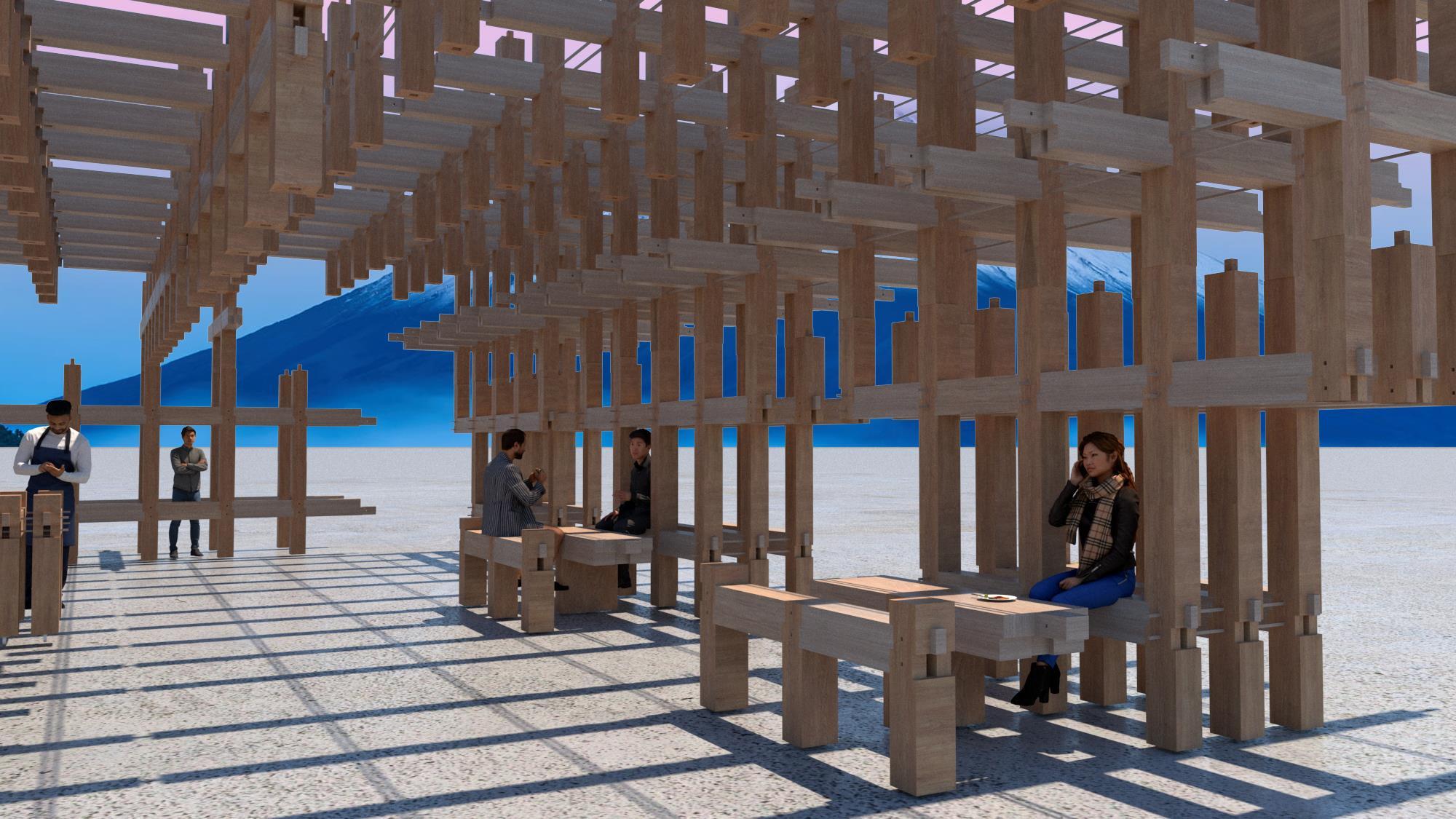

Exterior render of pavilion
Client- Igor Peraza
Project- A3 japanese joint
Drawing title- Introduction
Format- A3
Notes: THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.
Client- Igor Peraza
Project- A3 japanese joint
Drawing title- perspectives
Format- A3

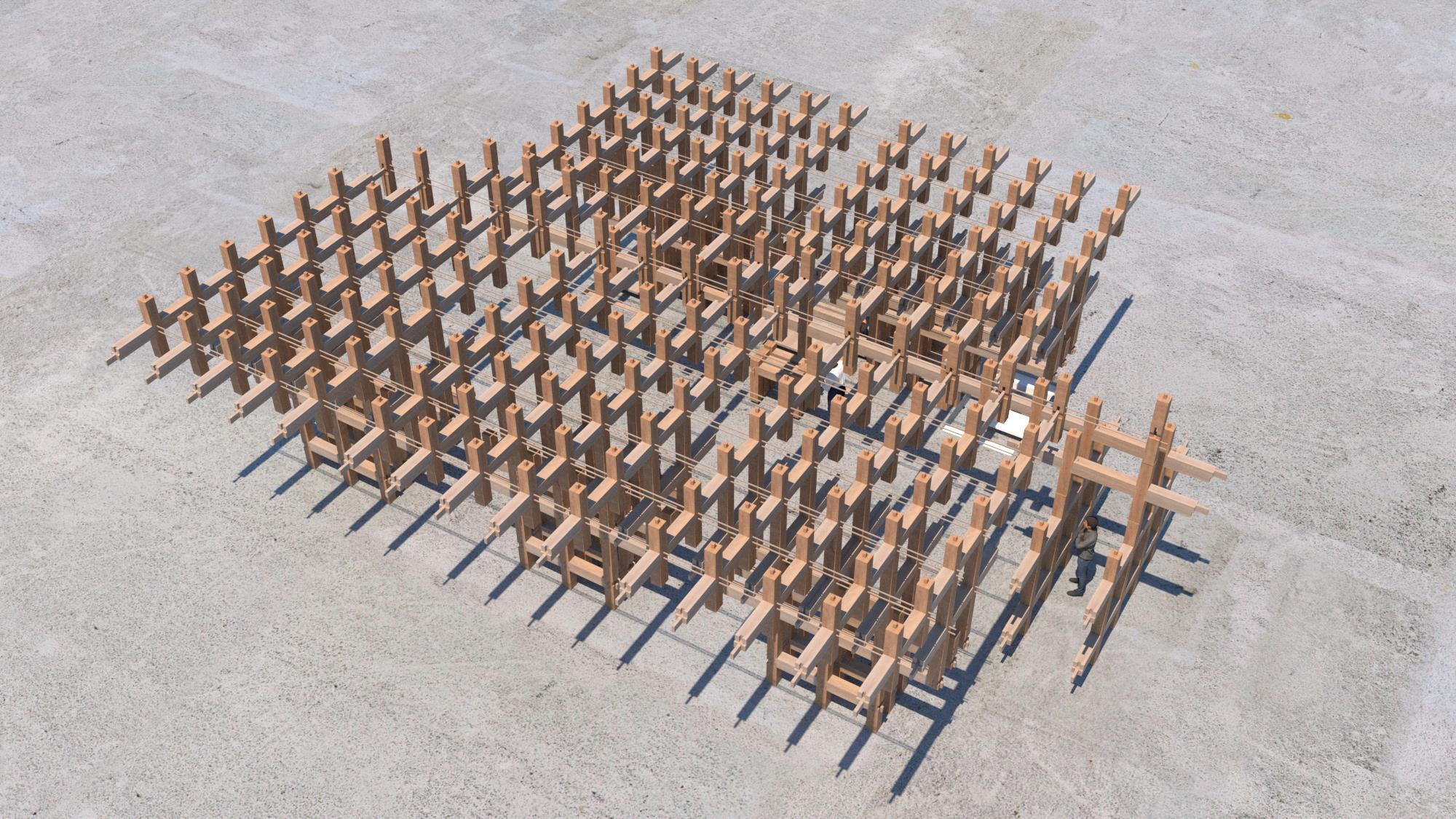

Exterior render of pavilion

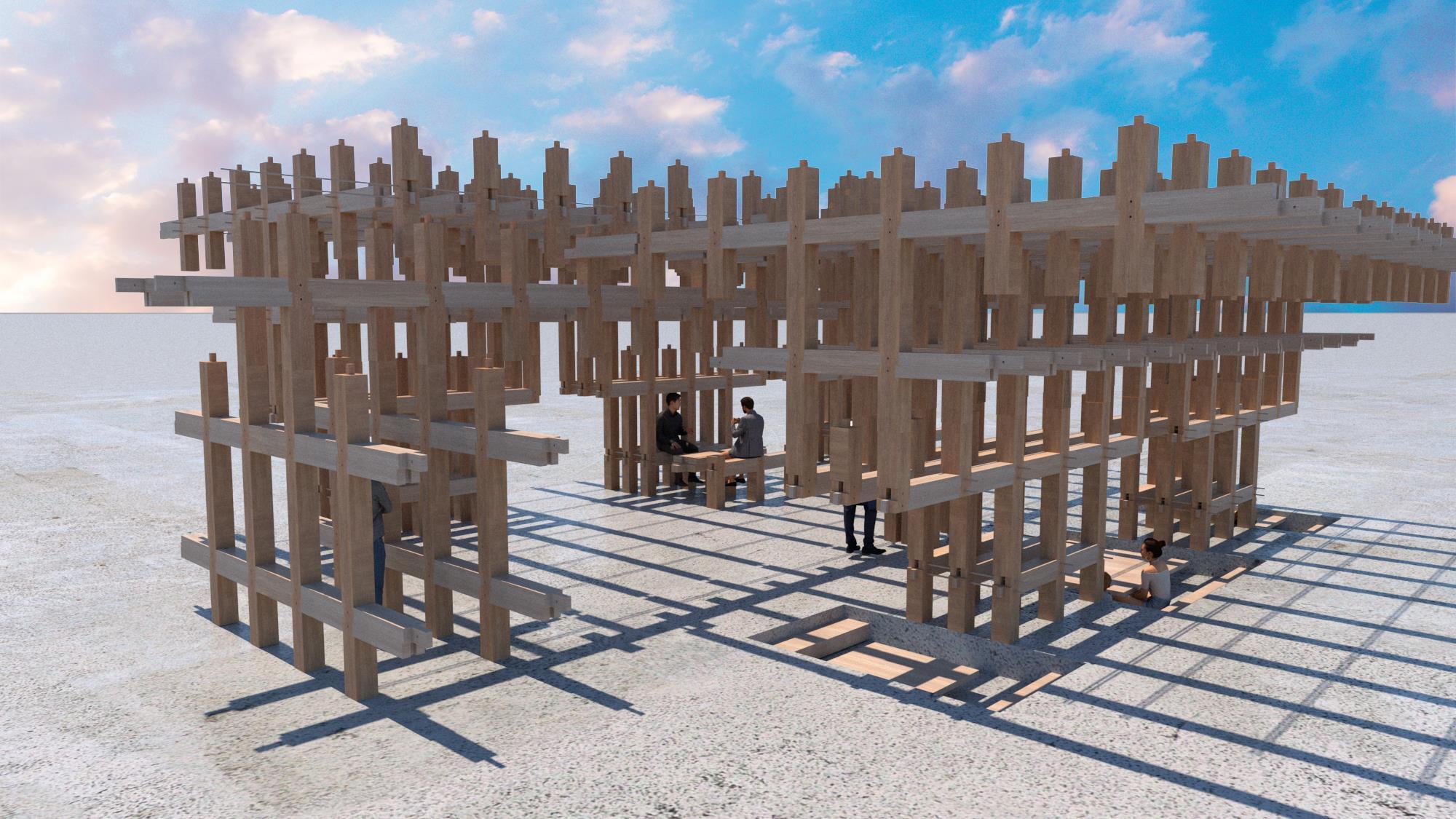

Exterior render of pavilion
Notes: THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.
Notes: THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.
Client- Igor Peraza
Project- A3 japanese joint
Drawing title- perspectives
Format- A3
Client- Igor Peraza
Project- A3 japanese joint
Drawing title- perspectives
Format- A3
Exterior render of pavilion
Notes: THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.
Notes: THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.
Client- Igor Peraza
Project- A3 japanese joint
Drawing title- perspectives
Format- A3
Client- Igor Peraza
Project- A3 japanese joint
Drawing title- perspectives
Format- A3
Notes: THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.
Notes: THIS DRAWING IS COPYRIGHT AND SHOULD NOT BE USED OR REPRODUCED FOR ANY OTHER PURPOSE OTHER THAN WHICH IT IS SUPPLIED WITHOUT THE WRITTEN CONSENT OF NAUMAN ABDULHAQ.
Client- Igor Peraza
Project- A3 japanese joint
Drawing title- perspectives
Format- A3
Client- Igor Peraza
Project- A3 japanese joint
Drawing title- perspectives
Format- A3
