Page 1

quarziti

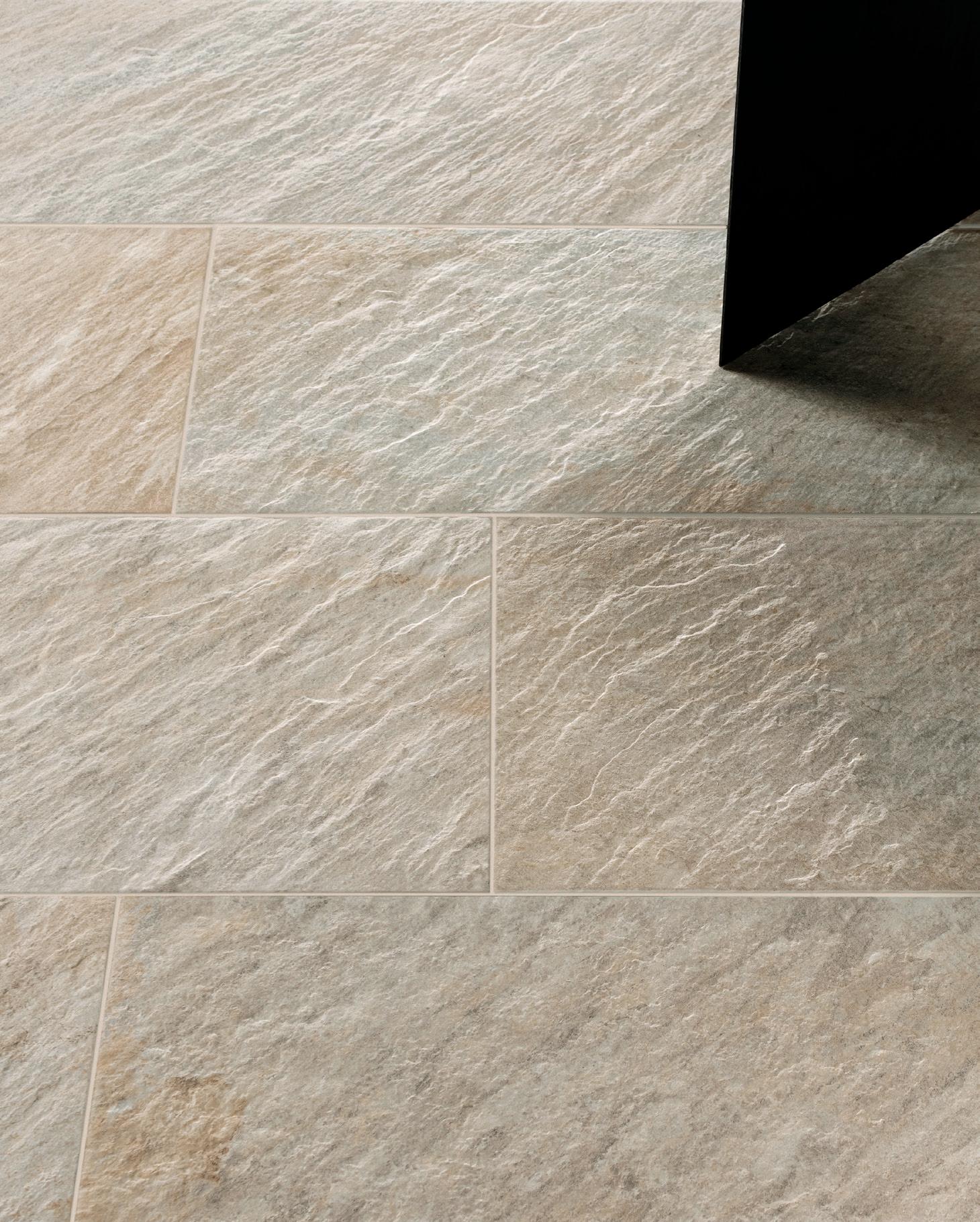

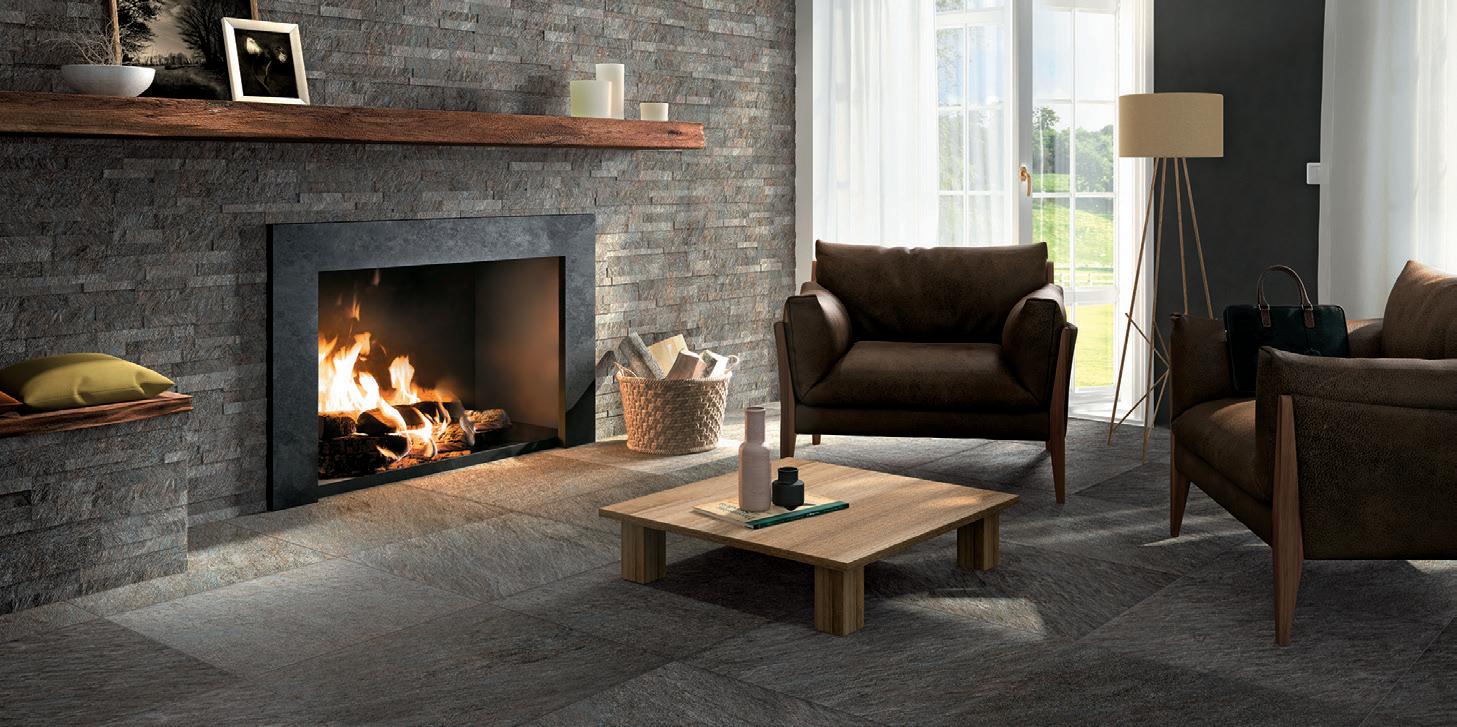

Floor: Quarziti Mountains

Reproducing the rich and rugged texture of quarzite with its distinct veining and mottled hues, the Quarziti series presents 5 lithic colourways in a durable porcelain body.


Product Specifications Material:

Full-body porcelain

Edge:

Rectified

Surface finish:

External

Application:

Floor and Wall

Nominal sizes:

300x600mm

Shade variation:

V3

Slip resistance:

Wet pendulum test: P5 Wet barefoot including platform test: C Oil-wet including platform test: R12

Green rating:

Eco label and LEED compliance

Made in Italy Exclusive to National Tiles Lifetime Warranty

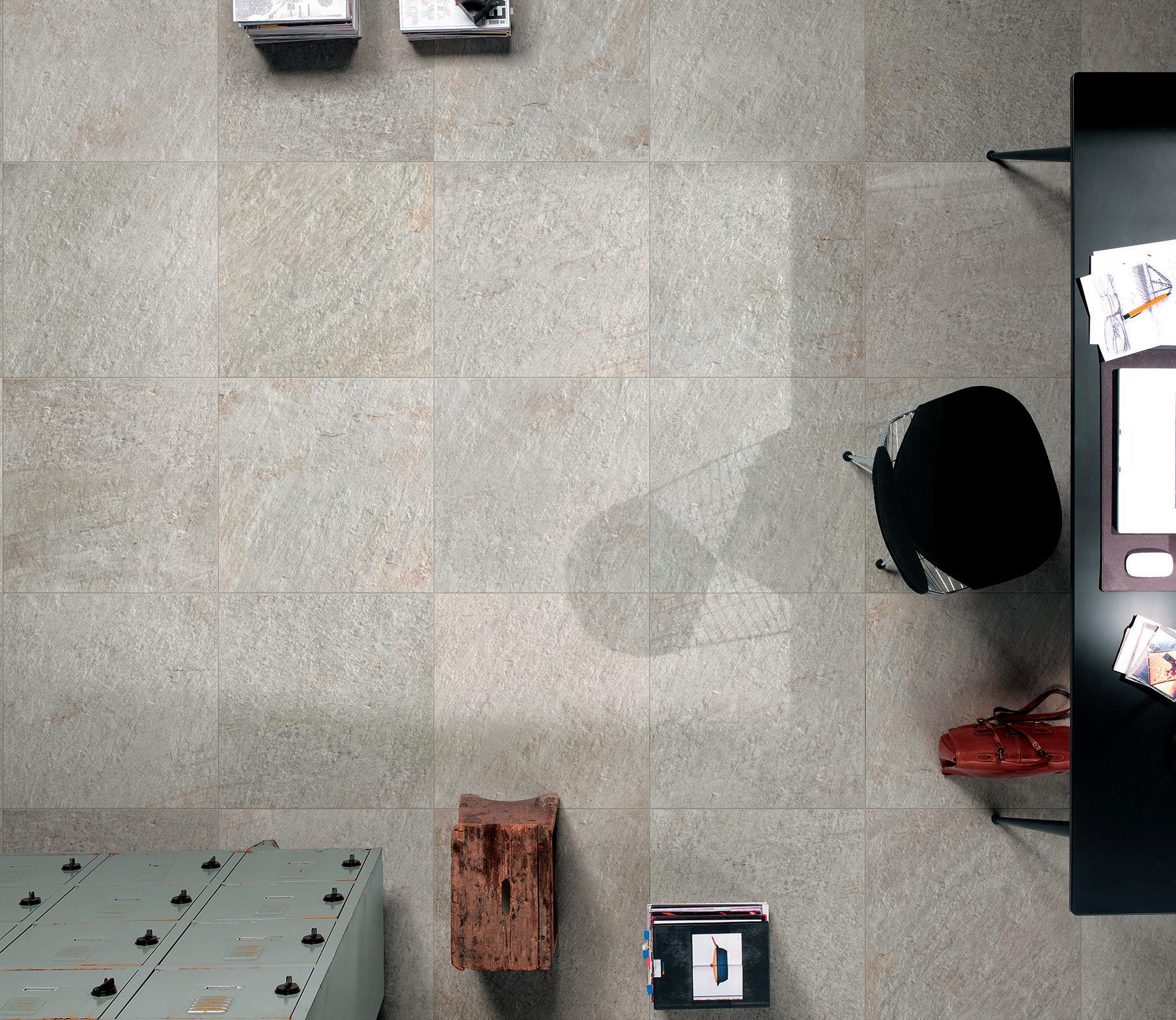

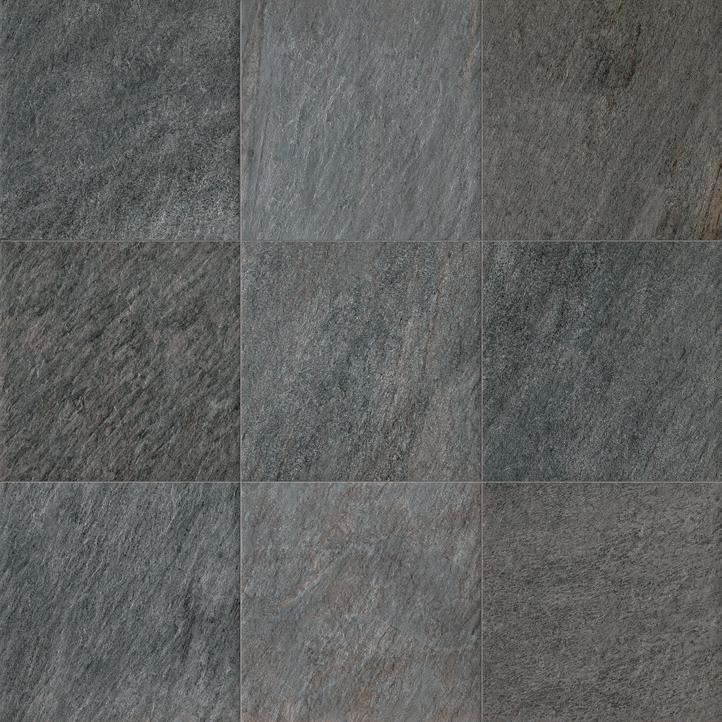

Floor: Quarziti Mantle

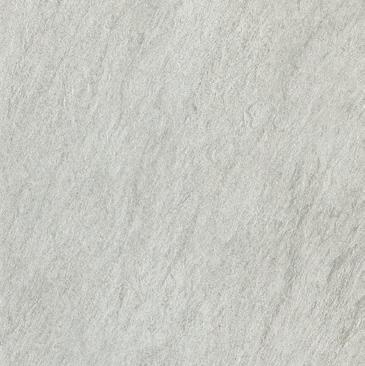

glacier

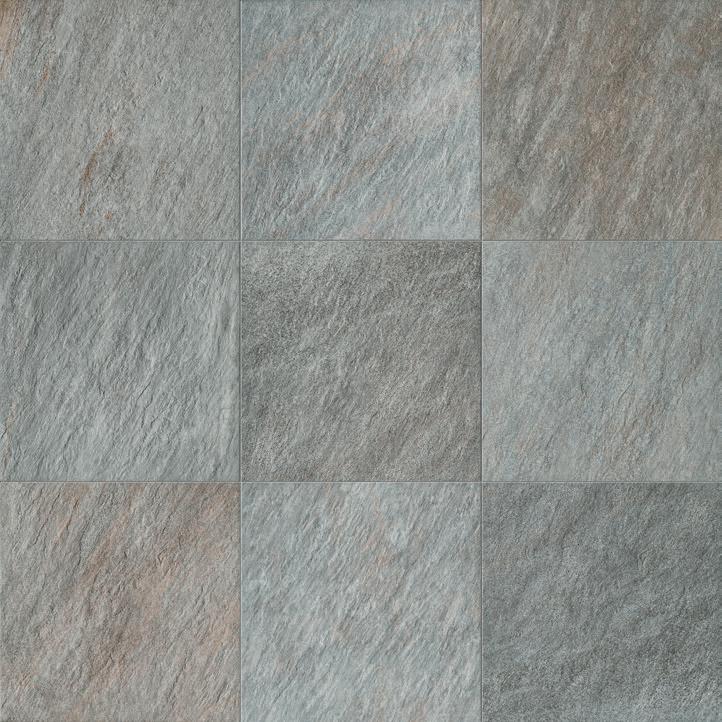

Floor: Quarziti River

Mantle 300x600mm

River 300x600mm

Mountains 300x600mm

Glacier 300x600mm

Waterfall 300x600mm

stocked


Standard EN 14411-G Technical Data

Standard

International Standards EN 14411-G

Mirage Average Value

EN ISO 10545-2

± 0.3% MAX ( ± 1.0mm MAX)

Compliant

Thickness

EN ISO 10545-2

± 5.0% MAX ( ± 0.5mm MAX)

Compliant

Straightness of sides

EN ISO 10545-2

± 0.3% MAX ( ± 0.8mm MAX)

Compliant

Rectangularity

EN ISO 10545-2

± 0.3% MAX ( ± 1.5mm MAX)

Compliant

Surface flatness

EN ISO 10545-2

± 0.4% MAX ( ± 1.8mm MAX)

Compliant

Water absorption

EN ISO 10545-3

≤ 0.5%

0.05%

Flexion resistance

EN ISO 10545-4

S ≥ 700 N ( < 7.5mm) S ≥ 1.300 N ( > 7.5mm) R ≥ 35 N/mm2

S 2700 N R 50 N/mm2

Impact resistance

EN ISO 10545-5

Declared Value

0.89

Abrasion resistance

EN ISO 10545-6

≤ 175mm3

135mm3

Coeffecient of linear thermal expansion

EN ISO 10545-8

-

α =6.6x10-6°C-1

Resistance to thermal shocks

EN ISO 10545-9

Pass according EN ISO 10545-1

No Damage

Frost resistance

EN ISO 10545-12

Pass According EN ISO 10545-1

No Damage

Resistance to Chemicals

EN ISO 10545-13

UB MIN.

UA ULA UHA

Resistance to Stains

EN ISO 10545-14

Declared Value

5

Lead and Cadmium Discharge

EN ISO 10545-15

Declared Value

< Than instrument limit

Size Characteristics Sides
