paver prosupport system
prosupport system
Adjustable pedestal support system for raised indoor and outdoor floor coverings application.
products and accessories for fixing and laying
self-leveling head model

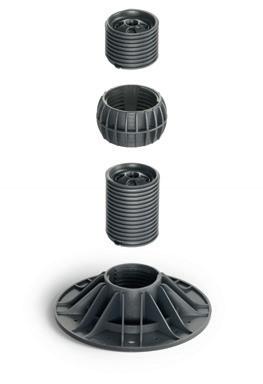

self-levelling head + screw + extension + base

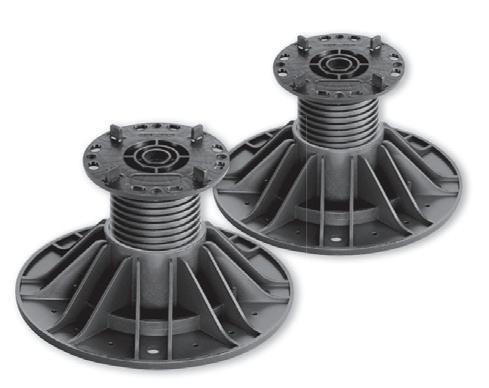

• PROSUPPORT SYSTEM is a pedestal support system for indoor and outdoor raised floors
• PROSUPPORT SYSTEM height is fully adjustable from a minimum of 35 mm to a maximum of 200mm.
• PROSUPPORT SYSTEM is a modular fully adjustable system made of Polypropylene suitable for outdoor areas like roof tops, terrace, pool surroundings, pedestrian walkways, decks and patios.
PROSU07 Prosupport System Self-level Head with Removable Flaps 4mm
*note - prosupport system and self-level head need to be ordered in 1-1 ratio
available in the self-leveling head. head with removable flaps 4mm
prosupport system
• PROSUPPORT System is a pedestal support system for outdoor raised floors.
• PROSUPPORT System height is fully adjustable, according to product height.
• PROSUPPORT System is a modular fully adjustable system made of Polypropylene suitable for outdoor areas like roof tops, terrace, pool surroundings, pedestrian walkways, decks and patios
• Available in the self-leveling head version and flat head version.
PROSU01
PROSUPPORT pedestal system 35/55mm base/extension/crew
PROSU02
PROSUPPORT pedestal system 55/70mm base/extension/crew
PROSU03
PROSUPPORT pedestal system 70/110mm base/extension/crew
PROSU04
PROSUPPORT pedestal system 110/150mm base/extension/crew
PROSU05
PROSUPPORT pedestal system 150/170mm base/extension/crew
PROSU06
PROSUPPORT pedestal system 170/200mm base/extension/crew

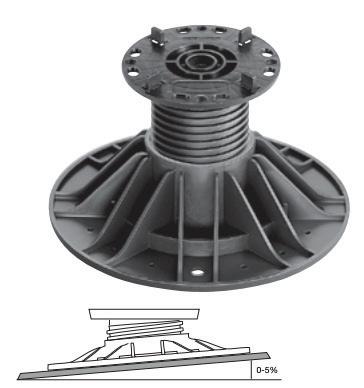

prosupport self-leveling head
PROSUPPORT SYSTEM is an adjustable support system for the realization of outdoor floating floors from a minimum height of 35mm to a maximum of 500mm. The system, made in polypropylene (PP), is suitable for outdoor areas, terraces, pool pavements and pedestrian walkways. The self-leveling head allows a self-levelling of floors slope up to 5%.
PROSU07
PROSUPPORT pedestal self level head with removable flaps 4mm
prosupport fixed head
PROSUPPORT SYSTEM is an adjustable support system for the realization of outdoor floating floors from a minimum height of 35 mm to a maximum of 500 mm. The system, made in polypropylene (PP), is suitable for outdoor areas, terraces, pool pavements and pedestrian walkways. The fixed head does not allow the self-leveling and adjustment. The tiles will lay flat on the pedestals and any slope underneath will be repeated on the surface of the tile.
PROSU31
PROSUPPORT pedestal fixed head with removable flaps
adjusting key
Only for PROSU07, it adjusts the height of the pedestal without the need to remove the tiles
PROSU10
PROSUPPORT adjusting key for self level pedestal
anti noise and slip rubber disc
Rubber disk designed to reduces noise up to 25 db and prevents slipping of the tiles. Height 3mm and diameter 110mm. To be placed on the self-leveling or fix head
PROSU28
ANTI NOISE AND SLIP RUBBER DISC 3MMX110MM GARPS3110

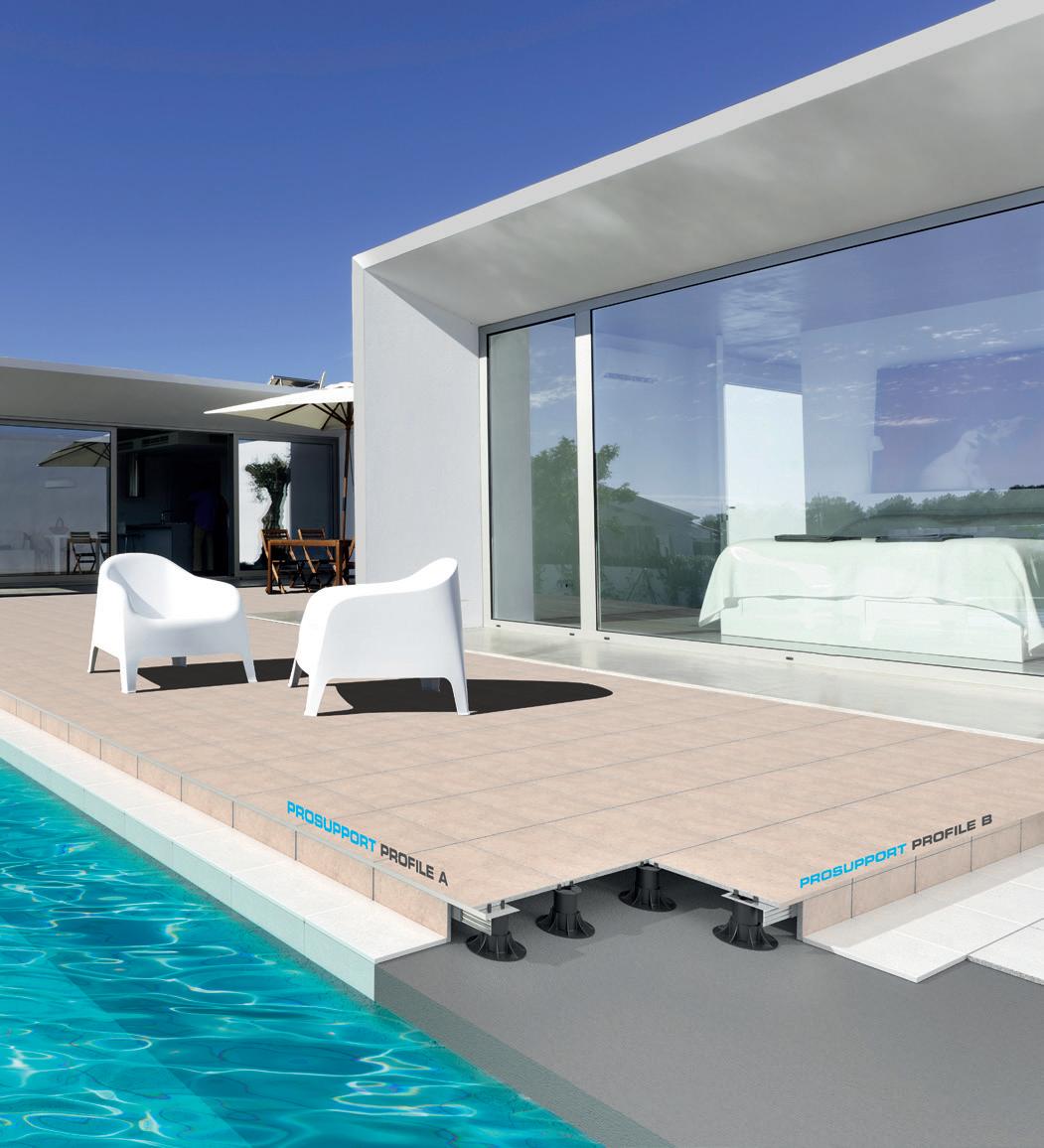

prosupport system profil a+b
PROSUPPORT System A & B is a perimeter profile to protect and finish the outer edge of raised floors of different types, ceramic, wood, stone etc. The PROSUPPORT Profile A consists in an “L” -shaped horizontal flat base to insert and anchor the PROSUPPORT Self-levelling head and a vertical visible part (PROSUPPORT Profile B) to insert in the vertical “L”-shaped element. Comes in heights of 15mm, 20mm, 25mm
PROSU15
PROSUPPORT PROFILE 2.7 (lm) LENGTH 150 (w) X 15 (h) PROFILE A PEDESTAL
PROSU16
PROSUPPORT PROFILE 2.7 (lm) LENGTH 150 (w) X 20 (h) PROFILE A PEDESTAL
PROSU17
PROSUPPORT PROFILE 2.7 (lm) LENGTH 150 (w) X 25 (h) PROFILE A PEDESTAL
PROSU25
PROSUPPORT PROFILE 2.7 (lm) LENGTH TOP PROFILE B H60 PEDESTAL
PROSU26
PROSUPPORT PROFILE 2.7 (lm) LENGTH TOP PROFILE B H80 PEDESTAL
PROSU27
PROSUPPORT PROFILE 2.7 (lm) LENGTH TOP PROFILE B H100 PEDESTAL

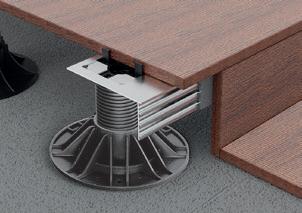

prosupport profile n
Profile for the protection and finishing of the external edge of raised floors in ceramic, wood and composite materials. The vertical section of the profiles features a specially designed fins that create a dovetail cladding system. This dovetail cladding system allows for the adhesive used to fix the covering to also mechanically bond to the profiles itself.
PROSU20
PROSUPPORT PROFILE N NATURAL ALUMINUM 2.7 (lm) LENGTH PEDESTAL

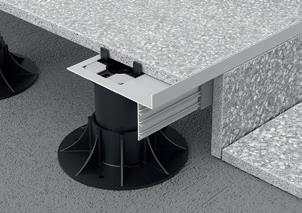

prosupport profile t
Profile for the protection and finishing of the external edge of raised floors in ceramic, wood and composite materials. The vertical section of the profiles features a specially designed fins that create a dovetail cladding system. This dovetail cladding system allows for the adhesive used to fix the covering to also mechanically bond to the profiles itself.
PROSU32
PROSUPPORT PROFILE T NATURAL ALUMINUM 2.7 (lm) LENGTH
