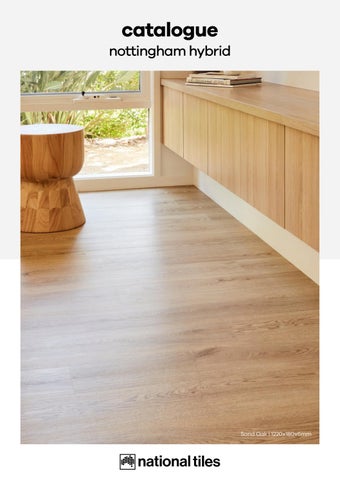

Nottingham Hybrid Flooring

catalogue nottingham hybrid

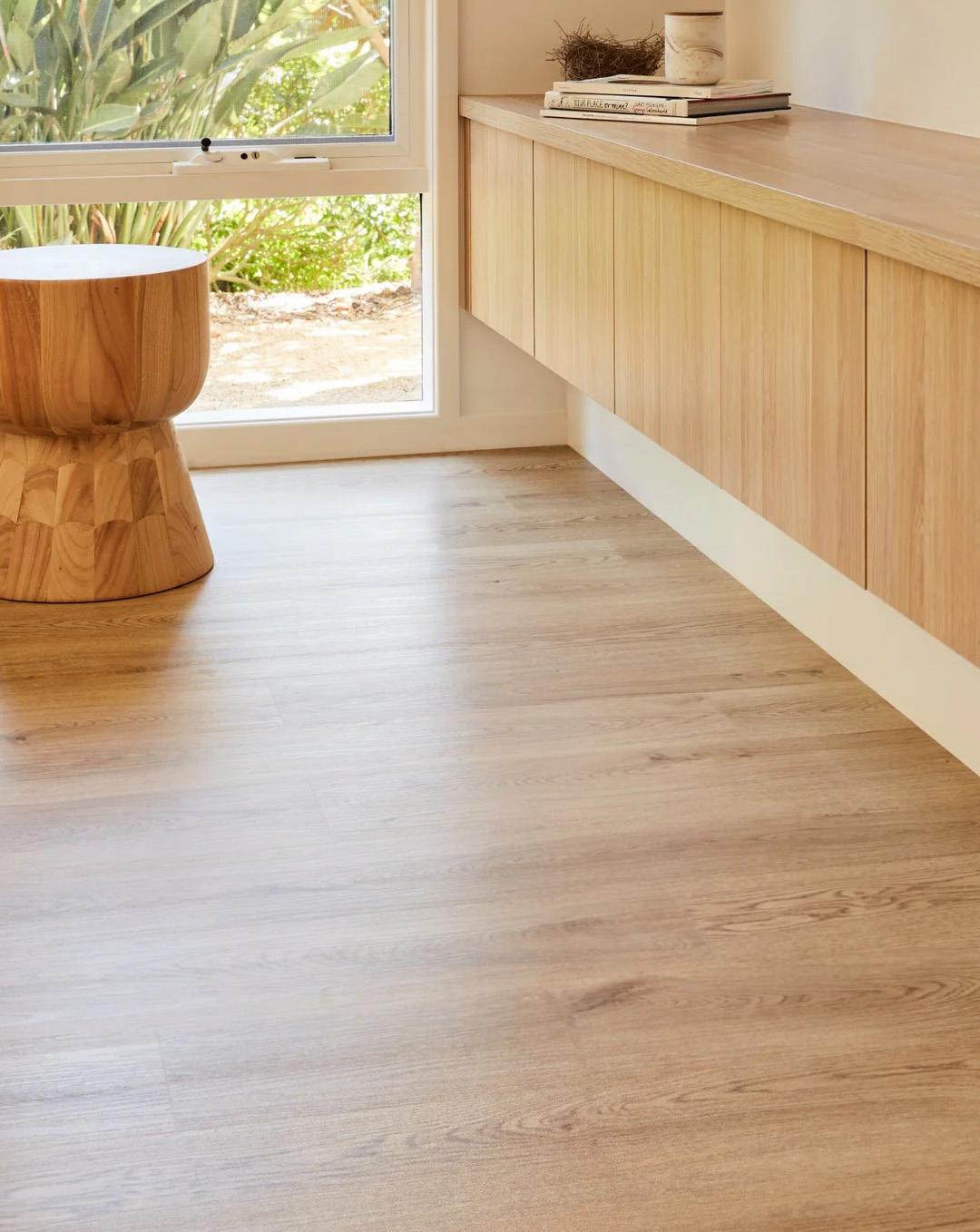

Sand Oak | 1220x180x6mm

Dawn Spotted Gum | 1220x180x6mm Nottingham Hybrid Flooring | 2

nottingham inspired by classic oak and rich Australian hardwoods.

Designed using advanced hybrid flooring technology, Nottingham combines A-Lite Core for strength and stability. CeraShield Surface for enhanced durability, and XFD Acoustic Backing for quieter, more comfortable living. Its innovative locking system, licensed from Unilin BV, makes installation quick and hassle-free. With easy upkeep and low-maintenance performance, Nottingham lets you enjoy a beautiful home without the extra effort.

available colours

Dawn Spotted Gum 1220x180x6mm

Coral Blackbutt 1220x180x6mm

Fawn Tasmanian Oak 1220x180x6mm

Classic Tasmanian Oak 1220x180x6mm

Honey Blackbutt 1220x180x6mm

Dusk Spotted Gum 1220x180x6mm

Heather Oak 1220x180x6mm

Pearl Oak 1220x180x6mm

Natural Oak 1220x180x6mm

Sand Oak 1220x180x6mm

Moss Oak 1220x180x6mm

Truffle Oak 1220x180x6mm

3 | Nottingham Hybrid Flooring

features & benefits

A LITE Core Technology

scratch resistant

easy to clean & maintain

hard wearing

stain resistant

acoustic benefits

Nottingham Hybrid Flooring | 4

Pearl Oak | 1220x180x6mm 5 | Nottingham Hybrid Flooring

Dawn Spotted Gum 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

Nottingham Hybrid Flooring | 6

Coral Blackbutt 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

7 | Nottingham Hybrid Flooring

Fawn Tasmanian Oak 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

Nottingham Hybrid Flooring | 8

Classic Tasmanian Oak 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

9 | Nottingham Hybrid Flooring

Honey Blackbutt 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

Nottingham Hybrid Flooring | 10

Dusk Spotted Gum 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

11 | Nottingham Hybrid Flooring

Heather Oak 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

Nottingham Hybrid Flooring | 12

Pearl Oak 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

13 | Nottingham Hybrid Flooring

Natural Oak 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

Nottingham Hybrid Flooring | 14

Sand Oak 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

15 | Nottingham Hybrid Flooring

Moss Oak 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

Nottingham Hybrid Flooring | 16

Truffle Oak 1220 x 180 x 6mm

Colour disclaimer: Due to monitor settings, we cannot guarantee that the colour you see on your screen as an exact colour of the product. We strive to make our colours as accurate as possible, but screen images are intended as a guide only and should not be regarded as absolutely correct. All colours are approximations of actual colours. For more accurate consideration of your tile choices, we recommend taking advantage of our sample service.

17 | Nottingham Hybrid Flooring

Truffle Oak | 1220x180x6mm Nottingham Hybrid Flooring | 18

Product Specifications Type of floor covering Classification (Use Area)

Hybrid flooring

Domestic: 23 (Heavy) Commercial: 31 (Moderate) Residential 15 years Warranty* Commercial 3 years *All warranties are in addition to any rights consumers may have under Australian consumer laws. Terms and conditions apply - for full information in respect to the scope of the residential warranty, please see nationaltiles.com.au or contact our head office.

ISO 10874

Physical Properties Surface treatment

CeraShield® Surface Technology

Colour (Standard)

12

Overall thickness (mm) ISO 24346

6.0

Wear layer (mm)

0.30

ISO 2430

Edge

Micro Bevel

Core type

A-Lite Core Technology®

Locking system

Angle/Angle - Side Tap (manufactured under license from Unilin BV)

Dimensions (mm)

ISO 24342

1220 x 180

Planks/carton

11

m2/carton

2.42

m2/pallet

145.2

kg/carton

23.5

Installation Please refer to National Tiles Nottingham Hybrid Flooring Installation Guide

Sustainability Global Green Tag

GreenRate Level A

TVOC Emissions

Compliant with Green Building Council low emitting VOC emission rates

19 | Nottingham Hybrid Flooring

Technical Performance Slip resistance Fire resistance (floor)

Acoustic

AS 4586 Wet Pendulum (Appendix A) P3 AS ISO 9239-1 Critical Radiant Flux (CHF Value) ≥ 4.5kW/m2 Smoke Development Rate ≤ 750%. min Ln,w = 40dB ISO 10140-3 & ISO 717-2 Impact sound insulation ASTM E989-21 Impact insulation class

Colour fastness

(150mm concrete drop ceiling - 288mm cavity, 50mm glass wool insulation, 12mm gypsym board)

IIC = 70 (150mm concrete drop ceiling - 288mm cavity, 50mm glass wool insulation, 12mm gypsym board)

ISO 712-2 Improvement of impact sound insulation

∆Lw = 20dB

ISO 105-B02, Method 3

>6

(200mm concrete slab)

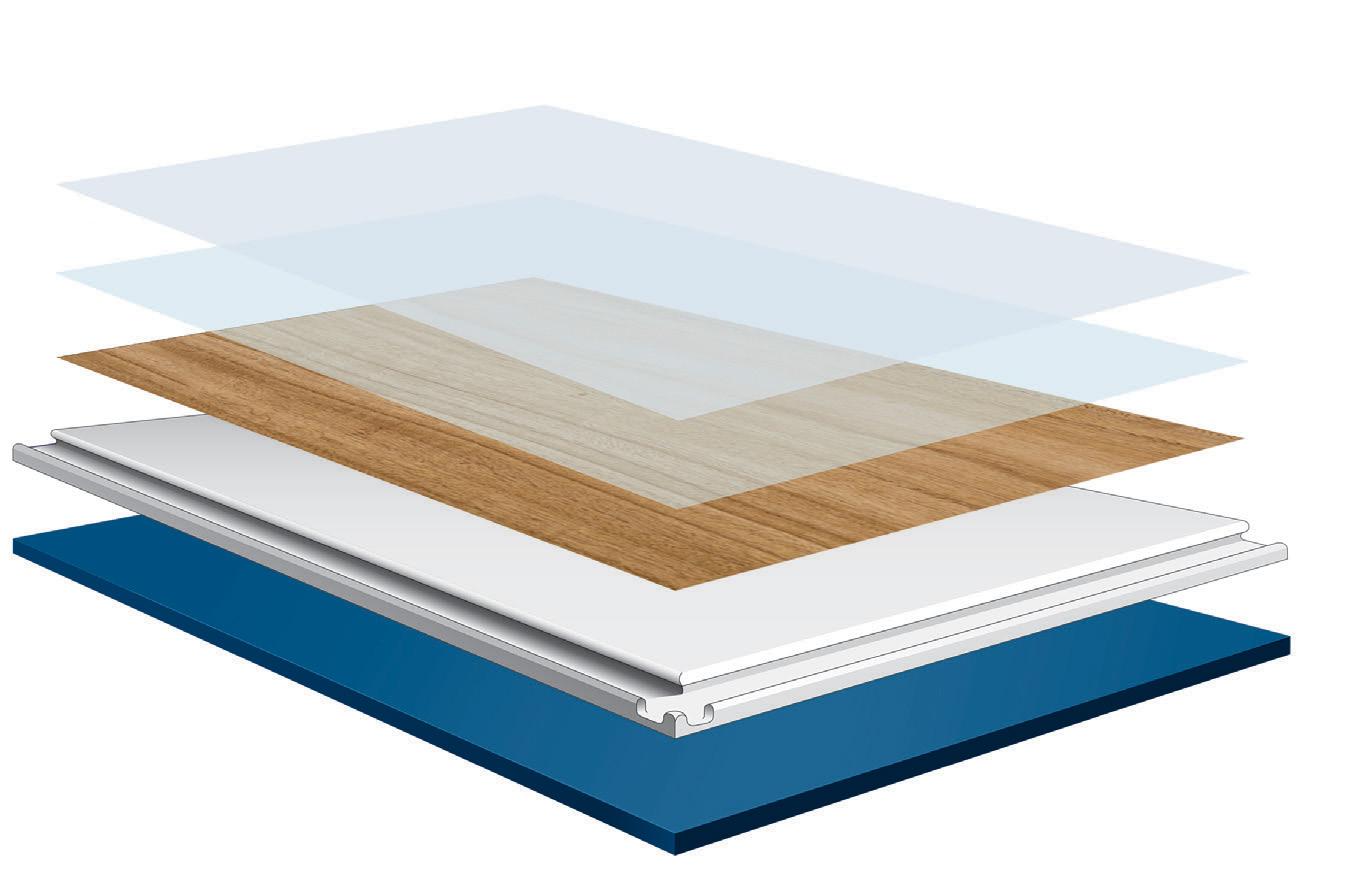

Product Structure

CeraShield Surface Technology™ Wear Layer Film Decor A-Lite Core Technology XFD Acoustic Backing™

Accreditation Manufactured under accredited ISO 9001 quality, ISO 14001 environmental and ISO 45001 OHS management system All specifications are current as at date of publication and may be changed without notice.

Nottingham Hybrid Flooring | 20

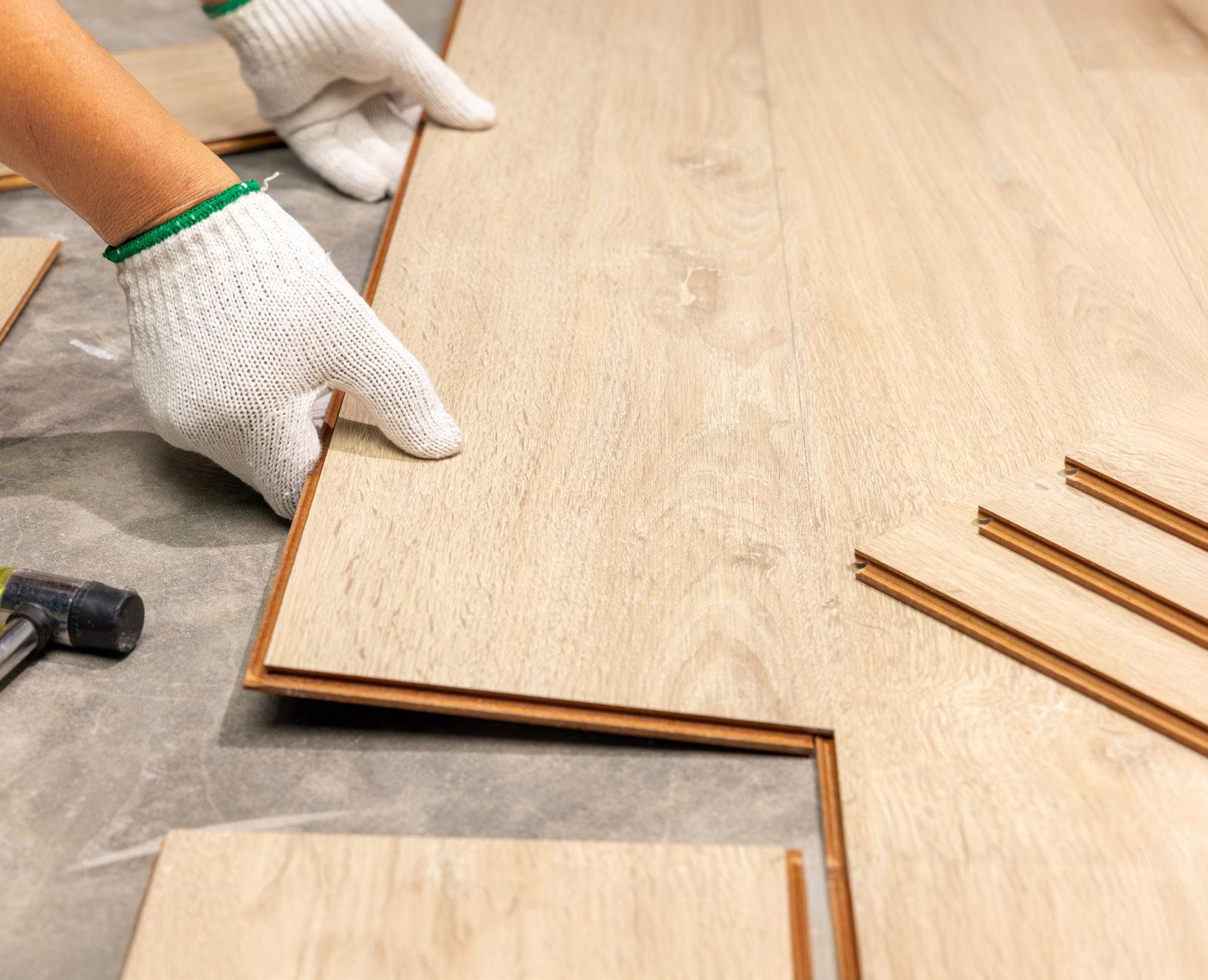

Installation Guide scan to view the installation guide

21 | Nottingham Hybrid Flooring

Care & Maintenance Guide Taking care of your new floors is a must, so that their magnificent finish is preserved.

By following a few simple care and maintenance guidelines, your floor will continue to be a thing of beauty for years to come.

Initial Care After installation is completed: • Sweep or vacuum all loose debris/dirt from the floor.

• Mop the floor with a damp mop (not wet) and a pH-neutral cleaner.

- Rinse the mop head regularly to avoid simply shifting dirt around.

- Mop in the direction of the floor grain to avoid dirty water build-up in the embossing.

- Avoid too much water - Use only a damp mop. Water will not damage the floor but can get between the joins and loosen the adhesive.

• Stubborn marks left after the construction phase can be removed using a soft white scouring pad and a pH-neutral cleaner. Be careful not to damage the surface, and ensure the floor is thoroughly cleaned and dried, leaving no residue.

Cleaning Your Floor Regular cleaning—daily or several times a week, depending on foot traffic—is recommended to maintain your floor. Dirt and debris can build up and cause surface damage, such as micro-scratches, which can make the floor harder to clean over time. Use a pH-neutral cleaner and a non-abrasive cloth or pad. Avoid using scouring pads, as they may damage the surface. Always ensure the floor is thoroughly cleaned and dried, leaving no residue behind.

Recommended cleaning methods: • Removal of loose debris/dirt using a vacuum, electrostatic mop, soft/mediumbristle broom or allow a robot vacuum to do the work.

• Remove any marks and keep the floor looking good by damp mopping (using either an electrostatic mop or a robot vacuum with a mopping function) and a pHneutral cleaner.

Nottingham Hybrid Flooring | 22

Caring for your Floor Your new floor has been engineered to be scratch and scuff resistant, and easy to clean. It is not, however, bulletproof. We recommend taking care of your flooring with the following: • Floor protectors on furniture legs (felt-type furniture protectors) • Door mats at all external doors (front and back doors for example). This should include a coarse external mat and a medium internal mat.

• Clean up spills as soon as possible.

• Do not use abrasive tools or abrasive cleaners.

• Use only pH-neutral cleaners.

• Protect your floor from constant direct sunlight (install tinting, drapes, curtains, or blinds on windows).

Please note: • Rubber backed mats and chair feet will discolour the floor.

• Scratches and scuffs on the floor make it harder to clean.

Commercial Applications (in addition to above) • The floor can be scrubbed and buffed with a soft white pad.

• Commercial entrance mats should have a walk-off zone of 3.5 metres and installed according to the mat manufacturer’s specifications.

23 | Nottingham Hybrid Flooring

15 year Residential Warranty Nottingham Hybrid Flooring comes with a 15 year Residential Warranty and a 3 year Commercial Warranty from the date of purchase. The original purchaser is covered by this warranty and may not be reassigned or transferred.

While you should have years of enjoyment of your new investment with peace of mind, you cannot rely on quality products and warranties alone. It is extremely important to ensure that proper installation, cleaning and care are carried out and also that the temperature range within your home is well maintained; otherwise this warranty might not apply (see conditions below). Your flooring should be protected from excessive heat, prolonged exposure to direct sunlight, dryness or moisture which may cause damage to your floor.

Australian Consumer Law Guarantees Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. What constitutes a major failure is set out in the Australian Consumer Law. National Tiles residential warranties are in addition to any rights available under the Australian Consumer Law, which may exceed the rights under this warranty. The National Tiles warranties are conditional, subject to the conditions set out below.

Warranty Manufacturing Defect Warranty applies to the structure of the product. National Tiles warrants that the product is free from manufacturing defects, meeting the specifications set out in the Technical Data Sheet for the product, and the product’s dimensions and structure will not alter outside of normal commercially accepted tolerances for the warranty period.

Performance Warranty applies to the function of the product.

Nottingham Hybrid Flooring | 24

National Tiles warrants that the product will be fit for normal residential purposes for the warranty period when it is correctly installed, cleaned, and maintained as set out in the Care and Maintenance Guide provided in this document.

National Tiles Nottingham Hybrid Flooring modular flooring has enhanced wear layer features that improve the wearability of the floor. National Tiles warrants that the product, for the warranty period, will not wear through to the design layer under normal household use.

Please note: Everyday use of the floor may result in, but is not limited to, scratches, dents, gloss level variations, changes in appearance, and changes in slip resistance.

These are not part of the warranty as this is the normal life of a floor covering.

Who is Covered?

This warranty is for the benefit of the original residential property owner for whom the flooring product is installed, or, if the original property owner is a builder or developer, for the property owner of the residential property 12 months after the purchase of the floor. The warranty is not transferable.

What Will We Do? If any of the covered events occur within the specified warranty period, we will, at our cost, either furnish comparable flooring (of our manufacture and of similar colour, pattern, and quality) or repair the defective area, at our option — but not including installation costs.

In the unlikely event that we are unable to correct the problem after a reasonable number of attempts, we will refund the portion of the purchase price for the section of the failed flooring.

If your floor was professionally installed, we will also pay reasonable labour costs for the direct repairs or replacement within the first five years of the warranty period, or the length of the warranty period — whichever is less. This does not include labour involved in the removal or replacement of cabinets and other fixtures.

25 | Nottingham Hybrid Flooring

General Conditions The warranty is subject to the following conditions: 1. This warranty applies to National Tiles Nottingham Hybrid Flooring products purchased in Australia after 1 January 2025 and used in a residential premises in accordance with these General conditions. The warranty runs from the date of installation.

2. The warranty does not apply to: • Products installed with visual, manufacturing, colour, dimensional and/or other obvious defects which could have been identified at the time of installation (unless the installation was approved in writing by National Tiles which approval may be subject to such conditions as National Tiles sees fit).

• Expansion or contraction of the product during normal seasonal temperature and humidity changes.

• Minor or immaterial differences in colour, texture or pattern between samples, photography or replacement flooring and actual products.

3. Without limiting or restricting the other rights and remedies that may be available to you under the Australian Consumer Law or any other law in relation to the product, these warranties do not cover any damage or changes in the colour, gloss or slip resistance of the product as a result of or in connection with: • Improper shipment, delivery, or storage • Installation not in accordance with National Tiles Nottingham Hybrid Flooring Installation Guide and all applicable Australian Standards, local government, or building and construction codes.

• Wilful or accidental damage to the products.

• Improper usage/misuse/abuse over and above normal wear and tear including burns, cuts, tears, scratches from high heels, spiked shoes, pets, rolling loads, or chairs, or other furniture not using suitable and properly maintained floor or wall protectors or castors.

• Exceeding weight-load limitations.

• Improper care and maintenance including (without limitation):

Nottingham Hybrid Flooring | 26

i. Improper cleaning agents. ii. Improper cleaning equipment such as steam mops, vacuum cleaner beater bar, or hard heads. iii. Irregular cleaning. iv. Improper protection from sharp objects (furniture leg pads).

• Exceeding weight-load limitations.

• Exposure to excessive heat and/or direct sun or failure to provide adequate protection from direct sunlight (e.g., curtains/blinds).

• Mishaps or exposure to abnormally corrosive conditions, excessive heat, moisture, or dampness (whether to the surface or trapped beneath the floor), hydrostatic pressure, natural or synthetic rubber, acids, alkalis, animal urine, pebbles, sand, or other abrasives.

• Structural or general defects in the site at which the product is installed, including failure of the subfloor, water damage (including broken/leaking water pipes, gutter overflow, flooding, water spills, weather conditions), or damp being retained under any impermeable protective covering, or the floor being subject to mould through any other cause.

• Alterations to the original manufactured product. Any reinstallation, refinishing, or other alterations to the product will void this warranty.

• Site-related causes or the application of topical treatments or cleaning agents.

• Long-term unprotected and localised use (including areas under desks and chairs).

• Installation in any outdoor areas and/or areas of exceptionally high humidity such as saunas.

• Any Acts of God, force majeure, acts of terrorism, damage caused by vermin, insect infestation, fire, flood, or any other act or circumstance beyond National Tiles’ reasonable control.

4. None of our installers, retailers, distributors, or employees have the authority to alter the obligations, limitations, disclaimers, or exclusions under any of these warranties.

27 | Nottingham Hybrid Flooring

Your Responsibility Under the Warranty You should retain proof of your purchase and the installation address and ensure that the flooring is properly installed in accordance with our installation instructions, preferably by a professional flooring installer.

If you are not the direct purchaser, then you should obtain evidence of purchase (e.g., receipts) from the contractor who purchased the products for you, and evidence of correct installation.

You must also properly care for and protect your new floor as set out in our easy-tofollow National Tiles Nottingham Hybrid Flooring Care and Maintenance Guide.

How to Make a Claim This warranty is provided by National Tiles Co Pty Ltd ABN 57 007 381 599 trading as National Tiles, 541 Graham Street, Port Melbourne VIC 3207, Ph 1300 733 000, email customerservice@nationaltiles.com.au Any claim under this warranty should be made to the retailer from which the floor was purchased within 30 days of the defect or damage becoming reasonably apparent, providing proof of purchase, the installation address, and details of the issue (including a photo if possible). The retailer will then contact National Tiles and make arrangements for the processing of your claim, which may include arranging an on-site inspection.

If you were not the direct purchaser, you will need to obtain evidence of purchase (e.g., invoices/receipts) from the contractor who purchased the products for your project and proof of correct installation as set out above. You must also provide any additional information required to process your claim, which may involve evidence of installation in accordance with the National Tiles Nottingham Hybrid Flooring Installation Guide, sufficient descriptions, and photographic evidence of the claimed defect or damage, making the floor available for inspection, and/or allowing removal of samples by National Tiles for technical analysis.

You must bear your expenses of claiming under this National Tiles Nottingham Hybrid Flooring warranty (including provision of information as set out above), and National Tiles will bear the cost of any inspection and processing of your claim.

Nottingham Hybrid Flooring | 28

Upon receiving valid notice of the claimed defect or damage and all information required to process your claim, National Tiles will determine whether the claimed defect or damage is eligible for coverage under this warranty and notify you of the determination. If the claimed defect or damage is eligible for coverage under this warranty, National Tiles will arrange for the relevant remedy; otherwise, they will provide reasons why the coverage is not available.

National Tiles will handle your personal information in accordance with its privacy policy, which is available at nationaltiles.com.au. National Tiles may share your information with its authorised service personnel to process your claim.

29 | Nottingham Hybrid Flooring

2 Year Installation Warranty When you choose National Tiles to install your flooring product (whether Hybrid, Laminate, Vinyl, or Engineered Timber), we are committed to ensuring that all works and services undertaken by our company are of high quality and suitable for the purpose for which they are intended.

This two-year warranty supersedes all other warranties, whether express or implied, including any implied warranties of merchantability or fitness for a particular purpose. It is subject to additional rights and remedies available to consumers under Commonwealth, Territory, and State legislation.

This warranty, therefore, is given in addition to any statutory warranty or consumer rights given in a State or Territory of Australia.

No employee, salesperson, or representative of National Tiles has any authority to change or modify this warranty in any way.

Warranty National Tiles will warrant that: • Our workmanship in installing the flooring product at your premises is in accordance with the relevant installation guide available on our website nationaltiles.com.au at the time of installation; •

All works and services undertaken are in accordance with the scope of works outlined in your National Tiles Installation Quote; and

•

The warranty period is for two years from the date of practical completion as recorded by National Tiles.

Warranty Terms This warranty covers defects in workmanship and materials related to the flooring installation. Flooring products themselves are covered by separate warranties, with details available on our website. It is the responsibility of the customer to make an informed choice, taking such warranties into consideration.

This warranty is given exclusively to the original buyer and is non-transferable.

If a claim is accepted, repair or replacement will be at National Tiles’ sole discretion and carried out by the installers.

Nottingham Hybrid Flooring | 30

All claims under this warranty must be made in writing specifying the address of the property, the date of installation, the contact details of the claimant, a full description of the fault, and emailed to install@nationaltiles.com.au and be accompanied by proof of purchase. No claims made by telephone will be regarded as valid.

This warranty shall not apply unless: • National Tiles has received payment in full for the products and services for which the warranty claim is made; and •

The relevant National Tiles Product Care & Maintenance Guide, available on our website, has been followed.

Warranty Exclusions National Tiles shall not be liable under this warranty for personal injury, loss, claims, property damage, or any other costs, whether consequential or otherwise, howsoever caused or arising and whether direct or indirect.

Damages or installation issues caused by, but not limited to, the following are excluded: • Movement of subfloor foundations • Restriction of required expansions and contractions of the floor • Moisture from steam mopping, spills, leaking pipes, wet mopping, rising subfloor moisture, etc • Failure to maintain adequate ventilation resulting in excessive humidity or dryness • Exposure to extreme indoor conditions such as radiant heat • Discolouration resulting from exposure to ultraviolet (UV) radiation in sunlight • Discolouration resulting from the use of abrasive cleaning tools and chemicals • Improper maintenance and accidents such as indentations and scratches made by the furniture, tools, toys and pets etc • Alterations or repairs performed by someone other than an agent of National Tiles or use of other materials not provided by National Tiles • Post installation treatment of flooring with fungicides or stain treatments • Installations and/or installation methods performed at your request against our advice • Minor gapping due to the floor’s normal expansion and contraction • Natural variations such as grain, colour shade, tone and knots. Natural wood characteristics are to be expected • Natural disasters
