manual tile cutters

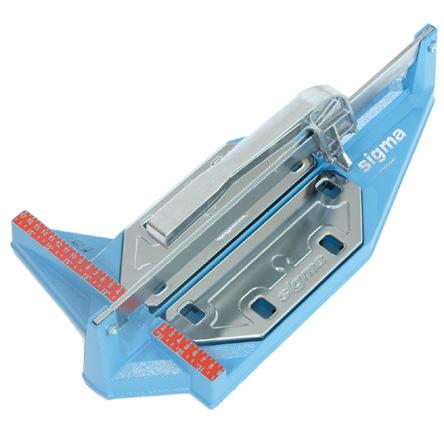

standard tile cutter with fixed guide 370mm
• Pull Handle for Scoring and snapping of tiles
• Rubber feet for secure anti slip cutting

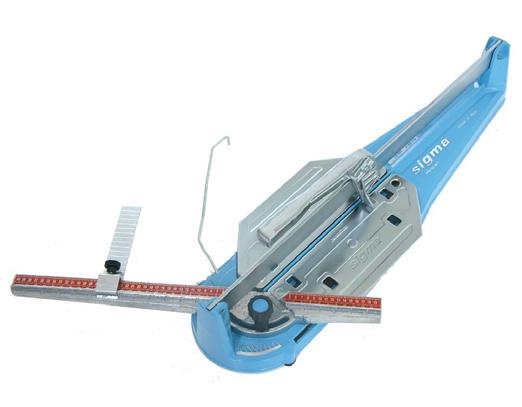

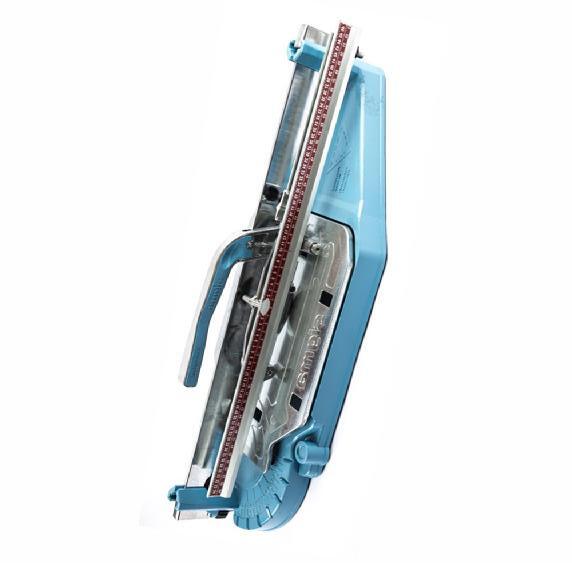

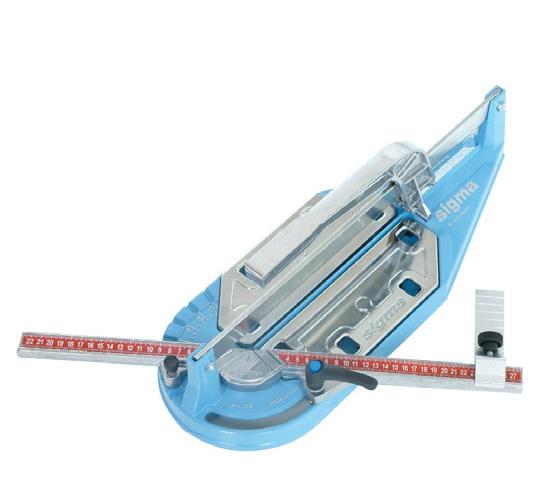

series 3 tile cutter with diagonal arm 370mm
• Pull handle for scoring and snapping of tiles
• Rubber feet for secure anti-slip cutting
• Adjustable brake for quick positioning of metric bar
• Pivoting measurement arm 00 to ± 450
tecnica series tile cutter with diagonal arm 660mm
• Pull handle for scoring and snapping of tiles
• Rubber feet for secure anti-slip cutting
• Adjustable arms for supporting large tiles
• Pivoting measurement arm 00 to ± 450

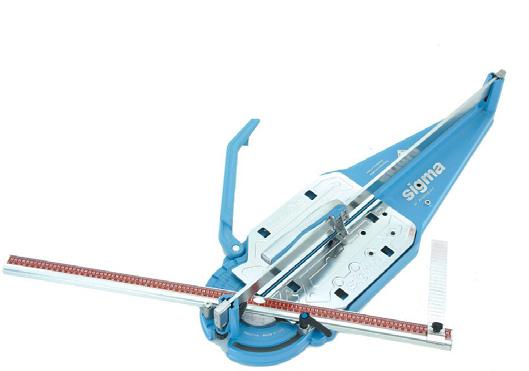

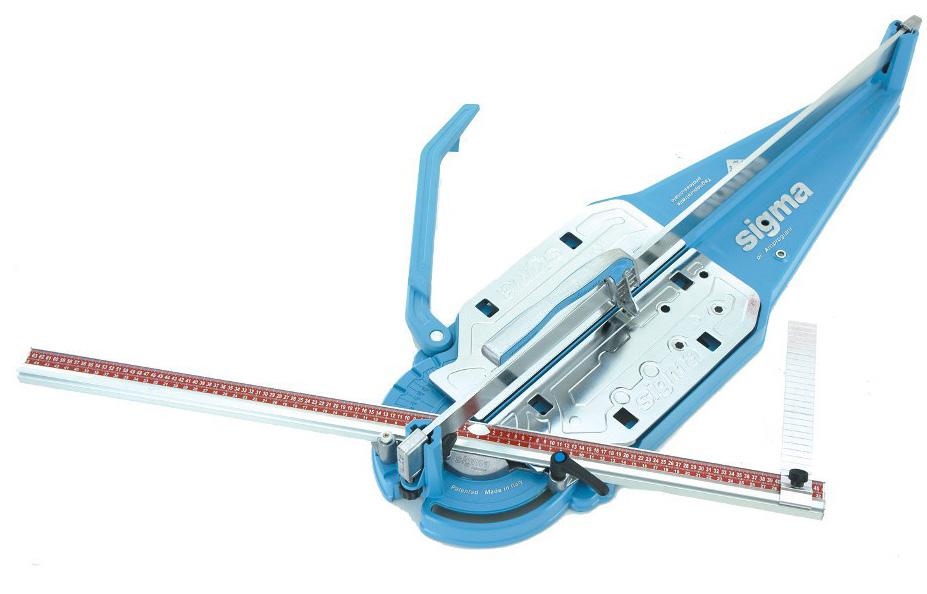

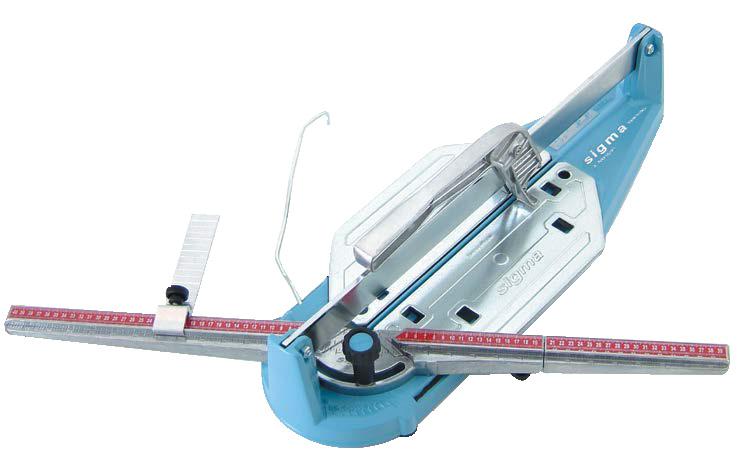

series 3 tile cutter with diagonal arm 670mm
• Ergonomic Pull Handle for scoring and snapping of tiles
• Rubber feet for secure anti slip cutting
• Adjustable arms for supporting large tiles
• Adjustable brake for quick positioning of metric bar
• Pivoting measurement arm 00 to ± 450

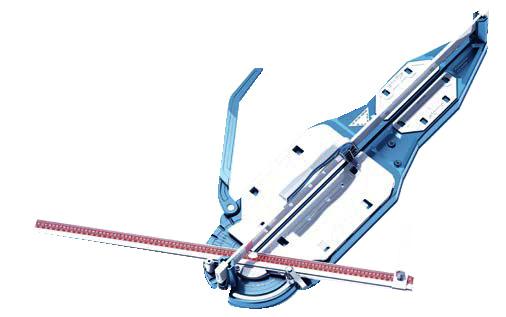

series 3 tile cutter with diagonal arm 770mm
• Ergonomic Pull Handle for scoring and snapping of tiles
• Rubber feet for secure anti slip cutting
• Adjustable arms for supporting large tiles
• Adjustable brake for quick positioning of metric bar
• Pivoting measurement arm 00 to ± 450
series 3 tile cutter with diagonal arm 950mm
• Ergonomic Pull Handle for scoring and snapping of tiles
• Rubber feet for secure anti slip cutting
• Adjustable arms for supporting large tiles
• Adjustable brake for quick positioning of metric bar
• Pivoting measurement arm 00 to ± 450
ART-3C2
large format cutters 1260-2450mm

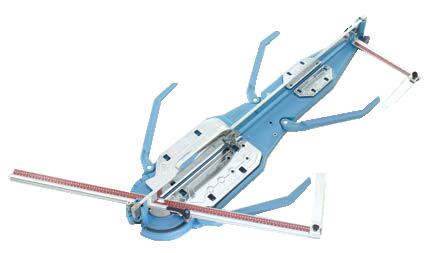

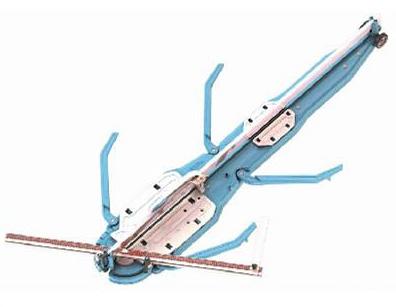

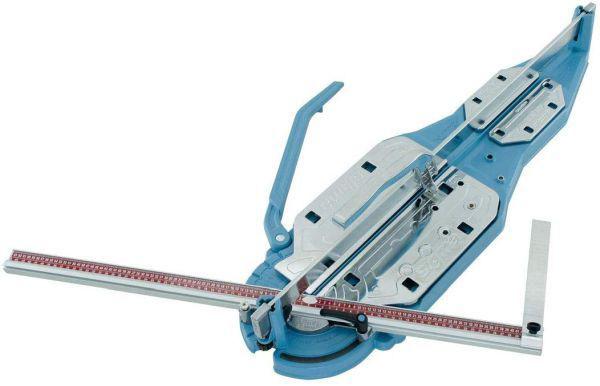

series 3 tile cutter with diagonal arm 1270mm
• Ergonomic handle optimised for push cutting
• Rubber feet for secure anti slip cutting
• Pivoting measurement arm 00 to ± 450
• Ball Bearing included in scoring wheel for easy and deep incision & cutting
• Adjustable sprung supports excellent for large rough tiles
series 3 tile cutter with diagonal arm 1560mm
• Pull handle for scoring and snapping of tiles
• Rubber feet for secure anti-slip cutting
• Adjustable brake for quick positioning of metric bar
• Pivoting measurement arm 00 to ± 450

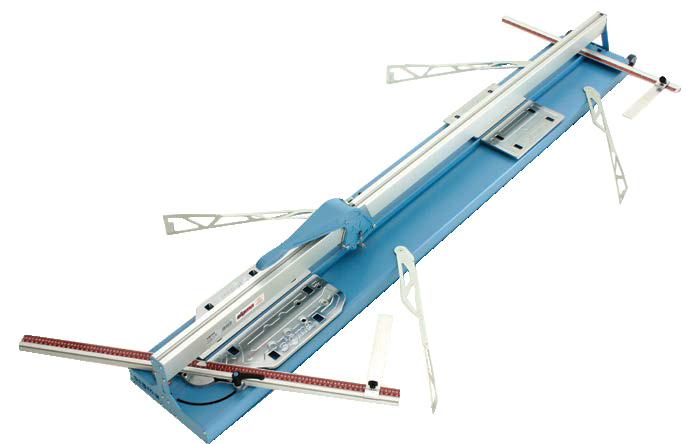

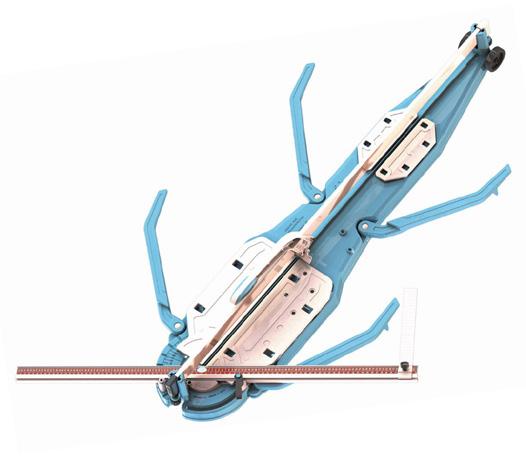

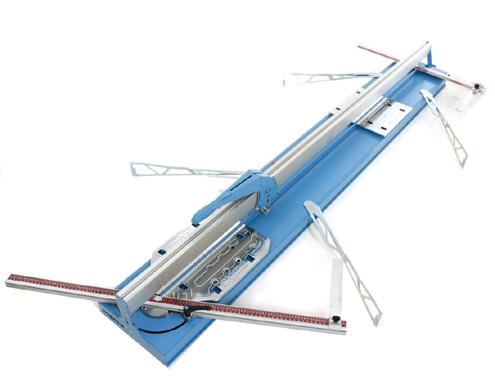

series 3 tile cutter with diagonal arm 2450mm
• Ergonomic handle optimised for push cutting
• Rubber feet for secure anti slip cutting
• Pivoting measurement arm 00 to ± 450
• Ball Bearing included in scoring wheel for easy and deep incision & cutting
• Adjustable sprung supports excellent for large rough tiles
•

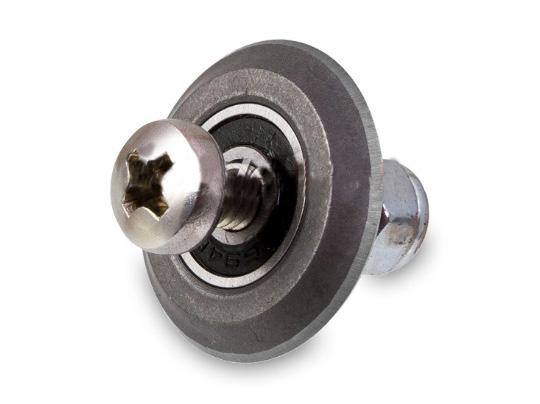

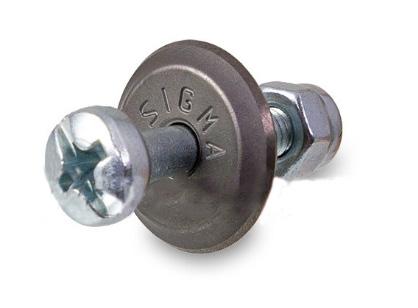

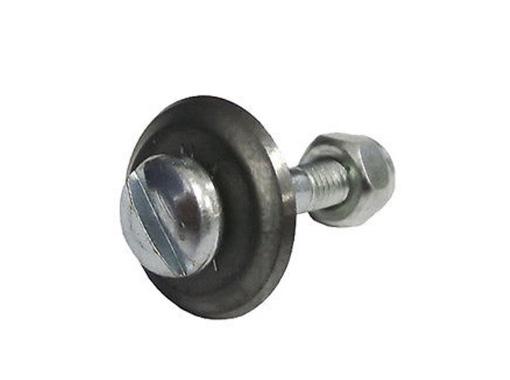

scoring wheel 12mm standard with axle

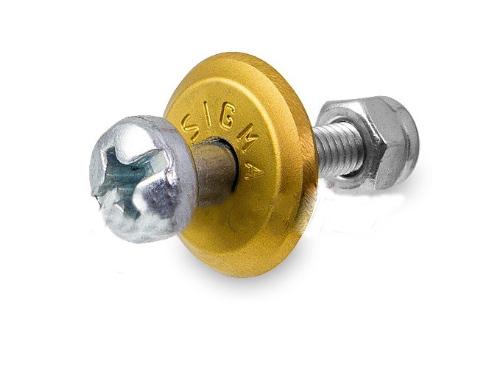

scoring wheel 12mm titanium with axle
• Excellent for porcelain tiles
scoring wheel 13mm standard with axle
• Suitable for all tiles
scoring wheel 12mm standard with axle
• Suitable for all tiles
Art Description
10144 Ball bearing reinforced 16/5/5
10166 Ball bearing reinforced 16/5/5
104031 NO-MARK protection
104032 NO-MARK protection 104033 NO-MARK protection for pulling handle
104039 NO-MARK protection for pulling handle
104058 NO-MARK protection for dragging lever grip
104064 Complete Left support
104065 Complete Right support 10652 Spring for MAX pushing handle 106725 Rubber foot 20/25 H24
10673 Rubber foot dia.14 for Art.6 106731 Rubber foot 13/17 H16
107112 Measurement tape
107126 Adhesive measurement tape
1079104 Nut M8 Hex 20 for Clamping knob lever
108346 Bearing 12/5/6,5 108612 Clamping knob Ø40 M10x35
108616 Clamping knob lever M8x25
108621 Clamping knob lever M8x40
108813 Plane. 9e+05. Front measure from 30 to 400mm
14A Ø 12 mm scoring wheel 14C Ø 15 mm scoring wheel
14CT Ø 15 mm TITANIUM scoring wheel
14M Ø12 mm complete scoring wheel for glass mosaic
support
Swivelling support
Complete adjustable support screw 8 20B Complete adjustable support screw 15 24AE ERGONOMIC pulling handle 10 mm groove 24C Dragging lever grip 7 mm groove 24D Pushing lever grip
24E ERGONOMIC pulling handle 8 mm groove
24F Pulling handle 6 mm groove
24M08X MAX pushing handle 8 mm groove
24M10X MAX pushing handle 10mm groove
24M15X MAX pushing handle 15 mm groove
24M20X MAX pushing handle 20 mm groove
43D1 Canvas padded case with wheels
64A2 wheel unit for 3P3M
64B Mosaic KIT for Art 3G-3L. complete with art. 14M
90D3 Swivel measurement bar
90DG Swivel bar
90E3 Front measure 410-0-410 mm
90LA Swivel bar
90LB Swivel measurement bar
90LC Swivel measurement bar
90LD Swivel measurement bar
90LE Swivel measurement bar
90LG Swivel measurement bar
