catalogue marble mosaics
wall: colosseum ming green mosaic design + build: happy haus photographer: koskphotography
Product Specifications Application:
Wall
Surface finish:
Polished or Honed
Nominal sizes:
Various
Visit our website for full warranty information
wall: hexagon carrara marble mosaic
Important Notice: All natural stone must be sealed after installation to ensure a surface that is easier to maintain. Please refer to our installation guide prior to installation. Natural stone products may vary from sheet to sheet and tile to tile. We recommend loose laying and inspecting the material before final adhesive fixing.
2 | Marble Mosaics
carrara marble
wall: colosseum carrara mosaic
Penny Round Carrara Mosaic
Colosseum Carrara Mosaic
Honed Ø23 305x288x10mm
Honed 15x151mm 305x305x15mm
Scala Carrara White Mosaic
Chic Carrara Mosaic
Honed 315x345mm 315x345x10mm
Honed 66x146mm 305x283x10mm
Marble Mosaics | 3
4 | Marble Mosaics
Slim Chevrons Carrara Mosaic
Shields Carrara Mosaic
Honed 20x120mm 280x345x10mm
Honed 41x61mm 302x300x10mm
Diamond Square Carrara Mosaic
Fan Carrara Mosaic
Polished 25x25mm 305x305x10mm
Polished 68x68mm 235x245x8mm
Lantern Carrara Mosaic
Hexagon Carrara Mosaic
Polished 75x62mm 295x305x8mm
Honed 73x73mm 308x285x10mm
Herringbone Carrara Mosaic
Herringbone Carrara Mosaic
Honed 50x200mm 285x290x10mm
Honed 25x75mm 305x325x10mm
castro white marble
wall: colosseum castro white mosaic
Colosseum Castro Mosaic
Scala Castro Mosaic
Honed 15x151mm 305x305x15mm
Honed 50x102mm 315x345x10mm
Herringbone Castro Mosaic
Picket Castro Mosaic
Honed 25x75mm 305x325x10mm
Honed 50x150mm 267x310x10mm
Square Castro Mosaic Honed 48x48mm 300x300x10mm Marble Mosaics | 5
white marble
wall: white marble brick calacatta bevelled mosaic
6 | Marble Mosaics
Brick Calacatta Bevelled Mosaic
Hexagon White Marble Mosaic
Polished 48x98mm 298x298x10mm
Polished 29x29mm 265x255x8mm
ming green
wall: colosseum ming green mosaic
Colosseum Ming Green Mosaic
Penny Round Ming Green Mosaic
Honed 15x151mm 305x305x15mm
Honed Ø23 305x288x10mm

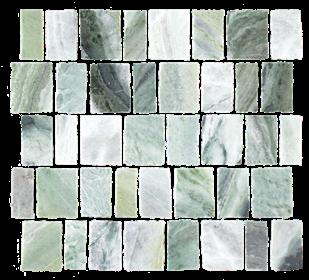

Herringbone Ming Green Mosaic
Picket Ming Green Mosaic
Honed 25x75mm 305x325x10mm
Honed 50x150mm 267x310x10mm
Marble Mosaics | 7
travertine
wall: capsule travertine mosaic
8 | Marble Mosaics
Capsule Travertine Mosaic
Chic Travertine Mosaic
Honed 35x150mm 302x291x10mm
Honed 66x146mm 305x283x10mm
Colosseum Travertine Mosaic
Concave Travertine Mosaic
Honed 15x151mm 305x305x15mm
Honed 30x150mm 318x302x10mm
wall: concave travertine mosaic
wall: colosseum travertine mosaic Marble Mosaics | 9
basalt stone
wall: slim chevron basalt mosaic
10 | Marble Mosaics
Slim Chevron Basalt Mosaic
Shields Basalt Mosaic
Honed 20x120mm 280x345x10mm
Honed 41x61mm 302x300x10mm
Large Herringbone Basalt Mosaic
Herringbone Basalt Mosaic
Honed 50x200mm 298x290x10mm
Honed 25x75mm 305x325x10mm
Penny Round Basalt Mosaic
Colosseum Basalt Mosaic
Honed Ø23 305x288x10mm
Honed 15x151mm 305x305x15mm
Picket Blush Mosaic
Penny Round Blush Mosaic
Honed 50x150mm 310x267x10mm
Honed Ø23 305x288x10mm
Capsule Shangri-la Jade Mosaic
Chic Shangri-la Jade Mosaic
Honed 35x150mm 302x291x10mm
Honed 66x146mm 305x283x10mm
Chic Calacatta Grey Mosaic
Penny Round Pietra Grey Mosaic
Honed 66x146mm 305x283x10mm
Honed Ø23 305x288x10mm
Marble Mosaics | 11
Penny Round Wooden Blue Mosaic
Penny Round Thala Grey Mosaic
Honed Ø23 305x288x10mm
Honed Ø23 305x288x10mm
bar wall: colosseum ming green mosaic
12 | Marble Mosaics
Marble and Stone Mosaic Installation Guide General Dry lay your mosaic/stone tiles prior to installation. Any quality issues should be brought to our attention prior to fixing. Delivered product may vary from showroom samples; fixing of the product constitutes acceptance of the product. Please refer to National Tiles Customer Care Instructions.
Cutting Cut mosaics/stone tiles with a wet saw using a diamond blade. Cut mosaic/stone tiles slowly using multiple passes, increasing the depth with each pass.
Adhesive •
National Tiles recommends using Mapei Granirapid (White) Adhesive for Carrara Marble, White Marble, Blush, Ming Green mosaic/stone tiles.
•
National Tiles recommends using Mapei Granirapid (Grey) Adhesive for Basalt and Grey mosaics and tiles.
Sealing •
Sealing of natural stone mosaics and tiles is required. This will protect the stone and grout joints against staining. National Tiles recommends that Spirit Premium Seal be applied as a pre-sealing treatment prior to grouting. Apply the sealer undiluted with a microfibre applicator or a dry, absorbent white cloth, allowing a minimum of 2–4 hours before commencing grouting.
•
After grout haze removal has been completed and the substrate is completely dry, it is ready for the final seal. Apply a coat of Spirit Premium Seal undiluted using a microfibre applicator or a dry, absorbent white cloth. Allow approximately 1 hour for the first coat to dry, then apply a second coat. Any sealer that does not penetrate the surface should be wiped off within 5–10 minutes of application using a dry, absorbent cloth. It is important that no water comes into contact with the newly sealed tiles for at least 24 hours after application.
Grouting •
Apply a premium grade thin set mortar using a 4mm V-notch trowel for small mosaics or a 6mm Square-notch trowel for larger mosaics.
•
Set tiles, applying pressure or tapping the surface with a rubber grout float to ensure all tiles are bonded and aligned properly. Use a level periodically to check the grout joints.
•
Mix and apply grout. For mosaic tiles with a metallic glaze finish, use unsanded grout to prevent surface abrasion.
•
Clean all excess grout immediately with a damp sponge.
•
After 12 hours, polish any remaining grout haze with a clean, dry cloth
Marble Mosaics | 13
Cleaning and Maintenance •
Do not use abrasive cleaners or harsh chemicals.
•
Use an all-purpose cleaner recommended and safe for use on your mosaics/stone tiles.
Disclaimer No claim will be accepted after installation of the product. All tiling must be undertaken in accordance with AS 3958.1: Guide to the Installation of Ceramic Tiles.
