Elegante Terrazzo

catalogue

elegante terrazzo

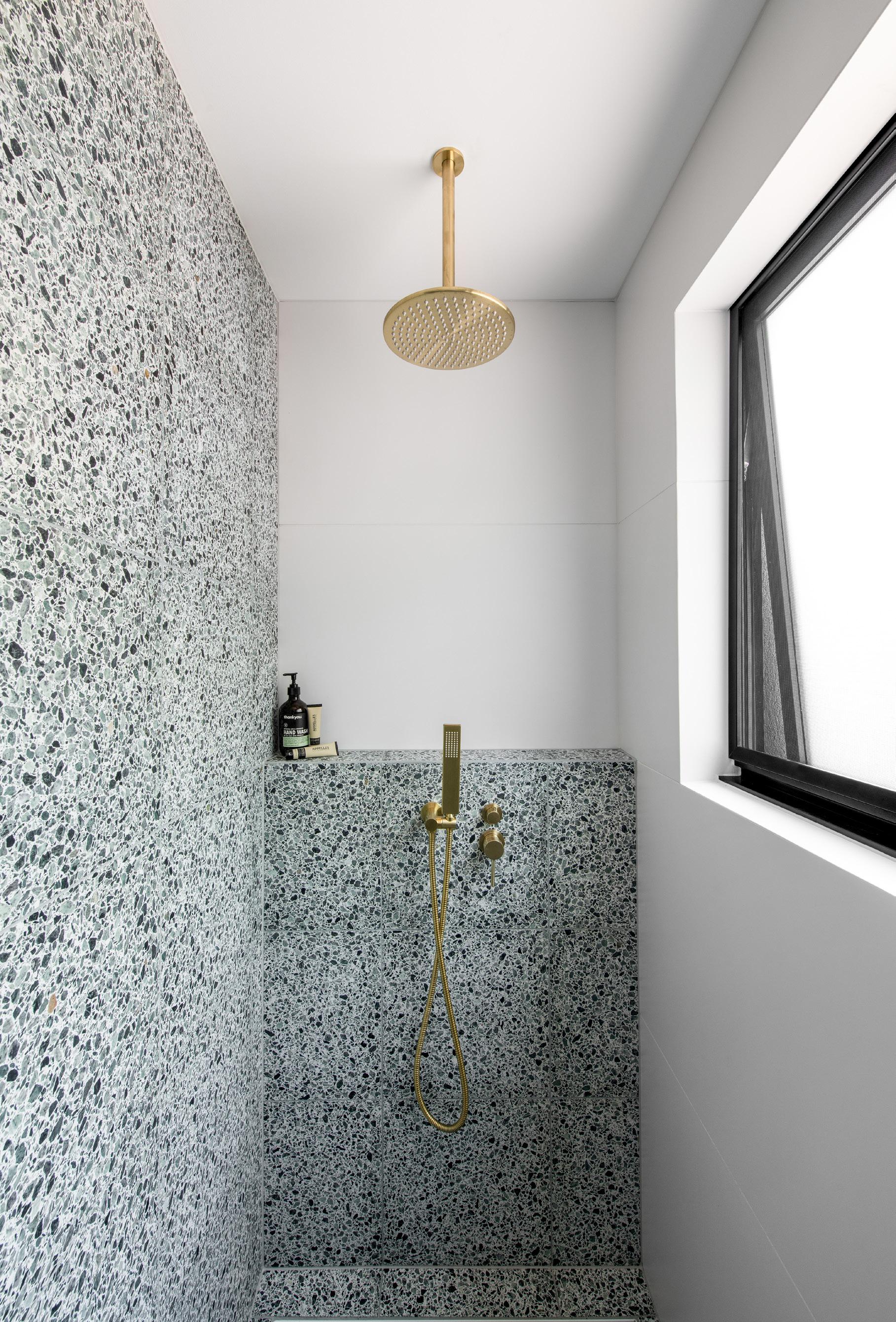

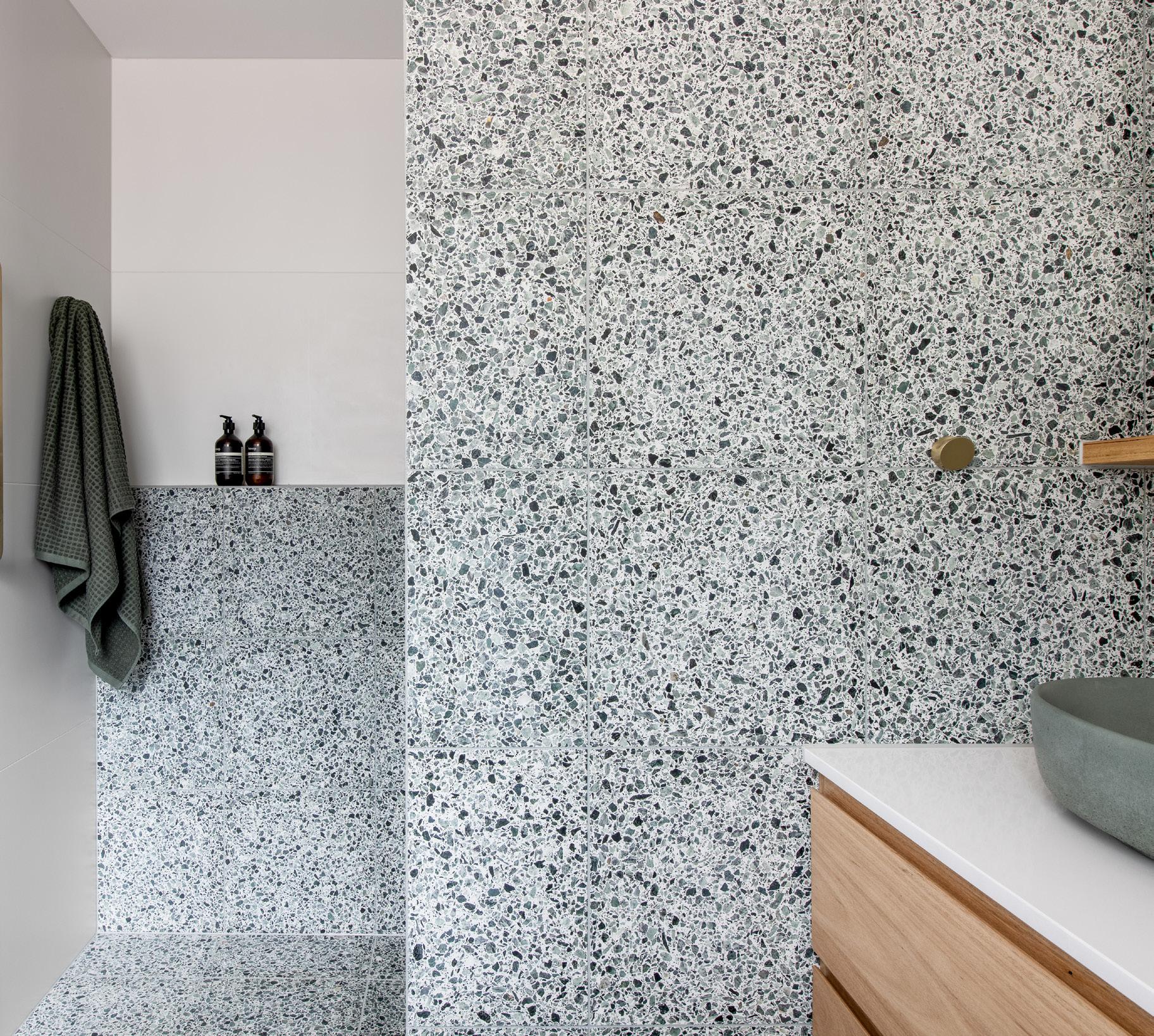

Floor and Wall Tile: Elegante Terrazzo Verde 400x400x18mm

Tile: Elegante Terrazzo Sapphire 2

When National Tiles sought the perfect source for our Elegante terrazzo collection, we naturally turned to Italy. We found a perfect partner in Mattoli: a third-generation, familyowned artisanal producer of cement-based surfaces that has been developing its deep technical expertise since 1923.

Hailing from the town of Jesi, in the province of Ancona, founder Manlio Mattoli initially specialised in the production of urban furniture such as benches, and ornamental fountains. When he was joined by his brother, Antonio, and his eldest son, Guiseppe, in the 1960s, the company invested in state-of-the-art machinery to add beautiful concrete floors to the product range.

Today, with Guiseppe’s three sons - Manlio, Massimiliano and Marta - now taking key roles, Mattoli specialises in producing terrazzo, in numerous shades, styles, and patterns. This includes our fabulous Elegante collection.

These terrazzo tiles are the real deal, being made from a mixture of marble chips, marble powder, and cement. They have the sustainable advantage of using raw materials that are a by-product of stone processing. Because the surfaces feature natural stone inclusions, there is an appealing variation in tile colour and chip size and colour; resulting in an organic and authentic terrazzo aesthetic.

Our range of nine colours celebrates that design diversity that can be achieved with this centuries-loved surface.

Stand out examples include the stunning chocolate chip ice-cream look of Uluru; the elegant mossy green specks of Verde; or the soft greyscale shades of Smoke.

3

Floor and Wall Tile: Elegante Terrazzo Nimbus Honed Tile 400x400x18mm 5

Product Specifications Material:

Italian mono layer terrazzo

Edge:

Rectified

Surface finish:

Honed

Nominal sizes:

400x400x18mm

Application:

Floor and Wall

Slip resistance:

Wet pendulum test: P1 Oil-wet inclining platform test: R9

Made in Italy Lifetime Guarantee

Installation Tips:

We recommend installation by an experienced installer. Terrazzo needs to be protected after installation by an appropriate sealer and should be considered similar to natural stone in terms of sealing and maintenance. A grout colour matching the tile is recommended, highly contrasting grouts should be tested on a sample prior to use and are not recommended

Wall Tile: Elegante Terrazzo Earth 400x400x18mm 6

stocked

The use of natural marble chips from various quarries results in subtle colour variation that adds greatly to the terrazzo tiles’ allure. This surface variety is compounded by the effects of honing, and the use of different sized chips.

The use of natural marble chips from various quarries results in subtle colour variation that adds greatly to the terrazzo tiles’ allure. This surface variety is compounded by the effects of honing, and the use of different sized chips. Elegante terrazzo comes in a highly versatile 400x400x18mm format.

Pebble 400x400x18mm

Nimbus 400x400x18mm

Winter 400x400x18mm

Smoke 400x400x18mm

Verde 400x400x18mm

Shale 400x400x18mm

Earth 400x400x18mm

Uluru 400x400x18mm

7

SHORT FORM SPECIFICATION

MAPEI: SFS17003A Version: 18/01/2017 Revision: 1

National Tiles, AUS Installation of monolayer terrazzo PART 1 1.1

1.2

SCOPE OF WORKS

DETAILS A.

Project:

National Tiles, Monolayer Terrazzo

B.

Areas:

Monolayer Terrazzo

C.

Areas:

Internal, wall & floor areas

- 400 x 400 x 18 to 22 mm - 600 x 600 x 18 to 22 mm

SCOPE This short form specification (SFS) covers the primer, cementitious adhesive, grout, silicone & sealer systems for the above mentioned site and selection over various (plasterboard, CTU, fibrous sheeting, concrete) wall substrates in accordance with the listed standards, architect’s drawings and specifications and as per MAPEI technical data sheets (TDS).

1.3

REFERENCES A.

AS 3958.1 (2007) – Ceramic Tiles; Part 1: Guide to the Installation of Ceramic Tiles

B.

AS 3958.2 (1992) – Ceramic Tiles; Part 2: Guide to the Selection of a Ceramic Tiling System

PART 2 2.1

EXECUTION

SUBSTRATE PREPARATION A.

Various Wall & Floor Substrates 1. Any laitance, dust, grease, oil, paint or curing compounds present on the surface of the various (plasterboard, CTU, fibrous sheeting, concrete) wall substrates that may inhibit bond shall be mechanically removed. The substrates should then be cleaned and prepared in accordance with the relevant standards and as per the MAPEI technical data sheets (TDS).

B.

References 1. AS 3958.1 (2007) – Ceramic Tiles; Part 1: Guide to the Installation of Ceramic Tiles 2. AS 3958.2 (1992) – Ceramic Tiles; Part 2: Guide to the Selection of a Ceramic Tiling System

2.2

PRIMER Primer to be chosen from the following options: A.

ECO PRIM GRIP (2916-5-2012) - For NON-Porous Substrates 1. Multi-purpose, ready-to-use bonding promoter primer made from synthetic acrylic resin and silica inerts with a very low emission of volatile organic compounds (VOC) for render, smoothing and levelling compounds and adhesives for ceramic tiles.  APPLICATION: 

B.

Stir ready-to-use primer prior to application, no dilution is required.

PRIMER G (532-8-2008) - For Porous Substrates 1. Synthetic resin based water dispersion primer with very low volatile organic compound.  APPLICATION: 

Apply primer using a brush or roller in accordance with the TDS.

MAPEI Australia Pty. Ltd.  180 Viking Drive  Wacol, Queensland 4076  Phone: +61-7-3276-5000

Page 1 of 3

SHORT FORM SPECIFICATION National Tiles, AUS Installation of monolayer terrazzo 2.3

MAPEI: SFS17003A Version: 18/01/2017 Revision: 1

CEMENTITIOUS ADHESIVE A.

GRANIRAPID (113-2-2014) 1. Two component high performance fast setting and hydrating cementitious adhesive for ceramic tiles and stone materials.  APPLICATION:

2.4



To ensure good adhesion, apply a thin coat of the adhesive with the straight edge of the trowel. Immediately follow this with a layer of adhesive at the correct thickness using a suitable notched trowel.



Adhesive should also be applied to the back of the tile/stone (back-buttering).



Ensure the adhesive stays “fresh” and does not form a skin, especially in hot environments, prior to the application of the tile/stone.



Place the tile/stone firmly into position with a slight twisting motion, merging the adhesives together wet-on-wet, to ensure good contact coverage is achieved.



It is recommended that once the first tile/stone is laid, it should then be removed to assess the coverage. If it is acceptable, then continue, if it is not acceptable, reassess the trowel used and the application technique.

GROUT  NOTE: Prior to the application of the grout, ensure the joints are clean, free of dust and empty down to at least 2/3 of the thickness of the tiles.

Grout to be chosen from the following options: A.

ULTRACOLOR PLUS (2801-7-2014) 1. High-performance, anti-efflorescence, quick-setting and drying polymer-modified mortar with water-repellent technology.

B.

KERAPOXY (141-4-2015) 1. Two component, acid resistant epoxy grout for joints of at least 3mm.  NOTE: When KERAPOXY (141-4-2015) is applied externally, colour variations may occur over time, especially with lighter shades, due to ultraviolet rays and environmental contaminants.  APPLICATION: 

Fill the joints completely with the grout using the appropriate trowel or rubber float, ensuring the joints are completely compacted with no unevenness.



Remove excess grout while still fresh from the surface of the tile/stone by moving the float diagonally across the joints.



It is suggested to carry out a 1m 2 sample area for approval by the architect.

MAPEI Australia Pty. Ltd.  180 Viking Drive  Wacol, Queensland 4076  Phone: +61-7-3276-5000

Page 2 of 3

SHORT FORM SPECIFICATION National Tiles, AUS Installation of monolayer terrazzo 2.5

MAPEI: SFS17003A Version: 18/01/2017 Revision: 1

SILICONE  NOTE: Prior to the application of the silicone, it is recommended that the silicone is applied in a test area to be approved by the client and to ensure it doesn’t stain the stone/tile.

A.

MAPESIL LM (408-1-2015) 1. Neutral mould resistant silicone sealant for stone and marble.

2.6

SEALER  NOTE: Prior to the application of the penetrating sealer, ensure the stone paving has been prepared in accordance with the penetrating sealer TDS. A.

UltraCare – Penetrating Plus Stone, Tile & Grout Sealer (PR6618, MKT13-0053, 2013) 1. Premium, water repellent, natural look, water based penetrating sealer.

MAPEI provides technical data sheets for all products which should be read in conjunction with this Short Form Specification. The TDS’ can be obtained from www.mapei.com.au Should any further assistance be required, please do not hesitate to contact us at: MAPEI Technical Assistance Department technical-au@mapei.com.au +61 7 3276 5000

MAPEI Australia Pty. Ltd.  180 Viking Drive  Wacol, Queensland 4076  Phone: +61-7-3276-5000

Page 3 of 3

terrazzo cleaning, sealing & maintenance guide PRE-SEALING *When using terrazzo around saltwater pools, or in harsh salt water environments such as seaside residences we recommend using Spirit Premium Consolidator. Methods of application include spraying, brushing, microfibre applicator, and dip sealing for complete and total consolidation. Contact Spirit Sealers for more information on stone consolidation.

If Spirit Premium Consolidator is not used in the above environments, we recommend using Spirit Pre Seal as an alternative prior to laying to provide added water resistance, helping to keep salts from building within the stone.

Spirit Pre Seal is excellent for use as a grout release for hard to grout surfaces and pointing on walls.

In shower cubicles, bathrooms and laundries, or when using dark coloured grout on light coloured terrazzo, we recommend at least the face and sides are pre-sealed. For total coverage, the terrazzo can be dip-sealed covering all six sides of terrazzo with Spirit Pre Seal.

IMPORTANT! Do not stack the drying stone against each other with no air flow, stack them so they can breathe, and remove any excess sealer within 5 minutes. Contact Spirit Sealers if you are unsure about pre-sealing.

INITIAL CLEANING/GROUT HAZE REMOVAL *Normally acid-based cleaners are used for grout haze removal; however, your terrazzo will be etched if it comes into contact with acids. Follow these steps: Once the terrazzo has been laid, grouted and washed, a grout residue/haze may be left.

It is recommended to wait for 3-4 days for the grout to harden sufficiently before attempting to remove the grout haze in preparation for sealing.

It is advised to keep the floor and or walls protected during this timeframe if work is still being done by other trades over or near your freshly laid stone.

What you will need – (NT All Purpose Cleaner, Spirit Doodlebug, bucket, broom, mop) 1. Sweep and or vacuum the area to remove any loose debris.

2. In a bucket, dilute 20 parts clean water to 1 part NT All Purpose Cleaner and apply to the area that needs cleaning. Use a broom to evenly distribute the solution over the area.

nationaltiles.com.au

3. Allow the solution to sit for 2-3 mins. If you notice that the solution is drying, add more cleaner to keep it wet. *Only clean in sections that you can handle.

4. Now scrub the area with a Spirit Doodlebug (scouring pad set.) The multi-directional head can be attached to a broom handle for easy cleaning in hard-to-reach areas.

5. Remove the solution with a dense mop and rinse the area with clean water. If you have access to a wet/dry vacuum it is the ideal way to remove the dirty water.

DO NOT use any acid-based cleaners on this terrazzo. If the grout haze is too heavy, or has been left for too long, a light dilution of Spirit HDC may be used, followed by a rinse with NT All Purpose Cleaner.

SEALING Once the terrazzo is clean and dry, final sealing can begin. It is recommended that a breathable penetrating sealer is used. Test first before use, preferably on a spare piece of tile.

• NT Penetrating Sealer can be used for the final seal. Spirit Premium Seal and Spirit NPS are also suitable for use. *If consolidation was done using Spirit Premium Consolidator, then only Spirit Premium Seal or Spirit NPS can be used for the final seal.

• For highly honed and polished finishes, Spirit NPS is the ideal choice.

• Spirit Colour Enhancer Pro can be used to bring out the natural colour in the terrazzo.

What you will need – (Sealer, Spirit Microfibre Applicator, clean white rags, gloves, respirator and solvent suitable tray (for solvent-based sealer only) 2 coats are required, allowing approximately 1 hour in between coats. Follow the directions on the can or bottle very closely.

Please note: Penetrating sealers will not prevent surface etching or scuffing. *Extra care must be taken to remove excess sealer when using Spirit Colour Enhancer Pro. MAINTENANCE The terrazzo can be cleaned regularly using NT All Purpose Cleaner. If need be, the tiles can be cleaned periodically (every 6-12 months) depending on traffic and wear with Spirit HDC or Spirit Bright As. RE-SEALING Please note: Weather conditions, harsh cleaning methods using high-alkaline, acid or solventbased cleaners will affect the long-term performance of any sealer. Following the appropriate Spirit Guide relating to your substrate will ensure the very best protection. The longevity of your sealer is greatly dependant on the following 4 points: 1. Using a premium quality sealer.

The range at National Tiles are all premium quality, high performance sealers.

2. Proper application of the sealer. This includes the cleaning process prior to sealing.

Sealing a floor that hasn’t properly dried, sealing when it’s too hot or cold, not mopping up excess sealer and not applying enough sealer are a few of the mistakes made.

nationaltiles.com.au

3. Where the sealed area is? Is it a high traffic area?

Commercial areas that see more traffic and are cleaned daily will need re-sealing before most domestic areas; however, in domestic situations like, outdoor areas, high-traffic internal areas and shower cubicles, these areas will need to be re-sealed more often. If in doubt, contact Spirit Sealers.

4. How the floor is maintained?

Cleaning regularly with the wrong types of cleaners will break down the sealer prematurely and may even do damage to your terrazzo. The cleaners in this guide have been formulated especially for the stone and tile industry.

This is a general guide for Terrazzo. National Tiles always recommends to test first when cleaning or sealing any surface. For more technical information contact sales@spiritsealers.com

nationaltiles.com.au

product reference manual (January 2022) PRODUCT PROFILE

sealers

cleaners

tools of trade

NT Easy Seal Aerosol

NT All Purpose Cleaner

Doodle Bug,

NT Penetrating Sealer

NT Residual Surface Cleaner

Scouring Pads,

Spirit Colour Enhancer Pro

Spirit Bright As

Microfibre Applicator

Spirit NPS (Natural-Look Penetrating Sealer)

Spirit Efflorescence Off

Decanting Taps

Spirit Pre Seal

Spirit HDC

Spirit Premium Consolidator

Spirit Neutral Cleaner

Spirit Premium Seal

Spirit Phosphoric Acid

Spirit Uni Seal

Spirit Porcelain Crème

Spirit Water Based Premium Seal

Spirit Rejuvenate Spirit Safe Acid Spirit Safe Stripper NT Twin Pack

nationaltiles.com.au

NT EASY SEAL AEROSOL technical data sheet Product Description A solvent-based penetrating (impregnating) natural look sealer for porous grout joints.

water-based

penetrating (impregnating sealer)

can be used in wet areas (shower & water features)

no

yes

yes

yes*

both

allows moisture vapour transmission

repels oil & water

alters appearance

alter slip resistance

can be used prior to grouting

yes

yes

no

no

no

can be used can be used internally on polished areas or externally

*Excess sealer should be wiped off tiles during the sealing process.

Where to Use: Internal & external porous grout joints.

• Shower cubicles, kitchen & laundry splashbacks, large format tiles Where NOT to Use: • Non porous epoxy or resin based modified grout joints.

Expected Wear: Will last up to 5 years in ideal conditions. Areas that are considered high traffic will need more regular sealing. As an example, a shower cubicle would benefit from annual sealing, outside of the shower will need less regular application.

Coverage: Coverage will depend on the porosity of the grout joints and the temperature at the time of sealing. Approximate coverage allows for 2 coats and is as follows: Standard grout joints 1.5mm – 3mm – 60-150 lineal metres Available Size: 300G Aerosol Can

nationaltiles.com.au

NT PENETRATING SEALER technical data sheet Product Description A water-based Green Star rated low VOC penetrating sealer that provides a natural-look finish with long life benefits. National Tile Penetrating Sealer provides the very best protection from oil & waterborne staining.

water-based

penetrating (impregnating sealer)

can be used in wet areas (shower & water features)

no

yes

yes

yes*

both

allows moisture vapour transmission

repels oil & water

alters appearance

alter slip resistance

can be used prior to grouting

yes

yes

no

no

yes*

can be used can be used internally on polished areas or externally

*Excess sealer may cause streaking on polished substrates and will need to be buffed off.

Where to Use: Internal & external porous stone & concrete surfaces.

• Natural stones such as travertine, limestone, marble, bluestone, sandstone, granite & slate.

• Terracotta, terrazzo, concrete & clay pavers.

Expected Wear: Weather conditions, location & harsh cleaning methods using high pressure cleaners, highalkaline, acid or solvent-based cleaners will affect the long-term performance of the sealer and may even damage the substrate. Following the appropriate Spirit Guide relating to your substrate will ensure the very best protection.

Coverage: Coverage will depend on the porosity of the substrate, temperature and method of application.

Approximate coverage allows for 2 coats and is as follows: • Sandstone, limestone, concrete pavers – 6-8 square metres per litre • Terracotta, clay pavers, slate, terrazzo – 8-10 square metres per litre • Marble, travertine, granite – 10-12 square metres per litre Available Sizes: 1L, 4L & 15L Drums

nationaltiles.com.au

SPIRIT COLOUR ENHANCER PRO technical data sheet Product Description A solvent-based impregnating sealer that provides a no gloss wet enhanced look. Spirit Colour Enhancer Pro is an ideal sealer for dull stones that look good when wet.

water-based

penetrating (impregnating sealer)

can be used in wet areas (shower & water features)

no

yes

yes

yes

both

allows moisture vapour transmission

repels oil & water

alters appearance

alter slip resistance

can be used prior to grouting

yes

yes

yes

no*

no

can be used can be used internally on polished areas or externally

* If enhancers are applied too heavily on dense stones, the slip rating can be affected. * Excess sealer must be wiped dry, driving the excess into the substrate as you wipe it off. * This sealer will change the look of a tile or stone! The treatment is to be considered irreversible. * It is recommended to test first to ensure satisfaction with the end results.

Where to Use: • Natural stones such as travertine, marble, limestone, *bluestone, granite, slate, quartz & porous porcelain tiles.

• *Bluestone, depending on the type does not always respond well to enhancement.

Expected Wear: Weather conditions, location & harsh cleaning methods using pressure cleaners, high-alkaline, acid or solvent-based cleaners will affect the long-term performance of the sealer and may even damage your substrate. Follow the correct maintenance procedures.

Coverage: Coverage will depend on the porosity of the substrate, temperature at the time of sealing and method of application.

Approximate coverage allows for 2 coats and is as follows: • Limestone, travertine, marble, slate – 8-10 metres squared per litre • Granite, quartz – 10-12 metres squared per litre • Porous porcelain tiles – 12-15 metres squared per litre Available Sizes: 1L, 4L, 10L, 20L Drums

nationaltiles.com.au

SPIRIT NPS

(Natural-Look Penetrating Sealer)

technical data sheet

Product Description A solvent-based penetrating sealer that provides a natural look finish with long life benefits.

Ideal for use on dense stones, NPS provides excellent protection from oil & waterborne staining.

water-based

penetrating (impregnating sealer)

can be used in wet areas (shower & water features)

no

yes

yes

yes

both

allows moisture vapour transmission

repels oil & water

alters appearance

alter slip resistance

can be used prior to grouting

yes

yes

no

no

yes*

can be used can be used internally on polished areas or externally

Where to Use: Internal & external porous tile, stone & concrete surfaces.

• Natural stones such as travertine, limestone, marble, bluestone, sandstone, granite, quartz.

• Terracotta, terrazzo, concrete pavers & clay pavers.

• Polished concrete surfaces.

• Porous porcelain tiles.

Expected Wear: Weather conditions, location & harsh cleaning methods using high pressure cleaners, highalkaline, acid or solvent-based cleaners will affect the long-term performance of the sealer, & may even damage the substrate. Following the appropriate Spirit Guide relating to your substrate will ensure the very best protection.

Coverage: Coverage will depend on porosity of the substrate, temperature and method of application.

Approximate coverage allows for 2 coats and is as follows: • Concrete pavers, sandstone, limestone – 6-8 square metres per litre • Travertine, granite, marble, terracotta – 8-10 square metres per litre • Slate, tessellated tiles, porous porcelain tiles – 10-12 square metres per litre Available Sizes: 1L, 4L, 10L & 20L Drums

nationaltiles.com.au

SPIRIT PRE SEAL technical data sheet Product Description A water-based penetrating sealer used for reducing the porosity of moisture sensitive stone and tiles during the laying process. Fantastic for use as a grout release on natural stones like sandstone.

water-based

penetrating (impregnating sealer)

can be used in wet areas (shower & water features)

yes

yes

yes

yes*

both

allows moisture vapour transmission

repels oil & water

alters appearance

alter slip resistance

can be used prior to grouting

yes

water only

no

no

yes

can be used can be used internally on polished areas or externally

*Excess sealer may cause streaking and will need to be buffed off polished substrates.

Where to Use: Internal and external porous stone & concrete surfaces.

• Natural stones such as sandstone, travertine, limestone, marble & terrazzo.

• Terracotta, concrete & clay pavers.

• Concrete floors Where NOT to Use: • On bluestone/basalt - (for pre-sealing of bluestone, contact Spirit for further advice) Expected Wear: Weather conditions, location & harsh cleaning methods using high pressure cleaners, highalkaline, acid or solvent-based cleaners will affect the long-term performance of the sealer and may even damage the substrate. Following the appropriate Spirit Guide relating to your substrate will ensure the very best protection.

nationaltiles.com.au

Coverage: Coverage will depend on the porosity of the substrate, temperature & method of application.

Note: Spirit Pre Seal only requires 1 coat. A second coat cannot be applied.

• Sandstone, limestone, concrete pavers – 6-8 square metres per litre • Terracotta, terrazzo, clay pavers – 8-10 metres per square litre • Marble, travertine – 10-12 metres per square litre *If dip-sealing is the preferred method, the above coverage rates should be halved.

Available Sizes: 1L, 4L, 15L, 25L Drums

nationaltiles.com.au

PREMIUM STONE CONSOLIDATOR technical data sheet Product Description A solvent-based penetrating consolidator boosted with a water repelling sealer. Designed to provide the ultimate protection from salt spalling, freeze-thaw spalling, & ingress of water. Ideal for use in harsh salt water environments such as the splash zone of swimming pools, seaside residences and also in extremely cold climates.

water-based

penetrating (impregnating sealer)

can be used in wet areas (shower & water features)

no

yes

yes

yes*

both

allows moisture vapour transmission

repels oil & water

alters appearance

alter slip resistance

can be used prior to grouting

yes

yes*

no

no*

yes

can be used can be used internally on polished areas or externally

* Excess sealer can be buffed out using a white cloth and some of the consolidating sealer. * Spirit Premium Consolidator also contains a water repelling (hydrophobic) sealer.

For oil staining protection, a final seal with Spirit Premium Seal or Spirit NPS is required. * When applied as per instructions there should be no impact on slip resistance.

Where to Use: Where natural stone has been used in harsh environments prone to freeze-thaw, or areas that are in repeated contact with salt water such as the splash line of swimming pools.

• Natural stones such as sandstone, limestone, travertine, terrazzo • Concrete, concrete pavers, concrete blocks, precast concrete • All types of terracotta and brickwork Curing Time: Depending on the substrate it can take anywhere from 2 – 4 weeks for Spirit Premium Consolidator to build a bond within the substrate and fully cure. In laboratory testing the timeframe for curing before the necessary tests were conducted was approximately 3 - 4 weeks.

nationaltiles.com.au

Coverage: Coverage will depend on the porosity of the substrate, temperature and method of application.

Approximate coverage is for 2 coats and is as follows: Surface application (spraying, microfibre applicator, bristle brush): 4 – 8 square metres per litre.

Dip Sealing: Halve the approximate coverage rates listed above.

Available Sizes: 1L, 4L, 10L & 20L

nationaltiles.com.au

SPIRIT PREMIUM SEAL technical data sheet Product Description A solvent-based penetrating sealer that provides a natural looking finish with long life benefits.

Spirit Premium Seal provides the very best protection from oil & waterborne staining.

water-based

penetrating (impregnating sealer)

can be used in wet areas (shower & water features)

no

yes

yes

yes*

both

allows moisture vapour transmission

repels oil & water

alters appearance

alter slip resistance

can be used prior to grouting

yes

yes*

no

no

yes*

can be used can be used internally on polished areas or externally

* Excess sealer may cause streaking on polished substrates, and will need to be buffed off. * Excess sealer can be removed by using the sealer itself.

Where to Use: Internal & external porous stone & concrete surfaces.

• Natural stones such as travertine, limestone, marble, sandstone, granite & slate • Terracotta, terrazzo, concrete and clay pavers Expected Wear: Weather conditions, location & harsh cleaning methods using high pressure cleaners, highalkaline, acid or solvent-based cleaners will affect the long-term performance of the sealer and may even damage the substrate. Following the appropriate Spirit Guide relating to your substrate will ensure the very best protection.

Coverage: Coverage will depend on the porosity of the substrate, temperature and method of application.

Approximate coverage is for 2 coats and is as follows: • Sandstone, limestone, concrete pavers – 6-8 square metres per litre • Terracotta, clay pavers, slate, terrazzo – 8- 10 square metres per litre • Marble, travertine, granite – 10-12 square metres per litre Available Sizes: 1L, 4L, 10L & 20L Drums

nationaltiles.com.au

SPIRIT UNI SEAL technical data sheet Product Description A solvent-based surface sealer/topical coating that provides a ‘wet look’ finish.

Uni-Seal withstands the elements while providing excellent protection against staining.

water-based

penetrating (impregnating sealer)

can be used in wet areas (shower & water features)

no

no

no

no

both

allows moisture vapour transmission

repels oil & water

alters appearance

alter slip resistance

can be used prior to grouting

no

yes

yes

yes

no

can be used can be used internally on polished areas or externally

Where to Use: Internal & external ‘textured’ stone and concrete surfaces • Natural stones such as slate, travertine, limestone, marble, granite.

• Concrete pavers, terrazzo, tessellated tiles.

• Concrete floors.

Where NOT to Use: • Non-porous ceramic tiles or porcelain tiles.

• Wet areas (bathroom/shower floors, water features, around swimming pools) Expected Wear: Weather conditions, location & harsh cleaning methods using high pressure cleaners, highalkaline, acid or solvent-based cleaners will affect the sealers long term performance. Under normal conditions the sealer will last up to 2 years following correct maintenance. However, in high traffic it may need to be reapplied every 6-12 months.

Coverage: Coverage will depend on the porosity of the substrate, temperature and method of application.

Approximate coverage allows for 2 coats and is as follows: • Limestone – 6-8 square metres per litre • Slate, granite – 8-10 square metres per litre • Marble, travertine, terrazzo – 10-12 square metres per litre Available Sizes: 1L, 4L, 10L & 20L Drums

nationaltiles.com.au

SPIRIT WATER BASED PREMIUM SEAL (Penetrating Sealer)

technical data sheet Product Description A water-based Green Star rated low VOC penetrating sealer that provides a natural-look finish with long life benefits. Spirit Water based Premium Seal provides the very best protection from oil & waterborne staining.

water-based

penetrating (impregnating sealer)

can be used in wet areas (shower & water features)

yes

yes

yes

yes*

both

allows moisture vapour transmission

repels oil & water

alters appearance

alter slip resistance

can be used prior to grouting

yes

yes

no

no

yes*

can be used can be used internally on polished areas or externally

* Excess sealer may cause streaking on polished substrates and will need to be buffed off.

Where to Use: Internal & external porous stone & concrete surfaces.

• Natural stones such as travertine, limestone, marble, bluestone, sandstone, granite & slate.

• Terracotta, terrazzo, concrete & clay pavers.

Expected Wear: Weather conditions, location & harsh cleaning methods using high pressure cleaners, highalkaline, acid or solvent-based cleaners will affect the long-term performance of the sealer and may even damage the substrate. Following the appropriate Spirit Guide relating to your substrate will ensure the very best protection.

Coverage: Coverage will depend on the porosity of the substrate, temperature and method of application.

Approximate coverage allows for 2 coats and is as follows: • Sandstone, limestone, concrete pavers – 6-8 square metres per litre • Terracotta, clay pavers, slate, terrazzo – 8-10 square metres per litre • Marble, travertine, granite – 10-12 square metres per litre Available sizes: 1L, 4L & 15L Drums

nationaltiles.com.au

NT ALL PURPOSE CLEANER technical data sheet Product Description: An environmentally friendly cleaner that is safe to use on all surfaces. NT All Purpose Cleaner is the ideal cleaner to use for the regular maintenance of sealed and unsealed surfaces.

Features + Benefits: • Environmentally friendly, biodegradable pH neutral detergent • Safe to use on all natural stone and tiles.

• Completely streak free cleaning (excellent glass and mirror cleaner) • Suitable for surfaces sealed or unsealed • Great for stone countertops & polished stone or polished porcelain tiles • Pleasant floral aroma Where to Use: • All natural stone surfaces from polished to exfoliated • Ceramic tiles, polished & matt porcelain tiles • Windows & mirrors (dilute into a spray bottle) • Concrete & clay pavers • All concrete surfaces • Use as a neutralising rinse after using stronger cleaners like NT Residual Surface Cleaner, Efflorescence Off, Safe Acid, H.D.C or Bright As. Method of Application: 1. Mix Spirit Neutral Cleaner with clean water to the desired strength 2. Spread over the area to be cleaned & allow to sit/dwell for 3-5 minutes 3. Agitate/scrub the surface with the appropriate grade nylon scouring pad, use a firm bristle brush for the grout joints.

4. Remove the dirty water with a dense mop. (Using a wet/dry vac is the ideal way) For Glass and Window Cleaning: Add 1 or 2 capfuls of NT All Purpose Cleaner to a spray bottle and top up with water for streak free cleaning!

Available Sizes: 1L, 4L, 15L Drums

nationaltiles.com.au

NT RESIDUAL SURFACE CLEANER technical data sheet Product Description: A food grade mineral acid cleaner designed to remove grout residue on newly tiled surfaces.

NT Residual Surface Cleaner is very effective at removing rust, light efflorescence & hard water deposits.

Features + Benefits: • Highly concentrated with added detergents • Breaks down grout haze and mortar residue • Made from safe food grade acids • Safer than hydrochloric acid, no harmful fumes Where to Use: • Some natural stone surfaces such as granite, basalt & sandstone • Terracotta, tessellated tiles • Ceramic tiles, porcelain & grout joints • Clay bricks & pavers Method of Application: 1. Mix NT Residual Surface Cleaner with clean water to the desired strength (follow instructions on the back of the bottle carefully.

2. Wet the area to be cleaned first.

3. Allow to stand for 1-2 minutes keeping the surface wet with the cleaner.

4. Now scrub the surface vigorously with the appropriate grade nylon scouring pad or bristle brush. Use a firm bristle brush for the grout joints 5. Rinse well with NT All Purpose Cleaner at a dilution rate of 10 parts clean water to 1 part NT All Purpose Cleaner to neutralise any residual acid solution.

Available Sizes: 1L, 4L & 15L Drums

nationaltiles.com.au

SPIRIT BRIGHT AS technical data sheet Product Description: A highly concentrated formula, Spirit Bright As is a very effective organic stain remover for internal and external use.

Features + Benefits: • Removes unsightly mould and mildew • Cleans up bird and bat droppings • Removes tannin stains (leeching timber) and leaf staining • Does NOT contain acids • The perfect Spring cleaner for outdoor entertainment areas Where to Use: • On natural stones such as travertine, marble, limestone, granite, bluestone, sandstone.

• Terracotta, terrazzo, concrete & clay pavers • Ceramic and porcelain tiles & grout joints *Test first before use, preferably on a spare piece of tile or stone.

Method of Application: 1. Dilute Spirit Bright As with clean water to the desired strength (see back of bottle for dilution rates) 2. Spread over the area to be cleaned (only clean in sections you can cope with) 3. Allow the solution to sit/dwell for 20 mins 4. Scrub the surface with the appropriate grade nylon scouring pad. Use a firm bristle brush for the grout joints.

5. Remove the dirty water with a dense mop (a wet/dry vac is the ideal way) or hose off.

6. A final rinse with NT All Purpose Cleaner is recommended as a final rinse.

Available Sizes: 1L, 4L, 20L Drums

nationaltiles.com.au

SPIRIT EFFLORESCENCE OFF technical data sheet Product Description: A commercial grade mineral acid cleaner designed to remove stubborn efflorescence. Spirit Efflorescence Off is also very effective at removing rust, grout haze & hard water deposits.

Features + Benefits: • Extra heavy duty acidic cleaner • Highly concentrated, dilutable up to 20:1 • Contains a combination of acids (does NOT contain hydrochloric acid) • Breaks down built up efflorescence & other mineral based materials Where to Use: • Some natural stone surfaces such as granite & sandstone • Terracotta, tessellated tiles, ceramic and porcelain tiles • Concrete & concrete pavers Where NOT to Use: • Acid sensitive stones like travertine, marble or limestone • Depending on where it was quarried, bluestone could be damaged by acids *Test first before use, preferably on a spare piece of stone or tile.

Method of Application: 1. Mix Spirit Efflorescence Off with clean water to the desired strength (see back of bottle for dilution rates) 2. Sweep or vacuum the area to remove any loose debris 3. Dampen the surface with clean water and then apply the solution 4. Allow to sit/dwell for 3-5 minutes keeping the surface wet with the cleaner. Spirit Efflorescence Off can damage the substrate if left to dwell on the surface for too long.

5. Scrub with a nylon scouring pad and use a firm bristle brush for the grout joints.

6. Remove slurry and rinse with NT All Purpose Cleaner to neutralise any residual acids Available Sizes: 1L, 4L, 15L Drums

nationaltiles.com.au

SPIRIT H.D.C technical data sheet Product Description: A heavy duty, super-alkaline detergent designed to remove build-up of soiling, grease & grime.

Spirit H.D.C is an industrial strength dilutable cleaner with outstanding cleaning properties.

Ideal for tired looking floors, walls and grout joints that have become unsightly over time.

Features + Benefits: • Highly concentrated formula provides superior cleaning power • Breaks down hard to remove grease and grime • Easy to use • Contains no acids • Specialty product designed for the stone and tile industry. *Test first before use, preferably on a spare piece of tile Where to Use: • All natural stone can be cleaned with Spirit H.D.C *Avoid use on polished limestone or polished marble • Ceramic & porcelain tiles • Grout joints • Concrete & clay pavers *Test first on a spare piece of tile or stone before use.

Method of Application: 1. Mix Spirit H.D.C with clean water to the desired strength (see back of bottle for recommended dilution rates) 2. Allow the solution to sit/dwell for 3-5 minutes keeping the surface wet with the cleaner.

3. After 3-5 minutes have passed and allowed the Spirit H.D.C to loosen the grease and grime, begin scrubbing with the appropriate grade nylon scouring pad. Use a firm bristle brush for the grout joints.

4. Remove the dirty water with a dense mop. (Using a wet/dry vacuum is the ideal way).

5. Follow with a rinse of NT All Purpose Cleaner to neutralise any residual alkaline solution.

Please note: Regular cleaning of sealed surfaces with Spirit H.D.C is not recommended as the high-alkaline formula will break down the sealer and affect the performance.

For regular cleaning we recommend NT All Purpose Cleaner.

Available Sizes: 1L, 4L, 20L Drums

nationaltiles.com.au

SPIRIT NEUTRAL CLEANER (NT All Purpose Cleaner)

technical data sheet Product Description: An environmentally friendly cleaner that is safe to use on all surfaces. Spirit Neutral Cleaner is the ideal cleaner to use for the regular maintenance of sealed and unsealed surfaces.

Features + Benefits: • Environmentally friendly, biodegradable pH neutral detergent • Safe to use on all natural stone and tiles.

• Completely streak free cleaning (excellent glass and mirror cleaner) • Suitable for surfaces sealed or unsealed • Great for stone countertops & polished stone or polished porcelain tiles • Pleasant floral aroma Where to Use: • All natural stone surfaces from polished to exfoliated • Ceramic tiles, polished & matt porcelain tiles • Windows & mirrors (dilute into a spray bottle) • Concrete & clay pavers • All concrete surfaces • Use as a neutralising rinse after using stronger cleaners like Phosphoric Acid, Efflorescence Off, Safe Acid, H.D.C or Bright As. Method of Application: 1. Mix Spirit Neutral Cleaner with clean water to the desired strength 2. Spread over the area to be cleaned & allow to sit/dwell for 3-5 minutes 3. Agitate/scrub the surface with the appropriate grade nylon scouring pad, use a firm bristle brush for the grout joints.

4. Remove the dirty water with a dense mop. (Using a wet/dry vac is the ideal way) For Glass and Window Cleaning: Add 1 or 2 capfuls of Spirit Neutral Cleaner to a spray bottle and top up with water for streak free cleaning!

Available Sizes: 1L, 4L & 15L Drums

nationaltiles.com.au

SPIRIT PHOSPHORIC ACID CLEANER (Residual Surface Cleaner)

technical data sheet Product Description: A food grade mineral acid cleaner designed to remove grout residue on newly tiled surfaces.

Spirit Phosphoric Acid is very effective at removing rust, light efflorescence & hard water deposits.

Features + Benefits: • Highly concentrated with added detergents • Breaks down grout haze and mortar residue • Made from safe food grade acids • Safer than hydrochloric acid, no harmful fumes Where to Use: • Some natural stone surfaces such as granite, basalt & sandstone • Terracotta, tessellated tiles • Ceramic tiles, porcelain & grout joints • Clay bricks & pavers Method of Application: 1. Mix Spirit Phosphoric Acid cleaner with clean water to the desired strength (follow instructions on the back of the bottle carefully.

2. Wet the area to be cleaned first.

3. Allow to stand for 1-2 minutes keeping the surface wet with the cleaner.

4. Now scrub the surface vigorously with the appropriate grade nylon scouring pad or bristle brush. Use a firm bristle brush for the grout joints 5. Rinse well with NT All Purpose Cleaner at a dilution rate of 10 parts clean water to 1 part NT All Purpose Cleaner to neutralise any residual acid solution.

Available Sizes: 1L, 4L & 15L Drums

nationaltiles.com.au

SPIRIT PORCELAIN CRÈME technical data sheet Product Description: An environmentally friendly crème cleaner that has a non-scratch abrasive additive. Originally designed to remove factory wax from porcelain tiles. Spirit Porcelain Crème is also very effective at removing ground in dirt on hard surfaces.

Features + Benefits: • Environmentally friendly • Non-acidic, safe to use on most surfaces • Suitable for surfaces sealed or unsealed • Very effective on soap scum (shower screens and sinks) • Removes scuff marks & pencil marks left during installation of stone & tiles • Removes light grout haze on natural stone (works great in conjunction with NT All Purpose Cleaner or Spirit HDC) Where to Use: • All natural stone and tile surfaces. *Test first before use on polished limestone or marble.

Method of Application: 1. Spirit Porcelain Crème can be directly applied to the surface.

2. Use a soft cleaning pad or sponge and scrub until the marks disappear 3. A light rinse with NT All Purpose Cleaner and a clean white cloth will ensure that no residue is left behind.

Available Sizes: 500ML tube

nationaltiles.com.au

SPIRIT REJUVENATE technical data sheet Product Description: An environmentally friendly stone cleaner with a built-in water based penetrating sealer.

Designed to be used as a regular cleaner for all natural stone surfaces. Available in a spray pack for benchtops and a 4L bottle for maintaining larger floors.

Features + Benefits: • Environmentally friendly • Cleaner and sealer in one • Great for maintenance of stone benchtops in kitchens and bathrooms • No need to rinse, just wipe off with a clean cloth • Pleasant apple fragrance Where to Use: • Porous natural stone kitchen benchtops, and bathroom vanity tops • Food preparation areas • As a regular cleaner on main floors or wall that have previously been sealed Method of Application: 1. Spray liberally onto the area to be cleaned and allow to sit/dwell for 2-3 minutes to enable the sealer to penetrate.

2. Wipe off excess Rejuvenate with a clean white absorbent cloth Available Sizes: 500ML spray bottle, 4L Drum

nationaltiles.com.au

SAFE ACID technical data sheet Product Description: Spirit Safe Acid is an alternative to mineral acid cleaners, formulated with new organic salt technology. Designed to remove concrete and mortar spills, heavy efflorescence, light and heavy grout haze, & rust stains. It is extremely effective for restoring colour in faded, aged concrete pavers.

Features + Benefits: • Powerful acidic cleaner which is safe for the user.

• Contains no strong mineral acids and has no VOC’s.

• Restores colour in concrete pavers, leaving them looking brand new.

• Breaks down heavy efflorescence.

• Effectively cleans tools covered in glues, grouts and mortar.

• Safe alternative to dangerous acids such as hydrochloric/muriatic acid.

Where to Use: • Ceramic Tiles, Porcelain Tiles & grout joints • Concrete & Concrete Pavers • Terracotta, Tessellated Tiles • Non calcium based natural stone (always test before use on natural stone) Where NOT to Use: • Acid sensitive calcium-based stones like travertine, marble or limestone Method of Application: 1. Test first before use to unsure you will not damage the surface you are cleaning.

2. Mix Spirit Safe Acid with clean water to the desired strength (see back of bottle for a guide to dilution rates) 3. Sweep or vacuum the area to remove any loose debris 4. Dampen the surface with clean water and then apply the solution 5. Scrub the affected area with a Spirit Doodlebug or firm bristle brush (Spirit Safe Acid can noticeably etch smooth coloured pavers if left to dwell on the surface for too long) 6. Remove slurry and rinse with NT All Purpose Cleaner to neutralise any residual acidity.

This step is important in preparing the surface for sealing.

Available Sizes: 1L, 4L, 15L Drums

nationaltiles.com.au

SPIRIT SAFE STRIPPER technical data sheet Product Description: A very effective safe-to-use acrylic floor stripper for the removal of acrylic surface/topical sealers like Spirit Uni Seal. It is water soluble with no offensive odours.

Features + Benefits: • Safe to use, does not contain acids, non-flammable, no fumes • Excellent for removing paint & glues • Strips Spirit Uni Seal • Most effective when used in conjunction with Spirit H.D.C Where to Use: • All natural stone surfaces • Ceramic tiles & porcelain tiles • Concrete & clay pavers Method of Application: 1. Sweep the area to remove any loose debris 2. Apply Spirit Safe Stripper neat from the container to the floor and allow it to sit/dwell for 15-30mins (do not start to scrub yet) 3. After the time has elapsed, check to see if the existing seal has softened (it will now feel tacky) 4. Mix Spirit H.D.C at a dilution rate of 1 part Spirit H.D.C to 8 parts warm water 5. Scrub the floor with a nylon scouring pad to remove the old sealer 6. Remove the slurry and rinse the floor with clean water, then wait for it to dry to see if you have successfully removed all of the sealer.

7. If there is still sealer present, repeat the process until all the old sealer has been removed 8. A final rinse with NT All Purpose Cleaner is recommended.

Available Sizes: 1L, 4L, 15L Drums

nationaltiles.com.au

TWIN PACK technical data sheet NT All Purpose Cleaner NT All Purpose Cleaner is a streak free, low suds, pH neutral formula that is ideal for use on all man-made tiles and natural stone. It is also safe to use on newly sealed surfaces without the worry of damaging the existing sealer.

Features + Benefits: • Perfect every day cleaner for all tiled surfaces in and out of the house.

• Streak free formula leaves polished surfaces with a mirror finish.

• Much more than just a tile cleaner…1 or 2 capfuls in a spray bottle is ideal for streak free cleaning of windows, mirrors and general cleaning.

• Highly dilutable. From 10:1 up to 100:1 depending on your needs.

• Recommended product for rinsing down areas that have been cleaned with heavier duty acid, alkaline or chlorinated cleaners.

Sealing with NT Easy Seal Aerosol NT Easy Seal Aerosol is an aerosol is designed for the sealing of grout joints in shower cubicles, bathrooms, and kitchen and laundry splashbacks.

Features + Benefits: • Easy spray application.

• Up to and over 5 years protection depending on the area being sealed. Due to the rate of use, shower cubicles may need more regular sealing.

• Suitable grout sealer for ceramic, porcelain tiles and natural stone.

• Perfect for grout joints in large format tiles.

• Prevents grout joints becoming waterlogged and going mouldy.

• Makes ongoing cleaning easier.

• Leaves a natural appearance.

We stock a wide range of products that have been formulated especially for the tile and stone industry. Contact your local NT store for expert advice on your other cleaning and sealing needs.

nationaltiles.com.au

TOOLS OF TRADE technical data sheet Spirit Doodle Bug • An effective abrasive cleaning tool that enables cleaning of large areas without the need for heavy machinery.

• Comes with a multi-directional head that can be easily attached to a broom handle.

• 3 grades of pads ranging from soft to medium to coarse ensures that you have the right grade of pad for the job.

• Pads can be washed and reused again.

• Replacement Pads available in all three grades in packs of 10.

Spirit Machine Pads • Pads for rotary floor scrubbing machines • 2 grades available - White super polish (soft) - lack stripping (hard) Spirit Microfibre Applicator • An easy to use, disposable tool for sealing flat surfaces.

• Allows greater control of application with minimal agitation to the surface being sealed.

• Easily attaches to a broom handle.

Spirit Decanting Taps • Taps for decanting from our larger drums • Pour out just the right amount of sealer • No spills or wasted sealer.

nationaltiles.com.au
