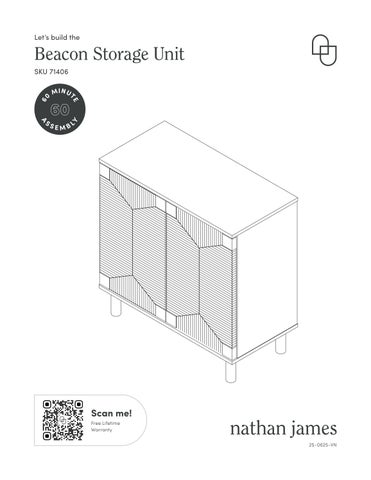

Beacon Storage Unit
This should be easy, just follow our instructions and you will be back to Netflix in no time.
60:00 Estimated time for assembly
need • Phillips-head screwdriver • Some of your favourite bubbly or your preferred relaxant
The goods
2. Do not over tighten screws and bolts to avoid stripping. A B I H C D E F E G K L L M
IMPORTANT
1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes.
Step 1
Let’s get this thing fired up!
Secure the Magnetic Push Latch (1) to the Top Front Stretcher (F) using the M3 x 15 mm Screws (3). Pay careful attention that the door catches are facing the correct way!
Next, attach the Magnetic Door Catch (2) to the Bottom Panel (D) using the screw (3).
Tip! Magnetic Push Latches can be adjusted - from front to backlater on for proper door alignment. Screws will be re-secured after adjusting for proper door alignment.
Tip! Magnetic Door Catch can be adjusted - from front to backlater on for proper door alignment.
Screw the Cam Bolts (4) onto the Top Panel (A), the Bottom Panel (D), the Left Side Panel (C) and the Right Side Panel (B).
How to use cam locks
Did you know?
Cam locks are used to join two panels together, usually the edge of one to the flat side of another.
First, your cam bolt (or cam pin) will need to be properly inserted into the flat side of the board.
Important Note: Only tighten the cam bolt until it is secure. Do not over-tighten.
Next, you will fit the proper hole on the edge of the associated joining panel over the cam bolt.
Important Note: When installed properly, the head of the cam bolt will be visible through the larger hole on the side of the joining panel.
Next, you will notice the cam lock has a “C” shaped back. Commonly, an arrow on the front of the cam lock points in the same direction as the open section on back.
Using these as your cue, insert the cam lock into the large hole so the opening of the “C” fits over the head of the cam bolt.
Using a screwdriver, you will turn the cam lock until it stops, usually between 130º or 180º. You will feel the panels pulling closer until they are secured.
Important Note: Only turn the cam lock until the panels are fully engaged & feel secure. Turning too far may lead to hardware failure
Still having issues?
If a cam lock seems to be spinning in place or is not “catching” or pulling the panels together as expected , first remove the cam lock & try again while making sure that everything is properly positoned & oriented .
If you are still having issues getting things work ing as expected, first remove the cam lock then unscrew the cam bolt slightly (less than 1 complete turn) to see if that helps with the alignment of the cam lock & bolt.
Step 3
Insert the Ø8 x 30mm Wooden Dowels (13) into the Top Panel (A) then place the Top Front Stretcher (F) and the Back Stretcher (E) onto the Top Panel (A).
Finally, use the Cam Lock (5) to secure Top Front Stretcher (F) and the Back Stretcher (E).
Double check to make sure the Top Front Stretcher (F) and the Back Stretcher (E) are facing the right way before tightening!
The side with Cam Lock holes should be facing to back at this point
The side with Cam Lock holes should be facing front at this point
Using the Cam Locks (5), as shown below, you will secure the Right Side Panel (B) to the top panel assembly that you just completed in Step 3.
x 2 pcs
Time to repeat the same steps for the Left Side Panel (C) as you just did for the Right Side Panel.
Using the Cam Locks (5), as shown below, you will secure the Left Side Panel (C) to the top panel assembly that you completed in Step 3.
5
x 2 pcs 5 5
Step 6
Slide the Ø1/4” x 10mm Spring Washer (8) and the Ø1/4” x 13mm Flat Washer (9) onto the Bolts (7). Use these parts and the Allen Key (14) to secure the Right Side Panel (B), the Left Side Panel (C) and Top Panel (A) together.
Secure the Back Stretcher (E) into place using the Cam Locks (5).
Be sure to line things up as shown below.
Tip: The grooves need to be aligned
Unfold the Back Panel (G) then slide it into the place of Storage Unit. It should fit smoothly into the grooves. Step 8
Step 9
Insert the Wooden Dowels (13) into the Back Stretcher (E) then place the Bottom Panel (D) on top by guiding the Cam Bolts into their respective holes.
Important Note:
Be sure to not secure the Bottom Panel (D) in place with any fasteners until instructed to do so in a few steps
13 x 2 pcs
Step 10
Time to install the doors!
Begin by sliding the Plastic Sleeve Washer (11) onto the pin of the Left Door (I). Then insert the Left Door (I) into the hole on the Top Panel (A).
Next, slightly lift the Bottom Panel (D) and insert the Left Door (I), with Plastic Sleeve Washer (11) attached, into the hole on the Bottom Panel (D) Make sure to line everythings up as shown below.
Now you can secure one side of the Bottom Panel (D) using the Cam Locks (5).
x2 PCS
Magnetic Catch Plate faces inside cabinet
Look familiar? Slide the Plastic Sleeve Washer (11) onto the pins of the Right Door (H). Then, insert the Right Door (H) into the hole on the Top Panel (A). Next, slightly lift the Bottom Panel (D) and insert the Right Door (H), with the Plastic Sleeve Washer (11) attached, into the hole on the Bottom Panel (D). Make sure to line everything up as shown below. lift up slightly Magnetic Catch Plate faces inside cabinet
Now you can begin securing the Bottom Panel (D) in place using the Cam Locks (5).
x2 PCS
Finish securing the Bottom Panel (D) in place using the Screws (10) and Cam Locks (5), as shown below.
Line up the Legs (L) with their holes then slide the Ø1/4” x 10mm Spring Washer (8) and Ø1/4” x 13mm Flat Washer (9) onto Ø1/4” x 40mm Hex Button Head Bolt (6). Use these parts and the Allen Key (14) to secure the Legs (L) to the Bottom Panel (D). Step 15
Next, secure the Center Leg (M) by turning it clockwise as shown below.
16
Push the Shelf Pins (12) into place at your desired shelf height then carefully place the Shelf (K) on top of the pins.
Step 17
Now go ahead and check that your Beacon Storage Unit is level and not wobbly. If it’s looking a little unlevel, adjust the levelers on the feet until it’s nice and level.
Wobbly or unlevel? Adjust feet until stable.
How to Use Drywall Anchors
5/16” Drill Bit WALL
5/16” Hole WALL
3. Begin tightening.
4.
is secure when screw is tightened to 100%.
Anchor
2. Pinch and insert.
1. Drill hole 5/16 bit.
Step 18
Safety first! Let’s get this cabinet secured to the wall. Find where you want your cabinet to live before you begin installing the wall anchors. First, determine which style of wall anchor you will need, then using the proper, recommended drill bit & the Plastic Bracket (17) as your hole guide, you will drill 2 holes in your wall before finally inserting the anchors into the wall.
IMPORTANT NOTE:
Drywall Anchor (16) requires 5/16” Drill Bit. Non-Drywall Anchor (18) requires 1/4” Drill Bit.
Step
19
Next, you will secure the other Plastic Bracket (17) to the back of the cabinet using the M3.5 x 15mm Screws (21) before looping the Plastic Strap (20) through both Plastic Brackets & pulling it through itself to secure the cabinet.
IMPORTANT NOTE:
Young children (and/or pets) can be seriously injured by tipping furniture units.
You must install the provided anti-tip kit hardware solution, as instructed, to prevent the furniture units) from tipping over - which could possibly lead to injuries or damage.
The provided anti-tip kit hardware solution is intended only as an additional safety measure & deterrent; it is not a substitute for proper adult supervision.
The provided anti-tip kit hardware solution is not an earthquake restraint. If you wish to add the extra security of earthquake restraints, they must be purchased & installed separately.
No heartburn, when we handle the return
Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle.
Our way Their way
Give us a call
Replacement
You
Re-package item
Schedule pick up
Track package
Replacement
You
We really don’t want you to go through the hassle of re-packaging your item and sending it back, because let’s be honest…nobody has time for that.
Safety first, fun later
We want your product to last as long as possible, so we recommend that you tighten the screws 2 weeks after assembly and for added safety check the tightness of all screws every 2 months.
For proper care and treatment of wood and metal please check our website at NathanJames.com/products
Safe use of this product starts with you.
Use this product responsibly with the primary concern for your safety. Follow assembly instructions carefully and inspect product upon receipt and each use.
Nathan James and its parent companies cannot be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product.
Do
not modify the structure of this product in any way.
Our products have been tested to meet specific safety measures as they were originally intended to be sold. Any modifications will present the risk of creating significant safety issues which NJ will not be responsible for.
DO NOT use for commercial purposes
DO NOT climb on storage unit
Proper use
DO NOT exceed weight limit
DO NOT leave spilled liquid on storage unit
DO NOT use if storage unit is damaged or broken
DO NOT make temporary repairs
DO NOT use outdoors
