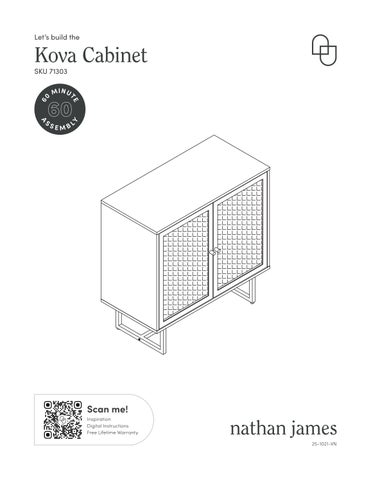

Kova Storage Cabinet Instruction Sheet

Let’s build the

Kova Cabinet 0

MINU

60

SEMBL

Y

A

S

TE

6

SKU 71303

Scan me!

Inspiration Digital Instructions Free Lifetime Warranty 23-1117-VN

Ok, let’s get rolling

What’s included Description

Qty

A

Top Panel

1

B

Left Side Panel

1

C

Right Side Panel

1

Estimated time for assembly

D

Bottom Panel

1

60:00

E

Shelf

1

F

Door Panel

2

This should be easy, just follow our instructions and you will be back to Netflix in no time.

What you need •

Some of your favourite bubbly or your preferred relaxant

G

Back Panel

1

•

Use the packaging carton as a working surface to prevent product damage during assembly

H

Top (Front & Back) Rail

2

•

Phillips head screwdriver

I

Bottom Back Rail

1

J

Bottom Metal Stretcher

1

K

Front and Back Metal Stretcher

2

L

Metal Frame

2

Do not use a drill

Weight Limitation

90

lbs for top

26

lbs per shelf

Toll-free at 1-866-619-1004 Help@nathanjames.com Nathanjames.com/help

Scan me!

Inspiration Digital Instructions Free Lifetime Warranty

2

The goods

A

H

H C

G

F E F

B

I

L

D K

J

K

L IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes.

2. Do not over tighten screws and bolts to avoid stripping.

3. Please use hand tools to assemble this product. Do not use power tools.

3

What’s included Description

Qty

1

M6*30mm Cam Bolt

14

2

8*30mm Wooden Dowel

19

3

15*9.5mm Cam Lock

14

4

Hinge

4

5

Plastic Strip

1

6

Metal Connector

2

7

M6*30mm Wall Anchor

1

8

M4.2*35mm Screw

1

9

M4.2*17mm Screw

1

10

M4*14mm Screw

24

11

Handle

2

12

M4*20mm Bolt

2

13

M6*30mm Bolt

10

14

M4.2*40mm Screw

6

15

Magnetic Door Catcher

2

16

M3*16mm Screw

4

17

M3*12mm Screw

4

18

Adjustable Leveler

4

19

Metal Support for Shelf

4

20

Allen Key

1

21

Metal Plate

4

4

The goods 1 6

2 6

3 6

4 6

5 6

6

7 6

8 6

9 6

10 6

11 6

12 6

13 6

14 6

15 6

16 6

17 6

18 6

19 6

20 6

21 6

5

Step 1 Let’s get this thing fired up! Lay down packaging carton or use carpet as a working surface.

We’re startin’ off easy. Secure the Hinges (4) and Metal Plates (21) to both sets of doors.

17 21

10 10 10

4

x2

10

F 6

4

Tip from a friend to a friend: save yourself some trouble and make sure the hinge lays flat against the door when securing!

6

Step 2 How much wood would a woodchuck chuck If a woodchuck could chuck wood? It’s time to put in your wooden dowels (2)!

Repeat this step with both of the Top Rails (H).

2

H 6

x2 2

2

2

2

2

6I

2

2

2

2

7

Step 3 Screw the Cam Bolts (1) and Magnetic Door Catcher (15) to the Top Panel (A).

1 1 1 1

1

A 6

1

16

16

1 15

1

Tip! Door Catcher can be adjusted from front to back for proper door alignment.

8

Step 4 Attach the other Magnetic Door Catcher (15) to the Bottom Panel (D).

16

D 6

16

15

9

Step 5 Secure the Cam Bolts (1) and Wooden Dowels (2) to the Left Side Panel (B).

1

2

1 1

B 6

2

10

Step 6 No, this isn’t Deja Vu! Repeat Step 5 with the Right Side Panel (C).

1

1 1

C 6

2

11

2

Step 7 Attach the Top Rails (H) and Bottom Back Rail (I) to Left Side Panel (B) using the Cam Locks (3).

H 6

H 6 6I

B 6

x3 6

Important Note: The cam lock must point toward the hole on the edge of the board.

12

Hole

Arrow

How to use cam locks

Did you know?

Cam locks are used to join two panels together, usually the edge of one to the flat side of another.

First, your cam bolt (or cam pin) will need to be properly inserted into the flat side of the board.

Important Note: Only tighten the cam bolt until it is secure. Do not over-tighten.

Next, you will fit the proper hole on the edge of the associated joining panel over the cam bolt.

Important Note: When installed properly, the head of the cam bolt will be visible through the larger hole on the side of the joining panel.

Next, you will notice the cam lock has a “C” shaped back. Commonly, an arrow on the front of the cam lock points in the same direction as the open section on back.

Using these as your cue, insert the cam lock into the large hole so the opening of the “C” fits over the head of the cam bolt.

Using a screwdriver, you will turn the cam lock until it stops, usually between 130º or 180º.

You will feel the panels pulling closer until they are secured.

Important Note: Only turn the cam lock until the panels are fully engaged & feel secure.

Turning too far may lead to hardware failure.

Still having issues?

If a cam lock seems to be spinning in place or is not “catching” or pulling the panels together as expected , first remove the cam lock & try again while making sure that everything is properly positoned & oriented.

If you are still having issues getting things worki ng as expected, first remove the cam lock then unscrew the cam bolt slightly (less than 1 complete turn) to see if that helps with the alignment of the cam lock & bolt .

13

Step 7 cont.

Next, attach the Right Side Panel (C) to the Top Rails (H) and Bottom Rack Rail (I) using the Cam Locks (3).

C 6

x3 6

B 6

14

Step 8 Using the Cam Bolts (A) again, secure the Top Panel to what you built from Step 7.

Spoiler alert: you’re over halfway finished!

B 6

3

3

3

3

C 6 3 3

3 A 6

3

15

Step 9 First, unfold the Back Panel (G) then carefully slide it into place with the taped seam facing back.

G 6 G 6 C 6

A 6

14

Step 10

14 14

Attach the Bottom Panel (D) as well as securing the Metal Connector (6) to Part H.

D 6

14

14 14

9 6

G 6

G 6

C 6

H 6

16

Step 11 Time to get the legs built! We take leg day very seriously around here. Using the provided Allen Key, tighten all pieces shown to 75%.

13 13

13 13

K 6 K 6

20

L 6

J6 13 13

13

L 6

17

Step 12 Time to get those gorgeous legs onto the unit! You can tighten these bolts to 100%. Once tightened, twist on the Adjustable Levelers (18) to the corner of the legs.

18 18

13 18 13

K 6

13

18

13 K 6 D 6

G 6

C 6

Now would be a great time to grab a sparkling water or snack as we head into the final steps!

18

Step 13 Carefully flip the unit over (grab a friend if you need help!) and twist on the Metal Supports (19) to where you want your shelf to rest.

19

Step 14 Is it just us or is it extremely satisfying to finally put that shelf in? It’s all coming together!

E 6

19

Step 15 Let’s get those doors and handles on and then you’re two steps away from being done! We’re sorry to keep you from your Netflix series for so long.

11

11

12 12 12 11

10

20

Is your cabinet door looking crooked or unevenly spaced?

Then you’ve come to the right place. Follow the illustrations below to get your cabinet door aligned and ready for action.

If your door is too low or too high…

Loosen the height screws, then move the door up or down to make it level.

If the space between your doors is off…

Loosen the side-to-side screws, then screw counter-clockwise to make the gap wider or clockwise to close any gaps.

If you need to adjust the depth of the doors…

Adjust the in-and-out screws until the door is aligned with the side of the cabinet.

21

Is your cabinet door looking crooked or unevenly spaced? (Cont.)

If you’re still having trouble lining everything up, your next step should be to try to adjust the feet slightly to square up the cabinet & doors. Follow the illustrations below: If the right door appears to be hanging low, you can adjust the adjustable leveler on the front right until the door is better aligned.

If the left door appears to be hanging low, you can adjust the adjustable leveler on the front left until the door is better aligned.

22

Step 16

Wobbly or unlevel?

Adjust feet until stable!

23

Step 17 Our favorite step! Because it’s the last step! Take your beautiful cabinet and secure it to the wall by looping the Plastic Strip (5) through the Metal Connector (6) and screwing it into the wall using the Wall Anchor (7).

A 6

G 6

8 6 7

A 6

5 You did it!

Now all that’s left is finding the perfect spot!

Wall

24

6

No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle.

Our way

Their way

Give us a call

Re-package item

Replacement

Schedule pick up

You

Track package Replacement You

We really don’t want you to go through the hassle of re-packaging your item and sending it back, because let’s be honest…nobody has time for that.

25

Safety first, fun later We want your Kova Cabinet to last as long as possible, so we recommend that you tighten the screws 2 weeks after assembly and for added safety check the tightness of all screws every 2 months.

For proper care and treatment of wood and metal please check our website at NathanJames.com/products

Safe use of this product starts with you.

Do not modify the structure of this product in any way.

Use this cabinet responsibly with the primary concern for your safety. Follow assembly instructions carefully and inspect product upon receipt and each use.

Our products have been tested to meet specific safety measures as they were originally intended to be sold. Any modifications will present the risk of creating significant safety issues which NJ will not be responsible for.

Nathan James and its parent companies cannot be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product.

Proper use

DO NOT

use for commercial purposes

DO NOT

climb on storage unit

DO NOT

exceed weight limit

DO NOT

leave spilled liquid on storage unit

DO NOT

use if storage unit is damaged or broken

DO NOT

make temporary repairs

DO NOT

use outdoors

26

We are only in business if you’re happy For starters, thanks for being you.

Toll-free at 1-866-619-1004 Help@nathanjames.com NathanJames.com/help

We do our best to ensure your furniture arrives without any problems, but occasionally mistakes happen—as humans we are imperfect beings. In the event that a part is damaged or missing, we will be more than happy to provide you with replacement part(s) for free.

Warranty This product comes with a lifetime warranty from the date of purchase. Please use your phone to scan the QR code to register your product or visit https://goo.gl/i9dk3q

Did we do alright? Please spread the love!

If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase.

Brooklyn Burdon Founder, Nathan James
