Kalos Drop Leaf Table
Let’s build the 22-0929 Scan me! Inspiration Digital Instructions Free Lifetime Warranty 45 45 M I NUTE ASSE MBLY SKU 41001
Ok, let’s
you need
2 This should be easy, just follow our instructions and you will be back to Netflix in no time.
get rolling What’s included What

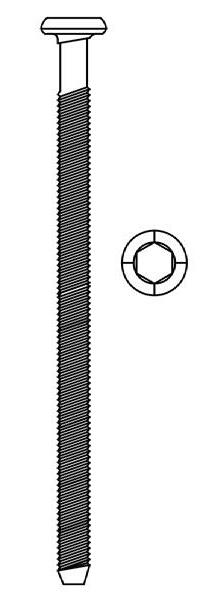

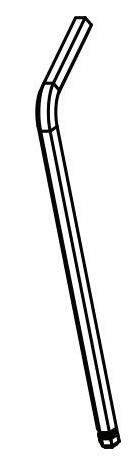

• Some of your favourite bubbly or your preferred relaxant • Use the packaging carton as a working surface to prevent product damage during assembly • Phillips head screwdriver Description Qty A Top Center Panel 1 B Top Left Lift Panel 1 C Top Right Lift Panel 1 D Support Crossbar 4 E Side Frame Leg 2 F Crossbar 1 1 Short Bolt (M6 x 25mm) 8 2 Long Bolt (M6 x 70mm) 4 3 Screw (M3.5 x 15mm) 18 4 Wood Dowel (8 x 25mm) 4 5 Allen Wrench 1 6 Wood Plug 4 7 Leveler Foot (M6 x 25mm) - Extra 2 45:00 Estimated time for assembly 110 lbs table top Weight Limitation Toll-free at 1-866-619-1004 Help@nathanjames.com Nathanjames.com/help Scan me! Inspiration Digital Instructions Free Lifetime Warranty 55 lbs per drop leaf

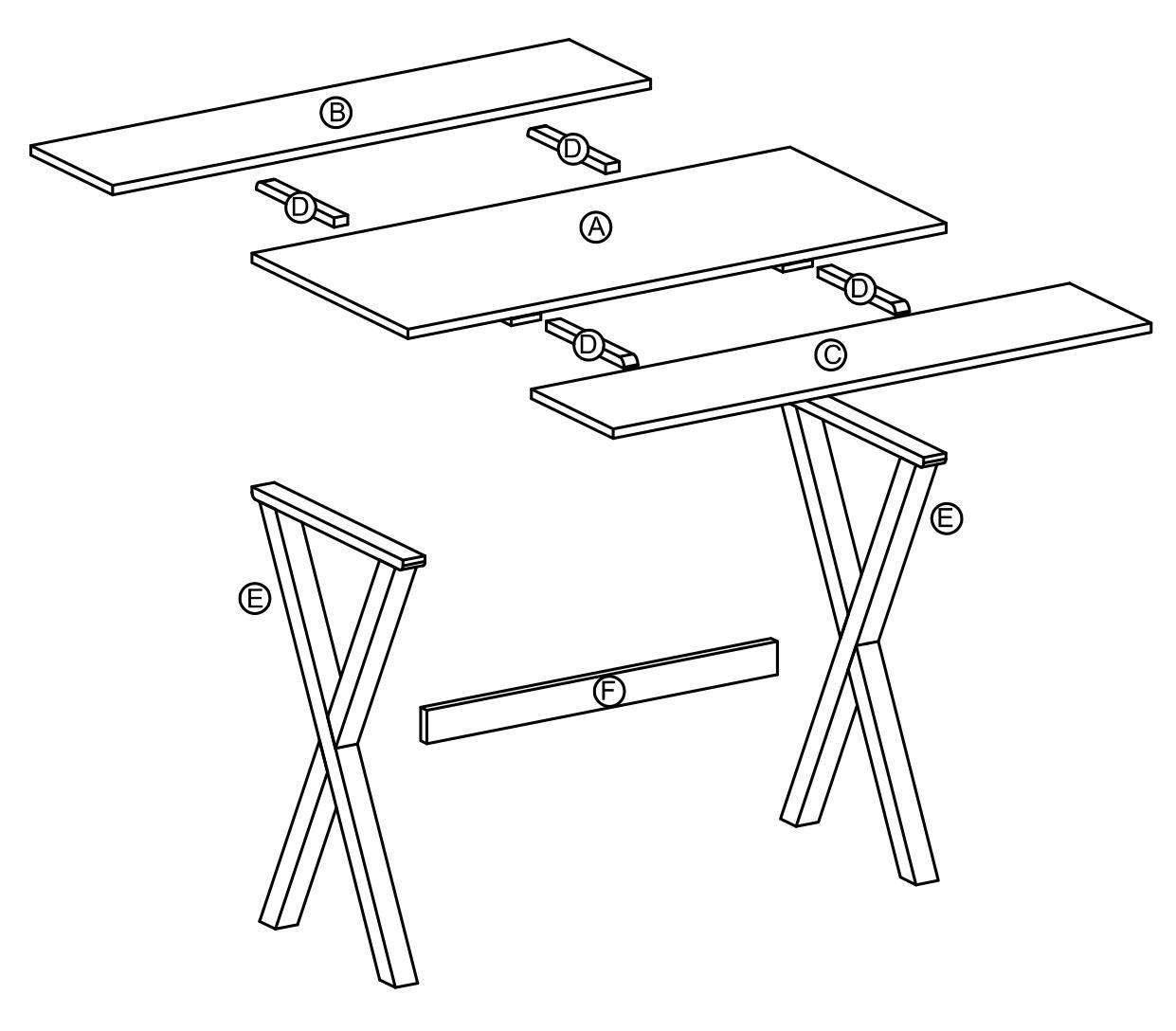

3 B A C E E F D D D D The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools. 1 2 3 4 5 6 7
Lay down packaging or carpet as a working surface and let’s fire this thing
D
D D C A B
A
D
4

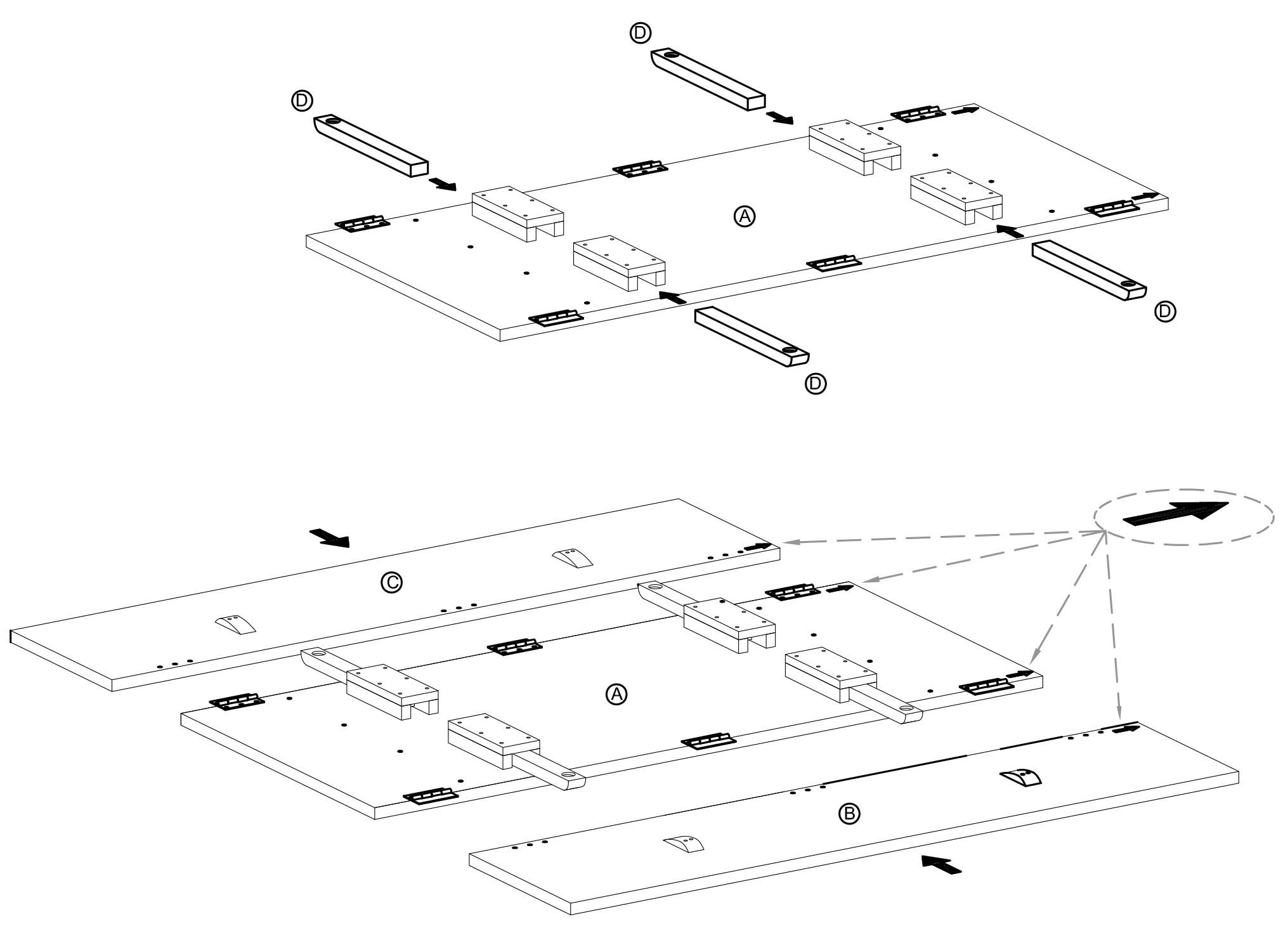

up! Step 1

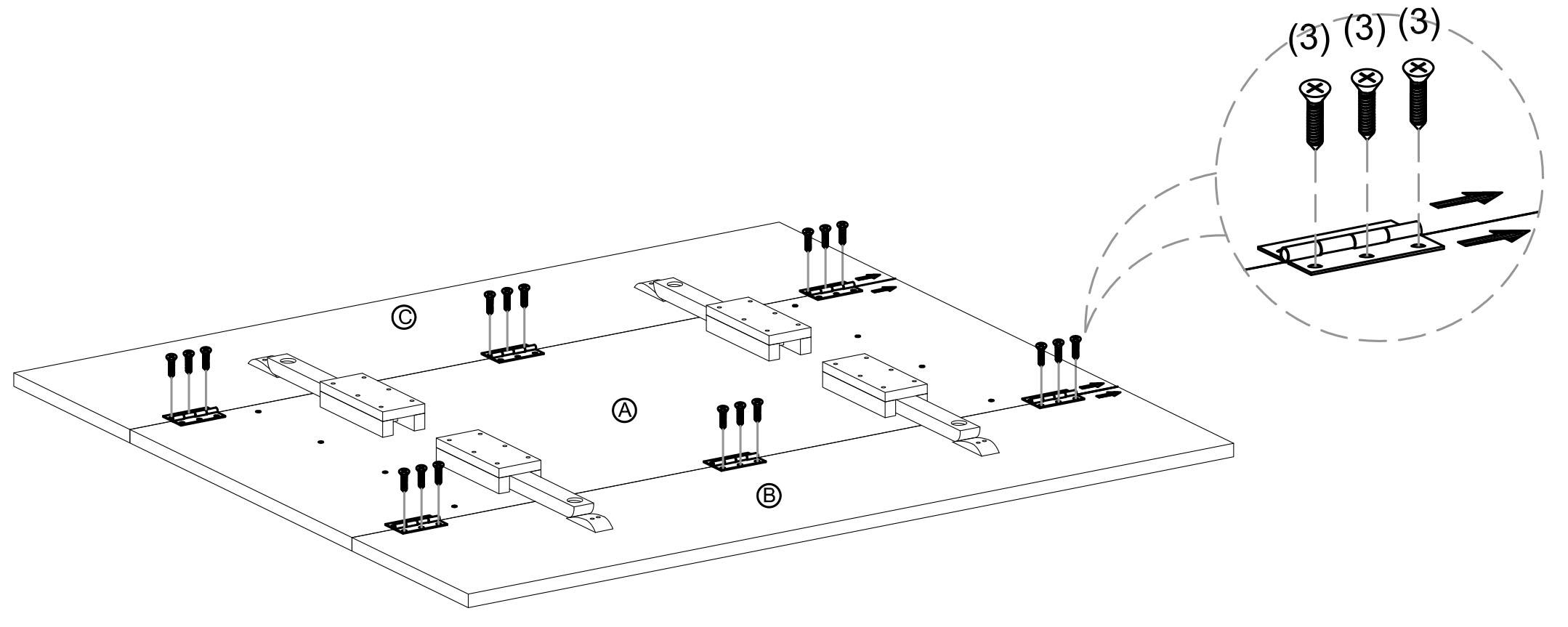

Step 2
TIP: You don’t need to follow the pre-drilled holes. Make sure leafs are flush and apply pressure when using a screw driver.
5

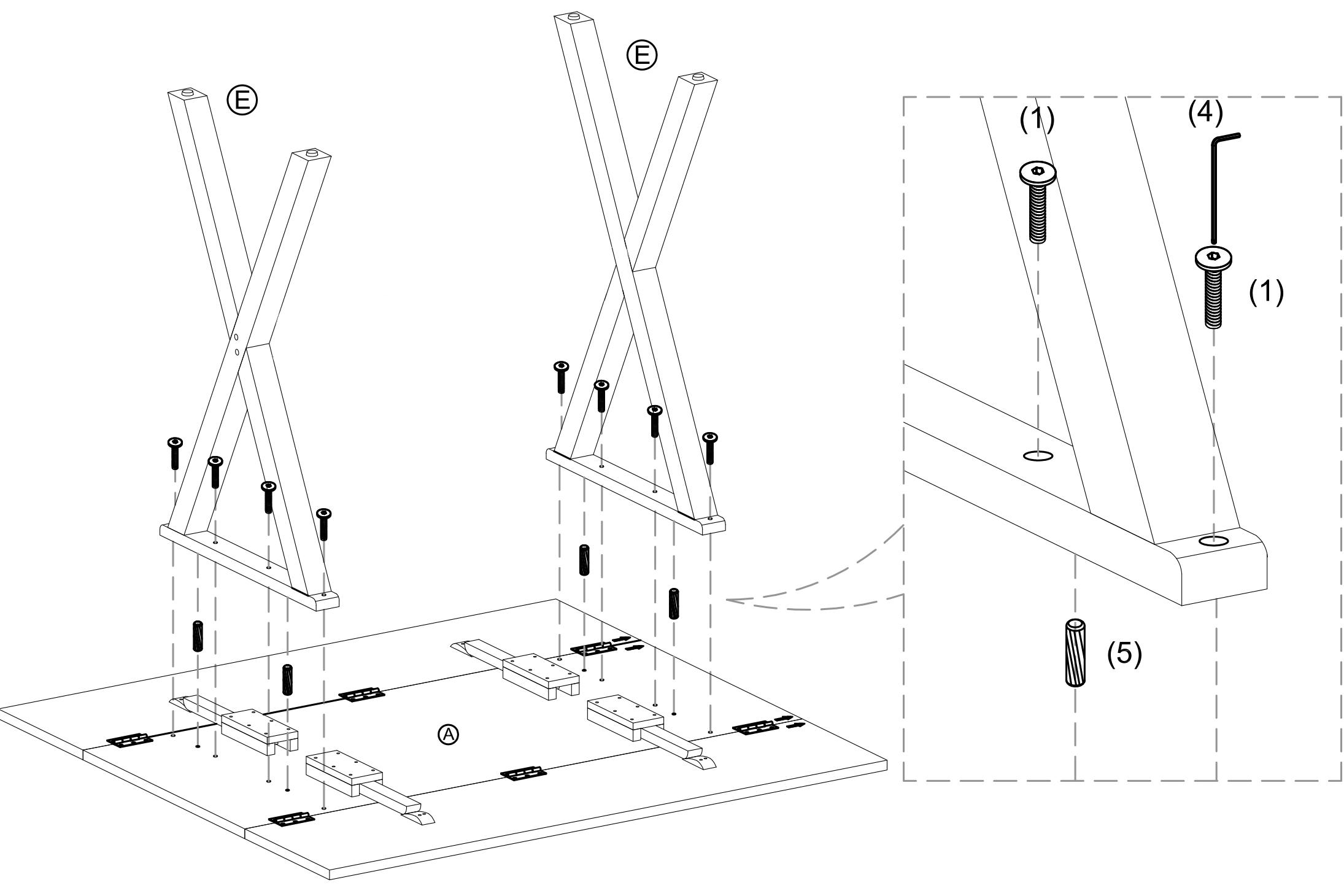

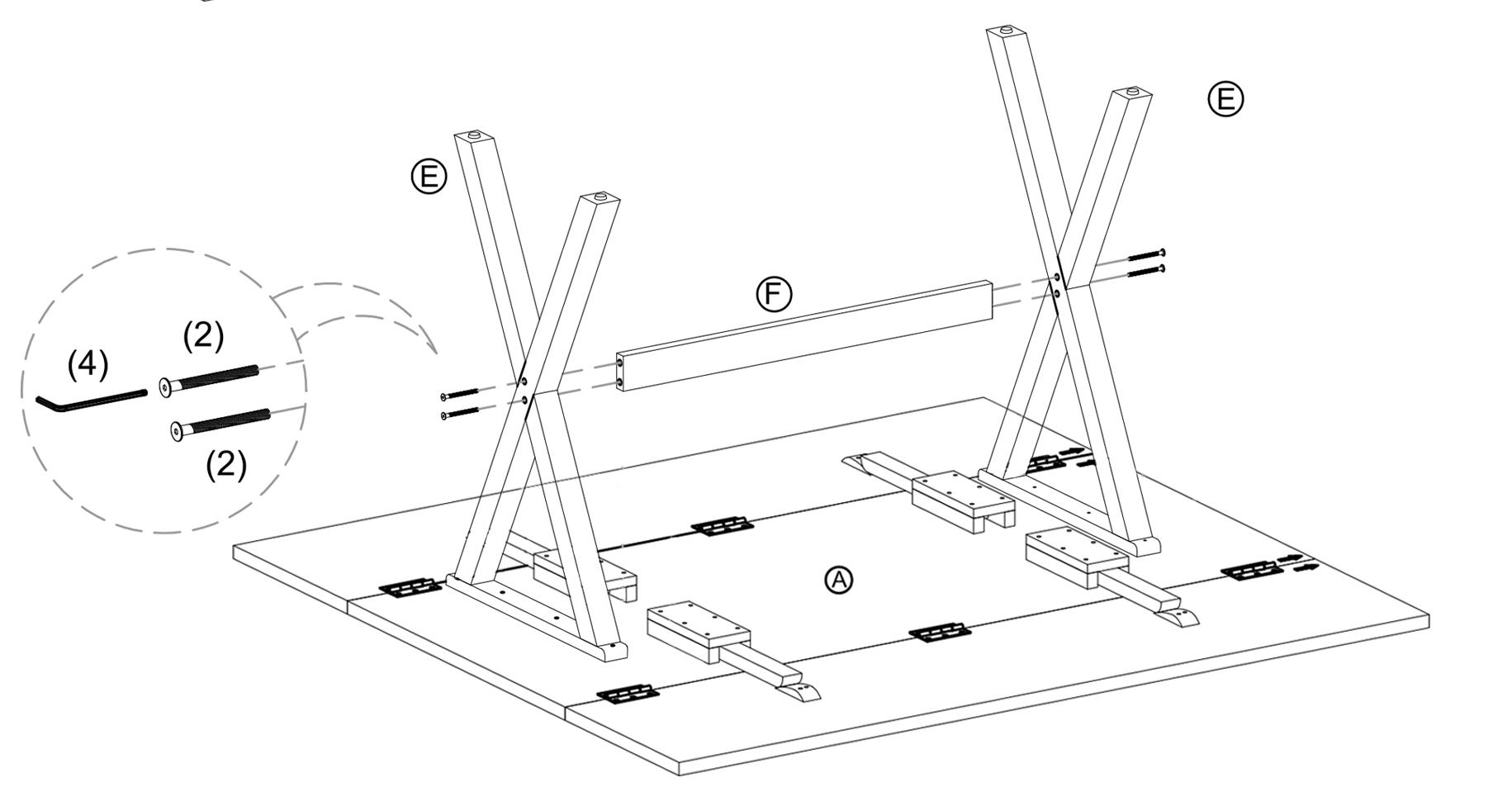

6 You’re almost done! Time to screw on the table legs. Step 3 4 15 1 E E
Screw in the Cross Bar
Frame
Gently press the button into the drill holes with
hand.
For aesthetics, when assembling the “X” legs, face the larger holes to the outside. Otherwise screws will be exposed.
7
(F) to the Side

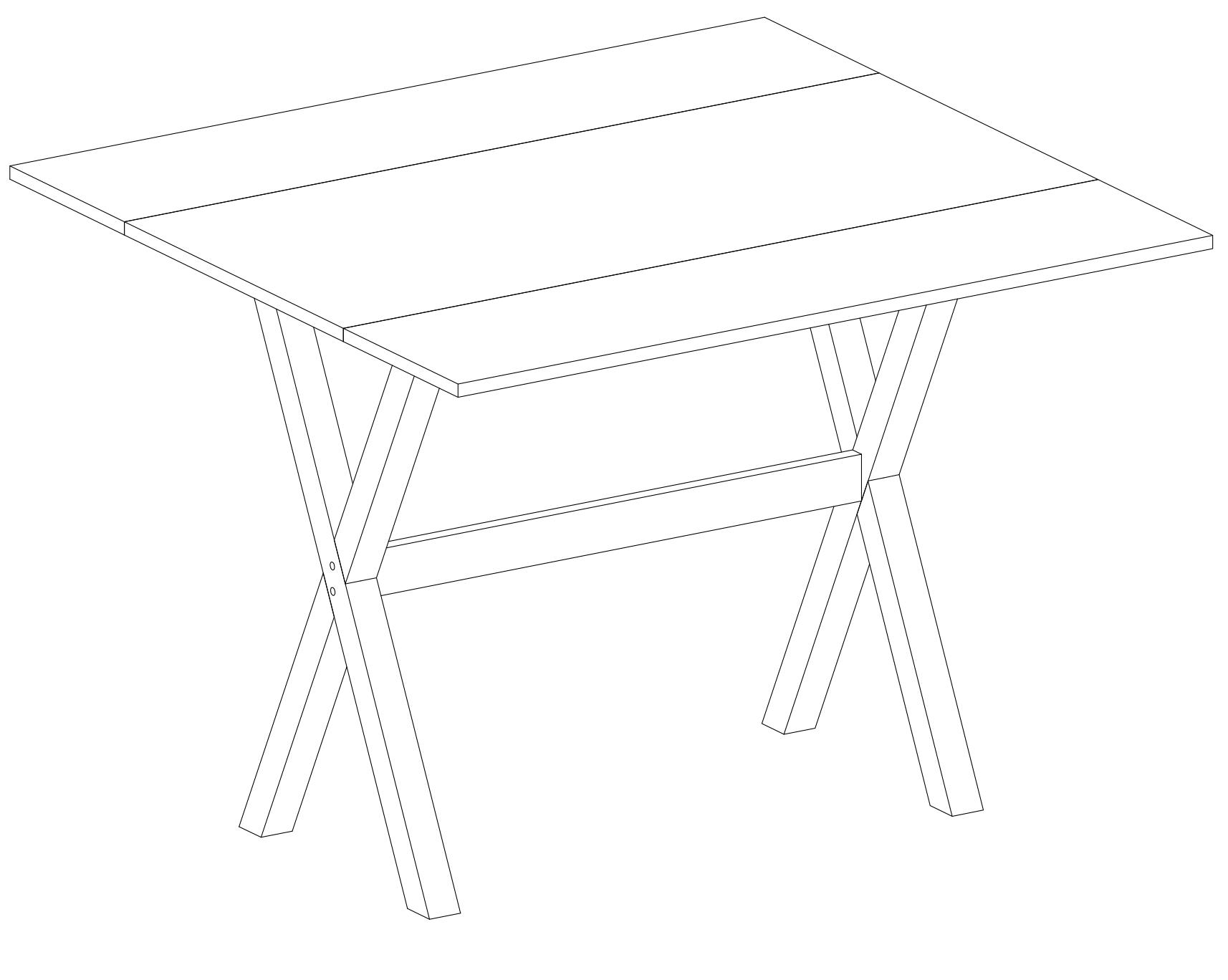

Legs (E) and you’re good to go! Step 4
E E 2 2 5 F A
your
Step 5 PRESS

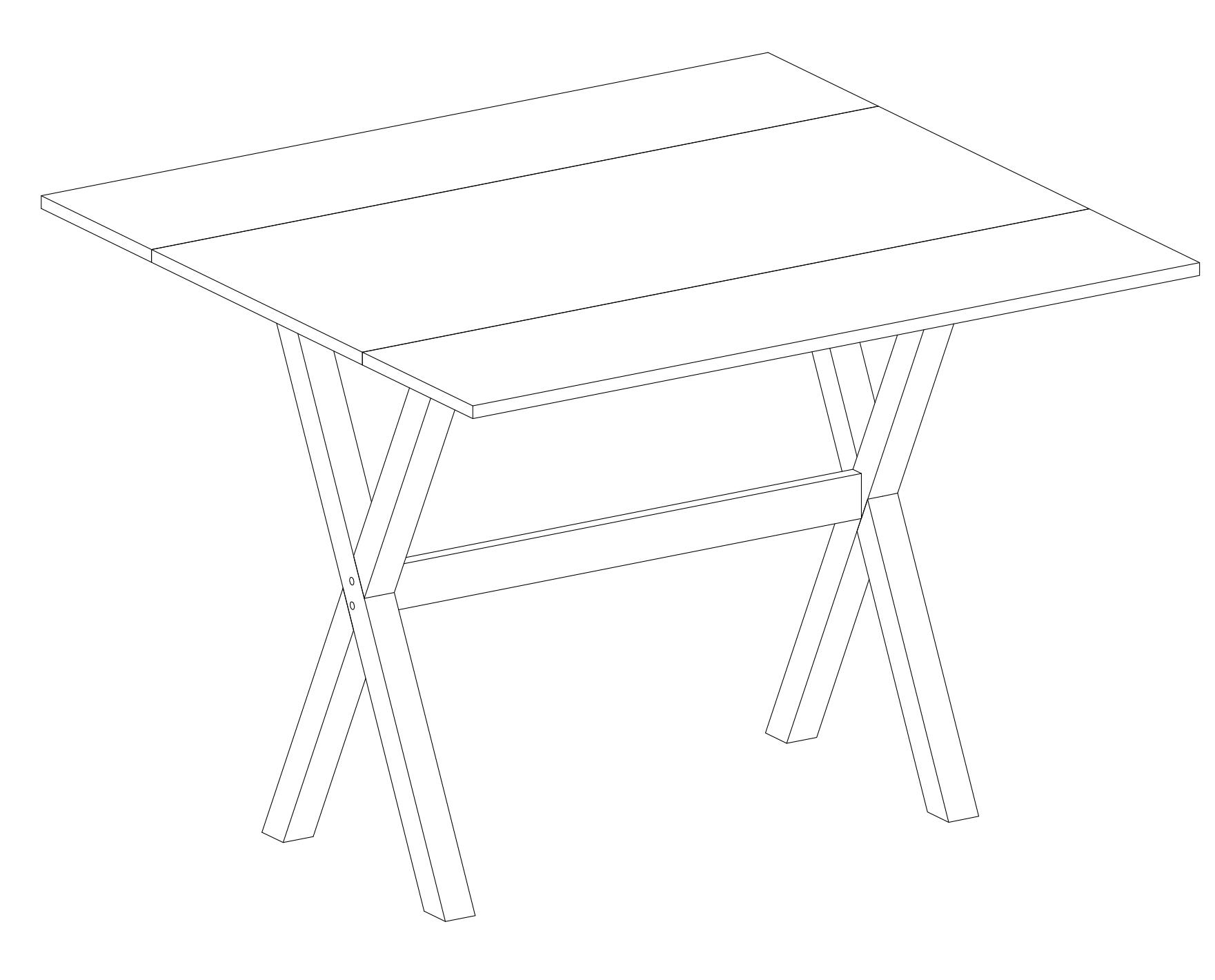

For the table to be extra sturdy, lift the drop leaf an extra bit and really pull the support bar tight against edge.
15

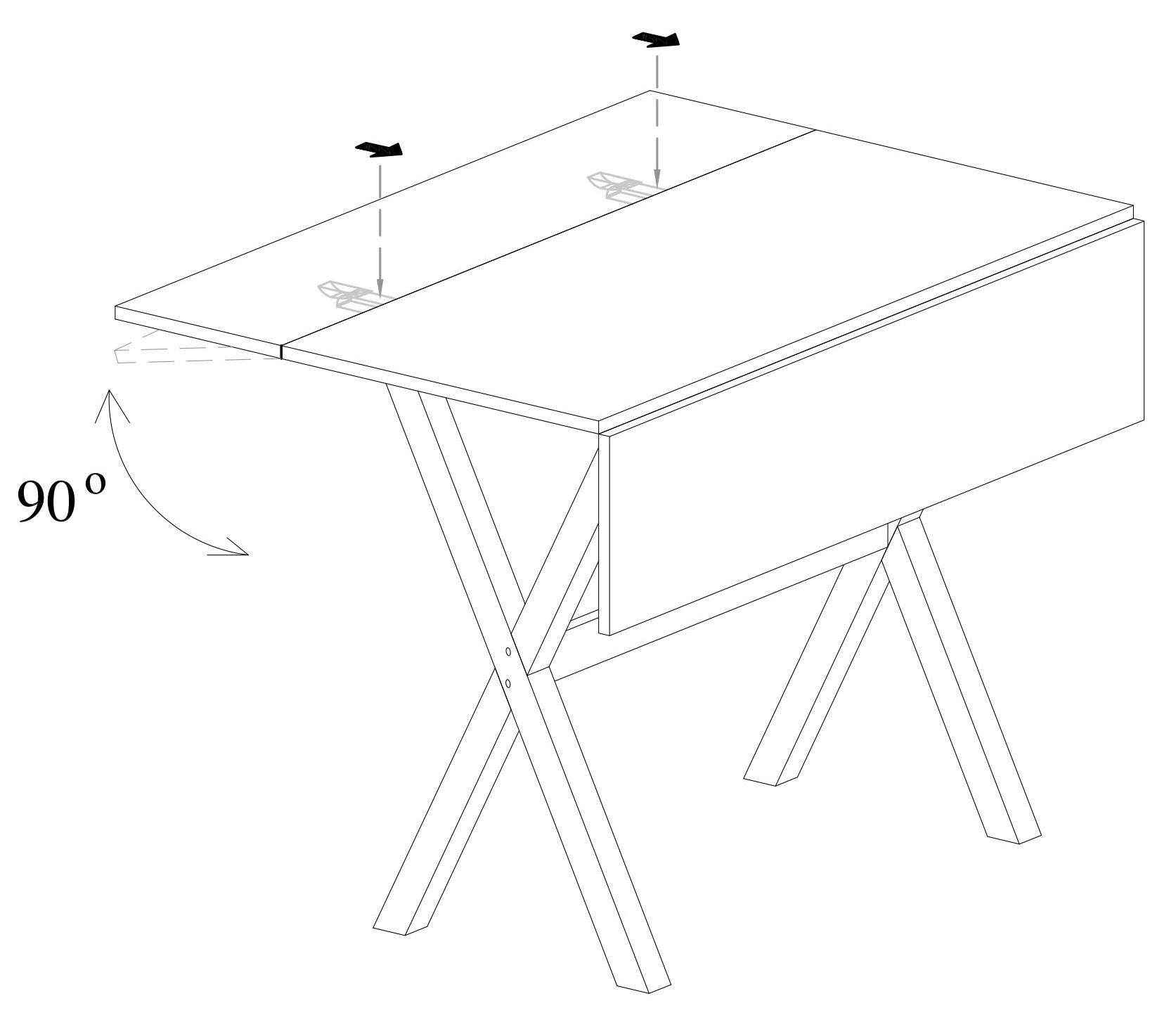

If you want to drop it like it’s hot, hold the side of the table and slide the crossbars inward towards the middle of the table.
90
8
No heartburn, when we handle the return
Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle.
Our way Their way
Give us a call
You
item
pick up
package
We really don’t want you to go through the hassle of re-packaging your item and sending it back, because let’s be honest…nobody has time for that.
9
Replacement Replacement You Re-package
Schedule
Track
Safety first, fun later
We want your Kalos Dining Table to last as long as possible, so we recommend that you tighten the screws 2 weeks after assembly and for added safety check the tightness of all screws every 2 months.
For proper care and treatment of wood and metal please check our website at NathanJames.com/products
Safe use of this product starts with you.
Use this dining table responsibly with the primary concern for your safety. Follow assembly instructions carefully and inspect product upon receipt and each use.
Nathan James and its parent companies cannot be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product.
Do not modify the structure of this product in any way.
Our products have been tested to meet specific safety measures as they were originally intended to be sold. Any modifications will present the risk of creating significant safety issues which NJ will not be responsible for.
Proper use
DO NOT use for commercial purposes DO NOT place on uneven floor or surface DO NOT use as a step-stool or stand on table DO NOT put hot serving liquid directly on table DO NOT leave spilled liquid on table
DO NOT use if table is damaged or broken
DO NOT make temporary repairs DO NOT use outdoors
