Madison Seater Sofa
See the following configuration options: seater Page 3
2 seater Page
3 seater Page
4 seat sectional Page
5 seat sectional Page
27233 Contents (per carton)
ALeg + Arm Sub-Assembly (Left)01
BLeg + Arm Sub-Assembly (Right)01
Madison Chair
This should be easy, just follow our instructions and you will be back to Net flix in no time.
Estimated time for assembly
What you need
• Some of your favourite bubbly or your preferred relaxant
• Use the packaging car ton as a working sur face to prevent product damage during assembly
• Phillips head screwdriver 300 lbs Weight Limitation Toll-free at 1- 866 - 619 -1004 Help@nathanjames com Nathanjames.com/help
Let ’s get your home ready for movie night! Star t by at taching the Metal Bracket (1) to the side of the Seat Frame (C) using t wo Ø1/4 x 30mm Bolts (2).
Step 1 Step 2
Join the Leg + Arm SubAssembly (Left) (A) to the Seat Frame (C) by the brackets.
Step 3
Align Par t (A) and (C). Then open the zipper on Par t (A). Place a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6) and twist to secure Part (A) and (C) together.
Close the zipper when complete
Step 4

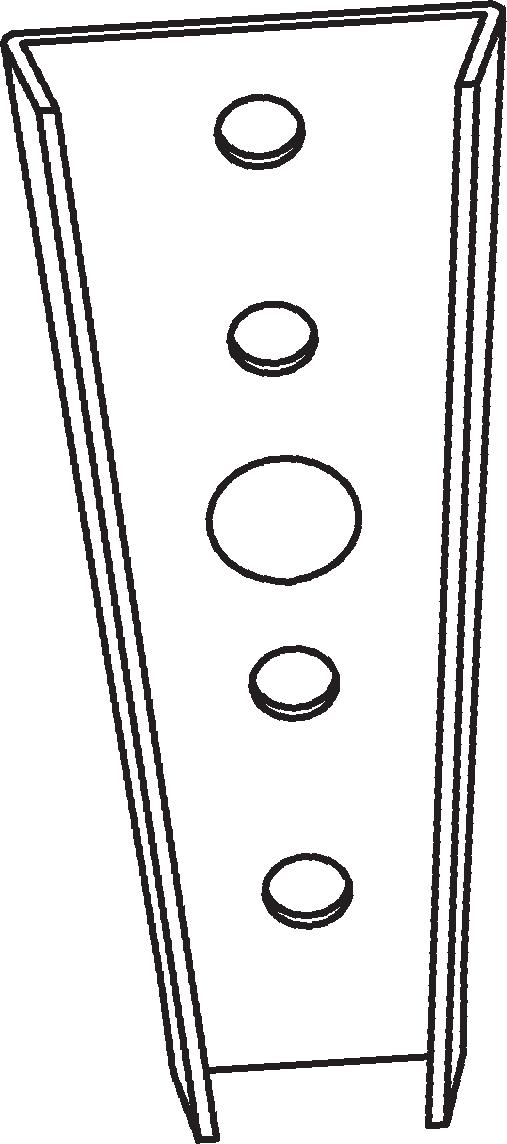

Remove the pre-installed metal bracket from the seat frame.
Step 5

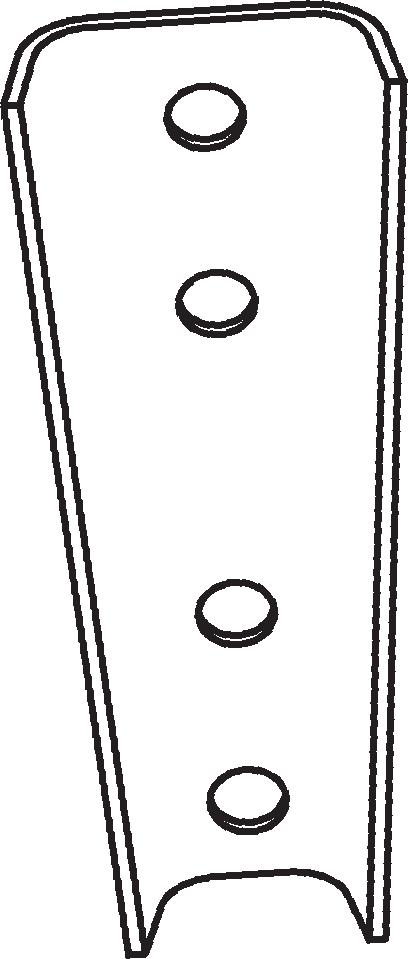

Tighten t wo Metal Brackets (1) on the side of the Frame using four Ø1/4” x 30mm Bolts (2), as shown below
x 2 x4
Use the wall to help stabilize the unit. Then, at tach the Leg + Arm Sub-Assembly (Right) (B) to the brackets
Step 7
Open the zipper on the Leg + Arm Sub-Assembly (Right) (B). Place a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6) and twist to secure.
Your fly ’s down! Don’t forget to close the zipper
Step 8
You made it to the last step! Place the Backrest Pillows (F ) and Seat Cushions (E) on to your sofa
Get your popcorn ready, movie nights just got a whole lot cozier!
Let ’s build the
Madison 2-Seater Sofa
This should be easy, just follow our instructions and you will be back to Net flix in no time.
Estimated time for assembly
What you need
• Some of your favourite bubbly or your preferred relaxant
• Use the packaging car ton as a working sur face to prevent product damage during assembly
• Phillips head screwdriver
Weight Limitation
Weight per seat. 300lbs
Toll-free at 1- 866 - 619 -1004 Help@nathanjames com Nathanjames.com/help
Let ’s get your home ready for movie night! Star t by at taching the Metal Bracket (1) to the side of the Seat Frame (C) using t wo Ø1/4 x 30mm Bolts (2).
Step 1 Step 2
Join the Leg + Arm SubAssembly (Left) (A) to the Seat Frame (C) by the brackets.
Step 3
Align Par t (A) and (C). Then open the zipper on Par t (A). Place a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6) and twist to secure Part (A) and (C) together.
Close the zipper when complete
Step 4
Join the other Seat Frame (C) to the bracket on the side of the Seat Frame from the previous steps
Step 5
Be sure that the t wo Frames are sit ting flush and then secure the t wo together by placing a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6) and twist to secure.
Grab a friend because you’re going to need an extra hand for this step! At tach the Seat Frame Suppor t Leg ( J) to the bot tom of the Frame using four M4 x 20 mm Screws (7).
Tip: The suppor t leg should be aligned with the white line.
Remove the pre-installed metal bracket from the seat frame.
Step 7 Step 8
Tighten t wo Metal Brackets (1) on the side of the Frame using four Ø1/4” x 30mm Bolts (2), as shown below
Step 9
Use the wall to help stabilize the unit. Then, at tach the Leg + Arm Sub-Assembly (Right) (B) to the brackets
WALL
Step 10
Open the zipper on the Leg + Arm Sub-Assembly (Right) (B). Place a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6) and twist to secure.
Your fly ’s down! Don’t forget to close the zipper
Step 11
You made it to the last step! Place the Backrest Pillows (F ) and Seat Cushions (E) on to your sofa
Get your popcorn ready, movie nights just got a whole lot cozier!
Let’s build the
Madison 3-Seater Sofa
This should be easy, just follow our instructions and you will be back to Netflix in no time.
Estimated time for assembly
What you need
•Some of your favourite bubbly or your preferred relaxant
•Use the packaging carton as a working surface to prevent product damage during assembly
Weight Limitation
•Phillips head screwdriver Weight per seat.
Toll-free at 1-866-619-1004 Help@nathanjames.com Nathanjames.com/help
The goods
2Ø1/4” ×30mm Bolt
3Allen Key
4Ø5/16” × 60mm Thumb Screw04
5Ø5/16” × 19mm Flat Washer 08
6Ø5/16” Wing Nuts
7M4 × 20mm Screws
8Plastic Nail-In Footpad (Extra)
Step 1
Let’s get your home ready for movie night! Start by attaching the Metal Bracket (1)to the side of the Seat Frame (C) using two Ø1/4 x 30mm Bolts (2).
Step 2
Join the Leg + Arm SubAssembly (Left) (A) to the Seat Frame (C) by the brackets.
Step 3
Align Part (A) and (C). Then open the zipper on Part (A). Place a flat washer on one Ø5/16” x 60mm ))4( wercS bmuhT and another Flat Washer on a Ø5/16” Wing Nut (6)and twist to secure Part (A) and C) together.
Close the zipper when complete.
Step 4
Join the other Seat Frame (C)to the bracket on the side of the Seat Frame from the previous steps.
Step 5
Ensure that the two Frames are aligned and sitting flush. Then secure the two together by placing a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6)and twist to secure.
Grab a friend because you’re going to need an extra hand for this step! Attach the Seat Frame Support Leg (J) to the bottom of the Frame using four M4 x 20 mm Screws (7).
Tip: The support leg should be aligned with the white line.
Step 7
Join the third Seat Frame (C)to the bracket on the side of the Seat Frame from the previous steps.
Step 8
Ensure that the two seat frames are aligned and sitting flush. Then secure the two together by placing a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6) and twist to secure.
Bring that friend back and attach the other Seat Frame
Support Leg (J) to the bottom of the seat frame using four M4 x 20 mm Screws (7).
Tip: The support leg should be aligned with the white line.
Step 10
Remove the pre-installed metal bracket from the seat frame.
R emove
Tighten two Metal Brackets (1) on the side of the seat frame using four Ø1/4” x 30mm Bolts (2), as shown below.
Step 12
Use the wall to help stabilize the unit. Then, attach the Leg + Arm Sub-Assembly (Right) (B) to the brackets.
WALL
Step 13
Open the zipper on the Leg +Arm Sub-Assembly (Right) (B). Place a flat washer on one Ø5/16” x 60mm Thumb Screw (4)and another Flat Washer ona Ø5/16” Wing Nut (6) and twistto secure.
Your fly’s down! Don’t forget to close the zipper.
Step 14
You made it to the last step! Place the Backrest Pillows (F)and Seat Cushions (E) on to your sofa.
Get your popcorn ready, movie nights just got a whole lot cozier!
Let’s build the
Madison 4-Seat Sectional
This should be easy, just follow our instructions and you will be back to Netflix in no time.
What you need
•Some of your favourite bubbly or your preferred relaxant
•Use the packaging carton as a working surface to prevent product damage during assembly
•Phillips head screwdriver
Weight Limitation
Toll-free at 1-866-619-1004
Help@nathanjames.com Nathanjames.com/help
The goods
Key
4Ø5/16’’ x 60mm Thumb Screw04
5Ø5/16’’ x 19mm Flat Washer
6Ø5/16’’ Wing Nuts
7M4 x 20 mm Screws
8Plastic Nail-In Footpad (Extra)11
Step 1
Let’s get your home ready for movie night! Start by attaching the Metal Bracket (1)to the side of the Seat Frame (C) using two Ø1/4 x 30mm Bolts (2).
Step 2
Join the Leg + Arm SubAssembly (Left) (A) to the Seat Frame (C) by the brackets.
Step 3
Align Part (A) and (C). Then open the zipper on Part (A). Place a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6)and twist to secure Part (A)and (C) together.
Close the zipper when complete.
Step 4
Join the other Seat Frame (C)to the bracket on the side of the Seat Frame from the previous steps.
Step 5
Ensure that the two Frames are aligned and sitting flush. Then secure the two together by placing a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6)and twist to secure, as shown below.
Grab a friend because you’re going to need an extra hand for this step! Attach the Seat Frame Support Leg (J) to the bottom of the Frame using four M4 x 20 mm Screws (7).
Tip: The support leg should be aligned with the white line.
Step 7
Keep your friend close!
Attach the other Seat Frame
Support Leg (J) to the bottom of the seat frame using M4 x 20 mm Screws (7).
Step 8
Remove the pre-installed metal bracket from the seat frame.
Tip: The support leg should be aligned with the white line.
Step 9
Tighten two Metal Brackets (1) on the side of the seat frame using four Ø1/4” x 30mm Bolts (2), as shown below.
Step 10
Join the Leg + Arm SubAssembly (Right) (B) to the Seat Frame (C) by the brackets.
Align Part (B) and (C). Then open the zipper on Part (B). Place a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6) and twist to secure Part and (C)together.
Close the zipper when complete.
Step 12
Join the Corner Seat Frame (D)to Part (B) and (C) by the brackets.
Ensure that the two seat frames are aligned and sitting flush. Then secure the two together by placing a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6) and twist to secure, as shown below.
Step 14
Attach the Seat Frame Support Leg J) to the bottom of the seat frame using four M4 x 20 mm Screws (7).
Place a 50mm Plastic Washer (9)on to a Corner Support Leg (K) and twist to secure, as shown below.
Tip: The support leg should be aligned with the white line.
Step 15
Bring the two assembled sofa units together and secure by the brackets, as shown below.
Step 16
You made it to the last step! Place the Backrest Pillows (F), Corner Pillow 1 (H), Corner PIllow 2 (I), Corner Seat Cushion (G), and Seat Cushions (E) on to your sofa.
Get your popcorn ready, movie nights just got a whole lot cozier!
Let’s build the
Madison 5-Seat Sectional
Configuration 1
Configuration 2
This should be easy, just follow our instructions and you will be back to Netflix in no time.
Estimated time for assembly
What you need
•Some of your favourite bubbly or your preferred relaxant
•Use the packaging carton as a working surface to prevent product damage during assembly
•Phillips head screwdriver
The goods
4Ø5/16” × 60mm Thumb Screw05
5Ø5/16” × 19mm Flat Washer
8Plastic Nail-In Footpad (Extra)13
Step 1
Let’s get your home ready for movie night! Start by attaching the Metal Bracket (1)to the side of the Seat Frame (C) using two Ø1/4 x 30mm Bolts (2).
Step 2
Join the Leg + Arm SubAssembly (Left) (A) to the Seat Frame (C) by the brackets.
Close the zipper when complete. Step 3
Align Part (A) and (C). Then open the zipper on Part (A). Place a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6)and twist to secure Part (A)and (C) together.
Step 4
Join the other Seat Frame (C)to the bracket on the side of the Seat Frame from the previous steps.
Step 5
Ensure that the two Frames are aligned and sitting flush. Then secure the two together by placing a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6)and twist to secure, as shown below.
Grab a friend because you’re going to need an extra hand for this step! Attach the Seat Frame Support Leg (J) to the bottom of the Frame using four M4 x 20 mm Screws (7).
Tip: The support leg should be aligned with the white line.
Step 7
Skip to Page 70 if you are doing Configuration 2!
No, this isn’t Deja Vu! Attach another Support Leg (J) to the bottom of the seat frame, this time using two M4 x 20 mm Screws (7).
Tip: The support leg should be aligned with the white line.
White line
Step 8
Tighten two Metal Brackets (1) on the side of the seat frame using four Ø1/4” x 30mm Bolts (2), as shown below.
Step 9
Join the Leg + Arm SubAssembly (Right) (B) to the Seat Frame (C) by the brackets.
Align Part (C) and (B). Then open the zipper on Part (B). Place a flat washer on one Ø5/16” x 60mm Thumb Screw (4))and another Flat Washer on a Ø5/16” Wing Nut (6) and twist to secure Part ))C( and together.
Close the zipper when complete.
Step 11
Join a Seat Frame (C) to the bracket on the side of the Seat Frame from the previous step.
You’re killin’ it!
Step 12
Ensure that the two Frames are aligned and sitting flush. Then secure the two together by placing a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6)and twist to secure, as shown below.
You know the drill by now! Bring your friend back for an extra hand for this step!
Attach the Seat Frame Support Leg (J) to the bottom of the Frame using four M4 x 20 mm Screws (7).
Tip: The support leg should be aligned with the white line.
Step 14
Join the Corner Seat Frame (D) to the previously assembled seat frames by the brackets, as shown below.
Ensure that the two Frames are aligned and sitting flush. Then secure the two together by placing a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6)and twist to secure, as shown below.
Attach the Seat Frame Support Leg (J) to the bottom of the seat frame using four M4 x 20 mm Screws (7).
Place a 50mm Plastic Washer (9)on to a Corner Support Leg (K) and twist to secure, as shown below.
Tip: The support leg should be aligned with the white line.
Step 17
Bring the two assembled sofa units together and secure by the brackets, as shown below.
Step 18
You made it to the last step! Place the Backrest Pillows (F), Corner Pillow 1 (H), Corner PIllow 2 (I), Corner Seat Cushion (G), and Seat Cushions (E) on to your sofa.
Step 7
Continue here for sofa Config.2!
Join another Seat Frame (C)to the sofa unit by the brackets, as shown below.
Step 8
Ensure that the two Frames are aligned and sitting flush. Then secure the two together by placing a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer a Ø5/16” Wing Nut (6)and twist to secure, as shown below.
You know the drill by now! Bring your friend back for an extra hand for this step!
Attach the Seat Frame Support Leg (J) to the bottom of the Frame using four M4 x 20 mm Screws (7).
Tip: The support leg should be aligned with the white line.
No, this isn’t Deja Vu! Attach another Support Leg (J) to the bottom of the seat frame, this time using two M4 x 20 mm Screws (7).
Step 11
Remove the pre-installed metal bracket from the seat frame.
Tip: The support leg should be aligned with the white line.
R emove
Step 12
Tighten two Metal Brackets (1) on the side of the seat frame using four Ø1/4” x 30mm Bolts (2), as shown below.
Step 13
Join the Leg + Arm SubAssembly (Right) (B) to the Seat Frame (C) by the brackets.
Step 14
Align Part (C) and (B). Then open the zipper on Part (B). Place a flat washer on one Ø5/16” x 60mm Thumb Screw (4)) and another Flat Washer on a Ø5/16” Wing Nut (6)and twist to secure Part dna ))C( together.
Close the zipper when complete.
Step 15
Join the Corner Seat Frame (D) to Part (B) and (C) by the brackets.
Step 16
Ensure that the two seat frames are aligned and sitting flush. Then secure the two together by placing a flat washer on one Ø5/16” x 60mm Thumb Screw (4) and another Flat Washer on a Ø5/16” Wing Nut (6) and twist to secure, as shown below.
Step 17
Attach the Seat Frame Support Leg (J) to the bottom of the seat frame using four M4 x 20 mm Screws (7).
Place a 50mm Plastic Washer (9)on to a Corner Support Leg (K) and twist to secure, as shown below.
Tip: The support leg should be aligned with the white line.
Step 18
Bring the two assembled sofa units together and secure by the brackets, as shown below.
Step 19
You made it to the last step! Place the Backrest Pillows (F), Corner Pillow 1 (H), Corner PIllow 2 (I), Corner Seat Cushion (G), and Seat Cushions (E) on to your sofa.
Get your popcorn ready, movie nights just got a whole lot cozier!
No heartburn, when we handle the return
Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle.
Our way Their way
Give us a call
Replacement
You
Re-package item
Schedule pick up
Track package
Replacement
You
We really don’t want you to go through the hassle of re-packaging your item and sending it back, because let’s be honest…nobody has time for that.
Safety first, fun later
We want your product to last as long as possible, so we recommend that you tighten the screws 2 weeks after assembly and for added safety check the tightness of all screws every 2 months.
For proper care and treatment, please check our website at NathanJames.com/products
Safe use of this product starts with you.
Use this product responsibly with the primary concern for your safety. Follow assembly instructions carefully and inspect product upon receipt and each use.
Nathan James and its parent companies cannot be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product.
Do
not modify the structure of this product in any way.
Our products have been tested to meet specific safety measures as they were originally intended to be sold. Any modifications will present the risk of creating significant safety issues which NJ will not be responsible for.
DO NOT use for commercial purposes
DO NOT frolic on sofa
Proper use
DO NOT leave spilled liquid on seat
DO NOT use sofa if damaged
DO NOT make temporary repairs
DO NOT use outdoors
We are only in business if you’re happy For
starters, thanks for being you.
Toll-free at 1-866-619-1004 Help@nathanjames.com NathanJames.com/help
We do our best to ensure your furniture arrives without any problems, but occasionally mistakes happen—as humans we are imperfect beings. In the event that a part is damaged or missing, we will be more than happy to provide you with replacement part(s) for free.
Warranty
This product comes with a lifetime warranty from the date of purchase. Please use your phone to scan the QR code to register your product or visit https://goo.gl/i9dk3q
Brooklyn Burdon Founder, Nathan James
Did we do alright? Please spread the love!
If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase.
