THE BOULEVARD
the missing link to the dancing scene.
an institute of contemporary dance situated along The Harbourside in Bristol, United Kingdom. providing support for potential elite dancers.
final year project.

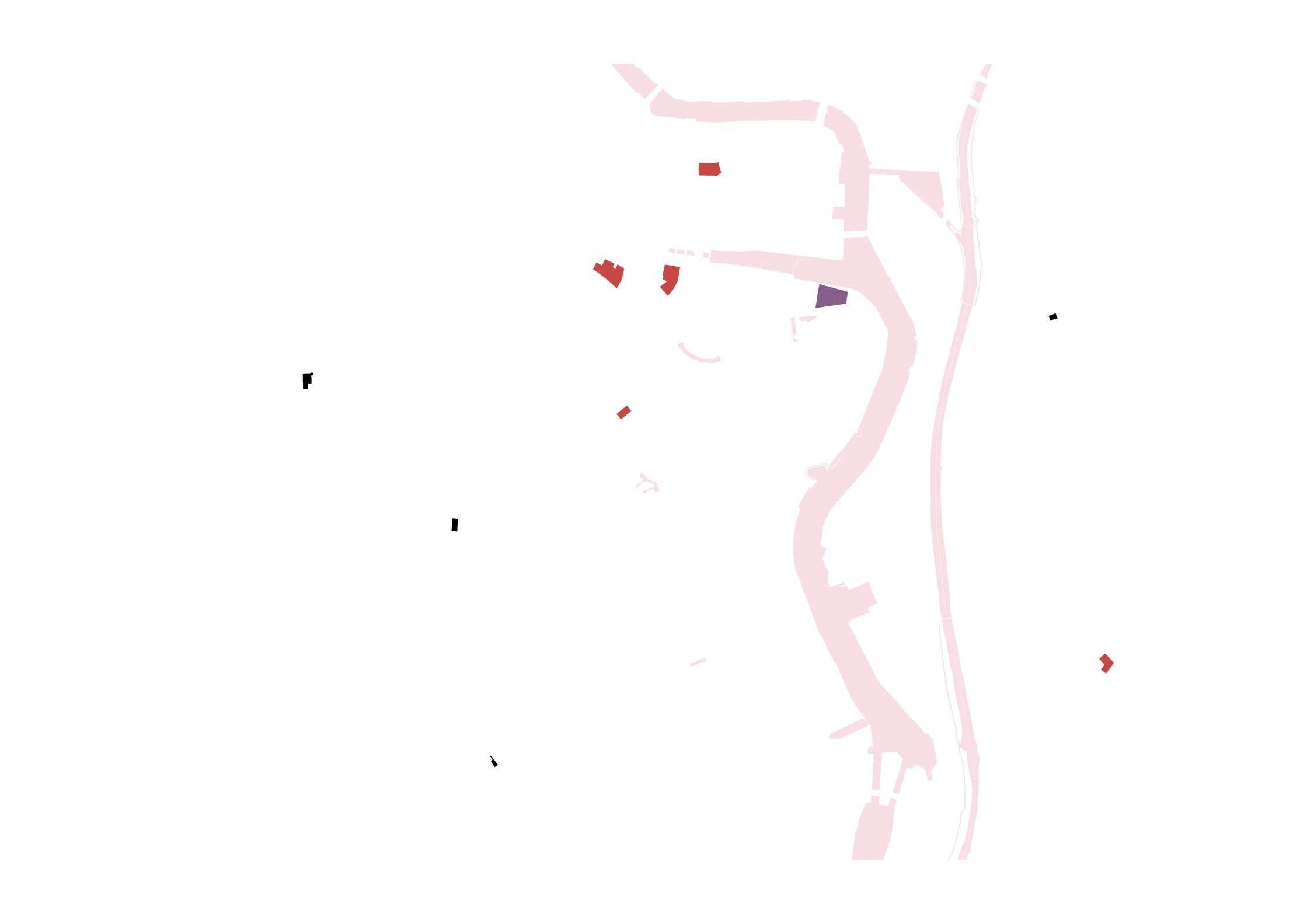

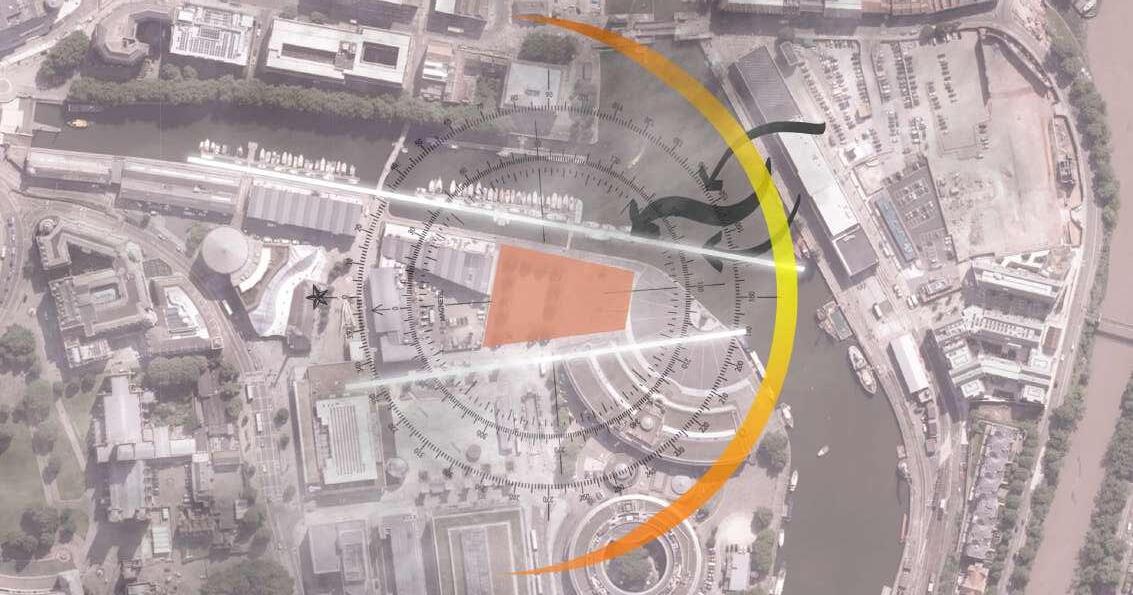

site location
Bristol School of Dancing performance venues
FORMING THE SHAPE OF THE BUILDING
sketching out glimpses of what is happening inside the building through the eyes of two prominent users (student and visitor) and later putting them up in a 3D format. making a storyboard out of said sketches helped with the understanding of how the building stands up and where some spaces would be located, especially for the performance hall which was intended to be the bridge that connects the institute and the public sector of the building.
OF USERS

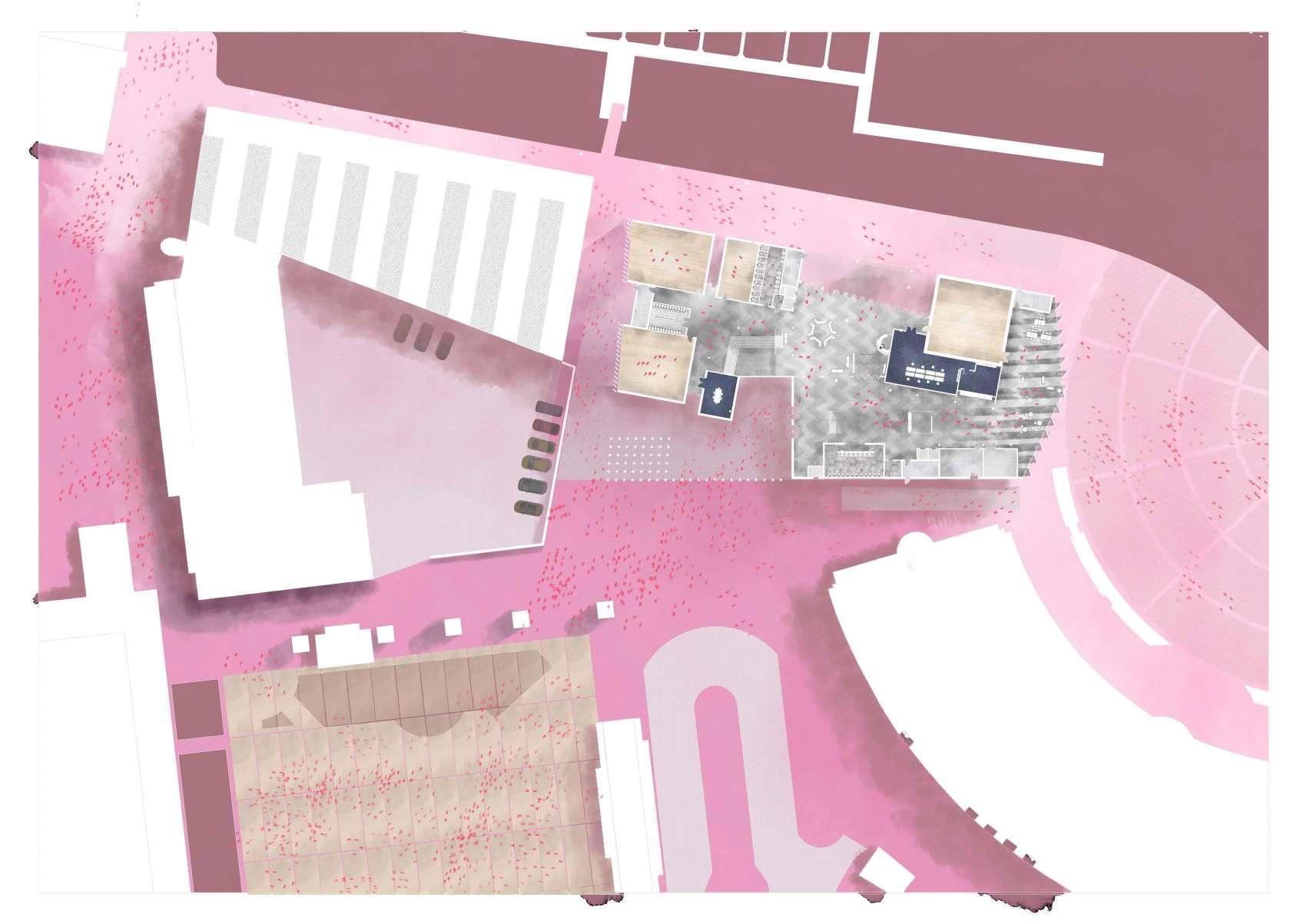

PROCESS : STORYBOARD IN RELATION TO FORM URBAN & SITE ANALYSIS N
START
sunken amphitheatre
glimpses of movement

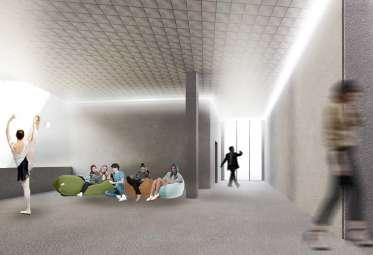

locker room studio walking through hallways getting ready performing COLLISION
watching the performance bar, waiting for hall entrance balcony overlooking cafe staircase
workshop 5 : storyboard

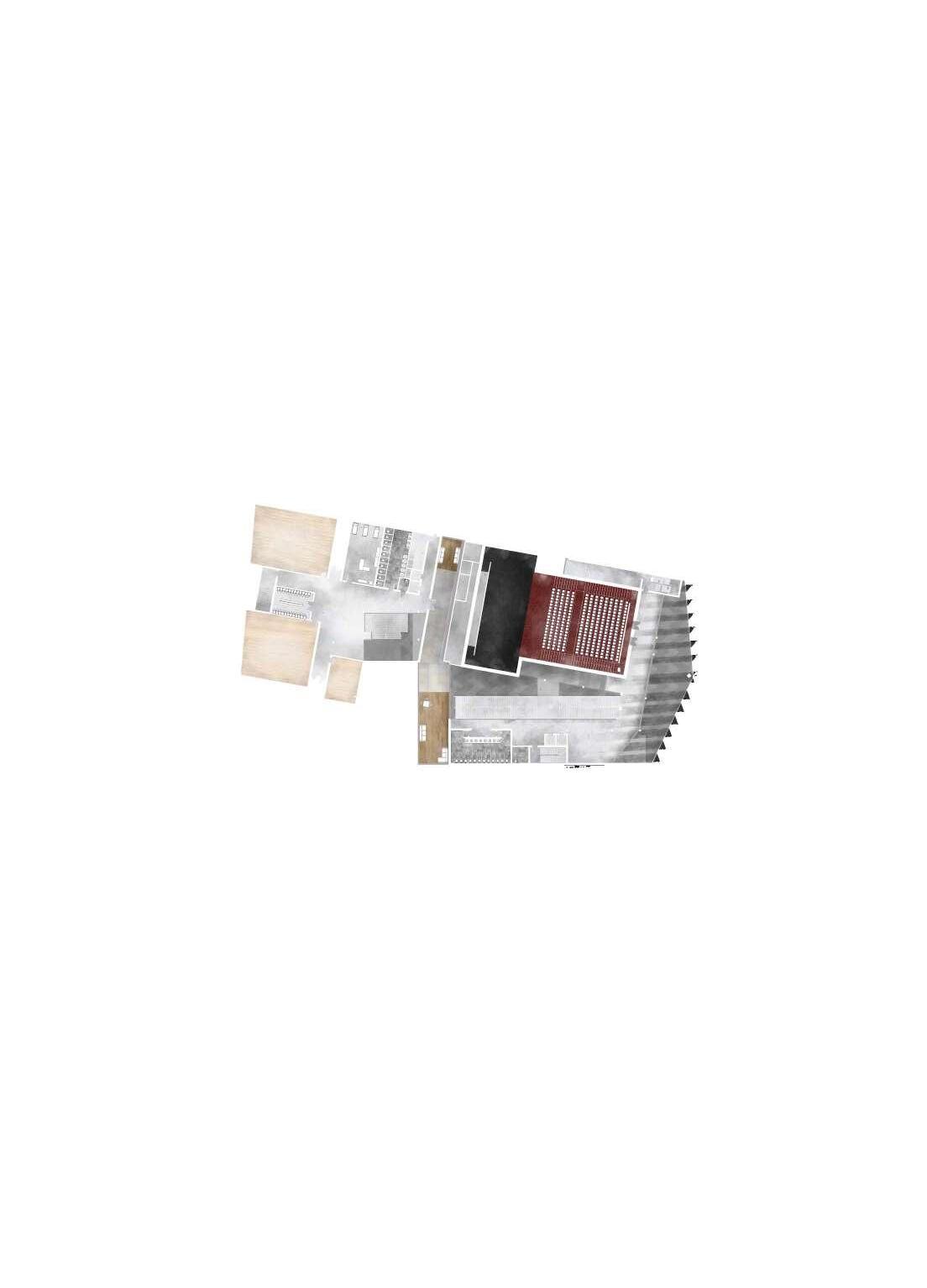

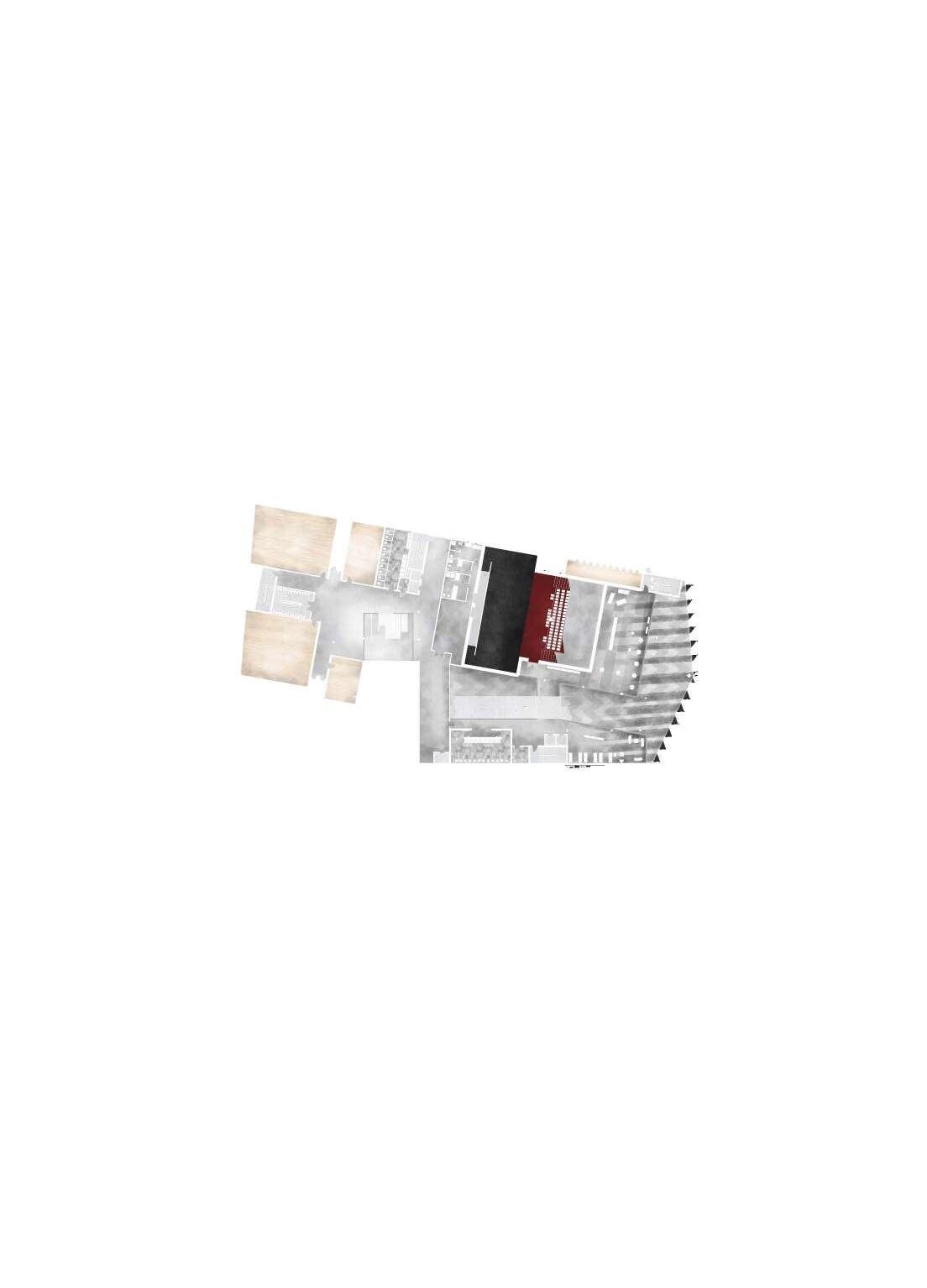

studio studio theatre locker room amphitheatre meeting room specialised equipment shop office cloak room box office cafe kitchen plant room unisex WC accessible WC backstage performance hall bar seating area pilates studio infirmary roof deck services for p.hall ventilation loading bay 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 0 5 10 15 20 N FLOOR PLANS 01 03 01

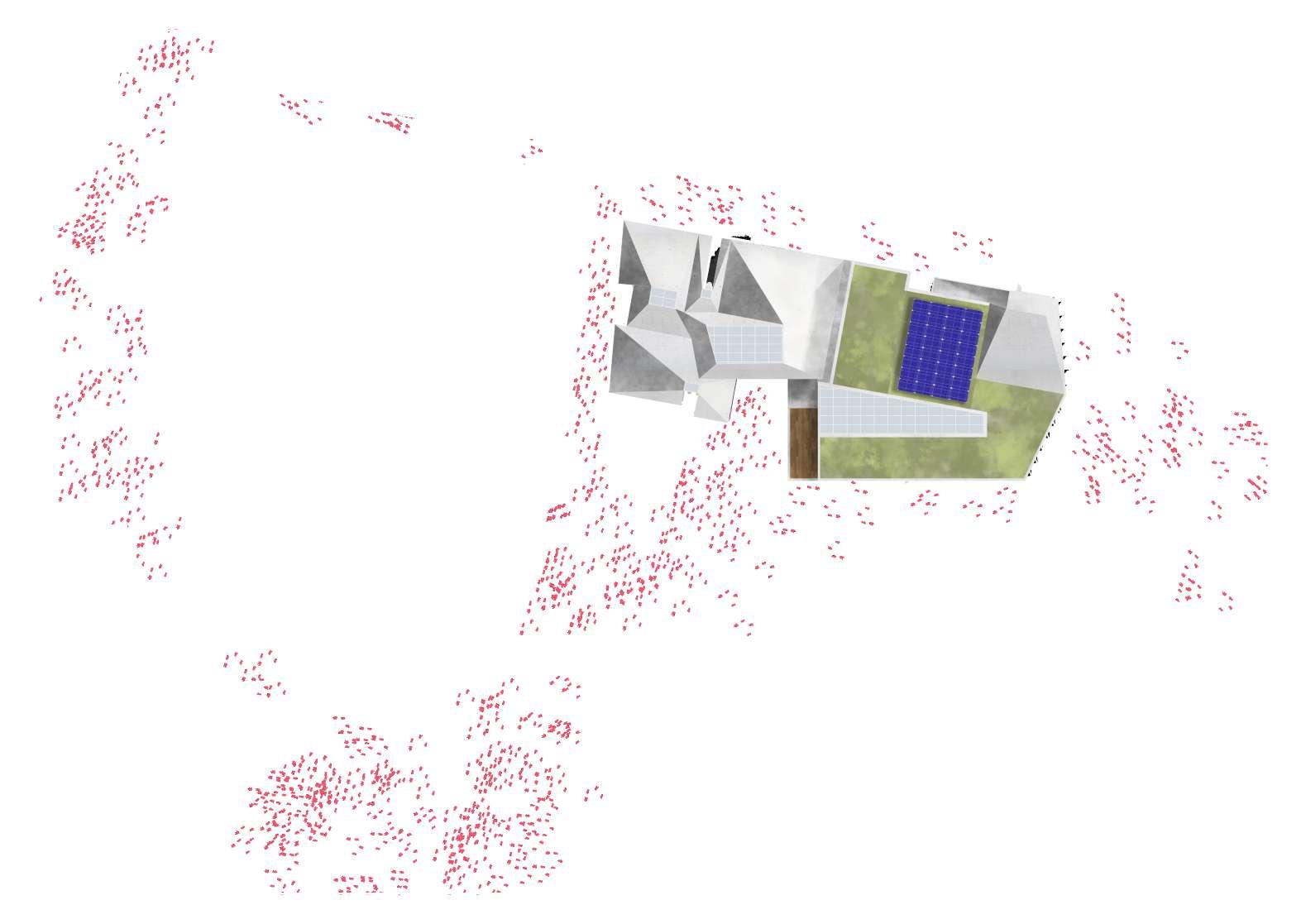

01 13 14 06 07 12 11 14 09 13 23 02 10 08 04 05 FLOOR PLAN 00 01 03 20 13 14 21 21 14 22 13 01 01 01 03 19 13 14 15 18 14 13 16 17 01 01 ROOF PLAN FLOOR PLAN 01 FLOOR PLAN 02
small windows for the institute to reserve some privacy, but will give glimpses of what is happening inside

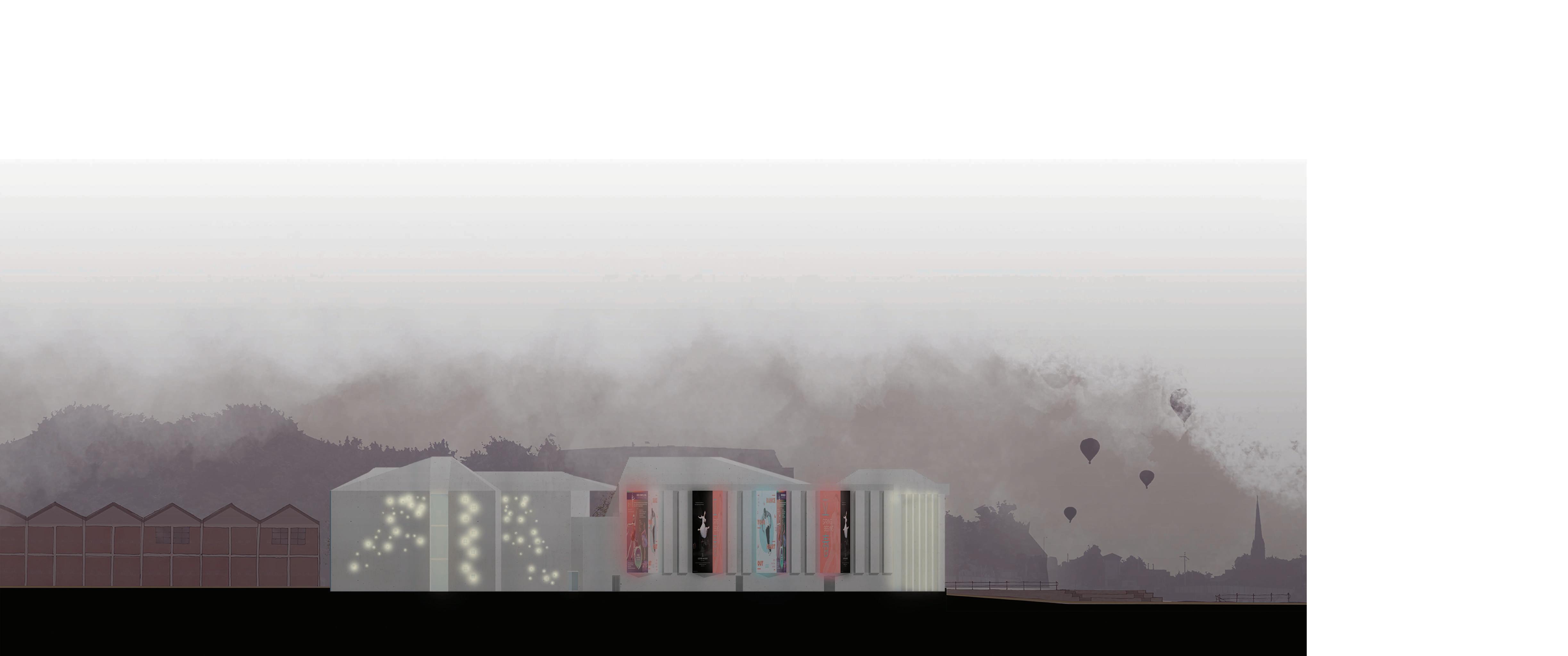

WEST ELEVATION

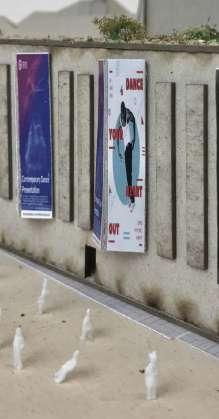

double sided LED screens advertising upcoming performances positioned in a way so people walking in the alley between Lloyds building and THE BOULEVARD can see.

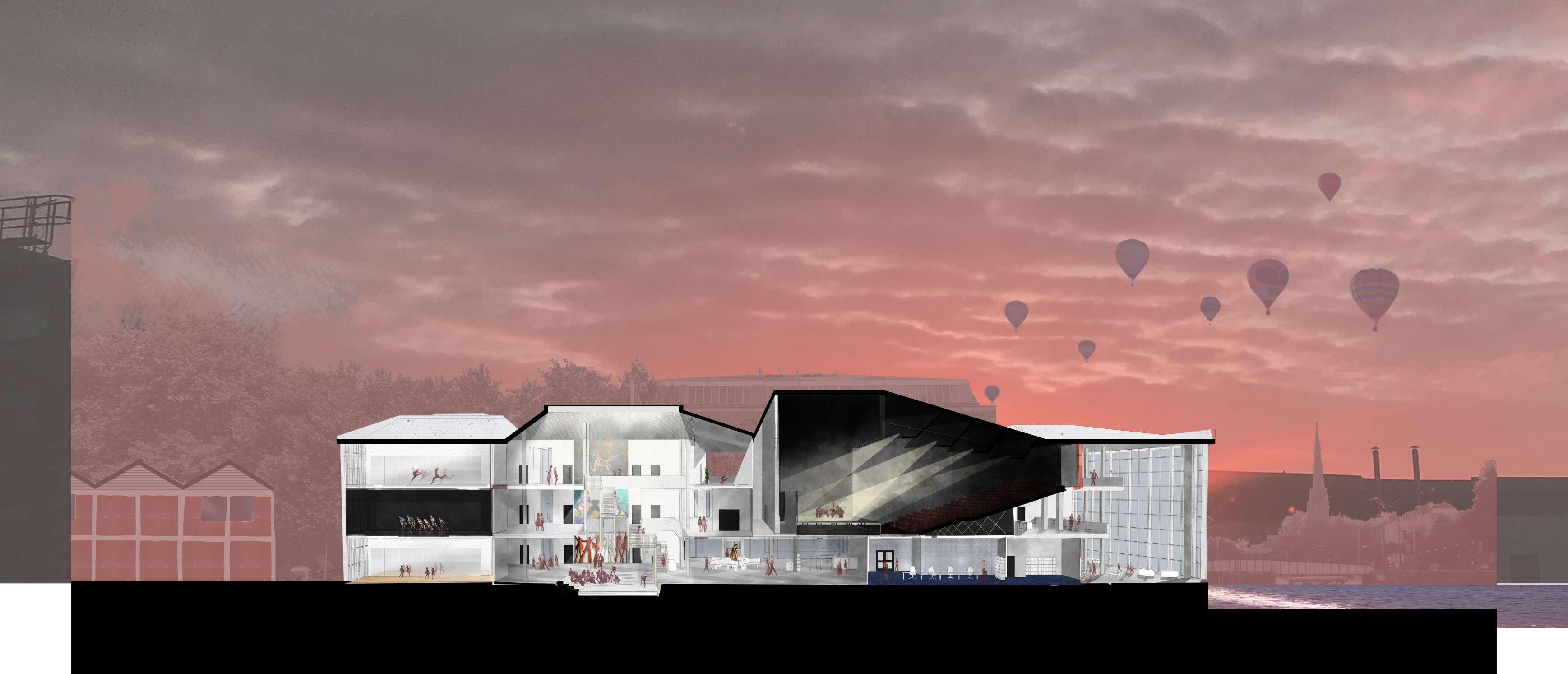

LONG PERSPECTIVE SECTION

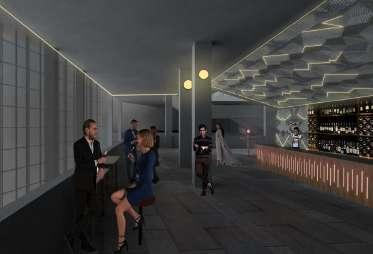

foyer bar

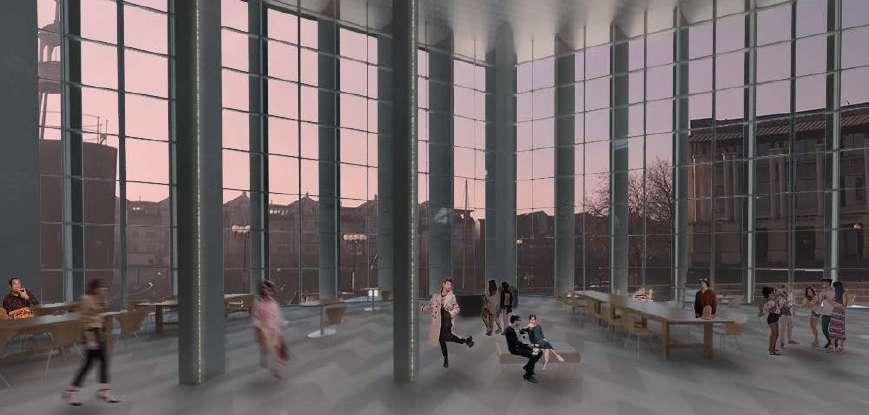

atrium
circulation zone
corridor
studio
GREEN ROOF SYSTEM
Solar panels
Plantings
Engineered Soil
Solar panel base
Filter Fabric
Resevoir Layer
Aeration Layer
Protection Course
Root Barrier
Moisture-Retention Layer
120mm Insulation
Vapour Barrier
400mm Concrete Structure
Pavement
Gutter
70mm Acoustic Insulation
40mm Plasterboard
Baffles
CURTAIN WALL-FLOOR DETAIL
20mm GRC facade panels
60mm Battens
Vaport Barrier
150 mm Insulation
Reinforced Concrete
Harlequinn Dance Floor System
Fire Stopper

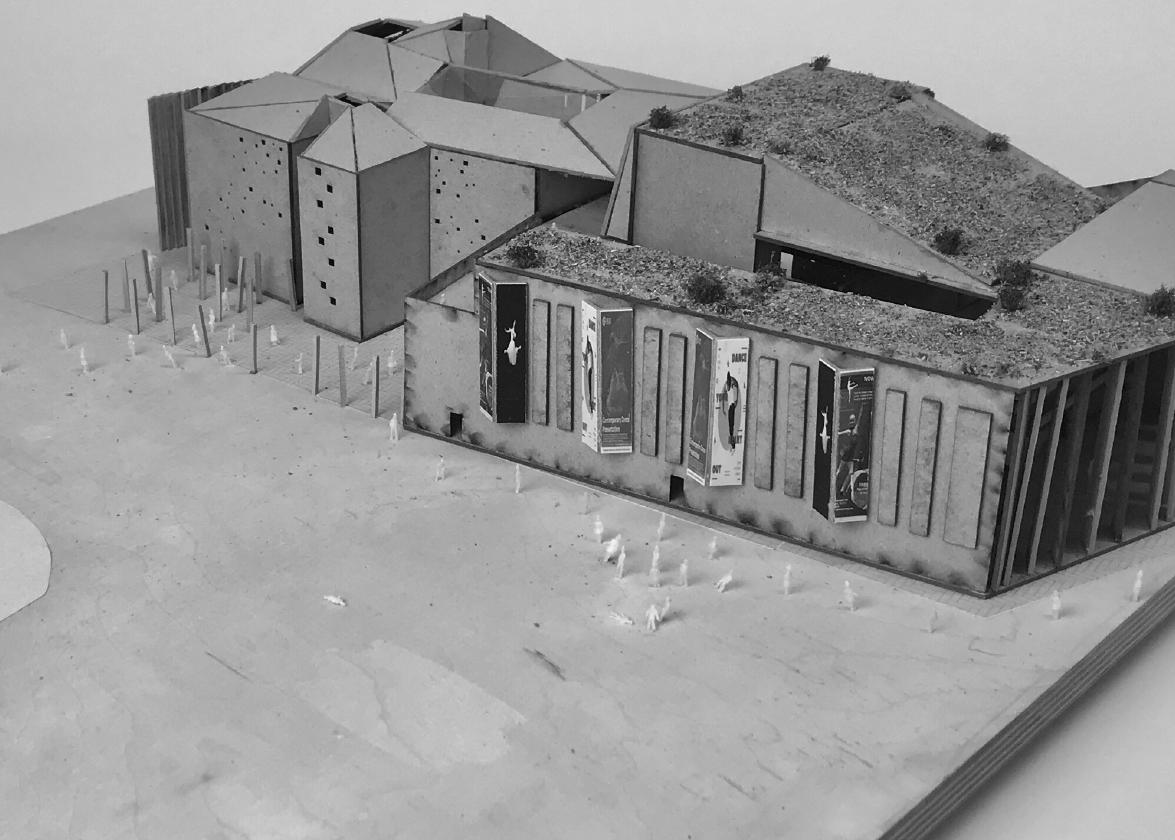

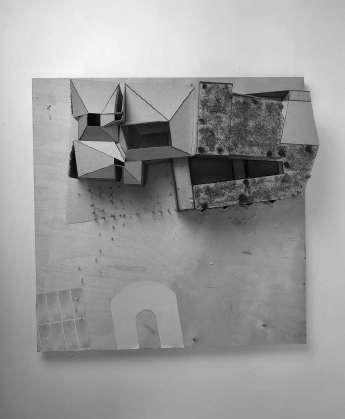

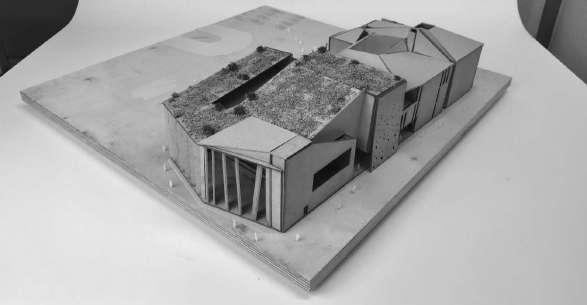

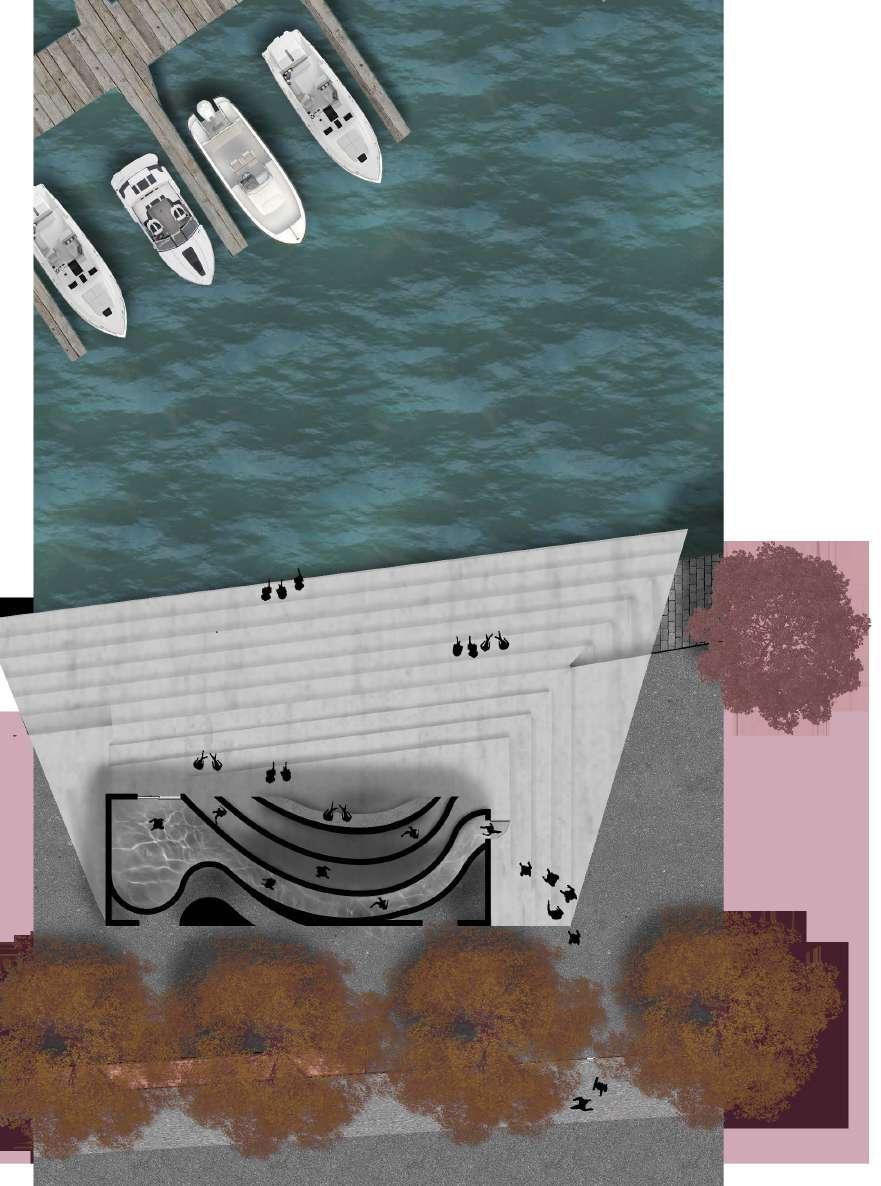

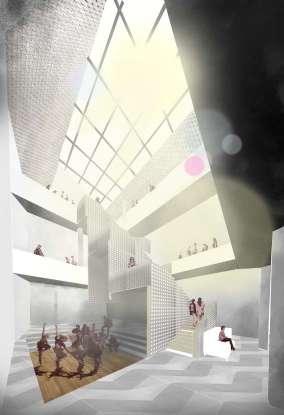

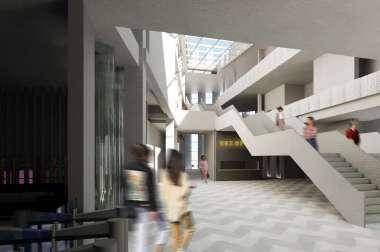

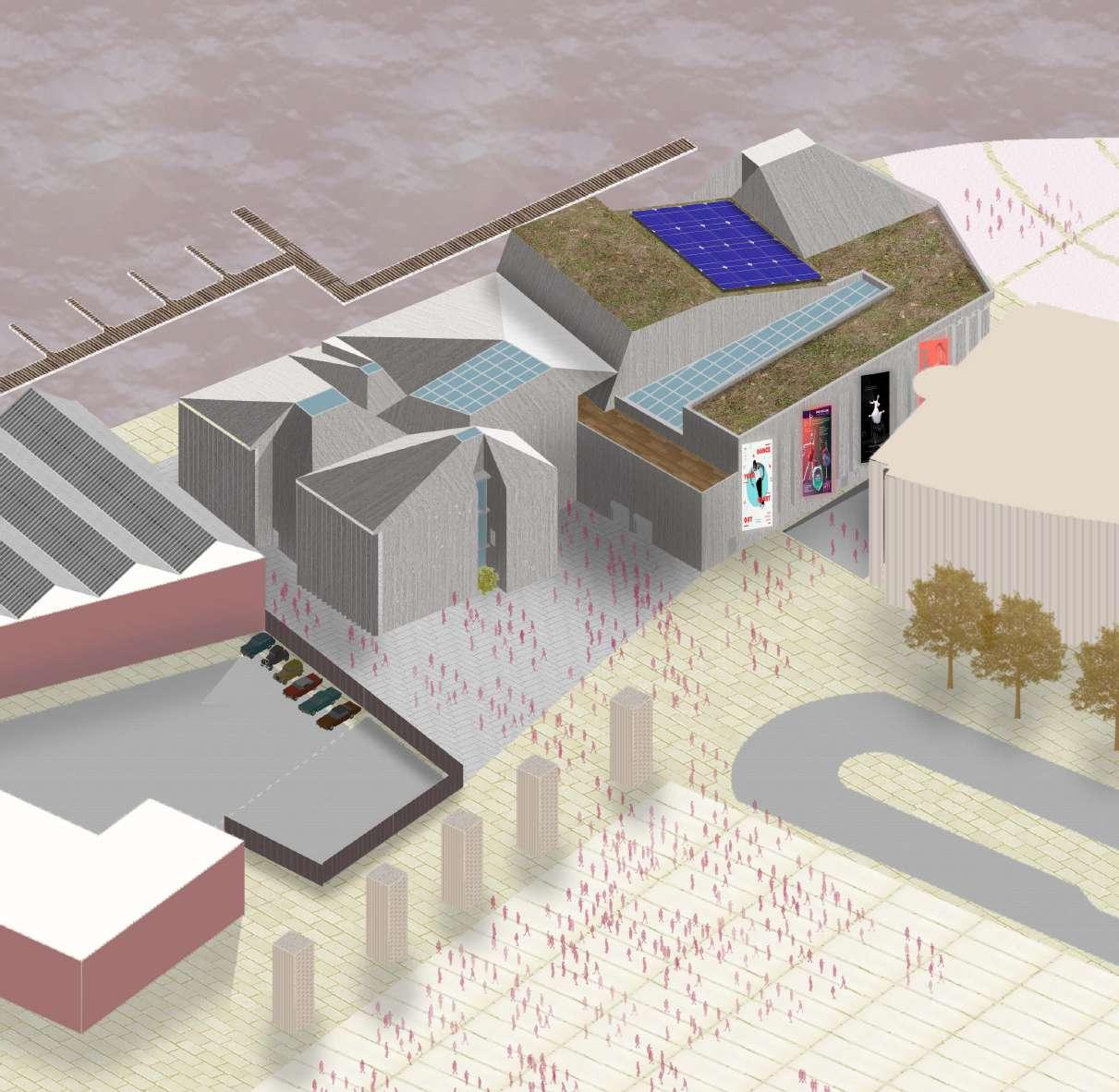

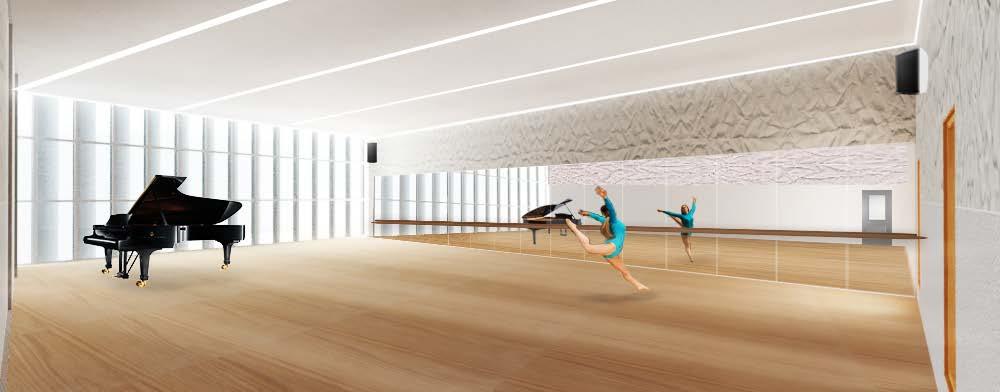

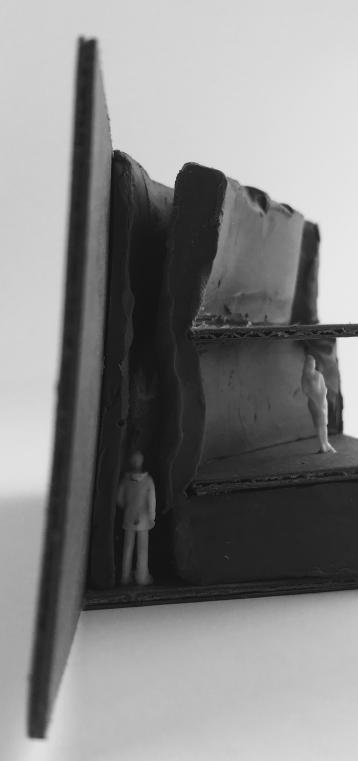

DETAILS FINAL MODEL RENDERS

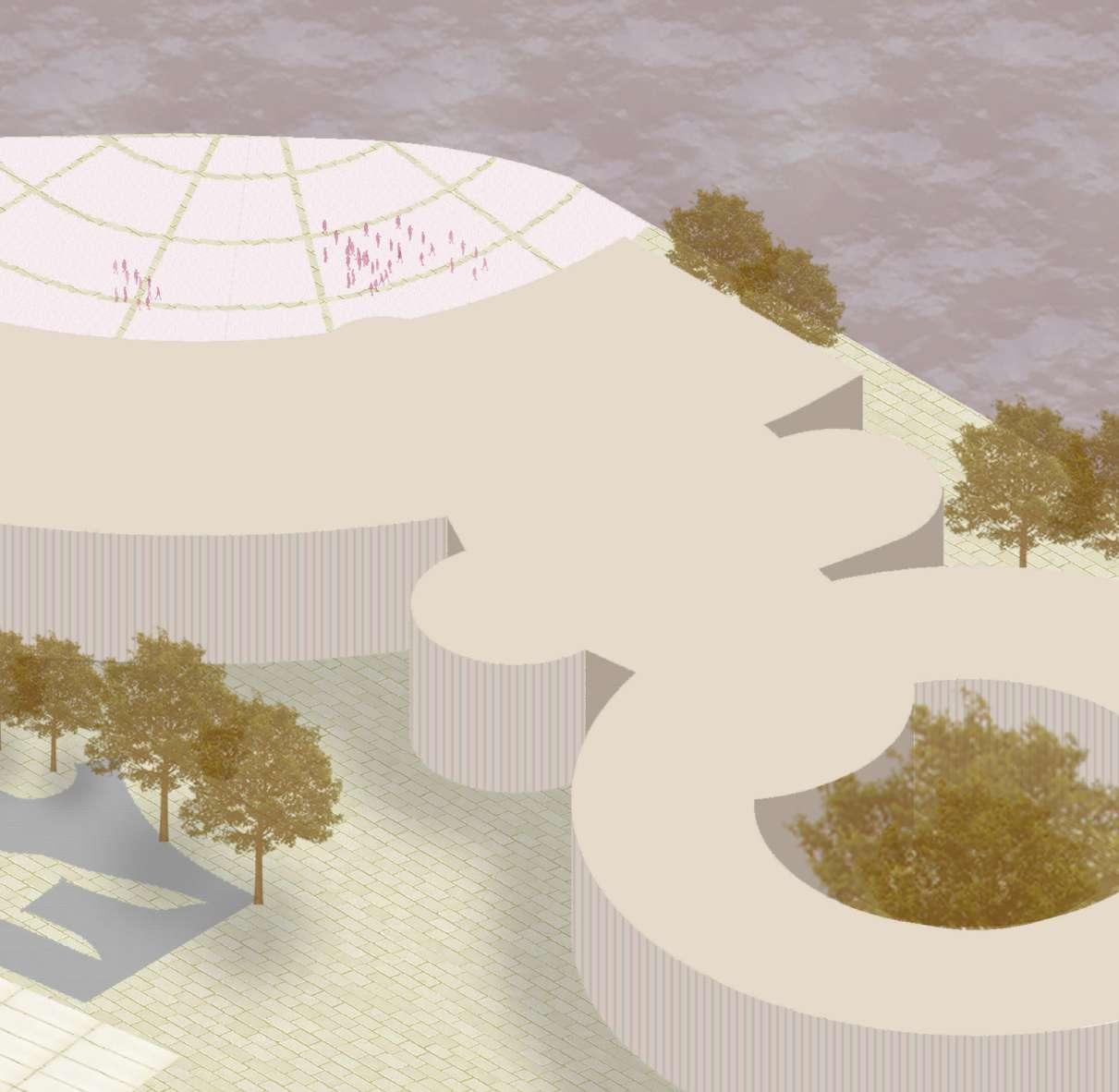

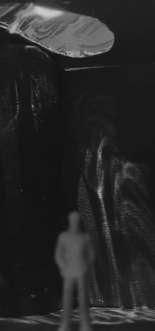

single narrow hallway in the pavilion with the smiluation of water created by the special enhanced glass when the sun hits it.

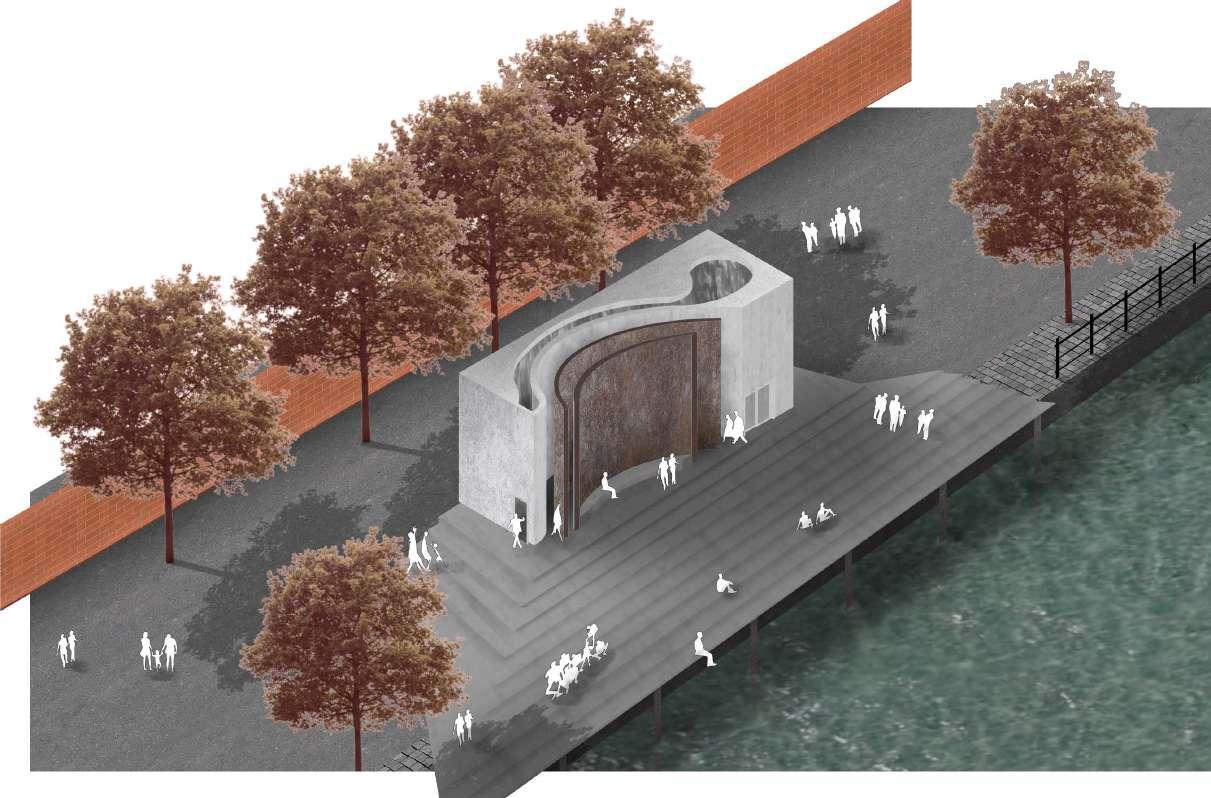

user exits the pavilion and is free to roam aroud more exterior hallways that have different finishes, or sit on the steps that reach out to the water.
exterior hallways are all around the building.
special glazed roof
special glazed roof is used to create a simulation that the user is underwater.
when light shines on the glazing, shadows mimicking water waves are projected on to the concrete walls and floor.
in situ concrete
concrete is to be poured in situ with steel rebar for structural support.
concrete will be left exposed to leave a raw and natural finish.
iron sheets finish
iron metal sheets are bolted on to the exterior hallway walls.
iron sheets are expected to weather and change appearance overtime. the appearance is to symbolise the metal pipings and concrete columns of a pier on the seabed.
