3 REDEVELOPMENT HOUSING GENERAL HOSPITAL 100 BED Semester - 7 Semester - 5 WORKING DRAWINGS MISCELLANEOUS Semester 6 & 7 CONTENTS 1 2 3 4 Furniture Layout 9770 10885 3300 1510 1525 1635 13825 3725 15220 1685 5000 2640 16465 11640 3270 7680 6235 3845 1355 895 1475 590 1220 2440 595 4845 1915 1 2 3 4 5 A B C D w 1 1080 w 1 w 2 w 2 w 2 w 1 w 1 w 1 w 1 w 1 w 1 w 1 w 1 w 1 w 1 D 1 D 1 D 1 D 2 D 2 D 3 +450.000 A B C Site Plan C B Main Vehicular road 5m wide S.NO. 1. 2. 3. 4. 5. SCHEDULE OF OPENINGS TYPE D1 D2 D3 W1 W2 WIDTH 1000 800 1600 700 1400 CILL LVL. 750 LINTEL LVL. 2400 2400 2400 2400 2400 750 KEYPLAN NOTES 2. 4. ALL DIMENSIONS ARE TO BE READ NOT SCALED WALLS ARE 230 THICK UNLESS OTHERWISE SPECIFIED LEVELS MARKED ARE FINISHED FLOOR LEVELS TO RESPECTIVE FINISHED FLOOR LEVEL CARPET AREA OF RESTAURANT = 230M 6.
REDEVELOPMENT HOUSING

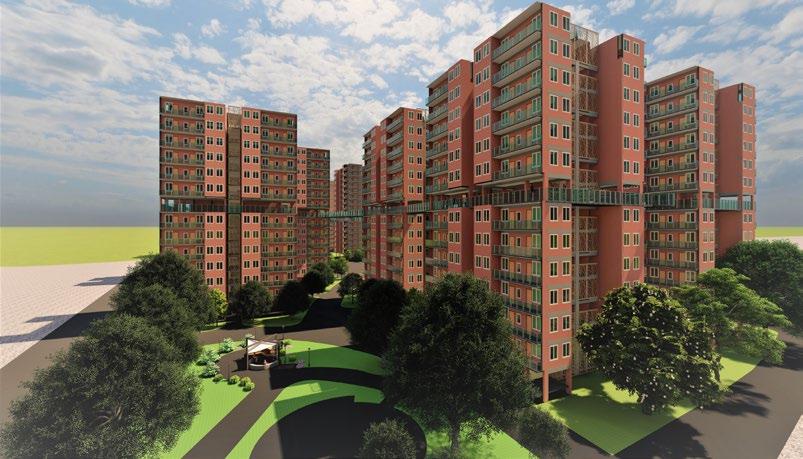

Redevelopment Housing of R.K. Puram Sector 5
Semeser - 7
The project aims to redevelop the central government housing complex in R.K Puram, Sector-5. The area of the site is 90.8 acres which is further divided into 4 plots of 14 acres each. To build a housing complex which is midrise and high density, affordable, provides quality of life and communal experiences within the complex. The housing to be constructed is of 840 units considering type I, type II and type III as given by CPWD.
The site has been selected keeping in view the recent redevelopment projects by the Government, most currently being Kidwai Nagar. The previous low rise low density accommodations were not catering to the existing demands and facilities provided hence there’s a dire need of redeveloping these old government housing.
4
5
Parn is the sanskrit word for leaf. The attempt is to mimic the character of the green belt which is a major element of the masterplan, responsible for providing the quality of life to the residents. Similar to that of a leaf, a central spine is planned to serve as the main ‘artery’ to connect and function the branches further.
The central spine of the site consists of 3 major components: the central community space for users across all age groups, the commercial space on the right and the common green space on the left. Apart from this, various activity nodes have been defined within the zones of each cluster to induce interaction of residents across the site while responding to the green belt.

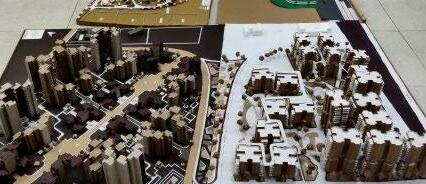

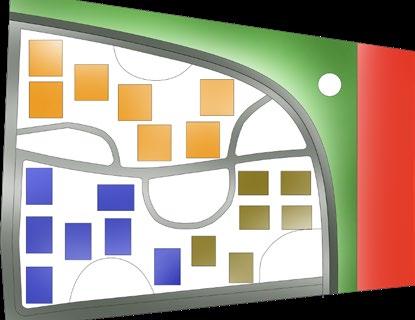

The second stage was the massing and placement of the clusters of different typologies. Planned in way that allows the residents to interact locally within the clusters of a typology, while having the opportunity to interact across different typology clusters too. The sense of individual cluster zones is maintained while not being too bold, thus heirarchy of built spaces is created.

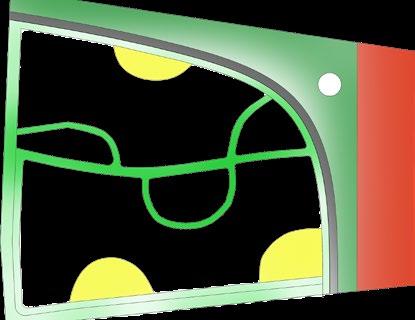

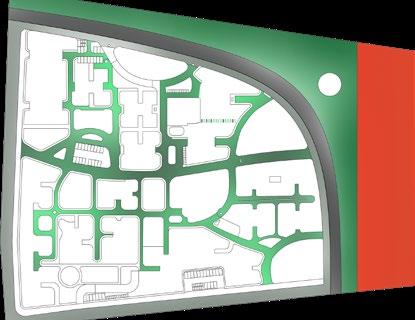

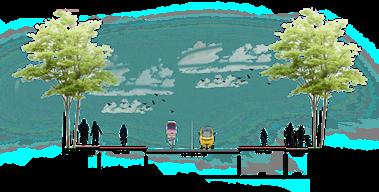

The third stage includes the designing of the roads to branch and cater to the organic approach of planning the clusters. The roads are planned to include culdisacks that adds up to the security factor of the cluster zones, while restricting the vehicular movement across the site. The roads mainly branch out from the central spine, similar to a leaf, towards the activity nodes.

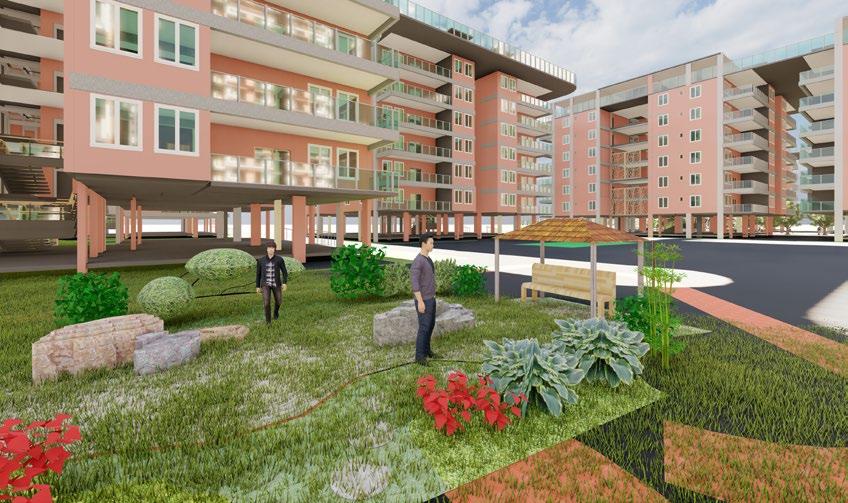

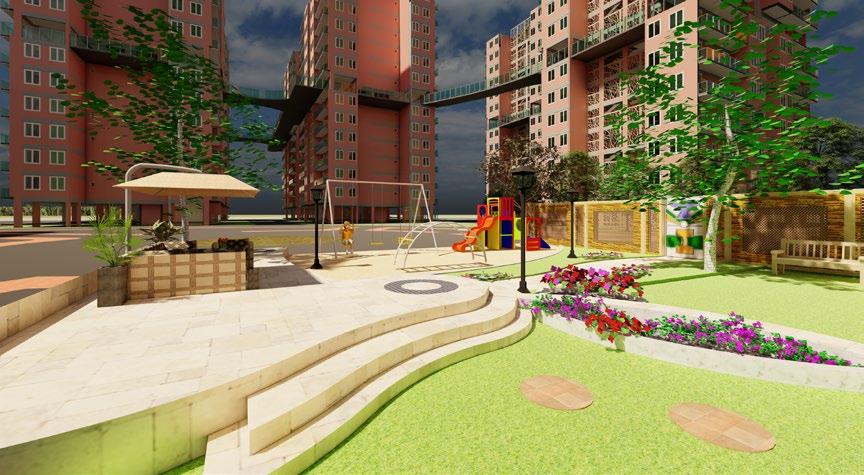

The fourth stage proceeds to add certain sensory elements within the branching roads, for the residents to have various stimulating and refreshing experiences, while they walk across the site. This stage also includes the designing of open spaces around the clusters , a hierarchy of open spaces is designed to introduce interaction at different levels amongst the users.

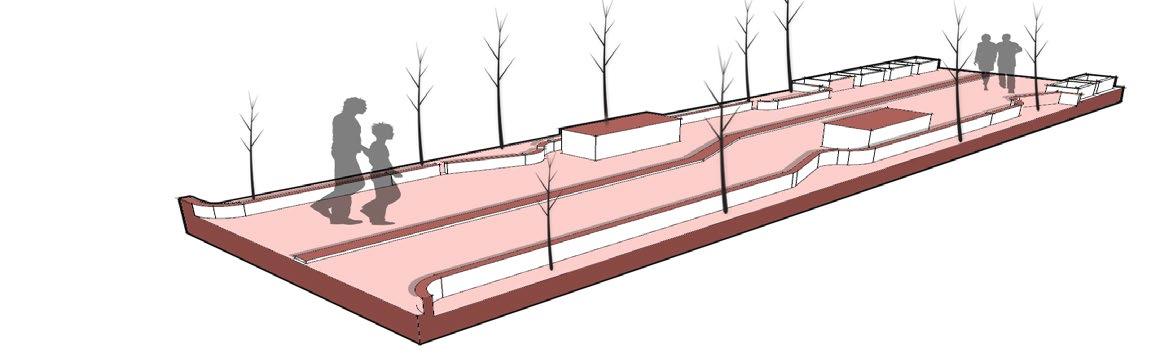

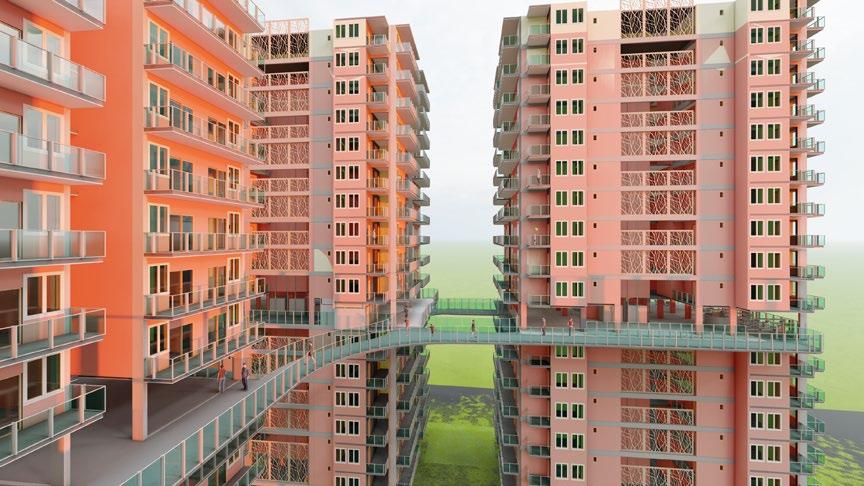

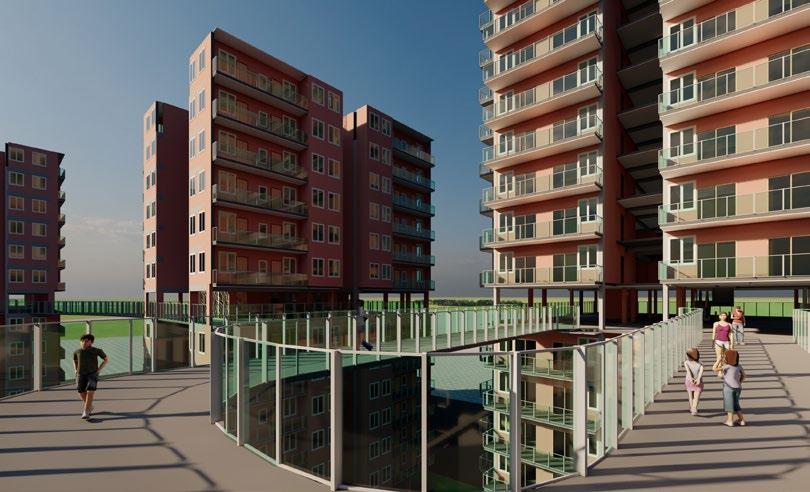

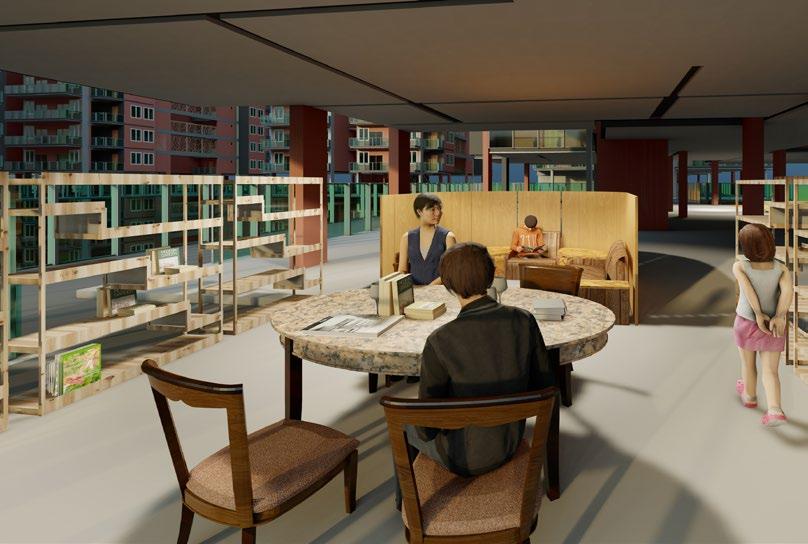

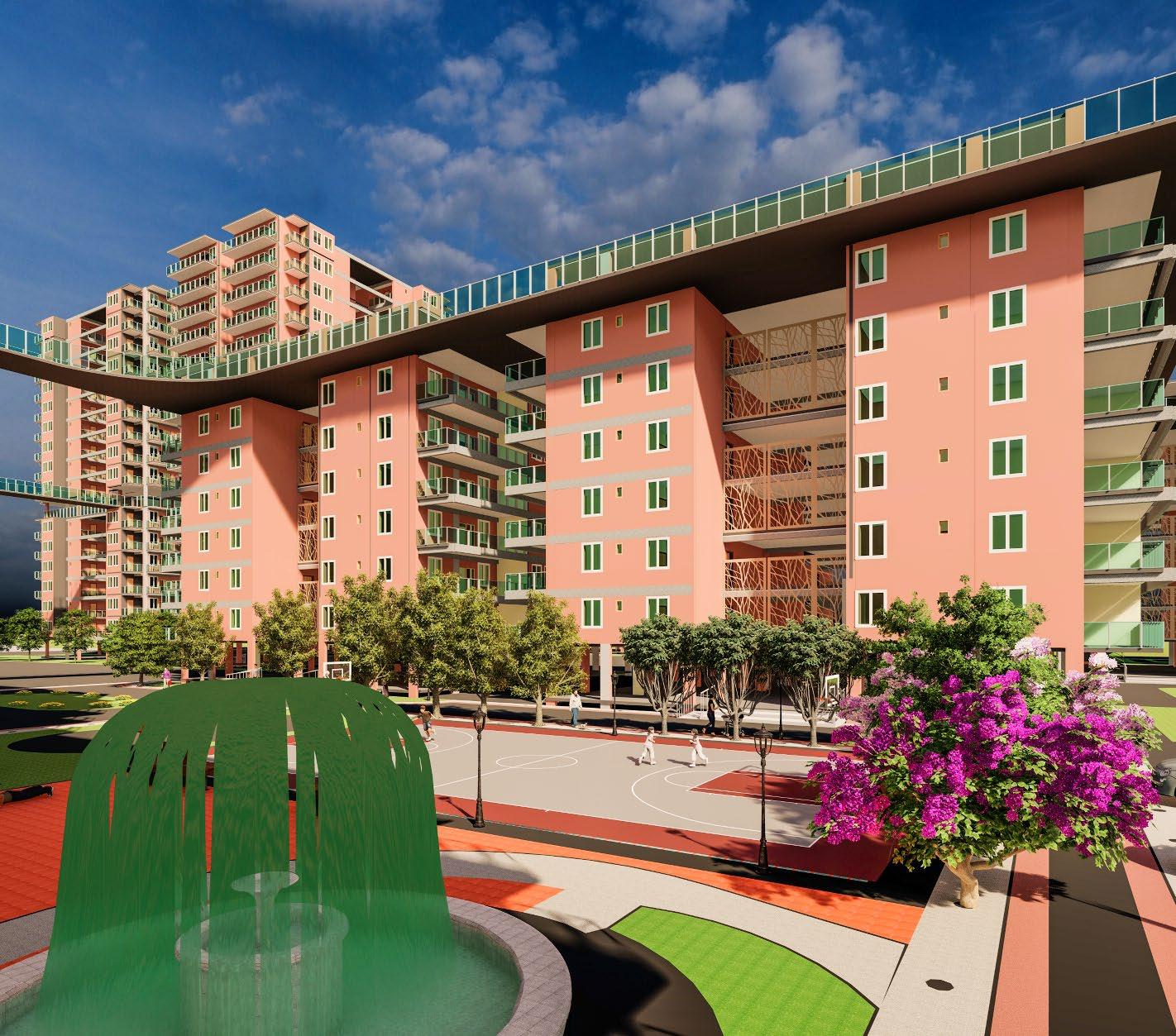

Walkway was introduced connecting the seventh floor of every towwer of types. which is a semi open space and a major spot for commnity activities

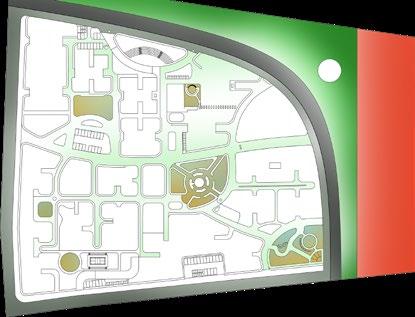

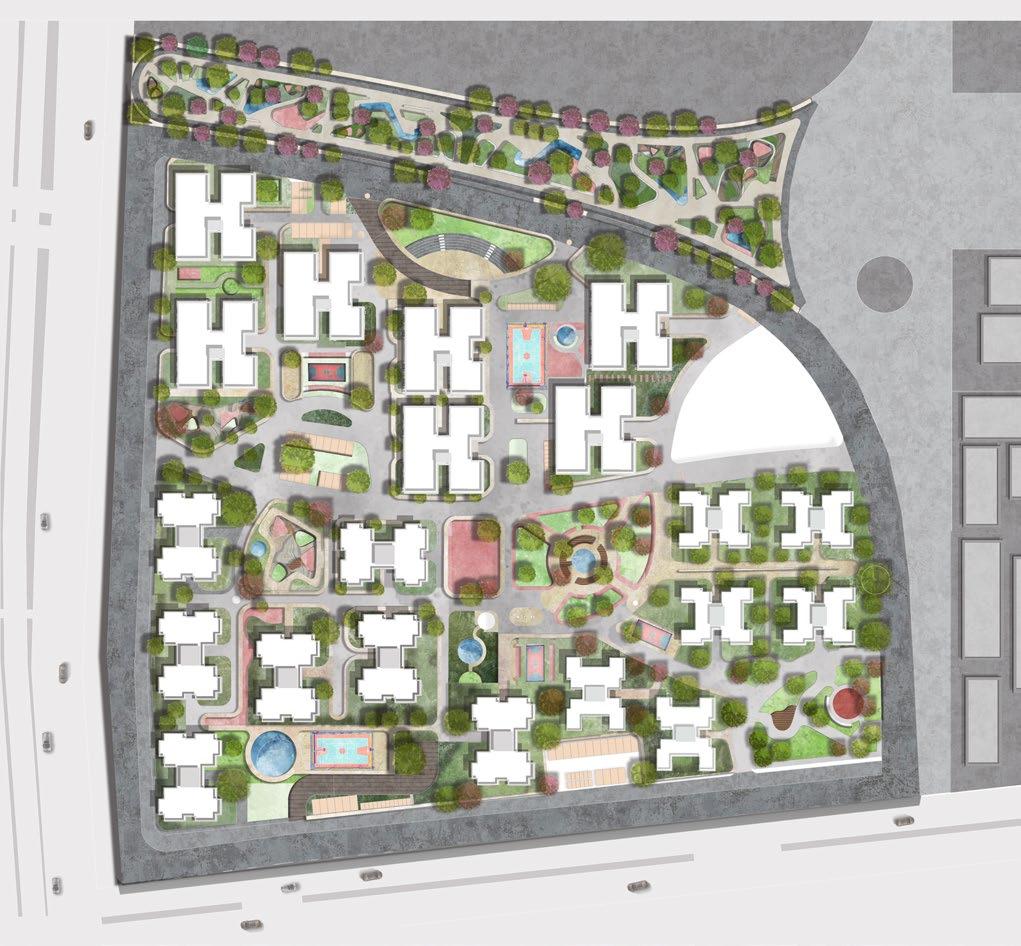

SITE PLAN
PERMISSIBLE
Total Plot Area: 56,656SQM
F.A.R: 2
Total Built Up Area: 183,730 SQM
Ground Coverage: 64,305 SQM
ACHIEVED
Total Plot Area: 56,656SQM
FAR: 1.3
Total Built Up Area: 43,590 SQM
Ground Coverage: 10,245 SQM
7

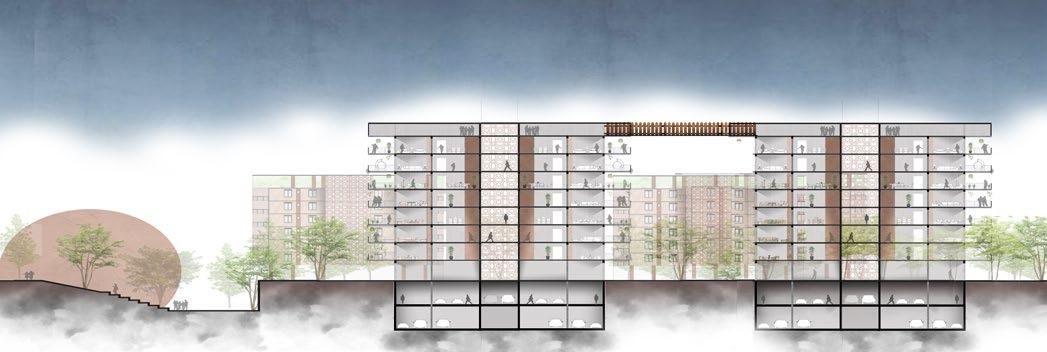

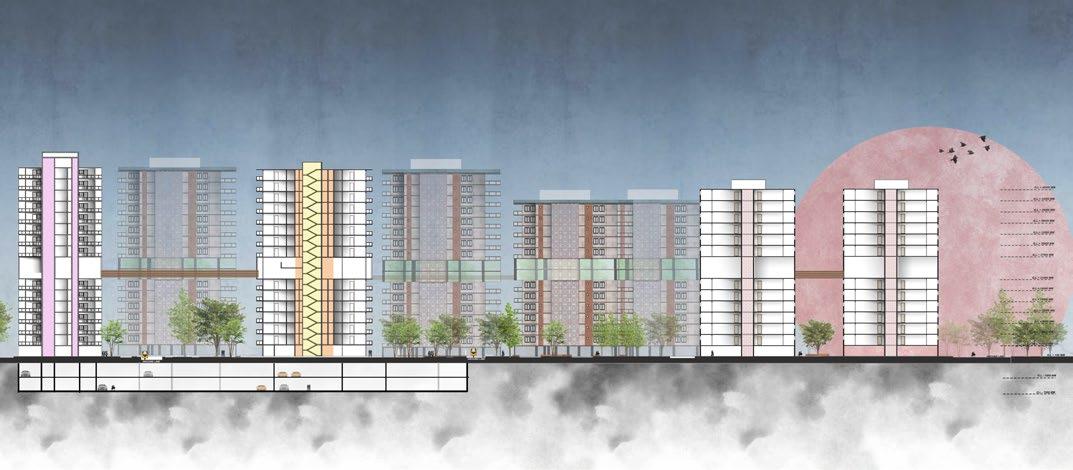

SECTION THROUGH TYPE 3

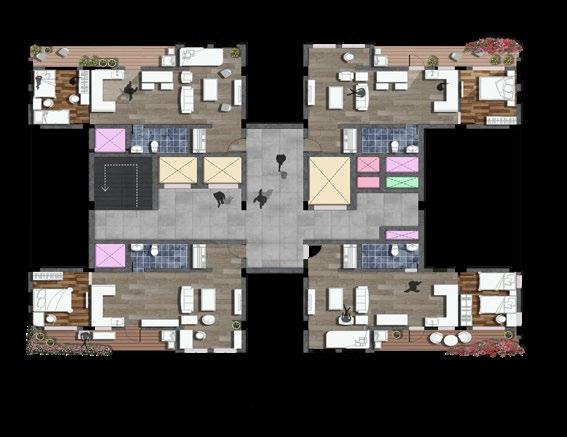

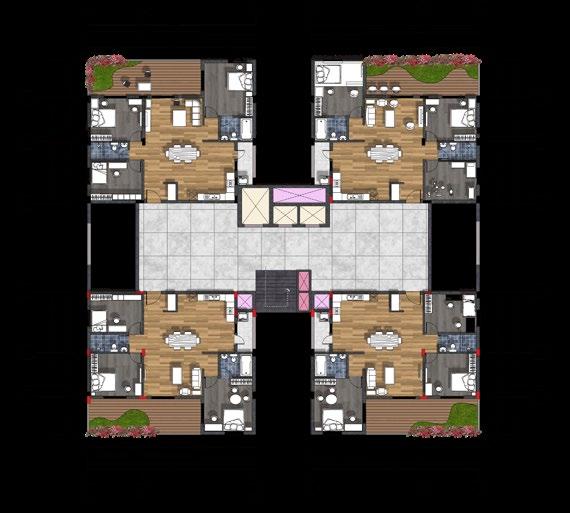

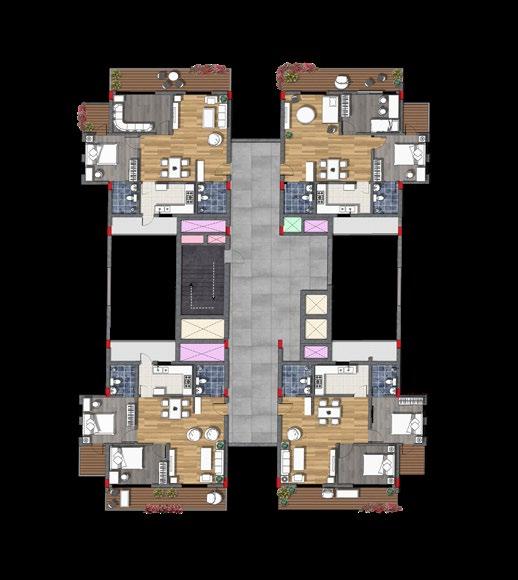

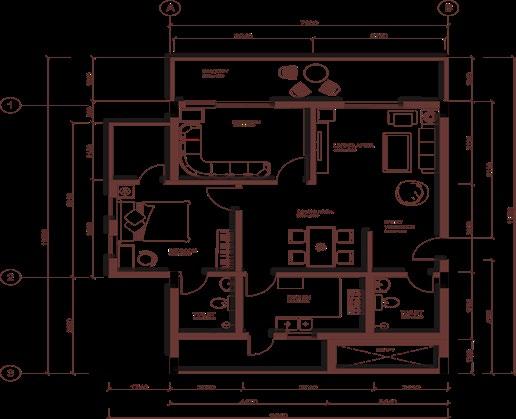

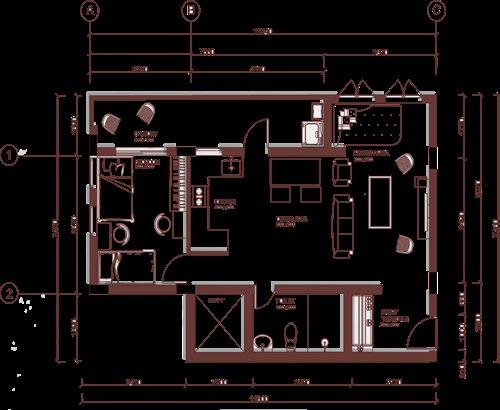

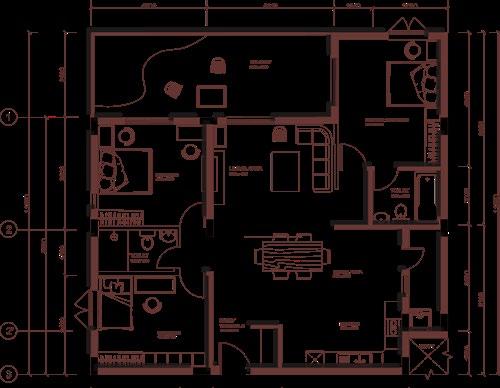

8 CLUSTER PLAN TYPE 1 CLUSTER PLAN TYPE 2 CLUSTER PLAN TYPE 3 UNIT PLAN 1BHK UNIT PLAN 2BHK UNIT PLAN 3BHK
50 SQM
SQM
TOTAL CARPET AREA:
SUPER AREA: 56
SQM
SQM
TOTAL CARPET AREA: 64
SUPER AREA: 77
SQM
SQM
TOTAL CARPET AREA: 103
SUPER AREA: 114
9
TYPE 3
TYPE 2 SECTION THROUGH TYPE 2

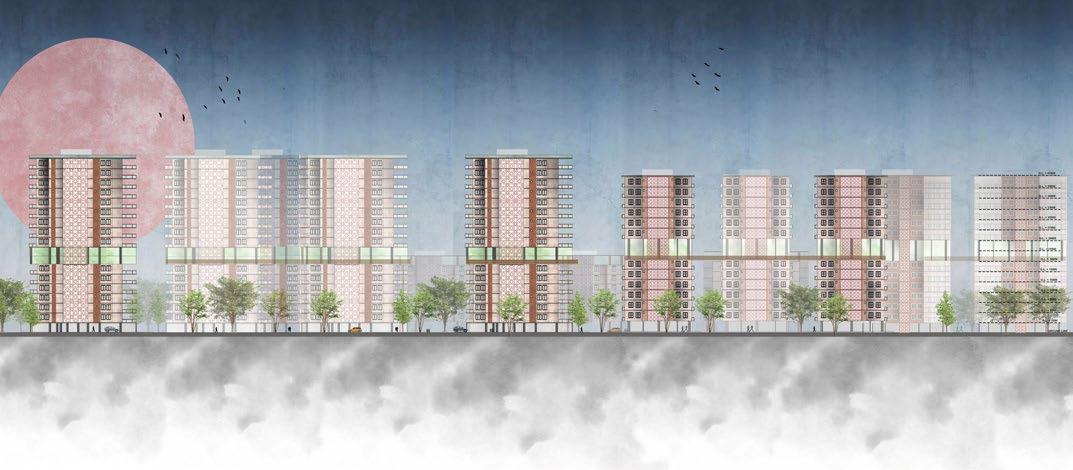

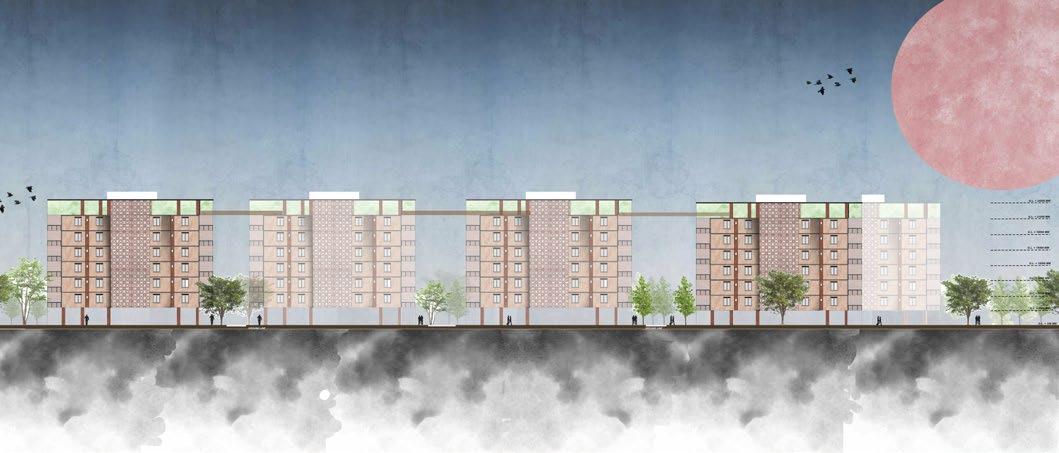

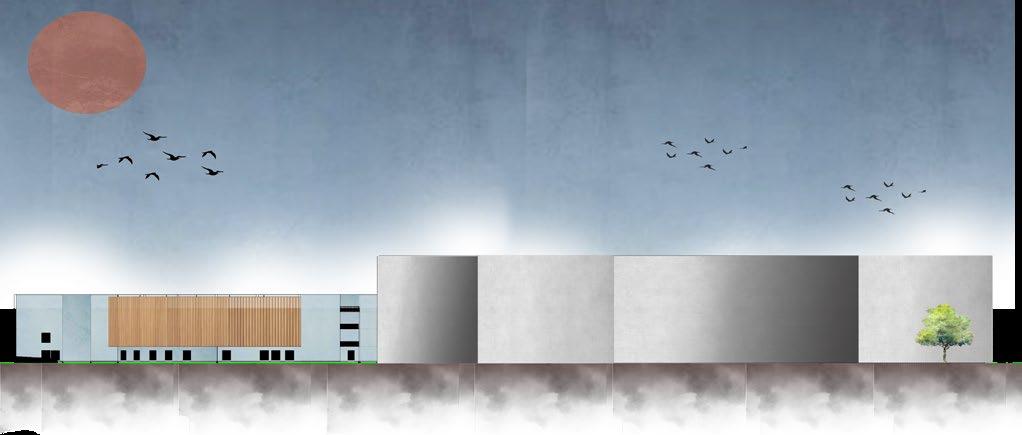

ELEVATION
ELEVATION
10
11
GENERAL HOSPITAL
100 BED GENERAL HOSPITAL WITH A PRE - PANDEMIC BLOCK
Semeser - 5
As per the present situation faced by the world, the pandemic has changed the concept of designing and operations of the hospital buildings. The infrastructure development of such buildings running 24x7x365 days is expected to incorporate separate provisions to cater to the present policies in medical terms. Medical Industry has witnessed a paradigm shift in the fastpaced growing infrastructure and people’s perception to health and health reforms thereof.
In this major project the students are expected to design a 100-bed primary medical facility in an approximately 8 acres of land area in sector 38 Noida, Delhi-NCR. The total built up area as phase I of the plan (area approx. 10,000 sqmt) is to be detailed. The expansion of the building for future development should be outlined in the site
12
13

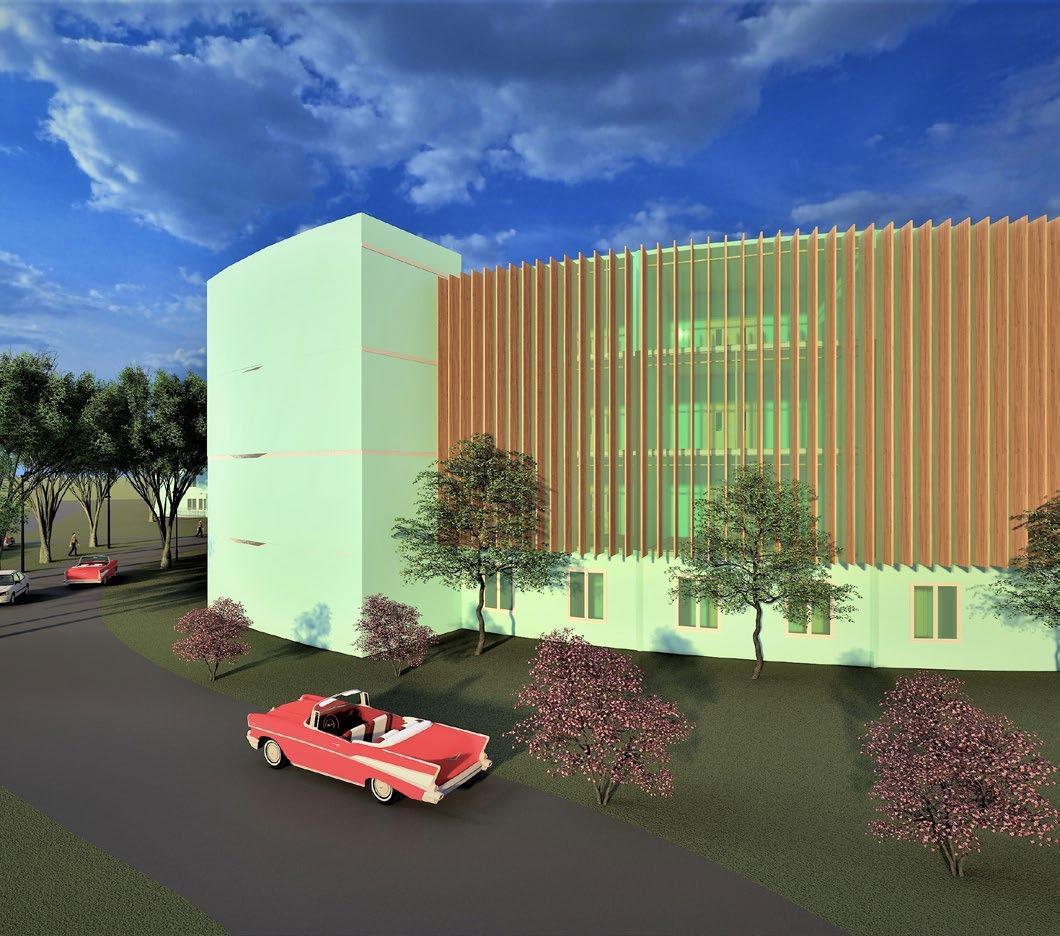

Healing doesn’t only happen inside the hospital building as much as it happens in the whole complex including semi open areas and open areas. The aim was to create a hospital building which provides maximum comfort to the users and has a healing environment. With the pandemic giving us a major hit, it was necessary to design in preparation of the unforseeble future thus a pandemic block is given separately with 60 beds.

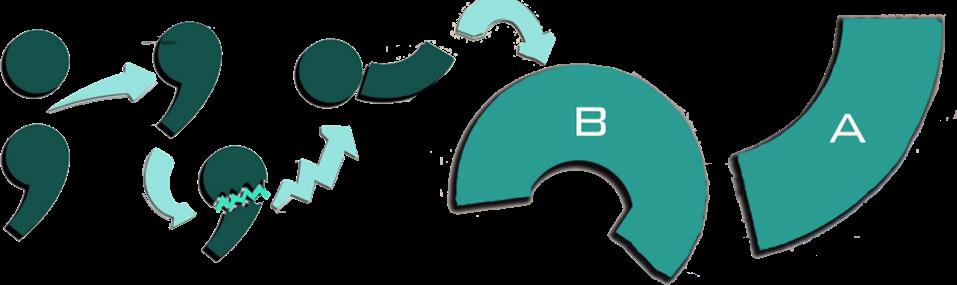

FORM DEVELOPMENT

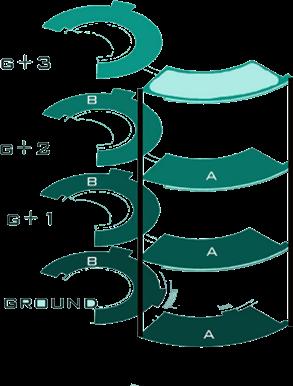

The whole building is divided into two blocks. BLOCK A is a temperature controlled zone with emergency department, maternity complex and operatio theatre complex
Block B has OPD department as well as IPD department. It also has ICUs which are separated from the public zone. Each block has 2 core
IPD, Admin and General Support Dept.
IPD, SICU, General Support Dept. & OT
IPD, MICU, PICU, NICU, Maternity Dept.
OPD, Diagnostics and Emergency Dept.
Total Area without circulation: 6,379 sqm
Total Area with ciculation: 11,700 sqm
Total Built up area: 95,500 sqm
Built up area achieved: 11,700 sqm
Ground Coverage: 13,700 sqm
Ground Coverage Achieved: 1,804
14

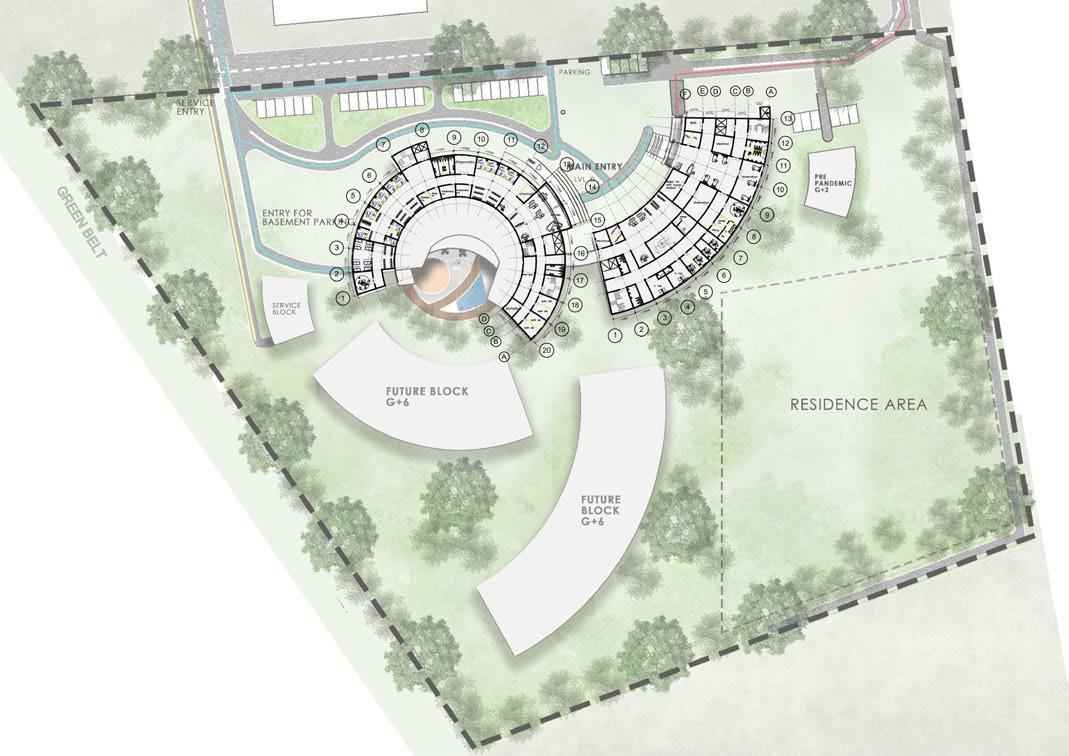

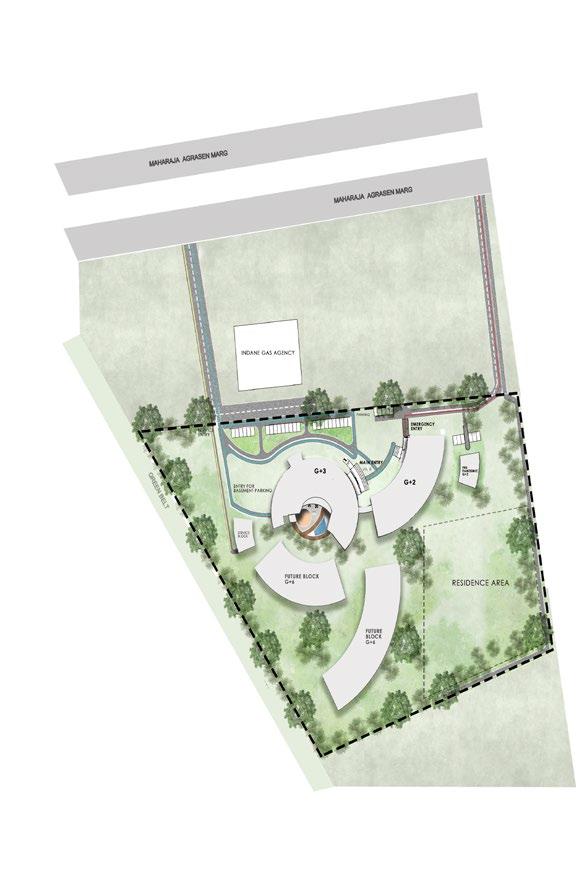

SITE PLAN

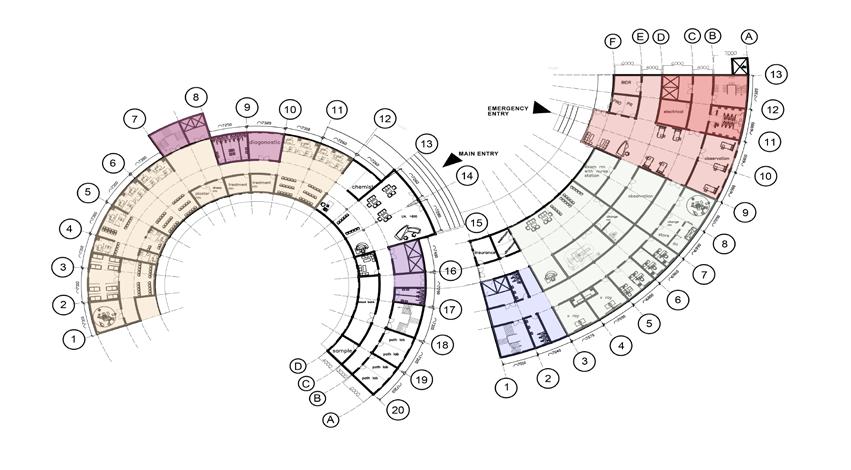

SITE PLAN WITH GROUND FLOOR PLAN
15

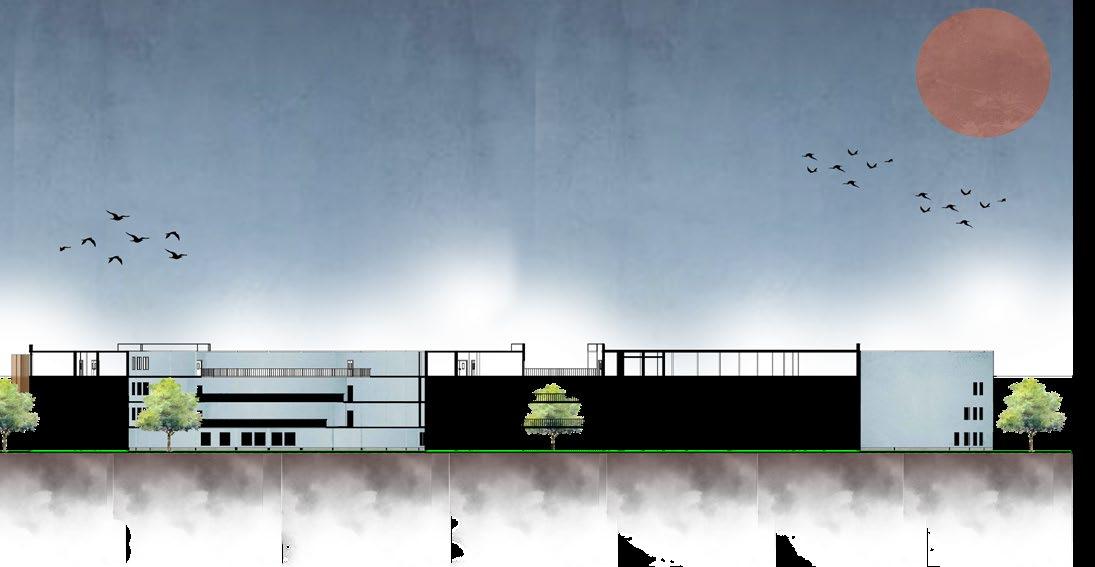

SECTION

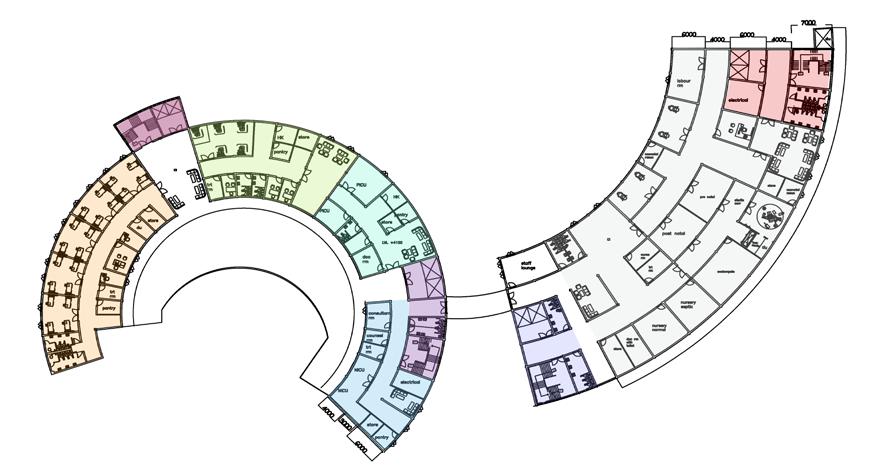

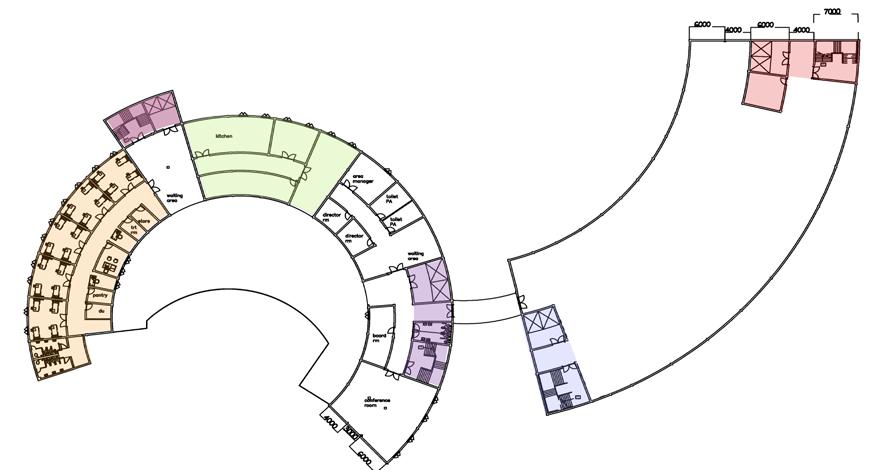

16 ALL FLOOR PLANS
PLAN
PLAN
GROUND FLOOR

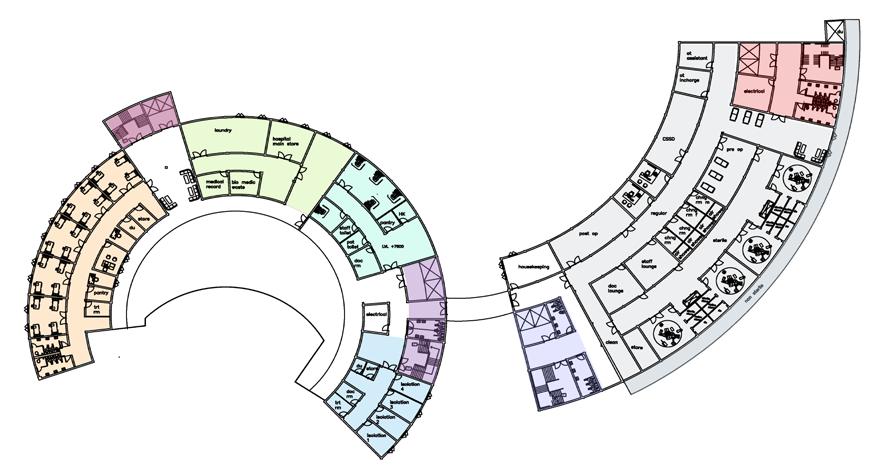

FIRST FLOOR PLAN SECOND FLOOR
EMERGENCY DEPT. DIAGNOSTICS OPD DOCTOR AND PATIENT CORE

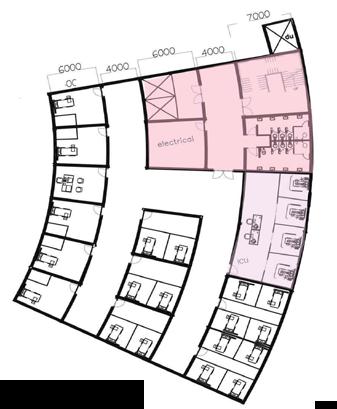

IPD MATERNITY COMPLEX PICU MICU NICU IPD OT COMPLEX SICU GEN. SUPP. AR. ISOLATION AR. IPD GEN. SUPP. AR.
THIRD FLOOR PLAN
DOCTOR CORE ADMIN CORE PATIENTS CORE

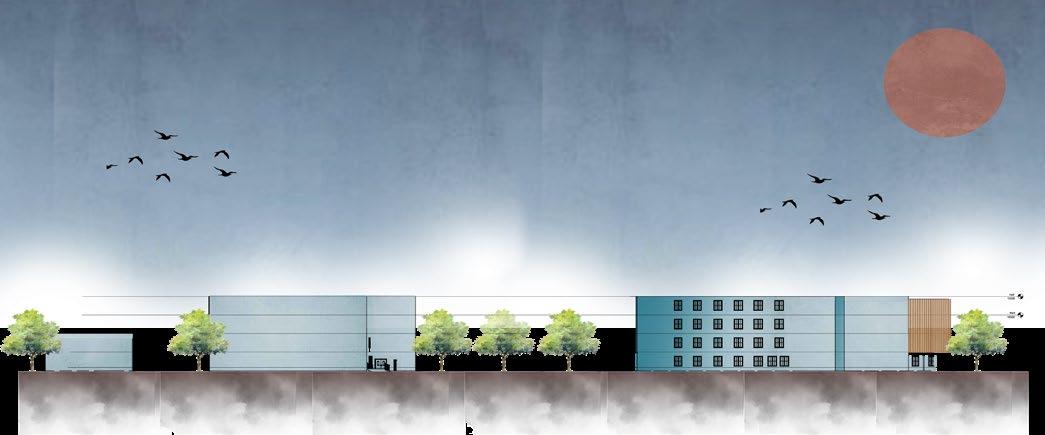

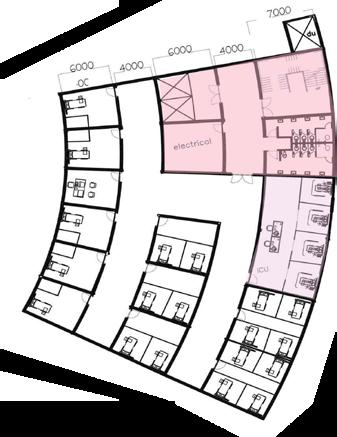

17 NORTH ELEVATION WEST ELEVATION GROUND FLOOR PLAN PRE PANDEMIC BLOCK FIRST FLOOR PLAN SECOND FLOOR PLAN
DOCTOR AND PATIENT CORE ICU

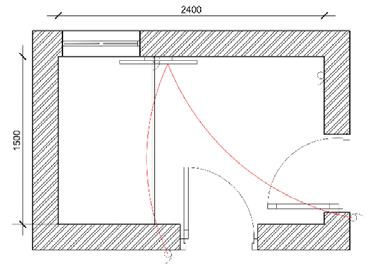

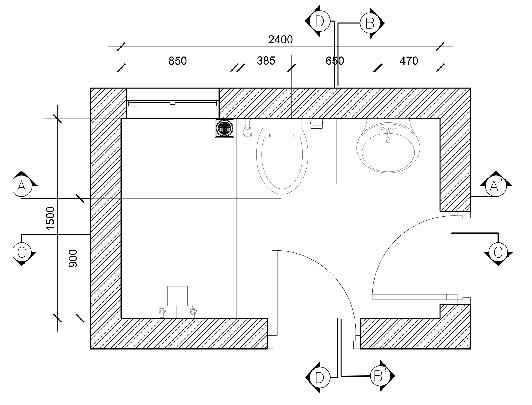

18 WORKING DRAWING RESIDENTIAL TOILET DRAWING

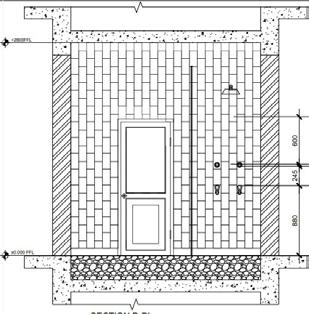

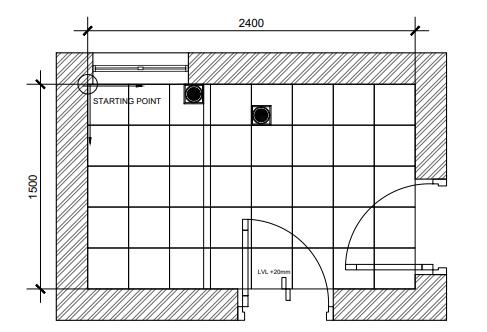

TILING

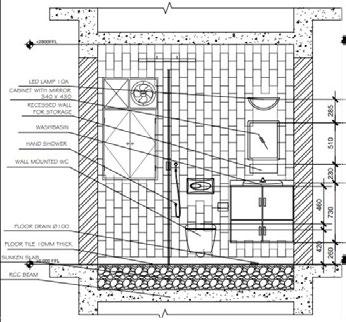

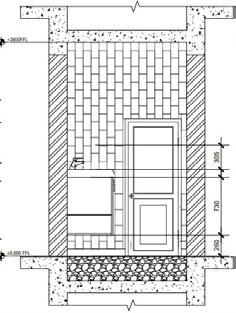

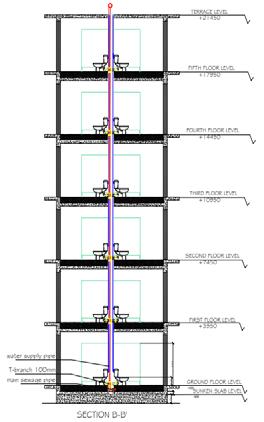

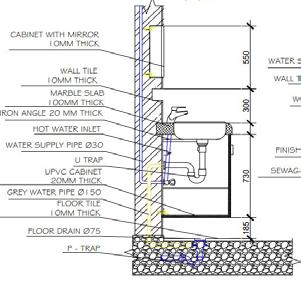

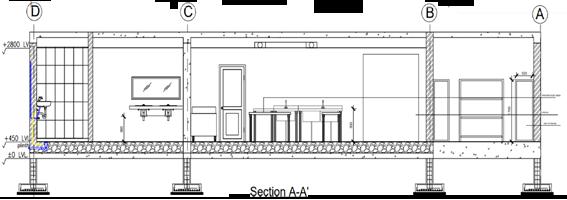

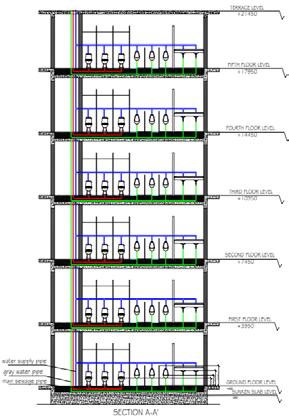

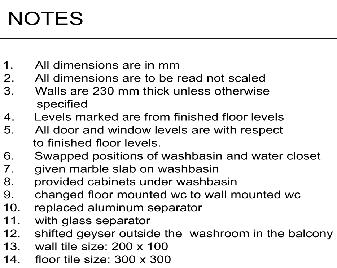

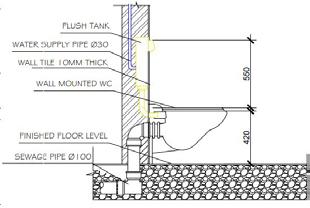

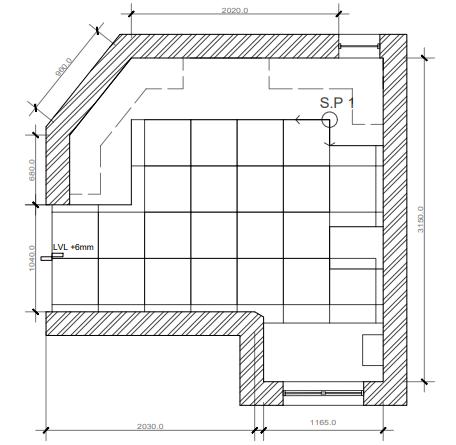

ELECTRICAL LAYOUT SECTION AA’ SECTION DD’ SECTION BB’ DETAIL B (WASHBASIN) DETAIL A (WC) SECTION CC’
LAYOUT
PLAN
LAYOUT

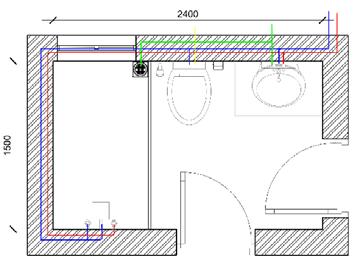

PLUMBING

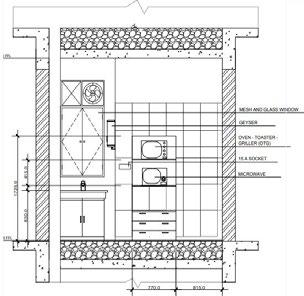

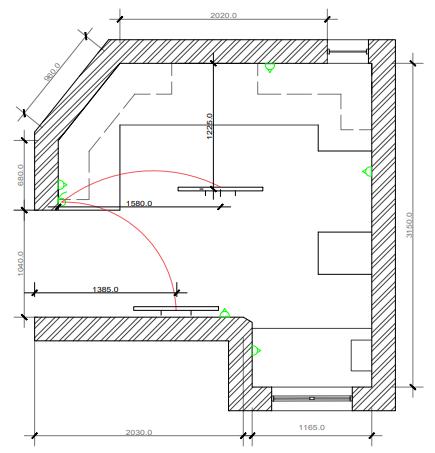

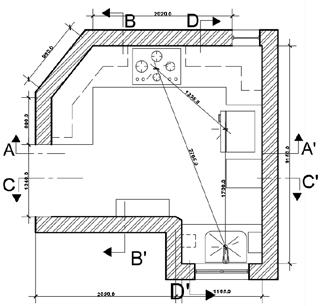

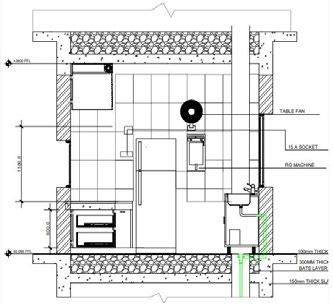

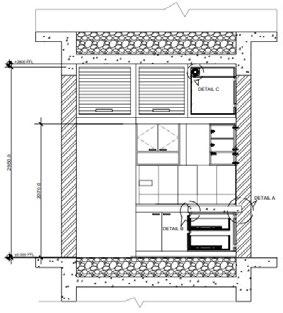

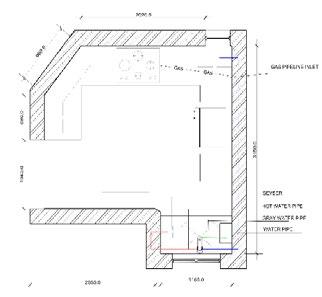

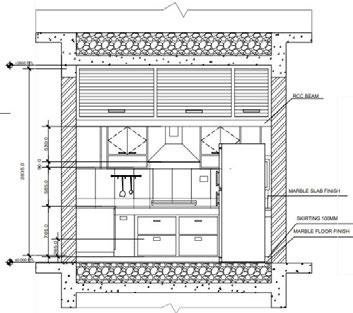

19 WORKING DRAWING RESIDENTIAL KITCHEN DRAWING PLAN TILING LAYOUT ELECTRICAL LAYOUT SECTION AA’ SECTION DD’ SECTION BB’ DETAIL A SECTION CC’ PLUMBING LAYOUT DETAIL B SINK DETAIL CABINET DETAIL
20

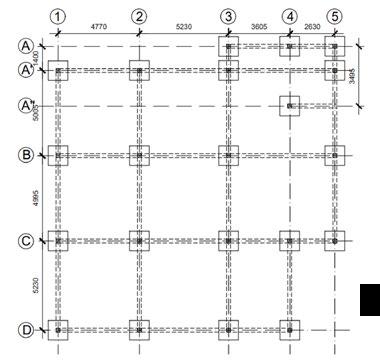

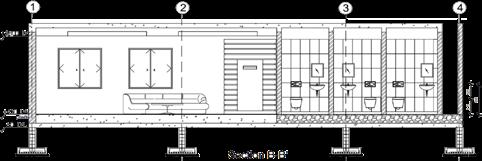

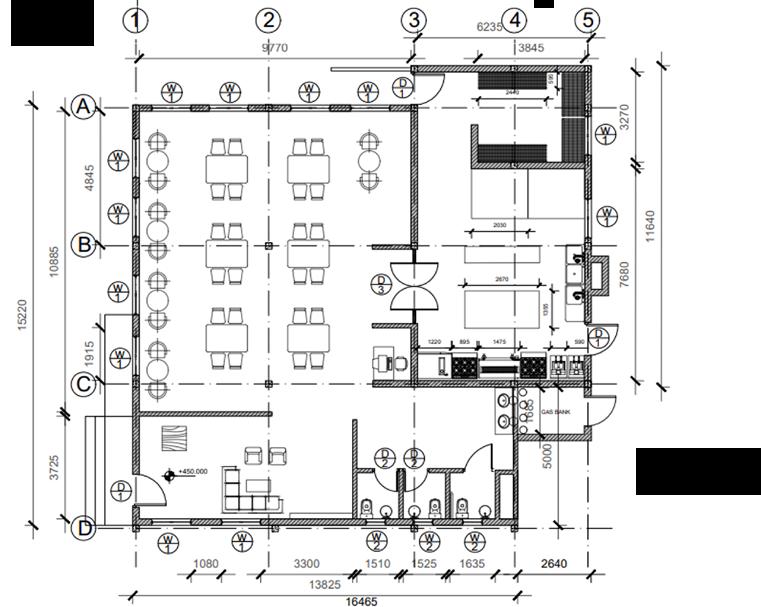

DRAWING RESTAURANT WITH 35 COVERS NOTES: 1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSIONS ARE TO BE READ NOT SCALED 3. WALLS ARE 230 THICK UNLESS OTHERWISE SPECIFIED 4. LEVELS MARKED ARE WITH RESPECT TO FINISHED FLOOR LEVELS 5. ALL DOOR & WINDOW LEVELS ARE WITH RESPECT TO FINISHED FLOOR LEVEL CARPET AREA OF RESTAURANT = 230M2 FURNITURE LAYOUT SECTION C - C’ SECTION B - B’ SECTION A - A’ ELECTRIC LAYOUT FRAMING LAYOUT
WORKING
NOTES:
1. ALL DIMENSIONS ARE IN MM 2. ALL DIMENSIONS ARE TO BE READ NOT SCALED
3. WALLS ARE 230 THICK UNLESS OTHERWISE SPECIFIED
4. LEVELS MARKED ARE WITH RESPECT TO FINISHED FLOOR LEVELS
5. ALL DOOR & WINDOW LEVELS ARE WITH RESPECT TO FINISHED FLOOR LEVEL
FURNITURE LAYOUT

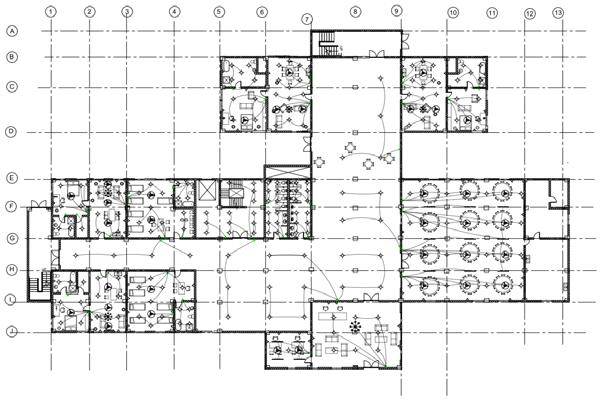

ELECTRIC LAYOUT
21
DRAWING
WORKING

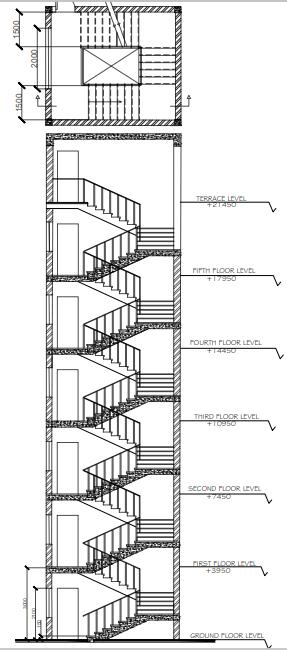

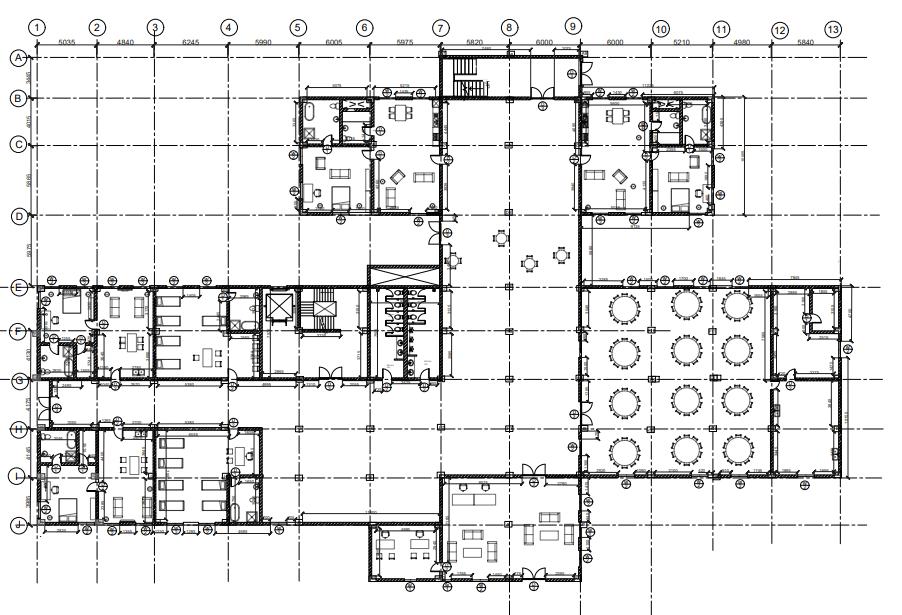

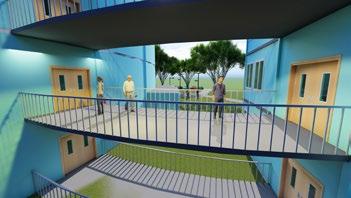

CO-ED HOSTEL (SEMESTER 4) B B’ A A’ SECTION B - B’ SECTION A - A’ SECTION FROM STAIR-

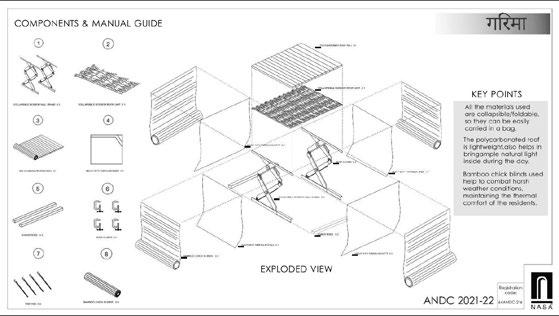

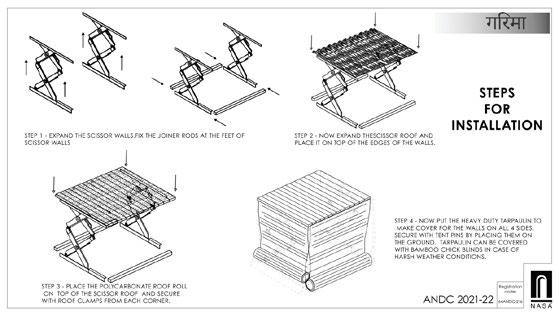

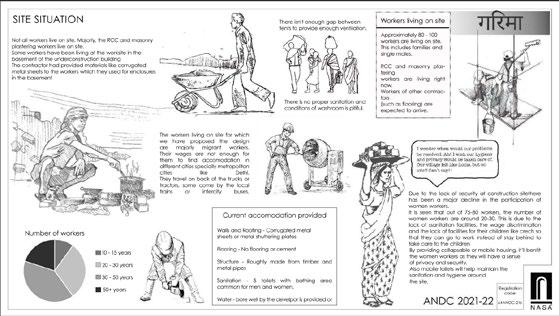

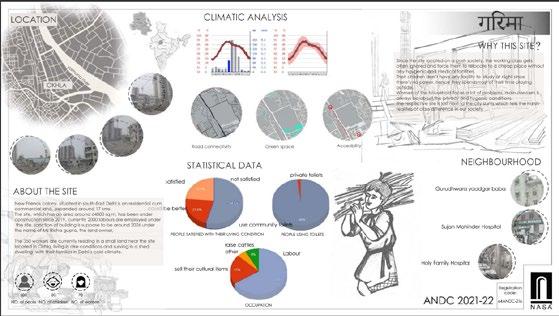

ANDC 2021 ASM (TOP 25)

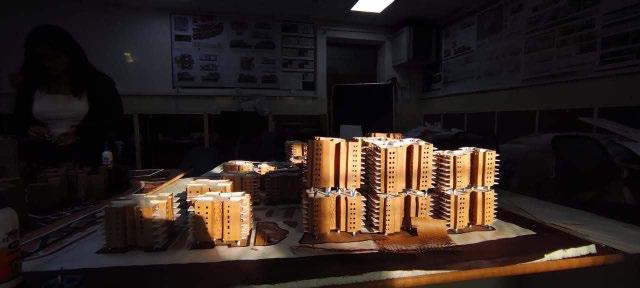

PHOTOGRAPHY, ART AND MODEL

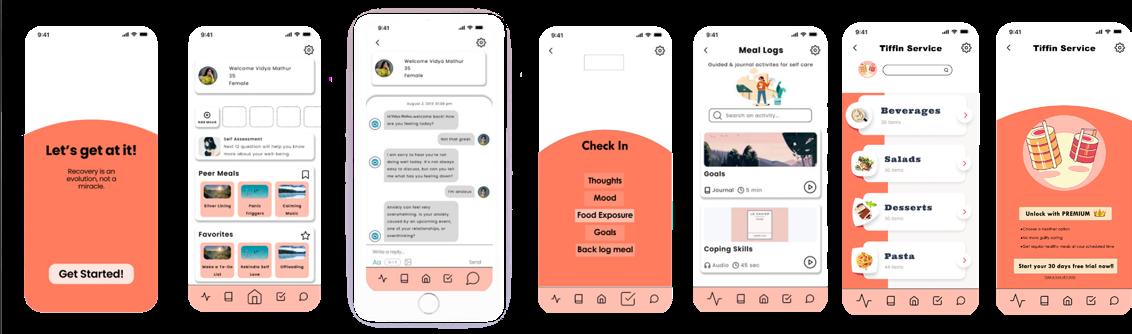

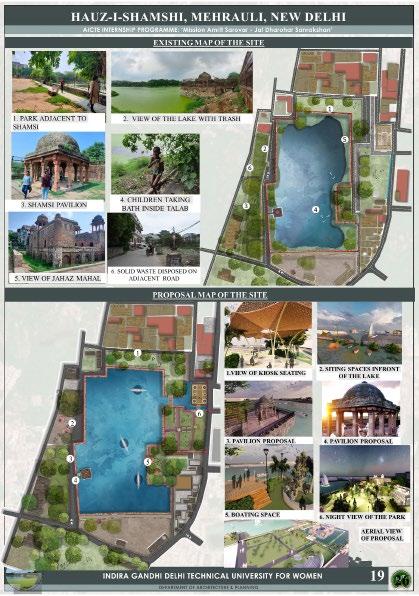

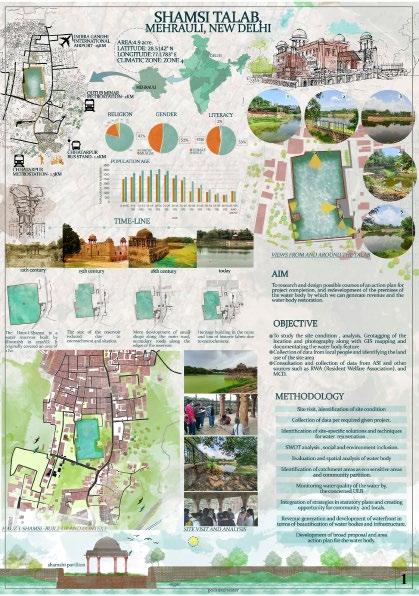

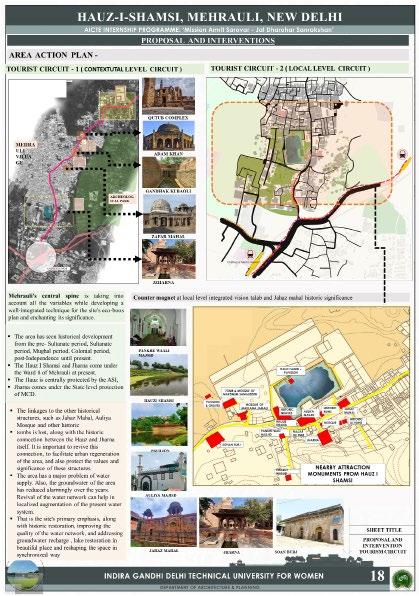

MISCELLANEOUS APP DESIGN TO HELP BINGE EATERS INDUCE
