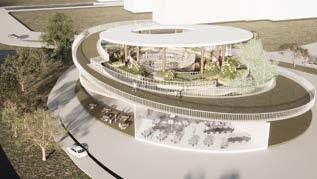

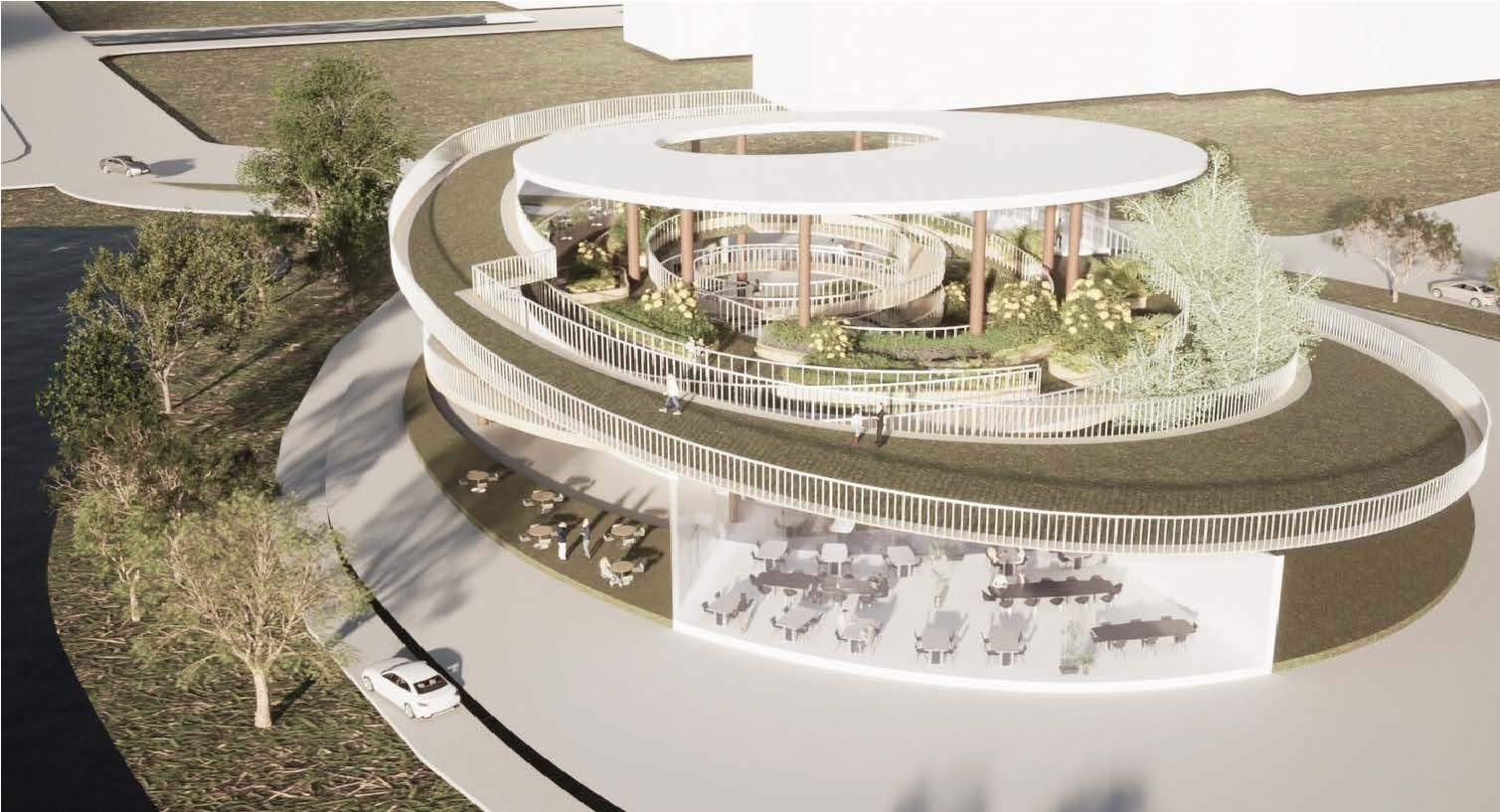

Community Garden Learning Center

COMMUNITY GARDEN LEARNING CENTER

CAMPUS LIFE + KMUTT - BANGKHUNTIEN of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

ARC 343 Architecture Design III Semester 2/2023

Project name : CampusLife+ KMUTT-Bangkhuntien

The main program proposal mainly prioritizes the inserting of the local plants within and surrounding the spaces in order to manage the unorganized planting program and also make an advantage for both locals, students, and visitors to have a green space in the community along with the workshop that supports the interaction within the campus.

Instructor : Elliott Voth

Phanthira Arjarreepipat

64120500014

LOCATION

SITE SURROUNDING KMUTT - BANGKHUNTIEN KMUTT - Bangkhuntien is the extension area of KMUTT - Bangmod. KMUTT is now in the process to develop KMUTT Sustainability Strategic Plan 2030 which comply to the university policy and KMUTT Strategic Plan 2030. KMUTT committed to be Sustainable University for SDG 2030 since 2017 which comply the global and national sustainable agenda and to promote the development of sustainability leadership.

Bangkok

Bang Khun Thian

3

POPULATION OF BANGKHUNTIEN PEOPLE

182,235

1

184,805

2

180,000

165,693

6

160,000 5

141,698 140,000 4

118,611 121,000

101,728 YEAR

100,000 1998

2002

of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

2007

2012

2017

ARC 343 Architecture Design III Semester 2/2023

2022

Project name : CampusLife+ KMUTT-Bangkhuntien

1

KMUTT - Bangkhuntien Campus

4

Multi-Company Warehouse

2

Bangkhuntien Geriatric Hospital

5

Pracha Bamrung Temple

3

Sea Food Reataurant

6

Pracha Bamrung School

Instructor : Elliott Voth

Phanthira Arjarreepipat

64120500014

BANGKHUNTIEN LANDUSE 1912

Historical Map

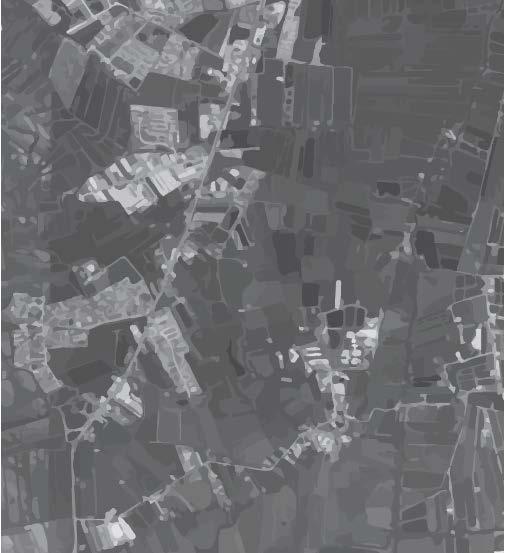

STUDENT SURVEY RESULT 1951 L709 Map

2023 Satellite Image

TOTAL PARTICIPANT 40 people SoA+D Student 22 people Media Art Student 7 people

Duarunsuksa Student 11 people

PLACE TO WORK

PLACE TO STAY

60%

Dormitory 24/7 Room Home Studio

Dormitory in campus 22.5%

17.5%

Kamkhung Terrace Home

34 11 12 1

0

10

12.5%

1912

- Inaccessible to the area - Few residences

1951

- Street and railway was built - More people move in - Sea salt farming was expaned

Low Density Residential Area High Density Residential Area

20%

Alone Friends Both

Walk Private car Bike

32.5%

40

34 11 12

0

10

20

30

40

Public transportation

Mangrove Forest Seasalt Farming Area Aquaculture Area

ACTIVITY AFTER CLASS

Co-Working Space

2023

15%

- Residential area expanded - Aquaculture half of area

85%

Yes No

Sleep Do Homework Biking Running Exercise Relax in the room Walk around campus

14 16 9 7 14 29 14

0

of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

30

WORK PARTNER

TRANSPORTATION 35%

20

ARC 343 Architecture Design III Semester 2/2023

Project name : CampusLife+ KMUTT-Bangkhuntien

Instructor : Elliott Voth

10

20

Phanthira Arjarreepipat

30

40

64120500014

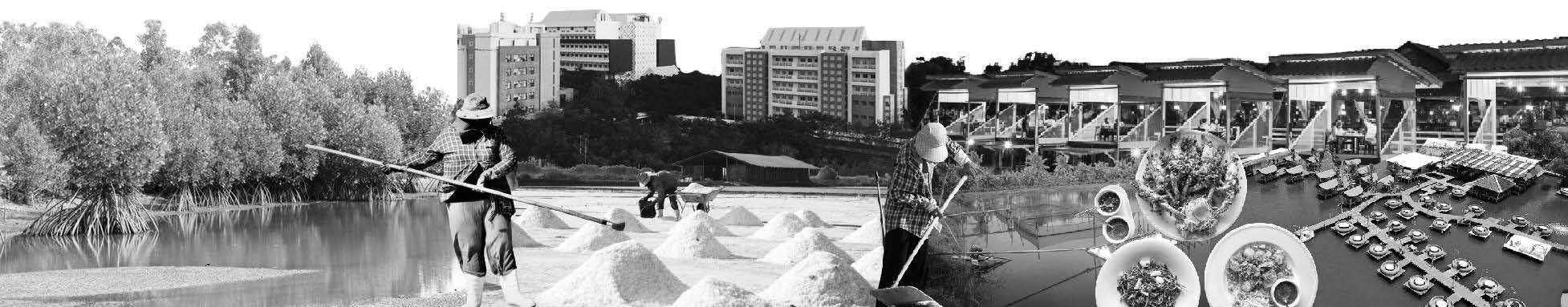

BANGKHUNTIEN SITE CONTEXT

1867

1938

1978

2024

Mangrove Forest

Sea Salt Farming

Aquaculture

Sea food Restaurant

Bangkhuntien became one of Thailand districts after Thonburi and Phra Na Korn provinces combine together as one province, Bangkok. Most of the lands are mangrove forest and not many people lived there, only small village.

The coastline are coverd by the soil so people can do the sea salt farming. Meanwhile, less mangrove causes less effective to protect the flood from high rise. After Suppasarnmit Canal was constructed, the sea salt can be transported. Creating way for people to make income.

People turn the sea salt pond to create other income by doing aquaculture by mostly focus on shrimp and fish farming.

Since the aquaculture is expaned for locals, it creates opportunity to build up the seafood restaurant bussinesses. Nowadays, this area is knows by the center point of seafood restaurants of Rama II Area.

of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

ARC 343 Architecture Design III Semester 2/2023

Project name : CampusLife+ KMUTT-Bangkhuntien

Instructor : Elliott Voth

Phanthira Arjarreepipat

64120500014

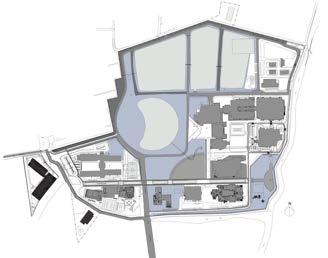

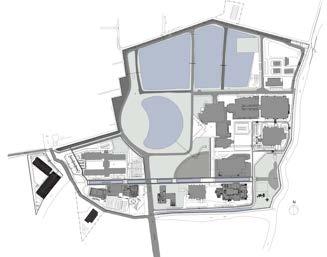

KMUTT BANGKHUNTIEN CAMPUS Water Area

Green Area

Building

of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

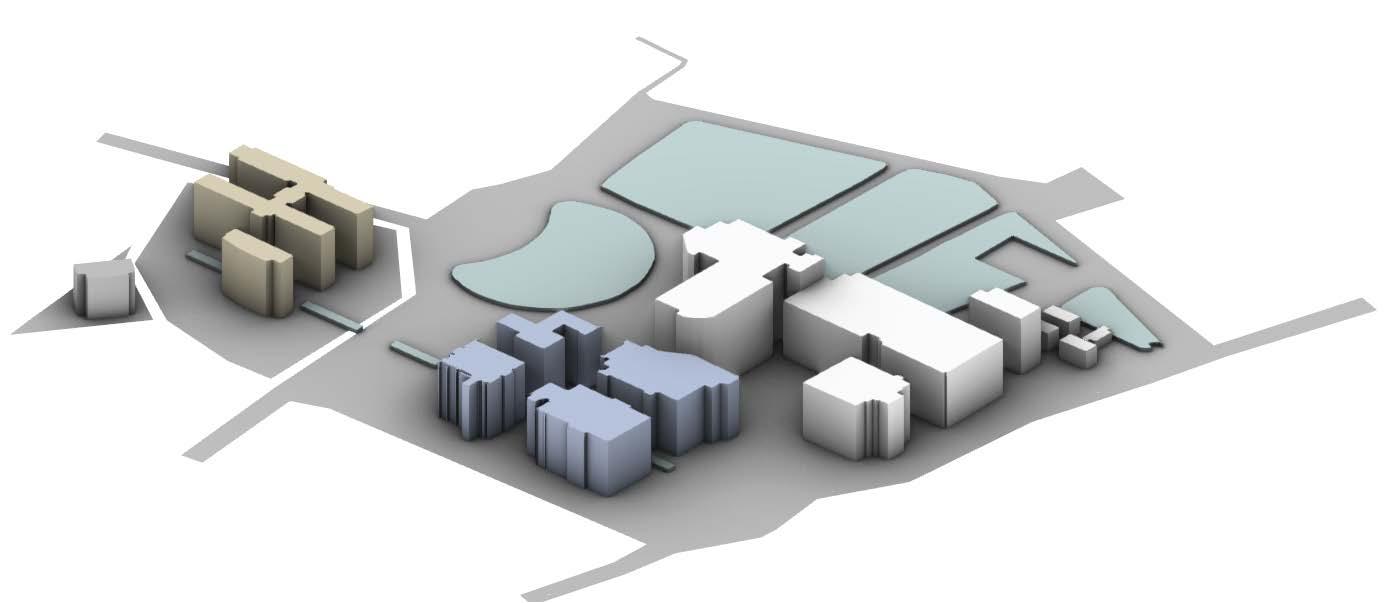

Parking / Bicycle Hub

ARC 343 Architecture Design III Semester 2/2023

Project name : CampusLife+ KMUTT-Bangkhuntien

Pedestrian/Biking Circulation

Vehicle Circulation

Instructor : Elliott Voth

Phanthira Arjarreepipat

64120500014

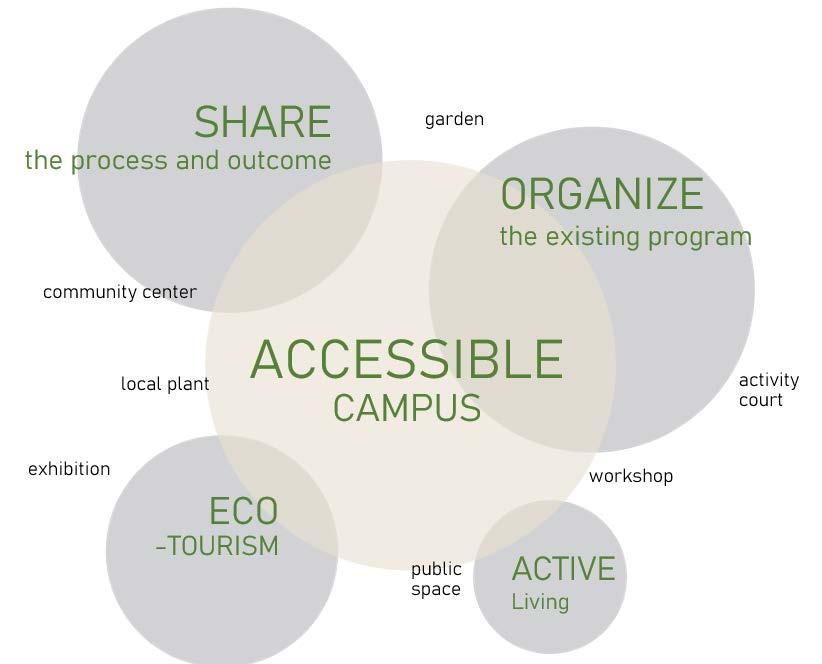

PROGRAM COMMUNITY GARDEN LEARNING CENTER

of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

ARC 343 Architecture Design III Semester 2/2023

Project name : CampusLife+ KMUTT-Bangkhuntien

Instructor : Elliott Voth

Phanthira Arjarreepipat

64120500014

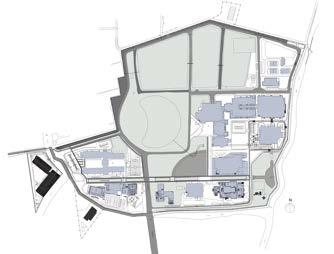

EXISTING PROGRAM Academic Zone

Research/Pilot Plant Zone

A1 Media Technology and Applied Art A2 School of Architecture and Design A3 School of Bioresources and Technology A4 KOSEN BUILDING

Dormitory/Recreation Zone

R1 Plot Plant Development and Training Institute R2 Engineering Center R3 CES Testing Center R4 Bioprocess Research and

Pond with sitting area

W1 Waste Storage Building KMUTT

D1 Female Dormitory D2 Male Dormitory D3 SPC Sport Center

P1 Research and Developing Building Pilot Plant 1 P2 Research and Developing Building Pilot Plant 1 P3 National Biopharmaceutical

Waster Management Zone

Public Utility Zone U

Public Utility Building

Leave Perment for Compost

Local Plant Nursary D1 D2

U

D3

R1

P2

A4 A1

P3

A3 Green Space at the entrace

R2 P1

R4

A2

W1

Waste Bank

R3

of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

ARC 343 Architecture Design III Semester 2/2023

Project name : CampusLife+ KMUTT-Bangkhuntien

Instructor : Elliott Voth

Phanthira Arjarreepipat

64120500014

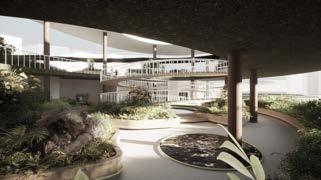

LANDSCAPE and INDOOR SPACE CONNECTION

ZONING

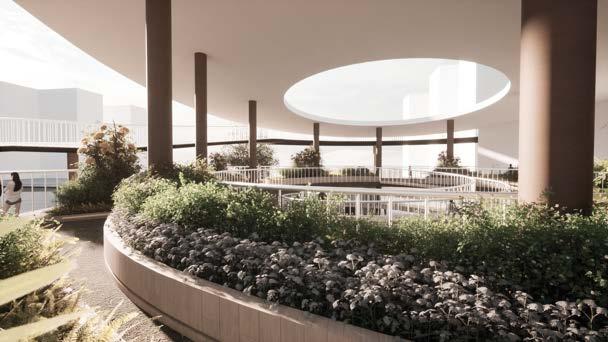

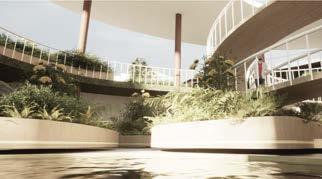

This concept is to manage the use of spaces by using curves that contribute to the separation between the landscape and the indoor spaces. The flat plate on the ground is connecting to the landscape and the floating plate is creating the indoor spaces below. The openness between the floating curve allows the trees with height to grow through the double volume, especially on the west to create shade during the day time. It creates a relationship between the garden and other programs. The east is the double volume allowing more space for indoor programs to situate with the view of the blue and green space.

The raised floor plate is open to the front of the campus to lead the students to join the space, the back opens for existing programs that need outdoor space and it closes to their old site.

Co-Working Space

SITE LOCATION

Restroom

Workshop

Cafe

Share Space

Indoor Garden

Share Space

Indoor Garden

Outdoor Program

Learning Center

Share Space

Outdoor Garden

Garden

Cafe

Restroom

Learning Center

Workshop

Co-working Space

Second Floor

First Floor

of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

ARC 343 Architecture Design III Semester 2/2023

Project name : CampusLife+ KMUTT-Bangkhuntien

Instructor : Elliott Voth

Phanthira Arjarreepipat

64120500014

TARGET USER

STRUCTURAL DIAGRAM

External User

Internal User

Visitors

Student

Family

Age: 4 - 70 Years old Time: 10.00 - 18.00 The customers of the seafood restaurant, come to spend family during the day.

Concrete Roof with circular glass void

SoA+D and Media Art Darunsuksa School Age: 15-24 Years old Time: 8.00 - 20.00 Spending most time at the campus, school and the dorm.

Rough Concrete Floor

Colunm and Beam, Cantilever

Teacher

Tourist Age: 18 - 55 Years old Time: 10.00 - 18.00 Conservation tourism group visiting to learn about Bang Khun Thian ecosystem and environment.

School Trip Age: 7 - 18 Years old Time: 10.00 - 16.00 Beyound classroom learning by outdoor education for students provided by the school.

KMUTT/DSS Teacher Age: 25- 60 Years old Time: 8.00 - 18.00 Come to teach students during weekdays.

Staff Staff and Workers

Concrete Ramp with Standless railing Age: 27- 55 Years old Time: 8.00 - 18.00 Spending time working in the office or labatory and their own building during weekdays.

Plaster Finishing Wall Plaster Finishing 15 mm x2 sides Outdoor Film

Local Community Local

Age: 18 - 55 Years old Time: 8.00 - 18.00 Exchanging knowledge with KMUTT staffs and use the facilities to develop the product.

Rigid Board 50 mm

Brick 100 mm x2 sides Indoor Film

Air Space 25 mm

of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

ARC 343 Architecture Design III Semester 2/2023

Project name : CampusLife+ KMUTT-Bangkhuntien

Instructor : Elliott Voth

Phanthira Arjarreepipat

64120500014

DESIGN DEVELOPMENT

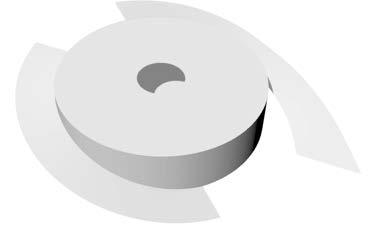

Focusing on how to create the relationship of the line to distinguish landscape and indoor space

Making the pathway with elevated floor and void to convince the integration of landscape with indoor space

of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

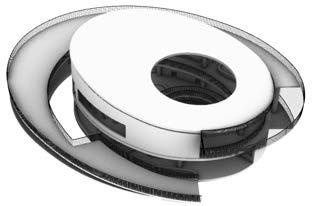

Simplify the form and find try intrgrate more with the site

Adjusting the form to make more connection with the site and to be able to manage the structural system

ARC 343 Architecture Design III Semester 2/2023

Project name : CampusLife+ KMUTT-Bangkhuntien

Adding structural element and manage the program with the space and form

Reorganize the pathway circulation and program area. Specify the material.

Instructor : Elliott Voth

Phanthira Arjarreepipat

64120500014

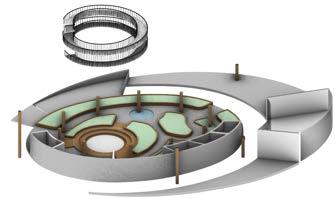

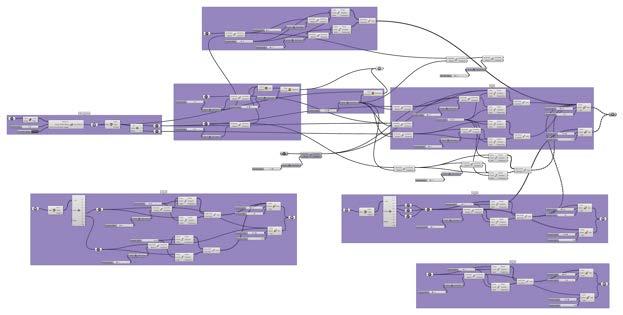

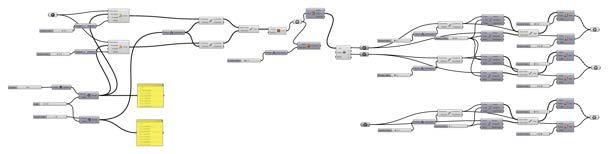

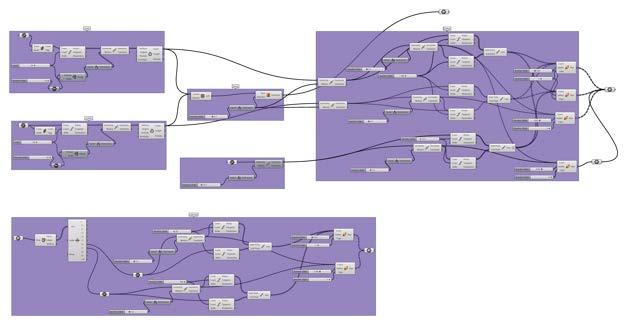

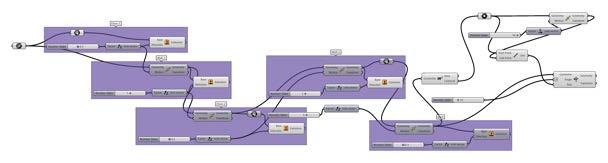

GRASSHOPPER

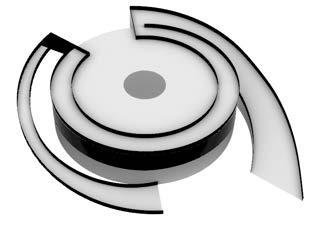

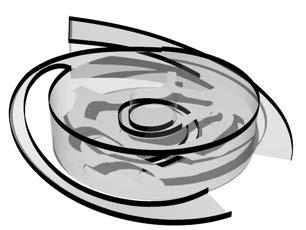

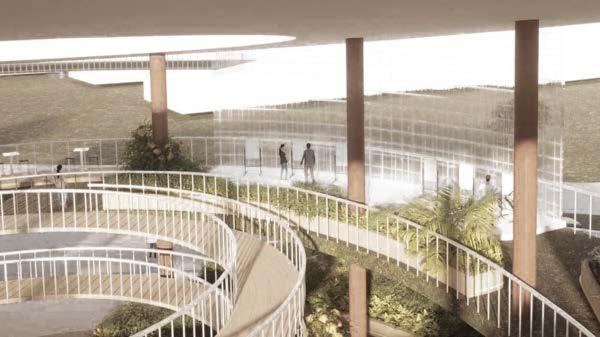

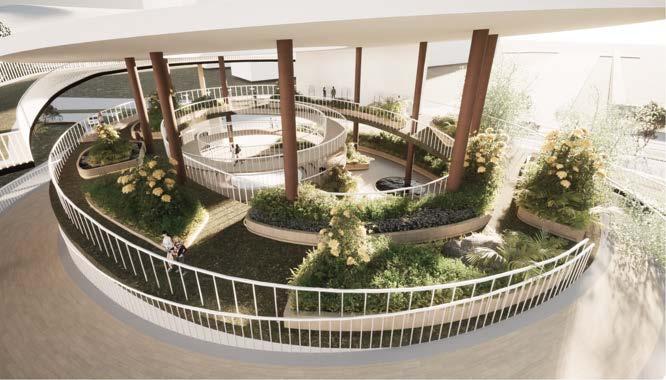

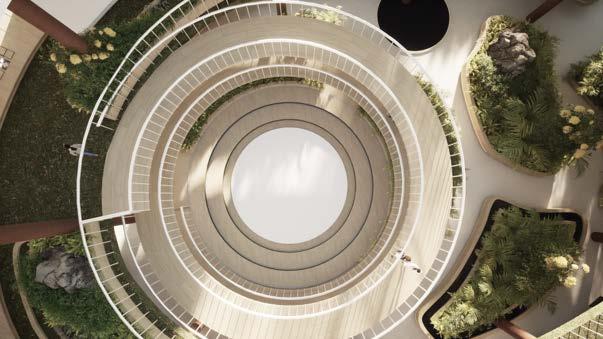

Spiral Ramp

Form

Ramp A

of Architecture and Design SoA+ D School King Mongkut’s University of Technology Thonburi

ARC 343 Architecture Design III Semester 2/2023

Ramp B

Project name : CampusLife+ KMUTT-Bangkhuntien

Instructor : Elliott Voth

Phanthira Arjarreepipat

64120500014

FIRST FLOOR PLAN SCALE 1 : 250 0

5

10

20

40

UP

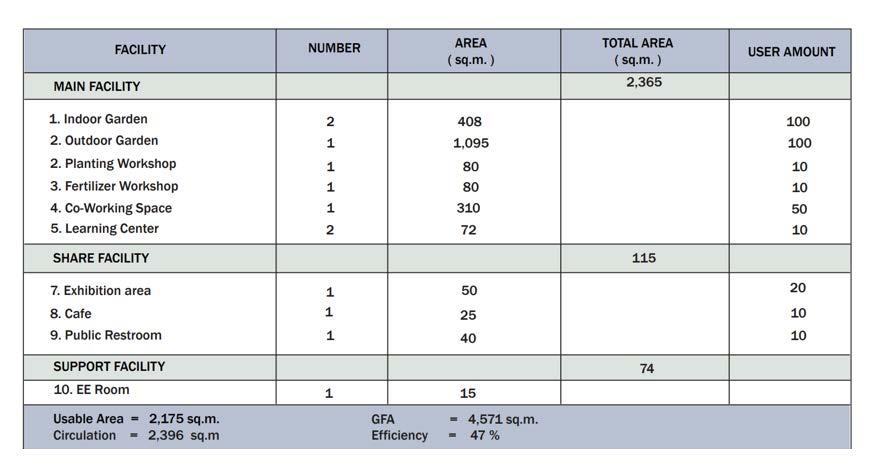

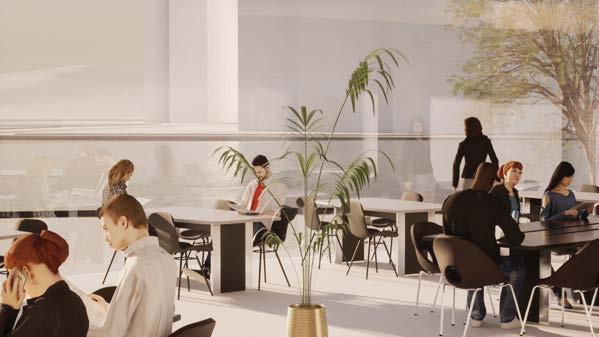

Indoor Co-Working Space 200 sq.m.

Plant Nursary 300 sq.m.

Outdoor Co-Working Space 90 sq.m.

Entrance

EE Room

Restroom 40 sq.m.

UP

UP

DN

UP

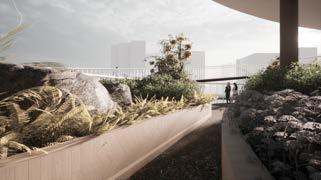

Graden 278 sq.m.

DN

Fertilizer Workshop 80 sq.m.

Multipurpose Area 117 sq.m.

Planting Workshop 80 sq.m.

Cafe 25 sq.m.

Main Entrance

DN

SECOND FLOOR PLAN

ROOF PLAN

SCALE 1 : 250

SCALE 1 : 250

0

5

10

20

40

0

5

10

DN

20

40

N
