Denver 60

Denver, Co

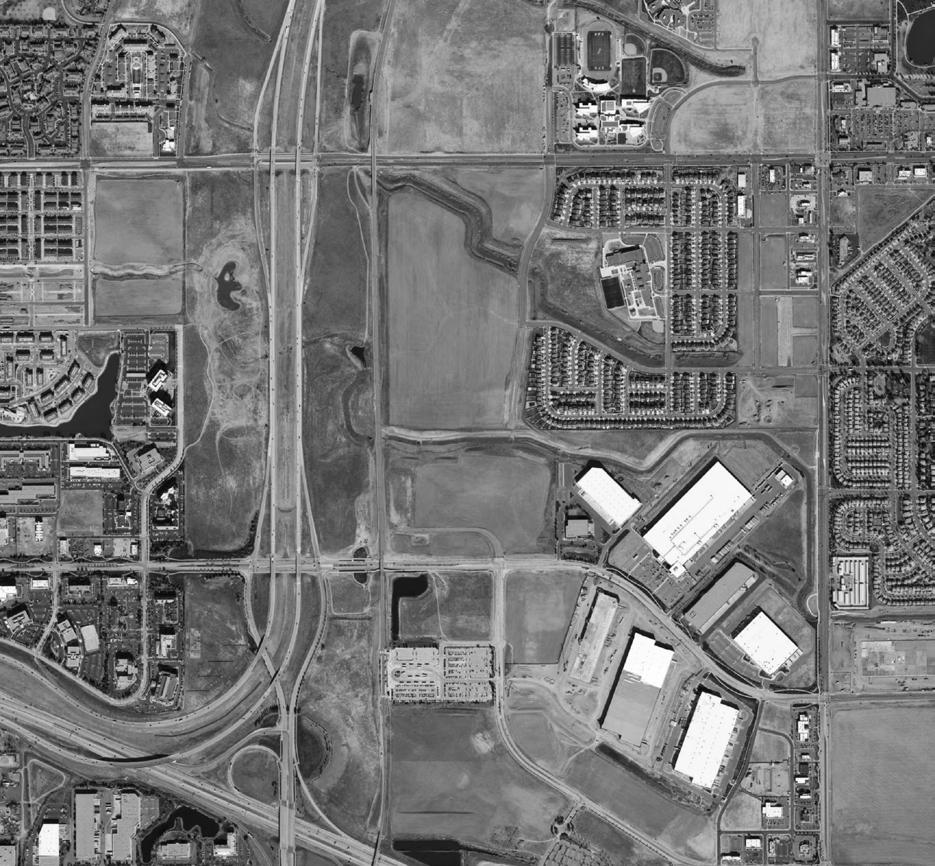

Denver 60 is a masterplanned community spanning 60 acres of the Denver Gateway District. The project features a diverse range of uses, including multi-family apartments, single-family homes, townhomes, a public park, and a neighborhood clubhouse and recreation center. The project will break ground this year with phase one. My involvement as the landscape designer focused on concept design, drafting, and coordinating construction documents.

*Pool courtyard and amenity deck located on third level.

*Amenity deck located on third level.

*Pool deck located on third level.

*Amenity deck located on third level.

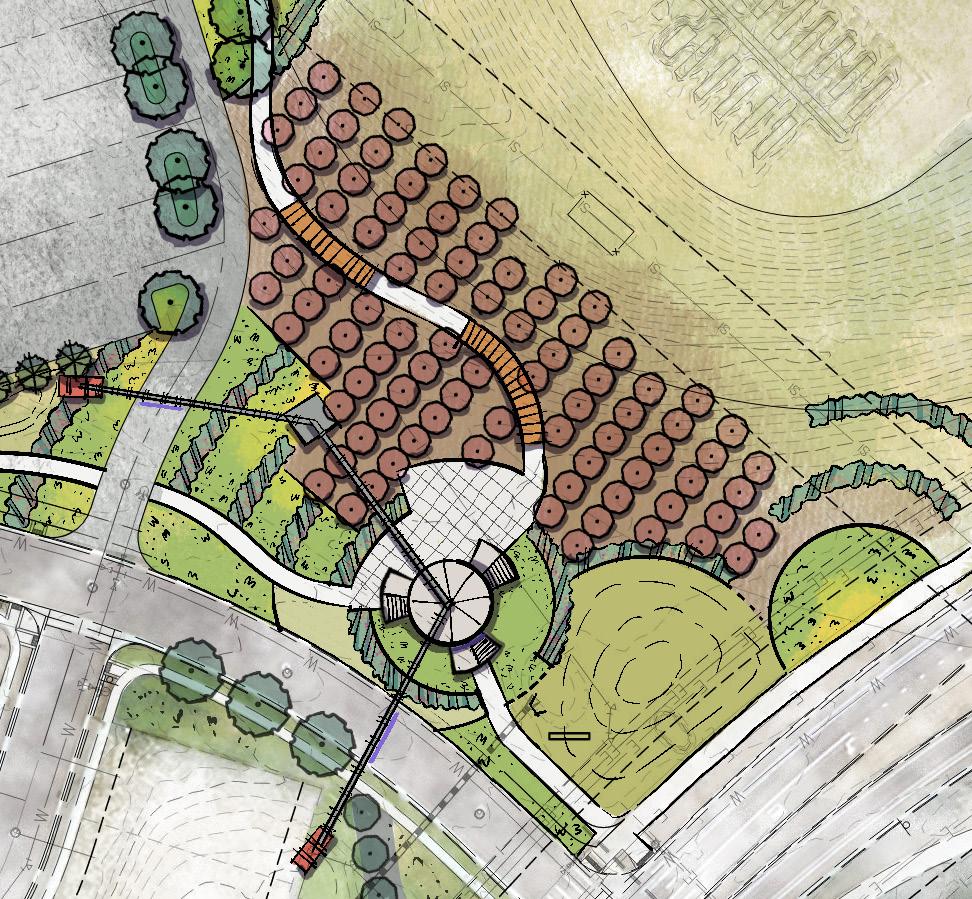

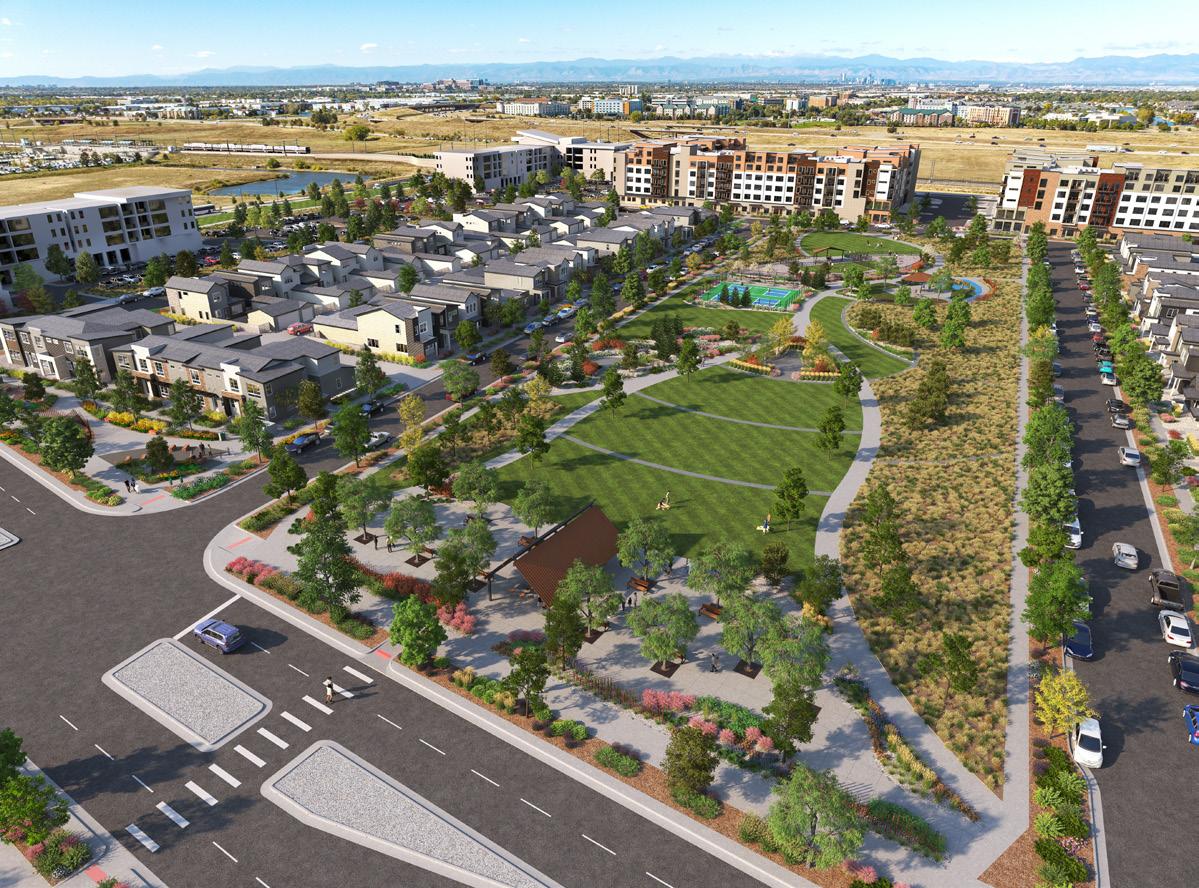

*Public park rendering

NOTES:

1. NORRIS DESIGN HAS PROVIDED THIS DETAIL FOR REFERENCE, THIS DETAIL HAS NOT BEEN ENGINEERED.

2. ALL CONCRETE SHALL HAVE A MINIMUM COMPRESSIVE STRENGTH OF 5,000 PSI AT 28 DAYS.

3. MINIMUM BURY DEPTH ON ALL REBAR SHALL BE 2-1/2".

4. VERTICAL CONTROL JOINTS SHALL BE 10' ON CENTER WITH EXPANSION JOINTS 50' ON CENTER, UNLESS OTHERWISE NOTED.

5. VERTICAL FACES OF WALL SHALL BE PLUMB, WITH NO INCONSISTENCIES GREATER THAN 1/4" IN 10'-0" MEASURED IN ANY DIRECTION ALONG THE FACE OF THE WALL.

6. SEATWALL SHALL BE INSTALLED SO HORIZONTAL CURVES ARE SMOOTH AND FREE-FLOWING AS SHOWN ON PLANS.

18" CONCRETE SEATWALL

NOTES:

1. NORRIS DESIGN HAS PROVIDED THE DETAIL FOR REFERENCE PURPOSE, THIS DETAIL HAS NOT BEEN ENGINEERED.

2. CONTRACTOR TO PROVIDE SHOP DRAWINGS AND CONFIRM LAYOUT PRIOR TO INSTALLATION.

3. CONTRACTOR SHALL VERIFY PEDESTAL HEIGHT DURING CONSTRUCTION. PEDESTAL HEIGHT SHOULD PROVIDE A SMOOTH TRANSITION FROM INTERIOR FINISHED FLOOR TO THE EXTERIOR GRADE AND MEET ALL ADA REQUIREMENTS FOR TRANSITIONS.

PEDESTAL PAVERS

*Mulit-family pool deck located on podium of Building B, lot 7 block 2.

CONCRETE SEATWALL, 1" RADIUS ON ALL EXPOSED CORNER

EXPANSION JOINT

SURROUNDING HARDSCAPE

#4 REBAR LOOP, 24" ON CENTER DOWN EACH FACE OF WALL

(3) #6 REBAR EQUALLY SPACED (VERTICALLY) ON EACH SIDE, CONTINUOUS DOWN LENGTH OF WALL, OVERLAP SPLICES 12"

SURROUNDING LANDSCAPE, REFER TO PLANS

COMPACTED AGGREGATE BASE

SUBGRADE COMPACTED TO 95% STANDARD PROCTOR DENSITY

SCALE: 1" = 1'-0"

PEDESTAL PAVER; SEE MATERIALS SCHEDULE

BISON PRODUCTS, VERSADJUST PEDESTAL WITH VT18 SPACER TAB (OR APPROVED EQUAL), CONTRACTOR SHALL PROVIDE A LAYOUT PLAN WITH SPECIFIC PRODUCT HEIGHTS AND SHIMS REQUIRED FOR PLACEMENT OF PAVERS AND TURF ON THE ROOF MEMBRANE HOT APPLIED MONOLITHIC WATERPROOF MEMBRANE, REFER TO ARCHITECTURE CONCRETE STRUCTURAL SLAB AND WATERPROOFING, SLOPE TO DRAIN, REFER TO ARCHITECTURE

DEMONSTRATE THE RESPONSIBLE FOR BUILDING OR BUILDING ENVELOPE.

IRRIGATED AND HAVE MECHANICAL AND PLUMBING DRAIN LOCATIONS

IRRIGATION PLANS FOR LOCATIONS.

PROVIDED THIS DETAIL FOR REFERENCE, THIS DETAIL HAS NOT BEEN

HAVE A MINIMUM COMPRESSIVE STRENGTH OF 5,000 PSI AT 28 DAYS. ALL REBAR SHALL BE 2-1/2".

JOINTS SHALL BE 10' ON CENTER WITH EXPANSION JOINTS 50' ON OTHERWISE NOTED.

SHALL BE PLUMB, WITH NO INCONSISTENCIES GREATER THAN 1/4"

DIRECTION ALONG THE FACE OF THE WALL.

INSTALLED SO HORIZONTAL CURVES ARE

PEDESTAL PAVER SYSTEM

SS Z BRACKET 2-FT O.C. SCREWED TO TOP OF ARTIFICIAL TURF ROOFDECK PANEL WITH SS SCREWS. BRACKETS EXTEND UNDER PAVERS

HIGH-PERFORMANCE COATED TOP-DRESSING PER SPECIFICATIONS

ARTIFICIAL TURF ATTACHED TO PANELS WITH 3/4" PAN HEAD #8 SS SCREWS

ARTIFICIAL TURF ROOFDECK PANEL 1/2" BELOW TOP OF PAVER

COMPLETED IN ACCORDANCE WITH MANUFACTURER'S SPECIFICATIONS.

INTENDED FOR USE BY ARCHITECTS, ENGINEERS, CONTRACTORS, DESIGN PROFESSIONALS FOR PLANNING PURPOSES ONLY. THIS USED FOR CONSTRUCTION.

CONCRETE SEATWALL, 1" RADIUS ON ALL EXPOSED CORNER

EXPANSION JOINT

SURROUNDING HARDSCAPE

#4 REBAR LOOP, 24" ON CENTER DOWN EACH FACE OF WALL

(3) #6 REBAR EQUALLY SPACED (VERTICALLY) ON EACH SIDE, CONTINUOUS DOWN LENGTH OF WALL, OVERLAP SPLICES 12"

SURROUNDING LANDSCAPE, REFER TO PLANS

COMPACTED AGGREGATE BASE

SUBGRADE COMPACTED TO 95% STANDARD PROCTOR DENSITY

PANEL TO PANEL CONNECTIONS WITH 1" PAN HEAD #14 SS SCREWS WITH 1/4" WASHERS

NOTES:

1. THIS DETAIL'S INTENT IS TO DEMONSTRATE THE PLANTER GRAVEL ASSEMBLY.

2. NORRIS DESIGN IS NOT RESPONSIBLE FOR CONNECTIONS TO THE BUILDING OR WATERPROOFING AT THE BUILDING ENVELOPE.

3. ALL PLANTERS TO BE IRRIGATED AND HAVE DRAINS, REFER TO MECHANICAL AND PLUMBING DRAWINGS FOR DRAIN SIZE, DRAIN LOCATIONS AND DETAILS. REFER TO IRRIGATION PLANS FOR IRRIGATION TYPE AND LOCATIONS.

4. ALL PENETRATIONS TO BE SEALED/WATERPROOFED.

ROOFTOP PLANTER

GEO TEXTILE

PRECAST CONCRETE CAP, 2-1/2" THICK, GROUT IN PLACE

8"X8"X16" GROUND FACE CMU, GROUT CELLS #4 REBAR AT 24" ON CENTER

6" CURB

PLANTER MULCH, MINIMUM 2" DEPTH, REFER TO MATERIAL SCHEDULE

MIRAFI FILTER FABRIC

AMENDED PLANTING SOIL, REFER TO LANDSCAPE SPECIFICATIONS AND PLANTER SOIL FILL

ADJACENT COURTYARD PAVERS, REFER TO MATERIAL SCHEDULE

6" LAYER OF 1.5"-3" WASHED GRAVEL, SLOPE TO DRAIN ALL PLANTERS ARE TO BE DRAINED, REFER TO MECHANICAL AND PLUMBING PLANS FOR DRAIN DETAILS

REFER TO ARCHITECTURE AND STRUCTURAL FOR SUB SLAB ASSEMBLY AND INSULATION

RETAINING WALL, REFER TO MATERIAL SCHEDULE

VARIES, RE: ARCHITECTURE

COUNTERTOP: 3CM GRANITE 2" OVERHANG AT ON ALL SIDES; GRANITE IMPORTS, BLACK PEARL L/P

GFCI OUTLET

ADA SIDE HOOD HANDLE

CONTAINED HEREIN WAS CURRENT AT THE TIME OF DEVELOPMENT BUT APPROVED BY THE PRODUCT MANUFACTURER TO BE CONSIDERED

PROVIDED THE DETAIL FOR REFERENCE PURPOSE, THIS DETAIL HAS PROVIDE SHOP DRAWINGS AND CONFIRM LAYOUT PRIOR TO

VERIFY PEDESTAL HEIGHT DURING CONSTRUCTION. PEDESTAL

PROVIDE A SMOOTH TRANSITION FROM INTERIOR FINISHED FLOOR TO THE MEET ALL ADA REQUIREMENTS FOR TRANSITIONS.

PEDESTAL PAVER; SEE MATERIALS SCHEDULE BISON PRODUCTS, VERSADJUST PEDESTAL WITH VT18 SPACER TAB (OR APPROVED EQUAL), CONTRACTOR SHALL PROVIDE A LAYOUT PLAN WITH SPECIFIC PRODUCT HEIGHTS AND SHIMS REQUIRED FOR PLACEMENT OF PAVERS AND TURF ON THE ROOF MEMBRANE HOT APPLIED MONOLITHIC WATERPROOF MEMBRANE, REFER TO ARCHITECTURE CONCRETE STRUCTURAL SLAB AND WATERPROOFING, SLOPE TO DRAIN, REFER TO ARCHITECTURE

60 PSI (MINIMUM) RIGID INSULATION DRAINAGE MEDIUM

1. CONTRACTOR SHALL PROVIDE SHOP DRAWINGS FOR REVIEW AND APPROVAL PRIOR TO CONSTRUCTION.

2. THIS DETAIL IS FOR DESIGN INTENT ONLY. CONTRACTOR TO MEET ALL APPLICABLE IBC, CITY, STATE AND ADA CODES. CONTRACTOR TO SUBMIT SHOP DRAWINGS FOR GRILL STATION STRUCTURE FOR APPROVAL PRIOR TO CONSTRUCTION.

HOT-APPLIED MONOLITHIC WATERPROOF MEMBRANE

3. COORDINATE WITH ELECTRICAL TO PROVIDE 1 GFCI OUTLET, POWER FOR GRILL, TIMERS AND SHUT-OFF SYSTEM.

CONCRETE STRUCTURAL SLAB, RE: ARCHITECTURE

4. ALL COUNTER TOPS SHALL BE MAXIMUM 2'-10" FROM TOP OF COUNTER TO TOP OF ADJACENT PAVER. COUNTERS EXCEEDING THIS HEIGHT WILL NOT BE ACCEPTED DUE TO ADA COMPLIANCE. USE HALF HEIGHT CMU BLOCKS ALONG THE TOP COURSE WHERE NECESSARY.

32 1/4" W x 16 1/4" D x 7 3/4" H CUT OUT FOR GRILL

PEDESTAL PAVER SYSTEM

SS Z BRACKET 2-FT O.C. SCREWED TO TOP OF

4"X8"X16" GROUND FACE CMU BLOCK, BLOCKS TO BE MORTARED TOGETHER, RUNNING BOND VERTICAL STACKING. REBAR AND TIE INS RE: STRUCTURAL

ARTIFICIAL TURF ROOFDECK PANEL WITH SS SCREWS. BRACKETS EXTEND UNDER PAVERS

HIGH-PERFORMANCE COATED TOP-DRESSING PER SPECIFICATIONS

ELECTRI-CHEF RUBY 32-INCH BUILT-IN 5280 WATT ELECTRIC GRILL WITH SINGLE TEMPERATURE CONTROL4400-EC-448-I-S-32

ARTIFICIAL TURF ATTACHED TO PANELS WITH 3/4" PAN HEAD #8 SS SCREWS

ADJACENT CUSTOM PLANTER, RE: DETAIL 2, LS-501

17" DEPTH ADA ACCESSIBLE KNEE AND TOE CLEARANCE ZONE, CONTRACTOR TO LOCATE CENTERED BETWEEN GRILLS COUNTER SUPPORTS FOR ADA/ FHAG REQUIRED CLEAR SPACE

MANUFACTURER NOTES:

1. THE GRASS MUST BE INSTALLED AND SEAMED WITH ADJACENT PIECES RUNNING IN THE SAME DIRECTION; SEAMS SHOULD BE GLUED WITH SUITABLE SEAMING GLUE AND SEAMING CLOTH, NOT ADHESIVE TAPE.

ROOFDECK SYSTEM (RIGID INSULATION)

5. GRILL CONTROLS TO BE WITHIN 15" TO 48" ABOVE FINISHED FLOOR AND NOT REQUIRE TIGHT GRASPING, PINCHING, OR TWISTING OF WRIST TO OPERATE.

6. ALL COUNTER OVERHANGS MUST BE SUPPORTED PER COUNTER TOP MANUFACTURER RECOMMENDATIONS. ALL SUPPORTS MUST MEET ADA AND FHAG REQUIREMENTS FOR CLEAR SPACE UNDER THE COUNTER. SUPPORTS SHALL BE HIDDEN TO THE GREATEST REASONABLE EXTENT POSSIBLE.

SCALE: 1 1/2" = 1'-0"

8'' X 8'' X 16'' GROUND FACE CMU PLANTER, REFER TO DETAIL 2/ LS-501.

ADJACENT COURTYARD PAVERS, REFER TO MATERIAL SCHEDULE ON SHEET LS-002

POOL FENCE REFER TO MATERIAL SCHEDULE ON SHEET LS-002

POOL DECK PEDESTAL PAVER SYSTEM

SAND STONE CAP

REFER TO ARCHITECTURE AND STRUCTURAL FOR SUB SLAB ASSEMBLY AND INSULATION

NOTES:

FIRE MAGIC STAINLESS ACCESS DOOR FIRE MODEL #53930KSC GFCI OUTLET

ARTIFICIAL TURF ROOFDECK PANEL 1/2" BELOW TOP OF PAVER

PANEL TO PANEL CONNECTIONS WITH 1" PAN HEAD #14 SS SCREWS WITH 1/4" WASHERS GEO TEXTILE 60 PSI (MINIMUM) RIGID INSULATION DRAINAGE MEDIUM HOT-APPLIED MONOLITHIC WATERPROOF MEMBRANE CONCRETE STRUCTURAL SLAB, RE: ARCHITECTURE

MANUFACTURER NOTES:

SCALE: 1/2" = 1'-0"

1. INSTALLATION TO BE COMPLETED IN ACCORDANCE WITH MANUFACTURER'S SPECIFICATIONS.

2. DO NOT SCALE DRAWING

ADJACENT PEDESTAL PAVER, RE: MATERIAL SCHEDULE, LS-002, ITEM G/H

3. THIS DRAWING IS INTENDED FOR USE BY ARCHITECTS, ENGINEERS, CONTRACTORS, CONSULTANTS AND DESIGN PROFESSIONALS FOR PLANNING PURPOSES ONLY. THIS DRAWING MAY NOT BE USED FOR CONSTRUCTION.

4. ALL INFORMATION CONTAINED HEREIN WAS CURRENT AT THE TIME OF DEVELOPMENT BUT MUST BE REVIEWED AND APPROVED BY THE PRODUCT MANUFACTURER TO BE CONSIDERED

1. THE GRASS MUST BE INSTALLED AND SEAMED WITH ADJACENT PIECES RUNNING IN THE SAME DIRECTION; SEAMS SHOULD BE GLUED WITH SUITABLE SEAMING GLUE AND SEAMING CLOTH, NOT ADHESIVE TAPE.

ARTIFICIAL TURF ROOFDECK SYSTEM (RIGID INSULATION)

NOTES:

1. ALL FENCING AND FENCE GATES SURROUNDING POOL AREA SHALL MEET CURRENT COUNTY, STATE AND IBC POOL ENCLOSURE CODE REQUIREMENTS.

PEDESTAL PAVERS

REFER

STEEL MOUNTING PLATE, ATTACHMENT TO STRUCTURAL SLAB BY OTHERS

2. THIS DETAIL IS FOR DESIGN REFERENCE ONLY, CONTRACTOR TO PROVIDE SHOP DRAWINGS FOR APPROVAL BY LANDSCAPE ARCHITECT.

3. ALL GATES TO BE SELF CLOSING WITH GATE ACCESS CONTROL APPROVED BY OWNER.

4. CONTRACTOR TO PROVIDE PANIC HARDWARE ON PUSH SIDE OF GATE FOR EGRESS WITH A CENTER POST LOCKING MECHANISM FOR DOUBLE GATE.

5. CONTRACTOR TO INCLUDE KEY FOB HARDWARE TO GATE.

ADJACENT COURTYARD PAVERS, REFER TO MATERIAL SCHEDULE ON SHEET LS-002

POOL FENCE REFER TO MATERIAL SCHEDULE ON SHEET LS-002

POOL DECK PEDESTAL PAVER SYSTEM

SAND STONE CAP

REFER TO ARCHITECTURE AND STRUCTURAL FOR SUB SLAB ASSEMBLY AND INSULATION

Alexan Northglenn

Northglenn, CO

Alexan Northglenn is a multifamily apartment with 340 units and 9 townhomes. The project involved 2D rendering, site analysis, and due diligence studies, including landscape and code minimum requirements. The project is expected to break ground later this year.

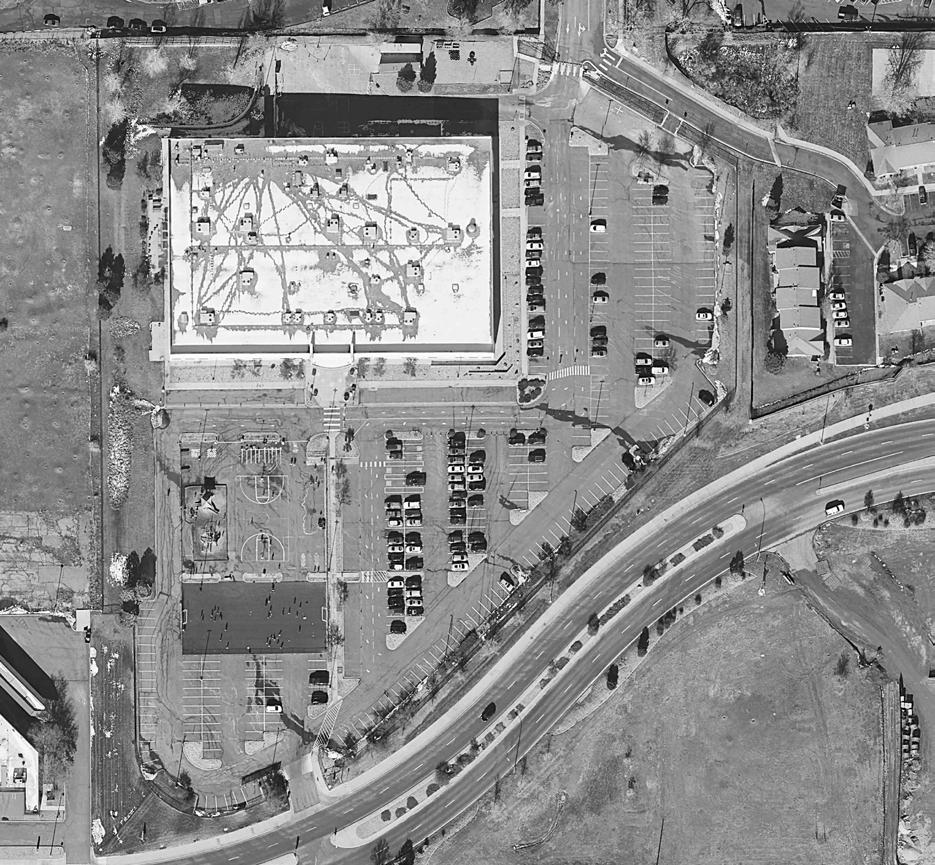

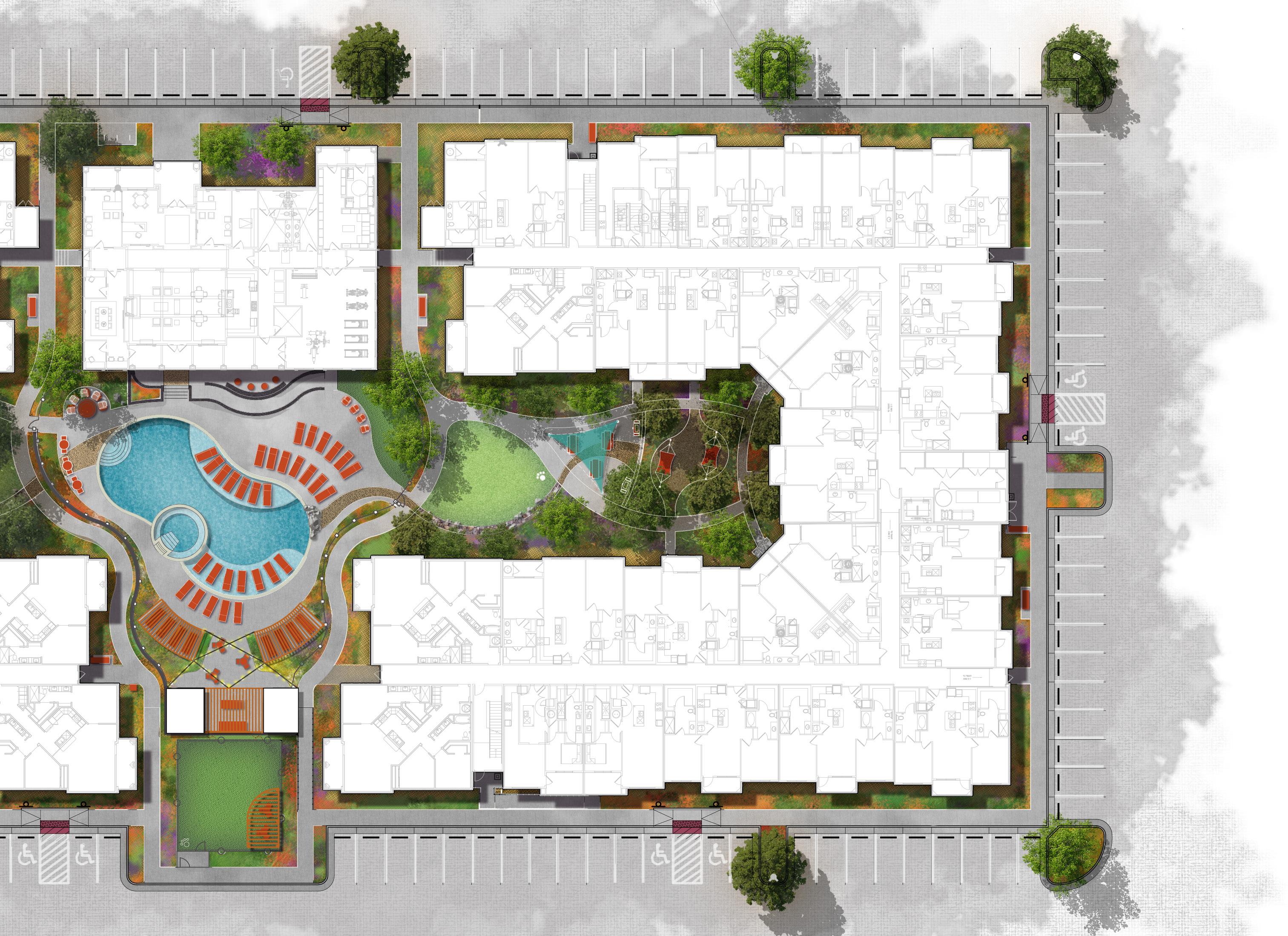

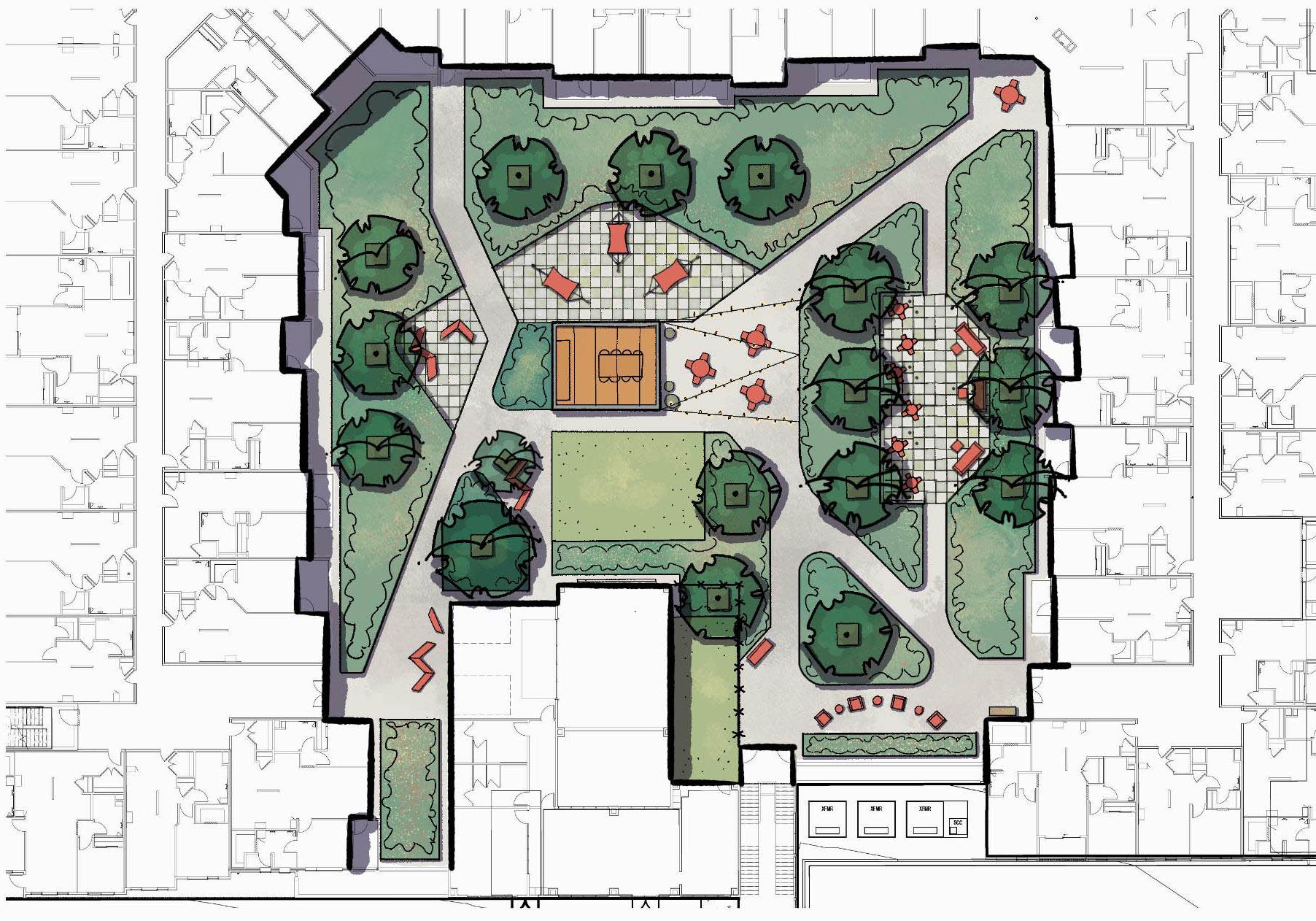

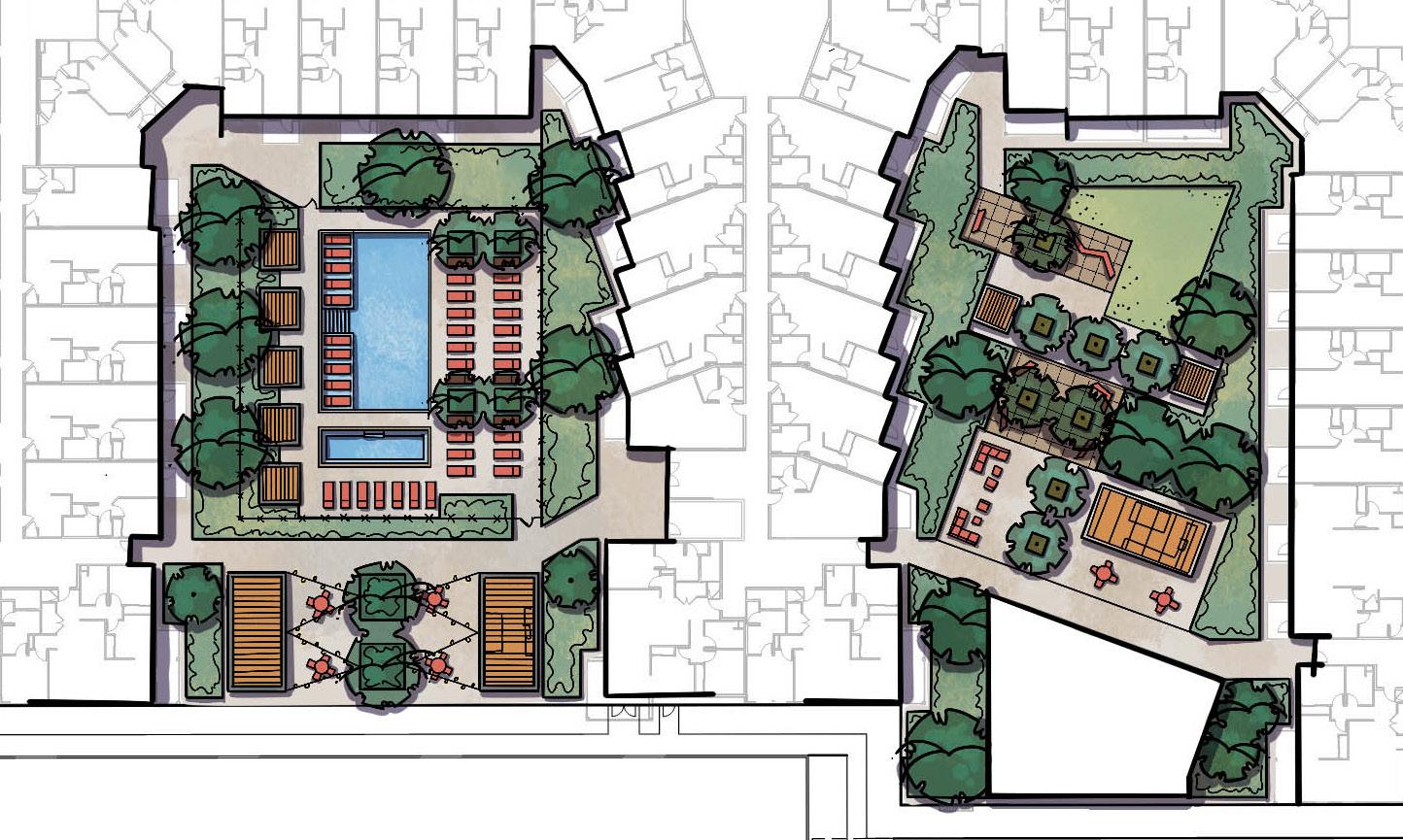

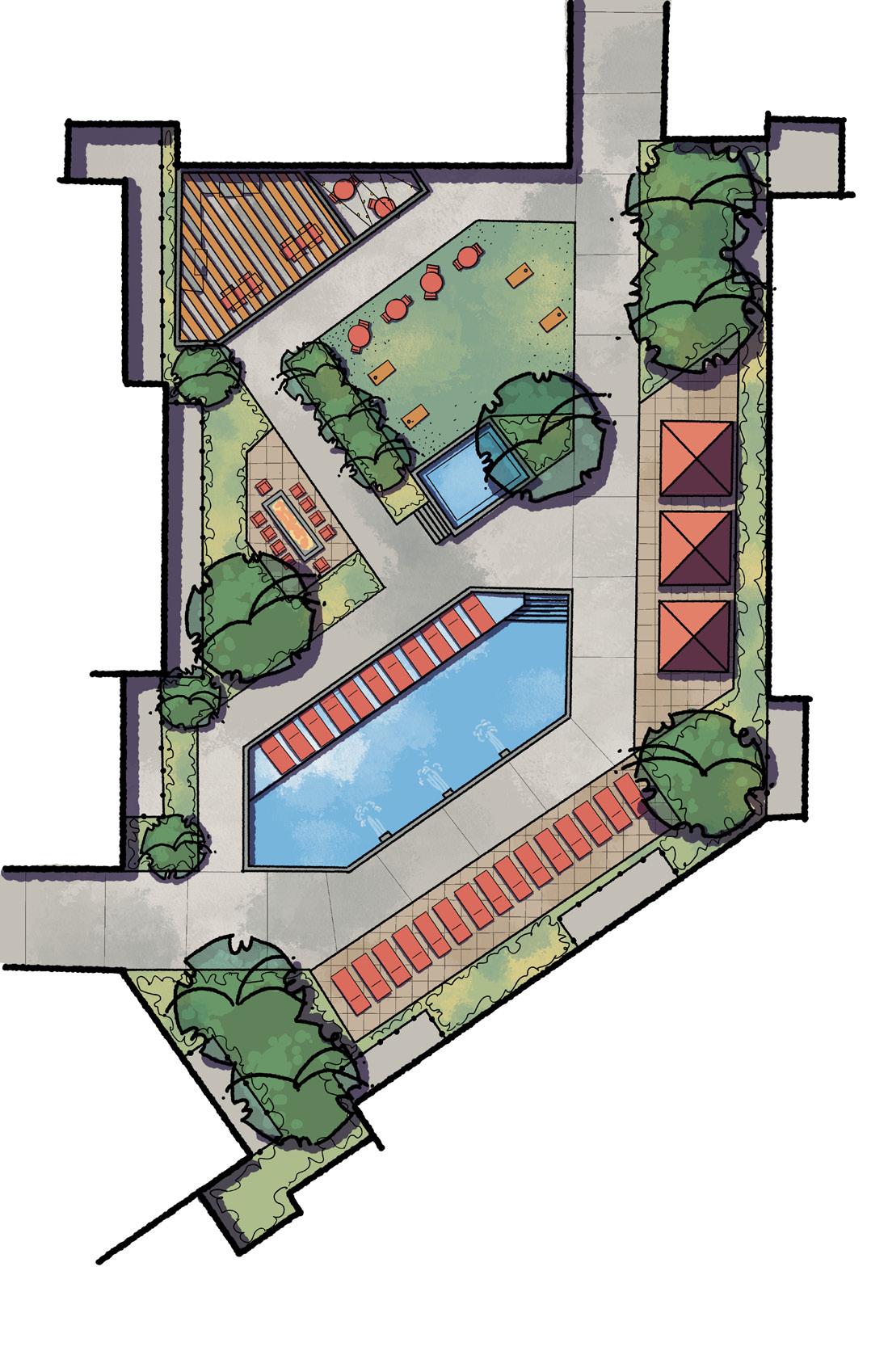

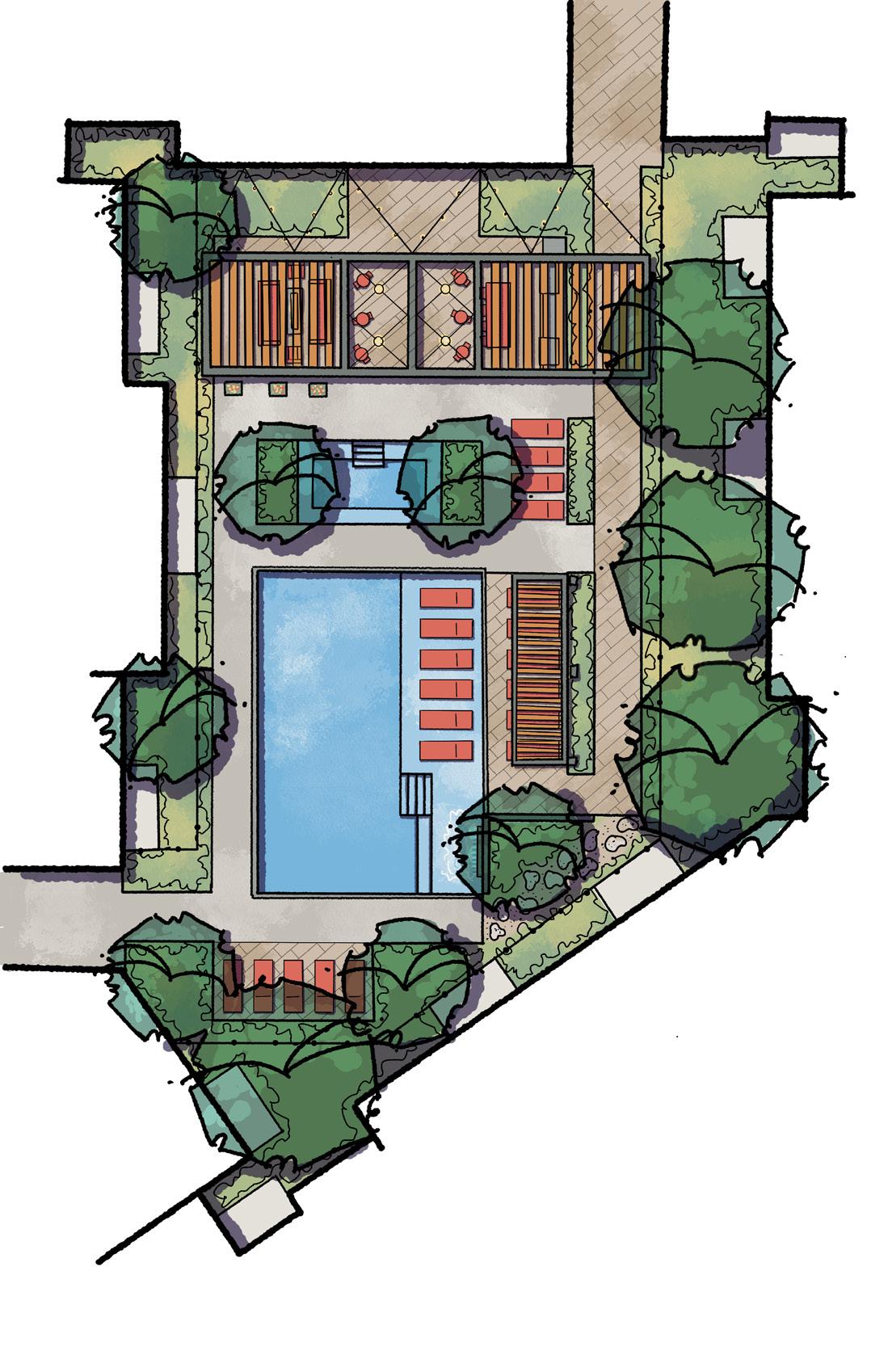

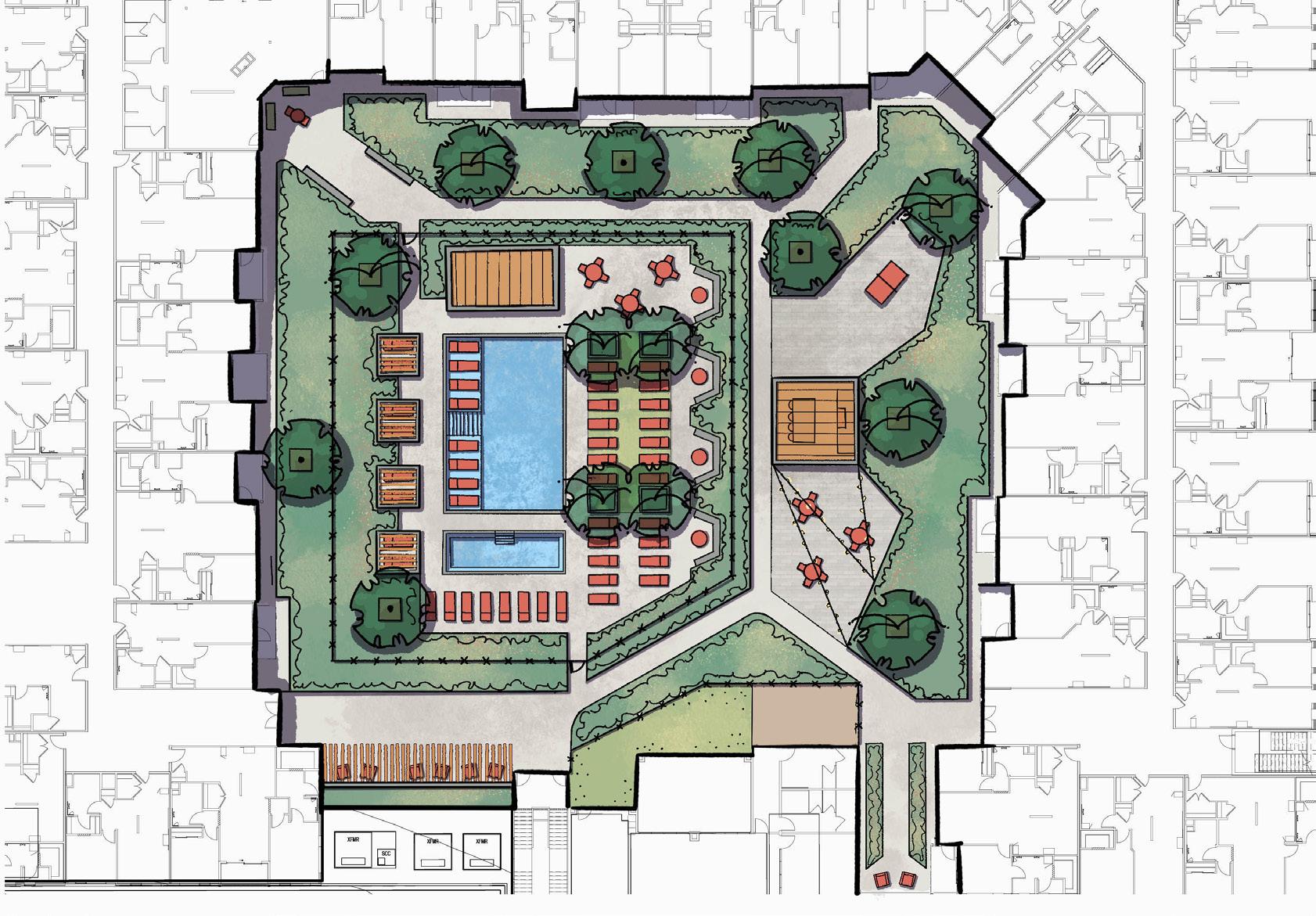

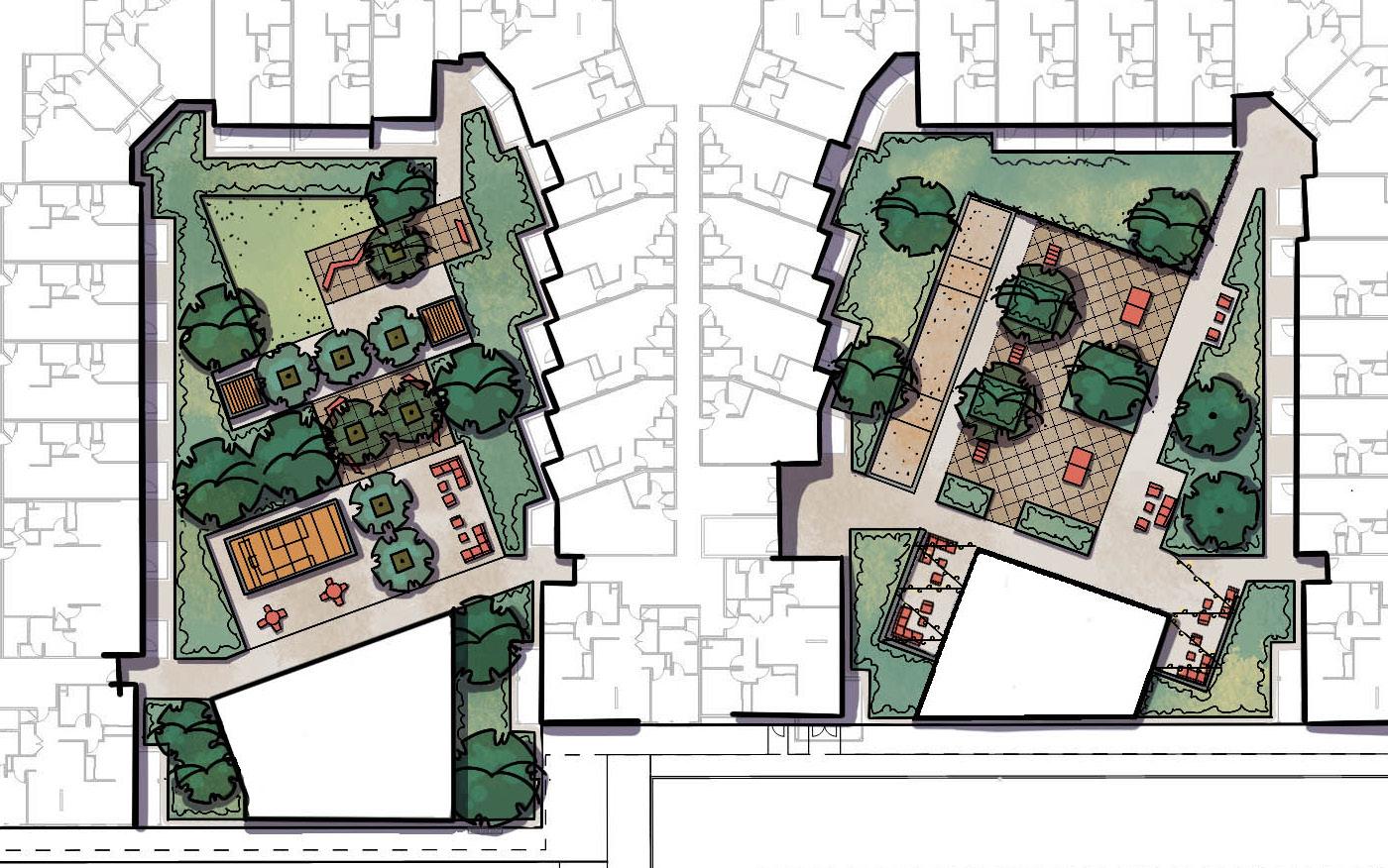

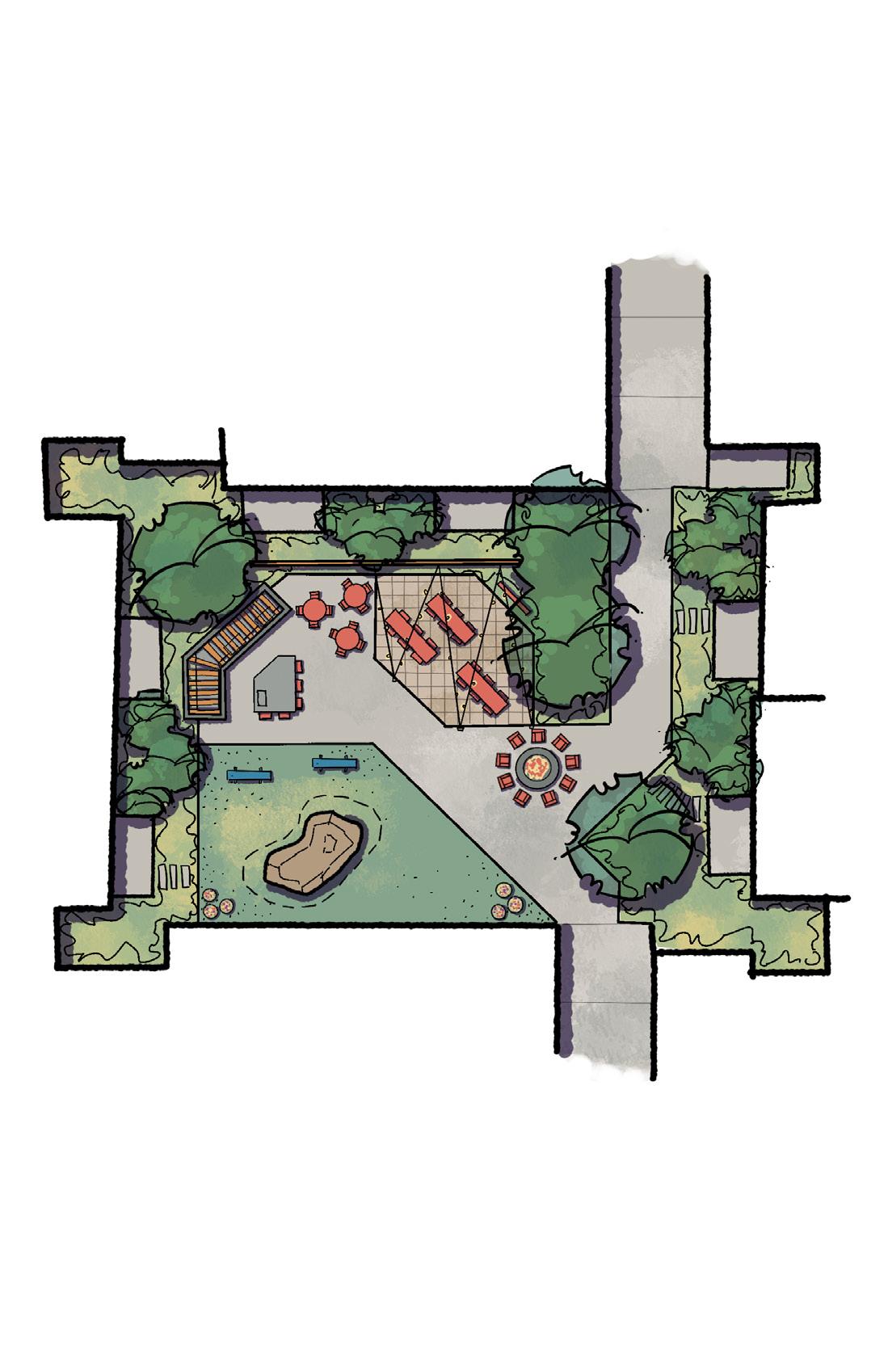

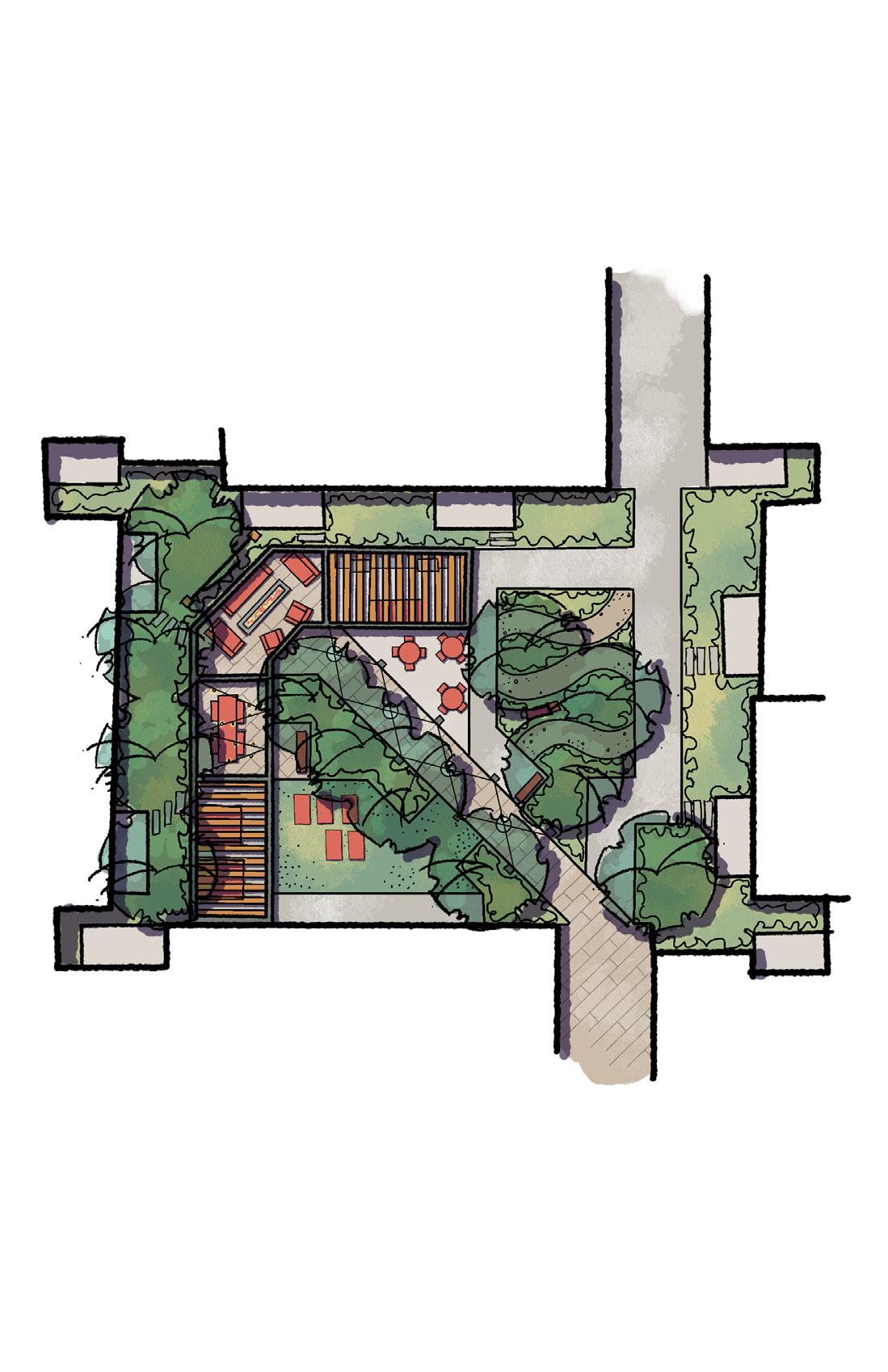

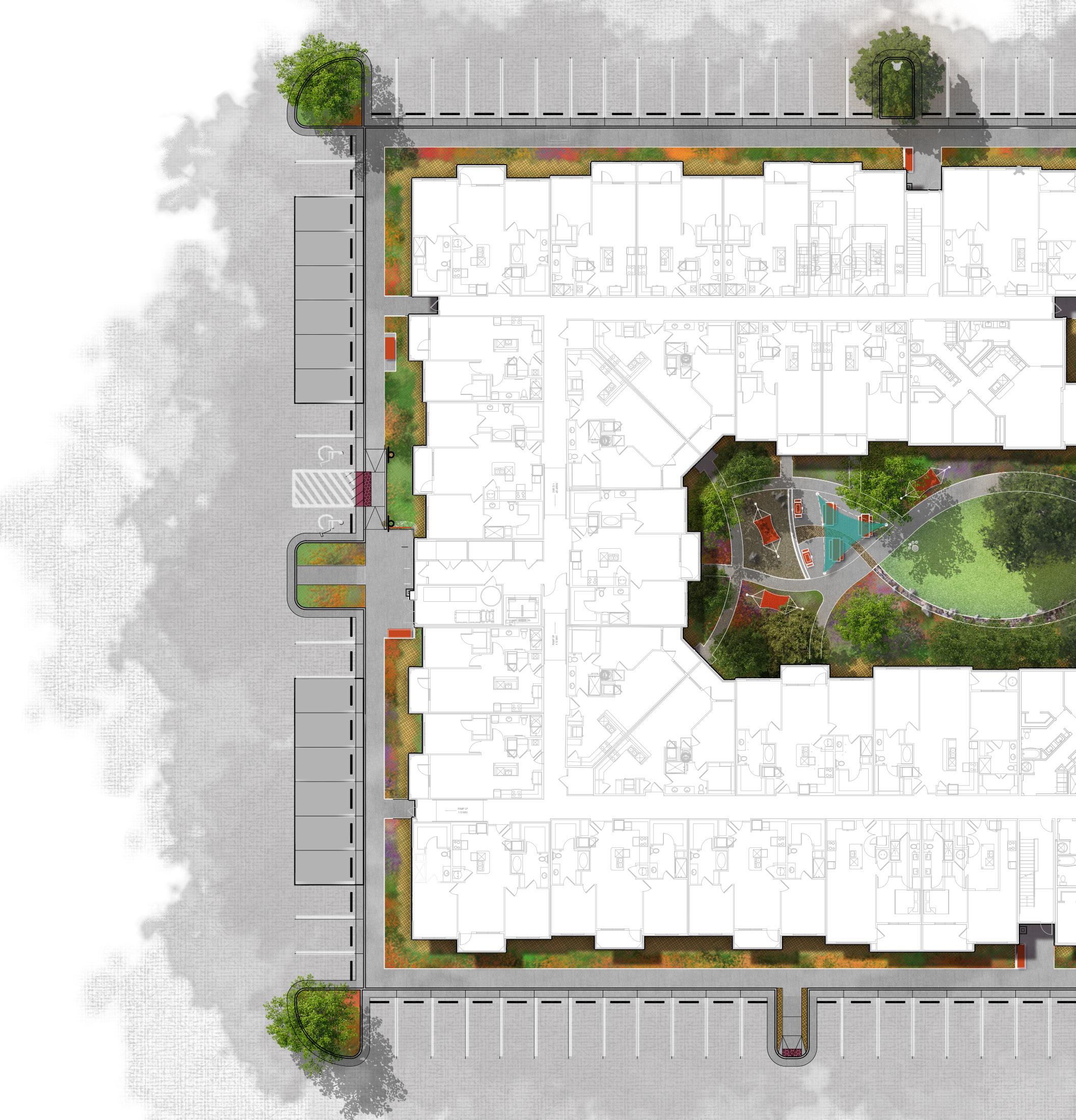

*Conceptual designs for the amenity courtyard and pool deck

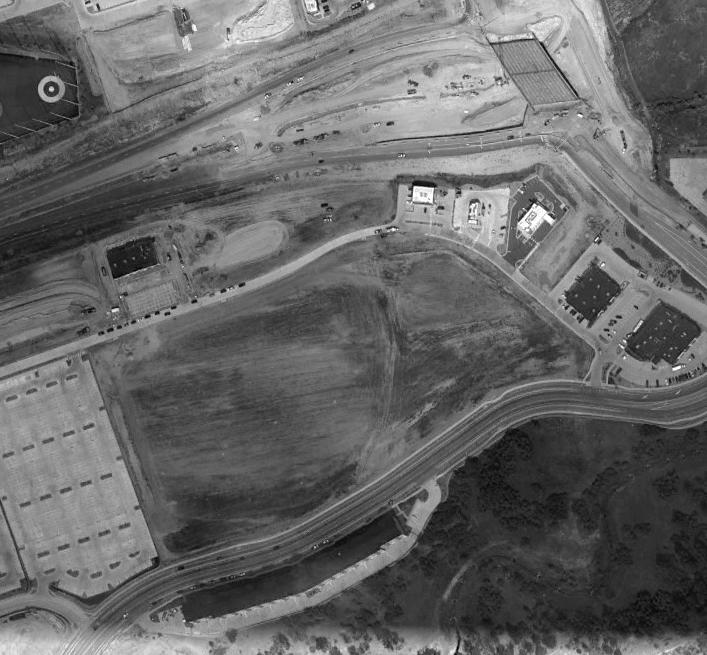

Sierra Juntion

Colorado Springs, CO

Sierra Junction is a multifamily apartment with 384 units and 40 townhomes. The project involved 2D rendering, soil analysis, and due diligence studies, including landscape and code minimum requirements.

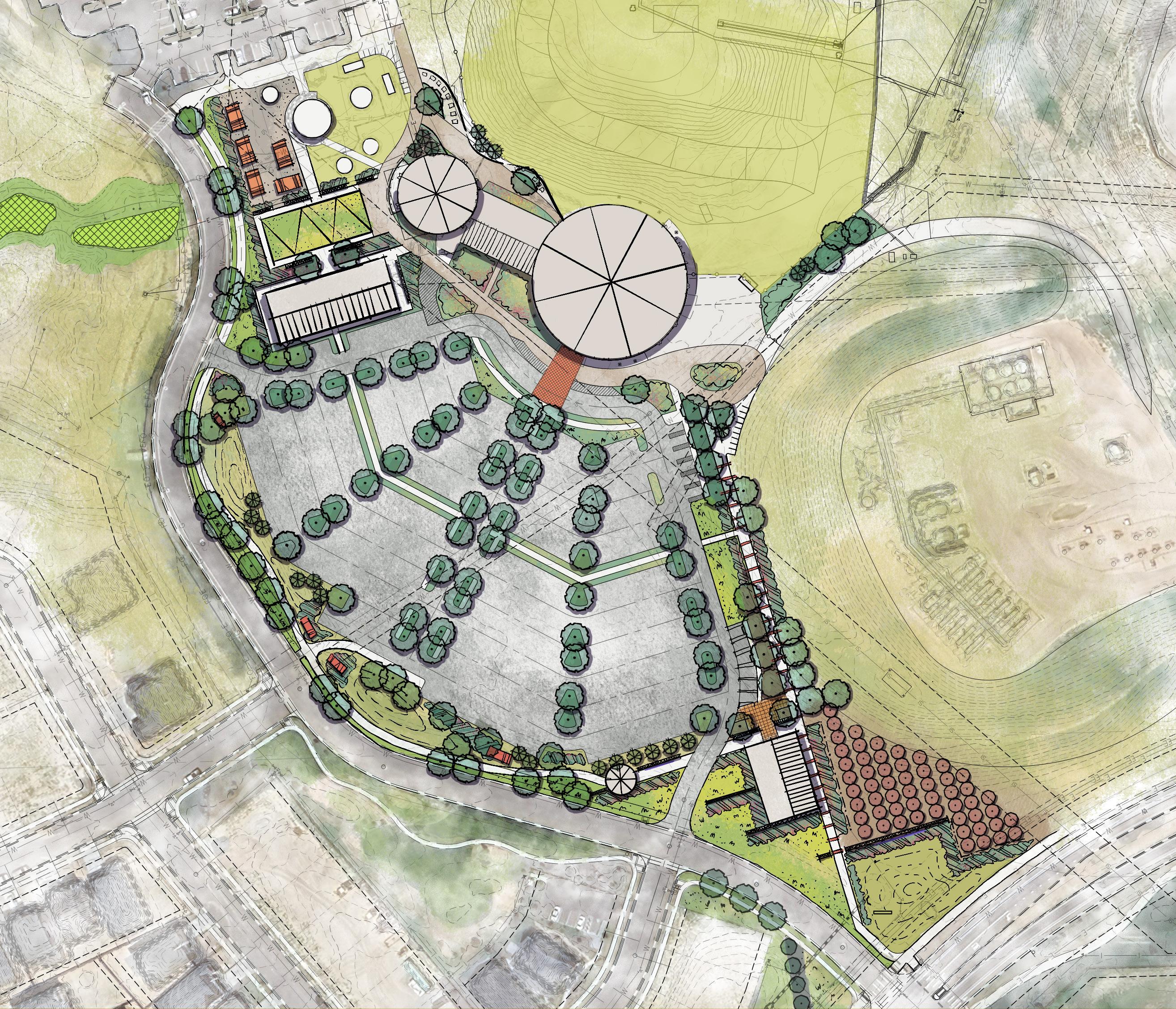

Addtional Works

Various Loactions

In addition to the projects showcased in this portfolio, I have contributed to the following works. I am a team player and able to balance the needs of my clients and co-workers. I am a fun-spirited and quick learner who strives to maintain a high-quality level of work every time. I leave everyone with a smile and a laugh during their work day.

*Entryway concept A of Raindance Resort and Golf, located in Windsor, Colorado.

*Clubhouse concept of Aster Placce, located in Parachute, Colorado.

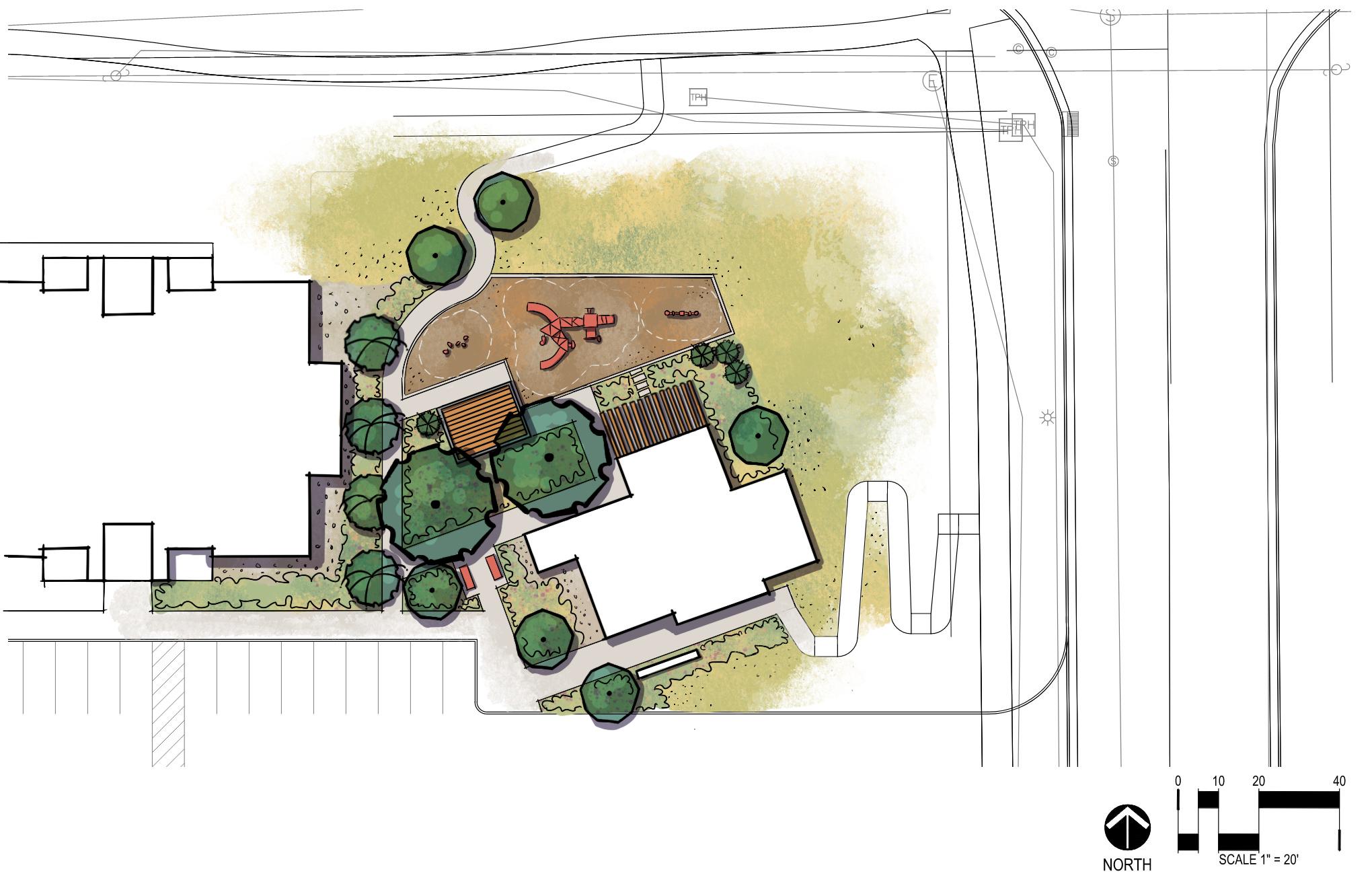

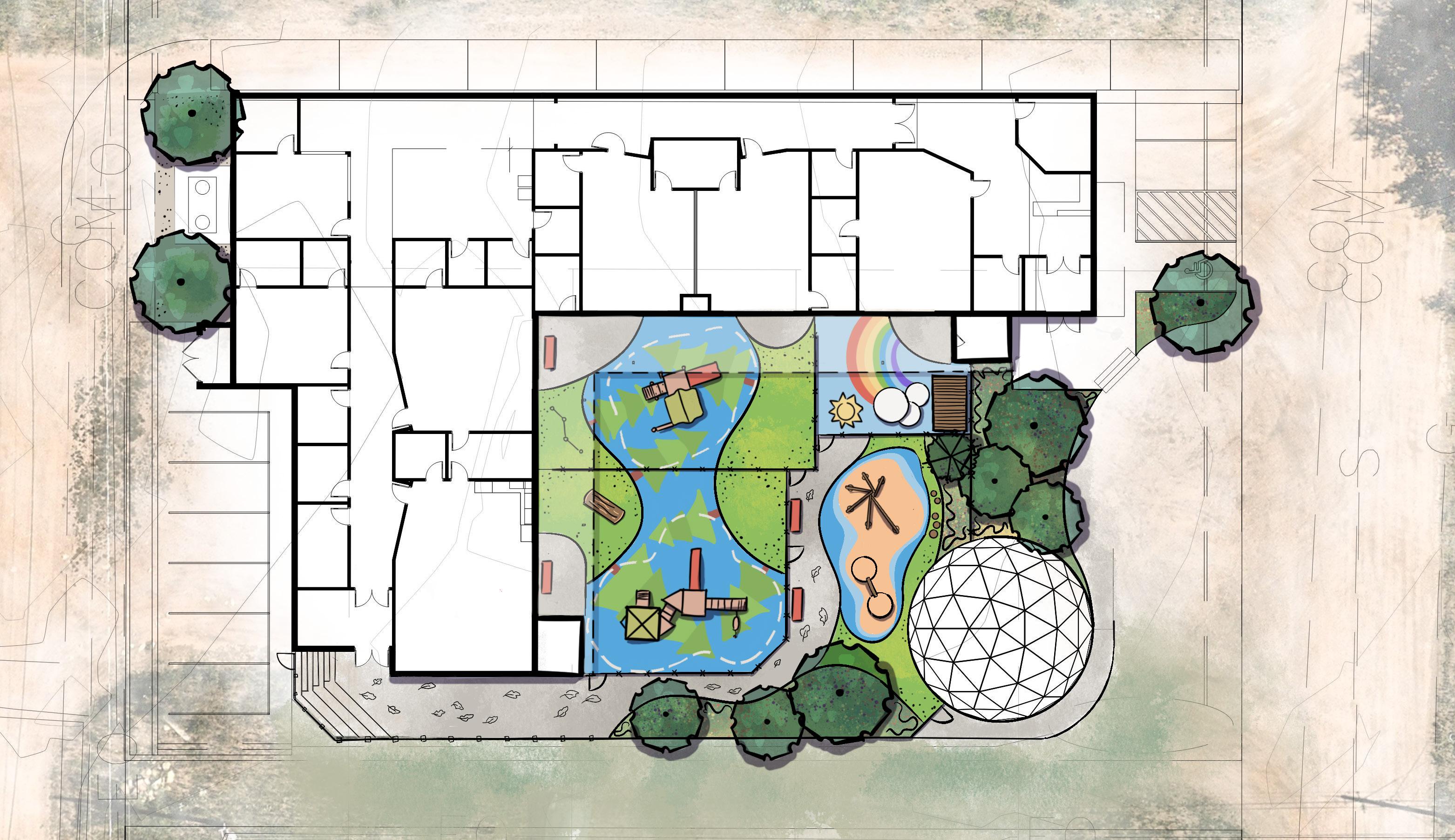

*Playground concept of New Expolor Learning Center, located in Nederland, Colorado.

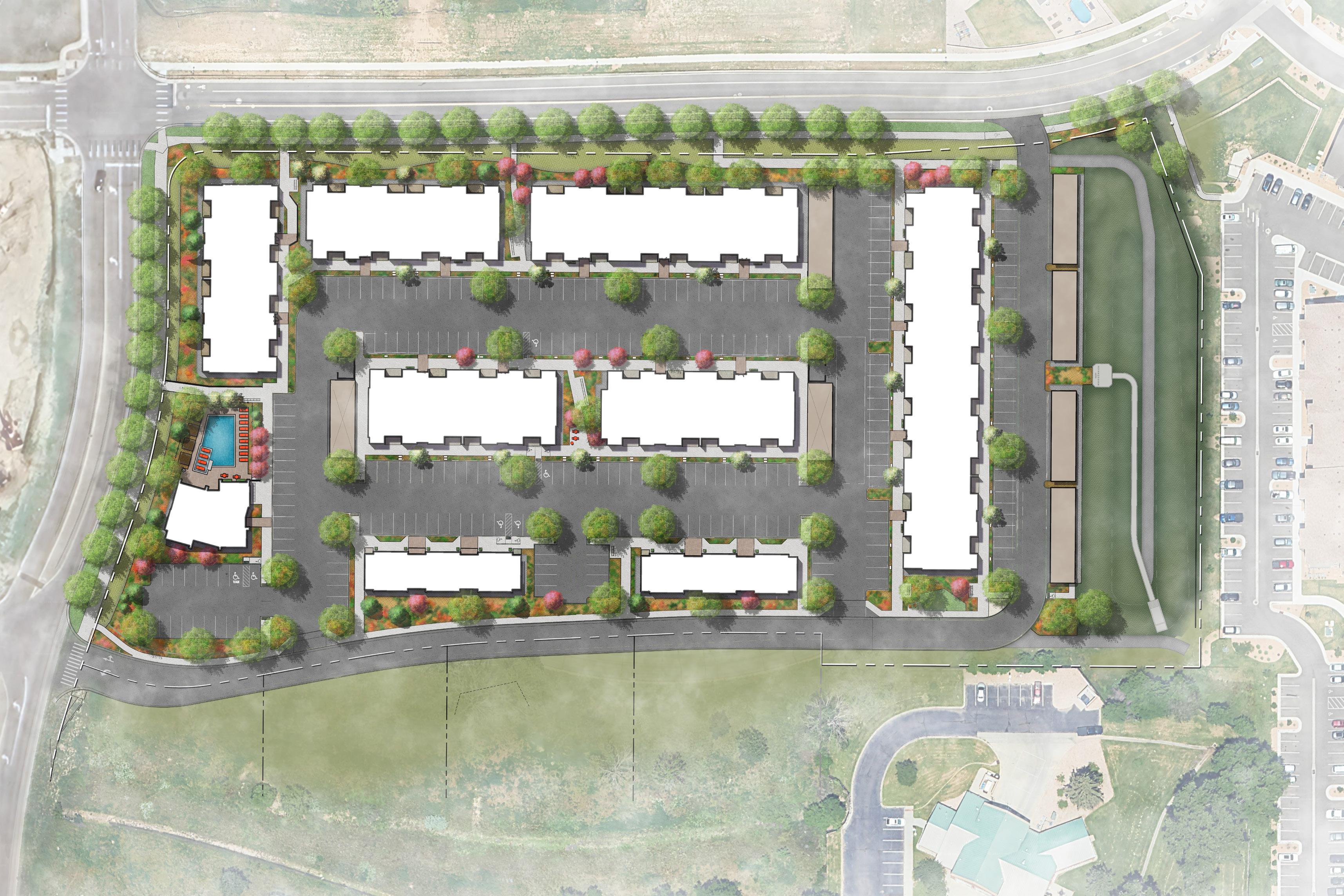

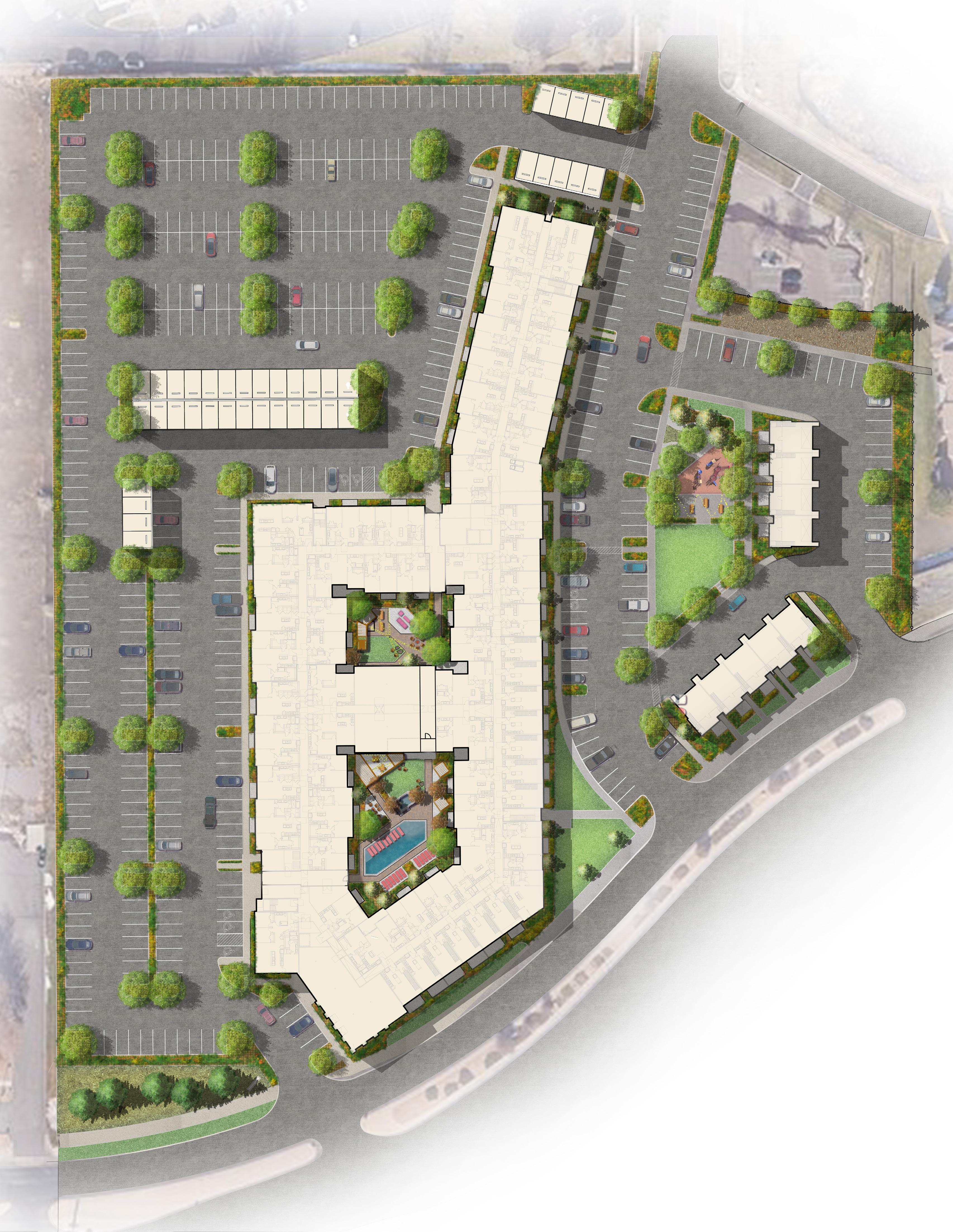

*Final site plan rendering of Greely Muilt-family, located in Greeley, Colorado.

ARTWORKS

A collection of personal works to showcase my first love: Art. My design journey started with a passion for drawing and painting. Often, I express my love of culture and experiences as a Latina in my work. Creating digital prints has helped sharpen my skills in Adobe Fresco, Illustrator, Photoshop, and Procreate. These skills have been monumental in my landscape design experience.
