DESIGN PROCESS

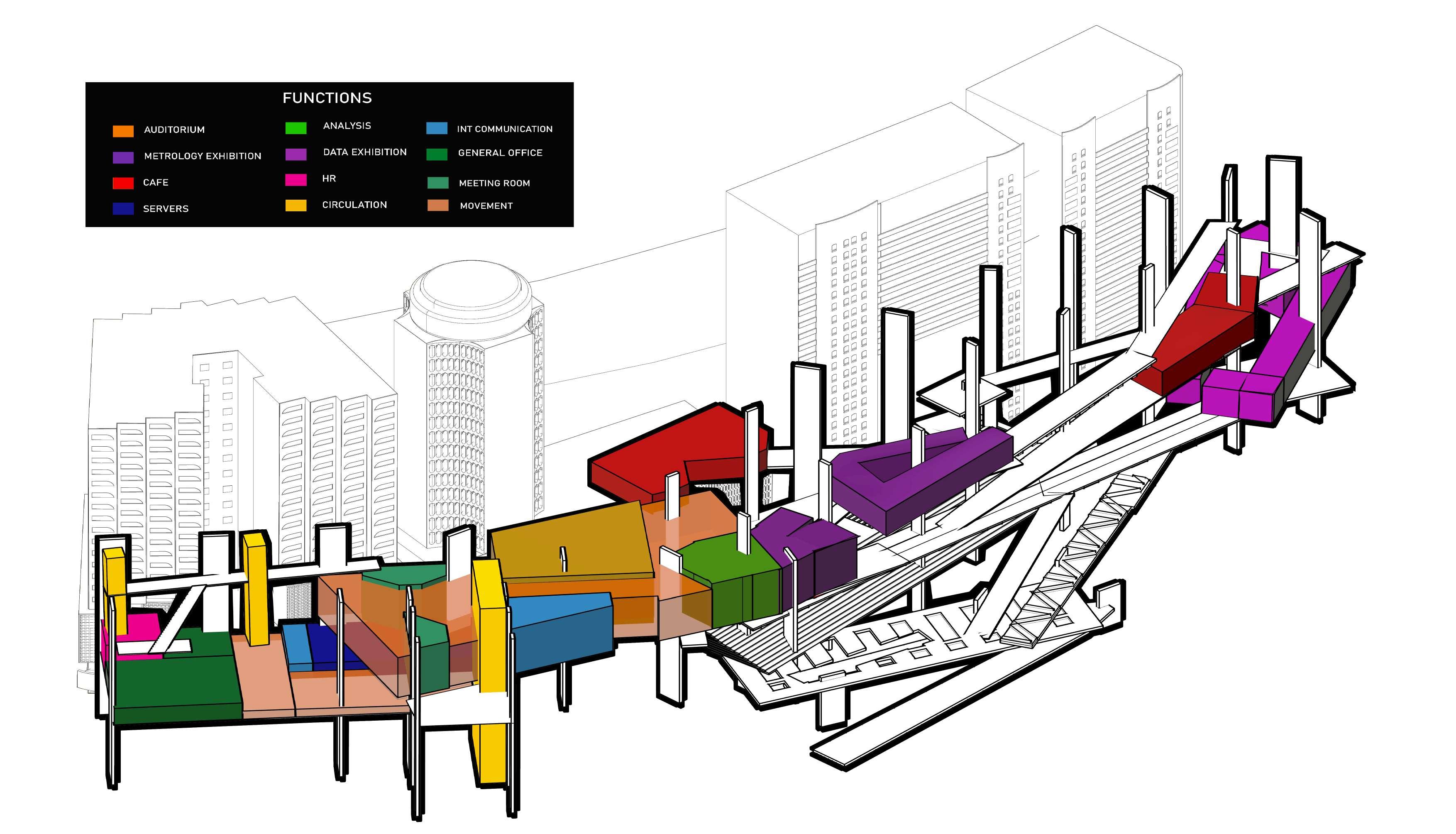

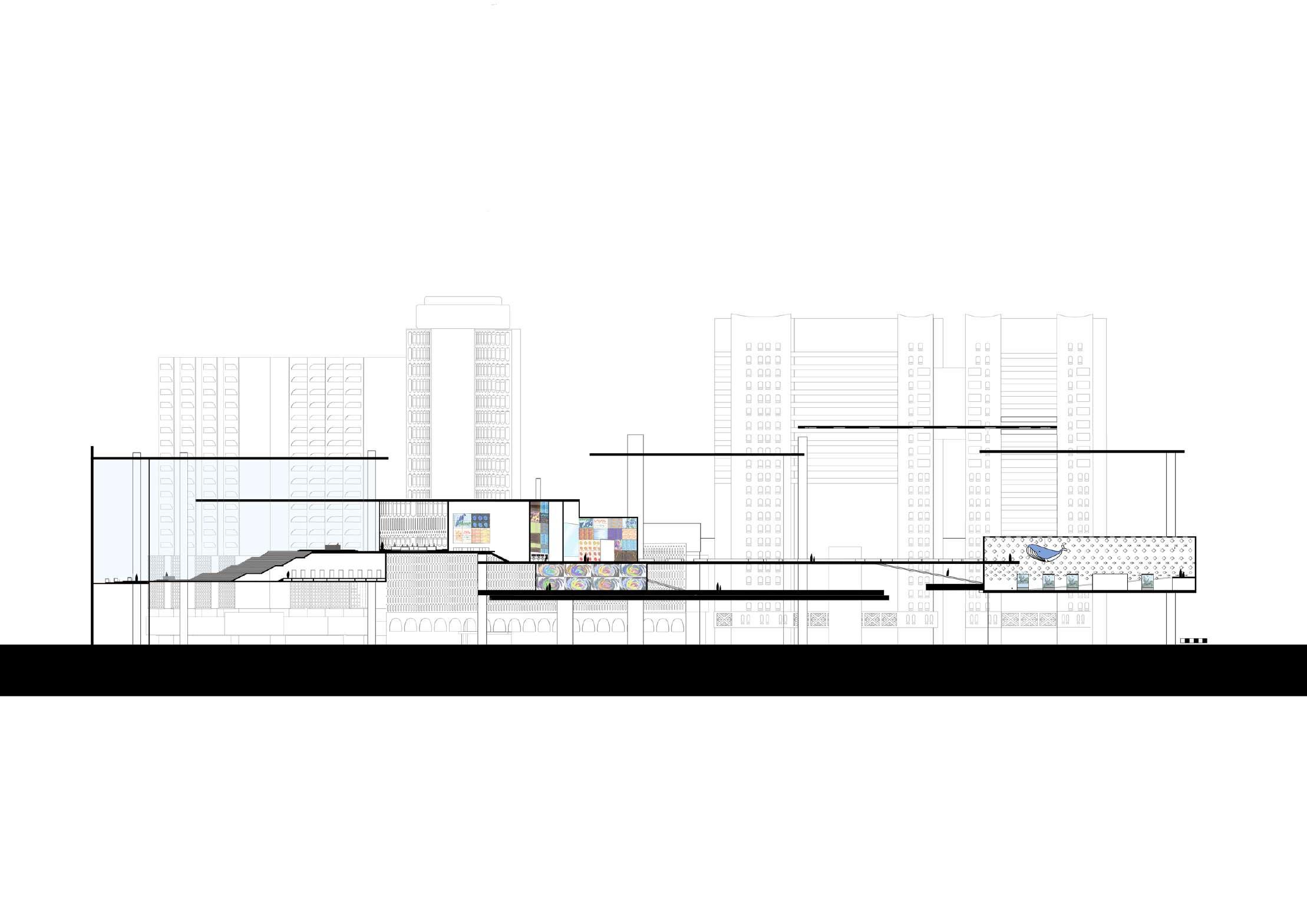

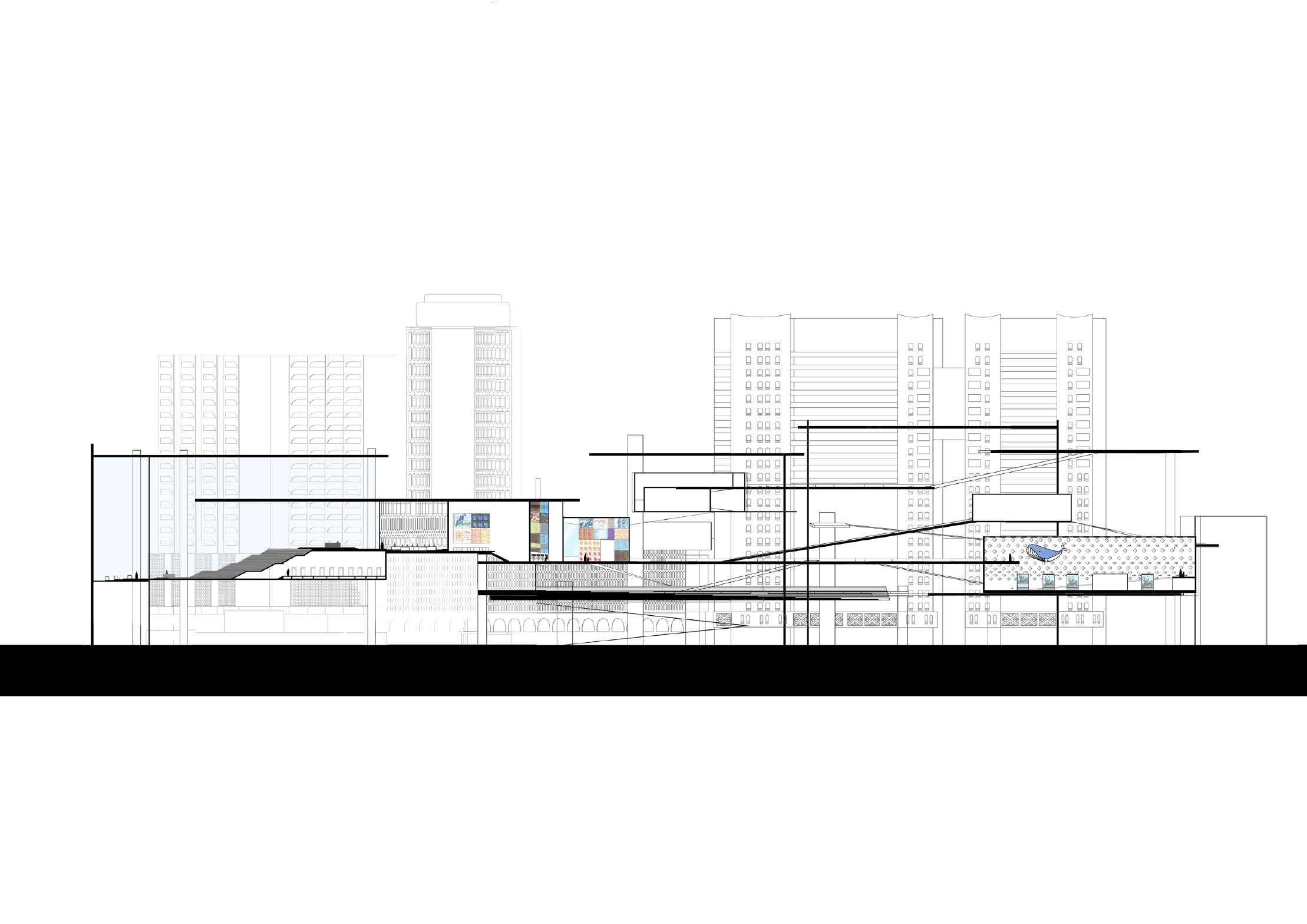

V1-This was the first attempt at a unfolded section ,doing this was helpful as it helped me realize there was a like of dynamicity in the design following a similar linear dialogue mainly aligning to the central plaza space above
Advertisement

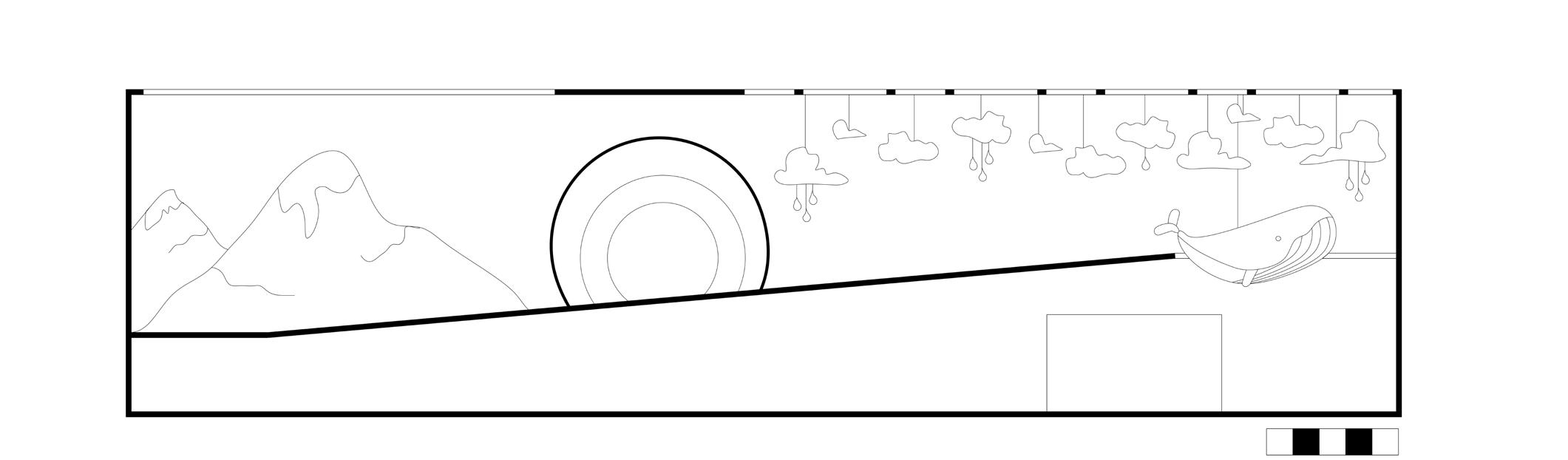

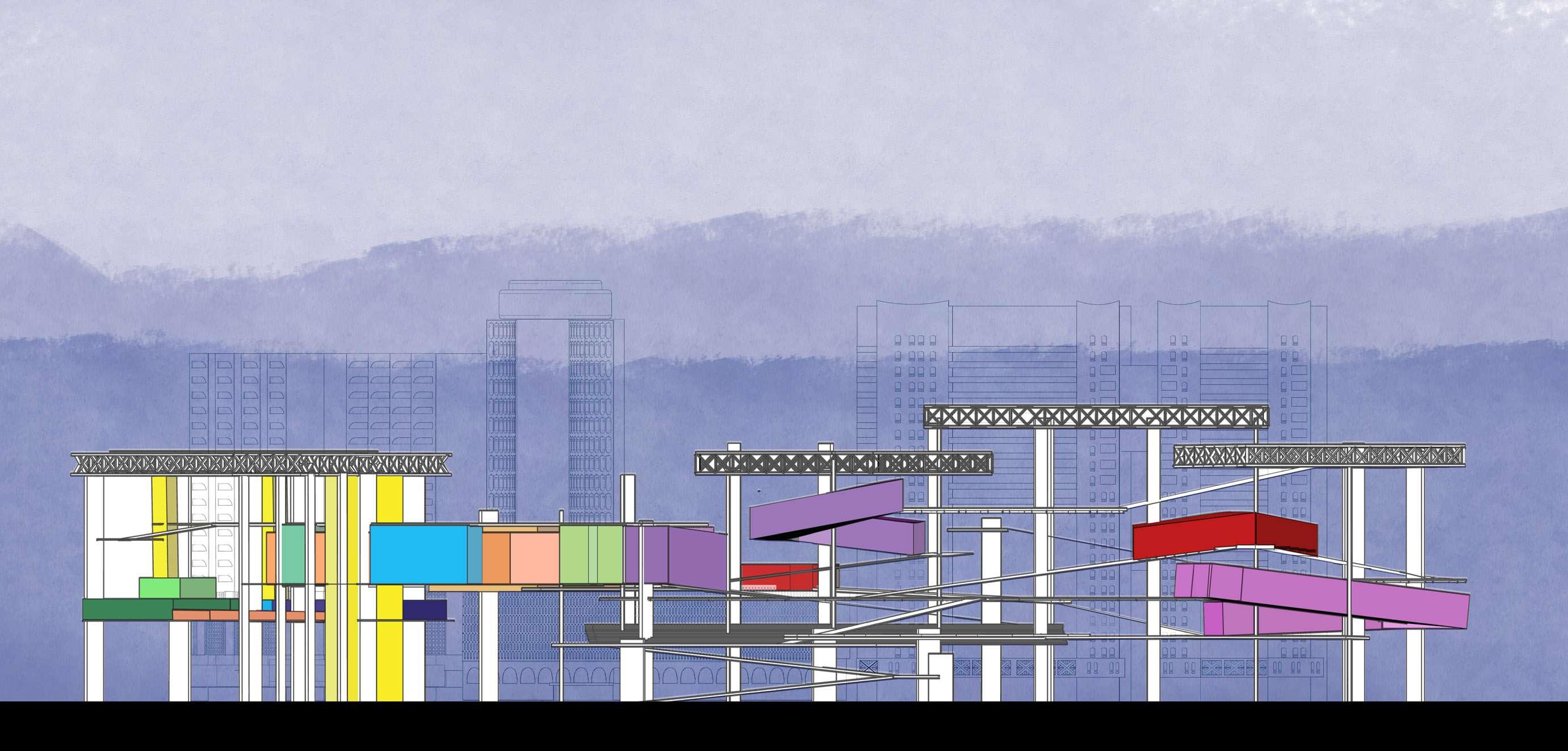

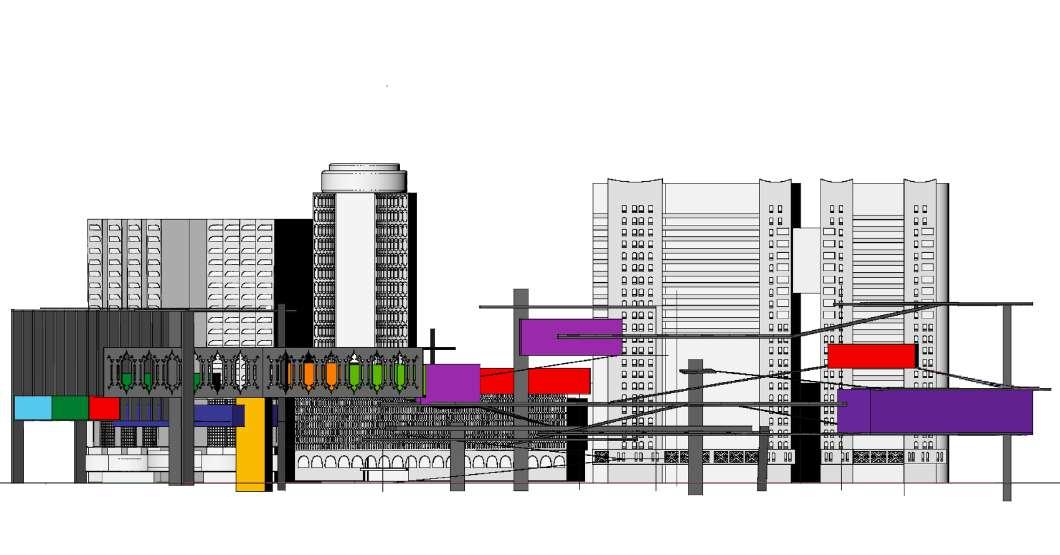

V2-Following the design critique varied the placement of one of the cafes and serated the data exhibit , placing it above to the right of the below half of data exhibit .

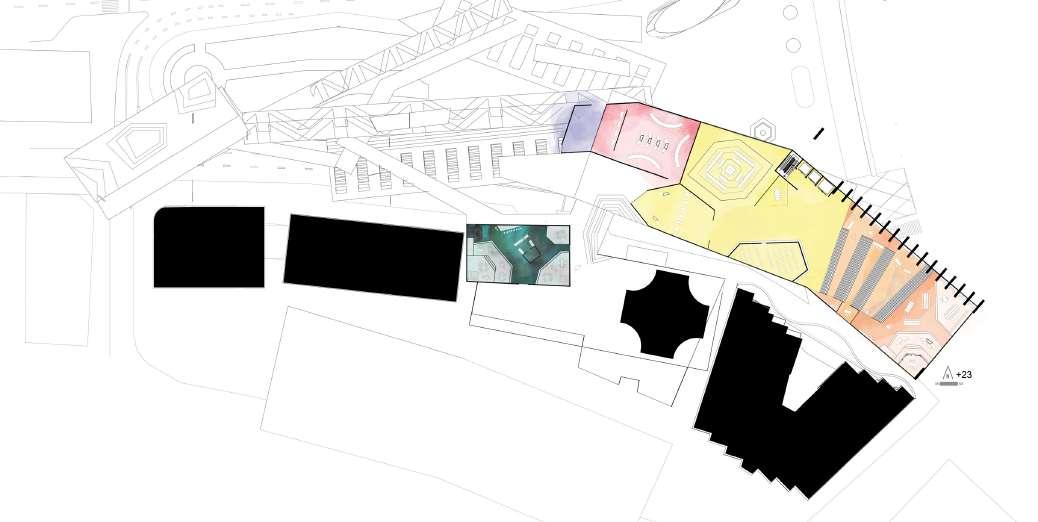

EXPERIMENTATION IN PLAN

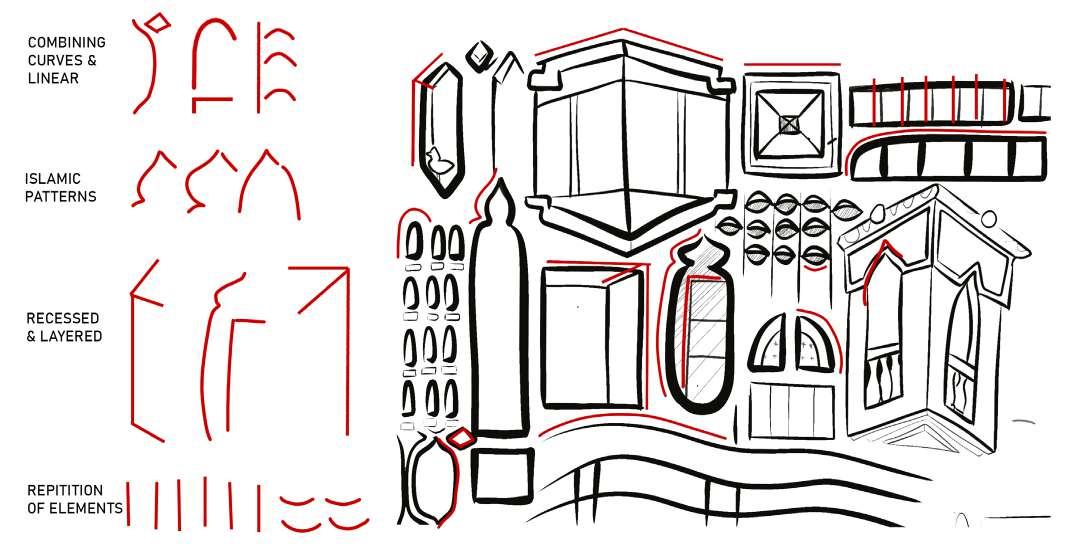

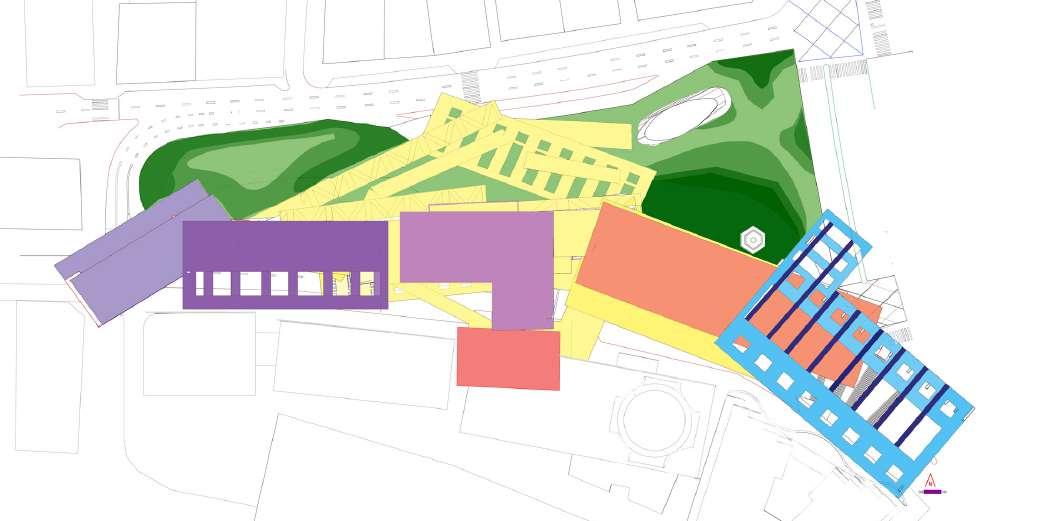

EXPERIMENTATION IN STYLE FOR ROOF PLAN

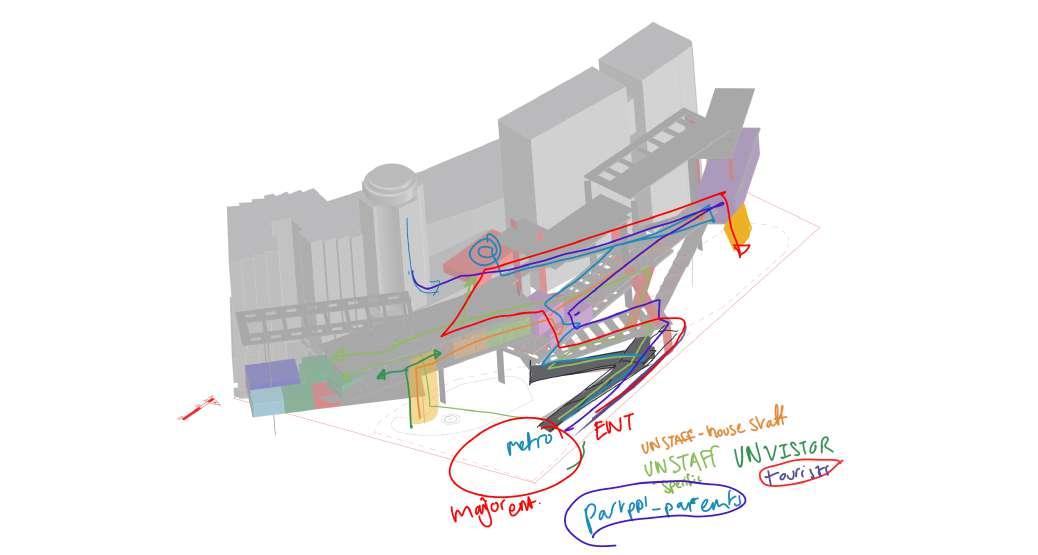

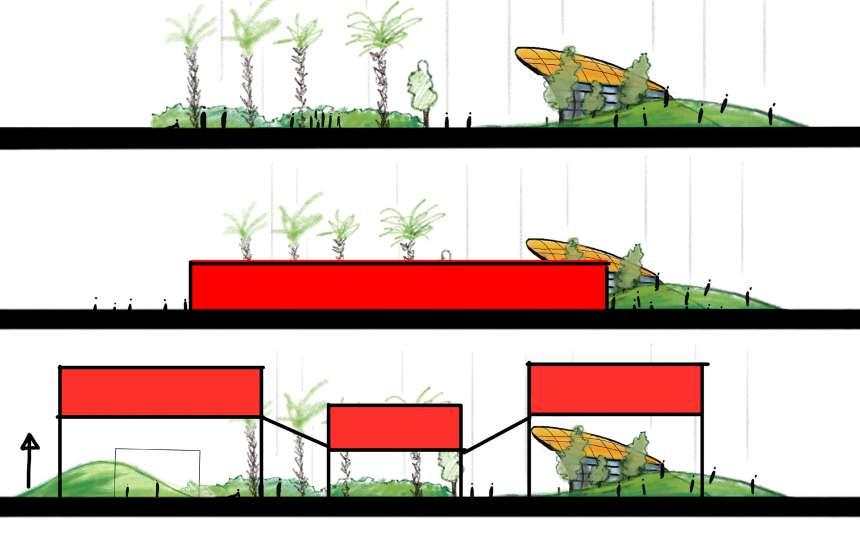

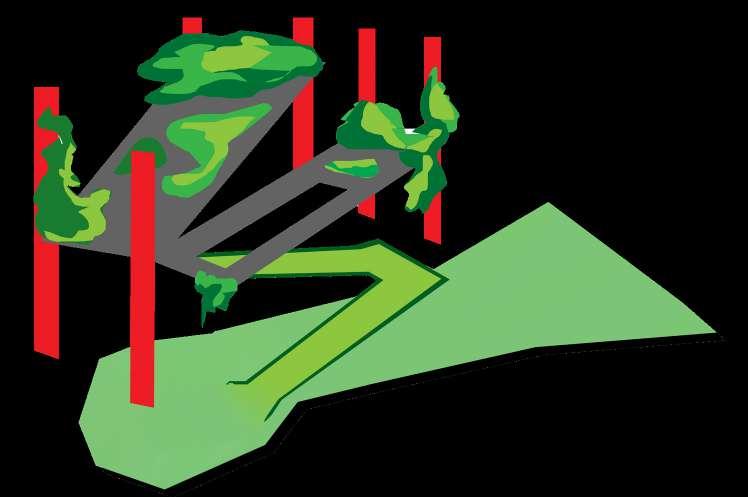

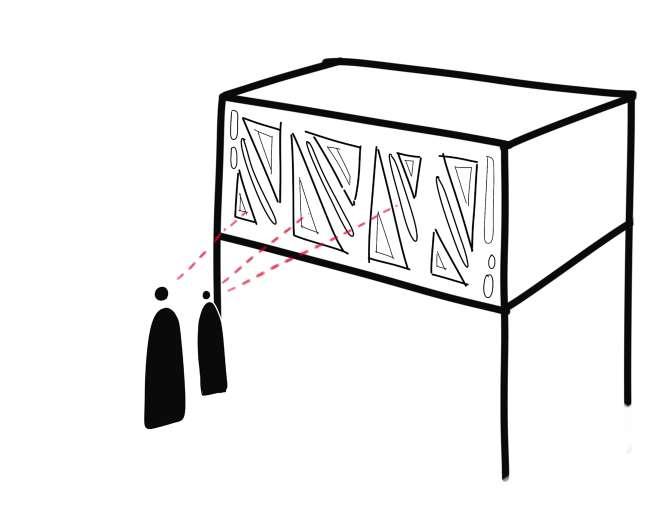

This was a preliminary to the current design as it showed the positions of the planes and why a certain view were important for reason like seeing into the facades or facing the brick mosque.

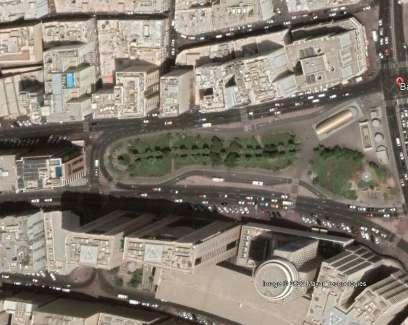

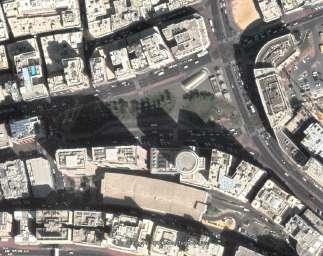

To create a context driven building for the WMO with a GFA of 5000m2 and an area of intervention of 10,000 m2..
