Shanghai Pavilions Design Concept

shanghai Park pavilion design

树

水

山

天

wood

water

earth

sky

01

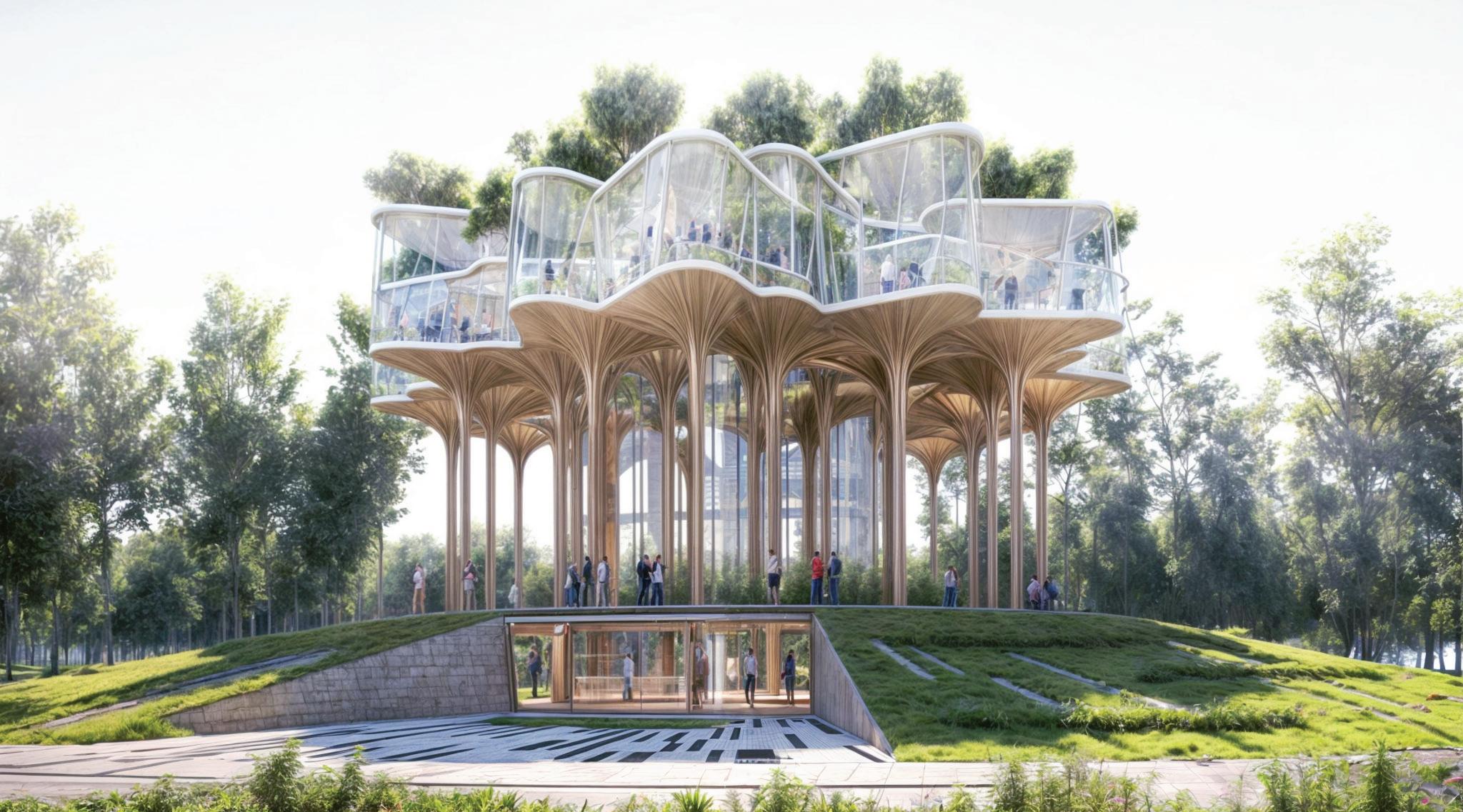

Tree of Life Nature Center

The Tree of Life Pavilion celebrates trees and forests, highlighting their role in maintaining biodiversity and inspiring sustainable technologies. The design of the pavilion weaves together like the intricate network of forest cells, with the terrain around the building gently rising, blending it into the natural landscape. The structure stands like a group of towering trees on the flat park grounds, serving as both a prime vantage point for visitors to overlook Dishui Lake and its surroundings, and as a landmark for the Chifeng Port Ecological Park area and the regions around Dishui Lake, especially for the traffic and pedestrians along Huanhu South Road No. 1.

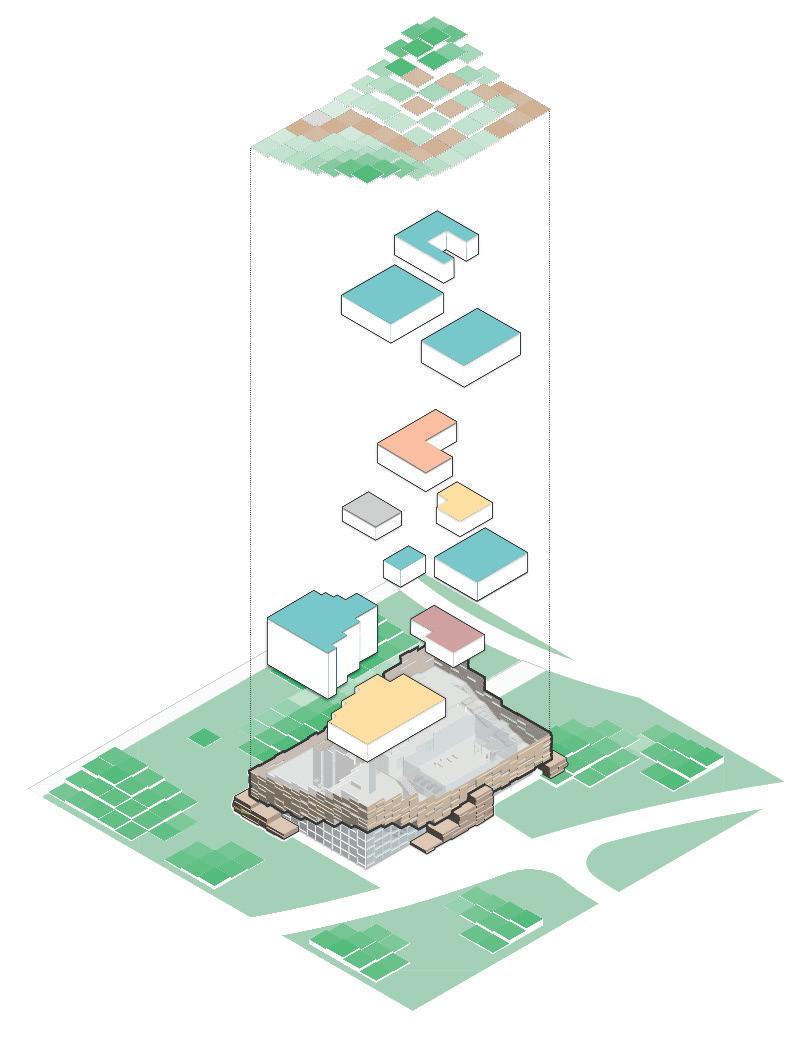

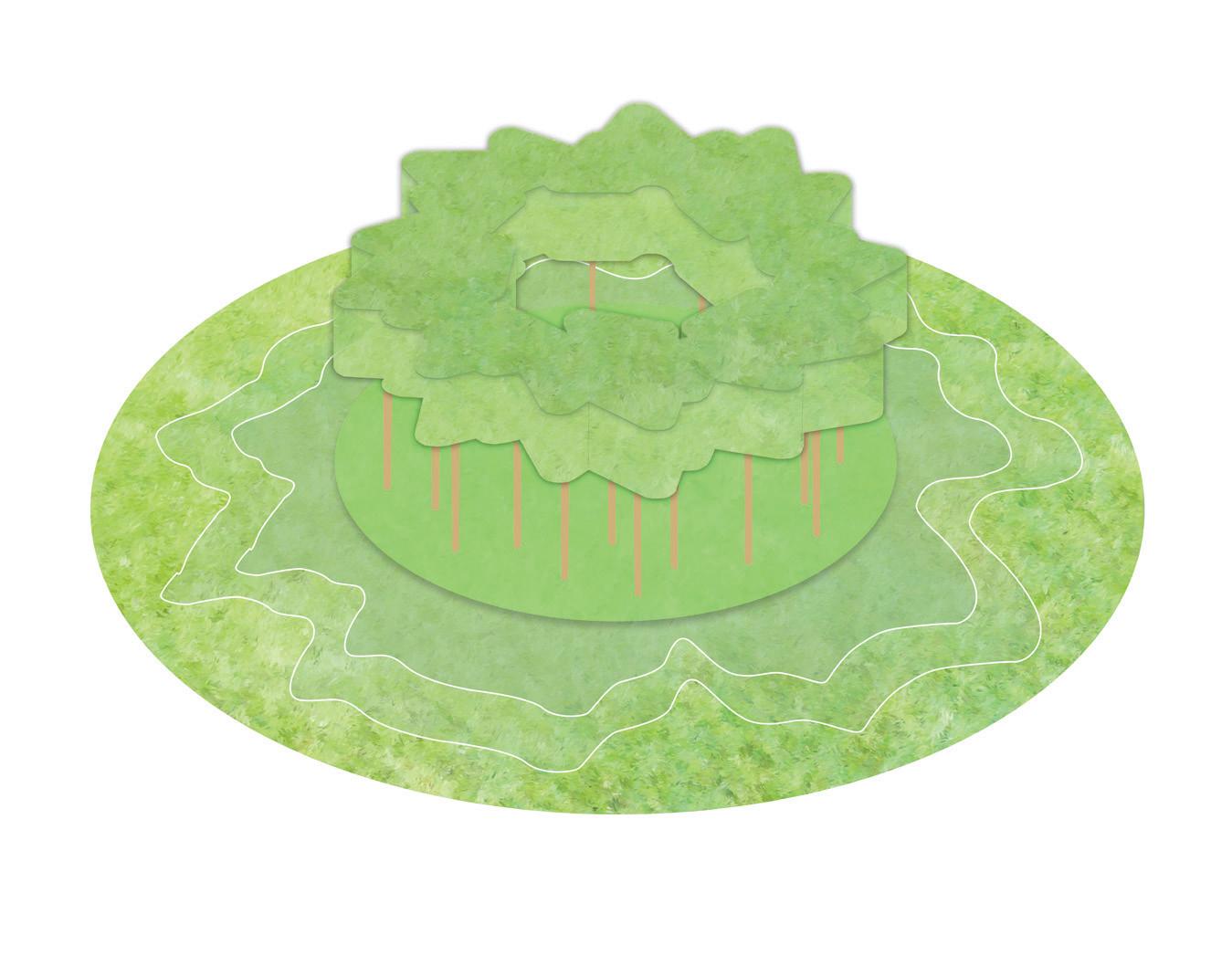

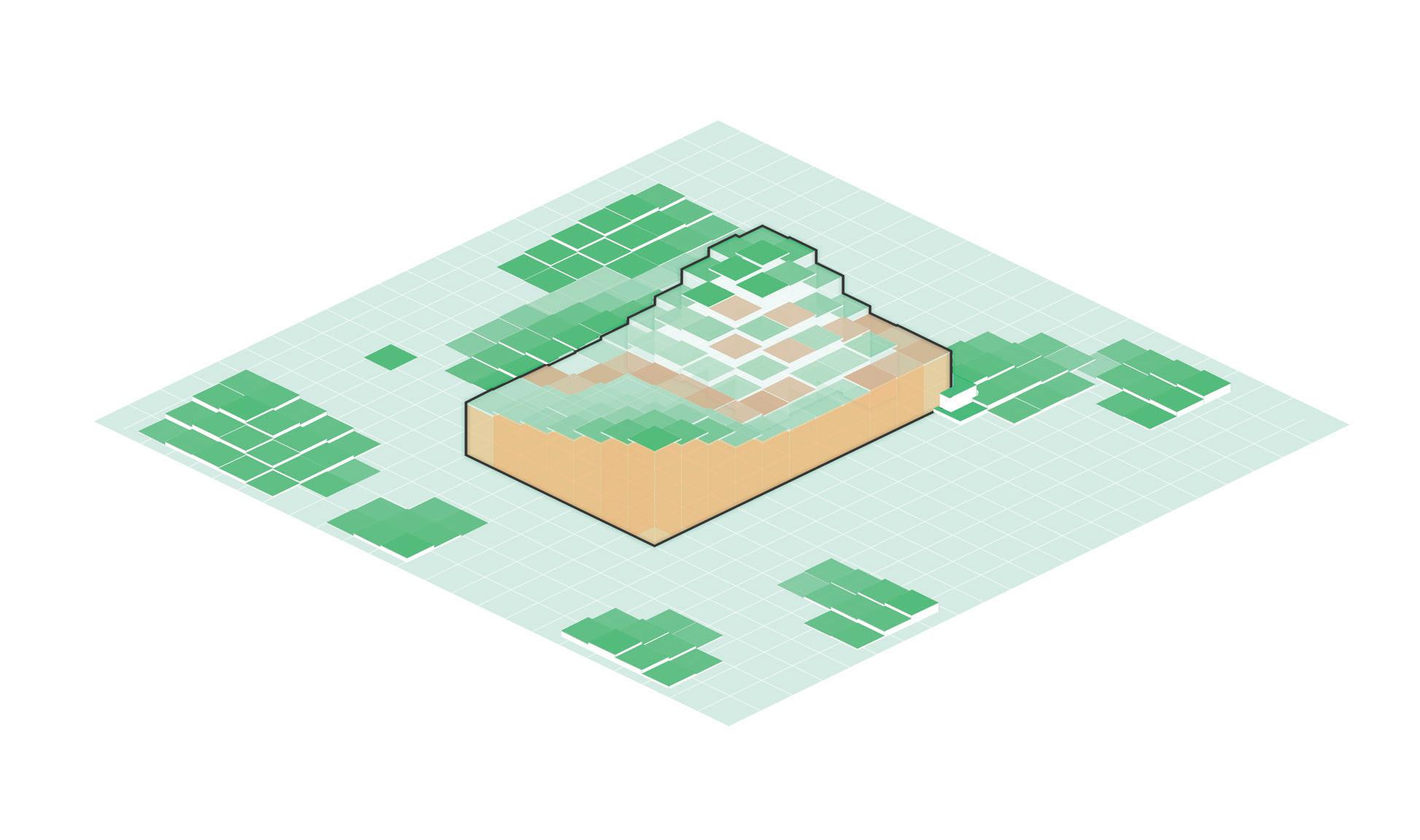

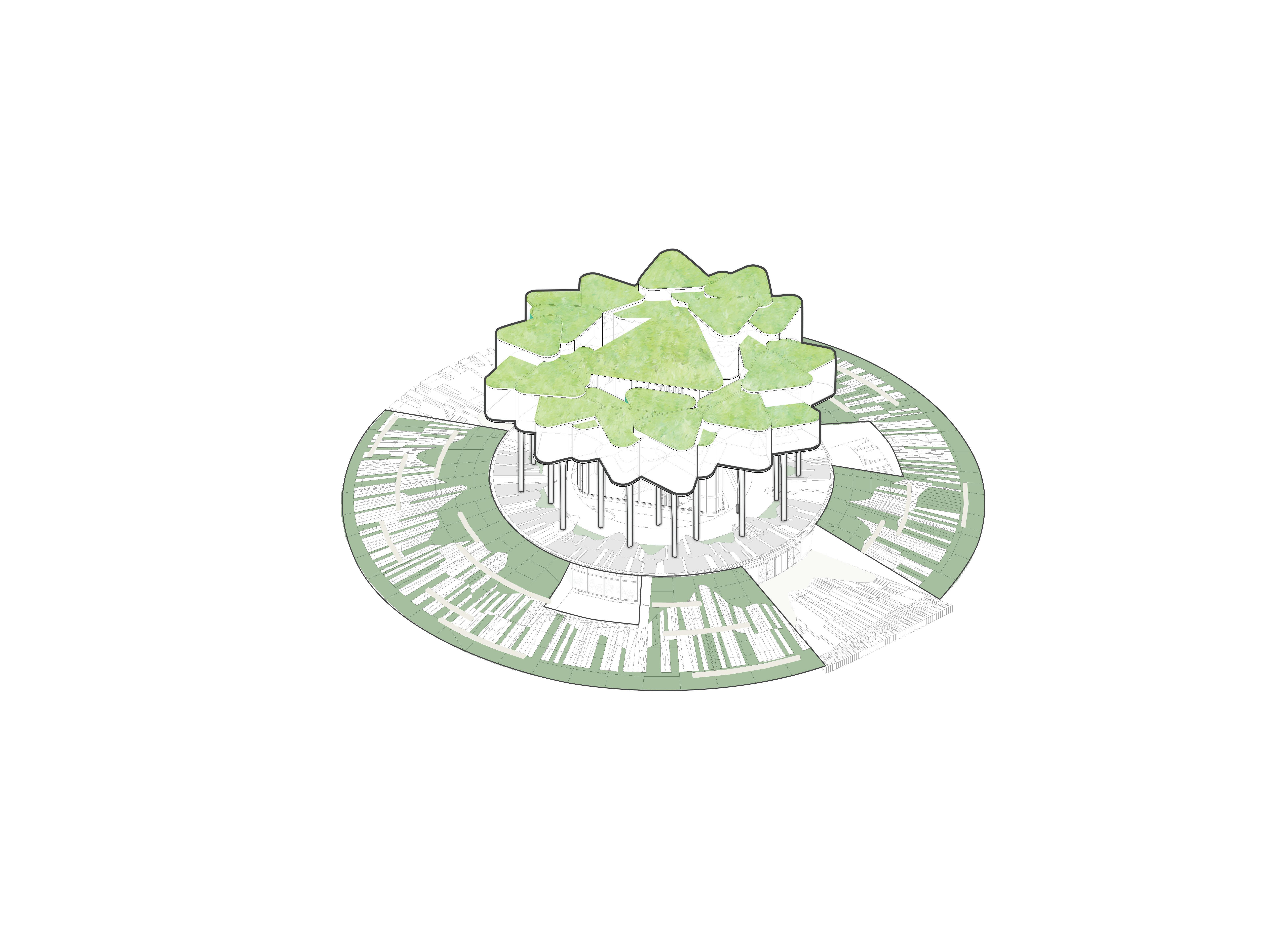

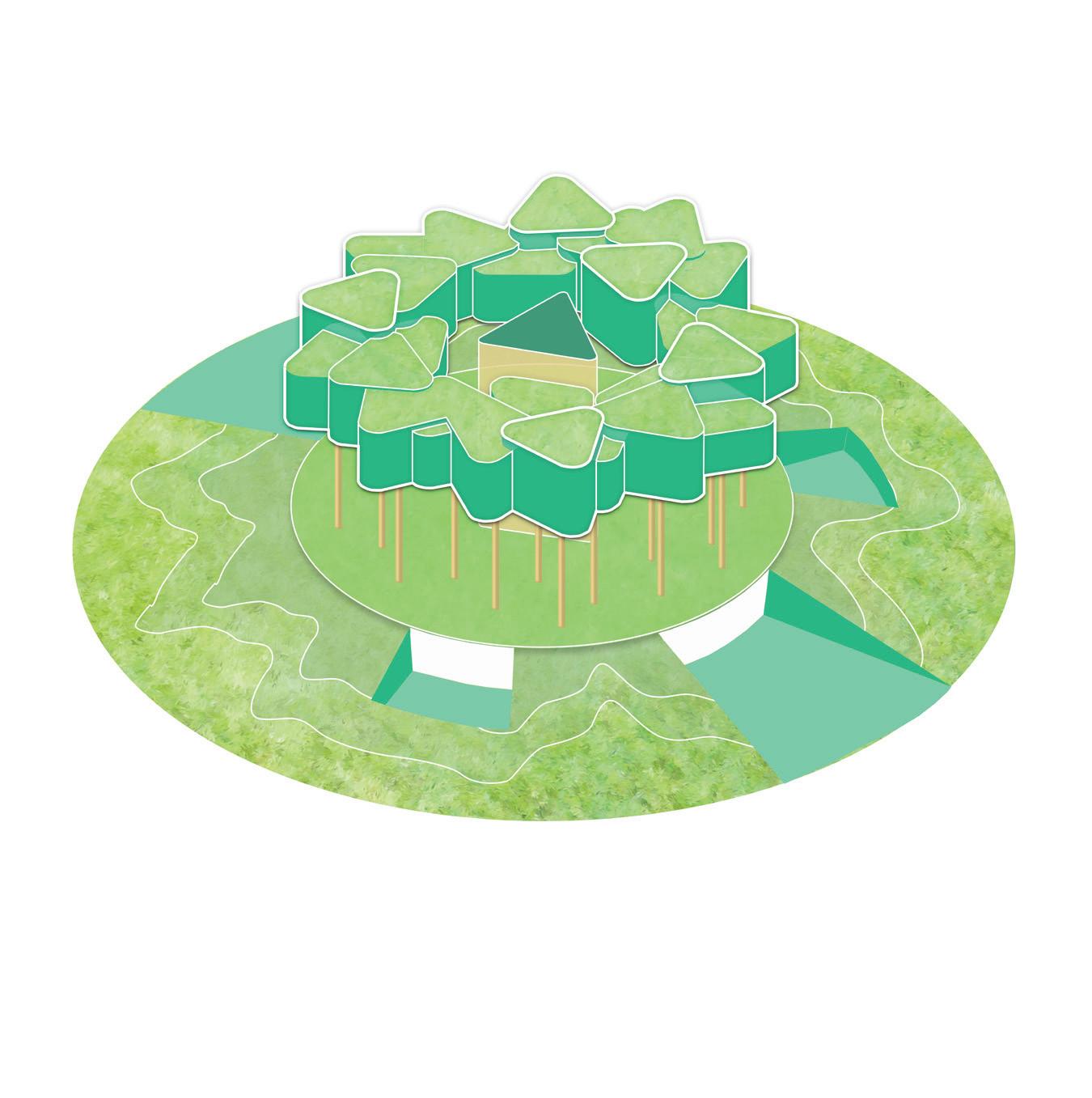

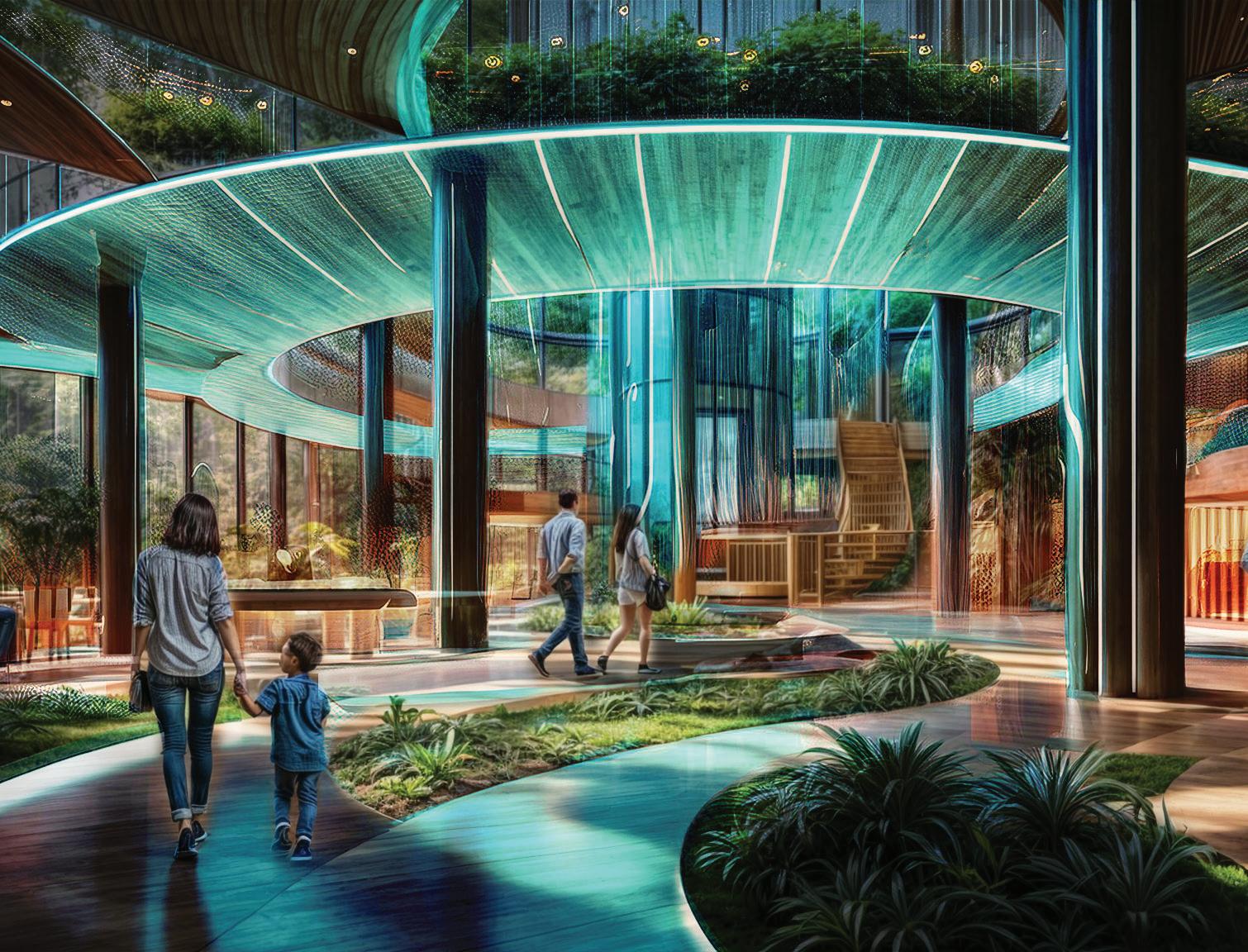

Cellular Representation of a Forest

Ground Level (Underground Nature Exhibition Level): Displays natural materials, revealing the mysteries of underground ecosystems and the interdependent relationships among subterranean organisms.

Ground Level (Forest Exhibition Level): The roof of the L1 level is flush with the ground, symbolizing the forest floor, and features areas for outdoor activities.

Top Level (Canopy Exhibition Level): The top of the building resembles a dense tree canopy, with an indoor greenhouse garden and observation deck, emphasizing the importance of the forest canopy in maintaining biodiversity.

Conservation Pioneers: Showcases forest conservation technologies, such as remote sensing and drone-assisted reforestation.

Nature Playground: An interactive nature playground that combines technology-assisted learning tools, allowing children and families to explore nature together. Ground Level (Underground Nature Exhibition Level): Displays natural materials, revealing the mysteries of underground ecosystems and the interdependent relationships among subterranean organisms.

Ground Level (Forest Exhibition Level): The roof of the L1 level is flush with the ground, symbolizing the forest floor, and features areas for outdoor activities.

Top Level (Canopy Exhibition Level): The top of the building resembles a dense tree canopy, with an indoor greenhouse garden and observation deck, emphasizing the importance of the forest canopy in maintaining biodiversity.

Conservation Pioneers: Showcases forest conservation technologies, such as remote sensing and drone-assisted reforestation.

Nature Playground: An interactive nature playground that combines technology-assisted learning tools, allowing children and families to explore nature together.

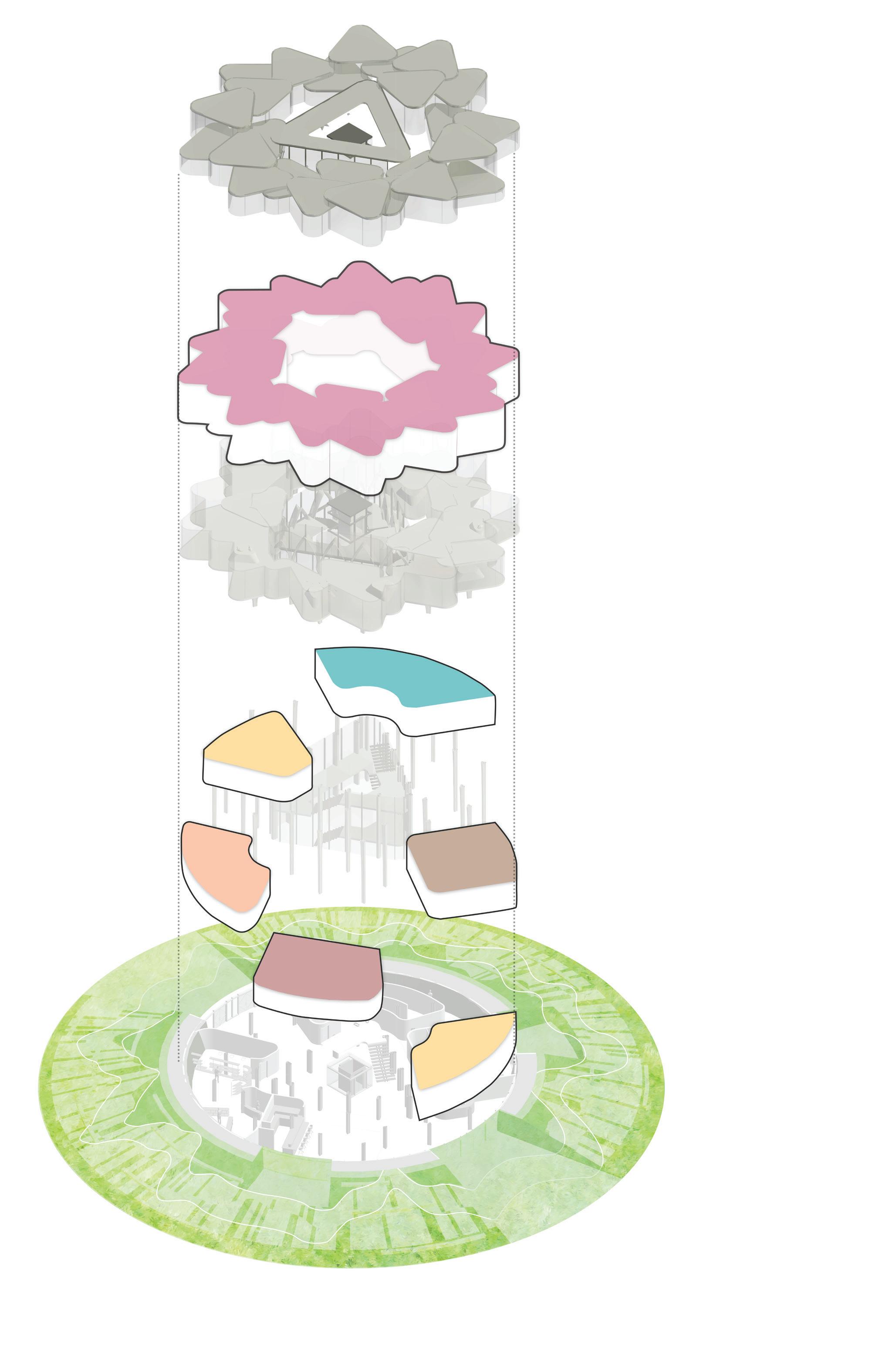

flow

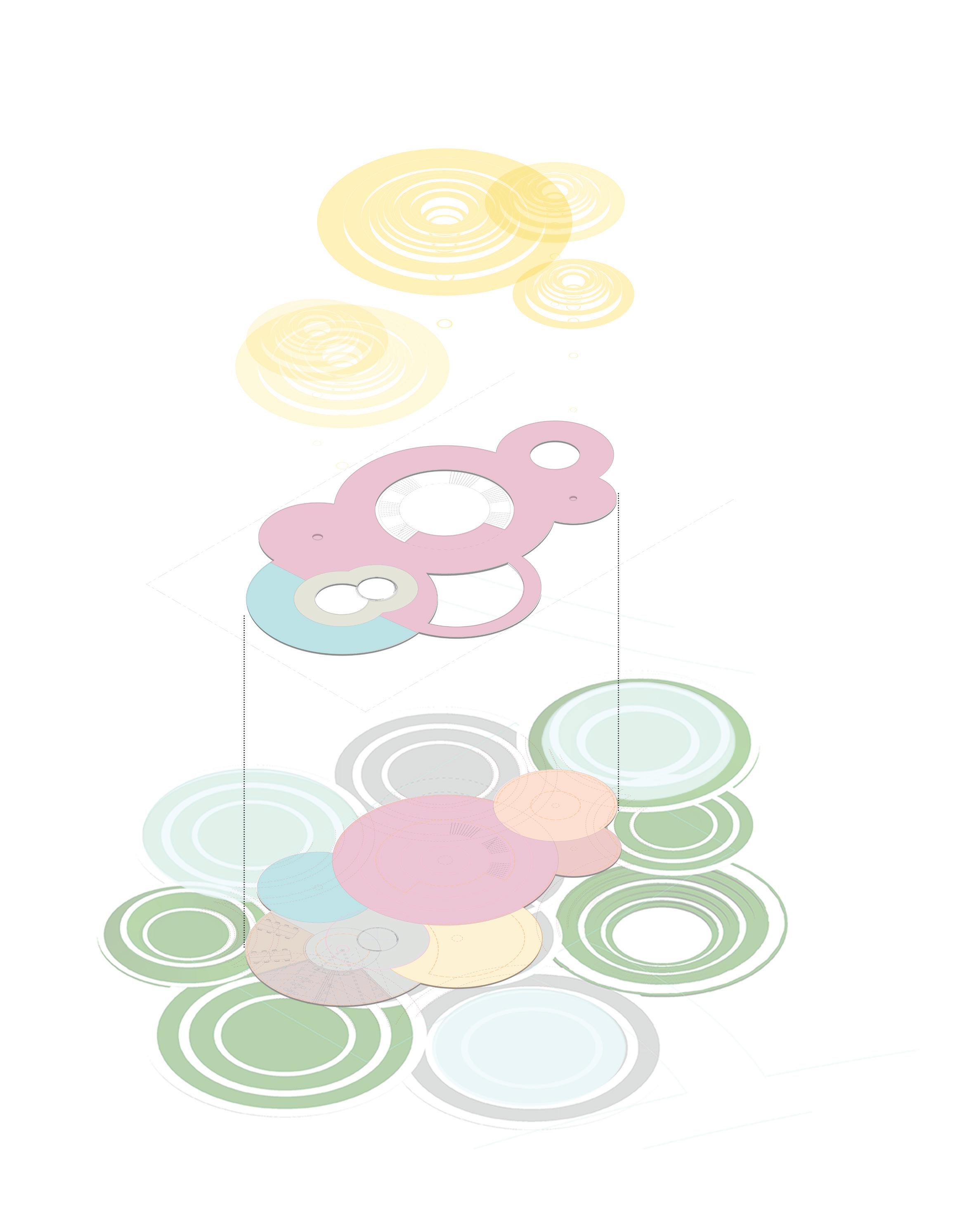

program diagram sustainable exploration 绿色建筑设计 //Green Design_

light Greenhouse Garden Waterbird Biology Education and Observation Deck

Large area of green roof and sky garden to reduce cooling load for top level and mitigate Heat Island effect.

Install rooftop solar hot water system for townhouses to generate hot water for bathroom to reduce electricity or gas use.

Design to maximize potential for natural ventilation so as to minimize use of air conditioning and also enhance outdoor and indoor space comfort.

Captures waste energy of exhaust cool air by heat recovery wheel to pre-cool the fresh air to save energy.

Use permeable paving materials for at least 70% outdoor pavement area (except the roof of underground space).

Use daylight through glazed facade and skylight to minimize use of artificial lighting.

Collect rainwater from roofs for reuse to reduce municipal water consumption.

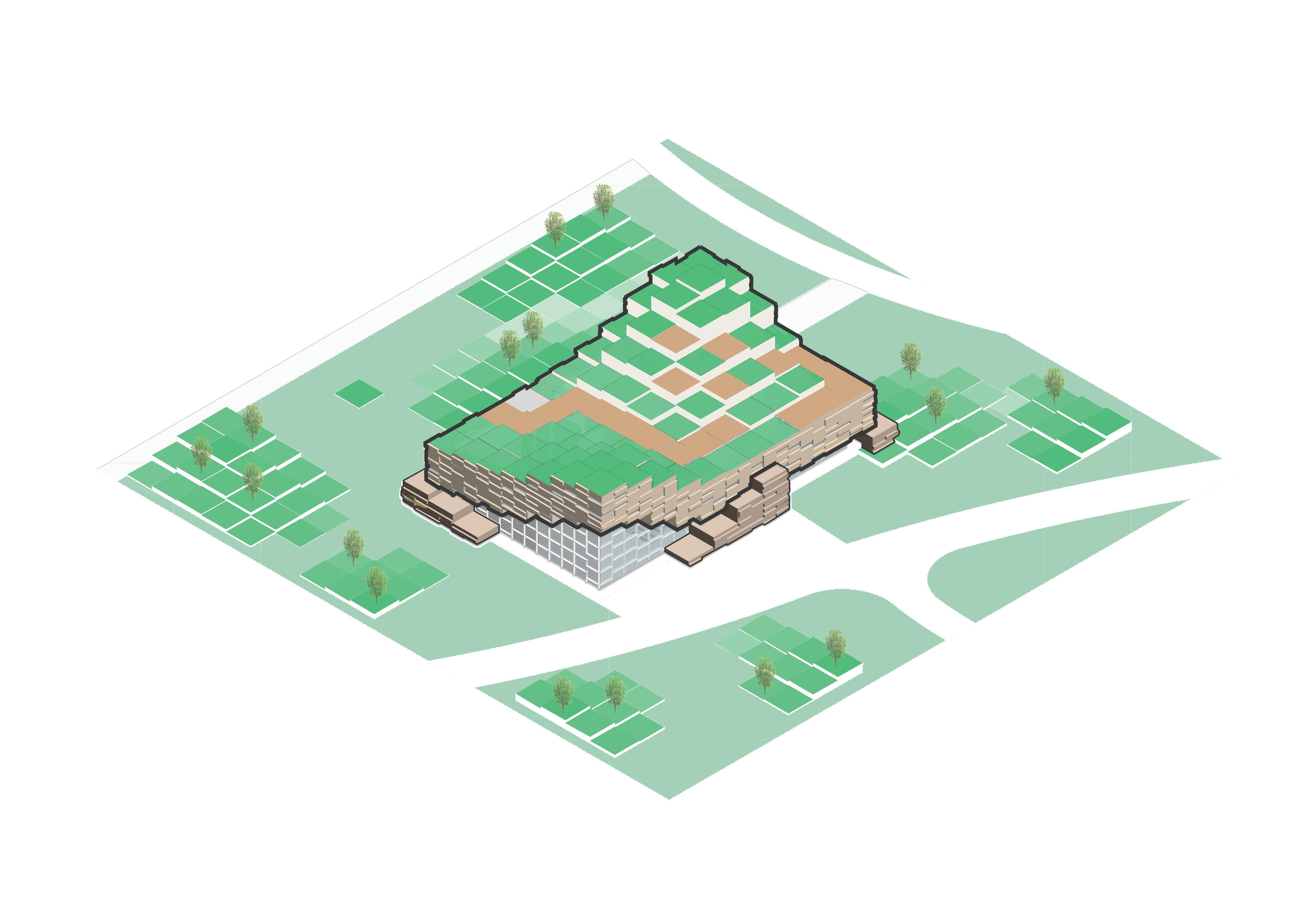

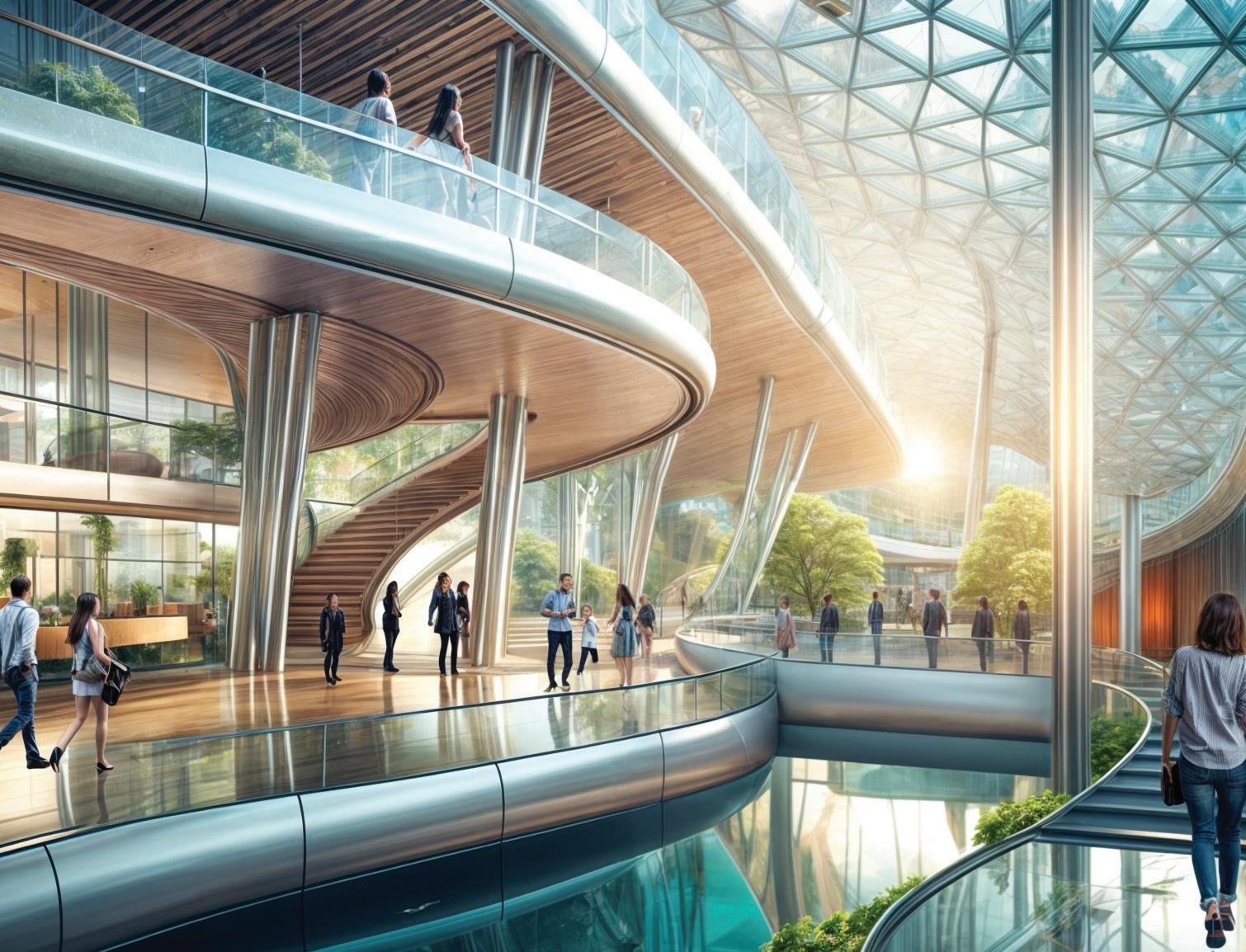

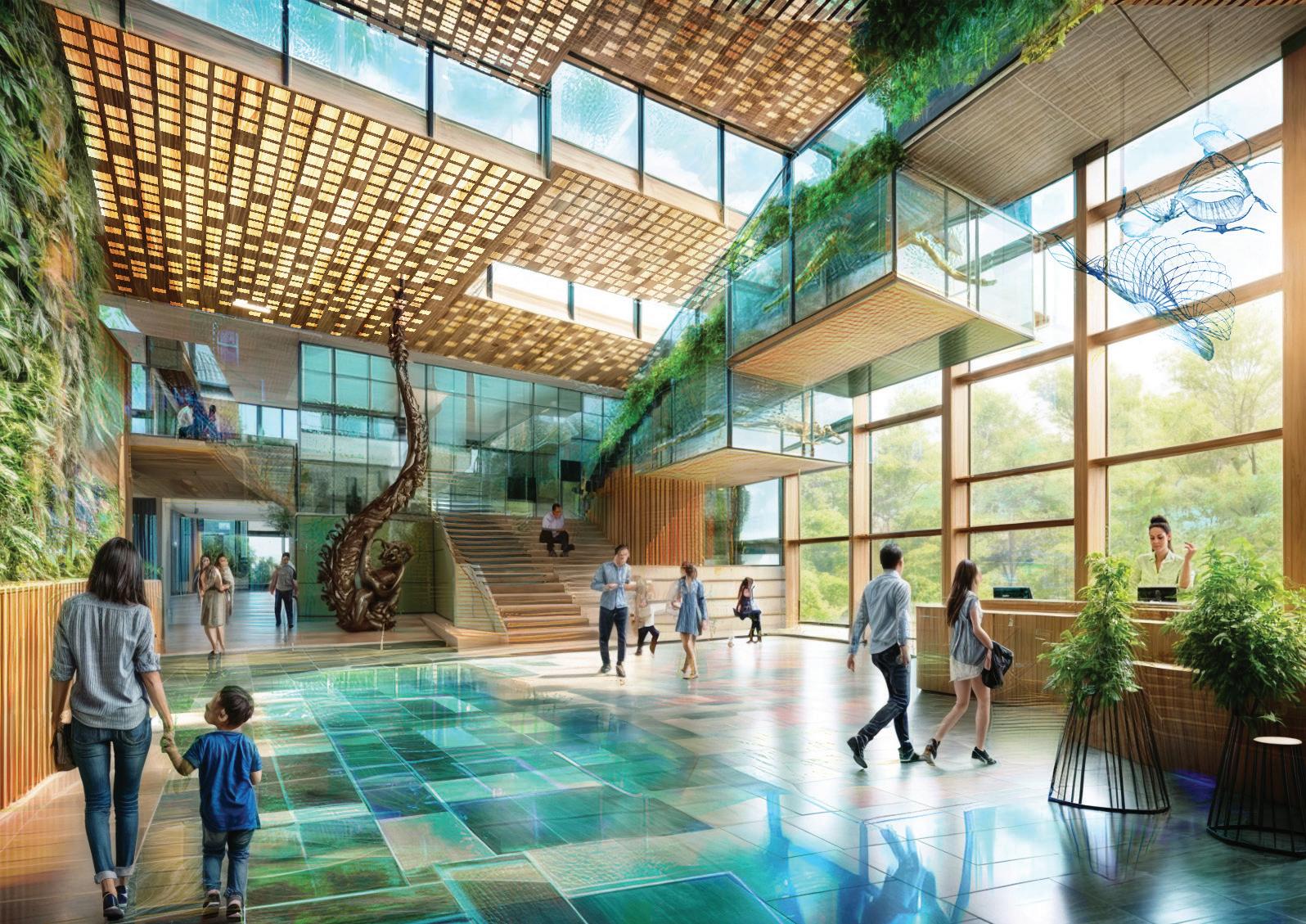

Exhibit The building mass is interwoven like the veins of forest cells, and the terrain around the structure gently rises.

Rest Lounge National Geographic Bookstore

The collected rainwater can be used for top-up water supply for landscape water feature and irrigation to reduce municipal water use.

Admin Office

Light meal café Visitor Center

Use LOW or NO VOC content paints, sealant and carpet products to safeguard occupants’ health.

Use HEPA filter, at least MERV 13, for HVAC system to improve indoor air quality.

Increase the fresh air ventilation rate to enhance the indoor air quality and comfort.

Like a group of towering trees standing tall in the flat park, it serves as the best vantage point for visitors to overlook Dishui Lake and the surrounding landscape.

南汇赤风港生态公园文化建筑功能策划及建筑设计 | FUNCTION PLANNING AND ARCHITECTURAL DESIGN OF NANHUICHIFENG PORT ECOLOGICAL PARK

0

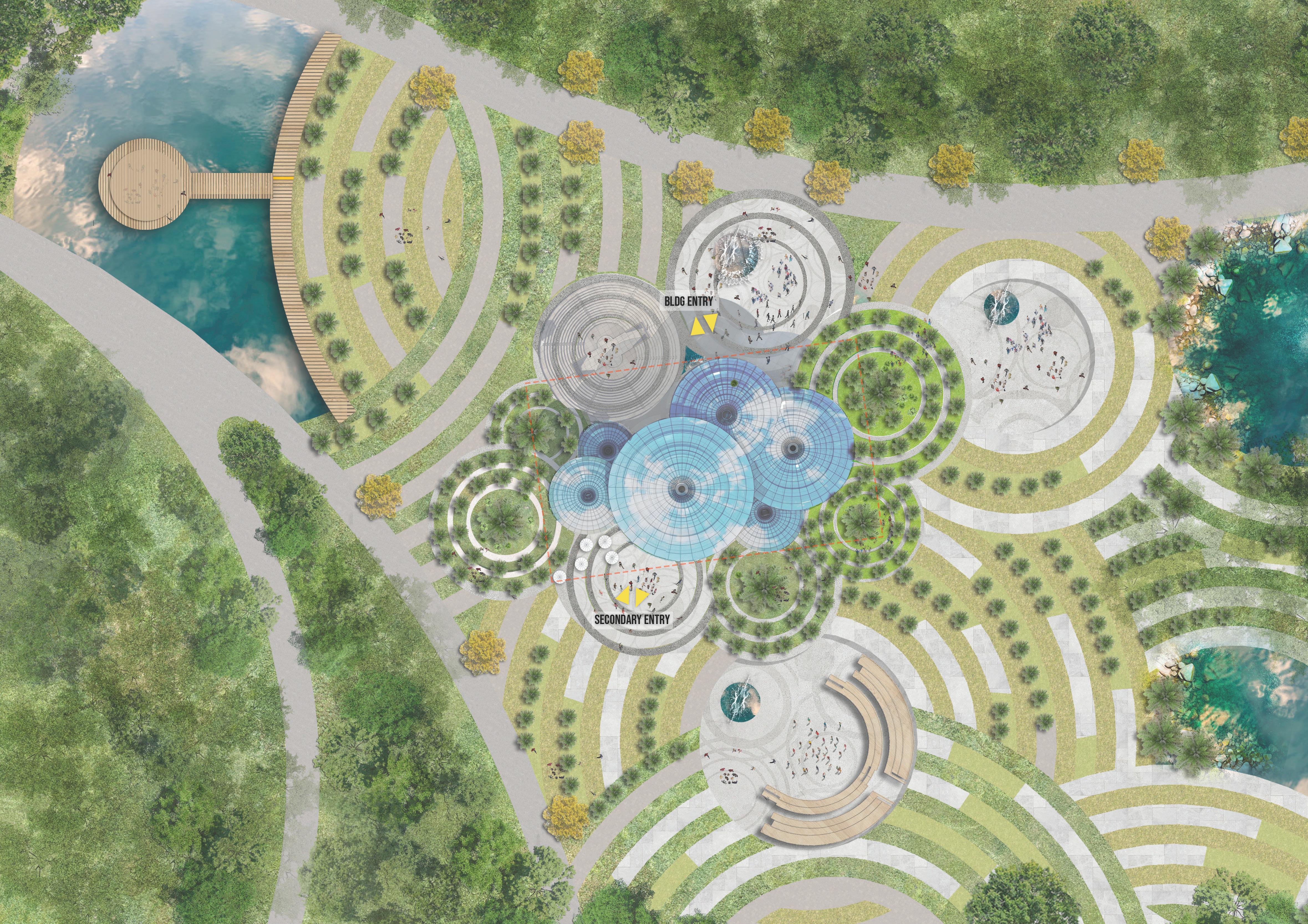

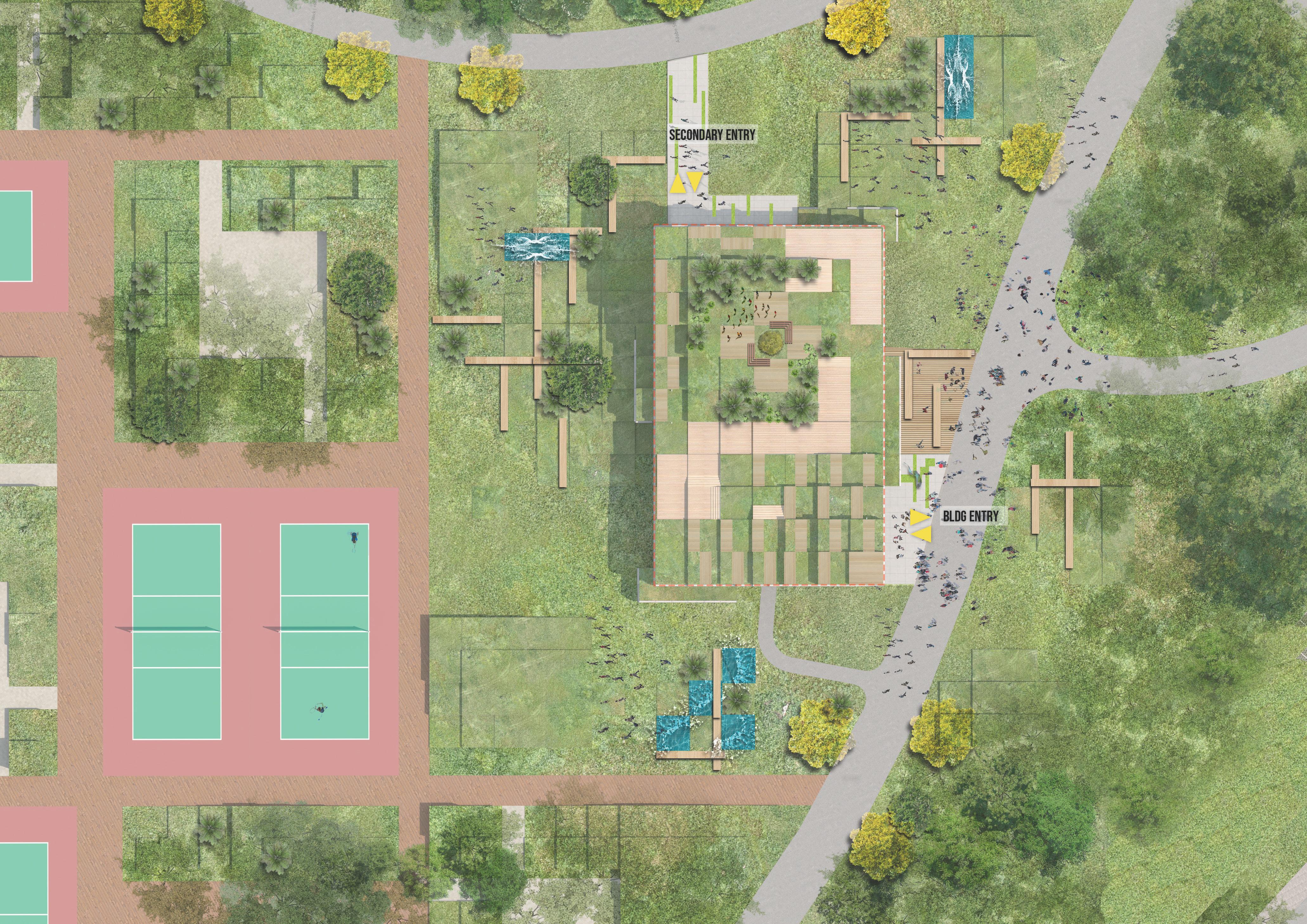

MASTER PLANNING_

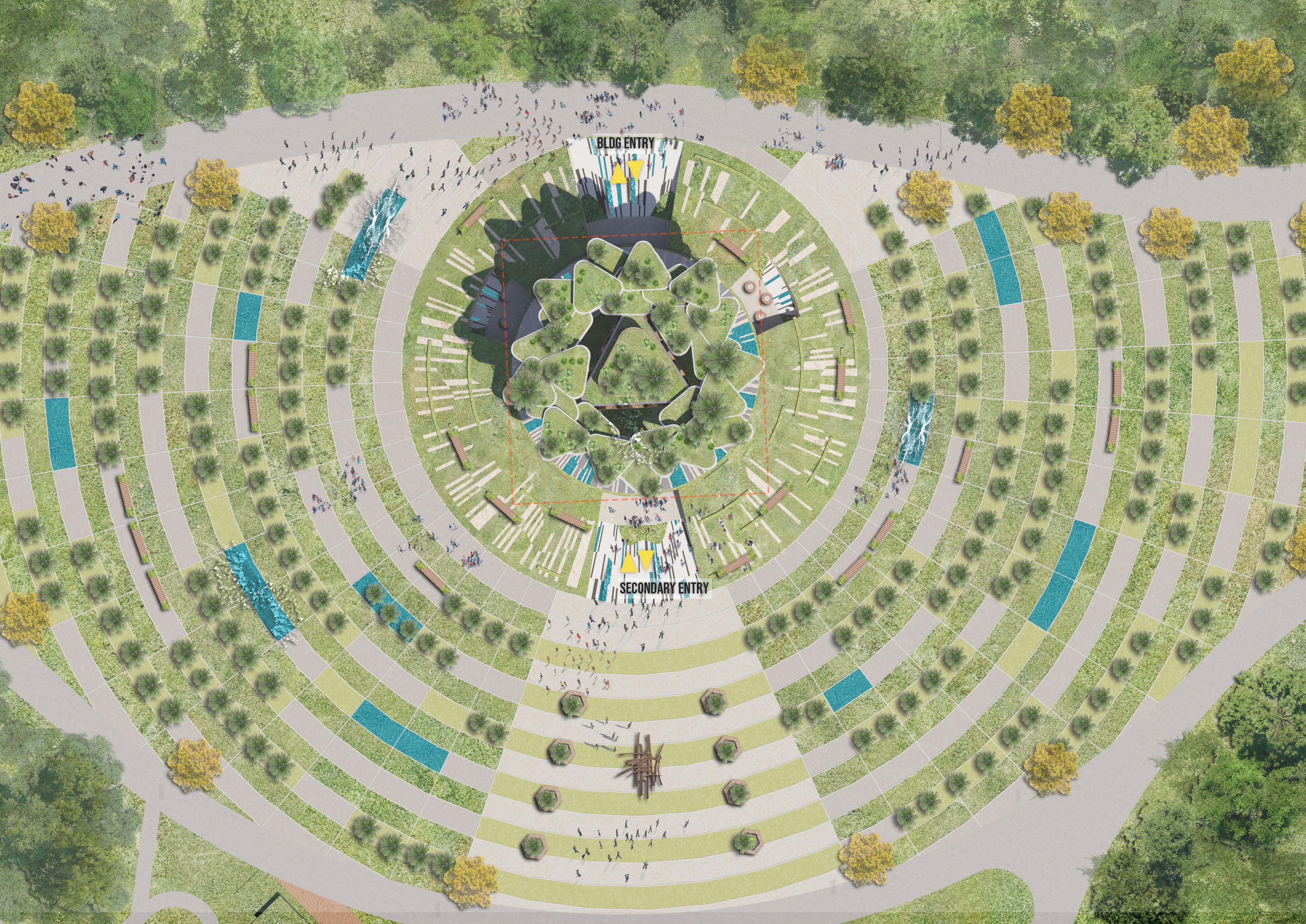

1.seasonal exhibit plaza 5.root Labyrinth garden

2.FOUNTAIN PLAZA 6.Outdoor picnic

南汇赤风港生态公园文化建筑功能策划及建筑设计 | FUNCTION PLANNING AND ARCHITECTURAL DESIGN OF NANHUICHIFENG PORT ECOLOGICAL PARK

3.outdoor cafe seating

5

25

4.outdoor OFFICE seating

50m

Nn

Install CO2 sensors to automatically adjust fresh air supply and on/off of HVAC system to achieve thermal comfort and energy saving.

Conduct Product Life Cycle analysis for the building structure and material.

Use materials with high recycled content. Total recycled content not less than 20%.

02

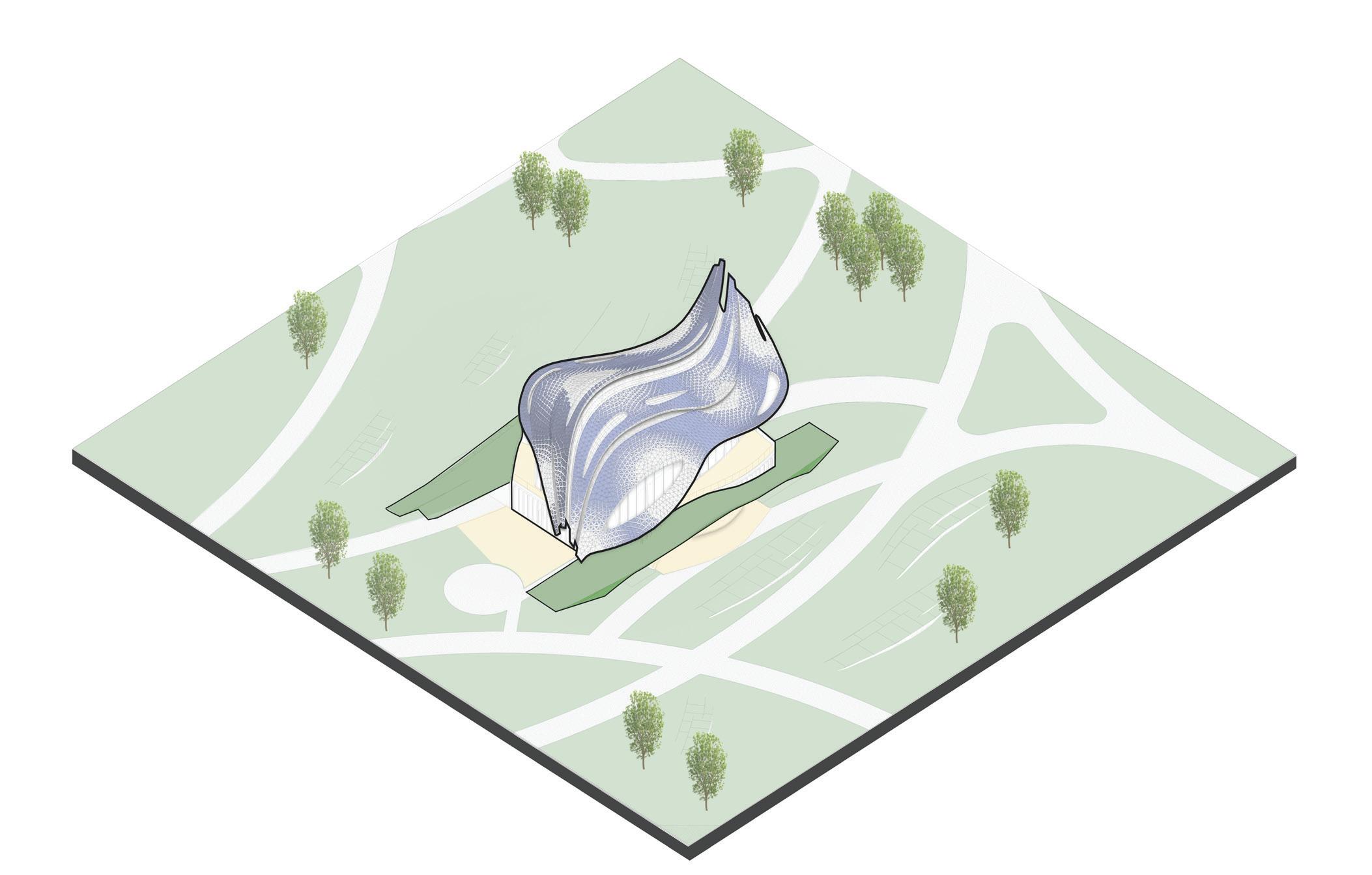

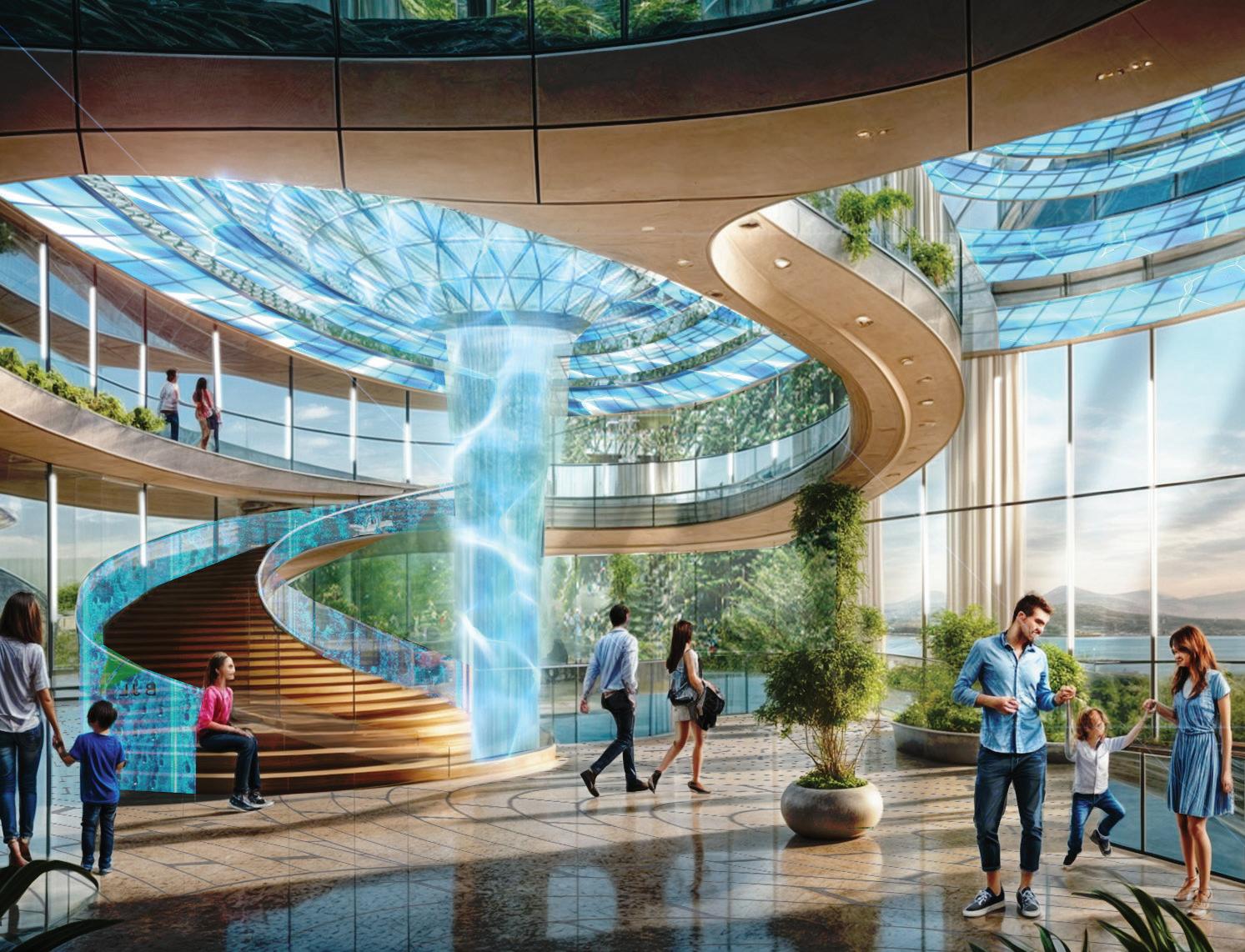

Water Wonders Ecology Center

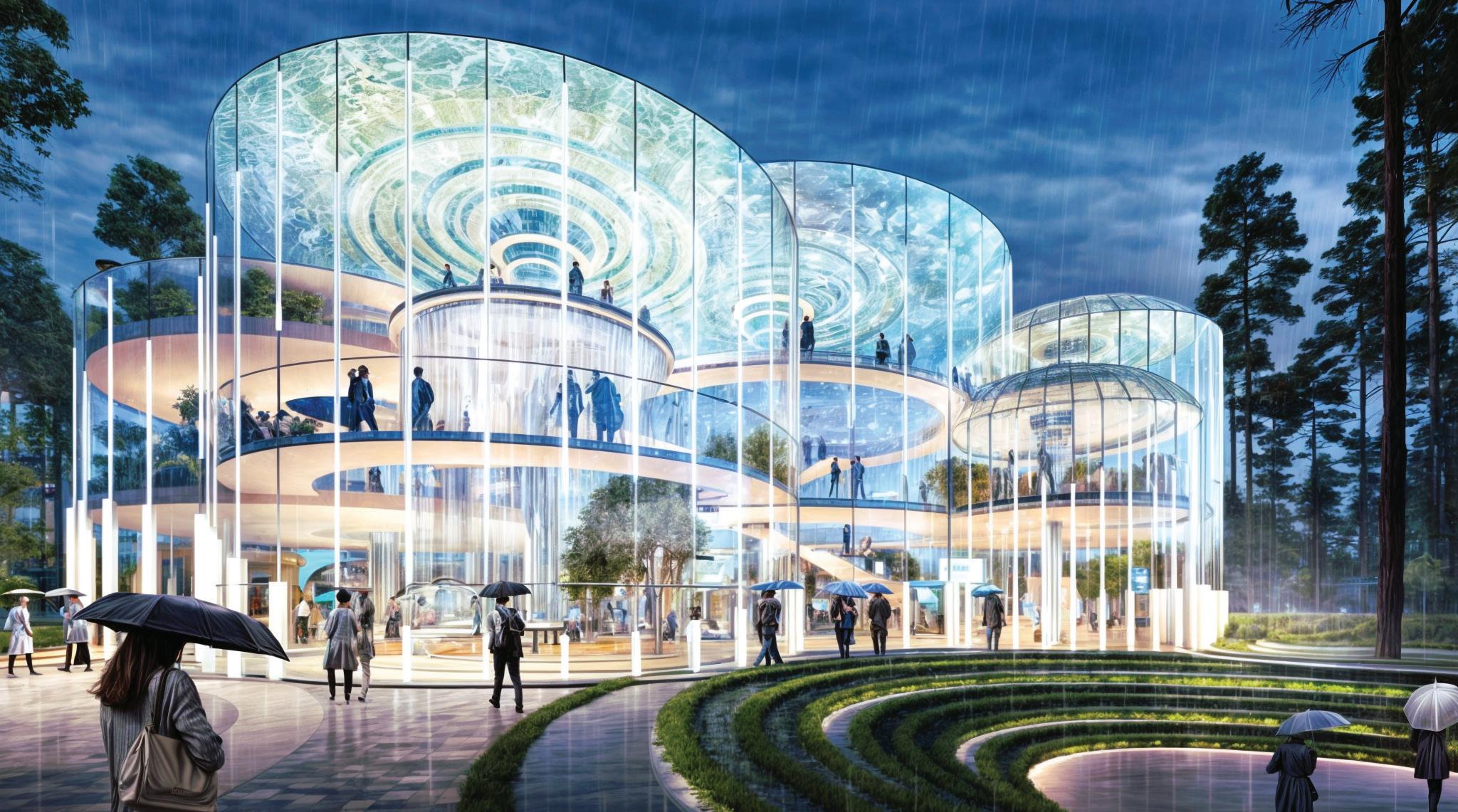

The “Water Wonders” pavilion celebrates the vital role of water in life and technology. Through the combination of large and small droplet forms, from the smooth undulations of its structure to the interior space, visitors can explore the ecological significance of water and its technological applications. The unique water droplet dome design is equipped with solar panel canopies, creating a ripple effect, symbolizing the dynamic nature of water and its role in technology.

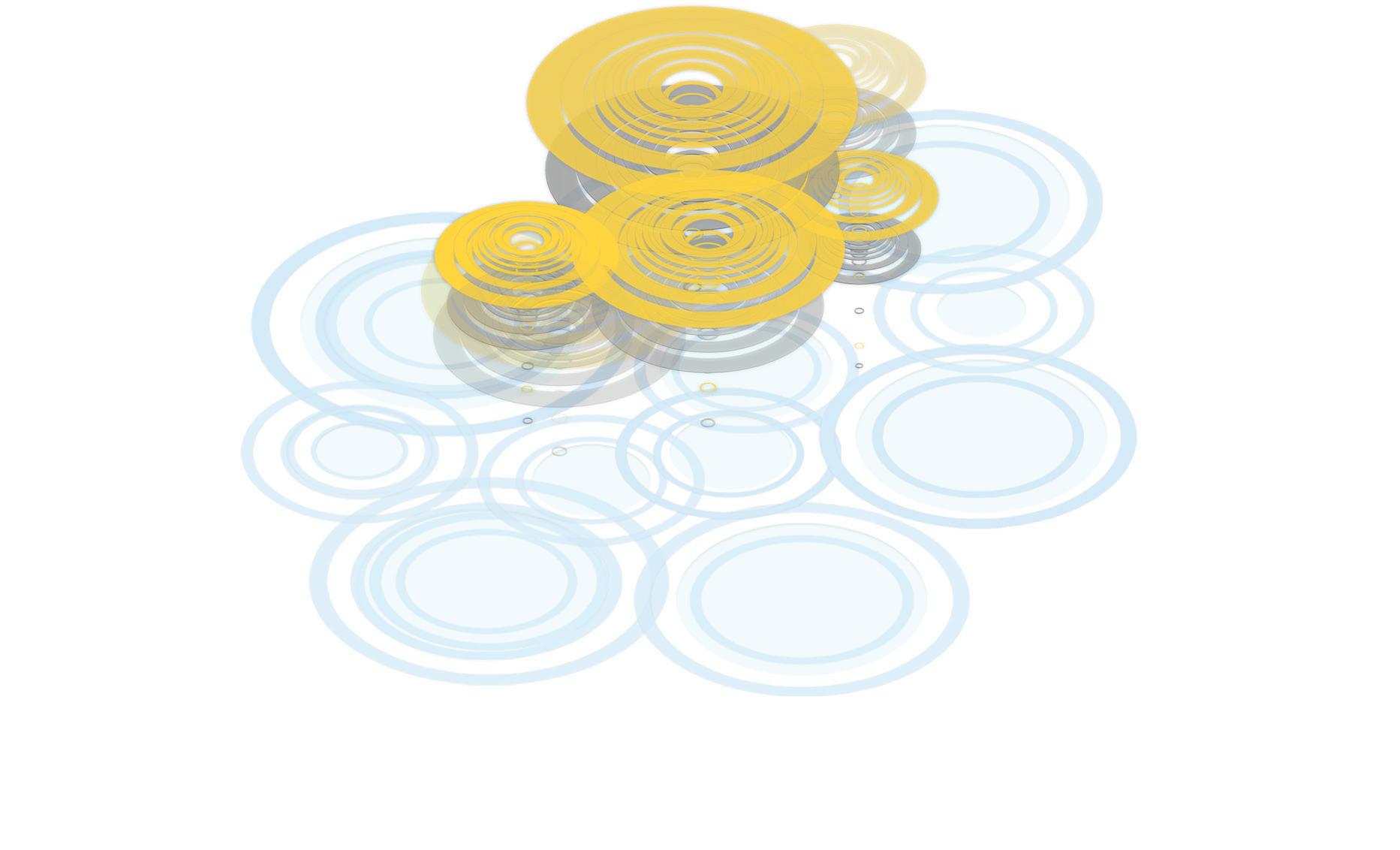

Water Fountains with Ripple Roof

Aquatic Ecological Symphony: An interactive exhibition about rivers, lakes, wetlands, and oceans, with a special focus on Lingang, which highlights water and wetlands.

Water Dance of Technology: Showcasing technologies related to hydropower, desalination, and water purification, emphasizing the contributions made by Shanghai and its people in these fields.

Rippled Canopy: Solar panels on the rooftop arranged in a wave-like pattern, demonstrating the generation of sustainable energy and innovative architectural design.

Smart Water Conservation: Presenting information on water-saving innovations and sustainable water management.

Water Exploration Journey: A VR experience and exhibition of water-based recreational technologies.

Mirror

program diagram sustainable exploration 2.8 _绿色建筑设计 绿色建筑设计 //Green//Green Design_ Design_

Install rooftop solar panels for townhouses to generate electricity for household needs to reduce the use of grid electricity or gas.

Ripple

Marine Tech Hall

Collect rainwater from roofs for reuse to reduce municipal water consumption.

Captures waste energy of exhaust cool air by heat recovery wheel to pre-cool the fresh air to save energy.

Use WELS (water efficiency labelling scheme) Excellent fittings to reduce municipal water consumption.

Use daylight through glazed facade and skylight to minimize use of artificial lighting.

The collected rainwater can be used for top-up water supply for landscape water feature and irrigation to reduce municipal water use.

Install CO2 sensors to automatically adjust fresh air supply and on/off of HVAC system to achieve thermal comfort and energy saving.

Use permeable paving materials for at least 70% outdoor pavement area (except the roof of underground space).

Multipurpose hall Design to maximize potential for natural ventilation so as to minimize use of air conditioning and also enhance outdoor and indoor space comfort.

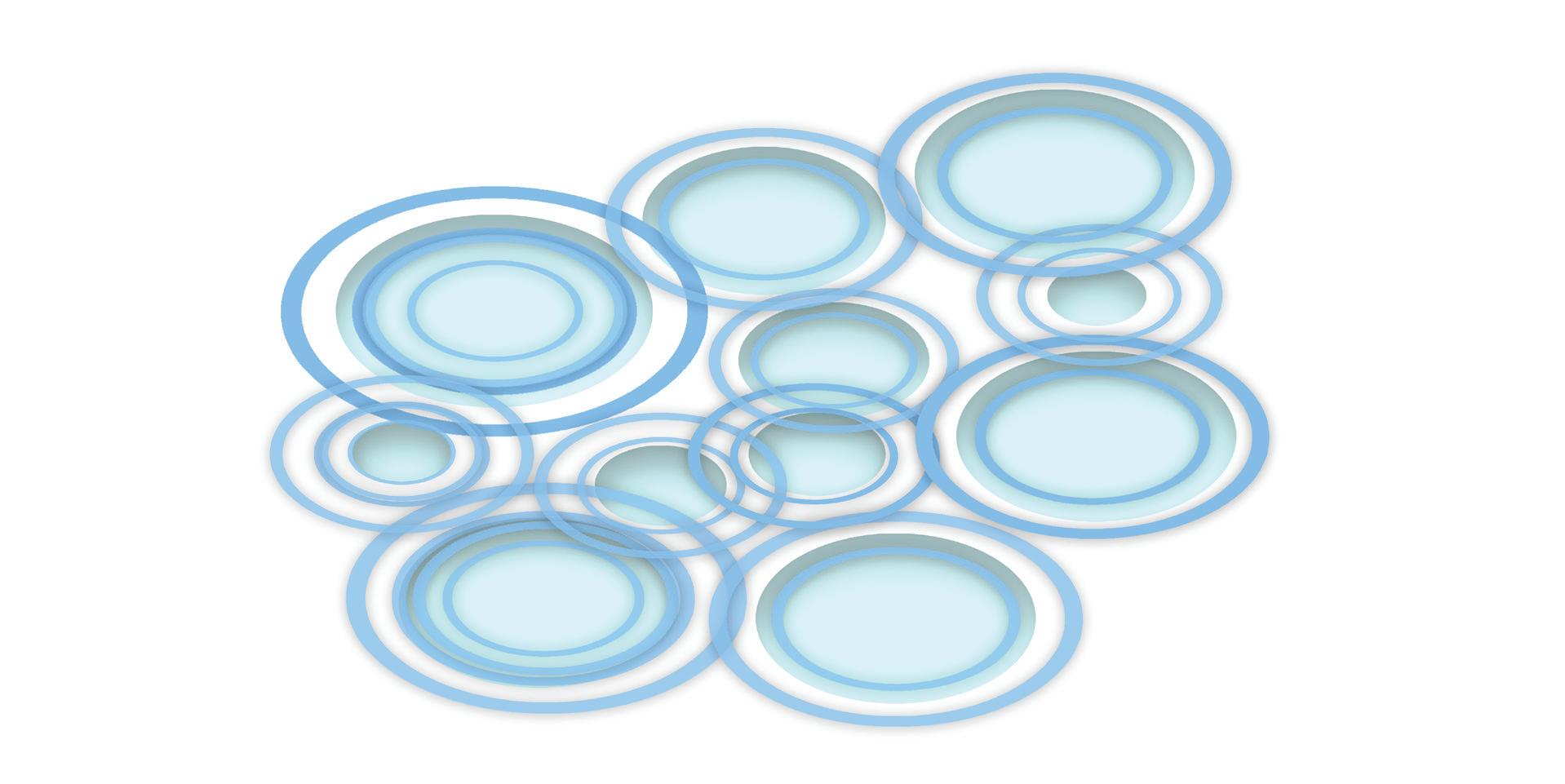

Through the combination of the shapes of large and small droplets.

Light meal café

interactive exhibit temp exhibit

Use LOW or NO VOC content paints, sealant and carpet products to safeguard occupants’ health.

Visitor Center

Admin office

Use HEPA filter, at least MERV 13, for HVAC system to improve indoor air quality.

Increase the fresh air ventilation rate to enhance the indoor air quality and comfort.

formS the Structure of the interior space.

南汇赤风港生态公园文化建筑功能策划及建筑设计 | FUNCTION PLANNING AND ARCHITECTURAL DESIGN OF NANHUICHIFENG PORT ECOLOGICAL PARK

MASTER PLANNING_

1.Pond Pavilion

0

2.Ampitheater

3.Water Performance Plaza

南汇赤风港生态公园文化建筑功能策划及建筑设计 | FUNCTION PLANNING AND ARCHITECTURAL DESIGN OF NANHUICHIFENG PORT ECOLOGICAL PARK

5

4.Children Pop Jet Plaza

25

50m

5.ECO POND

Nn

03

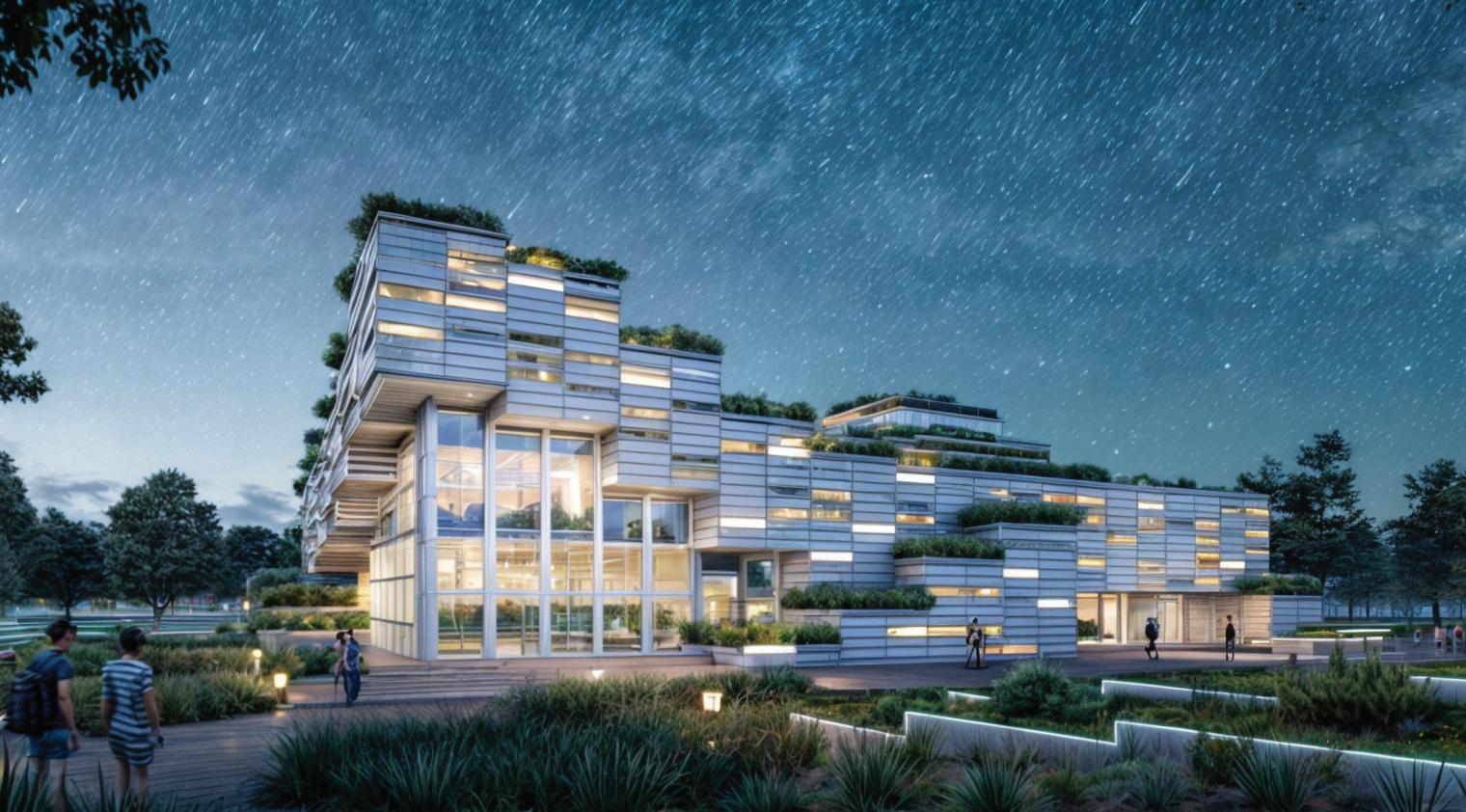

Mountain Majesty Cultural Center

The “Majestic Mountains” pavilion explores the cultural and technological significance of mountains, emphasizing their role as symbols of resilience and creativity in Chinese culture, particularly highlighting the contributions of Shanghai and its people in this regard. The pavilion design simulates a pixelated mountain, representing a technological interpretation of nature in a new era, with solid stone forms illustrating varying erosion effects. A series of green terraces extends from the ground to rooftops of different heights. The green roofs feature multiple platforms for visitors to rest and enjoy the view.

Pixelated Mountain Form Representing Resilience

Cultural Resilience: An exhibition about mountains as symbols of strength and resilience in Chinese culture, telling stories of perseverance from both historical and contemporary perspectives.

Community Cultural Spaces: Providing a variety of cultural and artistic services and exhibition spaces for the community, catering to all ages from children to the elderly. These include libraries, youth activity centers, small theaters, multifunctional halls, art exhibitions, cultural heritage preservation, various workshops, and more.

Historical Journey: An interactive map and artifacts showcasing famous mountain expeditions and breakthroughs in mountaineering techniques.

Green Rooftop Platform: A space for visitors to relax and enjoy panoramic views, equipped with technology that explains the meaning of these areas.

Spiritual and Technological Retreats: Displays information on the role of mountains in centers for spiritual retreats and technological innovation.

Resilience

program diagram sustainable exploration Large area of green roof and sky garden to reduce cooling load for top level and mitigate Heat Island effect.

Heritage Heritage exhibition Children Area fitness hall

Use permeable paving materials for at least 70% outdoor pavement area (except the roof of underground space).

Design to maximize potential for natural ventilation so as to minimize use of air conditioning and also enhance outdoor and indoor space comfort.

Install rooftop solar hot water system for townhouses to generate hot water for bathroom to reduce electricity or gas use.

Captures waste energy of exhaust cool air by heat recovery wheel to pre-cool the fresh air to save energy.

Install CO2 sensors to automatically adjust fresh air supply and on/off of HVAC system to achieve thermal comfort and energy saving.

The collected rainwater can be used for top-up water supply for landscape water feature and irrigation to reduce municipal water use.

Light meal café temp exhibit Multipurpose hall

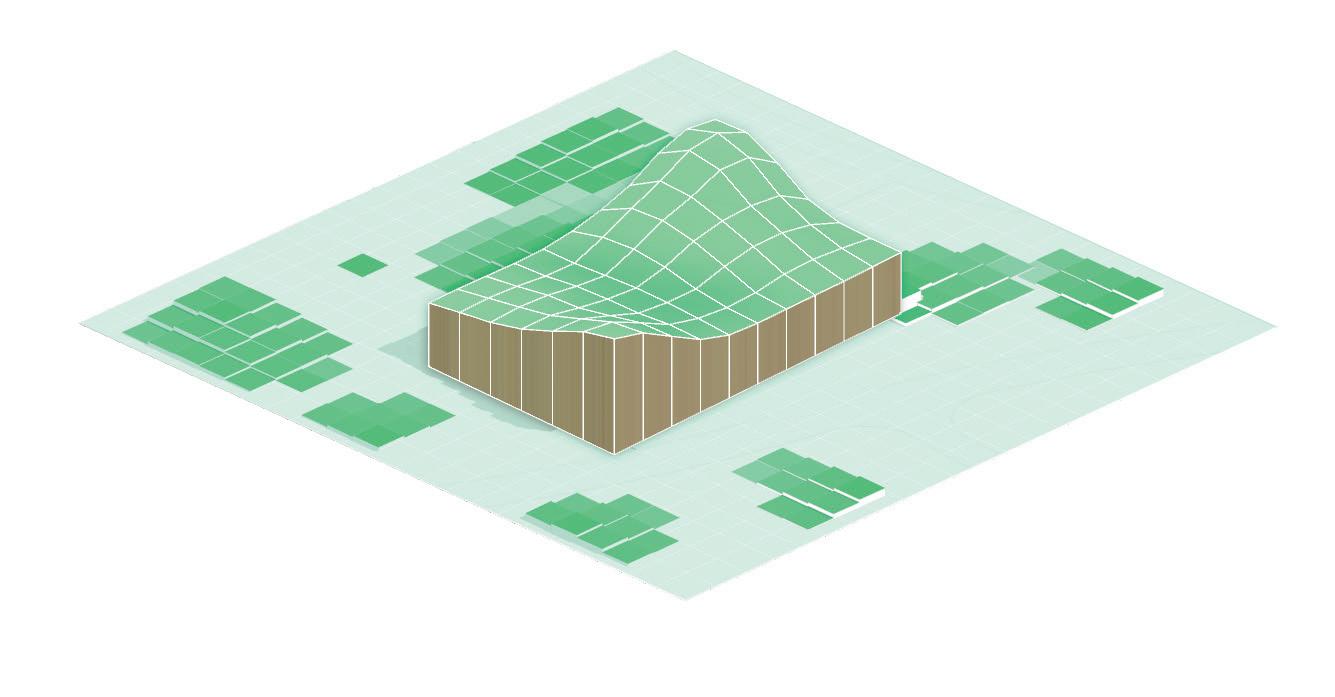

cultural art exhibition The design of the exhibition hall simulates a pixelated mountain.

Collect rainwater from roofs for reuse to reduce municipal water consumption.

Admin office

box theatre

Visitor Center Use LOW or NO VOC content paints, sealant and carpet products to safeguard occupants’ health.

Use HEPA filter, at least MERV 13, for HVAC system to improve indoor air quality.

Increase the fresh air ventilation rate to enhance the indoor air quality and comfort.

The continuous green terraces extend from the ground to rooftops at varying heights. 南汇赤风港生态公园文化建筑功能策划及建筑设计 | FUNCTION PLANNING AND ARCHITECTURAL DESIGN OF NANHUICHIFENG PORT ECOLOGICAL PARK

0

MASTER PLANNING_

1.MaRTIAL ARTS

2.outdoor tea garden

6.ROOF GARDEN 南汇赤风港生态公园文化建筑功能策划及建筑设计 | FUNCTION PLANNING AND ARCHITECTURAL DESIGN OF NANHUICHIFENG PORT ECOLOGICAL PARK

3.Outdoor picnic

5

4.REFECTING POOL

25

5.OUT DOOR CAFE SEATING

50m

n N

At least 30% materials within 800km to reduce energy use and pollution by transportation.

Conduct Product Life Cycle analysis for the building structure and material.

Use materials with high recycled content. Total recycled content not less than 20%.

04

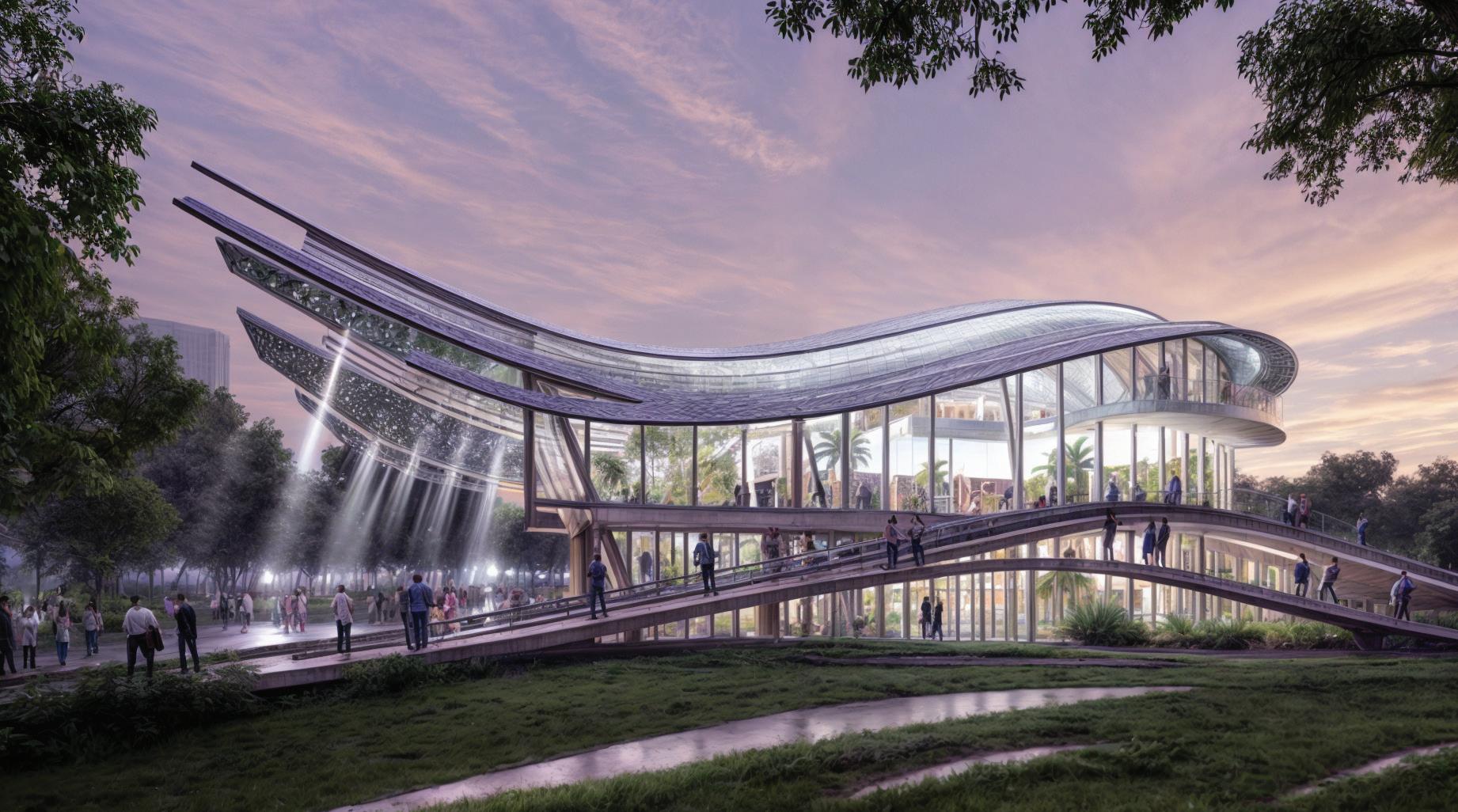

Sky Innovations Tech Center

The “Sky Dome” pavilion explores the infinite possibilities of the vast technological sky, with a special focus on showcasing the contributions of Shanghai and its people in this field. The roof design is inspired by floating clouds, featuring built-in photovoltaic sunshades arranged in parametric patterns to reveal gaps between the clouds. The architectural form mimics the flow of clouds in natural landscapes.

Unveiling the Aerospace Era: A glimpse into the future of Chinese civil aviation, including developments in large aircraft design, fuel efficiency, and passenger comfort.

Cloud-Inspired Parametric Glass Canopy

The Rise of Domestic Chips: Explore the development path of China’s chip industry and discover how Shanghai contributes to the research and design of domestic chips.

Renewable Energy: A showcase of wind and solar technologies inspired by atmospheric conditions.

Unlocking the Cloud: Step into the world of artificial intelligence to understand how cloud computing and big data analysis are used to solve data challenges.

Dancing Cloud Canopy Design: A glass canopy with photovoltaic sunshades creates an interplay of light and shadow, symbolizing the dynamic nature of clouds and promoting the use of sustainable energy.

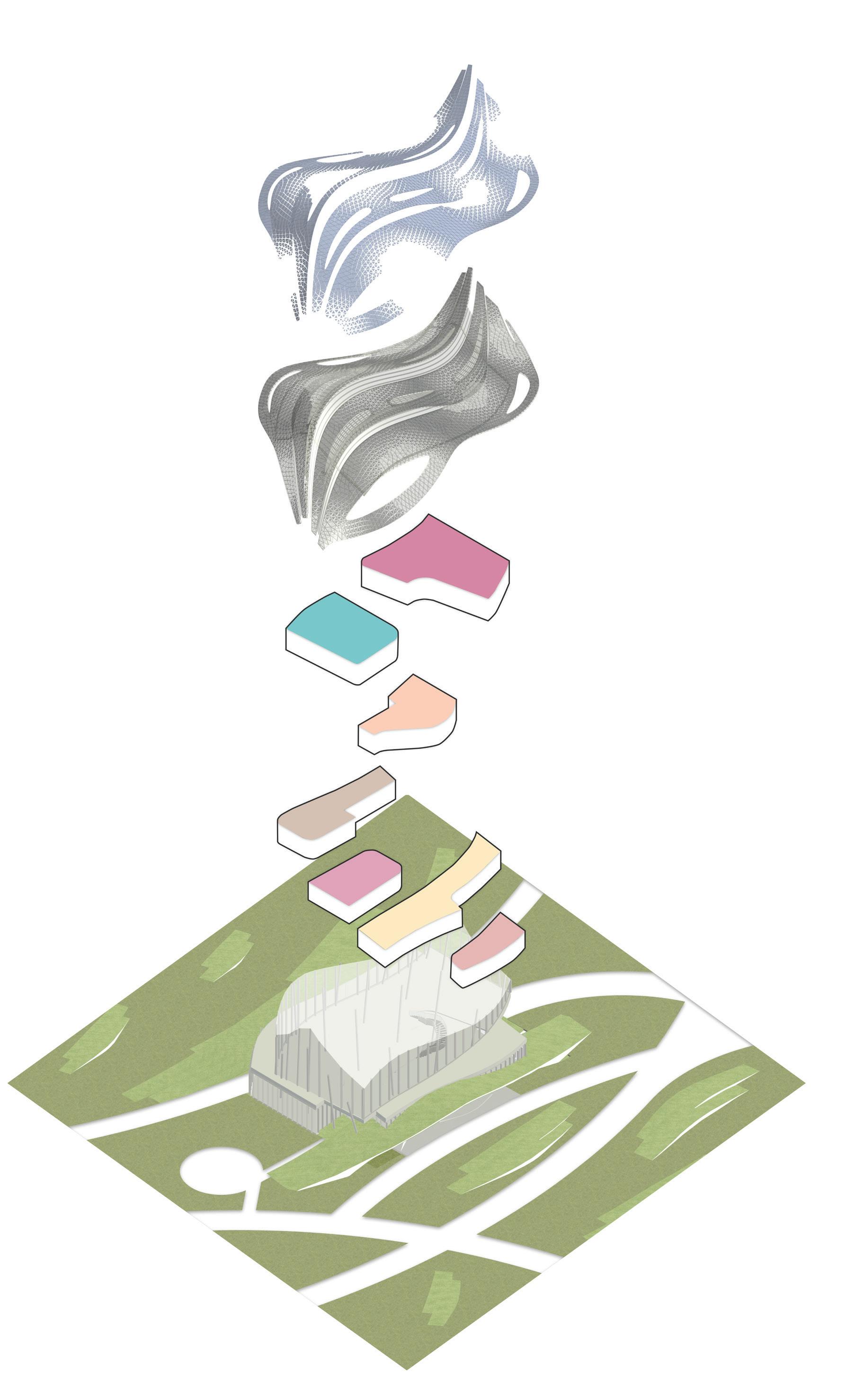

program diagram sustainable exploration 绿色建筑设计 //Green Design_ Install rooftop solar panels for townhouses to generate electricity for household needs to reduce the use of grid electricity or gas.

Ascend Glide

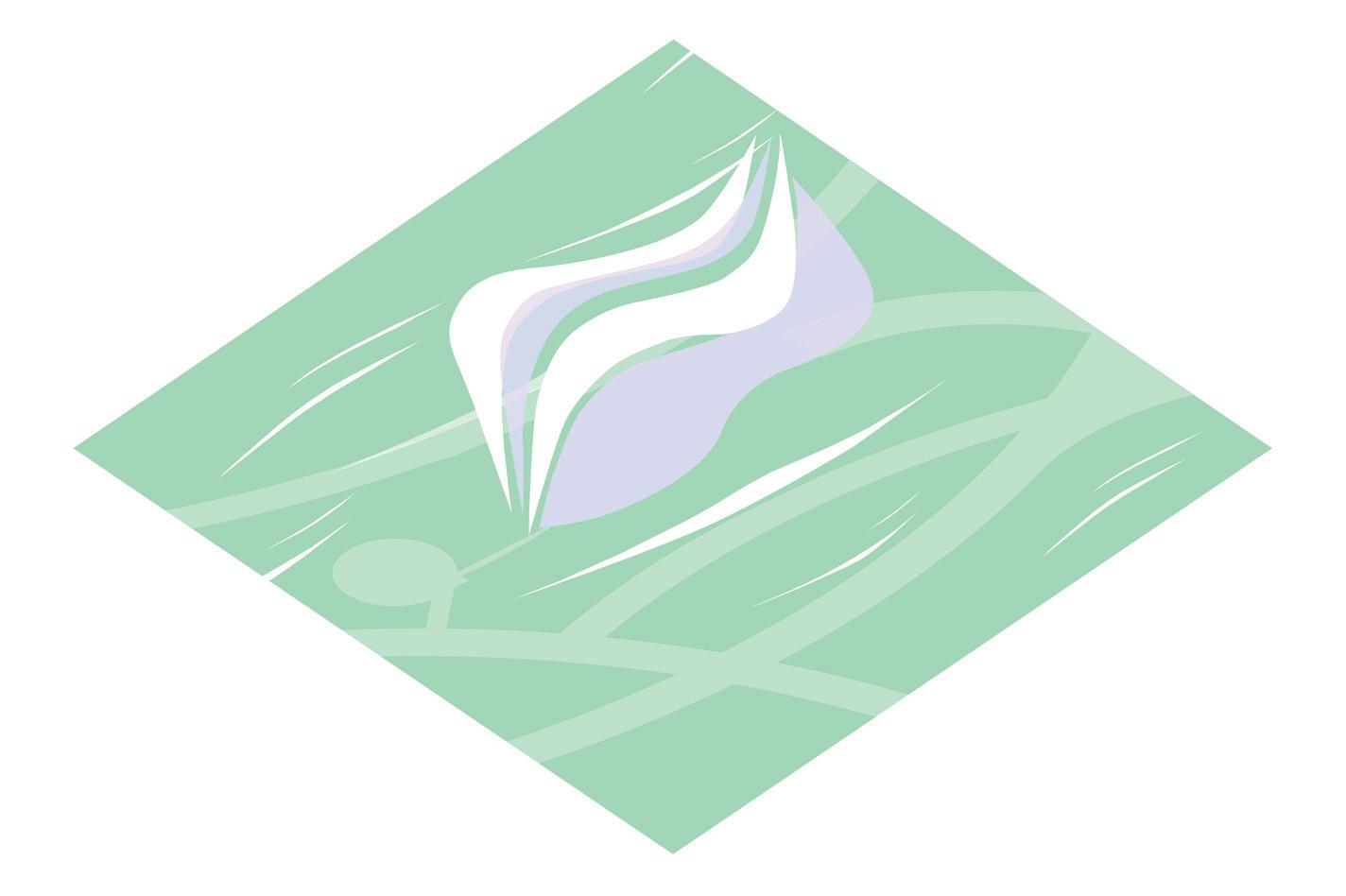

The design of Tianpeng is inspired by floating clouds.

Scientific Exhibit Hall

Captures waste energy of exhaust cool air by heat recovery wheel to pre-cool the fresh air to save energy.

Collect rainwater from roofs for reuse to reduce municipal water consumption.

Use daylight through glazed facade and skylight to minimize use of artificial lighting.

The collected rainwater can be used for top-up water supply for landscape water feature and irrigation to reduce municipal water use.

Multipurpose hall

Use permeable paving materials for at least 70% outdoor pavement area (except the roof of underground space).

Light meal café Admin office

Design to maximize potential for natural ventilation so as to minimize use of air conditioning and also enhance outdoor and indoor space comfort.

Visitor Center

Science Edu Hall

design store Use LOW or NO VOC content paints, sealant and carpet products to safeguard occupants’ health.

Install CO2 sensors to automatically adjust fresh air supply and on/off of HVAC system to achieve thermal comfort and energy saving.

Use HEPA filter, at least MERV 13, for HVAC system to improve indoor air quality.

Conduct Product Life Cycle analysis for the building structure and material.

Increase the fresh air ventilation rate to enhance the indoor air quality and comfort.

Built-in photovoltaic sunshades are arranged in a parametric pattern, revealing the gaps between clouds. 南汇赤风港生态公园文化建筑功能策划及建筑设计 | FUNCTION PLANNING AND ARCHITECTURAL DESIGN OF NANHUICHIFENG PORT ECOLOGICAL PARK

0

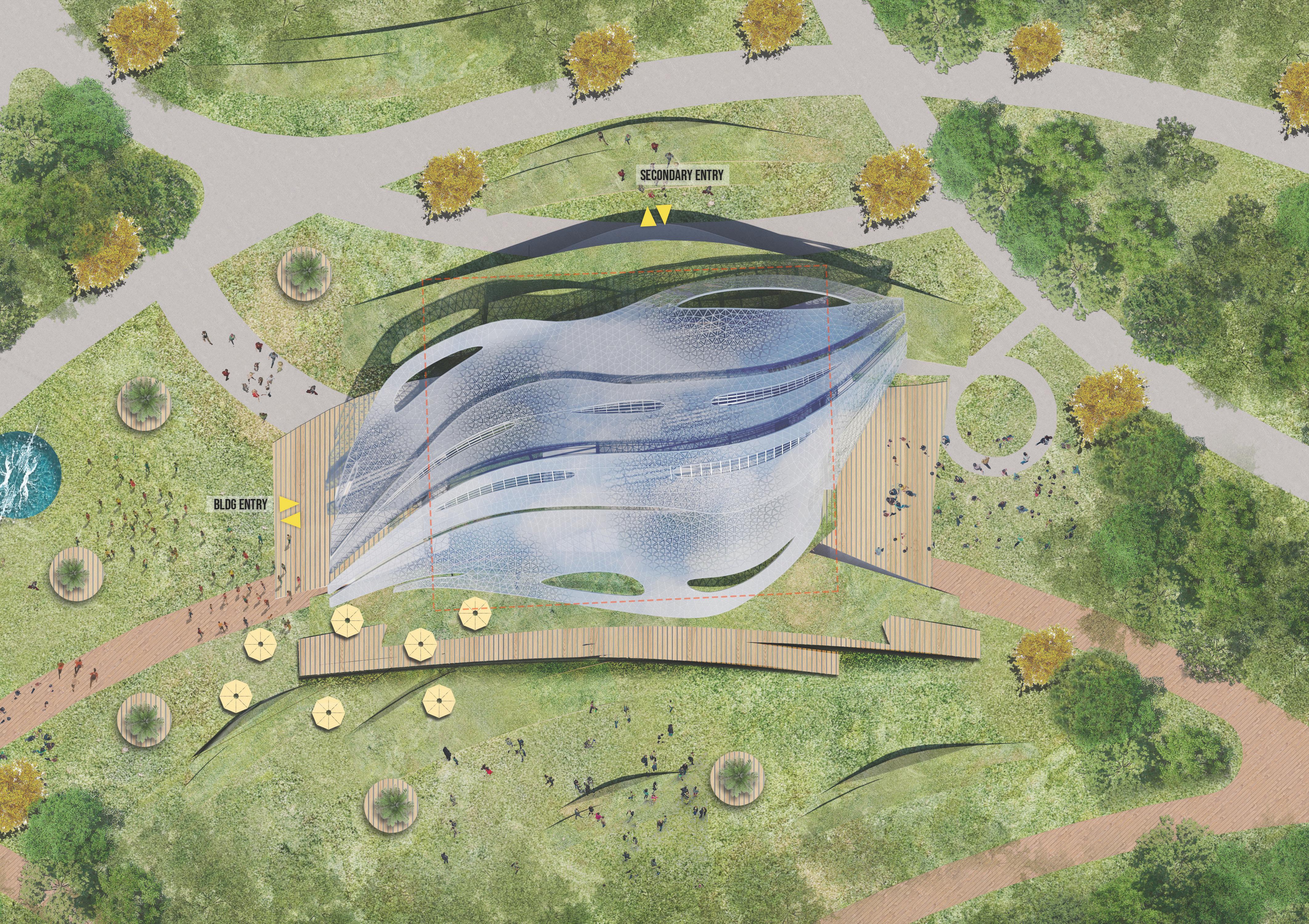

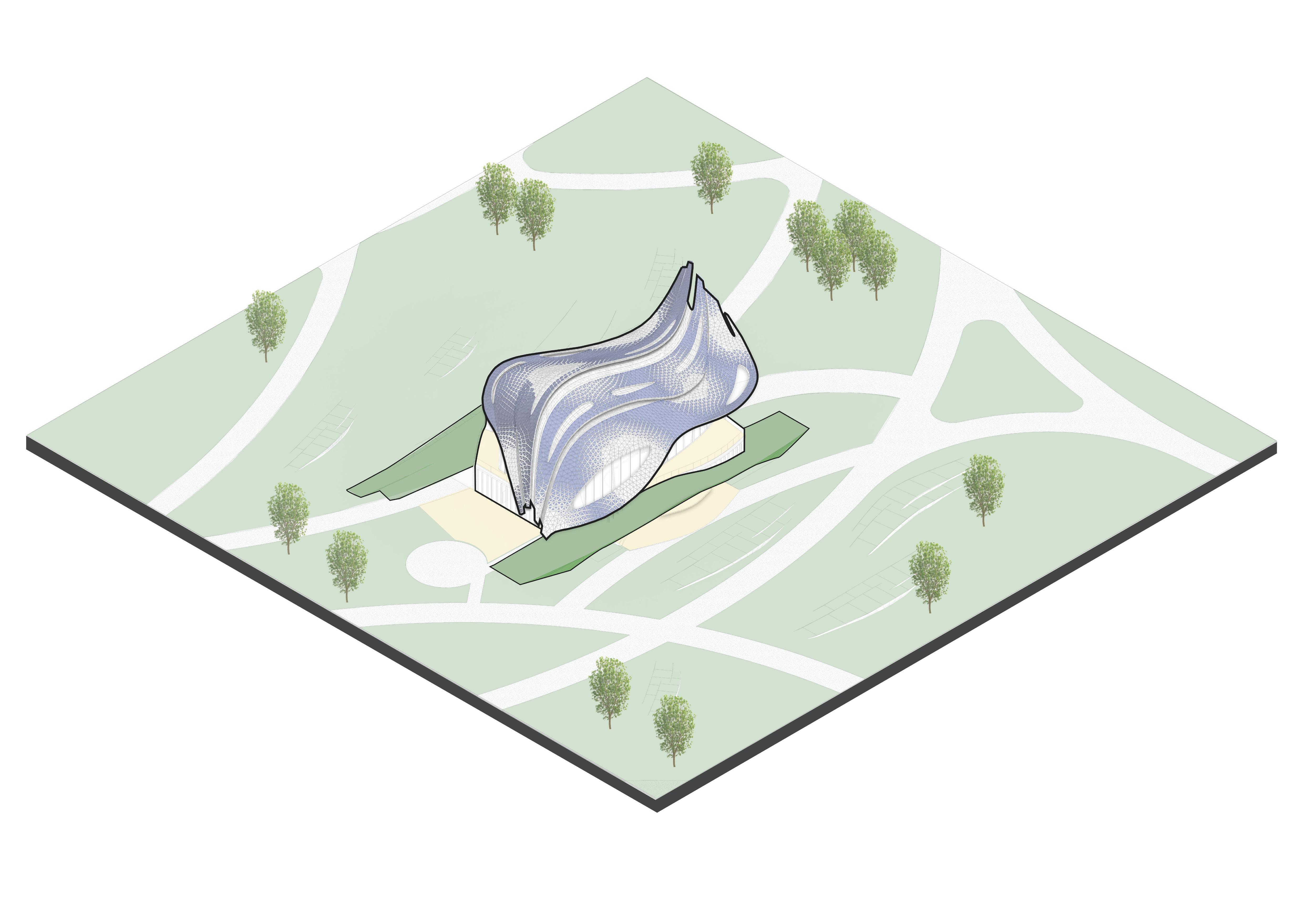

MASTER PLANNING_

1. seasonal event area

2.outdoor exhibit

南汇赤风港生态公园文化建筑功能策划及建筑设计 | FUNCTION PLANNING AND ARCHITECTURAL DESIGN OF NANHUICHIFENG PORT ECOLOGICAL PARK

3.kite park

5

15

25 M

Nn
