Hotel Group Project Binder - Fall '23

Page 1

Sandibe Okavango Safari Lodge

|
Gyllian Gaffney
|
Muriel Brown Commercial Design I
|
Prof. Moorman
| 2023

TABLE OF CONTENTS

TIME LOG

PRELIMINARY PLANNING

LOBBY

CONTINENTAL BREAKFAST

VIP SUITE

FAMILY SUITE

MEETING ROOM

SPA

Total Hours- 116

TIME LOG

PRELIMINARY PLANNING

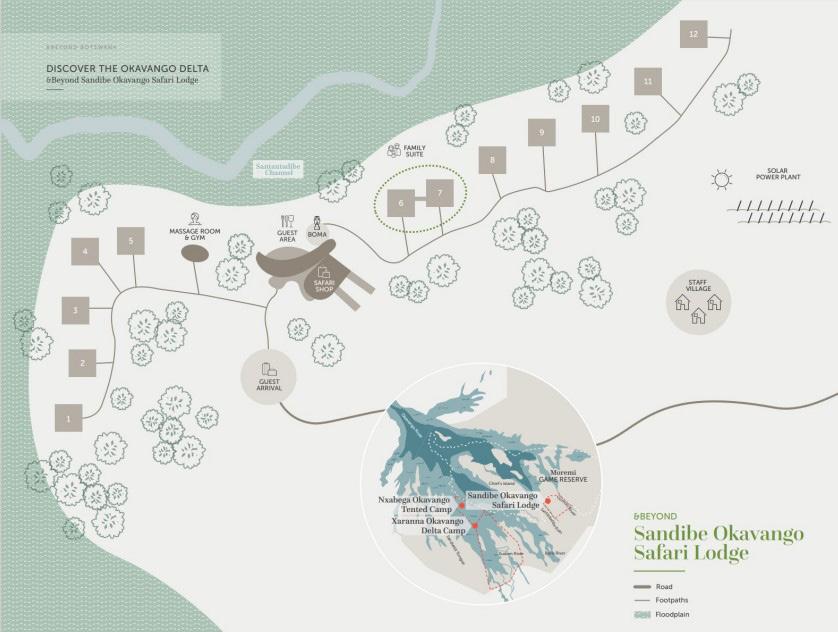

HOTEL MAP

SUSTAINABILITY

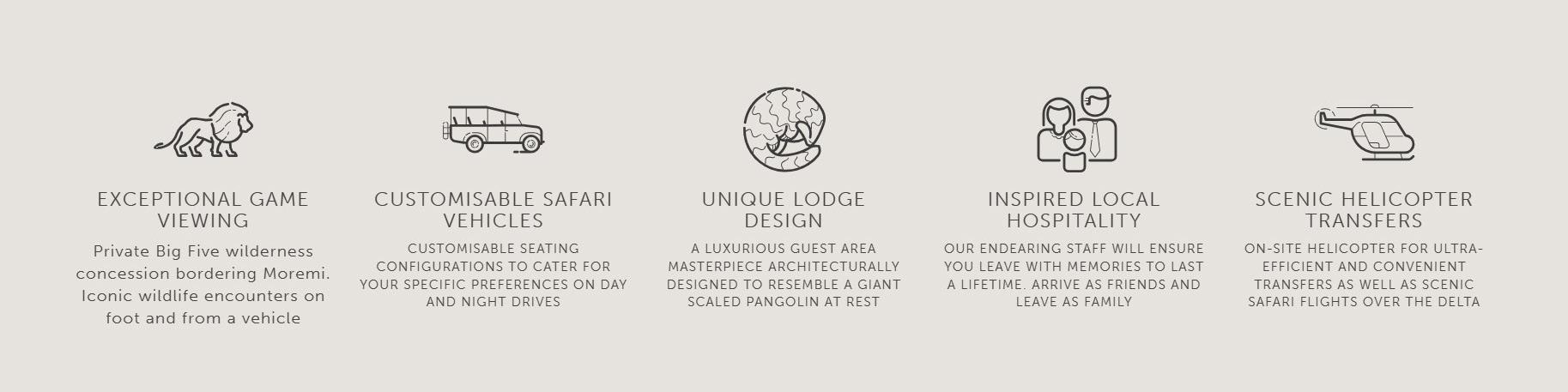

HOTEL HIGHLIGHTS

HOTEL ACCOMODATIONS

HOTEL AMENITIES

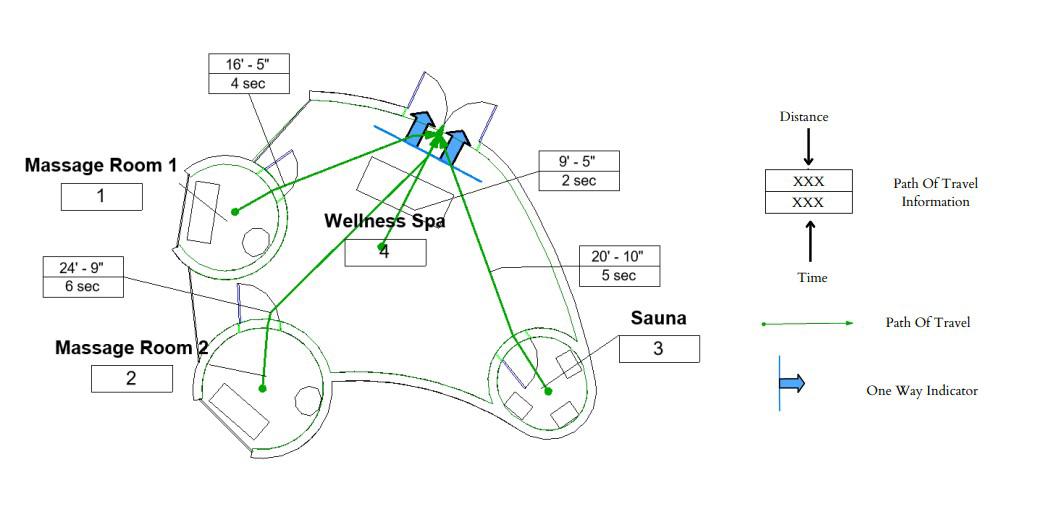

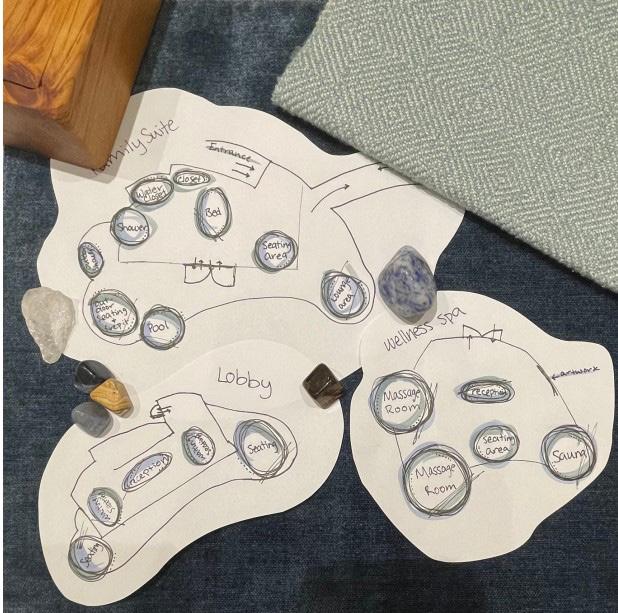

BUBBLE DIAGRAMS

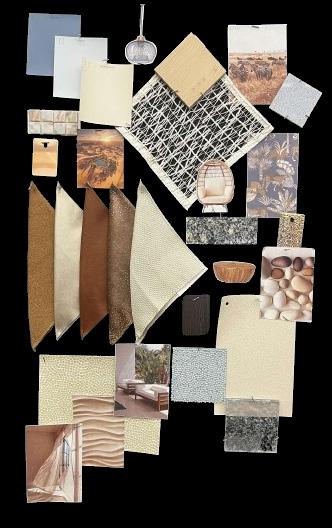

MATERIAL & FINISH FLAT LAY

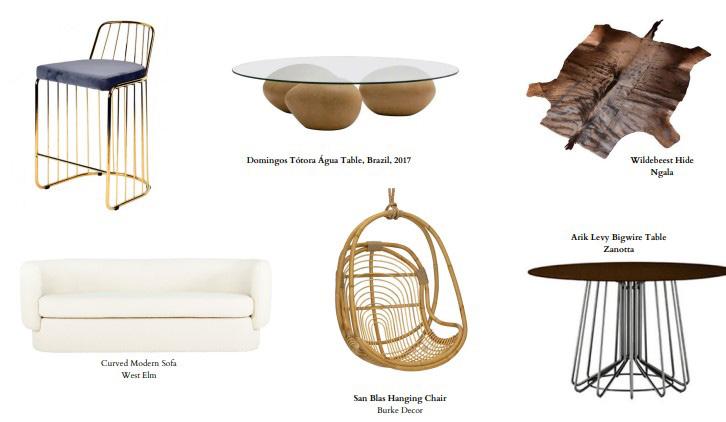

CONCEPT IMAGERY

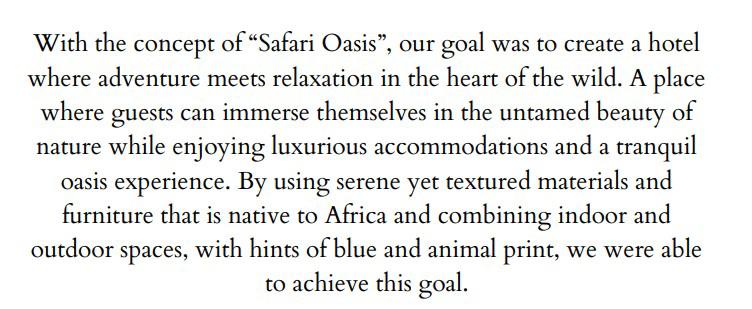

CONCEPT STATEMENT

LOBBY

REFLECTED CEILING PLAN

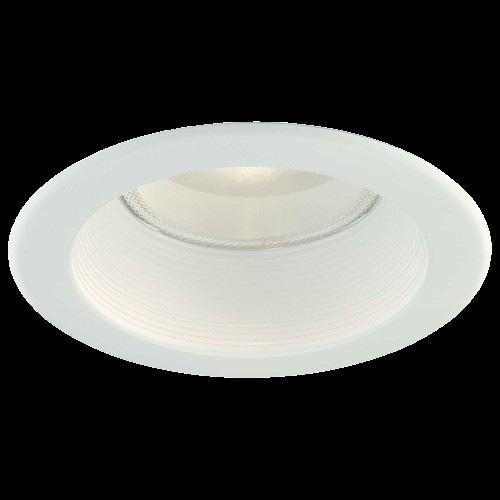

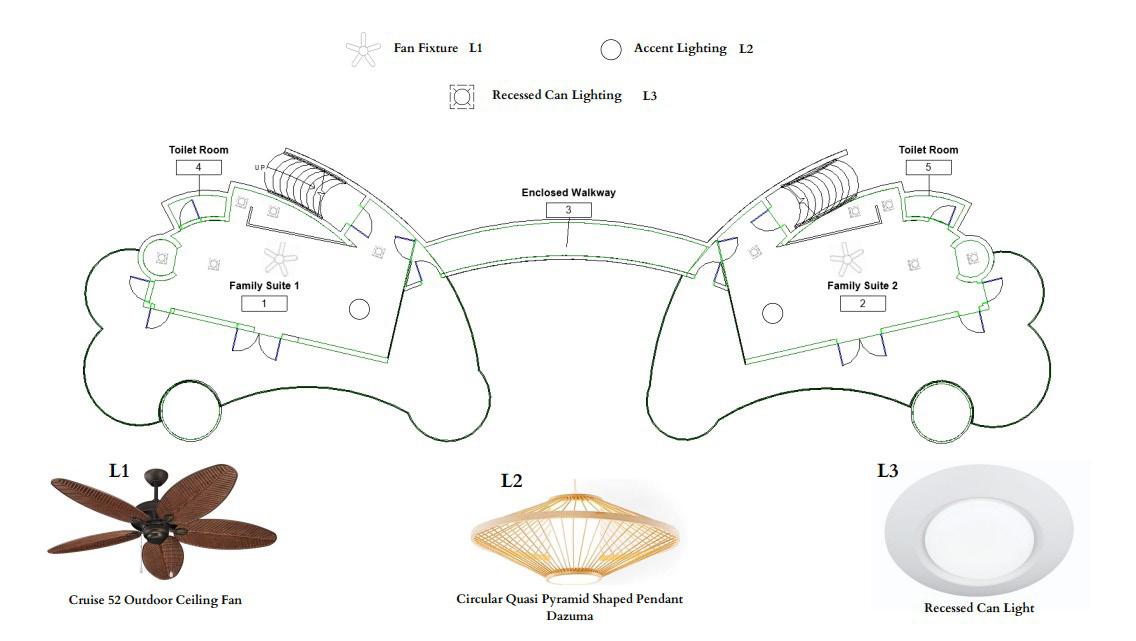

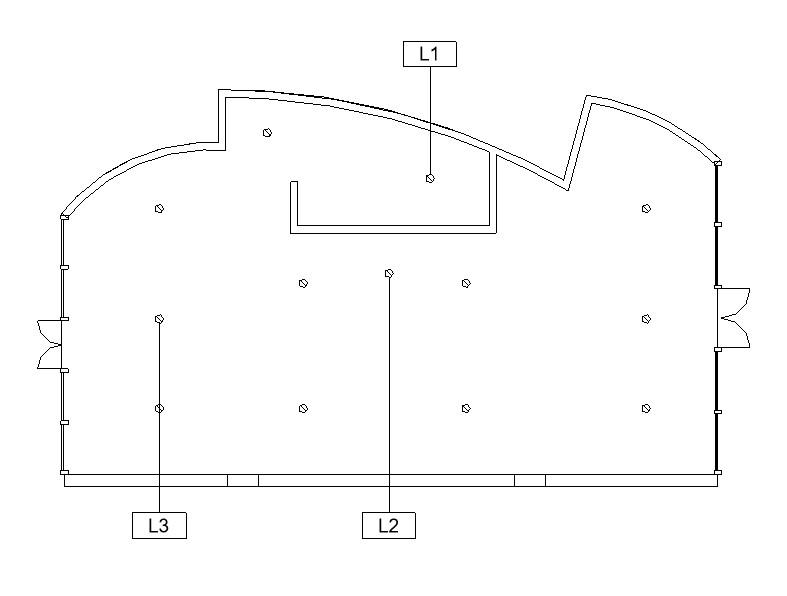

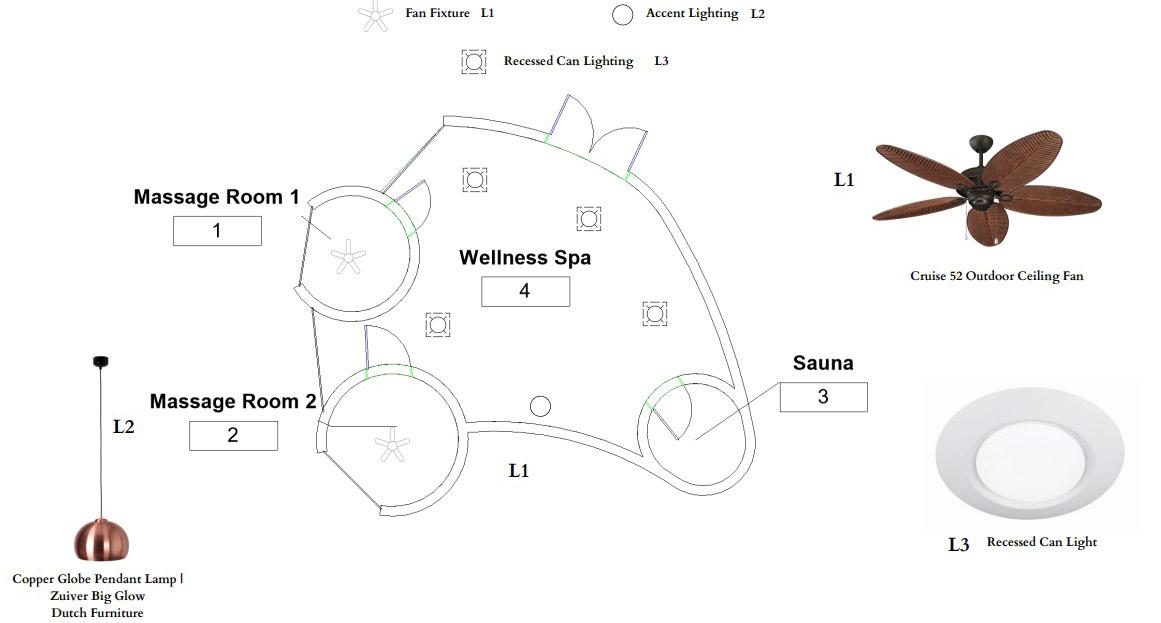

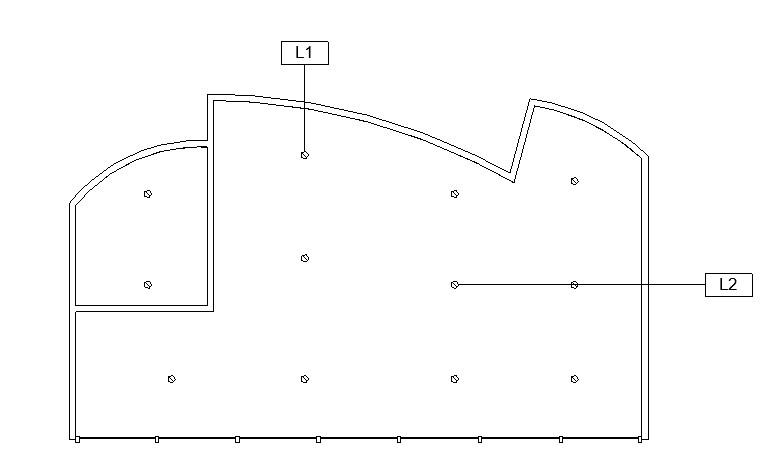

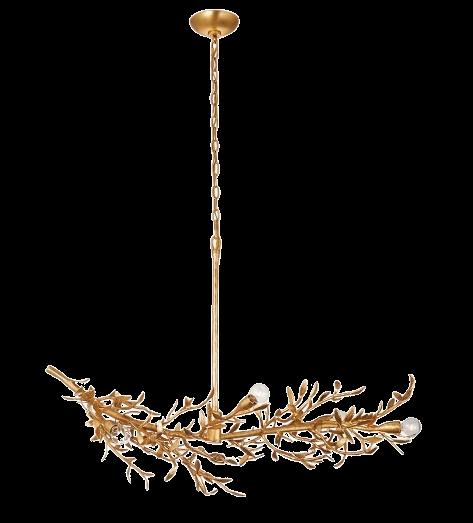

L1 L3 RECESSED CAN LIGHT CRUISE 52” OUTDOOR CEILING FAN L2 MANDEVILLE LINEAR CHANDELIER Lighting Fixture Schedule Type Mark Count Illuminance Description L1 L2 L3 2 1 10 308 lx 308 lx 308 lx Cruise 52” Outdoor Ceiling Fan Mandeville Linear Chandeier Recessed Can Light

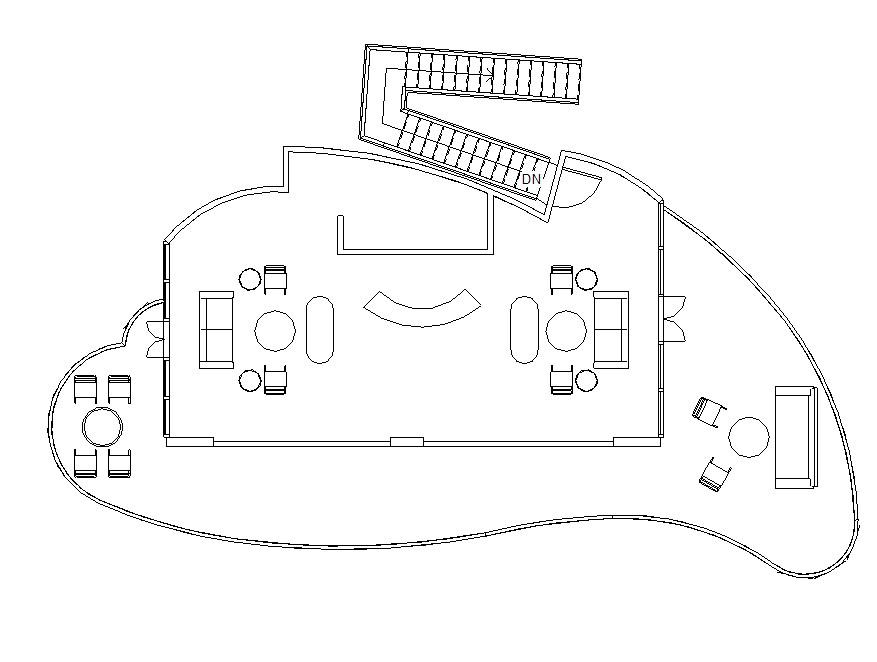

RENDERED FURNISHINGS PLAN

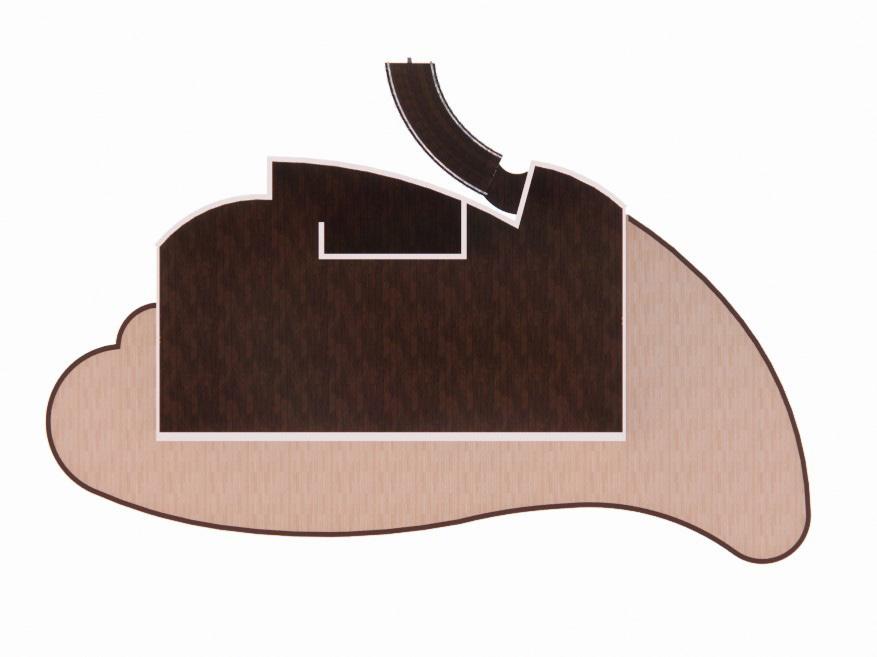

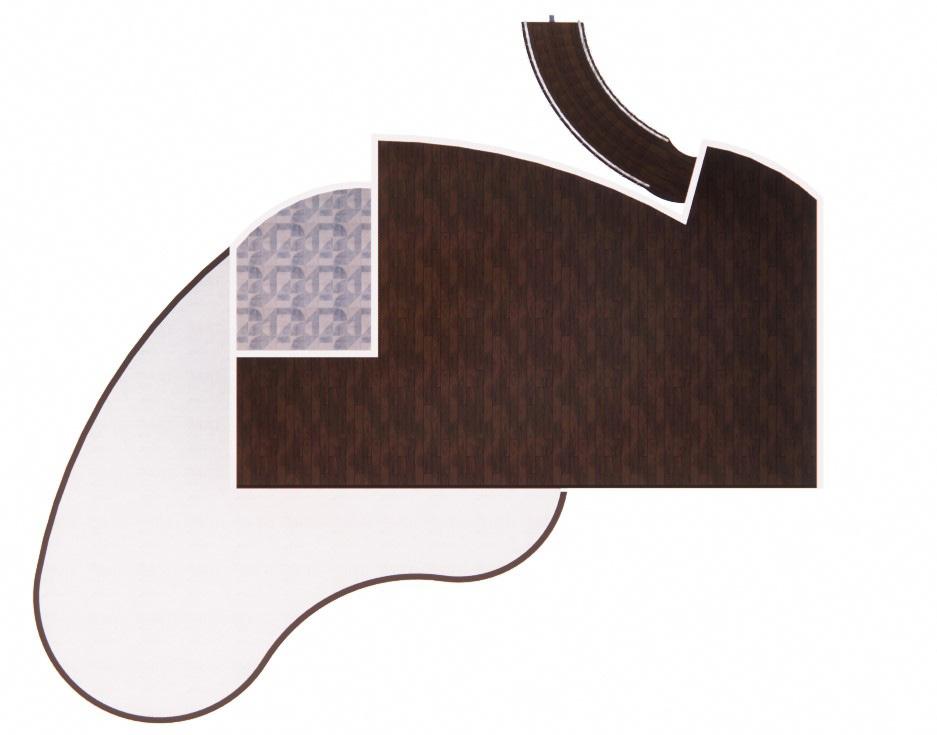

FLOOR FINISH PLAN

Antique Woodland Oak Austen Oak

WALL FINISH PLAN

LOWES

DECOR

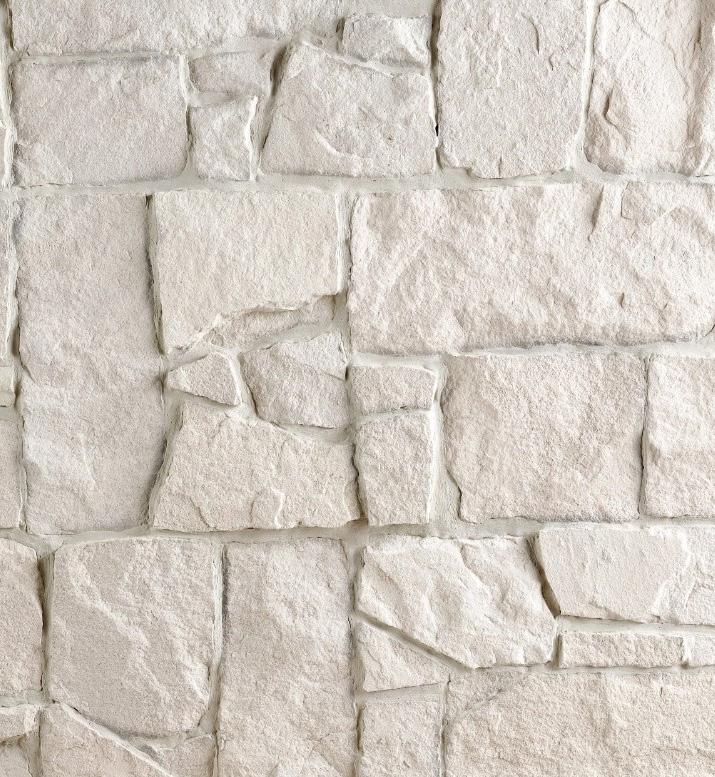

STUCCO ALAMO SANDSTONE FLOOR & CAMP CRITTERS NGALA TRADING DISTANCE- SW 6243 SHERWIN WILLIAMS STUCCO DISTANCE- SW 6243 CAMP CRITTERS ALAMO SANDSTONE

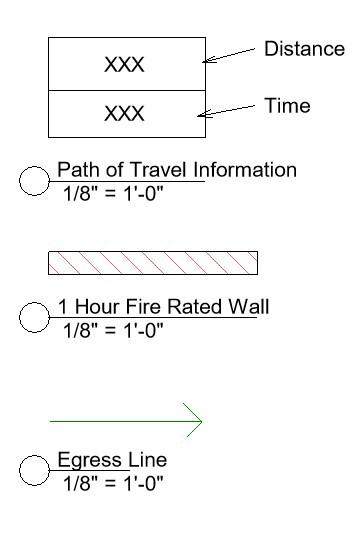

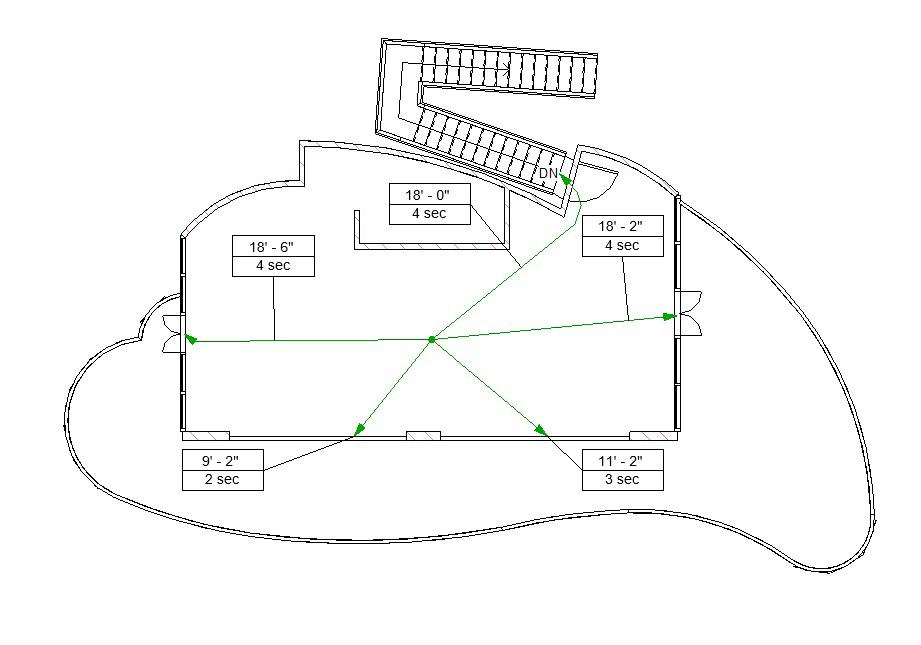

FIRE RATING & SAFETY PLAN

ELEVATION

Urban Sofa Cane Arms Chair Monti Lava Stone Coffee Table Monti Lava Stone Nighstand

COLOR CODED FURNISHINGS PLAN

Type Mark

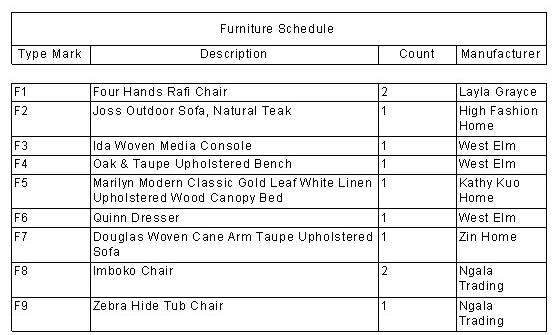

Furniture Schedule

Description Count Manufacture

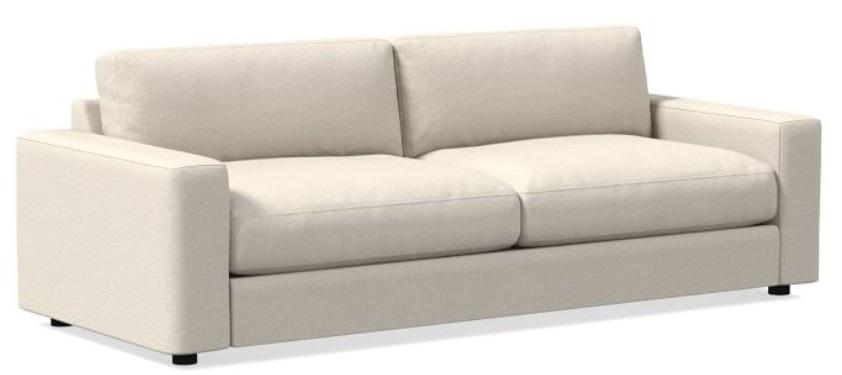

Urban Sofa

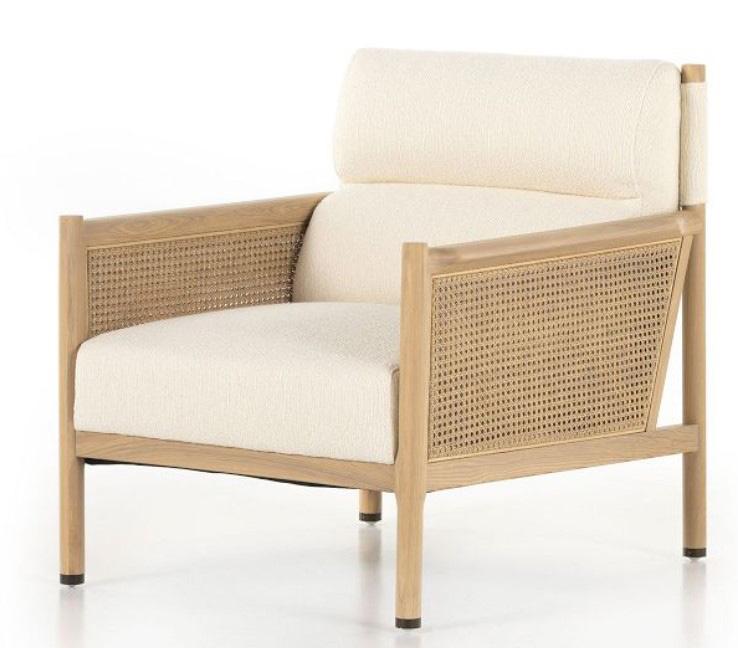

Cane Arms Chair

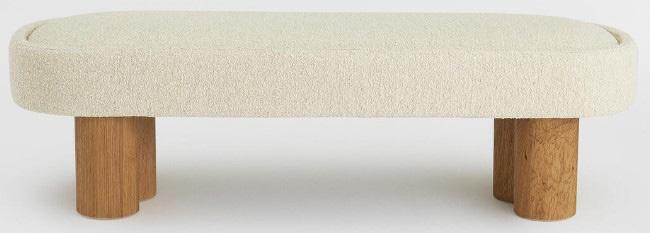

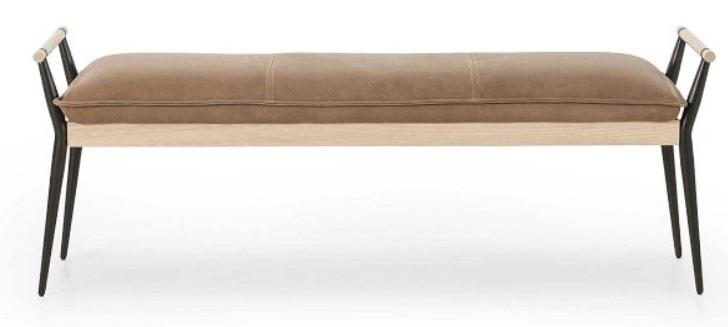

Nieve Bench

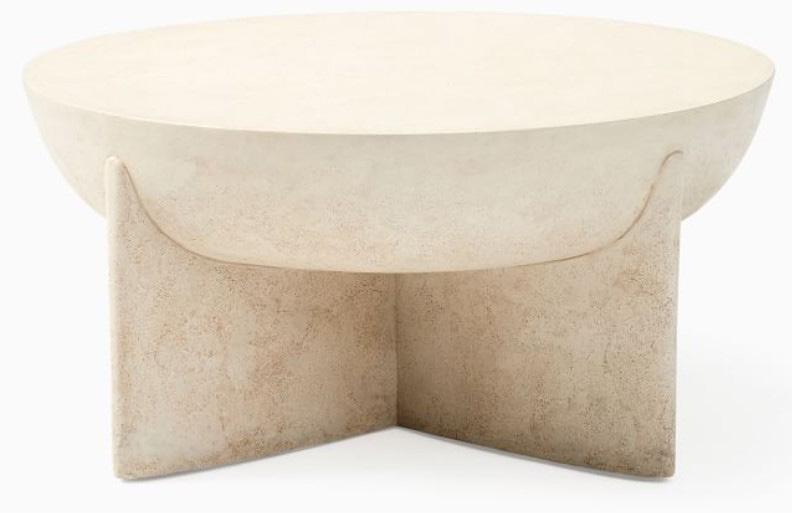

Monti Lava Stone Coffee Table

Monti Lava Stone Nightstand

Telluride Outdoor Sofa

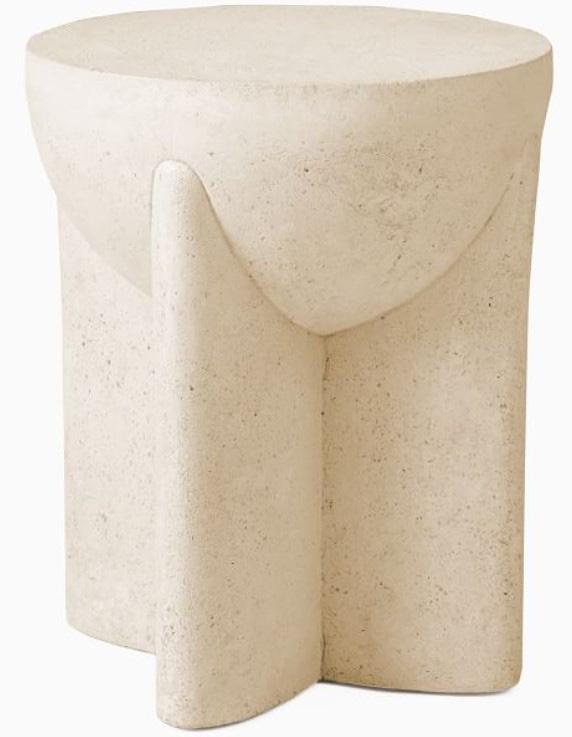

Concrete Pedestal Outdoor Round Side Table

West Elm

Soho Home

West Elm

West Elm

West Elm

West Elm

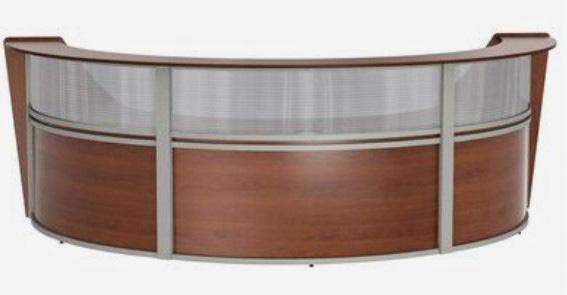

Peavy U-Shape Reception Desk Wayfair

West Elm 2 10 2 3 4 1 3 1

FURNITURE SELECTIONS

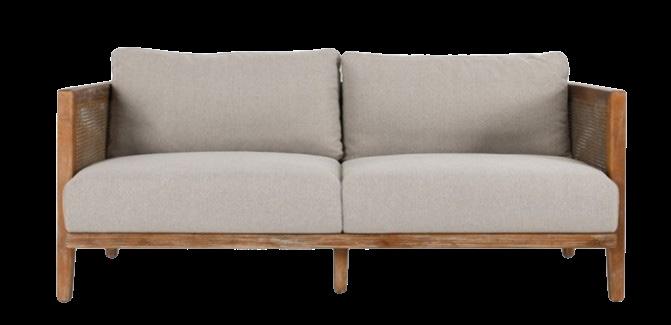

Urban Sofa Cane Arms Chair Nieve Bench Monti Lava Stone Coffee Table Monti Lava Stone Nighstand Telluride Outdoor Sofa in Ivory Concrete Pedestal Outdoor Round Side Table Peavy U-Shaped Recpetion Desk in Oak

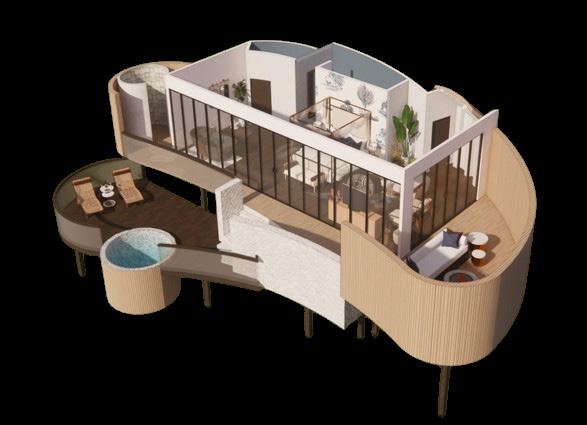

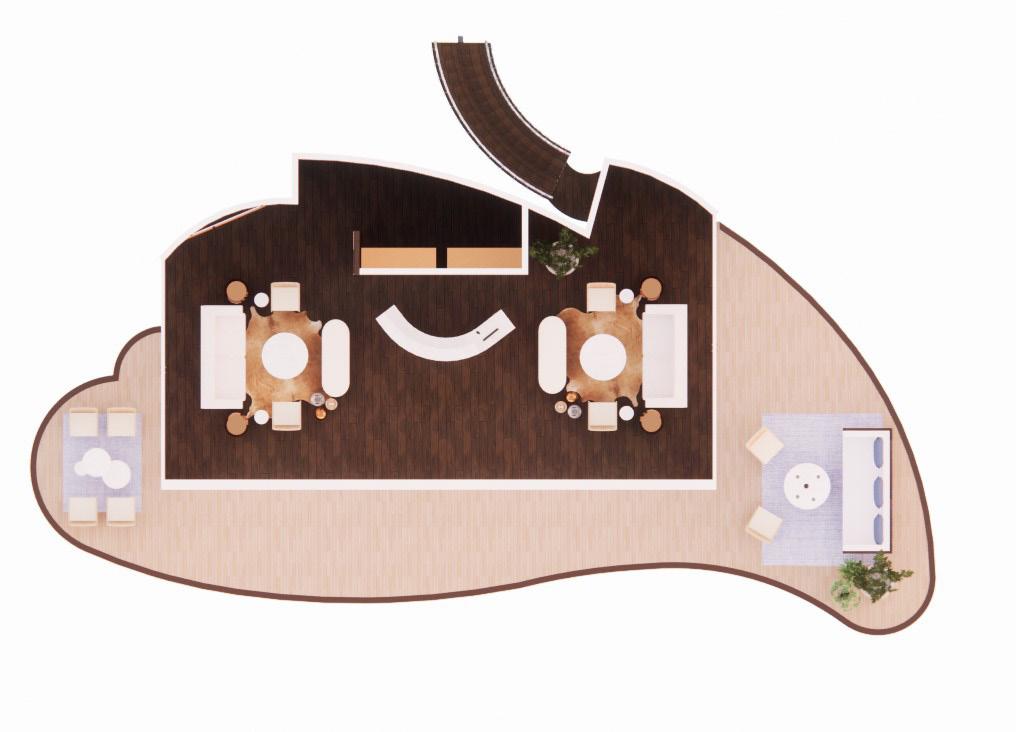

AXONOMETRIC

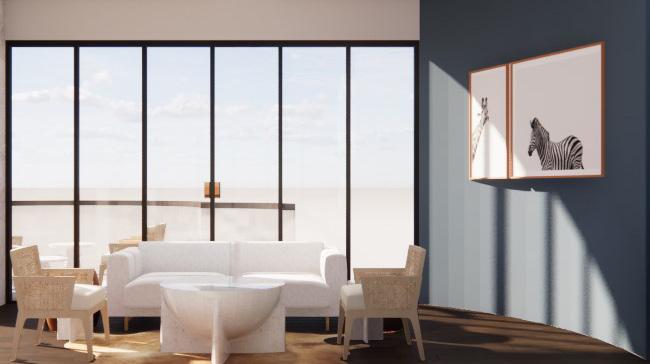

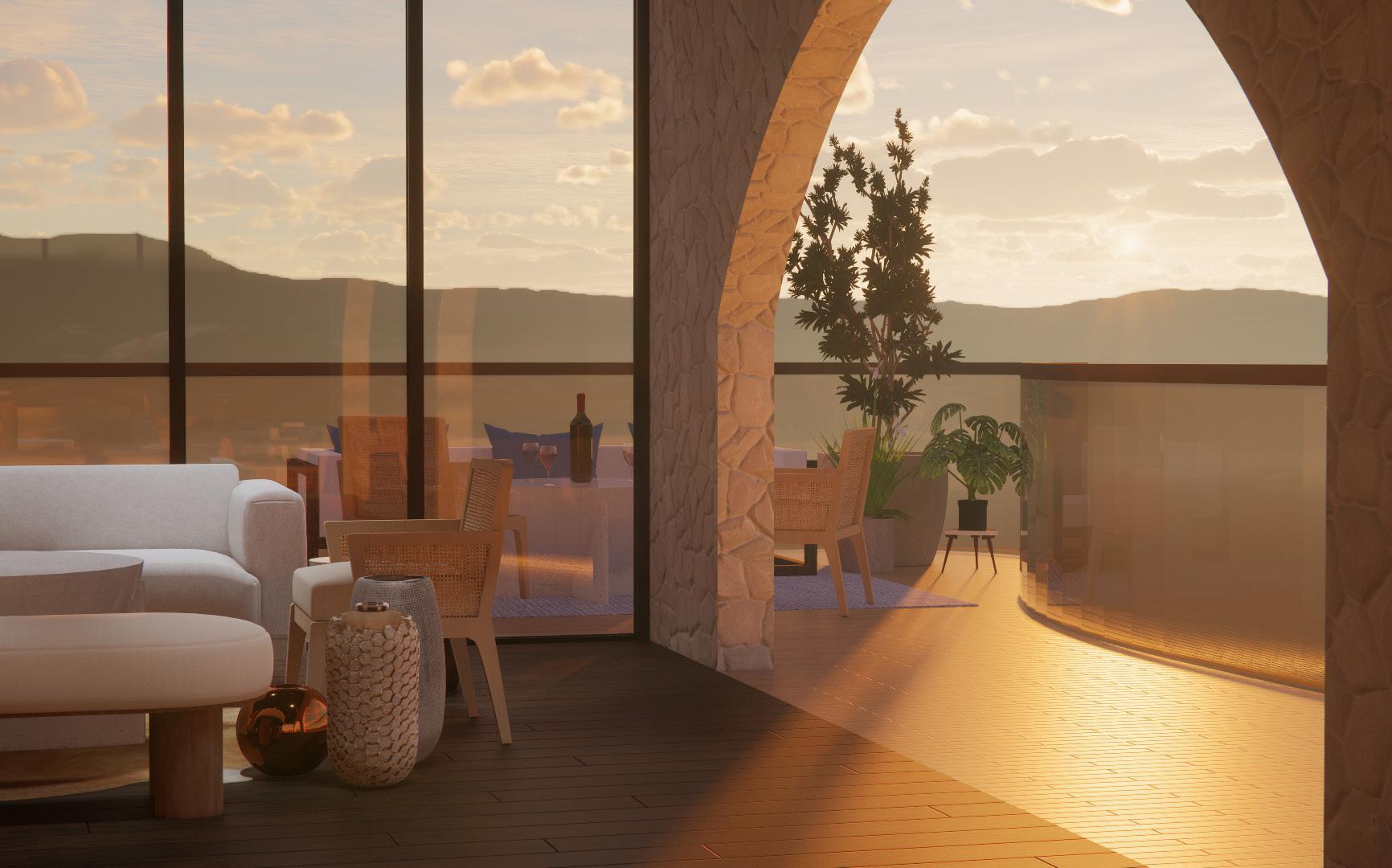

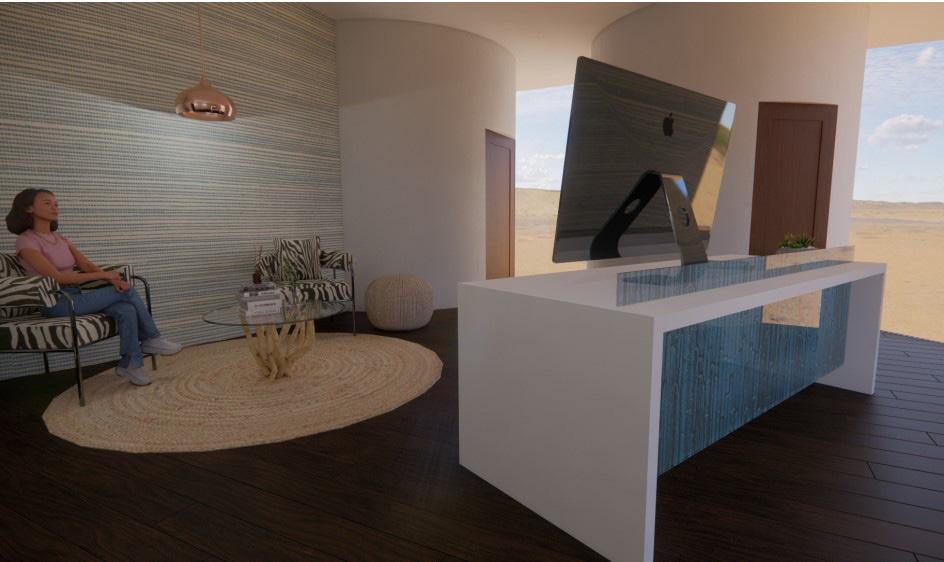

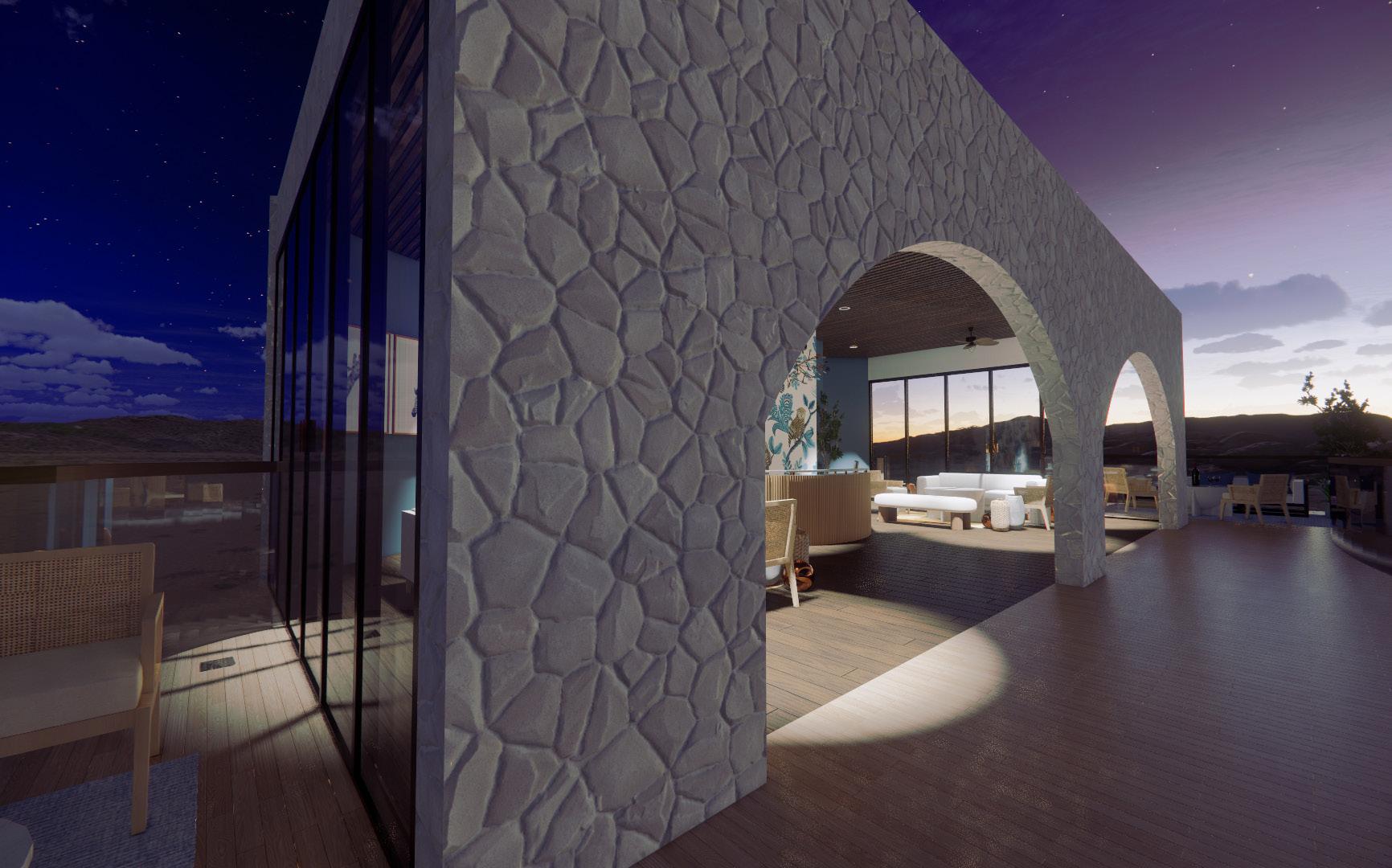

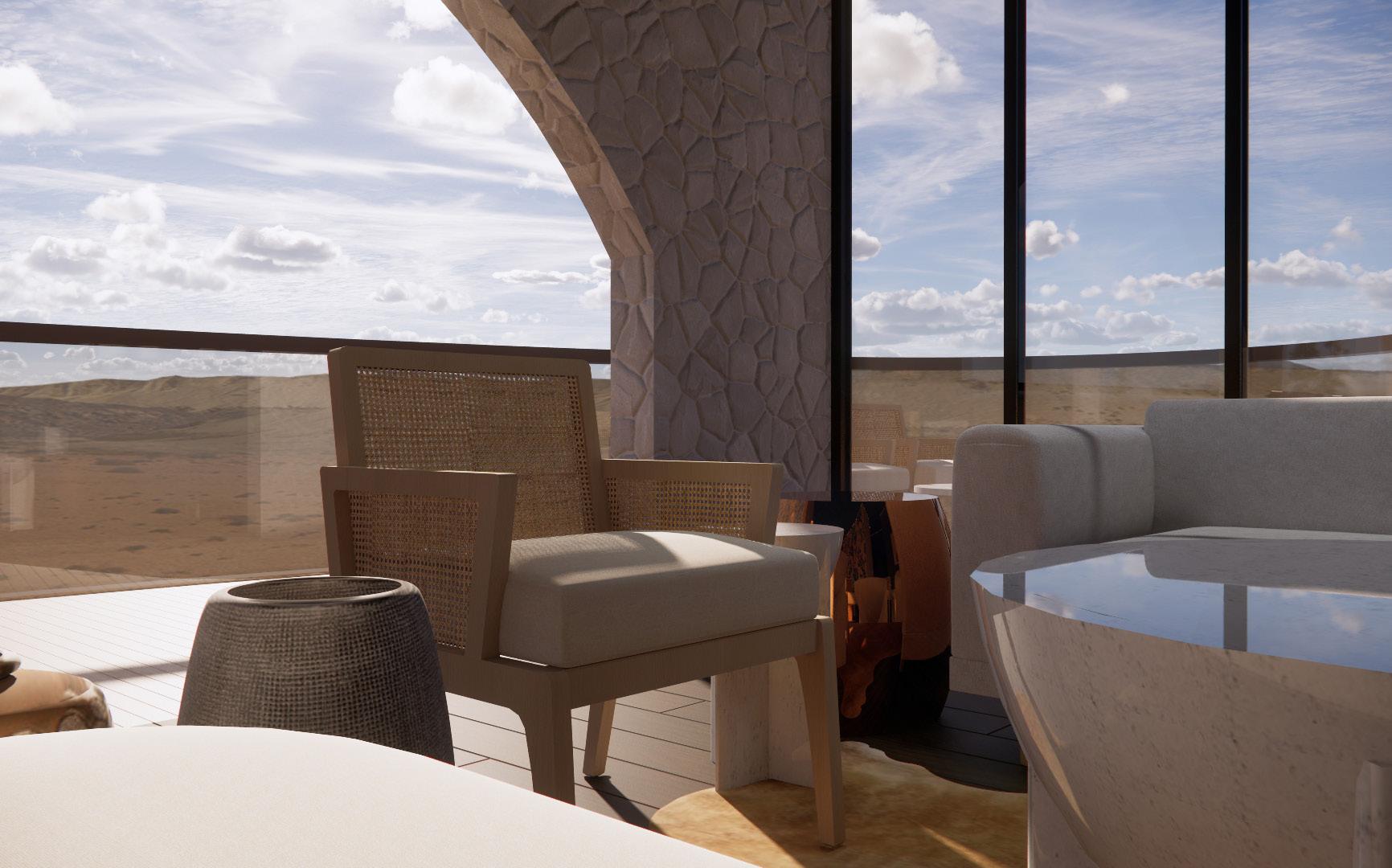

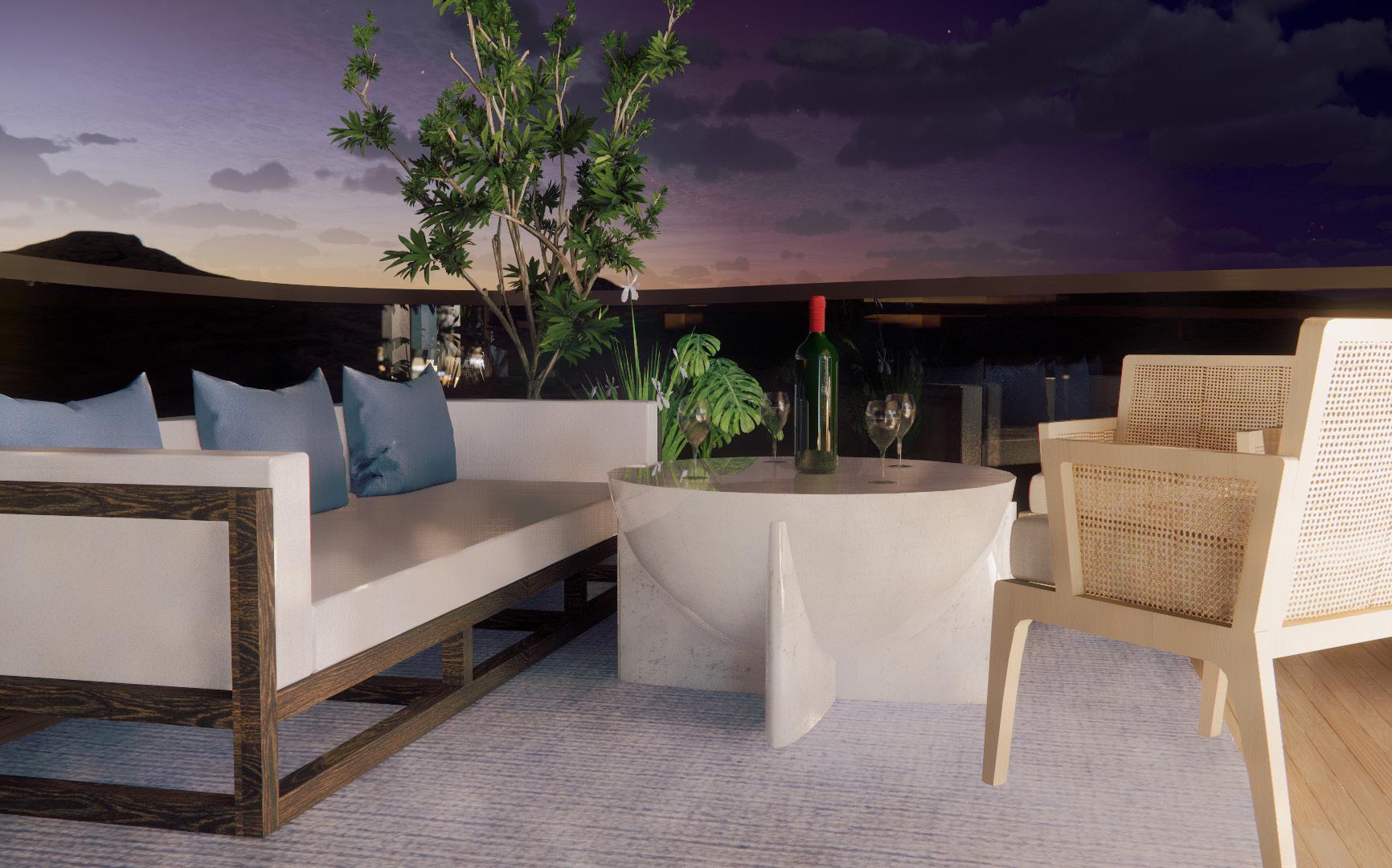

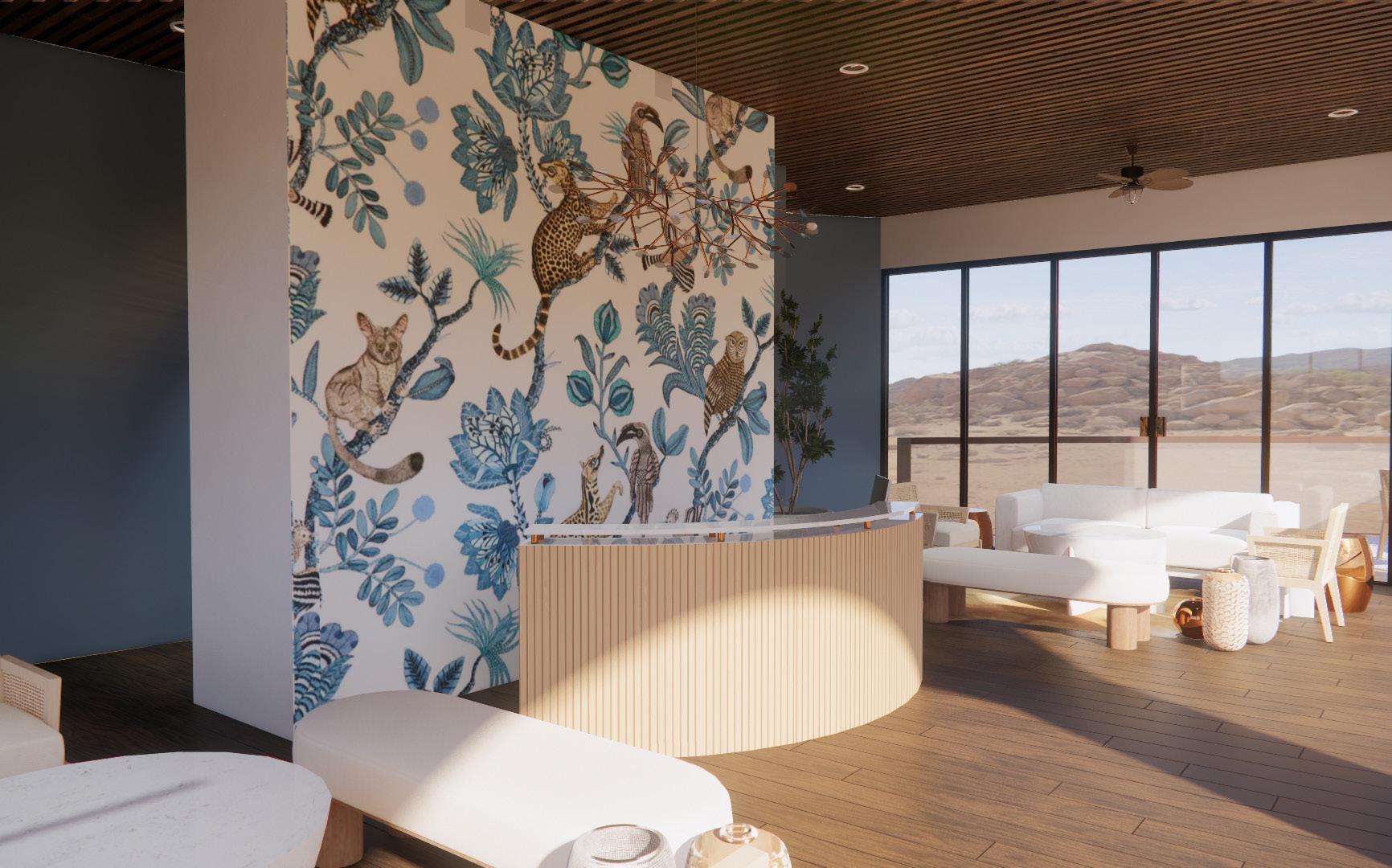

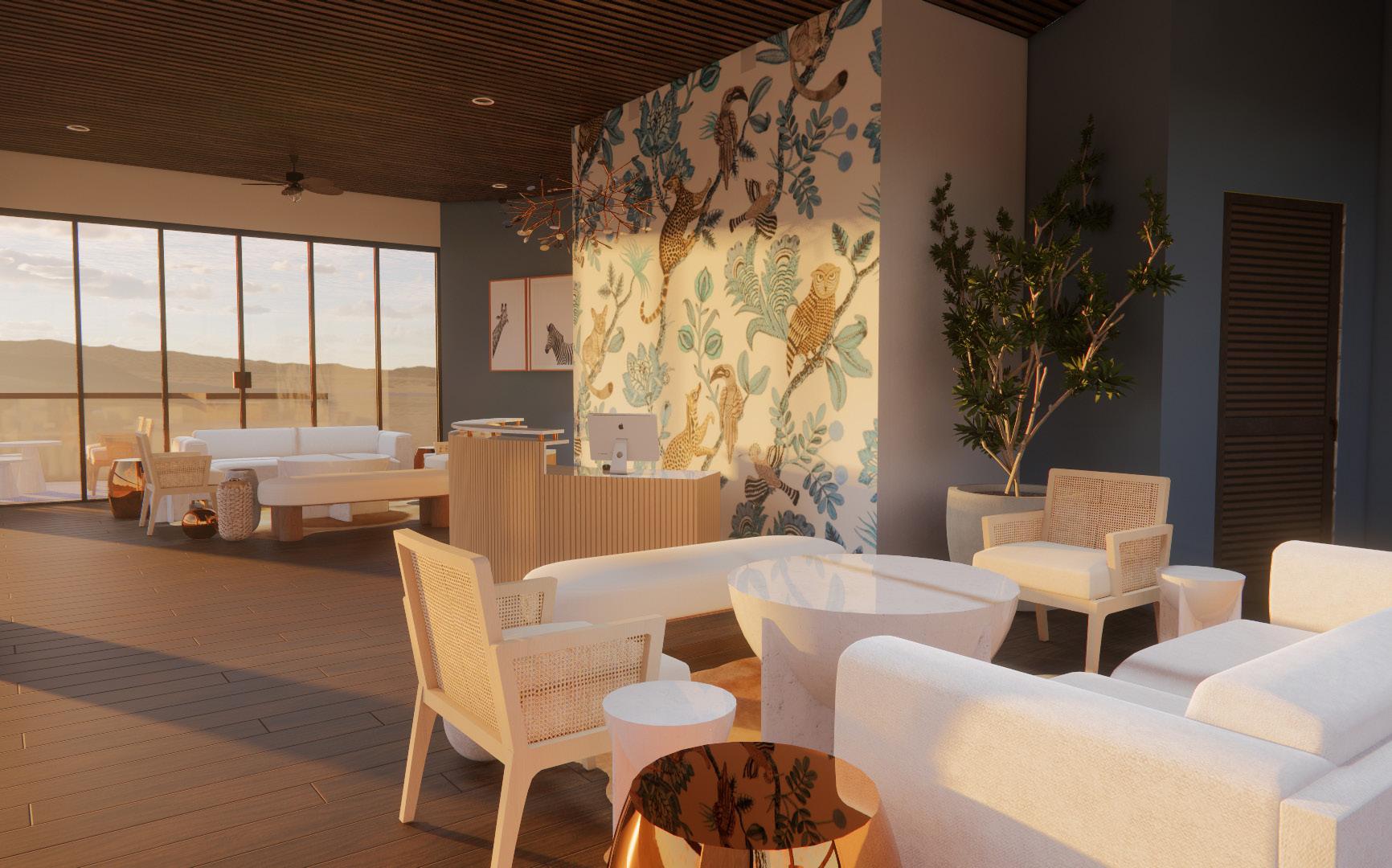

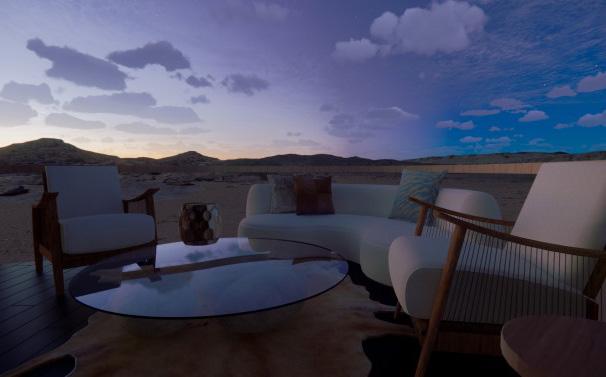

RENDERINGS

CONTINENTAL BREAKFAST

REFLECTED CEILING PLAN

RENDERED FURNISHINGS PLAN

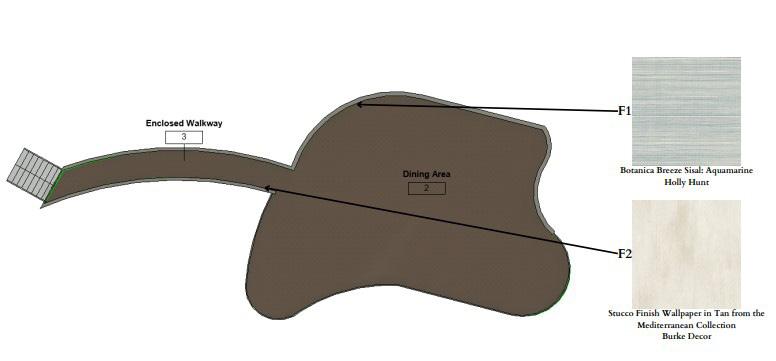

FLOOR FINISH PLAN WALL FINISH PLAN

COLOR CODED FURNISHINGS PLAN

FURNITURE SELECTIONS

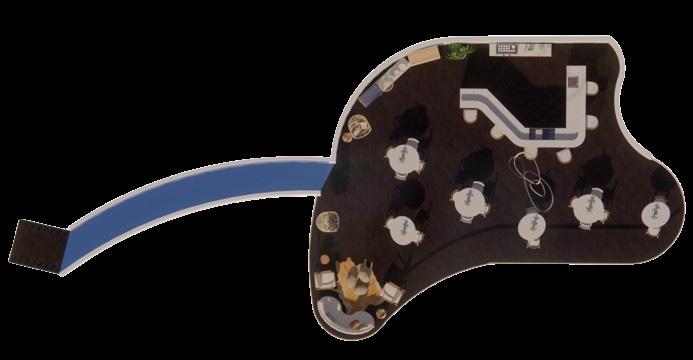

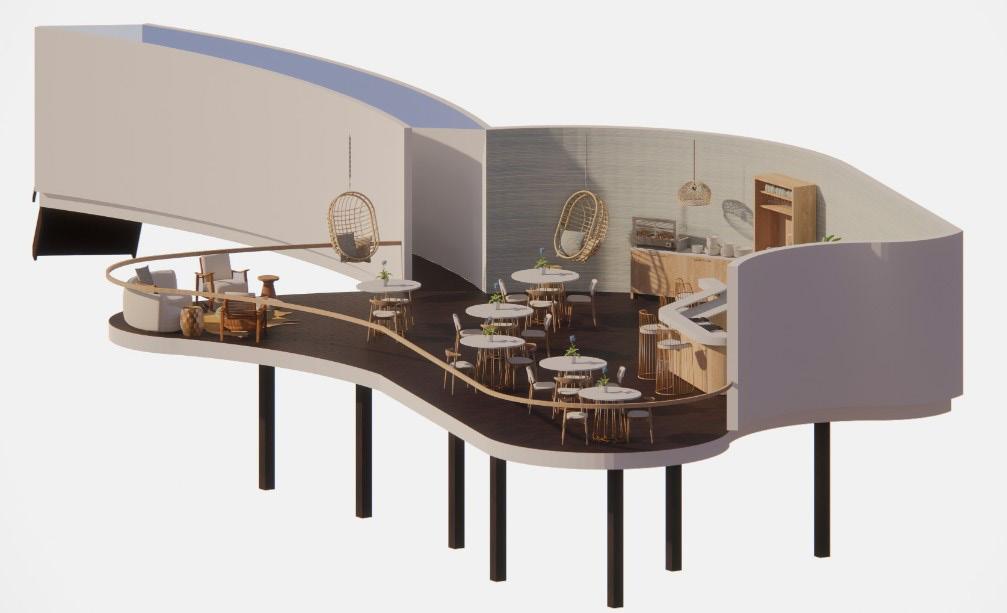

AXONOMETRIC

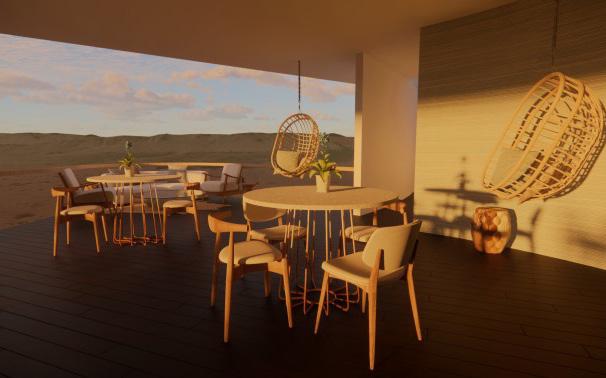

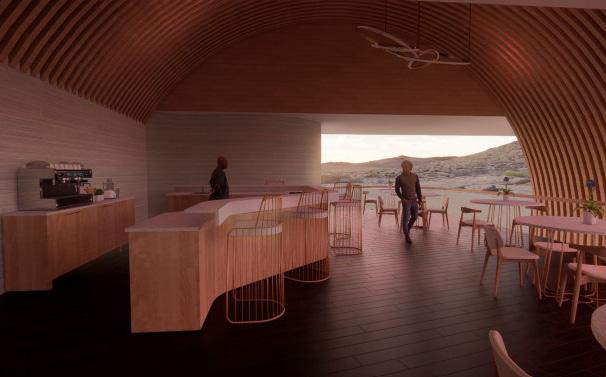

RENDERINGS

VIP SUITE

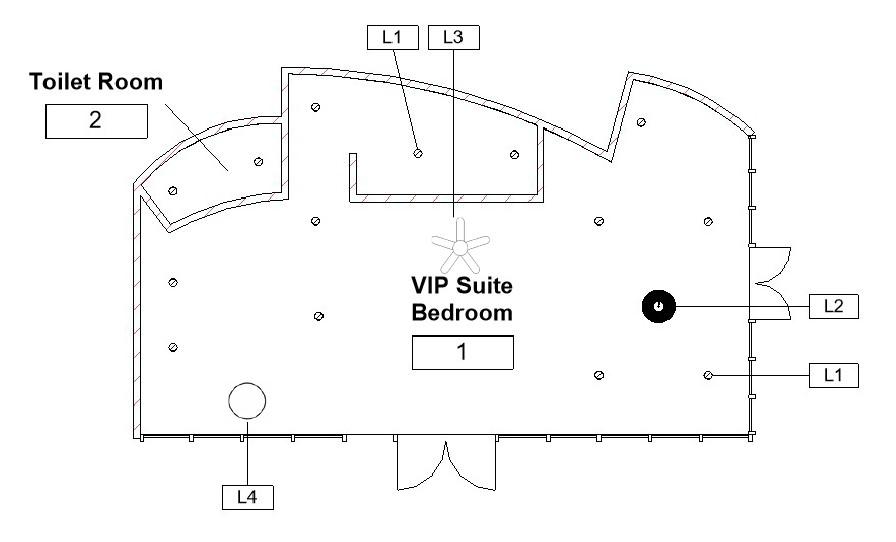

REFLECTED CEILING PLAN

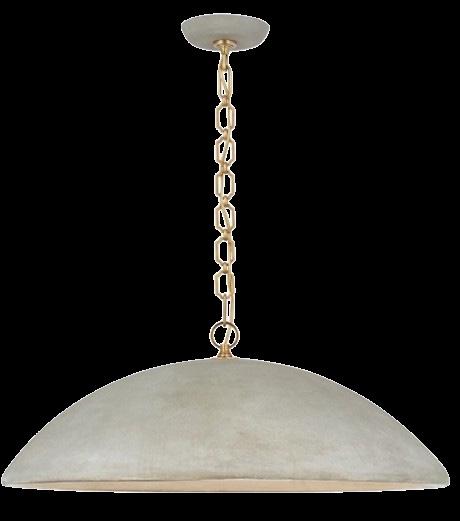

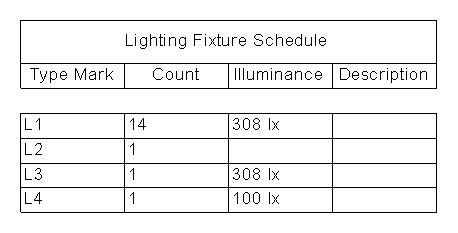

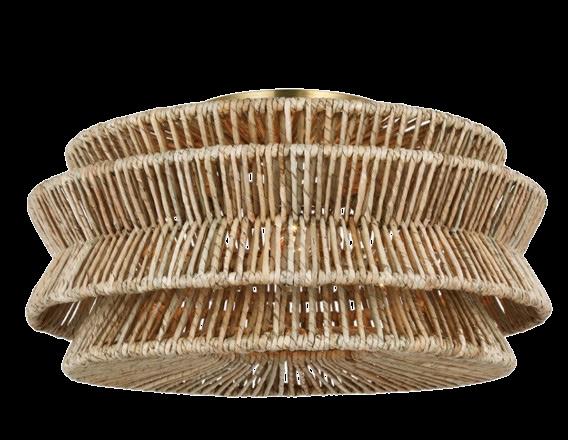

L1 L2 L3 L4 RECESSED CAN LIGHT ANTIGUA XL DRUM SEMI-FLUSH MOUNT ELLIOT GRANDE PENDANT CRUISE 52” OUTDOOR CEILING FAN
Recessed Can Light Antigua XL Drum Semi-Flush Mount Cruise Outdoor Fan Elliot Grande Pendant

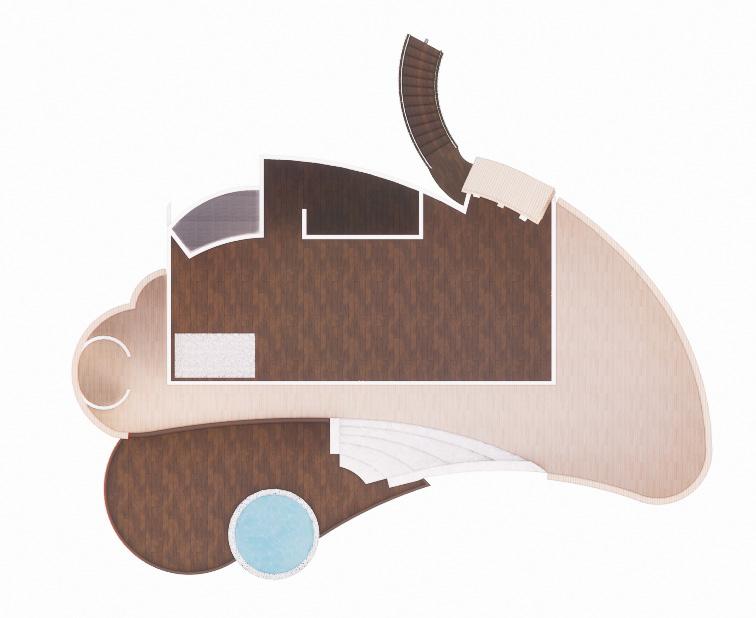

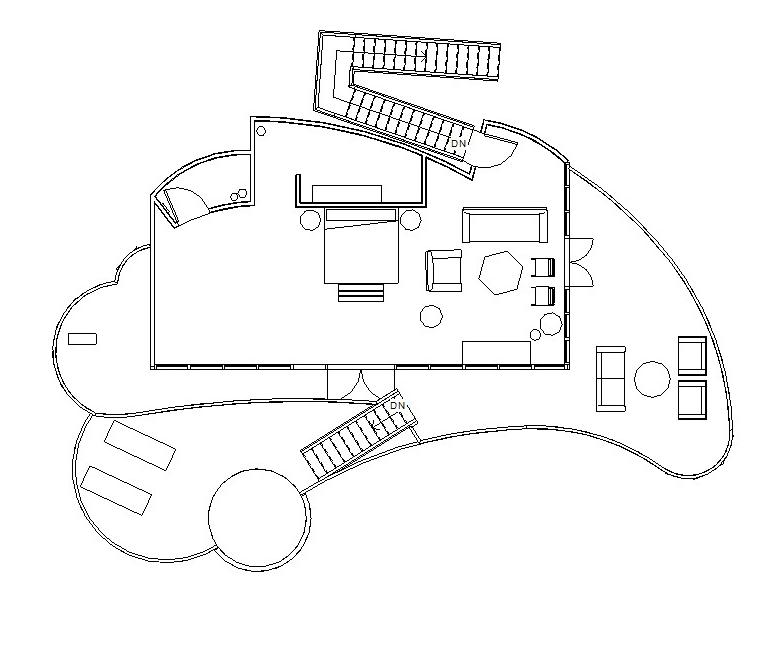

RENDERED FURNISHINGS PLAN

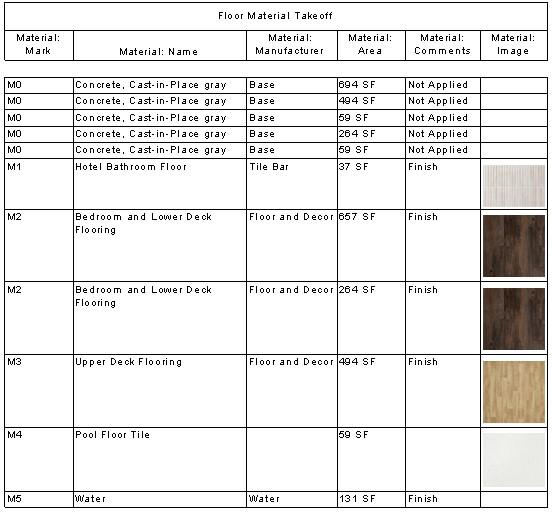

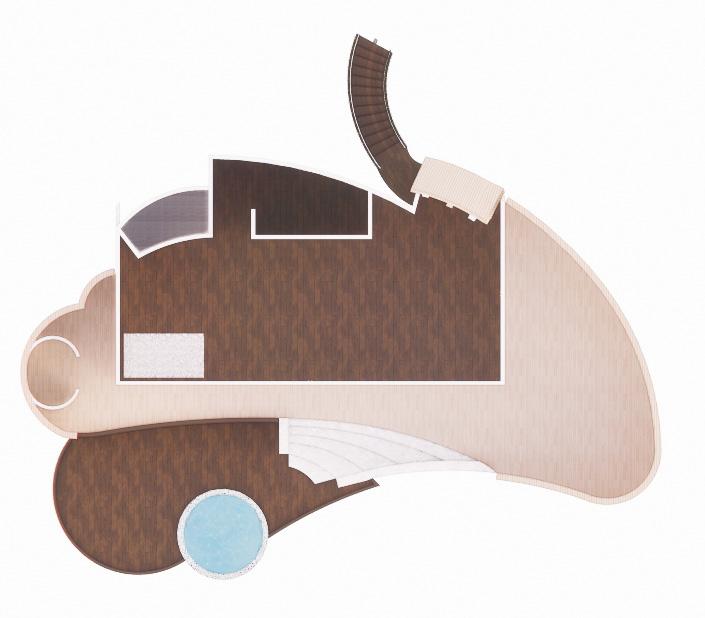

FLOOR FINISH PLAN

Fluted
Glossy Ceramic Tile
Austen Oak Zoe Bianco 1/2” Circle Frosted and Polished Glass Mosaic Tile M6 White Stone Floor and Decor N/A Not Applied Tile Bar
Curve
White 6x12 3D
Antique Woodland Oak
Alamo Sandstone

POLISHED CONCRETE

WALL FINISH PLAN

POLISHED CONCRETE

BARD CONCRETE

TILE BAR

NGALA TRADING

TILE BAR

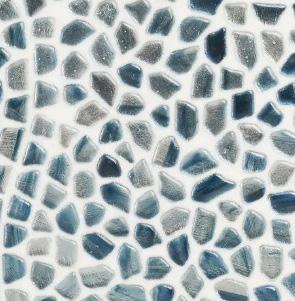

DISTANCE- SW 6243 SHERWIN WILLIAMS STUCCO LOWES KOMOREBI PEBBLE JET STREAM BLUE POLISHED GLASS MOSAIC TILE LOS LUNAS DECO BLUE MATTE PORCELAIN TILE THANDA TOILE DISTANCE- SW 6243 THANDA TOILE STUCCO LOS LUNAS DECO BLUE MATTE PORCELAIN TILE KOMOREBI PEBBLE JET STREAM BLUE POLISHED GLASS MOSAIC TILE

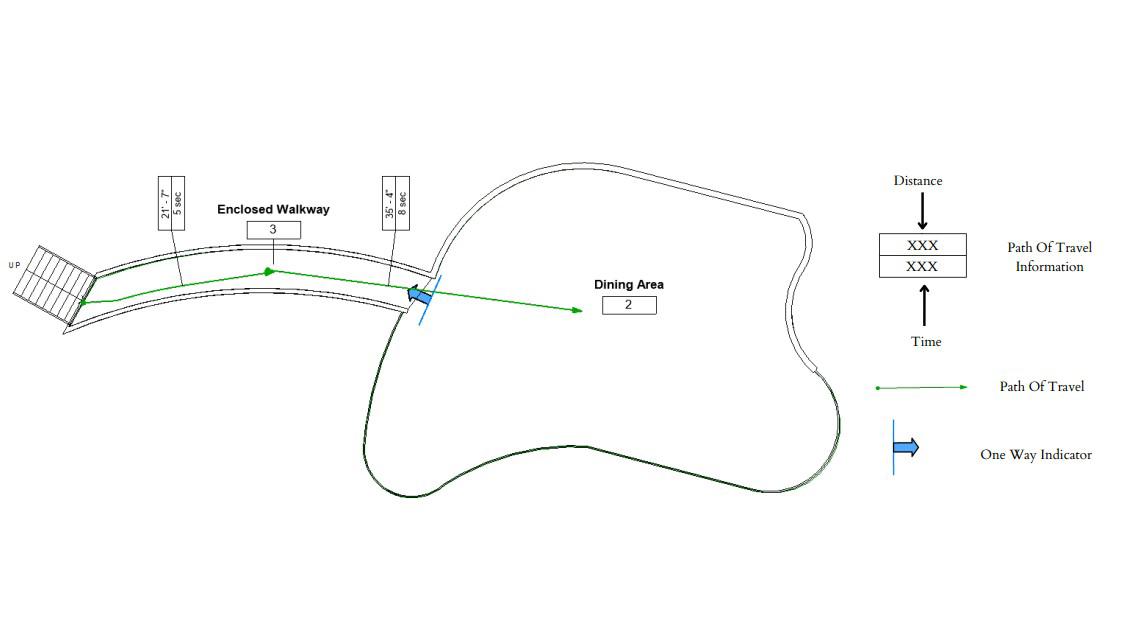

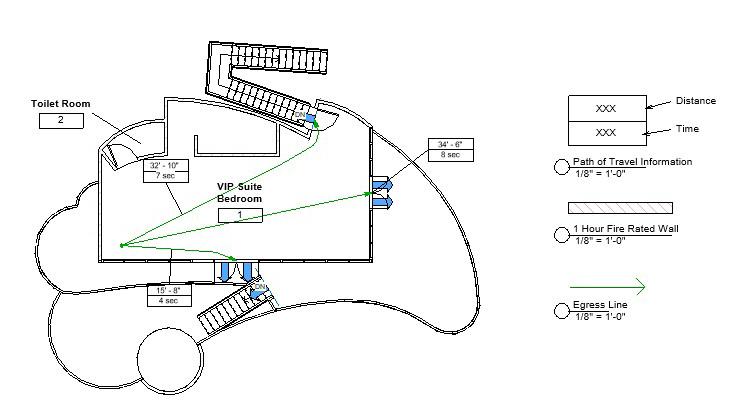

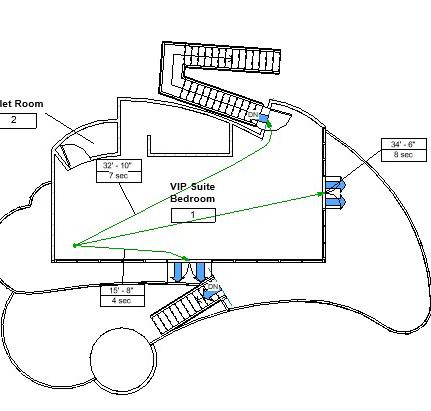

FIRE RATING & SAFETY PLAN

ELEVATION

Marilyn Modern Classic Gold

Leaf White Linen Upholstered

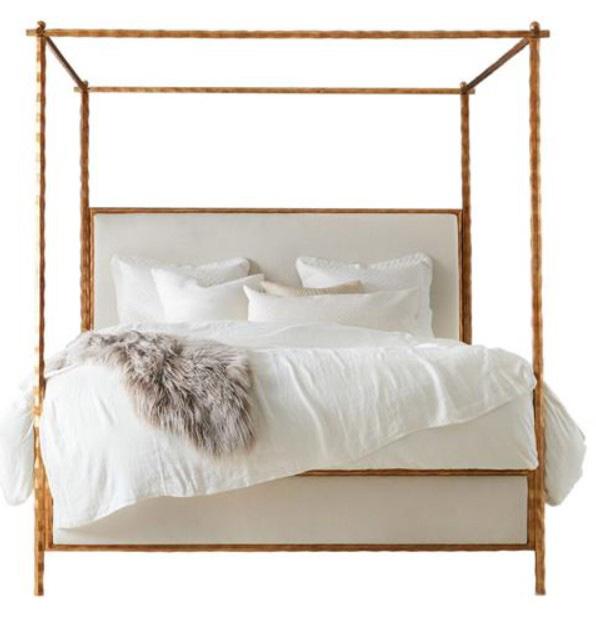

Wood Canopy Bed

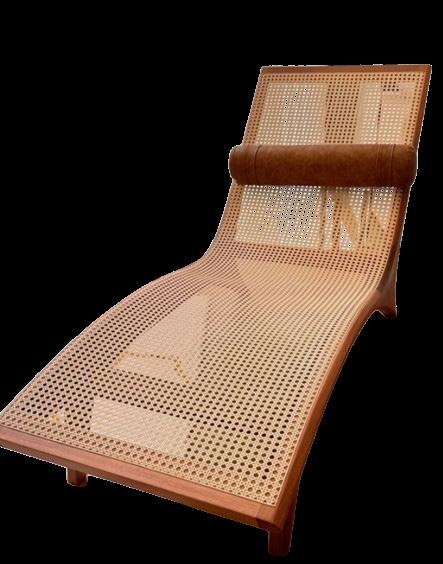

Abbyson Outdoor Palermo Chaise Lounge

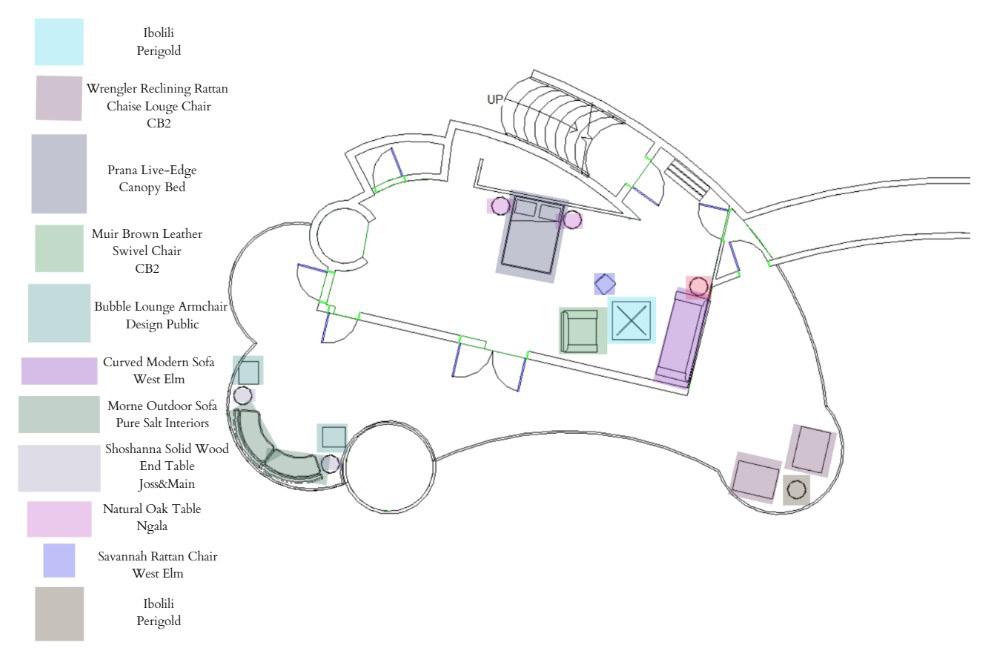

COLOR CODED FURNISHINGS PLAN

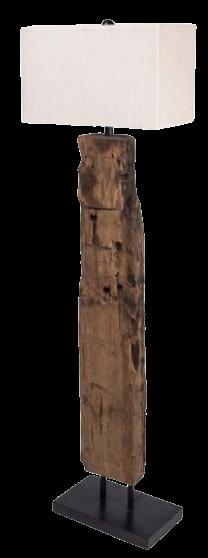

Teak Driftwood Floor Lamp

1 Burke Decor

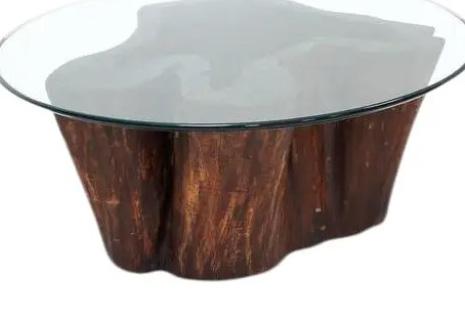

Organic Modern Carved Hollow Stump Coffee Table Chairish

Reclaimed Oak Venner Round Side End Table

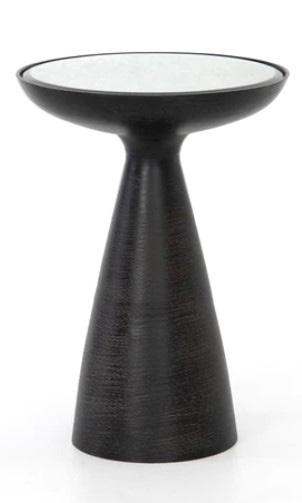

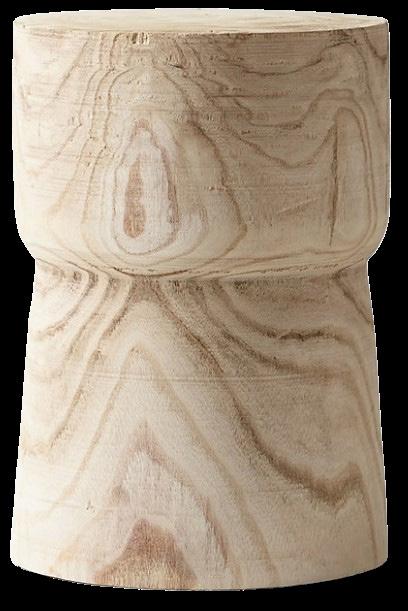

Yucca Side Table

Concrete Fire Pit Bowl

Round Leather Ottoman

Marlow Mod Pedestal Side Table

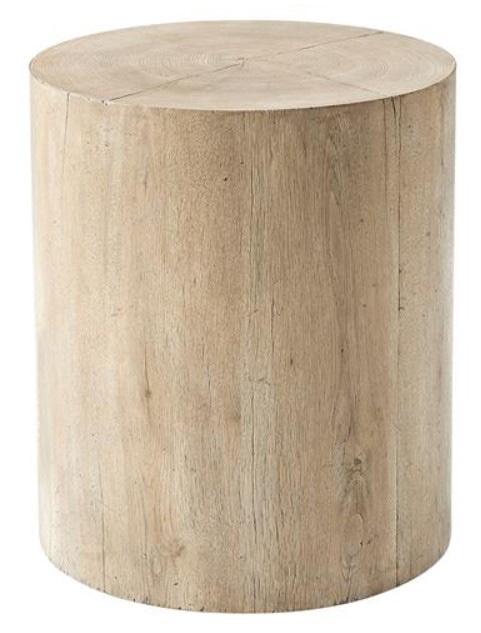

Woodturned Acacia Side Table

Abbyson Outdoor Palermo Chaise Lounge

Kathy Kuo Home

Garnet Hill

Crate&Barrel

High Fashion Home

2Modern DAO

Bed Bath & Beyond

Adela Teak Shower Bench Rejuventation

1 1 1 1 1 2 2 2
1

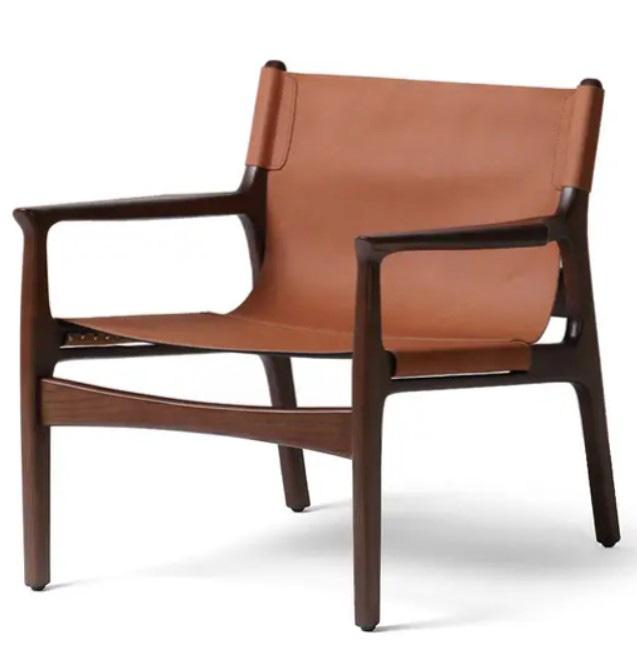

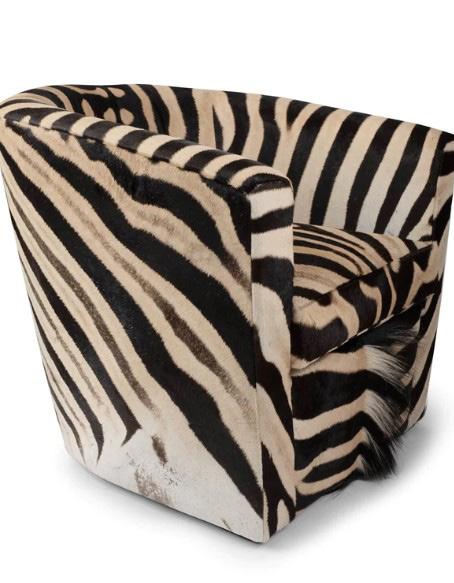

Zebra Hide Tub Chair

Douglas Woven Cane

Arm Taupe Upholstered Sofa 75"

FURNITURE SELECTIONS

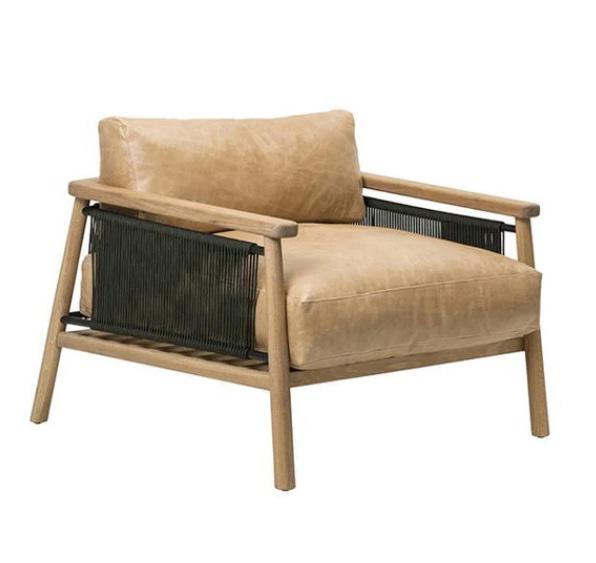

Imboko Chair

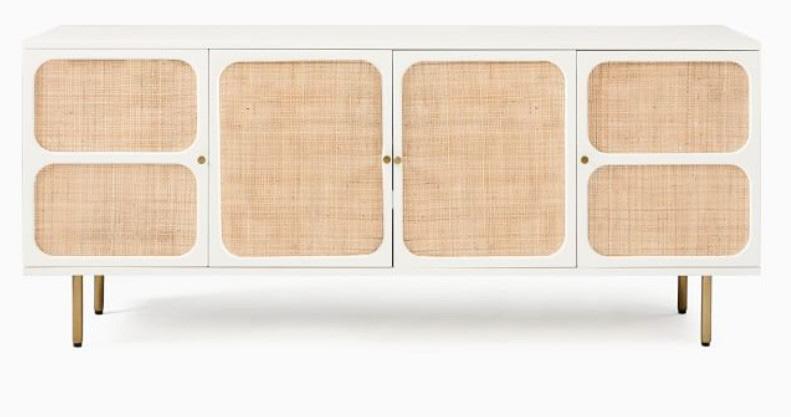

Ida Woven Media Console

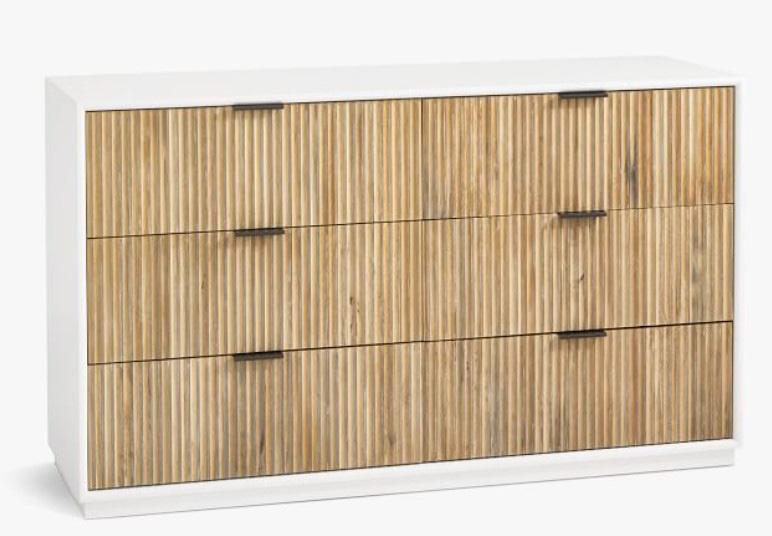

Quinn Dresser

Marilyn Modern Classic Gold Leaf White Linen Upholstered Wood Canopy Bed

Oak & Leather Bench Joss 106” Outdoor Sofa, Natural Teak Teak Driftwood Floor Lamp Organic Modern Carved Hollow Stump Coffee Table Oak Veneer Round Side End Table Yucca Side Table

FURNITURE SELECTIONS

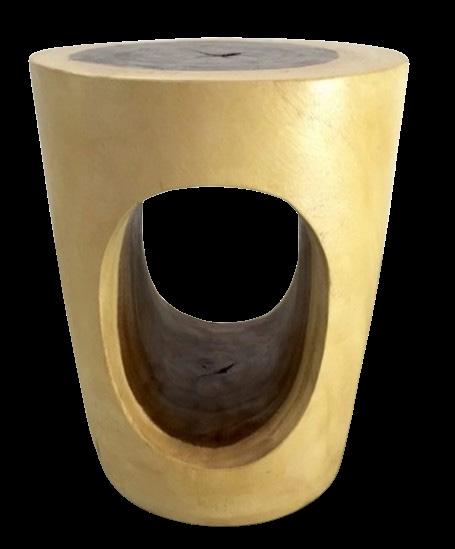

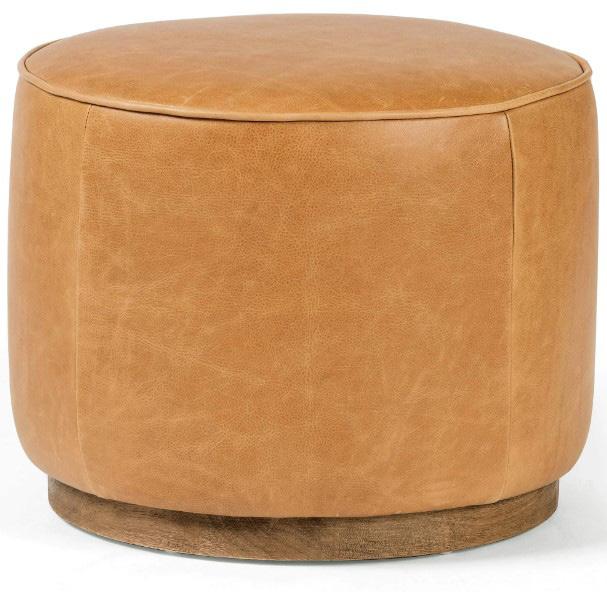

Concrete Fire Fit Bowl Sinclair Round Leather Ottoman Rafi Chair Adela Teak Shower Bench Abbyson Outdoor Palermo Chaise Lounge Abbyson Outdoor Palermo Chaise Lounge Woodturned Acacia Side Table

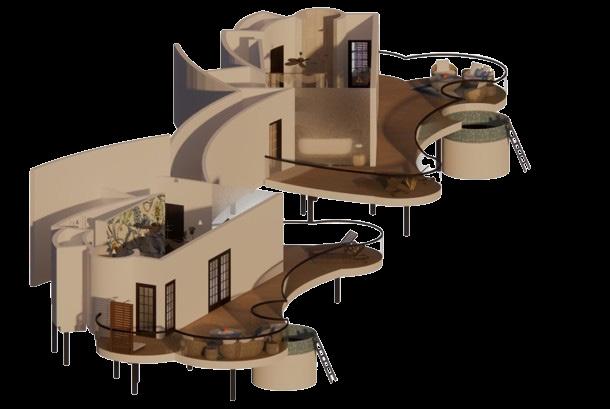

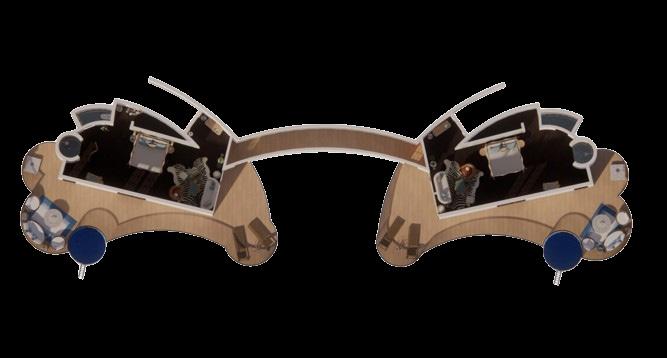

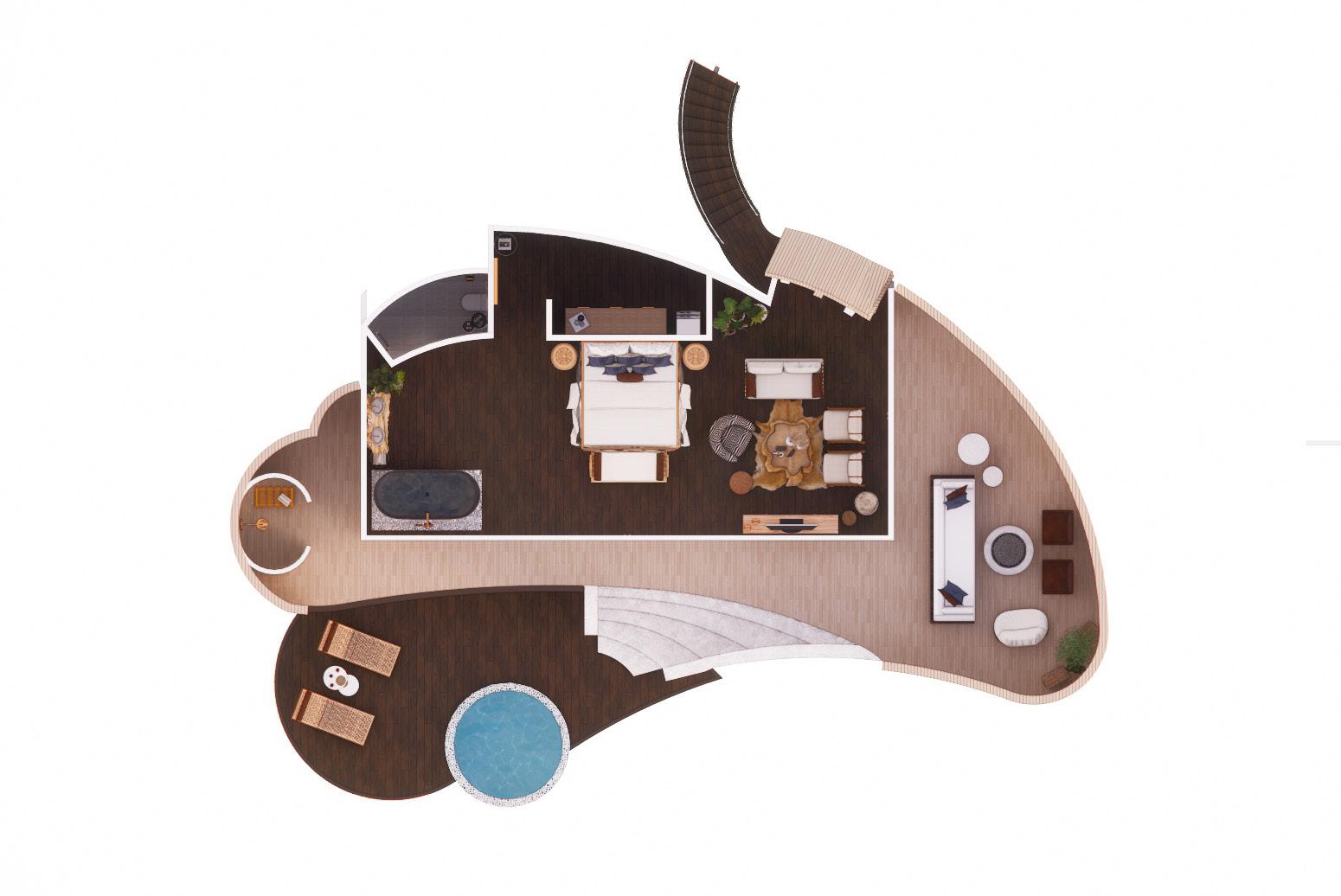

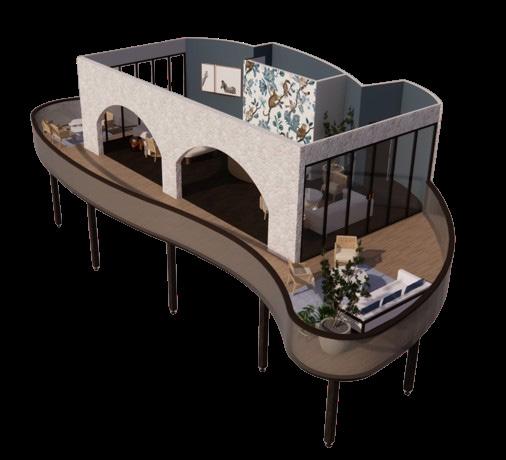

AXONOMETRIC

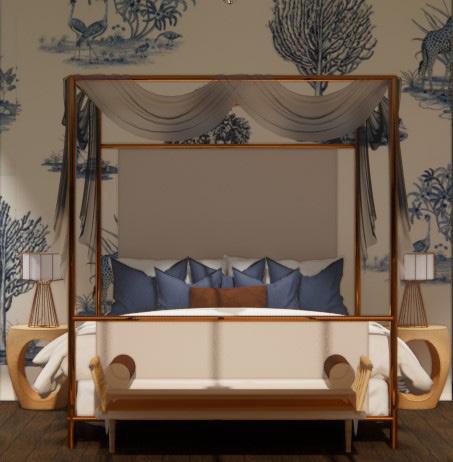

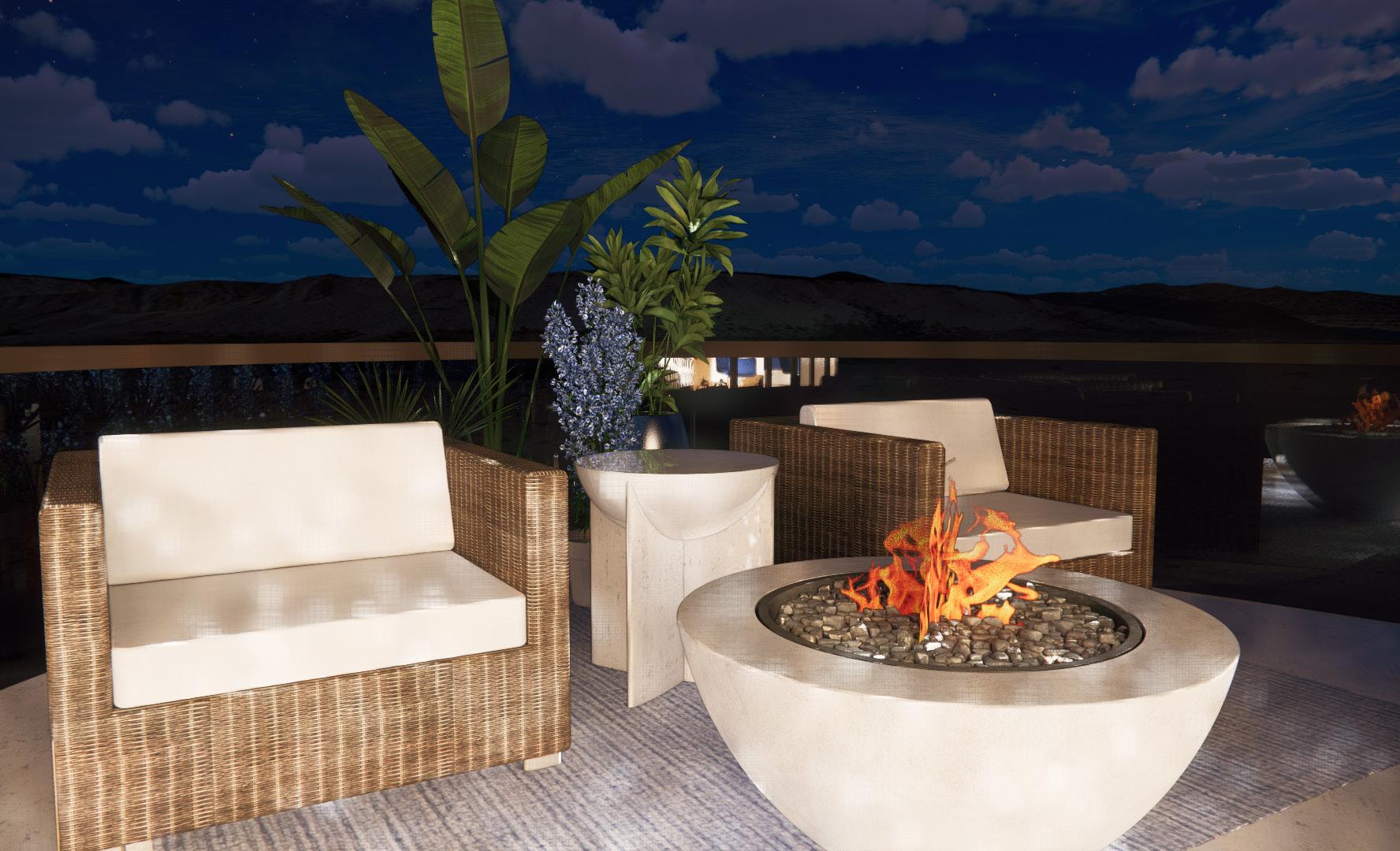

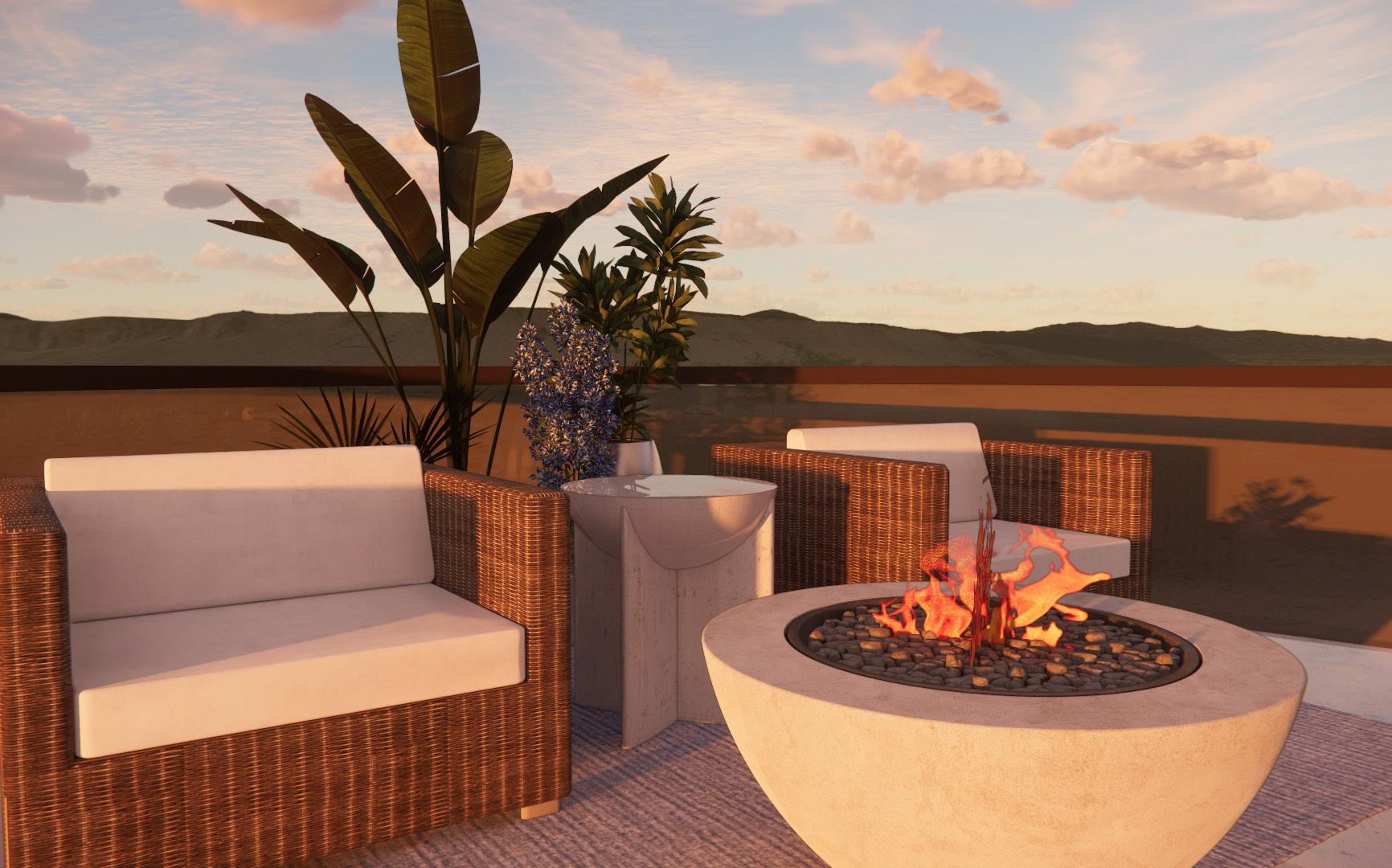

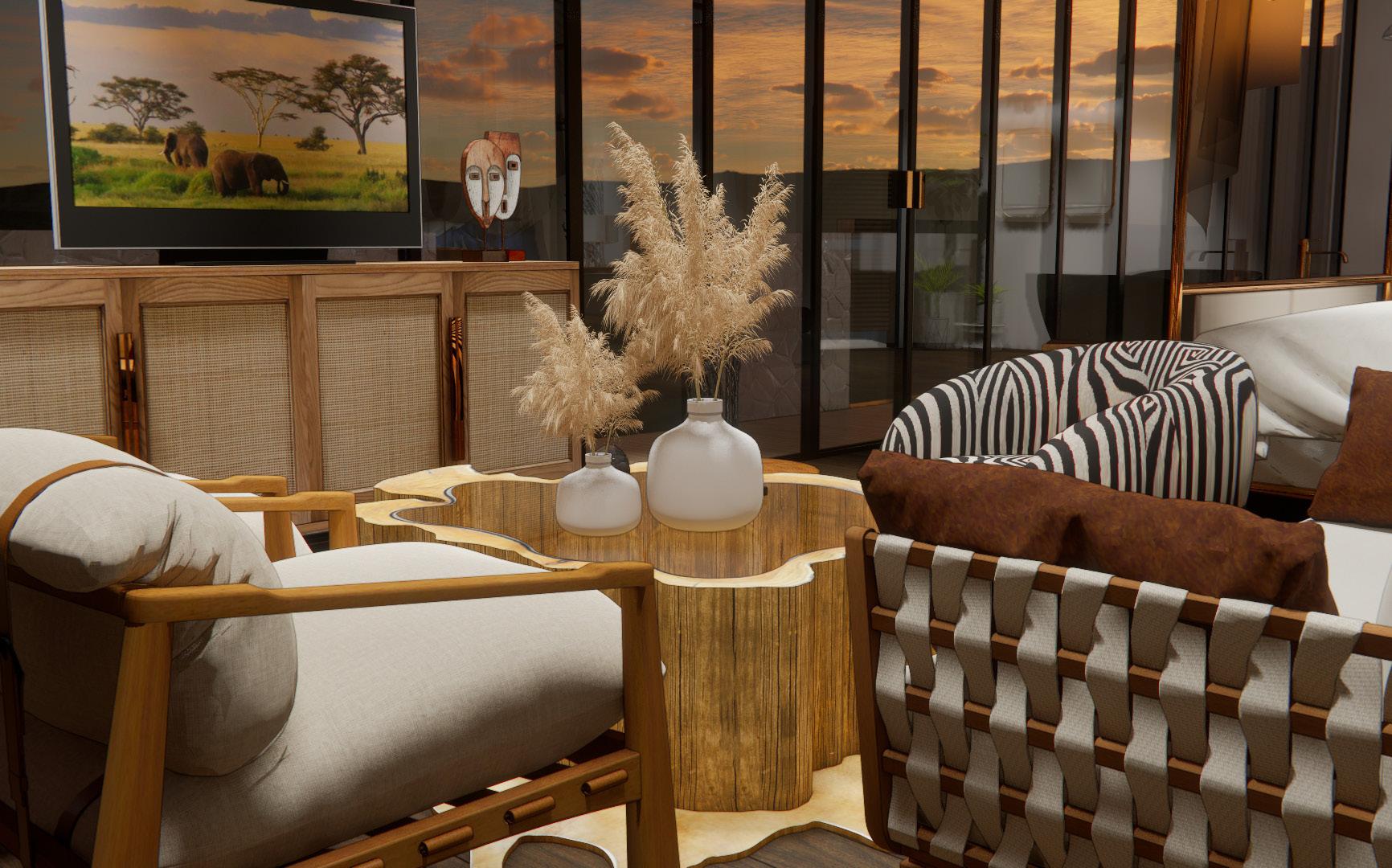

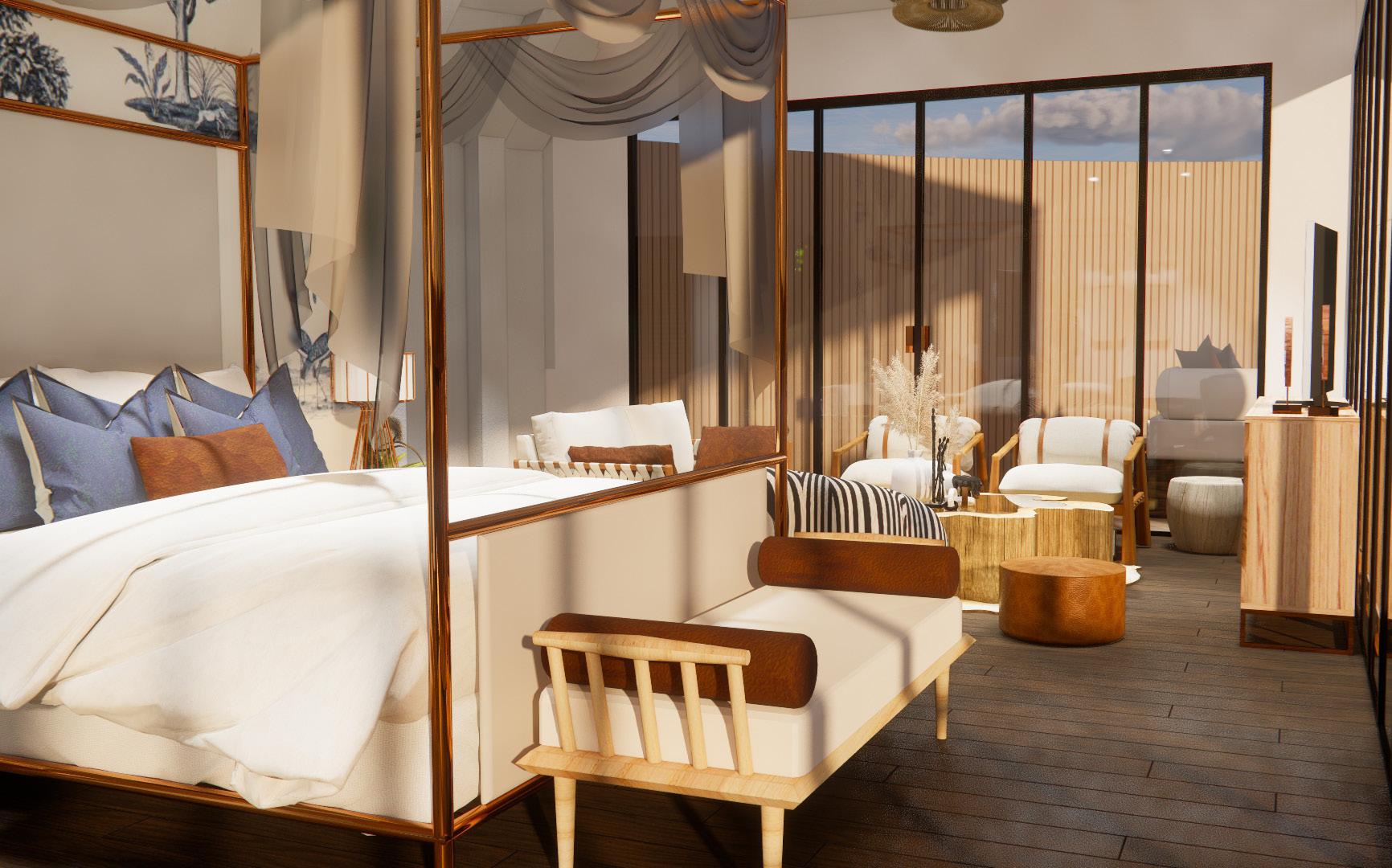

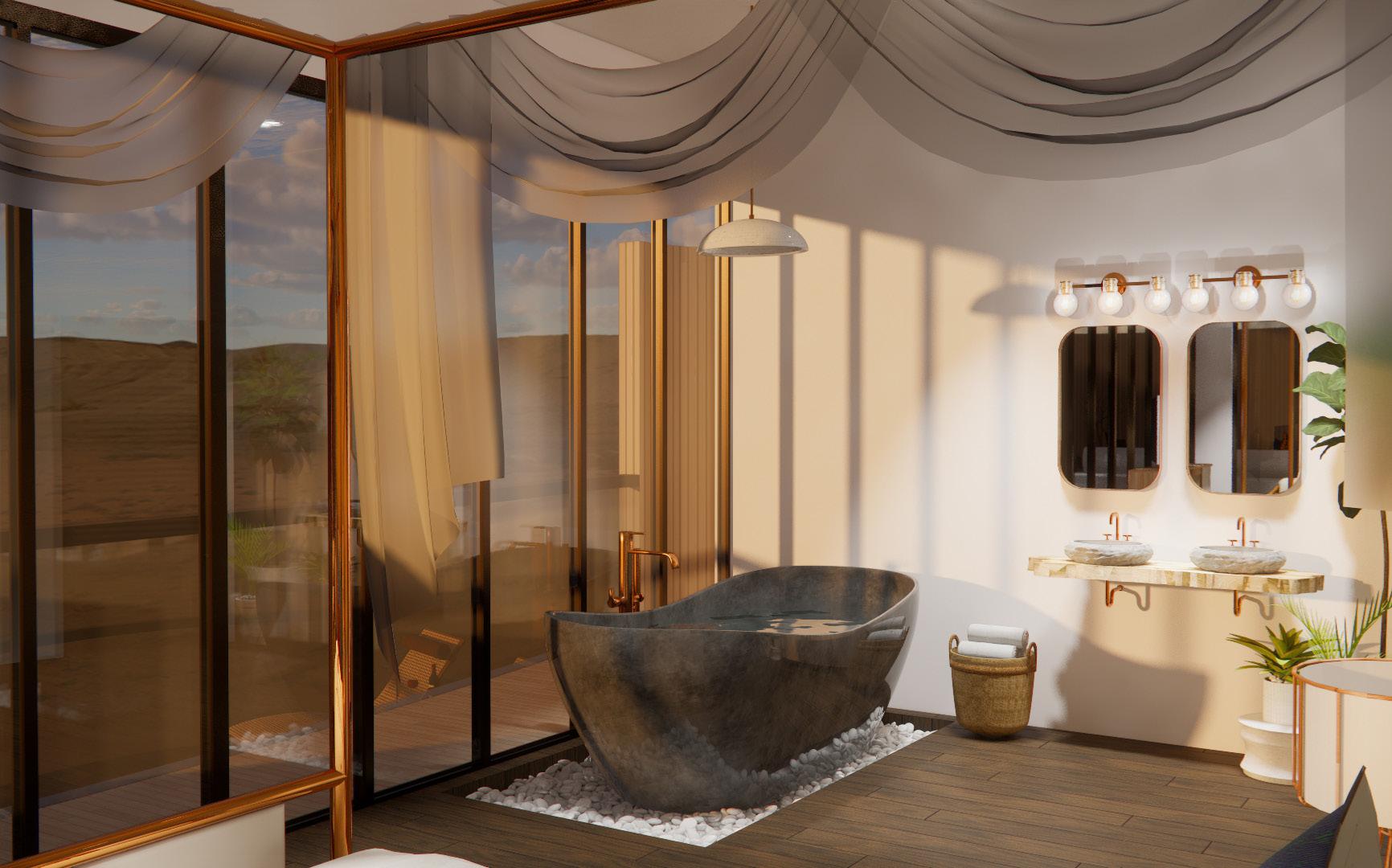

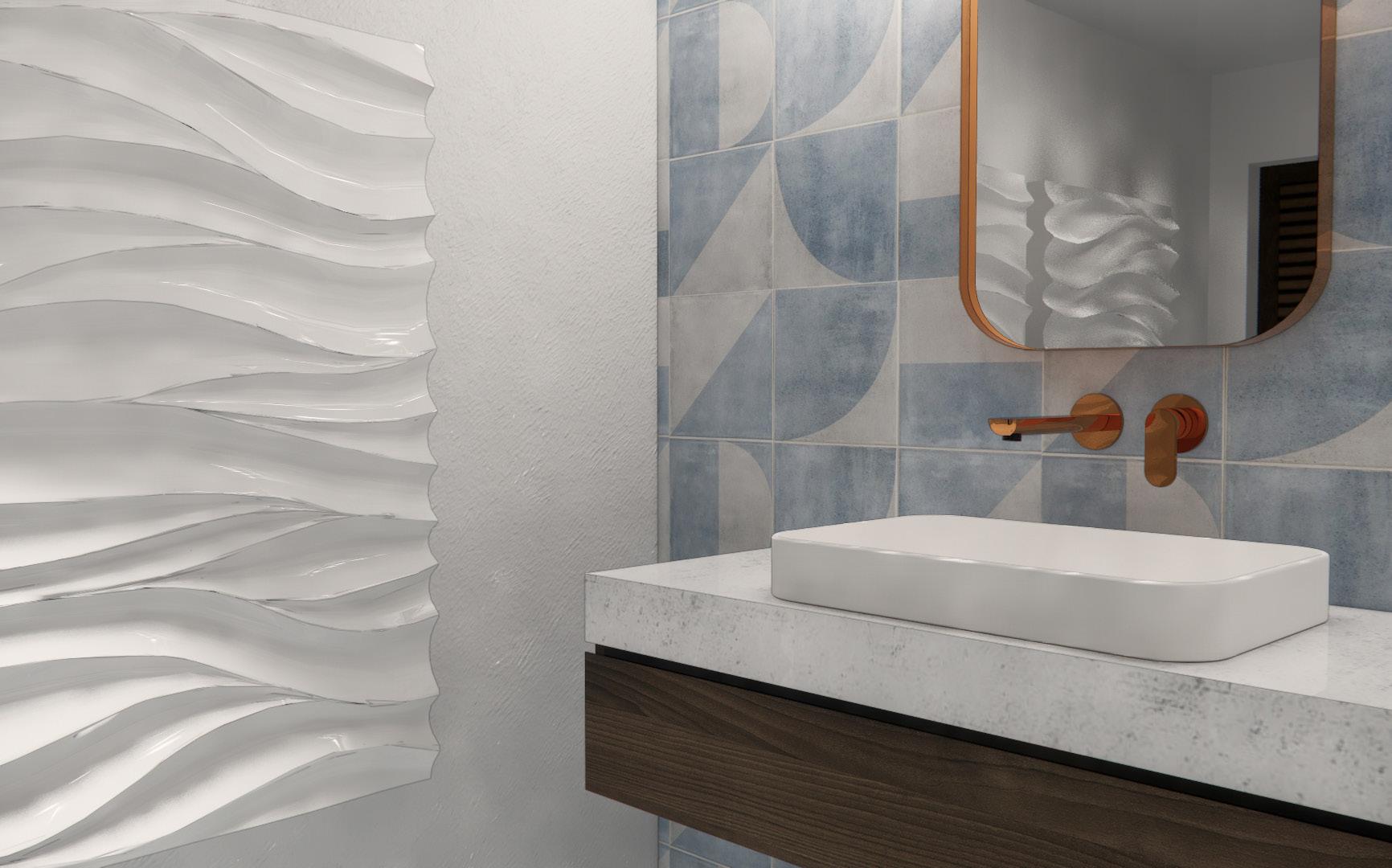

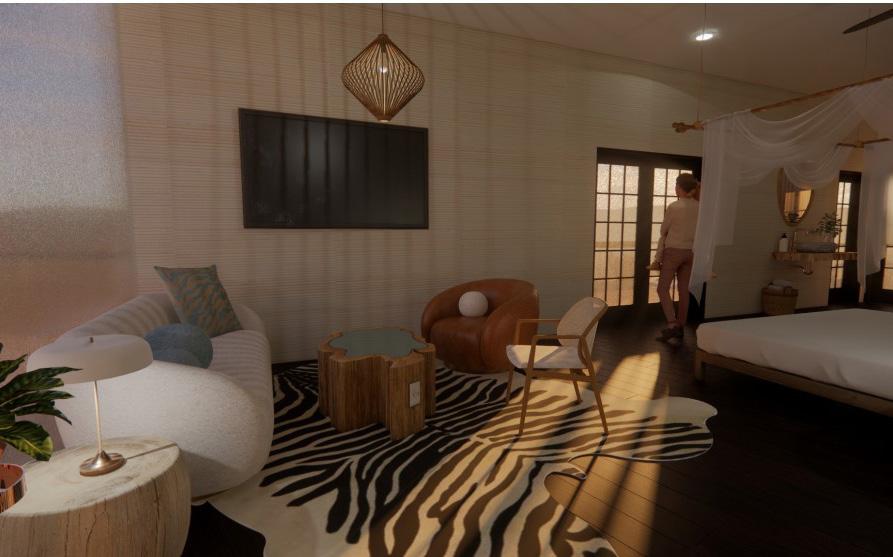

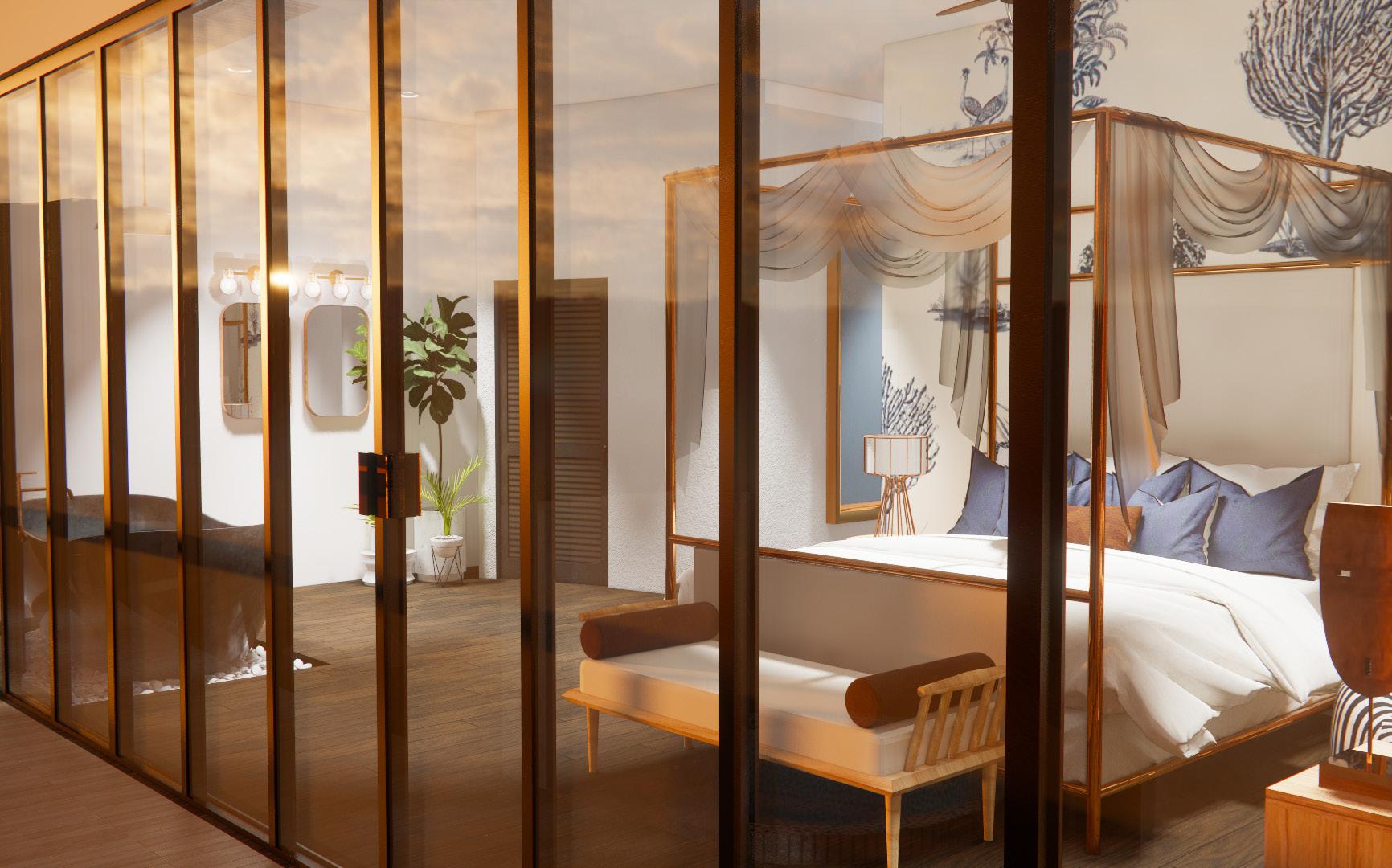

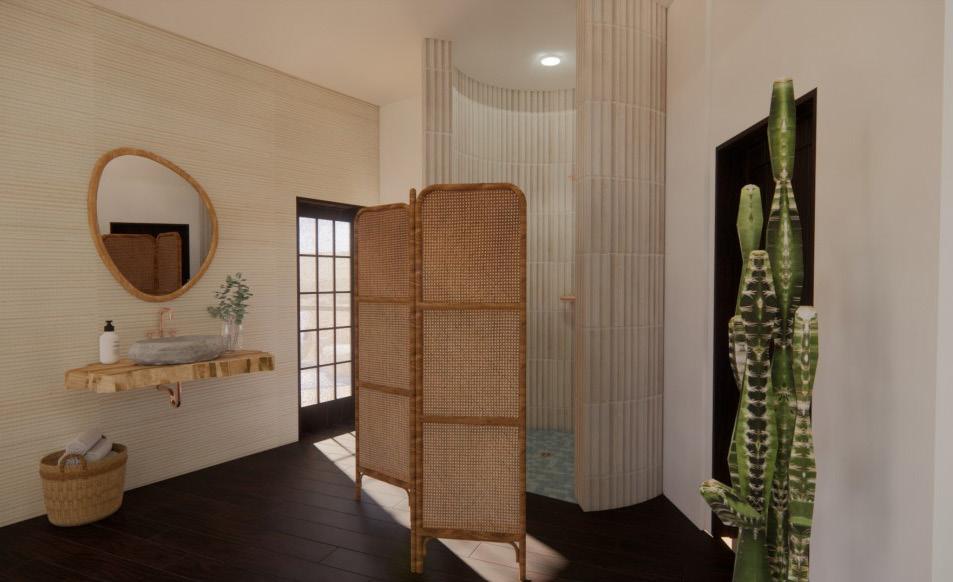

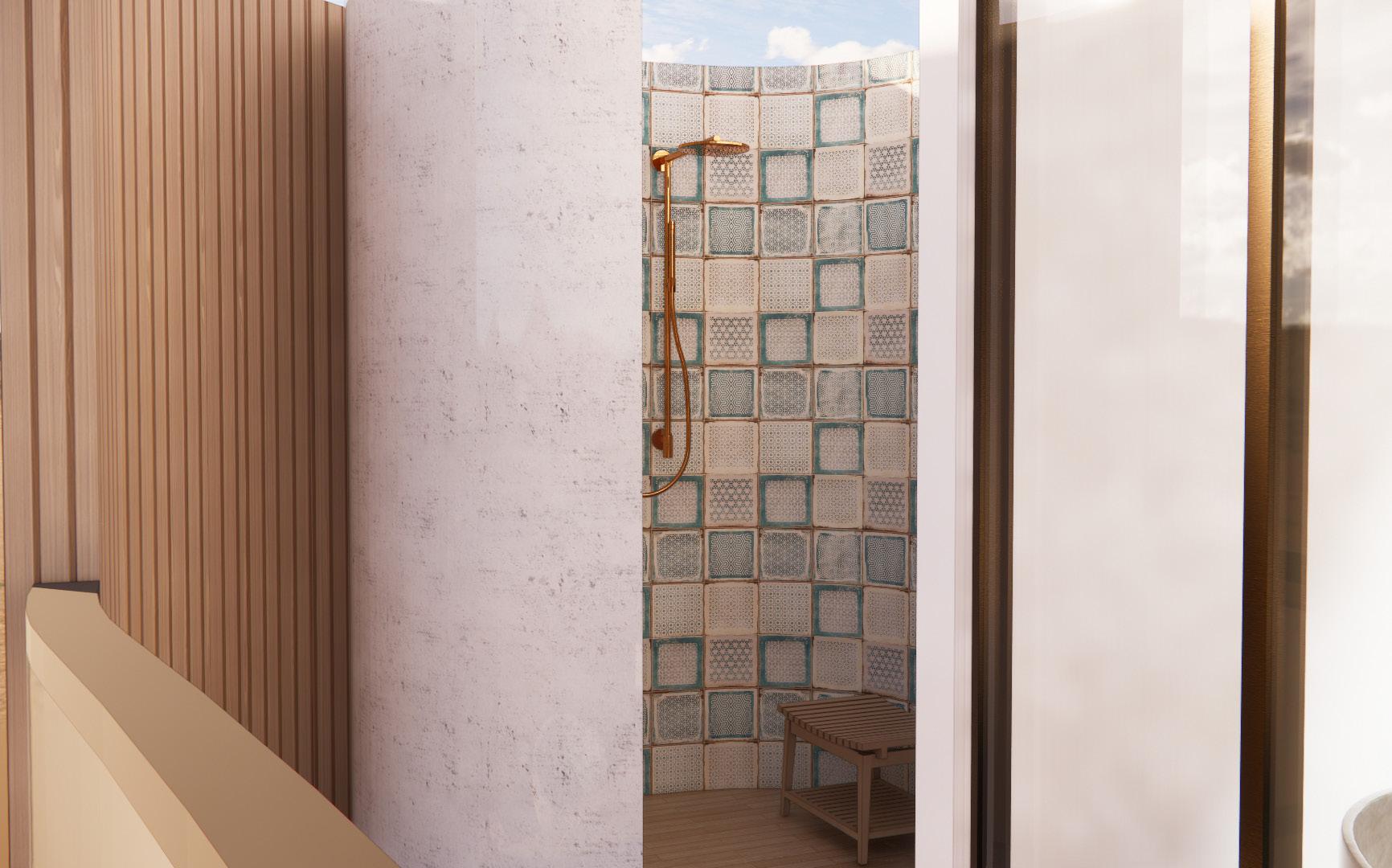

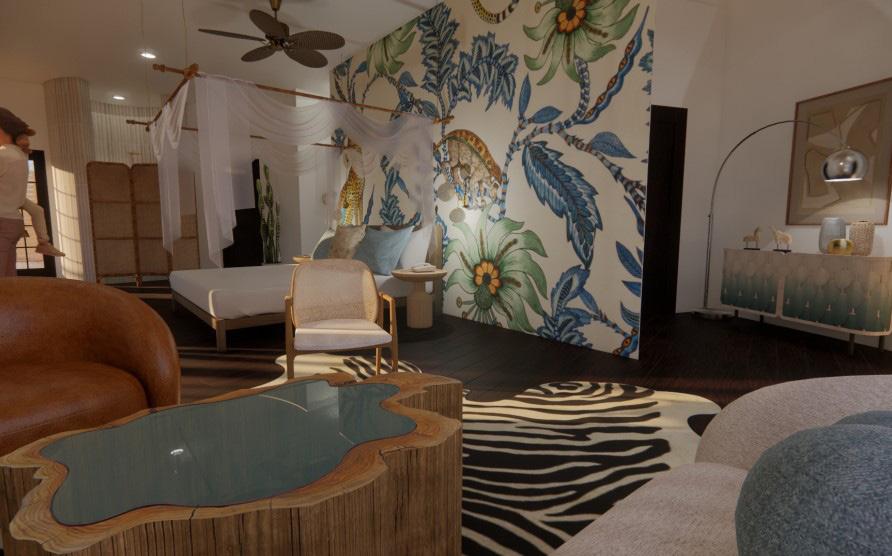

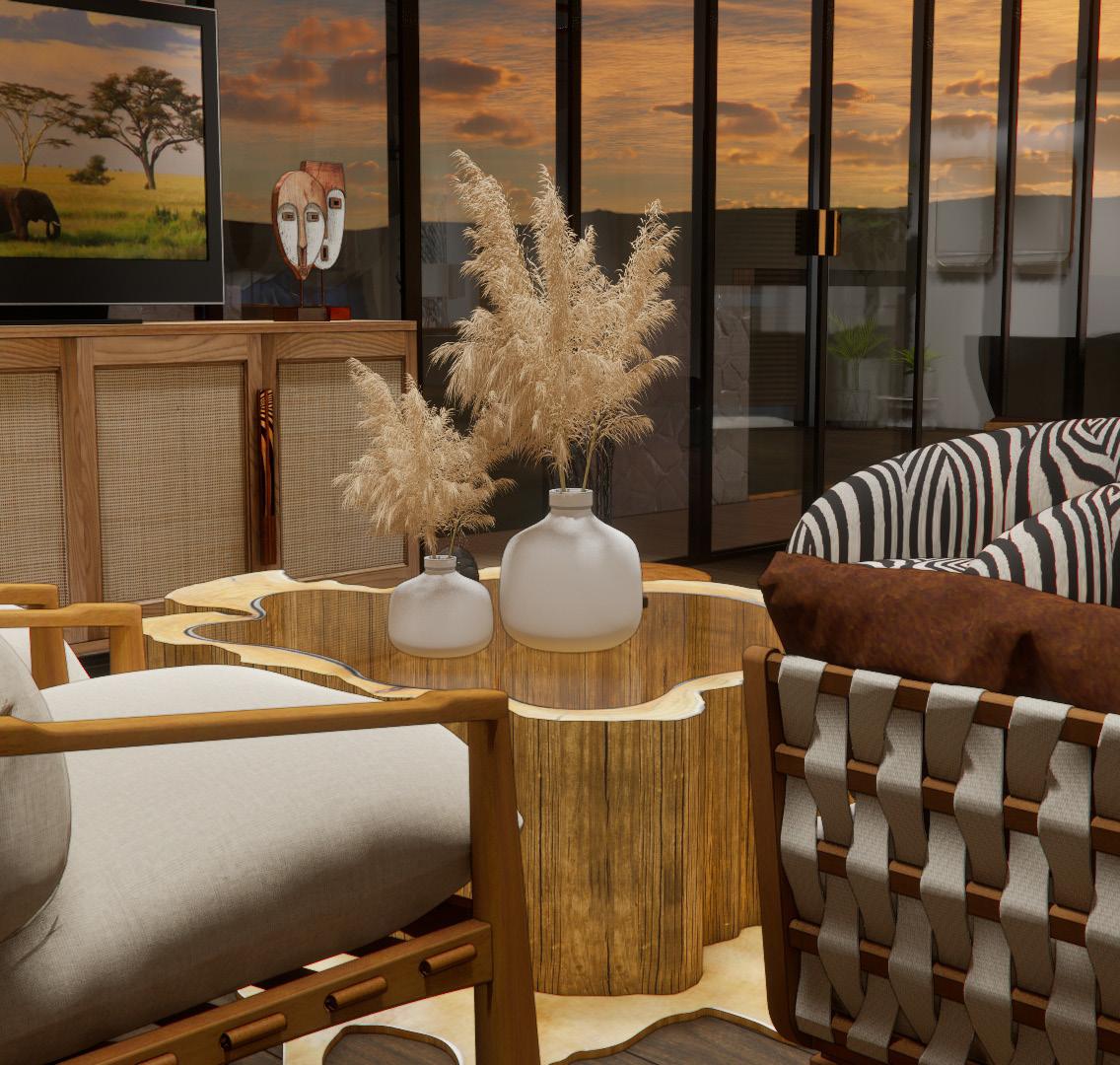

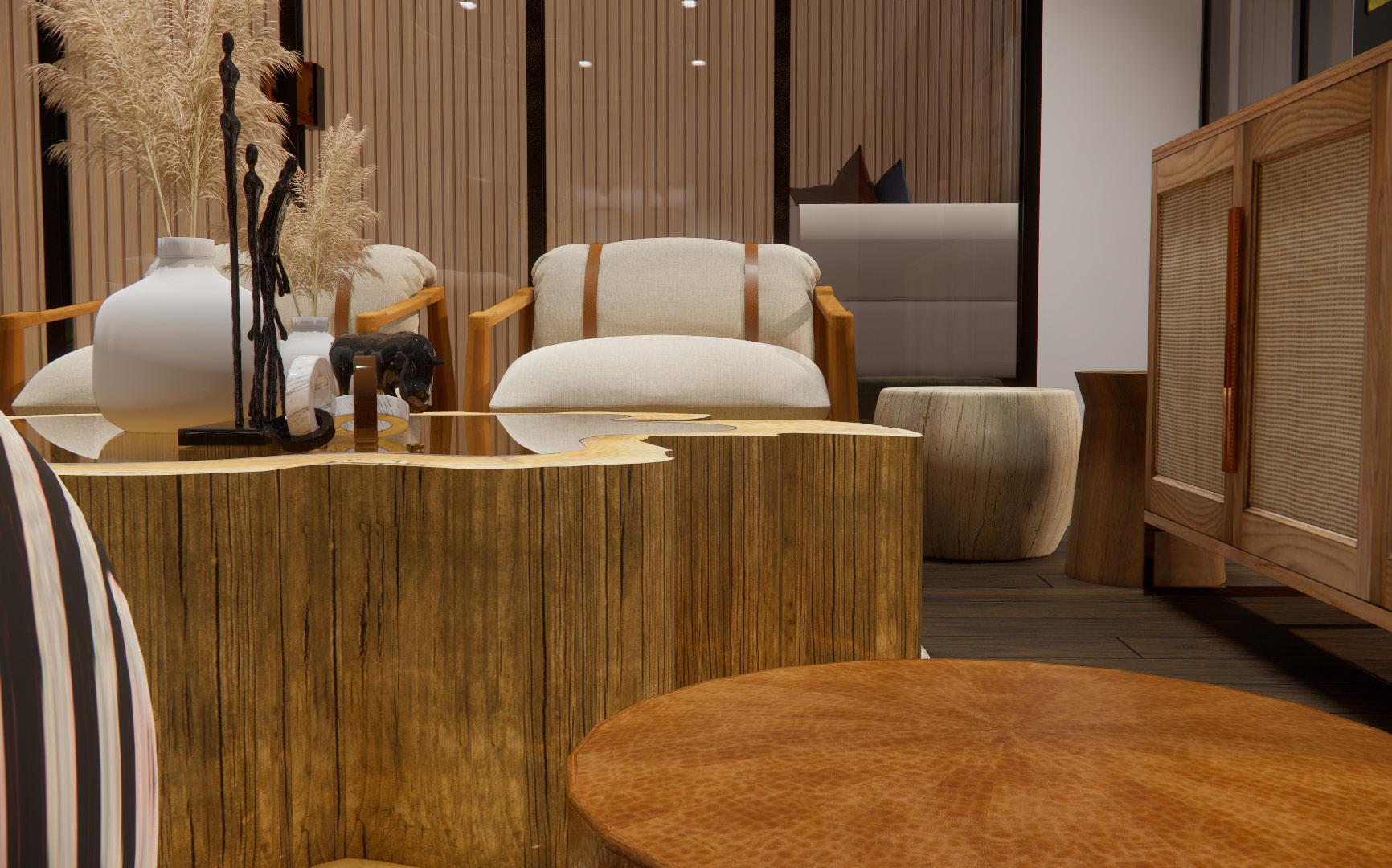

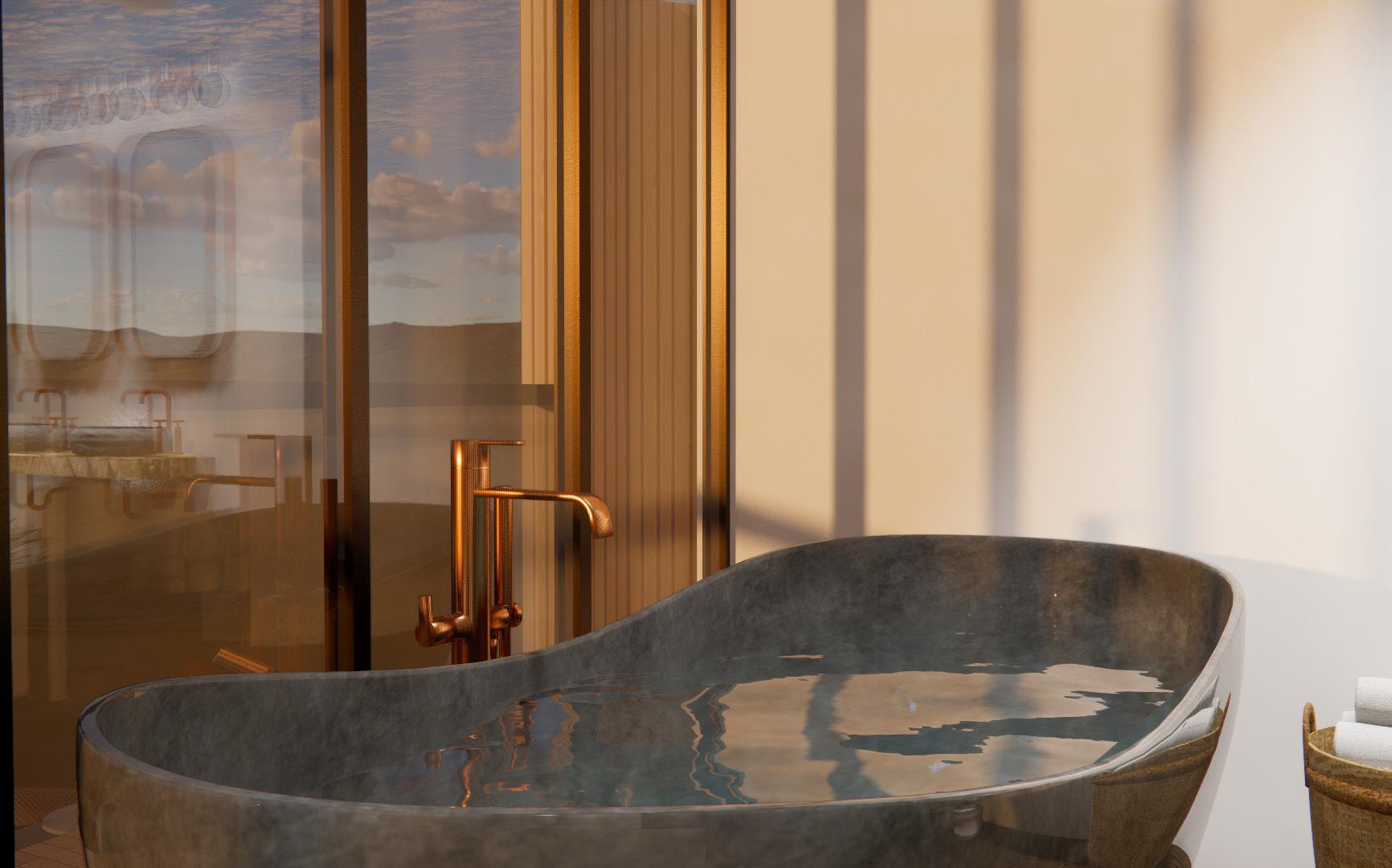

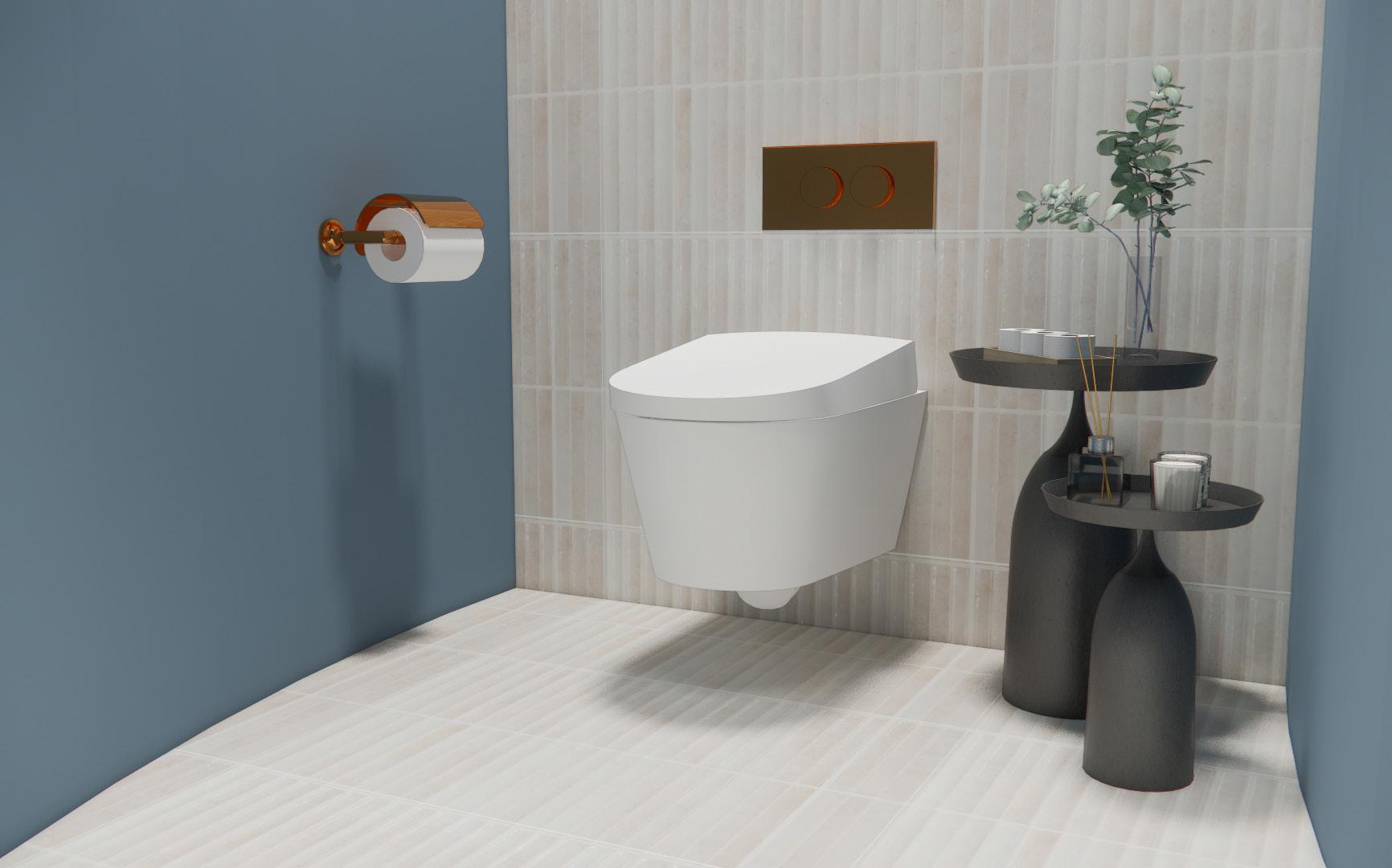

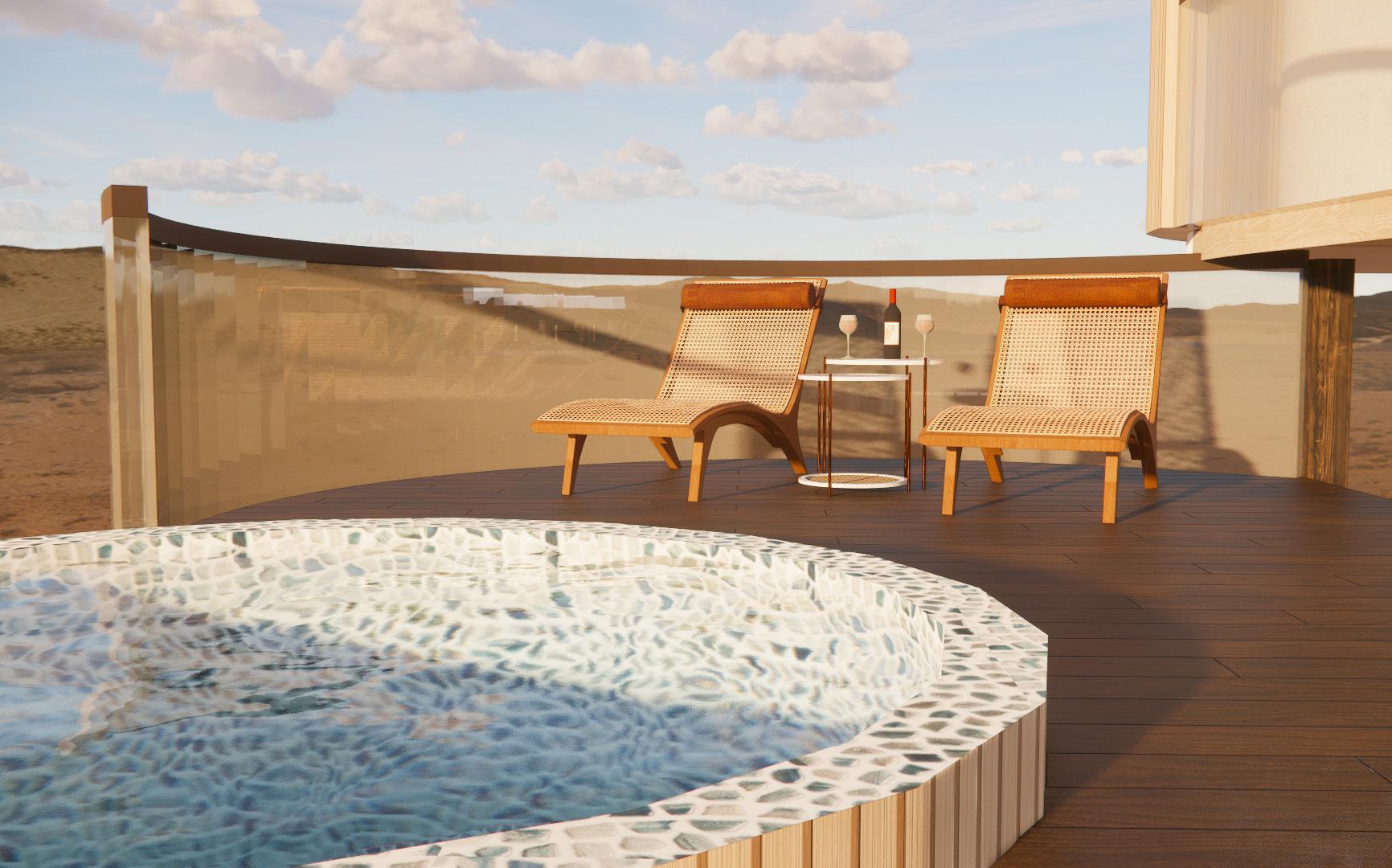

RENDERINGS

FAMILY SUITE

REFLECTED CEILING PLAN

RENDERED FURNISHINGS PLAN

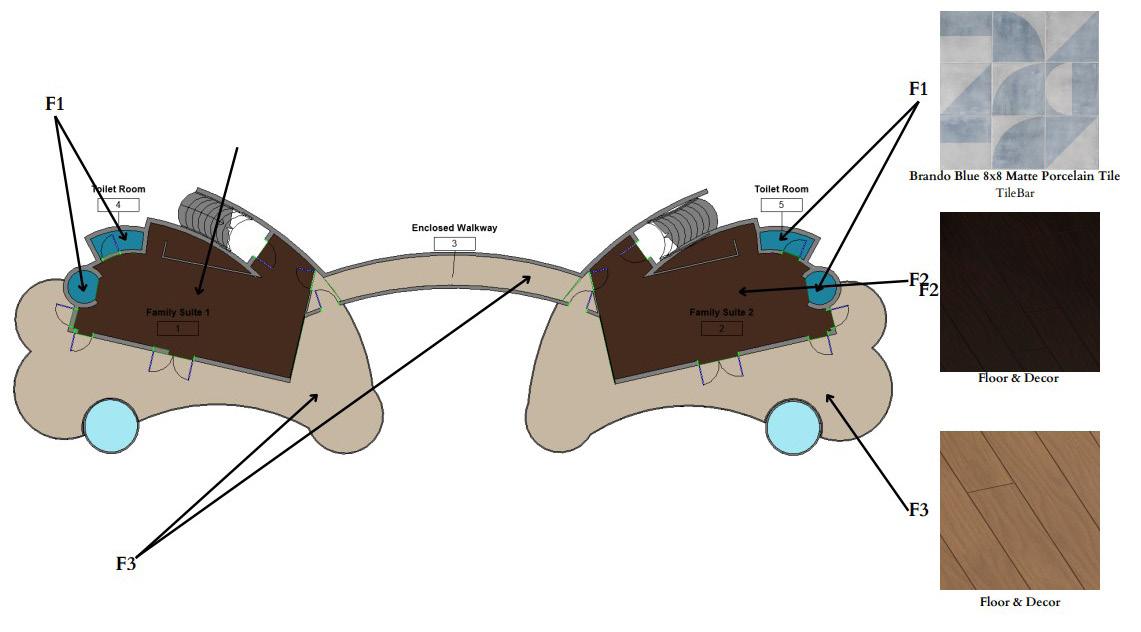

FLOOR FINISH PLAN

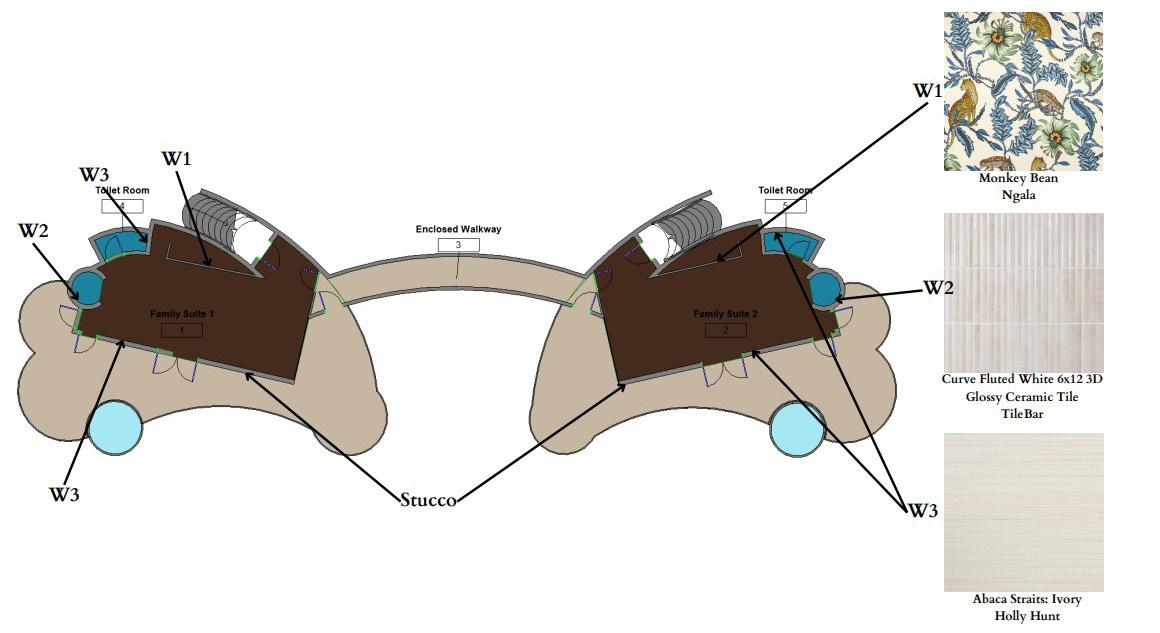

WALL FINISH PLAN

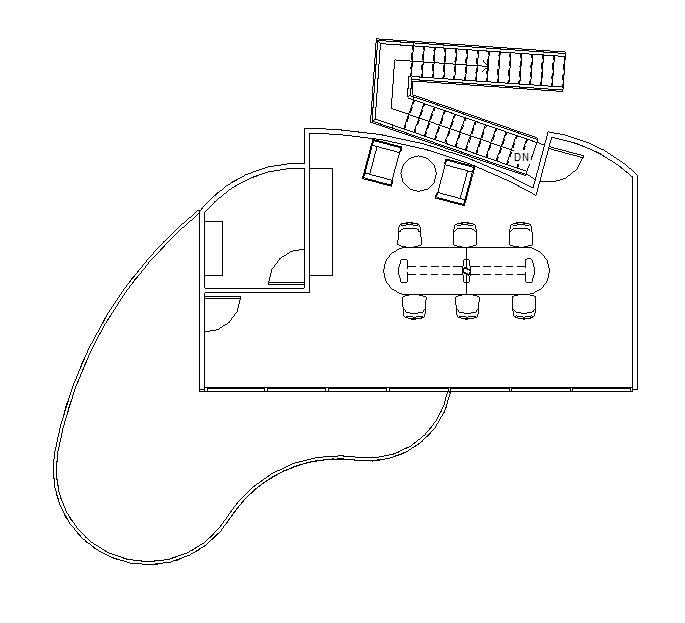

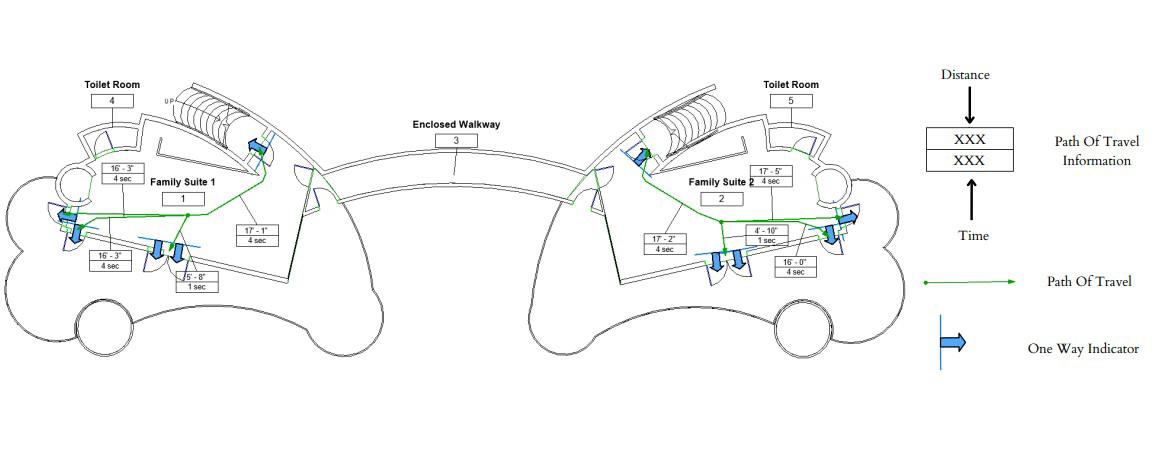

FIRE RATING & SAFETY PLAN

COLOR CODED FURNISHINGS PLAN

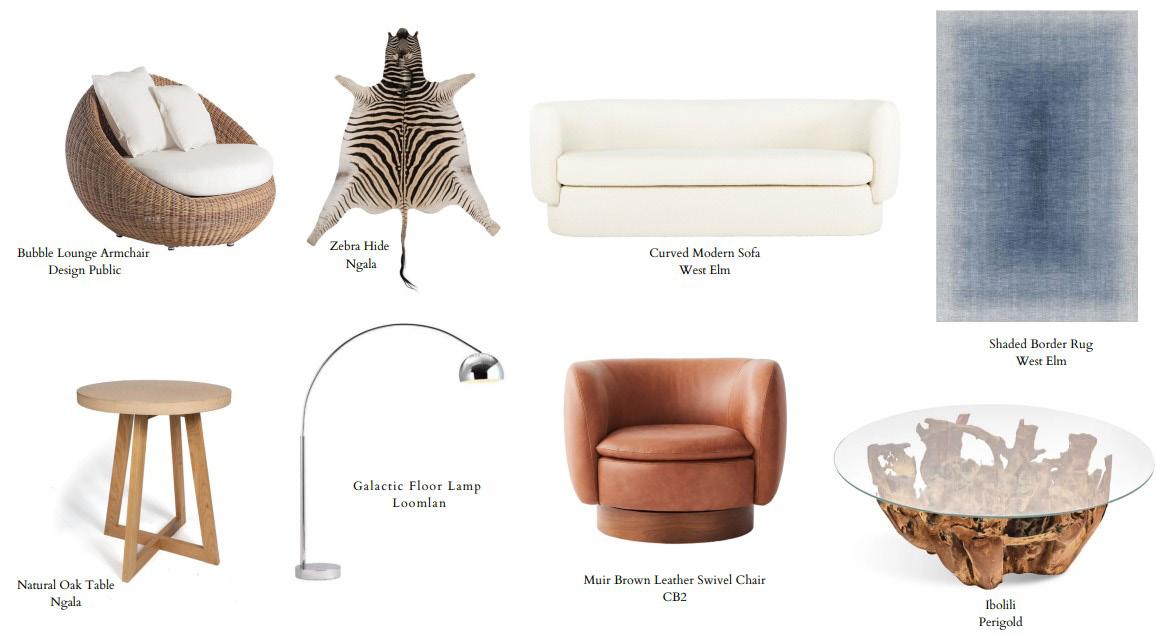

FURNITURE SELECTIONS

AXONOMETRIC

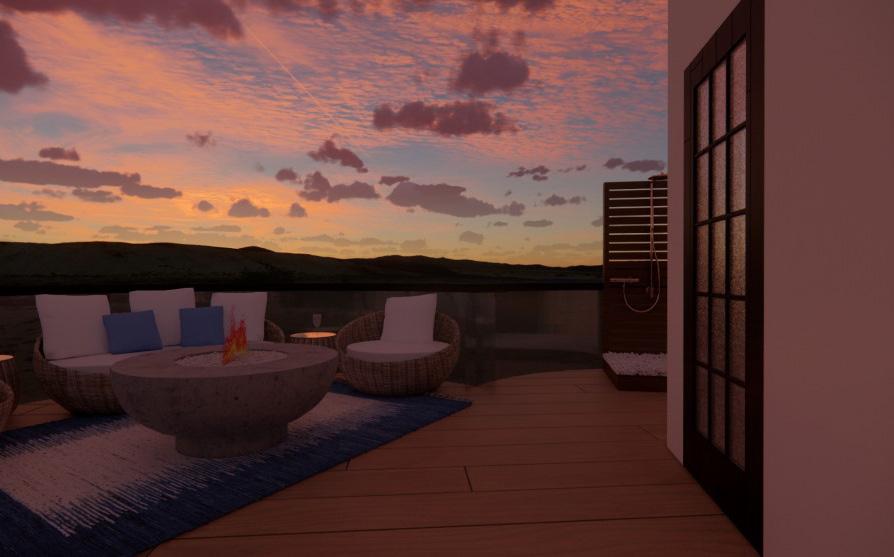

RENDERINGS

MEETING ROOM

REFLECTED CEILING PLAN

Lighting Fixture Schedule Type Mark Count Illuminance Description L1 L2 1 11 308 lx 308 lx Viaggio Linear Chandelier Recessed Can Light L1
L2 VIAGGIO
RECESSED CAN LIGHT

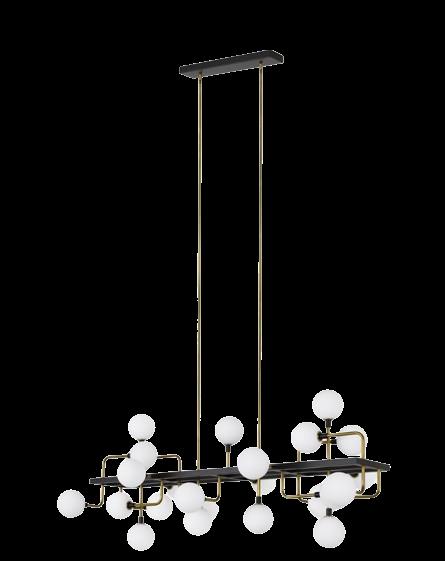

LINEAR CHANDELIER

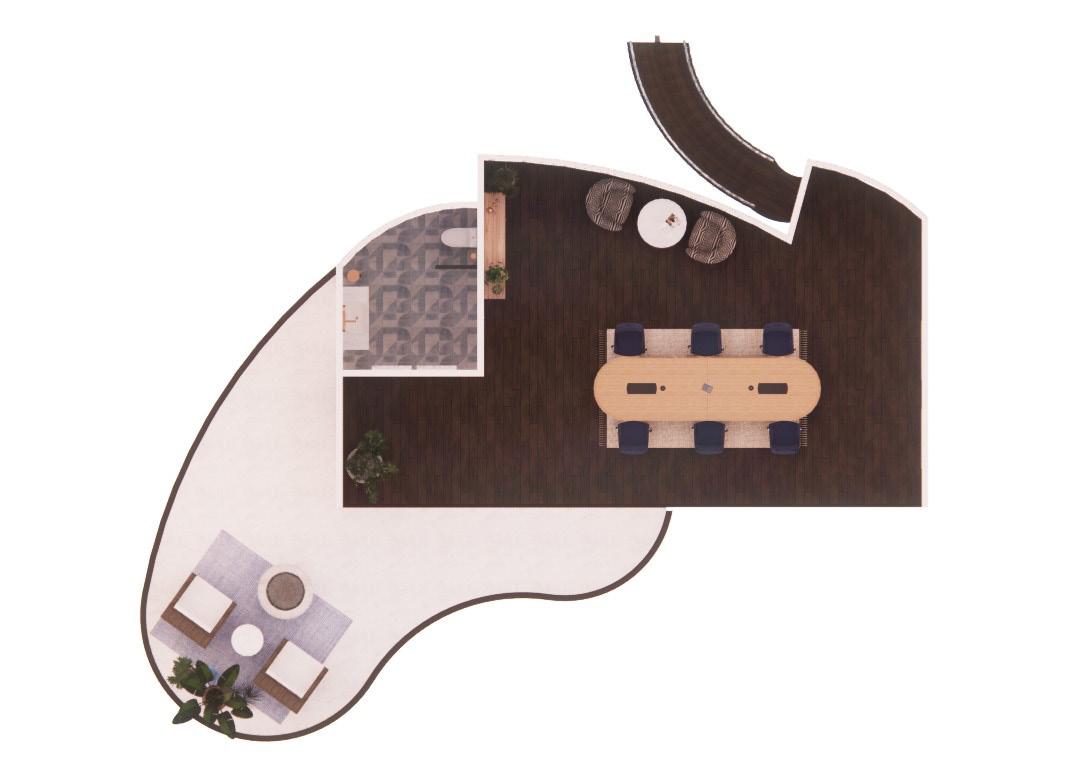

RENDERED FURNISHINGS PLAN

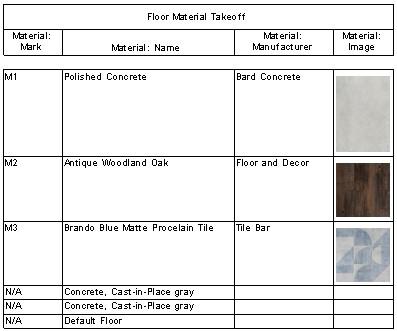

FLOOR FINISH PLAN

Matte Procelain Tile
Antique Woodland Oak Brando Blue
Polished Concrete

WALL FINISH PLAN

STUCCO LOWES
Stucco

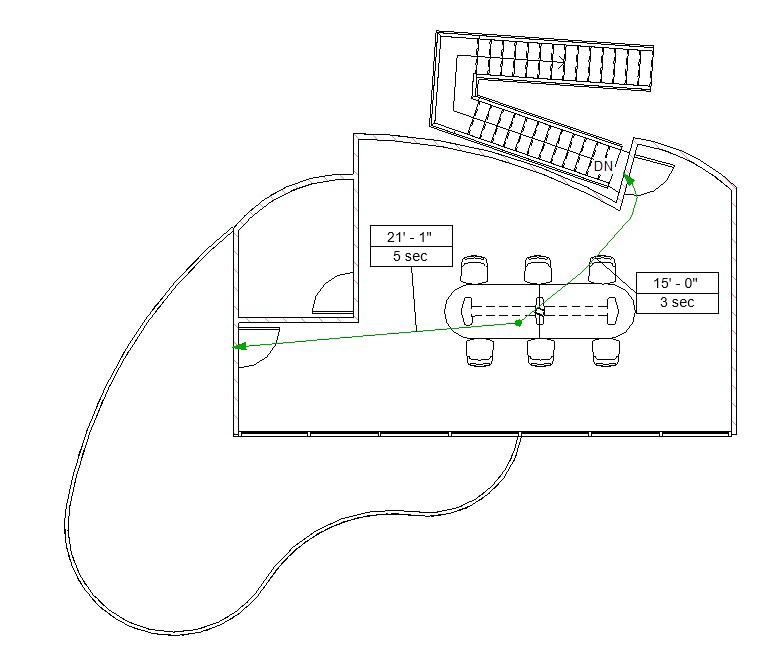

FIRE RATING & SAFETY PLAN

COLOR CODED FURNISHINGS PLAN

Furniture Schedule Description Count Manufacture Type Mark

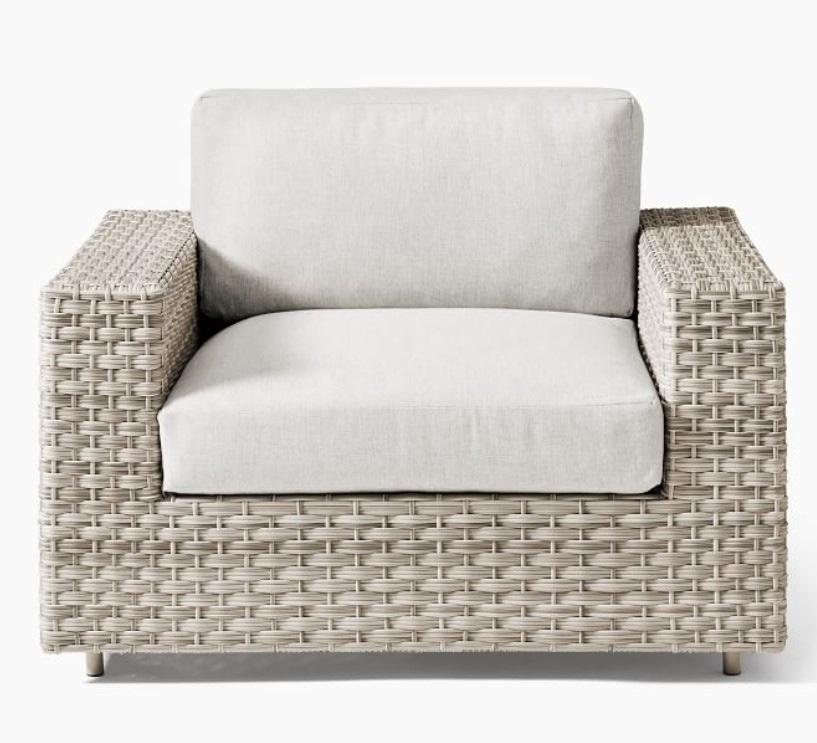

Urban Outdoor Lounge Chair

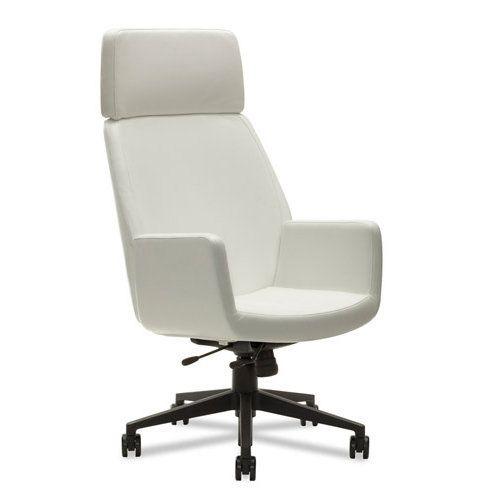

Bindu High-Back Conference Chair

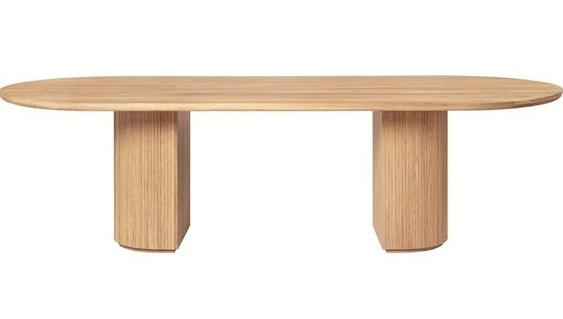

Elliptical Conference Table

Monti Lava Stone Coffee Table

Monti Lava Stone Nightstand

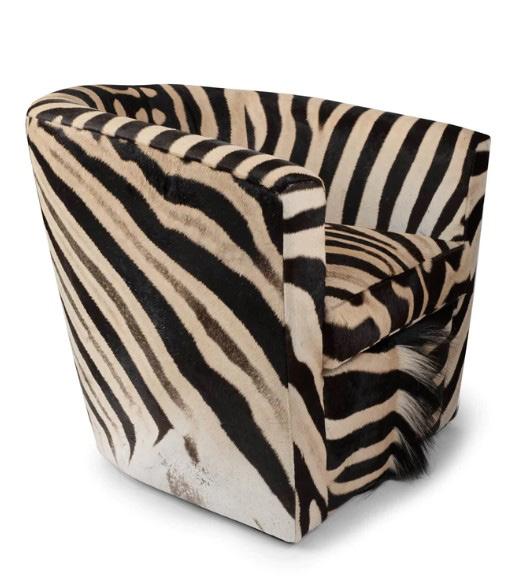

Zebra Hid Tub Chair

Steelcase

Steelcase

West Elm

West Elm

Ngala Trading

Ida Woven Media Console West Elm

Custom Floating Vanity 1

West Elm 2 6 1 1 1 2 1

FURNITURE SELECTIONS

Monti Lava Stone Coffee Table Monti Lava Stone Nighstand Ida Woven Media Console Zebra Hide Tub Chair Urban Outdoor Lounge Chair Bindu High-Back Conference Chair Elliptical Conference Table

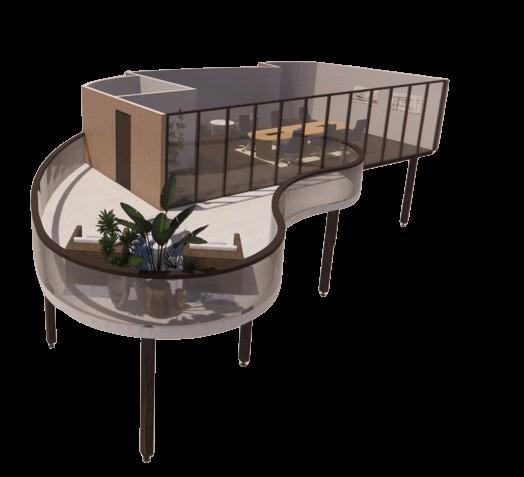

AXONOMETRIC

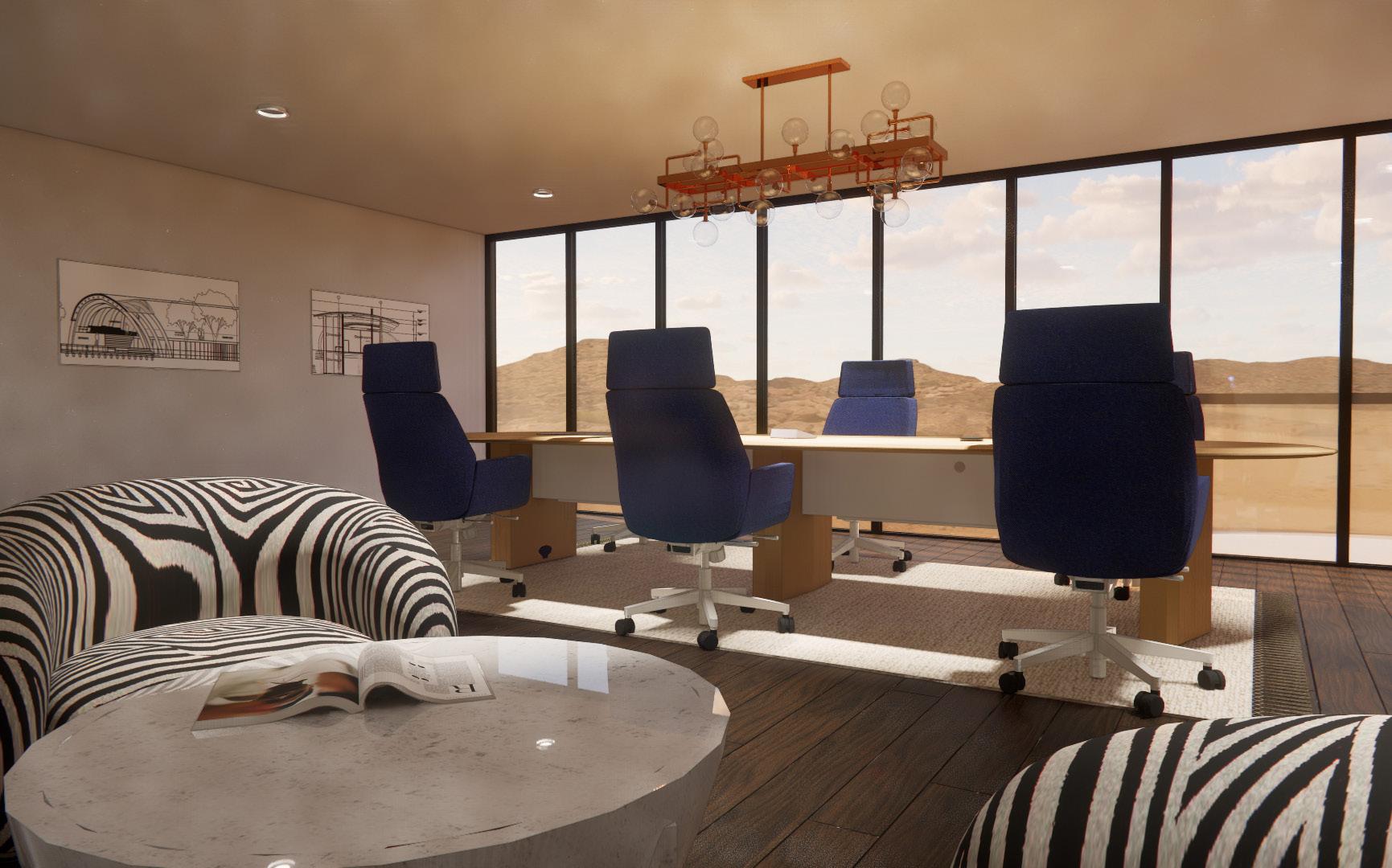

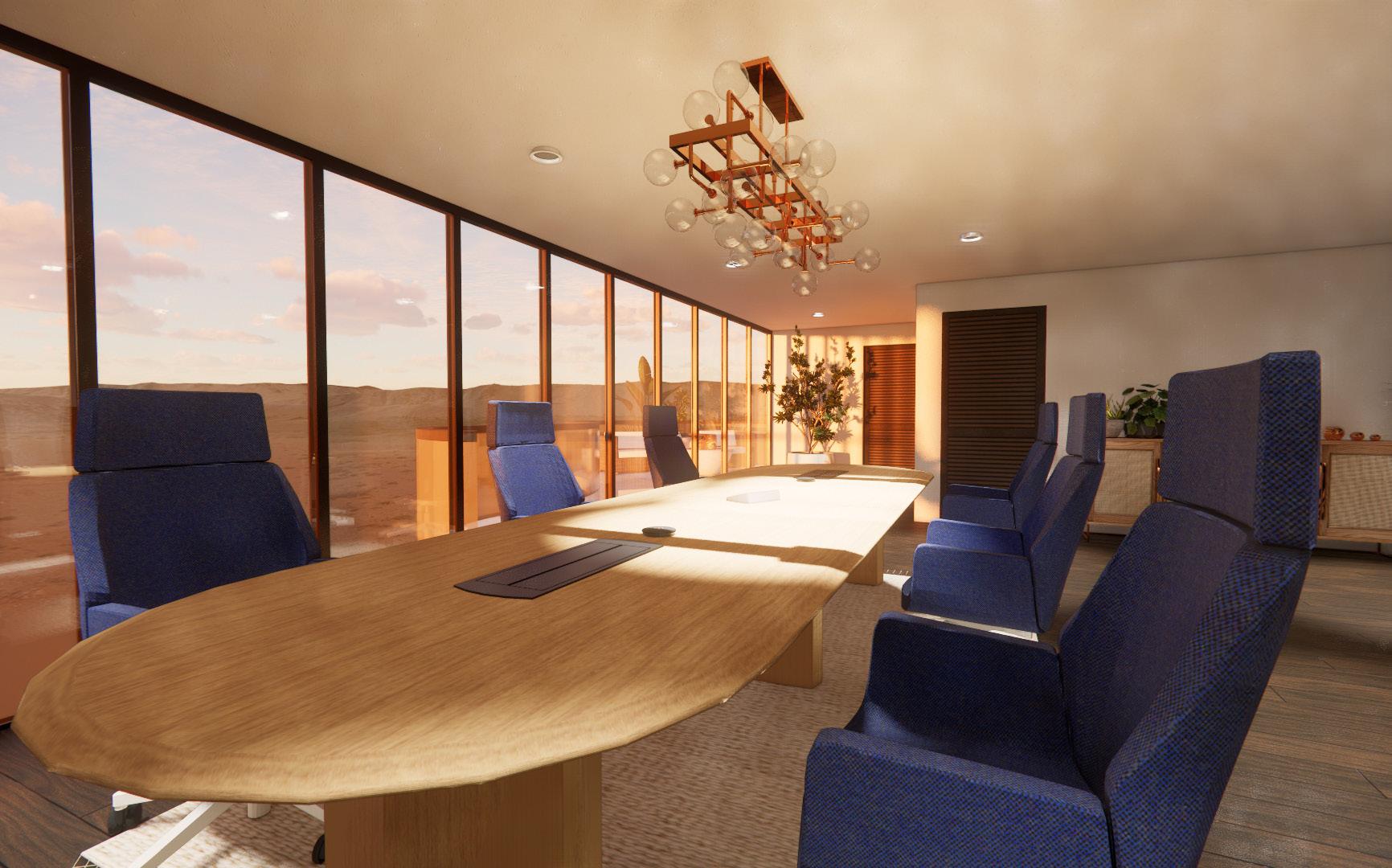

RENDERINGS

WELLNESS SPA

REFLECTED CEILING PLAN

RENDERED FURNISHINGS PLAN

FLOOR FINISH PLAN

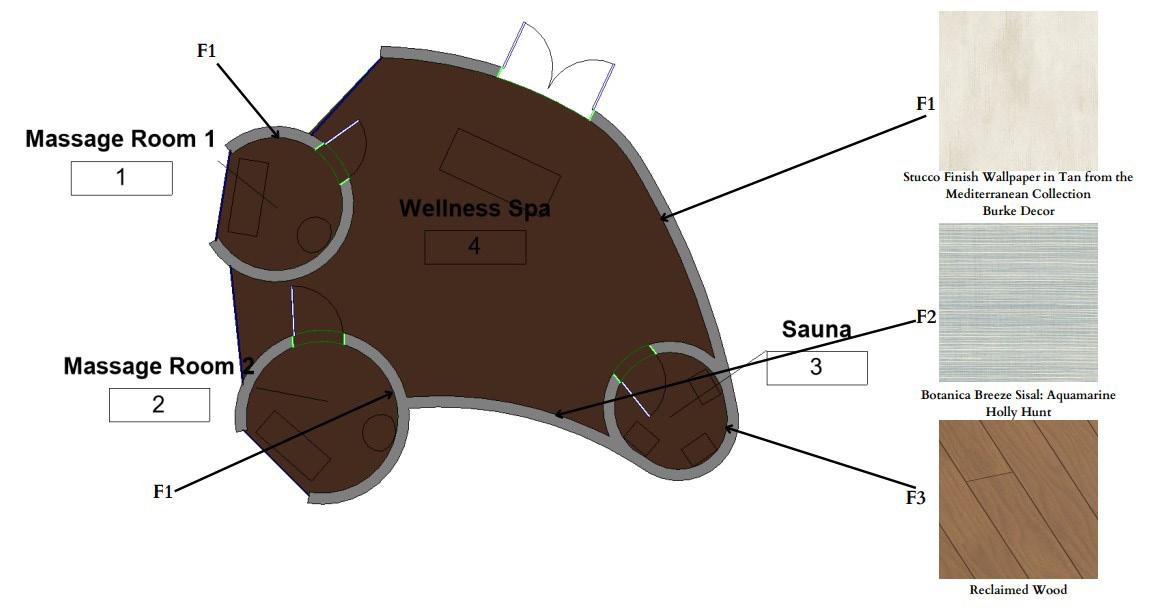

WALL FINISH PLAN

FIRE RATING & SAFETY PLAN

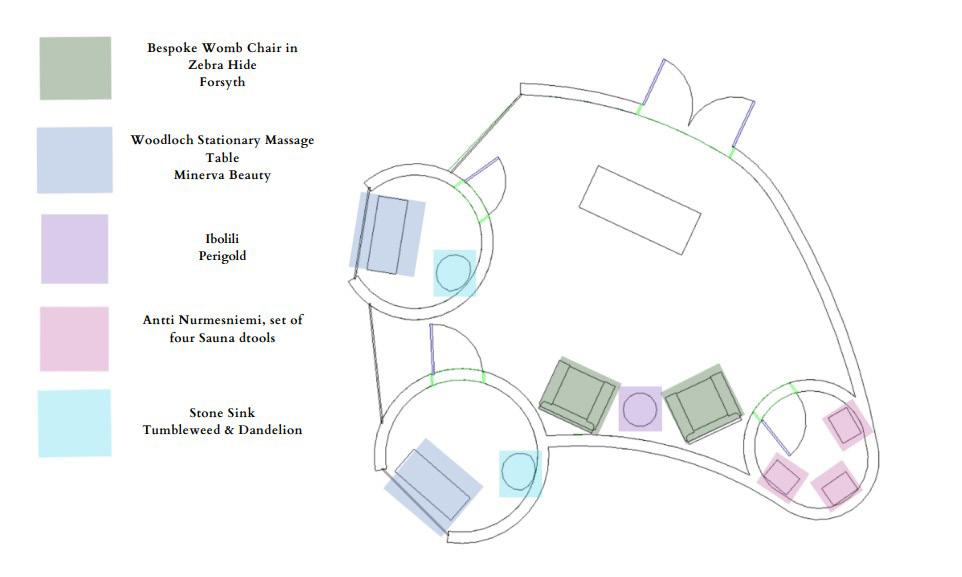

COLOR CODED FURNISHINGS PLAN

FURNITURE SELECTIONS

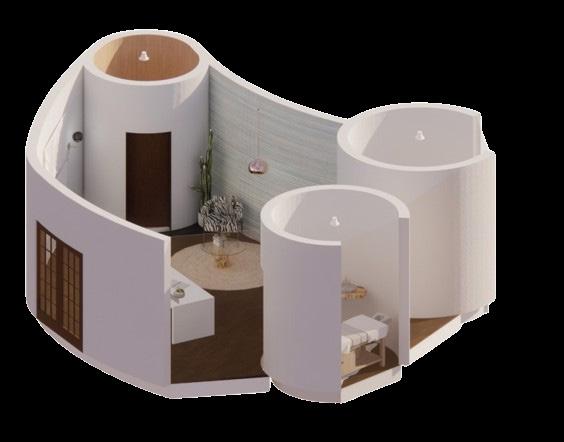

AXONOMETRIC

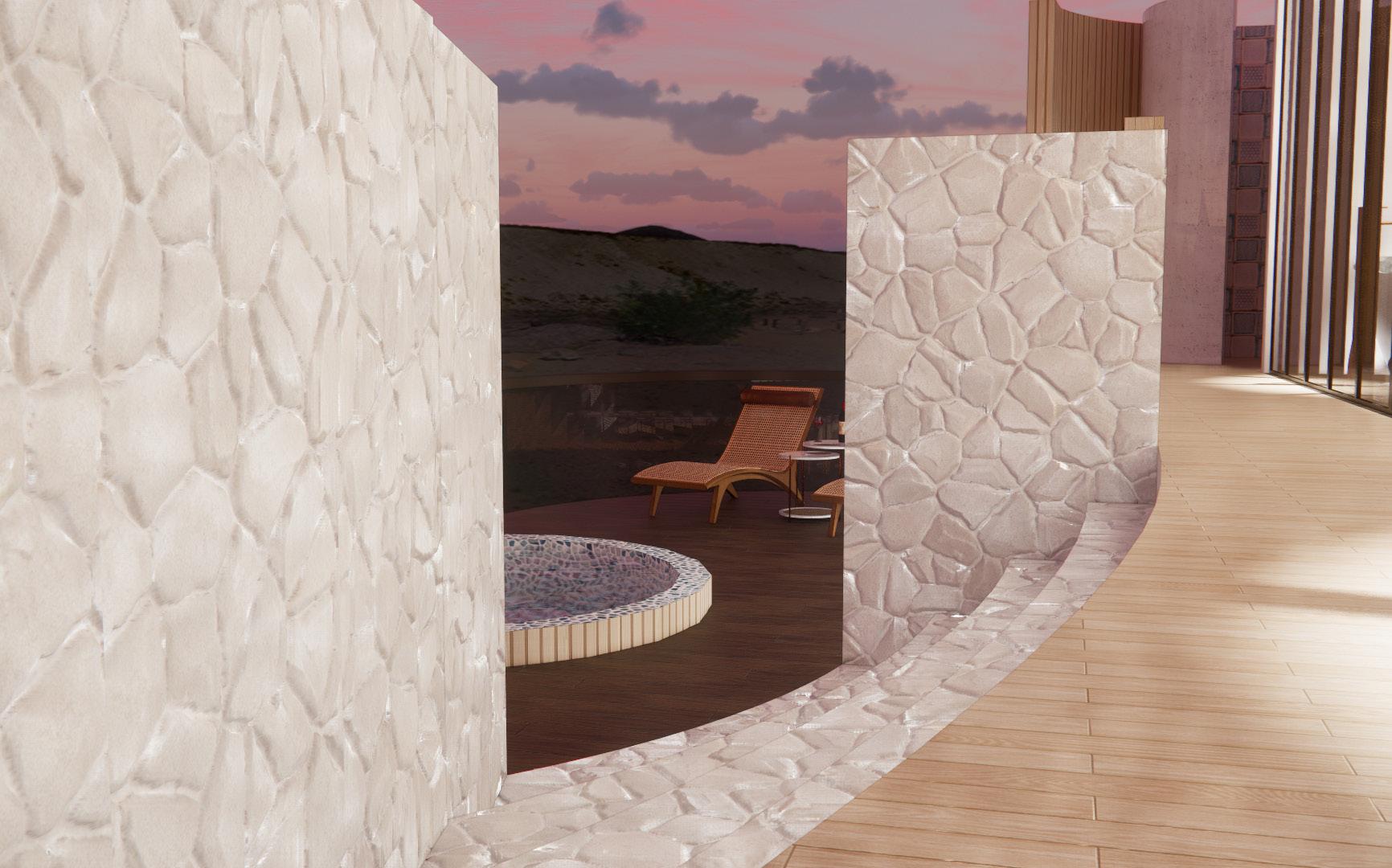

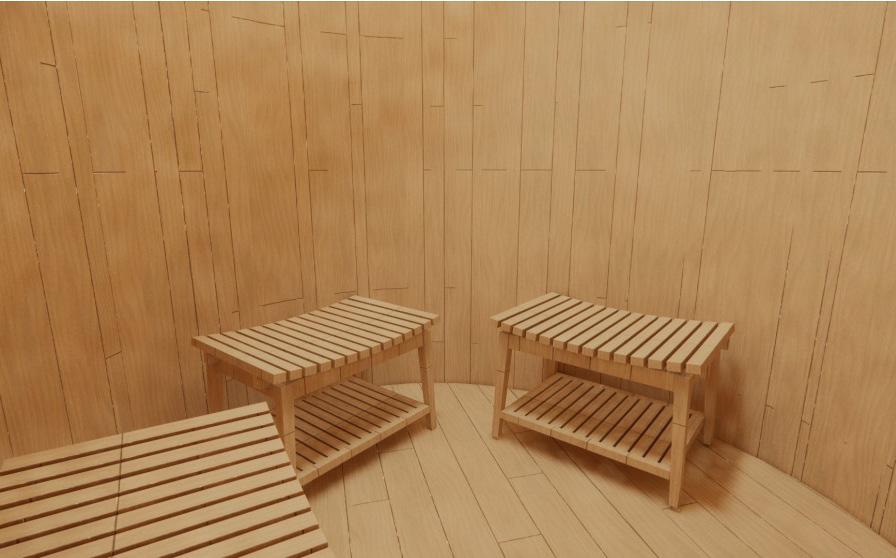

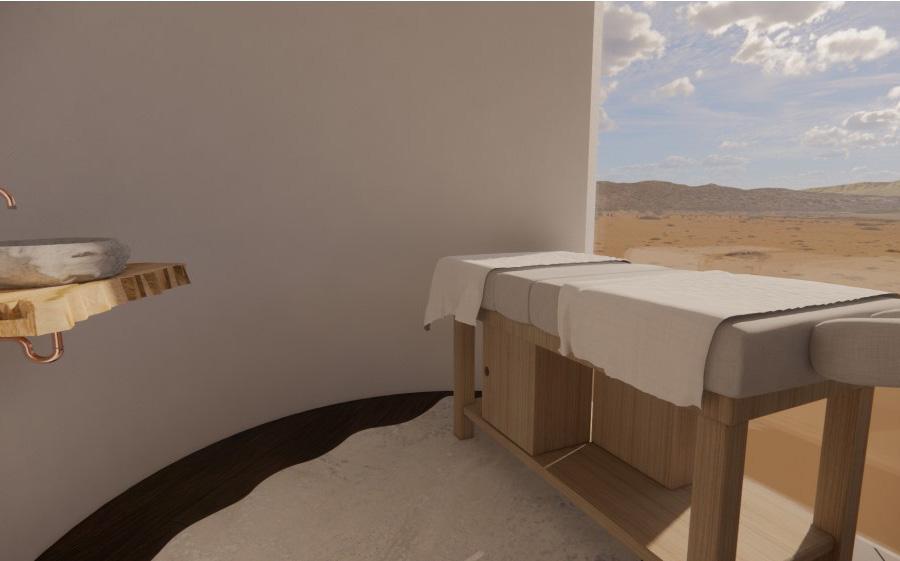

RENDERINGS
