QUICK HOSE GUIDE INDUSTRIAL
ICON GUIDE:
AMERICAN MADE ISO 9001: 2015 CERTIFIED QUALITY MANAGEMENT SYSTEM
KLEAN HOSE
LIFETIME WARRANTY AGAINST DELAMINATION ATTACK HOSE
SUPPLY LINE HOSE
SOFT SUCTION HOSE
POTABLE WATER HOSE
CONQUEST™ LDH
• Patented double jacketed fire hose made from 100% high tensile strength polyester outer jacket with extruded thru-the-weave polyurethane inner hose.
• Outstanding flow and low friction loss.
• Suitable for CAFS and foam concentrates.
• The polyurethane lining materials meets NSF/ANSI Standard 61 for drinking water.
• Application: Attack, Supply, CAFS, Potable Water.
SIZES:
COLORS: 4”, 5”, 6”
8D™
• Double jacketed EPDM rubber lined hose made from 100% high tensile strength polyester yarn.
• Recommended flow pressure: 100 psi.
• Highly resistant to ozone and oxidation.
• Application: Attack.
SIZES:
COLORS: 1”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”

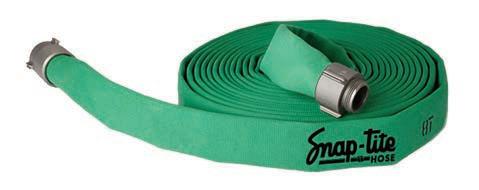

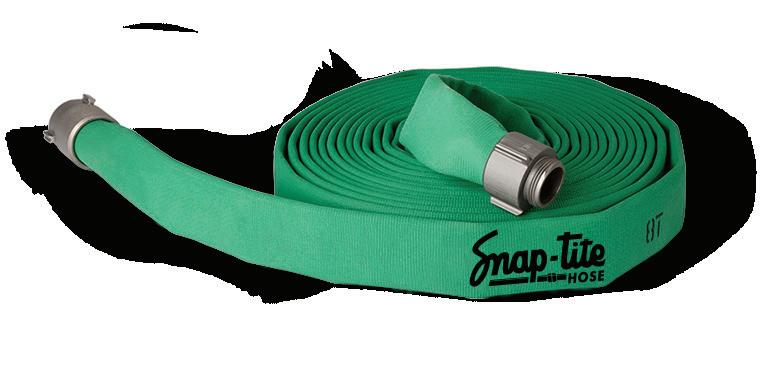

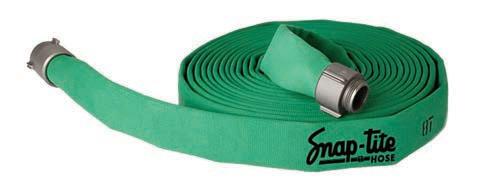

8T™
• Double jacketed polyurethane lined hose made from 100% high tensile strength polyester yarn.
• Recommended flow pressure: 100 psi.
• Polyurethane lining material meets NSF/ANSI Standard 61 for drinking water.
• Application: Attack.
SIZES:
COLORS: 1-1/2”, 1-3/4”, 2-1/2”, 3”

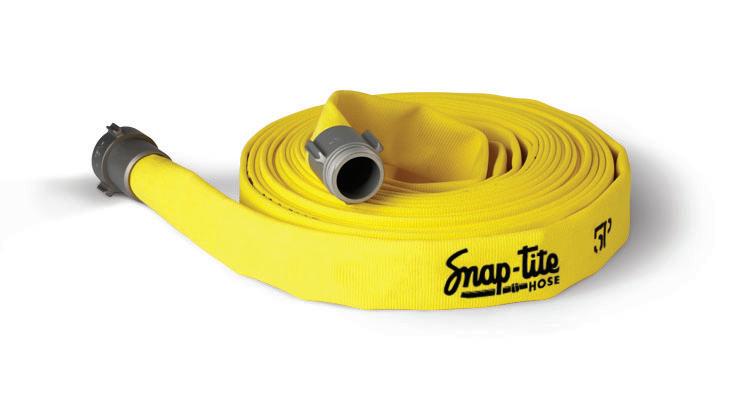

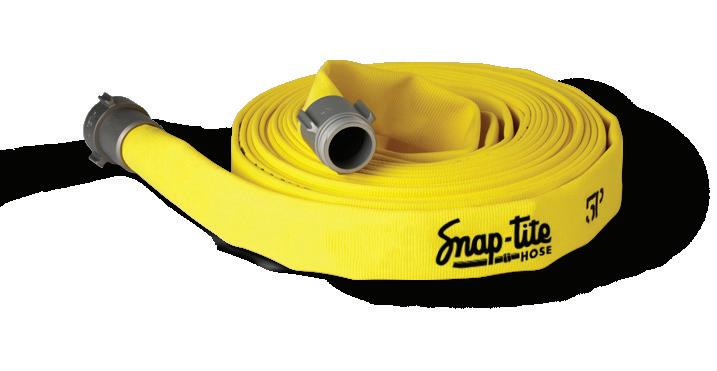

5P™

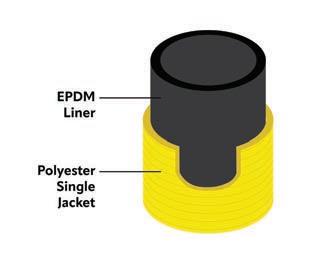

• Single jacket, polyester, EPDM rubber lined hose.
• Resistent to most petrochemicals.
• Available with aluminum or brass couplings.
• Applications: Industrial.
SIZES:
COLORS: 1-1/2”, 2”, 2-1/2”

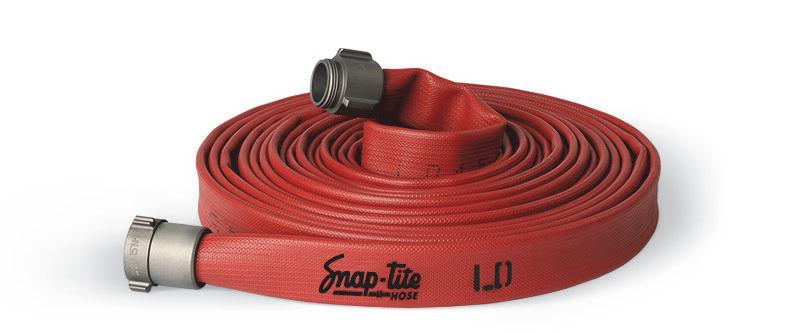

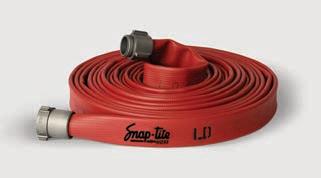

LD™
• Extruded thru-the-weave, nitrile rubber fire hose with reinforcement via circular woven, polyester, and nylon fibers.
• Highly resistant to both conductive and radiant heat.
• Lightweight and kink resistant at low pressures makes this hose superior for high rise firefighting.
• Application: Attack.
SIZES:
COLORS: 1”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 2-3/4”

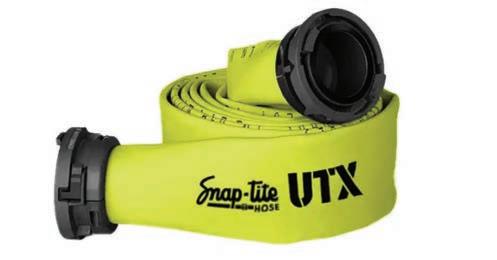

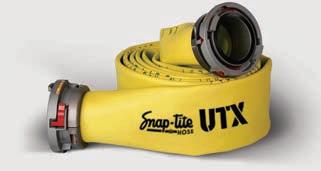

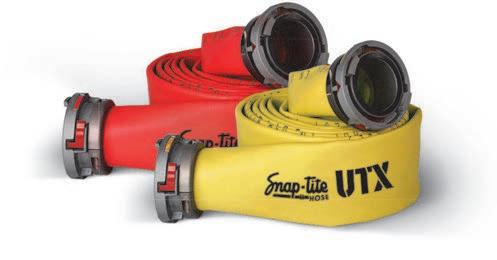

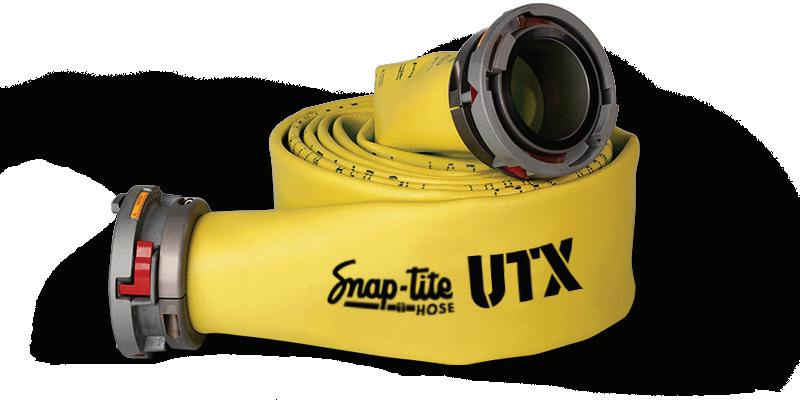

UTX™

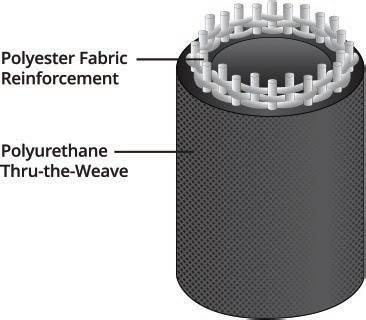

• Woven, polyester jacket construction with an extruded thru-the-weave polyurethane cover and liner.
• UTX™ is the most compact, flexible, and lightest LDH on the market.
• Resists ozone, oxidation, and most chemical/petroleum products.
• Ergonomically designed and constructed to be up to 30 lbs (per 100 ft) lighter than conventional LDH.
• Application: Supply.
SIZES: COLORS: 4”, 5”

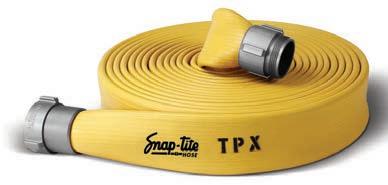

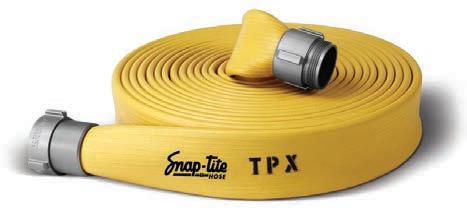

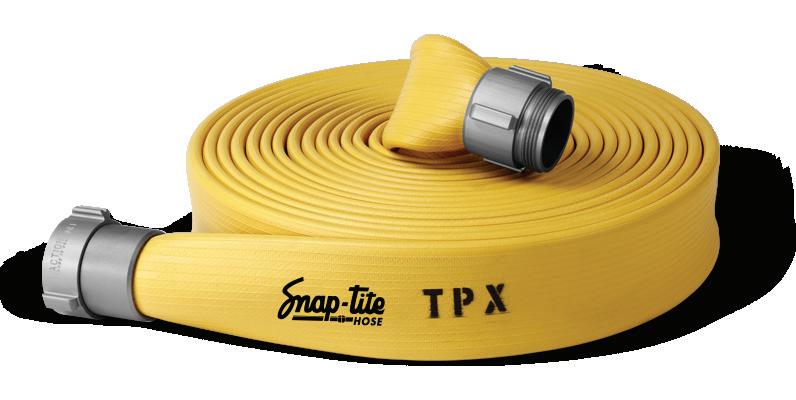

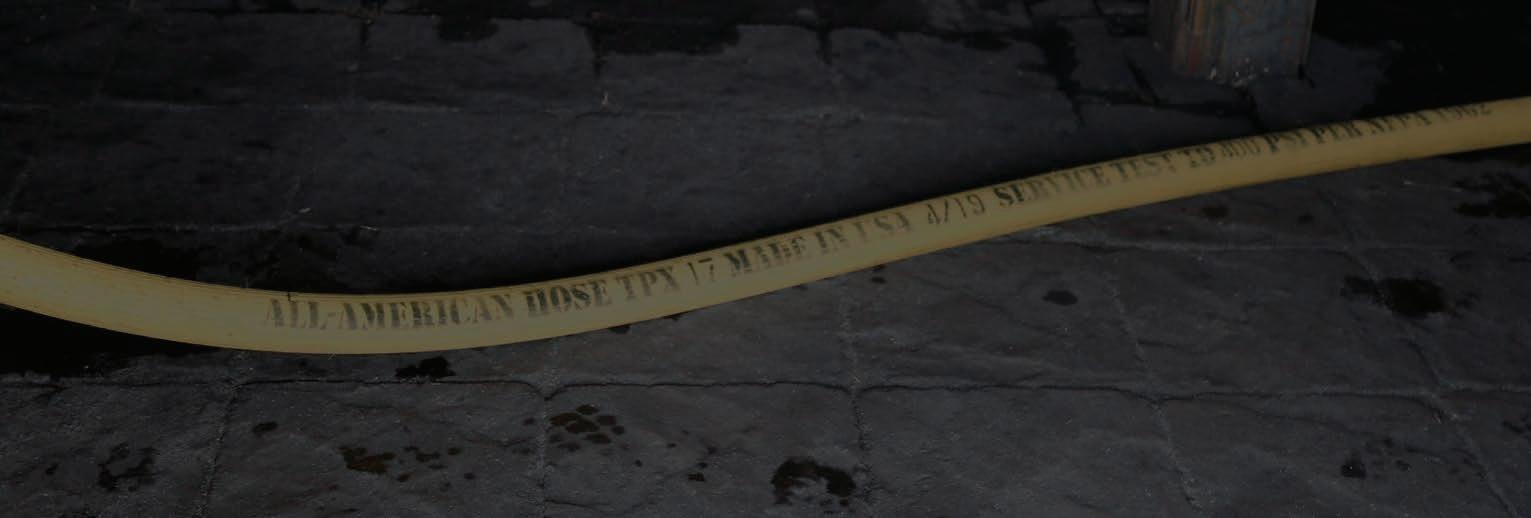

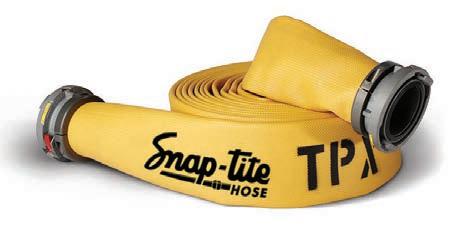

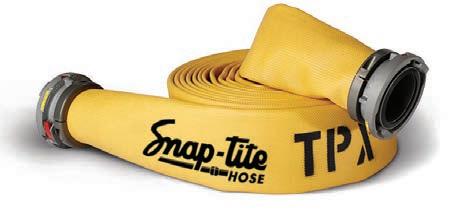

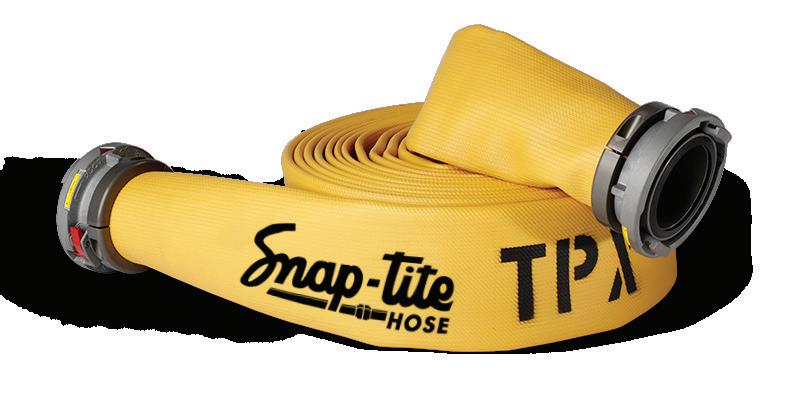

TPX™

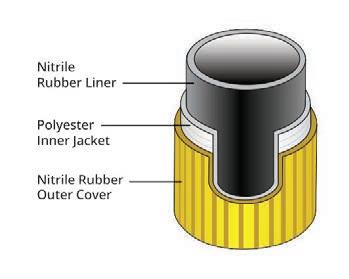

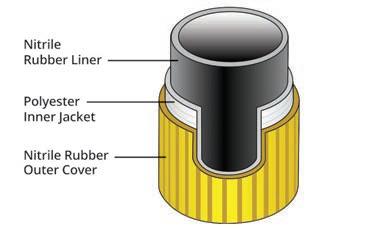

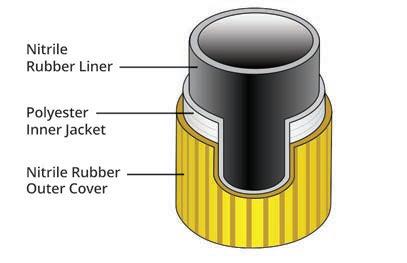

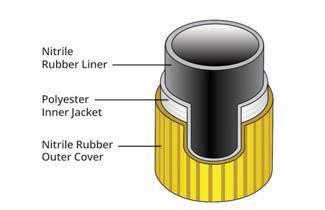

• 3-ply nitrile rubber cover/liner with polyester inner jacket.
• Unique 3-ply design affords incredible strength but with a lightweight profile, making it easy to manage on the fireground and virtually eliminating snaking.
• Lays flat, requiring less hose bed space than typical extruded hose.
• TPX™ Application: Attack.
• TPX™ LDH Application: Supply.
SIZES:
COLORS: 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”, 4”, 5”, 6”, 8”

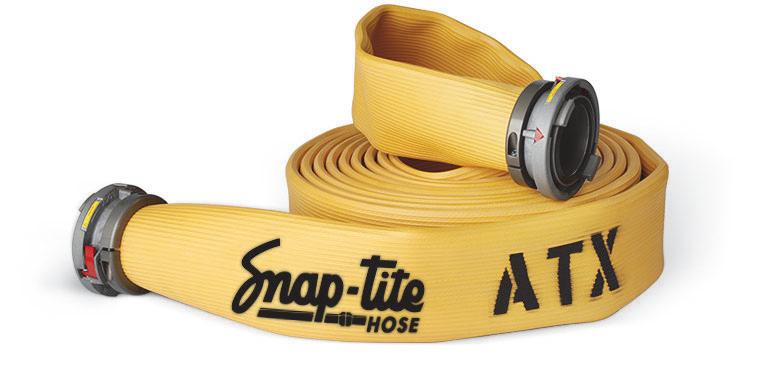

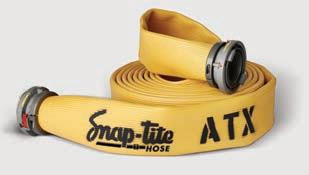

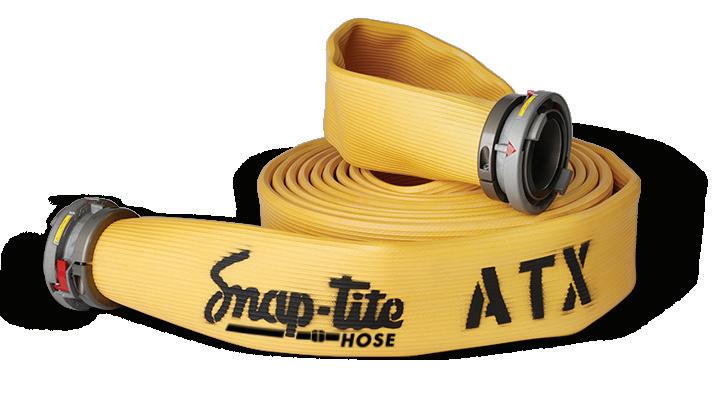

ATX™
• Heavy gauge 3-ply nitrile rubber cover/liner with polyester inner jacket.
• Smooth liner keeps friction loss to a minimum for greater flow.
SNAP-TITE ATX
• Engineered to meet the requirements of high pressure applications. Designed for relay pumping, pressurizing standpipes and sprinkler systems.
• Application: Attack, Supply.
SIZES:
COLORS: 4”, 5”, 6”

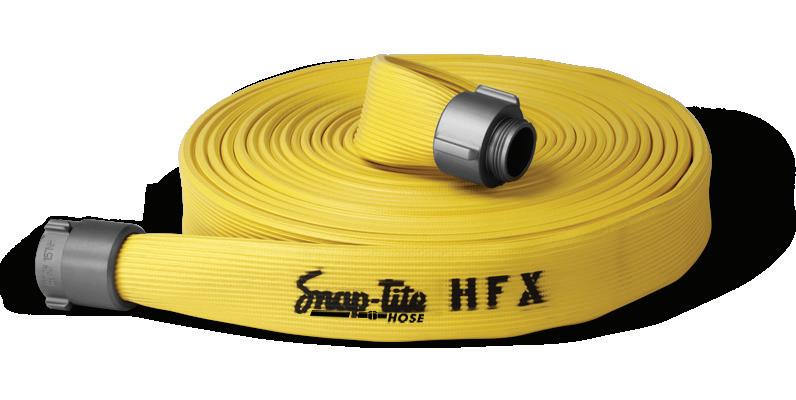

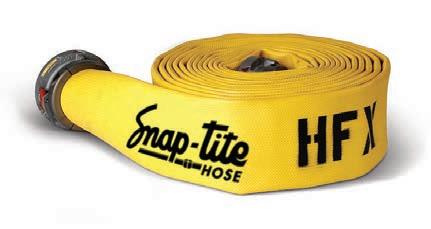

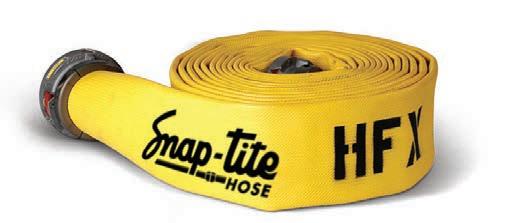

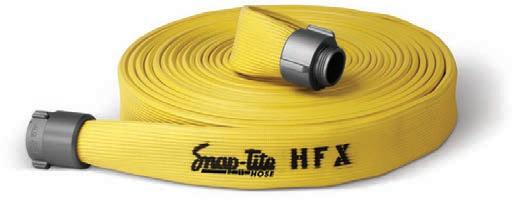

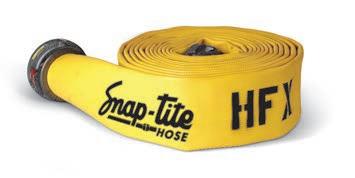

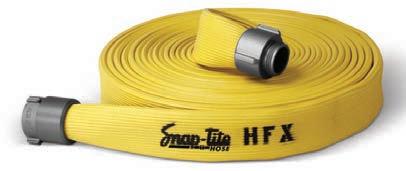

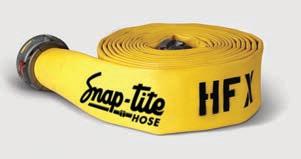

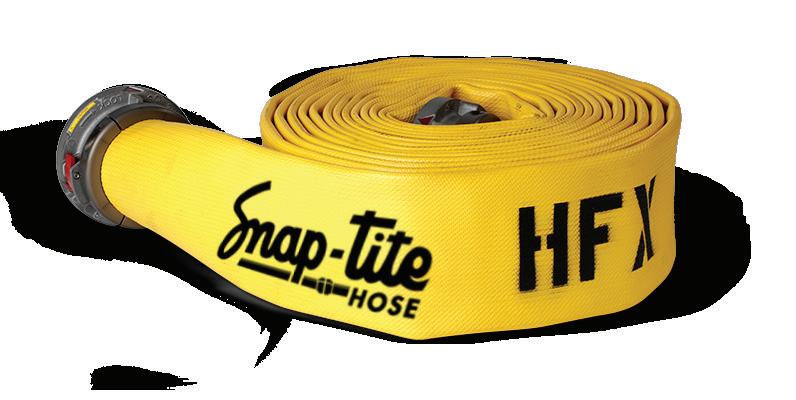

HFX™
• Extruded thru-the-weave, nitrile rubber construction with a polyester and nylon reinforcing jacket.
• Construction creates a concentric, flexible, and maneuverable hose that is also easy to pack.
• Ribs on the cover surface greatly increase abrasion resistance and help provide a long service life.
• HFX™ Application: Attack.
• HFX™ LDH Application: Supply.
SIZES:
COLORS: 1”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”, 4”, 5”, 6”

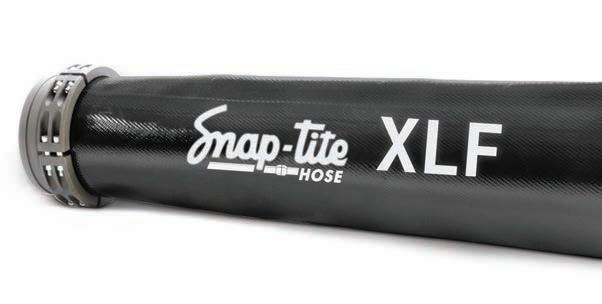

XLF™
• The XLF™ inner jacket is designed with 100% high tenacity polyester yarn and extruded thru-the-weave polyurethane.
• Designed pressure: 200 - 300 psi.
• Multi-purpose large diameter hose for oil/gas, water transfer, dewatering refineries for tank fire suppression, nuclear, agriculture, military, and water/sewer bypass during construction.
• The polyurethane lining materials meets NSF/ANSI Standard 61 for drinking water.
• Application: Agriculture, Industrial, Military
SIZES:
COLORS: 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”, 4”, 5”, 6”, 7-1/4”, 8”, 10”
*For UL/ULC information, visit our website.
NOTES:

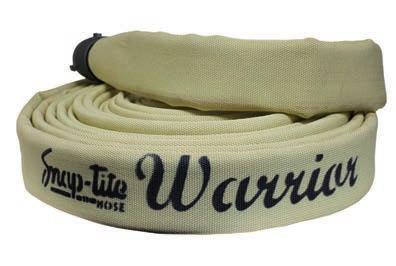

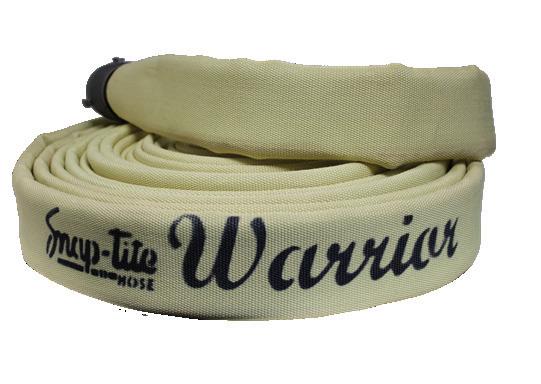

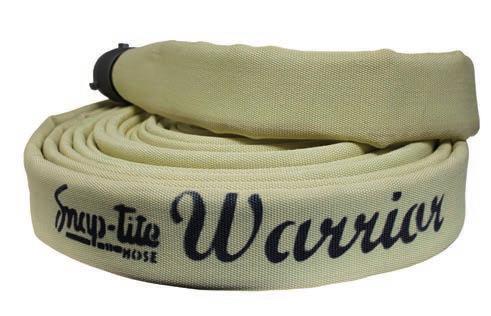

WARRIOR™ FW & FWN
PROPRIETARY DOUBLE JACKETED
HOSE
The Warrior™ hose is a revolutionary attack hose built to conquer the heat of modern res. Independent lab tests prove the Warrior™ can withstand extreme heat for extended periods. But it’s not just about survival; the Warrior™ delivers exceptional water ow, kink resistance, and handling –even under pressure. This translates to a hose that performs exceptionally well, even in the harshest environments. Equipping re ghters with the Warrior™, is helping to increase re ghter and civilian survivability in res. The Warrior™ sets a new standard for high-temperature attack hoses, proving itself to be in a class of its own.
Neither the para-aramid ber nor the inner lining of the Warrior hose contains PFAS (per-and-poly uoroalkyl substances).
FEATURES
•60 minutes of radiant testing at 30 kw/m² of heat ux without failure.
•More than three times the abrasion resistance of any current hose on the market.
• Excellent handling, kink resistance, and ow at the nozzle at pressures of 45 psi to 100 psi.
• Optional Dura-Cote™ treatment.
•Remains exible to temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals. (UL Tested to -4°F (-20°C)).
• Manufactured in accordance with NFPA 1960 standard, latest edition within our ISO-9001:2015 certi ed quality assurance system.
•An attack line designed with a 1.77” and 1.88” ID waterway.
WARRIOR™ FW & FWN
PROPRIETARY DOUBLE JACKETED HOSE
HOSE COLORS*
*Custom colors available upon request.
TECHNICAL DATA & INFORMATION
Model Warrior™ (FW & FWN)
Basic Construction Multiple jacketed attack hose with proprietary para-aramid outer jacket material and thru-the-weave nitrile rubber liner.
Application Attack, Low PSI, CAFS
Colors: Natural
TESTING PRESSURES
WARRIOR™ FW
PROPRIETARY DOUBLE JACKETED HOSE
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty, 3-year all hazard warranty.
*Uncoated, no stripe and red, no stripe - UL/ULC Certi ed.
*MIL Std 24606 used for water pickup weight.
*1-3/4” and 2-1/2” are UL/ULC Pending.
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
WARRIOR™ FWN
PROPRIETARY DOUBLE JACKETED HOSE
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty, 3-year all hazard warranty.
*Uncoated, no stripe and red, no stripe - UL/ULC Certi ed.
*MIL Std 24606 used for water pickup weight.
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045

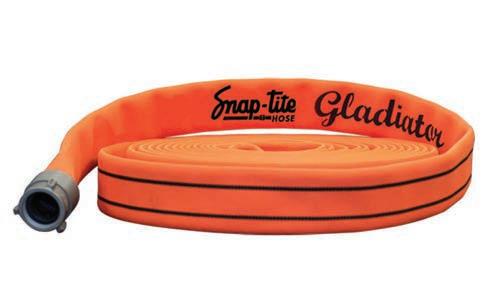

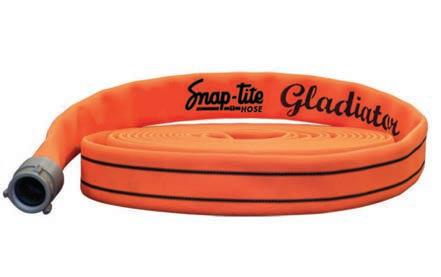

GLADIATOR™ FG
Gladiator™ is a premier hose with a polyester outside jacket that encompasses a very durable nitrile rubber thru-the-weave inside liner. Built to last, this rugged hose is constructed with incredible strength and long-lasting performance in mind. The Gladiator™ performs well at high or low pressures, has a smooth and enhanced waterway for better ows, and less kinking than other products on the market.
FEATURES

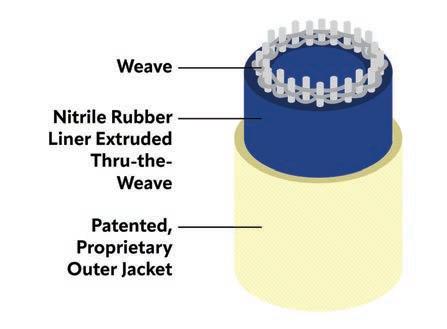

• Premium quality, outside jacket with a nitrile rubber thru-the-weave inner liner construction. NO ADHESIVE IS USED. The lining will never delaminate.
• Optional Dura-Cote™ treatment.
•Remains exible at temperatures as low as -40°F (-40°C) and highly resistant to ozone and oxidation, and most chemicals and petrochemicals.
• Kink resistance exceeds that of lightweight jacketed hose.
• Suitable for use with CAFS and foam solutions.
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certifed quality assurance system.
HOSE COLORS
WARRIOR
GLADIATOR™ FG
HOSE COLORS
STRIPE COLORS
TECHNICAL DATA & INFORMATION
Model Gladiator™
Basic Construction

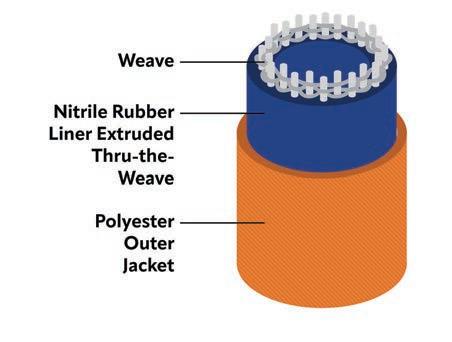

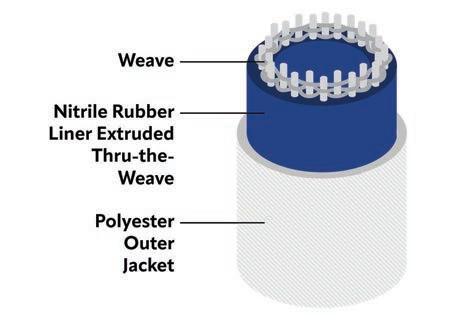

Polyester outer jacket, extruded thru-the-weave nitrile liner.
Application Attack, Low PSI, CAFS

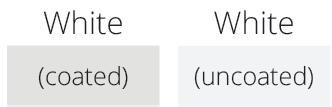

Colors: Yellow, Red, Blue, Orange, Green, White (coated), White (uncoated)
Stripe Colors: Yellow, Red, Blue, Black, Green
GLADIATOR™ FG
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
2”30 kw/m2Available upon RequestSteel block at 752°F Available upon Request2-1/2”30
/ 4S (Orange)
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty, 2-year all hazard warranty.
*MIL Std 24606 used for water pickup weight.
*1-3/4”, 2”, and 2-1/2” are UL/ULC Pending.
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045

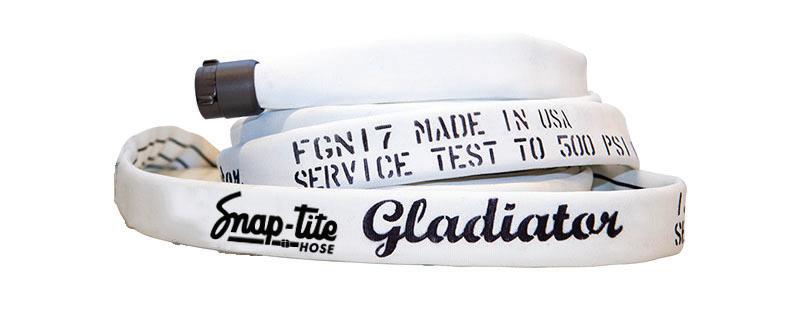

GLADIATOR™ FGN
JACKETED THRU-THE-WEAVE NITRILE RUBBER
Gladiator™ FGN is one of the leading attack lines in the industry. Built to last, this rugged hose is constructed with extruded thru-the-weave nitrile rubber liner with a durable outer polyester jacket, providing incredible strength and long-lasting performance. The Gladiator™ FGN performs well at high or low pressures and has a smooth 1.77” waterway for less kinking than other products on the market. Both the nitrile rubber thru-the-weave inner lining and outer jacket are proudly made at our factories in Pennsylvania, USA.
FEATURES
• The Service Test Pressure is 500 PSI, making it a very durable and reliable hose.
• Performance rated at -40° to 200°F (-40°C to 93°C).
• Standard Dura-Cote™ protective treatment available in NFPA colors.
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certifed quality assurance system.
WARRIOR
HOSE COLORS
GLADIATOR™ FGN
JACKETED THRU-THE-WEAVE NITRILE RUBBER
HOSE COLORS STRIPE COLORS
TECHNICAL DATA & INFORMATION
Model Gladiator™ FGN
Basic Construction
CONSTRUCTION
Polyester outer jacket, extruded thru-the-weave nitrile liner.
Application Attack, Low PSI, CAFS
Colors: Yellow, Red, Blue, Orange, Green, White (coated), White (uncoated)
t e -t e- e e t o t o e te te et TEMPERATURE RANGE -40ºF to 200ºF (-40ºC to 93ºC) COUPLINGS
Stripe Colors: Yellow, Red, Blue, Black, Green Temperature
CO LOR S e o Red e Orange
GreenTan te (coated)
GLADIATOR™ FGN
JACKETED THRU-THE-WEAVE NITRILE RUBBER
TECHNICAL DATA & INFORMATION
1-3/4”30 kw/m2
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
3 M / 15 S (Green Hose Stripe Side)
6 M / 32 S (Green Hose NonStripe Side)
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty, 2-year all hazard warranty.
*MIL Std 24606 used for water pickup weight.
*UL/ULC Pending.
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045

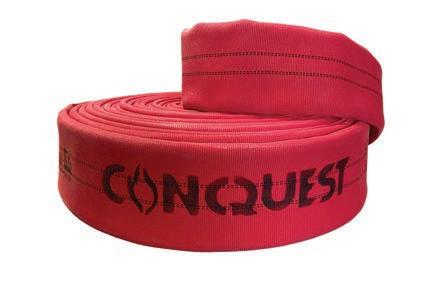

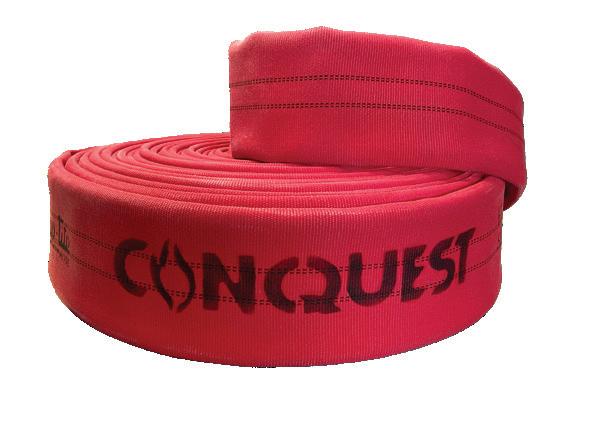

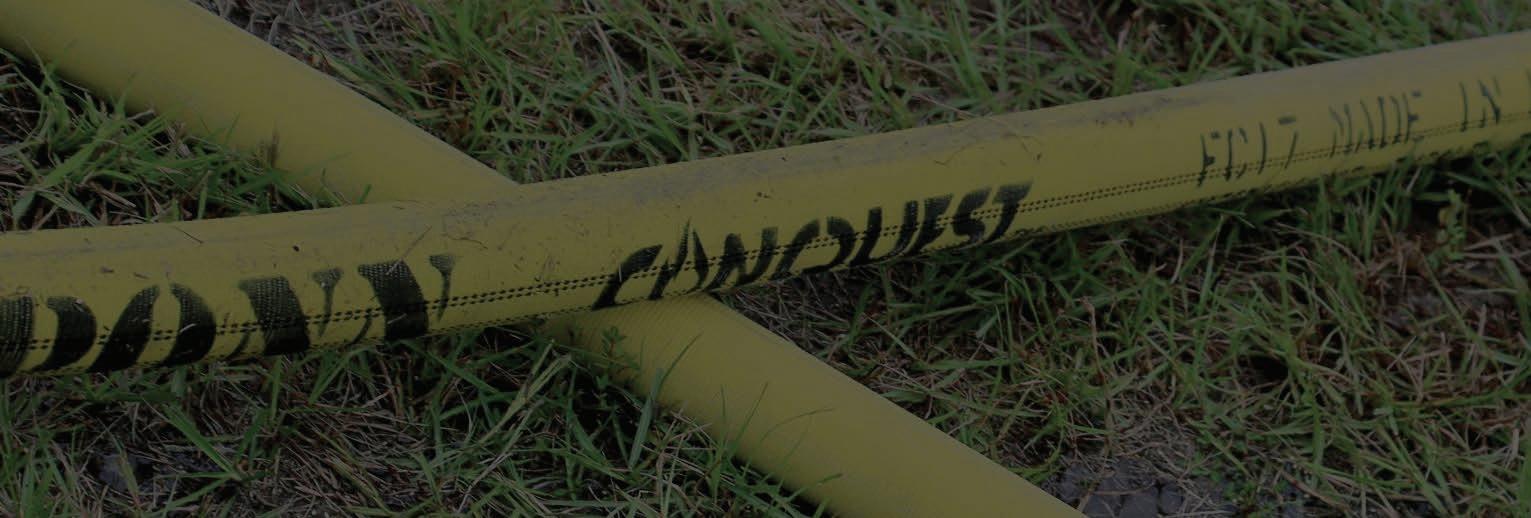

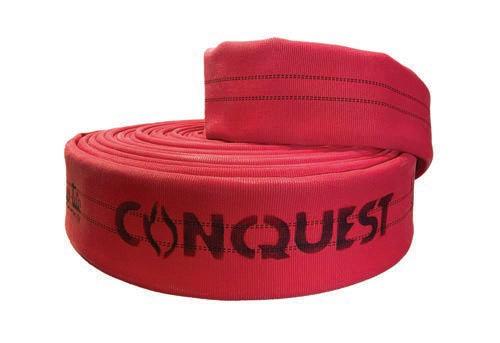

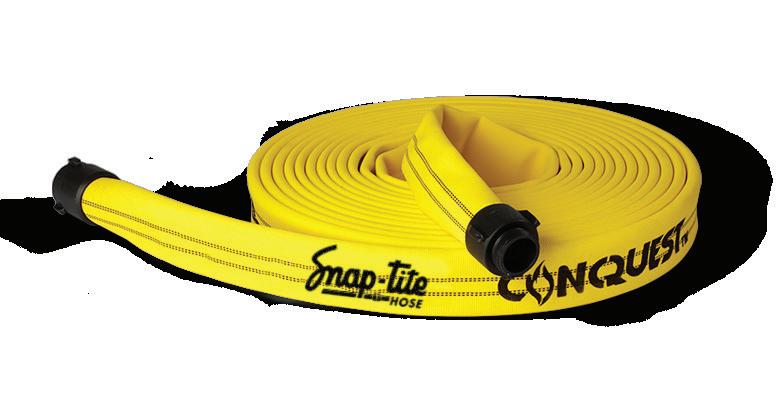

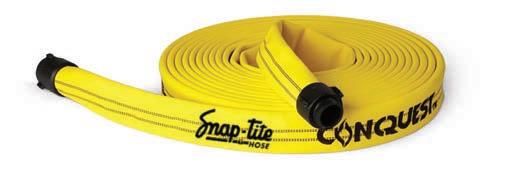

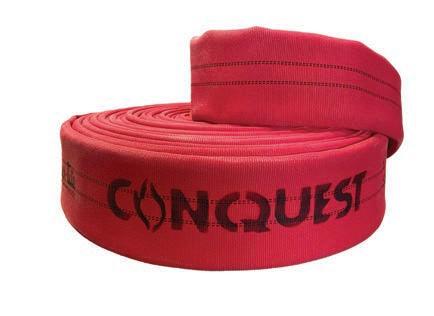

CONQUEST™
POLYESTER DOUBLE JACKETED ATTACK HOSE
Looking for a hose to ow a tremendous amount of water? You’ve found it with CONQUEST™! Today’s res are hotter and more water is needed at the nozzle to knock them down fast. Conquest™ meets that challenge every day. Our patented thru-the-weave extruded polyurethane liner has an incredibly smooth surface that enhances water ow.
FEATURES
•Patented double jacketed re hose made from 100% high tensile strength polyester outer jacket with extruded thru-the-weave polyurethane inner hose. NO ADHESIVE IS USED. The lining will never delaminate.
• Optional Dura-Cote™ treatment.
• Hose remains exible at temperatures as low as -40ºF (-40ºC) and meets all NFPA requirements for ozone resistance.
•Outstanding ow and low friction loss.
• Suitable for CAFS and foam concentrates.
• Optional color-coded stripe of one contrasting color can be woven into the outer jacket running the full length of the hose for identi cation purposes.
• Manufactured in accordance with NFPA 1960 standard, latest edition within our ISO-9001:2015 certi ed quality assurance system.
HOSE COLORS
CONQUEST™
POLYESTER DOUBLE JACKET ATTACK HOSE
HOSE COLORS
STRIPE COLORS
TECHNICAL DATA & INFORMATION
Model Conquest™
Basic Construction
Application

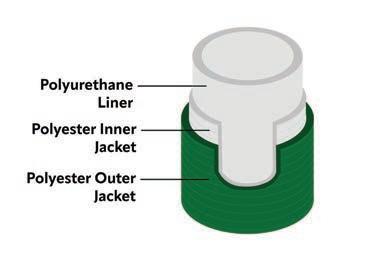

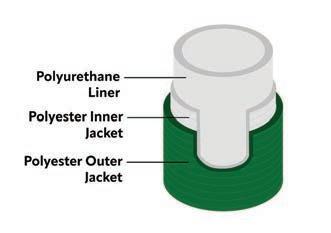

Polyester outer jacket, extruded thru-the-weave polyurethane liner.
Attack, CAFS, Potable Water
Colors: Yellow, Red, Blue, Orange, Green, White (coated), White (uncoated)
Striped Colors: Yellow, Red, Blue, Black, Green
CONQUEST™
POLYESTER DOUBLE JACKET ATTACK HOSE
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
CONQUEST™
POLYESTER DOUBLE JACKET ATTACK HOSE
TECHNICAL DATA & INFORMATION
1-3/4”30 kw/m2 1M / 21S (Red/ Yellow Stripe) 1M / 23S (Yellow/ Black Stripe)
2”30 kw/m2Available upon RequestSteel block at 752°F Available upon Request -
2-1/2”30 kw/m2 2M / 9S (Red / Yellow Stripe) 2M / 9S (Yellow /Black Stripe)
3”30 kw/m2Available upon RequestSteel block at 752°F Available upon Request -
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty, 2-year all hazard warranty.
*MIL Std 24606 used for water pickup weight.
*1-3/4” and 2-1/2” are UL/ULC Certi ed.
*Potable water approved: Yes
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
CONQUEST™ LDH
POLYESTER DOUBLE JACKETED SUPPLY HOSE
Looking for a hose to ow a tremendous amount of water? You’ve found it with CONQUEST™! Today’s res are hotter and more water is needed at the nozzle to knock them down fast. Conquest™ meets that challenge every day. Our patented thru-the-weave extruded polyurethane liner has an incredibly smooth surface that enhances water ow.
FEATURES
•Patented double jacketed re hose made from 100% high tensile strength polyester outer jacket with extruded thru-the-weave polyurethane inner hose. NO ADHESIVE IS USED. The lining will never delaminate.
• Optional Dura-Cote™ treatment.
•Outstanding ow and low friction loss.
• Hose remains exible at temperatures as low as -40ºF (-40ºC) and meets all NFPA requirements for ozone resistance.
• Suitable for CAFS and foam concentrates.
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certi ed quality assurance system.
CONQUEST™ LDH
POLYESTER DOUBLE JACKET SUPPLY HOSE
HOSE COLORS
TECHNICAL DATA & INFORMATION
Polyester outer jacket, extruded thru-the-weave polyurethane liner.
Application
Attack, Supply, CAFS, Potable Water
Colors: Yellow, Red, Blue, Orange, Green, White (coated), White (uncoated)
CONQUEST™ LDH
POLYESTER DOUBLE JACKET SUPPLY HOSE
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
*10-year warranty, 2-year all hazard warranty.
*MIL Std 24606 used for water pickup weight.
*Potable water approved: Yes
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045

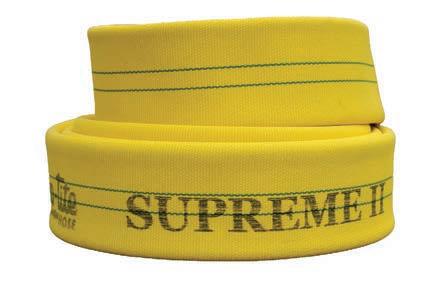

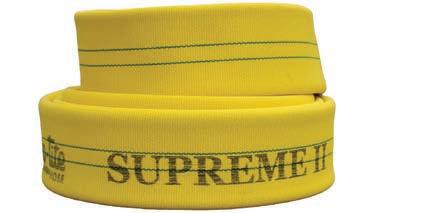

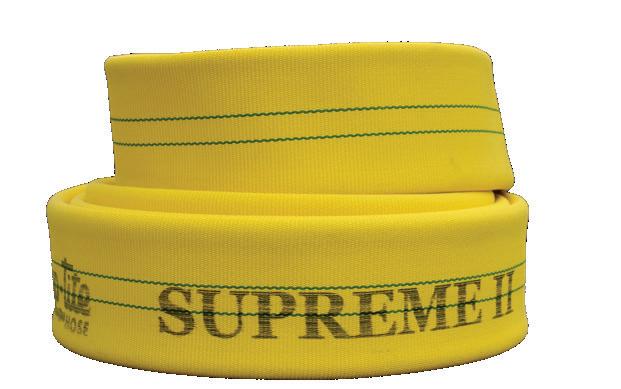

SUPREME™
Supreme™ ll is a premier double jacketed re hose and one of the best values on the market today. Originally designed over 40 years ago, Supreme™ has become the hose to which all others are compared. With hose sizes up to 3” and manufactured to exacting standards, Supreme™ ll features a polyester outer jacket that encompasses an onyx nitrile rubber thru-the-weave liner. Performing well with low pressure nozzles, Supreme™ ll has a smooth and enhanced waterway for better ow and less kinking.
FEATURES
•Premium quality outside jacket with an onyx nitrile rubber thru-the-weave liner construction. NO ADHESIVE IS USED. The lining will never delaminate.
• Optional Dura-Cote™ treatment.
• Remains exible at temperatures as low as -40°F (-40°C) and is resistant to ozone and oxidation.
• Optional color-coded stripe of one contrasting color can be woven into the outer jacket running the entire length of the hose for identi cation purposes.
• Kink resistance exceeds that of lightweight jacketed hose.
• Suitable for use with CAFS and foam solutions.
• Manufactured in accordance with NFPA 1960 Standard, the latest edition within our ISO-9001:2015 certi ed quality assurance system.
de o 00 te e t e to e te e e tt ed to t e e et ed e de ed e t t e d e o d t e e to t e de et t o t t e e o e d o de t e e t t t e ot de
SUPREME™
STRIPE COLORS
Model
TECHNICAL DATA & INFORMATION
Supreme™ ll
Basic Construction Polyester outer/inner jacket, extruded thru-the-weave onyx nitrile liner.
Application
Attack, Low PSI, CAFS
Colors: Yellow, Red, Blue, Orange, Green, White (coated), White (uncoated)
Stripe Colors: Yellow, Red, Blue, Black, Green
Temperature Range -40° F - 200° F
Testing
www.snaptitehose.com 814-438-7616
www.snaptitehose.com 814-438-7616
SUPREME™
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
1-1/2”30 kw/m2 2M / 38S (Red) 5 GPM5 GPMType 2
1-3/4”30 kw/m2 4M / 52S (Blue) 5 GPM5 GPMType 2
2”30 kw/m21M / 48S5 GPM5 GPMType 2
2-1/2”30 kw/m23M / 29S10 GPM10 GPMType 2
3”30 kw/m2Available Upon Request -
Steel block at 752°F 21.92S (Red) 5 GPM5 GPMType 2
Steel block at 752°F 38S (Blue) 5 GPM5 GPMType 2
Steel block at 752°F 34S5 GPM5 GPMType 2
Steel block at 752°F 1M / 8S7 GPM7 GPMType 2
Steel block at 752°F Available Upon Request-
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty, 2-year all hazard warranty.
*MIL Std 24606 used for water pickup weight.
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
8D™
POLYESTER DOUBLE JACKETED ATTACK HOSE
8D™ is a municipal grade double jacketed hose with a lightweight EPDM rubber liner that meets all the requirements of NFPA 1960. It is designed for use as an attack handline hose and is manufactured to a service test pressure of 400 psi (2758 kPa) to handle all reground challenges with ease.
FEATURES
•Double jacketed EPDM rubber lined hose made from 100% high tensile strength polyester yarn.
• Optional Dura-Cote™ protective treatment.
• Hose remains exible at temperatures as low as -40°F (-40°C) and is highly resistant to ozone and oxidation.
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certi ed quality assurance system.
POLYESTER DOUBLE JACKET ATTACK HOSE
FEATURES:
HOSE COLORS
CONSTRUCTION
TEMPERATURE RANGE -40ºF to 0ºF (-40ºC to ºC)
COUPLINGS
TECHNICAL DATA & INFORMATION
Model 8D™
Basic Construction Polyester outer/inner jacket, EPDM rubber liner.
Application Attack
Colors: Yellow, Red, Blue, Orange, Green, White (coated), White (uncoated)
Temperature Range -40° F - 150° F Testing Pressures:
COUPLINGS
8D™
POLYESTER DOUBLE JACKET ATTACK HOSE
TECHNICAL DATA & INFORMATION
upon Request Available upon Request
TECHNICAL DATA & INFORMATION
POLYESTER DOUBLE JACKET ATTACK HOSE
TECHNICAL DATA & INFORMATION
1”30 kw/m2Available upon Request -
1-1/2”30 kw/m2Available upon Request -
1-3/4”30 kw/m2Available upon RequestType 2
2”30 kw/m2Available upon Request -
2-1/2”30 kw/m2Available upon RequestType 2
3”30 kw/m2Available upon Request -
Steel block at 752°F
Steel block at 752°F
Steel block at 752°F
Steel block at 752°F
Steel block at 752°F
Steel block at 752°F
Available upon Request -
Available upon Request -
Available upon RequestType 2
Available upon Request -
Available upon RequestType 2
Available upon Request -
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty.
*MIL Std 24606 used for water pickup weight.
*1-3/4” and 2-1/2 are ULC Certi ed.
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
LIGHTWEIGHT POLYESTER DOUBLE JACKETED HOSE
This double jacketed municipal grade re hose incorporates a lightweight polyurethane liner that meets all the requirements of NFPA 1960. It is designed for use as an attack handline hose and can be used for potable water transfer in an emergency. This double jacketed re hose is manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001 certi ed quality assurance system. This hose is a great economical choice for departments of any size.
FEATURES
• Double jacketed municipal fire hose made from 100% high tensile strength ring-spun polyester yarn. A polyurethane liner reduces weight while remaining kink resistant.
• Optional Dura-Cote™ protective treatment available in NFPA colors.
• Hose remains flexible at temperatures as low as -40F (-40C) and is highly reistant to ozone and oxidation.
• Polyurethane lining material meets NSF/ANSI Standard 61 for drinking water.
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certified quality assurance system.
LIGHTWEIGHT POLYESTER DOUBLE JACKET HOSE
HOSE COLORS
TECHNICAL DATA & INFORMATION
Basic Construction Polyester outer/inner jacket, polyurethane liner. Application Attack
Colors: Yellow, Red, Blue, Orange, Green, White (coated), White (uncoated)
LIGHTWEIGHT POLYESTER DOUBLE JACKET HOSE
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
8T™ LIGHTWEIGHT POLYESTER DOUBLE JACKET HOSE
TECHNICAL DATA & INFORMATION
1-1/2”30 kw/m2Available upon Request -
1-3/4”30 kw/m22 M / 41 S>20 GPM--
2-1/2”30 kw/m2Available upon Request -
3”30 kw/m2Available upon Request -
Steel block at 752°F
Available upon Request -
Steel block at 752°F 33.18 Seconds >20 GPM - -
Steel block at 752°F Available upon Request -
Steel block at 752°F Available upon Request -
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty.
*MIL Std 24606 used for water pickup weight.
*Potable water approved: Yes
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045

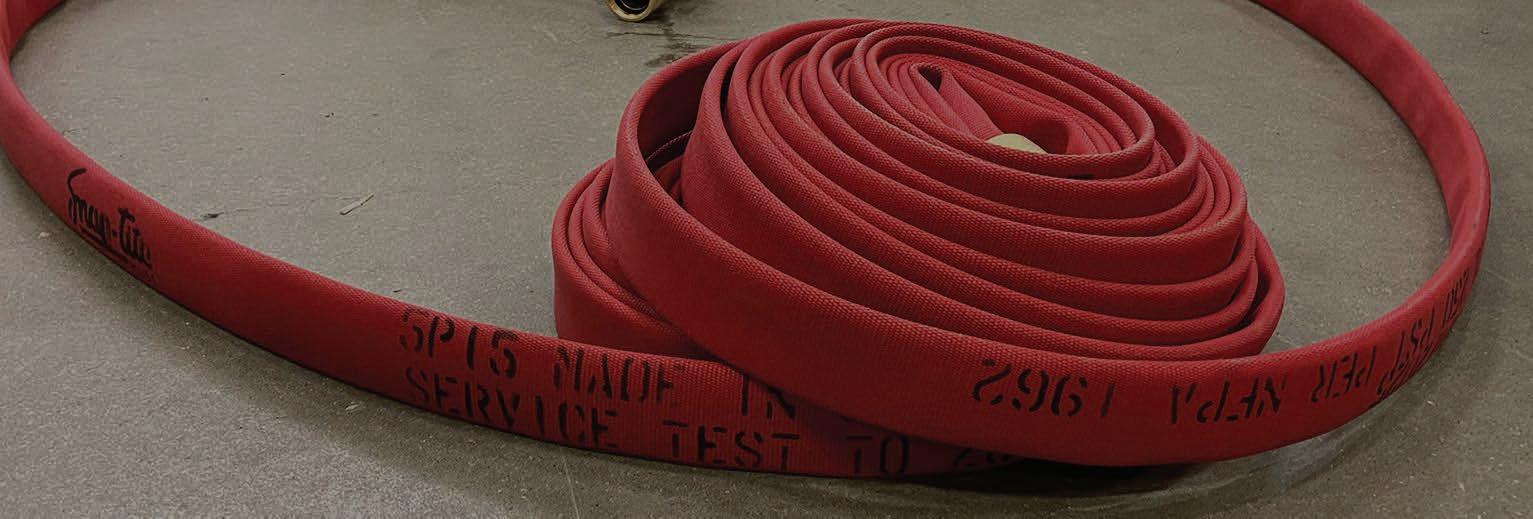

POLYESTER SINGLE JACKET EPDM RUBBER LINED HOSE
The super-duty 5P™ is an excellent all-around performer: Strong, exible, and ideally suited for all exterior and interior re ghting applications. It delivers medium pressure and high-end performance at a value price point. 5P™ is a polyester single jacket hose with a rugged Ethylene Propylene Diene Monomer (EPDM) rubber liner that can handle most uids, including some petrochemicals. It boasts a maximum operating pressure of 250 psi (1723 kPa) and can be enhanced with optional Dura-Cote™ treatment for a higher level of abrasion resistance.
FEATURES
•Single jacket, polyester, EPDM rubber lined hose.
• Optional Dura-Cote™ protective treatment.
•Hose remains exible at temperatures as low as -40°F (-40°C) and is resistant to ozone and oxidation.
•Available with aluminum or brass couplings.
•Designed for the following applications: General industrial and construction use; discharge hose; inplant re protection; wash down and maintenance.
• 1½” and 2½” sizes are UL, ULC, and FM certi ed.
POLYESTER SINGLE JACKET EPDM RUBBER LINED HOSE
TECHNICAL DATA &
POLYESTER SINGLE JACKET EPDM RUBBER LINED HOSE
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
2”30 kw/m2Available upon Request -
Available upon Request -
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*1-year warranty.
*MIL Std 24606 used for water pickup weight.
* 1-1/2” and 2-1/2” are UL/ULC/FM Certi ed
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
SNAP-TITE
LD™ is a premium quality extruded thru-the-weave, nitrile rubber re hose. It’s an easily coiled, nonkinking, high ow, lightweight hose that also resists abrasion, chemicals, and weathering by ozone.
FEATURES
• Extruded thru-the-weave, nitrile rubber re hose. The reinforcement has circular woven, twill weave, and nylon bers.
• Highly resistant to both conductive and radiant heat.
• Hose remains exible at temperatures as low as -40ºF (-40ºC) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
• Maintenance free, no drying required, and is easily cleaned.
SNAP-TITE LD
•Lightweight and kink resistant at low pressures makes this hose superior for high rise re ghting.
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certi ed quality assurance system.
LIGHTWEIGHT EXTRUDED RUBBER HOSE
e t t e e o e ed e o e t ed e o e
TITE LD
LIGHTWEIGHT
e t o d t e o e o e e t to t e t e
e o e e e o ed o -
FEATURES:
o t e t o e t t o e t o d e t e o o e
t ded t -t e- e e t e e e o e e
SNAP-TITE LD
SNAP-TITE LD
FEATURES:
LIGHTWEIGHT EXTRUDED RUBBER HOSE
• t ded t -t e- e e t e e e
e o e e t de t o e t e e o e
LIGHTWEIGHT
CONSTRUCTION
• e t t to ot o d t e
SNAP-TITE LD
•
e t t to ot o d t e d d t e t
o e e e e to te e t e o -40 º F (-40 º C ) d e t t to o o e o d t o d o t
e d et o e
te e ee o d e ed d e e ed
t ed o d e t F 9 t d d
te t ed t o t o -900 20 e t ed t e te
t e t t ded t e Co e e o Re o e e t
TEMPERATURE RANGE -40ºF to 200ºF (-40ºC to 93ºC)
COUPLINGS o o e ded t t t eo
COLORS
• te e ee o d e ed d e e ed
• t ed o d e t F 9 t d d te t ed t o t o -900 20 e t ed t e te WARRANTY 10 YEAR
e o Red e
CONSTRUCTION
COUPLINGS
FEATURES:
SNAP-TITE
t ded t -t e- e e t e e e o e e e o e e t de t o e t e e o e e t t to ot o d t e d d t
HOSE COLORS
CONSTRUCTION
TECHNICAL DATA & INFORMATION
Model LD™
CONSTRUCTION
Basic Construction
COLORS e o Red e
Nitrile rubber thru-the-weave with nylon reinforcing jacket.
Application Attack, High Rise
Colors: Yellow, Red, Blue
Temperature Range -40° F - 200° F
TEMPERATURE RANGE -40ºF to 200ºF (-40ºC to 93ºC)
COUPLINGS
TESTING PRESSURES
SNAP-TITE LD™
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
SNAP-TITE LD™
LIGHTWEIGHT EXTRUDED RUBBER HOSE
TECHNICAL DATA & INFORMATION
NOMINAL SIZE
1”30 kw/m2Available upon Request -
Steel block at 752°F
Available upon Request -
1-1/2”30 kw/m2Available upon RequestSteel block at 752°F Available upon Request -
1-3/4”30 kw/m2Available upon RequestSteel block at 752°F Available upon Request -
2”30 kw/m2Available upon Request -
2-1/2”30 kw/m2 1 M / 45 S (Red) >20 GPM-Type 3
Steel block at 752°F Available upon Request -
Steel block at 752°F 1 M / 50 S2 GPM-Type 3
2-3/4”30 kw/m2Available upon RequestSteel block at 752°F Available upon Request -
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty.
*MIL Std 24606 used for water pickup weight.
*2-1/2” is UL/ULC Certi ed
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
UTX™ LDH
PREMIUM HOSE. OUTSTANDING VALUE.
UTX™ LDH gives re departments that extra edge in ow and support - all in a high-visibility, lightweight supply line. A tough polyurethane outer cover combines with an exclusive thru-the-weave polyurethane liner to offer greater resistance to punctures and abrasion. But it doesn’t stop there. UTX™ is compact, taking up less room in the hose bed, and durable - with higher resistance to oils, chemicals, and ozone. Snag proof and kink resistant, UTX™ will not mildew or rot and is guaranteed for life to never delaminate.
FEATURES
• Typical rubber extruded re hose can vary in thickness, becoming bulky and heavy. UTX™ LDH incorporates a circular woven polyester jacket that is completely encapsulated by an extruded thru-the-weave polyurethane cover and liner that provides abrasion and puncture resistance while remaining light and service worthy.
• UTX™ weighs 20% less than conventional rubber supply hose.

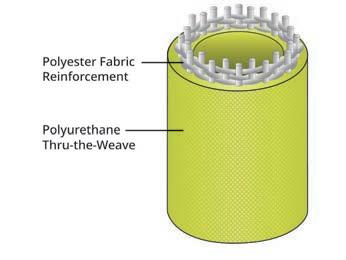

• Extruded thru-the-weave polyurethane construction and ultra-smooth liner minimize friction loss.
• Engineered to deliver more ow and more ef cient packability.
• Remains exible to -50°F (-46°C).
• Resists ozone, oxidation, and most chemical/petroleum products.
• Manufactured in accordance with NFPA 1960 Standard, latest edition.
• Made in USA to ISO 9001:2015 certi ed quality management system.
HOSE COLORS
UTX™ LDH
PREMIUM HOSE. OUTSTANDING VALUE.
HOSE COLORS
TECHNICAL DATA & INFORMATION
Model UTX™ LDH
Basic Construction Polyurethane thru-the-weave with polyester inner reinforcement. Application Supply
Colors: Red, Hi-Viz Green, Blaze Orange, Yellow
UTX™ LDH
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
*10-year warranty, 2-year all hazard warranty.
*MIL Std 24606 used for water pickup weight.
*Potable water approved: Yes
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
TPX™
UNIQUE 3-PLY CONSTRUCTION
Traditionally, manufactured extruded hose can vary in thickness, becoming bulky and heavy. TPX™ utilizes a 3-ply design where the ribbed cover and smooth nitrile liner are extruded independently. The cover is inserted inside the tight-weave reinforcement, vulcanized, and turned inside out. The liner is then inserted and the hose is vulcanized for a second time to form a bond of all three plies, guaranteeing a consistent, compact hose wall. The Snap-tite TPX™ is highly resistant to both conductive and radiant heat.
FEATURES
• 3-ply rubber municipal re hose with both the cover and liner made of heavy duty nitrile rubber, high tensile strength tightly woven polyester reinforcement for maximum durability and exibility.
• Smooth liner keeps friction loss to a minimum.
• Nitrile rubber cover greatly increases abrasion resistance, provides long service life and the tightly woven reinforcement resists puncture.
• Suitable for attack and soft sleeve suction applications.
• Remains exible at temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
• Tighter weave allows more resistance to puncture while also being easier to pack and store.
• Lays at and needs less hose bed space than typical extruded hose.
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certi ed quality assurance system.
COLORS
HOSE
TPX™ UNIQUE
3-PLY CONSTRUCTION
HOSE COLORS
TECHNICAL DATA & INFORMATION
TESTING PRESSURES
TPX™
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
TPX™
UNIQUE 3-PLY CONSTRUCTION
TECHNICAL DATA & INFORMATION
1-3/4”30 kw/m2Available upon RequestSteel block at 752°F
2”30 kw/m2Available upon RequestSteel block at 752°F
2-1/2”30 kw/m2Available upon RequestSteel block at 752°F
3”30 kw/m2Available upon RequestSteel block at 752°F
Available upon Request -
Available upon Request -
Available upon Request -
Available upon Request -
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during re ghting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of speci c eld performance. Several factors can in uence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty, 2-year all hazard warranty.
*MIL Std 24606 used for water pickup weight.
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
TPX™ LDH
UNIQUE 3-PLY CONSTRUCTION
Traditionally, manufactured extruded hose can vary in thickness, becoming bulky, and heavy. TPX™ utilizes a 3-ply design where the ribbed cover and smooth nitrile liner are extruded independently. The cover is inserted inside the tight-weave reinforcement, vulcanized, and turned inside out. The liner is then inserted and the hose is vulcanized for a second time to form a bond of all three plies, guaranteeing a consistent, compact hose wall. The Snap-tite TPX™ is highly resistant to both conductive and radiant heat.
FEATURES
• 3-ply rubber municipal re hose with both the cover and liner made of heavy duty nitrile rubber, high tensile strength tightly woven polyester reinforcement for maximum durability and exibility.
• Smooth liner keeps friction loss to a minimum.
• Nitrile rubber cover greatly increases abrasion resistance, provides long service life and the tightly woven reinforcement resists puncture.
• Suitable for supply and soft sleeve suction applications.
• Remains exible at temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
• Tighter weave allows more resistance to puncture while also being easier to pack and store.
• Lays at and needs less hose bed space than typical extruded hose.
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO 9001:2015 certi ed quality assurance system.
HOSE COLORS
TPX™ LDH
UNIQUE 3-PLY CONSTRUCTION
HOSE COLORS
TESTING PRESSURES
TPX™ LDH
UNIQUE 3-PLY CONSTRUCTION
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
*10-year warranty, 2-year all hazard warranty.
*MIL Std 24606 used for water pickup weight.
*8” has a 1-year warranty.
*4” and 5” are UL/ULC Certi ed
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
SNAP-TITE ATX™
HIGH PRESSURE NITRILE RUBBER ATTACK/SUPPLY HOSE
Manufactured in a similar process as TPX™, ATX™ utilizes a 3-ply design where the cover and liner are extruded independently and double vulcanized to guarantee a consistent, compact hose wall. The polyester reinforcement can then be woven tighter, making this hose more resistant to puncture while also being easier to pack and store. ATX™ has a stronger jacket which increases the service test pressure of the LDH sizes to 300 psi (2068 kpa).
FEATURES
• 3-ply rubber municipal re hose with both the cover and liner made of heavy duty nitrile rubber, high tensile strength tightly woven polyester reinforcement for maximum durability and exibility.
• Smooth liner keeps friction loss to a minimum for greater ow.
• Nitrile rubber cover greatly increases abrasion resistance, provides long service life, and the tightly woven reinforced jacket resists punctures.
• Remains exible at temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
•Engineered to meet the requirements of high pressure applications. Designed for relay pumping, pressurizing standpipes, and sprinkler systems.
• Manufactured in accordance with NFPA 1960 standard, latest edition within our ISO-9001:2015 certi ed quality assurance system.
HOSE COLORS WARRIOR
SNAP-TITE ATX™
HIGH PRESSURE NITRILE RUBBER ATTACK/SUPPLY HOSE
HOSE COLORS
TECHNICAL DATA & INFORMATION
Model ATX™
Basic Construction Heavy gauge 3-ply Nitrile rubber cover/liner with polyester inner jacket.
Application Attack, Supply
Colors*: Yellow, Red, Black
SNAP-TITE ATX™
HIGH PRESSURE NITRILE RUBBER ATTACK/SUPPLY HOSE
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
*10-year warranty, 2-year all hazard warranty for municipal hose only.
*MIL Std 24606 used for water pickup weight.
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
HFX™
EXTRUDED NITRILE RUBBER ATTACK HOSE
HFX™ is a nitrile thru-the-weave, rubber covered re hose that utilizes polyester and nylon 6.6 yarn in the reinforcing jacket. Under pressure, the polyester keeps the hose from snaking, while the nylon allows for controlled dilation, reducing friction loss, and generating higher ow rates. Our special rubber compound provides a tough cover that resists heat, abrasion, snags, and hot embers. The interlocking matrix also means no adhesives are used and there is a permanent bond to all the warp and weft yarns. The Snap-tite HFX™ is highly resistant to both conductive and radiant heat.
FEATURES
• Extruded thru-the-weave, nitrile rubber re hose. The reinforcement is made with a blend of circular woven, twill weave, polyester, and nylon bers.
• The ribs on the cover surface greatly increase abrasion resistance and help provide a long service life.
• Remains exible at temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
• Suitable for attack, soft sleeve suction, and relay applications.
• Unique extruded nitrile rubber thru-the-weave construction provides a exible, easy to maneuver hose that is easy to pack.
D D L H
F t e t -t e- e e e o e ed e o e t t t e
o e te d o t e e o et de e e
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certi ed quality assurance system.
F t e t -t e- e e e o e ed e o e t t t e o e te d o t e e o et de e e t e o e te ee t e o e o e e t e o o o o t o ed d t o ed t o o d e e t e o te e e o o d o de to o e t t e t e t o d ot e e e te o t o e o d e e e ed d t e e e e t o d to t e d e t e -t te F e t t to ot o d t e d d t e t
FEATURES:
t e o e te ee t e o e o e e t e o o o
o t o ed d t o ed t o o d e e t e o te e e o o d o de to o e t t e t e t o d ot e e e te o t o e o d e e e ed d t e e e e t o d to t e
• t ded t -t e- e e t e e e o e e e o e e t de t e d o o e t e e o e te d o e
D D L H
FEATURES:
F t e t -t e- e e e o e ed e o e t t o e te d o t e e o et de t e o e te ee t e o e o e e t e o o t o ed d t o ed t o o d e e t e o te e e o o d o de to o e t t e t o d ot e e e te o t o e d e e e ed d t e e e e t o d to t e e t e -t te F e t t to ot o d t e d d t e t
• t ded t -t e- e e t e e e o e e e o e e t de t e d o o e t e e o e te d o e
• e o t e o e e e t e e o e t e d e o de o e e e
• e o t e o e e e t e e o e t e d e o de o e e e
FEATURES:
• Re e e to te e t e o -40ºF (-40ºC) d e t t to o o e o d t o d o t e d et o e
e e t e o o t o ed d t o ed t o o d e e t e o te e e o o d o de to o e t t e t e t o d ot e e e te o t o e o d e e e ed d t e e e e t o d to t e d e t e -t te F e t t to ot o d t e d d t e t FEATURES: USA MADE
• e t t to ot o d t e d d t e t
•
• t e o attack o t ee e t o d e t o
• e e t ded t e e t -t e- e e o t t o
• Re e e to te e t e o -40ºF (-40ºC) d e t t to o o e o d t o d o t e d et o e
HOSE COLORS
TRUCTION
t ded t -t e- e e t e e e o e e e o e e t
e t t to ot o d t e d d t e t
t ded o e te
• t e o attack o t ee e t o d e t o
• e e t ded t e e t -t e- e e o t t o o de e e e to e e o e t t e to
t ded t e Co e e o e te o Re o e e t TEMPERATURE RANGE -4 0ºF to 200ºF (-40ºC to 93ºC)
t ed o d e t F 9 t d d te t ed t o
t o -900 20 e t ed t e te
COUPLINGS o e ded to
t to o o e o d t o d o t e d et o e
-4 0ºF to 200ºF COUPLINGS o e ded APPROVAL o t e
HFX™
D D L H
t e t -t e- e e e o e ed e o e t t t e
EXTRUDED NITRILE RUBBER ATTACK HOSE
te d o t e e o et de e e
e te ee t e o e o e e t e o o o
ed d t o ed t o o d e e t e o te
d ot e e e te o t o e
e e ed d t e e e e t o d to t e e -t te F e t t to ot o d
e t
t ded t -t e- e e t e e e o e e
o e e t de t e d o o e t
e e o e te d o e
HOSE COLORS
e o t e o e e e t e e o
t e d e o de o e e e
Re e e to te e t e o -40ºF (-40ºC) d
t t to o o e o d t o d o t e d et o e
e t t to ot o d t e d d t e t
Model HFX™
t e o attack o t ee e t o d e t o
e e t ded t e e t -t e- e e o t t o
Basic Construction
o de e e e to e e o e t t e to t ed o d e t F 9 t d d te t ed t o o -900 20 e t ed t e te
FEATURES: www snaptitehose com 814-438-7616
to 93ºC)
TECHNICAL DATA & INFORMATION
COUPLINGS o e ded to
Nitrile rubber thru-the-weave with polyester and nylon reinforcing jacket.
APPROVAL S o t e C ( C d ) ted
COLORS e o Red
Application Attack Colors: Yellow, Red Temperature Range -40° F - 200° F
Testing Pressures:
UPDATED 7/1/2024
HFX™
2-1/2”
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
HFX™
EXTRUDED NITRILE RUBBER ATTACK HOSE
TECHNICAL DATA & INFORMATION
1”30 kw/m2Available upon RequestSteel block at 752°F
1-1/2”30 kw/m2 1 M / 32 S (Red) 3 M / 9 S (Yellow)
1-3/4”30 kw/m2
Available upon Request -
1 M / 40 S (Red) 2
2”30 kw/m2Available upon RequestSteel block at 752°F Available upon Request -
2 M / 22 S (Red)
2-1/2”30 kw/m2
/ 21 S (Yellow)
3” 30 kw/m2Available upon RequestSteel block at 752°F Available upon Request -
*The results from the radiant heat test are based on controlled laboratory testing and do not represent actual conditions encountered during firefighting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of specific field performance. Several factors can influence hose performance relative to radiant heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*The results from the conductive heat test are based on controlled laboratory testing and do not represent actual conditions encountered during firefighting. These results are intended to be used as a baseline for hose comparison purposes only and are not indicative of specific field performance. Several factors can influence hose performance relative to conductive heat, please see Guidance for Lined Fire Hose and Hose Assemblies, UL 19G for further information on these results.
*10-year warranty.
*MIL Std 24606 used for water pickup weight.
*1-1/2”, 1-3/4”, and 2-1/2” are UL/ULC Certified 2" ULC only.
*Potable water approved: No
*Quality Management System Certification: ISO 9001:2015 Registration # 11-R1045
HFX™ LDH
EXTRUDED NITRILE RUBBER SUPPLY HOSE
HFX™ is a nitrile thru-the-weave, rubber covered re hose that utilizes polyester and nylon 6.6 yarn in the reinforcing jacket. Under pressure, the polyester keeps the hose from snaking, while the nylon allows for controlled dilation, reducing friction loss, and generating higher ow rates. Our special rubber compound provides a tough cover that resists heat, abrasion, snags, and hot embers. The interlocking matrix also means no adhesives are used and there is a permanent bond to all the warp and weft yarns. The Snap-tite HFX™ is highly resistant to both conductive and radiant heat.
FEATURES
• Extruded thru-the-weave, nitrile rubber re hose. The reinforcement is made with a blend of circular woven, twill weave, polyester and, nylon bers.
• The ribs on the cover surface greatly increase abrasion resistance and help provide a long service life.
• Remains exible at temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation and most chemicals and petrochemicals.
• Suitable for supply, soft sleeve suction, and relay applications.
• Extruded nitrile rubber thru-the-weave construction provides a exible, easy to maneuver hose that is easy to pack.
D D L H
t e t -t e- e e e o e ed e o e t t t e te d o t e e o et de e e o e te ee t e o e o e e t e o o o o ed d t o ed t o o d e e t e o te e e o o d o de to o e t t e t o d ot e e e te o t o e
F t e t -t e- e e e o e ed e o e t t t e o e te d o t e e o et de e e
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certi ed quality assurance system.
e e ed d t e e e e t o d to t e e -t te F e t t to ot o d
t e t
FEATURES:
t e o e te ee t e o e o e e t e o o t o ed d t o ed t o o d e e t e o te e e o o d o de to o e t t e t o d ot e e e te o t o e
t ded t -t e- e e e o e e t de t e d o o e t
e e o e te d o e
d e e e ed d t e e e e t o d to t e
e t e -t te F e t t to ot o d
FEATURES:
F t e t -t e- e e e
e o t e o e e e t e e o
e t e d e o de o e e e
Re e e to te e t e o -40ºF (-40ºC) d e t t to o o e o d t o d o t e d
et o e
TRUCTION
t ded t e Co e e o e te o Re o e e t
e ed e o e t t t e o e te d o t e e o et de e e t e o e te ee t e o e o e e t e o o o o t o ed d t o ed t o o d e e t e o te e e o o d o de to o e t t e t e t o d ot e e e te o t o e o d e e e ed d t e e e e t o d to t e d e t e -t te F e t t to ot o d t e d d t e t FEATURES:
TEMPERATURE RANGE
-4 0ºF to 200ºF (-40ºC to 93ºC)
e t t to ot o d t e d d t e t
t e o attack o t ee e t o d e t o
t ded t -t e- e e t e e e o e e e o e e t de t e d o o e t e e o e te d o e
COUPLINGS
o e ded to
HFX™ LDH
D D L H
t e t -t e- e e e o e ed e o e t t t e
EXTRUDED NITRILE RUBBER SUPPLY HOSE
te d o t e e o et de e e
o e te ee t e o e o e e t e o o o o ed d t o ed t o o d e e t e o te
e e o o d o de to o e t t e t e t
o d ot e e e te o t o e o
e e ed d t e e e e t o d to t e d e -t te F e t t to ot o d t e d
t e t
FEATURES:
t ded t -t e- e e t e e e o e e
e o e e t de t e d o o e t
e e o e te d o e
HOSE COLORS
e o t e o e e e t e e o
e t e d e o de o e e e
Re e e to te e t e o -40ºF (-40ºC) d
e t t to o o e o d t o d o t e d
et o e
e t t to ot o d t e d d t e t
TRUCTION t ded t e Co e e o e te o Re o e e t
TEMPERATURE RANGE -4 0ºF to 200ºF (-40ºC to 93ºC)
TECHNICAL DATA & INFORMATION
Model HFX™ LDH
t e o attack o t ee e t o d e t o
e e t ded t e e t -t e- e e o t t o
Basic Construction
o de e e e to e e o e t t e to t ed o d e t F 9 t d d te t ed t o
Application
t o -900 20 e t ed t e te
COUPLINGS o e ded to APPROVAL S o t e C ( C d ) ted
Nitrile rubber thru-the-weave with polyester and nylon reinforcing jacket.
Supply
Colors: Yellow, Red
COLORS e o Red
Temperature Range -40° F - 200° F
TESTING PRESSURES
www.snaptitehose.com 814-438-7616
UPDATED 7/1/2024
HFX™ LDH
EXTRUDED NITRILE RUBBER SUPPLY HOSE
TECHNICAL DATA & INFORMATION
TECHNICAL DATA & INFORMATION
*10-year warranty.
*MIL Std 24606 used for water pickup weight.
*4” and 5” are UL/ULC Certi ed
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
QUICK HOSE GUIDE MUNICIPAL
POLYESTER DOUBLE JACKET ATTACK HOSE
AMERICAN MADE
ISO 9001: 2015 CERTIFIED QUALITY MANAGEMENT SYSTEM ICON GUIDE:
1-YEAR WARRANTY
2-YEAR ALL HAZARD WARRANTY
3-YEAR ALL HAZARD WARRANTY
10-YEAR WARRANTY
LIFETIME WARRANTY AGAINST DELAMINATION
KLEAN HOSE
ATTACK HOSE
SUPPLY LINE HOSE
COUPLINGS
SOFT SUCTION HOSE
POTABLE WATER HOSE
HIGH-RISE HOSE
COLORS Red Orange GreenTan (coated)
WARRIOR™ FW & FWN
• Proprietary para aramid outer jacket material with a thru-the-weave nitrile rubber liner construction.
• Recommended flow pressure: 50 - 100 psi.
• 60 minutes of radiant testing at 30 kw/m² of heat flux without failure.
• More than three times the abrasion resistance of any current hose on the market.
• An attack line designed with a 1.77” (FWN) or 1.88” (FW) ID waterway.
• Officially UL certified.
• UL-19 heat resistance type: Type 1
• Application: Attack, Low PSI, CAFS.
SIZES: COLORS: 1-3/4”, 2-1/2”
GLADIATOR™ FG & FGN
• Premium quality, outside jacket with a nitrile rubber thru-the-weave inner liner construction.
• Recommended flow pressure: 50 - 100 psi.
• Suitable for CAFS and foam concentrates.
• FGN - Designed for a 7/8” Smooth Tip, to be flowed at 160 GPM flow rate.
• An attack line designed with a 1.77” (FGN) or 1.88” (FG) ID waterway.
• UL-19 heat resistance type: Type 2 (FG 1-3/4”, 2-1/2”)
• Application: Attack, Low PSI, CAFS.
1-3/4”, 2”, 2-1/2”
CONQUEST™
• Patented double jacketed fire hose made from 100% high tensile strength polyester outer jacket with extruded thru-the-weave polyurethane inner hose.
• Recommended flow pressure: 75 - 100 psi.
• Outstanding flow and low friction loss.
• Suitable for CAFS and foam concentrates.
• The polyurethane lining materials meets NSF/ANSI Standard 61 for drinking water.
• UL-19 heat resistance type: Type 2 (1-3/4”, 2-1/2”)
• Application: Attack, High Rise, CAFS, Potable Water.
SIZES:
COLORS: 1-3/4”, 2”, 2-1/2”, 3”
CONQUEST™ LDH
• Patented double jacketed fire hose made from 100% high tensile strength polyester outer jacket with extruded thru-the-weave polyurethane inner hose.
• Outstanding flow and low friction loss.
• Suitable for CAFS and foam concentrates.
• The polyurethane lining materials meets NSF/ANSI Standard 61 for drinking water.
• Application: Attack, Supply, CAFS, Potable Water.
SIZES:
COLORS: 4”, 5”,6”
SUPREME™ ll
• Premium polyester double jacketed fire hose with an onyx nitrile rubber thru-the-weave liner.
• Recommended flow pressure: 50 - 100 psi.
• Features a smooth and enhanced waterway for better flow and less kinking.
• Suitable for CAFS and foam concentrates.
• UL-19 heat resistance type: Type 2
• Application: Attack, CAFS.
SIZES:
COLORS: 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”
8D™
• Double jacketed EPDM rubber lined hose made from 100% high tensile strength polyester yarn.
• Recommended flow pressure: 100 psi.
• Highly resistant to ozone and oxidation.
• UL-19 heat resistance type: Type 2 (1-3/4”, 2-1/2”)
• Application: Attack.
SIZES:
COLORS: 1”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”
8T™
*For UL/ULC information, visit our website.
• Double jacketed, polyester, polyurethane lined hose.
• Recommended flow pressure: 100 psi.
• Highly resistant to ozone and oxidation.
SNAP-TITE ATX
• UL-19 heat resistance type: Pending
• Application: Attack.
SIZES: COLORS: 1-1/2”, 1-3/4”, 2-1/2”, 3”
5P™
• The polyurethane lining materials meets NSF/ANSI Standard 61 for drinking water.
• Single jacket, polyester, EPDM rubber lined hose.
• Resistent to most petrochemicals.
• Available with aluminum or brass couplings.
• UL-19 heat resistance type: Type 3 (1-1/2”, 2-1/2”)
• Applications: Industrial.
SIZES:
COLORS: 1-1/2”, 2”, 2-1/2”
LD™
• Highly resistant to both conductive and radiant heat.
• Extruded thru-the-weave, nitrile rubber fire hose with reinforcement via circular woven, polyester, and nylon fibers.
• Lightweight and kink resistant at low pressures makes this hose superior for high rise firefighting.
• UL-19 heat resistance type: Type 3 (2-1/2”)
• Application: Attack, High Rise.
SIZES:
COLORS: 1”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 2-3/4”
UTX™
PRODUCT OFFERINGS
• Woven, polyester jacket construction with an extruded thru-the-weave polyurethane cover and liner.
• UTX™ is the most compact, flexible, and lightest LDH on the market.
• Resists ozone, oxidation, and most chemical/petroleum products.
• Ergonomically designed and constructed to be up to 30 lbs (per 100 ft) lighter than conventional LDH.
• Application: Supply.
SIZES:
COLORS: 4”, 5”
*For UL/ULC information, visit our website.
TPX™
• 3-ply nitrile rubber cover/liner with polyester inner jacket.
• Unique 3-ply design affords incredible strength but with a lightweight profile, making it easy to manage on the fireground and virtually eliminating snaking.
• Lays flat, requiring less hose bed space than typical extruded hose.
• TPX™: UL-19 heat resistance type: Pending
• TPX™ Application: Attack.
• TPX™ LDH Application: Supply.
SIZES: COLORS: 1-3/4”, 2”, 2-1/2”, 3”, 4”, 5”, 6”, 8”
ATX™
• Heavy gauge 3-ply nitrile rubber cover/liner with polyester inner jacket.
• Smooth liner keeps friction loss to a minimum for greater flow.
• Engineered to meet the requirements of high pressure applications. Designed for relay pumping, pressurizing standpipes and sprinkler systems.
• Application: Attack, Supply.
SIZES: COLORS: 4”, 5”, 6”
HFX™
PRODUCT OFFERINGS
• Extruded thru-the-weave, nitrile rubber construction with a polyester and nylon reinforcing jacket.
• Construction creates a concentric, flexible, and maneuverable hose that is also easy to pack.
• Ribs on the cover surface greatly increase abrasion resistance and help provide a long service life.
• HFX™: UL-19 Type 2 heat resistance (1-3/4”), Type 3 heat resistance (1-1/2”, 2-1/2”).
• HFX™ Application: Attack.
• HFX™ LDH Application: Supply.
SIZES:
COLORS: 1”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”, 4”, 5”, 6”
*For UL/ULC information, visit our website.
NOTES:
POLYESTER DOUBLE JACKETED ATTACK HOSE
Snap-tite’s 8D™ is a premium quality, industrial grade, double jacketed hose with a lightweight EPDM (Ethylene Propylene Diene Monomer) rubber liner and a maximum operating pressure of 400 psi (2758 kPa). The outside jacket utilizes a tight weave that is less likely to “catch” while dragging through the work site and helps to reduce kinking at low pressures, keeping the ow constant. The EPDM liner is inert to most chemicals, is inherently ozone resistant, and won’t degrade or crack. 8D™ also has a wide temperature range; capable of being used both at a mine in Alaska or a construction site in Arizona.
FEATURES
•Double jacketed EPDM rubber lined hose made from 100% high tensile strength polyester yarn.
• Optional Dura-Cote™ treatment greatly increases abrasion, heat, ame and petrochemical resistance while virtually eliminating water pick-up. When treated, 8D™ is protected from mildew and no drying is required.
• Hose remains exible to temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals or petroleum products.
• Excellent for tough applications such as construction sites, mines and industrial re ghting.
• Available with aluminum or brass couplings.
• Made in USA to ISO-9001:2015 certi ed quality assurance system.
POLYESTER DOUBLE JACKET ATTACK HOSE
FEATURES:
TECHNICAL DATA
TECHNICAL DATA & INFORMATION
*1-year warranty.
*1-3/4” and 2-1/2 are ULC Certi ed.
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
LIGHTWEIGHT POLYESTER DOUBLE JACKETED HOSE
Snap-tite’s 8T™ is a premium quality, industrial grade, double jacketed hose with a lightweight polyurethane liner and a maximum operating pressure of 400 psi (2758 kPa). The outside jacket utilizes a tight weave that is less likely to “catch” while dragging through the work site and helps to reduce kinking at low pressures, keeping the ow constant. The polyurethane liner material meets NSF Standard 61 for potable water use and can be used as a hydrant or water main bypass in an emergency.
FEATURES
• Double jacketed, polyurethane-lined hose made from 100% high tensile strength polyester yarn.
• Optional Dura-Cote™ treatment greatly increases abrasion, heat, ame and petrochemical resistance while virtually eliminating water pick-up. When treated, 8T™ is protected from mildew and no drying is required.
• Hose remains exible to temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation and most chemicals or petroleum products.
• Excellent for tough applications such as construction sites, mines and industrial re ghting.
• Available with aluminum or brass couplings.
• Made in USA to ISO-9001:2015 certi ed quality assurance system.
LIGHTWEIGHT POLYESTER DOUBLE JACKET HOSE
HOSE COLORS
TECHNICAL DATA & INFORMATION
Model 8T™
Basic Construction
Polyester outer/inner jacket, polyurethane liner.
Application Attack, Potable Water
Colors: Yellow, Red, Blue, Orange, Green, White (coated), White (uncoated)
F
TECHNICAL DATA & INFORMATION
*1-year warranty.
*Potable water approved: Yes
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
POLYESTER SINGLE JACKET
EPDM RUBBER LINED HOSE
Snap-tite’s 5P™ is a medium pressure hose that is tough enough to meet most application requirements, while remaining economical for your budget. 5P™ is a polyester, single jacket style hose with an EPDM (Ethylene Propylene Diene Monomer) rubber liner that can handle most uids, including some chemicals and petroleum-based products. It has a maximum operating pressure of 250 psi (1723 kPa) and can be treated with our optional Dura-Cote™ treatment for a higher level of abrasion resistance while preventing water-pickup.
FEATURES
•Single jacket, polyester, EPDM rubber lined hose.
• Optional Dura-Cote™ protective treatment.
•Hose remains exible at temperatures as low as -40°F (-40°C) and is resistant to ozone and oxidation.
•Available with aluminum or brass couplings.
•Designed for the following applications: General industrial and construction use; discharge hose in plant re protection; wash down and maintenance.
• Made in USA to ISO-9001:2015 certi ed quality assurance system.
• 1½” and 2½” sizes are UL, ULC, and FM certi ed.
POLYESTER SINGLE JACKET EPDM RUBBER LINED HOSE
TECHNICAL DATA & INFORMATION
Basic Construction Polyester single jacket, EPDM rubber liner.
Application Industrial Colors:
Red, White (uncoated)
TECHNICAL DATA & INFORMATION
*1-year warranty.
* 1-1/2” and 2-1/2” are UL/ULC/FM Certi ed
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
SNAP-TITE LD™
LIGHTWEIGHT EXTRUDED RUBBER HOSE
LD™ is a premium quality extruded thru-the-weave, nitrile rubber hose. It’s easily coiled, nonkinking, high ow, lightweight hose that also resists abrasion, chemicals, and weathering by ozone.
FEATURES
• Extruded thru-the-weave, nitrile rubber re hose. The reinforcement has circular woven, twill weave, and nylon bers.
• Highly resistant to both conductive and radiant heat.
• Hose remains exible at temperatures as low as -40ºF (-40ºC) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
• Designed for the following applications: General industrial and construction use; discharge hose in plant re protection; wash down and maintenance.
• Maintenance free, no drying required, and is easily cleaned.
• Made in USA to ISO-9001:2015 certi ed quality assurance system.
LIGHTWEIGHT EXTRUDED RUBBER HOSE
e t t e e o e ed e o e
t ed e o e
e t o d t e o e o e e t to t e t e
e o e e e o ed oo t e t o e t t o e t o d e t e o o e
FEATURES:
SNAP-TITE LD
LIGHTWEIGHT
t ded t -t e- e e t e e e o e e
SNAP-TITE LD
e o e e t de t o e t e e o e
LIGHTWEIGHT
e t t to ot o d t e d d t e t
o e e e e to te e t e o -40 º F
CONSTRUCTION t e t t ded t e Co e e o Re o e e t
(-40 º C ) d e t t to o o e o d t o d o t
e d et o e
te e ee o d e ed d e
e ed
TEMPERATURE RANGE -40ºF to 200ºF (-40ºC to 93ºC)
te t ed t o t o -900 20 e t ed t e te 2 0 172
t ed o d e t F 9 t d d
COUPLINGS o o e ded t t t eo COLORS e o Red e
o e o d t o d o t e d et o e
• te e ee o d e ed d e e ed
• t ed o d e t F 9 t d d te t ed t o t o -900 20 e t ed t e te
FEATURES:
SNAP-TITE LD™
TECHNICAL DATA & INFORMATION
Model LD™
CONSTRUCTION
Basic Construction Nitrile rubber thru-the-weave with nylon reinforcing jacket.
to 200ºF (-40ºC to 93ºC)
COUPLINGS
TECHNICAL DATA & INFORMATION
*1-year warranty.
*2-1/2” is UL/ULC Certi ed
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
HFX™
EXTRUDED NITRILE RUBBER HOSE
HFX™ is a nitrile thru-the-weave, rubber covered re hose that utilizes polyester and nylon 6.6 yarn in the reinforcing jacket. Under pressure, the polyester keeps the hose from snaking, while the nylon allows for controlled dilation, reducing friction loss, and generating higher ow rates. Our special rubber compound provides a tough cover that resists heat, abrasion, snags, and hot embers. The interlocking matrix also means no adhesives are used and there is a permanent bond to all the warp and weft yarns. The Snap-tite HFX™ is highly resistant to both conductive and radiant heat.
FEATURES
• Extruded thru-the-weave, nitrile rubber re hose. The reinforcement is made with a blend of circular woven, twill weave, polyester, and nylon bers.
• The ribs on the cover surface greatly increase abrasion resistance and help provide a long service life.
• Remains exible at temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
• Suitable for attack, soft sleeve suction, and relay applications.
• Unique extruded nitrile rubber thru-the-weave construction provides a exible, easy to maneuver hose that is easy to pack.
• Made in USA to ISO-9001:2015 certi ed quality assurance system.
• t ded t -t e- e e e o e e t de t
e e o e te d o e
e o t e o e e e t e e o
e t e d e o de o e e e
F t e t -t e- e e e o e ed e o e t t o e te d o t e e o et de t e o e te ee t e o e o e e t e o o t o ed d t o ed t o o d e e t e o te e e o o d o de to o e t t e t e t o d ot e e e te o t o e o d e e e ed d t e e e e t o d to t e d e t e -t te F e t t to ot o d t e d d t e t
e e o e ed e o e t t t e o e te d o t e e o et de e e t e o e te ee t e o e o e e t e o o o o t o ed d t o ed t o o d e e t e o te e e o o d o de to o e t t e t e t o d ot e e e te o t o e o d e e e ed d t e e e e t o d to t e d e t e -t te F e t t to ot o d t e d
• Re e e to te e t e o -40ºF (-40ºC) d
e t t to o o e o d t o d o t e d et o e
FEATURES: USA MADE KLEAN HOSE
d t e t
• e t t to ot o d t e d d t e t
• t e o o t ee e t o d e t o
FEATURES: USA MADE
• t ded t -t e- e e t e e e o e e e o e e t de t e d o o e t e e o e te d o e
• e e t ded t e e t -t
• e o t e o e e e t e e o
e t e d e o de o e e e
• Re e e to te e t e o -40ºF (-40ºC) d
e t t to o o e o d t o d o t e d et o e
t ded
HFX™
EXTRUDED NITRILE RUBBER HOSE
HOSE COLORS
Basic Construction
Application
Nitrile rubber thru-the-weave with polyester and nylon reinforcing jacket.
Attack, Supply, Soft Suction
Colors: Yellow, Red
TECHNICAL DATA & INFORMATION
*1-year warranty.
*1-1/2”, 1-3/4”, 2-1/2”, 4”, and 5” are UL/ULC Certi ed.
*2” ULC only.
*Potable water approved: No *Quality Management System Certi cation:
TPX™
UNIQUE 3-PLY CONSTRUCTION
Traditionally, manufactured extruded hose can vary in thickness, becoming bulky and heavy. TPX™ utilizes a 3-ply design where the ribbed cover and smooth nitrile liner are extruded independently. The cover is inserted inside the tight-weave reinforcement, vulcanized, and turned inside out. The liner is then inserted and the hose is vulcanized for a second time to form a bond of all three plies, guaranteeing a consistent, compact hose wall. The Snap-tite TPX™ is highly resistant to both conductive and radiant heat.
FEATURES
• 3-ply rubber fire hose with both the cover and liner made of heavy duty nitrilerubber, high tensile strength tightly woven polyester reinforcement for maximum durabilityand flexibility.
• Smooth liner keeps friction loss to a minimum.
• Nitrile rubber cover greatly increases abrasion resistance, provides long service life and the tightly woven reinforcement resists puncture.
• Suitable for attack and soft sleeve suction applications.
• Remains flexible at temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
• Tighter weave allows more resistance to puncture while also being easier to pack and store.
• Lays flat and needs less hose bed space than typical extruded hose.
• Made in USA to ISO-9001:2015 certified quality assurance system
TPX™ UNIQUE 3-PLY CONSTRUCTION
HOSE COLORS
*1-year warranty.
*4” and 5” are UL/ULC Certi ed.
*Potable water approved: No
TECHNICAL DATA & INFORMATION
Supply, Soft Suction
Yellow, Red, Orange, Black
TECHNICAL DATA & INFORMATION
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
HIGH PRESSURE NITRILE RUBBER
ATTACK/SUPPLY HOSE
Manufactured in a similar process as TPX™, ATX™ utilizes a 3-ply design where the cover and liner are extruded independently and double vulcanized to guarantee a consistent, compact hose wall. The polyester reinforcement can then be woven tighter, making this hose more resistant to puncture while also being easier to pack and store. ATX™ has a stronger jacket which increases the service test pressure of the LDH sizes to 300 psi (2068 kpa).
FEATURES
• 3-ply rubber hose with both the cover and liner made of heavy-duty nitrile rubber and high tensile strength polyester for maximum durability and exibility.
• Smooth liner keeps friction loss to a minimum for greater ow.
• Nitrile rubber cover greatly increases abrasion resistance, provides long service life, and the tightly woven reinforced jacket resists punctures.
• Remains exible at temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals and petrochemicals.
•Engineered to meet the requirements of high pressure applications. Designed for relay pumping, pressurizing standpipes, and sprinkler systems.
• Made in USA to ISO-9001:2015 certi ed quality assurance system.
SNAP-TITE ATX™
HIGH PRESSURE NITRILE RUBBER ATTACK/SUPPLY HOSE
HOSE COLORS
TECHNICAL DATA & INFORMATION
Basic Construction Heavy gauge 3-ply nitrile rubber cover/liner with polyester inner jacket.
Application Attack, Supply
Colors: Yellow, Red, Black
TECHNICAL DATA & INFORMATION
*1-year warranty.
*Potable water approved: No
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
UTX™ LDH
PREMIUM HOSE. OUTSTANDING VALUE.
UTX™ is a tough lightweight extruded thru-the-weave hose. Its polyurethane material provides greater resistance to punctures and abrasion, while the thru-the-weave liner guarantees a lifetime warranty against delamination. UTX™ is compact and durable while providing higher resistance to oils, chemicals, and ozone.
FEATURES
• Typical rubber extruded hose can vary in thickness, becoming bulky and heavy. UTX™ incorporates a circular woven polyester jacket that is completely encapsulated by an extruded thru-the-weave polyurethane cover and liner that provides abrasion and puncture resistance while remaining light and service worthy.
• UTX™ weighs 20% less than conventional rubber supply hose.
• Extruded thru-the-weave polyurethane construction and ultra-smooth liner minimize friction loss.
• Engineered to deliver more ow and more ef cient packability.
• Remains exible to -50°F (-46°C).
• Resists ozone, oxidation, and most chemical/petroleum products.
• Made in USA to ISO-9001:2015 certi ed quality management system.
HOSE COLORS
UTX™ LDH
HOSE COLORS
TECHNICAL DATA & INFORMATION
Colors: Yellow, Hi-Viz Green, Blaze Orange, Yellow
F - 160° F *1-year warranty.
water approved: Yes
TECHNICAL DATA & INFORMATION
CONQUEST™ LDH
POLYESTER DOUBLE JACKETED SUPPLY HOSE
Looking for a hose to ow a tremendous amount of water? You’ve found it with CONQUEST™! Today’s res are hotter and more water is needed at the nozzle to knock them down fast. Conquest™ meets that challenge every day. Our patented thru-the-weave extruded polyurethane liner has an incredibly smooth surface that enhances water ow.
FEATURES
•Patented double jacketed hose made from 100% high tensile strength polyester outer jacket with extruded thru-the-weave polyurethane inner hose. NO ADHESIVE IS USED. The lining will never delaminate.
• Optional Dura-Cote™ treatment.
•Outstanding ow and low friction loss.
• Hose remains exible at temperatures as low as -40ºF (-40ºC) and meets all NFPA requirements for ozone resistance.
• Suitable for CAFS and foam concentrates.
• Engineered to meet the requirements of high-pressure applications. General industrial and construction use, designed for relay pumping, pressurizing standpipes, and sprinkler systems.
• Made in USA to ISO-9001:2015 certi ed quality assurance system.
CONQUEST™ LDH
POLYESTER DOUBLE JACKET SUPPLY HOSE
CONSTRUCTION:
CONSTRUCTION:
HOSE
HOSE COLORS:
COLORS
Application
TECHNICAL DATA & INFORMATION
Polyester outer jacket, extruded thru-the-weave polyurethane liner.
Attack, Supply, CAFS, Potable Water
Colors: Yellow, Red, Blue, Orange, Green, White (coated), White (uncoated)
TECHNICAL DATA & INFORMATION
*1-year warranty.
*Potable water approved: Yes
*Quality Management System Certi cation: ISO 9001:2015 Registration # 11-R1045
SNAP-TITE XLF™
DURABLE & RESISTANT TO PUNCTURE HOSE
The XLF™ is a polyurethane thru-the-weave large diameter hose engineered for long-lasting durability and performance in the eld. Originally designed to replace metal pipes used in the fracking industry for transfer of large volumes of water, it makes a great main feeder line. The XLF™ is designed for extreme resistance to abrasion and punctures with little friction loss - all while being exceptionally lightweight.
FEATURES
• Multi-purpose large diameter hose for oil/gas, water transfer, dewatering, re neries for tank re suppression, nuclear, agriculture, military, and water/sewer bypasses during construction.
• The XLF™ inner jacket is designed with 100% high tenacity polyester yarn and extruded thruthe-weave polyurethane - a uni ed, construction that ensures no delamination and provides abrasion protection.
• Hose can withstand exposure to most hydro-carbons, gasoline oils, alkalis, and grease.
• Hose shows no ozone exposure when subjected to testing in accordance with ASTM D1149-64, 100 PPHM /122 degrees F/70 hours.
• Manufactured in accordance with NFPA 1960 Standard, latest edition within our ISO-9001:2015 certi ed quality assurance system.
SNAP-TITE XLF™
DURABLE & RESISTANT TO PUNCTURE HOSE
HOSE COLORS
Basic Construction
Application
TECHNICAL DATA & INFORMATION
Polyurethane extruded thru-the-weave with a polyester reinforcement.
Industrial, Agriculture, Military
Colors: Black, Blue
Temperature Range
*1-year warranty.
-60° F - 180° F
