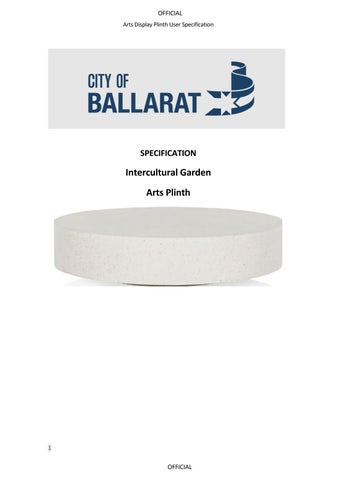

Arts Plinth Specification

OFFICIAL Arts Display Plinth User Specification

SPECIFICATION

Intercultural Garden Arts Plinth

1

OFFICIAL

OFFICIAL Arts Display Plinth User Specification

Table of Contents Background ............................................................................................................... 2 1

USER CONSIDERATIONS...................................................................................... 3

2

ENGINEERING..................................................................................................... 5

3

INSTALLATION CONSIDERATIONS ..................................................................... 12

4

PERMITS .......................................................................................................... 12

5

INSURANCE ...................................................................................................... 13

Background The City of Ballarat welcomes the use of the Arts Display Plinth at the Intercultural Garden site situated on the corner of Sturt Street and Pleasant Street North, Ballarat.

The intention is for it to be used by numerous Artists over many years and therefore appropriate use of the structure is of the upmost importance to ensure ongoing, sustainable use well into the future.

2

OFFICIAL

OFFICIAL Arts Display Plinth User Specification

1 USER CONSIDERATIONS The Plinth is constructed from 32MPa re-enforced concrete and sealed with a 2-part epoxy, antigraffiti sealer (Haymes Ultimate Anti-Graffiti) to protect it from permanent damage.

The plinth has been constructed from naturally coloured concrete so any holes created to anchor artworks can be easily filled with minimal changes to the overall aesthetics of the plinth.

Filler products must strictly adhere to the engineering details provided below.

The plinth itself can be decorated and therefore used to compliment or form part of the arts installation, but all installations must be approved in writing by the City of Ballarat prior to implementation.

The Artist will be responsible for returning the plinth to its original condition by allowing for the chemical removal of any paint or other applications and the re-application of one coat of the recommended epoxy sealer (Haymes Ultimate Anti-Graffiti) by one of our approved suppliers.

Prices for reapplication can be obtained on request.

Prior to the application of the anti-graffiti sealer, written confirmation from the City of Ballarat stating that the plinth has been returned to a satisfactory state must be obtained.

Any departure from this specification could incur financial penalties.

There is a central conduit which can be accessed to provide lighting for the artwork through the use of solar powered LEDs. All fixtures and fittings are to be provided by the Artist and The City of Ballarat takes no responsibility for the security of these temporary items.

All proposed artwork installations must be approved in writing by the City of Ballarat prior to implementation.

The Artist will need to provide certification from a qualified engineer that any proposed installation is in accordance with this specification.

3

OFFICIAL

OFFICIAL Arts Display Plinth User Specification

2 ENGINEERING Please see following pages 5-12

Please see pages 5-11

4

OFFICIAL

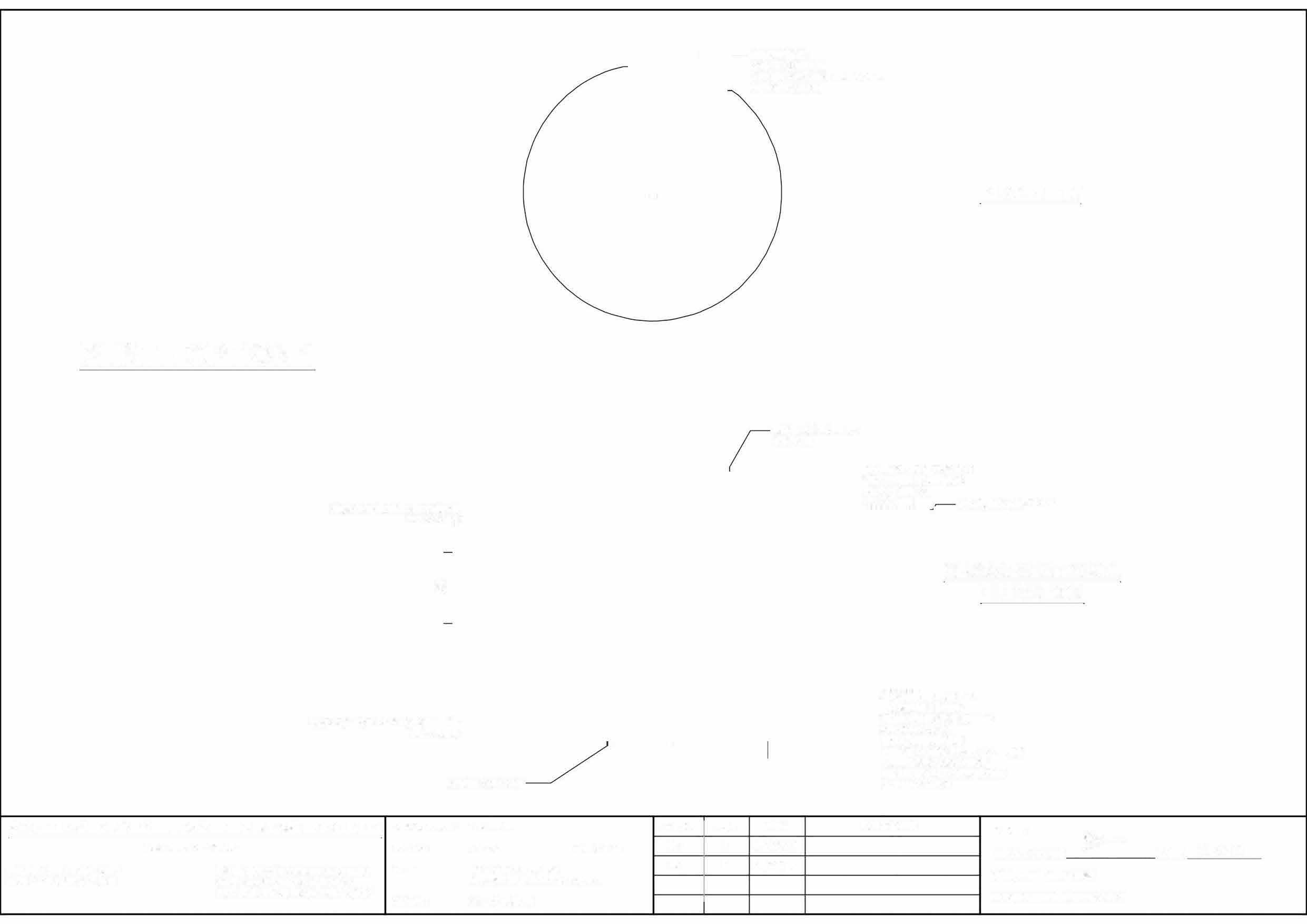

--- ALLOW FOR CABLE CONDUIT AS PER PROJECT MANAGER SPECIFICATION

PLAN VIEW

PLINTH OPTION 1 32MPa CONCRETE VIBRATE 'PERIMETER' BARS N 16 WITH VERTICAL LIGS N12@300 C'S 60 COVER GRANITIC SAND PATH

SL82 TOP REINFORCEMENT 200 COVER

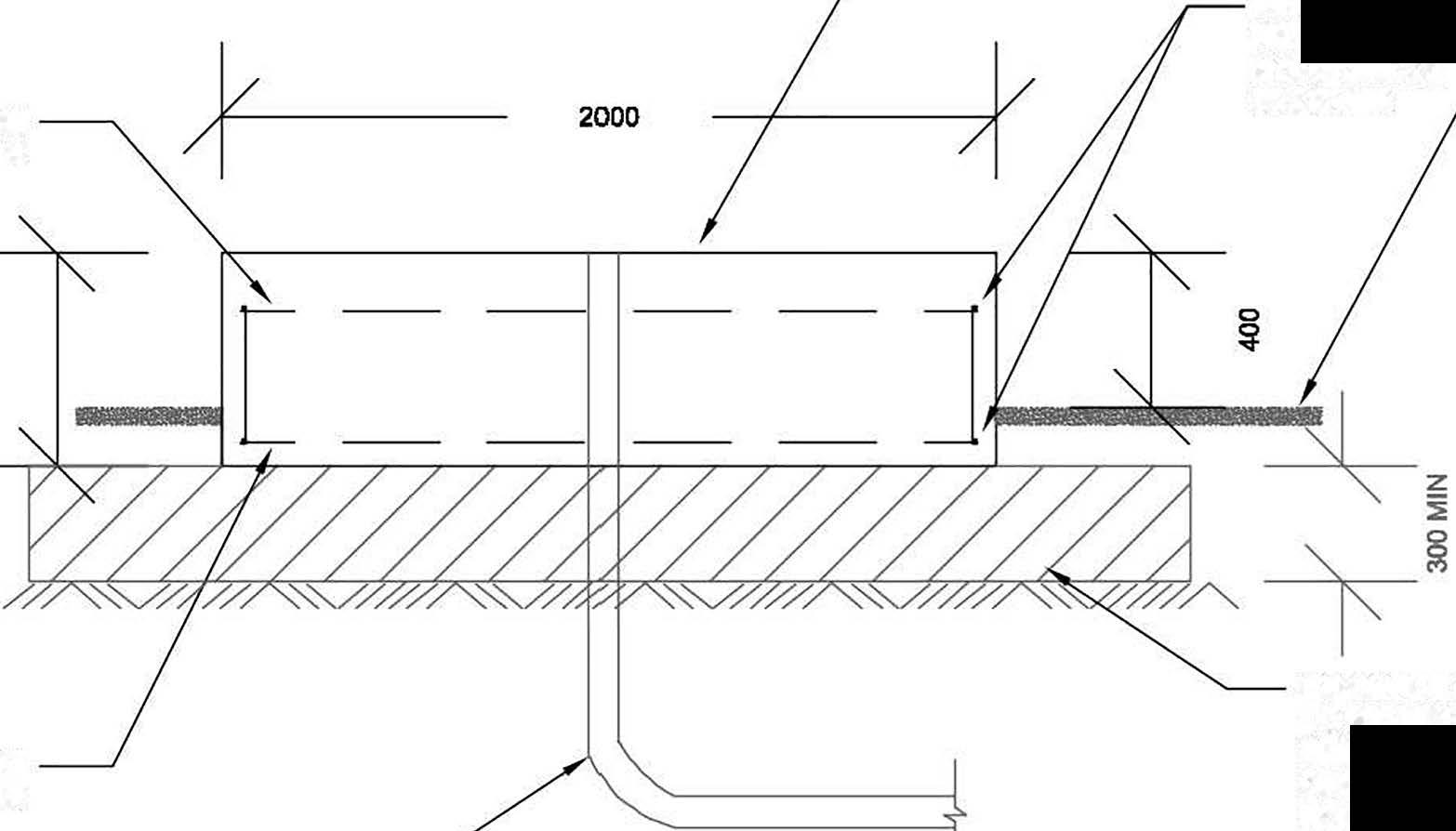

CROSS-SECTIONAL ELEVATION

0 0 cg

EXCAVATE 3000 DIA TO 300 MIN DEEP REMOVE LOOSE, WET & ORGANIC SOIL ROLL SUBGRADE PLACE CLASS 3 FCR LAYER(S) VIBRATORY COMPACT NOTE: EACH LAYER TO BE 200 MAX THICK

SL92 BOTTOM REINFORCEMENT SO COVER

CABLE CONDUIT

COLLINS DESIGN ENGINEERING PTY LTD DESCRIPTION: Arts Plinth ABN 73 072 278 445 PHONE: (03) 5334 2867 MOBILE: 0407 342 867

EMAIL: daryl@colllnseng.com.au WEB: www.collinseng.com.au P.O. BOX 500W, BALL.AMT WEST

JOB No:

041223

DWG # 001

SITE;

Intercultural Garden Pleasant St & Sturt St corner.

CUENT:

City of Ballarat

DRAWN

REV.

DATE

HC

A

06/12/23

HC

B

04/03/24

COMMENTS

SIGNED: DARYL COLLINS

�

CPEng REG No. 222092 ENDORSED BUILD ENG PE0003648

DATE:

04-03-24

ARTWORK CONSTRAINTS / /

2MWIDE

ARTWORK ARRANGEMENT A&B NOTES: 1.

___v

2.

3.

/

4.

/ /

3MWIDE

_________/ / 5.

0.5M MAX ECCENTRICllY

_/__/

/

+

/

::c

� ('I')

+

:::c

(!)

::c ::E N

I

I I I �

Ll

I I

A

<J

ARTWORK:

CENTR

f

OF AREA

I I ..

L...I

. <

�-

l:l

LI <J

.- . Ll

I I

A

<J

1� LI I I

L...I

.<

�-

Ll

I I

�IN™ _/

�l�H_/

ARTWORKARRANGEMENTA

ARTWORKARRANGEMENTB

COLLINS DESIGN ENGINEERING PTY LTD DESCRIPTION: Arts Plinth ABN 73 072 278 445

PHONE: (03) 5334 2867 MOBILE: 0407 342 867

ARTWORK

I

II �

LI <J

BE

40MPa MINIMUM

::c

(!)

I

..

NEW ARTWORK STRUCTURE &ANCHORING TO BE DESIGNED BY A QUALIFIED STRUCTURAL ENGINEER PRIOR TO FABRICATION FOR AN IMPOSED (LIVE) LOAD OF 1.8kN AT ANY POINT& A WIND REFERENCE PRESSURE OF 1.0kPa (PRESSURE COEFFICIENTS ARE TO BE APPLIED) ALTERNATIVE STRUCTURE SIZES& SHAPES TO APPROVED BY THE ENGINEER MAX WEIGHT OF NEW ARTWORK TO BE 400kg UNLESS OTHERWISE APPROVED BY THE ENGINEER PROCEDURE FOR FIXING ARTWORK STRUCTURE INTO THE CONCRETE PLINTH: FIXING TO BE DESIGNED BY QUALIFIED STRUCTURAL ENGINEER USE ONLY CONCRETE SCREW ANCHORS (MASONRY SCREWBOLT) INSTALL ALL FIXINGS AS PER MANUFACTURER'S SPECIFICATIONS PROCEDURE FOR REMOVING REMOVE IN ACCORDANCE WITH ENGINEER REQUIREMENTS REMOVE SCREW ANCHORS LOOSE PARTICLES &DUST MUST BE REMOVED FROM HOLES REMOVE WATER FROM HOLES INJECT EPOXY RESIN STRUCTURAL ADHESIVE INTO HOLES (INSTALL ACCORDING TO MANUFACTURER'S SPECIFICATION) PRODUCT DETAILS - COMPRESSIVE STRENGTH - NON-SHRINK - ADHESIVE STRENGTH 4 MPa MINIMUM - IMPERMEABLE TO LIQUID&WATER VAPOUR PRODUCT EXAMPLES - SIKA ANCHORFIX 3001 -RAMSET502 -&OTHERS TOP SURFACE TO BE FL.AT &FLUSH WITH CONCRETE PLINTH

EMAIL: daryl@colllnseng.com.au WEB: www.collinseng.com.au P.O. BOX 500W, BALL.AMT WEST

JOB No:

041223

DWG # 003

SITE;

Intercultural Garden Pleasant St & Sturt St corner.

CUENT:

City of Ballarat

DRAWN

REV.

DATE

HC

A

06/12/23

HC

B

04/03/24

COMMENTS

NEW DRAWING

SIGNED:

�I

DARYL COLLINS CPEng REG No. 222092 ENDORSED BUILD ENG PE0003648

DATE:

04-03-24
