Hygiene & Protection

jvd.fr HYGIENE CATALOGUE

TAKE CARE OF PEOPLE. AND ALSO THE PLANET.

FRENCH MANUFACTURER

JVD. PRODUCTS THAT TAKE CARE OF YOU In 2024, JVD will be celebrating its 40th anniversary, a special opportunity to reassert our commitment to quality, innovation and sustainability. Since the company was first founded, it has been our mission to invent and manufacture products that take care of you, your employees, your customers and your visitors.

For us, the concept of care extends well beyond our products, encompassing our commitment to the environment, as well. Last year, our efforts were rewarded by an EcoVadis Gold Medal, in recognition of our commitment to ecodesign and to products made in France. This honour makes us even prouder of the progress we have achieved over the years.

Each and every day, we are hard at work reducing our environmental footprint, whilst continuing to envision the products of tomorrow, made to last.

JVD. Products that care.

2

CONTENTS THE COLLECTIONS P. 6-7

SHIELD P. 8-13

HYGIACONNECT P. 14-15

HAND DRYERS P. 16-29

HAIR DRYERS P. 30-31

DISPENSERS P. 32-47

INSECT CATCHERS P. 48-55

BINS P. 56-75

ASHTRAYS P. 76-81

CONCEPTION

You can find all our eco-designed products at a glance by looking for this “product plus”, set against a green background: R ECO-DESIGN

3

WHY CHOOSE JVD? 40 YEARS OF INNOVATION IN THE SERVICE OF WELL-BEING Backed by four decades of existence – and above all experience – JVD has become the essential company in field of hygiene for hotels and municipalities. Thanks in particular to our Engineering Department and our close collaboration with the world of design, JVD is at the forefront of innovation today.

We conceive, design, manufacture and rigorously test all our products. Our strong, meticulous industrial processes guarantee the best possible quality, from the smallest components to our full customer service!

40,000 hand dryers and 400,000 paper and soap

dispensers are produced each year at our site in Rezé, France

ALL THE QUALITY OF FRENCH-MADE PRODUCTS With our international reach, JVD now has a foothold in more than 100 countries around the world. Even so, JVD has intentionally remained a local business.

Based outside Nantes, in France’s Loire-Atlantique department, we source components from neighbouring departments, out of a concern for promoting local knowhow and forging lasting relationships with our partners. As a result, many JVD products are manufactured from end to end within a 200 kilometre radius of our base.

With JVD, all the quality and innovation of Frenchmade products is exported to you!

100 countries currently benefit from JVD’s homegrown expertise 4

MEETING THE DEMAND FOR OPTIMAL SERVICE At JVD, the quality of our customer service is as important as the quality of our products… and that’s saying a lot! Which is why you’ll find the same responsiveness, the same attentiveness and the same desire to satisfy all of your requests, whether you’re in Nantes or Singapore, Mexico or Germany.

The strength of our sales and customer service teams is built on their ability to put themselves in your shoes and to create a truly close relationship with you. Whether you interact with us by phone or by email, you’ll feel like your JVD contact is right there with you!

5 days a week, our customer service team is here to listen and deliver personalised service to you

Certification ECOVADIS Gold, the global standard for CSR assessments

DAY-TO-DAY COMMITMENTS Here at JVD, we believe in the role we have to play in our shared future, which is why eco-responsibility is one of the key pillars of our strategy today. From design to manufacturing and from transport to use, by way of recycling and repairs, and wherever we have operations, we are dedicated to reducing our social and environmental impact.

Between eco-designing our products, making eco-responsible raw material sourcing decisions, reducing our carbon footprint, supporting the solidarity and social economy – namely with the establishment of a partnership with the association Better with Water and our work to combat planned obsolescence – JVD is committed and engaged for the long haul!

5

OUR COLLECTIONS JVD offers a broad selection of equipment, lines and colours to adapt to your environment and make it unique. Thanks to our mastery of product design to production, JVD is the only manufacturer able to offer matching sets ranging from hand dryers to toilet roll dispensers by way of soap dispensers.

YALISS STAINLESS STEEL OUR STYLISH, ROBUST COLLECTION Our stainless steel range offers the ideal balance between design and sturdiness.

Its look fits into even the highest-end locations. Its vandal resistance, antibacterial treatment and antifingerprint treatment make it the solution of choice for the most demanding settings.

Lastly, its antioxidant treatment, applied to real stainless steel, endows it with tremendous resistance to corrosion and an extraordinarily long life.

6

KIDS OUR COLLECTION FOR THE YOUNGEST USERS The purpose of our Kids range is to help children to learn the basics of hygiene from a very young age. By making the experience of washing and drying their hands more enjoyable, JVD provides a comprehensive solution, suitable for environments visited by children. Thanks to our powerful yet quiet hand dryers, JVD also helps to keep washrooms clean, with no wet paper roll on the floor and no clogged pipes.

By limiting their use of paper products, kids can also participate in the creation of a greener, more sustainable future by reducing the carbon footprint associated with using paper.

YALISS OUR MOST STYLISH COLLECTION

CLEANLINE OUR 100% RECYCLED COLLECTION

The more pronounced character of the Yaliss collection seeks to give your washrooms a new image combining gentleness with liveliness. The products provide new responses to broader requirements: larger capacities, universal or removable cores and improved hygiene, whilst retaining all the qualities of the Cleanline collection (ease of use, personalisation, etc.). This French-made collection features a decisive design capable of elevating all your washrooms.

JVD’s teams spent several months working with our partners in the plastics industry on the development and viability of the use of recycled plastic for injecting our parts made of ABS. Made in France using 100% recycled plastic, the Cleanline range pairs elegance with eco-design to meet the needs of establishments that are open to the public.

This range is available in white, black and metallic grey.

Other advantages include the fact that it is compatible with most consumables on the market, their levels are always visible, and they are easy to access.

7

8

OUR AIR PURIFIERS PAGES 8-13

WELCOME TO THE FUTURE OF HYGIENE, WHERE EVERY BREATH COUNTS Using our air purifiers means investing in your customers’ health, wellness and productivity. Our air purifiers are designed to be the faithful companions of even the most demanding customers, creating spaces where every inhalation is full of efficiency and tranquillity.

THREE GREAT REASONS TO FIT OUT YOUR CUSTOMERS WITH AIR PURIFIERS 1. TO RESPOND TO A PUBLIC HEALTH ISSUE Recent news stories have raised general awareness of the need to take care of our indoor air.

Our purifiers effectively meet your customers’ health and social needs. Indoor air tends to be eight times more polluted that outdoor air, and our solutions deliver a targeted response to that reality.

2. TO REDUCE THE ECONOMIC IMPACT OF POOR INDOOR AIR QUALITY The numbers speak for themselves! The cost of poor air quality in the workplace averages out at �440 per year, per employee. Our purifiers provide a proactive solution that improves productivity and cuts health-related costs, positioning your customers for economic efficiency.

3. TO PROTECT THE MOST SENSITIVE INDIVIDUALS Our air purifiers are specially designed to meet the health needs of the most sensitive groups, such as care home residents and small children. These devices offer optimal protection, guaranteeing environments that are free of any health risks and demonstrating our commitment to everyone’s well-being.

9

AIR PURIFIERS | SHIELD

THE SHIELD, FOR COMMON AREAS MADE IN FRANCE

PRODUCT PLUSES

SHIELD Cream White REF 8 77 2127-WH

R PATENTED TECHNOLOGY Smart Mineralisation®

Malachite Green REF 8 77 2127-GR

R AWARD-WINNING

Sapphire Blue REF 8 77 2127-BL

R PROVEN EFFECTIVE

Bronze REF 8 77 2127-BR Matte Black REF 8 77 2127-BK

Thanks to its core, created using unique technology, the Shield uses no consumables (HEPA filters) REF 8 77 2130

THE SHIELD COMPACT, FOR PRIVATE SPACES

DESIGN

against allergens, contaminants, pollutants, odours and more

R ECO-DESIGN CHARACTERISTICS

• Purification area: 20-60 m2 • 2 operating modes: Continuous / Boost • Min/max noise level: 38/68 dB • Power supply: 200-240 V • Max power: 85 W • Cover material: Epoxy steel • Max air flow: 400 m³/hr • Core (ref. 8 77 2130) replacement recommended every three years • Weight (kg): 8.75

MADE IN FRANCE

PRODUCT PLUSES

R COMPACT AND LIGHTWEIGHT R PATENTED TECHNOLOGY Smart Mineralisation®

SHIELD COMPACT Cream White REF 8 77 2134-WH Malachite Green REF 8 77 2134-GR Sapphire Blue REF 8 77 2134-BL Matte Black REF 8 77 2134-BK

10

R UNIQUE DESIGN R ECO-DESIGN CHARACTERISTICS

• Purification area: up to 20 m2 • 2 operating modes: Continuous / Boost • Noise level: 36 dB • Supply voltage: 12 V • Power: 22 W • Electrical insulation: Class III • Universal anti-theft system (ref.

2 10 2097) • Cover material: Anodised aluminium • Smart HEPA filter (ref. 8 77 2130) replacement recommended every year • Weight: 805 grams

AIR PURIFIERS | SHIELD

AN AIR PURIFIER FOR EVERY SPACE

FOR OFFICES Benefits: Increased productivity, concentration, comfort and management of odours (from food, perspiration, etc.)

Shield: Conference rooms, dining rooms and break rooms Shield Compact: Individual offices and small meeting rooms

11

AIR PURIFIERS | SHIELD

FOR CARE HOMES / CHILDCARE CENTRES / MUNICIPALITIES Benefits: Management of strong odours and reduced risk of crosscontamination Shield: Common areas like elderly day care rooms, activities rooms, game rooms and treatment rooms Shield Compact: Private bedrooms and near changing tables

FOR MEDICAL PRACTICES Benefits: Reduced risk of crosscontamination (seasonal viruses, bacteria, etc.) and improved management of strong body odour Shield: Waiting rooms Shield Compact: Exam rooms and treatment rooms

12

AIR PURIFIERS | SHIELD

A COMBINATION OF UNPARALLELED RESULTS AND A MASTERFUL DESIGN PATENTED TECHNOLOGY: SMART MINERALISATION® Our air purifiers capture and destroy pollutants. They have been tested by independent labs, using the protocols of the most demanding standards on the market.

ZERO CONSUMABLES Not only does Smart Mineralisation® deliver unparalleled results, but it also allows the device’s technological components to self-decontaminate, eliminating the need to frequently restock or replace consumables.

DESIGN BY RAMY FISCHLER The Shield range of air purifiers was crafted by designer Ramy Fischler, a member of the French Order of Arts and Letters since 2016, named Designer of the Year in 2018.

CONCEPTION

The Smart Mineralisation® technology used in our Shield devices requires no consumables or filters that have to be replaced. Our air purifiers were designed to last, using easily recyclable materials like steel.

13

HYGIACONNECT

®

THE SMART CLEANING SOLUTION THAT PREVENTS DISSATISFACTION AND CUTS COSTS

VE

M

O

MADE IN FRANCE

BENEFITS OF THE SOLUTION • Avoid outages of consumables and full waste bins thanks to real-time remote monitoring • Optimise consumables management by monitoring usage over time • Calculate service quality by continuously measuring the quality of service rendered

1

1

1

REAL-TIME MONITORING HygiaConnect® provides an overview of any points of dissatisfaction due to consumables outages or bin fullness levels.

1

ALERTS 1 Whenever a piece of smart equipment approaches a critical 1 threshold, HygiaConnect® sends you an alert, so you can 1 arrange for servicing as soon as possible.

1

1

REPORTING The HygiaConnect® solution provides an overview of all your managed sites and can be used to fuel discussions thanks to the various data it collects.

14

THE MOST COMPREHENSIVE RANGE DEDICATED TO SMART CLEANING

CONSUMABLES MANAGEMENT Avoid outages of consumables SOAP / HAND SANITISER / FOAM

WASTE MANAGEMENT

Prevents bins filling completely

SOAP DISPENSER Foam White REF 8441559HC01 Black REF 8442055HC01 HAND SANITISING STATION

Gel White REF 8441545HC01 Black REF 8442053HC01 Stainless REF 8442104HC01 LADYBOX REF 8992071HC01

40 L BIN White REF 8991745HC01 Black REF 8991991HC01 Stainless REF 8992114HC01

Gel White REF 8441545HC01TO Black REF 8442053HC01TO

TOILET ROLL DISPENSER JUMBO 400 White REF 8992051HC01 Black REF 8991546HC01 Stainless REF 8992103HC01

MOVEWORK FLOW HygiaConnect® is fully integrated with MoveWORK Flow, the all-in-one platform for facility management. HygiaConnect and MoveWORK Flow are both 100% compatible plug and play solutions. Take advantage of the power of a comprehensive solution!

PAPER TOWEL DISPENSERS

ZIG-ZAG White REF 8991744HC01 Black REF 8992057HC01 Stainless REF 8992102HC01

THE SOLUTION’S PLUSES EASY TO ROLL OUT LoRa connectivity ®

OPEN

EASY TO Compatible with all types INSTALL of soap, hand sanitiser and paper sizes

TRANSPARENCY

Fully transparent access No electrical connection to 100% of data required

CLEANTECH White REF 8991547HC01 Black REF 8992082HC01

FOR MORE INFORMATION

jvd.fr

15

16

OUR HAND DRYERS PAGES 16-29

DON’T GO SOFT WHEN CHOOSING A HAND DRYER A hand dryer should not be chosen at random. Whether your constraints relate to usage, maintenance, noise or vandal resistance, we have a large array of equipment suited to your environment.

Sp é c i a l

A

nn

ive r s air

AVOID NOISE POLLUTION WITH RELEVANT MODELS e

JVD will be celebrating its 40th anniversary in 2024. For this special occasion, we will be extending the warranties on certain models of hand dryers to 10 years, for any purchases made in 2024! The extended warranty can be activated on jvd.fr.

MORE ECONOMICAL THAN PAPER Now that paper pulp has more than doubled in price, jet air hand dryers are the only solution that can guarantee cost control in high-traffic washrooms. With their fast drying time, hand dryers are ten times less expensive than paper towels.

The sound of a hand dryer can become a nuisance if located nearby an office or restaurant dining room.

Most hot air hand dryers are relatively quiet. Some jet air hand dryers also manage to combine power with a low noise level.

PUT AN END TO VANDALISM Standard NF EN 62262 provides a clear interpretation of the level of vandal resistance with the IK index. IK10 is the highest level of resistance. A device of this type is able to tolerate at least a blow from a 5 kg sledgehammer. Devices with an aluminium or steel cover are even more resistant.

MORE ECOLOGICAL THAN DISPENSERS It takes 17 trees to produce one tonne of paper. Its manufacturing and transport then generate significant amounts of CO2. In this respect, hand dryers are the ideal solution for reducing your ecological footprint.

Next-gen jet air hand dryers consume very little energy, and the absence of consumables renders the impact of transport anecdotal at best.

COMFORT AT ANY TEMPERATURE If the washroom in question has little to no heating, a cold sensation during hand drying can be unpleasant.

In these cases, opt for a hand dryer which uses evaporation or jet air with a heating element.

For the last 40 years, JVD has been developing and manufacturing products which take care of people. So, it was only natural for us to join the association Better with Water in its fight for continuous access to high-quality running water at home and for the development of collective awareness of the importance of hygiene in underprivileged urban neighbourhoods. In 2023, JVD donated €16,000 to the association, equivalent to 16,000 hygiene kits.

17

HAND DRYERS | JET AIR

A HAND DRYER FOR EVERY SPACE RESTAURANTS They experience heavy washroom usage for short periods of time. The Stell’air delivers rapid drying speed and, thanks to its quiet design, is suitable for the peaceful, sophisticated atmospheres of the most intimate restaurants.

GYMS Their washrooms are often poorly heated, if not unheated, and experience spikes in usage. The Copt’air S, which is fitted with an automatically activated heating element, guarantees quick drying times and an enjoyable experience.

SHOPPING CENTRES & AIRPORTS The washrooms in shopping centres and airports are subject to intense usage. The Exp’air, which comes with a brushless motor, is designed to handle very heavy foot traffic and is also suitable for all types of users (children and adults of all mobility levels), thanks to its unique design.

MUNICIPALITIES Washrooms in local government buildings tends to receive limited foot traffic, but these devices may be subjected to acts of vandalism.

The Master hand dryer, with its IK10 steel cover and its very long lifespan, is the perfect choice for this purpose.

ENVIRONMENTS SUBJECT TO UNPLEASANT ODOURS Whether dealing with sewer backups or other bad odours, some washrooms can really put their users to the test. The Sup’air Fresh combines rapid drying with odour neutralisation, thanks to a patented JVD innovation featuring zero chemical and zero consumables.

18

OFFICES To maintain a peaceful atmosphere that’s conducive to work whilst delivering quick hand drying, the Stell’air is the perfect hand dryer for use in offices.

BARS The compactness and quick drying time of the Sup’air is perfectly suited to this type of washroom, with its highly variable foot traffic and, in many cases, confined spaces.

HOSPITALS & OTHER MEDICAL INSTITUTIONS In these locations that demand impeccable hygiene and that receive a wide variety of different users, the Exp’air guarantees a clean floor thanks to its water collection tray, while its unique design makes it suitable for use by people with reduced mobility.

INDUSTRY In this demanding environment, where washrooms experience major spikes in usage during breaks, the Copt’air is ultra-sturdy thanks to its IK10 aluminium cover and delivers incomparably quick drying times.

SCHOOLS What could be a better place for kids to learn to dry their hands than a school washroom? With the Exp’air and Sup’air Kids, JVD has the perfect solution for practising good habits in a fun way and delivering flawless hand hygiene.

HAND DRYERS | JET AIR

CHOOSING THE RIGHT HAND DRYER

ANTI-VANDALISM

EXP’AIR

STELL’AIR

COPT’AIR

SUP’AIR

SUP’AIR FRESH

AIRWAVE

MASTER

TORNADE

ZEPHYR

OURAGAN

Aluminium cover

IK10 ABS

Aluminium / stainless steel cover

IK9 ABS

IK9 ABS

IK10 ABS

Aluminium cover

IK10 PC-ABS

IK10 PC-ABS / Bioplastic

Steel cover

Accessible height

Accessible height

Accessible height

Accessible height

Accessible height

Accessible height

Accessible height

10-15 sec

10-15 sec

10-15 sec

15-20 sec

20-30 sec

20-30 sec

20-30 sec

20-30 sec

Yes

Yes

Yes

Yes

Yes

Automatically activatable

Heating element

Heating element

Heating element

Heating element

PEOPLE WITH REDUCED MOBILITY OR SMALL CHILDREN

DRYING TIME

10-15 sec

10-15 sec

Yes HOT AIR

No

No

Automatically activatable in the S model

No

No

USAGE

High (Exp’air) / Intensive (Exp’air+)

High

High

High

High

High

Intensive

Intensive

Moderate

Moderate

75-78 dB

73 dB

80 dB

75 dB

75 dB

77 dB

70 dB

70 dB

69 dB

78 dB

No specific Clean filter & No specific maintenance collection tray maintenance

No specific maintenance

No specific maintenance

No specific maintenance

MADE IN FRANCE

MADE IN FRANCE

MADE IN FRANCE

NOISE LEVEL

HYGIENE

MAINTENANCE

MADE IN FRANCE

Copper filter Copper filter Destruction Antibacterial Antibacterial of unpleasant Air filter Antibacterial Antibacterial coating coating odours in Water filter (optional) filter (optional) Water Water washrooms collection tray collection tray collection tray

Clean filter & Clean filter & collection tray collection tray

Clean filter (optional)

Clean filter (optional)

MADE IN FRANCE

MADE IN FRANCE

MADE IN FRANCE

MADE IN FRANCE

MADE IN FRANCE

HEIGHT (mm)

430

531

285 / 284 (Stainless)

292

292

467

290

302

243

240

WIDTH (mm)

343

340

232 / 225 (Stainless)

216

216

250

265

265

215

267

DEPTH (mm)

237

262

196 / 195 (Stainless)

195

195

165

132

140

195

200

POWER

800 W 1000 W (Exp’air+)

800 W

600 W 1500 W (Copt’air S)

600 W

600 W

1400 W

2 000 W

2 000 W

2000 W

2500 W

CERTIFICATIONS

CE – IP44 Class II

CE – IP44 Class II

CE – IP24 Class II

CE – IP24 Class II

CE – IP24 Class II

CE – IP24 Class II

CE – IP23 Class II

CE – IP23 Class II

CE – IP23 Class II

CE – IP21 Class I

19

HAND DRYERS | JET AIR

SUP’AIR

fresh

MADE IN FRANCE

PRODUCT PLUSES

R Neutralises unpleasant

odours without consumables or chemicals

R PATENTED

INNOVATION

R ECO-DESIGN - Low energy consumption - 25% recycled plastic CHARACTERISTICS

• Drying time: 10-15 seconds • Usage: High • Noise level: 75 dB • Anti-vandalism: IK9 ABS cover • Illuminated drying zone • Rated power: 600 W • Power supply: 220-240 V - 50 Hz • CE - Class II - IP24 • Finishes: Matte Black, Metal Grey or White • Dim. (mm): 216 (W) x 292 (H) x 195 (D)

NEW

THE HAND DRYER THAT NEUTRALISES UNPLEASANT ODOURS JVD PATENTED INNOVATION

SUP’AIR FRESH AUTOMATIC Matte Black REF 8 11 2178

SUP’AIR FRESH AUTOMATIC Metal Grey REF 8 11 2177

SUP’AIR FRESH AUTOMATIC White REF 8 11 2159

FOR EVERY HAND DRYER PURCHASED, WE WILL DONATE 1 HYGIENE KIT IN THE PHILIPPINES

20

HAND DRYERS | JET AIR

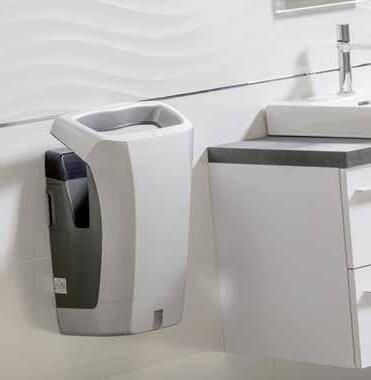

EXP’AIR MADE IN FRANCE

SUITABLE FOR ANY USAGE LEVEL

21

HAND DRYERS | JET AIR

EXP’AIR DESIGNED AND MANUFACTURED IN FRANCE, THIS DEVICE FEATURES A COMBINATION OF TECHNOLOGIES. FIND OUT HOW EACH COMPONENT WAS PLANNED AND CHOSEN TO PRODUCE OPTIMAL RESULTS.

JET AIR Ultra-fast drying (1015 seconds)

25% RECYCLED PLASTIC Ultra-sturdy ABS

ILLUMINATION Drying zone

SUITABLE FOR ALL USERS Front opening for people with reduced mobility and small children

QUIET (75 DB)

ANTI-VANDALISM Aluminium cover

Sound dampening foam

HYGIENIC Bactericidal copper filter

WATER REMOVAL Water tray (included) with direct drainage (optional)

video

22

he yt

SUITABLE FOR ALL USAGE LEVELS Available in a digital / brushless motor version (Exp’air+) for locations with intensive usage or with a brush motor for high traffic areas (Exp’air).

an me to pl Sc a

HAND DRYERS | JET AIR

EXP’AIR / EXP’AIR+

MADE IN FRANCE

EXP’AIR

EXP’AIR+

• Noise level: 75 dB • Rated power: 800 W • Power supply: 230 V - 50 Hz • CE - Class II - IP44 • 3 year warranty + 7 years

• Noise level: 78 dB • Rated power: 1 000 W • Power supply: 220-240 V - 50 Hz • CE - Class II - IP44 IK10 • Digital / brushless motor • 5 year warranty + 5 years

PRODUCT PLUSES

R 50% quieter than

competitors’ models

R ULTRA-STURDY ABS Black

REF 8 11 1376

REF 8 11 1602

R SUITABLE FOR ALL USERS Grey

REF 8 11 822

REF 8 11 1601

Front opening for people with reduced mobility and small children

R 100% VANDALISM PROTECTION Aluminium cover

R ECO-DESIGN - Low energy consumption - 25% recycled plastic White

REF 8 11 791

REF 8 11 1600

R 10 YEAR WARRANTY CHARACTERISTICS

Aluminium

REF 8 11 1757

BACTERICIDAL COPPER FILTER REF 5 90 2014

REF 8 11 1758

DRAINAGE KIT REF 5 30 1719

• Drying time: 10-15 seconds • Usage: High • Vandalism protection: Aluminium cover • Illuminated drying zone • Bactericidal copper filter included • 600 ml water collection tray • Finishes: Black, Metal Grey or White • Dim. (mm): 343 (W) x 430 (H) x 237 (D) • Reference: 9000100G1

EXP’AIR KIDS PACK

EXP’AIR KIDS REF 8 11 791 KIDS

CLEANLINE GEL SOAP DISPENSER KIDS*

EDUCATIONAL SIGN* to ELEPHANT PVC SIGN* guide children when washing to place behind the tap and drying their hands

FOR EVERY HAND DRYER PURCHASED, WE WILL DONATE 1 HYGIENE KIT IN THE PHILIPPINES

* Included in the Kids Pack

23

HAND DRYERS | JET AIR

STELL’AIR MADE IN FRANCE

PRODUCT PLUSES

R 73 DB

The quietest on the market

R HYGIENIC Built-in copper filter and water tank + antibacterial surface treatment

R ERGONOMIC Illuminated drying zone with sweeping jet air

R ECO-DESIGN - 25% recycled plastic Ultra-sturdy ABS

R 10 YEAR WARRANTY REF 8 11 963 CHARACTERISTICS

• Drying time: 10-15 seconds • Usage: High • Noise level: 73 dB • Anti-vandalism: IK10 ABS cover made of 25% recycled plastic • Illuminated drying zone • Bactericidal copper filter included • 1 L water collection tray • Rated power: 800 W • Power supply: 220-240 V - 50 Hz • CE - Class II - IP44 • Finishes: Matte Black, Metal Grey or White • 3 year warranty + 7 years • Dim. (mm): 340 (W) x 531 (H) x 262 (D)

STELL’AIR AUTOMATIC Matte Black REF 8 11 1761

STELL’AIR AUTOMATIC Metal Grey REF 8 11 963

BACTERICIDAL COPPER FILTER REF 5 90 2014

STELL’AIR AUTOMATIC White REF 8 11 962

DRAINAGE KIT REF 5 30 1719

FOR EVERY HAND DRYER PURCHASED, WE WILL DONATE 1 HYGIENE KIT IN THE PHILIPPINES

24

HAND DRYERS | JET AIR

SUP’AIR MADE IN FRANCE

PRODUCT PLUSES

R Excellent quality-price ratio R Compact R Very low energy consumption R ECO-DESIGN

- 25% recycled plastic - Ultrasturdy ABS

R 10 YEAR WARRANTY CHARACTERISTICS

• Drying time: 10-15 seconds • Usage: High • Noise level: 75 dB • Anti-vandalism: IK9 ABS cover made of 25% recycled plastic • Illuminated drying zone • Antibacterial filter (optional) • Rated power: 600 W • Power supply: 220-240 V - 50 Hz • CE - Class II - IP24 • Finishes: Matte Black, Metal Grey or White • 3 year warranty + 7 years • Dim. (mm): 216 (W) x 292 (H) x 195 (D) • Reference: 9000100G2 - 2 year extended warranty

REF 8 11 1056 KIDS

SUP’AIR AUTOMATIC Matte Black REF 8 11 1760

SUP’AIR AUTOMATIC Metal Grey REF 8 11 1057

SUP’AIR AUTOMATIC White REF 8 11 1056

ANTIBACTERIAL FILTER REF 5 30 1899

SUP’AIR KIDS PACK

SUP’AIR AUTOMATIC KIDS REF 8 11 1056 KIDS

CLEANLINE GEL SOAP DISPENSER KIDS*

EDUCATIONAL SIGN* to ELEPHANT PVC guide children when washing SIGN* to place behind and drying their hands the tap

FOR EVERY HAND DRYER PURCHASED, WE WILL DONATE 1 HYGIENE KIT IN THE PHILIPPINES

* Included in the Kids Pack

25

HAND DRYERS | JET AIR

COPT’AIR / COPT’AIR S MADE IN FRANCE

PRODUCT PLUSES

R 100% VANDALISM

PROTECTION Aluminium or stainless steel cover

R AVAILABLE WITH A

HEATING ELEMENT With automatic activation (Copt’air S)

R INNOVATION

Rotating nozzle for enhanced efficiency and new sensations

R ECO-DESIGN

- 25% recycled plastic

REF 8 11 1168

R 10 YEAR WARRANTY CHARACTERISTICS

COPT’AIR

COPT’AIR S With heating element*

Stainless

REF 8 11 1790

REF 8 11 1791

Black

REF 8 11 1377

REF 8 11 1624

Grey

REF 8 11 1168

REF 8 11 1623

White

REF 8 11 1167

REF 8 11 1622

• Drying time: 10-15 seconds • Usage: High • Noise level: 80 dB • Anti-vandalism: Aluminium or cover stainless steel cover • Illuminated drying zone • Antibacterial filter (optional, not available on the Copt’air S): REF 5 30 1899 • Rated power: Copt’air Automatic: 600 W Copt’air S Automatic: 1500 W • Power supply: 220-240 V - 50 Hz • CE - Class II - IP24 • Finishes: Stainless Steel, Black, Metal Grey or White • 3 year warranty + 7 years • Alum. dim. (mm): 232 (W) x 285 (H) x 196 (D) • Stainless dim. (mm): 225 (W) x 284 (H) x 195 (D)

FOR EVERY HAND DRYER PURCHASED, WE WILL DONATE 1 HYGIENE KIT IN THE PHILIPPINES

* With a heating element which automatically activates when the temperature in the room drops below 25°C

26

HAND DRYERS | JET AIR

AIRWAVE PRODUCT PLUSES

R ULTRA-FAST DRYING R Automatically activatable heating element

R Water collection tray R ECO-DESIGN - Low energy consumption CHARACTERISTICS

• Drying time: 15-20 seconds • Usage: High • Hot air: Automatically activatable heating element • Noise level: 77 dB • Vandalism protection: IK10 ABS • Air filter included • 600 ml water collection tray • Rated power: 1400 W (600 W without heating element) • Power supply: 220-240 V - 50 Hz • CE - Class II - IP24 • Finishes: Metal Grey or White • 2 year warranty • Dim. (mm): 250 (W) x 467 (H) x 165 (D) AIRWAVE AUTOMATIC Metal Grey REF 8 11 684

AIRWAVE AUTOMATIC White REF 8 11 707

27

HAND DRYERS | HOT AIR

TORNADE MADE IN FRANCE

PRODUCT PLUSES

R Hot air R Suitable for intensive usage R Quiet (70 dB) R 10 YEAR WARRANTY CHARACTERISTICS

TORNADE AUTOMATIC Chrome REF 8 11 292

TORNADE AUTOMATIC White ABS or Composite REF 8 11 251 / 8 11 252

MASTER

• Drying time: 20-30 seconds • Usage: Intensive (induction motor) • Noise level: 70 dB • Vandalism protection: IK10 ABS • Rated power: 2 000 W • Power supply: 220-240 V - 50 Hz • CE - Class II - IP23 • Finishes: Chrome, White or Composite White • 3 year warranty + 7 years • Dim. (mm): 265 (W) x 302 (H) x 140 (D)

MADE IN FRANCE

PRODUCT PLUSES

R Hot air R Suitable for intensive usage R Quiet (70 dB) R Vandalism protection: Aluminium cover

R 10 YEAR WARRANTY CHARACTERISTICS

MASTER AUTOMATIC Brushed Chrome REF 8 11 414

MASTER AUTOMATIC White Epoxy REF 8 11 413

OURAGAN

• Drying time: 20-30 seconds • Usage: Intensive (induction motor) • Noise level: 70 dB • Vandalism protection: Aluminium • Rated power: 2 000 W • Power supply: 220-240 V - 50 Hz • CE - Class II - IP23 • Finishes: Brushed Chrome or White • 3 year warranty + 7 years • Dim. (mm): 265 (W) x 290 (H) x 132 (D)

PRODUCT PLUSES

R Hot air R Nozzle that pivots 360° R Vandalism protection: Steel cover CHARACTERISTICS

28

OURAGAN AUTOMATIC Chrome REF 8 11 378

OURAGAN AUTOMATIC White REF 8 11 341

• Drying time: 20-30 seconds • Usage: Moderate • Noise level: 78 dB • Vandalism protection: Pressed steel • Rated power: 2 500 W • Power supply: 220-240 V - 50 Hz • CE - Class I - IP21 • Finishes: Chrome or White • 2 year warranty • Dim. (mm): 267 (W) x 240 (H) x 200 (D)

HAND DRYERS | HOT AIR

ZEPHYR BIO

MADE IN FRANCE

PRODUCT PLUSES

R Excellent quality-price ratio R Anti-vandalism R ECO-DESIGN

- 54% recycled plastic (Zephyr Bio), 46% for other colours

R 10 YEAR WARRANTY CHARACTERISTICS

• Drying time: 20-30 seconds • Usage: Moderate • Noise level: 69 dB • Illuminated drying zone • Rated power: 2 000 W • Anti-vandalism: IK10 ABS cover • Power supply: 220-240 V - 50 Hz • CE - Class II - IP23 • Finishes: Black, White, Red, Neon Green, Blue or Light Blue • 3 year warranty + 7 years • Dim. (mm): 210 (W) x 243 (H) x 195 (D)

CONCEPTION Made of biosourced plastic created from processed scallop shells consumed in France

ZEPHYR BIO REF 8 11 1805

ZEPHYR

ZEPHYR AUTOMATIC Black REF 8 11 1400

ZEPHYR AUTOMATIC White REF 8 11 1401

ZEPHYR AUTOMATIC Blue REF 8 11 1402

ZEPHYR AUTOMATIC Red REF 8 11 1403

ZEPHYR AUTOMATIC Light Blue REF 8 11 1404

ZEPHYR AUTOMATIC Neon Green REF 8 11 1462

29

NEPTUNE BLACK REF 8 22 1762 | P. 31

OUR HAIR DRYERS PAGES 30-31

ESTABLISHMENTS OPEN TO THE PUBLIC Whether installed at a swimming pool or a gym, in a changing room or a hotel room, our products will adapt to any environment.

30

HAIR DRYERS | PUBLIC FACILITIES

NEPTUNE MADE IN FRANCE

PRODUCT PLUSES

R Adjustable height R 180° rotation R Quiet (70 dB) R Longevity (induction motor) R Corrosion resistant in

chlorinated atmospheres

R On/off button to simplify maintenance

CHARACTERISTICS

NEPTUNE Matte Black REF 8 22 1762

NEPTUNE White REF 8 22 1405

NEPTUNE Blue REF 8 22 1406

NEPTUNE Red REF 8 22 1407

R

• Usage: Intensive (induction motor) • Noise level: 70 dB • Anti-vandalism: IK10 ABS cover • Rated power: 2 000 W • Power supply: 220-240 V - 50 Hz • CE - Class II - IP23 • Finishes: Matte Black, White, Blue or Red • 3 year warranty • Wall mount dim. (mm): 138 (W) x 1153 (H) x 148 (D) • Hair dryer dim. (mm): 150 (w) x 348 (H) x 384 (D)

OPTIONAL Neptune Mirror REF 8 99 1804 Scan me to play the video

DRAGON

CALISTO PRODUCT PLUSES

MADE IN FRANCE

R Brushless motor with a very

PRODUCT PLUSES

long lifespan

R Quiet (70 dB)

R Power: 2000 W

R Longevity (induction

R Fitted with an ionising system

motor)

R Corrosion resistant

CHARACTERISTICS

in chlorinated atmospheres

• Power supply: 230 V - 50-60 Hz • 6 drying configurations: Air flow: 55 or 85 m3/hr

CHARACTERISTICS

DRAGON REF 8 22 009

• Usage: High • Noise level: 70 dB • Anti-vandalism: IK10 ABS cover • Dust filter • Rated power: 2100 W • Power supply: 220-240 V 50 Hz • CE - Class II - IP23 • 3 year warranty • Dim. (mm): 255 (W) x 280 (H) x 140 (D)

CALISTO 2000 W + universal black wall mount Matte Black REF 8 22 1632

3 temperatures • A button for cold air • CE - Class II - IP20 • Zone 2 • 3 year warranty • Dim. (mm): 264 (W) x 266 (H) x 90 (D) • Cable length: 2270 mm

CALISTO 2000 W + socket Matte Black REF 8 22 2107

31

STAINLESS STEEL BIN REF 8 99 2114 | P. 61 YALISS STAINLESS ZIG-ZAG DISPENSER REF 8 99 2102 | P. 38 YALISS STAINLESS SOAP DISPENSER REF 8 44 2104 | P. 39

32

OUR DISPENSERS PAGES 32-47

FIND YOUR FUTURE DISPENSERS IN NO TIME FLAT With their optimised design and ergonomics, our dispensers are conceived and developed to be easy to use and maintain.

MODELS THAT WORK WITH ANY CONSUMABLES

AUTOMATIC SOAP DISPENSERS: SO CONVENIENT

JVD’s dispensers are considered to be “open” solutions, meaning any brand of consumable can be used in them (including brands which only offer proprietary equipment). Our soap dispensers feature built-in containers which can be filled with soap in bulk (from jugs, for example). This solution is more economical and more ecological (less packaging).

Automatic soap/hand sanitiser dispensers are becoming increasingly common in washrooms.

They are more hygienic as no contact with the device is required. They can also be more economical by limiting the flow.

FOLDED OR ROLLS: CHOOSE THE RIGHT PAPER! Disposable folded paper is compatible with our ZigZag devices. They are classified according the how the sheets are folded: • Interleaved paper: W or Z • Zig zag paper: V • Folder paper: C. Disposable paper rolls with cores are compatible with auto cut devices. They come in the form of spools of different diameters and different lengths. Please note that some spools are only compatible with proprietary solutions. Disposable paper rolls without cores are compatible with centre pull devices.

GEL OR FOAMING SOAP / HAND SANITISER: WHICH IS THE MOST ECONOMICAL? Our soap dispensers come in multiple formats.

The most common one on the market is designed for gel soap / hand sanitiser. Dispensers also come in foaming soap versions. With the right pump, this solution can reduce consumption as follows: • soap consumption cut by up to a factor of four • up to 50% less water usage.

All our soap dispensers are fitted with pumps that regulate the flow of soap, to prevent it from spattering on users’ clothes or in their eyes.

PLASTIC: UP TO 100% RECYCLED The Cleanline range has taken a major step forward by using 100% recycled materials. If an environmentally friendly approach to impeccable hygiene is important to you, then these products are the ones you want.

33

CLEANLINE COLLECTION - PAPER | DISPENSERS

CLEANLINE COLLECTION

100% RECYCLED MADE IN FRANCE The Cleanline collection is compatible with most consumables on the market. Their levels are always visible, and they are easy to access. This range is completely personalisable and can bear the distributor’s brand name or logo.

CLEANLINE JUMBO 200 / 400 DISPENSERS

MADE IN FRANCE

PRODUCT PLUSES

R Easy to tear right or left thanks to chiselled blades R ECO-DESIGN

CHARACTERISTICS

CLEANLINE JUMBO 200 TR DISPENSER Black cover REF 8 99 1380

CLEANLINE JUMBO 200 TR DISPENSER Metal Grey cover REF 8 99 734

CLEANLINE JUMBO 200 TR DISPENSER White cover REF 8 99 602

CLEANLINE JUMBO 400 TR DISPENSER Black cover REF 8 99 1381

CLEANLINE JUMBO 400 TR DISPENSER Metal Grey cover REF 8 99 735

CLEANLINE JUMBO 400 TR DISPENSER White cover REF 8 99 603

CLEANLINE MAXI / MINI TP DISPENSERS

• 100% recycled plastic • Capacity: 200 / 400 m roll • Core: Ø 45 mm • Paper level indicator • 4 mounting points • 200 m model dim. (mm): 245 (W) x 275 (H) x 120 (D) • 400 m model dim. (mm): 285 (W) x 320 (H) x 120 (D) Optional: • Possibility of installing a fixed key only for the Cleanline White collection (ref. 2 10 1697) • Adjustable cores for the Jumbo 400: 60 mm (ref. 2 10 1439) or 50 mm (2 10 1412)

MADE IN FRANCE

PRODUCT PLUSES

R ECO-DESIGN CHARACTERISTICS

• 100% recycled plastic • Capacity: - Cleanline Mini TP dispenser: 2 packets (ref. 8 99 608) - Cleanline Maxi TP dispenser: 4 packets (ref. 8 99 607 / 8 99 2175) • 4 mounting points • Mini dim. (mm): 137 (W) x 145 (H) x 122 (D) • Maxi dim. (mm): 145 (W) x 275 (H) x 135 (D) CLEANLINE MAXI TP White cover REF 8 99 607

34

CLEANLINE MAXI TP Black cover REF 8 99 2175

CLEANLINE MINI TP White cover REF 8 99 608

Optional: • Possibility of installing a fixed key (ref. 2 10 1697)

CLEANLINE COLLECTION - PAPER | DISPENSERS

CLEANLINE ZIG-ZAG

PRODUCT PLUSES

R ECO-DESIGN

CLEANLINE MAXI PULL DISPENSERS

CLEANLINE ZIG-ZAG Metal Grey cover REF 8 99 733

• 100% recycled plastic • Capacity: 400-600 paper towels • Max paper dimensions (mm): Width: 245 Depth: 110 • Paper level indicator • 4 mounting points • Dim. (mm): 265 (W) x 340 (H) x 110 (D)

slow dispensing

CLEANLINE MAXI PULL DISPENSER Black cover REF 8 99 1383

Optional: • Possibility of installing a fixed key (ref. 2 10 1697)

CLEANLINE ZIG-ZAG White cover REF 8 99 604

CLEANLINE FIXED KEY REF 2 10 1697

CLEANTECH AUTOMATIC PAPER DISPENSER

Optional: • Exclusive for the Cleanline collection • Permanent key to affix to the device • Prevents the problem of lost keys

PRODUCT PLUSES

R Optimised hygiene: No

contact with the device R Easy tear paper R Antistatic roll to prevent jams

CLEANTECH Matte Black REF 8 99 1763

CLEANTECH White REF 8 99 845

Adjustable tightness ECO-DESIGN R

• 100% recycled plastic • Capacity: 450 sheets (spool: Ø 205 mm) • 4 mounting points • Dim. (mm): 220 (W) x 310 (H) x 220 (D) Optional: • Possibility of installing a fixed key (ref. 2 10 1697)

CLEANLINE MAXI PULL DISPENSER White cover REF 8 99 605

CLEANLINE MINI PULL DISPENSERS

MADE IN FRANCE

PRODUCT PLUSES

R ECO-DESIGN CHARACTERISTICS

CHARACTERISTICS

• White or Black ABS cover • Capacity: Max diameter (mm): 216 Max width (mm): 210 • Adjustable core diam. (mm): 38-51 • Weight (kg): 3 • Dim. (mm): 309 (W) x 398 (H) x 252 (D)

R ECONOMICAL:

CHARACTERISTICS

CLEANLINE MAXI PULL DISPENSER Metal Grey cover REF 8 99 736

FIXED KEY

PRODUCT PLUSES

R Adjustable tightness to

CHARACTERISTICS

CLEANLINE ZIG-ZAG Black cover REF 8 99 1382

MADE IN FRANCE

CLEANLINE MINI PULL DISPENSER Black cover REF 8 99 2207

• 100% recycled plastic • Capacity: 200 sheets (spool: Ø 130 mm) • 4 mounting points • Dim. (mm): 145 (W) x 275 (H) x 135 (D) Optional: • Possibility of installing a fixed key (ref. 2 10 1697)

CLEANLINE MINI PULL DISPENSER White cover REF 8 99 606

35

CLEANLINE COLLECTION - SOAP | DISPENSERS

CLEANLINE MADE IN FRANCE

PRODUCT PLUSES

R Very sturdy R Easy to refill consumables R Choice of 3 colours R 3 versions: gel soap/hand

sanitiser, foaming soap or toilet cleaner gel

Black

Grey

White

Paddle

GEL SOAP / HAND SANITISER

REF 8 44 1379

REF 8 44 731

REF 8 44 479

REF 8 44 972

FOAMING SOAP

REF 8 44 1378

REF 8 44 732 REF 8 44 478

TOILET CLEANER GEL

CHARACTERISTICS

• Capacity: 700 ml • Removable container for easier cleaning • 100% recycled plastic (excl. container and pump) • Flow: 0.5 or 1 ml per pump (gel) • Level indicator • Locks with a key • Meets HACCP requirements • 1 year warranty • Dim. (mm): 110 (W) x 206 (H) x 106 (D)

REF 8 44 1455

R

R

R

TOILET CLEANER GEL VERSION

FOAM

PRACTICAL

Foaming soap can cut consumption by up to four times

Easy to refill and clean thanks to its removable container

User instructions printed on the product

R ECO-DESIGN

CLEANLINE KIDS

Optional: • Possibility of installing a fixed key (ref. 2 10 1697)

MADE IN FRANCE

PRODUCT PLUSES

R The soap dispensing solution from the Kids collection

R Very sturdy R Easy to refill consumables R 2 versions: Gel soap/hand CLEANLINE KIDS FOAMING SOAP DISPENSER REF 8 44 478 KIDS

CLEANLINE KIDS GEL SOAP/HAND SANITISER DISPENSER REF 8 44 479 KIDS

36

sanitiser or foaming soap ECO-DESIGN R CHARACTERISTICS

• Capacity: 700 ml • Removable container for easier cleaning • 100% recycled plastic (excl. container and pump) • Flow: 0.5 or 1 ml per pump (gel) • Locks with a key • Meets HACCP requirements • 1 year warranty • Dim. (mm): 110 (W) x 206 (H) x 106 (D)

YALISS COLLECTION - SOAP | DISPENSERS

YALISS COLLECTION MADE IN FRANCE The Yaliss collection was specially designed to be easy to install and maintain. These dispensers were created to handle any size of paper, including large formats. The Yaliss collection is completely personalisable and can bear the distributor’s brand name or logo.

YALISS JUMBO 400

SMART OPTION

Available with HygiaConnect® (cf. pages 14-15)

MADE IN FRANCE

PRODUCT PLUSES

R ERGONOMIC

Easy to tear right or left thanks to chiselled blades

YALISS JUMBO 400 DISPENSER Stainless Steel REF 8 99 2103

R UNIVERSAL

Universal core

R Locks securely with a key PRODUCT PLUSES

R Premium design R 100% antibacterial R Corrosion resistant, anti-vandal 304 stainless steel

YALISS JUMBO 400 DISPENSER Matte Black REF 8 99 1764

R Practical: Easy to restock consumables

R ECO-DESIGN CHARACTERISTICS

• Material: - 8 99 2103: 304 stainless steel - 8 99 1764: 100% recycled plastic - 8 99 955: 50 % recycled plastic • Capacity: 1 roll: 400 m - Ø 295 mm max • Universal core • Paper level indicator • 4 mounting points • Dim. (mm): 310 (W) x 334 (H) x 123 (D)

YALISS JUMBO 400 DISPENSER White REF 8 99 955

37

YALISS COLLECTION - PAPER | DISPENSERS

YALISS MINI MIXED TP DISPENSER MADE IN FRANCE

PRODUCT PLUSES

R Suitable for large formats R Removable core R Locks securely with a key R Practical: Easy to restock

YALISS MINI MIXED TP DISPENSER White REF 8 99 954

consumables

R ECO-DESIGN CHARACTERISTICS

R

R

UNIVERSAL A removable core makes this device suitable for roll or sheet by sheet dispensing

YALISS ZIG-ZAG DISPENSERS

SMART OPTION

Available with HygiaConnect® (cf. pages 14-15)

YALISS ZIG-ZAG Matte Black REF 8 99 1792

• 50% recycled plastic • Capacity: 1 roll - max Ø 130 mm • Paper level indicator • 3 mounting points • Dim. (mm): 155 (W) x 177 (H) x 135 (D)

MADE IN FRANCE

PRODUCT PLUSES

R Suitable for large paper towel formats R Locks securely with a key R Practical: Easy to restock consumables R ECO-DESIGN

CHARACTERISTICS

YALISS ZIG-ZAG Stainless Steel REF 8 99 2102

YALISS ZIG-ZAG White REF 8 99 880

YALISS MAXI PULL DISPENSER

• Material: - 8 99 2102: 304 stainless steel - 8 99 1792 / 8 99 880: 50 % recycled plastic • Capacity: 400-700 sheets • Max paper dimensions (mm): Width: 255 - Depth: 125 • Paper level indicator • 4 mounting points • Dim. (mm): 280 (W) x 350 (H) x 133 (D)

MADE IN FRANCE

PRODUCT PLUSES

R Adjustable tightness to slow dispensing

R Suitable for spools with large

YALISS MAXI PULL DISPENSER White REF 8 99 956

diameters R Locks securely with a key R Practical: Easy to restock consumables R ECO-DESIGN CHARACTERISTICS

R ECONOMICAL Adjustable tightness

38

• 50 % recycled plastic • Capacity: 450 sheets (spool: Ø 230 mm) • Paper level indicator • 4 mounting points • Dim. (mm): 260 (W) x 305 (H) x 240 (D)

YALISS COLLECTION - SOAP & STATIONS | DISPENSERS

YALISS AUTOMATIC DISPENSERS

SMART OPTION

Available with HygiaConnect® (cf. pages 14-15)

PRODUCT PLUSES

R HYGIENIC

Automatic hand detection

R Suitable for medical and agrifood settings

R Easy to refill consumables R 2 versions: Gel soap/hand YALISS GEL SOAP / HAND SANITISER DISPENSER Stainless Steel

sanitiser or foaming soap

REF 8 44 2104 YALISS FOAMING SOAP DISPENSER Stainless Steel REF 8 44 2158

R EASY

Automatically shuts off when the cover is open, with a wide opening for easy refills

R FOAM OR GEL

Thanks to interchangeable pumps CHARACTERISTICS

• Capacity: 1 L • Automatically shuts off when the cover is open • Removable container for easier cleaning • Large opening for level indicator • Flow: 1 ml per dose (gel) • Power supply: 4 LR14 (C, 1.5V) batteries (not included) • Level indicator • Locks with a key • Meets HACCP requirements • 2 year warranty • Dim. (mm): 157 (W) x 295 (H) x 106 (D)

YALISS GEL SOAP / HAND SANITISER DISPENSER Matte Black cover REF 8 44 1765

YALISS GEL SOAP / HAND SANITISER DISPENSER White cover REF 8 44 1448

YALISS FOAMING SOAP DISPENSER Matte Black cover REF 8 44 1766

YALISS FOAMING SOAP DISPENSER White cover REF 8 44 1449

39

YALISS COLLECTION - STATIONS | DISPENSERS

STATIONS HAND SANITISING

SMART OPTION

Available with HygiaConnect® (cf. pages 14-15)

MADE IN FRANCE

PRODUCT PLUSES

R SECURE

Locks with a key

R HYGIENIC

Automatic hand detection and built-in drip collection tray

R No electrical connection

required (battery operated)

R Built-in, easy to read stand (fits A5 signage – not included) R NON-CAPTIVE

Compatible with all types of hand sanitiser

R ANTI-VANDALISM

Very stable (6 kg steel base) CHARACTERISTICS

• Removable container for easier cleaning • Large opening for level indicator • Flow: 1 ml per dose • Material: ABS • Power supply: 4 LR14 (C, 1.5V) batteries (not included) • Optional external power charger (ref. 2 20 2798) • Meets HACCP requirements • Yaliss dispenser dim. (mm): 157 (W) x 295 (H) x 106 (D) • Stand measurements: 358 (W) x 1609 (H) x 358 (D) mm (12.8 kg)

REF 8 44 1448TO1

DISCOVER THE STATION IN VIDEO

BY SCANNING THIS QR CODE

YALISS AUTOMATIC HAND SANITISER STATION 1 L White REF 8 44 1448TO1

YALISS AUTOMATIC HAND SANITISER STATION 1 L Matte Black REF 8 44 1765TO1

R SET OF CASTERS REF 5 30 2764 PRACTICAL Optional set of 4 casters (2 with breaks, 2 without) + hardware

40

METAL COLLECTION | DISPENSERS

METAL COLLECTION

The metal collection has anti-vandal features. Thanks to its steel anti-vandal cover and frame, it is highly impact resistant. It is easy to refill, clean and maintain, making it suitable for use in a wide variety of settings. The equipment in our metal range features a consumables level indicator.

PAPER TOWEL DISPENSER METAL

PAPER TOWEL DISPENSERS White Metal REF 8 99 617

CHARACTERISTICS

CHARACTERISTICS

• Capacity: 400-700 paper towels • Max paper dimensions (mm): Width: 245 • Depth: 120 • Consumables level indicator at the front • 3 mounting points • 2 finishes: White Epoxy or Brushed Stainless Steel • Dim. (mm): 240 (W) x 400 (H) x 123 (D)

• Locks securely with a key • Capacity: 1 roll or 2 packets of folded paper • 3 mounting points • 2 finishes: White Epoxy or Brushed Stainless Steel • Dim. (mm): 134 (W) x 137 (H) x 120 (D)

PAPER TOWEL DISPENSER Brushed Stainless REF 8 99 797

MIXED TP DISPENSER White Metal REF 8 99 621

MIXED TP DISPENSER Brushed Stainless REF 8 99 622

DISPENSERS MENSTRUAL PRODUCTS NEW

MIXED TP DISPENSER METAL

JUMBO TOILET ROLL DISPENSERS METAL

PRODUCT PLUSES

PRODUCT PLUSES

R 3 dedicated

R Metal core delivered with

compartments

adapter

R Sturdy (steel) R Secure (locks with a key)

R Easy to refill menstrual products (hinged front door) MENSTRUAL PRODUCT DISPENSER REF 8 99 2292

CHARACTERISTICS

METAL JUMBO 200 M White REF 8 99 439 METAL JUMBO 400 M White REF 8 99 440

CHARACTERISTICS

• Material: Epoxy steel • Colour: White • 2 compartments for pads and 1 for tampons • Dim. (mm): 375 (W) x 432 (H) x 138 (D)

• Consumables level indicator at the front • Capacity: 200 / 400 m spool • Core diam. (mm): 45 / 60 • Easy to tear right or left • 4 mounting points • 2 finishes: White Epoxy or Brushed Stainless Steel • 200 m model dim. (mm): 246 (W) x 282 (H) x 120 (D) • 400 m model dim. (mm): 290 (W) x 326.5 (H) x 120 (D)

METAL JUMBO 200 M Brushed Stainless REF 8 99 1110 METAL JUMBO 400 M Brushed Stainless REF 8 99 623

41

OTHER | DISPENSERS

SAPHIR AUTOMATIC PRODUCT PLUSES

R Automatic hand detection R Large capacity (1.1 L) R Eco-friendly (flow limited to 1 ml every 3 seconds)

R Compatible with hand sanitiser R PRACTICAL Easy to refill

SAPHIR GEL SOAP / HAND SANITISER DISPENSER White cover REF 8 44 397

SAVINOX

CHARACTERISTICS

• Automatically shuts off when the cover is open • Automatic hand detection • Translucent level indicator • Flow: 1 ml per dose • Delivers 1 dose every 3 seconds • Power supply: 4 LR6 (AA, 1.5V) batteries • (not included) • Locks with a key • Meets HACCP requirements • 1 year warranty • Subject to eco-recycling • Dim. (mm): 140 (W) x 235 (H) x 107 (D)

PRODUCT PLUSES

R Anti-vandalism R Corrosion resistant 304 stainless steel R Soap level indicator R Compatible with hand sanitiser CHARACTERISTICS

SAVINOX GEL SOAP / HAND SANITISER DISPENSER 700 ml Shiny Stainless REF 8 44 254

SAVINOX GEL SOAP / HAND SANITISER DISPENSER 400 ml Shiny Stainless REF 8 44 253

SAVINOX GEL SOAP / HAND SANITISER DISPENSER 700 ml Brushed Stainless REF 8 44 304

ISISS

• Capacity: 450 or 700 ml • 2 finishes: Shiny 304 Stainless Steel (ref. 8 44 254 / 8 44 253) or Brushed 304 Stainless Steel (ref. 8 44 304) • Reinforced mounting system • Cover locks with a key • Translucent level indicator • Meets HACCP requirements • 1 year warranty CONCEPTION • 400 ml model dim. (mm): 90 (W) x 169 (H) x 115 (D) • 700 ml model dim. (mm): 105 (W) x 182 (H) x 115 (D)

MADE IN FRANCE

PRODUCT PLUSES

R 3 labels included (Soap, Shampoo & Lotion)

R Locks with a key (included) R Compatible with hand sanitiser R ECO-DESIGN ISISS GEL SOAP / HAND SANITISER DISPENSER Black REF 8 44 1767

42

ISISS GEL SOAP / HAND SANITISER DISPENSER White REF 8 44 1768

- Ecological & economical: Reusable container CHARACTERISTICS

• Key locking system for container • Capacity: 300 ml • Material: 100% recycled plastic • Flow: 1 ml per pump • Transparent containers • Meets HACCP requirements • 1 year warranty • Dim. (mm): 75 (W) x 202 (H) x 58 (D)

OTHER | DISPENSERS

RUBIS MADE IN FRANCE

PRODUCT PLUSES

R Long-lasting pump (silicone) R Personalisable name R Locks with a key (included) CHARACTERISTICS

• Compatible with gel soap or hand sanitiser • Capacity: 800 ml • Material: ABS • Flow: 1 ml per pump • Locks with a key • Meets HACCP requirements • 1 year warranty • Dim. (mm): 105 (W) x 207 (H) x 87 (D)

RUBIS REF 8 44 738

CRYSTAL

MADE IN FRANCE

PRODUCT PLUSES

R Long-lasting pump (silicone) R 2 capacities: 450 ml or 1 L R Push button or paddle R Secure: Locks with a key CHARACTERISTICS

CRYSTAL DISPENSER 450 ML PUSH BUTTON REF 8 44 098 CRYSTAL DISPENSER 1 L PADDLE REF 8 44 103 CRYSTAL DISPENSER 1 L PUSH BUTTON REF 8 44 102

R HYGIENIC Suitable for agrifood settings

CRYSTAL DISPENSER 450 ML PADDLE REF 8 44 099

CLEANSEAT TOILET SEAT DISINFECTANT

• Compatible with gel soap or hand sanitiser • Material: ABS • Flow: 1 ml per pump • Meets HACCP requirements • 1 year warranty • 450 ml model dim. (mm): 110 (W) x 155 (H) x 99 (D) • 1 L model dim. (mm): 110 (W) x 245 (H) x 99 (D)

MADE IN FRANCE

PRODUCT PLUSES

R Long-lasting pump (silicone) R Used under category TP2 R Compliant with European standard EN 13697

R CLEANSEAT 450 ML PUSH BUTTON TOILET SEAT DISINFECTANT REF 8 44 131

CLEANSEAT REFILL (1 L bottle)

R

CHARACTERISTICS

PRACTICAL User instructions printed on the product

• Capacity: 450 ml (approx. 450 doses) • Material: ABS • Flow: 1 ml per pump • Meets HACCP requirements • 1 year warranty • Dim. (mm): 110 (W) x 155 (H) x 99 (D)

REF 8 88 1656

43

OTHER | DISPENSERS

DISPENSERS SPOOL PRODUCT PLUSES

R Easy to tear paper: Plastic saw built into the cover and held in place by pressure from 2 side springs CHARACTERISTICS

• Tubular metal frame (Ø 20 mm): White Epoxy finish • ABS cover • Capacity: 1 spool of industrial paper • Standing model dim. (mm): 530 (W) x 910 (H) x 405 (D) • Wall-mounted model dim. (mm): 360 (W) x 345 (H) x 405 (D)

STANDING SPOOL FRAME REF 8 99 1169

WALL-MOUNTED SPOOL FRAME REF 8 99 1238

SOAP FOAMING

PRODUCT PLUSES

R Ecological R Economical R Gentle on the hands CHARACTERISTICS

• Made in the European Union: RS 37106/Z • pH: 6.0-6.5 • Biodegradable and Ecolabel • Compliant with standards 73/404/ EEC and 73/405/EEC

FOAMING SOAP 5 L jug REF 8 88 648

44

AIR FRESHENERS | DISPENSERS

AMARILLYS AIR FRESHENER PRODUCT PLUSES

R ECONOMICAL (day/night

modes, adjustable frequency)

R On/off indicator lights CHARACTERISTICS

R AMARILLYS Air freshener REF 8 33 522

ECONOMICAL With its day/night modes

AMARILLYS REFILL

• 3 modes: - Day (operates in the light) - Night (operates in the dark) - 24/7 • Programmable frequency of sprays: 7½, 15 or 30 min • Power supply: 2 LR14 (C, 1.5V) batteries (not included) • Battery life: 30,000 sprays • On/off indicator light • Spray indicator light • 2 year warranty • Dim. (mm): 95 (W) x 230 (H) x 95 (D)

MADE IN FRANCE

PRODUCT PLUSES

R Fragrances designed and Neutralising Floral Spray REF 8 88 1232

Purifying Essential Oil Spray REF 8 88 1464

Deodorant Peach Spray REF 8 88 1236

manufactured in France

R IFRA compliant CHARACTERISTICS

• Net volume: 250 ml for 3,000 sprays • Dim. (mm): 65 (Ø) x 130 (H) Fresh Wind Spray REF 8 88 1465

Deodorant Berry Spray REF 8 88 1235

Deodorant Citrus Spray REF 8 88 1237

ELIMINODOR

MADE IN FRANCE

PRODUCT PLUSES

R ECO-DESIGN

- No motor, no gas, no electricity - Uses no energy

ELIMINODOR Odour inhibitor REF 8 33 053

ELIMINODOR REFILL Lemon REF 8 88 057 ELIMINODOR REFILL Chlorophyll REF 8 88 058

CHARACTERISTICS

R

R

SIMPLE AND EFFECTIVE

• Material: Polypropylene • Dim. (mm): 100 (W) x 155 (H) x 50 (D)

Eliminodor works only via the flow of air caused by moving the door to which it is attached

45

FITTINGS | DISPENSERS

SINGLE HOOK MADE IN FRANCE

PRODUCT PLUSES

R Easy to mount

NEW

R Matte Black finish R ECO-DESIGN

- Sold in sets of 10 to reduce packaging - Controlled use of steel CHARACTERISTICS

SINGLE HOOK Matte Black REF 8 99 2242

HOOKS

• Material: Steel • Dim. (mm): 25 (Ø) x 20 (D)

CHARACTERISTICS

SINGLE HOOK Chrome REF 8 99 1438

DOUBLE HOOK Chrome REF 8 99 1439

SINGLE HOOK Matte Black REF 8 99 2276

DOUBLE HOOK Matte Black REF 8 99 2277

Single hook: • Material: 304 stainless steel • Dim. (mm): 56 (Ø) x 64 (D) Double hook: • Material: Brass • Dim. (mm): 87 (Ø) x 55 (D)

CHARACTERISTICS

NEW

NEW

HOOK Argo Matte Black REF 8 99 1780

DOUBLE HOOK Argo Matte Black REF 8 99 1781

46

• 304 stainless steel • Matte Black finish • Dim. (mm): 50 (W x 50 (H) x 80 (D)

FITTINGS | DISPENSERS

TOILET BRUSHES PRODUCT PLUSES

R 304L stainless steel CHARACTERISTICS

WALL-MOUNTED TOILET BRUSH HOLDER Brushed Chrome Stainless REF 8 99 1063

8 99 1063: • Dim. (mm): 92 (Ø) x 390 (H) x 122 (D) 8 99 1135: • Dim. (mm): 104 (Ø) x 386 (H) 8 99 796: • Dim. (mm): 104 (Ø) x 393 (H)

Shiny Chrome Stainless REF 8 99 1135

FLOOR TOILET BRUSH HOLDER Brushed Chrome Stainless REF 8 99 796

CHARACTERISTICS

• 304 stainless steel • Matte Black finish 8 99 1783: • Dim. (mm): 160 (W) x 365 (H) x 125 (D) 8 99 1136 • Dim. (mm): 92 (W) x 393 (H) x 115 (D) WALL-MOUNTED TOILET BRUSH HOLDER Argo Matte Black Stainless REF 8 99 1783

WALL-MOUNTED TOILET BRUSH HOLDER Matte Black REF 8 99 1136

47

HELIO BUG ZAPPER REF 8 55 2232 | P. 55

48

OUR INSECT CATCHERS PAGES 48-55

CHOOSE THE INSECT CATCHER THAT WILL HIT YOUR TARGET Explore our wide range of HACCP-compatible insect catchers. Our bug killers can be installed anywhere, on a flat surface, hanging from the ceiling or attached to the wall.

KEEP YOUR SPACE CLEAN Insect catchers are designed to attract and kill all kinds of flying insects, including flies, mosquitoes, midges, wasps, hornets, horseflies and more. Our insect catchers are illuminated electrical devices that attract flying insects with ultraviolet A rays (harmless to people) and then either electrocute them, trap them with glue or aspirate them.

FIND THE PERFECT SPOT FOR YOUR INSECT CATCHER For optimal operation, your insect catcher should be placed in a warm, dark place, sheltered from draughts and up in the air (whether mounted or hanging).

CONSIDER THE SPECIAL STANDARDS APPLICABLE TO HUMID SPACES IP54 devices are protected against splashing water and are especially well-suited to very wet, humid environments.

PREVENT THE RISK OF BREAKAGE WITH FRAGMENT RETENTION TUBES Unlike standard tube light bulbs, fragment retention tubes are covered with a protective film which prevents broken glass in the case of a blow. Fragment retention tubes are recommended for the agrifood industry in particular.

ELECTROCUTION, GLUE OR ASPIRATION? CHOOSE THE MODEL THAT MEETS YOUR NEEDS Bug zappers are non-polluting (no chemicals and no odours). They are safe (the high-voltage grids are always protected). Their collection trays need to be emptied.

Glue traps are non-polluting (no chemicals and no odours). They are safe. They do not cause any crackling or throw off any insect parts. Their glue strips need to be replaced on a regular basis. Glue traps are recommended for spaces with specific hygiene constraints, like kitchens and restaurants.

Aspiration fans are perfectly hygienic and a great choice for spaces with substantial hygiene constraints.

MAKE THE MOVE TO LED BULBS Lighting regulations are changing, in favour of more sustainable, planet-friendly options. As a result, all fluorescent bulbs designed for everyday lighting purposes have been phased out and banned from sale in the European Union since September 2023. In anticipation of the ban on UV lights (slated for 2027), we are switching all our insect killers to LED bulbs now.

LEDs consume 50% less electricity and function for 50,000 hours (twice as long as fluorescent tubes).

49

INSECT CATCHERS

CHOOSING THE RIGHT INSECT CATCHER

INDUSTRIE PRO IP54

INDUSTRIE

LED

8 55 837 REFERENCE

POWER

8 55 1174

80 W

8 55 838

8 55 1598

8 55 627

8 55 839 (Glue trap)

8 55 629

30 W

19 W

40 W

GLUE

DECO

COMPACT

8 55 524

8 55 1291 (White) 8 55 1392 (Black) 8 55 1393 (Red)

8 55 1326 (White) 8 55 1327 (Black) 8 55 1328 (Red)

19 W

20 W

20 W

8 55 625

13 W

80 W

24 W

DESINSECTIVOR COMMERCE

8 55 2232 8 55 2232 (Bulb)

7.5 W

8 55 078

30 W

48 W

Agrifood, chemicals and farming industries

Retail shops, kitchens, childcare centres, schools, retirement homes (40 W), and agrifood, chemicals and farming industries

Retail shops, kitchens, childcare centres, schools and retirement homes

Retail shops, kitchens, childcare centres, schools and retirement homes

Retail shops, kitchens, childcare centres, schools and retirement homes

AREA COVERED

200 m2

120 m2 200 m2

80 m2

80 m2 120 m2 200 m2

80 m2

30 m2

50 m2

60 m2

80 m2

METHOD USED

Electrocuting grid

Electrocuting grid / glue board

Electrocuting grid

Electrocuting grid

Glue board

Glue board

Electrocuting grid

Aspiration

Electrocuting grid

CONCEPTION

CONCEPTION

CONCEPTION

IDEAL FOR

ECO-DESIGN

RESISTANT TO SPLASHING WATER

ꤶ

DUST RESISTANT

ꤶ

HIGH CORROSION AND OXIDATION RESISTANCE

ꤶ

Food shops, Food shops, Food shops, bars, cafés, bars, cafés, bars, cafés, restaurants and restaurants and restaurants and hotels hotels hotels

ꤶ ꤶ

ꤶ

DIMENSIONS & WEIGHTS

160 (W) x 270 (H) x 130 (D) mm 1.78 kg

MADE IN FRANCE

MADE IN FRANCE

MADE IN FRANCE

MADE IN FRANCE

MADE IN FRANCE

MATERIALS

304L stainless steel

304L stainless steel

Steel

Steel

INSTALLATION

Hang, place on Hang from the Hang, place on a flat surface or ceiling or mount a flat surface or mount on a wall on a wall mount on a wall CE – IP54 Class I HACCP

Retail shops, kitchens, childcare centres, schools and retirement homes

CONCEPTION

617 (W) x 280 80 m2 515 (W) x 325 (H) x 110 (D) 630 (W) x 300 165 (W) x 265 mm 470 (W) x 255 (H) x 70 (D) mm 465 (W) x 285 (H) x 155 (D) 4.51 kg (H) x 113 (D) 6.46 kg (H) x 100 (D) (H) x 95 (D) mm mm 120 & 200 m2 mm (8 55 837) mm 4.05 kg 660 (W) x 365 10 kg 0.93 kg 7 kg (8 55 838) 4.51 kg (H) x 70 (D) mm 5.7 kg 5.70 kg (8 55 839)

CERTIFICATIONS

50

STANDARD

CE – IP20 Class I HACCP

ABS

CE – IP24 Class II HACCP

Stainless steel

Hang from ceiling CE – IP20 Class I HACCP

Steel

Place on a Hang, place on Hang, place on surface or a flat surface or a flat surface or mount on a wall mount on a wall mount on a wall CE – IP20 Class I HACCP

CE – IP20 Class I HACCP

CE – IP20 Class I HACCP

200 (W) x 430 (H) x 200 (D) mm 0.90 kg

350 (W) x 230 (H) x 150 (D) mm 4.42 kg

PC-ABS

ABS

Place on a flat surface

Hang, place on a flat surface or mount on a wall

CE – IP20 Class II HACCP

CE – IP20 Class I HACCP

BUG ZAPPERS | INSECT CATCHERS

INDUSTRIE PRO IP54 APPROXIMATE PROTECTED AREA • 200 m2

MADE IN FRANCE

PRODUCT PLUSES

R Robust R Hang, place on a flat surface or mount on a wall

R Suitable for wet and dusty environments (IP54)

CHARACTERISTICS

INDUSTRIE PRO 80 W BUG ZAPPER IP54 + fragment retention REF 8 55 1174

40 W FRAGMENT RETENTION TUBE REF 2 20 0340

INDUSTRIE

• Power supply: 230 V - 50 Hz • Grid voltage and intensity: 3700 V - 9 mA • Rated power: 60-100 W max • Material: 304L stainless steel • Class I • IP54 • 2 tubes included per device • 2 year warranty • Dim. (mm): 630 (W) x 300 (H) x 155 (D)

MADE IN FRANCE

APPROXIMATE PROTECTED AREA • 120 or 200 m2

PRODUCT PLUSES

R PRACTICAL

Opening system makes it easy to clean

GLUE STRIPS (pack of 6) 175 x 610 mm REF 8 88 840

R Hang, place on a flat surface or mount on a wall

R Automatically shuts off when the grid is open CHARACTERISTICS

BUG ZAPPER

SPARE BULB

STANDARD

FRAGMENT RET.

STANDARD

FRAGMENT RET.

• 40 W

REF 8 55 837

REF 8 55 837 TAE

REF 2 20 0338 20 W TUBE

REF 2 20 0089 20 W TUBE

• 80 W

REF 8 55 838

REF 8 55 838 TAE

REF 2 20 0339 40 W TUBE

REF 2 20 0340 40 W TUBE

• 80 W (GLUE)

REF 8 55 839

REF 8 55 839 TAE

REF 2 20 0339 40 W TUBE

REF 2 20 0340 40 W TUBE

• Power supply: 230 V - 50 Hz • Grid voltage and intensity: 3700 V / 9 mA • Rated power: 30, 40 or 80 W • Material: 304L stainless steel • Class I • IP20 • 2 tubes included per device • 2 year warranty • Dim. (mm): 617 (W) x 280 (H) x 110 (D)

51

BUG ZAPPERS & GLUE TRAPS | INSECT CATCHERS

LED

PRODUCT PLUSES

APPROXIMATE PROTECTED AREA • 80 m

2

R 360° opening for maximum attraction

R ECO-DESIGN

- Long-life, energy-efficient LED tube CHARACTERISTICS

LED BUG ZAPPER REF 8 55 1598

LED STRIP REF 2 20 2657

STANDARD

• Place on the ground or hang • Easy to clean insect collection tray • Power supply: 220-240 V - 50-60 Hz • Power: 13 W • Bulb type: LED • Grid voltage: 4000 V • Material: Heat resistant ABS • Class II - IP20 • 2 year warranty • Dim. (mm): 470 (W) x 255 (H) x 100 (D)

PRODUCT PLUSES

APPROXIMATE PROTECTED AREA • 80-200 m2

R Stainless steel R On/off switch R ECO-DESIGN

- Long-life, energy-efficient LED tube CHARACTERISTICS

STANDARD BUG ZAPPER

SPARE LED BULB

2

80 m

REF 8 55 625

REF 2 20 3234

2

120 m

REF 8 55 627

REF 2 20 3235

200 m2

REF 8 55 629

REF 2 20 3233

GLUE TRAP

• Power supply: 230 V - 50 Hz • Grid voltage and intensity: 3800 V / 10 mA • Power: 8 55 625: 19 W - 8 55 627: 24 W - 8 55 629: 48W • Power cord with plug (95 cm) • Material: Stainless steel • Class I • IP20 • 2 tubes included per device • 2 year warranty • 30 W model dim. (mm): 515 (W) x 325 (H) x 70 (D) • 40 & 80 W model dim. (mm): 660 (W) x 365 (H) x 70 (D)

PRODUCT PLUSES

APPROXIMATE PROTECTED AREA • 80 m2

R Compact size makes it easy to

move Hang, place on a surface or R mount on a wall R ECO-DESIGN - Long-life, energy-efficient LED tube CHARACTERISTICS

GLUE TRAP

SPARE LED BULB

REF 8 55 524

REF 2 20 3234 GLUE STRIPS (pack of 10) 460 x 295 mm REF 8 88 525

52

• Power supply: 230 V - 50 Hz • Power: 19 W • Fuse accessible from the exterior • Power cord with plug (1.8 m) • Material: Glossy white steel • Class I • IP20 • 2 tubes included per device • 2 year warranty • Dim. (mm): 465 (W) x 285 (H) x 95 (D)

GLUE TRAPS | INSECT CATCHERS

DECO APPROXIMATE PROTECTED AREA • 30 m2

MADE IN FRANCE

PRODUCT PLUSES

R Model for small spaces R Cost-effective CHARACTERISTICS

• Power supply: 220-240 V - 50 Hz • Power cord with plug (1.4 m) • Meets HACCP requirements • Material: Glossy steel • Class I • IP20 • 1 bulb included (20 W) • 2 year warranty • Dim. (mm): 165 (W) x 265 (H) x 113 (D)

REF 8 55 1292

DECO Black REF 8 55 1292 SCREW TUBE BULB E14 REF 2 20 1887

DECO White REF 8 55 1291 GLUE STRIPS (pack of 6) REF 8 88 1294

53

GLUE TRAPS | INSECT CATCHERS

COMPACT APPROXIMATE PROTECTED AREA • 50 m2

MADE IN FRANCE

PRODUCT PLUSES

R Model for small spaces R Decorative design CHARACTERISTICS

• Power supply: 230 V - 50 Hz • Grid voltage and intensity: 3000 V - 5 mA • Power: 25 W • Power cord with plug (1 m) • Material: Glossy steel • Class I • IP20 • 1 bulb included (20 W) • 2 year warranty • Dim. (mm): 160 (W) x 270 (H) x 130 (D)

COMPACT 20 W Black REF 8 55 1327 SCREW TUBE BULB E14 REF 2 20 1887

COMPACT 20 W White REF 8 55 1326 SCREW TUBE BULB E14 REF 2 20 1887

54

BUG ZAPPERS | INSECT CATCHERS

HELIO APPROXIMATE PROTECTED AREA • 60 m2

PRODUCT PLUSES

R ECO-FRIENDLY

No chemicals or consumables

R HYGIENIC

No insect parts thrown off Easy to empty trap

R ECO-DESIGN

- Low energy consumption - LED bulb with smart light sensor CHARACTERISTICS

• Approximate protected area: 60 m2 • Power supply: 220-240 V - 50-60 Hz • Rated power: 7.5 W • On/off button • Material: PC-ABS • Finish: White • Bulb type: UV-A • (included) • Insect collection tray • Dim. (mm): 200 (W) x 430 (H) x 200 (D)

HELIO BUG ZAPPER REF 8 55 2232

HELIO BULB REF 2 20 3176

COMMERCE

PRODUCT PLUSES

APPROXIMATE PROTECTED AREA • 80 m2

R Cost-effective CHARACTERISTICS

• Power supply: 230 V - 50 Hz • Plastic cover • Class I • IP20 • 2 tubes included (15 W) • 2 year warranty • Dim. (mm): 350 (W) x 230 (H) x 150 (D)

30 W PROFESSIONAL BUG ZAPPER REF 8 55 078

15 W TUBE (for ref. 8 55 078) REF 5 20 0337

55

METAL BINS REF 8 99 2293 | P. 73

56

OUR WASTE SORTING SOLUTIONS PAGES 56-75

ONE TWO TRI : THREE POINTS TO CONSIDER WHEN CHOOSING YOUR BINS Between bins for offices, washrooms, kitchens and recycling, JVD has a wide range suited to all your different spaces.

POINT NO. 1: ALIGNING YOUR ORGANISATION WITH YOUR LEGAL OBLIGATIONS European regulations and the French Energy Transition Law are increasing companies’ obligations in respect of waste treatment. All French companies with more than 20 office workers are now required to sort and recycle their office paper.

Companies, shops and administrations which entrust their waste to a private company or which generate more than 1,100 litres of waste per week and which use a public waste collection service must also organise their flows of paper, metal, plastic, glass and wood, meaning they must have bins for each category of waste.

POINT NO. 2: ENCOURAGING WASTE SORTING AS A FORM OF CLIMATE ACTION

POINT NO. 3: INSTALLING THE RIGHT SOLUTIONS IN THE RIGHT PLACES To simplify the sorting process and encourage your employees to take part in this eco-responsible approach, your choice of sorting bin locations is essential.

Bins for paper and other waste should be placed near office space, while larger sorting solutions can be set up in break areas. Lastly, you can create a clearly indicated, dedicated recycling area close to where employees congregate, where you can house all your sorting containers. Be sure to select appropriate receptacles. JVD offers a wide array of solutions designed for any setting, all of which are visible, easy to understand, easy to empty and suited to the quantity of waste produced.

If waste is not sorted, it cannot be recycled.

The recycling process transforms waste into secondary raw materials and gives them a new lease of life. Thanks to appropriate sorting solutions (based on signage, form and size), your employees can be included in an eco-responsible movement that is beneficial to your company. JVD also offers solutions that can help you take your eco-responsible strategy a step further. By using these bins made of recycled cardboard or plastic, you can further reduce the impact of your waste on the climate.

57

FOR OFFICES

BINS CARDBOARD MADE IN FRANCE

PRODUCT PLUSES

R PRACTICAL

Visibility of remaining space

R HYGIENIC

Minimal floor contact

R Delivered flat to reduce the impact of transport

R Easy attachment of bin bags R ECO-DESIGN

- 100% FSC or recycled cardboard CHARACTERISTICS

• 8 99 2105: Sold in packs of 3 • 8 99 2106: Sold in packs of 10 • 8 99 2106 measurements: 6 L capacity 226 (W) x 223 (H) x 145 (D) mm • 8 99 2105 measurements: 75 L capacity 355 (W) x 815 (H) x 375 (D) mm

SET OF 3 CARDBOARD BINS (75 L) REF 8 99 2105

SET OF 10 CARDBOARD OFFICE BINS REF 8 99 2106

58

OFFICES | WASTE SORTING SOLUTIONS

SORTING BINS DESIGNED IN FRANCE

BINS WITH 2 COMPARTMENTS

PRODUCT PLUSES

BINS

R 6 stickers included

R Rubber protection at

R Easy to empty thanks to built-in

base

handles

R Water and rust resistant

R WASTE SORTING

inner containers

R WASTE SORTING

ROUND RECYCLING BIN REF 8 99 1229

• Materials: Epoxy steel & polypropylene • Capacity: 10 L • Outer colour: Black • 2 compartments of 5 L each Dimensions (mm): • Round model: 225 (Ø) x 270 (H) • Rectangular model: 270 (W) x 290 (H) x 210 (D)

RECTANGULAR BIN WITH 2 COMPARTMENTS REF 8 99 1261

NEW

CHARACTERISTICS

BLACK BIN 3 colour coded compartments REF 8 99 1086

• Rubber protection at the base to prevent scratching the floor • Capacity: 13 L • Outer colour: Black or Brushed Stainless • Removable compartments (black or colour coded) • Dim. (mm): 245 (Ø) x 300 (H)

BLACK BIN 3 black compartments REF 8 99 881

BRUSHED STAINLESS BIN 3 black compartments REF 8 99 1031

PRODUCT PLUSES

PRODUCT PLUSES

R Lid to conceal the bags

R Streamlined design R 2 waste compartments R Easy to empty R WASTE SORTING

and hold them in place R WASTE SORTING CHARACTERISTICS

• Materials: Epoxy steel & polypropylene • Capacity: 10 L • Outer colour: Black • 2 compartments of 5 L each • Dim. (mm): 275 (W) x 340 (H) x 200 (D)

OVAL SORTING BIN WITH 2 CONTAINERS REF 8 99 1265

R Unique design for sorting small waste

R 10 L capacity

CHARACTERISTICS

PRODUCT PLUSES

CHARACTERISTICS

• Epoxy steel outer container • Polypropylene inner compartments • Outer colour: Black • Capacity: 13 L • Dim. (mm): 245 (W) x 300 (H) x 245 (D)

OVAL BIN WITH 2 COMPARTMENTS REF 8 99 1975

59

OFFICES | WASTE SORTING SOLUTIONS

BINS FOR OFFICES PRODUCT PLUSES

R 3 colour coded compartments

NEW

R Optional lid R WASTE SORTING CHARACTERISTICS

• Materials: Epoxy steel and polypropylene • Capacity: 12 L • Outer colour: Black • 3 compartments: 6 L and 2 x 3 L • Dim. (mm): 244 (Ø) x 315 (H)

LID FOR WASTE SORTING BIN WITH 3 COMPARTMENTS REF 8 99 2301

WASTE SORTING BIN WITH 3 COMPARTMENTS REF 8 99 2300

WASTE BINS

CHARACTERISTICS

• Rubber protection at the base to prevent scratching the floor • Colour: Mirror Stainless Steel • Dim. (mm): 200 (Ø) x 297 (H)

DOUBLE WALL

10 L WASTE BIN Satin Stainless with double wall REF 8 99 1007

SINGLE WALL

10 L WASTE BIN Black Leather with single wall REF 8 99 1087

60

10 L WASTE BIN Black with double wall REF 8 99 546

Waste bin: • Double wall system to conceal the bag and hold it in place • Colour: Black, Satin Stainless or Leather • Dim. (mm): 225 (Ø) x 270 (H)

FOR WASHROOMS

FEMININE HYGIENE STAINLESS STEEL PRODUCT PLUSES

R 304 stainless steel R Metal lock R Sealed waste deposit area R WASTE SORTING

NEW

CHARACTERISTICS

• Capacity: 45 L (50 L bag) • Material: 304 stainless steel • Dim. (mm): 193 (W) x 400 (H) x 405 (D)

STAINLESS STEEL FEMININE HYGIENE BIN REF 8 99 2296

R Quietly closing hatch

R Opens with a foot pedal

61

WASHROOMS | WASTE SORTING SOLUTIONS

WALL-MOUNTED BIN STAINLESS STEEL

SMART OPTION

PRODUCT PLUSES

Available with HygiaConnect® (cf. pages 14-15)

R PRACTICAL

Built-in bag holder

R Vandalism protection: 304 stainless steel

R Wall mounting R Easy to clean R Premium design R 100% antibacterial BIN Stainless Steel REF 8 99 2114

WALL-MOUNTED BINS HALF-MOON

CHARACTERISTICS

• Material: 304 stainless steel • Capacity: 60 L • Dim. (mm): 355 (W) x 665 (H) x 245 (D)

PRODUCT PLUSES

R Easy to mount R Easy to empty R Non-cutting edge R Wall mount included CHARACTERISTICS

• Material: Painted epoxy steel • Choice of 2 colours: Black or White • 20 L model dim. (mm): 350 (W) x 495 (H) x 190 (D) • 40 L model dim. (mm): 400 (W) x 660 (H) x 210 (D)

62

HALF-MOON WALL-MOUNTED BIN White (20 L) REF 8 99 1416

HALF-MOON WALL-MOUNTED BIN Black (20 L) REF 8 99 1418

White (40 L) REF 8 99 1417

Black (40 L) REF 8 99 1419

WASHROOMS | WASTE SORTING SOLUTIONS

BIN RECTANGULAR CHARACTERISTICS

• Material: Plastic • Scratch resistant and easy to clean • Outer colour: Grey • Dim. (mm): 235 (W) x 260 (H) x 62 (D)

6.6 L RECTANGULAR BIN REF 8 99 1420

BINS ROUND

PRODUCT PLUSES

R PRACTICAL

Plastic container makes it easy to clean

R Smooth material, very easy to clean

R Wide range of capacities: 3-30 L

CHARACTERISTICS

3 L PEDAL BIN Matte Black REF 8 99 1785

3 L PEDAL BIN Mirror Stainless REF 8 99 435

3 L PEDAL BIN White REF 8 99 432

OTHER SIZES 5L

12 L

20 L

30 L

Black

REF 8 99 1786

Stainless

REF 8 99 436

REF 8 99 437

REF 8 99 821

REF 8 99 998

White

REF 8 99 433

REF 8 99 434

REF 8 99 820

REF 8 99 997

• Materials: - Metal exterior - Plastic inner container • Rubber protection at the base against scratching the floor and detergents • Increased mobility thanks to its handle • Robust opening mechanism made entirely of metal • Floor grip reinforced by two rubber pads • Colour: Matte Black, Mirror Stainless (18/0) or White • 3 L model dim. (mm): Ø. 167 (Ø) x 270 (H) • 5 L model dim. (mm): Ø. 203 (Ø) x 284 (H) • 12 L model dim. (mm): Ø. 284 (Ø) x 400 (H) • 20 L model dim. (mm): Ø. 292 (Ø) x 445 (H) • 30 L model dim. (mm): Ø. 292 (Ø) x 640 (H)

63

WASHROOMS | WASTE SORTING SOLUTIONS

SWING TOP PRODUCT PLUSES

R Practical Swing top

R Cost-effective 50 L WHITE SWING TOP BIN REF 8 99 1085 25 L WHITE SWING TOP BIN REF 8 99 1084 10 L WHITE SWING TOP BIN REF 8 99 1083

LADYBOX

R Swing top R Easy to empty CHARACTERISTICS

• Material: Polypropylene • Capacity: 10, 25 or 50 L • Colour: White • 10 L model dim. (mm): 246 (W) x 373 (H) x 198 (D) • 25 L model dim. (mm): 346 (W) x 511 (H) x 278 (D) • 50 L model dim. (mm): 406 (W) x 668 (H) x 340 (D)

PRODUCT PLUSES

SMART OPTION

Available with HygiaConnect (cf. pages 14-15)

®

R Robust R Narrow shape suited to space in a washroom

R Hygienic opening R Sealed waste deposit area R Easy to clean R WASTE SORTING CHARACTERISTICS

LADYBOX REF 8 99 865

R HYGIENIC Pedal operated opening avoids all direct contact

64

• Capacity: 20 L (50 L bag) • Material: Polypropylene (for intensive usage) • Colours: Grey (lid) / White (waste container) • Retaining ring for the bag inside the container • 10 L model dim. (mm): 480 (W) x 415 (H) x 175 (D)

FOR COMMON AREAS

SORTING BINS METAL PRODUCT PLUSES

R Robust (epoxy steel casing)

NEW

40 L INDIVIDUAL METAL SORTING BIN Black REF 8 99 2297BASE

60 L INDIVIDUAL METAL SORTING BIN Black REF 8 99 2298BASE

R Available in several colours to encourage waste sorting

R Built-in bag holder R Easily create waste sorting islands

R WASTE SORTING CHARACTERISTICS

• Material: Epoxy steel • Capacity: 40 or 60 L • 40 L model dim. (mm): 300 (W) x 700 (H) x 200 (D) • 60 L model dim. (mm): 350 (W) x 750 (H) x 230 (D)

Grey lid

Blue lid

Yellow lid

Green lid

Red lid

40 L

8 99 2297 -LID-GRY

8 99 2297 -LID-BLU

8 99 2297 -LID-YEL

8 99 2297 -LID-GRN

8 99 2297 -LID-RED

60 L

8 99 2298 -LID-GRY

8 99 2298 -LID-BLU

8 99 2298 -LID-YEL

8 99 2298 -LID-GRN

8 99 2298 -LID-RED

65

COMMON AREAS | WASTE SORTING SOLUTIONS

SORTING BINS FRONT OPENING PRODUCT PLUSES

R Large front openings for easy bag removal

R Robust (epoxy steel) R Built-in bag holder R Ideal for creating waste sorting islands

R WASTE SORTING CHARACTERISTICS

• Material: Epoxy steel • Capacity: 80 L • Dim. (mm): 400 (W) x 785 (H) x 450 (D)

SORTING BIN WITH FRONT OPENING Grey REF 8 99 2299-GRY

NEW

SORTING BIN WITH FRONT OPENING Blue REF 8 99 2299-BLU

SORTING BIN WITH FRONT OPENING White REF 8 99 2299-WHT SORTING BIN WITH FRONT OPENING Blue REF 8 99 2299-BLU SORTING BIN WITH FRONT OPENING Yellow REF 8 99 2299-YEL SORTING BIN WITH FRONT OPENING Red REF 8 99 2299-RED SORTING BIN WITH FRONT OPENING Green REF 8 99 2299-GRN

SORTING BIN WITH FRONT OPENING Yellow REF 8 99 2299-YEL

66

COMMON AREAS | WASTE SORTING SOLUTIONS

WASTE SORTING BINS PRODUCT PLUSES

R SECURE

Locking system for 60 & 80 L sorting bins

R 50 % recycled plastic R MULTIPLE COMBINATIONS The lids are suited to waste types The containers come in Contact us for more info

R WASTE SORTING CHARACTERISTICS

• Material: Polypropylene, including more than 50% recycled plastic • Capacity: 60 or 80 L • Dollies and lid locking systems available for this range of sorting bins • 60 L model dim. (mm): 320 (W) x 580 (H) x 460 (D) • 80 L model dim. (mm): 320 (W) x 762 (H) x 460 (D) • Dolly dim. (mm): 480 (W) x 15 (H) x 355 (D)

80 L SORTING BIN Without lid REF 8 99 1098

R

60 L SORTING BIN Without lid REF 8 99 1097

PRACTICAL

PLASTIC DOLLY for 60 & 80 L sorting bins REF 8 99 1105

Bottles / Cups / Cans Opening: 10.5 x 10.5 cm

Bottles / Cups / Cans Opening: Ø 12 cm

Bottles / Cups / Cans Opening: Ø 12 cm

SORTING LID Yellow REF 8 99 1102

SORTING LID Green REF 8 99 1100

SORTING LID Blue REF 8 99 1101

Paper Opening: 3 x 23 cm

Other waste

Other waste

SORTING LID Blue Paper REF 8 99 1103

SORTING LID Grey REF 8 99 1099

SORTING LID Push REF 8 99 1104

67

OFFICES | WASTE SORTING SOLUTIONS

SORTING STATION BLACK WITH 3 COMPARTMENTS

PRODUCT PLUSES

R Front openings for easy bag removal

R Robust (epoxy steel)

NEW

R Built-in bag holder R Made in Europe R WASTE SORTING CHARACTERISTICS

• Material: Epoxy steel • Dim. (mm): 1018 (W) x 1094 (H) x 326 (D) • Bin bag holders: 3 x 40 L

BLACK SORTING STATION WITH 3 COMPARTMENTS REF 8 99 2302

68

COMMON AREAS | WASTE SORTING SOLUTIONS

OPEN DOME BINS PRODUCT PLUSES

R Coloured tops to help identify

what goes where R 5 colours: Stainless Steel, Green, Blue, Red and Yellow R Rubber protection at the base to prevent scratches WASTE SORTING R 40 L OPEN DOME 40 L OPEN DOME BIN BIN Blue Green REF 8 99 1424 REF 8 99 1423

CHARACTERISTICS

• Materials: Brushed stainless steel (outer bin) and galvanised steel (inner container) • Removable open dome lid • Dim. (mm): Ø. 350 (Ø) x 785 (H)

40 L OPEN DOME 40 L OPEN DOME 40 L OPEN DOME BIN BIN BIN Red Stainless Yellow REF 8 99 1427 REF 8 99 1426 REF 8 99 1425

PUSH BINS

PRODUCT PLUSES

R PRACTICAL

Galvanised inner container with handle (included)

R Opens and automatically closes with a reinforced push door of polished stainless steel

R Rubber ring at the base to

protect against scratching the floor and detergents CHARACTERISTICS

• Suitable for use indoors and in protected outdoor locations • Inner container of galvanised metal fitted with a handle • Capacity: 40 L • Colour: Black or Mirror Stainless • Dim. (mm): Ø. 345 (Ø) x 785 (H)

40 L PUSH BIN Mirror Stainless REF 8 99 539

40 L PUSH BIN Black REF 8 99 538

69

COMMON AREAS | WASTE SORTING SOLUTIONS

WASTE SORTING BINS PRODUCT PLUSES

R Compact sorting solution (offices and bedrooms)

R 3 removable compartments of galvanised steel

R Easy to empty R Stickers included R WASTE SORTING CHARACTERISTICS

• Material: Painted metal or stainless steel • Capacity: 40 L - 2 compartments of 10 L each - 1 compartment of 20 L • Colour: Black Epoxy or Brushed Stainless • Dim. (mm): 335 (Ø) x 470 (H) 40 L SORTING BIN Brushed Stainless REF 8 99 1005

40 L SORTING BIN Black Epoxy REF 8 99 1080

WASTE SORTING BINS

MADE IN FRANCE

PRODUCT PLUSES

R PRACTICAL

Galvanised steel container with handle

R Compact sorting solution R Easy to empty with its 3

removable galvanised steel compartments

R Stickers included to identify the purpose of each container

R WASTE SORTING CHARACTERISTICS

60 L SORTING BIN Brushed Stainless REF 8 99 1081

70

60 L SORTING BIN Black REF 8 99 1004

• Material: Painted metal or stainless steel • Capacity: 60 L - 2 compartments of 15 L each - 1 compartment of 30 L • Colour: Black Epoxy or Brushed Stainless • Dim. (mm): Ø. 355 (Ø) x 670 (H)

FOR KITCHENS

ROUND BAG HOLDERS ROLLING WITH PEDAL

PRODUCT PLUSES

R Available in several colours to

NEW

encourage waste sorting

R Wide foot pedal that meets HACCP requirements

R Bag held with elastic band R 2 hard plastic wheels R WASTE SORTING CHARACTERISTICS

• Material: Epoxy steel or stainless steel • Capacity: 110 L • Dim. (mm): 520 (W) x 990 (H) x 580 (D)

ROLLING ROUND BAG HOLDER WITH PEDAL Stainless Steel REF 8 99 2295-SSSTL

ROLLING ROUND BAG HOLDER WITH PEDAL Yellow REF 8 99 2295-YEL

ROLLING ROUND BAG HOLDER WITH PEDAL Red REF 8 99 2295-RED

ROLLING ROUND BAG HOLDER WITH PEDAL White REF 8 99 2295-WHT

ROLLING ROUND BAG HOLDER WITH PEDAL Blue REF 8 99 2295-BLU

ROLLING ROUND BAG HOLDER WITH PEDAL Green REF 8 99 2295-GRN

ROLLING ROUND BAG HOLDER WITH PEDAL Grey REF 8 99 2295-GRY

71

KITCHENS | WASTE SORTING SOLUTIONS

BIN BAG HOLDER WITH LID PRODUCT PLUSES

R Available in several colours to

NEW

encourage waste sorting

R Bag held with elastic band R Wall or post mounting R Screws included R WASTE SORTING CHARACTERISTICS

BIN BAG HOLDER WITH LID Red REF 8 99 2304-RED

BIN BAG HOLDER WITH LID Yellow REF 8 99 2304-YEL

BIN BAG HOLDER WITH LID Blue REF 8 99 2304-BLU

BIN BAG HOLDER WITH LID Green REF 8 99 2304-GRN

• Material: Epoxy steel • Mounting: To a wall or post (screws included) • Dim. (mm): 415 (W) x 150 (H) x 535 (D)

BIN BAG HOLDER WITH LID Black REF 8 99 2304-BLA

PEDAL BIN BAG HOLDER

PRODUCT PLUSES

R Silent foot pedal R Sturdy: Stainless steel (18/0) R 2 casters at the back to simplify mobility with a breaking system CHARACTERISTICS

BIN BAG HOLDER Stainless (18/0) REF 8 99 882

72

• Comes as a kit, ready to assemble • Made of stainless steel (18/0) and rubber • Reinforced stability with 4 legs • Assisted opening and closing • Bag held in place with a rubber band • Finish: Chrome • Ref. 8 99 882 dim. (mm): 550 (W) x 940 (H) x 425 (D) • Ref. 8 99 1075 dim. (mm): 590 (W) x 1000 (H) x 430 (D)

KITCHENS | WASTE SORTING SOLUTIONS

METAL BINS WITH PEDALS AND FRONT OPENINGS

PRODUCT PLUSES

R Comes pre-assembled R Available in several colours to encourage waste sorting

NEW

R Easy access with a lid that opens to more than 80°

R Removable front for easy bag removal

R Wide foot pedal that meets HACCP requirements R 2 rubber wheels for easy movement

R WASTE SORTING CHARACTERISTICS

• Material: 430 stainless steel or epoxy steel • Capacity: 70 or 110 L • 70 L model dim. (mm): 480 (W) x 755 (H) x 440 (D) • 110 L model dim. (mm): 480 (W) x 965 (H) x 440 (D)

110 L ROLLING PEDAL BIN Stainless Steel REF 8 99 2293-SSSTL

110 L ROLLING PEDAL BIN Blue Metal REF 8 99 2293-BLU

70 L ROLLING PEDAL BIN Stainless Steel REF 8 99 2294-SSSTL

110 L ROLLING PEDAL BIN Yellow Metal REF 8 99 2293-YEL

110 L ROLLING PEDAL BIN White Metal REF 8 99 2293-WHT

110 L ROLLING PEDAL BIN Red Metal REF 8 99 2293-RED

70 L ROLLING PEDAL BIN White Metal REF 8 99 2294-WHT

110 L ROLLING PEDAL BIN Green Metal REF 8 99 2293-GRN

110 L ROLLING PEDAL BIN Black Metal REF 8 99 2293-BLA

73

KITCHENS | WASTE SORTING SOLUTIONS

BINS ORGANIC WASTE PRODUCT PLUSES

R Comes pre-assembled R Compatible with the HACCP protocol

30 L REF 8 99 2279

45 L REF 8 99 2280

R Made of polypropylene for

70 L REF 8 99 2281

90 L REF 8 99 2282

R Auto close lid

NEW

intensive usage

R Pedal for easy opening R STICKER INCLUDED Gloves and masks sticker

R 70% RECYCLED PLASTIC Antimicrobial, antibacterial treatment CHARACTERISTICS

30 L REF 8 99 2110

45 L REF 8 99 2111

70 L REF 8 99 2112

90 L REF 8 99 2113

BIN ORGANIC WASTE (10 L)

• 30 L model dim. (mm): 400 (W) x 435 (H) x 410 (D) • 45 L model dim. (mm): 400 (W) x 600 (H) x 410 (D) • 70 L model dim. (mm): 410 (W) x 675 (H) x 500 (D) • 90 L model dim. (mm): 410 (W) x 820 (H) x 500 (D)

PRODUCT PLUSES

R Perfect for handling small

NEW

quantities of organic waste

R Handle holds the lid in place R WASTE SORTING CHARACTERISTICS

• Material: Polypropylene • Capacity: 10 L • Dim. (mm): 235 (W) x 285 (H) x 265 (D)

10 L ORGANIC WASTE BIN REF 8 99 2305

74

KITCHENS | WASTE SORTING SOLUTIONS

BINS PRODUCT PLUSES

R Comes pre-assembled R MULTIPLE COMBINATIONS The lids come in

The containers come in Contact us for more info

R WASTE SORTING 30 L

45 L

White lid

REF 8 99 748

REF 8 99 739

Blue lid

REF 8 99 750

REF 8 99 740

Yellow lid

REF 8 99 751

REF 8 99 741

Green lid

REF 8 99 752

REF 8 99 742

Red lid

REF 8 99 778

REF 8 99 779

70 L

90 L

White lid

REF 8 99 1092

REF 8 99 618

Blue lid

REF 8 99 1090

REF 8 99 743

Yellow lid

REF 8 99 1094

REF 8 99 744

Green lid

REF 8 99 1091

REF 8 99 745

Red lid

REF 8 99 1093

REF 8 99 777

CHARACTERISTICS

• Compatible with the HACCP protocol • Made of polypropylene for intensive usage • Auto close lid • Stabilising loop on the 90 L size only • 30 L model dim. (mm): 400 (W) x 435 (H) x 410 (D) • 45 L model dim. (mm): 400 (W) x 600 (H) x 410 (D) • 70 L model dim. (mm): 410 (W) x 675 (H) x 500 (D) • 90 L model dim. (mm): 410 (W) x 820 (H) x 500 (D)

75

STANDING ASHTRAY REF 8 99 503 | P. 80

76

OUR ASHTRAYS PAGES 76-81

FIND JUST THE RIGHT ASHTRAYS FOR YOUR ENVIRONMENT JVD’s ashtrays are robust thanks to their thick walls, treated for outdoor use and UV resistant. They are practical and easy to empty as they are fitted with inner containers as well as an anti-vandalism lock. Each ashtray comes with a kit to install it on the wall or in the ground.

HELP KEEP YOUR TOWN CLEAN In Paris and most other cities and towns in France, the fight for cleanliness has become a priority. As a result of French decree 2015-337, people who drop litter on public roads may receive a €68 ticket. Establishments which are open to the public are now motivated to provide solutions: ashtrays, bins and combinations of the two can help contribute to meeting this policy. Additionally, regulations on pavement cafés have become stricter. Because of this, many pavement café charters have been put in place or updated to compel owners to provide ashtrays to their customers.

TAKE UP LESS SPACE WITH A WALLMOUNTED ASHTRAY

OPT FOR ELEGANCE WITH A STANDING ASHTRAY Standing ashtrays are installed directly on the ground, where they can be fixed (or not, if you want to be able to move them). Whether made of painted steel or stainless steel, their delicacy adds a touch of elegance to your smoking areas.

BOOST YOUR CONVENIENCE WITH AN ASHTRAY WITH A BIN Ashtrays with bins can save space while keeping your outdoor areas clean. They allow your employees and visitors to throw out waste like cups and packaging.

Wall-mounted ashtrays are attached to a wall. Made of painted steel or stainless steel, they are very discreet and work great anywhere thanks to their compact size.

77

STANDING | ASHTRAYS

ASHTRAY ON STAND PRODUCT PLUSES

R Large capacity (10 L) Easy to empty

R Very resistant to bad weather

(plastic) and sunny weather (UV treatment) CHARACTERISTICS

• Plastic that is weather and impact resistant • UV treated coating • Grained texture to prevent scratching • Removable 10 L inner compartment made of galvanised steel • Rust resistant, stainless steel stubbing plate • Quick and easy installation with no tools required for assembly • Possibility of fixing to the ground Dimensions (mm): 350 (W) x 950 (H) x 350 (D)

10 L ASHTRAY ON STAND REF 8 99 1843

78

WALL-MOUNTED | ASHTRAYS

ASHTRAYS WALL-MOUNTED PRODUCT PLUSES

R ANTI-VANDALISM Key locking system

R READY TO INSTALL Mounting kit included

R Designed for outdoor use R Protected against the rain WALL-MOUNTED ASHTRAY 3 L + integrated 14 L collector REF 8 99 1170

WALL-MOUNTED ASHTRAY 1.5 L REF 8 99 501

R Fast and easy to empty R Easy to clean, smooth surface CHARACTERISTICS

• Galvanised steel and epoxy exterior for better corrosion resistance • UV treated coating • Grained texture to prevent scratching • Inner container of galvanised steel • Stubbing area made of stainless steel • Key locking system • Mounting kit included

WALL-MOUNTED ASHTRAY 3L REF 8 99 502

WALL-MOUNTED ASHTRAY Slim 3 L REF 8 99 1452

Capacities and dimensions: 8 99 1170: • 3 L (900 butts) + 14 L collector • 300 (W) x 670 (H) x 140 (D) mm 8 99 501: • 1.5 L (150 butts with a 0.5 L container) • 150 (W) x 255 (H) x 60 (D) mm 8 99 502: • 3 L (900 butts with a 0.5 L container) • 191 (W) x 355 (H) x 60 (D) mm 8 99 1452: • 3 L (900 butts) • 100 (W) x 500 (H) x 64 (D) mm 8 99 1451: • 250 (W) x 990 (H) x 200 (D) mm

BASE AND STAND FOR WALL-MOUNTED ASHTRAY Slim 3 L REF 8 99 1451

79

STANDING | ASHTRAYS

STANDING WALL-MOUNTED

STANDING RECTANGULAR

PRODUCT PLUSES

PRODUCT PLUSES

R Designed for protected

R Designed for outdoor use

outdoor use Very attractive with a R brushed or shiny finish R Fast and easy to install R Fire resistant

R Protected against the rain R Fast and easy to empty R Easy to clean, smooth surface

CHARACTERISTICS

WALL-MOUNTED TUBULAR ASHTRAY 1.8 L Charcoal Grey REF 8 99 884

R PRACTICAL

Easy to empty CHARACTERISTICS

• Key locking system • Wall mounting • Mounting kit included 8 99 884: • Charcoal Grey epoxy • Ø. 110 (Ø) x 500 (H) mm 8 99 1839: • Shiny Stainless • Ø. 110 (Ø) x 500 (H) mm

STANDING ASHTRAY 12.5 L REF 8 99 503

PRODUCT PLUSES

STANDING TUBULAR STAINLESS

• Inner container of galvanised steel • Stubbing area made of stainless steel (2 openings) • Galvanised steel and epoxy exterior for better corrosion resistance • UV treated coating • Key locking system • Ground fixing kit (screws and bolts) included • Weighted base to ensure stability (7.4 kg) Capacity and dimensions: • 2.5 L (3,750 butts) • 400 (W) x 1040 (H) x 400 (D) mm

WALL-MOUNTED TUBULAR ASHTRAY 1.8 L Stainless Steel REF 8 99 1839

STANDING TUBULAR

R Designed for outdoor use

R Fully galvanised,

resistant to bad weather and UV rays (container accessible from above)

80

R ROBUST Galvanised inner container

R 4 points of access to stub out cigarette butts

CHARACTERISTICS

Colour and material: • Shiny 304 Stainless Steel • Ground fixing kit (screws and bolts) included Dimensions: Ø. 300 (Ø) x 1080 (H) mm

CHARACTERISTICS

3 L TUBULAR STANDING ASHTRAY REF 8 99 616

R Designed for outdoor use

R Possibility of fixing to the ground

R Fast and easy to empty

• Inner container of galvanised steel • Stubbing area made of stainless steel (4 openings) • Galvanised steel and epoxy exterior for better corrosion resistance • UV treated coating • Ground fixing kit (screws and bolts) included • Weighted base to ensure stability (6.5 kg) Capacity and dimensions: • 3 L (900 butts) • Ø. 300 (Ø) x 1080 (H) mm

PRODUCT PLUSES

TUBULAR ASHTRAY on stand (3 L) Stainless REF 8 99 1840

STANDING | ASHTRAYS WITH BINS

ASHTRAYS WITH BINS PRODUCT PLUSES

R PRACTICAL

Galvanised inner container

R Designed for outdoor use R Protected against bad weather R Fast and easy to empty CHARACTERISTICS

• Material: Galvanised steel (rust and corrosion resistant) • UV treated coating • Inner container of galvanised steel • Stubbing area made of stainless steel • Possibility of fixing to the ground • Key locking system • Ground fixing kit included • Colour: Charcoal Grey

3 L ASHTRAY WITH 29 L BIN REF 8 99 1062

Capacities and dimensions: 8 99 1062: • 3 L ashtray (900 butts) + 29 L bin • 300 (W) x 990 (H) x 250 (D) mm 8 99 1082: • 4.7 L ashtray (1,400 butts) + 48 L bin • 480 (W) x 990 (H) x 250 (D) mm 8 99 615: • 2 L ashtray (600 butts) + 8 L bin • 400 (W) x 1040 (H) x 260 (D) mm

4.7 L ASHTRAY WITH 48 L BIN REF 8 99 1082

2 L ASHTRAY WITH 8 L BIN REF 8 99 615

81

REGULATIONS

WASHROOM SET-UPS In France, the set-up of company washrooms is governed by legislative texts that aim to protect employee health and safety. These texts define minimum standards that must be met in terms of the number of washrooms, their equipment, their maintenance and their accessibility.

Here are the legal references that are applicable to company washroom set-ups: French Labour Code: Articles R4228-2 to R4228-13 define the employer’s obligations in respect of washroom facilities.

Article R4228-7 • Sinks must be supplied with drinking water.

The temperature of the water must be adjustable, and there must be at least one sink for every 10 employees. Appropriate washing and drying or wiping equipment must be available to workers. That equipment must be maintained and replaced whenever necessary.

• Article R4228-10 • There must be at least one toilet stall and one urinal for every 20 men and two stalls for every 20 women. […] At least one stall must be fitted with a sink.

At establishments that employ both women and men, the toilet stalls must be separated by gender. Women’s toilet stalls must contain a recipient for their menstrual products.

Article R4228-11 • Toilet stalls […] must be set up so as not to emit any odours. They must be fitted with flushes and toilet paper.

Article R4228-12 • Toilet stalls must be ventilated in accordance with ventilation and sanitation rules […] and sufficiently heated.

Article R4228-13 • The employer must have the stalls and urinals cleaned and disinfected at least once a day.

• It should be noted that these legal texts apply to all companies, regardless of size. However, the French Labour Inspectorate may grant special dispensations, depending on the nature of the company’s activities or its technical constraints.

• Regulation (EC) No 852/2004 – Chapter I(4) • An adequate number of washbasins is to be available, suitably located and designated for cleaning hands. Washbasins for cleaning hands are to be provided with hot and cold running water, materials for cleaning hands and for hygienic drying.

WASTE SORTING & MANAGEMENT In France, the treatment of company waste is governed by multiple legislative texts. The most relevant of these are reproduced below.

French Environmental Code Article L541-21-1 • Those who generate or hold significant quantities of waste primarily comprising biowaste are required to set up sorting for that biowaste at its source, as well as either: - on-site biowaste recovery; or - the separate collection of biowaste for the purpose of its recovery and, in particular, to encourage its high-quality use on the ground.

• As from 31 December 2023, this obligation will apply to all biowaste producers and holders, including local and regional governments providing public waste management services and private and public establishments that generate biowaste.

82

French Environmental Code Article L541-21-2-1 • All waste producers and holders must put in place separate rubbish and recycling facilities in their establishments, that are suited to the various activities performed in those establishments and, when relevant, those facilities must be accessible by staff in order for waste to be sorted at the source, including waste generated by the staff’s consumption of everyday consumer goods.

French Environmental Code Article L541-21-2-2 • Operators of establishments that are open to the public, as defined by Article L123-1 of the French Building and Housing Code, must organise the collection of separated waste left by the public at their establishments and the waste generate by their own personnel. To that end, they must provide the public with separate receptacles for waste from household packaging – primarily comprising plastic, steel, aluminium, paper and cardboard – on the one hand, and biowaste on the other.

• Regulation (EC) No 852/2004 – Chapter VI(2) • Food waste, non-edible by-products and other refuse are to be deposited in closable containers, unless food business operators can demonstrate to the competent authority that other types of containers or evacuation systems used are appropriate. These containers are to be of an appropriate construction, kept in sound condition, be easy to clean and, where necessary, to disinfect.

FRENCH AGEC FOOD WASTE AND CIRCULAR ECONOMY LAW Article 58 of the French law of 10 February 2020 against food waste and in favour of the circular economy (AGEC) has been implemented by public buyers since March 2021. This mechanism requires State buyers and local and regional governments to source reused versions of certain products or versions that contain recycled materials.

Beginning on 1 January 2022, if a product is repaired under its statutory compliance warranty during the first two years after its purchase, the customer’s warranty will be extended by an additional six months, for a total warranty period of 30 months (two years plus six months).

HACCP HACCP (Hazard Analysis Critical Control Point) is a systematic, preventive approach to guaranteeing food safety by identifying and controlling biological, chemical and physical hazards in production processes which could make the finished product unsafe for consumption. HACCP is based on seven core principles: 1. Conduct a hazard analysis 2. Determine the critical control points (CCPs) 3. Establish critical limits 4. Establish monitoring procedures 5. Establish corrective actions 6. Establish verification procedures 7. Establish record-keeping and documentation procedures.

HACCP is used in a variety of sectors in the food industry, including production, preparation, packaging and distribution, to manage food safety along the entire supply chain.

A product itself cannot be “HACCP compliant” as HACCP is a food health and safety management method, not a standard that is specific to a given product or category of products. However, a product can be deemed compliant with the food safety requirements defined by a HACCP system that has been implemented by a company.

REGULATIONS

AIR QUALITY

volatile pollutants.

Air quality in the workplace is governed by multiple legislative and regulatory texts. The most relevant of these are outlined below.

1. Article L221-7 of the French Environmental Code stipulates that the State will coordinate work to identify the factors that cause pollution and to evaluate exposure levels and health risks relating to air quality in enclosed environments. It introduces preventive and management measures designed to reduce the scope and the effects of that pollution.

2. Article D221-38 of the French Environmental Code specifies that air quality monitoring in certain establishments that are open to the public must be performed according to the methods laid down in French Decree 201214 of 5 January 2012.

3. Article L221-8 of the French Environmental Code indicates that indoor air quality monitoring is compulsory for the owner or operator of certain establishments that are open to the public, as determined by a French Council of State decree, where justified by the configuration of the premises or the type(s) of public visitors.

4. Article R221-34 of the French Environmental Code stipulates that the owner, or if applicable the operator, of the establishment must retain last two assessments of ventilation mechanisms and analyses of pollutant measurements.

5. Article L221-10 of the French Environmental Code mentions that building products, furnishings, wall and floor coverings, paint and varnish that emit substances into the ambient air must feature labels indicating their

NF C15-100 The standard NF C15-100 includes specific instructions relating to electricity in bathrooms. Given that bathrooms are environments where water is present and where the risk of electrocution is higher, special precautions must be taken to ensure electrical safety.

INSECTS Establishments that are open to the public have obligations in terms of insect control. Those obligations are defined in department health regulations and in Articles 125.1 and 130.5 of the French memorandum on the subject, dated 9 August 1978.

The owners or managers of these establishments must take every necessary measure to prevent insects from entering the property and have extermination actions taken as needed, whilst avoiding any contamination of foodstuffs.

As part of their health control plans, all restaurateurs must implement an effective system to prevent the intrusion of pests (rodents, flying and crawling insects, etc.) into their premises. That plan must include a pest eradication plan and a list of good hygiene practices to follow, such as insect control efforts.

ACCESSIBILITY Different French decrees and laws define accessibility rules for people with reduced mobility, namely including the decree of 8 December 2014 and 20 April 2017.

The arrangements required of establishments open to the public include the following: • At least one wheelchair accessible toilet stall whith a sink on accessible floors of the building.

• Wheelchair accessible washrooms must be in the same location as the other toilet stalls, in cases where the non-accessible stalls are grouped together • Soap and paper dispensers, hand dryers and sinks must be accessible by people with disabilities. At least one of each of these fixtures and devices must be compliant with current accessibility standards.

83

JVD FRANCE 3 rue des Brèches 44406 Rezé Cedex – France France Sales Department Tel. + 33 (0)2 40 75 98 20 jvdfrance@jvd.fr Export Sales Department Tel. + 33 (0)2 40 75 99 76/77 jvdexport@jvd.fr Customer Service Tel. + 33 (0)2 40 75 96 30 sav@jvd.fr

JVD ASIA 56 Loyang Way #06-04 Loyang Enterprise Building Singapore 508775 Tel. +65 6214 8550 jvd.com.sg

JVD AMERICAS Carr. Querétaro San Luis Potosí 97 Blvd. Bernardo Quintana, Santiago de Queretaro.

Queretaro, 76140, MEXICO. Tel. + 52(442) 161 2595 jvd.mx

JVD ESPAÑA Calle Juan de Herrera 14, Elche Parque Industrial, 03203 Elche (Alicante), Spain Tel. +34 965 677 777 jvd.es

Because we respect the environment, JVD prints this catalogue using plant-based inks on eco-friendly paper from sustainably managed forests.

JVD invites our partners and clients to send us your email address so we can transmit this information to you directly in electronic form.

Non-binding document. JVD reserves the right to modify our products’ characteristics without notice. French business registration no.: RCS 330 927 476.

Photos: Garnier Studios, Cédric Chassé and Getty Images. AI generated image, prompt created by the Nouvelle Vague AI Lab. Translation by LC Lingua (www.lclingua.fr)

HOTEL · HOTEL · HOTEL

SCHILDERHALTER SIGN HOLDER · BORDJESHOUDER cm 1114 003

DIN A4

21,5 x 0,5 x 30,5

€ 42,00

SCHILDERHALTER SIGN HOLDER · BORDJESHOUDER cm 1114 005

DIN A4

25 x 5 x 30,5

€ 68,00

JOINFLEX • Gurtanschlüsse mit 4 Wege System

• Belt connections with 4-way system

• Riemaansluitingen met 4-wegsysteem

• Gurtband 3 Meter

• Belt strap 3 metres

• Riemband 3 meter

• Gurtband integriert

• Belt strap integrated

• Riemband geïntegreerd

• Gewicht 10 kg

• Weight 10 kg

• Gewicht 10 kg

• Höhe 105 cm

• Height 105 cm

• Hoogte 105 cm

• Pfosten Ø 7,5 cm

• Post 7.5 cm

• Paal Ø 7,5 cm

• Bodenteller Ø 35 cm

• Round base plate Ø 35 cm

• Bodemplaat Ø 35 cm

ABGRENZUNGSPFOSTEN BARRIER POST · BEGRENZINGSPAAL

1214 134

cm

€

1214 134

300

84,00

1214 634

300

84,00

Pulverbeschichtet, schwarz · Powder-coated, black · Gepoedercoat, zwart

W A S G E R M A N Y. C O M

1214 634

311

HOTEL · HOTEL · HOTEL

312

LARGEFLEX

ECOFLEX

• Gurtanschlüsse mit 4 Wege System

• Belt connections with 4-way system

• Riemverbindingen met 4-wegsysteem

• Gurtanschlüsse mit 4 Wege System

• Belt connections with 4-way system

• Riemverbindingen met 4-wegsysteem

• Gurtband 4,5 Meter

• Belt strap 4.5 metres

• Riemband 4,5 meter

• Gurtband 2 Meter

• Belt strap 2 metres

• Riemband 2 meter

• Gurtband integriert

• Belt strap integrated

• Riemband geïntegreerd

• Gewicht 6,5 kg

• Weight 6.5 kg

• Gewicht 6,5 kg

• Gewicht 10 kg

• Weight 10 kg

• Gewicht 10 kg

• Höhe 90 cm

• Height 90 cm

• Hoogte 90 cm

• Höhe 95 cm

• Height 95 cm

• Hoogte 95 cm

• Pfosten Ø 6,5 cm

• Post Ø 6.5 cm

• Paal Ø 6,5 cm

• Pfosten Ø 7,5 cm

• Post Ø 7.5 cm

• Paal Ø 7,5 cm

• Bodenteller Ø 35 cm

• Round base plate Ø 35 cm

• Bodemplaat Ø 35 cm

• Bodenteller Ø 36 cm

• Round base plate Ø 36 cm

• Bodemplaat Ø 36 cm

• Die Gurthalterung kann verriegelt

• The belt holder can be locked, thus

• De riemhouder kan worden vergren-

• Die Gurthalterung kann verriegelt

• The belt holder can be locked, thus

• De riemhouder kan worden vergren-

werden, unbefugtes Entfernen

making unauthorised removal of the

deld, onbevoegd verwijderen van de

werden, unbefugtes Entfernen

making unauthorised removal of the

deld, onbevoegd verwijderen van de

der Gurte wird somit erschwert.

belts difficult. When dismantling, the

riemen wordt zo bemoeilijkt. Bij het

der Gurte wird somit erschwert.

belts difficult. When dismantling, the

riemen wordt zo bemoeilijkt. Bij het

Bei Abbau muss die Gurthalterung

belt holder must be manually opened,

demonteren moet de riemhouder

Bei Abbau muss die Gurthalterung

belt holder must be manually opened,

demonteren moet de riemhouder

manuell geöffnet werden, anderenfalls

otherwise damage may occur

handmatig worden geopend, anders

manuell geöffnet werden, anderenfalls

otherwise damage may occur

handmatig worden geopend, anders

können Schäden entstehen

können Schäden entstehen

kan er schade ontstaan

kan er schade ontstaan

ABGRENZUNGSPFOSTEN BARRIER POST · BEGRENZINGSPAAL 1215 145

ABGRENZUNGSPFOSTEN BARRIER POST · BEGRENZINGSPAAL cm

€

1215 145

450

80,00

1215 645

450

80,00

Pulverbeschichtet, schwarz · Powder-coated, black · Gepoedercoat, zwart

cm

€

2114 104

200

50,00

2114 604

200

50,00

Hochglanzpoliert · Mirror finish · Hoogglans 2114 604

1215 645

ABGRENZUNGSPFOSTEN BARRIER POST · BEGRENZINGSPAAL 1315 145

2114 104

ABGRENZUNGSPFOSTEN BARRIER POST · BEGRENZINGSPAAL cm

€

1315 145

450

90,00

1315 645

450

90,00

Hochglanzpoliert · Mirror finish · Hoogglans

cm

€

2314 104

200

50,00

2314 604

200

50,00

2314 104

Lackiert, schwarz · Lacquered, black · Zwart gelakt

1315 645

2314 604

SCHILDERHALTER · SIGN HOLDER · BORDJESHOUDER cm 2114 004

DIN A4

21,5 x 0,5 x 30,5

€ 42,00

313

HOTEL · HOTEL · HOTEL

314

LIGHTFLEX

CLASSIC

• Gurtanschlüsse mit 4 Wege System

• Belt connections with 4-way system

• Riemaansluitingen met 4-wegsysteem

• Gurtband 2 Meter

• Belt strap 2 metres

• Riemband 2 meter

• Gurtband integiert

• Belt strap integrated

• Riemband geïntegreerd

• Gewicht 6 kg

• Weight 6 kg

• Gewicht 6 kg

• Höhe 90 cm

• Height 90 cm

• Hoogte 90 cm

• Pfosten Ø 10 cm

• Post Ø 10 cm

• Paal Ø 10 cm

• Bodenteller Ø 32 cm

• Circular base plate Ø 32 cm

• Bodemplaat Ø 32 cm

ABGRENZUNGSPFOSTEN ZYLINDER BARRIER POST CYLINDER TOP BEGRENZINGSPAAL CILINDER 2200 000

Abgrenzungspfosten · Barrier post · Begrenzingspaal

2200 011

Schilderhalter DIN A4 · Sign holder DIN A4 · Bordjeshouder DIN A4

cm

cm

kg

€

32

95

10,5

60,00

0,5

51,00

2200 011

Hochglanzpoliert · Mirror finish · Hoogglans 2200 000

2814 104

2814 204

ABGRENZUNGSPFOSTEN KUGEL BARRIER POST BALL TOP BEGRENZINGSPAAL BAL

ABGRENZUNGSPFOSTEN BARRIER POST · BEGRENZINGSPAAL cm

€

2814 104

200

54,00

2814 204

200

54,00

2814 604

200

54,00

Hochglanzpoliert · Mirror finish · Hoogglans

2814 604

2200 001

Abgrenzungspfosten · Barrier post · Begrenzingspaal

2200 012

Schilderhalter DIN A4 · Sign holder DIN A4 · Bordjeshouder DIN A4

cm

cm

kg

€

32

95

10,5

60,00

0,5

51,00

2200 012

Hochglanzpoliert · Mirror finish · Hoogglans 2200 001

2914 104

2914 204

ABGRENZUNGSPFOSTEN ZYLINDER BARRIER POST CYLINDER TOP BEGRENZINGSPAAL CILINDER

ABGRENZUNGSPFOSTEN BARRIER POST · BEGRENZINGSPAAL cm

€

2914 104

200

48,00

2223 000

2914 204

200

48,00

2914 604

200

48,00

Hochglanzpoliert, mit flachem Fuß

Pulverbeschichtet, schwarz · Powder-coated, black · Gepoedercoat, zwart

cm

cm

kg

€

36

95

9,5

118,00

cm

cm

kg

€

36

95

9,5

118,00

Mirror finish, with a flat base Hooggepolijst, met een platte voet

2914 604

ABGRENZUNGSPFOSTEN KUGEL BARRIER POST BALL TOP BEGRENZINGSPAAL BAL 2224 000 Hochglanzpoliert, mit flachem Fuß Mirror finish, with a flat foot Hooggepolijst, met een platte voet

315

HOTEL · HOTEL · HOTEL

316

ABGRENZUNGSPFOSTEN ZYLINDER BARRIER POST CYLINDER TOP BEGRENZINGSPAAL CILINDER

VERBINDUNGSTAU BARRIER ROPE AFSCHEIDINGSTOUW cm

cm

kg

€

36

95

9,5

118,00

€

cm

cm

2205 150

150

3,2

20,50

Pulverbeschichtet, schwarz, mit flachem Fuß

2205 152

150

3,2

20,50

Powder-coated, black, with a flat foot

2205 153

150

3,2

20,50

Gepoedercoat, zwart, met een platte voet

Velours, Beschläge hochglanzpoliert

2223 001

2205 150

2205 152

Velour, fittings with mirror finish Velours, fittingen verchroomd 2205 153

ABGRENZUNGSPFOSTEN KUGEL BARRIER POST BALL TOP BEGRENZINGSPAAL BAL 2224 001

cm

cm

kg

€

36

95

9,5

118,00

Pulverbeschichtet, schwarz, mit flachem Fuß Powder-coated, black, with a flat foot Gepoedercoat, zwart, met een platte voet

VERBINDUNGSTAU BARRIER ROPE AFSCHEIDINGSTOUW

ABGRENZUNGSPFOSTEN ZYLINDER BARRIER POST CYLINDER TOP BEGRENZINGSPAAL CILINDER 2201 000

Abgrenzungspfosten · Barrier post · Begrenzingspaal

€

3,2

22,50

2206 152

150

3,2

22,50

2206 153

150

3,2

22,50

2206 150

2206 152

Velour, fittings gold-coloured

cm

cm

kg

€

32

95

10,5

60,00

Velours, fittingen goudkleurig

2206 153

VERBINDUNGSKORDEL BARRIER CORDON · AFSCHEIDINGSTOUW cm

Abgrenzungspfosten · Barrier post · Begrenzingspaal

cm

150

Velours, Beschläge goldfarben

ABGRENZUNGSPFOSTEN KUGEL BARRIER POST BALL TOP BEGRENZINGSPAAL BAL 2201 001

cm 2206 150

32

cm 95

kg 10,5

cm

cm

€

2207 150

150

3,2

44,00

2207 152

150

3,2

44,00

2207 156

150

3,2

44,00

2207 157

150

3,2

44,00

€ 60,00

2207 252

250

3,2

49,00

2207 256

250

3,2

49,00

2207 150

2207 152

2207 156

Beschläge hochglanzpoliert Fittings with mirror finish Fittingen verchroomd

2207 157

317

HOTEL · HOTEL · HOTEL

318

CLASSIC ECO

VERBINDUNGSKORDEL BARRIER CORDON · AFSCHEIDINGSTOUW

2209 152

cm

cm

€

2209 152

150

3,8

58,00

2209 156

150

3,8

58,00

Beschläge hochglanzpoliert

ABGRENZUNGSPFOSTEN ZYLINDER BARRIER POST CYLINDER TOP BEGRENZINGSPAAL CILINDER

Fittings with mirror finish

3300 000

Fittingen verchroomd 2209 156

Abgrenzungspfosten · Barrier post · Begrenzingspaal

cm

cm

kg

€

32

100

9

55,00

cm

cm

kg

€

32

105

9

55,00

Hochglanzpoliert · Mirror finish · Verchroomd

ABGRENZUNGSPFOSTEN KUGEL BARRIER POST BALL TOP BEGRENZINGSPAAL BAL 3300 001

VERBINDUNGSKORDEL BARRIER CORDON · AFSCHEIDINGSTOUW cm

cm

€

2208 151

150

3,2

40,00

2208 156

150

3,2

40,00

2208 251

250

3,2

57,00

2208 256

250

3,2

57,00

Abgrenzungspfosten · Barrier post · Begrenzingspaal

Hochglanzpoliert · Mirror finish · Verchroomd

2208 151

2208 156

Beschläge goldfarben Fittings gold-coloured Goudkleurig beslagen

VERBINDUNGSKORDEL BARRIER CORDON · AFSCHEIDINGSTOUW cm

cm

€

2207 153

150

2,8

27,00

2207 159

150

2,8

27,00 2207 153

Beschläge hochglanzpoliert Fittings with mirror finish Fittingen verchroomd

2207 159

WANDBEFESTIGUNG WALL MOUNTING · WANDBEVESTIGING

VERBINDUNGSKORDEL BARRIER CORDON · AFSCHEIDINGSTOUW cm

2205 000

2205 001

€

cm

cm

€

2205 000

3,5 x 3,5

10,00

2208 153

150

2,8

28,10

2205 001

3,5 x 3,5

11,00

2208 159

150

2,8

28,10

Zum Befestigen von Verbindungskordeln

Beschläge goldfarben

For securing connecting cords

Fittings gold-coloured

Voor het bevestigen van afscheidingstouw

Goudkleurig beslagen

2208 153

2208 159

319

HOTEL · HOTEL · HOTEL

320

MOBILE ABSPERRUNG MOBILE BARRIER · MOBIELE AFZETTING

ABGRENZUNGSPFOSTEN BARRIER POST · BEGRENZINGSPAAL 2914 750

cm

cm

cm

kg

€

500

34,5

91,5

8,5

80,00

Pulverbeschichtet, schwarz, Gurtanschlüsse mit 4 Wege System, Gurtband integriert

4475 400

cm

cm

kg

€

400

100

16,5

421,70

Ausziehbar bis 4 Meter, mit 2 Rollen und Tragegriff

Powder-coated, black, belt connection with 4-way system, belt strap integrated

Extendable up to 4 metres, with 2 castors and carrying handle

Zwart gepoedercoat, riemaansluitingen met 4-wegsysteem, riemband geïntegreerd

Uitschuifbaar tot 4 meter, met 2 wielen en draaggreep

ABGRENZUNGSPFOSTEN BARRIER POST · BEGRENZINGSPAAL 2915 104

2915 604

cm

cm

cm

kg

€

2915 104

200

35

88,5

9

118,00

2915 604

200

35

88,5

9

118,00

Pulverbeschichtet, schwarz, mit Gurtband und Rolle, durch die Einkerbung im Bodenteller platzsparend zusammenstellbar Powder-coated, black, with belt strap and castor, notch in base allows posts to be placed together to save space Gepoedercoat, zwart, met riemband en rol, kan dankzij de inkeping plaatsbesparend worden samengevoegd

SCHERENSPERRE EXPANDING BARRIER · SCHAARHEK 2395 350

cm

cm

kg

€

400

100

9,5

264,00

Ausziehbar bis 4 Meter, beliebig erweiterbar, 6 schwenkbare Rollen mit Feststeller Extendable up to 4 metres, freely expandable, 6 swivel castors with brakes Uitschuifbaar tot 4 meter, naar wens uitbreidbaar, 6 zwenkwielen met rem

TRANSPORTWAGEN TROLLEY · TRANSPORTWAGEN 2300 000

cm

kg

€

120 x 80 x 193

46

650,00

Pulverbeschichtet, für Abgrenzungspfosten bis Ø 6 cm, 2 schwenkbare Rollen mit Feststeller und 2 Bockrollen, geeignet für bis zu 16 Abgrenzungspfosten und ca. 20 Taue Powder-coated, for barrier posts up to Ø 6 cm, 2 swivel castors with brakes and 2 fixed castors, suitable for up to 16 demarcation posts and approx. 20 ropes Gepoedercoat, voor begrenzingspaal tot Ø 6 cm, 2 zwenkwielen met rem en 2 bokwielen, geschikt voor maximaal 16 begrenzingspaal en ca. 20 touwen

SCHERENSPERRE EXPANDING BARRIER · SCHAARHEK

TRANSPORTWAGEN TROLLEY · TRANSPORTWAGEN 2301 000

cm

kg

€

120 x 80 x 193

74

1.090,00

Pulverbeschichtet, für Abgrenzungspfosten bis Ø 10 cm, 2 schwenkbare Rollen mit Feststeller und 2 Bockrollen, geeignet für bis zu 16 Abgrenzungspfosten und ca. 20 Taue, die Ständer werden durch PVC Rohre à Ø 10 cm gehalten Powder-coated, for barrier posts up to Ø 10 cm, 2 swivel castors with brakes and 2 fixed castors, suitable for up to 16 barrier posts and approx. 20 ropes, the posts are placed in PVC tubes each Ø 10 cm Gepoedercoat, voor begrenzingspaal tot Ø 10 cm, 2 zwenkwielen met rem en 2 bokwielen, geschikt voor maximaal 16 begrenzingspaal en ca. 20 touwen, de staanders worden vastgehouden door Ø 10 cm PVC-buizen

2395 351

cm

cm

kg

€

400

100

9,5

264,00

Ausziehbar bis 4 Meter, beliebig erweiterbar, 6 schwenkbare Rollen mit Feststeller Extendable up to 4 metres, freely expandable, 6 swivel castors with brakes Uitschuifbaar tot 4 meter, naar wens uitbreidbaar, 6 zwenkwielen met rem

321

HOTEL · HOTEL · HOTEL

322

SERVIERWAGEN SERVING TROLLEY · SERVEERWAGEN

PAPIERKORB WASTEPAPER BIN · PAPIERMAND cm

kg

€

92 x 50 x 79

23

490,00

Rahmen aus Birkenholz, furniert und lackiert, Borde aus MDF, Handgriff aus Chromnickelstahl, 4 schwenkbare Rollen à Ø 10 cm, davon 2 mit Feststeller, Abmessung unteres Bord: 68 x 42 cm, Artikel wird vormontiert geliefert

4437 000

Birch wood frame, veneered and lacquered, MDF shelves, chrome-nickel steel handle, 4 swivel castors each Ø 10 cm, 2 of them with brakes, dimensions of lower shelf: 68 x 42 cm, item is delivered pre-assembled Frame van berkenhout, gefineerd en gelakt, planken van MDF, handvat van chroomnikkelstaal, 4 zwenkwielen à Ø 10 cm, waarvan 2 met rem, afmetingen onderste plank: 68 x 42 cm, artikel wordt voorgemonteerd geleverd

€

cm

cm

1125 225

22

25

9,50

1126 225

22

25

9,50 1126 225

Pulverbeschichtet, abnehmbarer Edelstahlring zum Fixieren des Müllbeutels, mit Kunststoffbodenring Powder-coated, removable stainless steel ring for attaching bin liner, plastic base ring 1125 225

Verwijderbare roestvrijstalen ring voor het bevestigen van de vuilniszak, gepoedercoat, met kunststof bodemring

PAPIERKORB WASTEPAPER BIN · PAPIERMAND cm

cm

€

1125 220

22

28

22,00

1125 221

22

28

22,00 1125 221

Pulverbeschichtet, abnehmbarer Edelstahlring zum Fixieren des Müllbeutels, mit Kunststoffbodenring Powder-coated, removable stainless steel ring for attaching bin liner, plastic base ring

GETRÄNKE-/SERVIERWAGEN DRINKS/SERVING TROLLEY DRANK-/SERVEERWAGEN 4438 000

1125 220

Verwijderbare roestvrijstalen ring voor het bevestigen van de vuilniszak, gepoedercoat, met roestvrijstalen bodemring

cm

cm

kg

€

53

79

15

398,00

Rahmen aus Birkenholz, furniert und lackiert, Borde aus MDF. Beschläge aus Chromnickelstahl, 4 schwenkbare Rollen à Ø 10 cm, davon 2 mit Feststeller, Artikel wird vormontiert geliefert Birch wood frame, veneered and lacquered, MDF shelves. Fittings made of chrome-nickel steel, 4 swivel castors each Ø 10 cm, 2 of them with brakes, item is delivered pre-assembled Frame van berkenhout, gefineerd en gelakt, planken van MDF. Fittingen van chroomnikkelstaal, 4 zwenkwielen à Ø 10 cm, waarvan 2 met rem, artikel wordt voorgemonteerd geleverd

PAPIERKORB WASTEPAPER BIN · PAPIERMAND 1136 220

cm

cm

€

22

31,5

39,50

Pulverbeschichtet, mit Edelstahlring, herausnehmbarem Einsatz und Kunststoffbodenring Powder coated, with stainless steel ring, removable insert and plastic base ring Roestvrijstalen ring en uitneembaar inzetstuk, gepoedercoat, met kunststof bodemring

PAPIERKORB WASTEPAPER BIN · PAPIERMAND

SERVIERTISCH SERVING TABLE · SERVEERTAFEL 4439 000

cm

kg

€

105 x 90 x 75

28

690,00

Gestell aus Chromnickelstahl, Tischplatte aus MDF mit Holzdekor, 4 schwenkbare Rollen à Ø 10 cm, davon 2 mit Feststeller, 2 Seitenteile 26 cm, klappbar, Artikel wird vormontiert geliefert Frame made of chrome-nickel steel, table top made of MDF with wood decor, 4 swivel castors each Ø 10 cm, 2 of them with a brake, 2 side panels 26 cm, foldable, item is delivered pre-assembled Onderstel van chroomnikkelstaal, tafelblad van MDF met houtdecor, 4 zwenkwielen à Ø 10 cm, waarvan 2 met rem, 2 zijdelen 26 cm, inklapbaar, artikel wordt voorgemonteerd geleverd

1135 301

cm

cm

cm

€

10

24

30

37,80

Pulverbeschichtet, Feuerfest, mit selbstlöschendem, abnehmbarem Feuerschutzdeckel Powder-coated, fireproof, with self-extinguishing, removable fire protection lid Brandwerend, met zelfdovende, afneembare brandbeschermkap, gepoedercoat

323

HOTEL · HOTEL · HOTEL

324

PAPIERKORB WASTEPAPER BIN · PAPIERMAND

TRETEIMER · PEDAL BIN · PEDAALEMMER cm

cm

cm

€

10

24

30

51,46

1135 300

1121 300

30

Feuerfest, mit selbstlöschendem, abnehmbarem Feuerschutzdeckel

Mit Tragegriff und herausnehmbarem, verzinktem Einsatz

Fireproof, with self-extinguishing, removable fire protection lid

With carrying handle and removable galvanised insert

Brandwerend, met zelfdovende, afneembare brandbeschermkap

Met draaggreep en afneembaar, verzinkt inzetstuk

PAPIERKORB · WASTEPAPER BIN · PAPIERMAND

ABFALLEIMER · RUBBISH BIN · AFVALEMMER cm

1126 281

16

28,5 x 20,5 x 31

€ 7,50

1129 380

80

cm

cm

€

30

71

57,00

cm

cm

€

37

71

151,20

Pulverbeschichtet, mit Schwingdeckel und herausnehmbarem, verzinktem Einsatz, Deckel aus Chromnickelstahl Powder-coated, with swing lid and removable galvanised insert, lid made of chrome-nickel steel Met poedercoating, met zwenkdeksel en afneembaar, verzinkt inzetstuk, deksel van chroomnikkelstaal

TRETEIMER · PEDAL BIN · PEDAALEMMER 1121 030

cm

cm

€

17

26

15,50

ABFALLEIMER · RUBBISH BIN · AFVALEMMER

1121 050

5

20

30

23,10

1129 381

1121 120

12

25

42

34,00

1121 200

20

30

49

52,50

Mit Schwingdeckel und herausnehmbarem, verzinktem Einsatz

Mit Tragegriff und herausnehmbarem Kunststoffeinsatz 1121 050

3

With carrying handle and removable plastic insert Met draaggreep en uitneembaar kunststof inzetstuk

With swing lid and removable galvanised insert Met klapdeksel en uitneembaar, verzinkt inzetstuk

80

cm

cm

€

37

71

171,16

325

HOTEL · HOTEL · HOTEL

326

STANDASCHER STANDING ASHTRAY · STAANDE ASBAK

ABFALLEIMER · RUBBISH BIN · AFVALEMMER cm 1532 500

5

18,5

cm 28,5

€ 36,76

Mit Schwingdeckel · With swing lid · Met klapdeksel

1123 250

cm

cm

kg

€

25

60

3

60,00

Mit herausnehmbarem Windaschenbecher und verzinktem Abfallbehälter With removable windproof ashtray and galvanised waste bin Met afneembare windasbak en verzinkte afvalcontainer

TISCHABFALLEIMER TABLE TOP BIN · TAFELAFVALBAKJE 1531 001

cm

cm

€

12

16

11,70

Mit Schwingdeckel · With swing lid · Met klapdeksel

STANDASCHER STANDING ASHTRAY · STAANDE ASBAK 1122 200

cm

cm

kg

€

20 x 20

60

3

94,00

Pulverbeschichteter Stahl, mit herausnehmbarem Windaschenbecher aus Edelstahl und verzinktem Abfallbehälter Powder-coated steel, with removable windproof ashtray made of stainless steel and galvanised waste bin Poedergecoat staal, bovenste gedeelte van roestvrij staal, met afneembare windasbakbeker en verzinkt inzetstuk

TISCHABFALLEIMER TABLE TOP BIN · TAFELAFVALBAKJE 1531 002

cm

cm

€

12

16

5,46

Mit Schwingdeckel · With swing lid · Met klapdeksel

STANDASCHER STANDING ASHTRAY · STAANDE ASBAK 1122 250

STANDASCHER STANDING ASHTRAY · STAANDE ASBAK 1112 240 Mit herausnehmbarem Windaschenbecher With removable windproof ashtray Met uitneembare windasbakbeker

cm

cm

kg

€

25

60

4

65,50

Pulverbeschichteter Stahl, Oberteil aus Edelstahl, mit herausnehmbarem Windaschenbecher und verzinktem Abfallbehälter

cm

cm

kg

€

22

60

1,5

46,50

Powder-coated steel, stainless steel top part, with removable windproof ashtray and galvanised waste bin Gepoedercoat staal, bovenste gedeelte van roestvrij staal, met afneembare windasbak en verzinkte afvalcontainer

327

THE NEW SANITIZING PROGRAM

1

CONCIERGE DESK & PUBLIC AREAS SANITIZER STATION

2

CODE CONCEPT

CHECK IN / OUT SANITAZING PACK

3

CODE CONCEPT

CHECK IN / OUT CLEAN & SANITAZE

4

CODE CONCEPT

PUBLIC AREAS SANITIZER STATION

5

CODE CONCEPT

IN ROOM POCKET SIZE

6

CODE CONCEPT

CODE CONCEPT

> SANITIZER PROGRAM

FULL RANGE

500 ml CLEANSING HAND GEL (70% ALCOHOL) in dispenser bottle Fragrance: Thymus essential oil

300 ml CLEANSING HAND GEL (70% ALCOHOL) in dispenser bottle Fragrance: Thymus essential oil

40 ml CLEANSING HAND GEL (70% ALCOHOL) in bottle Fragrance: Thymus essential oil

CLEANSING WIPE in pouch Fragrance: Thymus essential oil > cm 7 x 14h

2 ml CLEANSING HAND GEL in pouch Fragrance: Aloe > cm 6 x 6h

100 pz single use PAPER TISSUES in box

7

CODE CONCEPT

> SANITIZER PROGRAM

FULL RANGE

BOX with 25 X 2 ml CLEANSING HAND GEL Fragrance: Aloe

BOX with 20 X CLEANSING WIPE Fragrance: Thymus essential oil

SINGLE GUEST ROOM

DOUBLE GUEST ROOM

PAPER POUCH PACK with adhesive label

PAPER POUCH PACK with adhesive label

> cm 9 x 20h x 4 width

> cm 9 x 20h x 4 width

SINGLE GUEST ROOM

DOUBLE GUEST ROOM

PAPER POUCH PACK with adhesive label

PAPER POUCH PACK with adhesive label

> cm 9 x 20h x 4 width > CUSTOM OPTION AVAIL.

> cm 9 x 20h x 4 width > CUSTOM OPTION AVAIL. 8

SINGLE GUEST ROOM STANDARD / CUSTOMIZABLE

> SANITIZER PROGRAM

KIT ITEMS

PAPER POUCH PACK with adhesive label > cm 9 x 20h x 4 width

2 ml CLEANSING HAND GEL in pouch Fragrance: Aloe > cm 6 x 6h

CLEANSING WIPE in pouch Fragrance: Thymus essential oil > cm 7 x 14h

1X ANTI-POLLUTION FACE MASK individually wrapped packaged

1X LATEX GLOVES PAIR individually wrapped packaged

9

DOUBLE GUEST ROOM STANDARD / CUSTOMIZABLE

> SANITIZER PROGRAM

KIT ITEMS

PAPER POUCH PACK with adhesive label > cm 9 x 20h x 4 width

1X 40 ml CLEANSING HAND GEL (70% ALCOHOL) in bottle Fragrance: Thymus essential oil

2X ANTI-POLLUTION FACE MASK individually wrapped packaged

2X LATEX GLOVES PAIR individually wrapped packaged

10

FACE MASK CERTIFICATION

ANTI-POLLUTION FACE MASK individually wrapped packaged Metal bar that adapts to the shape of the face 3 layers of protection: - Blue external non-woven fabric -High density fabric filter -White non-woven fabric in direct contact with the skin

11

> SANITIZER PROGRAM

THE NEW SANITIZING PROGRAM 1

C.O. BIGELOW

C.O. Bigelow was originally founded in 1838 by Dr. Galen Hunter.

For nearly two centuries Bigelow has been a destination for some of the country’s most prominent personalities, from Mark Twain, Thomas Edison and Eleanor Roosvelt to modern silver screen starlets and esteemed writers, musicians and artists. C.O. Bigelow is, and always has been, a hot spot for those in the know.

At the turn of the century Samuel Clemens (aka Mark Twain) filled his prescriptions at C.O. Bigelows. Over the years, four of Dr. Hunter’s master formulary books were found buried in the Bigelow archives. These hand-written treasures link us to oldworld New York and hundreds of formulas that were developed in our apothecary for our customers.

2

> BEAUTY & SKINCARE

LOBBY

SANITIZER STATION

3

C.O. BIGELOW

CONCIERGE DESK & PUBLIC AREAS SANITIZER STATION

4

C.O. BIGELOW

CHECK IN / OUT SANITAZING PACK

5

C.O. BIGELOW

PUBLIC AREAS SANITIZER STATION

6

C.O. BIGELOW

IN ROOM POCKET SIZE

7

C.O. BIGELOW

GIFT

SANITIZING GIFT PACK

8

C.O. BIGELOW

PROGRAM OVERVIEW

C.O. BIGELOW

FULL RANGE

2 ml CLEANSING HAND GEL monodose Fragrance: Aloe

CLEANSING WIPE single use Fragrance: Thymus essential oil > cm 7 x 14h

> cm 6 x 6h

40 ml CLEANSING HAND GEL in solid white tube w/flip top cap ø 30mm Fragrance: Thymus essential oil

300 ml CLEANSING HAND GEL in dispenser bottle Fragrance: Thymus essential oil

500 ml CLEANSING HAND GEL in dispenser bottle Fragrance: Thymus essential oil

20 ml SANITIZING ROOM FRAGRANCE in bottle with spray cap Fragrance: Thymus essential oil

500 ml SANITIZING ROOM FRAGRANCE in bottle with spray trigger Fragrance: Thymus essential oil

500 ml SANITIZING FABRIC FRAGRANCE in bottle with spray trigger Fragrance: Thymus essential oil

20 ml SANITIZING FABRIC FRAGRANCE in bottle with spray cap Fragrance: Thymus essential oil

9

C.O. BIGELOW

PROGRAM OVERVIEW

PACK

BOX with 25 X 2 ml CLEANSING HAND GEL Fragrance: Aloe

BOX with 20 X CLEANSING WIPE Fragrance: Thymus essential oil

PAPER POUCH PACK with adhesive label

WHITE COTTON BAG with black strings

10

PAPER POUCH

C.O. BIGELOW

PACK

KIT ITEMS

PAPER POUCH PACK with adhesive label > cm 9 x 20h x 4 width

1X CLEANSING WIPE single use Fragrance: Thymus essential oil > cm 7 x 14h 1X 2 ml CLEANSING HAND GEL in pouch Fragrance: Aloe > cm 6 x 6h

1X ANTI-POLLUTION FACE MASK individually wrapped packaged

1X LATEX GLOVES PAIR individually wrapped packaged

11

COTTON BAG

C.O. BIGELOW

GIFT PACK

KIT ITEMS

WHITE COTTON BAG with black strings > cm 16 x 23h CUSTOM OPTION AVAIBLE

1X 40 ml CLEANSING HAND GEL in solid white tube w/flip top cap ø 30mm Fragrance: Thymus essential oil 2X CLEANSING WIPE single use Fragrance: Thymus essential oil > cm 7 x 14h

1X ANTI-POLLUTION FACE MASK individually wrapped packaged

1X LATEX GLOVES PAIR individually wrapped packaged

12

N <MALI N+GOETZ> HAND SANITIZING PROGRAM . SO0IUM CHLO M). SERI THREO ',E'NY

ICCS TDEU

:1.oz . .,236ml

z

SULFATE: GLYCERI �COCAMI DL, POLYOUATERNIUM-7, UM BE ZOATE, POTASSIU TRATE METHOXY PE

I

NI E, ARGINI E, B

E SERI E, SOOIUM OATE, UMONENE, EET E YORK.

O

RP ICCS L

TACT@ICCSLTO EU

36ml

l.6oz. l '73g

LABOT1EG�

MALIN + GOETZ

Malin+Goetz is a luxury apothecary brand based in New York City. The first shop, which opened in 2004, is a modern interpretation of a traditional neighborhood apothecary. Nine years later Malin+Goetz remains family-owned and operated, supplying quality products that simplify skincare for all skin types; especially the most sensitive. Malin+Goetz is the fusion of the professional backgrounds of Mattew Malin and Andrew Goetz.

Mattew’s provenance is the luxury Beauty world laid the foundation for the high standards of the brand’s quality products.

Coupled with Andrew’s formidable experience and success in the Design world, Malin+Goetz packaging design reflects the elegant minimalism of the brand’s philosophy and quality.

> BEAUTY & SKINCARE

HAND SANITIZING PROGRAM

CLEANSING HAND GEL (alcohol 60% vol) 40 ml flip top bottle

CLEANSING HAND GEL (alcohol 60% vol) 300 ml dispenser bottle

CLEANSING HAND GEL (alcohol 60% vol) 500 ml dispenser bottle

HAND SANITIZING PROGRAM

FOR ROOMS/SUITES

FOR COMMON AREAS

FOR THE RECEPTION DESK

40 ml flip top bottle

300 ml dispenser (bracket)

500 ml dispenser (standalone)

FACE MASK CERTIFICATION

ANTI-POLLUTION FACE MASK individually wrapped packaged Metal bar that adapts to the shape of the face 3 layers of protection: - Blue external non-woven fabric -High density fabric filter -White non-woven fabric in direct contact with the skin

13

> SANITIZER PROGRAM

PROTECTIVE MASK PROGRAM

PROTECTIVE MASK PROGRAM Data sheet

ANTI-POLLUTION FACE MASK individually wrapped packaged

External material: Poliestere 100% hypoallergenic antibacterial OEKO-TEX Standard 100 Product Class 2

Antiviral and antibacterial treatment HEIQ VIROBLOCK NP J 03 Water repellent HEIQ BARRIER H M C6-01 Fluocarbon resin C 6 Certified non-toxic.

Internal material: 100% hypoallergenic cotton OEKO-TEX Standard 100 / ISO 3758

Compliance with the law ART. 16 PARAGRAPH 2DL of 17/03/2020.

MADE IN ITALY

50 washes - 40° or Steam sterilize

PROTECTIVE MASK PROGRAM Models

LAB

THE HOTEL COUTURE

CODE CONCEPT

BESPOKE STYLE FULL PRINT CUSTOMIZATION Piping + Elastic bands: ONLY black

Thank You
