SPEEDFLOW HIGH PERFORMANCE HOSES &

Welcome to our latest catalogue...

25 YEARS has come and gone! How time flies…..

We are entering our 26th year at Motorsport Connections and have just finished putting the final touches into our 2026 catalogue. I’m proud to say once again this aftermarket automotive “bible” is packed full of great things supplied by awesome companies, some of which I’m proud to say have been with us since day one!

We continue to triumph over our competitors who have gone to the dark side to support cheaply made, Chinese CRAP! Mark my words, as long as I’m at the helm MSCN will not sell out. It’s been 10 years since we started to see the wave of copycat products and comments like ‘it’s getting better’… NO… it was junk then and it’s junk now. Please note, these companies are getting better at trying to deceive you with the product’s origin. Do yourself a favour, ask the question... Where is this product made?

I’m also proud to say our inventory level has grown past 9,000 part numbers, with a total inventory number of close to one million parts in stock. This stock level gives you the benefit of knowing you can call us and get your parts delivered within a day or two in Australia and New Zealand.

If you are a customer of MSCN you will always be more than just a name in our database – you are a person and, more importantly, a friend. Life is a rocky road sometimes, add race cars into the mix it can be hectic. We are here for you and promise to do everything we can to get your project needs sorted. The MSCN team work and play hard in all aspects of motor-racing. As such, we know, use and understand every one of the products we distribute. Trust me when I say that I would not sell it if I didn’t believe in the ability of the product to do the job.

Lastly, I want to thank my amazing team for believing in the vision and continually pushing forward. No matter if you’re a high-end work shop, race team or DIY home guy, we’re

Signing out, Mad Mark Hinchelwood.

Photo Credit: Grant Stephens

Speedflow is excited to enter its 43rd year of manufacturing. The entire team is dedicated to investing in the newest technologies, highlighting their commitment to providing customers with products they stand behind.

Within this new catalogue you will see their latest innovation through their new 550

RANGE and 550 ‘SF FLEX’ HOSE that allows increased flexibility and kink resistance.

Speedflow believes in quality and doing it right the first time. They ensure this by having full control over every aspect of the production process. From concept, design, machining, polishing, anodising, assembly and packaging, it’s ALL done right here in AUSTRALIA!

Even though this is the Speedflow section of the catalogue we have listed items that are compatible with or compliment the Speedflow range and may be from another supplier.

HOSE OPTIONS

100 SERIES - HOSE

•Stainless steel braided synthetic rubber hose - suits 100 series hose ends

•Synthetic rubber inner tube, integral stainless braid, high tensile stainless outer braid

•Pressure rating: -4 to -12 operating pressure of 1000psi with 100 series hose ends

•Approved for synthetic lubricants, oils, air, coolant, methanol and nitromethane

•Not recommended for unleaded, E85 or corrosive fuels

115 SERIES - FULL RACE BLACK NYLON HOSE

•Heavy duty side wall for addittional strength

•Suits 100 series hose ends

•Ideal for dry sump suction applications

120 SERIES - START-LITE HOSE

•Up to 45% lighter than 100 series hose - suits 100 series hose ends

•Smooth-bore CPE liner with pre-dyed BLACK (with red trace) Nomex® cover

•Pressure rating: Operating pressures of 350-500psi with 100 series hose ends

•Approved for synthetic lubricants, oils, air, coolant, methanol and nitromethane

•Not Recommended for unleaded, E85 or corrosive fuels

200 SERIES - TEFLON® BRAIDED HOSE PAGE 10

•A versatile all round hose for performance vehicles - suits 200 or 520 series hose ends

•PTFE (Teflon®) inner tube with stainless steel braided cover (blackened available)

•Outstanding operating pressures (3380psi with -6 & 200 series hose ends)

•Compatible with brake, clutch, oils, air, N2O, coolant, fuels, hydraulics

•Recommended hose for unleaded, E85 & corrosive fuels

400 SERIES - PUSHLOCK

PAGE 18

•2 Brands - Gates 400 (smooth outer) & AQP A332 & A598 (rough outer) blue or black

•Use with our 400 series pushlock hose ends

•Elastomer tube, textile braid reinforcement with a rough elastomer outer cover

•Operating pressures up to 250psi

•Approved for low pressure oils, air, coolant, methanol - Not for unleaded, E85, corrosive fuels

480 SERIES - AIR CONDITIONING HOSE

PAGE 28

•Ideal for AC & reflect our 200 series hose system – suits 480 series AC reusable hose ends

•Nylon inner tube with stainless steel braided cover (blackened available)

•Suitable for R134a refrigerants for superior cooling

485 SERIES - BARRICADE PREMIUM FUEL HOSE

•Designed for modern EFI fuel systems and push on hose tails

•Can be used with our 411, 414 & 421 series hose tails utilising a hose clamp

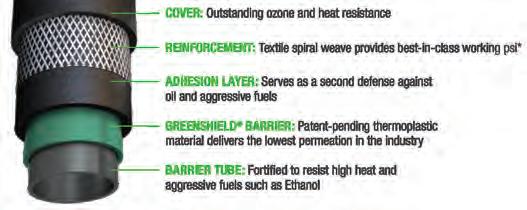

•Barrier liner, thermoplastic layer, adhesion layer, textile support and smooth cover

PAGE 20

•Low permeation rate - SAE R14 rating / operating pressure of 225psi

•Multi-fuel compatible: leaded and unleaded fuels, diesel, E85, methanol & gasohol

490 SERIES - POWERSTEER HOSE

PAGE 21

•Our best option for high pressure, high pulse applications - suits 490 series hose ends

•Elastomer tube, textile inner braid, single wire braid, black polyester braid cover

•For use with power steering, oils, coolant & air

520 SERIES

PAGE 22

•These are our “strongest & most compact - swivel crimp” hose ends - suits 200 series hose

•Can be rotated even with 1,000 psi in the hose!

•... or our “Extreme Temp - Non Swivel” hose ends - also suits 200 Series hose

•Made exclusively for MSCN they handle the extreme temps found with turbochargers etc

•Both ranges are strong, compact and lightweight!

550 SERIES - TEFLON® HOSE

PAGE 24

•A lightweight, flexible hose for professional motorsport - suits 550 series crimp hose ends

•Carbon impregnated PTFE smooth-bore inner tube with outer annular convolutions

•Choice of stainless steel or aramid fibre braided cover

•Compatible with oils, air, coolant, fuels including unleaded, E85 & corrosive fuels

550-900 SERIES - INJECTION HOSE

•Superior option for mechanical injection lines - suits 550-900 & 200-04 hose

•Synthetic rubber liner with textile reinforcing and smooth cover

•Suitable for use with synthetic lubricants, oils, air and methanol

PAGE 26

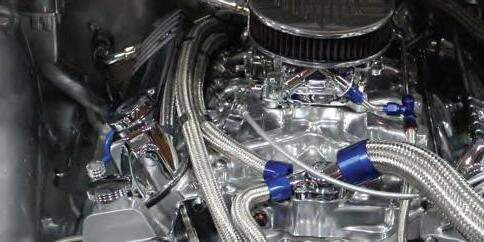

100 SERIES

Stainless Steel Braided Hose

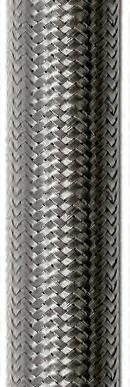

Manufactured in the USA, Speedflow 100 Series hose is the premier stainless steel nitrile hose and has been used by motorsport professionals all over the world! Used with our 100 Series hose ends it provides essential protection and resistance to high pressure, temperature, and chafing! It is constructed of a seamless synthetic nitrile inner tube with an integral stainless steel braid and a high tensile stainless steel outer braid. It has the highest corrosion & fire resistance of any other nitrile braided hose.

• Temperature range: -46°C to 150°C

Start-Lite Hose

The 120 Series hose is lightweight, durable and race proven! Made from smooth-bore CPE liner with pre-dyed BLACK (with red trace) Nomex® cover. Start-Lite® hose assemblies are lighter in weight than conventional high performance assemblies. Use 100 Series reusable Hose Ends, no crimping machines or special tools are required! Applications: Fuel*, lube, coolant, air. Not recommended for dry sump “suction” applications.

• Temperature Range: -46°C to 150°C

• Note: -16 requires a special socket.

Full Race black nylon hose features heavy duty side-wall for additional strength. This hose should be considered when using on dry sump “suction” applications. Vacuum not to exceed 28 ins/Hg. Full Race hose is manufactured by Parker USA.

• Temperature Range: -46°C to 150°C

• Note: -20 requires a special socket. Please ask!

Nomex® is a registered trademark of DuPont.

is a registered trademark of Eaton.

With the use of new blends of unleaded fuels and additives from fuel manufacturers in recent years it has become increasingly difficult to assure their compatibility with hose constructions.

The best option is our 200 SERIES TEFLON® HOSE which can withstand all additives used in the manufacture of unleaded fuels and Ethanol blends.

200 Series -6, -8, -10 and -12 sizes are also manufactured with a carbon lining to prevent static build up and discharge from fast moving liquids.

See page 10 for

Note: -20 requires a special socket. Please

Hoses & Fittings

Hose Ends

Made from 6061 grade aluminium and utilising Speedflow’s unique full flow formed bend which is the strongest and most compact hose end bend in the industry! Speedflow only manufacture the cutter style which is engineered to securely fit their 100, FR115 & 120 Series hose for a perfect seal every time! All these hose ends can be rotated once assembled.

STRAIGHT HOSE ENDS RED/BLUEBLACKSIZE

101-04101-04-BLK -4

101-06101-06-BLK -6

101-08101-08-BLK -8 101-10101-10-BLK -10

101-12101-12-BLK -12 101-16101-16-BLK -16

101-20101-20-BLK -20

90° HOSE ENDS RED/BLUEBLACKSIZE

103-04103-04-BLK -4

103-06103-06-BLK -6

103-08103-08-BLK -8

103-10103-10-BLK -10

103-12103-12-BLK -12

103-16103-16-BLK -16 103-20103-20-BLK -20

30° HOSE ENDS RED/BLUEBLACKSIZE

107-04107-04-BLK -4

107-06107-06-BLK -6

107-08107-08-BLK -8 107-10107-10-BLK -10

107-12107-12-BLK -12

107-16107-16-BLK -16

45° HOSE ENDS RED/BLUEBLACKSIZE

102-04102-04-BLK -4 102-06102-06-BLK -6

102-08102-08-BLK -8 102-10102-10-BLK -10

60° HOSE ENDS

RED/BLUEBLACKSIZE

108-04108-04-BLK -4

108-06108-06-BLK -6

108-08108-08-BLK -8

108-10108-10-BLK -10

108-12108-12-BLK -12

108-16108-16-BLK -16

120° HOSE ENDS RED/BLUEBLACKSIZE

104-04104-04-BLK -4

104-06104-06-BLK -6

104-08104-08-BLK -8

104-10104-10-BLK -10

104-12104-12-BLK -12

104-16104-16-BLK -16 104-20104-20-BLK -20

107-20107-20-BLK -20 STEPPED SIZE

-10-12

102-12102-12-BLK -12 102-16102-16-BLK -16 102-20102-20-BLK -20

150° HOSE ENDS RED/BLUEBLACKSIZE

105-04105-04-BLK -4

105-06105-06-BLK -6

105-08105-08-BLK -8

105-10105-10-BLK -10

105-12105-12-BLK -12

105-16105-16-BLK -16 105-20105-20-BLK -20

108-20108-20-BLK -20

180° HOSE ENDS RED/BLUEBLACKSIZE

106-04106-04-BLK -4

106-06106-06-BLK -6

106-08106-08-BLK -8

106-10106-10-BLK -10

106-12106-12-BLK -12

106-16106-16-BLK -16

106-20106-20-BLK -20

200 SERIES

Teflon® Stainless Steel Braided Hose

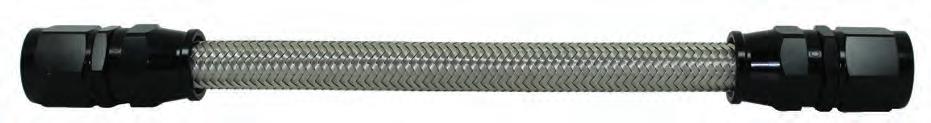

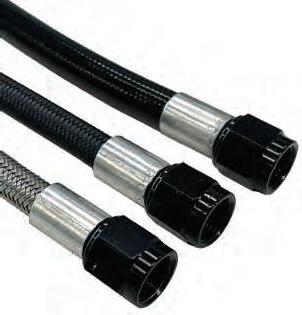

Speedflow 200 Series Teflon® Braided Hose is constructed from a PTFE (Teflon®) inner tube compatible with all brake & clutch fluids, oil & fuels. The outer stainless steel braided cover adds fire and heat resistance and gives the hose a high pressure rating. Sizes -6 and up are manufactured with an anti-static PTFE tube suitable for use as main fuel lines. 200 Series has been an industry standard since the mid 60’s when it was first used as brake lines to reduce expansion and provide a much firmer “pedal” and more consistent braking. This hose has evolved to be recommended in clutch, pressure lines, turbo lines oil, water and fuel systems! Temperature range: -70°C to 260°C

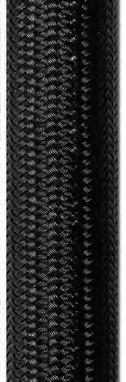

Teflon® Stainless Braided Hose - Black

We also offer their popular 200 Series hose with a BLACK STAINLESS STEEL finish, in sizes -3 to -12. Please note thet even though they are supplied by the metre - they are only available up to a maximum length of 5 metres (our -12 is only available up to max length of 3 metres). Temperature range: -70°C to 260°C

* Sold per metre - minimum order length 1 metre

Speedflow

Teflon® Braided Hose with PVC Cover

Hoses & Fittings

200 SERIES

Hose Ends - Aluminium

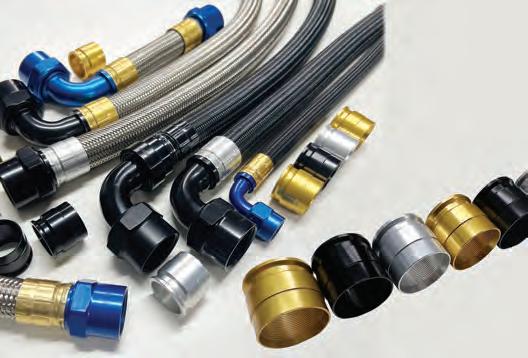

MSCN carry the biggest range of 200 series hose ends anywhere – 200 series aluminium hose ends are ideal for those who are conscious of weight. There are three colour options – standard in BLACK anodised, a BLUE/BLACK combination and introducing the “Classic” range which is available in RED/BLUE.

207-04-BLK207-04-D207-04-CLASSIC

207-10-BLK207-10-D 207-10-CLASSIC -10 207-12-BLK207-12-D 207-12-CLASSIC -12

203-04-BLK203-04-D203-04-CLASSIC

203-06-BLK203-06-D203-06-CLASSIC

203-08-BLK203-08-D203-08-CLASSIC

203-10-BLK203-10-D203-10-CLASSIC -10 203-12-BLK203-12-D203-12-CLASSIC

Hose Ends - Steel

XRP Hose

End Adaptors - Suit 100, FR115 & 120 Series Hose

Denote they are not Speedflow products but are compatible with or compliment the range.

XR290106 -6-6 AN

XR290108 -8-8 AN

XR290110 -10-10 AN

XR290112 -12-12 AN

O-Ring XR299013 -12-10 O-Ring

Photo Credit: Shane Pike

Hoses & Fittings

200 SERIES

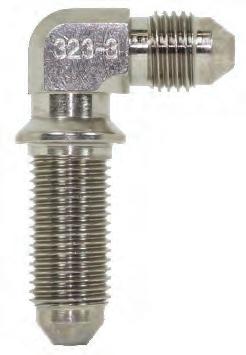

Hose Ends - Adaptor Type

MALE - DUAL SEAT

Convert 200 braid to rubber hose.

SUITS 200 SERIES HOSE

Washer seal and inverted seat. PART NO. HOSETHREAD

-3M10 x 1.0

-37/16”-20

FEMALE - CONCAVE SEAT Long

FEMALE - INVERTED SEAT With C-clip groove. -3 are short body. -4 is long body.

PART NO. HOSETHREAD

-33/8” -24

-3M10 x 1.0

-3M10 x 1.25

FEMALE SWIVEL - FLAT SEAT

FEMALE - CONCAVE SEAT

Long body with 5/8”-26 threaded O.D. PART NO. SIZE THREADOD

-33/8”-245/8”-26

FEMALE - INVERTED SEAT

Long body with threaded O.D.

PART NO. SIZETHREADOD 233-03 -37/16” -245/8” -18 233-04 -47/16” -245/8” -18 234-04 -47/16” -205/8” -26

x 1.5

MALE NPT HOSE END

Available in steel or black anodised aluminium. PART NO. SIZETHREAD 274-03-M-S -31/8” NPT 274-03-M-BLK -31/8” NPT

MALE TEE WITH BRACKET

PART NO. SIZE

325-03-S -3 Steel 325-03-BLK -3 Aluminium

FEMALE NPT HOSE END

Available in steel or black anodised aluminium.

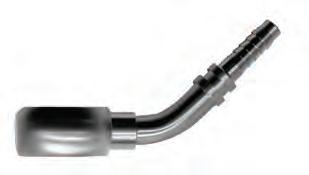

Hose Ends - Banjos

Banjo Bolts

Banjo to Male Flare

Banjo Bolt 1/2”-20 Part No. 300-08 Suits most Wilwood Tandem M/C

1/2” 12mm Aluminium: Part. 901-05 Banjo 1/2” -20 Size -3: Part. 315-03

200

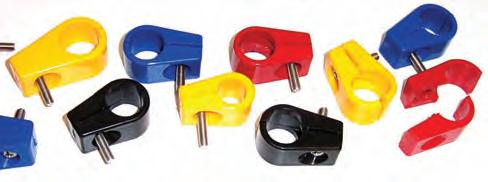

Hose Supports

200 SERIES

Denote they are not Speedflow products but are compatible with or compliment the range.

Male Flare Adapters

Ideal for adapting a gauge, a calliper, clutch or brake master cylinder or any -3 & 4 application.

-4 (see note) 3/8”-24

-37/16”-24

-47/16”-24

-39/16”-20

NOTE: Dual seal adapter, washer seal or inverted seat. Multi seal adapter, washer seal or dual seat. These are machined with a convex and inverted seat on the sealing surface.

-4 (see note) M12 x 1.0

200 SERIES

Flare Adapters (continued)

-41/8” NPT

-41/16” NPT * Denote Stainless Steel

Hoses & Fittings

Flare Adapters (continued)

400 SERIES

Pushlock Hose

Speedflow’s 400 series hose is manufactured by Gates and designed specifically for 400 series pushlock style fittings. This hose has an elastomer tube with a smooth outer cover. This is not recommended for use with unleaded fuels or use in high pressure applications or suction systems. This hose suitable for use with synthetic lubricants, oils, air, coolant and methanol.

• Temperature range: -46°C (-50.8°F) to 100°C (212°F)

332 SERIES 598 SERIES

AEROQUIP AQP® Socketless Hose

Speedflow have added the popular AQP® Socketless™ hose to our range. This hose has an elastomer tube, textile braid reinforcement with a rough elastomer outer cover. We do not recommend this hose for use with unleaded fuels or use in high pressure applications or suction systems. This hose suitable for use with synthetic lubricants, oils, air, coolant and methanol. 332 has a BLUE outer cover and the 598 is BLACK.

• Temperature range: -40°C (-40°F) to 100°C (212°F)

*FUEL ADDITIVES & THEIR EFFECT

With the use of new blends of unleaded fuels and additives from fuel manufacturers in recent years it has become increasingly difficult to assure their compatibility with hose constructions.

The best option is our 200 SERIES TEFLON® HOSE which can withstand all additives used in the manufacture of unleaded fuels and Ethanol blends.

200 Series -6, -8, -10 and -12 sizes are also manufactured with a carbon lining to prevent static build up and discharge from fast moving liquids.

See page 10 for details

332 / 400 / 598 SERIES

HOSE APPLICATION NOTE

Ideal for fuel lines (methanol only), low pressure/ temperature oil systems & coolant systems.

COMPATIBILITY:

• Methanol, water, oil & fuel

RESTRICTIONS:

• Not recommended for use with unleaded fuels & ethanol blends as it is known to allow the permeation of fuel smell through the layers as well as excessively reducing the life of the rubber compound

• Not to be used with brake fluids

• Not recommended for use around extreme heat sources such as turbochargers

Hoses & Fittings

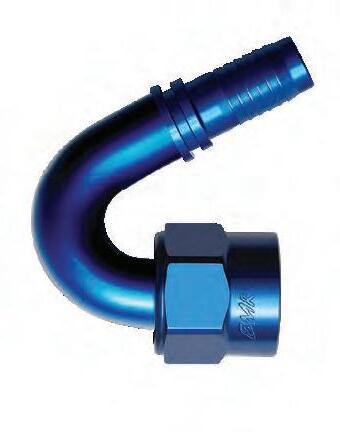

400 SERIES

Hose Ends

Speedflow makes a complete range of 400 series hose ends to suit their 400, 332 & 598 series hose. Made in Australia from 6061-T6 grade aluminium and utilising our unique full flow formed bend which is the strongest and most compact hose end bend in the industry! All these hose ends are beautifully finished in a hard coat anodise with a decorative colour, either in standard red and blue or black. We can custom anodise to your specification in a range of colours.

STRAIGHT HOSE ENDS RED/BLUEBLACKSIZE

401-04401-04-BLK -4

401-06401-06-BLK -6

401-08401-08-BLK -8

401-10401-10-BLK -10

401-12401-12-BLK -12

90° HOSE ENDS

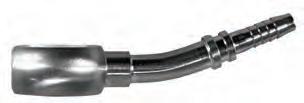

30° HOSE ENDS RED/BLUEBLACKSIZE

407-04407-04-BLK -4

407-06407-06-BLK -6

407-08407-08-BLK -8

407-10407-10-BLK -10 407-12407-12-BLK -12

45° HOSE ENDS RED/BLUEBLACKSIZE

402-04402-04-BLK -4

402-06402-06-BLK -6

402-08402-08-BLK -8

402-10402-10-BLK -10 402-12402-12-BLK -12

60° HOSE ENDS RED/BLUEBLACKSIZE

408-04408-04-BLK -4

408-06408-06-BLK -6

408-08408-08-BLK -8

408-10408-10-BLK -10

408-12408-12-BLK -12

406-04406-04-BLK -4

406-06406-06-BLK -6

406-08406-08-BLK -8

400 SERIES

Hose End

Collars

400 series hose end collars available as spares.

Great for damaged parts or custom coloured items!

-10

405-12405-12-BLK -12

Large Push-On Hose Ends

Ideal for larger hoses like breather lines and intercooler hoses. Use with standard style hose and a hose clamp for securing.

406-10406-10-BLK -10

406-12406-12-BLK -12

Clear Reinforced Hose

Transparent, plasticised PVC hose that is reinforced by a steel spiral helix which prevents the hose from collapsing. Great for overflow and breather lines. Not for use with Gasoline!

• Temperature range: -10ºC to +60ºC

(1/2”)

-10 (5/8”)

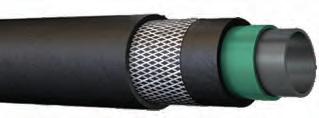

Barricade Fuel Injection Hose

• Fuel injection engines, fuel lines, EEC/EGR, cars and light duty trucks

• Air pump, PCV valve compatible with Gas/ Diesel and Ethanol

• Pressure rating: 225 psi (best-in-class)

• Temperature: -40°F to 257°F (-40°C to 135°C) continuous, up to 302°F (150°C) intermittent

MODERN FUELS REQUIRE MODERN FUEL HOSES

We stock the Gates premium range of Barricade fuel injection hose. EFI fuel hose to meet the demands of modern fuel blends.

Installing Barricade protects the system against the aggressive fuel mixtures of today’s modern fuels, which can degrade basic rubber hose and result in leaks and failure. Plus, with Barricade, you can be assured that you are complying with permeation laws, and providing you with the best hose – all while being environmentally-friendly.

• BEST-IN-CLASS working psi of 225 (for fuel injection)

• Lowest permeation rate on the market 1 gr/m2/day

• Multi-fuel compatible: Approved for use with leaded and unleaded Gasoline, Diesel, Biodiesel†, E-85, 100% Methanol, ETHANOL and gasohol fuels - with a SAE R14 rating

*Features a best-in-class working pressure of 225 psi † Biodiesel fuel must meet the ASTM D6751 specification for biodiesel fuel and be produced, marketed and distributed by BQ9000 accredited facilities.

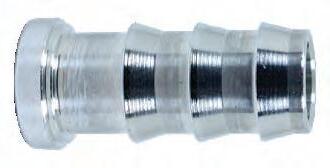

Hose Ends

411 Series Hose Ends are a push on hose end for use with standard style hose and a hose clamp for securing. As an example, these are great for adapting aftermarket

411-04-05411-04-05-BLK -45/16” 411-06-04411-06-04-BLK -61/4”

411-06-05411-06-05-BLK -65/16”

-83/8” 411-08411-08-BLK -81/2” -411-16-BLK -161”

Cobra Clamps / Pushlock Pliers

Pushlock clamps are a self tensioning self retaining clamp specifically sized for our hose. A must for high heat and oil line applications to ensure a secure seal without damaging the construction or integrity of the hose. Installation is easy using these Pliers!

Hose Ends Tails Hoses & Fittings

METRIC HOSE TAILS

BLACKTHREADSIZE

414-M10-05-BLK M10 x 1.05/16”

414-M10-06-BLK M10 x 1.03/8”

414-M10-08-BLK M10 x 1.01/2”

414-M12-05-BLK M12 x 1.55/16”

414-M12-06-BLK M12 x 1.53/8”

414-M12-08-BLK M12 x 1.51/2”

414-M14-05-BLK M14 x 1.55/16”

414-M14-06-BLK M14 x 1.53/8”

414-M14-08-BLK M14 x 1.51/2”

414-M16-05-BLK M16 x 1.55/16”

414-M16-06-BLK M16 x 1.53/8”

414-M16-08-BLK M16 x 1.51/2”

414-M18-05-BLK M18 x 1.55/16”

414-M18-06-BLK M18 x 1.53/8”

414-M18-08-BLK M18 x 1.51/2”

414-M18-10-BLK M18 x 1.55/8”

NPT HOSE TAILS

BLUEBLACKNPTSIZE

421-01-04421-01-04-BLK 1/16”1/4”

421-02-03421-02-03-BLK 1/8”3/16”

421-02-04421-02-04-BLK 1/8”1/4”

421-02-05421-02-05-BLK 1/8”5/16”

421-02-06421-02-06-BLK 1/8”3/8”

421-04-05421-04-05-BLK 1/4”5/16”

421-04-06421-04-06-BLK 1/4”3/8”

421-06-05421-06-05-BLK 3/8”5/16”

421-06-06421-06-06-BLK 3/8”3/8”

421-06-08421-06-08-BLK 3/8”1/2”

411-505-BLK 5/16”

411-506-BLK 3/8” 411-508-BLK 1/2”

411-510-BLK 5/8” 411-512-BLK 3/4”

JOINER 5/16”to 3/8” joiner

411-505-06-BLK 5/16” to 3/8”

Thread size 7/16” -20 designed to screw into master cylinders to relocate the reservoir with a 5/16” brake hose. BLUEBLACKSIZE 414-04-05414-04-05-BLK 5/16” THE 411, 414, 412 & 421 SERIES ARE DESIGNED TO BE USED WITH HOSE CLAMPS

Powersteer Hose

Designed for high pressure power steering applications using our 490 series fittings. The hose is constructed from a synthetic rubber tube with a textile inner braid, a single wire braid reinforcement and a rubber impregnated textile braid cover that is black in colour.

Hose Ends

Made from 6061 grade aluminium and hard anodised black for a tough finish as required with power steering applications. A non swivel tapered design hose end specially designed to suit our hose and tested to bursting pressures ideal for power steering applications.

520 SERIES

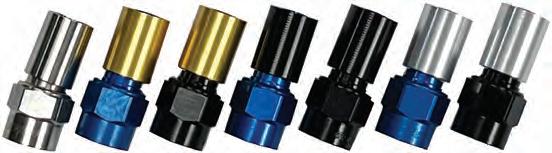

Hose Ends - Swivel Crimp Aluminium

Speedflow 520 series hose ends are crafted from premium 6061-T6 billet aluminum. Featuring unique SWIVEL full-flow formed bends, they are the strongest and most compact hose ends available in the industry! The unique swivel allows the hose end to fully rotate after crimping even with 1,000 psi in the hose. Designed for use with all 200 series hose!

Note: We recomend 520 ‘extreme temp’ range for transmissions using a bump box or any hi-temp application. See next page for details.

520-01-04 -4

520-01-06 -6

520-01-08 -8

520-01-10 -10

520-01-12 -12

90° HOSE ENDS SWIVEL SIZE

520-03W-04 -4

520-03W-06 -6

520-03W-08 -8

520-03W-10 -10

520-03W-12 -12

520-203-04-04

520-203-06-06 -6

520-203-08-08 -8

520-203-10-10 -10

520-203-12-12 -12

30° HOSE ENDS SWIVEL SIZE

520-07W-04 -4

520-07W-06 -6

520-07W-08 -8

520-07W-10 -10

520-07W-12 -12 60° HOSE ENDS

120° HOSE ENDS SWIVEL SIZE

520-04W-04 -4

520-04W-06 -6

520-04W-08 -8

520-04W-10 -10

520-02W-04 -4

520-02W-06 -6

520-02W-08 -8

520-02W-10 -10

520-02W-12 -12

520-05W-04 -4

520-05W-06 -6

520-05W-08 -8

520-05W-10 -10

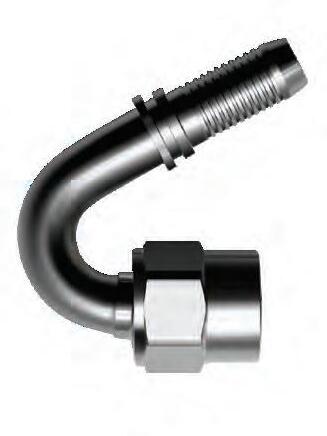

520-04W-12 -12 150° HOSE ENDS

520-05W-12 -12

520-03W-P06-06 -6-6

520-03W-P08-06 -8-6

520-03W-P08-08 -8-8

520-03W-P10-10 -10-10

520-03W-P12-12

520-01-AN06-06 -6-6 Crimp to -06 male flare.

520-06W-06 -6

520-06W-08 -8

520-06W-10 -10

520-06W-12 -12

Hoses & Fittings

520 SERIES

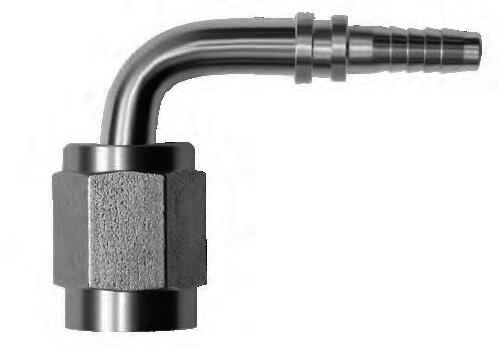

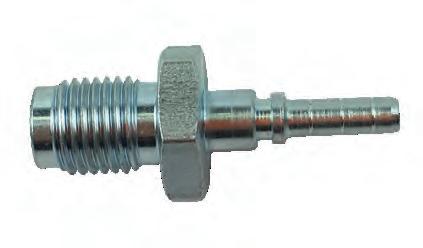

Hose Ends - Steel

520-01-03-S520-02-03-S520-03-03-S -3

Accepts 3/8” bleed nipple for remote bleeding of clutch or brake systems.

-33/8”-24

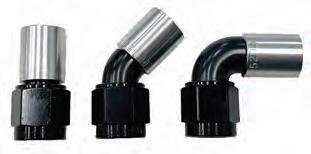

Hose Ends - “Extreme Temp” - NON SWIVEL

Speedflow 520 Series “EXTREME TEMP” Hose Ends are made exclusive for MSCN. They are a non-swivel design and can handle the EXTREME temperature found with Turbocharger side water hoses and Transmission Bump Box’s. They are also a shorter than the swivel range maximizing room. Crafted from premium 6061-T6 billet aluminium and meeting the highest quality standards. Featuring unique full-flow formed bends, they are strong, compact and lightweight.

For use with our 200 Series Hose which features an Anti-Static Liner. A must for motorsport applications.

A PTFE anti-static liner is a specialized version of a Polytetrafluoroethylene (PTFE) liner designed for motorsport hoses to prevent the dangerous buildup of static electricity, particularly in applications involving low-conductivity fluids or hazardous materials like flammable substances. Unlike standard white PTFE, which is highly insulative, anti-static PTFE incorporates additives, such as carbon black, to create a conductive path for static charges, dissipating them safely to prevent sparks or potential explosions. All CHINESE brands use the cheaper white PTFE.

You have been warned!

Hoses & Fittings

SF-LITE & SF FLEX Hose System - 550 Series

SF-Lite hose has a carbon impregnated anti-static PTFE inner tube that is manufactured with a smooth-bore and convolutions on the outside which allows for improved flexibility. Being a smoothbore hose, there are no voids that can create turbulence or trap debris as commonly found with a fully convoluted hose.

SF-Lite is available in six sizes from -4 to -16, all with a large bore size allowing greater volume to be carried at higher flow rates.

It comes in a choice of two braid options, Aramid Fibre or Stainless Steel braid.

Aramid fibre braid is a strong, flexible and lightweight cover that has well-known characteristics of durability and extraordinary tensile strength along with a high temperature rating.

Stainless Steel braid is made from 304 stainless steel and offers a much tighter bend radius along with full vacuum rating below 130°C and protects the PTFE liner against internal pressure and mechanical abuse.

SF-Lite has an even higher resistance to permeation than a standard smooth-bore PTFE hose thanks to the unique manufacturing process

which highly compresses the PTFE matrix ensuring a nonporous structure. This makes SF-Lite compatible with all automotive fluids including fuels such as E85 along with refrigeration gases making it perfect for AC lines.

SF-Lite utilises Speedflows new crimp system, and lightweight hose end series. The majority of the angled hose ends are made from our unique one piece formed bends that offer the most compact hose ends on the market with exceptional strength and allow us to achieve very light weight systems.

SF Flex - Premium PTFE Lined Convoluted Hose

The next evolution in Speedflow’s 550 Series hose, SF Flex sets a new benchmark in PTFE hose technology for high performance applications.

Featuring the same ultra smooth anti static PTFE liner you expect, now enhanced with a helically wound 316 stainless steel wire. SF Flex delivers superior flexibility, kink resistance, and durability in demanding environments.

Manufactured in the UK, SF Flex ensures consistently high quality and precision in every length of hose.

Teflon® Aramid Braided Hose

Speedflow’s light weight system starts with a black antistatic smooth bore PTFE (Teflon®) liner tube manufactured with convolutions on the outside which makes for high flow with the flexibility of a tighter bend radius than our standard 200 Series hose. We offer our light weight hose with an Aramid Fibre Braid which is light weight, abrasion and heat resistant. The working pressure rating will reduce by 1% per 1°C at temps above 130°C up to a maximum of 180°.

• Temperature range: -70°C (-94°F) to 180°C (356°F)

Teflon® Stainless Steel Braided Hose

The Stainless Steel braided version is made from the same liner as above, utilising a 304 Stainless Steel braid which provides more rigidity and flexibility, which is important when working in tight situations. The working pressure rating will reduce by 1% per 1°C at temps above 160°C up to a maximum of 260°. This hose is vacuum resistant up to 130° (266°F).

• Temperature range: -70°C (-94°F) to 180°C (356°F)

Teflon® is a registered trademark of DuPont.

Teflon® is a registered trademark of DuPont.

SF-Lite

SF Flex

Hoses & Fittings 550 SERIES

Hose Ends

Speedflow’s 550 series hose ends are now available in a double swivel option for a full 360° adjustment. This allows the hose to be rotated after crimping making alignment for installation a breeze. Made from 6061-T6 grade aluminium utilising our unique full flow formed bend* which is the strongest and most compact hose end bend in the industry! All hose ends come complete with a natural crimp collar and are hard coat anodised in black. Black crimp collars are sold separately. Use 550 Series Hose Ends on SF-Lite or SF Flex.

558-04558-04W -4

558-06558-06W -6

558-08558-08W -8

558-10558-10W -10

558-12558-12W -12

558-16558-16W -16

553-04553-04W

553-06553-06W

553-08553-08W

553-10553-10W

553-12553-12W

553-16553-16W -16

554-04554-04W -4*

554-06554-06W -6

554-08554-08W

555-04555-04W

556-04556-04W

556-12556-12W -12* 556-16556-16W -16* 120° - BLACK/NATURAL SOLIDSWIVELSIZE

556-10556-10W -10*

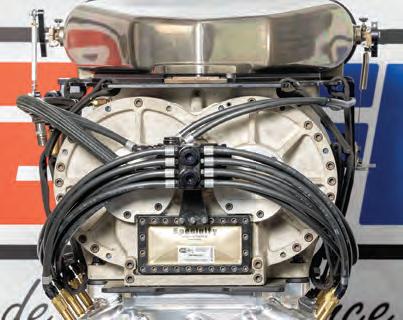

Mechanical Fuel Injection Hose 550 SERIES

Meets SAE 30R3 specification. This hose has a smooth outer cover with a fabric braided inner for strength and flexibility and a inner tube designed to withstand fuels. This hose suitable for use with synthetic lubricants, oils, air and methanol.

• Temperature range: -40°C to 93°C

Hose Ends

Lightweight, strong and high flowing! The 45° & 90° hose ends are a true flowed one piece formed bend. Male threaded hose ends are also available in 3/8” -24 O-ring port and NPT to give the option of screwing directly into the distribution blocks. Crimp collars are made from 6061-T6 aluminium and require a crimp machine to crimp.

Hoses & Fittings

550 SERIES

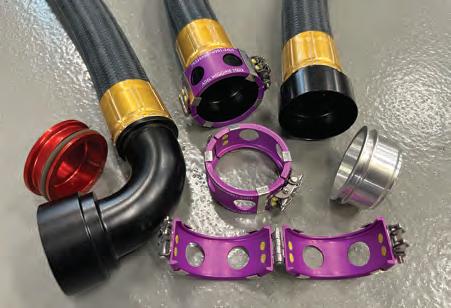

Clamshell Hose End Systems

Our clamshell hose end system delivers a quick, secure, and leak-free connection using a female shell that mates with a specialised adapter utlising twin O-rings. The assembly is locked in place with a clamshell clamp, ensuring strength and reliability under demanding conditions. This system supports a growing range of hose ends, adapters, and integrated filtration options.

551-CS10 -10

551-CS12 -12

551-CS16 -16

30° HOSE ENDS PART NO. SIZE

557-CS10W -10

557-CS12W -12

557-CS16W -16

45° HOSE ENDS PART NO. SIZE

552-CS10W -10

552-CS12W -12

552-CS16W -16

60° HOSE ENDS PART NO. SIZE

558-CS10W -10

558-CS12W -12

558-CS16W -16

90° HOSE ENDS PART NO. SIZE

553-CS10W -10

553-CS12W -12

553-CS16W -16

120° HOSE ENDS PART NO. SIZE

554-CS10W -10

554-CS12W -12

554-CS16W -16

150° HOSE ENDS PART NO. SIZE

555-CS10W -10

555-CS12W -12

555-CS16W -16

180° HOSE ENDS PART NO. SIZE

556-CS10W -10

556-CS12W -12

556-CS16W -16

Photo Credit: Craig Bachman

Royce McIntyre - MAYHEM

Air Conditioning Hose & Fittings

Nylon AC Braided Air Conditioning Hose

480-01-06-BLK -6

480-15-06-BLK -6 (High Side)

480-15-08-BLK -8 (High Side) 480-15-10-BLK -10 (High Side) 45° HOSE ENDS

CHARGE PORT ADAPTER PART NO.SIZE

480-14-06-BLK -6 (High Side)

480-14-08-BLK

This is the best quality Stainless Steel Braided Cover available on the market! It is strong, hard wearing and the close weave will not allow the hose to show through the braid unlike cheap covers. If you are after show quality looks for your Hot Rod, Street Machine, Custom Bike or for your daily drive, this is an economical and versatile option for fuel lines, radiator and heater hoses, power steering and AC lines. Available in several different sizes!

Hose Cover Clamps

Aluminium Tubing

Aluminium Tube

Stainless Steel Hardline

We have sourced this annealed seamless stainless steel tubing for almost any use. It has a thin wall to make bending and flaring easier and it can be polished to a high lustre show car shine if desired. It is supplied in straight lengths in the dimensions shown below. For shipping a maximum length will be enforced, so we can either cut or coil to suit your order. All stainless hardline is sold by the metre.

Tube Adapters, Nuts & Sleeves

Compression style tube adapters along with tube nuts & sleeves to convert standard steel or aluminium tube to AN fittings. The tube adapters use a compression olive to seal, whereas the tube nut & sleeve requires the tube to be flared using a 37° flaring tool. Compression style adapters are Ideal for EFI and carburettor applications.

MALE TUBE ADAPTER

RED/BLUEBLACKSIZETUBE SIZE

618-04-04618-04-04-BLK -41/4”

618-06-05618-06-05-BLK -65/16”

618-06-06618-06-06-BLK -63/8”

618-08-08618-08-08-BLK -81/2”

618-10-10618-10-10-BLK -105/8”

618-10-12618-10-12-BLK -103/4”

618-12-12618-12-12-BLK -123/4”

MALE TUBE ADAPTER (METRIC TUBE)

619-04-04619-04-04-BLK -41/4”

619-06-05619-06-05-BLK -65/16”

619-06-06619-06-06-BLK -63/8”

619-08-08619-08-08-BLK -81/2”

619-10-10619-10-10-BLK

RED/BLUEBLACKSIZETUBE SIZE

618-06-M8618-06-M8-BLK -68mm

618-06-M10618-06-M10-BLK -610mm

618-08-M12618-08-M12-BLK -812mm

Tube Adapters

Tube Nuts, Adapters & Sleeves

ALUMINIUM TUBE NUTS - FLARE STYLE

BLUEBLACK SIZE

818-03818-03-BLK -3 7/16” Hex

-318-03-BLK -3 1/2” Hex

818-04818-04-BLK -4

818-05818-05-BLK -5

818-06818-06-BLK -6

818-08818-08-BLK -8

818-10818-10-BLK -10

818-12818-12-BLK -12

818-16818-16-BLK -16

818-20818-20-BLK -20

390-M0324-L-SS 3/8”-24 Long

390-M0324-SS 3/8”-24 Short

390-M0424-SS 7/16”

390-M0520-SS 1/2”

390-M0618-SS 9/16”

390-M1001-SS M10 x 1

390-M1001-L-SS M10 x 1 Long

390-M1002-SS M10 x 1.25

390-M1201-SS M12 x 1

ALUMINIUM TUBE SLEEVES BLUEBLACKSIZETUBE SIZE

819-03819-03-BLK -33/16”

819-04819-04-BLK -41/4” 819-05819-05-BLK -55/16”

819-06819-06-BLK -63/8” 819-08819-08-BLK -81/2”

819-10819-10-BLK -105/8”

819-12819-12-BLK -123/4” 819-16819-16-BLK -16 1” 819-20819-20-BLK -201-1/4”

STEEL TUBE NUT

PART NO. SIZE

818-03-STEEL -3 Nut

818-04-STEEL -4 Nut

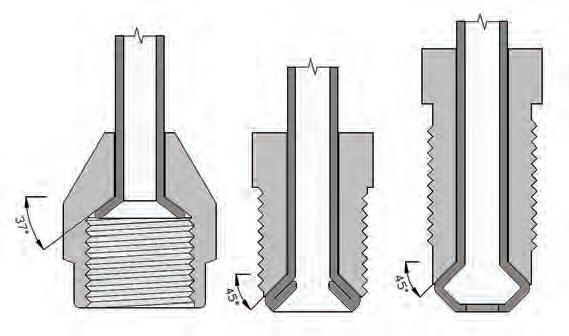

Use with a 37° (single) flare on steel, alloy or stainless tube. These can also be purchased in alloy. We recommend the use of steel nuts and sleeves with brake line applications.

S/S MALE TUBE NUTS

BP7511 7/16”-24

BP7515 1/2”-20

BP7520 9/16”-18

RED PART NUMBERS

Denote they are not Speedflow products but are compatible with or compliment the range.

1 PIECE FEMALE TUBE NUT

PART NO. SIZE

STEEL TUBE SLEEVES

PART NO. SIZE

819-03-STEEL -3 Sleeve

819-04-STEEL -4 Sleeve

Use with a 37° (single) flare on steel, alloy or stainless tube. These can also be purchased in alloy. We recommend the use of steel nuts and sleeves with brake line applications.

390-03-SS 3/16” Stainless Steel

390-04 1/4” Steel

Use with either a 45° or 37° flare. Thick wall construction.

TUBE BENDER

PART NO.

DESCRIPTION

SST9 Hand Held Tube Bender 1/8” to 3/16”

This tube bending tool is designed for tight radius bends and will simplify tube bending with very professional results. Excellent for use on brake lines, nitrous & fuel lines with 1/8’’ or 3/16’’ tubing.

MSCN / Speedflow PVC Banner

This 1200mm x 700mm PVC Banner will look great hanging in your work-shop or shed. Even works well as Race Car Tyre covers for the side of racecars to prevent them from warming up.

Pill Holder

Speedflow Enderle Threaded Pill Holder

MSCN BANNER

MSCN BANNER S-KIT

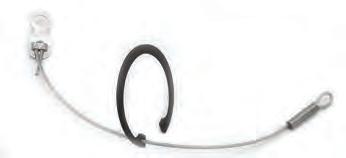

Suction Cap Kit

Supplied with x3 suction cups, R-clips and Teflon washers. Use these with your Banner and easily install / remove your tyre covers

Cap Kit

131-06-08131-06-08-BLK -6 to -8 131-08-10131-08-10-BLK -8 to -10 131-10-12131-10-12-BLK -10 to -12

142-03142-03-BLK -3 142-03-S STEEL-3 142-04142-04-BLK -4 142-06142-06-BLK -6 142-08142-08-BLK -8 142-10142-10-BLK -10

142-12142-12-BLK -12 142-16142-16-BLK -16

-12

133-16133-16-BLK -16

133-20133-20-BLK -20 133-03-S STEEL-3 133-04-S STEEL-4

136-04136-04-BLK -4

136-06136-06-BLK -6

136-08136-08-BLK -8 136-10136-10-BLK -10 136-12136-12-BLK -12 -10/-12 made with brazed tubes.

Swivel Adapters, Y Blocks & Tees

Still one of the most popular billet fittings in Speedflow’s range! These handy Y blocks and tees are great for many fuel system applications.

FEMALE - MALE STEP Y RED/BLUEBLACKFEMMALE

146-08-06146-08-06-BLK -8-6

146-10-08146-10-08-BLK -10-8

146-12-10146-12-10-BLK -12-10

144-03-S (STEEL) -3

144-03144-03-BLK -3

144-04144-04-BLK -4

144-06144-06-BLK -6

144-08144-08-BLK -8

144-10144-10-BLK -10

144-12144-12-BLK -12

-20

FEMALE - MALE Y RED/BLUEBLACKFEMMALE

147-04147-04-BLK -42 x -4

147-06147-06-BLK -62 x -6 147-08147-08-BLK -82 x -8

145-03-S (STEEL) -3 145-03145-03-BLK -3

145-04145-04-BLK -4 145-06145-06-BLK -6

145-08145-08-BLK -8

145-10145-10-BLK -10

147-304147-304-BLK -4 147-306147-306-BLK -6 147-308147-308-BLK -8 147-310147-310-BLK -10 147-312147-312-BLK -12

TEE - FEMALE

145-12145-12-BLK -12 FEMALE TEE MALE ON RUN BLUEBLACKSIZE

TEE - FEMALE ON RUN PART NO. MATERIALSIZE 145-03-S Steel-3

144-406144-406-BLK -6 144-408144-408-BLK -8

Fuel Pump, Power Steer & Oil Flare Adapters

Adapters to suit standard fuel pumps, filters, transmission adapters, power steering pumps and racks along with other specialised adapters to suit a wide variety of automotive applications.

702-06702-06-BLK -67/16” -24 Inverted

GEARBOX ADAPTER Suits most late model TH350, TH400 and TH700R. Earlier models use a 1/4” NPT (816 series) BLUE BLACKSIZETHREAD 816-06-NPS816-06-NPS-BLK -61/4” NPS 816-06-02-NPS816-06-02-NPS-BLK -61/8” NPS

810-M12-02-BLK 1/8” NPTM12 x 1.5 810-M14-02-BLK 1/8” NPTM14 x 1.5 810-M16-02-BLK

715-06-05715-06-05-BLK 5/16”-6

715-06-06715-06-06-BLK 3/8”-6

715-08-06715-08-06-BLK 3/8”-8 715-06-08715-06-08-BLK 1/2”-6 715-08-08715-08-08-BLK 1/2”-8

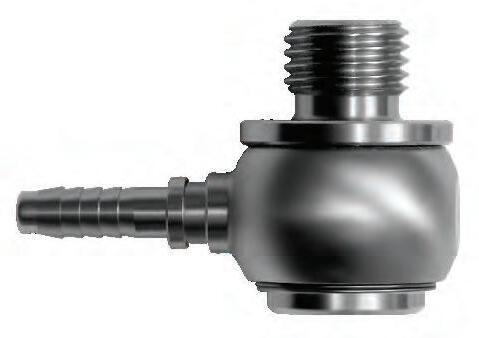

Banjo’s & Bolts

Suit our 14.5mm eye and new 16 & 18mm Banjo’s. Common uses include oil lines, fuel pumps, filters and carburettors, EFI & power steering.

722-06722-06-BLK 9/16”-24Holley Carb 727-06727-06-BLK 1/2”-20CAV Filters 728-06728-06-BLK 9/16”-18General

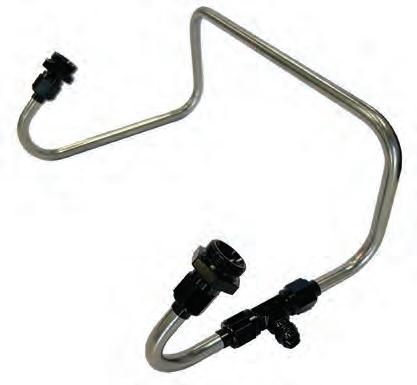

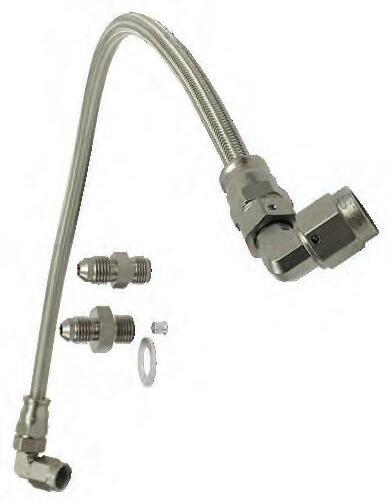

Carburettor Fuel Line Kits

We can make a fuel line kit to suit any fuel system, and carry on the shelf kits for the popular Holley & Demon carburettors. We have several combinations depending on your application or call us if you require a custom made kit, or custom colour anodising!

Note: Rubber hose is not recommended for all fuel types.

Note: Rubber hose is not recommended for all fuel types.

160-06-EXT - Holley-6100 Series - Rubber 160-08160-08-BLK Holley-8100 Series - Rubber 160-08-A160-08-A-BLK Holley-8120 Series - Rubber 160-08-T160-08-T-BLK Holley-8 200 Series - Teflon® 160-HP-06160-HP-06-BLK HP & QFT-6100 Series - Rubber 160-HP-06-A160-HP-06-A-BLK HP & QFT-6120 Series - Rubber

160-HP-06-T160-HP-06-T-BLK HP & QFT-6 200 Series - Teflon® 160-HP-08160-HP-08-BLK HP & QFT-8100 Series - Rubber

160-HP-08-A160-HP-08-A-BLK HP & QFT-8120 Series - Rubber 160-HP-08-T160-HP-08-T-BLK HP & QFT-8 200 Series - Teflon® 161-06161-06-BLK Demon-6100 Series - Rubber

161-06-A161-06-A-BLK Demon-6100 Series - Rubber 161-06-T161-06-T-BLK Demon-6 200 Series - Teflon® 161-08161-08-BLK

Dominator-8100 Series - Rubber 162-08-A162-08-A-BLK Dominator-8120 Series - Rubber 162-08-T162-08-T-BLK Dominator-8

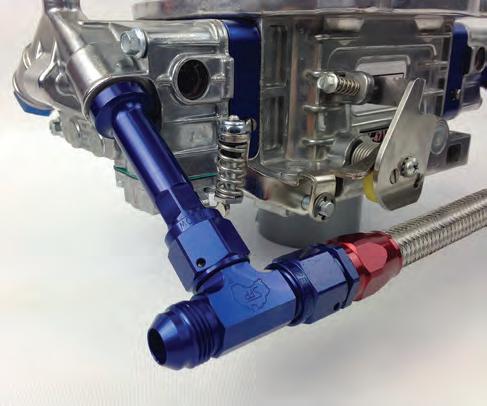

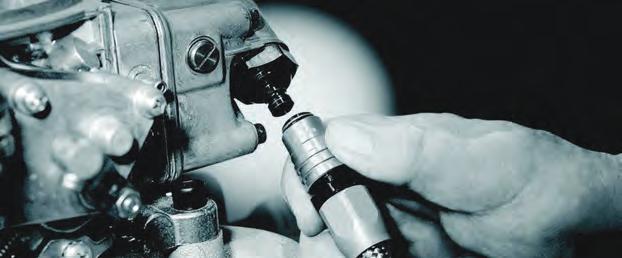

Carburettor Adapters

Speedflow have redesigned these adapters to suit a wider variety of carburettors including Holley, Demon, Quick Fuel technology plus others. The new Speedflow design will eliminate clearance issues that some carburettors encounter with certain styles of adapters!

BSPP Adapters

British Standard Pipe Parallel (BSPP) is commonly found in older English vehicles in engine blocks, oil pumps, fuel and oil filters. MALE BSPP ADAPTER

750-06750-06-BLK -61/4”BSPP

750-08750-08-BLK -81/4”BSPP

751-06751-06-BLK -63/8”BSPP

751-08751-08-BLK -83/8”BSPP

751-10751-10-BLK -103/8”BSPP

752-06752-06-BLK -61/2”BSPP

752-08752-08-BLK -81/2”BSPP

752-10752-10-BLK -101/2”BSPP

752-12752-12-BLK -121/2”BSPP

753-10753-10-BLK -105/8”BSPP

753-12753-12-BLK -125/8”BSPP

754-10754-10-BLK -103/4”BSPP

New size* available

BSP TAPERED ADAPTERS

Speedflow make a small range of BSP tapered adapters to suit parts supplied with this thread form. They are machined with a notch in the hex to make it easier to identify between NPT & BSPT. BLUEBLACKSIZEBSPT

760-10760-10-BLK -101/2”BSPP

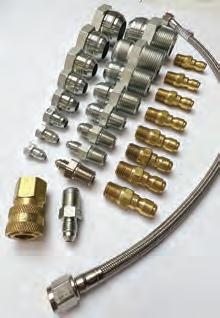

754-12754-12-BLK -123/4”BSPP AIR BOTTLE ADAPTOR

817-04-04817-04-04-BLK -4*1/4” 817-06-02817-06-02-BLK -61/8” 817-06-04817-06-04-BLK -61/4” 817-06-06817-06-06-BLK -63/8” 817-08-06817-08-06-BLK -83/8” 817-08-08817-08-08-BLK -81/2” 817-10-06817-10-06-BLK -103/8” 817-10-08817-10-08-BLK -101/2” 817-10-12817-10-12-BLK -103/4”

Shown with 816-06-02-BLK

RED PART NUMBERS

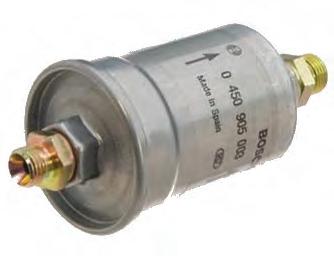

Metric Adapters

Metric adapters are some of the most common in todays modern performance hose & fitting industry. We have the largest range and are always expanding to incorporate new fittings for new technology.

MALE ADAPTERS ALUMINIUM PART NO. SIZEMETRIC

734-06-BLK -6M18 x 1.50

734-08-BLK -8M18 x 1.50

734-10-BLK -10M18 x 1.50

912-02-M10-BLK 1/8” NPTM10 x 1

912-B02-M10-BLK 1/8” BSPT M10 x 1 Bosch

912-M12-2-02-S M12 x 1.251/8” NPT

912-06-M12-BLK 3/8” NPTM12 x 1.5

912-M12-02-S M12 x 1.51/8” NPT

912-08-M12-BLK 1/2” NPTM12 x 1.5

912-M12-M10-BLK M12 x 1.5M10 x 1

912-M14-02-BLK M14 x 1.51/8” NPT

912-M16-02-BLK M16 x 1.51/8” NPT

912-M18-02-BLK M18 x 1.51/8” NPT

730-06-01-BLK -6M12 x 1.00

730-04-BLK -4M12 x 1.25

730-06-BLK -6M12 x 1.25

730-08-BLK -8M12 x 1.25

731-06-BLK -6M12 x 1.50

731-08-BLK -8M12 x 1.50

732-04-BLK -4M14 x 1.50

732-06-BLK -6M14 x 1.50

732-08-BLK -8M14 x 1.50

732-10-BLK -10M14 x 1.50

733-06-BLK -6M16 x 1.50

733-06-L-BLK -6 M16 x 1.50 Long

733-08-BLK -8M16 x 1.50

733-10-BLK -10M16 x 1.50

733-12-BLK -12M16 x 1.50

STEEL ADAPTER (TURBO HOUSING)

This adapter suits most turbo housings using 14mm x 1.5 Thread. It has a small 9/16” hex allowing easy installation.

734-12-BLK -12M18 x 1.50

735-06-BLK -6M20 x 1.50

735-08-BLK -8M20 x 1.50

735-10-BLK -10M20 x 1.50

735-12-BLK -12M20 x 1.50

736-06-BLK -6M22 x 1.50

736-08-BLK -8M22 x 1.50

736-10-BLK -10M22 x 1.50

736-12-BLK -12M22 x 1.50

737-06-BLK -6M24 x 1.50

VALVE COVER ADAPTER

Suits Nissan valve covers with a threaded hole. BLACKSIZESTYLE

708-10-M19-BLK -10 RB30 Screw In

An inline tee with an M10 x 1.0

and concave seat to accept Bosch senders or other M10 fittings. Sender not included.

Denote they are not Speedflow products but are compatible with or compliment the range. M12 PUMP ADAPTER Screws to any Bosch fuel pump using a M12 x 1.5 check valve.

Check out our range of aluminium crush washers on page 51

METRIC OIL SENDER ADAPTER

For use of the standard sender and aftermarket gauges. Three outlets

Male Bulkhead Fittings

MALE FLARE UNION

BLUEBLACKSIZE

815-03815-03-BLK -3

815-04815-04-BLK -4

815-06815-06-BLK -6

815-08815-08-BLK -8

815-10815-10-BLK -10

815-12815-12-BLK -12

815-16815-16-BLK -16

815-20815-20-BLK -20

815-04-03815-04-03-BLK -4-3

815-06-03815-06-03-BLK -6-3

815-06-04815-06-04-BLK -6-4

815-06-05815-06-05-BLK -6-5

815-08-04815-08-04-BLK -8-4

815-08-06815-08-06-BLK -8-6

815-10-04815-10-04-BLK -10-4

815-10-06815-10-06-BLK -10-6

815-10-08815-10-08-BLK -10-8

815-12-04815-12-04-BLK -12-4

815-12-06 815-12-06-BLK -12-6

815-12-08815-12-08-BLK -12-8

815-12-10815-12-10-BLK -12-10

815-16-10 815-16-10-BLK -16-10

815-16-12815-16-12-BLK -16-12

815-20-12815-20-12-BLK -20-12

815-20-16815-20-16-BLK -20-16

STRAIGHT BULKHEAD BLUEBLACKSIZE

832-03832-03-BLK -3

832-04832-04-BLK -4

832-06832-06-BLK -6

832-08832-08-BLK -8

832-10832-10-BLK -10

832-12832-12-BLK -12

832-16832-16-BLK -16

832-20832-20-BLK -20

45° BULKHEAD BLUEBLACKSIZE

837-03837-03-BLK -3

837-04837-04-BLK -4

837-06837-06-BLK -6

837-08837-08-BLK -8

837-10837-10-BLK -10

837-12837-12-BLK -12

837-16837-16-BLK -16

804-03804-03-BLK804-03-S -3

804-04804-04-BLK- -4

804-06804-06-BLK- -6

804-08804-08-BLK- -8

804-10804-10-BLK- -10

804-12804-12-BLK- -12

804-16804-16-BLK- -16

BULKHEAD TEE

834-03834-03-BLK -3

834-04834-04-BLK -4

834-06834-06-BLK -6

834-08834-08-BLK -8

834-10834-10-BLK -10

834-12834-12-BLK -12

834-16834-16-BLK -16

90° FLARE UNION BLUEBLACKSIZE 821-04 - -4

821-06821-06-BLK -6 821-08821-08-BLK -8

821-10821-10-BLK -10 821-12 - -12

90° BULKHEAD BLUEBLACKSIZE

833-03833-03-BLK -3

833-04833-04-BLK -4

833-06833-06-BLK -6

833-08833-08-BLK -8

833-10833-10-BLK -10

833-12833-12-BLK -12

833-16833-16-BLK -16 - 833-20-BLK -20

824-03824-03-BLK -3

824-04824-04-BLK -4

824-06824-06-BLK -6

824-08824-08-BLK -8 824-10824-10-BLK -10 824-12824-12-BLK -12 824-16824-16-BLK -16

924-03924-03-BLK924-03-S

924-12924-12-BLK- -12 924-16924-16-BLK- -16 924-20924-20-BLK- -20

Reducers, Expanders, Extensions, Plugs & Caps

A comprehensive range of flare reducers, expanders and extensions. Speedflow are also extending their range of plugs and caps to include metric to complement their popular imperial sizes.

950-04-03950-04-03-BLK -4-3

950-06-03950-06-03-BLK -6-3

950-06-04950-06-04-BLK -6-4

950-07-06*950-07-06-BLK* 5/8” SAE-6

950-08-04950-08-04-BLK -8-4

950-08-06950-08-06-BLK -8-6

950-10-06950-10-06-BLK -10-6

950-10-08950-10-08-BLK -10-8

950-12-08950-12-08-BLK -12-8

950-12-10950-12-10-BLK -12-10

950-16-10 - -16-10

950-16-12950-16-12-BLK -16-12

950-20-16950-20-16-BLK -20-16

* To adapt Ford power steering to -6 male.

IN HEX O-RING PLUG BLUEBLACKSIZE

814-03814-03-BLK -3

814-04814-04-BLK -4

814-05814-05-BLK -5

814-06814-06-BLK -6

814-08814-08-BLK -8

814-10814-10-BLK -10

814-12814-12-BLK -12

814-16814-16-BLK -16

814-20814-20-BLK -20

FLARE PLUG BLUEBLACKSIZE

806-03806-03-BLK -3

806-04806-04-BLK -4

806-06806-06-BLK -6

806-08806-08-BLK -8

806-10806-10-BLK -10

806-12806-12-BLK -12

806-16806-16-BLK -16

806-20806-20-BLK -20

951-03-04951-03-04-BLK -3-4

951-04-06951-04-06-BLK -4-6

951-05-06951-05-06-BLK -5-6

951-06-08951-06-08-BLK -6-8

951-06-10951-06-10-BLK -6-10

951-08-10951-08-10-BLK -8-10 951-08-12951-08-12-BLK -8-12

951-10-12951-10-12-BLK -10-12

951-12-16951-12-16-BLK -12-16

951-16-20951-16-20-BLK -16-20

814-M10-1-BLK

814-M12-BLK

814-M20-BLK

814-M22-BLK

FLARE CAP BLUEBLACKSIZE

820-03820-03-BLK -3

820-04820-04-BLK

820-10820-10-BLK -10

820-12820-12-BLK -12

820-16820-16-BLK -16

820-20820-20-BLK -20

952-04952-04-BLK -413/16”

952-06952-06-BLK -63/4”

952-08952-08-BLK -81”

952-10952-10-BLK -101-1/4”

952-12952-12-BLK -121-1/4”

952-16952-16-BLK -162”

Used to extend nipple height.

NPT PLUGS BLUEBLACKNPT

932-01932-01-BLK 1/16” 932-02932-02-BLK 1/8”

932-04932-04-BLK 1/4” 932-06932-06-BLK 3/8” 932-08932-08-BLK 1/2” 932-12932-12-BLK 3/4” 932-16932-16-BLK 1” 932-02-SS 1/8” Stainless Steel

Adapters

O-Ring Port Adapters

Ideal for O-ring port adapters often found in dry sump pumps, fuel rails, regulators, fuel pumps & filters.

STRAIGHT MALE PORT ADAPTERS BLUEBLACKSIZEPORT

920-03920-03-BLK -3-3

920-03-04920-03-04-BLK -3-4

920-03-06920-03-06-BLK -3-6

920-03-10920-03-10-BLK -3-10

920-04-03920-04-03-BLK -4-3

920-04920-04-BLK -4-4

920-04-06920-04-06-BLK -4-6

920-04-08920-04-08-BLK -4-8

920-06-03920-06-03-BLK -6-3

920-06-04920-06-04-BLK -6-4

920-06920-06-BLK -6-6

920-06-08920-06-08-BLK -6-8

920-06-10920-06-10-BLK -6-10

920-06-12920-06-12-BLK -6-12

920-08-06920-08-06-BLK -8-6

920-08920-08-BLK -8-8

920-08-10920-08-10-BLK -8-10

920-08-12920-08-12-BLK -8-12

920-10-08920-10-08-BLK -10-8

920-10920-10-BLK -10-10

920-10-12920-10-12-BLK -10-12

920-10-16920-10-16-BLK -10-16

920-12-08920-12-08-BLK -12-8

920-12-10920-12-10-BLK -12-10

920-12920-12-BLK -12-12

920-12-16920-12-16-BLK -12-16

920-12-20920-12-20-BLK -12-20

920-16-10920-16-10-BLK -16-10

920-16-12920-16-12-BLK -16-12

920-16920-16-BLK -16-16

920-16-20920-16-20-BLK -16-20

920-20920-20-BLK -20-20

920-20-16920-20-16-BLK -20-16

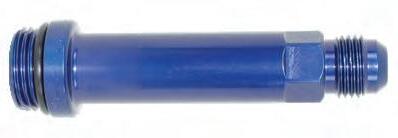

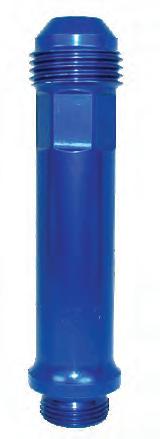

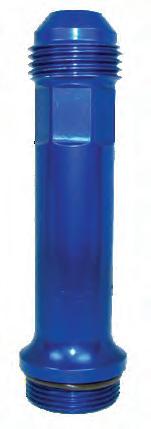

STRAIGHT PORT ADAPTER - LONG BLUEBLACKSIZEPORT

920-06-L920-06-L-BLK -6-6

920-06-08-L920-06-08-L-BLK -6-8

920-08-L920-08-L-BLK -8-8

920-10-L920-10-L-BLK -10-10

920-10-08-L920-10-08-L-BLK -10-8 Long

920-12-L920-12-L-BLK -12-12

920-16-L920-16-L-BLK -16-16

923-10923-10-BLK -10-10 923-12-10923-12-10-BLK -12-10 923-12923-12-BLK -12-12 923-16-12 - -16-12 -923-20-BLK

922-04922-04-BLK -4-4 922-04-06922-04-06-BLK -4-6

922-06922-06-BLK -6-6 922-06-08922-06-08-BLK -6-8 922-08-06922-08-06-BLK -8-6 922-08922-08-BLK

922-16-LP-BLK -16-16

922-16-12-LP-BLK -16-12

Adaptor does not need to be turned to tighten PART NO. SIZESIZE

922-LP-06-06-BLK -06-06

922-LP-08-08-BLK -08-08

922-LP-10-10-BLK -10-10

922-LP-12-12-BLK -10-10 Swivel Nut: Allows tightening without turning the adaptor.

912-P08-M10912-P08-M10-BLK

912-P12-M12912-P12-M12-BLK -12M12

912-P16-M12912-P16-M12-BLK -16M12

NPT Adapters

Speedflow have a large selection of NPT to male flare adapters in straight, 45° and 90°. Their fittings are beautifully made in a high flow billet one piece design.

STR MALE NPT ADAPTERS

BLUEBLACKSTAINLESSSIZE NPT

816-03-01816-03-01-BLK- -31/16” 816-03816-03-BLK- -31/8” 816-03-04816-03-04-BLK- -31/4” 816-03-06 816-03-06-BLK- -33/8”

816-04-01816-04-01-BLK- -41/16” 816-04816-04-BLK- -41/8”

816-04-04816-04-04-BLK- -41/4” 816-04-06816-04-06-BLK- -43/8”

816-06-02816-06-02-BLK816-06-02-SS -61/8” 816-06816-06-BLK816-06-SS -61/4” 816-06-06816-06-06-BLK- -63/8”

816-06-08816-06-08-BLK- -61/2”

816-08-02816-08-02-BLK- -81/8”

816-08-04816-08-04-BLK- -81/4” 816-08816-08-BLK- -83/8”

816-08-08816-08-08-BLK- -81/2” 816-08-12816-08-12-BLK- -83/4”

816-10-06816-10-06-BLK816-10-06-SS -103/8” 816-10816-10-BLK816-10-SS -101/2”

816-10-12816-10-12-BLK- -103/4”

816-12-08816-12-08-BLK- -121/2” 816-12816-12-BLK816-12-SS -123/4” 816-12-16816-12-16-BLK- -121”

816-16-12816-16-12-BLK- -163/4” 816-16816-16-BLK- -161”

816-20816-20-BLK- -201-1/4”

816-20-16816-20-16-BLK- -201”

825-03825-03-BLK -31/8” 825-04825-04-BLK -41/8”

45° MALE NPT ADAPTERS

823-03823-03-BLK -31/8”

823-03-04823-03-04-BLK -31/4”

823-04823-04-BLK -41/8”

823-04-04823-04-04-BLK -41/4”

823-06-02823-06-02-BLK -61/8” 823-06823-06-BLK -61/4”

823-06-06823-06-06-BLK -63/8”

823-06-08823-06-08-BLK -61/2”

823-08-04 - -81/4”

823-08823-08-BLK -83/8”

823-08-08823-08-08-BLK -81/2”

823-08-12 - -83/4”

823-10-06 823-10-06-BLK -103/8”

823-10823-10-BLK -101/2”

823-10-12 - -103/4”

823-12-08823-12-08-BLK -121/2”

823-12823-12-BLK -123/4” 823-12-16 - -121”

823-16-12 - -163/4” 823-16 823-16-BLK -161”

822-03822-03-BLK -31/8” 822-03-04 - -31/8” 822-04822-04-BLK -41/8” 822-04-04822-04-04-BLK -41/4” 822-06-02822-06-02-BLK -61/8” 822-06822-06-BLK -61/4”

822-06-06822-06-06-BLK -63/8” 822-06-08822-06-08-BLK -61/2” 822-08-04822-08-04-BLK -81/4” 822-08822-08-BLK -83/8” 822-08-08822-08-08-BLK -81/2” 822-10-06822-10-06-BLK -103/8” 822-10822-10-BLK -101/2” 822-10-12822-10-12-BLK -103/4” 822-12-08822-12-08-BLK -121/2” 822-12822-12-BLK -123/4” 822-12-16 822-12-16-BLK -121” 822-16-12822-16-12-BLK -163/4” 822-16822-16-BLK -161”

826-12826-12-BLK -123/4”

Adapters

NPT Adapters (continued)

FEMALE NPT COUPLER BLUEBLACKNPT

910-02910-02-BLK 1/8”

910-04910-04-BLK 1/4”

910-06910-06-BLK 3/8”

910-08910-08-BLK 1/2”

910-12910-12-BLK 3/4”

1/8” NPT - EXTENSION BLUEBLACKLENGTH

372-02372-02-BLK 38mm 372-202372-202-BLK 28mm

MALE NPT NIPPLE BLUEBLACKNPT

911-02911-02-BLK 1/8”

911-04911-04-BLK 1/4”

911-06911-06-BLK 3/8” 911-08911-08-BLK 1/2” 911-12911-12-BLK 3/4” 911-16 911-16-BLK 1”

TEMP PROBE ADAPTERS

FEMALE - MALE BLUEBLACKNPT 915-02915-02-BLK 1/8” 915-08 - 1/2”

Adapt mechanical temp probes to NPT holes.

660-06 3/8”5/8”-18 660-08 1/2”5/8”-18 BLACK NPTFEMALE

660-06-BLK 3/8”5/8”-18

660-08-BLK 1/2”5/8”-18

NPT REDUCING BUSH BLUEBLACKMALEFEMALE

912-04-02912-04-02-BLK 1/4”1/8”

912-06-02912-06-02-BLK 3/8”1/8”

912-06-04912-06-04-BLK 3/8”1/4”

912-08-02912-08-02-BLK 1/2”1/8” 912-08-04912-08-04-BLK 1/2”1/4”

912-08-06912-08-06-BLK 1/2”3/8”

912-12-04912-12-04-BLK 3/4”1/4”

912-12-06912-12-06-BLK 3/4”3/8”

912-12-08912-12-08-BLK 3/4”1/2”

912-16-06 - 1 x 3/8”

912-16-08912-16-08-BLK 1”1/2”

912-16-12912-16-12-BLK 1”3/4”

90° FEMALE - MALE BLUEBLACKNPT

914-02914-02-BLK 1/8”

914-04914-04-BLK 1/4” 914-06914-06-BLK 3/8”

914-08914-08-BLK 1/2” 914-12914-12-BLK 1” 914-16 - 1”

FEMALE NPT TEE BLUEBLACKNPT

917-02917-02-BLK 1/8” 917-04917-04-BLK 1/4” 917-06917-06-BLK 3/8”

917-08917-08-BLK 1/2”

NPT PLUGS

BLUE BLACK NPT

932-01932-01-BLK 1/16” 932-02932-02-BLK 1/8” 932-04932-04-BLK 1/4” 932-06932-06-BLK 3/8”

932-08932-08-BLK 1/2” 932-12932-12-BLK 3/4” 932-16932-16-BLK 1”

STD MALE PORT ADAPTORSHORT ORB THREAD

Made to fit Vacuum pumps, electric water pumps and other items when clearance is a problem. PART NO. SIZEORB PORT 920-10-12-X-BLK -10 -12 920-12-12-X-BLK -12 -12 920-16-12-X-BLK -16 -12

TEMPERATURE PROBE CAPS

Adapt temperature probes to AN males. BLUE

Weld-On Fittings, Male, Female & Special Purpose

We have assembled a huge range of weld on fittings to make the job of fabricating a tank, radiator or your speciality job a breeze. When you are fabricating you don’t have the time to search for the right part, which is why we have this complete range available right off the shelf!

ALUMINIUM MALE - FLOWED

These are machined with a profiled radius on the inside to increase flow. Standard weld on’s are drilled straight through and parted off.

New sizes available New sizes available

990-10-SS -10

990-12-SS -12 990-16-SS -16

990-20-SS -20

RED PART NUMBERS

Denote they are not Speedflow products but are compatible with or compliment the range.

ORB WELD

Weld on Necks & Caps

Speedflow have manufactured more weld necks in steel and stainless to suit their aluminium caps. If you are fabricating a tank, we have a cap to suit! Caps are supplied as raw, add colour behind part number if you require an anodised version.

WELD ON NECKS WITH ALUMINIUM CAPS

WELD NECKRAW CAPBLUE CAPBLACK CAPRED CAP

Aluminium 460-16460-16-BLUE460-16-BLACK460-16-RED

Aluminium 460-24460-24-BLUE460-24-BLACK460-24-RED

Aluminium 460-32460-32-BLUE460-32-BLACK460-32-RED

Steel 460-16-S460-16-S-BLUE460-16-S-BLACK460-16-S-RED

Steel 460-24-S460-24-S-BLUE460-24-S-BLACK460-24-S-RED

Stainless Steel 460-16-SS460-16-SS-BLUE460-16-SS-BLACK460-16-SS-RED

Stainless Steel 460-24-SS460-24-SS-BLUE460-24-SS-BLACK460-24-SS-RED

Stainless Steel 460-32-SS460-32-SS-BLUE460-32-SS-BLACK460-32-SS-RED

460-16 25mm (1”)Aluminium44mm 28mm

460-24 38mm (1.5”)Aluminium57mm 30mm

460-32 52mm (2”)Aluminium70mm 30mm

Filler Caps - AN Thread

Speedflow now manufacture these male threaded filler caps, featuring male AN threads in either -12, -16 or -20. They have finger grips for easy turn operation and a O-ring for a positive seal. They can be used in any AN Port threaded hole, or used our 990 series weld bungs to fabricate tanks, valve covers and other accessories.

REPLACEMENT WELD NECKS ALUMINIUMSTEELSTAINLESS STEEL

C460-16-DC460-16-SC460-16-SS

C460-24-DC460-24-SC460-24-SS

Inline Filters

Speedflow are proud to introduce their latest range of performance inline filters. They have invested countless hours in designing, machining and testing to ensure the best filtration available for the performance market. Results from flow and pressure testing on their 601 & 602 series filters surpassed their expectations, flowing well in excess of 15gpm (53lpm) with minimal pressure loss using a -10 unit! These units are usable for applications over 3000hp!

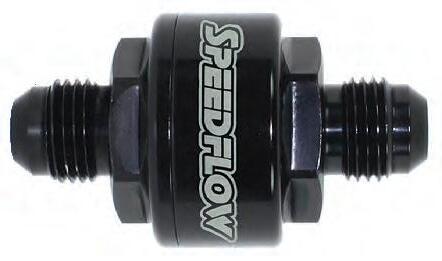

600 Micro Series

These are the smallest filter in Speedflow’s range, the body length measures 28mm (1.10”) making this perfect to place inline where space is limited or only a small filter is required. The body is machined from 6061-T6 aluminium with a hard anodised finish and fitted with a 44 or 74 micron pleated disc screen.

600-03-BLK -3 Male

600-04-BLK -4 Male

600-06-BLK -6 Male

600-08-BLK -8

601 Short Series

600-505-BLK 5/16” Tail

600-506-BLK 5/16” Tail - 40 Micron

MICRO SERIES - REPLACEMENT DISC

The 601 Short Series is a solution for applications that are tight on space, but still requiring high flow with a serviceable stainless element. This compact size measures 1.75” OD (44.45mm) with a body length of 3.00” (76.2mm) plus the fitting length. Machined from quality 6061-T6 aluminium and hard anodised for maximum protection and laser engraved with the Speedflow logo! The element has a 21.31 square inch area available in 6 micron sizes.

-6 SHORT SERIES BLACK SIZE

601-010-06-BLK -6 / 10 Micron

601-G12-06-BLK -6 / 12 Micron

601-040-06-BLK -6 / 40 Micron

601-065-06-BLK -6 / 65 Micron

601-100-06-BLK -6 / 100 Micron

601-150-06-BLK -6 / 150 Micron

All mesh elements are stainless steel except the 12 micron versions which are microglass...

-8 SHORT SERIES

BLACK SIZE

601-010-08-BLK -8 / 10 Micron

601-G12-08-BLK -8 / 12 Micron

601-040-08-BLK -8 / 40 Micron

601-065-08-BLK -8 / 65 Micron

601-100-08-BLK -8 / 100 Micron

601-150-08-BLK -8 / 150 Micron

601 Metric & Check Valve Series

12 & 150 micron versions now available

-10 SHORT SERIES

BLACK SIZE

601-010-10-BLK -10 / 10 Micron

601-G12-10-BLK -10 / 12 Micron

601-040-10-BLK -10 / 40 Micron

601-065-10-BLK -10 / 65 Micron

601-100-10-BLK -10 / 100 Micron

601-150-10-BLK -10 / 150 Micron

-12 SHORT SERIES

BLACK SIZE

601-010-12-BLK -12 / 10 Micron

601-G12-12-BLK -12 / 12 Micron

601-040-12-BLK -12 / 40 Micron

601-065-12-BLK -12 / 65 Micron

601-100-12-BLK -12 / 100 Micron

601-150-12-BLK -12 / 150 Micron

The 601 Short Series are also available with M12 inlet or M18 outlet ends making it suitable for applications such as aftermarket fuel pumps. Speedflow have also integrated their check valves into the inlet side of our filter range to make this a multi purpose unit to save space and fittings. Available in -6, -8 and M12 x 1.5 metric to suit aftermarket fuel pumps. Add your required micron size to the part number, filters come complete ready to run!

Add the required micron size to the part number where the *** appear.

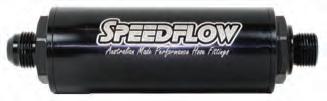

602 Long Series

Measure 1.75” OD (44.45mm) with a body length of 5.00” (127mm) plus the fitting length. These have an element area of 44.7 square inches (288.4cm²) with a choice of 6 micron sizes.

602 LONG SERIES -6 BLACKMICRON

602-010-06-BLK 10

602-G12-06-BLK 12

602-040-06-BLK 40

602-065-06-BLK 65

602-100-06-BLK 100

602-150-06-BLK 150

602 LONG SERIES -8 BLACKMICRON

602-010-08-BLK 10

602-G12-08-BLK 12

602-040-08-BLK 40

602-065-08-BLK 65

602-100-08-BLK 100

602-150-08-BLK 150

602 Metric Series

602 LONG SERIES -10 BLACKMICRON

602-010-10-BLK 10

602-G12-10-BLK 12

602-040-10-BLK 40

602-065-10-BLK 65

602-100-10-BLK 100

602-150-10-BLK 150

602 LONG SERIES -12 BLACKMICRON

602-010-12-BLK 10

602-G12-12-BLK 12

602-040-12-BLK 40

602-065-12-BLK 65

602-100-12-BLK 100

602-150-12-BLK 150

602 LONG SERIES CLAM SHELL -12 BLACKMICRON

602-100-CS12-BLK 100

The 602 Long series are also available with M12 inlet or M18 outlet ends along with their check valve series making it suitable for applications such as aftermarket fuel pumps. A great space saver for those tight situations. Add your required micron size to the part number, filters come complete ready to run!

602-***-M1206-BLK

603 Mega Series

Measures 2.48” OD (63mm) with a body length of 6.95” (177mm) plus the fitting length. These have an element area of 100.6 square inches (649cm²) with a choice of 3 micron sizes. Their unique end cap design locates the filter element without the need for a spring to hold it in place. Machined from 6061-T6 aluminium and hard anodised. Designed to be used for inline fuel and oil applications.

603 MEGA SERIES - MALE BLACK SIZEMICRONELEMENT

603-G12-10-BLK -10 12*Microglass

603-045-10-BLK -10 45Stainless Steel

603-100-10-BLK -10 100Stainless Steel

603-G12-12-BLK -12 12*Microglass

603-045-12-BLK -12 45Stainless Steel

603-100-12-BLK -12 100Stainless Steel

603-G12-16-BLK -16 12*Microglass

603-045-16-BLK -16 45Stainless Steel

603-100-16-BLK -16 100Stainless Steel

*Please note: MICROGLASS filters are not reusable / cleanable!

603-G12-12P-BLK -12 12*Microglass

603-045-12P-BLK -12 45Stainless Steel

603-100-12P-BLK -12100Stainless Steel

*Please note: MICROGLASS filters are not reusable / cleanable!

603 MEGA SERIES - M12 SENSOR PORT

M12 sensor port is located on the inlet end cap. Can be plugged off using 814-M12 or adapted to 1/8” NPT with 912-M12-02. BLACK SIZEMICRONELEMENT

603-G12-PM1212-BLK -1212*Microglass

603-045-PM1212-BLK -1245Stainless Steel

603-100-PM1212-BLK -12 100Stainless Steel

*Please note: MICROGLASS filters are not reusable / cleanable!

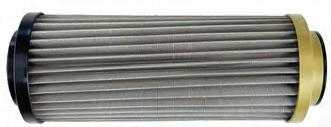

Individual Filter Components

REPLACEMENT FILTER ‘END CAPS’ PART NO. APPLICATIONS

601-**M-FE-BLK Finger End

601-**M-OE-BLK Filter O-ring End

Add Male AN size you require (**) PART NO. APPLICATIONS

602-**M-FE-BLK Finger End

602-**M-OE-BLK Filter O-ring End

Add Male AN size you require (**)

*Please note: MICROGLASS filters are not reusable / cleanable!

602-500-BLK 602Black

602-500-NAT 602Natural

603-500-BLK 603Black

x 1mm COM-08 -68mm x 1mm COM-11 -811mm x 1mm COM-14 -1014mm x 1mm COM-17 -1217mm x 1mm

COM-22 -1622mm x 1mm COM-28 -2028mm x 1mm

PART NO. APPLICATIONS

CON-010 741-06 Power Steering

REPLACEMENT O-RINGS - VITON

PART NO. APPLICATIONS

COV-010 -12 Ball Valve

905-T-04V 1/4”

905-T-05V 618 & 619-06-05 5/16”

905-T-06V 715-06-06 618 & 619-06

905-T-08V 618 & 619-08 1/2”

COV-015 Viton 75 Brown

905-T-10V 618 & 619-10 5/8”

COV-018 Viton Carby Adaptors

COV-026 -12 Ball Valve

COV-112 922-ZF-08-BLK

905-T-12V 3/4”

COV-127 Filter Housing 601/602

COV-12M Suits 618-08 M12 Viton

COV-137 603 Filters

COV-203 618-T-05-06 5/16”

COV-204 618-T-06-06 3/8”

COV-220 Filter Housing 601/602

Inline Filters - Scavenge Filters

Check Valves & Blower Relief

Speedflow has been manufacturing quality valves for over 25 years which have evolved into the quality parts they now have available. Their redesigned one way poppet valves have been proven to be very popular in every aspect of the performance industry!

NON-RETURN VALVE - INLINE

Unique one-way valves were designed with high performance vehicles in mind. They have a spring loaded high flow poppet valve that seals securely to positively stop fluid from returning! BLUE BLACKSIZE

610-03610-03-BLK -3

610-04610-04-BLK -4

610-06610-06-BLK -6

610-08610-08-BLK -8

610-10610-10-BLK -10

610-12610-12-BLK -12

ROLL OVER VALVE

Universal roll over valve that utilises a -12

Male thread with a -8 female thread and a stainless steel ball. Can be used with our 99012 weld on or a 924-12 bulkhead nut with a choice of outlet from our 920 series adapters. BLUE BLACKSIZE 613-12613-12-BLK -12

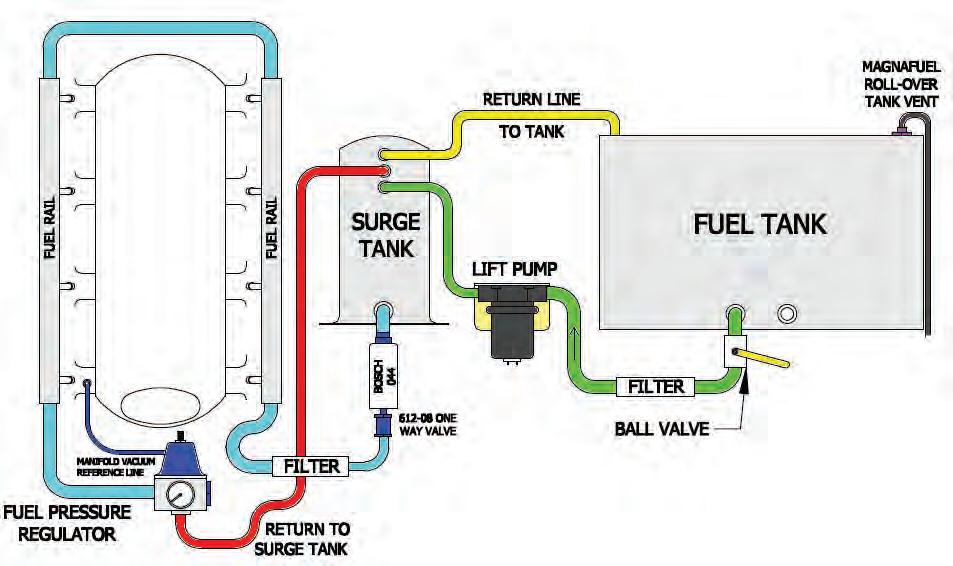

FUEL PUMP NON-RETURN VALVE

Screw directly into fuel pumps with a M12 x 1.5 thread to hold line pressure and make starting easier! BLUE/BLACKBLACKINLETOUTLET 612-06612-06-BLK M12 x 1.5-6 612-08612-08-BLK M12 x 1.5-8 -C6000-08-BLK End Cap

TANK VENT / ROLL OVER VALVE

3/8” In-tank vent / roll over vlave has a springloaded ball to prevent overflow on filling. The spring can be removed if you prefer the ball to act purely as a free flow roll over valve. The top can be replaced with a 920 series adapter if a hose is required to be used from the valve. BLUE BLACKSIZE

613-06613-06-BLK -6

BLOWER RELIEF VALVES

These can be screwed into a Supercharger gear case or other applications that require pressure to be released.

We also off the 620-504 with a 1/4” tail that is perfect for fuel sampling. RED/BLUEBLACKTHREAD

620-02620-02-BLK 1/8” NPT

620-04620-04-BLK 7/16” -20

620-504620-504-BLK 1/8” NPT

M12 PUMP ADAPTER

Screws to any Bosch fuel pump using a M12 x 1.5 check valve. PART NO. SIZE

612-00-BLK -8 Port

BRAKE BOOSTER VALVE

These Billet Brake Booster Valves are machined from billet aluminium, and feature a -6 male adapter. They are supplied with a rubber grommet to fit most factory and aftermarket boosters. They have a polished aluminium finish.

Range of adapters to suit a variety of threads to adapt mechanical temperature probes to your application.

660-06

AU2261

XR992913

XR992913-BLK

Aluminium Ball Valves

Mechanical Injection Shutoff Valves

Quality 6061-T6 aluminium & hard anodised in black, with the spool and hardware all made from stainless steel. A 12 point locating drive for multiple handle orientation designed to eliminate movement under vibration and tyre shake. Encapsulated o-rings greatly reduce the possibilities of leaks common with other three-way valves. However, these are not a total seal system.

Denote

Turbo Block Adapters, Flanges, Shims & Gaskets

Washers, O’Rings & Clamps

Washers, O-rings, Clamps & Seals

Ideal for adapters, always replace sealing washers when servicing fittings. We have replacement Nitrile (NBR) o-rings to suit our O-ring port adapters, plugs and other AN sized fittings.

ALUMINIUM CRUSH WASHERS

PART NO. I.D

901-02 8mm - 5/16”

901-03 10mm - 3/8”

901-04 7/16”

901-05 12mm - 1/2”

902-04 1/4” BSPP

901-06 14mm - 9/16”

902-06 16mm - 3/8” BSPP

901-08 18mm

902-08 1/2” BSPP

901-09 20mm

901-10 22mm - 7/8”

COPPER CRUSH WASHERS

Teflon® is a registered trademark of DuPont. TEFLON® WASHERS

903-04 7/16”-4

903-06 9/16”-6

903-08 3/4”-8

903-10 7/8”-10

903-12 1-1/16”-12

903-16 1-5/16”-16

REPLACEMENT O-RINGS - VITON

PART NO. APPLICATIONS

COV-010 -12 Ball Valve

905-T-04V 1/4”

905-T-05V 618 & 619-06-05 5/16”

905-T-06V 715-06-06 618 & 619-06

905-T-08V 618 & 619-08 1/2”

COV-015 Viton 75 Brown

905-T-10V 618 & 619-10 5/8”

COV-018 Viton Carby Adaptors

COV-026 -12 Ball Valve

COV-112 922-ZF-08-BLK

905-T-12V 3/4”

COV-127 Filter Housing 601/602

COV-12M Suits 618-08 M12 Viton

COV-137 603 Filters

COV-203 618-T-05-06 5/16”

COV-204 618-T-06-06 3/8”

COV-220 Filter Housing 601/602

-3 Teflon 1/4”

-4 Teflon 5/16” XR810204 -4 Braided7/16”

XR810206 -6 Braided9/16”

XR810208 -8 Braided11/16”

XR810210 -10 Braided13/16”

XR810212 -12 Braided15/16”

XR810216 -16 Braided1-3/16”

XR810220 -20 Braided1-1/2”

REPLACEMENT NITRILE (NBR) O-RINGS PART NO.I.D SIZE

905-03 3/8”-3

905-04 7/16”-4

905-06 9/16”-6

905-08 3/4”-8

905-10 7/8”-10

905-12 1-1/16”-12

905-16 1-5/16”-16

905-20 1-5/8”-20

905-24 1-11/16”-24

905-32 2-3/16”-32

-45mm x 1mm

-68mm x 1mm COM-11 -811mm x 1mm COM-14 -1014mm x 1mm COM-17 -1217mm x 1mm COM-22 -1622mm x 1mm COM-28 -2028mm x 1mm

PART NO. APPLICATIONS

CON-010

New sizes available

3/8” 905-04V 7/16” 905-06V 9/16” 905-08V 3/4” 905-10V 7/8” 905-12V 1-1/16” 905-16V 1-5/16” 905-20V 1-5/8”

905-24V 1-11/16” 905-32V 2-3/16”

Crimping Machine

Crimping Machine 550 SERIES

To assemble our 550 Series hose ends, the assembly needs to be crimped to our sized specification. We offer an in house crimping service via our distributor network or you can purchase a crimping machine and corresponding dies to suit each size.

This “go anywhere” crimping machine has the power and portability to quickly crimp our Speedflow 550 series assemblies.

The micrometer style adjustment allows the hose and fitting combinations to be crimped to exact specifications without the need for special shims or spacers. The stand alone hose crimper utilises a separate pneumatic pump which requires a constant supply of 80psi. CRIMPING

MACHINES

CRIMPER DIE SETS

Dies

Speedflow’s assembly lube is a specifically formulated oil to lubricate aluminium and steel threads during the assembly of hose ends to performance hose.

• 125ml bottle

Look in our TOOL SECTION for SPANNERS on P204 and HOSE CUTTERS on P205

•

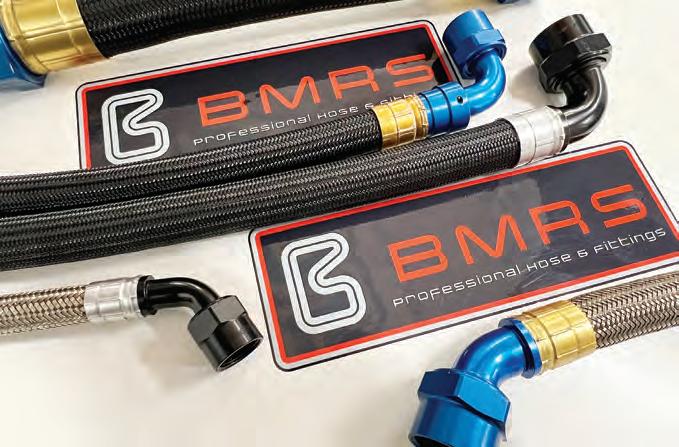

MSCN is proud to be the Australian distributor for Brown & Miller Racing Solutions (BMRS) products. BMRS have over 40 years experience in the aerospace and motorsport industries. Their light-weight range of hose satisfies virtually every racing application and their fittings are designed for safety, reliability and optimum weight saving.

We carry two ranges of BMRS products:

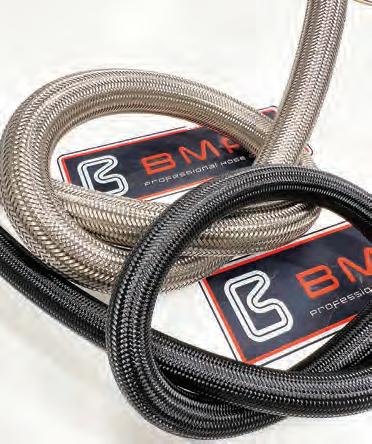

PROGold Hose Systems

Stainless Steel Braid

Features:

• Lightweight & ultimate flexibility

• Compatible with virtually all fluids

• Use with PROGold series fittings

Specifications:

• Innercore: Convoluted PTFE with integral glass fibre reinforcement and static dissipating liner*

• Braid: 304 series stainless steel

INNER CORE

• Operating temp: -54°C to +204°C (-67°F to +400°F)

Applications:

• Fuel, oil, water and air systems

• High vacuum engine oil scavenge

• High temperature applications

• Fuel - including internal fuel cell lines

*NOTE: sizes -24, -28 and -32 do not have a static dissipating liner. Call for details on fitting options.

Sizes -24, -28 & -32 are special order.

Applications include fuel, oil, water & air systems.

*Sizes -24, -28 & -32 do not have a static dissipating liner

High Temperature Polymer Braid - Black

Features:

• Ultimate lightweight & flexibility

• Compatible with virtually all fluids

• Use with PROGold series fittings

Specifications:

INNER CORE All* ProGold convoluted hose comes with a static dissipating liner as standard and is available in sizes -6 to -20.

• Innercore: Convoluted PTFE with integral glass fibre reinforcement and static dissipating liner

• Braid: High temperature polymer mono filament

• Operating temperature: -54°C to +200°C (-67°F to +392°F) at full pressure and specified vacuum Applications:

• Fuel, oil, water and air systems • Fuel - including internal fuel cell lines • Breather and vent lines

PROGold Hose Systems (continued)

Aramid Braid - Black

Features:

• Very lightweight & ultimate flexibility

• Compatible with virtually all fluids

• Use with PROGold series fittings

Specifications:

• Innercore: Convoluted PTFE with static dissipating liner

• Braid: Para Aramid

• Operating temperature: -54°C to +150°C (-67°F to +302°F)

Applications:

• Fuel, oil, water and air systems

• Fuel - including internal fuel cell Lines

• Applications requiring lightweight, durability and high temperature

• Harsh and agressive environments

Sizes -24, -28 & -32 are special order.

Clear Convoluted - PTFE

Features:

• Very

•

•

Specifications:

• Innercore: Convoluted clear PTFE

• Braid: None

• Operating

•

•

•

•

PROGold Hose Ends - AN Female

Straight

BM-AC-06-F3BMB-AC-06-F4

BM-AC-16-F3BMB-AC-16-F4 -16

BM-AC-20-F3BMB-AC-20-F4 -20

BM-AC-24-F3BMB-AC-24-F4 -24

BM-AC-06-08-F3BMB-AC-06-08-F4 -06-08

BM-AC-08-06-F3BMB-AC-08-06-F4 -08-06

BM-AC-10-08-F3BMB-AC-10-08-F4 -10-08

BM-AC-10-12-F3BMB-AC-10-12-F4 -10-12

BM-AC-12-10-F3BMB-AC-12-10-F4 -12-10

BM-AC-16-12-F3BMB-AC-16-12-F4 -16-12

BM-AC-20-16-F3BMB-AC-20-16-F4 -20-16

BM-AC-20-24-F3BMB-AC-20-24-F4 -20-24 30°

BM-AC-06-30JIC-3BMB-AC-06-30JIC-4

BM-AC-08-30JIC-3BMB-AC-08-30JIC-4

BM-AC-10-30JIC-3BMB-AC-10-30JIC-4 -10

BM-AC-12-30JIC-3BMB-AC-12-30JIC-4 -12

BM-AC-16-30JIC-3BMB-AC-16-30JIC-4 -16

BM-AC-20-30JIC-3BMB-AC-20-30JIC-4

BM-AC-06-60JIC-3BMB-AC-06-60JIC-4

BM-AC-08-60JIC-3BMB-AC-08-60JIC-4

BM-AC-10-60JIC-3BMB-AC-10-60JIC-4 -10

BM-AC-16-60JIC-3BMB-AC-16-60JIC-4 -16

BM-AC-16-12-H3BMB-AC-16-12-H4 -16-12

BM-AC-20-24-H3BMB-AC-20-24-H4 -20-24

PROGold Hose Ends - AN Female (continued)

90° Block Elbow

90° Block - Male Orb

Requires 905-08 Viton O-ring when purchased.

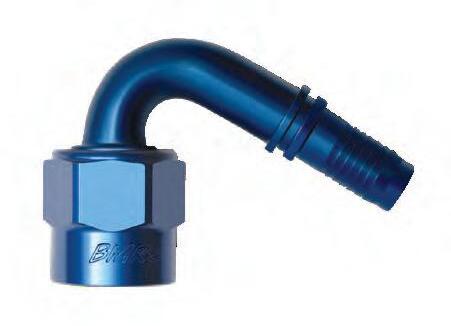

120°

BM-AC-06-P3BMB-AC-06-P4

BM-AC-10-P3BMB-AC-10-P4

BM-AC-12-P3BMB-AC-12-P4

BM-AC-16-P3BMB-AC-16-P4

BM-AC-20-P3BMB-AC-20-P4

PROGold Hose Ends - AN Male

BM-AC-06-R3BMB-AC-06-R4

BM-AC-10-R3BMB-AC-10-R4 -10

BM-AC-12-R3BMB-AC-12-R4 -12

BM-AC-16-R3BMB-AC-16-R4

BM-AC-06-R7

PROGold Hose Ends - AN Female Double Swivel 30°

Aluminum

BM-AC-06-30JICDS-3BMB-AC-06-30JICDS-4 -06

BM-AC-08-30JICDS-3BMB-AC-08-30JICDS-4 -08

BM-AC-10-30JICDS-3BMB-AC-10-30JICDS-4 -10

BM-AC-12-30JICDS-3BMB-AC-12-30JICDS-4 -12

BM-AC-16-30JICDS-3BMB-AC-16-30JICDS-4 -16

BM-AC-20-30JICDS-3BMB-AC-20-30JICDS-4 -20

DOUBLE SWIVEL

90°

Allows hose end to be tightened without rotating hose using the swivel nut (spanner end).

Once secure the crimped part of the hose end can also rotate. Select from either swivel or double swivel hose ends. Note: All 180º are double swivel.

Aluminum

New size available

BM-AC-06-H3-DSBMB-AC-06-H4-DS -06

BM-AC-08-H3-DSBMB-AC-08-H4-DS -08

BM-AC-10-H3-DSBMB-AC-10-H4-DS -10

BM-AC-12-H3-DSBMB-AC-12-H4-DS -12

BM-AC-16-H3-DSBMB-AC-16-H4-DS -16

BM-AC-20-H3-DSBMB-AC-20-H4-DS -20

BM-AC-08-06-H3-DSBMB-AC-08-06-H4-DS -08-06

BM-AC-10-08-H3-DSBMB-AC-10-08-H4-DS -10-08

BM-AC-12-08-H3-DSBMB-AC-12-08-H4-DS -12-08

BM-AC-12-10-H3-DSBMB-AC-12-10-H4-DS -12-10

BM-AC-12-16-H3-DSBMB-AC-12-16-H4-DS -12-16

BM-AC-16-12-H3-DSBMB-AC-16-12-H4-DS -16-12

BM-AC-20-16-H3-DSBMB-AC-20-16-H4-DS -20-16

BM-AC-06-G3-DSBMB-AC-06-G4-DS -06

BM-AC-08-G3-DSBMB-AC-08-G4-DS -08

BM-AC-10-G3-DSBMB-AC-10-G4-DS -10

BM-AC-12-G3-DSBMB-AC-12-G4-DS -12

BM-AC-16-G3-DSBMB-AC-16-G4-DS -16

BM-AC-20-G3-DSBMB-AC-20-G4-DS -20

Reducer Fittings

BM-AC-08-06-G3-DSBMB-AC-08-06-G4-DS

BM-AC-10-08-G3-DSBMB-AC-10-08-G4-DS -10-08

BM-AC-12-08-G3-DSBMB-AC-12-08-G4-DS -12-08

BM-AC-12-10-G3-DSBMB-AC-12-10-G4-DS -12-10

-08

BM-AC-10-60JICDS-3BMB-AC-10-60JICDS-4 -10

BM-AC-12-60JICDS-3BMB-AC-12-60JICDS-4 -12

BM-AC-16-60JICDS-3BMB-AC-16-60JICDS-4 -16

BM-AC-20-60JICDS-3BMB-AC-20-60JICDS-4 -20 45°

You must install a 3/4” spacer ring and switch spacer if crimping -20 ‘Double Swivel’ Hose Ends with a 30°, 45° or 60° angle. Failure to do this will result in a damaged socket. Use BM-D105-3/4-SPACER-KIT on page 71

BM-AC-06-R3-DSBMB-AC-06-R4-DS -06

BM-AC-08-R3-DSBMB-AC-08-R4-DS -08

BM-AC-10-R3-DSBMB-AC-10-R4-DS -10

BM-AC-12-R3-DSBMB-AC-12-R4-DS -12

BM-AC-16-R3-DSBMB-AC-16-R4-DS -16

Reducer Fittings

BM-AC-12-10-R3-DSBMB-AC-12-10-R4-DS -12-10

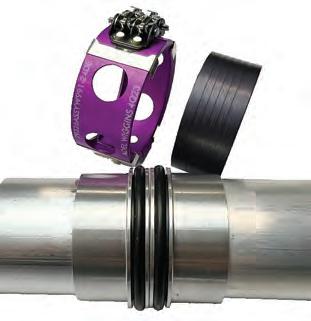

Wiggins Hose Ends - Female

BM-AC-06-08-ST-WF-3BM-AC-06-08-ST-WFFD-3BMB-AC-06-08-ST-WF-4BMB-AC-06-08-ST-WFFD-4

BM-AC-08-ST-WF-3BM-AC-08-ST-WFFD-3BMB-AC-08-ST-WF-4BMB-AC-08-ST-WFFD-4

BM-AC-10-ST-WF-3BM-AC-10-ST-WFFD-3BMB-AC-10-ST-WF-4BMB-AC-10-ST-WFFD-4

BM-AC-12-ST-WF-3BM-AC-12-ST-WFFD-3BMB-AC-12-ST-WF-4BMB-AC-12-ST-WFFD-4

BM-AC-16-ST-WF-3BM-AC-16-ST-WFFD-3BMB-AC-16-ST-WF-4BMB-AC-16-ST-WFFD-4

BM-AC-20-ST-WF-3BM-AC-20-ST-WFFD-3BMB-AC-20-ST-WF-4BMB-AC-20-ST-WFFD-4

BM-AC-24-ST-WF-3

Reducer Fittings

BM-AC-06-10-ST-WF-3 BMB-AC-06-10-ST-WF-4

BM-AC-08-10-ST-WF-3

BMB-AC-08-10-ST-WF-4

BM-AC-12-30-WF-3BM-AC-12-30-WFFD-3BMB-AC-12-30-WF-4BMB-AC-12-30-WFFD-4

BM-AC-06-08-45-WF-3BM-AC-06-08-45-WFFD-3BMB-AC-06-08-45-WF-4BMB-AC-06-08-45-WFFD-4

BM-AC-08-45-WF-3BM-AC-08-45-WFFD-3BMB-AC-08-45-WF-4BMB-AC-08-45-WFFD-4

BM-AC-10-45-WF-3BM-AC-10-45-WFFD-3BMB-AC-10-45-WF-4BMB-AC-10-45-WFFD-4

BM-AC-12-45-WF-3BM-AC-12-45-WFFD-3BMB-AC-12-45-WF-4BMB-AC-12-45-WFFD-4

BM-AC-16-45-WF-3BM-AC-16-45-WFFD-3BMB-AC-16-45-WF-4BMB-AC-16-45-WFFD-4

BM-AC-20-45-WF-3BM-AC-20-45-WFFD-3BMB-AC-20-45-WF-4BMB-AC-20-45-WFFD-4

PROGold Series

Wiggins Hose Ends - Female (continued)

BM-AC-08-90-WF-3BM-AC-08-90-WFFD-3BMB-AC-08-90-WF-4BMB-AC-08-90-WFFD-4

BM-AC-10-90-WF-3BM-AC-10-90-WFFD-3BMB-AC-10-90-WF-4BMB-AC-10-90-WFFD-4

BM-AC-12-90-WF-3BM-AC-12-90-WFFD-3BMB-AC-12-90-WF-4BMB-AC-12-90-WFFD-4

BM-AC-16-90-WF-3BM-AC-16-90-WFFD-3BMB-AC-16-90-WF-4BMB-AC-16-90-WFFD-4

BM-AC-20-90-WF-3BM-AC-20-90-WFFD-3BMB-AC-20-90-WF-4BMB-AC-20-90-WFFD-4

Reducer Fittings

BM-AC-06-08-90-WF-3BM-AC-06-08-90-WFFD-3BMB-AC-06-08-90-WF-4BMB-AC-06-08-90-WFFD-4

BM-AC-08-12-90-WF-3

BM-AC-12-28-90-WF-3

BM-AC-08-120-WF-3BM-AC-08-120-WFFD-3BMB-AC-08-120-WF-4BMB-AC-08-120-WFFD-4

Wiggins Hose Ends - Male Adaptors

ORB Male to Wiggins Male - Single O-ring

BM-K06-WM08-3BMB-K06-WM08-4 Single-06-08

BM-K08-WM08-3BMB-K08-WM08-4 Single-08-08

BM-K08-WM10-3BMB-K08-WM10-4 Single-08-10

BM-K10-WM10-3BMB-K10-WM10-4 Single-10-10

BM-K10-WM12-3BMB-K10-WM12-4 Single-10-12

BM-K12-WM12-3BMB-K12-WM12-4 Single-12-12

BM-K12-WM16-3BMB-K12-WM16-4 Single-12-16

BM-K16-WM16-3BMB-K16-WM16-4 Single-16-16

BM-K16-WM20-3BMB-K16-WM20-4 Single-16-20

BM-K20-WM20-3BMB-K20-WM20-4 Single-20-20

Bulkhead JIC Male to Wiggins Male

ORB Male to Wiggins Male - Double O-ring

BM-K08-WMD-08-3BMB-K08-WMD-08-4 Double-08-08

BM-K10-WMD08-3BMB-K10-WMD08-4 Double-10-08

BM-K10-WMD10-3BMB-K10-WMD10-4 Double-10-10

BM-K10-WMD12-3BMB-K10-WMD12-4 Double-10-12

BM-K12-WMD12-3BMB-K12-WMD12-4 Double-12-12

BM-K12-WMD16-3BMB-K12-WMD16-4 Double-12-16

BM-K16-WMD16-3BMB-K16-WMD16-4 Double-16-16

BM-HZ-K20-WMD20-3BMB-HZ-K20-WMD20-4 Double-20-20

Wiggins Spacers

These handy spacers convert single o-ring male adaptors and allow you to run deep double hose ends.

BM-W-SPACER-08 -08

BM-W-SPACER-10 -10

BM-W-SPACER-12 -12

BM-W-SPACER-16 -16

BM-W-SPACER-20 -20

BM-W-SPACER-24 -24

Wiggins Hose Ends - Female Double Swivel

BM-AC-16-30-WF-DS-3BM-AC-16-30-WFFDDS-3BMB-AC-16-30-WF-DS-4BMB-AC-16-30-WFFDDS-4

BM-AC-20-30-WF-DS-3BM-AC-20-30-WFFDDS-3BMB-AC-20-30-WF-DS-4BMB-AC-20-30-WFFDDS-4

Reducer Fittings

BM-AC-12-16-30-WF-DS-3

45°

BM-AC-12-45-WF-DS-3BM-AC-12-45-WFFDDS-3BMB-AC-12-45-WF-DS-4BMB-AC-12-45-WFFDDS-4

BM-AC-16-45-WF-DS-3BM-AC-16-45-WFFDDS-3BMB-AC-16-45-WF-DS-4BMB-AC-16-45-WFFDDS-4

BM-AC-20-45-WF-DS-3BM-AC-20-45-WFFDDS-3BMB-AC-20-45-WF-DS-4BMB-AC-20-45-WFFDDS-4

Reducer Fittings

BM-AC-12-16-45-WFDS-3 ---

90°

BM-AC-06-08-90-WFDS-3

BM-AC-08-90-WF-DS-3

BM-AC-10-90-WF-DS-3

BMB-AC-08-90-WF-DS-4BMB-AC-08-90-WFFD

BMB-AC-10-90-WF-DS-4

BM-AC-12-90-WF-DS-3BM-AC-12-90-WFFDDS-3BMB-AC-12-90-WF-DS-4BMB-AC-12-90-WFFDDS-4

BM-AC-16-90-WF-DS-3BM-AC-16-90-WFFDDS-3BMB-AC-16-90-WF-DS-4BMB-AC-16-90-WFFDDS-4

BM-AC-20-90-WF-DS-3BM-AC-20-90-WFFDDS-3BMB-AC-20-90-WF-DS-4BMB-AC-20-90-WFFDDS-4

Reducer Fittings

BM-AC-12-16-90WFDS-3

BM-AC-20-16-90WFDS-3

180°

BMB-AC-12-16-90WFDS-4

BMB-AC-20-16-90WFDS-4

Port Thread Hose Ends - Male Swivel

Straight

BM-AC-06-M3-00BMB-AC-06-M4-00 -06

BM-AC-08-M3-00BMB-AC-08-M4-00 -08

BM-AC-10-M3-00BMB-AC-10-M4-00 -10

BM-AC-12-M3-00BMB-AC-12-M4-00 -12

BM-AC-16-M3-00BMB-AC-16-M4-00 -16

BM-AC-20-M3-00BMB-AC-20-M4-00 -20 Reducer Fittings

HoseThread

BM-AC-06-08-M3-00BMB-AC-06-08-M4-00 -06-08

BM-AC-08-06-M3-00BMB-AC-08-06-M4-00 -08-06

BM-AC-08-10-M3-00BMB-AC-08-10-M4-00 -08-10

BM-AC-10-08-M3-00BMB-AC-10-08-M4-00 -10-08

BM-AC-10-12-M3-00BMB-AC-10-12-M4-00 -10-12

BM-AC-12-10-M3-00BMB-AC-12-10-M4-00 -12-10

BM-AC-16-12-M3-00BMB-AC-16-12-M4-00 -16-12

BM-AC-06-M3-45BMB-AC-06-M4-45 -06

BM-AC-08-M3-45BMB-AC-08-M4-45 -08

BM-AC-10-M3-45BMB-AC-10-M4-45 -10

BM-AC-12-M3-45BMB-AC-12-M4-45 -12

BM-AC-16-M3-45BMB-AC-16-M4-45 -16

BM-AC-20-M3-45BMB-AC-20-M4-45 -20 Reducer Fittings HoseThread

BM-AC-06-08-M3-45BMB-AC-06-08-M4-45 -06-08

BM-AC-08-10-M3-45 BMB-AC-08-10-M4-45 -08-10

BM-AC-10-08-M3-45BMB-AC-10-08-M4-45 -10-08

BM-AC-10-12-M3-45BMB-AC-10-12-M4-45 -10-12

BM-AC-12-10-M3-45BMB-AC-12-10-M4-45 -12-10

BM-AC-16-12-M3-45BMB-AC-16-12-M4-45 -16-12

BM-AC-06-M3-30BMB-AC-06-M4-30 -06

BM-AC-08-M3-30BMB-AC-08-M4-30 -08

BM-AC-10-M3-30BMB-AC-10-M4-30 -10

BM-AC-12-M3-30BMB-AC-12-M4-30 -12

BM-AC-16-M3-30BMB-AC-16-M4-30 -16

Reducer Fittings HoseThread - BMB-AC-10-12-M4-30 -10-12

BM-AC-12-10-M3-30BMB-AC-12-10-M4-30 -12-10

BM-AC-16-12-M3-30BMB-AC-16-12-M4-30 -16-12

Reducer Fittings HoseThread

BM-AC-12-10-M3-60BMB-AC-12-10-M4-60 -12-10

BM-AC-16-12-M3-60BMB-AC-16-12-M4-60 -16-12

90°

BM-AC-12-10-M3-90BMB-AC-12-10-M4-90 -12-10

BM-AC-12-16-M3-90BMB-AC-12-16-M4-90 -12-16

BM-AC-16-10-M3-90BMB-AC-16-10-M4-90 -16-10

BM-AC-16-12-M3-90BMB-AC-16-12-M4-90 -16-12

Port Thread Hose Ends - Male Swivel & Adaptors

120°

Aluminum

BM-AC-08-M3-120BMB-AC-08-M4-120 -08

BM-AC-10-M3-120BMB-AC-10-M4-120 -10

BM-AC-12-M3-120BMB-AC-12-M4-120 -12

BM-AC-16-M3-120BMB-AC-16-M4-120 -16

Reducer Fittings HoseThread

BM-AC-10-08-M3-120BMB-AC-10-08-M4-120 -10-08

150°

Aluminum

BM-AC-08-M3-150BMB-AC-08-M4-150 -08

BM-AC-12-M3-150BMB-AC-12-M4-150 -12

Reducer Fittings HoseThread

BM-AC-06-08-M3-150BMB-AC-06-08-M4-150 -06-08

BM-AC-10-08-M3-150BMB-AC-10-08-M4-150 -10-08

Crimp Collars

135°

BM-AC-12-M3-135BMB-AC-12-M4-135 -12

Fittings HoseThread

BMB-AC-12-10-M4-135 -12-10

1 x 1/8” NPT Port

Hose Finisher

If

-12

NOTE: Filter screen sold separately.

NOTE: Filter screen sold separately.

NOTE: Filter screen sold separately.

Metric Female Hose Ends

BM-AC-06-ST-M14-3BMB-AC-06-ST-M14-4 -06M14 x 1.50

BM-AC-06-ST-M16-3BMB-AC-06-ST-M16-4 -06M16 x 1.50

BM-AC-08-ST-M18-3BMB-AC-08-ST-M18-4 -08M18 x 1.50

BM-AC-10-ST-M22-3BMB-AC-10-ST-M22-4 -10M22 x 1.50

BM-AC-12-ST-M26-3BMB-AC-12-ST-M26-4 -12M26 x 1.50

BM-AC-12-ST-M30-3BMB-AC-12-ST-M30-4 -12M30 x 1.50

BM-AC-16-ST-M30-3BMB-AC-16-ST-M30-4 -16M30 x 1.50

BM-AC-08-90-M18-3BMB-AC-08-90-M18-4 -08M18 x 1.50

BM-AC-10-90-M22-3BMB-AC-10-90-M22-4 -10M22 x 1.50

BM-AC-12-90-M30-3BMB-AC-12-90-M30-4 -12M30 x 1.50 Aluminium - Double Swivel HoseThread

BM-AC-16-90-M30-DS-4BMB-AC-16-90-M30-DS-4 -16M30 x 1.50

You must use ‘High Pressure Smoothbore Stainless Braided Hose’ with these series of Hose Ends. See page 73 for our Hose options!

High Pressure Metric Female Hose Ends

Easily identify Metric Hose Ends with these marks!

Metric Hose Ends use an INVERTED SEAT

Common uses include industrial applications and use in many European cars, etc...

BM-AC-06-45-M14-3BMB-AC-06-45-M14-4 -06M14 x 1.50

BM-AC-06-45-M16-3BMB-AC-06-45-M16-4 -06M16 x 1.50

BM-AC-08-45-M18-3BMB-AC-08-45-M18-4 -08M18 x 1.50

BM-AC-10-45-M22-3BMB-AC-10-45-M22-4 -10M22 x 1.50

BM-AC-16-45-M30-DSBMB-AC-16-45-M30-DS -16M30 x 1.50

Crimp Banjo

Metric Hose Ends

Stainless Steel.

Male Swivel Port Thread

Allows full swivel rotation once tight.

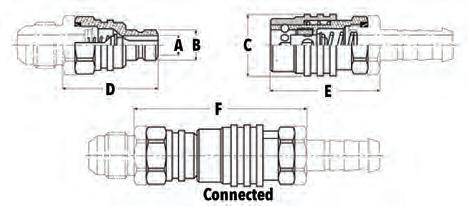

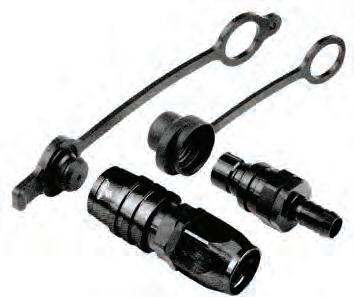

Quick Connect Hose Ends

Male - Straight

Female - Straight

Aluminum with EPDM O-rings

BM-AC-06-0030-00-E-3BMB-AC-06-0030-00-E4 -06

- Straight

Plug-in crimp fitting.

- 90°

BM-AC-08-0030-00E-3BMB-AC-08-0030-00-E4 -08

Aluminum with VITON O-rings - Blue & Gold

BM-SB-04-0040-00-V-3BMB-SB-04-0040-00-V4 -04

BM-AC-06-0030-00-V-3BMB-AC-06-0030-00-V4 -06

BM-AC-08-0030-00-V-3 --- -08

Male to Male ORB

with VITON O-rings BMB-AC-06-0030-90-V4 -06

Male Extended to Male ORB

Protective Caps & Plugs

Male to Swivel Port Thread - 90°

PROGold Series

Spigot Hose Ends

For use with a machined spigot or beaded tube as shown and are designed for low pressure applications such as fuel, water and oil that operate at less than 100psi.

Straight

These Spigot Hose Ends suit the longer barbs commonly found with OEM style formed tube. They work the same as the other spigot hose ends shown here and simply allow a longer tube (as shown in picture).

BM-AC-06-0009-45-3BMB-AC-06-0009-45-4 8mm-06

Replacement Nut

Nuts & orings to suit spigot hose ends.

BM-200-109-9775 - O-ring8mm

BM-200-110-9775 - O-ring3/8”

BM-07-0006-06-3BMB-07-0006-06-4 Blue Nut8mm

BM-AC-0012-06-3BMB-AC-0012-06-4 Blue Nut3/8”

'A' diameter should be matched to the nominal tube or spigot size.

'B' diameter should be matched as tightly as possible.

NOTE: DO NOT use with a plain tube.

Bulkhead & T Pieces

Hose Ends

Crimp 'T' Piece

Piece to JIC (AN) Female

Special Fittings (continued)

Hose End with Keep Plate

Oil Pump Fittings

Commonly used with Auto Verdi & FWRC oil pumps.

Straight Plug-In Crimp Fitting

90° Breather Rear Vent Fitting

Designed for Winters quick change differentials.

Sprintcar Filter / Parts

-12 Hose Ends with Keep Plate

Sprintcar Tail Tank Bulkhead

Stainless Steel Tube Nut / Sleeve

Sprintcar Tail Tank to Peterson

Assembly Equipment

Assembly Gear

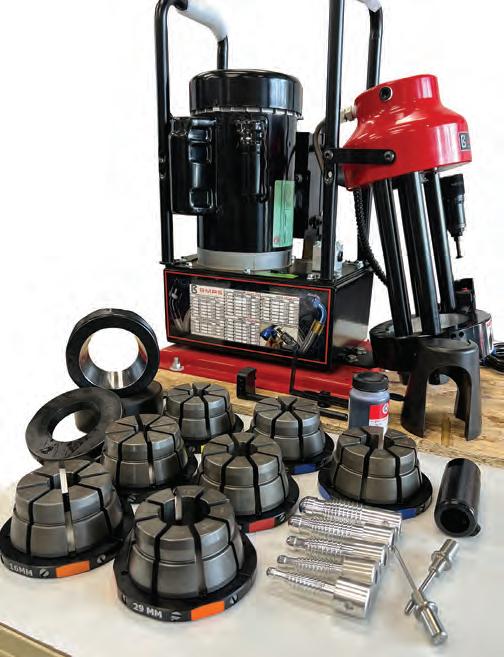

Fully Adjustable Crimping Machine

The 1HP – 15A ValPower pump makes fast crimps anywhere in your shop or race hauler.

It has a small footprint – only 11” wide, 14” long base and 19” high – which allows it to be placed anywhere on your bench. The fully adjustable, direct reading micrometer-style crimp adjustment accommodates a wide range of hose, fittings, or cables, for precise crimp diameters.

• Automatic low voltage shut-off assures precise crimps time after time

• Easily removable pusher and split dies make bent tube and special fittings easy to get into the crimper

• A pneumatic remote switch can be operated by hand or foot with no electrical wires

• 35 ton maximum cylinder force

• Machine weight: 67Kg

• 240volt ready for Australia & New Zealand

CRIMPER

BM-CRIMPER Supplied with the following expanders: Smooth Bore: -3, -4 PROGold: -6, -8, -10, -12, -16

DIE SETS

BM-100724-06 Crimp Die 6mm--- -02

BM-100724-07.5 Crimp Die 7.5mm--- -03

BM-100724-09 Crimp Die 9mm--- -4

BM-100724-12 Crimp Die 12mm--- -6

BM-100724-14 Crimp Die 14mm -6

BM-100724-16 Crimp Die 16mm-8 -8

BM-100724-19 Crimp Die 19mm-10

BM-100724-22 Crimp Die 22mm-12

BM-100724-29 Crimp Die 29mm-16

BM-100724-34 Crimp Die 34mm-20

BM-D105/KIT-3-16 Die Kit -3 to -16 dies

SPACER KIT

PART NO. DESCRIPTION

BM-D105-3/4-SPACER-KIT 3/4” Spacer Ring & Switch Stop for 30°, 45° or 60° D/S Hose Ends

Assembly Tools

A full range of tooling and fixtures are essential for quick, reliable and proper hose assembly.

Scan the QR code for more information!

DON’T FORGET TO CHECK OUT OUR GREAT RANGE OF TOOLS See page 204...

Smooth Bore Stainless Steel Braid Hose Systems

Stainless Steel Braid

Features:

• Long wearing attractive stainless steel braid

Specifications:

• Innercore: Smooth bore extruded PTFE with static dissipating liner option

• Braid: 304 series stainless steel

• Operating temperature: -54°C to 232°C at full pressure and full vacuum

Applications:

• Brakes

• Hydraulics systems (clutch, gearbox, power steering, etc.)

• All air and gas applications

• Gauge, instrumentation and sensor lines

Stainless Steel Braid - Black PVC Sheath

Features:

• Long wearing stainless steel braid with protective black PVC sheath

Specifications:

• Innercore: Smooth bore extruded PTFE with static dissipating liner

• Braid: 304 series stainless steel with black PVC sheath

• Operating temperature: -25°C to 85°C at full pressure & full vacuum

Applications:

• Brakes

INNER CORE

• Hydraulics systems (clutch, gearbox,power steering, etc.)

• All air and gas applications

• Gauge, instrumentation and sensor lines

Stainless Steel Braid Hose - Black TPE Sheath

Features:

• Long wearing stainless steel braid with protective robust & Hytrel TPE sheath

Specifications:

• Innercore: Smooth bore extruded PTFE with static dissipating liner option

• Braid: 304 series stainless steel with black TPE thermoplastic elastomer sheath

• Operating temperature: -65°C to 150°C at full pressure and full vacuum

Applications:

• Brakes

• Hydraulics systems (clutch, gearbox, power steering, etc.)

• All air and gas applications

• Gauge, instrumentation & sensor lines

Smooth Bore Hose Systems

Polyester Braid - Black

Features:

• Designed for low pressure light duty applications

• Extremely lightweight

• Durable polyester non-metallic braid

• Use with our crimp fittings on the following pages

Specifications:

• Innercore: Smooth bore extruded PTFE with static dissipating liner option

• Braid: Black polyester

Applications:

• Instrumentation, sensor & gauge lines

• Air and water bleed systems

• Water injection systems

• Master cylinder reservoir

• Operating temp: -54°C to 125°C (-67°F to 257°F) at full pressure and full vacuum

Impregnated Glass Fibre Braid - Black

Features:

• Excellent for low pressure hydraulics

• High temperature

• PTFE impregnated braid serves as a heat shield

• Use with our crimp fittings on the following pages

Specifications:

• Innercore: Smooth bore extruded PTFE with static dissipating liner

• Braid: PTFE impregnated glass fibre

• Operating temperature: -54°C to 260°C (-67°F to 500°F)

Applications:

• Air jack systems

• Bio fuel & alternative fuels (CNG, LPG etc.)

• Fuel • Turbo feed/drain

Translucent Tube

Features:

• Translucent smooth bore PTFE tube

• Use with ‘Raychem’ Heat shrink.

• Compatible with virtually all fluids

• Innercore: Smooth bore extruded translucent PTFE tube

• Braid: None

• Operating temperature: -54°C to 260°C (-67°F to 500°F)

Applications:

• Air and water bleed systems • Sight tube

• Overflow tanks

High Pressure Smoothbore Stainless Braided Hose

This hose has a smooth bore extruded PTFE innercore with a static dissipating liner and is designed for high pressure applications and is suitable for high impulse applications.

It is to be used with the HPSB range of BMRS fittings only and is compatible with virtually all fluids.

Note: All HPSB hoses require special tooling for assembly and needs to be assembled by MSCN.

• 5000 PSI operating pressure

• 16000 PSI burst pressure

• Operating temperature: -54°C to 204°C (at full pressure and full vacuum)

AN Hose Ends - Females

Aluminium

BM-SB-03-F3 BMB-SB-03-F4 -03

BM-SB-04-F3 BMB-SB-04-F4 -04

BM-SB-06-F3 BMB-SB-06-F4 -06

BM-SB-08-F3 BMB-SB-08-F4 -08

Stainless Steel with Aluminium Nuts

BM-SB-03-F7-3 BMB-SB-03-F7-4 -03

BM-SB-04-F7-3 BMB-SB-04-F7-4 -04

BM-SB-06-F7-3 BMB-SB-06-F7-4 -06

BM-SB-08-F7-3

Stainless Steel

BMB-SB-08-F7-4 -08

BM-SB-02-F7 -02

BM-SB-03-F7 -03

BM-SB-04-F7 --- -04

BM-SB-06-F7 -06

BM-SB-08-F7 -08

BM-SB-02-03-F7-3BMB-SB-02-03-F7-4 -02-03

BM-SB-02-04-F7-3BMB-SB-02-04-F7-4 -02-04

BM-SB-03-04-F7-3BMB-SB-03-04-F7-4 -03-04

BM-SB-03-06-F7-3BMB-SB-03-06-F7-4 -03-06

BM-SB-04-03-F7-3BMB-SB-04-03-F7-4 -04-03

BM-SB-04-06-F7-3BMB-SB-04-06-F7-4 -04-06

BM-SB-04-08-F7-3BMB-SB-04-08-F7-4 -04-08

Stainless Steel

BM-SB-02-03-F7 -02-03

BM-SB-02-04-F7 -02-04

BM-SB-03-02-F7 -03-02

BM-SB-03-04-F7 --- -03-04

BM-SB-04-03-F7

BM-SB-03-H3 BMB-SB-03-H4 -03

BM-SB-04-H3 BMB-SB-04-H4 -04

BM-SB-06-H3 BMB-SB-06-H4 -06

Stainless Steel with Aluminium Nuts

BM-SB-02-03-H7

Stainless Steel with Aluminium Nuts

BM-SB-03-G7-3BMB-SB-03-G7-4

BM-SB-04-G7-3BMB-SB-04-G7-4

BM-SB-06-G7-3BMB-SB-06-G7-4

High Pressure Hose Ends (AN -6)

Smooth Bore Series

AN Hose Ends - Females (continued)

Smooth Bore Series

NPT

Straight / 45° Male Fixed

Hose End Adaptors Port Thread Hose Ends - Male Swivel

Straight NPT Female Fixed

AP Master Cylinders

60°

120°

Smooth Bore Series

Banjos Straight

20°

BM-SB-02-BJ-M5-7

BM-SB-02-BJ-M6-7 -02M6

BM-SB-03-BJ-M8-7 -03M8 BM-SB-03-BJ-M10-7BM-SB-03-BJ-M10-3 -03M10 - 3/8" BMB-SB-03-BJ-M10-4 -03M10 - 3/8”

BM-SB-03-BJ-04-7BM-SB-03-BJ-04-3 -037/16"

BMB-SB-03-BJ-04-04 -047/16"

BMB-SB-04-BJ-04-4 -047/16” BM-SB-04-BJ-04-3 -047/16”

BM-SB-04-BJ-M10-7BM-SB-04-BJ-M10-3 -04M10 - 3/8"

BMB-SB-04-BJ-M10-4 -04M10 - 3/8"

BM-SB-04-BJ-04-7BM-SB-04-BJ-04-3 -047/16"

BM-SB-04-BJ-M12-7BM-SB-04-BJ-M12-3 -04M12

--- BMB-SB-04-BJ-M12-4 -04M12

BM-SB-04-BJ-M14-7BM-SB-04-BJ-M14-3 -04M14

BMB-SB-04-BJ-M14-4 -04M14

45°

Washers

90° - Side Bend

Banjo Bolts

3/8” -24

BM-BJB-03-1-7 3/8” -2420mmNo

BM-BJB-03-1-7S-W 3/8” -2418mm Yes

BM-BJB-03-1-TS-W 3/8” -2418mm Yes

3/8” -24 - Double

Metric

Smooth Bore Series

7/16” x 20

Metric - Double

Swivel - Internal Drive

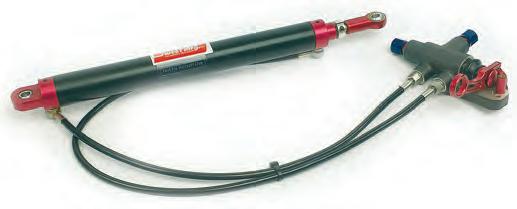

These are great for Sprint Car Wing Rams, with ‘Sweet’ branded parts. Used in our SPRINT CAR Wing Ram Kit on page 210

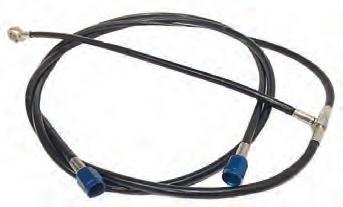

Brake Bleed System

Banjo M12 to Male -6AN

Captive Allen key

BMRS Merchandise

BMRS PART NUMBERS

• MSCN BMRS TShirt Small

• MSCN BMRS TShirt Medium

• MSCN BMRS TShirt Large

• MSCN BMRS TShirt XL

• MSCN BMRS TShirt 2XL

• MSCN BMRS TShirt 3XL

Adel Wiggins clamshell clamps are used in combination with weld ferrules or BMRS purpose hose ends. Each clamp offers a secure, flexible connection and is used as an alternative to standard hose clamps or AN hose ends. Adel Wiggins are qualified to the military and aerospace requirements of Mil-C-22263 and have over 30 years of proven reliability within the motorsport industry.

Wiggins Clamps

The W900 series of Adel Wiggins tube connectors are qualified to the military and aerospace requirements of Mil-C-22263, plus over 30 years of proven reliability within the Motorsports industry.

• Operating Pressure:125 psi

• Proof Pressure: 250 psi

• Burst Pressure: 375 psi

HOW TO GUIDE

CLAMP WITHOUT SLEEVE Used when clamping on to hose ends or fittings - SEE PAGE 82 FOR DETAILS -

CLAMP WITH SLEEVE Used when clamping directly on to hardline hose / tubing

Sleeves available separately

Tube Fittings, Caps & Plugs

Rigid Tube Fittings

Used in combination with weld ferrules or BMRS purpose hose ends. Each clamp offers a secure, flexible connection (+/-4° misalignment) and used as an alternative to standard hose clamps or AN hose ends. Burst Pressure 375 psi

MALE SOCKET WELD - SINGLE O-RING ALUMINUMTUBE SIZECLAMP SIZE

BM-TF-08-WM-J 1/2" -08

BM-TF-10-WM-J 5/8" -10

BM-TF-12-WM-J 3/4" -12

BM-TF-16-WM-J 1" -16

BM-TF-20-WM-J 1-1/4" -20

BM-TF-24-WM-J 1-1/2" -24

STAINLESSTUBE SIZECLAMP SIZE

BM-TF-10-WM-7 5/8" -10

BM-TF-12-WM-7 3/4" -12

BM-TF-16-WM-7 1" -16

BM-TF-20-WM-7 1-1/4" -20 MALE WIGGINS BUTT

BM-TF-28-WM-J 1-3/4" -28 MALE SOCKET WELD - DOUBLE O-RING ALUMINUMTUBE SIZECLAMP SIZE

BM-TF-08-WM-DO-J 1/2" -08

BM-TF-10-WM-DO-J 5/8” -10

BM-TF-12-WM-DO-J 3/4” -12

BM-TF-16-WM-DO-J 1” -16

BM-TF-20-WM-DO-J 1-1/4” -20

BM-TF-24-WM-DO-J 1-1/2" -24

BM-TF-28-WM-DO-J 1-3/4” -28

STAINLESSTUBE SIZECLAMP SIZE

BM-TF-12-WM-DO-7 3/4" -12

BM-TF-16-WM-DO-7 1" -16

BM-TF-20-WM-DO-7 1-1/4" -20

BM-WTF-08-WM-J 1/2" -08

BM-WTF-10-WM-J 5/8" -10

BM-WTF-12-WM-J 3/4" -12

BM-WTF-16-WM-J 1" -16

BM-WTF-20-WM-J 1-1/4" -20

BM-WTF-24-WM-J 1-1/2" -24

BM-WTF-28-WM-J 1-3/4" -28

BM-WTF-32-WM-J 2" -32

BM-WTF-40-WM-J 2-1/2" -40

BM-WTF-48-WM-J 3" -48

BM-WTF-56-WM-J

“HOW TO USE” Wiggins

JOIN TWO LENGTHS OF HARDLINE TUBE

Sleeve

2 x Joiners - Weld

O-rings to suit

BUTT WELD: Tube butts up to weld-on allowing you to grind weld and smooth off for a ‘no weld showing’ finish.

MALE SOCKET WELD: Tube pushes into weld-on allowing a strong connection for welding

JOIN TWO LENGTHS OF FLEXIBLE HOSE

Need the following:

• 1 x Clamp

• O-rings to suit • 2 x Hose Ends or a Joiner

Sleeve NOT Required

Caps, Plugs & Spacers

BM-W-PLUG-20 1-1/4"

BM-W-PLUG-28 1-3/4"

BM-W-PLUG-32

Note that Hose Ends and Joiners come in two depth options: STANDARD Suits single O-ring DEEP

Suits double O-rings

Make sure you choose the correct ones when ordering!

- WHICH PARTS TO CHOOSE!

These handy spacers convert Single O-ring Male Adaptors and allow you to run Deep Double Hose Ends. SPACERS

BM-W-SPACER-10 -10

BM-W-SPACER-12 -12

BM-W-SPACER-16 -16

BM-W-SPACER-20 -20

BM-W-SPACER-24 -24

XRP has a top quality range of hoses, adapters and fittings, and are the choice of racing’s premier pro teams, and sportsman racers. They are used in competition, off-road automotive, motorcycle and marine applications.

XRP is known to be an “Xtremely” well-engineered line of products, able to withstand the demands of modern racing engines for a variety of motorsports across the globe. Their roots and expertise reach into nearly every major sanctioning body worldwide.

HS-79 Series Hoses

Ultra-Lite

HS-79 ultra lightweight, flexible, smooth-bore Teflon® hose has a 4-ply composite construction: a Teflon® inner liner, silicone outer liner, high tensile stainless reinforcing braid and outer braid of Nomex® with Kevlar® traces.

• Temperature rating: -54°C to 204°C

Hypalon Hose

HS-79 hose is available with a Hypalon® outer covering as a fifth layer for added resistance against abrasion and ease of cleaning.

As used by NHRA, NASCAR and other top professional teams!

• Temperature rating: -54°C to 204°C

HS-79 Series Hose Ends

XH220004 -4

XH220006 -6

XH220008 -8

XH220010 -10

XH220012 -12

XH220016 -16

-8

HS-79 Series Collars

Hoses & Fittings

XRP Pressure Tester Manifold

XRP’s hose pressure testing manifold allows testing of hose sizes from -3 AN to -20 AN.

Made from high quality aluminium and anodised black. Use with the Test Fitting Kit which features -8 AN adapters quick disconnections.

Inline Filters

-12 AN Inline Filter Body

These cleverly-engineered assemblies allow you to uncouple the filter bodies in the snap of a finger to service the mesh filter inside. (Filter element sold separately).

• Ideal for quick pit stops

•

•

•

Crimping Machine & Dies

Crimping dies available individually for each size and style of hose. Call us for more information. Crimping machines are available by special order only.

XH329000 Crimper - Manual Hand Pump

Crimper - Air over Hydraulic Pump

Inline Filter Elements

Pleated stainless steel elements. Option to special order with antiseize relief valve with 15 psi pressure differential, to ensure oil flow if filter clogs.

We offer a comprehensive range of Stäubli quick release couplings. Applications include shock absorbers, brake, hydraulic lines and quick-release couplings for fuel, lubrication and coolant lines. They are available in aluminium and titanium, are extremely lightweight, and designed for safety. Both SPH and SPT couplings are non-drip and the clean break feature guarantees a secure connection as well as the integrity of fluids. FIA approved.

True Dry Break Couplings - SPH Series

True Dry Break Couplings for shock absorbers, brakes, hydraulic lines, lubrication and coolants. The flush face design ensures no air inclusion into the system when connecting as well as no leakage when disconnecting. This eliminates the need to purge the system & permits the use of pre-filled hose.

Quick Release Couplings

True Dry Break Couplings - SPH Series (continued)

SPH 05 Series

-04 AN / JIC

SOCKET - AN / JIC MALE - ALUMINIUM

BM-SPH 05.7653/KR/JE -4 EPDM

SPH 08 Series

-06 AN / JIC

SPH 08 Series

-08 AN / JIC

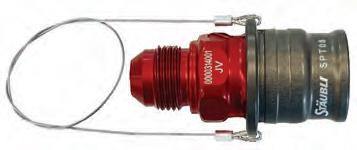

Quick Release / Breakaway Couplings - SPT Series

Quick couplings for inboard fuel lines meet the tough requirements of motorsports by combining high flow performance with reliable non-spill safety. They are very compact and lightweight, and designed to easily fit into all types of vehicles. The lanyard release feature ensures a safe fuel line break-away in a crash situation.

SPT 05 Series

SPT 08 Series

-06

Quick Release Couplings

Quick Release / Breakaway Couplings - SPT Series (continued)

SPT 08 Series

SPT 12 Series

SPT 12 Series

Jiffy-Tite’s Quick Connect Fluid Fittings are for use in all fuel, oil, and water systems in any high performance race or street application.

Available in a variety of thread styles including AN, NPT pipe thread, reusable hose ends and hose barb type. They can replace any fitting in any location. Jiffy-tite reusable hose ends and hose barb applications must be used with steel braided rubber hose.

Jiffy-tite's revolutionary Quick Connect fluid fittings provide unsurpassed performance under extreme racing conditions. Made of lightweight, 6061-T6 aluminium, brass valves, and stainless steel ball bearings, they are corrosion resistant for extra long life.

They are safer than traditional threaded fittings where there is always the risk that gas can leak or prompt a tragic spin-out or crash. Jiffy-tite’s unique, high-flow valve technology automatically interrupts the flow of fluid when disconnected to protect against hazardous gas leaks or potential hot oil spills. They have been tested and proven to have a 100% leak proof seal, even at 200 psi.

Jiffy-tite is the only Quick-Connect fitting on the market today approved for use in all categories of NHRA and IHRA. They are also accepted for use in SCCA for virtually ALL fuel, water, and oil systems. Fittings are currently available for all forms of high performance race and street applications.

∙ Lightweight and compact

∙ Connects by hand in seconds

∙ 100% leak tested

∙ Ribbed collar provides slip proof use

∙ Available for ALL fuel, oil, and water applications

∙ Shut-off features available for safety

∙ NHRA and IHRA approved, SCCA accepted

∙ Black anodized

∙ 360° swivel

∙ 6061-T6 aluminium and brass valve construction

REFERENCE CHART O-RING NAMES

Jiffy Tite O-ring” Also Known As: FKM Flurocarbon, FPM, Viton

Ethylene Propylene, EPR Buna NBR, Nitrile

Quick Connect Fittings

2000 Series Q/C Fittings

Available in -3AN to -6AN in numerous adapter styles. 1/8" and 1/4" NPT are available in male and female. Parts come standard with valved FKM (Fluorocarbon, Viton, FPM) seals. 2000 Series are also available in EPDM (Ethylene Propylene, EPR) seals, which are recommended for brake, Glycol and Methanol applications.

FEMALE - STRAIGHT SOCKET SIZEFKM NO.

NPT JT21802JJT21802FJ 1/4” NPT JT21804JJT21804FJ

JT220C1JJT220C1FJ

MALE - STRAIGHT PLUG SIZEFKM NO. EPDM 1/8” NPT JT22802JT22802F

Quick Connect Fittings

3000 Series Quick Connect Fittings

Available in -6AN to -8AN in numerous adapter styles. 1/4” and 3/8” NPT are available in both male & female. Parts come standard with valved FKM (Flurocarbon, Viton, FPM) seals.

3000 Series are also available in EPDM (Ethylene Propylene, EPR) seals, which are recommended for Glycol and Methanol applications.

Jiffy-tite’s Quick Connect Fluid Fittings provide minimal flow restriction for virtually any fuel, water or oil system on the

, Flurocarbon, Viton, FPM

, Ethylene Propylene, EPR

, Ethylene Propylene, EPR

, Flurocarbon, Viton, FPM Unleaded Fuel

E85 Fuel

, Flurocarbon, Viton, FPM

, Flurocarbon, Viton, FPM Nitromethane

, Ethylene Propylene, EPR

, Flurocarbon, Viton, FPM

Quick Connect Fittings

5000 Series Quick Connect

Available in -8AN to -12AN in numerous adapter styles. 3/8”, 1/2” & 3/4” NPT are available in both male and female.

Parts come standard with valved FKM (Flurocarbon, Viton, FPM) seals.

5000 Series are also available in EPDM (Ethylene Propylene, EPR) seals, which are recommended for Glycol and Methanol applications.

SEAL COMPATIBILITY CHART

Automatic Trans Fluid

Brake Fluid

Engine Oil

Glycol

Methanol

Water

Unleaded Fuel

E85 Fuel

Nitromethane

Diesel

FKM, Flurocarbon, Viton, FPM

EPDM, Ethylene Propylene, EPR

FKM, Flurocarbon, Viton, FPM

EPDM, Ethylene Propylene, EPR

EPDM, Ethylene Propylene, EPR

FKM, Flurocarbon, Viton, FPM

FKM, Flurocarbon, Viton, FPM

FKM, Flurocarbon, Viton, FPM

EPDM, Ethylene Propylene, EPR

FKM, Flurocarbon, Viton, FPM

Epik Industries supply a range of economically priced products to help with your plumbing build.

Billet Thermostat Housings

Epik Industries thermostat housings are machined from billet aluminium and then anodised in a variety of common colours and supplied with sealing O-rings and stainless steel bolts. The Epik logo is then laser engraved on the hose tail so it is hidden away once the hose is installed so that your engine bay is not covered in company logos.

SB CHEV, BB CHEV, CHRYSLER PART NO.COLOUR

EP20-1000-1 Silver

EP20-1000-2 Black

EP20-1000-3 Red

EP20-1000-4 Blue

EP20-1015-1 Silver

EP20-1015-2 Black

EP20-1015-3 Red

EP20-1015-4 Blue

EP20-1016-1 Silver

EP20-1016-2 Black

EP20-1016-3 Red

EP20-1010-1 Silver

EP20-1010-2 Black

EP20-1010-3 Red

EP20-1010-4 Blue FORD CLEVELAND PART NO.COLOUR

EP20-1016-4 Blue

EP20-1030-2

Billet P-Clips & Hose Separators

Billet P-Clips & Hose Separators

3/16” (4.8mm)

1/4” (6.4mm)

5/16” (7.9mm)

3/8” (9.5mm)

7/16” (11.1mm)

1/2” (12.7mm)

17/32” (13.5mm)

9/16” (14.3mm)

EP15-1010-1EP15-1010-2EP15-1010-3EP15-1010-4

EP15-1020-1EP15-1020-2EP15-1020-3EP15-1020-4

EP15-1030-1

EP15-1030-2EP15-1030-3EP15-1030-4

EP15-1040-1EP15-1040-2EP15-1040-3EP15-1040-4

EP15-1050-1EP15-1050-2EP15-1050-3EP15-1050-4

EP15-1060-1EP15-1060-2EP15-1060-3EP15-1060-4

EP15-1070-1EP15-1070-2EP15-1070-3EP15-1070-4

EP15-1080-1EP15-1080-2EP15-1080-3EP15-1080-4

7/16” (11.1mm) to 17/32”(13.5mm)

17/32” (13.5mm)

to 5/8” (15.9mm)

5/8” (15.9mm) to 3/4” (19.1mm)

EP15-2355-1EP15-2355-2EP15-2355-3EP15-2355-4

EP15-2375-1EP15-2375-2EP15-2375-3EP15-2375-4

EP15-2385-1EP15-2385-2EP15-2385-3EP15-2385-4

3/16” (4.8mm)

1/4” (6.4mm)

5/16” (7.9mm)

3/8” (9.5mm)

7/16” (11.1mm)

1/4” (6.4mm)

5/16” (7.9mm)

(13.5mm)

(15.1mm)

HOSE SEPARATORS

EP15-2010-1EP15-2010-2EP15-2010-3EP15-2010-4

EP15-2020-1EP15-2020-2EP15-2020-3EP15-2020-4

EP15-2030-1 EP15-2030-2EP15-2030-3EP15-2030-4

EP15-2040-1EP15-2040-2EP15-2040-3EP15-2040-4

EP15-2050-1EP15-2050-2EP15-2050-3EP15-2050-4 1/2” (12.7mm)

EP15-2060-1EP15-2060-2EP15-2060-3EP15-2060-4 17/32” (13.5mm) EP15-2070-1EP15-2070-2EP15-2070-3EP15-2070-4 9/16” (14.3mm) EP15-2080-1EP15-2080-2EP15-2080-3EP15-2080-4 19/32” (15.1mm) EP15-2090-1EP15-2090-2EP15-2090-3EP15-2090-4 5/8” (15.9mm)

EP15-2100-1EP15-2100-2EP15-2100-3EP15-2100-4 21/32” (16.7mm) EP15-2110-1EP15-2110-2EP15-2110-3EP15-2110-4 11/16” (17.5mm) EP15-2120-1EP15-2120-2EP15-2120-3EP15-2120-4 3/4” (19.1mm) EP15-2130-1EP15-2130-2EP15-2130-3EP15-2130-4 13/16” (20.6mm) EP15-2140-1EP15-2140-2EP15-2140-3EP15-2140-4

1” (25.4mm)

1-5/64" (27.0mm)

EP15-2160-1EP15-2160-2EP15-2160-3EP15-2160-4

7/8” (22.2mm) EP15-2150-1EP15-2150-2EP15-2150-3EP15-2150-4 15/16” (23.8mm)

EP15-2170-1EP15-2170-2EP15-2170-3EP15-2170-4

EP15-2180-1EP15-2180-2EP15-2180-3EP15-2180-4 BILLET P-CLIPS

Pump Block Offs, Clamps & Filters

Billet Fuel Pump Block Off

Epik Industries’ fuel pump block off plates are machined from billet

stainless steel

EP20-2000-2

EP20-2000-3

EP20-2000-4

Distributor Clamps & Hardware

EP20-2015-3

EP20-2015-4

AN Flare Filters

Brackets & Adjustable Spanners

Billet Throttle Brackets

4150 HOLLEY

Epik Industries’ billet throttle plates are made from aluminium and anodised in a variety of common colours and supplied with spacers, accessories, stainless steel bolts and twin return springs. The 4150 Series brackets include standard throttle and kick-down accessories plus one to suit morse style cables. The 4500 Series does not include a kick-down bracket.

EP20-4150-1

EP20-4150-2

EP20-4150-3

EP20-4150-4

Tools

Adjustable Spanners

Machined from billet aluminium, black anodised and laser engraved with the Epik logo on the handle. These suit -3 to -12 sized fittings or anywhere else an adjustable spanner may come in handy. Not recommended for use when torque is required to tighten or loosen as it will stretch the aluminium and cause the spanner to become inoperable.

EP30-0000-2 Short Adjustable Spanner

EP30-0010-2 Long Adjustable Spanner

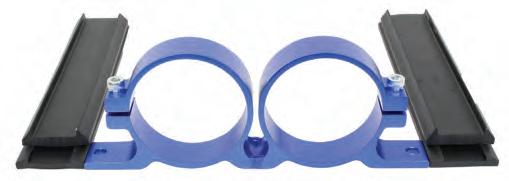

Fuel Pump Brackets

4500 HOLLEY

EP20-4500-1 Silver

EP20-4500-2 Black

EP20-4500-3 Red

EP20-4500-4 Blue

Tube Bender

Billet aluminium tube benders designed for 1/16”, 3/16” & 1/4” Tube.

The handle is made from billet aluminium with finger grips for a comfortable grip, with two bending dies and multiple positions to adjust the radius of the bend.

• Aluminium construction

• 200mm OAL

• Suit 1/16”, 3/16” & 1/4” tube

Look for our other bending tools in the Tools section

BILLET TUBE BENDER

EP30-0015-2 1/16” to 1/4”

Epik Industries’ fuel pump brackets are made from extruded aluminium, anodised and laser engraved with the logo underneath so it is hidden once installed. Two rubber inserts are included with each bracket to suit both 52mm and 60mm OD pumps, filters or any other parts that may fit. ALUMINIUM ADJUSTABLE SPANNERS

EP40-3010-1

EP40-3010-2

EP40-3010-3

EP40-3010-4

This high quality 4 & 5 ply silicone has been tested and used in the industry for years and is commonly used on intercooler and intake piping, radiators, methanol fuel hose, turbo, transport and industrial applications.

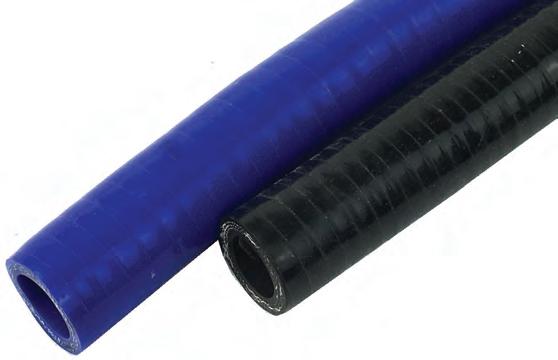

Aeroflex Performance Silicone Hose

STRAIGHT, 1 METRE OR PER INCH

PART NO.BORE (I.D.) WALL LENGTH

SMS S050 0.50” (13mm)4.5mm39” (1m)

SMS S063 0.63” (16mm)4.5mm39” (1m)

SMS S075 0.75” (19mm)4.5mm39” (1m)

SMS S085 0.85” (22mm)4.5mm39” (1m)

SMS S100 1.00” (25mm)4.5mm39” (1m)

SMS S125 1.25” (32mm)4.5mm39” (1m)

SMS S150 1.50” (38mm)4.5mm39” (1m)

SMS S175 1.75” (45mm)4.5mm39” (1m)

SMS S200 2.00” (51mm)5.3mm39” (1m)

SMS S225 2.25” (57mm)5.3mm39” (1m)

SMS S250 2.50” (63mm)5.3mm39” (1m)

SMS S275 2.75” (70mm)5.3mm39” (1m)

SMS S300 3.00” (76mm)5.3mm39” (1m)

SMS S325 3.25” (82mm)5.3mm39” (1m)

SMS S350 3.50” (88mm)5.3mm39” (1m)

SMS S375 3.75” (95mm)5.3mm39” (1m)

SMS S400 4.00” (102mm)5.3mm39” (1m)

SMS S425 4.25” (108mm)5.3mm39” (1m)

SMS S450 4.50” (114mm)5.3mm39” (1m)

SMS S475 4.75” (120mm)5.3mm39” (1m)

SMS S500 5.00” (127mm)5.3mm39” (1m)

SMS S600 6.00” (153mm)5.3mm39” (1m)

30° ELBOW

PART NO.BORE (I.D.) WALL LEG

SMS 30125 1.25” (32mm)4.5mm140mm

SMS 30150 1.50” (38mm)4.5mm140mm

SMS 30175 1.75” (45mm)4.5mm140mm SMS 30200 2.00” (51mm)5.3mm140mm SMS 30225 2.25” (57mm)5.3mm140mm SMS 30250 2.50” (63mm)5.3mm140mm

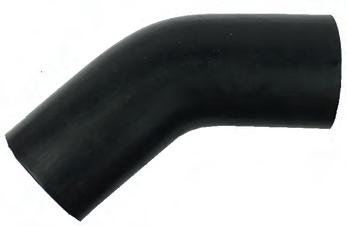

NO.BORE (I.D.) WALL LEG

SMS 45050 0.50” (13mm)4.5mm130mm

SMS 45063 0.70” (16mm)4.5mm130mm

SMS 45075 0.75” (19mm)4.5mm130mm

SMS 45100 1.00” (25mm)4.5mm130mm

SMS 45125 1.25” (32mm)4.5mm130mm

SMS 45150 1.50” (38mm)4.5mm130mm

SMS 45175 1.75” (45mm)4.5mm130mm

SMS 45200 2.00” (51mm)5.3mm130mm

SMS 45225 2.25” (57mm)5.3mm130mm

SMS 45250 2.50” (63mm)5.3mm130mm

SMS 45275 2.75” (70mm)5.3mm130mm

SMS 45300 3.00” (76mm)5.3mm130mm

SMS 45325 3.25” (82mm)5.3mm120mm

SMS 45350 3.50” (89mm)5.3mm120mm

SMS 45375 3.75” (95mm)5.3mm120mm

SMS 45400 4.00” (102mm)5.3mm120mm

SMS 45450 4.50” (114mm)5.3mm120mm

Silicone Hose

Aeroflex Performance Silicone Hose

NO.BORE (I.D.) WALL LEG

SMS 60125 1.25” (32mm)4.5mm135mm

SMS 60150 1.50” (38mm)4.5mm135mm

SMS 60175 1.75” (45mm)4.5mm135mm

SMS 60200 2.00” (51mm)5.3mm125mm

SMS 60225 2.25” (57mm)5.3mm125mm

SMS 60250 2.50” (63mm)5.3mm125mm

SMS 60275 2.75” (70mm)5.3mm125mm

SMS 60300 3.00” (76mm)5.3mm125mm

SMS 60325 3.25” (82mm)5.3mm125mm

SMS 60350 3.50” (89mm)5.3mm115mm

SMS 60375 3.75” (95mm)5.3mm115mm

SMS 60400 4.00” (102mm)5.3mm115mm

180° ELBOW

PART NO.BORE (I.D.) WALL CENTRES

SMS 180100 1.00” (25mm)4.5mm90mm

SMS 180125 1.25” (32mm)4.5mm105mm

SMS 180150 1.50” (38mm)4.5mm100mm

SMS 180175 1.75” (45mm)4.5mm100mm

SMS 180200 2.00” (51mm)5.3mm100mm

SMS 180250 2.50” (63mm)5.3mm110mm

SMS 180300 3.00” (76mm)5.3mm115mm

SMS 90050 0.50” (13mm)4.5mm120mm

SMS 90063 0.63” (16mm)4.5mm120mm

SMS 90075 0.75” (19mm)4.5mm120mm

SMS 90085 0.85” (22mm)4.5mm120mm

SMS 90100 1.00” (25mm)4.5mm120mm

SMS 90100 EXT LEG 1.00” (25mm)4.5mm 100mm 270mm

SMS 90125 1.25” (32mm)4.5mm120mm

SMS 90150 1.50” (38mm)4.5mm120mm

SMS 90175 1.75” (45mm)4.5mm120mm

SMS 90200 2.00” (51mm)5.3mm110mm

SMS 90225 2.25” (57mm)5.3mm110mm

SMS 90250 2.50” (63mm)5.3mm110mm

SMS 90275 2.75” (70mm)5.3mm100mm

SMS 90300 3.00” (76mm)5.3mm100mm

SMS 90325 3.25” (82mm)5.3mm100mm

SMS 90350 3.50” (88mm)5.3mm100mm

SMS 90375 3.75” (95mm)5.3mm90mm

SMS 90400 4.00” (102mm)5.3mm90mm

PART NO.BORE (I.D.) WALL

SMS HH150 1.50” (38mm)4.5mm100mm

SMS HH200 2.00” (51mm)5.3mm100mm SMS HH225 2.25” (57mm)5.3mm100mm SMS HH250 2.50” (63mm)5.3mm100mm SMS HH275 2.75” (70mm)5.3mm100mm

SMS HH300 3.00” (76mm)5.3mm100mm

SMS HH325 3.25” (82mm)5.3mm100mm

SMS HH350 3.50” (88mm)5.3mm100mm

SMS HH375 3.75” (95mm)5.3mm100mm

SMS HH400 4.00” (102mm)5.3mm100mm

ELBOW

PART NO.BORE (I.D.) WALL LEG

SMS 135100 1.00” (25mm)4.5mm80mm

SMS 135150 1.50” (38mm)4.5mm70mm

SMS 135175 1.75” (45mm)4.5mm70mm

SMS 135200 2.00” (51mm)5.3mm70mm

SMS 135250 2.50” (63mm)5.3mm70mm

SMS 135300 3.00” (76mm)5.3mm70mm SMS 135400 4.00” (102mm)5.3mm70mm

135 EX400 4.00” (102mm)5.3mm70mm

VACUUM HOSE

Extruded silicone rubber tubing is ideal for use as:

Vacuum lines, Washer Tubing, Coolant Overflow, Emission Control, Wire Insulation etc. Temperature Range: 200°C ( 392°F ) Not designed for pressurised installations

PART NO.BORE (I.D.) WALL

SH2013 3mm - 1/8”2.5mm

SH2014 4mm - 5/32”2.5mm

SH2015 5mm - 3/16”2.5mm

SH2016 6mm - 1/4”2.5mm

SH2018 8mm - 5/16”3mm

SH2110 10mm - 3/8”3mm -06 -01 BLACKBLUE

Silicone Hose

Silicone Reducer Hoses

SMS SR16-13 16-13mm / 0.70-0.50”127mm

SMS SR19-13 19-13mm / 0.75-0.50”127mm

SMS SR19-16 19-16mm / 0.75-0.70”127mm

SMS SR22-16 22-16mm / 0.85-0.70”127mm

SMS SR22-19 22-19mm / 0.85-0.75”127mm

SMS SR25-16 25-16mm / 1.00-0.70”127mm

SMS SR25-19 25-19mm / 1.00-0.75”127mm

SMS SR28-22 28-22mm / 1.125-0.85”127mm

SMS SR28-25 28-25mm / 1.125-1.00”127mm

SMS SR32-25 32-25mm / 1.25-1.00”127mm

SMS SR32-28 32-28mm / 1.25-1.125”127mm

SMS SR35-25 35-25mm / 1.375-1.00”127mm

SMS SR35-28 35-28mm / 1.375-1.125”127mm

SMS SR35-32 35-32mm / 1.375-1.25”127mm

SMS SR38-22 38-22mm / 1.50-0.85”127mm

SMS SR38-25 38-25mm / 1.50-1.00”127mm

SMS SR38-28 38-28mm / 1.50-1.125”127mm

SMS SR38-32 38-32mm / 1.50-1.25”127mm

SMS SR38-35 38-35mm / 1.50-1.375”127mm

45° REDUCERS

PART NO. BORE (I.D.)LEG

SMS 45R150-100 38-25mm / 1.50-1.00”130mm

SMS 45R150-125 38-32mm / 1.50-1.25”130mm

SMS 45R175-150 45-38mm / 1.75-1.50”130mm

SMS 45R200-175 51-45mm / 2.00-1.75”130mm

SMS 45R225-200 57-51mm / 2.25-2.00”130mm

SMS 45R250-200 63-51mm / 2.50-2.00”130mm

SMS 45R250-225 63-57mm / 2.50-2.25”130mm

SMS 45R275-250 70-63mm / 2.75-2.50”130mm

SMS 45R300-200 76-51mm / 3.00-2.00”130mm

SMS 45R300-225 76-57mm / 3.00-2.25”130mm

SMS 45R300-250 76-63mm / 3.00-2.50”130mm

SMS 45R300-275 76-70mm / 3.00-2.75”130mm

SMS 45R350-250 89-63mm / 3.50-2.50”130mm

SMS 45R350-300 89-76mm / 3.50-3.00”130mm

SMS 45R400-300 102-76mm / 4.00-3.00”130mm

SMS 45R400-350 102-89mm / 4.00-3.50”130mm

STRAIGHT REDUCERS PART NO.BORE (I.D.)LENGTH

SMS SR40-35 40-35mm / 1.625-1.375”127mm

SMS SR45-32 45-32mm / 1.75-1.25”127mm

SMS SR45-38 45-38mm / 1.75-1.50”127mm

SMS SR51-38 51-38mm / 2.00-1.50”127mm

SMS SR51-45 51-45mm / 2.00-1.75”127mm

SMS SR51-48 51-48mm / 2.00-1.875”127mm

SMS SR54-51 54-51mm / 2.125-2.00”127mm

SMS SR57-45 57-45mm / 2.25-1.75”127mm

SMS SR57-51 57-51mm / 2.25-2.00”127mm

SMS SR60-51 60-51mm / 2.36-2.00”127mm

SMS SR63-51 63-51mm / 2.50-2.00”127mm

SMS SR63-57 63-57mm / 2.50-2.25”127mm

SMS SR70-51 70-51mm / 2.75-2.00”127mm

SMS SR70-57 70-57mm / 2.75-2.25”127mm

SMS SR70-60 70-60mm / 2.75-2.375”127mm

SMS SR70-63 70-63mm / 2.75-2.50”127mm

SMS SR76-51 76-51mm / 3.00-2.00”127mm

SMS SR76-57 76-57mm / 3.00-2.25”127mm

SMS SR76-63 76-63mm / 3.00-2.50”127mm

90° REDUCERS PART NO.BORE (I.D.)LEG

SMS 90R075-063 19-16mm / 0.75-0.50”100mm

SMS 90R100-075 25-19mm / 1.00-0.75”100mm

SMS 90R125-100 32-25mm / 1.25-1.00”100mm

SMS 90R150-100 38-25mm / 1.50-1.00”100mm

SMS 90R150-125 38-32mm / 1.50-1.25”100mm

SMS 90R175-150 45-38mm / 1.75-1.50”100mm

SMS 90R200-150 51-38mm / 2.00-1.50”90mm

SMS 90R200-175 51-45mm / 2.00-1.75”90mm

SMS 90R225-200 57-51mm / 2.25-2.00”90mm

SMS 90R250-200 63-51mm / 2.50-2.00”90mm

SMS 90R250-225 63-57mm / 2.50-2.25”90mm

SMS SR76-67 76-67mm / 3.00-2.63”127mm

SMS SR76-70 76-70mm / 3.00-2.75”127mm

SMS SR80-70 80-70mm / 3.125-2.75”127mm

SMS SR82-63 82-76mm / 3.25-2.50”127mm

SMS SR82-70 82-70mm / 3.25-2.75”127mm

SMS SR82-76 82-76mm / 3.25”-3.00”127mm

SMS SR89-63 89-63mm / 3.50”-2.50”127mm

SMS SR90-70 90-70mm / 3.50-2.75”127mm

SR90-76 90-76mm

SMS SR102-95 102-95mm / 4.00-3.75”127mm

SMS SR114-102 114-102mm / 4.50-4.00”127mm

SMS SR127-102 127-102mm / 5.00-4.00”127mm

SMS SR159-102 157-102mm / 6.25-4.00”127mm

90°

REDUCERS

PART NO.BORE (I.D.)LEG

SMS 90R275-225 70-57mm / 2.75-2.25”80mm

SMS 90R275-250 70-63mm / 2.75-2.50”80mm

SMS 90R300-200 76-51mm / 3.00-2.00”80mm

SMS 90R300-250 76-63mm / 3.00-2.50”75mm

SMS 90R300-275 76-70mm / 3.00-2.75”80mm

SMS 90R325-275 80-70mm / 3.25-2.75”80mm

SMS 90R325-300 80-76mm / 3.25-3.00”80mm

SMS 90R350-250 90-63mm / 3.50-2.50”80mm

SMS 90R350-300 90-76mm / 3.50-3.00”80mm

SMS 90R350-325 90-80mm / 3.50-3.25”80mm

SMS 90R375-350 95-90mm / 3.50-3.25”80mm SMS 90R400-300 102-76mm / 4.00-3.00”70mm

Rubber & Silicone Hose

Rubber & Silicon Hose

Fuel Filler Hose

Lightweight, flexible and smooth hose made from a liner of nitrile sheet rubber, with a high tensile spring steel helix covered with nitrile coated nylon fabric, and having an outer cord of neoprenecoated polyester. This hose is able to bend 180° with no kinking!

Applications:

• Engine and automotive industry

• Can be used with all motor fuels and most lubricating oils

• Suitable for connecting the fuel filler to the fuel tank

Special properties:

• Light, flexible and resistant to constant vibration;

• Good abrasion levels and suitable for very damp media

• Good resistance to condensates due to the enclosed helix

• Sold by the INCH or LENGTH

• Standard length: 1000 mm

• Can be purchased in short lengths

• Sizes (I.D.): 32mm, 38mm, 45mm, 51mm, 57mm & 63mm

FILLER HOSES

Wrapped Type Filler Hose in Nitrile - These filler hoses are made from fuel resistant rubber. Owing to the method of construction the wrapped hoses do not bend easily. Straights and elbows should be used as required.

FF32STR 1.25” / 32mm

FF38STR 1.50” / 38mm

FF45STR 1.75” / 45mm

FF51STR 2.00” / 51mm FF57STR 2.25” / 57mm

FF32FLEX 1.25” / 32mm FF38FLEX 1.50” / 38mm

FF45FLEX 1.75” / 45mm

FF51FLEX 2.00” / 51mm

FF57FLEX 2.25” / 57mm

FF63FLEX 2.50” / 63mm

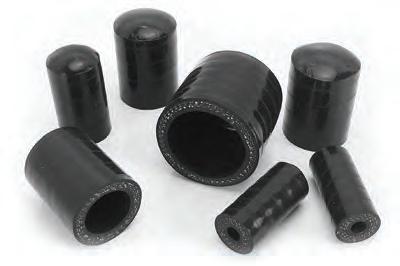

High Temperature Hose Block Off Caps

AEROFLEX silicone high temperature hose can be used in almost any application and genre.

Please note not suitable for petrol / brake fluid applications.

Silicone Hose - Lined

Silicone Hose Lined

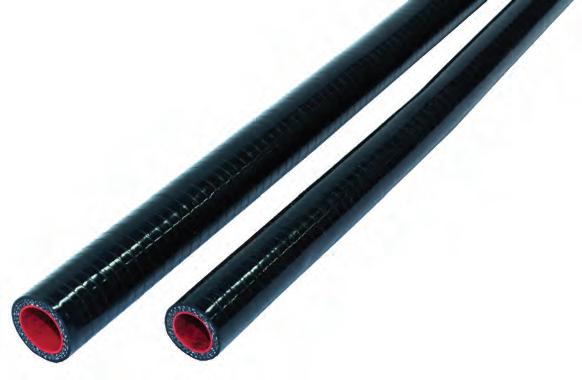

SMS Fluoro Lined Silicone Hose

Aeroflex Fluoro lined Silicone Hoses not only withstand extreme temperatures, generally from –50°C to 250°C, but also is quite compatible with hydrocarbon liquids, such as petrol, diesel and oil.

It’s often used as turbocharger drain hoses and is now available in a wide range of sizes and bends.

• Working temperature: –50°C to 250°C

• Fluoro lined for contacting with oils

• Polyester fibre reinforced 4 to 5 plies

• Especially used in turbocharger and intercooler hoses

• Low permeation

• Colours: Black

SMS FLS038 0.38” (9mm)4.5mm39” (1m)

SMS FLS050 0.50” (13mm)4.5mm39” (1m)

SMS FLS063 0.63” (16mm)4.5mm39” (1m)

SMS FLS075 0.75” (19mm)4.5mm39” (1m) SMS FLS085 0.85” (22mm)4.5mm39” (1m)

Flexible Heater Hose

DRAIN

SMS FL45050 0.50” (13mm)4.5mm140mm

SMS FL45063 0.70” (16mm)4.5mm140mm

SMS FL45075 0.75” (19mm)4.5mm140mm SMS FL45085 0.85” (22mm)4.5mm140mm

0.50” (13mm)4.5mm130mm

FL90063 0.63” (16mm)4.5mm130mm SMS FL90075 0.75” (19mm)4.5mm125mm SMS FL90085 0.85” (22mm)4.5mm120mm

Ideal for extremely high temperature applications in radiator, heater and other coolant transfer. Constructed with silicone rubber.

• Reinforced with tough, high temperature resistant polyester textile cords

• Exceptionally flexible

• Highly resistant to weathering, coolant deterioration, ozone & temperature extremes

• Can be used for heater hose applications

• Temperature rating: –70°F to +350°F (–57°C to +177°C)

• Sold by the metre

• Caution: Do not use for fuel or oil transfer applications

Ducting Hose & Clamps

Ducting

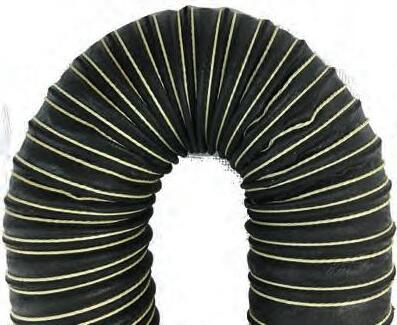

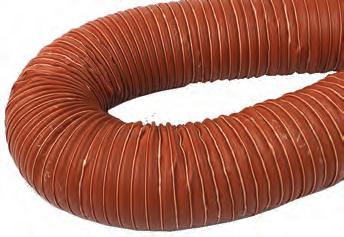

SFS Ducting

AEROSPACE “SCAT” STYLE

• Brake ducting

• Hi-Carbon steel wire

• Single wall

• Rated up to 550°F

• 11ft / 3.35m lengths - Sold in half or full lengths

550°F

SCAT - HIGH TEMP DUCTING - SINGLE WALL PART NO.BORE (I.D.)PART NO.BORE (I.D.)

SFS D100 1.00” (25mm)

3.25” (82mm) SFS D150 1.50” (45mm)

D175 1.75” (45mm)

(70mm)

3.50” (89mm)

(152mm)

SFS D300 3.00” (76mm) - -

Hose Clamps, Clips & Coupling Kits

Clamps Clips

SHU001

SHU08 0.50”12-20mm

SHU10 0.625”16-25mm

SHU12 0.75”16-27mm

SHU16 1.00”20-32mm

SHU18 1.15”*25-40mm

SHU20 1.25”30-45mm

*New size available

ROLLED EDGE HOSE CLIPS

T-Bolt Clamps

SHU24 1.50”35-50mm

NO.CLAMP SIZE SHM008 MINI 7.5 - 8.5mm SHM009 MINI 8.5

V-Band Coupling Kits

Premium quick release V-Band coupling kits made of 304 stainless steel.

• Cad plated, aerospace grade hi-temp locking nut

• Triple welded 304 stainless clamp

Constant Tension Clamps

Turbosmart stocks and recommends Murray Corporation turbo seal series stainless steel specialty worm drive clamps.

• Two per pack

Aluminium Tube

Aluminium Tube & Mandrel Bends

STRAIGHT

MB-S022 0.875” (22mm)

MB-S100 1.00” (25mm)

MB-S125 1.25” (32mm)

MB-S150 1.50” (38mm)

MB-S175 1.75” (45mm)

MB-S200 2.00” (51mm)

MB-S225 2.25” (57mm)

MB-S250 2.50” (63mm)

MB-S275 2.75” (70mm)

MB-S300 3.00” (76mm)

MB-S350 3.50” (88mm)

MB-S400 4.00” (102mm)

60 DEGREE

PART NO. O.D.

MB60-100 1.00” (25mm)

MB60-125 1.25” (32mm)

MB60-150 1.50” (38mm)

MB60-175 1.75” (45mm)

MB60-200 2.00” (51mm)

MB60-225 2.25” (57mm)

MB60-250 2.50” (63mm)

MB60-275 2.75” (70mm)

MB60-300 3.00” (76mm)

MB60-350 3.50” (88mm)

MB60-400 4.00” (102mm)

MB60-450 4.50” (108mm)

MB60-500 5.00” (127mm)

MB60-600 6.00” (152mm)

30 DEGREE

PART NO. O.D.

MB30-100 1.00” (25mm)

MB30-125 1.25” (32mm)

MB30-150 1.50” (38mm)

MB30-175 1.75” (45mm)

MB30-200 2.00” (51mm)

MB30-225 2.25” (57mm)

MB30-250 2.50” (63mm)

MB30-275 2.75” (70mm)

MB30-300 3.00” (76mm)

MB30-350 3.50” (88mm)

MB30-400 4.00” (102mm)

MB30-450 4.50” (108mm)

MB30-500 5.00” (127mm)

MB30-600 6.00” (152mm)

75 DEGREE

MB75-100 1.00” (25mm)

MB75-125* 1.25” (32mm)

MB75-150 1.50” (38mm)

MB75-175 1.75” (45mm)

MB75-200 2.00” (51mm)

MB75-225 2.25” (57mm)

MB75-250 2.50” (63mm)

MB75-275 2.75” (70mm)

MB75-300 3.00” (76mm)

MB75-350 3.50” (88mm)

MB75-400 4.00” (102mm)

DEGREE

MB45-100 1.00” (25mm)

MB45-125 1.25” (32mm)

MB45-150 1.50” (38mm)

MB45-175 1.75” (45mm)

MB45-200 2.00” (51mm)

MB45-225 2.25” (57mm)

MB45-250 2.50” (63mm)

MB45-275 2.75” (70mm)

MB45-300 3.00” (76mm)

MB45-325 3.25” (82mm)

MB45-350 3.50” (88mm)

MB45-400 4.00” (102mm)

90 DEGREE

PART NO. O.D.

MB90-100 1.00” (25mm)

MB90-125 1.25” (32mm)

MB90-150 1.50” (38mm)

MB90-175 1.75” (45mm)

MB90-200 2.00” (51mm)

MB90-225 2.25” (57mm)

MB90-250 2.50” (63mm)

MB90-275 2.75” (70mm)

MB90-300 3.00” (76mm)

MB90-350 3.50” (88mm)

MB90-400 4.00” (102mm)

MB90-450 4.50” (108mm)

MB90-500 5.00” (127mm)

MB90-600 6.00” (152mm)

Aluminium Tube & Mandrel Bends (continued)

Mandrel Bends

MB135-100 1.00” (25mm)

MB135-125 1.25” (32mm)

MB135-150 1.50” (38mm)

MB135-175 1.75” (45mm)

MB135-200 2.00” (51mm)

MB135-225 2.25” (57mm)

MB135-250 2.50” (63mm)

MB135-275 2.75” (70mm)

MB135-300 3.00” (76mm)

MB135-350 3.50” (88mm)

MB135-400 4.00” (102mm)

Reducers & Donuts

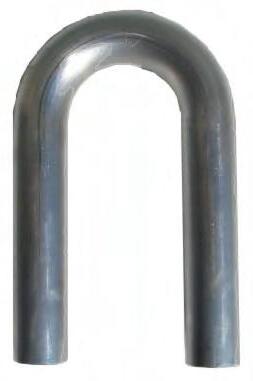

MB180-100 1.00” (25mm)

MB180-125 1.25” (32mm)

MB180-150 1.50” (38mm)

MB180-175 1.75” (45mm)

MB180-200 2.00” (51mm)

MB180-225 2.25” (57mm)

MB180-250 2.50” (63mm)

MB180-275 2.75” (70mm)

MB180-300 3.00” (76mm)

MB180-350 3.50” (88mm)

MB180-400 4.00” (102mm)

(25mm)

(76mm)

MB-D350 3.50” (88mm)

MB-D400 4.00” (102mm)

MB-D500 5.00” (127mm)

Aluminium Tube

1.00”2.00mm39mm130mm 1.25”1.42mm49mm140mm 1.50”1.60mm58mm145mm 1.75”1.63mm68mm145mm 2.00”1.63mm78mm140mm 2.25”1.63mm85mm145mm 2.50”2.03mm95mm145mm 2.75”2.03mm105mm140mm 3.00”2.03mm116mm150mm 3.50”2.03mm114mm185mm 4.00”2.00mm152mm210mm

Alloy Tube

Aluminium tube for all sorts of purposes, from fuel lines to on-board fire extinguisher lines. It is extremely light weight, easy to flare and bend, and it looks great too! When used and flared with the 818 and 819 tube nuts & sleeves, it creates a perfect seal and the ability to adapt to aluminium hose ends.

Only available in a natural aluminium finish.

Turbosmart is a world leading manufacturer in performance accessories including the highest quality Blow-Off Valves, Wastegates, Boost Controllers, Gauges, & Pressure Regulators for both the track and the street!

Turbosmart now have a new range of GEN-V products, so if you’re looking for External Wastegates and/or Blow-Off Valves, look for the “Turbosmart” logo. The GEN-V range of products have won a total of ten SEMA global media awards between them.

Boost Control

The ultimate boost controller. Designed with high performance and racing in mind, it is perfect for the tough conditions of track use, and absolutely untouchable in a street application. It is available in two sizes (60 & 66mm).

• Control six levels of boost, with a maximum boost of 60psi

• Enjoy faster boost response, thanks to Turbosmart’s unique Gate Pressure function, and longer boost duration at high RPM via RPM correction factor

• Use “Boost on Demand” for instant overtaking power

• Set different boost levels for each gear or boost against time/RPM

• Control water spray, methanol, nitrous injection, or just about anything else with e-Boost 2’s handy auxilliary outputs

• Monitor your boost and RPM with Peak Hold/Max Boost recall

• Protect your motor with Overboost Shutdown safety feature

TS-0301-1002 eBoost 2 - 60mm Boost Controller Black/Silver

TS-0301-1003 eBoost 2 - 60psi 60mm Sleeper

TS-0301-1011 eBoost 2 - 60psi 66mm Sleeper

TS-0301-1013 eBoost 2 - 60psi 66mm Boost Controller Black/Silver

TS-0301-1103 eBoost 2 - 60psi 60mm Sleeper 4 Port

TS-0301-2001 eBoost 2 - 60mm Dash Mounting System

TS-0301-2002 eBoost 2 - 60mm Roll Cage Mount

TS-0301-2003 eBoost 2 - 4 Port Solenoid System

TS-0301-2013 eBoost 2 - 66mm Dash Mounting System

TS-0301-2014 eBoost 2 - 66mm Roll Cage Mount

TS-0301-3003 eBoost 2 - 3 Solenoid System

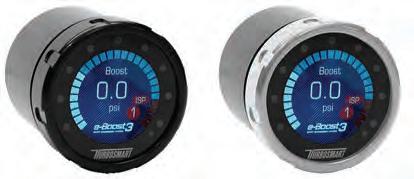

Building on the legendary performance of the eBoost2, the eBoost3 delivers precision control, powerful features, and a state-of-theart interface, making it the go-to solution for both street and race applications.

• Up to 6 programmable stages of boost by gear, RPM, time or custom

• Integrated 3 bar boost pressure sensor

• Auxiliary outputs for water spray, methanol or nitrous injection, shift lights, warning lights, and more

• Display and log critical data like RPM, Boost and Input Data

• Customizable over-boost shutdown and peak boost recall

• Logical menu navigation with quick adjustments via rotating bezel

TS-0311-1002 e-Boost 3 - Black - 60mm Diameter

e-Boost 3 - Silver - 60mm Diameter

e-Boost Street - 40psi

Racing technology for the street! The e-Boost STREET. This is an electronic boost controller aimed at the street performance market. New features include 40psi max boost operating pressure and an auxiliary output.

• Size: 1/4 DIN

x 3.78”)

PART

TS-0302-1002

Boost Control & Blow-Off Valves

Boost Control (continued)

Electronic Gauges

Turbosmart’s new range of electronic stepper motor-controlled gauges for turbo vehicles includes a Boost Only and an Exhaust Gas Temperature (EGT) gauge. These gauges are a complete standalone solution, with everything you need to obtain this information from your vehicle – including thermo couplers for EGT and transmission temperature gauges, and electronic boost gauges.

Manual Boost Controllers

Easy to fit, simple in operation, and require little maintenance – one of the best “bang for buck” performance mods on the market.

• A simple, cost effective solution to boost control

• An easy to use detent adjustment system

• Robust engineering with the one piece body and solid needle valve

• Turbosmart’s exclusive gate feature which brings boost on earlier

• Easy mounting with the supplied bracket

- Boost Tee: The perfect ‘set and forget’ boost controller

- In-Cabin: Adjust the boost from the driver’s seat

TS-0701-1011 30psi Boost Only Gauge (Diesel Engines)

TS-0701-2011 Exhaust Gas Temperature Gauge - Fahrenheit

TS-0101-2024 Mount Cup - 52mm TS-0701-1011 TS-0101-2024

Looking for our Fuel Pressure Gauge - see page 110.

Our Transmission Temperature Gauge is on page 112.

Blow-Off Valves

Plumb Back

HIGH PERFORMANCE / CUSTOM BUILDS (UP TO 600 HP)

Turbosmart’s Plumb Back BOV operates quietly, just like a standard diverter valve, so it does not draw unwanted attraction. It offers all the performance and durability benefits of a Turbosmart BOV, but with quiet operation that keeps you under the radar.

• A fulltime recirculating BOV, with one plumb back port

• Quiet operation

Supersonic

HIGH PERFORMANCE / CUSTOM BUILDS (UP TO 600 HP)

The quintessential Turbosmart BOV, with that classic Blow-Off Valve noise. The Supersonic vents completely to atmosphere for big sound and big performance. The Supersonic is the BOV for the driver who wants the show along with the go.

• A full-time vent to atmosphere BOV, featuring a single trumpet provides the characteristic Turbosmart blow-off valve noise we know and love

Blow-Off Valves

Blow-Off Valves (continued)

Vee-Port Pro

POWERSPORTS / HIGH-PERFORMANCE BUILDS (UP TO 600 HP)

Originally designed for the Powersports market, the Vee-Port PRO is an ideal Blow-Off Valve for anyone who is short on space, or looking for a low-weight BOV solution.

• A full-time vent to atmosphere Blow-Off Valve

• A very compact design, perfect for tight to fit places

• A hard anodised aluminium piston for lightness

• Very high flow ability with a 38mm/1.5in piston

• Precision machining and assembly – the piston and valve body are measured to mere fractions of a millimetre, and perfectly matched

• Quick release V-band clamp for ease of fabrication and installation

TS-0205-1130 Vee-Port PRO Universal - Blue

TS-0205-1131 Vee-Port PRO Universal - Black

TS-0205-3009 vBOV V Band Clamp Assembly

TS-0205-2002 Weld Flange Aloy 38mm

TS-0205-3010 BOV O-ring kit

Big Bubba

Sometimes bigger is just better.

Designed for large capacity supercharged and turbocharged engines, including turbo-diesel engines, the Big Bubba is Turbosmart’s largest piston style Blow-Off Valve.

• Huge 50.8mm/2” inlet and outlet

• Hard anodised aluminium piston for light weight

• Strong V-band mounting interchangeable with the Race Port BOV

Available in two different styles:

- Big Bubba: Full-time recirculating

- Bubba Sonic: Full-time vent to atmosphere

TS-0204-1203 Big Bubba BPV ‘By-Pass Valve’ BOV

TS-0204-1303 Big Bubba BOV Sleeper

TS-0204-2006 V Band Blanking Plate Race Port & Big Bubba

TS-0204-2204 21” HG Spring

TS-0204-3001 Alloy Weld Flange

TS-0204-3004 V Band

TS-0204-3005 Flange O Ring

TS-0204-3106 Big Bubba BOV O-ring Kit

Smart Port Technology

HIGH PERFORMANCE / OEM UPGRADE (UP TO 600 HP)

The Smart Port is a revolutionary Blow-Off Valve design, combining precision construction with state of the art materials to give unrivalled valve performance. The Smart Port’s unique piston is made from an aerospace alloy with a military-spec coating, ensuring its weight and friction are as low as possible, resulting in quicker valve response, better sealing and superior durability.

• Drive-by-wire friendly staging technology, eliminating compressor surge at both low and high RPM while integrating smoothly with the car’s factory engine mapping

• A hard-anodised, lightweight, aluminium piston providing better valve response and prolonged piston life

• New Smart Port trumpet design which allows the use of a softer spring in the body of the BOV to aid valve response to the plumb back port, while still retaining the ability to vent to atmosphere

• The Smart Port is currently available on type 5 BOVs to suit a wide range of vehicles

PART

TS-0215-1018

Dual Port Subaru WRX 2015-current - Black

TS-0203-3004 Kompact BOV Trumpet

TS-0203-3014 Kompact BOV O-ring kit

Power Port

HIGH LEVEL DRAG RACING FOR TURBO / SUPERCHARGED APPLICATIONS (UP TO 3000+ HP)

Turbosmart’s largest and highest flowing Blow-Off Valve ever. The massive 2.5” inlet, unprecedented valve lift, supersized ports and carefully designed CFD flow-paths mean it has more than enough breathing room for even the most powerful turbocharged drag racing engines. Its cutting edge dual-chamber design means it can be held open with the use of a solenoid to aid turbo response and control during staging to give the best possible launch. Also available with a sensor cap, which can be used to log valve position. Supplied With: 1/4” -4AN nipple, 1/8” NPT blank, 1/8” NPT nipple, profiled inlet weld-on flange (alloy) and collar tool.

• Billet 6000 series aluminium, MILSPEC hard anodised valve

• Quick release V-band collar for ease of installation and removal

• 2.5” inlet flows over 600 CFM

• Twin 1/8” NPT port lower chamber for advanced control strategies

• -4 AN upper port

• Collar secured cap for quick spring changes

• 4”Hg to 20”Hg activation range

TS-0207-1001

TS-0207-1002

TS-0207-3005

TS-0207-3009

Power Port BOV - Blue

Power Port BOV - Black

Power Port Diaphragm

Power Port Inlet O-ring

TS-0207-3004 V Band Clamp

TS-0207-3001

Power Port Alloy Weld Flange

Blow-Off Valves (continued)

Gen-V Race Port

ULTRA HIGH PERFORMANCE (UP TO 2,500 HP)

GEN-V SERIES

Amazingly small and light BOV for forced induction competition level engines. Featuring our unique collar design, twin 1/8” NPT pressure ports and internal flow structures, it is 50% lighter and 25% smaller than the competition, while flowing 330 CFM – making it the highest flowing BOV of it’s type on the market. Available with a sensor cap. Supplied with: vacuum fittings, profiled alloy weld flange, V-band assembly, and blue spring, rated -18 to -14” Hg (installed).

• Twin 1/8” NPT pressure ports for convenient positioning

• Billet 6000 series aluminium construction

• Quick release v-band collar for ease of installation and removal

• Female flange version available to suit other 50mm flanges

• 2.0” Inlet flows over 330 CFM

• MILSPEC hard anodised valve guide and stem

• Hi temp silicon Nomex diaphragm

• Collar secured cap for quick spring changes

• 4”Hg to 26” Hg activation range with spring kit (TS-0204-2104)

• Hall Effect, non-contact valve position sensor option available

25mm Kompact Dual Port

Dual outlet-type BOV. Dual port vents both to the atmosphere and back into the air intake. Ports with sequential timing allow quieter operation during normal driving, while getting all the benefits of a vent-to-atmosphere BOV under race conditions. Easily converted to a full atmospheric or full bypass unit by using supplied port blanking plug.

Please note that for twin-turbo applications, such as the Audi S4 2.7L (B5) 97-01, this will require two valves.

TS-0203-1022

25mm Kompact Dual Port

TS-0203-3014 Kompact BOV O-ring Kit

TS-0203-3008 Kompact Blow-Off Valve Fitting - 20mm

TS-0203-3009 Kompact Blow-Off Valve Fitting - 50mm

TS-0203-3010 Kompact Blow-Off Valve Fitting - 34mm

TS-0203-3005 Kompact Inlet Fitting - 20mm

TS-0203-3006 Kompact Inlet Fitting - 25mm

TS-0203-3007 Kompact Inlet Fitting - 34mm

TS-0203-3011 Kompact Port Blanking Plug

Boost Gauges

Mechanical Boost Gauges

A Turbosmart mechanical boost pressure gauge is the perfect accompaniment to a Turbosmart manual boost controller. Available in both psi and bar, Turbosmart’s mechanical boost gauges are a simple and reliable way to monitor boost pressure.

Blow-Off Valves

TS-0204-1132

TS-0204-3103

TS-0204-3005 Race Port Flange O-ring

TS-0204-3004 Race Port V Band

TS-0204-3001

20mm Kompact Plumb Back

Full recirculating BOV. The Plumb Back system recirculates all excess pressure back into the intake system. Great for enthusiasts not wanting to be noticed but wanting the performance and reliability benefits of a quality BOV.

APPLICATION: Fits most cars using the factory BOSCH or DENSO bypass valves.

DESCRIPTION

TS-0203-1221 20mm Kompact Plumb Back

TS-0203-3008 Kompact Blow-Off Valve Fitting - 20mm

TS-0203-3009 Kompact Blow-Off Valve Fitting - 50mm

TS-0203-3010 Kompact Blow-Off Valve Fitting - 34mm

TS-0203-3005 Kompact Inlet Fitting - 20mm

TS-0203-3006 Kompact Inlet Fitting - 25mm

TS-0203-3007 Kompact Inlet Fitting - 34mm

TS-0203-3011 Kompact Port Blanking Plug

Fuel Regulators Fuel Regulators

FPR Kompact Uni 1/8″ NPT (Sleeper)

An all-black Fuel Regulator Upgrade Series for OE and mild upgrades to around 800HP. The FPR Kompact Series includes universal (1/8NPT) fuel fittings and bolt-on direct replacement for Bosch in-rail style regulators as fitted to the VAG (Volkswagen Audi Group) of vehicles and the Ford ‘Barra’ Engine as found in the Australian Delivered Ford XR6 turbo. They are providing class-leading fuel control and response with a small footprint.

• Stainless steel valve seat

• Suitable for all fuel types

• 1:1 class leading ratio and response

• Adjustable pressure

• 1/8 NPT gauge / pressure sensor port

• Unique locking collar design

• Milspec diaphragm

• Detailed specific fuel flow data and spec

Note “LP” denotes (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 800HP systems.

TS-0404-1015 FPR Kompact Uni 1/8” NPT (Sleeper)

TS-0404-1115 FPR Kompact Low Pressure Uni 1/8″ NPT (Sleeper)

FPR8 Series

The Turbosmart FPR8 Series provides market-leading fuel control and response via a true 1:1 ratio and superior flow and bypass capacity for vehicles with -8 / 8AN fuel systems. Utilising their stainless-steel valve seat & milspec diaphragm, the FPR8 series is suitable for all fuel types, including race fuel and aggressive leaded fuels. Turbosmart’s FPR8 range includes an 8AN inlet, outlet, and returns port and is available in standard (35psi to 80psi) and LP (3psi to 20psi) for low pressure and carburettor systems to suit 2000HP systems.

• Stainless steel valve seat

• Suitable for all fuel types

• 1:1 class leading ratio and response

• Adjustable pressure

• 1/8 NPT gauge / pressure sensor port

• Unique locking collar design

• Milspec diaphragm

• Detailed specific fuel flow data and spec

Note “LP” denotes (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 2000HP systems

Fuel Pressure Regulator

(Black)

FPR6 Series

The Turbosmart FPR6 Series provides market-leading fuel control and response via actual 1:1 ratio and superior flow and bypass capacity for vehicles with -6 / 6AN fuel systems. Utilising our Stainless Steel Valve Seat & Milspec Diaphragm, the FPR6 Series is suitable for all Fuel types, including Race Fuel and aggressive leaded fuels. Turbosmart’s FPR6 Range includes a 6AN inlet, outlet and returns port and is Available in Standard (35psi to 80psi)

• Stainless steel valve seat

• Suitable for all fuel types

• 1:1 class leading ratio and response

• Adjustable pressure

• Milspec diaphragm

• 1/8” NPT gauge / pressure sensor port

• Unique locking collar design

• Detailed specific fuel flow data

• Available in black or blue

Note “LP” denotes (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 1200HP systems.

FPR10 Series

The Turbosmart FPR10 series provides market-leading fuel control and response via a true 1:1 ratio and superior flow and bypass capacity for vehicles with -10 / 10AN fuel systems. Utilising our stainless steel valve seat & Milspec diaphragm, the FPR10 series is suitable for all fuel types, including race fuel and aggressive leaded fuels. Our FPR10 range includes a 10AN inlet, outlet and returns port and is available in standard (35psi to 80psi) and LP (3psi to 20psi) for low pressure and carburettor systems to suit 3000HP systems.

• Stainless steel valve seat

• Suitable for all fuel types

• 1:1 class leading ratio and response

• Adjustable pressure

• 1/8 NPT gauge / pressure sensor port

• Unique locking collar design

• Milspec diaphragm

• Detailed specific fuel flow data and spec

Note “LP” denotes (3psi to 20psi) for Low Pressure and Carburettor Systems to suit 3000HP systems

Fuel Regulators

Fuel Regulators (continued)

FPR Pro 10 Series

The Turbosmart FPR Pro 10 series provides market-leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -10 / 10AN fuel feed and -10 / 10AN return fittings. Utilising their stainless steel valve seat & Milspec diaphragm, the FPR10 Pro series suits all fuel types, including race fuel and aggressive leaded fuels. Our FPR10 Pro range includes 1 x 10AN inlet, 4 x 8AN outlet ports and an 10AN return and is available in Pro EFI (50psi to 130psi) and Pro M (50psi to 100psi) for mechanical pump systems.

Available in Pro (EFI) and Pro M (mechanical pump)

- suits up to 3000HP systems.

• 10AN inlet and return

• 4 x 8AN fuel distribution

• Stainless steel valve seat

• Suitable for all fuel types

• 1:1 class leading ratio & response

• Adjustable pressure

• 1/8 NPT pressure sensor port

• Unique locking collar design

• Milspec diaphragm

• Detailed specific fuel flow data & spec

Fuel Rail Adaptors

Adapt fuel pressure regulators to the following OEM fuel rails:

Mazda 13BREW: FD3S RX7 Series 6

Nissan RB26DETT: BNR32, 33, 34 GTR

Nissan RB25DET: HCR32, ECR33, ER34 Skyline

Nissan SR20DET: S13, S14, S15 SILVIA

Nissan CA18DET: S13, 180SX

Subaru EJ20: GC8 WRX before Bug Eye Subaru EJ25: WRX 08 - CURRENT, Forester 08 - CURRENT, Liberty 05 - 18

TS-0402-1001 Nissan/Subaru/Mazda

Mitsubishi 4G63: Evo 4, 5, 6, 7, 8

Mitsubishi 6A12 Mivec: FTO

TS-0402-1005 Mitsubishi

Subaru EJ20: GDA WRX Bug Eye onwards Toyota 2JZGTE: JZ80 SUPRA, JZS147 ARISTO Toyota 4EFTE: EP STARLET Toyota 4AGZE Toyota 4AGE

TS-0402-1002 Toyota / Subaru

Ford BA, BF, FG XR6 Turbo & Territory Turbo, Audi/VW 1.8L Turbo

Ford / Audi / VW

Fuel Rail AdaptorBolt Centre Guide

TS-0402-1014

FPR Pro 12 Series

The Turbosmart FPR Pro 12 series provides market leading fuel control and response via true 1:1 ratio and superior flow and bypass capacity for vehicles with -12 / 12AN fuel feed and -12

/ 12AN return fittings. Utilising their stainless steel valve seat & Milspec diaphragm the FPR12 pro series is suitable for all fuel types including race fuel and aggressive leaded fuels. Our FPR12 Pro range includes 1 x 12AN inlet, 4 x 10AN outlet ports and a 12AN return and is available in Pro EFI (50psi to 130psi) and Pro M (50psi to 100psi) for mechanical pump systems.

Available in Pro (EFI) and Pro M (mechanical pump)

- suits up to 3000HP systems.

• 12AN inlet & return

• 4 x 10AN fuel distribution

• Stainless steel valve seat

• Suitable for all fuel types

• 1:1 class leading ratio & response

• Adjustable pressure

• 1/8 NPT pressure sensor port

• Unique locking collar design

• Milspec diaphragm

• Detailed specific fuel flow data & spec

TS-0404-1252 FPR Pro 12 Series - Suits EFI

Mazda 13B: RX7 Series 4 Toyota 3SGTE: MR2, CELICA GT4 Toyota 1UZ-FE Lexus/Soarer V8 Toyota 1JZGTE: SUPRA, CRESTA, CHASER, MARK II

PART NO.SUITS

TS-0402-1003 Toyota / Mazda

Subaru WRX STI 08 onwards (includes 90° fitting)

Honda B16A: EG6 CIVIC SIR, EK4 CIVIC, CRX DEL SOL Honda B16B: EK9 CIVIC TYPE R

NO.SUITS

TS-0402-1004 Honda

Mitsubishi 4B11T: EVO X (10) onwards (includes 90° fitting)

NO.SUITS TS-0402-1014 Mitsubishi (EVO X)

Fuel Pressure Gauge

Turbosmart Fuel Pressure Gauge is designed to suit Turbosmart’s Fuel Pressure Regulator Series, including the FPR800, 1200, 2000 and 3000 models. It easily connects to a 1/8 NPT port, giving precise readings on fuel pressure levels. Turbosmart’s sturdy construction ensures accuracy and durability so that you can rely on quality and reliable results every time.

Get your Turbosmart Fuel Pressure Gauge today for the best performance from your Turbosmart Fuel Pressure Regulators!

Wastegates

Wastegates

Ultra-Gate38 GEN-V SERIES

The Gen-V WG38 Ultragate38 external wastegate is a cost effective, high performing 38mm external wastegate designed for bolt on solutions where the 2-bolt flange is utilised.

• Interchangeable with all other 2 bolt wastegates (71mm bolt spacing)

• 38mm valve size

• High temp spring combinations from 3 - 26psi supplied in the box

• 1/8” NPT ports

• Popular 2-bolt flange fitting to suit 1-5/8” OD pipe

• Locking collar

• Hall effect, non-contact position sensor option available

• Supplied with: springs, valve seat, gaskets, 2 x 1/8” NPT hose fittings, 2 x blanking plugs, collar tool and bolts to fit wastegate.

PART NO.

DESCRIPTION

TS-0551-1012 WG38 - 14psi - Black

TS-0551-3001 WG38 Valve Seat

TS-0551-3002 WG38 Valve & Guide Set

TS-0501-3002 WG38 Manifold Gaskets

TS-0501-2001 WG38 Weld Flanges - Stainless Steel

TS-0552-2002 WG38 Weld Flanges - Mild Steel

TS-0550-3022 GenV WG38/40 Sensor Cap

TS-0550-3004 WG38/40 Diaphragm Replacement Kit

TS-0550-3013 WG38/40 Actuator Collar Tool

TS-0550-3150 GenV WG38/40 Spring Replacement Kit

Hyper-Gate45

The GenV WG45 HyperGate45 External Wastegate is a motorsport-proven, costeffective 45mm external wastegate.

• Direct swap for Turbosmart Gen-4 HyperGate45 and other 44mm V-band wastegates

• 45mm valve size

• High temp spring combinations from 3 - 26psi supplied in the box

• 1/8” NPT ports

• V-band clamp mounting system to suit 1-7/8” OD pipe

• Locking collar for compact size and easy spring changes

GEN-V SERIES

• Available in motorsport and compressed gas versions

• Hall effect, non-contact position sensor option available

• Supplied with: springs, inlet, outlet weld flanges, V-band clamps, valve seat, 2 x 1/8” NPT hose fittings, blanking plugs & collar tool

TS-0553-1011

TS-0553-1012

TS-0553-3001

WG45 - 14psi - Blue

WG45 - 14psi - Black

WG45 Valve Seat

TS-0553-3002 WG45 Valve and Guide Set

TS-0553-3003

TS-0552-3003

TS-0504-3001

TS-0504-3002

WG45 Inlet V-Band

WG45 Outlet V-Band

WG45 Inlet Weld Flange

WG45 Outlet Weld Flange

TS-0550-3024 WG45/50 Sensor Cap Upgrade Kit Black (Sensor Inc)

TS-0550-3005 WG45/50 Diaphragm Replacement Kit

TS-0550-3014 WG45/50 Actuator Collar Tool

TS-0550-3151 GenV WG45/50 Spring Replacement Kit

Comp-Gate40

The Gen-V WG40 Compgate40 external wastegate is a cost effective, high performing 40mm external wastegate. The Highest flowing wastegate of its kind.

• Direct swap for Turbosmart Gen-4 Comp-Gate 40, inlet the same as other 38/40mm V-band wastegates

• 40mm valve size & 1/8” NPT ports

• High temp spring combinations from 3 - 26psi supplied in the box

• V-band clamp mounting system

• Motorsport and compressed gas versions

• Hall effect or non-contact position sensor option

• V-band clamp mounting system to suit 1-3/4” OD pipe

• Supplied with: springs, inlet, outlet weld flanges, V-band clamps, valve seat, 2 x 1/8” NPT fittings, blanking plugs, and collar tool.

PART NO.

DESCRIPTION

TS-0552-1012 WG40 - 14psi - Black

TS-0552-3001 WG40 Valve Seat

TS-0552-3002 WG40 Valve & Guide Set

TS-0552-3003 WG40 Inlet V-Band

TS-0552-3004 WG40 Outlet V-Band

TS-0505-3001 WG40 Inlet Flange

TS-0505-3002 WG40 Outlet Flange

TS-0550-3001 74mm Spring Kit

TS-0550-3022 GenV WG38/40 Sensor Cap

TS-0550-3150 GenV WG38/40 Spring Replacement Kit

TS-0550-3004 GenV WG38/40 Diaphragm Replacement Kit

TS-0550-3013 74mm Actuator Collar Tool

Pro-Gate50

The Gen-V WG50 Progate50 external wastegate is a cost effective, high performing 50mm external wastegate. The highest flowing 50mm External Wastegate in the world!

• Direct swap for Turbosmart Gen4 Pro-Gate50

• 50mm valve size & 1/8” NPT ports

• High temp spring combinations from 3 - 26psi supplied in the box

• V-band clamp mounting suits 2” OD pipe

• Compressed gas version

• Hall effect or non-contact position sensor option

• Supplied with: Springs, Inlet, outlet weld flanges, V-band clamps, valve seat, 2 x 1/8” NPT fittings, blanking plugs and collar tool.v

PART NO.

TS-0554-1002

DESCRIPTION

WG50 - 7psi - Black

TS-0554-1012 WG50 - 14psi - Black

TS-0554-3001 WG50 Valve Seat

TS-0554-3002 WG50 Valve and Guide Set

TS-0554-3003 WG50 Inlet V-Band

TS-0554-3004 WG50 Outlet V-Band

TS-0502-3001 WG50 Stainless Inlet Weld Flange

TS-0502-3002 WG50 Stainless Outlet Weld Flange

TS-0504-3007 WG50 Alloy Inlet Weld Flange

TS-0504-3008 WG50 Alloy Outlet Weld Flange

TS-0550-3005 WG45/50 Diaphragm Replacement Kit

TS-0550-3151 GenV WG45/50 Spring Kit

TS-0550-3024 84mm Sensor Cap Upgrade Black

TS-0550-3014 84mm Actuator Collar Tool

Wastegates / Gauge / Regulator

Wastegates (continued)

Power-Gate60

The GenV WG60 PowerGate60 External Wastegate is a Motorsport-proven, costeffective 60mm external wastegate – The largest in the Turbosmart GenV range and the Highest Flowing ‘Poppet Style’ Wastegate in the World.

• Direct swap for Turbosmart Gen 4 Power-Gate60 wastegates

• 60mm valve size

• High temperature spring combinations from 3 - 26psi supplied in the box

• 1/8” NPT ports

• V-band clamp mounting to suit 2-1/2” OD pipe

• Available in compressed gas version

• Hall effect or non-contact position sensor

• Supplied with: Springs, inlet & outlet weld flanges, V-band clamps, valve seat, 2 x 1/8” NPT hose fittings, blanking plugs, & collar tool

PART

TS-0555-1002

WG60 - 7psi - Black

TS-0555-1012 WG60 - 14psi - Black

TS-0555-1242 GenV PowerGate60 CG / C02 HP Full Range

TS-0555-3001 WG60 Valve seat

TS-0555-3002 WG60 Valve and Guide set

TS-0555-3003 WG60 Inlet V-Band

TS-0555-3004 WG60 Outlet V-Band

TS-0503-3001 WG60 Stainless Inlet Weld Flange

TS-0503-3002 WG60 Stainless Outlet Weld Flange

TS-0503-3007 WG60 Alloy Inlet Weld Flange

TS-0503-3008 WG60 Alloy Outlet Weld Flange

TS-0550-3152 GenV WG60 Spring Kit

TS-0550-3026 98mm Sensor Cap Upgrade Black

TS-0550-3006 98mm Diaphragm Replacement Kit

TS-0550-3015 98mm Actuator Collar Tool

Transmission Gauge

Transmission Temperature Gauge

Looking for an accurate and reliable way to monitor your transmission temperature? Turbosmart has you covered with their electric transmission temperature gauge. This easy-to-install gauge comes with a bracket, anti-glare shield, wiring harness, and transmission temperature sensor. With a measurement range of 100-280°F, you can be sure you’re getting the most accurate reading possible. So, whether you’re looking to improve your vehicle’s performance or keep an eye on your transmission temperature, Turbosmart has the solution for you.

• Facia diameter (gauge and bezel) - 57mm

• Rear diameter (gauge body) - 52mm

TS-0701-3011

GenV High Pressure 45psi External Wastegate

The GenV HyperGate45 HP is a motorsport proven, cost effective external wastegate with base spring pressure options of up to 50psi! Add to that some reference signal manipulation and you have some serious boost! The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

• HP actuator – up to 50psi base pressure

• Class leading thermal performance

• Class leading CFD and bench-validated flow performance

• Class leading fatigue resistance

• Optional actuator liquid cooling

• Rotatable / clockable actuator housing

• Nitronic 60 valve guide and high temp 347 SS body

• 17-7 PH stainless steel springs strap type V-band clamps

PART NO. DESCRIPTION

TS-0553-1312 GenV HyperGate45 HP External Wastegate

TS-0553-3001 WG45 Valve Seat

TS-0553-3002 GenV WG45 Valve & Guide Set

TS-0553-3003 WG45 Inlet V-Band

TS-0552-3003 WG45 Outlet V-Band

TS-0504-3001 WG45 Inlet Weld Flange

TS-0504-3002 WG45 Outlet Flange

TS-0550-3004 GenV WG38/40 Diaphragm Replacement Kit (The HP uses a smaller actuator & diaphragm)

Regulators

Oil Pressure Regulator

Turbosmart’s ALL NEW from 2022 OPR V2 Turbocharger Oil Pressure Regulator provides rock solid oil pressure for your turbocharger from a simple, inline return-less regulator and includes a built in 44 micron stainless steel mesh oil filter.

No more trial and error with with restrictors and orifice sizes, or needing to fit and plumb a reuturn line to regulate your turbocharger oil pressure, the OPR V2 from Turbosmart is a simple return-less and inline fitment with a built-in 44 micron oil filter. The built-in stainless steel mesh oil filter is serviceable and replaceable and is another layer of defence from debris in your engine oil damaging your turbocharger.

• Patent pending innovated design

• Alluminium (6262 T6) anodised body & valve

• Output regulated oil pressure suits most turbochargers

• Stainless Steel (304) mesh oil filter built-in

• -4AN inlet and outlet

• 1/8” NPT sensor / guage port

• Directional inlet feed logic

• Laminar flow output

• Suitable for all engine oils

• Australian designed & manufactured

Springs / Coupling / Clamps

Wastegate Springs

GEN4 WG 50/60 PART NO.PSISPRING COLOURSPRING

TS-0502-2001 5 Black / Grey Inner

TS-0502-2002 7 Black / White Inner

TS-0502-2003 7 Black

TS-0550-3081

Coupling Kits & Clamps

V-Band Coupling Kits

Premium quick release V-Band coupling kits made of 304 stainless steel.

• Cad plated, aerospace grade hi-temp locking nut

• Triple welded 304 stainless clamp

Constant Tension Clamps

Turbosmart stocks and recommends Murray Corporation turbo seal series stainless steel specialty worm drive clamps. • Two per pack

TS-HCT-M033 1.125 - 1.500”(28-38mm)1.25” Silicone

TS-HCT-M042 1.375 - 1.875”(35-48mm)1.50” Silicone

TS-HCT-M050 1.625 - 2.375”(41-60mm)1.75” Silicone

TS-HCT-M062 1.970 - 2.875”(50-73mm)2.25” Silicone

TS-HCT-M075 2.500 - 3.375”(64-86mm)2.50-2.75” Silicone

TS-HCT-M081 2.750 - 3.625”(70-92mm)2.75-3.00” Silicone

TS-HCT-M100 3.750 - 4.625”(95-117.5mm)4.00” Silicone

TS-ECK-350

TS-ECK-400

Photo Credit: Grant Stephens

Limited stock available for BOSCH parts as they are often discontinued without notice

Bosch Motorsport is a division of the global Bosch Group, a leading supplier of technology and services worldwide. From weekend enthusiast to Formula 1, Bosch has been providing advanced electronics, components and service for motorsport and high performance applications since 1901. Worldwide experience and race proven technology backed by local support is in your race car when you use Bosch Motorsport components.

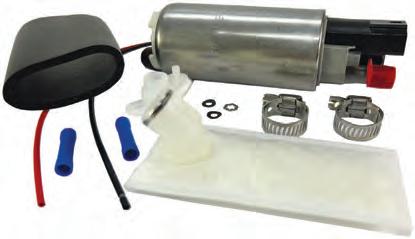

In-tank Fuel Pump

• Supercedes part number 0 580 254 979

• M14x1.5 inlet fitting

• M10x1 outlet fitting

• M4 & M5 +/- screw terminals

• No non-return check valve

• Includes pressure relief valve

• 60mm diameter body

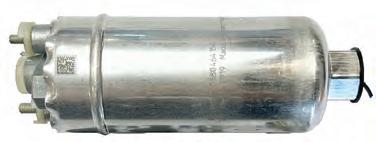

In-line Fuel Pump

LITRES

Known as the “NEW 044” this genuine pump is supplied direct from Bosch. Supercedes part number 0 580 254 044

• Flows ~10% higher than 044 / weighs 15% less than 044 at 860g

• Current draw similar to 044

• M14 x 1.5 inlet & M10 x 1 outlet fitting

• External non return valve

• Pressure relief valve 8-10bar

• Not suitable for voltage regulation

• Compatible with petrol E85 and diesel

• Ideal for generic & custom applications

FPx-HF In-tank Fuel Pump BR540

390 LITRES PER HOUR @ 5 BAR

Highest flowing Bosch in-tank fuel pump available!

• Up to 540 LPH @ open flow

• Up to 460 LPH @ 40 psi (2.75 bar)

• Up to 380 LPH @ 80 psi (5.5 bar)

• An amazing 270 LPH @ 145 psi (10.0 bar)

• High flow all the way up to the 190 psi (13.0 bar) pressure relief valve setting

• 9.0mm (nom.) barbed outlet fitting suits rubber or nylon hose

• Lightweight (550g) and compact 46mm body size

• Includes electrical connector with wires

• Includes high flow filter / inlet strainer

• Draws ~16A @ 40 psi (2.75 bar), ~19A @ 80 psi (5.5 bar)

NOTE: This pump needs to be securely installed inside the fuel tank via hanger or similar. Care should be taken to prevent separation of the filter from the pump.

•

*May require custom fittings & adaptors

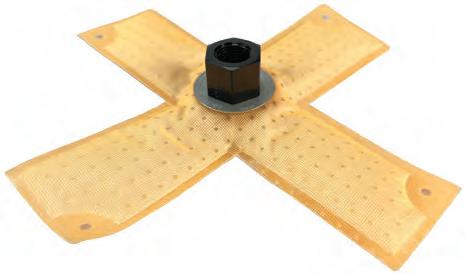

Adaptors to Suit

Sensors / Throttle

Sensors

• -40° to 130° Celsius range

• Suitable for liquid

• Jetronic 2 pin connector

• M12 x 1.5mm thread

• Suitable for water, coolant and oil

Pressure Sensor

FOR LIQUID - 420 BAR

0 - 420 bar (6090 psi) absolute PRESSURE sensor for liquid.

• Suitable for petrol, diesel, engine oil, brake fluid

• 45° cone seat, M10 x 1 fitting

• Compact 3 pin connector

545 136

Pressure BOS-D261 205 335-01 Mating Connector3 Pin Compact

Electronic Throttle

Electronic Throttle Body 74 or 82mm BORE

• Dual potentiometer redundancy

• OE quality and performance

• Includes groove on inlet port flange

• Use mating connector BOS-D 261 205 358-01

2x Sensors in one.

• 0 - 10.0 bar (145psi)

• -40 - 140° C

• Bosch Trapez 4-pin connector

• 45° cone seat, M10x1 fitting

• Suitable for Diesel, gasoline, water, engine oil, transmission oil

• Supersedes part number 0 261 230 340 Mating Connector Pressure/Temp Combined Sensor

Body Adaptors & Wiggins Clamps

Shown with Wiggins Clamp (see page 80)

Wiggins Tube Fitting (see page 81)

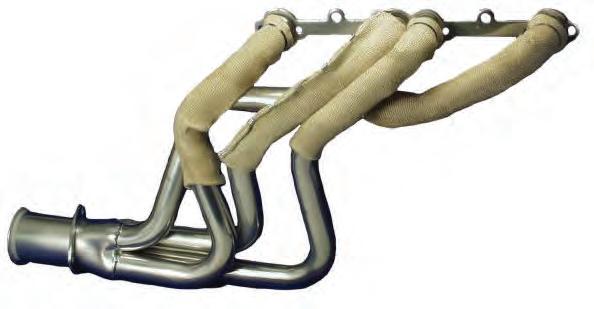

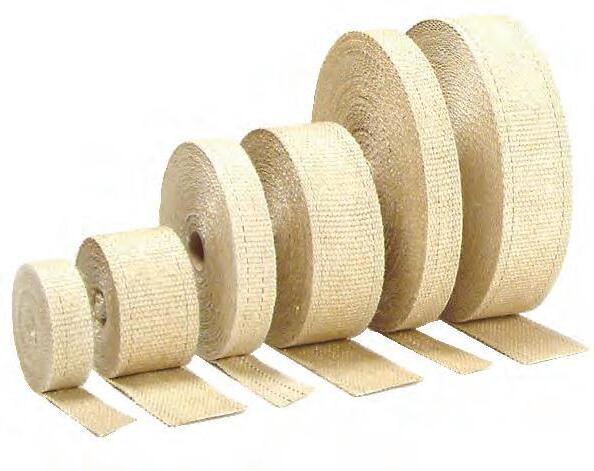

Exhaust Wrap

Tan or Black

Wrapping headers and down pipes is an important first step in controlling unwanted under hood radiant heat. Keeping exhaust gases hotter within the exhaust system helps in decreasing exhaust density and increases exhaust flow. This improves exhaust scavenging resulting in cooler air intake temperatures for an improvement in performance and a gain in horsepower. DEI’s Stainless Steel Locking Ties are the perfect way to fasten exhaust wrap for a easy, clean and professional installation.

• Reduces under hood temperatures by 50%

• Improves horsepower

• Withstands 648°C direct / 1,093°C radiant

• Only exhaust wrap with installation guide lines

• Added durability and heat retention

DEI010105DEI010120

Titanium

Titanium exhaust wrap, with LR technology, is made from pulverized lava rock and stranded into a fiber material and is engineered to be stronger than typical wraps. It has the ability to handle higher heat for improved performance and durability!

• Withstands 982˚C direct / 1,371˚C radiant heat

• High resistance to chemical, oil spills and abrasions

• Extremely pliable for easy install - will not shrink

• No need to “wet” wrap to install

PART NO.WIDTHLENGTH

DEI010128

(25mm)15ft DEI010129

(51mm)15ft / Black DEI010126

/ Black

the life span.

NOTE: Our HT Silicone Coating spray shown on the next page is highly recommended for exhaust wrap to penetrate, seal, protect and prolong

Thermal Protection

Exhaust Wrap, Silicone Coating & Lock Ties

EXO Exhaust Wrap HT Silicone Coating

Designed for extreme environment use. Traditional exhaust wraps have not been able to withstand the extreme use that off-road, dirt track, desert and other forms of driving have with exposure to water and dirt. The EXO Series (TM) is a dual-layer design using a combination of hi-temp glass fibre covered with a 304 grade stainless steel exoskeleton. It maintains high heat protection while offering superior abrasion and impact protection. The unique Air Gap Technology keeps direct contact of the glass fibre wrap off the hot surface, creating an insulating air barrier. Easy to install on any type of header, exhaust pipe or exhaust system. It is ideal for high impact spot protection and in addition the stainless steel exoskeleton locks together when overlapped, keeping the wrap tight and making installation easy.

• Black in either 10ft or 20ft rolls

Pipe Wrap & Locking Ties Kit

A roll of 2” x 25’ exhaust wrap. Available in Tan or Titanium. 4 x 8” stainless steel locking ties to secure wrap. Wrapping uses include:

• Header tubes to protect plug wires

• Downpipes to improve velocity

• Sections of exhaust and tail pipe to reduce heat

• Motorcycle pipes to prevent leg burns.

Stainless Steel Lock Ties

Locking Ties

These locking ties were designed to secure DEI’s exhaust wrap but the uses are endless. Made of high grade stainless steel they will withstand temperatures in excess of 1,371°C and have a tensile strength over 100lbs. They will provide a finished look to any job quickly and easily.

The High Temperature (HT) Silicone Coating provides lasting protection for any hot surface up to 815°C. Seals exhaust wrap providing protection from oil, dirt and road grime. Don’t limit the use to exhaust header wrap, this products works well on headers, blocks, starters and even on your grill at home.

Speed Sleeves

Speed Sleeves provide everything needed to cover and protect primary exhaust header pipes. An alternative to wrapping complete headers and ideal for spot protection from heat generating pipes and manifolds. Serves as an insulator and radiant heat barrier. Quick and simple installation!

Includes 8” wide exhaust wrap, lock fasteners and locking ties.

• Supplied wrap covers pipes to 2-1/2” diameter

• Colour - Tan

Designed to secure DEI’s exhaust wrap but the uses are endless. Withstand temps in excess of 1,371°C and have a tensile strength over 100lb.

Simply slide the tool on the end of any ¼” nut driver, engage the tie, and twist. This gets the tie nice and secure. It will fit on the end of any standard ¼” drive extension so working in tight spaces is not a problem. Works with all popular styles of stainless ties - up to ½” wide. Made from hardened tool steel and black oxide coated for years of trouble free use. PART

Thermal Protection

Heat Protection

Cool Tape

Cool-Tape offers a flexible, easy to apply and ultra light weight solution to reflect heat and ideal for wrapping wiring, cables, hoses, fuel lines and covering seams. Made of 1mm aluminised material bonded to woven fiberglass, Cool-Tape has a super strong self-adhesive backing capable of protecting up to 1,093°C radiant heat and available in two different widths and three different lengths.

• Flexible and easy to apply

• Strong self-adhesive backing

• Withstands 1,093°C radiant heat

• Secure & seal panels, seal air boxes & more

Reflect A Gold

A high performance reflector born in the aerospace industry for use in extreme temperature swing environments, this state-of-the-art polymer is extremely light weight and capable of handling continual operating temperatures up to 850 C.

Highly effective material for firewalls, fuel cells, engine covers, under hoods, engine compartment, bulk heads, seat bottoms - or any area that needs protection from heat.

• Reflects up to 80% of radiant heat

• Virtually NO clearance needed

• Fire resistant adhesive side rated up to 162˚C

• Self-adhesive backing for easy install and removal

DEI010394 1-1/2”15ft (4.55m)

1-1/2”30ft (9.1m) DEI010396 2”15ft (4.55m)

DEI010397 2”30ft (9.1m)

Heat Screen

DEI010391 12” x 12” Sheet DEI010392 12” x 24” Sheet

We also have a huge range of Tapes and Adhesives worth checking out

Heat Screen offers an excellent way to reflect radiant heat away from a vehicle‘s interior and because of its flexibility, can be trimmed-to-size to protect against excessive heat sources. Constructed of a high temperature resistant fiberglass material, and with a thickness of only .060”, Heat Screen features a thermal barrier on one side made of a superior reflective aluminised mylar surface capable of withstanding direct heat up to 648°C.

Heat Screen can be used to protect areas where excessive heat can blister paint, where exhaust pipes run close to the fuel tank, and has many other applications including floorboards, body panels and under carpeting.

• Aluminised surface reflects up to 1,371°C radiant or 648°C direct /continuous heat

• Multitude of uses around race cars, boats, RV’s & trucks

• Great protection for painted surfaces

• Used in aviation and aerospace industry

• 36”x 40” aluminised mylar radiant matting

*Note: A high temperature adhesive such as DEI’s Hi-Temp Spray Adhesive (Part No. DEI010492) or can be applied to secure Heat Screen or screws or rivets can be used.

DEI’s Cool Tape is ideal for sealing and covering seams.

Matting - Non Adhesive*

Thermal Protection

Heat Protection

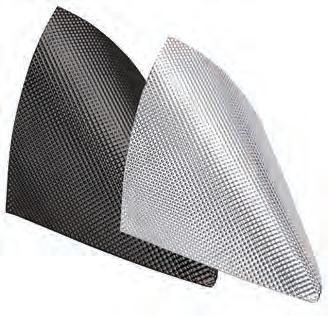

Floor & Tunnel Shield

Floor & Tunnel Shield was designed to withstand direct temperatures up to 1750°C. Because of its unique material, it is capable of insulating against unwanted road noise up to 50%. Constructed utilizing an embossed 10 mil aluminium face bonded to a 1/8” composite fiberglass insulation, Floor & Tunnel Shield is backed with an aggressive adhesive that holds past 232°C. Only 3/16” thickness it requires minimal clearance and can be shaped and trimmed for a custom fit.

Floor & Tunnel Shield provides the optimal way to reflect heat away from vehicle components and perfect for protecting under hoods, firewalls, fuel cells, exterior areas such as transmission tunnel, floor pans and other under-vehicle locations.

• Excellent heat and sound barrier

• Withstands 954°C direct continuous heat

• Self adhesive backing for easy installation

• Unique material works in harsh environments

• Can be trimmed to fit any shape

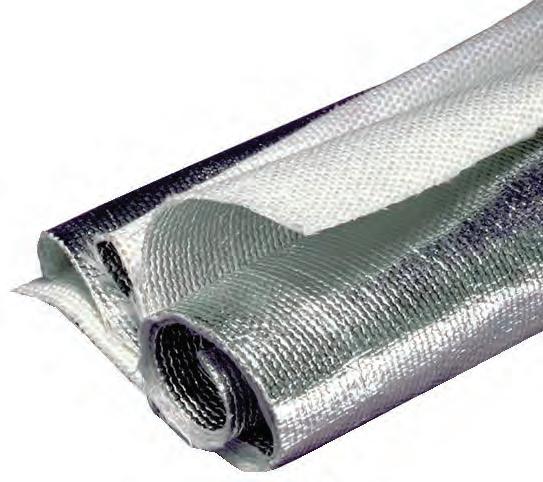

Reflect A Cool

Reflect-A-Cool, constructed of fiberglass material backed with a layer of aluminised reflective foil to handle direct continuous temperature of 204°C has many uses such as covering firewalls, marine engine compartments, RVs, in the tub of a racecar where typical mechanical fasteners cannot be used and has many industrial uses.

Reflect-A-Cool can be trimmed to fit just about any shape. Just measure, trim, face reflective side towards source of radiant heat & remove self-adhesive backing. It’s that easy.

• Withstands 1,093°C of radiant heat

• Self adhesive for easy installation

• Can be easily trimmed to size

• Virtually NO clearance needed

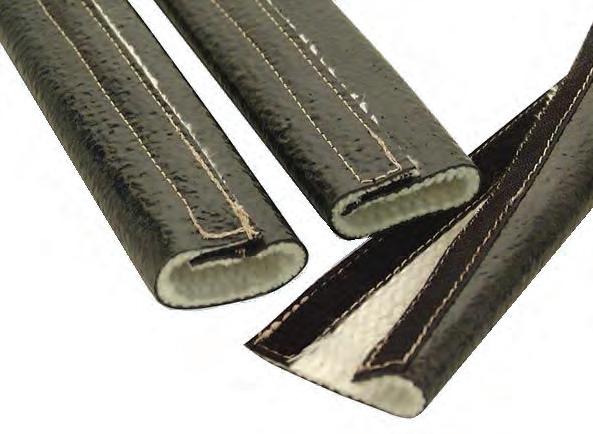

Heat Shroud

Heat Shroud is made from a high temperature rated glass fiber fabric with an aluminized outer facing. Same as Heat Sheath but with the added convenience of hook & loop closure design along the open edges. Without the need of removing one end of connected wires, cables and hoses, simply wrap Heat Shroud around whatever needs protection and close edges.

• Convenient hook & loop designed edges

• Withstands 260°C direct continuous/1,093°C radiant heat

• No need to remove wires and hoses

• Easily trimmed to length

• 1/2” to 1-1/4” diameters x 3 foot length

Heat Sheath Gold

Heat Sheath GOLD™ solves the problem of heat and abrasions causing failure of lines, hoses & wires. DEI Heat Sheath GOLD is manufactured from our high temperature metalized polyimide lamination, bonded to a robust 20oz. heat treated glass fiber base material, the DEI line of GOLD™ sleeving will protect & keep components cool in the most demanding applications. Able to reflect radiant heat up to 426°C makes DEI GOLD line sleeving the perfect choice to keep critical lines, air intakes and hoses cool & protected.

• 20oz. heat treated base glass

• 2Metalized Polyimide lamination

• 2Base glass rated to 593°C

*DO NOT apply directly to exhaust components

Thermal Protection

Heat Barrier

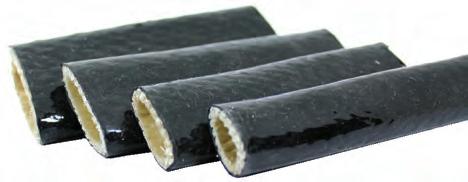

Fire Wrap 3000

Constructed from the same material as Fire Sleeve but with the convenience of a hook & loop edge closure design. Simply wrap Fire Wrap 3000 around wires, cables or hoses without the need of disconnecting.

• Withstands direct heat up to 260°C

• Protects against oil, dirt, road grime and other contaminants

• Pliable enough to shape & fit tightest bends

ID x 24” (2ft)

(2ft)

1-1/2” ID x 24” (2ft)

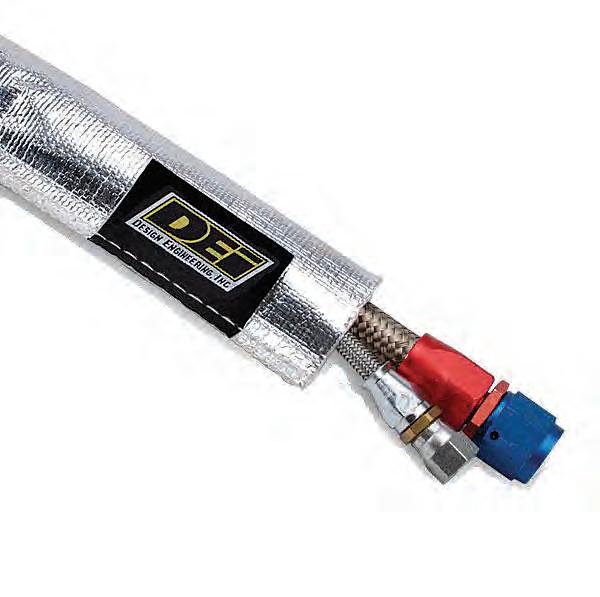

Heat Sheath - Aluminized Sleeving

Designed to slide over wires, cables and hoses, Heat Sheath provides the ultimate protection from extreme heat as well as chemical and oil spills, dirt, grease and road grime. Constructed from a high temperature fabric and bonded to an aluminized material to reflect heat. Heat Sheath is fireproof and withstands direct heat up to 260°C.

• Pliable for tight bends

• Withstands 260°C direct / 1,093°C radiant heat

• Five popular diameters to choose

• Trim to desired length

Ultra Sheath MA

Designed to be the ultimate protectection for your cables, lines, wire or hoses Ultra Sheath MA has a higher sustained heat capability up to 593°C and is more flexible than standard foil or bonded aluminium products. Constructed from a process that impregnates molten aluminium to the core fabric, giving it higher heat reflective properties. It’s the perfect choice for tight high heat applications.

• Can be trimmed to length

• Direct heat up to 593°C

• Easy to cut and trim

Aluminized Plug Wire Sheath

Aluminized Plug Wire Sheaths are constructed from high-temperature rated glass fiber material bonded to a heat reflective aluminized material. Plug Wire Sheaths are an inexpensive alternative for protecting specific areas on both ignition wire and boot locations from damaging heat generating sources.

• Capable of withstanding 1,093°C radiant heat

• Inexpensive alternative for protecting ignition wires and boots

• Ideal for protecting electrical wiring, harnesses, hoses, cables & more

• 3/4" diameter x 6" long

• 4 to a pack

Thermal Protection

Heat Barrier

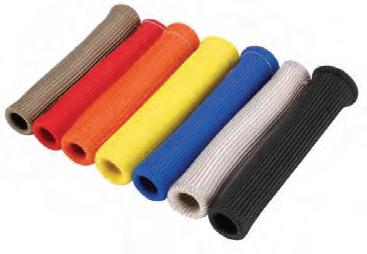

Protect-A-Boots

Made from a high temperature resistant glass fiber material and treated with a proprietary coating, Protect-A-Boots provide spark plug boot and wire protection from

• Double-wall construction for added durability

• Helps prevent burn-through, hardening and cracking of boots

• Installs in seconds

• Universal-fits most straight or angled boots

• Withstands 648°C direct continuous heat

• Non-flammable & protects against chemicals & resists water

• Standard size: 1” ID x 6” long / XL size: 1” ID x 8” long

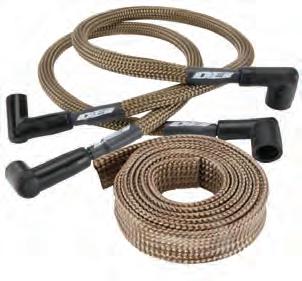

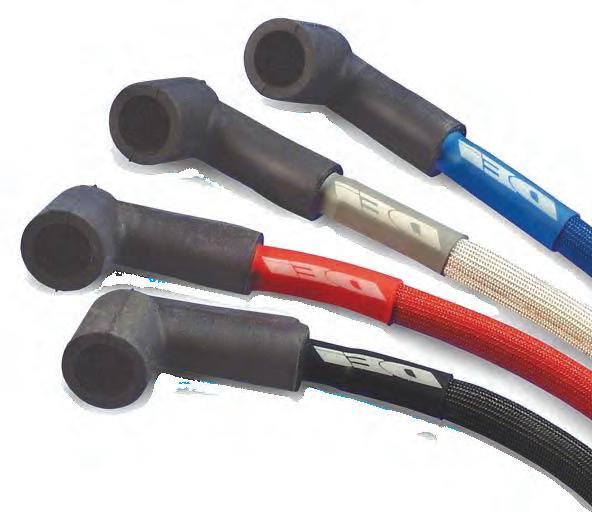

Protect-A-Wire

Protect expensive spark plug wire sets from potential burning, cracking, and hardening typically caused by severe under hood heat. Easily installs on wire by removing distributor boot and sliding Protect-A-Wire over spark plug wire.

• Constructed from high temp resistant glass fibre material

• Withstands 260°C continuous 648°C radiant heat

• Four vivid colors: silver, black, red & blue

• Available in 2 and 8 cylinder kits

• Protects electrical wiring, speedometer cable, hoses & more up to 10mm dia

• Includes DEI Hi-Temp Shrink Tubes

Perfect for sealing spark plug wires to boots at each end forming a water-tight, weather proof seal. With a 3 to 1 shrink ratio, Shrink Tubes can be used to bundle wires as an alternative to tape or plastic ties.

• 3:1 shrink ratio • Easy to install using a heat gun

• Clean and professional look • 25 tubes to a pack

• Two sizes / four colours Shrink Tube

Protect-A-Sleeve Titanium

DEI have taken their Titanium LR Technology ™ and made it into the best protection sleeve on the market. Capable of withstanding temperatures up to 982°C of direct heat and 1,371°C of radiant heat, it can protect your wires, lines and cables from damage.

Available in 4’ lengths and includes high temp heat shrink ends. The 1/2” ID will fit larger spark plug wires and protect them from hot exhaust manifolds and headers.

Thermal Protection

Heat Shield

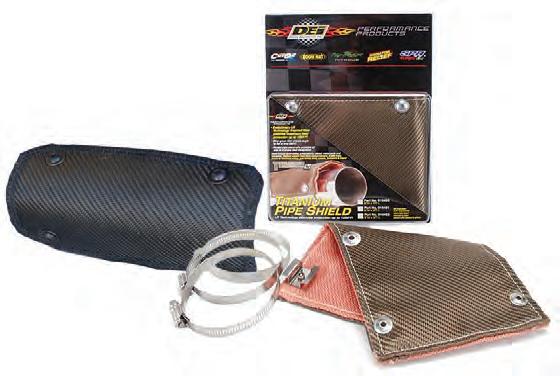

Titanium Pipe Shield

Extreme heat can rob power and potentially damage engines, transmissions, hoses, and sensitive electrical components. DEI’s Titanium Pipe Shield combines the high heat tolerance of DEI’s proprietary LR fiber technology with a unique rivet-based clamp shield design to improve heat dissipation and cooling. DEI’s Titanium Pipe Shield provides heat protection up to 1350°F. The unique shield standoff bracket design provides an air gap between the shield and pipe that together provides the maximum potential for cooling and heat dissipation.

With the strategic placement of DEI’s Titanium Pipe Shield near transmissions, brake lines, floorboards, body panels, diesel exhaust stacks or motorcycle pipes, radiant heat can be controlled for maximum protection and performance.

• Capable of handling high temperature exposure up to 732° C

• Protects heat sensitive components, hoses, lines and wiring

• Easy to install with unique rivet-based pipe standoff brackets and pipe clamps

• Reduces heat from entering vehicle when placed on exhaust pipes

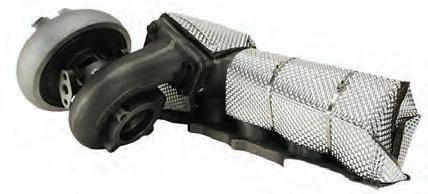

Form-A-Shield

Solves the problem of needing a direct contact, extreme heat barrier. Capable of withstanding direct heat of up to 706°C and designed to provide the best possible heat protection.

It can be applied to exhaust headers, manifolds, turbo housings, and downpipes dramatically reducing radiant exhaust temperatures. Formed from 10mm dimpled aluminum bonded to a high temperature rated basalt thermal barrier material, Form-AShield™ can be applied directly to hot surfaces helping to lower under hood temperatures while keeping more heat in the exhaust system.

• Extremely pliable and forms to many shapes and configurations

• Durable and resistant to oil and chemical spills

• Withstands direct heat up to 760°C

• Superior insulator anywhere near the path of exhaust pipes

• Can be applied directly to hot surfaces

• Ideal for firewalls, exhaust manifolds, under-vehicle, floor pans, oil tank box areas, transmission tunnels, fuel cells & more

• Fasten with straps, clamps or DEI locking ties

• No adhesive backing

NOTE: Use DEI DEI010492 Hi Temp Spray Adhesive with Form-AShield on non-hot areas to serve as a heat barrier / reflector

Form-A-Barrier

Learn more about Form-A-Shield here

Hi-Temp Spray Adhesive

DEI’s Improved Formula Hi-Temp Spray Adhesive is a very aggressive, high build pressure sensitive adhesive designed to bond porous substrates while maintaining a high level of tack. Useful for bonding for Foam, Fabric, Metals, Wood and of course DEI’s heat and sound barrier materials. The spray is a web pattern for excellent coverage on all materials.

• Fast drying, high tack spray adhesive

• Great for gluing metal, wood, plastic, and foam

• Heat resistant up to 94°C

• High strength, long-term bond

• Environmentally safe

DEI Form-A-Barrier is designed to provide the best heat protection where high temperatures are problematic. It limits heat transfer on components that aren’t the easiest shape for a wrap or heat screen. Light weight, formable rigid shield provides excellent thermal protection up to 1300 degrees with a minimal gap of 1 inch to heat source. The barrier can be formed or bent by hand to conform to odd shapes. Resistent to most automotive chemicals, the Form-ABarrier can be used in multiple locations including firewalls, interiors, engines and other areas.

• Protection up to 704°C

• Both sides have reflective material

• Light weight

• Easily formable

x 12” DEI011013

x 24”

for DEI’s range of

Thermal Protection

Component Specific Products

Versa-Shield

Constructed using an aluminised reflective material along with a high temperature rated glass fiber insulation barrier, Versa-Shield™ is capable of reflecting up to 2000˚F of radiant heat. Ideal for protecting starters and solenoids from potential failure caused by extreme heat and has multiple uses such as protecting master cylinders, cool cans, distributors, fuel pumps, electrical boxes to name a few.

Simply wrap desired component with Versa-Shield and trim excess material. Edges attach to itself using a hook & loop edge closure design. In most cases there is no need to remove component when installing Versa-Shield.

• Withstands 260˚C of direct heat/1,093˚C radiant

• Protective heat source barrier to prevent heat soak conditions

• Easy install-trim to size with scissors

• Can easily be removed for shows

• Starter / Universal Heat Shield

• 7” wide x 24” long

Ultra 47 Starter Shield

Designed for severe duty use, our new Ultra 47™ offers the highest level of protection. Constructed of two layers of material, a highly reflective outer layer combined with a high heat inner layer. Able to withstand direct heat of up to 732°C, Ultra 47™ is the perfect choice for EXTREME high heat applications where engine heat soak is a problem.

• 24”L x 7”W size

• Hook & loop fastening system

• Length can be trimmed to size

• Protect against heat soak

• Prolong life of components by reflecting damaging heat

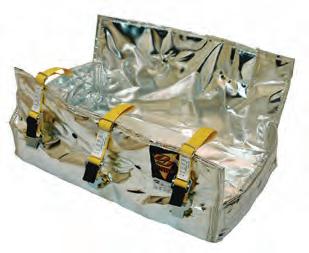

Cell Saver - Battery Insulation Kit

Batteries are very susceptible to heat and vibration that could cause premature failure and hazardous leaks. Cell Saver is very capable of damping vibration and will absorb and neutralize any damaging leaky battery acids. Cell Saver is easy to install and excess material can be trimmed to accommodate batteries of most sizes and shapes.

• Protects batteries from harmful radiant heat

• Material withstands up to 1,093°C radiant heat

• Traps and neutralizes harmful battery acid

• Protects environment and your vehicle

• Completely safe to handle before and during installation

• Provides clean finished look with easy installation

Kit Includes:

• 40” long x 7” insulation material

• 12” x 7” treated base mat

• Edge sealing tape

Muffler Shield

The Best muffler shield/wrap on the market. Based off our proven Floor and Tunnel II heat shield, our new Muffler Shield is designed to wrap around just about any size muffler. Includes our tough Stainless Steel positive locking ties for a tight secure installation. Made from 10mil dimpled aluminum with a 1/8” needle glass insulator it can be easily trimmed to fit most mufflers. Greatly reduces radiant heat coming off your muffler resulting in a cooler interior and protection from damaging heat.

• Greatly reduce radiant heat from muffler

• Cooler interior

Turbo Shields / Accoustic Products

Turbo Shields

Turbo Shields - Black Onyx

The most technologically advanced Turbo Shield ever!

By developing advanced textiles and diving deep into what is needed to control turbo heat, we developed the GEN-3 Onyx Black Turbo Shield. A Silicone coated Onyx Black outer layer with multiple stainless steel and silica inner layers resulting in the strongest, most heat-resistant shield available.

OUTER SHELL

• Coated in silicone to insulate and hold up under extreme conditions. Prevents fraying & encases seams to make them over 4 times stronger.

INSULATION LAYER

• Thick layer of silica insulation keep heat in turbo shield and turbo housing.

INNER LAYER

• Stainless steel, glass fiber & silicone adds to insulating and thermal properties. Increases seam strength, durability and insulation value.

INNER COVER

• Stainless Steel fabric holds up against the highest temps.

• Won’t break down or become brittle with heat.

Turbo Shields - Titanium

We’ve raised the bar! The most technologically advanced turbo shield ever!

We incorporated all our experience to build the absolute best turbo shield on the market. By developing advanced textiles and diving deep into what is needed to control turbo heat, we developed the GEN-3 TITANIUM Turbo Shield. A Silicone coated TITANIUM LR outer layer in a proprietary diagonal weave with multiple stainless steel and silica inner layers.

Without a doubt the strongest, most heat resistant shield available.

OUTER SHELL

• Coated in silicone to insulate and hold up under extreme conditions

• Prevents fraying & encases seams to make them over 4 times stronger

INSULATION LAYER

• Thick layer of silica insulation keep heat in turbo shield and turbo housing

• Silica has a low thermal conductivity making one of the best insulators

INNER LAYER

• Stainless steel, glass fiber & silicone adds to insulating and thermal properties

• Increases seam strength, durability and insulation value INNER COVER

• Stainless steel fabric holds up against the highest temps

• Will not break down or become brittle with heat

DEI Boom Mat

Boom Mat Spray-On

Boom Mat Spray-On sound deadening is perfect for reducing unwanted road noise and deadening vibrations in those hard to reach places. Boom Mat Spray-On also serves as a thermal barrier insulating against unwanted heat.

Boom Mat Spray-On can be applied in multiple layers for even more sound deadening while handling temperatures up to 148°C.

• Reduce unwanted road noise and vibration

• Won’t crack or chip

• Helps prevent rust

• Paintable in 6 hours

• Single can will cover approximately 20 sq. foot

DEI050220 Boom Mat Spray-On 18 oz Can

Accoustic Products

DEI Boom Mat (Continued)

Boom Mat

A high quality simple and effective solution in eliminating the low frequency noise problems found in structure-borne vibrations. Simply trim to desired size, peel backing and apply to a clean surface.

Boom Mat is constructed of a viscoelastic polymer layer protected by a durable aluminum wear surface and it’s strong adhesive backing is unaffected by extreme hot and cold temperatures and can be applied to horizontal, vertical, irregular, curved and inverted areas on metal, plastic, fiberglass and most other automotive surfaces.

Use as a first layer for areas with contours and bends for vibration damping needs. High performance adhesive maintains adhesion throughout temperature extremes. Durable weatherproof construction is also corrosion resistant & Flamability Rated. The industry standard in vibrational damping technology.

Applications

2 Pack - speaker

4 Pack - 4 speakers / dash

6 Pack - hatchback

8 Pack - door / ceiling

10 Pack - trunk

20 Pack - complete interior

Thick HD Damping

What’s in it for you...

• Enhances stereo performance

• Gives you a quiet and comfortable interior

• Minimal prep and install time

• Performs in extreme temperatures

30 Pack - complete interior SUVs etc.

If vibration damping is the goal, then this is the product. Boom Mat Heavy Duty Damping Material is a flexible extensional viscoelastic damping material designed to provide maximum damping efficiency in the most demanding applications. Designed for use on large flat metal areas with minimal contours. Perfect for exposed areas where a paintable textured finish is desired.

• Use as a first layer instead of Boom Mat Damping material

• A measured density of 111 lb/ft3 and a surface density of .65 lb/ft2

• Provides the widest temperature range of active damping

• Superior transmission loss performance of up to 3 db(A)

• Supplied with a 96/lb bleached craft release liner

• Excellent thermal properties and anti-corrosion protection

• Flammability rating of UL 94V-0

• Performs well in extreme temperatures, from -28°C to 79°C

• Black wrinkle finish wear surface gives a finished look

• Enhances stereo performance and sound

Where to use:

Large flat surfaces of sheet metal where vibration damping is needed such as the sides & floors of: vans, trailers, trunks - wherever a finished look is needed.

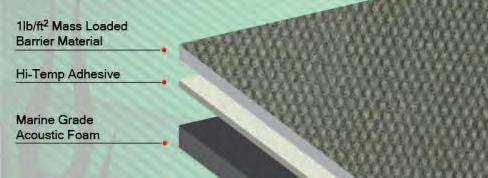

Sound Deadening / Insulation Mat

Boom Mat Undercarpet™ (UC™) is a second layer sound deadening and insulation mat. It additionally insulates against both hot and cold temperatures and helps eliminate squeaks, rattles, vibration and unwanted engine noise and heat.

TOP LAYER: Flexible, one pound per square foot mass loaded barrier material, and BOTTOM LAYER: High quality industrial acoustical marine grade foam.

• Saves you time and money by requiring only 25-50% coverage for optimal performance

It can be added under carpet, on fire walls, or anywhere in the interior of a vehicle where additional sound deadening or insulation is needed. Boom Mat recommends using UC™ over Boom Mat vibration dampening material. UC™ can be mechanically fastened or tacked in place with Boom Mat Hi-Temp Spray Adhesive (# 010490) including vertical and overhead surfaces.

Use Under Carpet as a second layer over Boom Mat Damping Material.

Features & Benefits

• 5.6 db(A) reduction... a 25% noise reduction over competitors product

• Perfect to use over Boom Mat

• Insulate from heat and cold

• Sound deadening 3/8” thick

What’s in it for you...

• Maximum noise control

• Enhances stereo performance & sound

• A quiet and comfortable interior

• No mould or mildew issues

• Combination of noise & vibration control

DEI050100 Under Carpet (UC) 24” x 54” (9.0sqft)

DEI050101 Under Carpet (UC) 48” x 54” (18.0sqft)

Where to use: Firewalls, floor boards, transmission tunnels, behind rear seats, inner wheel wells, trunk floors, rear quarter panels.

Accoustic Products

DEI Boom Mat (Continued)

Under Carpet Sound Deadening - Lite

Under Carpet Lite is a superior sound decoupling material for those hard to cover areas like door liners, rear decks, headliners and more. Under Carpet Lite™, (UC Lite™) is a ½” thick multi-layer, high tech composite material designed to be extremely flexible and easy to install. UC Lite offers maximum thermal insulation in a lightweight padding that provides less heat transfer in the summer while protecting against the transfer of cold air in the winter.

UC Lite is also equally effective as a sound deadener that prevents the transfer of noise, including rattles and squeaks to ensure a “like new” driving experience and add longstanding value to your investment. The multilayer polyester/fiberglass composite material offers unmatched thermal and acoustic protection in an extremely flexible light weight package

UC Lite is recommended for use either alone, or as an added sound decoupler with Boom Mat vibration dampening material. To install, simply fasten mechanically to the area, or tack in place with Boom Mat’s Hi-Temp Spray Adhesive (# 010490).

Use as a second layer over Boom Mat Damping material for superior light-weight thermal insulation.

Where to use: floor pans, fire walls, transmission tunnels, behind back seats, inner fender wells, trunk floors, rear quarter panels, under headliners, kick panels.

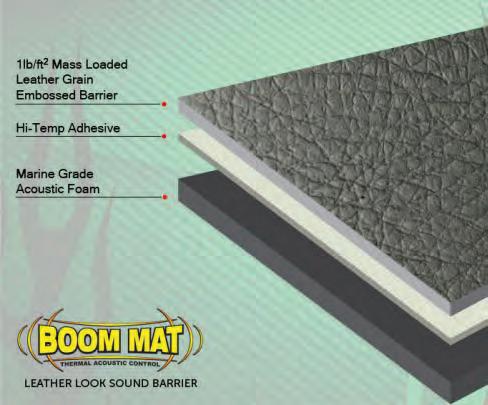

Leather Look Sound Barrier

The new Leather Look Sound Barrier is an ideal way to reduce noise and have a premium leather appearance. Available in a moisture resistant, black leather embossed wear surface features a 1 lb./ft. 2 loaded barrier and is designed for insulating trunks, door panels, floors, speaker boxes and package shelves. Can be permanently installed with Boom Mat Hi-Temp Spray Adhesive or used as temporary protection in trunk and floor areas.

Leather Look Sound Barrier is proven to significantly reduce incoming sounds caused by outside noise, troublesome rattles or squeaks, while providing a level of thermal insulation that lessens transfer of heat and cold in any climate.

Available in three sizes: 24” x 48” (8 sq. ft.), 48” x 48” (16 sq. ft.) and 48” widths sold by the linear foot.

Use as a second layer over Boom Mat Damping material for the quietest ride possible with a finished embossed leather look.

Features & Benefits

• Embossed leather grain

• Finishing touch for your interior

• Insulate interior from unwanted heat & vibration

• Moisture resistant

• Heat resistant to 210°F

• 5/16” thick

What’s in it for you...

Stylish finished appearance

• Enhances stereo performance and sound

• Maximum noise control

• A quiet and comfortable interior

• No mould or mildew issues

Where to use: Headliner, rear decks, door skins, trunk floors, floor boards, speaker boxes, engine cover (dog house)

Accoustic Products

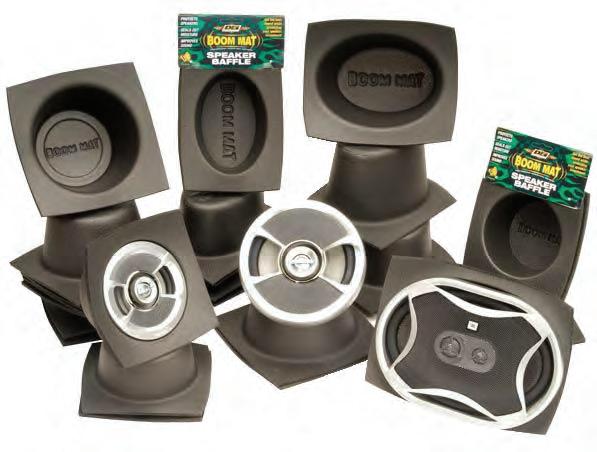

Speaker Baffles Sound Barrier

Boom Mat speaker baffles maximize speaker performance by isolating the correct frequency responses while damping reverberation in the sheet metal and panel to frame resonance. Also forms a water tight protective shell to prevent moisture intrusion.

Closed cell polyethylene enhances frequency response for improved sound clarity. Isolates frequency responses and prevents sound from migrating to unfavorable areas in the vehicle such as door panels. Closed-cell polyethylene enhances frequency response for improved sound clarity.

Thin material design offers less bulk for a clean and tight installation for professional finished appearance. Serves as a protective barrier for speaker cone and voice coil against dirt and dust. Damping properties help reduce distortion for enhanced acoustical response. Closed-cell material forms a cushioned seal between speaker and mounting surface to isolate speakers from vehicle. Acts as a protective guard for exposed speakers (example: speaker components visible in trunk area). Extends speaker lifespan and protects owner’s speaker investment.

• All sold in pairs

Floor & Tunnel Shield II

Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic. It limits heat transfer on areas where heat is an issue. It also provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well.

Constructed with an embossed 10 mil aluminum face bonded to 1/8” composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, withstands up to 954°C of direct continuous heat. The adhesive side holds past 232°C. It’s improved multifaceted modern aluminum surface offers improved reflectivity & rigidity and allows for ease of installation.

With a unique and patented finely woven glass-fibre backing it is the easiest, most cost effective way to control thermal transfer while protecting expensive components & occupants from extreme heat situations and sound.

Floor & Tunnel Shield II can be used on any number of surfaces including, metal, aluminum, carbon fibre, plastic, and more.

• Blocks radiant heat from entering driver compartment

• Withstands direct high heat temperatures up to 954°C

• Serves as a barrier to unwanted road, tire, & engine noise

• Easy to form to shapes and contours

• Excellent heat & sound barrier

• Wind and water will not affect adhesive

• Minimum clearance required, only 3/16” thick

• Just trim, peel & stick

• Aggressive self-adhesive backing holds past 232°C

• Adheres to almost any surface or material including to fibreglass

Where to use: Fire walls, transmission tunnels, floor boards above header collectors, catalytic converters, mufflers and exhaust pipes, fuel cells, motorcycle fairings, engine covers (dog house), marine & RV compartments, reflect turbo heat...

Handy Accessories

Radiator Relief™

Radiator Relief™ solves the problem of high engine temps by reducing coolant temperatures up to 30°F. It’s an excellent method of treating cooling systems as a preventive step to help avoid overheating, electrolytic (electrolysis) and chemical corrosion and is compatible with all coolant additives and anti-freeze mixtures. Both an anti-foaming agent and corrosion inhibitor which balances the negative acidic effects that can develop over time are also included. It is also safe to use with all types of radiator materials including cast iron, copper, brass and aluminum.

It supercharges your radiator by transferring heat more efficiently through the radiator. Similar to the original formula this proven coolant additive will reduce your operating temperature reducing engine wear that occurs during extreme use. It is also formulated to reduces mineral deposits. This is the first additive that maintains pH levels that otherwise fluctuate over time resulting in core damage.

• Reduces engine temps up to 30°F

• Includes anti-foaming agent and corrosion inhibitor

• Reduces pre-existing scale build-up

• Compatible with all types of anti-freeze

• Compatible with aluminum radiators

• Must cycle and mix with existing coolant before effective

• Performance will not dissipate over time

• Recommended 1 oz per quart of coolant (bottle sizes 16oz & 32oz)

1 x 16oz bottle mixes with x15 litres

Note: Radiator Relief™ is not intended to and cannot fix a malfunctioning thermostat!

Quick Fix Tape

High performance tape bonds to itself and is self-curing, forming a waterproof permanent seal. Ideal for emergency hose repair, non-slip grip surface for tools, electrical splices and connections, serves as a temporary leak sealer, and does not leave a sticky residue.

• Withstands temperatures from -54°C (-65°F) to 260°C (500°F)

• Adhesive-free and can be applied to wet surfaces

• 700psi tensile strength - insulating capabilities up to 8,000 volts

• Stretches 3x length

Speed Tape

Suits race applications, temporary damage repairs and taping body seams to name a few. Tears straight and easy every time.

• *Roll length: 2” x 90 foot

Handy Accessories

Radiator Relief™Cooling System Flush

Radiator Relief™ Cooling System Flush is a concentrated cleansing agent that effectively removes rust and mineral deposits left behind in the radiator core and hose lines.

This advanced treatment also dissolves oily residue build-up left behind in old anti-freeze and coolant mixtures due to external contaminants. Helps maintain optimum efficiency and recommended to be used with distilled water.

Application: 1 bottle per radiator flush

Intercooler Chill Charger

Chill Charger for water-to-air intercoolers maximizes thermal transfer to lower air intake temperatures while also protecting core corrosion, electrolysis and harmful mineral build up.

By effectively transferring water that circulates through the intercooler Chill Charger reduces liquid heat soak in high performance turbo and supercharger systems.

Easy Loom - Split Sleeves

Easy Loom™ Split Sleeves are a great solution to cleaning up and protecting old wiring, new wiring, lines hoses and more.

Protective Easy Loom offers a clean, classy way to protect exposed wires, cables and hoses on trucks, SUV’s and powersport vehicles including ATVs and UTVs. Superior in style and function to simple plastic tubing, DEI’s Easy Loom adds a superior level of protection to sensitive wires cables and hoses exposed to abrasion or the elements; all with a clean, classy look.

• Protects against abrasion, chemicals & the elements

• Clean, classy way to protect wires, hoses & cables

• Superior style & function compared to plastic tubing

• Split design makes installation easy

• No need to disconnect wires

Firesleeve / Firefoil

Firesleeve / Firefoil

MSCN offers several brands of FIRESLEEVE to protect engine hoses and wires in high temperature applications. Sized for stainless steel braided hose. Use I.D. dimensions for other hoses or cables.

Firesleeve - Lightweight

Lightweight firesleeve is a very effective insulator. This silicone covered fiberglass sleeve is designed to protect hose assemblies in areas of high radiant heat its braided construction maintains excellent flexibility over its temperature range of -40°C to +220°C (-40°F to +428°F).

The sleeve is self extinguishing and has excellent fluid resistance. This sleeve can also be used to protect wire harnesses, sensor wires and, due to its elastic structure, small electrical components.

• Lightweight - thin wall

• Black in colour

Firesleeve

TOP SELLERS

BM-FSLW-04-B 6mm 0.65mm -4

BM-FSLW-05-RED 7mm 0.65mm -5

BM-FSLW-08-B 12mm 0.75mm -6 & -8 black fire jacket

BM-FSLW-10-B 15mm 0.75mm -10

BM-FSLW-12-B 20mm 1.5mm -12

BM-FSLW-16-B 25mm 1.5mm -16 BM-FSLW-20-B 31.75mm

Manufactured from high bulk braided fibreglass sleeving and coated with a custom compounded black silicone rubber to protect and extend the life of hoses, cables and wires.

• Continuous operating temperature: 260°C (500°F)

• Max short term exposure: 1300°C (2370°F)

• Outstanding flexibility & durability, expandable for installation

• Colour: Shiny black, Speedflow size identification

599-04-BLK 200-3, 200-4, Ignition Leads, Wiring8mm / 5/16”

599-06-BLK 100-06, 200-08, 400-04, Wiring, Cables12mm / 1/2”

599-08-BLK 100-8, 200-10, 400-06, Wiring, Cables16mm / 5/8”

599-10-BLK 100-10, 400-08 19mm / 3/4”

599-12-BLK 100-12, 400-10 22mm / 7/8”

599-16-BLK 100-16, 400-12 25mm / 1”

Fire Foil Lite

Ultra-lightweight fiberglass laminated sleeve with a mylarized aluminium surface for radiant heat protection to 426°C. An internal seam for a smooth exterior with no visible stitching.

• Repels brake fluid.

We have an extensive range of FIRESLEEVE to protect engine hoses and electrical wiring.

Helps prevent potential burning, cracking and hardening typically caused by severe under hood engine bay heat!

Sized for stainless steel braided hose. Use I.D. dimensions for other hoses or cables.

Fire Foil II

Fire Foil II is a very lightweight fiberglass sleeving laminated with a mylarized aluminium surface that provides radiant heat protection to 800°F. The mylar surface resists abrasion and brake fluid.

Our safety gear is one of the most important sections of our catalogue. We put uncountable hours, days and weeks of effort into our Safety products. Not only do we have the best brands but we make sure they meet Australian safey standards required to keep our family of sports men and women safe.

Helmets

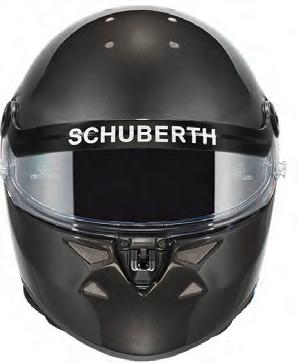

SCHUBERTH - SP1 HYBRID

FIA 8859-2024, FIA 8878-2024, SNELL SA2025, SNELL K2025

SP1 HYBRID - A NEW ERA!

The all-new SP1 HYBRID takes shape from SCHUBERTH Performance experience at the highest-level of Motorsport. The SP1 Hybrid is here and ready to go with one helmet across 4 homologation. It’s the perfect choice from karts to professional racing drivers.

The helmet is very well priced in the market and the, 3mm visor sets us apart. This is the same new SDL visor for karts to F1, best airflow in litres per second and best vision with nil distortion.

With their extensive knowledge in pre-pregs Carbon Fiber manufacturing bonds with pre-pregs Fiberglass, the bar has been set higher once again.

It’s not just in F1, F2, F3 where our helmets win but also in NASCAR and here in Australia it dominates the Sprint-car scene with back to back National titles plus plenty of other wins.

All models:

• Glossy anthracite grey

• Black inner lining

• Medium shell weight: 1,480grams

• Large shell weight: 1,590grams

SCHUBERTH - SP1 CARBON Evo

FIA 8859-2024, FIA 8878-2024, SNELL SA2025, SNELL K2025

FOR DRIVERS WHO DON’T ACCEPT COMPROMISES

SCHUBERTH Performance SP1 CARBON evolves into the SP1 CARBON Evo, now satisfying the strict FIA 8859-2024, FIA 8878-2024, SNELL SA2025 and K2025 homologations.

All of this without losing its iconic silhouette and great ventilation abilities.

Hand-made using the same artisanal process of the F1 SCHUBERTH helmets. No compromises.

The all-new SDL (Schuberth Dual Locking) System blends perfectly with the SP1 CARBON Evo design, combining easier opening and superior robustness with ventilation properties like no other.

models:

Pro Sport - Full Face Duck Bill

These Pro Sport composite helmets have been designed for increased safety, comfort and unmatched quality at an affordable price.

A unique six pad interior system allows resizing the interior for a perfect fit and is vacuum bagged and autoclave cured for superior helmet strength and durability.

The duckbill style improves aerodynamics and reduces neck strain of drivers who race open wheel cars by increasing downforce in the front. Ventilation ports in the front and top rear help air circulation.

• Stainless steel hardware and a Kevlar chinstrap

• Interchangeable 6 pad headliner & cheek pad system

• Front/rear top venting

• 0.125’ Polycarbonate shield with tear off posts

• Compatible with Racing Optics or Ultra Shield tear offs

• M6 inserted for head-neck restraint devices

• Fire retardant Nomex interior

PT800 SERIES - WHITE - SA2025 XXS, XS, Small, Medium,

Pro Sport - Full Face Duck Bill - Carbon Fibre

A light weight version of the Pro Sport, but made from lightweight Carbon fibre to help minimise the acceleration of the head during an impact due to increased g-forces.

A unique six pad interior system allows resizing the interior for a perfect fit and is vacuum bagged and autoclave cured for superior helmet strength and durability. The duckbill style improves aerodynamics and reduces neck strain of drivers who race open wheel cars by increasing downforce in the front. Ventilation ports in the front and top rear help air circulation.

• Stainless steel hardware and a Kevlar chinstrap

• Interchangeable 6 pad headliner & cheek pad system

• Front/rear top venting

• 0.125’ Polycarbonate shield with tear off posts

• Compatible with Racing Optics or Ultra Shield tear offs

• M6 inserted for head-neck restraint devices

• Fire retardant Nomex interior

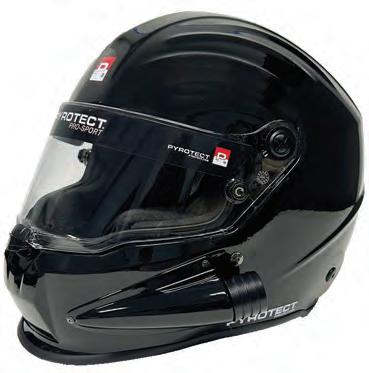

Pro Sport - Side Forced Air Full Face Duck Bill

SNELL SA2025

Tri-Weave composite helmets are designed for increased safety, comfort and unmatched quality at an affordable price. They come with the same features as the other helmets in the range, but these feature the Side Forced Air vents for use with ventilation system. The helmet is designed with a duckbill and built in airfoil on the back to reduce neck strain and wind drag.

• Composite Tri-Weave vacuum bagged and autoclave cured lightweight shell for durability

• Stainless steel hardware and a Kevlar chinstrap

• Interchangeable six pad headliner and cheek pad system for better adjustability, added comfort and cleaning

• 0.125” Polycarbonate shield with tear off posts

• Compatible with Racing Optics and Ultra Shield tear offs

• Large eye port offers great visibility

• Great aerodynamics due to the duckbill design

Helmet Sizing Chart

Be sure to measure around your head just above the ears. Refer to the chart for your correct helmets size. Helmet must fit properly for optimum performance. Your helmet must be securely and snugly fastened before engaging in any activity.

Please note: At the time of catalogue production PYROTECT had not released SA 2025 helmets or photos. All PYROTECT photos and descriptions in this catalogue are SA2020. We are told SA2025 will be available late 2026.

SNELL SA2025

SNELL SA2025

Helmet Accessories

Helmets - Accessories

Helmet Strap

Attach to a D-ring on your helmet and insert into the harness to reduce the movement of the helmet under acceleration. Adjustable length and includes a D-ring. Colour Black

Shields & Stickers

Helmet Skirt

Fits to the bottom of your helmet to help keep air inside your helmet clean while adding protection against fire & smoke. Includes self adhesive Velcro for installation.

• Meets SFI 3.3/5 specs

• Colours: Black, Blue, Red

Helmet Cheek Pads

Helmet Support

Made from high density foam to help support the helmet and restrict movement.

• Meets SFI 3.3 specs

• Colours: Black / Blue / Red

HANS Posts

DOES NOT include threaded backing plate.

• Suits 2020/25 models with backing plate pre fixed to helmet

A real innovation of the PYROTECT Helmets is the convenient, easily removable/ replaceable cheek pads.

• Four sizes and all sold as a pair.

Lid Lifter Balaclava

The retrieval of a driver from a crashed car is an extremely delicate operation to be performed solely by professionals. Removal of the helmet is the one of the first steps of extracation and first aid. To minimise the risk of damage to the cerebral vertebrae, Stand 21 have introduced this new device. Developed with medical motor racing personalities it is made of an exclusive airy fabric offering comfort, protection and also helps with perspiration.

• Meets FIA and SFI 3.3 specfications

• Available in black only

Scan the QR code to find out how the extracting-friendly Stand 21 Lid Lifter works.

Black Top Fit Balaclava

Massive research and development was performed to refine both sides of the assembly seams of this balaclava to best fit all heads while eliminating any hindrances that would have caused even minor discomfort.

• Meets FIA and SFI specifications

• Black with grey overstitching

• Get both a small or larger opening from the same balaclava

• Drink straw hole

Two sizes available: Small: 54-57 Large: 57+

Fire Resistant Underwear - PXP Range

Long Sleeve Undershirt

Wicks sweat away from your Racing Suit keeping it much fresher - perfect for those race meets that last for several days between washes

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing (SFI 3.3 certification tag sewn on)

• Non fade - black

Balaclavas

Balaclava with large single eye port. Choose from the Single layer option or for an even safer option choose the Double Layer version.

• Non fade - black

• Wicks sweat away from your helmet

• All PXP underwear is also machine washable

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing (SFI 3.3 certification tag sewn on)

Fire Resistant Socks

Socks - FIA

Don’t forget to see our Stand21 range on page 139

Long Pants

PXP’s long pants or bottoms - the latest technology in fabrics to keep you safe and comfortable.

• Non fade - black

• Wicks sweat away from your racing suit keeping it much fresher.

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing (SFI 3.3 certification tag sewn on)

PXP Professional racewear with fire resistant fabric - racing’s most comfortable underwear. The latest technology in fabrics to keep you safe and comfortable.

Racing Socks

Very comfy racing socksexceeds SFI 3.3.

• Non fade - black

• Wicks sweat away from your racing shoes or boots

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing (SFI 3.3 certification tag sewn on)

• Solution-dyed - so the colour won’t wash out or fade and is machine washable

• Retains its shape so your underwear won’t stretch out and look sloppy

• Quality sewing and construction

FIA8856-2000 homologated. These socks come with reinforced heels and keep your feet comfortable and dry.

Photo Credit: Grant Stephens

Driving Suits

-5 SERIES Driving Suits - SFI 3-2A/5

Meet the SFI 3-2A/5 standard required in many forms of motorsports. Choose from either a 1 or 2 piece suit.

• 2 layers of fire retardant Proban

• White piping trim

• Box quilt

• Wrap around collar

• 360° sleeve gusset

• Contoured epaulet

• Knit cuffs on wrist & ankle with straight boot cut

• SFI 3-2A/5 approved with tag sewn into left arm

•

PART NO.STYLESIZE

DJ012100 1 PieceS-XXXL

SIZEHEIGHTWEIGHTCHESTWAISTINSEAMSLEEVE

Small5’6”-5’9”55-70kg36-39”28-29”27-29”30-32” Medium5’9”-6’70-80kg40-43”30-34”30-31”31-32” Large5’9”-6’1”80-90kg44-48”35-39”31-32”32-33”

Driving Suits

-5 SERIES Driving Suits - SFI 3-2A/5

We have assembled a variety of suit packages to cater for a wide array of motorsports - the most economical way to buy your gear! See the 3-2A/20 packages on the following pages if you need higher spec.

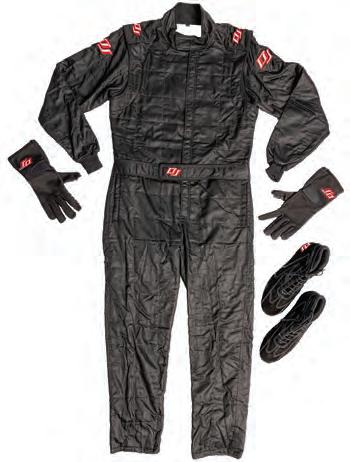

Entry Level Packages

Kit includes:

• One piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Suit colour - black

Kit includes:

• Two piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Suit colour - black

Race Ready One Piece Package

Kit includes:

• One piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Helmet

1PIECE SUIT 1PIECE SUIT

• Suit colour - black

STAY SAFE ON THE TRACK

Race Ready Two Piece Package

Kit includes:

• Two piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Helmet

• Suit colour - black

2 PIECE SUIT 2PIECE SUIT

Look for our NEW STAND 21 ONE PIECE SUIT on page 140.

GLOVES

GLOVES

Driving Suits / Arm Restraints

-20 SERIES Driving Suits - SFI 3-2A/20

DJ Safety manufactures their SFI 3-2A/20 suits from the best quality materials to meet and easily exceed the SFI 3-2A/20 standard required for professional Drag Racing classes.

Features include: 4 layer light weight construction, box quilt, wrap around collar, knit cuffs on wrist and ankle.

Choose from either a 1 or 2 piece suit in a standard range of colours and sizes.

SFI 3-2A/20 approved with tag sewn into left arm. For the best protection and comfort - choose DJ Safety Inc!

1 & 2 Piece Firesuits 3-2A/20

Sewn in arm restraints

Custom sizing

Custom embroidery

Arm Restraints

Arm Restraints - SFI 3.3

Our Arm Restraints have a 2” wide arm band with a fully adjustable Velcro system. 1” wide individual straps are fully adjustable from 4-15” with a steel buckle clip to attach to the harness.

• Meets SFI 3.3 specification

• Colours: Black / Blue / Red / Grey / Purple

Boots & Gloves

Gloves, Shoes & Boots

Sportsman Glove

Ensures a fire resistant coverage of your hand with a high grade leather palm and finger surface with a padded leather grip and knuckle guard. This is a mid length glove with an elastic wrist.

• Meets SFI 3.3/5 specification.

• Colours: black or blue only

Pro Series 3.3/15

Made from several layers of fire resistant material. High grade leather palm and finger strips and a leather encased Velcro adjusting strap. Full length gloves to give maximum protection to your hands and wrist joints.

• Meets SFI 3.3/15 specification.

• Colour: black with Tan inserts

• Available in sizes small to extra large

Glove sizing chart

Use this as a guide only, every hand is different! To find glove size, measure around the largest part of your hand over your knuckles while making a fist, excluding your thumb.

-20 Shoe

The Sportsman Shoe (SS) is a high top design made from a satin suede leather with toe, lace and heel guard reinforcements. Interior is a fire resistant fleece for comfort using a padded sole insert with lace up and twin straps to secure your foot.

• Meets SFI 3.3/5 specification

• Colours: black only

Sportsman SS Shoe Shoe Sizing Chart

To suit Top Fuel, Alcohol & Doorslammer, this shoe is designed to meet this tough environment without the use of an over boot. This makes a much more comfortable feel without sacrificing safety. Made from multiple layers of fire resistant materials to meet the SFI 3.3/20 specification.

• Colours: black only

Funny Car Over Boot

To suit Top Fuel, Alcohol & Doorslammer or where an over boot is required. Made from multiple layers of fire resistant materials with a suede leather sole and heel guard with full length Velcro side flaps for easy entry along with a fully adjustable instep strap.

• Meets SFI 3.3/20 specification

• Colours: black only

• Use with -5 shoe

Boots & Gloves / Underwear / Suits

Stand 21 Boots & Gloves

Ultimate Racing Gloves SFI 3.3/20

These are extremely lightweight - each glove weighs 125 grams. They provide exceptional fire protection

• SFI rated 3.3/20

• Colour is black with silicone grip

• All sizes available

Fire Resistant Underwear

Topfit EVO Top

An exclusive lighter fabric offering comfort, protection, softness and helping perspiration.

• 200 gr/m² emerized fabric (meta-aramid)

• Turtleneck

• FIA 8856-2018 homologated

• Colour - black

• Available in sizes XS - XXL

Ultimate Racing Boots SFI 3.3/20

If you require exceptional fire protection and the lightest boots aroundthese are the boots to get. SFI 3.3/20 certified

• These weigh in at an incredibly light 340 grams (each boot)

• Suitable for Pro Slammer, Supercharged Outlaws and Top Fuel

• Fully lined in grey aramid, padded ankle and ultra low back

• Curved sole around the heel with shock-absorbing heel

• Ankle velcro-fastening straps

• Contoured and padded tongue

• Color: black with red sole

• Most sizes available

Note: you are not required to wear overboots to reach level -20.

Topfit Pants

FIA 8856-2018 homologated. An exclusive lighter fabric offering comfort, protection, softness and helping perspiration.

• Colour - black

• Available in sizes XS - XXL

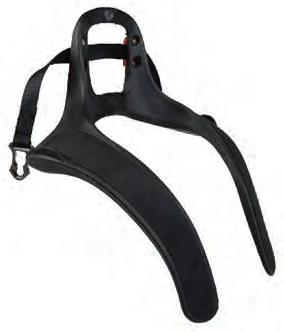

Stand 21 Hans Device

Club Series 3

This 20° HANS device comes in either a or Medium/Large size to suit many drivers. The Club Series 3 is very lightweight - weighing in at ony 640 grams (for the main part).

It is made from a Thermoplastic injected resin reinforced with carbon fibre and is handmade in France. It is supplied with black paddings, sliding tether and protective bag.

It comes as standard with a sliding tether offering the driver more head rotation but still giving protection against whiplash injury in an accident.

• FIA 8858-2010 certified

• High end ergonomics and comfort

Featherlite Series

This Featherlite is a true technological achievement in the FHR family, managing to provide the highest level of safety at the incredible low weight of 310 grams (12 ounces - not including accessories).

The use of ultra-high-strength carbon composites combined with a new and more ergonomic leg design make this FHR model the lightest such device ever created.

A revolutionary new belt loop allows for perfect integration within the cockpit thanks to a unique shape reducing the interference between the helmet and the seat’s headrest. It has quickly reached the world’s top racing class’ drivers and permeated in the professional racing classes and among the more demanding drivers in terms of performance.

SFI -20 SERIES One Piece Suit

Option 1:

Off the shelf sizes including Medium, Large or Extra Large.

SFI -20 (with small MSCN logo on belt) standard boot cuff.

Option 2:

Custom size made to measure.

SFI -20 (with small MSCN logo and driver name), NASCAR boot cuff and pockets.

Option 3:

Custom size to measure.

SFI -20 (front and rear logo of your choosing and driver name), NASCAR boot cuff, pockets, cool suit port, sewn in arm restraints, colour options. Optional logos on arms.

This Stand 21 one-piece SFI -20 suit offers exceptional fire retardant performance and is hand made in France according to the most stringent standards. It is suitable for both drag racing and land speed racing.

Pilot Chute, Spares & Cable Parachutes

Parachutes

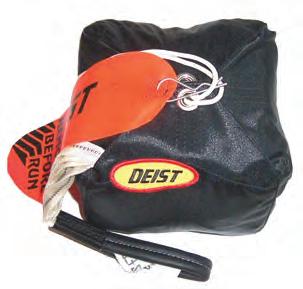

Sportsman Chute

These parachutes are manufactured with the sportsman racer in mind. They are made from a very strong long lasting material that can take the beating of going round after round as common within the sportsman ranks.

The chutes are a crossform design with eight canopy lines. Designed to be used for vehicles reaching up to 200mph. Parachutes come ready for racing, complete with Pilot Chute, a choice of either Black or Silver (at an extra cost) chute pack and Safety flag/pin.

• 9” x 9” x 5” tall

• Available in black, blue, red or purple

Replacement Chute Packs

Custom sizes, colours & styles can be made to order to your specifications - call today for more information!

Manual Launcher Upgrade

An alternative to using a pilot chute, these launcher systems include a new pack and associated parts to convert your vehicle to a launcher system.

Sportsman 250 Chute

A newly designed chute for sportsman style Sedans or Altereds running 180-260mph (Must use x 2 over 200mph). This chute is modelled from our popular Sportsman 12’ chute but made from heavy duty Twill Material and heavier canopy lines to endure the stresses of high MPH vehicles. Parachutes come ready for racing, complete with Pilot Chute, Black chute pack and Safety flag/pin.

• 9” x 9” x 5” tall

• Available in black, blue, red or purple

• Not recommended for cars over 2,500lb

Pilot Loop Straps attach to the small end of the pilot to connect the pilot chute to the bridle line. The bridle line connects the pilot chute and canopy.

12’ Comp Series Chute

Suits vehicles running between 180220mph. Ideal for Sedans to Funny Cars and Dragsters. Made from a very strong twill nylon material, the same as used in our Pro Series Chutes to deliver fantastic stopping power! When running over 200mph you require 2 parachutes for your car!

• Ready for racing, complete with Pilot Chute

• 9” x 9” x 7” tall

• Black nylon chute pack and safety flag/pin

• Available in black, blue, red or purple

12’ Sportsman Chute

Suits: Sedans, Altereds & Dragsters up to 180mph

• 7” x 7” x 5” tall

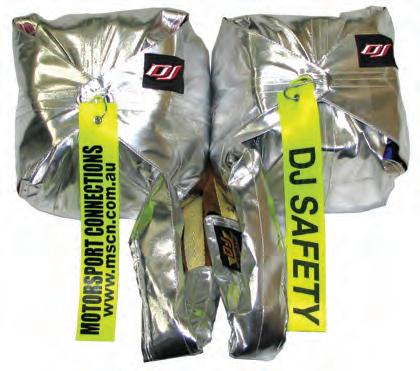

12’ Pro Series Chute

These parachutes suit Pro Class cars that can reach speeds of 330mph. Suitable for Top Fuel, Top Alcohol & Top Doorslammer. They are made from a very strong twill nylon material that can take the severe strain of being deployed at high speeds. The chutes are a 12ft crossform design with eight canopy lines.

• Ready for racing, complete with Pilot Chute

• 9” x 9” x 7” tall

• Silver chute pack and safety flag/pin

• Available in black, blue, red or purple

New model available

DJ Safety offers a full custom chute service. If you need a parachute for a Boat, Land Speed / Salt Car, Top Fuel Motorbike or any other application, DJ Safety & MSCN can handle your enquiry.

Custom Lettering is also available on all chutescontact us for more info.

Safety Flag

DJ Safety / Motorsport Connections safety flag secures your parachute from accidental deployment in the pits, staging lanes or during transport. It can also be used for any safety pin, such as fire bottles, throttle stop etc. The long bright yellow tag with DJ and MSCN logo won’t let you forget that the locking pin is in place.

Photo Credit: Grant Stephens

George Bukureshliev

Photo Credit: Grant Stephens

Maurice Fabietti / Brodie Zappia

Engine Protection

Engine Diapers

Ballistic Nylon Diaper

SPECIAL SERIES - These will fit standard style stepped sumps and aftermarket accessories. If you have clearance issues or need to clear a cross member or dry sump pump, the special series will solve your problems. They are light weight and fit perfectly, and will contain oil & parts without leakage as common with universal diapers! SFI 7.2 Spec.

Ballistic Nylon Diaper - Flat Pan

These Ballistic Nylon Diapers carry an SFI 7.2 Spec and are designed for Sportsman vehicles (Sedans, Dragsters, Altereds) that use a flat style pan or have no issue with space or cross members. They are light weight and fit perfectly, and will contain oil & parts without leakage as common with universal diapers! Available with quick disconnect adjustable bolt-on or frame rail straps.

Top Fuel Soft Kevlar Diaper Carbon Fibre Bucket Diaper

Soft Kevlar Diapers are the next step from the Ballistic Nylon - the Kevlar version is stronger and fire resistant. These meet the higher SFI 7.1 Specification as required in Top Fuel! Custom made diapers are available - please contact us for more info.

Complete with quick release adjustable kevlar straps & absorbent pads.

The top of the line, easy to take on & off the car, strong & light. These are the choice of professional teams worldwide! These meet the higher SFI 7.1 Specification as required in Top Fuel! Custom made diapers are available - contact us for more info. Complete with kevlar liner, quick release kevlar straps & absorbent pads.

We carry replacement pads to suit the DJ Diapers. We also have the Diaper Tube that is inserted in the diaper around the pan for added absorption.

Engine Protection

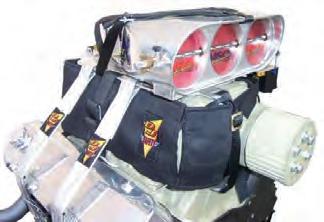

Blower Restraints

Universal Blower Restraints Blower Restraints - SFI

These universal blower restraints have a aluminium top plate with a small opening to suit most blower openings. The straps are fully adjustable from 6” to 28”. Paddles and hardware included. *Extra holes may need to be drilled.

14.1

We carry a large range of SFI 14.1 blower restraints on the shelf to suit different blower openings and engine combinations. Simply measure from the top of the supercharger to the top of the cylinder head to determine your strap length. Made from an aluminium top plate and non adjustable Kevlar straps with silver fire resistant cover and include all hardware to install.

Custom length straps are available by special order along with a huge range of top plates to suit a variety of superchargers and inlets!

PSI Restraint - SFI 14.21

DJ Safety make screw-type Supercharger restraint devices & bags to suit Top Alcohol & Top Doorslammer when you are running a PSI or Whipple style superchargers. Please contact us for an information/order sheet to determine the correct restraint.

New model available

Restraint - SFI 14.2 Blower Restraint - SFI 14.3

Designed to suit the explosive nature of Top Fuel, the 14.3 spec restraint is available by custom order only to suit your combination. Please contact us to fill out an information/order sheet to determine the exact restraint & bag. From nostalgia to modern fuel cars, DJ has the right equipment!

We have custom made Alcohol Supercharger restraints & bags to suit Top Alcohol & Top Doorslammer when you are running a roots style supercharger. Contact us for an information/order sheet to determine the correct restraint.

Restraint - Spares

MSCN carries replacement hardware in stock, call for more info. If you have a damaged restraint or bag, need to make your straps shorter or longer, we can help. DJ has the ability to fully service any restraint and can recertify to the latest SFI spec and date in the process.

Transmission Blankets / Tow Straps

Blankets

Auto Lenco Other Transmissions

Made from Ballistic Nylon, they simply wrap around the case of the transmission and are held in place with buckles and forward mounting straps. Designed to contain parts within the blanket if a failure occurs. Custom blankets are made to order. Meets SFI 4.1 specification.

* Denotes “No holes in blanket”

Blankets can be made to suit almost any transmission, other styles are availablecall with your enquiry.

Available to suit with or without reverser. All styles are available in CS1, CS2 and CS3 cases.

Downs & Tow Straps

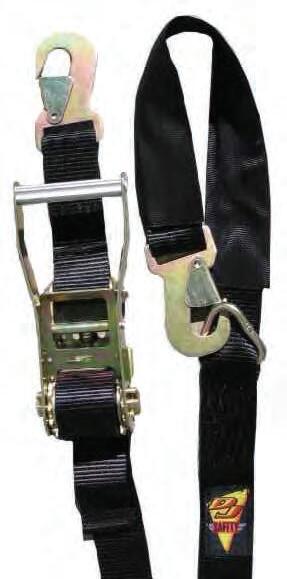

Tiedowns

Made from 2” webbing with a heavy duty ratchet in two standard lengths of 8 and 12 foot.

Standard colour is black, custom colours and lengths are available by special order. Call for details.

Attachment Straps Slings, Straps & Hardware

Made from 2” webbing in two different styles. The Hook & Loop system are adjustable while the D ring style are a set length.

Standard colour is black, call for custom colours.

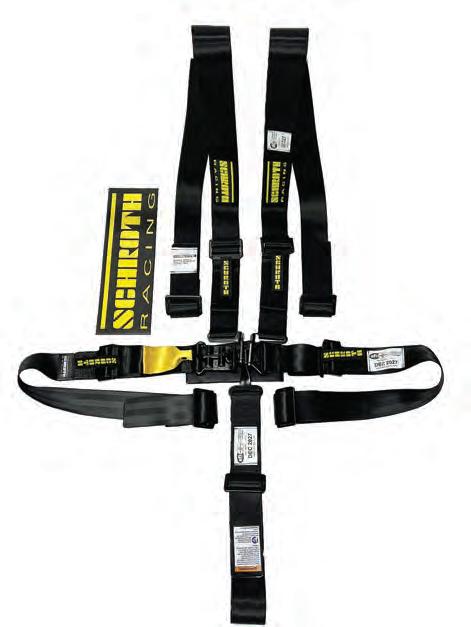

Harness Systems

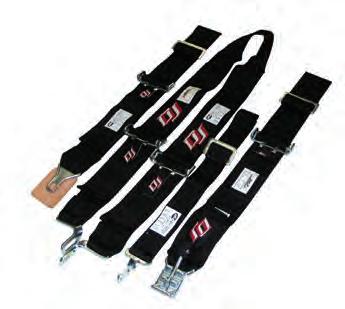

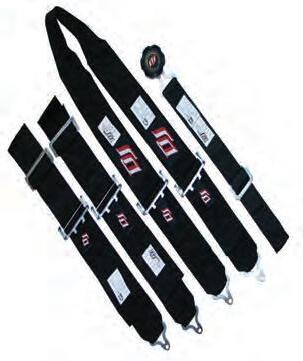

Motorsport Harness Systems

DJ Safety Motorsport Harness Systems are proudly made in the USA at their factory located in Los Angeles California. Made by craftsmen using quality hardware to stringent quality control so that you can feel 100% confident in securing yourself into your vehicle. All restraint devices made by DJ Safety carry the SFI 16.1 specification with current dates as required by many sanctioning bodies around the world. Their huge inventory will be able to suit any vehicle, with several options available to make your installation easy and hassle free. Custom systems are available by special order with a wide variety of colours to choose from along with new style adjusters and helmet restraint harness systems. Talk to a member of our sales team for more information.

Integral latch

Lever latch Cam lock

Optional sewn in shoulder pads available

Snap in Bolt in Wrap around

Pull up adjuster or pull down adjuster

Optional 2” webbing helmet Support shoulder restraint

Optional loop shoulder harness (shown with fireproof cover)

Harness Systems

Latch Harness Systems

Harness Systems

Cam Lock Harness Systems

Fire Suppression

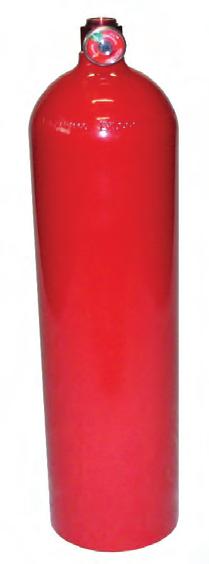

Coldfire - Fire Suppression Car & Marine Kits

Kits come with:

• 1 x 10lb Coldfire bottle

• Choice of 3, 6 or 9ft cable*

• 1 x bottle injector head

• 3 x DJ nozzles - 3 x nozzle tees

• 12.5ft roll aluminium tube, tube nuts, sleeves and adapters

• Instructions & stickers

* Please specify cable length required.

See our Technical pages at the end of the catalogue for more info...

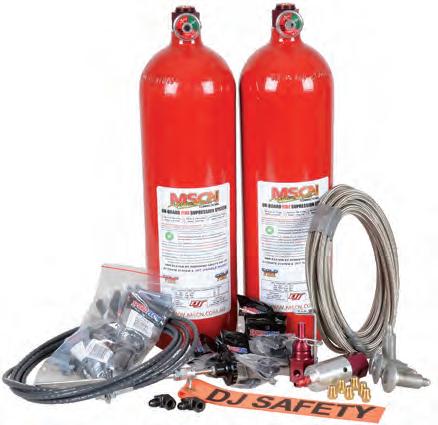

Both kits come complete with:

• Choice of 3, 6 or 9ft cable*

• 1 x standard injector head

• 8 metres of Teflon braided hose, instructions & stickers

Single bottle kits also come with:

• 1 x 10lb Coldfire bottle

• 3 x DJ nozzles, 2 x nozzle tees & 1 x nozzle end

Twin bottle kits also have

• 2 x 10lb Coldfire bottles,

• 6 x DJ nozzles, 6 x nozzle tees & 1 x nozzle end

• 1 x pneumatic injector head

* Please specify cable length requir

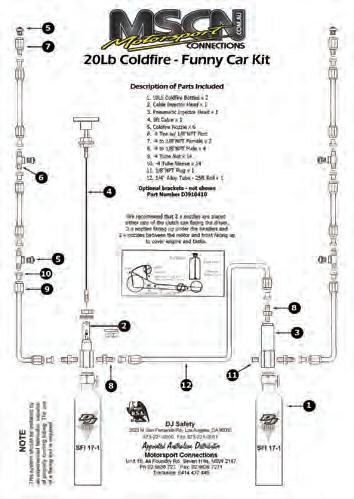

Funny Car Kits

2 x 10lb Coldfire bottles - choice of 3, 6 or 9ft cable*

1 x standard injector head - 1 x pneumatic injector head

6 x DJ nozzles - 4 x nozzle Tees - 2 x nozzle ends 25ft roll aluminium tube, tube nuts, sleeves and adapters, Instructions & stickers

* Please specify cable length required.

Doorslammer Kits

2 x 10lb Coldfire bottles - choice of 3, 6 or 9ft cable*

1 x standard injector head - 1 x pneumatic injector head

6 x DJ nozzles - 6 x nozzle tees, 25ft roll aluminium tube

Tube nuts, sleeves and adapters, instructions & stickers

* Please specify cable length required. SFI 17.1

Coldfire - Fire Suppression Systems

Injector Heads Replacements

Cable Assemblies

Spares

MSCN is an authorised agent for DJ Safety to service and recertify Coldfire Fire Suppression Systems to ANDRA specification and SFI 17.1. We only service DOT 3AL stamped bottles.

The process includes:

• Clean, check bottle integrity & gauge accuracy

• Refill bottle with Coldfire agent mix & replace burst disc & O-rings

• Pressurise bottle to recommended spec. & apply new date tag

The bottles are left to settle for 3-5 days before returning to you.

Bottle Brackets

Fire Suppression

FireSense® Suppression Systems

Steel Mechanical Kit - 4.0L

Using 4.0 litres of firefighting foam, this system offers high-quality entry-level fire suppression and is approved to FIA technical list 16. The mechanical actuation offers great value for money with excellent fire suppression capability. Each system is supplied with a comprehensive installation kit to allow for professional installation.

• Homologation number: EX.073.26

Kit includes:

• 1 x 4.0 mechanical steel body cylinder and valve

• 1 x 6ft pull cable

• 1 x 12ft pull cable

• 1 x 6 metre length - 8mm aluminium tubing

• 2 x Cockpit nozzle

• 3 x Engine bay nozzle

• 4 x 8mm push fit T piece

• 1 x Decal pack

• 1 x Steel bracket & strap kit - 155mm

4.0 Litre Electric

- Steel Mechanical

With 4.0 litres of firefighting foam, this is an excellent entry-level fire suppression system and is approved to FIA technical list 16. The electrical actuation offers great value for money with superb fire suppression capabilities. Each system is supplied with a comprehensive installation kit to allow for professional installation.

• Homologation number: EX.073.26

Kit includes:

• 1 x 4.0 Electrical steel body cylinder and valve

• 2 x Waterproof momentary actuation switch

• 1 x Power pack

• 2 x Plug and lead assembly - 1m length

• 6 x 1 metre lengths - 8mm aluminium tubing

• 2 x Cockpit nozzle

• 3 x Engine bay nozzle

• 3 x 8mm push fit T piece

• 1 x Decal pack

• 1 x 8mm bulkhead

• 1 x Steel bracket & strap kit

Extinguisher System - Electric Activation

Steel Electrical with Auto Activation

Great for Off-Road racing in buggies or SXS, with a robust 4 litre steel bottle and electric/auto activation!!

The FireSense® 4.0 litre Auto Activation Electrical fire system uses a steel bottle which provides a cost effective entry level fire system for your race or rally car.

Installation couldn’t be more straightforward, using 8mm pipework throughout the system and only 2 nozzles for the engine and 2 for the cockpit to disperse the firefighting foam. Installing the system can be done by someone with little to no mechanical knowledge. This extinguisher features a unique Auto Activation trigger function. This new safety feature ensures in the event a fire quickly getting out of control or a driver losing consciousness or is trapped and unable to operate the system it will operate automatically.

• FIA technical list 16 approvedFIA homologation number EX.066.22

Kit includes:

• 1 x 4 litre steel bottle

• 2 x Mounting bracket and straps

• 1 x Power pack

• 2 x Plug and cable assemblies

• 2 x Activation switches

• 4 x Nozzles

• 4.5 metre 8mm tubing

• Tube connectors

• Decals

• Instruction Manual

PART

DESCRIPTION SPA MFE 400A

System - Electrical Auto Activation

Speedway / Sprintcar Systems

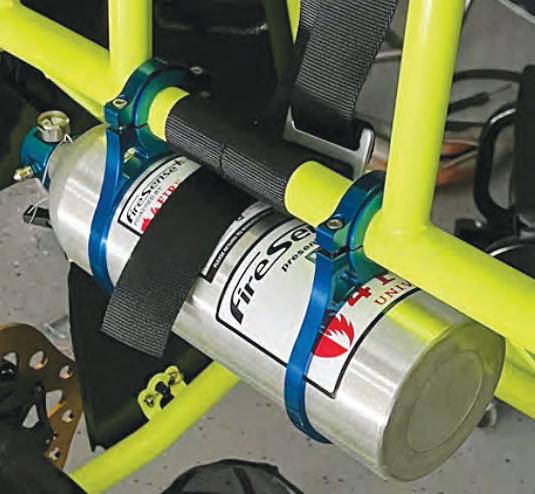

Supression System - SPA4f SFI 17.3

5lb Fire Sense+ with 4Fire Universal AUTOMATIC system with remotely mounted SPA Technique patented AM block.

The first system certified to the newest SFI 17.3 specification for open wheel-front engine cars such as Micro Sprints, Sprint Car and Midgets.

This block has a Pull for Fire lanyard, that serves as a manual override for the driver, if they wish to activate the system before the heat gets to where the block is mounted.

The system utilizes 4Fire Universal as the suppression agent. 4Fire presents as an AFFF (aqueous film forming foam), which blankets everything it touches. This means it is cooling while also forming a boundary layer, to help prevent re-ignition.

It also offers quick fire-out times on par with clean agents (gases).

SPA SFI 17.3 includes:

• 1 x Bottle - filled and pressurized with auto head and valve

• 1 x AM block (contains thermal bulb rated at 175°F)

• 2 x Nozzles

• 10 feet of aluminum tubing

• 2 x Standard bottle mounts**

• 1 x ‘E’ sticker

SPA 4F-17.3-4 includes:

• 1 x Bottle - filled and pressurized with auto head and valve

• 1 x AM block (contains thermal bulb rated at 175°F)

• 2 x Nozzles

• -04 Nipples

• -04 Hoses NOT supplied

• 2 x Standard bottle mounts**

• 1 x ‘E’ sticker

• Bottle dimensions: 15 1/4” x 4 3/8”

• Bottle weight: 8.8lbs.

Hand Held - 2.4L

This Firesense lightweight alloy hand held extinguisher is filled with 2.4 litres of firefighting foam extinguishant and meets MA/CAMS requirements for stage rallying.

Supplied with mounting bracket and quick release straps for easy mounting to the car.

Quick release straps to release easily should the extinguisher be needed

Utilising a superior quality firefighting foam concentrate, our extinguishers can be used in countries where traditional AFFF foams have been banned, 100% environmentally friendly water-based foam that has been approved by the FIA.

Designed for extinguishing and securing all types of flammable liquid fires with excellent coverage. It has excellent fire knock down properties and leaves a film which helps prevent re-ignition of the fire.

• Dimensions: Length (including head) 455mm, diameter 131mm

• Cylinder weight: 3.40kg

• Installation kit weight: 0.20kg

**Optional Bottle Brackets Billet, roll bar style mounts available as an upgrade.

Roll Bar & Side Impact Padding

Roll Bar & Side Impact Padding - SFI

Our Urethane Science padding is available in a variety of sizes and is endorsed by ANDRA and CAMS vehicles running in National events.

One advantage of USI SFI padding is that it is not hard like a rock, but it is firm with a cushion feel! This also makes it flexible and easier to install than other brands. The padding is available in a variety of sizes.

Also available is the SFI 45.2 Side impact / Helmet Padding this is available in flat sheets.

Our testing has provided proof that the padding can be soft and absorb high "G" forces, accomplished only with our formulated Urethane compounds.

• Best impact absorbing padding made

• Softer feel than other pads

• Easy to bend and shape

• Shaped for better visibility

• SFI 45.1 licensed approved

• SFI 45.2 licensed approved

• All pads made in USA

• Colour: Black

SFI 45.1 - Large

3ft (900mm) long

• Meets SFI 45.1 spec.

• Colour: Black only

SFI 45.2 Side Impact Pads

Designed specifically as a cut to shape Helmet Support Pad. Used by many top teams.

• Fabrication is required to mount to your vehicle.

• Meets SFI 45.2 specification.

• Colour: Black

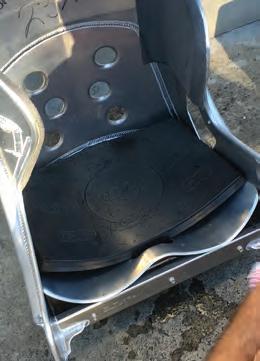

TECHNICAL INFORMATION

Heating the padding above 80°C in hot water will allow the padding to be bent at sharper or odd angles reducing the risk of breaking the

Our gun supplier for Racing Seats and Steering wheels. VELO also produces a nice range of FIA harnesses and accessories that should be checked out as well.

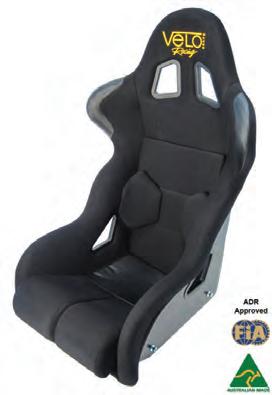

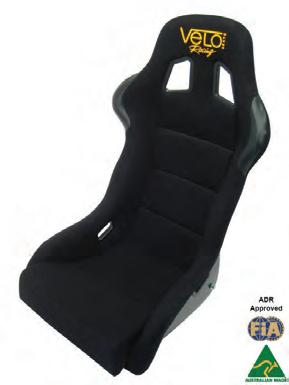

Velo Racing Seats

The GP-90 is a seat which offers excellent support. It is equipped with removable and adjustable leg, base and back cushions.

ADR approved making it equally at home on the track or the road.

It is a side mounted seat equipped with 5 harness holes to allow any configuration of racing harness to be used. It is available in standard, XL & XXL.

• Black is the standard colour

• Other colours are available as a custom order but have long lead times

GPT-1

NOTE ON VELO SEATS

We stock a huge range of Velo Gear - but the seats are quite large. Please call for availability and shipping options. Go to www.mscn.com.au for Velo Seat Sizes

This seat comes with FIA homogolation or as an ADR approved option.

Its enhancements include more support in the rib area and far greater rigidity utilizing a new sandwich construction technique. It features removable seat cushions and side mounting and comes in standard size only.

• Black is the standard colour

• Other colours are available as a custom order but have long lead times

This seat comes with FIA homogolation or as an ADR approved option.

Its enhancements include more support in the rib area and far greater rigidity utilizing a new sandwich construction technique. It features removable seat cushions and side mounting and comes in XL size only.

• Black is the standard colour

• Other colours are available as a custom order but have long lead times

GPT-3

This seat comes with FIA homogolation or as an ADR approved option.

Its enhancements include more support in the rib area and far greater rigidity utilizing a new sandwich construction technique. It features removable seat cushions and side mounting and comes in a XXL size only.

• Black is the standard colour

• Other colours are available as a custom order but have long lead times

Seats & Steering Wheels

Velo Racing Seats

Viper

The Viper Seat is designed for competition use and features ultra deep sides and an integral head restraint. It is available in glassfibre construction and is non FIA approved.

The Viper XL/XXL cater for the larger/taller framed driver/ navigator, being wider and 50mm taller than the standard Viper.

The seat is HANS compatible and offers excellent value for money, and has become particularly popular for use in targa events.

Apex

This is the ultimate in competition seating and is designed for dedicated racing applications. The fibreglass shell features ultra deep sides, close fitting lateral head support and has the rigidity required to satisfy the most demanding driver.

This seat is FIA homologated and our integral lateral head support is compatible with the HANS device.

The seat also features removable back, base and front cushions.

Velo Steering Wheels

Dish

dia,

• Includes horn button

• Lifeline Boss/Hub kits

• Suede leather

• Italian made

350mm dia, 28mm dish (Flat). Yellow stripe on top for reference.

• Includes horn button

• Fits all MOMO, Sparco, SAAS, Lifeline Boss/Hub kits

• Suede leather

• Italian made

Podium II

The all new VELO Podium II has been developed following the feedback received from the very popular original Podium. Its deep sided construction featuring extra high bolsters ensures maximum support.

It has also gained in rigidity through the utilisation of new sandwich construction techniques. This seat is able to accommodate a wide range of driver and co-driver sizing and is also equipped with removable insert cushions and adjustable padding.

• 5 harness holes and is available in a range of colours

Door Handle Strap

Velo door pull handle loops are suitable for use on race, rally and road cars.

• Simply bolt to the interior door of the car.

• Manufactured using 1400Kg webbing they measure 210mm overall length, with a loop size of 90mm. 11mm bolt hole size

• Red, blue, black, orange colour options

Sold singly (x1 per order)

We stock a huge range of Velo Gear, but the seats are quite large. Please call for sizes, availability & shipping options. See our website www.mscn.com.au

• Includes horn button

• Fits all MOMO, Sparco, SAAS, Lifeline Boss/Hub kits

• Suede leather

• Italian made

380mm dia, 65mm dish wheel. Yellow stripe on top for reference.

• Includes horn button

• Fits all MOMO, Sparco, SAAS, Lifeline Boss/Hub kits

• Suede leather

• Italian made

350mm

65mm dish wheel. Yellow stripe on top for reference.

350mm dia, 90mm dish wheel. Yellow stripe on top for reference.

Seats, Harnesses & Tow Straps

Velo Seat Brackets

The universal Seat track can bolt directly to the bottom mount seats, or can also be used on side mounts if desired. Requires custom brackets to mount the seat sliders to floor of car.

Billet Alloy mounting brackets to suit side mount seats. Undrilled base.

• 390mm Long x 100mm high

• Weight approx 1.1kg a pair

Steel mounting brackets to suit Side mount seats. Powdercoated black.

• 375mm long x 135mm high

• Weight approx 2kg a pair

Billet Alloy, extra length and height to suit larger cabins, and a much greater range of seat position adjustment.

• 395mm long x 125mm high

• Weight approx 1.3kg a pair

NO.

BISM CD Suits Larger Seats

FIA Harnesses & Tow Straps

All Velo belts are made in the UK so you can be sure of great quality. FIA approved.

• Available in black only

6 point HANS specific harness with ultra light rotary buckle and easy slide adjusters. Snap hook fittings for easy fitment and removal. Supplied with eye bolts. Velcro on shoulder strap for drink tube/intercom.

• FIA8853: 2016 homologated

Aluminium mounting brackets to suit side mount seats.

• Drilled Base: 390mm long x 100mm high

• Weight approx 1.1kg a pair

Long

Billet Alloy Seat mounting brackets, extra length and height to suit larger cabins, and a much greater range of seat position adjustment.

• 485mm long x 125mm high

• Weight approx 1.6kg a pair

NO. DESCRIPTION

This 6 point ultralight 50mm quick adjuster harness is for drivers who prefer to use 50mm webbing on all parts of the harness. The shoulder straps can be wrapped around the roll cage if required.

OIL ACCESSORIES

PENNGRADE OIL

Synthetic Blend Multi Grade High Performance Motor Oils

0W-30

A high-performance, lighter viscosity oil specifically designed to maximize horsepower while protecting critical engine parts. PennGrade 1® base oils provide superior film strength throughout a wide range of operating temperatures and conditions including gasoline and methanol powered vehicles. Also a great option for Jr Dragsters.

Discontinued Product - Limited stock!

10W-30

A truly versatile high performance oil suitable for engines used both on the street and/or the track using gasoline or methanol.

The multi-viscosity grade and synthetic components facilitate cold starting and quicker engine warm-up while ensuring adequate engine protection during competition.

15W-40

A multi-viscosity option for engines exposed to higher temps and mixed ambient conditions. The PennGrade 1® synthetic blend SAE 15W-40 high performance oil possesses excellent film strength and proven additive chemistry to provide required performance in a wide range of operating situations for gasoline and methanol fuelled engines.

5W-30

PennGrade 1® Synthetic Blend SAE 5W-30 is ideally suited in today’s street/racing market ‘crate engines’ that require this viscosity.

It contains strong detergent, dispersant and ZDDP anti-wear additives to help protect critical engine parts.

10W-40

Designed to meet the lubrication demands of traditional classic and muscle car engines as well as high-performance competition engines using gasoline or methanol. The SAE 10W-40 high performance oil offers the multi-viscosity advantages of faster oil flow and engine warmup as well as excellent film strength and engine component anti-wear protection.

20W-50

Designed to offer higher performance engines running on either gasoline or methanol the cold temperature operational benefits of an SAE ‘20W’ engine oil while providing the desired film strength; sealing abilities; bearing, crankshaft, piston ring and valve train component anti-wear protection of an SAE 50 weight oil at normal engine operating temperatures.

High Performance Oil

Mineral Mono Grade High Performance Motor Oils

B109-7139

B109-7115

SAE 30

A lighter straight-grade viscosity oil characterised by its proven protection and performance. Along with its PennGrade 1® straight-grade counterparts, the Brad Penn® PENNGRADE® SAE 30 High Performance Oil offers excellent film strength and an effective detergency package and is a good choice for the legacy muscle car/street rod. Excellent oil for vintage and air-cooled applications requiring a straight grade oil. Great for gasoline and methanol.

SAE 50

Heavy viscosity, straight-grade motor oil designed to provide superior lubrication to high-performance competition engines fueled by gasoline, methanol or nitromethane. Used extensively in high horsepower normally aspirated and supercharged engines all over Australia!

- 1 quart (0.946 litres)

B009-7115 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7115 Drum - 55 gallons (208 litres)

Nitro 70

Is specifically formulated for gasoline, alcohol and nitro-methane fueled racing engines that experience extreme load, torque and high temperature conditions.

The high viscosity and exceptional film strength of the oil allows for excessive dumping of blow-by fuel into the engine oil while maintaining critical lubricating protection for expensive parts of high performance racing engines.

Engine Builder Products

Engine Assembly Lubricant

This engine assembly lubricant is a premium high viscosity lubricant specifically designed to offer additional protection for new moving surfaces in engine assembly applications. The Pennsylvania Grade base oil provides higher load carrying ability and excellent surface film protection to prevent wear in highly stressed internal components.

It will not drip or run from treated parts due to it’s tacky/stringy nature and is perfect as a pre-lube for valve train components including cam lobes, lifters, wrist pins, rod and main bearings, plus other applications!

SAE 40

Formulated with the unique cut from our PennGrade ® stocks, this straight-grade oil is designed to provide excellent protection for street and competition engines using gasoline or methanol. It’s superior film strength, highly effective detergency package and foam inhibitors make it an optimal lubrication choice for muscle cars & hot rods. The increased ZDDP provides outstanding anti-wear/anti-scuffing protection for older style push rods and flat tappet cams. Excellent option for vintage car lubricant and air-cooled applications where a mono-grade viscosity is preferred.

SAE 60

PennGrade 1® SAE 60 Heavy viscosity, straightgrade motor oil is designed to provide superior lubrication to high-performance competition engines fuelled by gasoline, methanol or nitromethane. Superior alcohol separation assures continual lubricant protection to the engine under the harshest conditions.

SAE 60 is a great choice for Blown alcohol engines that require a little thicker oil than SAE 50.

SAE 30 mono-grade oil formulated specifically to meet the critical lubrication needs of new engines during break-in while allowing proper seating of rings and component ‘run-in’.

Enhanced levels of “zinc” (zinc dialkyldithiophosphate a.k.a. ZDDP) and superior oil film strength from Penn-Grade™ base oils offer protection for even the most demanding of applications such as those presented by break-in of engines with ‘flat tappet’ cams.

High Performance Oil

High Performance Wet Clutch 4 Stroke Motorcycle Oils

10W-40 Motorcycle Oil

Expertly formulated with premium oils, synthetic components, and advanced additives for top performance. Its unique viscosity modifier ensures excellent high-temp and shear stability, protecting high-revving engines and transmissions. Enhanced zinc content offers superior anti-wear protection, while detergents and anti-oxidants prevent deposits and breakdown. Anti-foam agents keep oil smooth at high speeds.

Gear Oils

Full Synthetic SAE 75W-90

For the ultimate in protection for supercharger, blower and hypoid gear applications. The Full Synthetic Hypoid Gear/Blower High Performance Lubricant is a specially formulated 100% synthetic, SAE 75W-90 oil designed for use with selfcontained systems where SAE 75W, SAE 80W-90 or SAE 90 grade gear oils are recommended. It is suitable for use in Roots and Lysholm screw type superchargers and may be used in manual transmissions and hypoid differentials where high shock loading is a concern.

Limited Slip SAE 80W-90

This Limited Slip GL-5 80W-90 Gear Oil has been specifically developed to serve as a friction modified lubricant for clutch-type, limited slip differentials, reducing slick-slip “chatter” in low speed high torque operations. It is formulated with PennGrade base stocks, as well as a skillfully tailored additive system. It is recommended when an SAE 80W, 90 or 80W-90 viscosity is required. PART NO.

B123-7732 Bottle - 1 quart (0.946 litres)

B023-7732 Case - 12 bottles - 12 quarts (11.35 litres)

High Temp EP No2 Blue Grease

The High Temperature EP 2 Blue Grease is a multi-purpose, NLGI #2 GC-LB lithium complex grease designed for a wide range of industrial and automotive applications. It combines strong high temperature performance with excellent extreme pressure (EP) properties. It also provides good water resistance, excellent oxidation stability, exceptional rust protection, and resistance to chemical breakdown.

• 260°C dropping point

20W-50 Motorcycle Oil

Specifically designed with twin V domestic and imported motorcycle engine technology/lubrication needs in mind. A good multi-viscosity choice for use in V twin engines such as those found in HarleyDavidson® motorcycles where a 20W-50 API SJ, CF, CG-4 or CH-4 quality oil is specified. Also suitable for use in S&S®, RevTech®, Triumph®, Ducati®, BMW®, Victory®, and other domestic and imported motorcycles where an SAE 20W-50 viscosity, API SJ, SH, SG, CH-4, CG-4, or CF oil is specified.

Classic SAE 80W-90

The SAE 80W-90 is specially blended using high quality PennGrade 1® mineral base stocks and select additive technologies. It is designed to be used with “yellow” metallurgy (brass, bronze, copper) and with “soft” metals used in synchronizers, bushings, thrust washers and other components typically found in classic manual transmissions and transaxles. In applications specifying API GL-4 lubricants, the use of API GL-5 lubricants can damage these “soft” metal components.

Multi Purpose SAE 85W-140

litres)

This 85W-140 Limited Slip is formulated with high quality paraffinic base oils and a premium additive system to provide smooth, quiet performance with maximum protection against wear in gear applications. It provides superior thermal stability and maximizes oxidative sludge and varnish formations in the most severe operating conditions. Sold in a 35 Pound Tub only.

B551-7735 Drum - 35 Pound

Penngrade Banner

This 1200mm x .700mm PVC Banner will look great hanging in your workshop or shed. These even work well as Race Car Tyre covers for the side of racecars to prevent them from warming up.

High Performance Oil

MOTUL Engine Oils

The mechanical constraints encountered in Motorsport require the use of specific products guaranteeing great performance and reliability. Motul has built its reputation through motorsport, using the track laboratories and putting performance research at the heart of its R&D. This involvement has made it possible to create a range of reference products used in the biggest competitions around the world.

POWER SERIES

8100

ESTER Technology: 100% synthetic formula derived from competition and based on Ester ensuring outstanding oil film resistance at very high temperatures for maximum engine power and torque, as well as maximum wear protection. Stable oil pressure whatever the conditions of use, road or racing.

5W-30 5L Bottle

5W-40 5L Bottle MOT111855 5W-50 5L Bottle

For decades MOTUL has developed high performance synthetic Ester based lubricants. The 300V line includes the latest evolutions of MOTUL’s proprietary ESTER Core® technology to ensure maximum engine power output without compromising reliability and wear protection. MOTUL has created a perfect synergy formula to increase performance and protection of the engine selecting esters over other high performance synthetic and organic base stocks and combining them with an innovative additive package. This exclusive racing formulation now features biofuels (especially Ethanol) and particulate filter compatibility, LSPI protection and lowers environmental impact.

POWER SERIES 300V

The 300V POWER series viscosity grades allow stable oil pressure and bring the maximum power to your engine in all extreme conditions.

These 300V POWER series viscosity grades can cope with engines subject to low engine oil dilution from unburned fuelER Core* Technology

COMPETITION SERIES

300V

All racing gasoline or Diesel engines, naturally aspirated, turbocharged or supercharged fitted with injection (direct/indirect) or carburetted. For tuned engines and high performance cars operating over a wide range of rpm and temperatures, in severe driving conditions. Suitable for all types of fuels, gasoline, Diesel and biofuels (especially Ethanol).

LE-MANS SERIES

*ESTER Core® TECHNOLOGY

By selecting esters over other high performance synthetic base stocks and combining them with an innovative additive package, MOTUL has created a perfect synergy dedicated to increase performance and protection of the engine.

300V

The 300V LE MANS series viscosity grades allow stable oil pressure and bring the maximum reliability to your engine in all extreme conditions. These 300V LE MANS series viscosity grades can cope with engines subject to high engine oil dilution from unburned fuel and are suitable for engines featuring high clearances.

We have more MOTUL products available on the following pages: Gear Oil - Page 168 Brake Fluid - Page 190

Scan the QR code for more information!

Racing Oil Coolers

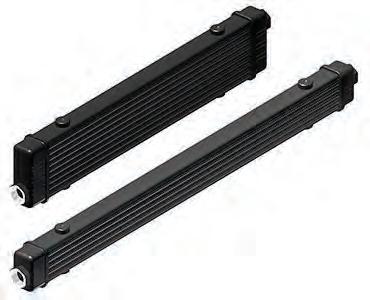

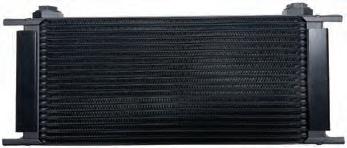

Setrab Coolers

Don't let their small stature fool you, their small footprint and low-profile suit tight spots where access to direct airflow isn’t always possible. They are the choice of racers and performance street machines - ideal for the following applications:

• Engine oil cooler

• Differential oil cooler

• Power-steering oil cooler

• ATV/motorcycle oil cooler

• Transmission oil cooler

• Fuel cooler

Racing Oil Coolers

Setrab Coolers & Accessories

Setrab is the number one supplier of high-performance racing oil coolers to many of the winning teams all around the world. The track proven rugged coolers are the ideal addition to racing cars, motor-cycles, street tuners, and also to motor homes and towing vehicles.

Technical Specifications

• Maximum working pressure is 10 bar. Approved testing at a dynamic working pressure of 0–10 bar, 200,000 fluctuations in load, 1 Hz

• Corrosion protection: Nocolok brazing process and epoxy-coated

• Connections: M22 female thread with adapters available

• Use in hydraulics, engines, transmissions, transformers, fuel coolers

• Unique modular system for the STD Oil Cooler suits most applications

Setrab Coolers & Accessories

These oil coolers represent the top tier of high-performance oil radiators. The modification of the internal turbulators allow for more movement of oil and greater exposure to the cooling surface area, resulting in greater capacity for heat rejection per cubic inch. Available in a 3-series width, with the option for 32 or 60 rows. These sizes were picked for their similarity to Setrab’s most popular oil coolers and, therefore, their ability to provide the broadest coverage of applications in just two sizes.

Setrab ProLine Multi-Pass oil coolers alter the flow path of the ProLine STD to optimize heat-rejection in specialized oiling systems.

SET-51-07990 USED IN RADICALS & LEGENDS RACE CARS.

Racing Oil Coolers

Both super-cooler fanpacks are compact, high-performance units, perfect for transmissions, differentials, and engine cooling applications.

The powder coated steel shrouds include integrated mounting tabs (including 70A durometer rubber pads) that allow for rigid, face mounting, isolating the aluminum core from chassis shock and vibration.

Compact, lightweight, and durable, the Sūsa mini gear oil circulation pump is a self-priming 12V positive displacement pump with no internal bypass. It is designed for intermittent/discontinuous use to circulate oil and waterbased fluids. Typical applications are differential/gearbox cooling circuits.

• O-rings included • Clamshell clamp not included

MALE

SET22-M22WGN08-00 shown

SET22-M22WGN08-00 -8 AN Straight

SET22-M22WGN10-00 -10 AN Straight

SET22-M22WGN12-00 -12 AN Straight

SET22-M22WGN16-00

Use above fittings on all SETRAB Coolers

SET516-332-761

Racing Oil Coolers

Setrab Coolers & Accessories

Spin-on take-off plates replace a spin-on oil filter at the oil filter housing, allowing installation of a remote oil filter and access to oil supply for the installation of an external oil cooler.

• Suits O-ring diameter up to 76mm O/D

Designed for vehicles with a recessed oil filter landing. The Sūsa oil filter spacer offers features for differing scenarios. Use the spacer alone to add facility for installing miniature sending units, or use in conjunction with a sandwich adapter plate to install an oil cooling system.

SET22-BJAN08-90

SET22-SKBJM22

BANJO ASSEMBLIES

SET22-BJAN06-90

Filter mount is designed for large diameter spin-on oil filters.

• Suits O-ring diameters from 70mm - 92mm

SET22-BJAN16-90

SET22-SKBJM22 Service Kit for Setrab ProLine Banjo Assembly

Design provides multiple options for oil flow entrance & exit. Filter mount is designed for smallto-medium-format spin-on oil filters.

Oil Filter not included

Integrated thermostatic oil valve controls oil flow to oil cooler downstream. Available in left-to-right (LTR) or right-to-left (RTL) variants for convenient installation and plumbing no matter where the oil flow originates or leads. Included heavy-gauge steel mounting plate offers multiple orientations for adaptability.

REMOTE OIL FILTER MOUNTS WITH THERMOSTATIC

SET18-RFHUT77-13-22-LTR Oil flow Left to Right13/16”

SET18-RFHUT77-34-22-LTR Oil flow Left to Right3/4” -16 SET18-RFHUT77-13-22-RTL Oil flow Right to Left13/16” SET18-RFHUT77-34-22-RTL Oil

This billet aluminum LS Take-Off Adapter is a reliable, high-performing solution to install an oil cooler on LS-powered platforms.

M22 Ports with Thermostat

Transmission Coolers / Power Steering Reservoir Coolers / Power Steering / Oil Filters

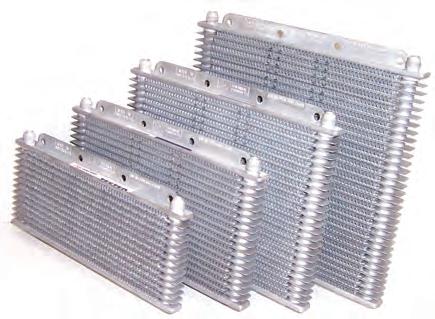

Hi-Tek Trans Cooler Systems

These efficient coolers are built with B&M's favoured fin-and-plate construction to handle tough cooling jobs, and they have built-in mounting brackets to make installation easier. Fitted with high-quality, 12V, high-flow fans that are controlled by a thermal switch. These rugged coolers are pressure-tested to 200 psi and can be used on RVs, race cars, and high performance street vehicles.

• All aluminum construction

• 1/2” NPT fittings easily adaptable

• 175° Thermal switch included

• Small & efficient design

Fittings:

• Speedflow -6 Straight 816-06-08

• Speedflow -8 Straight 816-08-08

• Strong, durable cooler core

• Permanently bonds all mating surfaces

• Lightweight cooler core

Lightweight transmission coolers to suit Street, Off Road and Race applications

• Australian made

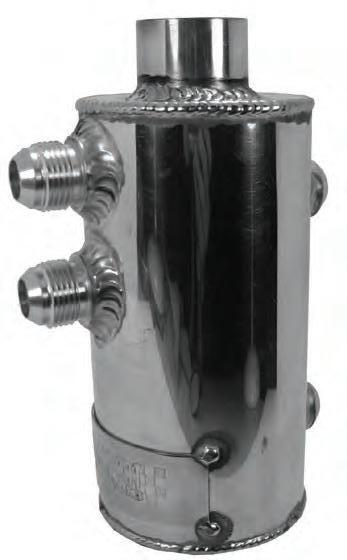

Power Steering Reservoir

MSCN universal power steering reservoirs are made in Australia from quality aluminium and polished to a high shine.

As with all our tanks we even put a couple of mounting lugs on the back so fitting to a bracket or panel is easy!

• -10 male feed, -6 return

• 6mm mounting lugs

• Size: 75mm dia. 120mm high

• Capacity: 500ml

Wix Racing Oil Filters

The WIX line of racing oil filters features a heavy duty can and cover which provides up to 500 psi burst pressure protection for high performance racing engines. You won't collapse this filter as it features a Steel Fully Perforated Spiral Centre Tube that has the highest collapse strength in the industry. Filter flow rates from 28 to 30 GPM provides plenty of flow for wide bearing clearances found in racing engines. Recommended and used by BK Race Engines.

Racing performance parts are sold “as is” without any warranty. NO IMPLIED WARRANTY for fitness or merchantability is included. The buyer assumes all risks related to the use of this product. New vehicle and equipment warranties are voided when this product is used in competitive racing or on modified high performance engines.

Oil Accessories & Breather Tanks

Oil Accessories

High Efficiency Endurance Oil Filters use a media (T-71) rated at a Fraizer air flow of approximately 75 CFM. This media contains a higher resin content than our Advanced Performance Filters to trap and hold smaller contaminants and provide higher efficiency.

Pressure Switches Pressure Tees Pressure Tees

These pressure switches are designed to activate a light when pressure drops below the closed pressure range as above. Light remains off at open pressures.

AU3241 Closes 15psi Opens 18psi 1/8” NPT

AU3242 Closes 30psi Opens 32psi 1/8” NPT

AU3243 Closes 50psi Opens 52psi 1/8” NPT

Perfect for adapting an aftermarket gauge to a standard sender location or for running a turbo feed line. This has 3 x 1/8”NPT holes for multiple uses from the same outlet!

Breather Tanks & Filters

Use as a remote air/oil separator.

Take off pressure lines for gauges or turbo feed lines while still retaining the original sender. Made from brass these tees are strong and suit a huge range of vehicles.

1/8” NPT1/8”

• -6AN Drain, 1-1/2” breather tube

Moroso Accumulators, Fittings & Valves

Oil Accumulators

These provide an instantaneous supply of oil when pressure falls below a safe level. The 1.5 quart version is perfect for sport compacts and vehicles with 4 or 6 cylinder engines. Ideal for street performance and mild off-road applications. All accumulators store oil under pressure and automatically release oil to the main galleries when oil pressure drops. These can also be used to manually pre-lube engines before starting to prevent cold-start scuffing & premature bearing wear. Automatic operation!

12 Volt Solenoid Valve

Allows remote control of fluid flow via 12v switch.

Each side of the solenoid valve contains a 1/2” NPT female port. Solenoid Valve is open with switch on, closed with switch off & remains closed regardless of ignition switch position. Use toggle switch and 16 gauge wire included. A 20A fuse must be used between power source and switch. Power source must be active (i.e., “hot”) only when the ignition switch is in the “on” position. CAUTION!: Do not use with any fuels.

MOTUL Gear Oil

Technosynthese® lubricant for a better resistance at high temperature and longer life time.

Mounting Kit

Fasten to any flat surface. T-Bolt type clamps.

Suits

Check Valve

Spare Parts

Replacements for Moroso and other brand accumulators

/ 23901

Once installed, put 6psi of air pressure into the cylinder using the air valve and checking the gauge. Once the engine is running you will notice a pressure increase on the gauge. The system is now primed and ready to go.

Male Fittings

All mechanical transmission, synchronised or not synchronised gearboxes, gearbox/differential, transfer gearbox and hypoid differentials without limited slip system operating under shocks, heavy loads and low revolution speed or moderate loads and high revolution speed.

• Very high lubricating power decreases friction and wear.

• SAE 90 grade at hot temperature to provide outstanding oil film resistance at hot temperature and/or to reduce transmission noise.

• Fluid at low temperature to allow easier gear shifting when the gearbox is cold.

• Less effort required on the gear lever to shift the gears.

Earls Oil Accessories

3/4” -16 Oil Filter

(fits Fram PH8A or HP1 oil filters)

Allows you to move your oil filter to an easy to reach location.

• -10 AN O-ring ports and a 1/8” NPT port

• 1/8” NPT port

• 2 bolt mounting with 2.0” C/L to C/L

• Dual inlets/outlets for easy plumbing from either side

• Kit includes filter mount, plugs and hardware

• Lightweight aluminium black anodized finish

Remote Filter Mount With -10 ORB

• Billet aluminium, black anodized

• Fits 13/16”-16 (Fram PH5 or HP4) oil filters

• 3 x -10AN O-ring ports

• Inlet ports on both sides for easy routing

• Outlet port on top - 1/8” NPT port

• Size: 3.750” Wide x 4.000” long x 1.630” tall

• 2 bolt mounting - Bolt spacing 2 bolt with 2.860” C/L to C/L

Remote Filter Mount

Y Blocks

Fully CNC machined fuel distribution block for various applications. 1/8” NPT outlet for fuel pressure gauge. Anodized black.

-10 AN O-ring Port on Inlet & Two Oulets

Y Blocks

Updated CNC machined design with 1/8” NPT gauge port.

• -8 AN O-ring outlets

• Anodized black

EAR100168 -10 AN O-Ring Port on Inlet and Two Oulets

Oil Cooler Transmission Adapter

Allows easy installation of -6 AN hoses and oil cooler on late model GM 6 & 8 speed automatic transmissions - fits 6L80E, 6L90E and 8L90E transmissions. Replaces the factory thermostat.

• Billet aluminium construction, black anodized finish

• -6 AN male flares - use with AN plumbing

• Bolts to transmission & features O-ring seals

• Low profile - for extra tunnel clearance and easier routing of hoses

Oil Filter Adapter for 2011 Onwards Ford 5.0L Coyote Engine

• Billet construction, black anodized finish

• Replaces existing OEM oil filter housing

• Includes stainless steel hardware

• -10 AN O-ring ports

• Must be used with remote filter housing - EAR2077 is recommended

• O-Ring seals – no gasket required

• Fits 2011 and up 5.0L Coyote engine

• 2 x ¼” NPT Ports – ideal for temperature sensor, pressure sensor or turbo oiling (eliminates need for T junction)

• Special sculpting of the adapter allows extra clearance PART NO.

EAR1125 Oil Filter Adapter

Oil Fill Cap with PCV Vent

These late model valve cover fill caps screw into the valve cover like an ordinary cap. It is an easy way to add a catch tank to a racing engine without modifying the valve cover.

• -10 AN ORB (7/8” -14 straight thread) O-ring Boss Port for use with AN hose to the catch tank or PCV

• Use with O-Ring Port hose end or O-ring Adapter

• Internal baffle inside cap helps reduce transfer of oil to catch tank

• Billet aluminium, black anodized

• Fits factory GM LS, GM Gen-V LT and Ford Coyote valve covers PART NO.

EAR3434122 Oil Fill Cap

Tilton Continuous Oil Pump

Inline Filters - Scavenge Filters

Ideal for pumping oil through transmission and differential coolers. Features an internal bypass valve and is self-priming up to eight feet (2.5 metres) above the source. Designed for applications where the pump needs to operate continuously for longer than two hours at a time.

These coarse screen filters are designed to be placed on scavenge lines to protect the dry sump pump from debris during a major engine failure.

Scavenge Filters

XRP Inline Scavenge Filter

Filtered Sump Adapters

Billet Breathers

These billet breathers feature a stainless steel element with internal supporting spring for maximum support. The stainless steel element can be cleaned. All filters are have anodised top and bottom plate for that stealth look.

Available in -6, -10 and 12AN female threads. Applications include: valve cover engine breathers, catch tank breathers, dry sump breathers, fuel & diesel tank breathers & much more.

Mocal Oil Components

Made from Die-Cast aluminium, these sandwich blocks are to suit spin-on filters, with a remote oil cooler. They are not supplied with a centre extension bolt.

Made from Die-Cast aluminium, these sandwich blocks have a built-in thermostat set to divert oil to the cooler once the oil is at a temperature of 80°C.

Blanking Plate

The blanking plate is designed to fit the SP1 sandwich block to convert it to a low profile (63mm clearance) remote adapter. It can be turned to face any direction and tightened. Cannot be used with the OTSP1. PART NO.SEAL

O-ring / Seal

Replacement O-ring to suit all Mocal

Made from Die-Cast aluminium, these are set to divert oil to the cooler once the oil is at a temperature of 80°C. This is a positive control for engine oil in conjunction with all types of coolers.

Remote Filter Bracket

Die-Cast aluminium, suits most filters with a 3/4”-16 thread and features a right to left flow direction with a 3/8” NPT port in the front for temp or pressure senders.

• Secures with 2 x 5/16” mounting holes.

Banjo Fittings Banjo Bolt

The -10 banjo bolt (MO-BANJO-10) suits Mocal sandwich plates.

Designed to be used with the Mocal banjo bolts and screw directly into Mocal oil adapters.

Adapters & Mounts

Remote Adapters & Filter Mounts

Remote AdaptersCast Earls Oil Filter By-Pass Adapter

Oil port 1/2” NPT on all models. PART NO.THREADSEAL(I.D.-O.D.)

TD1013 3/4”-16 63 - 70mm

TD1020 13/16”-16 63 - 70mm

TD1022 13/16”-16 76 - 87mm

Cast Dual Filter Bracket

Chevrolet Sandwich Block - Cast

Trans-Dapt Performance Products sandwich adapters mount to the stock oil filter location on your engine block, and allow for the installation of an engine oil cooler, without relocating the oil filter. Simply match your vehicle’s oil filter nipple size with the thread & O-ring diameter.

Oil port 1/2” NPT on all models. PART NO.THREADSEAL(I.D.-O.D.)

*EAR1178-TD1013B 3/4”-16 63 - 70mm

EAR1118-TD1014B 3/4”-16 53 - 65mm EAR1120-TD1020B 13/16”-16 63 - 70mm

Earls Remote Oil Filter Mount

Sandwich BlockCast

Oil Cooler Delete & O-rings

Remote AdaptersCast Side Entry

13/16”-16

Cast Filter Bracket - Side Entry

Earls Sandwich Filter Adapter

Oil Filters

Ryco Specification Chart

Use this handy list to figure out what Block / Sandwich thread and O-ring style you have.

R14 G1- 92.00mm133.00mm97.00mm

Z100 3/4-16-UNF-2B 72.00mm108.00mm93.00mm

Z103 3/4-16-UNF-2B 70.00mm143.00mm82.00mm

Z113 1-12-UNF-2B 70.00mm141.00mm94.00mm

Z115 3/4-16-UNF-2B 70.00mm142.00mm94.00mm

Z121 3/4-14-BSP-2B 61.00mm135.00mm97.00mm

Z125 3/4-16-UNF-2B 63.00mm76.00mm82.00mm

Z129 1-12-UNS-2B 73.00mm177.00mm97.00mm

Z130A M22-x1.5-6H 66.00mm80.00mm87.00mm

Z131A 3/4-16-UNF-2B 70.00mm143.00mm81.00mm

Z133 1-12-UNF-2B 70.00mm127.00mm94.00mm

Z134 3/4-16-UNF-2B 71.00mm142.00mm81.00mm

Z136 1-12-UNF-2B 70.00mm142.00mm94.00mm

Z141 M22-x1.5-6H 70.00mm142.00mm94.00mm

Z142A M20-x1.5-6H 66.00mm80.00mm87.00mm

Z145A 3/4-16-UNF-2B 63.00mm102.00mm82.00mm

Z148A M20-x1.5-6H 63.00mm102.00mm82.00mm

Z149 1"-12-UNF-2B 70.00mm178.00mm94.00mm

Z150 M20-x1.5-6H 64.00mm141.00mm81.00mm

Z154 M18-x1.5-6H 72.00mm86.00mm77.00mm

Z155X M20-x1.5-6H 98.00mm83.00mm105.00mm

Z158 3/4-16-UNF-2B 63.00mm101.00mm82.00mm

Z160 13/16-16-UNF-2B 72.00mm86.00mm77.00mm

Z161X M30-x1.5-6H 84.00mm140.00mm113.00mm

Z162 M20-x1.5-6H 98.00mm126.00mm105.00mm

Z170 3/4-16-UNF-2B 70.00mm99.00mm94.00mm

Z172 3/4-16-UNF-2B 63.00mm102.00mm82.00mm

Z176 M26-x1.5-6H 71.00mm151.00mm105.00mm

Z178A M20-x1.5-6H 89.00mm99.00mm94.00mm

Z179 1-12-UNF-2B 98.00mm176.00mm105.00mm

Z182 1-12-UNF-2B 70.00mm127.00mm105.00mm

Z186 1-12-UNF-2B 70.00mm177.00mm105.00mm

Z189 1-16-UNF-2B 71.00mm149.00mm105.00mm

Z23 1/2-14-BSP-2B 73.00mm136.00mm97.00mm

Z24 13/16-16-UNF-2B 89.00mm139.00mm94.00mm

Z251 M18-x1.5-6H 66.00mm101.00mm92.00mm

Z30 13/16-16-UNF-2B 70.00mm142.00mm94.00mm

Z305 M20-x1.5-6H 74.00mm143.00mm81.00mm

Z312 M20-x1.5-6H 66.00mm129.00mm88.00mm

Z313 M26-x1.5-6H 70.00mm127.00mm106.00mm

Z314 3/4-16-UNF-2B 70.00mm62.00mm82.00mm

Z32 13/16-16-UNF-2B 70.00mm142.00mm94.00mm

Z330 M20-x1.5-6H 89.00mm127.00mm94.00mm

Z333 M22-x1.5-6H 63.00mm102.00mm82.00mm

Z334 M24-x1.5-6H 81.00mm126.00mm105.00mm

Z335 M24-x1.5-6H 81.00mm87.00mm105.00mm

Z336 M22-x1.5-6H 77.00mm102.00mm82.00mm

Z37 3/4-16-UNF-2B 70.00mm143.00mm82.00mm

Z372 M26-x1.5-6H 70.00mm151.00mm105.00mm

Z38 3/4-16-UNF-2B 70.00mm142.00mm94.00mm

Z386 3/4-16-UNF-2B 63.00mm76.00mm68.00mm

Z40 13/16-16-UNF-2B 89.00mm97.00mm94.00mm

Z402 M26-x1.5-6H 91.00mm126.00mm97.00mm

Z411 M20-x1.5-6H 64.00mm86.00mm69.50mm

Z416 1-12-UNF-2B 70.00mm127.00mm97.00mm

Z418 3/4-16-UNF-2B 71.20mm89.00mm77.50mm

Z419 1-12-UNF-2B 98.00mm126.00mm106.00mm

Z421 3/4-16-UNF-2B 72.00mm98.00mm95.00mm

Z422 3/4-16-UNF-2B 63.00mm89.00mm77.00mm

Z423 3/4-16-UNF-2B 72.00mm124.00mm77.00mm

Z429 M20-x1.5-6H 66.00mm86.00mm71.00mm

Z432 3/4-16-UNF-2B 62.00mm86.00mm68.00mm

Z443 3/4-16-UNF-2B 66.00mm66.00mm71.00mm

Z444 M20-x1-6H 65.00mm67.00mm71.00mm

85.00mm79.00mm97.00mm Z581 3/4-16-UNF-2B 71.00mm189.00mm94.00mm

Z585 13/16-16-UNF-2B 71.00mm89.00mm77.00mm

Z587 13/16-16-UNF-2B 70.00mm77.00mm93.00mm

Z596 3/4-16-UNF-2B 71.00mm124.00mm78.00mm

Z600 M26-x1.5-6H 78.00mm170.00mm83.00mm Z608 M20 X 1.5-6H 71.00mm51.50mm77.50mm Z614 3/4-16-UNF-2B 71.00mm100.00mm78.00mm

Z62 3/4-16-UNF-2B 70.00mm121.00mm82.00mm

Z63 3/4-16-UNF-2B 70.00mm121.00mm82.00mm

Z630 M26 X 1.5 70.00mm111.00mm95.00mm

Z632 3/4 -16-UNF-2B 71.00mm86.00mm77.60mm

Z661 3/4"-16-UNF-2B 71.00mm0.00mm78.00mm

Z663 M22 X 1.5 71.00mm85.00mm77.00mm

Z68 3/4-16-UNF-2B 70.00mm120.00mm82.00mm

Z688 13/16"-16-UNF + 71.00mm105.40mm77.00mm

Z689 13/16"-16 O/S 71.00mm120.50mm77.60mm

M18-x1.5-6H 79.00mm72.00mm87.00mm Z690 M20X1,5-6H 71.00mm69.50mm77.60mm Z692 1"-12-UNF 71.00mm100.00mm80.00mm Z701 M26x1,5-6H 88.00mm126.50mm94.00mm Z71 3/4-16-UNF-2B 73.00mm79.00mm97.00mm

Z720 3/4"-16-UNF-2B 70.40mm146.50mm89.00mm

Z723 3/4-16 UNF 71.00mm100.00mm0.00mm

Z73 3/4-16-UNF-2B 70.00mm142.00mm82.00mm

Z731 3/4-16 UNF 71.00mm114.00mm0.00mm

Z733 M20x1.5 71.00mm86.00mm95.00mm

Z734 3/4"-16-UNF-2B 62.50mm91.50mm68.70mm

Z74 1-12-UNF-2B 73.00mm180.00mm97.00mm

Z775 1"-12-UNF-2B 97.20mm155.00mm105.00mm

Z777 1"-12-UNF-2B 99.00mm150.00mm106.00mm

Z778 1"-16-UNF-2B 97.20mm149.00mm0.00mm

3/4-16-UNF-2B 70.00mm90.00mm82.00mm Z89A 3/4-16-UNF-2B 70.00mm99.00mm94.00mm

Z9 3/4-16-UNF-2B 70.00mm139.00mm94.00mm

Z93 M16-x1.5-6H 70.00mm78.00mm82.00mm

Z96 M16-x1.5-6H 70.00mm99.00mm94.00mm

Ryco # Thread Seal O.D. Height Filter

Aeroflex Fuel Filler Hose

Lightweight, flexible and smooth hose made from a liner of nitrile sheet rubber, with a high tensile spring steel helix covered with nitrile coated nylon fabric, and having an outer cord of neoprene-coated polyester. This hose is able to bend 180° with no kinking!

Applications: Engine and automotive industry. Can be used with all motor fuels and most lubricating oils.

Special properties: Light, flexible and resistant to constant vibration and suitable for very damp media; good resistance to condensates due to the enclosed helix. Applications: Suitable for connecting the fuel filler to the fuel tank.

• Sold by the INCH or LENGTH

• Standard length: 1000 mm: (can be purchased in short lengths)

• Available in 32mm, 38mm, 45mm, 51mm, 57mm & 63mm I.D.

WARNING

Aeroflex FLEX hose requires a perfect fit to the barb. No distortion or flare on the barb end. For fuel transfer only.

/ 32mm

/ 38mm FF45FLEX

/

/ 45mm

/

/

Aeroflex Heavy Duty Filler Hose

Wrapped Type Filler Hose in Nitrile - These filler hoses are made from fuel resistant rubber. Owing to the method of construction the wrapped hoses do not bend easily. Straights and elbows should be used as required.

Fuel Caps

Fuel Caps

In what is probably the world's largest range of tank caps will be found a product suitable for the smallest or largest vehicles - and all those in between! Aero filler caps are suitable for fuel, oil, water and any other liquid you care to mention. The Aeros can be supplied with an assortment of flanges, flange necks and weld-on-necks. The flange/neck type is designed to connect with a suitable hose to a remote tank. All Aero filler caps are shut by means of a lever and every flanged filler cap has available a fixing ring that can be employed should access to the rear of the panel or inside the tank be restricted. The operation of Aero filler caps follows best aircraft practice. To release the filler cap the lever is lifted and turned. To replace and secure the filler cap return the lever to the closed position and snap shut. Aero filler caps fitted with the locks can be left unlocked if required. All locking products are supplied with the two matching keys. We can supply spare keys for all Aero filler caps that have the lock number stamped on the lock.

• 6 bolt flange, non-locking cap

• Application: Fuel, oil & water tanks

• Aluminium alloy 6082/T6 clear anodised

• Weight: 117g

• 6 bolt flange, non-locking cap

• Stepped neck for 2” & 2-1/4” filler hose

• Application: Fuel, oil & water tanks

• Aluminium alloy 6082/T6 clear anodised

• Weight: AERO36NS: 257g AERO36SULP: 282G, AERO36NL38:

•

• 6 bolt flange, locking cap

• Stepped neck for 2” & 2-1/4” filler hose

• Application: Fuel, oil & water tanks

• Aluminium alloy 6082/T6 clear anodised

• Weight: 260g

• 8 bolt flange, non-locking

ULP comes with Unleaded Flap.

Fuel Caps & Parts

300 Series Cap

Lost or damaged your cap? We have replacement centre caps to suit AERO series Newton fuel caps.

Non Locking Cap for AERO200

Locking Cap for AERO300

*Black Locking Cap for AERO300

Non-Locking Cap for AERO300

AERO4LCAP Locking Cap for AERO400

AERO4SCAP Non-Locking Cap for AERO400

Fuel Cap Tether Kit

Tether Kit

If you need your AERO remote mount to suit unleaded fuel regulations, simply insert this ULP fuel flap into your remote mount neck and retain with the supplied wire clip.

& 400 Necks

This ring is inserted into the tank to allow the cap to be secured without the risk of dropping the nuts into the tank

200/300 Series Weld Flange

Funnel and gasket with 8 hole x 4”

PCD for 57mm / 2.25”

Can be welded to an alloy tank to allow caps to be bolted directly to a tank.

Fuel Caps

Designed primarily for car fuel tanks in motorsport applications, where they will be subjected to violent movement. Access to inside of tank is not required for installation. A 9/16” UNF nut can be brazed or welded to the tank and mounting hole made in the tank from the outside. Red anodised 6082 aluminium.

Developed

Inline Filters

We are proud to stock Speedflows latest range of performance inline filters. They ensure the best filtration available for the performance market. Flow and pressure testing on our 601 & 602 series filters surpassed our expectations, flowing well in excess of 15gpm (53lpm) with minimal pressure loss using a -10 unit! These units are usable for applications over 3,000hp!

Inline Filters - 600 Micro Series

These are the smallest filter in Speedflow’s range, the body length measures 28mm (1.10”) making this perfect to place inline where space is limited or only a small filter is required. The body is machined from 6061-T6 aluminium with a hard anodised finish and fitted with a 44 or 74 micron pleated disc screen.

Micro Series

Hose Tail

SPEEDFLOWS FULL RANGE?

If you need more information about these products see the Speedflow section of the catalogue for the full range

Inline Filters - 601 Short Series

The 601 Short Series has the solution for applications that are tight on space, but still require high flow with a serviceable stainless element. This compact size measures 1.75” OD (45mm) with a body length of 3.825” (97mm) plus the fitting length. Machined from quality 6061-T6 aluminium and hard anodised for maximum protection as well as laser engraved with the Speedflow logo. The element has a 21.31 sq inch area available in 4 micron sizes.

601 Short Series

601-010-06-BLK -6 / 10 Micron

601-040-06-BLK -6 / 40 Micron

601-065-06-BLK -6 / 65 Micron

601-100-06-BLK -6 / 100 Micron

SIZE

601-010-08-BLK -8 / 10 Micron

601-040-08-BLK -8 / 40 Micron

601-065-08-BLK -8 / 65 Micron

601-100-08-BLK -8 / 100 Micron

SIZE

601-010-10-BLK -10 / 10 Micron

601-040-10-BLK -10 / 40 Micron

601-065-10-BLK -10 / 65 Micron

601-100-10-BLK -10 / 100 Micron

Inline Filters - 601 Metric & Check Valve Series

601-010-12-BLK -12 / 10 Micron

601-040-12-BLK -12 / 40 Micron

601-065-12-BLK

The 601 Short Series are also available with M12 inlet or M18 outlet ends making it suitable for applications such as aftermarket fuel pumps. Speedflow have also integrated their check valves into the inlet side of their filter range to make this a multi purpose unit to save space and fittings. Available in -6, -8 and M12 x 1.5 metric to suit aftermarket fuel pumps. Add your required micron size to the part number, filters come complete ready to run!

M12 Inlet

M18 Outlet Check Valves

Inline Filters - 602 Long Series

Measure 1.75” OD (45mm) with a body length of 5.725” (145mm) plus the fitting length. These have an element area of 44.7 square inches (288.4cm²) with a choice of 6 micron sizes.

602-010-06-BLK 10

602-G12-06-BLK 12

602-040-06-BLK 40

602-065-06-BLK 65

602-100-06-BLK 100

602-150-06-BLK 150

602-010-08-BLK 10

602-G12-08-BLK 12

602-040-08-BLK 40

602-065-08-BLK 65

602-100-08-BLK 100

602-150-08-BLK 150

602-010-10-BLK 10

602-G12-10-BLK 12

602-040-10-BLK 40

602-065-10-BLK 65

602-100-10-BLK 100

BLACKMICRON

602-010-12-BLK 10

602-G12-12-BLK 12

602-040-12-BLK 40

602-065-12-BLK 65

602-100-12-BLK 100

602-150-12-BLK 150 -8 BLACKMICRON

602-150-10-BLK 150

Inline Filters - 602 Metric Series

The 602 Long Series are also available with M12 inlet or M18 outlet ends along with Speedflow’s check valve series making it suitable for applications such as aftermarket fuel pumps. A great space saver for those tight situations. Add your required micron size to the part number, filters come complete ready to run!

602-***-M1206-BLK

602-***-M1208-BLK

602-***-M1210-BLK

CLAM SHELL -12

BLACKMICRON

602-100-CS12-BLK 100

Add the required micron size to the part number where the

602-***-M1806-BLK

602-***-M1810-BLK

Inline Filters - 603 Mega Series

The 603 Mega series is the newest addition to Speedflow’s filter range, measuring 2.48” OD (63mm) with a body length of 6.95” (177mm) plus the fitting length. These have an element area of 100.6 square inches (649cm²) with a choice of 2 micron sizes.

The new unique end cap design locates the filter element without the need for a spring to hold it in place. Machined from quality 6061-T6 aluminium and hard anodised for maximum protection and laser engraved with the Speedflow logo. Designed to be used for inline fuel and oil applications.

Inline Filters

Individual Filter Components

We offer filter components as separate part numbers. This is perfect for resellers, as you do not have to carry all the part numbers. This helps reduce your stock holdings and you can build filters as you require them. Never miss out on that sale again!

Replacement Elements

Replacement O-Rings

905-T-05V 618 & 619-06-05 5/16”

905-T-06V 715-06-06 618 & 619-06

905-T-08V 618 & 619-08 1/2”

COV-015 Viton 75 Brown

905-T-10V 618 & 619-10 5/8”

COV-018 Viton Carby Adaptors

COV-026 -12 Ball Valve

COV-112 922-ZF-08-BLK

905-T-12V 3/4”

COV-127 Filter Housing 601/602

COV-12M Suits 618-08 M12 Viton

COV-137 603 Filters

COV-203 618-T-05-06 5/16”

COV-204 618-T-06-06 3/8”

COV-220 Filter Housing 601/602

End Cap O-Rings

Filter Brackets

Check Valves, Blower Relief & Turbo Adapters

Speedflow has been manufacturing quality valves for over 25 years, which have evolved into the quality parts we now have available. Their redesigned one-way poppet valves have been proven to be very popular!

Blower Relief Valves

Non-Return Valves

These can be screwed into a Supercharger gear case or other applications that require pressure to be released.

INLINE - Unique one-way valves designed for high performance. Spring loaded highflow poppet valve that seals securely to positively stop fluid from returning!

Non-Return Valves

Screw directly into fuel pumps with a M12 x 1.5 thread to hold line pressure and make starting easier!

Roll Over Valves

Speedflow have manufactured a universal roll over valve that utilises a -12 male thread with a -8 female thread and a stainless steel ball. This can be used with our 990-12 weld on or a 924-12 bulkhead nut with a choice of outlet from our 920 series adapters.

Tank Vent / Roll Over Valve

3/8” in-tank vent / roll over valve has a spring-loaded ball to prevent overflow on filling. The spring can be removed if you prefer the ball to act purely as a free flow roll over valve. The top can be replaced with a 920 series adapter if a hose is required to be used from the valve.

Aluminium Ball Valves

Turbocharger Adapters

Hard anodised & includes a silicone sealing O-ring.

These are lightweight, beautifully machined and anodised. Available in three body sizes to suit many applications including fuel, oil water and air.

XS Small Large

The Speedflow ball valves are now available and incorporate a panel mount option as

handle. Constructed from 6061 aluminium body, handle, adapters and ball with a

The XS Body ball valves utilise a stainless ball suitable for all automotive fluids. These compact, high quality units perform in high performance environments as expected from all Speedflow Products!

Surge Tanks

Twin Pump Surge Tanks

Accessories

Nuke Performance

Nuke Performance’s Full-Flow Fuel Flex Sensor-Adapter’s bypass design lets you use an ethanol content sensor without flow loss. This product allows you to mount your ethanol content sensor on both the pressure and return fuel line in your fuel system. A sensor is not included with delivery.

Banjo Adaptors

The full-flow swivel banjo allows for a space-efficient installation with minimal flow loss, thanks to the oversized full-flow internal design. It provides 360-degree rotation even when tightened and is safe for use with all types of fuels, including alcoholic fuels.

Vacuum Station 5 Port

An easy way to get rid of too many vacuum hoses in the engine bay. Use on turbosuper-charged engines.

• 1x 1/4 BSPP inlet fitting and 1x 1/4 BSPP plug

• Additional fittings are sold separately

• Thread size for the output ports are 1/8 BSPP and are sold separately.

Fuel Filler Adapter 51mm

Suits our Competition Fuel Cell Unit (NK-CFC-01), threaded on one side and with a flange the other side - makes a fixed fit for a 51mm / 2” fuel hose mounted with a hose clamp.

• For 51mm fuel hose

• O-ring for use with alcoholic fuels included

• No fuel hose or hose clamp is included

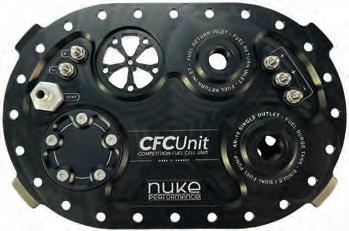

Stepped Banjo Adaptors Fuel Surge Tank Competition Fuel Cell Unit

Everything you need to mount the popular Ti Automotive GST400 / GST460 / GST525/ GST550 high-pressure fuel pumps. Mounts up to three Ti Automotive / Walbro GST400, GST460, GST525 AND GST550 motorsport fuel pumps into one AN-10 (7/8 UNF) outlet. Delivers steady fuel flow even over 1500hp. Lightweight

• Fits a single, dual or triple high-pressure fuel pumps.

• Combined into a single AN-10 outlet

• 3.0 litre surge tank capacity (empty)

• 100% safe for all type of fuels

• AN-10 and AN-8 fittings

These Full-Flow “Stepped” Swivel Banjo fittings are the same as those on the left, but the ORB is a different size to AN Male.

Nuke ORB full flow swivel banjo fittings allow for a space-efficient installation with minimal flow loss, thanks to the oversized full-flow internal design. The fitting provides 360-degree rotation even when tightened and is safe for use with all types of fuels, including alcoholic fuels.

Eliminates the need for an external surge tank. Perfect for fuelinjected systems. Combine with staged pumps to prevent emerging heat.

• Eliminate fuel starvation.

• Can be made to fit all aftermarket fuel cell

• Lowest weight “drop-in surge tank” available

• Integrated 2 litre fuel surge tank function

• Single AN-10 (7/8 UNF) outlet fitting (fittings for outlet & return)

• 100% proof for E85, methanol, and petrol

Shut Off Valves, Fuel Pumps

Shut Off Valves / Holley Vent Valve

Shut Off Valves - Large Handle

• Brass nickel plated body

• Working pressure: 435psi

• Temperature:-20ºC to 90ºC

• Threads: BSPP

• AN adaptors: Speedflow 750 series

3/8”

Electric Fuel Pumps

Mighty Mite Shut Off Valves - Small

Fuel Pump

• Facet no: 476087

• Flow: 25gph @ 4-5psi

• Inlet: 1/8” NPT

• Outlet: 1/8” NPT

NO.

• Holley no: 12-801

• Flow: 97 GPH (Free Flow)

• Inlet: 3/8” NPT

• Outlet: 3/8” NPT

NO.

• Brass nickel plated, full bore

• Working pressure: 600psi

• Temp: -40ºC to 170ºC, Threads: BSPP

• AN Adapters: Speedflow 750 series

Fuel Tank Filter

Remote Tank Breather for all types of fuel systems. Helps prevent breather pipe becoming blocked.

• -06 female ORB

• Suits all fuel systems and tanks that need to breath. Can also be used as small engine breather.

• Holley no: 12-427

• Flow: 32gph @ 4-7psi

• Inlet: 1/8” NPT

•

1/8” NPT

LOOKING FOR FUEL PUMP BRACKETS!

Dont forget to check out page 96. Epik Industries have 8 different models to suit both single and twin pumps.

• Holley no: 12-802

• Flow: 110 GPH (Free Flow)

• Inlet: 3/8” NPT

• Outlet: 3/8” NPT

• Includes 12-803 regulator

• Holley no: 12-815

• Flow: 140 GPH (Free Flow)

• Inlet: 3/8” NPT

• Outlet: 3/8” NPT

Pumps, Regulators & Gauges

Bosch Electric Fuel Pumps

Intank Pump - 200 Litres / Hour Pump - 275 L/Hour

BOSCH INTANK PUMP - 200 litres per hour @ 5 bar

• >200l/h @ 5bar • Supercedes the BOS 580 254 979

• M14 x 1.5 inlet fitting

• M4 & M5 +/- screw terminals

M10x1 outlet fitting

No non-return check valve

• Includes pressure relief valve • 60mm diameter body

• As used in V8 Supercars

Intank Pumps

BOSCH FPx-HF InTank Fuel Pump (BR540)

390 litres per hour @ 5 bar.

The highest flowing Bosch intank fuel pump available!

• Up to 540 LPH @ open flow

• Up to 460 LPH @ 40psi (2.75 bar)

• Up to 380 LPH @ 80psi (5.5 bar)

• An amazing 270 LPH @ 145psi (10.0 bar)

BOSCH PUMP - 275 litres per hour @ 5 bar

Known as the “NEW 044” this genuine pump is supplied direct from Bosch

• M14 x 1.5 inlet • M10 x 1.0 outlet • Flows ~10% higher than 044

• Weighs 15% less than 044 at 860g • Current draw similar to 044

• Pressure relief valve 8-10bar • External non return valve

• Not suitable for voltage regulation • Suits petrol E85 & diesel

• High flow up to the 190psi (13.0 bar) pressure relief valve setting

• 9.0mm (nom.) barbed outlet fitting suits rubber or nylon hose

• Lightweight (550g) and compact 46mm body size

• Includes electrical connector with wires

• Includes high flow filter / inlet strainer

• Draws ~16A @ 40psi (2.75 bar), ~19A @ 80psi (5.5 bar)

Check out the YouTube video to see how

Note: Wiring kit not included with any pump.

• Outlet diameter 10mm • Wiring connector included

• Upper body diameter 39mm

• Lower body diameter 50mm

• Larger pressure relief valve than the 450L/H pump

• Suitable for all performance and high pressure applications

Suits vehicles experiencing fuel starvation during hard cornering, acceleration, stopping, inclines & low fuel conditions. Surface tension & fluid wicking allow the HydraMat to continue to draw fuel from the tank or cell even when part of the mat uncovered.

Regulators, Rail Extension, Gauges

Holley Carburettor Fuel Pressure Regulators

Carb Reg - 2 Port

• Cast aluminium construction

• Inlet: 3/8” NPT port

• Outlets: 2 x 3/8” NPT ports

Blue (Dead Head) 4-9psi

Red (Dead Head) 1-4psi

Bypass Reg

• Cast aluminium construction

• Inlet: 3/8” NPT port

• Outlet & bypass: 3/8” NPT ports

• Pressure: 4.5-9psi

Fuel Rail Extrusion

Billet Carb Reg Carb Bypass Reg

• Inlet: 3/8” NPT port

• Outlets: 2 x 3/8” NPT ports

• 1/8” NPT gauge port

• Inlet & outlet: 3/8” NPT port

• Return: 3/8” NPT port

• 1/8” NPT gauge ports

• Pressure: 4.5-9psi

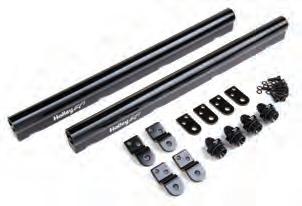

Fuel Rail Kit

• Ideal for manufacturing fuel rails

• Excellent machining and welding properties

• Made from 6061-T6

• Use with Speedflow 989-99-D injector boss

Pressure Gauges

A non-liquid filled gauge that has self calibrating true zero technology and no effect from vibration. Features an 1-1/2” diameter white face, chrome bezel and 1/8” NPT thread on the back.

Popular Speedflow Adaptors

& Sender Adapters

A liquid (glycerin) filled gauge to help resist vibrations. Reads in 1/2lb increments from 0-15psi. Features a 1-1/2” diameter white face, chrome bezel and 1/8” NPT Thread on the back. Small enough to fit almost anywhere.

NBM Hydraulics manufacture a large selection of brake line adapters — ideal for us to make STREET LEGAL BRAIDED BRAKE LINES which comply to Australian FVMSS106 Standards. We stock all OEM replacement components so fitting is a breeze. Contact us, and we will custom build your hoses fast.

Hose Ends

STRAIGHT HOSE ENDS PART NO.SIZETYPE

NB6103-03 -3Steel

NB6103-03-ST -3Stainless

NB6103-04 -4 Nut to -3Steel

MALE - SWIVEL INVERTED PART NO.SIZETYPE

NB6104-03 3/8”-24Steel

NB6104-03-ST 3/8”-24Stainless

NB6104-31 M10 x 1.0Steel

NB6104-31-ST M10 x 1.0Stainless

NB6104-32 M10 x 1.25Steel

NB6104-32-ST M10 x 1.25Stainless

45° HOSE ENDS

PART NO.SIZETYPE

NB6117-03 -3Steel

NB6117-03-ST -3Stainless

45° MALE - SWIVEL INVERTED PART NO.SIZETYPE

NB6193-03 3/8”-24Steel

NB6193-03-ST 3/8”-24Stainless

NB6154-31 M10x1Steel

NB6114-03 3/8”-24Steel NB6114-03-ST 3/8”-24Stainless

MALE - SOLID INVERTED PART NO.SIZETYPE

90° HOSE ENDS PART NO.SIZETYPE

NB6191-03 -3Steel

NB6191-03-ST -3Stainless

90° MALE - SWIVEL INVERTED PART NO.SIZETYPE

NB6194-03 3/8”-24Steel

NB6194-03-ST 3/8”-24Stainless

NB6194-31 M10x1Steel

NB6194-31-ST M10x1Stainless

NB6123-31 M10 x 1.0Steel

NB6123-31-ST M10 x 1.0Stainless

NB6123-32 M10 x 1.25Steel

NB6123-32-ST M10 x 1.25Stainless

MALE - SOLID INVERTED PART NO.SIZETYPE

NB6132-04 7/16”-20Steel

NB6132-41 M12 x 1.0Steel

NB6100-03 -3Steel

NB6100-03-ST -3Stainless

MALE - SWIVEL CONVEX PART NO.SIZETYPE

NB6105-03 3/8”-24Steel

NB6105-2003 M8 x 0.75Steel

NB6105-31 M10 x 1.0Steel

MALE -

Hose Ends Brake Line Hose Ends

FEMALE - SOLID CONCAVE PART NO.SIZETYPE

NB6101-31 M10 x 1.0Steel

NB6143-31 M10 x 1.0Steel

NB6145-03 3/8”-24Steel

NB6145-03-ST 3/8”-24Stainless

FEMALE - SWIVEL CONCAVE PART NO. SIZE TYPE

NB6141-03 3/8”-24Steel

NB6141-03-ST 3/8”-24Stainless

NB6141-07 7/16”-24Steel

NB6141-31 M10 x 1.0Steel

NB6141-31-ST M10 x 1.0Stainless

NB6141-31-P M10 x 1.0 PorscheSteel

NB6141-31-RH M10 x 1.0 Round HeadSteel

NB6141-31-T M10 x 1.0 Flat HeadSteel

NB6141-31-Z M10 x 1.0 Large HexSteel

NB6141-41 M12 x 1.0Steel

NB6141-31-03A M10 x 1.0 suit AudiSteel

FEMALE - SWIVEL INVERTED PART NO. SIZE TYPE

NB6142-03 3/8”-24 Steel

NB6142-03-ST 3/8”-24Stainless

NB6142-07 7/16”-24Steel

NB6142-17 7/16”-20Steel

NB6142-31 M10 x 1.0Steel

NB6142-31-ST M10 x 1.0Stainless

NB6142-31-RH M10 x 1.0 Round HeadSteel

NB6142-31-T M10 x 1.0 Flat HeadSteel

NB6142-31-Z M10 x 1.0 Large HexSteel

NB6142-32 M10 x 1.25Steel

NB6142-32-ST M10 x 1.25Stainless

NB6142-41 M12 x 1.0Steel

Banjo Hose Ends & Bolts

Brake Line Hose Ends & Supports

A huge range of banjos are available to suit almost any application in any angle. The handy banjo bolt with switch is also available.

BANJO - SHORT PART NO.SIZETYPE

NB6192-08 M8Steel

NB6192-10 M10 3/8”Steel

NB6192-10-ST M10 3/8”Stainless

NB6192-11 7/16”Steel

BANJO - MEDIUM

PART NO.SIZETYPE

NB6192-10-ML M10 3/8”Steel

NB6192-10-ST-ML M10 3/8”Stainless

NB6192-11-ML 7/16”Steel

BANJO - LONG PART NO.SIZETYPE

NB6192-10-L M10 3/8”Steel

NB6192-10-ST-L M10 3/8”Stainless

BANJO - 20°

PART NO.SIZETYPE

NB6193-10 M10 3/8”Steel

NB6193-10-ST M10 3/8”Stainless

NB6192-11-ST-ML 7/16”Stainless

NB6192-12 12mmSteel

BANJO - 35°

PART NO.SIZETYPE

NB6196-10 M10 3/8”Steel

NB6196-10-ST M10 3/8”Stainless

BANJO - SIDE 20° PART NO.SIZETYPE

NB6197-10

PART NO.SIZETYPE

NB6194-10 M10 3/8”Steel

NB6194-10-ST M10 3/8”Stainless

Brake Line Hose Supports

NB6170-10 M10 3/8”Steel

NB6170-10-ST M10 3/8”Stainless

NB6193-11 7/16”Steel

NB6193-11-ST 7/16”Steel

BANJO - 90°

NO.SIZETYPE

NB6199-10 M10 3/8”Steel

NB6199-10-ST M10 3/8”Stainless

We carry a range of hose supports that slide onto a -3 hose during assembly that suit a variety of standard OEM mounting options including bolt on styles and C-clip versions. These allow you to follow the original orientation of your hose or to make sure you can mount your hose away from the strut, wheels and tyres.

Brake Tubing, Tube Nuts & Bleeders

Brake Tubing

Speed Bleeders / Tube Nipple

Speed bleeders from Russell Performance makes bleeding brakes or clutch systems a one person task. Made of quality components for lasting, reliable performance.

• Fit virtually any hydraulic brake or clutch system

• Dust protection caps - Sold as a pair

• Permanently replace original bleeder screw

Tube Nuts, Adaptors & Sleeves

Fluid, Ducting & Launch Control

Brake Fluid & Ducting

MOTUL

100% synthetic brake fluid on polyglycol basis for all types of hydraulic actuated brake and clutch systems

• 0.5 litre bottles

• Application: Brake fluids

• Product range: car, motorcycle

SCAT - High Temp Ducting

AEROSPACE “SCAT” STYLE

• Brake ducting

• Hi-carbon steel wire

• Single wall

• Rated up to 287°C

• 11ft / 3.35m lengths

• Sold in half or full lengths

Launch Control & Proportioning Valves

B&M Launch Control Kit

Easily installs into your existing brake system. This solenoid provides the brake holding capacity you are looking for. Ideal for racing or for street applications if you need a hill holder while stopped on an uphill grade. Can be used on either the front or rear brakes of your vehicle and can handle pressure spikes up to 1500 psi or maintain constant pressure of up to 400psi. Includes: in-dash line fuse assembly, indicator light, aluminium switch mount, and button switch. Works with 12 and 16 volt systems. Also can be used as a brake locking device for drag racing.

Hurst Roll Control Kit

These keep your manual or auto car out of the staging lights until you’re ready to launch. Controlled by a solenoid valve attached to a switch on your shifter, roll controls keep you from rolling by locking your front or rear brakes. When you hit the switch, your brakes are unlocked and you’re ready to hit the throttle. Rigorous testing has proved a 1/100,000th of a second release time, and vibration tests have surpassed 30 Gs without mechanical failure. Each roll control comes with a rebuildable stainless steel solenoid valve, indicator light, inline fuse holder, and complete instructions.

Russel Brake Proportioning Valve

Adjustable up to a 60% pressure reduction. Valves include 3/8”- 24 inverted flare hard line adapter and anti-corrosive brass components.

Tilton Proportioning Valve

Tilton’s screw-type proportioning valve allows for fine adjustments for brake pressure reduction.

• Fine adjustment set at any point

• Metric or Standard inlet port (either 10mm or AN-3)

NOT DESIGNED FOR USE WITH ABS

Wilwood / Tilton & Brake Accessories

WILWOOD PROPORTIONING VALVE

Valves weigh only 5.2oz and have two 1/4” side mounting holes. Standard in and out ports are 1/8”NPT. Adaptor fittings included.

WIL260-8419 Proportioning Valve, Knob Style.

WILWOOD RESIDUAL VALVE - 10LB

Retain a minimum brake line pressure to help eliminate excessive pedal travel in drum brake systems. Made from billet aluminium and colour coded. 1/8” NPT Female threads.

WIL260-13707 10lb Residual - Red w/o Fittings

WILWOOD RESIDUAL VALVE - 2LB

Retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The minimal two pound residual pressure prevents fluid from flowing back without causing the brakes to drag. Residual Pressure Valves are made from billet aluminium and are colour coded. 1/8” NPT Female threads.

WIL260-13706 2lb Residual - Blue w/o Fittings

WILWOOD MASTER CYLINDERS

All three sizes have a 3/8”-24 outlet thread with a 7/16”-20 reservoir thread.

NO. DESCRIPTION

WIL260-6087 5/8” (0.625) Bore Master Cylinder

WIL260-6088 0.700 Bore Master Cylinder

WIL260-6089 3/4” (0.750) Bore Master Cylinder

The STANDARD model features a plastic adjustment knob and a single detent design. Fits balance bars with 3/8”-24 and 7/16”-20 threaded shafts.

BLEED SCREW ASSEMBLY

For use in repair and maintenance of your Wilwood callipers or as a remote bleed screw as used in clutch applications. Contact us to make a remote mount line kit.

Waterless Coolants

Because they do not contain any water, electrolysis and corrosion are also eliminated.

EVANS Waterless Coolants are the only 100% waterless automotive engine coolants available. It is a chemical blend that results in more efficient cooling due to a higher boiling point. The increased boiling point eliminates the occurrence of boil-over, cavitation and detonation. The EVANS product also does not freeze - even in extreme cold temperatures. The coolant contracts and becomes extremely thick but not solid and won’t expand, unlike antifreeze which contains water.

Before use the entire cooling system must be drained (radiator, engine block and heater core) and refilled 100% with the EVANS Waterless Coolantno need for any further additives.

EVANS High Performance Waterless Coolant

For high performance, light to heavy duty diesel, off-road, overland, CNG, and LP engines EVANS High Performance waterless coolant is designed for all gasoline and light duty diesel engines.

EVANS coolant eliminates many problems associated with water in conventional water-based cooling systems, while increasing reliability and engine life. Compatible with all rubber and silicone hoses.

Engine Types

• High performance

• Overland

• Hot rod & muscle cars

• Off-road

• Light to heavy duty diesel

• LP

• CNG

The EVANS Prep Fluid is a flush fluid for smaller engines without block drains. It will seek out remaining water after draining the cooling system of an engine. It should be used when block drains are unavailable or cannot be removed. 190°C (375°F)

EVANS Prep Fluid

EVANS Prep Fluid is a waterless cooling system flush engineered specifically to purge the cooling system of water-based antifreeze after draining and before installing new waterless coolant. Prep Fluid should be used when block drains are unavailable or cannot be removed. It is not a substitute for thoroughly draining the cooling system and related components. Prep Fluid is NOT intended to be a stand-alone operating coolant, but as a flush only.

For use with all engines being converted to any EVANS waterless coolant, after draining 50-50 coolant from the cooling system. Evans Prep fluid is ready to useno water required.

• Hygroscopically absorbs water

• Ensures all residual water is removed from the system

• Ensures that Evans coolants will meet the water content limits and provide peak performance

EVANS Products

EVANS Waterless Coolants

EVANS Collectors Choice

For vintage gasoline, classic gasoline, and light duty to medium diesel.

EVANS Collectors Choice waterless coolant is specifically designed to protect vintage and classic gasoline vehicles, bikes, and light to medium duty diesel engines that are not driven on a daily basis. EVANS coolant eliminates many problems associated with water in conventional water-based cooling systems, while preserving the engine for a lifetime.

Engine Types

• Vintage gasoline

• Classic gasoline

• Light duty to medium diesel

EVANS TrackWater Non Glycol

TrackWater is a high performance corrosion protected deionized inhibited water with surfactant (compounds that reduce the surface tension between two liquids).

TrackWater is recommended for all forms of motorsport racing on Bitumen, Asphalt or Concrete that are not allowed to use glycol based coolants.

No mixing is required, does not offer freeze protection.

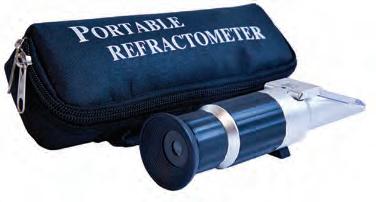

Refractometer

Designed for an accurate conversion.

EVANS Powersport

EVANS Powersports waterless engine coolant, is designed for motorcycles, ATVs, UTVs, snowmobiles and other powersports machines.

Used by race teams around the world for years to keep their engines safe, no matter what the conditions.

They don’t pull over to let their engines cool down, and neither should you. EVANS Powersports is a proprietary blend of glycols and inhibitors formulated to be used without water. EVANS waterless coolants are compatible with silicone hoses.

Engine Types

• MX bikes • Trail bikes

• Enduro bikes • Street bikes

• Quad bikes • ATVs

• UTVs • Snowmobiles

Evans High Performance Decal Package

This EVANS cooling refractometer is designed to accurately test for residual water content. By determining the water content you’ll be able to safely set up your cooling system with EVANS cooling products.

• Fast, simple optical method

• Requires only 1 drop of coolant

• Compare optical reading to water content chart

Scan the QR code for more information!

Taylor Motorsports Products was founded in 1979 by Dennis Taylor. Dennis has been immersed in the motorsport’s world for most of his life starting with his days at Orange County International Raceway in the late sixties and his time on the road with fuel dragsters and Funny Cars. Taylor’s involvement did not stop at drag racing; he has been instrumental in product development for many racing competitors in all aspects of motorsports. For over 30 years, Dennis Taylor has been on the leading edge of safety innovation combining his eye for detail, perfection and quality with the most challenging safety needs of competitors in drag racing to open wheel to off road and more.

Sportsmen Chute

• SFI 14.1 Spec

• 6” long paddles

• 8” x 3-3/4” opening

• Adjustable straps 5”-30” long

Suits 6-71 to 14-71

Blowers (Opening can be made larger if needed)

See pages 141 to 145 of our SAFETY SECTION for other products.

Today, Taylor Motorsports Products has a comprehensive line of hundreds of custom designed and hand made products from driver’s suits to complete restraint systems.

“We build and supply the best safety equipment you can buy, I bet my life on it. For over 25 years I have trusted my life with these products in my own race cars and so should you.”

Dennis Taylor

President, Founder and Crash Test Dummy

Suits Taylor, D.J Safety, Deist, Simpson and some Stroud styles. Note: Some brands will require the additional Pilot Loops

Pilot Loops • Sold as ‘each’

x4 needed per Pilot

Direct replacement for brands using a 9” x 9” chute pack including Taylor, D.J Safety, Deist, Simpson & some Stroud styles.

• SFI 14.21 Spec

• 1.470mm x 0.230mm

• Optional Q/Release buckles

Radiator Relief & Hose Kits

Radiator Relief Products

Radiator Relief

• Reduces engine temperature up to 1.1°C/ 30˚F

• Includes anti-foaming agent

• Formulated with a corrosion inhibitor

• Reduces pre-existing scale build-up

• Safe with all alloys

• 100% biodegradable and non-corrosive

• For use in all water cooled engines

• Contains no Glycol

Radiator Relief Flush

Effectively removes rust and mineral deposits left behind in the radiator core and hose lines. Also dissolves oily residue build-up left behind in old anti-freeze and coolant mixtures.

• Removes rust deposits & dissolves oily residue

• Restores cooling system efficiency

• 100% biodegradable

• Contains no Glycol

Radiator Relief Diesel

Formulated with a corrosion inhibitor that reduces mineral deposits and maintains pH levels that otherwise fluctuate over time resulting in core damage.

• Decrease coolant temperature up to 1.1°C / 30°F

• Concentrated for larger systems

• Helps reduce engine wear

• Contains no Glycol

Chill Charger

Protects water-to-air intercoolers while also protecting core corrosion, electrolysis & harmful mineral build up.

• Prevents core corrosion and electrolysis

• Prevents mineral build up

• Maximizes thermal transfer to reduce temps

• Simply add to intercooler water

• Non-toxic and environmentally friendly

• Contains no Glycol

OEM Hose Kits by Motorsport Connections

Radiator & Cooling

Windscreen Washer / Radiator Accessories

Radiator Overflow Tank

Radiator Caps

Motorad Radiator Caps

Fabricated in Australia

Aluminium Radiator Necks

Radiator Cover Braid

Got a late model car and want to “HOT ROD” the engine bay? Perhaps you have a Rod and really want to show off your hoses. Now you can with MSCN stainless cover braid.

We are so confident on the quality we offer a 10 year guarantee that the braid won’t fade or become ugly like most other brands after installation. To achieve this process simply supply us your factory hoses or purchase new replacements.

We will cover and return to you within the week. MSCN only uses Speedflow Econo Clamps so you can be sure of a great looking job.

Holley LS Steam Vent Adaptors

UNF Bolts & Nuts - Specialty Fasteners

High tensile 12 point bolts are great for fixing hardware on race cars and engine accessories. 12 point bolts offer the same bearing surface as a hexagon head cap screw or socket head screw of comparable size and will save on weight. The 12 point bolts comes in coarse thread (UNC) or fine thread (UNF).

7/16” 12 POINT BOLTS - UNF PART NO.LENGTHSHANK

3/8” 12 POINT BOLTS - UNF

RB041225 2-1/4”10mm

RB041250 2-1/2”21mm

RB041275 2-3/4”22mm

RB041300 3”35mm

RB041325 3-1/4”36mm

RB041350 3-1/2”49mm

12 POINT LOK NUTS - UNF PART NO.THREAD

RBN011000 1/4” UNF

RBN021000 5/16” UNF

RBN031000 3/8” UNF

RBN041000 7/16” UNF

RB031225 2-1/4”20mm

RB031250 2-1/2”25mm

RB031275 2-3/4”33mm

RB031300 3”33mm

RB051250 2-1/2”14mm

RB051300 3”32mm

RB051350 3-1/2”45mm

RB051400 4”52mm

RB051450 4-1/2”68mm

RB051500 5”73mm

RBN051000 1/2” UNF THIN NYLOC - UNF PART NO.THREAD

RBN011010 1/4” UNF

RBN021010 5/16” UNF

RBN031010 3/8” UNF

RBN041010 7/16” UNF

RBN051010 1/2” UNF

3/8”

7/16”

1/2”

UNC Bolts & Nuts

12 Point

1/4” BOLTS - UNC

RB012050 1/2”0

RB012075 3/4”0

RB012100 1” 0

RB012125 1-1/4”0 RB012150 1-1/2”10mm RB012175 1-3/4”15mm

3/8” BOLTS - UNC

RB032075 3/4”0

RB032100 1” 0

RB032125 1-1/4”0

RB032150 1-1/2”0

RB032175 1-3/4”9mm

RB032200 2”9mm

RB032225 2-1/4”20mm

RB032250 2-1/2”25mm

RB032275 2-3/4”31mm

RB032300 3”35mm

RB022050 1/2”0

RB022075 3/4”0

RB022100 1” 0

RB022125 1-1/4”0

RB022150 1-1/2”0

RB022175 1-3/4”11mm

RB022200 2”11mm

7/16” BOLTS -

RB042100 1” 0

RB042125 1-1/4”0

RB042150 1-1/2”0

RB042175 1-3/4”0

RB042200 2”9mm

RB042225 2-1/4”10mm

RB042250 2-1/2”23mm

RB042275 2-3/4”19mm

RB042300 3”35mm

RB042325 3-1/4”36mm

RB042350 3-1/2”47mm

RB042400 4”62mm

1-1/2”0 RB052200 2” 0

RB052250 2-1/2”14mm

RB052300 3”30mm

RB052350 3-1/2”31mm

RB052400 4”52mm

RB052450 4-1/2”70mm

Metric Bolts

12 Point

RBMT8125 X 20 20mm0mm

RBMT8125 X 25 25mm0mm

RBMT8125 X 30 30mm0mm

RBMT8125 X 35 35mm0mm

RBMT8125 X 40 40mm0mm

RBMT8125 X 50 50mm18mm

RBMT1015 X 25 25mm0mm

RBMT1015 X 30 30mm0mm

RBMT1015 X 35 35mm0mm

RBMT1015 X 40 40mm0mm

RBMT1015 X 50 50mm14mm

DZUS Fasteners

DZUS Fasteners

How to Measure your DZUS Fasteners

Button length is easily calculated by adding the total material thickness plus the spring height, as shown in the diagram to the right. Measure from the bottom of the head to the bottom of spring locking area.

DOME HEAD

PART NO.GRIPMATERIAL

DZUS-OH-5500 0.500”Steel

DZUS-OHA-5500 0.500”Alloy

*New lengths available

DOME HEAD

PART NO. GRIP

DZUS-B-OHA-6500 0.500”Black Alloy

DZUS-B-OHA-6550 *0.550”Black Alloy

DZUS-B-OHA-6600 0.600”Black Alloy

DZUS-OH-6500 0.500”Steel

DZUS-OH-6550 0.550”Steel

DZUS-OH-6600 0.600”Steel

DZUS-OH-6650 0.650”Steel

DZUS-OH-6750 0.750”Steel

DZUS-OHA-6500 0.500”Alloy

DZUS-OHA-6550 0.550”Alloy

DZUS-OHA-6600 0.600”Alloy

DZUS-OHA-7500 *0.750”Alloy

7/16” 5/16” SELF EJECT - FLUSH HEAD 3/8” PART NO.GRIP

DZUS-B-SE-6500 0.500”Black Alloy

DZUS-B-SE-6550 0.550”Black Alloy

DZUS-B-SE-6600 0.600”Black Alloy

DZUS-B-SE-6650 0.650”Black Alloy

DZUS-SE-6500 0.500” Steel

DZUS-SE-6550 0.550” Steel

DZUS-SE-6650 0.650” Steel

SELF EJECT - FLUSH HEAD 5/16”

PART NO.GRIPMATERIAL

DZUS-SE-5500 0.500”Steel

DZUS-SE-5550 0.550”Steel

DZUS-SE-5600 0.600”Steel

DZUS-SE-5650 0.650”Steel

FLUSH HEAD - STEEL

PART NO. GRIPTYPE

DZUS-FH-6500 0.500”Steel

DZUS-FH-6550 0.550”Steel

DZUS-FH-6600 0.600”Steel

DZUS-FH-6650 0.650”Steel

FLUSH HEAD - ALLEN PART NO. GRIPTYPE

DZUS-B-AK-FHA-6500 0.500”Black Alloy

DZUS-B-AK-FHA-6550 0.550”Black Alloy

DZUS-AK-FH-6500 0.500”Steel

DZUS-AK-FH-6550 0.550”Steel

DZUS-AK-FHA-6500 0.500”Alloy

DZUS-AK-FHA-6550 0.550”Alloy

SELF EJECT WINGED STEEL

PART NO.GRIP

DZUS-WSE-6500 0.500”

Dome Head

Large diameter - 7/16” shank

SELF EJECT - WINGED PART NO.GRIPMATERIAL

DZUS-WSE-5500 0.500”Steel

DOME HEAD - ALLEN PART NO.GRIPTYPE

DZUS-B-AK-0HA-6500 0.500”Black Alloy

DZUS-B-AK-0HA-6550 0.550”Black Alloy

DZUS-AK-0H-6500 0.500”Steel

DZUS-AK-0H-6550 0.550”Steel

DZUS-AK-0HA-6500 0.500”Alloy

DZUS-AK-0HA-6550 0.550”Alloy

WINGED BUTTON - STEEL

PART NO.GRIP

DZUS-WH-6500 0.500”

BIG HEAD - BUTTON

PART NO. GRIPTYPE

DZUS-OHA-6500-BIG HEAD 0.500”Aluminium

SPRINGS / WIRES

DZUS-S-5325 0.325”1” DZUS-S-6425 0.425”1-3/8”

DZUS Fasteners

DZUS Accessories & Tools

PANEL DOUBLER - ROUND

These panel doubler plates are great for fibreglass and carbon panels where a little more strength is required.

Tools

Two

Hose & Wire Accessories

Hose & Wire Separators

Single Place T-Clamps

Precision moulded from 6-6 Dupont Zytel nylon, with an UNCONDITIONAL guarantee (under normal operating conditions)

• Will not melt, fade, stain, corrode or discolour

• Will not crack or break from heat or cold

• Unaffected by any automobile fluids, including brake, fuel, oil, coolant, or solvents

• Non-conductive

Engineered to "pre-load", working as their own lock washer, our T-Clamps hold tubing, hoses, and wire away from the application, thereby eliminating vibration and paint chaffing. 10/32 or 1/4-20 stainless steel mounting hardware is included for a professional finish.

Separate, organize, and support all types of hose, tubing, and wire.

Economical, lightweight alternatives to expensive aluminium and metal products. Available to secure single lines or hoses (Single Place T-clamp) or if you have two lines or hoses running next to each other, the Double Place T-Clamp is the perfect option to separate your hoses.

When ordering please add the colour prefix behind the part number.

• Blue & red are available in all sizes

• Black is no longer available on some models See tables for more details.

Double Place T-Clamps

Tow Hooks, Decals, Batteries

Tow Hooks & Straps

CAMS Spec Tow Hook Tow Straps

Fullriver

12V High Cranking Batteries

Our HC (High Cranking) series is especially used for engine starting, which requires superior cranking performance at lower temperatures for a high current discharge. They use Absorbent Glass Mat (AGM) technology. Suited for repeated discharges such as running your vehicle with winches or other electrical accessories. Shipped fully charged - just install and go!

• CCA ratings based at -18°C

• Can be mounted in any orientation except inverted.

• Operation temp: -15° to 50°C

• Voltage: 12V

• Capacity: 20Ah

• CCA: 230A

• Length: 181mm

• Width: 77mm

• Height: 167mm

• Weight: 7kg

• Voltage: 12V

• Capacity: 35Ah

• CCA: 438A

• Length: 196mm

• Width: 131mm

• Height:167mm

• Weight: 12kg

HC28

• Voltage: 12V

• Capacity: 28Ah

• CCA: 230A

• Length: 165 mm

• Width: 176 mm

• Height: 125 mm

• Weight: 7kg

Battery Isolation

• Sealed construction (non-spillable battery)

• Can be fitted with TP brass automotive adaptor

• Voltage: 12V

• Capacity: 30Ah

• CCA: 450A

• Length: 250mm

• Width: 97mm

• Height: 156mm

• Weight: 10kg

• Voltage: 12V

• Capacity: 40Ah

• CCA: 500A

• Length: 250mm

• Width: 97mm

• Height: 206mm

• Weight: 14kg

Air Filters

FILTERS

We carry a complete range of sizes for various applications including diff breather, engine breather, and air intake filters. We have listed just a small range kept on the shelf. If you don’t see what you’re looking for, please call us with your part number or requirements.

New sizes available

CHROME TOP WITH RUBBER PUSH IN BASE

3”O.D. x 2-1/2” high to suit 1-1/4” valve covers PART NO. VENT SIZE

KN62-1490 1-1/4”

CHROME TOP & RUBBER CLAMP ON BASE

2”O.D. x 1-1/2” high

PART NO. TUBE SIZE

KN62-1320 3/8”

1/2”

TOP SELLER KN62-1460

3”O.D. x 2-1/2” high

KN62-1390 1-1/4”

KN62-1460 1-1/2”

KN62-1480 1-3/4”

RUBBER TOP AND RUBBER CLAMP ON BASE

3”O.D. x 2-1/2” high PART NO. TUBE SIZE KN62-1430 1-3/8”

KN62-1330 1/2”

KN62-1340

CHROME TOP & SHIELD ON RUBBER CLAMP ON BASE

3”O.D. x 2-1/2” high

PART NO. TUBE SIZE

KN62-1513 1-3/8”

KN62-1514 1-1/2”

Spanners

Aluminium Spanners

These are made from 6061 grade aluminium giving them strength, with a shorter handle that makes the spanner more usable in tight spaces and does not allow for over tightening of the fitting. They have radiused edges for comfort and are available in hard anodised red, blue, black, clear, purple, green or gold.

Spanner Kits

Aluminium Adjustable Spanners

Machined from billet aluminium, black anodised and laser engraved. These suit -3 to -12 sized fittings. Not recommended for use when torque is required to tighten or loosen as it will stretch the aluminium and may damage the spanner.

Vice Jaws & Cutters

Vice Jaws

Hose Cutters

200 Series

• Sold as pairs

• Sold as pairs

400 Series

The 200 series cutter is a hand sized cutter that is designed to cut through -3 & -4 hose. Measures 8.25” (210mm) long with plastic grips.

Heavy Duty Cutters

This cutter is a ratcheting action that slices straight through any rubber hose and leaves a square end, perfect for 400 series hose ends!

MSCN carries the new style Speedflow hose cutters. This new design has a larger cutting area, longer aluminium handles with rubber grips. They are 32” (810mm) long and make cutting braided hose a breeze. Does not leave residue in the hose as found when cutting with a cut off blade or hacksaw.

Tube Benders & Flaring Tools

Tube Bender

1/8” & 3/16”

Designed for tight radius bends.

Excellent for use on brake lines, nitrous & fuel lines with 1/8’’ or 3/16’’ tubing.

Tube Bender 1/16” to 1/4”

Designed for 1/16”, 3/16” & 1/4” Tube. Two bending dies and multiple positions to adjust the radius of the bend.

• Aluminium construction

• 200mm OAL

Brake Line Flaring Tool Kit

This kit allows you create three kinds of precision flares in any of five sizes of tubing.

• Create 45° single, double and bubble brake flares in seconds

• Brake-flaring tool works with stainless steel, steel, and soft metal tubing

• Use for brake lines, transmission cooler lines and fuel lines

Includes Pro forming tool; 3/16”, 1/4”, 5/16”, 3/8” and 4.75mm tube-retaining dies; handle; instructions and case

Lock / Tie Wire & Bar Ends

Lock / Tie Wire Pliers

These top quality twisting lock pliers with automatic return are extremely durable. Features a sharp cutting edge and will twist up to .060” diameter safety wire. Simply attach the ends of your lockwire in the jaws of the pliers, lock in the handle and pull the twisting knob to produce tightly wound wire.

• Fast, easy, professional!

• Plier length: 6 inch

LWA109A 6” Lockwire Pliers

37° Flaring Tool

Heavy duty Parker flaring tool makes perfect 37° single flares for most tubing.

Suits 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”

It can be hand held or secured in a vice.

Lock / Tie Wire

Stainless steel wire is used for securing bolts and other fasteners in critical situations where hardware can not come loose. Lock wire is an important safety feature made from a soft yet durable wire that easily bends.

• Available in 1lb spools

Aluminium Bar Ends

We sell round off cuts of 6061 grade aluminium in a variety of sizes and lengths.

Sold by the kilo, these pieces are great for making spacers, washers, or fittings, come to think of it - almost anything!

Tapes & Adhesives

Tapes, Adhesives & Sealants

Speed Tape

Tears straight and easy every time

• Eight colors as well as the popular checkered

• All rolls are 2” wide x 90 feet (27.4m) long except for the chequered which is 40 feet (12.2m) long

Speedflow Assembly Lube

Speedflow’s assembly lube is a specifically formulated oil to lubricate aluminium and steel threads during the assembly of hose ends to performance hose.

• 125ml bottle

Quick Fix Tape

High performance Quick Fix Tape bonds to itself and is selfcuring, forming a waterproof permanent seal. It’s ideal for emergency hose repair, non-slip grip surface for tools, electrical splices and connections, serves as a temporary leak sealer & does not leave a sticky residue after removal. It has insulating capabilities up to 8,000 volts and stretches to three times its length for a simple stretch-andwrap application. The triangular profile of the tape (the center is thicker than the edges) provides a smooth edge when over lapping tape.

• 1 in. wide x 12 ft. rolls

• Withstands temperatures from -54°C to 260°C

• Seal ends of hoses, wrap wires, weatherproof connections etc

• Suits wet surfaces also air / liquid tight seal

• Resists solvents, oils, fuel, acids & chemical spills

Ultralocc Thread Sealant

A white anaerobic pipe sealant containing Teflon. It seals instantly and is resistant to most chemicals. Suitable for use on mild steel, aluminium, copper and brass. Removable with hand tools and prevents vibration loosening.

Temperature range is -55°C to 180°C. Recommended for all coarse threads where slow cure is required to prolong time frame for adjusting values & fitting.

• Pipe threads: Metal

• Description: White paste

• Temperature range: -55°C to 180°C

• Unique features: Contains Teflon

• Max thread: 76mm (3”)

• Instant low pressure seal: Yes

• Disassembly strength: Low / medium

Hi-Temp Spray Adhesive

DEI’s improved formula hi-temp spray adhesive is a very aggressive, high build pressure sensitive adhesive designed to bond porous substrates while maintaining a high level of tack.

Useful for bonding for foam, fabric, metals, wood and of course DEI’s heat and sound barrier materials.

The spray is a web pattern for excellent coverage on all materials.

DEI010492 Fast drying, high tack spray adhesive

Heat Resistant Sealant

For extreme-duty applications, Heat Resistant Sealand bonds to almost all surfaces and is an ideal method of encapsulating and protecting applications where parts must perform at high temperatures. Unlike other sealants, Heat Resistant Sealant will not sag or run on overhead or on sidewall applications. For use with fibreglass, metal, wood, rubber, plastic and more.

• Withstands continuous temps up to 260°C / 316°C intermittent

• Made from 100% silicone and remains flexible

• Peel strength of 20lbs

• Comes in a 3oz tube with applicator nozzle

Tyre Pressure Gauges

Tyre Pressure Gauges - Longacre

Reads in 1/2-pound increments & includes both angle & ball chucks.

• 2-1/2” glow-in-the-dark face for high accuracy and easy readability

• 1/2 lb increments with 2% accuracy

• High flow air pressure release button

• Swivel angle chuck installed with alternate ball chuck included

• Holds pressure reading until released

• Internal gauge damper for more accurate readings and longer life

• Flexible 17” red hose

* Note this series has a single bleeder valve

Sharp looking graphics and use a more durable mechanism to withstand tough racing use and still maintain accuracy.

• Huge 3-1/2″ glow-in-the-dark face for high accuracy

• The 15PSI display has 1/4 lb increments

Both the 40 and 60PSI displays have 1/2 lb increments

• Dual air pressure release buttons for faster setting

• Swivel angle chuck installed with alternate ball chuck included

• Holds pressure reading until released

• Internal gauge damper for more consistent, accurate readings

• Comes with flexible 17″ red hose and handy protective hard case

Tough Protective Carrying Case

We deal with many sprint car teams around the country — we know what is needed to keep you and your team up and running. We see all the same safety and maintenance issues you see on a week-toweek basis.

It’s safe to trust MSCN with our experience and knowledge of Sprint Cars.

SCHROTH SFI 16.1 Pull Up Belts Sprint Car Safety Gear

2” webbing on shoulders / 2” webbing on waist with pull up straps. Easy glide adjusters makes for easy hassle free driver comfort and quick escape. These belts are used by the top teams around the world.

Sprint Car Seat Crash Pad

Designed to be used in all Speedway applications. Can also be used in Drag, Salt Racing, Burnout vehicles where SFI 16.1 is approved. Same harness but supplied

Use adjustable crotch to get you pulled in even tighter.

super tight. 1/4” ratchet not supplied with harness.

We now have available sheets of 45.2 spec padding designed for use in the manufacture of seat base support, rollcage helmet support and rollcage interior protection. This padding can be cut to shape and layered to give the desired thickness simply by using glue to adhere together and to fasten to an alloy or steel plate attached to your seat base.

If you look at the professional race teams, they will use a SFI 45.2 seat crash pad/ helmet support. You can recreate this in your vehicle.

• 1” thickness, 24” x 12”

• Colour: Black

• Best impact absorbing padding made (from public records)

• Softer feel than other pads and easy to form into curves

• SFI 45.2 licensed approved

• All pads made in USA

Seat Crash Pad 209 Wing Ram Kit 210

Brakes Lines 210 Firewall Quick Disconnect Kit 210

Power Steering Hose Kit 210 Safety Harnesses 146, 157, 209

SCCA APPROVED...

Brake Line & Hose Kits

Specialist Sprint Car Hose Kits

BMRS Soft Brake Lines

Sprint Car Brake Line Kit

Our BMRS soft brake lines are available in two sizes! Choose from -2 or -3 hose depending on your application.

They can be supplied in four different lengths with -3AN STRAIGHT hose ends crimped on both ends ready to be installed in your sprint car.

Please note we can supply 45° or 90° hose ends if preferred.

NOTE:

BMRS -2 brake lines build higher pressure at your calipers for more stopping power. Using -2 hose in your sprint car also eliminates the need for a brake residual valve.

This is a -2 brake kit (Front / Back) sprint car kit. Modelled kit to fit a 87/40 Maxim chassis. Motorsport Connections make this in-house so we are able to modify for you and tweak the lengths if you require it to fit something else.

By using a BMRS -02 hose kit you will not need to run a residual valve, simply strap to your chassis and bolt to your master cylinder.

Power Steering Hose Kit

BMRS Hose Kit to connect your SWEET valve to pump and steering box.

MSCN can custom make to your requirements – please phone us for details.

Wing Ram Kit

This kit is designed to fit a 87/40 Maxim chassis using a SWEET Ram and Valve. The hose length has been set with the valve positioned just above the steering bar mount.

Motorsport Connections make this hose kit in-house so if your valve is mounted lower or your using KSC gear we can modify for you to suit.

Firewall Quick Disconnect Kit

Pimp out your firewall with this quick release fuel hose kit from BMRS.

This 7 piece kit comes complete with all hardware to install hoses inline from firewall to motor as well as a black firewall dash plate

Note: not supplied with hose or hose ends onto bulkhead. To fit this kit send us your hoses so we can splice in the hardware.

We can also build complete hose from firewall forward as well for additional cost. If you already have a BMRS crimper please just call us and ask for the “Pimped Sprint Car Fire Wall Kit” and we will send it to you.

Ask about our High Pressure full swivel hose ends! Now available.

Part Number Index

15

15

15

15

15

15

15

15

15

15, 38

15

349-03-2-L 15 349-04 15, 38 350-03 15 350-04 15 351-03 15, 38 351-04 15, 38 352-03 15, 38 352-04 15, 38 353-03 15 353-04 15 354-03 15 354-04 15 355-03 15 356-03 15, 38

356-04 15, 38 357-03 15 357-04 15, 38 358-04 15, 38 359-03 15, 38 359-04 15, 38 360-03 16 360-04 16

360-04-03 16

370-02-02 17

370-03 16, 185

370-04 16, 185

372-02 17, 43

372-202 17, 43

373-03 16, 185 373-04 16, 185

380-02 16

380-03 16

380-03-01 16

380-03-04 16 380-04 16 380-04-01 16 381-03 16 381-04 16 382-03 16 383-03-01 16 383-04 16 383-04-01 16

386-BN0324 17

386-BN1001 17

386-GM01-04 15

386-GM01-M10 15

390-03 16

390-03-SS 31, 189

390-04 31, 189

390-M0324-L-SS 31, 189

390-M0324-SS 31, 189

390-M0424-SS 31, 189

390-M0520-SS 31, 189

390-M0618-SS 31, 189

390-M1001-L-SS 31, 189

390-M1001-SS 31, 189

390-M1002-SS 31, 189 390-M1201-SS 31, 189 399-03 17 399-04 17 Part

Part Number Index

414-04-05 21, 191 414-06-04 21 414-06-05 21 414-06-06 21 414-08-06 21 414-08-08 21 414-08-10 21 414-08-12 21 414-10-10 21 414-10-12 21 414-M10-05 21 414-M10-06 21 414-M10-08 21 414-M12-05 21 414-M12-06 21 414-M12-08 21 414-M14-05 21 414-M14-06 21 414-M14-08 21 414-M16-05 21 414-M16-06 21 414-M16-08 21 414-M18-05 21 414-M18-06 21 414-M18-08 21 414-M18-10 21 421-01-04 21 421-02-03 21 421-02-04 21 421-02-05 21 421-02-06 21 421-04-05 21 421-04-06 21 421-06-05 21

21

21

Part Number Index

493-06 21

493-08 21

493-10 21

Part starts with... 5

520-01-03 23

520-01-04 22, 23

520-01-06 22, 23

520-01-08 22

520-01-10 22

520-01-12 22

520-01-715-08-06 22

520-01-AN06-06 22

520-02-03 23

520-02-04 23

520-02-06 23

520-02-715-08-06 22

520-02W-04 22

520-02W-06 22

520-02W-08 22

520-02W-10 22

520-02W-12 22

520-03-03 23

520-03-04 23

520-03-06 23

520-03-43 23

520-03-715-08-06 22

520-03W-04 22

520-03W-06 22

520-03W-08 22

520-03W-10 22

520-03W-12 22

520-03W-P06-06 22

520-03W-P08-06 22

520-03W-P08-08 22

520-03W-P10-10 22

520-03W-P12-12 22

520-04W-04 22

520-04W-06 22

520-04W-08 22

520-04W-10 22

520-04W-12 22

520-05W-04 22

520-05W-06 22

520-05W-08 22

520-05W-10 22

520-05W-12 22

520-06W-04 22

520-06W-06 22

520-06W-08 22

520-06W-10 22

520-06W-12 22

520-07W-04 22

520-07W-06 22

520-07W-08 22

520-07W-10 22

520-07W-12 22

520-08W-04 22

520-08W-06 22

520-08W-08 22

520-08W-10 22

520-08W-12 22

520-09-03 23

520-10-03 23

520-10-43

520-10-04 23 520-10-33 23

520-203-04-04 22

520-203-06-06

552-CS10W

552-CS12W

552-CS16W

553-08W

553-16W

553-208-08 25

553-210-10

553-212-12 25

553-CS10W 27

553-CS12W 27

553-CS16W 27

553-P06-06W 25

553-P08-06W 25

553-P08-08W 25

553-P10-10W 25

553-P12-12 25

553-P12-12W 25

553-P16-16 25

554-04 25

554-04W 25 554-06 25

554-06W 25 554-08 25

554-08W 25

554-10 25

554-10W 25

554-12 25

554-12W 25

554-16 25

554-16W 25

554-CS10W 27

554-CS12W 27

554-CS16W 27 555-04 25

555-12W 25

555-16 25

555-16W 25

555-CS10W 27

555-CS12W 27

555-CS16W 27

556-04 25

556-04W 25

556-06 25

556-06W 25

556-08 25

556-08W 25

556-10 25

556-10W 25

556-12 25

556-12W 25

556-16 25

556-16W 25

556-CS10W 27

556-CS12W 27

556-CS16W 27

557-04 25

557-04W 25

557-06 25

557-06W 25

557-08 25

557-08W 25

557-10 25

557-10W 25

557-12 25

557-12W 25

557-16 25

557-16W 25

557-CS10W 27

557-CS12W 27

557-CS16W 27

558-04 25

558-04W 25

558-06 25

558-06W 25

558-08 25

558-08W 25

558-10 25

558-10W 25

558-12 25

558-12W 25 558-16 25

558-16W 25

558-CS10W 27

558-CS12W 27

558-CS16W 27

598-04 18

598-06 18 598-08 18 598-10 18

598-12 18

599-04-BLK 129

599-06-BLK 129

599-08-BLK 129

599-10-BLK 129

599-12-BLK 129

599-16-BLK 129

602-SERIES FILTERS 47, 178 602-010 48, 179

602-010-06 47, 178

602-010-08 47, 178

602-010-10 47, 178

602-010-12 47, 178 602-040 48, 179

602-040-06 47, 178

602-040-08 47, 148

602-040-10 47, 148

602-040-12 47, 148

602-065 48, 179

602-065-06 47, 148

602-065-08 47, 148

602-065-10 47, 148

602-065-12 47, 148 602-100 48, 179

602-100-06 48, 178

602-100-08 48, 178

602-100-10 48, 178

602-100-12 48, 178

602-100-CS10 27

602-100-CS12 27, 47, 178

602-150 48, 179

602-150-06 48, 178

602-150-08 48, 178

602-150-10 48, 178

602-150-12 48, 178

602-500 48, 179

602-500-NAT 179

602-G12 48, 179

602-G12-06 47, 178

602-G12-08 47, 178

602-G12-10 47, 178

602-G12-12 47, 178

603-045-10 47, 178

603-045-12 47, 178

603-045-12P 47, 178

603-045-16 47

603-045-PM1212 47, 178

603-100-10 47, 178

603-100-12 47, 178

603-100-12P 47, 178

603-100-16 47

603-100-PM1212 47, 178

603-500 48, 179

603-G12-10 47

603-G12-12 47

603-G12-12P 47

603-G12-16 47

603-G12-PM1212 47

609-00-10 48, 170

609-00-12 48, 170

609-00-16 48, 170

609-90-12 48, 170

610-03 49, 180

610-04 49, 180

610-06 49, 180

610-08 49, 180

610-10 49, 180

610-12 49, 180

612-00 38, 114

612-06 38, 49, 180

612-08 38, 49, 180

613-06 49, 180

613-12 49, 180

618-04-04 30

618-06-05 30

618-06-06 30

618-06-M10 30

618-06-M8 30

618-08-08 30

618-08-M12 30

618-10-10 30

618-10-12 30

618-12-12 30

618-T05-06 35

618-T06-06 35

619-04-04 30

619-06-05 30

619-06-06 30

619-08-08 30

619-10-10 30

619-12-12 30

620-02 49, 180

620-04 49, 180

620-504 49, 180

625-CS01-08 27

625-CS01-10 27

625-CS01-12 27

625-CS01-16 27

650-02 50, 180

650-03 50, 180

650-04 50, 180

650-06 50, 180

650-08 50, 180

650-10 50, 180

650-12 50, 180

650-308 50

650-312 50

660-06 43, 49

Part Number Index

Part Number Index

820-M12X1.5

821-10

822-04-04

822-06-02

822-06-06

822-06-08

822-08-04

822-10-06

901-02 51, 187

901-03 51, 187

901-04 51, 187

901-05 51, 187

901-06 51 901-08 51

901-09 51 901-10 51

901-B02-M10-BLK 114

902-04 51

902-06 51

902-08 51

903-04 39, 51

903-06 39, 51

903-08 39, 51

903-10 39, 51

903-12 39, 51

903-16 39, 51

905-03 51

905-03V 51

905-04 51

905-04V 51

905-5-208 48, 51, 179

905-5-214 48, 51, 179

905-5-218 48, 51, 179

905-06 51

905-06V 51

905-08 51

905-08V 51

905-10 51

905-10V 51

905-12 51

905-12V 51

905-16 45, 51

905-16V 51

905-20 51

905-20V 51

905-24 45, 51

905-24V 51

905-32 45, 51

905-32V 51

905-AC06 28

905-AC08 28

905-AC09 28

905-AC10 28

905-S-208 51

905-S-214 51

905-S-218 51

905-S208 50

905-S214 50

905-S218 50

905-T-04V 49, 51, 179

905-T-05V 49, 51, 179

905-T-06V 49, 51, 179

905-T-08V 49, 51, 179

905-T-10V 49, 51, 179

905-T-12V 49, 51, 179

906-03-02 42

906-03-02-S 16, 33

906-04-02 42

906-06-04 42

906-06-06

906-10-M18 33, 38

906-P06-06 33

906-P08-08 33 906-P10-10

912-08-04

912-12-06

912-12-08 43

912-16-06 43

912-16-08 43 912-16-12 43

912-B02-M10 38, 114

912-M12-02-S 38

912-M12-2-02-S 38

912-M12-M10 38 912-M14-02 38 912-M16-02 38 912-M18-02 38 912-P06-02 41, 43 912-P06-M10 41 912-P08-02 41, 43 912-P08-M10 41

912-P10-02 41, 43 912-P12-02 41, 43 912-P12-M12 41 912-P16-M12 41 914-02 43 914-04 43 914-06 43 914-08 43 914-12 43 914-16 43 915-02 43 915-08 43 916-02 43 917-02 43 917-04 43 917-06 43 917-08 43 918-04-02 43, 150 920-03 41 920-03-04 41 920-03-06 41 920-03-10 41 920-04 41 920-04-03 41 920-04-06 41 920-04-08 41, 50 920-06 41 920-06-03 41 920-06-04 41 920-06-08 37, 41 920-06-10 41 920-06-12 41 920-08 37, 41 920-08-06 41 920-08-10 41 920-08-12 41 920-10 41, 50 920-10-08 41, 50 920-10-12 41, 43 920-10-12-FS 41, 48 920-10-12-X 34 920-10-16 41 920-12 41, 170 920-12-08 41, 50 920-12-10 41, 50 920-12-12 43

924-10 39 924-12 39 924-16 39 924-20 39

932-01 40, 43

932-02 40, 43 932-04 40, 43

932-06 40, 43

932-08 40, 43 932-12 40, 43

932-16 40, 43

AERO300-FLUSHWELD 176

AERO300-GASKET 176

AERO300-RETRING 176

AERO300-WELDRING 176

AERO300L 175

AERO300S 175

AERO36ANL44B 176

AERO36ANL44LF 176

AERO36NL 175

AERO36NS 175

AERO36SULP 175

AERO3LCAP 176

AERO3LCAP-BLK 176

AERO3SCAP 176

AERO400-GASKET 176

AERO400L 175

AERO400S 175

AERO48NL 175

AERO48NL57 175

AERO48NS 175

AERO4LCAP 176

AERO4SCAP 176

AERO500 176

AERO57FUN 176

AEROCAPRT1 176

AEROROV 176

AEROROV -6 176

AEROROV CF-AA-025 176

AEROROV-BARB 176

AEROTRV68 176

AEROTRV86 176

AEROULF 176

AEROZ200 175

ALLOY CUT OFFS 206

AU2261 44, 49

AU2270 49

AU2372 49

Part starts with... B

B&M46076 190

B&M70297 166

B&M70298 166

B009-7109 158

B009-7115 159

B009-7116 159

B009-7117 159

B009-7119 158

B009-7120 159

B009-7126 158

B009-7139 159

B009-7140 159

B009-7144 158

B009-7150 158

B009-7156 160

B009-7157 160

B009-7158 158

B009-7766 160

B023-7729 160

B023-7732 160

B0572-7105 159

B109-7109 158

B109-7115 159

B109-7116 159

B109-7117 159

B109-7119 158

B109-7120 159

B109-7126 158

B109-7139 159

B109-7140 159

B109-7144 158

B109-7150 158

B109-7156 160

B109-7157 160

B109-7158 158

B109-7766 160

B123-7729 160

B123-7732 160

B1572-7105 159

B551-7735 160

B567-7867 160

B601-7115 159

B601-7116 159

B601-7117 159

B601-7119 158

B601-7144 158

B601-7150 158

B601-7158 158

BM-04-0003-06-3 64

BM-04-0003-06-5 64

BM-04-0003-06-7 64

BM-04-0003-06-RED 64

BM-04-0003-08-3 64

BM-04-0003-08-5 64

BM-04-0003-08-7 64

BM-04-0003-08-RED 64

BM-04-0003-10-3 64

BM-04-0003-10-5 64

BM-04-0003-10-RED 64

BM-04-0003-12-3 64

BM-04-0003-12-5 64

BM-04-0003-12-RED 64

Part Number Index

BM-04-0003-20-3 64

BM-04-0003-20-5 64

BM-04-0003-20-RED 64

BM-05-0001-02-7 64

BM-05-0001-03-3 64

BM-05-0001-03-7 64

BM-05-0001-03-GOLD 64

BM-05-0001-03-RED 64

BM-05-0001-04-3 64

BM-05-0001-04-7 64

BM-05-0001-04-GOLD 64

BM-05-0001-04-RED 64

BM-05-0001-06-3 64

BM-05-0001-06-7 64

BM-05-0001-06-GOLD 64

BM-05-0001-06-RED 64

BM-05-0006-06-7 66

BM-07-0001-03-7 70

BM-07-0006-06-3 68

BM-100724-06 71

BM-100724-07.5 71

BM-100724-09 71

BM-100724-12 71

BM-100724-14 71

BM-100724-16 71

BM-100724-19 71

BM-100724-22 71

BM-100724-29 71

BM-100724-34 71

BM-115 78

BM-200-109-9775 68

BM-200-110-9775 68

BM-22-0001-04-07 59

BM-22-0001-06-07 59

BM-22-0001-08-07 59

BM-22-0001-10-07 59

BM-22-0001-12-07 59

BM-22-0001-16-07 59

BM-22-0001-20-07 59

BM-22-0010-04-3 76

BM-24-0003-06 71

BM-24-0003-08 71

BM-24-0003-10 71

BM-24-0003-12 71

BM-24-0003-16 71

BM-24-0003-20 71

BM-24-0006 71

BM-24-0315-03 71

BM-24-0315-04 71

BM-24-0315-06 71

BM-32-0.600-L-3 65

BM-32-0.630-10 65

BM-32-0.875-L-3 65

BM-32-1.125-L-3 65

BM-32-1.375-L-3 65

BM-32-1.600-L-3 65

BM-32-1.700-L-3 65

BM-32-2.650-L-3 65

BM-35-0007-04-03 67

BM-35-0012-04-08-3 67

BM-35-0012-06-06-3 67

BM-35-0012-06-08-3 67

BM-35-0012-08-08-3 67

BM-35-0013-04-3 67

BM-35-0014-04-3-V 67

BM-35-0014-06-3-E 67

BM-35-0014-08-3-E 67

BM-35-0015-06-45-3 67

BM-35-0016-06-3 67

BM-35-0018-06-3-E 67

BM-35-0019-08-10-3 67

BM-35-0019-08-3 67

BM-35-0020-06-3 67

BM-704-P 78

BM-AC-0012-06-3 68

BM-AC-0032-00-3 68

BM-AC-06-0006-3 69

BM-AC-06-0009-00-3 68

BM-AC-06-0009-45-3 68

BM-AC-06-0009-90-3 68

BM-AC-06-0021-3 69

BM-AC-06-0023-00-3 68

BM-AC-06-0023-90-3 68

BM-AC-06-0024-3 69

BM-AC-06-0028-3 69

BM-AC-06-0030-00-E-3 67

BM-AC-06-0030-00-V-3 67

BM-AC-06-0030-90E3 67

BM-AC-06-0031-00-3 67

BM-AC-06-08-45-WF-3 60

BM-AC-06-08-45-WFDS-3 62

BM-AC-06-08-45-WFFD-3 60

BM-AC-06-08-90-WF-3 61

BM-AC-06-08-90-WFDS-3 62

BM-AC-06-08-90-WFFD-3 61

BM-AC-06-08-F3 56

BM-AC-06-08-G3 56

BM-AC-06-08-H3 56

BM-AC-06-08-M3-00 63

BM-AC-06-08-M3-150 64

BM-AC-06-08-M3-45 63

BM-AC-06-08-M3-90 63

BM-AC-06-08-ST-WF-3 60

BM-AC-06-08-ST-WFFD-3 60

BM-AC-06-08-ST-WM 59

BM-AC-06-10-ST-WF-3 60

BM-AC-06-30JIC-3 56

BM-AC-06-30JICDS-3 58

BM-AC-06-45-M14-3 66

BM-AC-06-45-M16-3 66

BM-AC-06-60JIC-3 56

BM-AC-06-60JICDS-3 58

BM-AC-06-90-M14-3 66

BM-AC-06-90-M16-3 66

BM-AC-06-B-H3 57

BM-AC-06-BH-J3 69

BM-AC-06-F3 56

BM-AC-06-F7 56

BM-AC-06-FINISHER-3 64

BM-AC-06-G3 56

BM-AC-06-G3-DS 58

BM-AC-06-G7 56

BM-AC-06-H3 56

BM-AC-06-H3-DS 58

BM-AC-06-H7 56

AU3241 167

AU3242 167

AU3243 167

BM-04-0003-16-3 64

BM-04-0003-16-5 64

BM-04-0003-16-RED 64

BM-35-0013-06-3 67

BM-35-0013-08-3 67

BM-AC-06-H7-DS 58

BM-AC-06-J3 57

Part Number Index

BM-AC-06-J7 57

BM-AC-06-M3-00 63

BM-AC-06-M3-30 63

BM-AC-06-M3-45 63

BM-AC-06-M3-60 63

BM-AC-06-M3-90 63

BM-AC-06-P3 57

BM-AC-06-P3-DS 58

BM-AC-06-P7 57

BM-AC-06-R3 57

BM-AC-06-R3-DS 59

BM-AC-06-R7 57

BM-AC-06-S3-DS 59

BM-AC-06-ST-M14-3 66

BM-AC-06-ST-M16-3 66

BM-AC-08-0003-3 69

BM-AC-08-0012-3 69

BM-AC-08-0015-3 69

BM-AC-08-0017-3 69

BM-AC-08-0027-3 69

BM-AC-08-0028-3 69

BM-AC-08-0030-00-V-3 67

BM-AC-08-0030-00E-3 67

BM-AC-08-0034-00-3 67, 70

BM-AC-08-0039-3 69

BM-AC-08-06-F3 56

BM-AC-08-06-G3-DS 58

BM-AC-08-06-H3-DS 58

BM-AC-08-06-M3-00 63

BM-AC-08-06-M3-90 63

BM-AC-08-10-M3-00 63

BM-AC-08-10-M3-45 63

BM-AC-08-10-M3-90 63

BM-AC-08-10-ST-WF-3 60

BM-AC-08-12-90-WF-3 61

BM-AC-08-120-WF-3 61

BM-AC-08-120-WFFD-3 61

BM-AC-08-30JIC-3 56

BM-AC-08-30JICDS-3 58

BM-AC-08-45-M18-3 66

BM-AC-08-45-WF-3 60

BM-AC-08-45-WF-DS-3 62

BM-AC-08-45-WFFD-3 60

BM-AC-08-60JIC-3 56

BM-AC-08-60JICDS-3 58

BM-AC-08-90-M18-3 66

BM-AC-08-90-WF-3 61

BM-AC-08-90-WF-DS-3 62

BM-AC-08-90-WFFD-3 61

BM-AC-08-B-H3 57

BM-AC-08-B-M3-90 57

BM-AC-08-BH-J3 69

BM-AC-08-F3 56

BM-AC-08-F7 56

BM-AC-08-G3 56

BM-AC-08-G3-DS 58

BM-AC-08-G7 56

BM-AC-08-H3 56

BM-AC-08-H3-DS 58

BM-AC-08-H7 56

BM-AC-08-H7-DS 58

BM-AC-08-J3 57

BM-AC-08-M3-00 63

BM-AC-08-M3-120 64

BM-AC-08-M3-150 64

BM-AC-08-M3-30 63

BM-AC-08-M3-45 63

BM-AC-08-M3-60 63

BM-AC-08-M3-90 63

BM-AC-08-P3 57

BM-AC-08-P3-DS 58

BM-AC-08-P7 57

BM-AC-08-R3 57

BM-AC-08-R3-DS 59

BM-AC-08-R7 57

BM-AC-08-S3-DS 59

BM-AC-08-ST-M18-3 66

BM-AC-08-ST-WF-3 60

BM-AC-08-ST-WFFD-3 60

BM-AC-08-ST-WM 59

BM-AC-10-0001-90 70

BM-AC-10-0020-3 69

BM-AC-10-0032-90-3 65

BM-AC-10-08-F3 56

BM-AC-10-08-G3 56

BM-AC-10-08-G3-DS 58

BM-AC-10-08-H3 56

BM-AC-10-08-H3-DS 58

BM-AC-10-08-M3-00 63

BM-AC-10-08-M3-120 64

BM-AC-10-08-M3-150 64

BM-AC-10-08-M3-45 63

BM-AC-10-08-M3-60 63

BM-AC-10-08-M3-90 63

BM-AC-10-12-F3 56

BM-AC-10-12-M3-00 63

BM-AC-10-12-M3-45 63

BM-AC-10-12-M3-60 63

BM-AC-10-12-M3-90 63

BM-AC-10-120-WFFD-3 61

BM-AC-10-30JIC-3 56

BM-AC-10-30JICDS-3 58

BM-AC-10-45-M22-3 66

BM-AC-10-45-WF-3 60

BM-AC-10-45-WF-DS-3 62

BM-AC-10-45-WFFD-3 60

BM-AC-10-60JIC-3 56

BM-AC-10-60JICDS-3 58

BM-AC-10-90-M22-3 66

BM-AC-10-90-WF-3 61

BM-AC-10-90-WF-DS-3 62

BM-AC-10-90-WFFD-3 61

BM-AC-10-B-H3 57

BM-AC-10-BH-J3 69

BM-AC-10-F3 56

BM-AC-10-FINISHER-3 64

BM-AC-10-G3 56

BM-AC-10-G3-DS 58

BM-AC-10-H3 56

BM-AC-10-H3-DS 58

BM-AC-10-J3 57

BM-AC-10-M3-00 63

BM-AC-10-M3-120 64

BM-AC-10-M3-30 63

BM-AC-10-M3-45 63

BM-AC-10-M3-60 63

BM-AC-10-M3-90 63

BM-AC-10-M3-90-M22 66

BM-AC-10-P3 57

BM-AC-10-P3-DS 58

BM-AC-10-S3-DS 59

BM-AC-10-ST-M22-3 66

BM-AC-10-ST-WF-3 60

BM-AC-10-ST-WFFD-3 60

BM-AC-10-ST-WM 59

BM-AC-12-0002-00-3 70

BM-AC-12-0002-30-3 70

BM-AC-12-0002-45-3 70

BM-AC-12-0002-60-3 70

BM-AC-12-0002-90 70

BM-AC-12-0003-00-3 65

BM-AC-12-0003-30-3 65

BM-AC-12-0003-45-3 65

BM-AC-12-0003-60-3 65

BM-AC-12-0003-90-3 65

BM-AC-12-0019-3 65

BM-AC-12-0029-45-3 70

BM-AC-12-0029-90-3 70

BM-AC-12-0042-45-3 70

BM-AC-12-0042-90-3 70

BM-AC-12-0092-00 70

BM-AC-12-0092-90 70

BM-AC-12-08-G3-DS 58

BM-AC-12-08-H3-DS 58

BM-AC-12-10-F3 56

BM-AC-12-10-G3-DS 58

BM-AC-12-10-H3-DS 58

BM-AC-12-10-M3-00 63

BM-AC-12-10-M3-135 64

BM-AC-12-10-M3-30 63

BM-AC-12-10-M3-45 63

BM-AC-12-10-M3-60 63

BM-AC-12-10-M3-90 63

BM-AC-12-10-P3-DS 58

BM-AC-12-10-R3-DS 59

BM-AC-12-120-WF-3 61

BM-AC-12-120-WFFD-3 61

BM-AC-12-16-30-WF-DS-3 62

BM-AC-12-16-45-WFDS-3 62

BM-AC-12-16-90WFDS-3 62

BM-AC 12-16-H3-DS 58

BM-AC-12-16-M3-90 63

BM-AC-12-16-ST-WF-3 60

BM-AC-12-180-WF-DS-3 62

BM-AC-12-28-90-WF-3 61

BM-AC-12-30-WF-3 60

BM-AC-12-30-WFFD-3 60

BM-AC-12-30JIC-3 56

BM-AC-12-30JICDS-3 58

BM-AC-12-45-WF-3 60

BM-AC-12-45-WF-DS-3 62

BM-AC-12-45-WFFD-3 60

BM-AC-12-45-WFFDDS-3 62

BM-AC-12-60-WF-3 60

BM-AC-12-60-WFFD-3 60

BM-AC-12-60JIC-3 56

BM-AC-12-60JICDS-3 58

BM-AC-12-90-M30-3 66

BM-AC-12-90-WF-3 61

BM-AC-12-90-WF-DS-3 62

BM-AC-12-90-WFFD-3 61

BM-AC-12-90-WFFDDS-3 62

BM-AC-12-F3 56

BM-AC-12-G3-DS 58

BM-AC-12-H3 56

BM-AC-12-H3-DS 58

BM-AC-12-J3 57

BM-AC-12-M3-00 63

BM-AC-12-M3-120 64

BM-AC-12-M3-135 64

BM-AC-12-M3-150 64

BM-AC-12-M3-30 63

BM-AC-12-M3-45 63

BM-AC-12-M3-60 63

BM-AC-12-M3-90 63

BM-AC-12-M3-90-M22 66

BM-AC-12-P3 57

BM-AC-12-P3-DS 58

BM-AC-12-R3 57

BM-AC-12-R3-DS 59

BM-AC-12-S3-DS 59

BM-AC-12-ST-M26-3 66

BM-AC-12-ST-M30-3 66

BM-AC-12-ST-WF-3 60

BM-AC-12-ST-WFFD-3 60

BM-AC-12-ST-WM 59

BM-AC-12-ST-WMDO 59

BM-AC-16-0041-90-3 70

BM-AC-16-10-M3-90 63

BM-AC-16-12-F3 56

BM-AC-16-12-G3 56

BM-AC-16-12-H3 56

BM-AC-16-12-H3-DS 58

BM-AC-16-12-M3-00 63

BM-AC-16-12-M3-30 63

BM-AC-16-12-M3-45 63

BM-AC-16-12-M3-60 63

BM-AC-16-12-M3-90 63

BM-AC-16-12-P3-DS 58

BM-AC-16-12-R3 57

BM-AC-16-120-WFFD-3 61

BM-AC-16-20-45-WFDS-3 62

BM-AC-16-30-WF-3 60

BM-AC-16-30-WF-DS-3 62

BM-AC-16-30-WFFD-3 60

BM-AC-16-30-WFFDDS-3 62

BM-AC-16-30JIC-3 56

BM-AC-16-30JICDS-3 58

BM-AC-16-45-M30-DS 66

BM-AC-16-45-WF-3 60

BM-AC-16-45-WF-DS-3 62

BM-AC-16-45-WFFD-3 60

BM-AC-16-45-WFFDDS-3 62

BM-AC-16-60-WF-3 60

BM-AC-16-60-WFFD-3 60

BM-AC-16-60JIC-3 56

BM-AC-16-60JICDS-3 58

BM-AC-16-90-M30-DS-4 66

BM-AC-16-90-WF-3 61

BM-AC-16-90-WF-DS-3 62

BM-AC-16-90-WFFD-3 61

BM-AC-16-90-WFFDDS-3 62

BM-AC-16-BJ-M26-5 66

BM-AC-16-F3 56

BM-AC-16-G3 56

BM-AC-16-G3-DS 58

BM-AC-16-H3 56

BM-AC-16-H3-DS 58

BM-AC-16-M3-120 64

BM-AC-16-M3-30 63

BM-AC-16-M3-45 63

BM-AC-16-M3-60 63

BM-AC-16-M3-90 63

BM-AC-16-P3 57

BM-AC-16-P3-DS 58

BM-AC-16-R3 57

BM-AC-16-R3-DS 59

BM-AC-16-S3-DS 59

BM-AC-16-ST-M30-3 66

BM-AC-16-ST-WF-3 60

BM-AC-16-ST-WFFD-3 60

BM-AC-16-ST-WM 59

BM-AC-20-16-30-WF-3 60

BM-AC-20-16-30-WF-DS-3 62

BM-AC-20-16-90WFDS-3 62

BM-AC-20-16-F3 56

BM-AC-20-16-H3-DS 58

BM-AC-20-16-ST-WF-3 60

BM-AC-20-16-ST-WM 59

BM-AC-20-24-45-WFFD-3 60

BM-AC-20-24-90-WFFD-3 61

BM-AC-20-24-F3 56

BM-AC-20-24-G3 56

BM-AC-20-24-H3 56

BM-AC-20-24-ST-WFFD-3 60

BM-AC-20-28-45-WF-3 60

BM-AC-20-28-ST-WF-3 60

BM-AC-20-30-WF-DS-3 62

BM-AC-20-30-WFFDDS-3 62

BM-AC-20-30JIC-3 56

BM-AC-20-30JICDS-3 58

BM-AC-20-45-WF-3 60

BM-AC-20-45-WF-DS-3 62

BM-AC-20-45-WFFD-3 60

BM-AC-20-45-WFFDDS-3 62

BM-AC-20-60JIC-3 56

BM-AC-20-60JICDS-3 58

BM-AC-20-90-WF-3 61

BM-AC-20-90-WF-DS-3 62

BM-AC-20-90-WFFD-3 61

BM-AC-20-90-WFFDDS-3 62

BM-AC-20-F3 56

BM-AC-20-G3 56

BM-AC-20-G3-DS

BM-AC-20-H3

BM-AC-20-H3-DS

BM-AC-20-M3-00

BM-AC-20-M3-45 63

BM-AC-20-M3-90 63

BM-AC-20-P3

BM-AC-20-ST-WF-3 60

BM-AC-20-ST-WFFD-3 60

BM-AC-20-ST-WM 59

BM-AC-24-F3 56

BM-AC-24-ST-WF-3 60

BM-AC-24-ST-WM 59

BM-AC-8-FINISHER-3 64

BM-AN819-7

BM-AR-06-AM 55

BM-AR-06-HTP 54

BM-AR-06-S 54

BM-AR-08-AM 55

BM-AR-08-HTP 54

BM-AC-10-R3 57

BM-AC-10-R3-DS 59

BM-AC-12-FINISHER-3 64

BM-AC-12-G3 56

BM-AC-16-J3 57

BM-AC-16-M3-00 63

BM-AR-08-S 54

BM-AR-10-AM 55

BM-AR-10-HTP 54

BM-AR-10-S 54

BM-AR-12-AM 55

BM-AR-12-HTP 54

BM-AR-12-S 54

BM-AR-16-AM 55

BM-AR-16-HTP 54

BM-AR-16-S 54

BM-AR-20-AM 55

BM-AR-20-HTP 54

BM-AR-20-S 54

BM-AR-24-AM* 55

BM-AR-24-S 54

BM-AR-28-AM* 55

BM-AR-28-S 54

BM-AR-32-AM* 55

BM-AR-32-S 54

BM-BH12-WM-12-3 61

BM-BH16-WM-16-3 61

BM-BJB-03-1-7 78

BM-BJB-03-1-7S-W 78

BM-BJB-03-1-TS-W 78

BM-BJB-03-2-3 78

BM-BJB-03-2-7 78

BM-BJB-03-2-75-W 78

BM-BJB-03-3-7 78

BM-BJB-04-3-3 78

BM-BJBD-03-1-7 78

BM-BJBD-03-2-7 78

BM-CCH-06 55

BM-CCH-08 55

BM-CCW-03 51, 77

BM-CRIMPER 71

BM-D105-3/4-SPACER-KIT 71

BM-D105/KIT-3-16 71

BM-FILTER-09-0460 70

BM-FSLW-04-B 129

BM-FSLW-05-RED 129

BM-FSLW-08-B 129

BM-FSLW-10-B 129

BM-FSLW-12-B 129

BM-FSLW-16-B 129

BM-FSLW-20-B 129

BM-HPSB-06-ST-M14 66

BM-HPSB-06-45-M14 66

BM-HPSB-06-90-M14 66

BM-HPSB-06-F7 74

BM-HPSB-06-G7 74

BM-HPSB-06-H7 74

BM-HPSB-06-P7 74

BM-HPSB-06-S-SD 73

BM-HZ-K20-WMD20-3 61

BM-K06-WM08-3 61

BM-K08-WM08-3 61

BM-K08-WM10-3 61

BM-K08-WMD-08-3 61

BM-K10-WM10-3 61

BM-K10-WM12-3 61

BM-K10-WMD08-3 61

BM-K10-WMD10-3 61

BM-K10-WMD12-3 61

BM-K12-WM12-3 61

BM-K12-WM16-3 61

BM-K12-WMD12-3 61

BM-K12-WMD16-3 61

BM-K16-WMD16-3 61

BM-K20-WM20-3 61

BM-ORW-08-N 81

BM-ORW-10-N 81

BM-ORW-10-VB 81

BM-ORW-12-N 81

BM-ORW-12-VB 81

BM-ORW-16-N 81

BM-ORW-16-VB 81

BM-ORW-28-N 81

BM-ORW-28-VB 81

BM-ORW-32-N 81

BM-ORW-32-VB 81

BM-ORW-40-VB 81

BM-ORW-48-VB 81

BM-ORW-56-VB 81

BM-ORW-64-VB 81

BM-RMI 09.1655/L/JV 88

BM-RMI 09.7655/L/JV 88

BM-SB-02-0026-7 75

BM-SB-02-03-BJE90-7 77

BM-SB-02-03-F7 74

BM-SB-02-03-F7-3 74

BM-SB-02-03-G7 74

BM-SB-02-03-G7-3 74

BM-SB-02-03-H7 74

BM-SB-02-03-H7-3 74

BM-SB-02-04-F7 74

BM-SB-02-04-F7-3 74

BM-SB-02-04-G7 74

BM-SB-02-04-G7-3 74

BM-SB-02-BJ-M10-7 77

BM-SB-02-BJ-M5-7 77

BM-SB-02-BJ-M6-7 77

BM-SB-02-BJ-M8-7 77

BM-SB-02-F7 74

BM-SB-02-G7 74

BM-SB-02-S-SD-PVC 72

BM-SB-03 73

BM-SB-03-0010-7 75

BM-SB-03-0026-7 75

BM-SB-03-0033-7 78

BM-SB-03-0038-00-7 75

BM-SB-03-0038-45-7 75

BM-SB-03-0038-70-7 75

BM-SB-03-0038-90-7 75

BM-SB-03-0039-7 75

BM-SB-03-0041-7 78

BM-SB-03-02-F7 74

BM-SB-03-02-G7 74

BM-SB-03-04-F7 74

BM-SB-03-04-F7-3 74

BM-SB-03-04-G7 74

BM-SB-03-04-G7-3 74

BM-SB-03-04-H7 74

BM-SB-03-04-P7 74

BM-SB-03-06-F7-3 74

BM-SB-03-B-G7 75

BM-SB-03-B-H7 75

BM-SB-03-BJ-04-3 77

BM-SB-03-BJ-04-7 77

BM-SB-03-BJ-E20-7 77

BM-SB-03-BJ-E45-7 77

BM-SB-03-BJ-E60-7 77

BM-SB-03-BJ-E90-7 77

BM-SB-03-BJ-M10-7 77

BM-SB-03-BJ-M8-7 77

BM-SB-03-BJ-SB90-7 77

BM-SB-03-F3 74

BM-SB-03-F7 74

BM-SB-03-F7-3 74

BM-SB-03-G3 74

BM-SB-03-G7 74

BM-SB-03-G7-3 74

BM-SB-03-H3 74

BM-SB-03-H7 74

BM-SB-03-H7-3 74

BM-SB-03-J7 76

BM-SB-03-J7-45 76

BM-SB-03-M7-00 76

BM-SB-03-M7-45 76

BM-SB-03-M7-90 76

BM-SB-03-P-SD 73

BM-SB-03-P7 74

BM-SB-03-R7 75

BM-SB-03-S-SD 72

BM-SB-03-S-SD-PVC 72

BM-SB-03-T7 76

BM-SB-03-V7 76

BM-SB-04 73

BM-SB-04-0016-70-3 76

BM-SB-04-0016-90-3 76

BM-SB-04-0034-3 75

BM-SB-04-0040-00-V-3 67

BM-SB-04-0045-3 75

BM-SB-04-0045-4 75

BM-SB-04-0046-3 75

BM-SB-04-03-F7 74

BM-SB-04-03-F7-3 74

BM-SB-04-03-G7 74

BM-SB-04-03-G7-3 74

BM-SB-04-03-H7 74

BM-SB-04-03-V7 76

BM-SB-04-06-F7-3 74

BM-SB-04-06-M3-90 76

BM-SB-04-06-M7-90 76

BM-SB-04-08-F7-3 74

BM-SB-04-90-M12-7 66

BM-SB-04-90-M14-7 66

BM-SB-04-BJ-04-3 77

BM-SB-04-BJ-04-7 77

BM-SB-04-BJ-M10-3 77

BM-SB-04-BJ-M10-7 77

BM-SB-04-BJ-M12-3 77

BM-SB-04-BJ-M12-7 77

BM-SB-04-BJ-M14-3 77

BM-SB-04-BJ-M14-7 77

BM-SB-04-F3 74

BM-SB-04-F7 74

BM-SB-04-F7-3 74

BM-SB-04-G3 74

BM-SB-04-G7 74

BM-SB-04-G7-3 74

BM-SB-04-H3 74

BM-SB-04-H7 74

BM-SB-04-H7-3 74

BM-SB-04-M3-90 76

BM-SB-04-M3-90-M14 76

BM-SB-04-M7-00 76

Part Number Index

BM-SB-04-M7-45-M10 66, 76

BM-SB-04-M7-90 76

BM-SB-04-M7-90-M10 66, 76

BM-SB-04-P-SD 73

BM-SB-04-P7 74

BM-SB-04-R7 75

BM-SB-04-S-SD 72

BM-SB-04-S-SD-PVC 72

BM-SB-04-ST-M14 66

BM-SB-06-BJ-M12-3 77

BM-SB-06-BJ-M12-7 77

BM-SB-06-BJ-M14-3 77

BM-SB-06-BJ-M14-7 77

BM-SB-06-F3 74

BM-SB-06-F7 74

BM-SB-06-F7-3 74

BM-SB-06-G3 74

BM-SB-06-G7 74

BM-SB-06-G7-3 74

BM-SB-06-H3 74

BM-SB-06-H7 74

BM-SB-06-J3 75, 76

BM-SB-06-M3-90 76

BM-SB-06-M7-00 76

BM-SB-06-M7-120 76

BM-SB-06-M7-45 76

BM-SB-06-M7-60 76

BM-SB-06-M7-90 76

BM-SB-06-P3 74

BM-SB-06-P7 74

BM-SB-06-R3 75

BM-SB-06-R7 75

BM-SB-06-S-FC-SD 73

BM-SB-06-S-H-SD 72

BM-SB-06-S-SD 72

BM-SB-08-F3 74

BM-SB-08-F7 74

BM-SB-08-F7-3 74

BM-SB-08-G3 74

BM-SB-08-G7 74

BM-SB-08-G7-3 74

BM-SB-443-03BN-7 78

BM-SPH 03.1652/KJ/JV 86

BM-SPH 03.1652/KR/JE 86

BM-SPH 03.1653/KR/JE 86

BM-SPH 03.2652/KJ/JV 86

BM-SPH 03.2652/KR/JE 86

BM-SPH 03.7652/KJ/JV 86

BM-SPH 03.7652/KR/JE 86

BM-SPH 03.7653/KR/JE 86

BM-SPH 05.2653/KR/JE 87

BM-SPH 05.7653/KR/JE 87

BM-SPH 08.1655/KJ/JV 87

BM-SPH 08.1656/KJ/JV 87

BM-SPH 08.7655/KJ/JV 87

BM-SPH 08.7656/KJ/JV 87

BM-SPH05.1653/KR/JE 87

BM-SPT 05.1655/L/JV 87

BM-SPT 05.7655/L/JV 87

BM-SPT 08.1655/L/JV 87

BM-SPT 08.1656/L/JV 88

BM-SPT 08.3656/L/JV 88

BM-SPT 08.5655/L/JV 87

BM-SPT 08.5656/L/JV 88

BM-SPT 08.7655/L/JV 87

BM-SPT 12.1658/L/JV 88

BM-SPT 12.5658/L/JV 88

BM-SPT 12.7657/L/JV 88

BM-SPT 12.7658/L/JV 88

BM-TF-03-JZ-BZ 189

BM-TF-08-WFFD-J 81

BM-TF-08-WM-DO-J 81

BM-TF-08-WM-J 81

BM-TF-10-WFFD-J 81

BM-TF-10-WM-7 81

BM-TF-10-WM-DO-J 81

BM-TF-10-WM-J 81

BM-TF-12-WFFD-7 81

BM-TF-12-WFFD-J 81

BM-TF-12-WM-7 81

BM-TF-12-WM-DO-7 81

BM-TF-12-WM-DO-J 81

BM-TF-12-WM-J 81

BM-TF-16-AC-7 81

BM-TF-16-WFFD-7 81

BM-TF-16-WFFD-J 81

BM-TF-16-WM-7 81

BM-TF-16-WM-DO-7 81

BM-TF-16-WM-DO-J 81

BM-TF-16-WM-J 81

BM-TF-20-WFFD-J 81

BM-TF-20-WM-7 81

BM-TF-20-WM-DO-7 81

BM-TF-20-WM-DO-J 81

BM-TF-20-WM-J 81

BM-TF-24-JJ 81

BM-TF-24-WFFD-J 81

BM-TF-24-WM-DO-J 81

BM-TF-24-WM-J 81

BM-TF-28-WFFD-J 81

BM-TF-28-WM-DO-J 81

BM-TF-28-WM-J 81

BM-VC-1062-16-12 82

BM-VC-1312-16-16 82

BM-VC-1593-16-20 82

BM-VC-1875-16-24 82

BM-VC-2125-16-28 82

BM-VC-725-16-08 82

BM-VC-875-16-10 82

BM-W-CAP-08 82

BM-W-CAP-10 82

BM-W-CAP-12 82

BM-W-CAP-16 82

BM-W-CAP-20 82

BM-W-CAP-24 82

BM-W-CAP-28 82

BM-W-CAP-32 82

BM-W-CAP-40 82

BM-W-PLUG-08 82

BM-W-PLUG-10 82

BM-W-PLUG-12 82

BM-W-PLUG-16 82

BM-W-PLUG-20 82

BM-W-PLUG-24 82

BM-W-PLUG-28 82

BM-W-PLUG-32 82

BM-W-PLUG-40 82

BM-W-SPACER-08 61, 82

BM-W-SPACER-10 61, 82

BM-W-SPACER-12 61, 82

BM-W-SPACER-16 61, 82

BM-K16-WM16-3 61

BM-K16-WM20-3 61

BM-SB-03-BJ-M10-3 77

BM-SB-04-M7-00-M10 66, 76

BM-SB-04-M7-45 76

BM-SPT 08.7656/L/JV 88

BM-SPT 12.1657/L/JV 88

BM-W-SPACER-20 61, 82

BM-W-SPACER-24 61, 82

Part Number Index

BM-W908-32D 80

BM-W908-48D 80

BM-W908B-10D 80

BM-W908B-12D 80

BM-W908B-16D 80

BM-W908B-20D 80

BM-W908B-24D 80

BM-W908B-28D 80

BM-W991-08DE 80

BM-W991-10DE 80

BM-W991-12DE 80

BM-W991-16DE 80

BM-W991-20DE 80

BM-W991-24DE 80

BM-W991-28DE 80

BM-W991-32DE 80

BM-W991-40DE 80

BM-W991-48DE 80, 115

BM-W991-56DE 80, 115

BM-W991-64DE 80

BM-W994-08D 80

BM-W994-10D 80

BM-W994-12D 80

BM-W994-16D 80

BM-W994-20D 80

BM-W994-24D 80

BM-WM12-WM12-3 81

BM-WO-03-ORBF-3 44

BM-WO-03-ORBF-J 81

BM-WOO-BH-BLUE 70

BM-WTF-08-WM-J 81

BM-WTF-10-WM-J 81

BM-WTF-12-WM-J 81

BM-WTF-16-WM-J 81

BM-WTF-20-WM-J 81

BM-WTF-24-WM-J 81

BM-WTF-28-WM-J 81

BM-WTF-32-WM-7 81

BM-WTF-32-WM-J 81

BM-WTF-40-WM-J 81

BM-WTF-48-WM-J 81

BM-WTF-56-WM-J 81

BM-WTF-64-WM-J 81

BMB-04-0003-06-4 64

BMB-04-0003-08-4 64

BMB-04-0003-10-4 64

BMB-04-0003-12-4 64

BMB-04-0003-16-4 64

BMB-04-0003-20-4 64

BMB-04-0003-24-4 64

BMB-05-0001-03-4 64

BMB-05-0001-04-4 64

BMB-05-0001-06-4 64

BMB-07-0006-06-4 68

BMB-18-0299-12-4 70

BMB-35-0018-06-4-E 67

BMB-35-0020-06-4 67

BMB-AC-0012-06-4 68

BMB-AC-0032-00-4 68

BMB-AC-06-0006-4 69

BMB-AC-06-0009-00-4 68

BMB-AC-06-0009-45-4 68

BMB-AC-06-0009-90-4 68

BMB-AC-06-0021-4 69

BMB-AC-06-0023-00-4 68

BMB-AC-06-0023-90-4 68

BMB-AC-06-0024-4 69

BMB-AC-06-0028-4 69

BMB-AC-06-0030-00-E4 67

BMB-AC-06-0030-00-V4 67

BMB-AC-06-0030-90-E4 67

BMB-AC-06-0030-90-V4 67

BMB-AC-06-0031-00-4 67

BMB-AC-06-0040-00-4 68

BMB-AC-06-0043-90-4 70

BMB-AC-06-0056-4 69

BMB-AC-06-08-45-WF-4 60

BMB-AC-06-08-45-WFDS-4 62

BMB-AC-06-08-45-WFFD-4 60

BMB-AC-06-08-90-WF-4 61

BMB-AC-06-08-90-WFDS-4 62

BMB-AC-06-08-90-WFFD-4 61

BMB-AC-06-08-F4 56

BMB-AC-06-08-G4 56

BMB-AC-06-08-H4 56

BMB-AC-06-08-M4-00 63

BMB-AC-06-08-M4-150 64

BMB-AC-06-08-M4-45 63

BMB-AC-06-08-M4-90 63

BMB-AC-06-08-ST-WF-4 60

BMB-AC-06-08-ST-WFFD-4 60

BMB-AC-06-08-ST-WM-4 59

BMB-AC-06-10-ST-WF-4 60

BMB-AC-06-30JIC-4 56

BMB-AC-06-30JICDS-4 58

BMB-AC-06-45-M14-4 66

BMB-AC-06-45-M16-4 66

BMB-AC-06-60JIC-4 56

BMB-AC-06-60JICDS-4 58

BMB-AC-06-90-M14-4 66

BMB-AC-06-90-M16-4 66

BMB-AC-06-B-H4 57

BMB-AC-06-BH-J4 69

BMB-AC-06-F4 56

BMB-AC-06-FINISHER-4 64

BMB-AC-06-G4 56

BMB-AC-06-G4-DS 58

BMB-AC-06-G7 56

BMB-AC-06-H4 56

BMB-AC-06-H4-DS 58

BMB-AC-06-J4 57

BMB-AC-06-M4-00 63

BMB-AC-06-M4-30 63

BMB-AC-06-M4-45 63

BMB-AC-06-M4-60 63

BMB-AC-06-M4-90 63

BMB-AC-06-P4 57

BMB-AC-06-P4-DS 58

BMB-AC-06-R4 57

BMB-AC-06-R4-DS 59

BMB-AC-06-S4-DS 59

BMB-AC-06-ST-M14-4 66

BMB-AC-06-ST-M16-4 66

BMB-AC-08-0003-4 69

BMB-AC-08-0004-4 69

BMB-AC-08-0005-4 69

BMB-AC-08-0012-4 69

BMB-AC-08-0013-4 69

BMB-AC-08-0017-4 69

BMB-AC-08-0027-4 69

BMB-AC-08-0034-00-4 70

BMB-AC-08-06-F4 56

BMB-AC-08-06-G4-DS 58

BMB-AC-08-06-H4-DS 58

BMB-AC-08-06-M4-00 63

BMB-AC-08-06-M4-90 63

BMB-AC-08-10-M4-00 63

BMB-AC-08-10-M4-45 63

BMB-AC-08-10-M4-90 63

BMB-AC-08-10-ST-WF-4 60

BMB-AC-08-12-90-WF-4 61

BMB-AC-08-120-WF-4 61

BMB-AC-08-120-WFFD-4 61

BMB-AC-08-30JIC-4 56

BMB-AC-08-30JICDS-4 58

BMB-AC-08-45-M18-4 66

BMB-AC-08-45-WF-4 60

BMB-AC-08-45-WF-DS-4 62

BMB-AC-08-45-WFFD-4 60

BMB-AC-08-60JIC-4 56

BMB-AC-08-60JICDS-4 58

BMB-AC-08-90-M18-4 66

BMB-AC-08-90-WF-4 61

BMB-AC-08-90-WF-DS-4 62

BMB-AC-08-90-WFFD 62

BMB-AC-08-90-WFFD-4 61

BMB-AC-08-B-H4 57

BMB-AC-08-B-M4-90 57

BMB-AC-08-BH-J4 69

BMB-AC-08-F4 56

BMB-AC-08-G4 56

BMB-AC-08-G4-DS 58

BMB-AC-08-G7 56

BMB-AC-08-H4 56

BMB-AC-08-H4-DS 58

BMB-AC-08-J4 57

BMB-AC-08-M4-00 63

BMB-AC-08-M4-120 64

BMB-AC-08-M4-150 64

BMB-AC-08-M4-30 63

BMB-AC-08-M4-45 63

BMB-AC-08-M4-60 63

BMB-AC-08-M4-90 63

BMB-AC-08-P4 57

BMB-AC-08-P4-DS 58

BMB-AC-08-R4 57

BMB-AC-08-R4-DS 59

BMB-AC-08-S4-DS 59

BMB-AC-08-ST-M18-4 66

BMB-AC-08-ST-WF-4 60

BMB-AC-08-ST-WFFD-4 60

BMB-AC-08-ST-WM-4 59

BMB-AC-10-0001-90-4 70

BMB-AC-10-0006-4 65

BMB-AC-10-0020-4 69

BMB-AC-10-0032-90-4 65

BMB-AC-10-08-F4 56

BMB-AC-10-08-G4 56

BMB-AC-10-08-G4-DS 58

BMB-AC-10-08-H4 56

BMB-AC-10-08-H4-DS 58

BMB-AC-10-08-M4-00 63

BMB-AC-10-08-M4-120 64

BMB-AC-10-08-M4-150 64

BMB-AC-10-08-M4-90 63

BMB-AC-10-12-F4 56

BMB-AC-10-12-M4-00 63

BMB-AC-10-12-M4-30 63

BMB-AC-10-12-M4-45 63

BMB-AC-10-12-M4-60 63

BMB-AC-10-12-M4-90 63

BMB-AC-10-120-WFFD-4 61

BMB-AC-10-30JIC-4 56

BMB-AC-10-30JICDS-4 58

BMB-AC-10-45-M22-4 66

BMB-AC-10-45-WF-4 60

BMB-AC-10-45-WF-DS-4 62

BMB-AC-10-45-WFFD-4 60

BMB-AC-10-60JIC-4 56

BMB-AC-10-60JICDS-4 58

BMB-AC-10-90-M22-4 66

BMB-AC-10-90-WF-4 61

BMB-AC-10-90-WF-DS-4 62

BMB-AC-10-90-WFFD-4 61

BMB-AC-10-B-H4 57

BMB-AC-10-BH-J4 69

BMB-AC-10-BJ-M16-4 66

BMB-AC-10-F4 56

BMB-AC-10-FINISHER-4 64

BMB-AC-10-G4 56

BMB-AC-10-G4-DS 58

BMB-AC-10-H4 56

BMB-AC-10-H4-DS 58

BMB-AC-10-J4 57

BMB-AC-10-M4-00 63

BMB-AC-10-M4-120 64

BMB-AC-10-M4-30 63

BMB-AC-10-M4-45 63

BMB-AC-10-M4-60 63

BMB-AC-10-M4-90 63

BMB-AC-10-M4-90-M22 66

BMB-AC-10-P4 57

BMB-AC-10-P4-DS 58

BMB-AC-10-R4 57

BMB-AC-10-R4-DS 59

BMB-AC-10-S4-DS 59

BMB-AC-10-ST-M22-4 66

BMB-AC-10-ST-WF-4 60

BMB-AC-10-ST-WFFD-4 60

BMB-AC-10-ST-WM-4 59

BMB-AC-12-0002-00-4 70

BMB-AC-12-0002-30-4 70

BMB-AC-12-0002-45-4 70

BMB-AC-12-0002-60-4 70

BMB-AC-12-0002-90-4 70

BMB-AC-12-0003-00-4 65

BMB-AC-12-0003-30-4 65

BMB-AC-12-0003-45-4 65

BMB-AC-12-0003-60-4 65

BMB-AC-12-0003-90-4 65

BMB-AC-12-0019-4 65

BMB-AC-12-0042-45-4 70

BMB-AC-12-0042-90-4 70

BMB-AC-12-0054-4 64

BMB-AC-12-08-G4-DS 58

BMB-AC-12-08-H4-DS 58

BMB-AC-12-10-F4 56

BMB-AC-12-10-G4-DS 58

BMB-AC-12-10-M4-135 64

BMB-AC-12-10-M4-30 63

BMB-AC-12-10-M4-45 63

BMB-AC-12-10-M4-60 63

BMB-AC-12-10-M4-90 63

BMB-AC-12-10-P4-DS 58

BMB-AC-12-10-R4-DS 59

BMB-AC-12-120-WF-4 61

BMB-AC-12-120-WFFD-4 61

BMB-AC-12-16-30-WF-DS-462

BMB-AC-12-16-45-WFDS-4 62

BMB-AC-12-16-90WFDS-4 62

BMB-AC 12-16-H4-DS 58

BMB-AC-12-16-M4-90 63

BMB-AC-12-16-ST-WF-4 60

BMB-AC-12-180-WF-DS-4 62

BMB-AC-12-28-90-WF-4 61

BMB-AC-12-30-WF-4 60

BMB-AC-12-30-WFFD-4 60

BMB-AC-12-30JIC-4 56

BMB-AC-12-30JICDS-4 58

BMB-AC-12-45-WF-4 60

BMB-AC-12-45-WF-DS-4 62

BMB-AC-12-45-WFFD-4 60

BMB-AC-12-45-WFFDDS-4 62

BMB-AC-12-60-WF-4 60

BMB-AC-12-60-WFFD-4 60

BMB-AC-12-60JIC-4 56

BMB-AC-12-60JICDS-4 58

BMB-AC-12-90-M30-4 66

BMB-AC-12-90-WF-4 61

BMB-AC-12-90-WF-DS-4 62

BMB-AC-12-90-WFFD-4 61

BMB-AC-12-90-WFFDDS-4 62

BMB-AC-12-F4 56

BMB-AC-12-FINISHER-4 64

BMB-AC-12-G4 56

BMB-AC-12-G4-DS 58

BMB-AC-12-H4 56

BMB-AC-12-H4-DS 58

BMB-AC-12-J4 57

BMB-AC-12-M4-00 63

BMB-AC-12-M4-120 64

BMB-AC-12-M4-135 64

BMB-AC-12-M4-150 64

BMB-AC-12-M4-30 63

BMB-AC-12-M4-45 63

BMB-AC-12-M4-60 63

BMB-AC-12-M4-90 63

BMB-AC-12-M4-90-M22 66

BMB-AC-12-P4 57

BMB-AC-12-P4-DS 58

BMB-AC-12-R4 57

BMB-AC-12-R4-DS 59

BMB-AC-12-S4-DS 59

BMB-AC-12-ST-M26-4 66

BMB-AC-12-ST-M30-4 66

BMB-AC-12-ST-WF-4 60

BMB-AC-12-ST-WFFD-4 60

BMB-AC-12-ST-WM-4 59

BMB-AC-12-ST-WM-DO-4 59

BMB-AC-16-0028-4 70

BMB-AC-16-0041-90-4 70

BMB-AC-16-10-M4-90 63

BMB-AC-16-12-F4 56

BMB-AC-08-0028-4 69

BMB-AC-08-0030-00-E4 67

BMB-AC-10-08-M4-45 63

BMB-AC-10-08-M4-60 63

BMB-AC-12-10-H4-DS 58

BMB-AC-12-10-M4-00 63

BMB-AC-16-12-G4 56

BMB-AC-16-12-H4 56

BMB-AC-16-12-H4-DS 58

BMB-AC-16-12-M4-00 63

BMB-AC-16-12-M4-30 63

BMB-AC-16-12-M4-45 63

BMB-AC-16-12-M4-60 63

BMB-AC-16-12-M4-90 63

BMB-AC-16-12-P4-DS 58

BMB-AC-16-12-R4 57

BMB-AC-16-120-WFFD-4 61

BMB-AC-16-20-45-WFDS-4 62

BMB-AC-16-30-WF-4 60

BMB-AC-16-30-WF-DS-4 62

BMB-AC-16-30-WFFD-4 60

BMB-AC-16-30-WFFDDS-4 62

BMB-AC-16-30JIC-4 56

BMB-AC-16-30JICDS-4 58

BMB-AC-16-45-M30-DS 66

BMB-AC-16-45-WF-4 60

BMB-AC-16-45-WF-DS-4 62

BMB-AC-16-45-WFFD-4 60

BMB-AC-16-45-WFFDDS-4 62

BMB-AC-16-60-WF-4 60

BMB-AC-16-60-WFFD-4 60

BMB-AC-16-60JIC-4 56

BMB-AC-16-60JICDS-4 58

BMB-AC-16-90-M30-DS-4 66

BMB-AC-16-90-WF-4 61

BMB-AC-16-90-WF-DS-4 62

BMB-AC-16-90-WFFD-4 61

BMB-AC-16-90-WFFDDS-4 62

BMB-AC-16-BJ-M26-4 66

BMB-AC-16-F4 56

BMB-AC-16-G4 56

BMB-AC-16-G4-DS 58

BMB-AC-16-H4 56

BMB-AC-16-H4-DS 58

BMB-AC-16-J4 57

BMB-AC-16-M4-00 63

BMB-AC-16-M4-120 64

BMB-AC-16-M4-30 63

BMB-AC-16-M4-45 63

BMB-AC-16-M4-60 63

BMB-AC-16-M4-90 63

BMB-AC-16-P4 57

BMB-AC-16-P4-DS 58

BMB-AC-16-R4 57

BMB-AC-16-R4-DS 59

BMB-AC-16-S4-DS 59

BMB-AC-16-ST-M30-4 66

BMB-AC-16-ST-WF-4 60

BMB-AC-16-ST-WFFD-4 60

BMB-AC-16-ST-WM-4 59

BMB-AC-20-16-30-WF-4 60

BMB-AC-20-16-30-WF-DS-462

BMB-AC-20-16-90WFDS-4 62

BMB-AC-20-16-F4 56

BMB-AC-20-16-H4-DS 58

BMB-AC-20-16-ST-WF-4 60

BMB-AC-20-24-45-WFFD-4 60

BMB-AC-20-24-90-WFFD-4 61

BMB-AC-20-24-F4 56

BMB-AC-20-24-G4 56

BMB-AC-20-24-H4 56

BMB-AC-20-24-ST-WFFD-4 60

BMB-AC-20-28-45-WF-4 60

BMB-AC-20-28-ST-WF-4 60

BMB-AC-20-30-WF-DS-4 62

BMB-AC-20-30-WFFDDS-4 62

BMB-AC-20-30JIC-4 56

BMB-AC-20-30JICDS-4 58

BMB-AC-20-45-WF-4 60

BMB-AC-20-45-WF-DS-4 62

BMB-AC-20-45-WFFD-4 60

BMB-AC-20-45-WFFDDS-4 62

BMB-AC-20-60JIC-4 56

BMB-AC-20-60JICDS-4 58

BMB-AC-20-90-WF-4 61

BMB-AC-20-90-WF-DS-4 62

BMB-AC-20-90-WFFD-4 61

BMB-AC-20-90-WFFDDS-4 62

BMB-AC-20-F4 56

BMB-AC-20-G4 56

BMB-AC-20-G4-DS 58

BMB-AC-20-H4 56

BMB-AC-20-H4-DS 58

BMB-AC-20-M4-00 63

BMB-AC-20-M4-45 63

BMB-AC-20-M4-90 63

BMB-AC-20-P4 57

BMB-AC-20-ST-WF-4 60

BMB-AC-20-ST-WFFD-4 60

BMB-AC-24-F4 56

BMB-AC-8-FINISHER-4 64

BMB-BJA-06-M12-4 78

BMB-BJB-03-2-4 78

BMB-BJB-04-3-4 78

BMB-BJB-06-M14-4 78

BMB-HZ-K20-WMD20-4 61

BMB-K06-WM08-4 61

BMB-K08-WM08-4 61

BMB-K08-WM10-4 61

BMB-K08-WMD-08-4 61

BMB-K10-WM10-4 61

BMB-K10-WM12-4 61

BMB-K10-WMD08-4 61

BMB-K10-WMD10-4 61

BMB-K10-WMD12-4 61

BMB-K12-WM12-4 61

BMB-K12-WM16-4 61

BMB-K12-WMD12-4 61

BMB-K12-WMD16-4 61

BMB-K16-WM16-4 61

BMB-K16-WM20-4 61

BMB-K16-WMD16-4 61

BMB-K20-WM20-4 61

BMB-SB-02-03-F7-4 74

BMB-SB-02-03-G7-4 74

BMB-SB-02-03-H7-4 74

BMB-SB-02-04-F7-4 74

BMB-SB-02-04-G7-4 74

BMB-SB-03-04-F7-4 74

BMB-SB-03-04-G7-4 74

BMB-SB-03-04-H7-4 74

BMB-SB-03-06-F7-4 74

BMB-SB-03-BJ-04-04 77

BMB-SB-03-BJ-04-4 77

BMB-SB-03-BJ-M10-4 77

BMB-SB-03-F4 74

BMB-SB-03-F7-4 74

BMB-SB-03-G4 74

BMB-SB-03-G7-4 74

BMB-SB-03-H4 74

BMB-SB-03-H7-4 74

BMB-SB-04-0034-4 75

BMB-SB-04-0040-00-V4 67

BMB-SB-04-0046-4 75

BMB-SB-04-03-F7-4 74

BMB-SB-04-03-G7-4 74

BMB-SB-04-03-H7-4 74

BMB-SB-04-06-F7-4 74

BMB-SB-04-08-F7-4 74

BMB-SB-04-BJ-04-4 77

BMB-SB-04-BJ-M10-4 77

BMB-SB-04-BJ-M12-4 77

BMB-SB-04-BJ-M14-4 77

BMB-SB-04-F4 74

BMB-SB-04-F7-4 74

BMB-SB-04-G4 74

BMB-SB-04-G7-4 74

BMB-SB-04-H4 74

BMB-SB-04-H7-4 74

BMB-SB-04-M4-90 76

BMB-SB-04-P7-4 74

BMB-SB-04-R7-4 75

BMB-SB-06-BJ-M12-4 77

BMB-SB-06-BJ-M14-4 77

BMB-SB-06-F4 74

BMB-SB-06-F7-4 74

BMB-SB-06-G4 74

BMB-SB-06-G7-4 74

BMB-SB-06-H4 74

BMB-SB-06-H7-4 74

BMB-SB-06-J4 75

BMB-SB-06-P4 74

BMB-SB-06-P7-4 74

BMB-SB-06-R4 75

BMB-SB-08-F4 74

BMB-SB-08-F7-4 74

BMB-SB-08-G4 74

BMB-SB-08-G7-4 74

BMB-WOO-BH-BLACK 70

BMRS MERCHANDISE 79

BOS-261 230 482 115

BOS-261 545 136 115

BOS-280 130 026 115

BOS-280 750 473 115

BOS-280 750 474 115

BOS-287 013 003 115

BOS-450 905 003 114

BOS-580 464 200 114, 184

BOS-580 464 201 114, 184

BOS-580 464 202 114, 184

BOS-D261 205 335-01 115

BOS-D261 205 358-01 115

BOS-F 02U B00751-01 115

BOS-F 02UV0U 343 114, 184

BOS-WBA-48 115

BOS-WBA-56 115 BP190 206

BP9200 189

BP9225 39, 189

BPJ10X1 17, 189

BPJ3/8-24 17, 189

BPJ3/8-24SS 17, 189

BPMB12 188

BPS-100 191

BPT100 189

BPT101 189

BPT105 189

BPT10X1 17

BPT10X1FEM 189

BPT3/8FEM 17, 189

BPT401 189

BPT410 189

BPV-100 49, 191

BRUNO 145 BUR 197

BUR-2 197 BURGSKT 197

BVAGA10 183 BVAGA15 183 BVAGA20 183 BVM10 183 BVM15 183

C4000-04 19

C4000-06 19

C4000-08 19

C4000-10

C480-82-M8 28

C5200-03 23

C5200-04

COV-010

COV-015

COV-018

Part Number Index

COV-112

48, 51, 179

COV-127 48, 51, 179

COV-12M 48, 51

COV-137 48, 51, 179

COV-203 48, 51

COV-204 48, 51

COV-220 48, 51, 179

Part starts with... D

DB18 191

DB38 191

DE27252.0 142

DEI010003 116

DEI010005 116

DEI010065 121

DEI010077 117

DEI010078 117

DEI010098 116

DEI010101 116

DEI010102 116

DEI010105 116

DEI010106 116

DEI010107 116

DEI010108 116

DEI010114 117

DEI010115 117

DEI010120 116

DEI010121 116

DEI010122 117

DEI010123 117

DEI010126 116

DEI010128 116

DEI010129 116

DEI010134 116

DEI010201 117

DEI010202 117

DEI010203 117

DEI010208 117

DEI010209 117

DEI010210 117

DEI010211 117

DEI010212 117

DEI010213 117

DEI010220 117

DEI010230 120

DEI010231 120

DEI010232 120

DEI010235 123

DEI010238 124

DEI010241 124

DEI010244 124

DEI010247 124

DEI010267 124

DEI010268 124

DEI010269 124

DEI010271 124

DEI010272 124

DEI010301 117

DEI010302 117

DEI010303 117

DEI010391 118

DEI010392 118

DEI010393 118

DEI010394 118

DEI010395 118

DEI010396 118

DEI010397 118

DEI010400 118

DEI010401 118

DEI010402 123

DEI010403 120

DEI010404 120

DEI010405 119

DEI010408 118

DEI010409 120

DEI010410 207

DEI010412 119

DEI010413 118

DEI010416 118

DEI010418 120

DEI010419 120

DEI010420 120, 129

DEI010450 122

DEI010451 122

DEI010452 122

DEI010453 122

DEI010454 122

DEI010460 119

DEI010461 119

DEI010462 119

DEI010468 118

DEI010477 120

DEI010478 120

DEI010479 120

DEI010480 123

DEI010491 128, 207

DEI010492 122, 207

DEI010496 122

DEI010501 121

DEI010502 121

DEI010503 121

DEI010504 121

DEI010511 121

DEI010512 121

DEI010516 122

DEI010517 122

DEI010521 121

DEI010522 121

DEI010529 123

DEI010531 121

DEI010532 121

DEI010541 121

DEI010542 121

DEI010543 121

DEI010544 121

DEI010561 121

DEI010562 121

DEI010571 121

DEI010572 121

DEI010601 121

DEI010602 121

DEI010611 121

DEI010612 121

DEI010621 121

DEI010622 121

DEI010631 121

DEI010632 121

DEI010651 128

DEI010652 128

DEI010653 128

DEI010654 128

DEI010656 128

DEI010800 121

DEI010801 121

DEI010810 121

DEI010811 121

DEI010820 121

DEI010821 121

DEI010830 121

DEI010831 121

DEI010914 119

DEI010915 119

DEI010916 119

DEI010917 119

DEI010918 119

DEI010924 119

DEI011002 122

DEI011013 122

DEI040104 195, 128

DEI040200 128, 195

DEI040202 128, 195

DEI040204 195

DEI040208 128, 195

DEI050100 125

DEI050101 125

DEI050110 126

DEI050111

DEI050202 125

DEI050206 125

DEI050210

DEI050310

DEI050320

DEI050330

DEI050340

DEI050380 127

DEI050501 119, 127

DEI050502 119, 127

DEI050503 119, 127

DEI050549 119, 127

DEI050552 119, 127

DEI060101 128, 207

DEI060102 128, 207

DEI060103 128, 207

DEI060104 128, 207

DEI060105 128, 207

DEI060106 128, 207

DEI060107 128, 207

DEI060108 128, 207

DEI060202 128, 207

DJ012100 135

DJ012200 135 DJ012300 135 DJ014100 137 DJ01420 0 137

DJ014300 137

DJ022000 138

DJ024000-HARD 138

DJ036050 132

DJ040000

DJ050000

DJ051000

DJ141000 144

DJ141015.UNIVERSAL 144

DJ141100 144

DJ141900 144

DJ141901 144

DJ142000 144

DJ142100 144

DJ143000 144

DJ236201 145

DJ236205 145

DJ237207 145

DJ237208 145

DJ237214 145

DJ237224 145

DJ238044 145

DJ241201 145

DJ241220 145

DJ250000 145

DJ262030 145

DJ263018 145

DJ264024 145

DJ323932 147

DJ333830 147

DJ333832 147

DJ333836 147

DJ333930 147

DJ423932 148

DJ433830 148

DJ433830 148

DJ433832 148

DJ433930 148

DJ530500 142

DJ605000 136, 137

DJ606001 133

DJ710000 143

DJ710401 143

DJ710402 143

DJ711000 143

DJ730300 143

DJ730301 143

DJ730302 143

DJ730304 143

DJ730305 143 DJ730350 143

DJ730351.H 143

DJ730354-392 143

DJ730426 143

DJ730454 143

DJ730460 143

145

145

DZUS-AK-0HA-6500

DZUS-AK-FHA-6550

DZUS-B-AK-0HA-6500

DZUS-B-AK-0HA-6550 199

DZUS-B-AK-FHA-6500 199

DZUS-B-AK-FHA-6550 199

DZUS-B-OHA-6500

DZUS-B-OHA-6550

DZUS-B-OHA-6600

DZUS-B-SE-6500

DZUS-B-SE-6550

DZUS-B-SE-6600

DZUS-B-SE-6650

DZUS-FH-6500

DZUS-FH-6550 199

DZUS-FH-6600 199

DZUS-FH-6650 199

DEI010655 128

DZUS-KIT-SFK-1001 198

DZUS-KIT-SFK-1010 198

DZUS-OH-5500 199

DZUS-OH-6500 199

DZUS-OH-6550 199

DZUS-OH-6600 199

DZUS-OH-6650 199

DZUS-OH-6750 199

DZUS-OHA-5500 199, DZUS-OHA-6500 199

DZUS-OHA-6500-BIG 199

DZUS-OHA-6550 199

DZUS-OHA-6600 199

DZUS-OHA-7500 199

DZUS-PF-TOOL 200

DZUS-S-5325 199

DZUS-S-6425 199

DZUS-SE-5500 199

DZUS-SE-5550 199

DZUS-SE-5600 199

DZUS-SE-5650 199

DZUS-SE-6500 199

DZUS-SE-6550 199, DZUS-SE-6650 199

DZUS-WH-6500 199, DZUS-WP-100F 200

DZUS-WP-100L 200

DZUS-WP-138F 200

DZUS-WP-138L 200

DZUS-WSE-5500 199

DZUS-WSE-6500 199

DZUS-Z-DIMPLING 200

DZUS-Z-SPRING ADJUST 200

DZUS-Z-TOOL 200

DZUS-Z-TS-516 200

DZUS-Z-TS-716 200

Part starts with... E

EAR100168 169

EAR100176 169

EAR1118-TD1014B 172

EAR1119-TD1059B 172

EAR1120-TD1020B 172

EAR1125 169

EAR1128 169

EAR1178-TD1013B 172

EAR1578-TD1050B 172

EAR2077 169

EAR2178-TD1028B 172

EAR2188 169

EAR3434122 169

EAR510-TD1313B 172

EAR516-TD1314B 172

EAR517-TD1359B 172

EP15-1010 94

EP15-1020 94

EP15-1030 94

EP15-1040 94

EP15-1050 94

EP15-1060 94

EP15-1070 94

EP15-1080 94

EP15-2010 94

EP15-2020 94

EP15-2030 94

EP15-2040 94

EP15-2050 94

EP15-2060 94

EP15-2070 94

EP15-2080 94

EP15-2090 94

EP15-2100 94

EP15-2110 94

EP15-2120 94

EP15-2130 94

EP15-2140 94

EP15-2150 94

EP15-2160 94

EP15-2170 94

EP15-2180 94

EP15-2355 94

EP15-2375 94

EP15-2385 94

EP15-9006 95

EP15-9008 95

EP15-9010 95

EP15-9012 95

EP20-1000 93

EP20-1010 93

EP20-1015 93

EP20-1016 93

EP20-1020 93

EP20-1022 93

EP20-1030 93

EP20-1031 93

EP20-2000 95

EP20-2010 95

EP20-2015 95

EP20-2020 95

EP20-2025 95

EP20-2026 95

EP20-2027 95

EP20-4150 96

EP20-4500 96

EP30-0000 96

EP30-0000-2 204

EP30-0010 96

EP30-0010-2 204

EP30-0015 96

EP30-0015-2 206

EP40-3000 96

EP40-3010 96

EVANS 2196 193

EVANS 31001 193

EVANS 42001 192

EVANS 53001 192

EVANS 72064 193

EVANS TW 10064 193

EVANSSTICKERSHEET 193

Part starts with... F

FA476087 183

FF32FLEX 100, 174

FF32STR 100, 174

FF38FLEX 100, 174

FF38STR 100, 174

FF45-51 100, 174

FF45-57 100, 174

FF45FLEX 100, 174

FF45STR 100, 174

FF51FLEX 100, 174

FF51STR 100, 174

FF57FLEX 100, 174

FF57STR 100, 174

FF63FLEX 100, 174

FF90-51 100, 174

FF90-57 100, 174

HC20

HC28

Part Number Index

Part starts with... L

LA52001 208

LA52003 208

LA52011 208

LA52013 208

LA52031 208

LW020 206

LW025 206

LW032 206

LW041 206

LW051 206 LWA109A 206

Part starts with... M

MB SRC250-200 104

MB SRC300-200 104

MB SRC300-250 104

MB SRC400-300 104

MB SRS250-200 104

MB SRS300-200 104

MB SRS300-250 104

MB SRS400-300 104

MB-D100 104

MB-D150 104

MB-D175 104

MB-D200 104

MB-D225 104

MB-D250 104

MB-D300 104

MB-D350 104

MB-D400 104

MB-D500 104

MB-S022 103

MB-S100 103

MB-S125 103

MB-S150 103

MB-S175 103

MB-S200 103

MB-S225 103

MB-S250 103

MB-S275 103

MB-S300 103

MB-S350 103

MB-S400 103

MB135-100 104

MB135-125 104

MB135-150 104

MB135-175 104

MB135-200 104

MB135-225 104

MB135-250 104

MB135-275 104

MB135-300 104

MB135-350 104

MB135-400 104

MB180-100 104

MB180-125 104

MB180-150 104

MB180-175 104

MB180-200 104

MB30-100 103

MB30-125 103

MB30-150 103

MB30-175 103

MB30-200 103

MB30-225 103

MB30-250 103

MB30-275 103

MB30-300 103

MB30-350 103

MB30-400 103

MB30-450 103

MB30-500 103

MB30-600 103

MB45-100 103

MB45-125 103

MB45-150 103

MB45-175 103

MB45-200 103

MB45-225 103

MB45-250 103

MB45-275 103

MB45-300 103

MB45-325 103

MB45-350 103

MB45-400 103

MB60-100 103

MB60-125 103

MB60-150 103

MB60-175 103

MB60-200 103

MB60-225 103

MB60-250 103

MB60-275 103

MB60-300 103

MB60-350 103

MB60-400 103

MB60-450 103

MB60-500 103

MB60-600 103

MB75-100 103

MB75-125* 103

MB75-150 103

MB75-175 103

MB75-200 103

MB75-225 103

MB75-250 103

MB75-275 103

MB75-300 103

MB75-350 103

MB75-400 103

MB90-100 103

MB90-125 103

MB90-150 103

MB90-175 103

MB90-200 103

MB90-225 103

MB90-250 103

MB90-275 103

MB90-300 103

MB90-350 103

171 MO-OT/2A 171

MO-OT/2C 171 MO-OTGM7 171 MO-OTSP1 171

MS 111-28 29

MS 440-04 30, 104, 150

MS 440-06 30, 104

MS 440-08 30, 104

MS 440-10 30, 104

MS 442-06 30, 104

MS 442-08 30, 104

MS 442-10 30, 104

MS 446-04 - METRE 104

MS 446-06 - METRE 104

MS 446-08 - METRE 104

MS 446-10 - METRE 104

MS CA18 WATER 195

MS CAMS DECAL 202

MS CX7 195

MS GMCL 195

MS RB30 OIL 195

MS RB30-W 195

MS SR20 OIL 195

MS SR20-13W 195

MS SR20-13W-BLK 195

MS SR20-W HIGH BLK 195

MS SR20-W LOW BLK 195

MS TERRITORY 195

MS XR6 195

MS XR6 BLK 195

MS XR6 FG 195

MS XR6 FG BLK 195

MSCN BANNER 31

MSCN BANNER S-KIT 31

MSCN PENN BANNER 160

MSSC-02-18 210

MSSC-02-21 210

MSSC-02-22 210

MSSC-02-24 210

MSSC-02-BRAKE LINE KIT210

MSSC-03-18 210

MSSC-03-21 210

MSSC-03-22 210

MSSC-03-24 210

MSSC-03-BRAKE LINE KIT210

MSSC-06-005 210

MSSC-SWR-HP-EAGLE 210

MSSC-SWR-PR-EAGLE 210

MSSC-WING RAM KIT 210

MY10-188 201

MY10-250 201

MY10-313 201

MY10-375 201

MY10-437 201

MY10-500 201

MY10-562 201

MY10-625 201

MY10-650 201

MY10-820 201

MY20-252 201

MY20-258 201

MY20-288 201

MY20-323 201

MY20-327 201

MY20-357 201

MY20-377 201

MY20-432 201

MY20-502 201

MY20-522 201

MY20-622 201

NB6100-03 186

NB6100-03-ST

NB6103-03-ST

NB6104-31-ST

NB6104-32-ST

NB6123-31-ST

NB6141-03-ST

NB6141-07

NB6141-31 187

NB6141-31-03A 187

NB6141-31-P 187

NB6141-31-RH 187

NB6141-31-ST 187

NB6141-31-T 187

NB6141-31-Z 187

NB6141-41 187

NB6142-03 187

NB6142-03-ST 187

NB6142-07 187

NB6142-17 187

NB6142-31 187

NB6142-31-RH 187

NB6142-31-ST 187

NB6142-31-T 187

NB6142-31-Z 187

NB6142-32 187

NB6142-32-ST 187

NB6142-41 187

NB6143-31 187

NB6144-31 186

NB6144-31 EXT 186

NB6145-03 187

NB6145-03-ST 187

NB6150-03 187

NB6154-31 186

NB6170-10 188

NB6170-10-ST 188

MB180-225 104

MB180-250 104

MB180-275 104

MB180-300 104

MB180-350 104

MB180-400 104

MB90-400 103

MB90-450 103

MB90-500 103

MB90-600 103 MDC-001 191

MS 441-04 30, 104

MS 441-06 30, 104

MS 441-08 30, 104

MS 441-10 30, 104

MS 442-04 30, 104

MY20-652 201

MY20-822 201

MY20-823 201

MY20-835 201

MY20-836 201

NB6191-03 186

NB6191-03-ST 186

NB6192-08 188

NB6192-10 188

NB6192-10-L 188

NB6192-10-ML 188

NB6192-10-ST 188

NB6192-10-ST-L 188

NB6192-10-ST-ML 188

NB6192-11 188

NB6192-11-ML 188

NB6192-11-ST-ML 188

NB6192-12 188

NB6193-03 186

NB6193-03-ST 186

NB6193-10 188

NB6193-10-ST 188

NB6193-11 188

NB6193-11-ST 188

NB6194-03 186

NB6194-03-ST 186

NB6194-10 188

NB6194-10-ST 188

NB6194-31 186

NB6194-31-ST 186

NB6196-10 188

NB6196-10-ST 188

NB6197-10 188

NB6197-10-ST 188

NB6199-10 188

NB6199-10-ST 188

NB6199-11 188

NB6199-12 188

NB6199-12-ST 188

NB6297-10 188

NB6297-10-ST 188

NB6299-10 188

NB6299-10-ST 188

NB6741-03 187

NB6741-31 187

NB6742-03 187

NB6743-31 187

NB6744-31 187

NB6745-31 187

NB6746-31 187

NBBK992-03-03 188

NBBK992-03-31 188

NBBLT1 15, 188

NBBLT3 15, 188

NBBLT301NY 15, 188

NBBLT302NY 15, 188

NBBLT4 15, 188

NBBLT9 15, 188

NBG105A 17, 187

NK-310-03-201 182

NK-600 182

NK-BANJO 182

NK-CFC-01 182

NK-FF51 182

182

PT210420 133

PT210520 133

PT210620 133

PT710 SERIES 132

PT800 SERIES 132

PT801 SERIES 132

PT811 SERIES 132

PTCPFF-M-15 133

PTCPFF-2XL-15 133

PWTC10AN 166

PWTC11AN 166

PWTC15AN 166

PWTC20AN 166

PWTC25AN 166

RB012150 198

RB012175 198

RB012200 198

RB022050 198

RB022075 198

RB022100 198

RB022125 198

RB022150 198

RB022200 198

RB031075 197

RB031100 197

RB031150 197

RB031175 197

RB031200 197

RB031225 197

RB031250 197

RB031275 197

RB031300 197

RB032075 198

RB032100 198

RB032125 198

RB032150 198

RB032175 198

RB032200 198

RB032225 198

RB032250 198

RB032275 198

RB032300 198

RB041100 197

RB041125 197

RB041150 197

RB041175 197

RB041200 197

RB041225 197

RB041250 197

RB041275 197

RB041300 197

RB041325 197

RB041350 197

RB041400 197

RB042100 198

RB042125 198

RB042150 198

RB042175 198

RB042200 198

RB042225 198

RB042250 198

RB042275 198

RB042300 198

RB042325 198

RB042350 198

RB042400 198

RB051100 197

RB051150 197

RB051200 197

RB051250 197

RB051300 197

RB051350 197

RB051400 197

RB051450 197

RB051500 197

RB052100 198

RB052125 198

RB052150 198

RB052200 198

RB052250 198

RB052300 198

RB052350 198

RB052400 198

RB052450 198

RB052500 198

RBBLW-05 197

RBBWBL-04 197

RBBWBL-05 197

RBBWBL-06 197

RBF9C-05-104 197

RBHSX-06-108 197

RBMT1015 X 25 198

RBMT1015 X 30 198

RBMT1015 X 35 198

RBMT1015 X 40

RBMT1015 X 50

RBMT610 X 20

RBMT610 X 25 198

RBMT610 X 30 198

RBMT610 X 35 198

RBMT610 X 40 198

RBMT610 X 50 198

RBMT8125 X 20 198

RBMT8125 X 25 198

RBMT8125 X 30 198

RBMT8125 X 35 198

RBMT8125 X 40 198

RBMT8125 X 50 198

RBN011000 197

Part Number Index

RBN011005 197

RBN011010 197

RBN012000 198

RBN012005 198

RBN012010 198

RBN021000 197

RBN021005 197

RBN021010 197

RBN022000 198

RBN022005 198

RBN022010 198

RBN031000 197

RBN031005 197

RBN031010 197

RBN032000 198

RBN032005 198

RBN032010 198

RBN041000 197

RBN041005 197

RBN041010 197

RBN042000 198

RBN042005 198

RBN042010 198

RBN051000 197

RBN051005 197

RBN051010 197

RBN052000 198

RBN052005 198

RBN052010 198

RBNM10X1.5 198

RBNM6X1 198

RBNM8X1.25 198

RBOPS-05-110 197

RBW12 197

RBW38 197

RBW516 197

RBW716 197

REV3100002535 202

REV3100002536 202

REV3100002537 202

REV3100002538 202

REV3100004500 202

RGA-31 167

RGA-32 167

RGA-33 167

RGA-34 167

RGA-35 167

RGA-36 167

RT4100HR 154

RU639510 189

RU639540 189

RU639550 189

RU639560 189

RU639570 189

RU639600 189

RU639610 189

189

189

190

SET18-RFU92-13-22

SET18-TOTLS-22

SET19-SPS76-20

SET19-SPS76-22

SET19-SPS76-34

SET19-SPTB76-20-180

SET22-M22AN08

SET22-M22AN10

SET22-M22AN12

SET22-M22AN16

SET22-M22BSP-12-00

SET22-M22M18

Part Number Index

SET22-M22M30-SE 164

SET22-M22PL06-90 164

SET22-M22PL08-90 164

SET22-M22PL10-90 164

SET22-M22PL12-90 164

SET22-M22RU06-90 164

SET22-M22RU08-90 164

SET22-M22RU10-90 164

SET22-M22RU12-90 164

SET22-M22WGN08-00 164

SET22-M22WGN10-00 164

SET22-M22WGN12-00 164

SET22-M22WGN16-00 164

SET22-SKBJM22 165

SET23-1002 163

SET23-6002 163

SET23-9002 163

SET23-BPSTD 163

SET23-MPSTD-UBI-9 163

SET40-AOT180-22-BILLET165

SET50-107-7612 163

SET50-110-7612 163

SET50-113-7612 163

SET50-116-7612 163

SET50-119-7612 163

SET50-125-7612 163

SET50-134-7612 163

SET50-150-7612 163

SET50-172-7612 163

SET50-607-7612 163

SET50-610-7612 163

SET50-613-7612 163

SET50-616-7612 163

SET50-619-7612 163

SET50-625-7612 163

SET50-634-7612 163

SET50-640-7612 163

SET50-650-7612 163

SET50-660-7612 163

SET50-910-7612 163

SET50-915-7612 163

SET50-920-7612 163

SET50-925-7612 163

SET50-934-7612 163

SET50-948-7612 163

SET50-960-7612 163

SET516-332-7612 164

SET516-360-7612 164

SET52-12864-01 163

SET52-12965-01 163

SET52-13141-01 163

SET53-10745-01 163

SET53-10747-01 163

SET53-10748-01 163

SET53-10749-01 163

SET53-10750-01 163

SET53-10751-01 163

SF-LEVER 50, 180

SF-LUBE 52, 207

SFS D100 102, 190

SFS D150 102, 190

SFS D175 102, 190

SFS D200 102, 190

SFS D250 102, 190

SFS D275 102, 190

SFS D300 102, 190

SFS D325 102, 190

SFS

SFS D400 102, 190

SFS

97

SMS 45R150-100 99

SMS 45R150-125 99

SMS 45R175-150 99

SMS 45R200-175 99

SMS 45R225-200 99

SMS 45R250-200 99

SMS 45R250-225 99

SMS 45R275-250 99

SMS 45R300-200 99

SMS 45R300-225 99

SMS 45R300-250 99

SMS 45R300-275 99

SMS 45R350-250 99

SMS 45R350-300 99

SMS 45R400-300 99

SMS 45R400-350 99

SMS 60125 98

SMS 60150 98

SMS 60175 98

SMS 60200 98

SMS 60225 98

SMS 60250 98

SMS 60275 98

SMS 60300 98

SMS 60325 98

SMS 60350 98

SMS 60375 98

SMS 60400 98

SMS 90050 98

SMS 90063 98

SMS 90075 98

SMS 90085 98

SMS 90100 98

SMS 90125 98

SMS 90150 98

SMS 90175 98

SMS 90200 98

SMS 90225 98

SMS 90250 98

SMS 90275 98

SMS 90300 98

SMS 90325 98

SMS 90350 98

SMS 90375 98

SMS 90400 98

SMS 90R075-063 99

SMS 90R100-075 99

SMS 90R125-100 99

SMS 90R150-100 99

SMS 90R150-125 99

SMS 90R175-150 99

SMS 90R200-150 99

SMS 90R200-175 99

SMS 90R225-200 99

SMS 90R250-200 99

SMS 90R250-225 99

SMS 90R275-225 99

SMS 90R275-250 99

SMS 90R300-200 99

SMS 90R300-250 99

SMS 90R300-275 99

SMS 90R325-275 99

SMS 90R325-300 99

SMS 90R350-250 99

SMS 90R350-300 99

SMS 90R350-325 99

SMS 90R375-350 99

SMS 90R400-300 99

SMS 90R400-350 99

SMS C 006 BLACK 100

SMS C 008 BLACK 100

SMS C 010 BLACK 100

SMS C 012 BLACK 100

SMS C 016 BLACK 100

SMS C 018 BLACK 100

SMS C 025 BLACK 100

SMS C 028 BLACK 100

SMS C 030 BLACK 100

SMS C 032 BLACK 100

SMS C 038 BLACK 100

SMS C 045 BLACK 100

SMS FH 3/8 BLACK 100

SMS FH 3/8 BLUE 100

SMS FH 5/16 BLACK 100

SMS FH 5/16 BLUE 100

SMS FH050 101 SMS FH063 101

FH075 101

FH100 101

FL45050 101

FL45063 101

FL45075 101

SMS SR51-38 99

SMS SR51-45 99

SMS SR51-48 99

SMS SR54-51 99

SMS SR57-45 99

SMS SR57-51 99

SMS SR60-51 99

SMS SR63-51 99

SMS SR63-57 99

SMS SR70-51 99

SMS SR70-57 99

SMS SR70-60 99

SMS SR70-63 99

SMS SR76-51 99

SMS SR76-57 99

SMS SR76-63 99

SMS SR76-67 99

SMS SR76-70 99

SMS SR80-70 99

SMS SR82-63 99

SMS SR82-70 99

SMS SR82-76 99

SMS SR89-63 99

SMS SR90-70 99

SMS SR90-76 99

SMS SR90-80 99

SMS SR90-82 99

SP1 HYBRID 131

SP1 CARBON 131

196 ST21 BALACLAVA LARGE 133

ST21 BOOTS SFI 20 139

ST21 CLUB SERIES 3 139

ST21 GLOVES SFI 20 139

ST21 HANS FEATHERLITE139

ST21 HANS POSTS 133, 139

ST21 LID LIFTER 2 EYE 133

ST21 PANTS 139

ST21 SF120 140

ST21 SOCKS 134

ST21 TOP EVO 139

Part starts with... T

TS-0204-3103 108

TS-0204-3106 107

TS-0205-1130 107

TS-0205-1131 107

TS-0205-1262 106

TS-0205-1301 106

TS-0205-2002 106, 107

TS-0205-3008 106

TS-0205-3009 107

TS-0205-3010 107

TS-0205-3104 106

TS-0205-3105 106

TS-0207-1001 107

TS-0207-1002 107

TS-0207-3001 107

TS-0207-3004 107

TS-0207-3005 107

TS-0207-3009 107

TS-0215-1018 107

TS-0301-1002 105

TS-0301-1003 105

TS-0301-1011 105

TS-0301-1013 105

TS-0301-1103 105

TM730454.RS 194

TM801010 194

TM801012 194

TM851079-BLK 194

TM851252-BLK 194

TM852809 194

TM852809-1 194

TS-0101-1101 106

TS-0101-1102 106

TS-0101-2023 108

TS-0101-2024 106, 108, 112

TS-0101-2025 108

TS-0106-1001 BLUE 106

TS-0106-1002 BLACK 106

TS-0203-1022 108

TS-0203-1221 108

TS-0203-3004 107

TS-0203-3005 108

TS-0203-3006 108

TS-0203-3007 108

TS-0203-3008 108

TS-0203-3009 108

TS-0203-3010 108

TS-0203-3011 108

TS-0203-3014 107, 108

TS-0204-1132 108

TS-0204-1203 107

TS-0204-1303 107

TS-0204-2006 107

TS-0204-2204 107

TS-0204-3001 107, 108

TS-0204-3004 107, 108

TS-0204-3005 107, 108

TS-0501-3002 111

TS-0502-2001 113

TS-0502-2002 113

TS-0502-2003 113

TS-0502-2004 113

TS-0502-2005 113

TS-0502-2006 113

TS-0502-3001 111

TS-0502-3002 111

TS-0503-3001 112

TS-0503-3002 112

TS-0503-3007 112

TS-0503-3008 112

TS-0504-3001 112

TS-0504-3001 111

TS-0504-3002 112

TS-0504-3002 111

TS-0504-3007 111

TS-0504-3008 111

TS-0505-2001 113

TS-0505-2002 113

TS-0505-2003 113

TS-0505-2004 113

TS-0505-2005 113

TS-0301-2001 105

TS-0301-2002 105

TS-0301-2003 105

TS-0301-2013 105

TS-0301-2014 105

TS-0301-3003 105

TS-0302-1002 105

TS-0311-1000 105

TS-0311-1002 105

TS-0402-1001 110

TS-0402-1002 110

TS-0402-1003 110

TS-0402-1004 110

TS-0402-1005 110

TS-0402-1006 110

TS-0402-1013 110

TS-0402-1014 110

TS-0402-1141 109

TS-0402-2023 110, 185

TS-0404-1015 109

TS-0404-1022 109

TS-0404-1032 109

TS-0404-1042 109

TS-0404-1115 109

TS-0404-1122 109

TS-0404-1132 109

TS-0404-1142 109

TS-0404-1242 110

TS-0404-1252 110

TS-0404-1342 110

TS-0404-1352 110

TS-0501-2001 111

TS-0550-3151

TS-0551-1012 111

TS-0551-3001 111

TS-0551-3002 111

TS-0552-1012

TS-0552-2002

TS-0552-3001

TS-0552-3002

TS-0552-3003

TS-0552-3003

TS-0552-3004

TS-0553-1011

TS-0553-1012

TS-0553-1312

TS-0553-3001

TS-0554-1012

TS-0505-2006 113

TS-0505-2012 113

TS-0505-2013 113

TS-0505-2014 113

TS-0505-3001 111

TS-0505-3002 111

TS-0550-3001 111

TS-0550-3004 112

TS-0550-3004 111

TS-0550-3005 111

TS-0550-3006 112

TS-0550-3013 111

TS-0550-3014 111

TS-0550-3015 112

TS-0550-3022 111

TS-0550-3024 111

TS-0550-3026 112

TS-0550-3081 113

TS-0550-3082 113

TS-0550-3083 113

TS-0550-3084 113

TS-0550-3085 113

TS-0550-3086 113

TS-0550-3087 113

TS-0550-3088 113

TS-0550-3089 113

TS-0550-3090 113

TS-0550-3091 113

TS-0550-3092 113

TS-0550-3150 111

TS-0550-3150 111

TS-0550-3151 111

TS-0555-1012

TS-0555-1242

TS-0555-3001

TS-0555-3002

TS-0555-3003

TS-0555-3004

TS-0701-1011

TS-0701-2011

TS-0701-3011

TS-0801-3002

TS-0811-0012

TS-0811-3001

TS-ECK-150 102, 113

TS-ECK-175 102, 113

TS-ECK-200 102, 113

TS-ECK-225 102, 113

TS-ECK-250 102, 113

TS-ECK-275 102, 113

TS-ECK-300 102, 113

TS-ECK-350 102, 113

TS-ECK-400 102, 113

TS-HCT-M033 102, 113

TS-HCT-M042 102, 113

TS-HCT-M050 102, 113

TS-HCT-M062 102, 113

TS-HCT-M075 102, 113

TS-HCT-M081 102, 113

TS-HCT-M100 102, 113

Part Number Index

Part starts with... U

US1000 SMALL 153

US1500 MEDIUM 153

US1750 LARGE 153

US4520 SC 153

US4520-SC 209

Part starts with... V

VEL 6PT MAGNUM 157

VEL APEX 156

VEL ATOW 157, 202

VEL BISM 157

VEL BISM XLD 157

VEL DOOR HANDLE 156

VEL FTOW 157, 202

VEL GP90 155

VEL GPT-1 155

VEL GPT-2 155

VEL GPT-3 155

VEL HARNESS MOUNT 157

VEL KIDNEY CUSHION 157

VEL PODIUM II 156

VEL R28 156

VEL R380 156

VEL R65 156

VEL R90 156

VEL SLIDER 157

VEL SM (STEEL) 157

VEL VIPER 156

VM001 196

Part starts with... W

WA-RAD20-0298 184

WA-RAD20-0598 184

WA460E85 WIRING 184

WA525E85 184

WAGSS341 184

WAGSS341 FILTER 184

WAGSS342 184

WAGSS352 184

WIL220-0627 191

WIL260-13706 191

WIL260-13707 191

WIL260-6087 191

WIL260-6088 191

WIL260-6089 191

WIL260-8419 191

WIX 51060R 166

WIX 51069R 166

WIX 51222R 166

WIX 51515R 166

Part starts with... X

XH229006 84 XH229008 84 XH229010 84 XH229012 84 XH229016 19, 84 XH229020 19, 84

XH322004 83

XH322006 83

XH322008 83

XH322010 83 XH322012 83

84

84

XH224516 19, 84

XH224520 19, 84

XH2255-04 84

XH2255-06 84

XH2255-08 84

XH2255-10 84

XH2255-12 84

XH2255-16 84

XH2255-20 84

XH226006 84

XH226008 84

XH226010 84

XH226012 84

XH226016 84

XH226020 84

XH2275-04 84

XH2275-06 84

XH2275-08 84

XH2275-10 84

XH2275-12 84

XH2275-16 84

XH2275-20 84

84

XR329001 85

XR329101 85

XR329201 85

XR402503 17

XR402504 17

XR402603 17

XR402604 17

XR410103 17

XR410104 17

XR6001-03 84

XR630000 84

XR634500 84

XR639000 84

XR648000 84

XR648100 84

XR650003 84

XR659103 84

XR700193 32

XR700194 32 XR700197 32

XR700198 32 XR700210 32

XR704110 170 XR704112 170 XR710015 185 XR713045HP 85 XR713075HP 85 XR7212ANAP 85 XR810203 51 XR810204 51 XR810206 51 XR810208 51 XR810210

Stirton Family Racing 410 CID Sprint Car Engine Built by: Hi Tech Engine Balancing Picture by: Elevate 360 Media

by

Pty

ABN: 39 094 778 953 Layouts & Prepress by Design FX Ph: 0418 211 961 No part of this publication may be reproduced in whole or part without prior written permission from the above.

Speedflow AN/JIC Fitting Identification Chart

Speedflow’s hose and fittings sizes are primarily based on the AN/JIC imperial system. Dash sizes relate to hose or tube sizes in 1/16” increments. The drawings below depict actual sizes of our AN/JIC thread sizes shown in the appropriate dash number.

Listed are all the relevant data relating to AN/JIC threads and diagrams for the B-Nut or Wire Nut sizes.

Male AN/JIC Thread Diagrams

B-Nut Size Diagrams

Common Speedflow Nipples that share this thread are 920, 921, 922,

Use 814 series to plug Female port. Referred to as O.R.B.

Technical Information

Speedflow NPT & BSP Fitting Identification Chart

NPT & BSP sizes do not measure their given size. Use the diagrams below to determine the correct size. The chart below displays all information in regards to NPT, BSP & BSPP thread pitches and diameters.

NPT & BSP Thread Diagrams

Common Speedflow Nipples that share this thread are 816, 822, 823, 825,826, 997 . Use 932 series to plug Female port.

Understanding Brake Flares:

Most cars/bikes use a double brake flare. The “Flare” refers to the size of the opening width as it expands from the brake line tubing. The end of the tubing is flared or opened to 45° degree angle. Then the flare is folded above itself, creating a double and secure flare.

Please note that AN (Army/Navy) system uses a 37° angle which is sometimes misused as a brake flare. Whilst 37° flares will stand up to the pressure of brake line applications it is recommended to flare to the standard 45° seat as used and recommended by ADR42.

All (Non Registered) vehicles can enjoy the simplistic installation of 37° hose and fittings for all brake lines without worry. Please view these on pages 10-18. The 200 Series Speedflow fitting (37° flare) are perfect for all racing applications including Drag, Circuit, Drift, Speedway and Bike racing. additional benefits include being able to service at the track with no special tool.

Motorsport Connections (MSCN) can help you fix and make show quality brake lines and hoses to ADR Standards. We can supply these to you in kit form or completely prefab the job for you, so you simply bolt them in.

Return Style Carb Schematic

EFI Schematic

Coldfire - Fire Suppression Systems

Coldfire is an environmentally friendly fire extinguishing agent that is leading the way in fire fighting technology and revolutionizing the way firefighters combat fires. Coldfire works to remove heat and the hydrocarbon fuel sources from the fire triangle. The suppressants in Coldfire use water as a catalyst to remove the heat as well as encapsulate and breakdown the hydrocarbons in the fuel source to extinguish the fire more rapidly. Coldfire extinguisher kits are now available for Motorsport and Marine applications. MSCN can also custom kits for industrial and other applications.

• Every second counts

• Super effective on A,B and D type fires

• Leaves surfaces cool to touch

• Trusted and used by professionals for years

A,B & D Class Fires

THE FIRE TRIANGLE Without sufficient heat, a fire cannot begin. Without fuel, a fire will stop. Without sufficient oxygen, a fire cannot begin.

• Completely environmentally friendly

• Refilling available from any MSCN store

• No Damage to paint

• Will not harm driver

Extract: ANDRA Rulebook

ANDRA will allow manufacturers to appoint Australian agents for inspection and certification purposes. Any enclosed vehicle faster than 8.00 seconds (1/4 mile), from 01 JAN 2013, must have a serviceable fire suppression system of a minimum 5lb capacity (10lb recommended) installed unless specified otherwise by class regulations. On all fire suppression systems, dispersion of contents should be divided as per manufacturer’s recommendation.
