MSC Moto 2025 Catalogue

AUSTRALIAN MADE COMPONENTS STEERING DAMPERS // BAR MOUNTS & HARD PARTS...

2023 CATALOGUE

2025 CATALOGUE www.mscmoto.com

AUSTRALIAN-MADE COMPONENTS, MAKING LIGHT WORK OF ROUGH TRACKS FOR OVER 25 YEARS. For over 25 years, MSC has engineered a host of Australian-made components that have been tested, developed and proven by Australia’s leading off-road riders on Australia’s harshest tracks and trails.

From our first Steering Damper in 1995 through to the latest generation Axis Steering Damper and Dampened Handlebar Mounts, our unwavering commitment to constantly improving performance, comfort and safety has never let up.

AUSTRALIAN DESIGNED AND MADE

QUALITY CONTROL

From the drawing table to the final product, everything is designed and manufactured out of our factory in Australia.

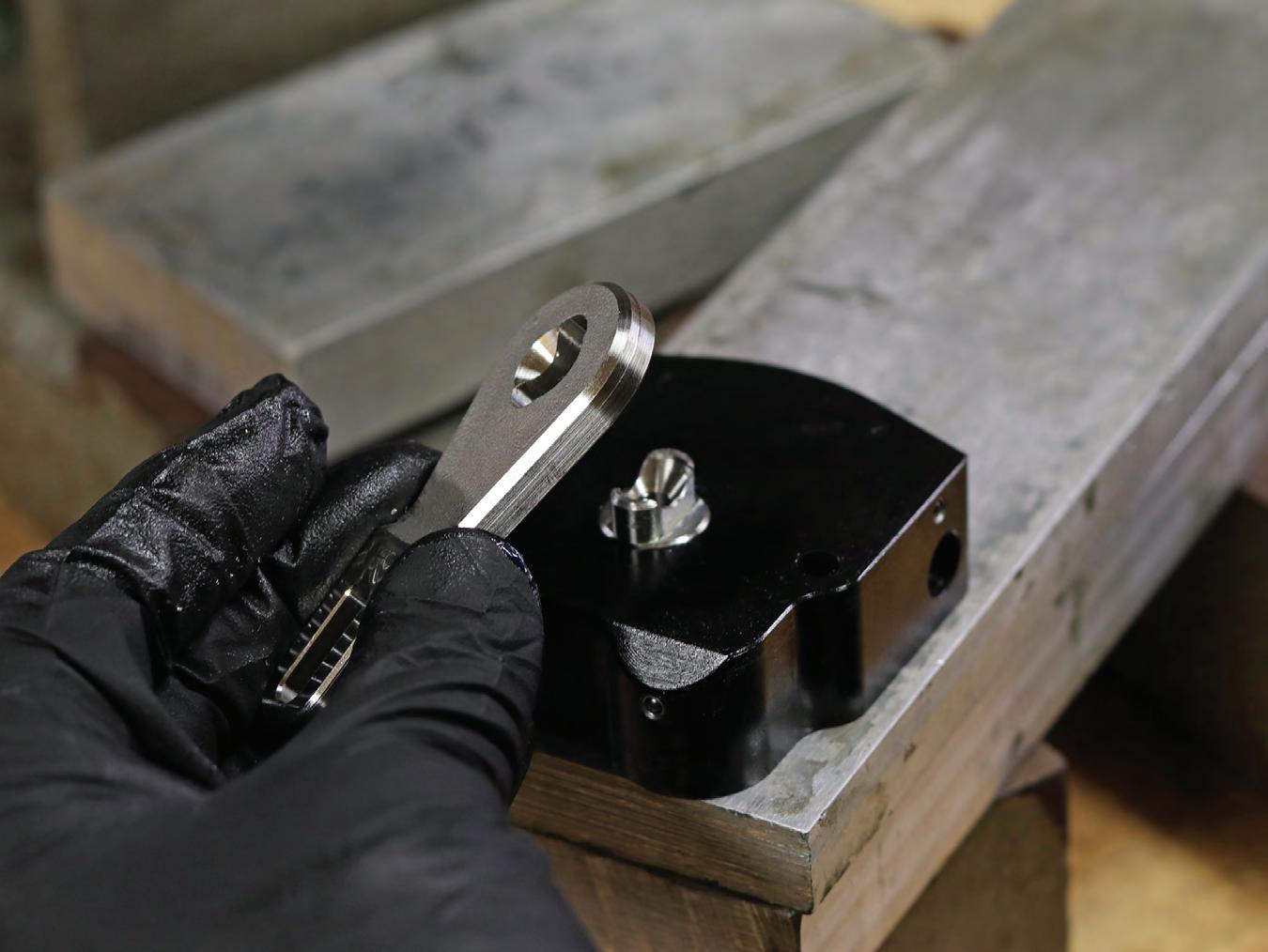

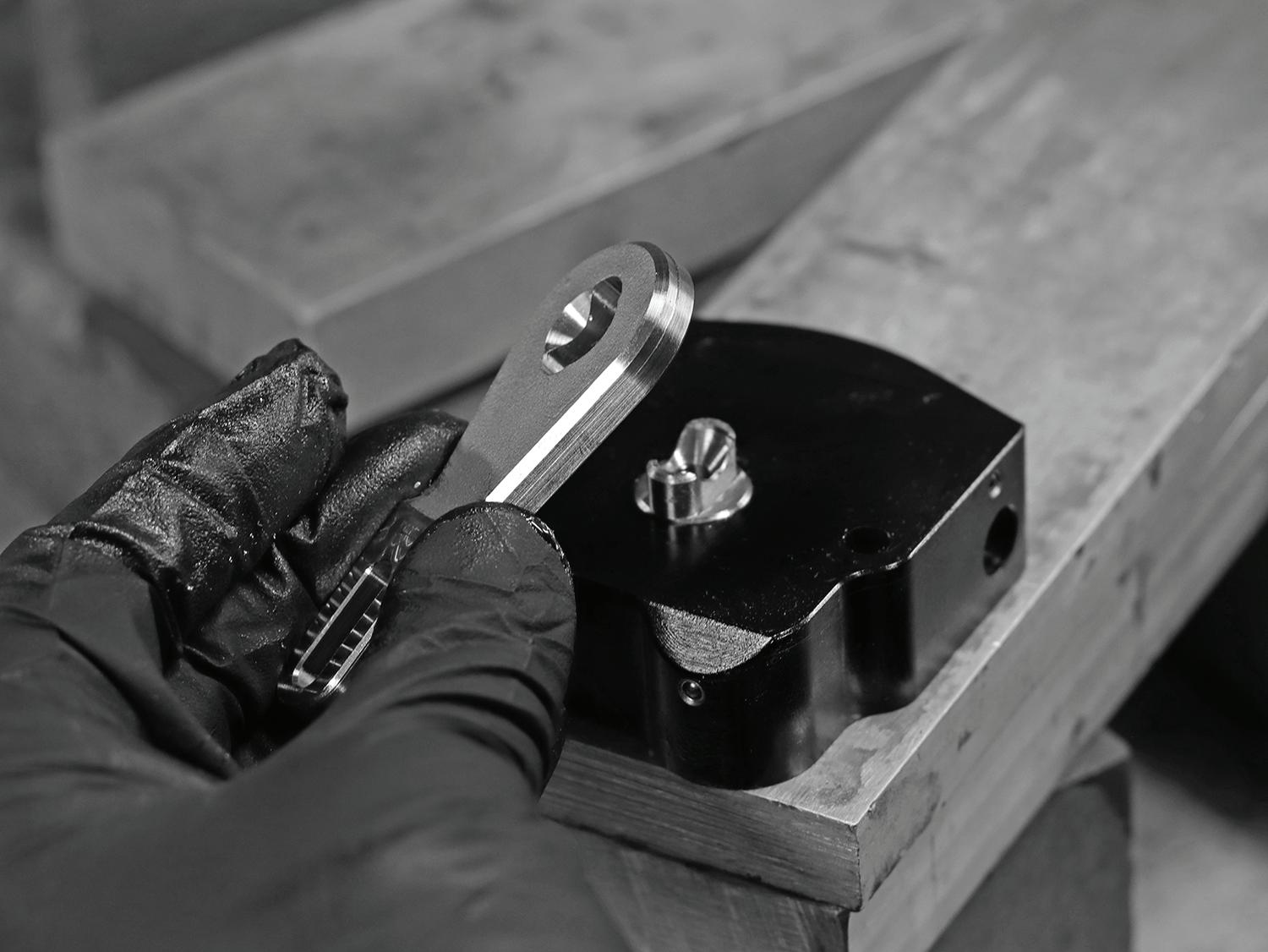

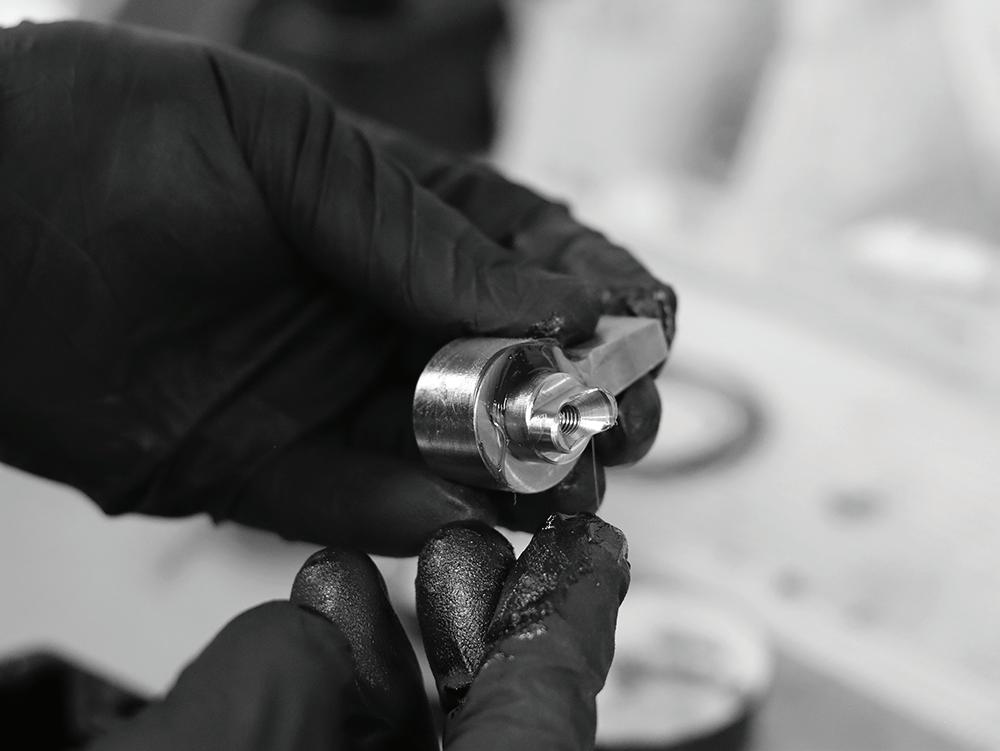

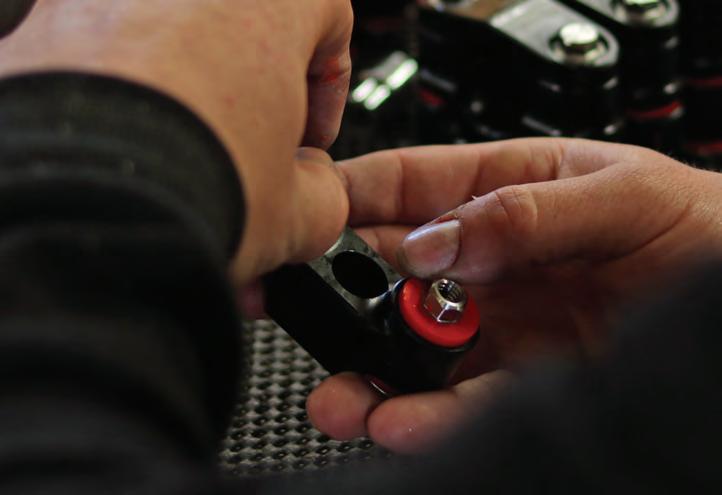

Each product is hand-assembled and checked by one of our experienced fitters before leaving the assembly line to ensure years of untroubled use.

MATERIAL

TESTING

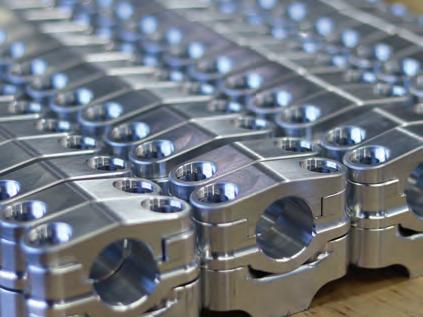

CNC machined Billet aluminium to ensure customers are receiving the highest quality product for their motorcycle.

Years of testing and development is undergone for each product with Australia’s leading off-road riders before hitting the shelves.

CONTACT DETAILS +61 2 4374 1655

www.mscmoto.com

info@mscmoto.com

Mangrove Mountain, NSW Australia

CONTENTS

MACHINING PROCESS WARRANTY / CONTACT INFO STEERING DAMPERS HANDLEBAR MOUNTS PRO KITS TRIPLE CLAMPS HARD PARTS SERVICE KITS / SPARE PARTS FAQ

4-7 8-9 10-13 14-17 18-19 20-21 22-23 24-25 26

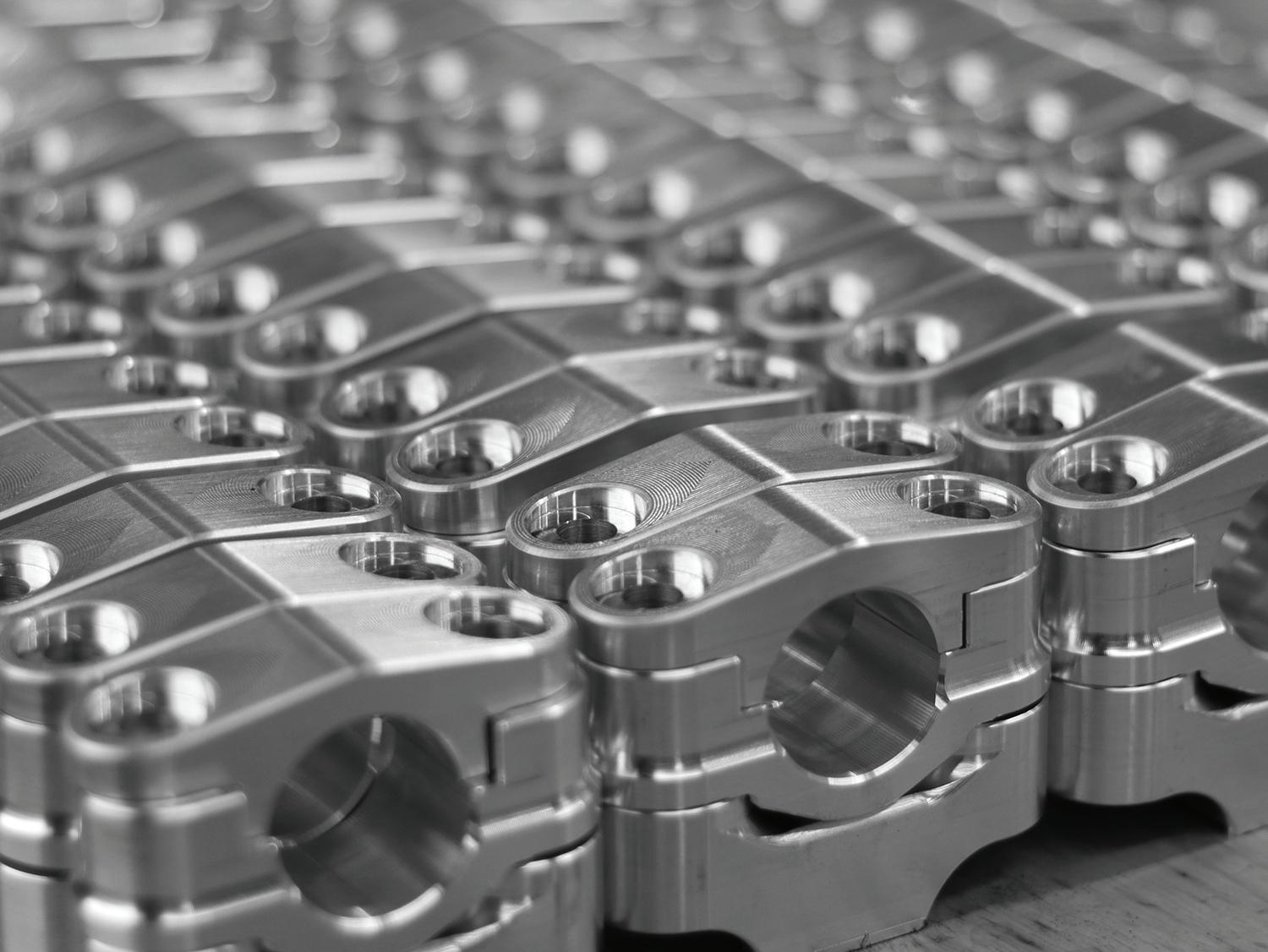

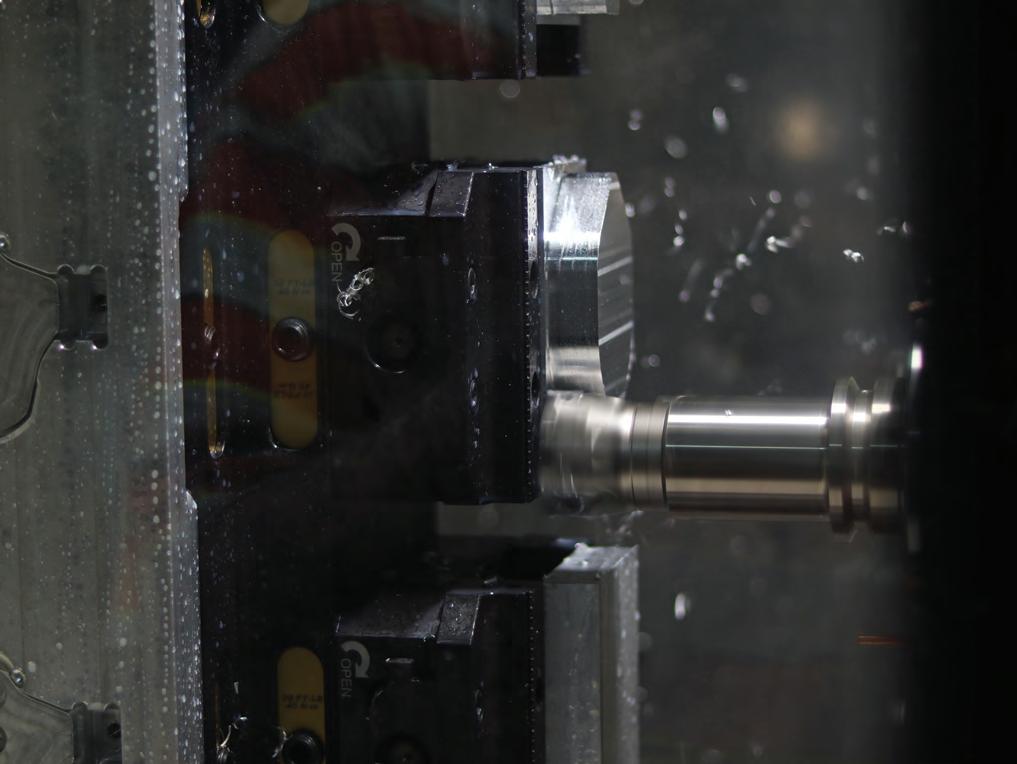

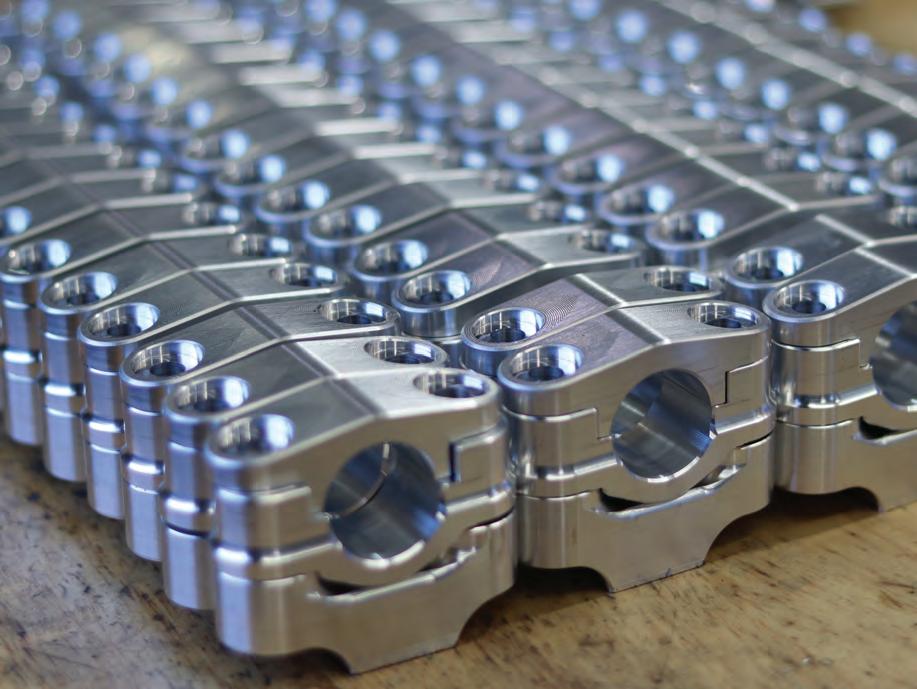

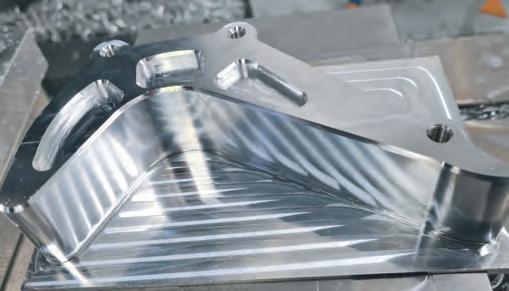

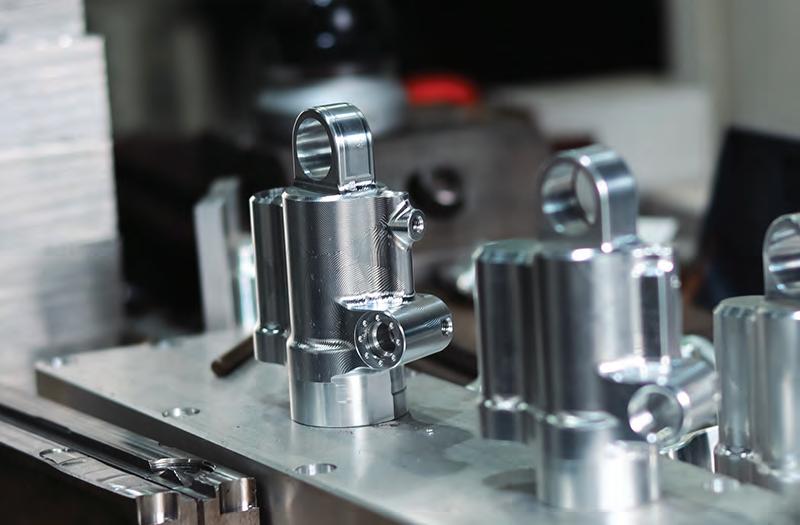

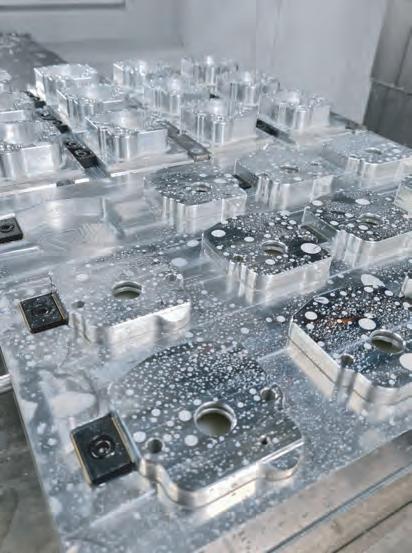

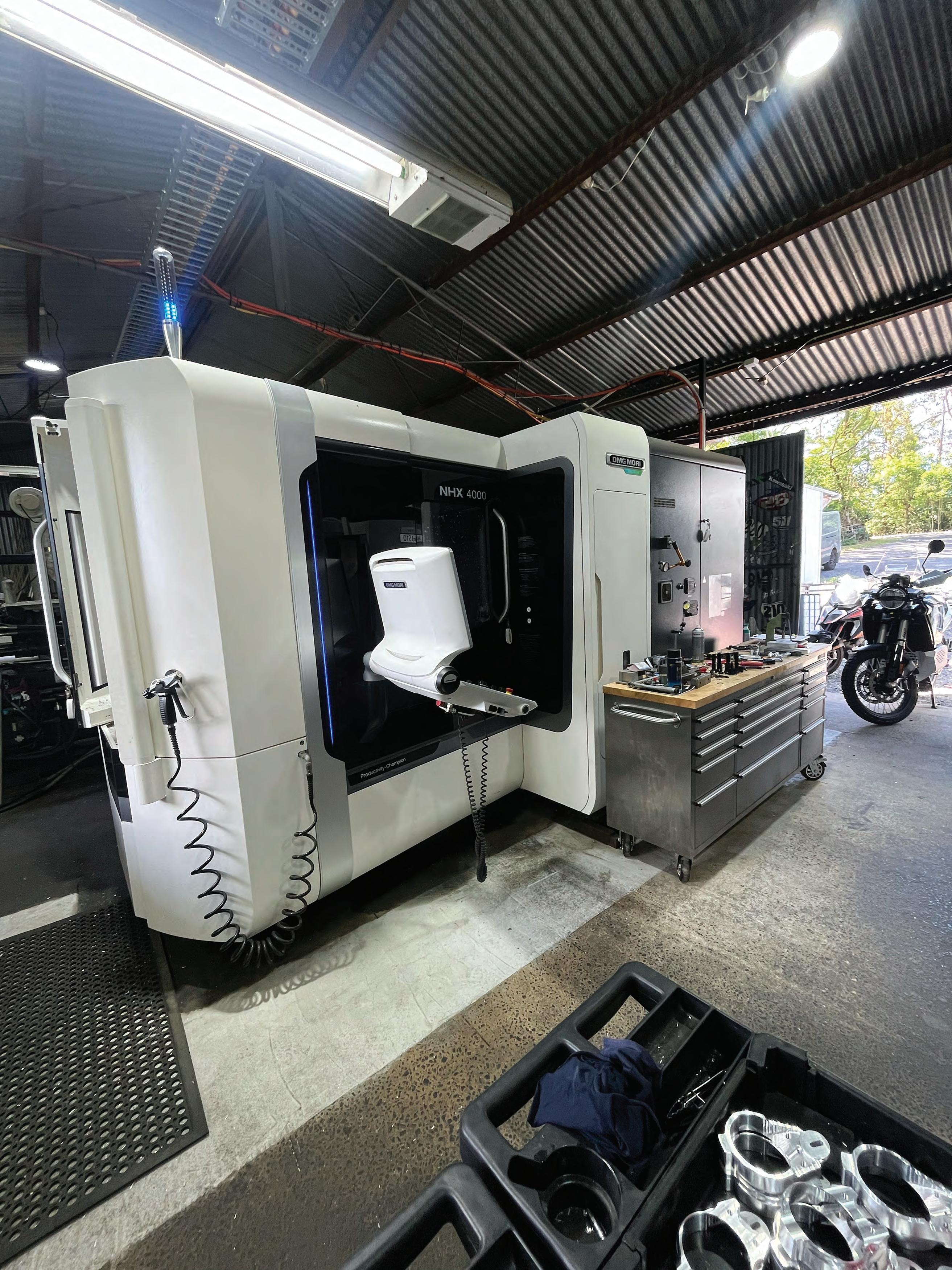

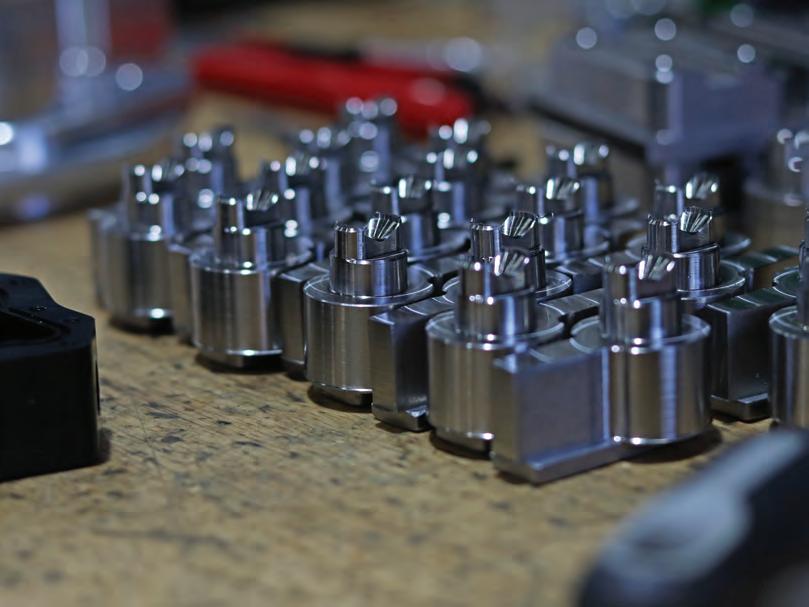

IN-HOUSE MACHINING. HIGH SPEED, HIGH PRECISION. MSC has acquired the latest in state-of-the-art machining technology thanks to our Horizontal Machining Center, the DMG MORI NHX 4000.

In addition to retaining our incredibly precise machining process, our all-new machine maximises MSC’s production efforts. We now have the ability to manufacture products. up to 3x the speed of our previous machines.

This enables us to supply high-quality, Australian-made products faster and more efficiently than ever before.

04

05

06

07

WARRANTY & CONTACT

“It’s in our best interest to keep our customers completely satisfied with all of our products”

WARRANTY PROCESS MSC Warrants all its products back to base for 12 months based on manufacturing fault.

We pride ourselves on creating products built to withstand the harsh conditions that come with motorcycle riding so our customers can use them trouble-free for years to come.

However, in the unlikely event that our products fail outside of your control, MSC Warrants all our products back to base for 12 months based on manufacturing fault.

CONTACT DETAILS Please get in contact with our customer service team regarding any questions about our product range or warranty issues. +61 2 4374 1655 info@mscmoto.com

www.mscmoto.com Mangrove Mountain, NSW Australia

08

09

MX / OFF-ROAD & ADVENTURE

ABOUT OUR STEERING DAMPERS Every part of our steering dampers are CNC machine here in Australia at the MSC factory and hand assembled to ensure you’re receiving the best possible product for your bike. Each damper is checked by an experienced fitter before it leaves the assembly line and made ready to ship for years of untroubled use.

So, what benefit does a Steering Damper actually have?

Every motorcycles has suspension to help you control the up and down movements of your front wheel.

Well, a steering damper does a similar thing, it helps you control the side to side motion of the front wheel by dampening sharp or sudden hits that may want to turn your front wheel and send you in an unintended direction. So over the years we commonly explain to people that a damper provides "sideways suspension". This enables a smoother, safer ride and reduces over-fatigue.

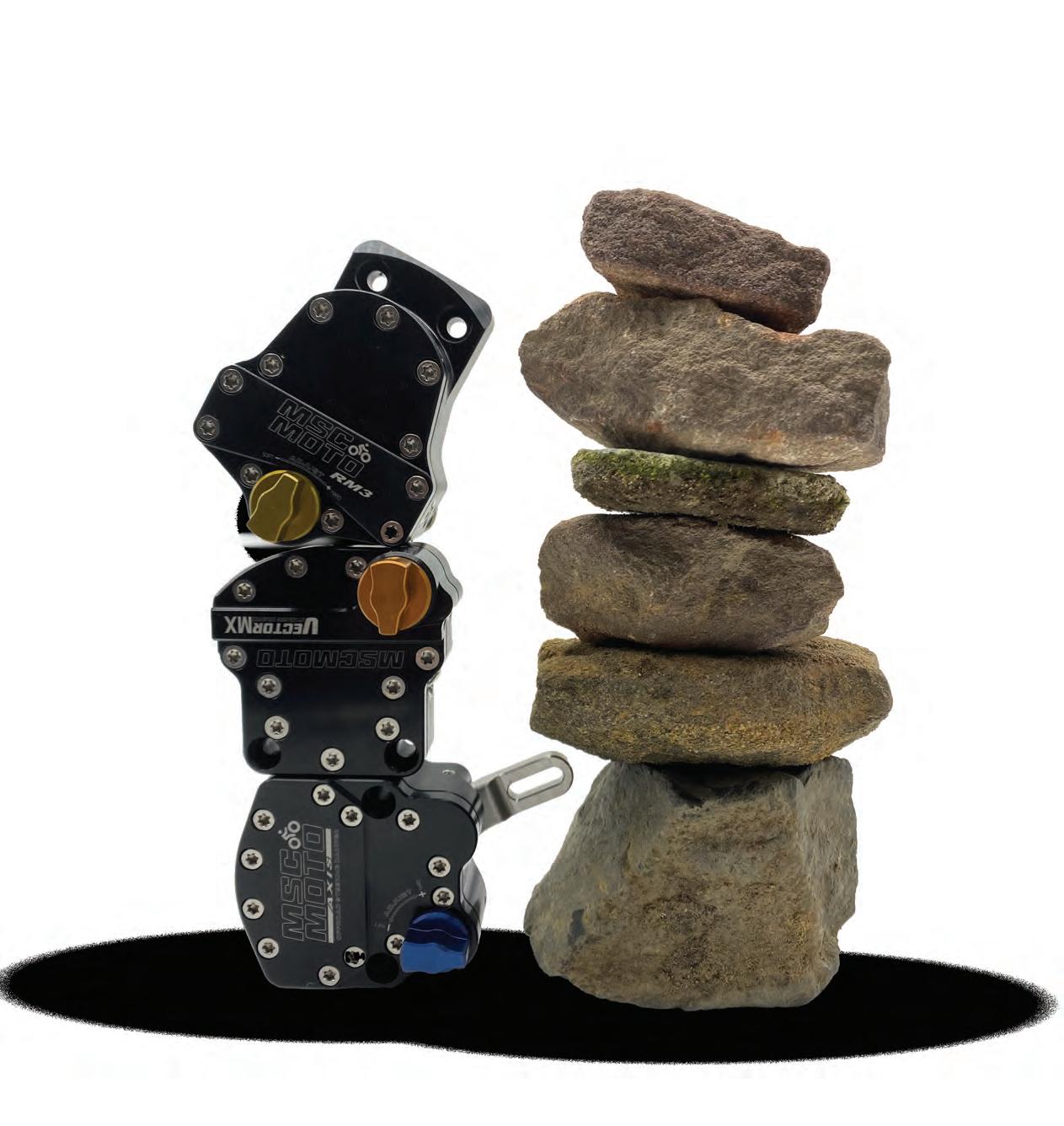

STEERING DAMPERS

10

FEATURES AND BENEFITS Our Australian made Steering Dampers offer left-to-right stabilisation of your bike, MSC offers steering dampers (also known as steering stabiliser) for off-road, adventure bikes, and road bikes in above bar mount and under bar mounted options depending on the make and model of your bike.

Australian made with CNC machined billet aluminium

Multiple variations of damper to suit models

Reduces headshake and overall ride fatigue

Wide range of adjustment (20 clicks)

Reduces wheel deflection from debris and elements

Active Return To Centre Technology

Hardened steel, long-lasting linkages

Fully serviceable by mechanics or MSC 11

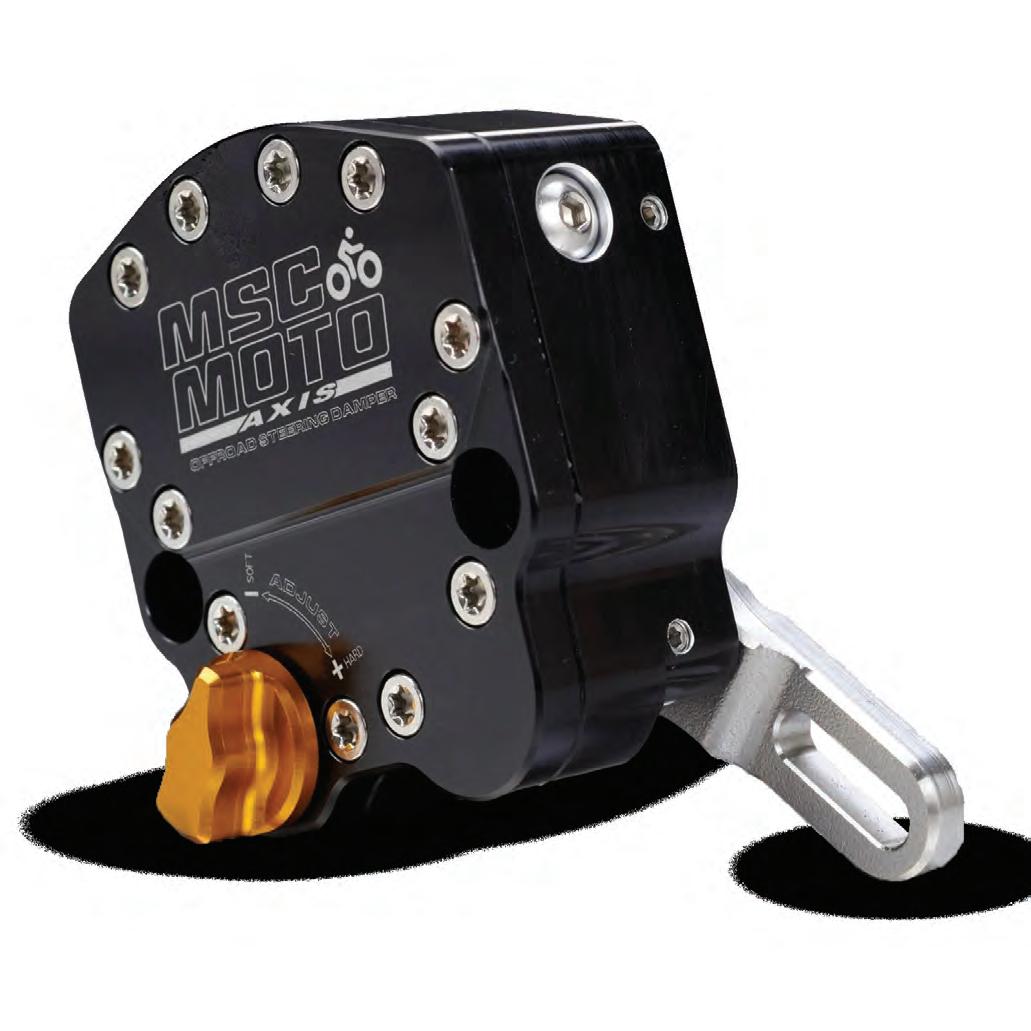

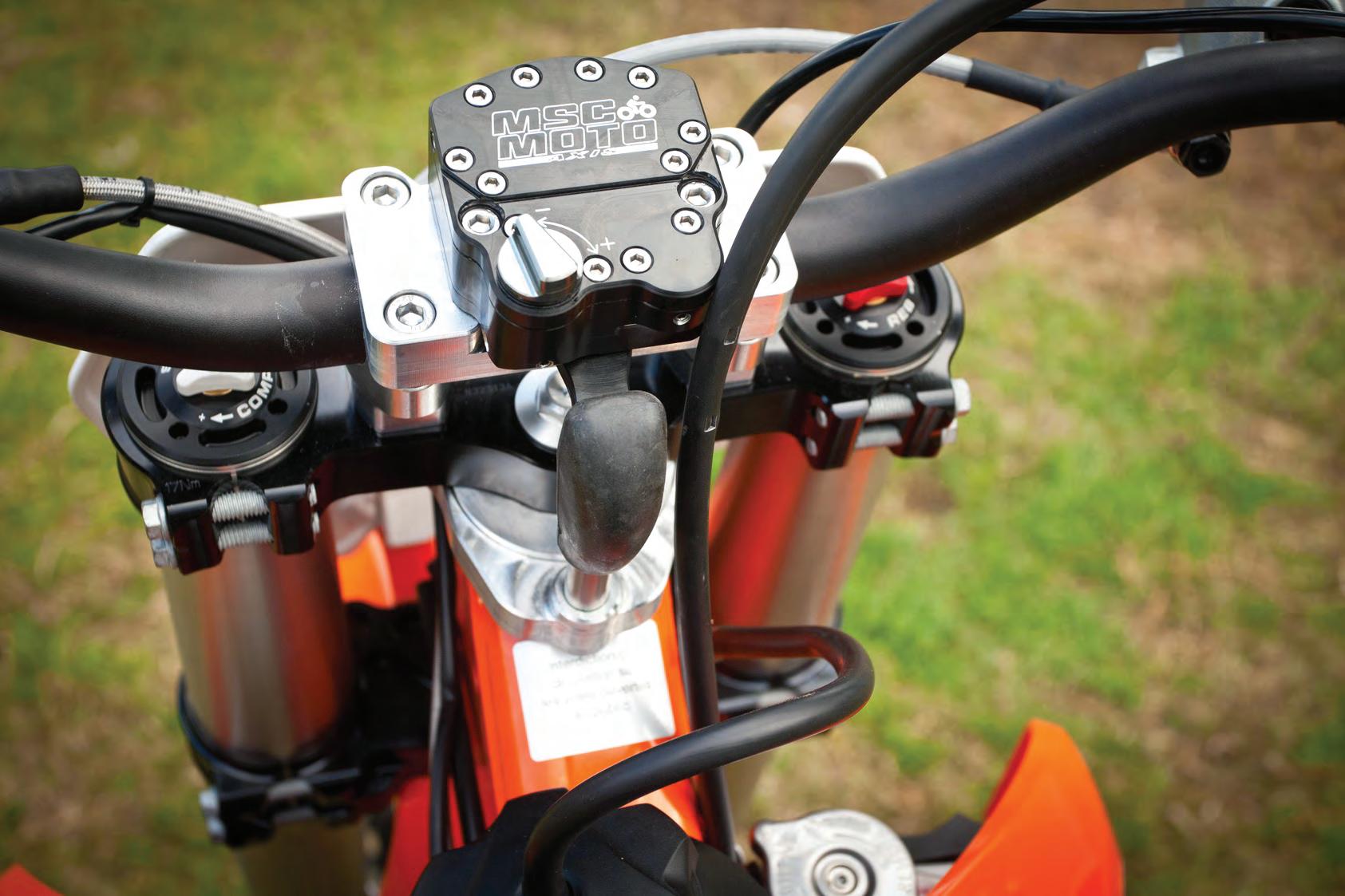

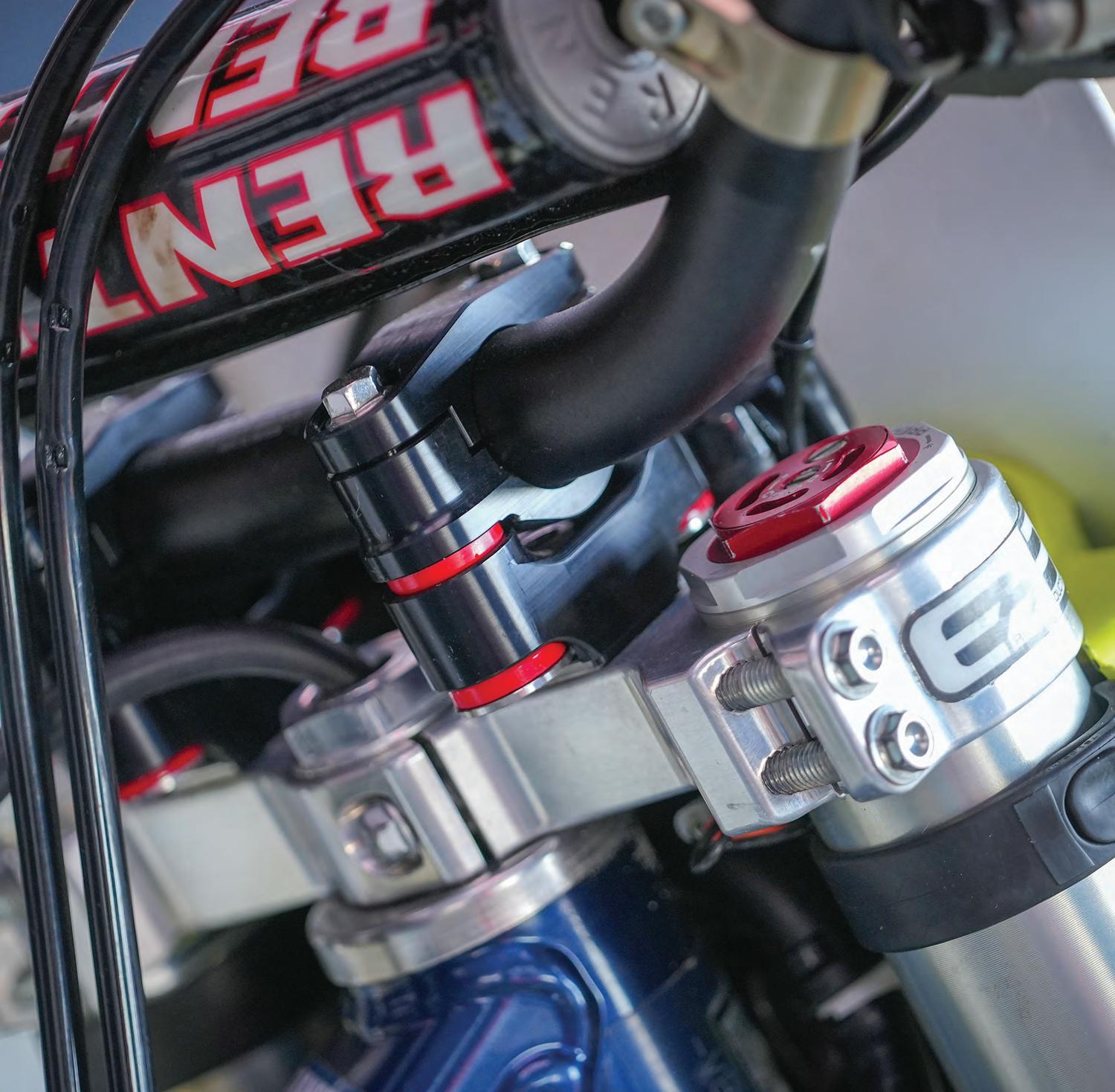

AXIS

M X / O FF -R O A D STE E R IN G D A M P E R A V A IL A B L E IN T O P A N D D O W N U N D E R M O U N T

ABOUT: Ideal for riders tackling high-speed races such as Finke and Hattah, the AXIS steering damper is the latest in steering damper technology with its small compact design featuring 20 clicks of adjustment and Active Return to Centre (RTC) as well as all the standard MSC MOTO quality features like hardened steel long-lasting linkages and anodized billet construction.

INCLUDED IN KIT: Axis damper unit Handle bar bracket

Spigot post Bolt kit

Instruction manual Bar pad kit (Included with top mount only)

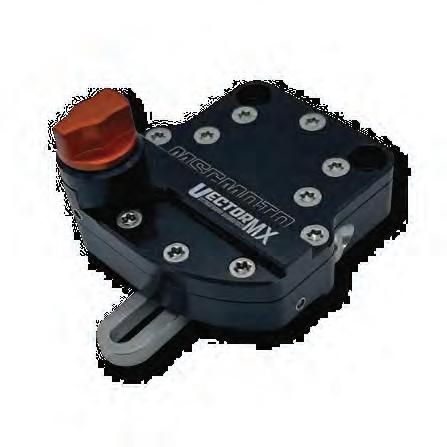

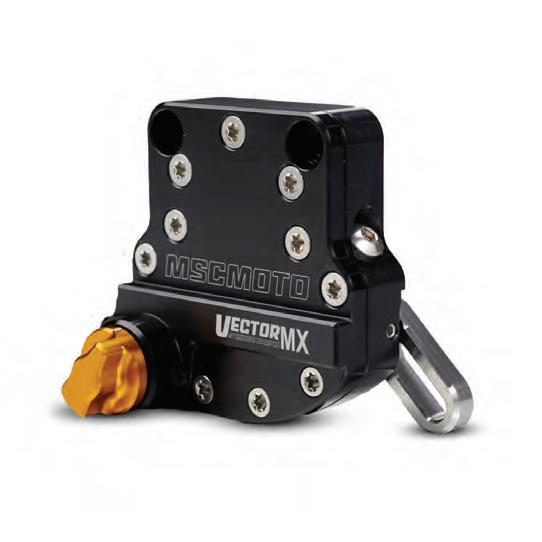

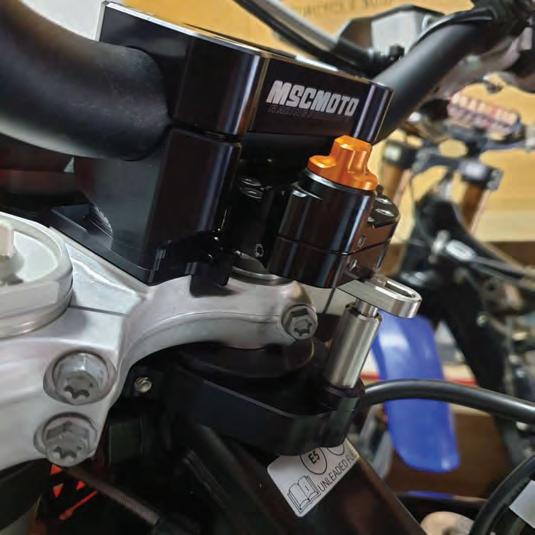

VECTOR MX

M X / O FF- R O A D L O W - P R O FIL E D O W N U ND E R M OU NT ST E E R IN G D A M P E R

ABOUT:

VectorMX has all the benefits of the Axis steering damper for riders who want a low-profile under-bar mount steering damper that won't raise their handlebar height like a conventional steering damper. In most cases, the handlebars are raised less than 5mm and at the highest, 10mm, which you can overcome with some lower bend handlebars if needed. The VectorMX is supplied with a single piece billet top bar clamp designed to add strength to the bar mounts and reduce twisting in a crash. Installation can be completed with a standard tool kit

INCLUDED IN KIT:

All fasteners stainless steel

Lower bar clamps Billet top bar clamp

VectorMX Steering Damper Full bolt on mounting kit

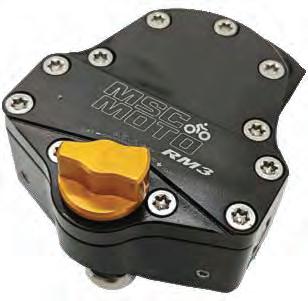

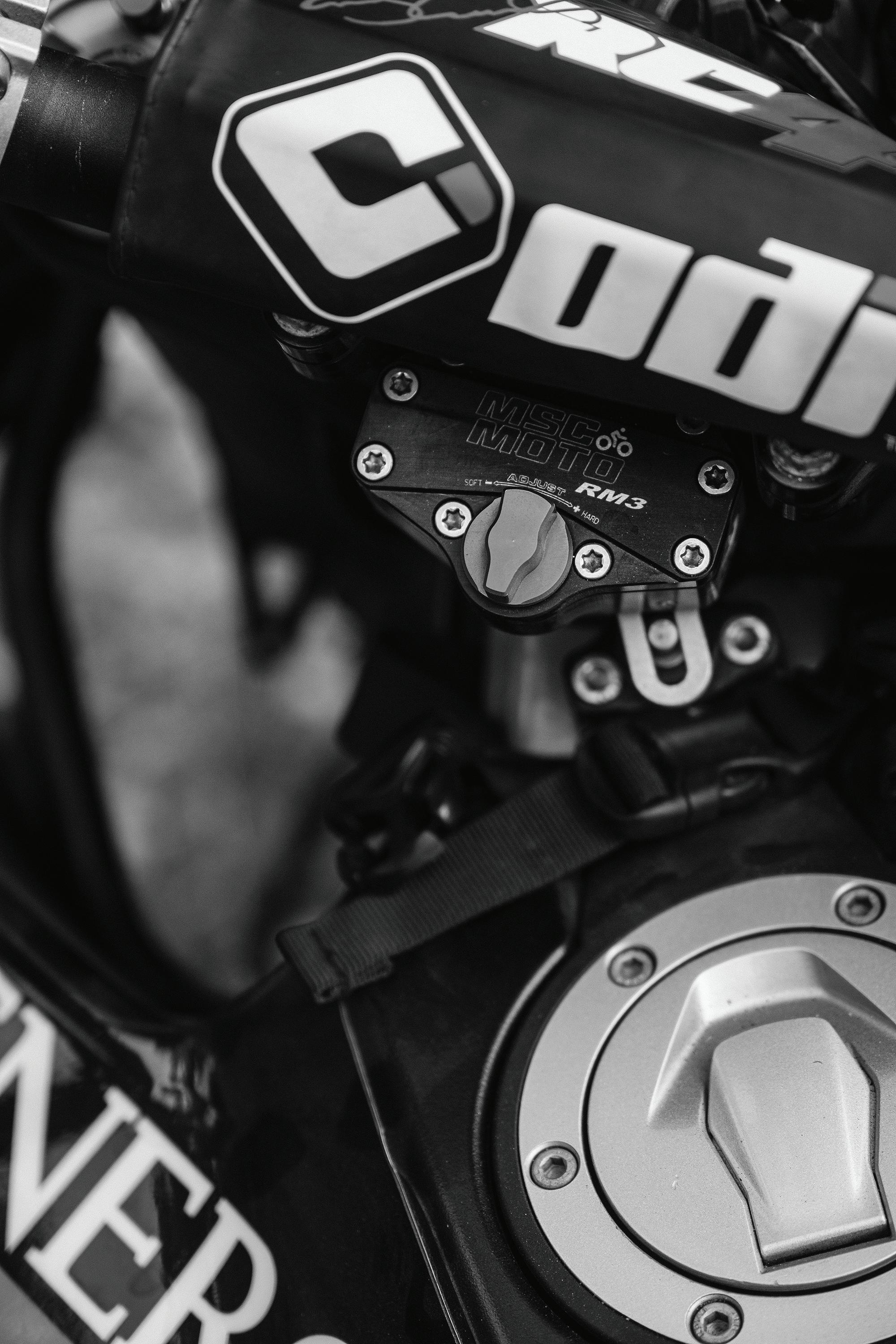

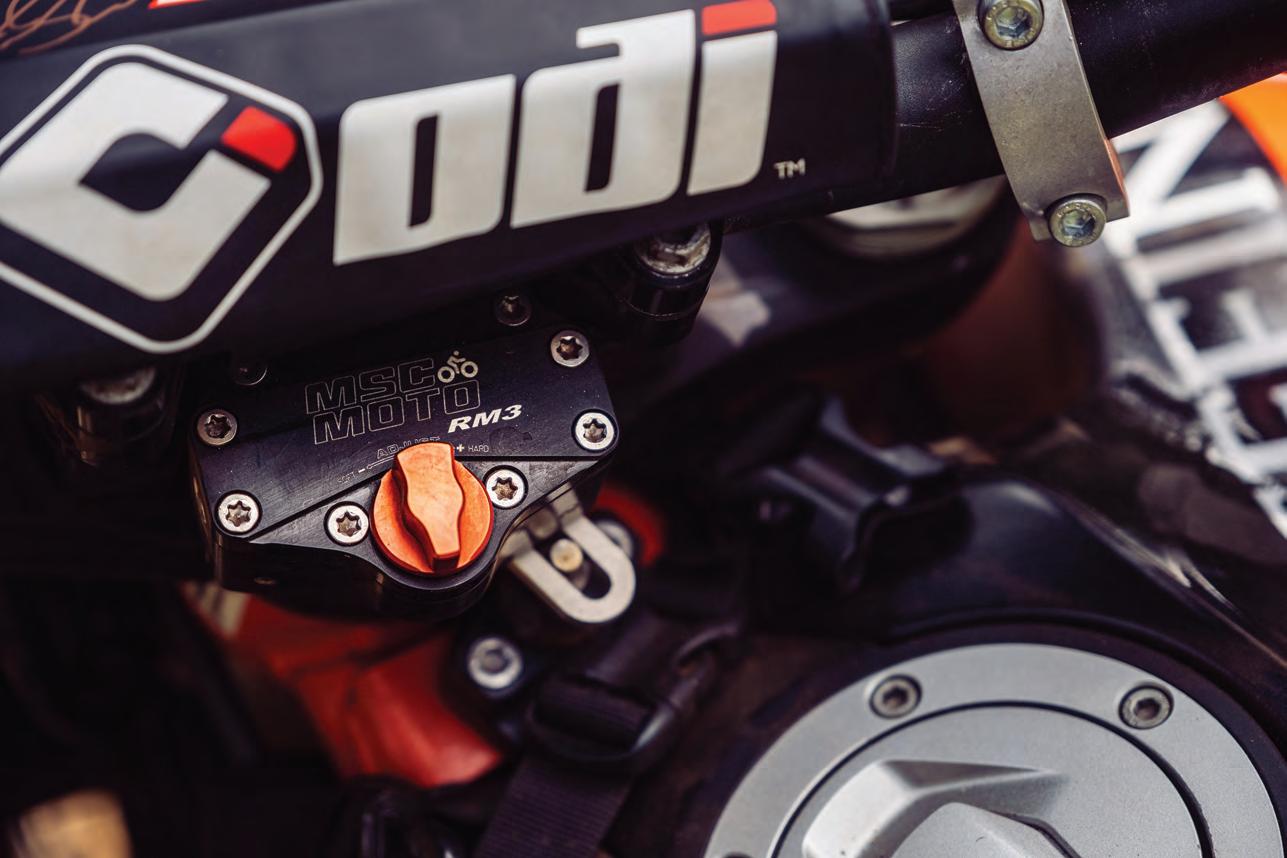

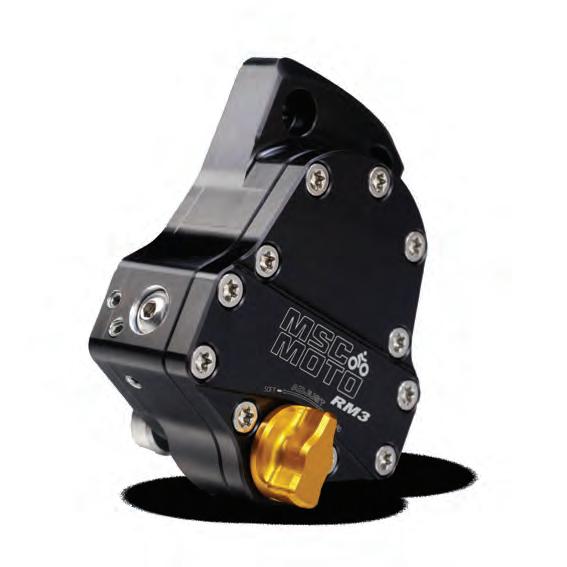

RM3

A D V E N TUR E SP E C IFI C S T E E R IN G D A M P E R

ABOUT: The adventure-specific RM3 steering damper kits are bolt-on and do not require you to make permanent changes to your standard bike. To allow for this the RM3 offers you a unit that’s physical dimensions, its height, width and depth, are slimline enough to fit under most handlebars with the bars raised a nominal amount.

INCLUDED IN KIT: RM3 Steering damper unit Damper mount bracket STEERING DAMPER

Pin post Bolt kit

Instruction manual

12

#1 BRAND OF CHOICE FOR FINKE DESERT RACE...

13

MX / OFFROAD & ADVENTURE

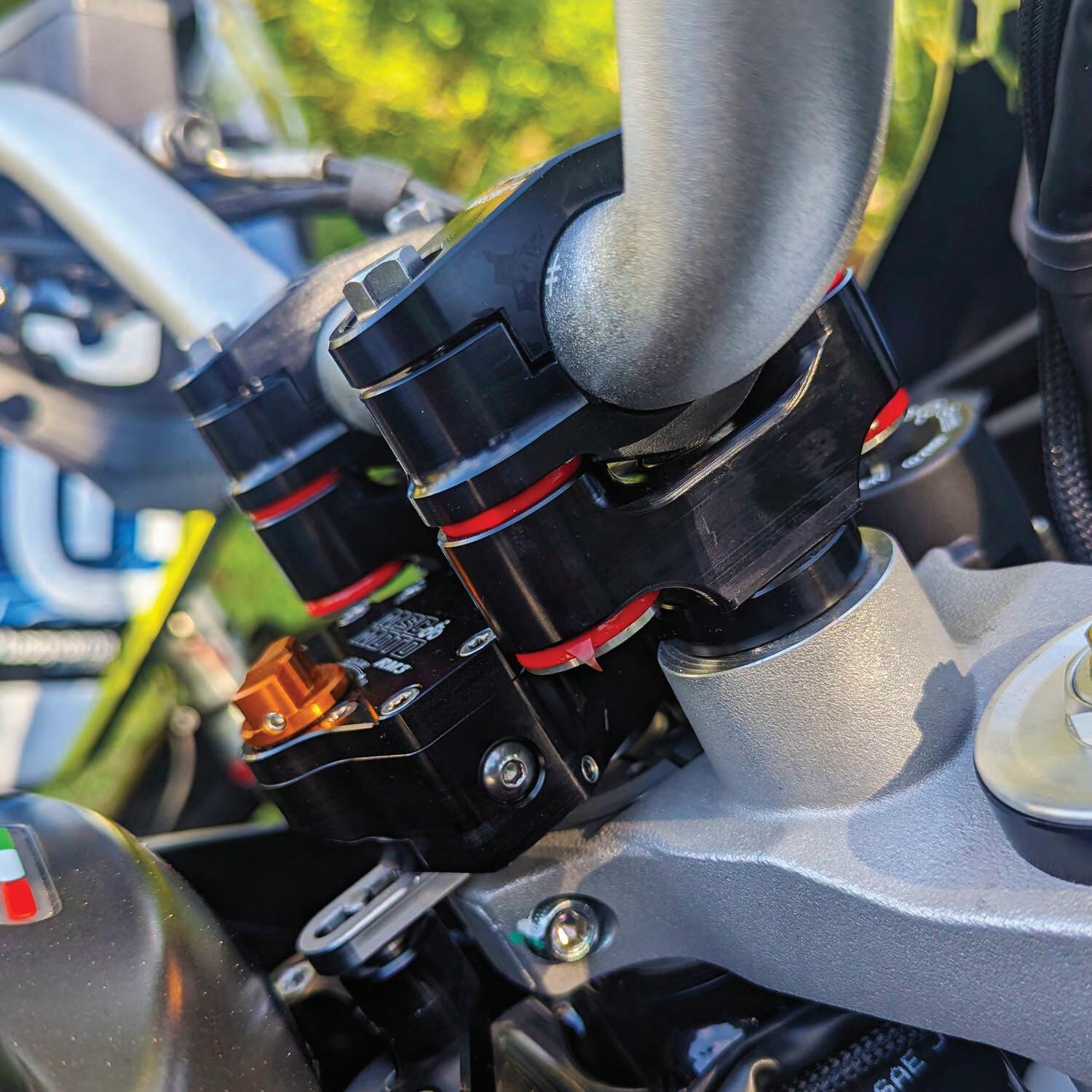

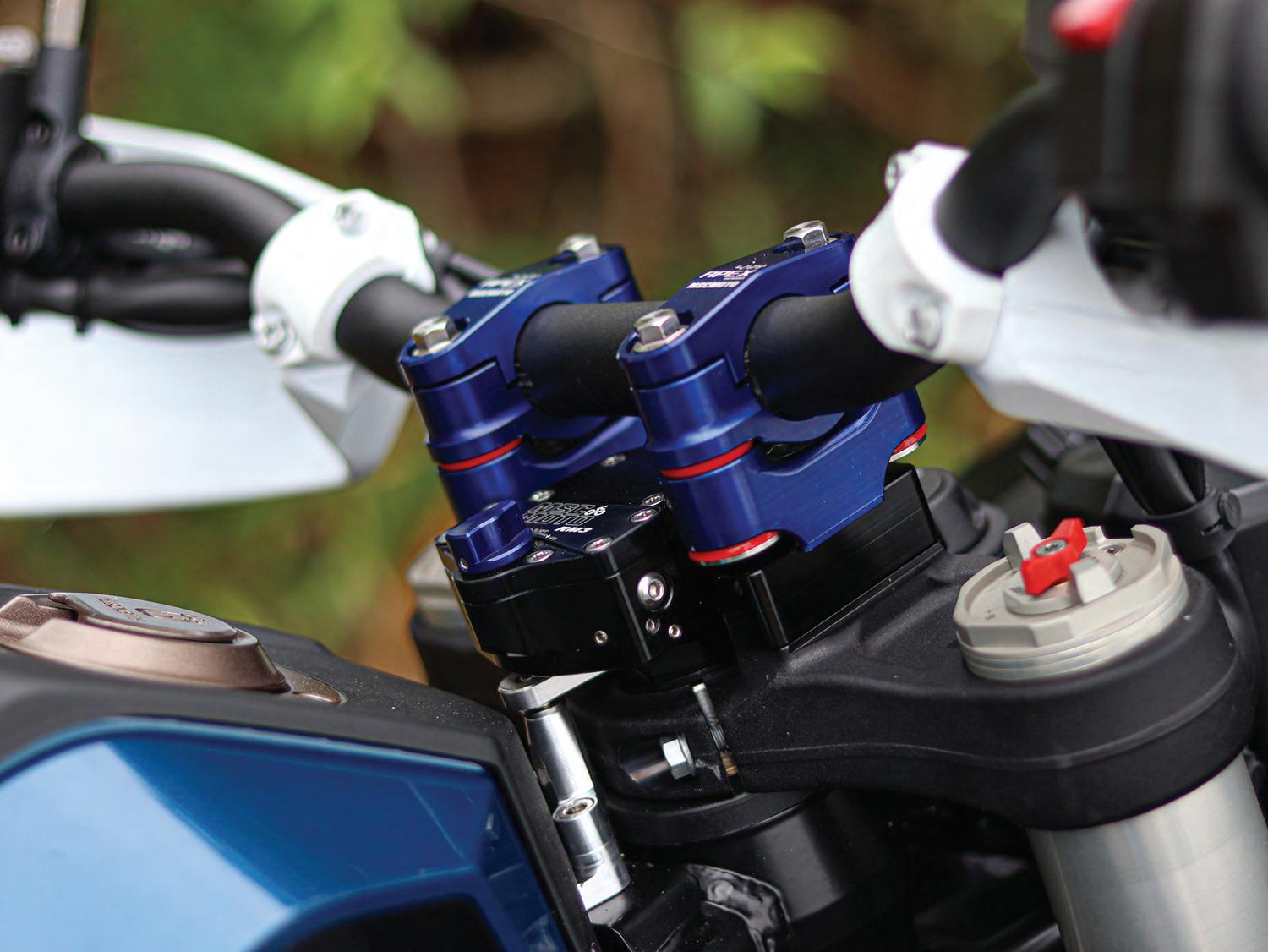

ANTI-VIBRATION HANDLEBAR MOUNTS Maintaining our commitment to constantly improving our customer's performance, safety and overall riding experience, MSC Moto is proud to expand our product range with the development of our new Apex Dampened Handlebar Mount!

Thanks to years of rigorous testing and development in the harsh conditions that come with off-road riding and racing, MSC’s all-new Apex Dampened Handlebar Mount not only reduces vibration and aids in reducing hand fatigue and arm pump, but also eliminates twisting in the event of an accident.

HANDLEBAR MOUNTS

14

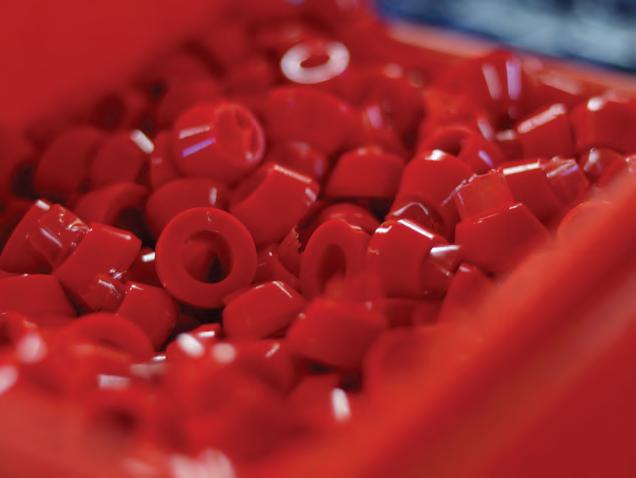

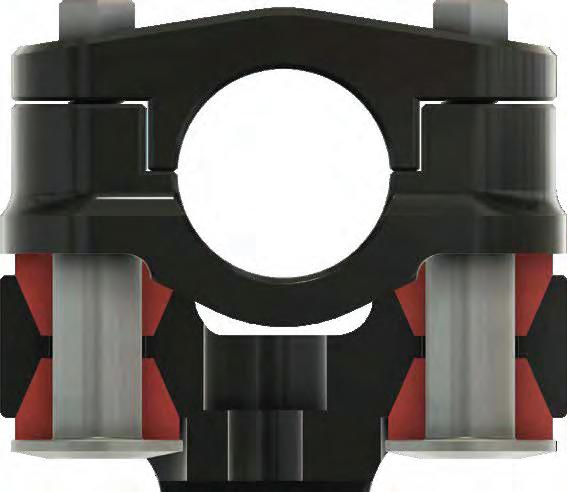

FEATURES AND BENEFITS Featuring the use of 8 vacuum cast polyurethane resign dampers positioned concentrically with the 4 handlebar clamp bolts, the APEX Bar Mounts vastly reduce the amount of vibration received through the engine and chassis while also eliminating twisting in the event of an accident.

Australian made with CNC machined billet aluminium

Lightweight without sacrificing strength due to compact construction (503g Per Set)

Polyurethane resign dampers prevent twisting and vastly reduce vibration & arm pump

Mount Height - 40mm to centerline of handlebar

Softer option polyurethane dampers available separately for riders wanting more damping

Hardware - All stainless steel fasteners

15

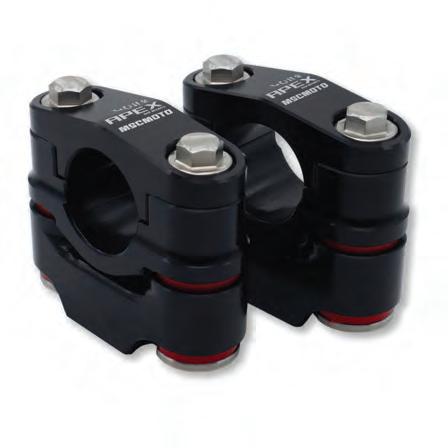

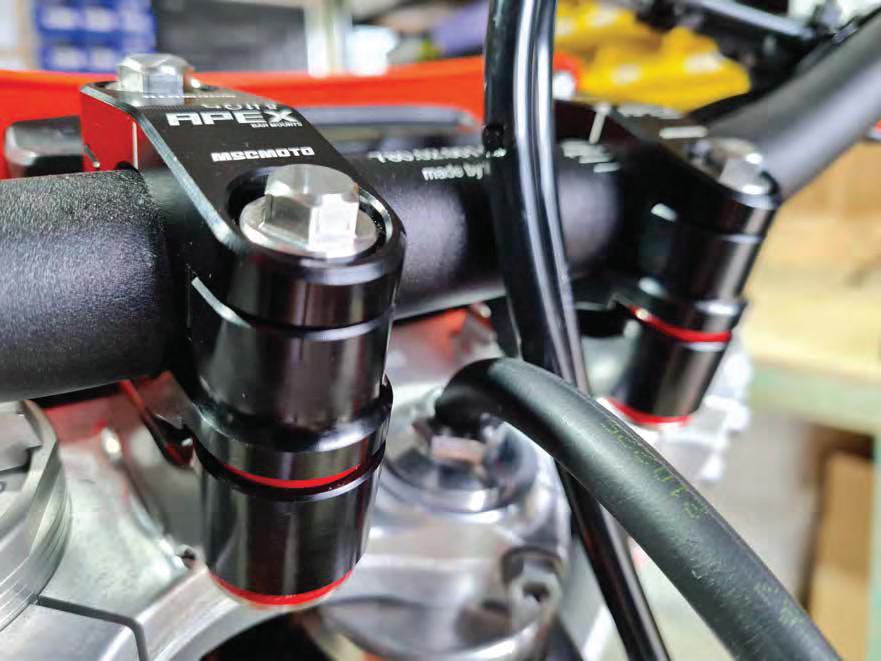

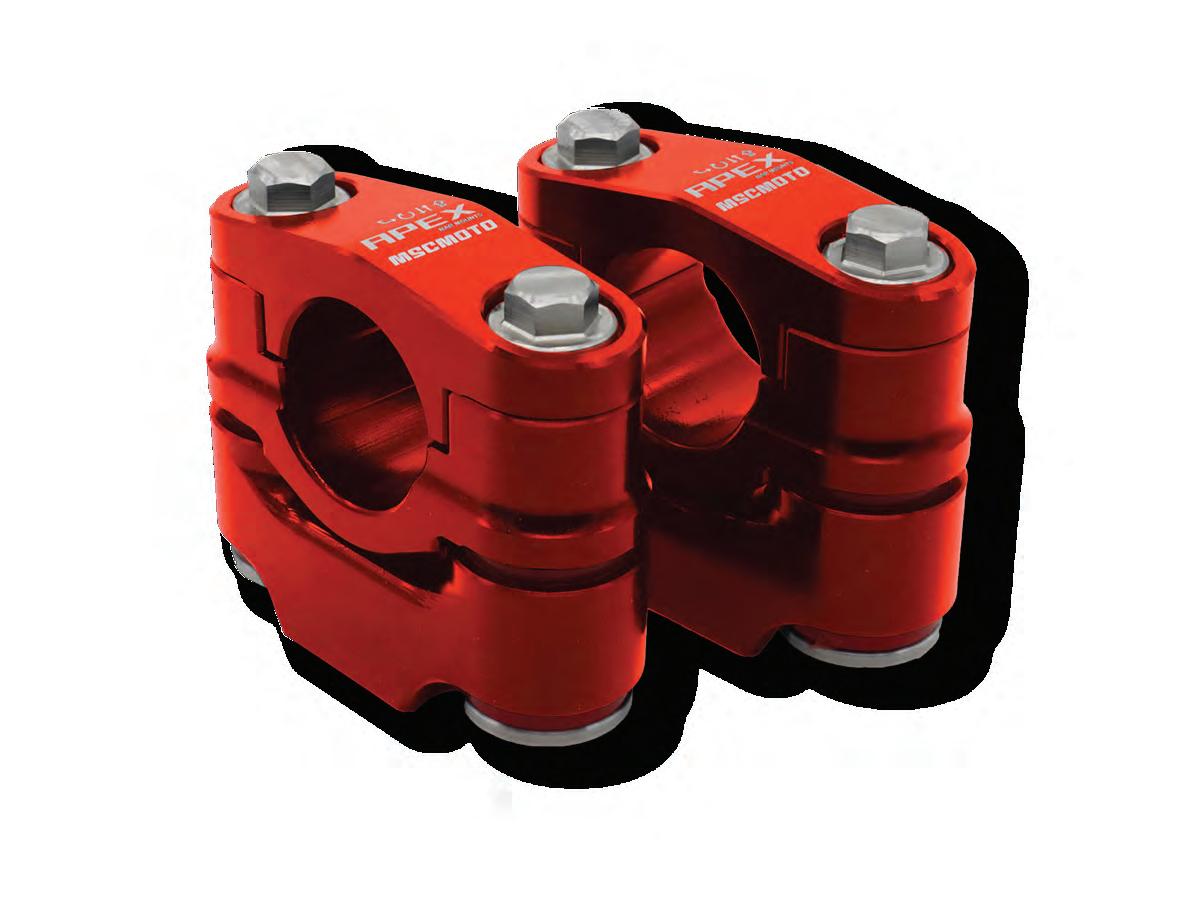

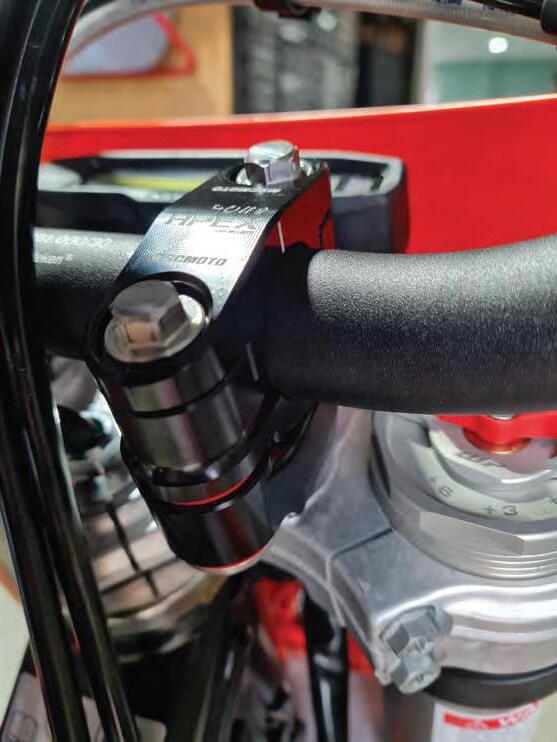

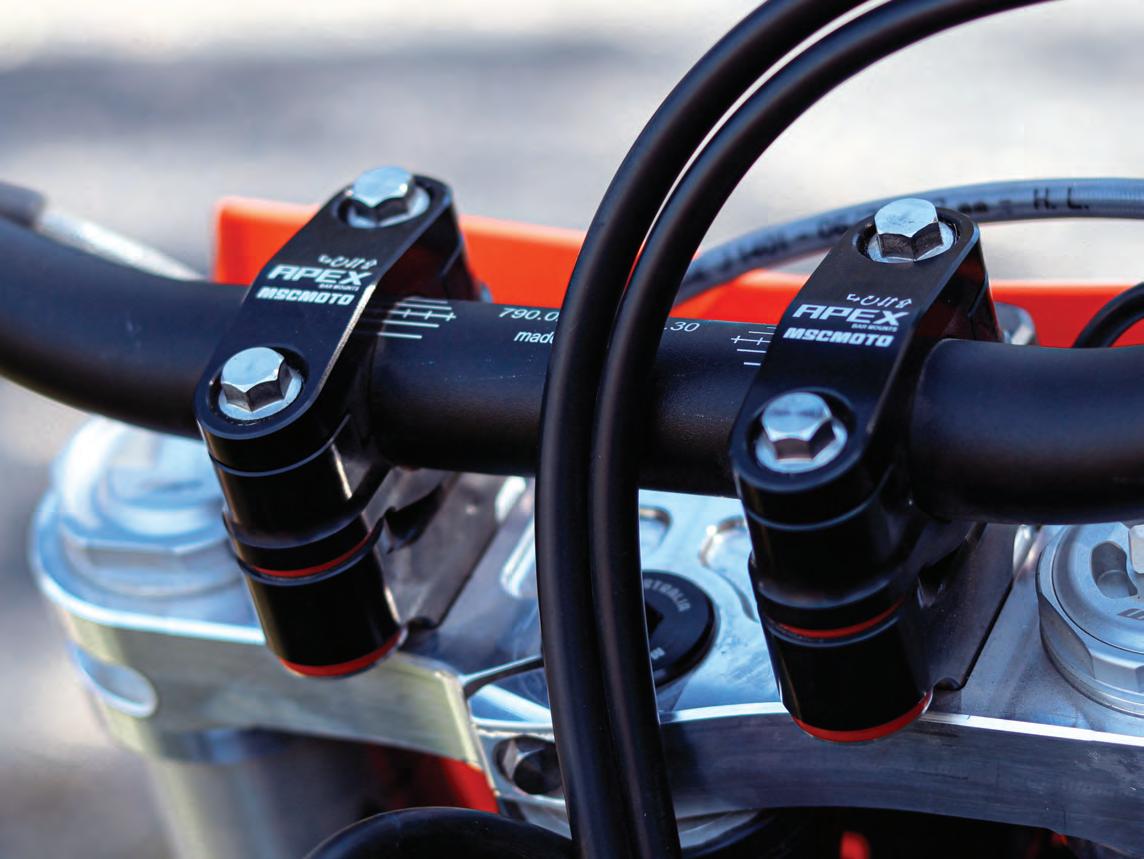

APEX

M X / O FF -R O A D D A M P E NE D HA N D L E B A R M O U N T

ABOUT: Featuring the use of 8 vacuum cast polyurethane resign dampers positioned concentrically with the 4 handlebar clamp bolts, the APEX Bar Mounts vastly reduce the amount of vibration received through the engine and chassis while also eliminating twisting in the event of an accident. Spare parts and softer option polyurethane dampers available separately.

INCLUDED IN KIT: APEX Handlebar Mounts Polyurethane dampers

Instruction manual Bolt kit

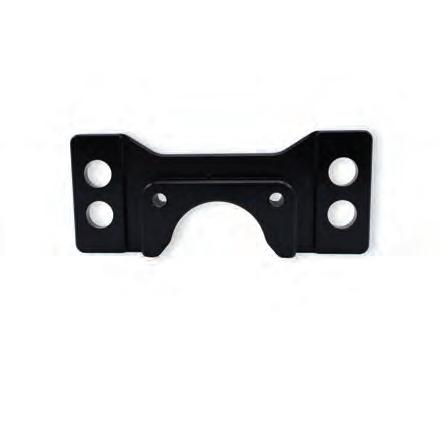

MOUNTING KITS CO M P A T IB L E W IT H M SC ST E E R I NG D A M P E R K IT S

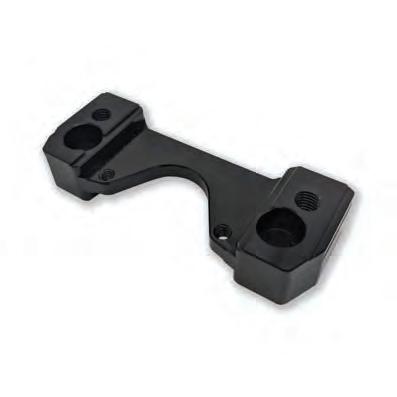

ABOUT: Allows fitment for APEX bar mounts for bikes currently fitted with AXIS / VectorMX steering damper kits.

The part replaces the lower mount that fits directly to the top triple clamp on DownUnder AXIS kits. Package individually with required bolts.

INCLUDED IN KIT: Billet mount All stainless steel fasteners

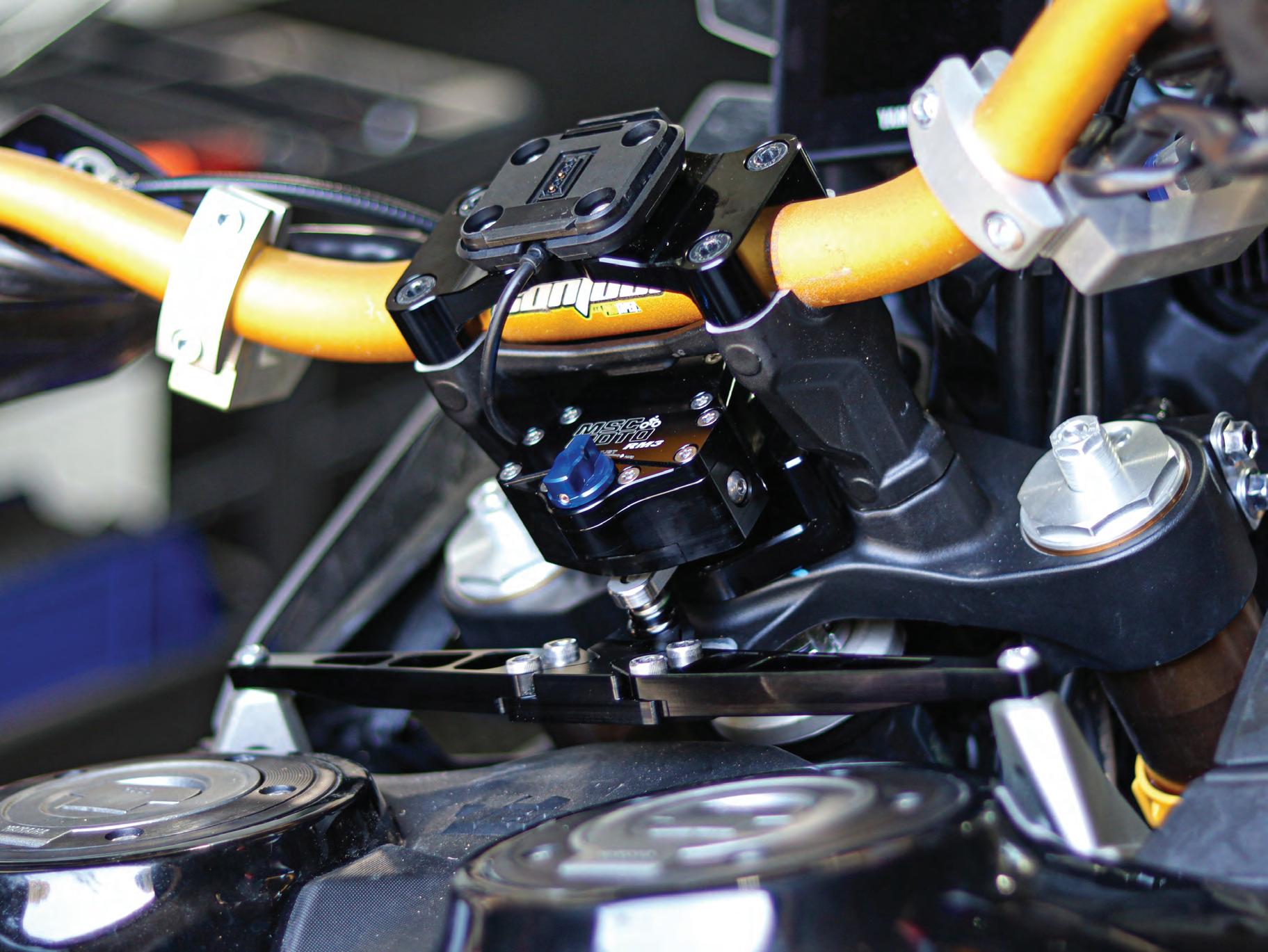

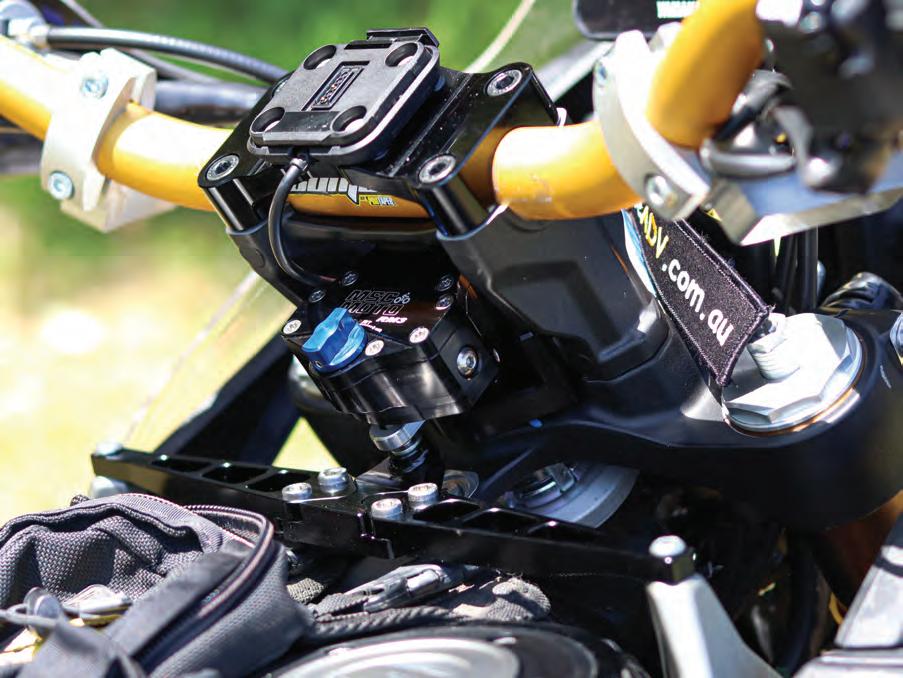

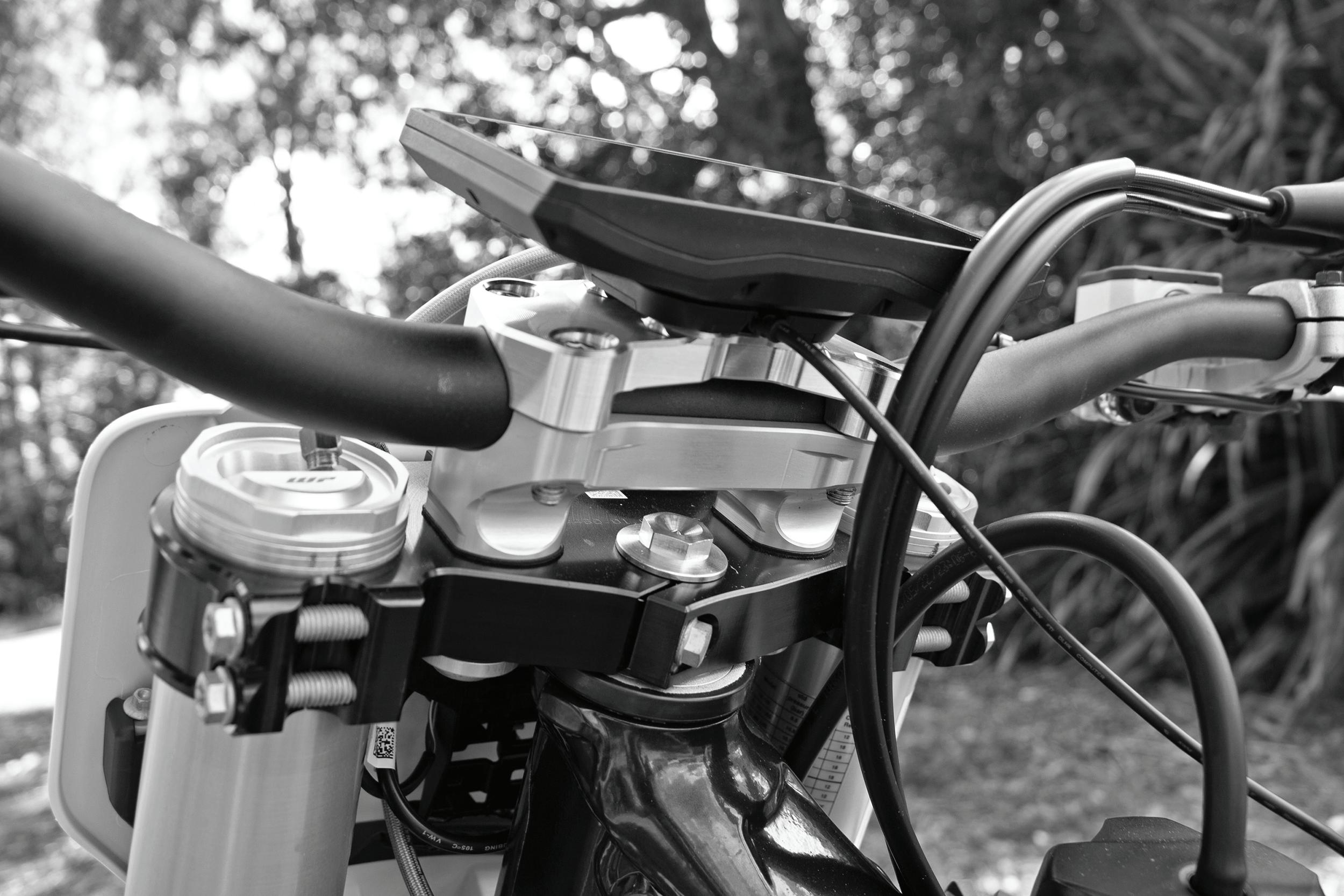

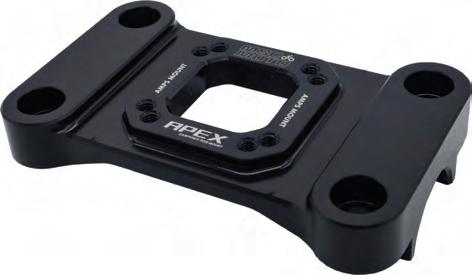

GPS BAR MOUNT

D I R E CTL Y M OUNT S GP S T O M S C HA N D LE B A R M OUN T AVAILABLE IN APEX UPGRADE OR STANDARD OPTION FOR REGULAR MOUNTS

ABOUT: Compatible with all “AMPS” GPS mounting systems, our new GPS Handlebar Mounts swap out your OEM bar mounts to create a low-profile and strong mounting point for your GPS in both upright and sideways positions.

Available in Black, Blue, Orange and Silver anodised colourways.

INCLUDED IN KIT: Includes mounting hardware to fit to the bike 4 pieces of M5x12mm screws

HANDLEBAR MOUNTS

16

17

FEATURES AND BENEFITS Create the ultimate fusion of steering stabilization and anti-vibration by combining our AXIS dampened handlebar mounts and steering damper, converting your cockpit to a rubber mount system to further eliminate vibration and unlock the ultimate level of comfort and control for your ride..

Australian made with CNC machined billet aluminium

Reduces headshake and overall ride fatigue

Reduces wheel deflection from debris and elements

Wide range of adjustment (20 clicks)

Hardened steel, long-lasting linkages

Fully serviceable by mechanics or MSC

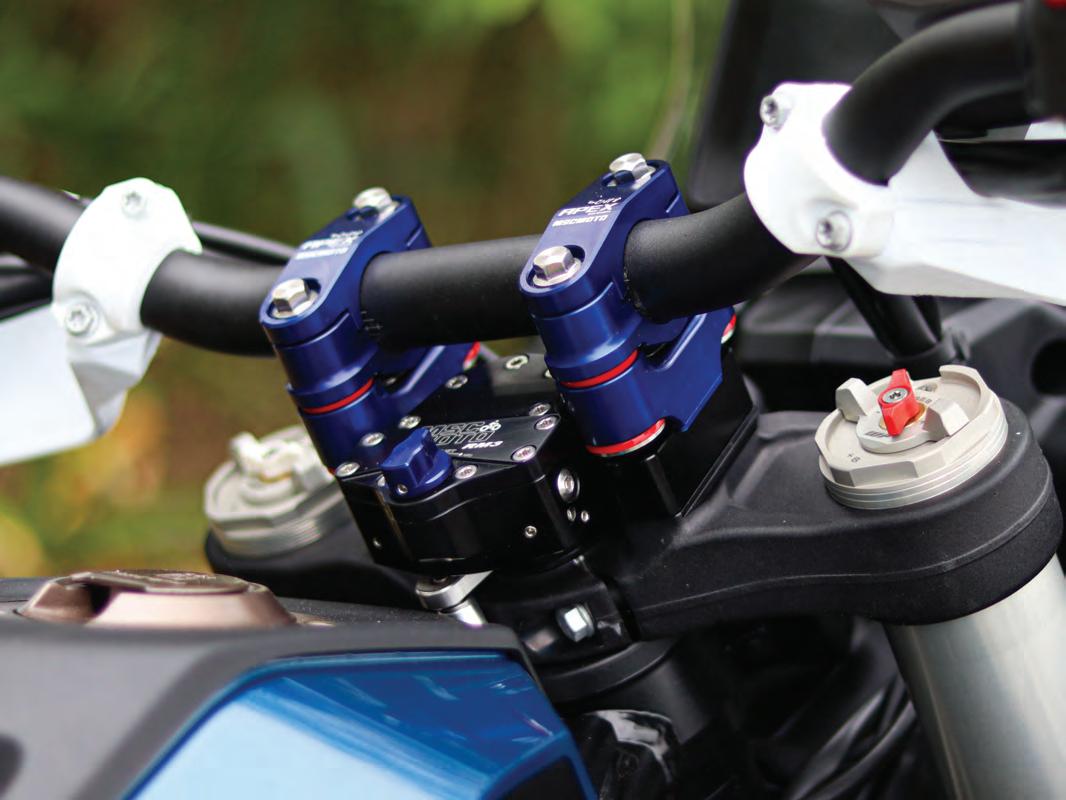

PRO KITS DAMPER STEERING

18

AXIS PRO KIT M X / O FF -R O A D STE E R IN G D A M P E R A V A IL A B L E IN T O P A N D D O W N U N D E R M O U N T

INCLUDED IN KIT: Axis damper unit Spigot post Handle bar bracket Apex Bar Mounts Bar pad (Top mount) Bolt kit Polyurethane dampers Apex Bolt kit Instruction manuals for Bar Mounts & Dampers

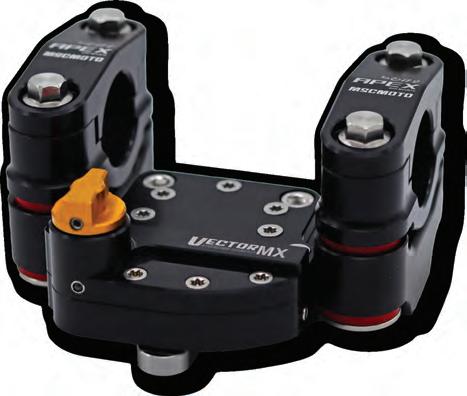

VECTORMX PRO KIT

M X / O FF- R O A D L O W - P R O FIL E D O W N U ND E R M OU NT

INCLUDED IN KIT: VectorMX Damper Spigot post Handle bar bracket Apex Bar Mounts Damper Bolt kit Polyurethane dampers Apex Bolt kit Instruction manuals for Bar Mounts & Dampers

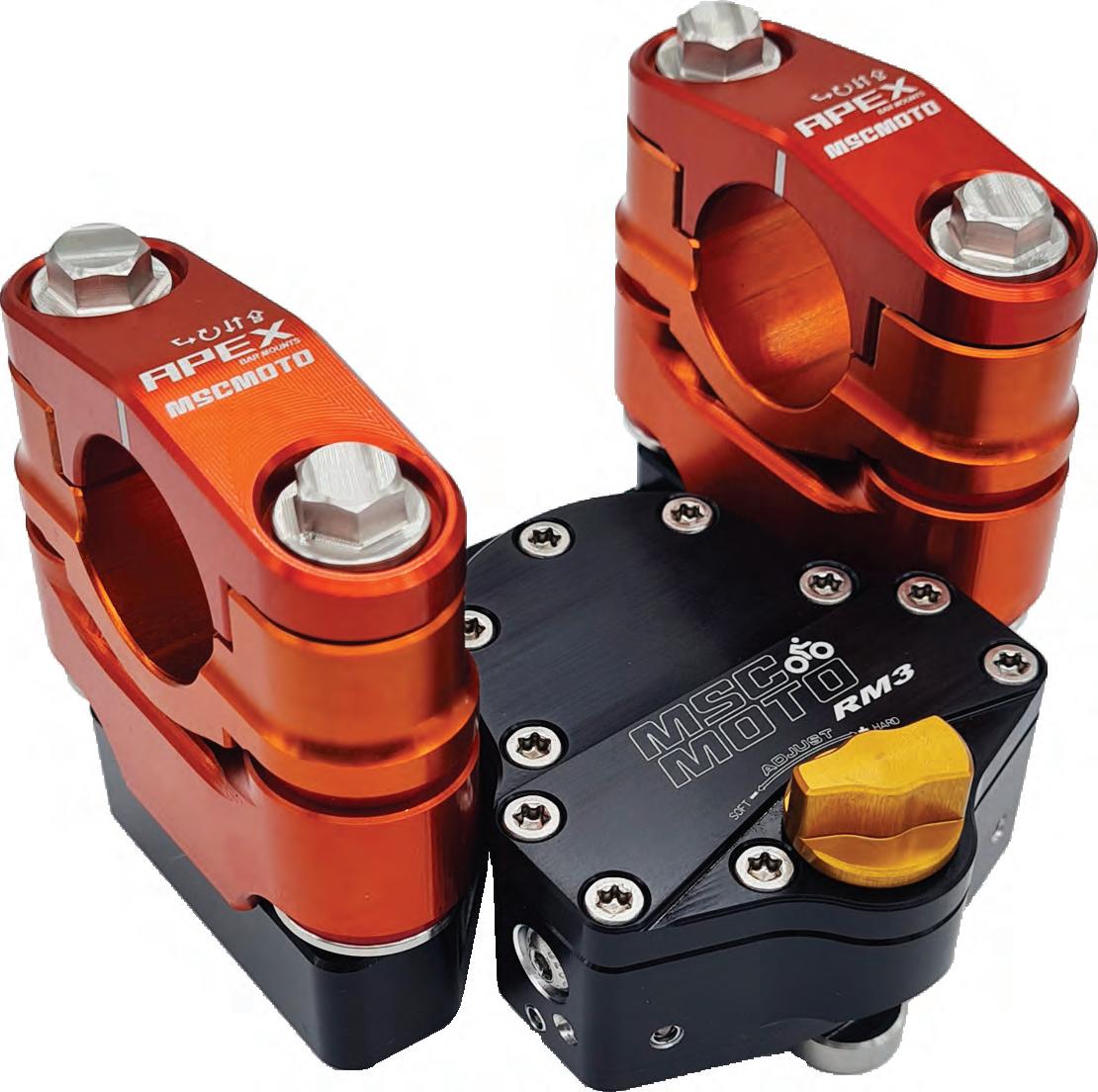

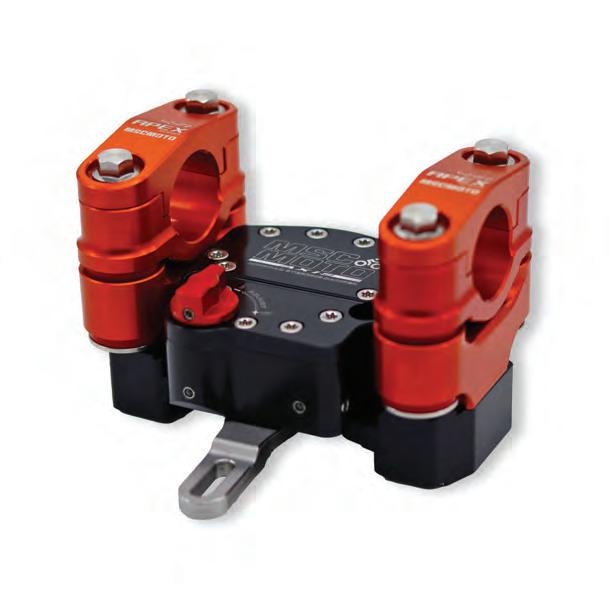

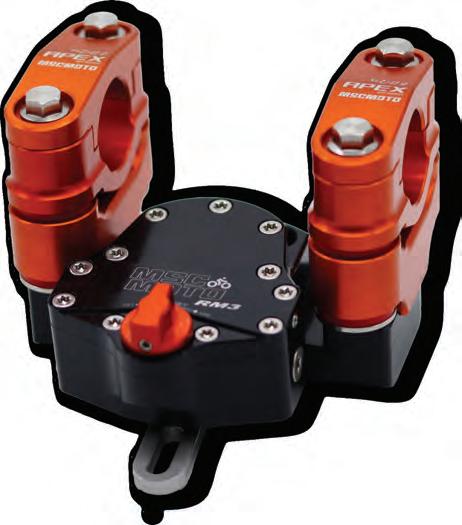

RM3 PRO KIT A D V E N TUR E SP E C IFI C S T E E R IN G D A M P E R

INCLUDED IN KIT: RM3 damper unit Spigot post Handle bar bracket Apex Bar Mounts Damper Bolt kit Polyurethane dampers Apex Bolt kit Instruction manuals for Bar Mounts & Dampers

19

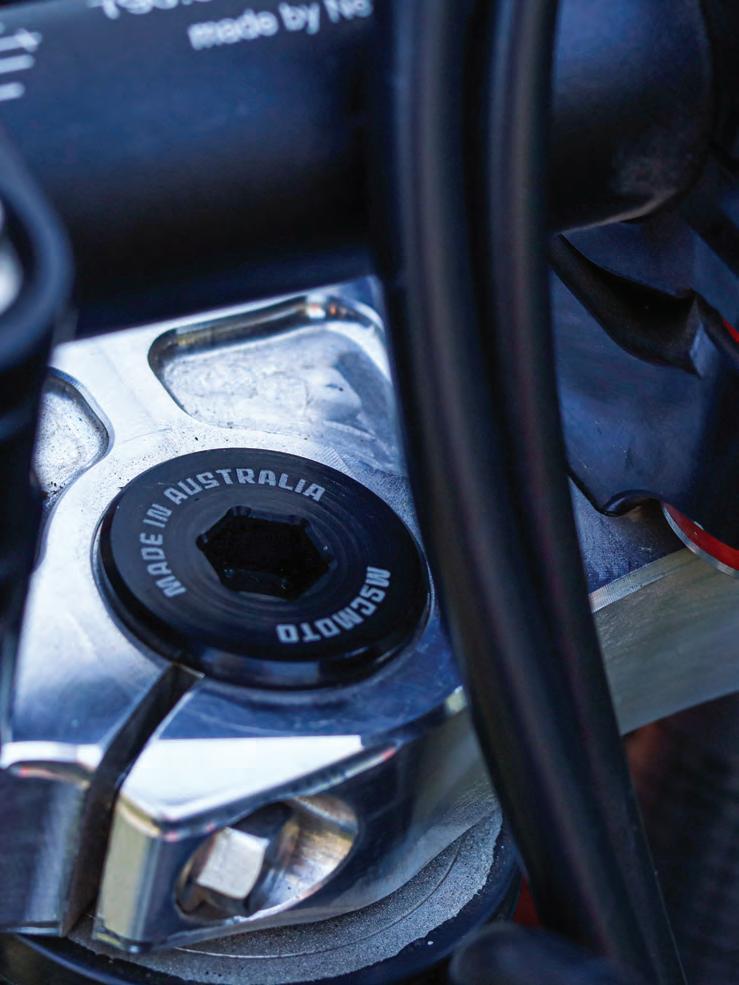

FEATURES AND BENEFITS MSC Moto’s Billet Aluminium Triple Clamps offer multiple offset options for optimum rider preference.

The ability to add additional stability or a more agile feel is achieved simply by switching between the two offset options provided. In addition, the aluminium construction offers a lighter triple clamp along with improved and precise fork response along with improved control and front-end feel.

Australian made with CNC machined billet aluminium

Optimised bar mount positions on top clamps

Split clamp provides precise and plush fork response

Compatible with MSC steering dampers

Superior strength and rigidity offers improved control

Multiple off-set options available

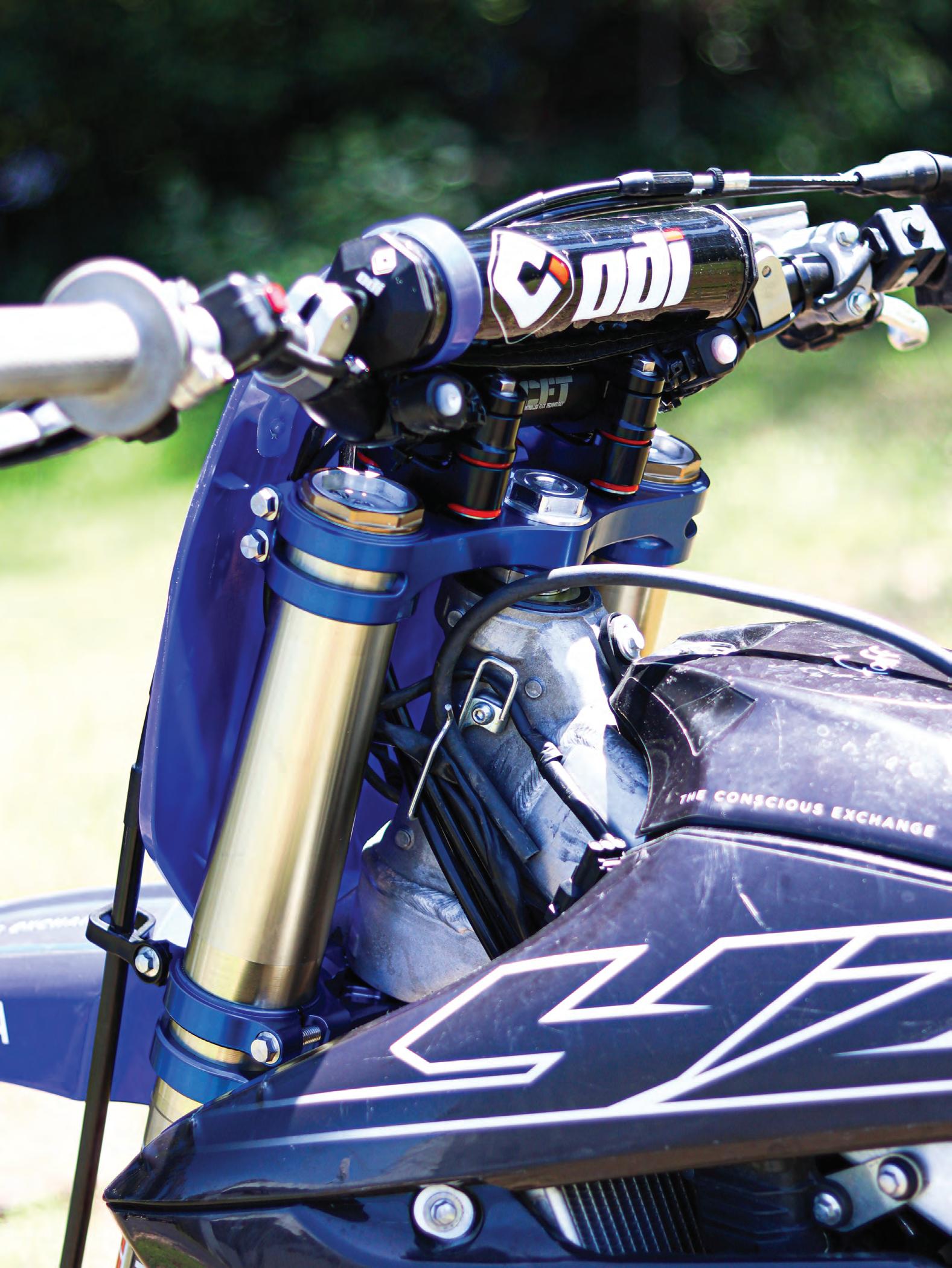

TRIPLE CLAMPS

20

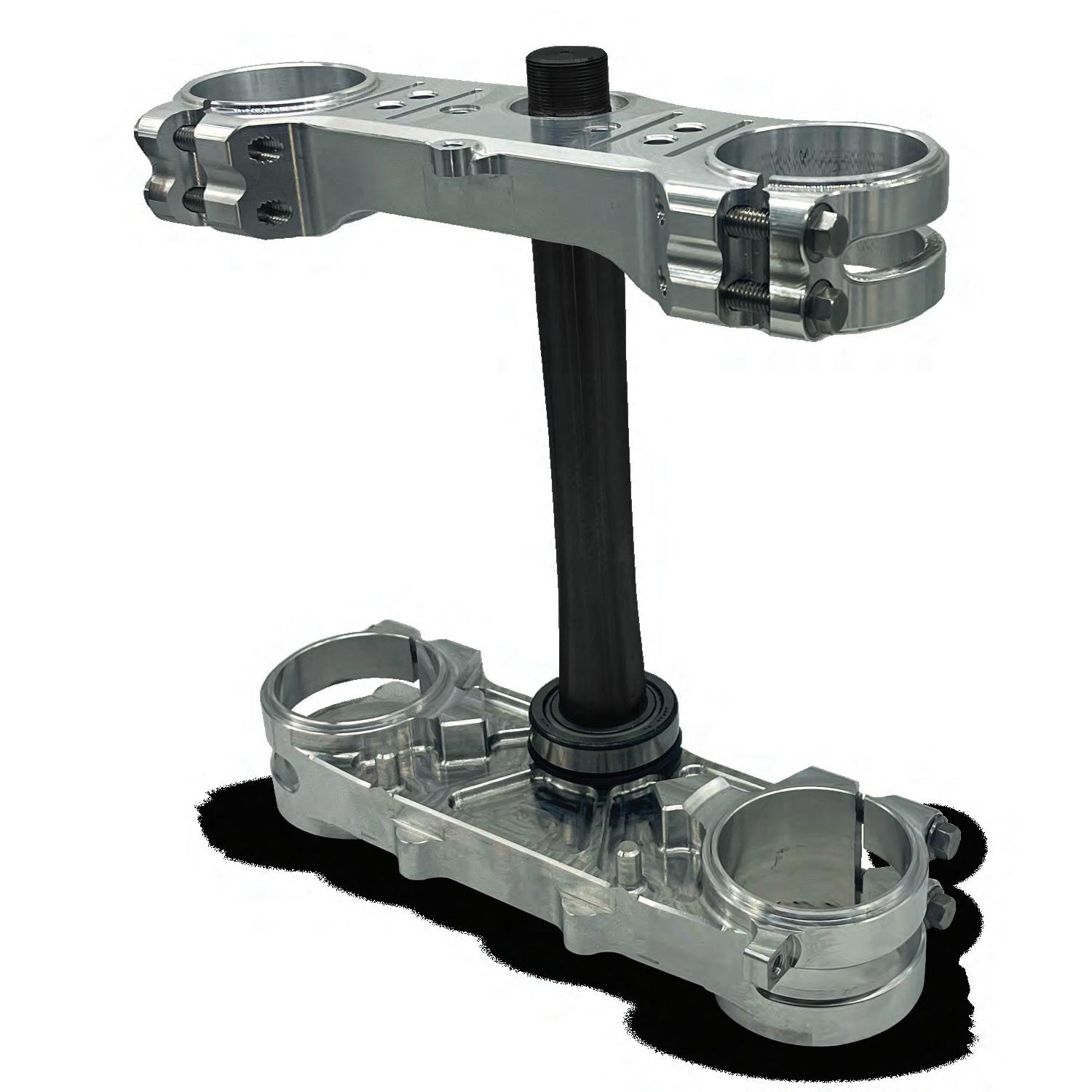

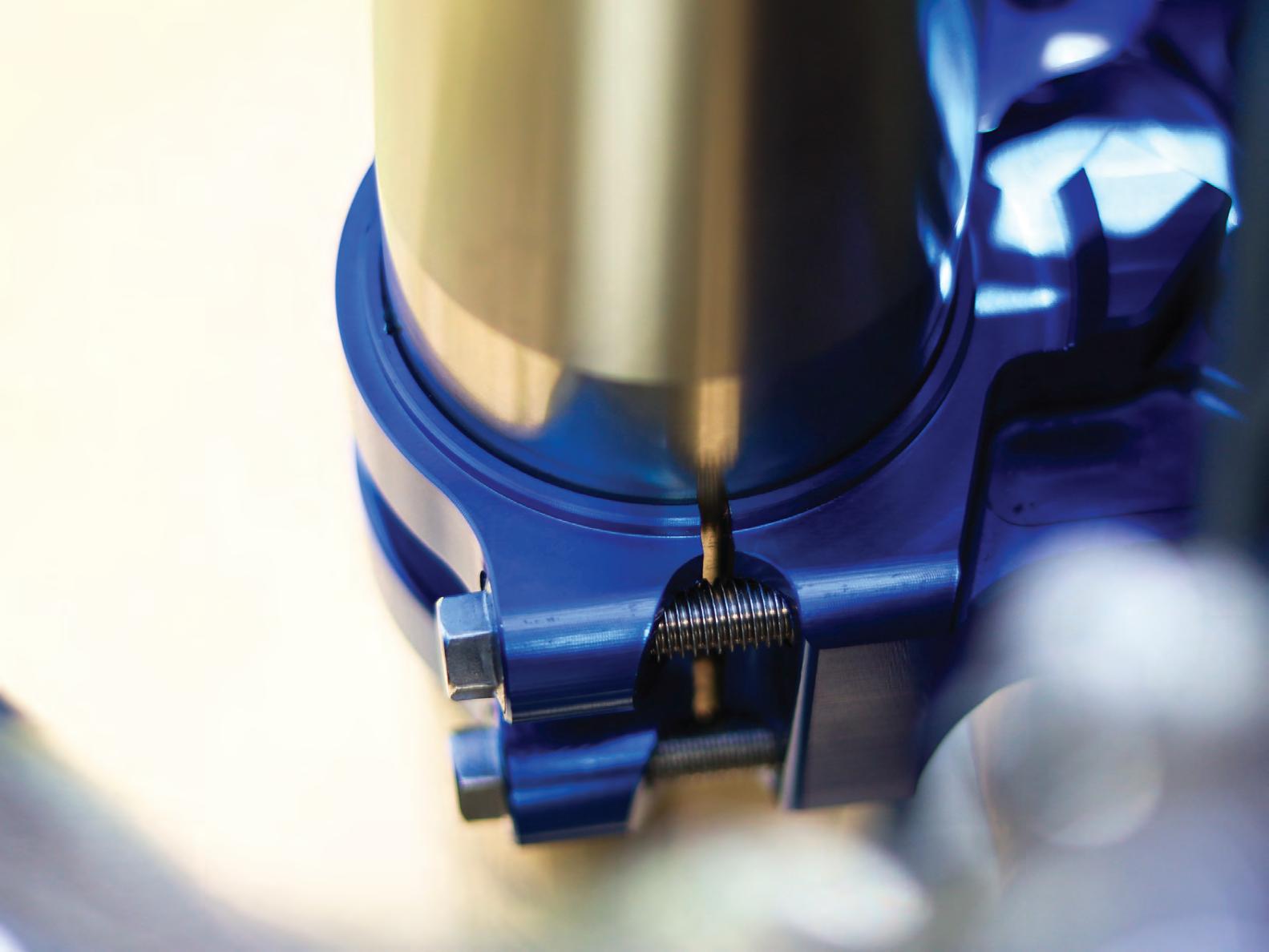

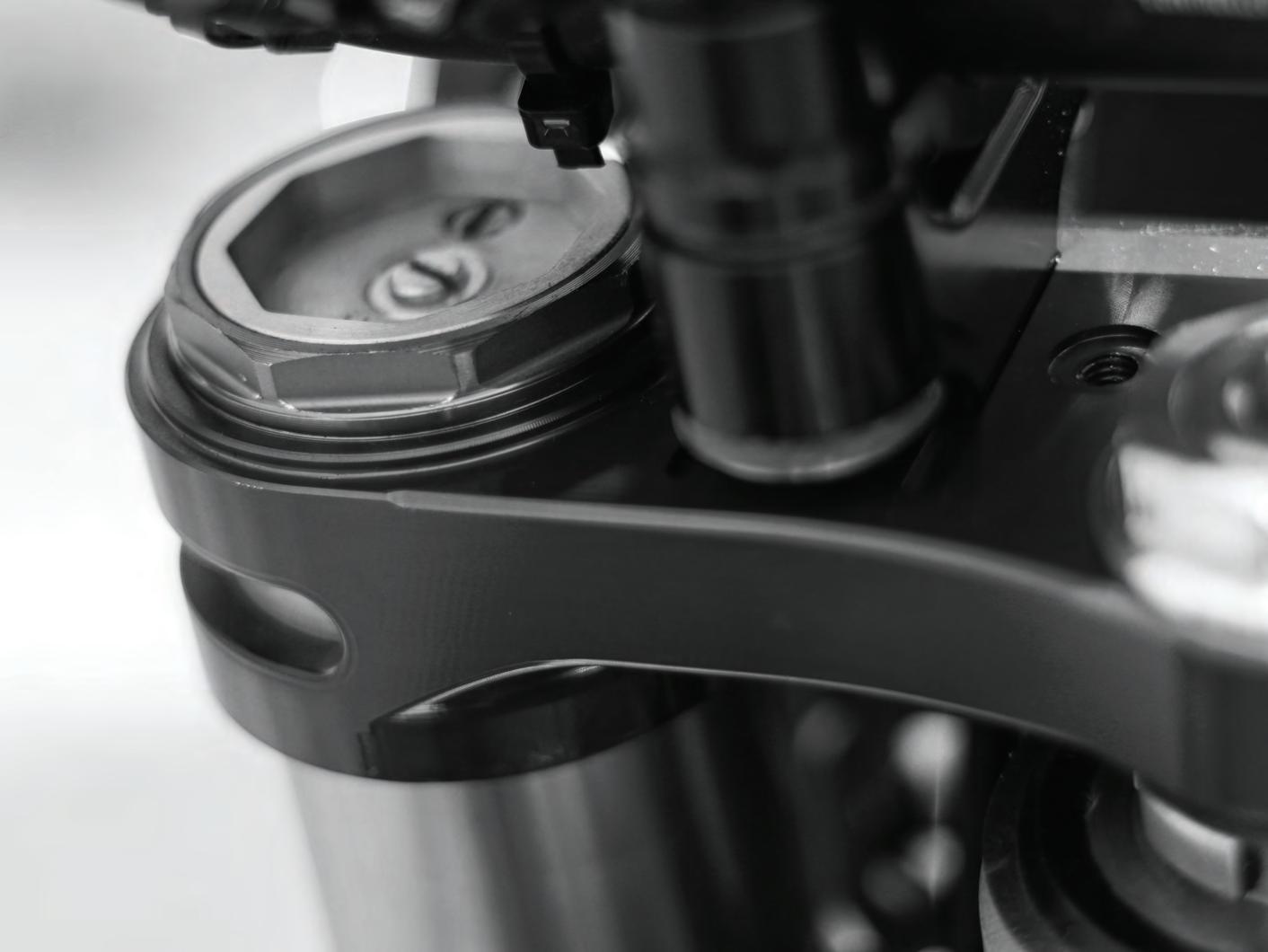

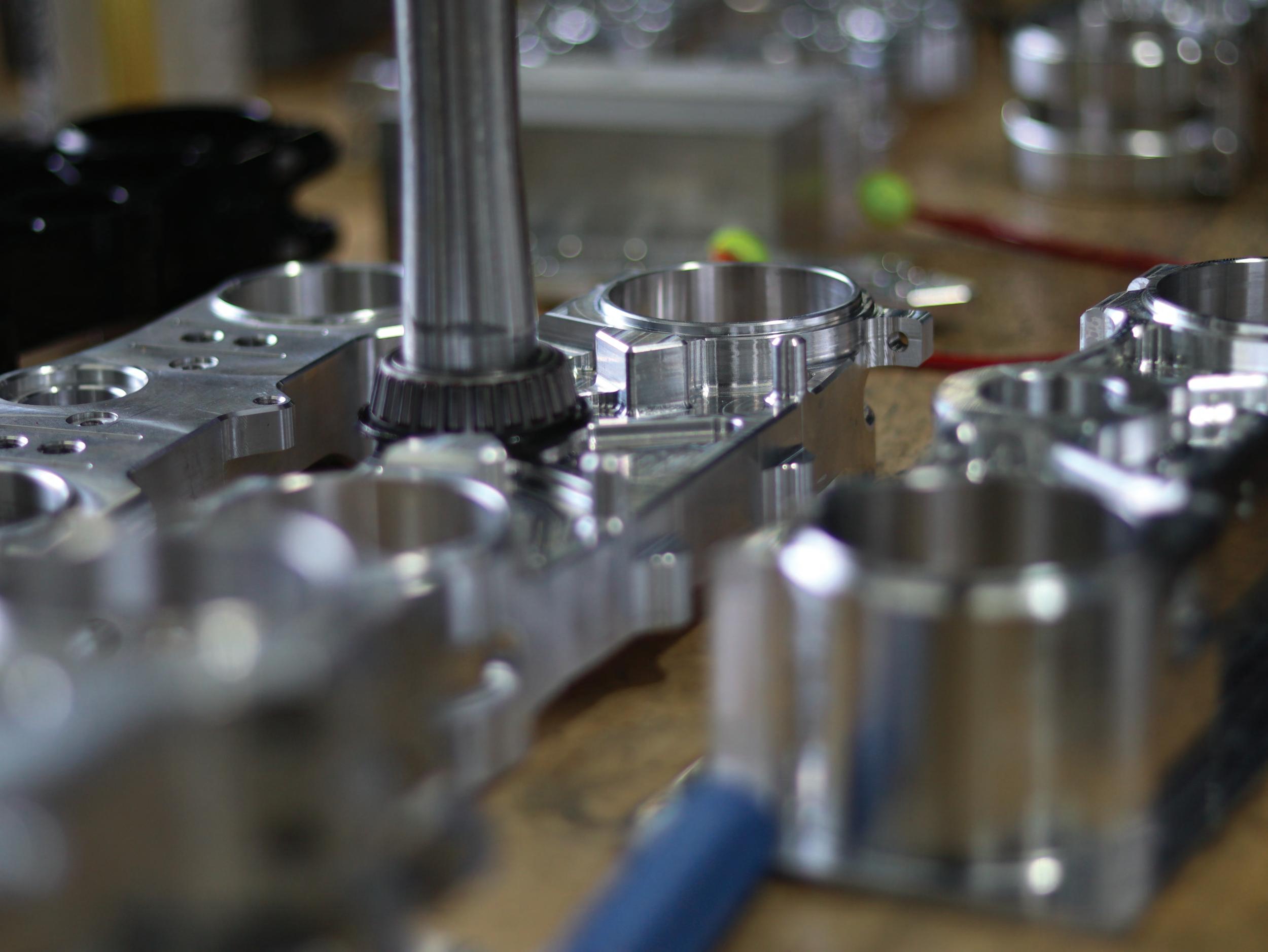

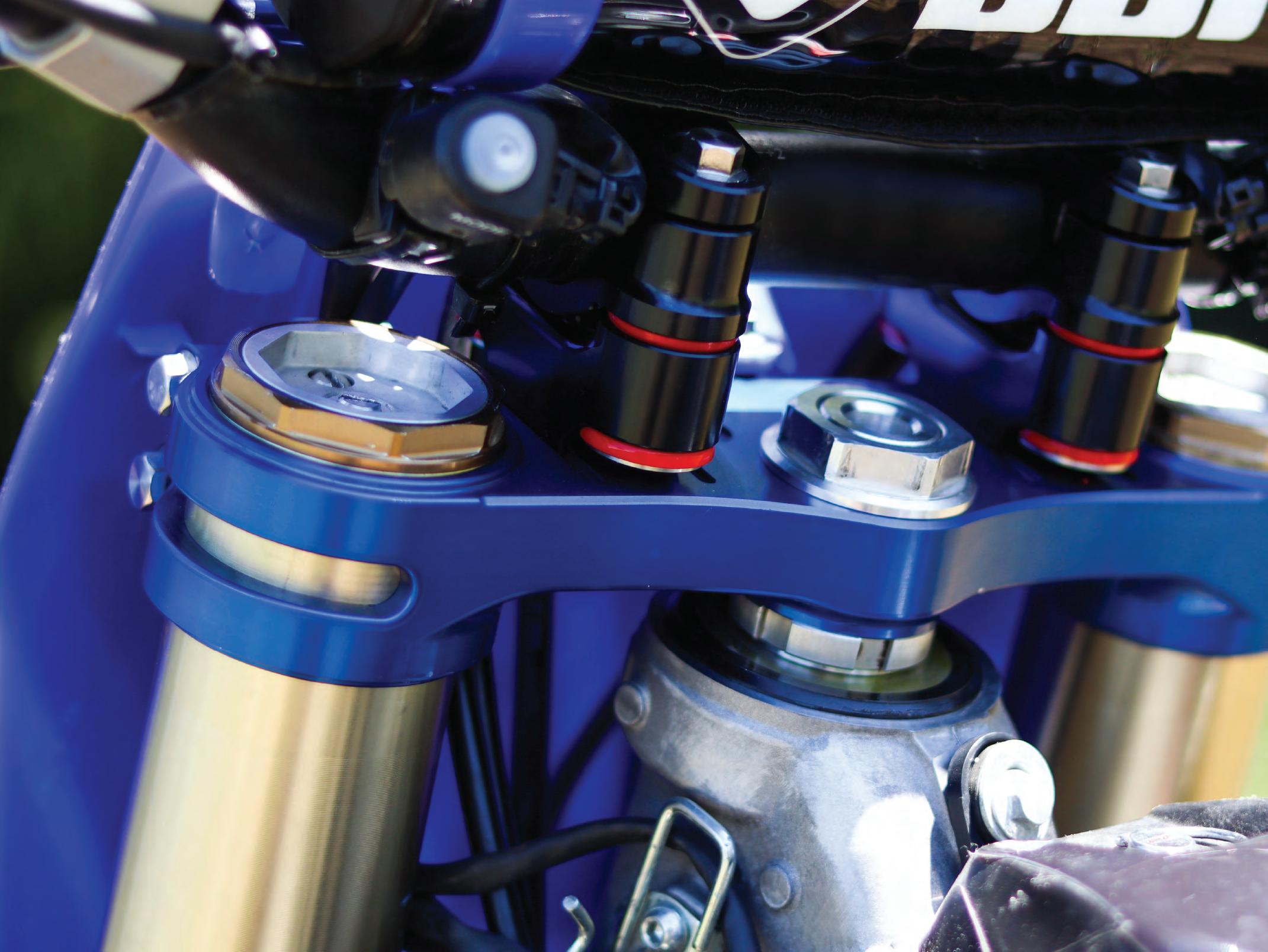

GEO TRIPLE CLAMPS AUSTRALIAN-MADE WITH CNC MACHINED BILLET ALUMINIUM

ABOUT:

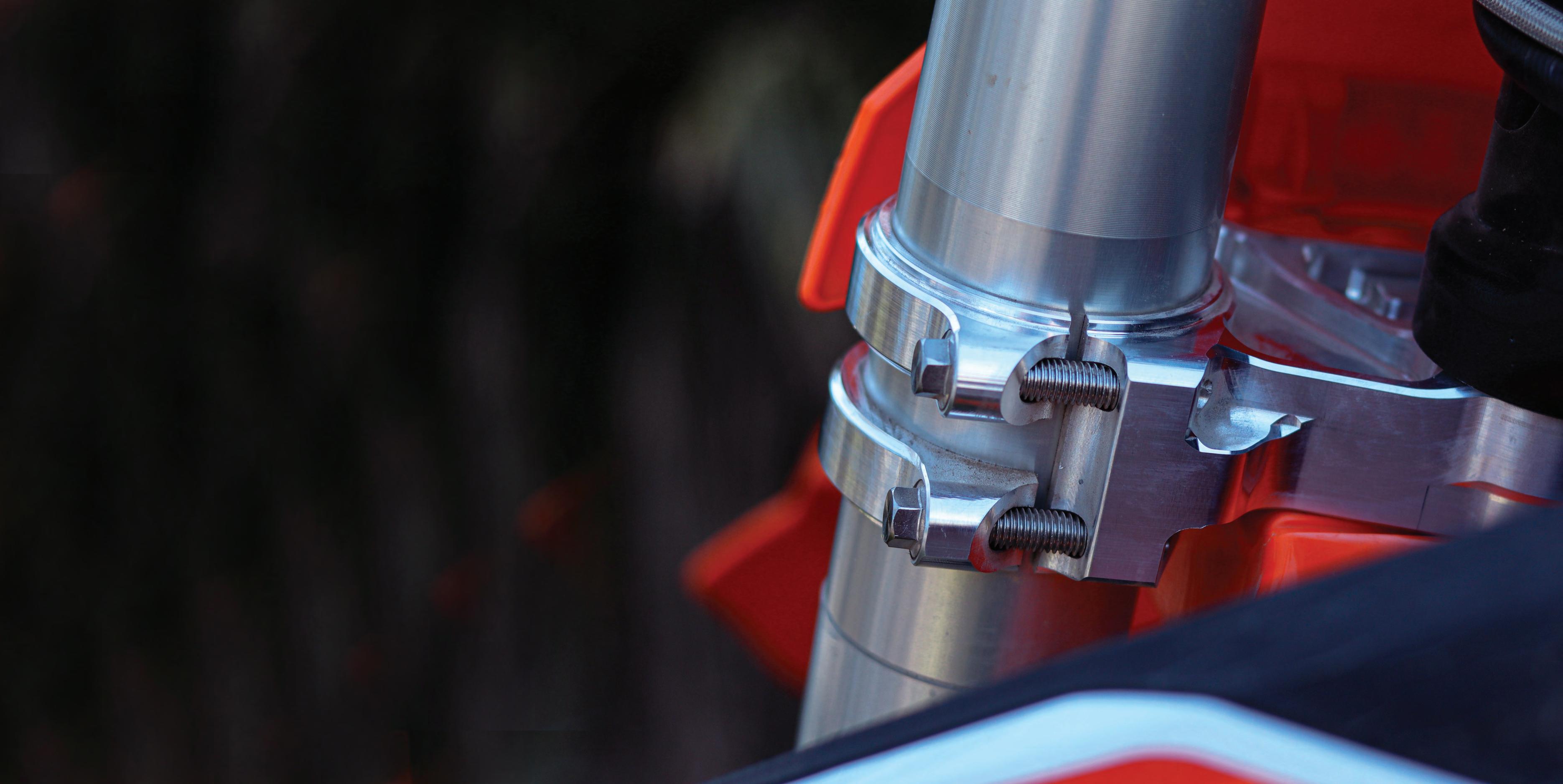

MSC’s split clamp allows for a lower torque setting, meaning there is no ovaling of the fork's outer tube. This in turn offers a plusher and more precise fork response while the CNC machined billet aluminium construction provides superior strength and increased control and front-end feel.

OFFSET OPTIONS:

Yamaha 21mm & 23mm KTM 22mm & 24mm

INCLUDED IN KIT:

COLOURS AVAILABLE:

Silver, Black, Orange & Blue

Excentric steerer stem Pre-pressed lower bearing Top and Bottom clamp Bar Mounts (Either rigid or APEX)

21

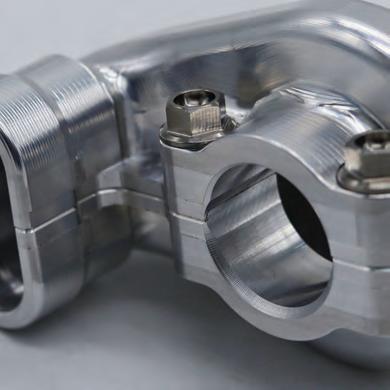

CNC MACHINED BILLET HARD PARTS Australian-made billet aluminium hard parts to level up your machine.

Due to the forging process, billet aluminium is much stronger than cast aluminium. It can withstand higher levels of stress and strain, which is crucial when it comes to manufacturing motorcycle parts.

MSC offers a range of billet aluminium hard parts that not only improve ride comfort, durability and control but also add a little factory touch to your machine.

Each part is designed, manufactured and expertly assembled entirely in our workshop with the intention to elevate your off-road riding experience!

HARD PARTS

22

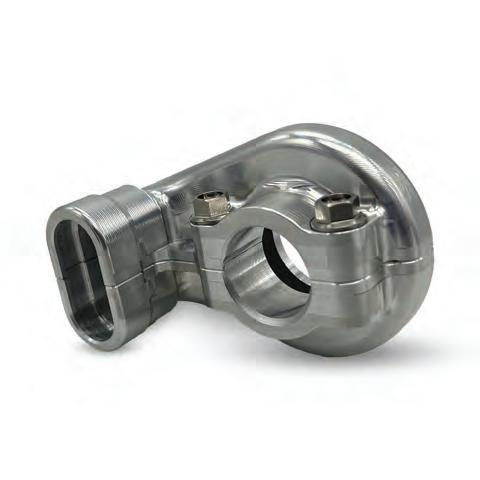

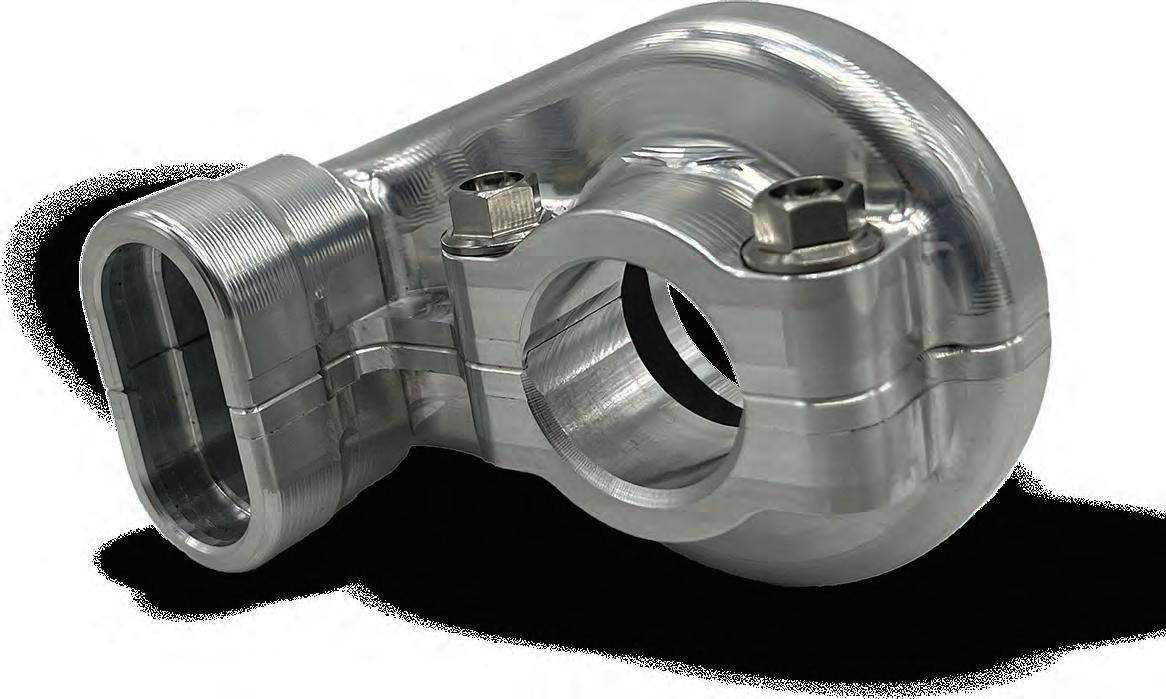

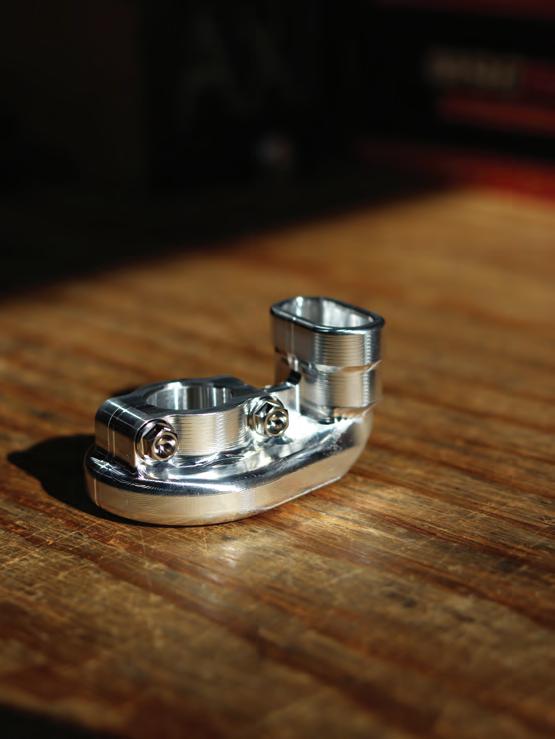

THROTTLE HOUSING KTM/GASGAS/HUSQVARNA BILLET THROTTLE HOUSING

ABOUT: Manufactured entirely in Australia, designed to withstand the brutal impacts of trees, rocks and other elements that Motocross and Enduro riding provide. Features additional bracing under the throttle cable to greatly increases strength. Anodised for corrosion resistance.

Fitment: ‘18-’25 KTM, GASGAS & Husqvarna MX & Off-road range INCLUDED IN KIT: CNC machined Billet Alluminium

Available in Silver, Black Blue, Orange

Precision machining ensures precise fit Ti bolts included

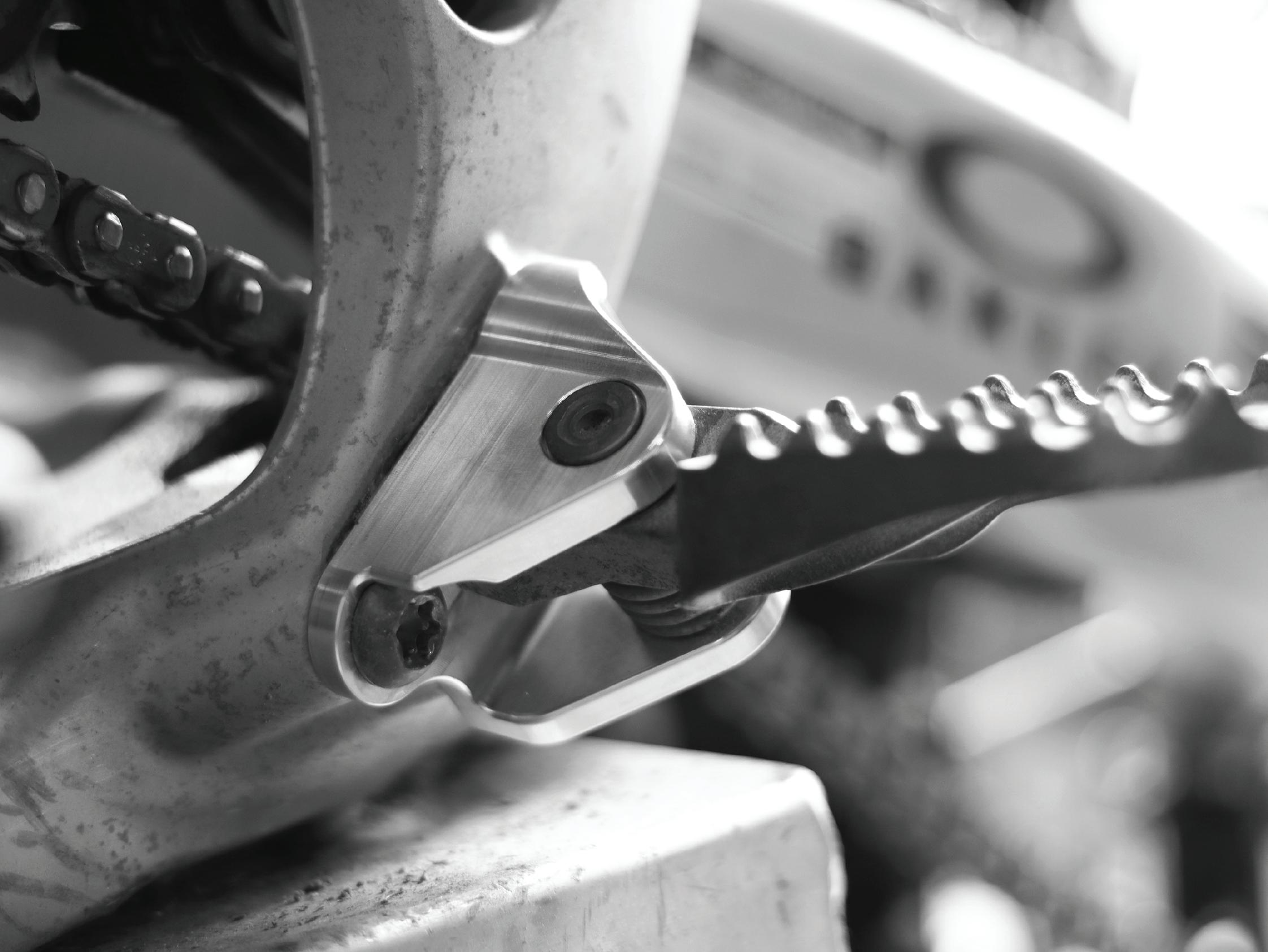

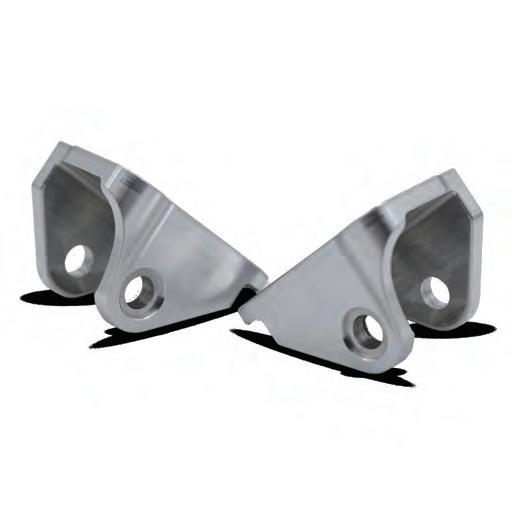

FOOTPEG LOWERING KIT YAMAHA YZ450F OFFSET FOOTPEG MOUNTS

ABOUT: Footpeg-lowering mount that drops the footpegs down 7mm and positions them 5mm rearward to provide optimum body positioning to suit the Yamaha YZ450F ergonomics.

Designed in Australia, CNC machined billet aluminium.

Fitment: 2023-2024 YZ450F & 2024 YZ250F

FEATURES: CNC machined Billet Alluminium Lighter / stronger than OEM Foot Peg mounts 7mm down, 5mm rearward

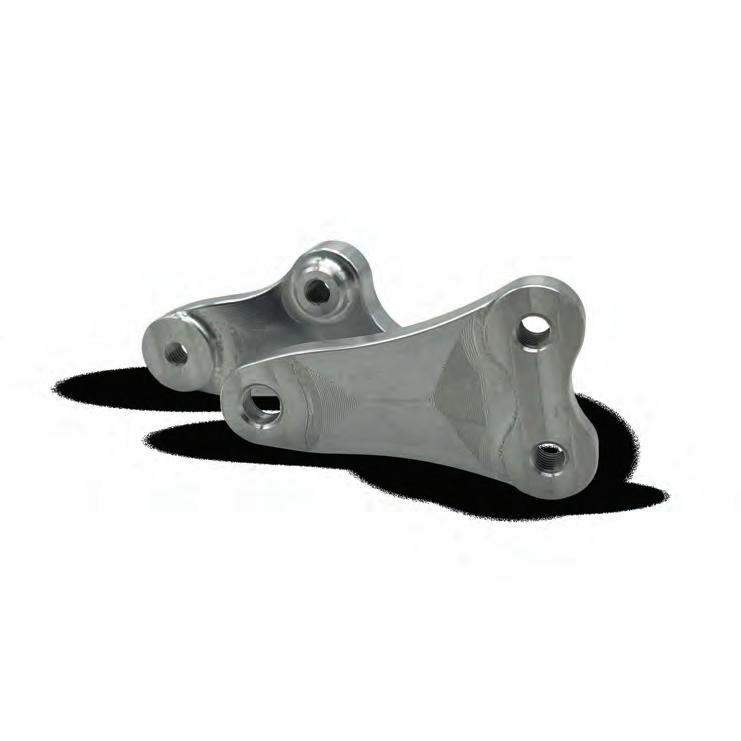

ENGINE MOUNTS YAMAHA YZ450F BILLET ALUMINIUM ENGINE MOUNTS

ABOUT: CNC Billet Alluminium Lighter / stronger than OEM mounts Increased flex in chassis Improved traction and plushness Available in Blue and Silver anodised colourways.

INCLUDED IN KIT: Includes mounting hardware to fit to the bike 4 pieces of M5x12mm screws

23

STEERING DAMPER SERVICE KITS MSC products have a complete service kit available to purchase to suit your damper. The service can be carried out at home by the customer or taken to your nearest MSC stockist. The service kit includes all parts required to change during a service (excluding fork oil), along with detailed instructions on how to carry out your service. we recommend a high-quality 5W fork oil.

AXIS / RM3 SERVICE IT

VECTOR SERVICE KIT

TITAN SERVICE KIT

SKA02

SKV04

SKT01

Alternatively, MSC offers servicing on our dampers. Simply package your damper and send to our workshop.

Please ensure to include; Name, contact details, return address and summary of damper condition.

Please allow 2-3 week turn around, upon completion MSC will return the damper via express post to the supplied address. If service is urgent please contact our customer service team to make arrangements prior.

SERVICE KITS AND SPARES

24

MOUNTING KITS PARTS / ACCESSORIES Mounting kits for your current MSC damper are available to suit different motorcycle manufacturers as part of our range of spare parts. Please contact MSC for any mounting kit enquiries as they are not available online or in-store for direct purchase due to the lare range of variables.

APEX FITMENT KIT

AXIS BAR PAD

KNOB KITS

Fitment kit to adapt replace OEM rubber cones on certain models of off-road bikes.

Available for Axis top mount damper kits only.

Colour knob kits available for all steering dampers.

Orange / Blue / Gold / Black

LINKAGE ARM

SPRING / PINS

AXIS KTM SPEEDOMETER SPACER KIT Spacer to suit KTM / GASGAS / HQV.

Long / Short / VMX Refer to fitment guide for linkage arm fitment or contact MSC.

Spigot pin and thread Threaded Spigot Pin

APEX POLYURETHANE DAMPERS

MSC T SHIRT - BUILT DIFFERENT

MSC T SHIRT - STAMP

Apex rubber set (x8) - Standard Apex rubber set (x8) - Soft

SML, MED, LGE, XXL, XXXL

SML, MED, LGE, XXL, XXXL

25

FREQUENTLY ASKED QUESTIONS

HOW LONG WILL MY ORDER TAKE TO ARRIVE? We usually allow up to 7 business days for your order to arrive. Everything we sell is made in-house so while we usually have all components in-stock, this allows time for one of our technicians to assemble your order. Once dispatched you will be notified and receive tracking.

WHAT IS ACTIVE RETURN TO CENTRE TECHNOLOGY (ARTC) AND HOW DOES IT WORK? Unique to MSC Moto, Active Return To Centre Technology is a fully dynamic internal adjuster that controls the return to the centre circuit by actively reducing the damping as much as a rider needs to get back to the centre at the speed they turn the handlebars. This means the faster the rider tries to get the bike back to a straight line the more the RTC will be released.

Having this system means that when the rider wants to keep a st raight line at high speed they get the benefit of a damper that has full damping on RTC while in tight trees the feeling is more like having a fully controlled zero RTC system.

HOW HIGH WILL THE DOWNUNDER STEERING DAMPER RAISE MY HANDLEBARS? On a KTM it will raise the bars 25mm while on some other models like a Yamaha, it may go up 30mm because of how far the steering stem protrudes through the triple clamp. MSC produces a Top-Mount Steering Damper with a bar pad included which is the ideal solution if you don't want to raise the height of your handlebars.

HOW OFTEN DO I NEED TO SERVICE MY STEERING DAMPER? Servicing is dependent on many elements such as how much you ri de, the terrain you commonly ride, etc. We recommend servicing the damper at the same frequency you wou ld get your suspension serviced, which is usually once a year. In some cases customers go on to use MSC dampers for up to 5 years without any servicing, however, this isn’t something we recommend as the oil will not perform the way it should after this amount of time.

FAQ

26

2227

+61 2 4374 1655 info@mscmoto.com

www.mscmoto.com Mangrove Mountain, NSW Australia
