MSC Moto 2023

AUSTRALIAN MADE COMPONENTS STEERING DAMPERS // BAR MOUNTS & MORE...

www.mscmoto.com

2023 2023 CATALOGUE CATALOGUE

AUSTRALIAN MADE COMPONENTS, MAKING LIGHT WORK OF ROUGH TRACKS FOR OVER 25 YEARS. For over 25 years MSC have engineered a host of Australian made components that have been tested, developed and proven by Australia’s leading off-road riders on Australia’s harshest tracks and trails.

From our first Steering Damper in 1995 through to the latest generation Axis Steering Damper and Dampeneded Handlebar Mounts, our unwaivering committment to constantly improving performance, comfort and safety has never let up.

AUSTRALIAN DESIGNED AND MADE

QUALITY CONTROL

From the drawing table to the final product, everything is designed and manufactured out of our factory in Australia technicians.

Each product is hand-assembled and checked by one of our experienced fitters before leaving the assembly line to ensure years of untroubled use.

MATERIAL

TESTING

CNC machined Billet alluminium to ensure customers are receiving the highest quality product for their motorycle.

Years of testing and development is undergone for each product with Australia’s leading off-road riders before hitting the shelves.

CONTACT DETAILS +61 2 4374 1655

www.mscmoto.com

info@mscmoto.com

Mangrove Mountain, NSW Australia

CONTENTS

MACHINING PROCESS WARRANTY / CONTACT INFO STEERING DAMPERS HANDLEBAR MOUNTS SERVICE KITS / SPARE PARTS FAQ

4-5 6-7 8-11 12-15 16-17 18

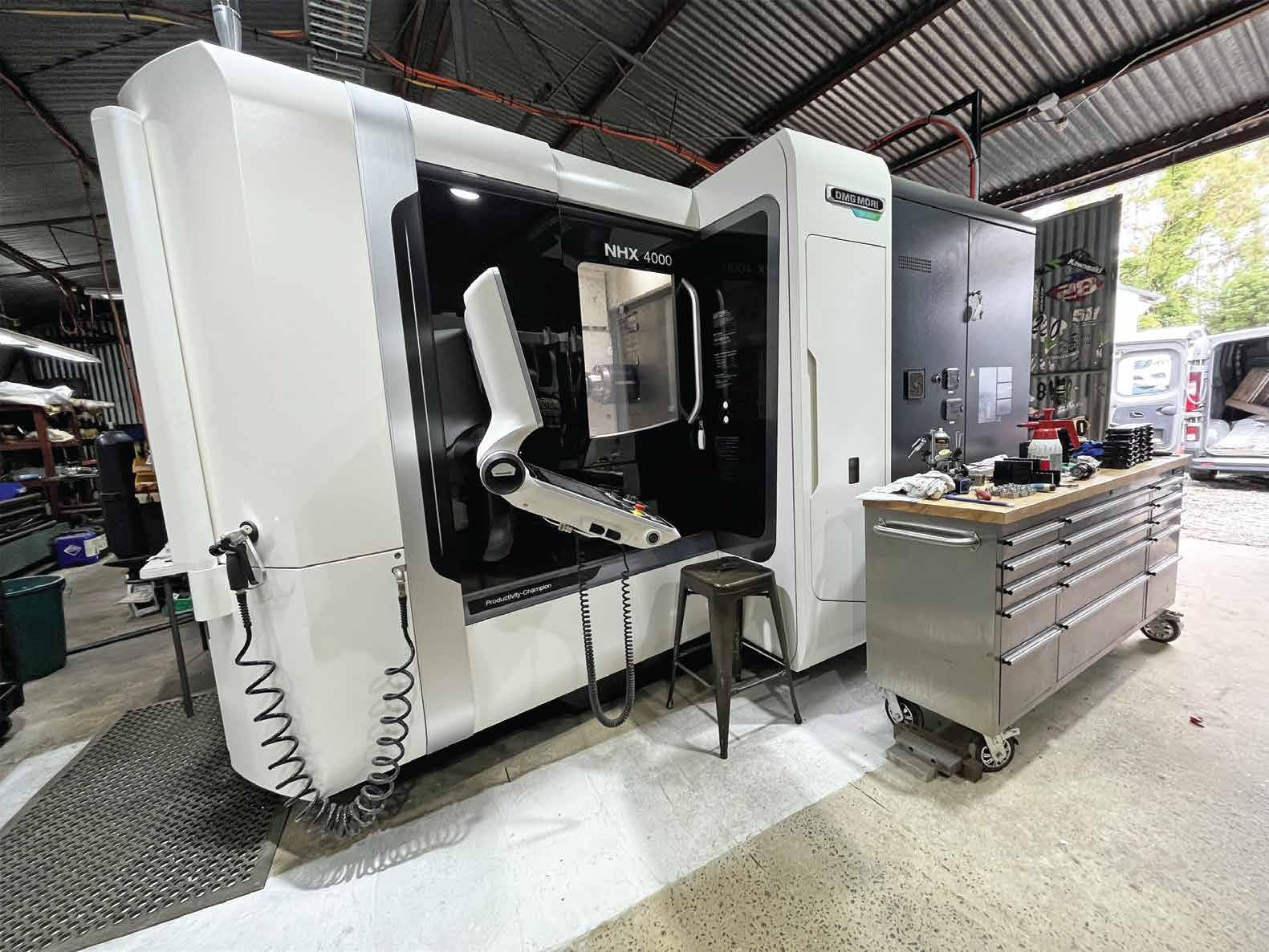

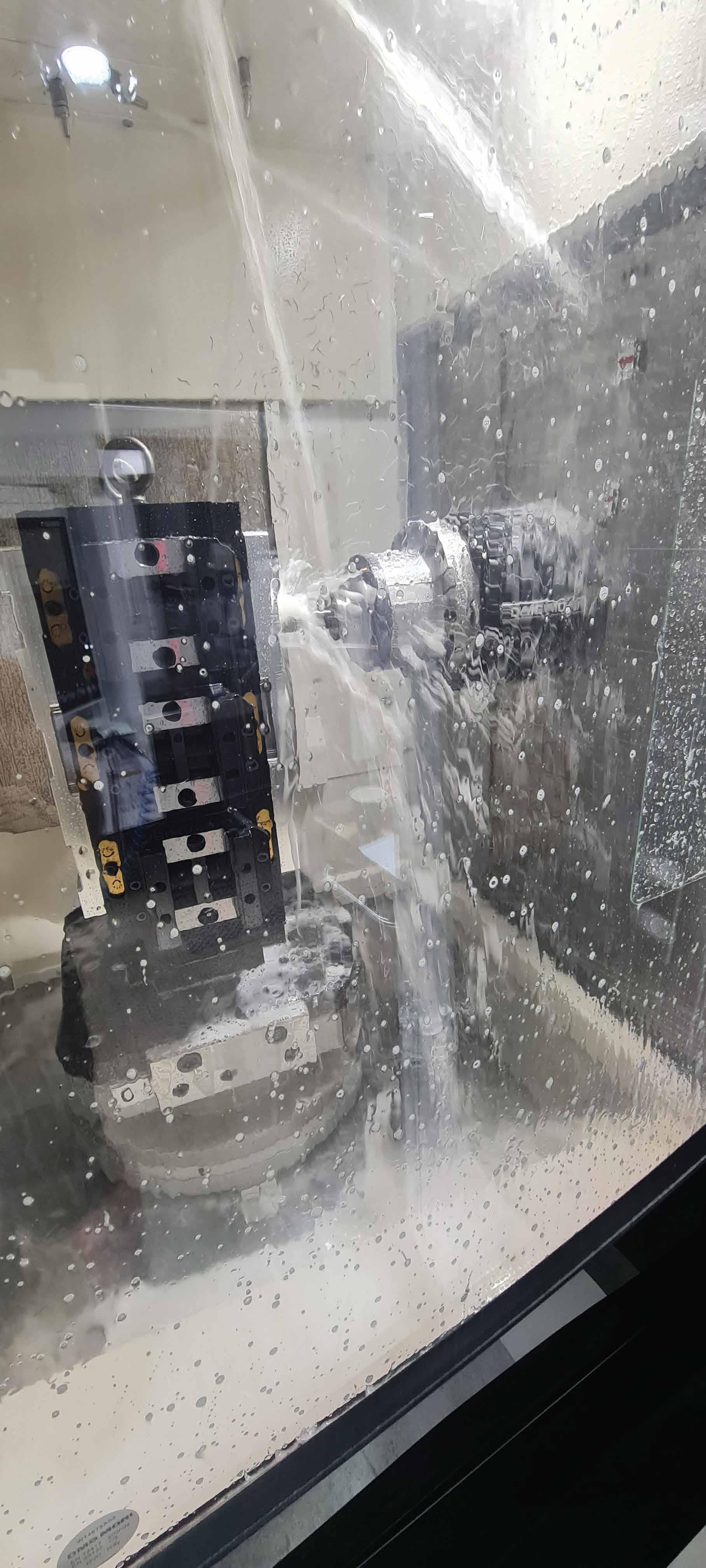

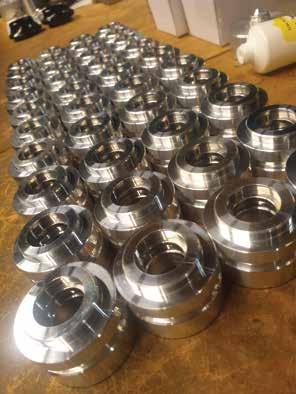

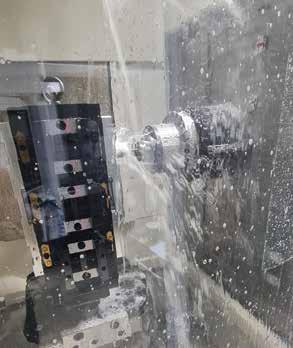

IN-HOUSE MACHINING. HIGH SPEED, HIGH PRECISION. For 2022 and beyond, MSC have acquired the lastest in state-of-the-art machining technology thanks to our Horizontal Machining Center, the DMG MORI NHX 4000.

In addition to retaining our incredibly precise machining process, our all new machine maximises MSC’s production efforts. We now have the ability to manufacture product up to 3x the speed of our previous machines.

This enables us to supply high-quality, Australian made product faster and more efficiently than ever before.

04

05

WARRANTY & CONTACT “We believe it's in our best interest to keep our customers completely satisfied with all of our products” WARRANTY PROCESS MSC Warrants all its products back to base for 12 months based on manufacturing fault.

We pride ourselves on creating products built to withstand to the harsh conditions that come with motorcycle riding so our customers can use them trouble-free for years to come.

However, in the unlikley event that our products fail outside of your control, MSC Warrants all our products back to base for 12 months based on manufacturing fault.

CONTACT DETAILS Please get in contact with our customer service team regarding any question about our product range or warranty issues. +61 2 4374 1655 info@mscmoto.com

www.mscmoto.com Mangrove Mountain, NSW Australia

06

07

MX / OFFROAD & ADVENTURE

ABOUT OUR STEERING DAMPERS Every part of our steering dampers are CNC machine here in Australia at the MSC factory and hand assembled to ensure you’re getting the best possible product for your bike. Each damper is checked by an experienced fitter before it leaves the assembly line and made ready to ship for years of untroubled use.

So, what benefit does a Steering Damper actually have?

Every motorcycles has suspension to help you control the up and down movements of your front wheel.

Well, a steering damper does a similar thing, it helps you control the side to side motion of the front wheel by dampening sharp or sudden hits that may want to turn your front wheel and send you in an unintended direction. So over the years we commonly explain to people that a damper provides "sideways suspension". This enables a smoother, safer ride and reduces over fatigue.

STEERING DAMPERS

08

FEATURES AND BENEFITS Our Australian made Steering Dampers offer left to right stabilisation of your bike, MSC offers steering dampers (also known as steering stabiliser) for off-road, adventure bikes, and road bikes in above bar mount and under bar mounted options depending on the make and model of your bike.

Australian made with CNC machined billet aluminium

Multiple variations of damper to suit models

Reduces headshake and overall ride fatigue

Wide range of adjustment (20 clicks)

Reduces wheel deflection from debris and elements

Active Return To Centre Technology

Hardened steel, long-lasting linkages

Fully serviceable by mechanics or MSC 09

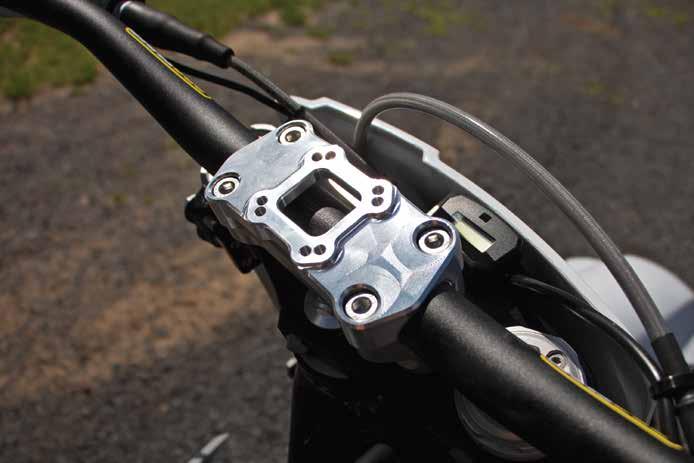

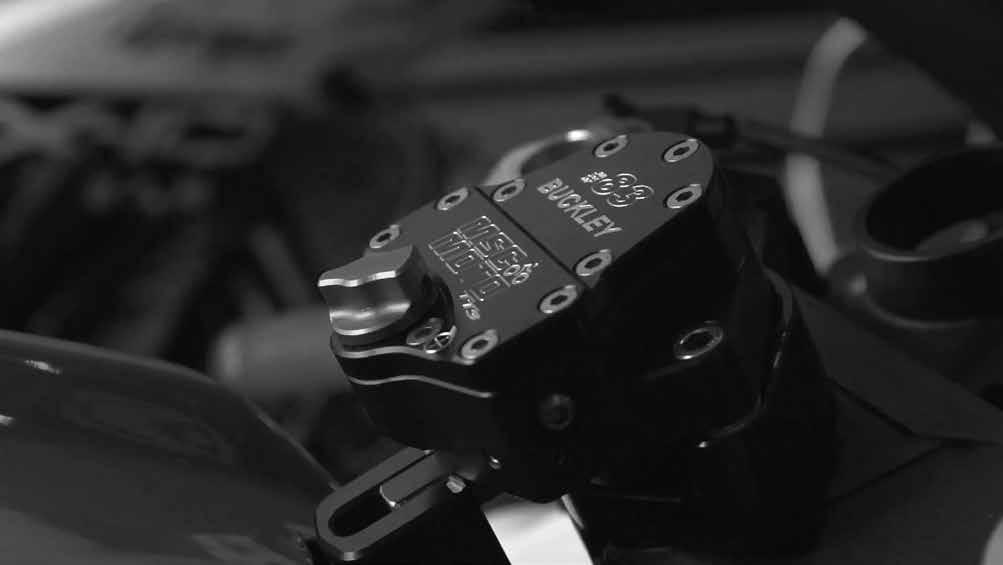

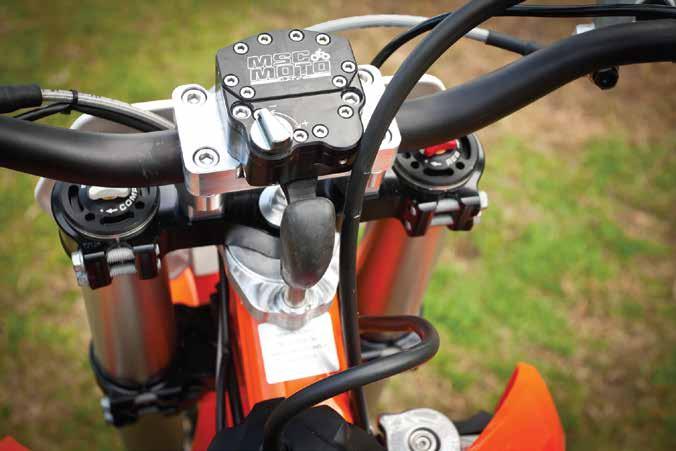

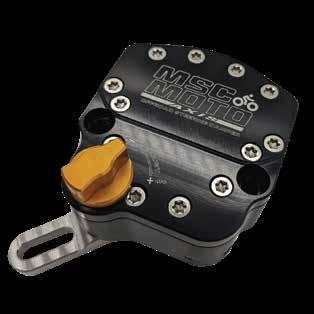

AXIS

MX / OFF-ROAD STEERING DAMPER AVAILABLE IN TOP AND DOWN UNDER MOUNT

ABOUT: Ideal for riders tackling high-speed races such as Finke and Hattah, the AXIS steering damper is the latest in steering damper technology with its small compact design featuring 20 clicks of adjustment and Active Return to Centre (RTC) as well as all the standard MSC MOTO quality features like hardened steel long-lasting linkages and anodized billet construction.

INCLUDED IN KIT: Axis damper unit Handle bar bracket

Spigot post Bolt kit

Instruction manual Bar pad kit (Included with top mount only)

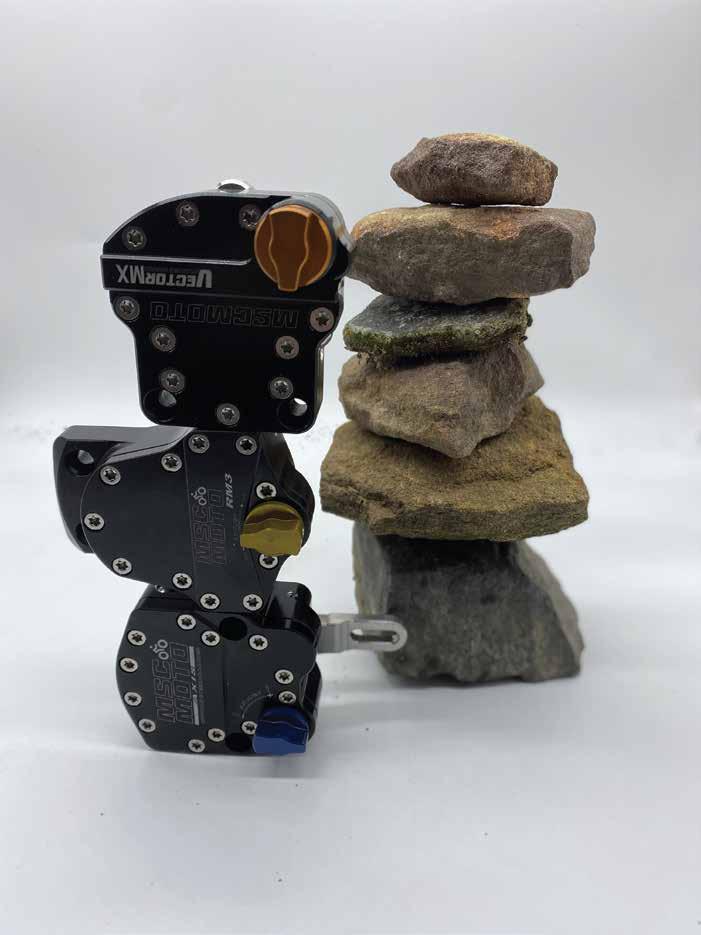

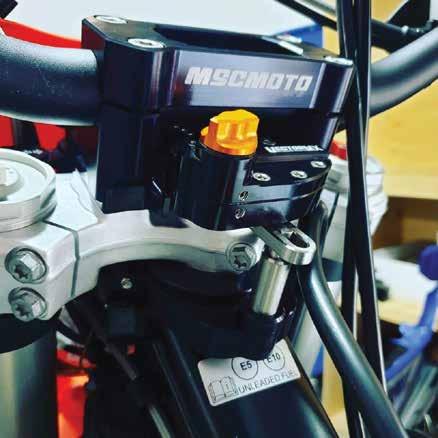

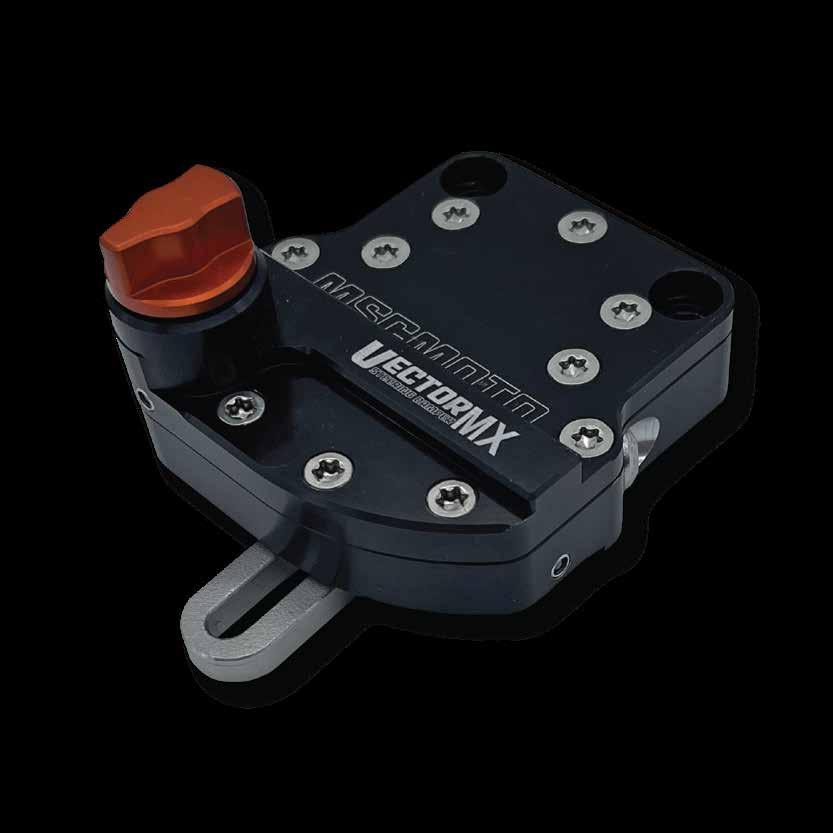

VECTOR MX

MX / OFF-ROAD LOW-PROFILE DOWN UNDER MOUNT STEERING DAMPER

ABOUT: VectorMX has all the benefits of the Axis steering damper for riders who want an under mount steering damper but don't like the raised bar height a conventional steering damper offers. In most cases, the handlebars are raised less than 5mm and at the highest, you will only get a 10mm raised bar height which you can overcome with some lower bend handlebars if needed. The top bar clamp is a strong 1 piece billet design adding more strength to the bar mounts and reduce twisting in a crash. Installation can be completed with a standard tool kit.

INCLUDED IN KIT:

All fasteners stainless steel

Lower bar clamps Billet top bar clamp

VectorMX Steering Damper Full bolt on mounting kit

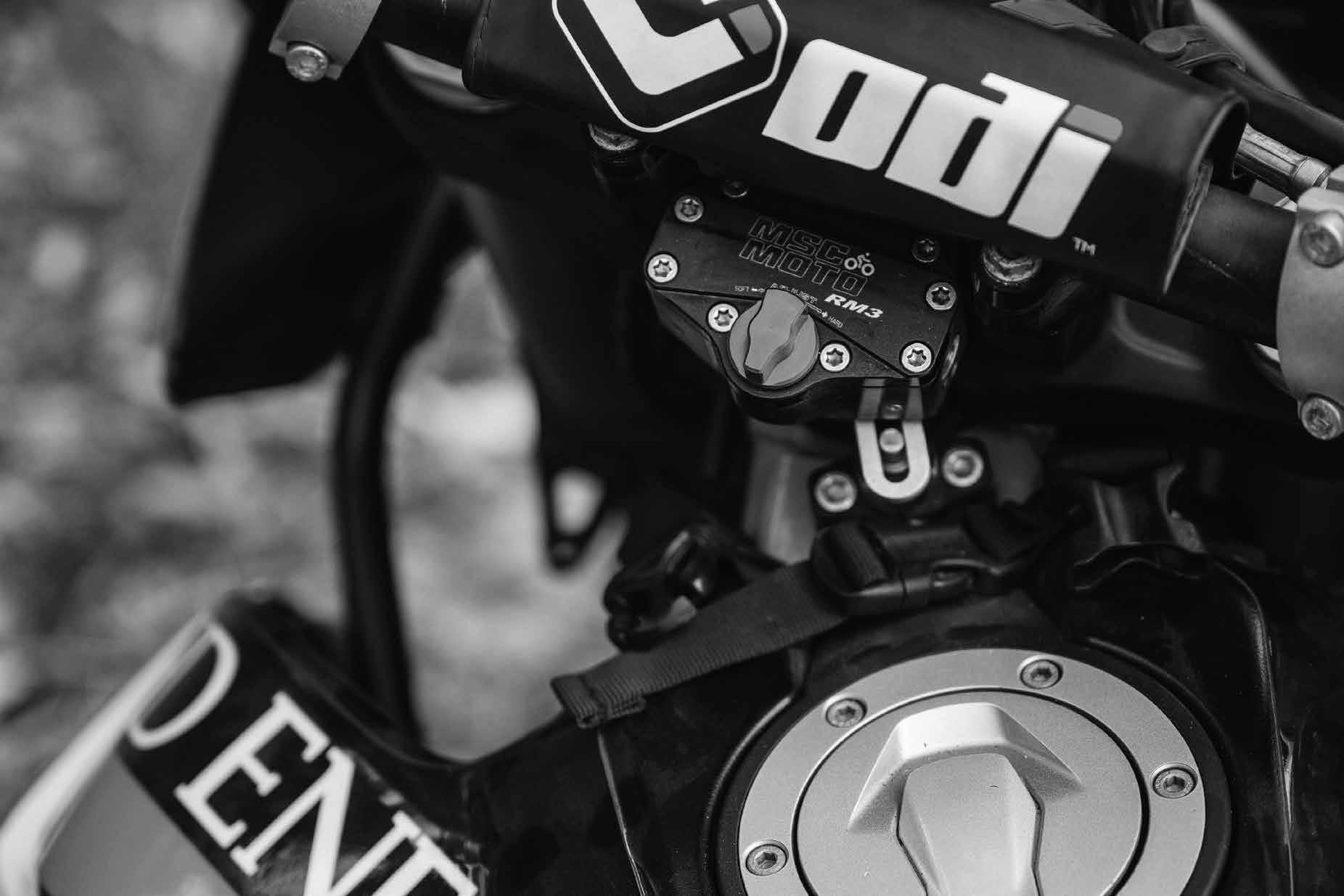

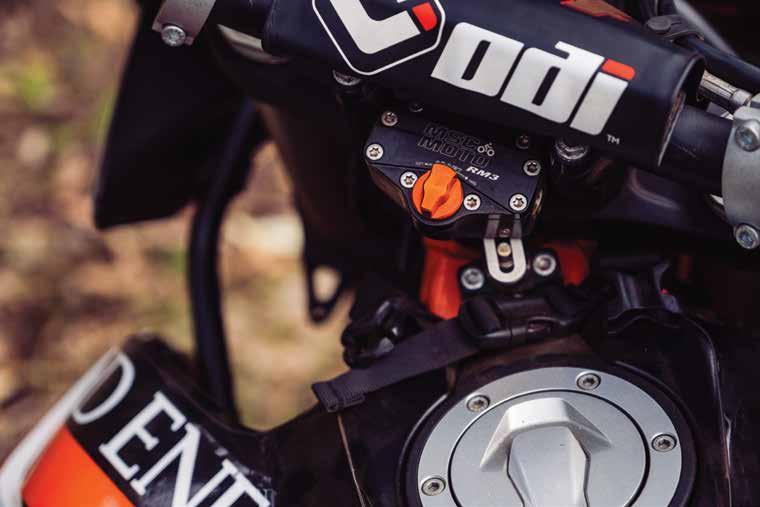

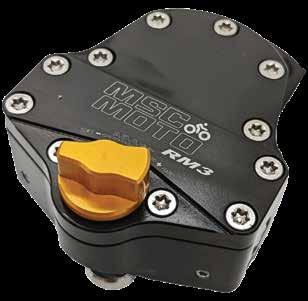

RM3

ADVENTURE SPECIFIC STEERING DAMPER

ABOUT: All RM3 steering damper kits are bolt-on and do not require you to make permanent changes to your standard bike. To allow for this the RM3 offers you a unit that’s physical dimensions, its height, width and depth, are slimline enough that it fits under most handlebars with the bars raised a nominal amount.

INCLUDED IN KIT: RM3 Steering damper unit Damper mount bracket STEERING DAMPERS

Pin post Bolt kit

Instruction manual 10

#1 BRAND OF CHOICE FOR FINKE DESERT RACE...

11

W CT NE DU O PR

MX / OFFROAD & ADVENTURE

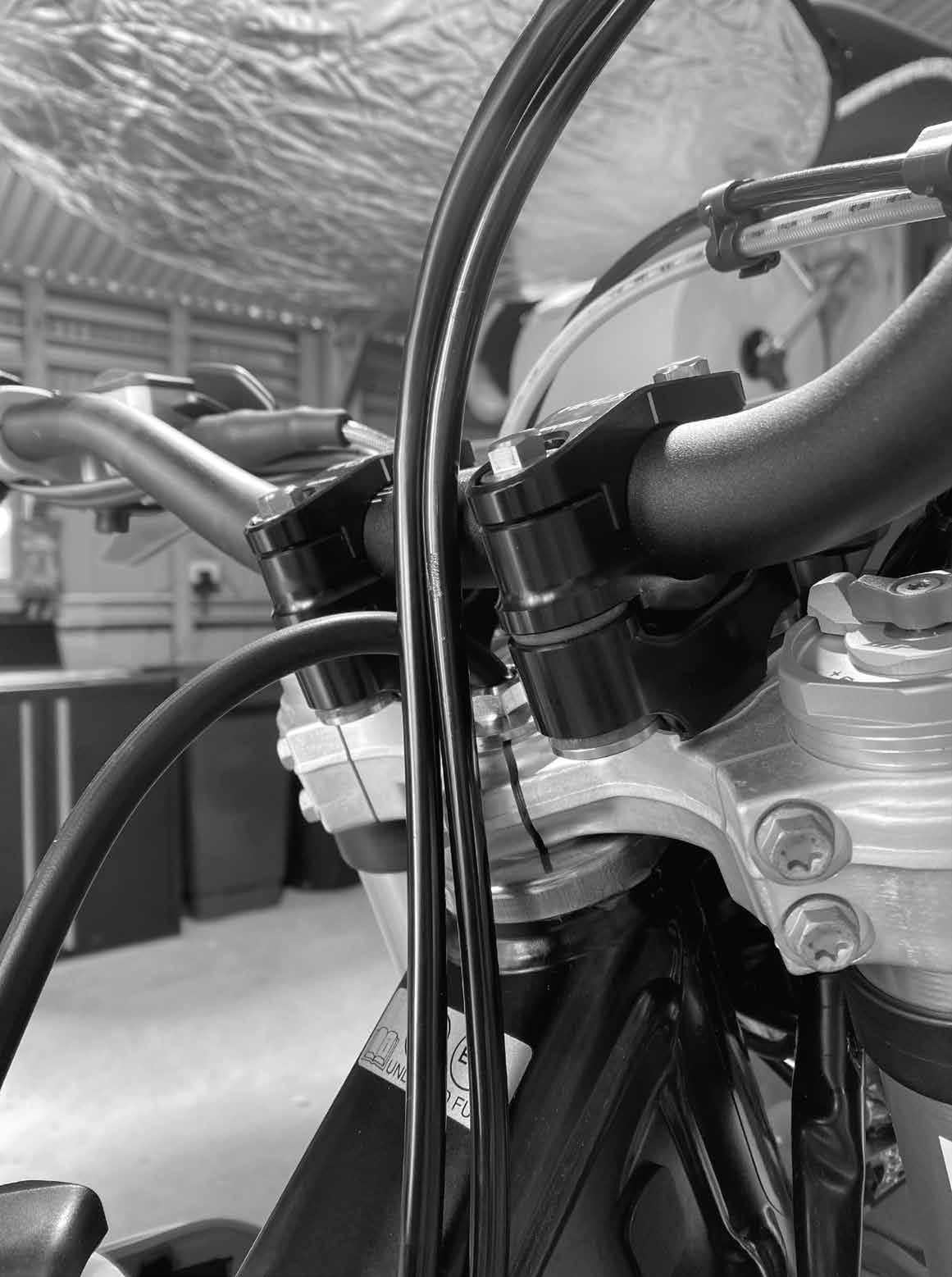

ANTI-VIBRATION HANDLEBAR MOUNTS Maintaining our commitment to constantly improving our customers performance, safety and overall riding experience, MSC Moto is proud to expand our product range with the development of our new Apex Dampened Handlebar Mount!

Thanks to years of rigorous testing and development in the harsh conditions that come with off-road riding and racing, MSC’s all-new Apex Dampened Handlebar Mount not only reduces vibration and aids in eliminating arm pump, but also eliminates twisting in the event of an accident.

HANDLEBAR MOUNTS

12

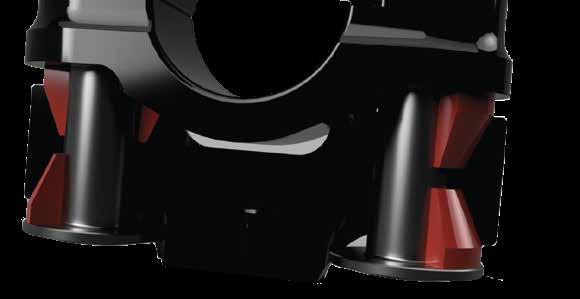

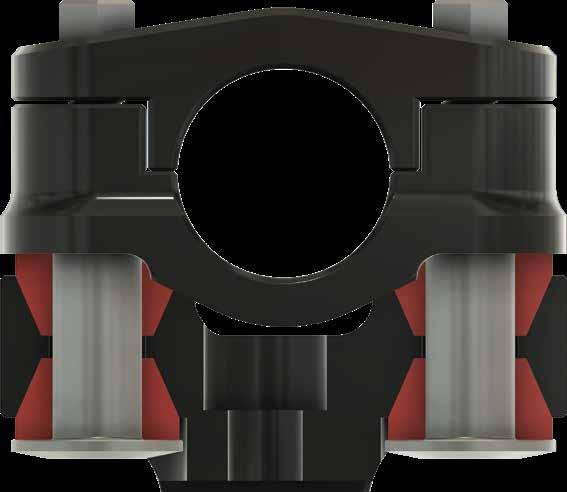

FEATURES AND BENEFITS Featuring the use of 8 vacuum cast polyurethane resign dampers positioned concentrically with the 4 handlebar clamp bolts, the APEX Bar Mounts vastly reduce the amount of vibration received through the engine and chassis while also eliminating twisting in the event of an accident.

Australian made with CNC machined billet aluminium

Lightweight without sacrificing strength due to compact construction (503g Per Set)

Polyurethane resign dampers prevent twisting and vastly reduce vibration & arm pump

Mount Height - 40mm to centerline of handlebar

Softer option polyurethane dampers available separately for riders wanting more damping

Hardware - All stainless steel fasteners

13

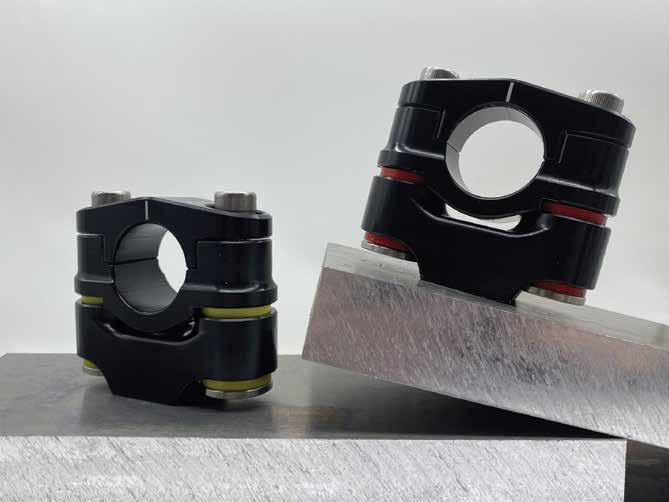

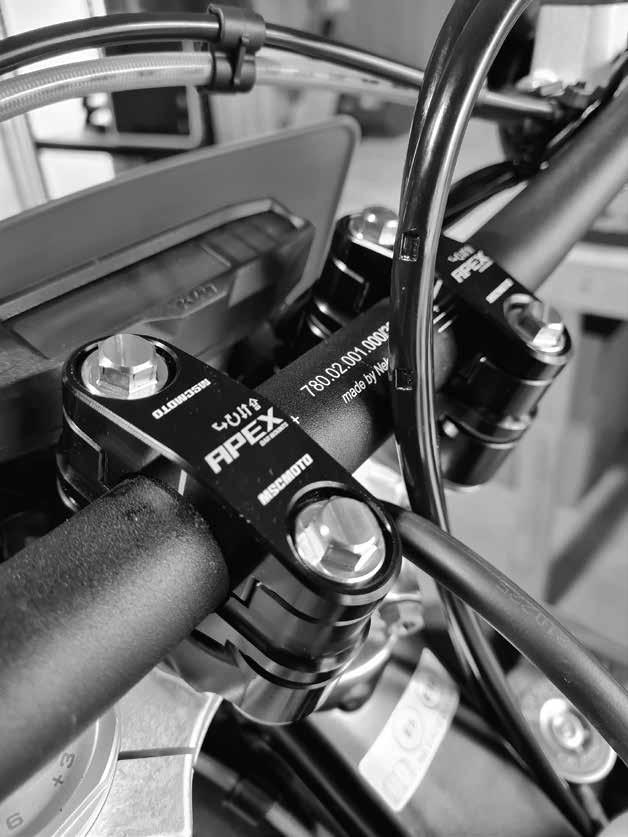

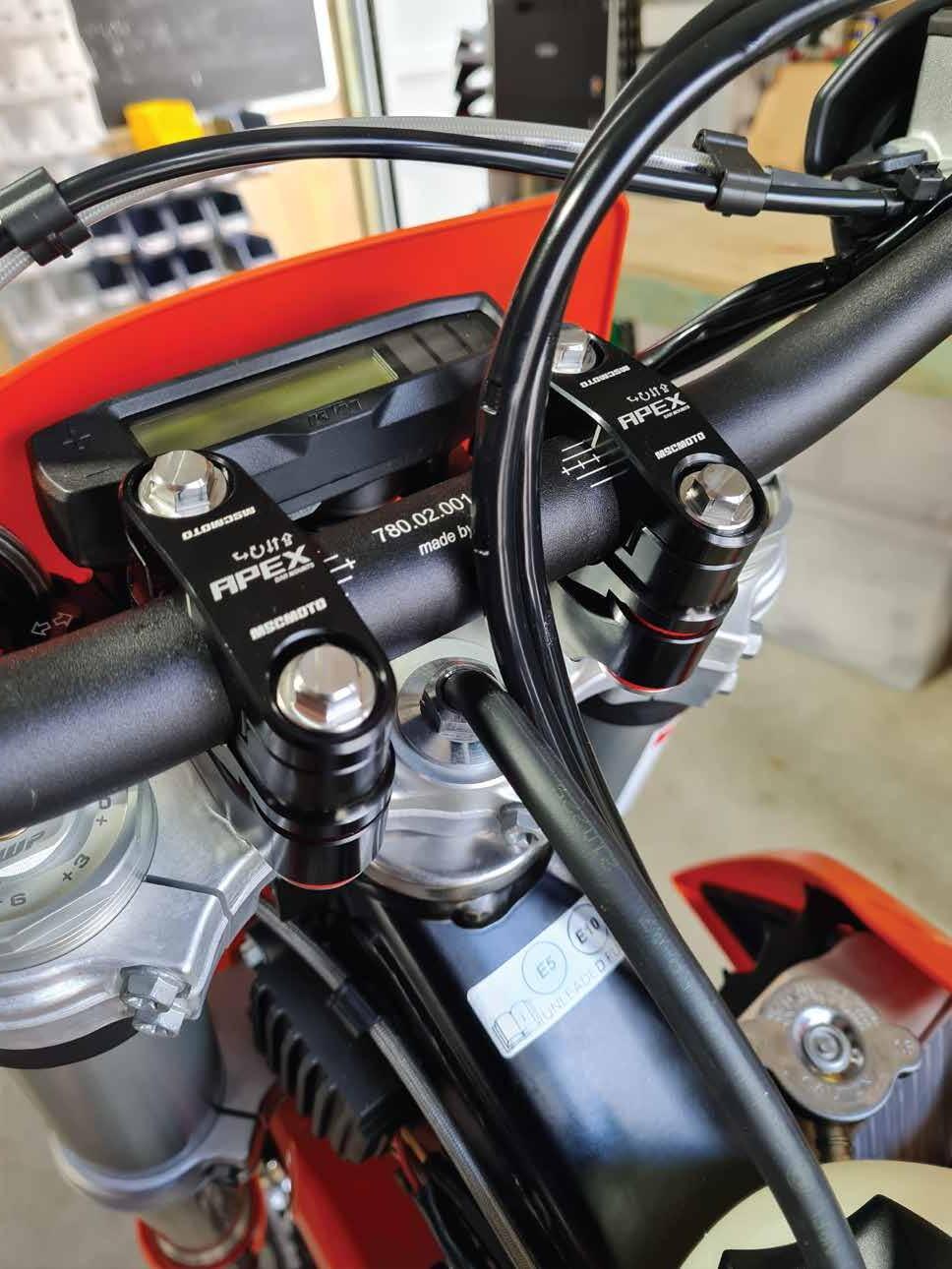

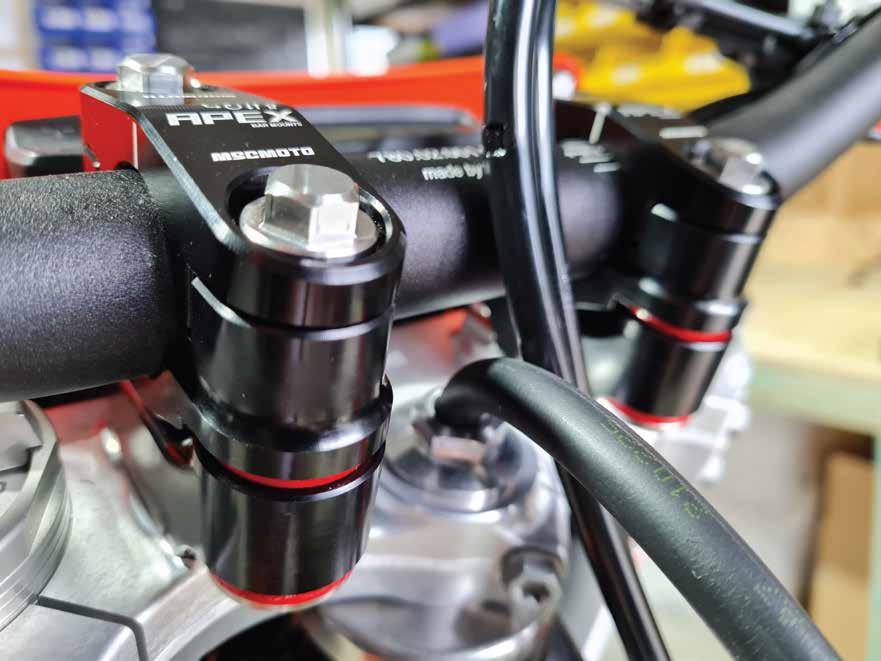

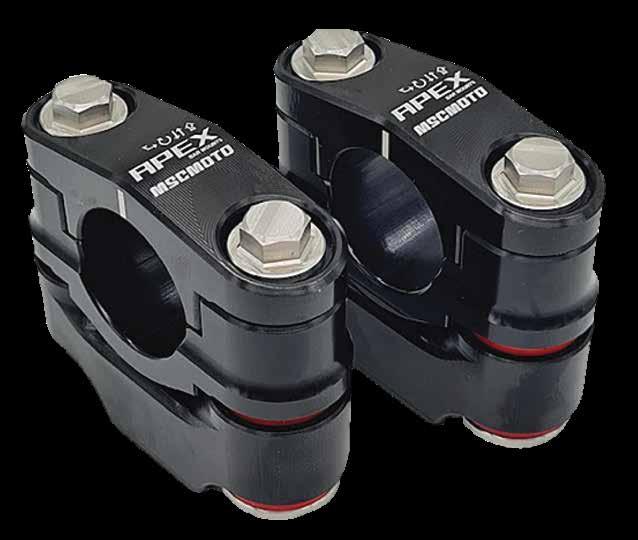

APEX

MX / OFF-ROAD DAMPENED HANDLEBAR MOUNT

ABOUT: Featuring the use of 8 vacuum cast polyurethane resign dampers positioned concentrically with the 4 handlebar clamp bolts, the APEX Bar Mounts vastly reduce the amount of vibration received through the engine and chassis while also eliminating twisting in the event of an accident. Spare parts and softer option polyurethane dampers available separately.

INCLUDED IN KIT: AXIS Handlebar Mounts Polyurethane dampers

Instruction manual Bolt kit

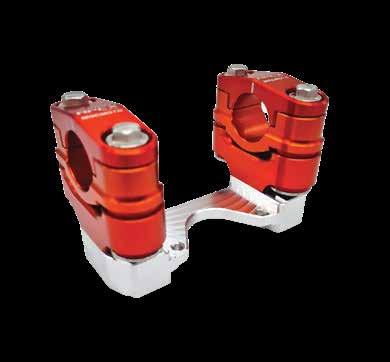

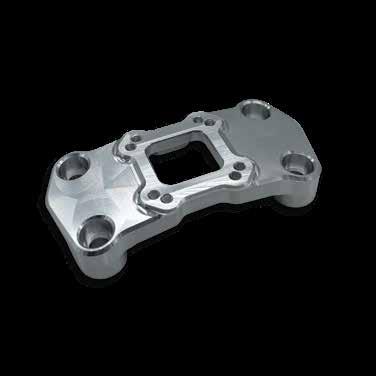

MOUNTING KITS COMPATIBLE WITH MSC STEERING DAMPER KITS

ABOUT: Create the ultimate fusion of steering stabilization and anti-vibration by combining our AXIS dampened handlebar mounts with your current MSC steering damper.

Our low-profile mount bracket converts your current AXIS or VectorMX steering damper kit to a rubber mount system to create the ultimate to further elimitate vibration and and unlock the ultimate level of comfort and control for your ride.

INCLUDED IN KIT: Billet mount All stainless steel fasteners

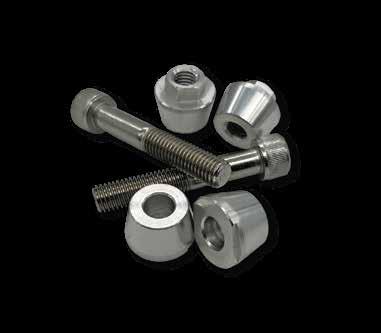

FITMENT KITS ABOUT: Fitment kit to adapt replace OEM rubber cones on certain models of MX / Enduro bikes.

Please check your model or our application guide for more information.

INCLUDED IN KIT: All stainless steel mounting hardware

HANDLEBAR MOUNTS

14

15

W CT NE DU O PR

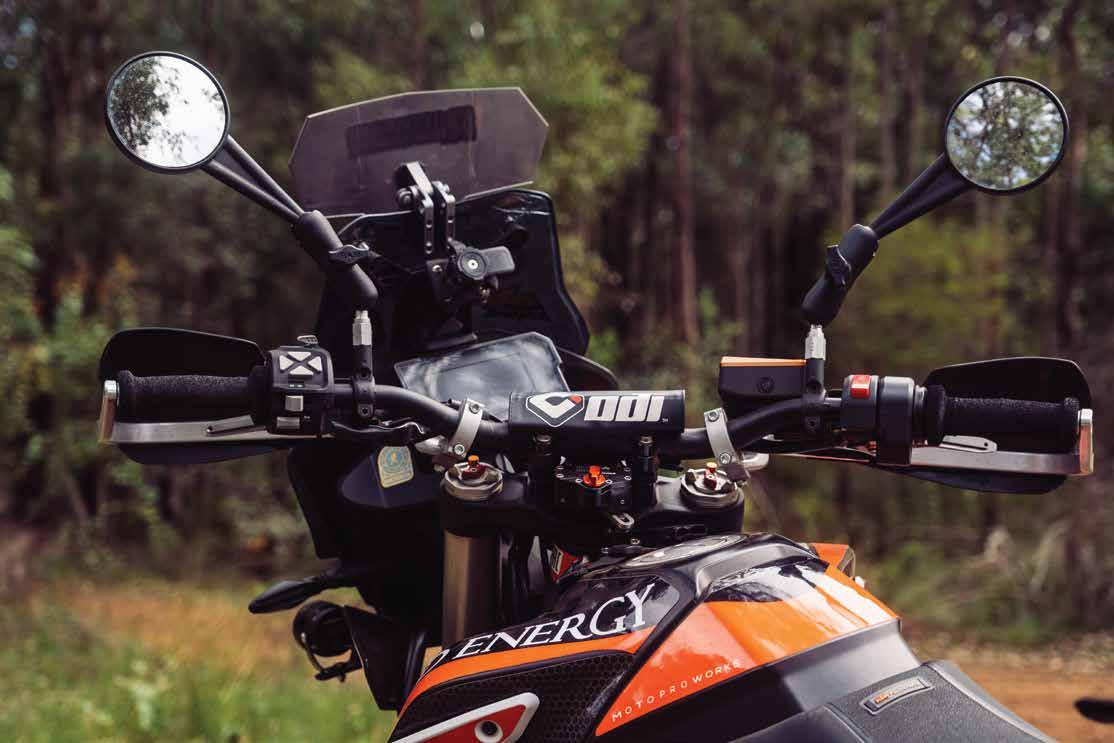

FEATURES AND BENEFITS Compatible with all “AMPS” GPS mounting systems, our new GPS Handlebar Mounts swap out your OEM bar mounts to create a low-profile and strong mounting point for your GPS in both upright and sideways positions.

Currently available for all KTM, Husqvarna and GASGAS models along with Suzuki DR650S, Yamaha Teneree T7 & Honda Afican Twin Adventure bikes.

Australian made with CNC machined billet aluminium

Directly mounting GPS to AMPS layout on MSC handlebar mount creates low-profile design

Ability to mount both upright or sideways depending on motorcycle or rider preference

Hardware - All stainless steel fasteners

HANDLEBAR MOUNTS

16

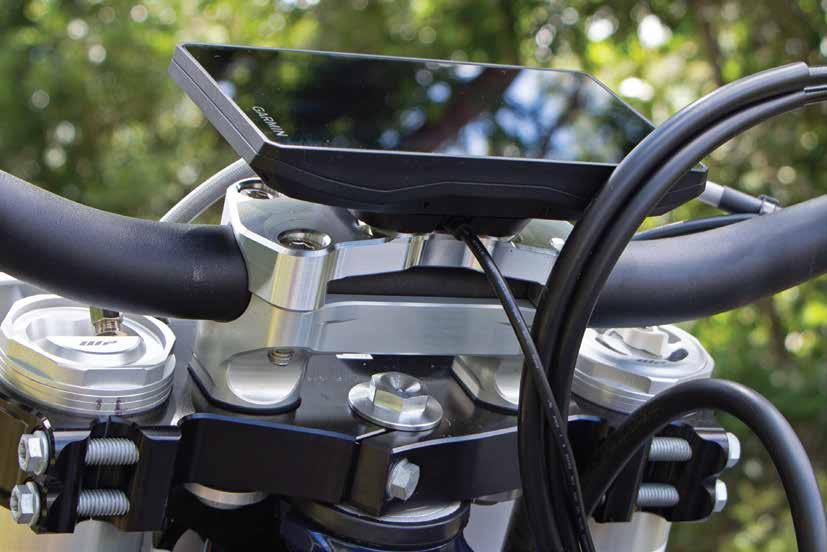

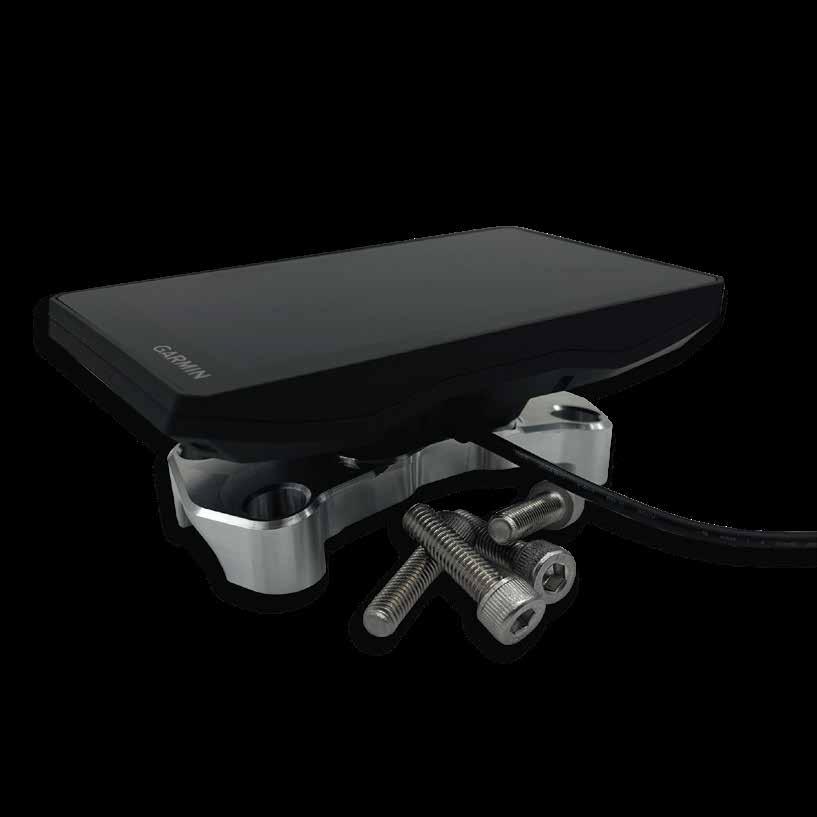

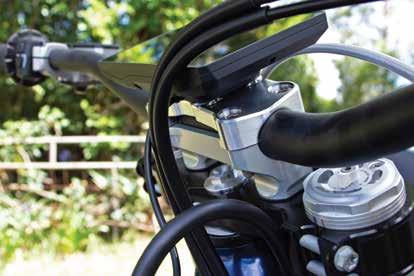

GPS MOUNT

DIRECTLY MOUNTS GPS TO MSC HANDLEBAR MOUNT

ABOUT: Compatible with all “AMPS” GPS mounting systems, our new GPS Handlebar Mounts swap out your OEM bar mounts to create a low-profile and strong mounting point for your GPS in both upright and sideways positions.

Currently available for all KTM, Husqvarna and GASGAS models along with Suzuki DR650S, Yamaha Teneree T7 & Honda Afican Twin ADV bikes.

Available in Black and Silver anodised colourways.

INCLUDED IN KIT: GPS Compatible Handlebar Mount All stainless steel fasteners

17

STEERING DAMPER SERVICE KITS Msc products has a complete service kit available to purchase to suit your damper. The service can be carried out at home by the customer or taken to your nearest MSC stockist. Service kit includes all parts required to change during a service (excluding fork oil), along with detailed instructions on how to carry out your service. we recommend a high-quality 5W fork oil...

AXIS SERVICE IT

RM3 SERVICE KIT

VECTOR SERVICE KIT

PILOT SERVICE KIT

TITAN SERVICE KIT

MMA-ASK

MMA-RSK

MMA-VSK

MMA-PSK

MMA-TSK

Alternatively, MSC offers servicing on dampers. Simply package your damper and send to our workshop.

Please ensure to include; Name, contact details, return address and summary of damper condition.

Please allow 2-3 week turn around, upon completion MSC will return damper via express post to supplied address. If service is urgent please contact our customer service team to make arrangements prior.

SERVICE KITS AND SPARES

18

MOUNTING KITS PARTS / ACCESSORIES Mounting kits for your current MSC damper are available to suit different motorcycle manufacturers as part of our range of spare parts. Please contact MSC for any mounting kit enquiries as they are not available online or in-store for direct purchase due to the large range of variables.

AXIS BAR PAD

KNOB KITS

Available for Axis top mount damper kits only.

Colour knob kits available for all steering dampers.

Orange / Blue / Gold / Black

LINKAGE ARM

AXIS KTM SPEEDOMETER SPACER KIT

Long / Short / VMX Refer to fitment guide for linkage arm fitment or contact MSC.

Spacer to suit KTM / GASGAS / HQV.

APEX POLYURETHANE DAMPERS

MSC T SHIRT - BUILT DIFFERENT

MSC T SHIRT - STAMP

Apex rubber set (x8) - Firm Apex rubber set (x8) - Soft

SML, MED, LGE, XXL, XXXL

SML, MED, LGE, XXL, XXXL

19

FAQ & MORE What is Active Return To Centre Technology (ARTC) and how does it work?

Unique to MSC Moto, Active Return To Centre Technology is a fully dynamic internal adjuster which controls the return to center circuit by actively reducing the damping as much as a rider needs to get back to center at the speed they turn the handlebars.

This means the faster the rider tries to get the bike back to a straight line the more the RTC will be released. Having this system means that when the rider wants to keep a straight line at high speed they get the benefit of a damper that has full damping on RTC while in tight trees the feeling is more like having a fully controlled zero RTC system.

How high will the DownUnder Steering Damper Mount raise my handlebars?

On a KTM it will raise the bars 25mm while on some other models like a Yamaha, it may go up 30mm because of how far the steering stem protrudes through the triple clamp.

MSC produce a Top-Mount Steering Damper with a bar pad included which is the ideal solution if you dont want to raise the height of your handlebars.

How often do I need to service my steering damper?

Servicing is dependent on many elements such as how much you ride, the terrain you commonly ride, etc. We recommend servicing the damper at the same frequency you would get your suspension serviced, which is usually once a year. In some cases customers go on to use MSC dampers for up to 5 years without any servicing, howver this isn’t something we reccomend as the oil will not be perform the way it should be after this amount of time.

FAQ

20

22

+61 2 4374 1655 info@mscmoto.com

www.mscmoto.com Mangrove Mountain, NSW Australia
