01 AASPTAAL HOSPITAL 6TH SEMESTER LOCATION: NEW CHANDIGARH, INDIA ACADEMIC WORK

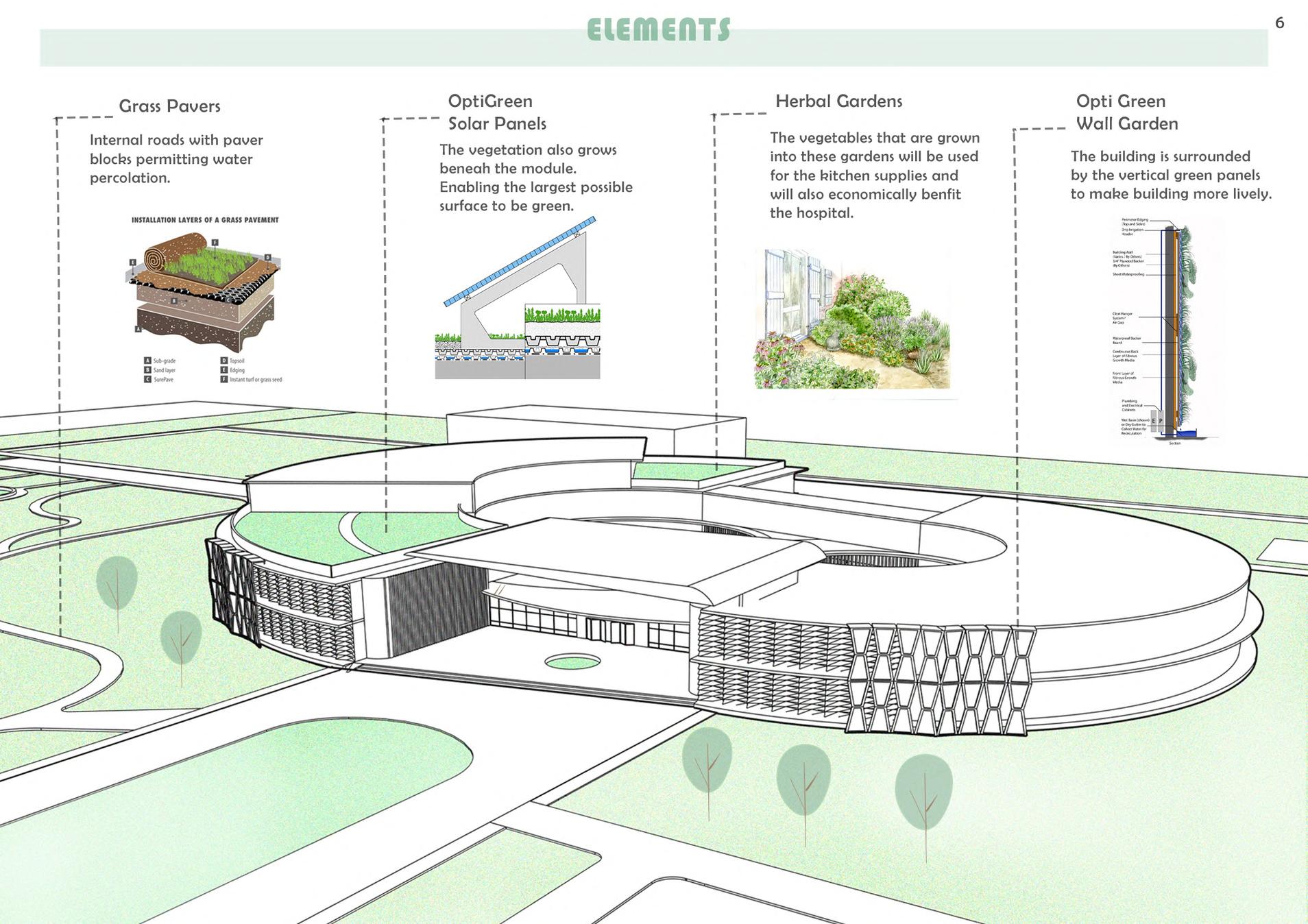

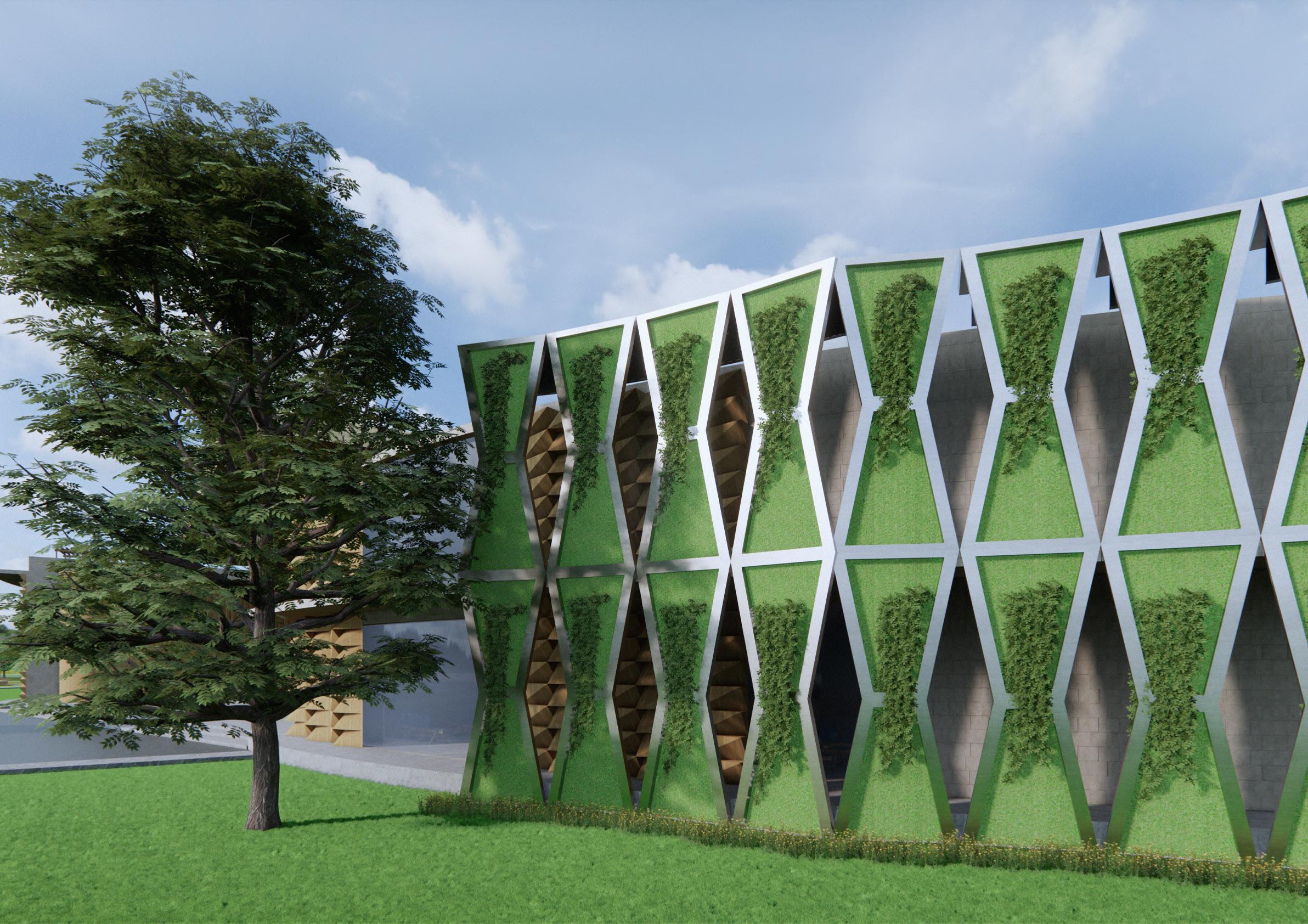

ELEMENTS

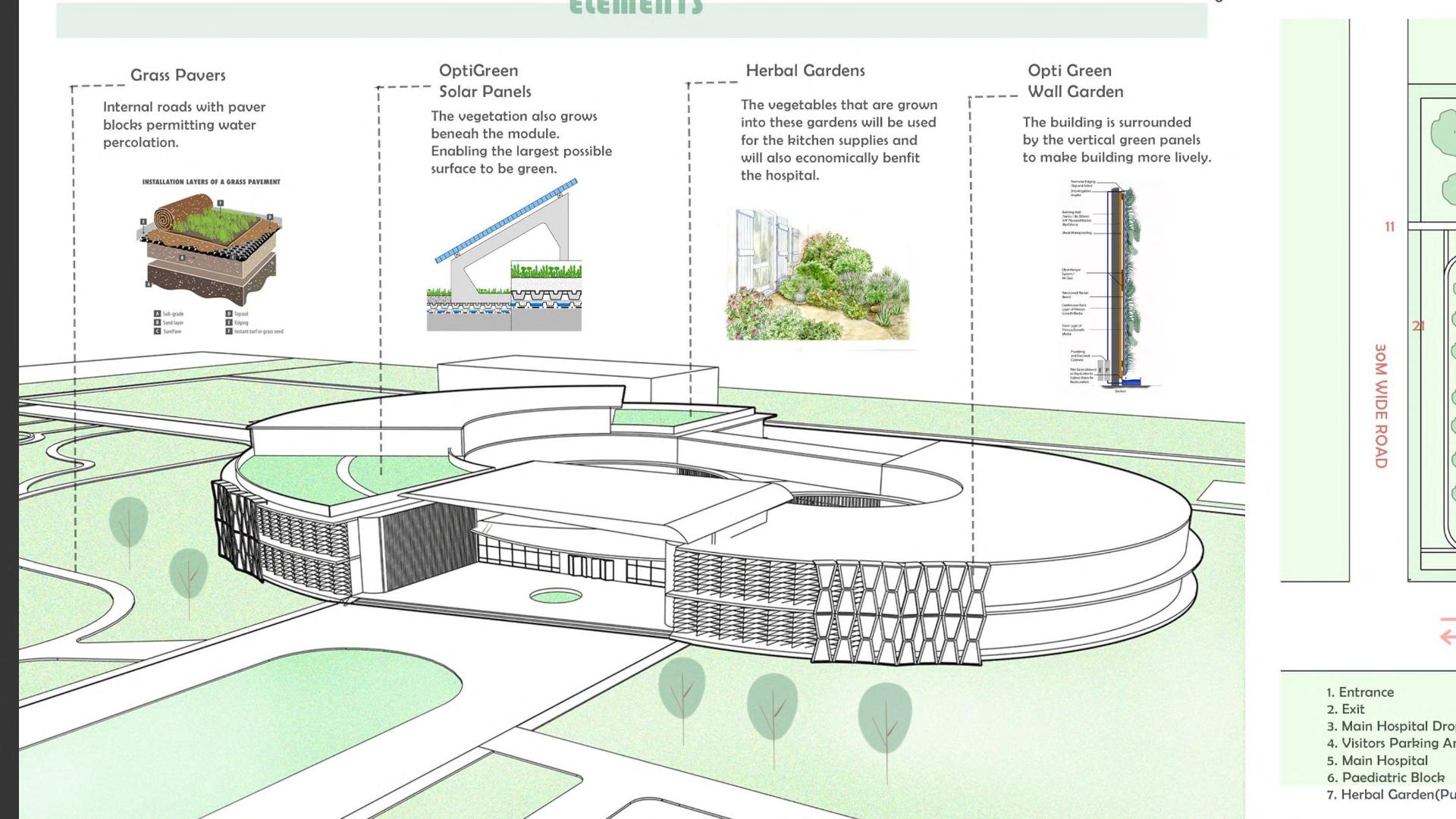

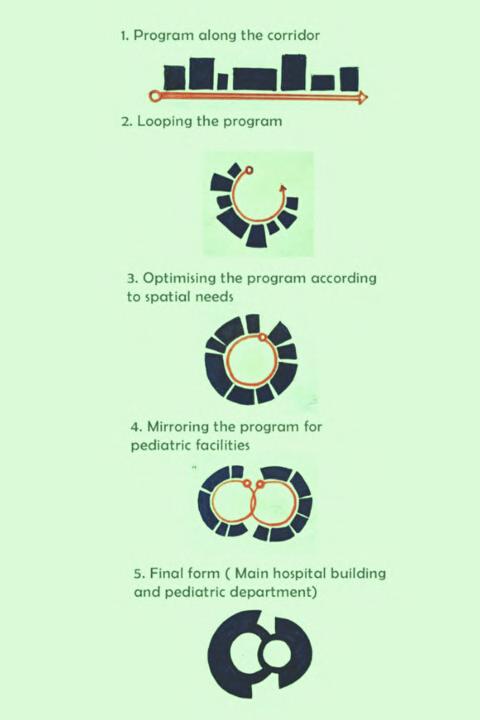

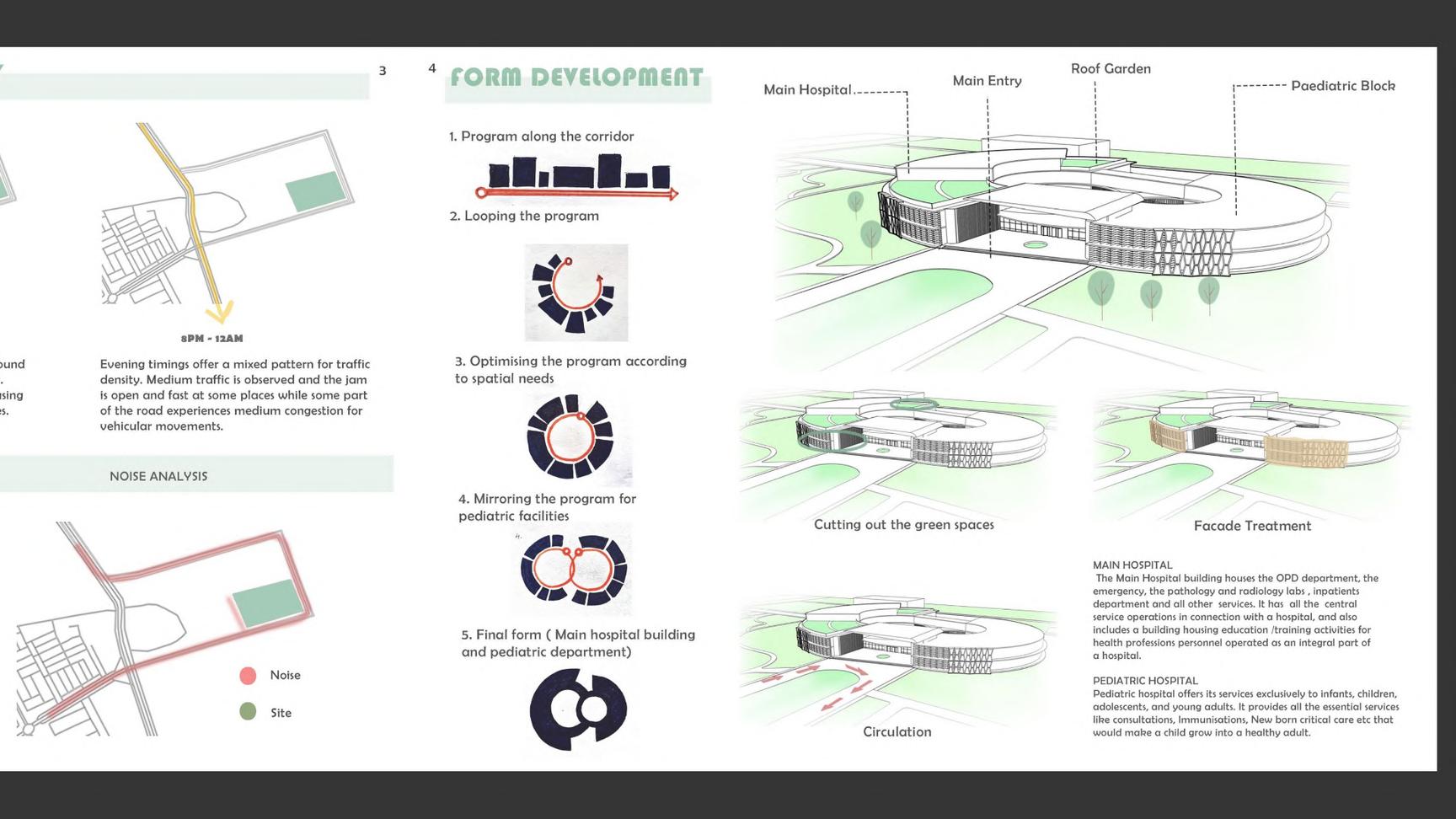

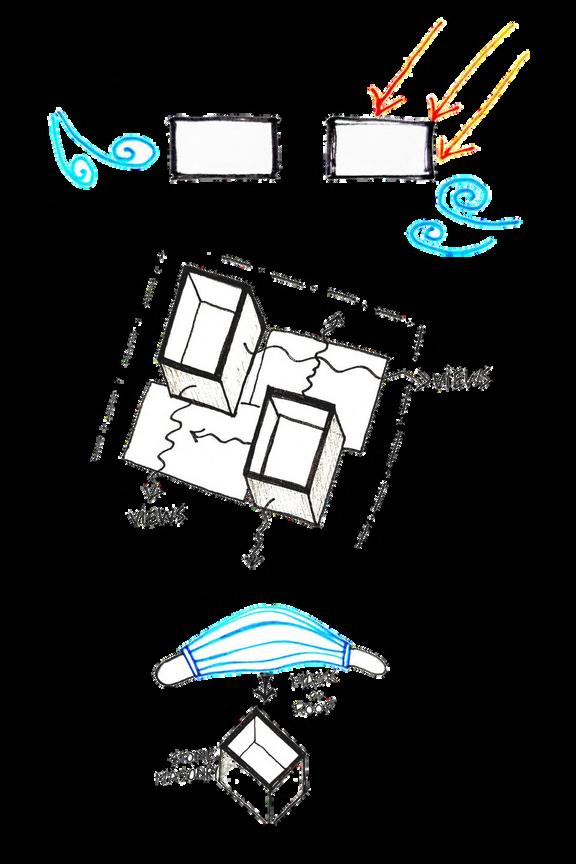

CONCEPT FORM DEVELOPEMENT

PROGRAM ALONG THE CORRIDOR

LOOPING THE PROGRAM

OPTIMISING THE PROGRAM ACCORDING TO SPATIAL NEEDS

MIRRORING THE PROGRAM FOR PEDIATRIC FACILITIES

FINAL FORM ( MAIN HOSPIITAL BUILDING + PEDIATRIC BLOCK)

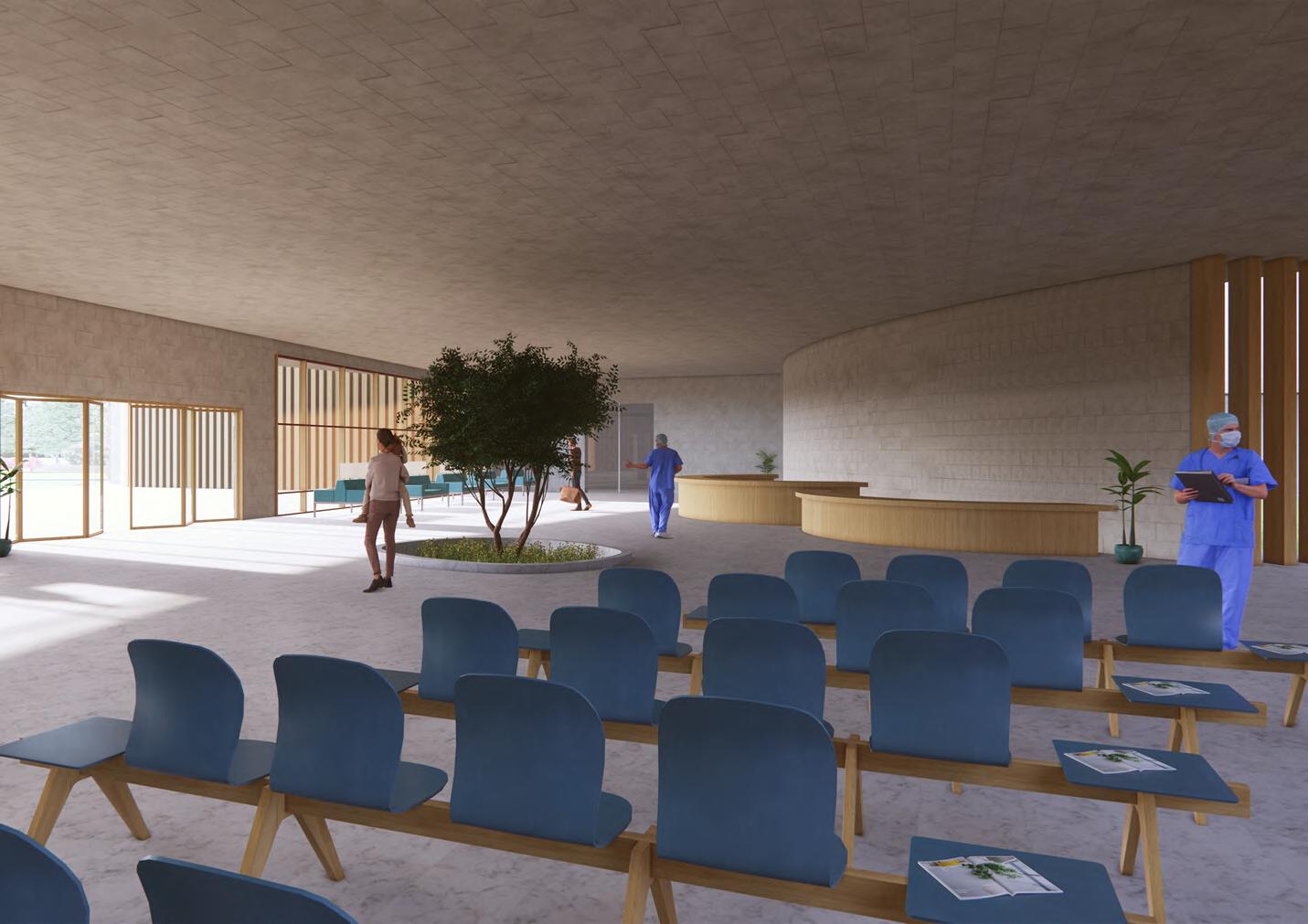

MAIN HOSPITAL THE MAIN HOSPITAL BUILDING HOUSES THE OPD DEPARTMENT, THE EMERGENCY, THE PATHOLOGY AND RADIOLOGY LABS, THE INPATIENTS DEPARTMENT AND ALL OTHER SERVICES. IT HAS ALL THE CENTRAL SERVICE OPERATIONS IN CONNECTION WITH A HOSPITAL, AND ALSO INCLUDES A BUILDING HOUSING EDUCATION TRAINING ACTIVITIES FOR HEALTH PROFESSIONS PERSONNEL OPERATED AS AN INTEGRAL PART OF A HOSPITAL.

PEDIATRIC HOSPITAL THE PEDIATRIC HOSPITAL OFFERS ITS SERVICES EXCLUSIVELY TO INFANTS, CHILDREN, ADOLESCENTS, AND YOUNG ADULTS. IT PROVIDES ALL THE ESSENTIAL SERVICES LIKE CONSULTATION, IMMUNISATIONS, NEWBORN CRITICAL CARE ETC THAT WOULD MAKE A CHILD GROW INTO A HEALTHY ADULT.

GROUND FLOOR PLAN

FIRST FLOOR PLAN

SECOND FLOOR PLAN

SECOND FLOOR PLAN

BASEMENT FLOOR PLAN

BASEMENT FLOOR PLAN

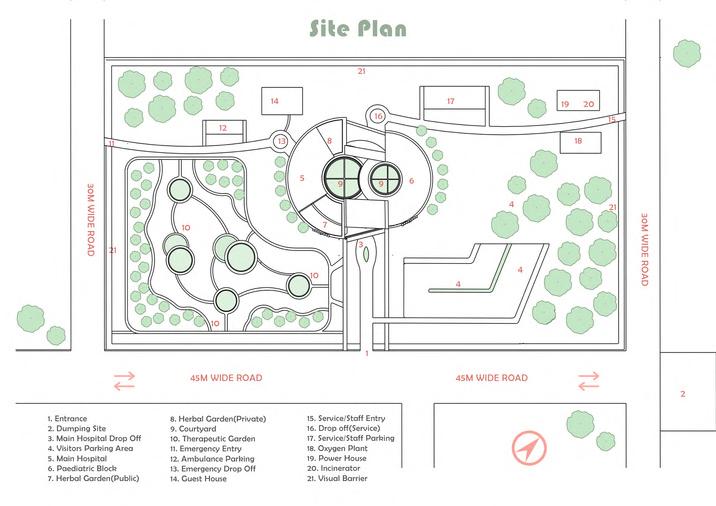

SITE PLAN

02

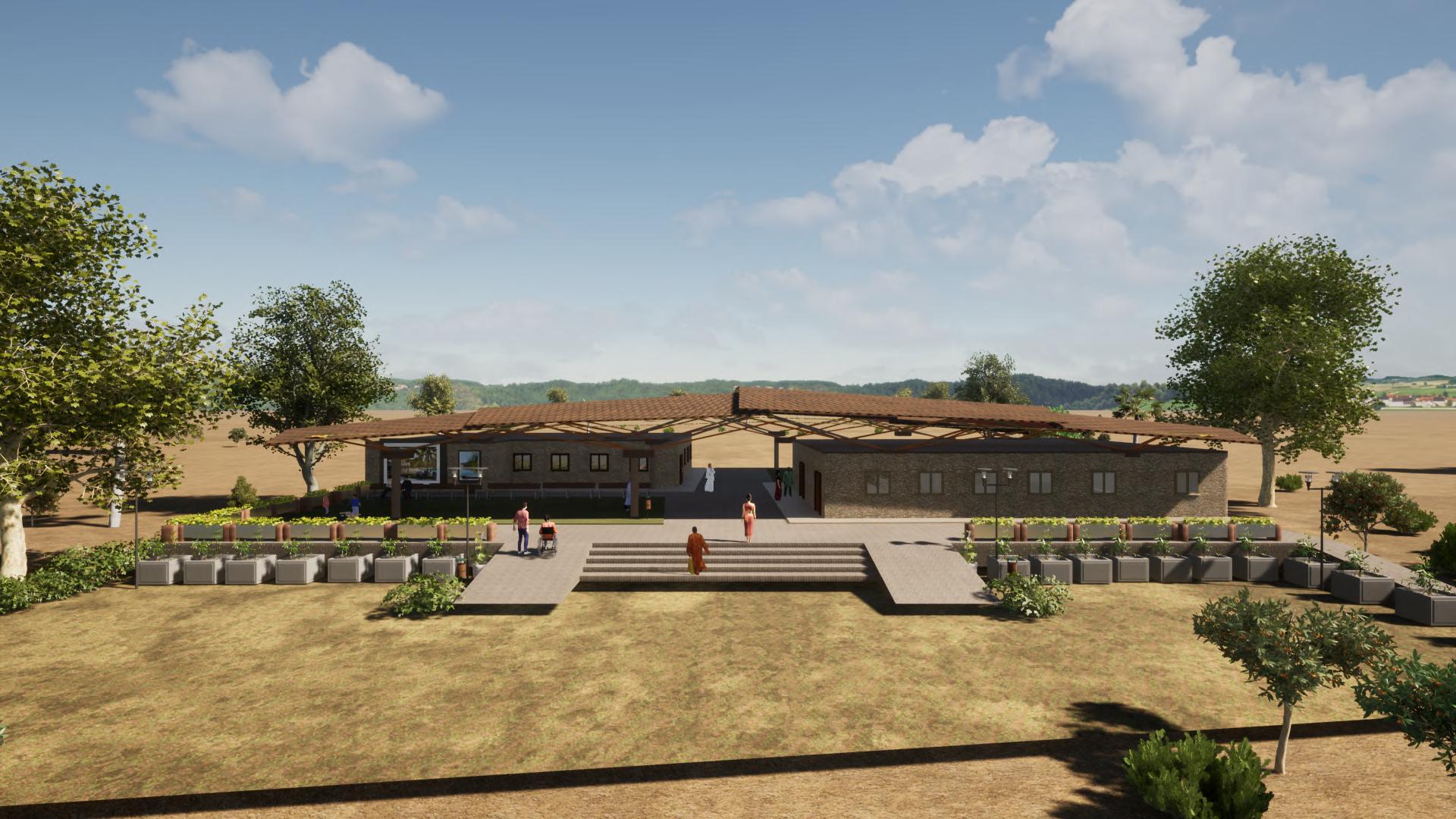

CHAAYA

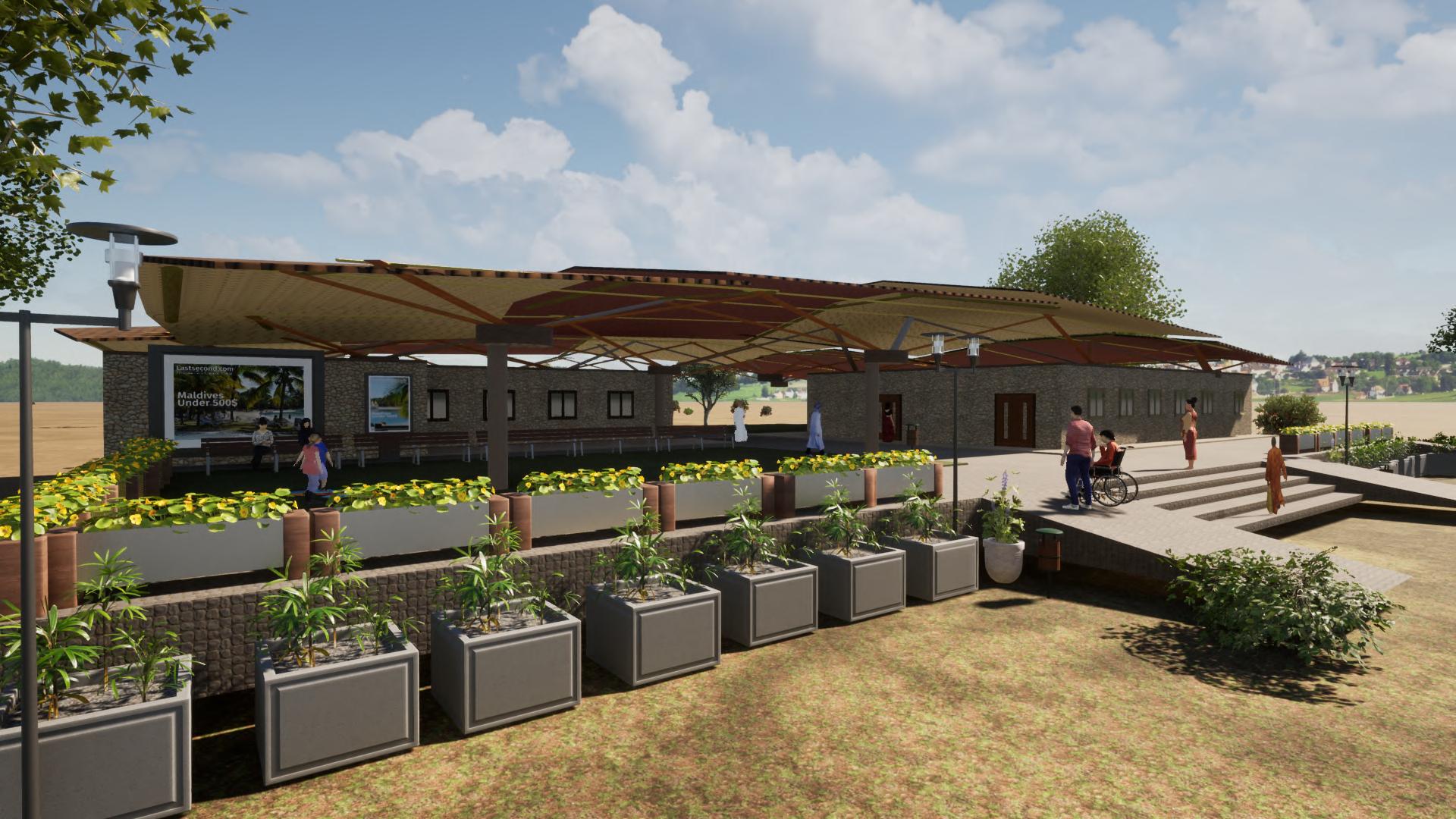

IGBC: GREEN DESIGN CONTEST 5TH SEMESTER LOCATION: PURAKHER KHEDI, INDIA COMPETETION (Jury Shortlists)

FORM DEVELOPMENT

THE PROPOSED SITE FOR THE PRIMARY HEALTHCARE DEVELOPMENT IS IN PURAKHER KHEDI, THE VILLAGE COMES UNDER KHILCHIPUR TALUK IN THE RAJGARH DISTRICT OF MADHYA PRADESH. PINCODE OF THE VILLAGE IS 465679. PRADESH. OUR APPROACH TO THE PROJECT WAS TO CREATE A SPACE THAT EMBODIES THE IDEAS OF EQUAL & UNIVERSAL HEALTHCARE FOR ALL. KEEPING AT THE FOREFRONT SUSTAINABILITY & THE IMPACT ARCHITECTURE CAN HAVE ON THE CULTURAL IDENTITY. TAKING INSPIRATION FROM THE TRADITIONAL "KORKU" PATTERN ORIGINATING IN MADHYA PRADESH WE DECIDED TO CREATE A FORM THAT WOULD COMPLEMENT THE EXISTING VERNACULAR OF THE VILLAGE. TO CUT BACK UNNECESSARY COSTS AND FOR EASE OF CONSTRUCTION, WE OPTED FOR MATERIALS THAT WERE LOCALLY AVAILABLE IN THE MALWA PLATEAU. THESE MATERIALS HAD BEEN IN USE IN TRADITIONAL ARCHITECTURE THROUGHOUT THE REGION. ROCKS, STONES & PEBBLES HAVE BEEN IMPLEMENTED IN THE FORM BY USING RUBBLE MASONRY IN THE WALLS. THIS HELPS KEEP THE BUILDING COOL AND IS ALSO MORE EFFECTIVE & SUSTAINABLE THAN MODERN CONSTRUCTION METHODS BEING USED IN THE AREA.

TWO ROOFS HAVE BEEN PROVIDED IN THE STRUCTURE - ONE MADE OF RAMMED EARTH PLASTERED WITH CLAY & THE SECOND MADE OF ROOF TILES, RESTING ON A BAMBOO FRAMEWORK SUPPORTED BY BAMBOO TRUSSES. TWO ROOFS HAVE A GAP IN BETWEEN WITH AIR SERVING AS INSULATION, TO PREVENT THE TRANSFER OF HEAT INTO THE MAIN BUILDINGS.

OTHER TECHNIQUES & MATERIALS OPTED FOR INCLUDE RAMMED EARTH, CLAY PLASTER, BAMBOO TRUSSES AND LOCAL MUD TILES.

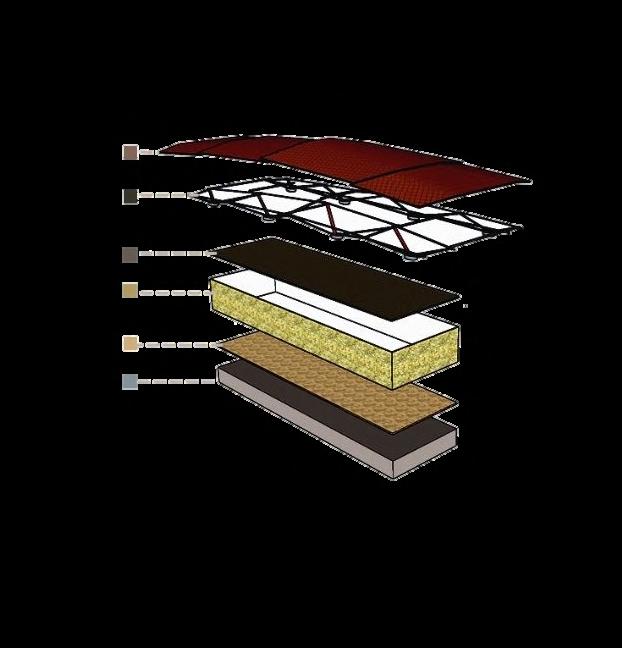

MATERIALS LOCAL MUD TILE ROOF BAMBOO TRUSS

NATURAL CLAY PLASTER RUBBLE MASONRY WALLS RAMMED EARTH FLOORING RUBBLE TRENCH FOUNDATION

TO CUT BACK UNNECESSARY COSTS AND FOR EASE OF CONSTRUCTION, WE OPTED FOR MATERIALS THAT WERE LOCALLY AVAILABLE IN THE MALWA PLATEAU. THESE MATERIALS HAD BEEN IN USE IN TRADITIONAL ARCHITECTURE THROUGHOUT THE REGION. ROCKS, STONES & PEBBLES HAVE BEEN IMPLEMENTED IN THE FORM BY USING RUBBLE MASONRY IN THE WALLS. THIS HELPS KEEP THE BUILDING COOL AND IS ALSO MORE EFFECTIVE & SUSTAINABLE THAN MODERN CONSTRUCTION METHODS BEING USED IN THE AREA. TWO ROOFS HAVE BEEN PROVIDED IN THE STRUCTURE - ONE MADE OF RAMMED EARTH PLASTERED WITH CLAY & THE SECOND MADE OF ROOF TILES, RESTING ON A BAMBOO FRAMEWORK SUPPORTED BY BAMBOO TRUSSES. TWO ROOFS HAVE A GAP IN BETWEEN WITH AIR SERVING AS INSULATION, TO PREVENT THE TRANSFER OF HEAT INTO THE MAIN BUILDINGS. OTHER TECHNIQUES & MATERIALS OPTED FOR INCLUDE RAMMED EARTH, CLAY PLASTER, BAMBOO TRUSSES AND LOCAL MUD TILES.

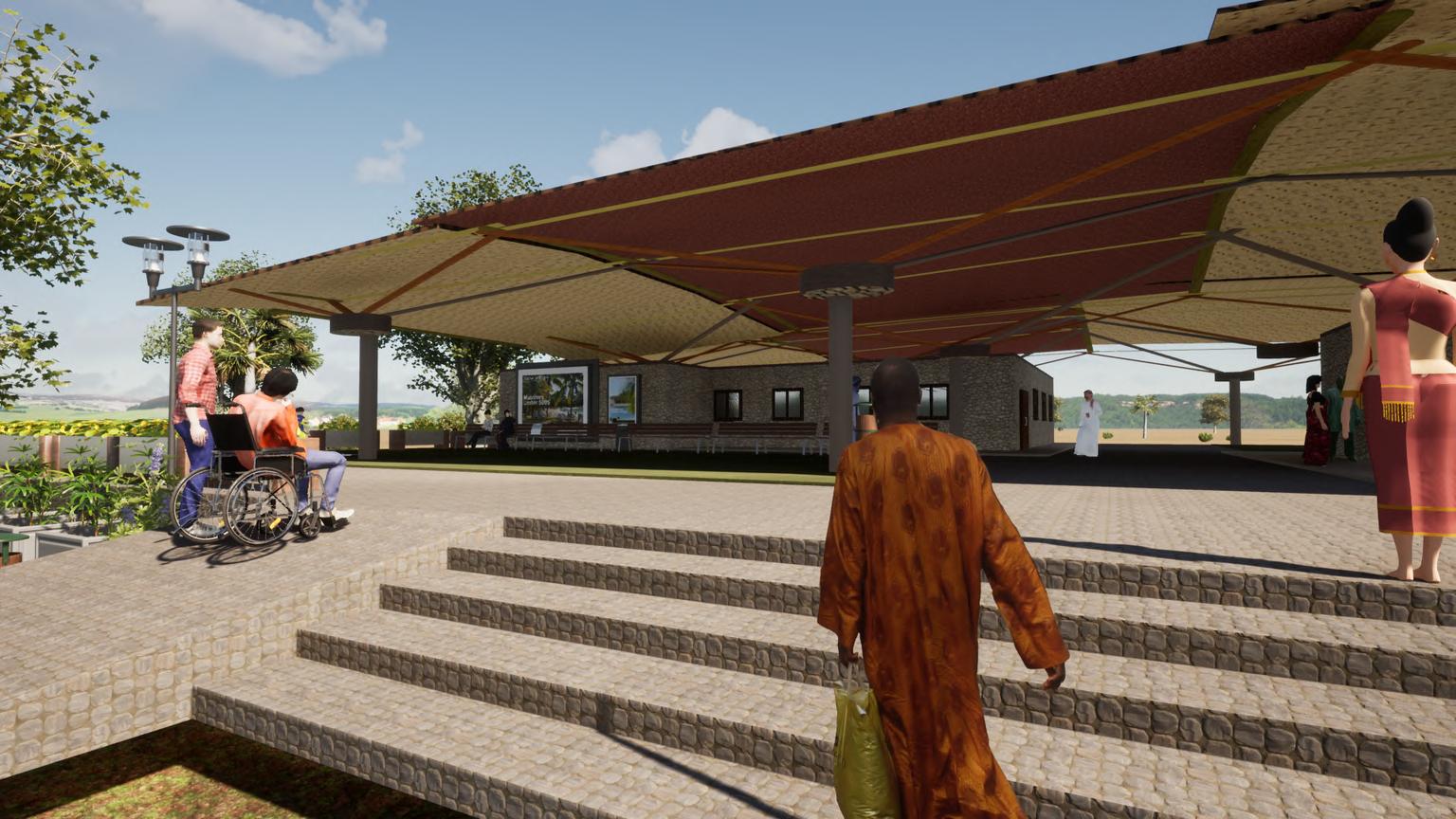

TO INTEGRATE THE COMMUNITY AND PROVIDE SPACE FOR DIALOG, THOUGHT, CELEBRATION, AND GROWTH WE INTEGRATED COURTYARDS IN OUR DESIGN THAT COULD BE USED AS MULTI-PURPOSE SPACES FOR DIFFERENT ACTIVITIES FOR THE COMMUNITY.

THESE SPACES PROVIDE PROTECTION FROM THE HARSH SUN WHILE PROVIDING AMPLE AIR CIRCULATION. DROUGHTRESISTANT PLANTS HAVE BEEN USED THROUGHOUT THE SITE TO PROVIDE AMPLE GREEN SPACES FOR HEALING VISIBLE THROUGHOUT THE YEAR. .

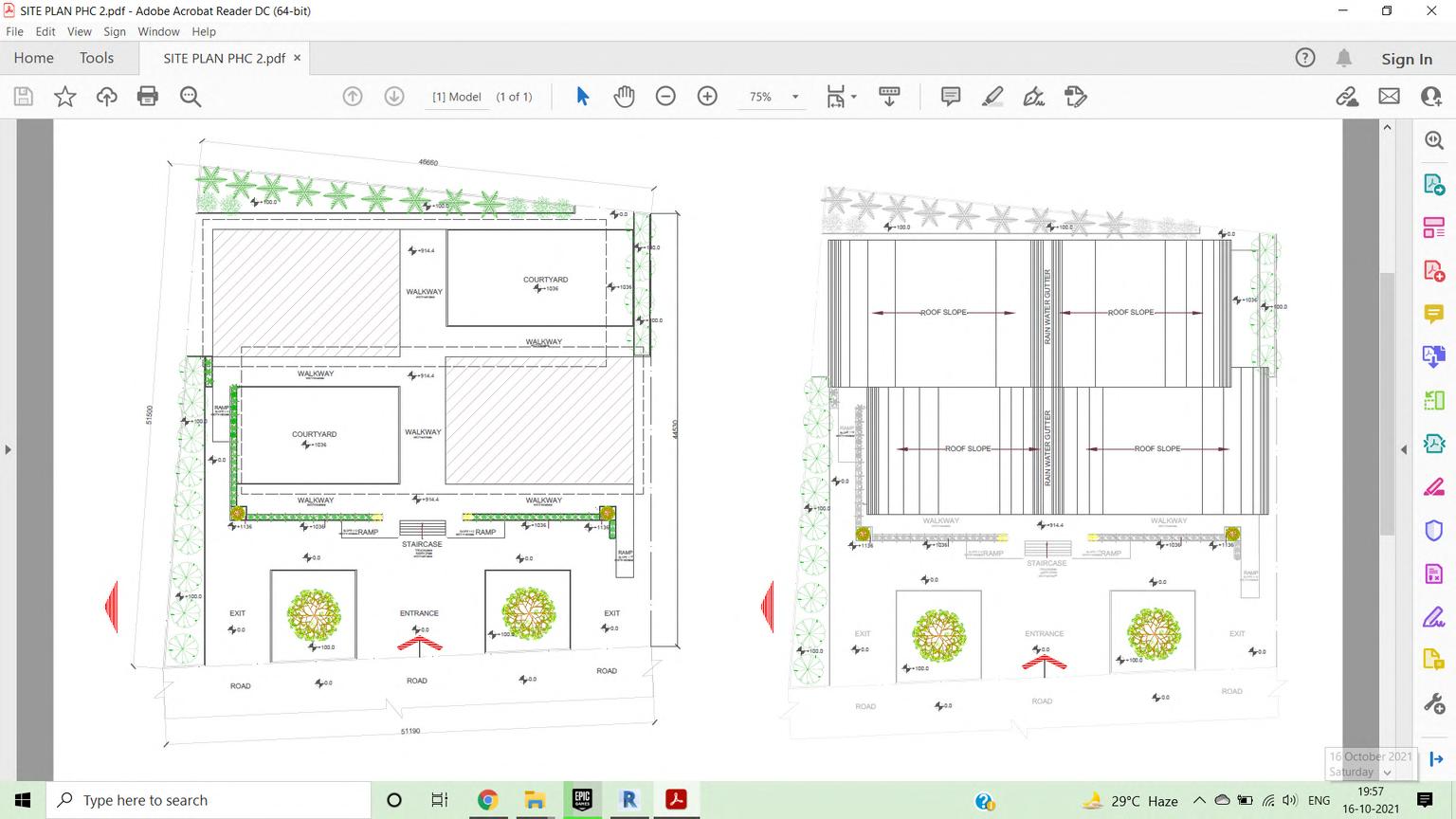

SITE PLAN

SCALE 1:200

16

17

6

A 14

15

b 1

1

LOBBY & WAITING ROOM

2

OPD

3

RADIOLOGY

4

CHIEF MEDICAL OFFICER'S

5

OFFICE

6

PHARMACY

7

WASHROOM

8

STORAGE

9

OPERATION THEATRE

10

RECOVERY ROOM

SCALE 1:200

6

2

3

4

5

6 7

1

8

A 10

9

11

EMERGENCY WARD

12

CANTEEN

13

IMMUNIZATION

14

PAEDIATRICS

15

DELIVERY ROOM

16

NATAL CARE

17

MATERNITY WARD

18

PARAMEDIC & NURSE STATION

NOTE- ALL DIMENSIONS ARE

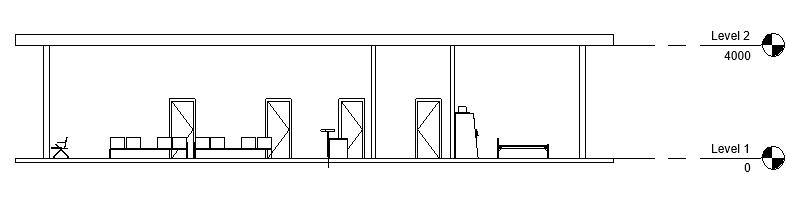

FLOOR PLANS

IN MM

03

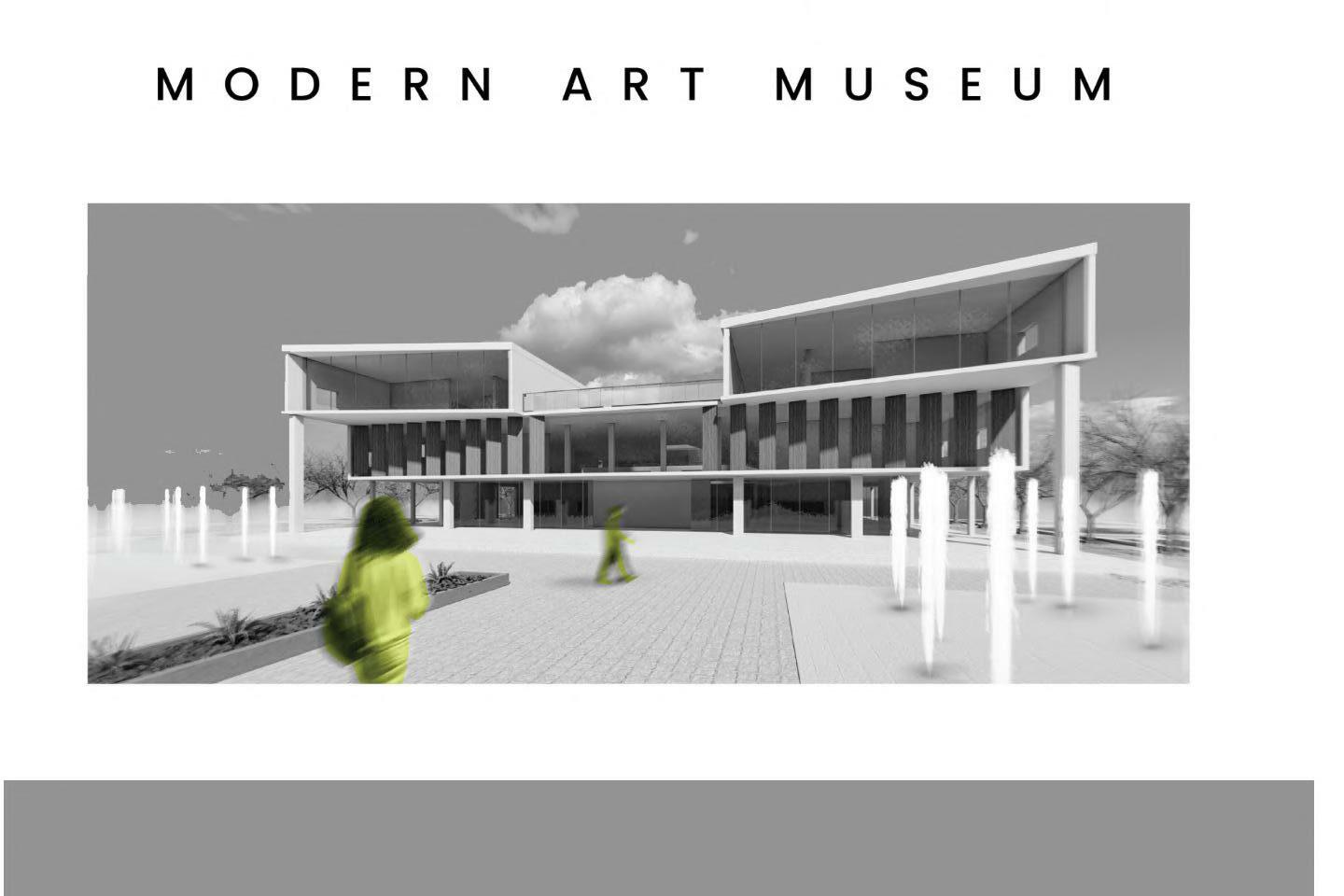

PRADARSHANI MODERN ART MUSEUM 5TH SEMESTER LOCATION: KOLKATA, INDIA ACADEMIC WORK

FORM DEVELOPMENT

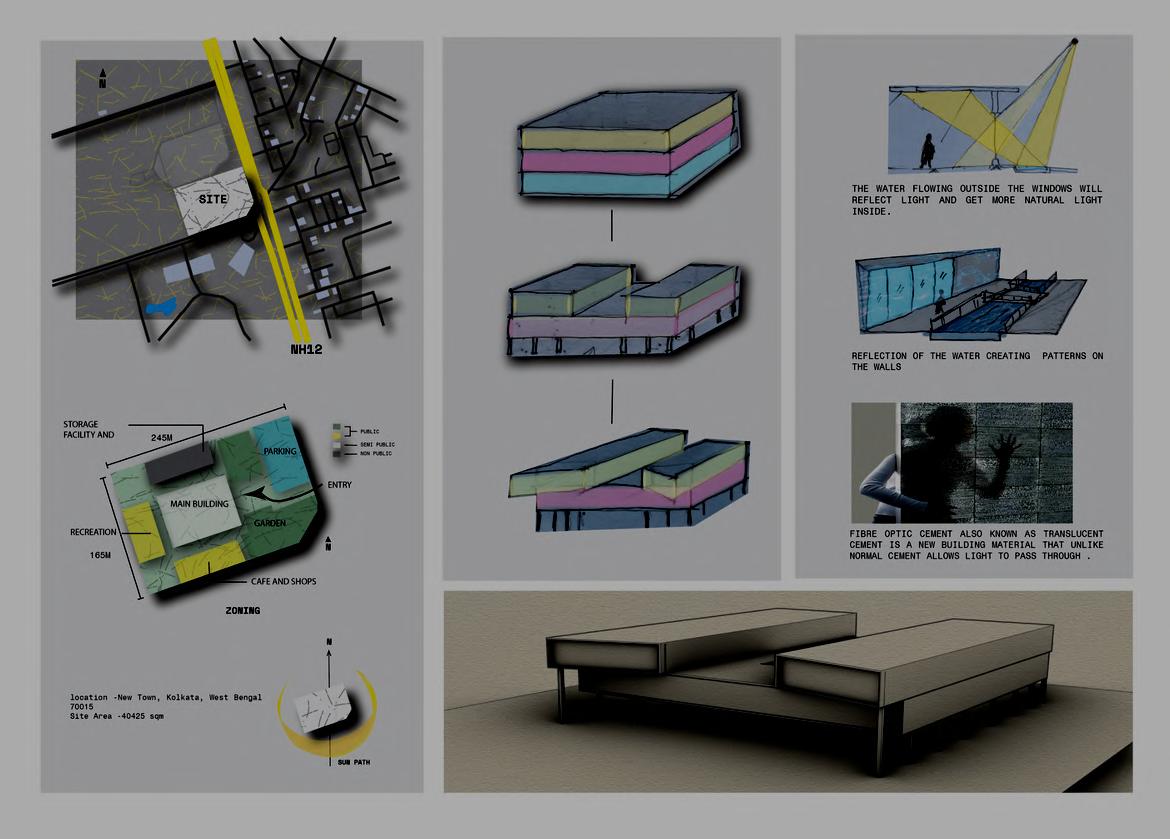

THE WATER FLOWING OUTSIDE THE WINDOWS WILL REFLECT LIGHT AND WILL RECEIVE MORE LIGHT INSIDE.

REFLECTION OF WATER FORMS PATTERNS ON THE WALLS.

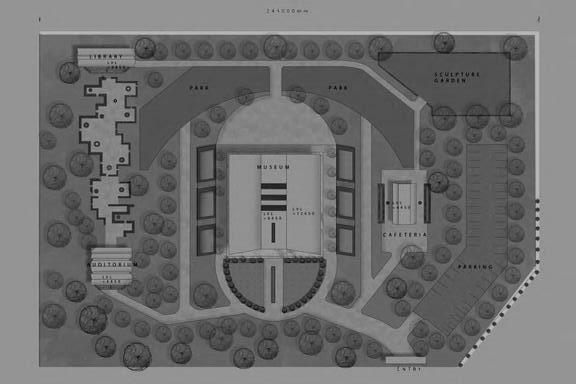

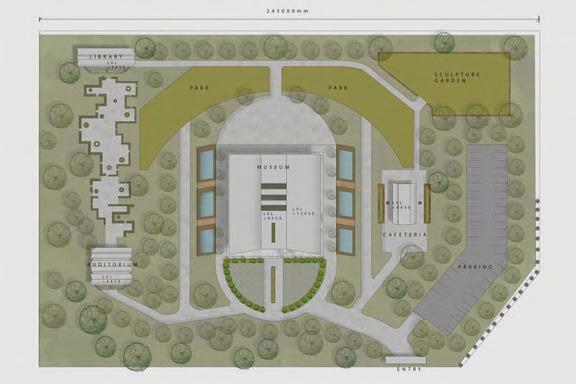

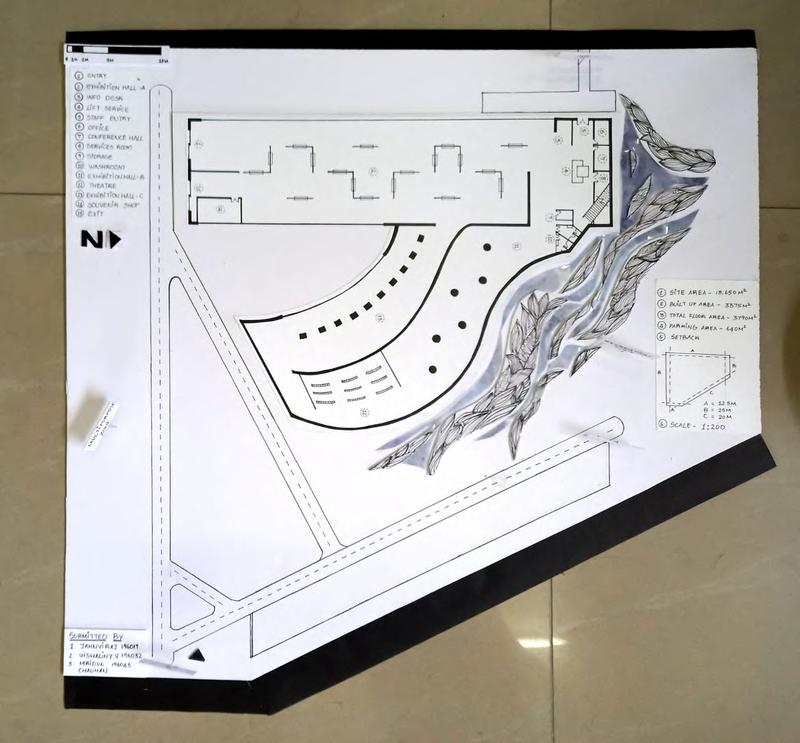

SITE PLAN

CONCEPT THE MUSEUM IS DESIGNED TO HAVE A CONVERGING FORM THAT SYMBOLIZES ACCEPTANCE AS ONE ENTERS THE MUSEUM THEY HAVE TO GO THROUGH A SECURITY CHECKPOINT AND THEN THEY ENTER THE HIGH-CEILING GRAND HALL AND RIGHT IN FRONT OF THEM IS THE RECEPTION AND TOWARDS THE RIGHT AND LEFT ARE THE SHOPS FOR SOUVENIRS.

GROUND FLOOR PLAN

FIRST FLOOR PLAN

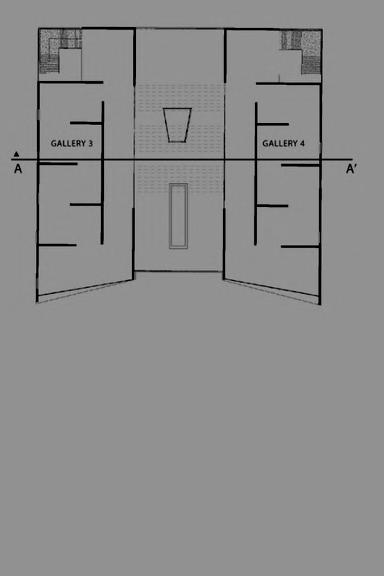

SECOND FLOOR PLAN

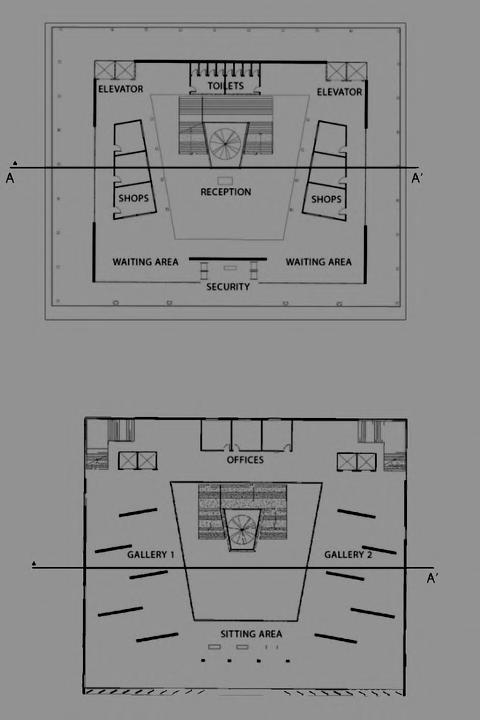

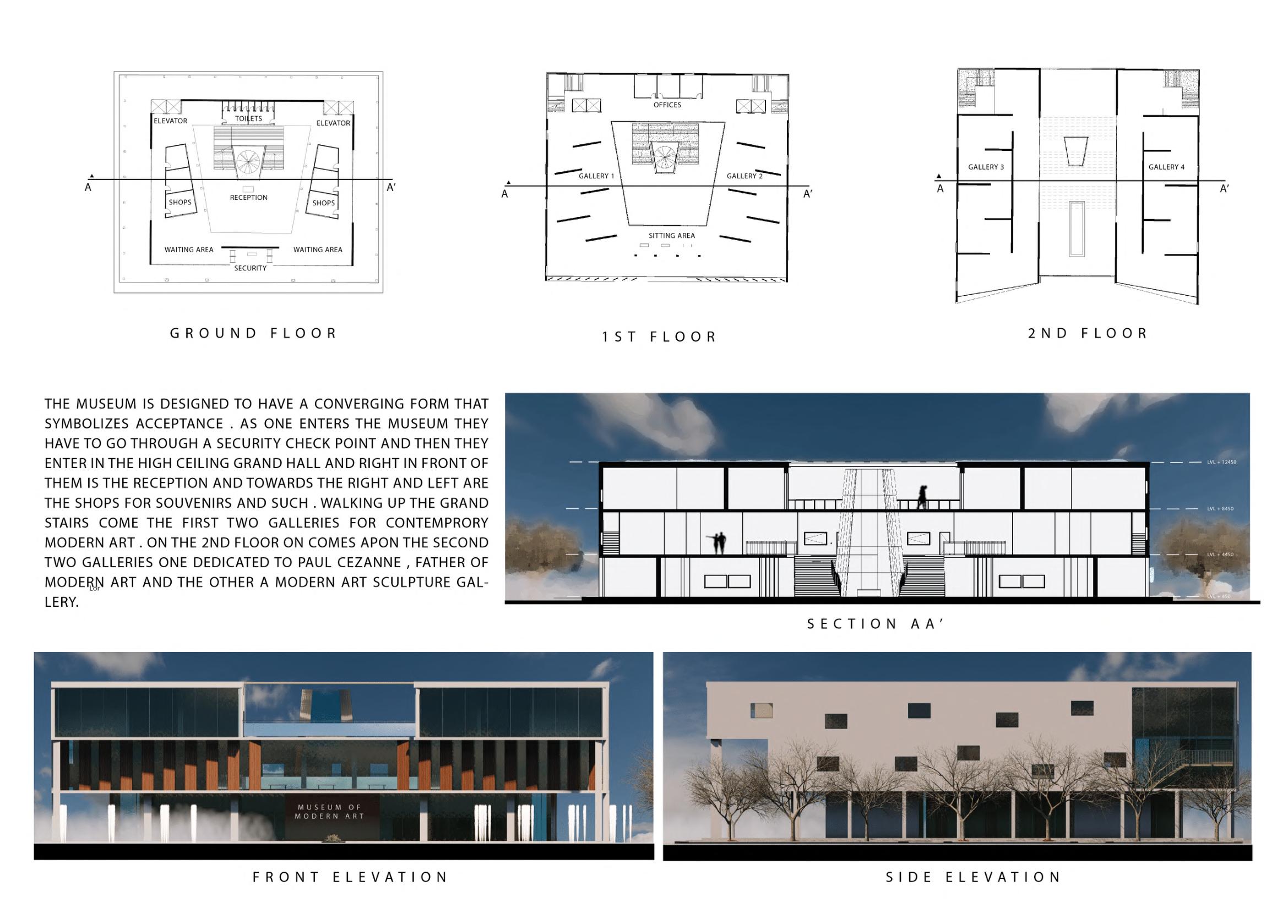

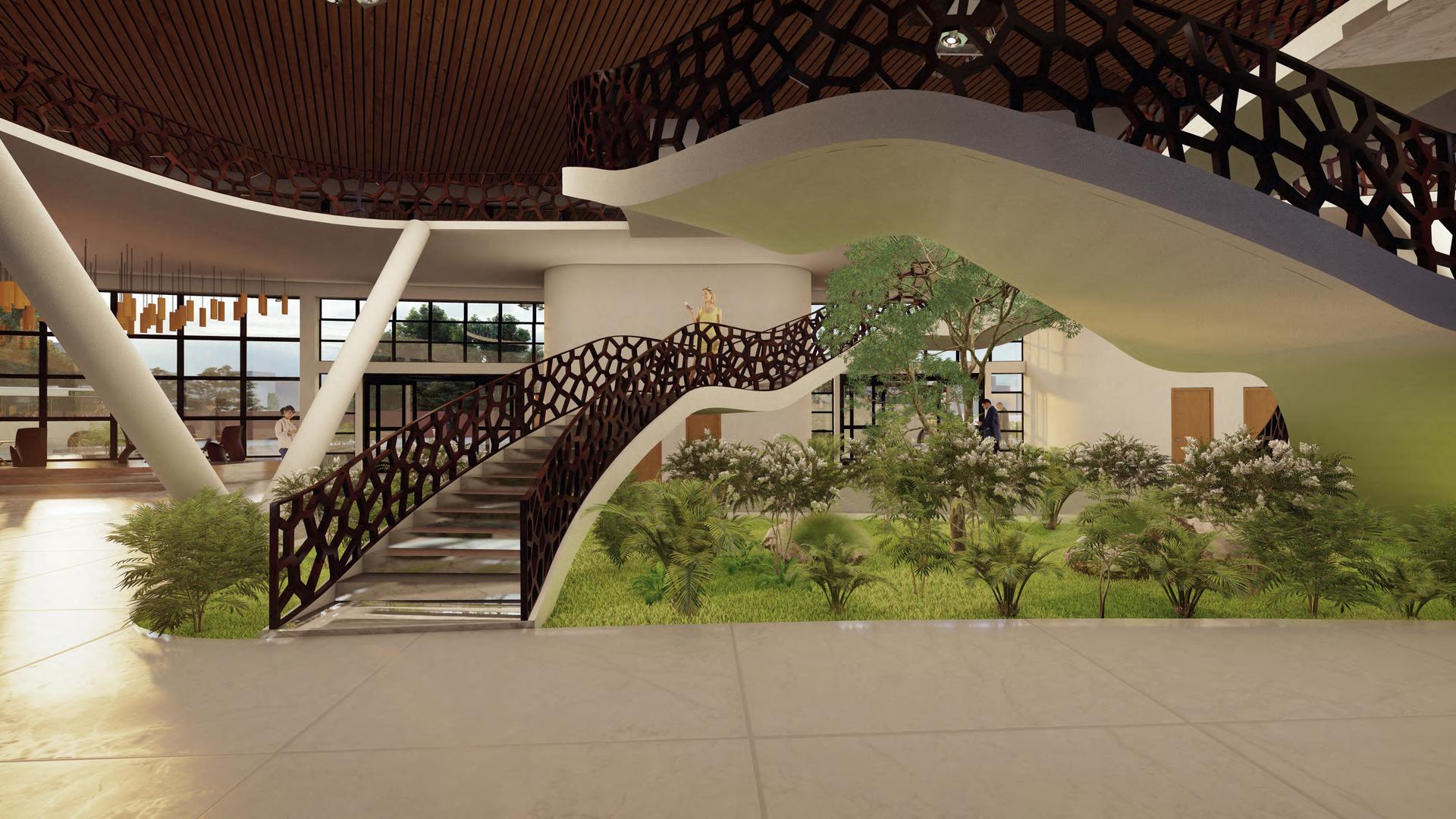

FLOOR PLANS WALKING UP THE GRAND STAIRS COME THE FIRST TWO GALLERIES FOR CONTEMPORARY MODERN ART ON THE 2ND FLOOR ON COMES UPON THE SECOND TWO GALLERIES ONE DEDICATED TO PAUL CEZANNE, FATHER OF MODERN ART AND THE OTHER A MODERN ART SCULPTURE GALLERY

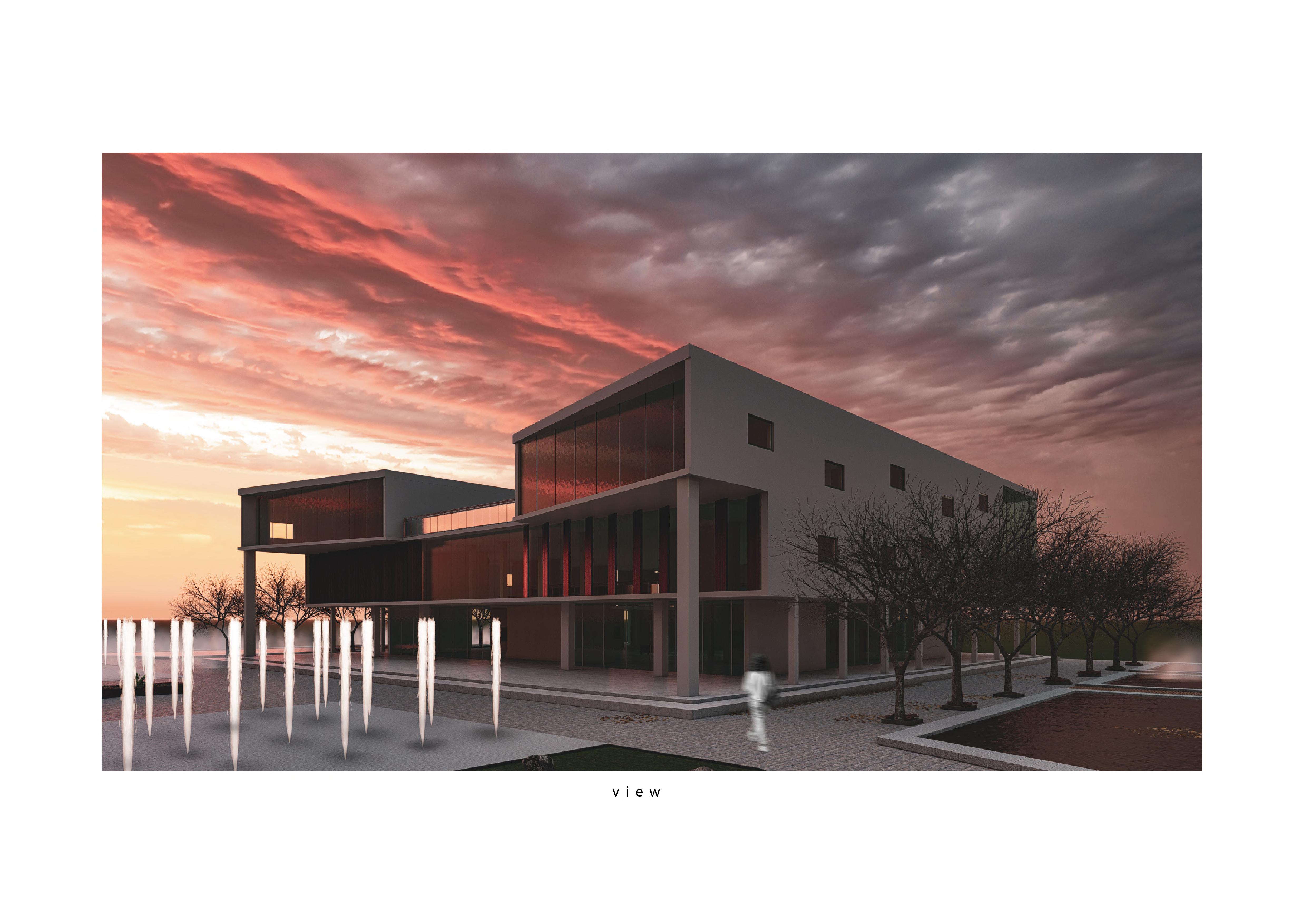

THE RAINWATER THAT FALLS ONTO THE GLASS CAGE AROUND THE TREE CAN BE CLEARLY SEEN IN THE SECTION. THE GRAND ENTRY TO THE MUSEUM WITH FOUNTAINS IN FRONT AND AN ILLUSION OF FLOATING FLOORS.

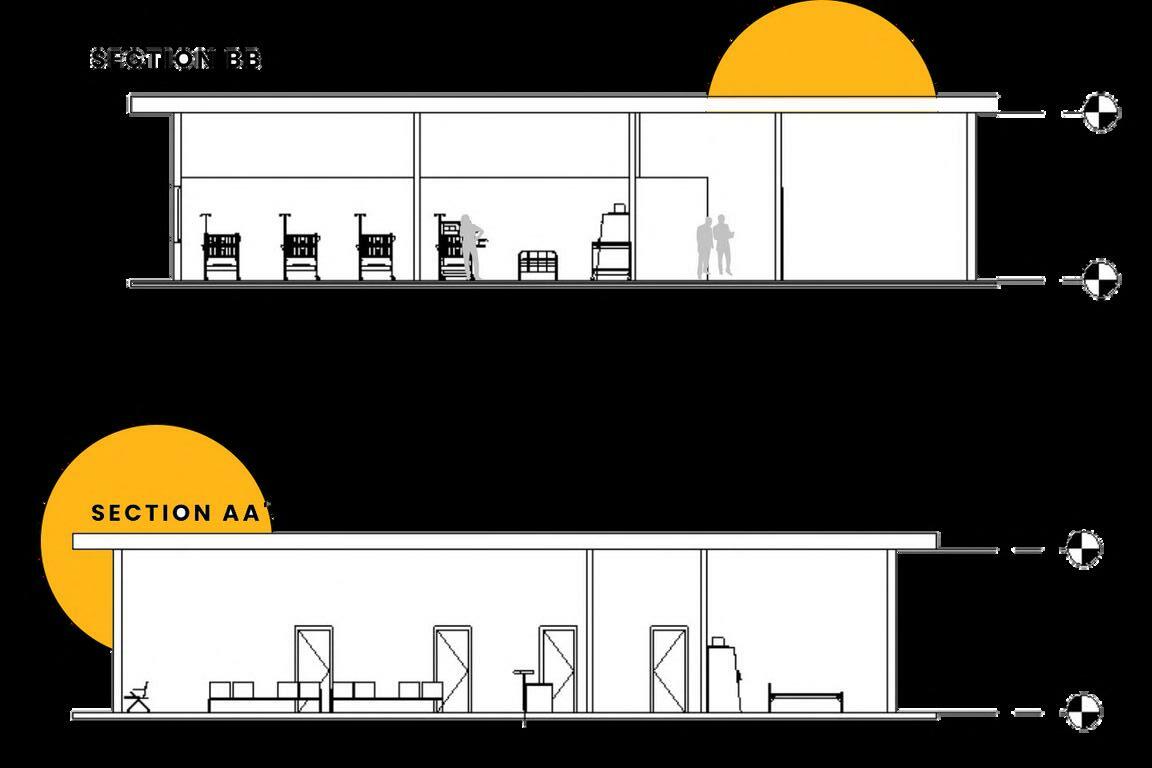

SECTION AA'

FRONT ELEVATION

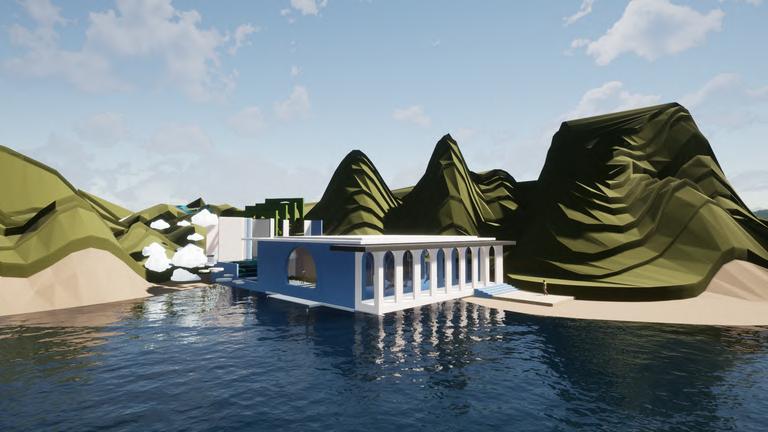

04 A SURREALIST DREAMSCAPE CONCEPTUAL SPACE INTO THE RABBIT HOLE COMPETITION 2022

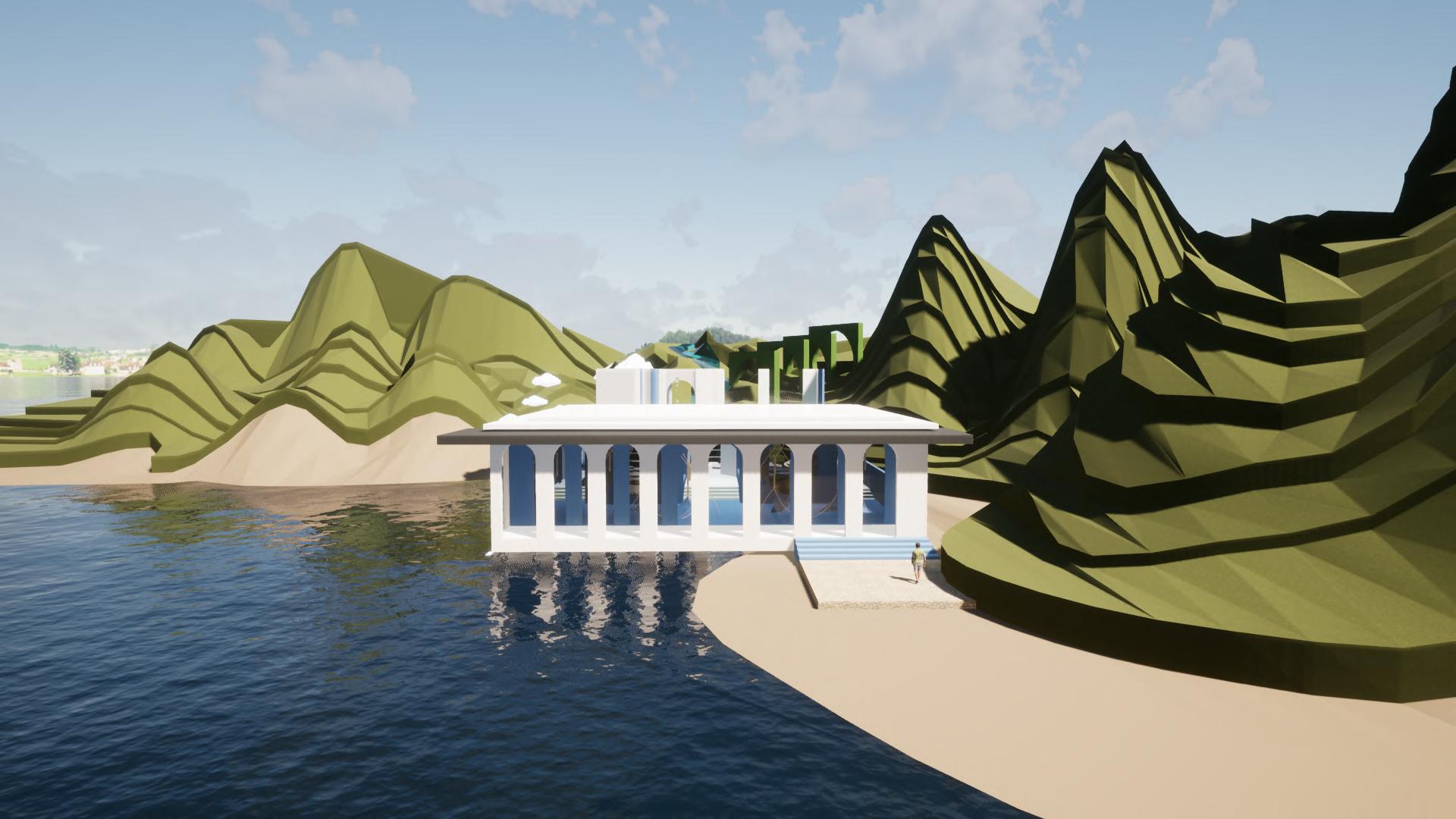

SURREALISM IS THE PSYCHIC AUTOMATION OF THE MIND, IN ITS PUREST FORM ALLOWING EXPRESSION TO BE EXERCISED WITHOUT THE CONTROL OF REASON. WITH CHILDLIKE CURIOSITY, THE INTENT WAS TO CREATE A DREAMSCAPE THAT ALLOWS JOY & HEALING TO TAKE PLACE IN A SPACE UNBOUND BY THE RIGIDITY, RULES & NORMS OF WHAT IS EXPECTED & ALLOWED TO BE CONSIDERED "NORMAL" IN SOCIETY. FREE OF MONOTONY, THE BUILDING IS CONCEPTUALIZED AS A FLOATING FORM NESTLED BETWEEN THE LUSCIOUS, TALL HILLS FULL OF FOLIAGE & THE VAST WAVES OF THE OCEAN. CREATING A CONNECTION WITH ELEMENTS OF WATER, GREENERY, THE WIND, AND CLOUDS.

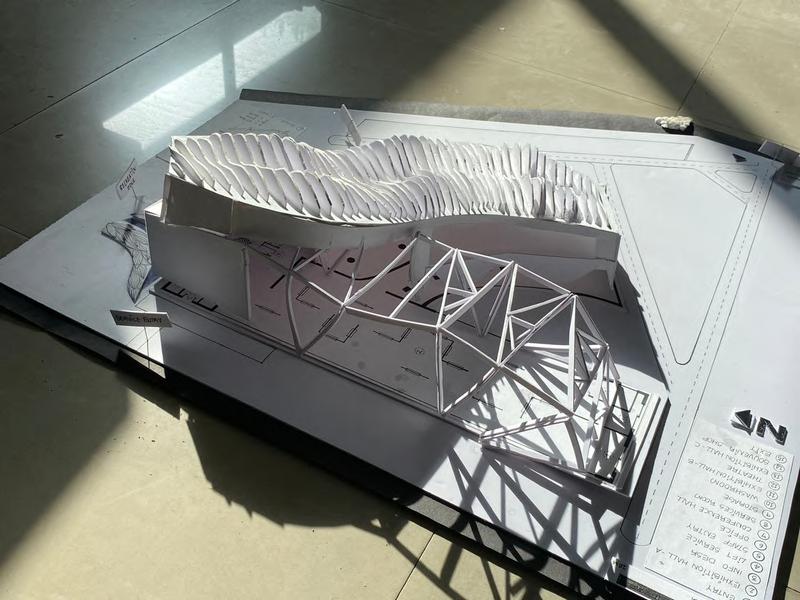

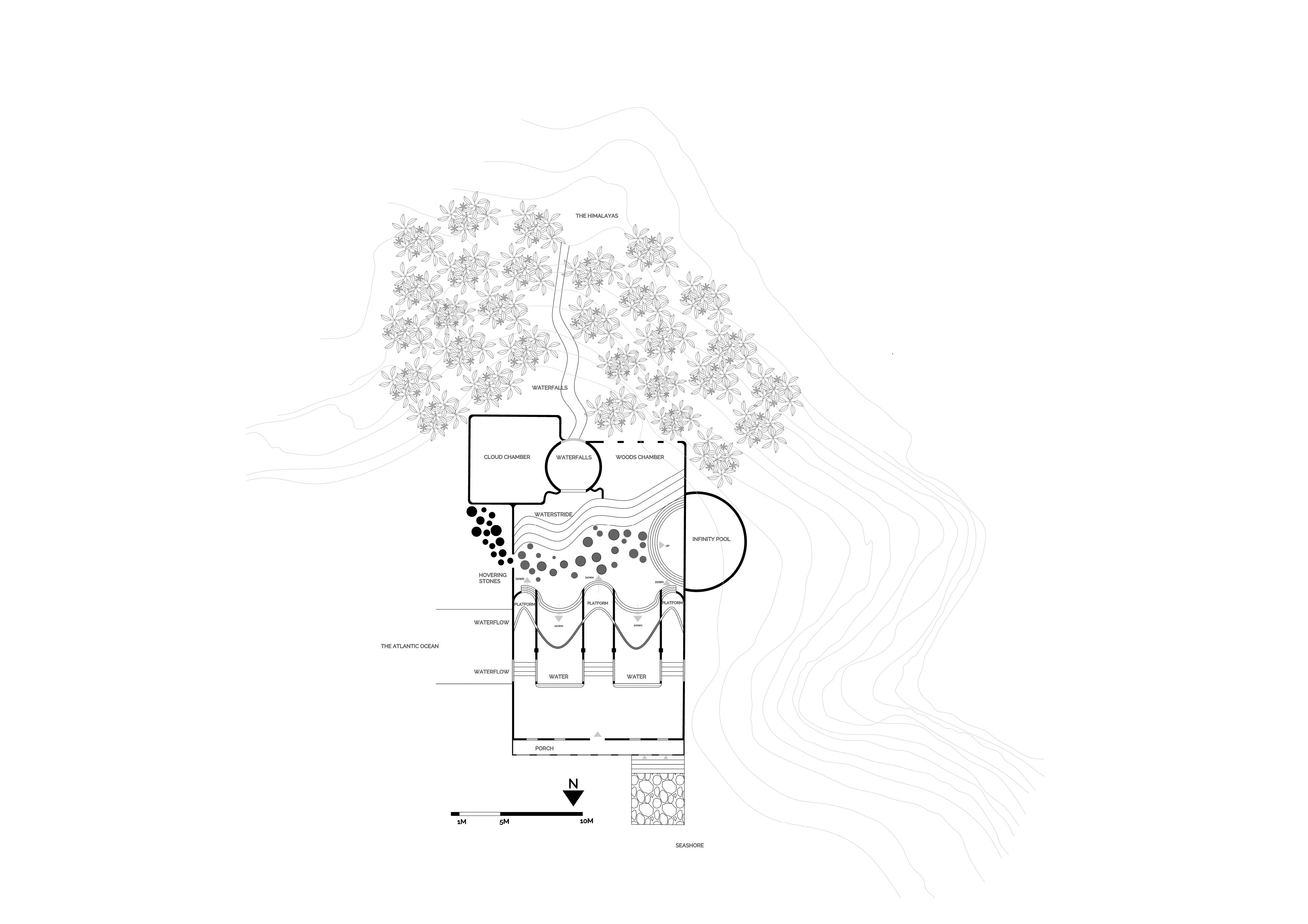

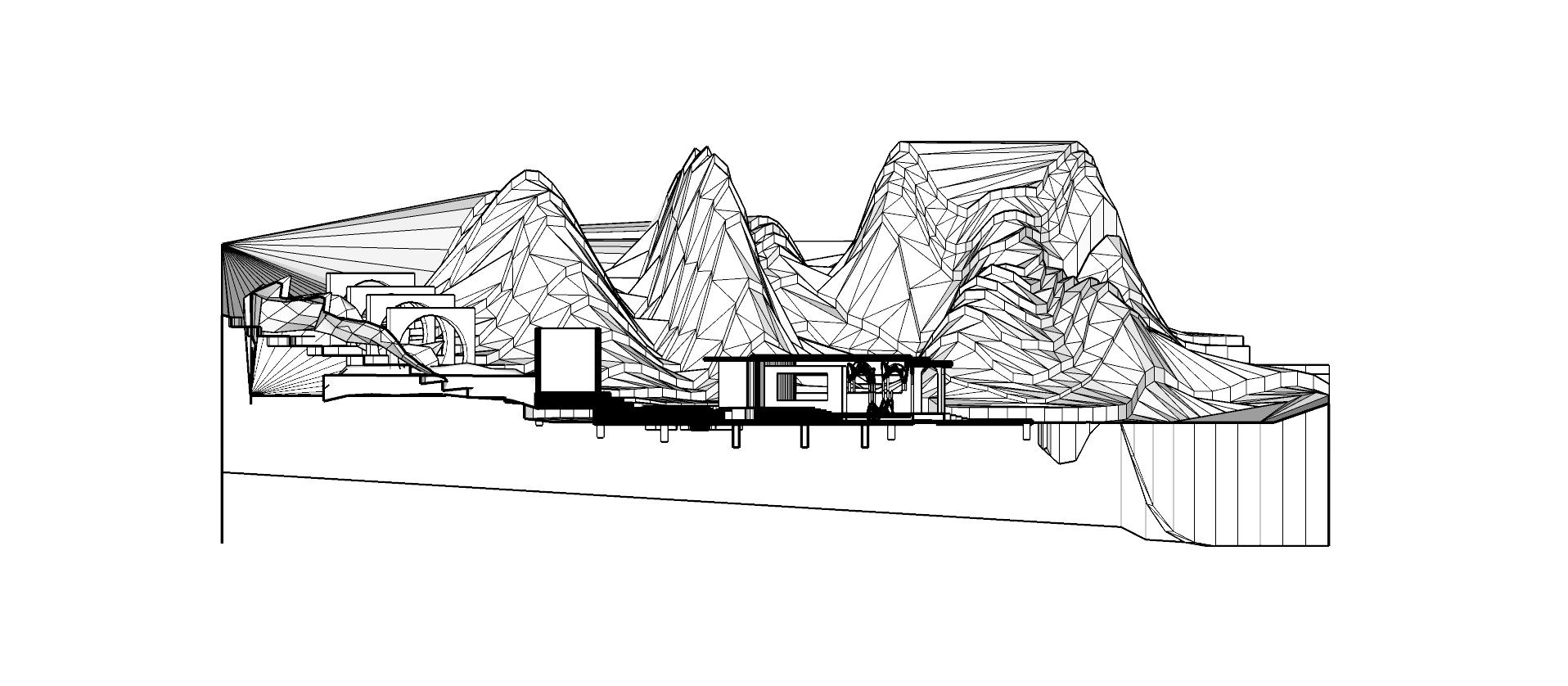

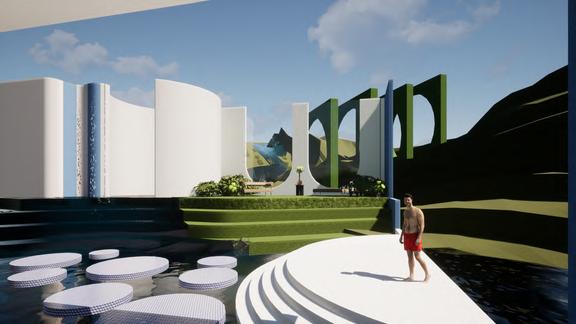

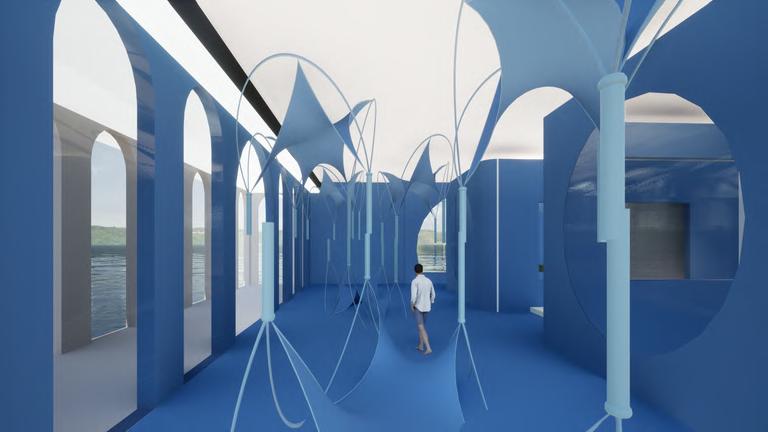

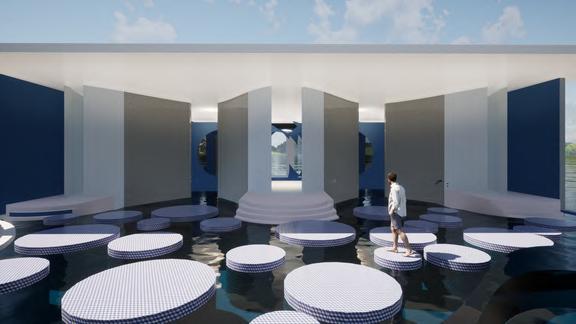

THE STRUCTURE IS CONCEIVED ALONG A LINEAR PLAN. STARTING AT AN ARCHED PORTICO THE FORM TRANSITIONS INTO THE BLUE LOBBY CONSISTING OF CURVED CANOPIED ARCHES.

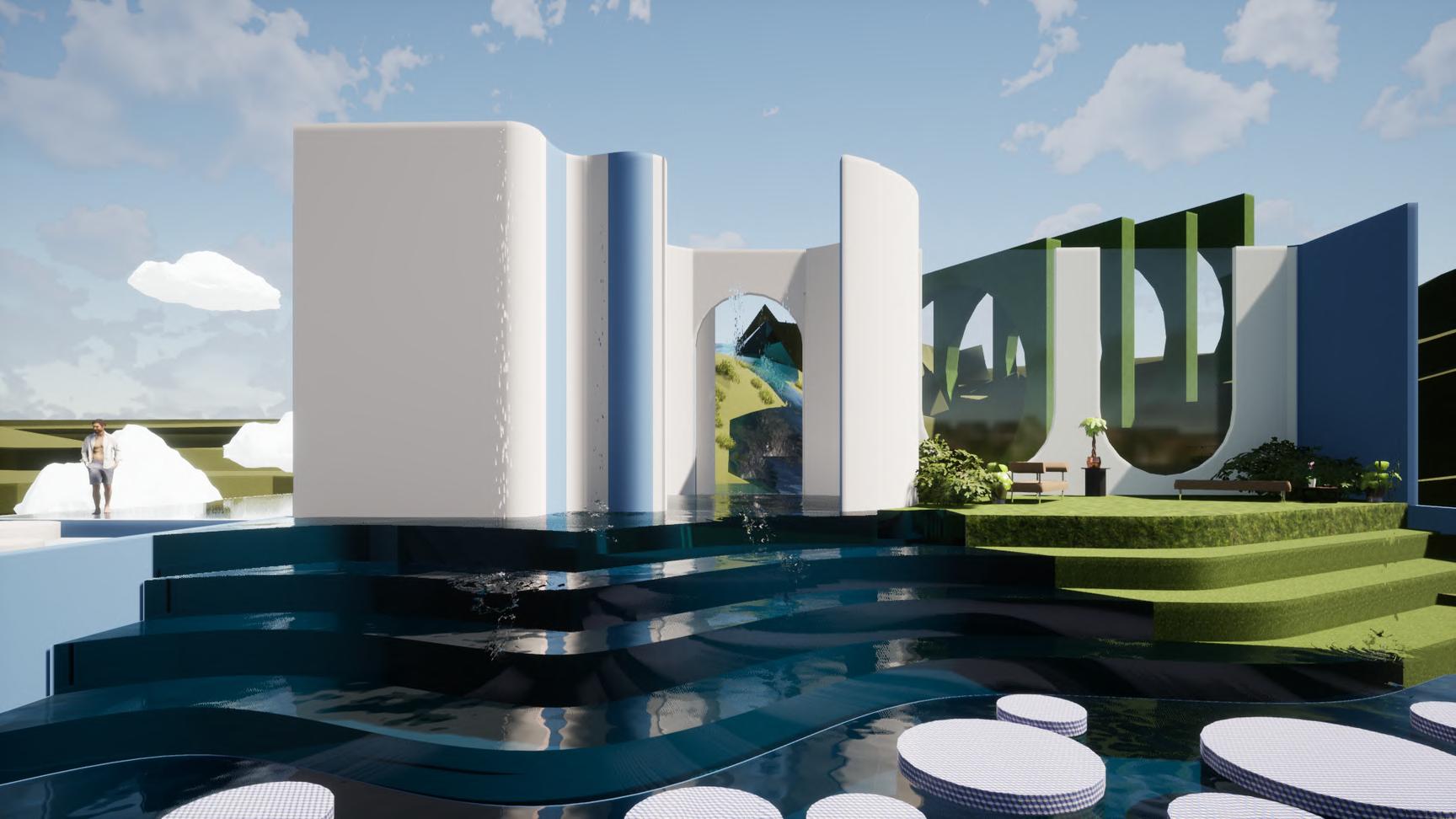

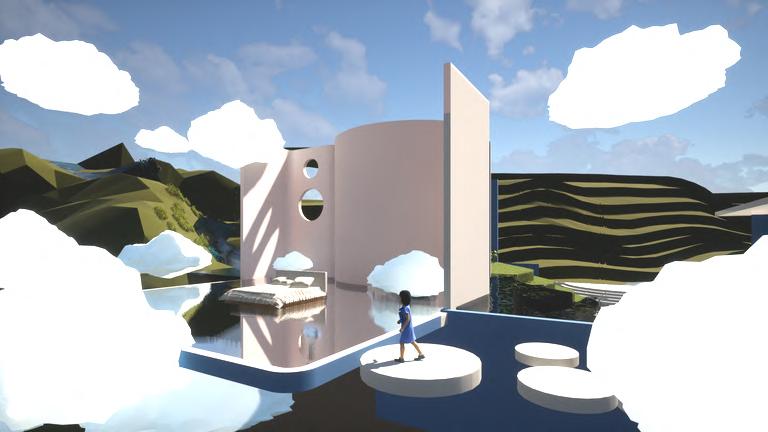

FROM THE SOUTH OF THE STRUCTURE, WATERS ARE CHANNELED FROM A NATURAL WATER STREAM PRESENT VIA THE WATER STRIDE, ALLOWING WATER TO PASS THROUGH THE STEPS INTO TWO WATER CHAMBERS AND THEN EXIT FROM UNDERNEATH THE FORM FALLING INTO THE OCEAN WATERS. AN INFINITY EDGE POOL IS DESIGNED TO THE WEST TO OFFER VIEWS OF THE SETTING SUN BEHIND THE LUSH HILLS. ON THE EAST, A CHAMBER IS DESIGNED FLOATING WITH THE CLOUDS OFFERING SUNRISE & THE MORNING MIST TO HEAL, WITH FLOATING ROCKS SERVING AS A WALKWAY AND ALLOWING ACCESS. TOWARDS THE SOUTH, A COMPLETELY OPEN GREEN LOUNGE IS DESIGNED TO SERVE AS A PLACE TO PAUSE SIT & REFLECT IN THE GREENERY OF NATURE WITH FRESH BREEZE & VIEWS OF THE WATERS.

THE FORM WAS PLANNED TO INCORPORATE ELEMENTS THAT CONTRIBUTE TO IMPROVING MENTAL HEALTH, RELAXATION, AND HEALING, SUCH AS THE USE OF SOOTHING COLORS SUCH AS BLUE & GREEN, ACCESS TO GREEN LANDSCAPES AND SEASCAPE, USE OF SOFT, CURVED LINES IN THE DESIGN WHILE CREATING PATTERNS THROUGH ARCHITECTURE.

05

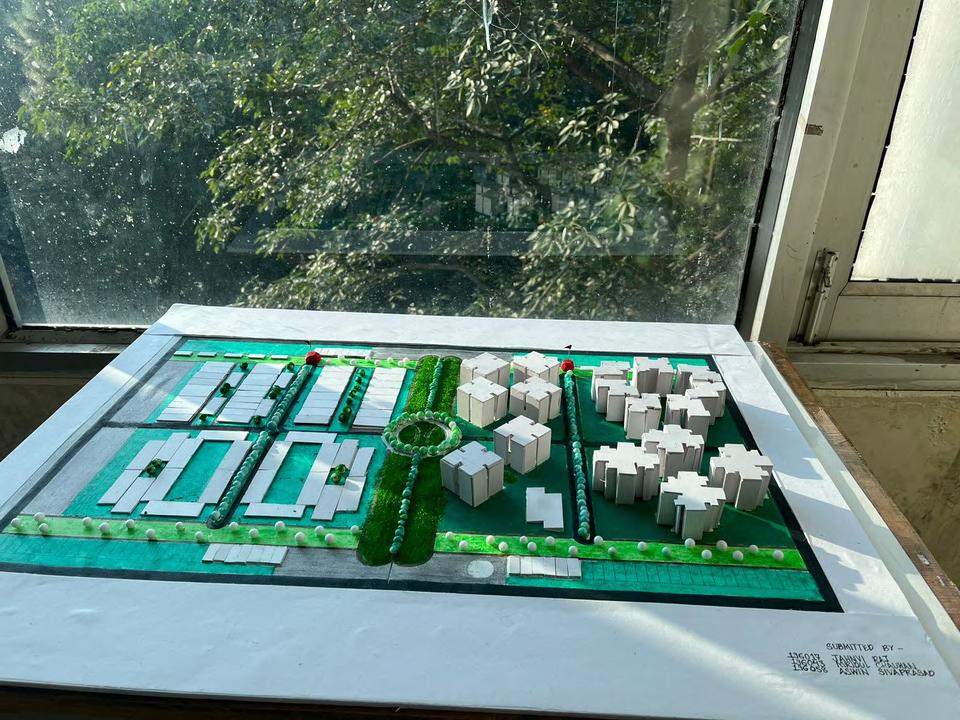

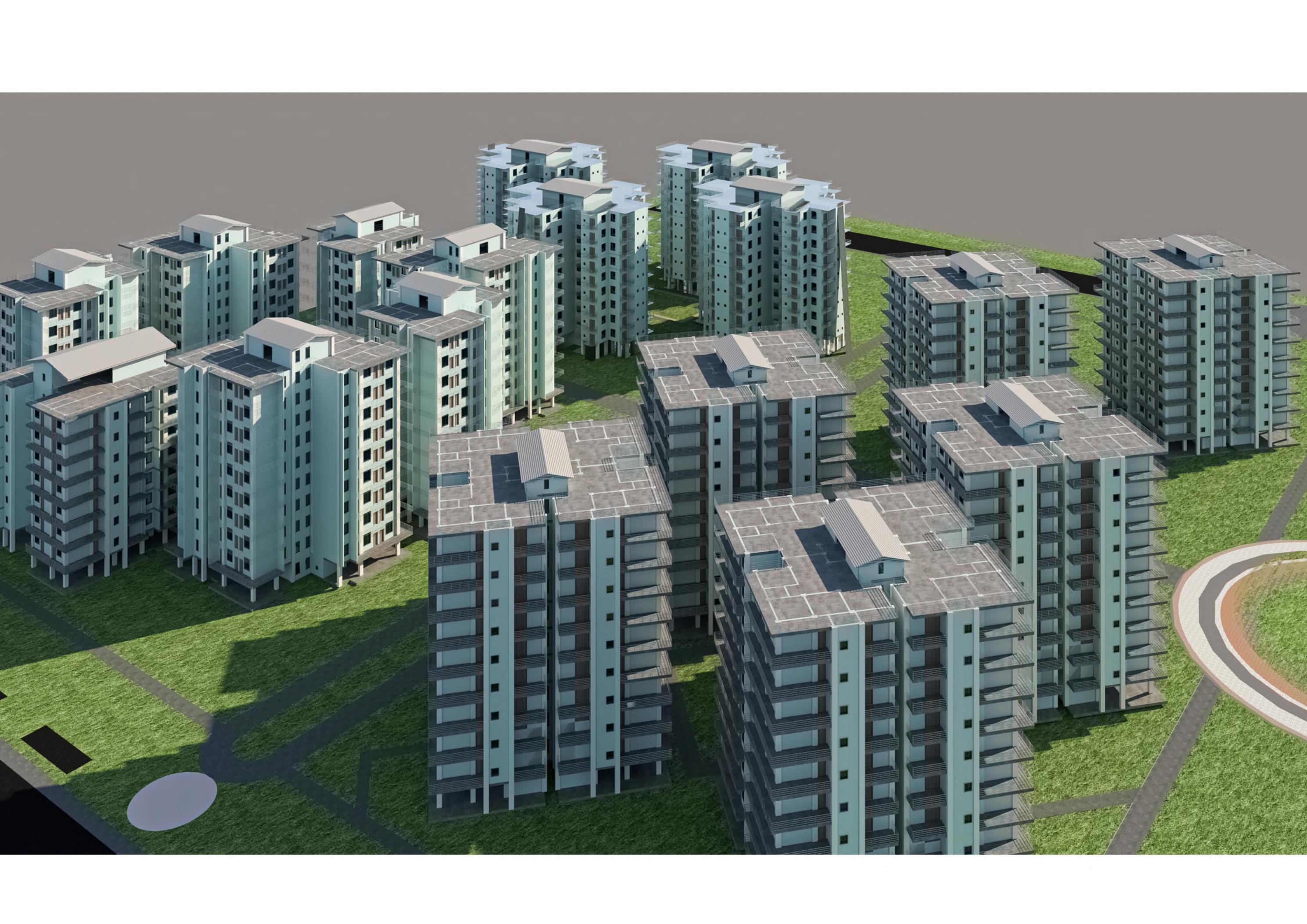

AAVAAS NEIGHBOURHOOD 7TH SEMESTER LOCATION: HAMIRPUR, INDIA ACADEMIC WORK

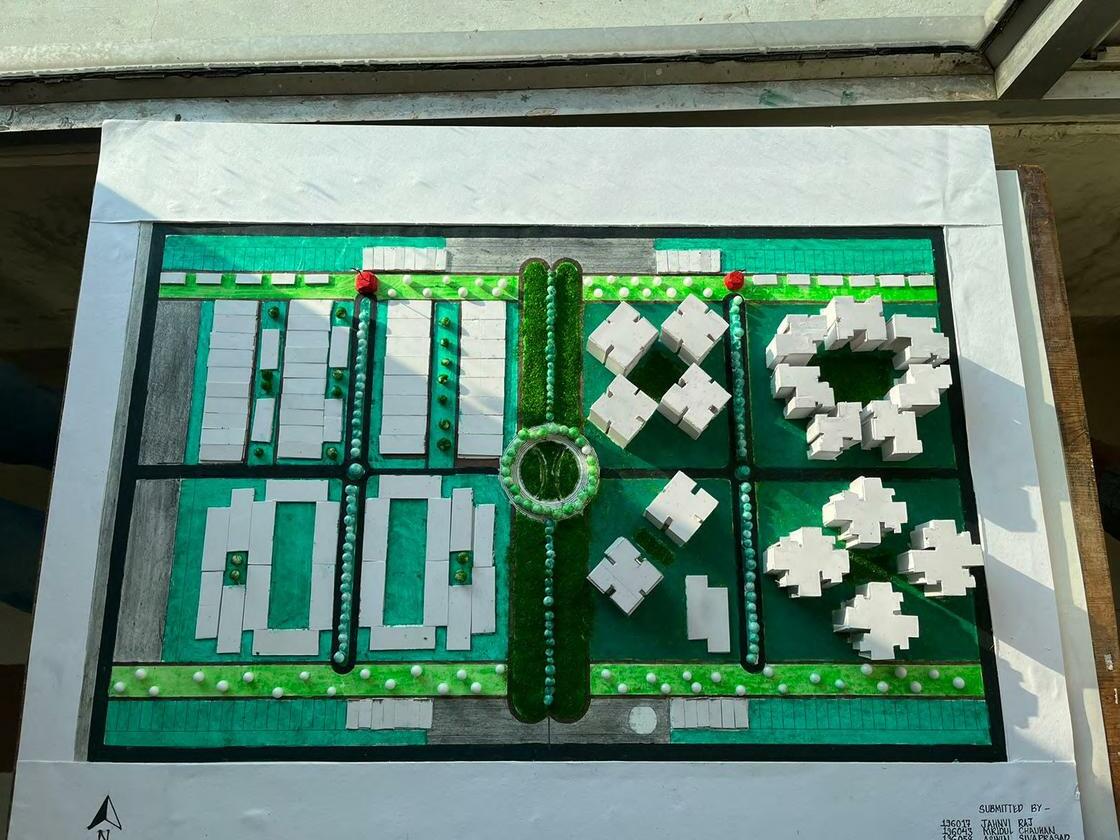

INTRODUCTION THE MAIN INTENT THROUGH THE DESIGN IS TO FOCUS ON 3 KEY ASPECTS TERMED ACT

A C T

ACCESSIBILITY-THROUGH PEDESTRIAN NETWORKS CONNECTIVITY -THROUGH COMMUNITY TRANQUILITY -THROUGH GREEN SPACES

GREEN SPACE IS PLANNED NEXT TO ALL HOUSING UNITS TO ESTABLISH A PHYSICAL AND VISUAL CONNECTION WITH NATURE FROM ALL DWELLING UNITS. THE BUILDING FORMS ARE ORIENTED TO MAXIMIZE VENTILATION WHILE ALLOWING GOOD SUN EXPOSURE AS HAMIRPUR EXPERIENCES HEAVY RAINFALL YEAR-ROUND AND COOL WINTER MONTHS. THE ACT CONCEPT WAS PLACED AT THE FOREFRONT OF ROAD NETWORK PLANNING, TO FACILITATE PEDESTRIAN TRAFFIC OVER MOTOR VEHICLES WITHOUT HINDERING EASE OF MAINTENANCE.

RESPECT THE SPACE HIERARCHY PROVIDE A CENTRAL COMMUNITY PARK WITH EQUAL ACCESS FOR ALL INCOME GROUPS PROVIDE SAFE WALKABLE OPEN SPACES

PROVIDE A COMMON COMMERCIAL AREA FOR ENTIRE NEIGHBOURHOOD

PROVIDE ADJACENT GREEN SPACES WITH ALL HOUSING SPACES ADJUST ORIENTATION TO PROVIDE SHADING FOR YARDS

SEPARATE PUBLIC AND PRIVATE AREAS. EFFECTIVE PEDESTRIAN AND STREET NETWORK.

500 M

7

7 12

12

12

11

10

8

9

9

6

6

14

14 14

6

14

11

12

12

12

1

1

14

6

12

3

2

2 8

10

14 1

2

2

1 1

1

15 320 M 5

5 5

5

5

5

5

14 14 5

5 5

5

5

14

14

8

5

2 5

5

4

14

14

5

5

4

2

5

13

5

7

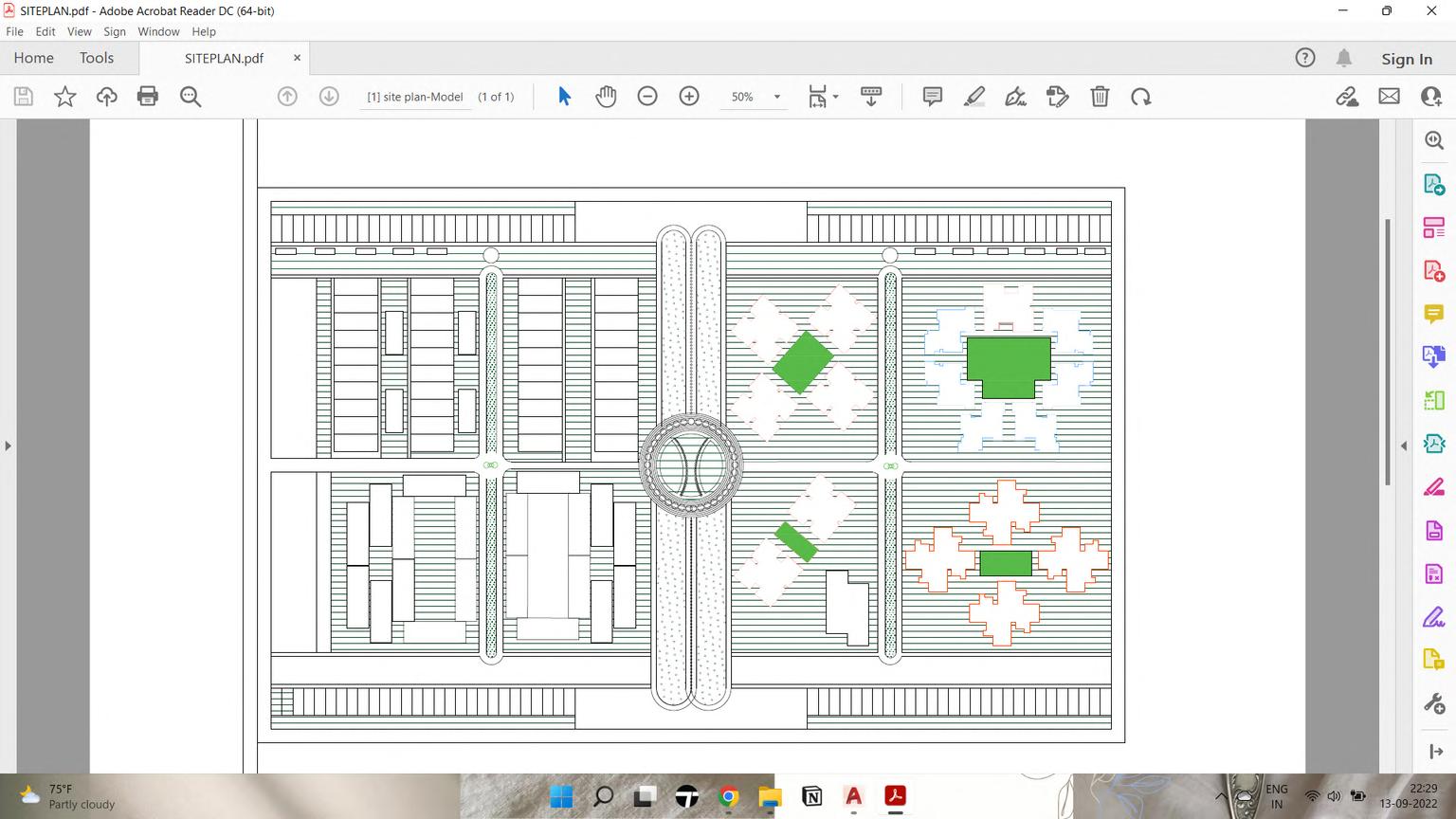

SITE PLAN

5

1. LIG 2. MIG 3. LIG+MIG 4. HIG 5. 450 SQM PLOTS

14

4

4

7 8

6.250 SQM PLOTS 7. 100 SQM PLOTS 8.PARKING LOT 9. TEMPLE 10. DISPENSARY

11. MILK BOOTH 12. SHOPS/RETAIL 13. SCHOOL 14. Housing area parks 15. Community park

DOUBLE LANE 8M WIDE ROAD SINGLE LANE 4M WIDE ROAD PEDESTRIAN WALKWAYS 2M WIDE

LOCATION: HAMIRPUR, HIMACHAL PRADESH ADDRESS: BESIDE DEGREE COLLEGE ANU, HAMIRPUR, 177005 AREA OF PROJECT: 160000 SQ.M.

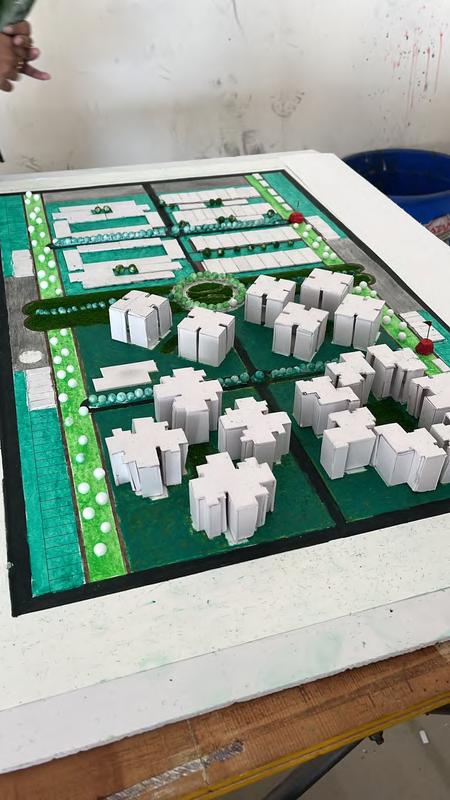

PLANNING IN TERMS OF PLANNING OF THE SITE, WE CHOSE TO PROVIDE GREEN SPACES IN CLOSE VICINITY TO THE BUILT FORM TO ALLOW FOR VISUAL CONNECTION TO NATURE FROM ALL UNITS. WE ORIENTED THE BUILT FORM SO AS TO

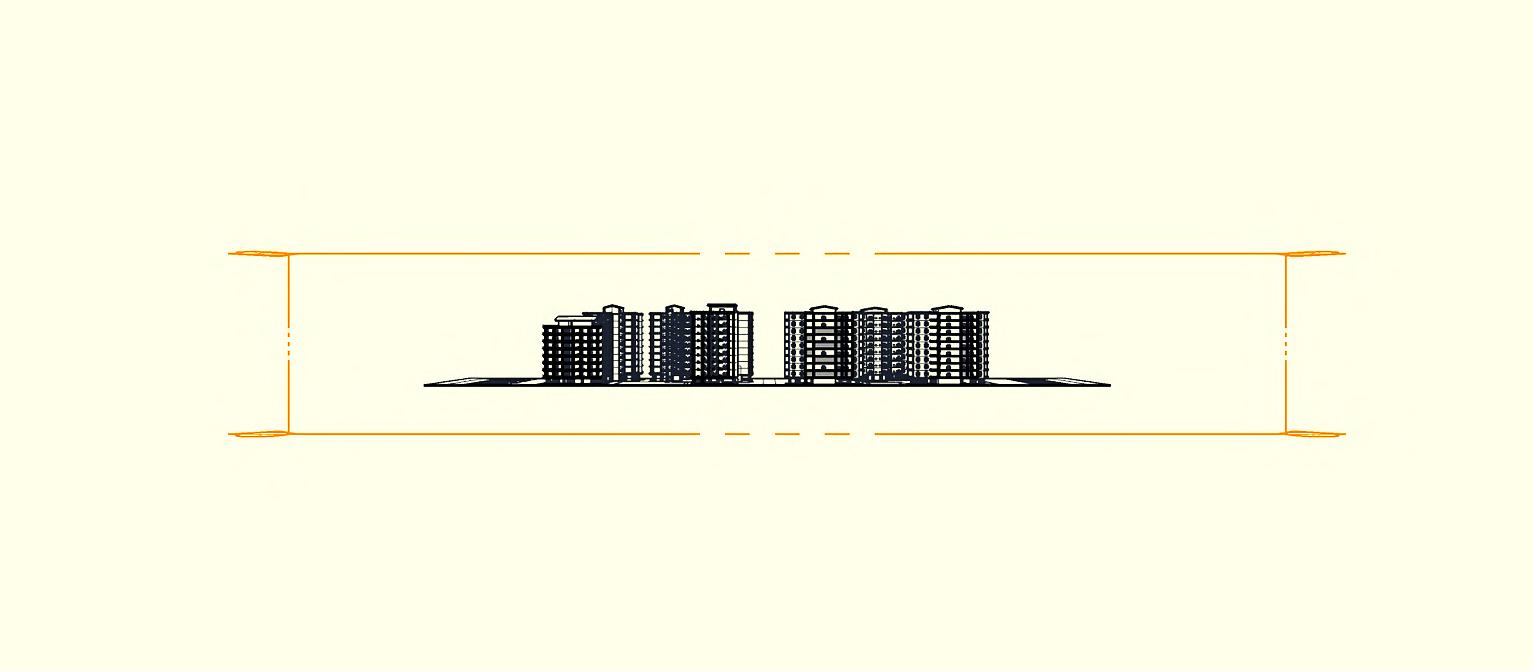

SITE SECTION

500 M

7 12

12

12

11

10

7

8

9

9

OUR MAIN INTENT THROUGH THE DESIGN IS TO EMBODY THE ARCHITECTURE OF HUMANITY AND PROTECTION WITH HOPE & HEALING BEING REFLECTED THROUGH EVERY ASPECT OF THE DESIGN. KEEPING THIS IN MIND WE AIM TO FOCUS ON-USER-CENTRIC DESIGN TO MAXIMIZE PATIENT COMFORT.

6

6

14

14

6

11

12

12

12

1

1

14

6

12

3

2

2 8

10

14 1

2

2

1 1

1

15 320 M 5

5 5

5

5

5

5

5

5

5

5

5 5

5

2 5

5 5

4

14

14

14 8

5

4

2

5

13

5

7

14

4

4

7 8

1. LIG 2. MIG 3. LIG+MIG 4. HIG 5. 450 SQM PLOTS

6.250 SQM PLOTS 7. 100 SQM PLOTS 8.PARKING LOT 9. TEMPLE 10. DISPENSARY

11. MILK BOOTH 12. SHOPS/RETAIL 13. SCHOOL 14. HOUSING AREA PARKS 15. COMMUNITY PARK

DOUBLE LANE 8M WIDE ROAD SINGLE LANE 4M WIDE ROAD PEDESTRIAN WALKWAYS 2M WIDE

SIMILAR TYPES OF HOUSING UNITS WERE GROUPED TOGETHER AND THE CLUSTERS WERE MIRRORED AXIALLY TO CREATE 4 DIFFERENT HOUSING TYPES, EACH HAVING DIRECT ACCESS TO ITS OWN COURTYARD SPACE WHILE BEING CONNECTED TO THE CENTRAL COMMUNITY PARK VIA WALKWAYS.. EACH UNIT IS PLANNED WITH A VISUAL CONNECTION TO THE GREEN SPACES BEING CREATED THROUGHOUT. ELECTRICAL LAYOUT

PLUMBING LAYOUT

FRONT ELEVATIONS

LIG

MIG

HIG

LIG + MIG

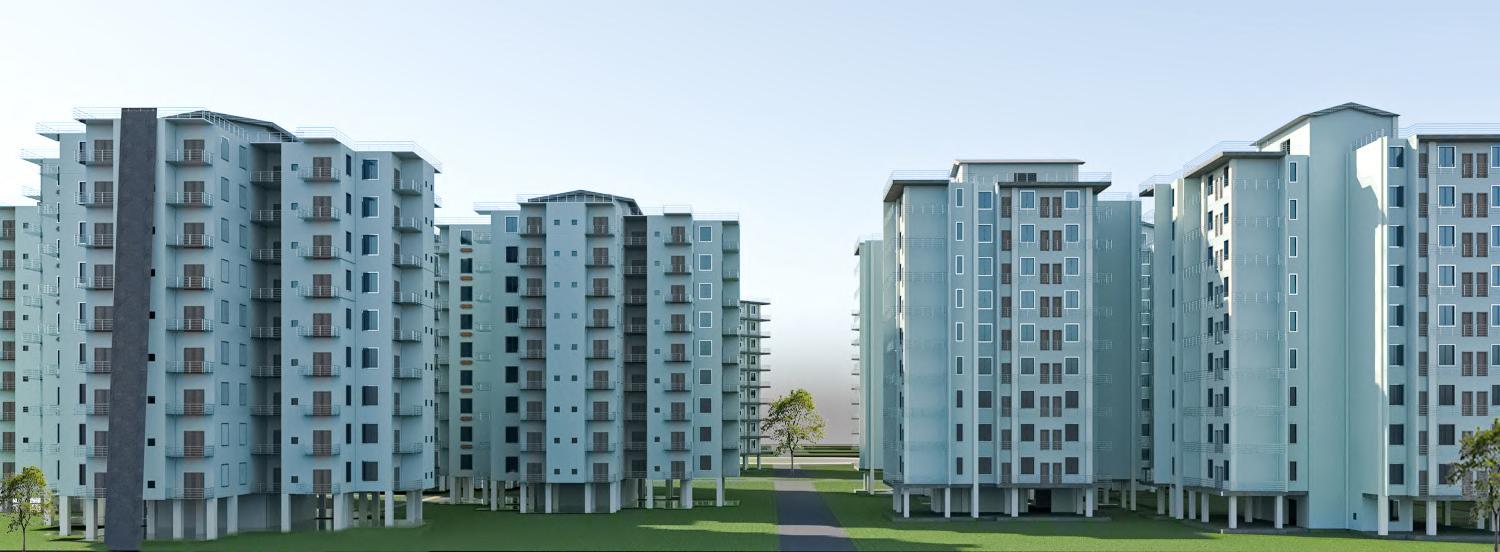

GROUP HOUSING

06

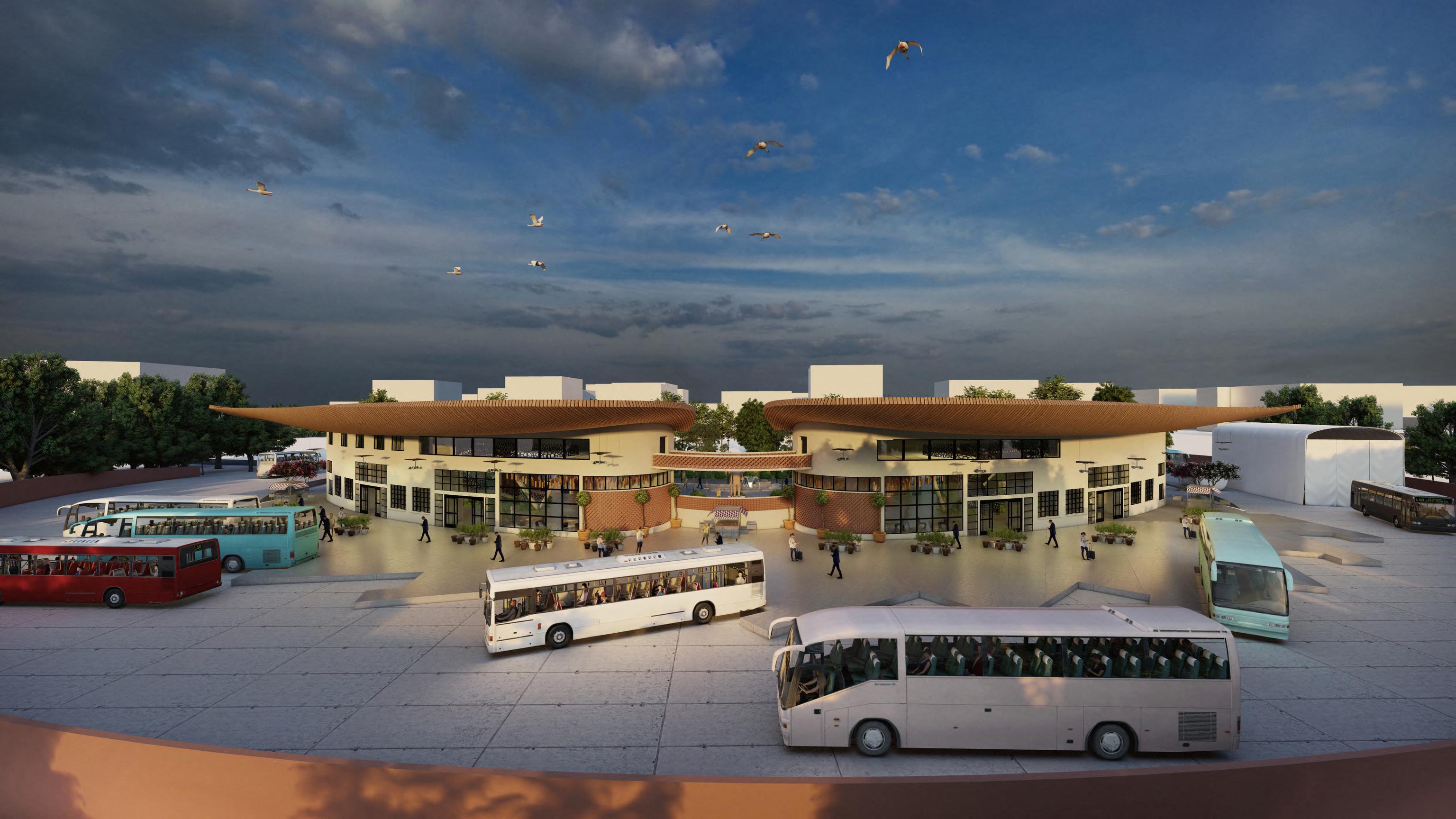

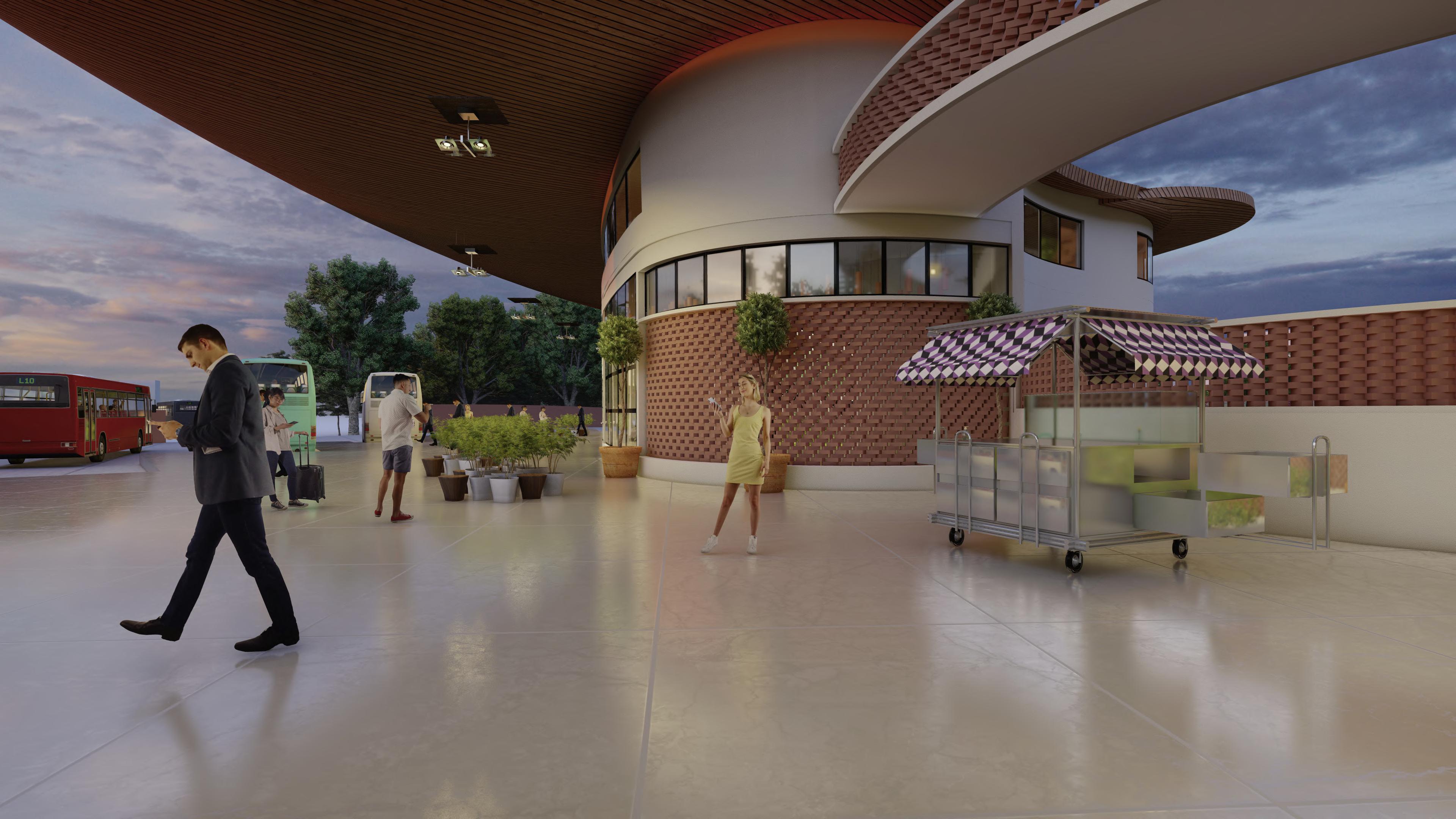

ANTRAAL BUS TERMINAL DESIGN YEAR 2021 LOCATION: PUNJAB, INDIA ANDC NASA

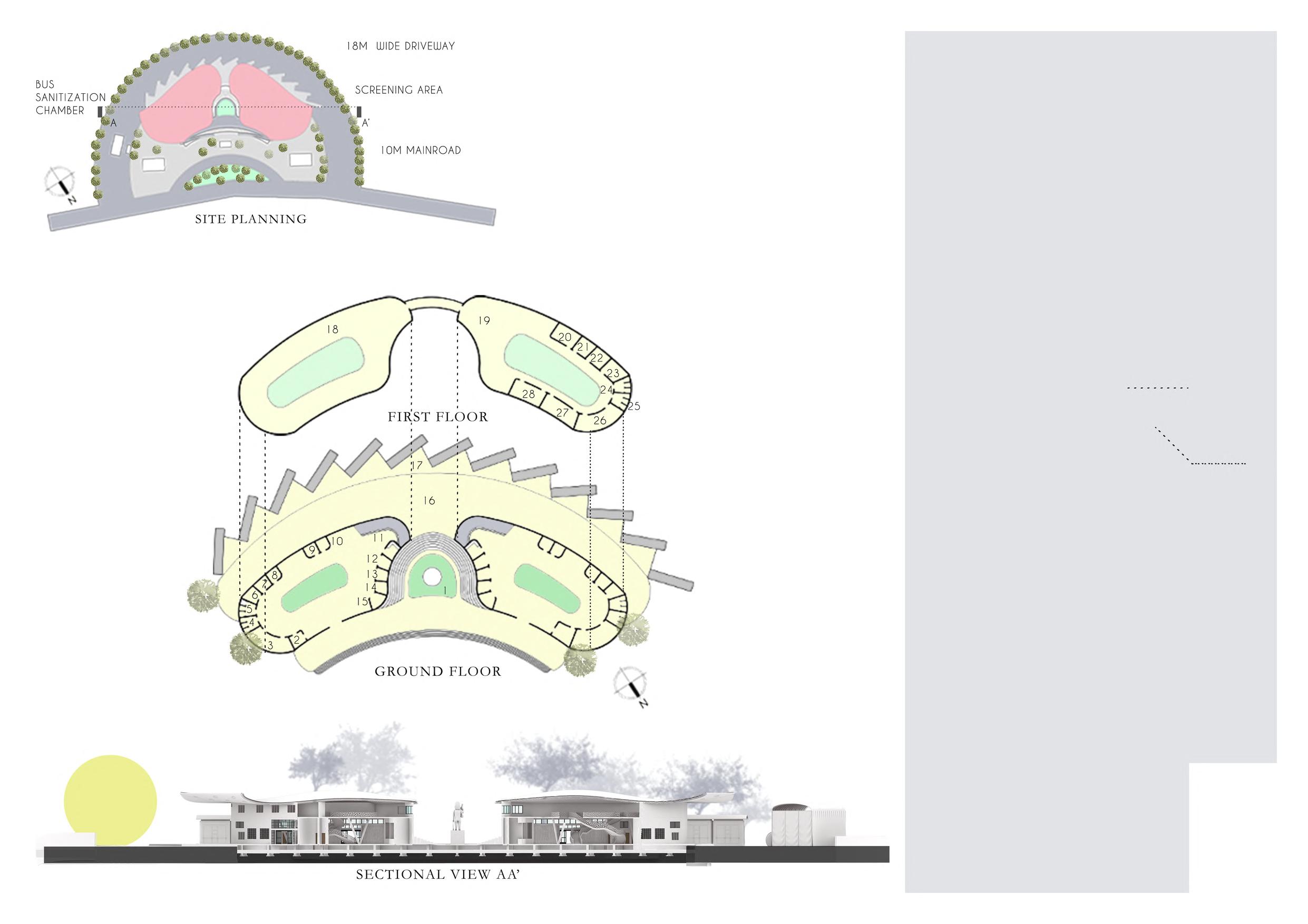

1. AMPHITHEATRE SEATING 2. LUGGAGE DISINFECTION ROOM 3. LUGGAGE ROOM 4. MALE TOILETS 5. FEMALE TOILETS 6. DRIVER’S LOUNGE 7. TICKET COUNTER 1 8. TICKET COUNTER 2 9. ENQUIRY COUNTER 10. TICKET COUNTER 3 11. RESTAURANT 12. SHOP 1 13. SHOP 2 14. SHOP 3

15. SHOP 4 16. CONCOURSE AREA 17. BAY AREA 18. MULTIPURPOSE AREA 19. WAITING LOUNGE 20. STAFF LOUNGE 21. REVENUE OFFICE 22. PAPERWORK OFFICE 23. PAPERWORK OFFICE 24. MALE TOILETS 25.FEMALE TOILETS 26.VISITOR’S DORMITORY 1 27. VISITOR’S DORMITORY 2 28. STAFF DORMITORY

MANY VIRUSES HAVE GONE BY AND OTHERS MIGHT COME IN FUTURE, BUT THE SURVIVAL INSTINCTS OF HUMANS ARE INEVITABLE. DIVIDED BY BARRIERS LIKE RELIGION AND CASTE, WE ALL UNITE, WHEN A PROBLEM LIKE THIS CONFRONTS US

.

THOUGH THE PANDEMIC CAUSED SERIOUS DAMAGE TO THE WORLDWIDE ECONOMY AND LIFESTYLE, IT DID GIVE AN OPPORTUNITY TO UPLIFT THE HEALTH STANDARDS, BE IT THROUGH A GALI, NUKKAD OR A PUBLIC TRANSIT.

WE AS ARCHITECTS CAN PROPOSE DESIGN CHANGES, BUT WITH THE GENERAL MASSES OBEYING THEM, WE CAN SURELY DEFEAT THE PANDEMIC AND COME OUT, STRONGER THAN EVER,

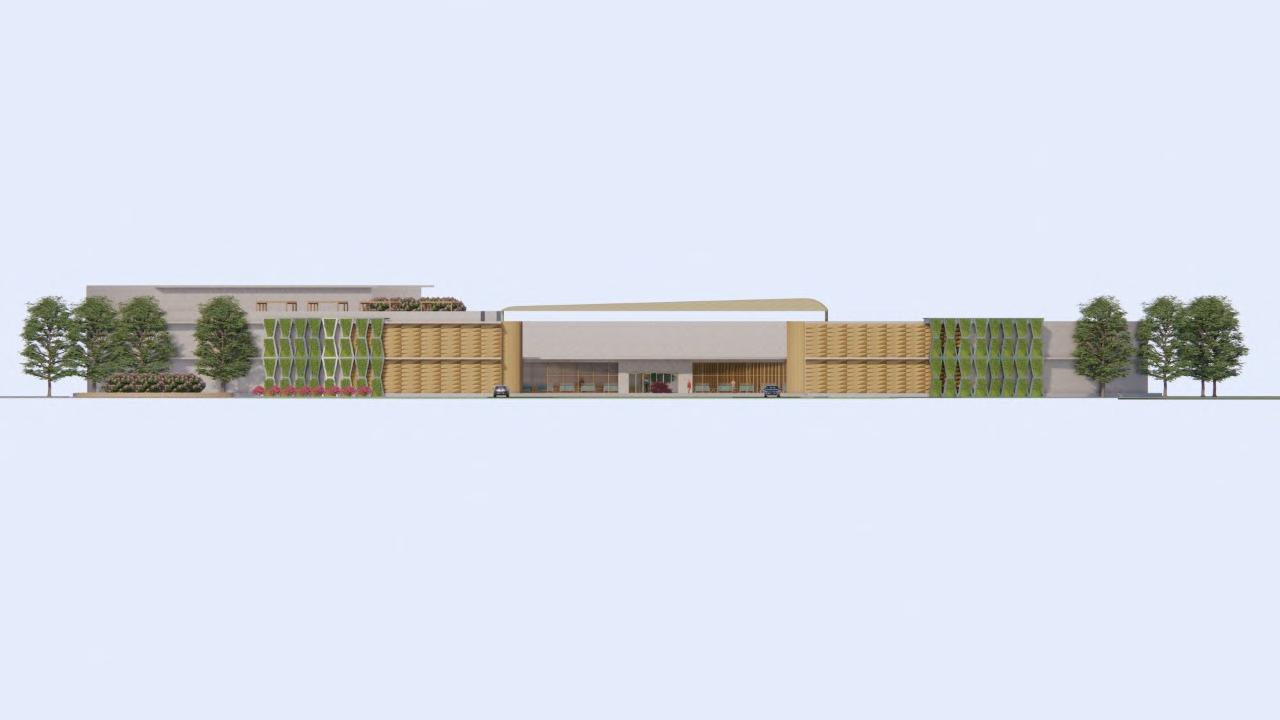

THE MAJOR IDEOLOGY BEHIND THE DESIGN WAS TO SIMPLIFY THE CIRCULATION PATTERNS OF THREE MAJOR TRAFFIC SOURCES, NAMELY BUSES, PRIVATE VEHICLES/AUTOS, AND PEDESTRIANS. SEPARATE PUBLIC ENTRANCE AND EXITS PROVIDED A CLEAR DISTINCTION BEETWEEN THE ARRIVAL AND DEPARTURE PASSENGERS AND REDUCED THEIR INTERSECTION TO A MINIMUM.

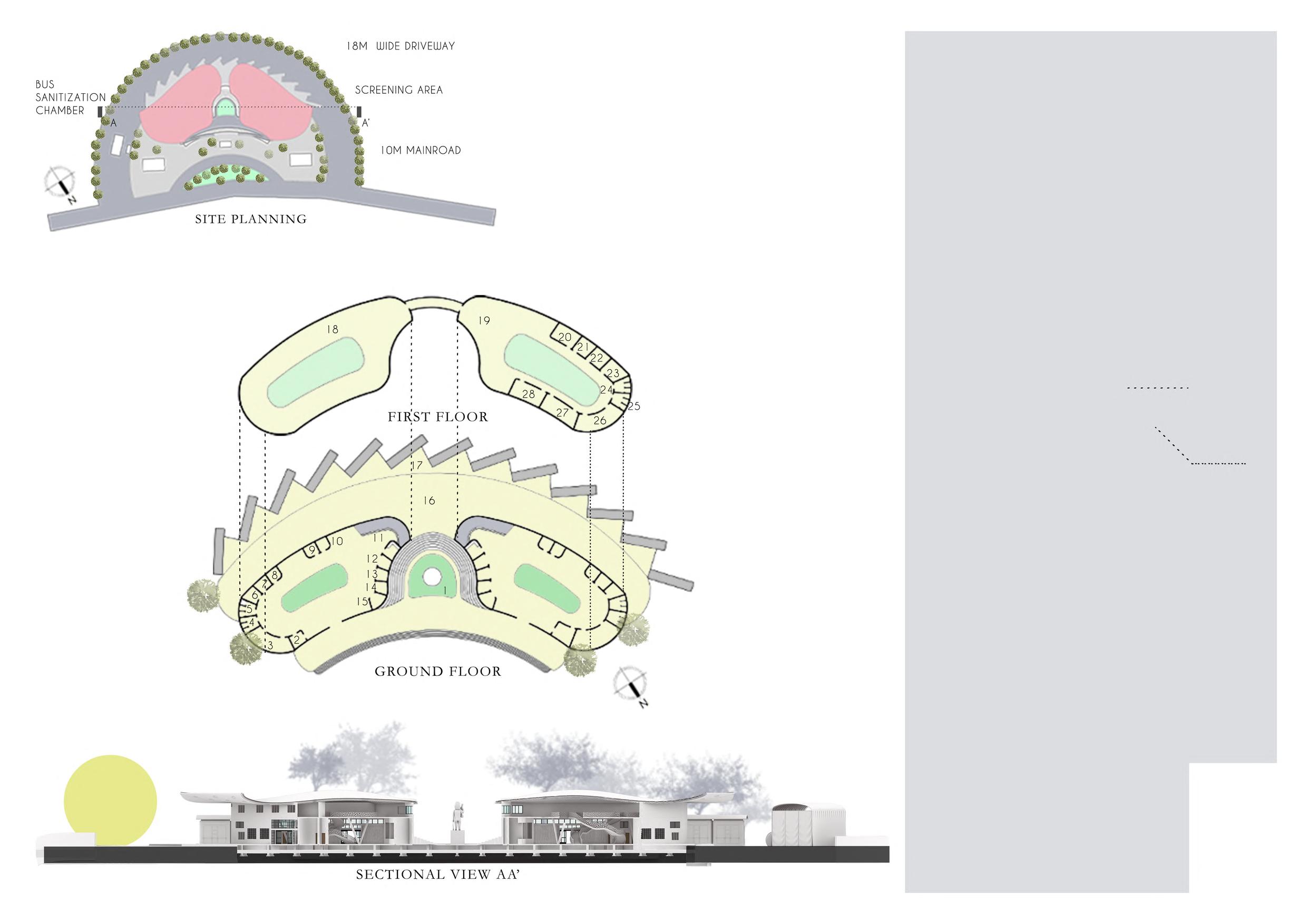

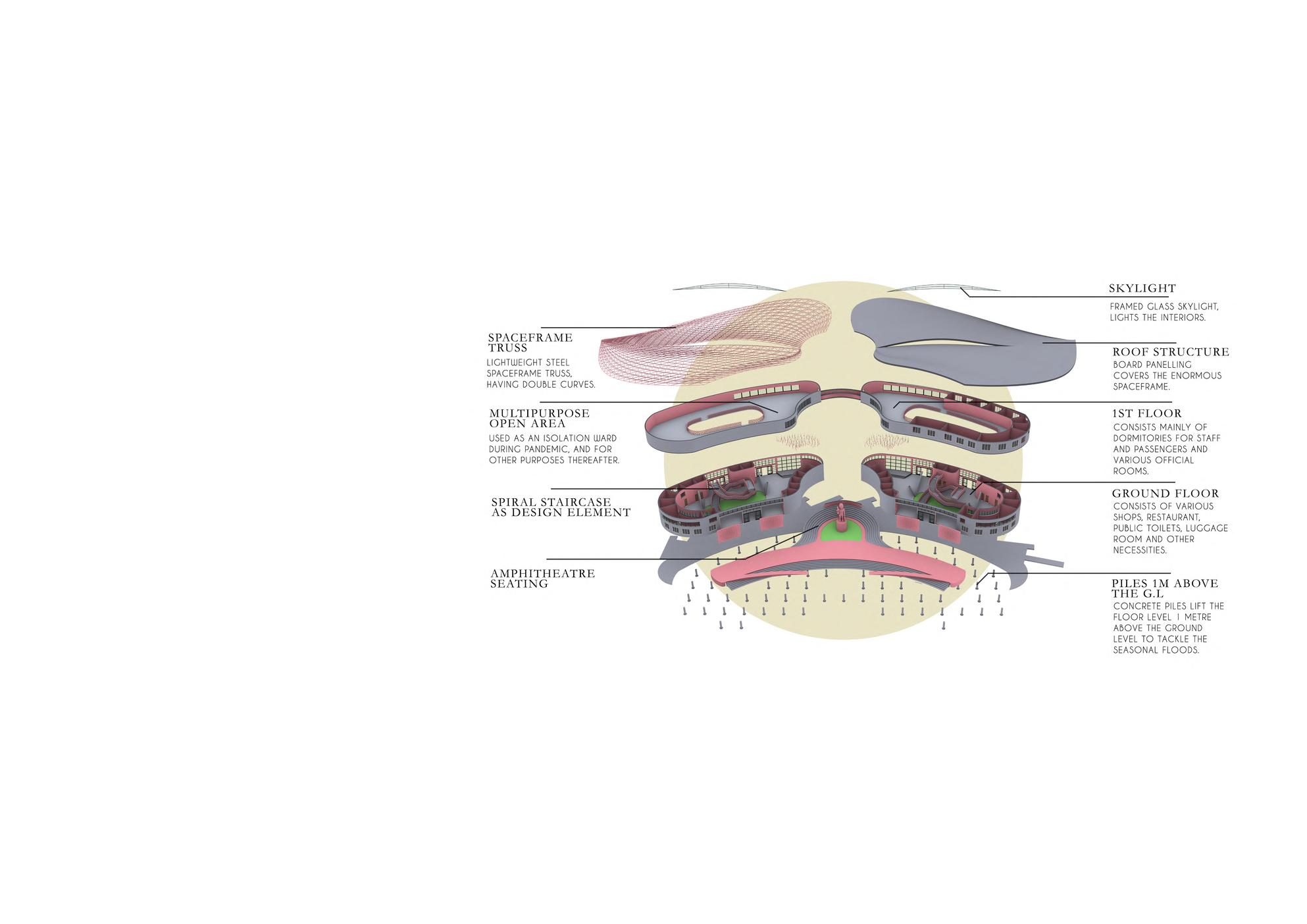

THE SECTIONAL VIEW SHOWCASES THE PILE FOUNATION UNDERNEATH THE GROUND FLOOR, THE SPACEFRAME TRUSS AND THE OTHER CONSTRUCTION DETAILS.

07

HPPWD INTERN,SHIMLA WORKING DRAWINGS 6TH SEMESTER LOCATION: BILASPUR, INDIA UNA, INDIA INTERNSHIP WORK

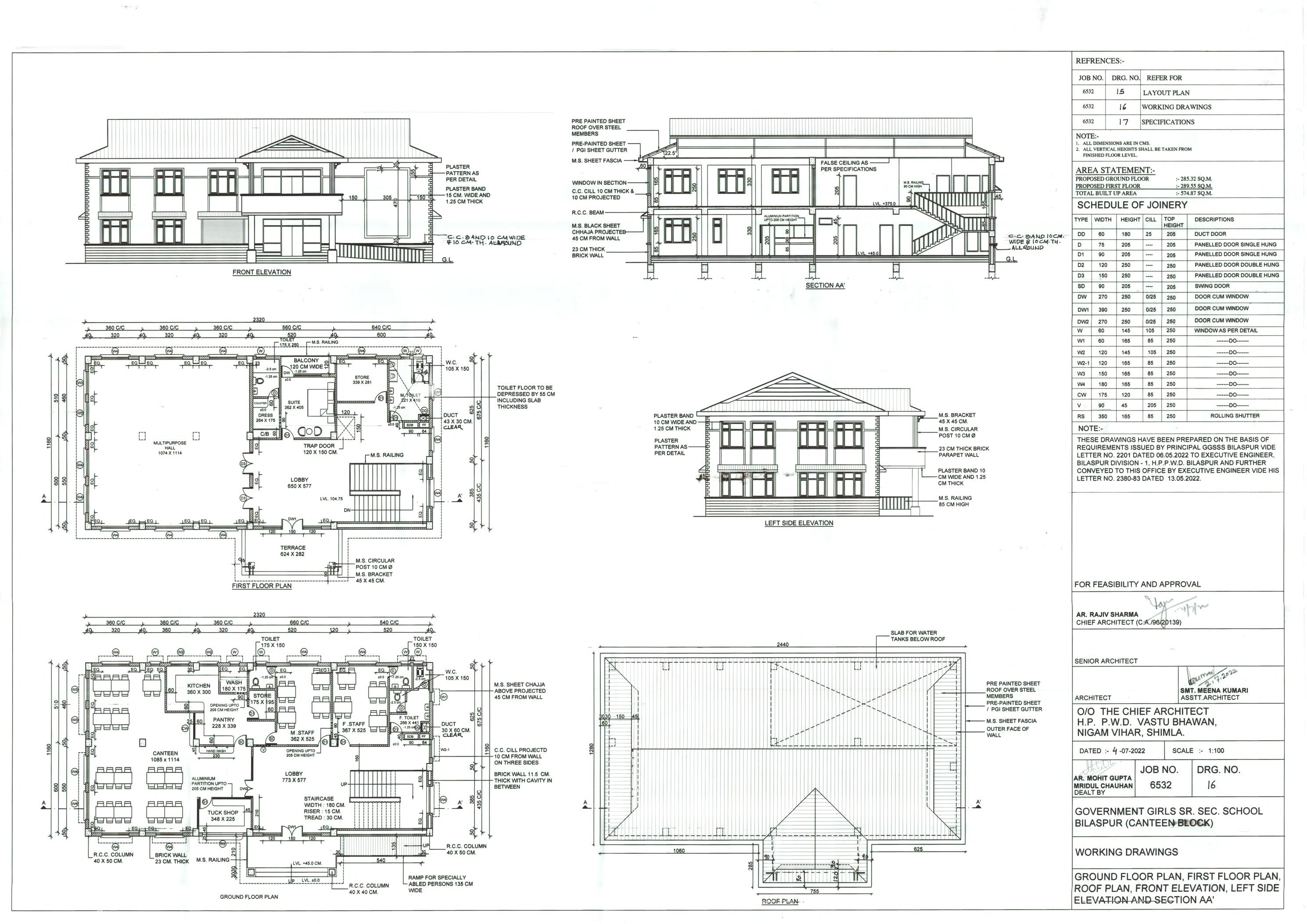

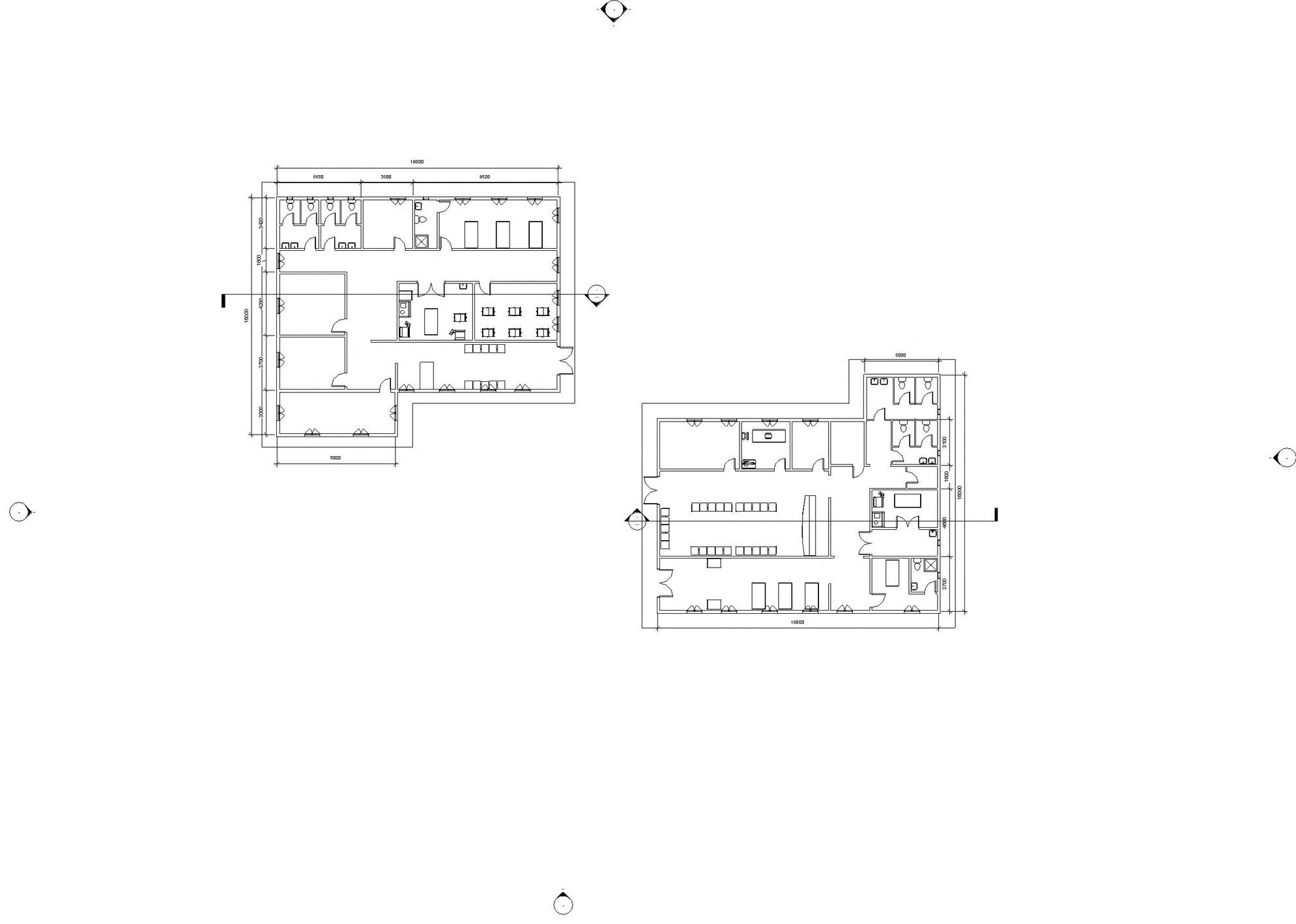

GOVERNMENT GIRLS SR. SEC. SCHOOL BILASPUR ( CANTEEN BLOCK ) WORKING DRAWINGS: GROUND FLOOR PLAN, FIRST FLOOR PLAN, ROOF PLAN, FRONT ELEVATION, LEFT SIDE ELEVATION AND SECTION AA'

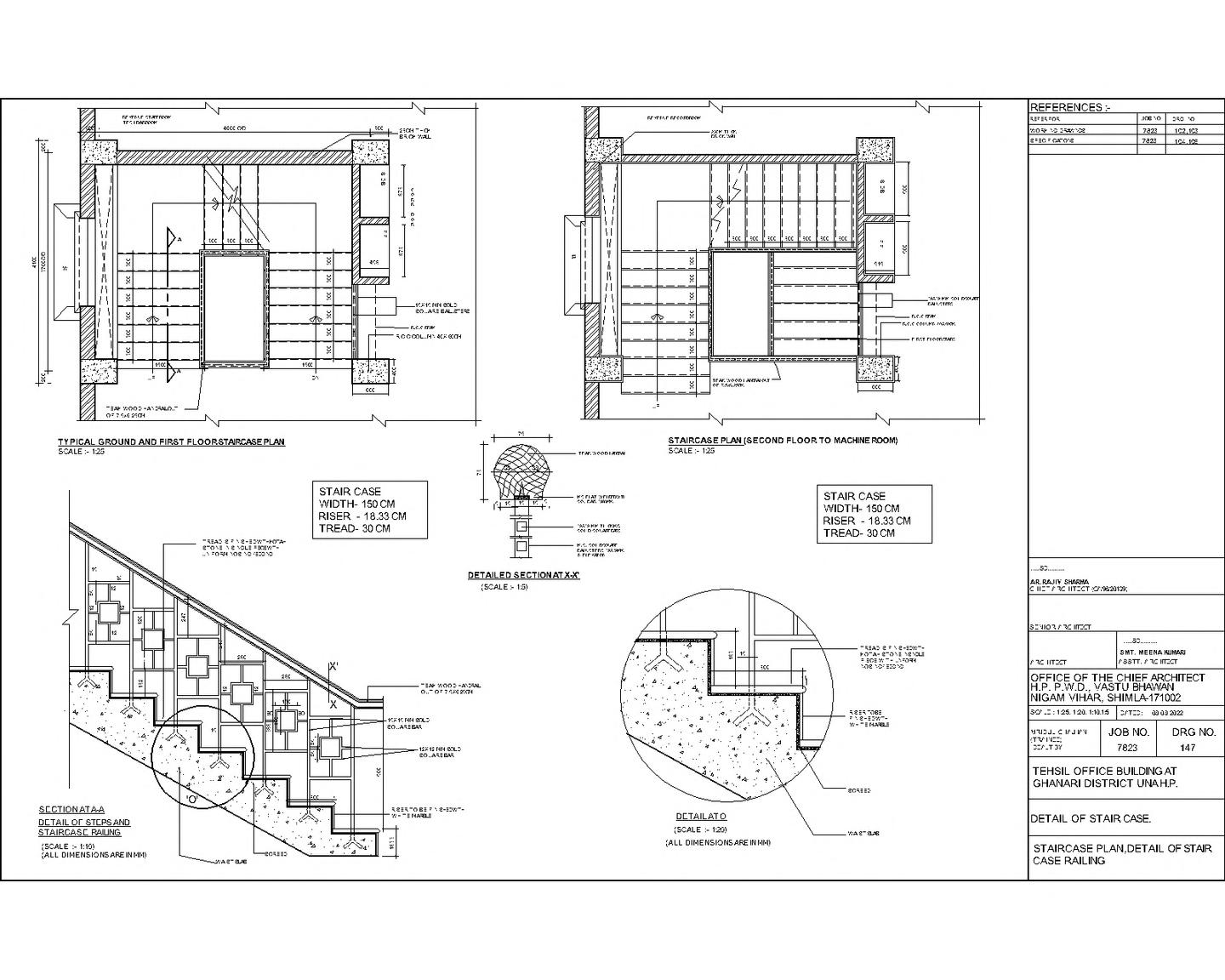

TEHSIL OFFICE BUILDING AT GHANARI, DISTRICT UNA HIMACHAL PRADESH, INDIA DETAILS OF STAIRCASE : PLAN, DETAILS OF STAIRCASE RAILINGS

08 MISCELLANEOUS PRODUCT DESIGN AND ART DESIGNS OF PRODUCTS POST-PANDEMIC DOODLING AND RANDOM ART

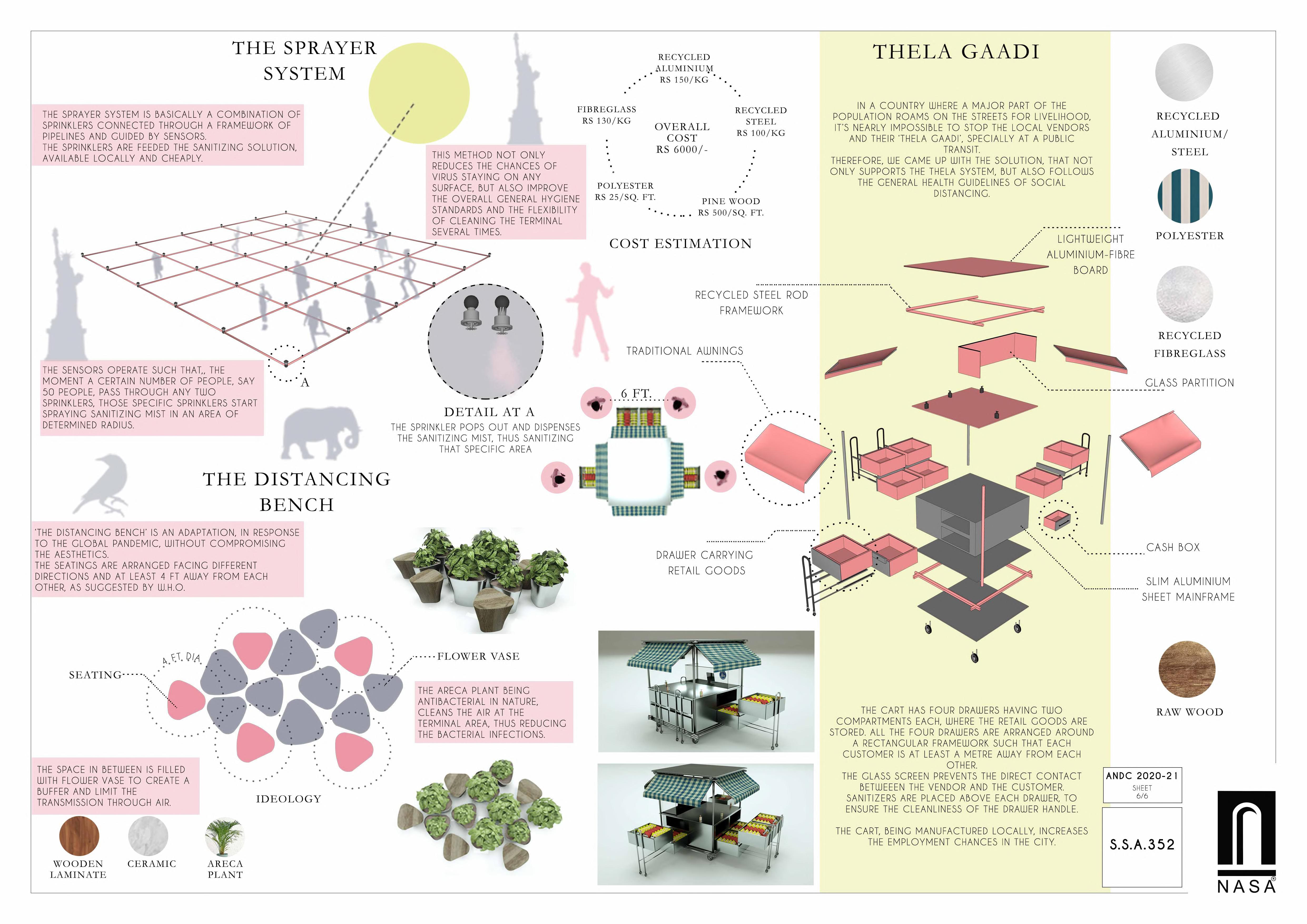

THELA CART IN A COUNTRY WHERE A MAJOR PART OF THE POPULATION ROAMS ON THE STREETS FOR LIVELIHOOD, IT'S NEARLY IMPOSSIBLE TO STOP THE LOCAL VENDORS AND THEIR THELA GAADI, SPECIALLY AT A PUBLIC TRANSIT.

THAT'S WHY WE'VE FOUND A SOLUTION THAT NOT ONLY SUPPORTS THE THELA SYSTEM, BUT ALSO COMPLIES WITH COMMON HEALTH GUIDELINES FOR SOCIAL DISTANCING.

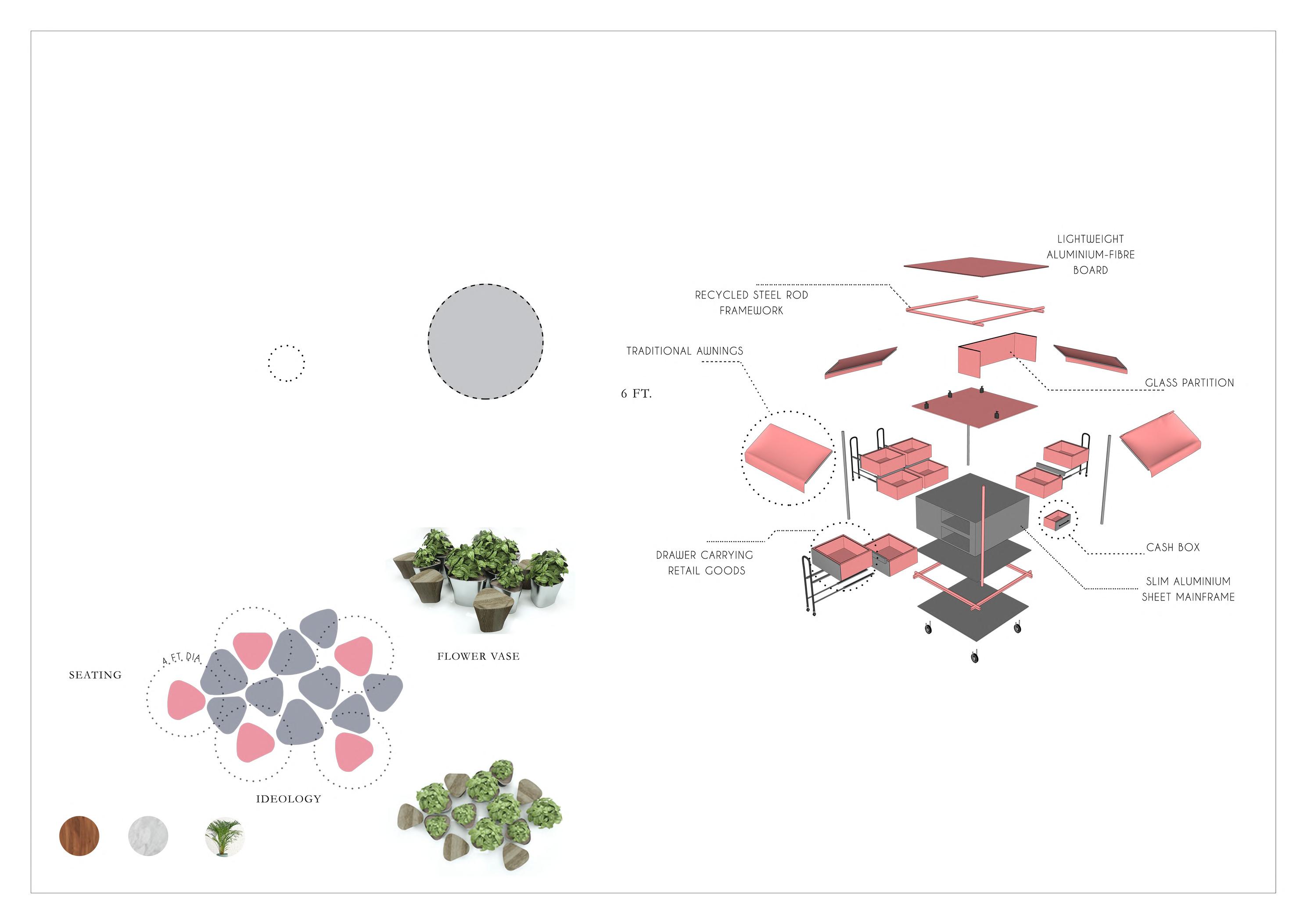

THE CART HAS 4 DRAWERS, EACH WITH 2 COMPARTMENTS WHERE RETAIL ITEMS ARE STORED. ALL FOUR DRAWERS ARE ARRANGED AROUND A RECTANGULAR FRAME SO THAT EACH CUSTOMER IS AT LEAST ONE METER AWAY FROM THE OTHERS. GLASS PROTECTION PREVENTS DIRECT CONTACT BETWEEN SELLER AND CUSTOMER. A SANITIZER IS PLACED ABOVE EACH DRAWER TO ENSURE THE CLEANLINESS OF THE DRAWER HANDLES.

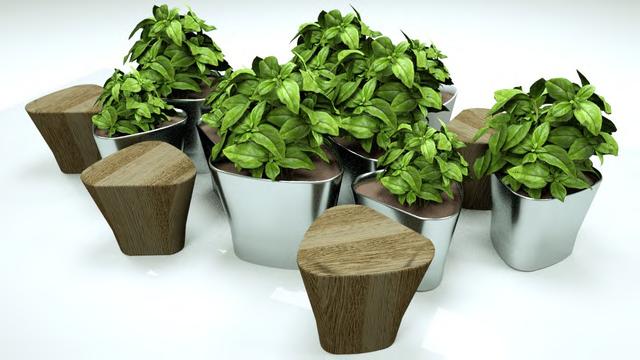

THE DISTANCING BENCH

THE DISTANCING BENCH IS AN ADAPTATION, IN RESPONSE TO THE GLOBAL PANDEMIC, WITHOUT COMPROMISING THE AESTHETICS. THE SEATINGS ARE ARRANGED FACING DIFFERENT DIRECTIONS AND AT LEAST 4 FT AWAY FROM EACH OTHER AS SUGGESTED BY WH.O. THE SPACE IN BETWEEN IS FILLED WITH FLOWER VASE TO CREATE A BUFFER AND LIMIT THE TRANSMISSION THROUGH AIR
