MUKESH RAJA B | ARCHITECTURE PORTFOLIO | NEHRU SCHOOL OF ARCHITECTURE

ARCHITECTURAL PORTFOLIO

2019 - 2023

MUKESH RAJA .B

Eager to learn and to be highly motivated. I hope that you will take me into consideration for an intern position , I love to learn and gained insight into the work flow in an architecture studio, Now it’s time to practise architecture out side the classroom . I hope this selective projects of mine give you an idea that myself as a creative person . My design incorporates the natural light its patterns, ventilation to bringout life to the space I build. For me, building should construct on essentials of clarity, utility and effect.

PERSONAL DETAILS

Name : Mukeshraja . B

D.O.B : 27-03-2002

Address : 23/10, Rajastall, Kalanivasal new road, Karaikudi - 630001, Sivagangai Dist, Tamilnadu, India. Contact : 8825808092

G-mail : mukeshraja373@gmail.com

EDUCATION

2023 Present

NEHRU SCHOOL OF ARCHITECTURE, Kuniyamuthur, Coimbatore - 641008. Bachelors in Architecture

Affiliated to Anna University,Chennai.

2019

Vidhya Giri, matriculation

higher secondary school,karaikudi - 630001

2017

Maharishi Vidhya Manddir, matriculation

higher secondary school,karaikudi - 630001

PROFESSIONAL SKILLS

Manual Drafting

Model Making

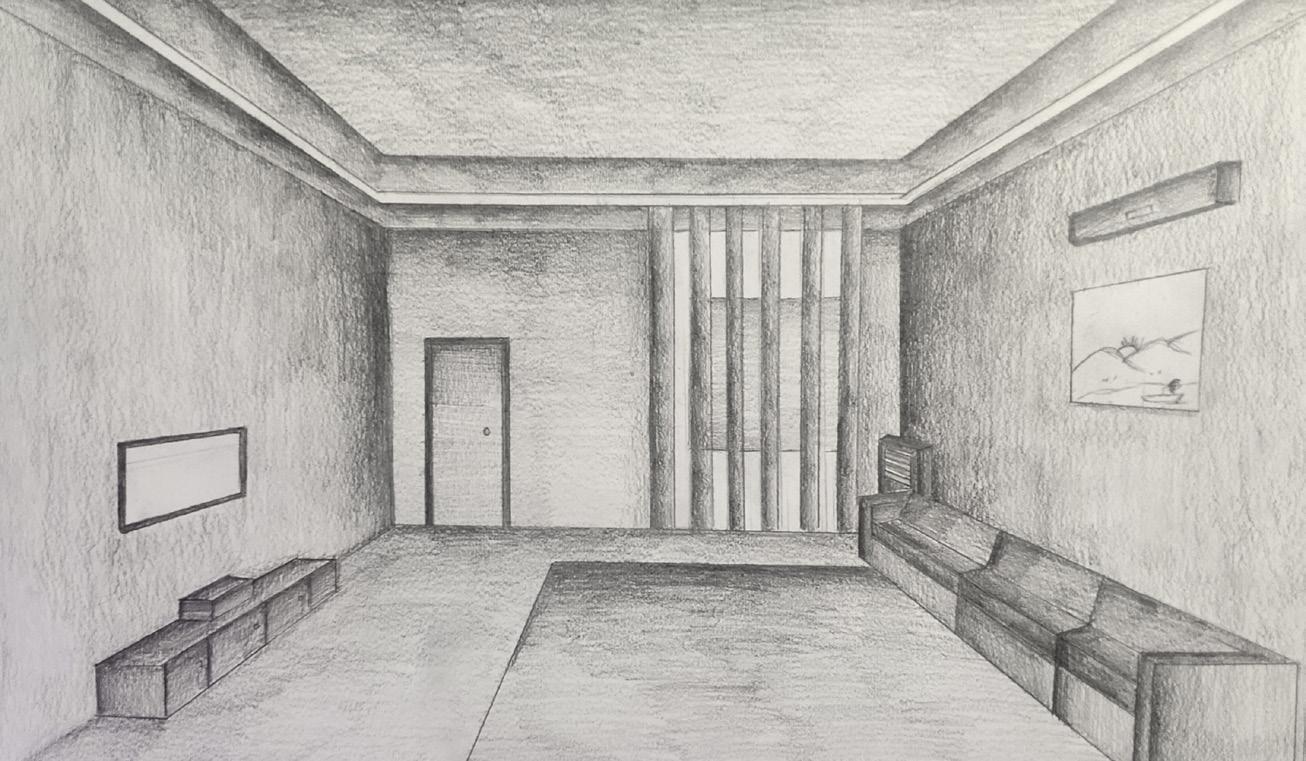

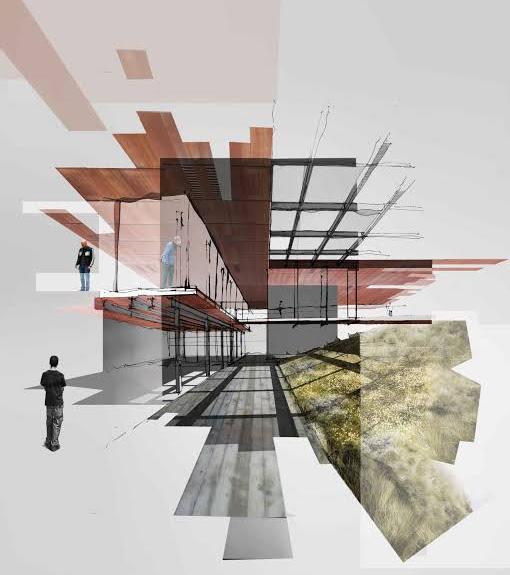

Sketching

WORKSHOP

MUD WALL CONSTRUCTION & BAMBOO CONSTRUCTION

AR.Deepika

SOFTWARE SKILLS

2D&3D Modeling

Auto CAD

Sketch-up

Revit

Rendering

Enscape

Lumion

Presentation

Adobe Photoshop

Indesign

DESIGN INTEREST

Modern architecture

Landscape architecture

Vernacular architecture

Interior Design

HOBBY & INTEREST

Cricket Games

Bike Riding / Travel

Photography

Videography / Editing

LANGUAGE PROFICIENCY

Tamil [Native]

English [Conversation]

Malyalam [Intermediate]

Hindi [Basic]

MUKESH RAJA .B

CONTENTS FT H SH C TR WC D1 D2 39.69 55.57 9.13 58.38 23.82 9.13 9.13 9.13 95.27 9.13 35.72 4.56 65.75 113.53 137.34 119.08 MIXED USE BUILDINGS MID RISE APARTMENTS SLUM REDEVLOPMENT STREET CORNER DESIGN WORKING DRAWINGS OTHER WORKS (LIVE WORKS & MISCELLANEOUS) 01 02 03 04 05 06

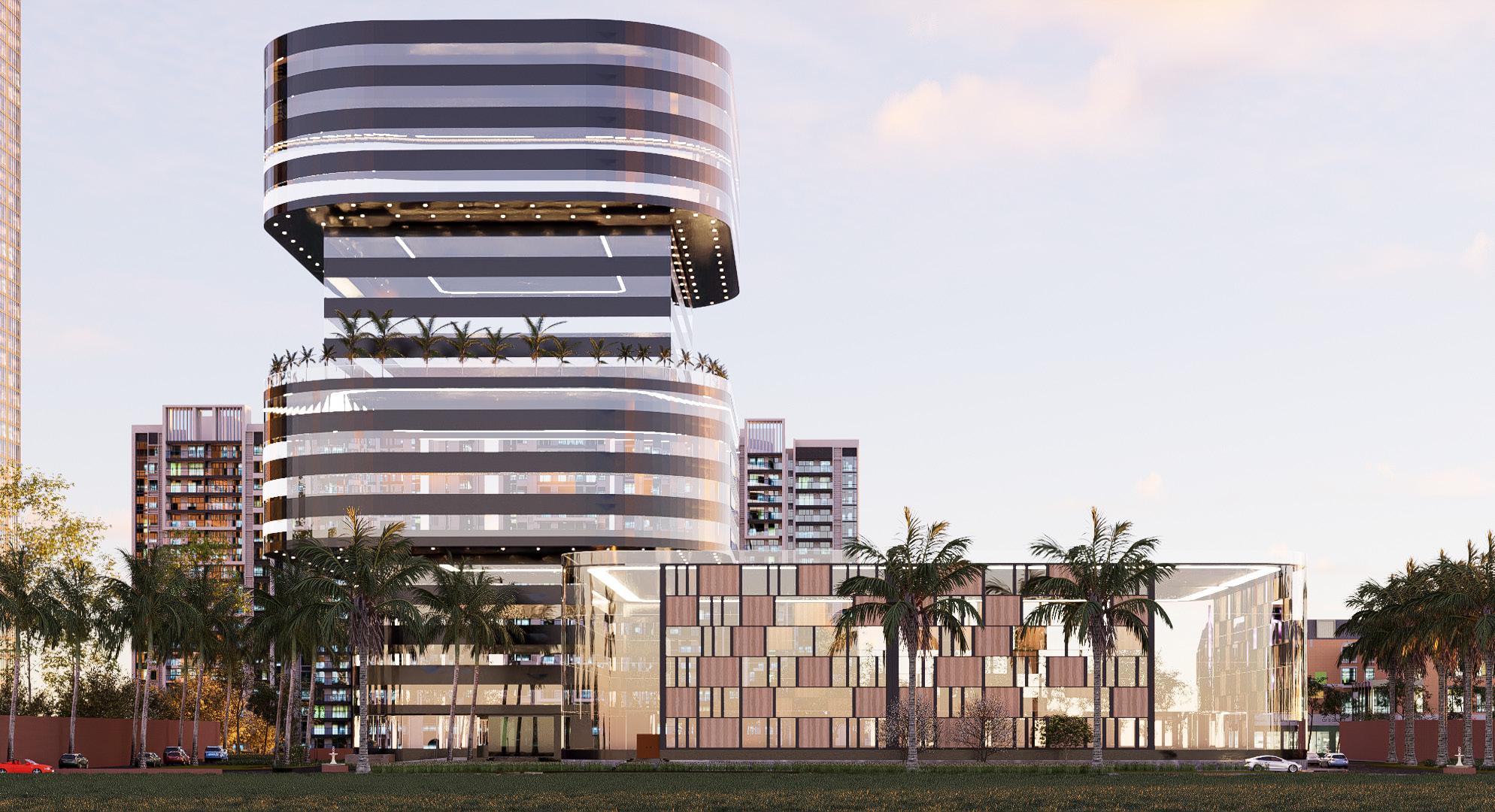

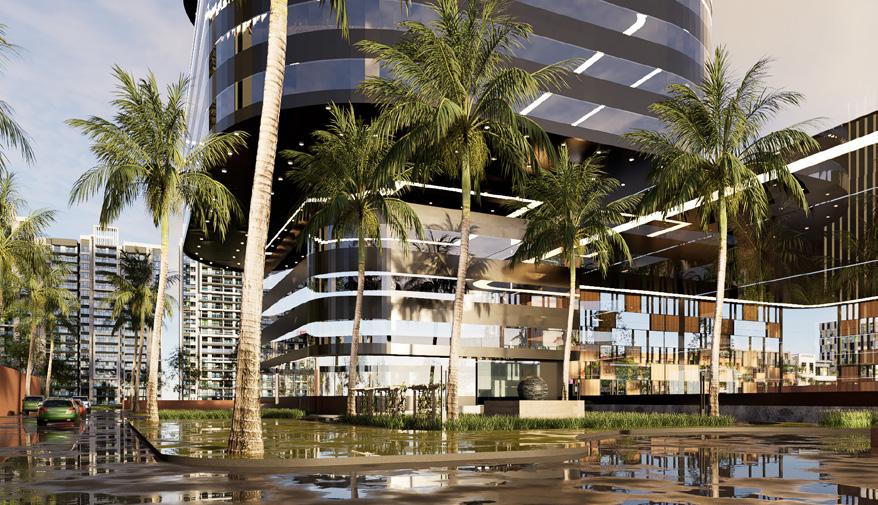

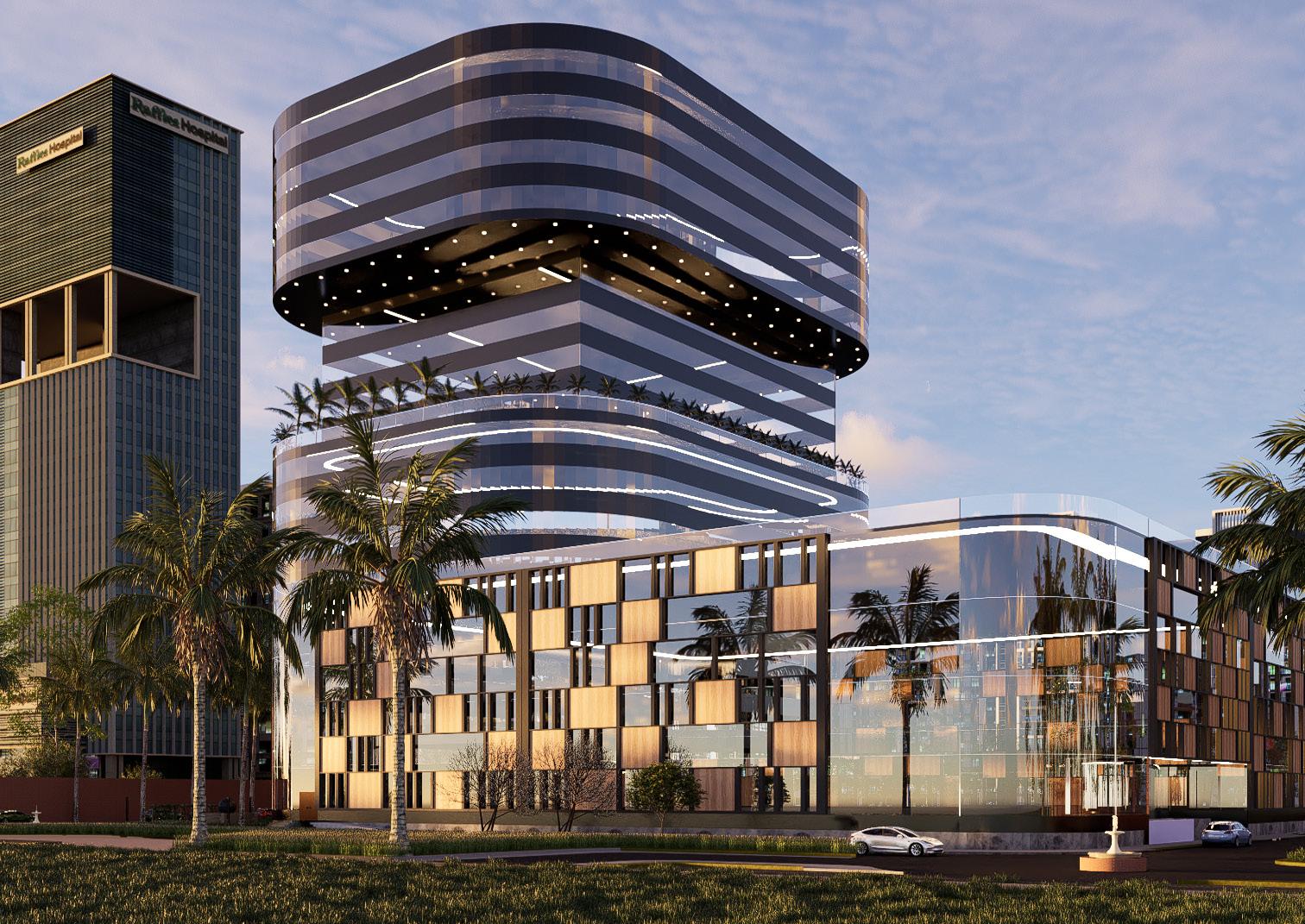

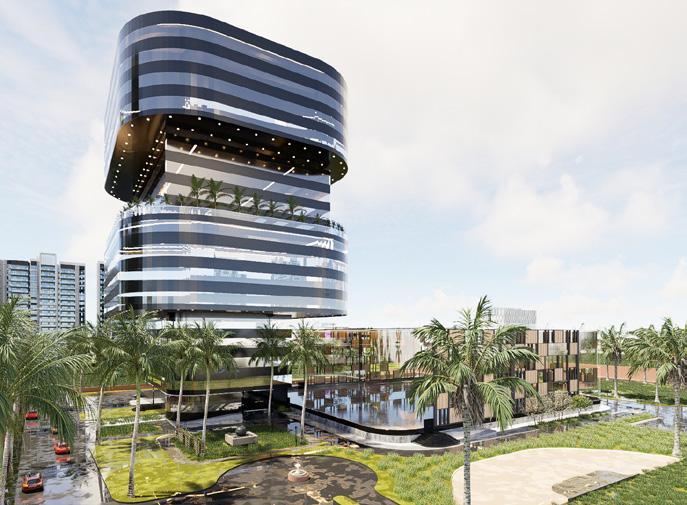

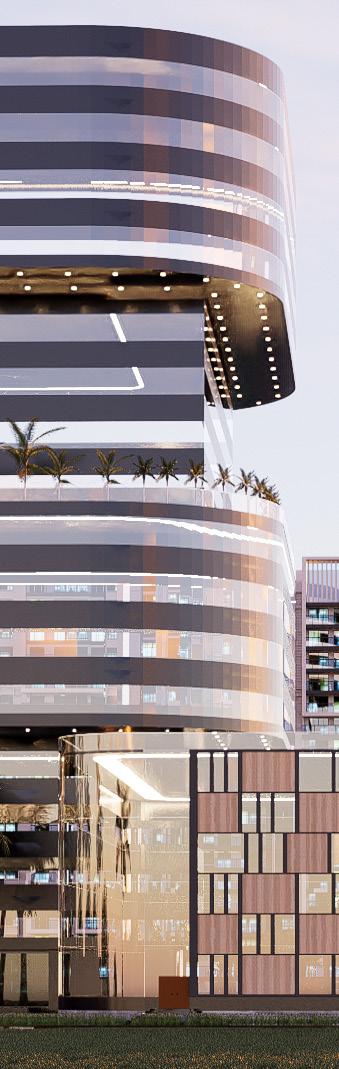

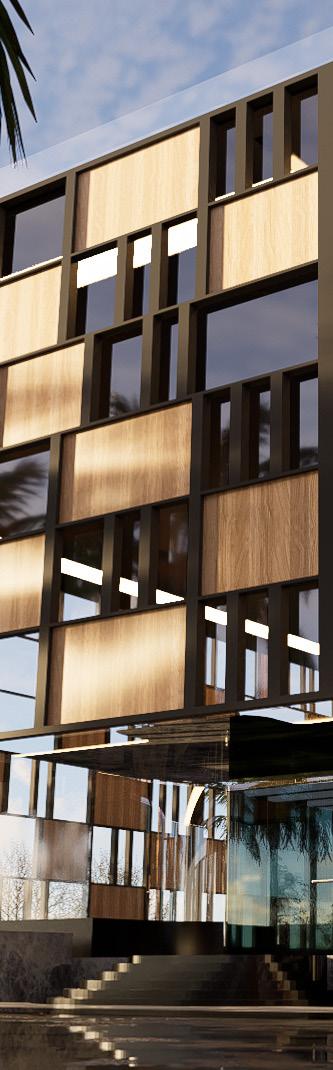

01 MIXED USE BUILDING (MALL , HOTEL , OFFICE) Sem - 07 Address - Near Aerodrome Post, Peelamedu , Coimbatore - 641014 Total Site Area - 40810 Sq.m (10.08 Acre) Co-ordinaates - 11°02’06.5”N 77°01’35.3”E

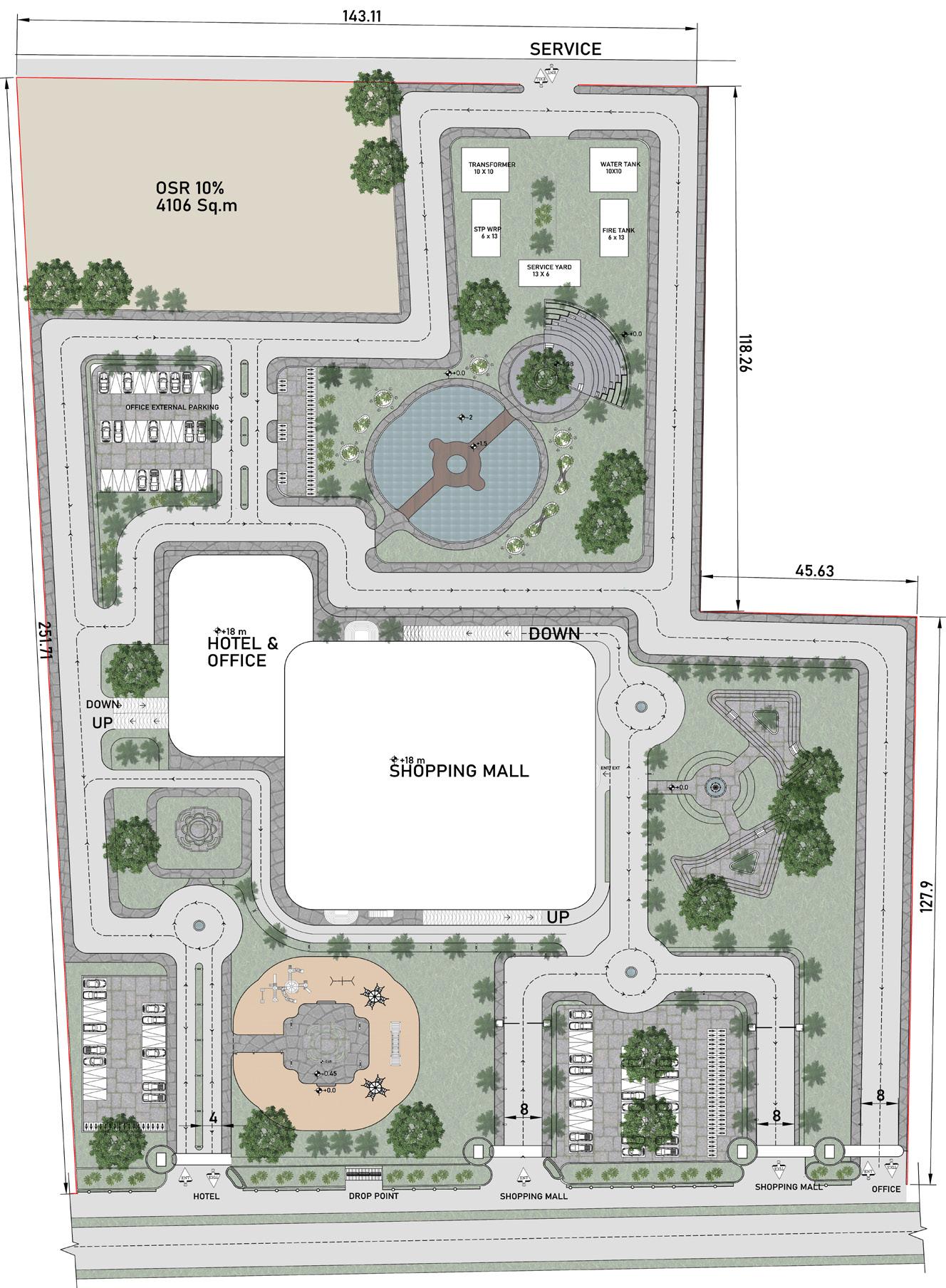

CONCEPT SITE PLAN

I’ve created three different entries for private access to reduce traffic and user friendly acess through the amenities.The Aft was seperated for OSR and Services to easily acess the three.

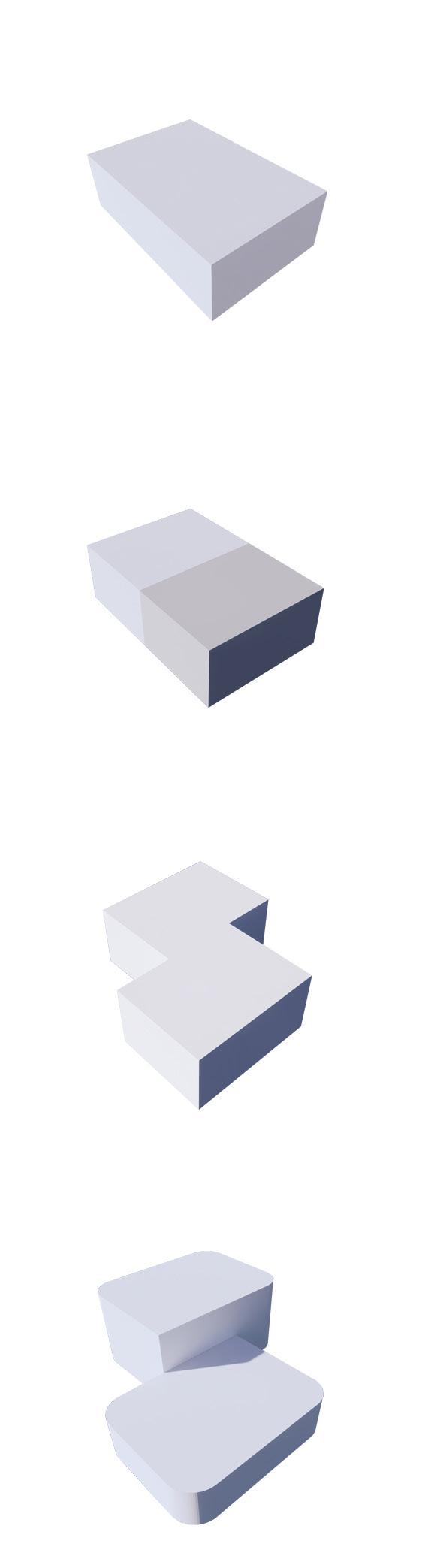

Basic square form selected to create a spatial functionality around the plot and the blocks.

Breakage of the square plot and divided into two portions for the given requirements.

Using the addition and subration method blocks were seprated towards different forms.

The concept was inspired by ice cubes, were edges was curved and through the blocks placed, the sufficient lightinth and ventilation is achieved.

1 2 3 4

LEGENDS 1) HOTEL ENT / EXT 2) MALL ENT / EXT 3) OFFICE ENT / EXT 4) MALL EXTERNAL PARKING 5) PLAY AREA 6) HOTEL EXTERNAL PARKING 7) LANDSCAPE 8) SHOPPING MALL 9) HOTEL / OFFICE 10) OFFICE EXTERNAL CAR PARKING 11) OFFICE EXTERNAL BIKE PARKING 12) OSR 13) WATER BRIDGE 14) AMPHITEATER 15) SERVICE CORE 16) LANDSCAPE 2 2 1 3 4 5 6 7 8 9 10 13 11 12 14 15 16

CODISSIA MAIN ROAD

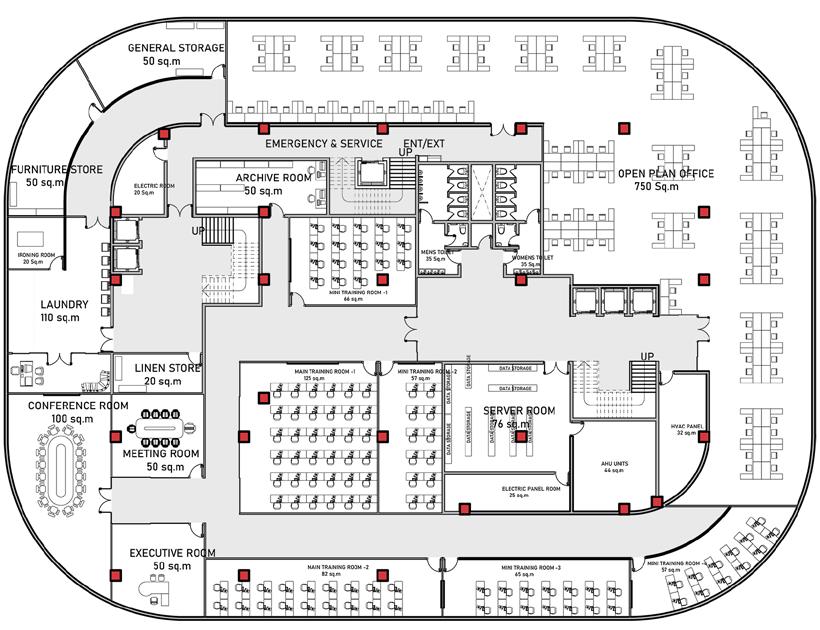

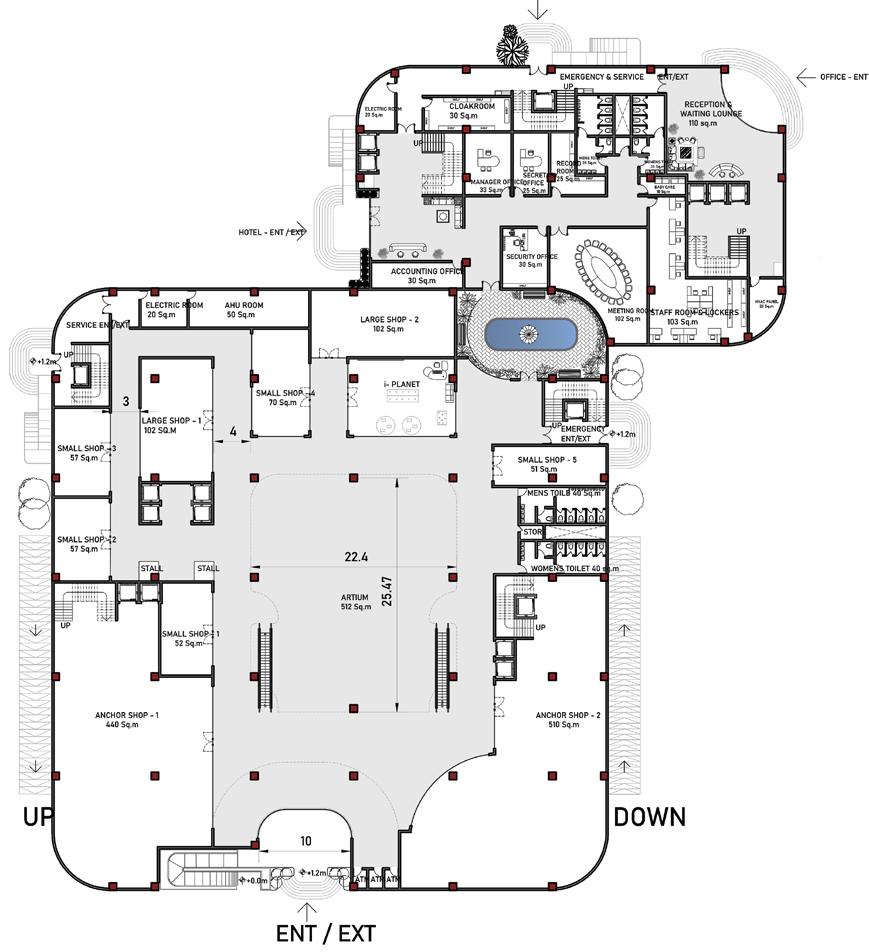

GROUND FLOOR:

FIFTH FLOOR:

4 77.92 21 16.6 16.6 18.2 55.8 +4m lvl +16m +28m +48m +60m +0m GL 82 76.6 4

SECTION BB’: SECTION AA’:

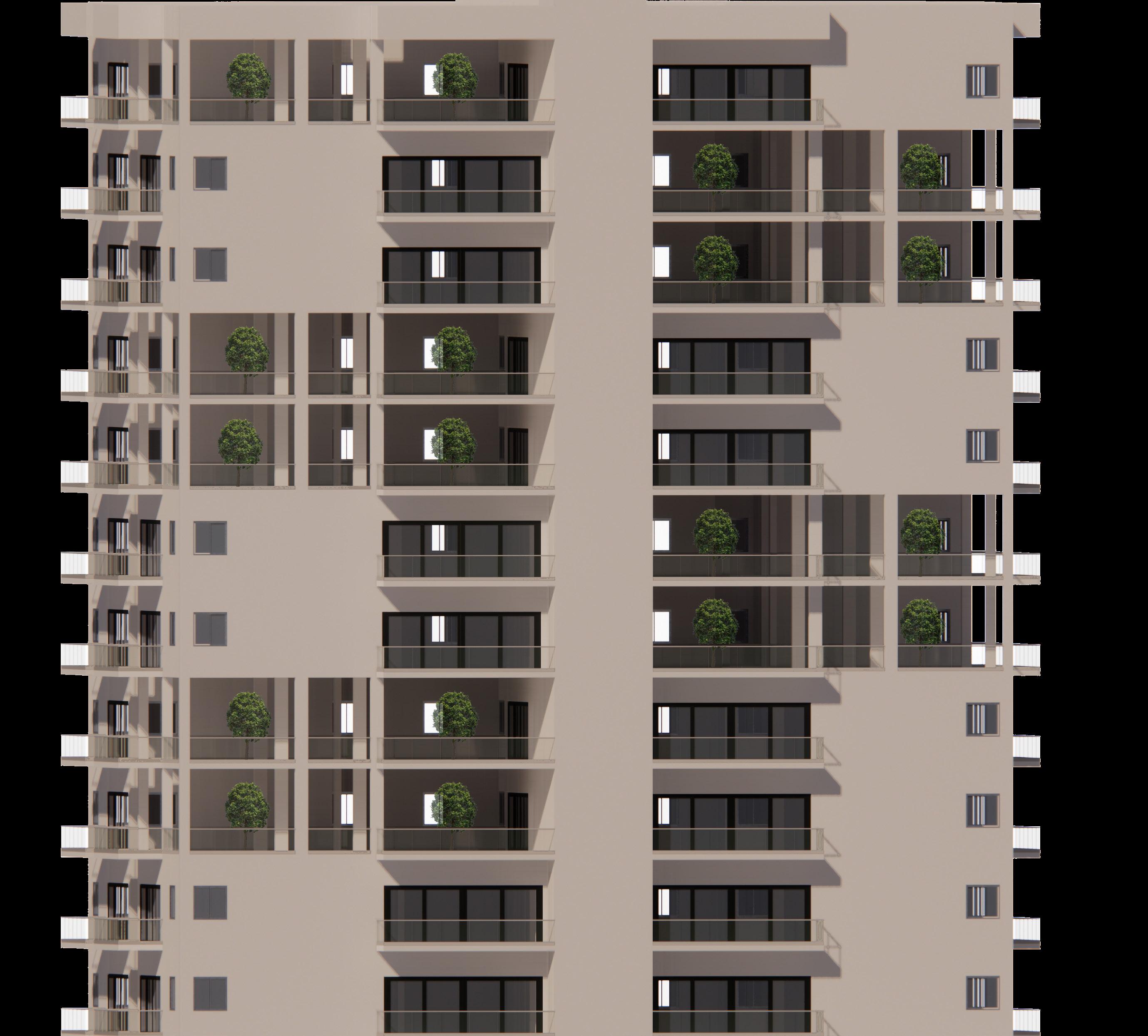

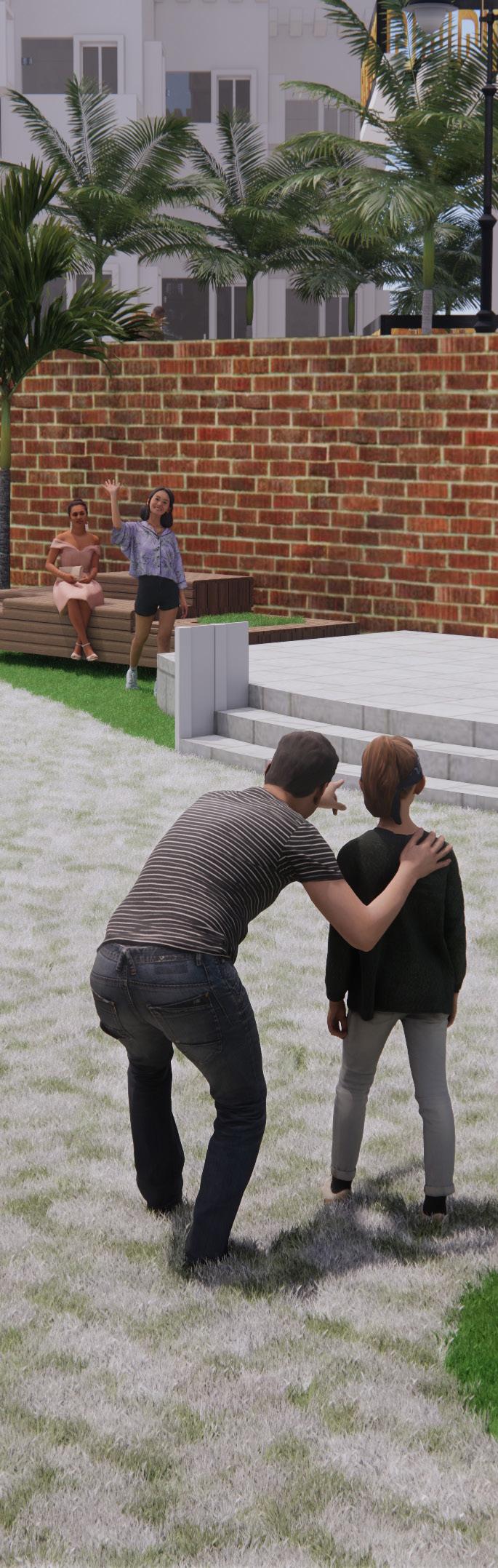

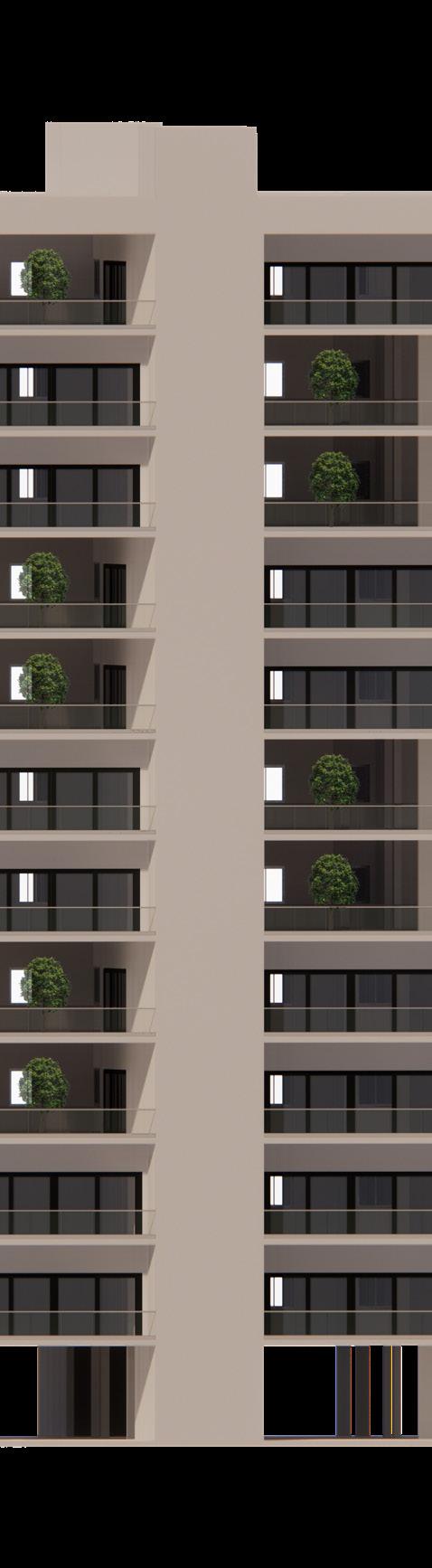

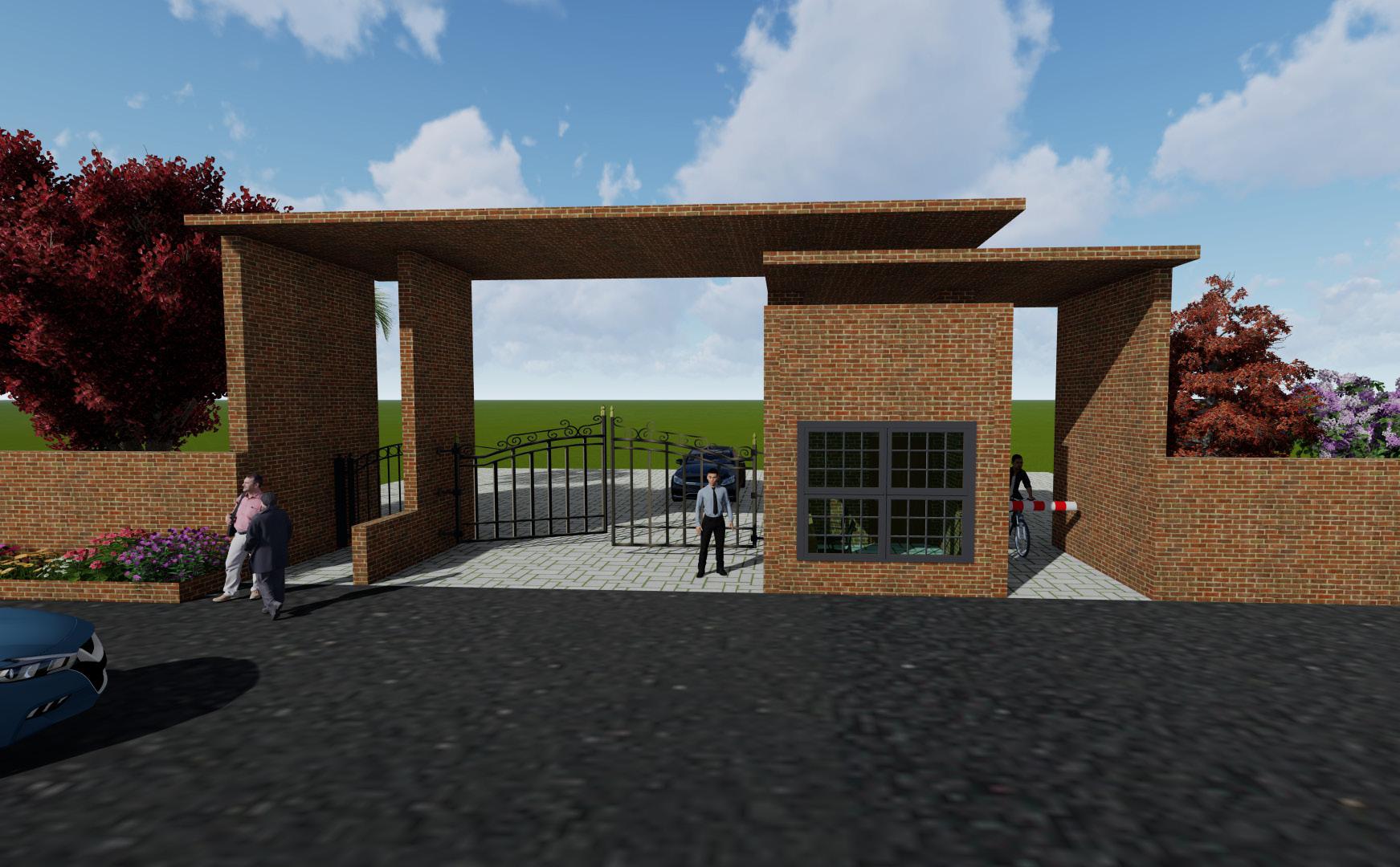

MID RISE APARTMENTS (2BHK

, 3BHK , DUPLEX)

Sem - 05

Address - Near Tidel Park, Avinashi Road , Coimbatore - 641014

Total Site Area - 56656 Sq.m (14 Acre)

Co-ordinaates - 11°01’54.6”N 77°01’11.8”E

CONCEPT

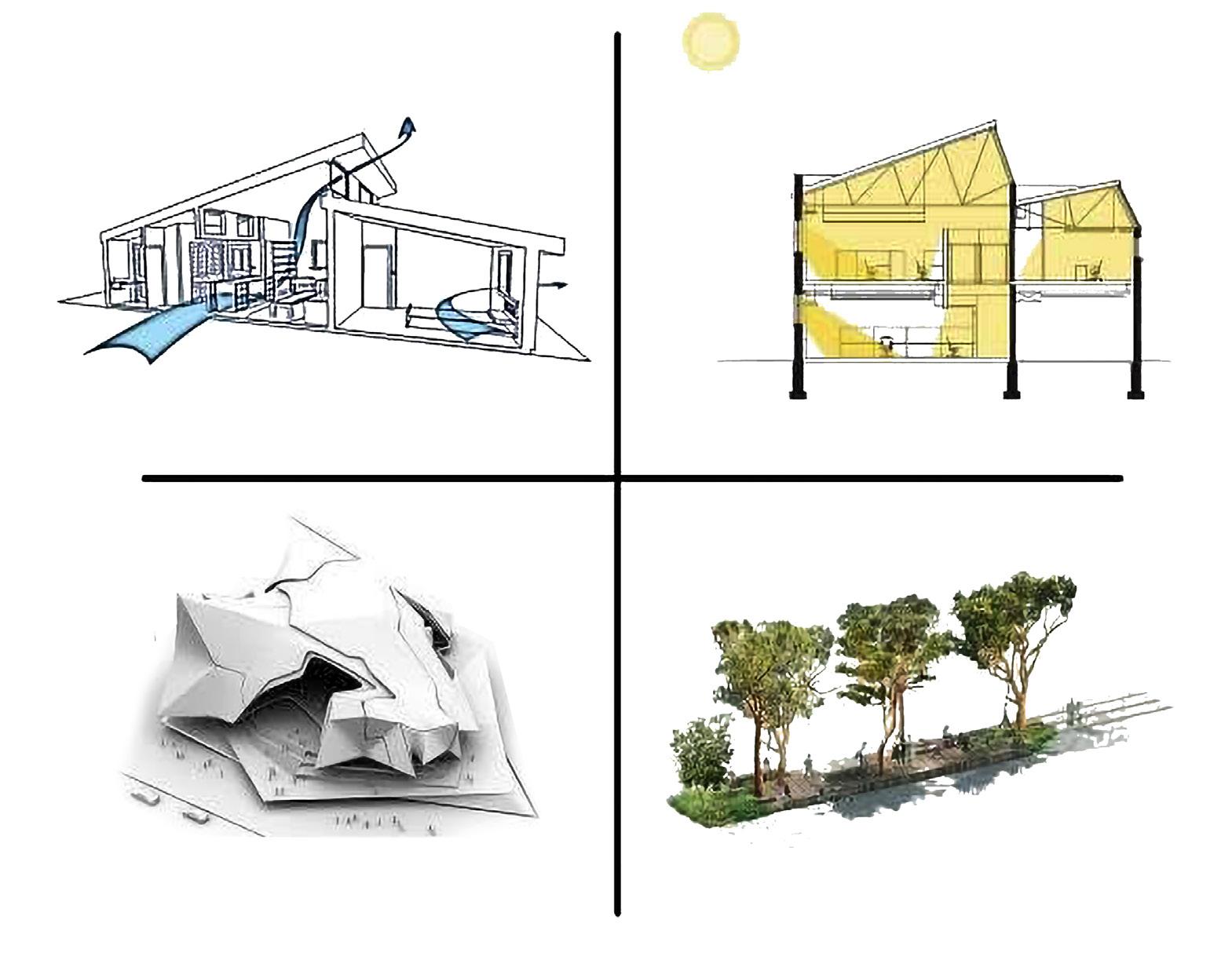

The “BIOPHILIC DESIGN” is an approach to the Archhitecture that seeks to connect building occupants more closelyy to nature, that is buildings incorporate things like natuural landscape features and other elements for creating a more productive and healthy built environment for pepople.

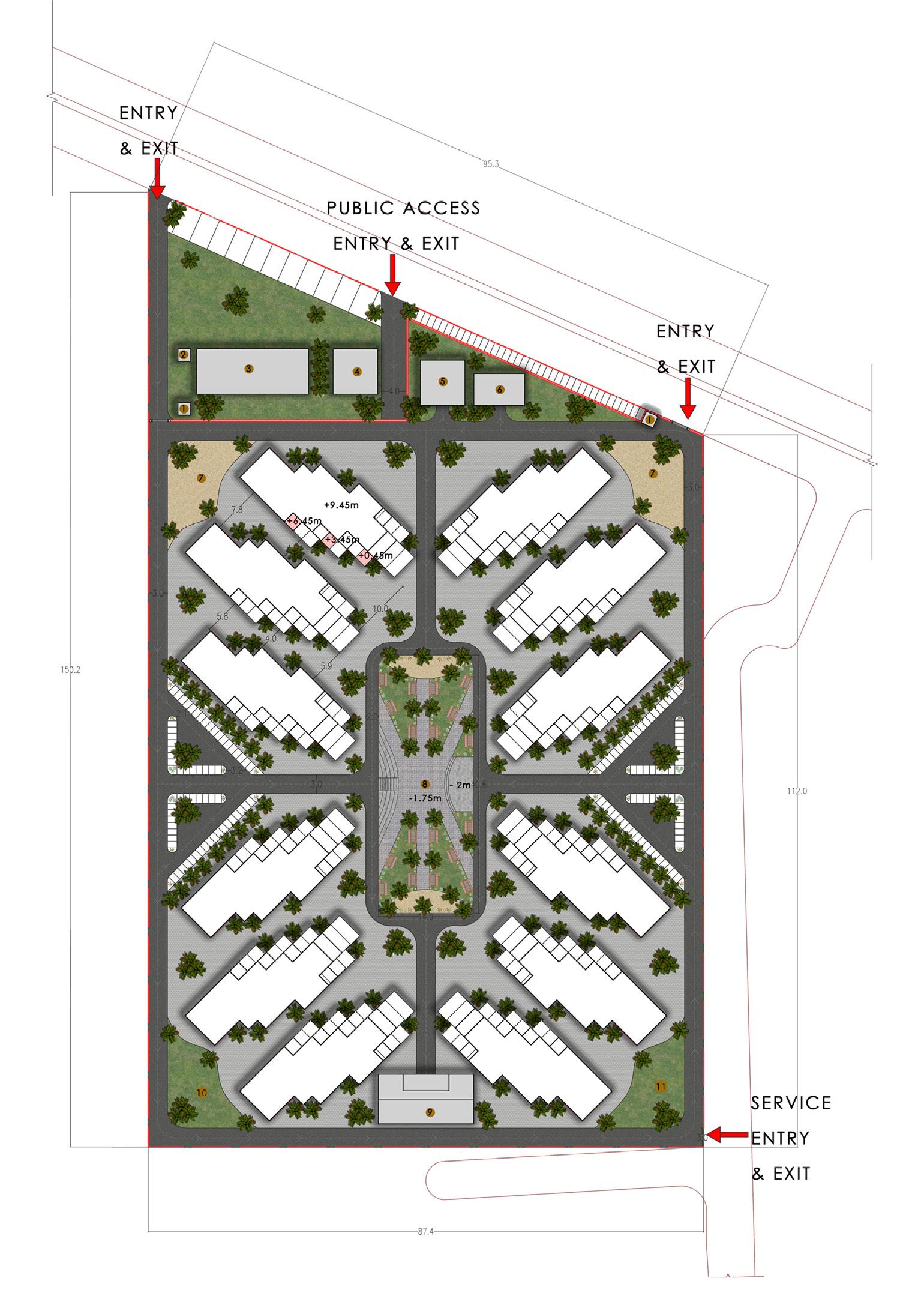

SWMMING POOL KIDS POOL MAIN ROAD MAIN ROAD SERVICE ROAD S.R ENT & EXT MAIN ENT & EXT OSR 10% 12m WIDE ROAD MAIN GATE 6m ROAD 6m ROAD 6mROAD 6mROAD 6mROAD 6mROAD 6mROAD 254.9 229.34 3 BHK 2 BHK DUPLEX SITE PLAN Natural Ventilation Natural Lighting Natural Landscape Organic Forms 1 2 3 4 5 6 7 8 10 9 11 12 14 13 15 LEGENDS 1) SERVICE ENT / EXT 2) APARTMENT ENT / EXT 3) SUPERMARKET 4) OSR 5) ADMIN OFFICE 6) CLB HOUSE 7) GYM 8) TENNIS COURT 9)VISITOR’S PARKING 10) AMPHITHEATER 11) VOLLEY BALL COURT 12) PLAY AREA 13) LANDSCAPE 14) SWMMING POOL 15) SWMMING POOL PARKING

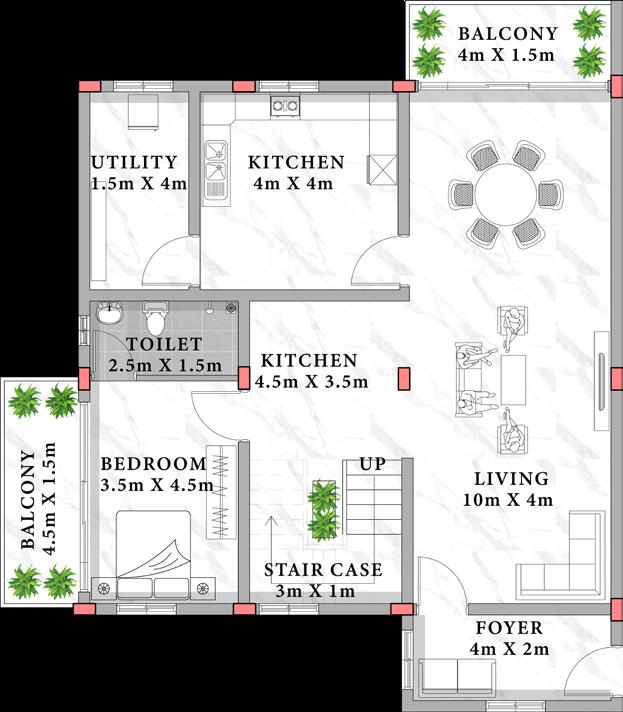

PLANS:

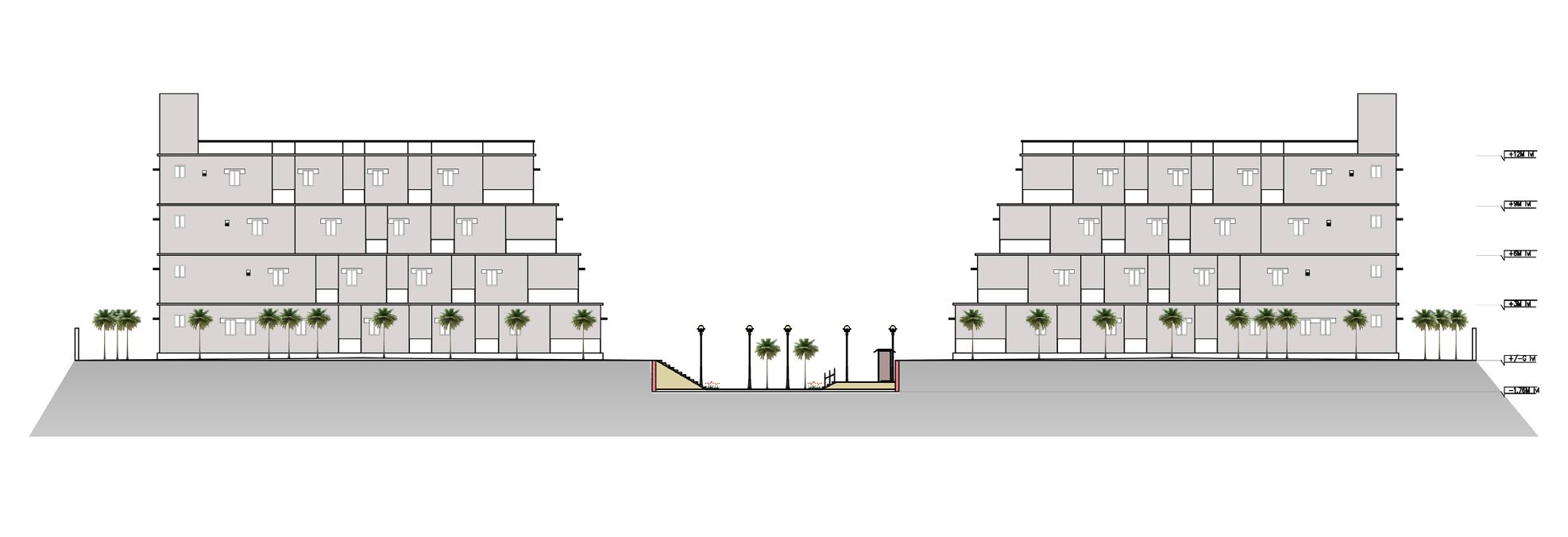

SITE SECTION:

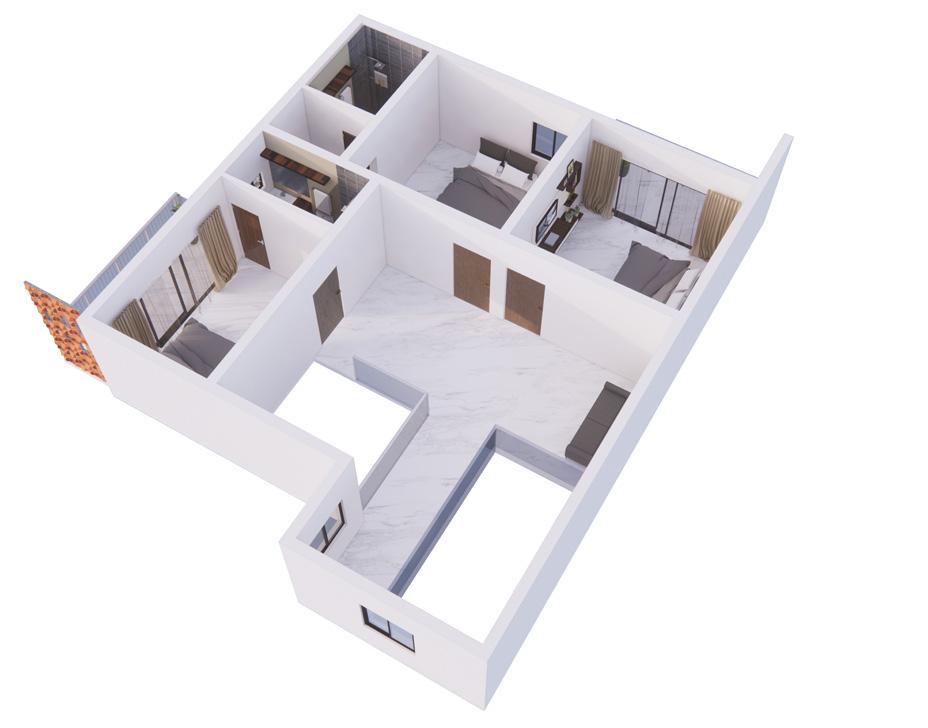

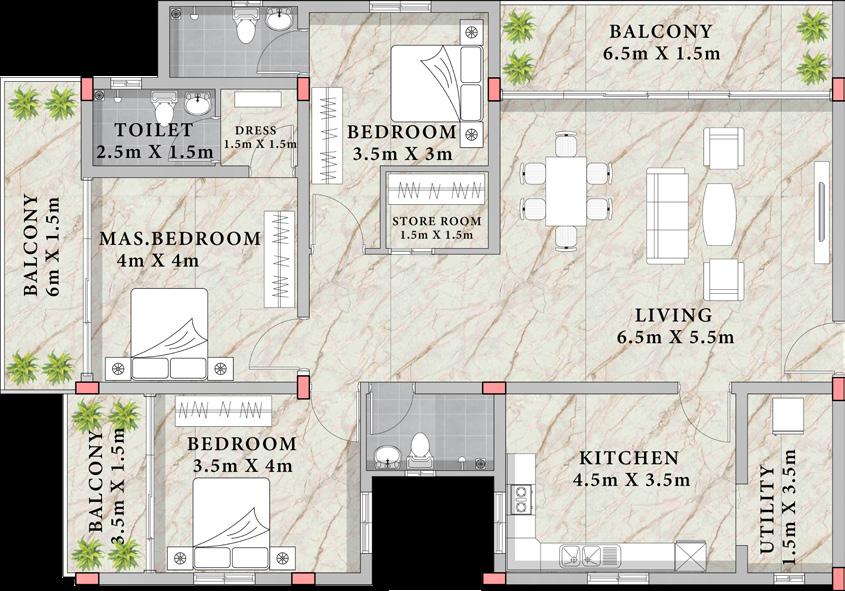

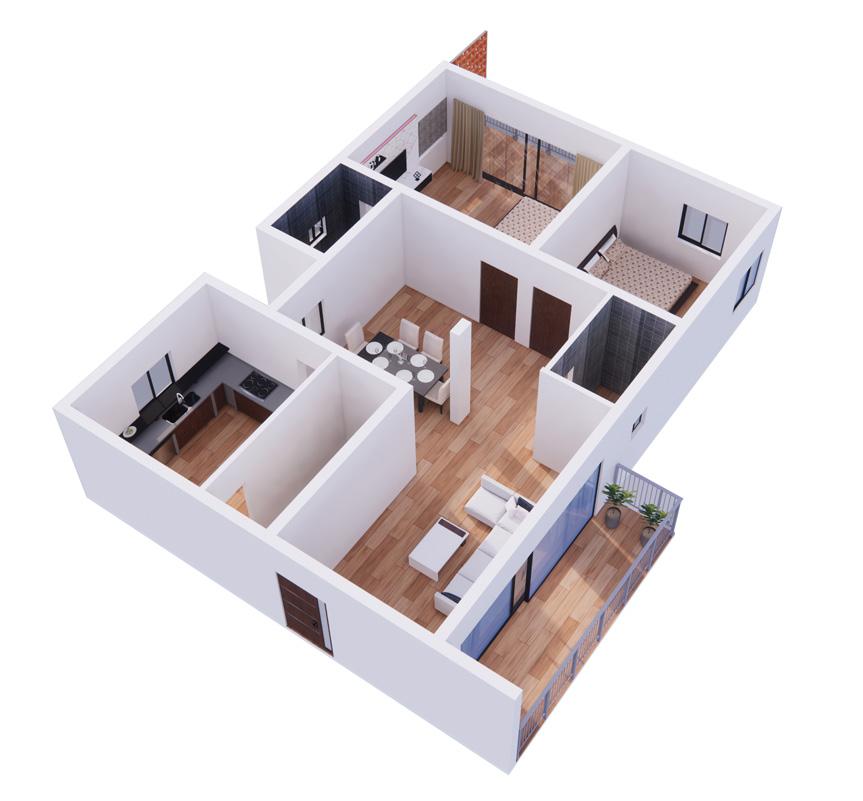

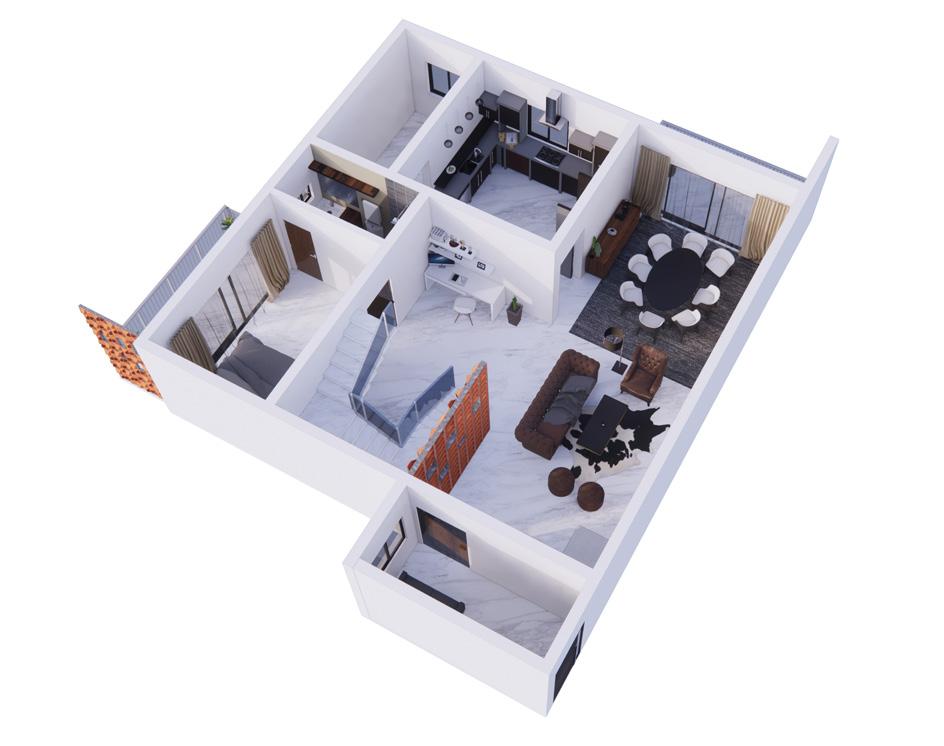

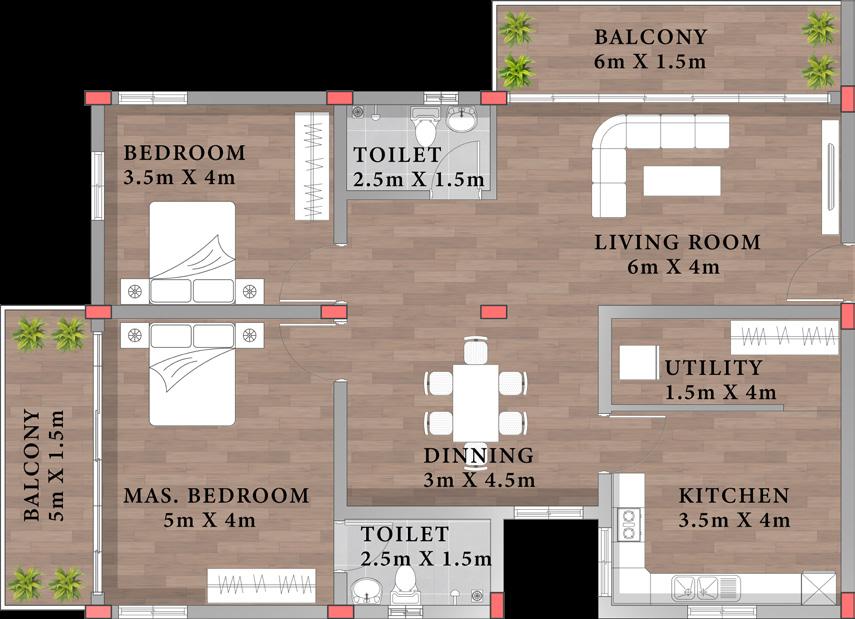

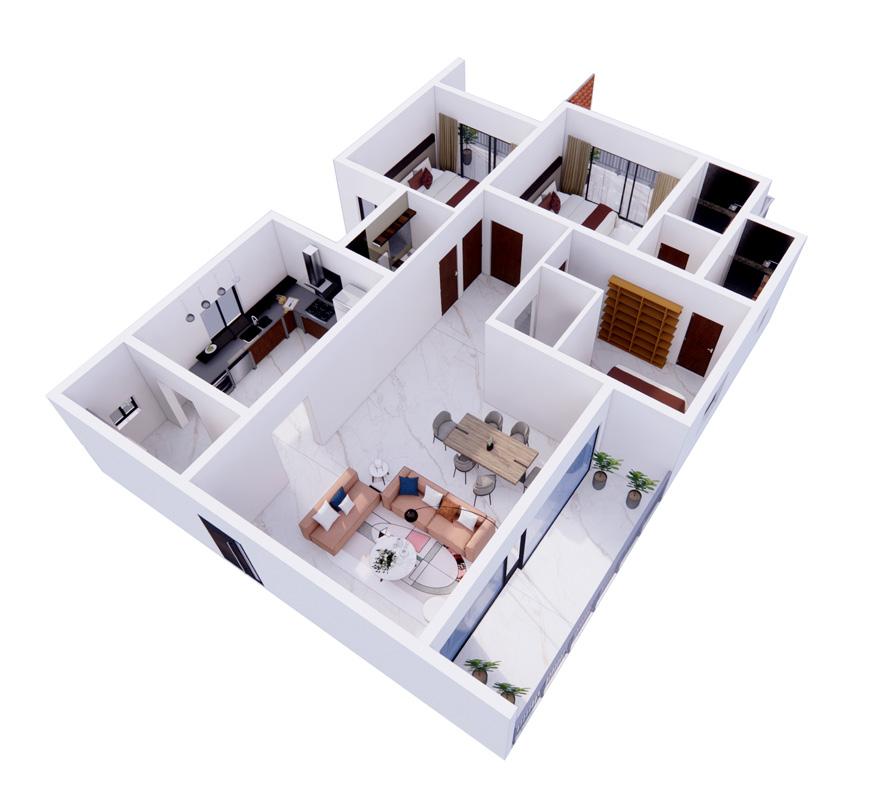

2 BHK (124 sq.m) 3 BHK (160 sq.m)

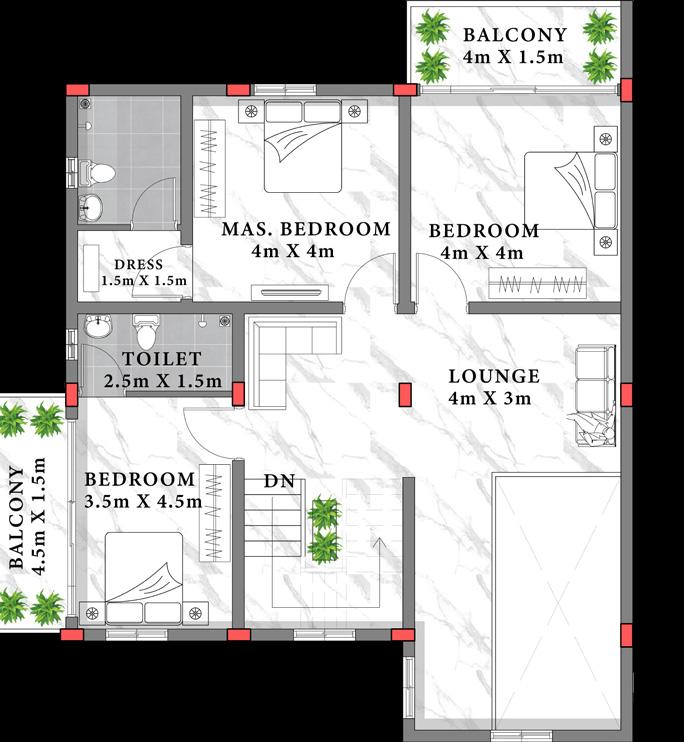

DUPLEX (190 sq.m) +3m lvl +6m lvl +9m lvl +12m lvl +15m lvl +18m lvl +21m lvl +24m lvl +27m lvl +30m lvl +33m lvl +36m lvl 1 2 3 4 5 6 7 8 SECTION AA’ : SECTION BB’ : +3m lvl +6m lvl +9m lvl +12m lvl +15m lvl +18m lvl +21m lvl +24m lvl +27m lvl +30m lvl +33m lvl +36m lvl 1 2 3 4 5 6

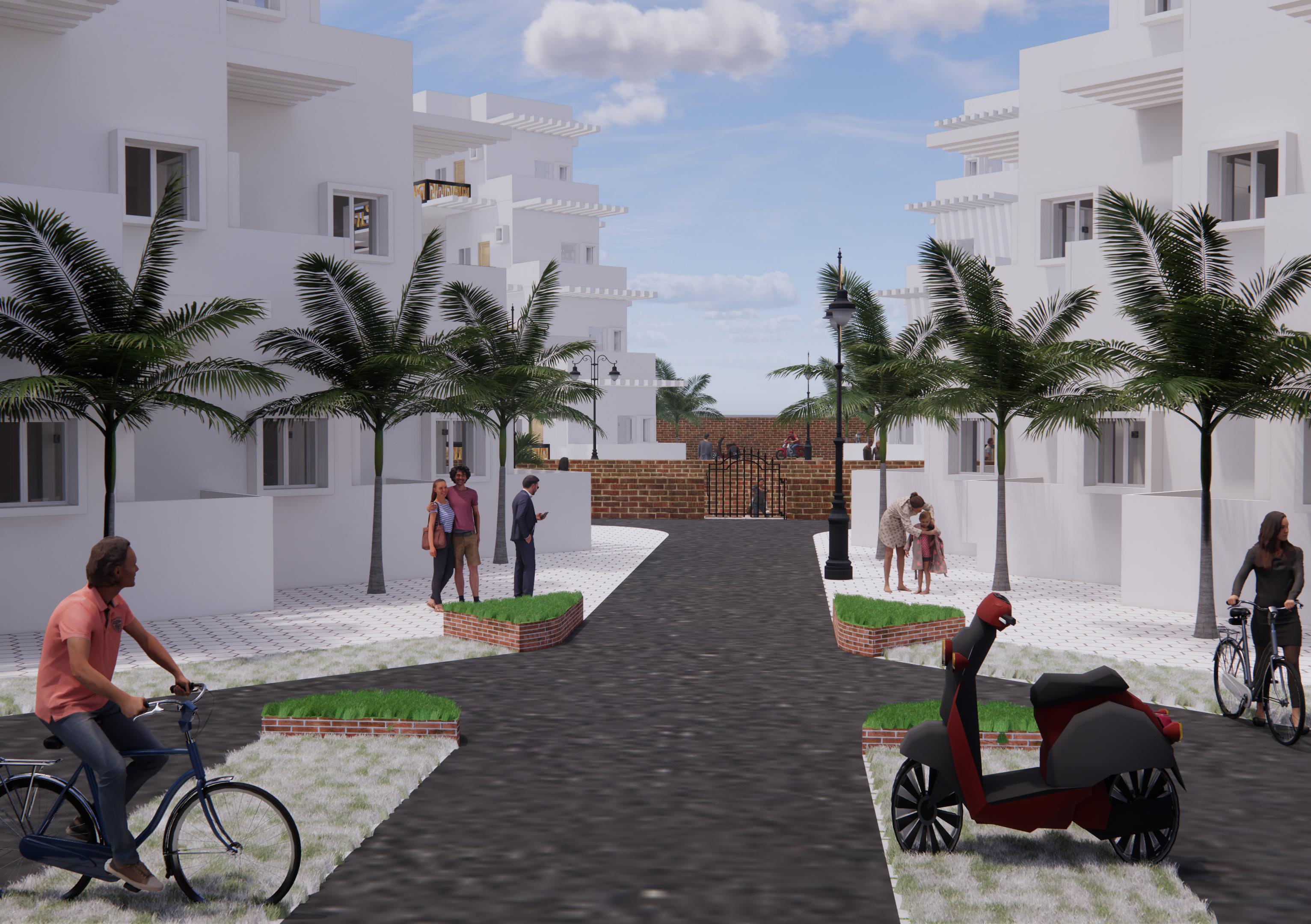

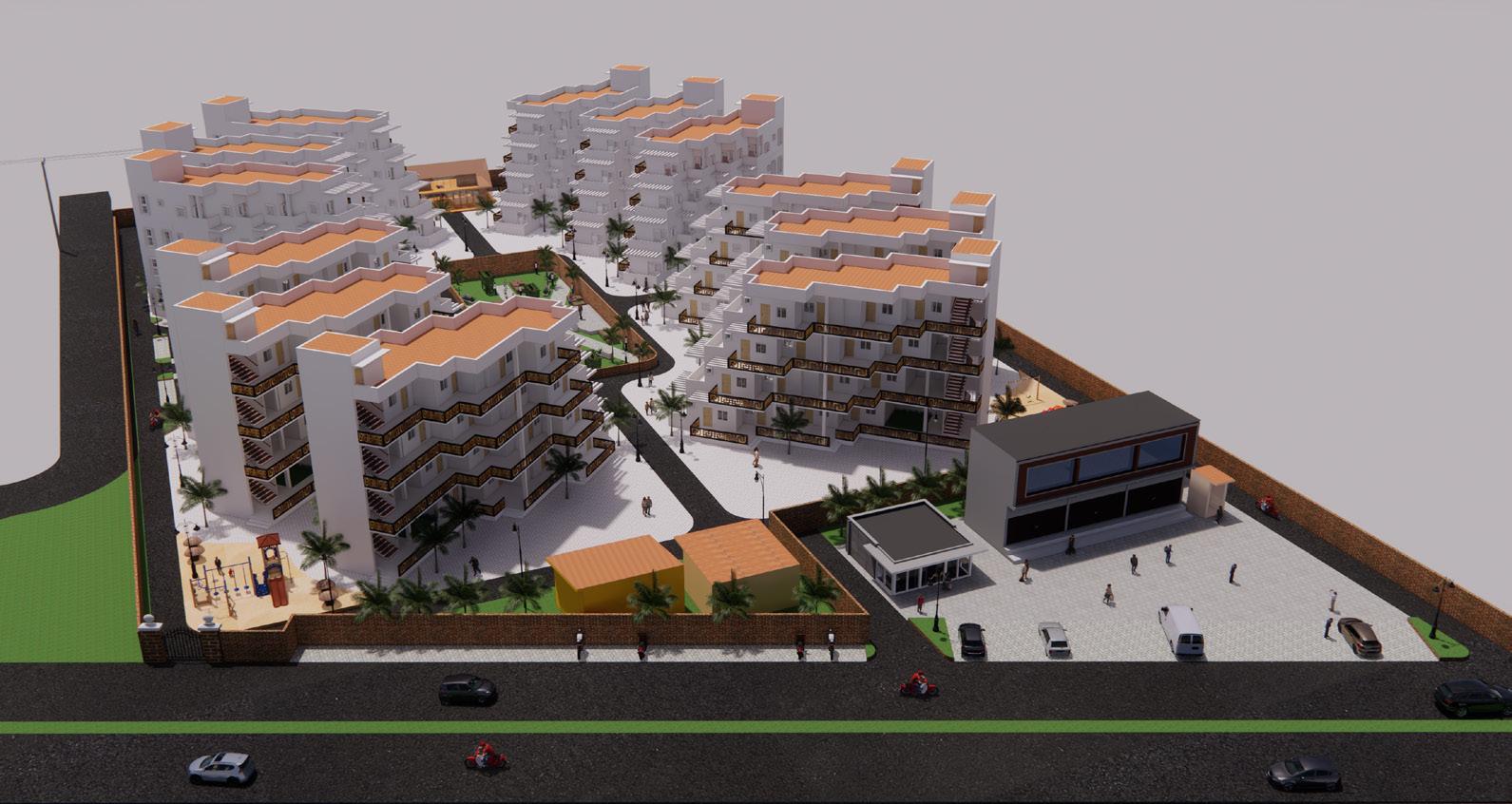

SLUM REDVELOPMENT

Sem - 08

Address - Near Railwaystation, Madgaon, Goa, India - 403601

Total Site Area - 11428.39 Sq.m (2.82 Acre)

AIM : The aim of the proposal is to create a habitable living environments for the residents, addressing issues such as overcrowding, lack of basic amenities & services, and vulnerability to natural disasters.

CONCEPT

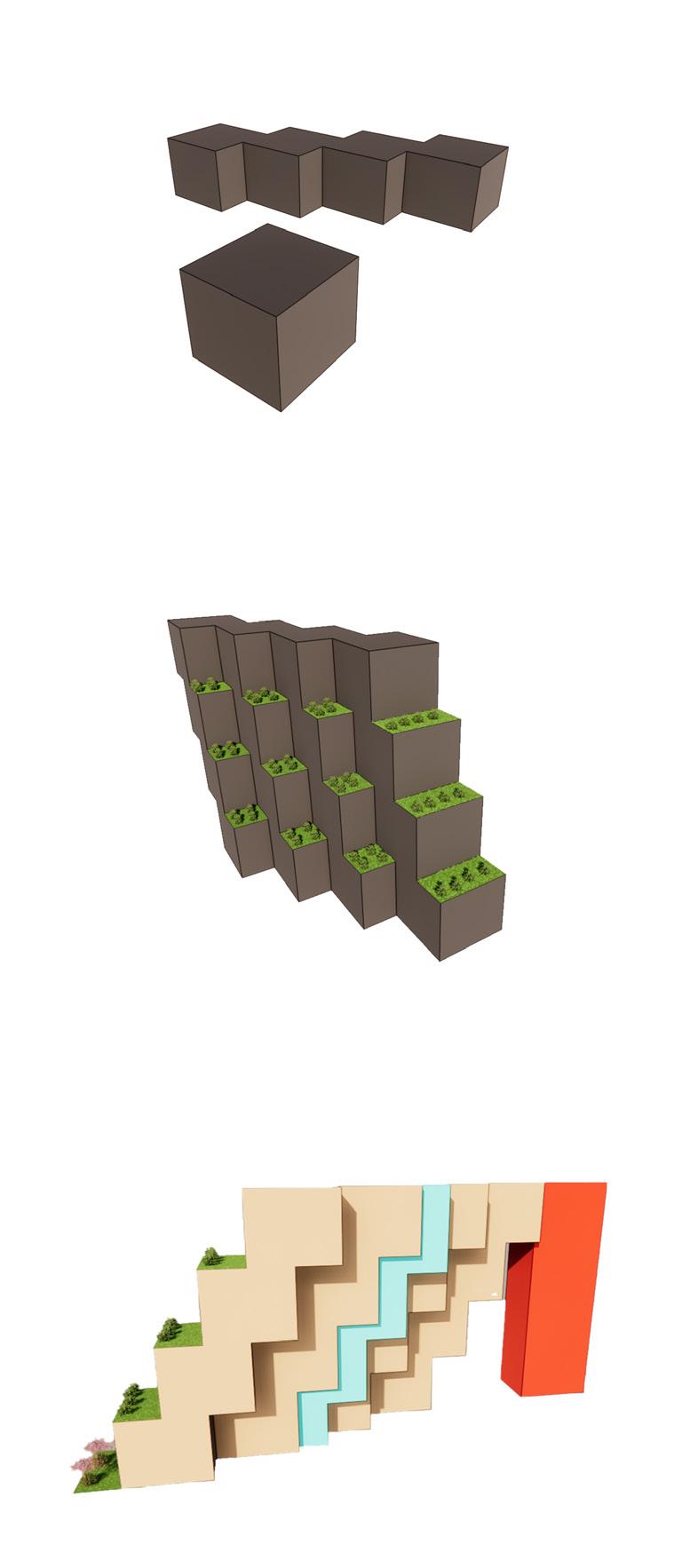

Inspired from the Habitat 67 building, inclusion of blocks were done to enhance the living &betterment of life.

The dwellings are arranged in such a way to achieve proper ventilation& daylighting and also to achieve vistas from the balcony.

Vertical circulation

Providing duct for ventilation.

SITE

TOTAL SITE AREA – 11428.39 Sq.m PARKING AREA – 499 Sq.m BUILD UP AREA –10828.08 Sq.m ROAD AREA – 2564.68 Sq.m FSI – 1.05 TWO WHEELER PARKING – 167 FOUR WHEELER PARKING - 11

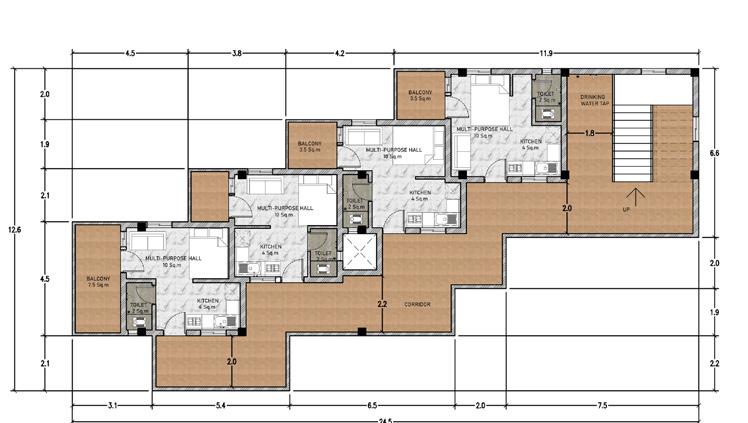

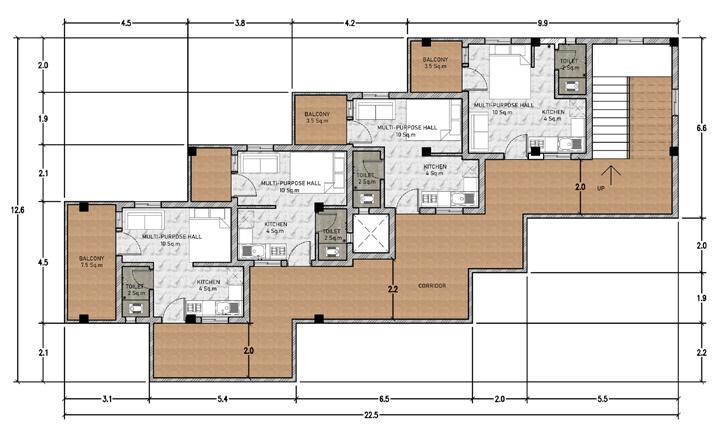

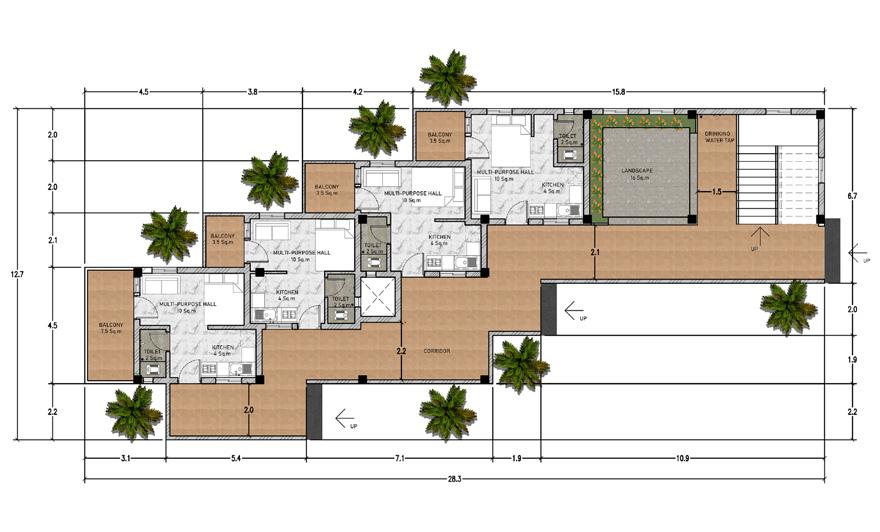

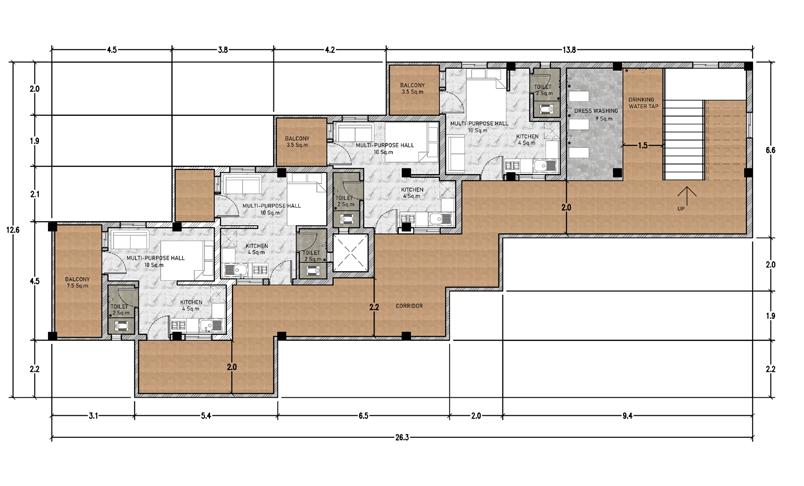

PLAN

GROUND FLOOR PLAN:

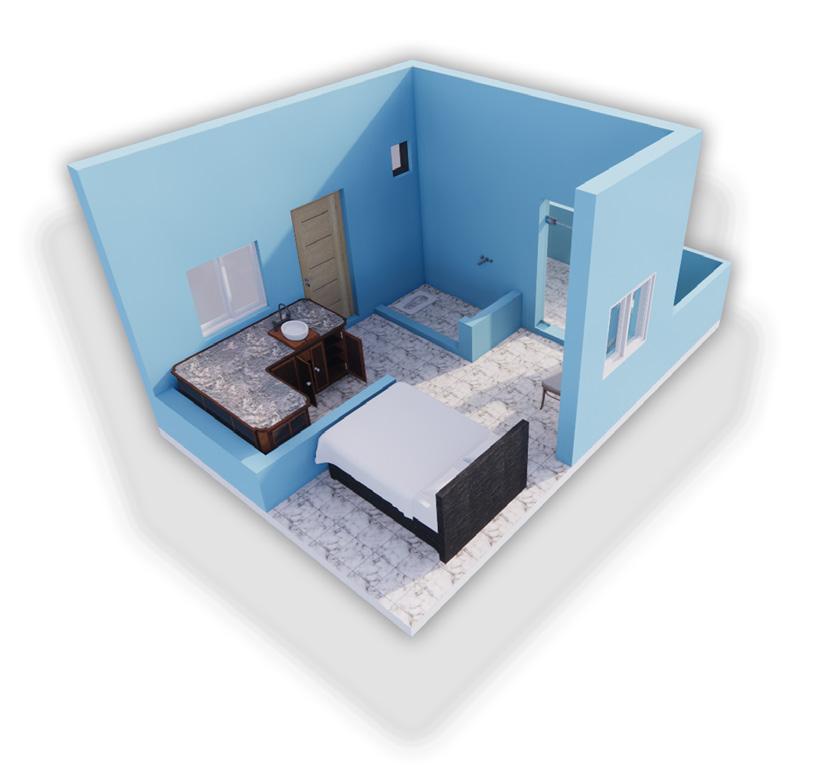

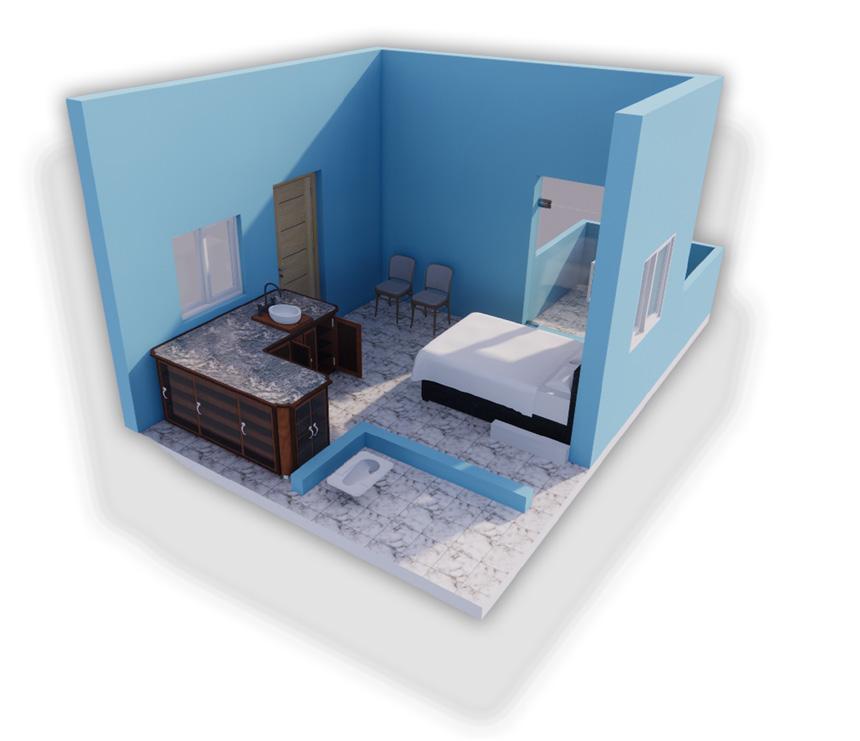

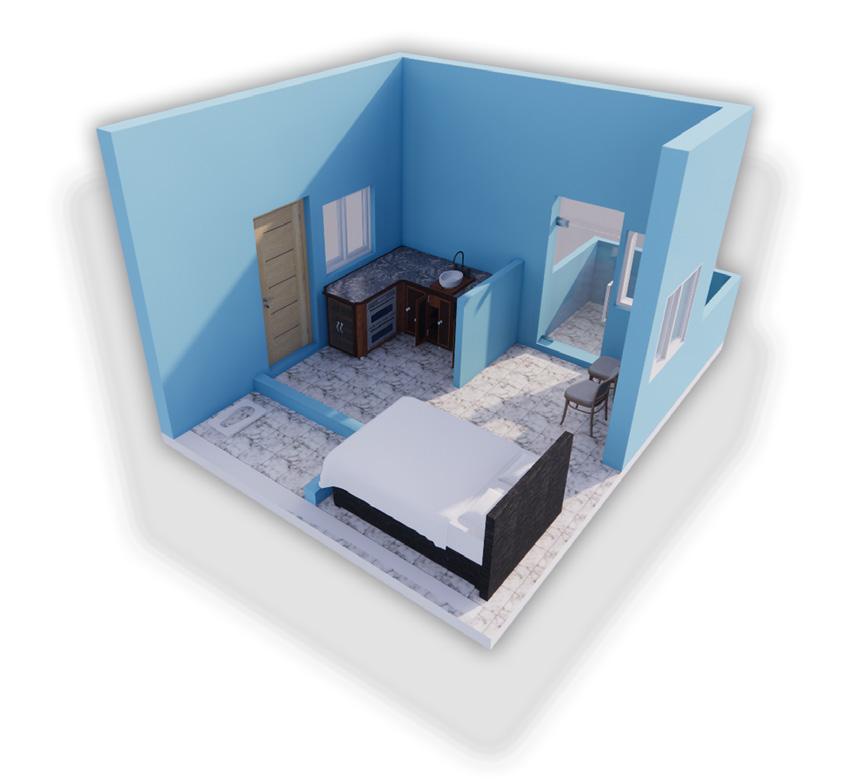

MODULE -1

FIRST FLOOR PLAN:

MODULE -2

DESIGN REQUIREMENTS :

SECOND FLOOR PLAN:

THIRD FLOOR PLAN:

MODULE -3

hall 3)Services

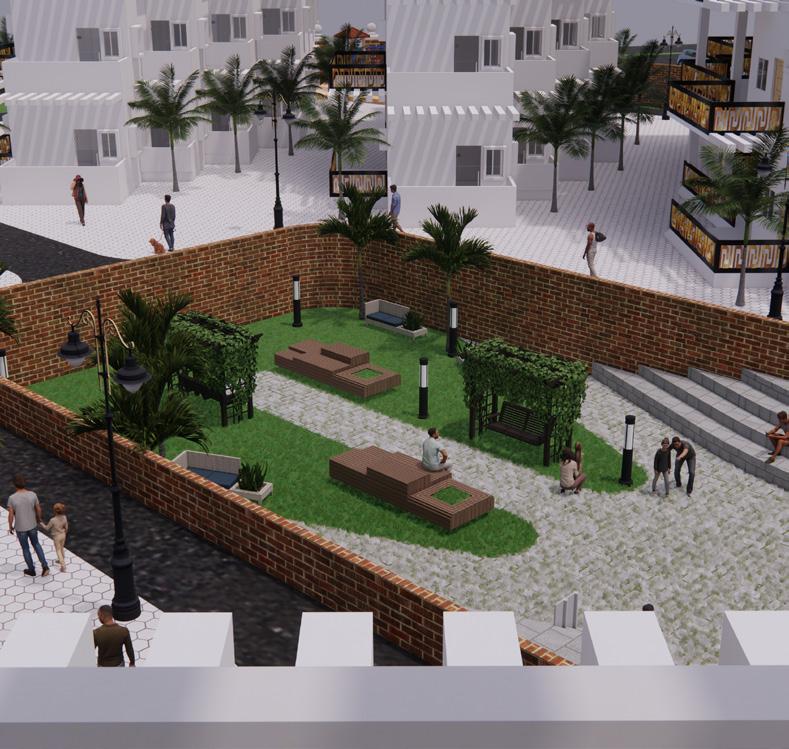

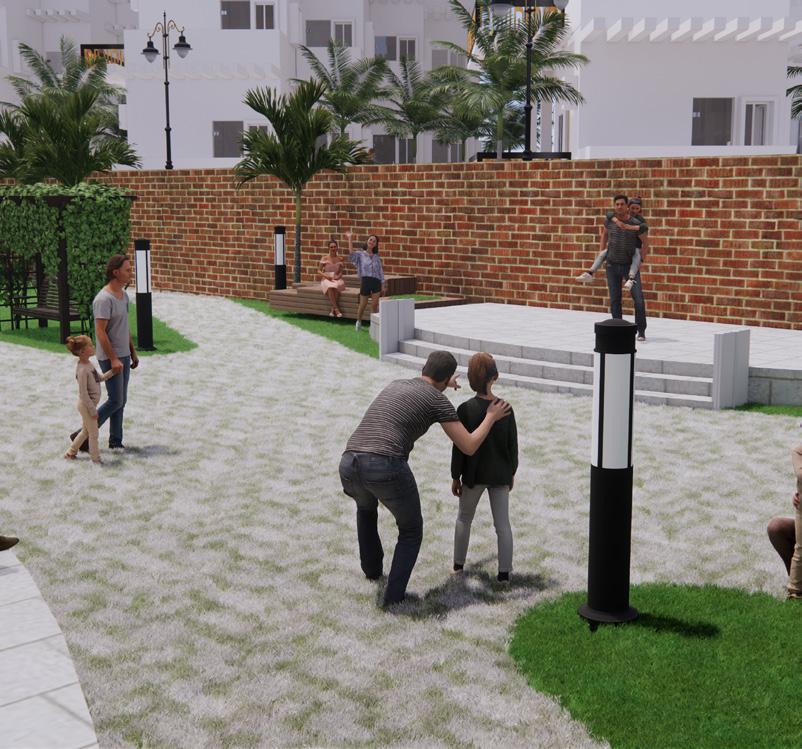

5)Clinic 6)Kids skill development centre 7)Play area 8)Parking 9)ATM 10)Supermarket 11)Cafe 12)Security cabin

1)Apartment 2)Community

4)Amphitheatre

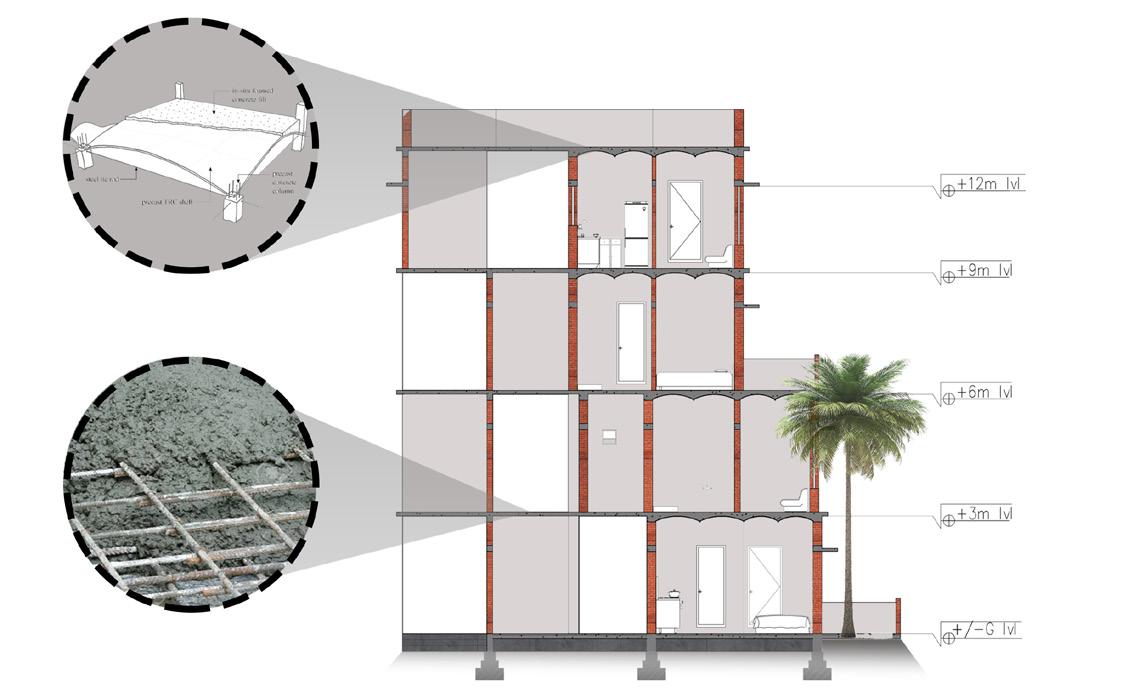

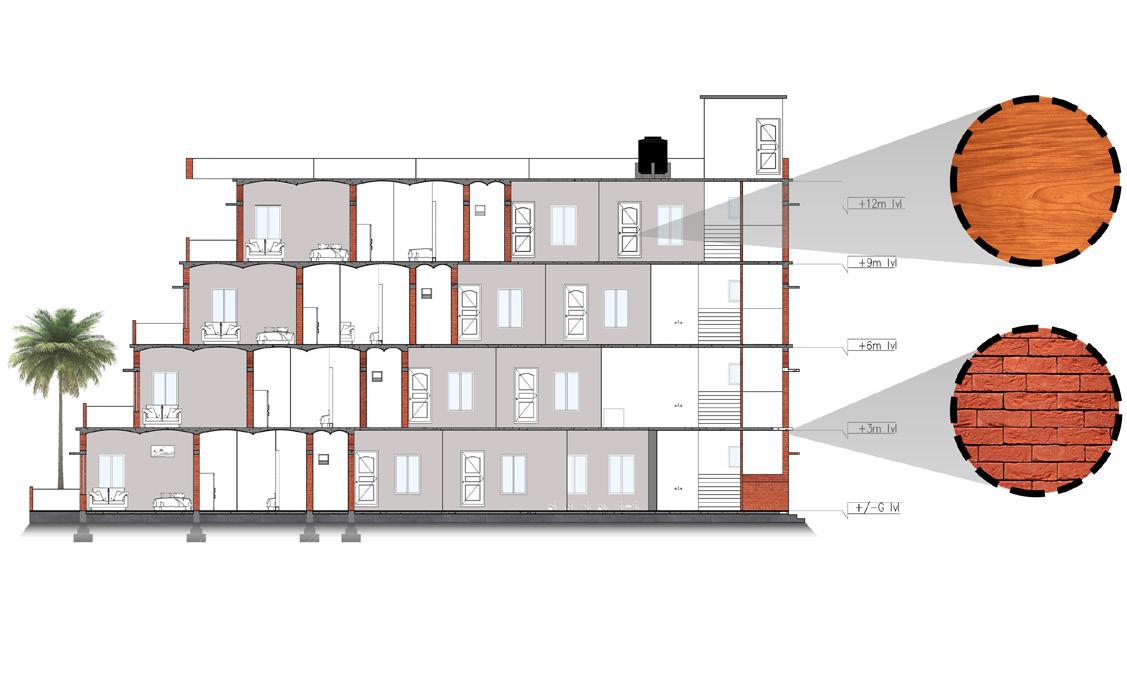

Wood Brick Doubly-curved shell roof R.C.C SITE SECTION: SECTION AA’ : SECTION BB’ :

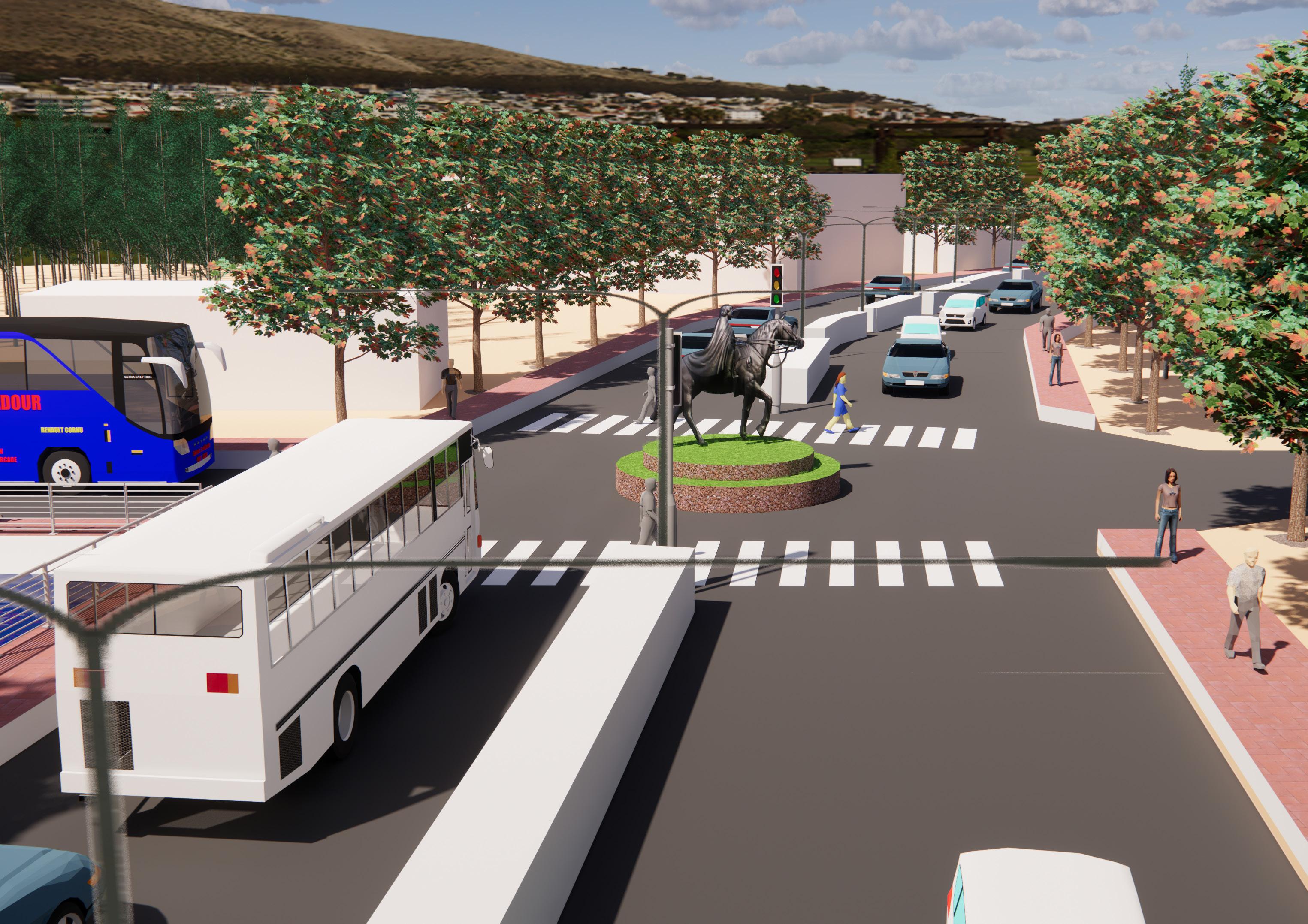

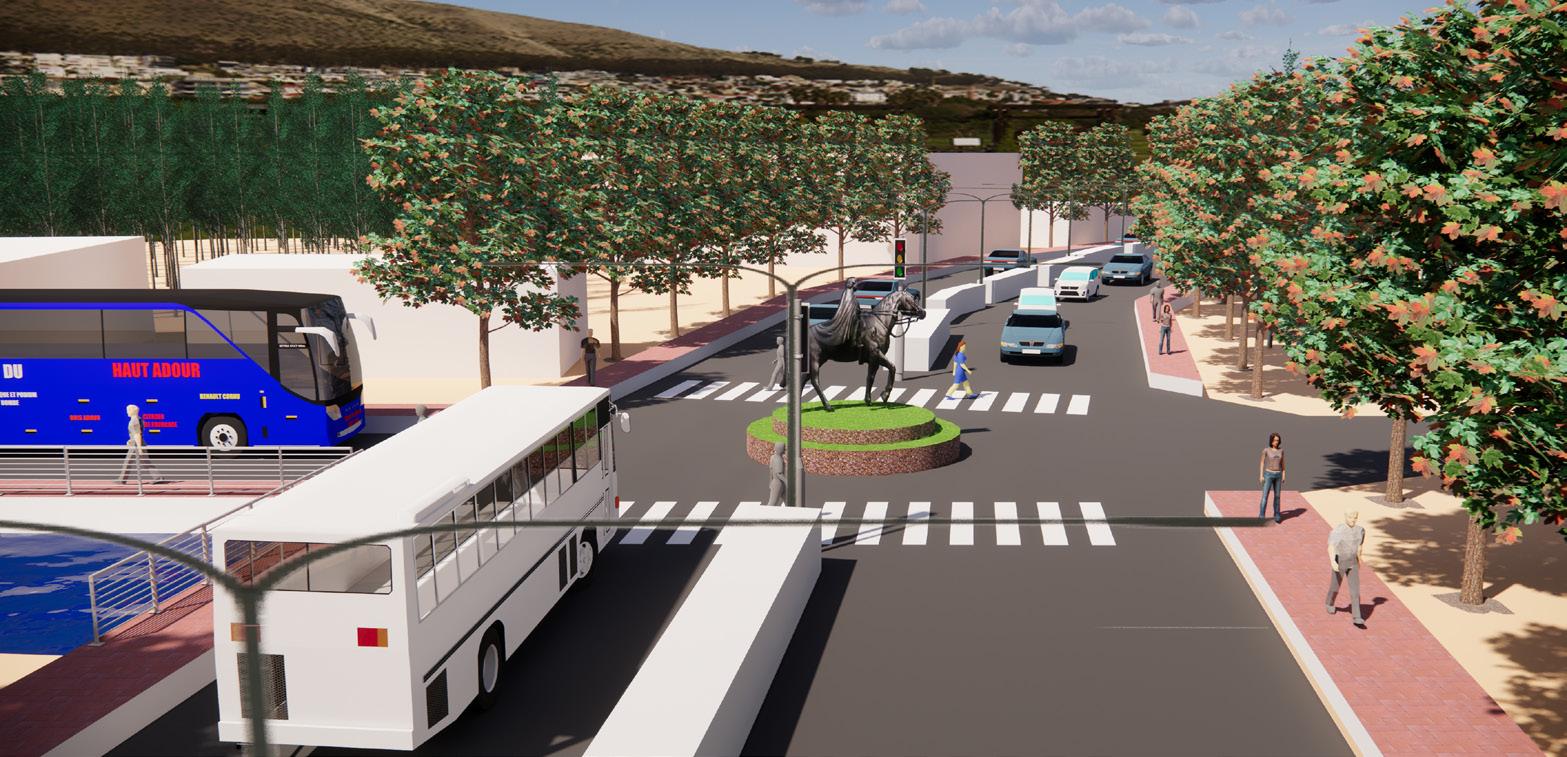

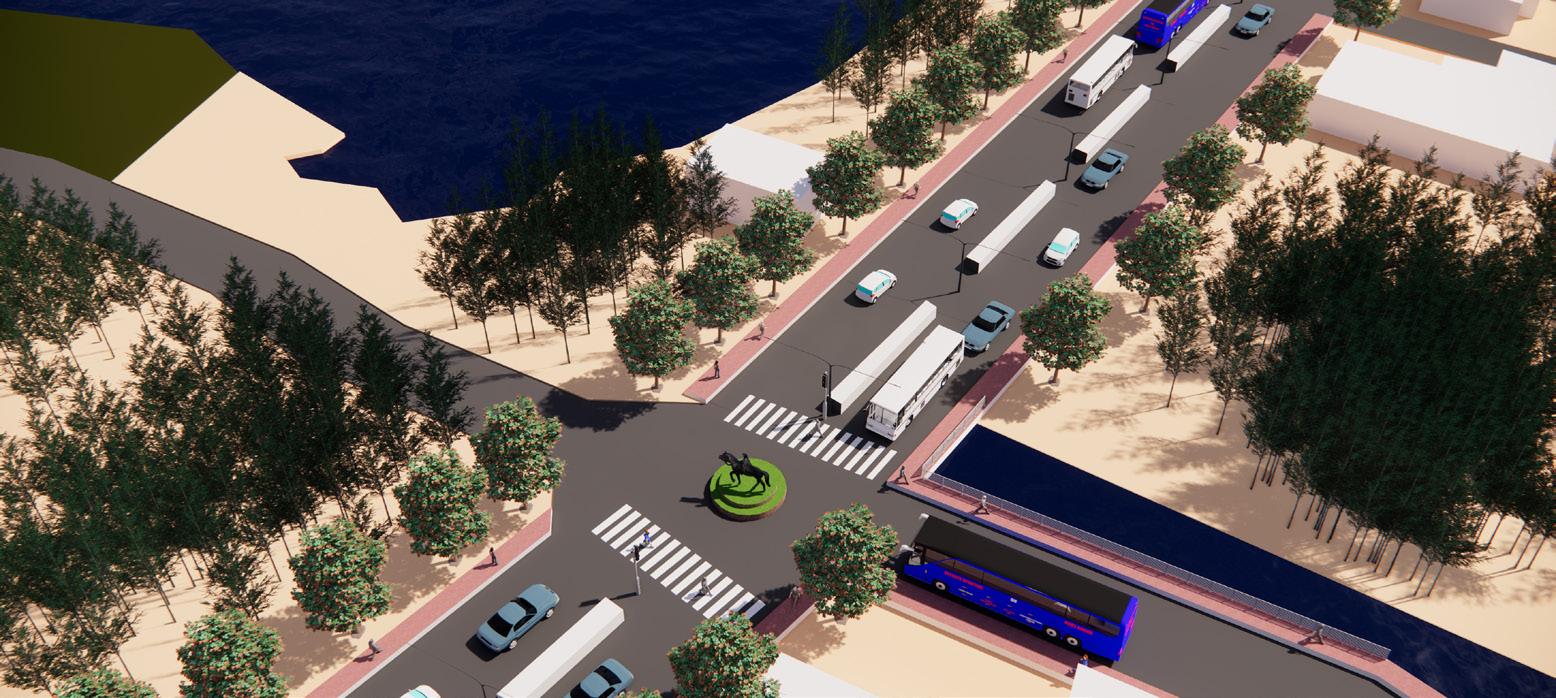

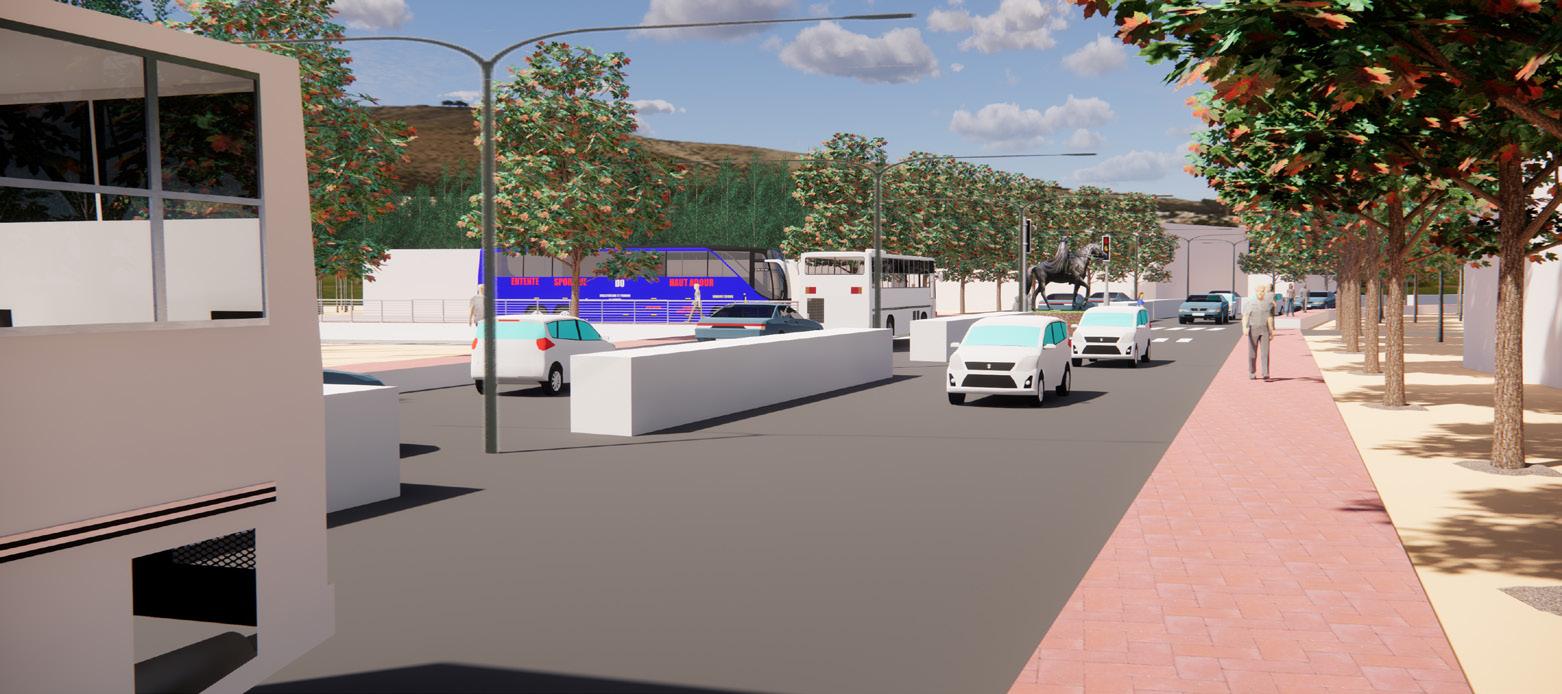

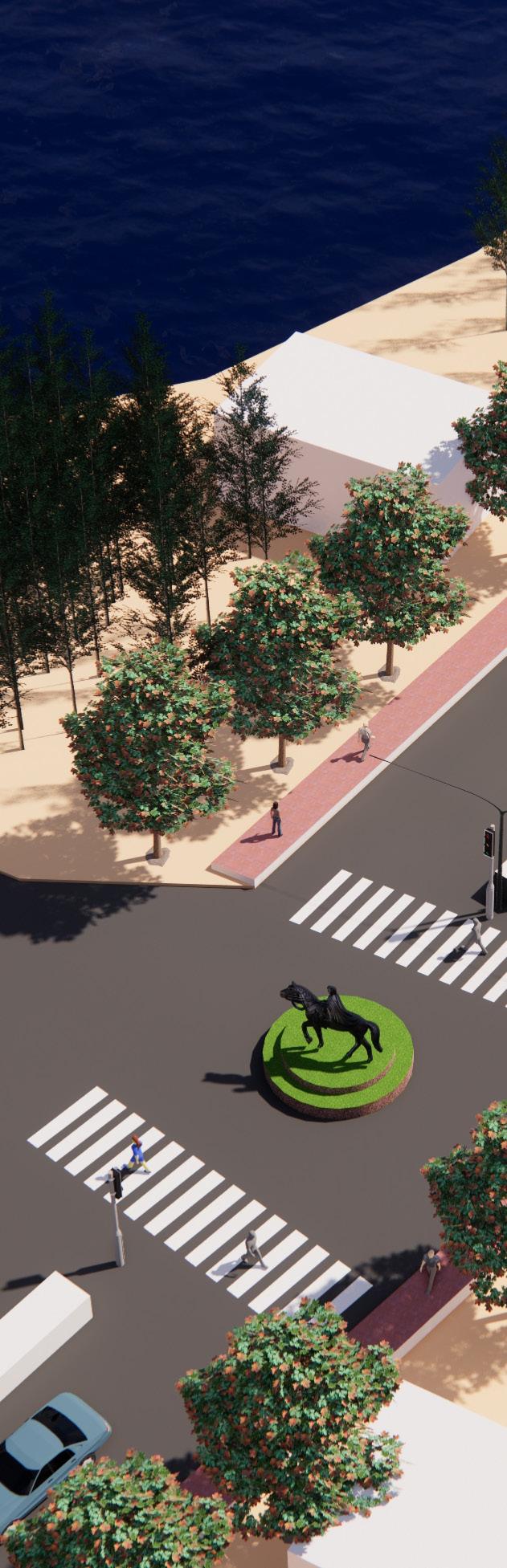

STREET CORNER DESIGN

Sem - 05

Address - Near High School, KuniyamuthurCoimbatore - 641008.

Total Site Area - 100m Co-ordinaates - 10.9627327,76.9549209

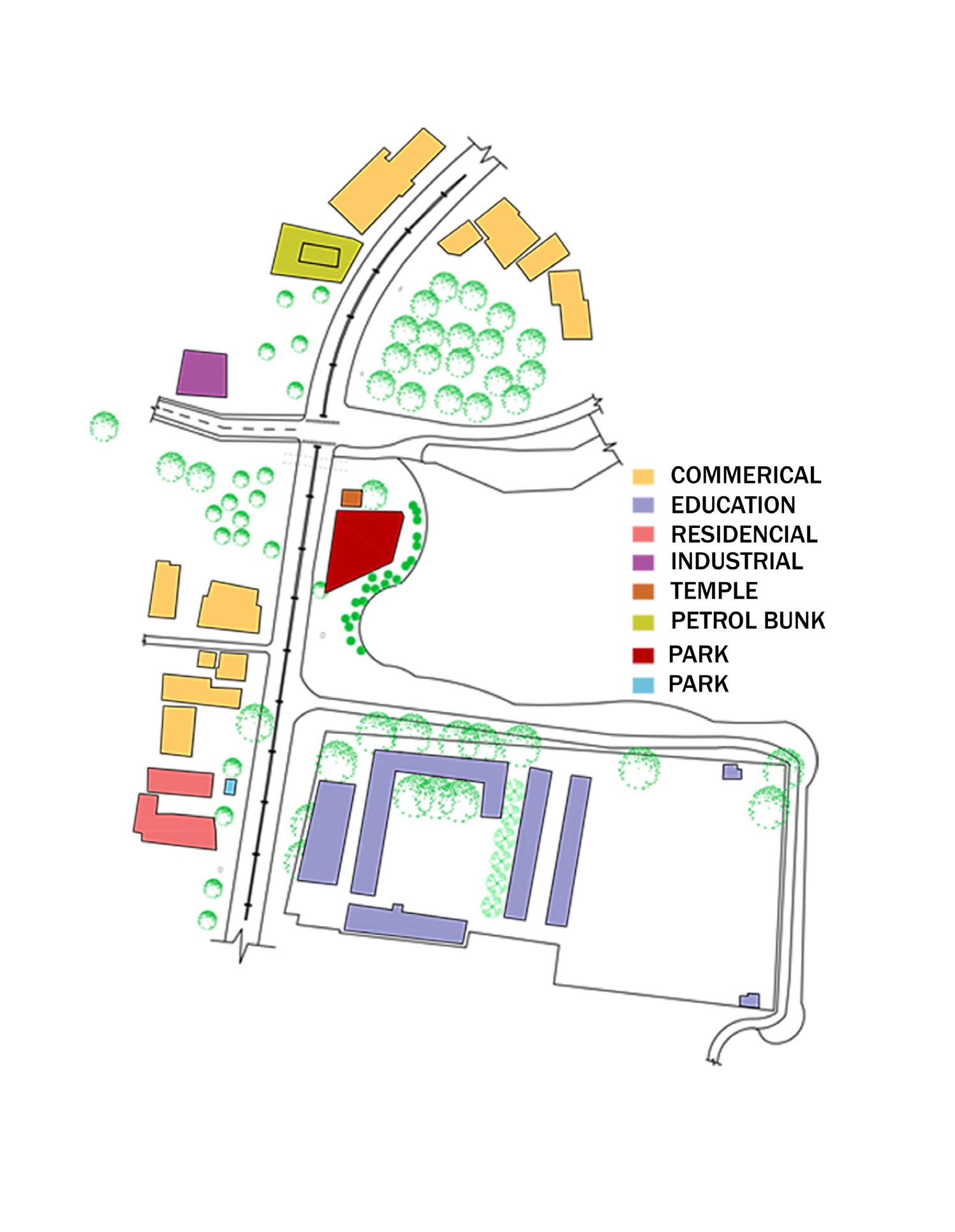

INTRODUCTION:

Kuniyamuthur is one of the oldest parts of Coimbatore and the busiest markets of the city. We have chosen the aathupalam junction as our site for the main accessibility and its one of the important junctions in the southern city.

BUILDING TYPOLOGY:

Kuniyamuthur is located close to NH 948 and is well-connected to other parts of Coimbatore by major roads like Palakkad road, Avinashi Road. The upcoming Ring Road that starts from Sugunapuram near Kuniyamuthur and will reach Narasimmanaickenpalayam will boost connectivity. Podanur Junction railway station and Coimbatore Main Junction railway station are the nearest railway station located within 6km. Coimbatore Airport is 17km away and can be reached through Avinashi Road.

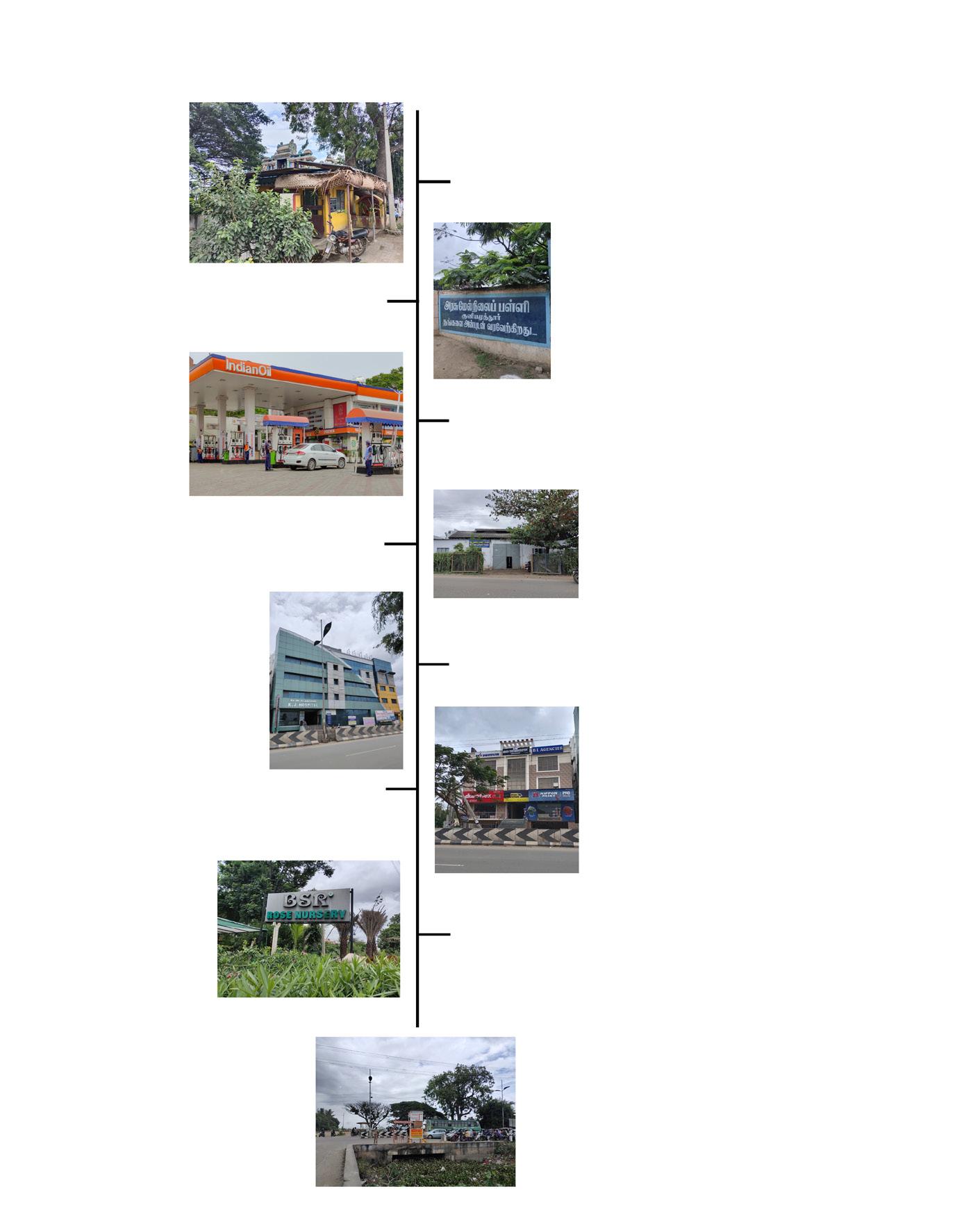

1960 - Temple 1980 - GOVERNMENT HIGH SCHOOL 1990 - PETROL BUNK 1992 - ANNAPURNA SNACKS 2001 - KJ HOSPITAL 2018 - COMPLEX 2020 - BSR ROSE NURSERY

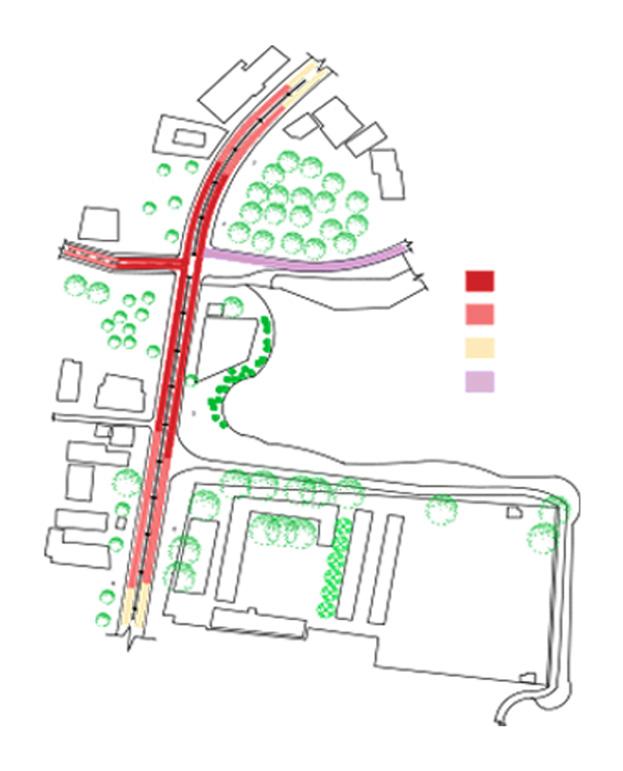

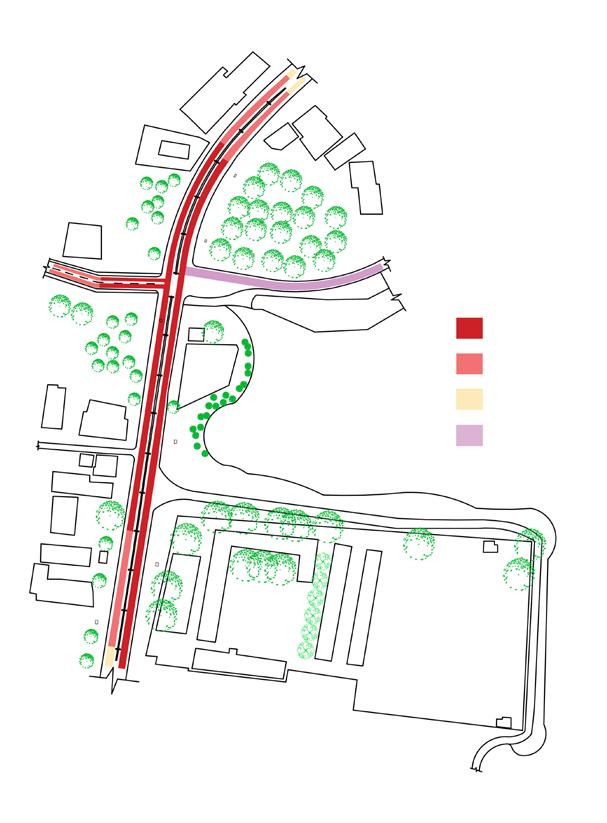

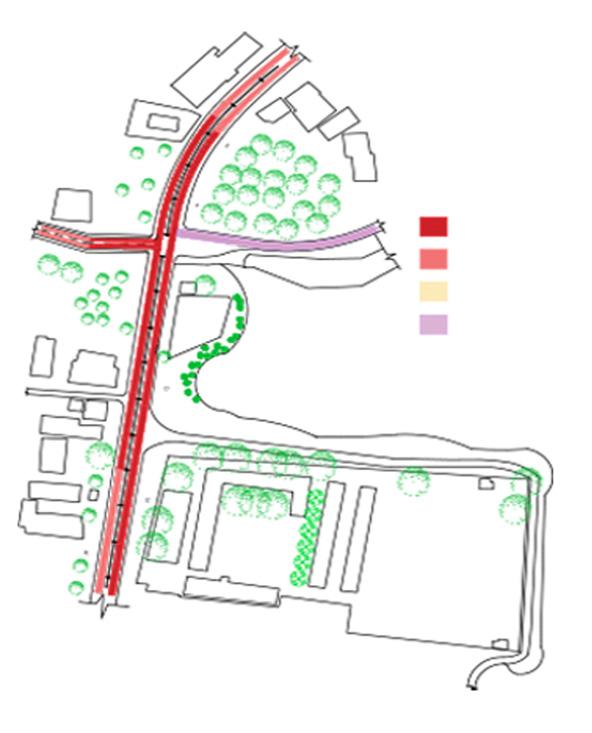

KURICHI KULAMLAKE KURICHI KULAMLAKE KURICHI KULAMLAKE VERY HIGH HIGH MEDIUM VERY LOW VERY HIGH HIGH MEDIUM VERY LOW VERY HIGH HIGH MEDIUM VERY LOW TRAFFIC ANALYSIS: TRAFFIC HIGHLIGHTS 9.00 - 12.00 TRAFFIC HIGHLIGHTS 12.00 - 3.30

HIGHLIGHTS

TRAFFIC

3.30 - 9.00

SHOWER@ 2.1m ht (FROM FL)

HOT WATER PIPE @ 0.75m ht (FROM F.L) (SUPREME INDUSTRIES)

COLD WATER PIPE @ 0.75m ht (FROM F.L) (SUPREME INDUSTRIES)

SECTION AA' PLAN

WASH CLOSET@ 0.4m ht (FROM FL) WASH BASIN@ 0.8m ht (FROM FL)

SECTION BB'

SECTION CC' SECTION DD'

TOILET LAYOUT - WORKING DRAWINGS

SCALE 1:50

ALL DIMENSIONS ARE IN 'm'

FT FT H SH C TR WC WB D1 D2 1 1.4 0.23 1.47 0.6 0.93 0.23 0.23 0.23 0.23 2.4 0.23 0.23 0.56 0.9 0.12 1.66 FLOOR TRAP @0.10m 2.86 3.46 3 A A' B' D' C C' B D CERAMIC TILE 30cm x 30cm GRANITE TOP @0.80m PLYWOOD DOOR GLASS DOOR CERAMIC TILE 30Cm x 30Cm RCC SLAP BRICK WALL FLOOR MOUNTED WATER CLOSET COLD WATER PIPE @ 0.75m ht (FROM F.L) (SUPREME INDUSTRIES) HOT WATER PIPE @ 0.75m ht (FROM F.L) (SUPREME INDUSTRIES) WATERMAN SHOWER 0.54 0.74 0.67 0.95 0.45 1.5 0.84 2.01 TOILET VENTILATOR @.65m x .65m FLUSH @.74 PYRAMID SOLID SURFACE COUNTERTOP WASHBASIN 3 1.5m x 2.4m MIRROR 0.8 0.07 WARM LIGHT STAINLESS STEEL HANDRILL 1.5m x 2.4m MIRROR PLYWOOD CUPBOARD 0.5 0.35 2.13 0.91 0.8 WATERMAN SHOWER HOT WATER PIPE @ 0.75m ht (FROM F.L) (SUPREME INDUSTRIES) COLD WATER PIPE @ 0.75m ht (FROM F.L) (SUPREME INDUSTRIES) 2.1 1.3 1.16 0.87 0.8 0.08 2.97 0.15 0.15 3.15 GLASS DOOR GLASS PARTITION TOILET VENTILATOR RCC SLAB 2.1 1 0.78 2.1 CERAMIC TILE 3.0m x 3.0m TOWEL

HEIGHT GLASS PARTITION PLYWOOD DOOR

ROD @1.50

WORKING DRAWINGS

3'-3"x2'-4" AREA-5SQ.FT 2'Ø 9'-3"x11'-3" AREA-104SQ.FT INFORMAL LIVING 14'-9"x20'-5" AREA-293SQ.FT MASTER BEDROOM 15'-9"x15'-0" AREA-236SQ.FT BEDROOM 11'-6"x14'-5" AREA-165SQ.FT TOILET AREA-69SQ.FT +15'-6" +16'-0" GYM 9'-9"x15'-9" AREA-153SQ.FT UTILITY ROOM 9'-6"x4'-0" AREA-38SQ.FT +16'-0" +16'-4" COMMON BALCONY 14'-9"x15'-4" AREA-226SQ.FT +16'-0" BEDROOM 16'-0"x10'-4" AREA-165SQ.FT TOILET 4'-9"x10'-4" +16'-0" +15'-6" +15'-6" +15'-6" AREA-40SQ.FT STORAGE 3'-6"x9'-9" AREA-34SQ.FT TERRACE AREA-1927SQ.FT +26'-0" +26'-0" CH A B C D E F G H J C1 C1 C1 C2 C1 C1 C1 C2 C2 C3 C2 C1 C5 C5 C4 C4 C5 C5 C4 C5 C5 C5 3'Ø 2'Ø LIVING HALL CUM DINING 16'-6"x30'-0" AREA-495SQ.FT OUTDOOR SEATING 7'-0"x9'-9" AREA-67SQ.FT TOILET 11'-6"x6'-0" AREA-69SQ.FT GUEST BEDROOM 11'-6"x14'-5" AREA-165SQ.FT SL SL SL SL SL SL SL SL BL BL BL COMMON TOILET 9'-3"x4'-0" AREA-37SQ.FT TOILET 9'-3"x6'-6" +5'-9" DRESSING ROOM 9'-3"x4'-5" AREA-40SQ.FT +5'-9" +5'-9" +5'-0" +5'-6" +2'-0" LOTUS POND 4'-3"x15'-9" AREA-77SQ.FT +6'-0" +6'-6" +6'-0" +5'-0" +5'-6" +4'-6" +4'-0" +3'-6" +3'-0" +3'-0" +2'-6" +2'-0" +1'-6" +1'-0" +0'-6" +6'-0" +4'-6" +1'-6" CEILING FAN 1200mm DIA. LEGEND : PROFILE LIGHTS CEILING FAN 600mm DIA. MIRROR LIGHT @ 2100mm FROM FFL WALL LIGHT 1650mm LVL FROM FLOOR (IP RATED) ML CHANDLIER LAMP STRIP LIGHTS (UNDER STAIRS) STRIP LIGHTS (UNDER WARDROBE) SWITCH BOARD CEILING LIGHT (OUTDOOR) TV POWER POINT POWER SOCKET 16A CEILING LIGHT (INDOOR 12W) BELL POINT POWER SOCKET 5A BOLLARD LIGHT CEILING LIGHT (OUTDOOR) REVISIONS: S.NO. DESCRIPTION DATE N ALL DIMENSIONS ARE IN FEET AND INCHES.DRAWING NOT BE SCALED. ANY DISCREPANCIES SHOULD BE BROUGHT TO THE ARCHITECTS NOTICE IMMEDIATELY. NOTE :

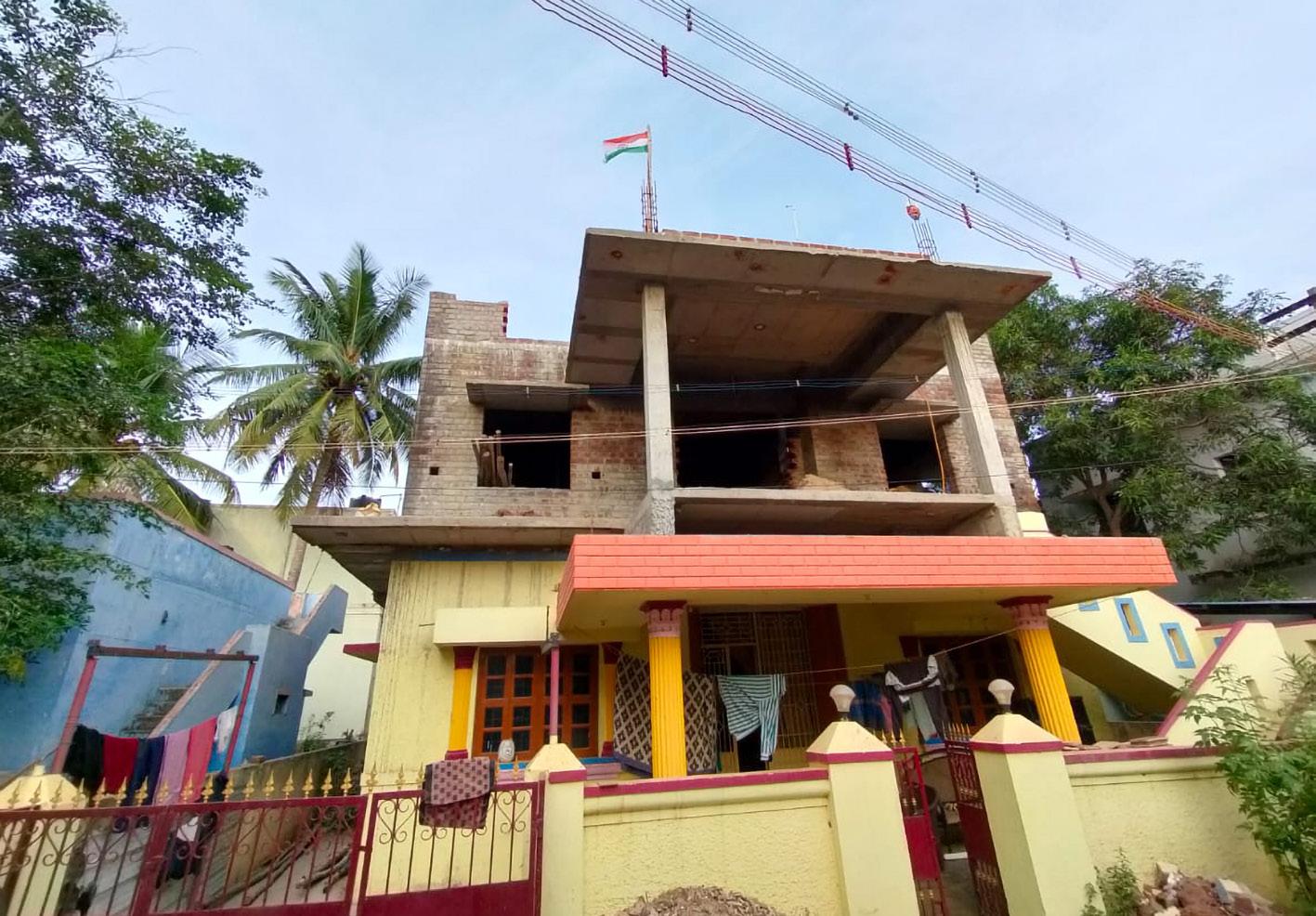

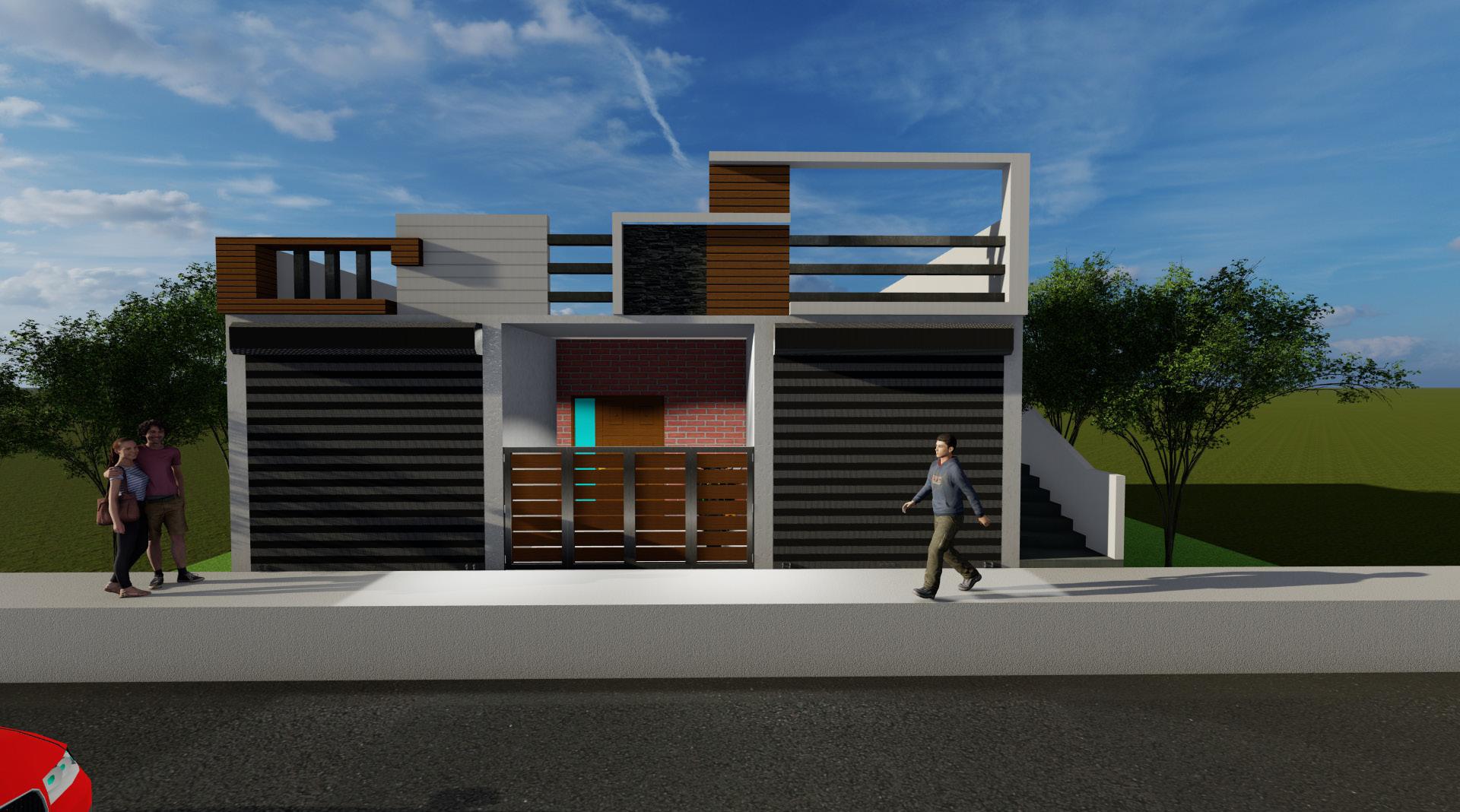

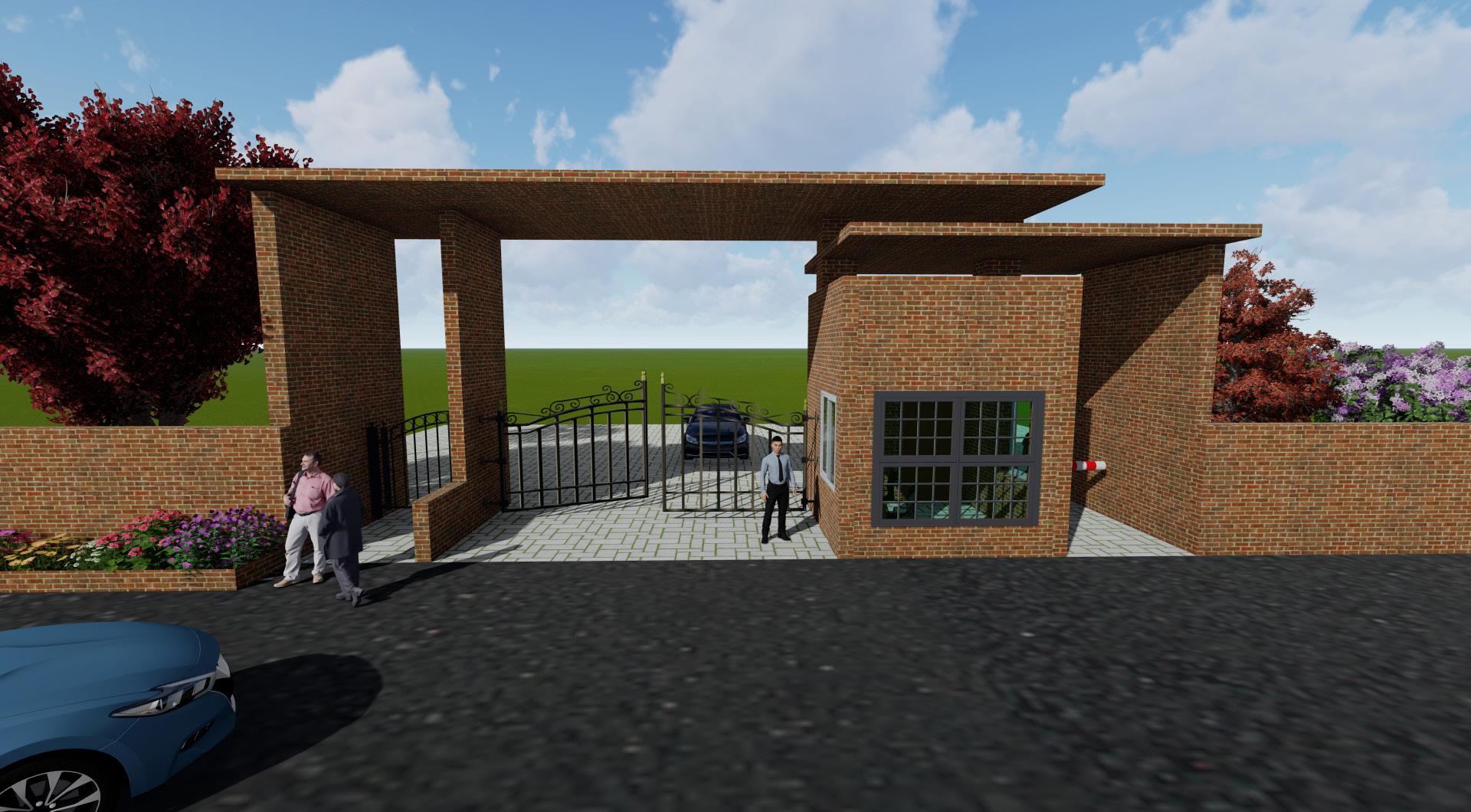

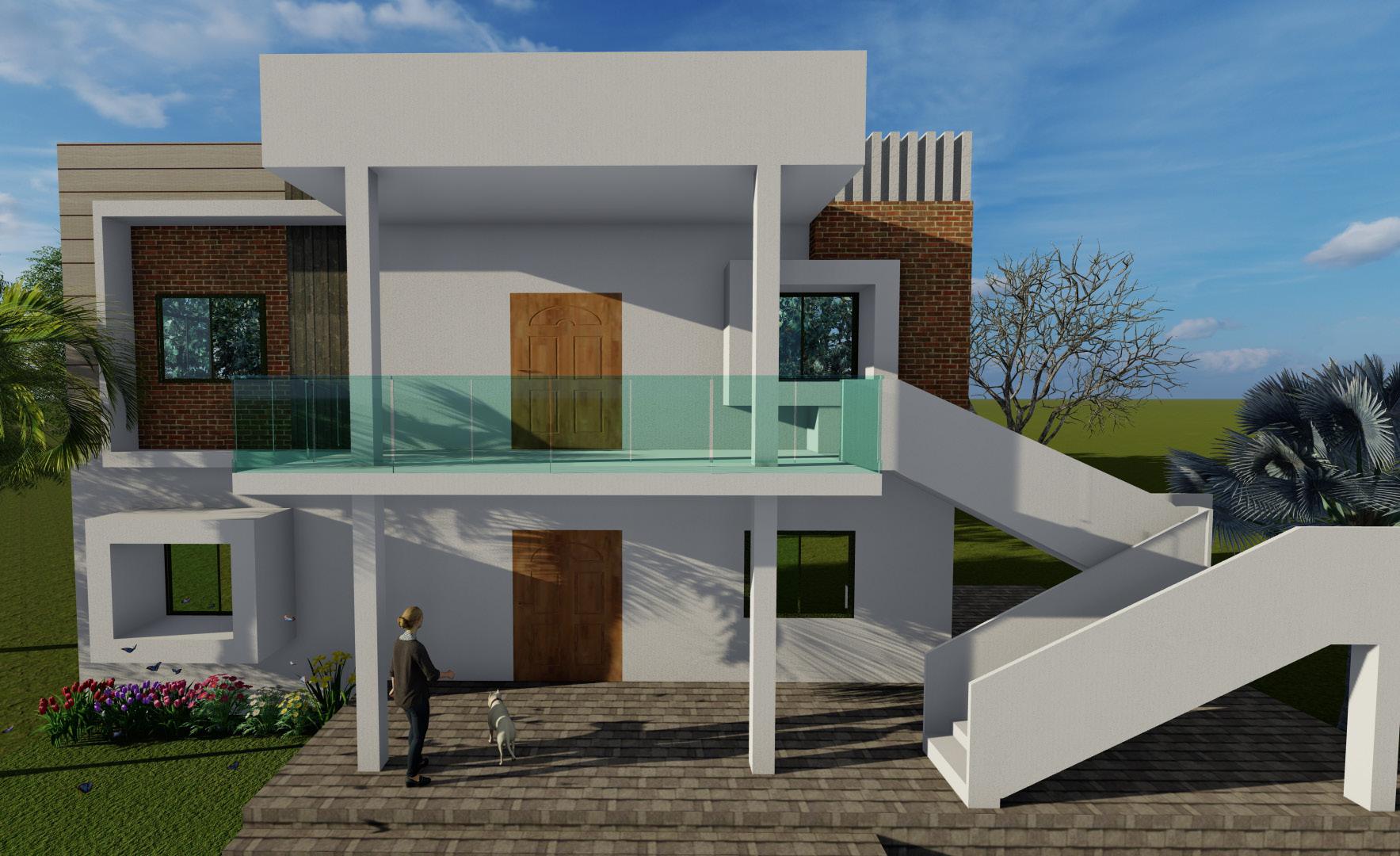

RESIDENTIAL LAYOUT - WORKING DRAWINGS (LIVE WORKS)

SITE LOCATION : NEEDAMANGALM W AREA : 30’X40’

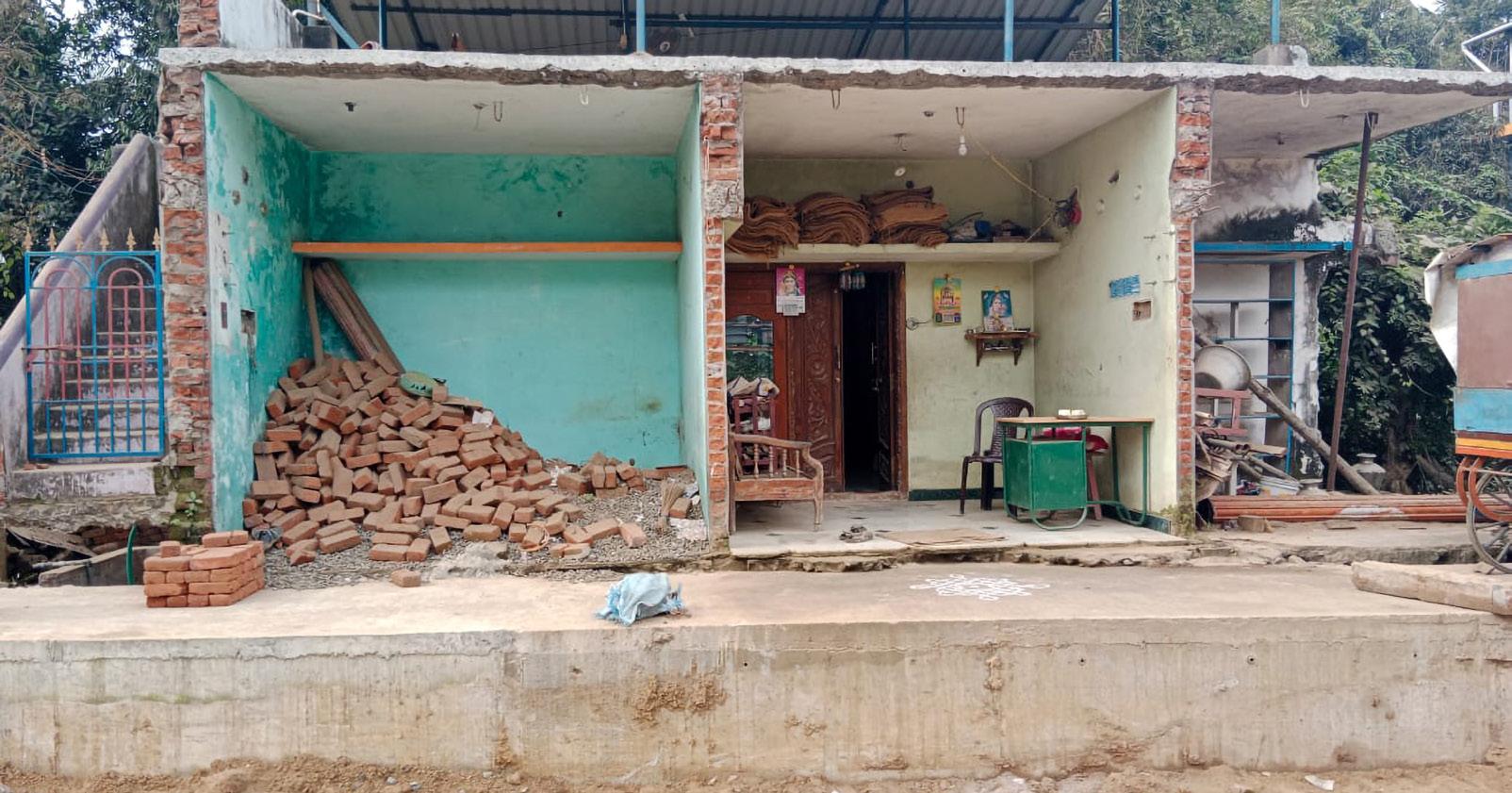

Because of National Highways (NH) extension buildings were demolished . To give compensation to the people, new buildings will be constructed that should be attractive and austerity.
