MOZ COLUMNS Technical Information rev. 5/20/26

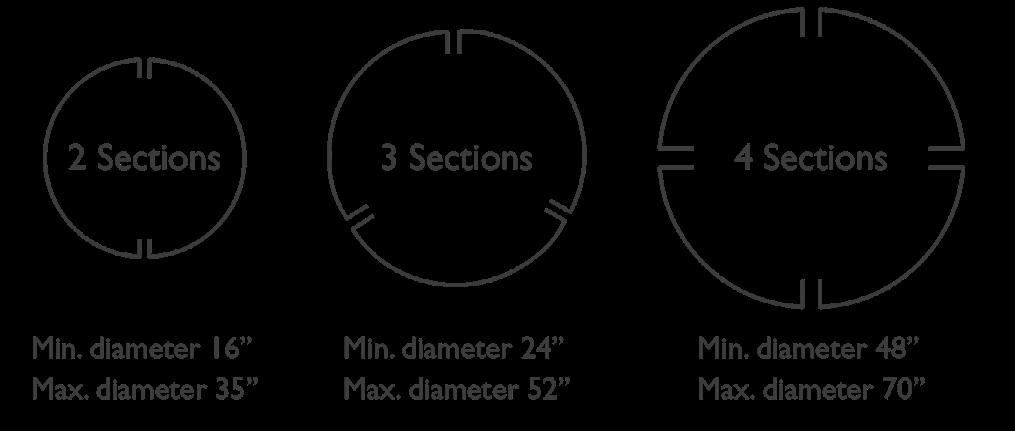

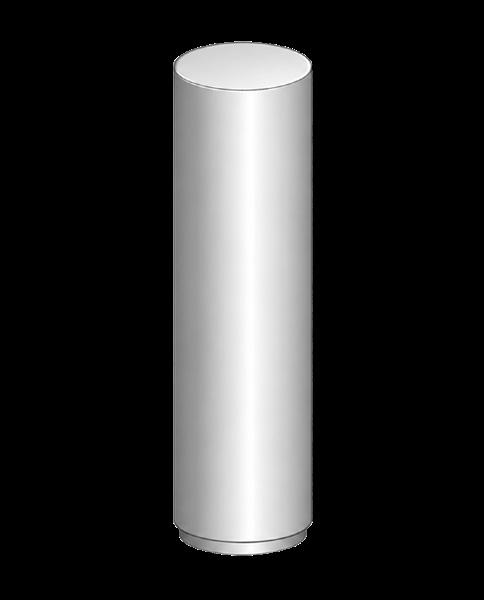

COLUMN CLASSIFICATIONS CLASSIC COLUMNS CC100 ROUND COLUMN COVER Round metal columns are available in dia. from 16” to 70” and up to four sections.

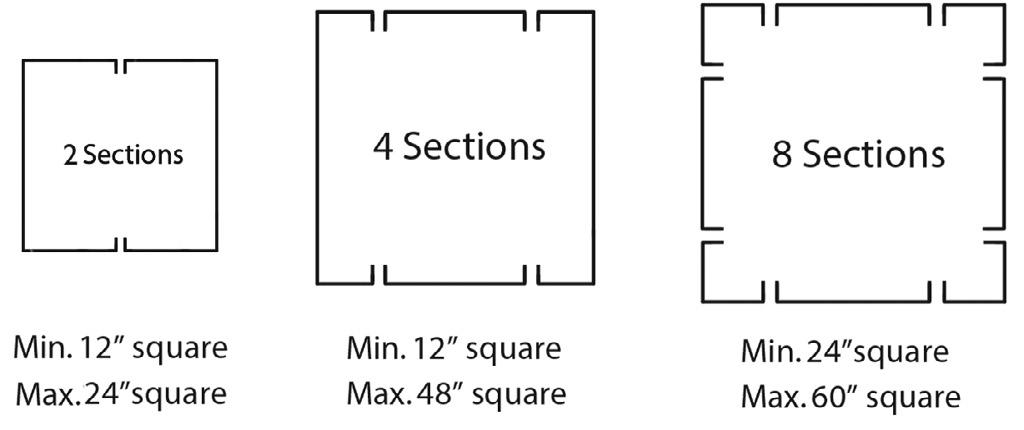

CC150 SQUARE COLUMN COVER Square columns are available in sizes from 12” to 60” square or rectangle, and four or eight sections.

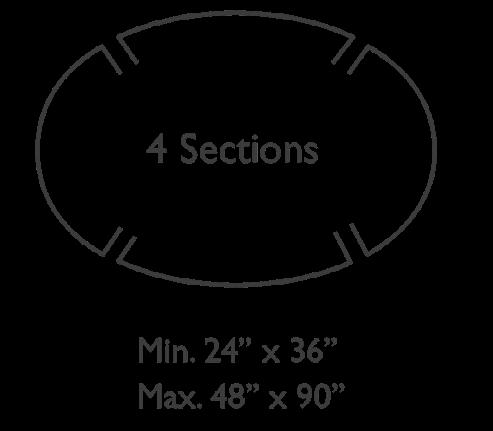

CC200 OVAL COLUMN COVER Oval columns are available in sizes up to 48” x 90” and four sections.

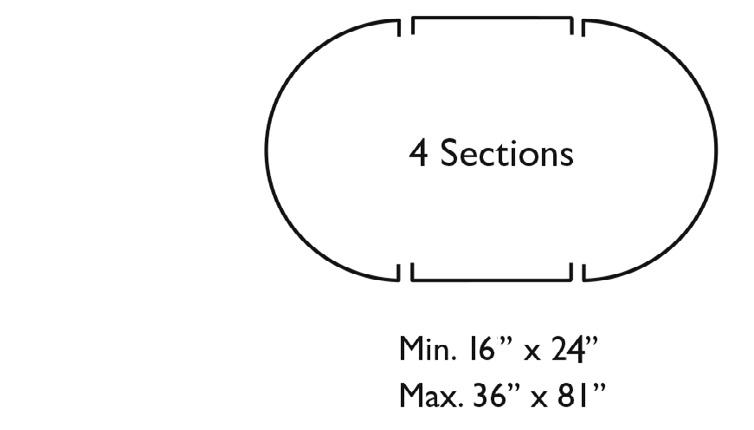

CC250 RACETRACK COLUMN COVER Ideal for larger applications. Race-track aluminum columns are available in sizes up to 36” x 81” and come in four sections.

2

COLUMN CLASSIFICATIONS DIMENSIONAL COLUMNS INLAY COLUMN COVER Layered Inlay Columns use a two-panel system that combines an outer laser-cut or perforated metal layer with a secondary inner layer. The inner layer can be specified as either solid or perforated metal.

LUMINOUS OPTIONS BASE & CAPITAL LIGHTING Capital uplighting draws the eye upward to emphasize ceiling height, while base lighting creates a soft glow at the floor, transforming the column into an integrated architectural lighting feature.

REVEAL LIGHTING Reveal lighting integrates LED illumination into vertical reveals, adding movement and energy to the surrounding space.

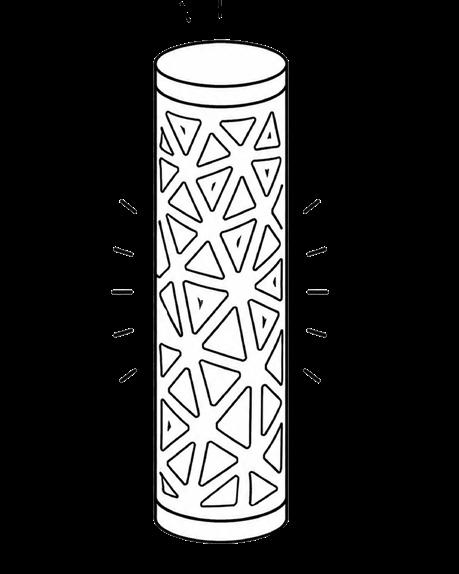

BACKLIGHTING Backlighting brings laser-cut patterns to life with dynamic color and layered shadow effects.

3

CLASSIC COLUMNS

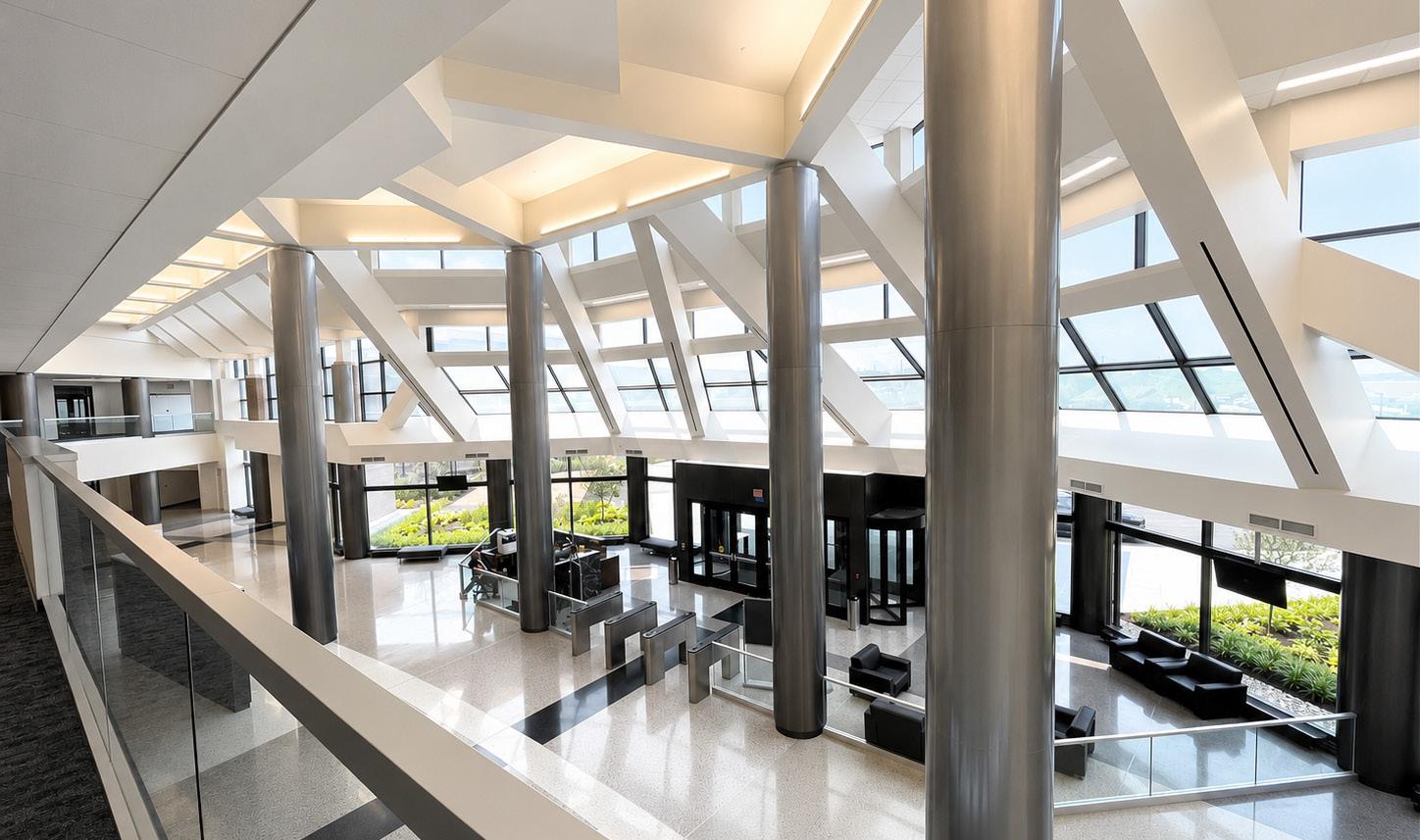

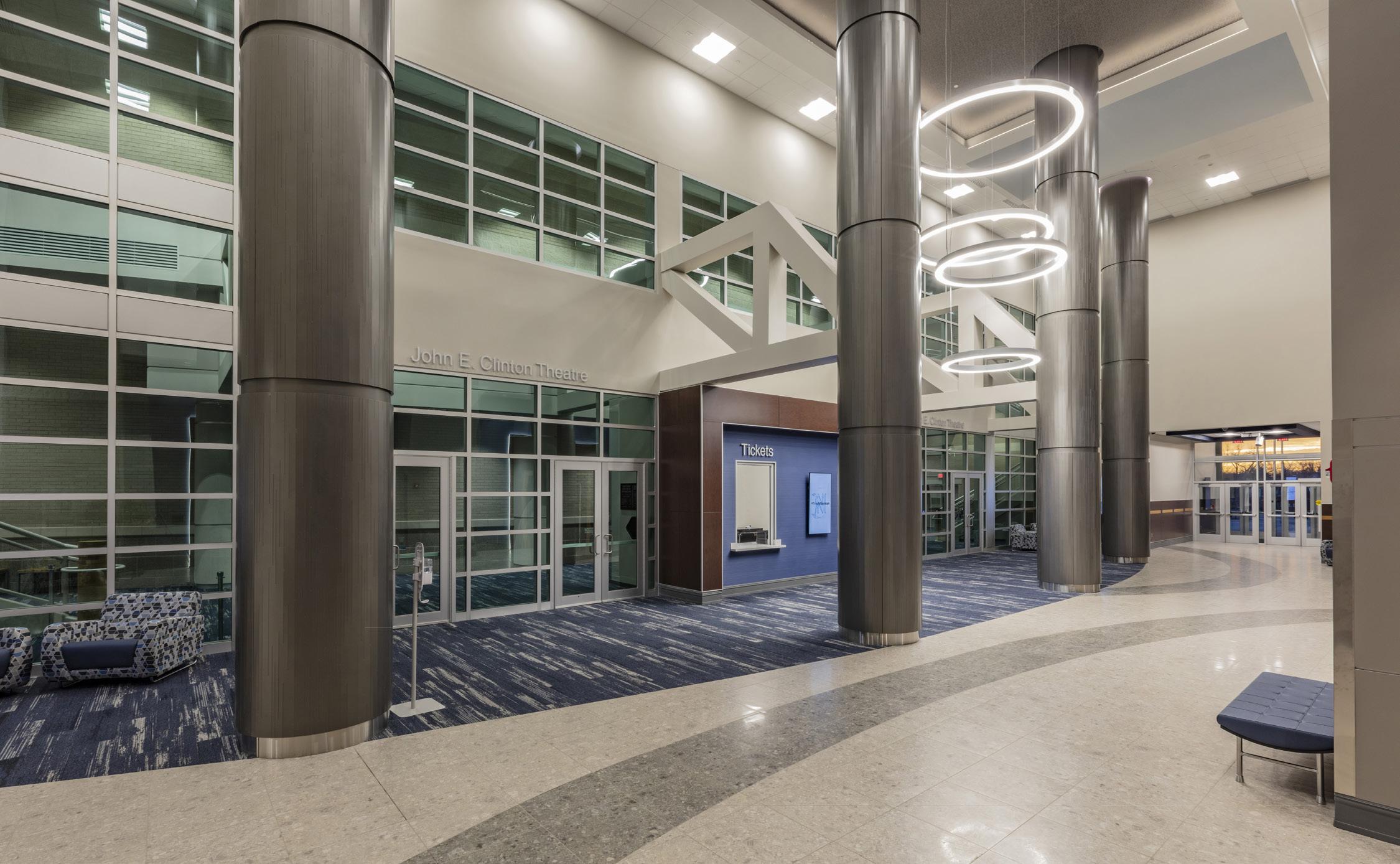

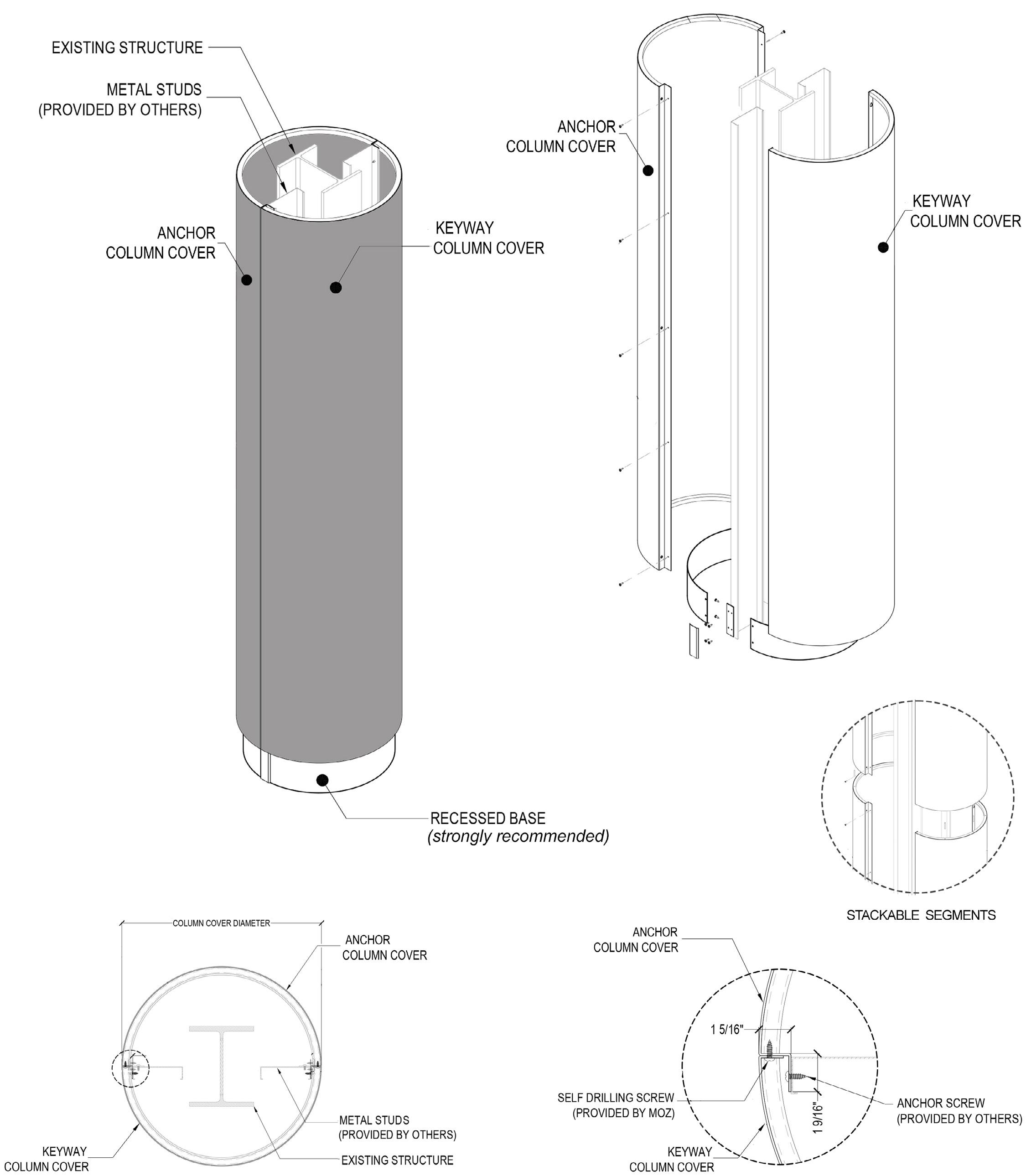

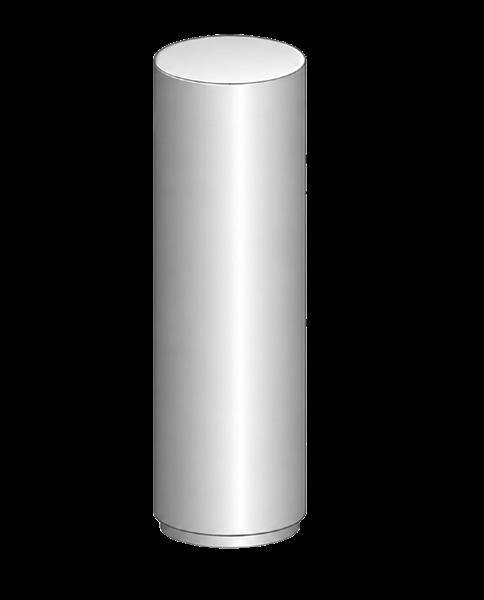

CC100 ROUND COLUMN COVER CC100 Round Column Covers provide a clean,

Optional Add-ons:

durable solution for concealing structural supports

• Vertical and/or horizontal reveals (see page 14)

in interior and exterior applications.

• Recessed Base & Capital (see page 14)

Pre-formed aluminum construction with vertical butt

• Integrated lighting (see page 16-21)

joints allows for fast installation with a wide range of

• Dimensional Inlay (see page 12)

finish, reveal, and integrated lighting options.

• Custom shapes, partials, and tapered forms

Column Sizes:

• Exterior-rated finishes Materials: • Solid .090” aluminum • Laser-cut .125” aluminum¹ • Perforated .090” aluminum¹ • Engraved .090” aluminum² • Skinz .090” aluminum³ • Stainless steel 18 ga

Unlimited column heights using stacked segments.

Max segment height: 12’-0”* *For column diameters under 18”, max segment height is 10’-0”.

Finishes: Available in Móz Classics, Powder Coat, Gradients², Patina², and Digital² collections. ¹ Requires 1” minimum solid margin. Patterns may facet slightly. ² Maximum 10’-0” segment height. ³ Section quantity may vary based on panel width limitations. Maximum diameters: 28” (2-section), 40” (3-section), 54” (4-section).

4

CC100 ROUND COLUMN COVER

5

CLASSIC COLUMNS

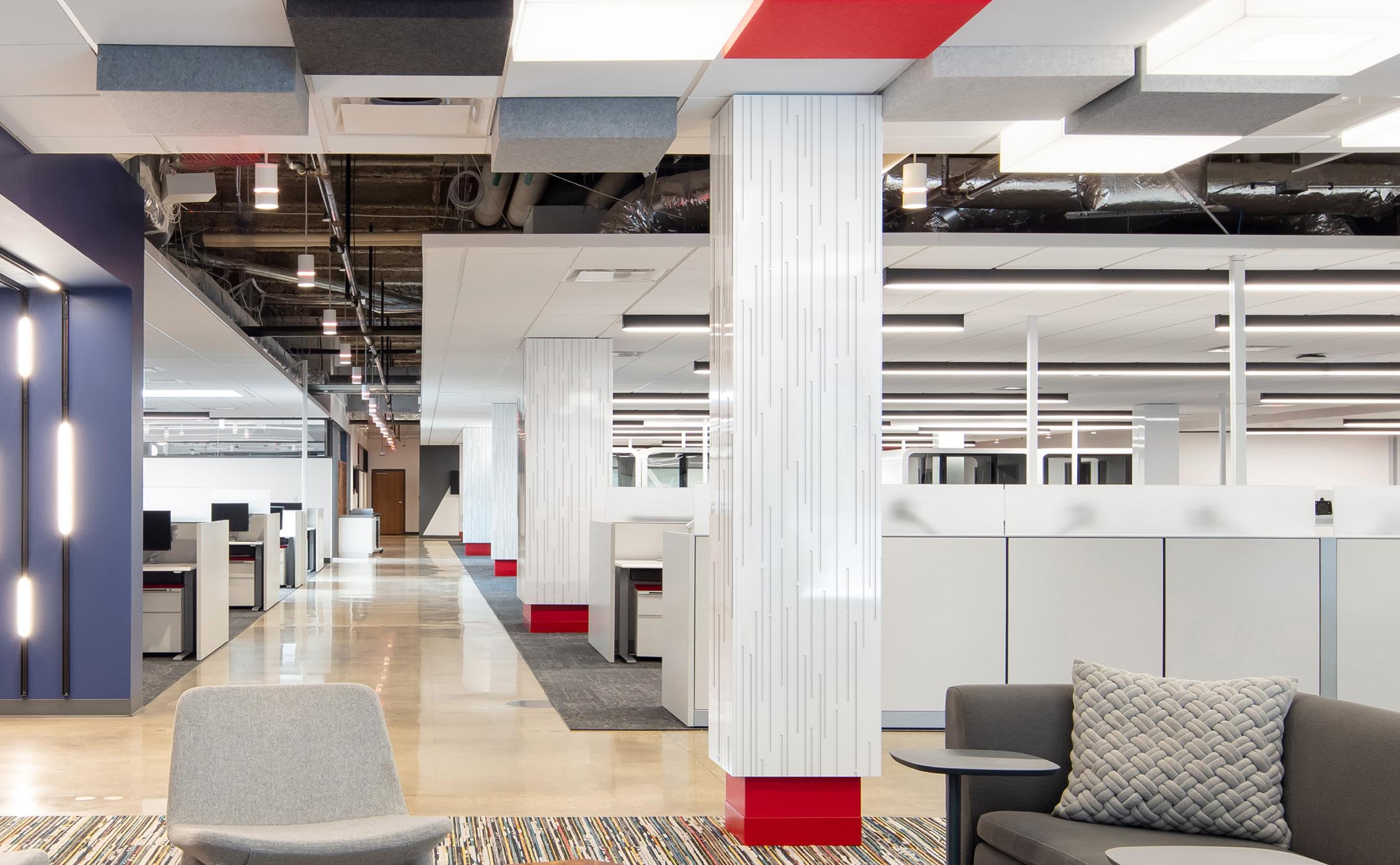

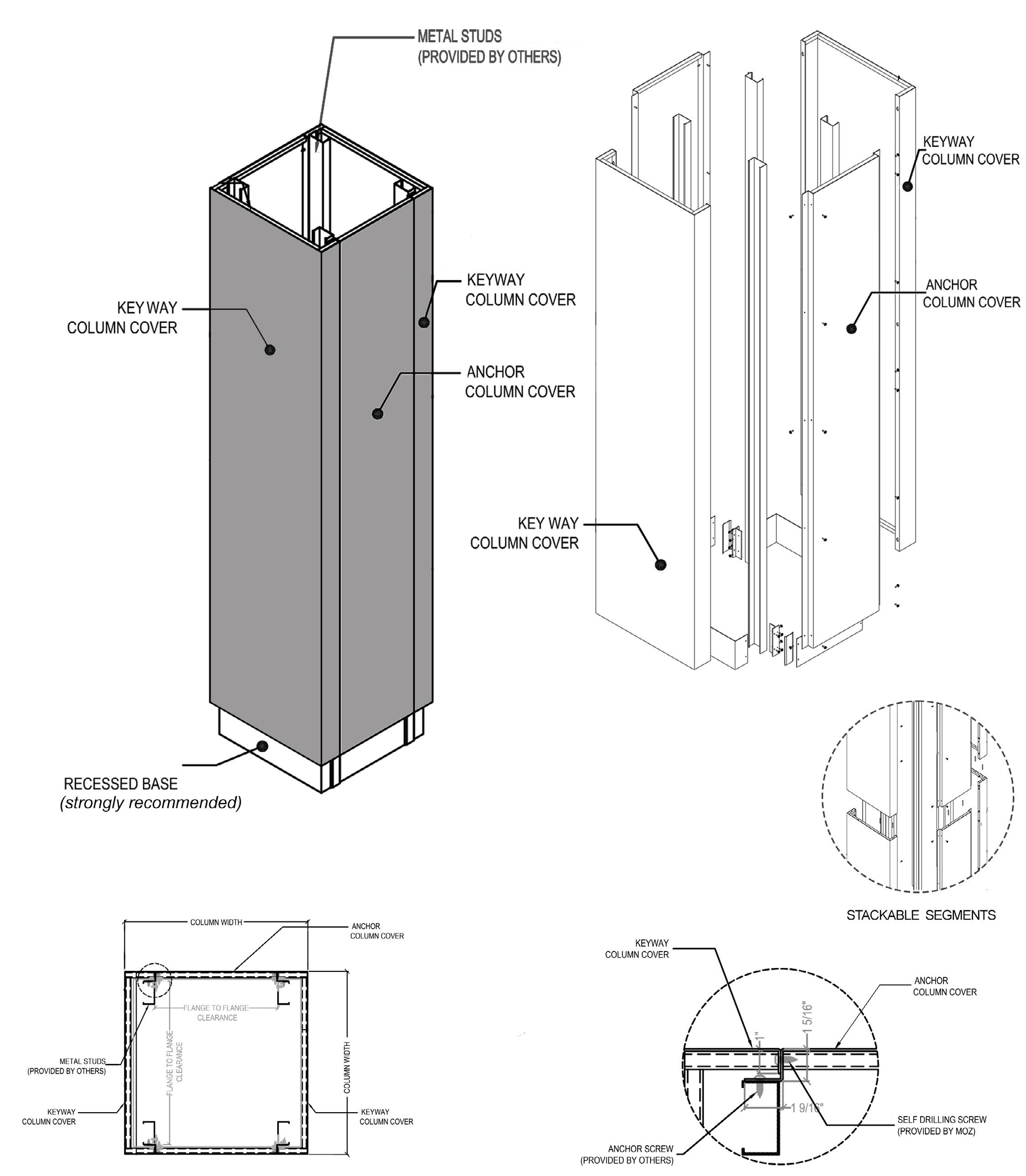

CC150 SQUARE COLUMN COVER CC150 Square Column Covers provide a clean,

Optional Add-ons:

durable solution for concealing structural supports

• Vertical and/or horizontal reveals (see page 14)

in interior and exterior applications.

• Recessed Base & Capital (see page 14)

Pre-formed aluminum construction with vertical butt

• Integrated lighting (see page 16-21)

joints allows for fast installation with a wide range of

• Dimensional Inlay (see page 12)

finish, reveal, and integrated lighting options.

• Custom shapes, partials, and tapered forms

Column Sizes:

• Exterior-rated finishes Materials: • Solid .090” aluminum • Laser-cut .125” aluminum¹ • Perforated .090” aluminum¹ • Engraved .090” aluminum² • Skinz .090” aluminum³ • Stainless steel 18 ga Finishes:

Unlimited column heights using stacked segments.

Available in Móz Classics, Powder Coat, Gradients², Patina²,

Max segment height: 12’-0”

and Digital² collections. ¹ Requires 1” minimum solid margin. ² Maximum 10’-0” segment height. ³ Section quantity may vary based on panel width limitations.

6

CC150 SQUARE COLUMN COVER

7

CLASSIC COLUMNS

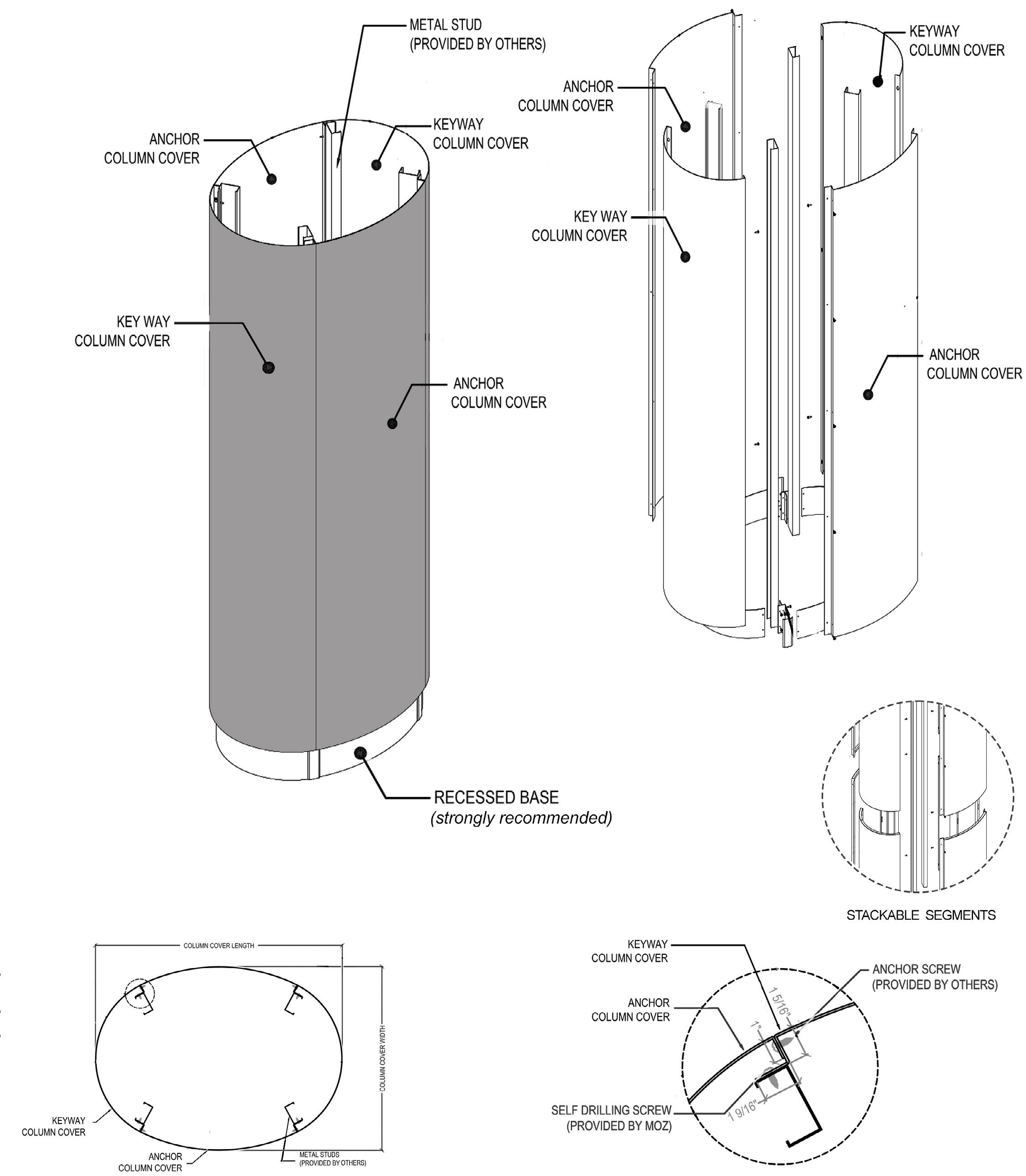

CC200 OVAL COLUMN COVER CC200 Oval Column Covers provide a clean,

Optional Add-ons:

durable solution for concealing structural supports

• Vertical and/or horizontal reveals (see page 14)

in interior and exterior applications.

• Recessed Base & Capital (see page 14)

Pre-formed aluminum construction with vertical butt

• Integrated lighting (see page 16-21)

joints allows for fast installation with a wide range of

• Dimensional Inlay (see page 12)

finish, reveal, and integrated lighting options.

• Custom shapes, partials, and tapered forms

Column Sizes:

• Exterior-rated finishes Materials: • Solid .090” aluminum • Laser-cut .125” aluminum¹ • Perforated .090” aluminum¹ • Engraved .090” aluminum² • Skinz .090” aluminum³ • Stainless steel 18 ga Finishes:

Unlimited column heights using stacked segments.

Available in Móz Classics, Powder Coat, Gradients², Patina²,

Max segment height: 12’-0”

and Digital² collections. ¹ Requires 1” minimum solid margin. Patterns may facet slightly. ² Maximum 10’-0” segment height. ³ Section quantity may vary based on panel width limitations.

8

CC200 OVAL COLUMN COVER

9

CLASSIC COLUMNS

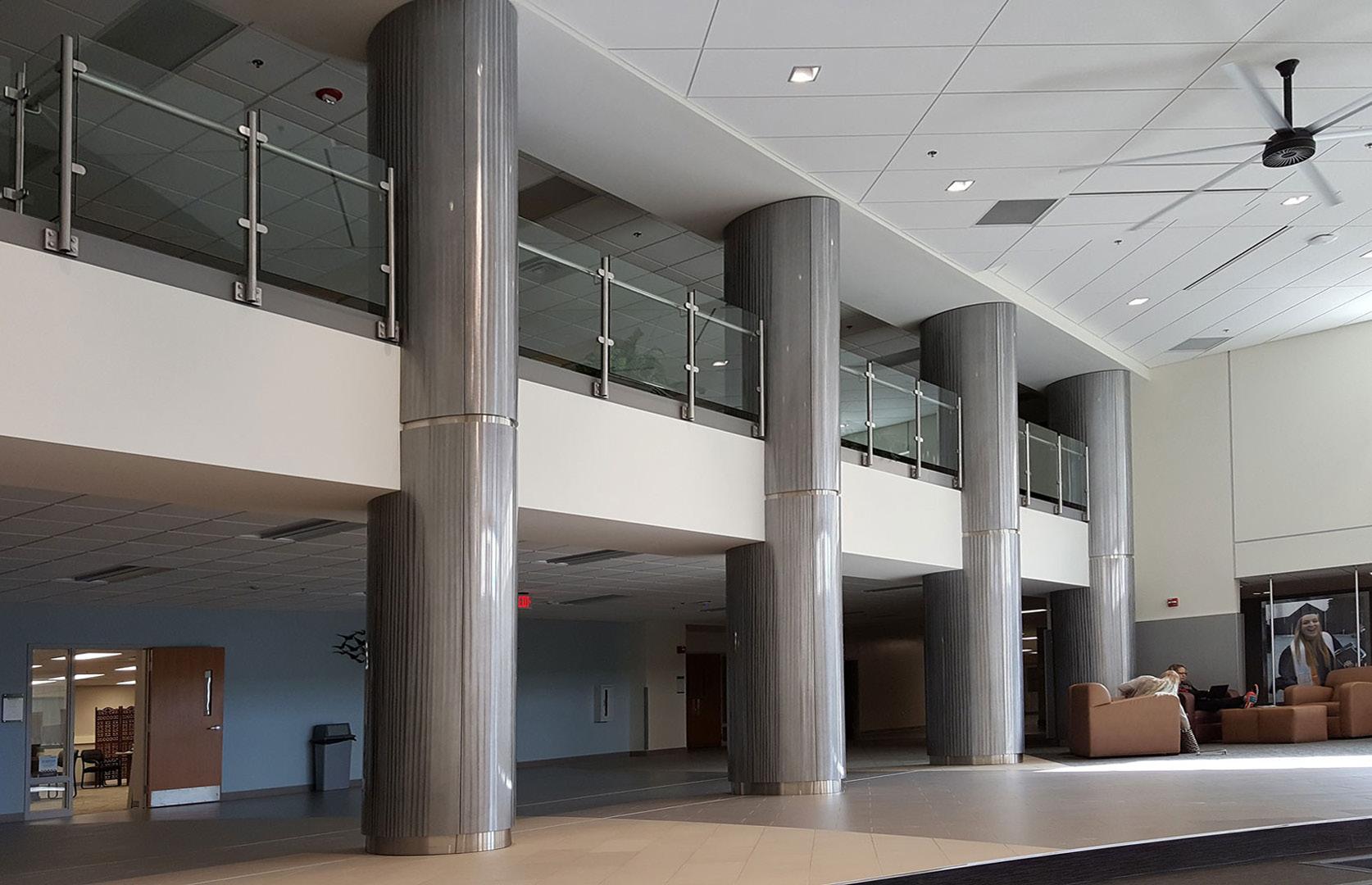

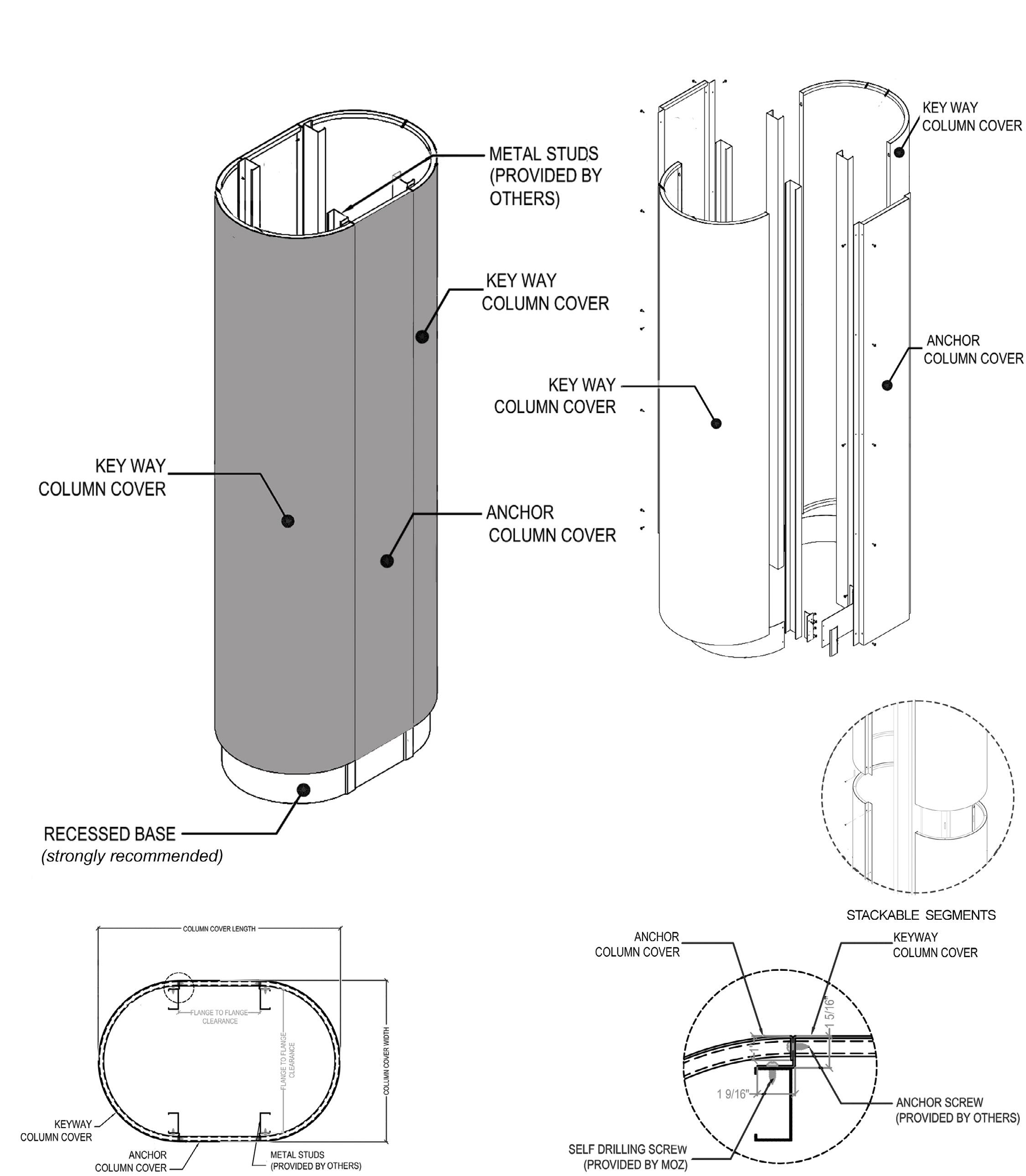

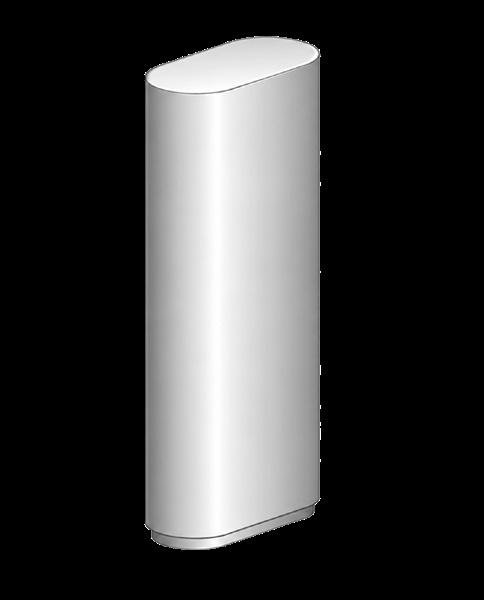

CC250 RACETRACK COLUMN COVER CC250 Racetrack Column Covers provide a clean,

Optional Add-ons:

durable solution for concealing structural supports

• Vertical and/or horizontal reveals (see page 14)

in interior and exterior applications.

• Recessed Base & Capital (see page 14)

Pre-formed aluminum construction with vertical butt

• Integrated lighting (see page 16-21)

joints allows for fast installation with a wide range of

• Dimensional Inlay (see page 12)

finish, reveal, and integrated lighting options.

• Custom shapes, partials, and tapered forms

Column Sizes:

• Exterior-rated finishes Materials: • Solid .090” aluminum • Laser-cut .125” aluminum¹ • Perforated .090” aluminum¹ • Engraved .090” aluminum² • Skinz .090” aluminum³ • Stainless steel 18 ga Finishes:

Unlimited column heights using stacked segments.

Available in Móz Classics, Powder Coat, Gradients², Patina²,

Max segment height: 12’-0”*

and Digital² collections.

*For column diameters under 18”, max segment height is 10’-0”.

¹ Requires 1” minimum solid margin. Patterns may facet slightly. ² Maximum 10’-0” segment height. ³ Section quantity may vary based on panel width limitations.

10

CC250 RACETRACK COLUMN COVER

11

DIMENSIONAL COLUMNS

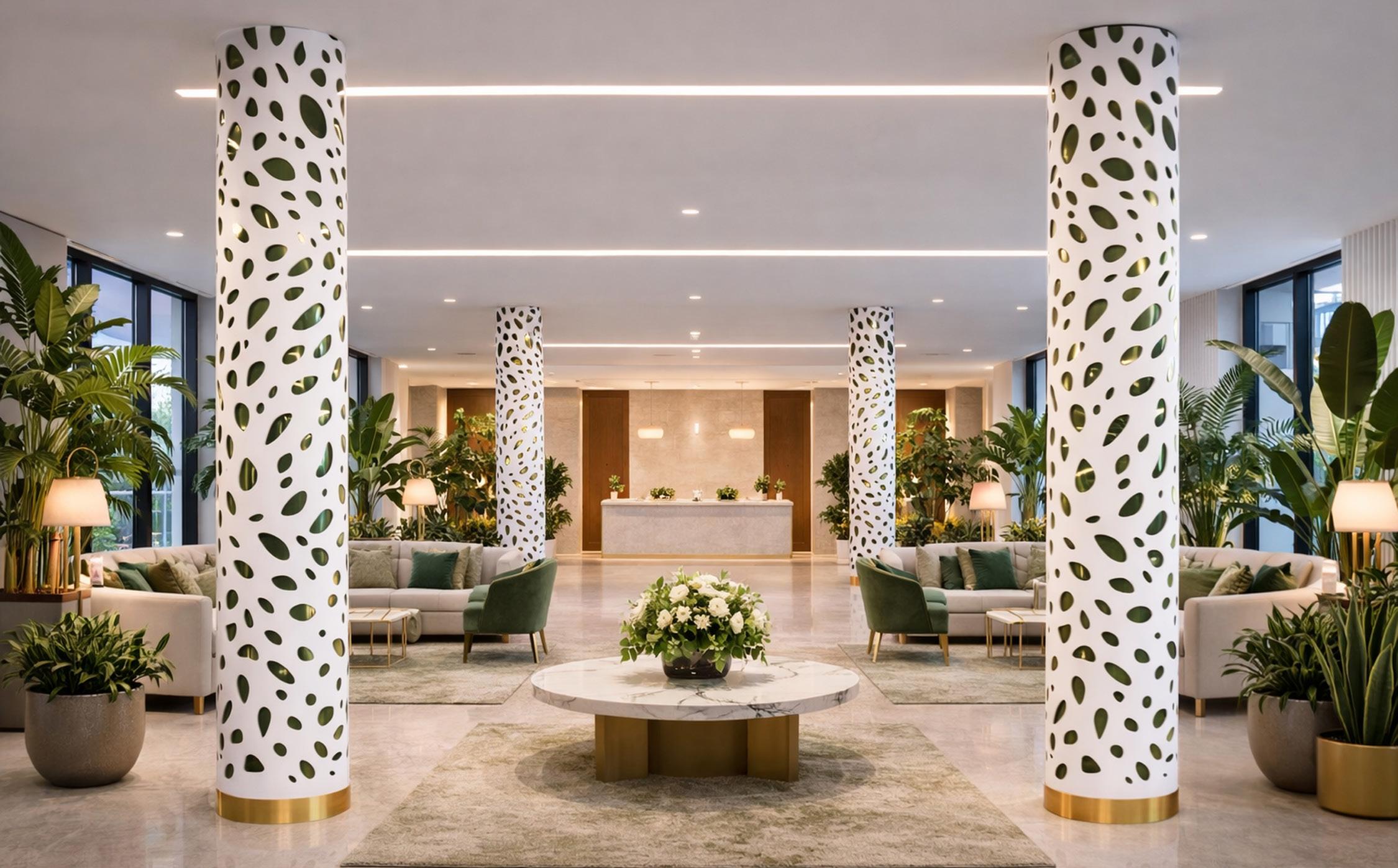

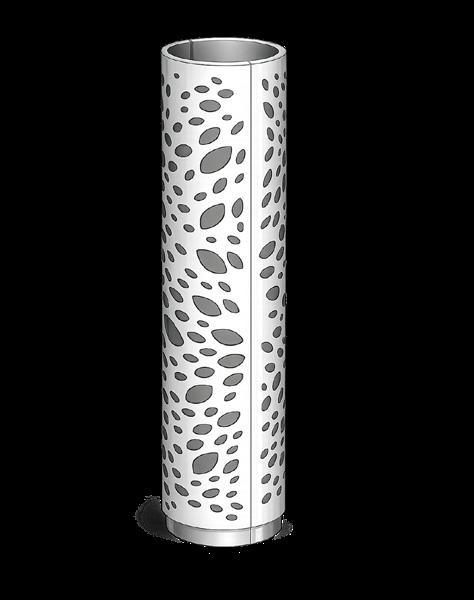

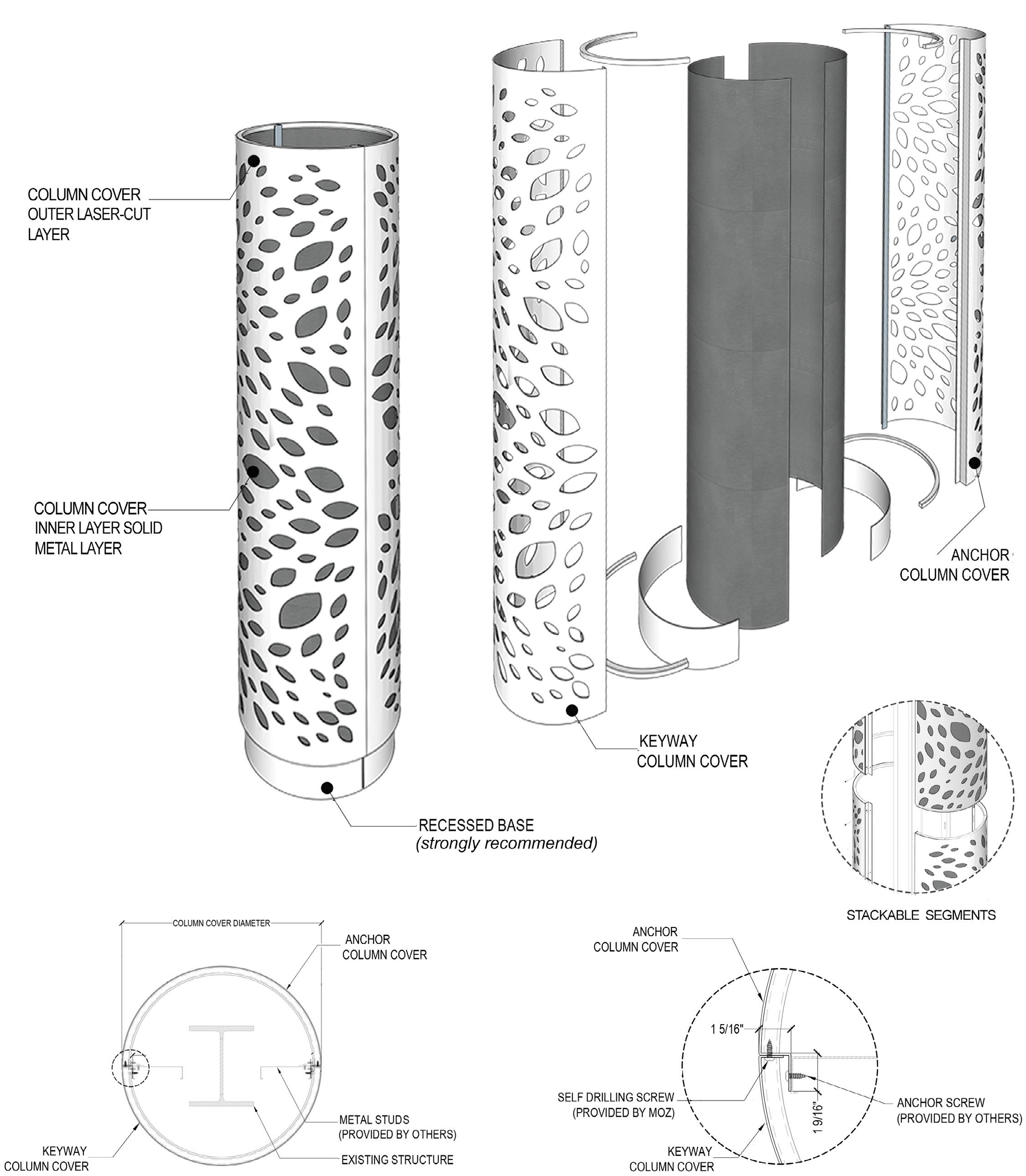

DIMENSIONAL INLAY COLUMN Dimensional Inlay Columns transform standard

Optional Add-ons:

column covers into layered architectural features

• Vertical and/or horizontal reveals (see page 14)

through laser-cut metal, contrasting inlays, mixed

• Recessed Base & Capital (see page 14)

finishes, and multi-layer construction. Designed to

• Integrated lighting (see page 16-21)

create depth, shadow, texture, and visual move-

• Custom shapes, partials, and tapered forms

ment, these systems bring dimensional impact to

• Exterior-rated finishes

interior architectural environments.

Material options:

By combining multiple metal layers, perforation patterns, and contrasting materials or finishes, Dimensional Inlay Columns create visual experiences that evolve with light, perspective, and proximity.

Outer Layer Material Options: •

Laser-cut .125” aluminum¹

•

Perforated .090” aluminum¹

Inlay Material Options: •

Solid .040” aluminum

•

Perforated .063” aluminum

•

Skinz .040” aluminum³

Finishes: Available in Móz Classics, Powder Coat, Gradients², Patina², and Digital² collections.

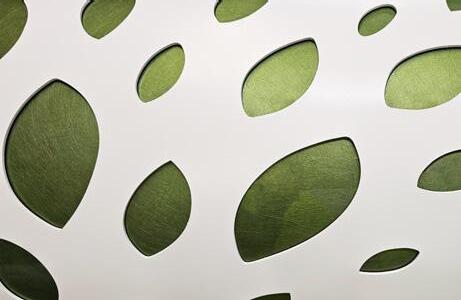

Laser with solid contrasting inlay

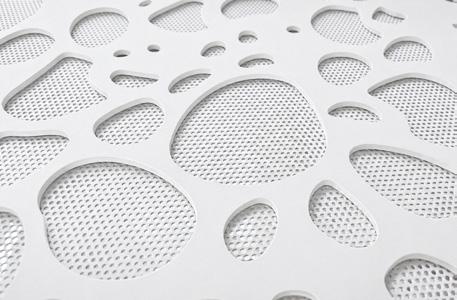

Laser with perforated matching inlay

¹ Requires 1” minimum solid margin. Patterns may facet slightly. ² Maximum 10’-0” segment height. ³ Section quantity may vary based on panel width limitations. Maximum diameters: 28” (2-section), 40” (3-section), 54” (4-section).

12

DIMENSIONAL INLAY COLUMN

13

OPEN REVEALS / BASE&CAPITAL

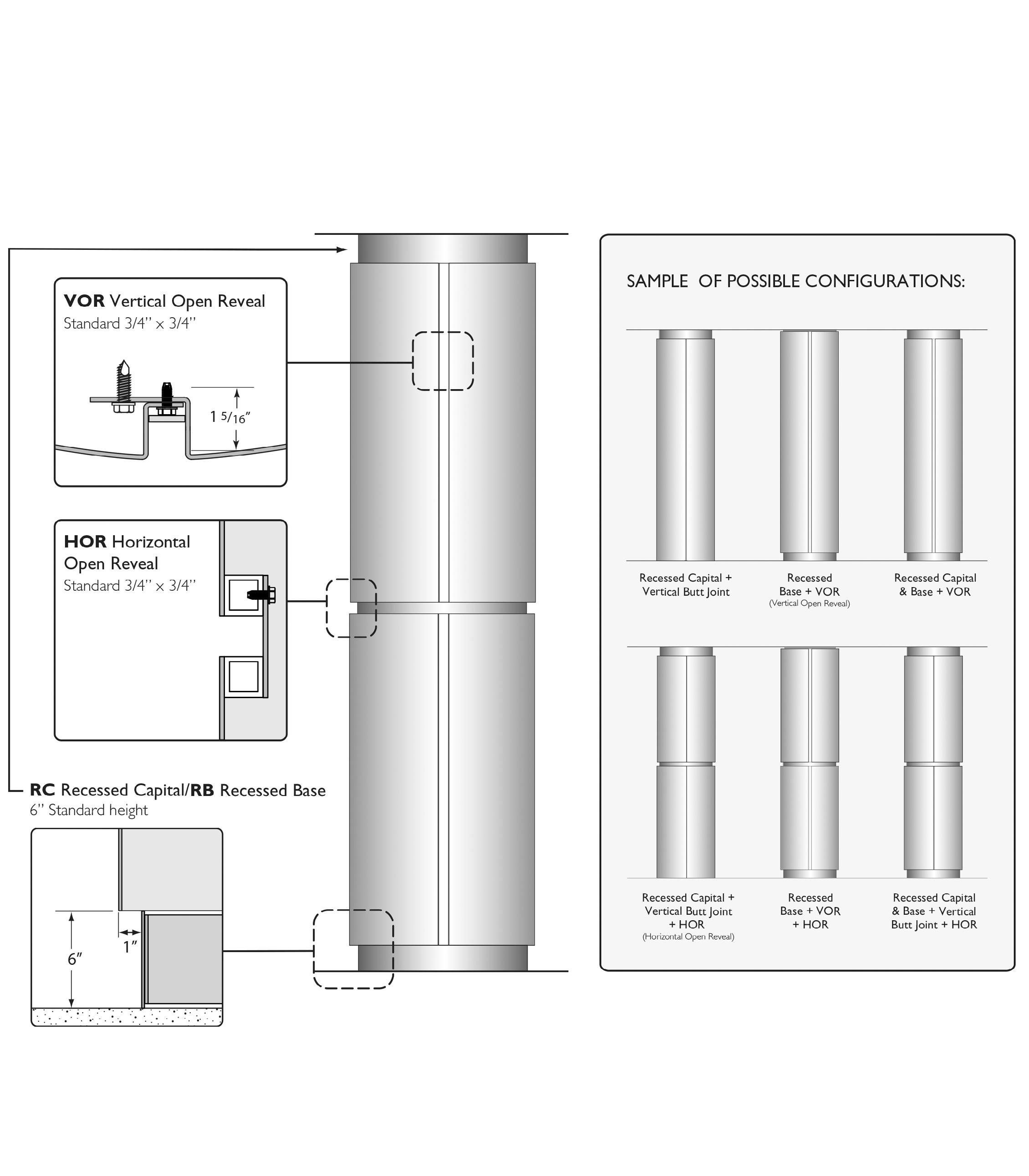

OPEN REVEALS / RECESSED BASE & CAPITAL Horizontal Open Reveals (HOR) and Vertical Open Reveals (VOR) are available as optional design enhancements for all column cover profiles including round, square, oval, and racetrack configurations. Open reveals create clean shadow lines that add architectural detail, define scale, visually break up large column surfaces, and help interrupt directional grain or pattern orientations. Standard reveal dimensions are 3/4” x 3/4”, with reveal placement coordinated to align with surrounding architectural elements and design intent.

HOR and VOR options may be used independently or combined to create a variety of custom configurations. Vertical reveals emphasize height and panel segmentation, while horizontal reveals help establish visual proportion across taller column elevations.

Recessed Bases and Recessed Capitals are available as optional features that provide a stepped transition at the top and/or bottom of the column cover assembly. Recessed Bases are recommended for added durability in high-traffic environments where carts, cleaning equipment, or pedestrian activity may impact exposed surfaces.

Recessed Capitals and Bases are manufactured in a standard 6” height and are available in brushed stainless steel or aluminum painted to match. Custom capital and base configurations may also be explored depending on project requirements.

14

OPEN REVEALS / RECESSED BASE & CAPITAL

15

LUMINOUS OPTIONS

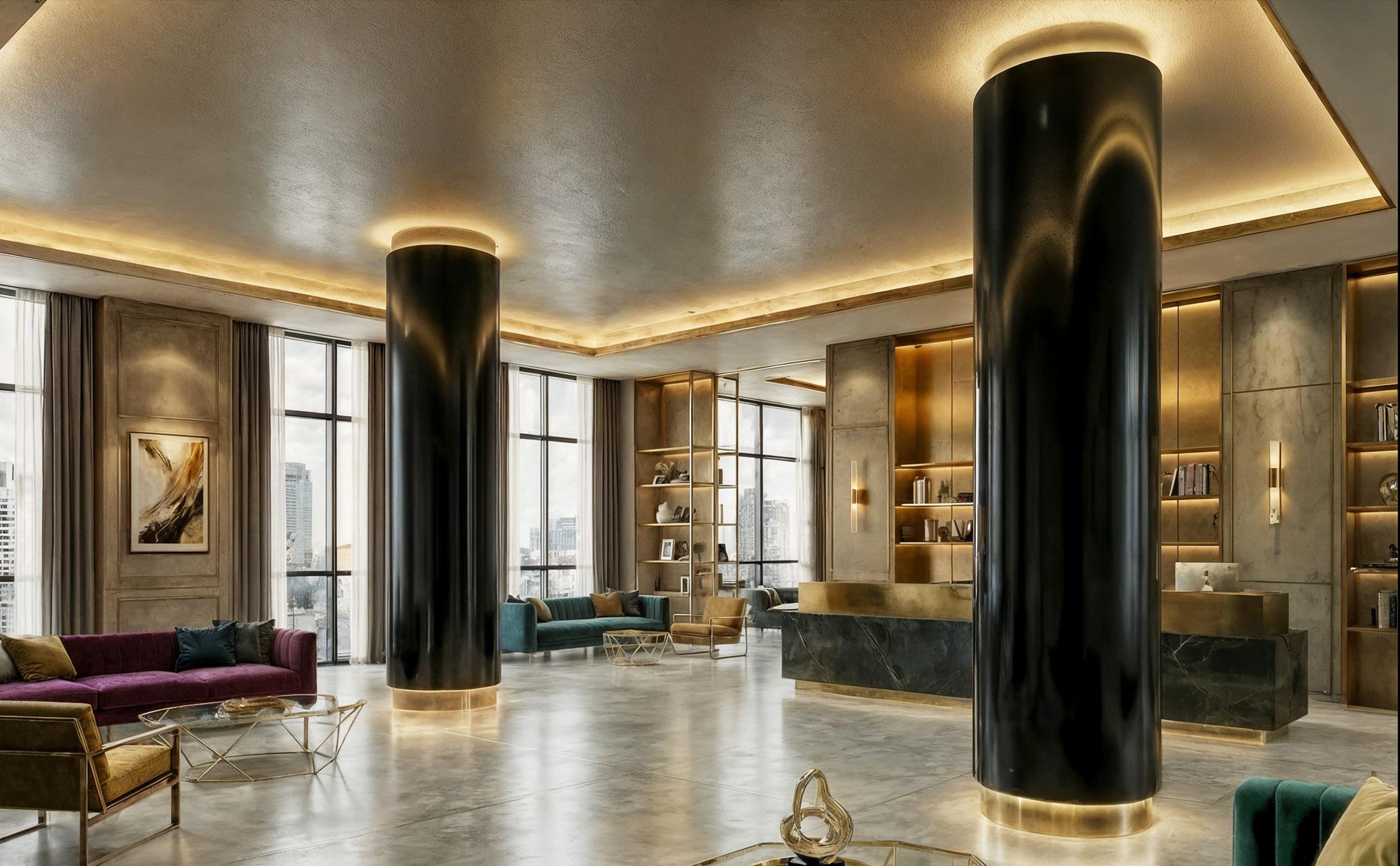

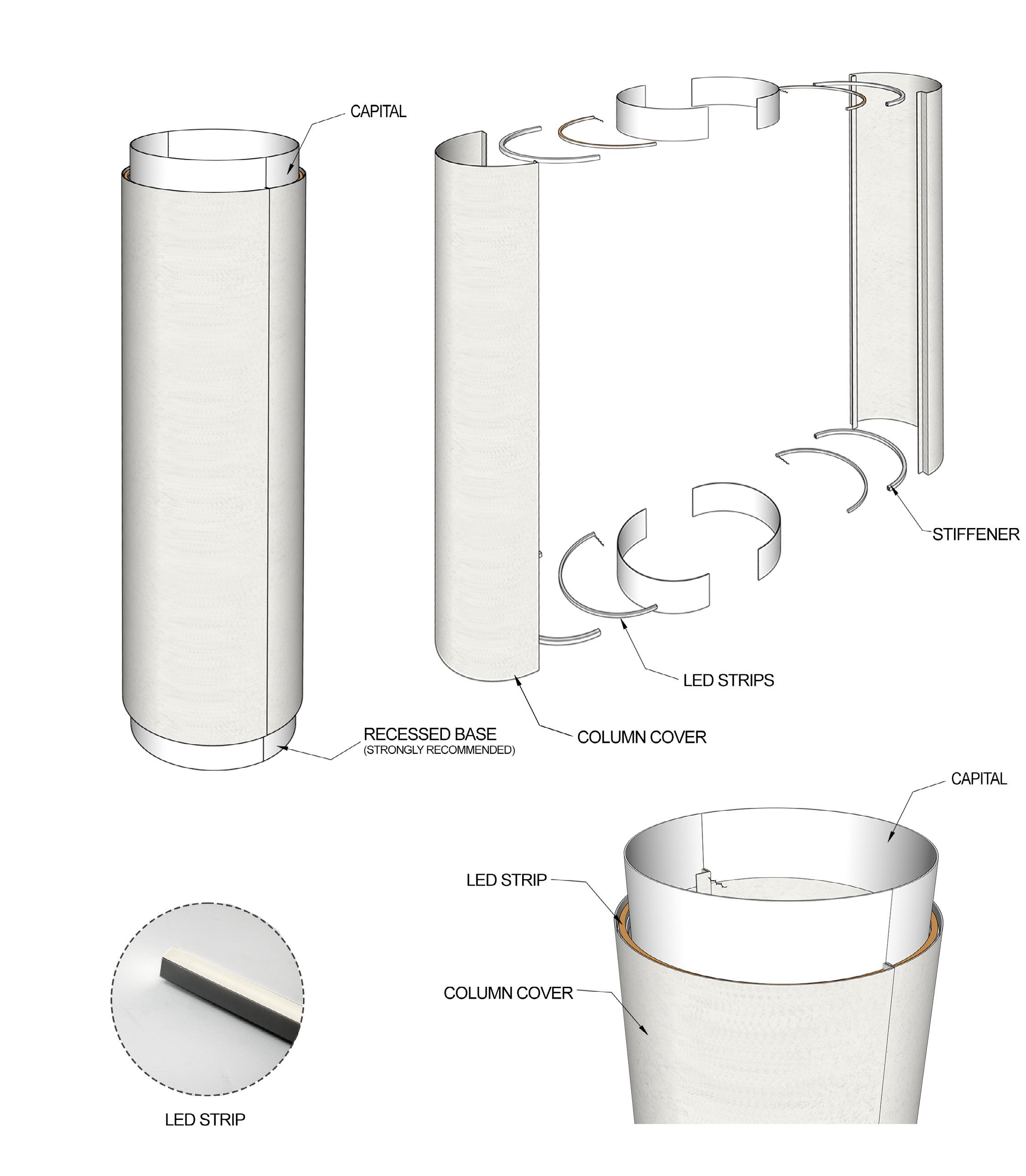

RECESSED BASE & CAPITAL LIGHTING Recessed base & capital lighting integrates fully diffused LED illumination directly into the top and bottom transitions of the column, creating a soft, seamless glow with no visible LED dots or hot spots. The concealed lighting detail delivers a refined architectural appearance while helping visually anchor the column and accent surrounding ceiling and floor conditions.

Technical Information: Fully diffused, dotless LED illumination Color Temperature: White 3500K (other color temperatures available) Light Output: 79 lm/ft Dimmable: Yes Voltage: 24VDC Drivers: Included Exterior Compatible: Yes Profile Dimensions: 0.39” × 0.39” in flexible channel

16

LIGHTING

RECESSED BASE & CAPITAL LIGHTING

17

LUMINOUS OPTIONS DIMENSIONAL COLUMNS

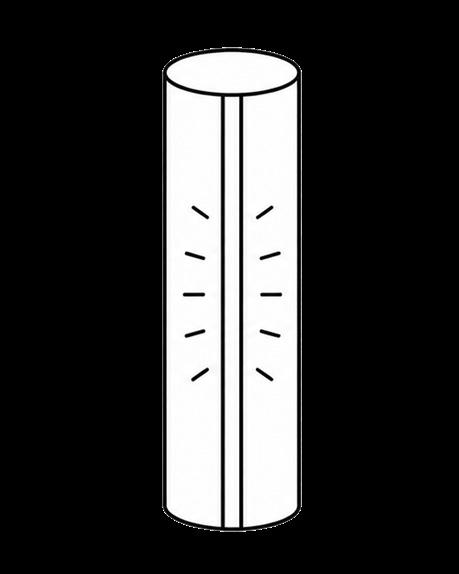

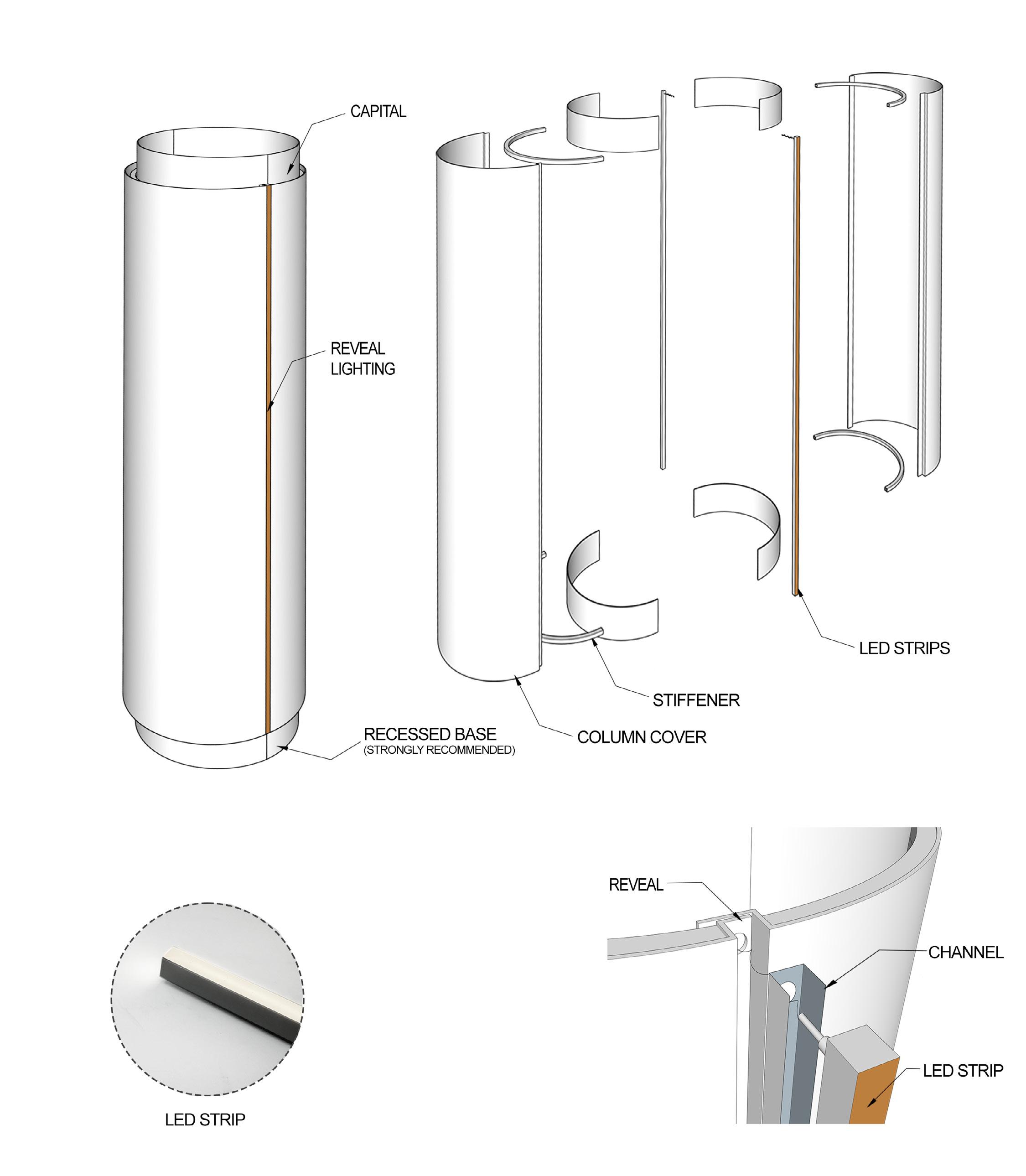

REVEAL LIGHTING Vertical Reveal Lighting integrates fully diffused LED illumination directly within the column reveal, creating a smooth, continuous glow with no visible LED dots or hot spots. Designed to fit within a standard 3/4” reveal detail, the concealed lighting system blends seamlessly into the column surface for a clean, minimal architectural appearance while adding depth and visual emphasis to the overall design.

Technical Information: Fully diffused, dotless LED illumination Color Temperature: White 3500K (other color temperatures available) Light Output: 200 lm/ft Dimmable: Yes Voltage: 24VDC Drivers: Included Exterior Compatible: Yes Profile Dimensions: 0.63” × 0.63” Channel Size: 0.74” channel seats within column vertical open reveal

18

LIGHTING

REVEAL LIGHTING

19

LUMINOUS OPTIONS DIMENSIONAL COLUMNS

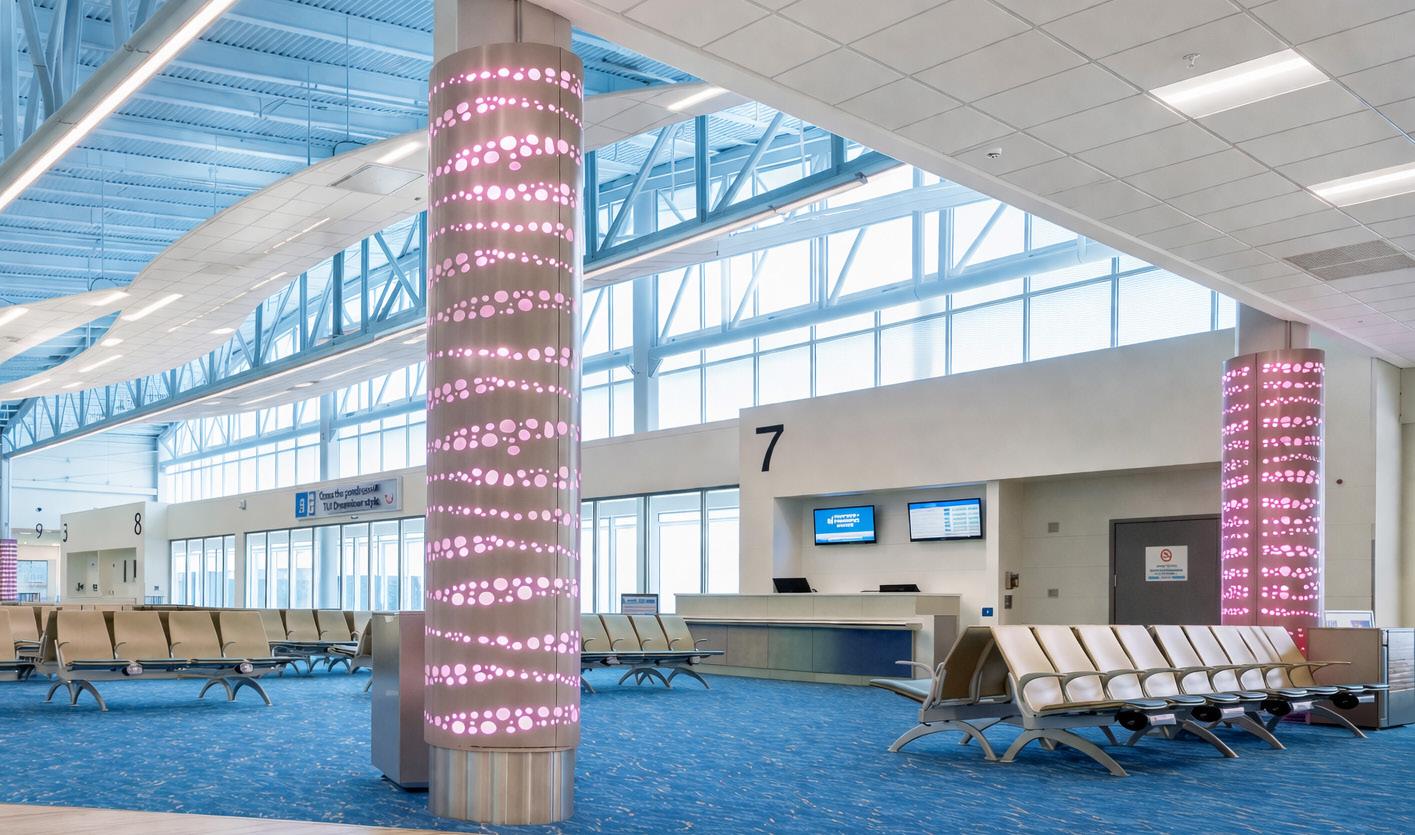

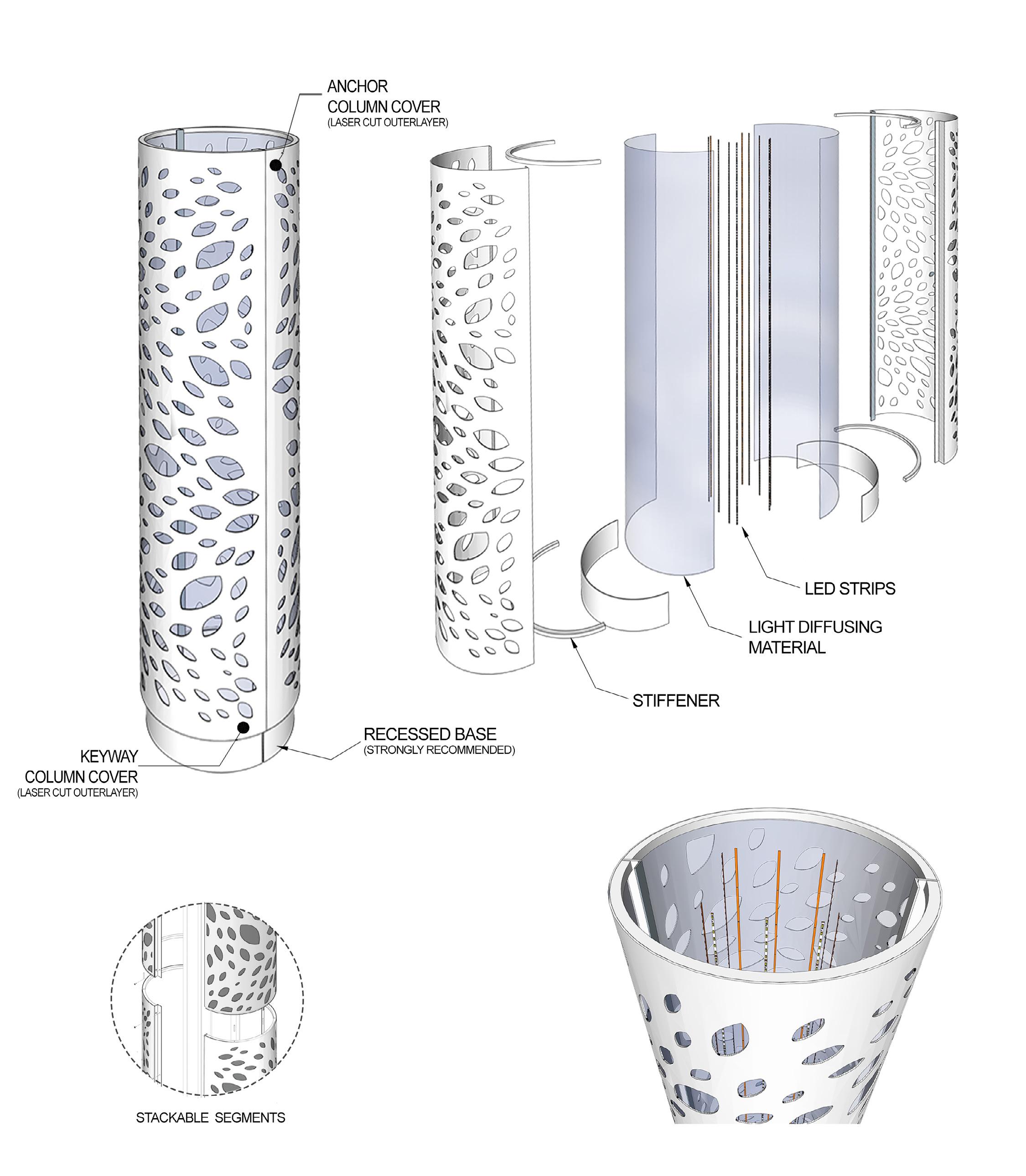

BACKLIGHTING Backlighting combines laser-cut metal panels with integrated LED illumination to create dramatic, visually dynamic column features with depth and dimensionality. An diffuser layer positioned behind the decorative metal surface helps evenly distribute light across the panel, reducing hot spots and producing a smooth, balanced illuminated effect.

The lighting system is engineered for efficient installation, with LED strip lighting pre-mounted to flat bars that attach directly to the internal column structure. Available in standard White 3500K with dimmable options, the system can also incorporate RGBW lighting for customizable color effects and branded architectural environments. Comes in a wide range of color options.

BACKLIGHTING

RGBW LIGHTING

Lighting type:

Blaze 100 LED light strips

Eco RGBW LED light strips

Light Output:

126 Lumens per LF

Lumens vary

White 3500K

RGBW

Color: Dimmable: Drivers Included:

Yes 24 volt Class 2 Drivers

24 volt Driver /Controllers

Exterior Compatible:

Yes

No

Profile Dimensions

.38” wide mounted to 1” aluminum flat bar

Max Segment Height

10’ before seam is visible

Spacing Required

6” space from LED of diffuser
