Moz Graphix Metals Design Guide

Graphix Collection DESIGN GUIDE TABLE OF CONTENTS

PRODUCT DESCRIPTION FEATURES AND BENEFITS SPECIFICATIONS STANDARD PATTERNS DESIGN CONSIDERATIONS CUSTOM DESIGN OPTIONS SAMPLING STOCK AND AVAILABILITY SUSTAINABILITY HANDLING, CARE, AND WORKING WITH METAL CLEANING INSTRUCTIONS GENERAL WARRANTY

PRODUCT DESCRIPTION The Graphix Collection captures the layered beauty of nature through artfully designed dimensional metal surfaces. By combining Móz signature grains with high-resolution imagery, Graphix brings depth, movement, and reflection to any space.

FEATURES AND BENEFITS ● ● ● ● ●

Standard patterns suitable for interior and exterior applications Custom pattern options available Cost-effective decorative metal surfacing solution Durable, easy-to-clean finishes Simple to specify as a sheet material for laminate use or as a finish on Móz Column, Wall, and Divider systems

SPECIFICATIONS Material Solid-core aluminum ASTM B209. (not available on stainless steel) • Standard laminate thickness: .040" (1.016 mm), approximately .60 lbs/ft² • Also available in perforated (.063"), laser-cut (3/16"), engraved (.090"), or corrugated (.040") formats • Thicker gauges available for columns, dividers, and wall systems (varies by product) Panel Sizes 4' × 8' (1.2 × 2.4 m) and 4' × 10' (1.2 × 3.0 m); maximum size 5' × 10' Panel squareness tolerance: ±3/16" (4.7 mm) Finishes Low-VOC clear polycoat for interior and exterior use

Page 1 of 8 rev 07012026

STANDARD PATTERNS Five standard patterns suitable for interior and exterior applications with a 5yr exterior warranty. Custom patterns are also available - simply provide scaled artwork for consultation. Visit mozdesigns.com for the full range of color and grain options.

Sandrift

Oceara

Foliage

Bloom

Aurabelle

DESIGN CONSIDERATIONS Seaming Each panel design is produced in a full 4'×8' or 4'×10' repeat. Avoid mixing sizes, as artwork will not align. For large-scale applications, Moz can provide custom artwork spanning multiple panels. Some limitations apply.

4’x8’ panel next to a 4’x10’ panel Avoid mixing sizes, as artwork will not align

Custom artwork spanning over multiple panels. Some limitations apply. Contact us for support.

Móz Graphix Collection Design Guide

Page 2 of 8

rev 07012026

CUSTOM DESIGN OPTIONS Submit your own artwork or collaborate with Moz’s design team to create custom graphics. Refer to our Art Requirements Guide for preferred file types and submission instructions.

SAMPLING Samples are produced on .040" aluminum in 3.5" × 5" sizes. Due to the large-scale nature of the artwork, samples are often scaled down for color and design representation. Request samples via the Sample Request Form at mozdesigns.com.

STOCK AND AVAILABILITY All products are made to order. • Standard sheet production: approximately 3–4 weeks • Pre-built solutions (columns, dividers, walls): additional lead time • Larger or more complex orders may require longer production schedules

SUSTAINABILITY Móz Metals are proudly Made in the USA from our factory in Oakland California. Móz Metals can contribute to LEED credits. To learn more visit mozdesigns.com/sustainability.

HANDLING, CARE, AND WORKING WITH METAL Refer to the Móz Metal Sheets Technical Information Guide for detailed instructions on handling, fabrication, and installation.

CLEANING INSTRUCTIONS For general cleaning, use a damp, lint-free cloth or sponge with mild, non-abrasive soap and water. For heavier cleaning or grease removal, use mineral spirits or naphtha. Low-concentration ammonia cleaners (such as household glass cleaners) may also be used. For disinfection, use a 60% alcohol / 40% water solution or Lysol® disinfectant spray. Do not use abrasive cleaners, rubbing compounds, lacquer thinner, or pressure washers, as they may damage the coating. Refer to the Móz Metals Cleaning Guidelines for detailed touch-up procedures.

GENERAL WARRANTY Due to the handcrafted nature of our process, each sheet is unique. Minor surface irregularities and color variations are inherent to the product. Inspect materials prior to cutting or installation by lifting a corner of the protective mask. If material is deemed defective, Móz Designs’ liability is limited to the replacement cost of that material. Defective material must be submitted to Móz for evaluation. No other warranty is expressed or implied.

Móz Graphix Collection Design Guide

Page 3 of 8

rev 07012026

OCEARA PATTERN < BACK TO PATTERNS

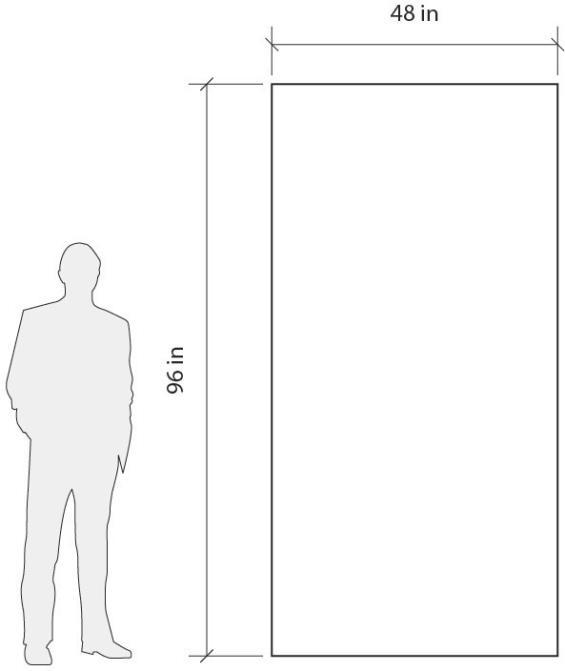

Fluid waveforms across a pastel horizon Pattern Repeat: 48” x 96” or 48” x 120” Pattern will match on long sides only. Artwork not recommended for scaling up. Contact us for help with large scale applications

3- PANEL REPEAT

Móz Graphix Collection Design Guide

Page 4 of 8

rev 07012026

SANDRIFT PATTERN < BACK TO PATTERNS

A meditation on time and texture Pattern Repeat: 48” x 96” or 48” x 120” Pattern will match on long sides only. Contact us for help with large scale applications

3- PANEL REPEAT

CUSTOM SCALED ART 2X (max recommended)

Móz Graphix Collection Design Guide

Page 5 of 8

rev 07012026

AURABELLE PATTERN < BACK TO PATTERNS

Abstract florals in bright pastels Pattern Repeat: 48” x 96” or 48” x 120” Pattern will match on long sides only. Contact us for help with large scale applications

3- PANEL REPEAT

CUSTOM SCALED ART 2X (max recommended)

Móz Graphix Collection Design Guide

Page 6 of 8

rev 07012026

FOLIAGE PATTERN < BACK TO PATTERNS

Flowing layers of blue leaves Pattern Repeat: 48” x 96” or 48” x 120” Pattern will match on ALL sides. Contact us for help with large scale applications

3- PANEL REPEAT (panels can also be stacked)

CUSTOM SCALED ART 2X (max recommended)

Móz Graphix Collection Design Guide

Page 7 of 8

rev 07012026

BLOOM PATTERN < BACK TO PATTERNS

Subtle floral impressions in tonal colors Pattern Repeat: 48” x 96” or 48” x 120” Pattern will match on ALL sides. Contact us for help with large scale applications

3- PANEL REPEAT (panels can also be stacked)

CUSTOM SCALED ART 2X (max recommended)

Móz Graphix Collection Design Guide

Page 8 of 8

rev 07012026
