All prices subject to change without notice. Please verify all confirmations.
$750 Minimum Order Required for Prepaid Freight
Orders less than $750 will be subject to freight charges or may be held until additional orders accumulate reaching $750 or more.
Order Cut Off
Place orders 2 full business days before your scheduled delivery day.
Delivery Day: Order By:
Monday
Tuesday
End of day Wednesday
End of day Thursday
WednesdayEnd of day Friday
Thursday
Friday
Special Delivery
End of day Monday
End of day Tuesday

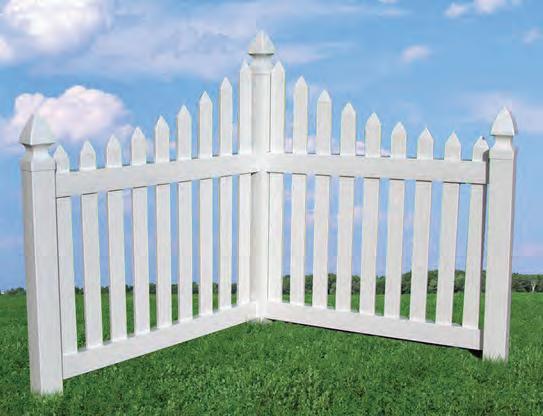

NOTE: Fence, Custom , and/or Gate orders, depending on size and style, will require additional lead time.
If delivery is requested sooner than your regular delivery day, the order will be subject to freight charges regardless of order size.
Returns
A 20% restock fee will be charged on all returns. NO returns accepted after 60 days of invoice date. NO returns on gates, Vista rail, pergola, fence or custom work. NO returns on pickets/balusters out of any sections. Additional Resources Visit movinyl.com for information regarding installation and warranty.
VENTURE DECKING
Research Report #RR-0100
WOOD PLASTIC COMPOSITE 12'16'20'
Grooved decking - 5 ½" wide
Solid Edge decking - 5 ½" wide N/A
Fascia (½ " x 11 ¼ " - 12')
Grooved Edge Solid Edge
Venture Series features a lobed bottom profile and is 15/16" thick. Other series are 7/8" thick. Advised not to mix with other series when using Venture.
Visit Deckorators.com for installation instructions.

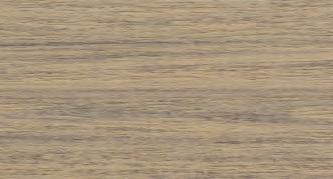

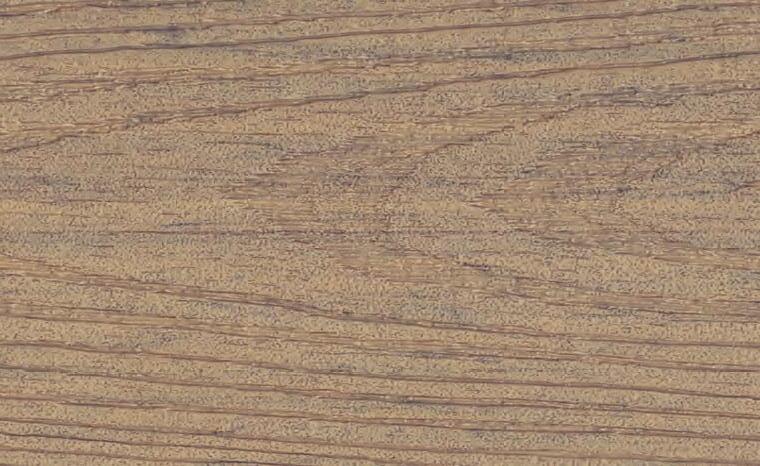

Venture series is a directional grain pattern. Each board has a unique appearance and should be arranged according to the end user’s preference.
Screws and pro-plug system must be used in the thickest part of the board.
Sandbar (SB)
Saltwater (SW)
VISTA DECKING
Research Report #RR-0100
WOOD PLASTIC COMPOSITE 12'16'20'
Grooved decking - 5 ½" wide
Solid Edge decking - 5 ½" wide N/A
Riser (½ " x 8" - 12')
Fascia (½ " x 11 ¼ " - 12')
Replacement warranty exclusive to Certified Pros
Vista Series has enhanced traction for increased slip resistance
Visit Deckorators.com for installation instructions.
VAULT DECKING
Research Report #CCRR-0195
MINERAL BASED COMPOSITE 12'16'20'
Grooved decking - 5 ½" wide
Solid Edge decking - 5 ½" wide N/A
Riser (½ " x 8" - 12')
Fascia (½ " x 11 ¼ " - 12')
Replacement warranty exclusive to Certified Pros
Grooved Edge Solid Edge
These profiles are the same for Vista, Vault and Voyage
Vault decking features a water and ground contact warranty.
Visit Deckorators.com for installation instructions.
Research Report #CCRR-0195
M INERAL B ASED COMPOSITE 12'16'20'
D12V__D16V__D20V__
Grooved decking - 5 ½" wide
Grooved decking - 9 ¼" wide N/AN/A
D20V__9
Solid Edge decking - 5 ½" wide N/A D16V__SD20V__S
Solid Edge decking - 7 ¼" wide N/AN/A
Solid Edge decking - 9 ¼" wide N/AN/A
Riser (½ " x 8" - 12') D12V__R
Fascia (½ " x 11 ¼ " - 12')
White Fascia (½ " x 11 ¼ " - 12') D12WF
D20V__7S
D20V__9S
Varied-width decking is also available in 3½", 7¼" widths. Some by special order only.
Voyage decking features a water
PICTURE FRAME & PORCH FLOOR
P ICTURE F RAME B OARD
12'21'
Dark Slate color, solid edge - 3 ½" N/A
Dark Slate color, solid edge - 5 ½" N/A
Dark Slate color, solid edge - 7 ¼" N/A
Riser (½ " x 8" - 12')
Fascia (½ " x 11 ¼ " - 12')
D21DSPF3
D21DSPF
D21DSPF7
D12DSPFR
D12DSPFF

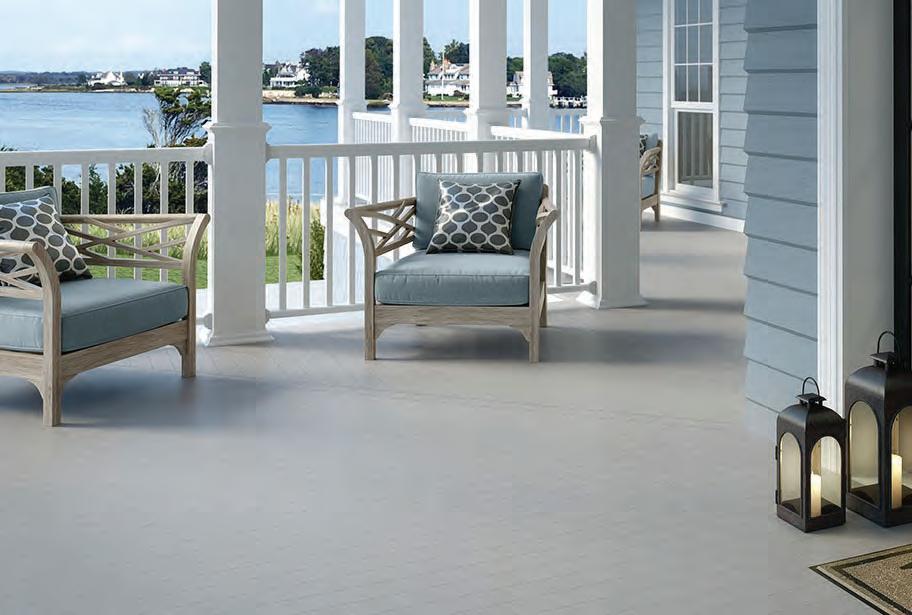

Porch Floor
7⁄8" x 3 ½" - 12' - T&G
7⁄8" x 3 ½" - 16' - T&G
7⁄8" x 3 ½" - 12' - Solid Edge
D12PF-__
D16PF-__
D12PF-__S
SurestoneTM technology. Non-reversible wood grain surface for slip resistance. Can be installed in contact with the ground or water.
Porch floor has a 3 1⁄8" finished measurement. *Chicory is a verigated color. Kettle is solid color.
Hidden Fastener Systems
Stowaway Clips - 90 clips/box (enough for 50 sq ft)
Stowaway Clips - 525 clips/box (enough for 300 sq ft)
Stealthlock/CAMO Clips - 90 clips/box (enough for 50 sq ft)
Stealthlock/CAMO Clips - 450 clips/box (enough for 250 sq ft)
Stealthlock/CAMO Clips - 900 clips/box (enough for 500 sq ft)
TC-G Fasteners - 90 clips/box (enough for 50 sq ft)
SHF-50
SHF-300
SLF-90
SLF-450
SLF-900
FASTENERS
allowsStowawayabout a 1/4" gap
Stealthlock allows about a 1/4" gap *works with CAMO tools
Butt Joint Fastener - 55 clips/box (“Reversed” TC-G - recommend for all butt joints ) TCG-BJ
TC-G Bucket - 900 clips/box (enough for 500 sq ft - NO SCREWS) TCG-500
*Each package includes 165 plugs, 150 screws and 1 tool. Covers about 100 lineal feet.
Pro Plugs Only
Color Match Plugs 375 ct DP375-_
Pro Plug Countersinking Tool PPT
Color Match 305 S/S Screws
#7 x 1 5⁄8" S/S Screws 100 ct S104-SST_
2 ½" S/S Screws 350 ct S104-SS_ Call for S/S screw color options
TC-G allows about a 3/16" gap
Please specify deck color when ordering
Smart Bit (depth setter) SWDE
Color Match Epoxy Fascia Screws
#10 x 1 7⁄8" - 100 ct FS101D-_ Fascia Tool FST
Color Match S/S Screws for METAL Framing
1 5⁄8" S/S Screws - 100 ct S104-_Metal
1 5⁄8" S/S Screws - 350 ct S104-_Metal
Stocked in all Deckorators decking colors. Specify color.

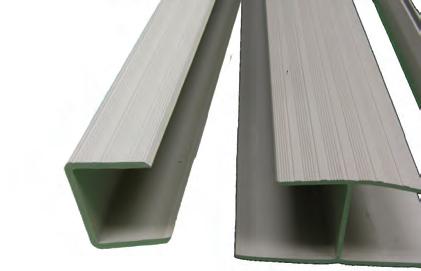

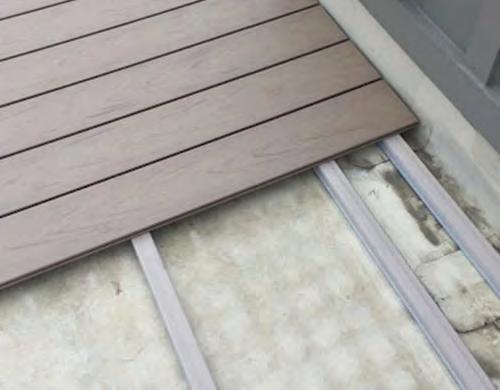

SLEEPER SYSTEM
For gound-level patios or roof top decks, Deckorators® Sleeper System elevates your deck surface, helping protect your deck boards from damage due to moisture buildup.
Reversible. Used as gray or brown.
BUTYL (JOIST) TAPE
1-5⁄8" x 50' Roll
3-1⁄8" x 50' Roll

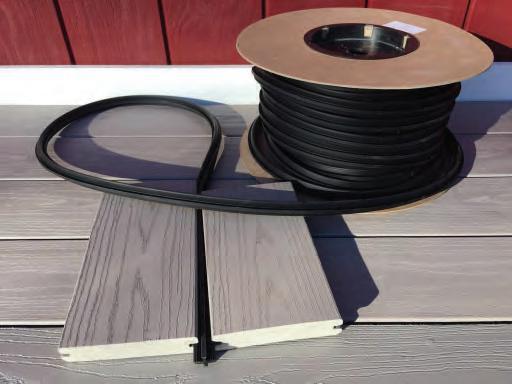

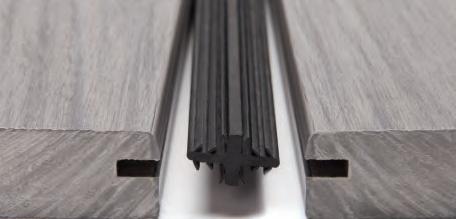

DEXERDRY SYSTEM
Visit dexerdry.com for proper installation instructions.
D EXERDRY S YSTEM 50' Roll240' Roll
Compatible with all Deckorators, Trex and Azek/TimberTech decking
Specify specific series of decking

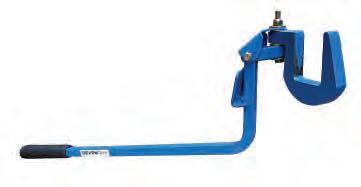

Blue Claw Installation ToolDD-BC
Special Order only for Fiberon decking.
Dexerdry is not a waterproof solution. Leaks may still occur with proper installation. No warranty for leaks.
GORILLA DECKING
6" Deck Planks 16'20'24'
Chestnut (CH) Chestnut Screw
Unique interlocking design channels water to the edges of deck creating a watershedding installation. Not waterproof. For proper warranty coverage, homeowners must complete a w arranty registration form within 30 days of purchase.
1-1/4"
Mocha Walnut (M)
*Chestnut is a solid color. Mocha Walnut is verigated color.
KOMA PVC BOARDS & SHEETS
¾"
Trim Boards
(actual size)
¾" x 3 ½" x 18' PVC Trim Board K34418
¾" x 5 ½" x 18' PVC Trim Board K34618
¾" x 7 ¼" x 18' PVC Trim Board K34818
¾" x 9 ¼" x 18' PVC Trim Board K341018
¾" x 11 ¼" x 18' PVC Trim Board K341218
All boards & sheets are wood grain on one side. & side.
Screws / Pro Plug System

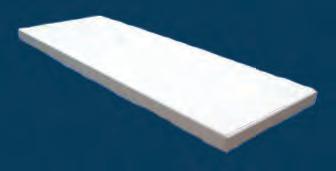

4 x 8 Sheets
Trim Boards
STRUCTURAL FASTENERS by FastenMaster
Structural and Framing Fasteners
3 ½" FlatLOK - 250 ct./bucket
5" FlatLOK - 250 ct./bucket
6" FlatLOK - 250 ct./bucket
6 ¾" FlatLOK - 200 ct./bucket
3 ⅝" LedgerLOK - 250 ct./bucket
5" LedgerLOK - 250 ct./bucket
2 ⅞" HeadLOK - 500 ct./bucket
4 ½" HeadLOK - 250 ct./bucket
6" HeadLOK - 250 ct./bucket
2 ½" TimberLOK - 500 ct./bucket
4" TimberLOK - 250 ct./bucket
6" TimberLOK - 250 ct./bucket
8" TimberLOK - 250 ct./bucket
10" LOGHOG - 250 ct./bucket
12" LOGHOG - 250 ct./bucket
FL350-250
FL5-250
FL6-250
FL634-200
LL358-250
LL5-250
HL278-500
HL450-250
HL6-250
TL25-500
TL4-250
TL6-250
TL8-250
LH10-250
LH12-250
Sections include rails and balusters. Level mounting brackets installed on post.

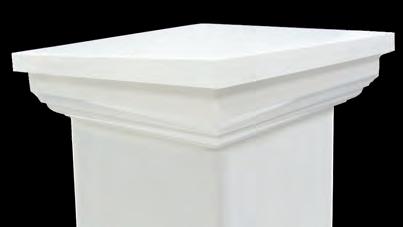

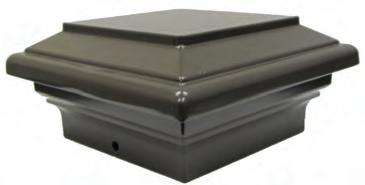

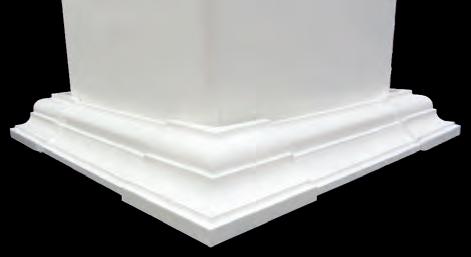

Cap, & 2-pc skirt are included with post.
Baluster spacing = 3-3/4"
5/8" x 5/8" square pickets
Rail length for level sections
6' = 71-⅝", 8' = 95-⅝"
Rail length for STAIR sections
5⁄8" Square Baluster
6' = 71-⅝", 8' = 95-⅝"

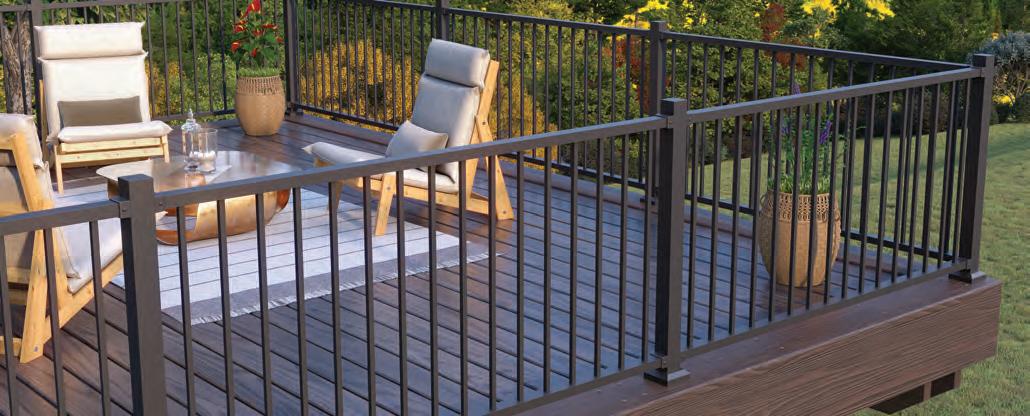

6' Discovery Rail Section (16 balusters)
Color
Textured Black
Top & Bottom Rail 2" W x 1-¼” H
8' Discovery Rail Section (21 balusters)
6' Discovery STAIR Rail Section (12 balusters)
8' Discovery STAIR Rail Section (17 balusters)

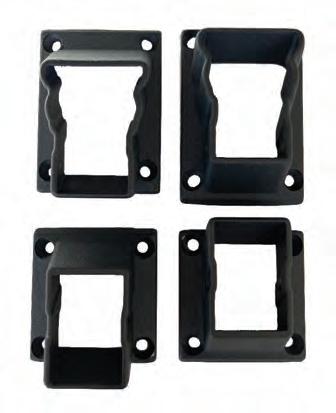

Level Rail Bracket Kit (2 pk)
Stair Rail Bracket Kit (4pk) 32°-36° angle
Multi-Swivel Bracket Kit (4pk) adjustable for horizontal (up to 45°) or stair (up to 40°) angles

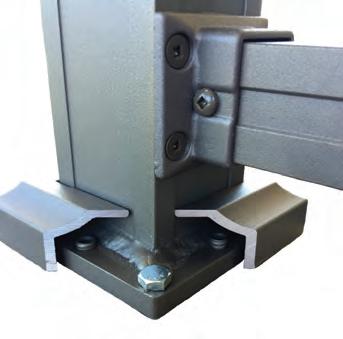

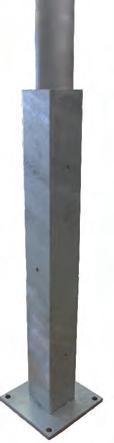

2-½" x 38" Line Post w/ base plate and brackets
2-½" x 38" End Post w/ base plate and brackets
2-½" x 38" Corner Post w/ base plate and brackets
2-½" x 48" Post w/ base plate (for stairs, no brackets)
All 38" tall Discovery series level posts come with pre-installed brackets.

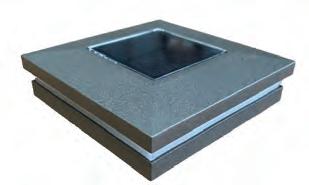

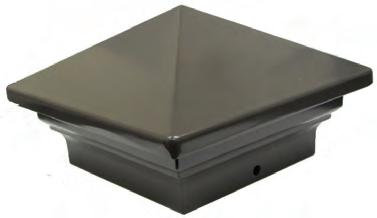

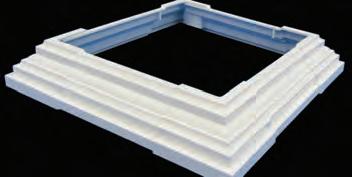

All posts come with cap and 2-pc skirt.
AAMA 2604 Powder Coating
TB6DR-S
TB8DR-S
TB6DSR-S
TB8DSR-S
KDRB-TB
KDSRB-TB
KDMSB-TB
KDL382NP-TB
KDE382NP-TB
KDC382NP-TB
KD482NP-TB
Rough Opening 36" or Less37" - 48"
Standard Height Discovery Gate
All gates are CUSTOM made to fit your rough opening. Gates made with 2-1/2" post. All gates include hardware GATES ARE NOT RETURNABLE
O UTLOOK

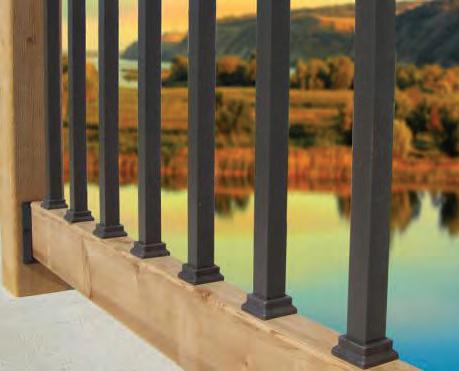

5⁄8" Square Baluster
Sections include rails, balusters, mounting brackets & hardware.
Posts, caps, & skirts are not included. Order separately.
Baluster spacing = 3-3/4"
5/8" x 5/8" square pickets
Rail length for level sections
6' = 72", 8' = 96"
Rail length for STAIR sections
6' = 70", 8' = 94"
*Add 15% to stock color pricing for special order textured colors
5' Outlook Rail Section (13 balusters) __5OR-S 6' Outlook Rail Section (16 balusters) __6OR-S
1-½" W x 1-½” H 1” flat on top
1-1⁄8" W x 1” H
7' Outlook Rail Section (19 balusters) __7OR-S 8' Outlook Rail Section (21 balusters) __8OR-S 6' Outlook STAIR Rail Section (12 balusters) __6OSR-S
Replacement Rails
6' Rail Only specify type of rail and color 8' Rail Only specify type of rail and color
All gates are CUSTOM made to fit your rough opening. Gates made with 2-1/2" post. All gates include hardware GATES ARE NOT RETURNABLE
O UTLOOK Accessories
Textured Black (TB) Matte Black (MB)
AFlat Rail Bracket Kit (Set of 4)
B Fixed Stair Bracket Kit (Set of 4) 32°-36° angle
C 45° Fixed Angle Rail Bracket Kit (Set of 4)
D Adjustable Stair Rail Bracket Kit
Swivels up and down (Set of 4) up to a 30° angle BUOSRB-_
E Adjustable Angle Rail Bracket Kit
Swivels side to side (Set of 4) up to a 40° angle BUOARB-_

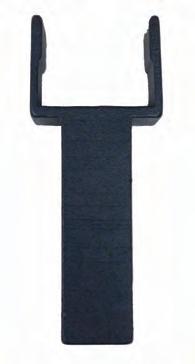

F Outlook Rail Support
No multi-swivel bracket kits available for Outlook series.

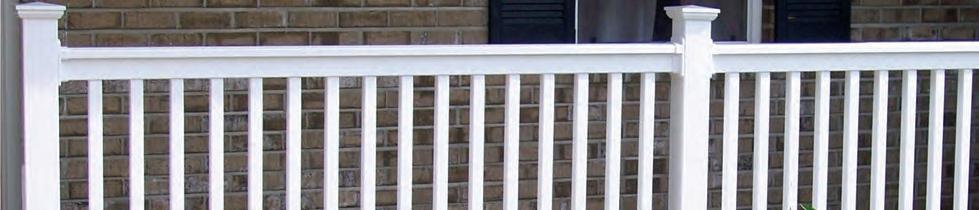

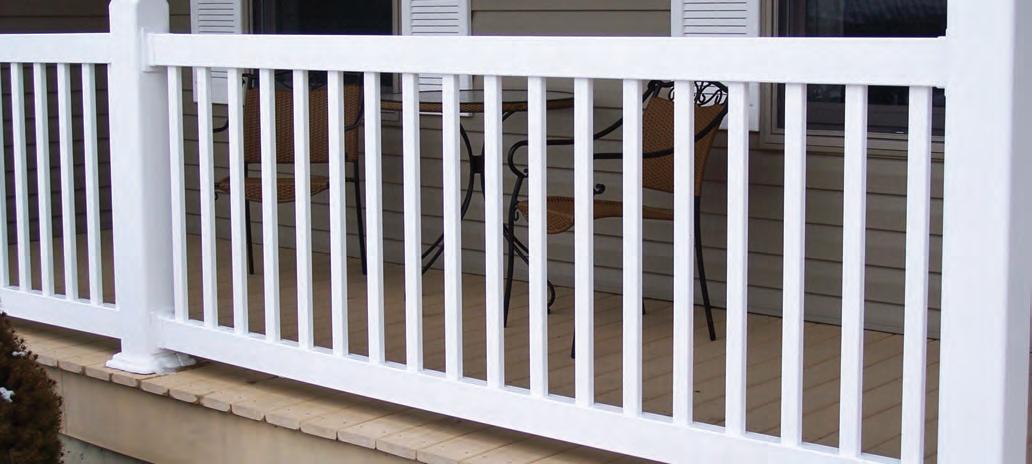

A MERICAN

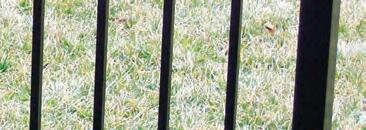

¾" Square Baluster
Sections include rails, balusters, mounting brackets & hardware.
Posts, caps, & skirts are not included. Order separately.
Baluster spacing = 3-5/8"
3/4" x 3/4" square pickets
Rail length for level sections
6' = 72", 8' = 96"
Rail length for STAIR sections
6' = 70", 8' = 94"
Call for pricing on other special order colors.
5' American Rail Section (13 balusters) __5AR-S N/AN/A
6' American Rail Section (16 balusters)
__6AR-STB6AR-S-42TB6AR-S-48
7' American Rail Section (19 balusters) __7AR-S N/AN/A
8' American Rail Section (21 balusters)
6' American STAIR Rail Section (12 balusters)
8' American STAIR Rail Section (17 balusters)
Replacement Rails
6' Rail Only specify type of rail and color
8' Rail Only specify type of rail and color
__8AR-STB8AR-S-42TB8AR-S-48
__6ASR-STB6ASR-S-42 N/A
__8ASR-STB8ASR-S-42 N/A
Add 10% for 42" tall and 20% for 48" tall
All gates are CUSTOM made to fit your rough opening. Gates made with 2-1/2" post. All gates include hardware GATES ARE NOT RETURNABLE
To mix rails and baluster colors, i.e., black rails and white balusters. Call for pricing. Alternative rail and baluster options available, please visit keylinkonline.com for details.
A MERICAN Accessories

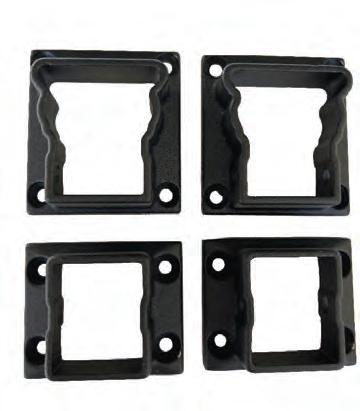

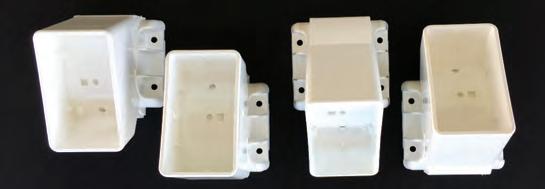

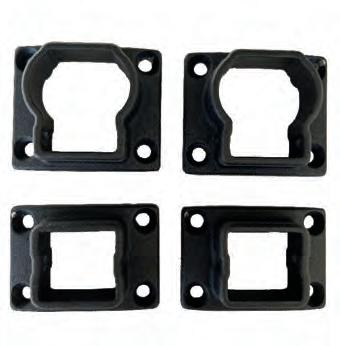

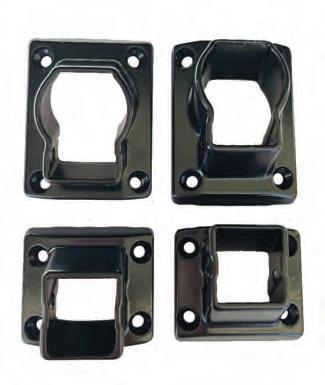

Brackets
AFlat Rail Bracket Kit (set of 4)
B Fixed Stair Bracket Kit (set of 4) 32°- 36° angle
C 45° Fixed Angle Rail Bracket Kit (set of 4)

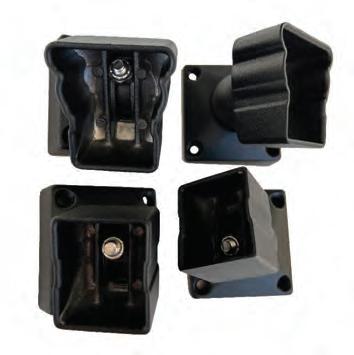

Multi Swivel Bracket Kit (4pk)
• Adjusts for horizontal or stair angle (not both together)
• Top photo in D box shows horizontal angle (up to 45° angle)
• Bottom photo in D box shows stair angle (up to 40° angle)
Discovery and Chesapeake series multi-swivel bracket kits operate the same as the American series
Radius Adapter for Flat or Stair Fixed Bracket (set of 4)
E Universal Adjustable Bracket Kit Swivels BOTH up and down and side to side (set of 4)
Textured Black (TB)
Textured White (TW)
Textured Bronze (TBR)
Special Order

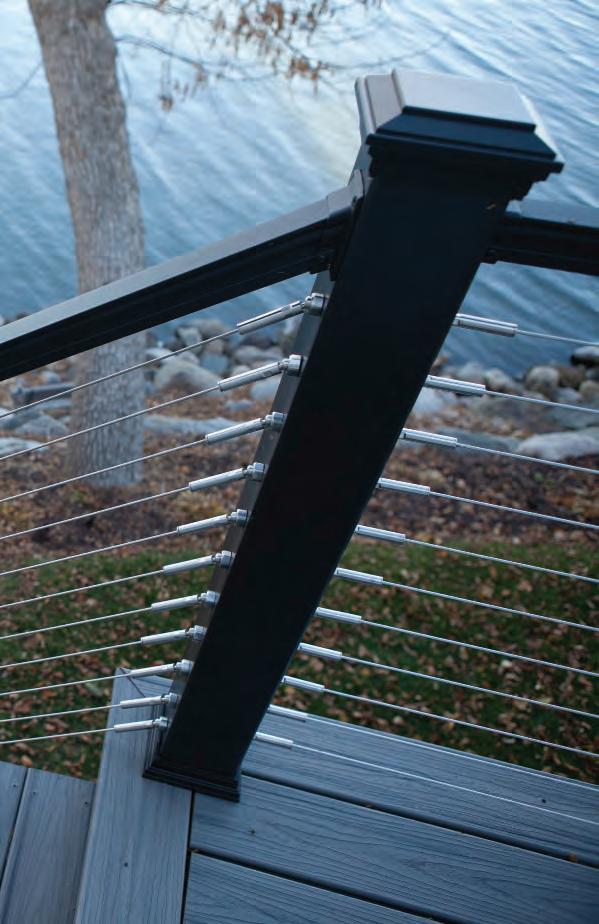

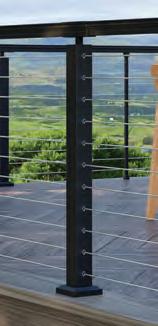

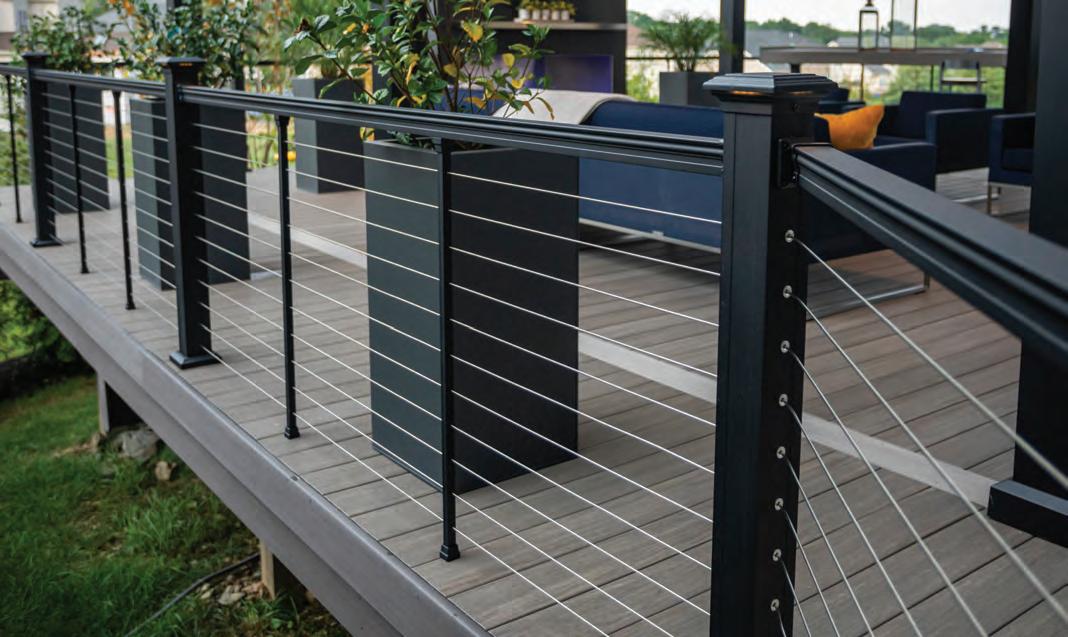

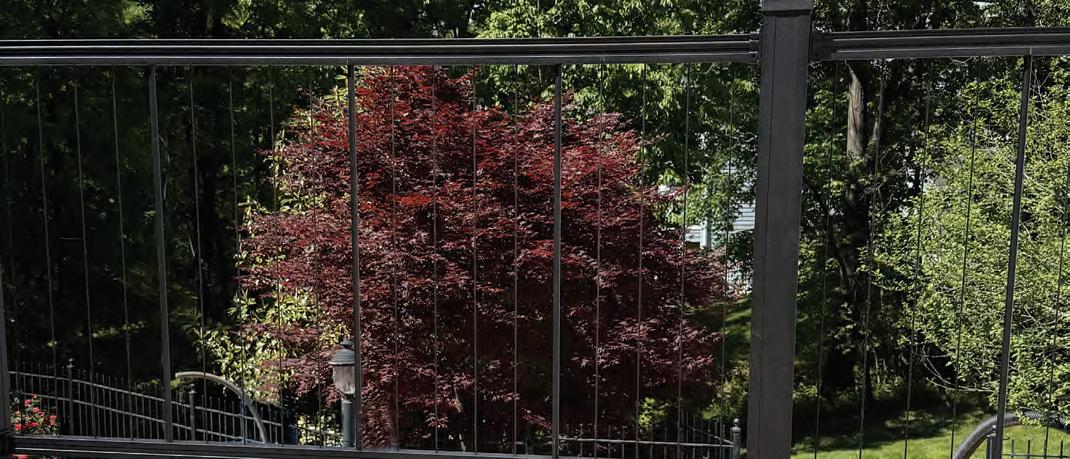

A MERICAN Vertical Cable
Sections include rails, ATTACHED cables, mounting brackets & hardware.
Posts, caps, & skirts are not included. Order separately.
Pre-drilled for cable spacing spacing = 2-7⁄8"
No job-site drilling required for typical installations.
*Add 15% to Textured Black for special order textured colors with S/S vertical cable infill (black infill shown above)
6' American Vertical S/S Cable Section
8' American Vertical S/S Cable Section
6' American STAIR S/S Vertical Section
8' American STAIR S/S Vertical Section

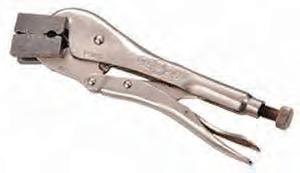

Gripping Pliers

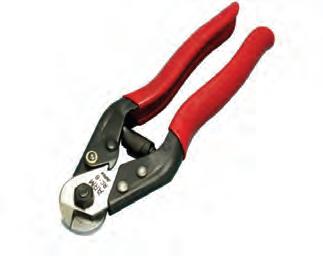

Cable Cutter
Cable Tension Gauge
Please visit keylinkonline.com for proper installation instructions.
Stainless Infill Black Infill
2604 Powder Coating
TB6VAR-STB6VAR-S-B
TB8VAR-S TB8VAR-S-B
TB6VASR-STB6VASR-S-B
TB8VASR-STB8VASR-S-B
Black vertical cable infill option is only available in Black rail color
Uses same posts, caps, skirts and brackets as the American aluminum baluster series.
# of Support RodsL ength of Section
to
View the chart above to determine the stainless steel support rods' positions, cut and remove unnecessary cables, then insert rods into empty holes.
Add 15% for black infill cable
All gates are CUSTOM made to fit your rough opening. Gates made with 2-1/2" post. All gates include hardware GATES ARE NOT RETURNABLE
Sections include rails, 2 end and 1 center baluster, baluster mounts, ⅝ rods, mounting bracket kit.
Posts, caps, & skirts are not included. Order separately.
A MERICAN Rod Rail
*Add 15% to Textured Black pricing for special order textured colors
6' American Rod Rail Section
8' American Rod Rail Section
6' American STAIR Rod Rail Section
8' American STAIR Rod Rail Section
Rod Rail Level Section Cut Kit
Rod Rail Stair Section Cut Kit
Rod Rail Installation Tool
T extured B lack
TB6ARR-S
TB8ARR-S
TB6ASRR-S
TB8ASRR-S
ARRCC-TB
ARRSCC-TB
ARRT
Rod Rail Cut Kits include 2 end balusters, baluster mounts and a bracket kit (4 pk).
Please visit keylinkonline.com for proper installation instructions.
Gates
Uses same posts, caps, and skirts as the American aluminum baluster series.
Rough Opening 36" or Less37" - 48"
Standard Height
Vertical Gate
All gates are CUSTOM made to fit your rough opening. Gates made with 2-1/2" post. All gates include hardware GATES ARE NOT RETURNABLE
AAMA 2604 Powder Coating
C HESAPEAKE Drink Rail Option
Sections include rails, balusters, mounting brackets & hardware.
Posts, caps, & skirts are not included. Order separately.
Baluster spacing = 3-5/8" 3/4" x 3/4" square pickets
Rail length for level sections
6' = 72", 8' = 96"
Rail length for STAIR sections
6' = 70", 8' = 94"
Color
Special
Order Colors
Chesapeake Series is used only as a drink rail application. Refer to pages 3-5 for our deck options.
*Add 15% to Textured Black pricing for special order textured colors
6' Chesapeake Rail Section
8' Chesapeake Rail Section
6' Chesapeake STAIR Rail Section
8' Chesapeake STAIR Rail Section
TB6CPR-S
TB8CPR-S
TB6CPSR-S
TB8CPSR-S
Level Bracket Kits (set of 4) CPRB-TB
CPSRB-TB
Stair Bracket Kits (set of 4)
450 Wedge - use with Level bracket (set of 4) CPARB-TB
Multi Swivel Bracket Kit (4pk)
• Adjusts for horizontal or stair angle (not both together)
• Horizontal angle (up to 45° angle)
• Stair angle (up to 40° angle) CPMSB-TB
Must use at least 3-1/4" post, caps, and skirts with Chesapeake Series.
Drink rail screws included.
Opening 36" or Less 37" - 48"
Deck boards not included with Discovery gates. All gate deck boards installed on job site. All gates are CUSTOM made to fit your rough opening. Gates made with 3-1/4" post. All gates include hardware GATES ARE NOT RETURNABLE
A CCESSORIES
Chesapeake Series Only - Special Order Tex Black
17' Chesapeake Aluminum Flat Rail Cap (2 pk)
Chesapeake Flat Rail Cap Beauty Ring
Chesapeake Level Alignment Block (2 pk)
Chesapeake Stair Alignment Block (2 pk)
Chesapeake Flat Rail End Cap
FASCIA MOUNT BRACKETS
When joining 2 rail caps together, use the beauty ring with the proper alignment block.
Textured Colors: Textured Black (TB), Textured White (TW), Textured Bronze (TBR)
2-½" x 38" Newel Post w/ base plate
2-½" x 48" Newel Post w/ base plate
3-¼" x 38" Newel Post w/ base plate
3-¼" x 48" Newel Post w/ base plate
3-¼" x 52" Pool Fence Post w/ base plate
3-¼" x 108" Newel Post w/ base plate
4" x 38" Newel Post w/ base plate
4" x 48" Newel Post w/ base plate
Post Under Deck Bracket
3-¼" x 108" Structural Porch Post (with mounting plates) - 5,000# load bearing
• Lighting options shown are available in 3000 Kelvin
• Lumen and wattage draw varies on lighting choice
• All lighting requires a DC LED low voltage power supply, harness and complete line of accessories
• 5 year warranty on all lighting
Ornamental low voltage post cap lights available in 2½” and 3¼” in Black, Bronze, White. 4” available in Black Only.
Stair/Side light available in Black, Bronze, and White
Ornamental side light available in Black, Bronze and White
LED SOLAR POST CAPS BY LMT
S ECONDARY H ANDRAIL S YSTEM
1-1/2" Round Aluminum
Available in Textured Black, Matte Black, Textured White and Textured Bronze See page 43 for a typical installation detail
Rail
J* 8'-8" pc 1-½" Straight Rail
Connectors
M External Universal
E Straight Connector
B End Cap
Corners
K* 90° Elbow
H* 34° Elbow
* 5° Elbow
O* 90° Outside Corner
SKU All Colors
KRR88R-S-_
KRRXC-_
KRRSC-_
KRREC-_
KRRI90-_
KRRI32-_
KRRI5-_
KRRO90-_
D Inline Bracket
Brackets Returns
KRRIB-_
L Inside Corner BracketKRRIC-_
C* "P" Loop Return
P 90° Post Return
T Straight Wall Return
KRRPR-_
KRR90R-_
KRRSR-_
* These components need to be used with straight connectors.
RAPID RAIL
Rapid Rail Kits include everything between the posts 2 aluminum base rails, 2 cap rails, balusters, baluster support block and 4 brackets. ⅝" square balusters. 6' rails = 68-¾" 8' rails = 92-¾"
Available only in Textured Black (TB)
6' Rapid Rail Level Kit
8' Rapid Rail Level Kit
6' Rapid Rail Stair Kit
8' Rapid Rail Stair Kit
6DRR-TB
8DRR-TB
6DSRR-TB
8DSRR-TB
Post kits come with Cap, Skirt, Leveling Plate. Post has a 5" base plate.
2-½" x 2-½" x 39" Post Kit
2-½" x 2-½" x 49" Post Kit
39ALX-__
49ALX-__
Rapid Rail Post/Bracket Template DRRPT
2-½" Post Cap
2-½" Post Skirt
4" Post Kits available by Special Order.
ALXC-__
ALXS-__
Rapid Rail Level Brackets (set of 4) DRRB-TB
Rapid Rail Stair Brackets (set of 4) DRRSB-TB
Rapid Rail Horizontal Angle (set of 4) DRRBUAB-TB
ALX CONTEMPORARY WELDED BALUSTER RAIL
Sections are PRE-ASSEMBLED and boxed with brackets Rectangle top and bottom profile. 3/4" square welded balusters. Stocked in Textured Black only. Other colors special order.
Sections include rails, aluminum stiffeners, pickets, brackets & screws.
Posts, caps, & skirts are not included. Please order separately.
Picket spacing = 3 ¾"
Picket size = 7⁄8 x 1 ½"
Additional bracket kits available
Add $ /ft (LIST) for 42" & 48" tall rail.
x 3 ½" Top Rail
ALZAR rail option is NOT AVAILABLE on Sonoma series.
6' Sonoma Rail Section (13 pickets)
8' Sonoma Rail Section (18 pickets)
10' Sonoma Rail Section (22 pickets)
12' Sonoma Rail Section (27 pickets)
6' Sonoma STAIR Section (11 pickets)
8' Sonoma STAIR Section (14 pickets)
10' Sonoma STAIR Section (18 pickets)
10' and 12' level sections come standard with a center leg.
REPLACEMENT RAILS
Rails DO NOT include aluminum stiffeners. Sold Separately. White Colors
6' - 2" x 3.5" Sonoma Rail 6ER (A or C)6ER
8' - 2"
__8ER-S
__10ER-S
__12ER-S
__6ESR-S
__8ESR-S
__10ESR-S
Adjustable Bracket Option:
To have your flat or stair rail sections packaged with adjustable brackets rather than the standard fixed brackets please add to the section cost: White (List) Colors (List)
Rough Opening 36" or Less37" - 48"
Standard Height Sonoma Gate (colors 15% up)
All gates are CUSTOM made to fit your rough opening. All gates include hardware GATES ARE NOT RETURNABLE
2"
AMERICANA
Sections include rails, aluminum stiffeners, pickets, brackets & screws.
Posts, caps, & skirts are not included. Please order separately.
Picket spacing = 3 3⁄8"
Picket size = 1 ½" x 1 ½"
Additional bracket kits available
Add $ /ft (LIST) for 42" & 48" tall rail.
6' Americana Rail Section (14 pickets)
8' Americana Rail Section (19 pickets)
6PR-S (A or C)6PR-S6PRA-S (A or C)6PRA-S
8PR-S __8PR-S8PRA-S__8PRA-S
10' Americana Rail Section (24 pickets) 10PR-S __10PR-S10PRA-S__10PRA-S
12' Americana Rail Section (29 pickets)
6' Americana STAIR Section (11 pickets)
8' Americana STAIR Section (15 pickets)
10' Americana STAIR Section (19 pickets)
10' and 12' level sections come standard with a center leg.
REPLACEMENT RAILS
12PR-S__12PR-S 12PRA-S__12PRA-S
6PSR-S__6PSR-S 6PSRA-S__6PSRA-S
8PSR-S__8PSR-S 8PSRA-S__8PSRA-S
10PSR-S__10PSR-S10PSRA-S__10PSRA-S
Rails DO NOT include aluminum stiffeners. Sold Separately.
6' - 2" x 3.5" Americana Rail6PR (A or C)6PR
8' - 2" x 3.5" Americana Rail8PR__8PR
10' - 2" x 3.5" Americana Rail10PR__10PR
12' - 2" x 3.5" Americana Rail12PR__12PR
6' - Americana / ALZAR Rail6PRA__6PRA
8' - Americana / ALZAR Rail8PRA__8PRA
10' - Americana / ALZAR Rail10PRA__10PRA
12' - Americana / ALZAR Rail12PRA__12PRA
6' - 2" x 3.5" Americana STAIR Rail6PSR__6PSR
8' - 2" x 3.5" Americana STAIR Rail8PSR__8PSR
10' - 2" x 3.5" Americana STAIR Rail10PSR__10PSR
6' - Americana / ALZAR STAIR Rail6PSRA__6PSRA
8' - Americana / ALZAR STAIR Rail8PSRA__8PSRA
10' - Americana / ALZAR STAIR Rail10PSRA__10PSRA
1.5" x 1.5" x 31-3/4" Pickets32PCKT__32PCKT
Adjustable Bracket Option:
To have your flat or stair rail sections packaged with adjustable brackets rather than the standard fixed brackets please add to the section cost: White (List) Colors (List)
Gates
Standard Height Americana Gate (colors 15% up)
Rough Opening 36" or Less37" - 48"
All gates are CUSTOM made to fit your rough opening. All gates include hardware GATES ARE NOT RETURNABLE
White Tan (A) Adobe (C) White Tan (A) Adobe (C)
Shown with ALZAR top rail
White Colors
VICTORIA
Sections include rails, aluminum stiffeners, spindles, brackets & screws.
Posts, caps, & skirts are not included. Please order separately.
Spindle spacing = 3-3⁄8"
Spindle size = 1-½" x 1-½"
Additional bracket kits available
Add $ /ft (LIST) for 42" & 48" tall rail. 2" x 3 ½"
6'
8'
10'
12'
6'
8'
Victoria Rail Section (14 spindles)
Victoria Rail Section (19 spindles)
Victoria Rail Section (24 spindles)
Victoria Rail Section (29 spindles)
Victoria STAIR Section (11 spindles)
Victoria STAIR Section (15 spindles)
10' Victoria STAIR Section (19 spindles)
10' and 12' level sections come standard with a center leg.
REPLACEMENT RAILS
6SR-S (A or C)6SR-S6SRA-S (A or C)6SRA-S
8SR-S __8SR-S8SRA-S__8SRA-S
10SR-S __10SR-S10SRA-S__10SRA-S
12SR-S__12SR-S 12SRA-S__12SRA-S
6SSR-S__6SSR-S 6SSRA-S__6SSRA-S
8SSR-S__8SSR-S 8SSRA-S__8SSRA-S
10SSR-S__10SSR-S10SSRA-S__10SSRA-S
Rails DO NOT include aluminum stiffeners. Sold Separately.
6' - 2" x 3.5" Victoria Rail 6SR (A or C)6SR
8' - 2" x 3.5" Victoria Rail8SR__8SR
10' - 2" x 3.5" Victoria Rail10SR__10SR
12' - 2" x 3.5" Victoria Rail12SR__12SR
6' - Victoria / ALZAR Rail6SRA__6SRA
8' - Victoria / ALZAR Rail8SRA__8SRA
10' - Victoria / ALZAR Rail10SRA__10SRA
12' - Victoria / ALZAR Rail12SRA__12SRA
6' - 2" x 3.5" Victoria STAIR Rail6SSR__6SSR
8' - 2" x 3.5" Victoria STAIR Rail8SSR__8SSR
10' - 2" x 3.5" Victoria STAIR Rail10SSR__10SSR
6' - Victoria / ALZAR STAIR Rail6SSRA__6SSRA
8' - Victoria / ALZAR STAIR Rail8SSRA__8SSRA
10' - Victoria / ALZAR STAIR Rail10SSRA__10SSRA
1.5" x 1.5" x 32" Spindles32SPNDL__32SPNDL
Adjustable Bracket Option:
To have your flat or stair rail sections packaged with adjustable brackets rather than the standard fixed brackets please add to the section cost: White (List) Colors (List)
Rough Opening 36" or Less37" - 48"
Standard Height
Victoria Gate (colors 15% up)
All gates are CUSTOM made to fit your rough opening.
All gates include hardware GATES ARE NOT RETURNABLE
Shown with ALZAR top rail option
White Colors
CONTEMPRA
Vinyl Rail with Deckorators ROUND aluminum balusters
Sections include rails, aluminum stiffeners, balusters, brackets & screws. Posts, caps, & skirts are not included. Please order separately.
Baluster spacing = 3 7⁄8"
Baluster size = ¾" round
Additional bracket kits available
Add $ /ft (LIST) for 42" tall rail.
Available in Black only
Prices are for 36" tall rail.
Please specify baluster color.
6' Contempra Rail Section (15 balusters)
8' Contempra Rail Section (20 balusters)
10' Contempra Rail Section (25 balusters)
12' Contempra Rail Section (30 balusters)
6' Contempra STAIR Section (12 balusters)
8' Contempra STAIR Section (16 balusters)
10' Contempra STAIR Section (20 balusters)
10' and 12' level sections come standard with a center leg.
REPLACEMENT RAILS
Rails DO NOT include aluminum stiffeners. Sold Separately.
Colors
6' - 2" x 3.5" Contempra Rail 6CR (A or C)6CR
8' - 2" x 3.5" Contempra Rail8CR__8CR
10' - 2" x 3.5" Contempra Rail10CR__10CR
12' - 2" x 3.5" Contempra Rail12CR__12CR
6' - Contempra / ALZAR Rail6CRA__6CRA
8' - Contempra / ALZAR Rail8CRA__8CRA
10' - Contempra / ALZAR Rail10CRA__10CRA
12' - Contempra / ALZAR Rail12CRA__12CRA
6' - 2" x 3.5" Contempra STAIR Rail 6CSR__6CSR
8' - 2" x 3.5" Contempra STAIR Rail 8CSR__8CSR
10' - 2" x 3.5" Contempra STAIR Rail 10CSR__10CSR
6' - Contempra / ALZAR STAIR Rail 6CSRA__6CSRA
8' - Contempra / ALZAR STAIR Rail 8CSRA__8CSRA
10' - Contempra / ALZAR STAIR Rail 10CSRA__10CSRA
10CSRA-S__10CSRA-S
Adjustable Bracket Option:
To have your flat or stair rail sections packaged with adjustable brackets rather than the standard fixed brackets please add to the section cost:
White (List) Colors (List)
Gates
Standard Height Contempra Gate (colors 10% up)
Rough Opening
36" or Less37" - 48"
All gates are CUSTOM made to fit your rough opening. All gates include hardware GATES ARE NOT RETURNABLE
2" x 3 ½" Top Rail ALZAR Top Rail
White Tan (A)
Adobe (C) White Tan (A)
Adobe (C)
White
Black White Bronze
CONTEMPRA 2
Vinyl Rail with Deckorators SQUARE aluminum balusters
Sections include rails, aluminum stiffeners, balusters, brackets & screws. Posts, caps, & skirts are not included. Please order separately.
Baluster spacing = 3 7⁄8"
Baluster size = ¾" square
Additional bracket kits available
Prices are for 36" tall rail. Balusters available in Black only.
6' Contempra 2 Rail Section (15 balusters) 6CR2-S (A or C)6CR2-S 6CRA2-S (A or C)
8' Contempra 2 Rail Section (20 balusters)
10' Contempra 2 Rail Section (25 balusters)
12' Contempra 2 Rail Section (30 balusters)
6' Contempra 2 STAIR Section (12 balusters)
8' Contempra 2 STAIR Section (16 balusters)
10' Contempra 2 STAIR Section (20 balusters)
10' and 12' level sections come standard with a center leg.
REPLACEMENT RAILS
8CR2-S __8CR2-S8CRA2-S__8CRA2-S
10CR2-S __10CR2-S10CRA2-S__10CRA2-S
12CR2-S__12CR2-S 12CRA2-S__12CRA2-S
6CSR2-S__6CSR2-S 6CSRA2-S__6CSRA2-S
8CSR2-S__8CSR2-S 8CSRA2-S__8CSRA2-S
10CSR2-S__10CSR2-S 10CSRA2-S__10CSRA2-S
Rails DO NOT include aluminum stiffeners. Sold Separately.
6' - 2" x 3.5" Contempra 2 Rail 6CR2 (A or C)6CR2
8' - 2" x 3.5" Contempra 2 Rail8CR2__8CR2
10' - 2" x 3.5" Contempra 2 Rail10CR2__10CR2
12' - 2" x 3.5" Contempra 2 Rail12CR2__12CR2
6' - Contempra 2 / ALZAR Rail6CRA2__6CRA2
8' - Contempra 2 / ALZAR Rail8CRA2__8CRA2
10' - Contempra 2 / ALZAR Rail10CRA2__10CRA2
12' - Contempra 2 / ALZAR Rail12CRA2__12CRA2
6' - 2" x 3.5" Contempra 2 STAIR Rail 6CSR2__6CSR2
8' - 2" x 3.5" Contempra 2 STAIR Rail 8CSR2__8CSR2
10' - 2" x 3.5" Contempra 2 STAIR Rail 10CSR2__10CSR2
To have your flat or stair rail sections packaged with adjustable brackets rather than the standard fixed brackets please add to the section cost: White (List) Colors (List)
Gates
Standard Height Contempra 2 Gate (colors 10% up)
Rough Opening 36" or Less37" - 48"
All gates are CUSTOM made to fit your rough opening.
All gates include hardware GATES ARE NOT RETURNABLE
2" x 3 ½" Top Rail ALZAR Top Rail White Tan (A)
Adobe (C) White Tan (A)
Adobe (C)
White Colors
V ISTA
Vista rail system comes with Alzar or 2 x 3 ½" top rail option.
Each rail set includes top and bottom rails, aluminum stiffeners, brackets, hardware and foam glazing tape
GLASS PANELS ARE NOT INCLUDED
For 36" tall rail, obtain ¼" thick x 32" tall tempered glass or acrylic panels at your local glass dealer.
Additional bracket kits available
Panel width should be 3" less than finished distance between posts.
REPLACEMENT RAILS
Rails DO NOT include aluminum stiffeners. Sold Separately.
No Returns on Vista Sections.
Gates are not available for the Vista Rail System
2" x 3
Rail ALZAR Top Rail White Tan (A) Adobe (C) White Tan (A) Adobe (C)
6' Vista Rail Set w/ 1-½"
8' Vista Rail Set w/ 1-½" sq. center leg
B LANK R AILS & S TIFFENERS
Blank Rails
(No routed holes)
x 3-½"
6NR6NR-_8NR8NR-_10NR10NR-_12NR12NR-_
6ANR6ANR-_8ANR8ANR-_10ANR10ANR-_12ANR12ANR-_
Rail/Fence Stiffeners
6'8'10'12'
4 x 4 Gate Post Stiffener
5 x 5 Gate Post Stiffener
5 x 5 "H" Stiffener (open 2 sides)
"H" stiffeners used in all Alzar top rails.
"H" stiffener used in top and bottom 2"x3-½" rails. (Except for Sonoma rails)
Sonoma stiffeners used in all Sonoma rails except for 10' & 12' top rails.
"L" stiffeners used in the bottom 2" x 3-½" rails of 6' & 8' wide fence sections.
Galvanized stiffener used in the bottom 1-½" x 5-½" rails of 8' wide fence sections.
Gate post stiffener recommended for hinge side of fence gates. of gates.
"H" Post stiffener recommended for taller fence applications.
1
2
3
4
V INYL R AIL B RACKET K ITS
S PECIALTY R AIL B RACKETS
Adjustable Bracket Kits - 4 Brackets Per Kit
Brackets adjust up & down or side to side to match your custom angles. Hardware and covers are included with each kit.
1 2" x 3-½" Adjustable STAIR Bracket Kit -Adjusts Up & Down BU23SRB-KIT-_
2" x 3-½" Adjustable Angle Bracket Kit - Adjusts Side to
BU23ARB-KIT-_
Alzar Adjustable Angle Bracket Kit - Adjusts Side to Side BUAZARB-KIT-_ Halfmoon Screw Covers for Adjustable Bracket Kits Sold Separately
2" x 3-1/2" Cap Rail Bracket Kit (2 pk) 23DRBK 2" x 3-1/2" Stair Cap Rail Bracket Kit (2 pk)23SDRBK Used for drink rail option for vinyl rail.
Trimmable Brackets
x 3-1/2" Trimmable Bracket23TB Alzar Trimmable BracketAZTB
Brackets sold individually, hardware included.
S ECONDARY H ANDRAIL S YSTEM
1-1/2" Round Aluminum
Available in Textured Black, Matte Black, Textured White and Textured Bronze See page 21 for a typical installation detail
Rail
J* 8'-8" pc 1-½" Straight Rail
Connectors
M External Universal
E Straight Connector
B End Cap
Corners
K* 90° Elbow
H* 34° Elbow
* 5° Elbow
O* 90° Outside Corner
SKU All Colors
KRR88R-S-_
KRRXC-_
KRRSC-_
KRREC-_
KRRI90-_
KRRI32-_
KRRI5-_
KRRO90-_
D Inline Bracket
Brackets Returns
KRRIB-_
L Inside Corner BracketKRRIC-_
C* "P" Loop Return
P 90° Post Return
T Straight Wall Return
KRRPR-_
KRR90R-_
KRRSR-_
* These components need to be used with straight connectors.
S ECONDARY H ANDRAIL S YSTEM
1-1/2" Round Aluminum
Typical Installation Detail
Continuous Secondary Handrail
1-½" Square Rail with 1-¼" box stiffener. Includes two caps for each end. Does not include mounting brackets.
- 1-½" x 1-½" Continuous Rail
* These components need to be used with straight connectors.
C OMPONENT C ABLE R AIL S YSTEM
Cable Railing components, used with wood or composite railing. It is recommended staying within 4' section lengths to maintain structural integrity. Order wire components separately. Each run of wire needs one Tensioner and one Swivel End. (Or two Tensioners) Max cable run is 48' if using Tensioners on each end. If using a Tensioner and a Swivel End the max run is 25'.
B
Cable 5/32" - 100' Roll
Cable 5/32" - 500' Roll
Tensioner - 2 pack
Tensioner - 10 pack
Swivel End - 2 pack
Swivel End - 10 pack
D Cable Sleeve - 10 pack
E Cable Cutter
F Drilling Template
The Swivel End is used in conjunction with a Tensioner in order to tension cable. The slotted base allows for angles up to 45° and is surfaced mounted
Made from grade 316 stainless steel with a 1 x 19 strand construction.
The Tensioner is the primary cable railing tensioning/fastening device. The compression fitting allows for installation and tensioning with simple hand tools.
The 1-½" Cable Sleeve is designed to protect your post from chafing and incidental damage from the cable rubbing around the outside of your mid post cable holes. The Cable Cutter is an essential tool when installing a cable railing system. The hardened heat treated blades cut 5/32" cable cleanly and quickly for an easy installation.
The Drilling Template allows for an easy installation of the rail system. Cable runs are spaced 3" oncenter.
C OMPONENT C ABLE R AIL S YSTEM
Sets include rail, (either 2 x 3-½" or Alzar) aluminum stiffener, 48" long center support, foot bracket, rail brackets & screws.
Order wire components separately. Each run of wire needs one Tensioner and one Swivel End. (Or two tensioners)
Max cable run is 48' if using Tensioners on each end. If using a Tensioner and a Swivel End the max run is 25'.
Posts, caps, & skirts are not included. Please order separately.
Vinyl Sets:
(Cable components sold separately)
6' Flat Rail Set
8' Flat Rail Set
6' STAIR Rail Set
8' STAIR Rail Set
**Brackets are included in all rail sets.**
(Each set includes two brackets and hardware)
Cable 5/32" - 100' Roll
Cable 5/32" - 500' Roll
Tensioner - 2 pack
Tensioner - 10 pack
Swivel End - 2 pack
Swivel End- 10 pack
D Cable Sleeve - 10 pack
E Cable Cutter
F Drilling Template
6SREA6SREA-_
8SREA8SREA-_
Vinyl Sets include the following:
- Alzar top rail with aluminum stiffener
- (2) Brackets and Hardware
- (1)1-½" x 1-½" x 48" center support (Holes will have to be drilled in center support on job site)
- (1) 1-½" Foot Bracket - to attach center support to deck.
Flat Bracket Sets:WhiteColors
Alzar Flat
STAIR Bracket Sets:WhiteColors
Alzar STAIR
Made from grade 316 stainless steel with a 1 x 19 strand construction.
The Cable Sleeve is designed to protect your post from chafing and incidental damage from the cable rubbing around the outside of your mid post cable holes.
The Tensioner is the primary cable railing tensioning/ fastening device. The compression fitting allows for installation and tensioning with simple hand tools.
The Swivel End is used in conjunction with a Tensioner in order to tension cable. The slotted base allows for angles up to 45° and is surfaced mounted
E F
The Cable Cutter is an essential tool when installing a cable railing system. The hardened heat treated blades cut 5/32" cable cleanly and quickly for an easy installation.
The Drilling Template allows for an easy installation of the rail system. Cable runs are spaced 3" on-center.
Use with 6" Posts
2 5⁄8" x 2 5⁄8" Balusters
4 ½ " x 3 3⁄8" Rails
Top and bottom rails are reinforced with aluminum stiffeners.
Baluster spacing= 5 ¼ " on center spacing
V INTAGE (S PECIAL O RDER )
Sections include rails, aluminum stiffeners, balusters and appropriate brackets.
Appropriate freight must be added for all Vintage orders.
Sections FlatStairWhite
6' 6JR-S6JSR-S
8' 8JR-S8JSR-S
10' 10JR-S10JSR-S
6" Accessories
Uses 6" posts, mounts, caps and skirts
P OST S LEEVES & M OUNTS
Post Sleeves 4 x 45 x 56 x 68 x 8
Hollow Vinyl Extrusions designed to slip over wood post or our post mounts. 4x4 - I.D. = 3-5⁄8" O.D. = 4" | 5x5 - I.D. = 4-5⁄8" O.D. = 5" | 6x6 - I.D. = 5-5⁄8" O.D. = 6"
Post Mounts/Bases SKU
1 4 x 4 x 39" Universal Post Mount
5- ¼ " flange - with leveling plate and bolts 44FUPM
5 x 5 Adapter for Universal Post Mount (each)55RPC
6 x 6 Adapter for Universal Post Mount (each)66RPC
5 x 5 x 39" Standard Post Base*
2
6 x 6 x 39" Standard Post Base
3 4 x 4 x 36" - 42" Angle Wizard Post Mount with leveling guide 44UPM
-Used for mounting post to concrete. -Mounts using (4) 3/8" x 3" wedge type anchor bolts (not included)
-Special blocking required when used on wood decks.
5x5 adapter (replaces 4x4 adapter)
6x6 adapter (used with 4x4 adapter)
Wood Post Mounting Plates
4 x 4 5-½" x 5-½" 44WPM (each)
6 x 67-3⁄8" x 7-3⁄8"66WPM (each)
Designed to mount full length treated post. Use the one piece 4" New England Skirt or the one piece low-profile 6" skirt to cover mount.
2*
View of 55GPB only
Holes on both sides to allow fence rails to slide through.
Adobe White
V INYL P OST C APS
Standard
Post SizeSKUWhite Tan Adobe
4 x 444SCAP
5 x 555SCAP
6 x 666SCAP
New England
Post SizeSKUWhite Tan Adobe
4 x 444NCAP
5 x 555NCAP
6 x 666NCAP
8 x 888NCAP N/A
8" Cap is similar to the New England cap shown.
Gothic
Post SizeSKUWhite Tan Adobe
4 x 444GCAP
5 x 555GCAP
V INYL P OST S KIRTS
4x4 = 1-5⁄8" 5x5= 2-1⁄16"
New England
Post SizeSKU
4 x 4 44NSKRT
5 x 5 55NSKRT
6 x 6 N/A
8 x 8 88NSKRT N/A 4x4 = 5-15⁄16" 5"x5" = 6-15⁄16"
= 5-5⁄8" 5x5 = 6-5⁄8"
2 Pc. Low Profile
4 x 4442PNSKRT
5 x 5552PNSKRT
6 x 6 N/A
= 7-5⁄8"
1 Pc. Low Profile
4 Pc. Universal
L OAD B EARING P ORCH P OSTS
SKU1-9
A4" x 9' TraditionalSPP-44
A5" x 9' Traditional 400 Series SPP-400
A 5" x 9' Traditional - TAN/CLAY SPP-T/A
B5"x 10' PlainSPP-P
B5" x 10' Plain - TAN/CLAY SPP-PT/A
C5" x 9' Madison (Colonial)SPP-M
D6" x 9' Recessed PanelSPP-RP
E6" x 9' VintageSPP-V
F8" x 10' Tapered Round SPP8R-10
F10" x 10' Tapered Round SPP10R-10
Quantity Discounts
Total Posts (same series) 10 -195% off 20+10% off
All porch posts include mounting hardware. Trim skirts/sets are not included. The 400 Series structural post feature a continuous aluminum core along with
Traditional Plain Madison Recessed Vintage Tapered Round
N EWEL P OSTS
Newel Post are White Only
• Newel posts do not include multi-mounts, see Post Sleeves and Mounts page.
• Caps and Skirts not included. See appropriate page for selections.
New England Post Covers
• Slips over your cedar or treated posts.
• "Telescopes" to any length up to 10'.
• Shipped complete with all shims and hardware.
Post shown with optional New England Skirts. Skirts NOT included.
P OST W RAPS (S TYLES H & X)
Style H (8-pc) Wrap - 10' long
To make a 4x6 post wrap, combine a wrap, 4x4 and 6x6 wrap. Style H only. 6x6
Universal Wrap Skirts for Style H & X WhiteTanAdobe
A 4" to 6-½" Skirt (For 4"& 6" wraps) 456USKRT456USKRT-A 456USKRT-C
B 6-½" to 12" Skirt
(For 6" style H when wrapping rough sawn cedar, 8x8 style H & 10x10 style H)
Post Wrap Caps for Style H & X WhiteTanAdobe
C 4-½" Neptune Cap
D 4" Wrap Cap
E 6" Wrap Cap
F 6-½" Flat Cap
G 7" Low Profile Wrap Cap (For style H) For 6x6 rough sawn cedar
45NCAP 45NCAP-A45NCAP-C
44WCAP44WCAP-A N/A
66WCAP66WCAP-A N/A
66XCAP66XCAP-A66XCAP-C
77WCAP77WCAP-A77WCAP-C
4410SWRP-8A4410SWRP-8C
612USKRT612USKRT-A612USKRT-C Style X (4-pc) Wrap - 10' long
P OST W RAPS (S TYLES S & F)
Post
S OLAR P OST C APS
Zena Solar Cap
Post
2-½" LV25ZS Non-Stock
3-½" LV35ZS Non-Stock 4" LV44HSZ Non-Stock
Aries Solar Cap
Call for non-stock Aurora lighting items. Allow 2+ week lead time on all special order lights.
Note about SOLAR caps: Solar caps give off a soft bluish light from their LED bulbs. They will burn up to 4-5 hours after a full charge on a summer day. Burn times are significantly shorter during the winter.
L OW V OLTAGE L IGHTED C APS
Saturn LED Series - Flat Top
Post SizeSKUWhiteTanClayBlack
4" LV44S-_ 5"
6"
LV55S-_ Non-StockNon-StockNon-StockNon-Stock
LV66S-_ N/A N/A Non-Stock
4" and 5" Saturn lighted caps comes with 1 watt LED bulbs. 6" Saturn lighted caps comes with 4 watt LED bulbs.
Triton
on 4x4
P ATHWAY & S TAIR L IGHTING
Nebula Eyeball Light
SKU White / Black / Bronze
LVNE-_
Lights have "warm" LED bulb that pulls 1 watt per light
Recessed Riser Light
SKU White / Black / Bronze
LVPR-_ Lights have "warm" LED bulb that pulls 6 watts per light
T RANSFORMERS & P ARTS
Wire Power Supply
LMT 50 Watt Smart Power Supply LV50XF
LMT 12 Watt Power Supply with photo eye LV12XF
LMT Dimmer for 12 Watt Power SupplyLVDIM
Must hard wire splice for the power
100' roll 12 gauge
Wire to Light Connectors
60" Connection Pig-Tail (one per light)
Bulbs
(For Titan, Triton, & Sirius Lights)
Transformer buying guide:
Take the number of lights and multiply by the wattage of the bulb. That will be the minimum wattage rating of the transformer.
Pig Tails:
Lay your wire in the groove, then close the connector and a connection to the wire is made.
M ETAL P OST C APS
Titan Series Flat Top Aluminum Caps
(Non-Stock on all Titan Aluminum Caps)
Available in several post sizes and colors
Sirius Series Flat Top Aluminum Caps
(Non-Stock on all Sirius Aluminum Caps)
Available in several post sizes and colors
Classic Aluminum Balusters - sold in 10 counts only
Price Per Baluster 26"32"36"
AB26-B AB32-B AB36-B
Black
Black Contractor Packs - 100 count
Baluster Connectors
Black Only 20 / per bag
ABBC-B per bag
Black Only Contractor Pack 200 / per bag
ABBC-CP per bag
Baluster Installation Tool
Speed installation by automatically spacing baluster connectors at a standard 4-5⁄8" (3-7⁄8" in between)
Baluster Stair Connectors
Black & Bronze w/screws 20 / per bag
ABBSC-B - Black per bag
ABBSC-BR - Bronze per bag
AB26B-CPAB32B-CP N/A
AB26-W AB32-W N/A
AB26-BRAB32-BR N/A
Designer Baluster Connectors
Black Only w/screws 20 / per bag
ABCD-B per bag
Must use flat connector with stair adapter
Designer Baluster Stair Adapters
Black Only w/screws 20 / per bag
ABCDS-B per bag
White Bronze Wh Black
Baroque Balusters
32-¼"
BlackAB32BAR-B5 / 75
Traditional Balusters
BlackAB32T-B10 / 120
BronzeAB32T-BR10 / 120
Each baluster comes with 4 color matching stainless screws and 2 end caps.
Estate Balusters
/ 120
/ 120
Deck Board Mounting Bracket
DBRC | Black (6-pack)
Connector measures ¾" x 3 ¼".
Deck board rail connector is reversible and can be used with vinyl or aluminum rail
Railing Connectors
2 Connectors per pack
Easy installation of 2x4 wood rails Black only
Straight - BlackABRC-B
Multi Degree - BlackABRCM-B
Stair - BlackABRCS-B
Multi Degree StraightStair
Call for Special Order, non-stock Deckorators items.
Decorative Stone Postcovers
ColorSKU 42"53"
Gray Cobblestone DPC-GC
Gray Fieldstone DPC-GF
Beige Stacked Stone DPC-B
Deckorators cast stone postcovers are made of fiberglass-reinforced concrete that is hand-painted. Designed to fit over a 4x4 or 6x6 treated post.
8" x 8" x 42" or 53"
Stacked Stone
Stone Postcover Caps
Copper Cast Stone
Gray Flat Stone
Woodland Gray
Woodland Gray - Solar
2-Piece Decorative Stone Postcovers
Deckorators postcovers are made of fiberglassreinforced concrete that is hand-painted.
Outside dimension of 2-piece Cap is 10 ¼"
Gray Cobblestone Gray Fieldstone
Gray Flat Stone
Copper Cast Stone Stone
Beige
Woodland Gray Gray Woodland Gray Solar
Stringer Bracket Purlin Beam
"H" Stiffener
2x6 Rafter
2x6 Drop in Brackets
2x6 Rafter Beam
'C' Aluminum Stiffener can be used in Beams or in rafters (when you are attaching purlins to top of rafters)
P ERGOLA R OOF S YSTEM
Rafters
8'12'16'
PER8PER12PER16
A End Rafter - 2 x 6
B Mid Rafter - 2 x 6
PMR8PMR12PMR16
Aluminium 'H' Rafter Stiffeners 8AH12AH16AH
Purlins
Please specify purlin option when ordering.
C 1-½" x 1-½" Purlins PP8 N/A PP16
7⁄8" x 6" Purlins PP68 N/A
7⁄8" x 3" Purlins PP38 N/A
Beams
Beam - 2 x 6 (No Holes)
P268P2612P2616
Beam - 2 x 8 (No Holes) (Only Available in White) P288 N/A P2816
Stiffeners
12'16'24'
12AC16AC24AC
Pergola Accessories
2 x 6 Roman Caps
2 x 8 Roman Caps RC28 N/AN/A
2 x 3.5 Roman Caps
2 x 6 Flat Rail Plugs
2 x 8 Flat Rail Plugs
2 x 6 *Metal* Drop-In Bracket
2 x 6 'C' Stiffener
5 x 5 Beam Stiffener (use w/5x5 Post Sleeve)
Roman Cap All brackets (drop in and stringer brackets include screws) Stringer Bracket
RC23 N/AN/A
RP26RP26-ARP26-C
RP28 N/AN/A
26MDRP26MDRP-A26MDRP-C
2" Stringer Bracket 2SB 2SB-A2SB-C
2 x 6 Vinyl Coupler
5/8" Hole Plug
1" Hole Plug
1-½" Pointed Cap
7/8" x 3" Dog Ear Cap
7/8" x 6" Dog Ear Cap
26COUP N/AN/A
H102H102-AH102-C
H101H101-AH101-C
15SHP15SHP-A15SHP-C
3DOG3DOG-A3DOG-C
6DOG6DOG-A6DOG-C
2x6 Drop in Brackets 2x6 p i
1-1/4" x #10 SS Screws S101S101-AS101-C
2-1/2" x #8 SS Screws S103 N/AN/A
Vinyl Adhesive Glue 1.5 oz CHG N/AN/A
P ERGOLA R OOF S YSTEM
All construction details shown are suggestions only. Builder is solely responsible for determining best methods based on individual project and site conditions.
ANo Returns on Pergola Components
A.End Rafter
B.Mid Rafter
C.Purlin
D.Beam
B
C
D
2 x 6 hollow. Aluminum 'H' stiffeners are recommended. Holes for purlins routed for on side only. Same part make right or left.
2 x 6 hollow. Aluminum 'H' stiffeners are recommended. Holes for purlins routed through both sides.
1-½" x 1-½" or 7⁄8" x 6" hollow. No Stiffener. Runs continuous from end rafter to end rafter.
2 x 6 or 2 x 8 hollow. Uses nominal wood 2x's or 2x6 'C' alum. as stiffener. Bolts to existing posts. Bolts & wood by others.
Under normal applications, no more than 8' post spacing is recommended.
Typical cross section purlin spacing.
8" 16"16" 2x6 Rafter
"H" Stiffener
Determined by Builder
Wood 2x's insert, not included. Could also use 'C' Stiffener.
2x6 or 2x8 Vinyl Beam
P ERGOLA R OOF S YSTEM
Pergola Post Mount Kit
Fasten bottom mount to concrete substructure using at least 3⁄8" x 3" wedge type anchors (not provided). Measure, cut and insert the 3-¼" aluminum extrusion into the bottom mount and fasten at all connection points (use ¼" x 4" bolts). Make sure all is square and plumb. May have to shim under mount for unlevel surfaces. Slide the top mount over the 3-¼" aluminum extrusion to the built in stop and make sure plumb with the bottom mount. Fasten top mount (use ¼" x 4" bolts)
After checking square & plumb on mount, slide column over mount. Install all appropriate skirts and trims on column. Slide cellular PVC board over top mount to where it rests on top of column. You can trim down overall dimensions for a proportioned look. Install 4" vinyl sleeve and cap.
Fasten spacer collars (round columns only) to aluminum post according to instructions. Make sure post & collars are stable. May need to modify spacers for 6" columns.
Install the 2x6 vinyl beam stock (with wood 2x6 inside) to the top mount. Either bolt through all pieces (using ¼" x 7 bolts) for superior stability or fasten each beam separately. Plug the bolt holes with hole plugs. Make sure bolts do not extend through where hole plugs will not work. 1 2 34
G ATE H ARDWARE & A CCESSORIES
When ordering please give the width inside your finished opening. We will size the gate to allow for the
• All standard handrail gates include S/S Self Closing Hinge Set (#2) and a Nylon Keyed Latch (#7)
• All gates are reinforced with wood fillers on the hinge side. (Except Alzar top rail)
• All standard fence gates include S/S Hinge Set (#3) and a S/S Latch (#4)
• All double gates come with respective hinges, latch and standard drop rod.
G ARDEN & P ATIO A CCESSORIES
Planter Boxes
Small Planter Box
(Inside dimensions 13 ¾" x 13 ¾") PBS
Large Planter Box
(Inside dimensions 16 ¾" x 16 ¾") PBL
*Planter Boxes are designed to accommodate flower pots or baskets. From floor of box to top of rail for
Vinyl Mail Box Posts
G ARDEN & P ATIO A CCESSORIES
Kingsport Pergola
• 53" Wide x 35" Deep x 96" High (Outside Measurements)
• Posts - 4" x 4" x 102"
• Secure to anchored wood posts (not included)
• 47-¾" Wide x 74" High (Outside Measurements)
• Posts - 4" x 4"
• 12" for burial or secure to anchored wood posts (not included)
Kingsport Arbor
• 57" Wide x 35" Deep x 96" High (Outside Measurements)
• Posts - 4" x 4" x 96"
• Secure to anchored wood posts (not included)
• 54" wide on each side w/ 4x4 posts • 46-7⁄8" @ tallest picket • 34-¾" @ shortest picket • Aprox. 24" of post for burial
C LASSIC
• 48", 54", 60", 72" heights
• 48" tall is offered in 2-rail or 3 rail option
• 6' wide assembled sections only
• 1" x 1" rails with 5⁄8" square pickets
• 3-13⁄16" space between pickets
• Offered with flush or traditional bottom rail. Traditional style has 5" exposed picket below the bottom rail.
• 4-rail option (72" tall) Add $ (LIST)
• 6' wide = 72-1/2" on center
• Allow 3+ full weeks for delivery
• Call for White & Bronze pricing
2" caps sold separately, see page 75
48" tall Classic Section (2-RAIL)
2 x 2 - 72"Post (Line, End, Corner)
48CL2-(F or T)
48CL2(L, E, C)-(F or T)
2 x 2 - 72" Gate Post (End) .125 wall48CL2GP-(F or T)
48" tall Classic Section (3-RAIL)48CL-(F or T)
2 x 2 - 72" Post (Line, End, Corner)
48CL(L, E, C)-(F or T)
2 x 2 - 72" Gate Post (End) .125 wall48CLGP-(F or T)
54" tall Classic Section (3-RAIL)54CL-(F or T)
2 x 2 - 84" Post (Line, End, Corner)
54CL(L, E, C)-(F or T)
2 x 2 - 84" Gate Post (End) .125 wall54CLGP-(F or T)
60" tall Classic Section (3-RAIL)60CL-(F or T)
2 x 2 - 84" Post (Line, End, Corner)
60CL(L, E, C)-(F or T)
2 x 2 - 84" Gate Post (End) .125 wall60CLGP- (F or T)
72" tall Classic Section (3-RAIL)72CL-(F or T)
2 x 2 - 96" Post (Line, End, Corner)72CL-(L, E, C)-(F or T)
2 x 2 - 96" Gate Post (End) .125 wall72CLGP-(F or T)
All gates are PRE-ASSEMBLED to specific size. All gates include black hardware
• Both 6' & 8' wide sections have L stiffener in bottom rail
• Height based on tallest picket
• 7"difference between tallest and shortest pickets
• Replacement parts available, please call office for price
• 6' wide = 72" on center
• 8' wide = 96" on center
• 4" caps sold separately
No Returns on Fencing
Tan 25% up charge Adobe 25% up charge
Tan 15% up charge Adobe 25% up charge
42" tall Cascade 2 Section
4 x 4 Post (72" tall)
48" tall Cascade 2 Section
4 x 4 Post (72" tall)
60" tall Cascade 2 Section
4 x 4 Post (90" tall)
42CS2-(6’ or 8')
42CS2-_
48CS2-(6' or 8')
48CS2-_
60CS2-(6' or 8')
60CS2-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
42" tall Cascade 2 Gate
48" tall Cascade 2 Gate
GATES
Rough Opening Size 48" or less49" - 60"
60" tall Cascade 2 Gate GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-255% off 26+10% off
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
• Both 6' & 8' wide sections have L stiffener in bottom rail
• Replacement parts available, please call office for price
• 6' wide =72" on center
• 8' wide = 96" on center
• 4" caps sold separately
No Returns on Fencing
Tan 25% up charge Adobe 25% up charge
6' wide8’ wide SKU 1 - 101 - 10
36" tall Cascade 4 Section 36CS4-(6’ or 8')
4 x 4 Post (60" tall)
48" tall Cascade 4 Section
4 x 4 Post (72" tall)
36CS4-_
48CS4-(6' or 8')
48CS4-_
4 x 4 Post (84" tall) Pool Code Post
Specify when ordering pool code style fence. Post route; top of top rail to bottom of bottom rail is 48 ½" tall.
60" tall Cascade 4 Section 60CS4-(6' or 8')
4 x 4 Post (90" tall)
60CS4-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
36" tall Cascade 4 Gate
48" tall Cascade 4 Gate
60" tall Cascade 4 Gate
GATES
Rough Opening Size 48"or less49" - 60"
GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-255% off 26+10% off Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
S HASTA 1
• 36", 42", 48" & 60" heights.
• 2" x 3½"top and bottom rails
• 6' wide section includes:
19 - 7⁄8"x 1½" pickets & caps
• 8' wide sections includes:
26 - 7⁄8" x 1½" pickets & caps
• 2" space between pickets
• Both 6' & 8' wide sections have L stiffener in bottom rail
• Replacement parts available, please call office for price
• 6' wide = 72" on center
• 8' wide = 96" on center
• 4" caps sold separately
No Returns on Fencing
Tan 25% up charge
Adobe 25% up charge
6' wide8’ wide SKU 1 - 10 1 - 10
36" tall Shasta 1 Section 36SH1-(6’ or 8')
4 x 4 Post (60" tall) 36SH1-_
42" tall Shasta 1 Section 42SH1-(6' or 8')
4 x 4 Post (72" tall) 42SH1-_
48" tall Shasta 1 Section 48SH1-(6' or 8')
4 x 4 Post (72" tall) 48SH1-_
60" tall Shasta 1 Section 60SH1-(6' or 8')
4 x 4 Post (90" tall) 60SH1-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening.
All Gates include hardware.
36" tall Shasta 1 Gate
42" tall Shasta 1 Gate
48" tall Shasta 1 Gate
60" tall Shasta 1 Gate
GATES
Rough Opening Size
48" or less49" - 60"
GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-255% off 26+10% off
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request.
For double gates, price as two singles. Hardware adjusted.
All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
• Both 6' & 8' wide sections have L stiffener in bottom rail
• Height based on tallest picket
• 8" difference between tallest and shortest pickets.
• Replacement parts available, please call office for price
• 6' wide = 72" on center
• 8' wide = 96" on center
• 4" caps sold separately
No Returns on Fencing
Tan 25% up charge Adobe 25% up charge
wide8’ wide SKU 1 - 10 1 - 10
42" tall Shasta 2 Section 42SH2-(6’ or 8')
4 x 4 Post (72" tall) 42SH2-_
48" tall Shasta 2 Section 48SH2-(6' or 8')
4 x 4 Post (72" tall) 48SH2-
60" tall Shasta 2 Section 60SH2-(6' or 8')
4 x 4 Post (90" tall) 60SH2-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
42" tall Shasta 2 Gate
48" tall Shasta 2 Gate
60" tall Shasta 2 Gate
GATES
Rough Opening Size 48" or less49" - 60"
GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-255% off 26+10% off Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
• 8' wide sections has metal stiffener in bottom rail
• Replacement parts available, please call office for price
• 6' wide = 72" on center
• 8' wide = 94" on center
• 5" caps sold separately
No Returns on Fencing
Tan 25% up charge.
6' wide8’ wide SKU1 - 101 - 10
Adobe 25% up charge Quantity Discounts
48" tall Whitney Section 48WHT-(6’ or 8')
5 x 5 Post (72" tall) 48WHT-_
60" tall Whitney Section 60WHT-(6' or 8')
5 x 5 Post (90" tall) 60WHT-_
72" tall Whitney Section 72WHT-(6' or 8')
5 x 5 Post (102" tall) 72WHT-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
48" tall Whitney Gate
60" tall Whitney Gate
GATES
Rough Opening Size 48" or less49" - 60"
72" tall Whitney Gate GATES ARE NOT RETURNABLE
Total Sections or Posts 11-255% off 26+10% off
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
• All sections have metal stiffeners in all 3 rails
• Replacement parts available, please call office for price
• 6' wide = 72" on center
• 8' wide = 96" on center
All Sections come with a mid rail for added support
72" tall Everest Section 72EVR-(6' or 8')-MW
5 x 5 Post (102")72EVR-__-MW
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
5 x 5 Standard Caps: (sold separately )
1-3/4" x 5-1/2" Drop in Brackets
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
Walnut color full privacy fencing.
Quantity Discounts
Total Sections or Posts 11-255% off 26+10% off Sections and posts cannot be combined for quantity discounts.
Mocha Walnut 55SCAP-MW
Mocha Walnut 175DRP-MW
GATES
Rough Opening Size 48" or less49" - 60"
72" tall Everest Gate - MW GATES ARE NOT RETURNABLE
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
Mocha
C AMBRIDGE
No Returns on Fencing
• 48", 60" & 72" heights
• 2"x 3½"top rail
• 1½" x 5½" bottom & mid rail
• 6' wide section includes:
16 - 7⁄8" x 1½" pickets
11 - 6" T&G panels
• 8' wide sections includes:
22 - 7⁄8" x 1½" T&G picket
15 - 6" T&G panels
• 2 - C-channels to cover panel edges
• 8' wide sections has metal stiffener in bottom rail
• Replacement parts available, please call office for price
• 6' wide = 72" on center
• 8' wide = 96" on center
• 5" caps sold separately
Tan 25% up charge.
Adobe 25% up charge
48" tall Cambridge Section 48CMB-(6’ or 8')
5 x 5 Post (72" tall)
48CMB-_
60" tall Cambridge Section 60CMB-(6' or 8') 5 x 5 Post (90" tall)
60CMB-_
72" tall Cambridge Section 72CMB-(6' or 8') 5 x 5 Post (102" tall)
72CMB-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
48" tall Cambridge Gate
60" tall Cambridge Gate
GATES
Rough Opening Size
48" or less49" - 60"
72" tall Cambridge Gate GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-255% off 26+10% off
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
• 8' wide sections has metal stiffener in bottom rail
• Replacement parts available, please call office for price
• 6' wide = 72" on center
• 8' wide = 96" on center
• 5" caps sold separately
Tan 25% up charge. Adobe 25% up charge
48" tall McKinley Section 48MCK-(6’ or 8')
5 x 5 Line Post (72")48MCK-_
60" tall McKinley Section 60MCK-(6' or 8')
5 x 5 Line Post (90")60MCK-_
72" tall McKinley Section 72MCK-(6' or 8')
5 x 5 Line Post (102") 72MCK-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening.
All Gates include hardware.
48" tall McKinley Gate
60" tall McKinley Gate
72" tall McKinley Gate
GATES
Rough Opening Size 48" or less49" - 60"
GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-255% off 26+10% off Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted. All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
M ONTEREY
No Returns on Fencing
• 48", 60" & 72" heights
• 2" x 3½" top rail
• 1½"x 5½" bottom rail
• 2" x 3½" mid rail on 60" & 72" tall
• 6' wide section includes:
7 - 7⁄8"x 3" pickets
6 - 7⁄8" x 6" pickets
• 8' wide sections includes:
9 - 7⁄8" x 3" pickets
8 - 7⁄8" x 6" pickets
• 11⁄16" space between pickets
• Height based on tallest picket
• 7" difference between tallest and shortest pickets
• 8' wide sections has metal stiffener in bottom rail
• Replacement parts available, please call office for price
• 6' wide = 72" on center
• 8' wide = 93" on center
• 5" caps sold separately
Tan 25% up charge.
Adobe 25% up charge
6' wide8’ wide SKU 1 - 10 1 - 10
48" tall Monterey Section 48MT-(6’ or 8')
5 x 5 Post (72" tall) 48MT-_
60" tall Monterey Section 60MT-(6' or 8')
5 x 5 Post (90" tall) 60MT-_
72" tall Monterey Section 72MT-(6' or 8')
5 x 5 Post (102" tall)72MT-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
48" tall Monterey Gate
60" tall Monterey Gate
72" tall Monterey Gate
GATES
Rough Opening Size 48" or less49" - 60"
GATES ARE NOT RETURNABLE
Quantity Discounts
Total Sections or Posts 11-255% off 26+10% off
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request.
For double gates, price as two singles. Hardware adjusted.
All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
S TANFORD
No Returns on Fencing
• 48", 60" & 72" heights
• 2"x 3½"top rail
• 1½" x 5½ bottom rail
• 2" x 3½" mid rail on 60" & 72" tall
• 1-1⁄8" space between pickets
• 6' wide section includes:
12 - 7⁄8"x 1½" pickets
5 - 7⁄8" x 6" pickets
• 8' wide sections includes:
16 - 7⁄8" x 1½" pickets
7 - 7⁄8" x 6" pickets
• 8' wide sections has metal stiffener in bottom rail
• Replacement rails available, please call office for price
• 6' wide = 72" on center
• 8' wide = 96" on center
• 5" caps sold separately
Tan 25% up charge. Adobe 25% up charge Quantity Discounts
48" tall Stanford Section 48SF-(6’ or 8')
5 x 5 Post (72" tall) 48SF-_
60" tall Stanford Section 60SF-(6' or 8')
5 x 5 Post (90" tall) 60SF-_
72" tall Stanford Section 72SF-(6' or 8')
5 x 5 Post (102" tall)72SF-_
Specify ALL styles of posts ( L ine, E nd, C orner, T ee, B lank) when ordering
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
48" tall Stanford Gate
60" tall Stanford Gate
72" tall Stanford Gate
GATES
Rough Opening Size 48" or less49" - 60"
GATES ARE NOT RETURNABLE
Total Sections or Posts 11-255% off 26+10% off
Sections and posts cannot be combined for quantity discounts.
Gates come with black hardware. White available upon request. For double gates, price as two singles. Hardware adjusted.
All gates are made with a permanent diagonal brace.
Hinge post needs reinforcement. See Blank Rails and Stiffeners page for gate post stiffeners.
R AIL F ENCE (2, 3 OR 4 RAIL )
No Returns on Fencing
• Post set on 96" on center
• 5" x 5" Post
.135" Wall thickness
• 1 ½" x 5½" Rails'
.080" Wall Thickness
Interior ribbing for superior rigidity
• 10 ½" between rails on 2 & 3 rail
• 6 ½" between rails on 4 rail
• 5" caps sold separately
Tan 25% up charge
Adobe 25% up charge
191-1/2" Rail (1½" x 5½") 1555R-R
2 Rail 5x5 - 60" Tall Post
L ine, E nd, C orner, T ee, B lank 2R_-R
3 Rail 5x5 - 78" Tall Post
L ine, E nd, C orner, T ee, B lank 3R_-R
4 Rail 5x5 - 84" Tall Post
L ine, E nd, C orner, T ee, B lank
GATES
All gates are CUSTOM made to fit your rough opening. All Gates include hardware.
2 Rail Residential Gate
3 Rail Residential Gate
4 Rail Residential Gate
Rough Opening Size 60" or Less61" - 96"
GATES ARE NOT RETURNABLE
Approximate LIST price per foot. White color (figured with standard caps): 2 Rail = 3 Rail = 4 Rail =
