2026 RFX Catalogue by moto-direct

ControL

DrIve ChaIn

C ontro L

bars built tough.

DesIgneD For perFormanCe, engIneereD to Last

WE'RE SO CONFIDENT IN THE STRENGTH OF OUR BARS THAT EVERY BAR IS SOLD WITH A 1 YEAR BEND GUARANTEE. Bend your bars as result of a crash and we'll replace them free of charge.

testeD anD trusteD By our sponsoreD pro rIDers

ENGINEERED FLEX TECHNOLOGY (EFT) is designed to give a small amount of flex in the bars. Carefully selecting an inner wall thickness of 5mm through the rise and taper area of the bars helps to reduce the effects of jarring in large impacts whilst providing the rider maximum front-end feel in corners. engIneereD FLeX teChnoLogy

PROGRESSIVE DAMPING CONTROL (PDC) is created using a larger wall thickness of 5.3mm on the handlebar grip area, this has been calculated to balance and dampen against the effects of handlebar vibration. This is a similar principal to the handlebar weights used in sports bikes but is specifically designed and tested to suit the vibration range produced by modern high performance 4 stroke motocross bikes.

OVERSIZE TAPER EXTENSION (OTE) is a lengthening of the central oversize (28.6mm) section. Increasing the oversize section to run past the final bend in the handlebar adds significant strength to the weakest part of any handlebar, couple this with a 5mm wall thickness that stays consistent even on the outside of the bends and the F7 taper bars are some of the lightest yet strongest bars on the market.

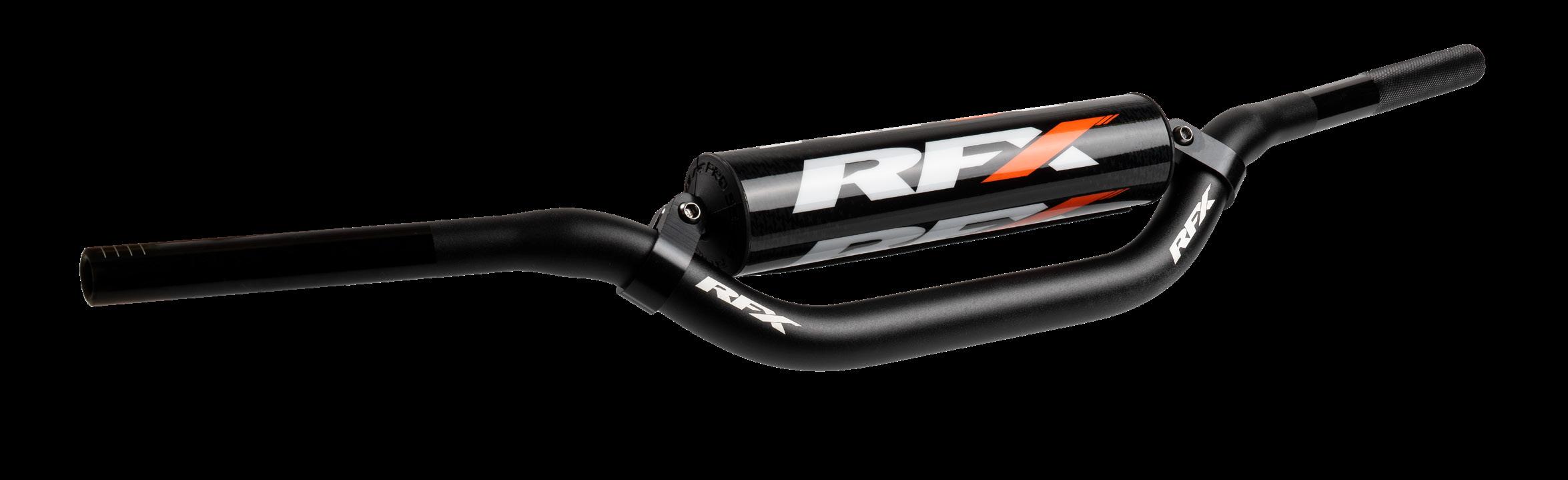

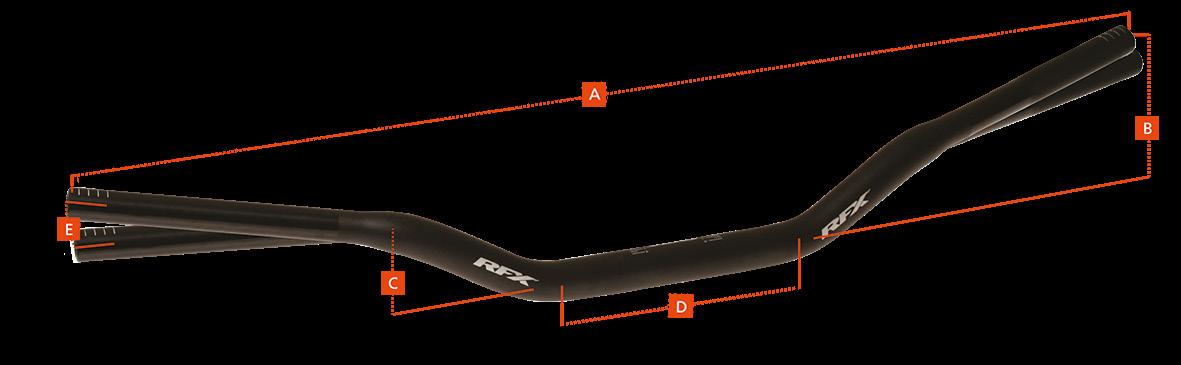

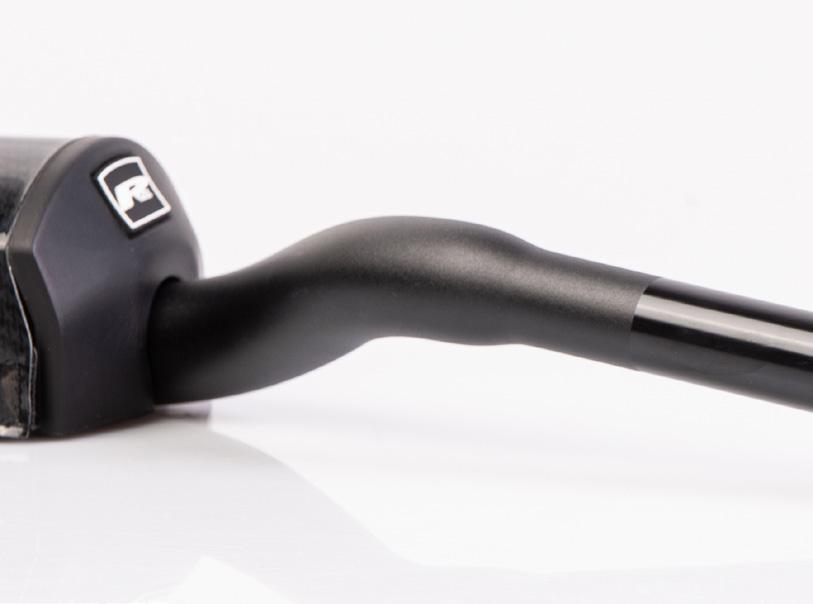

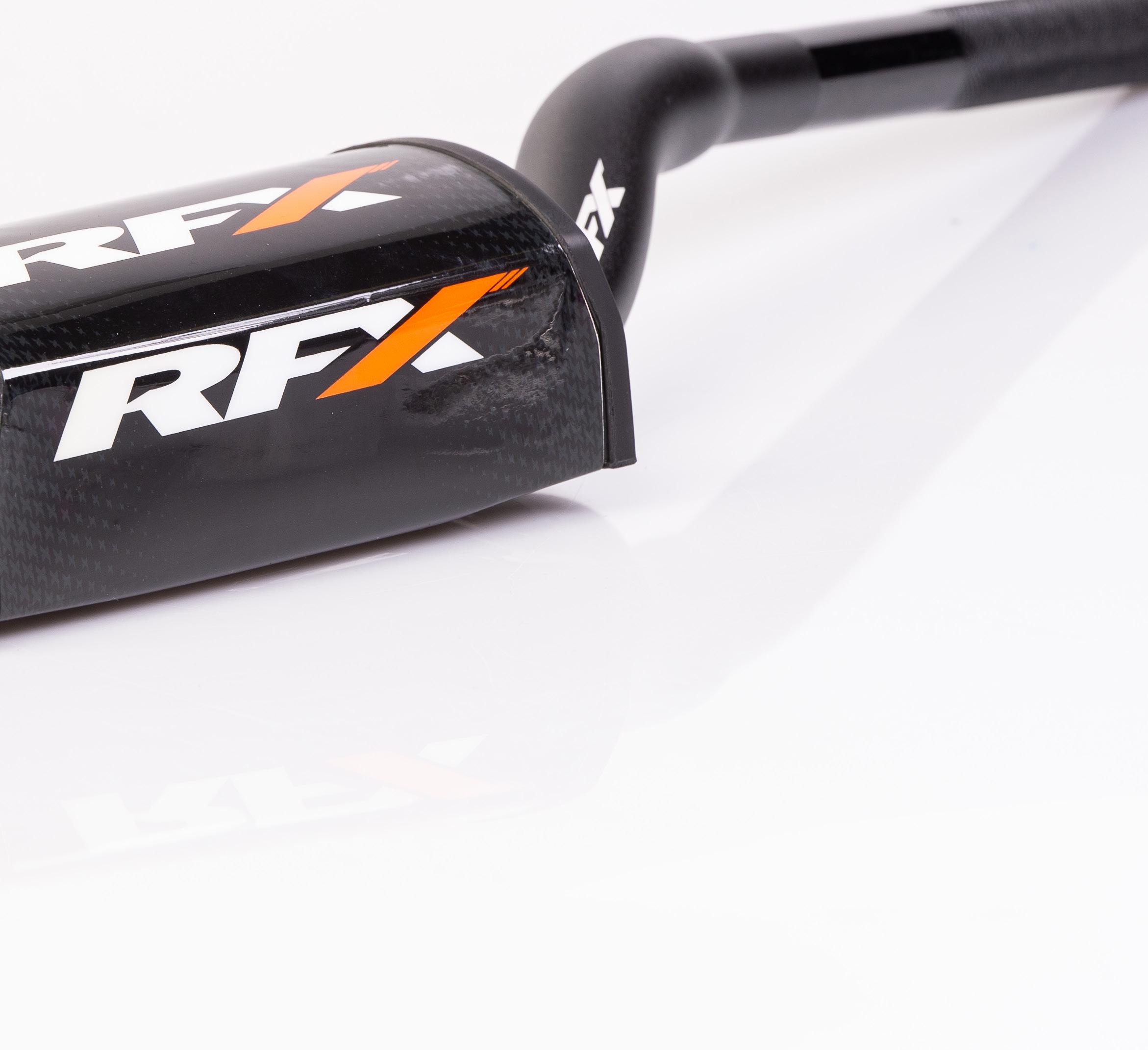

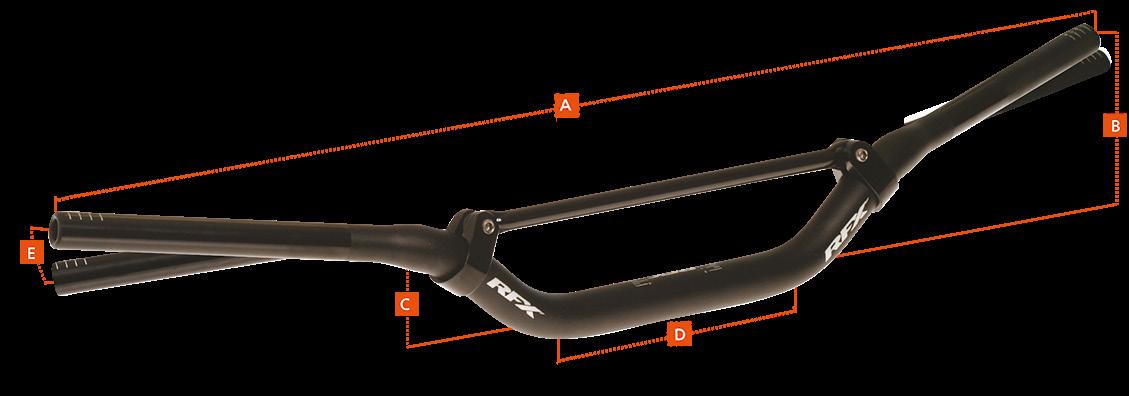

HANDLEBARS F7 taper Bar

Laser etched alignment grid

ENGINEERED FLEX TECHNOLOGY

OVERSIZED TAPER EXTENSION PROGRESSIVE DAMPING CONTROL

F7 Taper Bars are manufactured from 7075-T6 aluminium and feature Oversize Taper Extension (OTE) to give the ultimate strength and crash resistance, whilst Engineered Flex Technology (EFT) and Progressive Damping Control (PDC) helps provide just the right amount of flex and reduces machine vibration to help combat rider fatigue.

Features

• 7075 aerospace aluminium construction

• T6 heat treated to increase tensile strength

• Shot peened finish to prevent surface stress fractures and increase bar life

• Oversize Taper Extension (OTE) helps reduce crash damage

• Engineered Flex Technology (EFT) helps reduce rider fatigue

• Progressive Damping Control (PDC) helps reduce machine vibration

• Knurled grip area to help prevent grips slipping and twisting

• Polished throttle area to give a smoother throttle action

• Laser etched alignment grid for the perfect setup

• Colour anodized to prevent corrosion

• Includes a high-density foam pad with a hard wearing PVC cover

• Available in a variety of bends to suit most racers

F7 Bar paDs

FXHB 71000 99WH

HANDLEBARS F8 taper Bar

F8 Taper bars are manufactured from 7075-T6 aluminium and feature Oversize Taper Extension (OTE) to give the ultimate strength and crash resistance, whilst Engineered Flex Technology (EFT) and Progressive Damping Control (PDC) helps provide just the right amount of flex and reduces machine vibration to help combat rider fatigue.

• 7075 aerospace aluminium construction

• T6 heat treated to increase tensile strength

• Shot peened finish to prevent surface stress fractures and increase bar life

• Oversize Taper Extension (OTE) helps reduce crash damage

• Engineered Flex Technology (EFT) helps reduce rider fatigue

• Progressive Damping Control (PDC) helps reduce machine vibration

• Knurled grip area to help prevent grips slipping and twisting

• Polished throttle area to give a smoother throttle action

• Laser etched alignment grid for the perfect setup

• Colour anodized to prevent corrosion

• Includes a high-density foam pad with a hard wearing PVC cover

• Available in a variety of bends to suit most racers

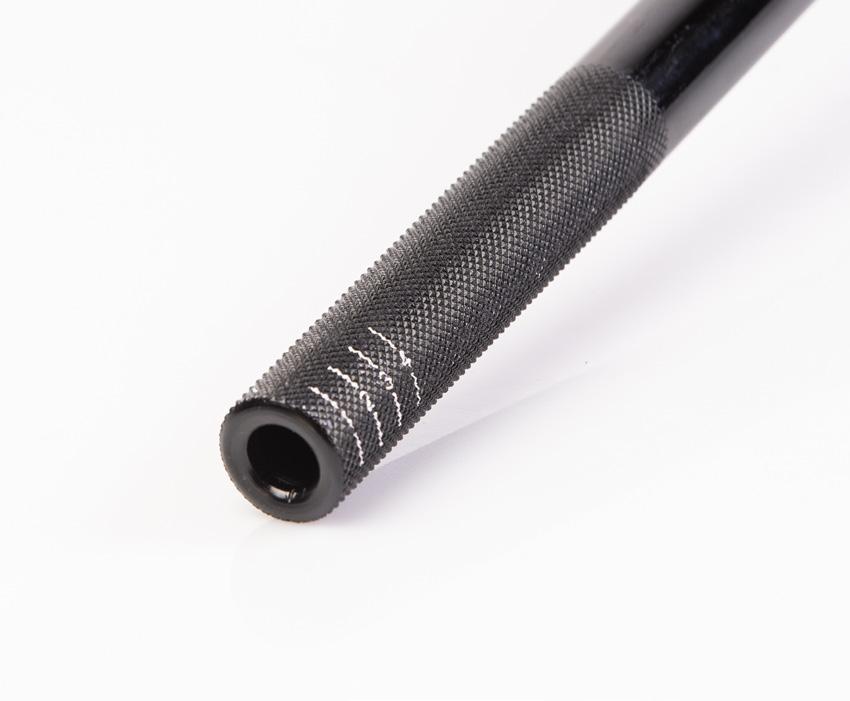

Knurled grip area

Laser etched alignment grid

F22 Bar

A narrower alternative to the F8, with a constant 22.2mm diameter throughout the full length of the bar. F22 bars are manufactured from 7075-T6 aluminium to give the best strength and crash resistance.

Engineered Flex Technology (EFT) and Progressive Damping Control (PDC) helps provide just the right amount of flex and reduces machine vibration to help combat rider fatigue.

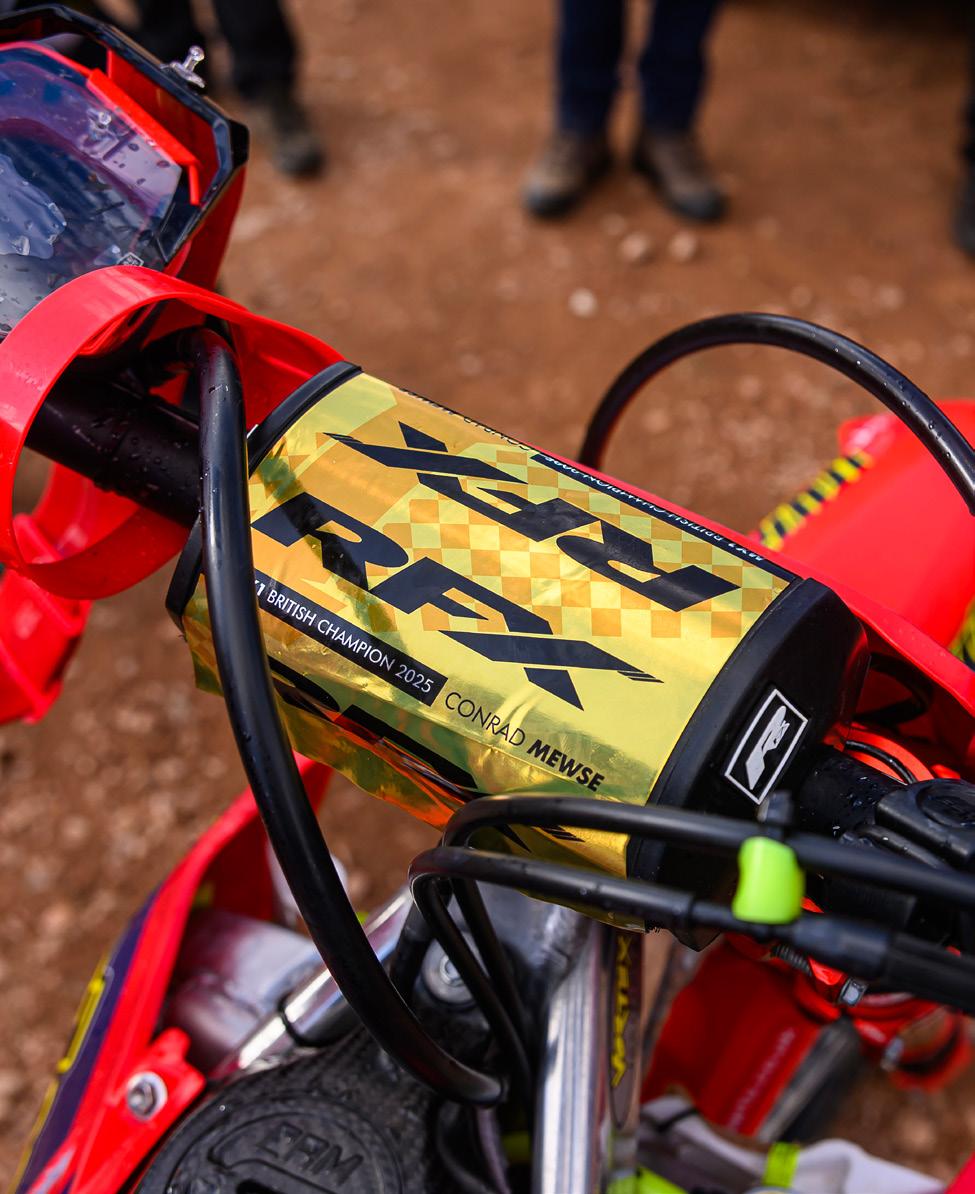

F8 & F22 Bar paDs

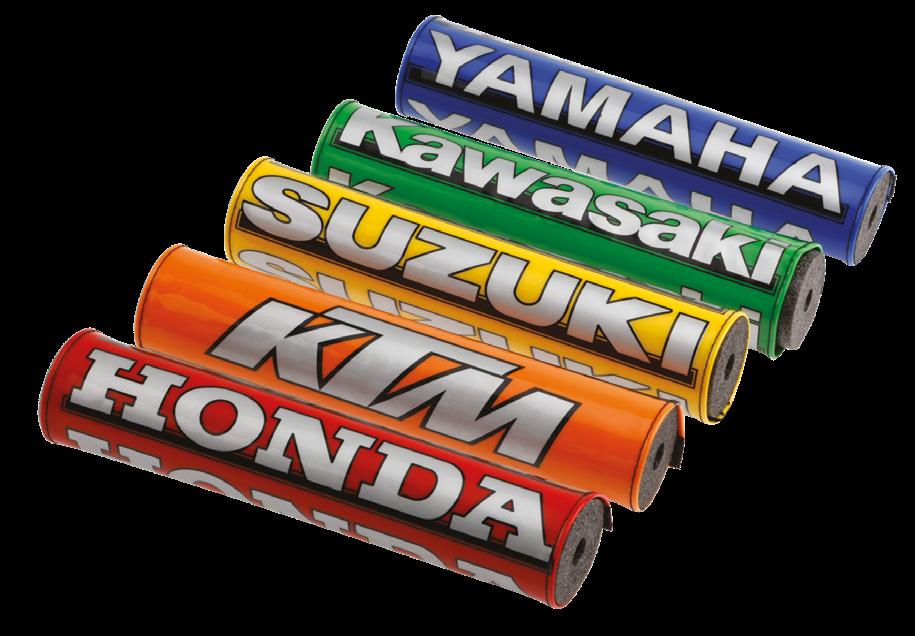

HANDLEBAR ACCESSORIES unIversaL Bar paD

Yamaha

FXHP 40100 00BU

Kawasaki

FXHP 20100 00GN

High density foam pad with a universal fit to suit the crossbar of most off-road motorcycles.

Suzuki

FXHP 30100 00YL

KTM

FXHP 50100 00OR

Honda

FXHP 10100 00RD

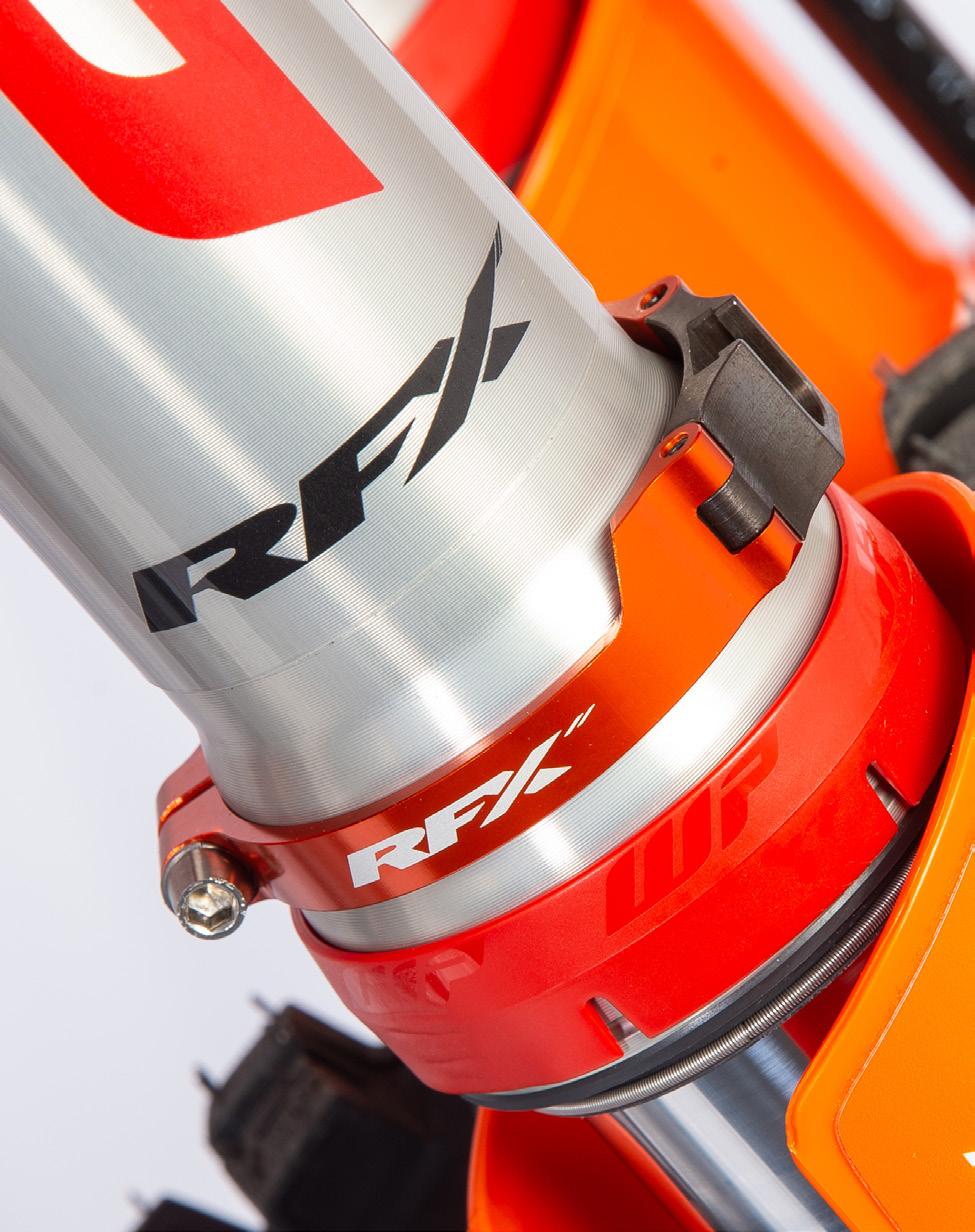

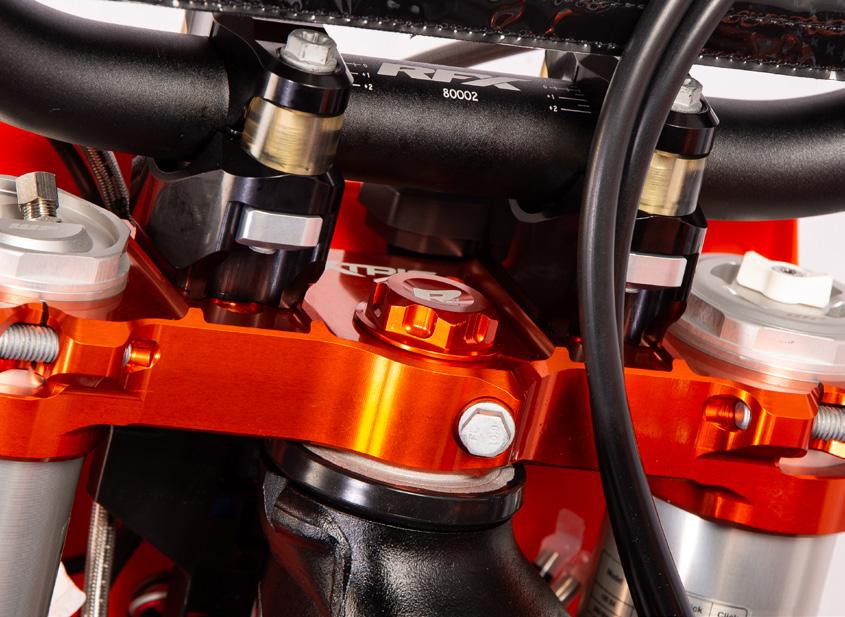

steerIng stem nut

Lightweight one-piece nut and washer design, CNC machined from 7075-T6 aluminium. Anodized for that factory bike look, they exceed OEM specifications in design and manufacture. Please refer to the chart.

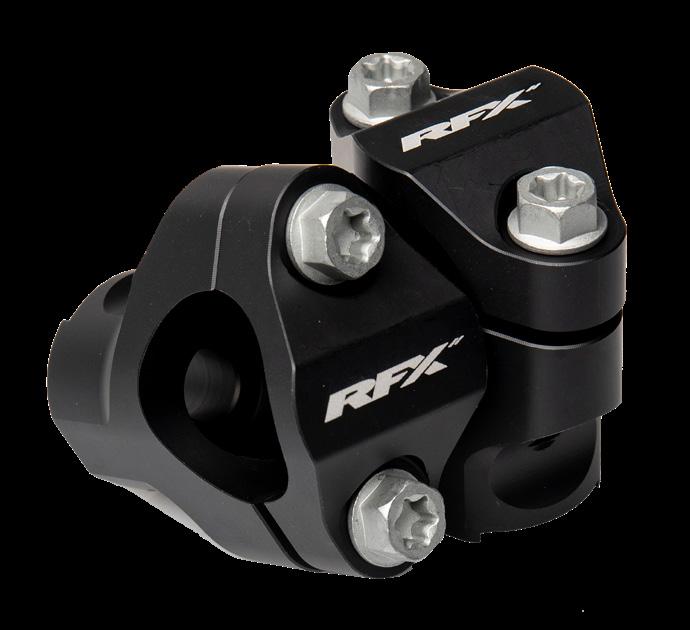

hanDLeBar rIser kIt

These kits fit into the original bar mounts allowing you to raise the handlebars in increments of 5mm from 25mm to 40mm. Available in anodized black to fit either standard (22.2mm) or oversize (28.6mm) bars. Supplied complete with all mounting hardware. Universal Handlebar Adaptor Kit.

90122 55BK

90128 55BK

Ideal for bikes that have a solid top yoke. Allows you to change from standard bars (22.2mm) to oversize bars (28.6mm).

OEM replacement handlebar mount kits, available for both 22.2mm and 28.6mm.

Universal FXHM 90000 55BK

maXImum ControL

ergonomIC FLeXIBLe rIDges

The ridges have been designed to promote the correct hand position for ultimate control. They’re closer together at the end of the grip to allow for the fact that the Distal, Middle and Digital creases get closer together on the last two fingers. This unique layout for the raised ridges has been calculated by taking mouldings of rider’s hands in the correct riding position. With our 3D printing technology we have been able to print, test and make adjustments to get the most accurate fit to suit most riders.

InCreaseD CLampIng area

Other lock on tubes only clamp at the very end.

The RFX Lock-On grip features an elongated cut-out in the plastic clamp tube which reduces stress on the plastic and also allows the rubber to compress and push against the bar. This greatly increases the surface area that clamps onto the bar making a really secure fit and with the tube under less stress it’s also less likely to crack under impact.

super soFt 15sa Comp DensIty

The throttle and clamp tubes have been designed to reinforce the flange area meaning that an extra soft 15SA compound can be used for the grip area making it extra tacky for superior grip.

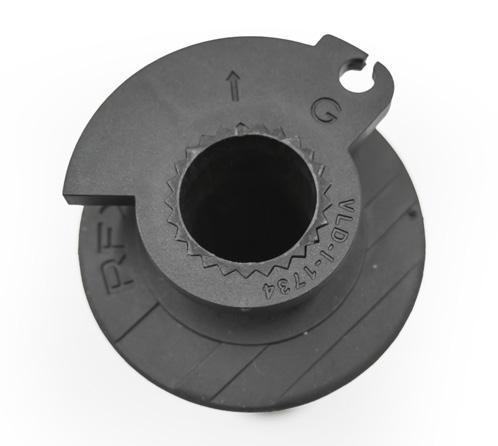

GRIPS LoCk on grIp

The RFX Lock-On grip has been CAD designed, prototyped and tested by our new RND team in conjunction with RFX sponsored riders. The ultra-low density 15 SA rubber compound and carefully placed ergonomic ridges that perfectly mirror the hand make for optimal grip and ensure the correct hand placement for maximum control around the racetrack.

It features a new and improved lock-on system for quick and easy installation. The cut-out in the lock-on tube has been elongated to increase the surface area that clamps onto the bars, this also squashes the rubber grip so that it pushes into the bar when clamped, providing even more adhesion to the bars compared with other lock-on grips that only clamp at the very end.

At the outside of the knurling the grip measures 29mm making it a nice thin grip as preferred by our pro racers, without compromising on material thickness to make it a strong and sturdy grip.

Features

• Injection Moulded 15 SA synthetic kraton polymer compound

• Injection moulded plastic throttle & lock on tubes

• Includes 8x Throttle Cams to suit most off road motorcycles

• Includes etched RFX lock on ring

• Micro-Injection X logo

• Ergonomic, flexible ridge design for maximum control and accurate hand placement

• 29mm diameter at the outside of the knurling

• Sold in pairs

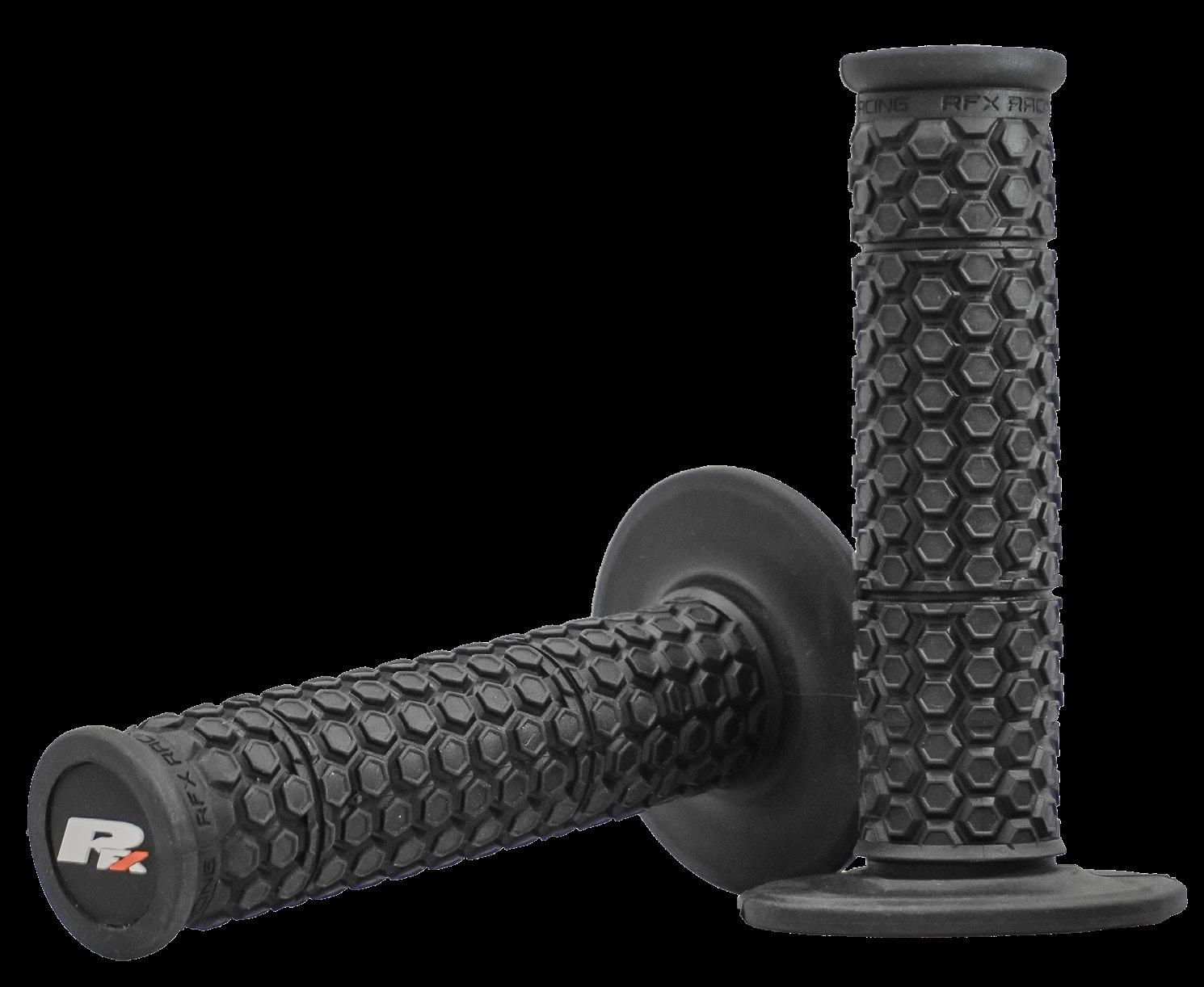

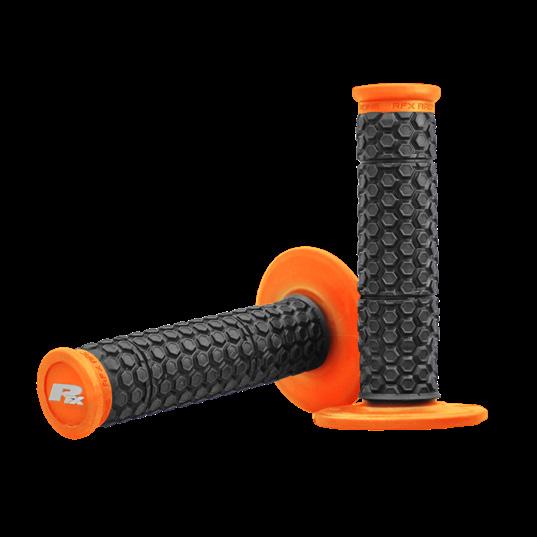

nanotuBe grIp GRIPS

New for 2025 the Nanotube grip is dual-injection moulded with an ultra soft 15SA external honeycomb grip area for maximum comfort and vibration dampening combined with a harder 50 SA compound for the flange and internal grip area adding strength to the areas where it’s needed.

The honeycomb design is thick, soft and tacky for riders who want more comfort and feel from their grips, with a reduced diameter where the thumb and forefinger contact the grip ensuring you still get that thinner feel where it’s needed for maximum control. The indentations also improve mud and water displacement ensuring your grip isn’t compromised in harsher conditions.

With 3 dedicated areas for attaching grip wire, combined with our fast drying grip glue these will be sure not to budge on those all important corners.

Features

• Dual-Injection Moulded

• 15 SA centre compound improves comfort and reduces vibration

• 50 SA end compound improves stability and control

• Honeycomb design for comfort and water displacement

• 3 dedicated areas for grip wire installation

• Micro-Injection X logo

• Reduced diameter at the thumb and forefinger placement

• Available in 9 colour combinations

• Sold in pairs

Orange/Black FXHG 30200 99OR

Black/Black FXHG 30300 99BK

Blue/Black FXHG 30200 99BU

Red/Black FXHG 30200 99RD

Black/Black FXHG 30100 99BK

Black/Black FXHG 30100 99GY

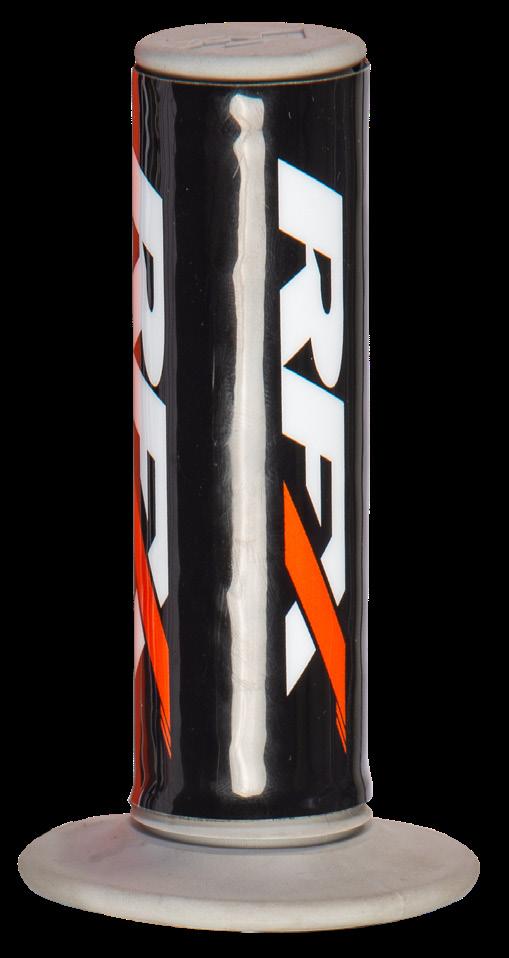

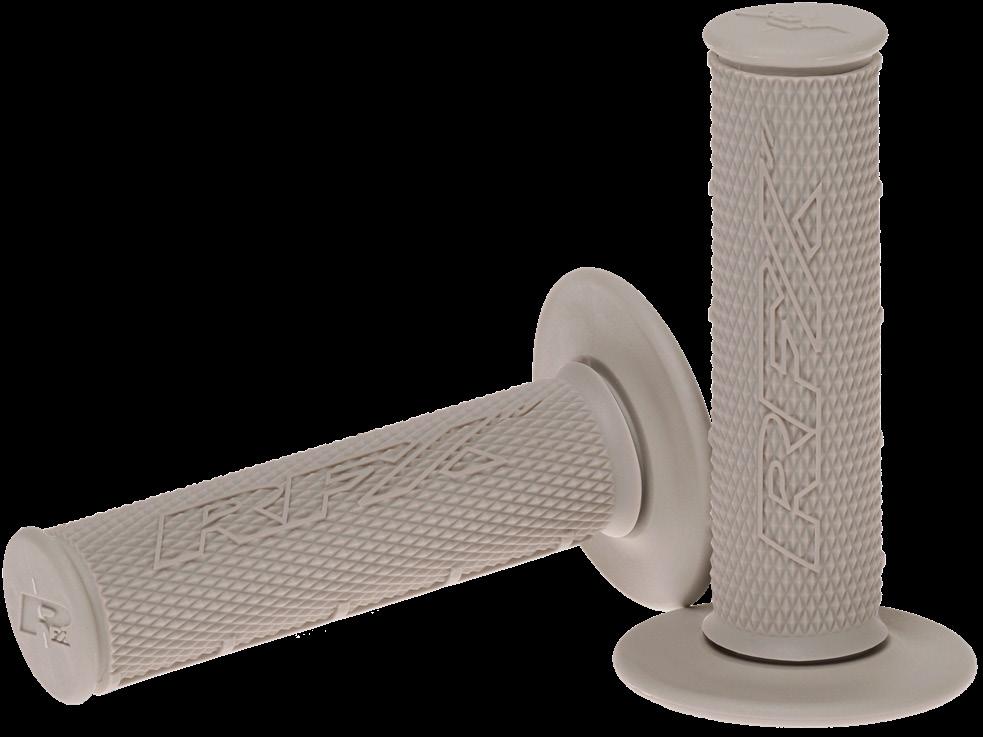

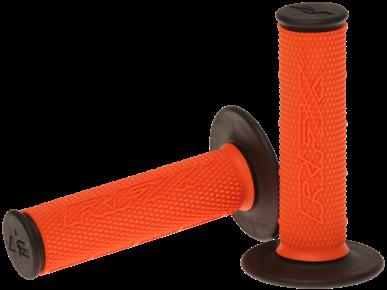

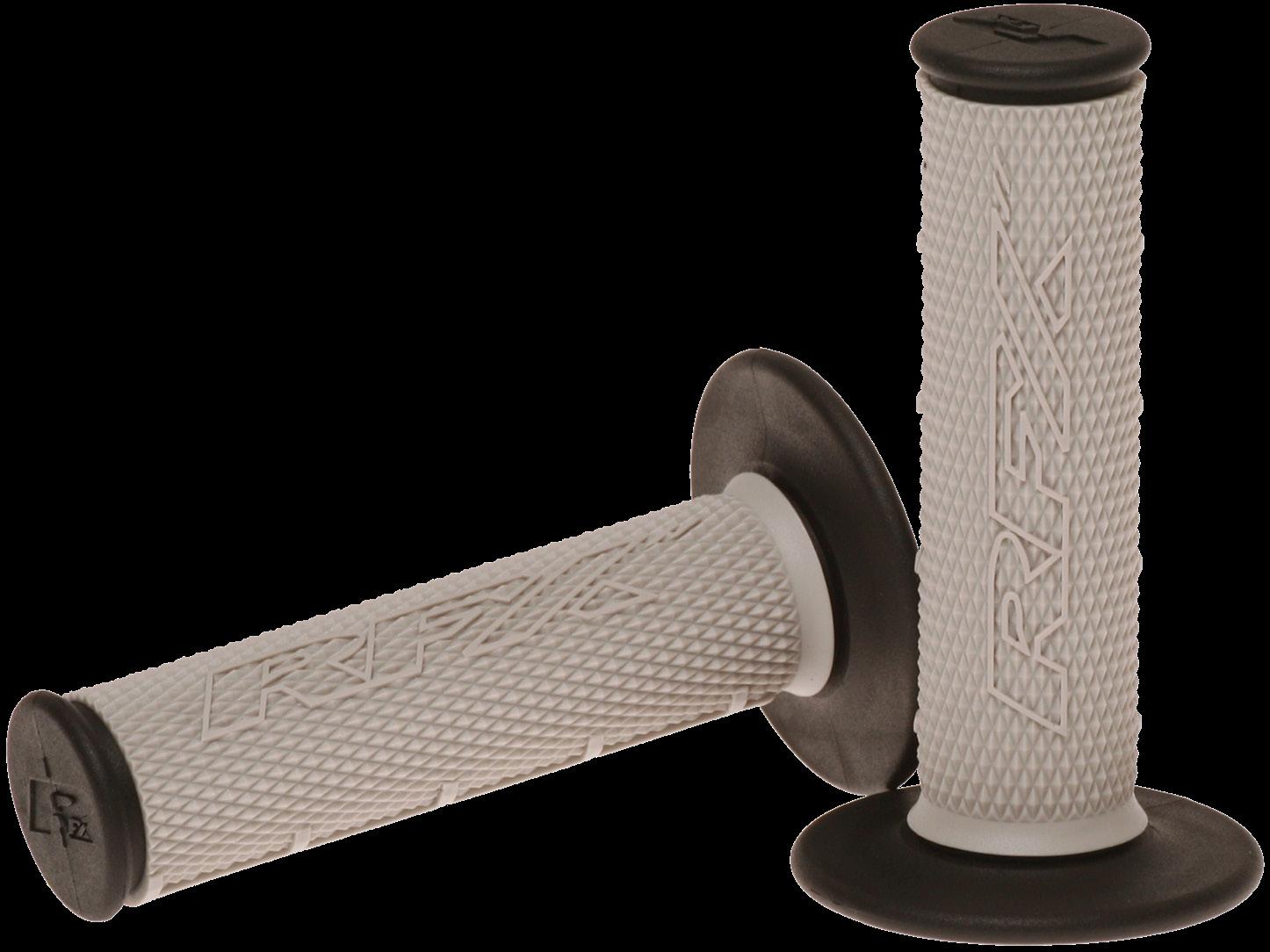

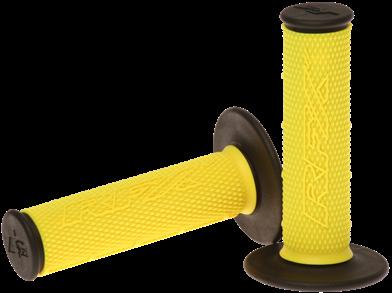

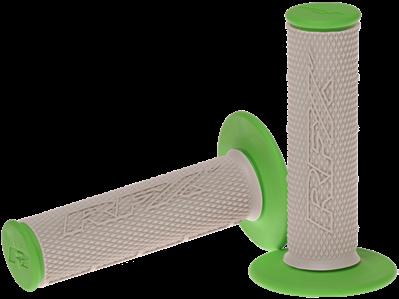

haLF WaFFLe grIp

RFX Grips are manufactured from high spec synthetic kraton polymer and feature the vibration reduction benefits and stickiness of natural rubber but resist damage caused by sunlight and chemicals that occur with natural rubber.

RFX Grips feature a dual density design which allows for an external 50 SA compound that is more durable and resists crash damage with a NEW softer centre 20 SA compound grip area for the best vibration resistance and comfort available.

RFX Grips use the industry standard half waffle design with a level RFX logo on the palm, this upper diamond and lower waffle design gives the best combination of palm area comfort and lower grip for muddy conditions.

Features

• Made using high spec synthetic kraton polymer for the ultimate sticky grip

• Dual compound tool design allows for the best combination of compounds

• 20 SA centre compound improves comfort and reduces vibration

• 50 SA end compound improves crash damage resistance

• Half waffle design gives the best combination of grip and comfort

• Smooth diamond pattern and level RFX logo on the palm area offer excellent grip without sacrificing comfort and causing blisters

• Available in 26 colour combinations

• Packaged in pairs for use with right hand twist throttle machines

Smooth diamond pattern and level RFX logo on the palm area

60 SA end compound improves crash damage resistance

Orange/Black FXHG 20200 99OR

Green/Black

FXHG 20200 99GN

Grey/Orange FXHG 20500 99OR

Grey/Red FXHG 20500 99RD

Black/Blue

FXHG 20100 99BU

Black/Red

FXHG 20100 99RD

Blue/Black

FXHG 20200 99BU

Yellow/Black

FXHG 20200 99YL

Grey/Blue FXHG 20500 99BU

Grey/Yellow

FXHG 20500 99YL

Black/Green

FXHG 20100 99GN

Black/Yellow

FXHG 20100 99YL

Red/Black FXHG 20200 99RD

Grey/Black

FXHG 20200 99GY

Grey/Green FXHG 20500 99GN

Grey FXHG 20900 99GY

Black/Orange

FXHG 20100 99OR

Black

FXHG 20900 99BK

Black/Grey

FXHG 20100 99GY

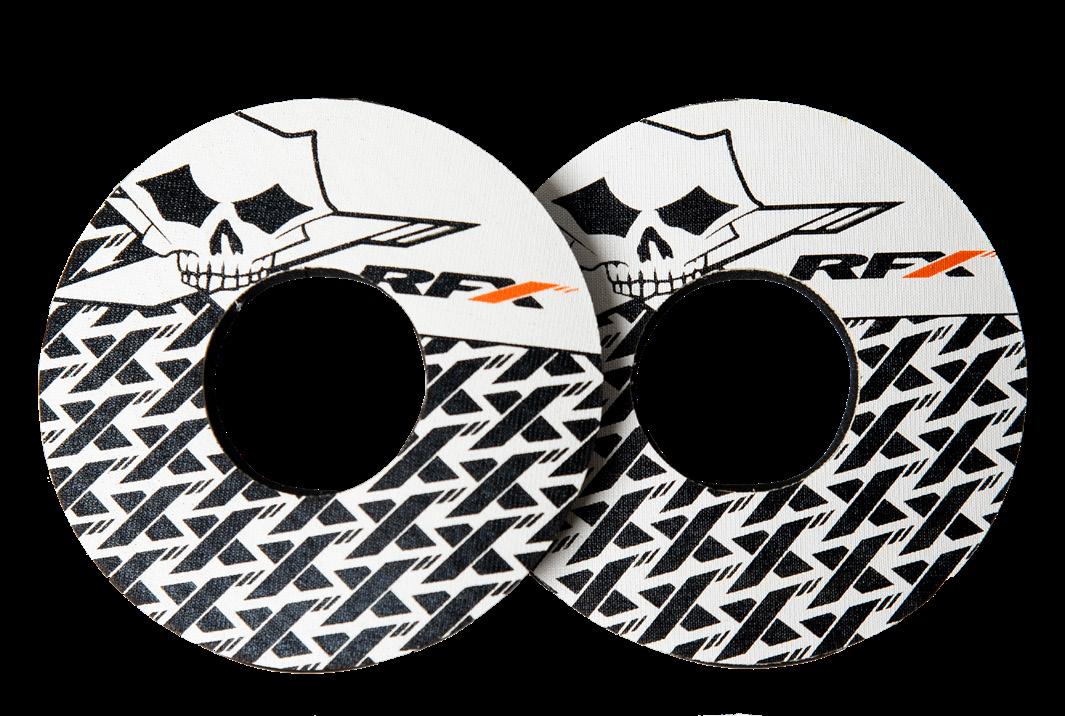

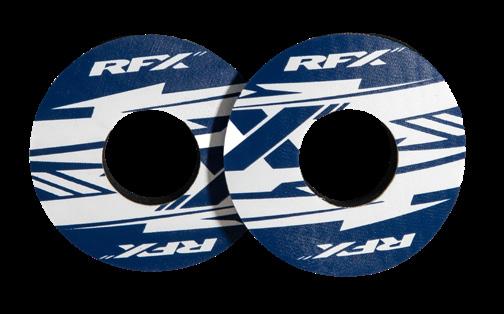

GRIP ACCESSORIES grIp Donuts

RFX Sport Series Grip Donuts feature soft neoprene coated construction which help prevent blisters forming on the thumb.

grIp Covers

RFX Race Grip Covers ensure that your grips are clean from oil and grease while performing maintenance or transporting your bike to the track.

Sold in Pairs.

KTM FXHG 90100 00RF

Skull FXHG 90200 00RF

Yamaha FXHG 90100 00BU

Kawasaki FXHG 90100 00GN

Honda FXHG 90100 00RD

Suzuki FXHG 90100 00YL

Husqvarna FXHG 90100 00BY

Black/White/Orange FXGC 10000 55BK

RFX Race Series Grip Glue Single (Clear) 1oz / 28.4g

Features

• Bonds up to 12 sets of grips

• Dries within 25 seconds

• Designed to secure grip without any damage

• Resealable bottle with applicator included

grIp LoCkIng saFety WIre

RFX Race Series Safety Locking Wire is ideal for wiring grips or lock wiring nuts and bolts.

Supplied on a 30m roll 0.8mm gauge wire.

saFety WIre pLIers

RFX Race Series Safety Locking Wire

Pliers ideal for wiring grips or lock wiring nuts and bolts.

easy throttLe

For Renthal Twinwall 28.6mm Handlebars. Convert your standard plastic throttle sleeve into a smooth and consistent feeling throttle in minutes with this easy throttle bearing.

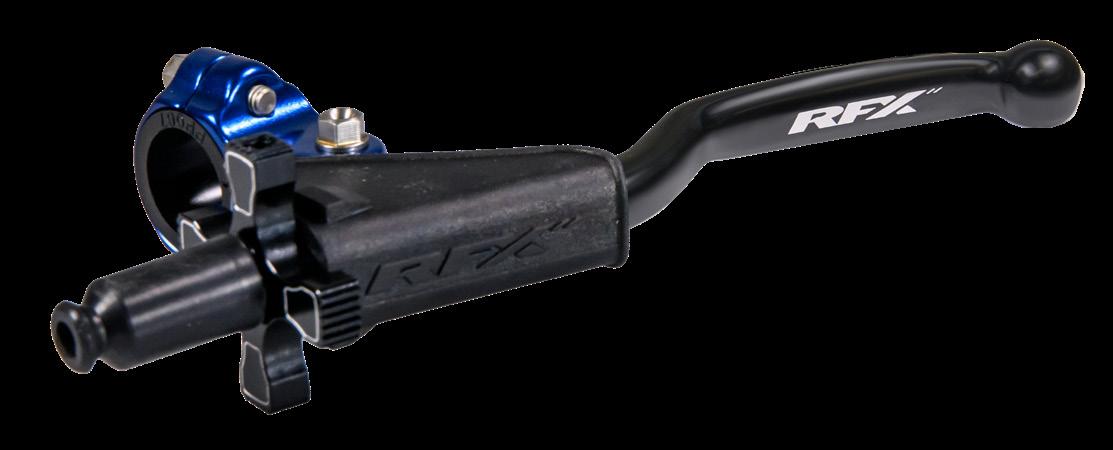

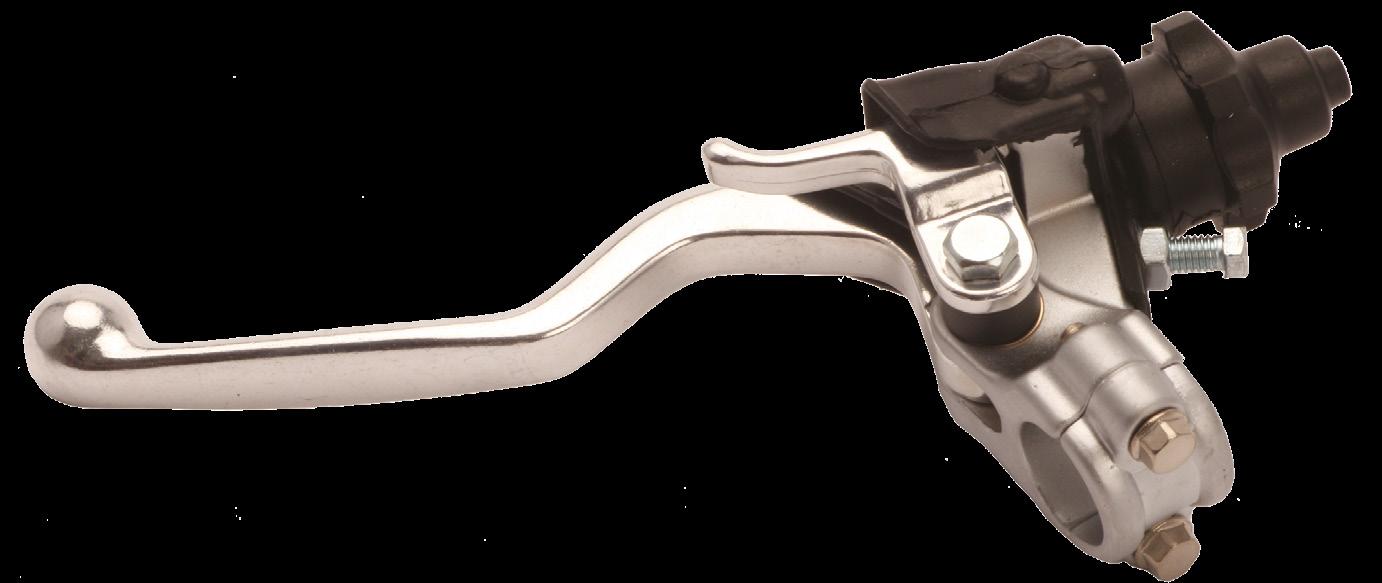

CLUTCH LEVER ASSEMBLIES CnC CLutCh Lever assemBLy

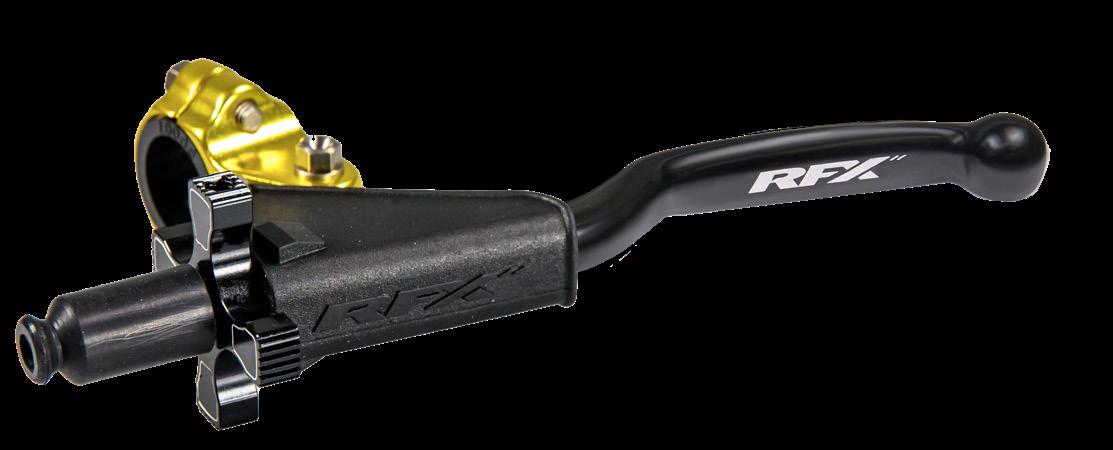

RFX Pro Series Factory Edition Clutch Lever Assemblies have been designed and tested with the help of top UK professional race teams.

The aim was to produce a lever assembly that is extra strong, includes an oversize quick adjuster for ease of adjustment when riding, a rubber boot that covers all the internals of the lever increasing service intervals, a lever with a pivot point bearing and a lever ratio that provides a positive yet light clutch actuation.

Features

• High grade 6061-T6 billet aluminium lever bracket

• Hard wearing hard anodized lever bracket

• Hard wearing hard anodized quick adjuster and screw

• Bespoke flexible rubber protective boot

• Oversize 50mm quick adjuster

• Machined stainless steel hardware

• Forged lever with pivot point bearing

• Ultimate durability and strength

• Lightweight

• Lasting stylish look

ForgeD CLutCh Lever assemBLy CLUTCH LEVER ASSEMBLIES

RFX Pro Series Clutch Lever Assemblies have all the same great features as the Factory Edition but include a forged lever holder with colour anodizing instead of the billet machined part. This helps reduce cost and makes this an excellent affordable high grade lever replacement for everyday racers.

Features

• High strength forged aluminium lever bracket

• Colour anodized lever bracket and adjuster

• Available in 5 different colour versions

• Bespoke flexible rubber protective boot

• Oversize 50mm quick adjuster

• Machined stainless steel hardware

• Forged lever with pivot point bearing

• Lightweight

CLUTCH LEVER ASSEMBLIES

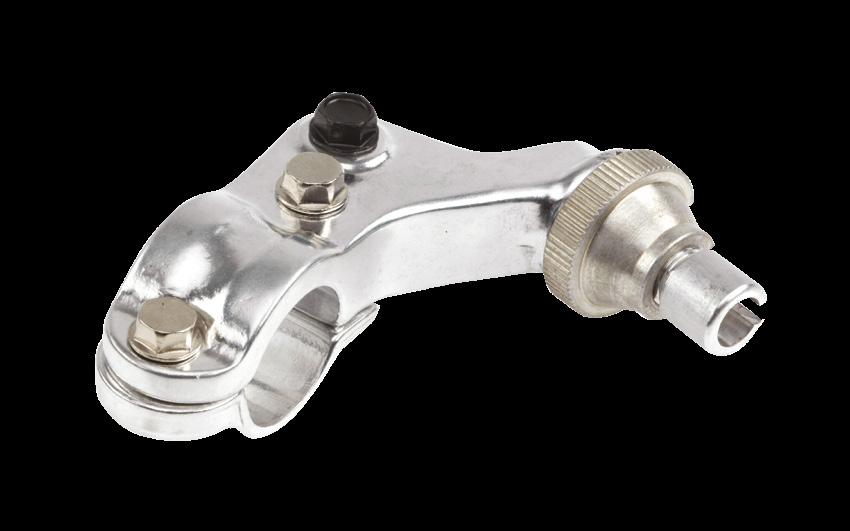

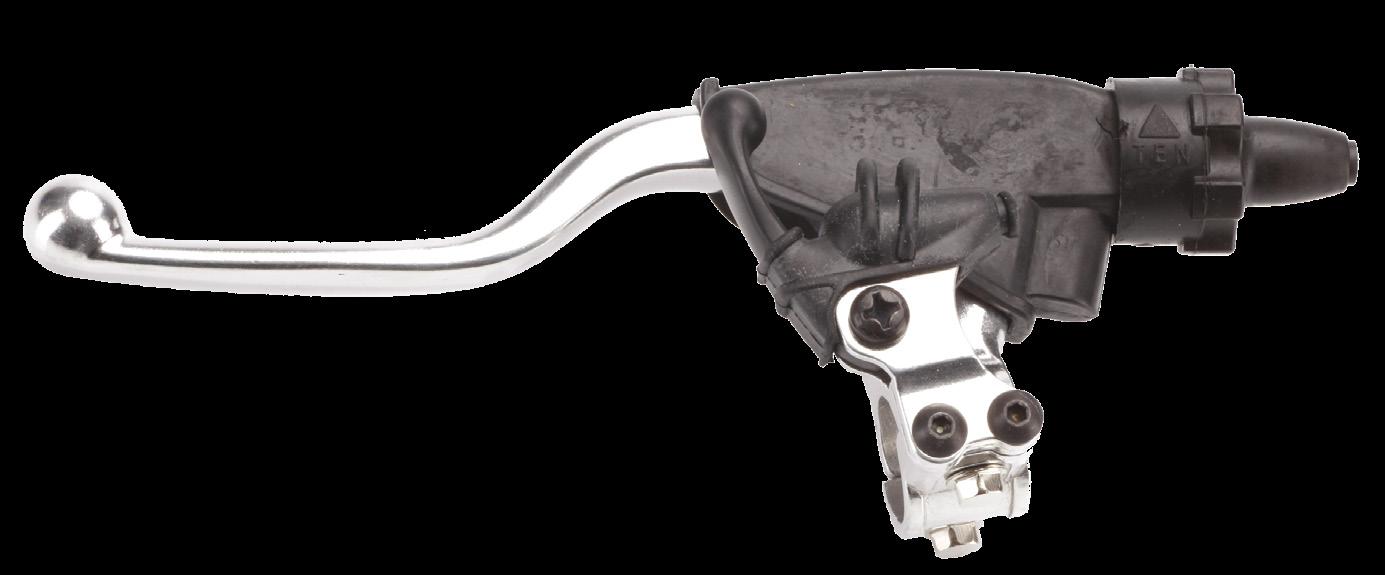

RFX OEM Clutch Lever Assemblies are replicas of the OEM part on modern motocross bikes and are available for a wide variety of machines.

Manufactured using a 100% cold forged process for extra strength, these assemblies are supplied with all the standard adjusters and rubber boots and are fully interchangeable with the OEM item.

Clutch assembly is supplied with a FXCL 10200 55SV lever

Clutch

CLUTCH LEVER ASSEMBLIES unIversaL Lever unIversaL 4 stroke Lever assemBLy

Manufactured using a 100% cold forged process for extra strength these lever holders are supplied with all the standard adjusters and are fully interchangeable with the OEM item. Available for a variety of machines. Clutch assembly is supplied with a

raCe

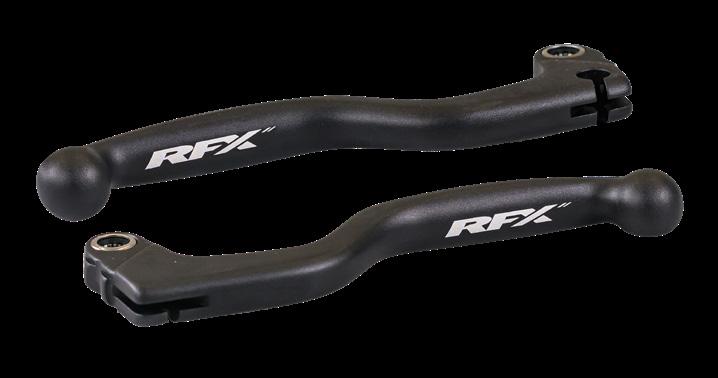

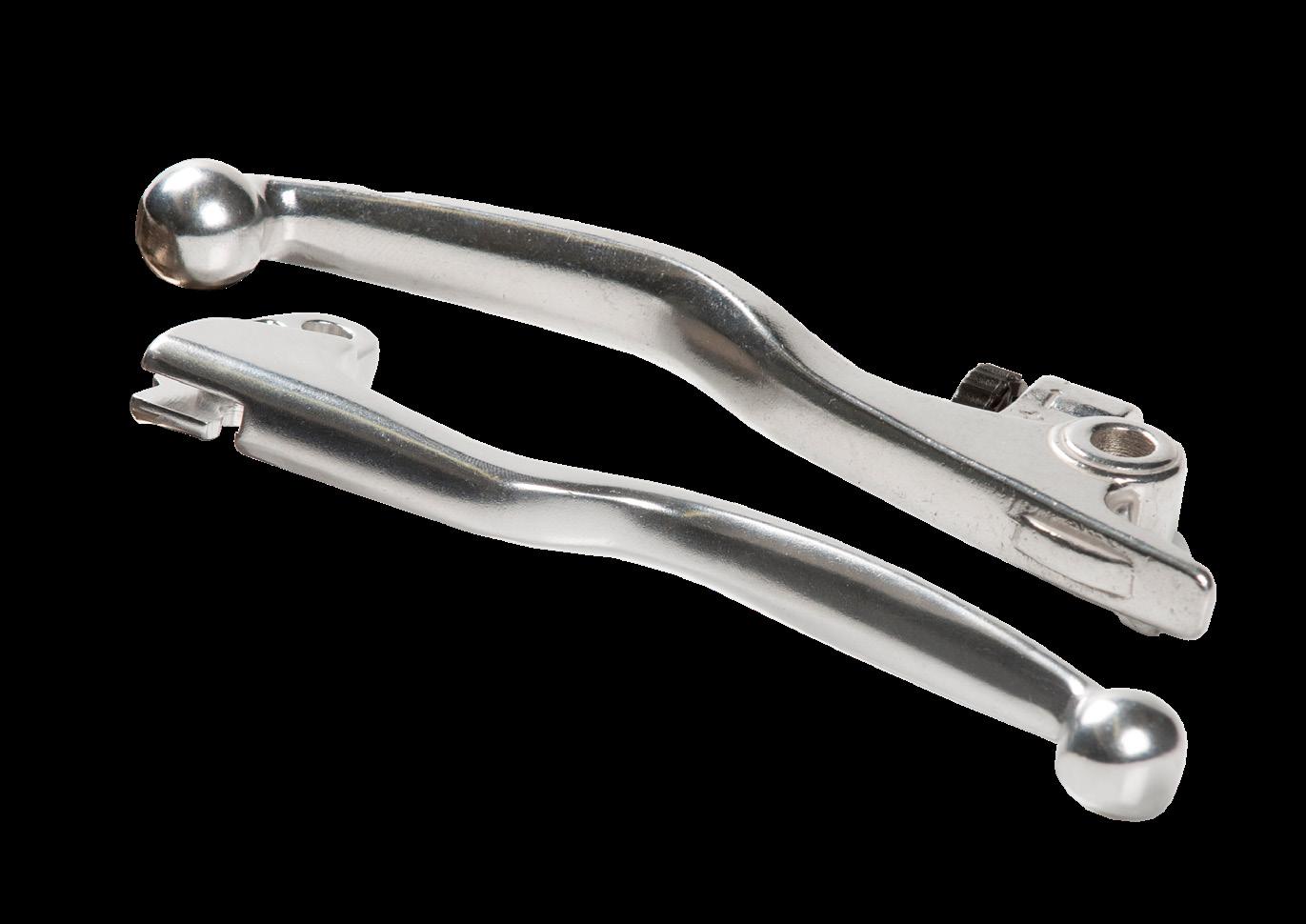

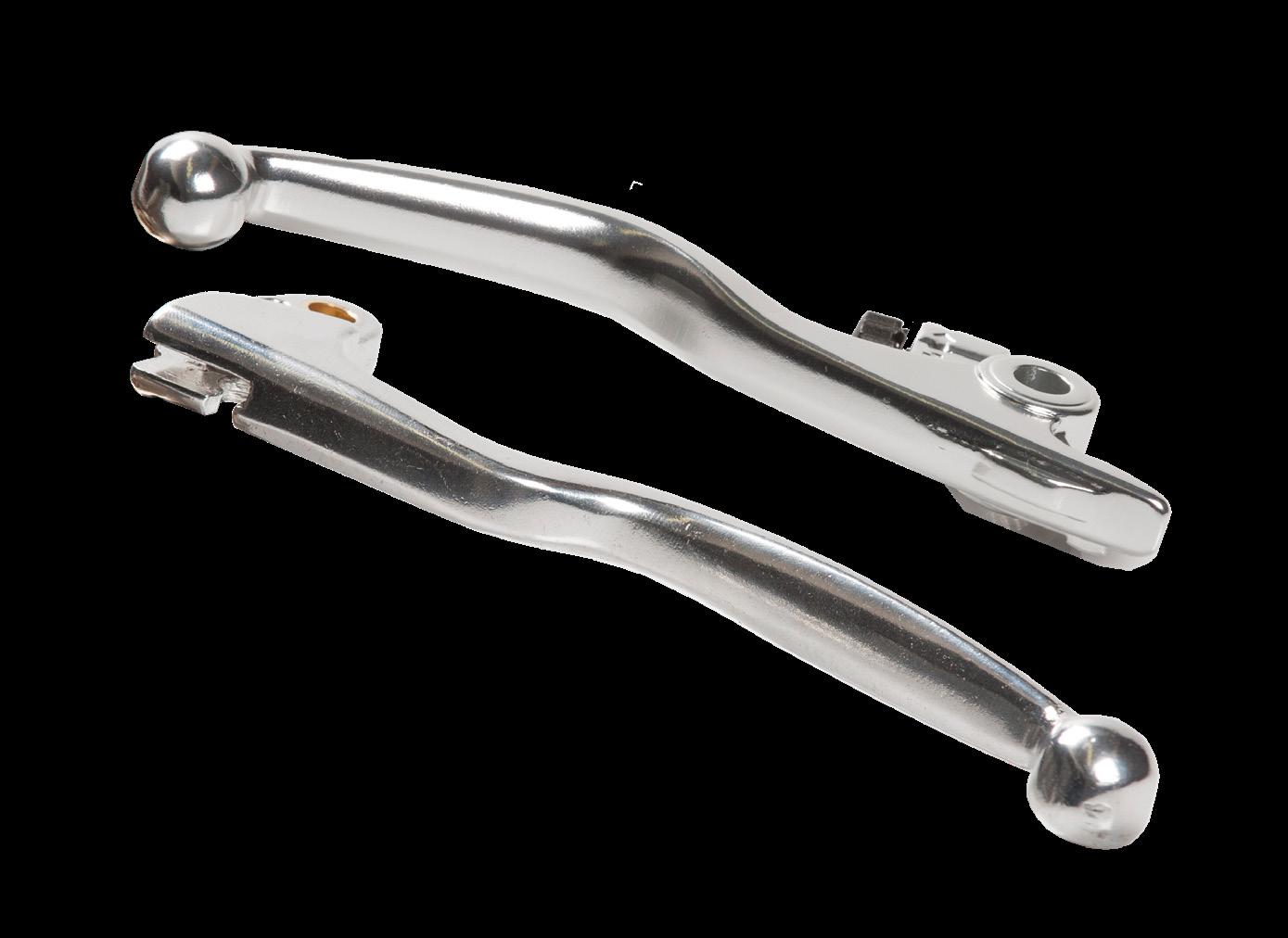

BRAKE & CLUTCH LEVERS pro serIes Levers

Pro Series Levers are manufactured using a metal forging process to increase inner core strength and resist damage in collisions. Featuring a needle bearing for a consistant smooth action. Black design with a laser etched RFX logo.

Now with a matte finish.

raCe serIes Levers

Race Series Levers are manufactured using a metal forging process to increase inner core strength and resist damage in collisions.

sport serIes Levers

Sport Series Levers are mass produced using die casting to drive down the cost, whilst maintaining a quality suitable for the average racer.

BRAKE & CLUTCH LEVERS

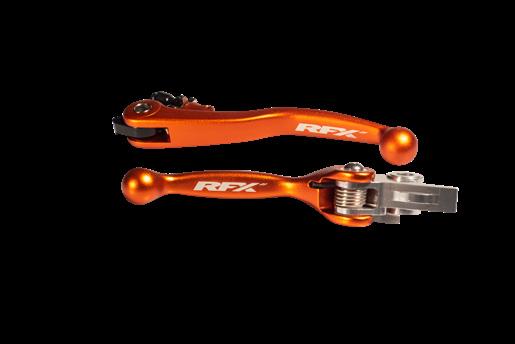

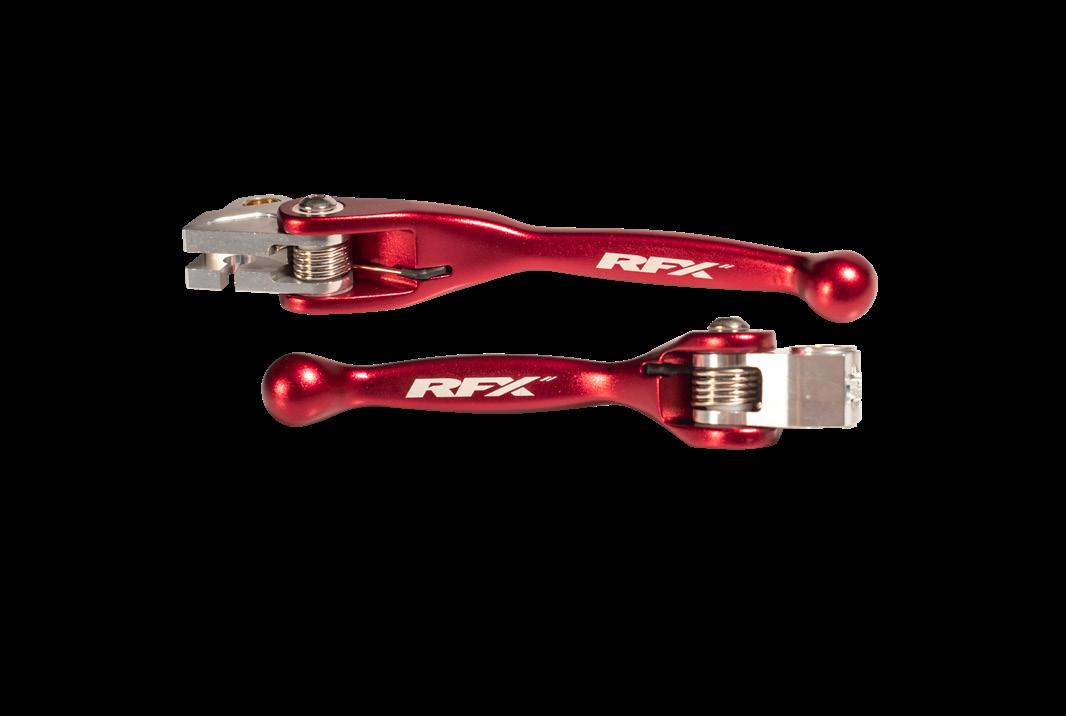

Race Series Flexi Lever Sets are a forged aluminium construction and colour anodized for a professional look.

Features

• Fully flexible design allows levers to rotate outwards in accidents

• Reach adjusters to allow the levers to be perfectly adjusted to rider preference

• Stainless steel springs to resist corrosion

• Phosper bronze lever pivot inserts for smooth lever action

• Spring and bush rebuild kits available to ensure proper lever action at all times

THROTTLE TUBES & ASSEMBLIES aLumInIum throttLe tuBe

RFX Pro Series Throttle Tubes are machined from billet aluminium and feature a sealed bearing and Teflon sleeve to provide an effortless throttle action. RFX Pro Series Tubes resist damage in a crash unlike standard plastic tubes. For these reasons they are used by many of the top race teams and riders.

Features

• Replacement throttle tubes for all popular off road bikes.

• Uses the same cam profile as the OEM part for proper throttle control.

• Hard anodized billet aluminium construction.

• Sealed ball bearing and Teflon sleeve virtually eliminate friction.

• Laser etched with RFX logo.

• Knurled grip mounted area.

• Reduced chance of damage if you crash.

pLastIC throttLe tuBe

Sports Series Plastic Throttle Tubes are an OEM replacement. Manufactured using Teflon coated nylon fabric to ensure a smooth feel and fit.

FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 174

oem throttLe assemBLIes

OEM replica throttle assemblies feature a die-cast throttle housing and plastic throttle tube. Complete with rubber boot as standard they are an ideal cost effective replacement for any throttle.

FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 175

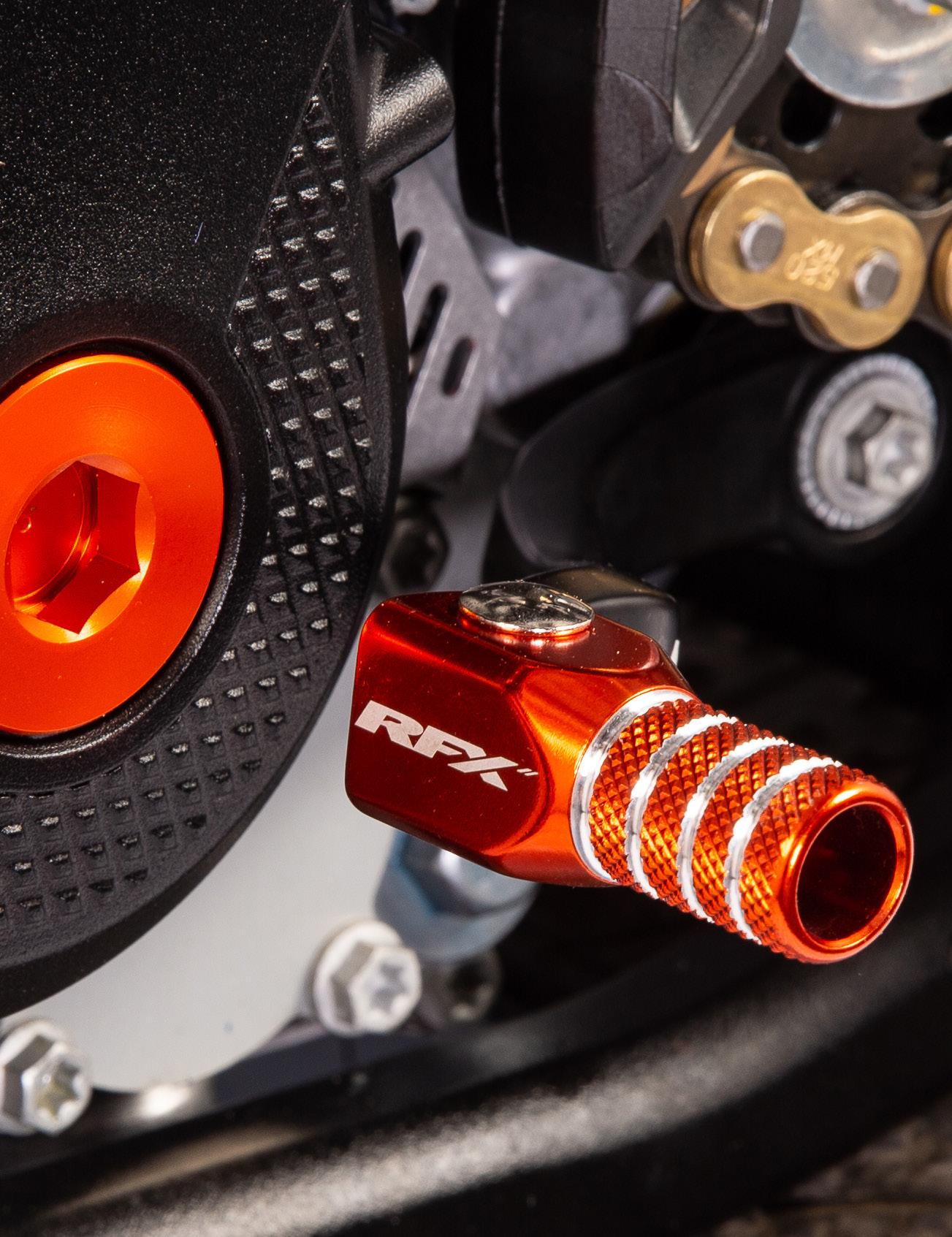

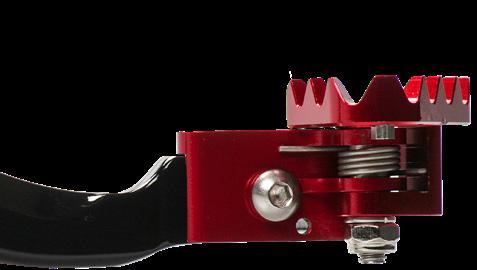

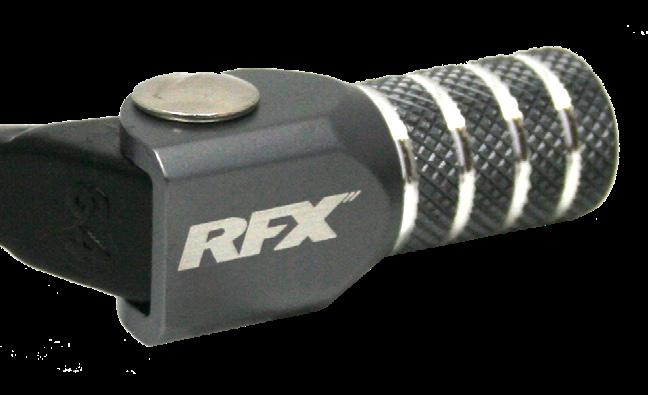

GEAR PEDALS FLeX+ CnC gear

RFX Hardware Factory Edition CNC parts are designed, tested and manufactured for the serious competitor.

Using our 30 years of racing and engineering experience we have blended quality designs, superior materials and precision manufacturing processes to create factory racing parts available to everyone.

RFX Flex+ Factory Edition gear levers offer the best in aftermarket replacement gear levers. Featuring a new style anti-stick tip which resists dirt build up thanks to an enclosed spring design, also included is a new style low profile tip bolt which stays tighter for longer.

Features

• New Anti-Stick folding gear tip

• New enclosed tip design

• New low profile gear tip bolt

• CNC machined shaft and tip for increased strength

• Knurled tip for improved gear shifts

• Stainless steel spring & Pivot to resist corrosion

• Laser etched RFX logo

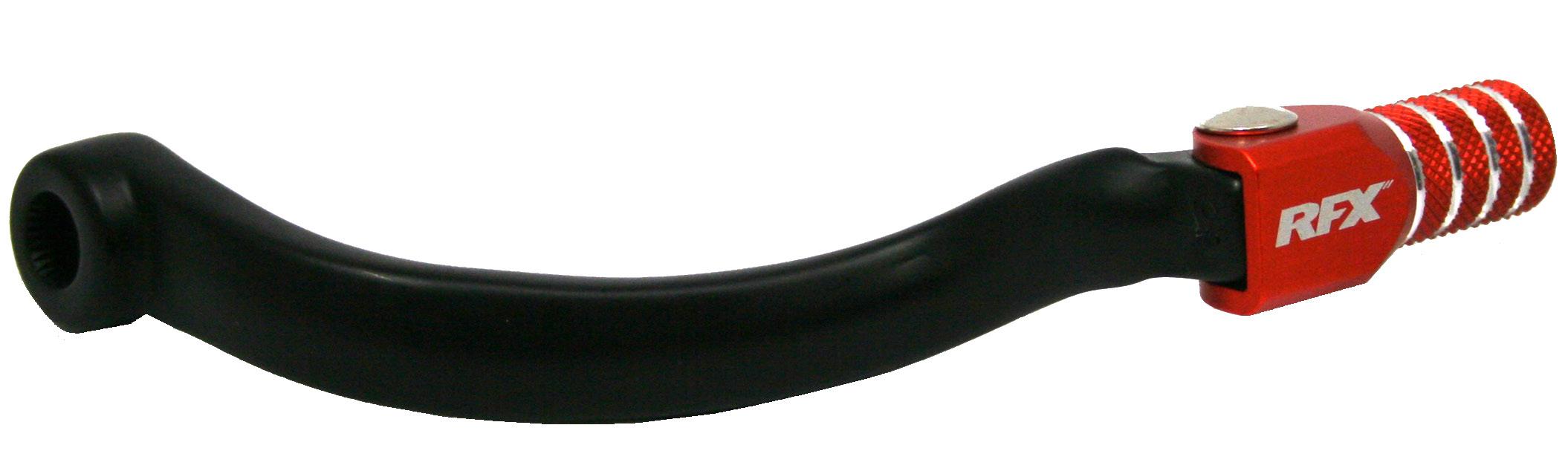

ForgeD gear peDaL GEAR PEDALS

RFX Race Series Gear Levers are the leader in OEM replacement gear levers.

Manufactured from high quality forged aluminium for improved strength and duarability with spring loaded forged knurled tip for improved gear shifts.

Features

• Forged aluminium shaft

• Forged knurled tip

• Lazer etched RFX logo

• Colour anodized for that factory look

• Stainless steel hardware

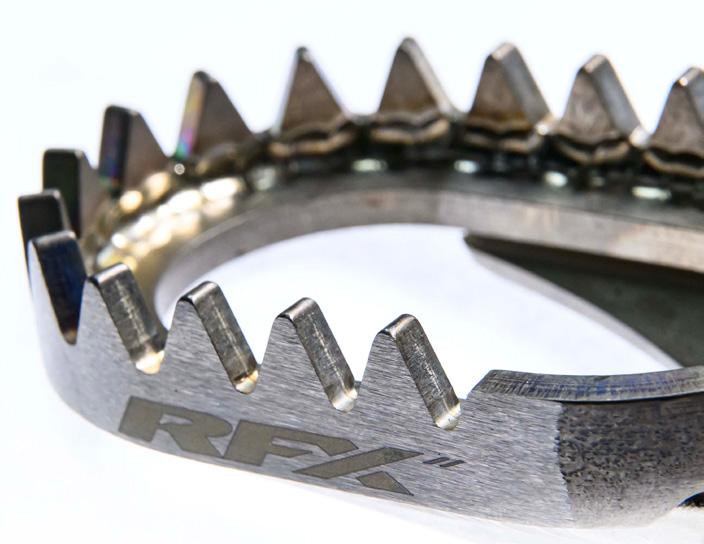

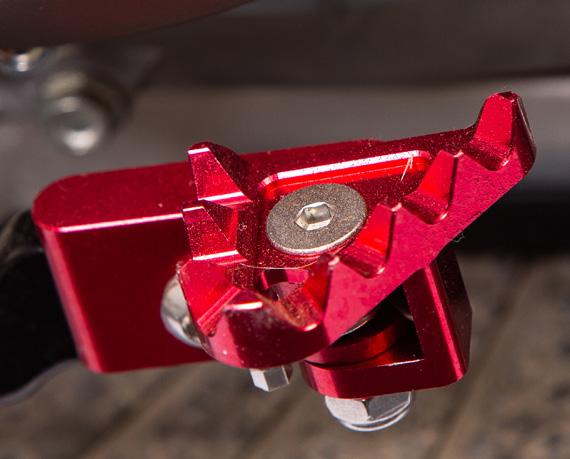

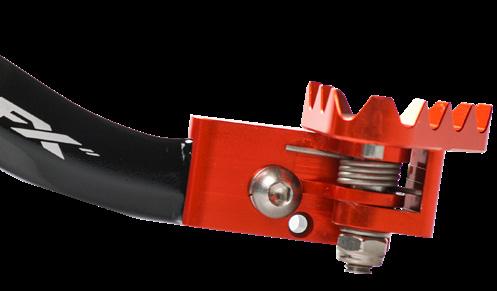

BRAKE PEDALS soLID tIp Brake

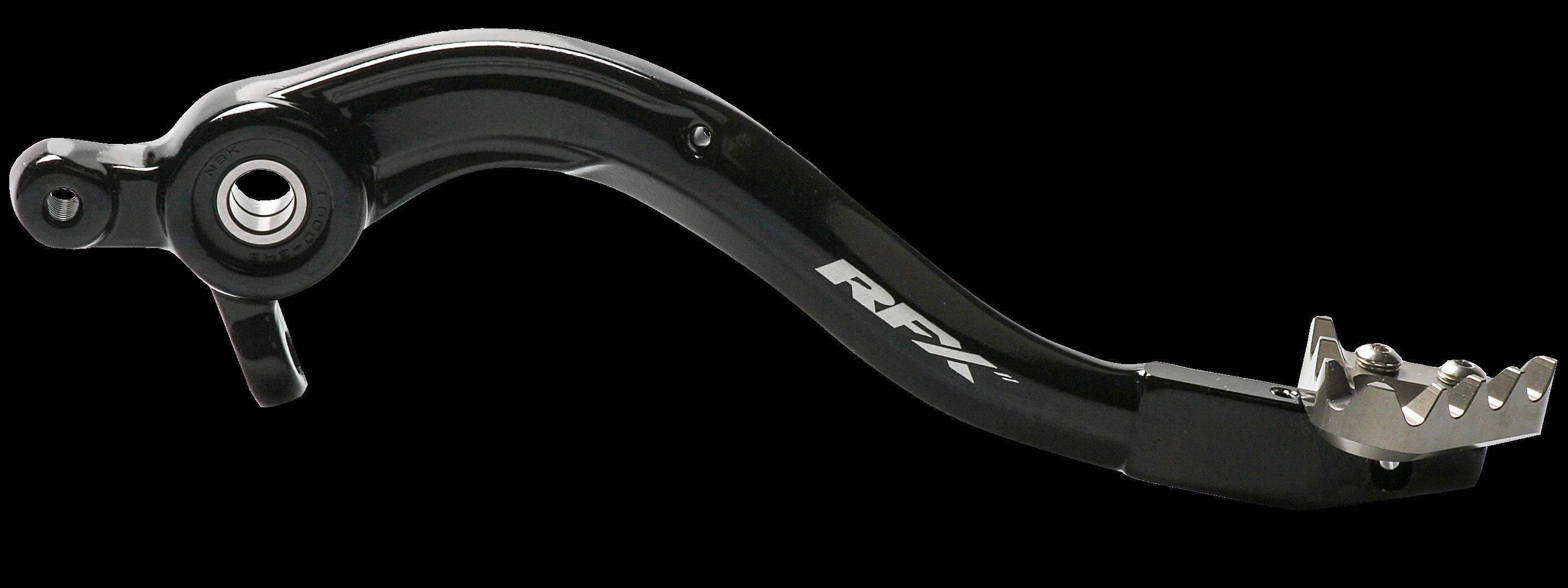

Pro Series Brake Pedals are manufactured from 6061-T6 aluminium alloy and feature an OEM type forged shaft, a smooth finish on the shaft helps to reduce the wear associated with a ridged design.

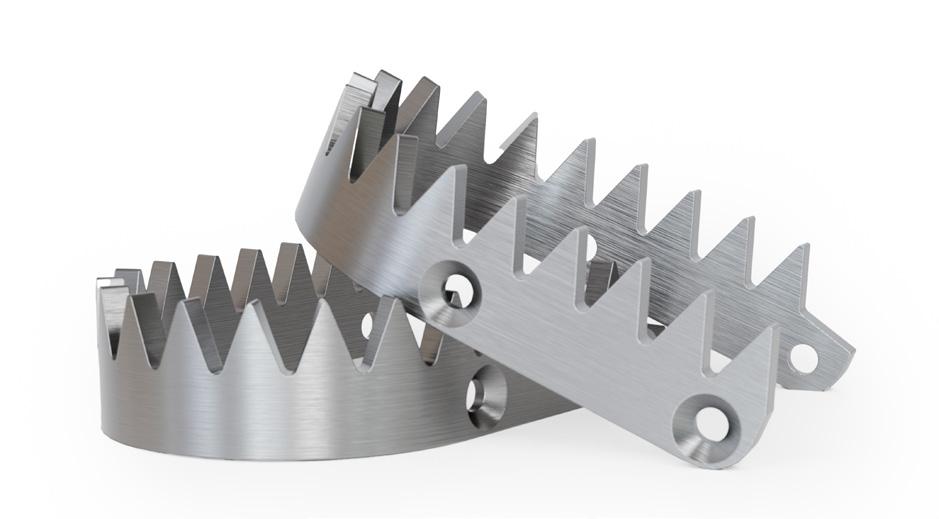

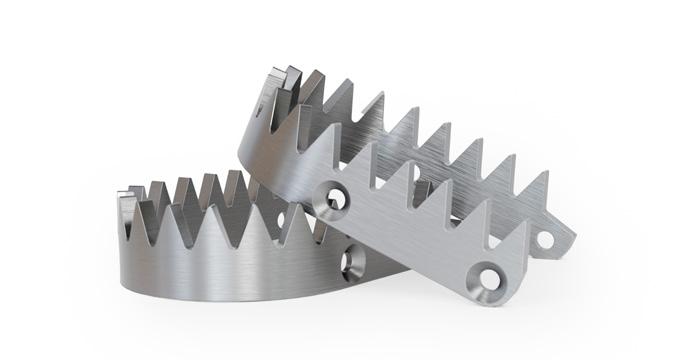

The tips are CNC machined and incorporate steel teeth to help grip in muddy conditions. These can also be adjusted into two different positions to suit different boot sizes.

Pro Series Brake Pedals also incorporate a cable brake snake, this helps prevent the pedal shaft being bent around in a collision.

The Factory Edition lever tip is hard anodized for ultimate wear resistance. Also available with colour anodized tips.

Features

• Anti-Stick folding gear tip

• 6061-T6 Billet solid tip, with flow design

• Brake snake with adjustable clamp

• New low profile gear tip bolt

• CNC machined shaft and tip for increased strength

• Knurled tip for improved gear shifts

• Stainless steel spring & Pivot to resist corrosion

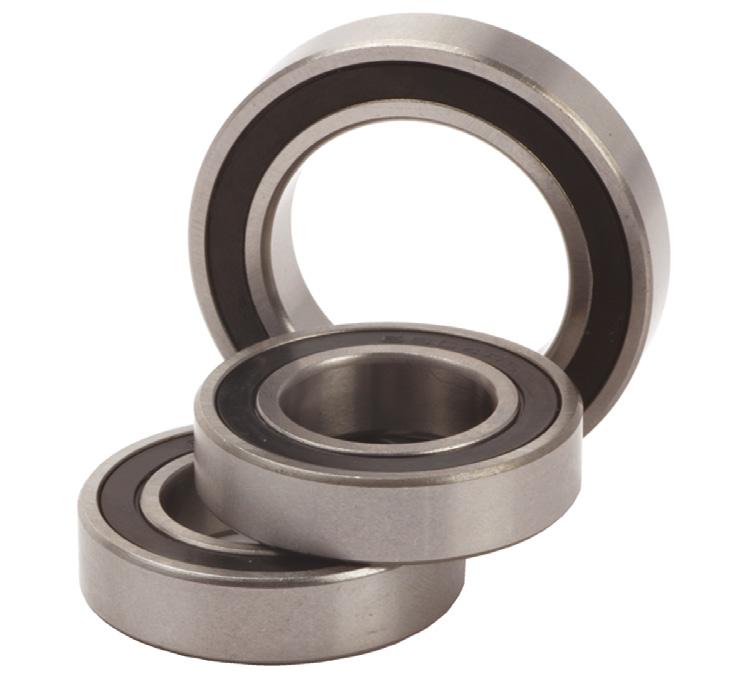

• Supplied complete with bearings and bushes for selected models

• Laser etched RFX logo

• Hard/ Colour Anodized

FLeXI tIp Brake peDaL BRAKE PEDALS

Pro Series Brake Pedals are manufactured from 6061-T6 aluminium alloy and feature an OEM type forged shaft, a smooth finish on the shaft helps to reduce the wear associated with a ridged design.

Pro Series Flexible Tips are CNC machined and feature a spring loaded rotatable tip which under impact such as in a rut will spin to reduce damage. The tip also features steel teeth to help grip in muddy conditions. Pro Series Flexible tips also incorporate a stop on the pivot tip, this stops the tip at 90 degrees of rotation preventing damage that can occur if the tip rotates under the clutch cover.

Pro Series Brake Pedals also incorporate a cable brake snake, this helps prevent the pedal shaft being bent around in a collision.

Features

• 6061 aerospace aluminium construction

• T6 heat treated to increase tensile strength

• Forged shaft for increased core strength

• Smooth shaft design to reduce surface wear

• CNC machined billet flexible tip

• Rotating action reduces impact damage

• Steel insert teeth for increased grip

• Mechanical stop on the tip

• Incorporated brake snake

• Colour anodized to prevent corrosion

• Laser etched logo FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 178-180

CNC MACHINED 6061-T6 BILLET

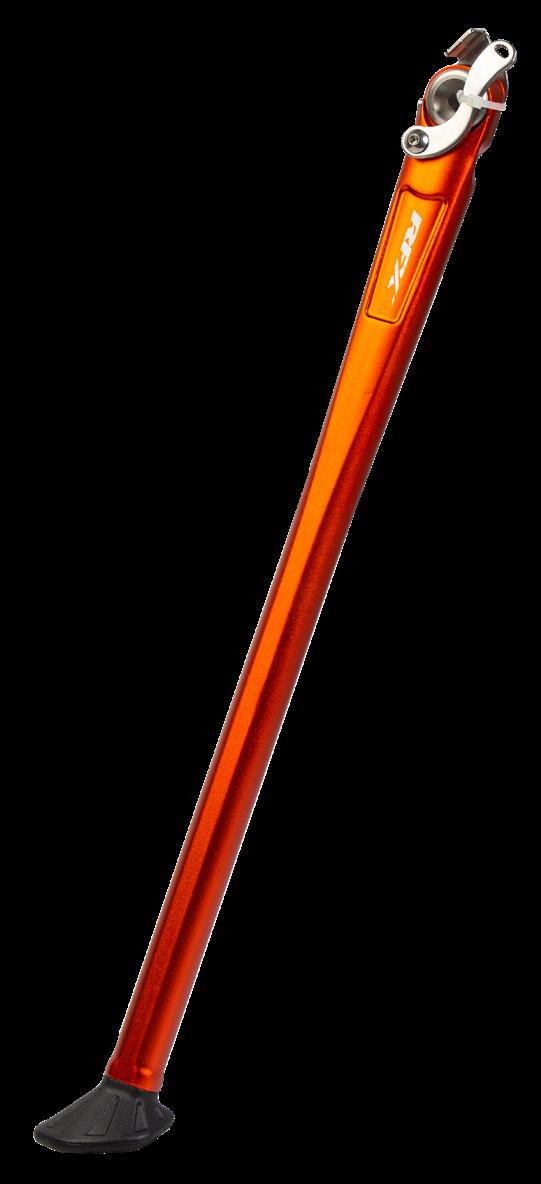

KICK STANDS pro sIDe stanD

6061-T6 BILLET INJECTION MOULDED

RFX side stand kits are forged from 6061- T6 Aluminum for increased strength and durability and come with an injection molded foot pad. Colour coded for your bike.

Features

• Forged aluminium construction

• Injection moulded foot pad.

• Hard anodized finish

FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 177

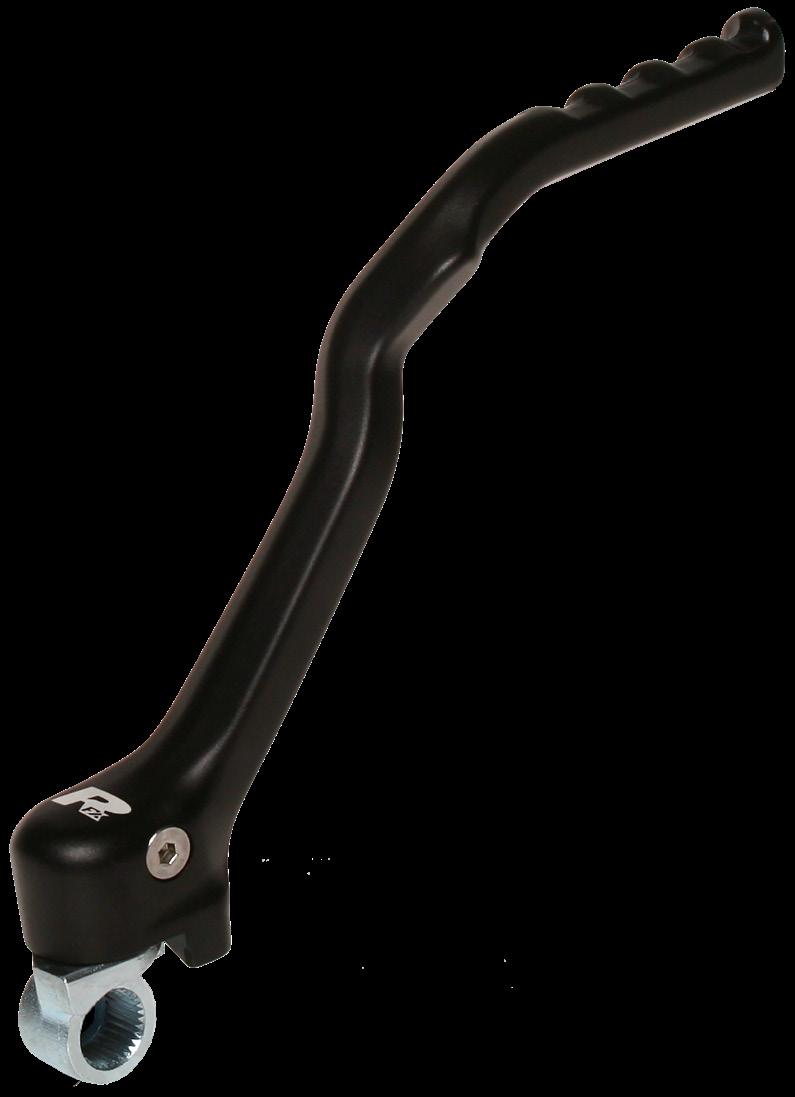

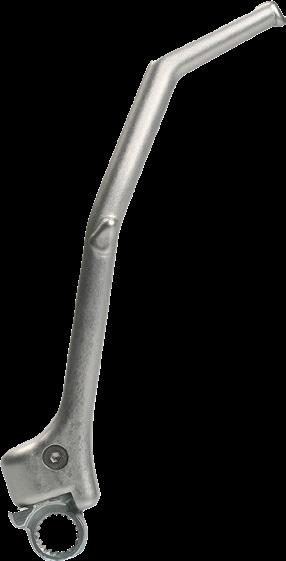

KICKSTARTS pro kICkstart Lever

RFX Pro Series Kickstarts meet or exceed OEM specification. Kickstart arms are manufactured from 7075T6 forged aluminium and feature a forged steel knuckle to provide strength and optimum fit. They come in a hard anodized finish to increase corrosion resistance and help keep that factory look.

Features

• OEM replacement

• Forged aluminium construction

• Forged steel knuckle

• Hard anodized finish

raCe kICkstart Lever

RFX Race Series Kickstarts meet or exceed OEM specification. Kickstart arms are manufactured from forged aluminium and feature a forged steel knuckle to provide strength and optimum fit.

Features

• OEM replacement

• Forged aluminium construction

• Forged steel knuckle

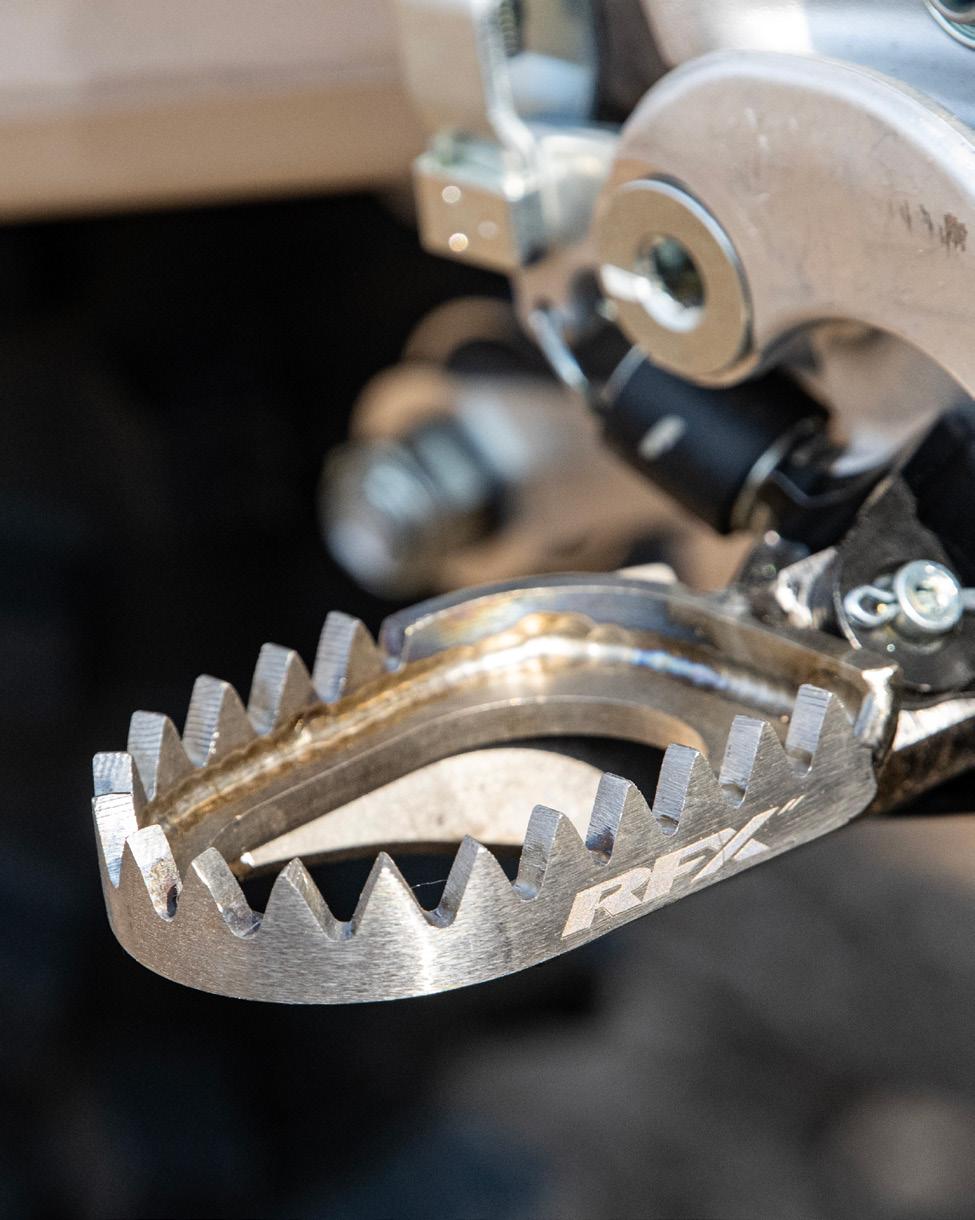

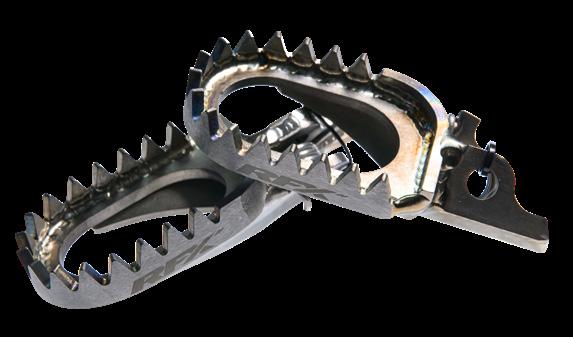

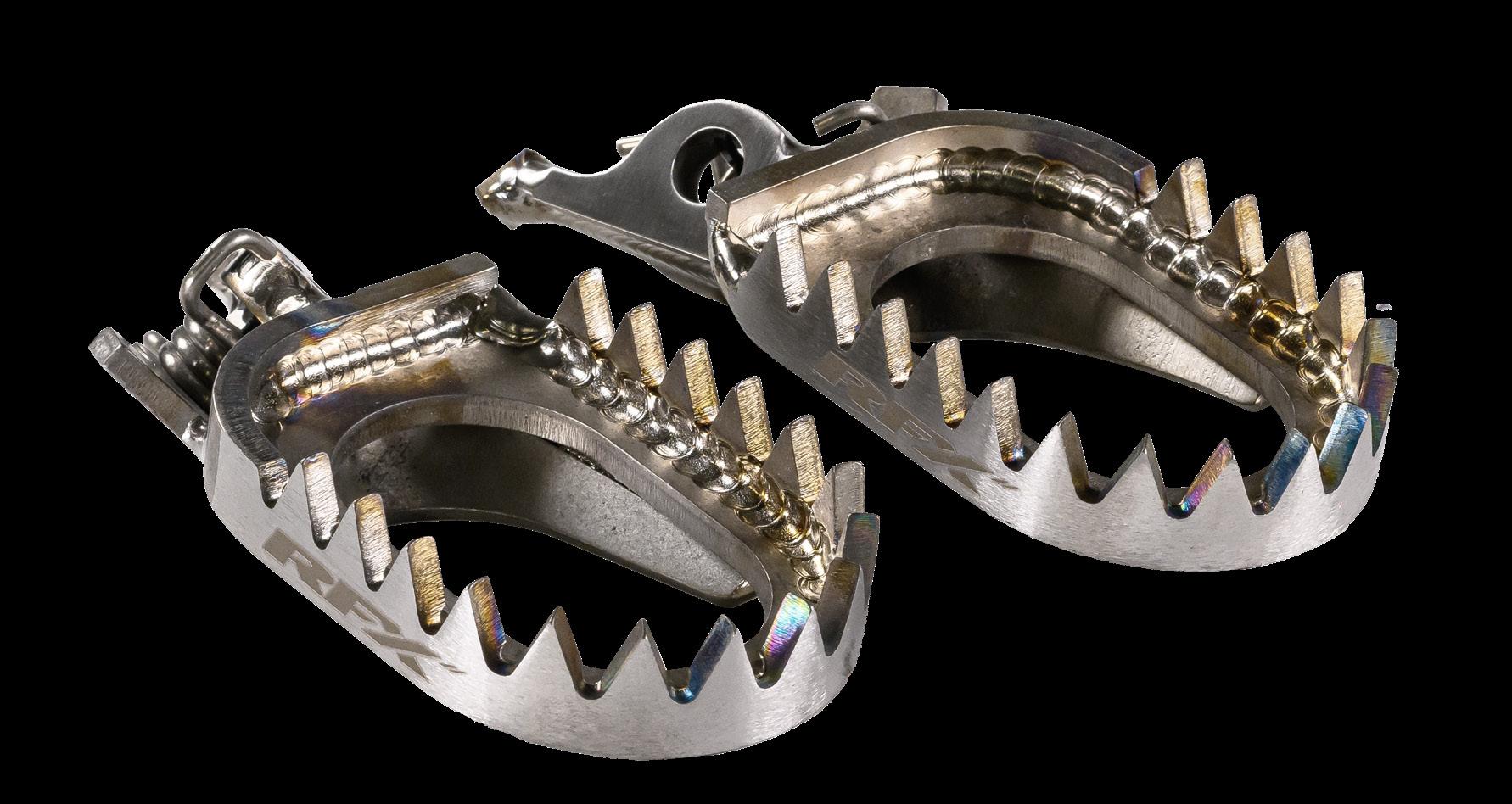

FOOTRESTS tItanIum Footrests

Ti-6AL-4V TIG-WELDED

RFX Pro Series Titanium Footrests offer maxium strength and durability at approximately half the weight of factory fitted steel footrests.

The high strength to weight ratio of titanium allows for a wider profile and thicker teeth for optimal grip and reduced boot-wear.

Manufactured from aerospace grade Ti-6AL-4V Titanium and tig welded by hand by highly skilled welding engineers to produce strong, stressfree welds.

Features

• Aerospace-grade Ti-6AL-4V Titanium

• Tig-welded construction

• Lightweight

• Hand fabricated for high precision

• Reduced boot-wear

• Wide profile

FOOTRESTS tI/aLumInIum Footrests

Designed and developed in conjunction with RFX sponsored race teams, RFX Pro Series Ti-Aluminium Footrests utilise the strength and durability of titanium teeth in an aluminium alloy base, making them both strong and lightweight with an overall clean, weld-free aesthetic.

The Ti-6AL-4V aerospace grade titanium teeth provide superior grip and wear-resistance with the added advantage of being replaceable, which is significantly more cost effective than replacing a whole set of titanium footpegs. With thicker teeth than their steel predecessors boot-wear is a thing of the past.

With replaceable titanium teeth

The lightweight base has been CNC machined from 6061-T6 aluminium alloy and hard anodized for ultimate wear-resistance.

Features

• Aerospace-grade Ti-6AL-4V Titanium

• 6061-T6 Aluminium alloy

• Lightweight

• Reduced boot-wear

• Replaceable titanium teeth

• Hard-anodised alloy base

CNC MACHINED 6061-T6 BILLET

Ti-6AL-4V

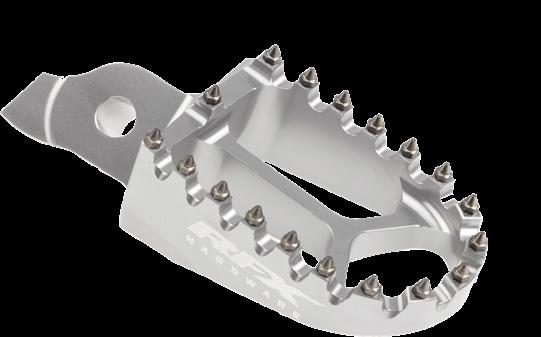

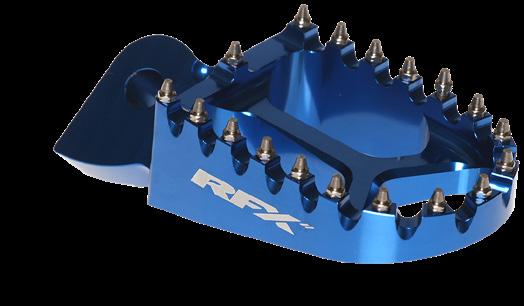

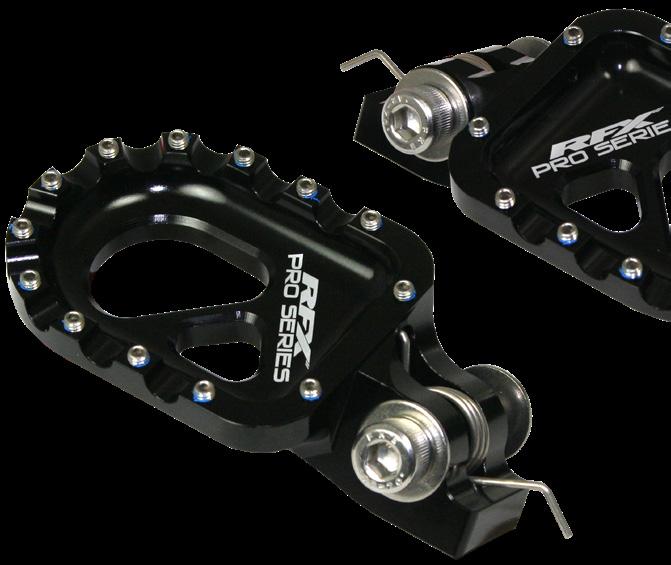

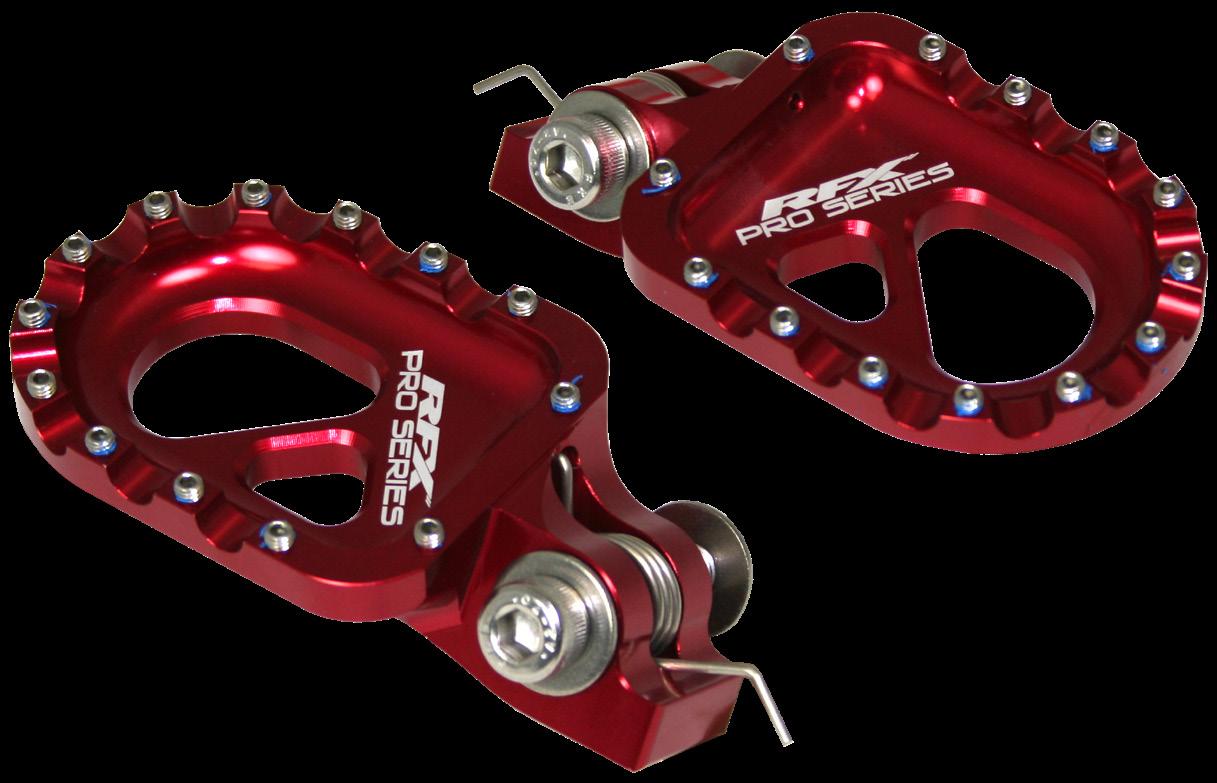

FOOTRESTS CnC Footrests

RFX Hardware Pro Series CNC footrests are designed, tested and manufactured for the serious competitor.

Using our 30 years of racing and engineering experience we have blended quality designs, superior materials and precision manufacturing processes to create factory racing parts available to everyone.

Features

• 100% CNC machined from 6061-T6 grade aluminium

• Super wide 55mm platform

• Replaceable screw-in stainless steel teeth

• Colour anodized to suit bike model

• Flow through mud clearing design

• Laser etched RFX logo

• Sold complete with 5 spare teeth for longer life

CNC MACHINED 6061-T6 BILLET

FOOTRESTS trIaLs Footrests

RFX Hardware Pro Series CNC footrests are designed, tested and manufactured for the serious competitor.

Using our 30 years of racing and engineering experience we have blended quality designs, superior materials and precision manufacturing processes to create factory racing parts available to everyone.

Features

• 100% CNC machined from 6061T6 grade aluminium

• Super wide 55mm platform

• Replaceable screw-in stainless steel teeth

• Colour anodized to suit bike model

• Flow through mud clearing design

• Laser etched RFX logo

• Sold complete with 5 spare teeth for longer life

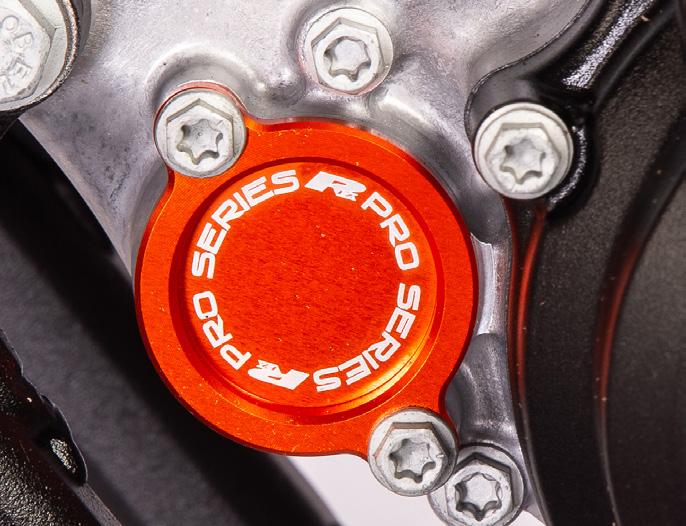

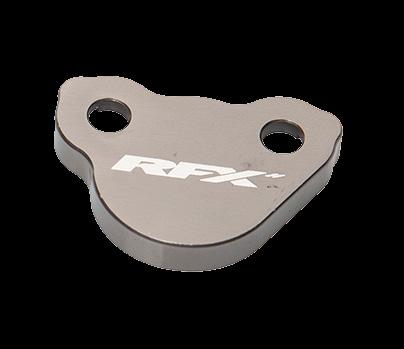

RESERVOIR CAP KITS

RFX Pro Series Reservoir Covers are CNC machined from 6061-T6 aluminium and are a perfect factory style replacement to your standard reservoir covers.

Features

• CNC machined from 6061-T6 grade aluminium

• Tighter tolerances than OEM cast part

• Highly polished then colour anodized for that factory look

• Laser etched RFX logo

• Available in a variety of colours for a wide range of models

• Also available KTM clutch reservoir covers to accept standard hot start levers longer life

Cap Kits are also available for Gas Gas, Beta, Sherco & Fantic. See fitment charts on page 172

husQvarna Cap kIts

6061-T6 BILLET

suZukI Cap kIt

yamaha Cap kIt

kaWasakI Cap kIt Brake CooLIng

CNC machined from aerospace grade aluminium featuring a cooling fin design and larger volume to help reduce brake fluid temperature.

• Highly polished then colour anodized

• Only available for KTM rear brakes

• Available in black, blue and orange

FACTORY KITS

Kits available in 6 colours: Red, Green, Yellow, Blue, Black, Orange

RFX Pro Series Factory Kits gives your bike the full factory look in one pack.

Machined from 6061-T6 grade aluminum, they are a perfect factory style replacement for your standard parts.

Features

• Brake Hose Clamps

• Engine Plugs

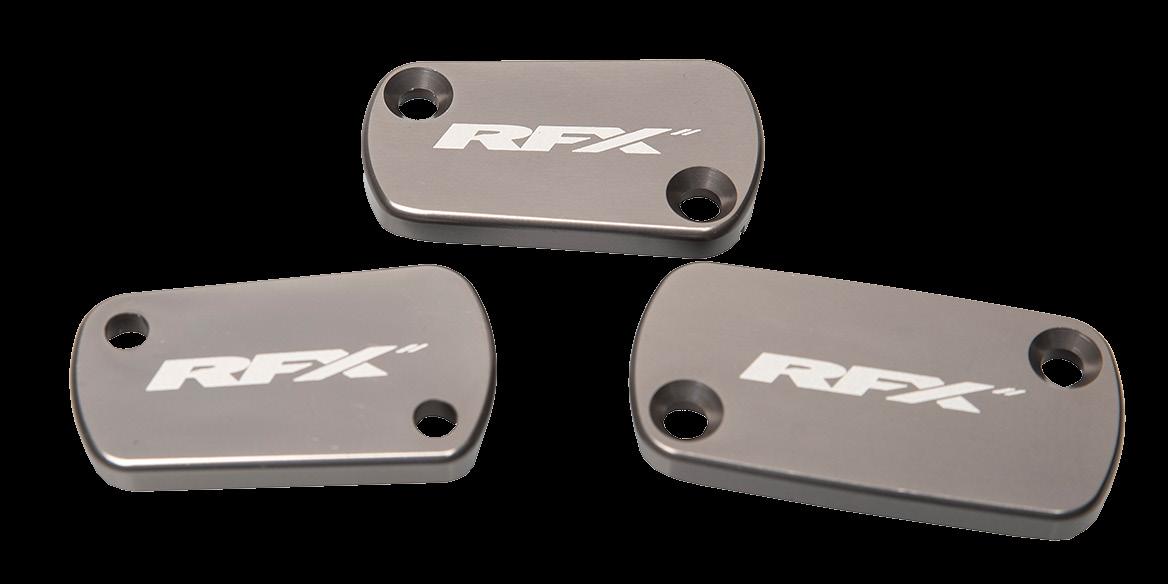

• Master Cylinder Covers

• Valve Caps

• Rim Lock Nuts & Washers

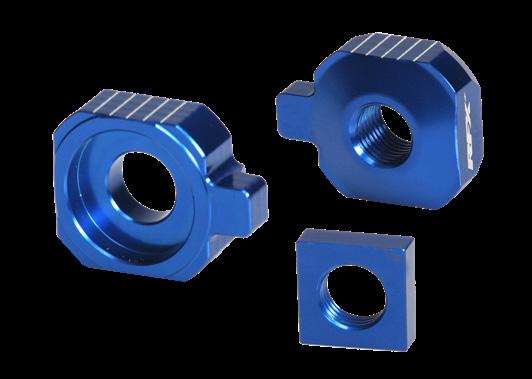

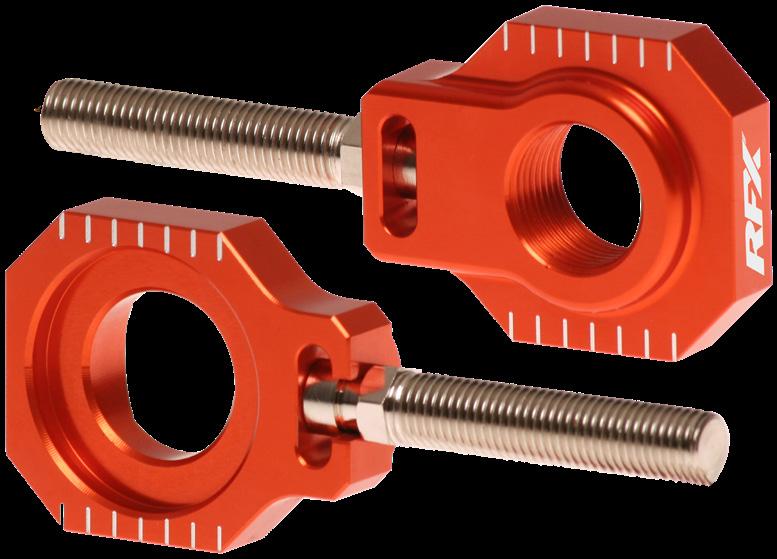

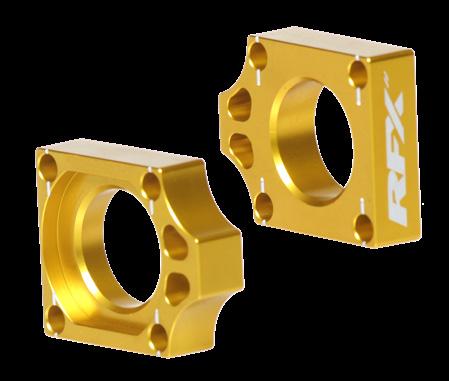

• Rear Axle Blocks & Adjusters

• Steering Stem Nuts

*Kits contents vary per application

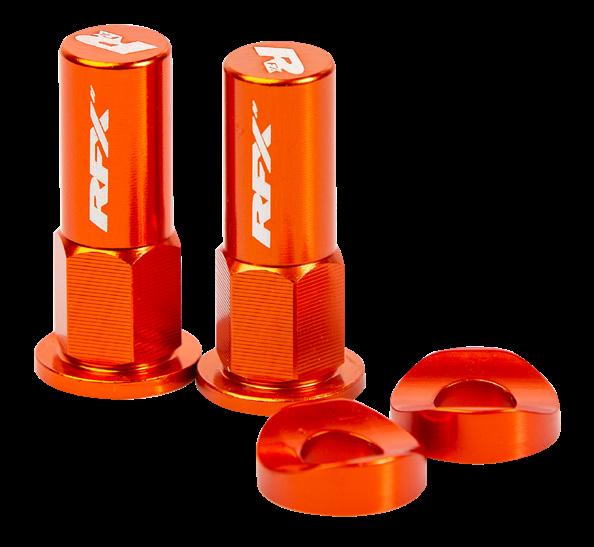

rIm LoCk nuts & Washers

FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 185

6061-T6 BILLET

engIne pLugs

steerIng stem nuts

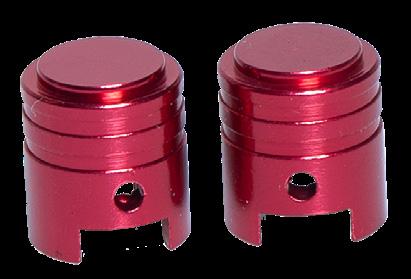

vaLve Caps

Front reservoIr Caps

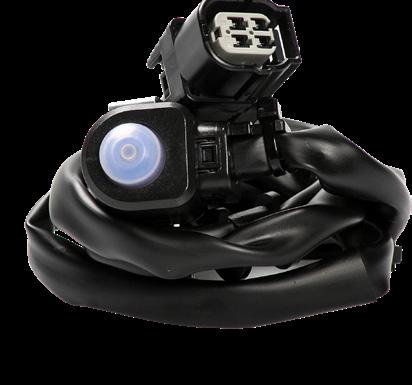

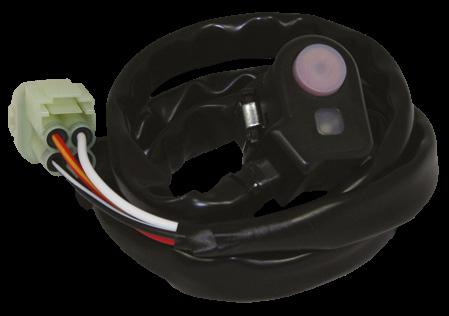

SWITCH GEARS

RFX Race Series Switch Gears are an exact OEM replacement part complete with the same couplings, fasteners, connectors and exact cable lengths as the original part.

Features

• OEM replacement

• Accepts all original connectors

• OEM cable length

raCe serIes

Model Year Part Number

CRF250 15-17 FXKB 11000 55ST

CRF250 18-21 FXKB 10500 55ST

CRF450 15-16 FXKB 11000 55ST

CRF450 17-20 FXKB 10500 55ST

raCe serIes

Model Year Part Number

CRFX250 04-17 FXKB 10900 55ST

CRFX450 05-17 FXKB 10900 55ST

CRF250 18-21 FXKB 11200 55ST

CRF250 22-26 FXKB 11300 55ST

CRF450 17-20 FXKB 11200 55ST

CRF450 21-24 FXKB 10600 55ST

CRF450 25-26 FXKB 11300 55ST

Model Year Part Number

CR80/85 86-07 FXKB 10100 55ST

CR125/250/500 86-07 FXKB 10100 55ST

CRF150 07-26 FXKB 10100 55ST

CRF250 04-09 FXKB 10100 55ST

CRF250 10-13 FXKB 10200 55ST

CRF250 14-17 FXKB 10300 55ST

CRF250 18-21 FXKB 10500 55ST

CRF450 02-08 FXKB 10100 55ST

CRF450 09-12 FXKB 10200 55ST

CRF450 13-16 FXKB 10300 55ST

CRF450 17-24 FXKB 10500 55ST

CRFX250 04-18 FXKB 10100 55ST

CRFX450 05-18 FXKB 10100 55ST

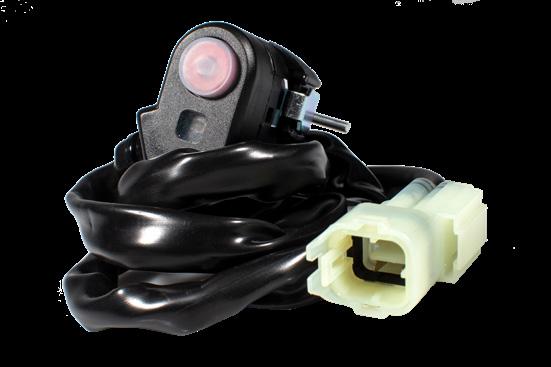

honDa mappIng Button

honDa start Button

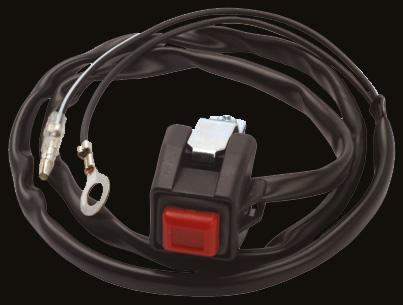

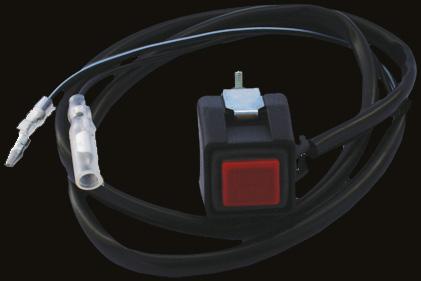

honDa kILL Button

serIes

- raCe serIes

SWITCH GEARS

raCe serIes

F orks

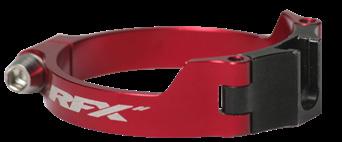

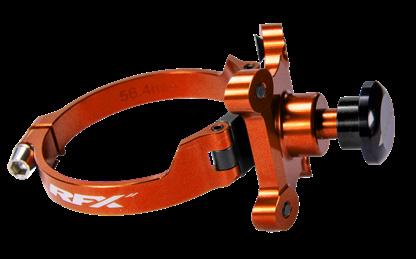

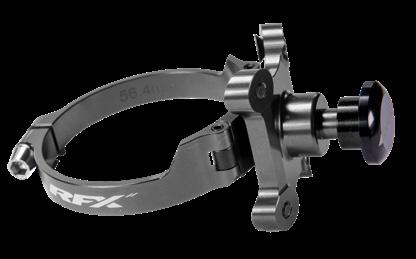

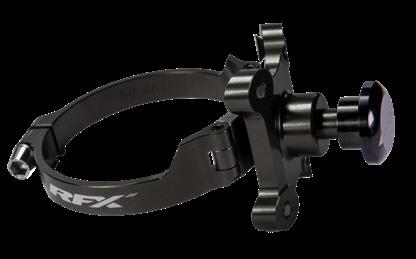

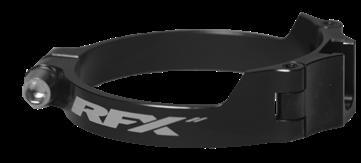

LAUNCH CONTROLS LaunCh ControL

New for 2024, the RFX Single button Launch Control comes with a much wider button making it much easier and quicker to locate and activate allowing you to focus on that all-important holeshot.

CNC Machined from billet aluminium and featuring a hinged design to eliminate fork leg removal on installation, a steel catch to reduce wear and a four bolt plunger to resist stone damage.

Features

SINGLE BUTTON LAUNCH CONTROL:

• New wider button

• CNC machined from 6061-T6 billet aluminium

• Hinged design to eliminate fork leg removal on installation

• Steel catch to reduce wear

• Four bolt plunger to resist stone damage

LATCH:

• Two bolt design ensures no hindrance on fork guard

• Deeper profile latch ensures maximum hold

• Easy installation due to hinged design

• CNC Aerospace grade billet aluminium construction

• Hard anodized colour

• RFX laser etched logo

• Tested by top UK race teams

HARD

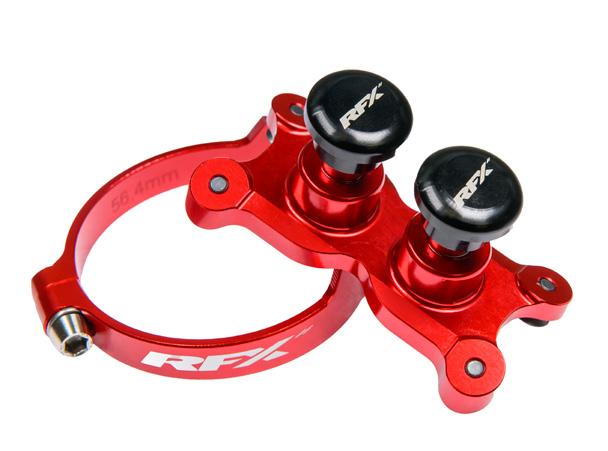

DuaL-Button LaunCh ControL LAUNCH CONTROLS

The dual button design allows rider preference in different conditions and features a new plunger which is machined further away to give greater clearance on new KTM models but also has extra reach to ensure max engagement. The hinged latch design eliminates snag on the rear of the fork guard by replacing the rear bolt with with two smaller bolts in the front.

Features

DUAL BUTTON LAUNCH CONTROL:

• New wider button

• Allows for rider preference in different conditions

• Plunger sits further away to give greater clearance (KTM) and has extra reach to ensure max engagement

• Low profile design is only 20g heavier than single button

• Four bolt design for greater security

• CNC 6061-T6 grade billet aluminium construction

• Hard anodized colour

LATCH:

• Two bolt design ensures no hindrance on fork guard

• Deeper profile latch ensures maximum hold

• Easy installation due to hinged design

• CNC 6061-T6 grade billet aluminium construction

• Hard anodized colour

• RFX laser etched logo

• Tested by top UK race teams

HARD ANODISED CNC MACHINED 6061-T6 BILLET

FORK ACCESSORIES Fork aIr BLeeDers

Kayaba.Showa (M5x0.8) Red FXFB 101M5 99RD

Kayaba.Showa (M5x0.8) Black FXFB 101M5 99BK

Kayaba.Showa (M5x0.8) Blue FXFB 101M5 99BU

Kayaba.Showa (M5x0.8) Green FXFB 101M5 99GN

Kayaba.Showa (M5x0.8) Yellow FXFB 101M5 99YL

Kayaba.Showa (M5x0.8) Silver FXFB 101M5 99SV WP (M4x0.7) Orange FXFB 501M4 99OR

RFX Pro Series Fork Air Bleeders allow you to remove the excess air from both original cartridge and modern dual chamber forks (not for use with air forks). This allows for proper operation of the forks as excess air makes the forks feel harder than normal and can eventually lead to the seals failing.

Features

• Ensures proper fork operation

• Quick installation

• No tools required to operate once installed

• CNC Aerospace grade billet aluminium & stainless steel construction

• RFX laser etched logo

• Tested by top UK race teams

Fork seaLs

RFX offer a wide range of fork seals to suit most MX & Enduro Models. Seals are manufactured from high quality base materials and are made to OEM specification, to guarantee quality & durability. RFX Fork Seal Kits come in a pack of two.

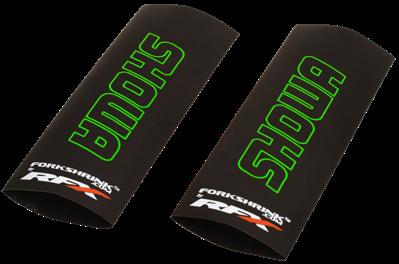

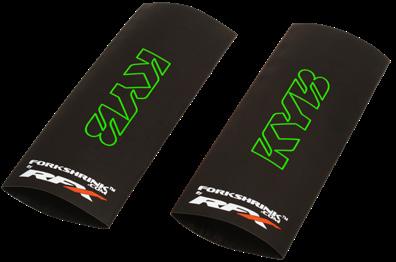

UPPER FORK GUARDS

- FXFG 10000 55YL

shoWa Fork guarDs

kyB Fork guarDs

SHOWA Black/White

- FXFG 10100 55WH

- FXFG 10000 55WH

- FXFG 20100 55WH

- FXFG 20000 55WH

ne

IGNITION COVERS kaWasakI IgnItIon Cover

RFX Pro Series Ignition Covers are CNC machined from a solid billet of 6061-T6 aluminium which allows thin, lightweight sections to be machined whilst still increasing strength and durability over standard covers. This helps to resist damage from stones/rocks/footrests and gear pedals which can put a hole in a standard cover.

Pro Series Covers also feature an extra tough dark titanium grey Akadized surface treatment which drastically increases the wear resistance from boots and grit to give a lasting stylish look.

Features

• High Grade 6061-T6 Aluminium.

• CNC Machined.

• Ultimate durability and strength.

• Lightweight.

• Hard wearing Akadized surface treatment.

• Lasting stylish look.

AKADIZED CNC MACHINED 6061-T6 BILLET

suZukI IgnItIon Cover

honDa IgnItIon Cover

yamaha IgnItIon Cover

ktm/husQ IgnItIon Cover

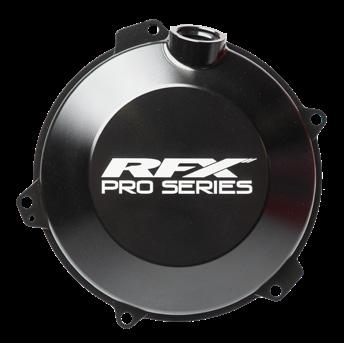

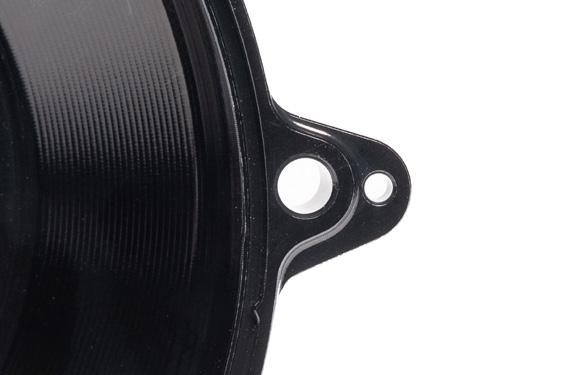

CLUTCH COVERS ktm CLutCh Cover

RFX Pro Series Clutch Covers are manufactured to increase oil capacity and circulation improving clutch performance and longevity. Featuring a deeper profile to increase oil capacity by 100cc helps reduce oil temperature in long races especially in extreme muddy/sandy conditions where clutch abuse is most common. Selected models also feature an internal scoop to increase oil flow to the centre of the basket.

RFX Pro Series Clutch Covers are CNC machined from a solid billet of 6061-T6 aluminium which allows thin lightweight sections to be machined whilst still increasing strength and durability over standard covers. This helps to resist damage from stones/rocks/footrests and brake pedals which can put a hole in a standard cover.

Features

• 1.5mm deeper profile for increased oil capacity

• Inner scoop design on selected models

• Reduced oil temperature

• High grade 6061-T6 aluminium

• CNC machined

• Ultimate durability and strength

• Lightweight

• Hard wearing akadized surface treatment

• Lasting stylish look

AKADIZED

CLutCh Cover FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 188

kaWasakI CLutCh Cover

CLutCh Cover

yamaha CLutCh Cover

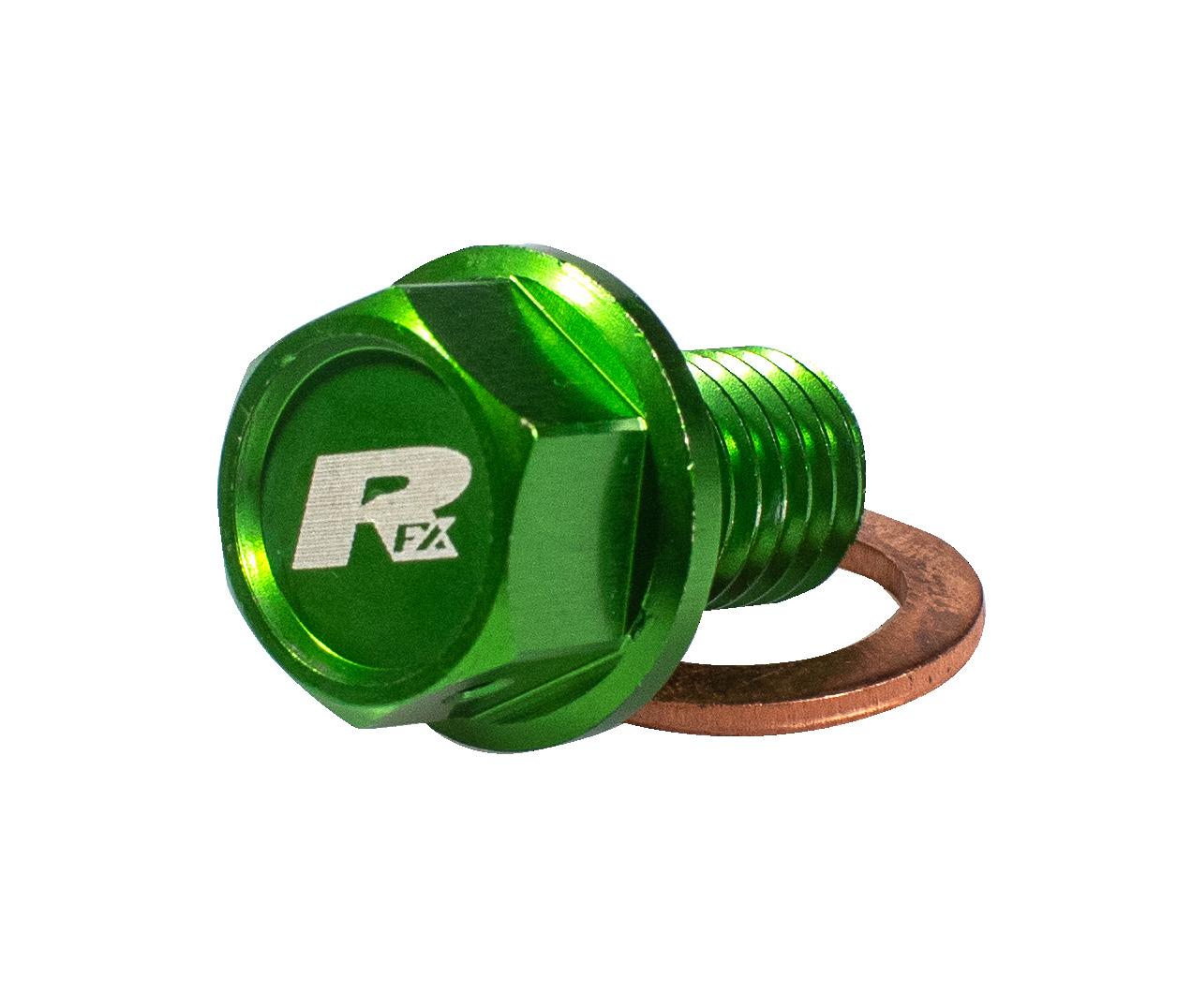

oIL DraIn BoLts OIL & FUEL

RFX Pro Series Fork oil drain bolts contain a magnet to attract any metal debris floating in the oil, which helps to prolong the life of the engine and gearbox.

Manufactured from lightweight 6061-T6 aluminium alloy and colour anodized for that factory look.

Features

• Magnet catches metal contaminants in oil to prolong engine life

• CNC Machined from aluminum 6061-T6 with a lightweight design

CNC MACHINED FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 189

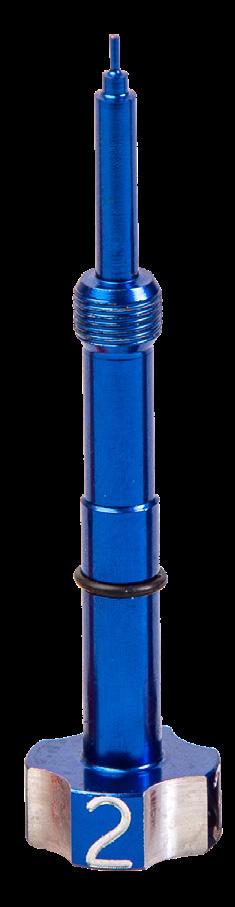

Designed to replace the standard hard to reach fuel screw to allow for quick and easy adjustments at the track.

Available in red, orange or blue.

VENT TUBES

vent tuBe

CNC machined and featuring a oneway valve to allow the gas tank to breath but stop fuel from spilling out after a fall. Available in six colours.

Part numbers:

Yellow - FXVT 10000 55YL

Blue - FXVT 10000 55BU

Green - FXVT 10000 55GN

Black - FXVT 10000 55BK

Red - FXVT 10000 55RD

Orange - FXVT 10000 55OR

Long vent tuBes

Replacement vent tube pipe for fuel tank breathers on all modern MX, enduro and trials bikes. Sold as a pack of 5 pieces per colour (minimum 5 packs).

• 360mm total length

• One-way valve to stop fuel from spilling out after a fall

• Eight different colour combinations

• Universal fitment

• 4mm ID/8mm OD

The RFX free standing prism holds up to 40 RFX vent tubes in this convenient counter top display.

*Please note Vent Tubes sold separately from display*

ENGINE ACCESSORIES engIne tImIng pLug

RFX Pro Series Engine Timing Plugs are manufactured from 7075-T6 aluminium for increased dimensional stability under high heat and pressure conditions.

CNC machined for tighter manufacturing tolerances helps these plugs stay in place over standard plastic plugs which are prone to failing.

RFX engine plugs also feature handy 8mm and 6mm hex key heads for easier installation.

Features

• 6061-T6 aluminium construction

• 8mm and 6mm hex key head

• Colour anodized

• Lightweight hollow design

• Accepts OEM O-ringsn

kaWasakI yamaha

CNC MACHINED 6061-T6 BILLET

RFX Pro Series Oil Filler Plugs are manufactured from 6061-T6 aluminium for increased dimensional stability under high heat and pressure conditions.

RFX filler plugs also feature a handy 13mm hexagon head and a locking wire hole, these help ensure your oil plug stays in place under extreme riding conditions, as plastic plugs are prone to failing.

Features

• 6061-T6 aluminium

• 12mm hexagonal head

• Lightweight design

• Accepts OEM O-rings

oIL FILters

oIL FILLer pLugs

Produced to the same high specifications as OEM ensuring the ultimate protection for your engine.

6061-T6 BILLET

OIL MAINTENANCE oIL FILter Cover

RFX Pro Series Oil Filter Covers are manufactured from 6061-T6 aluminium for increased dimensional stability under high heat and pressure conditions. The covers also feature an increased flow design for better oil circulation.

Features

• 6061-T6 aluminium construction

• Increased flow rate design

• Available in hard anodized and colour anodized versions.

• Lightweight hollow design

• Accepts OEM O-rings

HARD ANODISED CNC MACHINED 6061-T6 BILLET

yamaha FILter Cover

husQvarna FILter Cover

kaWasakI FILter Cover

ktm FILter Cover

suZukI CLutCh Cover

honDa FILter Cover

I ntake

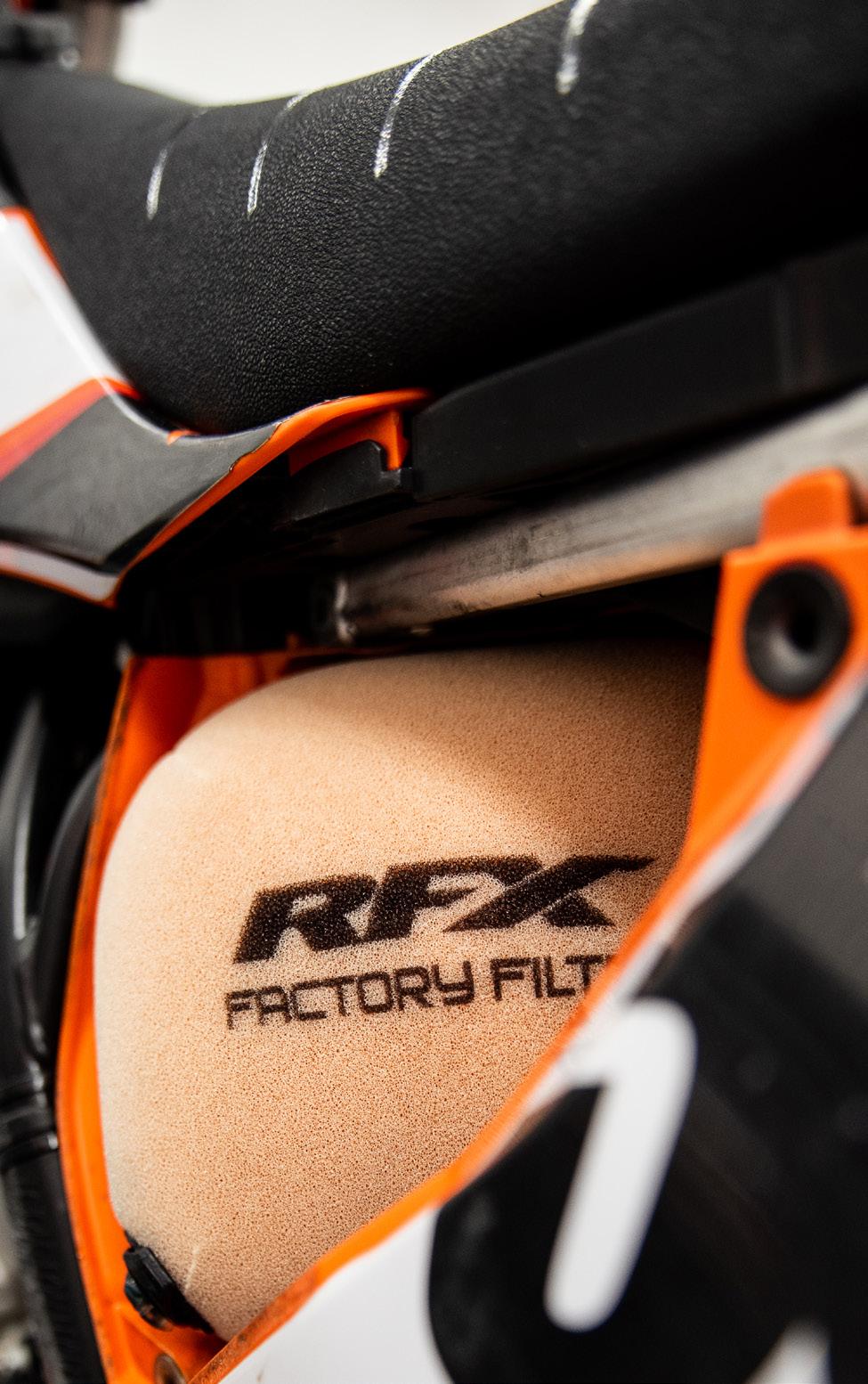

AIR FILTERS non-oILeD &

The RFX Air filter is the perfect choice for all levels. Let your bike breath with twin layered foam and precise fitment.

The shape and design of the filter allows maximum airflow whilst the dual layered foam consists of an outer layer to catch dust and debris a fine inner layer which traps the smallest particles.

Now available for most off-road motorcycle models as both non-oiled and pre-oiled.

• Breathable twin layered foam.

• Non-flammable foam used on all 4 stroke models.

• Available non-oiled and pre-oiled Features

OIL MAINTENANCE

aIr BoX Wash Cover

RFX Air Box wash covers have been designed to keep water and dirt from entering the carburetors whilst the bike is being cleaned. Injection moulded from high quality ABS with a rubber leak-free seal.

Features

• Leak-free rubber seal

• Injection moulded

• Mounting screw included

INJECTION MOULDED LEAK-FREE FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 192-194

B rakes

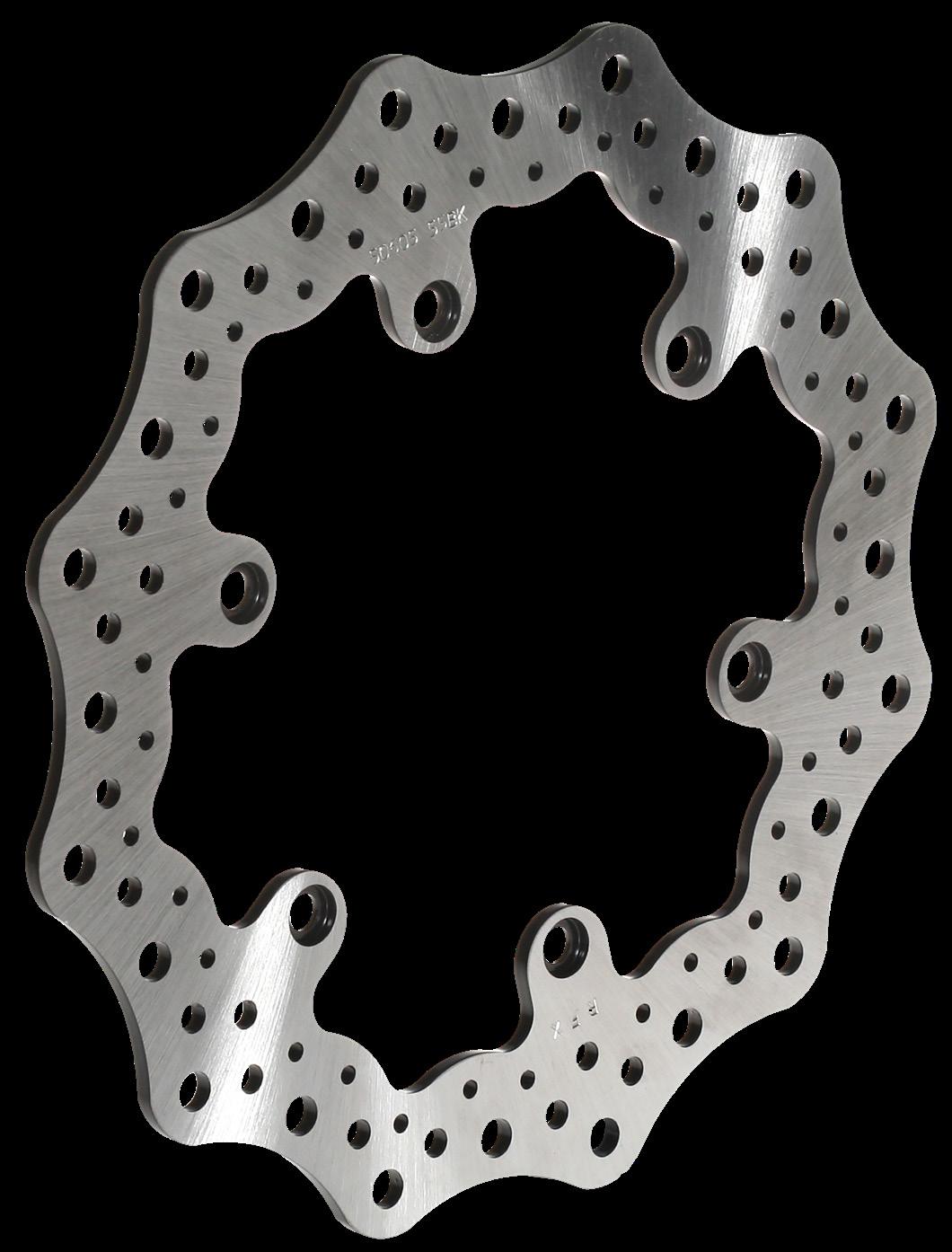

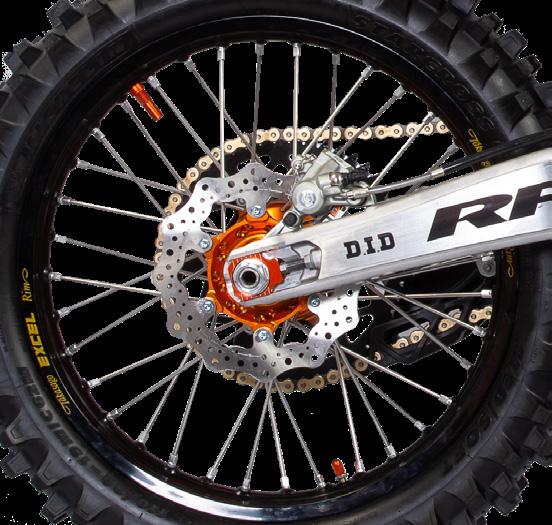

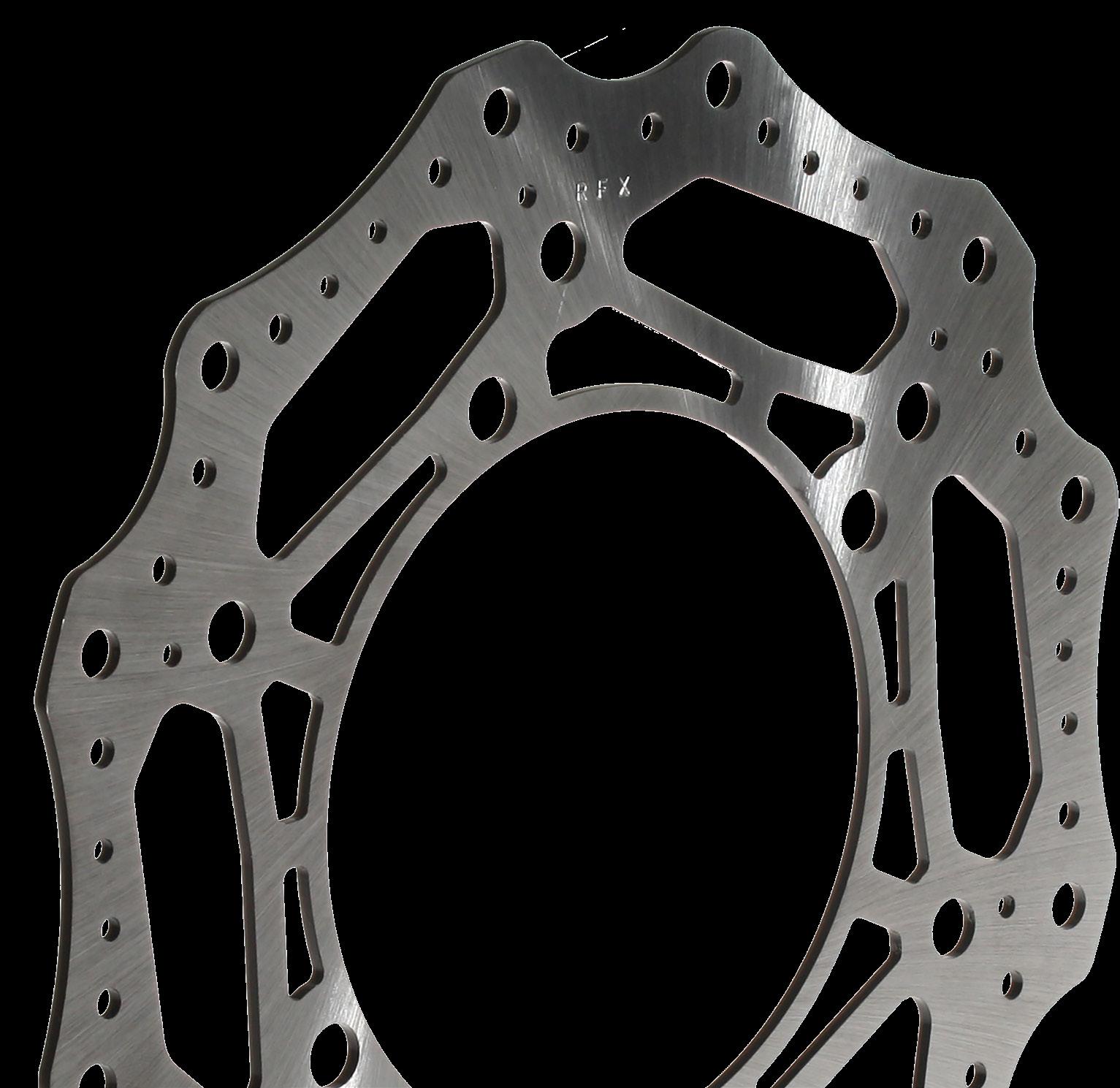

BRAKES Brake DIsCs

RFX Race Series Discs are designed and tested at the highest level by top World and British championship race teams.

Precision laser cut from high grade stainless steel and heat treated for wear resistance, RFX Discs also feature a special comaxit heatproof coloured finish on non-wear faces for the best corrosion resistance.

RFX Race Series Discs are surface ground to within 0.01mm for instant brake feel and reduced fade.

RFX Race Series Discs are the new price leader in OEM replacement brake discs.

Features

• Laser cut from high grade quality stainless steel

• Heat treated to withstand excessive brake pad wear

• Comaxit coating (metal colour surface treatment)

• CAD designed profile for lightness and reduced un-sprung weight

• Wave design ensures maximum pad cleaning

• Precision cut vented holes and wave design dissipate heat

HEAT TREATED LASER CUT

Brake paDs

Pro Series sintered copper Brake Pads are designed and tested at the highest level. A superior compound of elements are used to produce brake pads with exceptional stopping power, superior resistance to heat fade and a quick bed in time.

The sintered fully metallic copper formula is tested specifically to suit the motocross and off road pro rider. Our Pro Series brake pads provide stopping power and brake feel in excess of OEM brake pads, with the added benefit of improved pad life in the harshest wet mud and sand conditions.

Features

• Premium sintered blend of elements with a large percentage of copper

• Provides exceptional stopping power

• Reduces heat fade in harsh braking conditions

• Facilitates quick bed in time

• Vacuum heat press manufacture ensures top quality adhesion to the backing plate

• Selected models supplied with a heat dispersing rear shield as OEM

• Suitable for all motocross and enduro machines from

• 50cc - 600cc

FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 192-193

FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 106

B o D y W ork

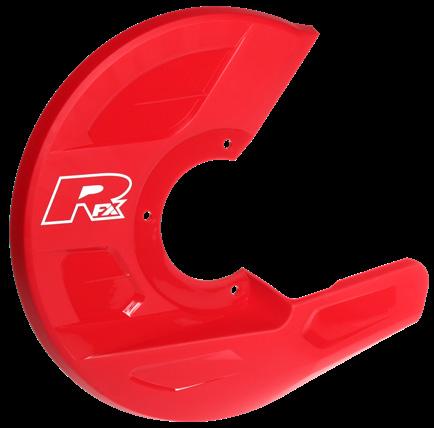

DISC GUARDS

RFX Pro Series Disc Guards help reduce brake disc damage by preventing rocks and roost from hitting and damaging the disc. RFX Disc Cap - Guards also feature a wheel spacer fitment to speed up wheel changes whilst the design still allows the caliper to be cooled by air for improved braking. Suitable for use with oversize discs.

Features

• High strength plastic guard

• Protects brake disc from rocks and roost

• Accepts oversize 270mm brake discs

• Allows air to cool the brake caliper unlike most OEM guards

• Bracket replaces wheel spacer for quicker and easier wheel changes

• Billet aluminium bracket construction

• High stick 3M colour coded RFX decal

• Multiple colour combinations available

• Model specific bracket is required

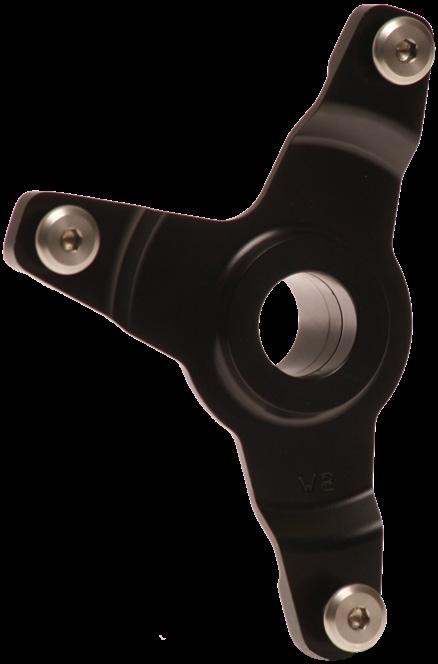

MODEL SPECIFIC BRACKET IS REQUIRED TO FIT BOTH THE DISC GUARD AND DISC & CALIPER GUARDS. FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 202

Disc & Caliper Guard

Disc Guard

DIsC guarDs

FXDG 90000 99WH

FXDG 90100 99YL

FXDG 90000 99GN

FXDG 90000 99BK

FXDG 90000 99BU

FXDG 90000 99RD

DIsC & CaLIper guarDs

FXDG 90100 99BK

FXDG 90100 99OR

FXDG 90100 99BU

FXDG 90100 99RD

FXDG 90100 99GN

FXDG 90100 99WH

FXDG 90000 99OR

FXDG 90100 99YL

White

Yellow

Green

Black

Blue

Red

Orange

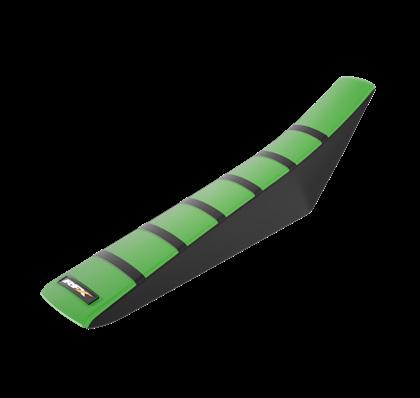

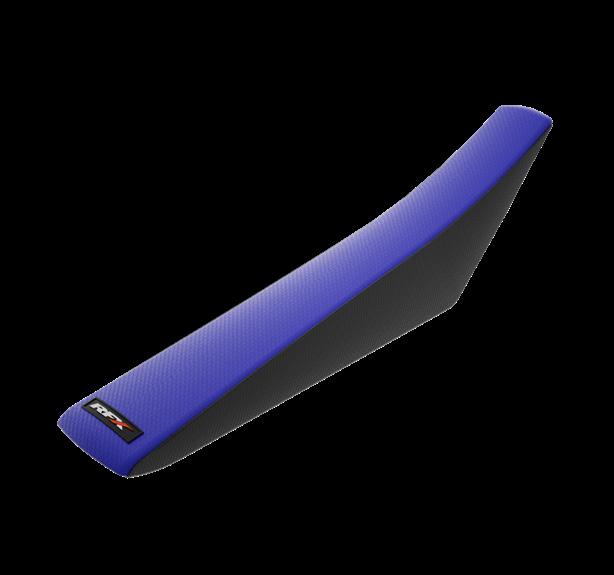

RFX Race Gripper and Pro Ribbed seat covers are designed and manufactured to combine performance and style.

RFX Race Gripper seat covers contain complete gripper material coverage for total bike control, whereas the RFX Pro ribbed seat covers contain ribs to ensure maximum traction for bike control.

Features

• Marine grade material to withstand all conditions

• UV protection for durability

• Double stitched for improved longevity

• Superior thickness

• Maximum traction

• Simple installation

• Race proven

MARINE GRADE UV PROTECTED DOUBLE STITCH

grIpper seat Cover

FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 204-205

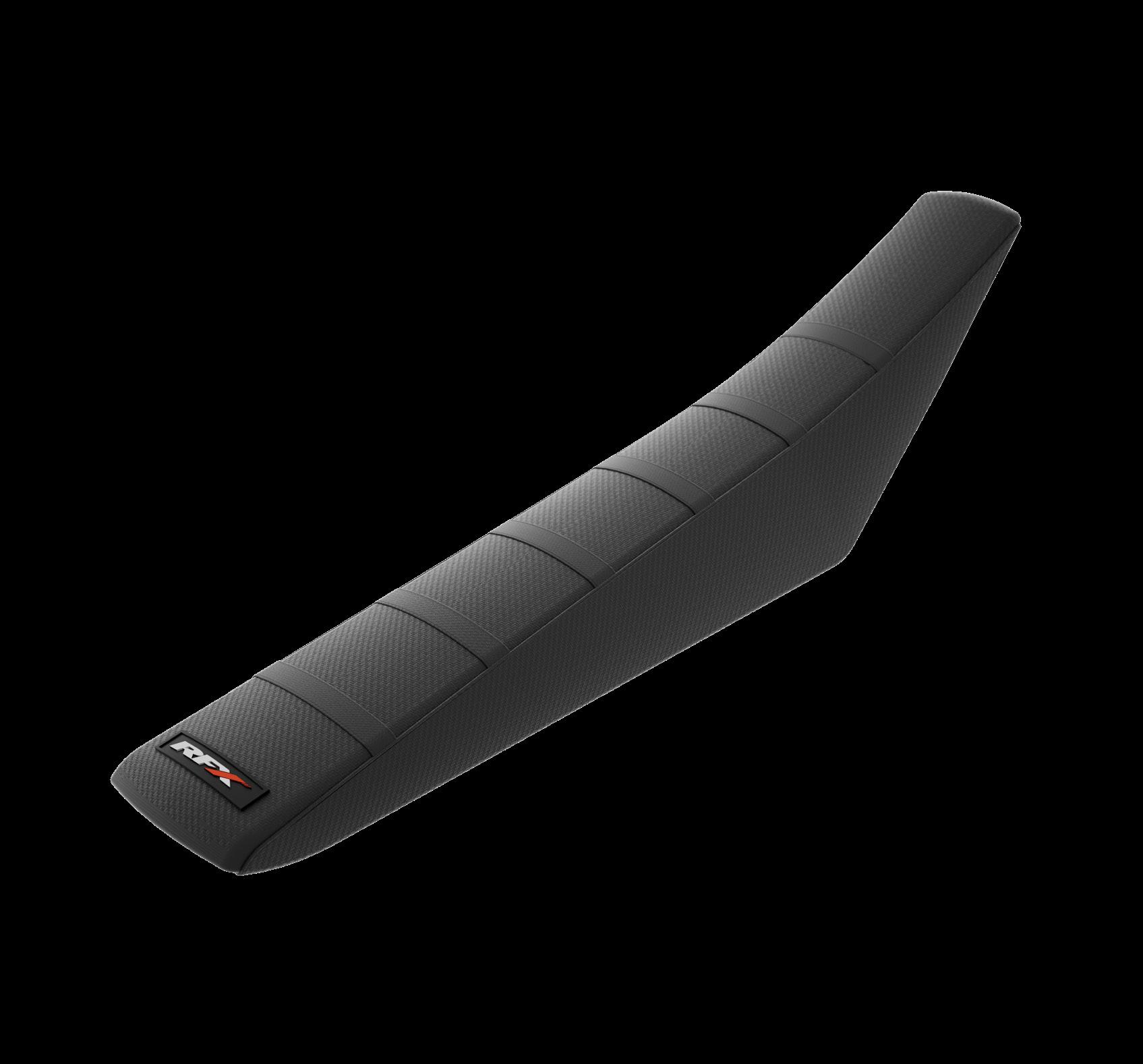

rIBBeD grIpper seat Cover

FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 204-205

Black

Black Blue Orange Blue

Red

Black/Blue Navy Navy Green

Black/Green Orange

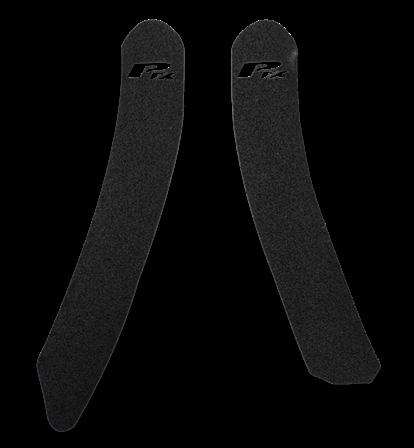

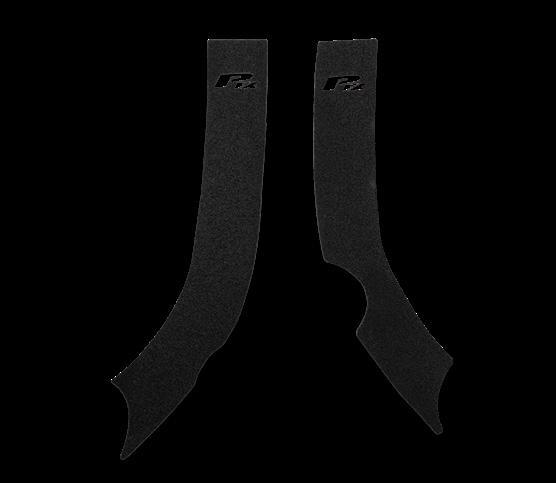

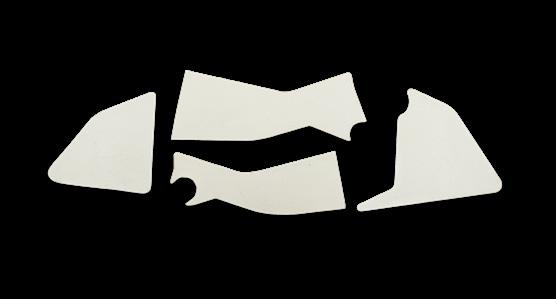

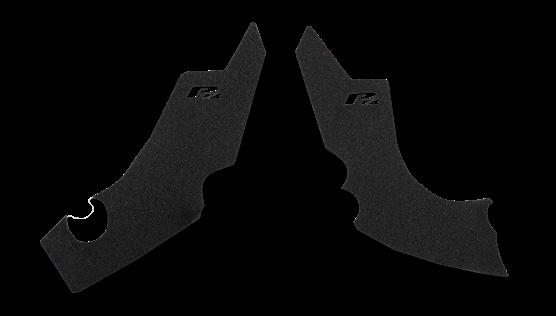

GRIP TAPE Frame grIp tape

Ride with confidence. RFX Frame Grip Tape is laser cut from high friction, self-adhestive rubber tape designed to give the rider maximum control. It has been pre-cut to fit the frame for easy application and provides a strong and secure bond for superior grip on the track.

Features

• Laser cut for a perfect fit

• Easy application

• Available in 2 colours

• Strong Bond

sIDe paneL grIp tape

A clear tape pre-cut to fit the side number plates. Easy to apply and allows the graphics to show through whilst providing extra grip for the rider.

Features

• Laser cut for a perfect fit

• Easy application

• Strong Bond

LASER CUT

HANDGUARDS

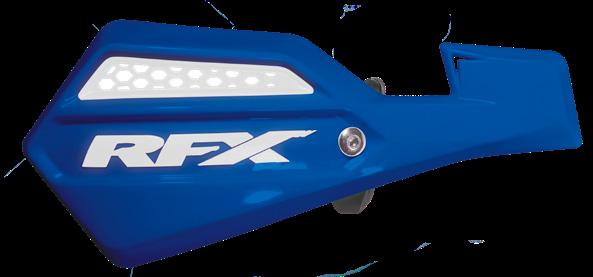

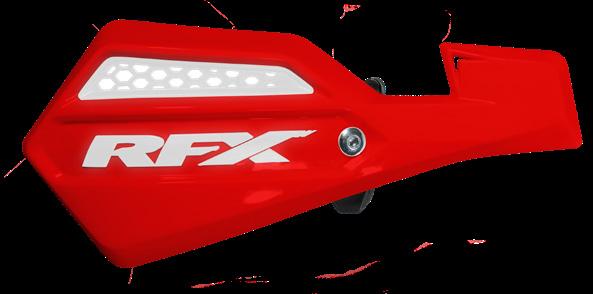

unIversaL hanDguarDs

DUAL INJECTION MOULDED

RFX Pro Series Dual Injection Handguards are manufactured to the highest standards using the latest technologies, featuring moulded ribs on the underside to improve strength whilst also reducing weight. They can be easily mounted to all handlebars and can be adjusted horizontally to suit the rider. Available in a range of colours to help you get the custom look you require.

Features

• Dual injection moulded for improved strength and durability

• Large vent area

• Open-ended

• Universal mounting - handlebar mounting kit included

Orange/White FXGU 30100 55OR

White/Black FXGU 10100 55WH

Green/White FXGU 30100 55GN

Black/White FXGU 20100 55BK

Yellow/White FXGU 30100 55YL

Blue/White FXGU 30100 55BU

Red/White FXGU 30100 55RD

D r I ve C ha I

strengthenIng gussets

The rotational force is transferred from the chain through to the bolts which then turns the wheel. Thinner gussets have been added to these areas under most stress. This adds strength, reinforcing the sprocket’s structure whilst keeping the additional material and weight to a minimum.

aDvanCeD muD CLearanCe

Each of the cutouts have a chamfered 45 degree edge which not only gives the sprocket a sleek, new look and helps with weight reduction, it also makes it harder for mud to collect in the gaps.

The teeth also have machined grooves which allows the mud to fall away instead of clogging in the chain.

QuICk ChaIn reLease

There have been slight alterations to the teeth to ensure that the chain releases from the sprocket smoothly. As well as improving performance this also reduces wear, increasing chain and sprocket life.

7075-T6 is a very high strength aerospace aluminium alloy offering superior stress corrosion resistance.

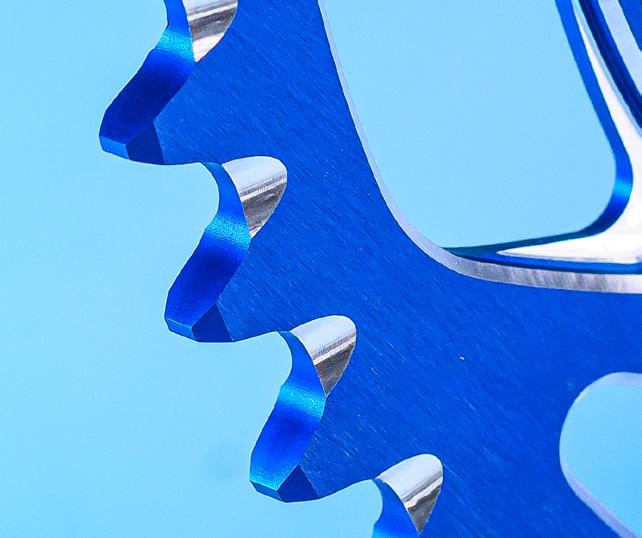

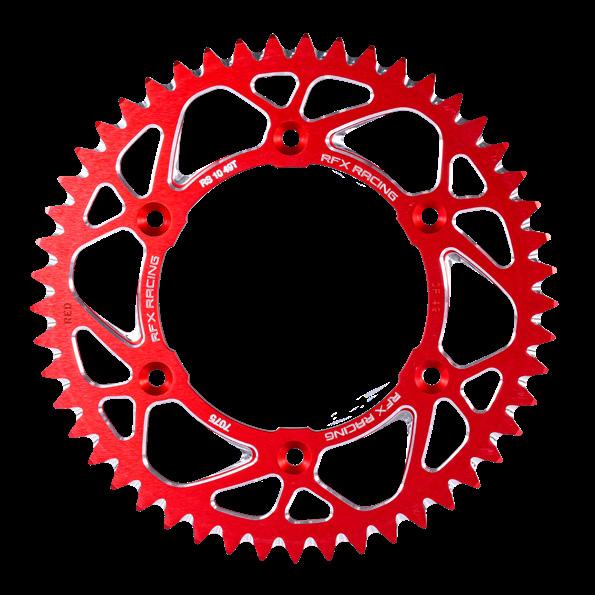

SPROCKETS eLIte rear sproCket

A new take on an old, race-proven design. The RFX Elite sprocket has been given a revamp, keeping all the old, proven features such as a solid inner ring and mud-clearing grooves in a brand-new, modern design that utilizes strengthening gussets to reinforce the sprocket, making it both strong and lightweight.

The chamfered edges on the weight-reducing cutouts not only give the sprocket a sleek new look, they also help with mud clearance and further reduce the weight without compromising the strength and structure of the sprocket. There are also some slight alterations to the teeth to ensure that the chain releases from the sprocket easily, reducing wear and increasing chain and sprocket life.

Each sprocket is CNC machined from aerospace grade 7075-T6 aluminium alloy with a 2-tone anodized/polished finish, available in 6 colours for that factory look.

Features

• Laser etched RFX logo

• CNC machined from 7075 aerospace aluminium

• Strengthening gussets

• Chamfered weight-reducing cutouts

• Mud clearing grooves for longer lasting sprocket life

• 2-tone colour anodized/ polished finish for that Factory Bike look

CNC MACHINED 7075-T6 BILLET

HANDGUARDS

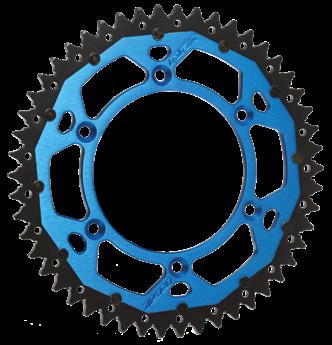

armaLIte rear sproCket

Featuring a new dual ring design, long lasting high carbon steel outer teeth and reduced weight as a result of a 7075-T6 aluminium centre, this provides the ultimate in sprocket performance.

Armalite sprockets also feature a hexagon drive interface between the inner and outer ring. This is revolutionary technology for sprockets and maximises drive between the two parts and reduces the force on the rivets to zero, in comparison to other items on the market.

Features

• CNC 7075 aerospace aluminium inner ring

• HCS outer ring

• Hex-Drive location between inner & outer ring

• CAD designed profile for lightness

• New style mud clearing grooves to reduce wear

• Rigid design increases torsional strength

• Colour anodized for that Factory Bike look

CNC MACHINED HIGH-CARBON STEEL 7075-T6 BILLET

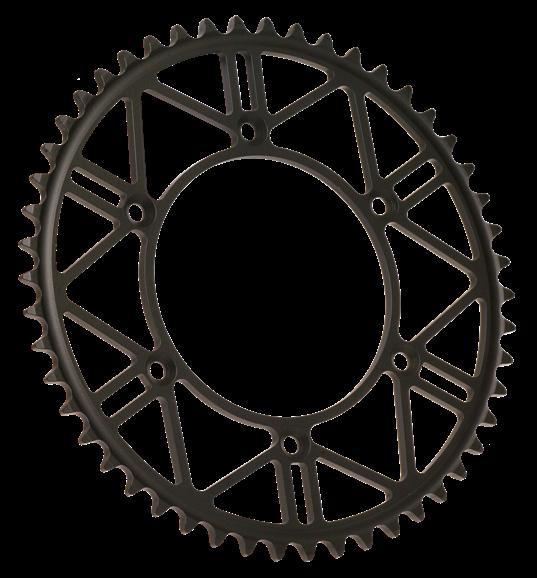

hCs rear sproCket SPROCKETS

RFX Pro Series Hi-Carbon Steel (HCS) Rear Sprockets are perfect for riders looking for longevity and value for money from their sprockets, without compromising on quality. Certified HiCarbon Steel offers unbeatable wear properties and its added strength in comparison to mild steel, allows for a lighter profile design to ensure the weight increase over aluminium is kept to a minimum.

Features

• Certified Hi-Carbon Steel

• CNC laser cut

• CAD designed profile for lightness

• Mud clearing grooves to reduce wear

• Rigid design increases torsional strength

• Tighter tolerances improve performance

Kits are sold complete with nickel plated high tensile steel bolts and locking nuts. Sold in packs of 6.

pro Front sproCket

RFX Pro Series Black Zinc Front Sprockets are CNC machined to the tightest tolerances from high tensile steel and case hardened to 60 Rockwell to resist wear and ensure longevity. Pro Series sprockets also feature lightening holes and self-clearing mud grooves on both sides to resist dirt build up and help prolong sprocket and drive chain life.

Features

• CNC Machined

• Case hardened to 60 Rockwell

• Lightening holes

• Self clearing mud grooves

• Black Zinc finish

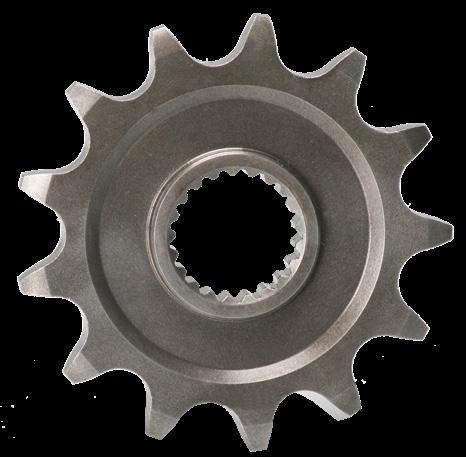

Front sproCket

RFX Front Sprockets are CNC Machined from High Tensile Steel and case hardened to 60 Rockwell to resist wear. RFX sprockets also feature lightening holes on selected models but only when durability will not be affected.

Features

• CNC Machined to extremely tight tolerances

• Case Hardened and core refined Alloy steel that gives you the best strength and durability

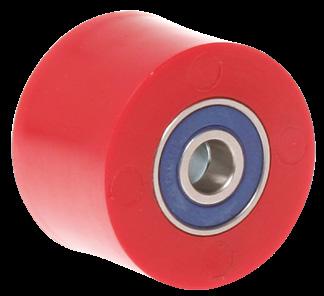

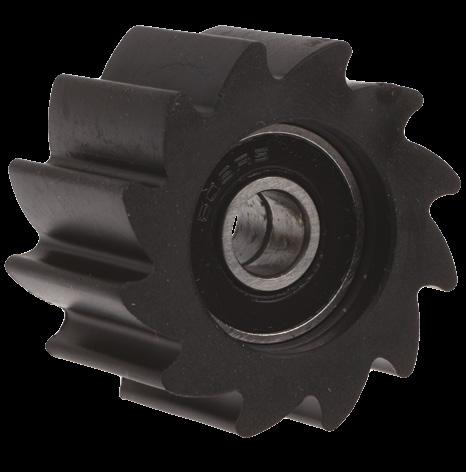

CHAIN ROLLERS

Manufactured to OEM specifications using top quality polyurethane for a longer roller life and reduced chain noise. Available for a wide variety of motorcycle applications. Features

• OEM replacement

• Accepts all original fittings

• Top quality polyurethane material

• Ready to install including bearings

L s

TYRE PROTECTION tyre Covers

Our RFX tyre covers are used by every Pro in the paddock to keep tyres clean on the way to the start.

Super easy to fit or remove single handed. After washing your bike fit the covers and wherever your bike goes, the tyres stay clean. Available in pairs in 2 sizes. Adult and youth.

Features

• Keeps the pits and your van tidy

• Available in both Adult (21”& 19”/18”) and Youth (19”/17” & 16”/14”)

• The tyre covers can be quickly and intuitively fitted thanks to the Velcro fastener

• Sold in Pairs - The kit consists of two Tyre covers: one for the front wheel and one for the rear wheel

• Easily cleaned by washing machine at 30° or cold water pressure washer

• Polyester and PVC fabric resistant to wear and tear

INNER TUBES

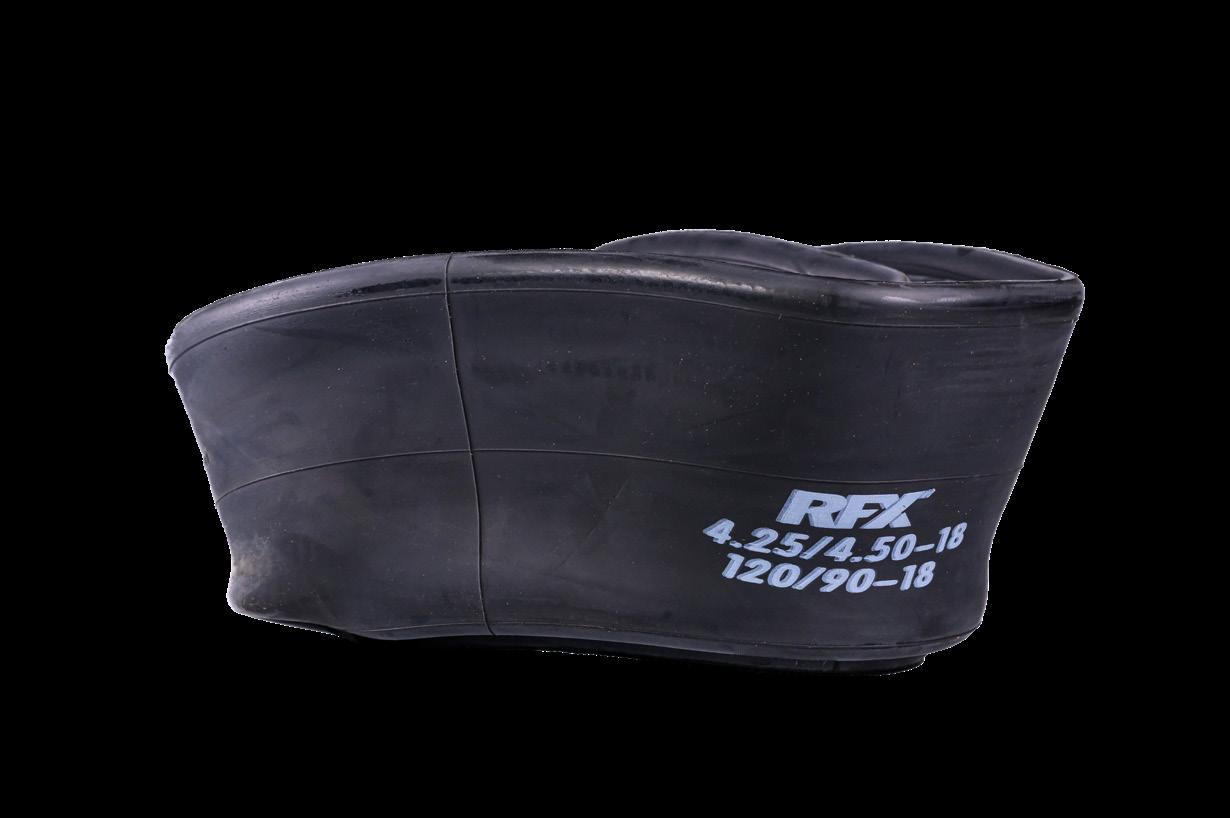

heavy Duty nner tuBe

RFX Pro Series Heavy Duty Inner tubes are available in 2 different thicknesses, 2.5mm and 4mm. The increased thickness provides outstanding protection against punctures in the roughest riding conditions.

Our tubes are unrivalled for price and quality. Available for every wheel size from 10” to 21”.

2.5mm THICK 4mm THICK

rear aXLe BLoCks

ACCESSORIES

CNC manufactured from 6061 aerospace grade aluminium, this ensures accuracy and eliminates guess work when aligning the rear wheel.

Features

• Laser etched RFX logo

• CNC 6061-T6 aerospace aluminium

• CAD designed profile for lightness

• Tighter tolerances for improved fit

• Alignment scales for precision

• Colour anodized for that factory bike look

pro 2 aXLe BLoCks

RFX Pro Series Axle Blocks are designed to speed up & improve wheel changes with easy fitting and more precise alignment. CNC manufactured from 6061 aerospace grade aluminium.

• Laser etched RFX logo

• CNC 6061- T6 aluminium

• CAD designed profile for lightness

• Tighter tolerances for improved fit

• Alignment scales for precision

• Colour anodized for that factory bike look

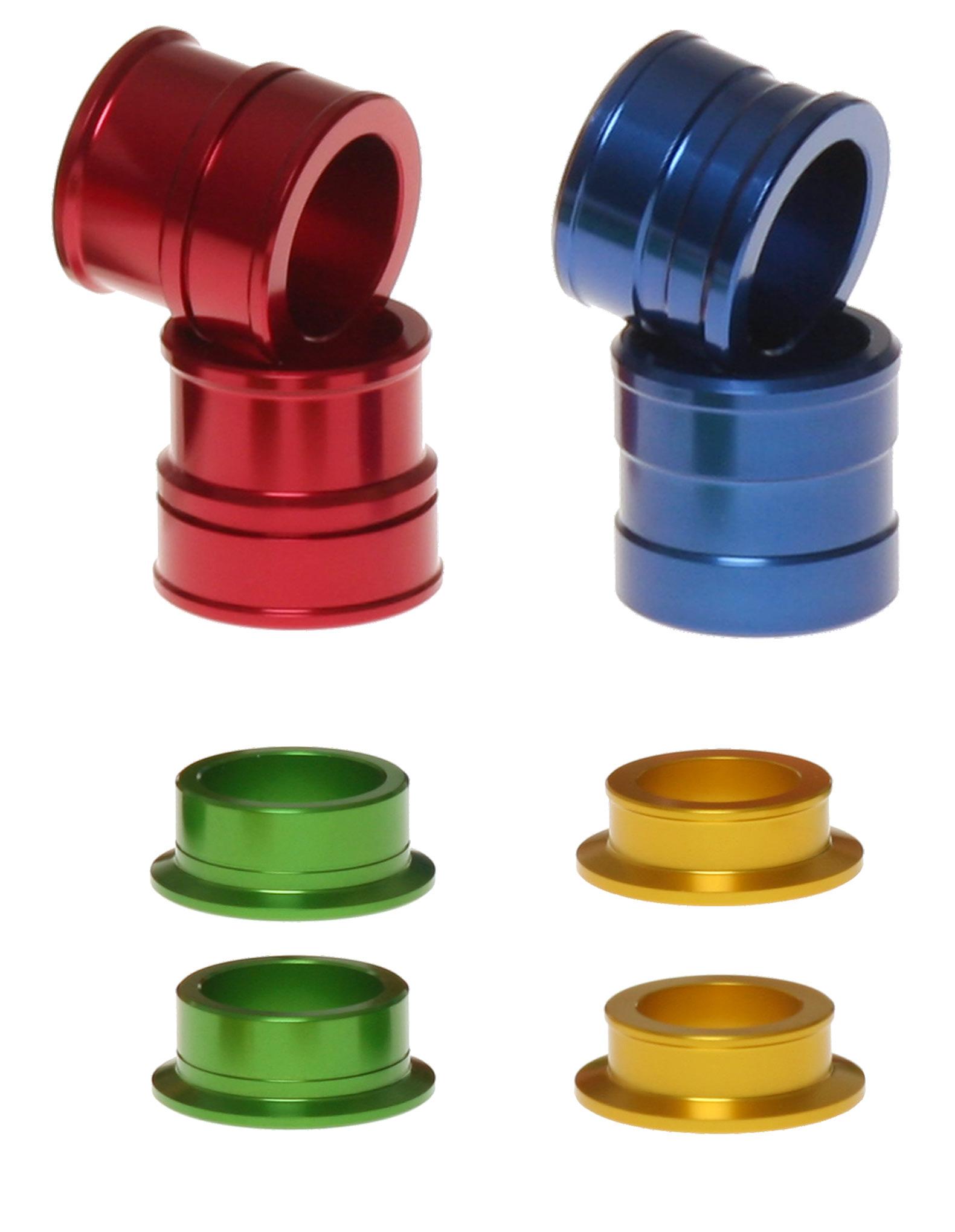

WheeL spaCers

RFX Pro Series wheel spacers are constructed from 6061-T6 aluminium with an anodized finish and this results in a lighter and more durable component in comparison to OEM.

The wheel spacers reduce surface wear and minimise the amount of dirt entering the hub which in turn extends the life of the bearing.

Designed with a rear lip which helps to keep them hooked into the seals, this decreases the chance of falling out during maintenance and speeds up wheel changes.

6061-T6 BILLET

• 6061-T6 Aluminium Construction.

• Colour anodized for durability.

• Machined rear location lip.

FOR FITMENT CHARTS AND PRODUCT CODES SEE PAGE 213

rIm

Prevent dirt clogging the threads on your rim locks, allowing easy removal. The curved washers prevent the rim locks from becoming loose as they are designed to fit the shape of the rim. Features

LoCk nuts & Washers

rIm tape raCe

EXHAUST SPRINGS

Manufactured from stainless steel to resist corrosion. The springs include a swivel end to improve the fit on to all types of exhaust pipes. Available in 4 sizes - 57mm, 75mm, 83mm and 90mm. Sold in pairs.

Available in 4 sizes - 57mm, 75mm, 83mm and 90mm. Sold in pairs.

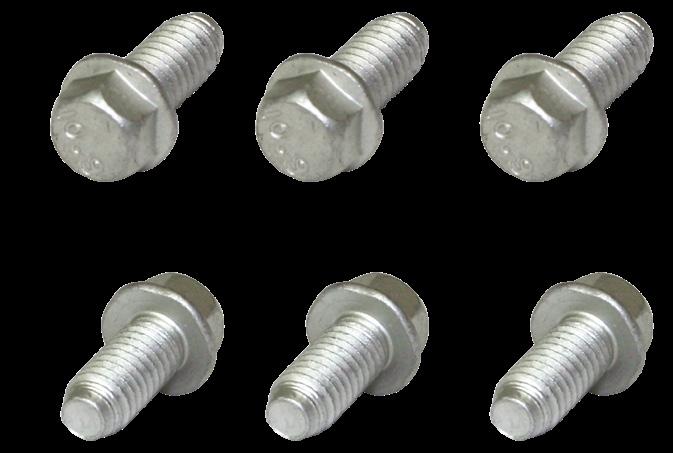

M6 x

RFX Race Series M6 Flange Head Bolt Assortment Box (25pcs x 6 sizes). Contains 25 of each M6 bolt 12mm.16mm, 20mm.25mm, 30mm and 35mm all in a plastic divided box.

Front anD rear Brake DIsC BoLts

Kits are sold complete with nickel plated high tensile steel bolts and locking nuts. Sold in packs of 6.

HONDA

KAWASAKI

SUZUKI & YAMAHA

KTM & HUSQVARNA

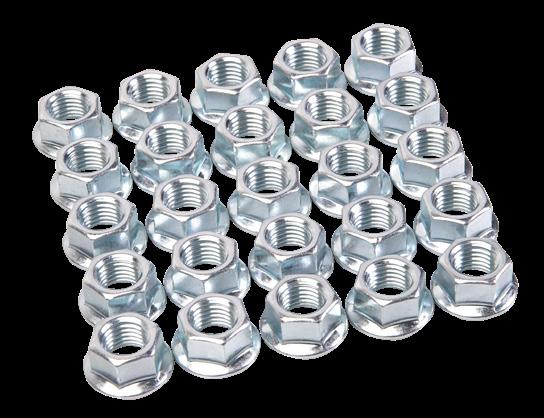

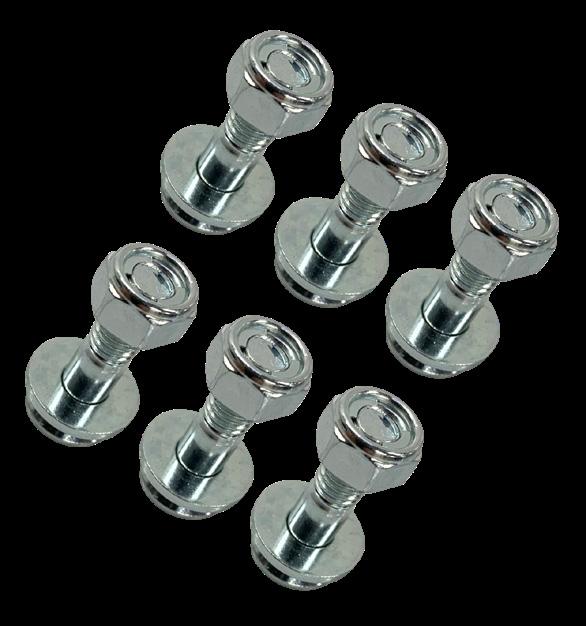

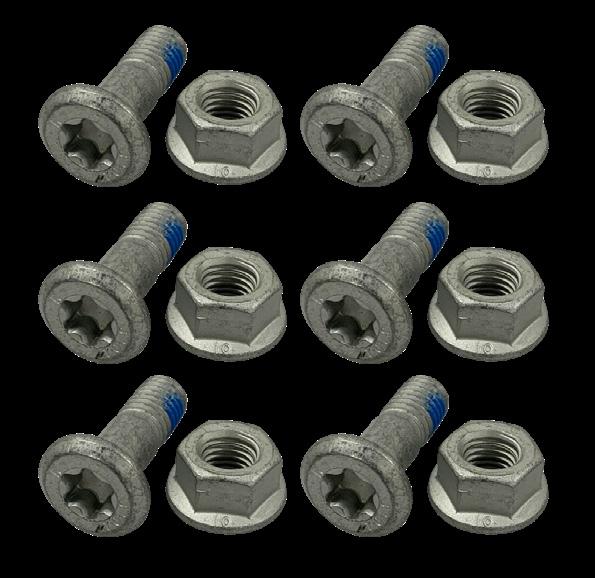

sproCket BoLt & nut kIts

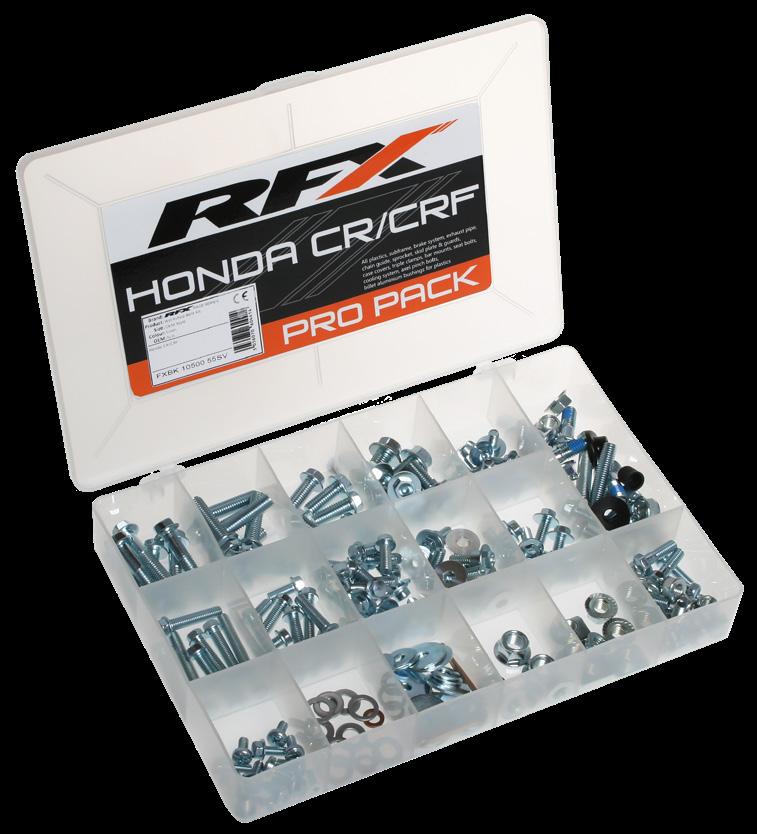

pro BoLt kIts

RFX Race Series Pro Bolt Packs are the OEM leader in replacement bolt packs to help keep you going when you are at the track or to help you rebuild your bike.

Assembled using components that meet or exceed OEM specification. RFX Race Series Pro Bolt Packs are ideal to keep in your toolbox or garage for when you need that bolt or nut you are missing.

This kit includes parts for fastening all plastics, subframe, brake system, exhaust pipe, chain guide, skid plate & guards, case covers, triple clamps, bar mounts, sprocket bolts, seat bolts, cooling system, axle pinch bolts. Also includes billet aluminium bushings.

KITS

RFX Race Series Plastics Bolt Packs are the OEM leader in replacement bolt packs to help keep you going when you are at the track or to help you rebuild your bike.

Assembled using components that meet or exceed OEM specification. RFX Race Series Plastics Bolt Packs are ideal to keep in your toolbox or garage for when you need that bolt or nut you are missing.

This kit includes parts for fastening front & rear mudguards, fork guards, number boards, radiator shrouds, side panels and seat.

traCk paCks

RFX Race Series Track Packs are the OEM leader in replacement bolt packs to help keep you going when you are at the track.

Assembled using components that meet or exceed OEM specification. RFX Race Series Track Packs are ideal to keep in your toolbox to help you out when you forget to tighten that bolt and it comes out by mistake.

Included are the most commonly lost flange bolts, nuts, washers and screws.

pLastIC Fastener kIts

paCks

honDa

kaWasakI

suZukI

yamaha

ktm

husQvarna

unIversaL

WORKSHOP TOOLS

Helps to keep the tyre bead in the rim whilst fitting tyres.

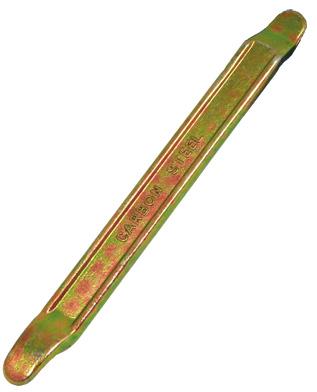

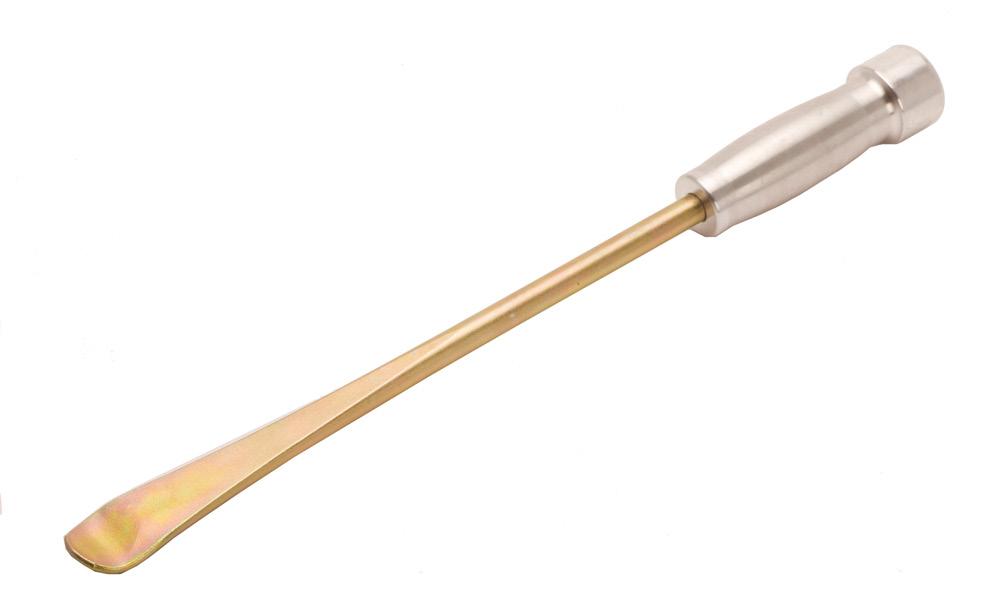

The strongest tyre lever around and perfect for use with mousses.

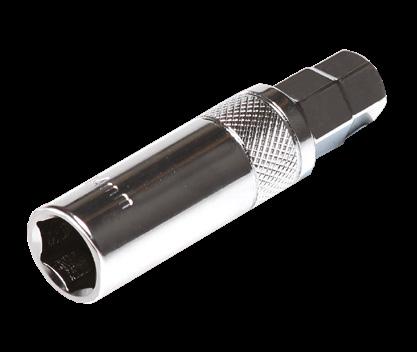

ratChet pLug spanner B serIes ngk

pLug spanner D serIes ngk

pLug spanner aF (ktm/hon neW 4t)

pLug spanner B serIes ngk

pLug spanner C serIes ngk

WORKSHOP TOOLS

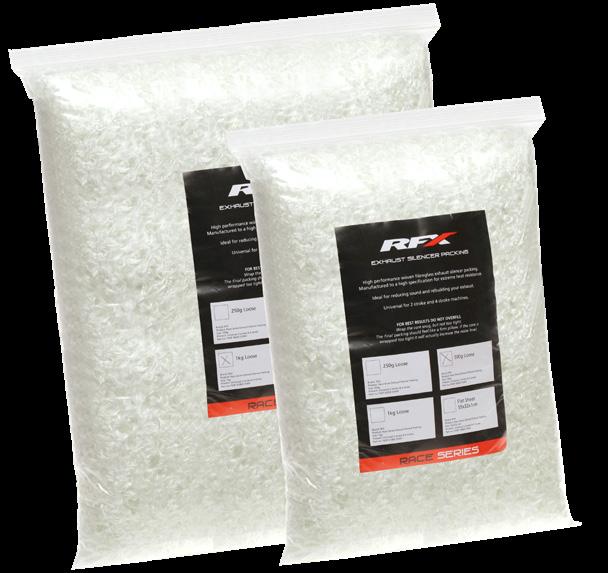

FLat eXhaust paCkIng

eXhaust Bung

HI-Viz/Black FXTD 30000 55HV

Grey/Black FXTD 30000 55BK

Orange/Black FXTD 30000 55OR

Red/Black FXTD 30000 55RD

Blue/Black FXTD 30000 55RD

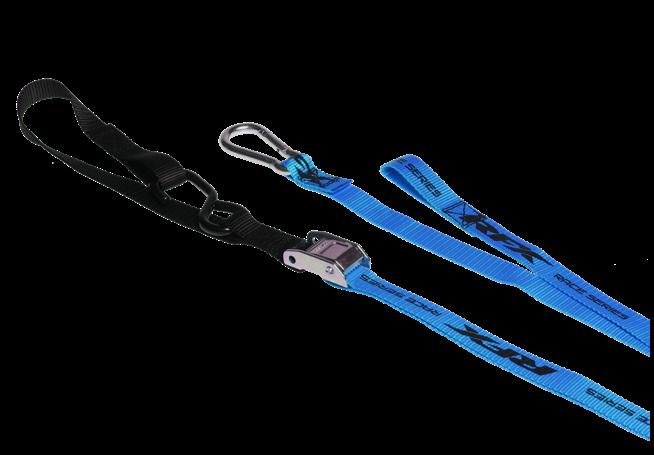

RFX Tie Downs are designed to safely secure motorcycles in transit. WIth 25mm wide nylon webbing for added strength and a caribiner clip to quickly secure the tie down and remove the frustration of the hook being able to fall off the van eyelet prior to tightening the straps when securing the bike in place.

Each strap is 2m in length and features an extra extension loop which is useful for bikes with oversized bars.

Available in 6 different colours.

Features

• Pack of two tie downs

• 25mm wide nylon webbing straps

• 2 metres in length

• Extra extension loop

• Caribiner attached to one end for fast and secure fitting

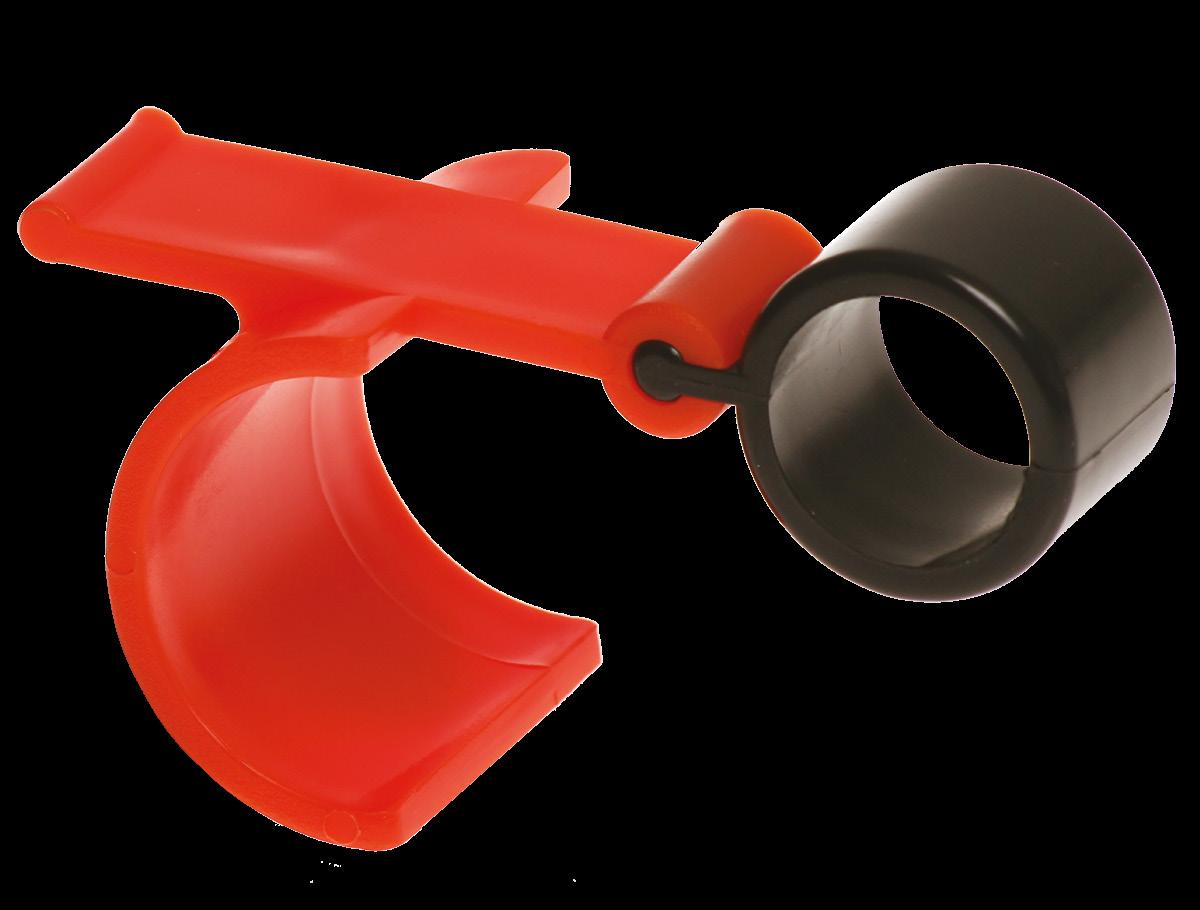

Front Brake LoCk

Ensures the front wheel stays in place during transportation.

Simply hook over the grip and front brake lever when your bike is strapped into a van or onto trailer.

BIKE STANDS

Xtreme BIke stanD

A heavy duty single pillar H lift up design. Manufactured from heavy duty steel and designed with a wide stand footprint for stability and a non-slip rubber mat for bike security.

The single pillar design features a solid nylon bush and a lever arm with a progressive linkage to provide the smoothest and easiest action possible.

Powder coated to resist fading in sunlight and washing chemical contact. Available in six colours to suit 125cc-600cc machines.

Features

• Upper plate - 2 anti-slip stripes.

• Ergonomic and resistant lever.

• Reinforced rubber feet for higher stability and a longer life.

• Fits all off-road bikes from 85cc to 450cc.

FXBS 30002 99BU

FXBS 30002 99OR

FXBS 30002 99BK

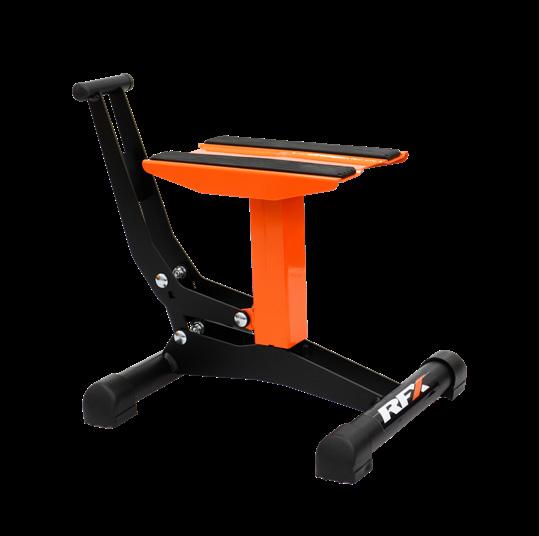

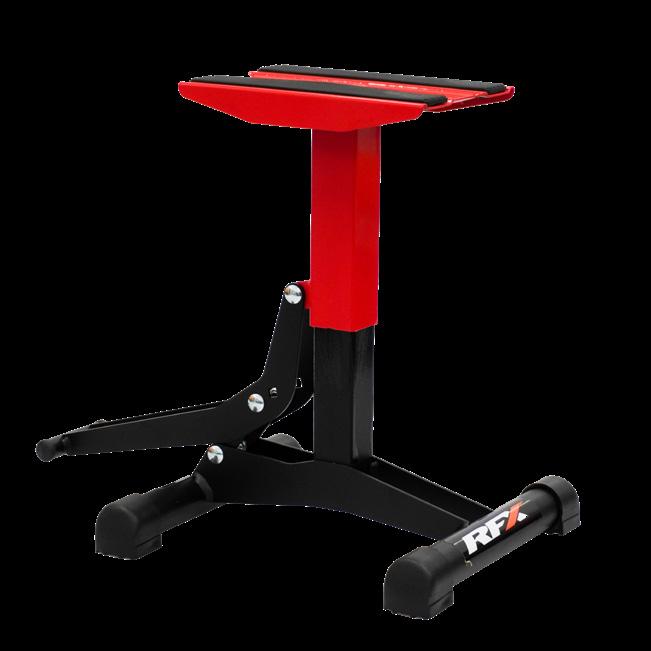

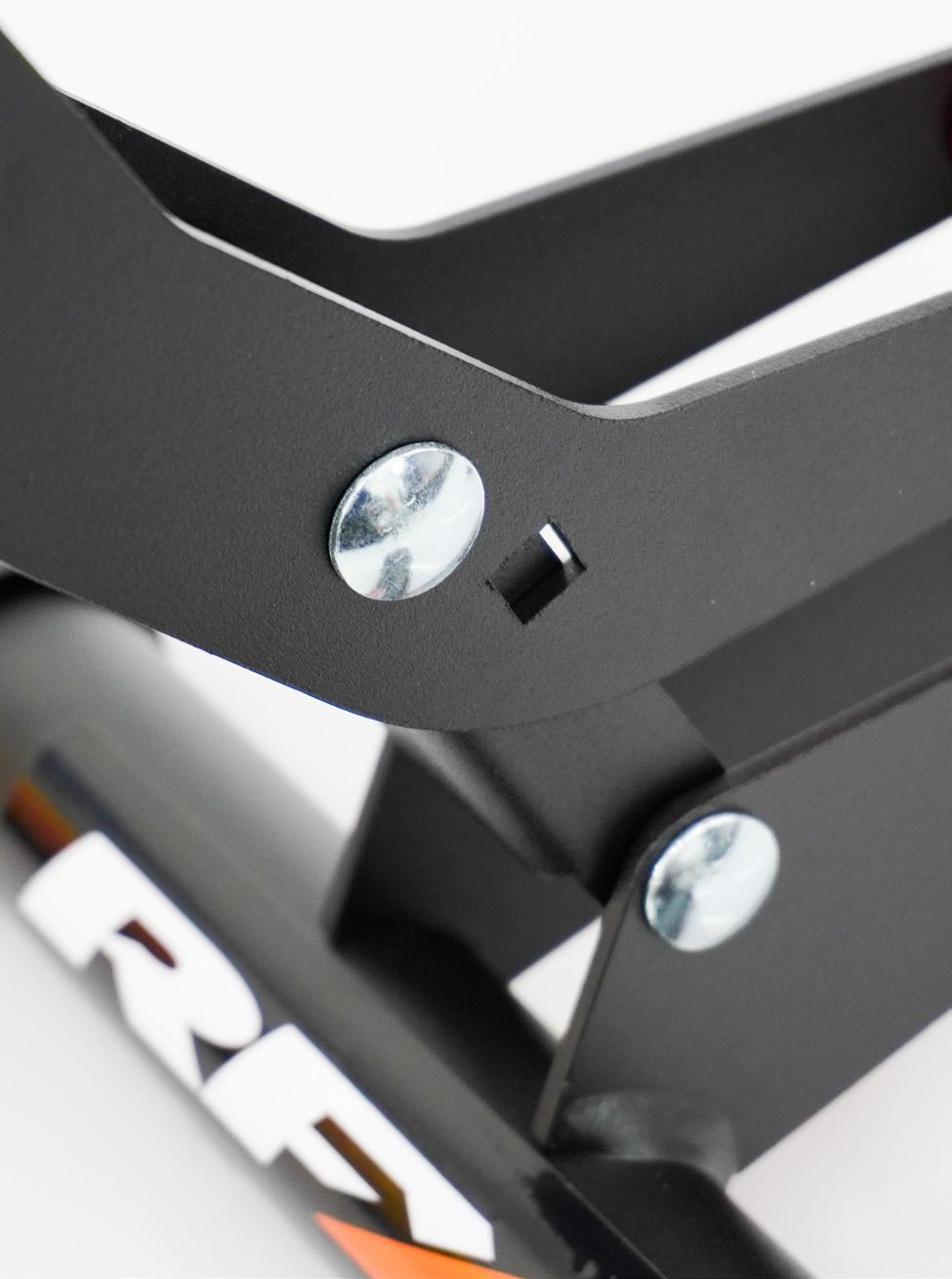

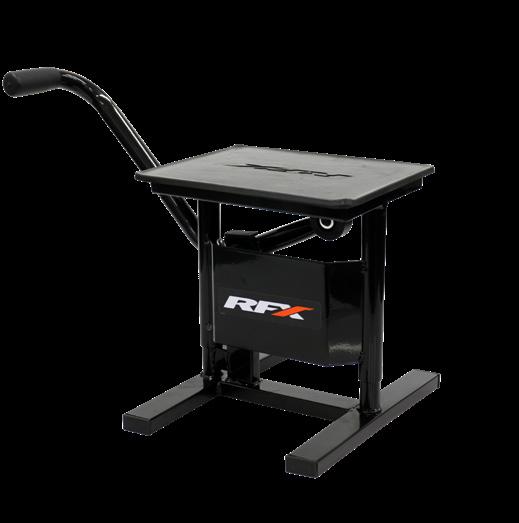

LIF t up BIke stanD

A heavy duty single pillar H lift up design. Manufactured from heavy duty steel and designed with a wide stand footprint for stability and a non-slip rubber mat for bike security.

The single pillar design features a solid nylon bush and a lever arm with a progressive linkage to provide the smoothest and easiest action possible.

Powder coated to resist fading in sunlight and washing chemical contact. Available in six colours to suit 125cc600cc machines.

trIangLe stanD

Slots into the rear axle quickly and easily to act as a side stand. Fabricated from high carbon steel bar with a liquid baked paint finish.

18mm, 14.5mm, 11mm

Features

• Durable carbon steel construction provides excellent strength and stability

• Compatible with 11 mm, 14.5 mm, and 18 mm axle shafts

• Quick and easy installation

Blue

Red

Black

BIKE MATS

FaCtory pIt mat

ENVIRONMENTAL

ABSORBENT

Black/Orange/White FXPM 10000 99BK

Features FIM approved RFX Factory Pit Mat is the perfect addition to any workshop. It is highly absorbant, being able to take up to 3 litres per square metre as well as being slip and fire resistant and washable up to 30°. Celcius.

• Vinyl backed

• FIM approved

• Highly absorbent (water, oil, dust etc)

• Environmentally friendly

• Easy to clean

r ID er a CC essor I es

Long WInter jaCket JACKETS

Beat the cold with this long winter Jacket designed to keep you protected from the elements whilst at the trackside or washing down.

Manufactured with a waterproof, quick drying Nylon outer layer and an extra-thick fleece lining which extends into the hood. With minimal seams, nylon zip pockets and an inside pocket to keep valuables protected from the rain.

Available in Small, Medium and Large

Features

• Waterproof

• Quick drying outer layer

• Nylon zip pockets

• Inside zip pocket

• Extra-thick fleece lining

• Velcro Cuffs

Wet jaCket

Perfect for those muddy meetings. Featuring underarm and back venting, taped seams, lycra wrist and waist binding and reflective piping.

Constructed from a clear PVC to enable race gear and riding numbers to be seen.

Clear/Black XSmall FXWJ 104XS 55BK

Clear/Black Small FXWJ 105SM 55BK

Clear/Black Medium FXWJ 106MD 55BK

Clear/Black Large FXWJ 107LG 55BK

Clear/Black XLarge FXWJ 108XL 55BK

Clear/Black 2XLarge FXWJ 1092X 55BK

Clear/Black 3XLarge FXWJ 1103X 55BK

Clear/Blue Medium FXWJ 106MD 55BU

Clear/Blue Large FXWJ 107LG 55BU

Clear/Blue XLarge FXWJ 108XL 55BU

Clear/Green Medium FXWJ 106MD 55GN

Clear/Green Large FXWJ 107LG 55GN

Clear/Green XLarge FXWJ 108XL 55GN

Clear/Orange XSmall FXWJ 104XS 55OR

Clear/Orange Small FXWJ 105SM 55OR

Clear/Orange Medium FXWJ 106MD 55OR

Clear/Orange Large FXWJ 107LG 55OR

Clear/Orange XLarge FXWJ 108XL 55OR

Clear/Orange 2XLarge FXWJ 1092X 55OR

Clear/Orange 3XLarge FXWJ 1103X 55OR

Clear/Red Medium FXWJ 106MD 55RD

Clear/Red Large FXWJ 107LG 55RD

Clear/Red XLarge FXWJ 108XL 55RD

Clear/Yellow Medium FXWJ 106MD 55YL

Clear/Yellow Large FXWJ 107LG 55YL

Clear/Yellow XLarge FXWJ 108XL 55YL

Wet jaCkets youth

Clear/Black Youth Small (6-8)

100YS 55BK

Long raIn jaCket

Perfect for those muddy meetings, as a spectator or a mechanic for washing the bike. Featuring underarm and back venting, taped seams, lycra wrist, reflective piping and zip front.

Constructed from PVC to ensure strong protection and weather resistance. Sizing ranges from Adult Medium to 2XL.

Clear/Orange

Clear/Red

pIt BoarDs TRACK

A lightweight plastic pit board with erasable white side. Sold with an erasable marker.

RFX Black FXPB 90100 99BK

Yamaha Blue FXPB 40100 99BU

Kawasaki Green FXPB 20100 99GN

Honda Red FXPB 10100 99RD

KTM Orange FXPB 50100 99OR

Husqvarna Blue FXPB 70100 99BU

Gas Gas Red FXPB 60100 99RD

Track tape FXZP 50000 55BK

WaterprooF CLoth tape

Cloth Tape

FXWT 90500 55WT

Black

FXZP 80000 55BK

Black/Orange FXZP 80001 55BK

POINT OF SALE

This free-standing RFX stand has tiered arms to hold the full handlebar range in addition to eurohooks which can be used to display other items from the RFX range.

The centre graphic is interchangable so that it can be regularly updated. Supplied flat pack. It also has 4 heavy duty castors for easy manouvrability.

Slatwall graphics are supplies as 1300x600m vinyl sheets for easy application. A pack of 4 will fit one portait slatwall.

DIspLay stanD

The RFX Hardware Point of Sale Display Stand is 100cm wide with a height of 210cm. The stand is supplied with all the necessary hooks to dress the stand. The stand will arrive flat packed and some assembly will be required. Multiple stands can be connected side by side.

RFX Slatwall Headers (printed to size depending on space available).

Please speak to your local sales representative to discuss point of sale options.

BEARING KITS

LInkage BearIng kIt

*Includes lower shock bearing

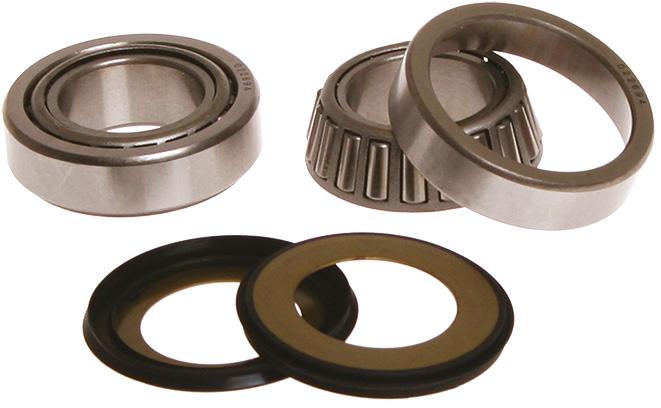

steerIng heaD BearIng kIt

Front WheeL BearIng kIt

rear WheeL BearIng kIt

Fork seaL kIt

sWIng arm pIvot BearIng kIt

upper & LoWer

shoCk BearIng kIt

suZukI

YAMAHA

GAS GAS

WheeL BearIngs

RFX Wheel Bearings are premium quality and feature two rubber seals for increased wear protection. An ideal replacement for your standard wheel bearings and are suitable for the most extreme off road conditions. Please refer to the fitment and price chart to check the availability of bearings for your bike.

Sold Individually

KLX 450 08-17 FXBE 61904 00ST FXBE 61904 00ST

KX 500 94-96 FXBE 61904 00ST FXBE 61904 00ST

61905 00ST (x2) FXBE 61905 00ST

steerIng stem nuts hanDLeBar mounts

50128 55BK 250

50128 55BK

350 SX-F 07-16 - FXHM 50128 55BK

350 SX-F 17-22 - FXHM 50228 55BK

350 EXC-F 06-23 - FXHM 50128 55BK

450 SX-F 07-16 - FXHM 50128 55BK

450 SX-F 17-22 - FXHM 50228 55BK

450 EXC-F 06-23 - FXHM 50128 55BK husQvarna

TC 125 14-16 - FXHM 50128 55BK

TC 125 17-22 - FXHM 50228 55BK

TE 125 14-16 - FXHM 50128 55BK

TX 125 17-19 - FXHM 50128 55BK

TE 150 17-23 - FXHM 50128 55BK

TE 150I 20-22 - FXHM 50128 55BK

FC 250 14-16 - FXHM 50128 55BK

FC 250 17-22 - FXHM 50228 55BK

FE 250 14-23 - FXHM 50128 55BK

TC 250 14-16 - FXHM 50128 55BK

TC 250 17-22 - FXHM 50228 55BK

TE 250 15-18 - FXHM 50128 55BK

TE 250i 18-23 - FXHM 50128 55BK

TE 300i 14-18 - FXHM 50128 55BK

TE 300i 18-23 - FXHM 50128 55BK

FC 350 14-16 - FXHM 50128 55BK

FC 350 17-22 - FXHM 50228 55BK

FE 350 15-22 - FXHM 50128 55BK

FC 450 14-16 - FXHM 50128 55BK

FC 450 17-22 - FXHM 50228 55BK

FE 450 15-23 - FXHM 50128 55BK

15-23

13-21

50128 55BK

CLutCh Levers

14-23 FXCL 10600 00SV FXCL 10600 55SV -

02-03 FXCL 10100 00SV FXCL 10100

07-25

20000 00SV FXCL 20000 55SV FXCL 20000 99BK

89-99 FXCL 40000 00SV FXCL 40000 55SV -

YZ 65 18-26 FXCL 30500 00SV FXCL 30500 55SV FXCL 30500 99BK

88-02 FXCL 30000 00SV FXCL 30000 55SV -

03-14 FXCL 30000 00SV FXCL 30000 55SV -

15-26 FXCL 30500 00SV

Brake Levers

CR 80 86-97

10500 00BK FXBL 10500 55SV -

CR 80/85 98-07 FXBL 10100 00SV FXBL 10100 55SV FXBL 10100 99BK

CR 125 86-91 FXBL 10500 00BK FXBL 10500 55SV -

CR 125 92-07 FXBL 10100 00SV FXBL 10100 55SV FXBL 10100 99BK CR 125L 14-20 FXBL 10700 00SV - -

150 07-26 FXBL 10100 00SV FXBL 10100 55SV FXBL 10100 99BK CR 250 86-91 FXBL 10500 00BK FXBL 10500 55SV -

92-07 FXBL 10100 00SV FXBL 10100 55SV FXBL 10100 99BK CRF

04-06

07-26

10100 00SV FXBL 10100 55SV FXBL 10100 99BK

10200 00SV FXBL 10200 55SV FXBL 10200 99BK

X 04-19 FXBL 10100 00SV FXBL 10100 55SV FXBL 10100 99BK

19-26

10200 00SV FXBL 10200 55SV FXBL 10200 99BK

14-22 FXBL 10600 00SV FXBL 10600 55SV -

07-26 FXBL 10200 00SV FXBL 10200 55SV FXBL 10200 99BK

RX 17-26 FXBL 10200 00SV FXBL 10200 55SV FXBL 10200 99BK

KX 65 00-26 FXBL 20300 00SV FXBL 20300 55SV FXBL

KAWASAKI

520

525

TC 125 14-26 FXBL 50600 00SV FXBL 50600 55SV FXBL 50600 99BK

FE 250 22-24 FXBL 60200 00SV FXBL 60200 55SV FXBL 60200 99BK

TC 449 11-13 FXBL 50200 00SV FXBL 50200 55SV FXBL 50200 99BK

TE 449 11-13 FXBL 50200 00SV FXBL 50200 55SV FXBL 50200 99BK

TC 450 04-08 FXBL 50200 00SV FXBL 50200 55SV FXBL 50200 99BK

TE 450 04-08 FXBL 50200 00SV FXBL 50200 55SV FXBL 50200 99BK

TE 450 08-11 FXBL 50200 00SV FXBL 50200 55SV FXBL 50200 99BK

FC 450 (Magura) 2018 - FXBL 70100 55SV -

FC 450 14-26 FXBL 50600 00SV FXBL 50600 55SV FXBL 50600 99BK

FE 450 14-17 FXBL 50600 00SV FXBL 50600 55SV FXBL 50600 99BK

FE 450 18-21 - FXBL 70100 55SV -

FE 450 22-24 FXBL 60200 00SV

throttLe tuBes

CR 80 92-02 - FXTT 10100 99BK

CR 85 03-07 - FXTT 10100 99BK

CRF 150 07-26 - FXTT 10400 99BK

CR 125 92-07 FXTS 10200 00WT FXTT 10200 99BK

CRF

04-26 FXTS 10300 00BK FXTT 10300 99BK CRF

04-18 FXTS 10300 00BK FXTT 10300 99BK CRF

19-26 FXTS 10300 00BK FXTT 10300 99BK CR

92-07 FXTS 10200 00WT FXTT 10200 99BK

450 02-26 FXTS 10300 00BK FXTT 10300 99BK CRF 450X 05-26 FXTS 10300 00BK FXTT 10300 99BK CRF 450RX 17-26 FXTS 10300 00BK FXTT 10300 99BK

throttLe assemBLIes

gear peDaLs

CRF50 00-23 FXGP 10700 55RD -

CR80/85 96-07 FXGP 10500 55RD -

CRF150 07-26 FXGP 11200 55RD -

CR125 83-07 FXGP 10100 55RD -

CR250 88-91 FXGP 10100 55RD -

CR250 92-01 - -

CR250 02-07 FXGP 10300 55RD -

CRF250 04-09 FXGP 10400 55RD -

CRF250 10-17 FXGP 11500 55RD FXGP 11501 99HA

CRF250 18-26 FXGP 11600 55RD FXGP 11601 99HA

CRF250L (Adventure) 14-19 FXGP 11200 55RD -

CRF250X 04-18 FXGP 10400 55RD -

CRF250RX 19-26 FXGP 11600 55RD FXGP 11601 99HA

CRF 300L 21-24 FXGP 11200 55RD

CRF450 02-04 FXGP 10600 55RD -

CRF450 05-07 FXGP 10800 55RD -

CRF450 08-16 FXGP 11300 55RD FXGP 11301 99HA

CRF450 17-26 FXGP 11600 55RD FXGP 11601 99HA

CRF450 RX 17-26 FXGP 11600 55RD FXGP 11601 99HA

CRF450X 05-18 FXGP 10800 55RD -

CRF450X/L 19-21 FXGP 11700 55RDkaWasakI

KX65 00-26 FXGP 21000 55GN -

81-00 FXGP 28500 55GN -

01-26 FXGP 28500 55GN -

94-02 FXGP 20100 55GN -

03-08 FXGP 20200 55GN -

04-05 FXGP 20300 55GN -

06-08 FXGP 20900 55GNKXF250 09-26 FXGP 21100 55GN FXGP 21101 99HA KX250 94-08 FXGP 20100 55GNKXF450 06-08 FXGP 20800 55GN -

SUZUKI

RM80/85 89-26 FXGP 30300 55YL -

RM125 89-08 FXGP 30100 55YL -

RMZ250 04-06 FXGP 20300 55GN -

RMZ250 07-26 FXGP 30700 55YL -

RM250 89-08 FXGP 30200 55YL -

DRZ400 00-14 FXGP 30500 55YL -

RMZ450 05-07 FXGP 30400 55YL -

RMZ450 08-26 FXGP 30800 55YL -

YZ65 18-26 FXGP 40900 55BU -

YZ80/85 94-26 FXGP 40000 55BU -

YZ125 96-04 FXGP 40100 55BU -

YZ125 05-26 FXGP 40300 55BU FXGP 40300 99HA

YZ250 89-04 FXGP 40200 55BU -

YZ250 05-26 FXGP 40300 55BU FXGP 40300 99HA

YZF250 01-05 FXGP 40400 55BU -

YZF250 06-13 FXGP 40700 55BU -

YZF250 14-18 FXGP 40800 55BU FXGP 40801 99HA

YZF250 19-26 FXGP 41000 55BU FXGP 41001 99HA

WRF250 06-16 FXGP 40700 55BU -

WRF250 18-19 FXGP 40800 55BU FXGP 40801 99HA

WRF250 20-26 FXGP 41000 55BU FXGP 41001 99HA

YZF400/426/450 98-05 FXGP 40400 55BU -

YZF450 06-13 FXGP 40600 55BU -

YZF450 14-17 FXGP 40800 55BU FXGP 40801 99HA

YZF450 18-26 FXGP 41000 55BU FXGP 41001 99HA

WRF400/426/450 98-05 FXGP 40400 55BU -

WRF450 06-16 FXGP 40600 55BU -

WRF450 17-18 FXGP 40800 55BU FXGP 40801 99HA

WRF450 19-26 FXGP 41000 55BU FXGP 41001 99HA

01-08 FXGP 50700 55OR -

09-23 FXGP 50800 55OR -

24-26 FXGP 51400 55OR

85 SX 03-17 FXGP 50400 55OR

250 EXC-F 17-26 FXGP 51000 55OR FXGP 51000 99HA

250-300 SX/EXC 94-16 FXGP 50600 55OR250-300 EXC/TPI 17-23 FXGP 51200 55OR FXGP 51200 99HA

250-300 EXC 24-26 FXGP 51300 55OR FXGP 51300 99HA 250

FXGP 60600 55RD -

TC/TE 250 09-13 FXGP 60200 55RD -

TC/TE 250 - 300 14-16 FXGP 70600 55BU -

TC 250 17-22 FXGP 71200 55BU -

TC 250 23-26 FXGP 51300 55BU FXGP 51300 99HA

TE 250 - 300 17-23 FXGP 71200 55BU -

TE 250 - 300 24-26 FXGP 51300 55BU FXGP 51300 99HA

FC 250 14-15 FXGP 70200 55BU -

FC 250 16-26 FXGP 71000 55BU FXGP 51000 99HA

FE 250 14-16 FXGP 70200 55BU -

FE 250 17-26 FXGP 71000 55BU FXGP 51000 99HA

TE 300 14-16 FXGP 70600 55BU -

TE 310 09-13 FXGP 60200 55RD -

FC 350 14-15 FXGP 70200 55BU -

FC 350 16-26 FXGP 71000 55BU FXGP 51000 99HA

FE 350 14-16 FXGP 70200 55BU -

FE 350 2016 FXGP 70100 55BU -

FE 350 17-26 FXGP 71000 55BU FXGP 51000 99HA

TC/TE 450-510 04-13 FXGP 60200 55RD -

FC 450 14-15 FXGP 70100 55BU FXGP 51000 99HA

FC 450 16-22 FXGP 70900 55BU FXGP 50901 99HA

FC 450 23-26 FXGP 71000 55BU FXGP 51000 99HA

FE 450/501 14-16 FXGP 70100 55BU FXGP 51000 99HA

FE 450/501 17-23 FXGP 70900 55BU FXGP 50901 99HA

FE 450/501 24-26 FXGP 71000 55BU FXGP 51000 99HA husaBerg HUSABERG

TE 125 11-14 FXGP 70200 55BU -

TE 250-300 10-14 FXGP 70600 55BU -

FE 250 13-14 - -

FE 350 12-14 FXGP 70200 55BU -

EC 250F 21-26 FXGP 51000 55RD FXGP 51000 99HA

MC 250F 21-26 FXGP 51000 55RD FXGP 51000 99HA

gear peDaLs

15-19

60700 55RD

61200 55RD

60700 55RD

61200 55RD

rear Brake Levers

rear Brake peDaLs

Footrests

GAS GAS

FaCtory kIts

• Brake Hose Clamps

• Engine Plugs

• Master Cylinder Covers

• Valve Caps

• Valve Cap Screws

• Rear Axle Blocks & Adjusters

• Steering Stem Nuts

*Kits contents vary per application

LaunCh ControLs

IgnItIon Covers

CLutCh Covers

150

200

250

HUSQVARNA

oIL DraIn BoLts engIne tImIng pLugs

oIL FILters

250

400

450 EXC-F (1) 03-07 FXOF 50100 55ST HF 155

450 EXC-F

oIL FILter Covers

aIr FILters

KAWASAKI

125

150

200

250

250 EXC 12-16

250

300

350

350 EXC-F 24-26

50008 55NO

50004 55NO

450

450 SX-F 23-26 FXAF 50008 55NO

450 EXC-F 04-07 FXAF 50004 55NO

450 EXC-F 08-11 FXAF 50005 55NO

450 EXC-F 12-16 FXAF 50006 55NO

500 EXC 12-16

500 EXC-F 17-23

50007 55NO

50008 55NO

50006 55NO

50007 55NO

500 EXC-F 24-26 FXAF 50008 55NO

50004 55NO

50008 55PO FXAW 50005 55ST

50005 55PO

50006 55PO

50008 55PO

50006 55PO

50007 55PO

50008 55PO

50005 55ST

aIr FILters

Brake DIsCs

Brake paDs

150

200

250

400

DIsC guarD BraCket

Disc Guard

Disc & Caliper Guard

seat Covers

350

450

500

sproCkets

aXLe BLoCks

WheeL spaCers

250
