C HANG H E M EMO RIAL MUS EUM

Lo c atio n : Ch a n ghe, Ha n gzh ou C h i n a / Ac ad e mi c In d ivi d u al Work / 2018 Sp ri n g S e meste r / Prof. Kai Wa n g 王 凯

T E R R O I R I N A R C H I T E CT U R E D E S I G N

The preservation of collective memory in a settlement is an essential factor in the urbanization process of ancient towns. To understand Architecture is to understand the life it carries, and to understand the life it carries is imperative to understand the environment that created it. “Changhe” is a vernacular settlement in the Bingjiang District of Hangzhou. The main purpose of this project is to study and design around how the topography and vernacular character shaped the town and created it’s architecture language. The structure of the terroir contains two parts: the natural environment and the man-made environment, both reflected in the process of design and shaping the essence of this particular project, a combination that unifies the collective memory of this town.

[POLIMI ] Master’s Program - Building Architecture Application

5

PR E M I S E T R A D I T I O N I N J U X TA P O S I T I O N W I T H D E V E LO P M E N T China as a growing country has faced many challenges due to it’s rapid development, the question of how to protect and continue the tradition in the development is a serious issue in this new chinese modern society. This project is thought as part of the modernization plan of Hangzhou announced in 2002, which is a project on going in 9 famous historical and cultural towns. Protection is urgent, development is imperative, this is the core idea that fuels the inspiration for this project.

To understand the factors that influences Changhe’s development is important to make a deep study into the terroir structure of the village. The formation of this “terroir” is composed by two general elements , wind and land; Wind refering to costumes and practices representing the lifestyl of it’s inhabitants, and Land being the region and natural environment in which the settlement is located and gather it’s resources. These factors are the inspiration for the structure’s choice, a traditional chinese wall structure called Matou Wall or (马头墙) which can be seen along the town in different ways. The one used for this project is a re-interpretation of the structure and the form, creating a more flexible structure that not only looks more contemporary, but at the same time evoques the escence of the past in a subtle way.

This exhibit’s purpose is to influence the way in which progress and urbanization are perceived in China through a more temporal perspective, where both development and preservation can co-exist. Each component of the exhibition allows the viewer to experience an approach to this concept, and to feel the true escence of the water town of Changhe.

SITE PLAN

FUNCTIONS DIAGRAM

Traditional Housing Location

Functions and Circulations

river exhibition tea house “patio”

shrine mountain

SITE ORIENTATION

Feng-Shui’s Face Water and Back Mountain

exhibition

FORM ARRANGEMENT Traditional Chinese Housing

[POLIMI ] Master’s Program - Building Architecture Application

6

D ESI G N PR O C ES S

SITE FEELING

SKETCHING

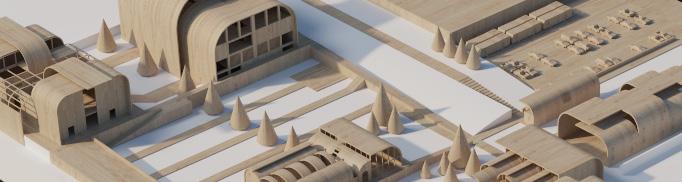

CONCEPTUAL (DIGITAL) MODEL

A memorial exhibition should be able to communicate in every way the essence of the place, it’s architecture, it’s way of living and the feeling of the people living around.

After considering several options for this exhibition, I decided that creating a traditional cover filled with a modern and innovative interior would be the best fit for the overall look of the project.

The representation of this model with materials and an unrealistic scale, is to express better the feeling of merging with the environment, undersizing visually the project, so it blends with the surroundings.

[POLIMI ] Master’s Program - Building Architecture Application

7

Temporary Exhibit

Tea House / Cafe

+ 5600 + 4200 + 2400

+ 3000

B

+ 3000

+ 0900 + 0150

+ 0.000

SECTION A-A

A

A

04

06

05

01 02

02

03

FACADE

South to North View

B

0

5

10

15

25

FLOOR PLAN

01

Main Lobby

05

Temporary Exhibit

LEVEL 1

02

Exhibition Space

06

Public Plaza

03

Projection Room

04

Tea House / Cafe [POLIMI ] Master’s Program - Building Architecture Application

8

Tea House / Cafe

Exhibition Space + 7600

+ 3000 + 2100

B

+ 1200

+ 2000 + 0900

SECTION B-B

05

A

A

04

02

02 01

FACADE

West to East View

B

0

FLOOR PLAN

01

Sitang (Shrine)

LEVEL 2

02

Exhibition Space

03

Projection Room

04

Leveled Terrace

5

10

05

15

25

Main Staircase

[POLIMI ] Master’s Program - Building Architecture Application

9

[POLIMI ] Master’s Program - Building Architecture Application

10

STRUCTURE

Updating a Traditional Construction System

Following the same conceptual direction, this project has a traditional structure composed of beams, columns and a diagonal roofing system. Usually this would be made out of wood, reinforced with thick walls on the perimeter that stabilized the whole building. But for this project wood was replaced by a metal structure acompanied with reinforced concrete, the changes in material and sructure are supossed to evoque the old feeling, in a bigger scale for a public building instead of a small house or temple. The structure is repeated along the two main “buildings” of the exhibit and a smaller more simple version is used for the temporary exhibit. For the cafe a simple roof garden in reinforced concrete structure is used.

[POLIMI ] Master’s Program - Building Architecture Application

11

RENDER TEMPORARY EXHIBITION

RENDER

TEA HOUSE / CAFE

[POLIMI ] Master’s Program - Building Architecture Application

12

HOM E ABOVE MARKET

Lo c atio n : Ku n sh a n , Ji a n gsu C h i n a / Ac ad e mi c In d ivi d u al Work / 2019 Wi nte r S e meste r / Prof. Fa n g Ji Wa n g 王 方 戟

COMPOSITE DESIGN

For this project, the goal is to create a harmonious system where two different typologies can co-exist in a single space, housing and commerce. The housing part is an apartment building type of architecture and for the commerce an update of the existing market in the location. In this project, the idea we want to express with our concept is that in architecture sometimes the hardest solution is the simplest one.

When having so many dueling functions that may be affected by each other, and complicated systems is easy to strive into complex solutions. But in this project, the result is a simple structure that goes along the whole project repeating itself, making both the circulations very logical and the functions very organized for the users.

[POLIMI ] Master’s Program - Building Architecture Application

13

PR E M I S E C O N VO LU T E D SYST E M S L E A D TO S I M P L E S O LU T I O N S

UNIT A

2400

SITE PLAN

Riverside Market Location

3 F A PA R T M E N T

1200

P R I VAT E P L AT F O R M UNIT C

2400

2 F A PA R T M E N T

600

P U B L I C P L AT F O R M

1 F A PA R T M E N T

M A I N P L AT F O R M I N T E R I O R P L AT F O R M MARKET UNIT

2800

Housing Solutions: - A deconstruction idea of the typical “apartment building”, creating several modules.

- Three different layers of public space are reflected in three different levels of platforms, public, semi-public, and public for only inhabitants of the project.

- Public activities are shared in public spaces, reducing the need for indoor space, therefore, making the project more affordable.

UNIT B

1800

Market Solutions: - A simple structure conformed by 4 sections that were chosen after analyzing the current market: living products, vegetables, food, and miscellaneous temporary vendors.

- Specific routes for storage and parking of small products transporting vehicles - A connection to the waterfront, creating leisure spaces for not only customers but also vendors.

1200

The form is determinated by the analysis of perspective along the project, the determination of angles that can help to visually separate the market from disturbing the appartments, this is a system of platforms that according to their height function as filters for the residents in the buildings.

This is also the reason for the angles in the middle units that are key to separate the central park of the market, as well aaas functioning as green roofing for the project.

GF MARKET

600

The project is located in Kunshan, a medium-sized city in Jiangsu province. The site currently has a market which is the commercial core of the surrounding areas. As Kunshan is not so big, most of its inhabitants are old and prefer to buy things in this market despite having some local supermarkets around. The government has started the plan of relocating this market closer to the main road, but this project is planned in the current location.

FUNCTION ANALYSIS Platforms relationship

[POLIMI ] Master’s Program - Building Architecture Application

14

D ESI G N PR O C ES S

SITE FEELING

SKETCHING

CONCEPTUAL MODEL

The first step in this project is to understand the needs and problems in the area, studying different appartment compounds and the market.

Understanding what is imperative to be fixed and what can be embrace.

Looking at all the different factors, my sketching for this project is a visual representation of the space usage in the area, so many different activities in “harmony”.

The idea represented by the model is “PERSPECTIVE”, I create different layers of space that help the users to understand the space limitations between functions without creating physical barriers.

[POLIMI ] Master’s Program - Building Architecture Application

15

Apartment Unit

Plaza Space

Platform

+ 14800

B

+ 3000 + 9600

+ 6400 + 0150 + 3200

06

06

07

05

SECTION 03

A-A

04

07 05 07 03

04

08

07 05 07 03

A

04

07

A

05

04 01

MODEL PHOTO River-side View 02

B

0

5

10

15

25

FLOOR PLAN

01

Main Entrance

05

Food Court

LEVEL 1 / MARKET

02

Parking Lot

06

Public WC

03

Living Products

07

Storage Rooms

04

Vegetables

08

Riverside Area [POLIMI ] Master’s Program - Building Architecture Application

16

B

02

04

DETAIL PLANS LIVING UNITS

04

05

03

06

02

05

A

A 04

02

01

AXONOMETRIC Aerial View

B

0

5

10

15

25

FLOOR PLAN

01

Public Plaza

05

Park Platform

LEVEL 2 / APARTMENTS

02

Patio Type 01

06

Riverside Platform

03

Interior Platform

04

Patio Type 02 [POLIMI ] Master’s Program - Building Architecture Application

17

[POLIMI ] Master’s Program - Building Architecture Application

18

ILLUSTRATION

River-side Activities

MODEL PHOTO Aerial View

[POLIMI ] Master’s Program - Building Architecture Application

19

MAN G R OVE W ETLAN D PR ES ERVATION C E NTE R

Lo c atio n : Sh e nzh e n , C h i n a / Ac ad e mi c In d ivi d u al Work / 2020 Sp ri n g S e meste r / Prof. Qi ao Z h a n g 张 樵

U R BAN S CAL E

Shenzhen Mangrove Wetland Museum will be one of the future landmark public cultural facilities in Shenzhen, and it’s purpose is to integrate ecological protection, exhibition, science education, scientific research and recreation. The project is located at the southern end of the Mangrove Forest Corridor, one of the nine planned mountain and sea corridors in Shenzhen. The Mangrove Wetland Museum is a people-centered and diverse urban space, which means that the main goal of the design is to innovate public participation in and for the area, in order to meet the diverse needs for achieving long-term vitality.

It is a “park + museum” type of project that aims to expand the possibilities of education, recreation, communication and culture.

[POLIMI ] Master’s Program - Building Architecture Application

20

PR E M I S E UR BAN SCALE AFFECTE D BY H U MAN- SI Z E PE RC E PTI O N Shenzhen is a giant growing city in China, plenty of worldwide size projects are outgoing in the surrounding area, so the government has a very ambitious urban developmen plan for the city. This site is almost at the end of one out of he nine different mountain to city belts that connect and facilitates the tourist spots in the area. The approach for this project is how to create an urban landmark that priorities human scale, and the eye perception, without generating big scale problems within the city.

This project has an opposing stream of gardens around the architecture. The overall space is a museum with an open decentralized architectural approach. Fully aware that this may be complicated by weather and rain, we believe the result matches better the “preservation” approach this project has. Separated volumes of different heights and orientations create a very dynamic space that avoids repetition and monotony; each gallery and educational space is different, yet they share the same spatial logic. There are many details inside each space that make it feel special and unique. As a result, the overall landscape of the project is dynamic and open.

ADMIN.

FUNCTIONS

EXHIBIT

The project is separated into 2 different areas, exhibition and administration. The part to the north was given administrative and storage functions, and south with an ocean view to exhibition and education.

PG.02

PG.01

PG.04

PG.03

POCKET GARDENS To retain the natural feeling as possible we separate each space from each other and then used the topographic elevation to break up the linear visual points.

Mountain

PASSAGE Ma ngrove Pa rk

Sea-side

An important feature in this project was to create a corridor for people to complete the mountain and sea corridor experience. I chose 3 entrances connecting the main corridors for people and vehicles.

Ve h i c l e s E n t ra n c e

ENTRANCES Elevated Bridge Main Entra nce

The “main” one is in the direction of the mountain to the south, this entrance is to connect the southern road. The second one is a bridge that connects the eastern parcel to the main part. The third and last one is an elevated bridge for vehicles to enter.

SITE PLAN

Mountain to Sea Corridor [POLIMI ] Master’s Program - Building Architecture Application

21

DESI G N PR O C ES S

MASSING

SKETCHING

CONCEPTUAL (DIGITAL) MODEL

At this scale, the first logical step is to create the overall volume idea, this in order to have a clear vision of the necessary construcion area in the project, as well as clearing circulations and desired views.

After knowing where the areas will be, the “carving” of the volumes begin, for this particular project I wanted to embrace the feeling of a gateway, literally creating architecture that resemble a passage.

This project was completed online, so the conceptual model I used to clarify my vision for the space was made on Sketchup, the overall space is a trick to the user, not knowing the limits between inside and outdoors.

[POLIMI ] Master’s Program - Building Architecture Application

22

B Exhibition A

Temporary Exhibit

Parking

A 06

+ 24000

03

+ 18000

07

+ 15000 + 12000

+12000 +9000

SECTION A-A

03

02 04 08

06

06

05

03

04

RENDER

03 01

South Exhibition View 06

03

03

B

0

5

10

15

25

FLOOR PLAN

01

South Entrance

05

Administraion

LEVEL 1

02

North Entrance

06

Temporary Exhibit

03

Exhibition Space

07

Paking Lot

04

Education Space

08

Cafeteria [POLIMI ] Master’s Program - Building Architecture Application

23

B Exhibition A

Green Plaza

Temporary Exhibit

Education

Exhibition

A 06 03

07

SECTION B-B

03

02 04 08

06

03

04

RENDER

03

Lake Area / Cafeteria

01

03

03

B

0

5

10

15

25

FLOOR PLAN

01

South Entrance

05

Administraion

LEVEL 2

02

North Entrance

06

Temporary Exhibit

03

Exhibition Space

07

Paking Lot

04

Education Space

08

Cafeteria [POLIMI ] Master’s Program - Building Architecture Application

24

[POLIMI ] Master’s Program - Building Architecture Application

25

RENDER

Hybrid Exhibition

RENDER

Green Roof Detail

[POLIMI ] Master’s Program - Building Architecture Application

26

PRADA O FF I C E INTERIO R D ES IG N

Lo c atio n : Sh a n gh ai , C h i n a / Ac ad e mi c In d ivi d u al Work / 2021 Sp ri n g S e meste r / Prof. Ru a n Z h on g 阮 忠

F U T U R E ’ S C R A F T M A N S H I P A N D P R E S E R V E D M E M O RY A creative approach to the future, reinterpretation of the present, and preservation of the past. This is a project that acts as a contemporary interpreter of the ever-changing design scene, combining the legacy of past identities with the needs and dynamics of the present and future in a three-dimensional temporal dialogue; Space, Function, and Aesthetic. Combining the prevailing perspective of office space with a new proposal of working/education space. The sole purpose of this project is to explore what can be beyond office space and to come up with a new solution that is appropriate to our time and context in the ever-changing social and economical environment. As well as an exercise to construct a design that evokes the identity of a brand.

[POLIMI ] Master’s Program - Building Architecture Application

27

PR E M I S E

N E W I N S TA L AT I O N S

DESIGN ENSURES THE DURABILIY OF A BRAND

In addition to structure and spatial sense, the use of new materials evoque the sense of modernity and simplicity, two factors that mark our lifestyle nowadays.

Yanqingli Warehouse is located in Nanzhou Road at the south bank of Nansu, Shanghai. It belongs to Shanghai’s historial and cultural landscape area, built in 1929. I has a three story tall reinforced concrete frame sructure, with a 6,233 square meters. The project was developed in the third floor of the building due to the dynamic exposed roof structure, that inspired the shapes along the different design elements.

C U R R E N T S PA C E The current combination of structure and space, creates a timeless feeling in both sections of the building, and inspire the adaptation of the space for commercial use.

This project’s concept is “Future’s Craftmanship” which refers to a reinterpretation of the idea of manual craftmanship, the concept is partially inspired by the Prada Group.

The Prada Group is a contemporary interpreter of changing scenes, is a company that seeks to push boundaries not only in fashion but in all art forms, architecture included. The design in this office does not only embraces the current Prada design style in it’s offices, stores and instalations, but aims to explore a new direction for the brand, and architecture in fashion.

PA S T I N F L U E N C E S Revival and preservation of ancient technologies and concepts that still have a great influence in our present, introducing a traditional shanghai “sikumen” arrangement in the overall floorplan.

SITE PLAN

South Bank of Nansu

CONCEPT DIAGRAMS

Past, Present, Future Relationship / Office + Training

LOGO ADAPTATION Brand’s Logo and Space

PRIVATE

OFFICE

PUBLIC NEUTRAL

WORKSHOP

AREA ANALYSIS

Office / Cafe / Workshop

OPEN OFFICE

CIRCULATIONS ANALYSIS Office / Cafe / Workshop

[POLIMI ] Master’s Program - Building Architecture Application

28

DESI G N PR O C ES S

BRAND AND SITE STUDY

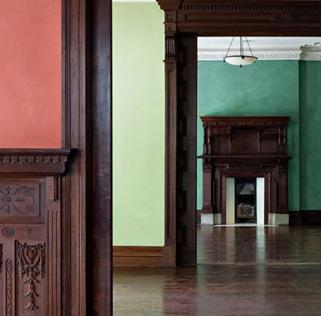

MOOD BOARD

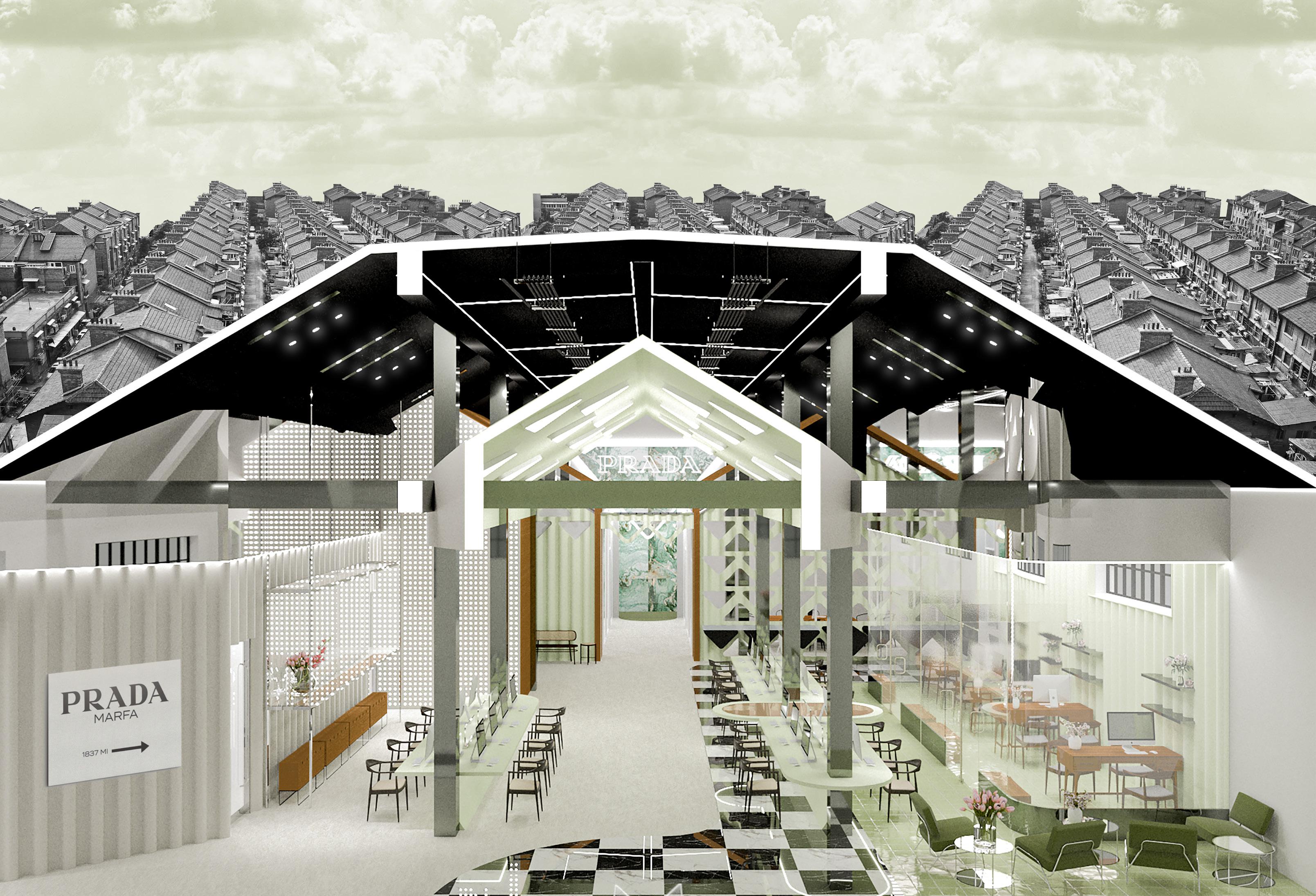

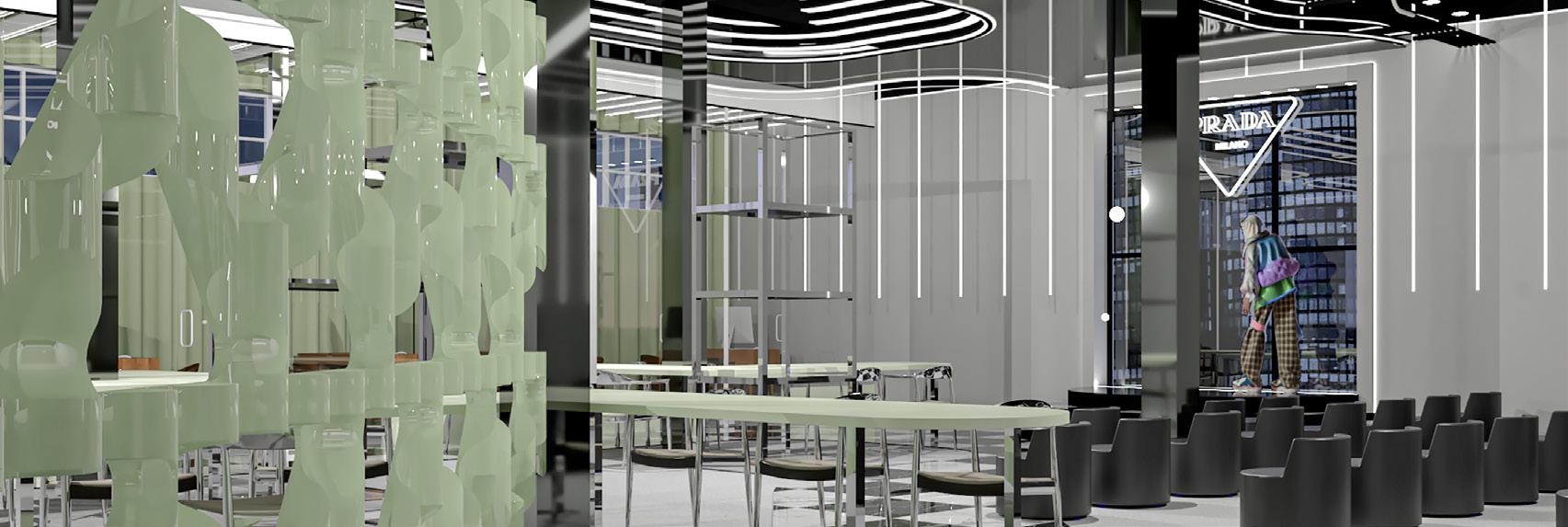

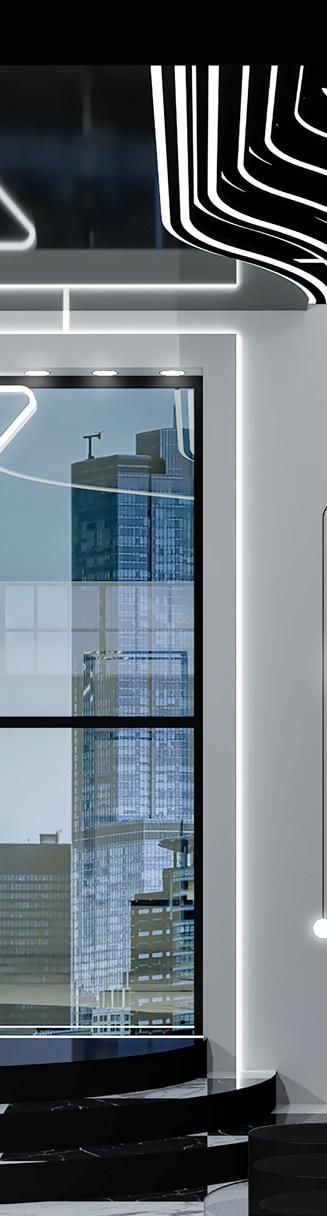

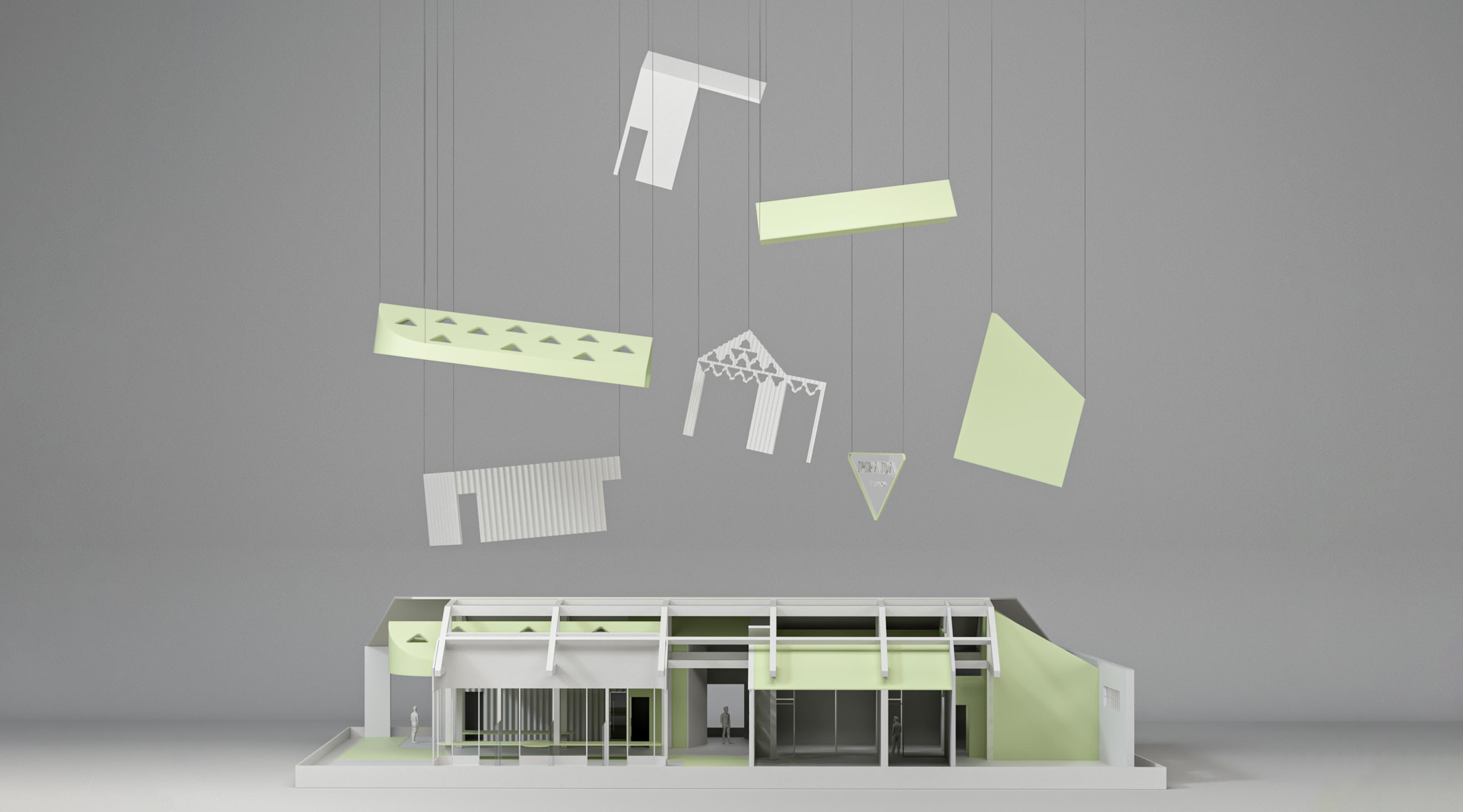

CONCEPTUAL RENDERS

In this interior design project the firs step I employed was to understand the relationship that site and brand could have, what is the impact of Prada Group in Shanghai?

After understanding the desire of the Prada Group to rescue ancient techniques and embrace old design aesthetics, I created the moodboard that represents this feeling.

Three different timelines that does not colide with each other, this is the result of tesing different possibilities and combinations of design and colors, the result is a cohesive space.

[POLIMI ] Master’s Program - Building Architecture Application

29

Workshop / Exhibit

Staircase / Cafe

Office Space

B

+7200 +6100 + 5100

+3600

+ 3600

08 08

04 + 0450

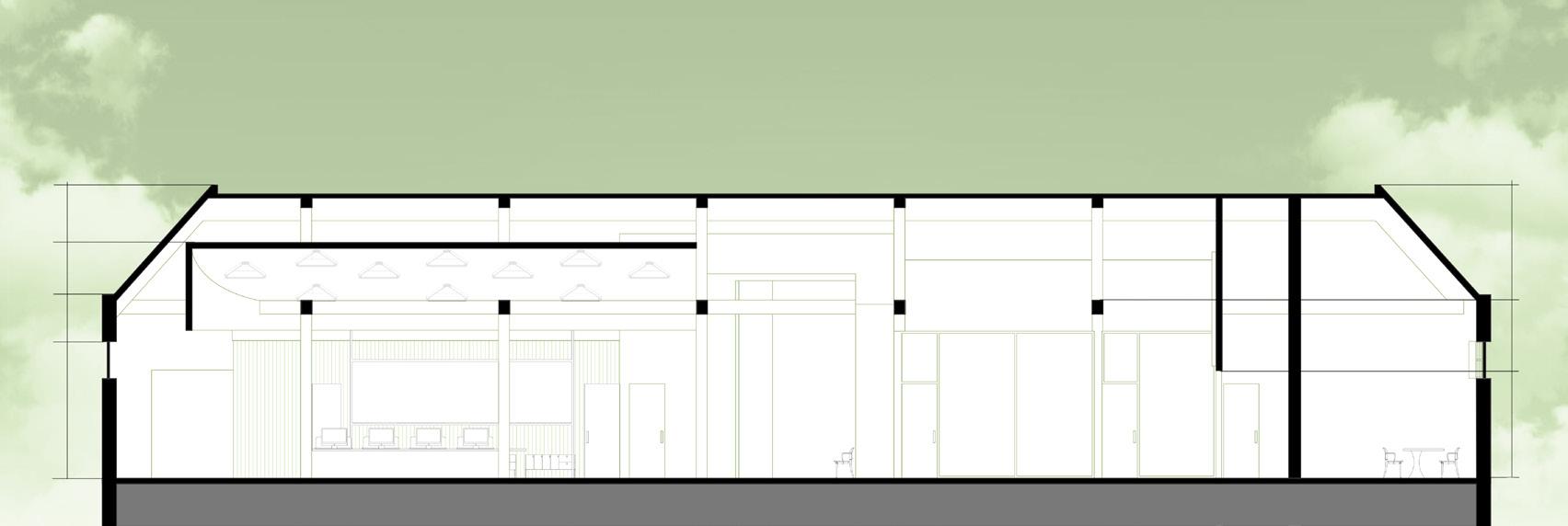

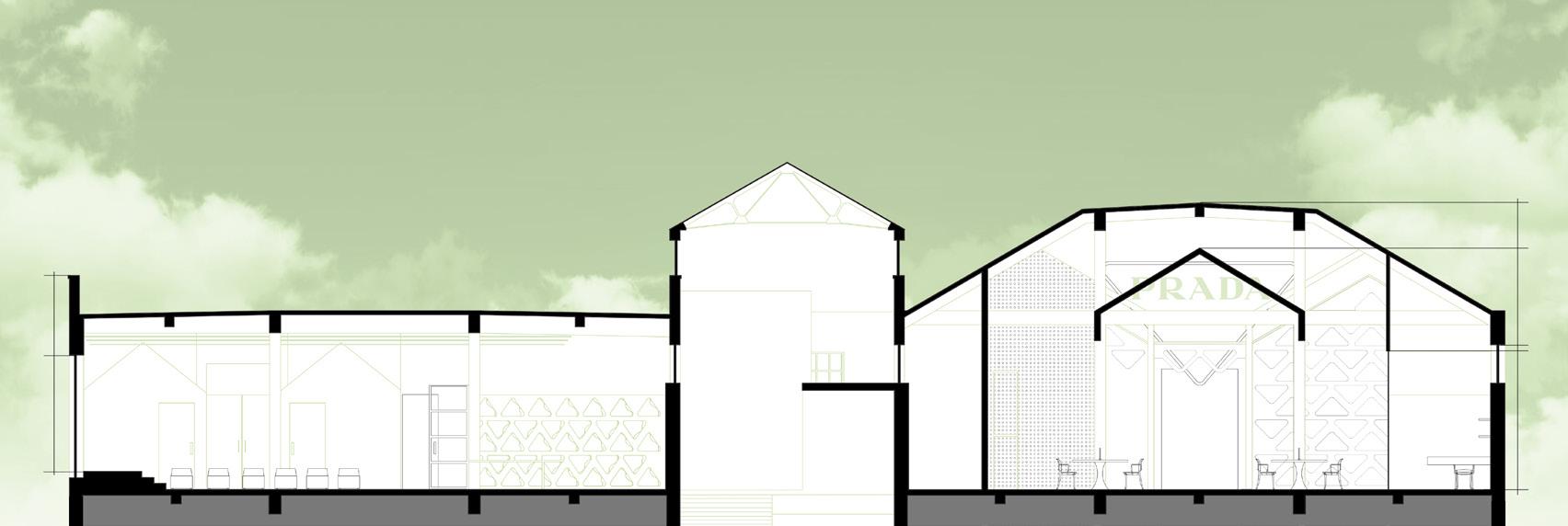

SECTION

04

05

08

+0000

03

A-A

03

04

03 07 01

03

03 02 03

A

A

06 03

03

03

03

RENDER

Workshop / Exhibit

03

B

0

3

6

9

15

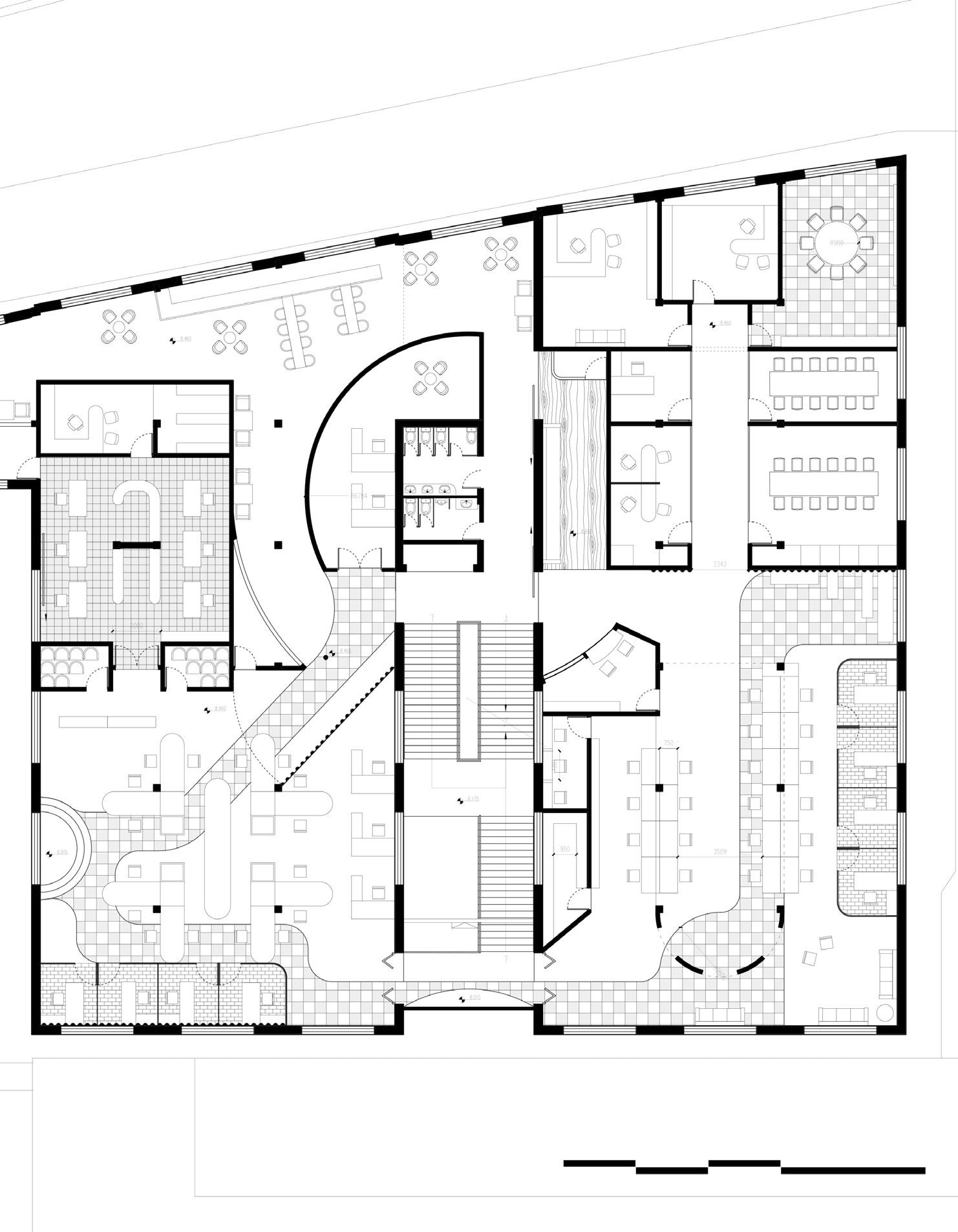

FLOOR PLAN

01

Entrance / Lobby

05

Cafe

LEVEL 3

02

Open Office Area

06

Workshop / Exhibit

03

Office

07

Digital Design Room

04

Meeting Room

08

Administration [POLIMI ] Master’s Program - Building Architecture Application

30

Open Office

B

Lobby

Administration

CEO’s Office

+ 7200

+ 7200

+ 6100

+ 4600

+4600

+ 3600 +2800

08

08

04

+ 0.000

03

+0.000

SECTION

04

B-B

08 03 05

04 03

07 01

03

03

02

A

03

A

06 03

03

03

03

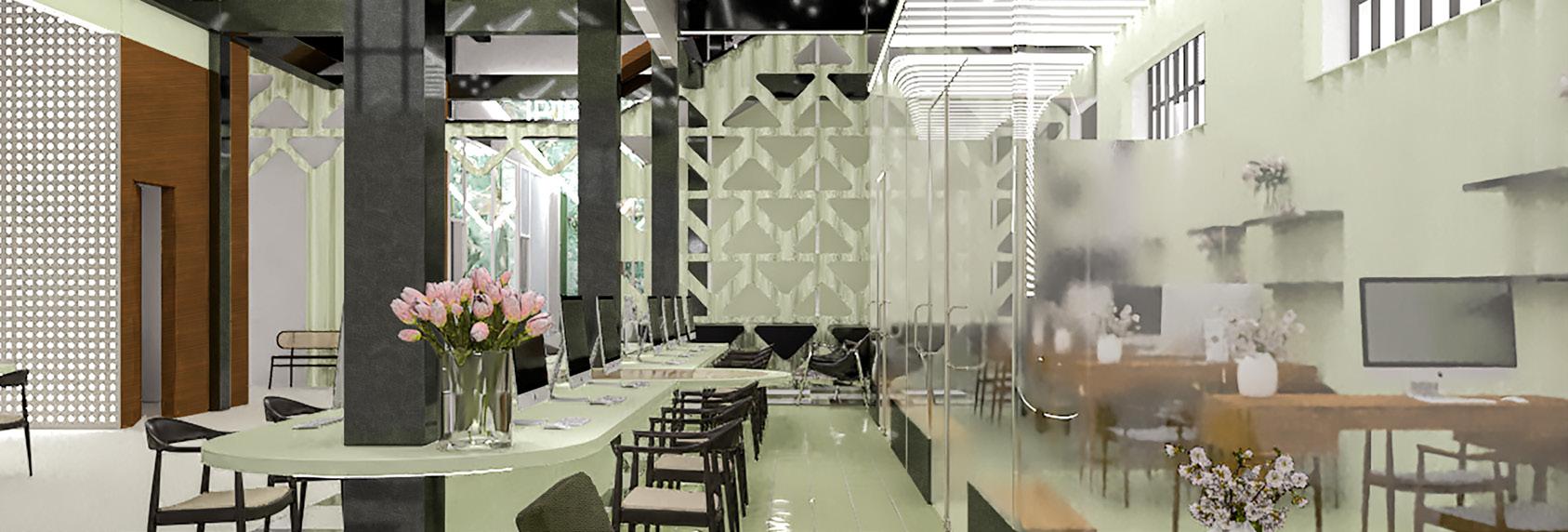

RENDER

Open Office Area

03

B

0

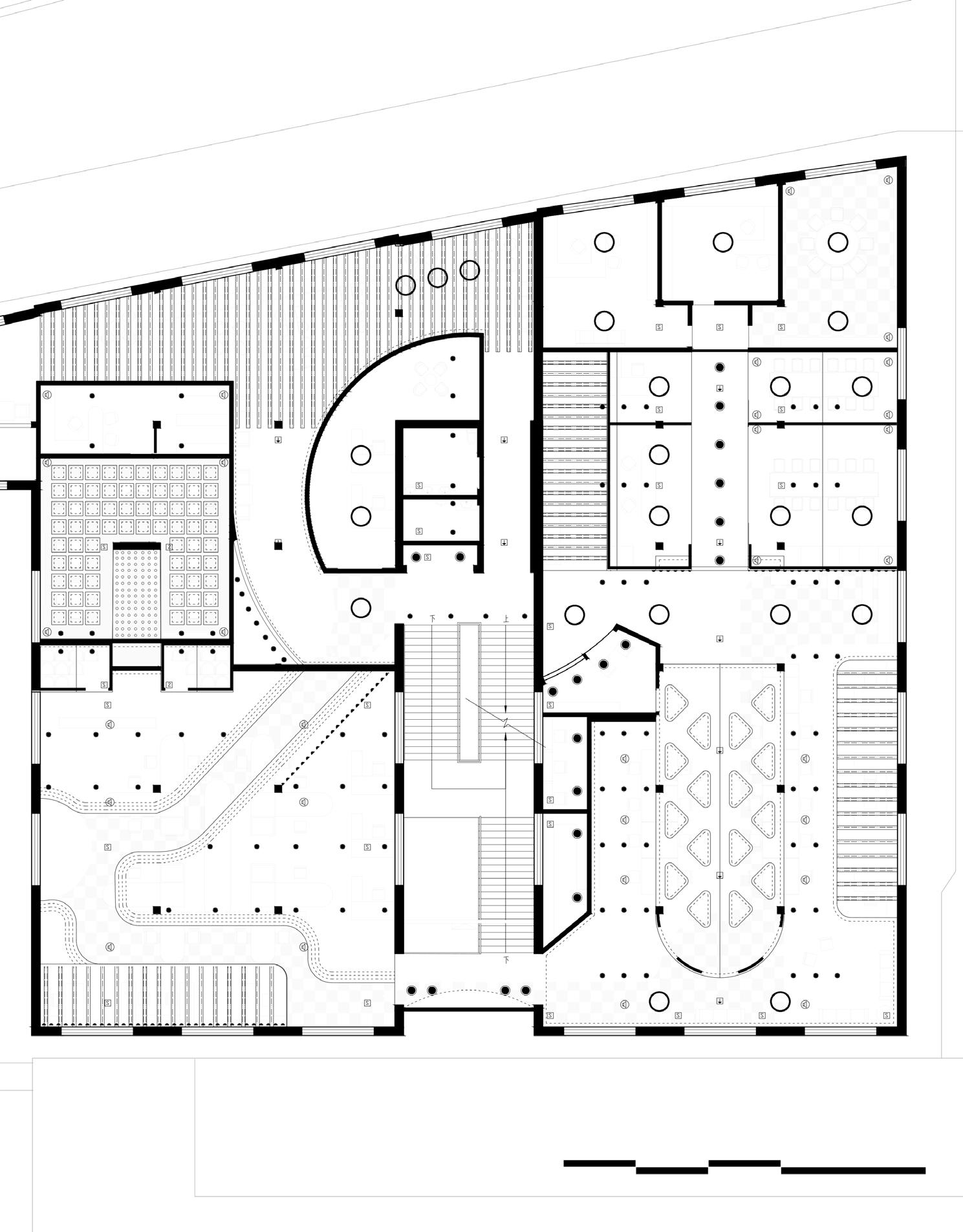

INSTALATIONS PLAN LEVEL 3

3

6

9

15

01

Entrance / Lobby

05

Cafe

02

Open Office Area

06

Workshop / Exhibit

03

Office

07

Digital Design Room

04

Meeting Room

08

Administration [POLIMI ] Master’s Program - Building Architecture Application

31

[POLIMI ] Master’s Program - Building Architecture Application

32

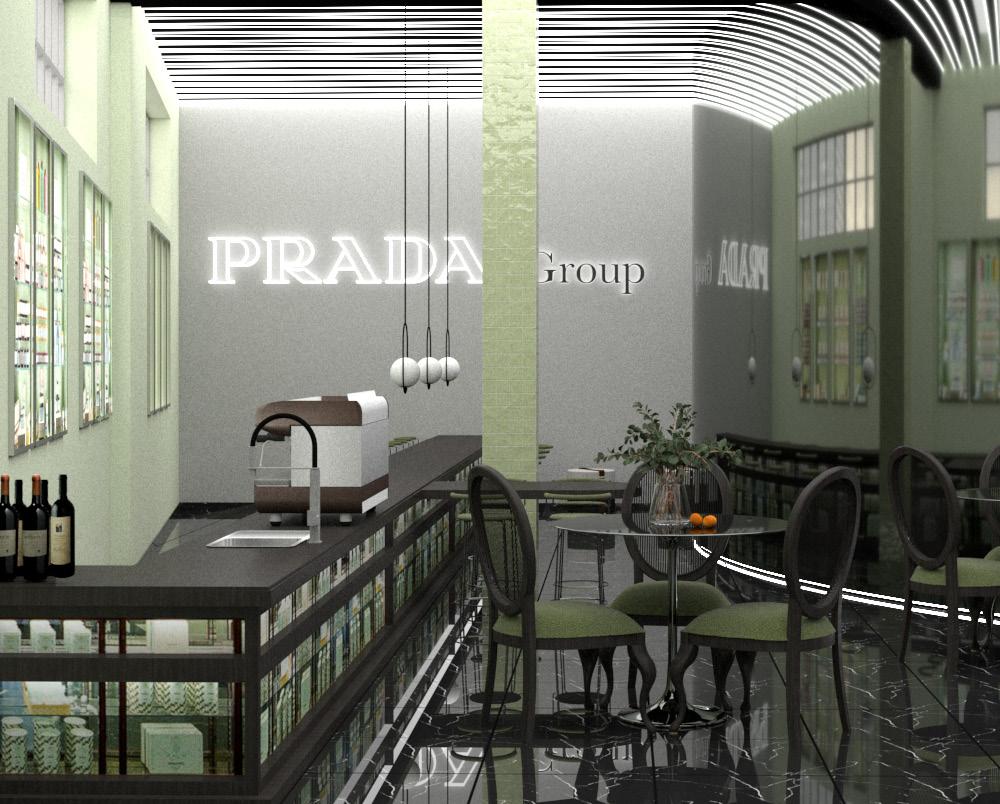

RENDER Cafe

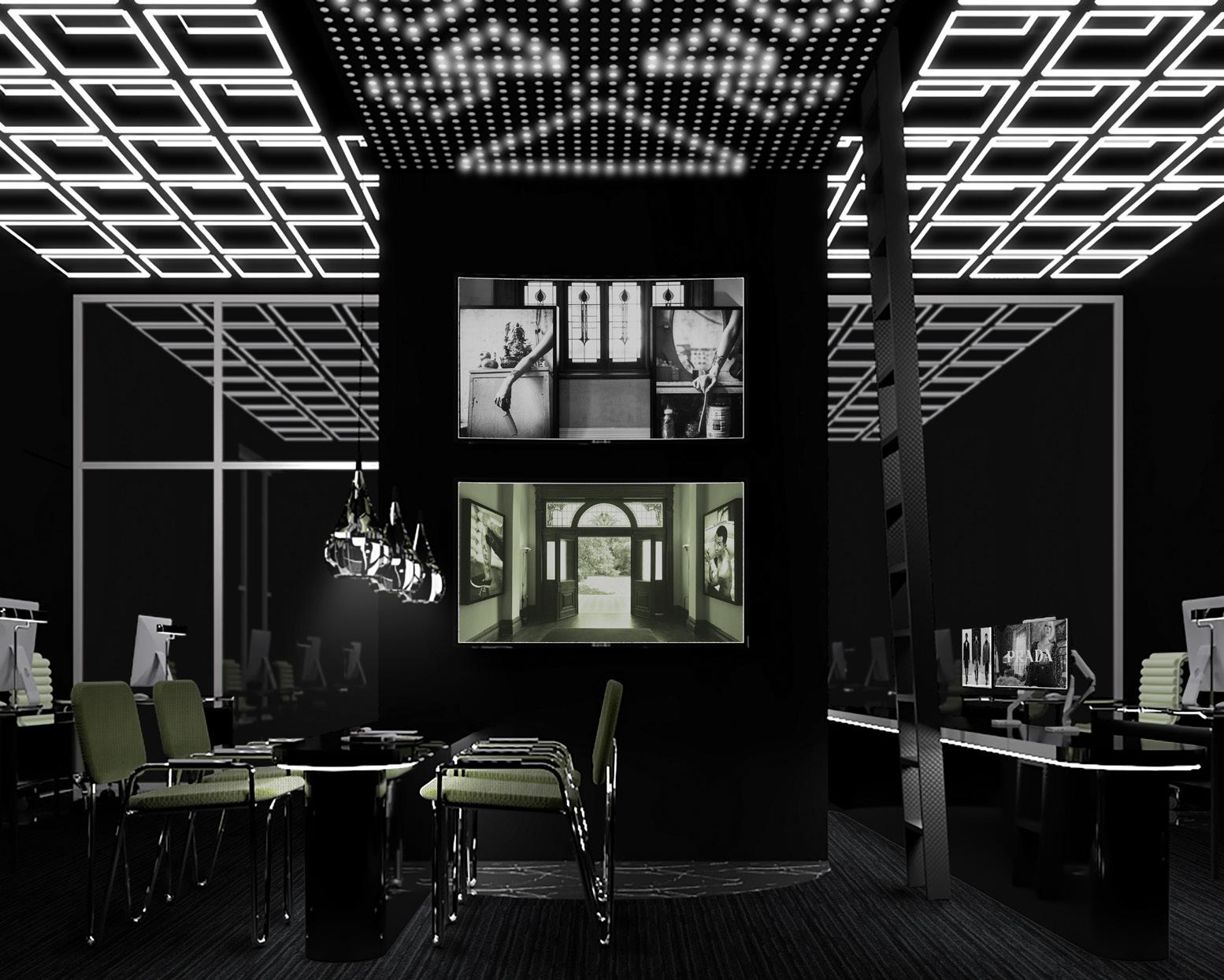

RENDER

Digital Design Room

[POLIMI ] Master’s Program - Building Architecture Application

33

OTHER WO RKS

C ol or Pe n c i l on C a nva s / Pe rs on a l Work / 2020 / J orge Monte j o

H A N D - D R AW I N G A N D OT H E R S

[POLIMI ] Master’s Program - Building Architecture Application

34

OIL PAINTING Portrait

WATER COLOR Box fight

[POLIMI ] Master’s Program - Building Architecture Application

35

PEN SKETCH

Original Work / Girls Playing

PHOTOGRAPHY

Original Work / Girls Playing

[POLIMI ] Master’s Program - Building Architecture Application

36

PEN SKETCH

Original Work / Dragon Statue

PEN SKETCH

Original Work / Landscape

[POLIMI ] Master’s Program - Building Architecture Application

37

DIGITAL ILLUSTRATION Original Work / Emotion

DIGITAL ILLUSTRATION Original Work / Self-portraits

[POLIMI ] Master’s Program - Building Architecture Application

38
