JUJU RESTAURANT & BAR

BRIEF

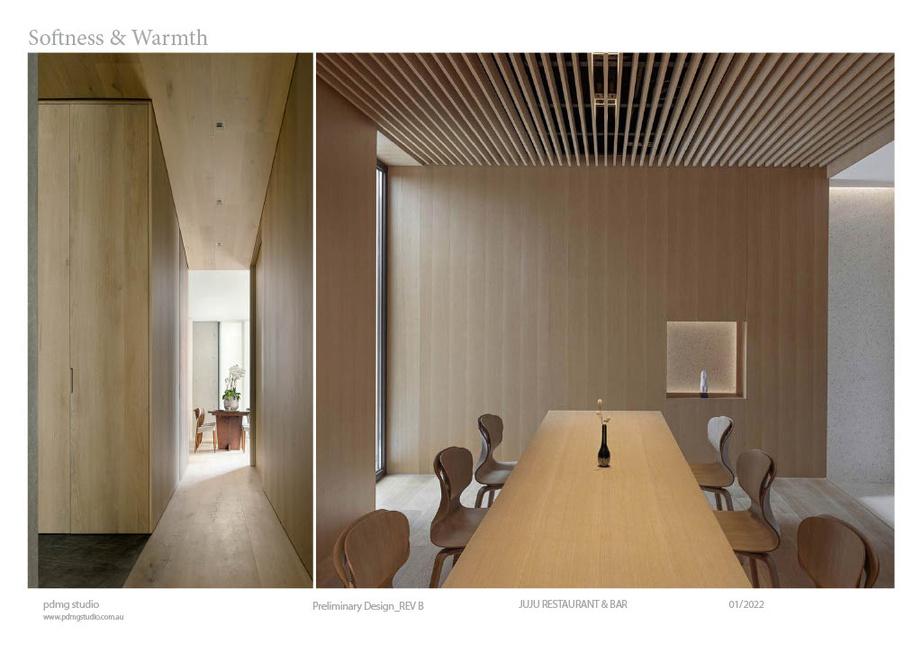

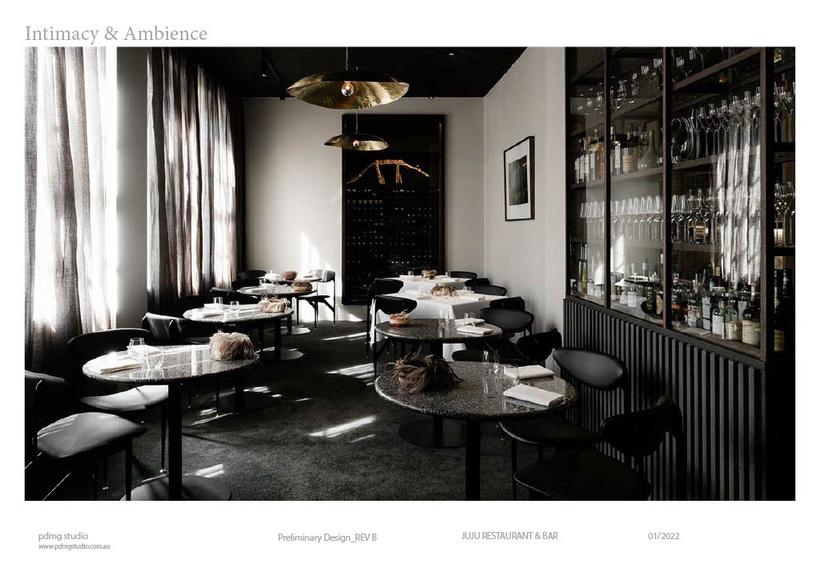

250m² restaurant project for Juju restaurant & bar. The idea was to work in two different environments. In the dining area, a more formal environment was proposed with elements of leather, velvet, and wood. All in darker tones bringing an air of class and seriousness to the environment.

In the bar area, the proposal was to bring more lightness, using: wood in light tones, burnt cement, and furniture in a simpler composition. In the bar/breakfast area, the use of natural light was also proposed, with the help of the large windows already existing in the building, making the environment clearer.

Thus, bringing two different environments to the restaurant, but still talking to each other.

The Project was developed by the PDMG Studios office, with the design of Architect & Designer David Liu. My role in this project was to develop the plan with the help of AutoCAD, and model the internal and external electronic model in SketchUp, develop the cuts in SketchUp Layout, and images.

I was also responsible for the design and layout of the public bathroom, as requested by the client. moniquelira.arch@gmail.com

+61 0451 911 944 Page 02 of 30

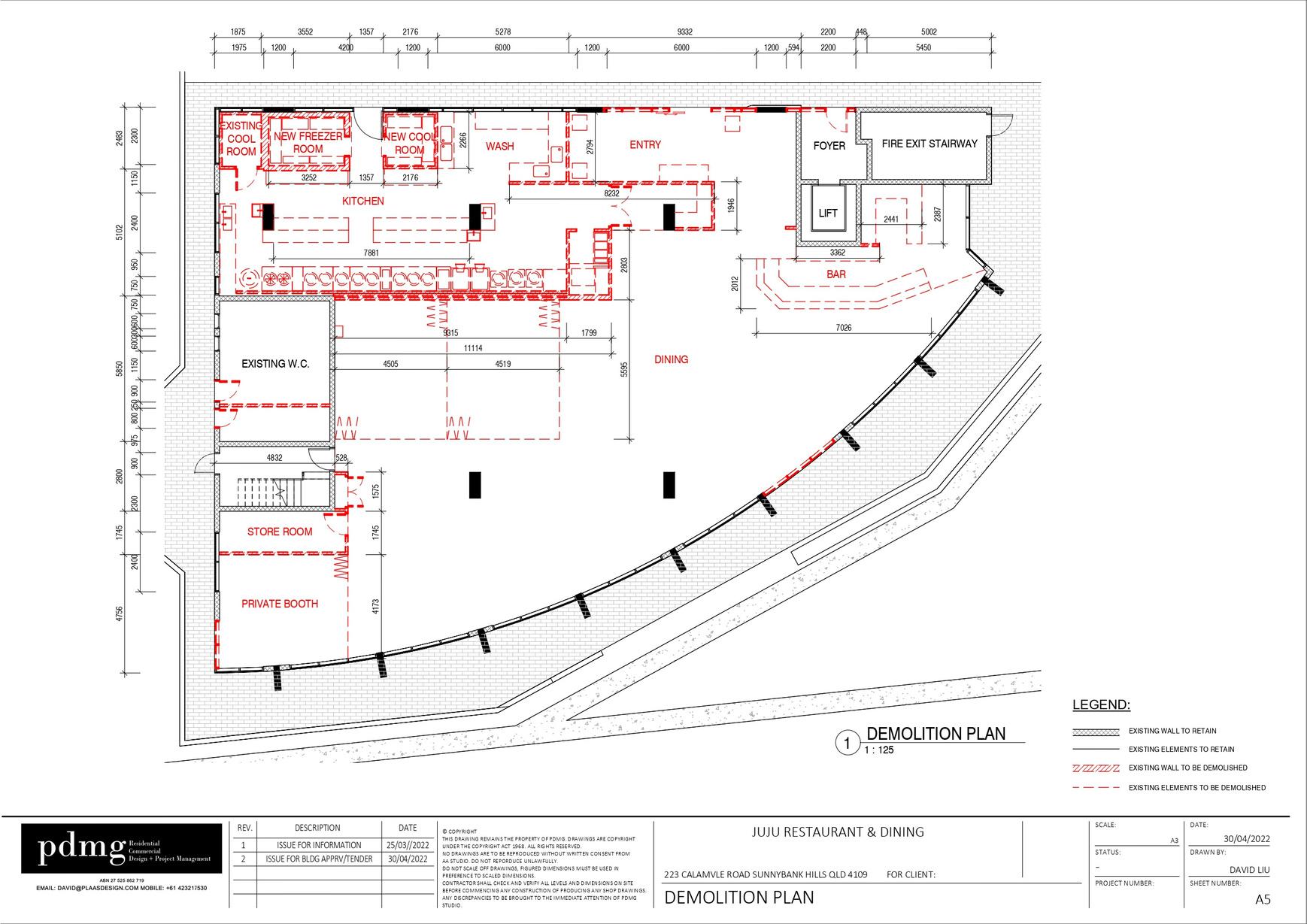

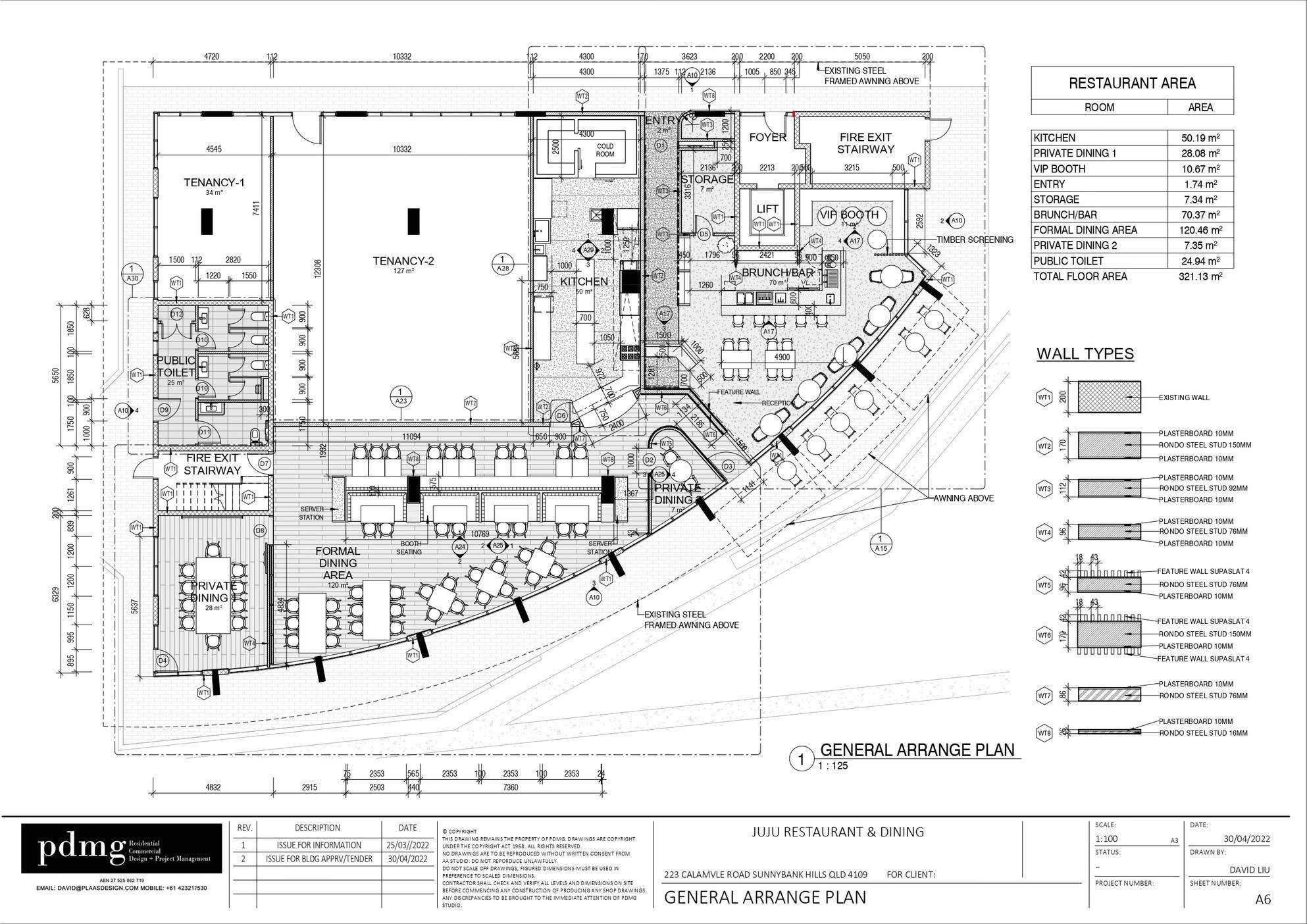

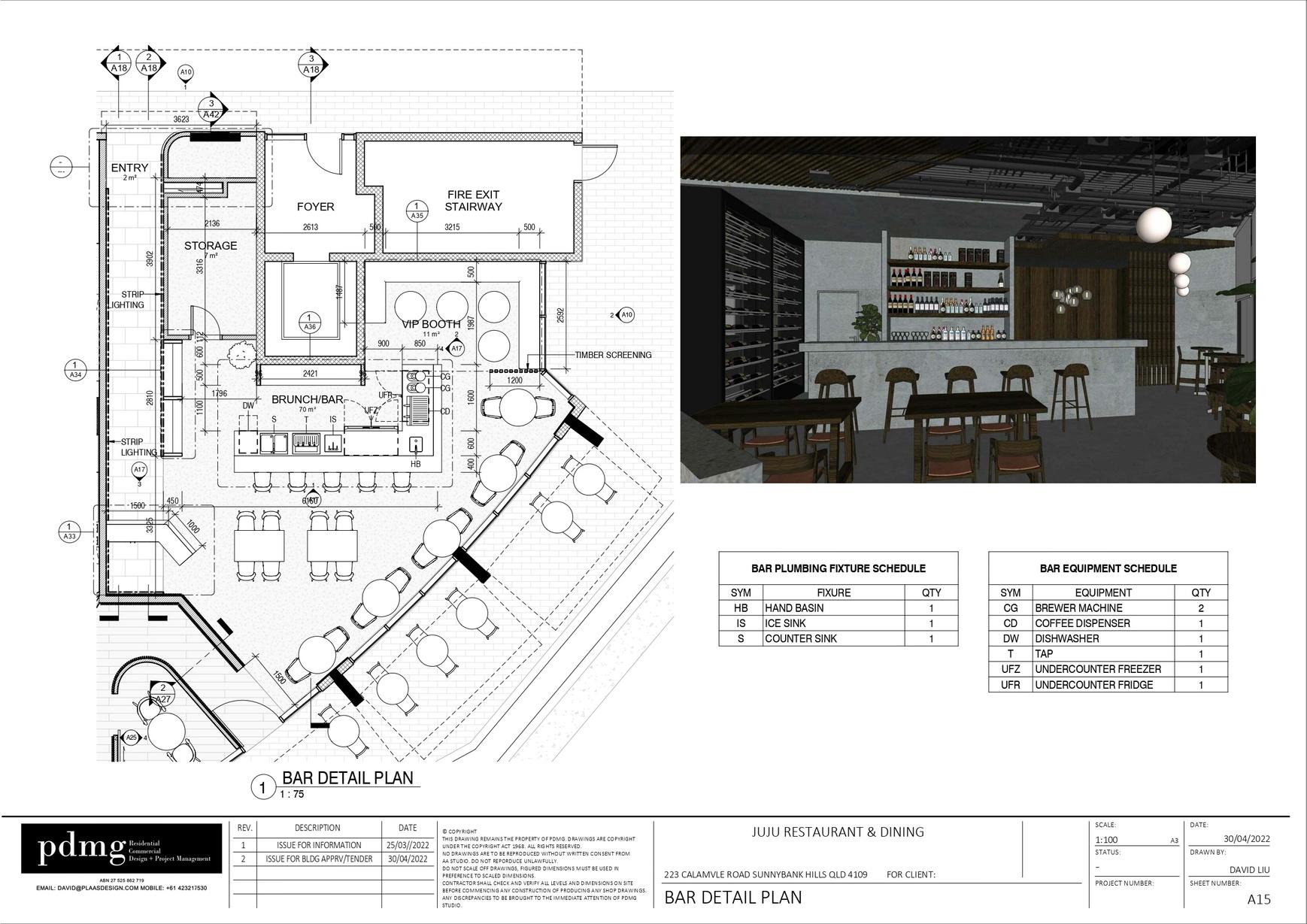

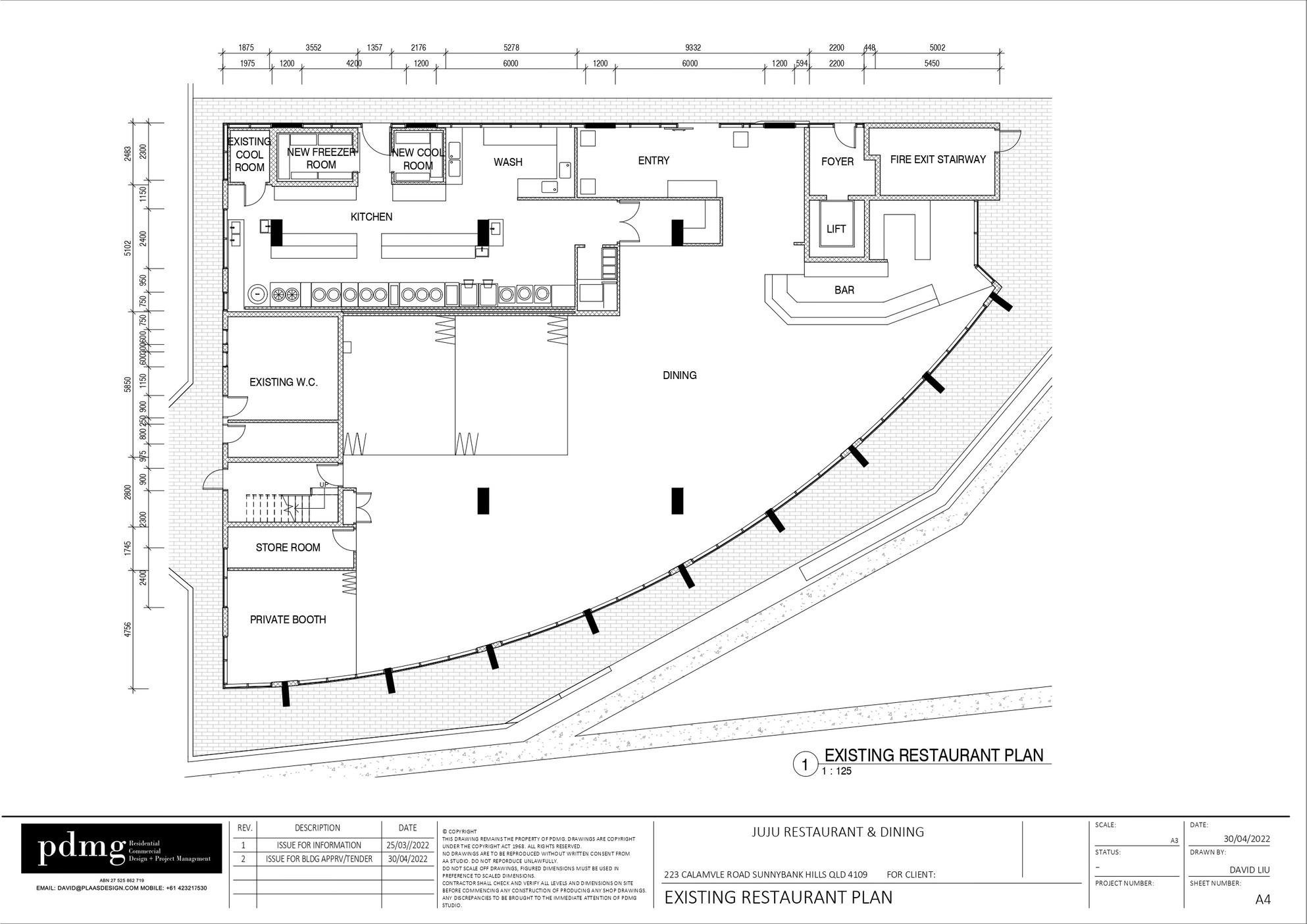

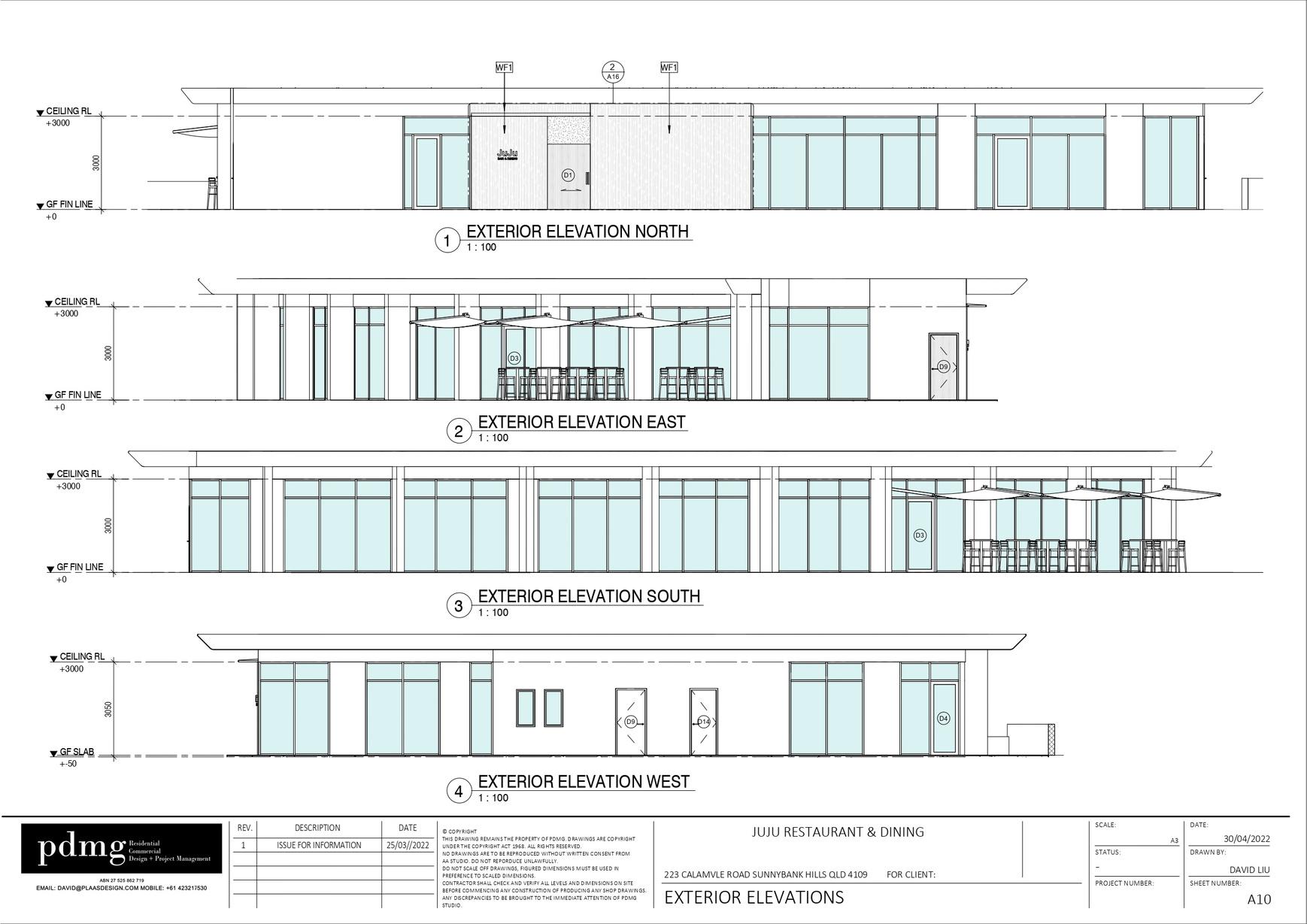

EXECUTIVE PROJECT

Page 05 of 30

Page 06 of 30

Page 07 of 30

Page 08 of 30

Page 09 of 30

Page 10 of 30

Page 11 of 30

Page 12 of 30

Page 13 of 30

Page 14 of 30

Page 15 of 30

Page 16 of 30

Page 17 of 30

Page 18 of 30

Page 19 of 30

Page 20 of 30

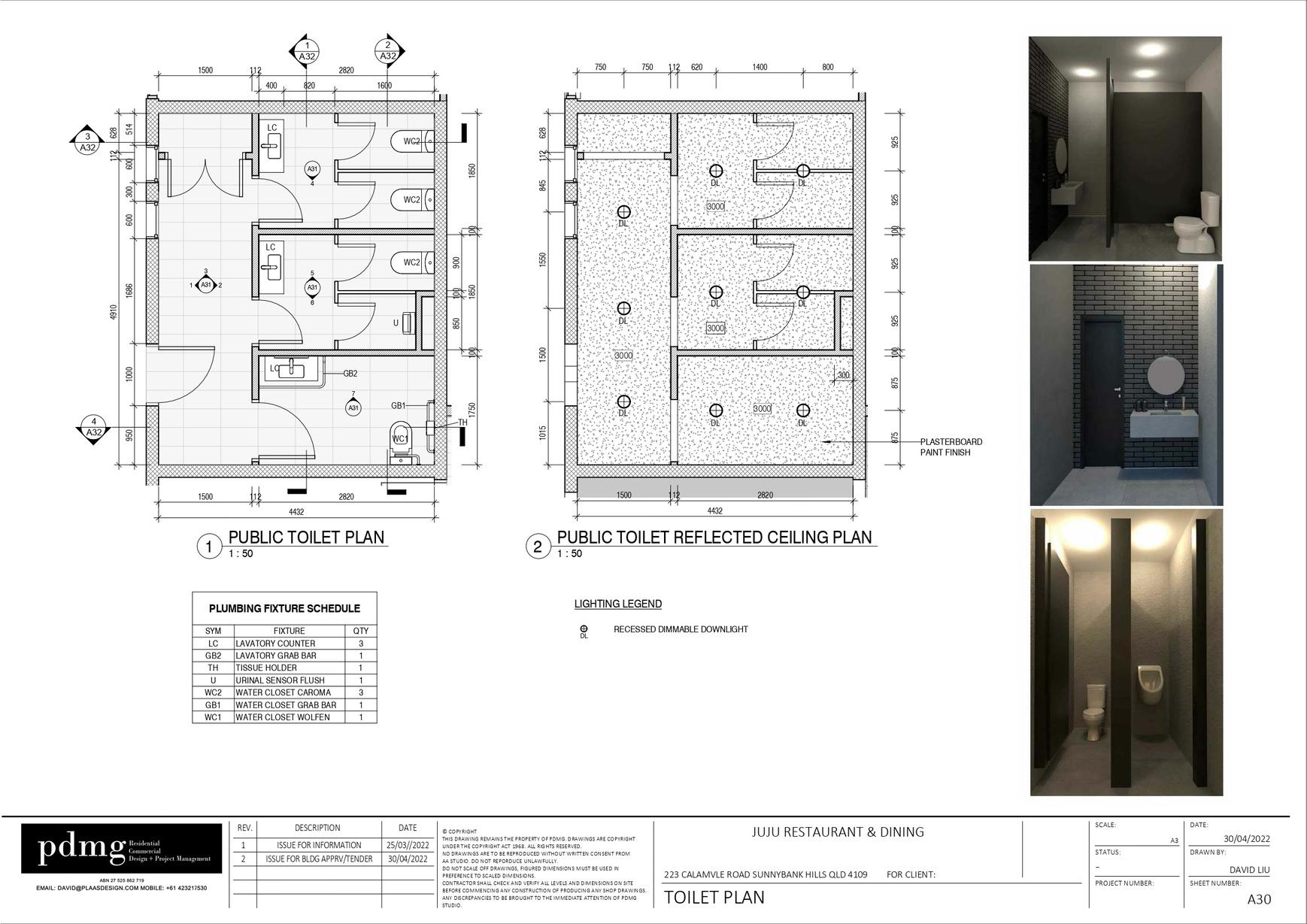

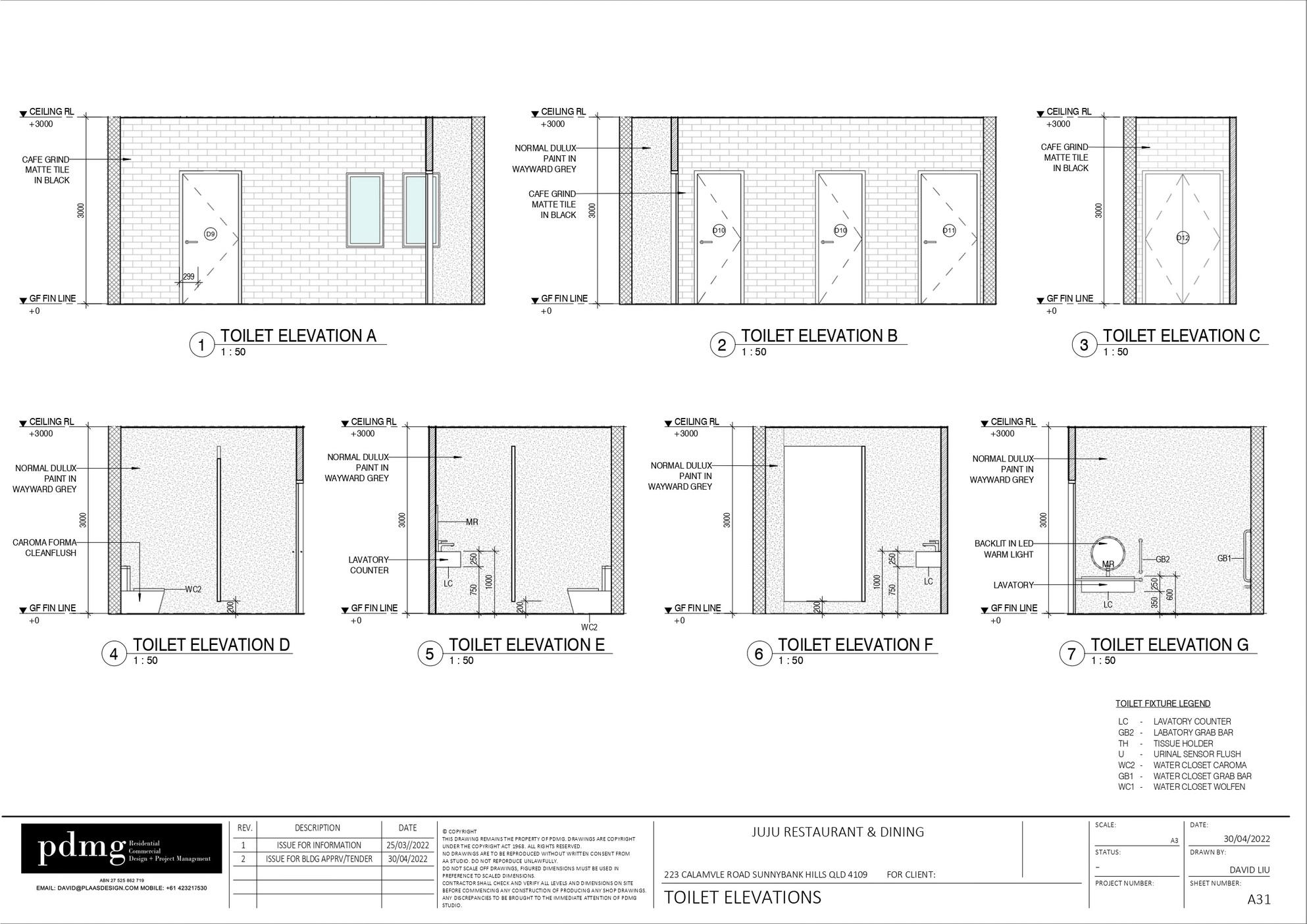

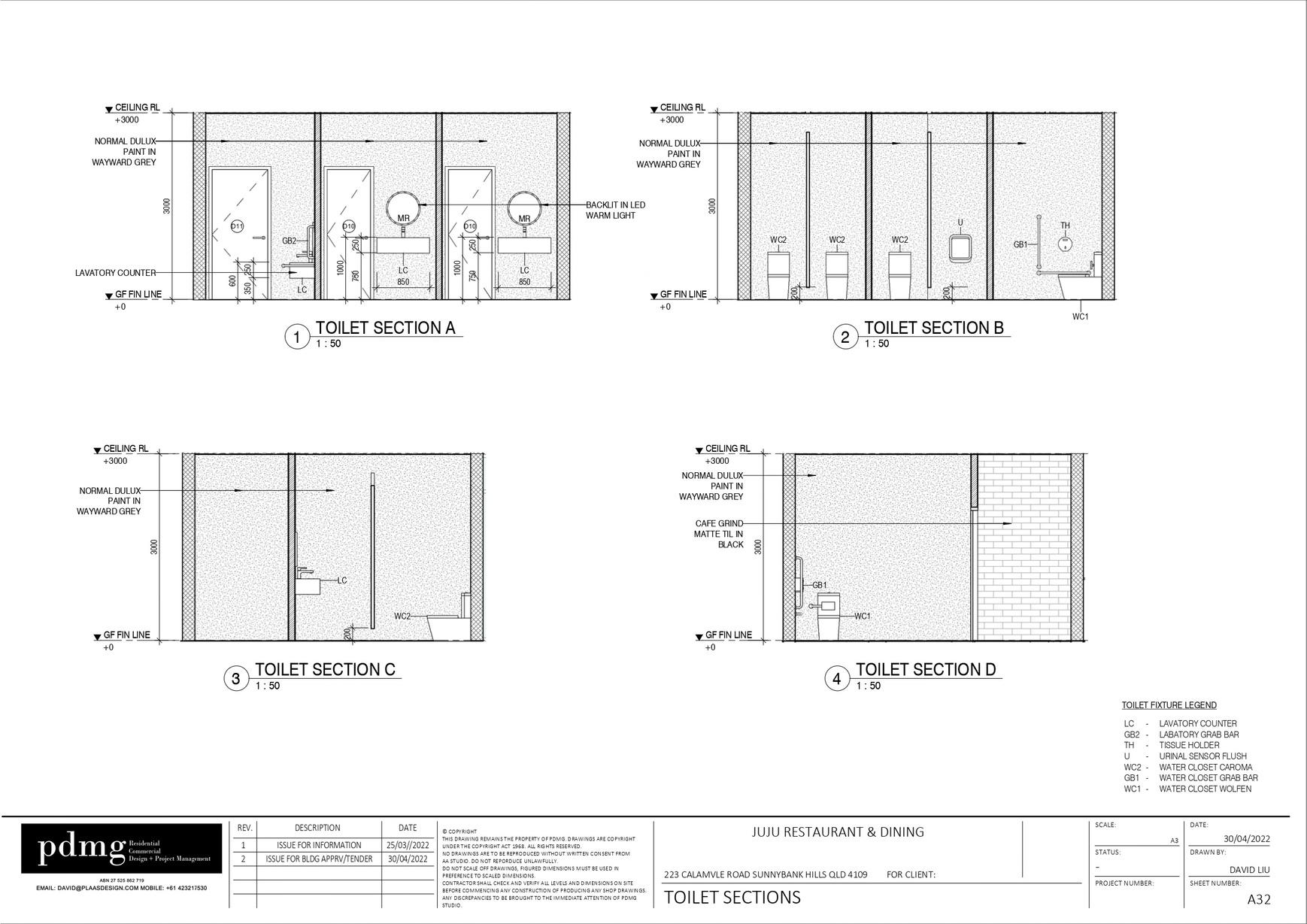

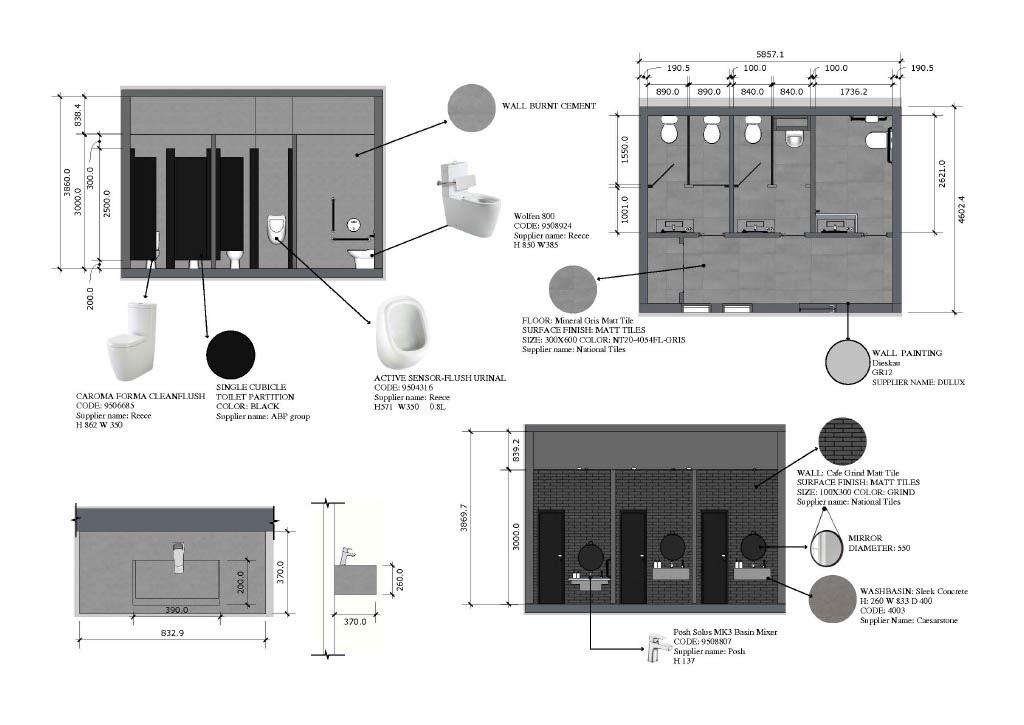

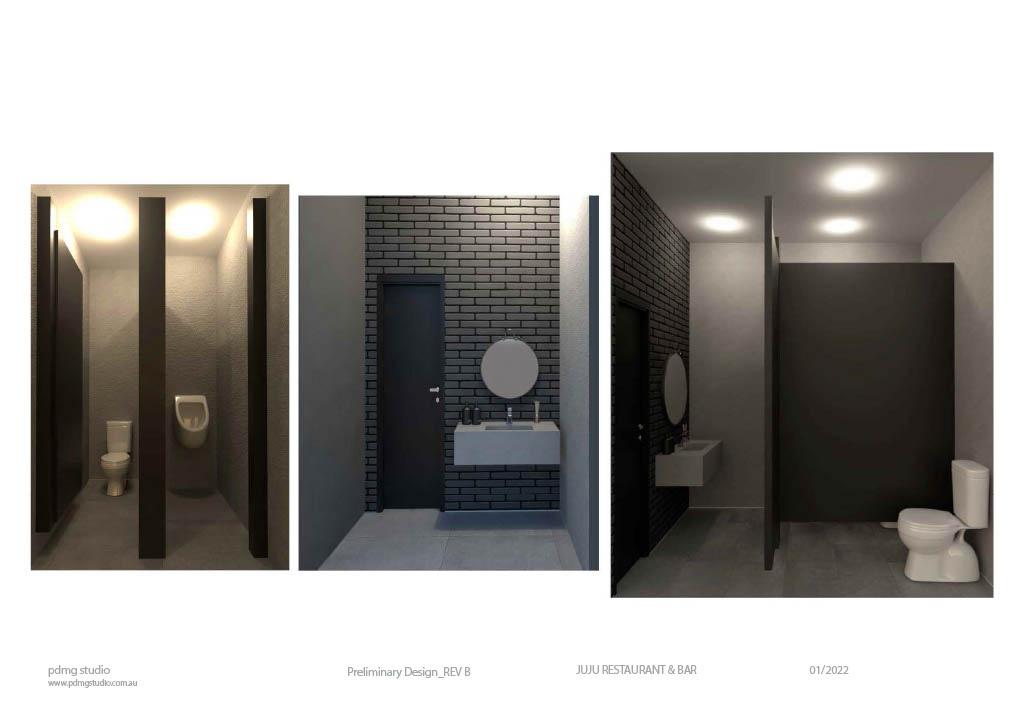

PUBLIC TOILET

Page 22 of 30

Page 23 of 30

Page 24 of 30

Page 25 of 30

PERSPECTIVES

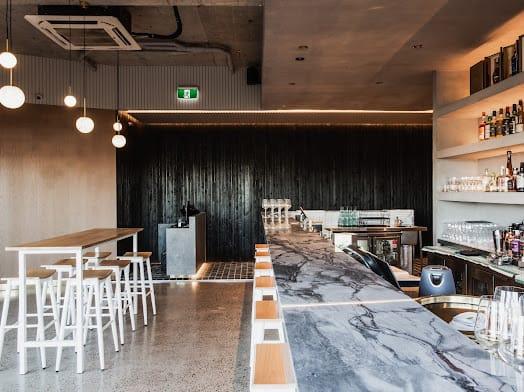

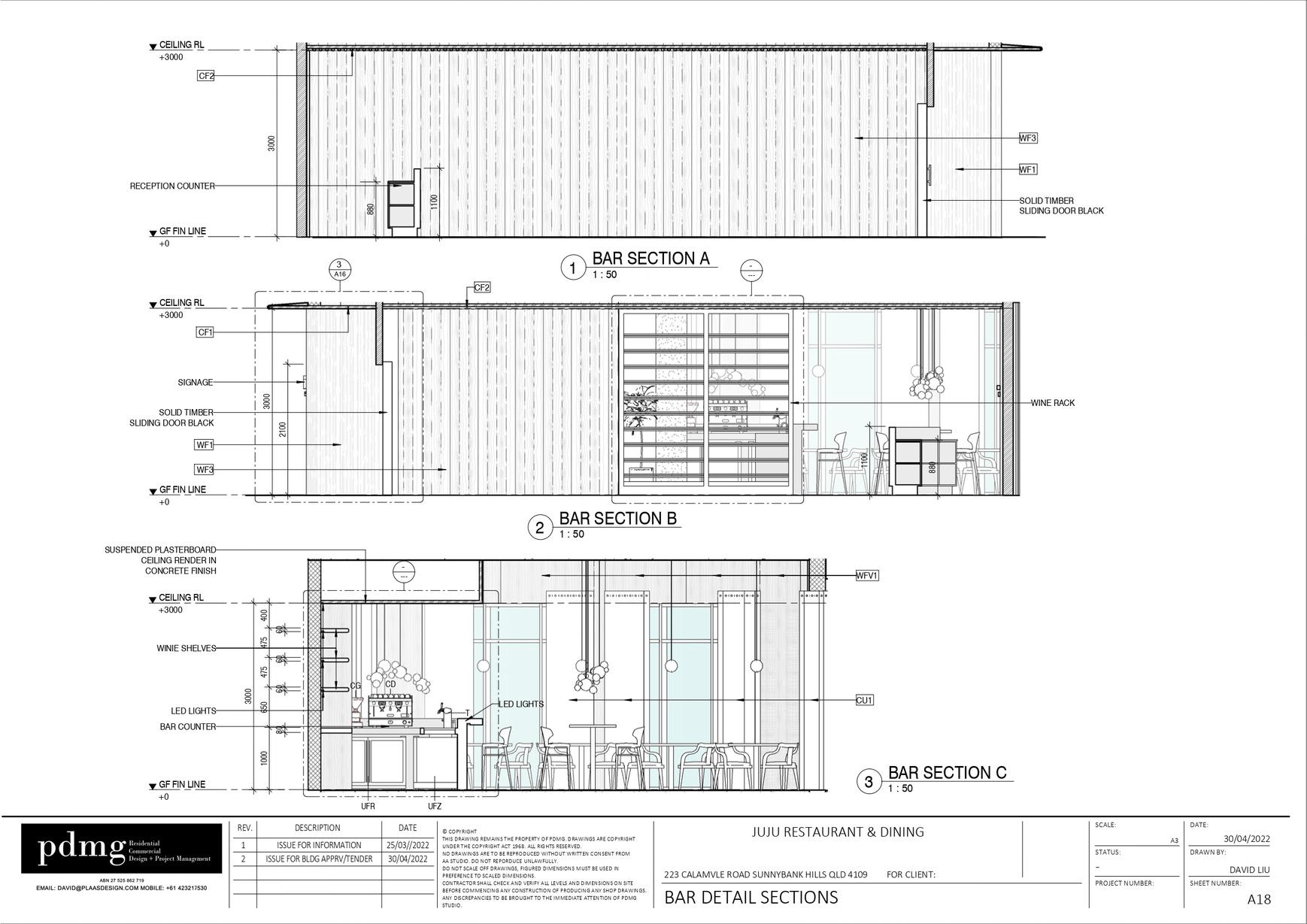

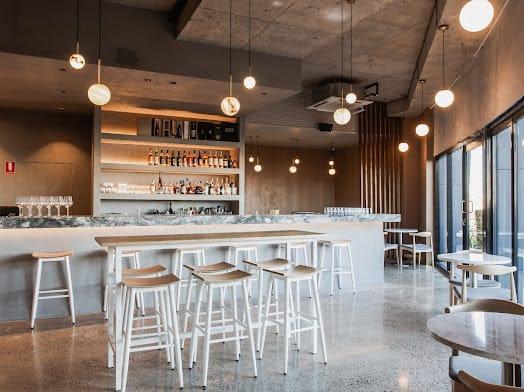

BRUNCH/BAR AREA

Page 27 of 30

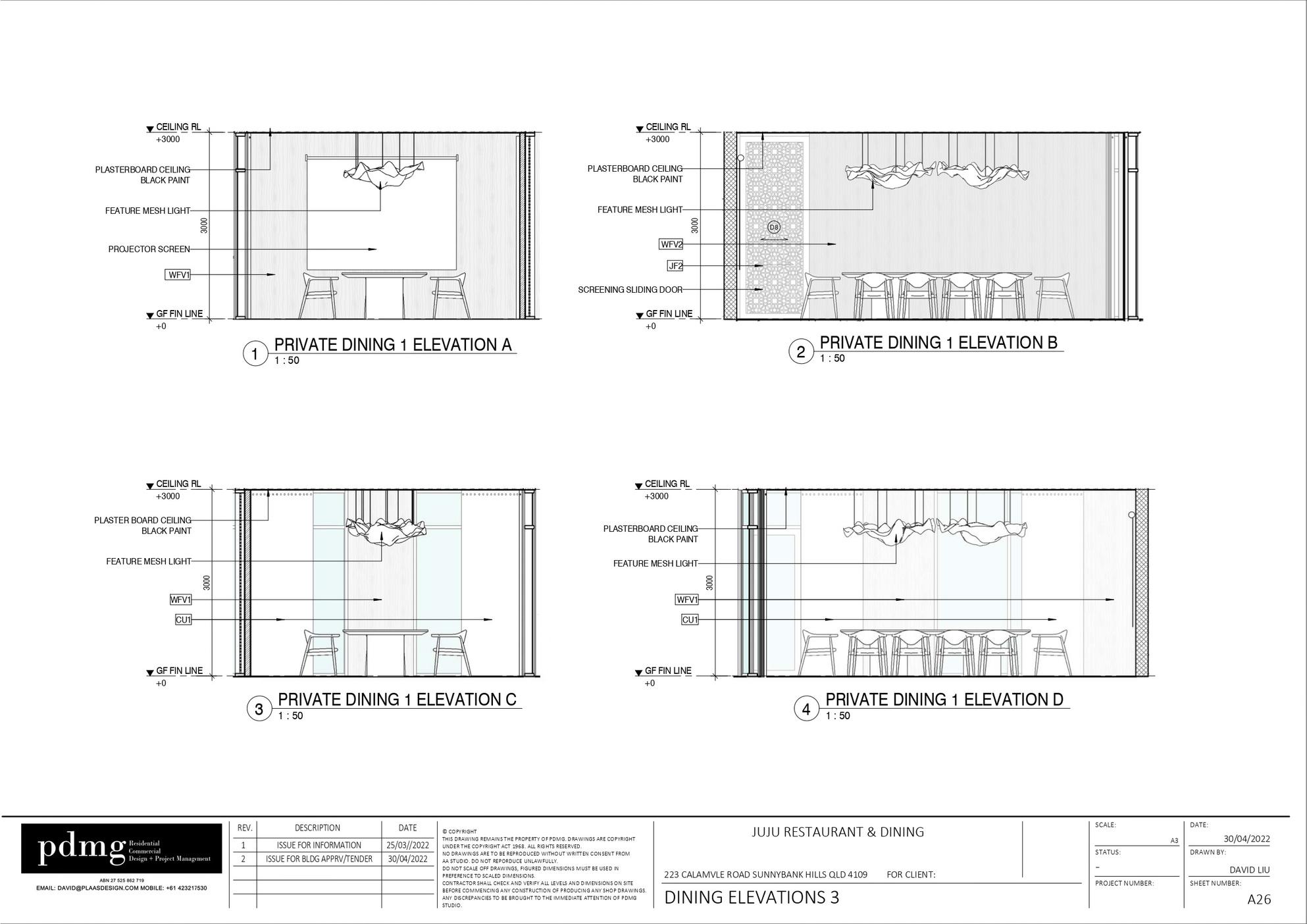

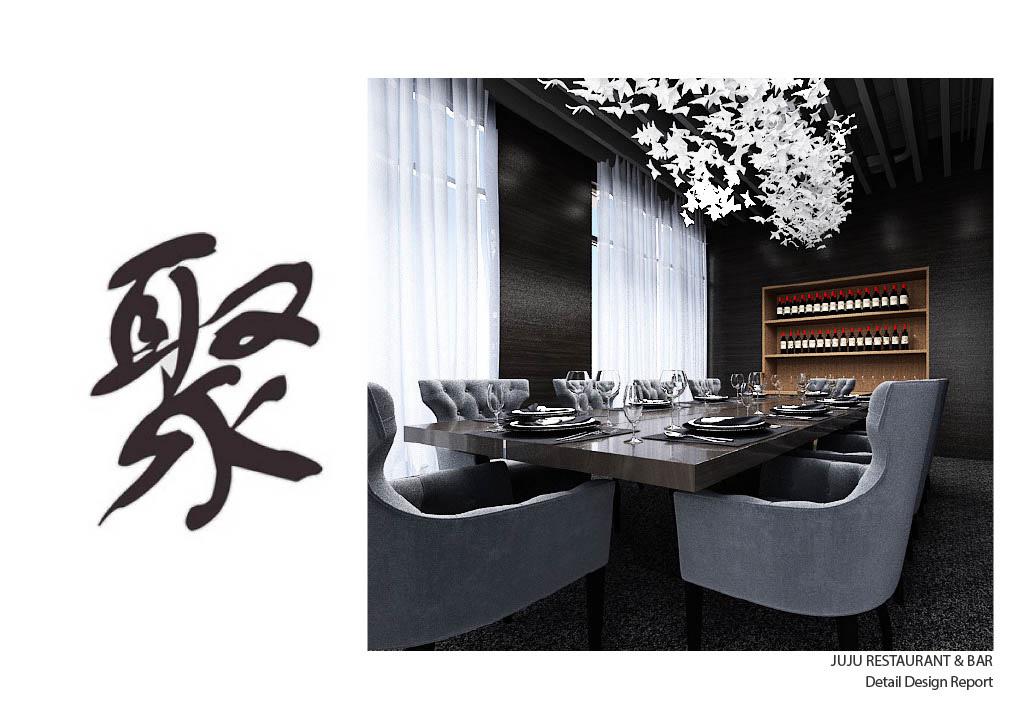

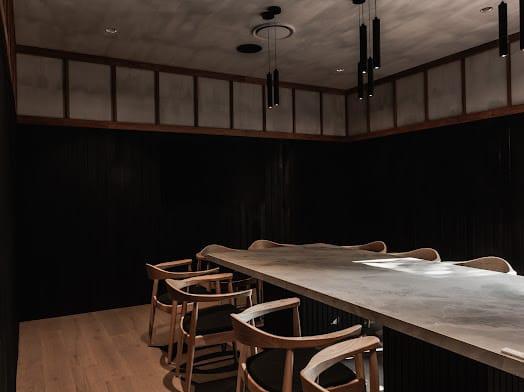

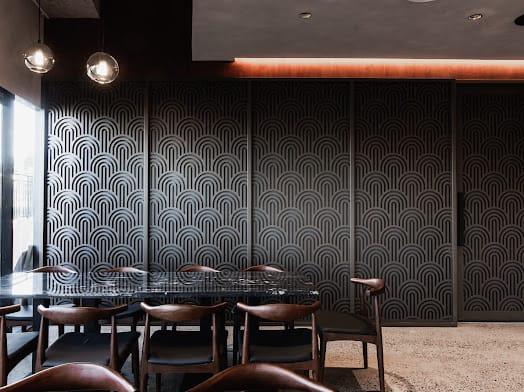

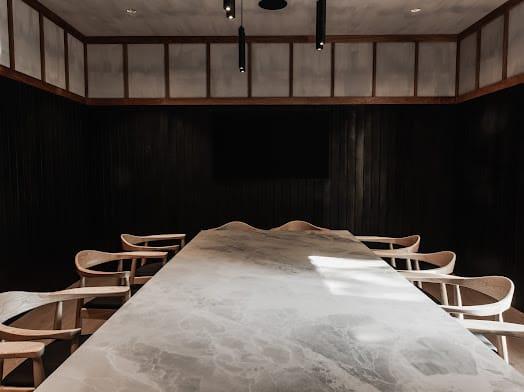

PRIVATE DINING AREA 1

Page 28 of 30

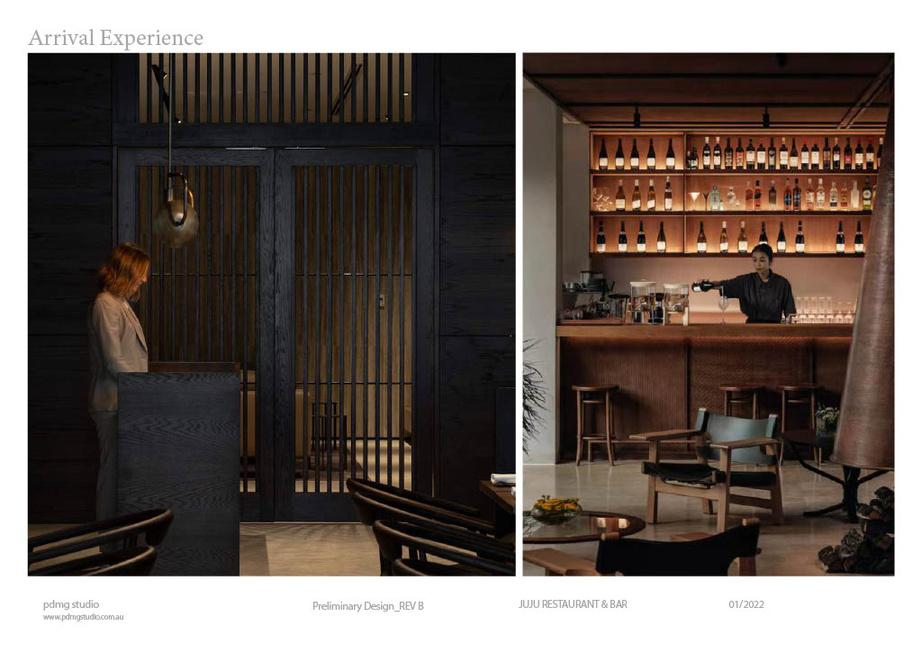

ENTRY AREA

FORMAL DINING AREA

Page 29 of 30
