MONICA DEBORA SULTANJAYA ARCHITECTURE | 2023
Hi.
My name is Monica Debora Sultanjaya, an Architecture student who is interested in architecture and design, I am also curious about building construction. I firmly believe, as a passionate and hardworking person with the experience I got before in architecture college, I can improve my skills even more in the future.
Jakarta, Indonesia
Contact : @monicasultanjaya +62 822 4544 2350 monicasultanjaya@gmail.com
Architecture Portfolio 1
CURICULUM VITAE
EDUCATION
2020 – Present BINUS University
5th semester in Architecture Current GPA 3.50/4.00
2017 – 2020 SMA Sanata Karya Langgur Natural Sciences
EXPERIENCE
2019 – 2020 Head of the Entrepreneurship Division in Student Organizations
2018 – 2019 Staff of Entrepreneurship Division in Student Organizations
SOFTWARE SKILLS Sketchup Enscape Autocad Rhinoceros Adobe Photoshop Adobe InDesign Adobe Illustrator 2020 - 2022 2
3
CONTENT.
The Chalari Resort Hotel 2022
PN House Residential 2021
AMPHI-THEATER
Amphitheater 2022
Tambi Gallery Cultural Gallery 2021
4
2022/ Hotel
THE CHALARI
Four Star Resort hotel
Architectural Design IV
Location Jl. Pantai Indah, Ancol, North Jakarta, Indonesia Site Area 9932 sqm
The capital city of Indonesia, Jakarta, remains one of the leading port of entry to the country. Jakarta and Bali International Airports account for 64% of the total arrivals in the country. The demand for budget accommodation for short-stays or for transit-stay, has raised multi-fold. Therefore, the need of accommodations in Jakarta and surrounding areas would attract tourists and travellers. One of the private sectors in Jakarta plan to boost its influence into the hotel services. They want to provide a fourstar hotel which aims to attract the leisure and business activities in a busy urban environment. The hotel will integrate art, business, and social interaction in a safe and secure environment
Hotel Resort located in Ancol, Jakarta. The word “Chalarí” or χαλαρή comes from the Greek which means ‘relax’. The concept of this hotel itself is intended for guests who want to just ‘relax’ to spend an exciting holiday even though they are still in the city of Jakarta. Located close to the water and in front of it having a direct view of the sea, the exterior concept of this hotel takes the philosophy of ocean waves which can be seen in the solar shading pattern and the wavy cantilever tower
01
Front Elevation 7

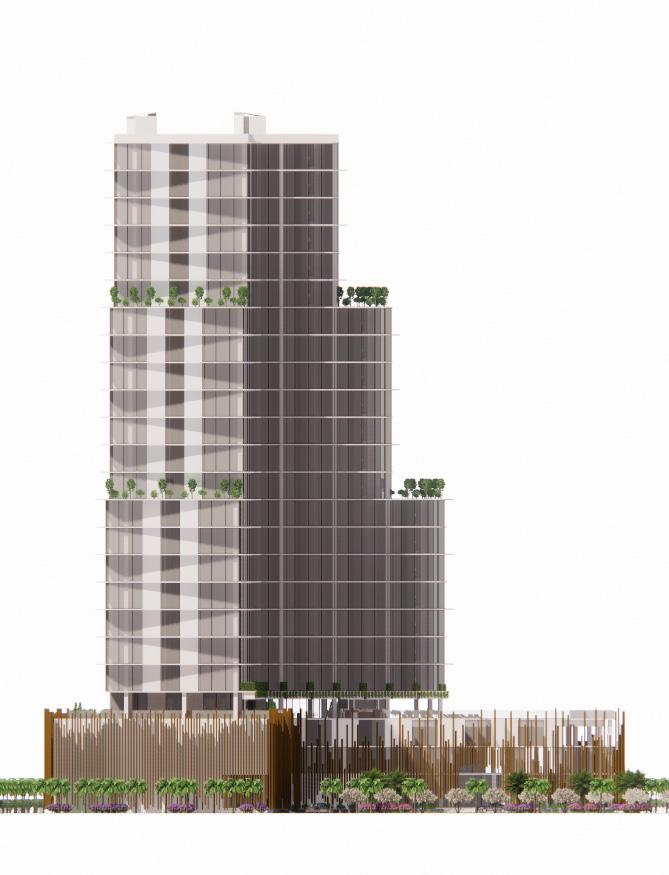

The Chalari | 4th Semester | 2022 8

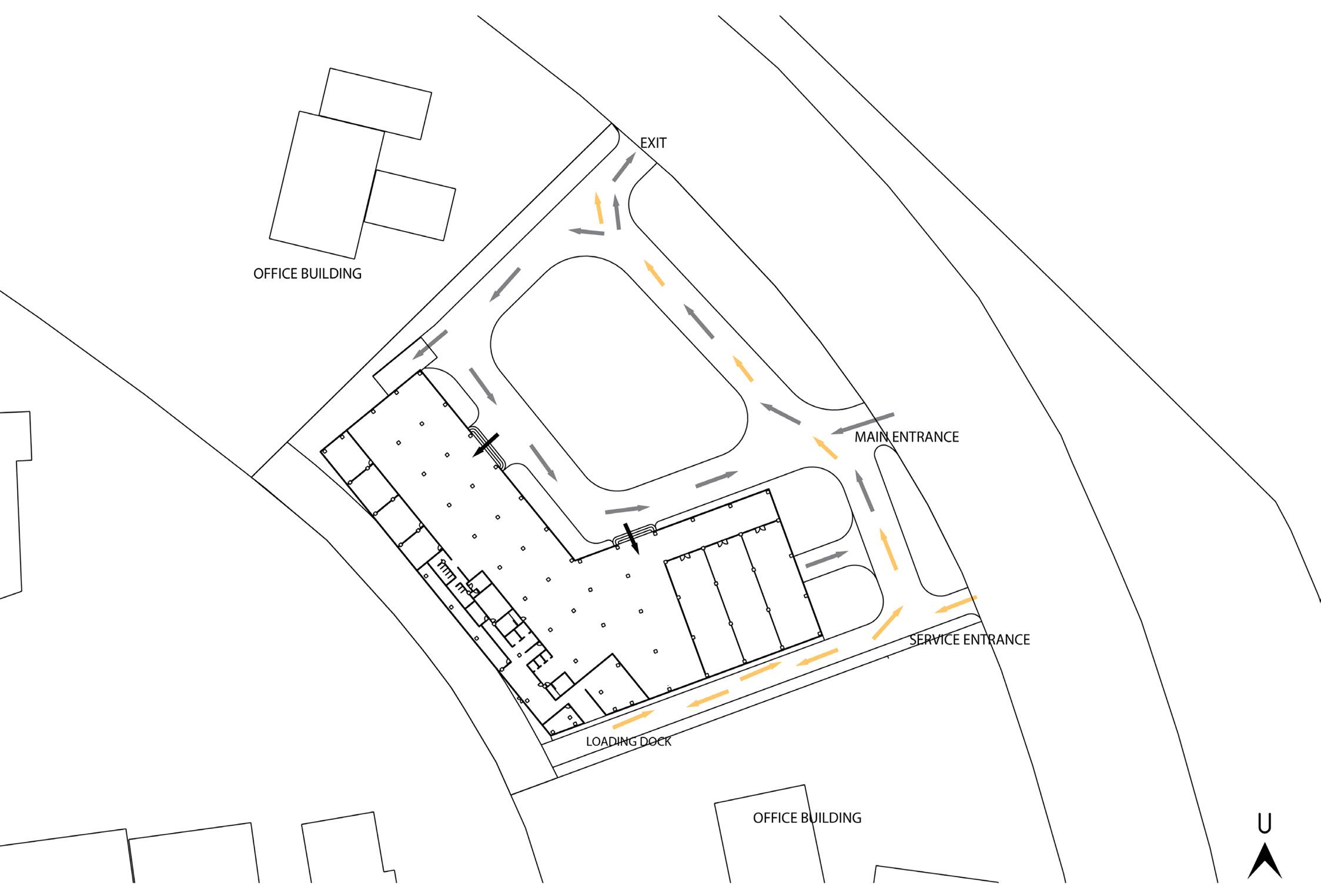

SITE PLAN
The Chalari | 4th Semester | 2022
9

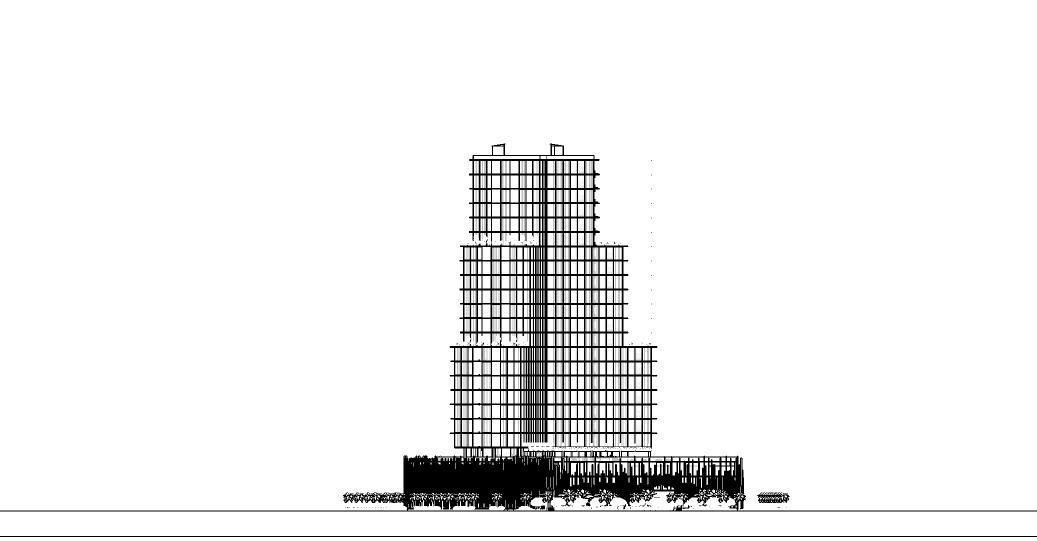

Front Elevation Rigth Elevation

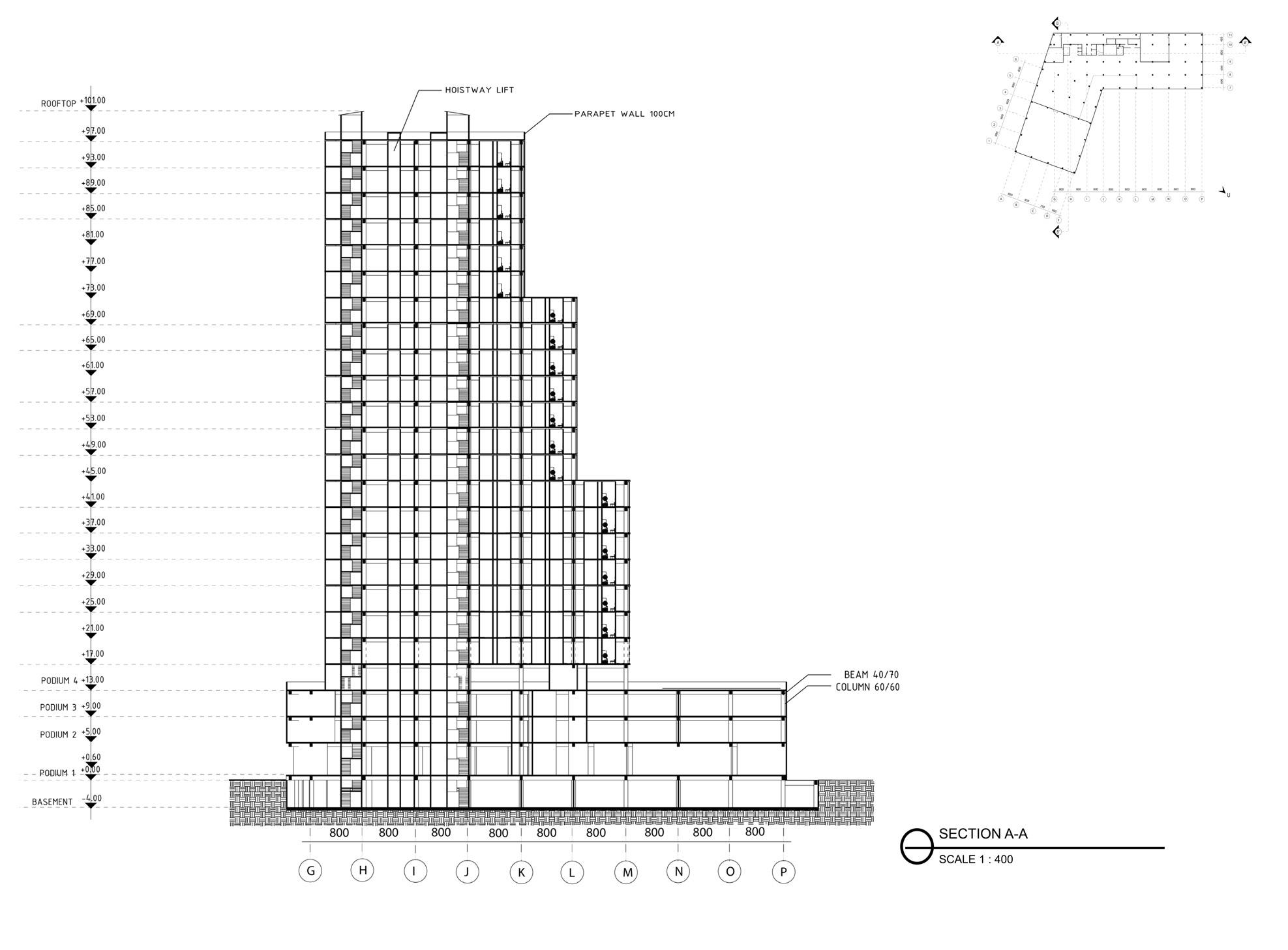

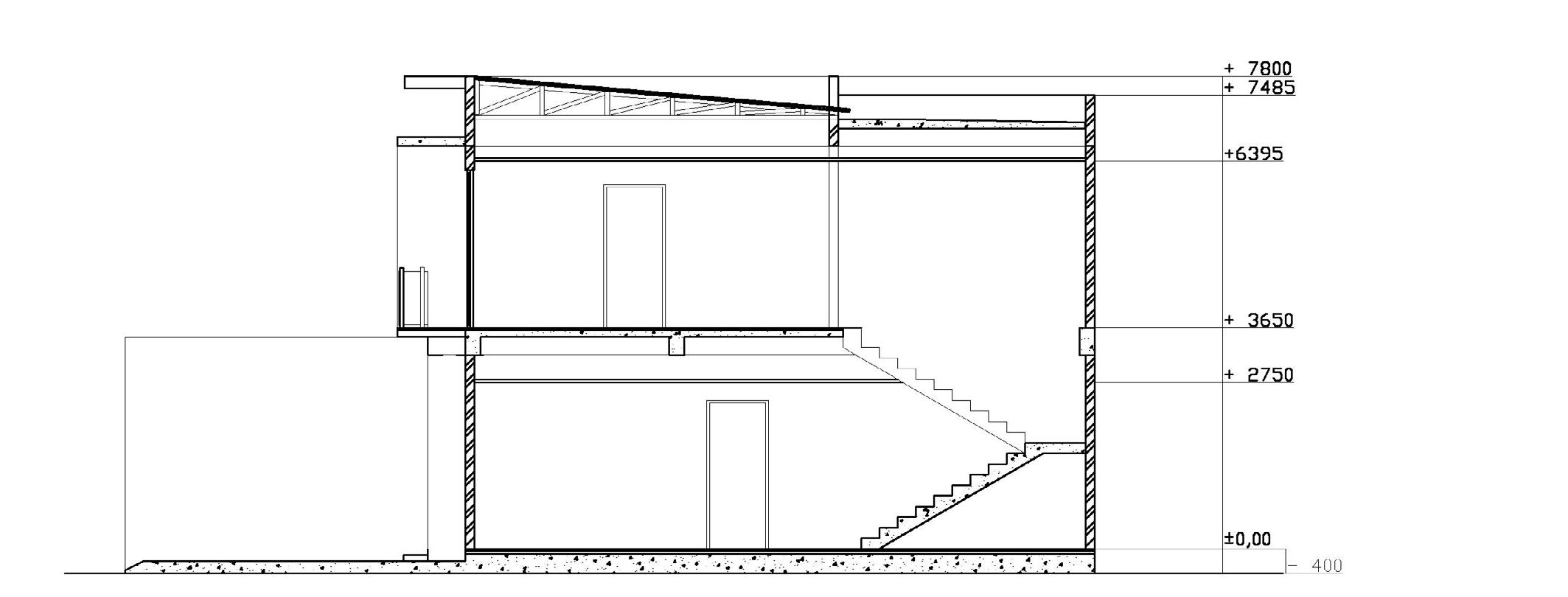

Section A-A
The Chalari | 4th Semester | 2022

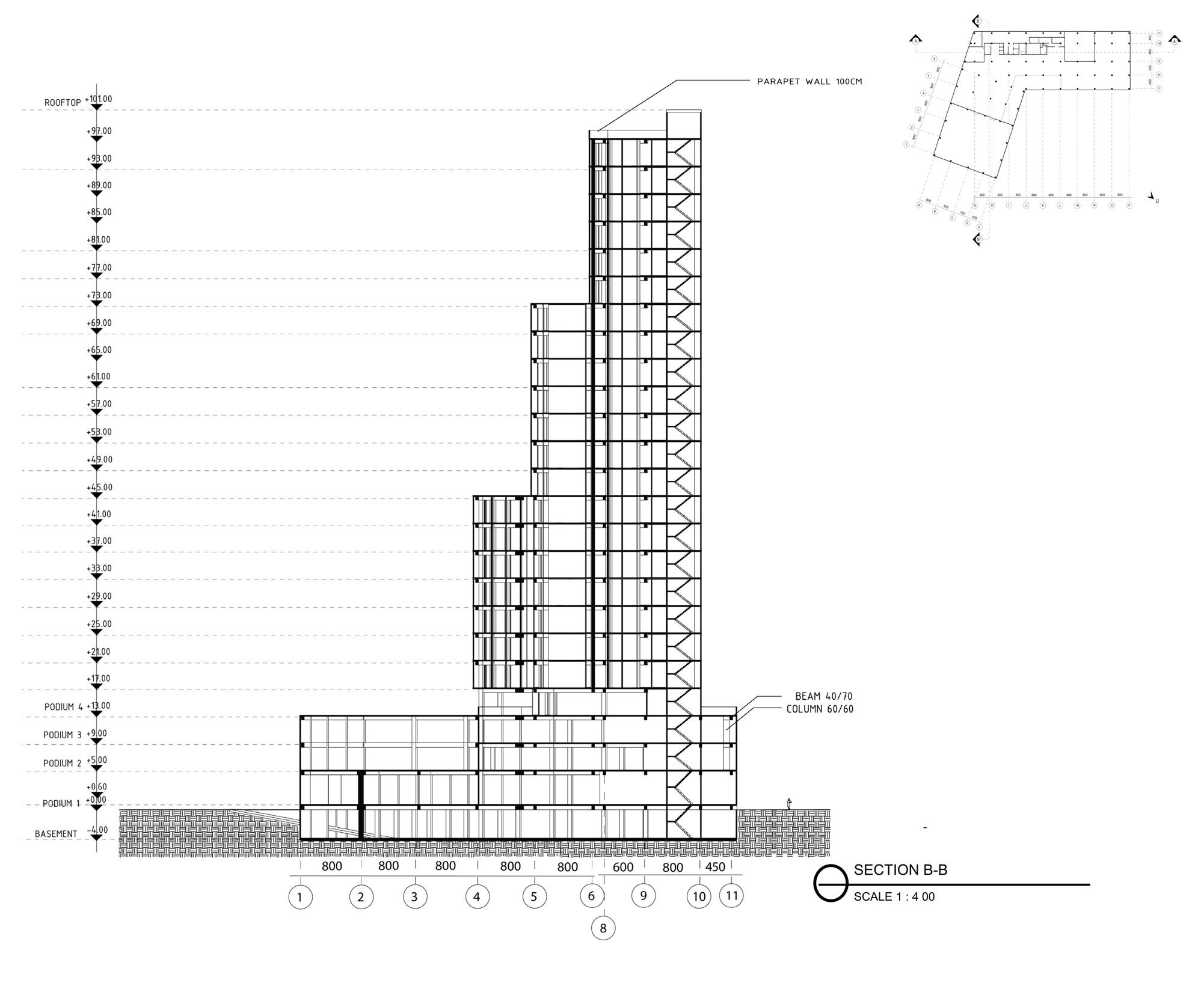

Section B-B 10

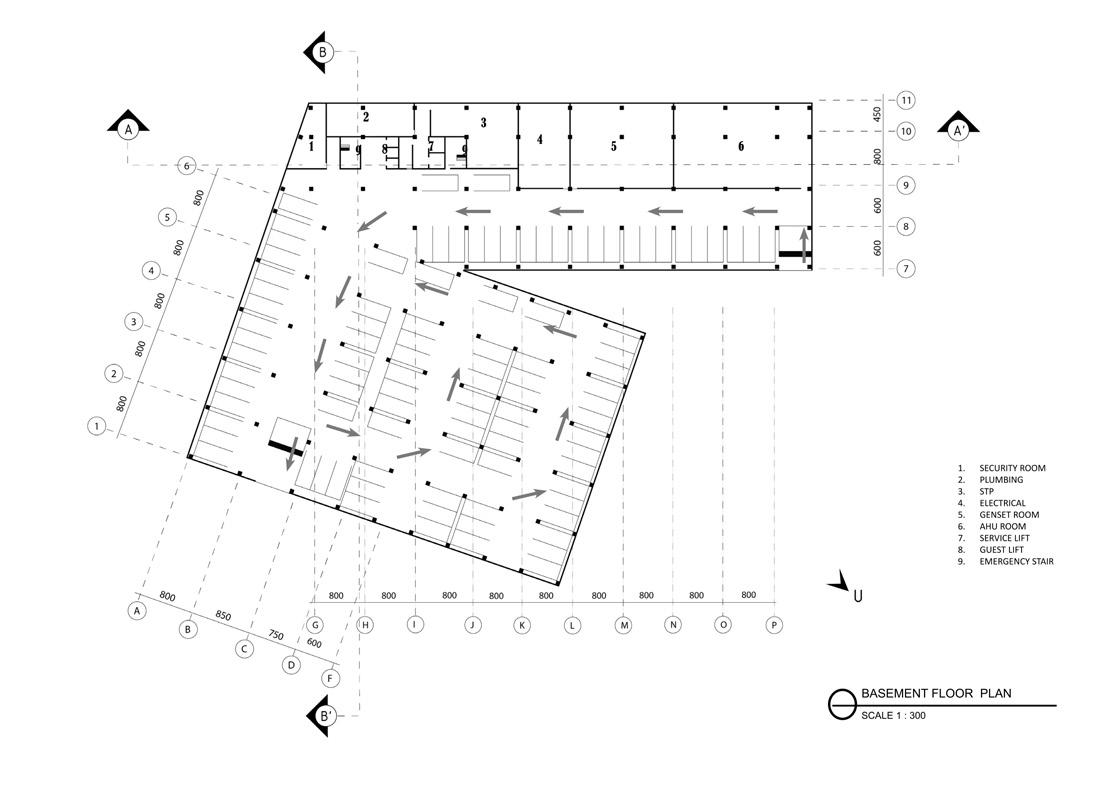

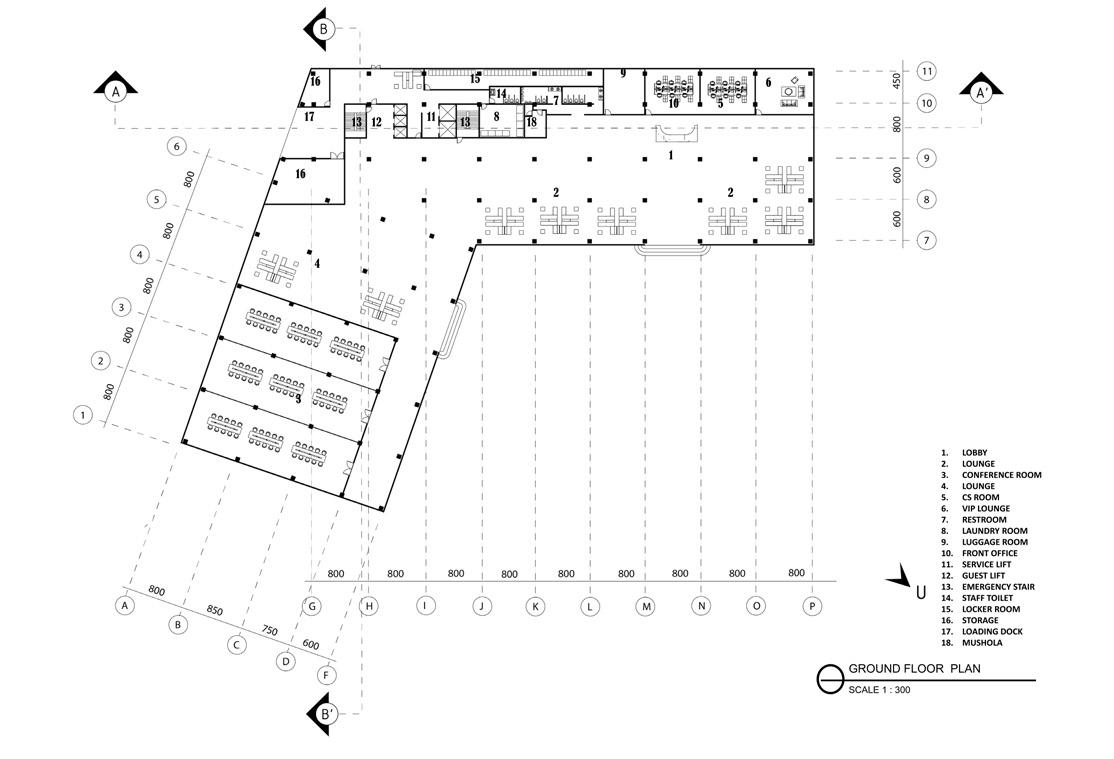

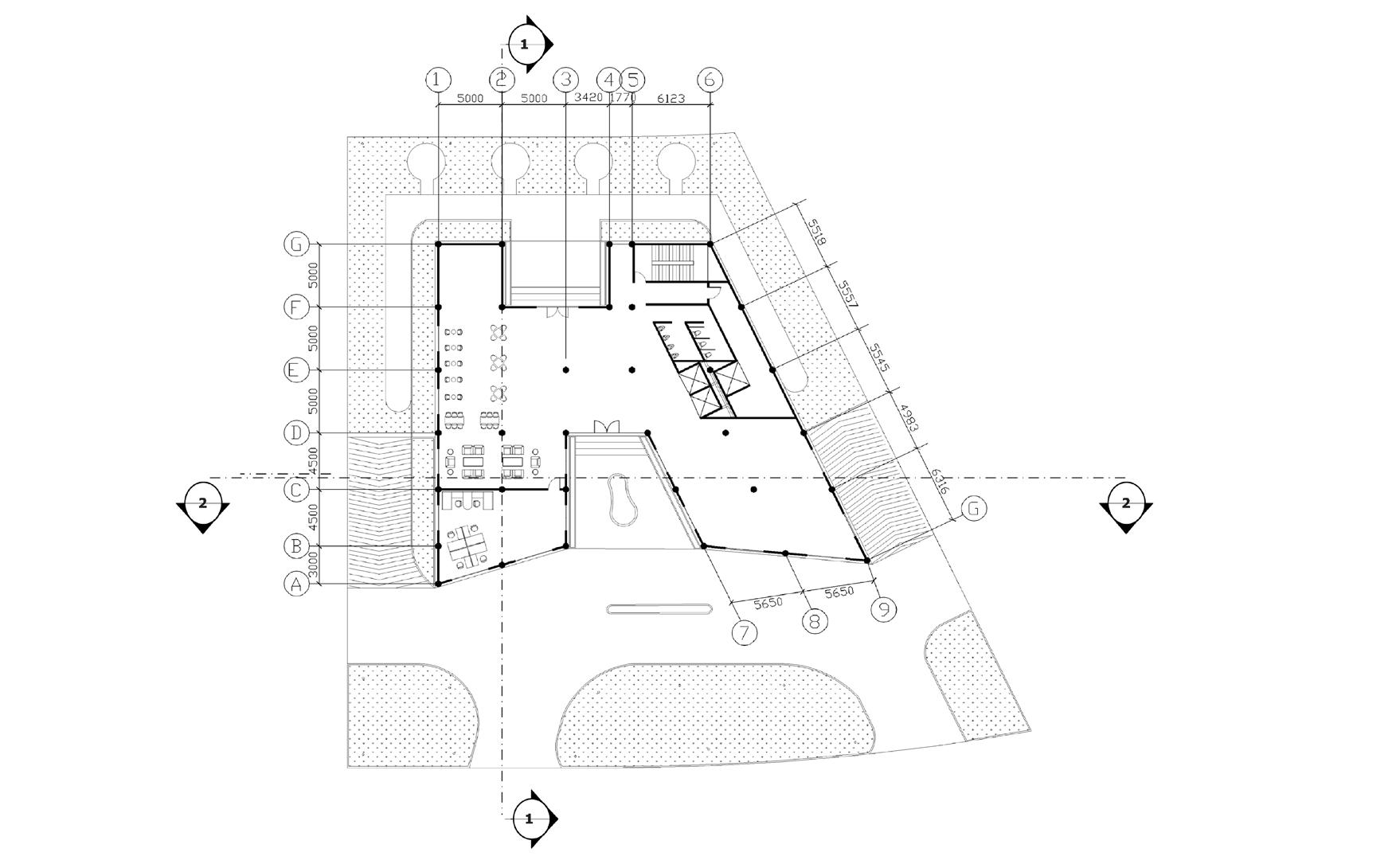

Basement Plan Ground Floor Plan

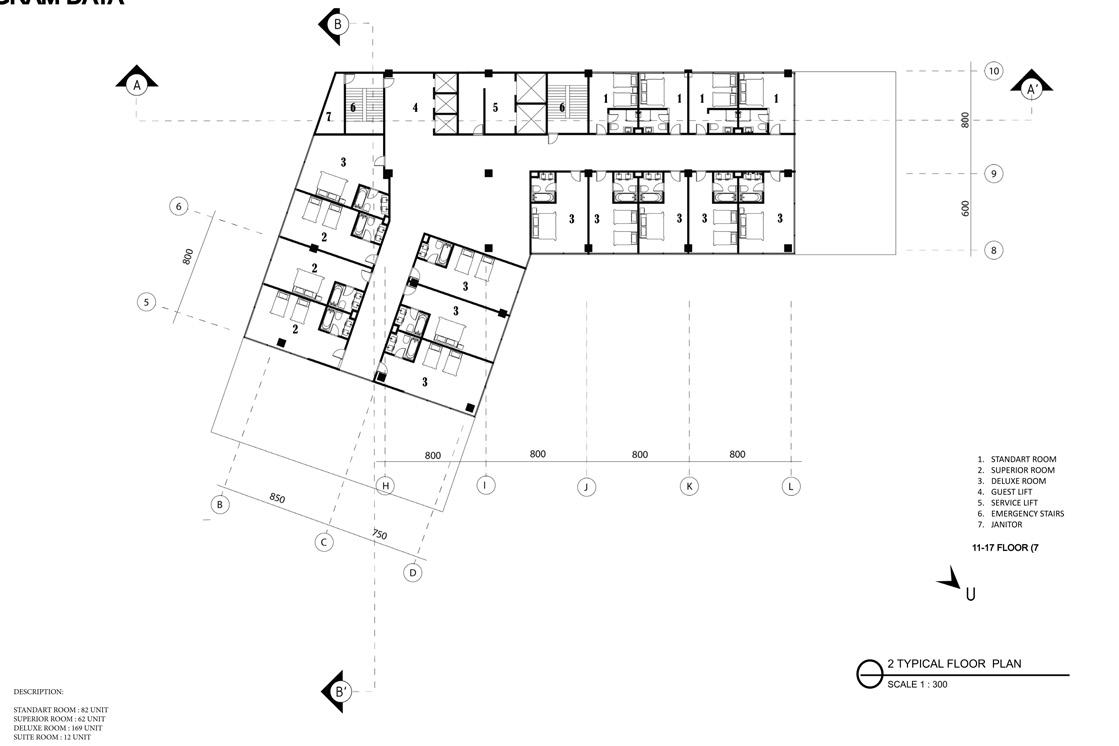

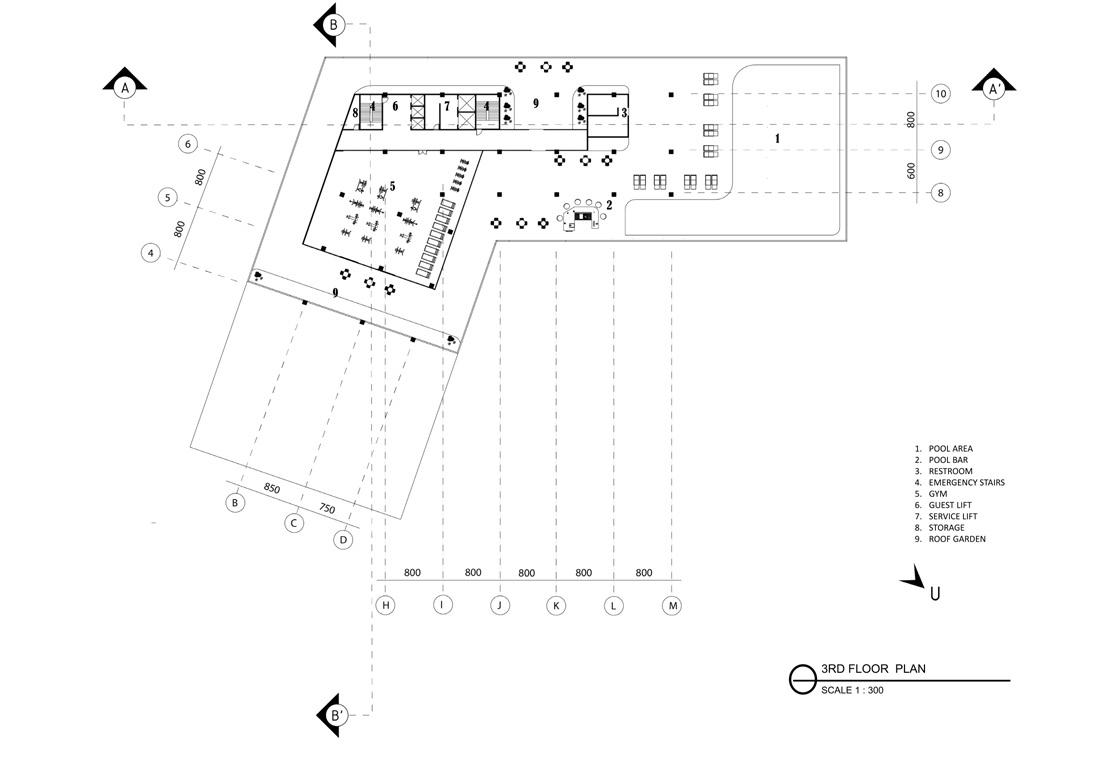

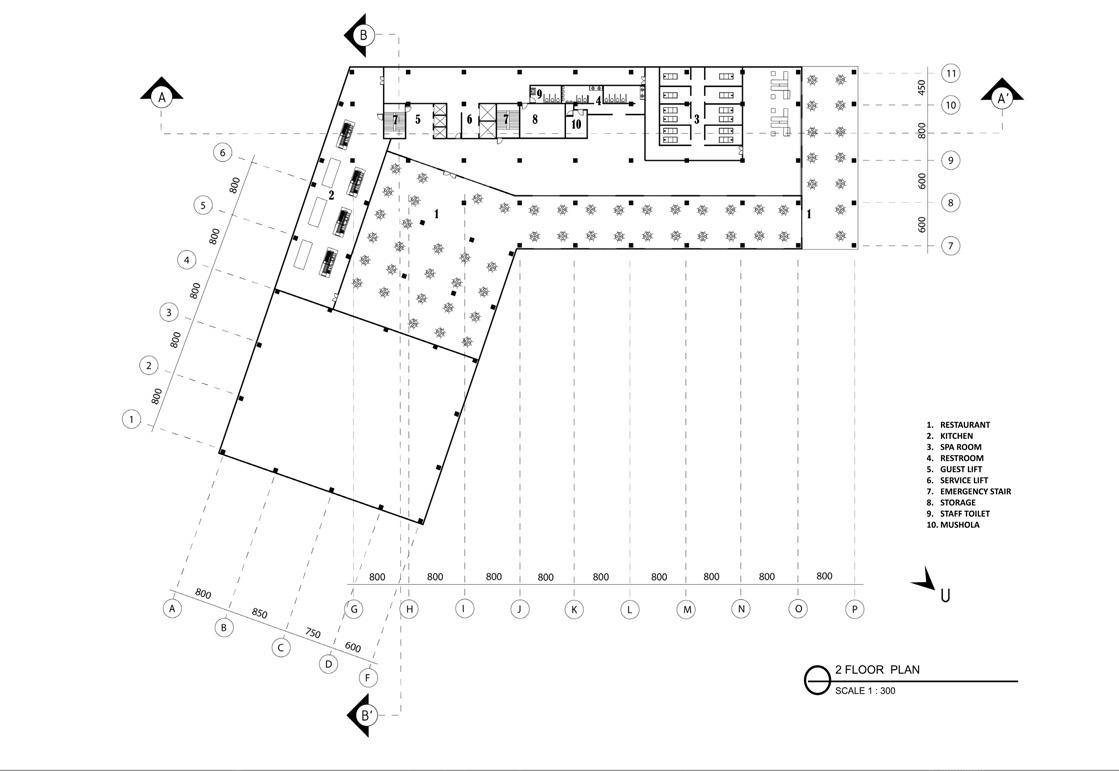

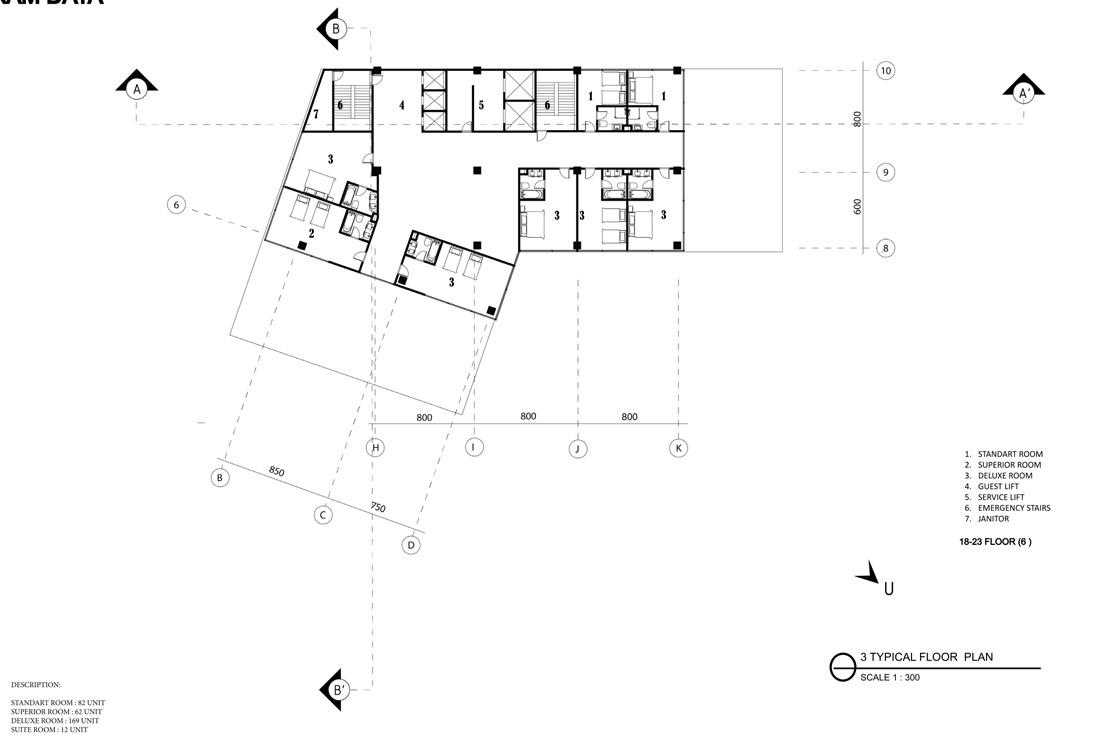

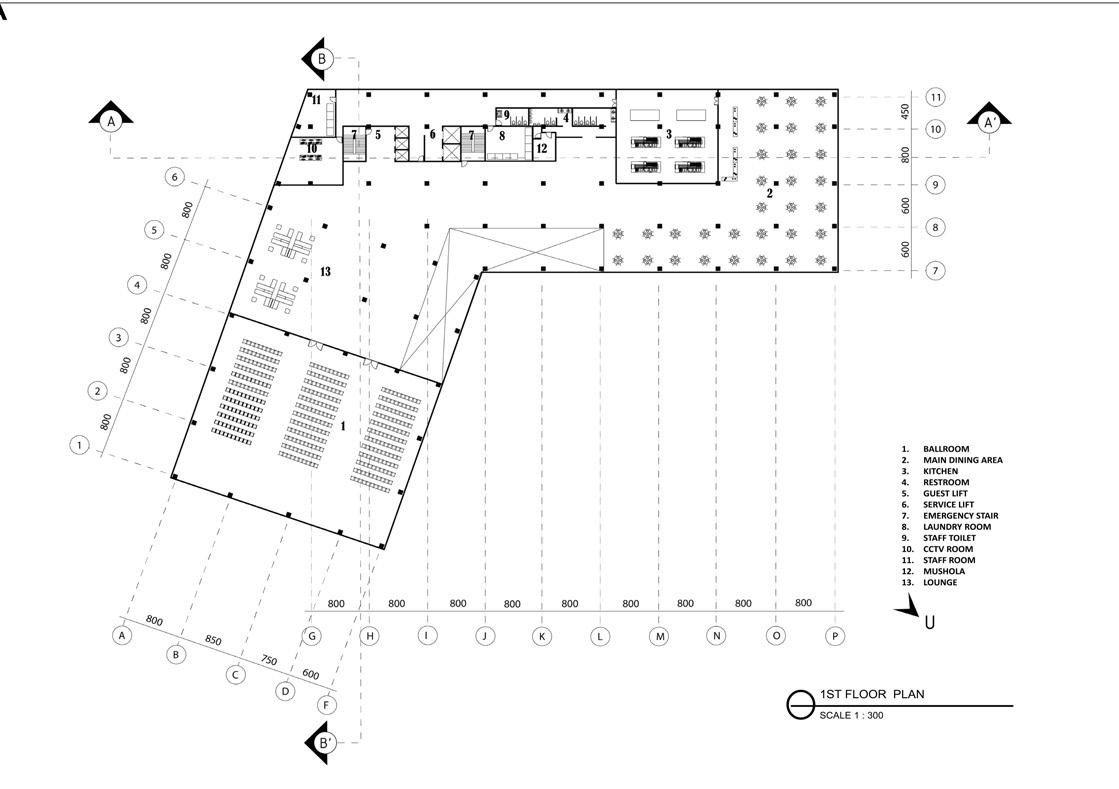

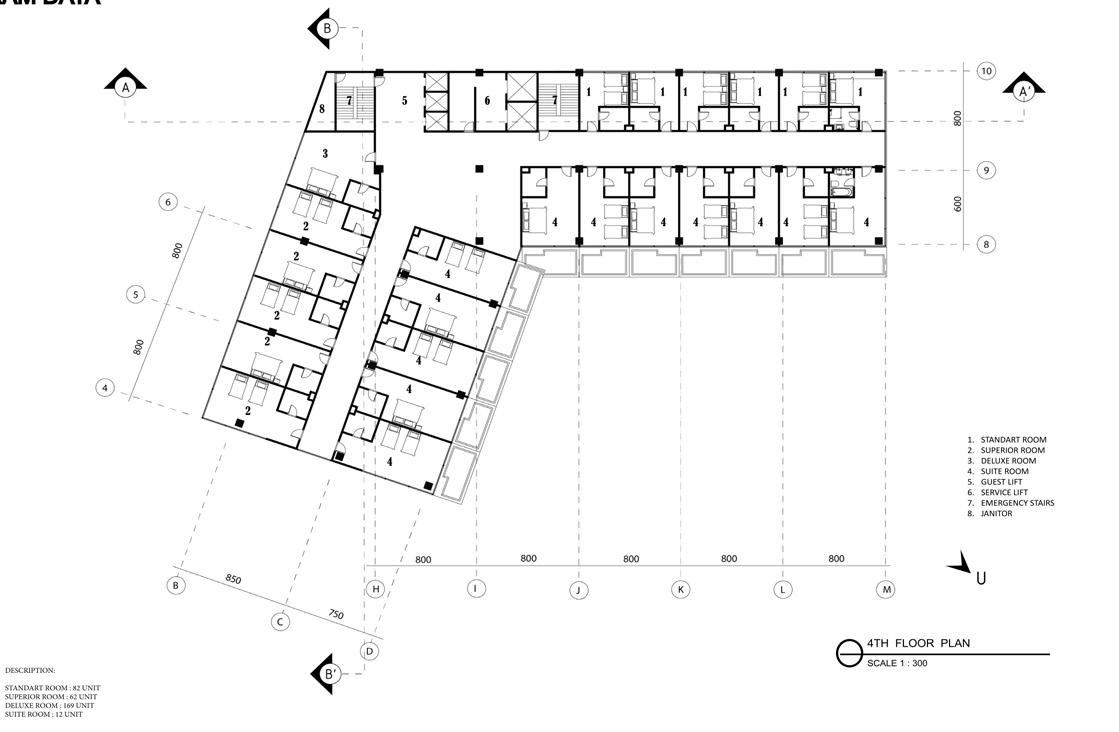

1 st Floor Plan 2 nd Floor Plan 3 rd Floor Plan 4 th Floor Plan 1 Typical Floor Plan 2 Typical Floor Plan
The Chalari | 4th Semester | 2022 11

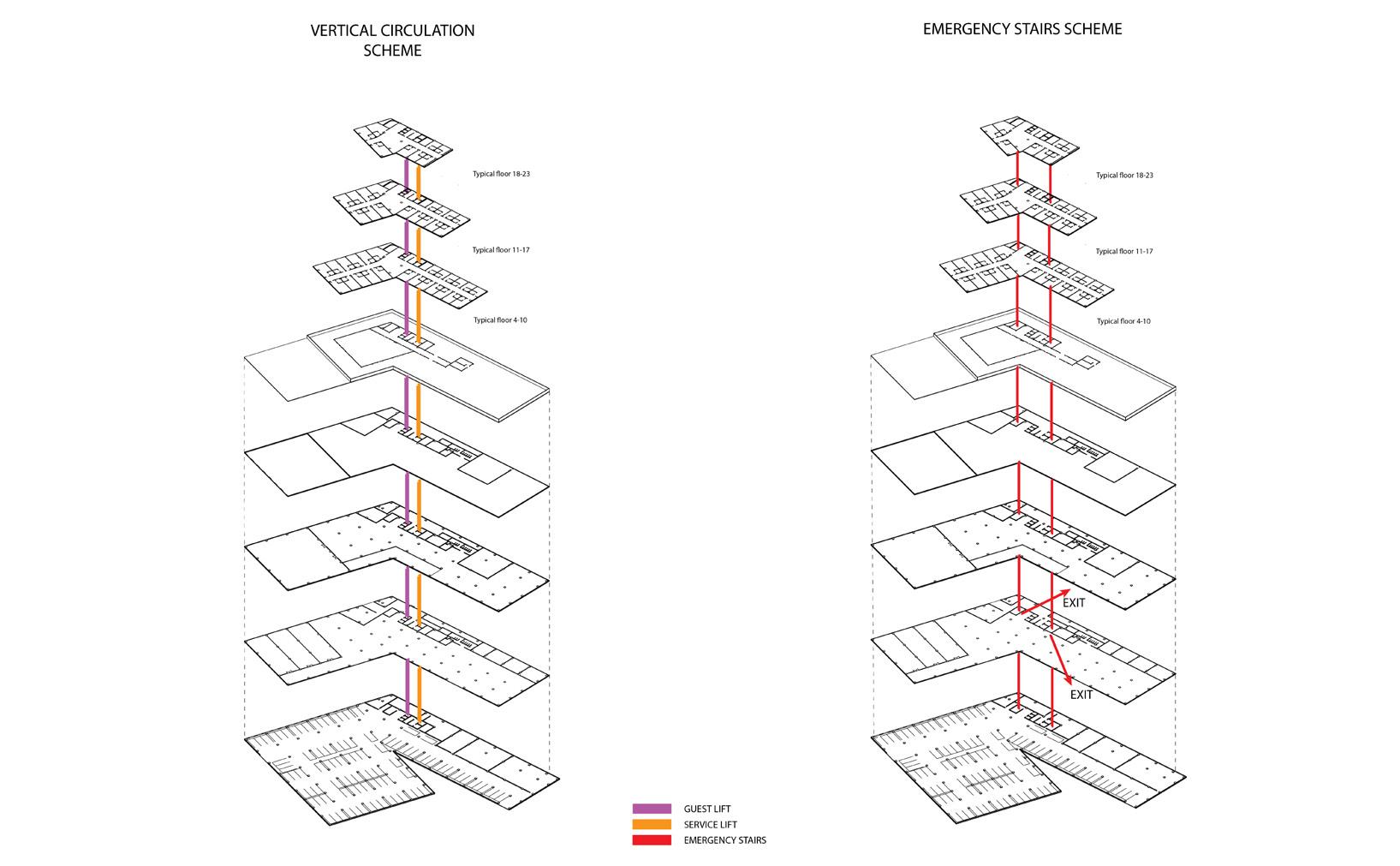

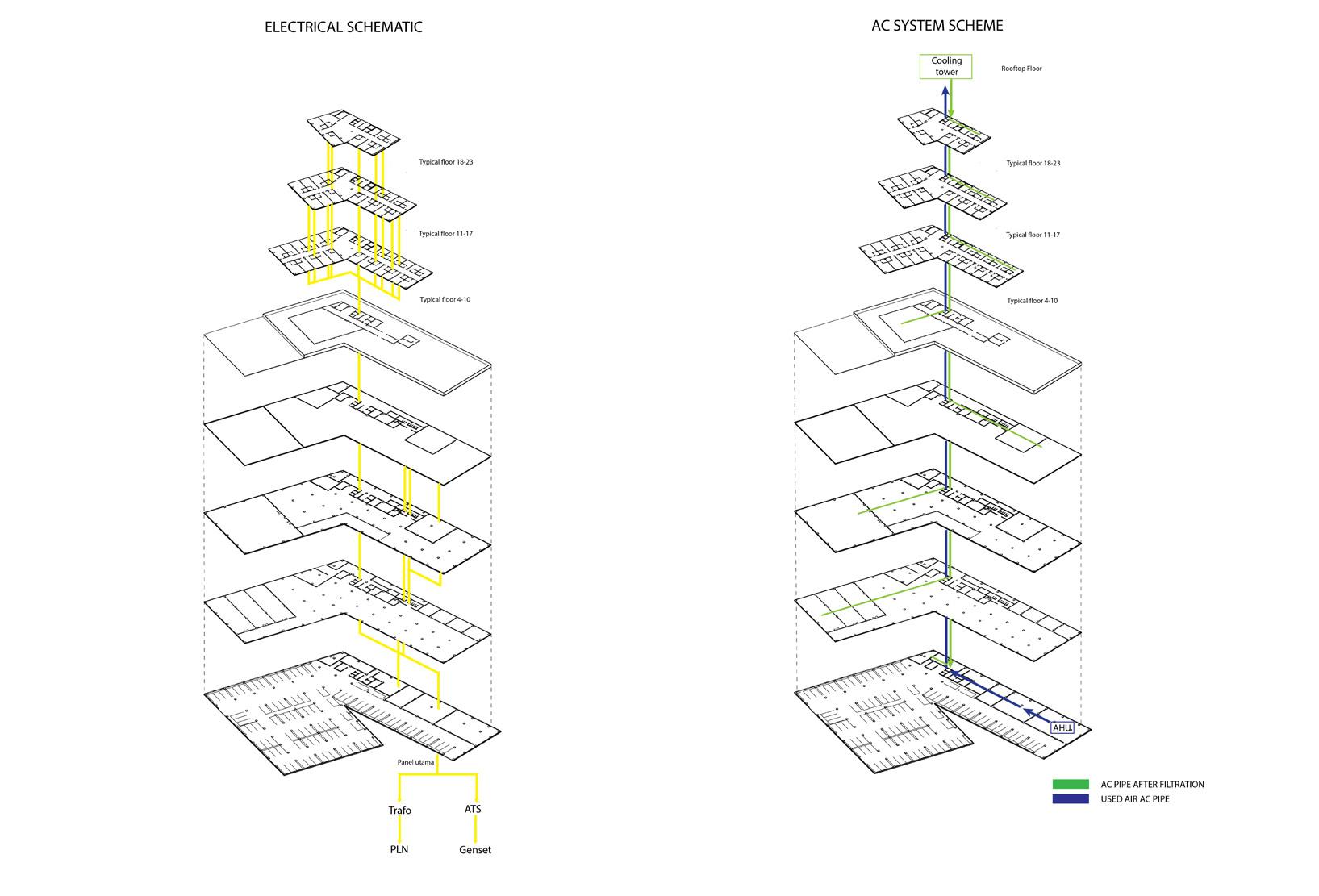

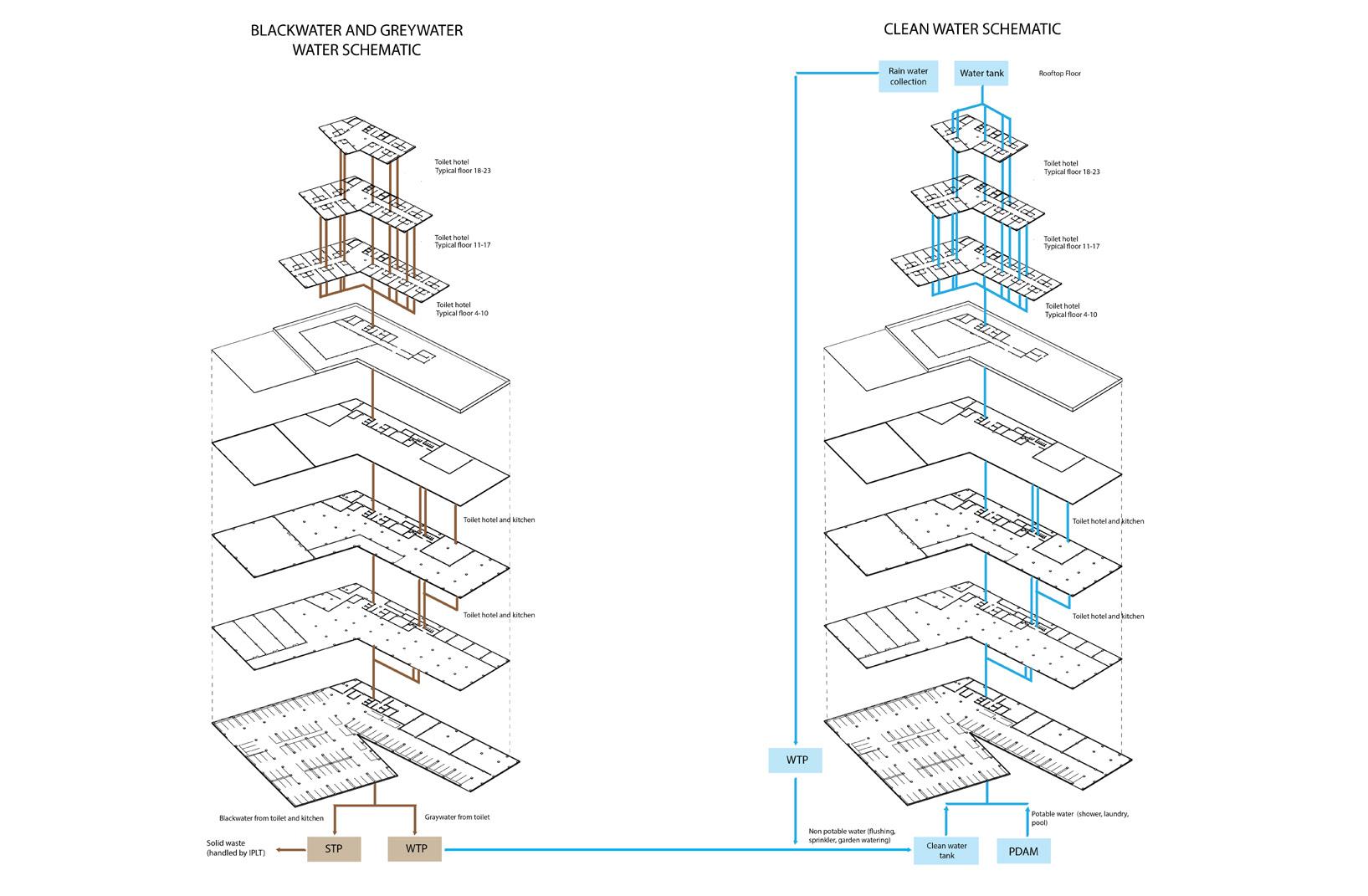

BUILDING SYSTEM The Chalari | 4th Semester | 2022 12
13
The Chalari | 4th Semester | 2022 14
17
02 PN HOUSE Residential
2021/ Residential Architectural Design II
Location Kembangan, West Jakarta, Indonesia
Site Area 314 sqm
The house is designed in a tropical modern architectural style with the use of natural elements, such as wood and natural plants. PN House carries the concept of comfortable housing for families with separate private and semi-public zone settings, as well as a mass building that is open on the side for a inner courtyard and music room according to the client’s wishes. This house was also designed to respond to the conditions of the Covid-19 pandemic by having an inner courtyard area and lots of openings to ensure good air circulation in each room and provide an area that can be used for sunbathing.
18

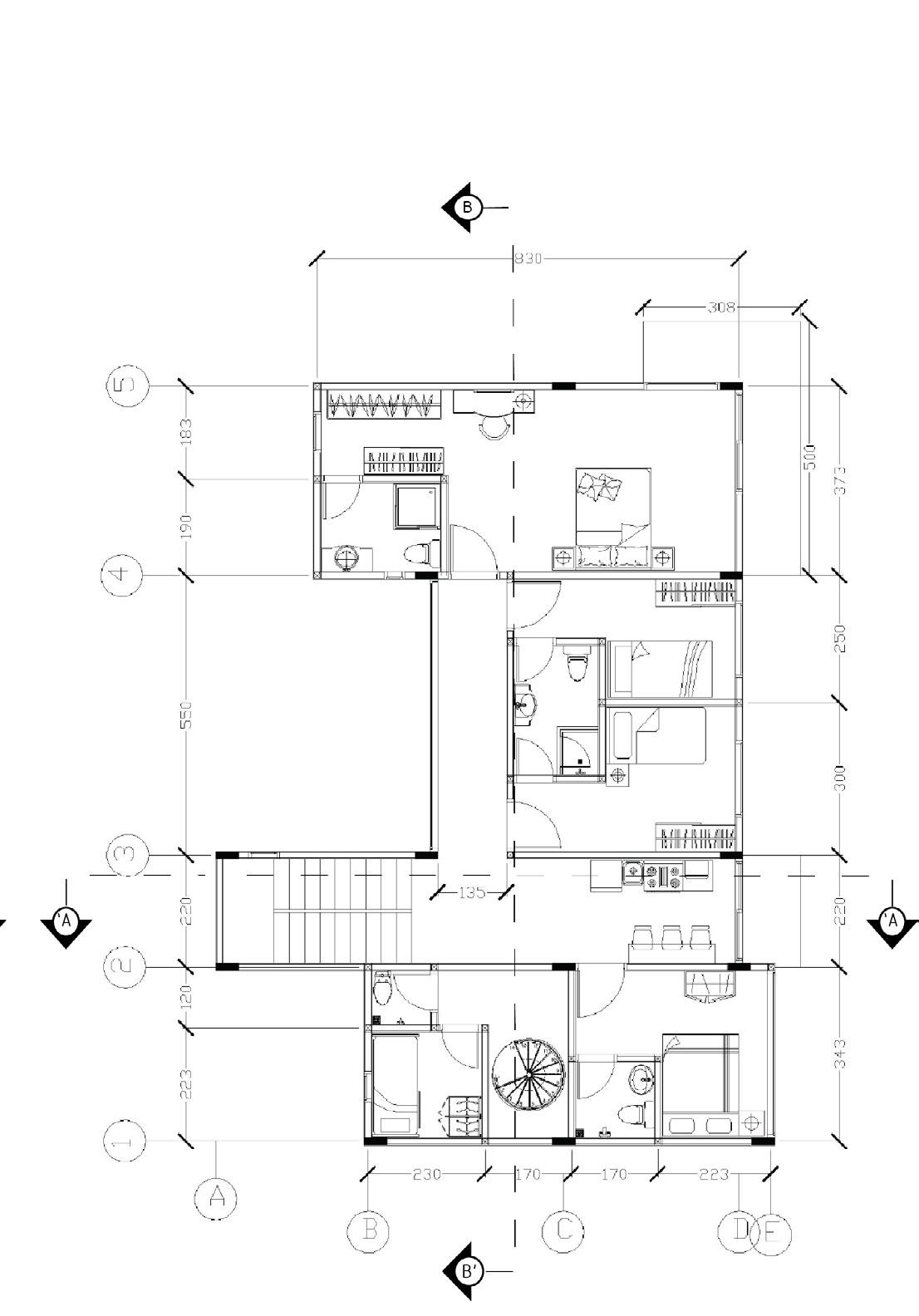

2 nd Floor Plan PN House | 2nd Semester | 2021 19

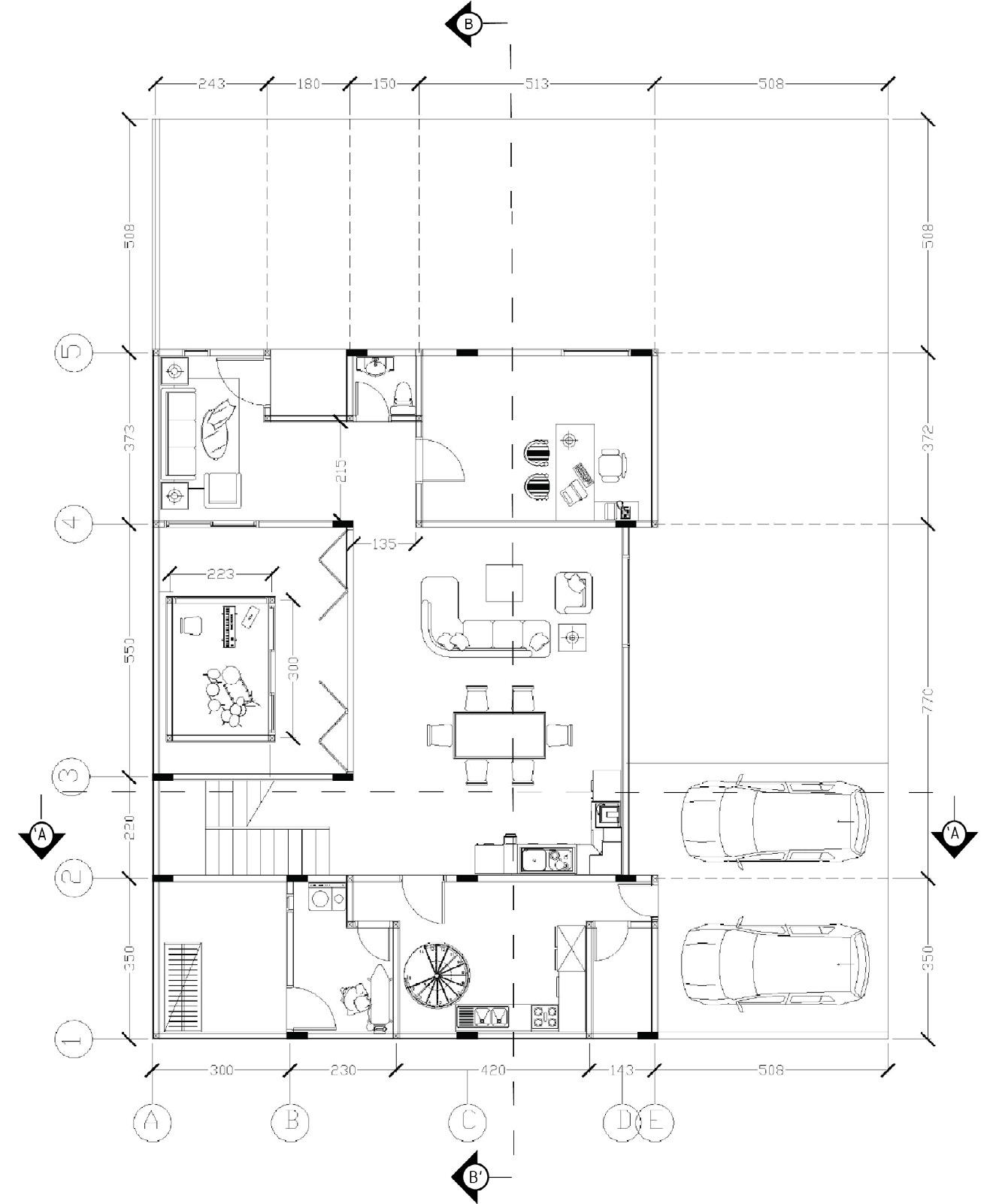

1 st Floor Plan
PN House | 2nd Semester | 2021

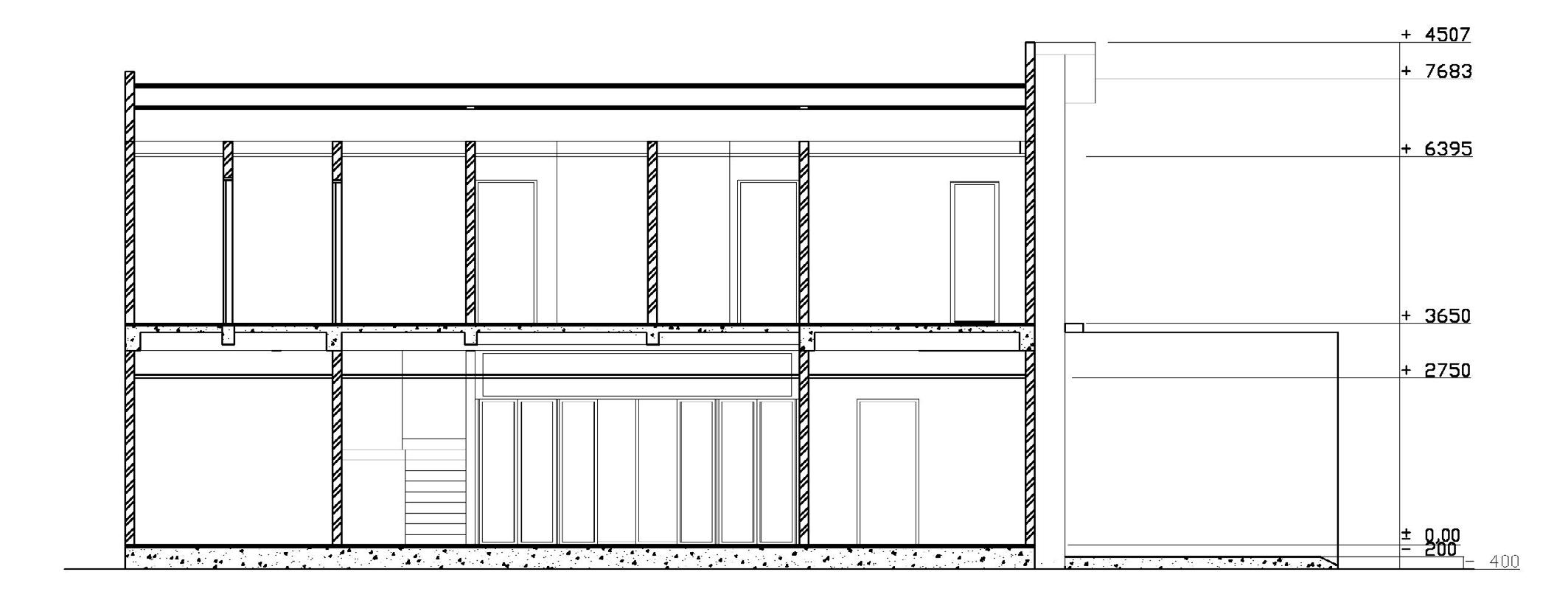

Section
20
Section A-A
B-B
PN House | 2nd Semester | 2021 21
Left Elevation
PN House | 2nd Semester | 2021

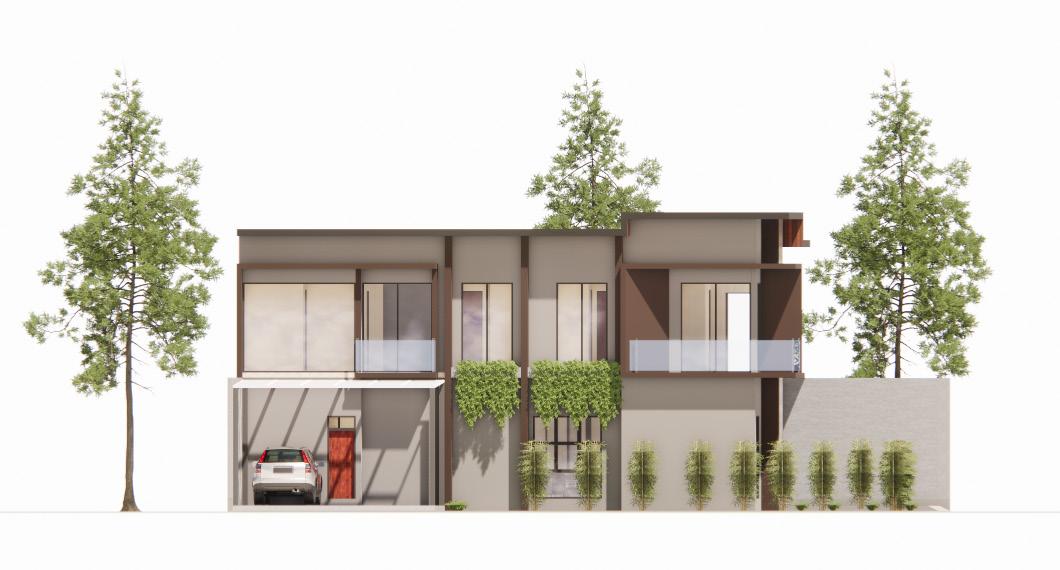

Front Elevation
22
AMPHI-THEATER
Amphitheater
2022/ Amphitheater Building Technology III
Location Central Jakarta, Indonesia
Site Area 960 sqm

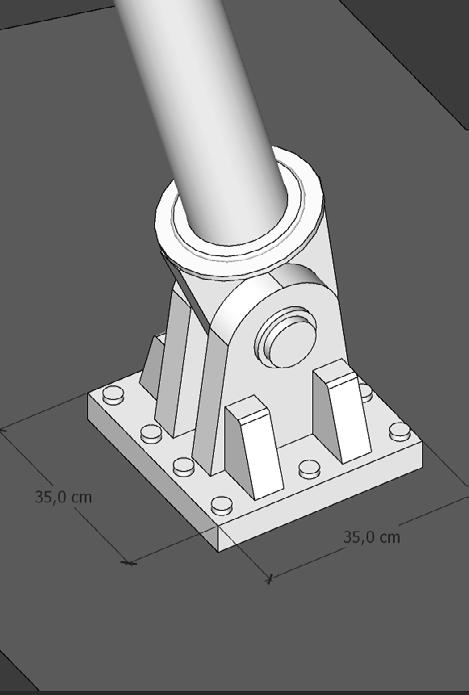

a recreation area in Central Jakarta, this amphitheater is used for performing arts activities, namely the Open Theater. The space can be used for various types of activities; art performances, dance, drama, music, exhibitions, exhibitions, receptions, hospitality, etc. Using a membrane structure, which is a thin flexible surface structure that carries loads connected by cables or ropes that generate tension.
03
25
26

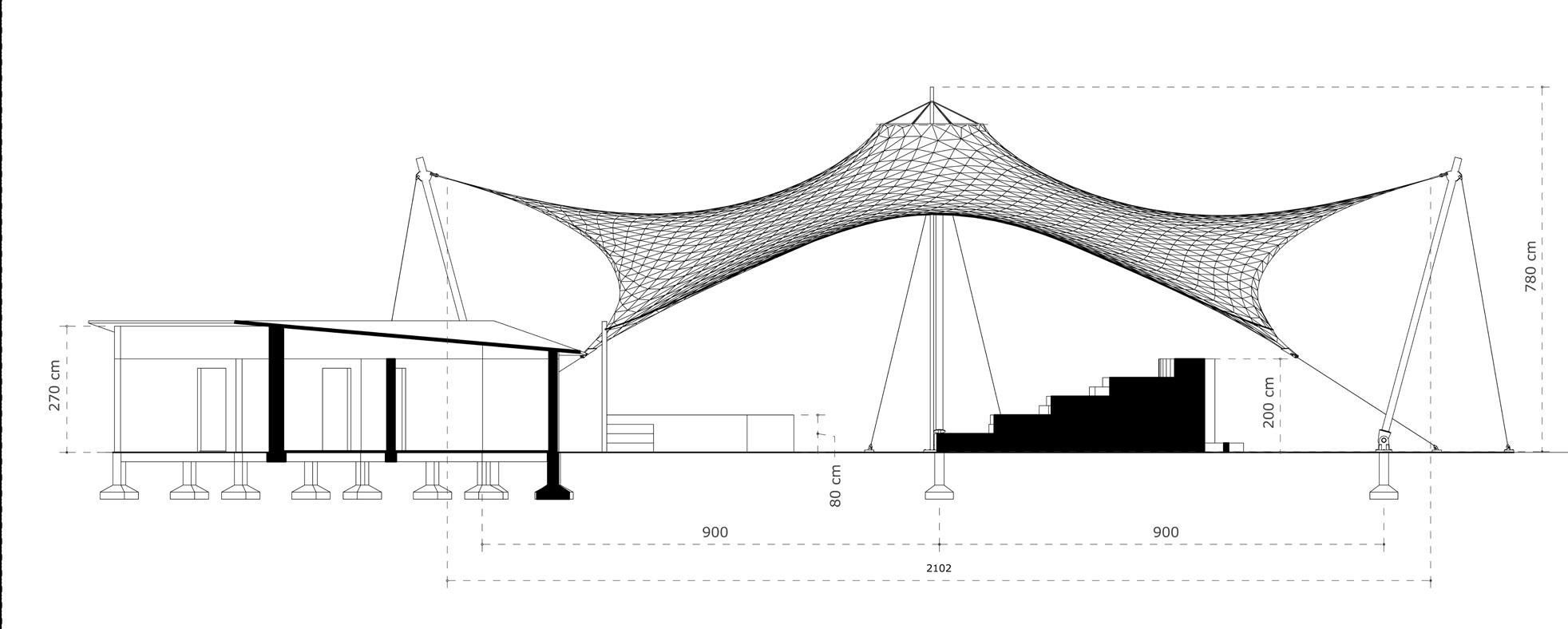

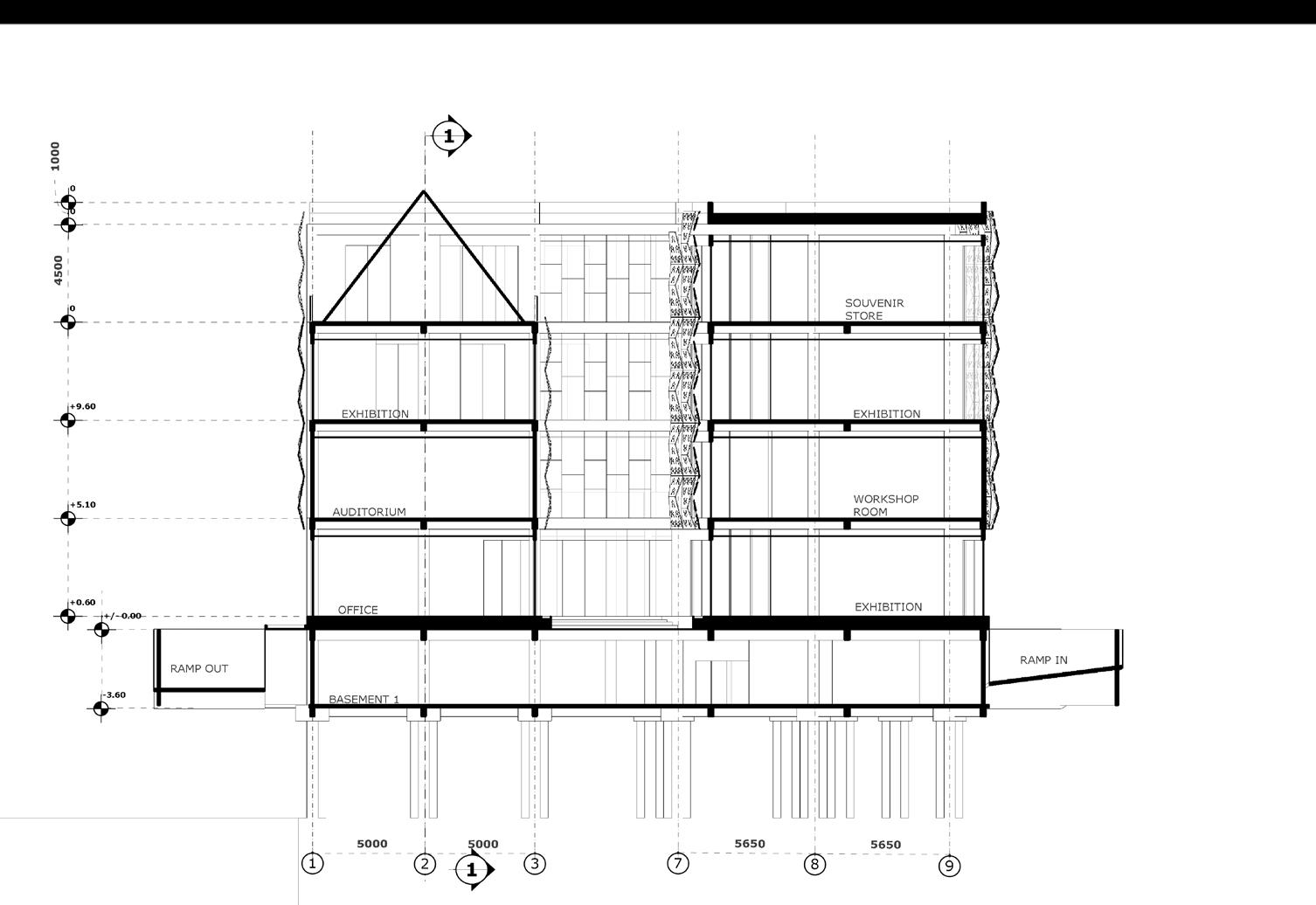

Section 3-3
Amphi-theater | 3rd Semester | 2022 27
Section 1-1 Site Plan

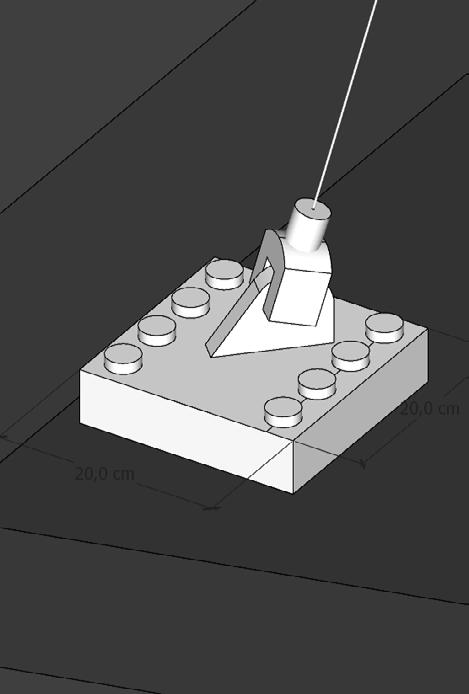

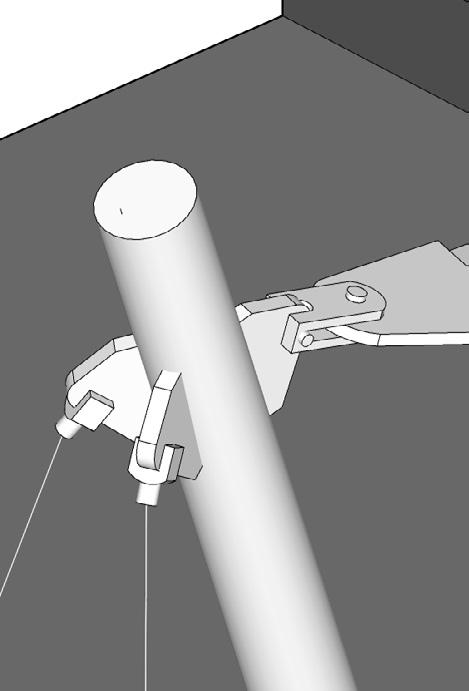

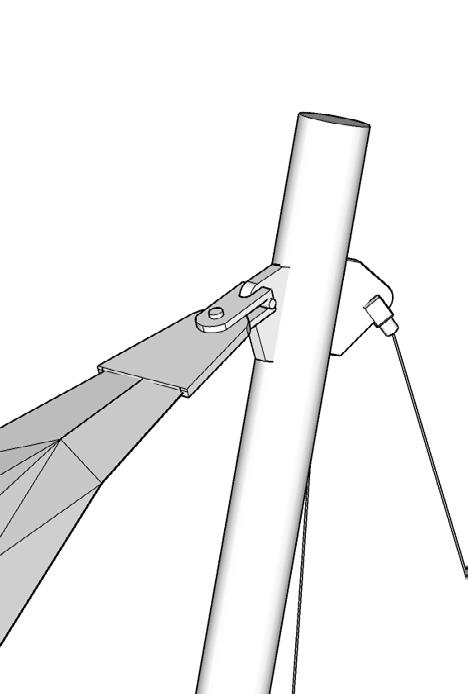

Detail Amphi-theater | 3rd Semester | 2022 28

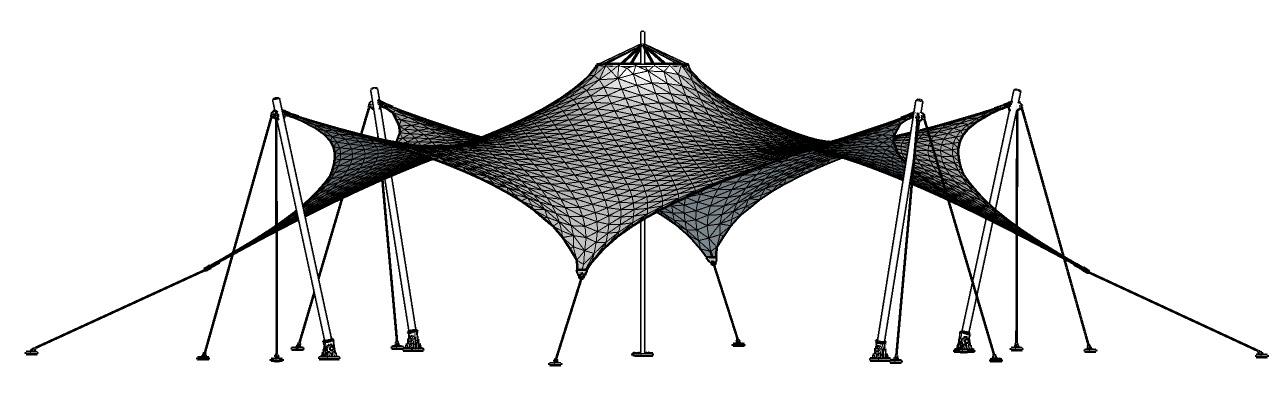

Building Mass transformation
Tambi Gallery | 3rd Semester | 2022 31
04 TAMBI GALLERY Cultural Gallery
2022/ Gallery Architectural Design III
Location Jl. Marina Raya, North Jakarta, Indonesia
Site Area 2101 sqm
The creative economy is currently one of the largest sources of state revenue, one of which is related to cultural tourism. This cultural tourism is proven to be able to drive the local economy by attracting both foreign and domestic tourists, which in turn will improve the local economy. The presence of tourists will trigger the growth of the hotel sector, service sector, and various other sectors.Indonesia has very many cultures, spread from Sabang to Merauke. This culture is a great potential whose management has not yet been maximized. In fact, not many tourists know about various cultures in Indonesia. Therefore, it is necessary to have a showcase that shows the local culture, along with all material and intangible wealth, so a gallery and workshop facilities are needed in this facility
Tambi gallery is designed by adopting culture from the Lore tribe, the Tambi traditional house. By taking the element of decoration elements in the form of horns symbols which are used as a pattern of the secondary skin used. This Gallery Also has a Cultural Exhibition Room in according to the selected cultural product. In addition, this gallery also has art performance space, both indoors and outdoors. The gallery is also planned to have a workshop space that aims to train visitors about the skills possessed by the culture. Other facilities need are the cultural restaurant which shows local cuisine and also sales facilities that sell souvenirs and local handicrafts.
32

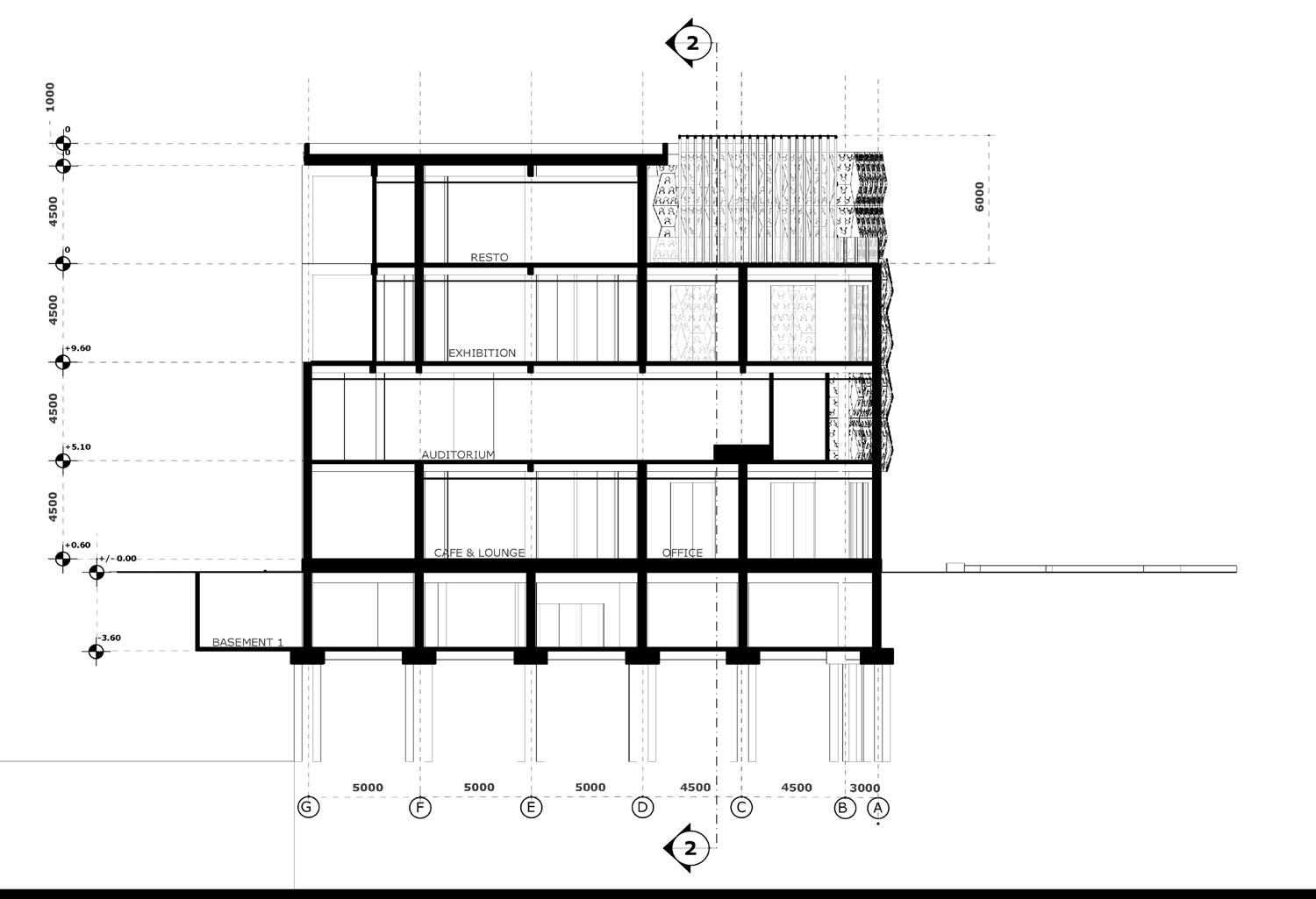

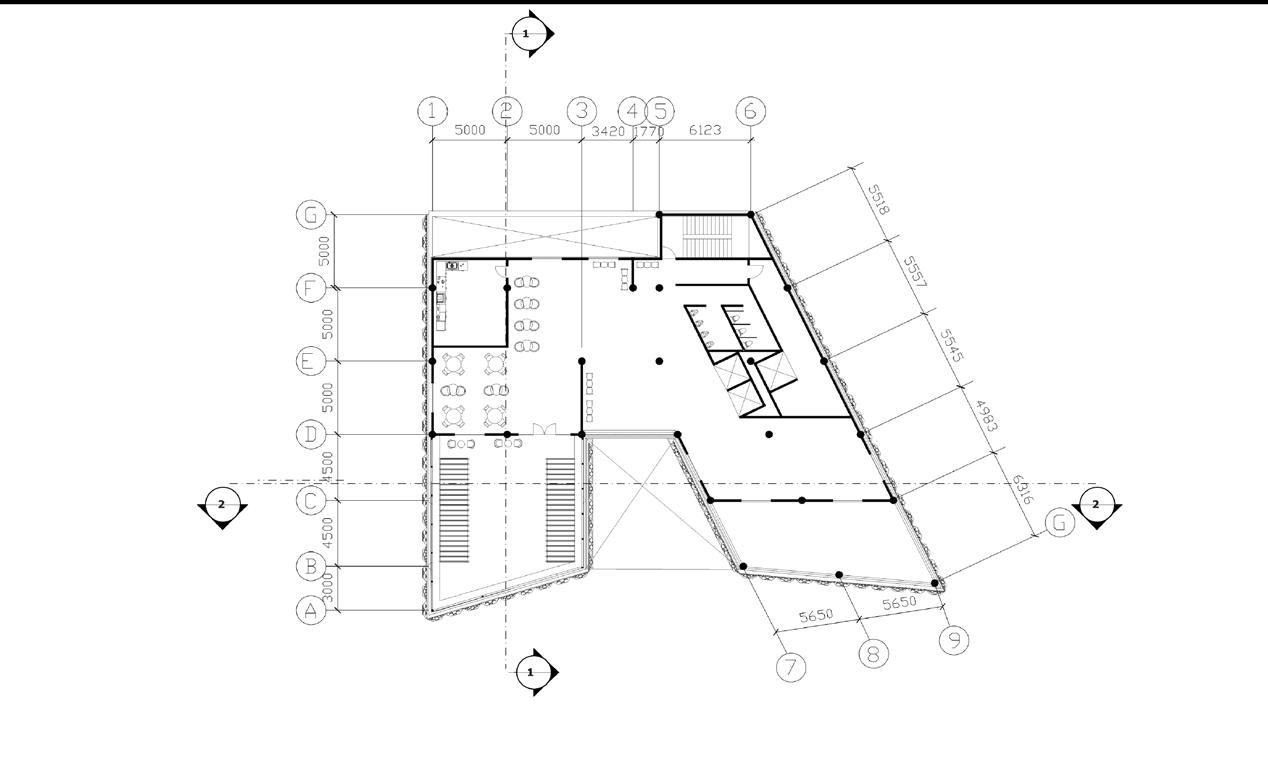

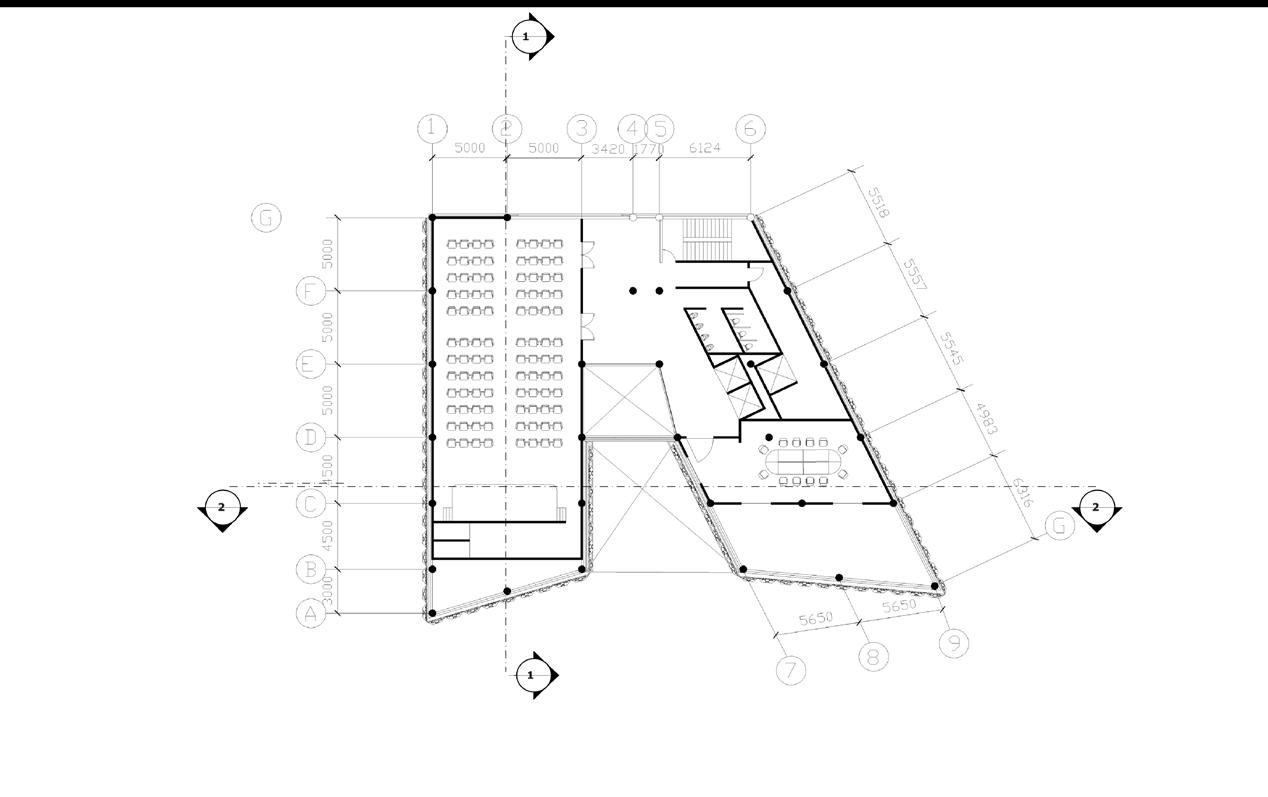

Tambi Gallery | 3rd Semester | 2022 OFFICE 1.OFFICE ROOM PUBLIC AREAS 2. CHANGING EXHIBITION 3. LOUNGE 4. CAFE 5. LOBBY 6. OUTDOOR FOYER 7. BACKYARD SERVICES 8. RESTROOM 9. PASSENGER LIFT 10. SERVICE LIFT 11. EMERGENCY STAIRS 12. STORAGE 1 2 3 4 5 6 8 9 10 11 12 KET: VEHICLE CIRCULATION Section 2-2 `Section 2-2 1 st Floor Plan 33

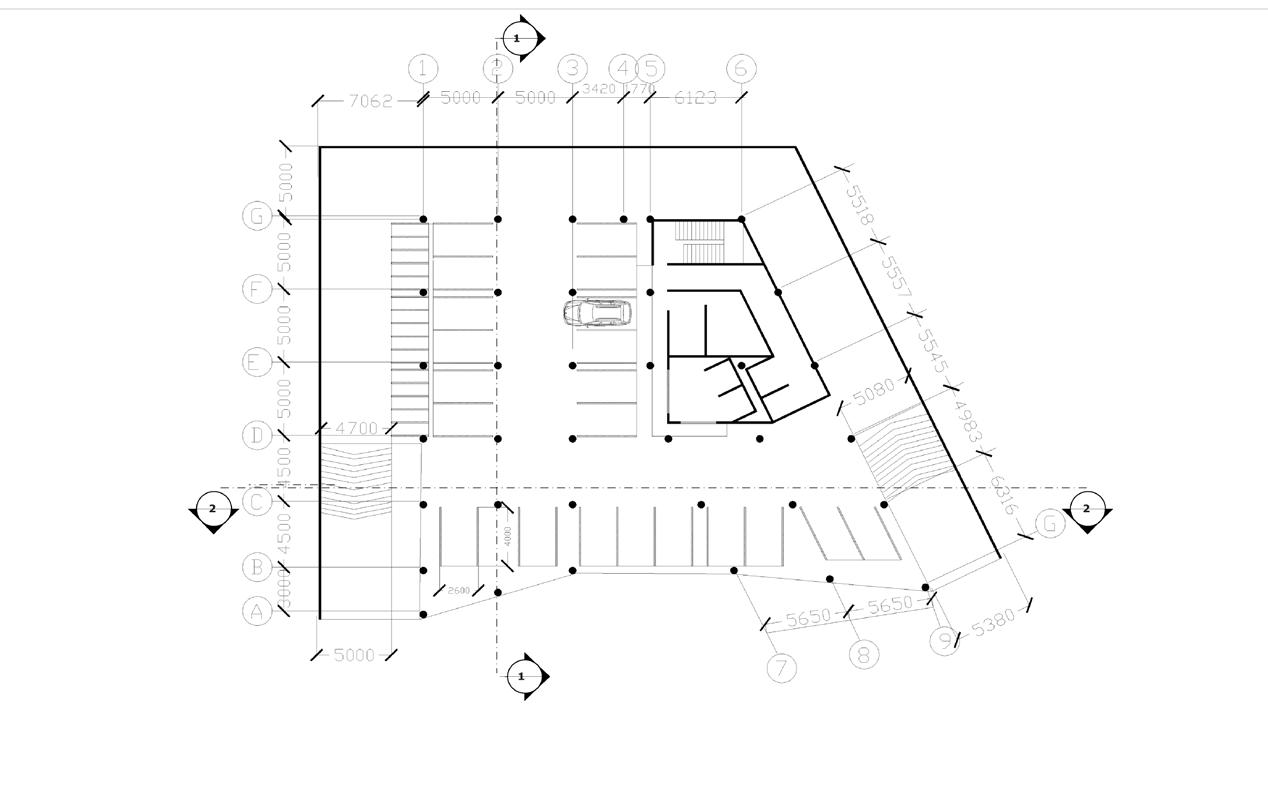

Tambi Gallery | 3rd Semester | 2022 1 2 3 4 5 6 7 8 9 10 CIRCULATION 1. VEHICLE IN 2. VEHICLE OUT SERVICES 3. CAR FOR CAR 4. PARKING FOR MOTORCYCLE 5. MEP ROOM 6. SECURITY ROOM 7. PASSENGER LIFT 8. SERVICE LIFT 9. LOADING DOCK 10. EMERGENCY STAIRS KETERANGAN: VEHICLE CIRCULATION PUBLIC AREAS 1. AUDITORIUM 2. BACKSTAGE 3. CHANGING ROOM 4. WORKSHOP ROOM SERVICES 5. RESTROOM 6. PASSENGER LIFT 7. SERVICE LIFT 8. EMERGENCY STAIRS 9. STORAGE 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 9 PUBLIC AREAS 1. PERMANENT EXHIBITION SERVICES 2. RESTROOM 3. PASSENGER LIFT 4. SERVICE LIFT 5. EMERGENCY STAIRS 6. STORAGE 1 1 2 3 4 5 6 7 8 9 PUBLIC AREAS 1. RESTAURANT 2. OUTDOOR SPACE 3. SOUVENIR STORE SERVICES 4. KITCHEN 5. RESTROOM 6. PASSENGER LIFT 7. SERVICE LIFT 8. EMERGENCY STAIRS 9. STORAGE Basement Plan 2 nd Floor Plan 3 rd Floor Plan 4 th Floor Plan 34

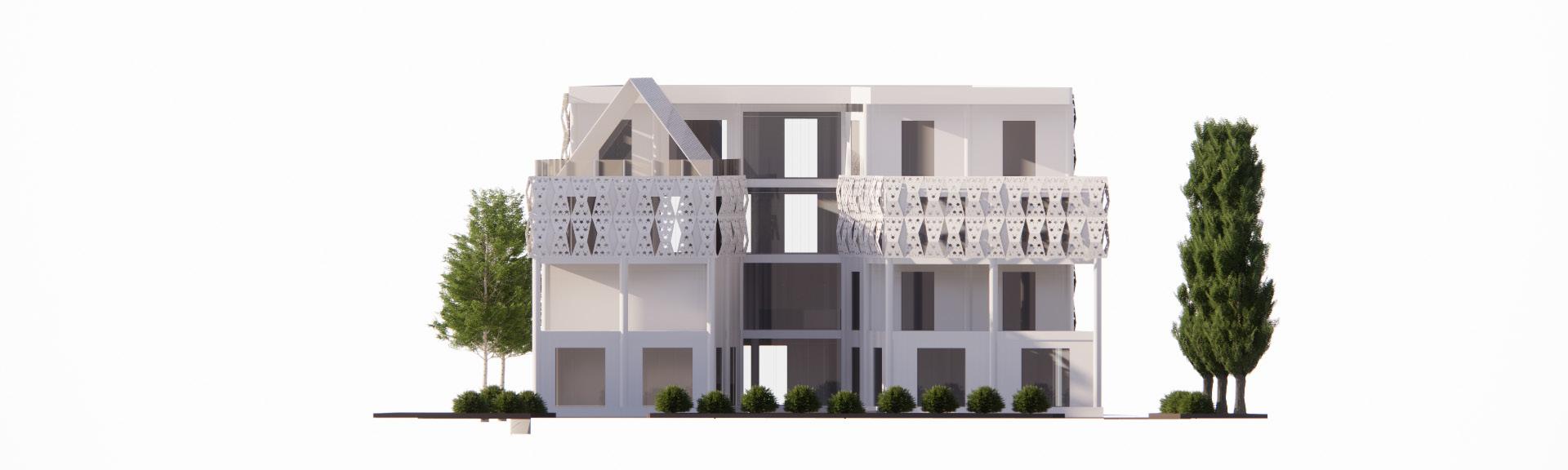

Front Elevation

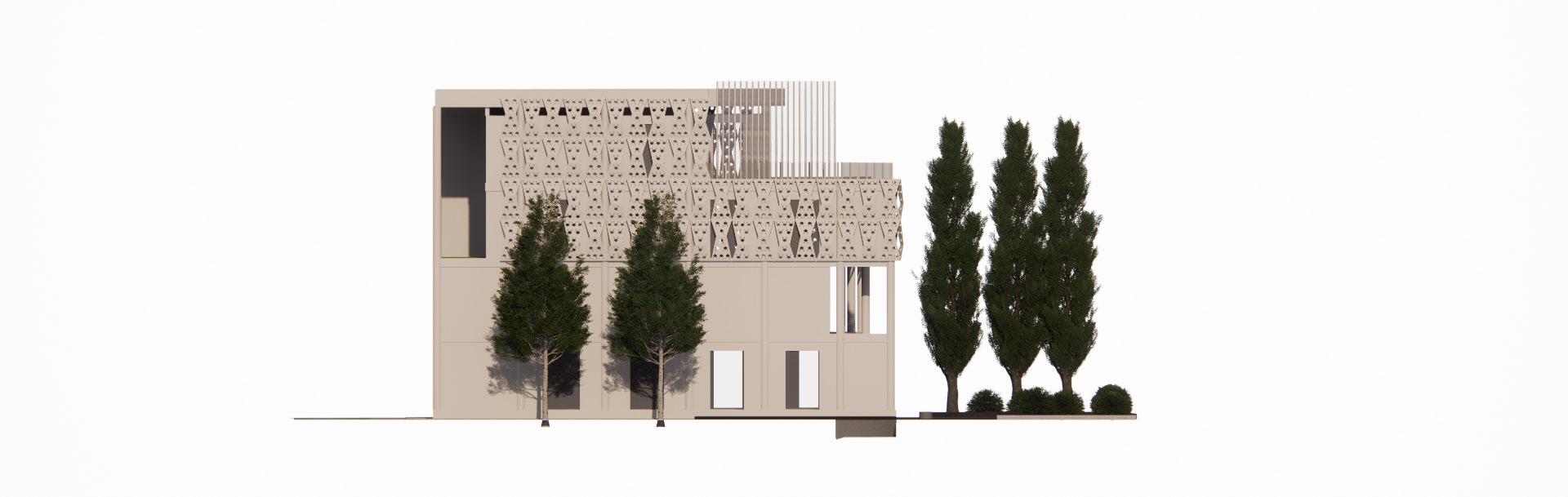

Left Elevation
Tambi Gallery | 3rd Semester | 2022
35
Tambi Gallery | 3rd Semester | 2022 36
MONICA DEBORA SULTANJAYA | ARCHITECTURE 2023
