Our performance driven line of sliding glass doors, built to withstand the harshest weather conditions. Featuring an anchorless sill option and corrosionresistant hardware.
Our designer line of sliding glass doors, offering sleek narrow frames, luxurious hardware and unlimited configurations.
Our expertly crafted line of fixed glass windows with modern sightlines, incredible sizes and outstanding structural performance.
Offering unmatched reliability with our performance-driven line of sliding glass doors. The perfect combination of durability and style, our Catalina series is designed for coastal environments. Featuring custom finishes, corrosionresistant handles, and anchorless sills for maximum leak protection.
Interlocks: 4-1/4" Standard or 3" Narrow
Insulated & Monolithic Laminated Glass Clear & Tinted Options Available
10-year Warrantied Coastal Finishes White, Bronze, Black & Two-Tone finishes in stock.
Custom configurations up to 10-panels

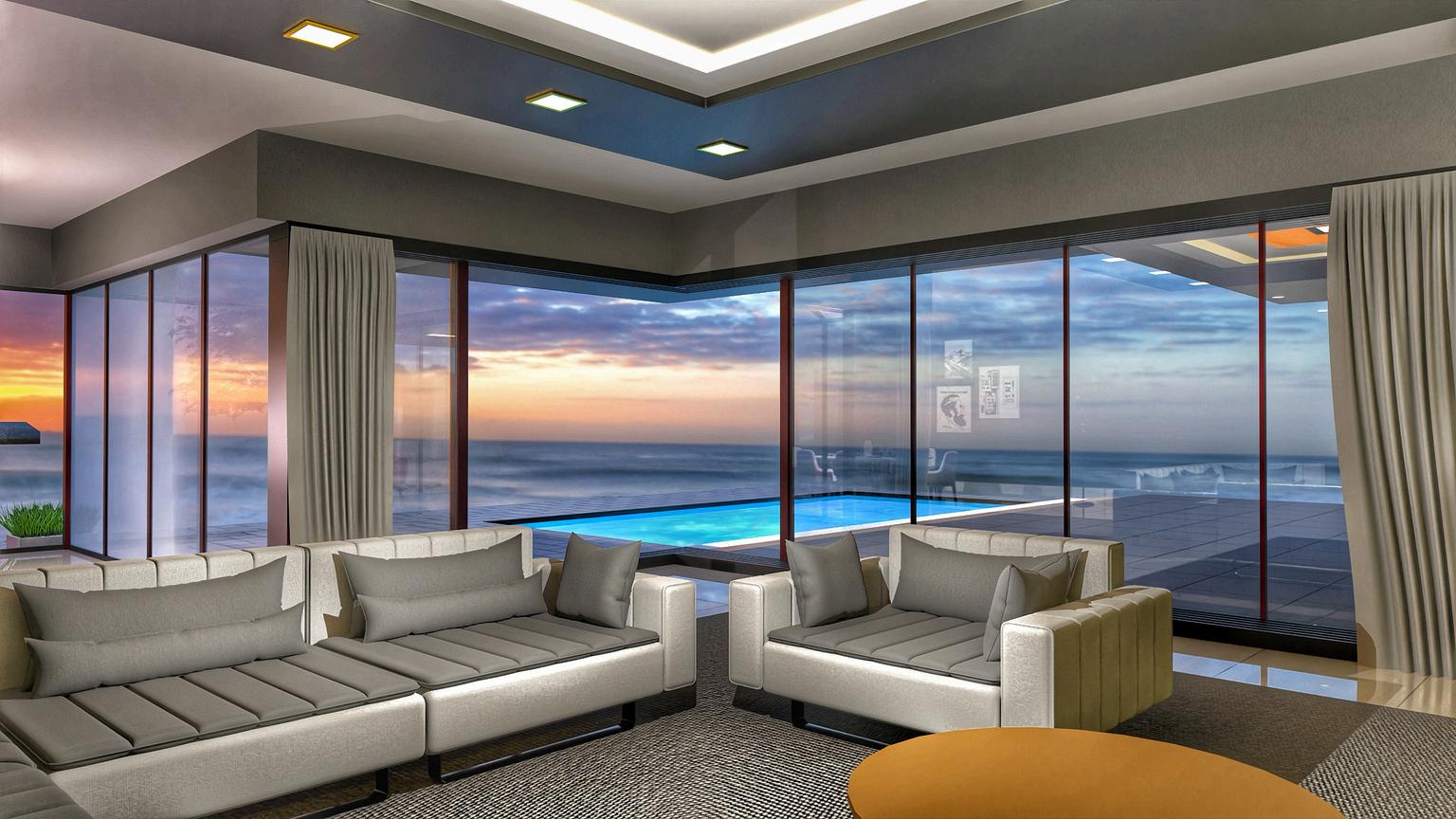

90° Corner & Pocket Doors

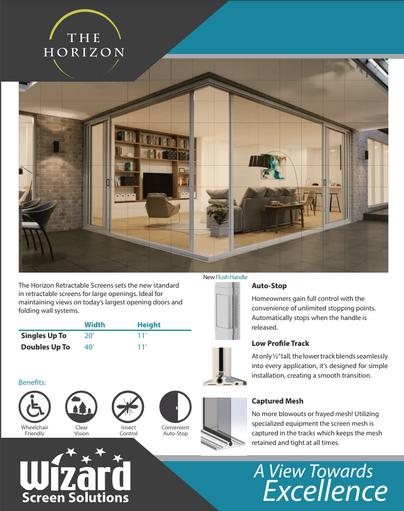

Optional Retractable Interior Screen
Maximum Panel Sizing: 60" x 120"
Design Pressure: +120/-140
Large Missile Impact Rated Standard
Non-Impact Glass Option
Anchorless Sill Option
6" Track Depth for 2-Track w/ Screen
800lb Tandem Polymer Rollers
.060 Aluminum Box Screens w/
BetterVue™ Mesh

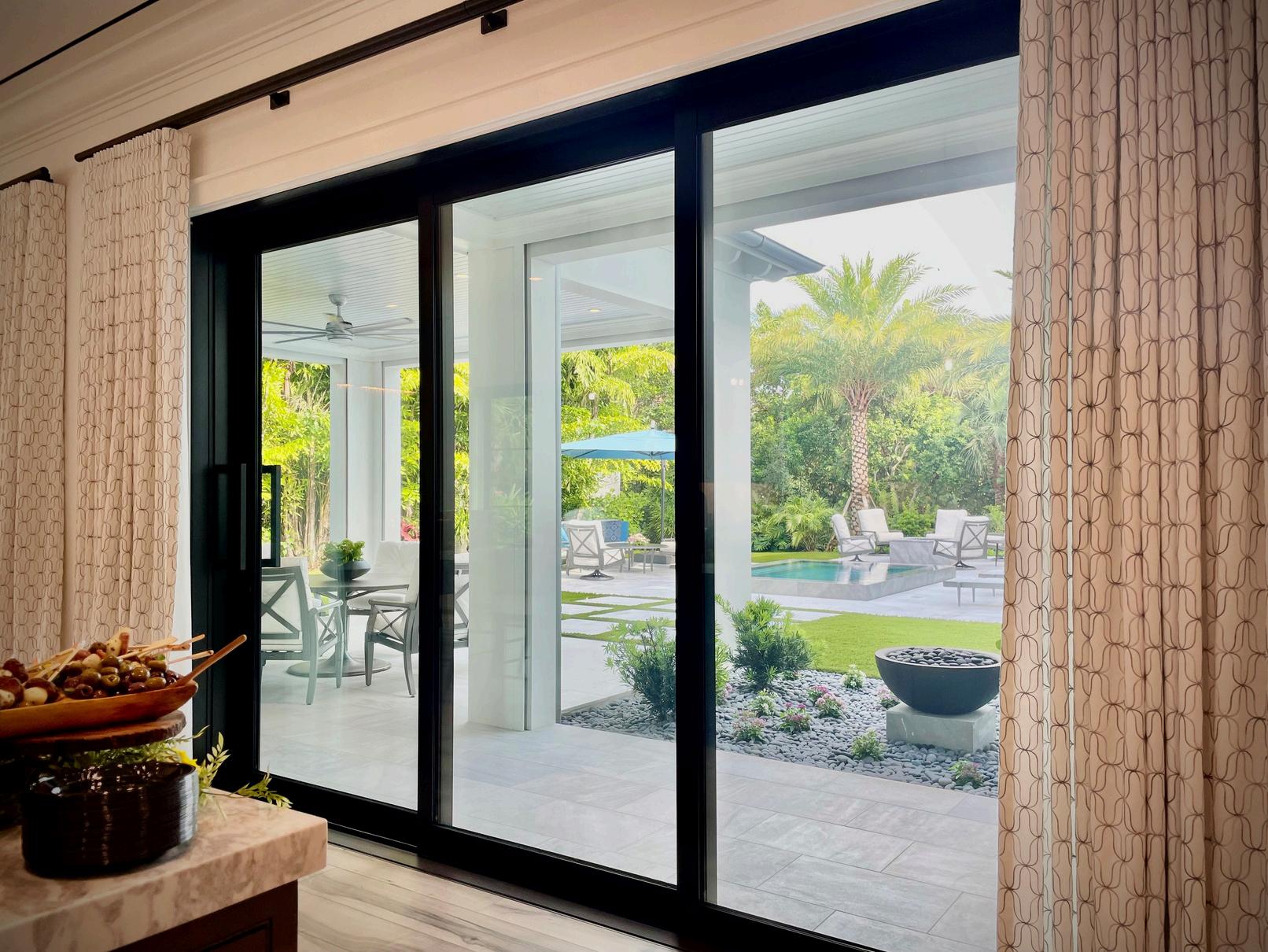

Experience unparalleled aesthetics with our designer line of sliding glass doors. Crafted with attention to detail, they offer a sleek design, durable designer handles, and the quietest operation. With a variety of finish options and superior glass quality, these doors are built to last a lifetime.
Insulated & Monolithic Laminated Glass Clear & Tinted Options Available
10-year Warrantied Coastal Finishes White, Bronze, Black & Two-Tone finishes in stock.
Custom configurations up to 10-panels
90° Corner & Pocket Doors
Optional Retractable Interior Screen
1-3/8" Narrow Interlock
Max Panel Sizing: 60" x 120"
Design Pressure: +/- 65
Water Performance: up to 15.5PSF
Large Missile Impact Rated
Non-Impact Glass Option
Anchorless Sill Option

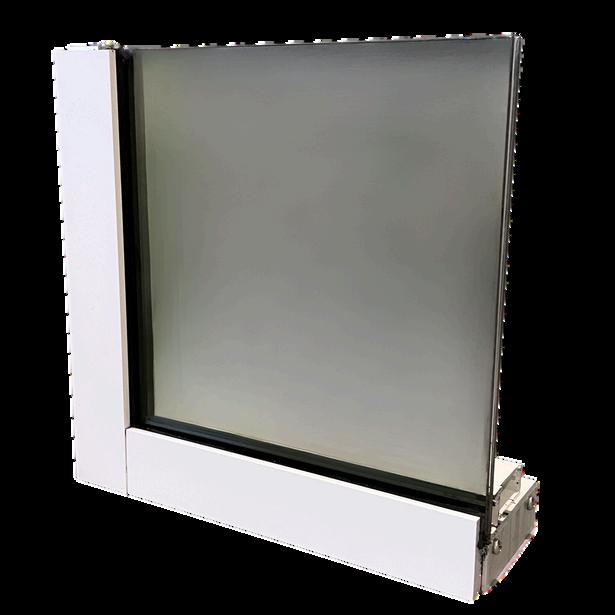

Introducing the Velocity Impact Wall, a visually stunning and expertly crafted line of fixed glass solutions. Offering clean modern lines, incredible sizes, and unlimited configuration options. Designed to complement our Luxxe sliding glass doors, presenting you outstanding performance.
Insulated & Mo
Clear, Tinted
Options Ava 10-year W
White, Custom C
Max Frame Size: 60" x 120"
Design Pressure: +/- 100
Large Missile Impact Rated Non-Impact Glass Option
5" Frame Depth
2-1/8" Perimeter Frame
3" Glass-to-Glass Sightline
Anchorless Jambs
Indulge in our extensive array of finish options, backed by an impressive 10-year coastal warranty for added peace of mind. Unleash your creativity with our custom color capabilities, two-tone selections, and captivating woodgrain finishes.
Complement your chosen finish with a glass color of your preference, enhance energy efficiency with specialized coatings, and bring your unique vision to life with a personalized touch.
Solid color PPG Duranar® finishes
AAMA 2605 Performance rated
10-year coastal warranty
Standard lead time finishes:
White, Bronze, Black & Bronze/White
Two-Tone
Custom lead time finishes:
Custom color and woodgrains
Glass options include:
laminated | double pane | impact
insulated laminated | triple pane | impact
insulated | double pane | non-impact
Clear & Tinted Options
Additional colors available
Low-E coatings offered Solarban® 60, Solarban® 70
Discover Duranar®: The ultimate solution for lasting beauty and protection It boasts remarkable resistance to corrosion, chemical attack, and UV rays, ensuring long-term durability With its excellent resistance to chalk and color fade, Duranar® preserves the aesthetics of your building while requiring minimal maintenance, easily cleaned with mild detergents and solvents
Low-E (low-emissivity) glass coatings were created to reduce the transmission of UV and infrared light through glass, while still maintaining the desired level of visible light. By applying this thin, transparent coating, low-e glass effectively reflects external heat in warm weather and retains heat in colder temperatures This results in an environment that is light, bright and reduces energy consumption.
N D L E S L O C K S
11-7/8" H x 1-3/16" W 1-11/16" Projection
18" or 24" H x 1-1/2" W 3" Projection
Additional sizes available Not compatible with screen
Finishes

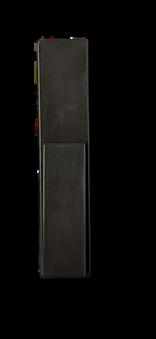

5-1/2" H x 1-1/8" W x 1" D Finishes match Crest Handle
15-3/4" H x 1-1/4" W 3-1/8" Projection
Finishes
15-3/4" H x 1-1/4" W 3-1/8" Projection
Finishes

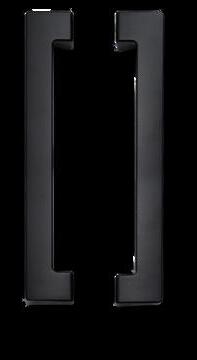

18" or 24" H x 1-1/4" W 2-7/8" Projection
Additional sizes available Not compatible with screen
(ROUND)
7" H x 1-3/4" W each 11/32" Projection 7/8" Pull Depth
COASTAL (SQUARE)
2-7/8" H x 1-1/4" W x 1-3/16" D Finishes match Coastal Handle
2-7/8" H x 1-1/4" W x 1-3/16" D Finishes match Coastal Handle
*See Additional Information page at the back of the brochure for finish names
