Architecture Portfolio 2022

mohit bansal

architecture portfolio. selected works 2022

Mohit Bansal

CONTACT DETAILS: mohitbansal.1998@gmail.com +91-7689094759 Kota, Rajasthan Hindi, English, German

ABOUT ME:

‘‘

I am a self-motivated architect, always looking for an environment where I can apply my proven skills and knowledge base. I believe in minds limitless power which motivates me to push my limits at the required situation.

As a creative individual, I am in constant pursuit of finessing new methods of resolving a question in hand. I find myself driven by curiosity that aims to innovate and question the norms. I am eager to reveal them at every opportunity I encounter. This made architecture the most natural choice for my studies and career path.

EDUCATION: Bachelors of Architecture

2016-2021

Schooling

2005-2016

Aayojan School of Architecture, Jaipur, Rajasthan, India Modern Sr. Sec. School, Kota, Rajasthan, India

INTERESTS:

Reading

Photography

Sketching

Model making Graphic design

Sports

Finance skills

WORK EXPERIENCE: Aug 2021- Nov 2022

Junior Architect Kothari Architects, Kota, India • •

16 months

Schematic Design, Design Development, Site Supervising, Interior Design and Construction Drawings for Various Residential and Commercial Project Project Experience: Jaiminesh Tribal University, Resort, Cafe, Hostels, Affordable Housing, and various Residential Projects.

Jan 2020-June 2020

Intern Architect Architect Tulio de souse, Goa, India • •

6 months

work closely with firm principals on all aspects of architectural projects, office administration, and Architecture Visualization.

Project experience: Residential Villas, Resort and Cottages (Mario Resort), Goa Housing Board Appartments, Interior of (Bank of India). See the Training report here https://rb.gy/fvp6hn.

2019 - Present

Freelance Designer / Personal project • • •

Graphic Design, Architecture Design, Visualization and coordination of various small projects for Both Indian and Foreign Clients on Platform like Upwork and Fiverr.

Aadi Home Stay Renovation, Almora, Uttrakhand (2022).

Project Brahma, Residence on plot area 5300Sq.ft, Almora, Uttrakhand. (2022)

2019 - 2021

Project Assistance Ascension Design, Jaipur, India • •

Project and Construction Management Work, Documentation Work of Jayakumar Rawal (Tourism Minister Maharshtra 2016-19) Haveli for the purpose of renovation located in Dondaicha, Maharashtra

ACHIEVEMENTS / PARTICIPATION: ZNDC ZONASA 2017 (Trophy Winner), 2016, 2018, Panel Discussion (2017) on Smart Cities.

2016-19

Tokyo Anti library design Competition: - Special mention.

2018

GATE Architecture 2022: AIR 583

2022

TECHNICAL SKILLS: • • • • • • •

Auto Cad Revit Architecture Sketchup Rhino 3ds Max Lumion Enscape

• • • • • •

V-ray Adobe Photoshop Adobe Premiere Pro Adobe After Effects Adobe Illustrator Adobe Indesign

“If you give people nothingness, they can ponder what can be achieved from that nothingness.”

- Tadao Ando

Table of contents Academic I Professional I Competitions

Academic/ Architectural Projects

01-18

1. Student Hub . Sitapura, Jaipur, India

01

2. Cultural Hub . Kolhapur, Maharashtra, India

09

Urban Design Project

Urban Insert, Urban Design, Industrial Design

Professional Projects

19-40

3. Jaiminesh Tribal University . Kota, Rajasthan, India

19

4. Dr. Bhanwar Residence . Kota, Rajasthan, India

25

5. Gautam Appartments . Gurugram, India

33

6. Architecture Details

37

Institutional Project Residential Project Residential Project

Miscellaneous

41-48

7. Tokyo Anti Library Competiton . Tokyo, Japan

41

8. Art Work

45

Cultural Architecture.

Passion that completes me.

Mohit Bansal

01

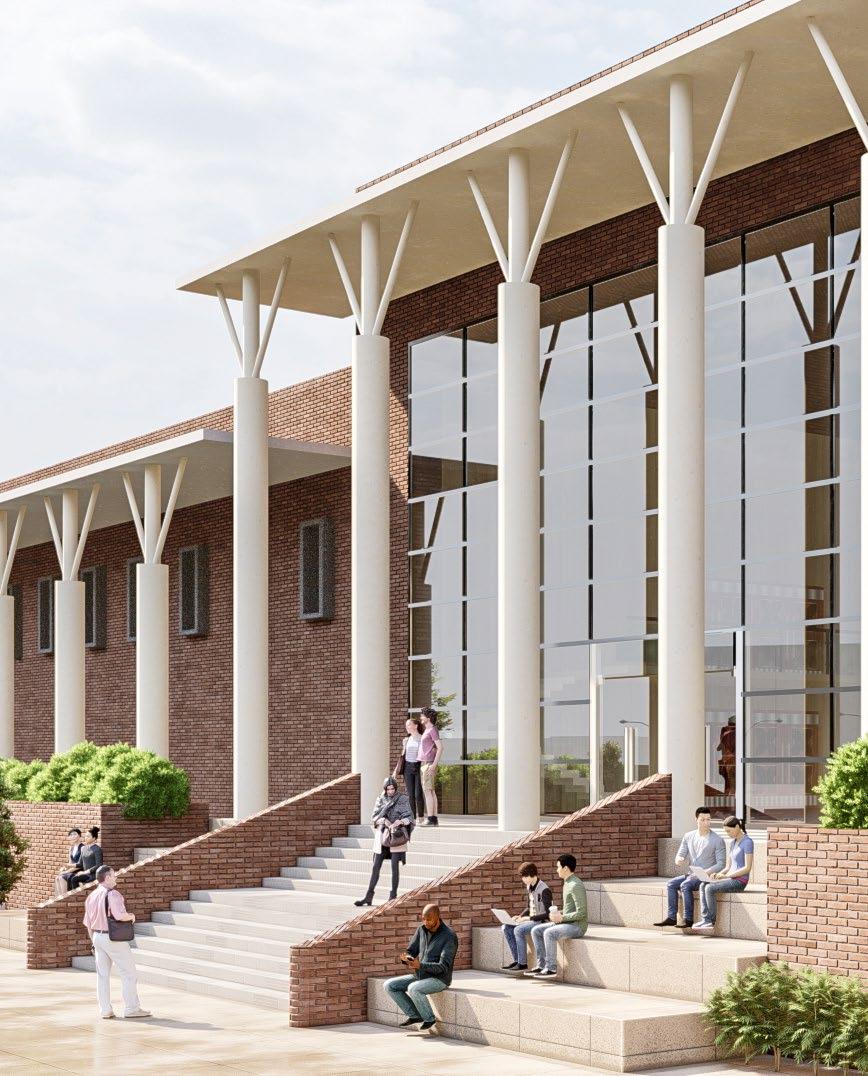

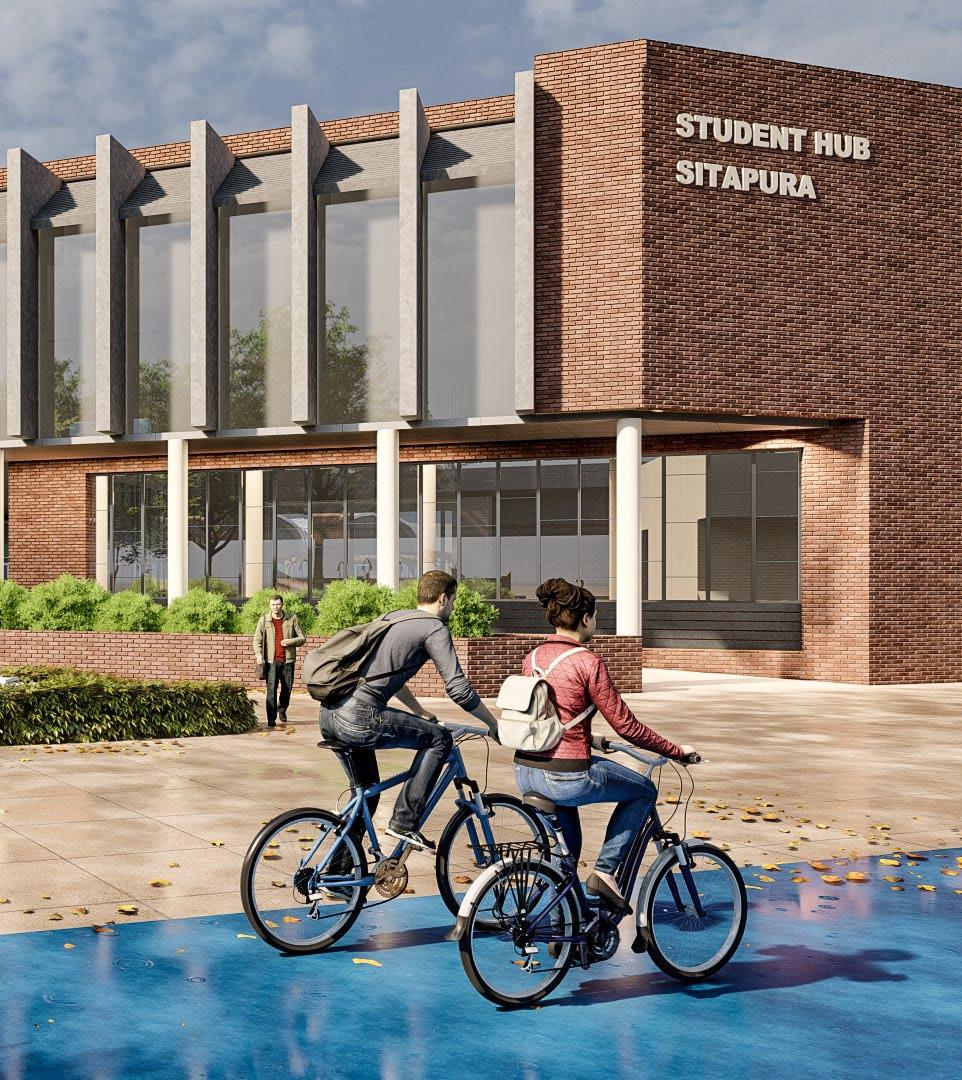

Student Hub Year: 2020 Category: Academic Project (IX-Sem) Theme: Urban Design and Planning Site Area: 8 Acres approx.

Location: Sitapura Institutional Area, Jaipur Software Used: Autocad, Sketchup, Lumion, Vray, Enscape, Photoshop, Indesign.

Walkthrough Link: https://youtu.be/abji1OIlxvU 1

Selected Work

Project Brief: With the Intent to draw students out of their rooms and into opportunities to live, learn, and develop as a community, The Student Hub integrates academic and social experiences around a lively student zone with views, clear orientation, and destination for collaboration. Transitional indoor/outdoor functional spaces adds a further dimension for the student experience and to enhance the relationship between the building and its landscape.

The Student Hub is an inspirational space at the heart of the area. ‘a place to find people’, a place where diversity is embraced, a dynamic meeting place for students (home and international), staff, business mentors and alumni volunteers, visiting school children and community partners, visiting scholars and more. Student Life Professionals are strategically integrated throughout the building to serve and support students.

2

Mohit Bansal

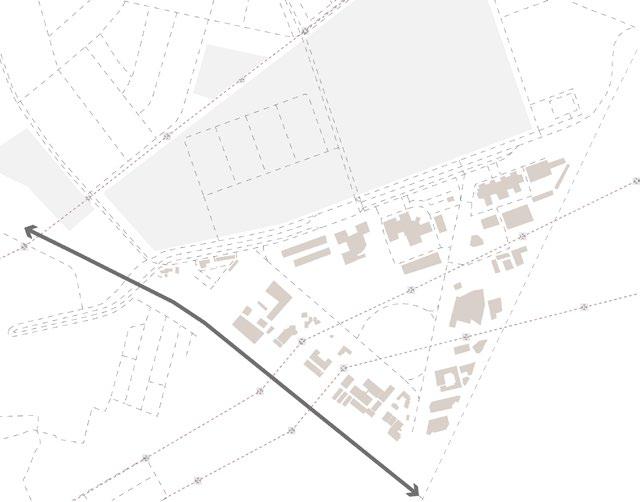

Site Location:

Proposed Site

The Site is Located in the heart of institutional region of Sitapura. If we see the current Linkages around the radius of 500 Metres, we have major conectivity of main road running west to east which has facilities like hospitals, an elevated road, ATM”s, and some of the institutes connecting directly with it. The rail road running from SE to NW is dividing the whole patch of land in two parts the residential zone and the institutional zone.

Air Quality

Thermal Comfort

Centralised Planning

Communal Spaces

Site Analysis:

INDUSTRIAL ZONE HOSPITAL

INSTITUTIONAL RESIDENTIAL

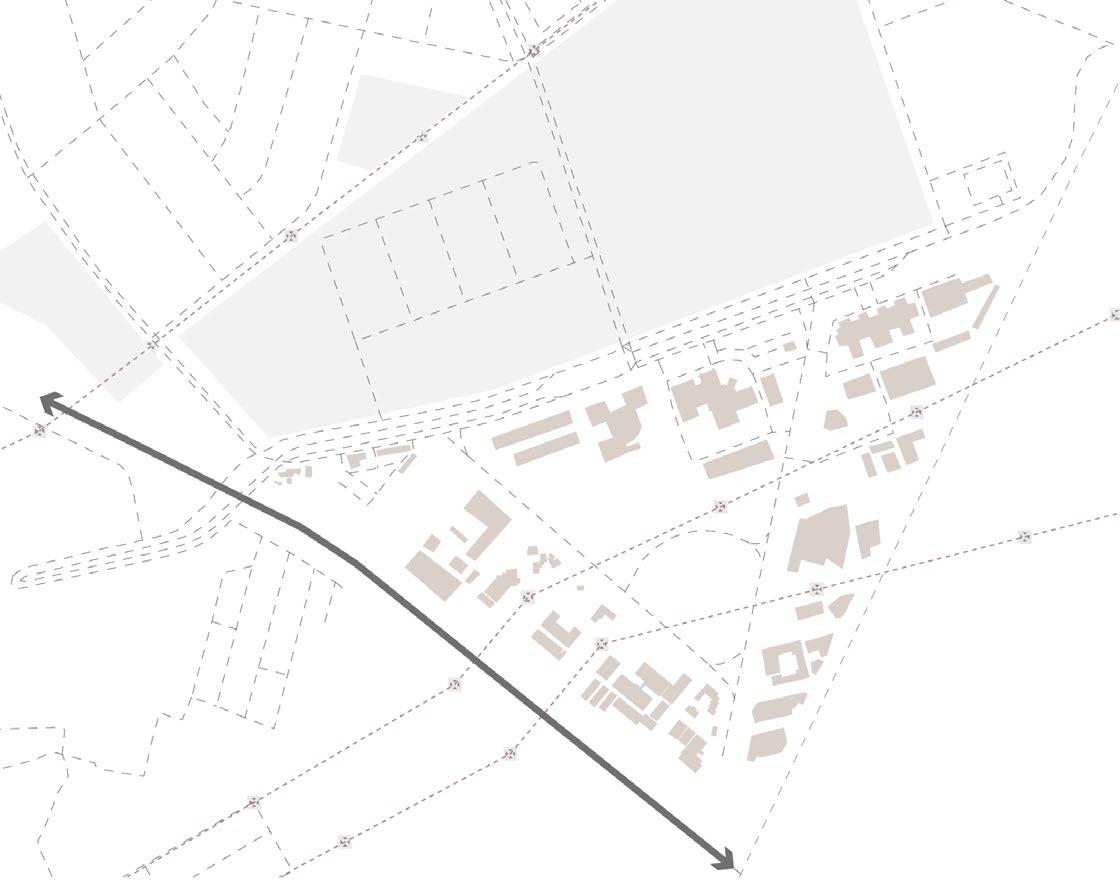

Urban Connections

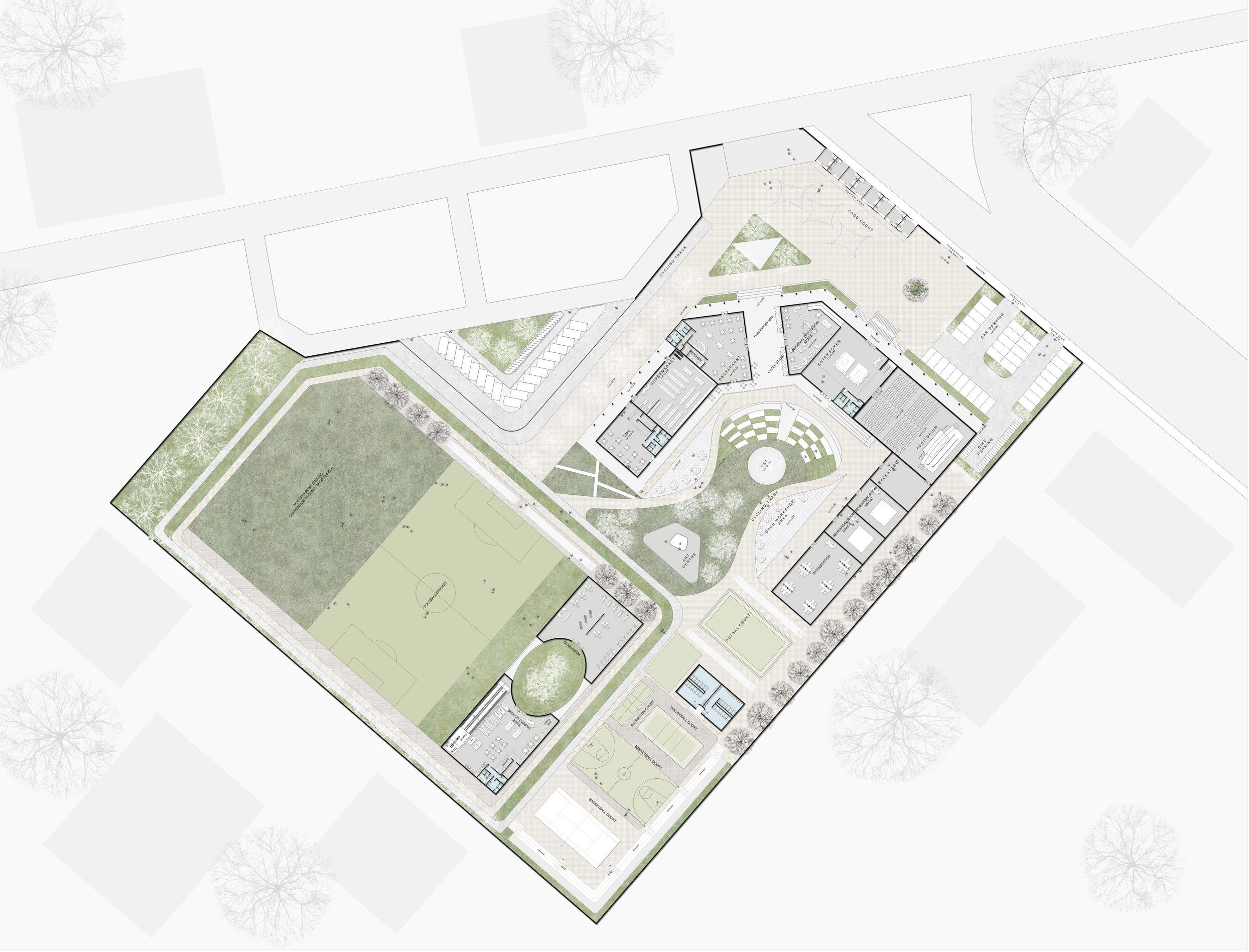

Activities Zone/ Pause Points

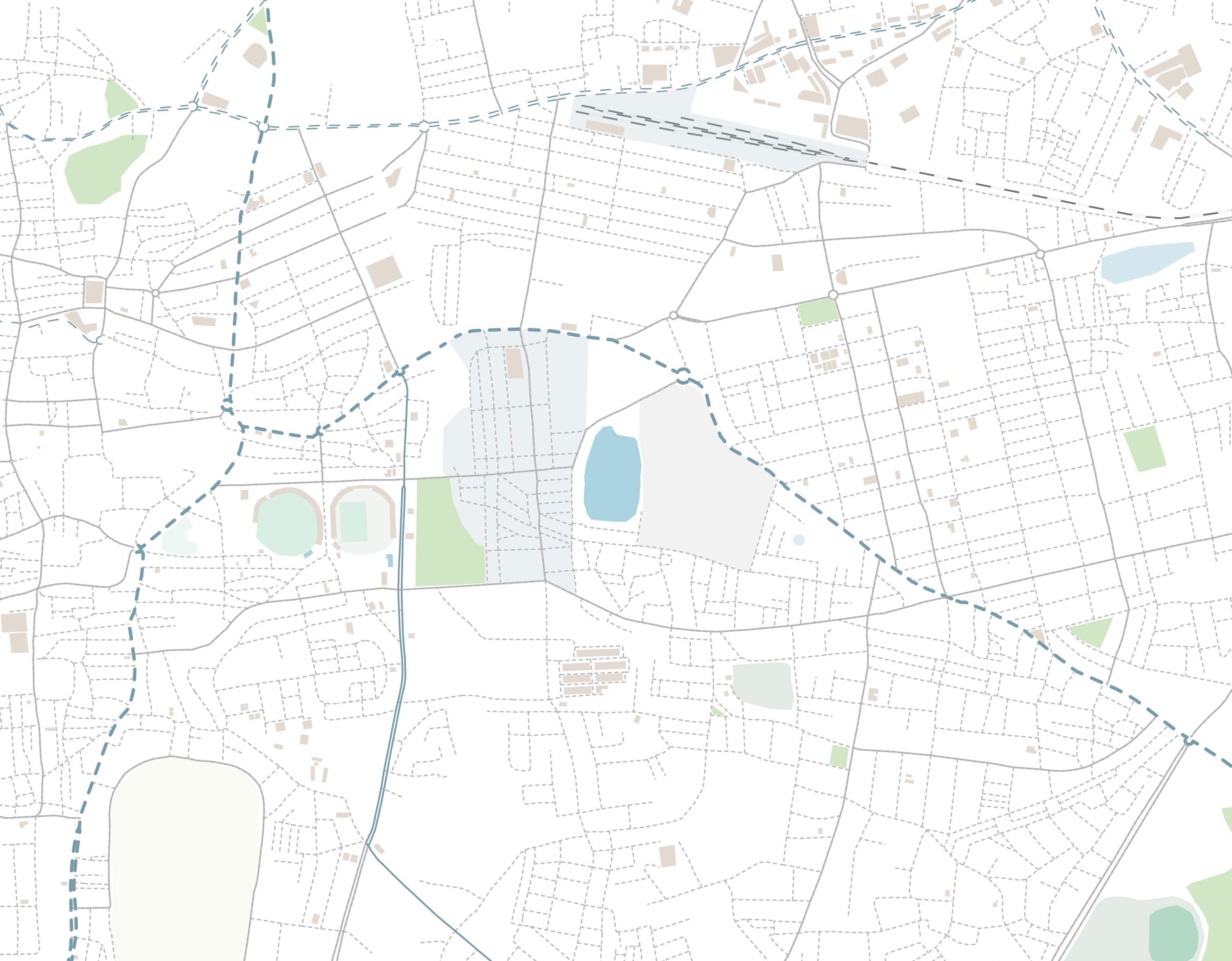

Land Use map

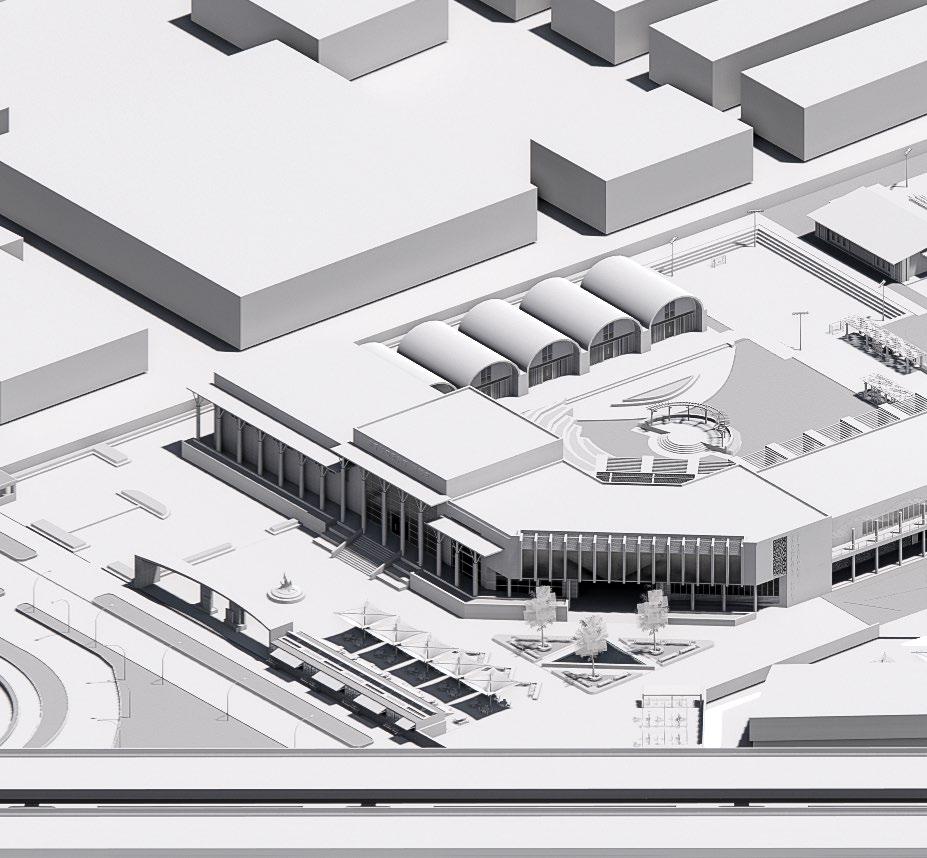

Open Amphitheatre is created in the courtyard formed which lead to the formation of central plaza and then a building mass is extracted to connect the Central plaza with the Entrance plaza. where people come together to enjoy the space.

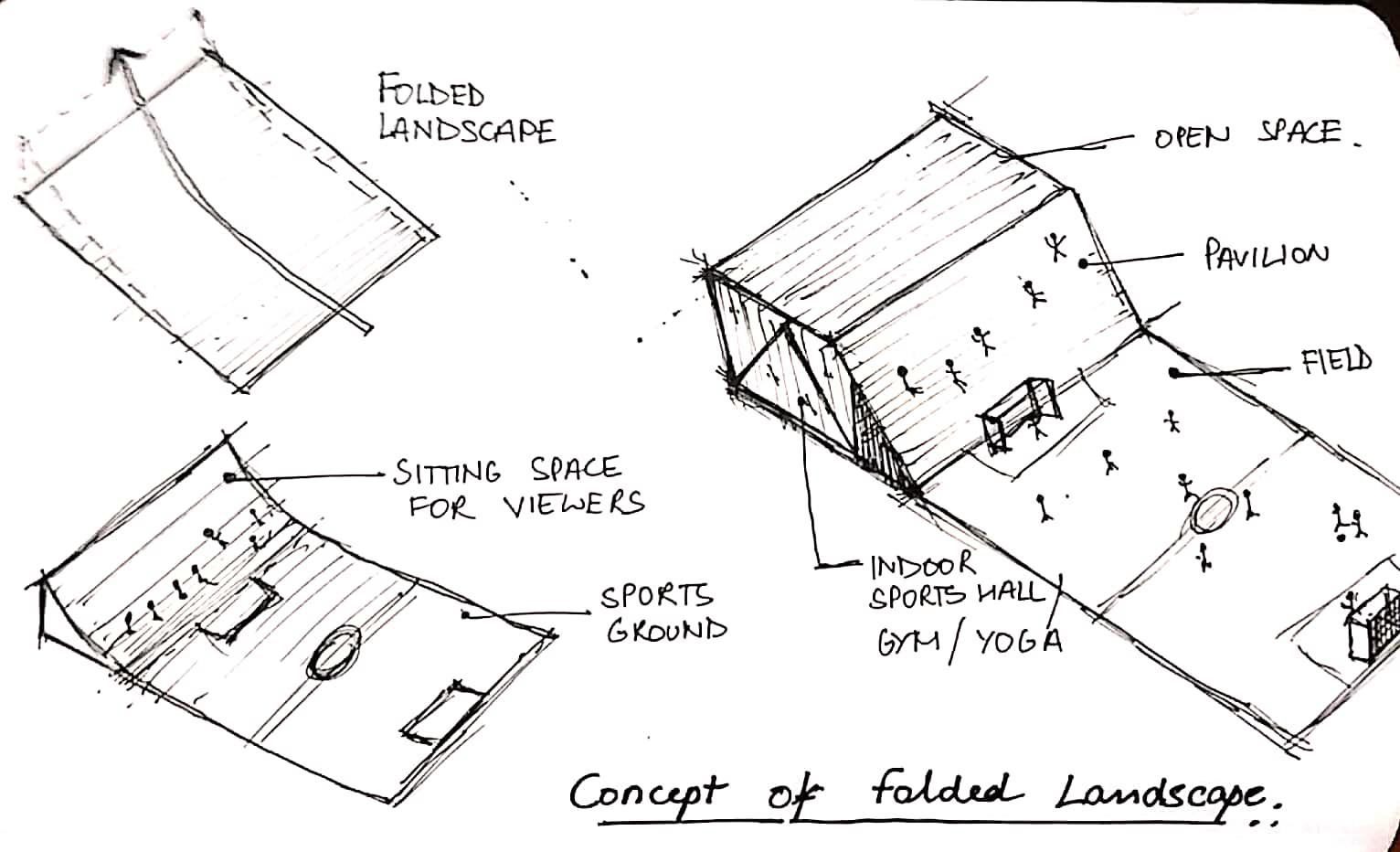

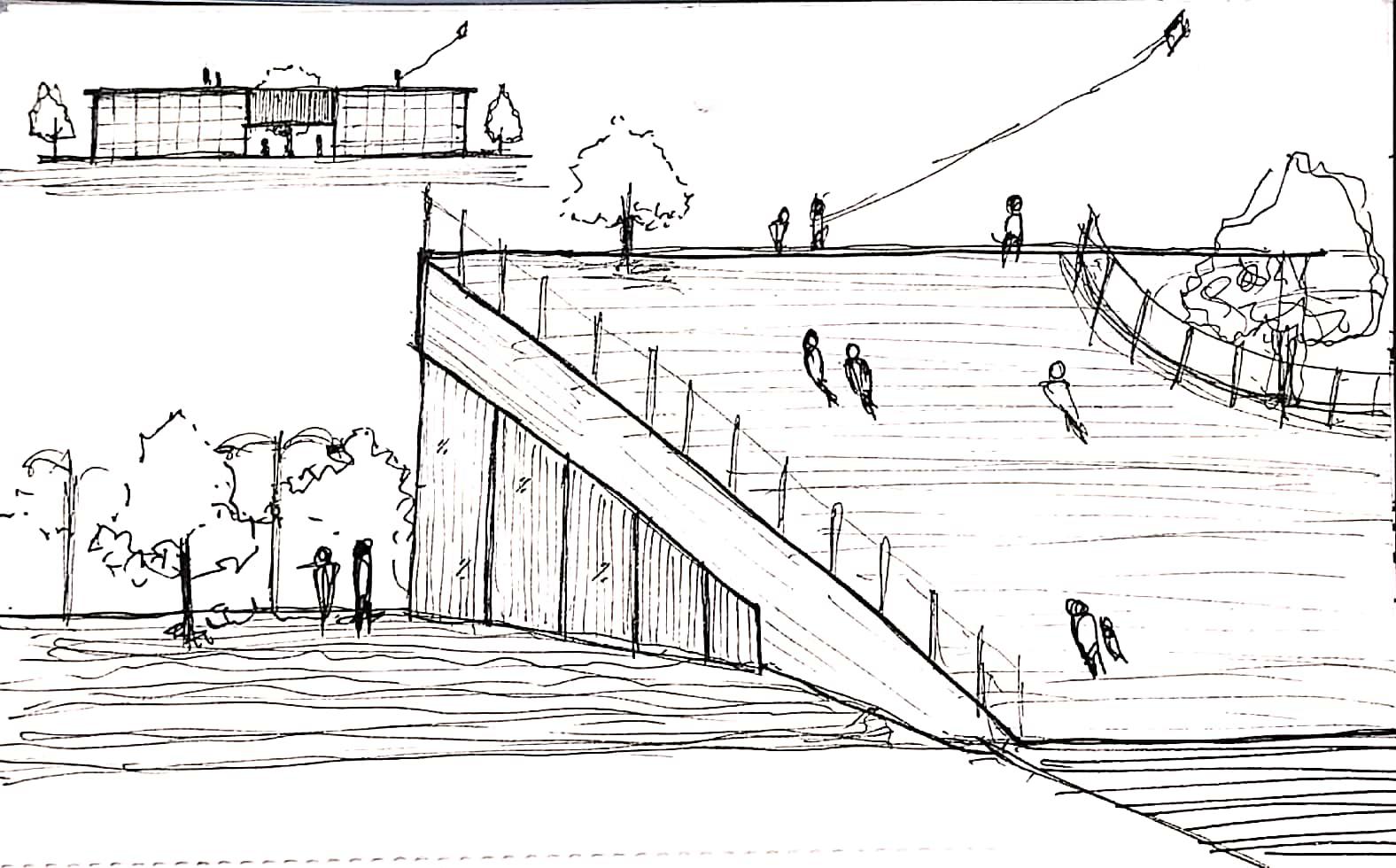

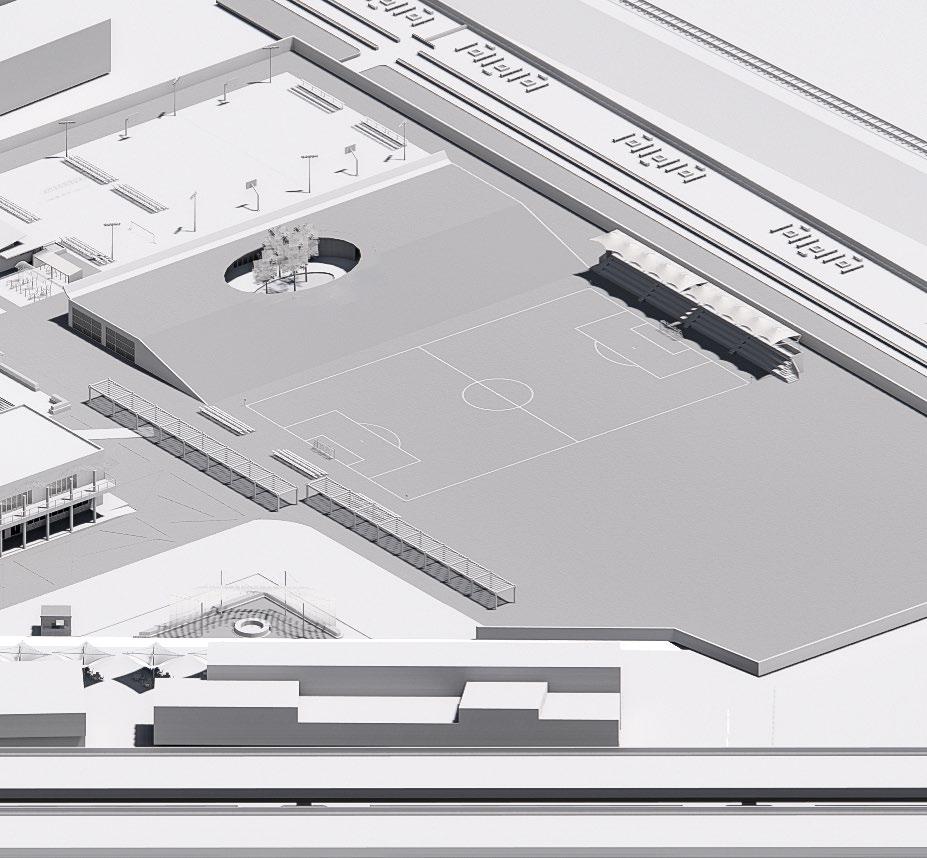

The sports field is extended creating a folded field that accomodates indoor sports and games facilities underneath.

A courtyard is created which makes the underneath space more interesting and playful.

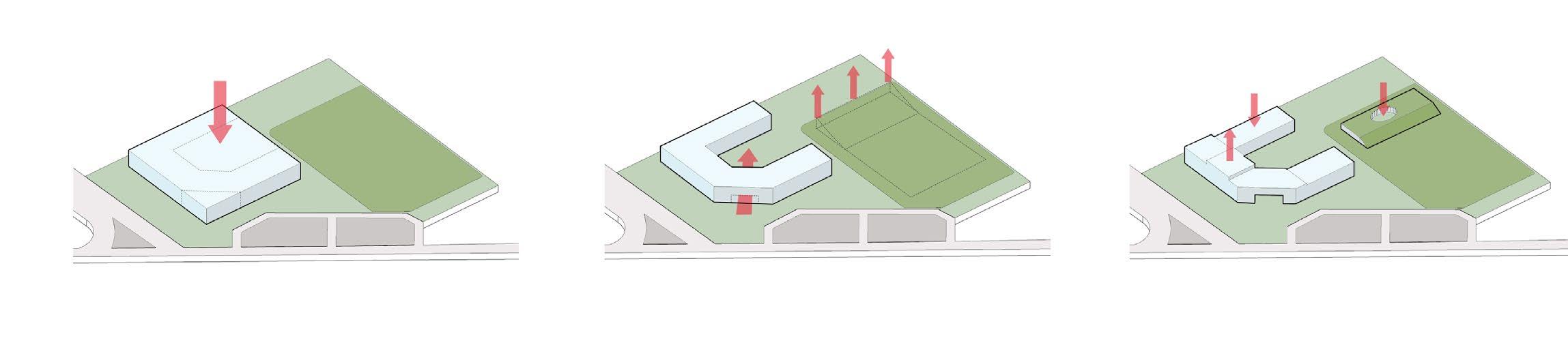

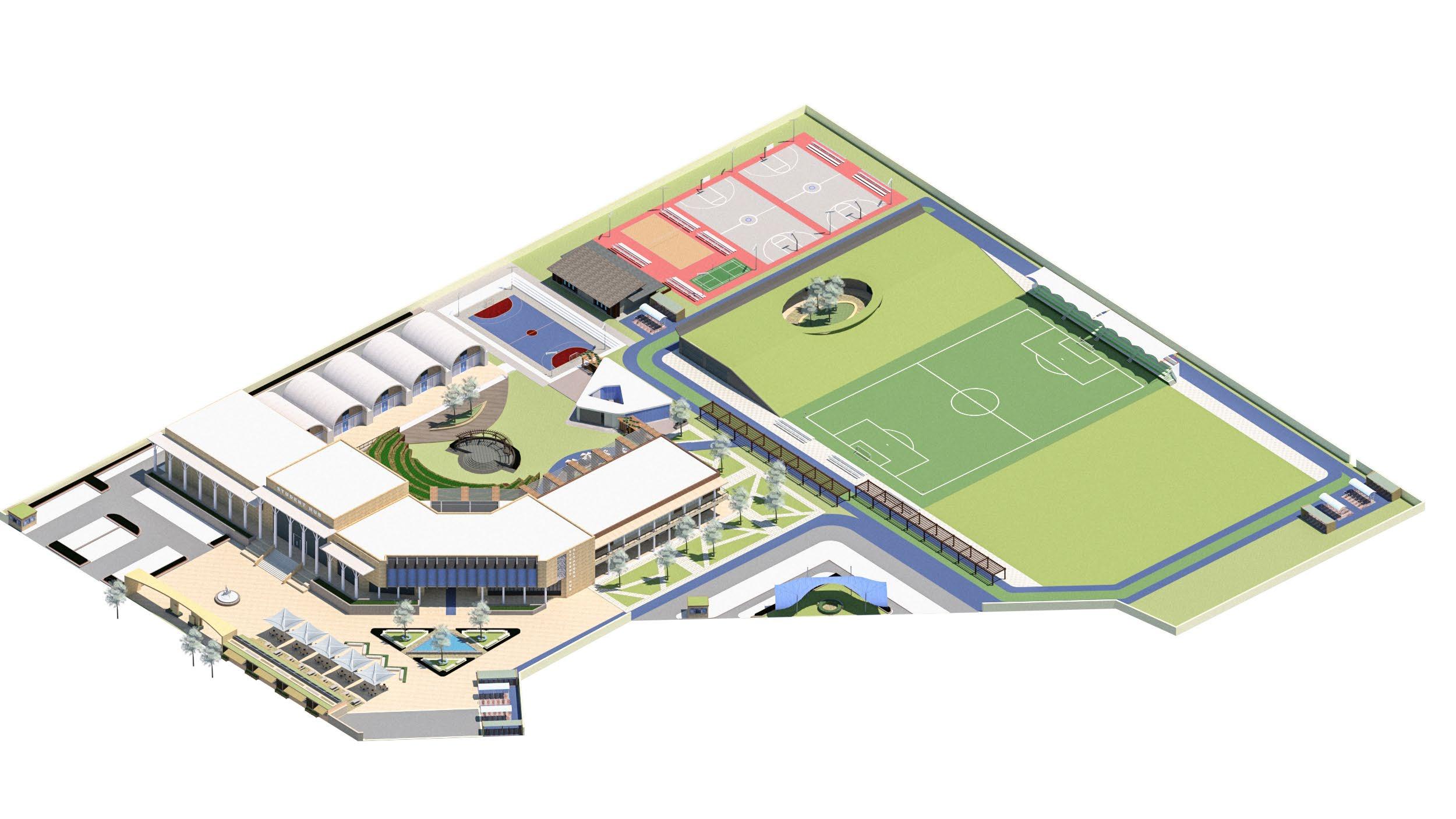

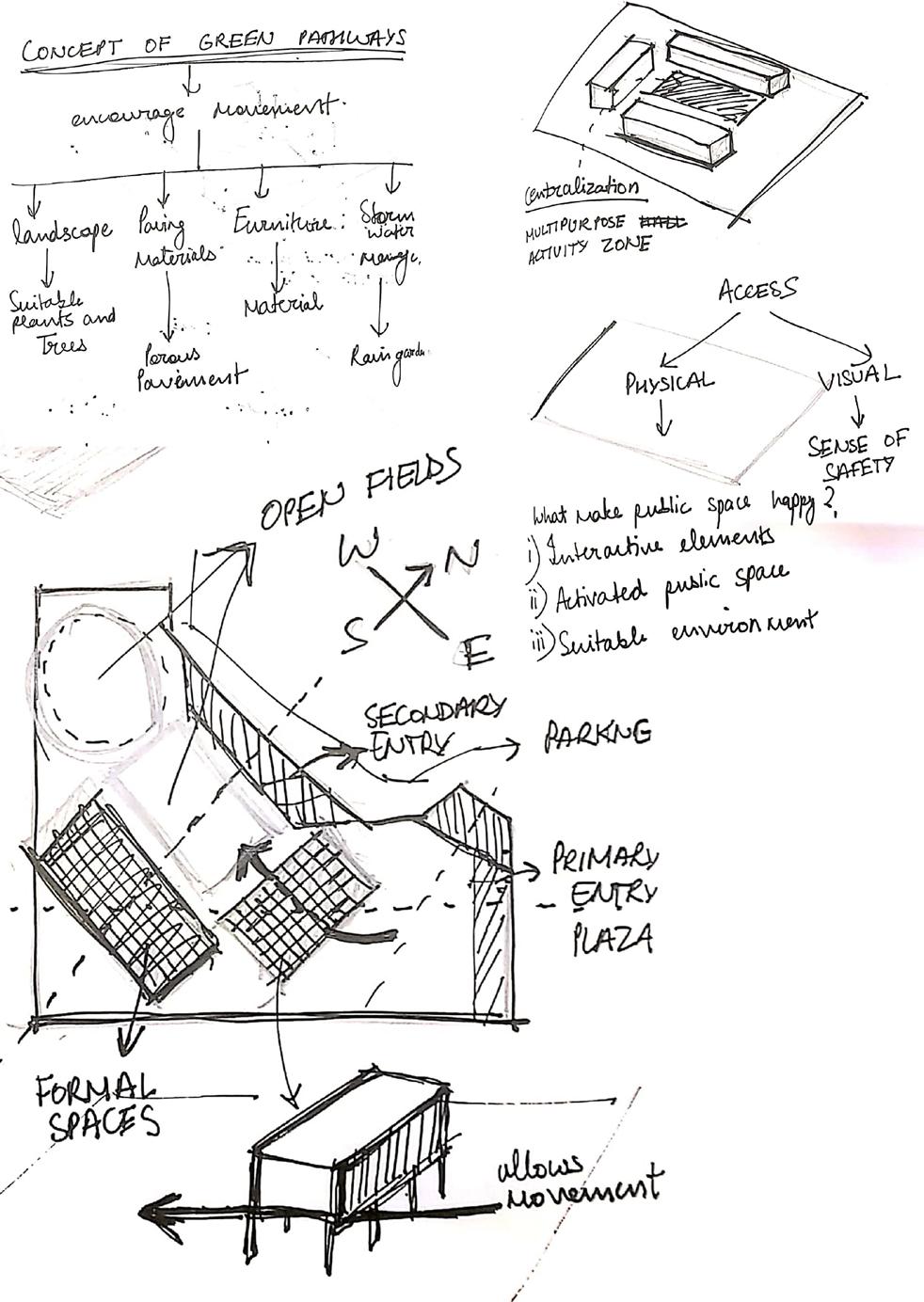

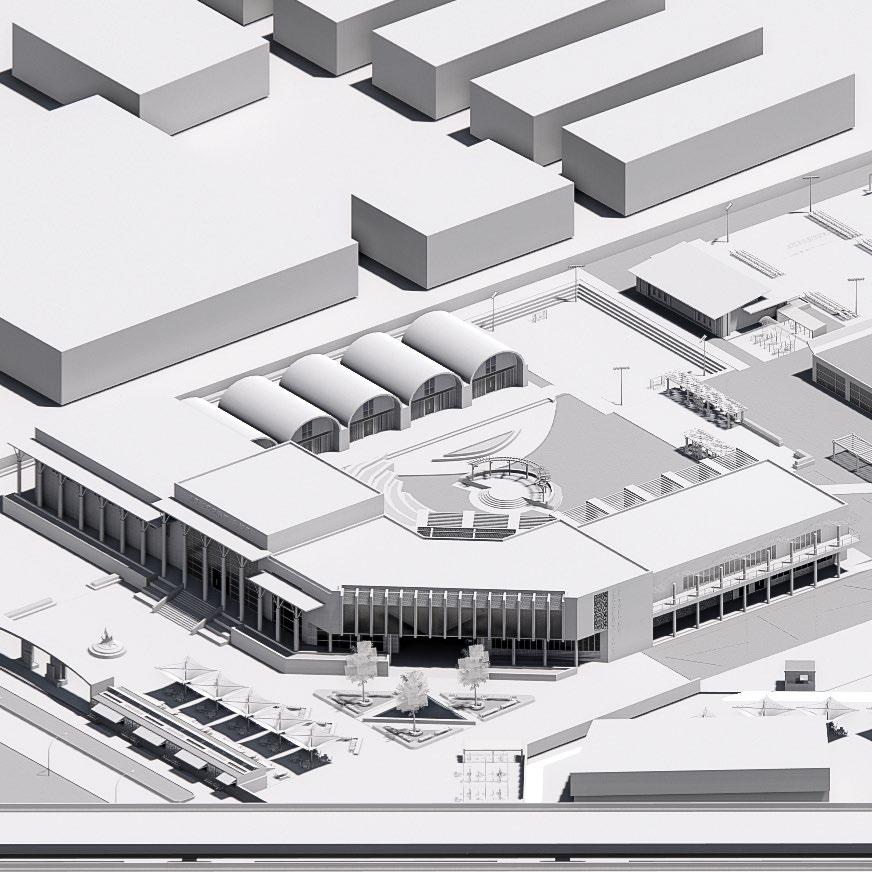

Massing Evolution:

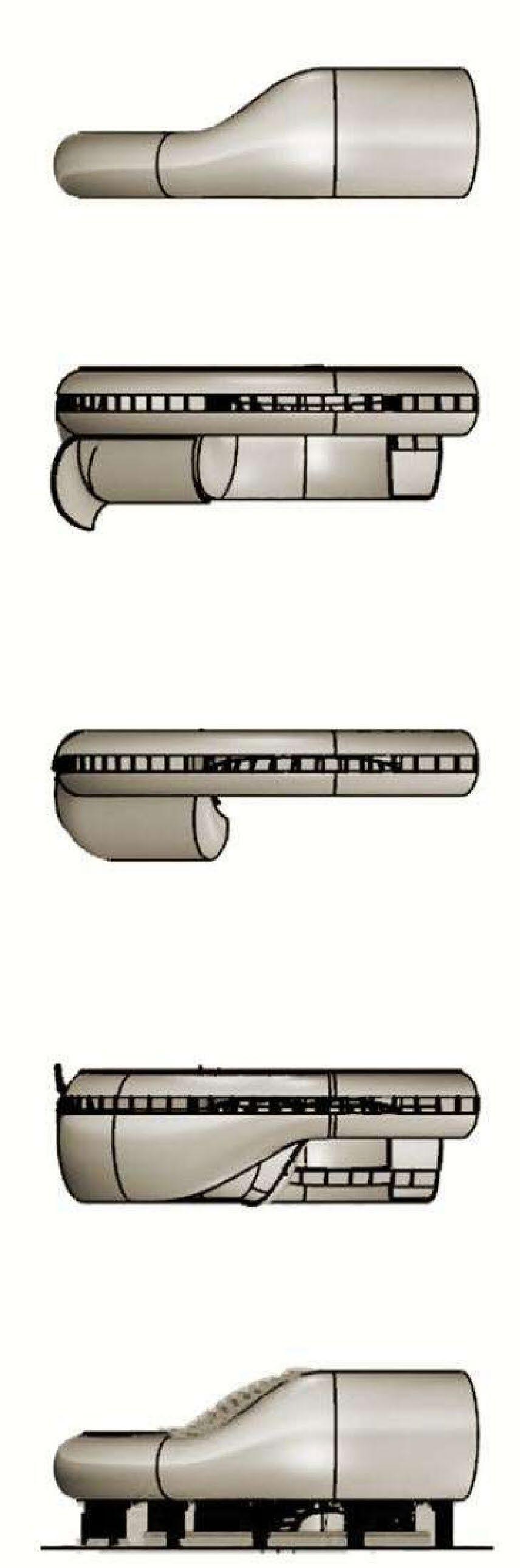

The axis of the road network forms the massing of the building. it defines the movement and entry to the site. further along the road side it clears the area for entry plaza which allows the integration of built and urban surroundings.

3

Selected Work

0

10

20

30

50

Playing Courts

Open Amphitheatre

Indoor Sports Hall

Workstations/ Rehearsal Hall

Open Pavilion

Sports Fields

Entrance Plaza/ Food Court

Entrance Plaza Central Plaza

4

Mohit Bansal

5

Selected Work

6

Mohit Bansal

7

Selected Work

8

Mohit Bansal

02

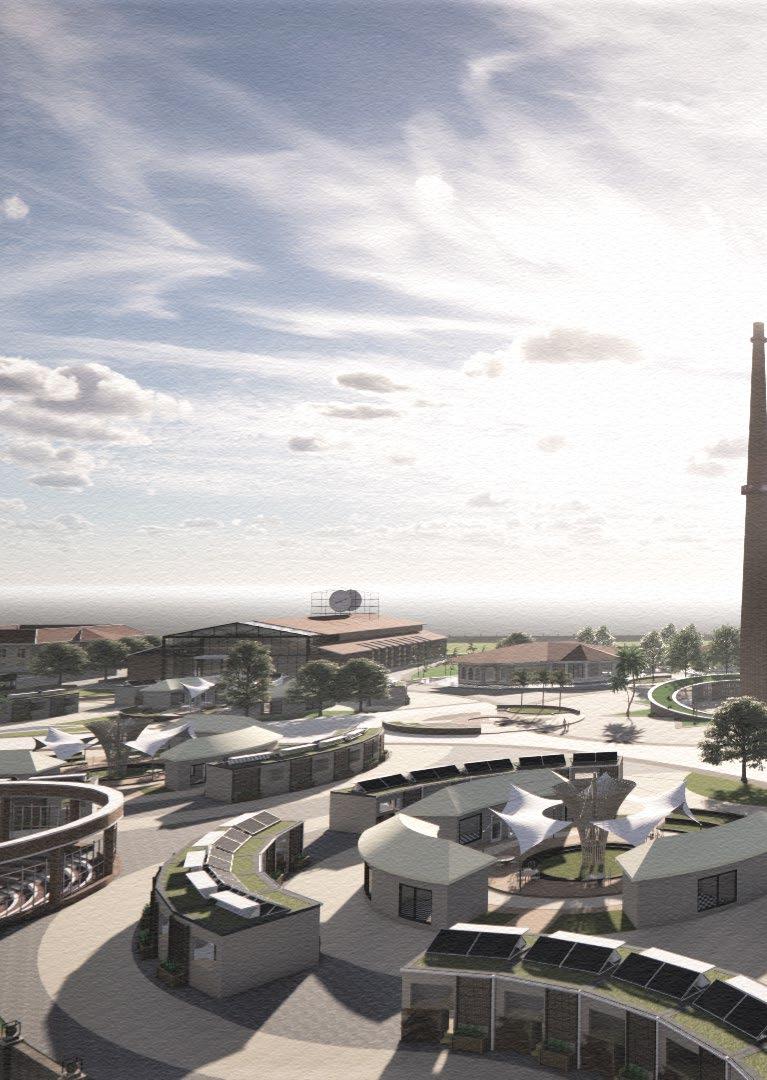

Cultural Hub Year: 2021 Category: Thesis Project (X-Sem) Theme: Industrial Heritage and Redevelopment/ Urban Design and Urban Insert Site Area: 38 Acres (1,53,781 Sq.m) Location: Kolhapur, Maharashtra Software Used: Autocad, Sketchup, Lumion, Vray, Enscape, Photoshop, Indesign.

Detailed Thesis Link: https://rb.gy/rkeysg Project Brief: The foundation of industrial Development of kolhapur was laid during the regime of Chattrapati Shahu Maharaj. he was the most popular Maratha king with a revolutionary Vision. The Site is an abondoned Mill which was established in 1906 on 38 acre of land. Today it is a big void in the City Center with a collection of historic buildings and a towering chimney. Government Published the Tenders to develop the area in 2013 but there is no progress till now.

The goal of the Thesis is to restore the historic site as a new tourist attraction place by redeveloping the mill into museum and exhibition spaces which will exhibit the time honored history of the Textile mill and about the great leader. Adding new spaces like Plazas, Food Courts, Auditorium, cultural and sports Facilities to entertain people. Through this project, the city will greatly enhance its environment and consequently attract large no. of talented peoples, big companies and capital.

9

Selected Work

10

Mohit Bansal

Site Context:

Connectivity

Mill Structures

Cultural Values

Lake

Site Location:

RAILWAY STATION

HANUMANTRAO CHATE COLLEGE MAJOR NODE

MAJOR NODE

PROPOSED SITE

M

1K US

DI

RA

YP POWAR NAGAR

The Site is located in the heart of the city. it has a network of well connected road system with accessible routes to landmarks such as Rankala lake, Shahu Palace, Kalamba Lake and The Shivaji University.. it is 10 Km away from the south of Railway station. the main entrance faces the North and Kotitirth lake, a natural reservoir adjoins the site to its west.

11

Selected Work

Project Objectives: Landscape Resources

Tourism

Establish Sewage Disposal

Historic sites as tourist spots

Construct Wetland

Lakefront development

Urban Green Spaces

City & Lake

Open Public Green spaces

Multi-use & Recreational activities

Recreational Green spaces

Connection to the city

Various factors such as the Configuration, Cultural reflection in complex, crowd attraction, the crowd movement pattern is analyzed which give the basic core design strategies.

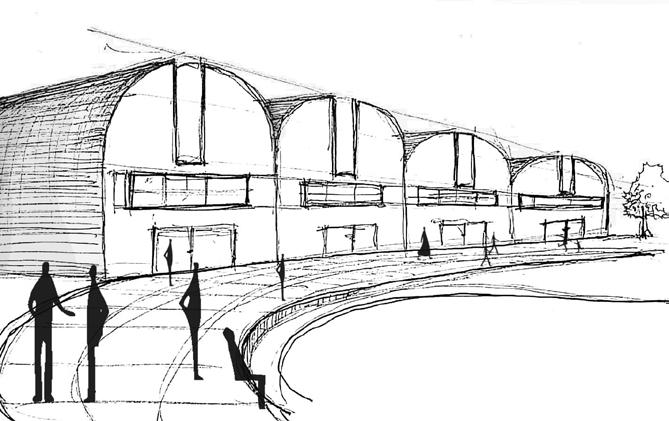

Concept:

INTERVENTION

EXISTING

Urban Environment

Built Form

Interior Architecture

Cultural Value

Perception

Scale

Function

Materiality

The Aim of the design is to maintain the true spirit of the building in terms of materials and the Physical quality of the space. the complex is designed with a storyline, that leads the user to the Climax, the Nuclear Plaza. It is connected by promenades managing the crowd without any congestion.

12

Mohit Bansal

Design Program: Site Area

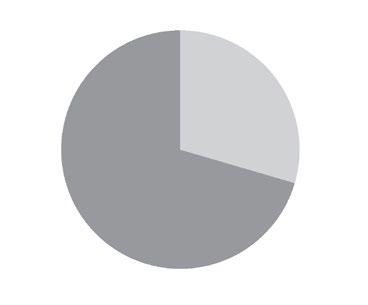

Factory Area 23% FUTURE EXPANSION

0

13

40

40 % RETAINED

60% DEMOLISHED

77% USED SITE AREA

80

120

Built and Open

200

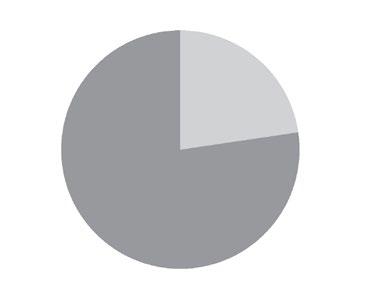

25% BUILT UP AREA

81 % OPEN SPACES

Selected Work

Spatial Organisation:

Parking 1 Existing shops

Museum and Art Gallery

Entrance Plaza 1

Kotitirth Lake Shahu Maharaj Statue

Kotitirth Lake

Kolhapur Haat Chimney plaza

Recreational/ Sports Facilities Performing space

Entrance plaza 2 Parking 2

Existing Site and Retained Structure

Spatial Zoning

Shri Shahu Chhatrapati Spinning and weaving mill is a void in the city center. out of whole factory area, 40% of the built up area is refurbished and the other 60% is not in a reconstruction condition or it was a fabricated structure. Chimney located in the ceter is the main element around which the whole design revolve.

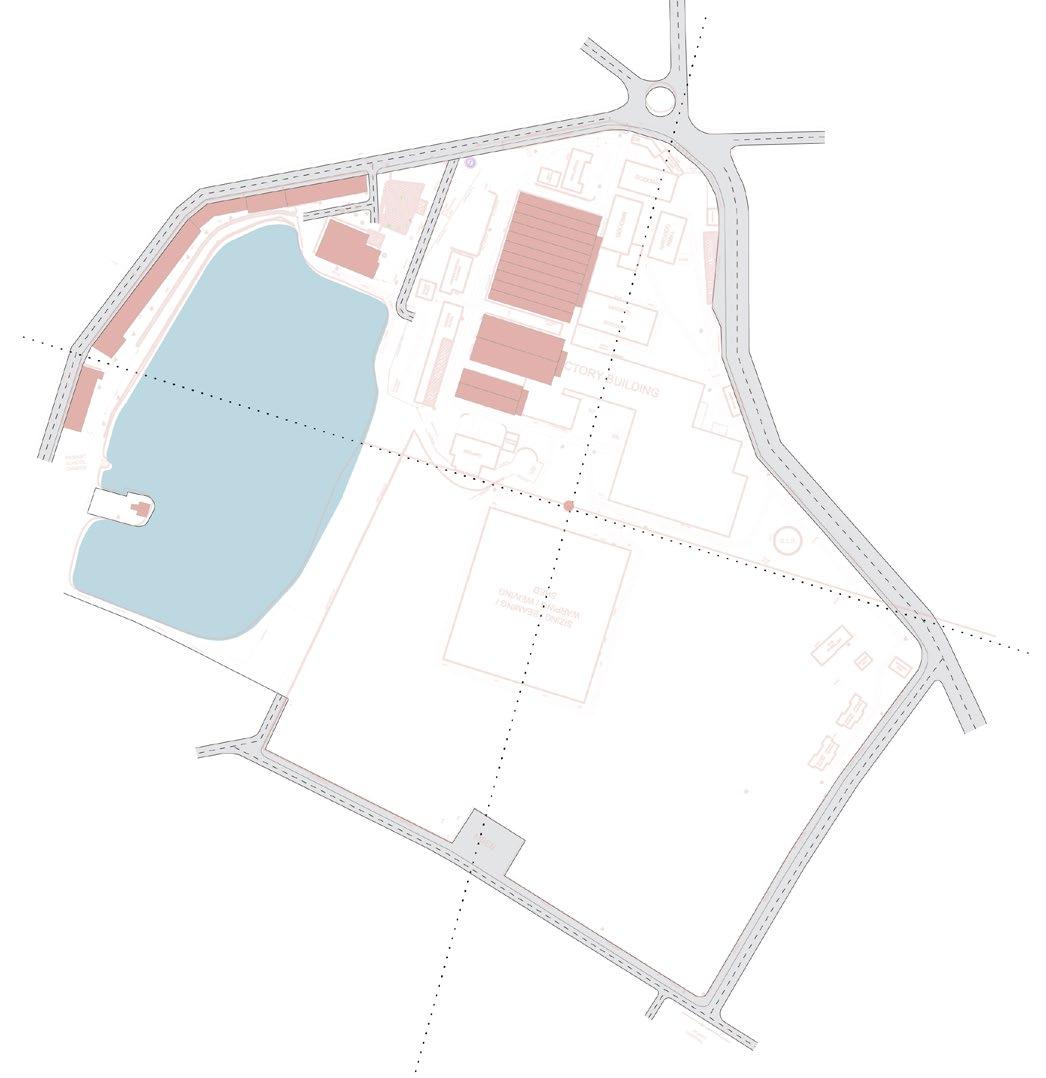

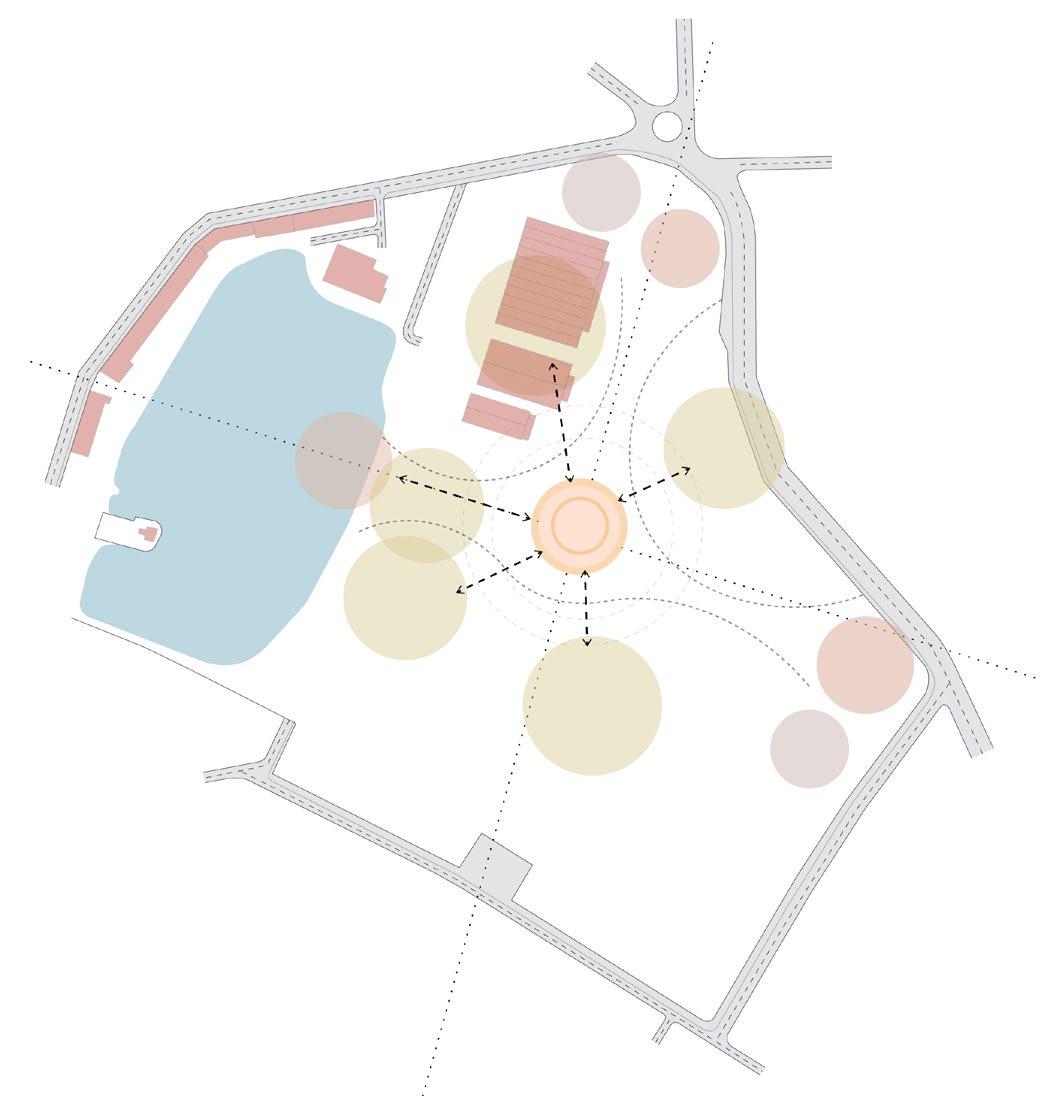

Two major axis is drawn passing through the chimney at right angle. along the axis multiple plazas are created which are connected by promenades that allow easy crowd movement and improve social life of the city. These promenades provides user to connect with historic buildings, food plazas, auditorium, cultural and sports facilities.

14

Mohit Bansal

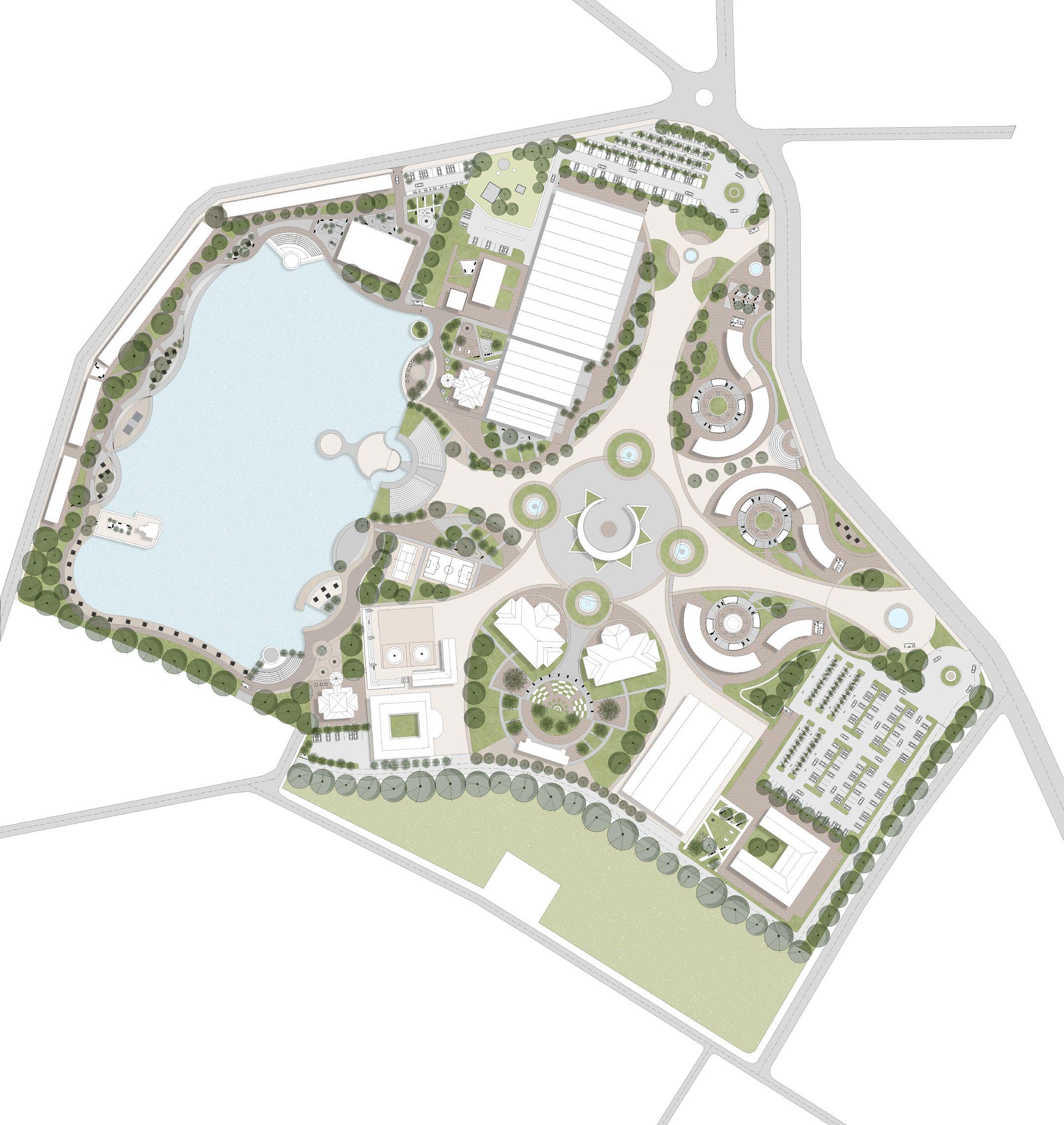

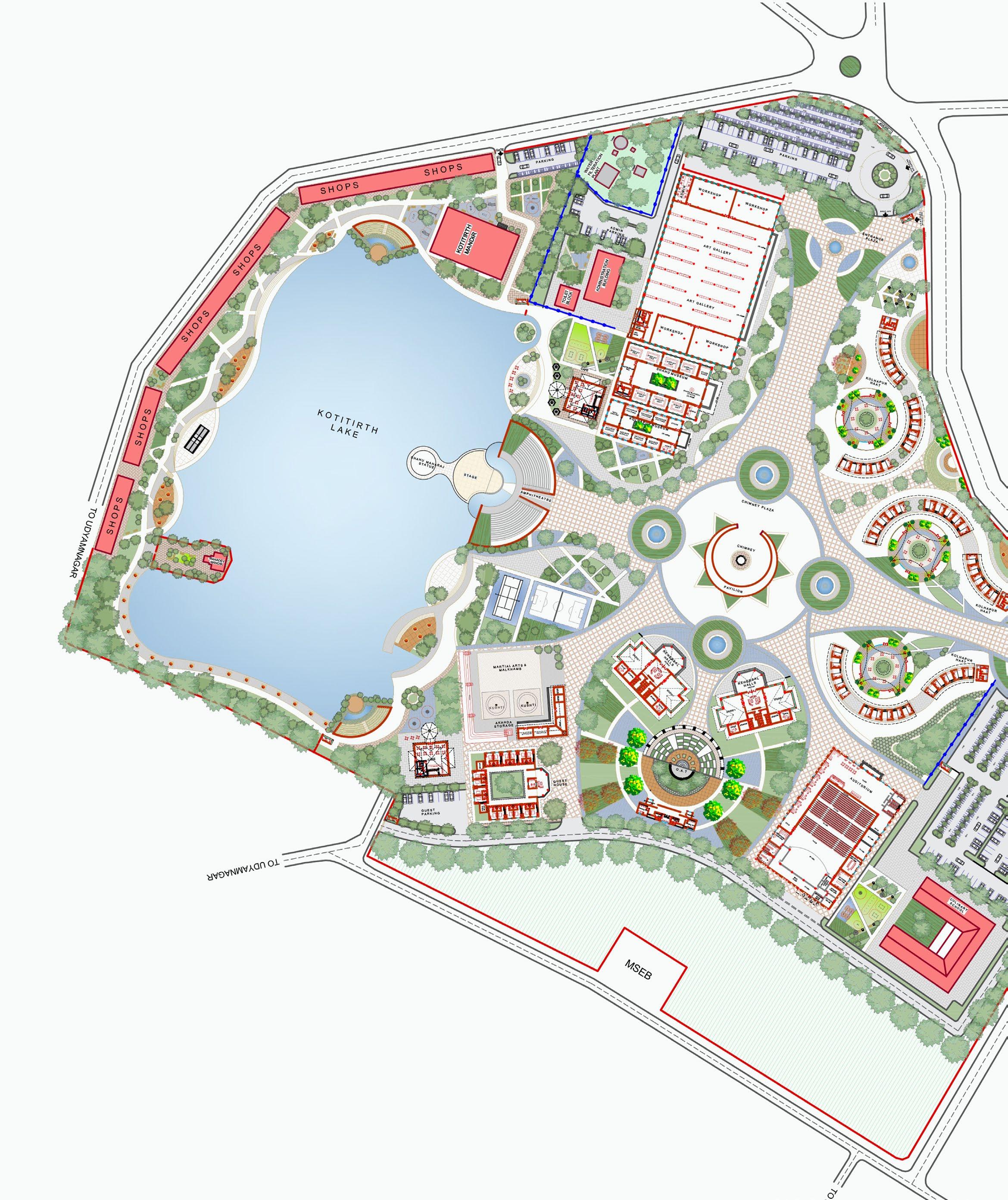

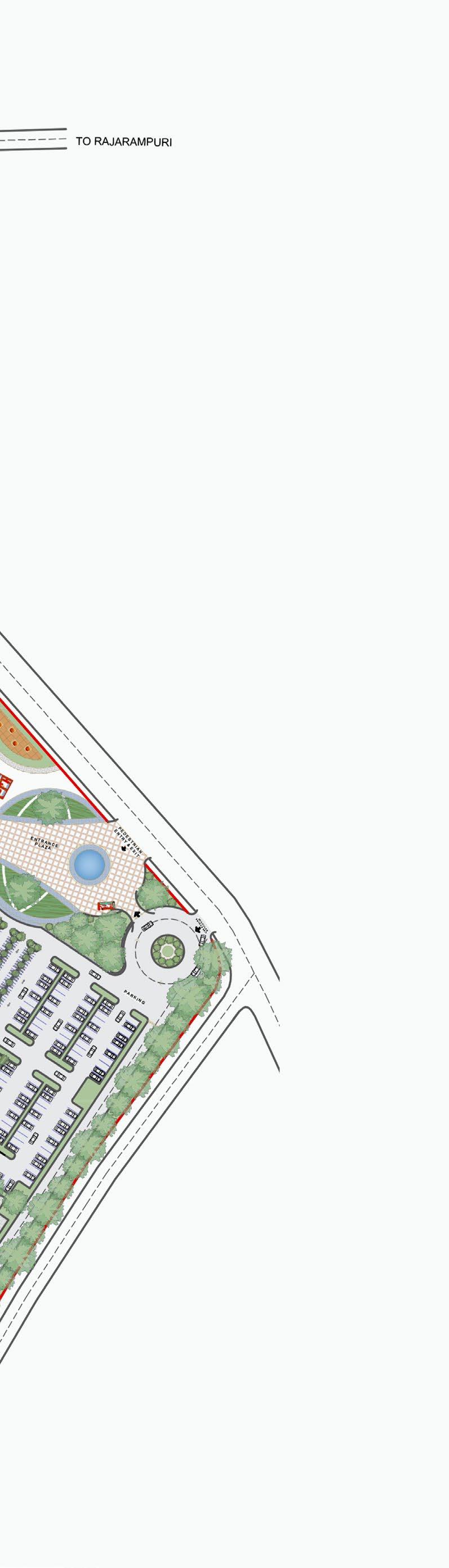

Proposed Floor Plan :

0 15

40

80

120

200

Selected Work

Retained Structure:

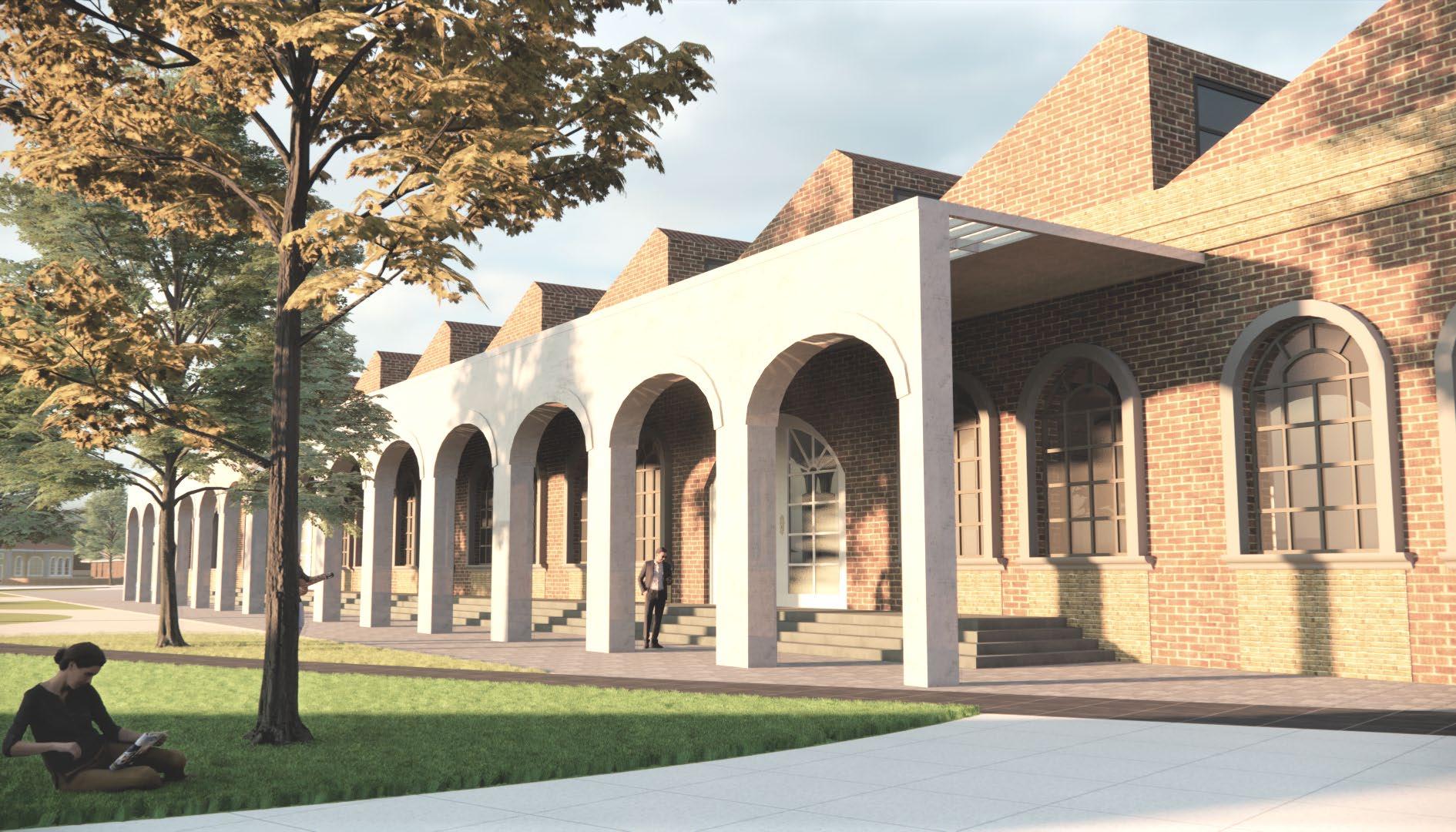

Factory Refurbished into Art gallery and Workshop

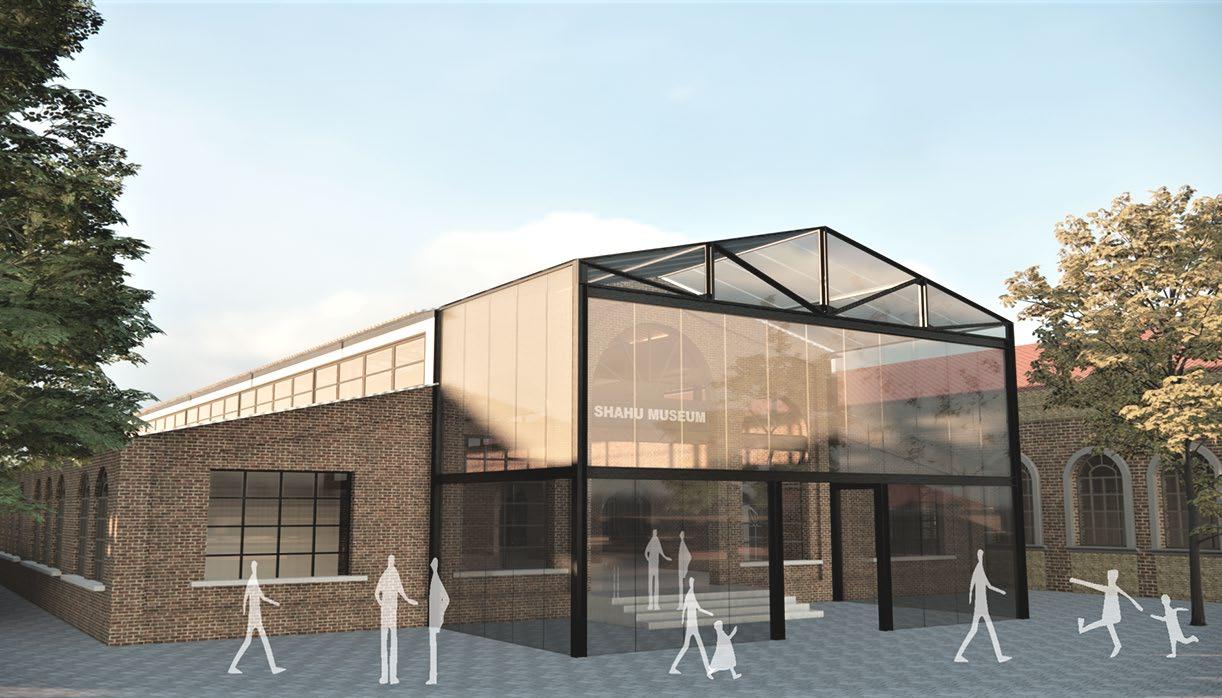

Factory Structure Refurbished into Museum

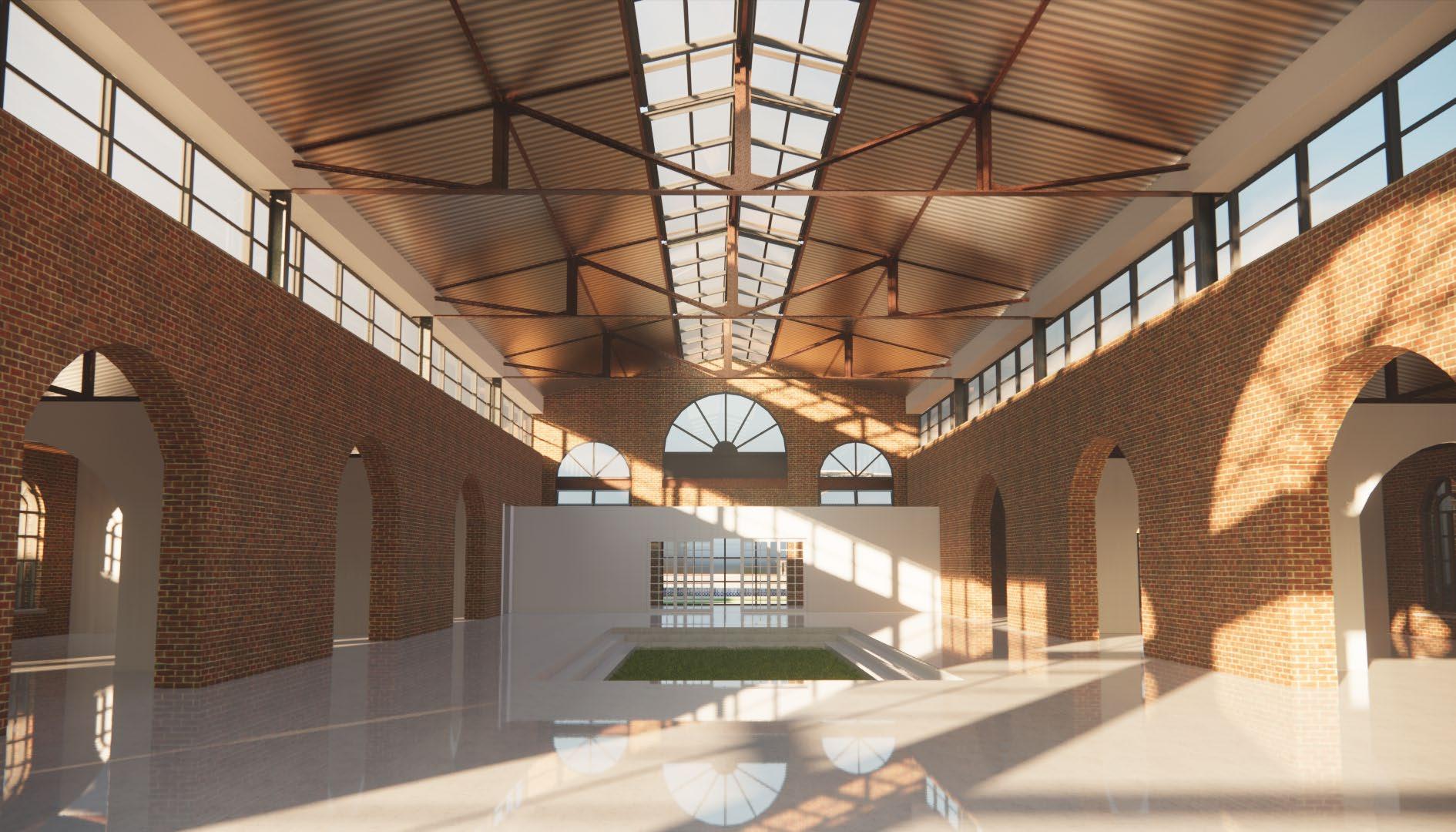

Inside of Factory which is refurbished into Museum

16

Mohit Bansal

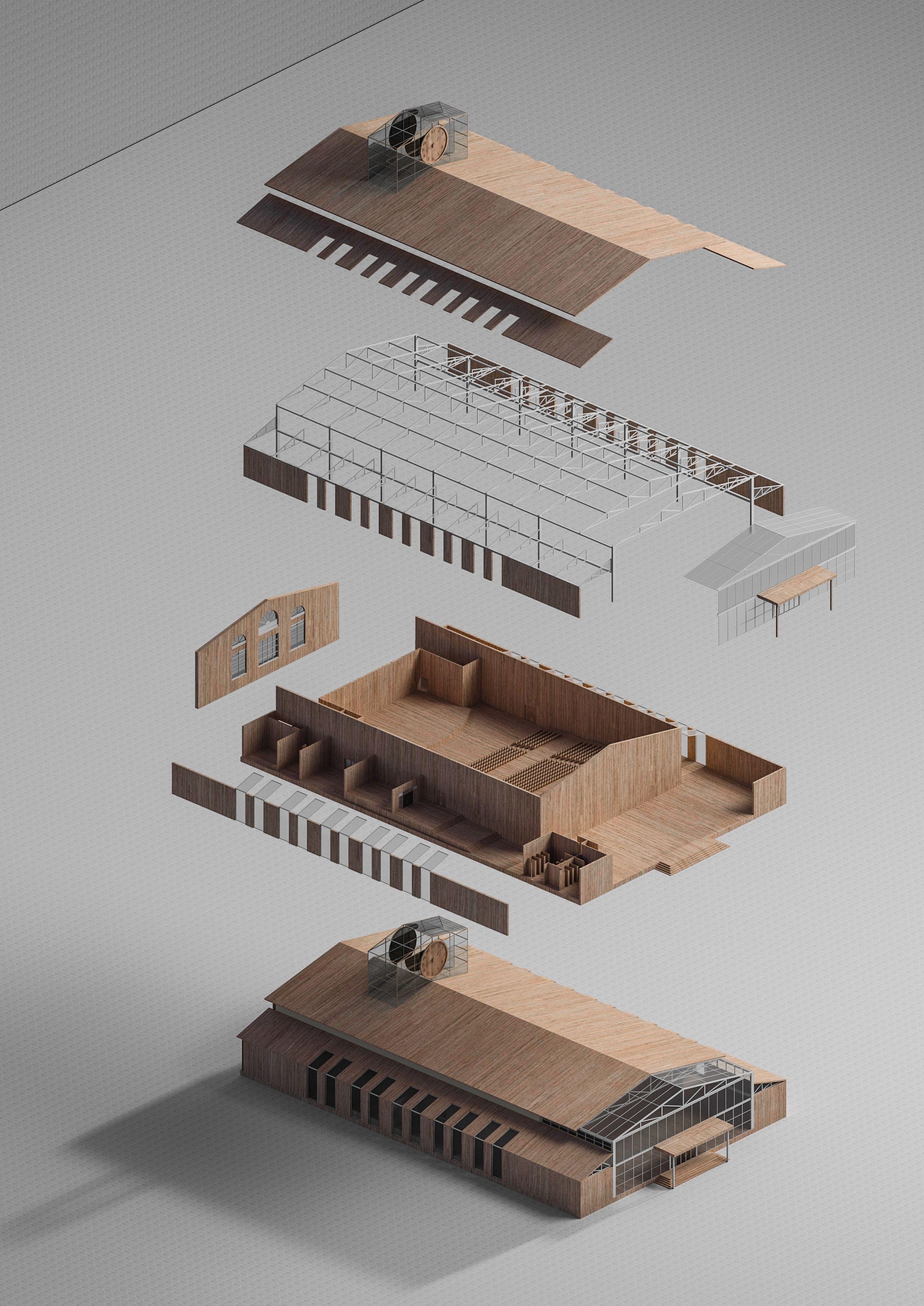

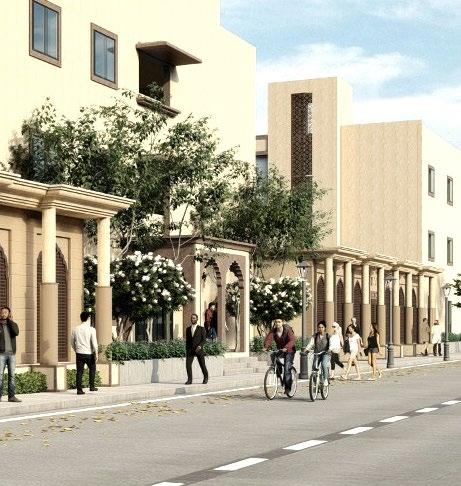

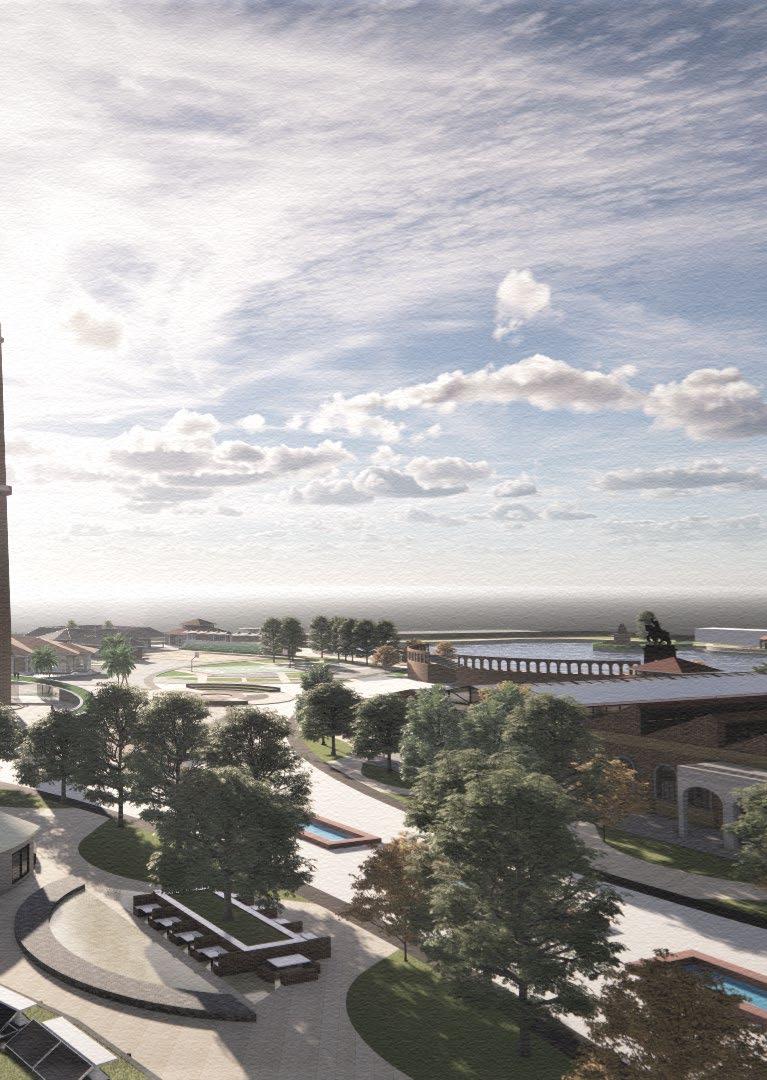

Cultural hubs Kolhapur includes a variety of spaces and facilities, such as museums, galleries, theaters, and music venues. it also include libraries, bookstores, cafes, and restaurants that cater to different tastes and interests. These spaces provide a platform for artists, writers, musicians, and other creatives to share their work with the public. Overall, cultural hubs are vital for the cultural life of a city or community. They provide a space for artistic expression and cultural exchange, and play a crucial role in the growth and development of a place.

17

Selected Work

18

Mohit Bansal

03

Jaiminesh University Year: 2021-2022 Category: Professional Project (Kothari Architects) Team: Ar. Tushar Kothari, Ar. Mohit, Er. CP Sharma.

Theme: Institutional Project Site Area: 30 Acres approx.

Built Up: 10800 Sq.m Location: Ranpur, Kota, Rajasthan Responsibilities: Complete Drawing Set, Site Cordination, Furniture Drawings, Project Management, Site Visits.

19

Selected Work

Project Brief: A tribal university is an institution of higher education that serves the needs of a specific tribe or indigenous community. The purpose of a tribal university is to provide education and training to members of the tribe that is culturally relevant and responsive to the unique needs and priorities of the community.

Jaiminesh Tribal university is the project by Meena Samaj in the Institutional area of Ranpur, kota. The 30 Acre site is located in front of the ongoing project IIIT-Kota which will be a national institute.

The university will be accredited by the appropriate higher education regulatory bodies, and will be eligible for federal funding for student financial aid. the university will also offer extracurricular activities and cultural events that celebrate the unique traditions and experiences of all communities.

20

Mohit Bansal

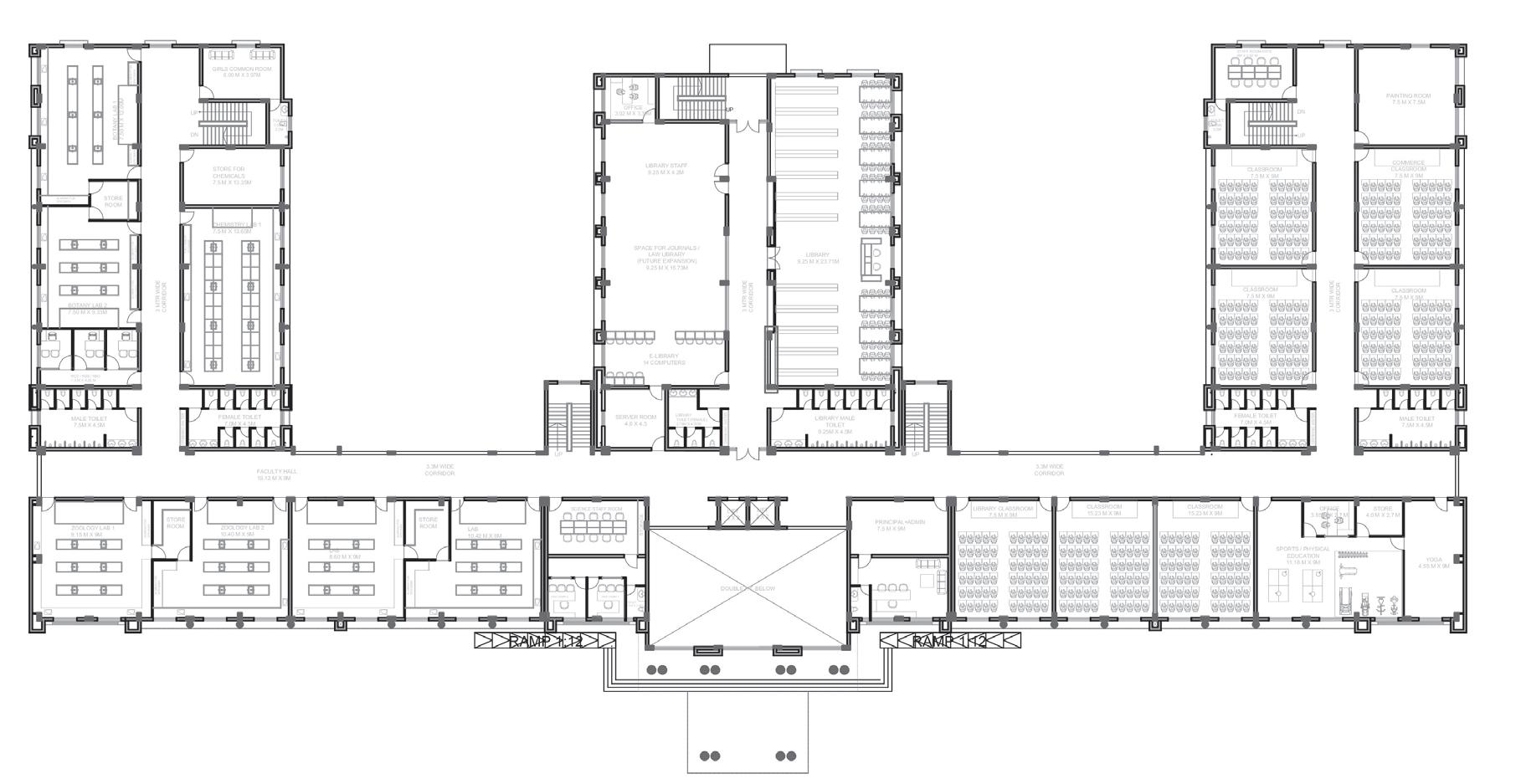

Third Floor Plan

First Floor Plan

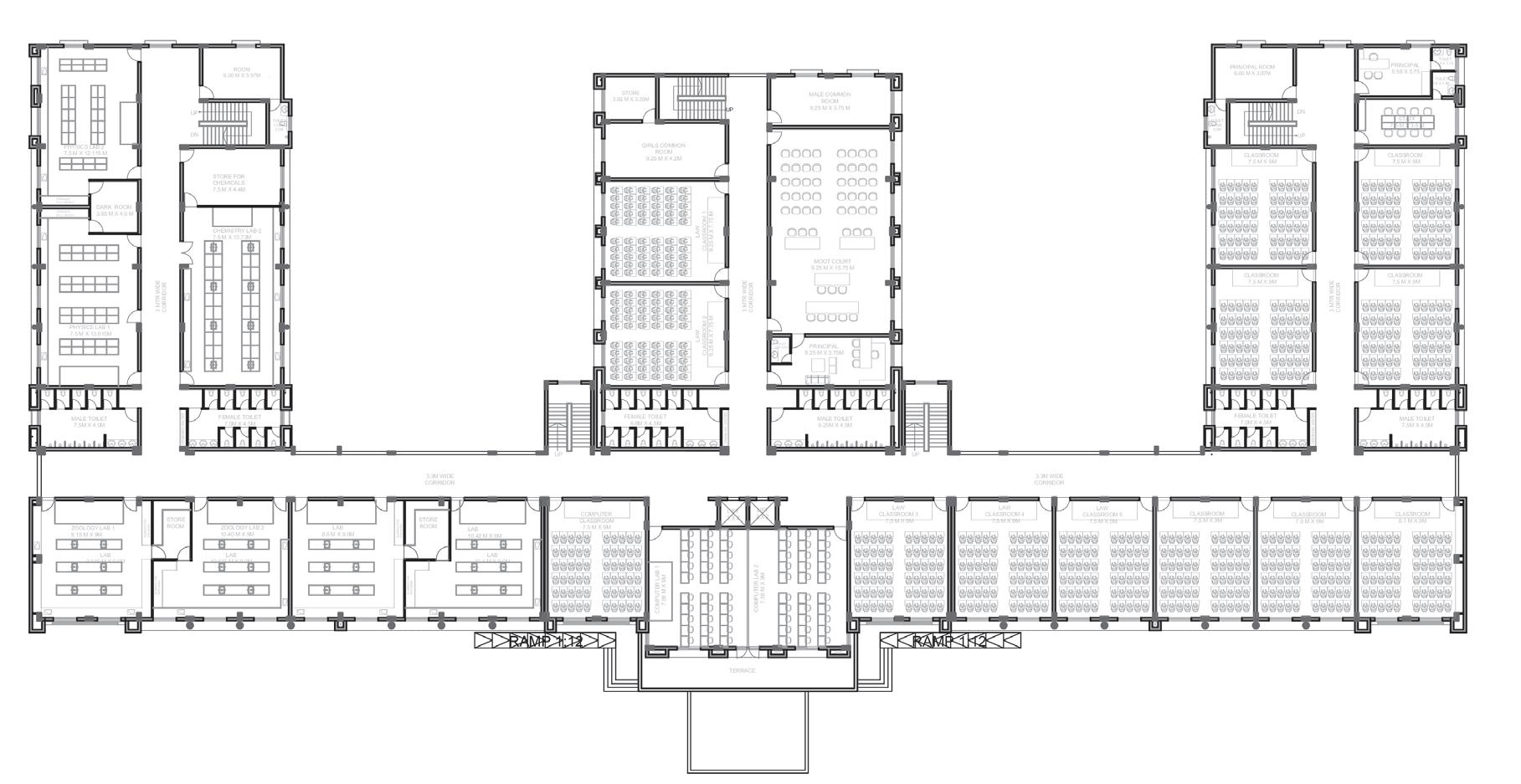

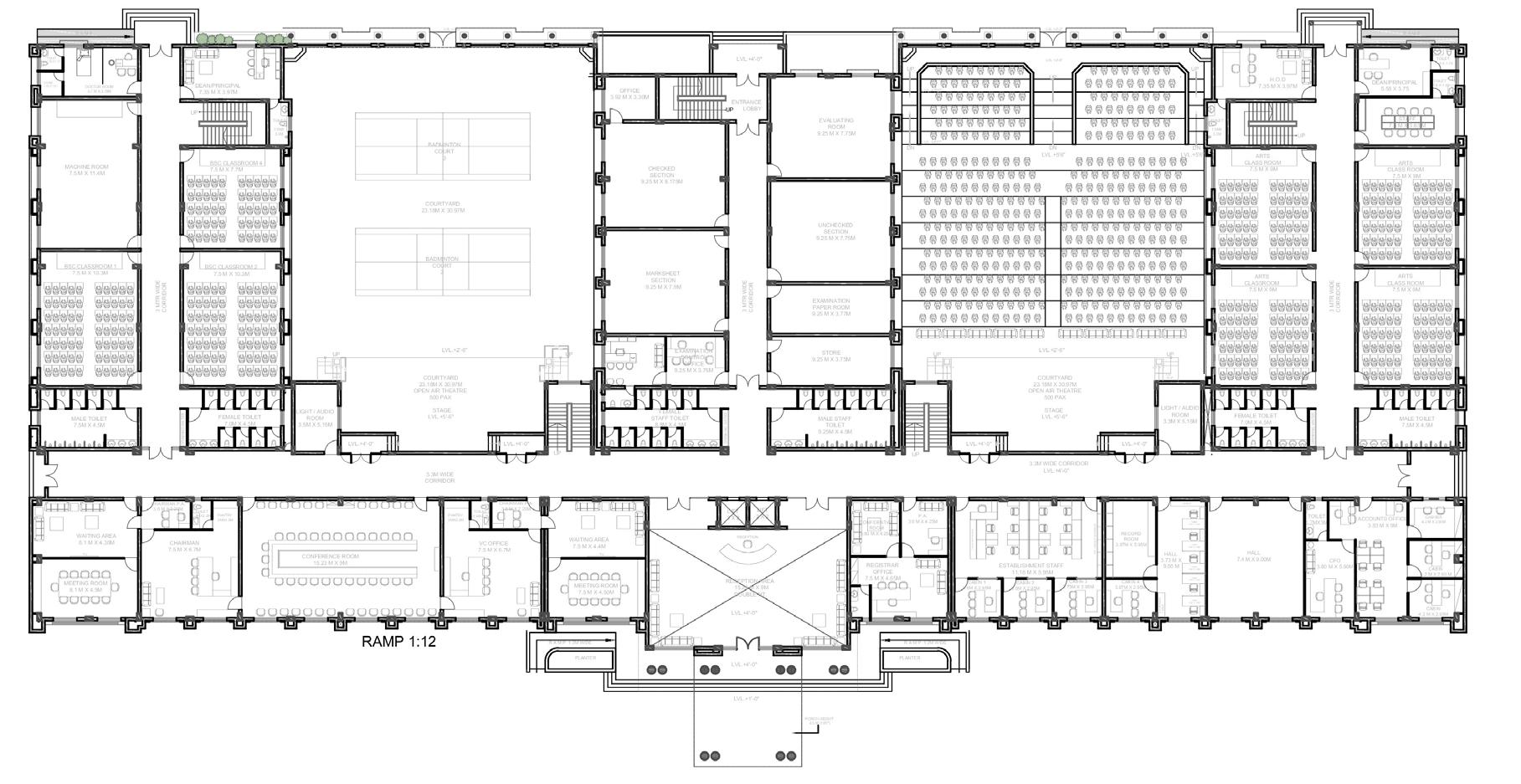

Ground Floor Plan 21

Selected Work

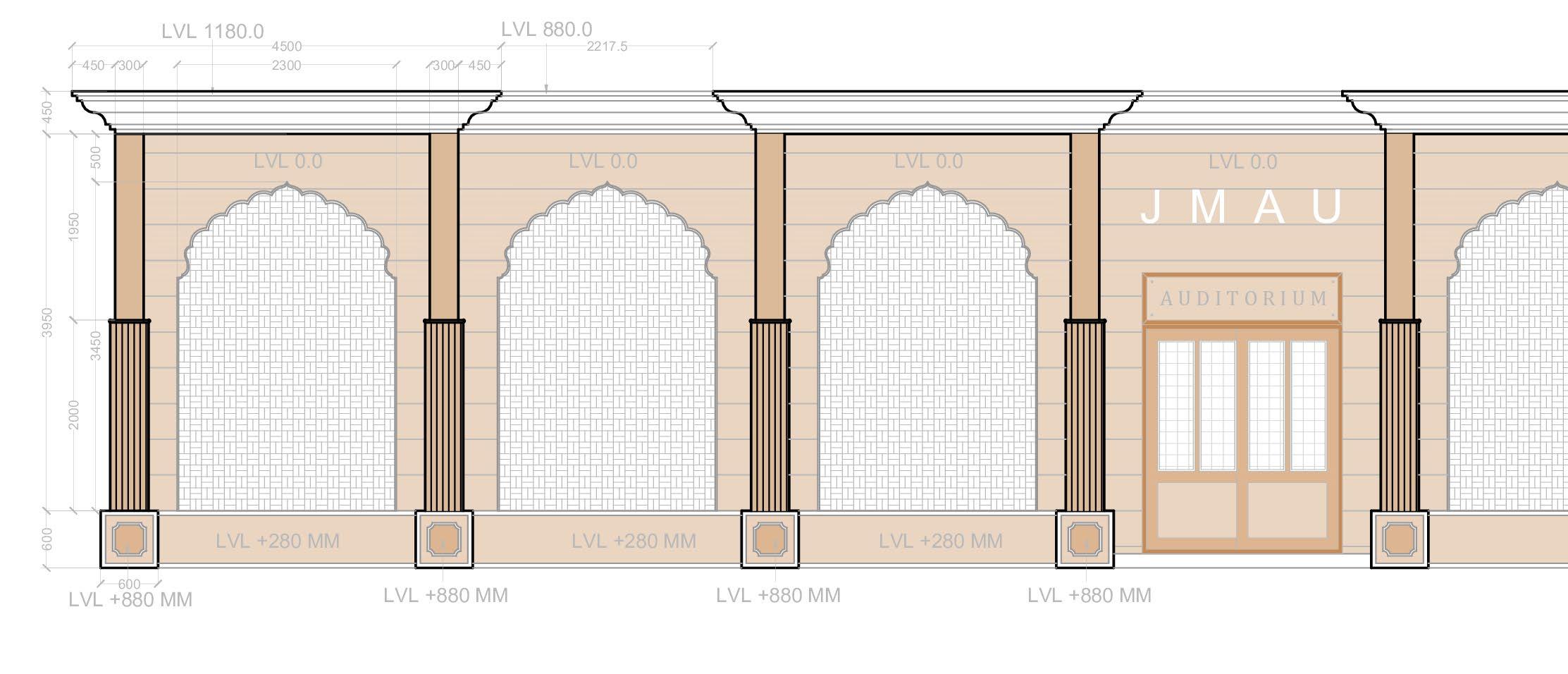

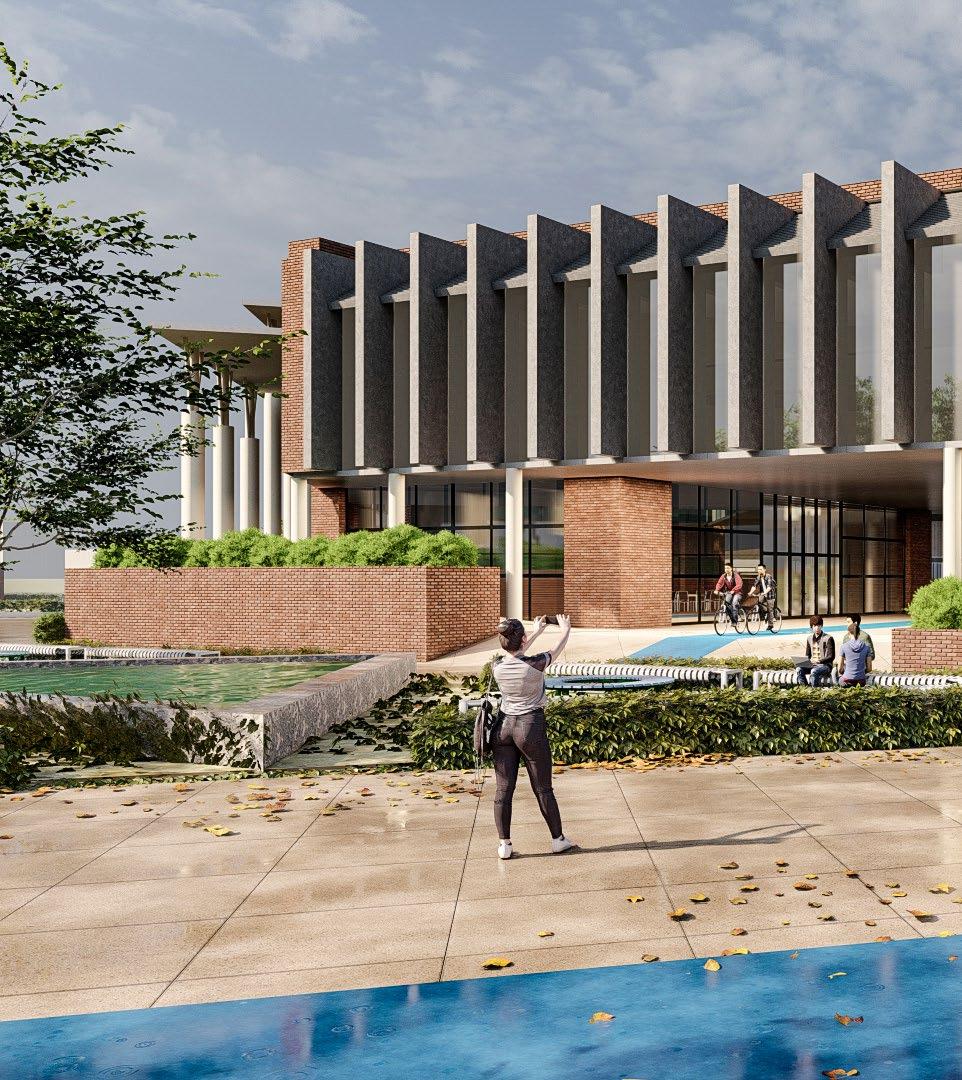

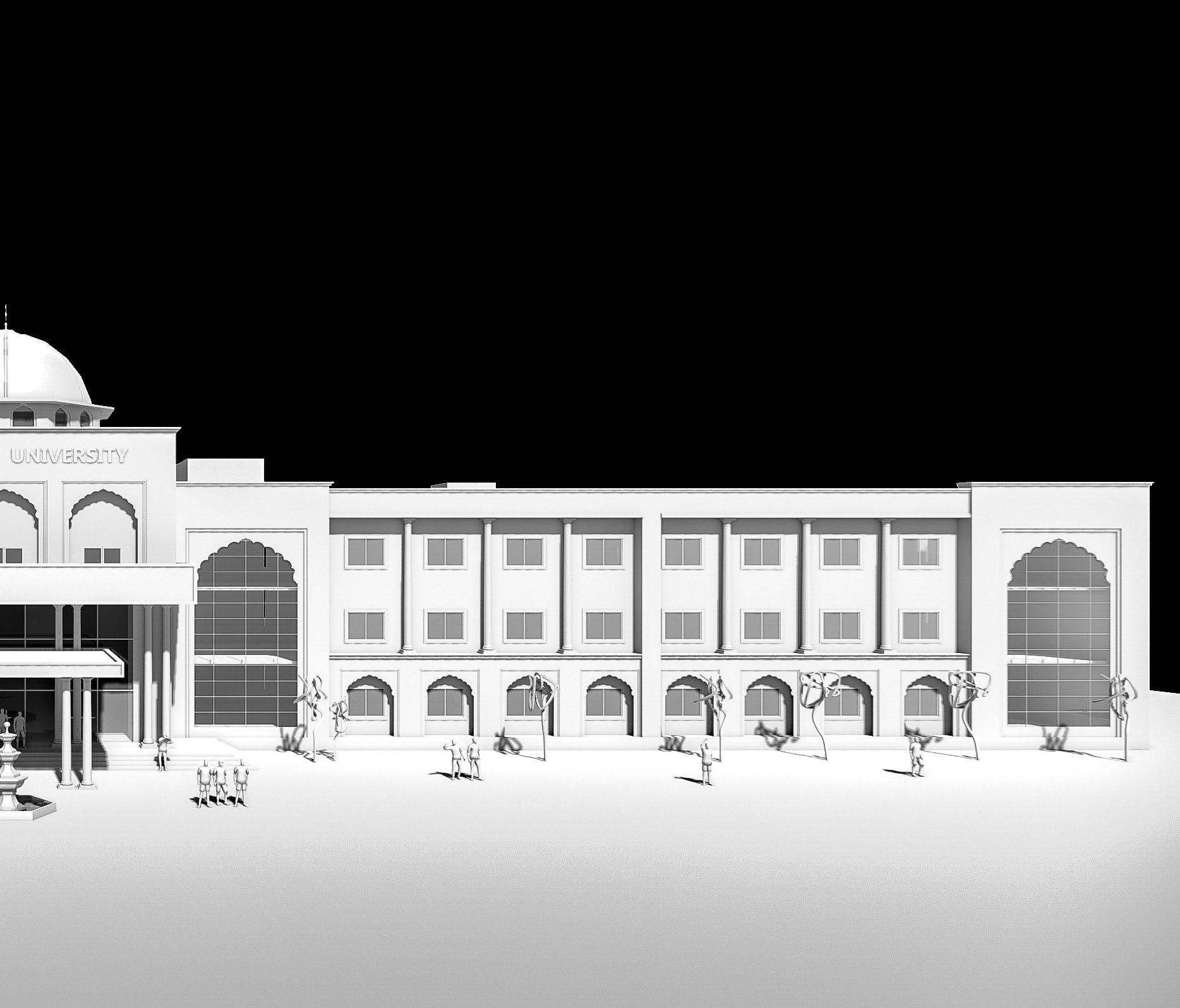

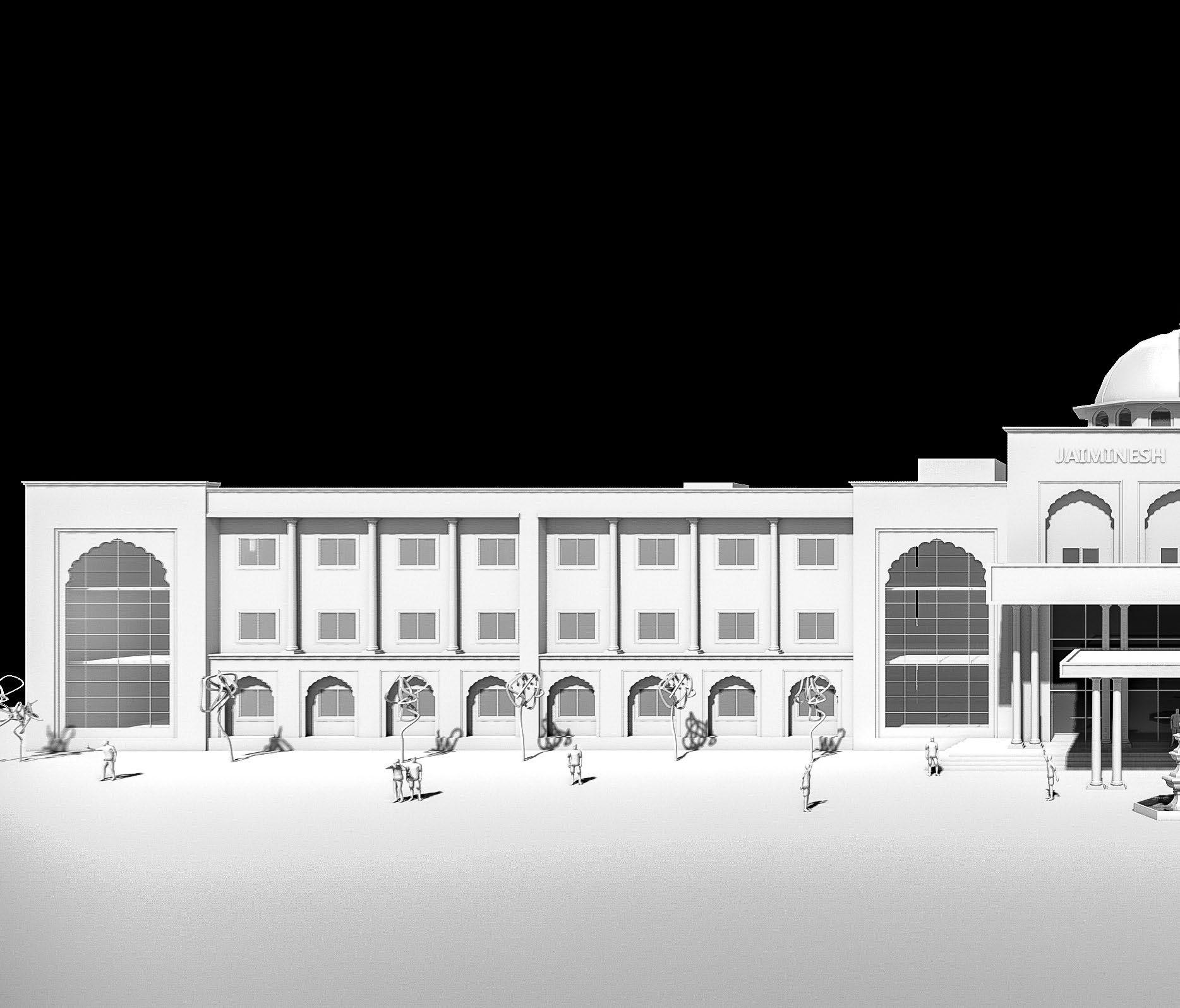

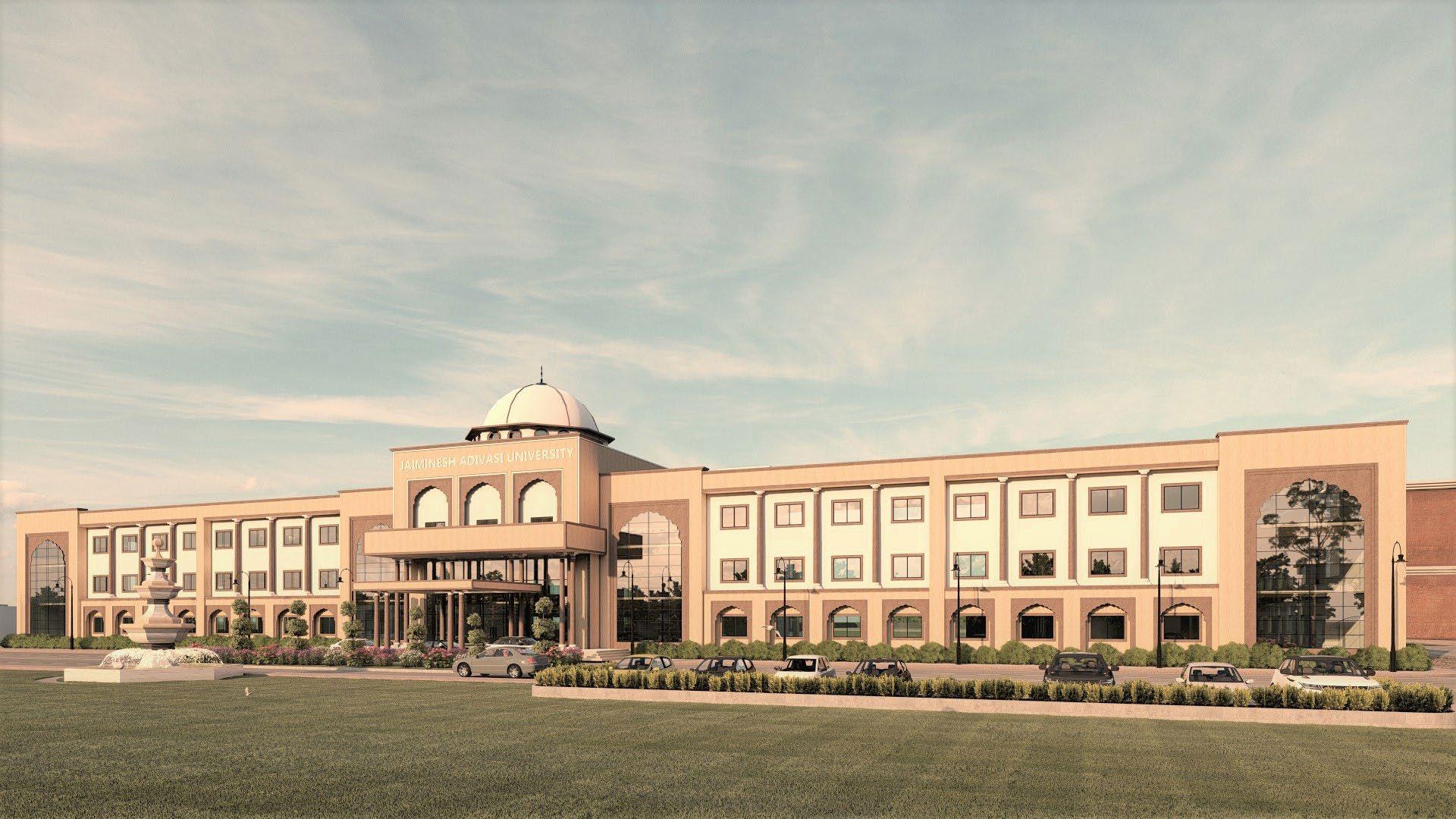

Front Elevation of the University with a huge lawn in front.

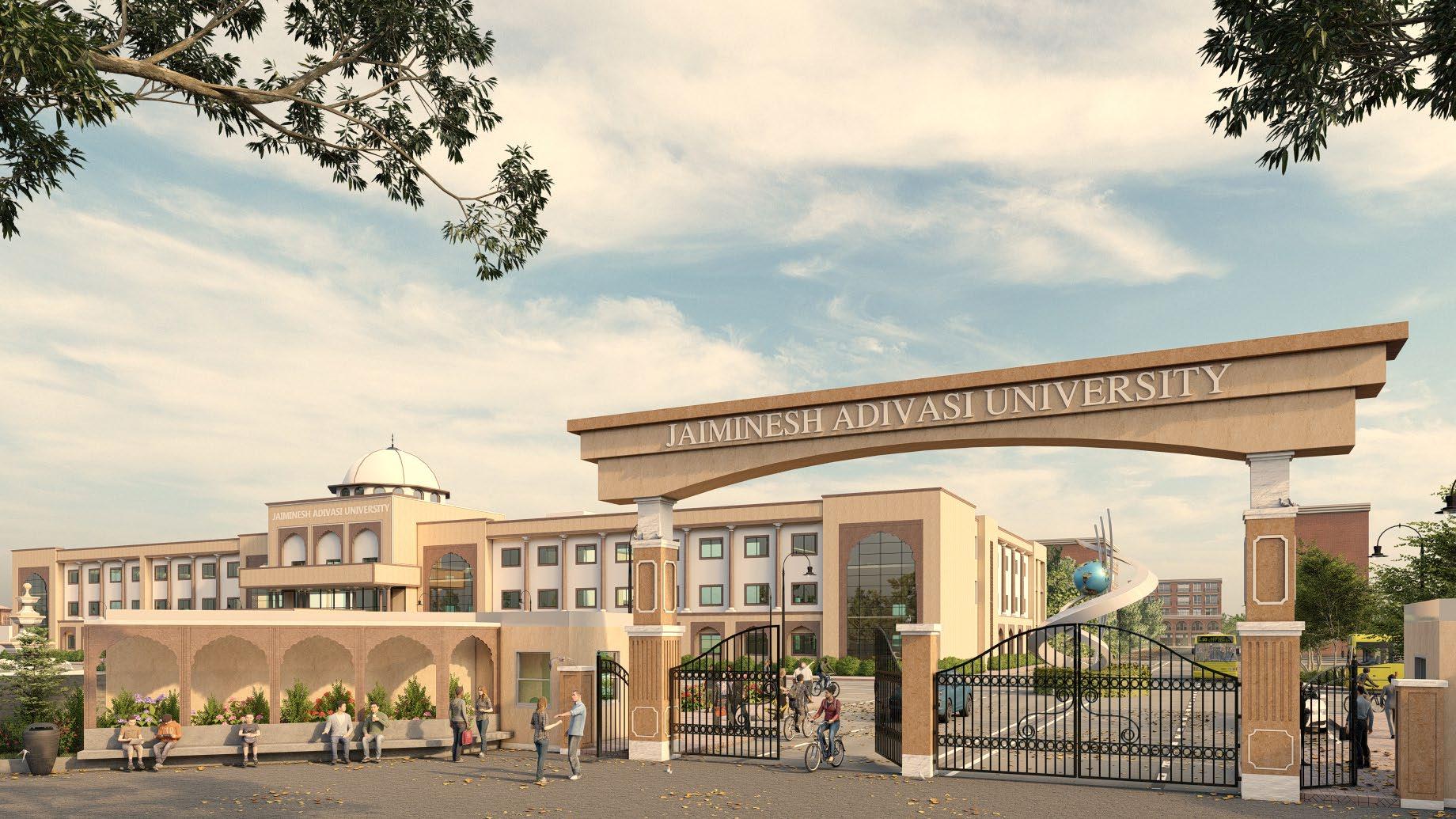

Main entrance gate of university designed in Rajasthani Architecture style.

22

Mohit Bansal

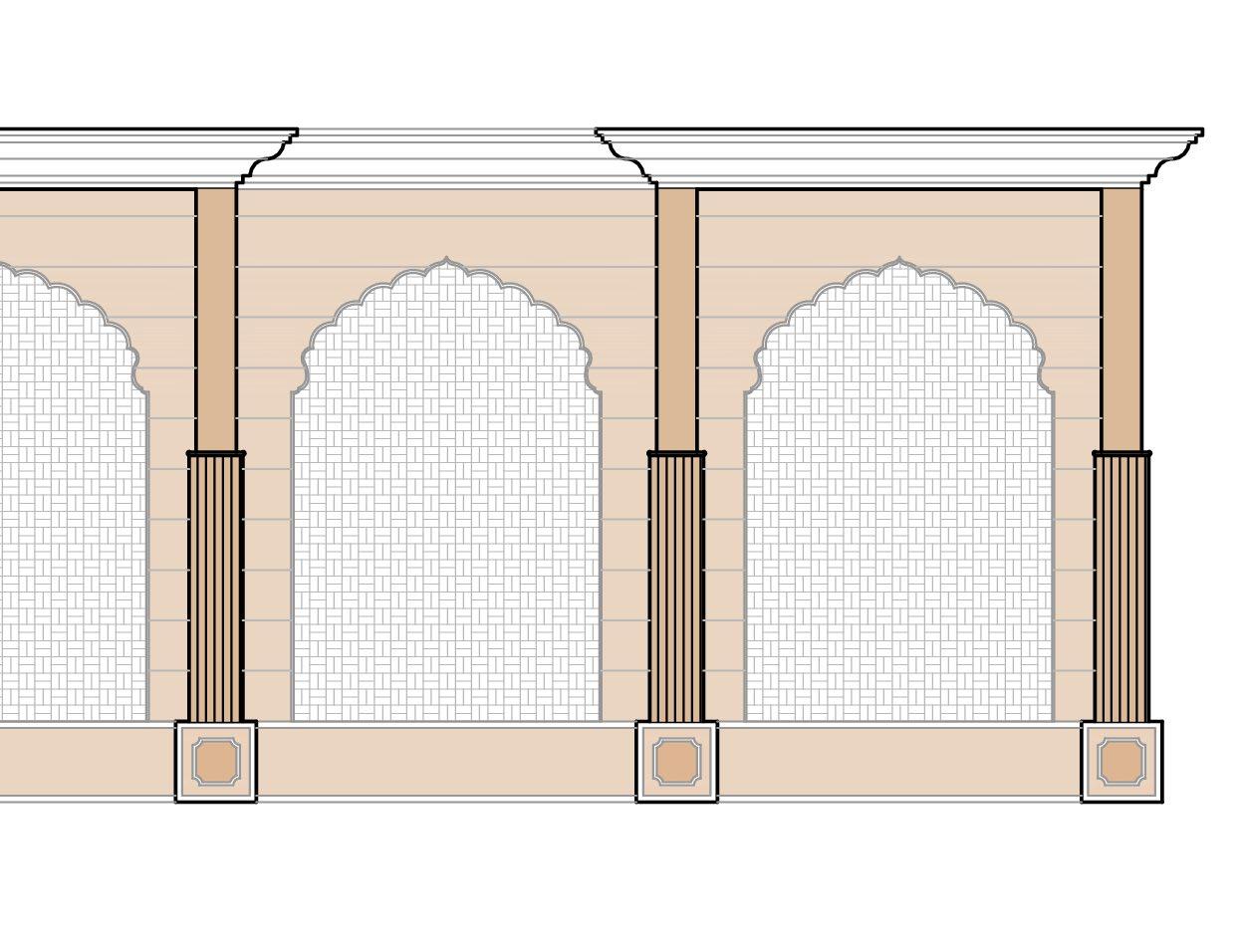

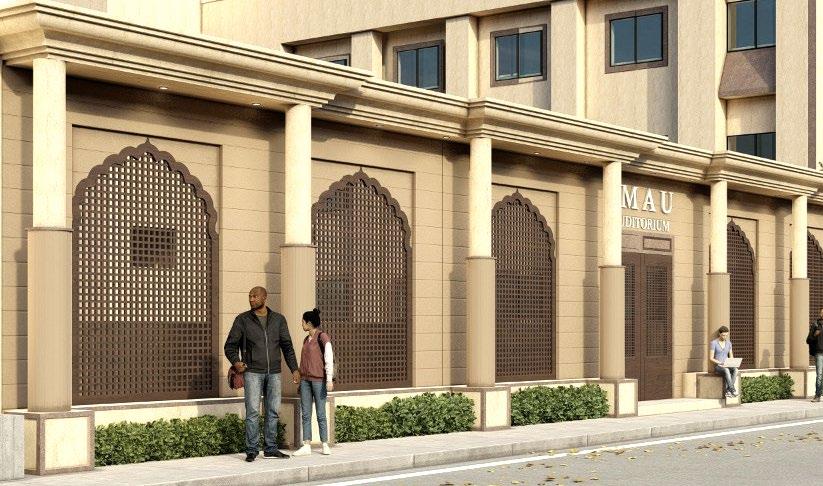

Courtyard Wall Design

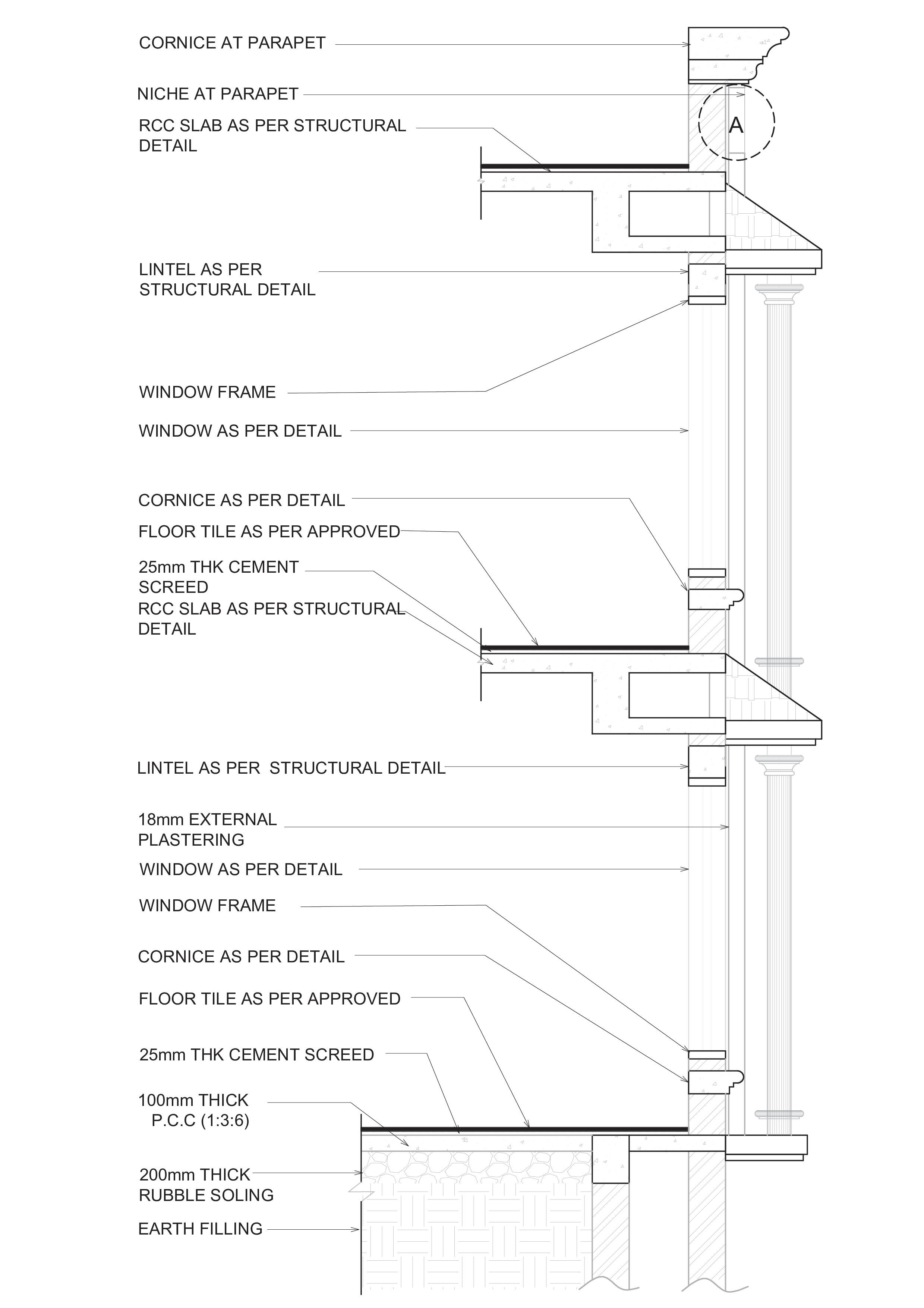

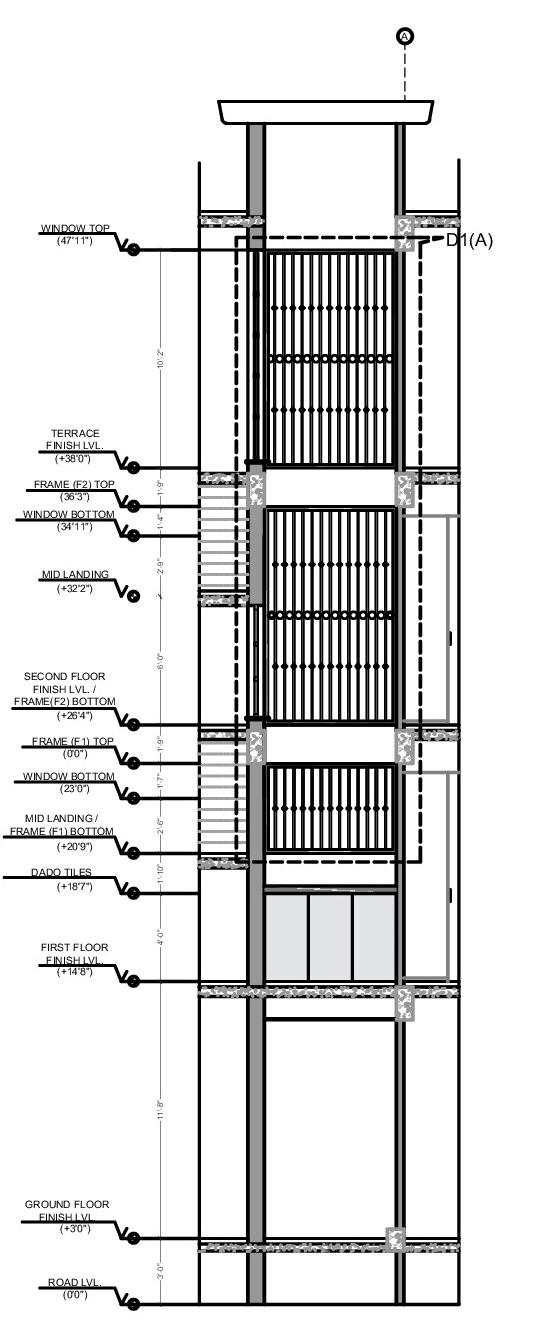

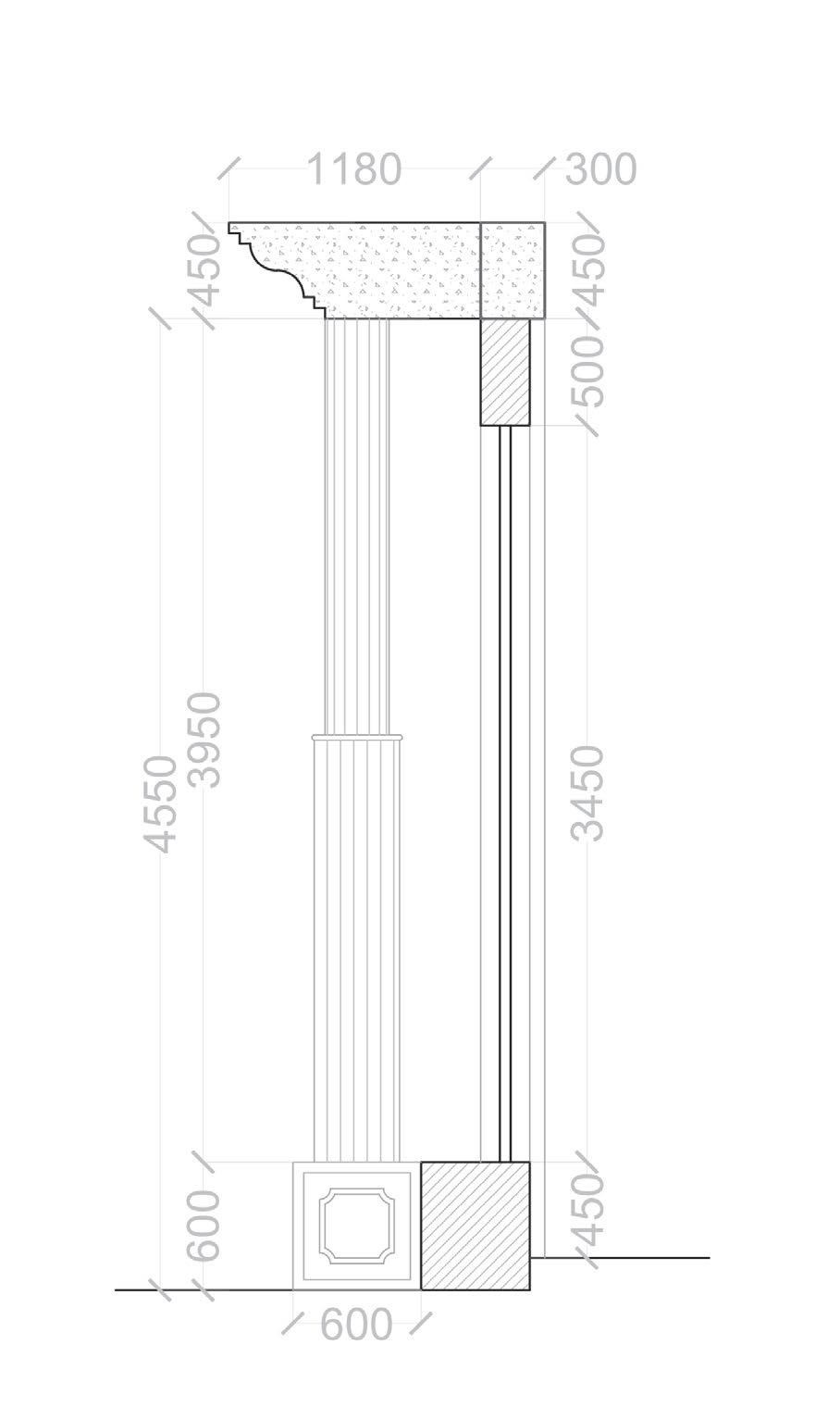

Elevation Details

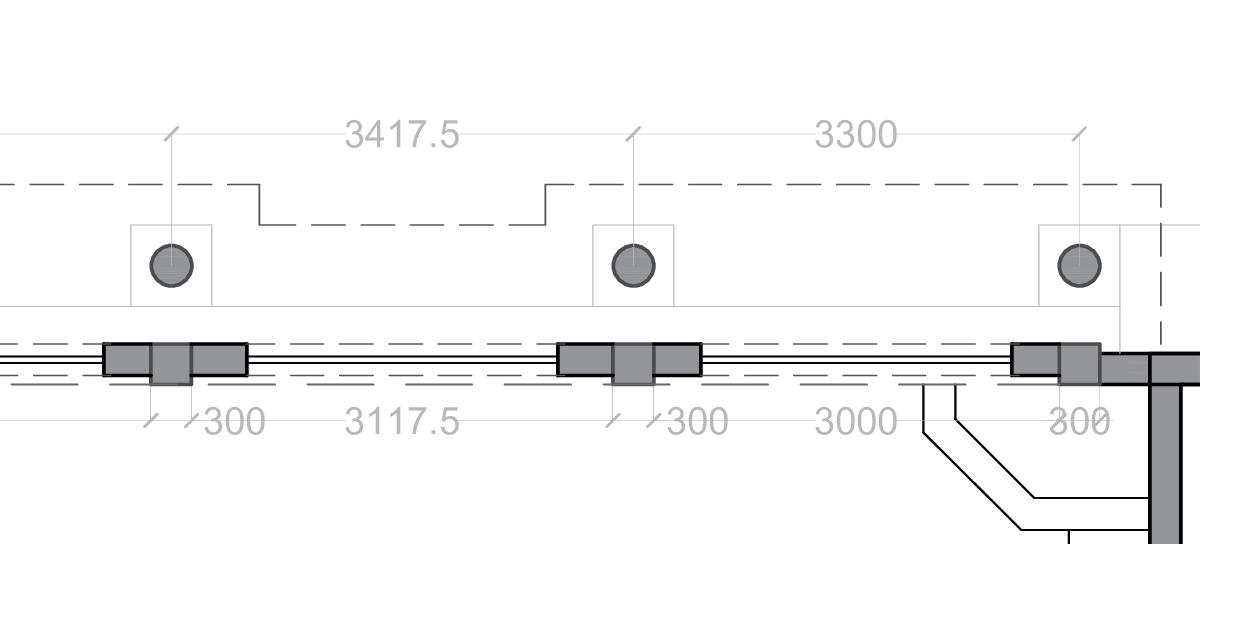

Plan

23

Selected Work

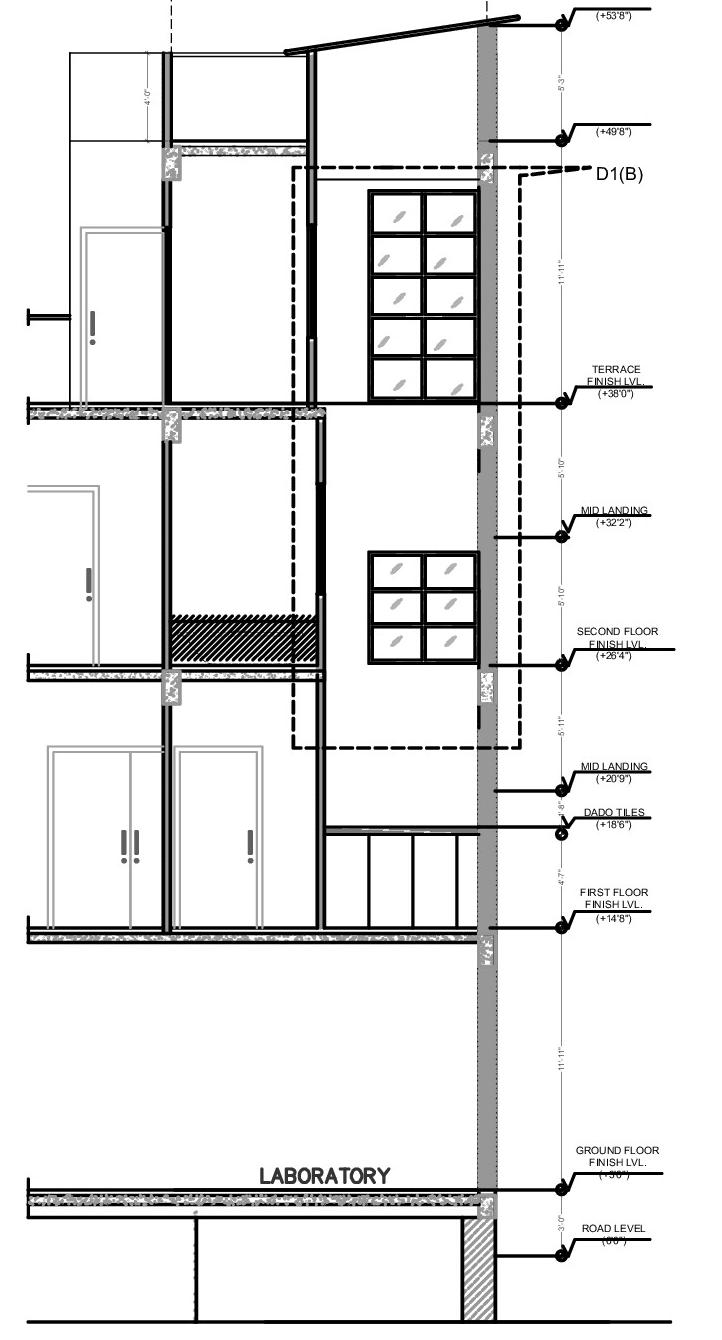

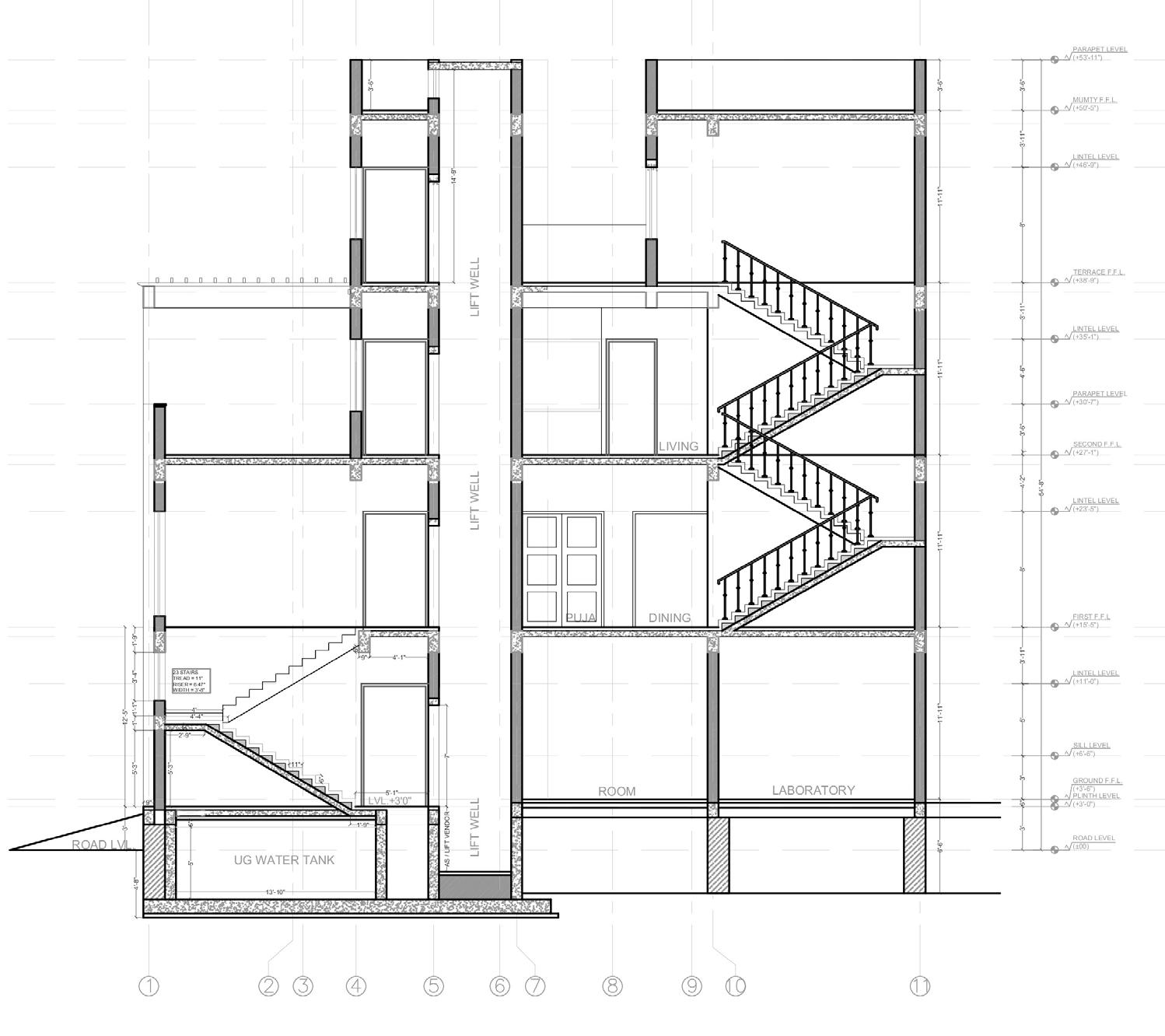

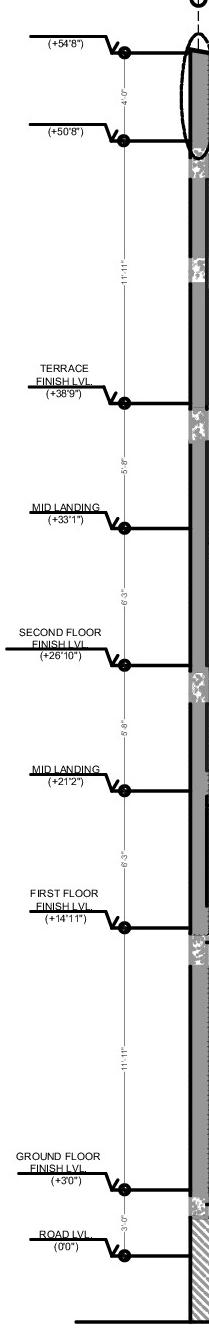

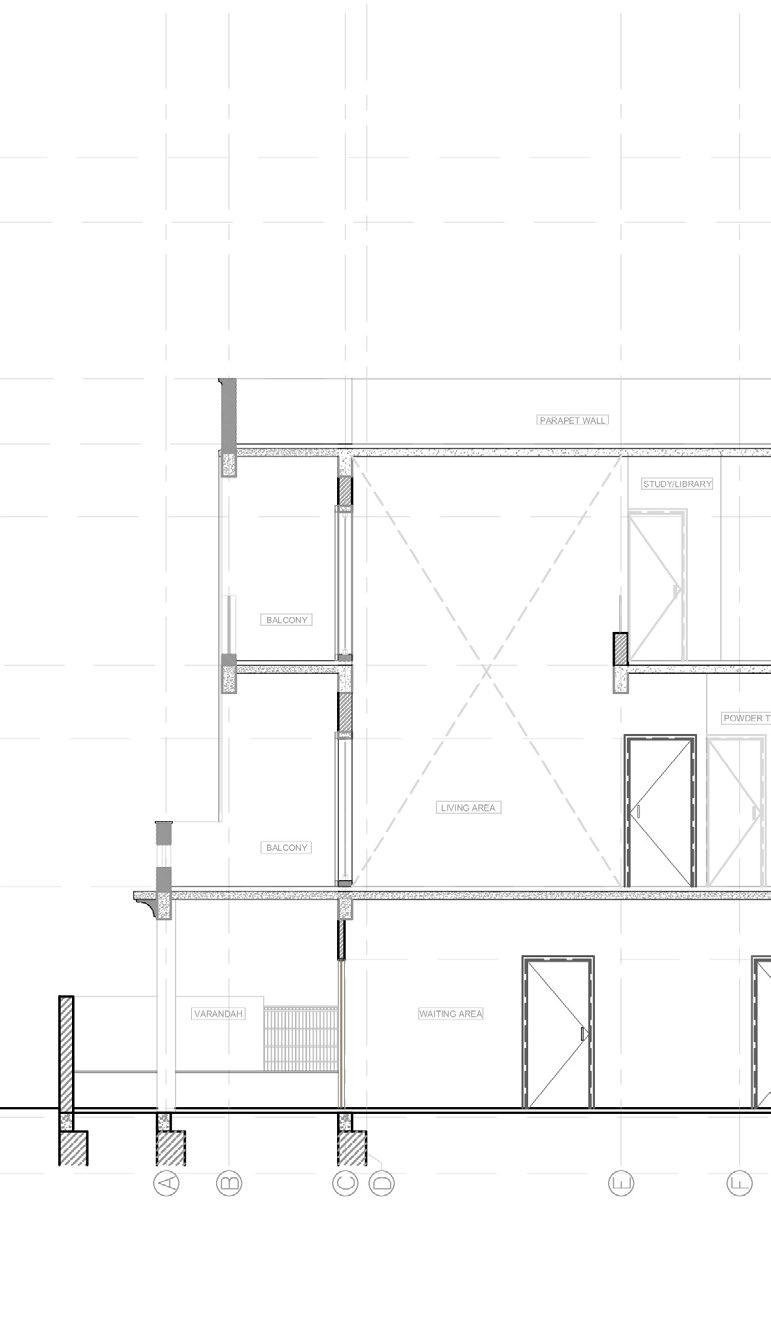

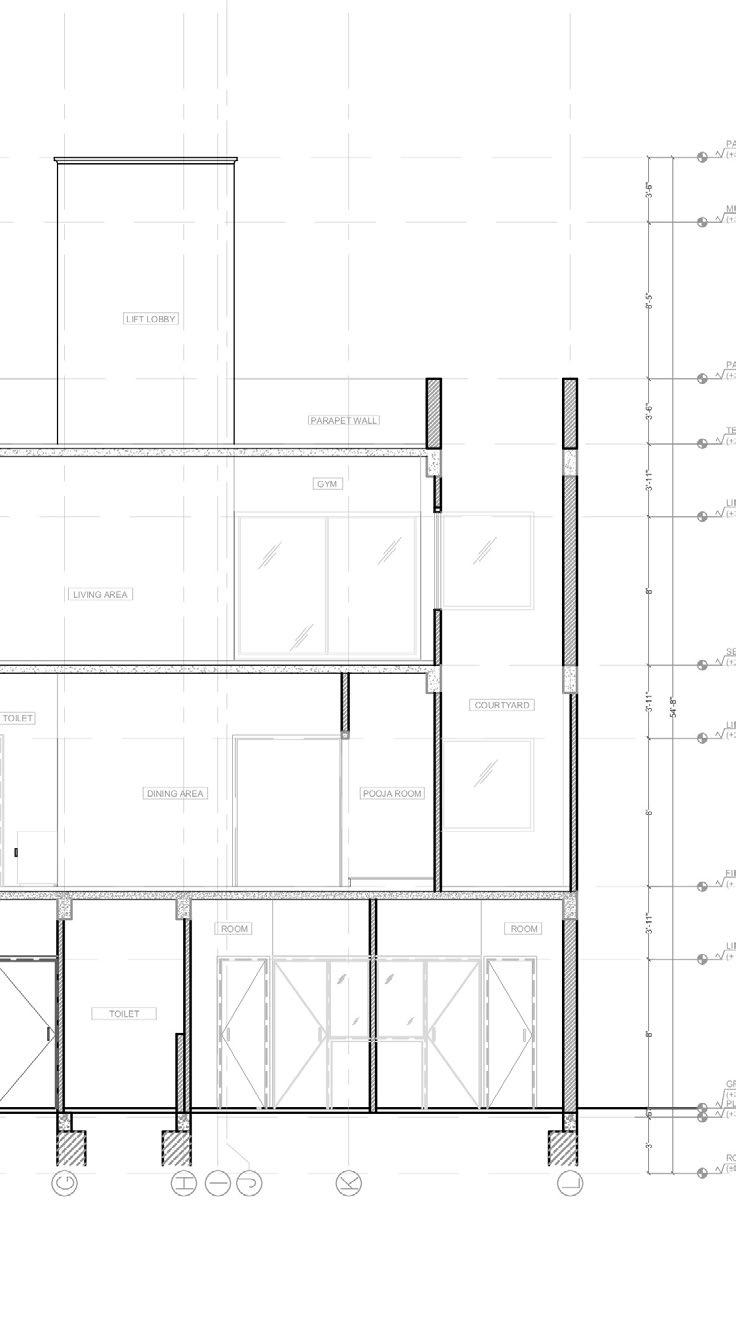

Section BB’

Section AA’

24

Mohit Bansal

04

Dr. Bhanwar Residence Year: 2022 Category: Professional Project (Kothari Architects) Team: Ar. Tushar Kothari, Ar. Mohit, Er. CP Sharma.

Theme: Residence Site: 54’0” x 68’10” (G+2) Location: Shrinathpuram, Kota, Rajasthan Responsibilities: Architecture Drawings, Interior Drawings, Site Coordination, Site Visits.

25

Selected Work

26

Mohit Bansal

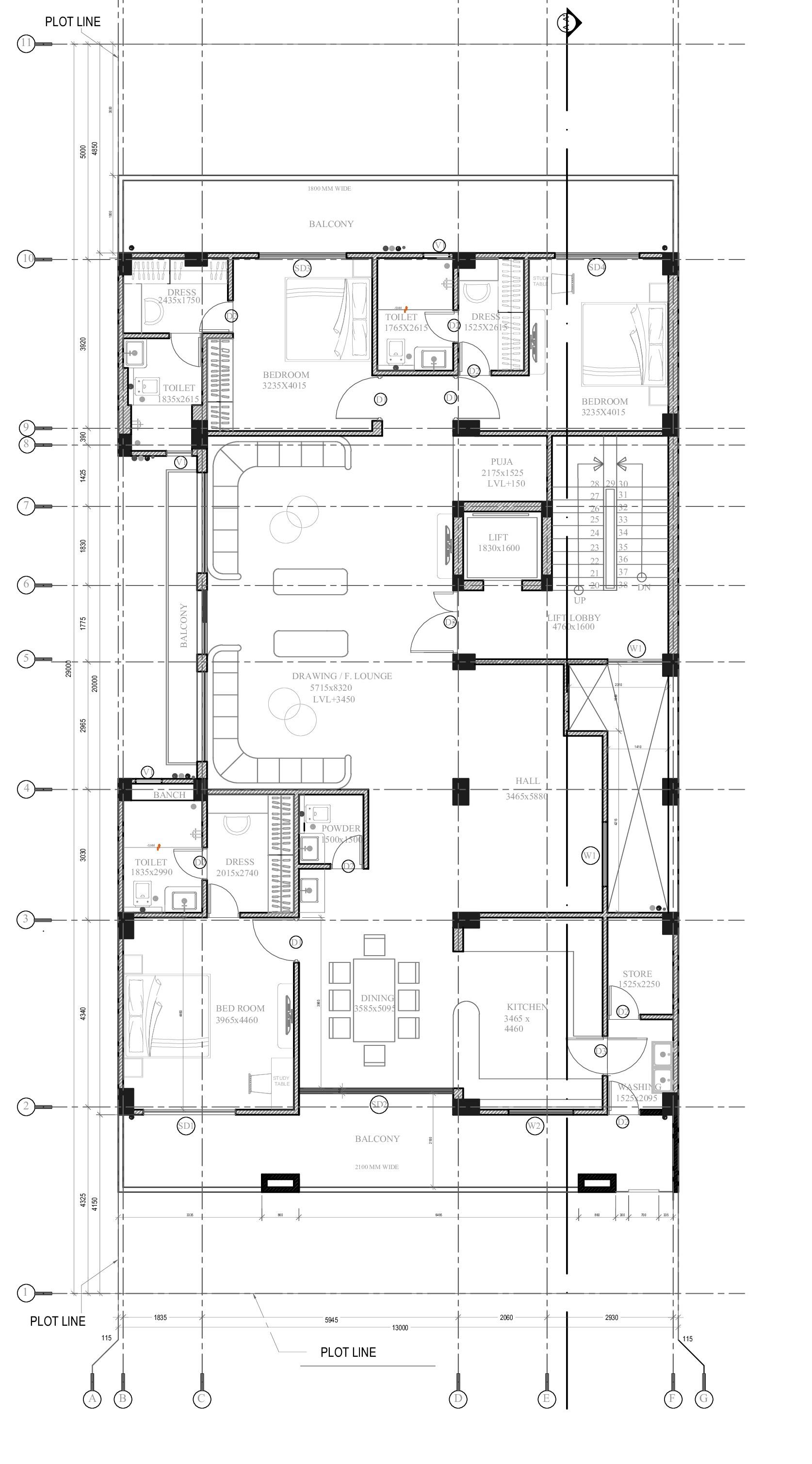

Ground Floor Plan

Section A-A’ 27

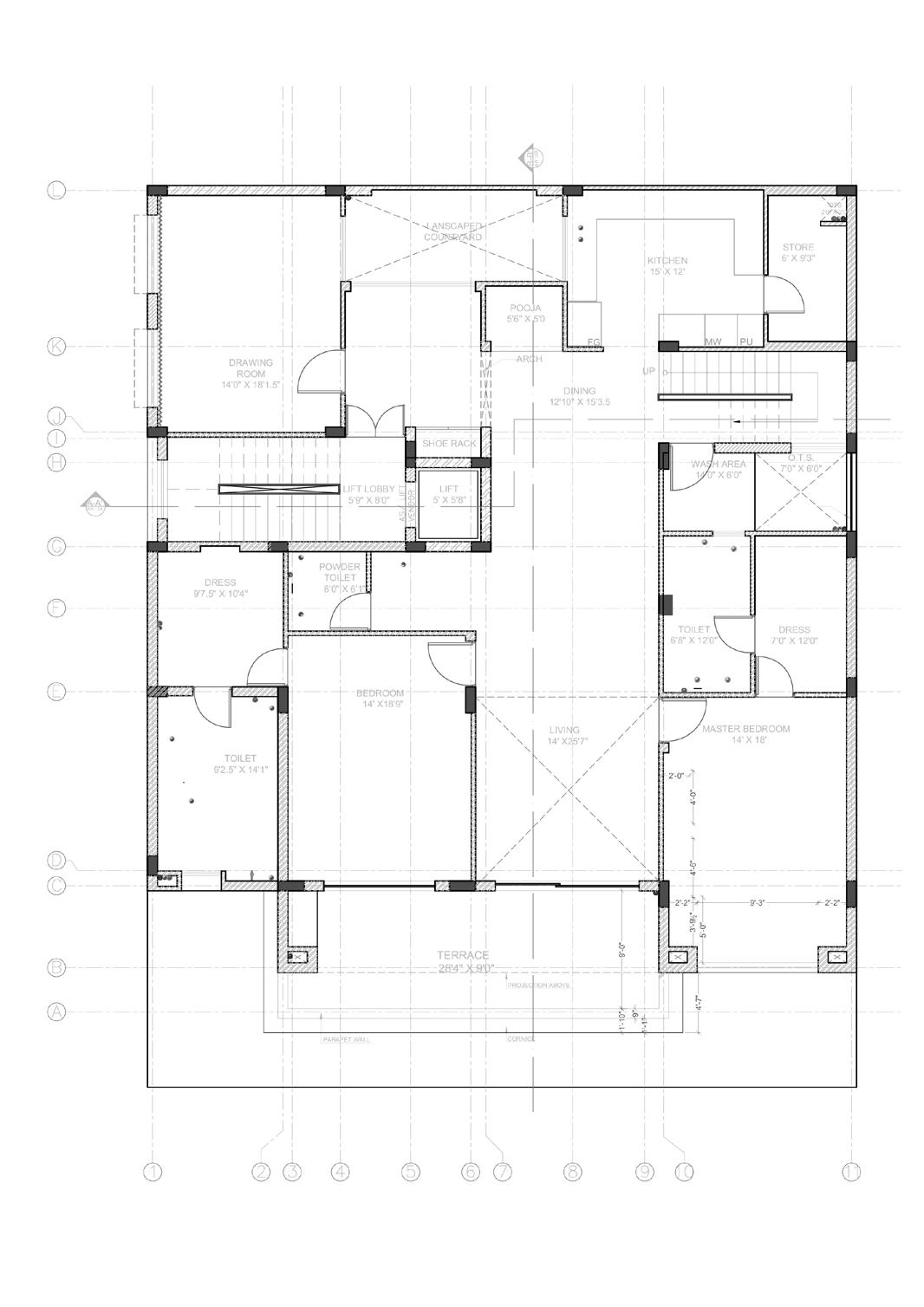

First Floor Plan

Section B-B’

Selected Work

Second Floor Plan

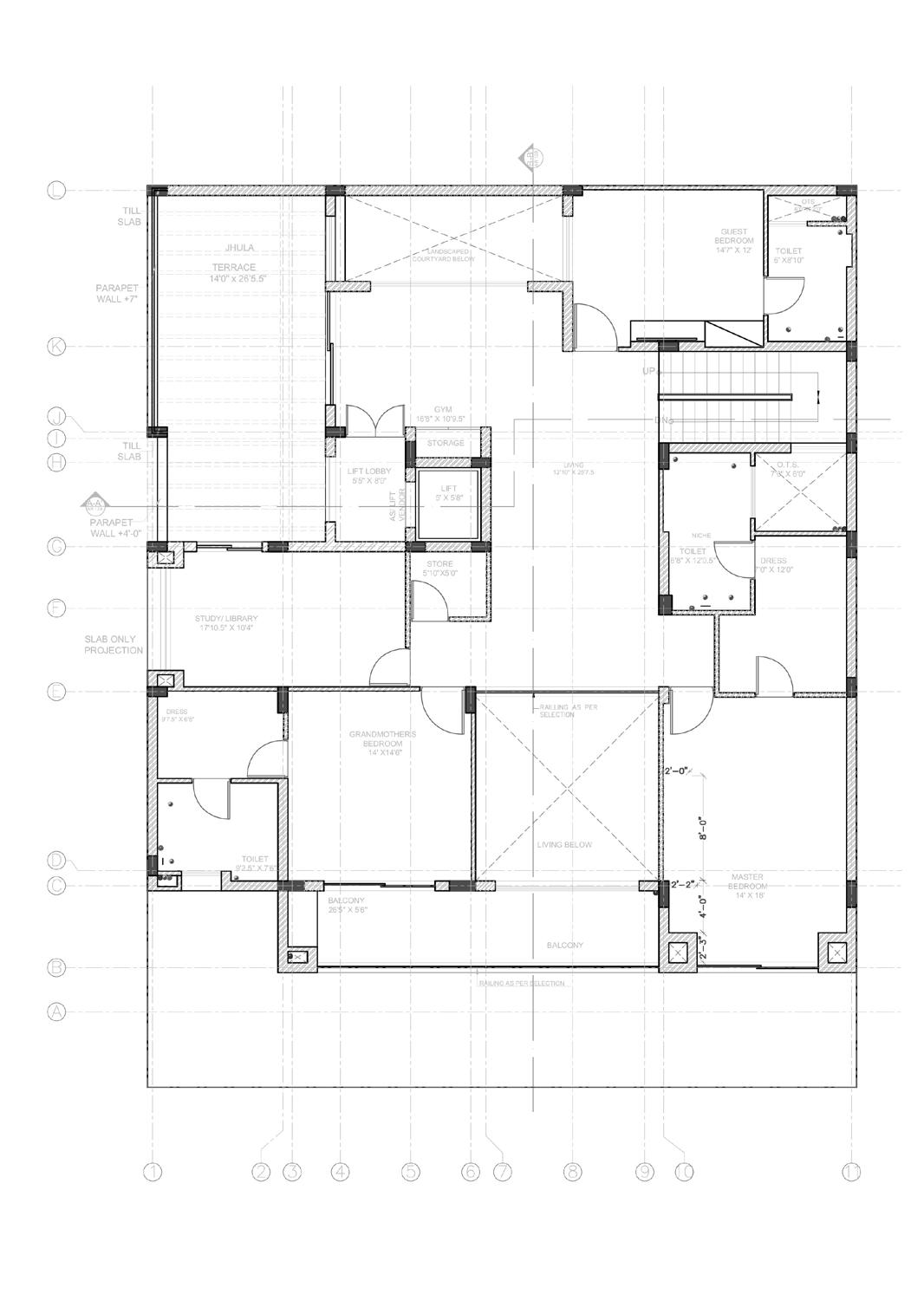

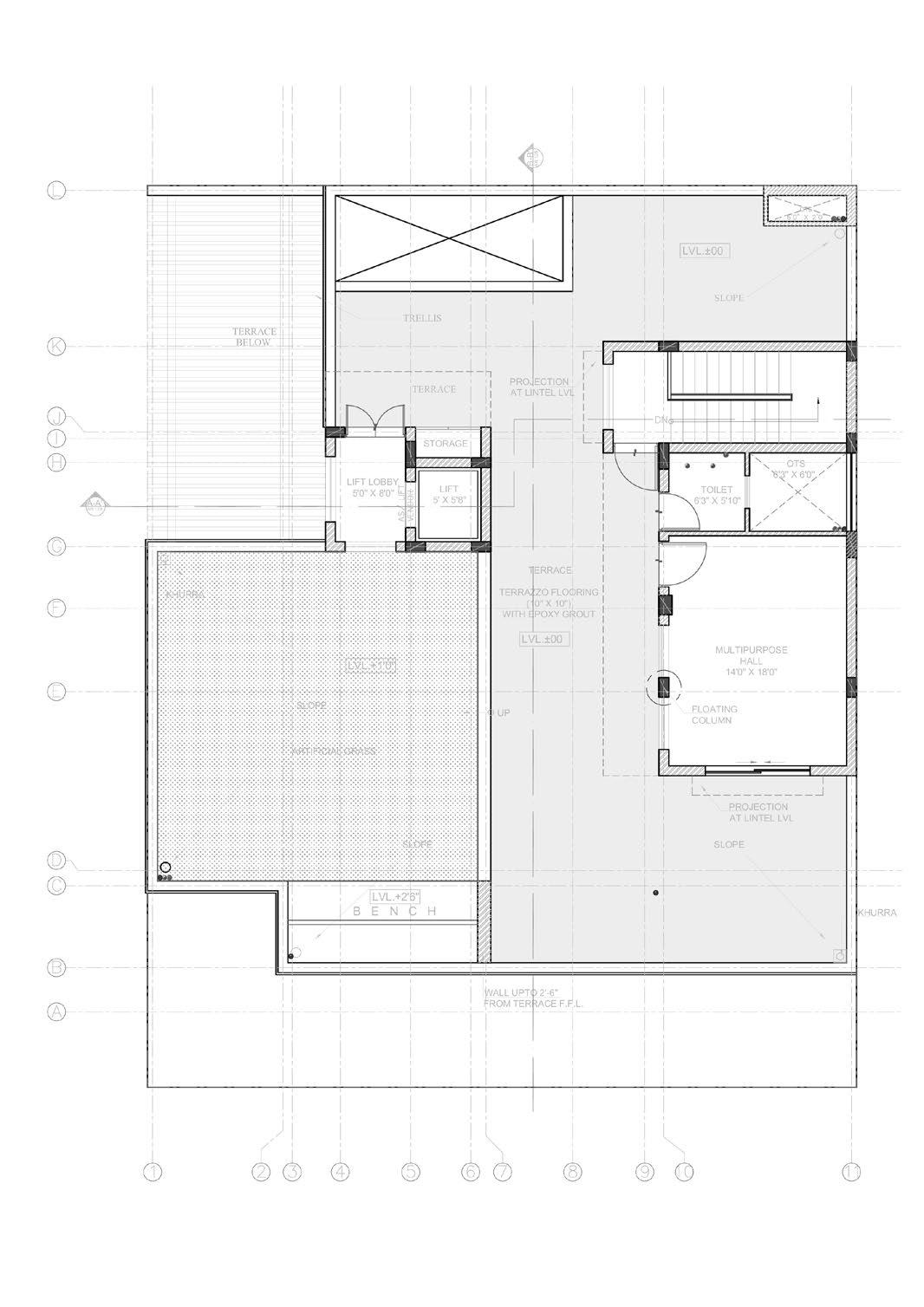

Terrace Floor Plan

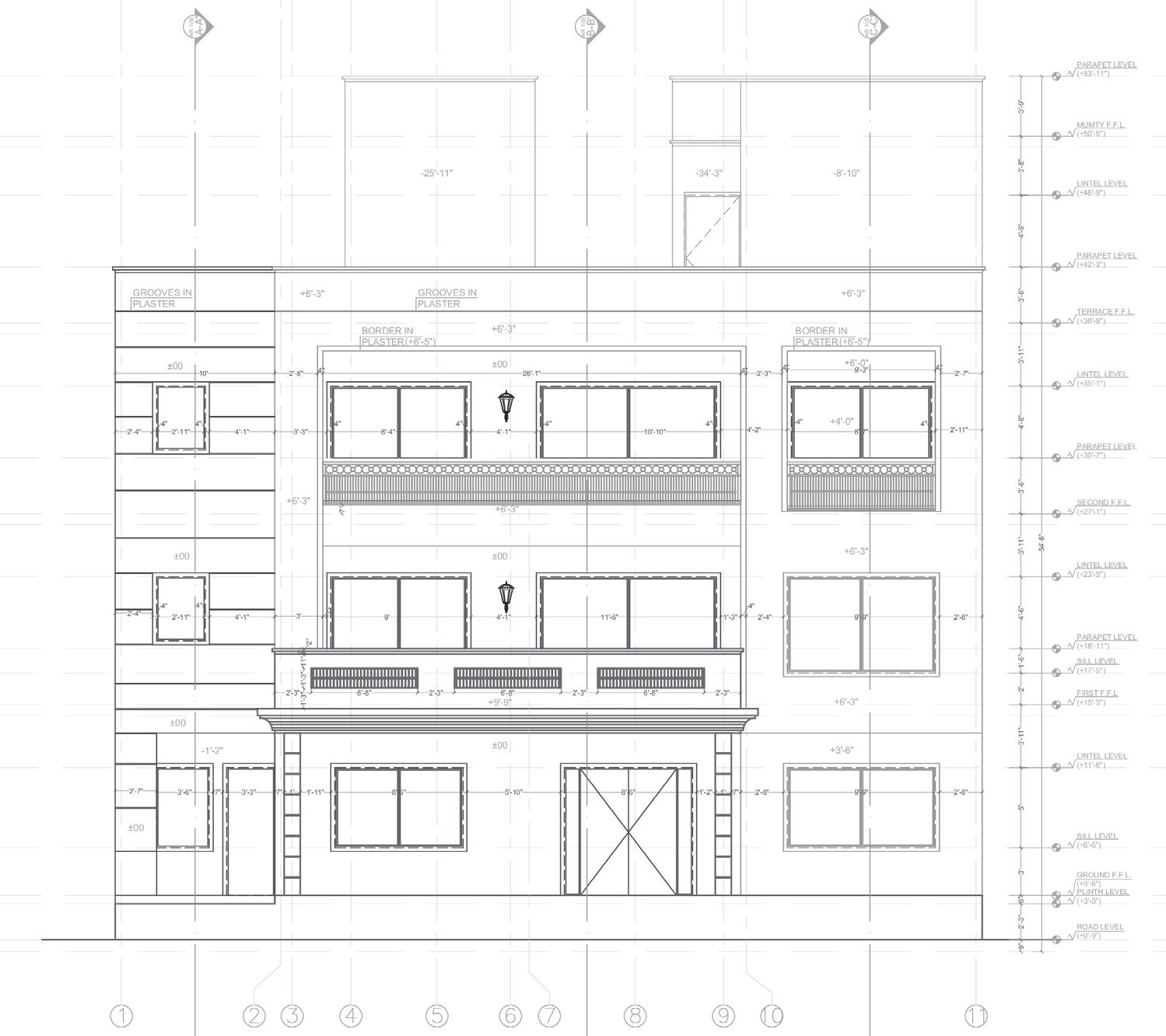

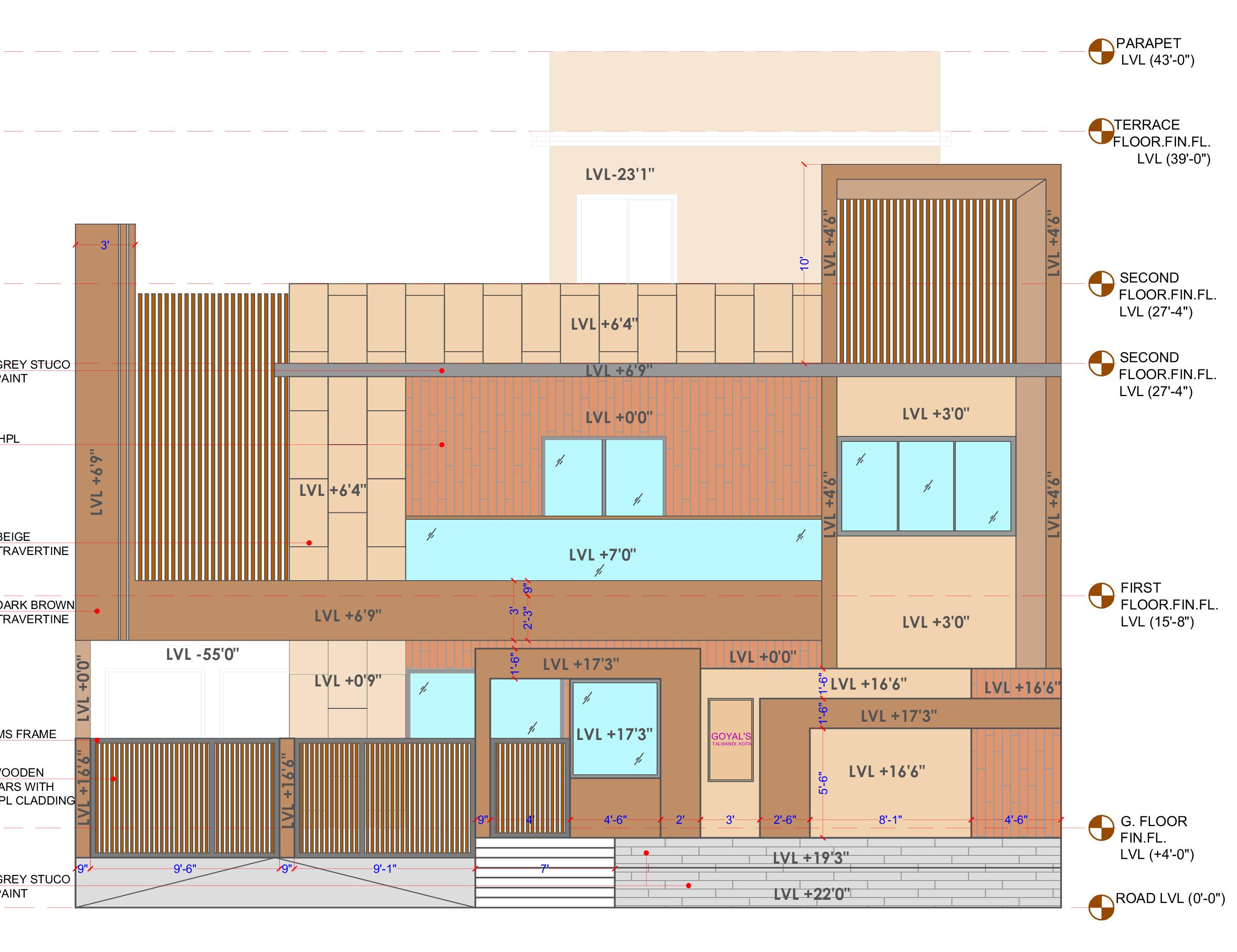

Front Elevation 28

Mohit Bansal

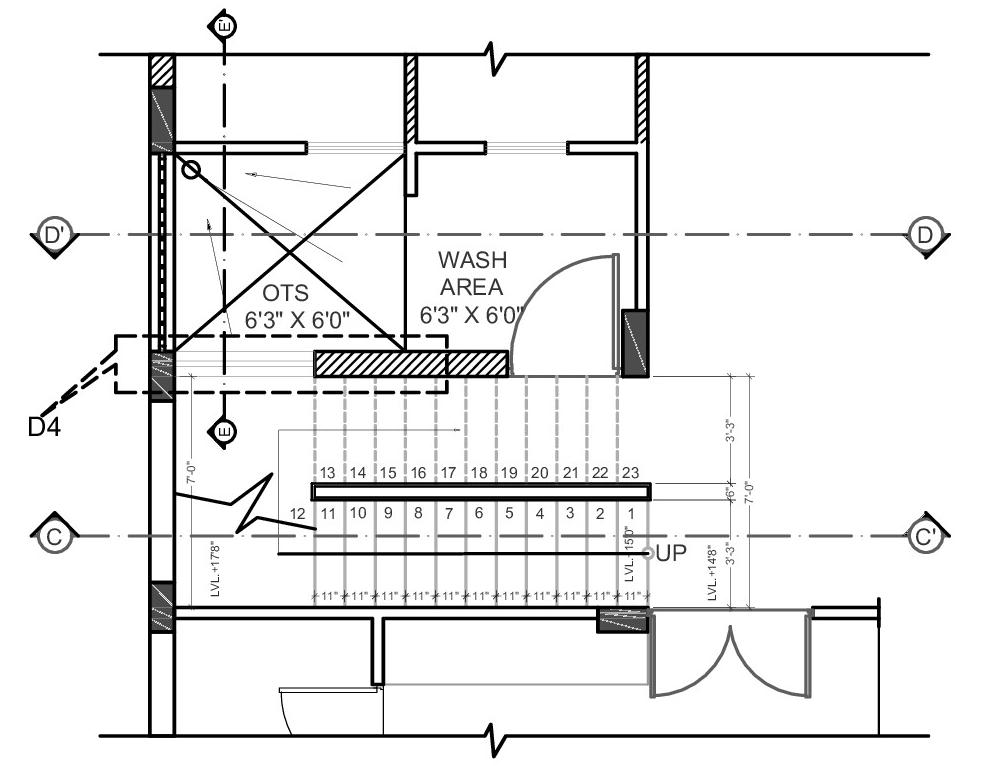

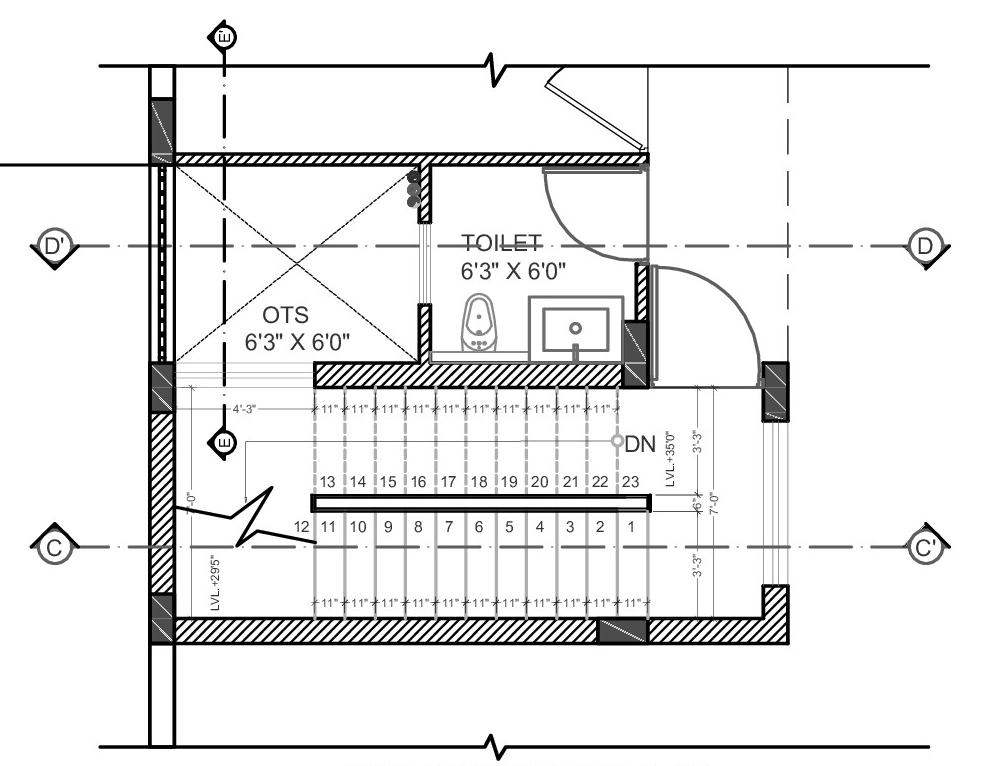

Third Floor Staircase Plan

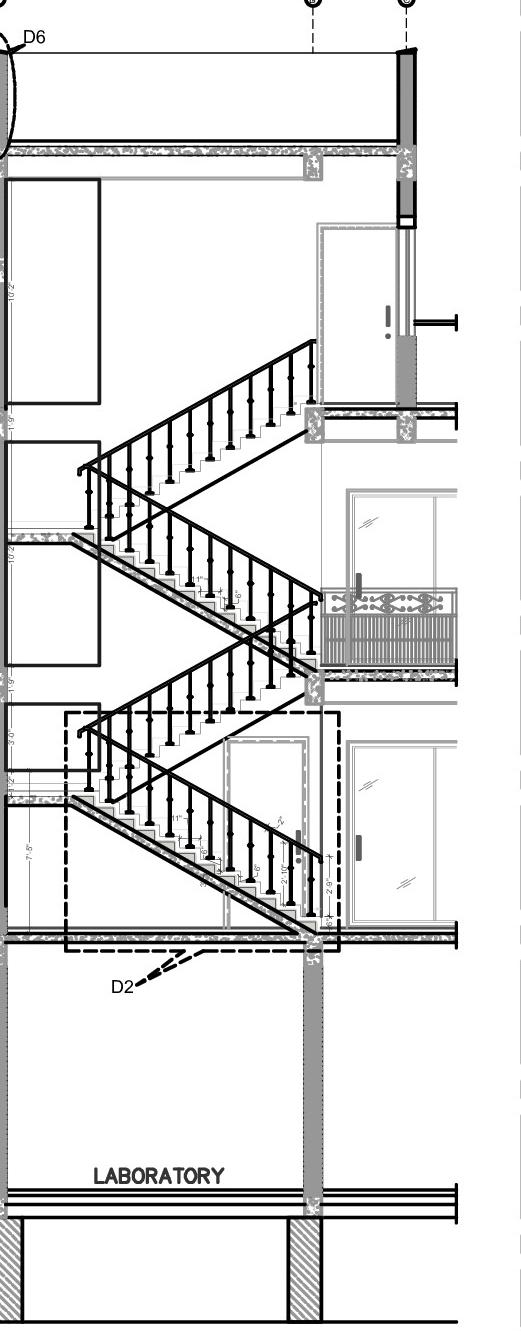

Section EE’

Second Floor Staircase Plan

First Floor Staircase Plan 29

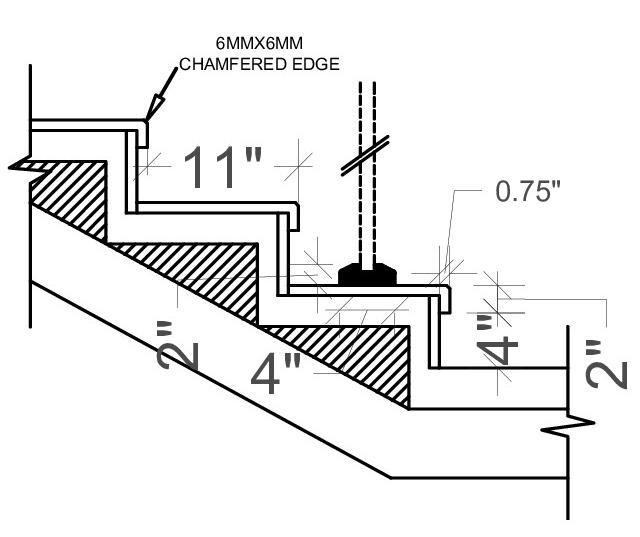

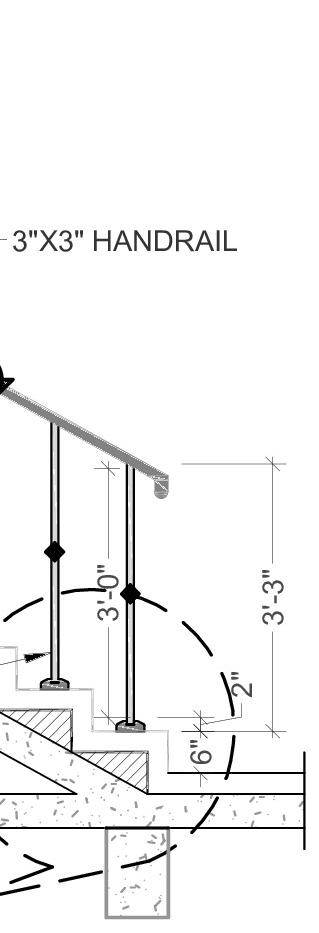

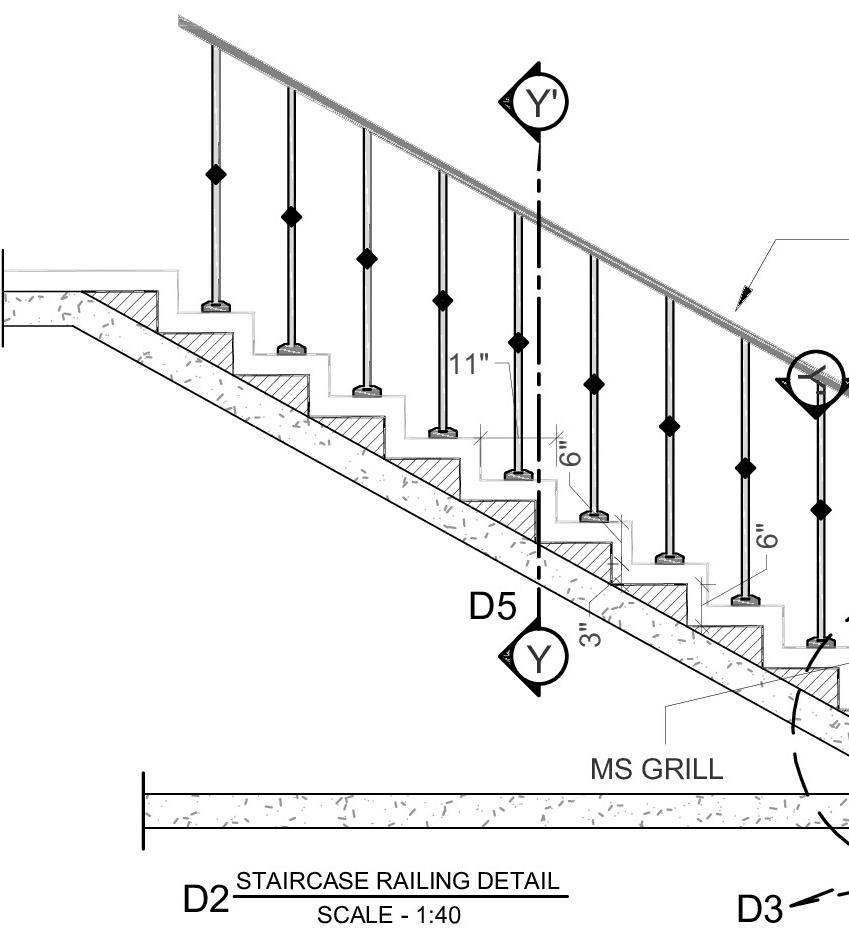

D2 Staircase Railing Detail

Selected Work

Section CC’

D3 Nosing Detail

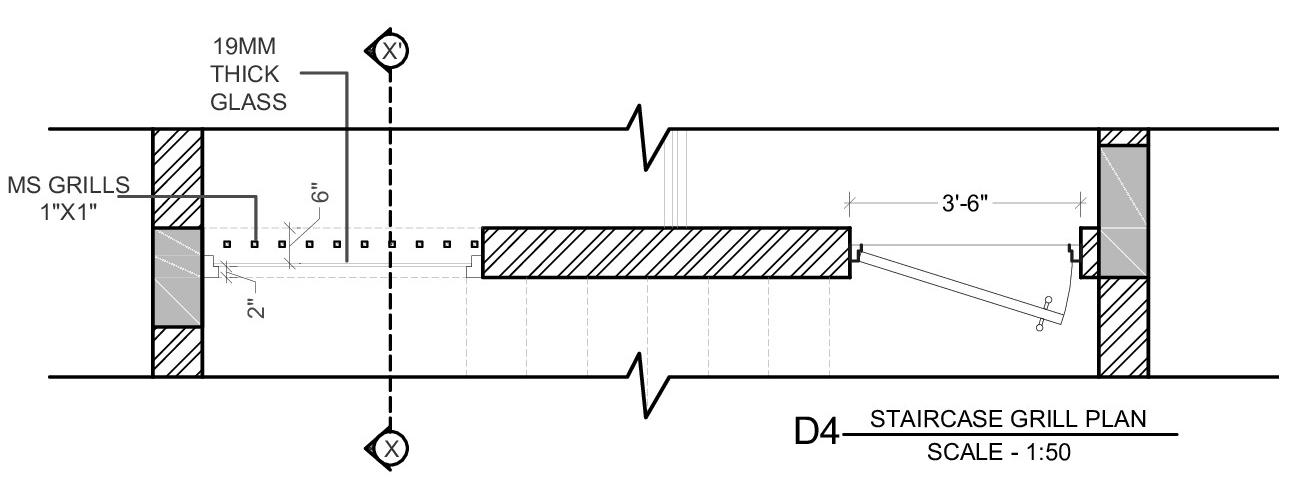

D4 Staircase Grill Plan

Section DD’

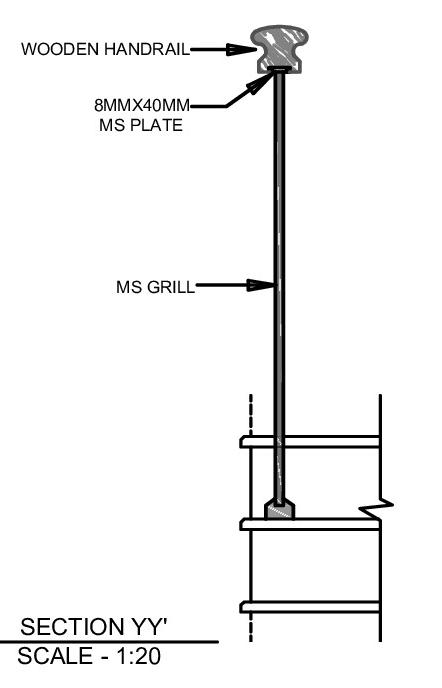

D5 Section YY’

Section XX’ 30

Mohit Bansal

Exterior Views :

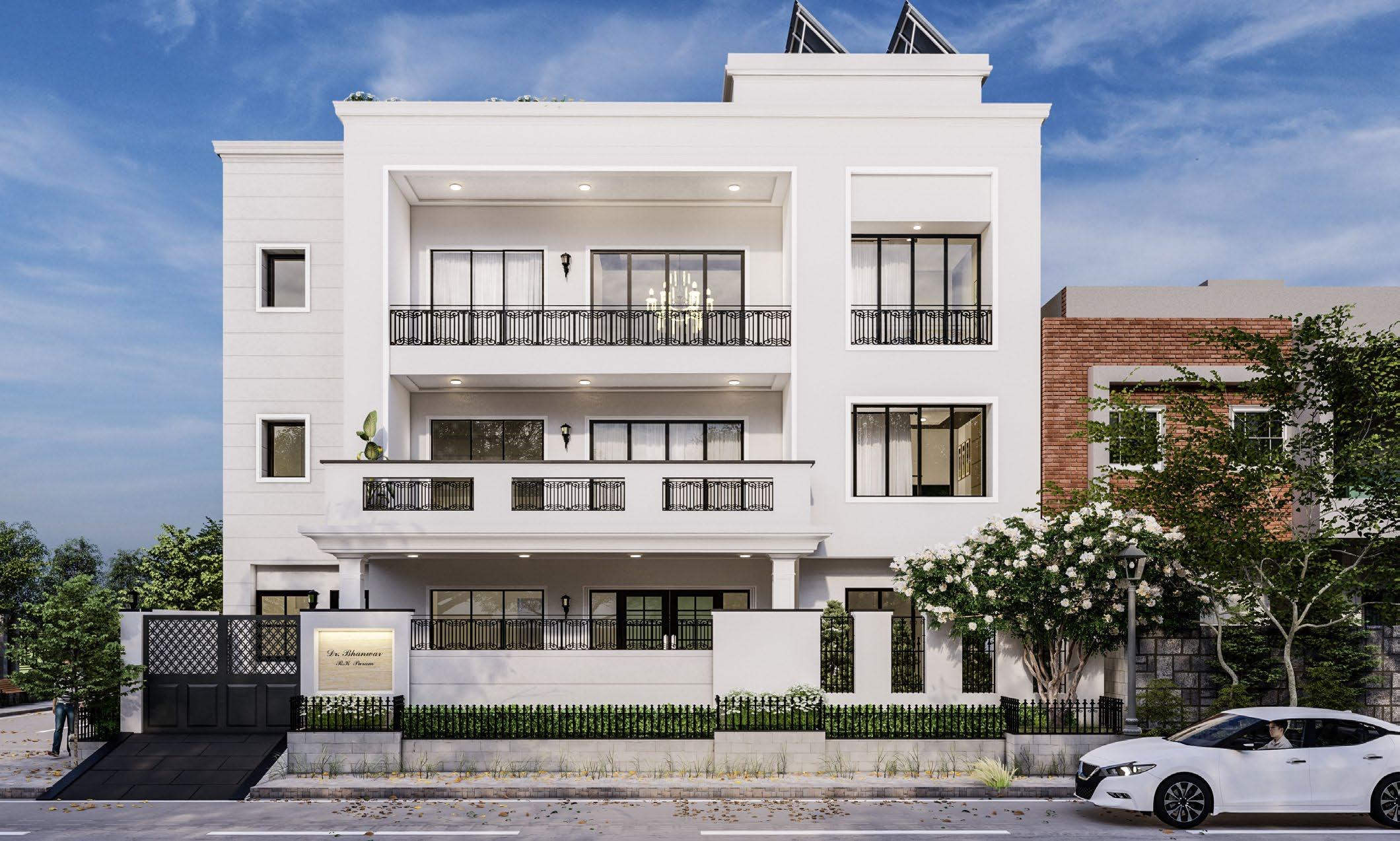

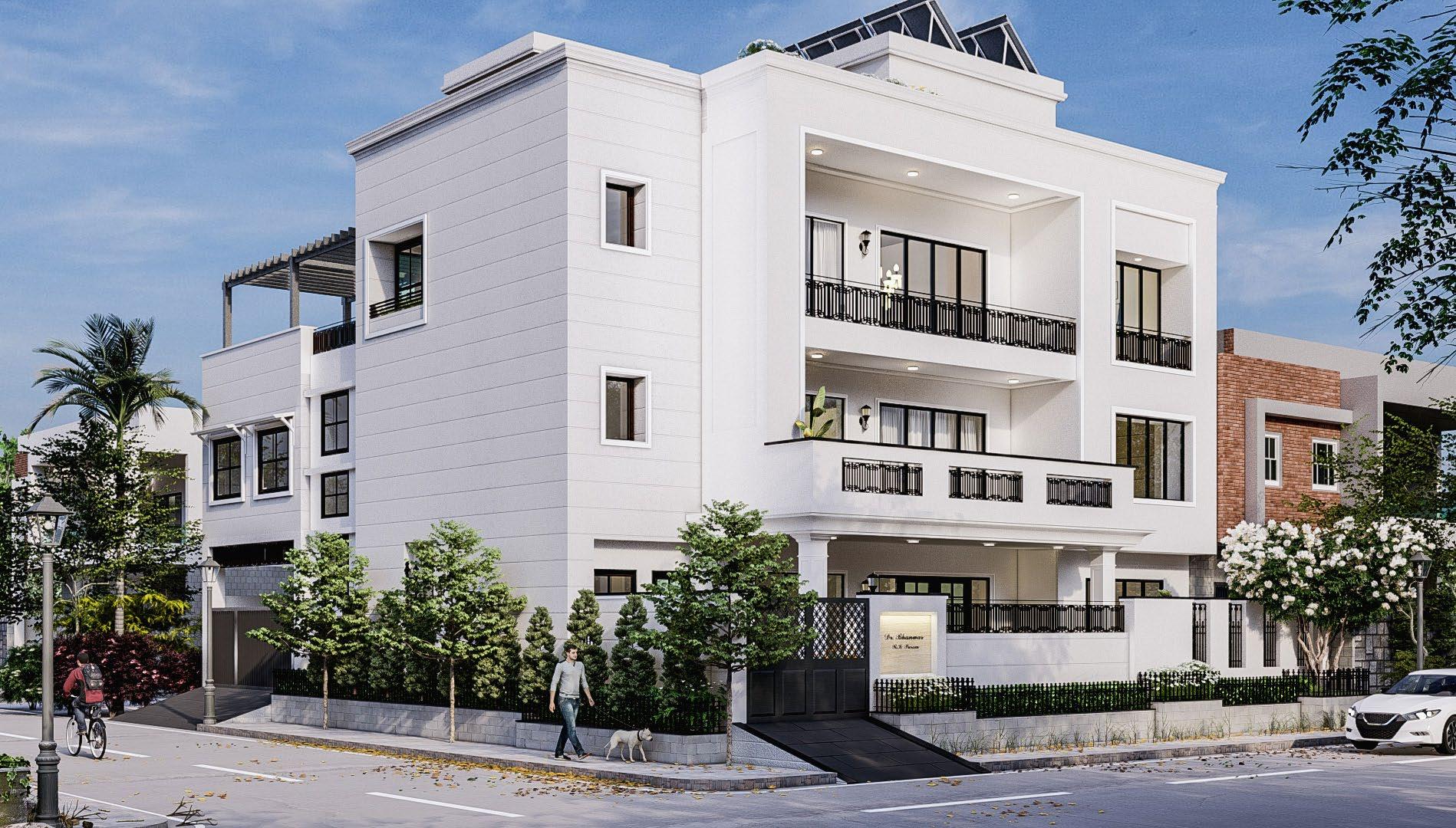

Front elevtion of the building designed in classical style.

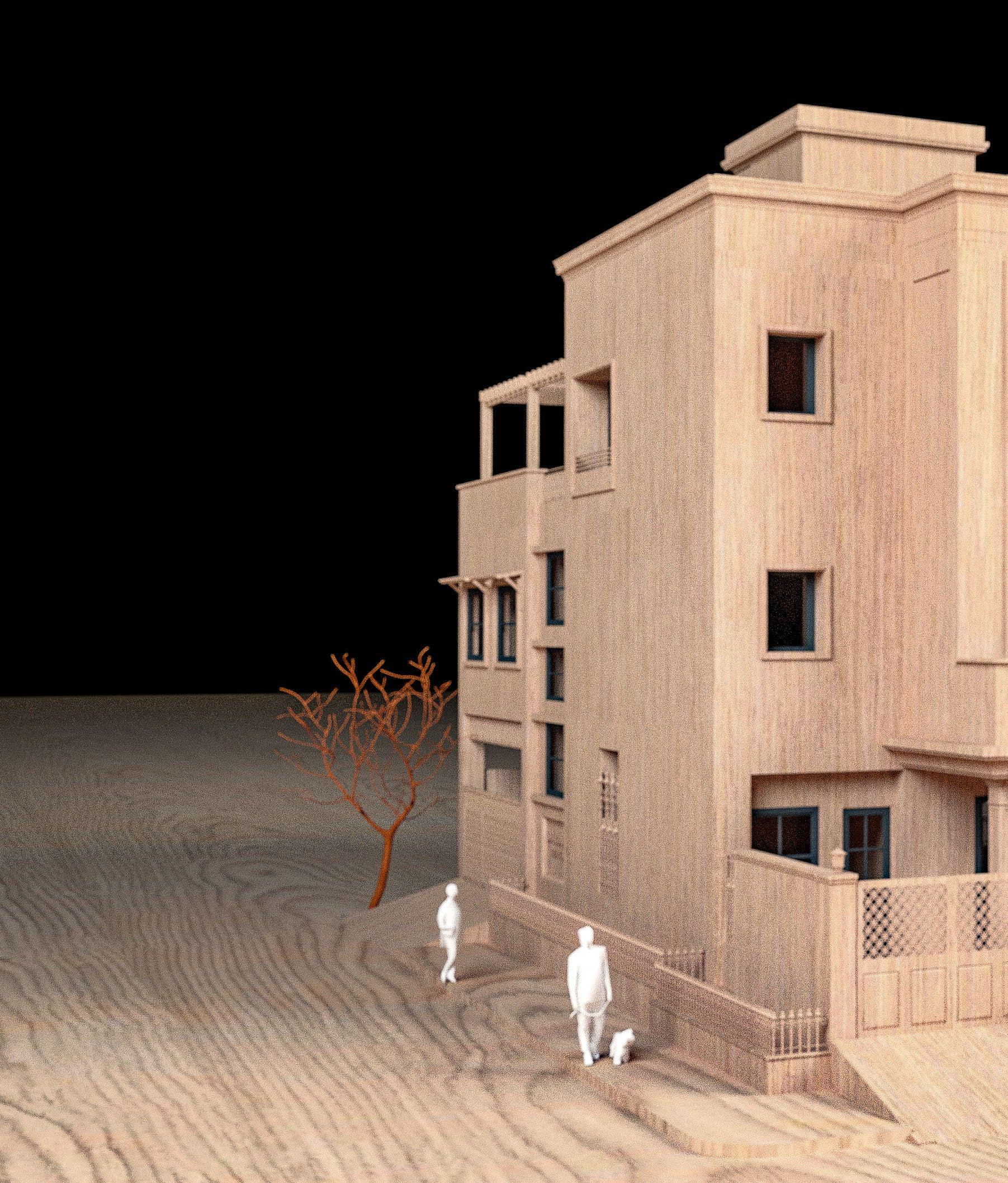

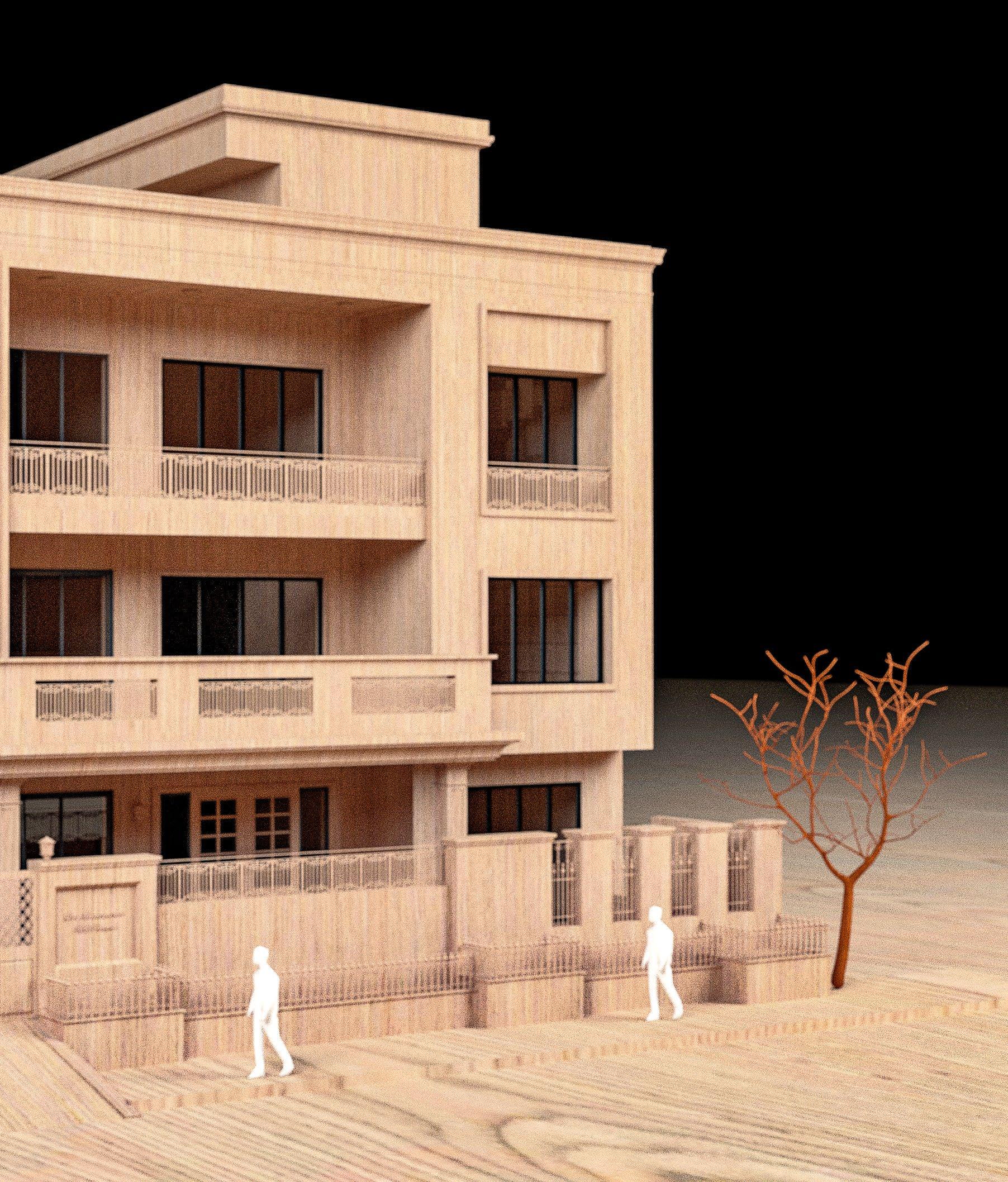

Isometric view of the building

31

Selected Work

Interior Views :

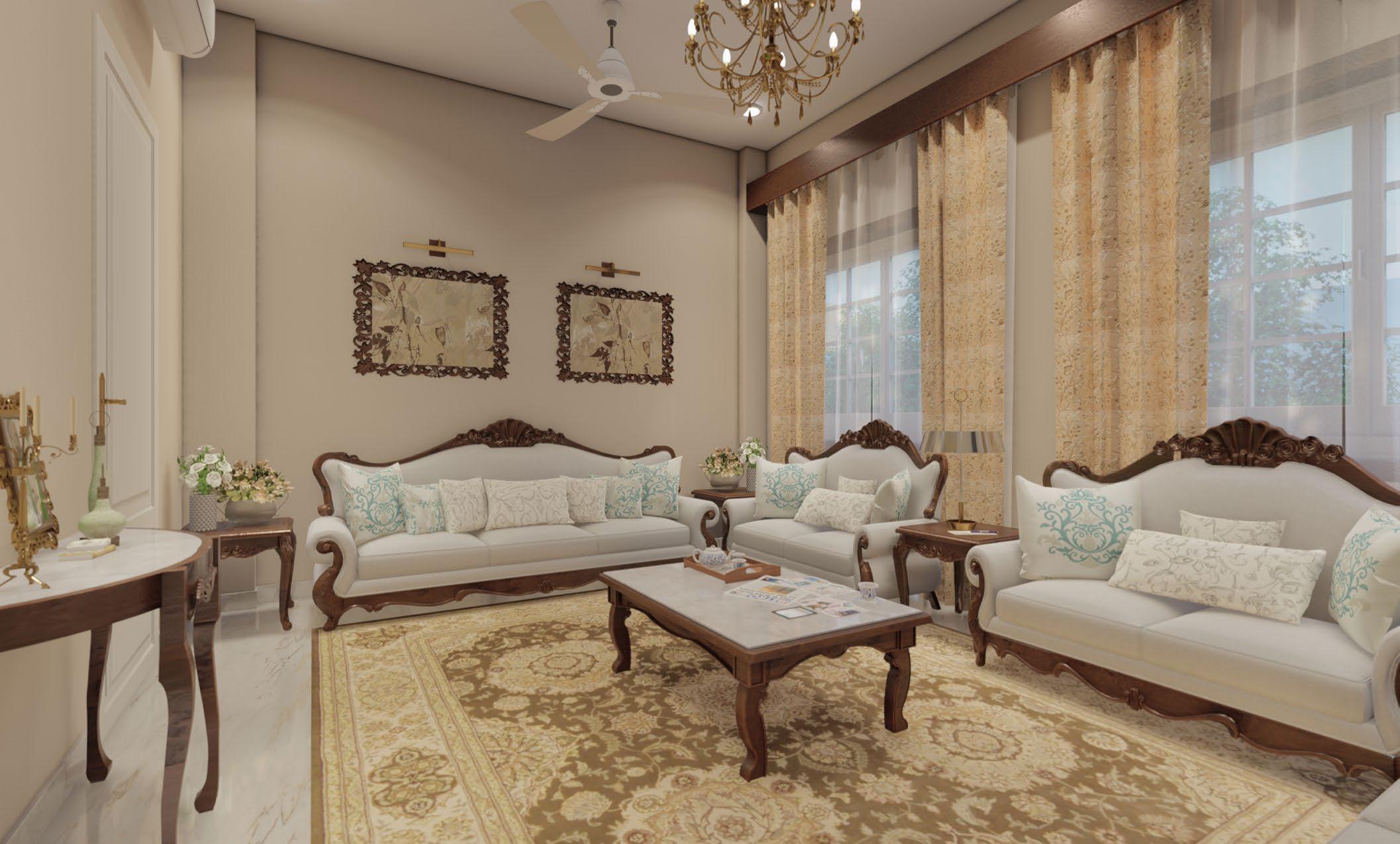

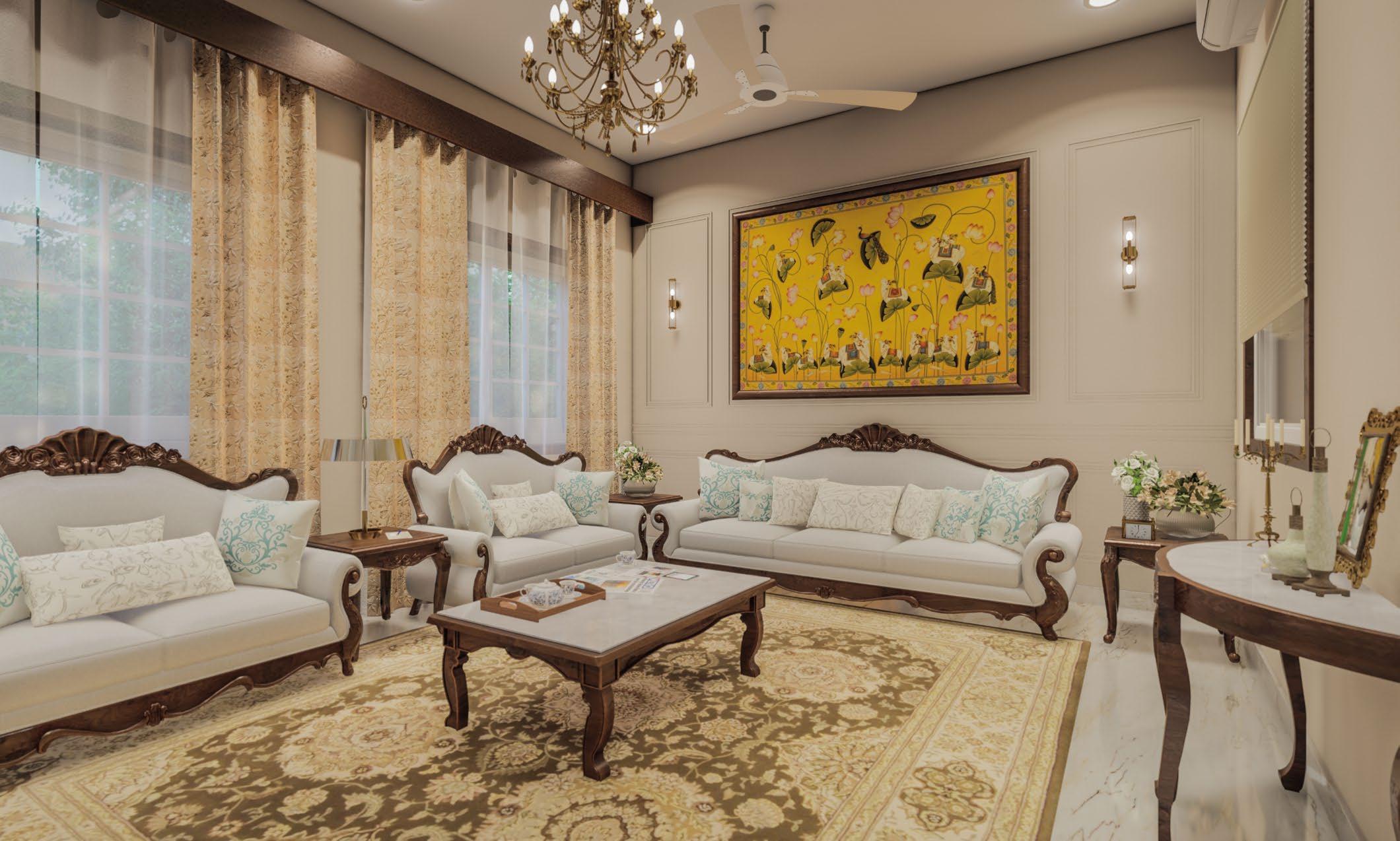

Drawing Room Interior view 1

Drawing Room Interior view 2

32

Mohit Bansal

05

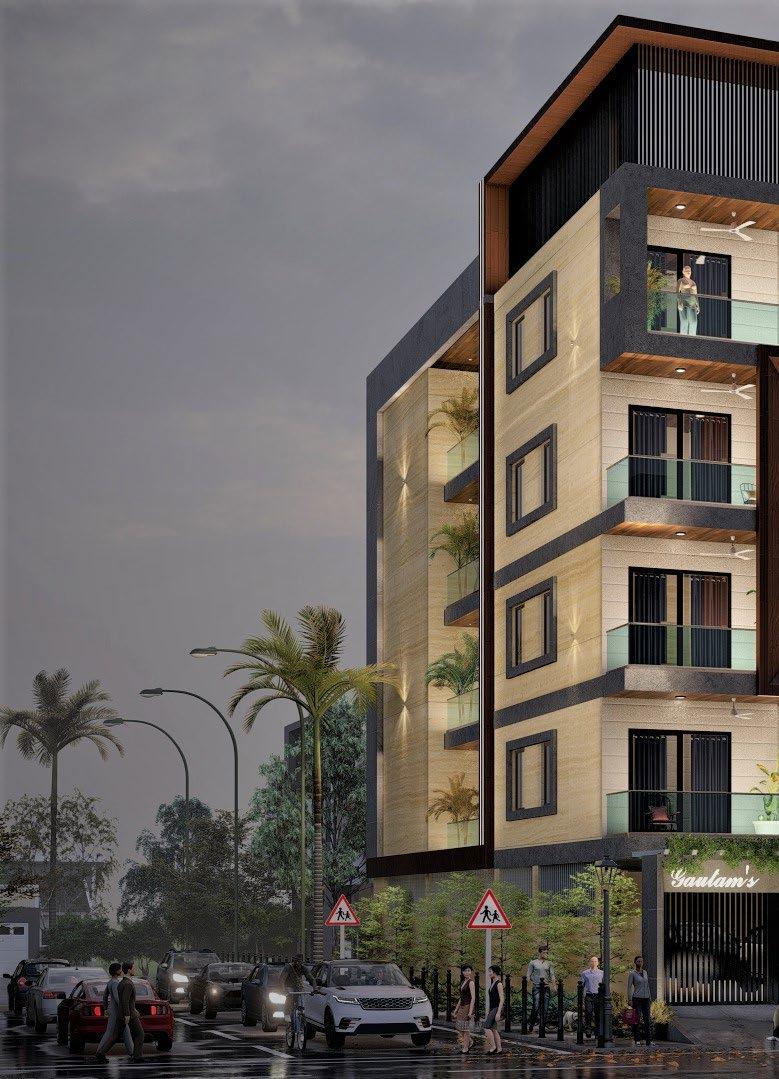

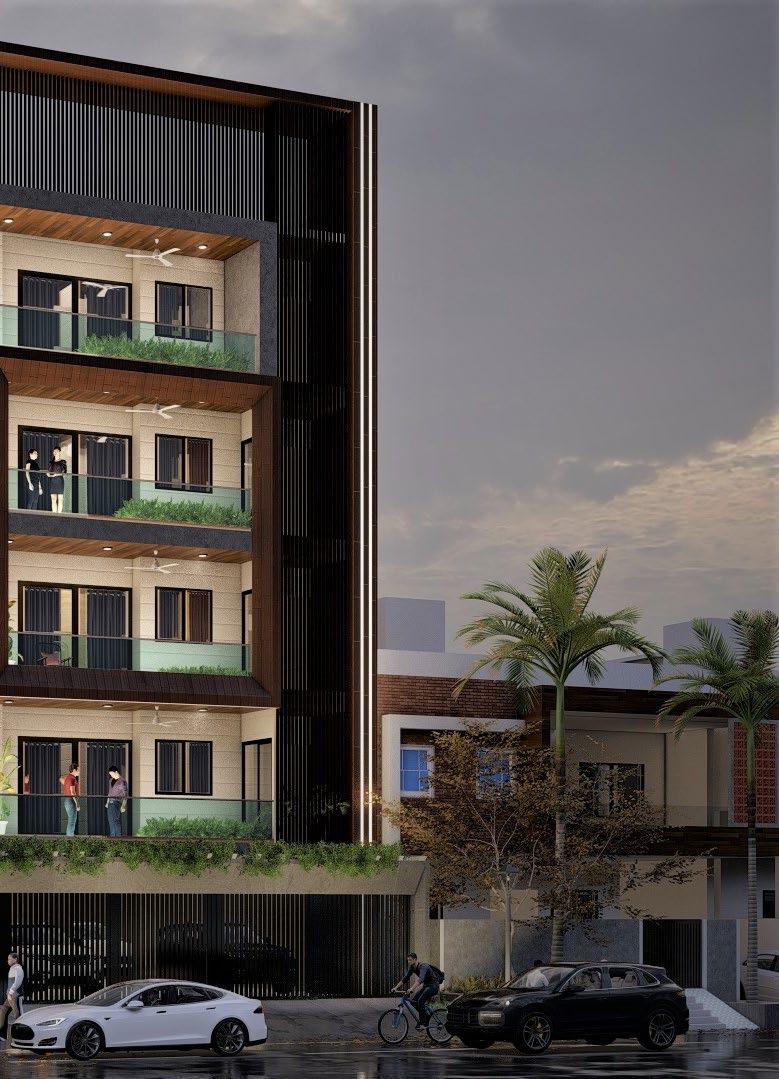

Gautam Appartments Year: 2022 Category: Professional Project (Kothari Architects) Team: Ar. Tushar Kothari, Ar. Mohit, Er. CP Sharma.

Theme: Residence Site: 42’0” x 95’0” (G+4) Location: Gurugram, India Responsibilities: Architecture Drawings, 3-D Design and Render, Elevation Design

33

Selected Work

34

Mohit Bansal

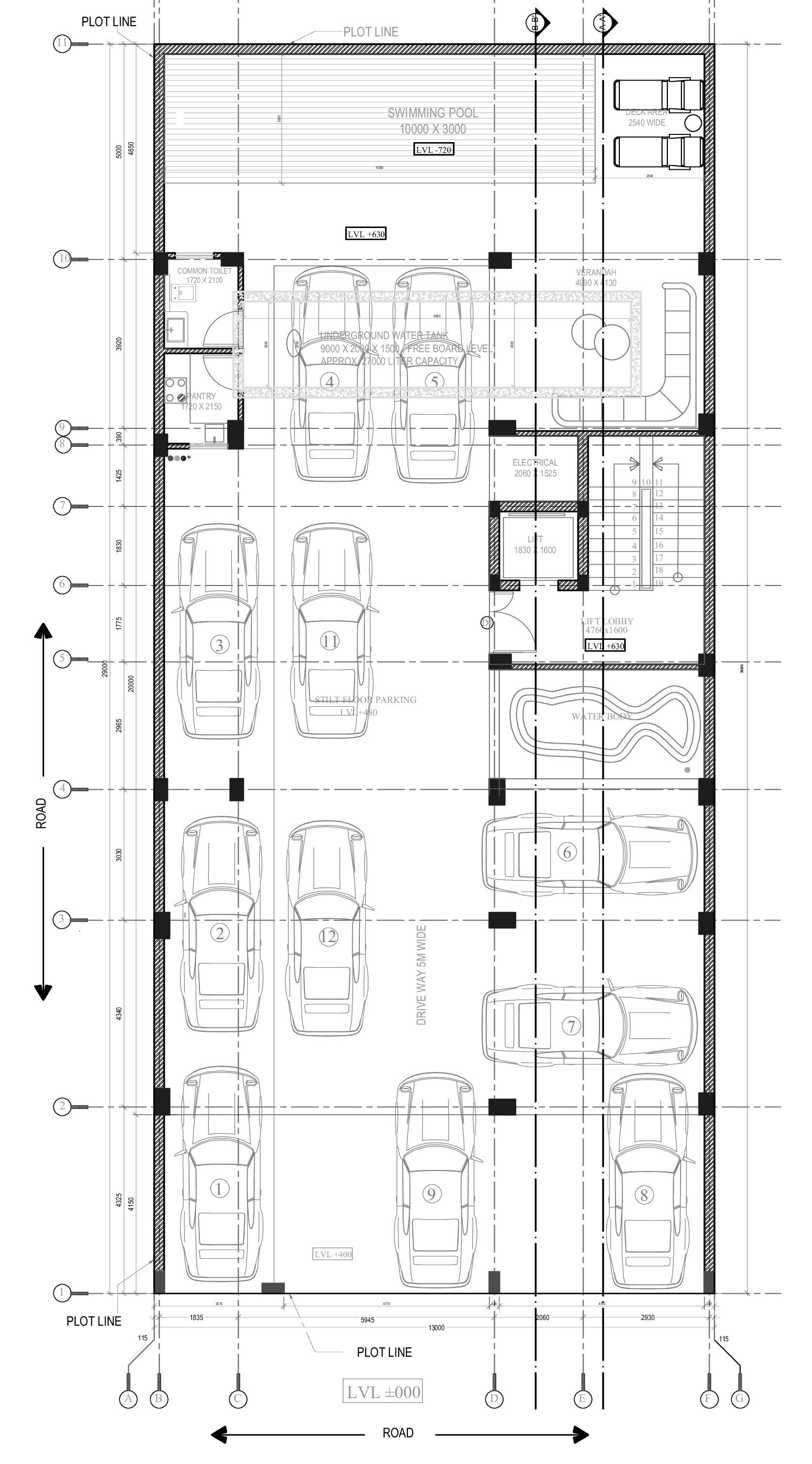

Stilt Floor Plan 35

Selected Work

1st-4th Floor Plan 36

Mohit Bansal

06

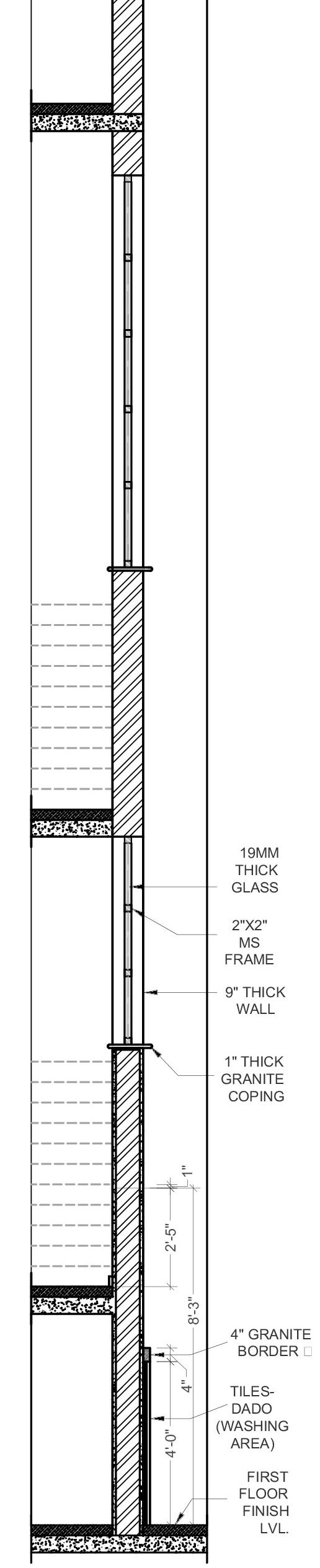

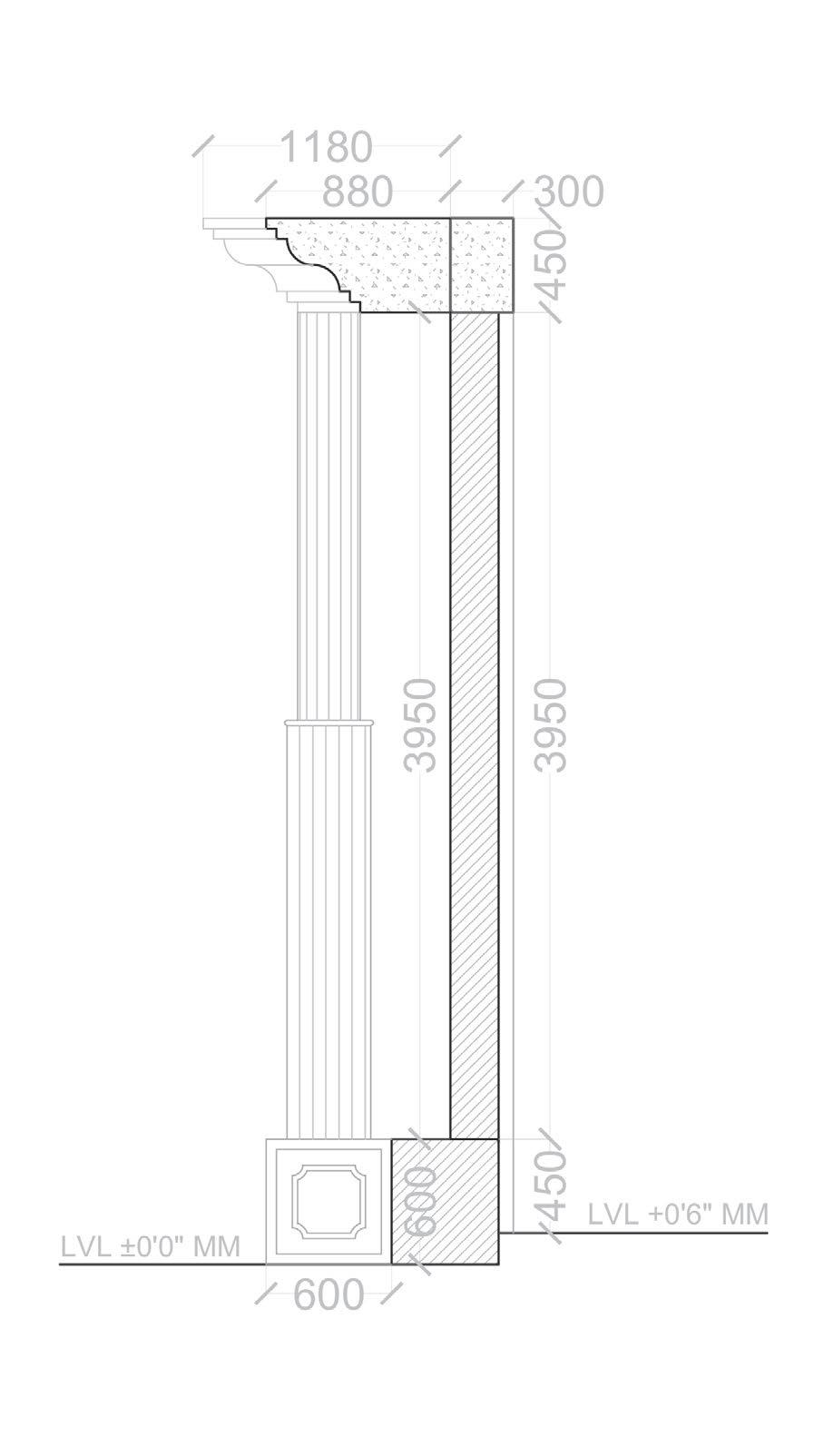

Architecture Details

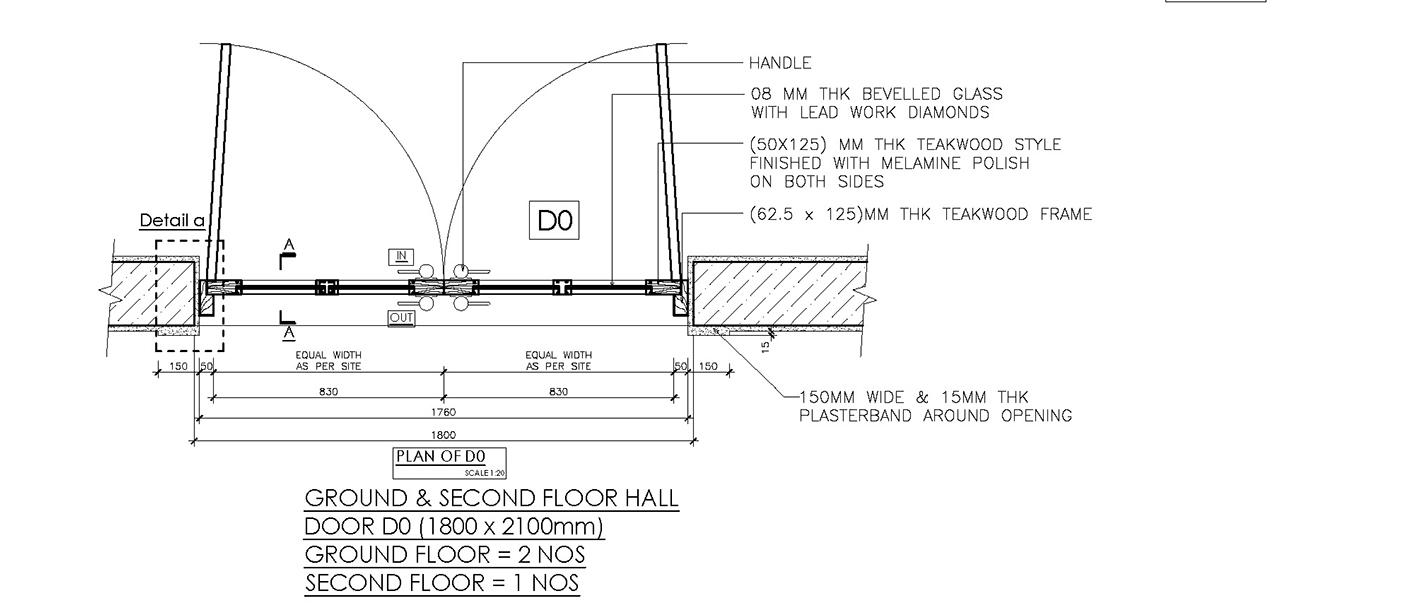

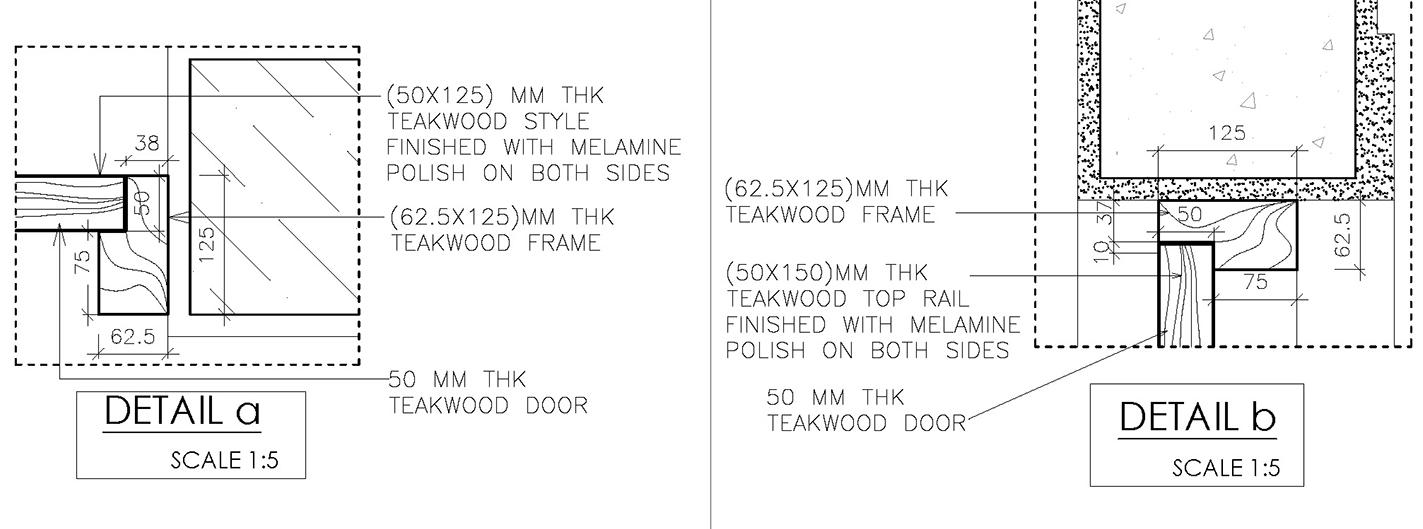

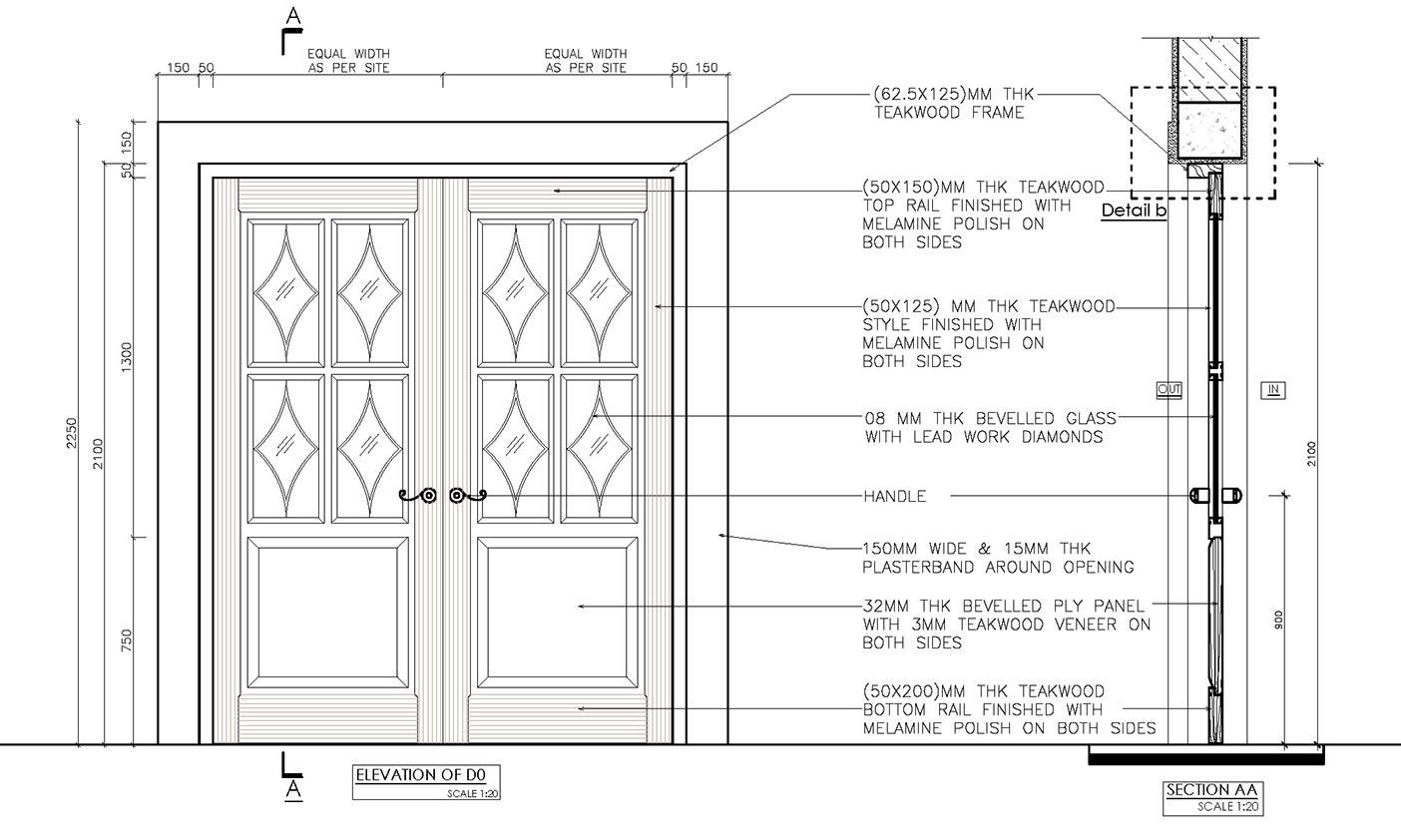

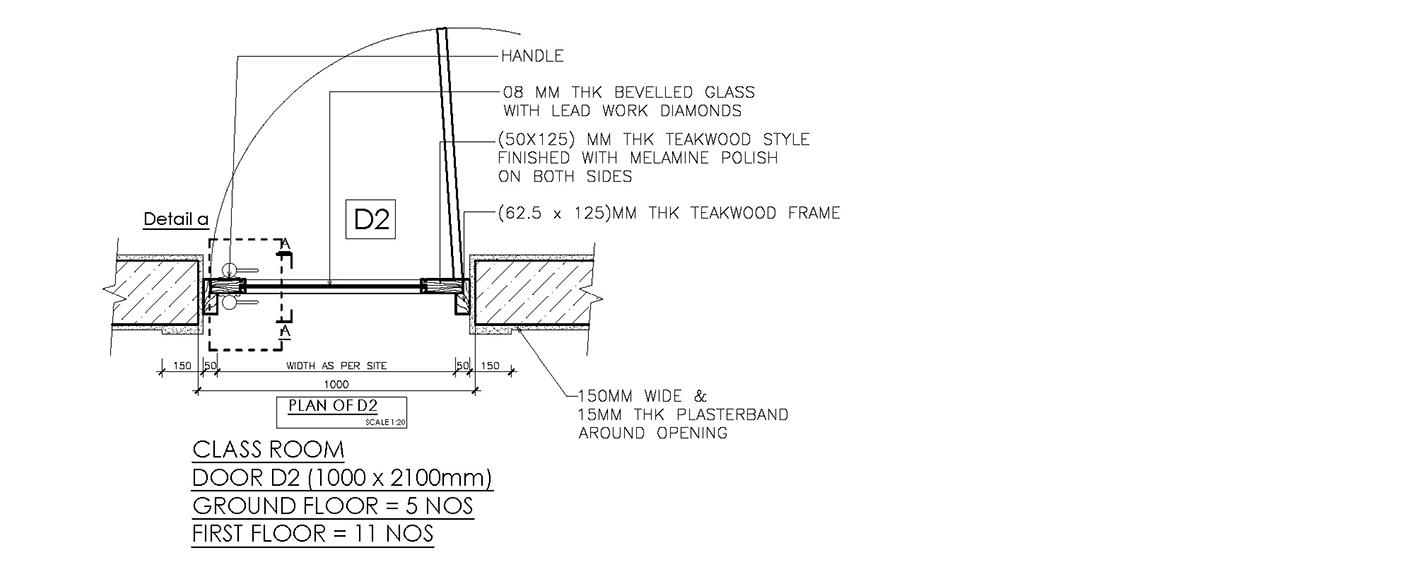

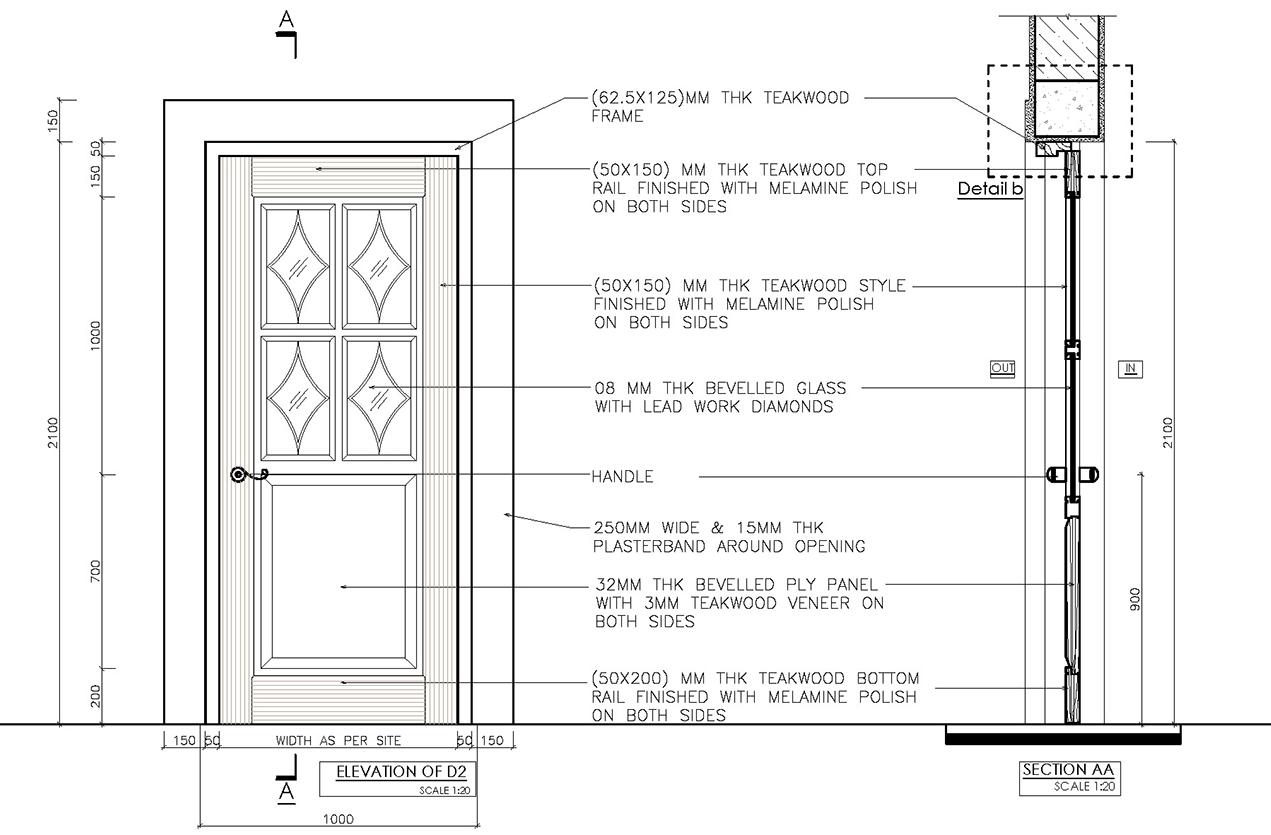

1. Project- Saligaon Church, Goa, India (Internship Project), Door Detail.

37

Selected Work

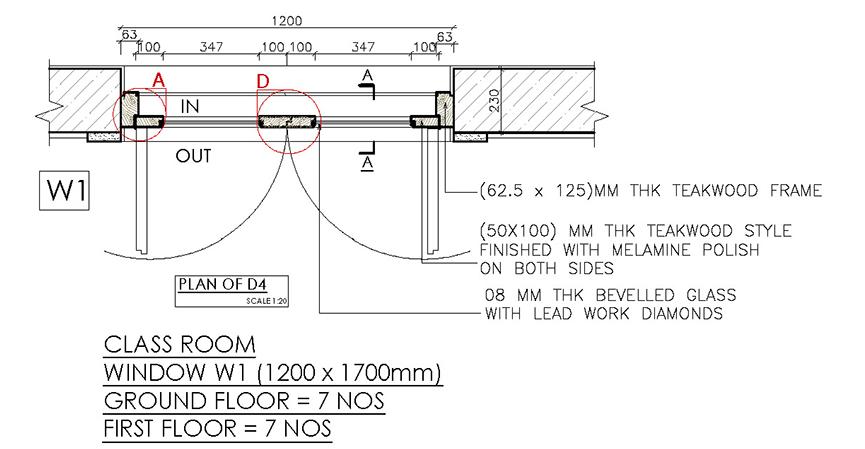

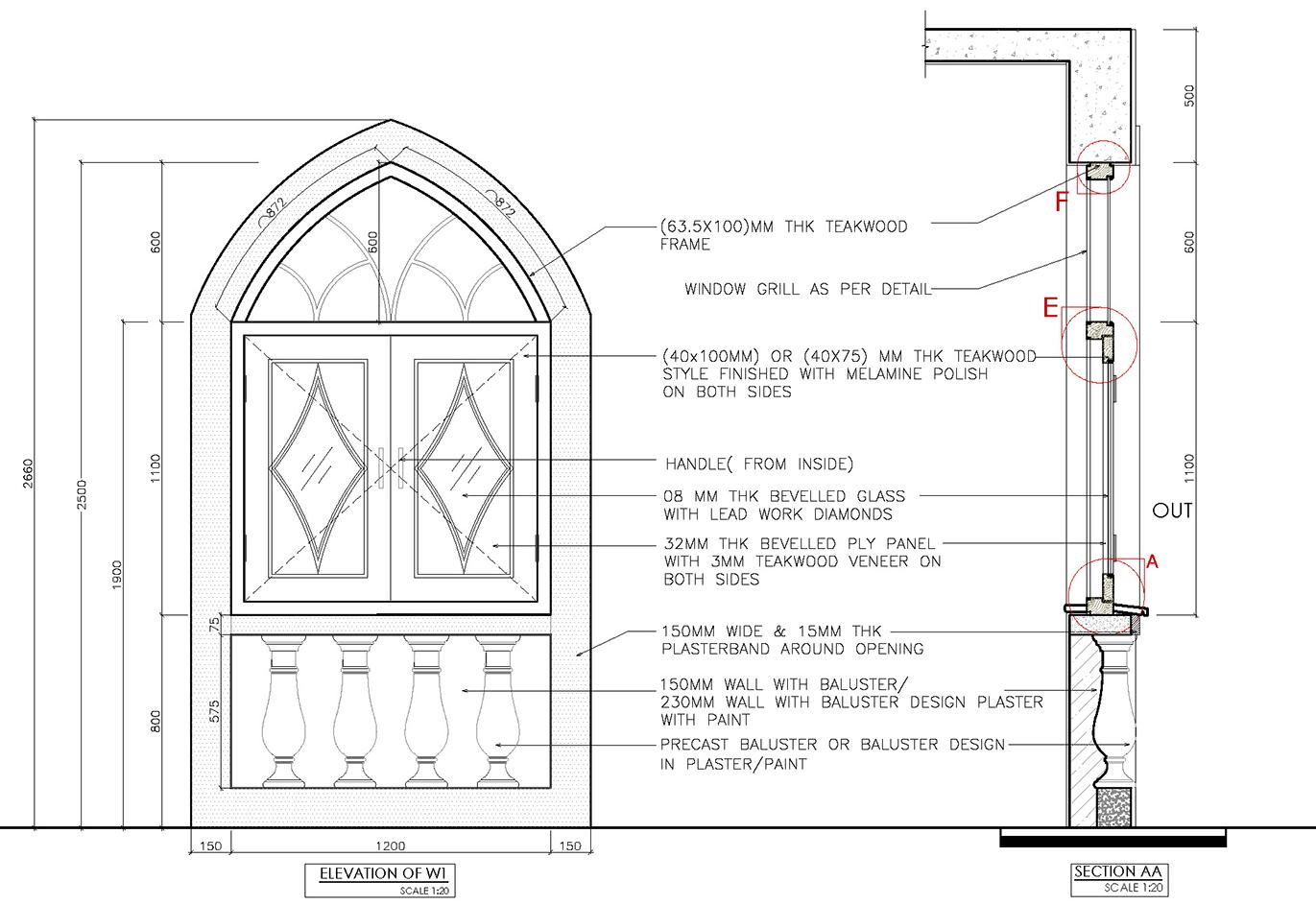

2. Project- Saligaon Church, Goa, India (Internship Project), Window Detail.

38

Mohit Bansal

3. Project- Saligaon Church, Goa, India (Internship Project), Window Detail.

39

Selected Work

4. Project- Francis Xavier Villa, Goa, India (Internship), Elevation Detail.

40

Mohit Bansal

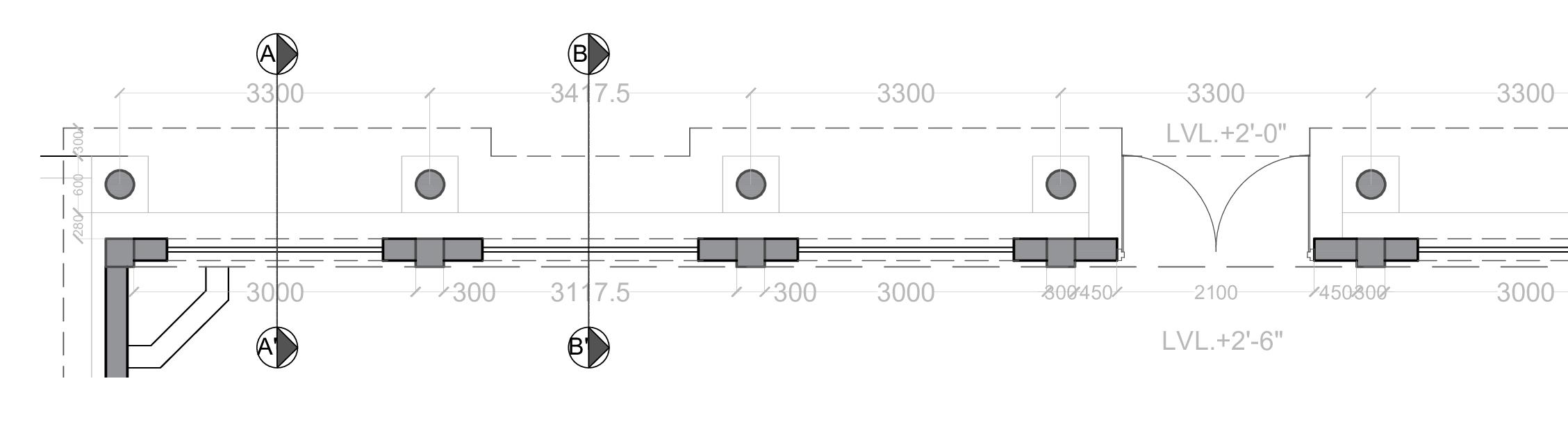

Elevation ABCD

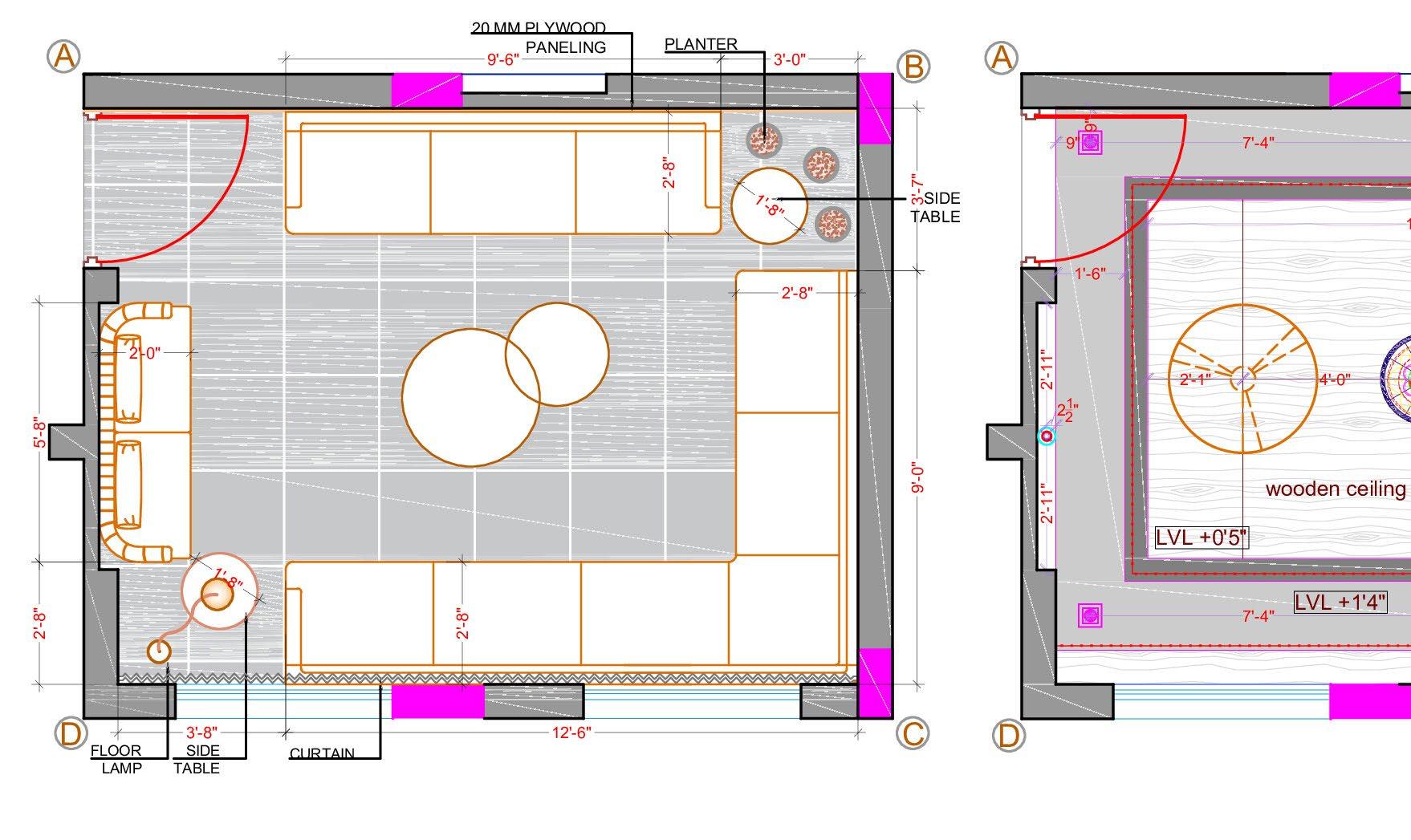

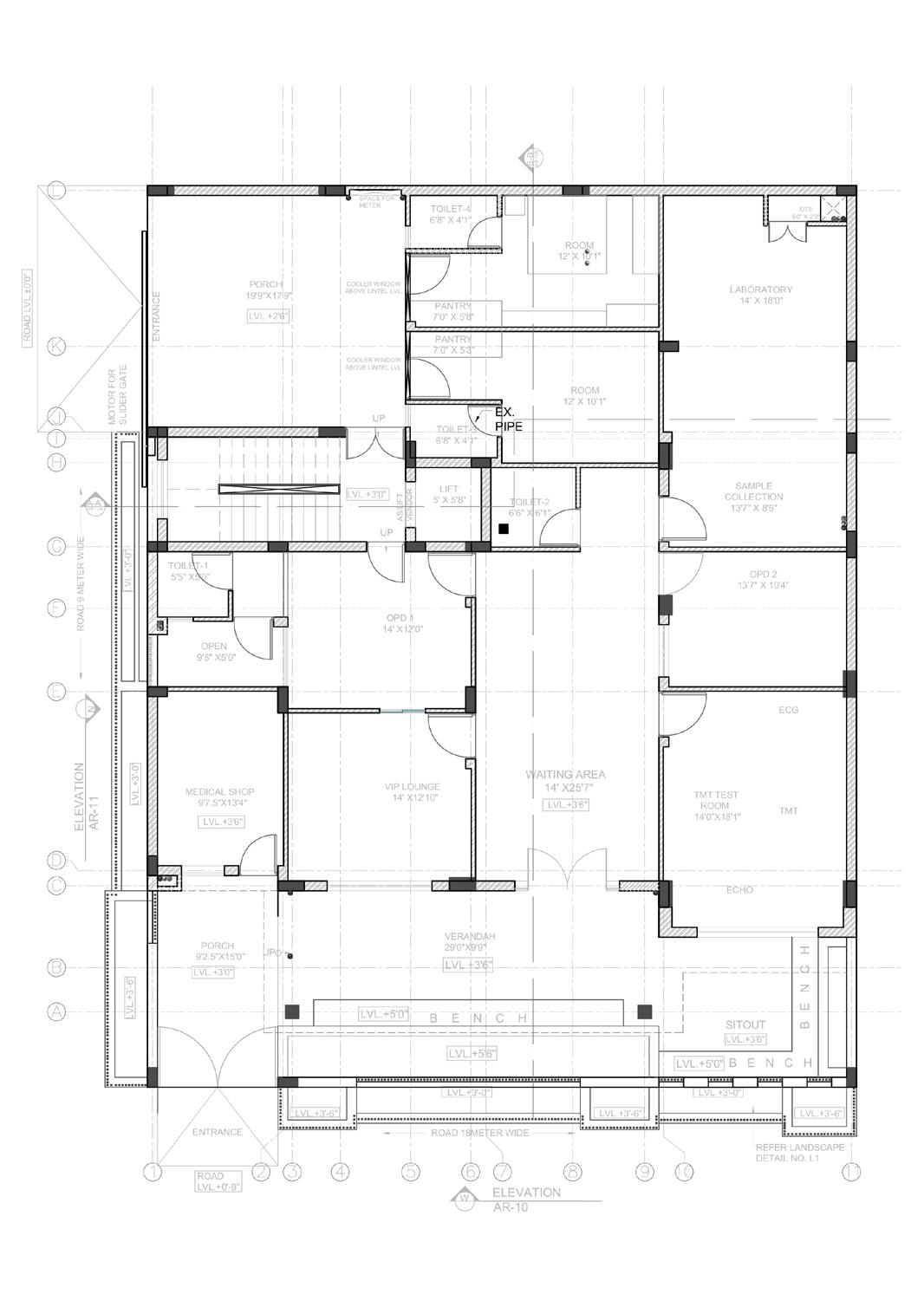

Floor Plan

5. Project- Rohit Khanna Residence, kota, India (Kothari Architects), Drawing Room Interior 41

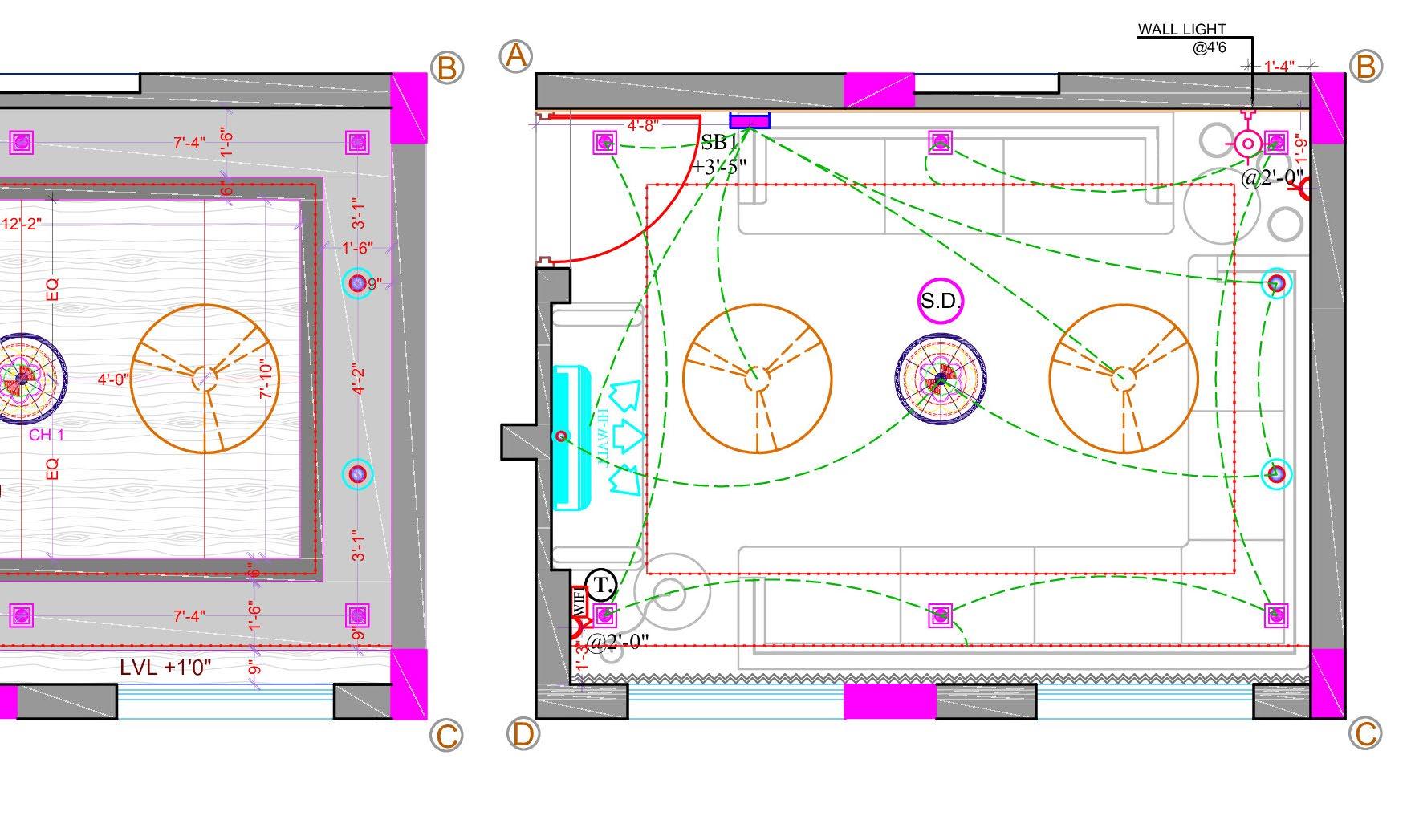

Reflected Ceiling Plan

Selected Work

Electrical Plan

42

Mohit Bansal

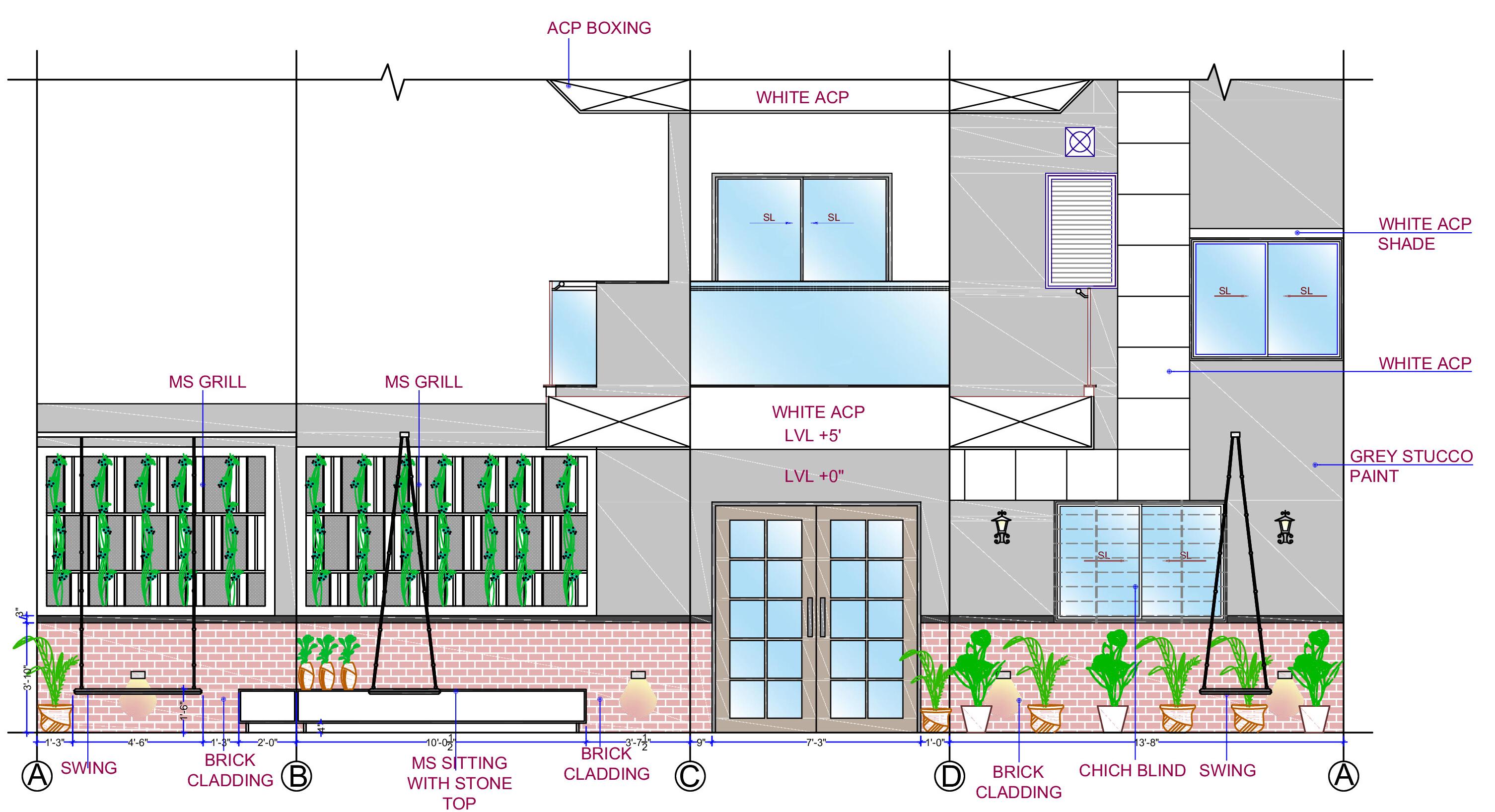

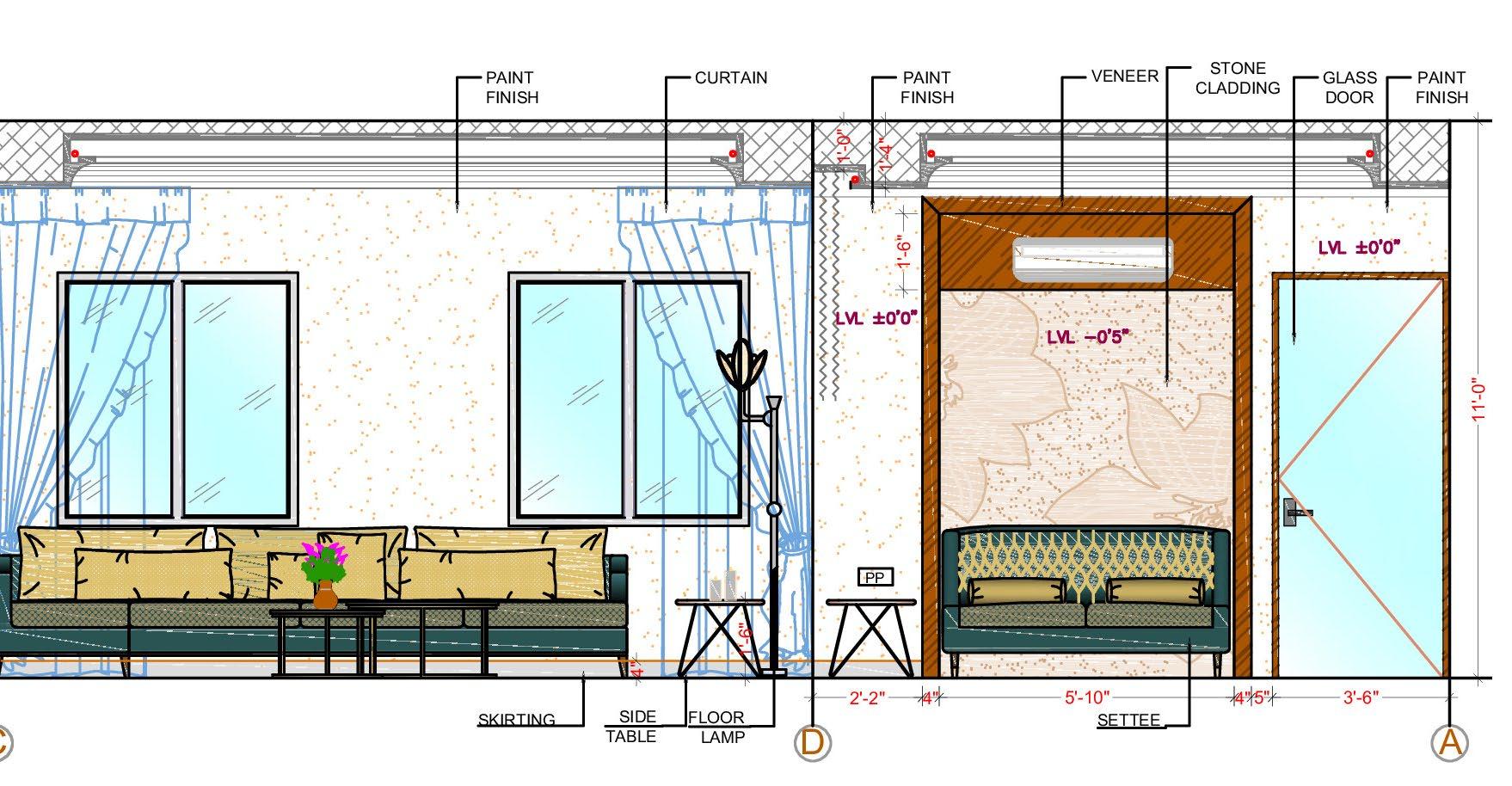

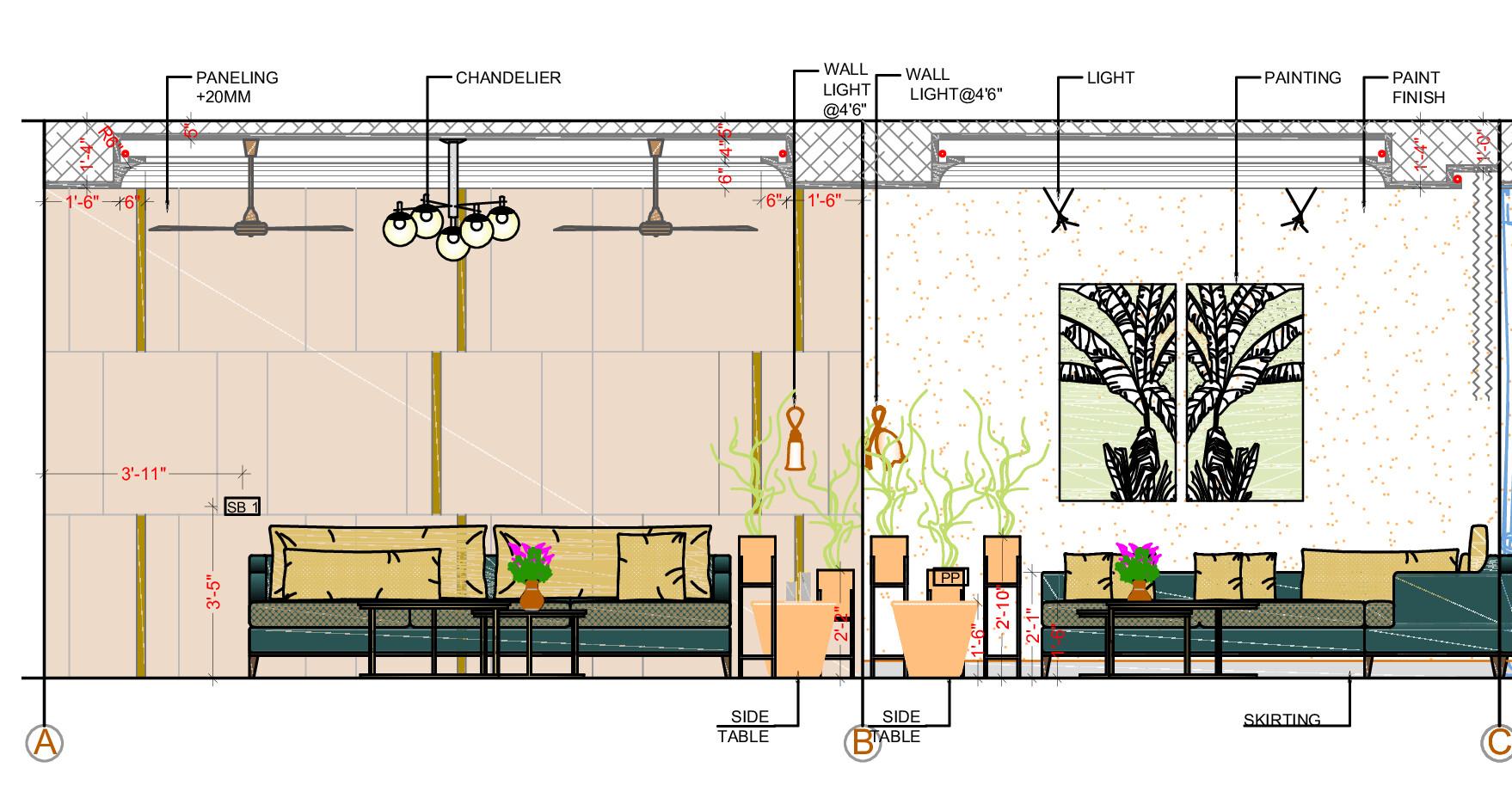

Elevation Detail

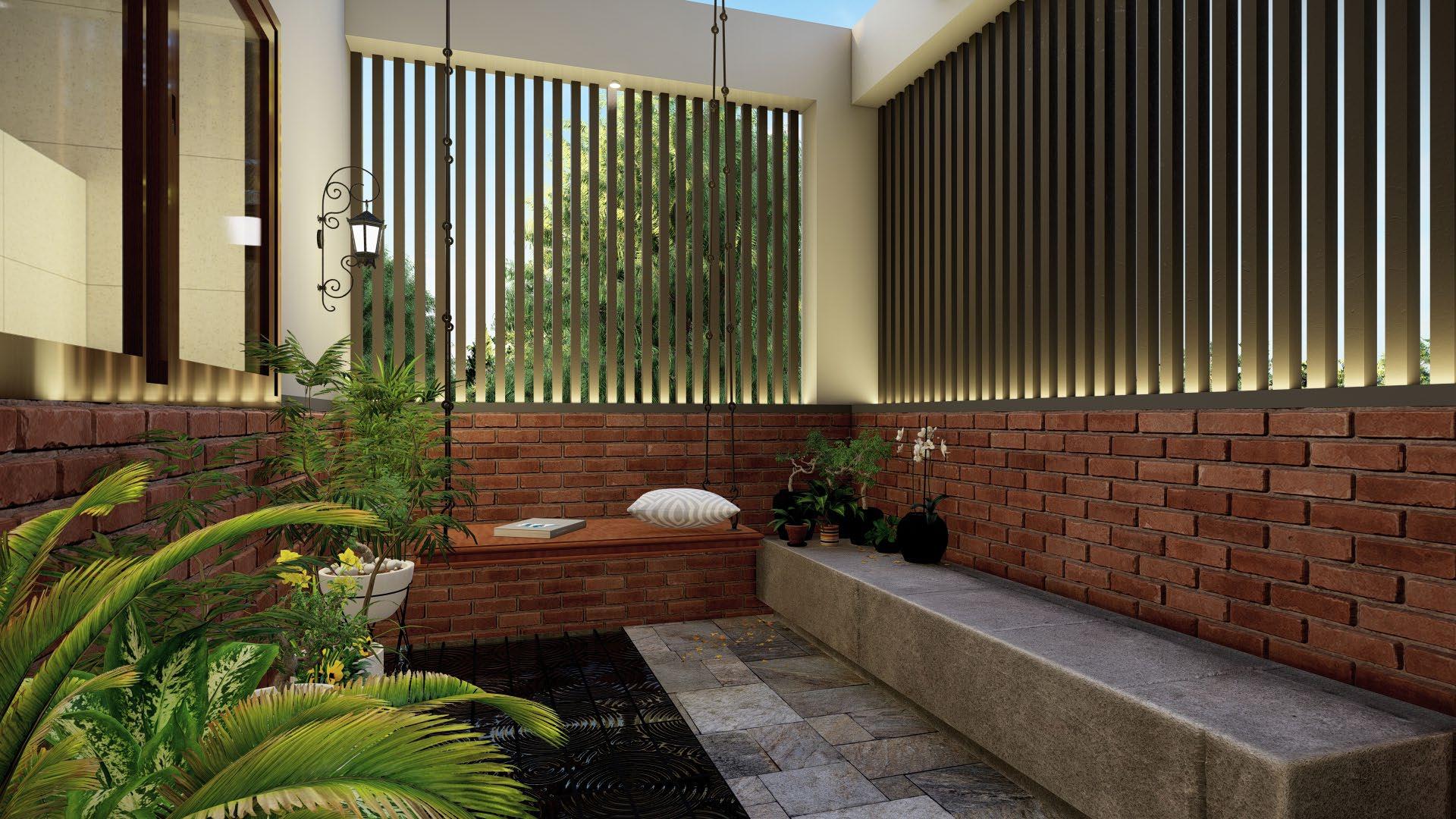

6. Project- Rohit Khanna Residence, kota, India (Kothari Architects), Rear Courtyard Interior 43

Selected Work

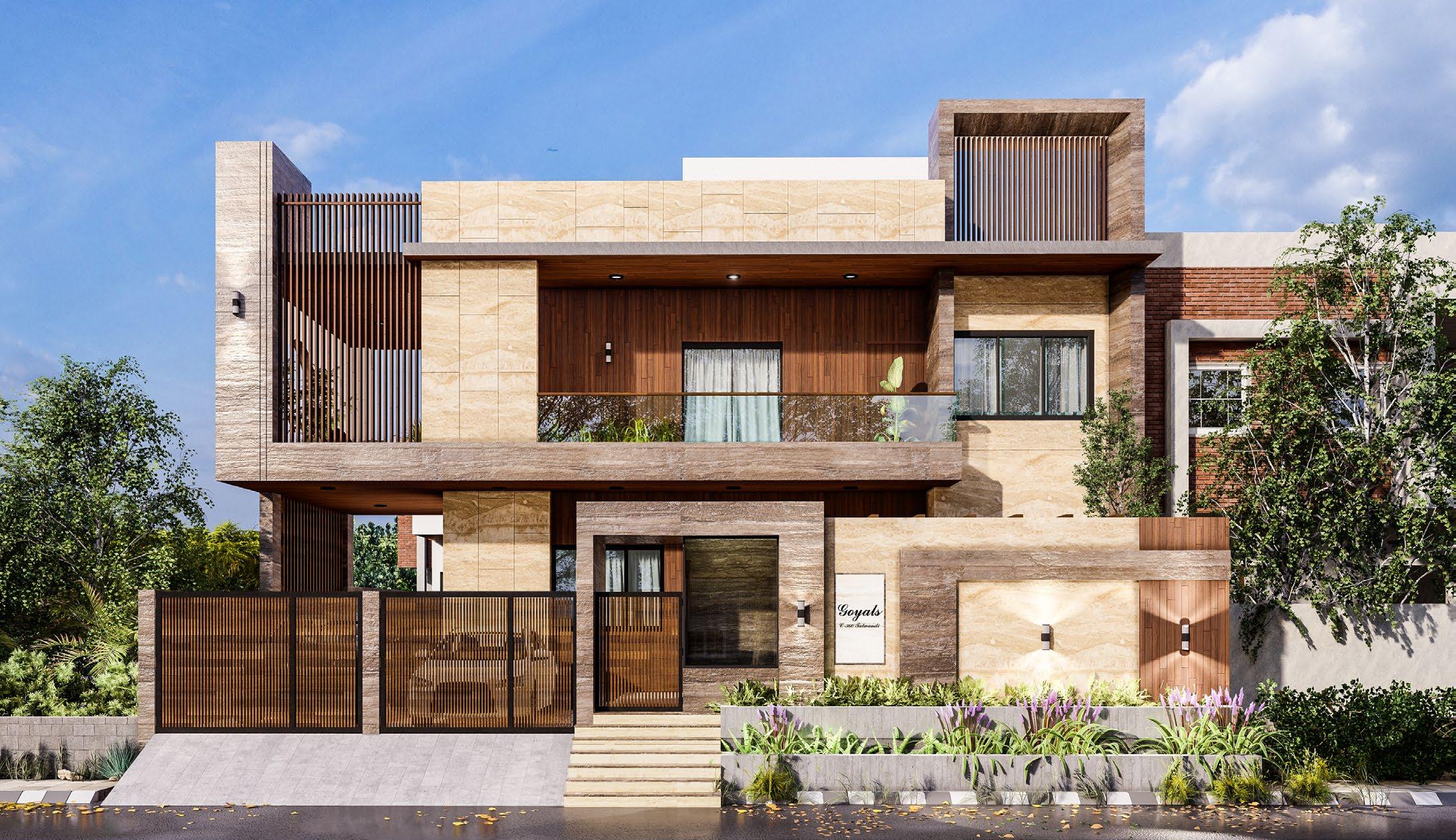

7. Project- Anshul Goyal Residence, kota, India (Kothari Architects), Elevation Detail.

44

Mohit Bansal

07

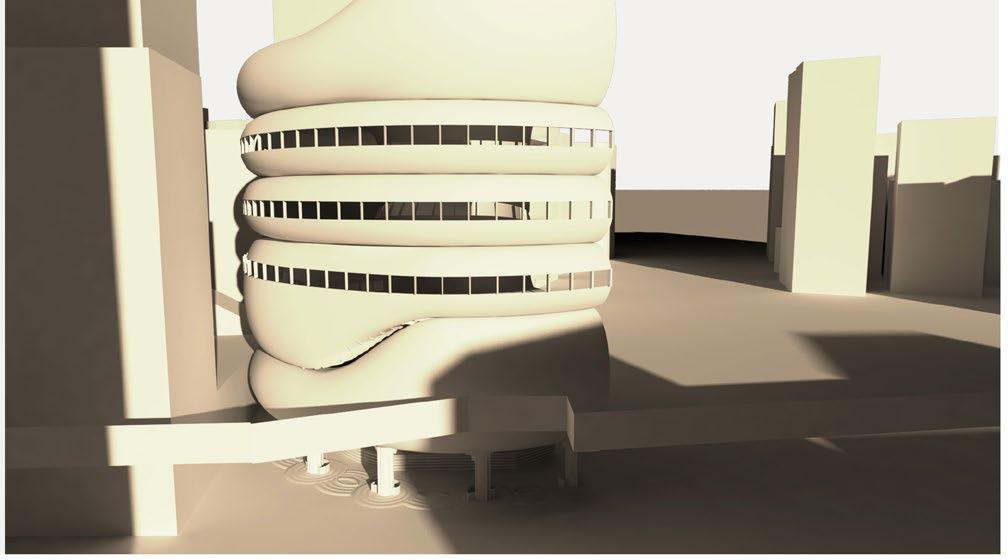

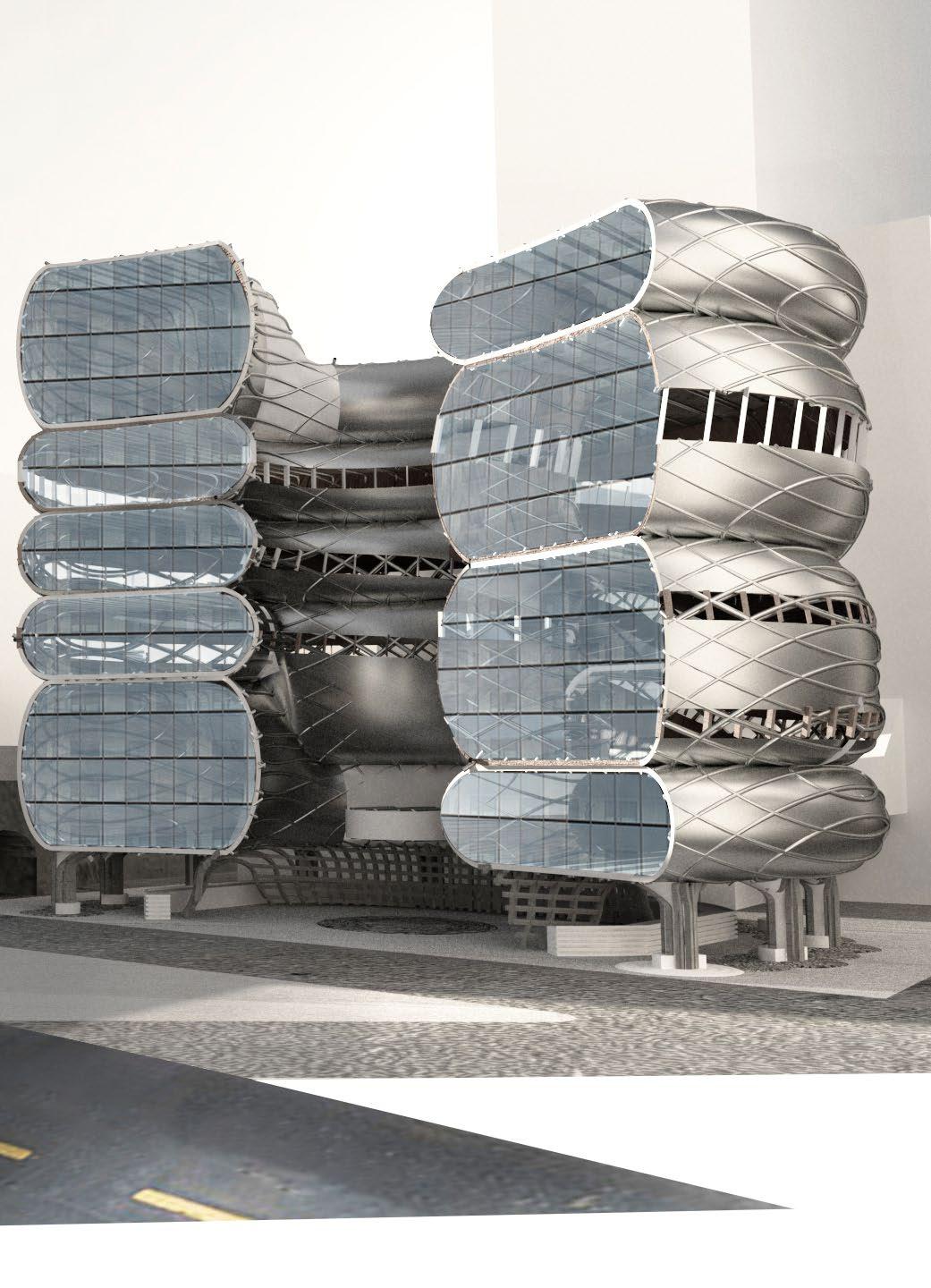

Zen-Library Year: 2019 Category: Competition (Anti Library) Team: Mohit, Parth, Priyansh Theme: Public Architecture Site Area: 1064 Sq.m Built Up: 10,000 Sq.m Location: Tokyo, Japan Tools Used: Rhino, Vray, Photoshop, Sketches Project Brief: Creating an icon that will have and contribute to the culture of the city of Tokyo. The aim of the competition is to create an iconic 21st century ‘public library’ in the city of Tokyo, Japan and debate its role in a ‘digital age’. The proposal must aim to become a solution to the frequently questioned vitality of a library by enhancing and transforming its capabilities as a ‘knowledge sharing and research prototype’ that will become a model for the future libraries of the world.

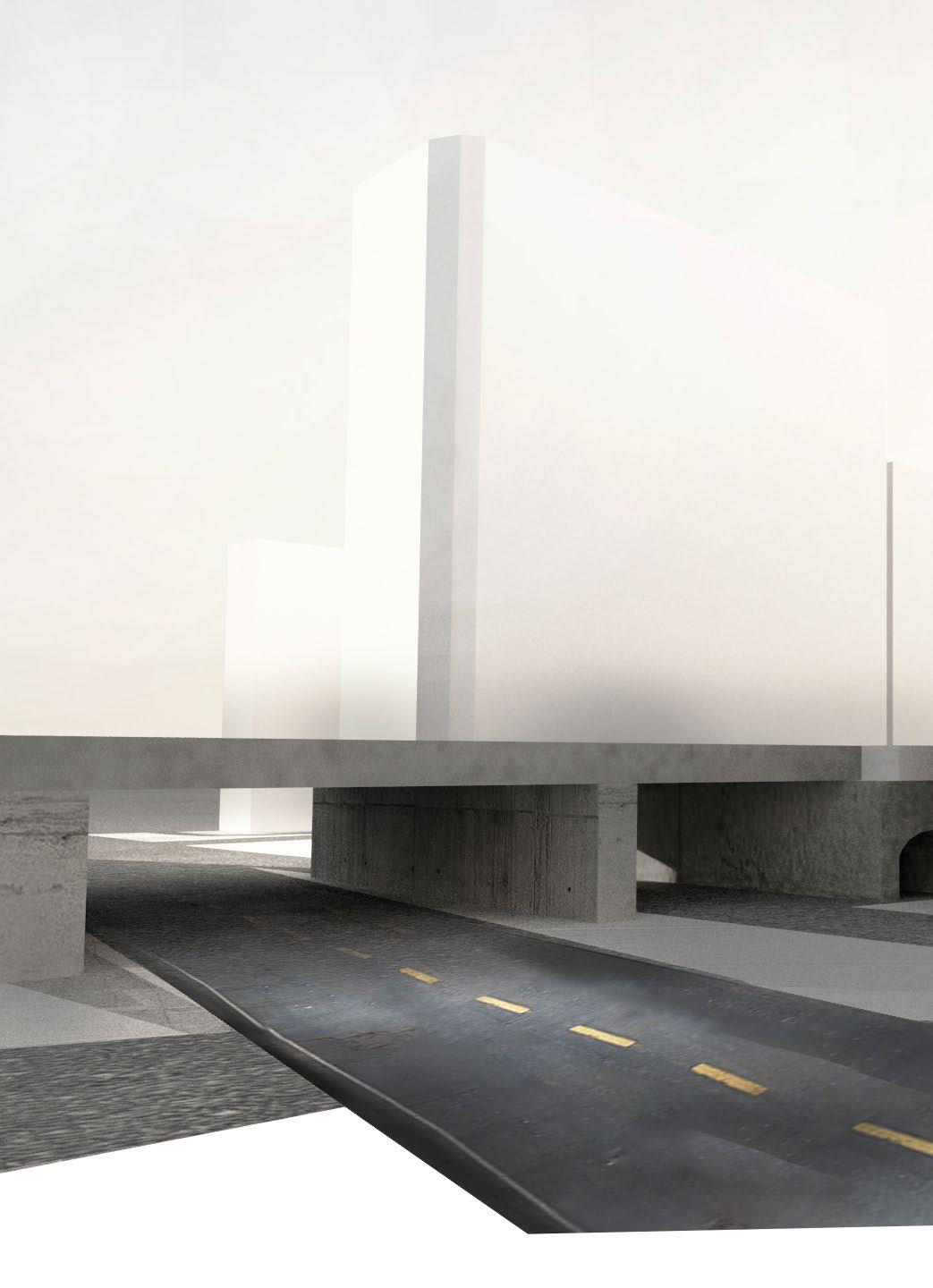

The site for the intervention is located at an edge of Kabukicho district and against the railways coming from Shinjuku station. The site faces the Yasukuni Dori promenade which runs adjacent to it providing easy access and visual access from multiple locations in the vicinity

45

Selected Work

46

Mohit Bansal

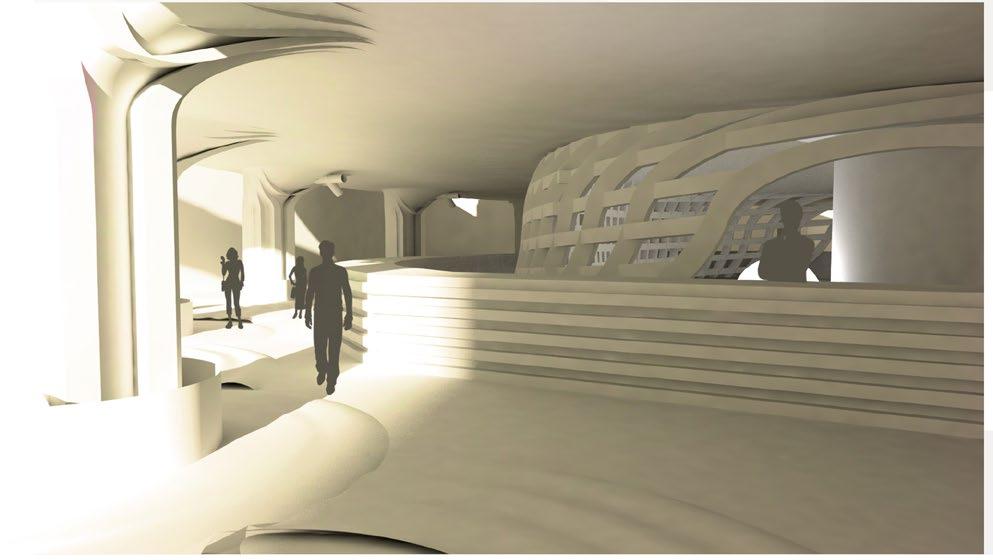

Zen Library focuses on creating a position betweeen what japan was and what has japan embarked to be. it creates a space where youngsters can vicariously live the essence of japan that drives it everyday.

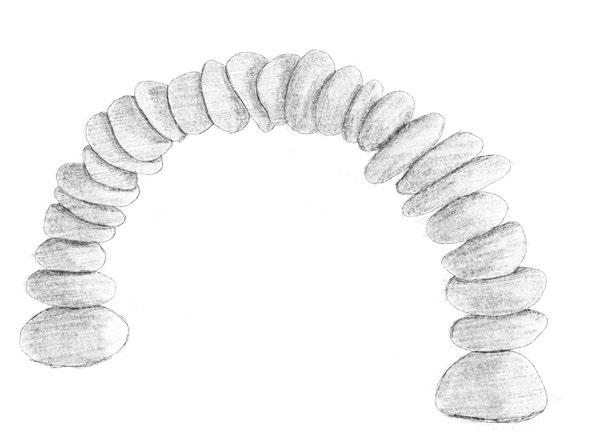

Zen arch- a symbol of japanese culture

A major concept woven within the design is something that relates directly to the giving nature of the people of Japan, where no matter how inter-twined they are in their lives, they take time out to give something back to the society.

A simplified form of japanese culture

it also breaks away from the notions how libraries are generally imagined, and tries to create a futuristic image of what it can be.

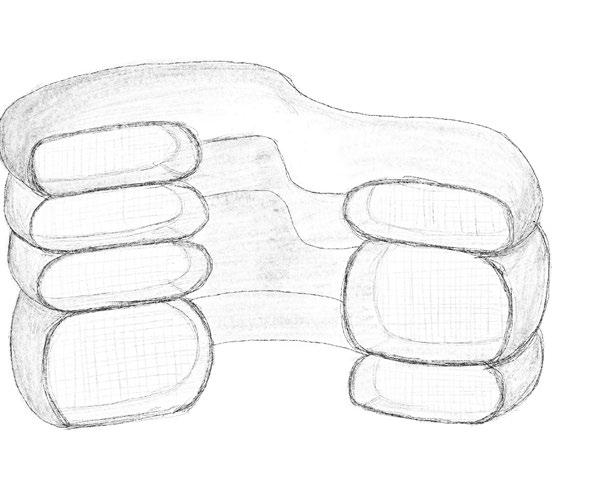

The resultant from amalgation of these ideas

47

Selected Work

Fourth Floor It is the space left for study and research as well for the administrative body

Third Floor It is an exquisite for gaming and anime/ manga enthusiasts. it is a space where pop culture fans can interact and have fun

Second Floor It involves a media space as well as a mezanine space which combines with space below to use as a Theatre.

First Floor it combines a doiuble heighted reading space, staff space and Kids reading areas.

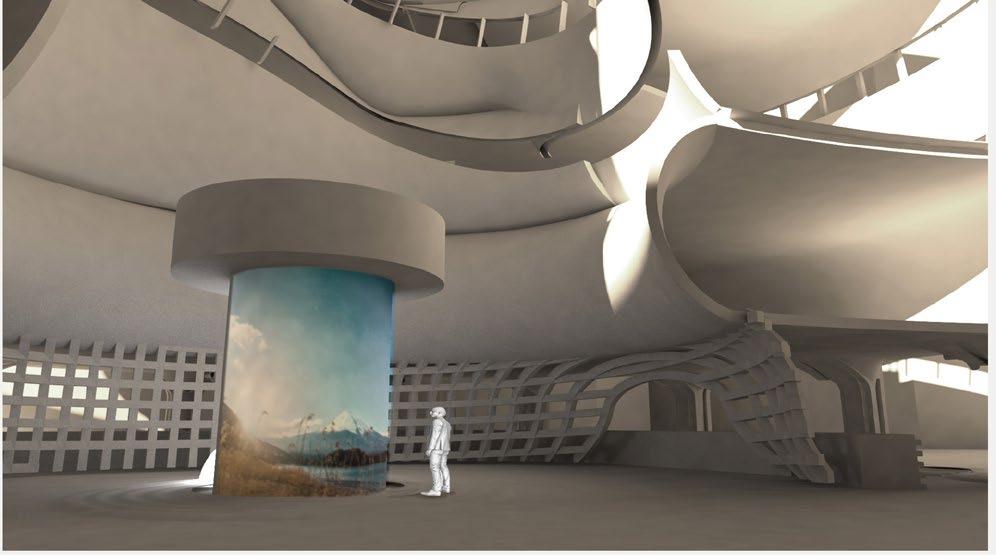

Ground Floor Ground floor of the building is kept as open space allowing circulation through tunnel and other buildings. it consist of digital screens and LED’s which are used for display on various occasions.

48

Mohit Bansal

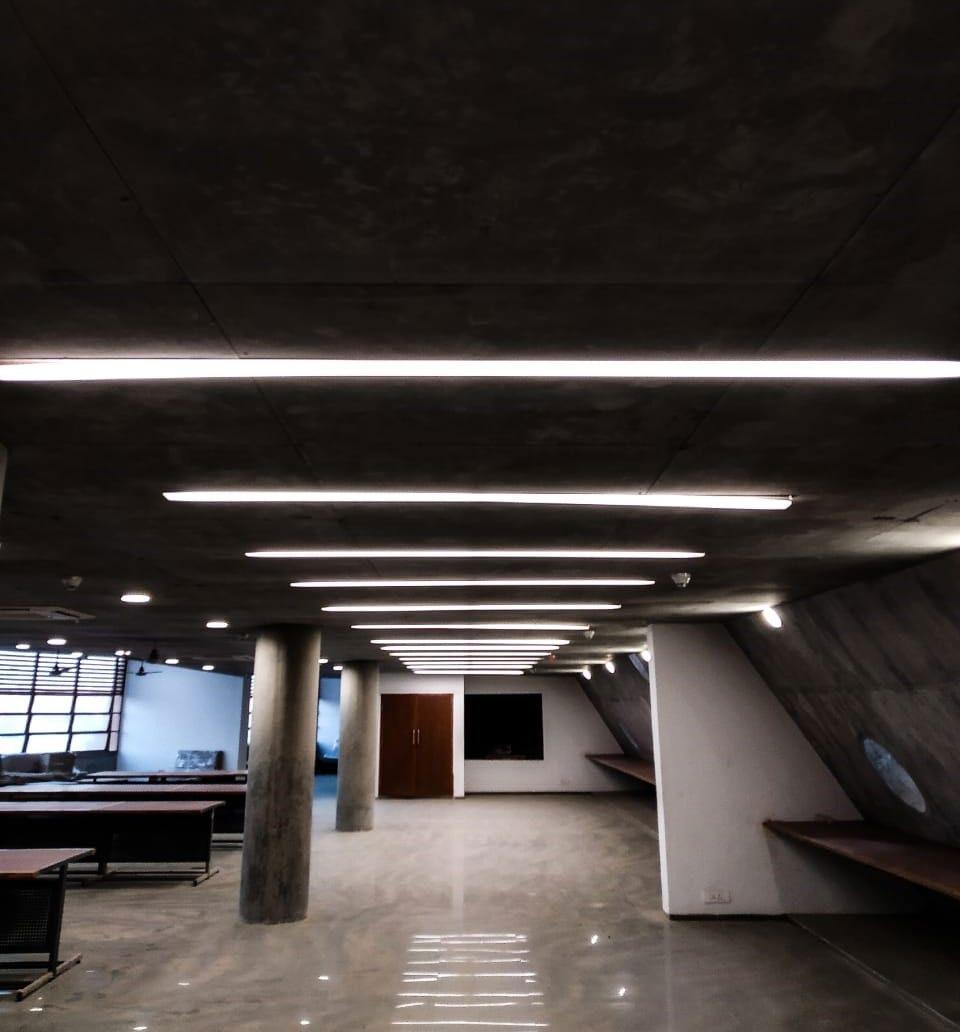

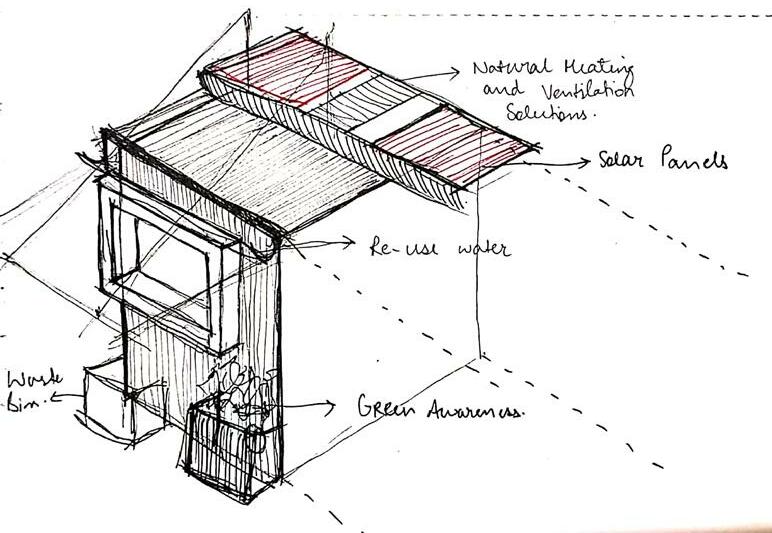

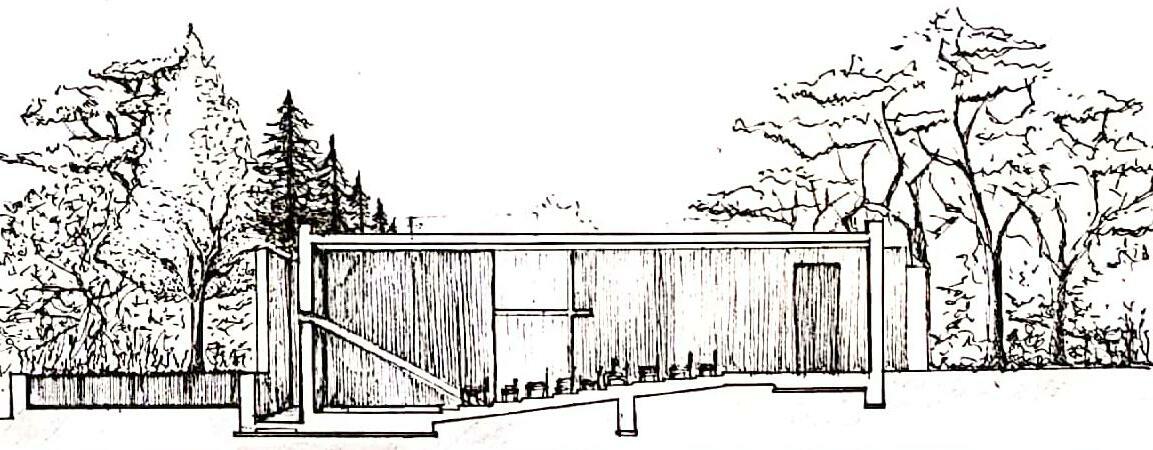

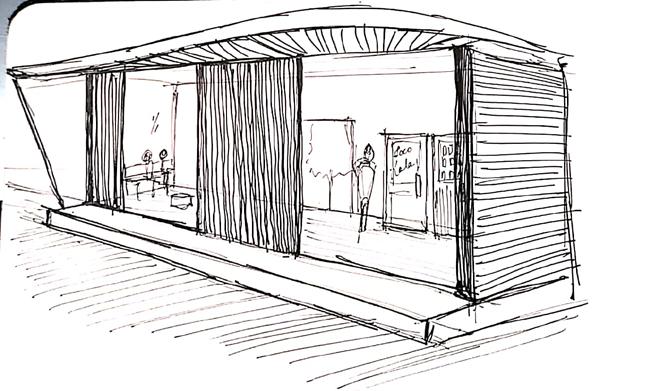

08 Passion that completes me. “if you have two or three real passions, don’y feel like you have to pick and chose between them. keep all your passion in life. if you love different things you just keep spending time with them let them talk to each other and something will begin to happen.”

-Steven Tomlinson

49

Selected Work

50

Mohit Bansal

51

Selected Work

52

Mohit Bansal +91- 7689094759 mohitbansal.1998@gmail.com
