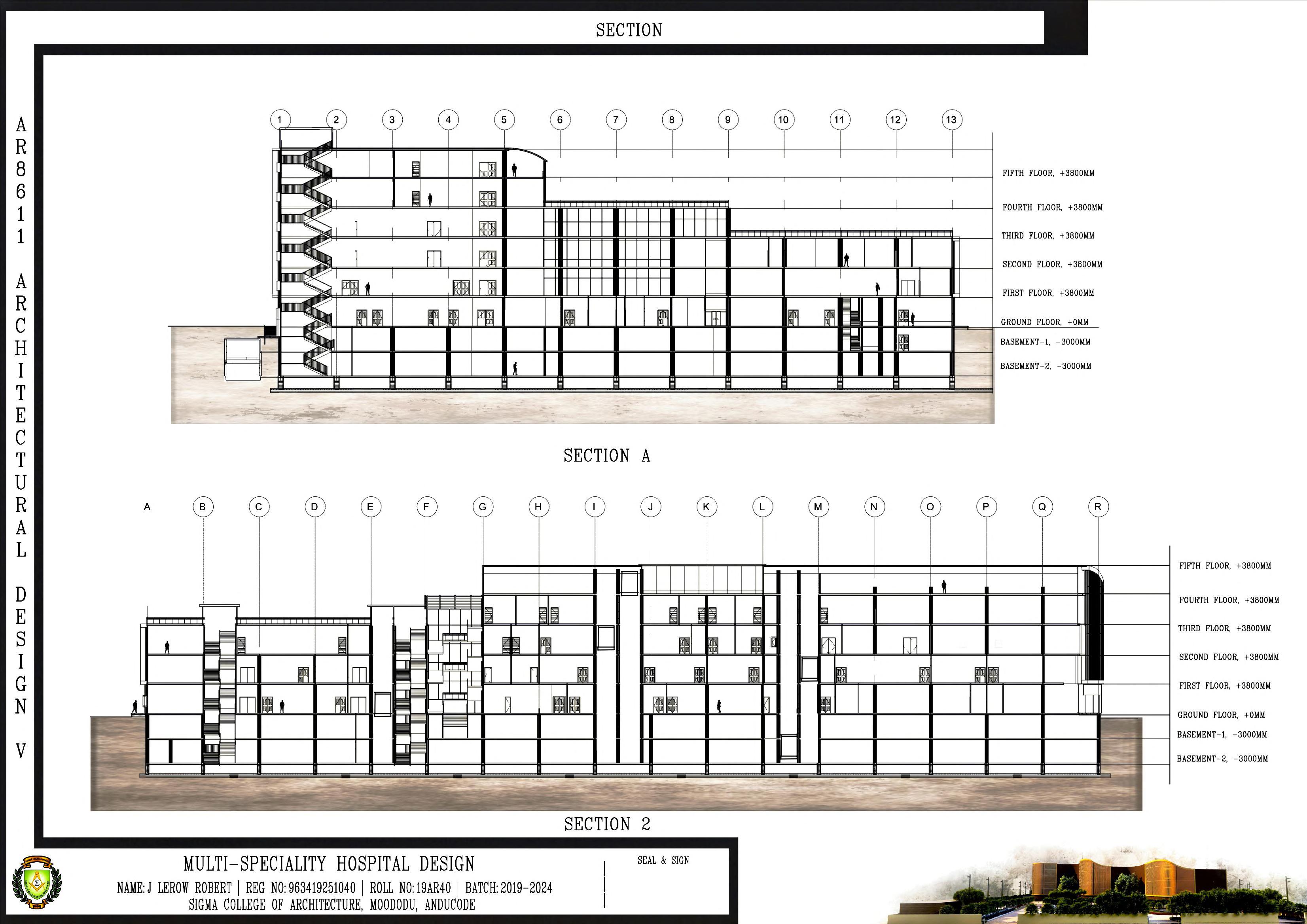

MULTI-SPECIALITY HOSPITAL

(Thesis-Live Project @ Trivandrum)

Multi-Speciality Hospitals are hospitals that offer wide range of medical services. These hospitals have the capability to treat many different types of illnesses and conditions. The state-of-art infrastructure and all amenities ensure that patients get everything from emergency care ,diagnosis, treatment , surgery and OPD services under one roof

The main aim was to ensure that their design satisfies the people living and functioning in the spaces i design. In a hospital the main design approach is from the central building corridor and the central core.Hence while designing a hospital the main aim is to create a Healing Space which could define as a space to reduce stress that helps health and healing and improves patient and staff safety

GROUND FLOOR PLAN

SECOND FLOOR PLAN

THIRD FLOOR PLAN

WEST ELEVATION

SOUTH ELEVATION

02

TOGETHERMENT LIVE TOGETHER

The project is about the Live Proposal/ Design of Apartments plus Ammenities emphasizing Together spaces set up at 5 acres of land demaecation by natural system at Abishekapakkam,Pondicherry.

The proposed site is located about 10km from Indira Gandhi Bus Stop.Pondicherry.About 15km from pondicherry Airport .About 9km from Railway station

SITE LOCATION :

SITE ARAE : 19667 sq.m F.S.I : 1.8 OSR : 10% SETBACK : 7.2m

TOTAL BUILTUP AREA : 4201 sq.m

TOTAL NO. OF BLOCKS : 7 nos

TOTAL NO.OF UNITS : 252 units

1 BHK : 80 units

2BHK : 160 units

3BHK : 24 units

4BHK : 8units

NO. OF UNITS PER BLOCK : 40 units

TOTAL NO. OF UNITS : 160 units

TOTAL NO. OF UNITS : 24units 3BHK APPARTMENT FLOOR PLAN

VIEWS

MIXED USE TOWER

MIXED USE IS A TYPE OF URBAN DEVELOPEMNT, URBAN DESIGN,ZONNING CLASSIFICATIONS THAT BLEND MULTIPLE USES SUCH AS RESIDENTIAL, COMMERCIAL,CULTURAL,INSTITUTIONAL, ENTERTAINMENT , INTO ONE SPACE .

MIXED USE DEVELEPEMENT MAY BE A NEW CONSTRUCTION , REUSE OF AN EXISTING BUILDING OR BROWNFIELD SITE OR A COMBINATION OF BOTH

MALL FOURTH FLOOR PLAN OFFICE FLOOR PLAN @6,8,10,12,14,16 th FLOORS

SINGLR ROOM : 60 sq.m

NO OF ROOMS : 28 ROOMS

DOUBLE ROOM : 68 sq.m

NO. OF ROOMS : 40 ROOMS

DELUX ROOM : 95 sq.m

NO OF ROMS : 42 ROOMS

PREMIUM DELUX ROOMS : 140 sq.m

NO. OF ROOMS : 24 ROOMS

EXECUTIVE SUITE :135 sq.m NO OF ROOMS : 16 ROOMS

VIEWS

WORKING DRAWING

GROUND FLOOR PLAN

FIRST FLOOR PLAN

KITCHEN DETAILS

INTERNSHIP WORKS

ATTIC FLOOR PLAN

TOP VIEW

NORTH ELEVATION

INTERIOR DESIGN FOR KIDS BEDROOM AND KITCHEN

LIVE PROJECTS

3D MODEL RENDER FOR RESIDENCE IN KANYAKUMARI
