TOGETHERMENT LIVE TOGETHER
The project is about the Live Proposal/ Design of Apartments plus Ammenities emphasizing Together spaces set up at 5 acres of land demaecation by natural system at Abishekapakkam,Pondicherry.
The proposed site is located about 10km from Indira Gandhi Bus Stop.Pondicherry.About 15km from pondicherry Airport .About 9km from Railway station
01
SITE ELEVATION
SITE LOCATION : Abishekapakkam,Pondicherry.
SITE ARAE : 19667 sq.m
F.S.I : 1.8
OSR : 10%
SETBACK : 7.2m
SITE SECTION
TOTAL BUILTUP AREA : 4201 sq.m
TOTAL NO. OF BLOCKS : 7 nos
TOTAL NO.OF UNITS : 252 units
1 BHK : 80 units
2BHK : 160 units
3BHK : 24 units
4BHK : 8units
SITE PLAN
172.4 7.2 24.38 34.65 56.19 225 18.8 2.2 74.36
OSR
2 BHK
1 BHK
2 BHK
3 BHK
2 BHK
2 BHK
1 BHK
4 BHK & ENTRY EXIT
PARKING PARKING
UNIT AREA :34 sq.m
BLOCK AREA : 88 sq.m
BUILTUP AREA : 1709.4 sq.m
TOTAL BUILTUP AREA : 3418.8 sq.m
NO. OF UNITS PER FLOOR : 8 units
NO. OF UNITS PER BLOCK : 40 units
TOTAL NO. OF UNITS : 80 units
1 BHK UNIT 1 BHK APPARTMENT FLOOR PLAN SECTION ELEVATION
3.0 3.0 3.5 5.1 2.5 2.5 2.2 1.5 1.5 5.1 6.2 6.2 0.9 LIVING ROOM DINNING KITCHEN BALCONY BEDROOM TOILET 4 3 2 1 G F E D C B A 5 6 4.8 4.8 4.7 2.2 4.8 4.8 2.9 3.0 2.2 3.0 2.9 ROOF LEVEL +18.30M FIFTH FLOOR LEVEL +15.15 FORTH FLOOR LEVEL +12.0M THIRD LEVEL LEVEL +8.85M SECOND FLOOR LEVEL +5.7M COMMERCIAL FLOOR LEVEL +2.55 GROUND LEVEL RISE LEVEL +0.15 STILT FLOOR +2.4M LINTEL LEVEL 2.4M SLIDING GLASS DOOR 2.1M RCC BEAM RCC LINTEL BEAM PARAPET WALL WITH 0.23M BRICK WALL WITH 0.23M BRICK CORRIDOR CORRIDOR CORRIDOR CORRIDOR CORRIDOR HEAD ROOM 21.0
UNIT AREA :68.65 sq.m
BLOCK AREA : 667.5 sq.m
BUILTUP AREA : 3337.9 sq.m
TOTAL BUILTUP AREA:13351.6 sq.m
NO. OF UNITS PER FLOOR : 8 units
NO. OF UNITS PER BLOCK : 40 units
TOTAL NO. OF UNITS : 160 units
ROOF LEVEL +18.30M FIFTH FLOOR LEVEL +15.15 FORTH FLOOR LEVEL +12.0M THIRD LEVEL LEVEL +8.85M SECOND FLOOR LEVEL +5.7M COMMERCIAL FLOOR LEVEL +2.55 GROUND LEVEL RISE LEVEL +0.15 STILT FLOOR +2.4M LINTEL LEVEL 2.4M SLIDING GLASS WINDOW 1.3M RCC BEAM RCC LINTEL BEAM PARAPET WALL WITH 0.23M BRICK WALL WITH 0.23M BRICK HEAD ROOM 2bhk appartment plan 4.6 2.9 2.4 2.9 4.6 4 3 2 1 5 6 G F E D C B A H I 3.6 3.3 3.3 3.6 7.0 3.6 3.3 1.7 1.7 1.7 1.7 3.2 3.6 J K L M N 3.0 1.6 3.0 3.8 7.9 3.3 3.8 2.5 3.1 1.9 8.9 7.2 2.8 1.7 2.4 2.6 0.9 5.9 0.9 2.3 8.8 LIVING ROOM DINNING KITCHEN BALCONY BEDROOM M.BEDROOM BALCONY TOILET TOILET UTILITY
2BHK UNIT PLAN
SECTION
2BHK APPARTMENT FLOOR PLAN
ELEVATION
UNIT AREA :90.79
sq.m
BLOCK AREA : 847.79 sq.m
BUILTUP AREA : 2543.37 sq.m
TOTAL BUILTUP AREA:2543.37 sq.m
NO. OF UNITS PER FLOOR : 8 units
NO. OF UNITS PER BLOCK : 24units
TOTAL NO. OF UNITS : 24units
appartment
G F E D C B A H I J K L M N 3.2 3.4 3.6 3.6 3.2 3.4 7.0 3.4 3.2 3.6 3.6 3.2 3.4 5.4 2.9 2.9 5.4 2.2 4 3 2 1 5 6 1.6 4.0 3.7 2.4 3.0 0.9 0.9 2.4 4.0 3.9 8.6 3.3 1.8 2.0 2.5 3.4 3.3 2.3 2.8 9.1 10.5 9.5 LIVING ROOM DINNING KITCHEN BALCONY BEDROOM M.BEDROOM TOILET TOILET BEDROOM BALCONY BALCONY ROOF LEVEL +18.30M FIFTH FLOOR LEVEL +15.15 FORTH FLOOR LEVEL +12.0M THIRD LEVEL LEVEL +8.85M SECOND FLOOR LEVEL +5.7M COMMERCIAL FLOOR LEVEL +2.55 GROUND LEVEL RISE LEVEL +0.15 STILT FLOOR +2.4M LINTEL LEVEL 2.4M SLIDING GLASS DOOR 2.1M RCC BEAM RCC LINTEL BEAM PARAPET WALL WITH 0.23M BRICK WALL WITH 0.23M BRICK HEAD ROOM
3bhk
plan
3BHK UNIT PLAN
SECTION ELEVATION
3BHK APPARTMENT FLOOR PLAN

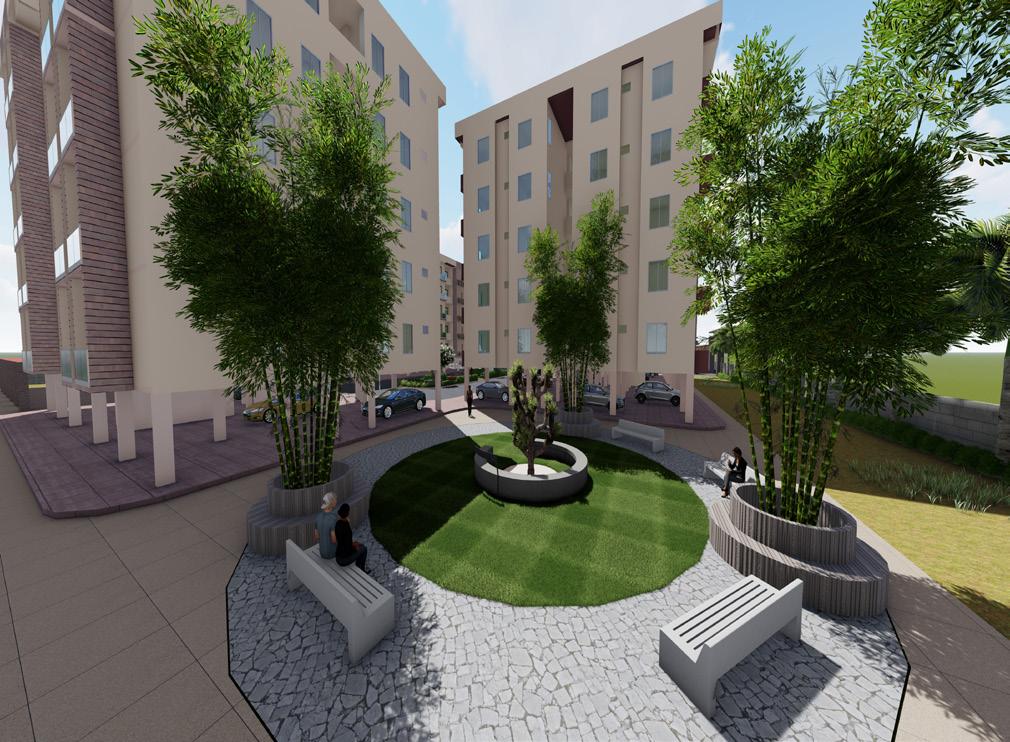

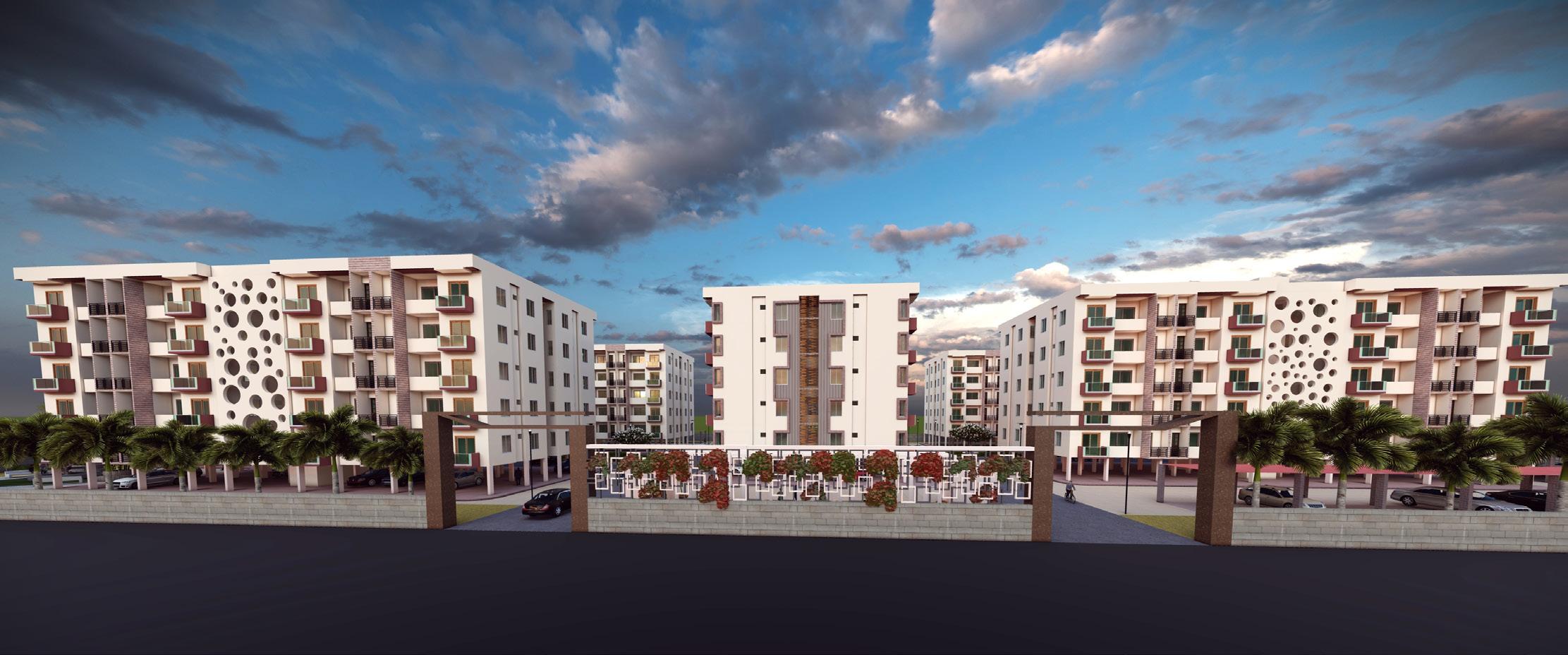

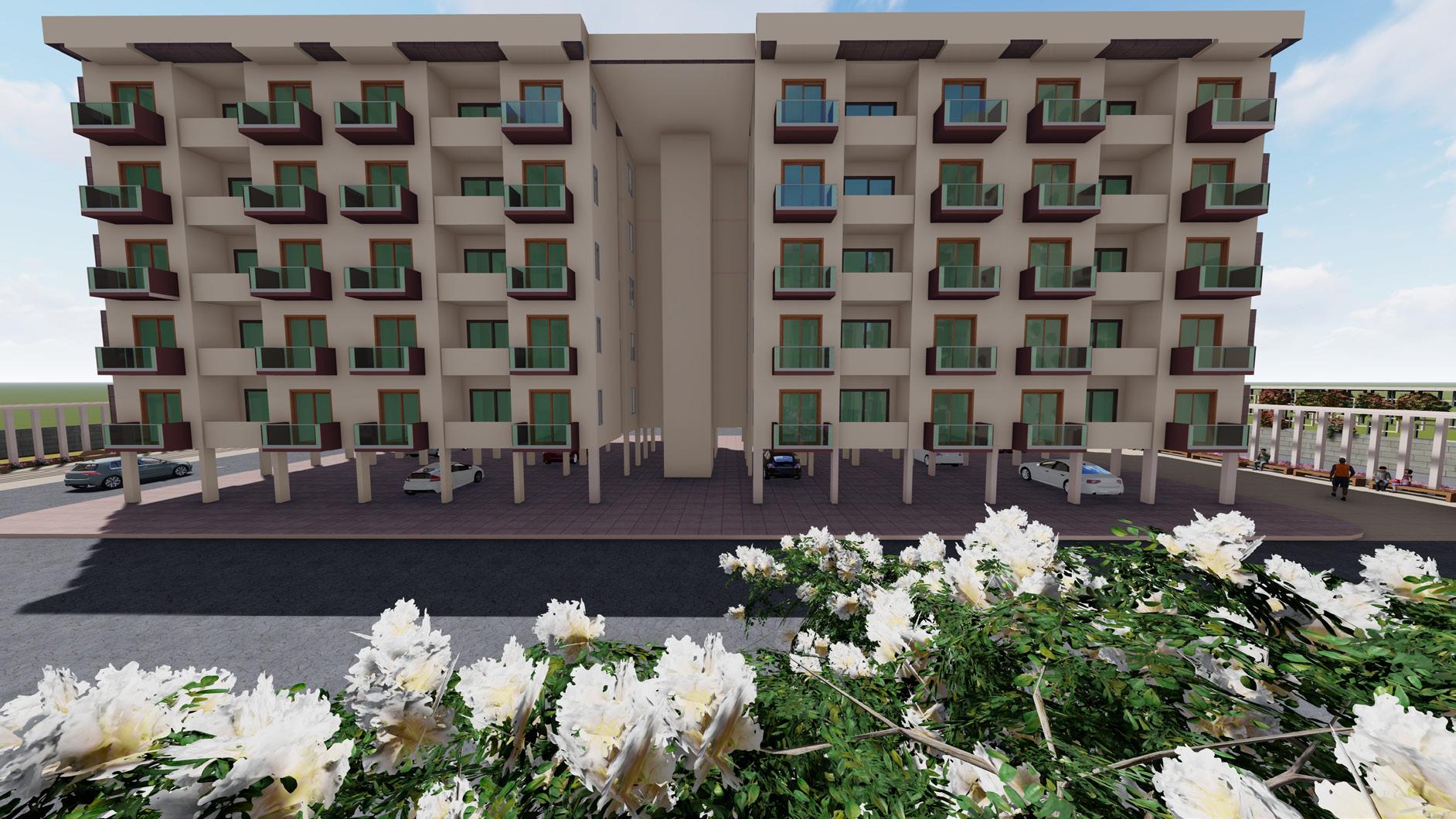

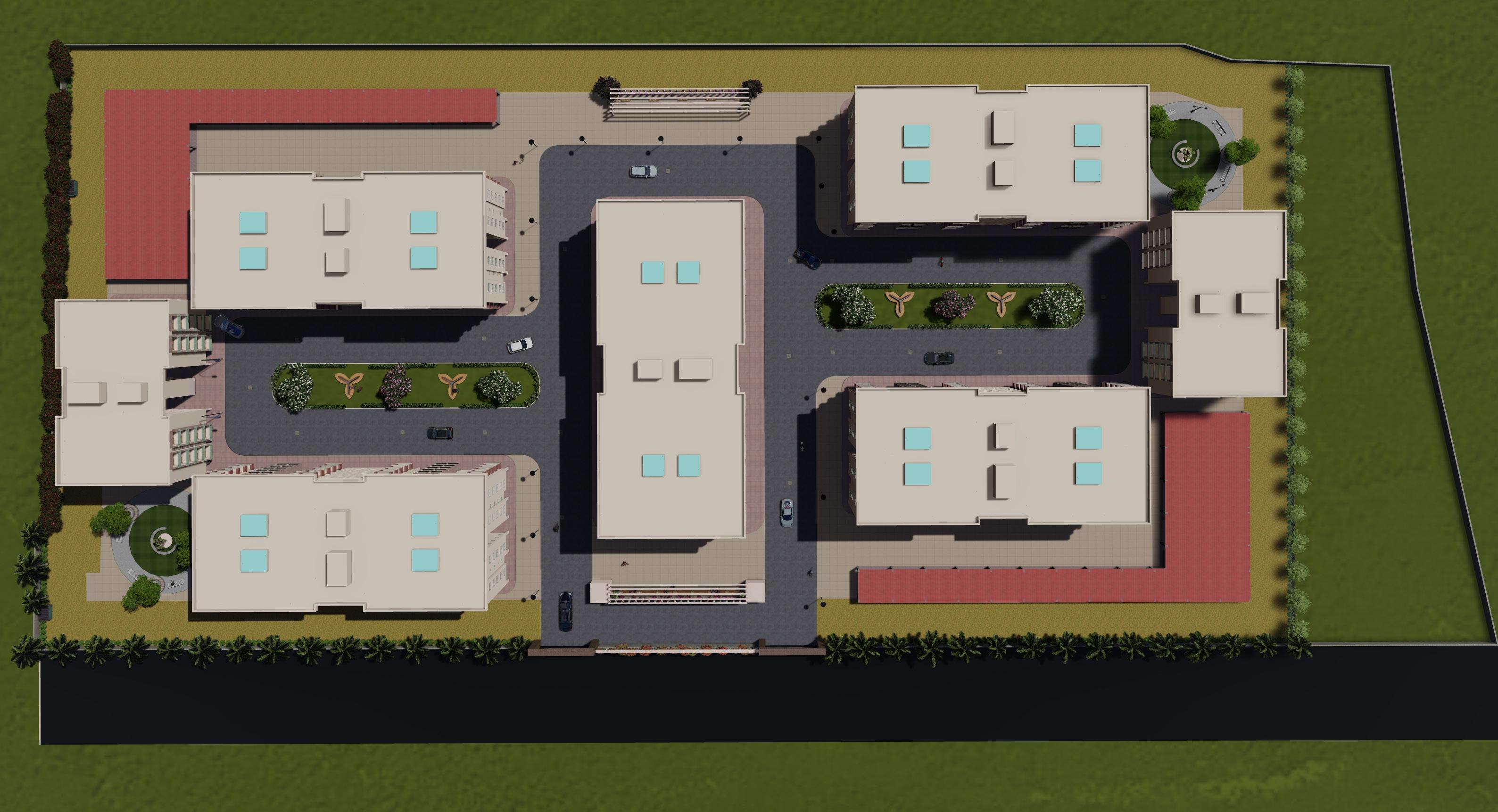

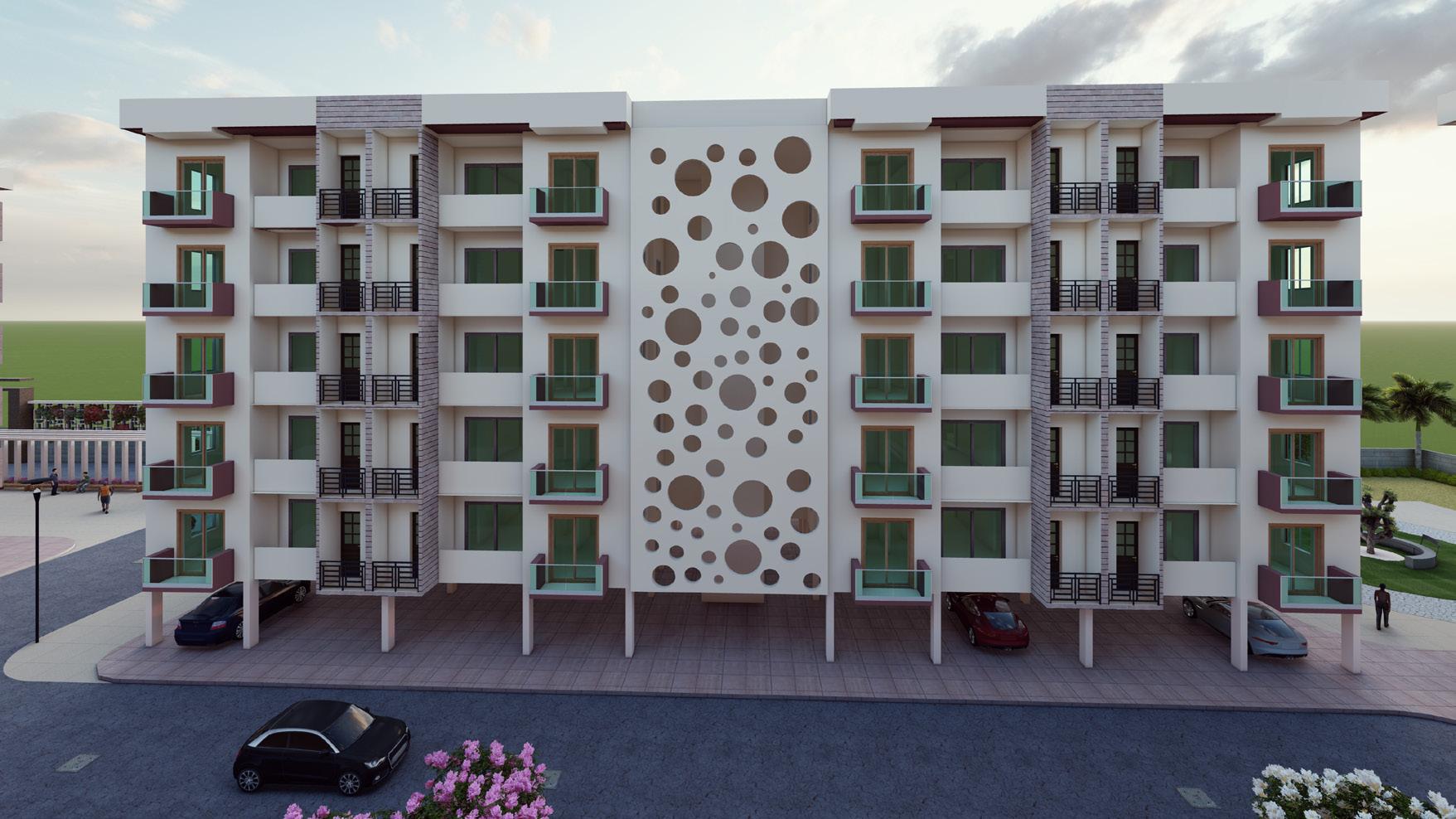

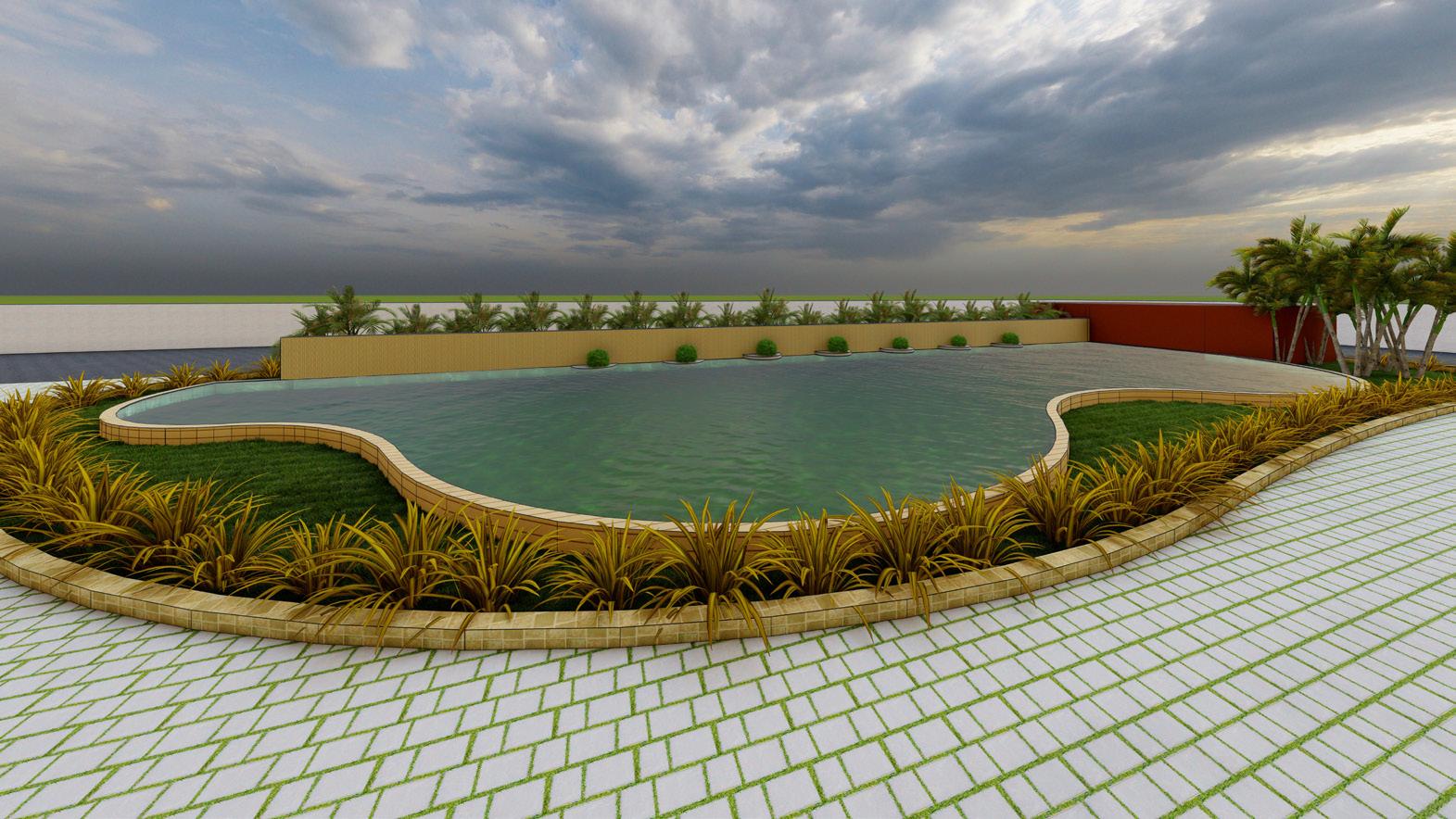

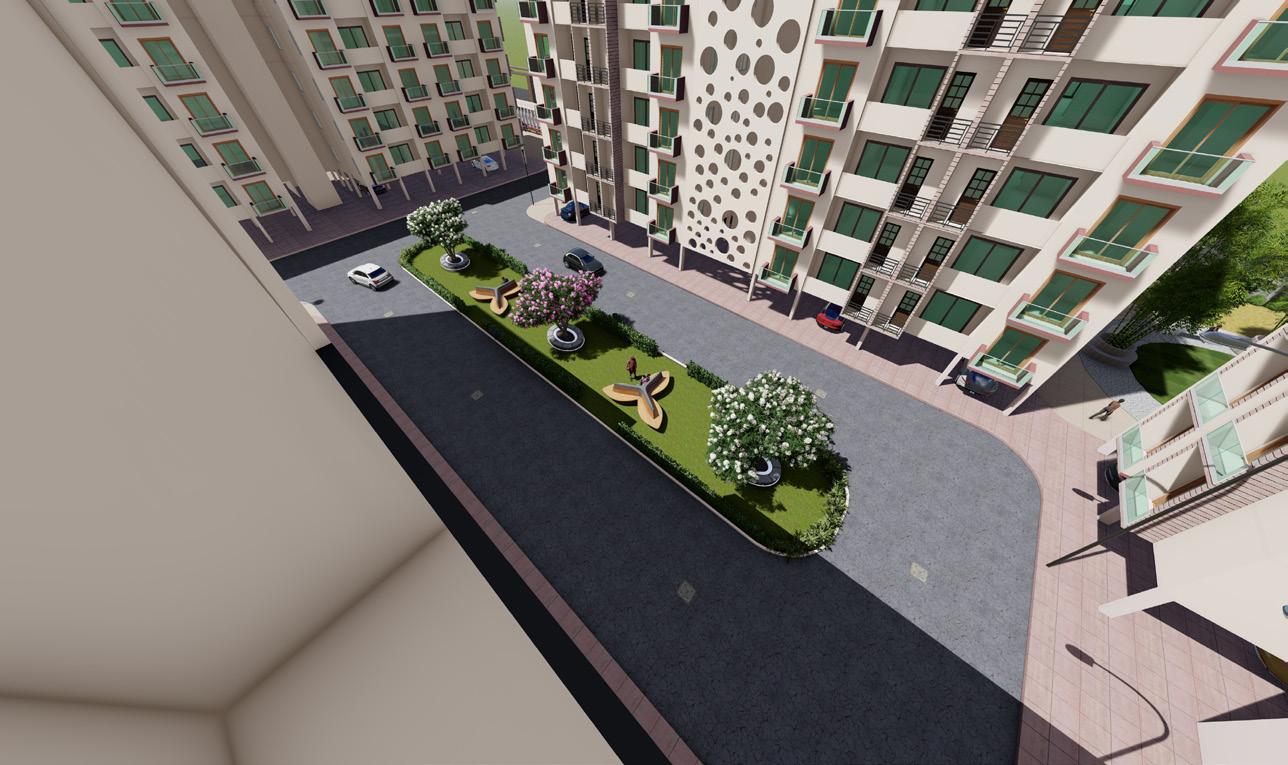

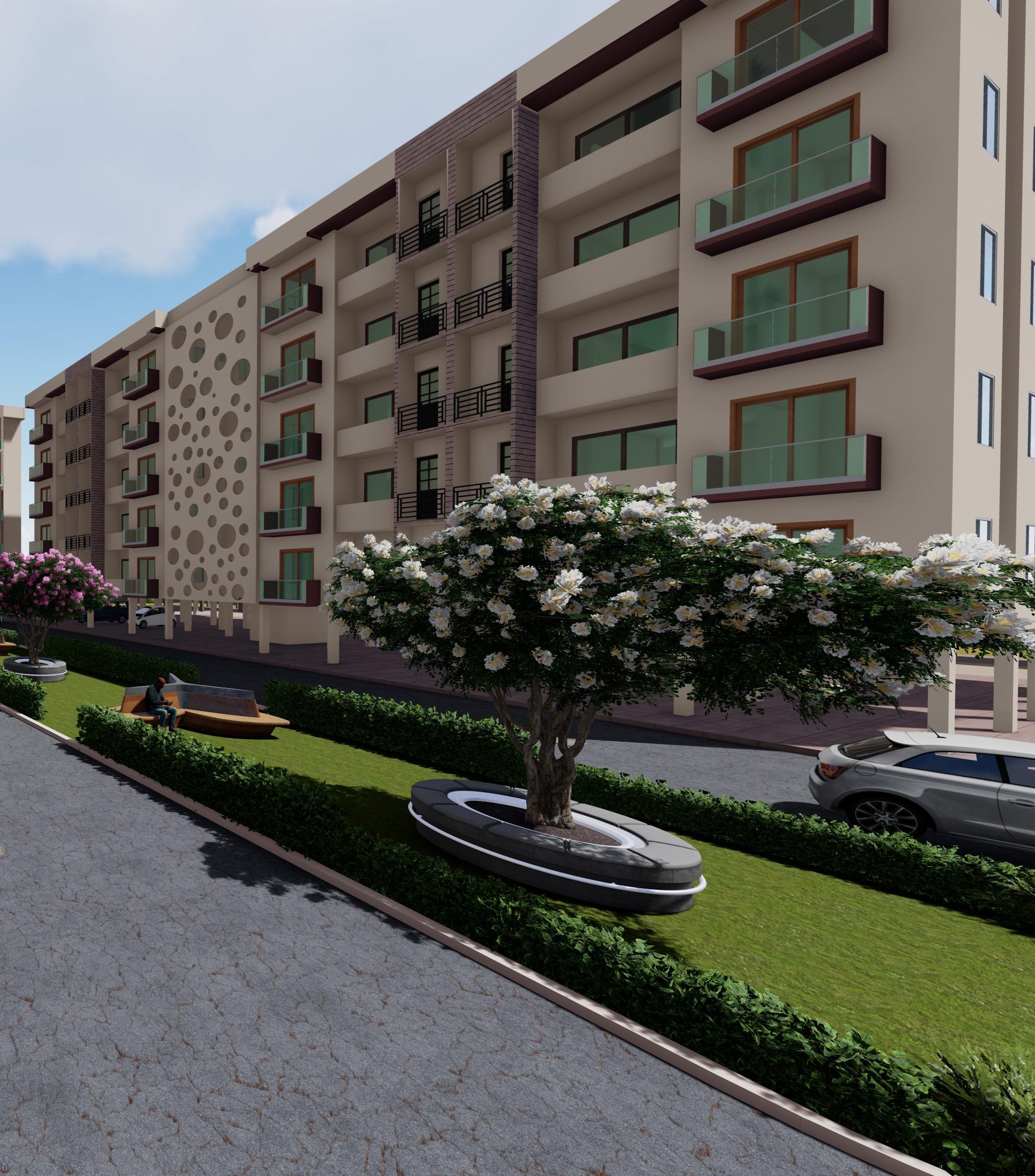

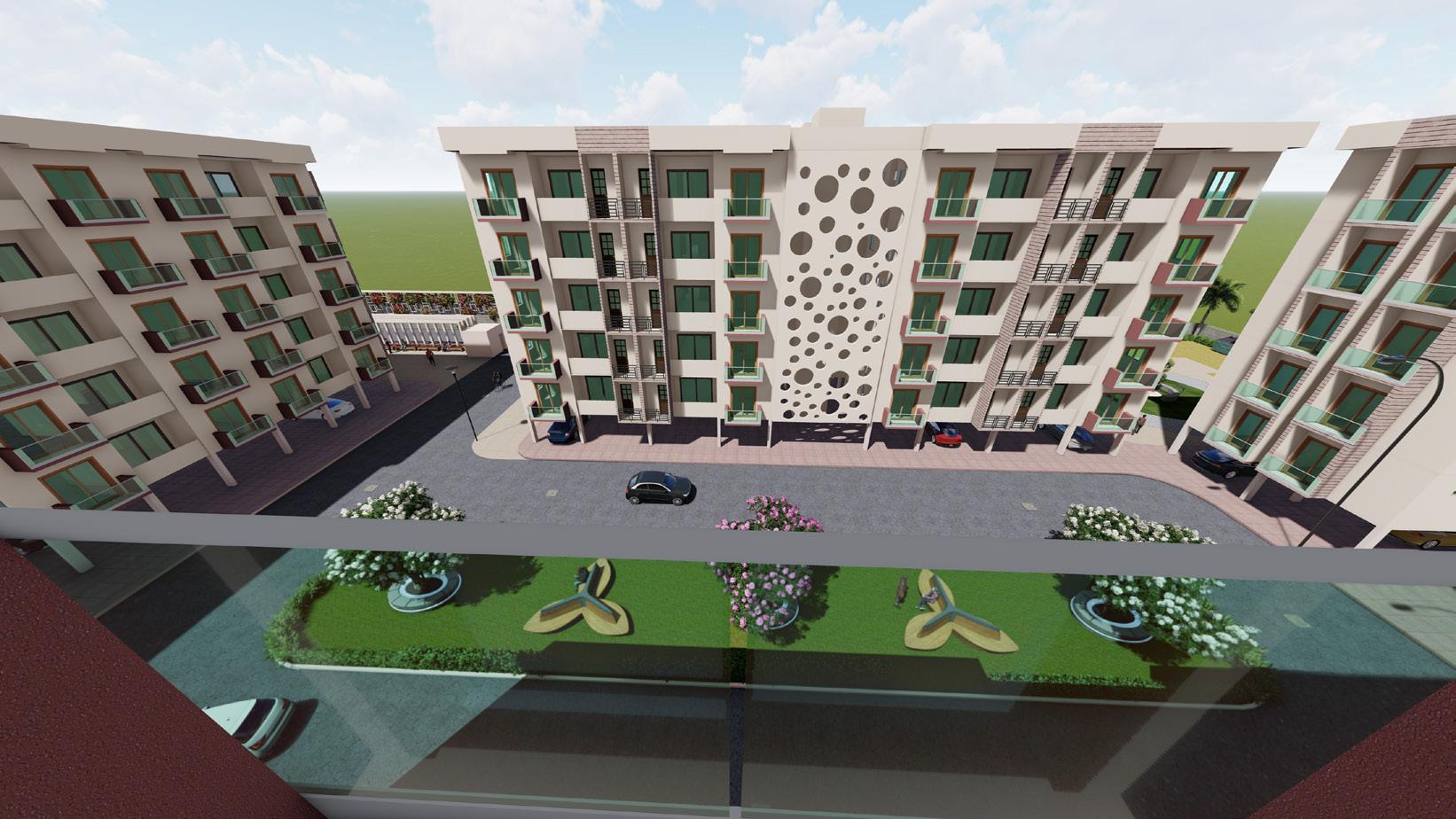

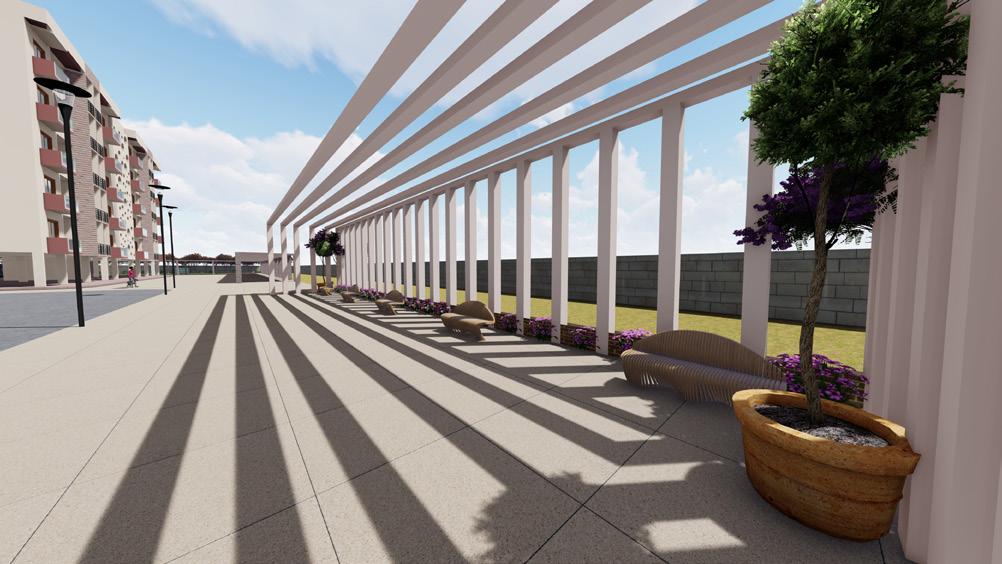

VIEWS
02
CO-WORKING SPACE
CO-WORKING is the use of shared workspace by people who requireflexibility.Members typically share equipments and share ideas generating a sense of community
CO-WORKING aren’t just for start up anymore,but used by many small businesses and even large corporate companies

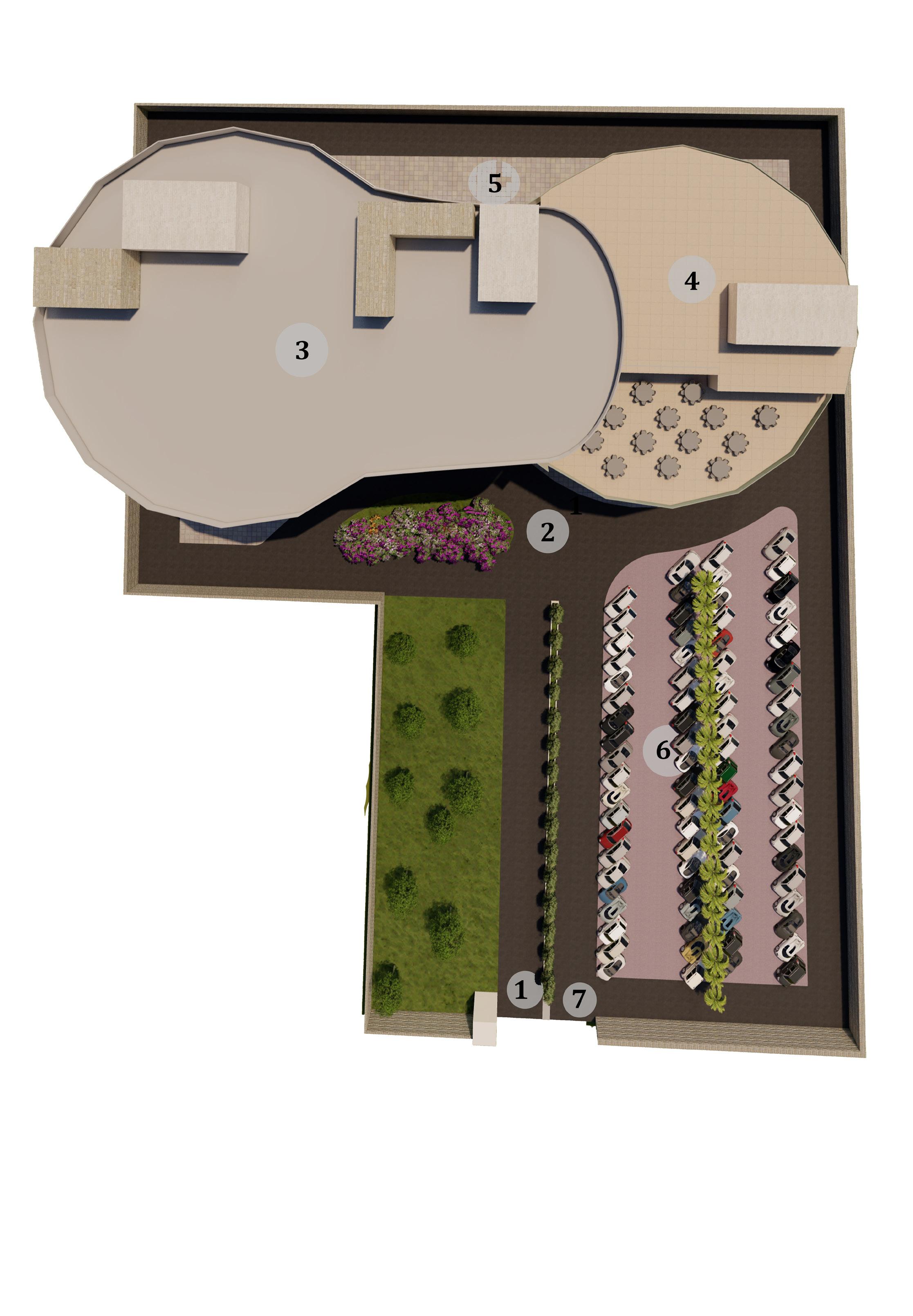

1. ENTRY
2. DROP-OUT SPACE
3. PRIVATE WORK SPACE
4. PUBLIC/SEMI-PUBLIC WORK SPACE
5. TWO WHEELER PARKING
6. FOUR WHEELER
SITE PLAN
TOTAL AREA : 2.3 ACRES
OSR : 10%
BUILT-UP AREA : 2400 sq.m
TOTAL BUILT-UP AREA : 13845 sq.m
SETBACK : 7.2m
GROUND FLOOR PLAN ( LAW FIRM)
MEETING HALL CONFERENCE HALL HVAC FIRE LOBBY ELECTRICAL ROOM ENTRY/EXIT PRE FUNC. LOBBY LOBBY MAINTANANCE ROOM ADMIN MAGAZINE LOUNGE AND LIBRARY LAW FIRM FIRE LOBBY HVAC ELECTRICAL ROOM ATTORNEY ATTORNEY ATTORNEY ATTORNEY CONFERENCE BOARD ROOM ARCHIVE FILE ROOM MAIL ROOM LIBRARY LOBBY ASSOCIATE ASSOCIATE ASSOCIATE ASSOCIATE ASSOCIATE ASSOCIATE ASSOCIATE ASSOCIATE ASSOCIATE 242SQM 215SQM 23SQM 23SQM 17SQM 70SQM 85SQM 2.5M WIDE 12SQM 9SQM 18SQM 13SQM 9SQM 38SQM 24SQM 16SQM 16SQM 2M WIDE CORRIDOR STORAGE LIFT LOBBY G F E D C B A H 4 3 2 1 5 6 7.6998 14.6971 5.0222 5.1790 5.1642 4.8350 3.0007 8.8302 7.8626 8.1300 8.1566 7.6209 12.0882
FIRST FLOOR PLAN ( DIGITAL MEDIA )
SECOND FLOOR PLAN (ARCHITECTURE/INTERIOR DESIGN FIRM)
THIRD FLOOR PLAN ( SHARED WORK SPACE)
FOURTH
FLOOR PLAN ( IT OFFICE)
SHARED WORK SPACE BREAKOUT SPACE RESTAURANT ELECTRICAL ROOM FIRE LOBBY HVAC CLOAK ROOM PRINT ROOM LV ROOM TELEPHONE BOOTH MEETING ROOM CONFERENCE MEETING ROOM KITCHEN ELECTRICAL ROOM PANTRY/COFFEE MACHINE 38SQM 24SQM HVAC 25SQM 2.5M WIDE 77.2012 33.2597 36.9554 PANTRY/COFFEE MACHINE IT OFFICE LOBBY MEETING ROOM MEETING ROOM HR ROOM TEAM LEAD MAIL ROOM ARCHIVED FILES ADMIN 38SQM 24SQM HVAC 16SQM 2.5M WIDE 2M WIDE CORRIDOR F E D C B A 4 3 2 1 5 6 14.6971 5.0222 5.1790 5.1642 4.8350 3.0007 8.8302 7.8626 8.1300 8.1566
HVAC FIRE LOBBY ELECTRICAL ROOM HVAC ARCHI / INT. DESIGN POD MEETING ROOM CONFERENCE LOBBY MAIL ROOM MATERIAL LIBRARY PRODUCT LIBRARY STUDIO STUDIO ELECTRICAL ROOM PANTRY/COFFEE MACHINE 38SQM 24SQM 16SQM 25SQM 16SQM 16SQM 4SQM 16SQM 40SQM 35SQM 2.5M WIDE 2M WIDE CORRIDOR 2M WIDE CORRIDOR 77.2012 33.2597 36.9554 HVAC FIRE LOBBY FIRE LOBBY HVAC DIGITAL MEDIA CLOAK ROOM PRINT ROOM STORAGE LV ROOM MEETING ROOM MEETING ROOM ACCOUNTS TEAM HR TEAM ELECTRICAL ROOM DESIGN/DEVELOPEMENT TEAM PANTRY/COFFEE MACHINE ON DISCUSSION CONTENT CREATERS TRIAL CASTING ROOM MEETING HALL 242SQM 1.8M WIDE CORRIDOR 2M WIDE CORRIDOR 215SQM CONFERENCE HALL 8SQM 9SQM 9SQM 15SQM 38SQM 35SQM 24SQM 2.5M WIDE 16SQM 25SQM 1.8M WIDE CORRIDOR 2M WIDE CORRIDOR 77.2012 33.2597 36.9554
FIFTH FLOOR PLAN ( IT OFFICE)
SIXTH FLOOR PLAN ( GAME DEVELOPERS) SECTION
FIRE LOBBY ELECTRICAL ROOM PANTRY/COFFEE MACHINE IT OFFICE LOBBY BOARD ROOM PRINTER ROOM DIRECTOR ROOM HR ROOM LIBRARY ARCHIVED FILES 38SQM 24SQM HVAC 16SQM 25SQM 2.5M WIDE F E D C B A 4 3 2 1 5 6 14.6971 5.0222 5.1790 5.1642 4.8350 3.0007 8.8302 7.8626 8.1300 8.1566 HVAC ELECTRICAL ROOM PANTRY/COFFEE MACHINE GAME DEVELOPERS LOBBY MAIL ROOM LIBRARY LV ROOM ARCHIVED FILES ADMIN MEETING ROOM CONFERENCE MEETING ROOM 38SQM 24SQM 2.5M WIDE 2M WIDE CORRIDOR 51.2966 33.2597 22.5901 STAIRCASE STAIRCASE STAIRCASE STAIRCASE STAIRCASE STAIRCASE HVAC HVAC HVAC HVAC LEVEL +4.6M LEVEL +0.45M GROUND LEVEL LEVEL +8.75M LEVEL +12.9M LEVEL +16.05M LEVEL +20.05M LEVEL +24.2M LEVEL +28.35M LEVEL +29.50M PLINTH LEVEL FIRST FLOOR SECOND FLOOR THIRD FLOOR FOURTH FLOOR FIFTH FLOOR SIXTH FLOOR PARAPET WALL FLAT SLAB COLUMN RCC .15M THICK
ELEVATION

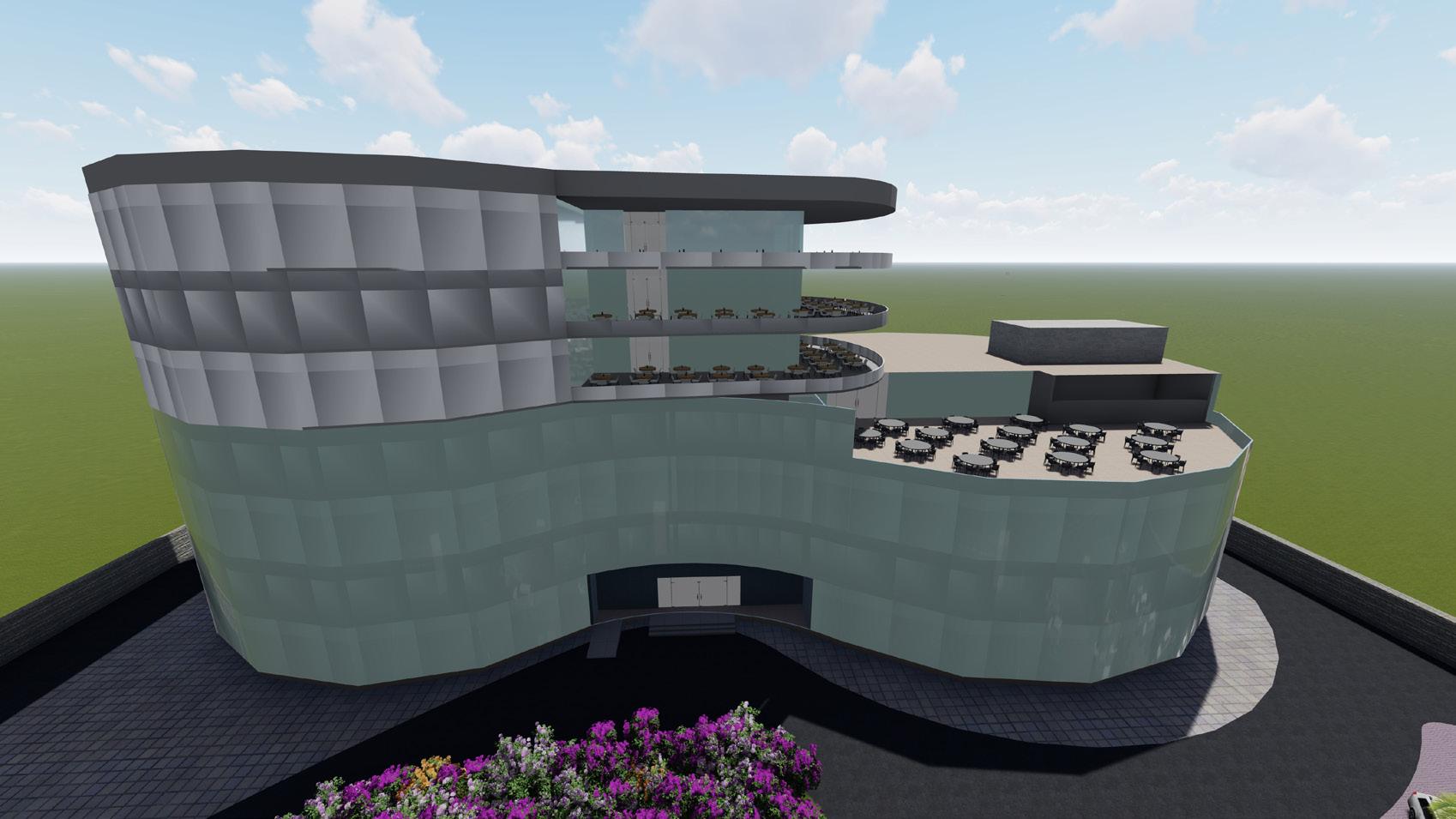

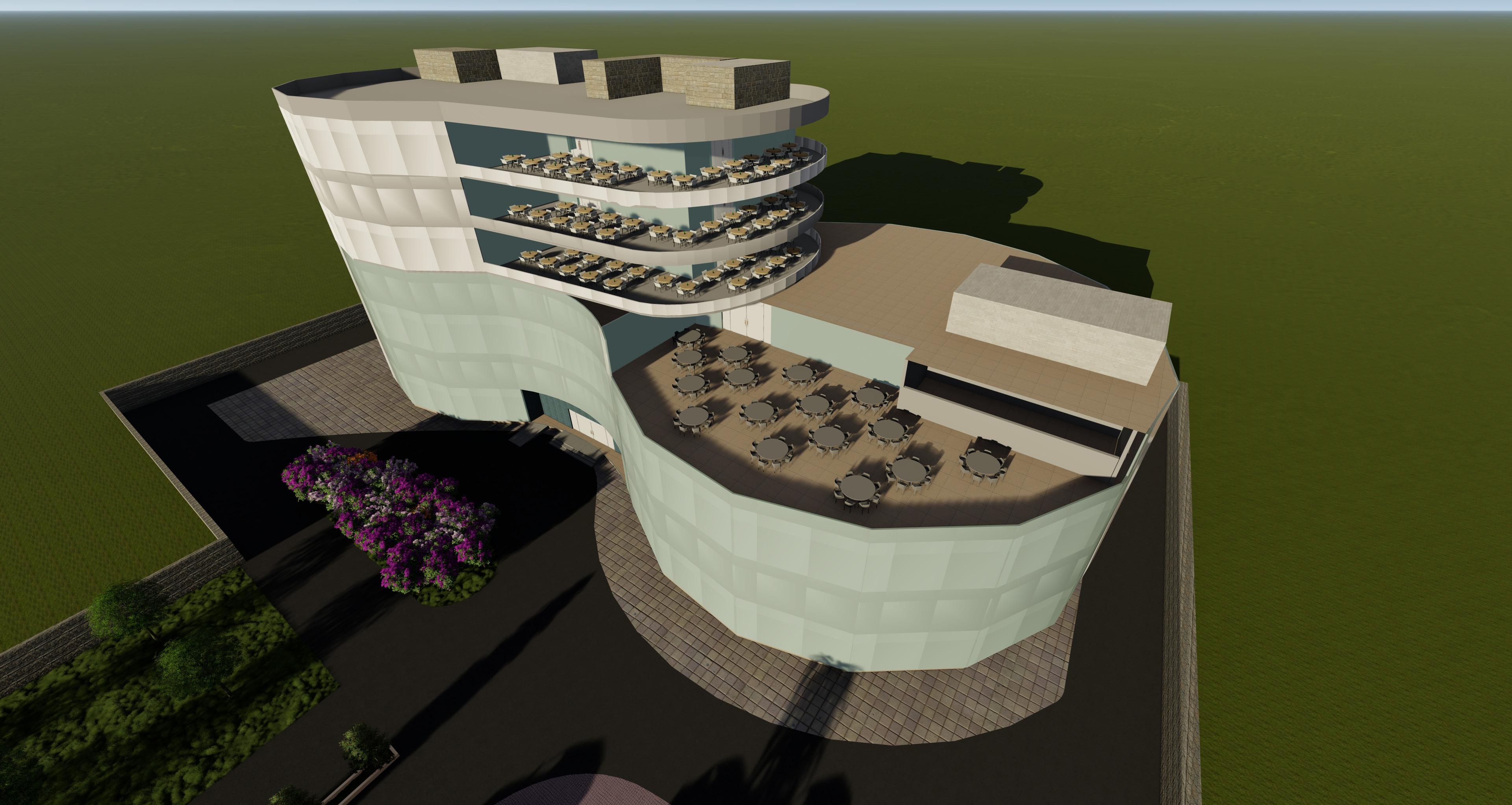

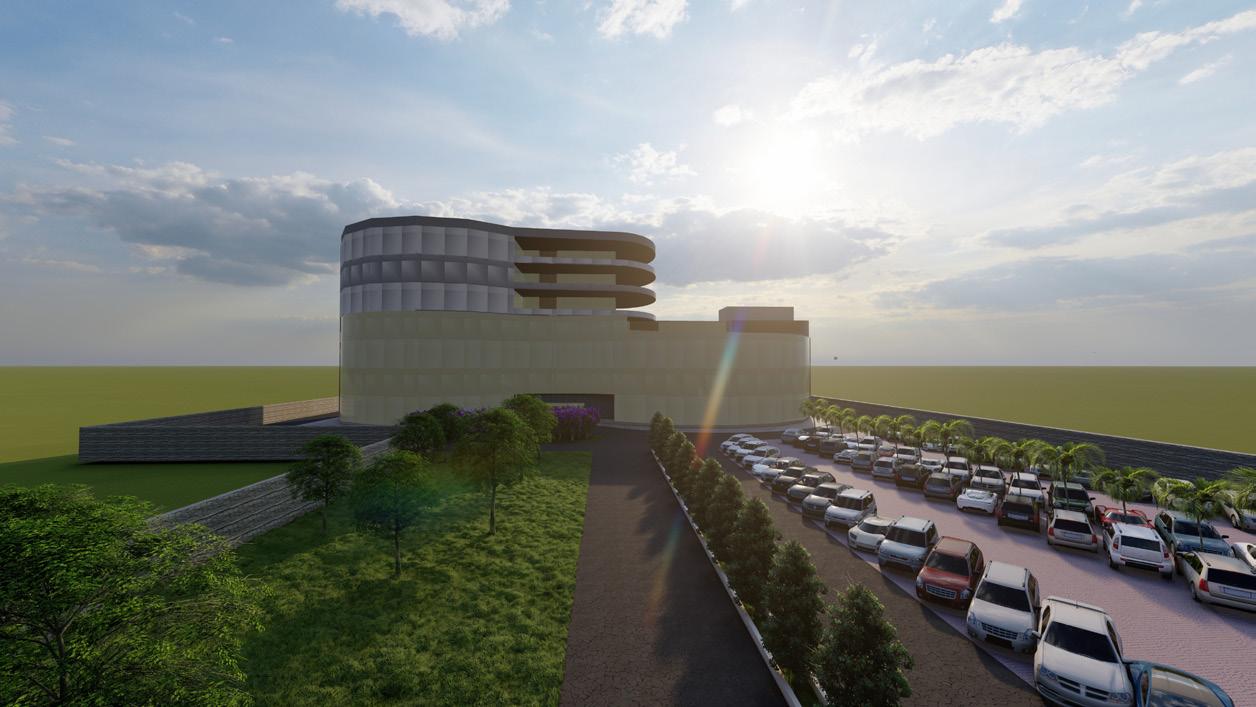

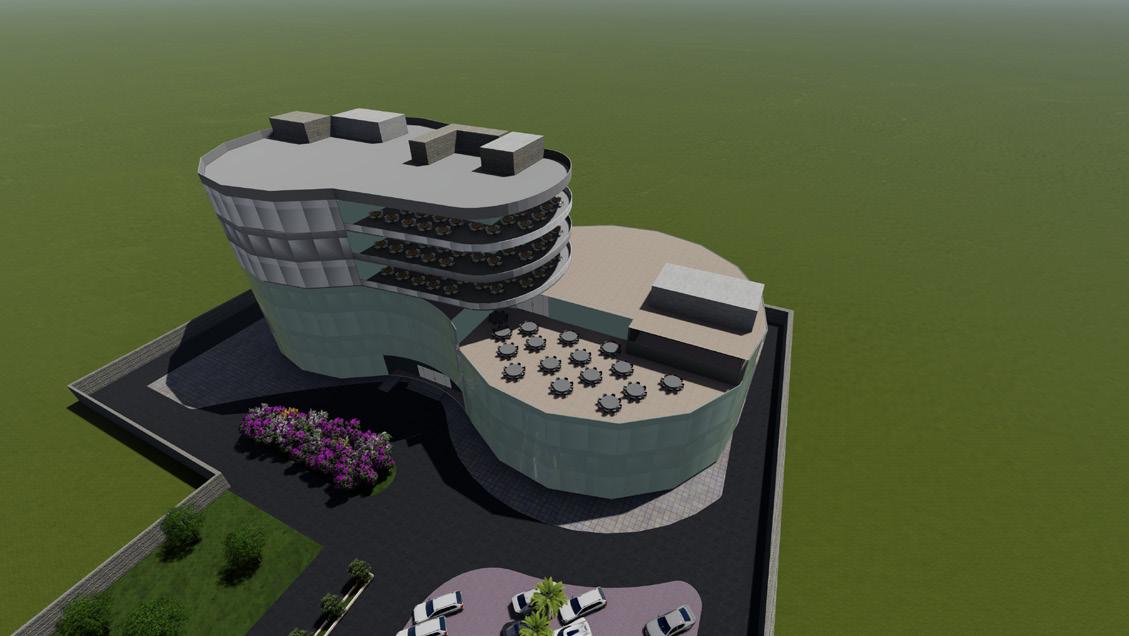

VIEWS
MIXED USE TOWER
MIXED USE IS A TYPE OF URBAN DEVELOPEMNT, URBAN DESIGN,ZONNING CLASSIFICATIONS THAT BLEND MULTIPLE USES SUCH AS RESIDENTIAL, COMMERCIAL,CULTURAL,INSTITUTIONAL, ENTERTAINMENT , INTO ONE SPACE .
MIXED USE DEVELEPEMENT MAY BE A NEW CONSTRUCTION , REUSE OF AN EXISTING BUILDING OR BROWNFIELD SITE OR A COMBINATION OF BOTH
03
SITE PLAN
TOTAL SITE AREA : 30540 sq.m
OSR 10% : 3054 sq.m
FSI : 4.75
MAXIMUM PLOT COVERAGE : 15270 sq.m
ALLOWABLE PLOT COVERAGE : 9162 sq.m
ACHEIVED PLOT COVERAGE ; 9100 sq.m
MAXIMUM HEIGHT : 120 m
ACQUIRED HEIGHT : 113.7 m
SETBACK : 18m
ROAD WIDTH : 8m
BUILDING RISE LEVEL : 124.9m
BASEMENT I &II PLAN
TOTAL NO OF CARS : 1900
TOTAL NO OF BIKES : 500
OSR OSR MALL OFFICE HOTEL IN OUT IN TRANSFORMER YARD 18m WIDE SETBACK 18m WIDE SETBACK 18m WIDE SETBACK ENTRY/EXIT 7.2m WIDE DRIVEWAY 3m WIDE PEDESTRIAN STP OUTLET IN IN OUT GROUND LVL BASEMENT GROUND LVL BASEMENT GROUND LVL OUT SERVICE ROAD 127.2961 127,2 124,9 254,75 234,08 ENTRY/EXIT HOTEL/OFFICE TEMPORARY WAITING AREA 30M WIDE ROAD UNLOADING IN IN OUT WATER SUMP FIRE SUMP WTP 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 9.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 H 11.0000 11.0000 11.0000 11.0000 11.0000 10m DRIVEWAY 6.5m DRIVEWAY 6.5m DRIVEWAY 6.5m DRIVEWAY 7.5m DRIVEWAY 7.5m DRIVEWAY FRM BASEMENT FRM BASEMENT OUT TO BASEMENT STP
MALL GROUND FLOOR PLAN
MALL FIRST FLOOR PLAN
FIRE EXIT STAIRCASE FHR HYPER MARKET SHOP 2 SHOP 3 SHOP 4 SHOP 5 SHOP 6 SHOP 7 SHOP 8 SHOP 1 TEMPORARY VENDOR KIOSK TEMPORARY VENDOR KIOSK pass office pass HOTEL RECP./LOBBY OFFICE LOBBY ANCHOR SHOP 1 ANCHOR SHOP 2 240 sqm 155 sqm 2760sqm 155 sqm 168 sqm 520 sqm ANCHOR SHOP 3 280 sqm 230 sqm 155 sqm 206 sqm 520 sqm 555 sqm TEMPORARY VENDOR KIOSK TEMPORARY VENDOR KIOSK CORRIDOR 3M WIDE CORRIDOR 3M WIDE CORRIDOR 2.5M WIDE CORRIDOR 2.5M WIDE CORRIDOR 2.5M WIDE LIFT LIFT LOADING BAY G D C B A 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 10 11.0000 11 11.0000 12 11.0000 13 11.0000 14 11.0000 15 11.0000 H 11.0000 11.0000 SHOP 9 SHOP 10 SHOP 11 SHOP 12 SHOP 16 SHOP 15 SHOP 14 SHOP 13 SHOP 21 SHOP 20 SHOP 18 SHOP 19 RESTAURANT 1 ANCHOR SHOP 4 ANCHOR SHOP 5 ANCHOR SHOP 6 ANCHOR SHOP 7 ELEC. ROOM TEMPORARY VENDOR KIOSK FHR office pass office pass office pass TEMPORARY VENDOR KIOSK CORRIDOR 2.5M WIDE CORRIDOR 2.5M WIDE CORRIDOR 3M WIDE CORRIDOR 3M WIDE CORRIDOR 2.5M WIDE 240 sqm 155 sqm 155 sqm 168 sqm 206 sqm 21O sqm SHOP 17 260 sqm 490 sqm 530 sqm 620 sqm 155 sqm 206 sqm 170 sqm 170 sqm 250 sqm 660 sqm 230 sqm 749 sqm LIFT LIFT G E D C B A 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 10 11.0000 11 11.0000 12 11.0000 13 11.0000 14 11.0000 15 11.0000 H 11.0000 11.0000
LIFT service SHOP 35 SHOP 34 SHOP 40 SHOP 39 SHOP 38 SHOP 37 SHOP 36 SHOP 45 SHOP 44 RESTAURANT 5 GAME ZONE RESTAURANT 4 SHOP 43 SHOP 42 SHOP 41 RESTAURANT 6 GAME ZONE FIRE EXIT STAIRCASE hotel pass TEMPORARY VENDOR KIOSK CORRIDOR 2.5M WIDE CORRIDOR 2.2M WIDE CORRIDOR 2.5M WIDE 490 sqm CORRIDOR 3M WIDE CORRIDOR 3M WIDE 240 sqm 155 sqm 155 sqm 168 sqm 206 sqm 155 sqm 206 sqm 165 sqm 200 sqm 150 sqm 520 sqm 1390 sqm 470 sqm LIFT LOBBY G F E D C 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11 11.0000 12 11.0000 11.0000 14 11.0000 15 11.0000 H 11.0000 11.0000 service SHOP 23 SHOP 22 SHOP 29 SHOP 28 SHOP 27 SHOP 26 SHOP 25 SHOP 24 SHOP 33 SHOP 32 SHOP 31 SHOP 30 RESTAURANT 2 ANCHOR SHOP 8 ANCHOR SHOP 9 ANCHOR SHOP 10 ANCHOR SHOP 11 RESTAURANT 3 FIRE EXIT STAIRCASE hotel pass CORRIDOR 2.5M WIDE CORRIDOR 2.5M WIDE CORRIDOR 2.5M WIDE 490 sqm 240 sqm 155 sqm 155 sqm 168 sqm 555 sqm 520 sqm 230 sqm 155 sqm 206 sqm 190 sqm 235 sqm 520 sqm 21O sqm 260 sqm 170 sqm CORRIDOR 3M WIDE CORRIDOR 3M WIDE LIFT LOBBY G F E D C B A 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11 11.0000 12 11.0000 11.0000 14 11.0000 15 11.0000 H 11.0000 11.0000
MALL SECOND FLOOR PLAN
MALL THIRD FLOOR PLAN
OFFICE FLOOR PLAN @6,8,10,12,14,16 th FLOORS
MALL FOURTH FLOOR PLAN
OFFICE FLOOR PLAN @7,9,11,13,15,17 th FLOORS
FIRE EXIT STAIRCASE HR ROOM SEMINAR ROOM TRAINING ROOM DINNING KITCHEN SHARED WORK SPACE OPEN WORK SPACE 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 12 11 10 13 14 15 G E D C B A H FIRE EXIT STAIRCASE MANAGER ROOM HR ROOM STAFF ROOM DINNING KITCHEN WORK STATION WORK STATION WORK STATION SHARED WORK SPACE PANTRY POD OPEN WORK SPACE 12 11 10 G D C B 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 H 11.0000 14 11.0000 15 11.0000 F&B 11 F&B 12 F&B 13 F&B 14 F&B 15 SPORTS CENTRE GYM & F&B MULTIPLEX F&B 1 F&B 2 F&B 3 F&B 4 F&B 5 F&B 6 F&B 7 F&B 8 F&B 9 F&B 10 FHR office hotel pass CORRIDOR 2.2M WIDE CORRIDOR 2.5M WIDE CORRIDOR 2.5M WIDE 490 sqm GAME ZONE CORRIDOR 3M WIDE 1390 sqm 470 sqm CORRIDOR 2.5M WIDE 50 sqm 50 sqm 50 sqm 50 sqm 50 sqm 50 sqm 50 sqm 50 sqm 50 sqm 50 sqm 50 sqm 50 sqm 50 sqm 50 sqm 42 sqm 2840 sqm G F E D C B A 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 10 11.0000 11 11.0000 11.0000 13 11.0000 14 11.0000 15 11.0000 H 11.0000 11.0000
HOTEL LOUNGE FLOOR PLAN @ 18th FLOOR
SINGLR ROOM : 60 sq.m
NO OF ROOMS : 28 ROOMS
DOUBLE ROOM : 68 sq.m
NO. OF ROOMS : 40 ROOMS
DELUX ROOM : 95 sq.m
NO OF ROMS : 42 ROOMS
PREMIUM DELUX ROOMS : 140 sq.m
NO. OF ROOMS : 24 ROOMS
EXECUTIVE SUITE :135 sq.m
NO OF ROOMS : 16 ROOMS
HOSPITALITY FLOOR PLAN@19,20,21,23,24,25,26 th
FLOORS
HOSPITALITY FLOOR PLAN@22 and 27 with refuge area
FIRE EXIT STAIRCASE FHR AHU LINEN ROOM DATA HUB HOUSE KEEPING SINGLE ROOM DOUBLE ROOM SINGLE ROOM DOUBLE ROOM PREMIUM DELUX PREMIUM DELUX DELUX ROOM DOUBLE ROOM DELUX ROOM DELUX ROOM EXECUTIVE SUITE EXECUTIVE SUITE DOUBLE ROOM SINGLE ROOM DELUX ROOM DELUX ROOM PREMIUM DELUX 140 sqm 68 sqm 60 sqm 95 sqm 135 sqm 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 14 13 12 11 G F E D C H 20sqm 3m WIDE CORRIDOR 3m WIDE CORRIDOR 3m WIDE CORRIDOR FIRE EXIT STAIRCASE FHR service office pass hotel pass AHU LINEN ROOM DATA HUB HOUSE KEEPING SINGLE ROOM DOUBLE ROOM SINGLE ROOM DOUBLE ROOM PREMIUM DELUX PREMIUM DELUX DELUX ROOM DOUBLE ROOM DELUX ROOM DELUX ROOM EXECUTIVE SUITE EXECUTIVE SUITE DOUBLE ROOM SINGLE ROOM DELUX ROOM DELUX ROOM PREMIUM DELUX REFUGE AREA 140 sqm 68 sqm 60 sqm 95 sqm 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 14 13 12 11 G F E D C H 106sqm 40sqm 20sqm 3m WIDE CORRIDOR 3m WIDE CORRIDOR 3m WIDE CORRIDOR FIRE EXIT STAIRCASE FHR hotel pass AHU STORAGE ROOM DATA HUB HOUSE KEEPING REFUGE AREA FINE DINNING WITH BAR STAFF ROOM STAFF DINING KITCHEN STORAGE UNIT REFRIGIRATION CHAMBER WAITING LOUNGE BUSINESS MEETING HALL INFINITY POOL KIDS POOL PREMIUM LOUNGE F&B DATA HUB MAINTANANCE ROOM COMMUNICATION ROOM 14 13 12 11 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 11.0000 G F E D C H 200sqm 40sqm 106sqm 45sqm 54sqm 450sqm 428sqm 140sqm 160sqm 20sqm 120sqm 4m WIDE CORRIDOR 20sqm 2m WIDE CORRIDOR GYM 78 sqm

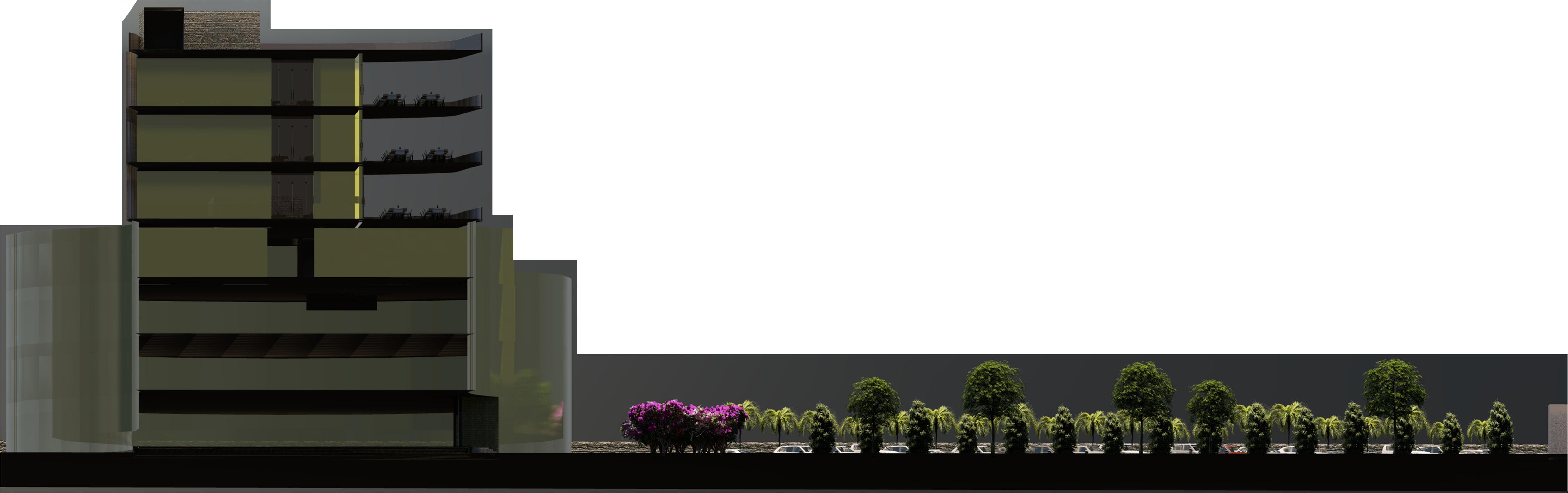

SECTION AA’
SECTION BB’

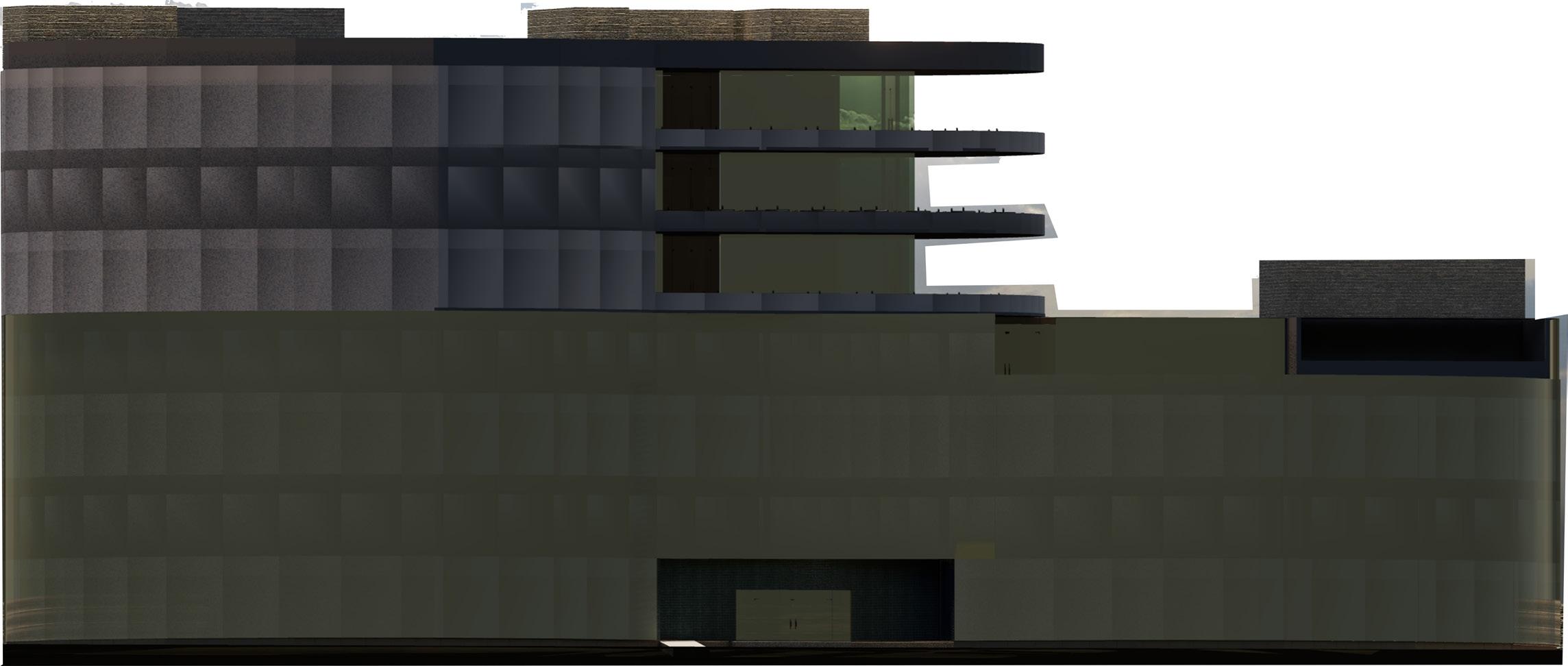

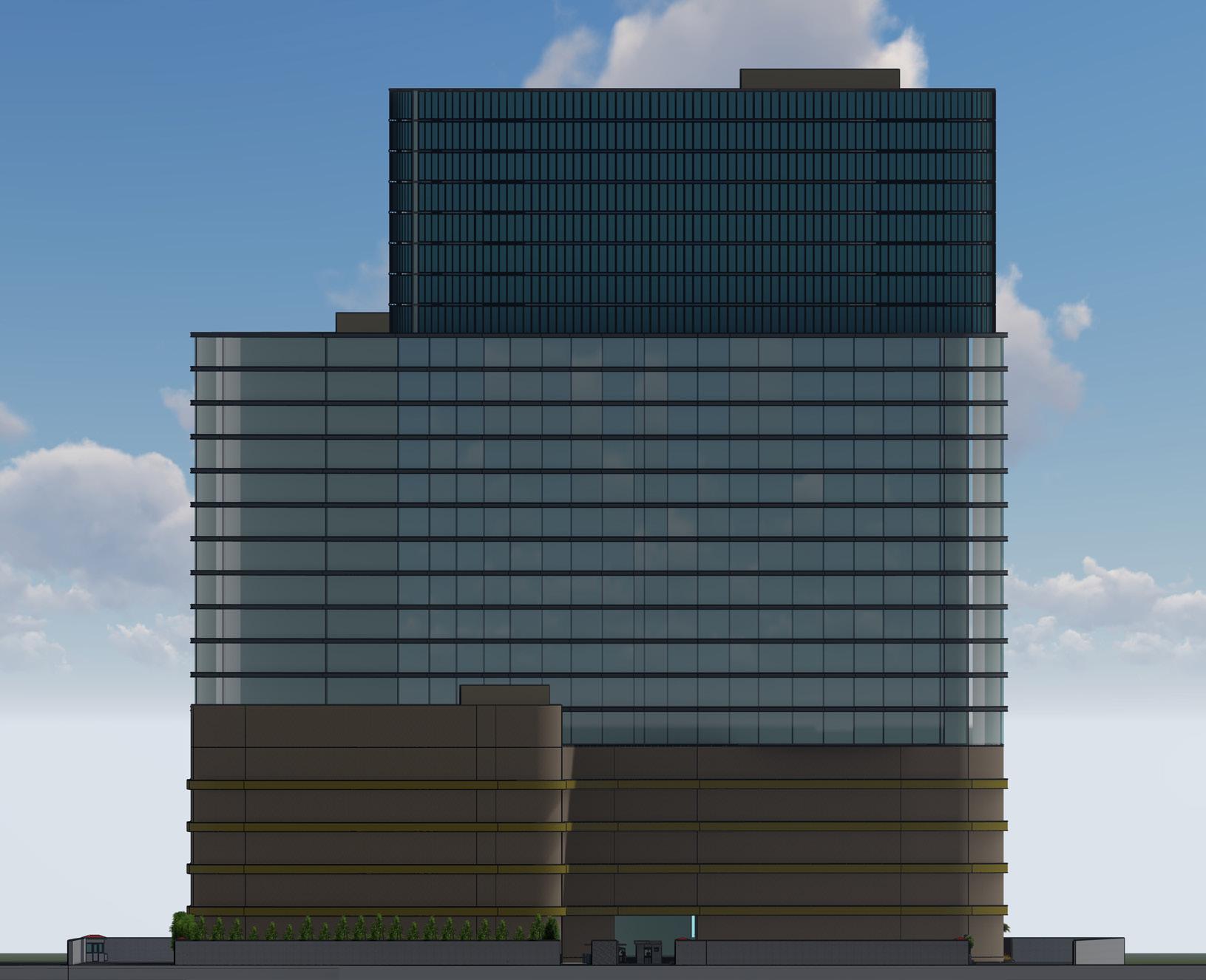

SOUTH ELEVATION
LVL+0.0 LVL-4.75m LVL-9.73m LVL+1m LVL+4.75m LVL+9.5m LVL+14.25 BASEMENT BASEMENT GROUND LVL MALL@1st FLR MALL@2nd FLR MALL@3rd FLR MALL@4th FLR MULTIPLEX MALL@GROUND FLR SERVIE@5th FLR OFFICE@6th FLR OFFICE@7th FLR OFFICE@8th FLR OFFICE@9th FLR OFFICE@10th FLR OFFICE@11th FLR OFFICE@12th FLR OFFICE@13th FLR OFFICE@14th FLR OFFICE@15th FLR OFFICE@16th FLR OFFICE@17th FLR SERVICE@18th FLR HOSPITALITY@19th FLR HOSPITALITY@20th FLR HOSPITALITY@21st FLR HOSPITALITY@22nd FLR HOSPITALITY@23rd FLR HOSPITALITY@24th FLR HOSPITALITY@25th FLR HOSPITALITY@26th FLR TERRACE@27th FLR LVL+19m LVL+23.75m LVL+26.15m LVL+30.65m LVL+35.15m LVL+39.65m LVL+44.15m LVL+48.65m LVL+53.15m LVL+57.65m LVL+62.15m LVL+66.65m LVL+71.15m LVL+75.65m LVL+80.15m LVL+82.55 LVL+86.15m LVL+89.75m LVL+93.35m LVL+96.95m LVL+100.55m LVL+104.15m LVL+107.75m LVL+111.35m DRIVE WAY DRIVE WAY DRIVE WAY DRIVE WAY DRIVE WAY DRIVE WAY LVL+0.0 LVL-4.75m LVL-9.73m LVL+1m LVL+4.75m LVL+9.5m LVL+14.25 LVL+19m LVL+23.75m LVL+26.15m LVL+30.65m LVL+35.15m LVL+39.65m LVL+44.15m LVL+48.65m LVL+53.15m LVL+57.65m LVL+62.15m LVL+66.65m LVL+71.15m LVL+75.65m LVL+80.15m LVL+82.55 LVL+86.15m LVL+89.75m LVL+93.35m LVL+96.95m LVL+100.55m LVL+104.15m LVL+107.75m BASEMENT II BASEMENT GROUND LVL MALL@1st FLR MALL@2nd FLR MALL@3rd FLR MALL@4th FLR MALL@GROUND FLR SERVIE@5th FLR OFFICE@6th FLR OFFICE@7th FLR OFFICE@8th FLR OFFICE@9th FLR OFFICE@10th FLR OFFICE@11th FLR OFFICE@12th FLR OFFICE@13th FLR OFFICE@14th FLR OFFICE@15th FLR OFFICE@16th FLR OFFICE@17th FLR SERVICE@18th FLR HOSPITALITY@19th FLR HOSPITALITY@20th FLR HOSPITALITY@21st FLR HOSPITALITY@22nd FLR HOSPITALITY@23rd FLR HOSPITALITY@24th FLR HOSPITALITY@25th FLR HOSPITALITY@26th FLR TERRACE@27th FLR LVL+111.35m

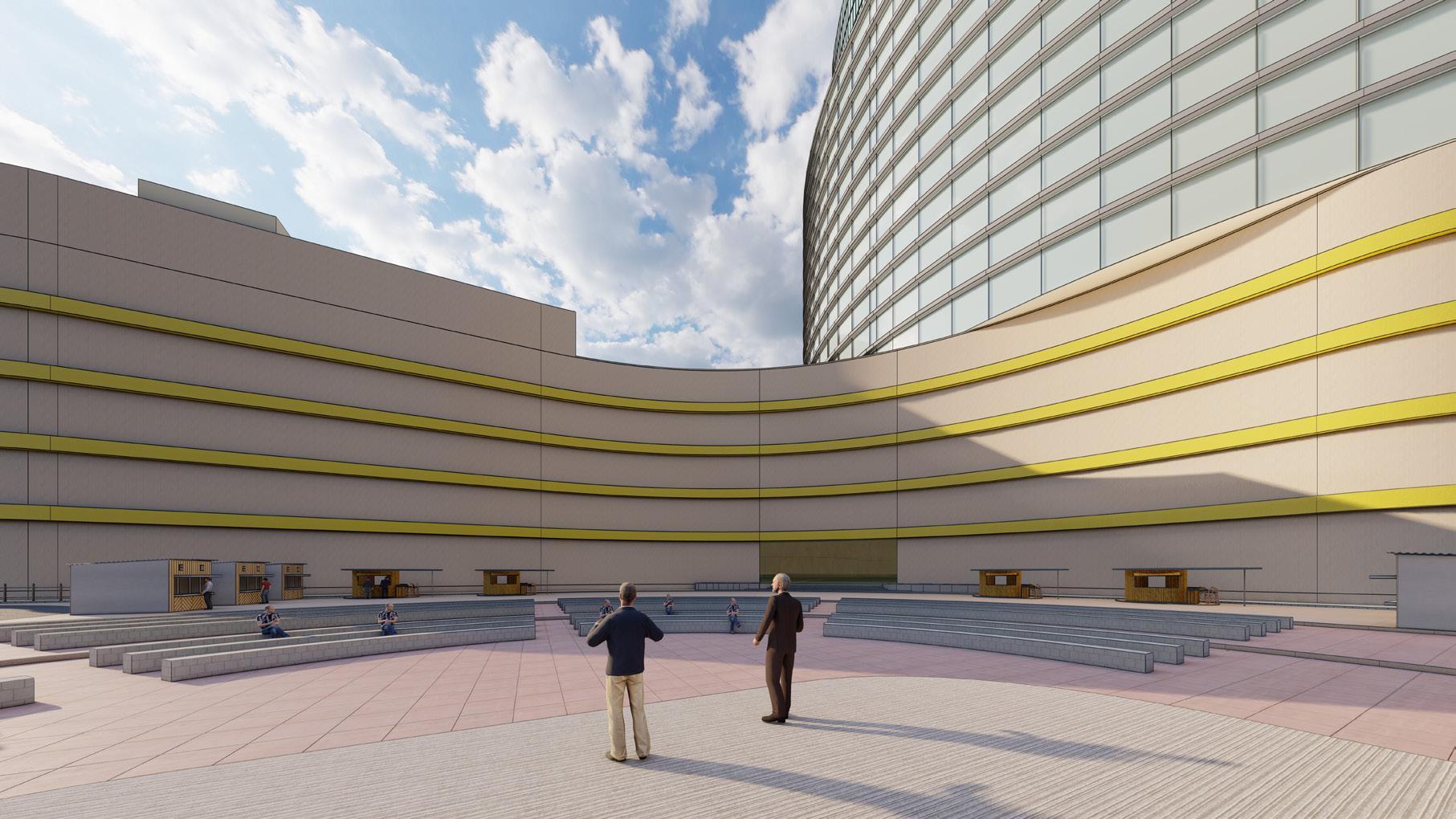

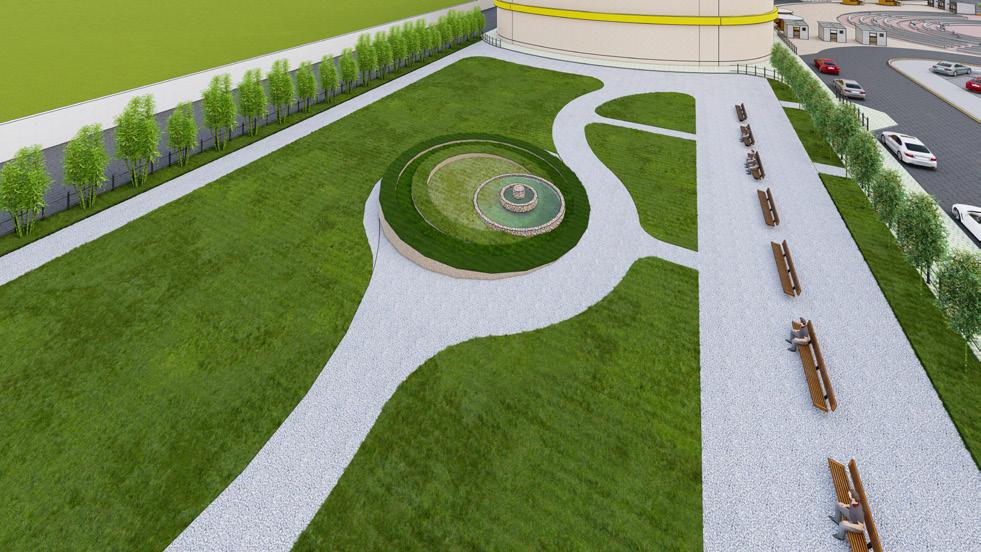

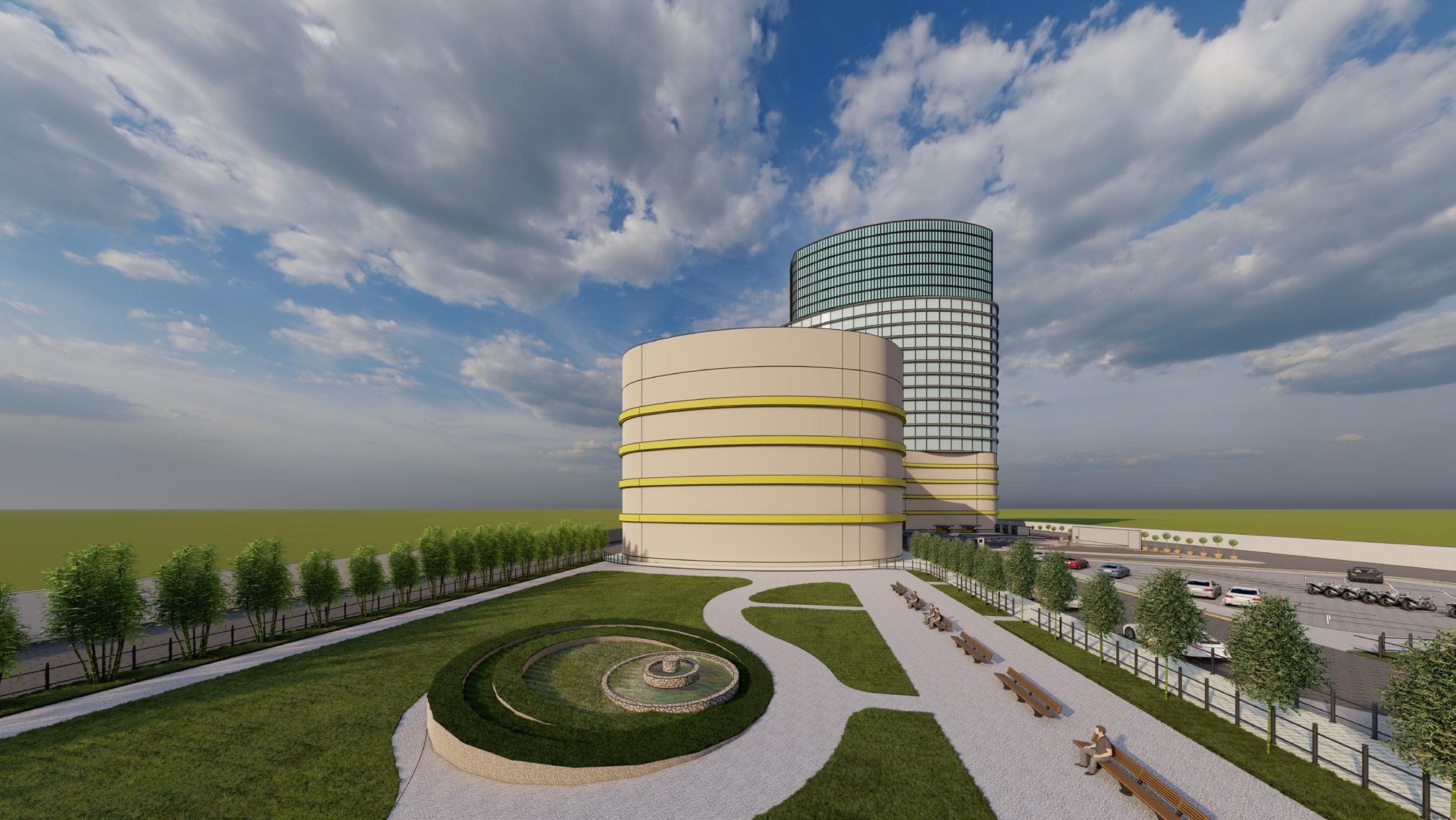

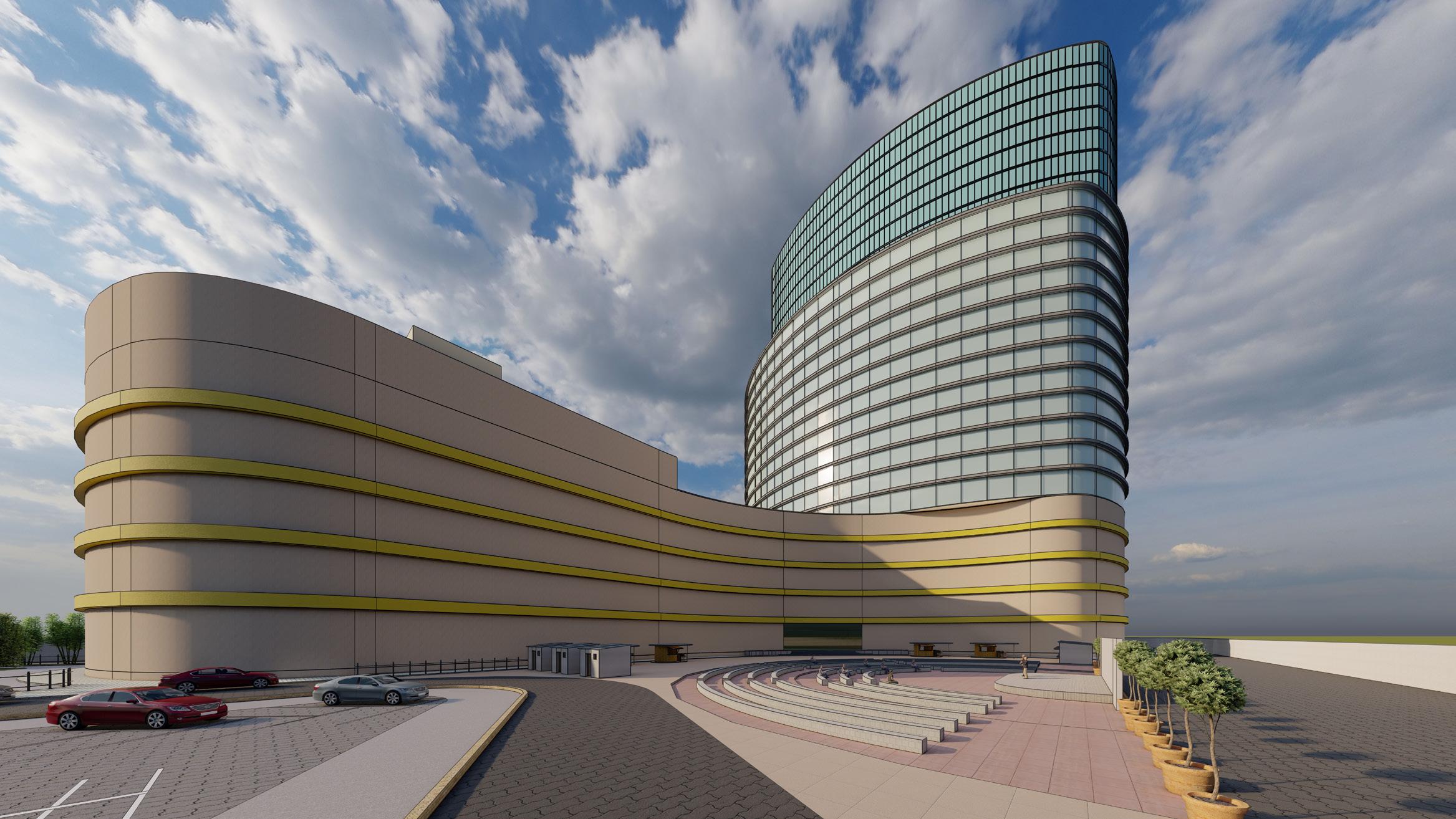

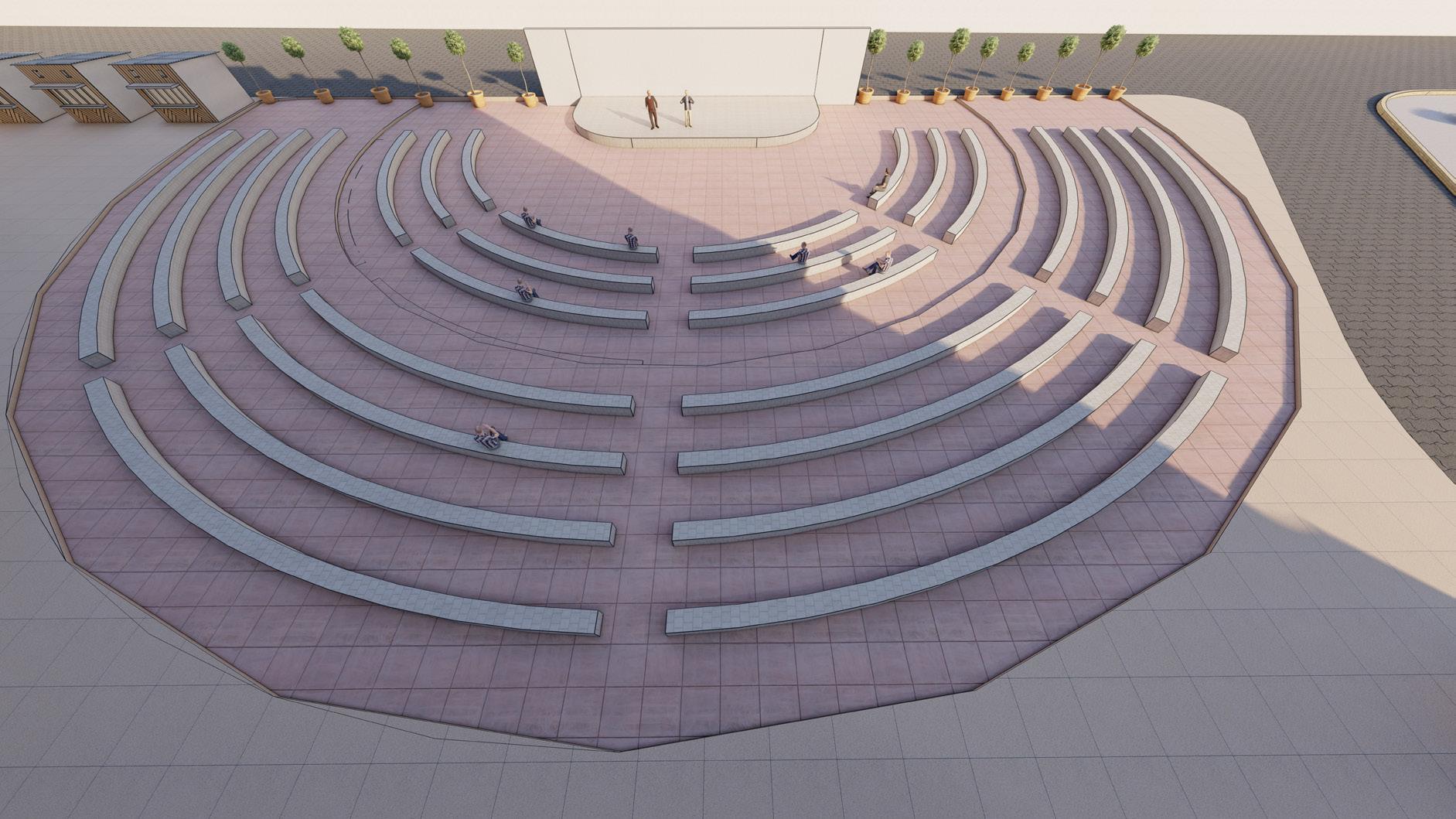

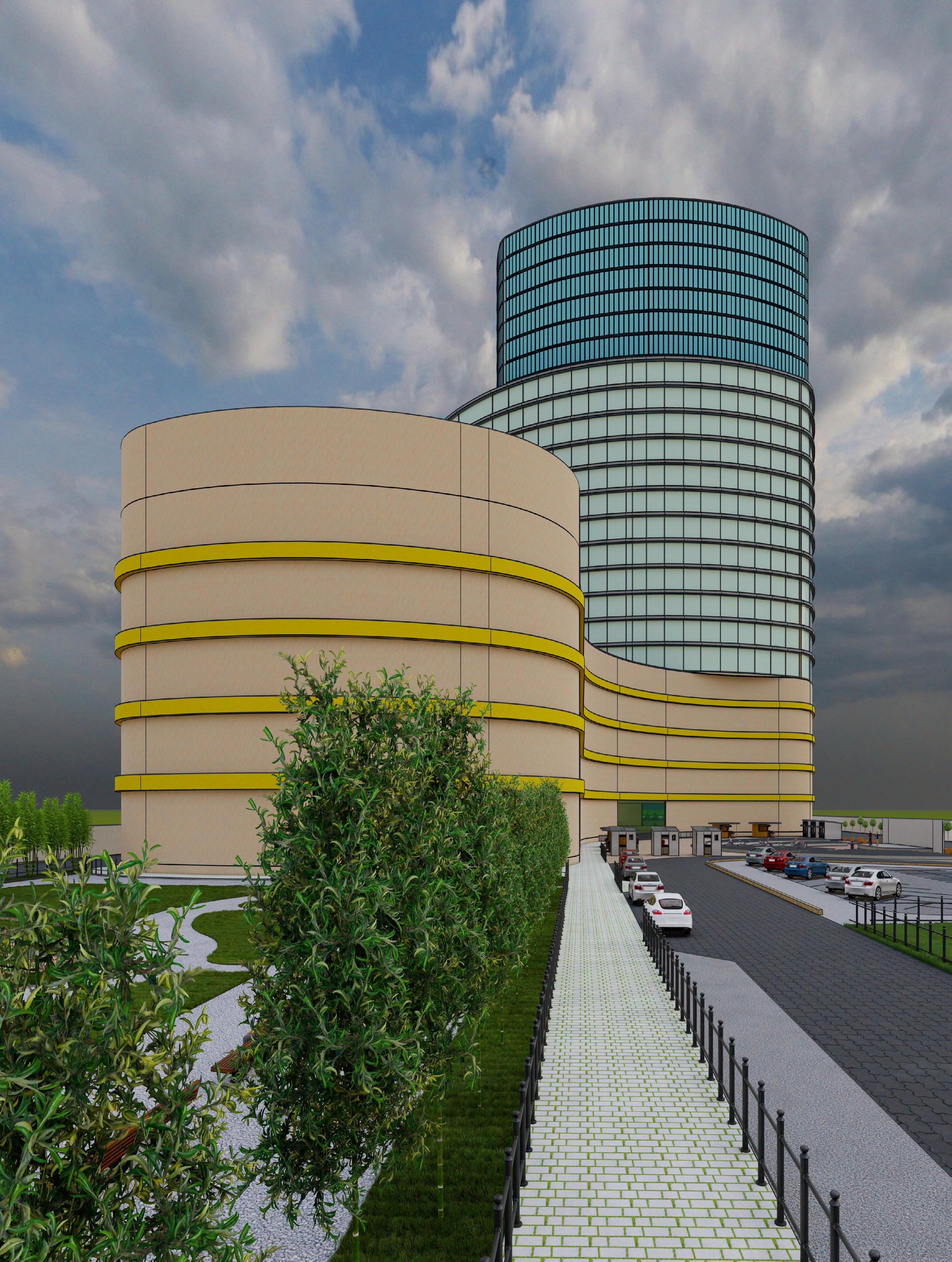

VIEWS
URBAN DESIGN PROPOSAL
04
SELECTION OF SITE 1 . Reserch and Analysis 2 . Market Demand 3 .Infrastructure and Facilities 4 . Competetion 5 . local Regulations and Permits 6 . Community Support 7 . Future Potential of the Place

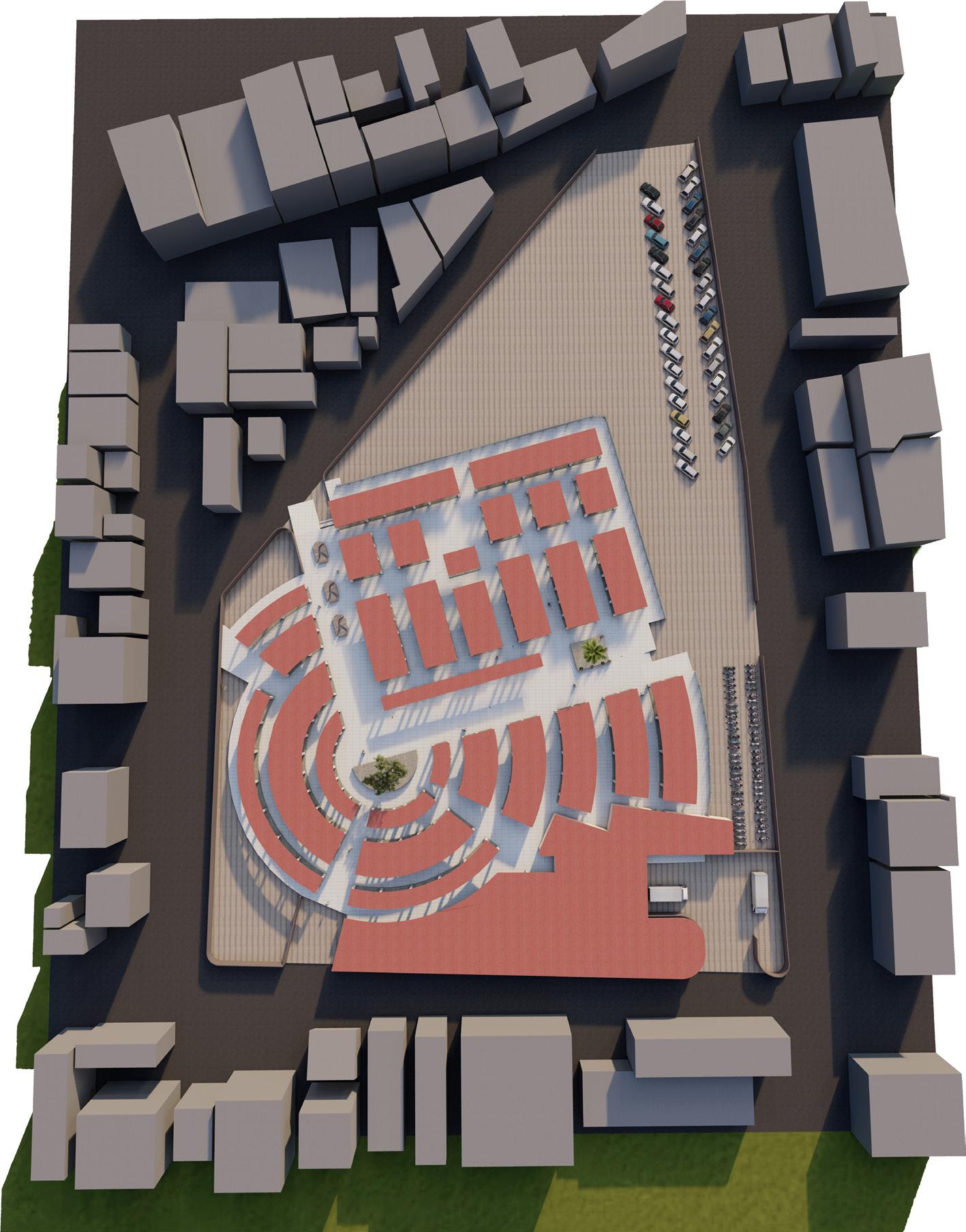

SITE PLAN
SITE AREA : 11474 sq.m
BUILTUP AREA : 5634 sq.m
NO. OF SLOTS PROVIDED:265 no
GROUND FLOOR PLAN
security cabin security 103 55.25 98.7 19.64 108.81 63.41 sq.m RESTING unloading security cabin ecurity security cabin 103 55.25 98.7 19.64 108.81 63.41
SECTION

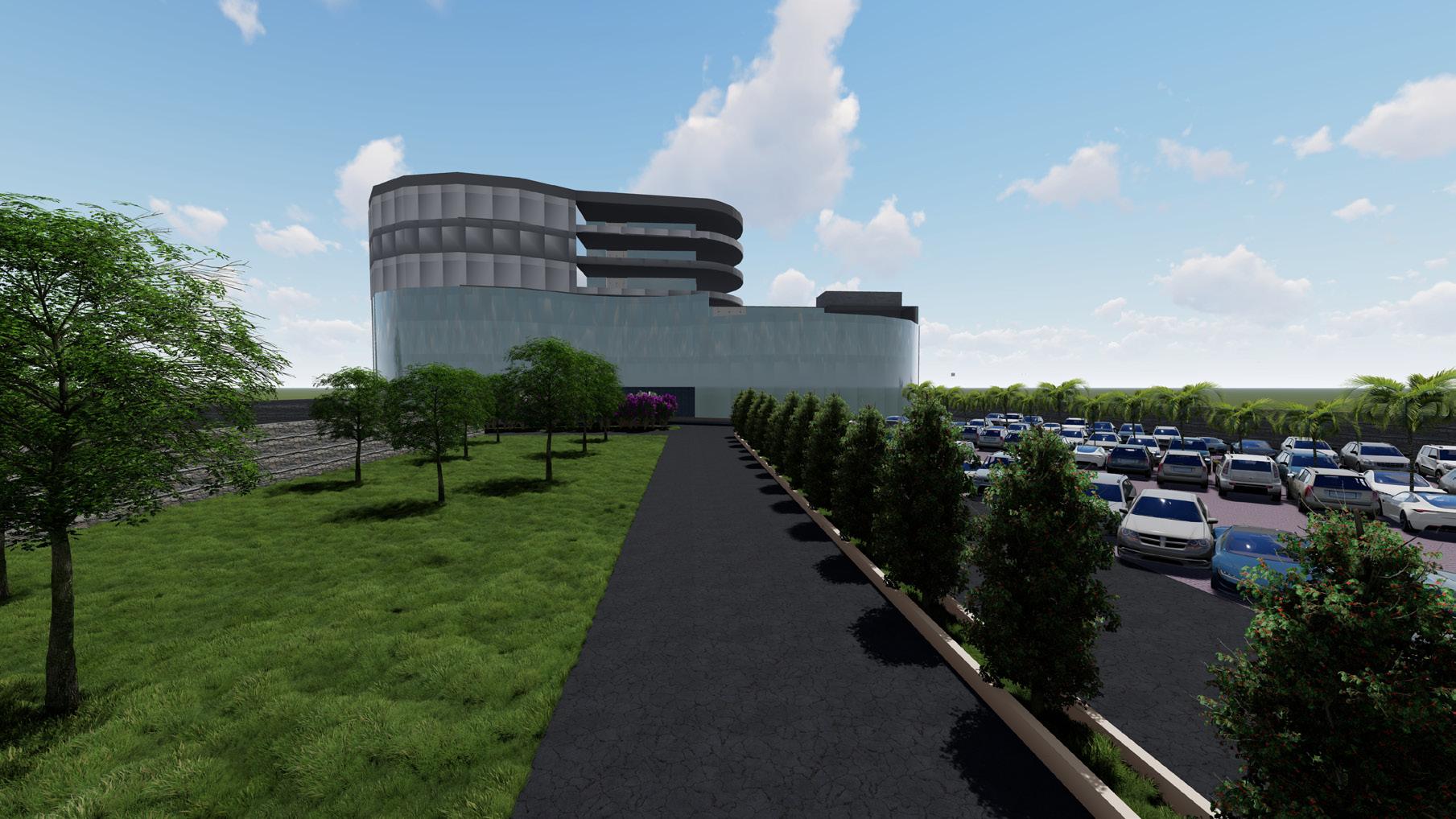

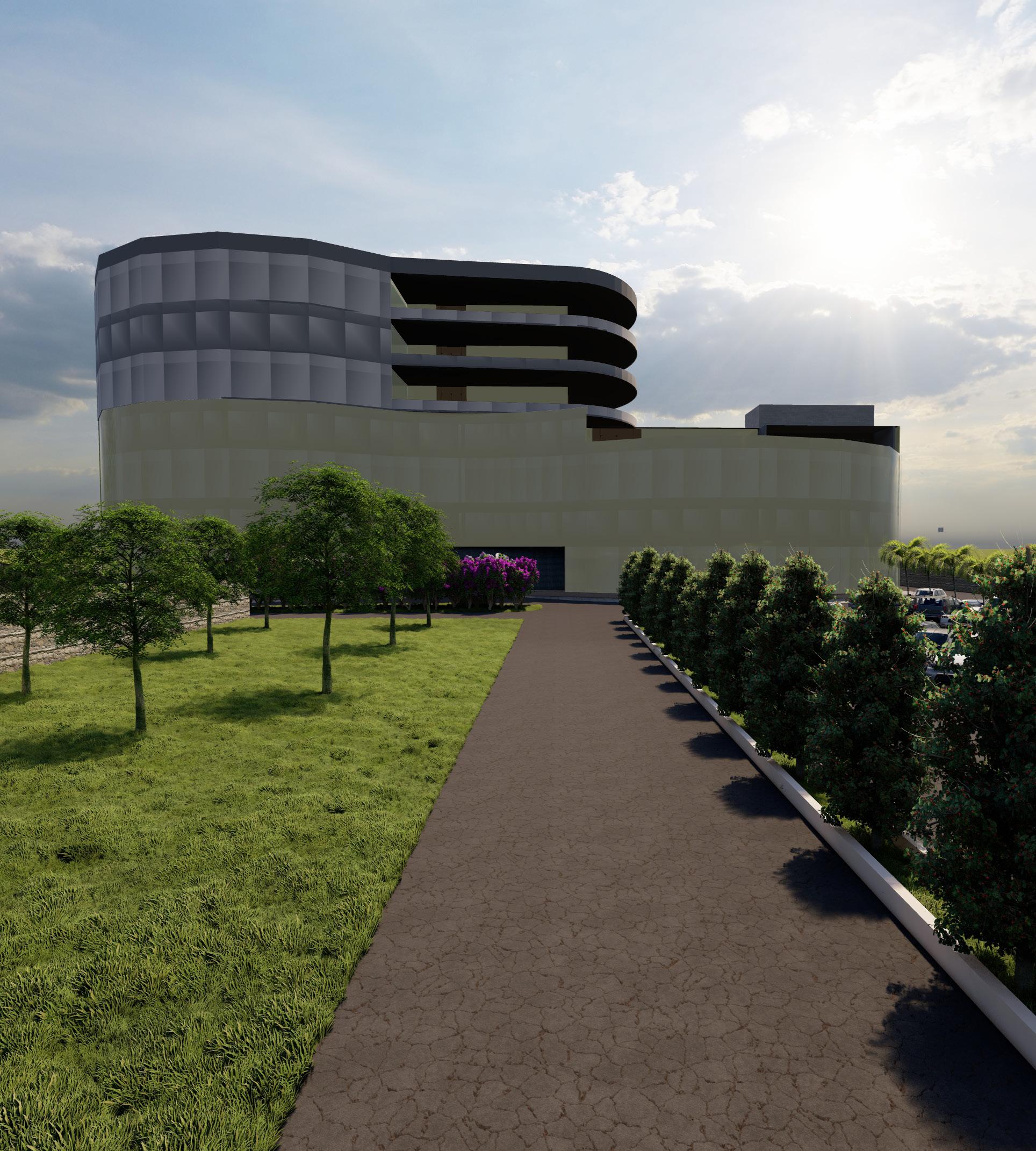

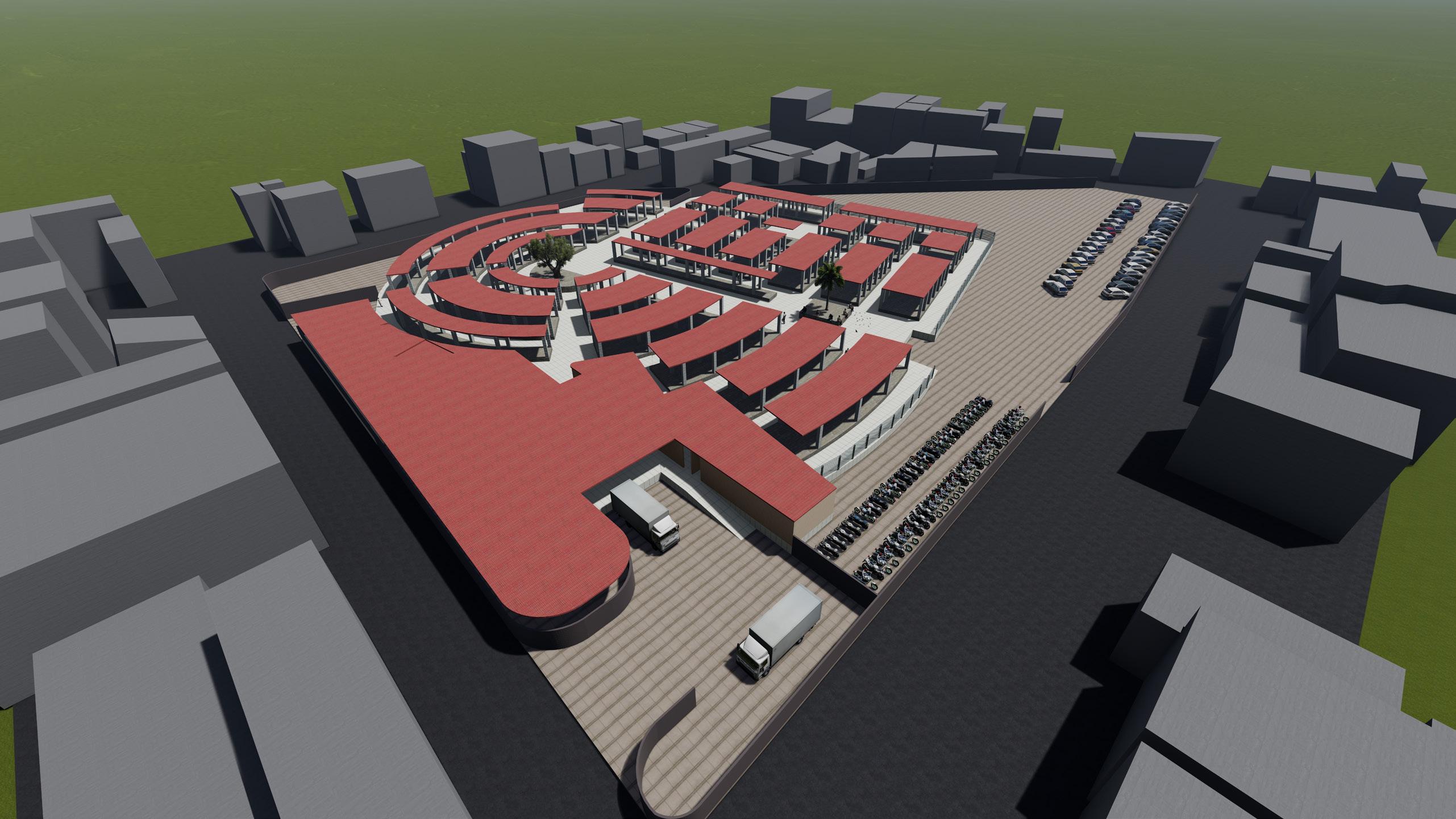

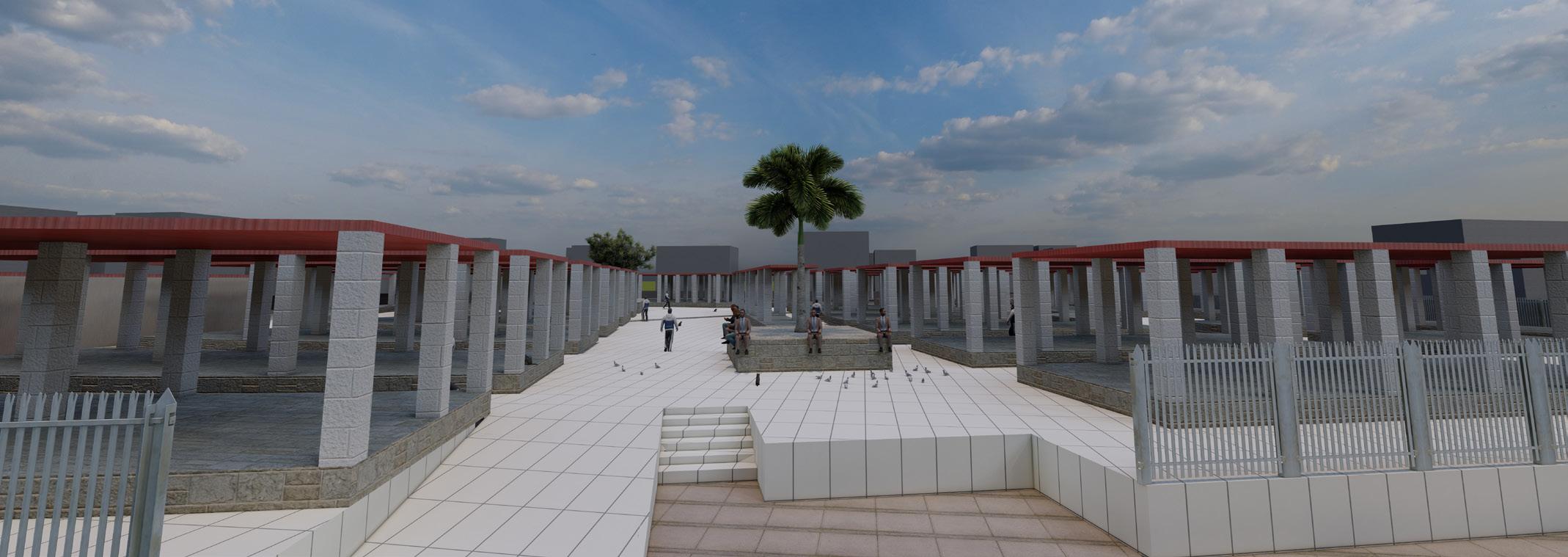

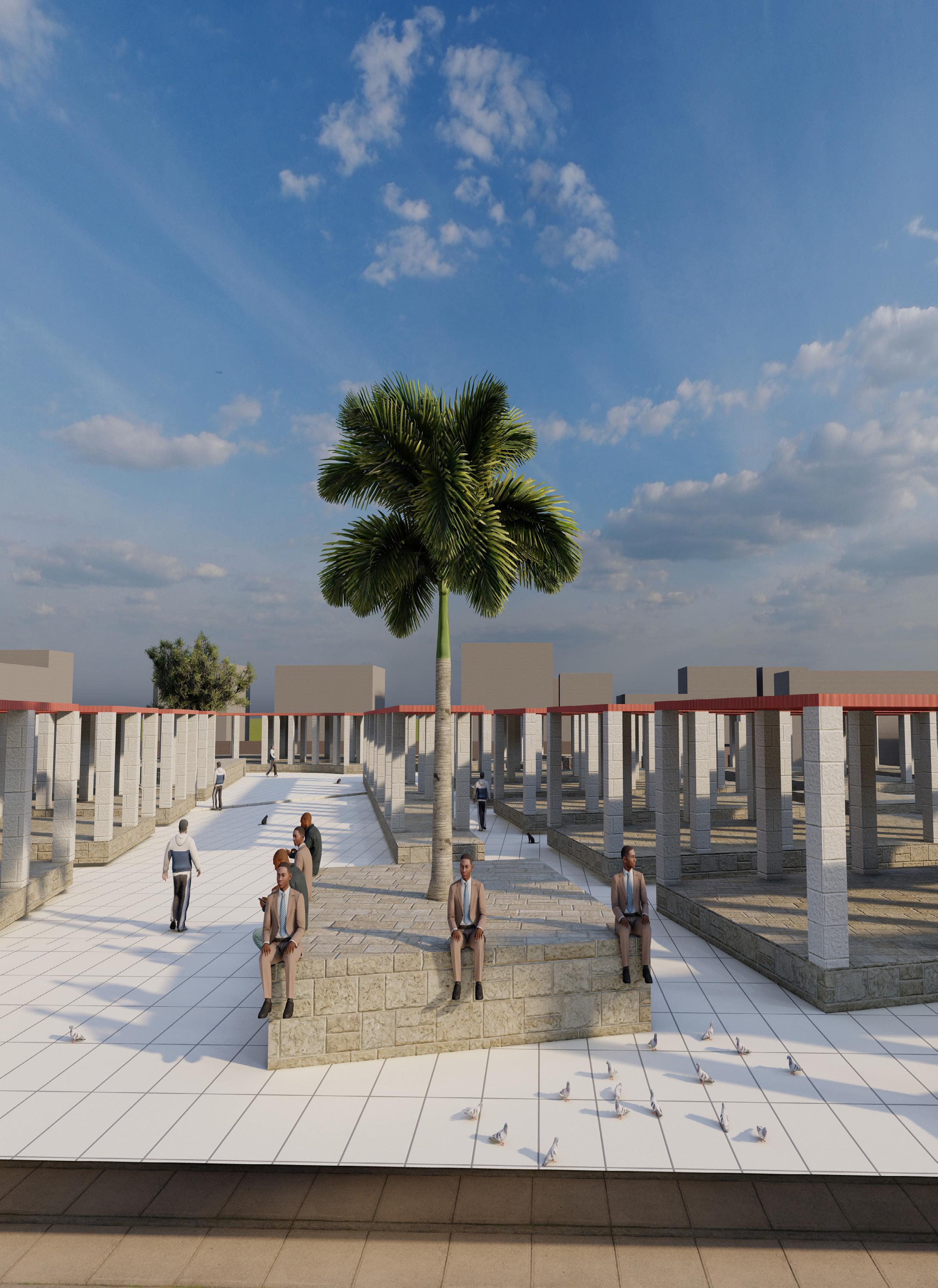

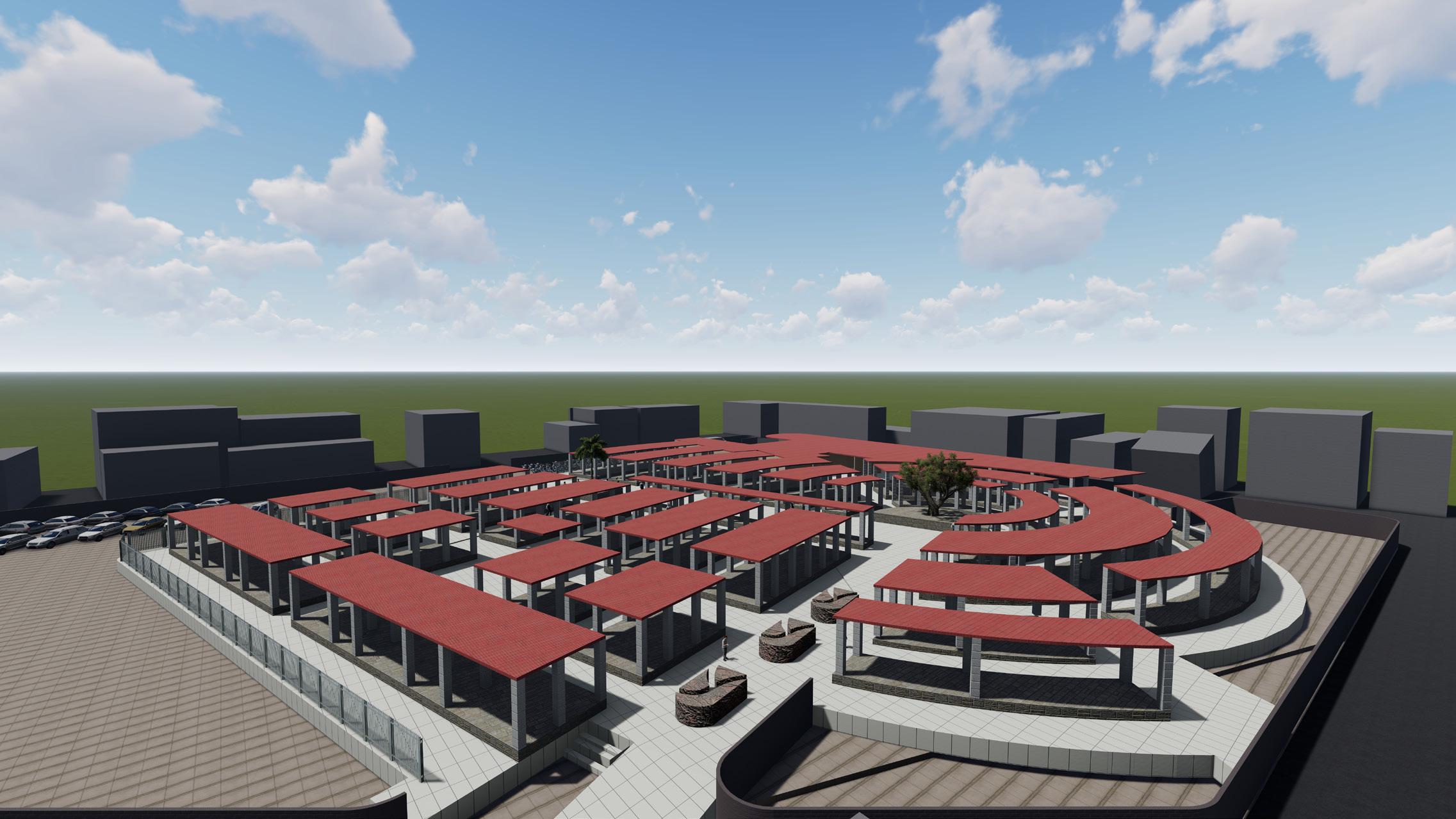

VIEWS
WORKING DRAWING
05
PROPOSED 3BHK
GROUND FLOOR PLAN
4B
FIRST FLOOR PLAN
ARCHITECTURAL WORKING DRAWING
CENTRELINE DETAILS
MOHAMMED NABIL H
CENTRELINE DRAWING
SECTION BB'
SECTION DRAWING
BEDROOM BEDROOM II KITCHEN DINNING LIVING ROOM 2.7 X 4.2 3 X4.2 5.1 X4.2 4.2 X4.2 3.9 X4.2 TOILET TOILET 1.5 X 2.8 1.5 X 2.8 2.64 1.13 0.98 1.42 2.4 1.7 2.48 1.41 1.7 2.89 1.7 4.18 2.27 2.15 1.73 3.53 4.43 2.72 1.7 2.16 4.41 3.42 4.98 3.16 6.22 6.2 3.53 6.17 6.25 12.75 19.83 12.75 19.83 LVL+0.45m LVL+0.45m LVL+1.5 A B C D E F 1 2 3 A B C D E F 1 2 3 D1 D2 D2 D2 D3 D3 W1 W1 W1 W1 W2 W4 W3 V1 V1 LVL+0.45m LVL+0.45m LVL+0.45m LVL+0.45m LVL+0.45m LVL+0.45m ENTRY GATE TREAD 0.25 RISER 3200/21
RESIDENCE TOTAL AREA :222 SQM TOTAL BUILTUP AREA:123 SQM FRONT SET BACK :3M SETBACK ON OTHER SIDES:1.5M ALL DMENSIONS ARE IN METRES SCHEDULE OF JOURNEY MD T.W.FRAME PANEL DOOR D1 C.W.FRAME FLUSH DOOR D2 C.W.FRAME FLUSH DOOR V1 VENTILATOR DATE: SCALE: 1:50 GROUND FLOOR PLAN ARCHITECTURAL WORKING DRAWING DRAWN BY 311219251045 MOHAMMED NABIL H CHECKED BY 1200X2150 900X2150 750X2150 1200X1200 1000X1200 W1 C.W.FRAME WINDOW W2 C.W.FRAME WINDOW W3 C.W.FRAME WINDOW 800X1200 600X900
PROPOSED 3BHK RESIDENCE TOTAL AREA :222 SQM TOTAL BUILTUP AREA:123 SQM FRONT SET BACK :3M SETBACK ON OTHER SIDES:1.5M ALL DMENSIONS ARE IN METRES SCHEDULE OF JOURNEY MD T.W.FRAME PANEL DOOR D1 C.W.FRAME FLUSH DOOR D2 C.W.FRAME FLUSH DOOR V1 VENTILATOR DATE: SCALE: 1:50 FIRST FLOOR PLAN ARCHITECTURAL WORKING DRAWING DRAWN BY 311219251045 MOHAMMED NABIL H CHECKED BY 1200X2150 900X2150 750X2150 1200X1200 1000X1200 W1 C.W.FRAME WINDOW W2 C.W.FRAME WINDOW W3 C.W.FRAME WINDOW 800X1200 600X900 4B
BEDROOM III BALCONY UPPER.LIVING SITOUT TOILET 4.2 X4.2 1.5 X 2.8 3.5 X 4.2 2.4 X3.1 5.5 X 4.2 6.23 2.43 1.72 2.5 1.52 6.1 0.86 11.54 2.18 1.72 2.75 4.48 1.75 3.45 3.19 4.46 6.27 6.28 12.87 5.03 6.23 6.32 12.87 20.03 LVL+3.6m LVL+3.45m LVL+5.1 D2 D2 D2 D3 W1 W1 W1 W3 V1 A B C D E F 1 2 3 1 2 3 A B C D E F LVL+3.6m LVL+3.6m LVL+3.6m TREAD 0.25 RISER 3200/21 PROPOSED 3BHK RESIDENCE TOTAL AREA :222 SQM TOTAL BUILTUP AREA:123 SQM FRONT SET BACK :3M SETBACK ON OTHER SIDES:1.5M
DMENSIONS
METRES DATE: SCALE:
ALL
ARE IN
1:50
DRAWN
BY 311219251045
CHECKED
BY 4B
PLINTH
A B C D E F 1 2 3 A B C D E F 1 2 3 6.05 6.14 4.88 3.36 3.1 4.33 3.47 6.05 6.14 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 12.19 FOOTING DETAILS PLINTH BEAM RCC (1:2:4) 10mm @6"c/c BOTHWAYS PCC (1:4:8) SAND FILLING PROPOSED 3BHK RESIDENCE TOTAL AREA :222 SQM TOTAL BUILTUP AREA:123 SQM FRONT SET BACK :3M SETBACK ON OTHER SIDES:1.5M ALL DMENSIONS ARE IN METRES DATE: SCALE: 1:50 SECTION DETAILS ARCHITECTURAL WORKING DRAWING DRAWN BY 311219251045 MOHAMMED NABIL H CHECKED BY 4B
BEAM DETAILS
SECTION DETAILS BEDROOM KITCHEN DINNING TOILET RAILING TO DETAIL OPEN TERRACE GLASS RAILING GROUNG FLOOR ROOF SLAB PROJECTION SLAB PROJECTION MID LANDING MID LANDING 0.61 1.21 2.83 1.21 1.35 1.82 0.51 3.73 0.51 4.04 LIVING ROOM LVL+1.95m LVL+0.45m LVL+3.6m LVL+5.1m LVL+6.35m LVL+10.5m LVL+7.35m LVL+0.00m FIRST FLR LVL +3.6 TERRACE FLR LVL +6.35 GROUND FLR LVL +O.45 GROIND LVL +0.0 FIRST FLR LVL +3.6 TERRACE FLR LVL +6.35 GROUND FLR LVL +O.45 GROIND LVL +0.0 LVL+0.45m LVL+3.6m LVL+6.35m LVL+10.5m LVL+7.35m LVL+0.00m V1 V1 W3 W3 V1 LVL+1.95m LVL+5.1m BEDROOM BEDROOM BED ROOM FAMILY LIVING STORAGE ROOM OPEN TERRACE
SECTION AA'
KEY PLAN
PROPOSED 3BHK RESIDENCE
TOTAL AREA :222 SQM
TOTAL BUILTUP AREA:123 SQM FRONT SET BACK :3M SETBACK ON OTHER SIDES:1.5M
ALL DMENSIONS ARE IN METRES
ELECTRICAL POINTS
ELECTRICAL LAYOUT
DATE:
4B
KITCHEN DETAILS
JOINERY DETAILS
PROPOSED 3BHK RESIDENCE DATE: SCALE: 1:25 KITCHEN DETAILS ARCHITECTURAL WORKING DRAWING DRAWN BY 311219251045 MOHAMMED NABIL H CHECKED BY 4B GENERAL NOTES: 1.ALL DIMENSIONSN ARE IN FEET AND INCHES 2.REFER DIMENSION TEXT FOR ACTUAL DIMENSION.DO NOT MEASURE FROM DRAWING 3.ALL LEAVES GIVEN IN ARCHITECTURAL DRAWIN GS ARE FINISHED FLOOR LEVELS ACCORDING LEAVE CLEARANCE FOR FINISHED WHEN DOING STRUCTURES BEDROOM LIVING ROOM KEY PLAN D2 W1 W4 A B C D ELEVATION A ELEVATION B ELEVATION C ELEVATION D TILE STARTS FROM THIS SIDE TILE STARTS FROM THIS SIDE WHITE LINO MOCHA DECOR MOTIF WHITE LINO MOCHA DECOR MOTIF
2'6" 2'6" 2'6" 4'8" 2' 1'8" 3' 2'5" 3' 2'3" 1' 2'4" 1'2" 1'8" 1'5" PLAN PROPOSED 3BHK RESIDENCE DATE: SCALE: 1:25
DETAILS ARCHITECTURAL WORKING DRAWING DRAWN BY 311219251045 MOHAMMED NABIL H CHECKED BY 4B TOILET
D3 V1 D3 V1 S S S FFL-0'-3" FFL-0'-2" B FFL-0"-3" FFL-0"-2" D FFL-0'-0" WB WC tile drop eql eql eql eql eql eql LINE OF PLASTER LINE OF TILES 2.5"DIA PVC SEWAGE WATER PIPE 4.5"DIA PVC SEWAGE WATER PIPE FFL-0'-0" tile drop FL FL S GENERAL NOTES: 1.ALL DIMENSIONSN ARE IN FEET AND INCHES 2.REFER DIMENSION TEXT FOR ACTUAL DIMENSION.DO NOT MEASURE FROM DRAWING 3.ALL LEAVES GIVEN IN ARCHITECTURAL DRAWIN GS ARE FINISHED FLOOR LEVELS ACCORDING LEAVE CLEARANCE FOR FINISHED WHEN DOING STRUCTURES BEDROOM KITCHEN DINNING TOILET KEY PLAN FFL-0'-3" FFL-0'-2" FFL-0'-3" FFL-0'-2" 2.5"DIA PVC SEWAGE WATER PIPE 4.5"DIA PVC SEWAGE WATER PIPE PLAN FLOORING LAYOUT ELEVATION A ELEVATION B ELEVATION C ELEVATION D B A FFL-0'-3" FFL-0'-0" FFL-0'-0" FFL-0'-0" FFL-0'-0" FFL-0'-0" FFL-0'-0" FFL-7'-0" FFL-7'-0" FFL-7'-0" FFL-7'-0" OUT IN IN OUT DOOR FRAME TO FLUSH WITH OUTER PLASTER LINE DOOR JAMB AS PER JOINERY DETAILS 0.5"THICK DADO TILE OVER 0.5" THICK MORTAR DADO TILE TO TURN AROUND WALL EDGE AND MEET THE JAMB 0.5"THICK DADO TILE OVER 0.5:" THICK MORTOR VENTILATOR FRAME TO FLUSH WITH DADO TILE LINE ON THE INSIDE VENTILATOR FRAME AS PER JOINERY DETAILS 9'3" 5' 9'3" 5' A B PROPOSED 3BHK RESIDENCE DATE: SCALE: 1:25 JOINERY DETAILS ARCHITECTURAL WORKING DRAWING DRAWN BY 311219251045 MOHAMMED NABIL H CHECKED BY 4B GENERAL NOTES: 1.ALL DIMENSIONSN ARE IN METRES 2.REFER DIMENSION TEXT FOR ACTUAL DIMENSION.DO NOT MEASURE FROM DRAWING 3.ALL LEAVES GIVEN IN ARCHITECTURAL DRAWIN GS ARE FINISHED FLOOR LEVELS ACCORDING LEAVE CLEARANCE FOR FINISHED WHEN DOING STRUCTURES BEDROOM LIVING ROOM KEY PLAN
TOILET
DETAILS
EQ EQ EQ EQ EQ S S S S S S S ELEVATION ELEVATION ELEVATION 2.1 2.1 2.1 1.2 0.9 0.75 1 1 1 1.2 0.9 0.75 PLAN PLAN PLAN ELEVATION ELEVATION ELEVATION 1.4 1.4 1.4 1.6 1.2 0.4 0.6 1 1.6 1.2 1 PLAN PLAN PLAN DOOR WINDOW PLAN ELEVATION 0.6 0.6 0.5 0.15 0.09 BRICK WALL P.W FRAME 0.15X0.09 FIXED CUT HINGE VENEER FINISH 6MM THICK PLYWOOD OUTSIDE INSIDE TYPICAL INTRNAL COOR FRAME DETAIL PADAK WOOD FRAME 0.15M X 0.09M 0.18 0.09 OUTSIDE INSIDE MAIN DOOR FRAME DETAIL TEAK WOOD FRAME 0.18M X 0.09M BRICK WALL T.W FRAME018X.09 0.06M THK TEAK WOOD PLANKS CLAMP SCREW PLASTERING CLAMP SCREW PLASTERING 0.15 0.09 OUTSIDE INSIDE TYPICAL WINDOW AND VENTILATOR FRAME DETAIL PADAK WOOD FRAME 0.15M X 0.09M BRICK WALL PADAK WOOD FRAME 0.15M X0.09M PADAKWOOD STYLE CLAMP SCREW PLASTERING 16MM SQUARE BRITE BAR
SCALE: 1:50 GROUND FLOOR ELECTICAL LAYOUT ARCHITECTURAL WORKING DRAWING DRAWN BY 311219251045 MOHAMMED NABIL H CHECKED BY
BEDROOM BEDROOM II KITCHEN DINNING LIVING ROOM 2.7 X 4.2 3 X4.2 5.1 X4.2 4.2 X4.2 3.9 X4.2 TOILET TOILET 1.5 2.8 1.5 X 2.8 LVL+1.5 D2 D3 W1 W1 W1 W2 W4 W3 V1 V1 (G) (G) (WL) ENTRY GATE (TS2) (WL) (SB) (20A) (CL) (5A-3) SPOT LIGHT(SL) DATABAND PLUG 5 AMPS(5A) TELEPHONE(T) SWITCH(SB) CHANDILIER(C) 15AMPS(15A) MIRROR LIGHT(ML) WALL LIGHT(WL) TUBE LIGHT(TL) CALLING BELL(CB) CALL PUSH(CP) AC 20 AMPS(20A) WALL FAN(WF) FOOT LAMP(FL) ANTENNA(A) EXHAUST FAN(F) CEILING LIGH(CL) OUTSIDE LIGHT(OL) FAN(F) BEDROOM III BALCONY UPPER.LIVING SITOUT TOILET 4.2 X4.2 1.5 X 2.8 3.5 X 4.2 2.4 X3.1 5.5 X 4.2 LVL+3.6m LVL+3.45m LVL+5.1 D2 D2 D2 D3 W1 W1 W1 W3 V1 LVL+3.6m LVL+3.6m LVL+3.6m TREAD 0.25 RISER 3200/21 TERRACE D2 WATER TANK (SB) (G) (TS2) (WL) (WL) (WL) (SB) FIRST FLOOR GROUND FLOOR TERRACE FLOOR
MISCELLANEOUS
06
