Lite POD Series
Wellness by Design
WELLNESS BY DESIGN
(Both side glass)

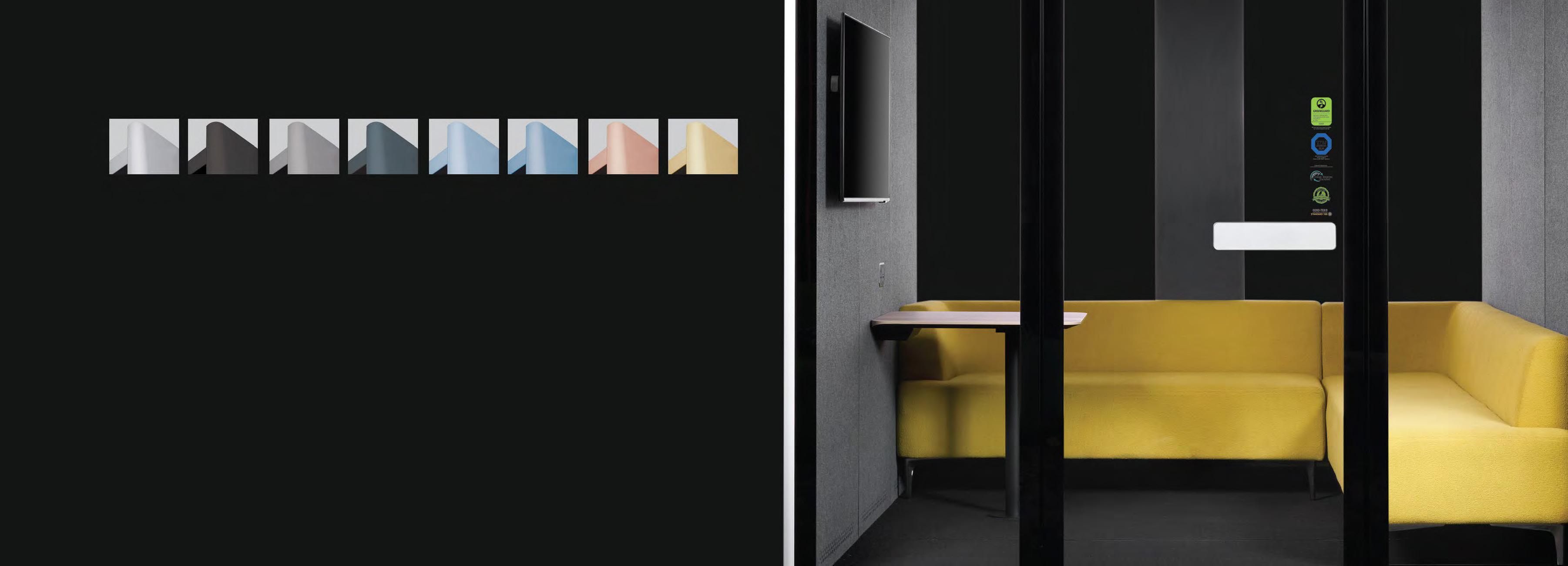

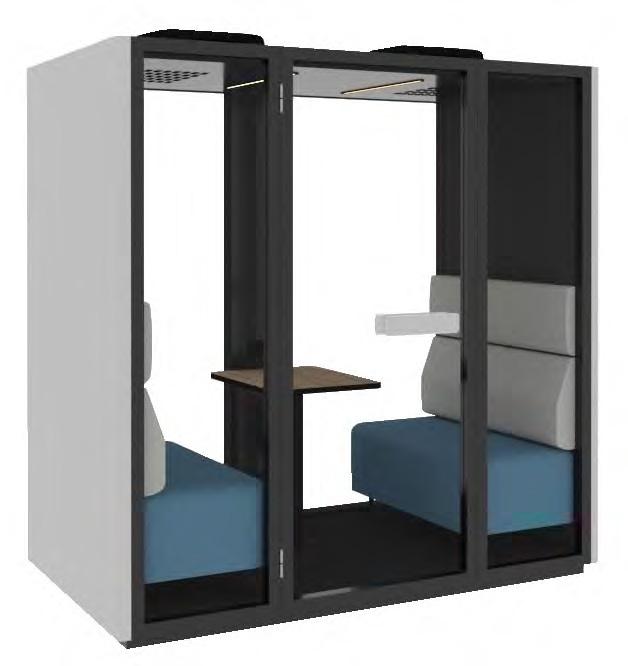

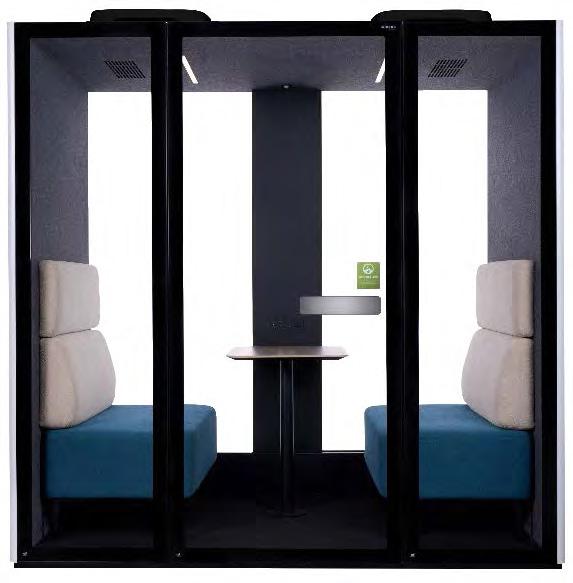

DPOD Lite Discussion Pod 2-4 Person Pod
LITE POD Series
พื้นที่ทำงานของคุณ

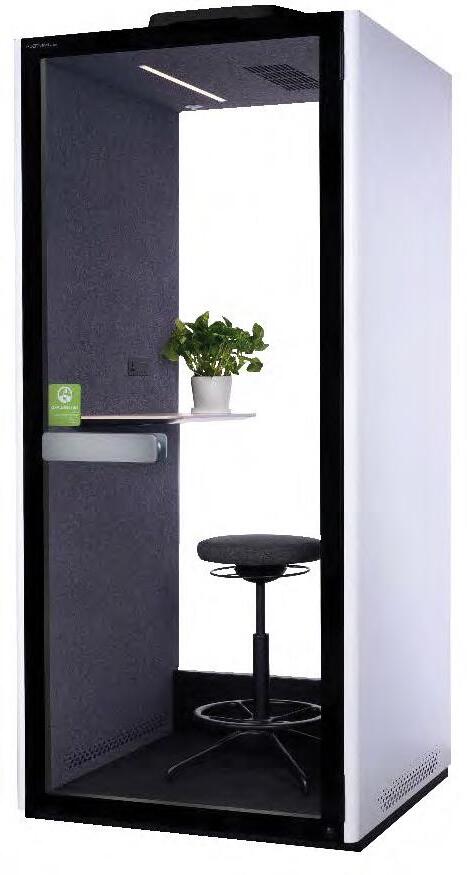

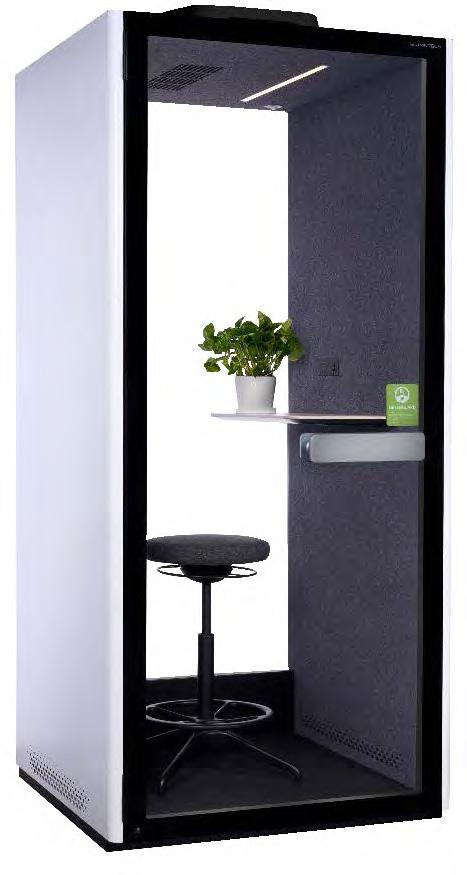

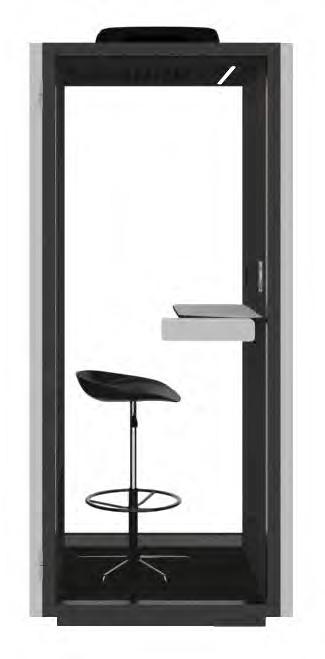

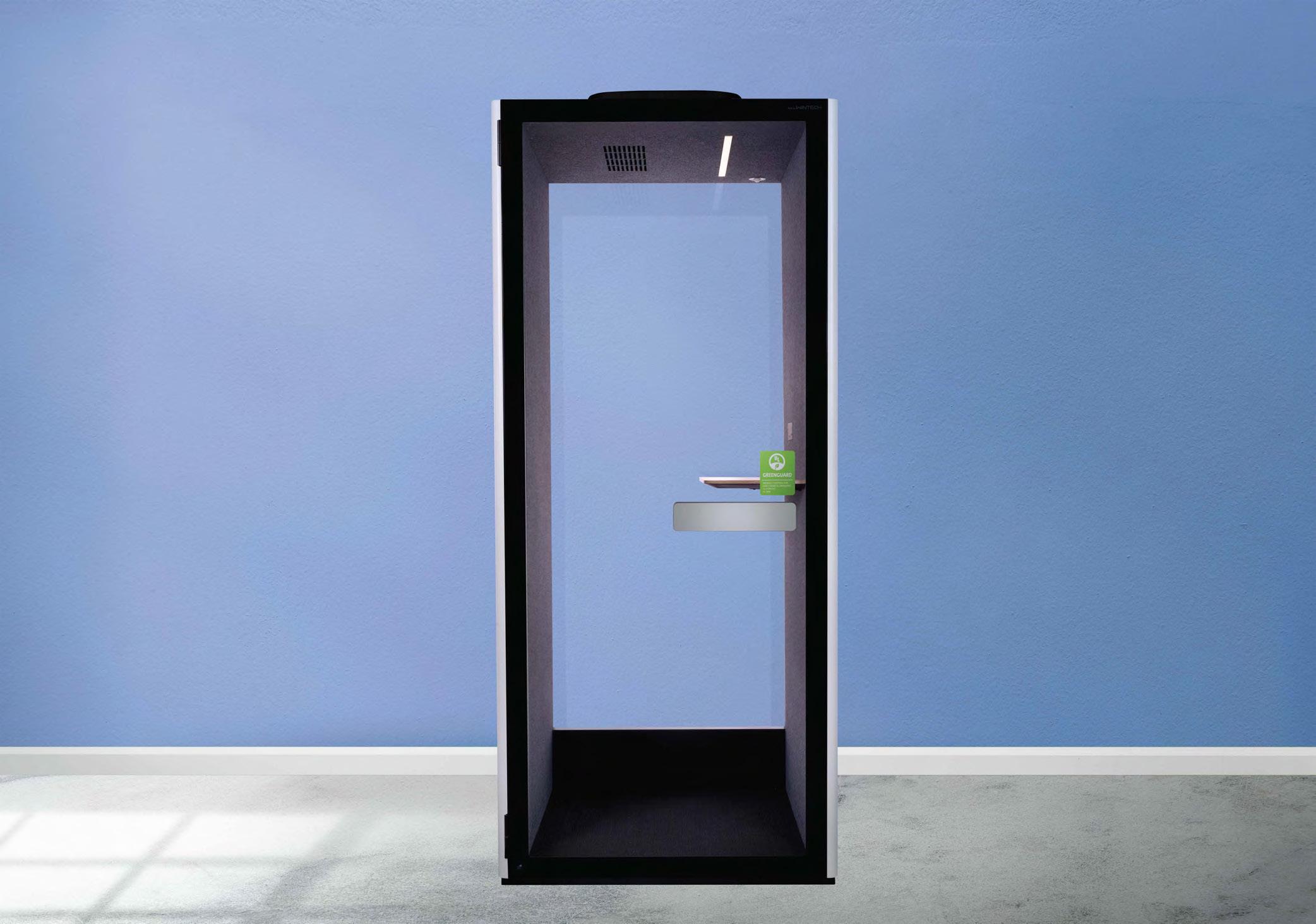

S POD Lite
W POD Lite มาพร้อมโต๊ะที่ถูกออกแบบมาพิเศษที่สามารถขยายได้ช่วยเพิ่มฟังก์ชันการใช้งาน

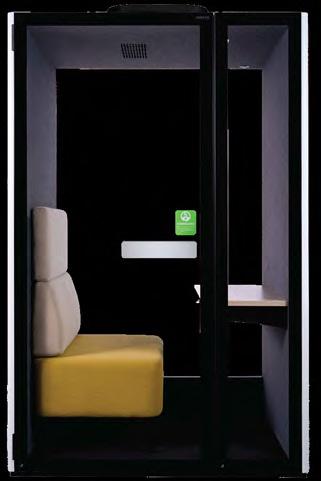

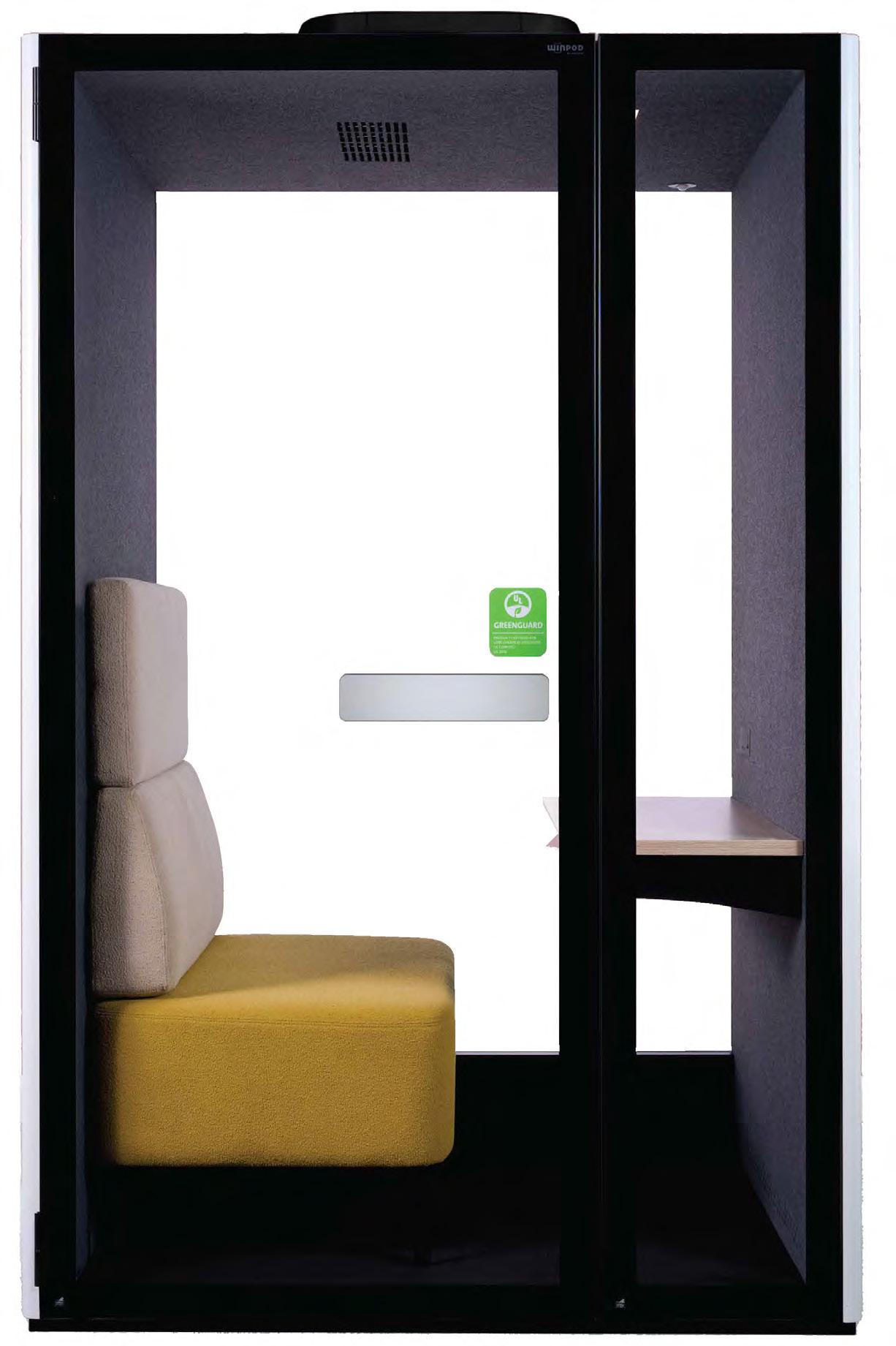

W POD Lite

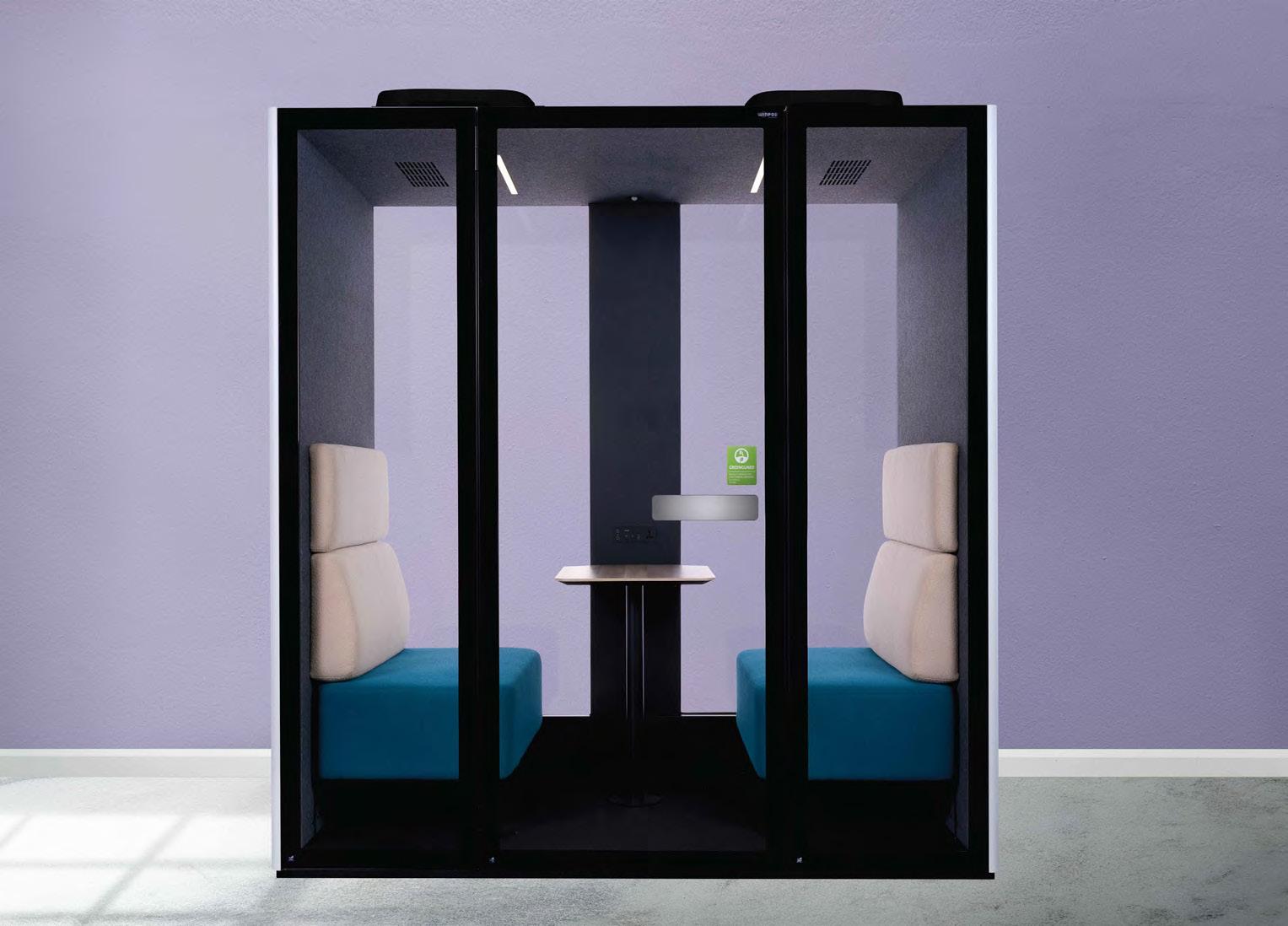

D POD Lite
POD
S POD Lite
Acoustic Properties Material
Dimension (External & Internal)
26.3dB According to ISO 23351-1, Speech Level Reduction, DS,A (Tested at TUV SUD Singapore)
1.2mm Electro Galvanize Steel
1000mm(W) x 1000mm(D) x 2280mm (H) 830 (W) x 910mm(D) x 2030mm (H)
External Finishing Epoxy Powder Coating
Internal Finishing Polyester Fiber Acoustic Board Dark Grey only
Floor Finishing Fiber Nylon Carpet Black only
Glass Door Aluminum Frame with Laminated Glass (8.00 mm)
Rear Glass Laminated Glass (8.38 mm)
Door Closer YES
Fixed Table Melamine Laminated Wood With Chamfered Edge (820mm x 320mm x 25mm)

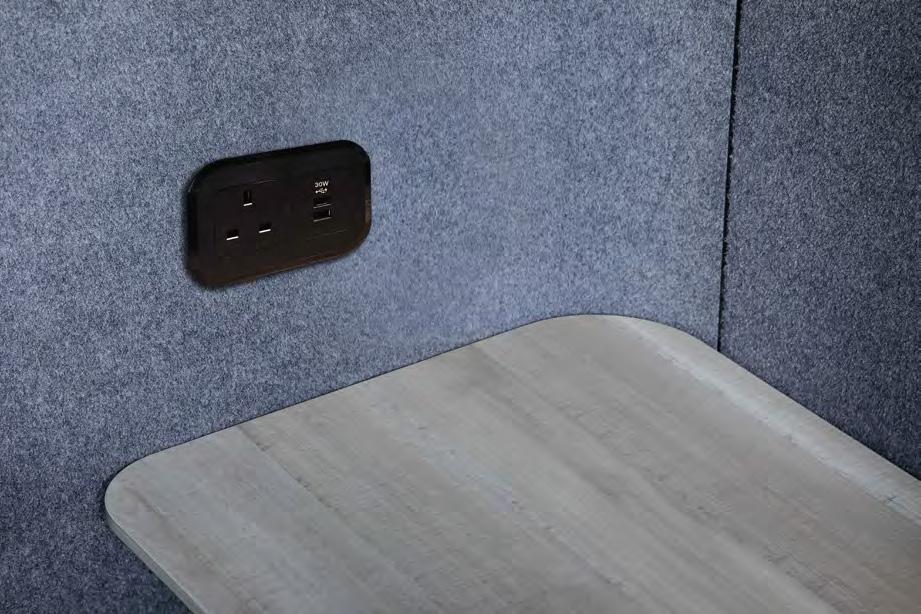

AH Meyer NETBOX Flush 1 Power Socket & USB A + C
Rated for 110V to 250V with a maximum of 20A. USB A + C, MAX 30W
CAT 6 LAN Outlet N/A

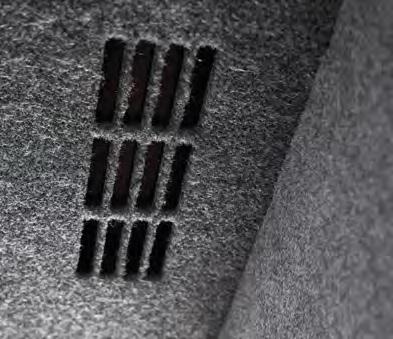

Ventilation Fan (2 Fans) 118 CFM Per Fan

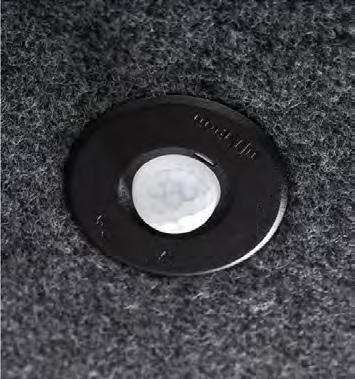

Motion Sensor 12V DC, Sensor Duration Adjustable
Lighting LED 4000K 1 X (11W)
Occupancy Indicator Light N/A
Air Purifying System N/A
Self Ventilation YES
Heavy Duty Castor N/A
Power Consumption (A) 0.18
New Interface Control Hab N/A Net Weight (KG) 265.55
*Optional -Adjustable Worktop

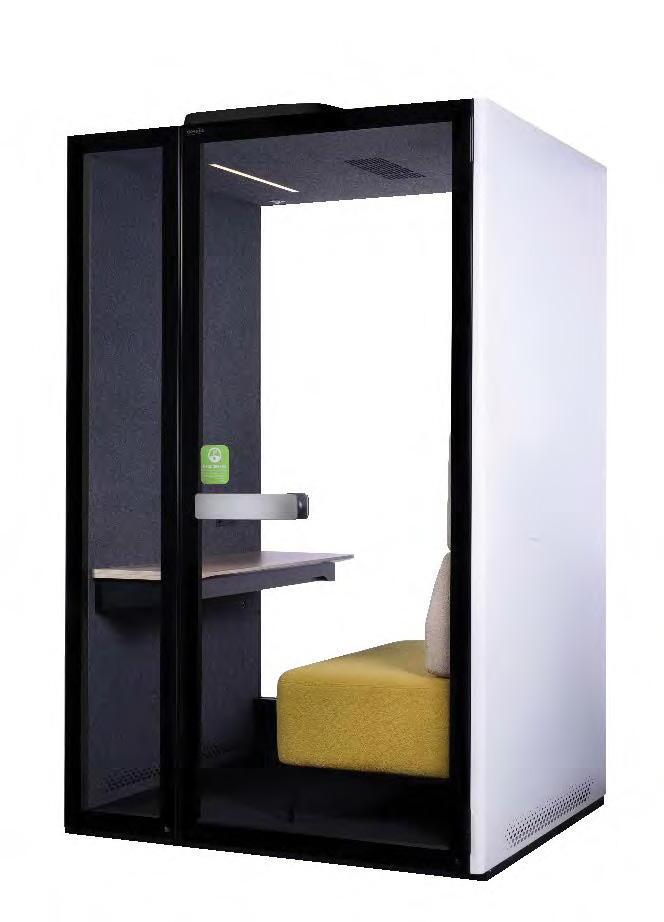

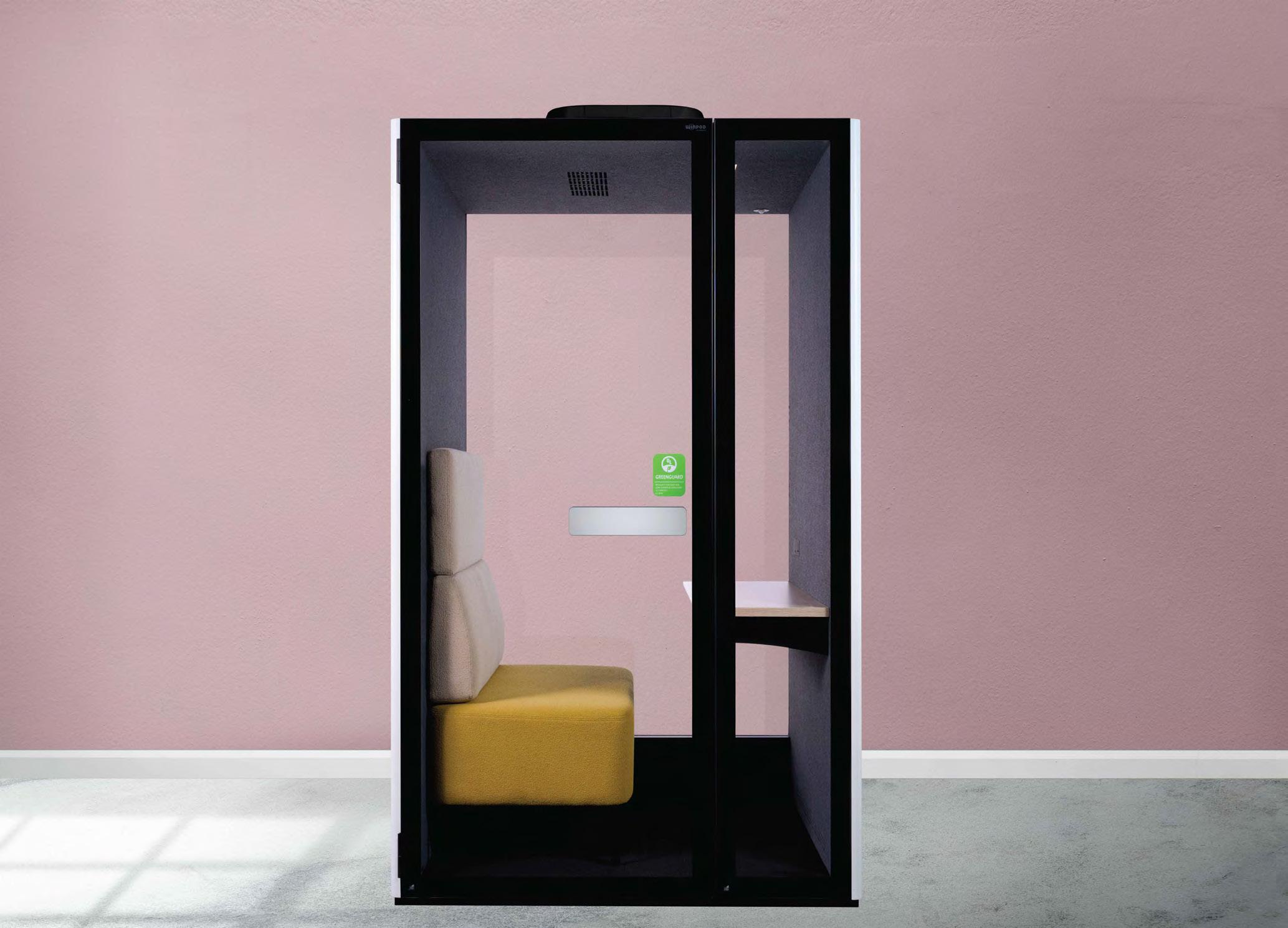

W POD Lite
Acoustic Properties
Material
Dimension (External & Internal)
26.3dB According to ISO 23351-1, Speech Level Reduction, DS,A (Tested at TUV SUD Singapore)
1.2mm Electro Galvanize Steel
1400mm(W) x 1250mm(D) x 2280mm (H)
1230 (W) x 1160mm(D) x 2030mm (H)
External Finishing Epoxy Powder Coating
Internal Finishing
Polyester Fiber Acoustic Board Dark Grey only
Floor Finishing Fiber Nylon Carpet Black only
Glass Door Aluminum Frame with Laminated Glass (8.00 mm)
Rear Glass Laminated Glass (8.38 mm)
Door Closer YES
Sliding Table
AH Meyer NETBOX Flush
1 Power Socket & USB A + C
Melamine Laminated Wood With Chamfered Edging (1140mm x 400mm x 25mm)
Rated for 110V to 250V with a maximum of 20A. USB A + C, MAX 65W
CAT 6 LAN Outlet N/A
Ventilation Fan (2 Fans)
Motion Sensor
118 CFM Per Fan
12V DC, Sensor Duration Adjustable
Lighting LED 4000K 2 X (11W)
Air Purified System N/A
Self Ventilation YES
Heavy Duty Castor N/A
Adjustable Foot Cap 4 Pcs Power Consumption (A)
New Interface Control Hab N/A
S POD Lite
Acoustic Properties
Material
Dimension (External & Internal)
26.3dB According to ISO 23351-1, Speech Level Reduction, DS,A (Tested at TUV SUD Singapore)
1.2mm Electro Galvanize Steel
2200mm(W) x 1250mm(D) x 2280mm (H)
2030 (W) x 1160mm(D) x 2030mm (H)
External Finishing Epoxy Powder Coating
Internal Finishing Polyester Fiber Acoustic Board Dark Grey only
Floor Finishing Fiber Nylon Carpet Black only
Glass Door Aluminum Frame with Tempered Glass (8.00 mm)
Rear Glass Laminated Glass (8.38 mm)
Door Closer YES
Table Melamine Laminated Wood With Chamfered Edging (700mm x 550mm x 25mm)
AH Meyer NETBOX Flush
1 Power Socket & USB A + C
Rated for 110V to 250V with a maximum of 20A. USB A + C, MAX 65W
CAT 6 LAN Outlet N/A
Ventilation Fan (2 Fans)
Motion Sensor
118 CFM Per Fan
12V DC, Sensor Duration Adjustable
Lighting LED 4000K 2 X (11W)
Air Purifying System N/A
Heavy Duty Castor N/A
Power Consumption (A) 0.33
New Interface Control Hab N/A
Net Weight (KG) 498
*Optional -TV Bracket with AC Power socket
