MISTER HITCHES CATALOGUE by MISTER HITCHES AUSTRALIA

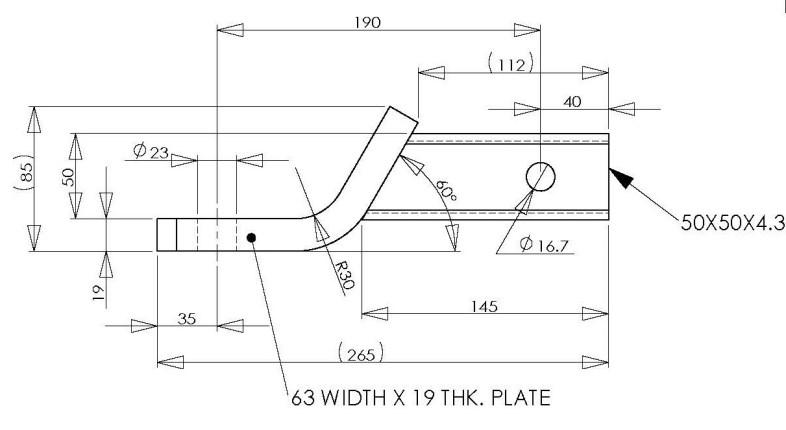

BALL HOLE

HITCH PIN HOLE

Part A Contents:

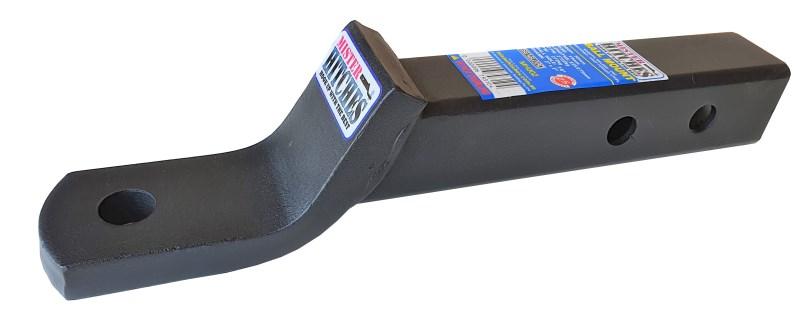

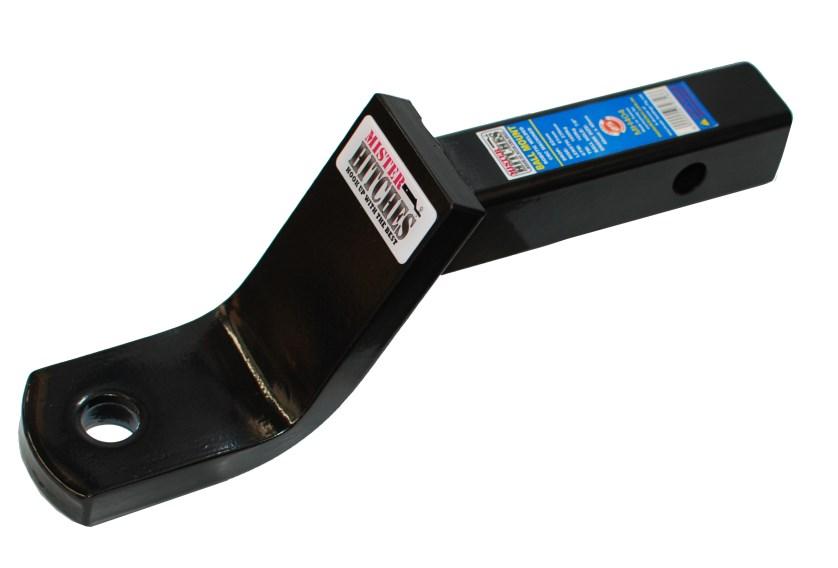

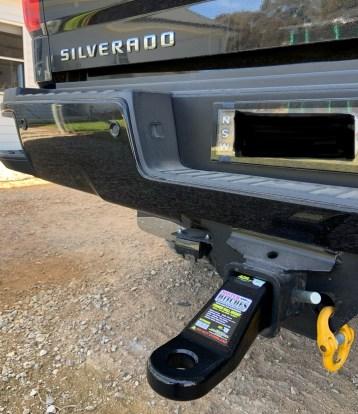

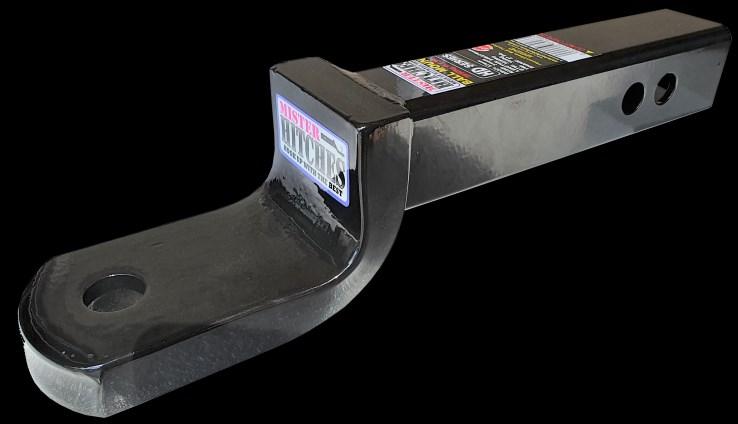

Ball Mount Hitches - Standard

Part No. MH001

Barcode: 0000006793227

Weight: 3kg

Carton Qty: 6pcs

• GTW: 2722kg TW: 272kg

• Drop: 50mm Rise: 19mm

• Length (Pin Hole to Ball Hole): 190mm

• Can be inverted for Drop or Rise configuration.

• Seaguard Matte Black Powder Coated.

• Suits shallow shank receivers. Eg Ford Ranger & Pajero Sport.

• Suitable for D035 Pin or 50mm Ball

• ADR62/02 Compliant.

Part No. MH002

Barcode: 0000006793104

Weight: 3.2kg

Carton Qty: 6pcs

• GTW: 2722kg TW: 272kg

• Drop: 50mm Rise: 19mm

• Lengths (Pin Hole to Ball Hole): 230/280mm

• Can be inverted for Drop or Rise configuration.

• Seaguard Matte Black Powder Coated.

• Suits shallow shank receivers. Eg Ford Ranger.

• Suitable for D035 Pin or 50mm Ball

• ADR62/02 Compliant.

Part No. MH314

Barcode: 0000006793111

Weight: 3.5kg Carton Qty: 6pcs

• GTW: 2268kg TW: 227kg

• Drop: 83mm Rise: 50mm

• Lengths (Pin Hole to Ball Hole): 244/294mm

• Can be inverted for Drop or Rise configuration.

• Seaguard Matte Black Powder Coated.

• Suits shallow shank receivers. Eg Ford Ranger.

• Suitable for D035 Pin or 50mm Ball

• ADR62/02 Compliant.

Please Note: Dimension & photos can vary without prior notification Lengths noted are measured from centre of Pin Hole to centre of Ball Hole Drop or Rise noted are measured from top of the Shank to the Ball Platform

Ball Mount Hitches Standard

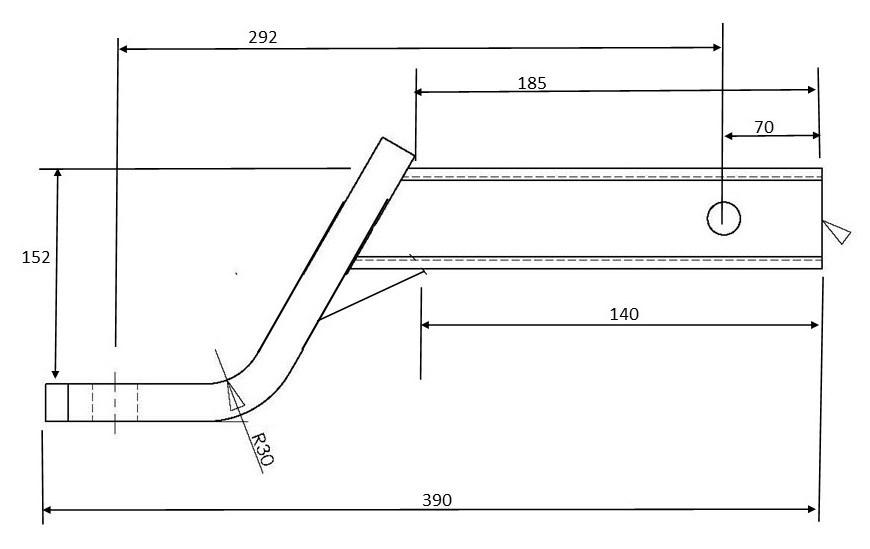

Part No. MH006

Barcode: 0000006793128

Weight: 4.3kg

Carton Qty: 4pcs

• GTW: 2268kg TW: 227kg

• Drop: 152mm Rise: 121mm

• Length (Pin Hole to Ball Hole): 292mm

• Can be inverted for Drop or Rise configuration.

• Gloss Black Powder Coated.

• Suitable for D035 Pin or 50mm Ball

• ADR62/02 Compliant.

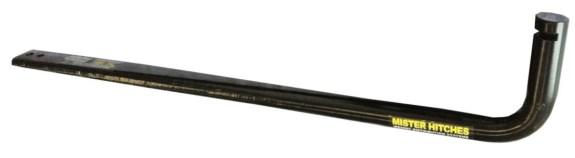

LONG REACH HITCH

Part No. MH002LS

Barcode: 0000006793708

Weight: 3kg

Carton Qty: 6pcs

• GTW: 2722kg TW: 272kg

• Drop: 50mm Rise: 19mm

• Length (Pin Hole to Ball Hole): 322mm

• Length Overall: 420mm

• Can be inverted for Drop or Rise configuration.

• Gloss Black Powder Coated.

• Suitable for D035 Pin or 50mm Ball

• ADR62/02 Compliant.

Ball Mount Hitches - 40mm x 40mm

BALL MOUNTS WITH 40mm x 40mm SQUARE SHANK

Part No. MH402

40 x 40mm SHANK

Barcode: 0000006793579

Weight: 2.4kg

Carton Qty: 6pcs

• GTW: 1600kg TW: 160kg

• Drop: 50mm Rise: 30mm

• Length (Pin Hole to Ball Hole): 220mm

• Can be inverted for Drop or Rise configuration.

• Matte Black Seaguard Powder Coated.

• Suitable for D035 Pin or 50mm Ball

• ADR62/02 Compliant.

Part No. MH404

40 X 40mm SHANK

Barcode: 0000006793586

Weight: 2.71kg

Carton Qty: 6pcs

• GTW: 1600kg TW: 160kg

• Drop: 86mm Rise: 61mm

• Length (Pin Hole to Ball Hole): 239mm

• Can be inverted for Drop or Rise configuration.

• Matte Black Seaguard Powder Coated.

• Suitable for D035 Pin or 50mm Ball

• ADR62/02 Compliant.

Part No. MHABM-40

Barcode: 0000006793586

Weight: 6.25kg

Carton Qty: 1pc

• GTW: 1800kg TW: 180kg

• Max Drop: 186mm Max Rise: 166mm

• Lengths (Pin Hole to Ball Hole): 237/267mm

• Can be inverted for Drop or Rise configuration.

• 12.9 grade HT 16mm Bolts.

• 20mm x 75mm Ball Platform.

• 40mm x 40mm Shank.

• Seaguard Matte Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter.

• ADR62/02 Compliant.

MH4050 40mm TO 50mm ADAPTERS ALSO AVAILABLE

LARGEST RANGE OF SPECIALTY HITCHES

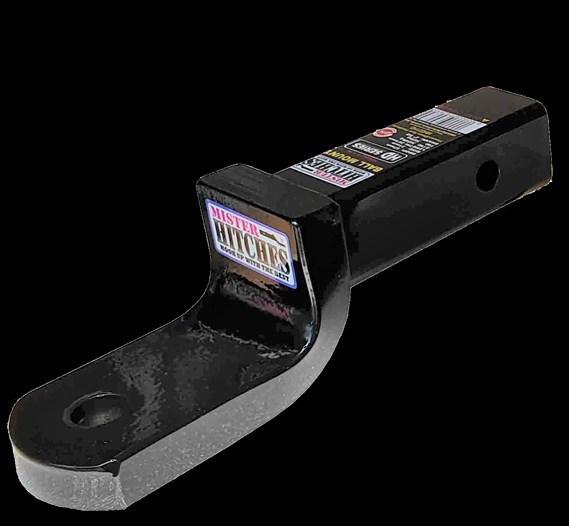

Ball Mount Hitches - Heavy Duty

NEW 2 PIN HOLE MODEL ARRIVING SOON

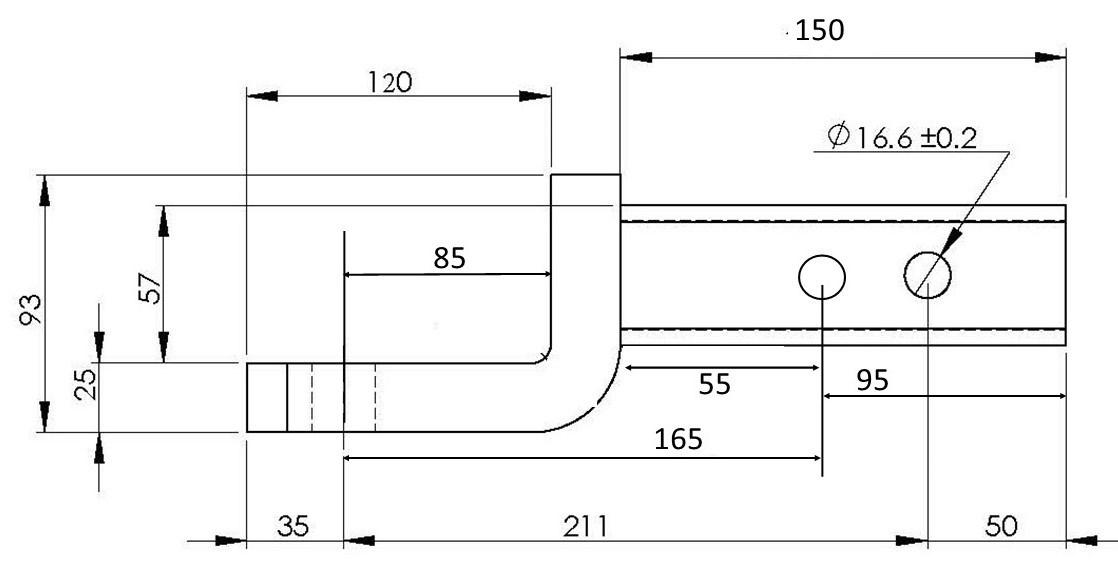

Part No. MH001HD

Barcode: 0000006792855

Weight: 3.5kg

Carton Qty: 6pcs

• GTW: 3650kg TW: 365kg

• Drop: 57mm Rise: 31mm

• Lengths (Pin Hole to Ball Hole): 165/211mm

• Can be inverted for Drop or Rise configuration.

• Gloss Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter

• Suits shallow receiver of Ford Ranger (Pre Next-Gen)

• Stone Stomper compatible

• ADR62/02 Compliant.

Part No. MH001HDP

Barcode: 0000006792794

Weight: 3.5kg

Carton Qty: 6pcs

• GTW: 3650kg TW: 365kg

• Drop: 57mm Rise: 31mm

• Length (Pin Hole to Ball Hole): 221mm

• Can be inverted for Drop or Rise configuration.

• Gloss Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter

• Suits shallow receiver of Ford Ranger & Pajero Sport

• Stone Stomper compatible

• ADR62/02 Compliant.

Part No. MH002HD

Barcode: 0000006792862

Weight: 4.0kg

Carton Qty: 6pcs

• GTW: 3650kg TW: 365kg

• Drop: 57mm Rise: 31mm

• Lengths (Pin Hole to Ball Hole): 248/274mm

• Can be inverted for Drop or Rise configuration.

• Gloss Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter

• Suits shallow receiver of Ford Ranger (Pre Next-Gen)

• Stone Stomper compatible

• ADR62/02 Compliant.

Ball

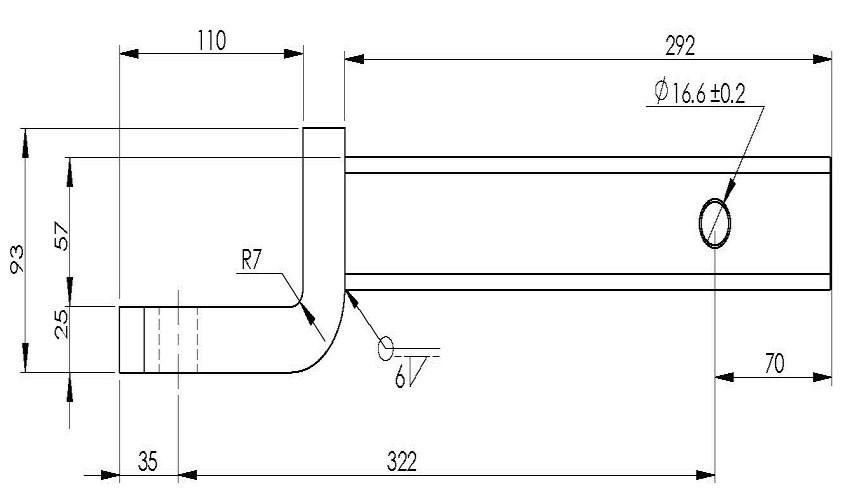

LONG REACH HITCH

Part No. MH002LSHD

Barcode: 0000006793715

Weight: 8.2kg

Carton Qty: 2pcs

• GTW: 3650kg TW: 365kg

• Drop: 57mm Rise: 31mm

SOLID STEEL SHANK

• Length (Pin Hole to Ball Hole): 322mm

• Can be inverted for Drop or Rise configuration.

• Gloss Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter

• SOLID STEEL SHANK

• Stone Stomper compatible

• ADR62/02 Compliant.

Part No. MH004HD

Barcode: 0000006792879

Weight: 4.6kg

Carton Qty: 4pcs

• GTW: 3650kg TW: 365kg

• Drop: 102mm Rise: 76mm

• Lengths (Pin Hole to Ball Hole): 254/280mm

• Can be inverted for Drop or Rise configuration.

• Gloss Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter

• Suits shallow receiver of Ford Ranger (Pre Next-Gen)

• Stone Stomper compatible

• ADR62/02 Compliant.

Part No. MH004HDP

Barcode: 0000006792930

Weight: 3.5kg

Carton Qty: 6pcs

• GTW: 3650kg TW: 365kg

• Drop: 102mm Rise: 76mm

• Length (Pin Hole to Ball Hole): 200mm

• Can be inverted for Drop or Rise configuration.

• Gloss Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter

• Suits shallow receiver of Ford Ranger & Pajero Sport

• Stone Stomper compatible

• ADR62/02 Compliant.

Ball Mount Hitches - Heavy Duty

REVERSIBLE

Part No. MH006HD

Barcode: 0000006792886

Weight: 7.5kg

Carton Qty: 1pc

• GTW: 3650kg TW: 365kg

• Drop: 152mm Rise: 127mm

• Lengths (Pin Hole to Ball Hole): 242/292mm

• 25mm x 75mm Ball Platform

• Can be inverted for Drop or Rise configuration.

• Seaguard Matte Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter

• Suits shallow receiver of Ford Ranger (Pre Next-Gen)

• Stone Stomper compatible

• ADR62/02 Compliant.

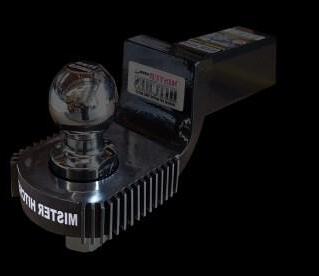

SECURE TOW HITCH KIT

Part No. MHSK35

Barcode: 0000006793234

Weight: 4.9kg

Carton Qty: 2pc

• GTW: 3500kg TW: 350kg

• Drop: 48mm Rise: 17mm

• Length (Pin Hole to Ball Hole): 210mm

• Can be inverted for Drop or Rise configuration.

• Exclusive Seaguard Matte Black Powder Coated.

• Includes 3.5t GTW Ball Mount Hitch.

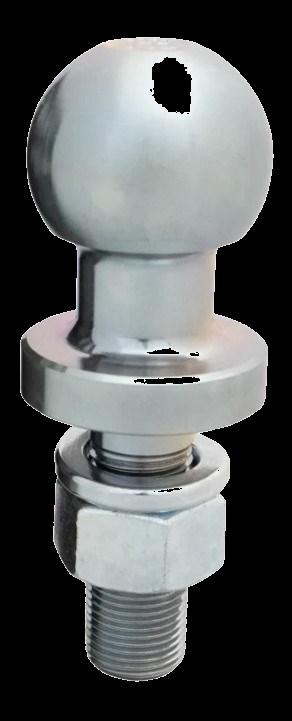

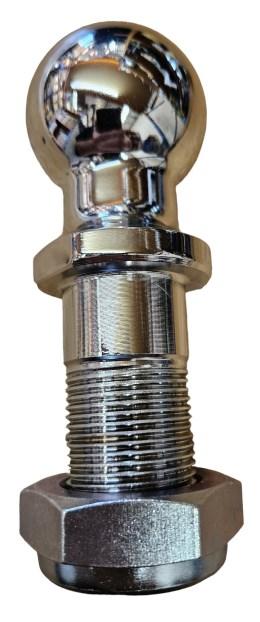

• Includes 3.5t AS4177.2 rated 50mm chrome tow ball.

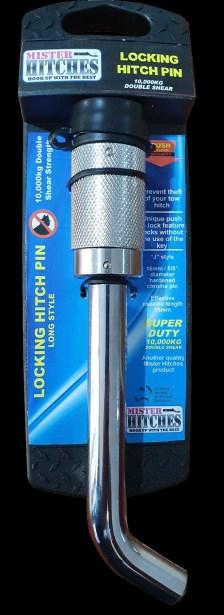

• Includes Locking Hitch Pin (10,000kg Double Shear rated).

• Includes handy carry storage case.

• ADR62/02 Compliant.

DESIGNED IN AUSTRALIA

Ball

40mm x 40mm SHANK

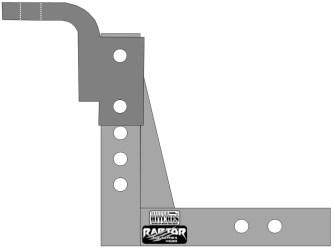

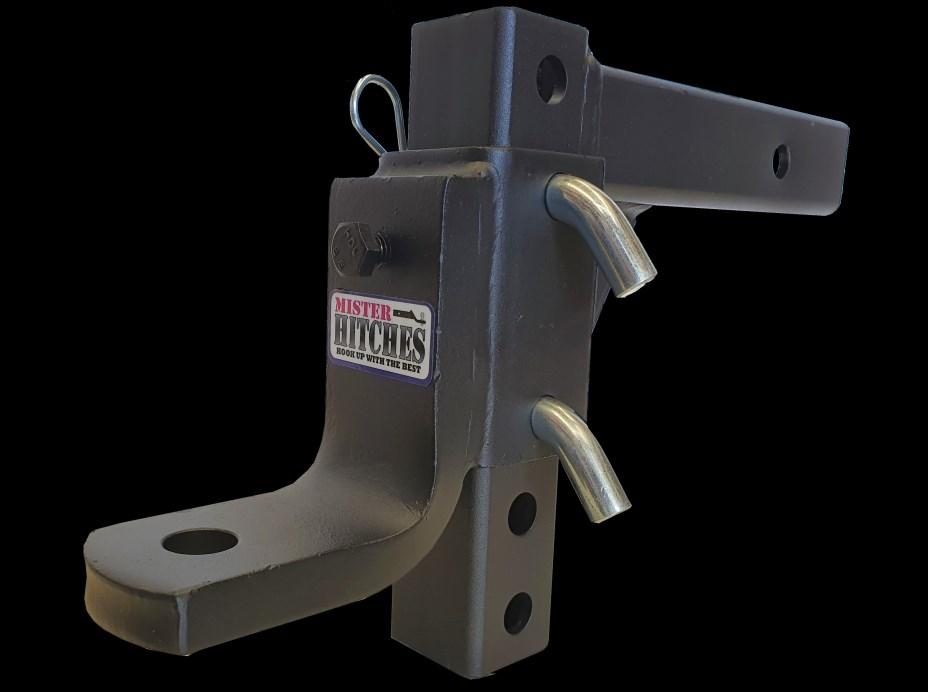

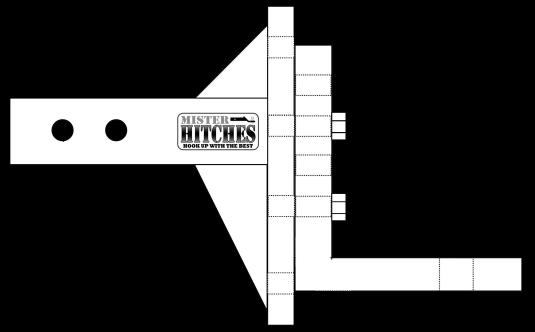

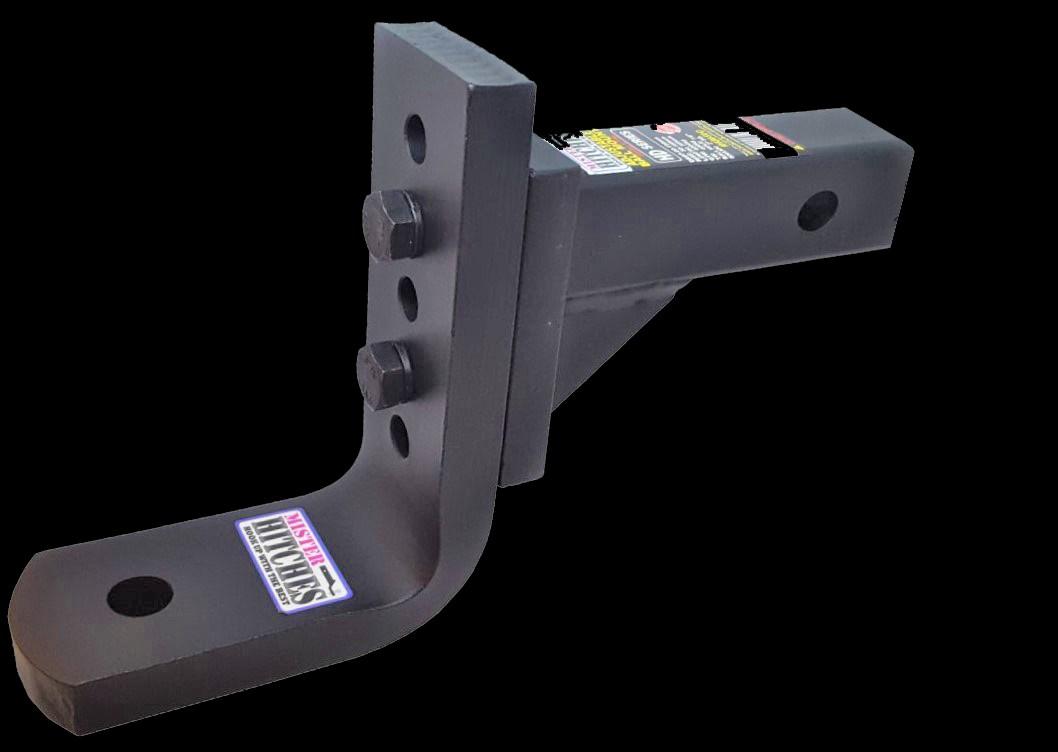

16 STAGES OF ADJUSTMENT

Part No. MHABM-40

Barcode: 0000006793586

Weight: 6.25kg

Carton Qty: 1pc

• GTW: 1800kg TW: 180kg

• Max Drop: 186mm Max Rise: 166mm

• Lengths (Pin Hole to Ball Hole): 237/267mm

• Can be inverted for Drop or Rise configuration.

• 12.9 grade HT 16mm Bolts.

• 20mm x 75mm Ball Platform.

• 40mm x 40mm Shank.

• Seaguard Matte Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter.

• ADR62/02 Compliant.

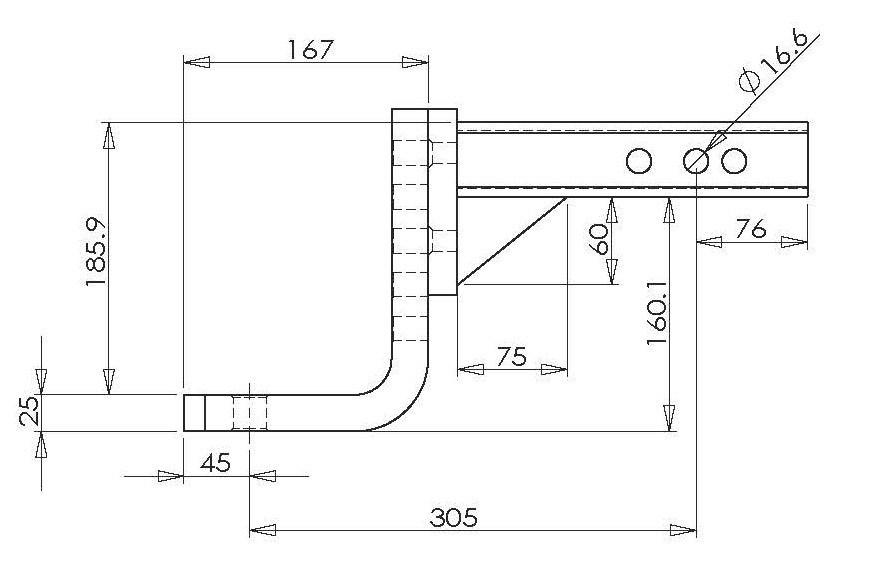

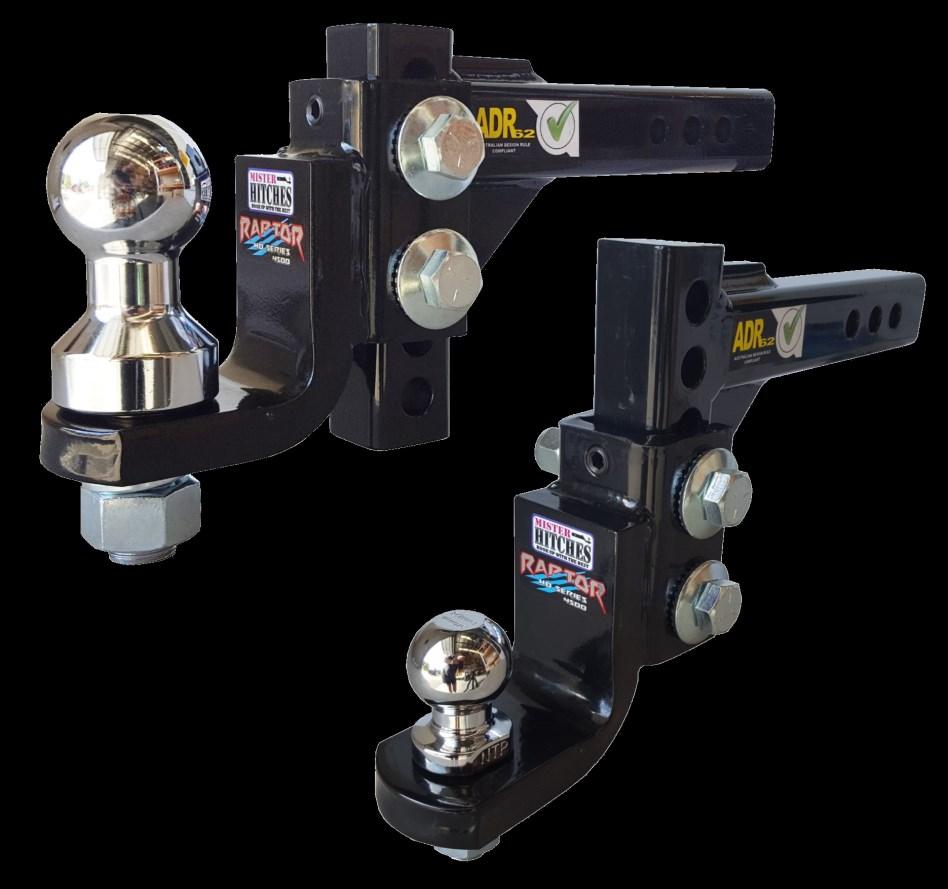

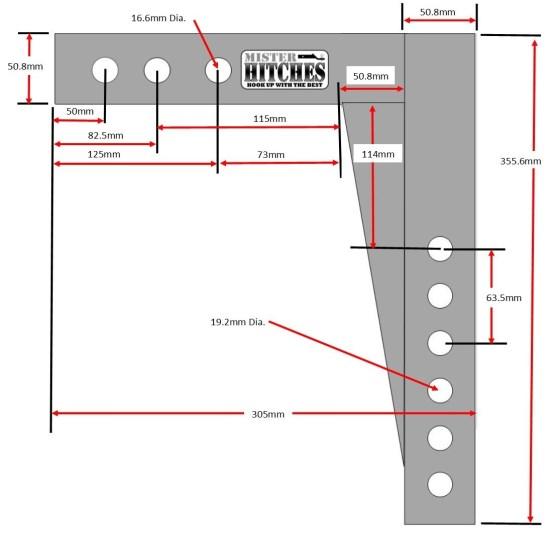

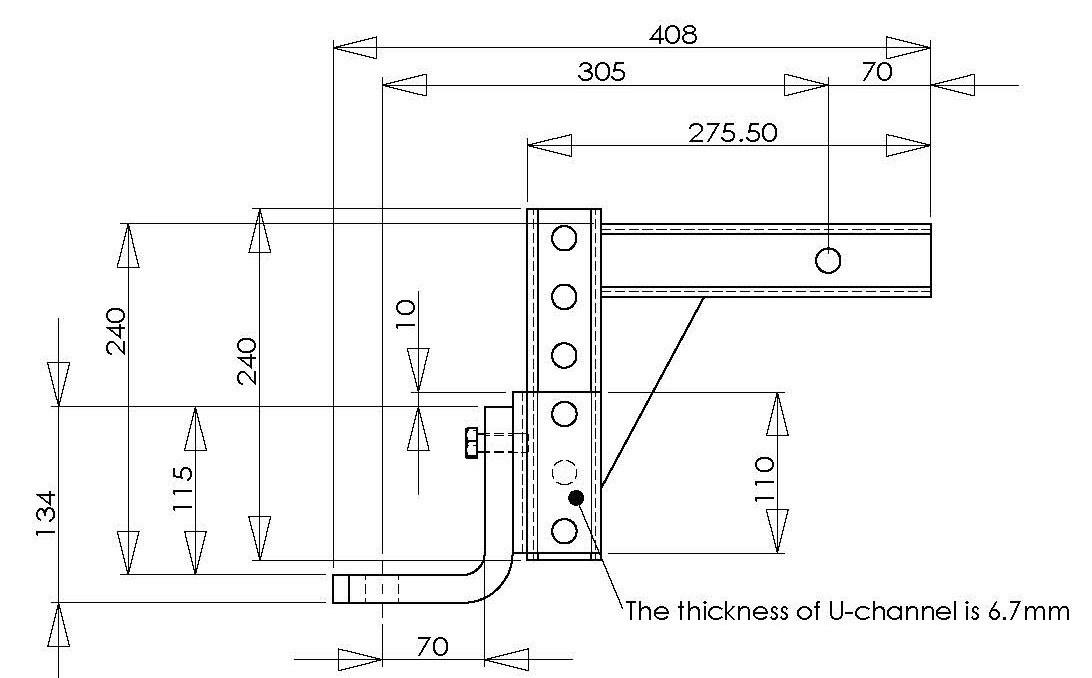

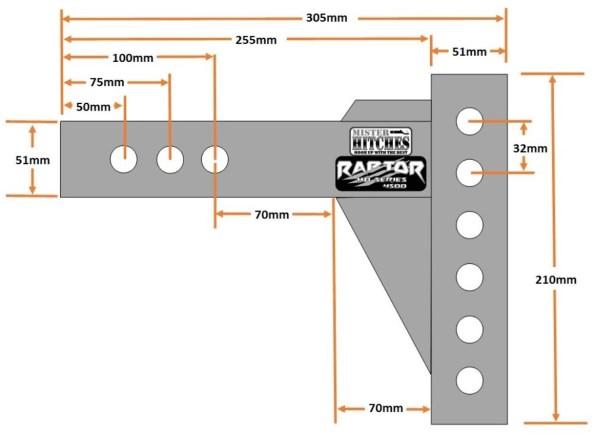

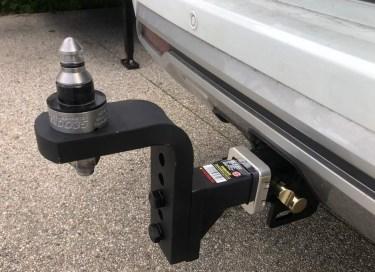

Part No. MHABM

Barcode: 0000006793135

Weight: 6.6kg

Carton Qty: 1pc

• GTW: 2722kg TW: 272kg

• Max Drop: 240mm Max Rise: 210mm

• Length (Pin Hole to Ball Hole): 305mm

• Can be inverted for Drop or Rise configuration.

• Anti-Rattle bolt on Ball Platform.

• 20mm x 65mm Ball Platform.

• 2 x 10,000kg Double Shear 5/8” Pins.

• Seaguard Matte Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball.

• ADR62/02 Compliant.

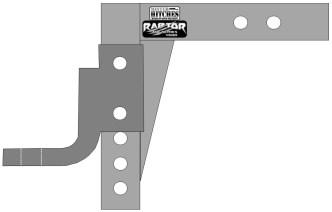

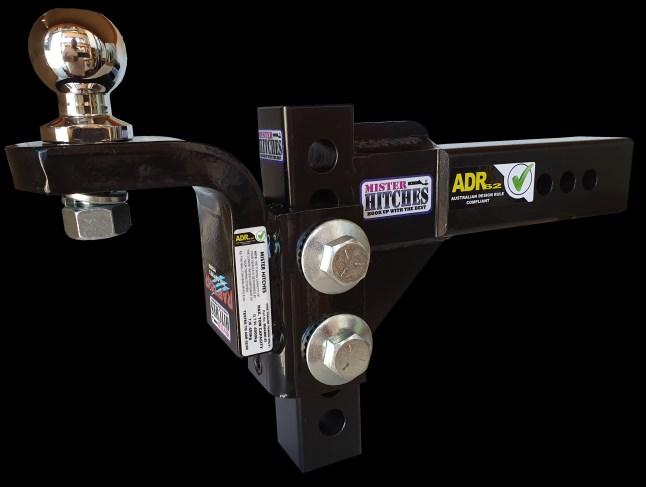

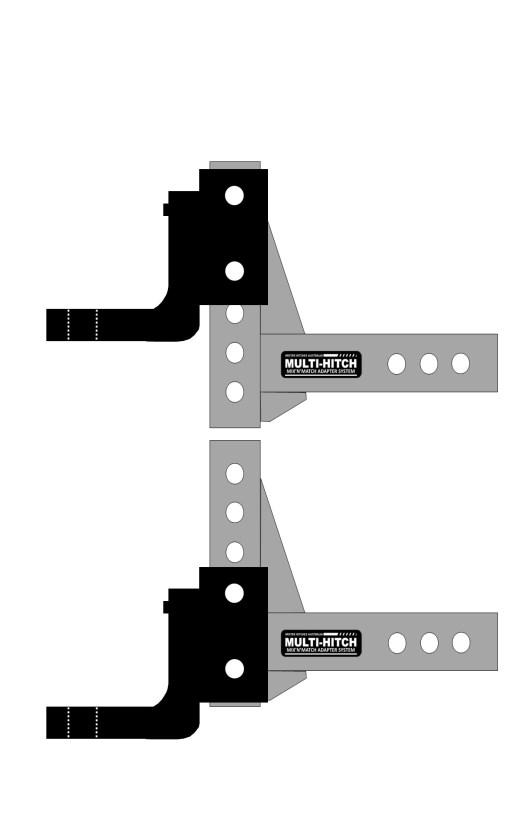

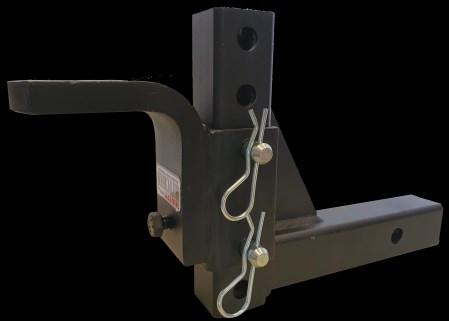

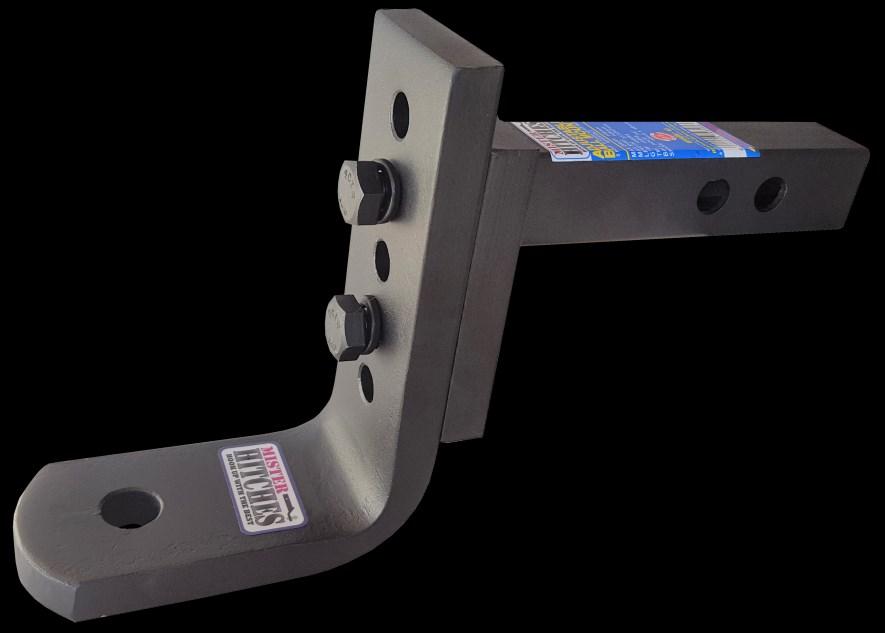

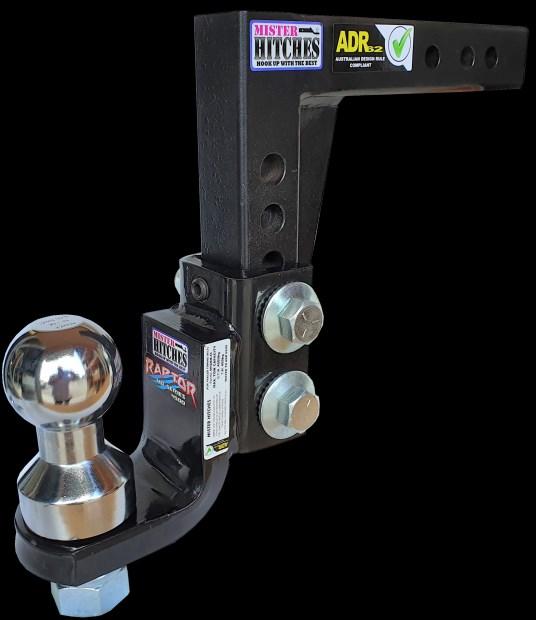

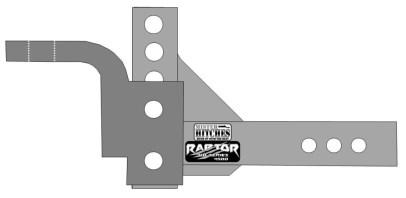

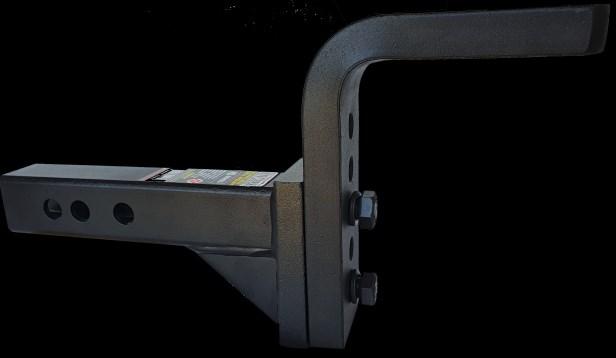

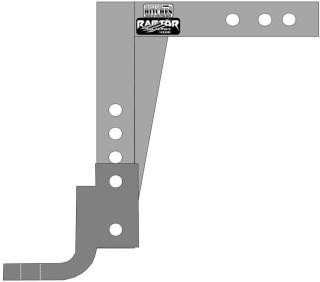

Adjustable

12 STAGES OF ADJUSTMENT

BOTH SHANK & BALL PLATFORM ARE REVERSIBLE

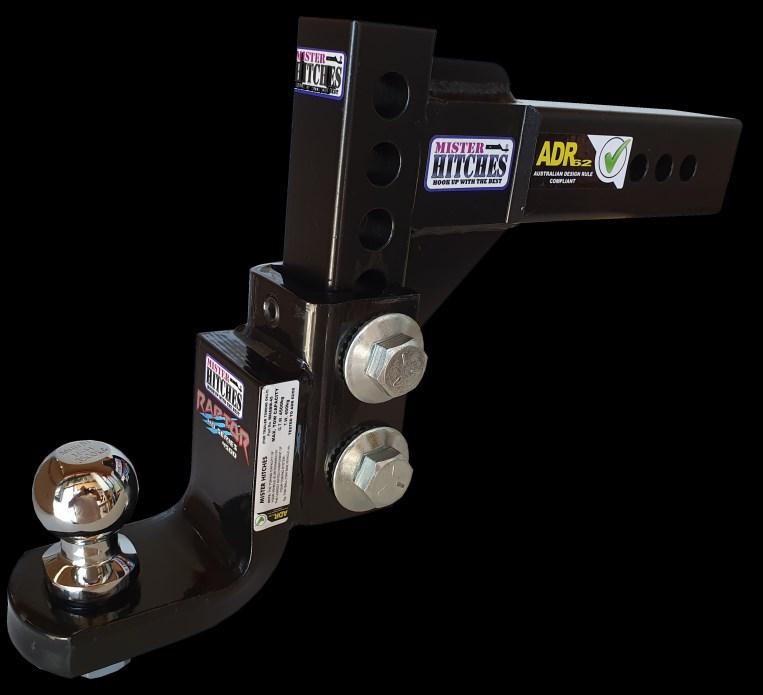

Part No. MHABM-5T

Barcode: 0000006793265

Weight: 8.2kg

Carton Qty: 1pc

• GTW: 2500kg TW: 250kg

• Drop: 80-190mm Rise: 50-160mm

• Lengths (Pin Hole to Ball Hole): 261/300/326mm

• Can be inverted for Drop or Rise configuration.

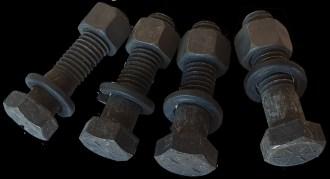

• 12.9 grade HT 16mm Bolts.

• 20mm x 75mm Ball Platform.

• Seaguard Matte Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter.

• Suits Ford Ranger Shallow Receiver.

• ADR62/02 Compliant.

Part No. MHABM-5XHD

Barcode: 0000006793692

Weight: 8.7kg

Carton Qty: 1pc

• GTW: 4000kg TW: 400kg

• Drop: 80-186mm Rise: 50-160mm

• Lengths (Pin Hole to Ball Hole): 266/305/331mm

• Can be inverted for Drop or Rise configuration.

• 12.9 grade HT 16mm Bolts.

• 9mm Support Gussets.

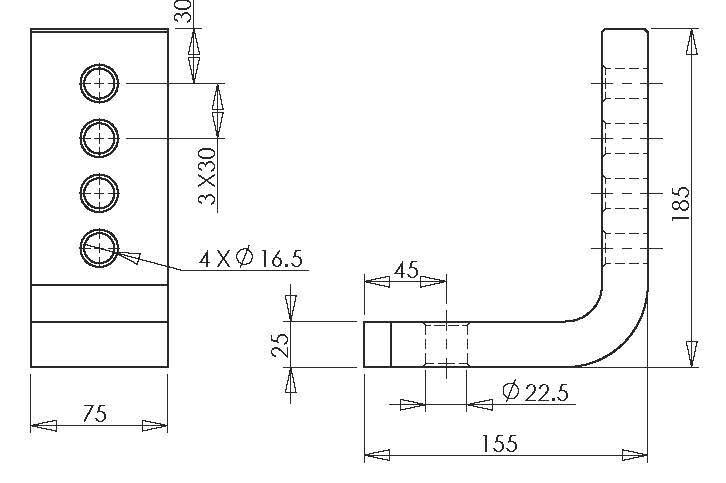

• 25mm x 75mm Ball Platform.

• Seaguard Matte Black Powder Coated.

• Suits Ford Ranger Shallow Receiver.

• Stone Stomper compatible

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter.

• ADR62/02 Tested & Compliant.

Ball

12 STAGES OF ADJUSTMENT

BOTH SHANK & BALL PLATFORM ARE REVERSIBLE

Part No. MHABM-5XHDP

Barcode: 0000006793036

Weight: 7.8kg

Carton Qty: 1pc

• GTW: 4000kg TW: 400kg

• Drop: 80-186mm Rise: 50-160mm

• Length (Pin Hole to Ball Hole): 252mm

• Can be inverted for Drop or Rise configuration.

• 12.9 grade HT 16mm Bolts.

• 9mm Support Gussets.

• 25mm x 75mm Ball Platform.

• Seaguard Matte Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter.

• Suits Pajero Sport, Ford Ranger Shallow Receiver.

• Stone Stomper Compatible.

• ADR62/02 Compliant.

12 STAGES OF ADJUSTMENT

BOTH SHANK & BALL PLATFORM ARE REVERSIBLE

Part No. MHABM-5XHDS

Barcode: 0000006793296

Weight: 8.0kg

Carton Qty: 1pc

• GTW: 4000kg TW: 400kg

• Drop: 80-186mm Rise: 50-160mm

• Length (Pin Hole to Ball Hole): 262mm

• Can be inverted for Drop or Rise configuration.

• 12.9 grade HT 16mm Bolts.

• 9mm Support Gussets.

• 25mm x 75mm Ball Platform.

• Seaguard Matte Black Powder Coated.

• Suits Ford Ranger Shallow Receiver.

• Stone Stomper compatible

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter.

• ADR62/02 Tested & Compliant.

STONE STOMPER BRACKET

Part No. MHABM-HDX

Barcode: 0000006793388

Weight: 9.0kg

Carton Qty: 1pc

• GTW: 4000kg TW: 400kg

• A Massive 24 Adjustment Positions.

• Drop: 6-205mm Rise: 10-180mm

• Lengths (Pin Hole to Ball Hole): 245/285mm

• Can be inverted for Drop or Rise configuration.

• 12.9 grade HT 16mm Bolts.

• 9mm Dual Support Gussets.

• 25mm x 75mm Ball Platform.

• Seaguard Matte Black Powder Coated.

• Suitable for D035 Pin, 50mm Ball or Poly Block Adapter.

• Suits Pajero Sport, Ford Ranger Shallow Receiver.

• Stone Stomper Compatible.

• ADR62/02 Compliant.

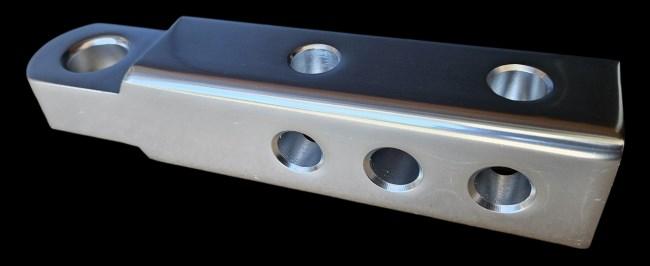

Ball Mount Hitches - Aluminium Adjustable

AUSTRALIA

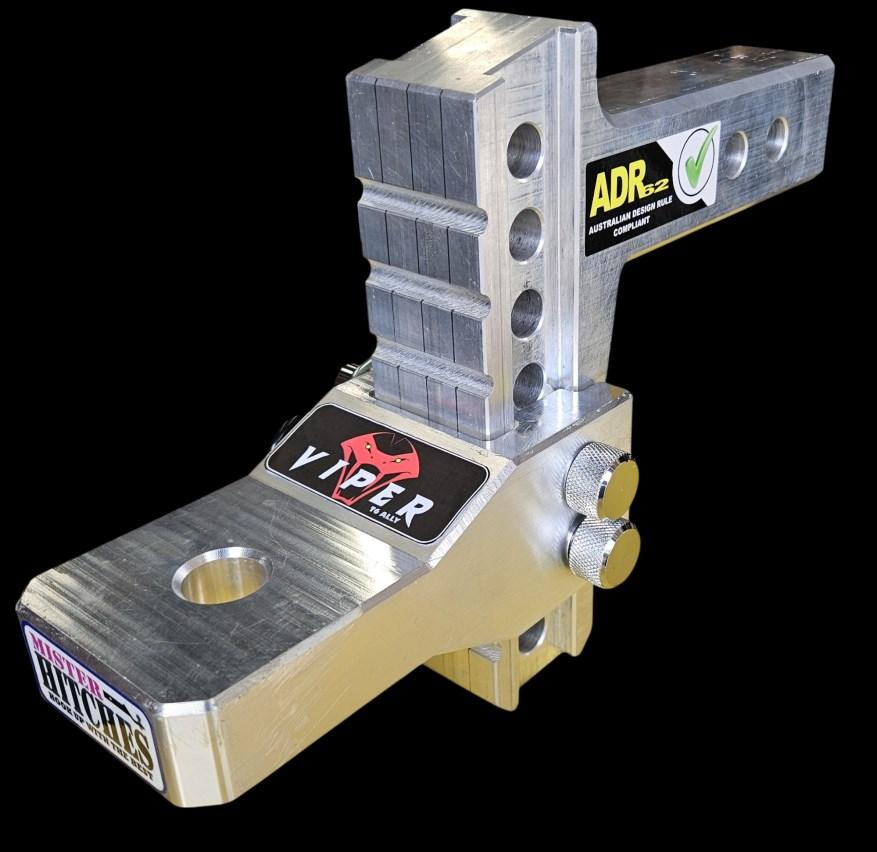

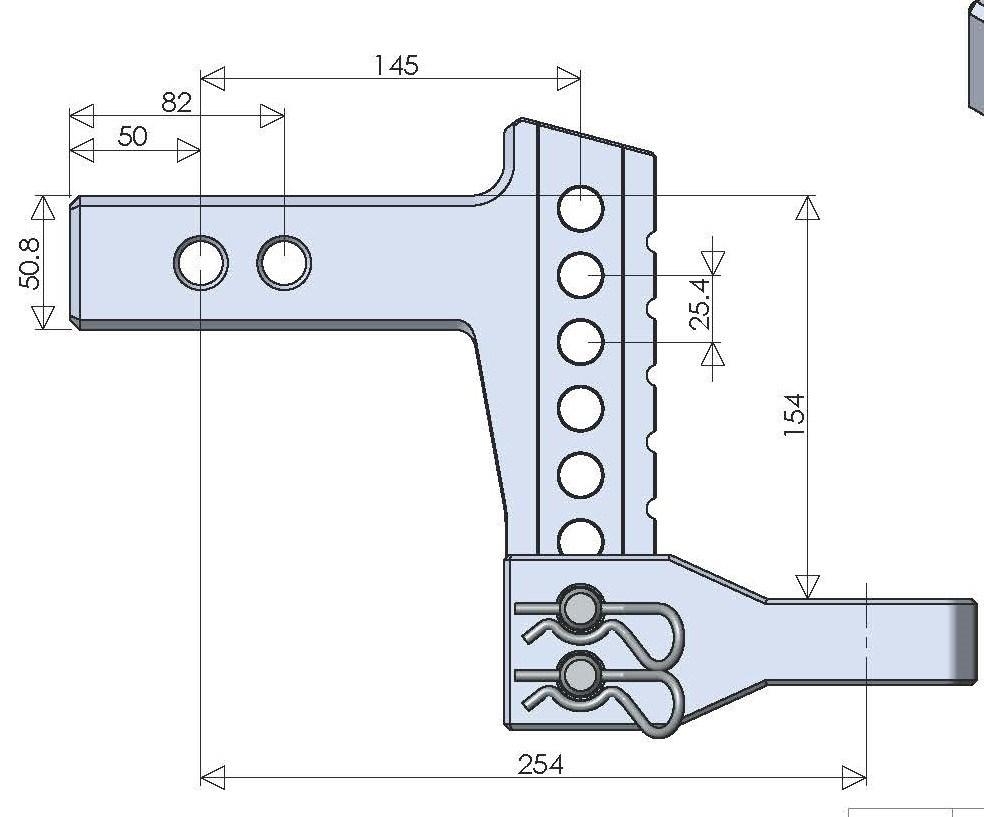

THE ORIGINAL 3.5t VIPERT6 ALUMINIUM ADJUSTABLE HITCH - DEVELOPED & DESIGNED BY MISTER HITCHES AUSTRALIA.

LIGHTWEIGHT - STRONG - VERSATILE - ANTI-RUST

Part No. MHABM35-AS6

Barcode: 0000006791964

Weight: 4.4kg

Carton Qty: 1pc

• GTW: 43500kg TW: 350kg

• Made from T6 grade 6061 Billet Aluminium.

• 14 Adjustment Positions.

• Max Drop: 154mm Max Rise: 140mm (25.4mm increments)

• Lengths (Pin Hole to Ball Hole): 254mm & 222mm

• Both Shank & Ball Platform can be inverted for Drop or Rise configuration. 7 positions per configuration.

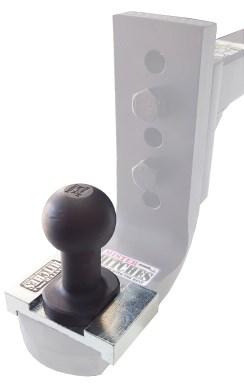

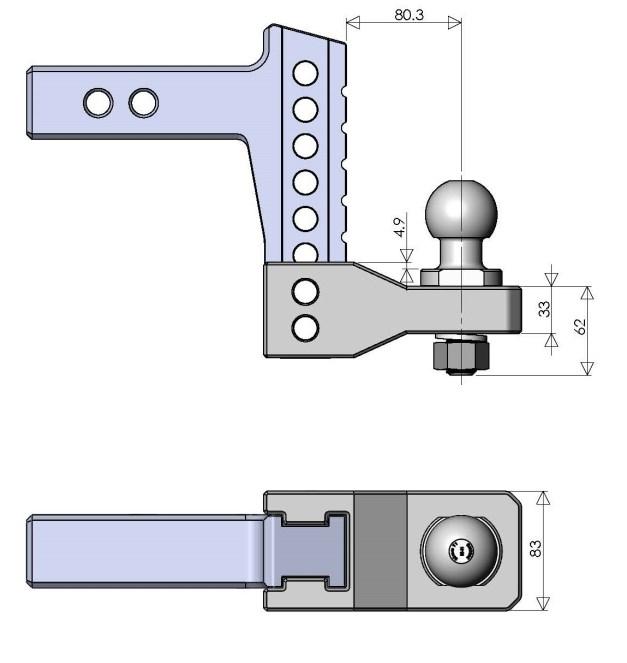

• 33mm x 83mm Ball Platform.

• Solid T6 Aluminium 50x50mm Shank.

• Silver Anodised Finish. Will not rust.

• Suitable for a D035 or 50mm 3.5t Ball. (not included)

• Fitting Instructions Included.

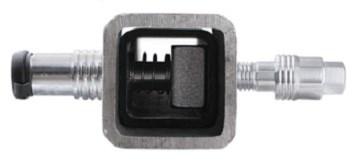

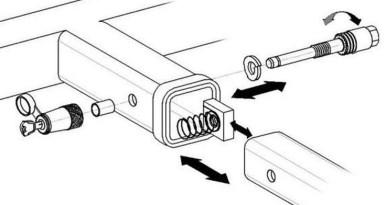

• Includes our Mister Hitches Anti-Rattle Shim kit to assist in reducing the rattle of the hitch inside the towbar receiver.

• Suits the Shallow Receiver of a Ford Ranger.

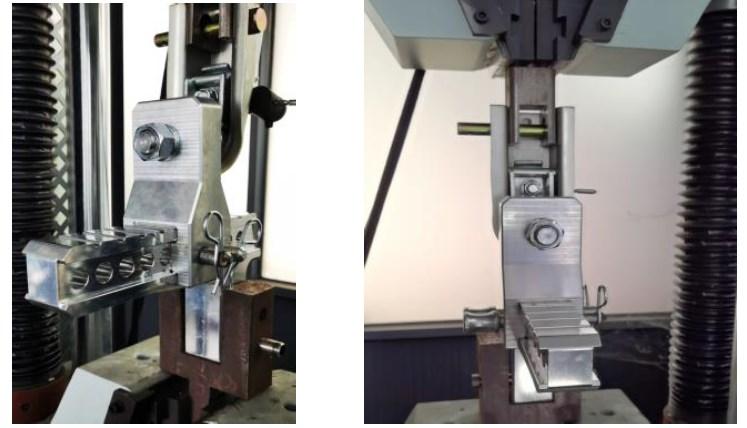

• ADR62/02 Compliant, transverse thrust test up to 6,984kg (68.489kN) with no deformation.

NOTE: THE RISE OR DROP MEASUREMENT IS FROM TOP OF THE HITCH SHANK TO THE BALL PLATFORM SURFACE.

LENGTH/S NOTED IS MEASURED FROM CENTRE OF PIN HOLE/S TO CENTRE OF BALL HOLE.

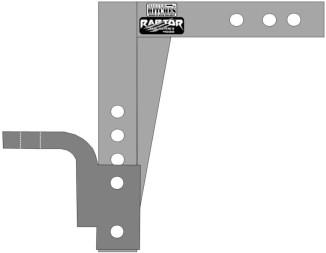

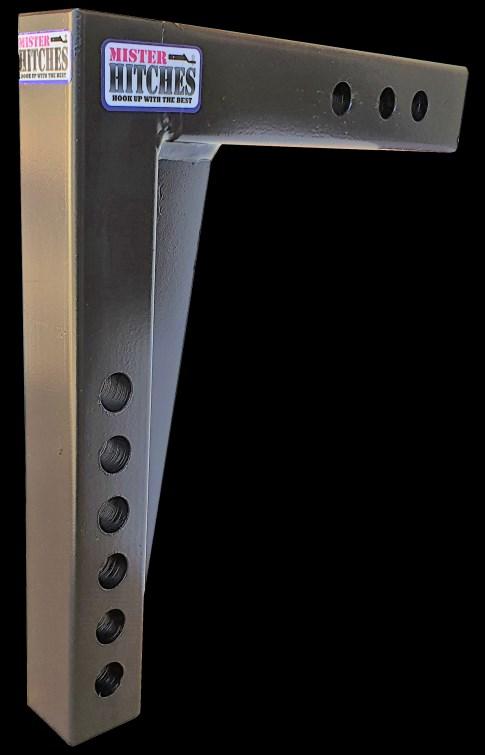

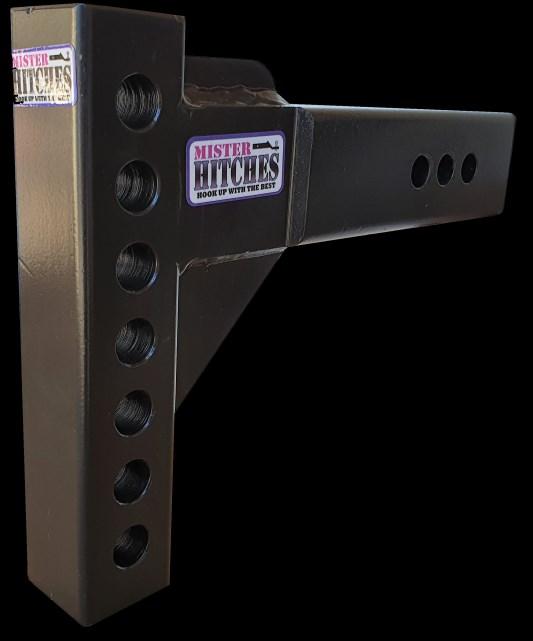

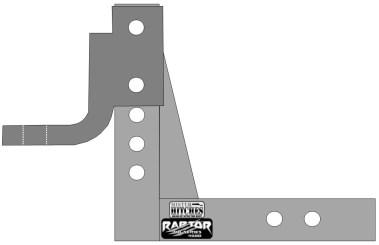

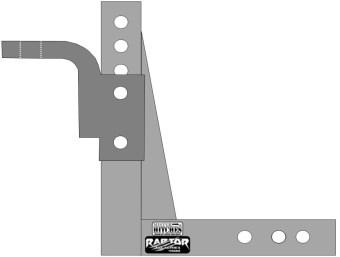

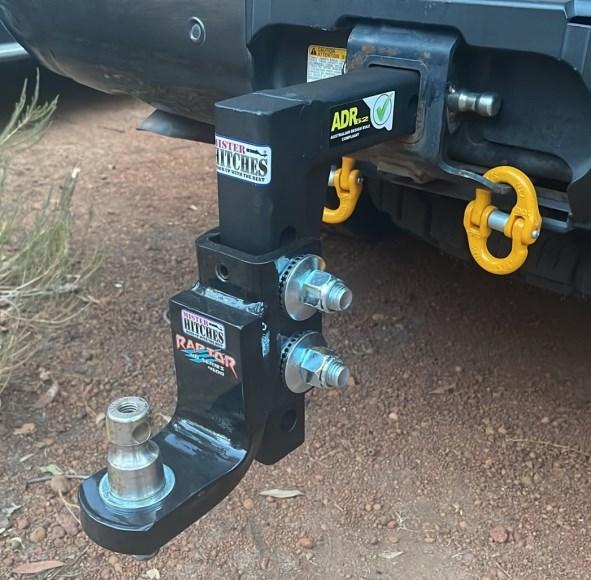

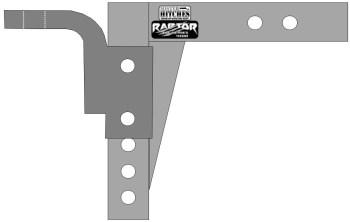

THE ORIGINAL 4.5t RAPTOR ADJUSTABLE HITCH DEVELOPED & DESIGNED BY MISTER HITCHES AUSTRALIA.

THE ONLY HITCH YOU WILL EVER NEED!!

Part No. MHABM45-1

Barcode: 0000006791971

Weight: 16.0kg

Carton Qty: 1pc

• GTW: 4500kg TW: 450kg

• 16 Adjustment Positions.

• Max Drop: 210mm Max Rise: 188mm (32mm increments)

• Lengths (Pin Hole to Ball Hole): 315/340/365mm

• Both Shank & Ball Platform can be inverted for Drop or Rise configuration.

• H.T. 3/4” Bolts Nyloc Locking Nuts & Toothed Conical Washers.

• Dual Support Gussets.

• 25mm x 75mm Ball Platform.

• Solid Steel 50x50mm Shank.

• Powder Coated Enamel Finish.

• Suitable for a D045 or 70mm 4.5t Ball.

• Includes a 32mm to 23mm Tow Ball Reducing Bush so you can fit a D035 or a standard 50mm Ball.

• Fitting Instructions Included.

• Suits the Shallow Receiver of a Ford Ranger.

• ADR62/02 Compliant, tested up to 6,750kg (Longitudinal Tension)

Ball

THE ORIGINAL 4.5t RAPTOR ADJUSTABLE HITCH DEVELOPED & DESIGNED BY MISTER HITCHES AUSTRALIA.

Part No. MHABM45-S2

RAPTOR - LONG DROP

Barcode: 0000006791988

Weight: 17.0kg

Carton Qty: 1pc

• GTW: 4500kg TW: 450kg

• 16 Adjustment Positions.

• Max Drop: 305mm Max Rise: 286mm (32mm increments)

• Lengths (Pin Hole to Ball Hole): 290/332/365mm

• Both Shank & Ball Platform can be inverted for Drop or Rise configuration.

• H.T. 3/4” Bolts Nyloc Locking Nuts & Toothed Conical Washers.

• Support Gusset.

• 25mm x 75mm Ball Platform.

• Solid Steel 50x50mm Long Drop Shank.

• Powder Coated Enamel Finish.

• Suitable for a D045 or 70mm 4.5t Ball.

• Includes a 32mm to 23mm Tow Ball Reducing Bush so you can fit a D035 or a standard 50mm Ball.

• Fitting Instructions Included.

• Suits the Shallow Receiver of a Ford Ranger.

• ADR62/02 Compliant, tested up to 6,750kg (Longitudinal Tension)

Ball Mount Hitches -

THE ORIGINAL 4.5t RAPTOR ADJUSTABLE HITCH DEVELOPED & DESIGNED BY MISTER

HITCHES AUSTRALIA.

Part No. MHABM45-S3

RAPTOR - EXTRA LONG DROP

Barcode: 0000006791995

Weight: 18.0kg

Carton Qty: 1pc

• GTW: 4500kg TW: 450kg

• 16 Adjustment Positions.

• Max Drop: 370mm Max Rise: 350mm (32mm increments)

• Lengths (Pin Hole to Ball Hole): 290/332/365mm

• Both Shank & Ball Platform can be inverted for Drop or Rise configuration.

• H.T. 3/4” Bolts Nyloc Locking Nuts & Toothed Conical Washers.

• Support Gusset.

• 25mm x 75mm Ball Platform.

• Solid Steel 50x50mm Long Drop Shank.

• Powder Coated Enamel Finish.

• Suitable for a D045 or 70mm 4.5t Ball.

• Includes a 32mm to 23mm Tow Ball Reducing Bush so you can fit a D035 or a standard 50mm Ball.

• Fitting Instructions Included.

• Suits the Shallow Receiver of a Ford Ranger.

• ADR62/02 Compliant, tested up to 6,750kg (Longitudinal Tension)

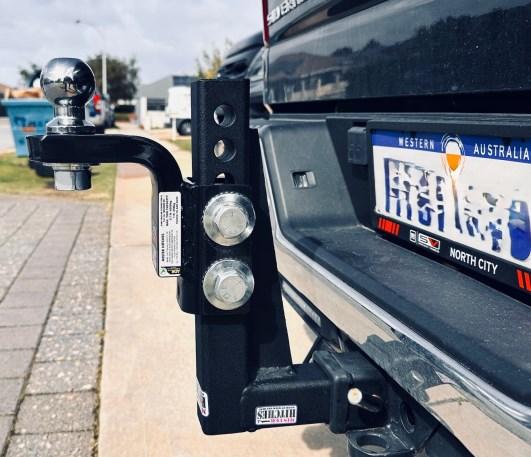

SILVERADO WITH RAPTOR MHABM45-S3 HITCH

Ball

THE ORIGINAL 4.5t RAPTOR ADJUSTABLE HITCH DEVELOPED & DESIGNED BY MISTER HITCHES AUSTRALIA.

Part No. MHABM45-S4 SHORT SHANK STYLE

Barcode: 0000006792015 Weight: 13.5kg Carton Qty: 1pc

• GTW: 4500kg TW: 450kg

• 16 Adjustment Positions.

• Max Drop: 210mm Max Rise: 188mm (32mm increments)

• Length (Pin Hole to Ball Hole): 267mm

• Both Shank & Ball Platform can be inverted for Drop or Rise configuration.

• H.T. 3/4” Bolts Nyloc Locking Nuts & Toothed Conical Washers.

• Dual Support Gussets.

• 25mm x 75mm Ball Platform.

• Solid Steel 50x50mm Shank.

• Powder Coated Finish.

• Suitable for a D045 or 70mm 4.5t Ball.

• Includes a 32mm to 23mm Tow Ball Reducing Bush so you can fit a D035 or a standard 50mm Ball.

• Fitting Instructions Included.

• Suits the Shallow Receiver of a Ford Ranger & Pajero Sport

• ADR62/02 Compliant, tested up to 6,750kg (Longitudinal Tension)

THE ORIGINAL 4.5t RAPTOR ADJUSTABLE

HITCH DEVELOPED

& DESIGNED BY MISTER

HITCHES AUSTRALIA.

Part No. MHABM45-S25 63.5mm (2 1/2”) SQ. SHANK

Barcode: 0000006792008

Weight: 19.0kg

Carton Qty: 1pc

• GTW: 4500kg TW: 450kg

• 16 Adjustment Positions.

• Max Drop: 245mm Max Rise: 205mm (32mm increments)

• Lengths (Pin Hole to Ball Hole): 330/355/380mm

• Both Shank & Ball Platform can be inverted for Drop or Rise configuration.

• H.T. 3/4” Bolts Nyloc Locking Nuts & Toothed Conical Washers.

• Dual Support Gussets.

• 25mm x 75mm Ball Platform. Ball Hole: 32mm

• Solid Steel 63.5mm X 63.5mm Shank.

• Powder Coated Finish.

• Suitable for a D045 or 70mm 4.5t Ball.

• Includes a 32mm to 23mm Tow Ball Reducing Bush so you can fit a D035 or a standard 50mm Ball.

• Fitting Instructions Included.

• Suits some American Big Rigs e.g. Ram Silverado etc

• ADR62/02 Compliant, tested up to 6,750kg (Longitudinal Tension)

63.5mm (2 1/2”) SHANKED BALL MOUNTS ARE SUITABLE FOR SOME AMERICAN BIG RIGS eg, RAM - SILVERADO

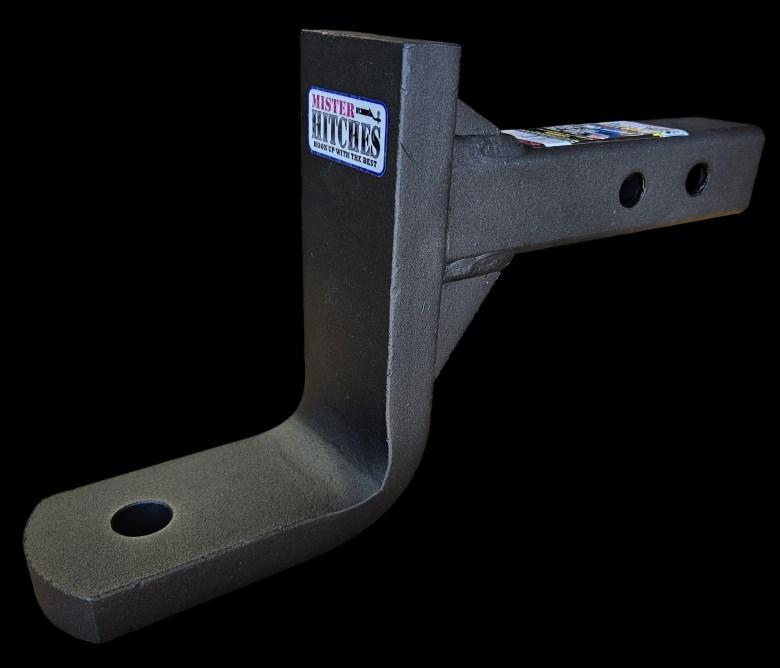

THE ORIGINAL ION FORGED 4.5t FORGED BALL MOUNT

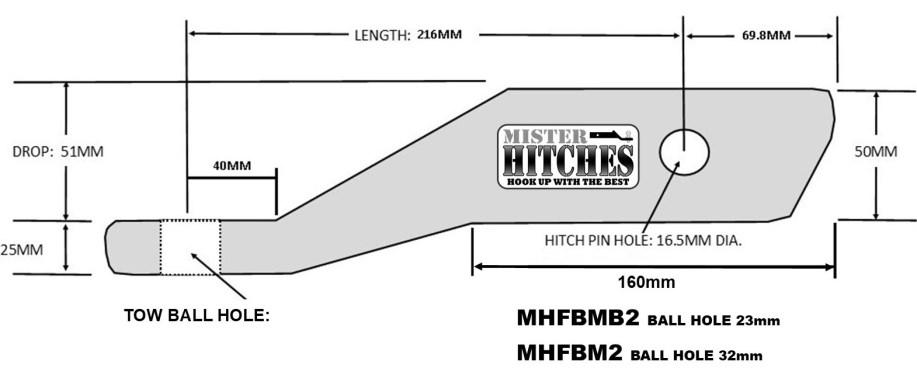

Part No. MHFBM2

32mm BALL HOLE

Barcode: 0000006793470

Part No. MHFBMB2

23mm BALL HOLE

Barcode: 0000006793470

Weight: 5.25kg Carton Qty: 3pc

• GTW: 4500kg TW: 450kg

• Made from 1pce of Drop Forged Q345B Steel

• Max Drop: 50mm Max Rise: 25mm

• Length (Pin Hole to Ball Hole): 216mm

• Can be inverted for Drop or Rise configuration.

• 25mm x 79mm Ball Platform.

• Solid Steel 50x50mm Shank.

• Powder Coated Enamel Finish.

• MHFBM2 Suitable for a D045 or 70mm 4.5t Ball.

• MHFBMB2 Suitable for a D035 or 50mm Ball.

• ADR62/02 Compliant.

Part No. MHFBM4

32mm BALL HOLE

Barcode: 0000006793487

Part No. MHFBMB4

23mm BALL HOLE

Barcode: 0000006794057

Weight: 6.0kg Carton Qty: 4pc

• GTW: 4500kg TW: 450kg

• Made from 1pce of Drop Forged Q345B Steel

• Max Drop: 102mm Max Rise: 76mm

• Length (Pin Hole to Ball Hole): 216mm

• Can be inverted for Drop or Rise configuration.

• 25mm x 79mm Ball Platform.

• Solid Steel 50x50mm Shank.

• Powder Coated Enamel Finish.

• MHFBM4 Suitable for a D045 or 70mm 4.5t Ball.

• MHFBMB4 Suitable for a D035 or 50mm Ball.

• ADR62/02 Compliant

Ball Mount Hitches - Adjustable

THE ORIGINAL ION FORGED 4.5t FORGED BALL MOUNT

(2 1/2”) SHANKED BALL MOUNTS ARE SUITABLE FOR SOME AMERICAN BIG RIGS

Part No. MHFBM6

32mm BALL HOLE

Barcode: 0000006793548

Part No. MHFBMB6

23mm BALL HOLE

Barcode: 0000006794071

Weight: 5.25kg

Carton Qty: 3pc

• GTW: 4500kg TW: 450kg

• Made from 1pce of Drop Forged Q345B Steel

• Max Drop: 152mm Max Rise: 127mm

• Length (Pin Hole to Ball Hole): 241mm

• Can be inverted for Drop or Rise configuration.

• 25mm x 79mm Ball Platform.

• Solid Steel 50x50mm Shank.

• Powder Coated Enamel Finish.

• MHFBM6 Suitable for a 70mm 4.5t Ball.

• MHFBMB6 Suitable for a 50mm 3.5t Ball.

• ADR62/02 Compliant.

Part No. MHFBM252

63.5 x 63.5mm (2.5”x 2.5”) SQUARE SHANK

32mm Ball Hole

Barcode: 0000006793012

Part No. MHFBM254

63.5 x 63.5mm (2.5”x 2.5”) SQUARE SHANK

32mm Ball Hole

Barcode: 0000006793029

Weight: 7.7kg

Carton Qty: 2pc

• GTW: 4500kg TW: 450kg

• Made from 1pce of Drop Forged Q345B Steel

• MHFBM252 Max Drop: 51mm Max Rise: 13mm

• MHFBM254 Max Drop: 102mm Max Rise: 63.5mm

• Length (Pin Hole to Ball Hole): 216mm

• Can be inverted for Drop or Rise configuration.

• 25mm x 79mm Ball Platform.

• Solid Steel 63.5mm X 63.5mm Shank.

• 32mm Ball Hole.

• Powder Coated Enamel Finish.

• Suitable for a D045 or 70mm 4.5t Ball.

• ADR62/02 Compliant

SIMPLY MIX & MATCH YOUR ADAPTER TO A COMPATIBLE SHANK It’s that easy!

The Mister Hitches Australia team have developed their Multi-Hitch Mix ‘N’ Match system, to give the user a quick fit adapter towing hitch system. This allows for matching a variety of adapters to a compatible shank to give greater height adjustment. The adapters have been designed and tested in Australia to meet the testing requirements of ADR62/02 & AS4177-1.

All Adapter kits are rated at GTW 3500kg TW 350kg, when used with any of the 5 Mister Hitches compatible shanks.

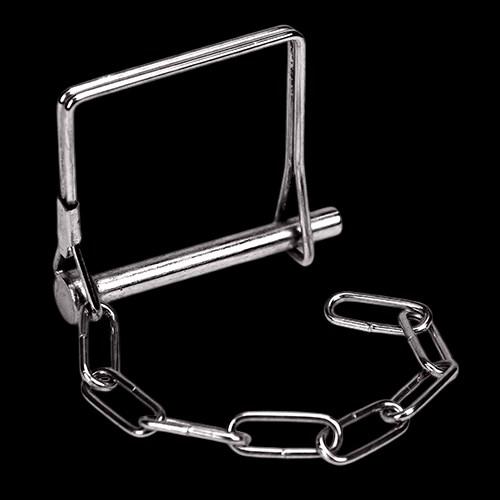

All Adapter kits come with:2 x 16mm hitch pins & clips (Double shear rated at 10,000kg). 2 x 16mm to 19mm shank sleeves to reduce the excessive movement of the hitch on the shank. 1 x Anti-Rattle grub screw & 1 x Allen key tool. The MHMHBM ball mount adapter and the shank can be inverted without loss of rating integrity. Most brands of couplings are compatible with the MHMHBM, such as the Do35 and Stone Stomper etc.

MULTI-HITCH MIX ‘N‘ MATCH ADAPTER SYSTEM

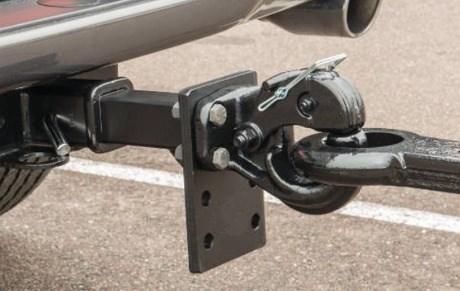

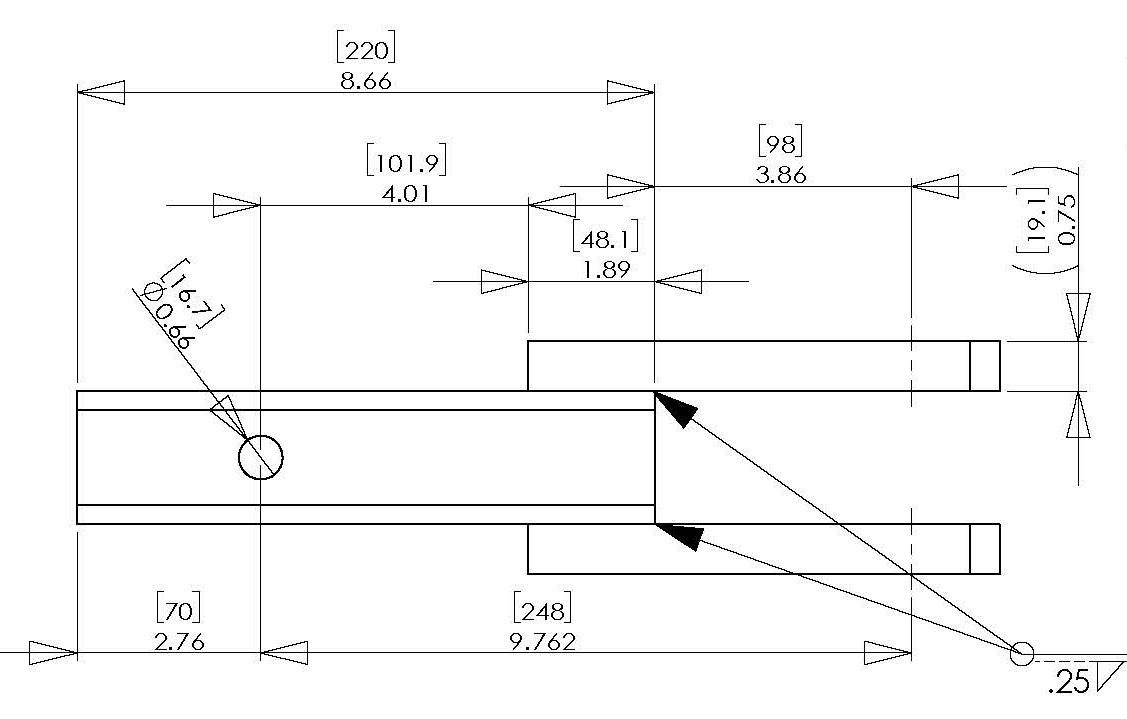

Mister Hitches are the first to develop an adjustable Clevis mount hitch and an adjustable Poly Block adapter.

Note: Adapter kits have been tested with the genuine Mister Hitches 4.5t shanks. Warranty void if adapter is used with a nongenuine Mister Hitches shank.

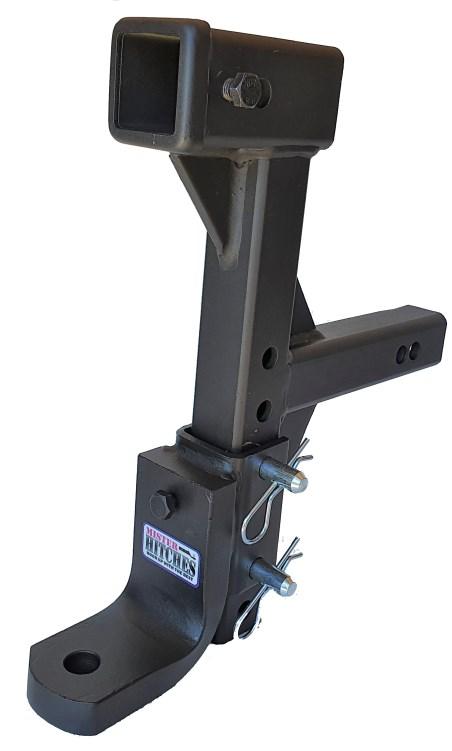

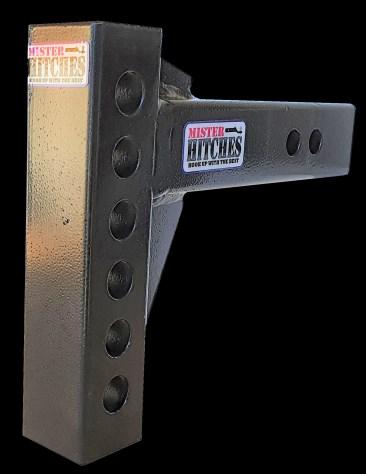

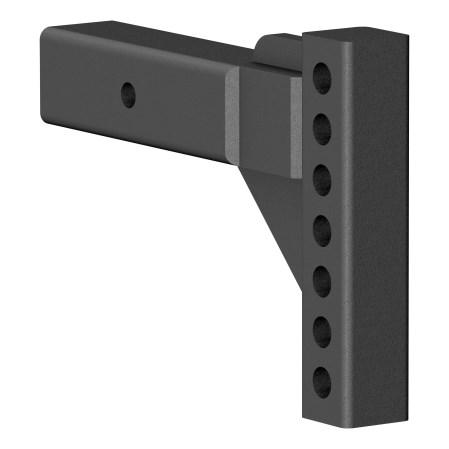

MULTI HITCH SYSTEM COMPATIBLE SHANKS

All Mister Hitches drop shanks are made from solid steel high strength carbon steel (ATSM A36) & have a rated capacity of 4500kg. The rated towing capacity when used with a Mister Hitches WDH system or with a Mister Hitches Mix ‘N’ Match adapter is 3500kg. Compliant with the static test requirements of ADR62/02

PLEASE NOTE: Your towing capacity is determined by the lowest rated component of your towing system e.g. Vehicle’s tow & ball weight capacity , Tow Bar, Tow Ball, Ball Mount etc.

Ball couplings on towbars are required to be installed so that the height of the centre of the body of the ball coupling is between 350mm and 420mm from the ground when laden (Refer to ADR 62/01)

Part

No. MHCM

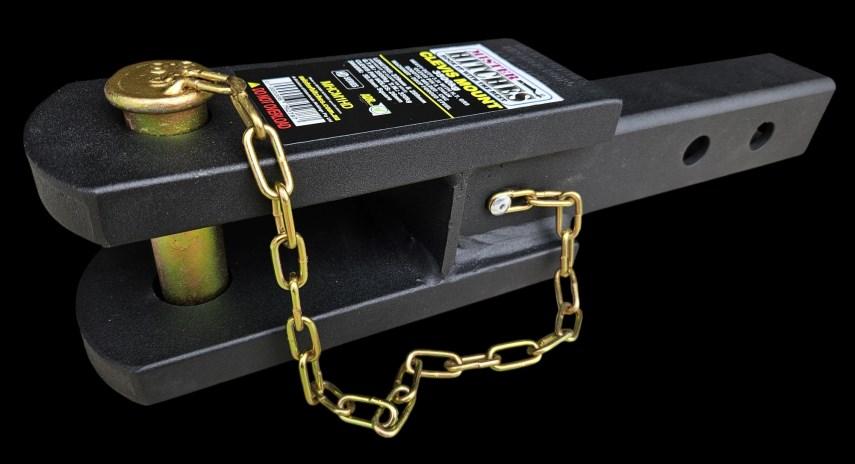

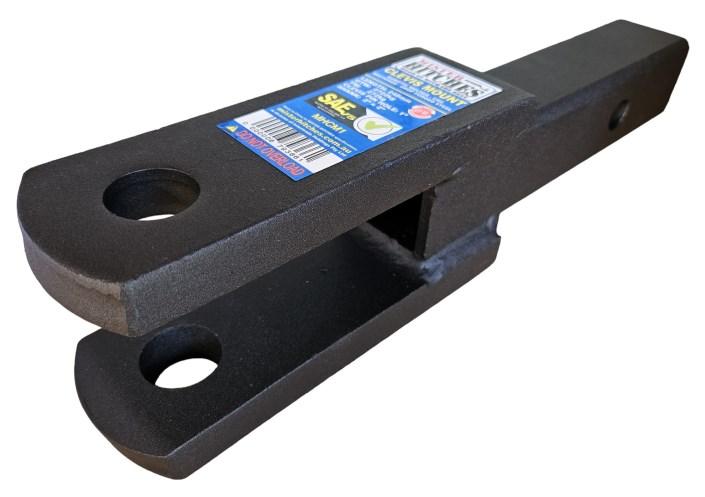

CLEVIS HITCH MOUNT

Barcode: 0000006793142

Weight: 4.6kg

Carton Qty: 2pcs

• GTW: 2722kg TW: 272kg

• Pin Holes: 22.5mm (7/8 inch)

• Lengths (Pin Hole to Ball Hole): 248mm

• Matte Black Seaguard Powder Coated.

• Use with MHCMP Clevis Pin or 50mm Ball.

• Ideal for Towing Farm Equipment, Spreaders etc.

• ADR62/02 Compliant.

Part No. MHCM1

CLEVIS HITCH MOUNT

Barcode: 0000006793661

Weight: 4.9kg

Carton Qty: 2pcs

• GTW: 2722kg TW: 272kg

• Pin Holes: 25.4mm (1 inch)

• Length (Pin Hole to Ball Hole): 248mm

• Matte Black Seaguard Powder Coated.

• Use with MHCMP1 Clevis Pin.

• Ideal for Towing Farm Equipment, Spreaders etc.

• ADR62/02 Compliant.

Part

No. MHCM1HD

CLEVIS HITCH MOUNT HEAVY DUTY 3500kg

Barcode: 0000006792787

Weight: kg

Carton Qty: 1pcs

• GTW: 3500kg TW: 350kg

• Tang Pin Holes: 26mm (1 inch)

• Matte Black Seaguard Powder Coated.

• 2 Pin Holes for greater length adjustment.

• Length Pin Hole/s to Clevis Pin Hole 229 & 289mm.

• Strengthening Support plate 75 x 60 x 6mm between Clevis Tangs.

• Tang Plates 75mm x 205mm x 20mm

• Includes 25.4mm Grade 8 H.T. Clevis Pin & Chain - Zinc Plated

• Ideal for Towing Farm Equipment, Spreaders etc.

• ADR62/02 Compliant.

Part No. MHMHCM1

MULTI-HITCH CLEVIS ADAPTER

Barcode: 0000006792732

Weight: 4kg

Carton Qty: 1pcs

• GTW: 3500kg TW: 350kg (When used with Mister Hitches Drop Shank)

• Tang Pin Holes: 26mm (1 inch)

• Use with Mister Hitches Drop Shanks - Adjustable

• Matte Black Seaguard Powder Coated.

• Includes 2 Pins & Clips, Pin hole reducing sleeves

• Use with MHCMP1 Clevis Pin.

• Ideal for Towing Farm Equipment, Spreaders etc.

• ADR62/02 Compliant when used with Mister Hitches Drop Shanks.

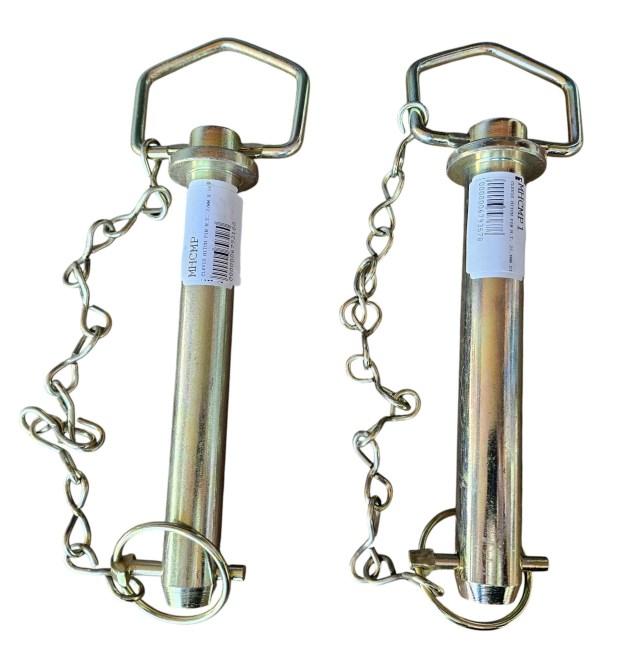

Clevis Hitch Pins

Part No. MHCMP

Barcode: 0000006793180

Pin Dia: 22mm (7/8 inch)

Useable Length: 160mm

Part No. MHCMP1

Barcode: 0000006793678

Pin Dia: 25.4mm (1 inch)

Useable Length: 160mm

• Yellow Zinc Dichromate Plated.

• Forged Steel Grade 8 H.T.

• Swivel Handle, Lynch Pin and Retainer Chain.

• Useable Length: 160mm

Hitch Extenders - Adapters

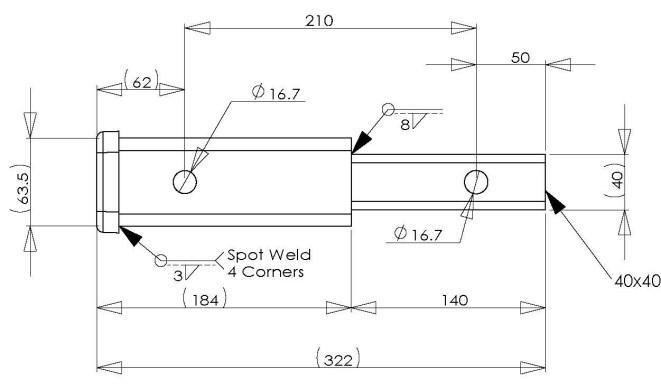

Part No. MHA4050

40mm to 50mm HITCH ADAPTER

Barcode: 0000006793760

Weight: 3kg

Carton Qty: 6pcs

• Download Capacity: 180kg

• Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Adapter, if in doubt consult an Engineer.

• Pin Hole to Pin Hole: 210mm

• Total Length: 322mm

• Matte Black Seaguard Powder Coated.

• Suitable for 40x40mm Towbar Receivers when a 50mm x 50mm receiver is required eg. Bike Carriers

• NOT RECOMMENDED FOR TOWING

It is important to consider the leverage placed on your receiver hitch and vehicle by heavy cargo. Generally, the use of extenders (and hitch adapters) can reduce the tongue weight capacity / vertical load capacity of your vehicle’s receiver hitch. Extenders under 30cm long reduce load capacity by 25%, and extenders over 30cm reduce load capacity by 50%.

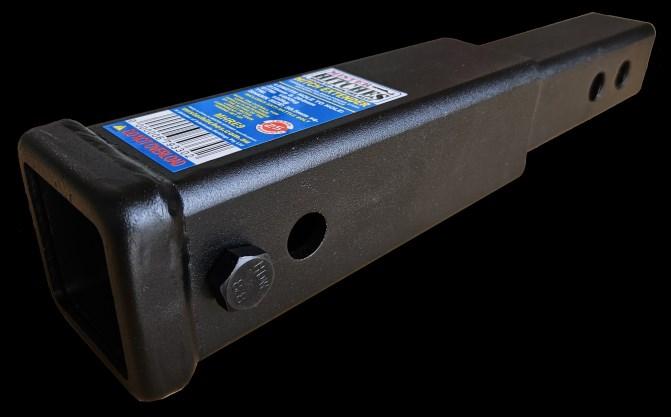

Hitch Extenders

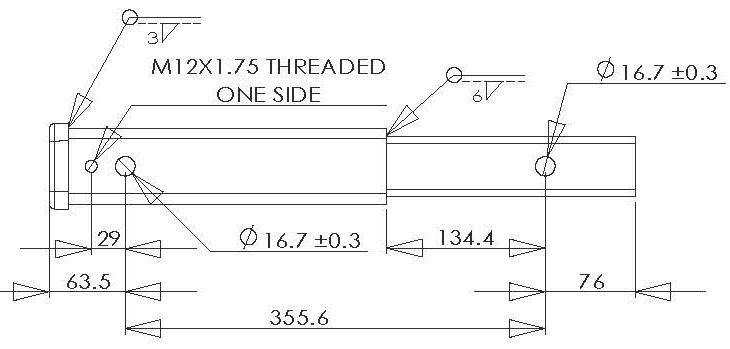

Part No. MHRE9

Barcode: 0000006793302

Weight: 2.7kg

Carton Qty: 4pcs

• Download Capacity: 180kg

• Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Adapter, if in doubt consult an Engineer.

• Lengths (Pin Hole to Pin Hole): 229/264mm

• 2 Pin holes for greater length adjustment.

• Total Length: 368mm

• Matte Black Seaguard Powder Coated.

• Includes M12 Anti-Rattle Bolt.

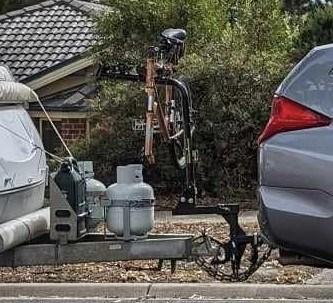

• Ideal for using with a Bike Carrier to clear Spare Tyre e.g. Pajero

• Suitable for the Shallow Towbar Receivers of Ford Ranger and Pajero Sport

• NOT RECOMMENDED FOR TOWING

Part No. MHRE14

Barcode: 0000006793159

Weight: 5.2kg

Carton Qty: 2pcs

• This Extender reduces your Ball Weight Cap. by approx. 1/3

• Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Adapter, if in doubt consult an Engineer.

• Lengths (Pin Hole to Pin Hole): 356mm

• Total Length: 495mm

• Matte Black Seaguard Powder Coated.

• Includes M12 Anti-Rattle Bolt.

• Ideal for using with a Bike Carrier to clear Spare Tyre e.g. Pajero

• NOT RECOMMENDED FOR TOWING

Part No. MHREMF2

MULTI-HOLE - MULTI-FIT

Barcode: 0000006792978

Weight: 4.3kg

Carton Qty: 2pcs

• This Extender reduces your Ball Weight Cap. by approx. 1/3

• Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Adapter, if in doubt consult an Engineer.

• Lengths (Pin Hole to Pin Hole): 180/305mm

• Matte Black Seaguard Powder Coated.

• Includes M12 Anti-Rattle Bolt.

• Ideal for using with a Bike Carrier to clear Spare Tyre e.g. Pajero

• NOT RECOMMENDED FOR TOWING

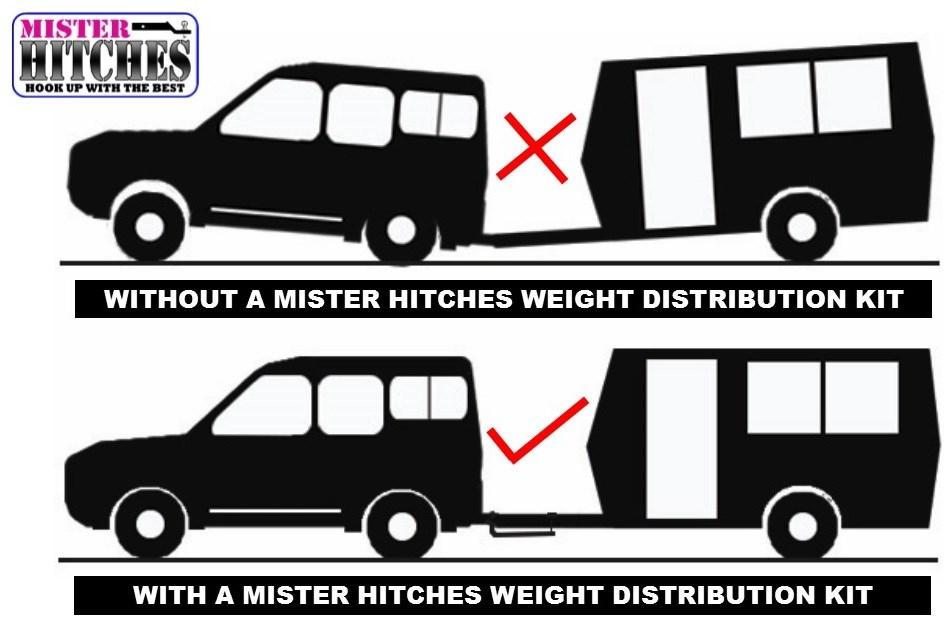

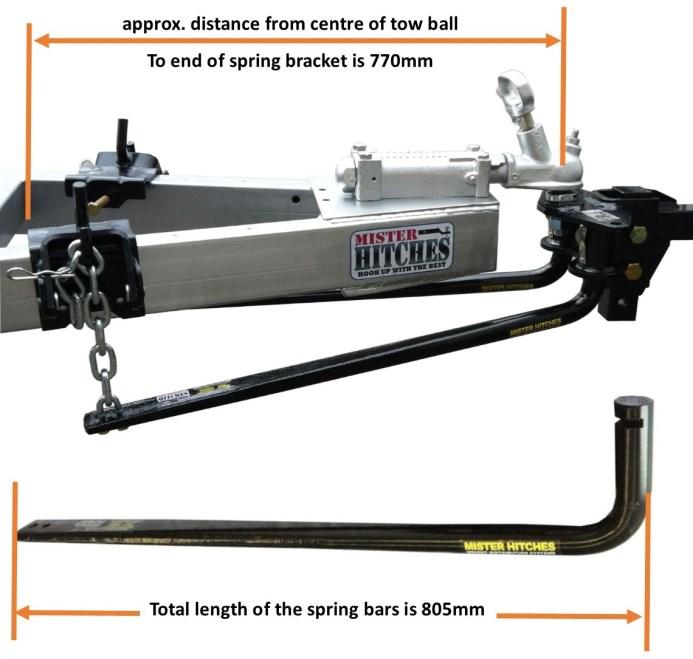

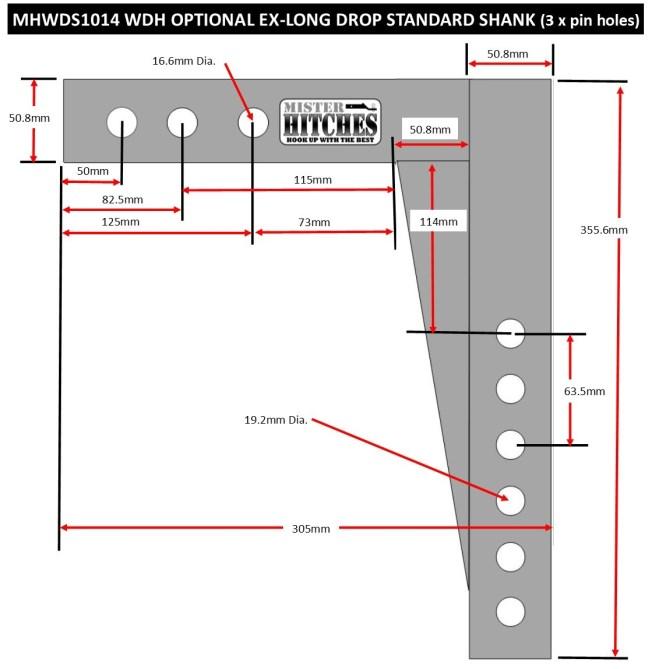

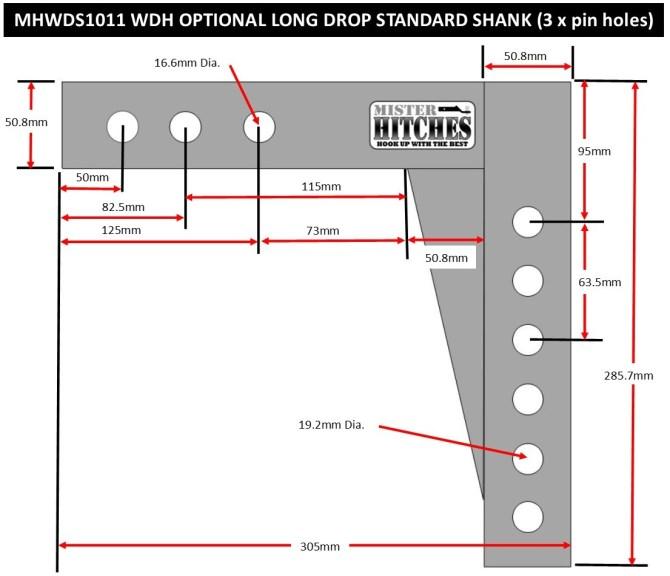

Drop Shanks - Suits WDH

63.5mm (2-1/2”)

PLEASE NOTE: Your towing capacity is determined by the lowest rated component of your towing system e.g. Vehicle’s tow & ball weight capacity , Tow Bar, Tow Ball, Ball Mount etc.

Ball couplings on towbars are required to be installed so that the height of the centre of the body of the ball coupling is between 350mm and 420mm from the ground when laden (Refer to ADR 62/01)

MHWDS07

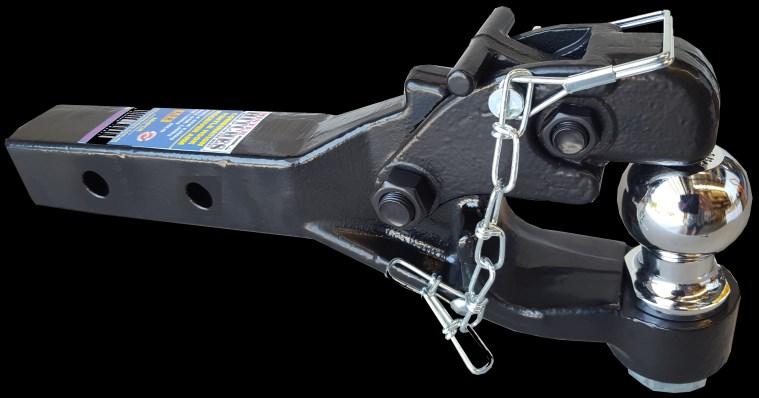

Part No. MHPC1

6 TON PINTLE HOOK COMBO

Barcode: 0000006793562

Weight: 6.2kg

Carton Qty: 1pcs

• Max Ball G.T.W.: 3500kg Max Pintle G.T.W.: 6000kg

• Max T.W. : 1360kg

• D-Value: 27Kn

• Fully Forged 50mm Ball. Q345 high grade steel. (AS3678 Grade 350)

• Includes 4 x HT Gr 8 bolts & Nuts & Safety Clip.

• Mounting Hole Configuration: 45mm x 85mm

• Includes Instruction Sheet.

• ADR62/02 2 Million Cycle Dynamically tested in Australia by a Rover Certified Lab.

• Test Loaded to 16.2Kn which is Equivalent to a D-Value of 27Kn

Part No. MHPC8

8 TON PINTLE HOOK COMBO - LOW WEAR

Barcode: 0000006792749

Weight: 5.7kg

Carton Qty: 1pcs

• Max Ball G.T.W.: 3500kg Max Pintle G.T.W.: 8000kg

• Max T.W. : 1360kg

• D-Value: 36Kn

• Fully Forged 50mm Ball. Q345 high grade steel. (AS3678 Grade 350)

• Includes 4 x HT Gr 8 bolts & Nuts & Safety Clip.

• Mounting Hole Configuration: 45mm x 85mm

• Includes Instruction Sheet.

• ADR62/02 2 Million Cycle Dynamically tested in Australia by a Rover Certified Lab.

• Test Loaded to 21.6Kn which is Equivalent to a D-Value of 36Kn

Part No. MHPH10

10 TON PINTLE HOOK

Barcode: 0000006793425

Weight: 5.6kg

Carton Qty: 1pcs

• Max Pintle G.T.W.: 10000kg

• Max T.W. : 2000kg

• D-Value: 57.61Kn

• Fully Forged 50mm Ball. Q345 high grade steel. (AS3678 Grade 350)

• Includes 4 x HT Gr 8 bolts & Nuts & Safety Clip.

• Mounting Hole Configuration: 45mm x 85mm

• Suits 3” Ring Coupling

• ADR62/02 Compliant

Pintle Hooks & Mounts

Part No. MHPCR

6 TON PINTLE HOOK COMBO RECEIVER

Barcode: 0000006793623

Weight: 9.6kg

Carton Qty: 1pcs

• Max Ball G.T.W.: 3500kg Max Pintle G.T.W.: 6000kg

• Max T.W. : 1360kg

• D-Value: 34.26Kn

• 50mm Dia. Tow Ball (Replacement Ball MHPTB50)

• Q345 high grade steel. (AS3678 Grade 350)

• New 2 Pin Hole model.

• Includes Safety Catch, I.D. Tag & Instruction Sheet.

• Use with 3” Ring Coupling or 50mm Ball Coupling

• ADR62/02 Compliant.

Part No. MHPHR5

5 TON PINTLE HOOK RECEIVER

Barcode: 0000006793340

Weight: 7.6kg

Carton Qty: 1pcs

• Max Pintle G.T.W.: 5000kg

• Max T.W. : 1000kg

• D-Value: 36Kn

• Q345 high grade steel. (AS3678 Grade 350)

• Includes Safety Catch, I.D. tag & Instruction Sheet.

• Use with 3” Ring Coupling.

• ADR/62/02 Compliant.

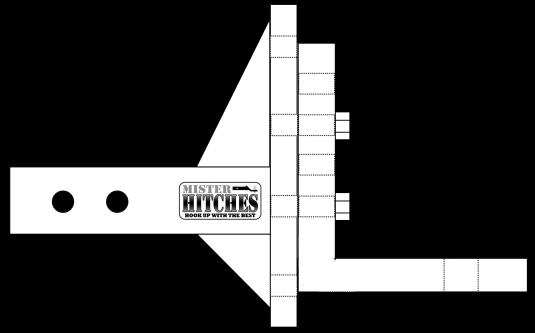

Part No. MHPRA

PINTLE RECEIVER ARM

Barcode: 0000006793173

Weight: 6.75kg

Carton Qty: 2pcs

• G.T.W.: 6000kg T.W. : 600kg

• 8 Hole plate to give 3 Adjustment positions.

• Solid Steel 50mm x 50mm Shank.

• Use with Pintle Hooks or Mister Hitches MHPTBA Ball Adapter.

• Tested in Australia to ADR62/02

NEW

Pintle Hooks & Mounts

Part No. MHPAP8

PINTLE MOUNTING PLATE

Barcode: 0000006795023

Weight: 2.4kg

Carton Qty: 1pcs

• Capacity dependant on what it is used with, if in doubt seek an Engineers advice.

• Mounts to a Pintle Mounting point to give adjustment as required.

• 8 Hole - 3 levels of adjustment.

• Mounting Hole Configuration: 45mm x 85mm

• 12.7mm thick steel plate with 13.5mm mounting holes.

Part No. MHPTBA

PINTLE TOW BALL ADAPTER

Barcode: 0000006792947

Weight: 5kg

Carton Qty: 1pcs

• G.T.W.: 4500kg T.W.: 450kg

• Mounts to either a MHPRA Pintle Receiver Arm or a Pintle Mounting point.

• Includes 4 x HT Grade 8 Bolts & Nuts.

• Mounting Hole Configuration: 45mm x 85mm

• Ball Hole: 32mm suits a 70mm 4.5t Ball.

• Reversible Mounting Position.

• Includes a Tow Ball Reducing Bush to suit a 50mm Tow Ball.

• ADR62/02 Compliant.

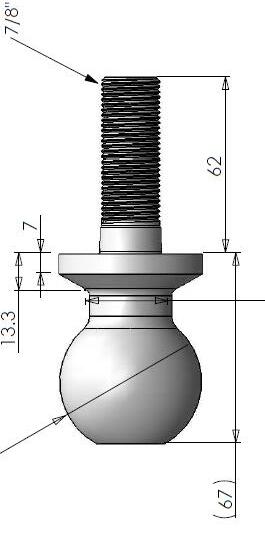

Part No. MHPTB50

REPLACEMENT TOW BALL TO SUIT PINTLE COMBOS

Barcode: 0000006793609

Weight: 1.2kg

• 50mm 3.5t Rated Tow Ball

• Shank Diameter: 32mm (1-1/4”)

• Shank Length: 62mm

• Includes Nylon Lock Nut.

• Can also be used with the Mister Hitches Raptor or ION Forged Ball Mounts with 32mm ball hole.

• AS4177 & ADR62 compliant, tested to 85Kn (8.5t)

Part No. MHPCL

Barcode: 0000006793609

• Replacement Safety Latch with Chain to suit most Pintle Hooks

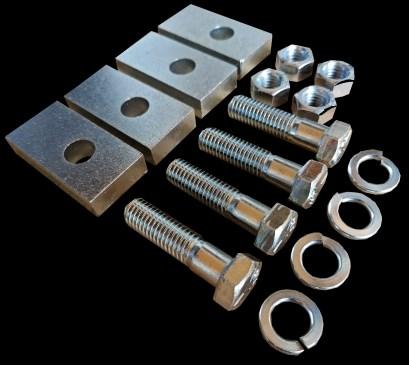

Part No. MHPBK

Barcode: 0000006793333

• 4pc Pintle Bolt, Washer & Nut kit

• Grade 8 H.T. 2” x 1/2”

Specialty Hitches

SOLID STEEL SHANK

Part No. MHDHRE

Barcode: 0000006793401

Weight: 8.6kg

Carton Qty: 1pcs

• G.T.W: 3500kg T.W. 350kg (combined max. tongue weight including accessories.) Top Receiver Cap.: 160kg

• Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Receivers, if in doubt consult an Engineer. (see notes at bottom of page)

• 3 Pin holes for greater length adjustment.

• Dual Support Strengthening Gussets.

• Solid Steel Shank.

• Matte Black Seaguard Powder Coated.

• Includes M12 Anti-Rattle Bolt on both receivers & Hitch Pin & Clip.

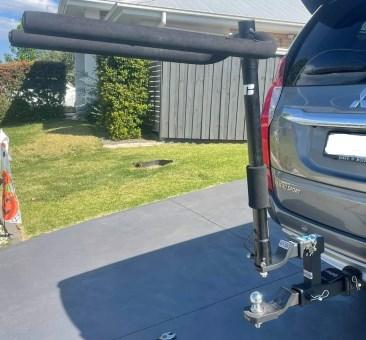

• Ideal for using with a Bike Carrier in top receiver.

• Suitable for the Shallow Towbar Receivers of Ford Ranger

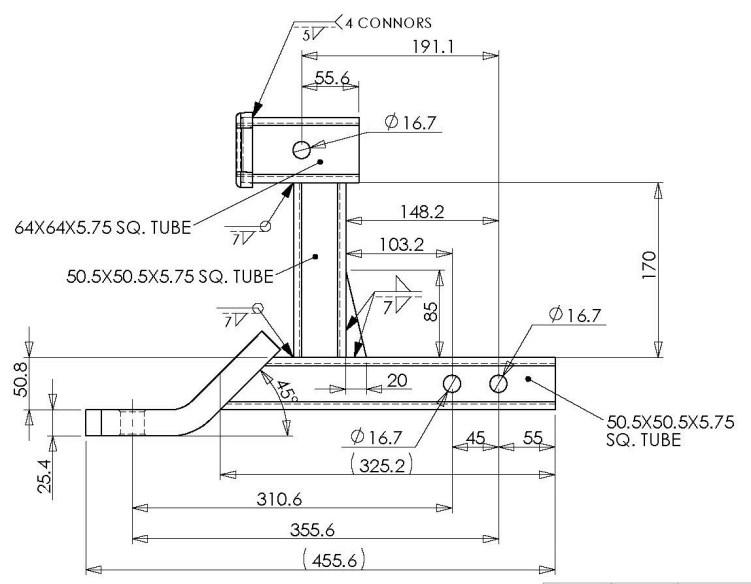

Part No. MHSBM-2

Barcode: 0000006793371

Weight: 8.8kg

Carton Qty: 1pcs

• G.T.W: 3500kg T.W. 350kg (combined max. tongue weight including accessories.) Top Receiver Cap.: 160kg (not for towing)

• Lengths: 311/356mm (Ball Hole to Pin Holes)

• Drop: 50.8mm

• 25mm x 76mm Ball Platform.

• Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Receivers, if in doubt consult an Engineer. (see notes at bottom of page)

• 2 Pin holes for greater length adjustment.

• Support Strengthening Gusset.

• Matte Black Seaguard Powder Coated.

• Ideal for using with a Bike Carrier in top receiver.

Specialty Hitches

Part No. MHABM-MU2

MULTI-USE BALL MOUNT

Barcode: 0000006793456

Weight: 12.5kg

Carton Qty: 1pcs

• G.T.W: 3500kg T.W. 350kg (combined max. tongue weight including accessories.) Top Receiver Cap.: 160kg

• Max Drop: 233mm Max Rise: 57mm

• Note: The Rated Download Capacity of the top Receiver will be reduced depending on the distance of the Load from the Receiver.

• 2 Pin holes for length adjustment. 306/326mm Lengths.

• Dual Support Strengthening Gussets.

• 8mm thick 50x50mm Steel Shank.

• 25mm x 75mm Reversible Ball Platform.

• Matte Black Seaguard Powder Coated.

• Includes M12 Anti-Rattle Bolt on Top Receiver and Ball Platform.

• Ideal for using with a Bike Carrier in top receiver.

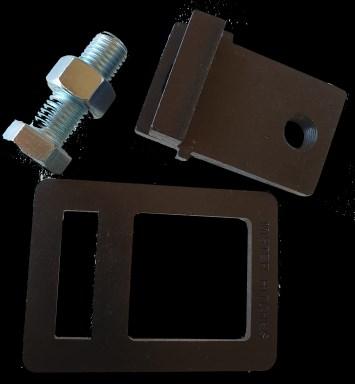

Part No. MHBMRA

BALL MOUNT RECEIVER ADAPTER

Barcode: 0000006792954

Weight: 3.8kg

Carton Qty: 1pcs

• G.T.W: 1800kg T.W.: 180kg

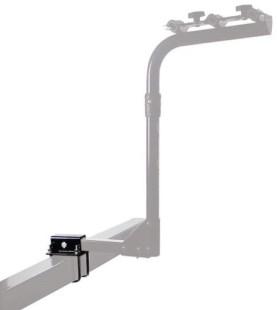

• Mounts to a Hitch Tow Ball hole to allow fitment of Bicycle Carriers where a 50mm x 50mm Receiver opening is required.

• Includes Hitch Pin & Clip & 22mm Mounting Bolt & Nut.

• Includes unique Stabilizing Plate to prevent side swivel movement.

• Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Receivers, if in doubt consult an Engineer. (see notes at bottom of page)

• Matte Black Seaguard Powder Coated.

Specialty Hitches

RESERVED FOR NEW PRODUCT COMING SOON

Part No. MH

Barcode: 000000679

Weight: 0.0kg

Carton Qty: 1pcs

•

Part No. MHRVBH2

RV BUMPER HITCH

Barcode: 0000006791711

Weight: 4.8kg

Carton Qty: 1pcs

• 150kg Vertical Load Rating (not extended load rating)

• Can be fitted to a rear bumper or A-Frame of a Camper/Caravan.

• Suits up to 110mm (W) x 120mm (D) Mounting bars or can be used with longer M12 Grade 8 Bolts (not supplied)

• Include Anti-Rattle Bolt and Gr 8.8 Mounting hardware.

• Can be mounted on top or below the bumper or A-Frame.

• Matte Black Seaguard Powder Coating.

• Ideal for use with Bicycle Carriers or other 50x50mm Receiver accessories. Not to be used for Towing

Part No. MHRVBH4

RV BUMPER HITCH WITH BALL MOUNT

Barcode: 0000006793937

Weight: 6kg

Carton Qty: 1pcs

• 200kg Vertical Load Rating (not extended load rating)

• Can be fitted to a rear bumper or A-Frame of a Camper/Caravan.

• Suits 50mm & 75mm (W) x 120mm (D) Mounting bars or can be used with longer M12 Grade 8 Bolts (not supplied)

• Include Anti-Rattle Bolt, Hitch Pin & Clip & Gr 8.8 Mounting Hardware.

• Can be mounted on top or below the bumper or A-Frame.

• Can be used with a Tow Ball Mount style Bike rack or Receiver Style Bike Rack.

• Includes HT Grade 8 Bolts & Nyloc Nuts.

• Not to be used for Towing.

Specialty Hitches

Part No. MHSBR

RECEIVER HITCH

Barcode: 0000006793685

Weight: 4.18kg

Carton Qty: 1pcs

• G.T.W.: 1600kg T.W.: 160kg

• Receiver opening 50mm x 50mm

• Grade 8 H.T. Mounting hardware included.

• Can be mounted on top or below the bumper or A-Frame.

• Matte Black Seaguard Powder Coating.

• The mounting area must be suitable for the rated Hitch capacity.

• Ideal for use on ATV’s, Farm Machinery or fitting to the front of a vehicle for guiding a Trailer into a Tight Spot

Not approved for Public Road Towing

Not suitable for Recovery or Off-Road use

Part No. MHBRT4

BOLT ON RECEIVER TUBE - 4 Hole

Barcode: 0000006793289

Weight: 2.9kg

Carton Qty: 1pcs

• G.T.W.: 2250kg T.W.: 224kg (refer notes below)

• Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Receiver.

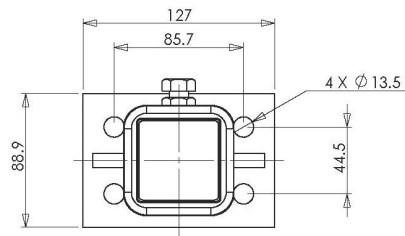

• This Handy Bolt On Receiver is designed to bolt to existing pre-drilled mounting points in the rear frame cross brace of most Landcruisers or Land Rovers. Can also be bolted to any Pintle Bolt configuration.

• Mounting holes 86mm x 44.5mm

• Includes Ant-Rattle Bolt

• Use Grade 8 Mounting Bolts & Nuts (not supplied)

• Do Not Exceed the rated Capacity of the Receiver Tube or the Mounting Plate to which it will be mounted. Extended Load Length will reduce the Rated capacity refer below. Refer to an Engineer if in doubt.

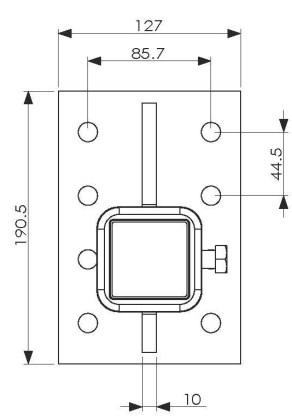

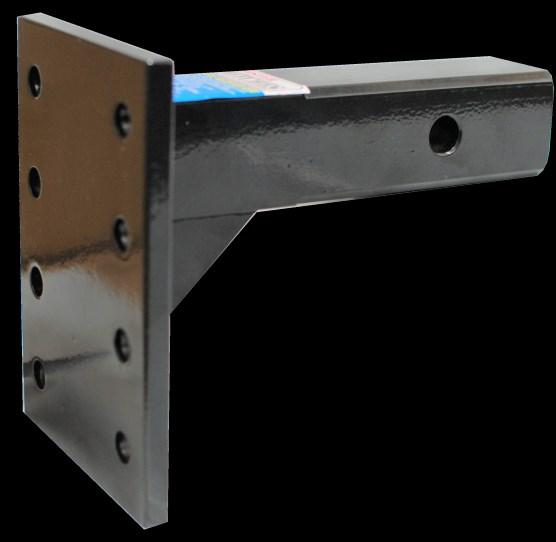

Part No. MHBRT845

BOLT ON RECEIVER TUBE - 4500kg - 8 Hole

Barcode: 000000679

Weight: kg

Carton Qty: 1pcs

• G.T.W.: 4500kg T.W.: 450kg

• Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Receiver.

• This Handy Adjustable 8 Hole Bolt On Receiver is designed to bolt to existing pre-drilled mounting points in the rear frame cross brace of most Trucks, Landcruisers or Land Rovers. Can also be bolted to any Pintle Hook Bolt configuration.

• Mounting holes 86mm x 44.5mm - 2 Pin Holes for greater versatility.

• Includes Anti-Rattle Bolt, Hitch Pin & Grade 8 2” x 1/2” Mounting Bolts, Nuts & Washers

• Grade 8 H.T. Mounting Bolts & Nuts supplied.

Specialty

Part No. MHVRA

VERTICAL RECEIVER ADAPTER

Barcode: 0000006792961

Weight: 3.14kg

Carton Qty: 4pcs

• G.T.W.: 2270kg T.W.: 227kg (refer notes below)

• Note: The Rated Download Capacity of the top Receiver will be reduced depending on the distance of the Load from the Receiver.

• This Hitch allow you to convert your Vertical Receiver to a Horizontal Receiver tube. Ideal for Receiver mounted accessories e.g. Bike Carriers.

• Extended Load Length will reduce the Rated capacity refer below. Refer to an Engineer if in doubt.

Specialty Hitches & Adapters

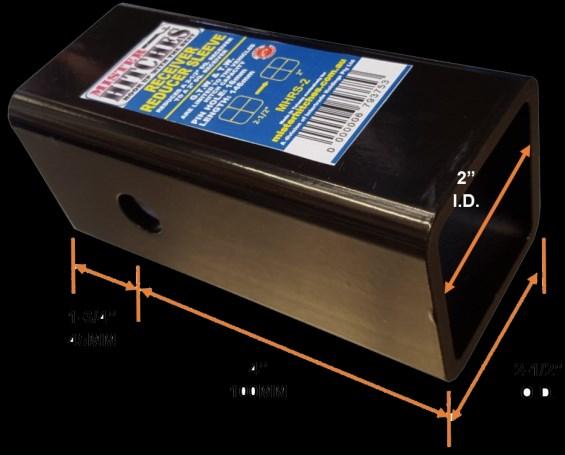

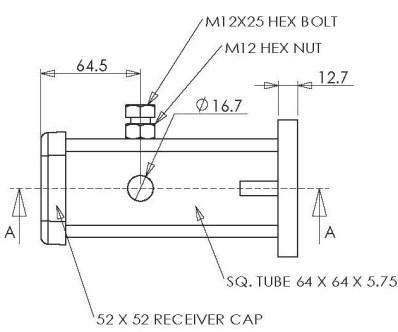

Part No. MHRS-2

HITCH REDUCING SLEEVE

Barcode: 0000006793753

Weight: 1.5kg

Carton Qty: 10pcs

• Reduces a 63.5mm (2-1/2”) Receiver to a Standard 50.8mm (2”) Receiver.

• Suits some American trucks with 2-1/2” Tow Bar Receivers.

• Total Length: 146mm Pin Hole to End: 45mm

• Black Seaguard Powder Coating.

• Can also be welded on to provide a 50mm x 50mm Receiver for a variety of uses. E.g. Bike Carriers etc

Part No. MHA4050 40mm to 50mm HITCH ADAPTER

Barcode: 0000006793760

Weight: 3kg

Carton Qty: 6pcs

• Download Capacity: 180kg

• Note: The Rated Download Capacity will be reduced depending on the distance of the Load from the Adapter, if in doubt consult an Engineer. (see below notes)

• Pin Hole to Pin Hole: 210mm Total Length: 322mm

• Matte Black Seaguard Powder Coated.

• Suitable for 40x40mm Towbar Receivers when a 50mm x 50mm receiver is required eg. Bike Carriers

• NOT RECOMMENDED FOR TOWING

Part No. MHRT12

WELD-ON RECEIVER TUBE

Barcode: 0000006793166

Weight: 3.25kg

Carton Qty: 6pcs

• Tow Weight N/A Check with Engineer if in doubt.

• Total Length: 305mm

• Pin Hole distance from Collar: 65mm

• Tube Thickness 5.8mm

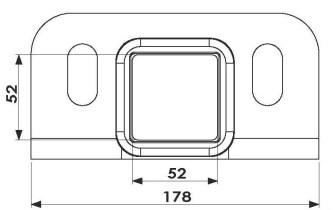

• Receiver Size I.D.: 52mm x 52mm

• Includes Strengthening Collar.

• Unpainted ready for welding.

Tow Balls & Accessories

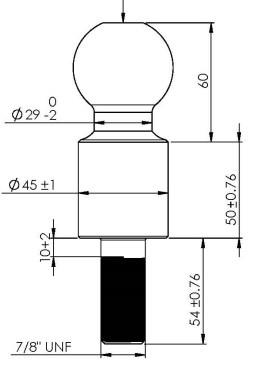

Part No. MHTB50CB

Barcode: 0000006791803

Carton Qty.: 16pcs (Bulk)

50mm Chrome Tow Ball 3500kg tested to AS4177-2 & ADR62/02 (85kN for 10secs)

Shank Dia. 7/8” UNF. Shank Length: 51mm Side Flats for ease of fitting & removal. Nut Torque: 225 Nm.

Part No. MHTB60CB

Barcode: 0000006791803

Carton Qty.: 16pcs (Bulk)

50mm Chrome Tow Ball 3500kg tested to AS4177-2 & ADR62/02 (85kN for 10secs) Shank Dia. 7/8” UNF. Shank Length: 62mm Side Flats for ease of fitting & removal. Nut Torque: 225 Nm.

Part No. MHTB60C

Barcode: 0000006791810

Carton Qty.: 12pcs (Double Blister Hang)

50mm Chrome Tow Ball 3500kg tested to AS4177-2 & ADR62/02 (85kN for 10secs) Shank Dia. 7/8” UNF. Shank Length: 62mm Side Flats for ease of fitting & removal.

Torque: 225 Nm.

Part No. MHTB50ZB ZINC PLATED

Barcode: 0000006791803

Carton Qty.: 16pcs (Bulk)

50mm Zinc Tow Ball 3500kg tested to AS4177-2 & ADR62/02 (85kN for 10secs)

Shank Dia. 7/8” UNF. Shank Length: 62mm

100hrs Salt Spray Test to meet ASTM B117 Nut Torque: 225 Nm.

Part No. MHTB70CB

70mm 4,500kg

Barcode: 0000006791858

Carton Qty.: 6pcs (Bulk)

70mm Tow Ball 4,500kg 2 Million Cycle Dynamically tested in Australia by a Certified Rover Lab.

D-Value 23.5Kn ADR62/02

Stamping as required by ADR62/02

Shank Dia. 32mm UNF. Shank Length: 70mm Nut Torque: 1,100Nm (800ft/lbs).

Part No. MHPTB50 32mm SHANK DIA.

Barcode: 0000006794248

50mm Chrome Tow Ball 3500kg tested to AS4177-2 & ADR62/02 (85kN for 10secs)

Shank Dia. 32mm UNF. Shank Length: 60mm Includes Nylon Lock Nut. Suitable Replacement Ball for Pintle Combo or suits any hitch with 32mm Ball Hole.

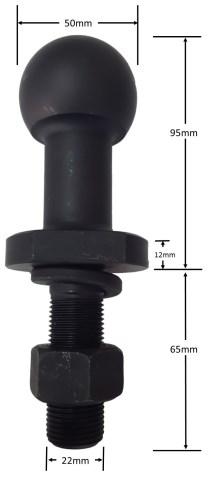

Part No. MHTB50HRB HI-RISE TOW BALL

Barcode: 0000006792811

Carton Qty.: 10pcs

50mm Dia, 3500kg Tested to AS4177-2 & ADR62 COMPLIANT

Black Oxide Finish

Shank Length: 65mm

Ball Height from Base: 95mm

Shank Dia: 22mm (7/8” UNC)

Distance between Side Flats: 47mm

Suitable for Al-Ko AKS Friction Couplings, use with Retention Plate MHTBRP.

Part No. MHTB5045CB 25.4mm LONG SHANK

Barcode: 0000006791865

50mm Chrome Tow Ball 3500kg tested to AS4177-2 & ADR62/02 (85kN for 10secs)

Shank Dia. 25.4mm UNF. Shank Length: 114mm.

MHTB50HRB

Part No. MHTBHRK TOW BALL & RETENTION PLATE SET (AKS)

Barcode: 0000006792831

Suitable for Al-Ko AKS Friction Style Coupling. The Retention Plate stops the Tow Ball from Rotating. The Tow Ball is approx. 22mm higher than a standard ball allowing clearance between the Coupling and the Ball Mount.

Both parts sold separately or as a set.

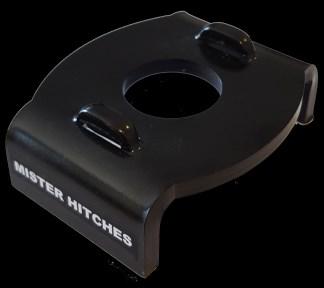

MHTBRP Retention Plate

MHTB50HRB Hi-Rise Tow Ball

MHTBRP

Tow Balls & Accessories

MHTBCCD

Part No. MHARBL

ANTI-RATTLE HITCH BOLT

Barcode: 0000006793623 Carton Qty.: 20pcs H.T.

Part No. MHARSK

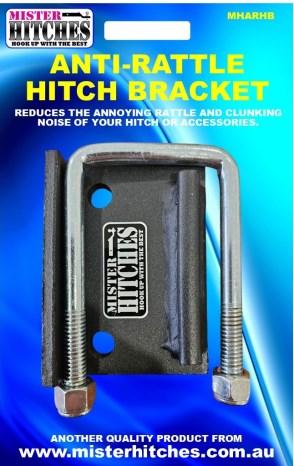

Part No. MHARHB

ANTI-RATTLE HITCH BRACKET

Barcode: 0000006793746

ANTI-RATTLE SHIM KIT

Barcode: 0000006793050

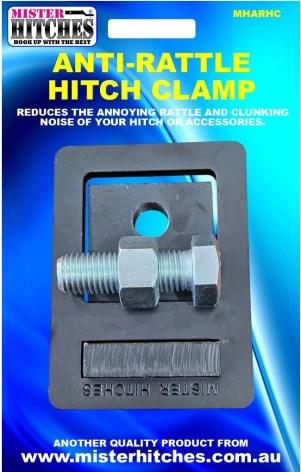

Part No. MHARHC

ANTI-RATTLE HITCH CLAMP

Barcode: 0000006793043

Part No. MHARHP

ANTI-RATTLE HITCH PIN LOCK

Hitch Pins & Locks

Part No. MHARHP

Part No. MHPL2

Part No. MHPL2 2

Part No. MHPL6

Part No. MHP4

Part No. MHPL5

Part No. MHPH4B

Coupling Locks

Part No. MHCL10

DUAL USE COUPLING LOCK

Barcode: 0000006785819

Carton: 6pcs

Weight: 2.16kg

2 Function Locking Feature. Locks 50mm Coupling or Coupling to Vehicle. Bronze Zinc Plated

D Shackles

Part No. MHCL20

50mm COUPLING LOCK

Barcode: 0000006793319

Carton: 8pcs

Weight: 1kg

Ratchet Locking Mechanism. Locks 50mm Coupling. Hi - Viz Yellow Theft Deterrent.

The Department of Transport and Main Roads recommends that the shackles used should meet Australian Standard AS 2002 “Shackles”, or another equivalent recognised standard, and have a break load limit of the shackle is rated at least 1.5 times greater than the ATM of the trailer.

MHRDS11

G80 Hammerlock Chain Connectors

G80 Chain connecting links, commonly referred to as Hammerlocks. These Hammerlocks are mostly used when extending safety chains on trailers connecting safety chains to your tow bar or used to connect winch recovery hooks steel cable or synthetic winch rope. Made from G80 grade Alloy Steel and tested to a safety factor of 4:1 which means that the Hammerlocks have a breaking strength of 4 x the W.L.L. (Working Load Limit) e.g. MHHL10 has a W.L.L. of 3.15 tonnes and Breaking Strength of 12.6 tonnes/12,600kg (W.L.L. 3.15t x S.F. 4 = M.B.S.12.6t) Conforms to Australian Standard AS3776 & European Standards EN1677.4

Trailer Couplings & Accessories

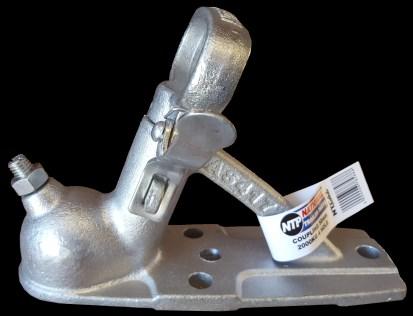

Part No. NTC4Z

4 Hole 50mm 2000kg Coupling

Barcode: 0000006785888

Carton: 6pcs

Weight: 2.85kg

Non Braked Fixed Coupling

Replaces 2 or 3 Hole Couplings Zinc Plated, AS4177.3 Compliant

Part No. MHTC45

Part No. MHTCOR2

50mm 2000kg Override Coupling

Barcode: 0000006785895

Carton: 1pc

Weight: 8.54kg

Suits Mechanical & Hydraulic Brakes Zinc Plated AS4177.3 Compliant

Part No. MHTCPBOR

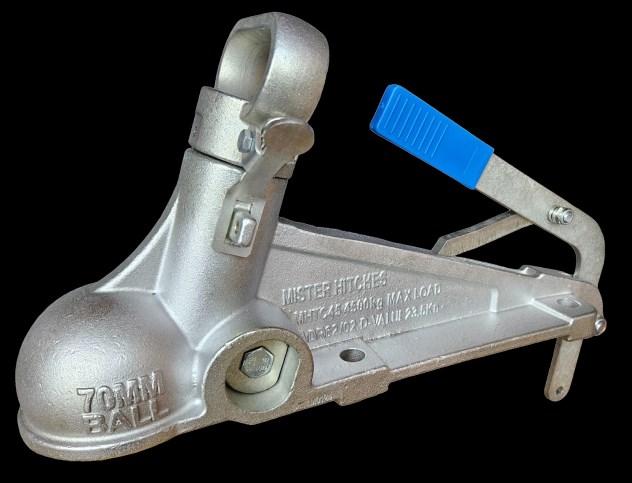

Part No. MHTCE35

70mm 4500kg Coupling - D-V 23.5kN

Barcode: 0000006792619

Weight: 12kg

With Hand Brake Lever & Instruction Sheet.

Use with MHTB70CB 70mm 4.5t ball.

Use with 16mm Grade 8 Bolts & Nuts. 92Nm.

2 Million Cycle Dynamic tested to ADR62/02 in Australia by a Rover Certified Lab. ADR62/02 Compliant. D-Value 23.5kN

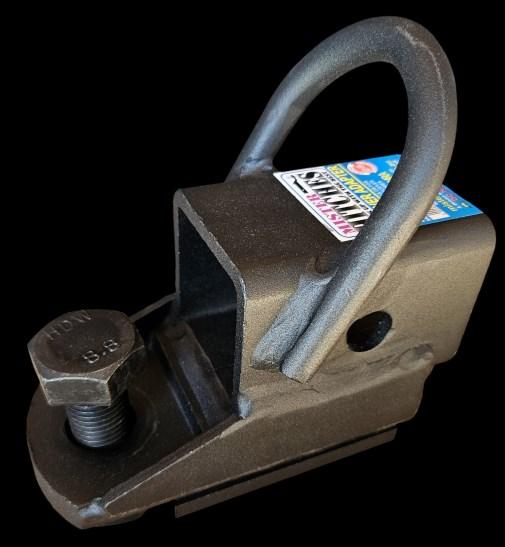

Part No. MHPBCAC

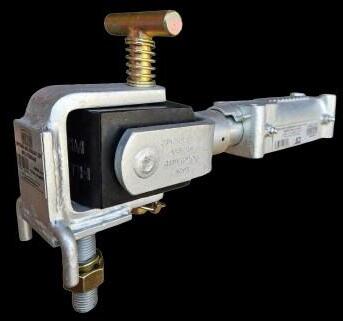

3000kg POLY BLOCK ADAPTER

Barcode: 0000006794286

Weight: 4.4kg

G.T.W.: 3000kg T.W.: 300kg

19mm T-Bar Handle & Pin & Lynch Pin.

10.9 grade 22mm Mounting Bolt & Nut included. AS 4177 compliant - Dacromet Finish. Use with MHTCPBOR Poly Block Coupling

Part No. MHTCBK COUPLING MOUNTING KIT

Barcode: 00000067985871

4PC 4” X 1/2” GR8.8 Bolts & Nyloc Nuts Zinc Plated Finish. Recommended Torque: 100Nm

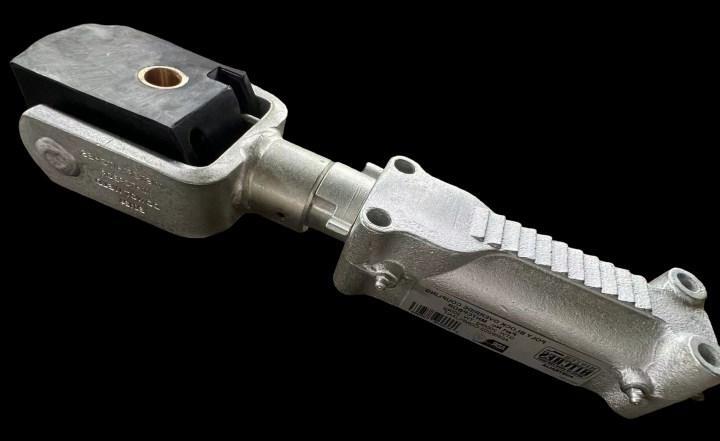

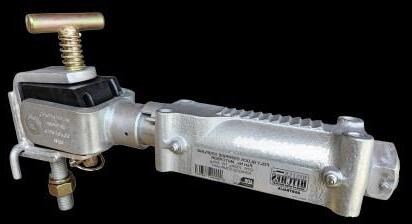

2000kg POLY BLOCK COUPLING

Barcode: 0000006785963

Weight: 8kg

G.T.W.: 2000kg T.W.: 200kg

2000kg Poly Block Mech. Override Coupling. Heavy Duty Polyurethane Block.

360 deg. Rotation, 70 deg. Vertical Articulation. Use with MHPBCA or MHPBCAC Adapter

12.7mm Grade 8 Bolts & Nuts included. 100Nm ADR62/02 Compliant. Stamped & Batch Number.

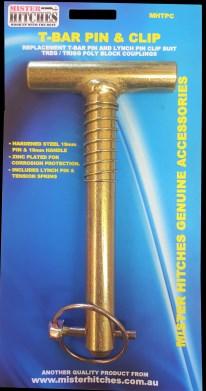

Part No. MHTPC

POLY

Barcode:

50mm 3500kg Electric Coupling

Barcode: 0000006785901

Carton: 1pc

Weight: 6.4kg

Suits Electric Brakes with Hand Brake Lever Zinc Plated AS4177.3 Compliant

Part No. MHPBCA

3000kg POLY BLOCK ADAPTER

Barcode: 0000006785987

Weight: 2.5kg

G.T.W.: 3000kg T.W.: 300kg

19mm T-Bar Handle & Pin & Lynch Pin. 22mm Dia. Mounting Rod/Bolt.

Instruction Sheet Included.

AS 4177 compliant - Dacromet Finish. Use with MHTCPBOR Poly Block Coupling

Part No. MHTPL

POLY BLOCK T-BAR PIN & LOCK

Barcode: 0000006791742

Weight: 0.79kg

19mm T-Bar Handle & Pin & Pin Lock. Zinc Finish. Use with Poly Block Coupling Adapters

Part No. NPBCALP

LYNCH PIN

Barcode: 0000006794203 6mm x 46mm Pin

Finish. Use with Poly Block Adapter T-Bars

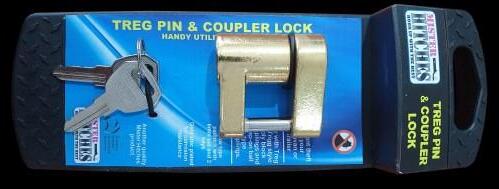

Part No. MHTPCL

Barcode:

Part No. NOCL4

Barcode:

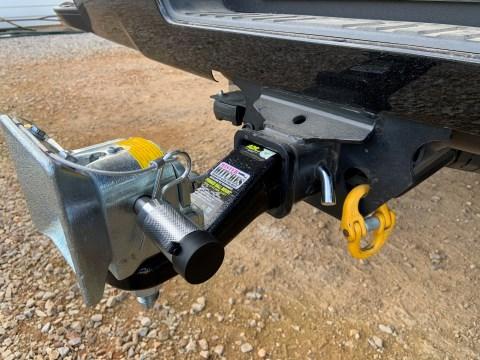

Recovery Gear

Part No. MHRHS

RECOVERY HITCH - SWIVEL

Barcode: 0000006792022

Weight: 2.8kg

W.L.L.: 4,750kg

360 Degree Rotation & 180 Degree Pivot.

Includes a 4.75t Rated Bow Shackle.

Includes Hitch Pin & Clip.

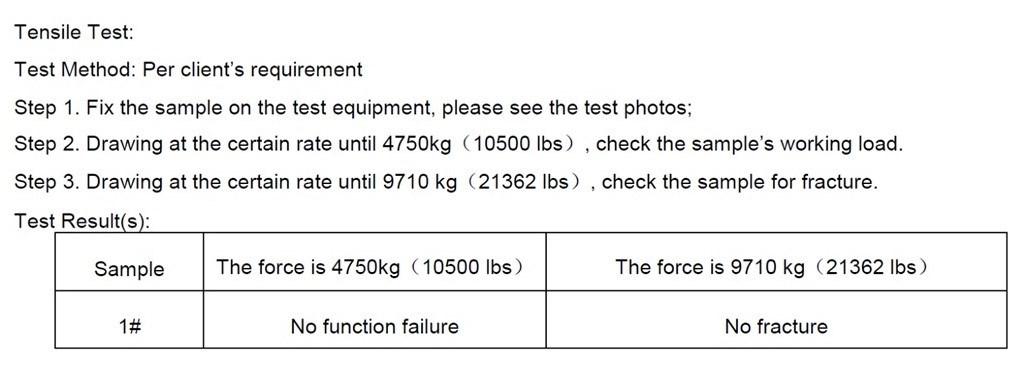

SGS Tested to 4,750kg W.L.L.

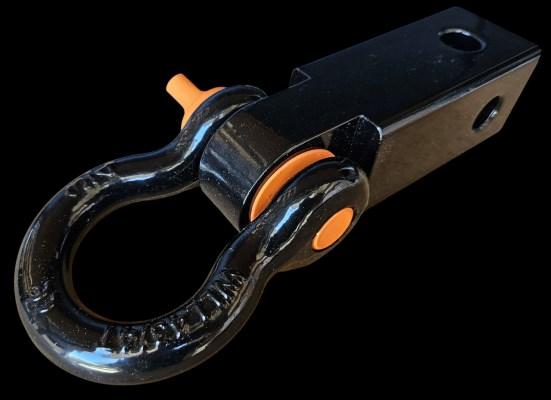

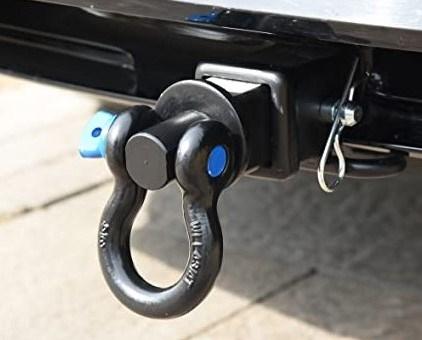

Part No. MHRH

RECOVERY HITCH

Barcode: 0000006793197

Weight: 1.8kg

Recovery Hitch W.L.L.: 5,000kg

Bow Shackle W.L.L.: 4,750kg

WARNING: DO NOT OVERLOAD

DO NOT EXCEED THE VEHICLE MANUFACTURERS TOW BAR CAPACITY. DO NOT USE YOUR VEHICLES TOW BALL AS A RECOVERY POINT.

Part No. MHRH-ALS

RECOVERY HITCH ALUMINIUM

Barcode: 000000679 Weight: 1.15kg W.L.L.: 5,000kg M.B.S. 10,000kg Lightweight T6 Aluminium Billet - Long Style

Part No. MHRH-ASB

RECOVERY HITCH ALUMINIUM

Barcode: 000000679

Weight: 1kg

W.L.L.: 5,000kg M.B.S. 10,000kg

Lightweight T6 Aluminium Billet - Short Style

Drop Forged Steel - Electrocoat Powder Coat. Dual Hitch Pin holes allow vertical or Horizontal recovery modes.

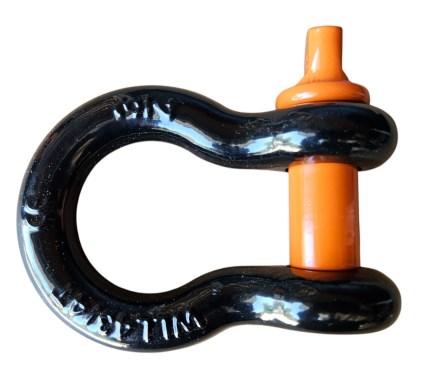

Part No. MHBS475

RATED BOW SHACKLE

Barcode: 0000006793210

Weight: 1kg

W.L.L.: 4.75t 19mm x 22mm Pin

Drop Forged Steel - Electrocoat Powder Coat. AS2741-2002 Compliant.

Dual Hitch Pin holes allow vertical or Horizontal recovery modes. Can use with Braided Soft Shackle or Bow Shackle.

Dual Hitch Pin holes allow vertical or Horizontal recovery modes.

Can use with Soft Shackle or Rope

Part No. MHRSS-2

RECOVERY SOFT SHACKLES 2pc

Barcode: 000000679

Weight: 0.40kg Colour: Yellow/Black

W.L.L.: 7,000kg M.B.S.: 14,000kg 10mm x 500mm - Loop I.D. Dia. 175mm Features Strong Diamond Knot 12 Strand UHMWPE Synthetic Rope with Durable Braided Binding for added Protection of the Shackle. 2pcs of Soft Shackle in Storage Bag.

STRONGER - LIGHTER - SAFER than Steel Shackles.

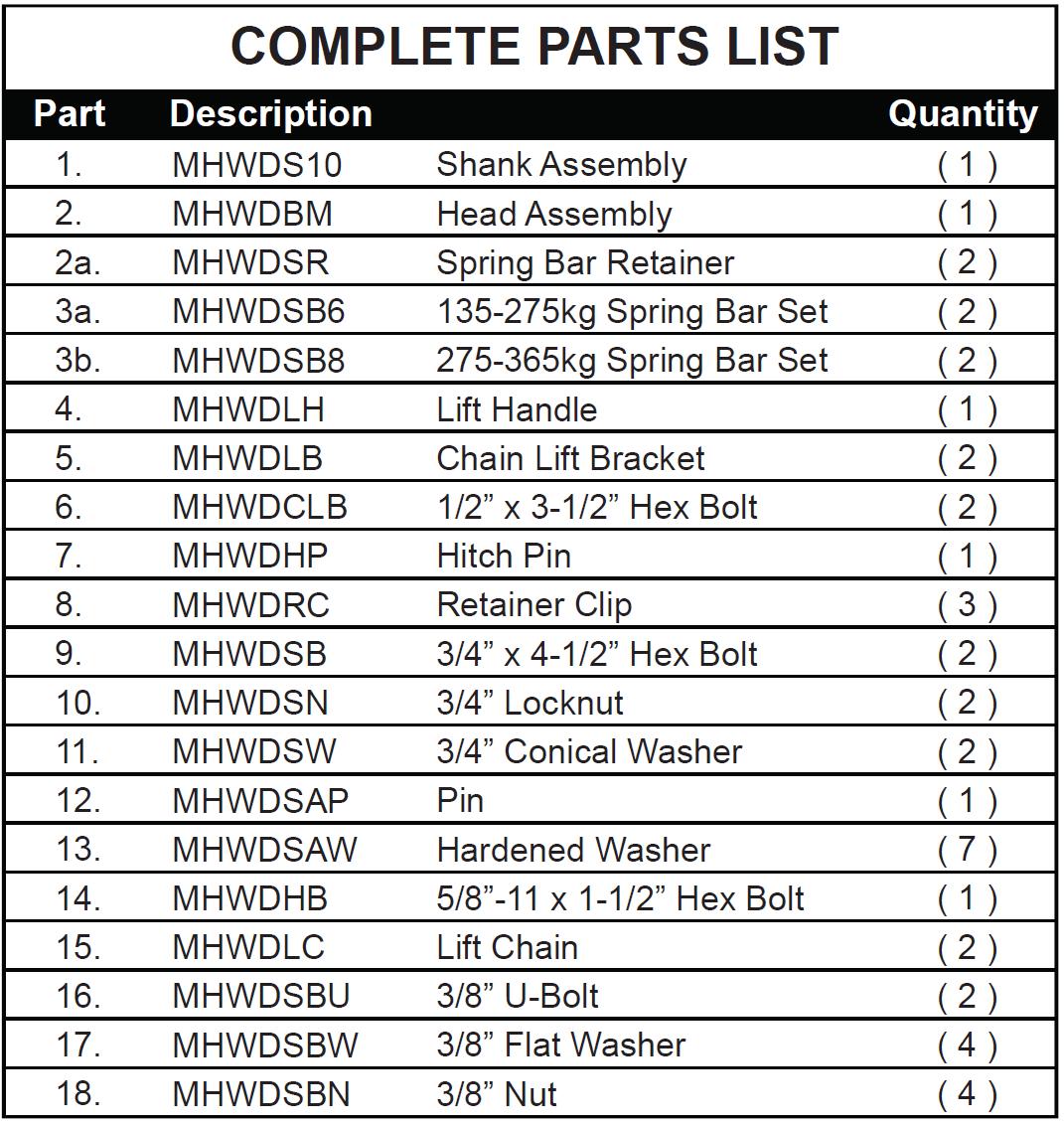

Weight Distribution Systems

Part No. MHWDR6

600 SERIES WDH

Barcode: 0000006794736

Weight: 37kg

Suits Ball Weights 135-275kg

Max G.T.W.: 3500kg (with spring bars fitted) Includes Standard Shank (MHWDS10)

Part No. MHWDR6P

600 SERIES WDH

Barcode: 0000006794833

Weight: 37kg

Suits Ball Weights 135-275kg

Max G.T.W.: 3500kg (with spring bars fitted)

Includes Short Shank MHWDS07 Suits Pajero Sport Shallow T/Bar Receiver.

Part No. MHWDR8

800 SERIES WDH

Barcode: 0000006794743

Weight: 37kg

Suits Ball Weights 275-365kg

MISTER HITCHES

Weight Distribution Systems are designed to evenly distribute weight over all axles; levelling the ride of the towing vehicle and trailer for increased stability, control and economy. They help reduce trailer sway and excessive tyre wear by returning the natural balance of the towing vehicle.

In addition, they restore the towing vehicles braking efficiency, headlight alignment and suspension geometry for a smooth and enjoyable towing experience.

Max G.T.W.: 3500kg (with spring bars fitted) Includes Standard Shank (MHWDS10)

Part No. MHWDR8P

800 SERIES WDH

Barcode: 0000006794842

Weight: 37kg

Suits Ball Weights 275-365kg

Max G.T.W.: 3500kg (with spring bars fitted)

Includes Short Shank MHWDS07 Suits Pajero Sport Shallow T/Bar Receiver.

Note: Optional Drop Shanks of various Shank Lengths & Drops are available at additional cost. Our Drop Shanks can be inverted to give the Towing Height Required. The Mister Hitches WDH systems can be used with a D035 Coupling Pin.

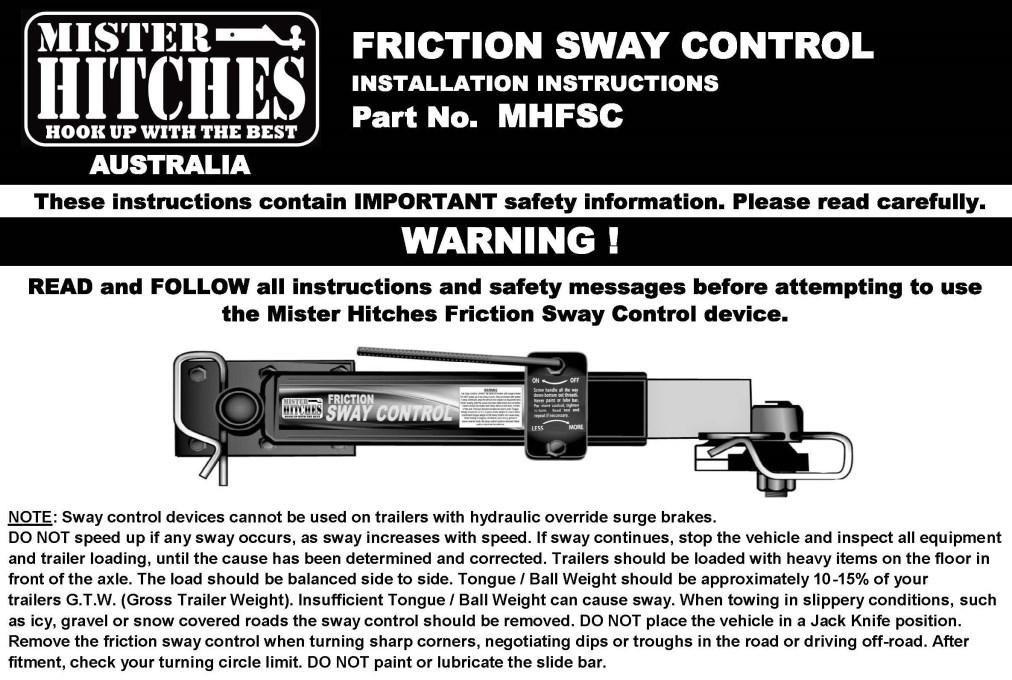

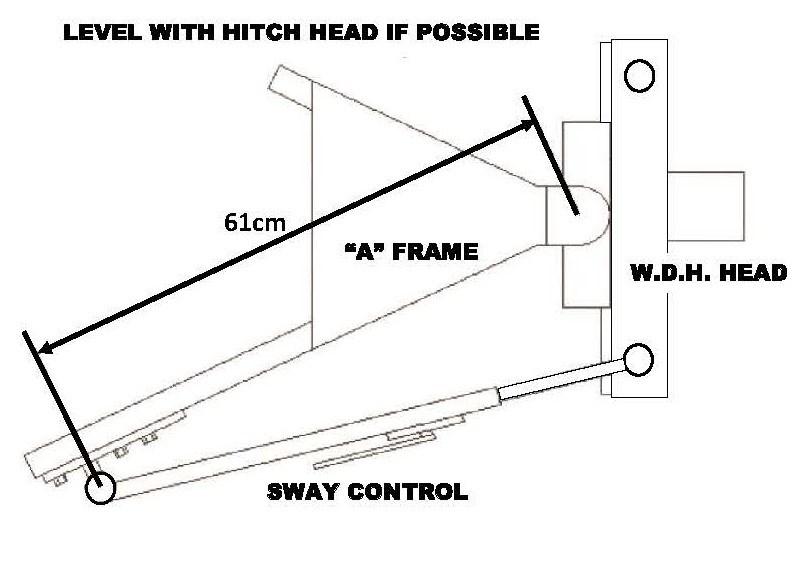

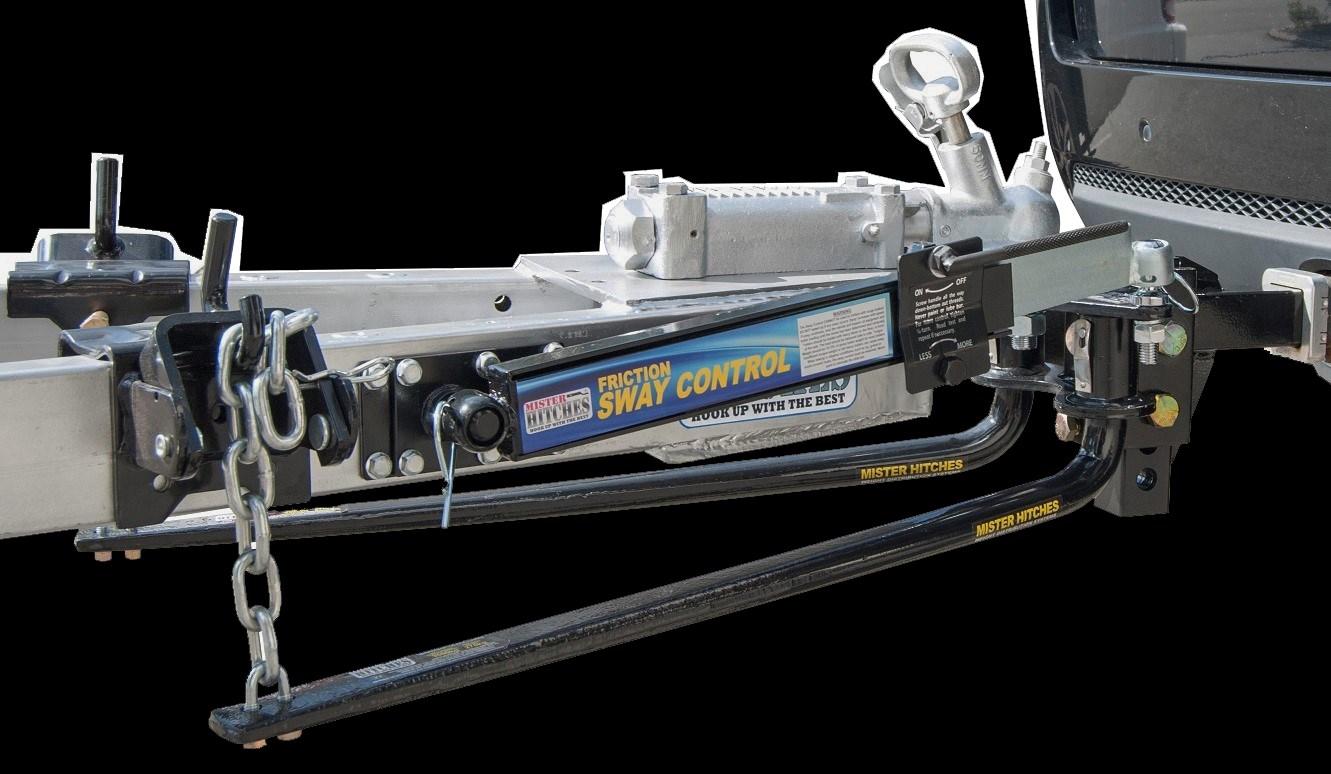

Friction Sway Control Device

Part No. MHFSC

FRICTION SWAY CONTROLLER

Barcode: 0000006793500

Weight: 6kg

Reduces Sway caused by Side Winds, Road Trains, Passing Trucks etc

Manages Sway, designed to retard pivotal movement between the Tow Hitch and Caravan.

Adjustable Friction Control. Fitting Instructions included.

Note: Remove Friction Bar if facing a Jack-Knife situation. Easy to Enable or Disable the Device Function.

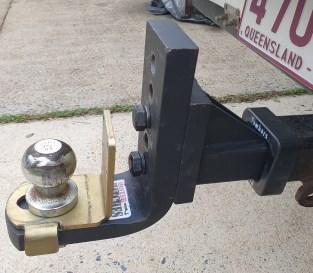

FRICTION SWAY CONTROLLER BALL BRACKET

MHSCB65

Barcode: 0000006793517

Use with 65mm Wide Ball Mount Platform

Non-Weld Ball Bracket, use when a Friction Sway control ball Bracket is not fitted to a Hitch.

MHSCB75

Barcode: 0000006793524

Use with 75mm Wide Ball Mount Platform

Non-Weld Ball Bracket, use when a Friction Sway control ball Bracket is not fitted to a Hitch.

FRICTION SWAY CONTROLLER DUAL BALL BRACKET

MHSCB752

Barcode: 0000006793005

Use with 55mm Wide Ball Mount Platform

Non-Weld Ball Bracket, use when a Friction Sway control ball Bracket is not fitted to a Hitch.

Use when installing 2 Sway Control Devices.

MISTER HITCHES

Friction Sway Control Device

Controls the sway or snaking of your towed vehicle. This can occur when driving in windy conditions, passing road trains or poor weight distribution of your towing load. This unit is easy to install & remove and can be fitted to either the RH or LH side of the A frame. Uses double friction disc brake principle and is easy to adjust or simply turn off. An optional non-weld ball bracket is available.

Can be used on Left or Right Side of Draw Bar. Two Devices can be used when installed on larger Caravans.

Vehicle & Caravan Weight Control Systems

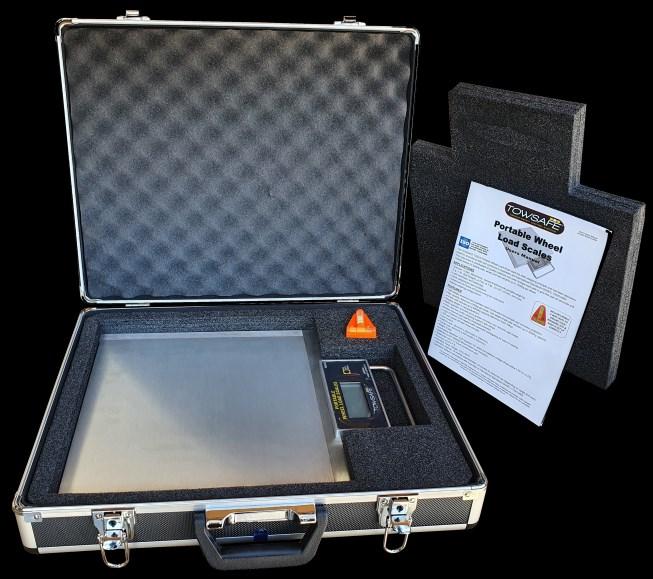

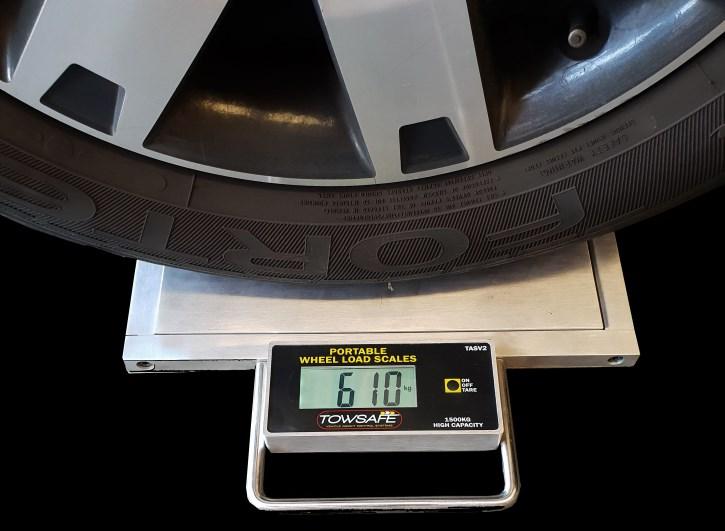

PORTABLE WHEEL LOAD SCALES

STAY SAFE AND LEGAL BY ENSURING YOUR TOWING WEIGHT CAPACITIES ARE NOT EXCEEDED DESIGNED IN AUSTRALIA BY MISTER HITCHES AUSTRALIA

Our Towsafe Portable Wheel Scales are sold to Lovells, Pedders, TJM, Fulcrum, DFES, Govt. Departments, 4x4 Specialists, Mobile Weighing businesses' and DIY Caravan owners.

APPLICATIONS

• CARAVAN, VEHICLE, TRAILER & MOTORHOME PORTABLE WEIGHING; E.g. TW (Tow Ball Weight), ATM, GTM, GVM, GCVM & MORE.

• LOAD DISTRIBUTION AND BALANCING

• CHECK WEIGHING FOR LAW COMPLIANCE

• DETERMINATION OF WHEEL AND AXLE LOAD DISTRIBUTION FOR VEHICLE DESIGN AND MODIFICATIONS

• SUSPENSION & CENTRE OF GRAVITY TUNING FOR MOTORSPORT

• SPECIAL WEIGHING CONFIGURATIONS

FEATURES

• LIGHT-WEIGHT ALUMINIUM & STAINLESS STEEL CONSTRUCTION FOR STRENGTH & CORROSION RESISTANCE.

• HIGH CAPACITY: MAXIMUM LOAD OF 1500kg PER SCALE. CAN WEIGH SINGLE AXLE VEHICLES UP TO 3000kg CAPACITY & TWIN AXLE VEHICLES UP TO 6000kg CAPACITY (MINIMUM LOAD: 50kg).

• DISPLAYS WEIGHT IN 1kg GRADUATIONS

• STATIC OPERATION PRINCIPLE GIVES GREATER ACCURACY OVER DYNAMIC TYPE SCALES

• 19mm ULTRA-LOW PROFILE WEIGHING PLATFORM WITH RAMPS

• MULTIPLE LOAD CELLS FOR INCREASED PRECISION

• TARE FUNCTION

• LARGE 75x30mm DIGITAL READOUT WITH AUTOMATIC BACKLIGHT

• LCD AUTO POWER-OFF AFTER 3 MINUTES

• ACCURACY: ±0.5% F.S.

• BATTERIES: 2 x 3V CR2032 LITHIUM BUTTON CELL (INCLUDED)

• BATTERY LIFE: UP TO 12 HOURS (CONTINUOUS USE)

• LOW BATTERY DETECTION

• WEIGHING PLATFORM SIZE: 19mm(H) x 305mm(W) x 305mm(L)

• OVERALL SIZE: 30mm(H) x 347mm(W) x 432mm(L)

• WEIGHT: 6.2kg

• LABORATORY TESTED IN ACCORDANCE WITH AUSTRALIAN & INTERNATIONAL STANDARDS ISO/IEC 17025:2005

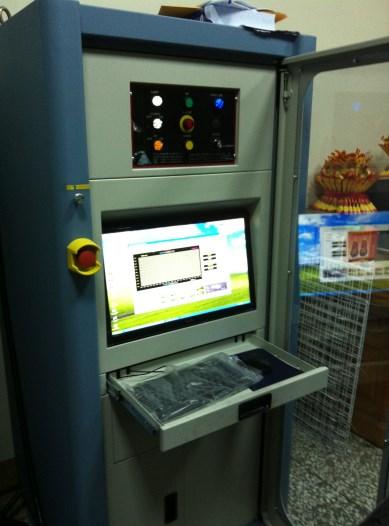

Scale Testing & Calibration

Part No. TASV2

WHEEL LOAD SCALE

Barcode: 0000006793616

Weight: 7kg

Part No. TASV2-CASE

WHEEL LOAD SCALE

STORAGE CARRY CASE

Barcode: 0000006793395

Weight: 2.4kg

Vehicle & Caravan Weight Control Systems

BALL WEIGHT SCALES

STAY SAFE AND LEGAL BY ENSURING YOUR TOWING WEIGHT

CAPACITIES ARE NOT EXCEEDED

THE ORIGINAL BALL WEIGHT SCALE SUITABLE FOR THE AUSTRALIAN MARKET WAS FIRST DEVELOPED BY MISTER HITCHES AUSTRALIA IN 2012 AND IS STILL THE MOST ACCURATE BALL WEIGHT SCALE ON THE MARKET. MADE IN TAIWAN USING A JAPANESE MADE COMPRESSION SPRING WHICH RETAINS IT’S COMPRESSION PROPERTIES AFTER THOUSANDS OF USES. EACH SCALE IS BATCH TESTED & SERIAL NUMBERED.

Easily measures the Ball Weight of your Caravan or Trailer. Stay safe and legal while towing with the help of the TOWSAFE Ball Weight Scales. Too little or too much weight on your tow ball can have some dangerous implications including excessive caravan sway, poor handling and difficulty braking.

Exceeding your vehicles maximum ball weight is both unsafe and illegal.

Don’t risk the safety of yourself or others, check your tow ball weight before you hit the road.

Features:

• SCALE CALIBRATION: 100kg TO 350KG

• ACCURACY TESTED TO AUSTRALIAN, NZ AND INTERNATIONAL STANDARDS

AS/NZS ISO 10012:2004

• TESTED & CERTIFIED BY SGS TAIWAN

• EASY TO READ LONG LASTING LASER ETCHED GAUGE

• METAL CONSTRUCTION & POWDER COATED FOR LONG LIFE

• JAPANESE MADE COMPRESSION SPRING GIVES OVER 1000 USES WHILST STILL MAINTAINING ACCURACY

• SOFT HEAD WILL NOT DAMAGE COUPLING

• COMPACT AND EASY TO STORE

• USAGE INSTRUCTIONS INCLUDED

• TAIWAN QUALITY & 12 MONTH WARRANTY

Scale Testing & Calibration

Part No. MHBWS

Barcode: 0000006793463 Weight: 1.8kg Carton Qty: 10pcs

Part No. MHBWS-ADP

Barcode: 0000006793630

Use with Non-Ball Couplings

Part No. MHBWS-ADP2

Barcode: 0000006794347

Use with D035 & D045

Jerry Can Holders

Part No. MCJCH20

JERRY CAN HOLDERS

JERRY CAN HOLDER BOLT/WELD ON

Barcode: 0000006794590 Carton: 2pcs

Zinc Plated

Metal or Plastic Cans: 245mm(H) x 180mm(W) x 370mm(L)

Part No. MCJCH20B

JERRY CAN HOLDER W/ DRAWBAR / BUMPER BRACKET

Barcode: 0000006794583 Carton: 2pcs

Zinc Plated - S/Steel Bolts with Nyloc Nuts

Metal or Plastic Cans: 245mm(H) x 180mm(W) x 370mm(L)

to 75mm / 100mm Drawbar / Bumper

Mud Flaps - Made in Australia - Largest Range

KMF100 MUDFLAP BLACK 210 (W) X 250MM (DROP) 1PC

KMF200 MUDFLAP BLACK 230 (W) X 250MM (DROP) 1PC KMF210

MUDFLAP 4WD O/R 230 (W) X 250MM (DROP) 1PC

KMF213 MUDFLAP 4WD BLK 230 (W) X 250MM (DROP) 1PC

KMF300 MUDFLAP BLACK 230 (W) X 305MM (DROP) 1PC

KMF310 MUDFLAP 4X4 O/R 230 (W) X 305MM (DROP) 1PC

KMF311 MUDFLAP 4X4 BLK 230 (W) X 305MM (DROP) 1PC

KMF312 MUDFLAP 4WD O/R 230 (W) X 305MM (DROP) 1PC

KMF313 MUDFLAP 4WD BLK 230 (W) X 305MM (DROP) 1PC

KMF400 MUDFLAP BLACK 230 (W) X 355MM (DROP) 1PC

KMF410 MUDFLAP 4X4 O/R 230 (W) X 355MM (DROP) 1PC

KMF411 MUDFLAP 4X4 BLK 230 (W) X 355MM (DROP) 1PC

KMF412 MUDFLAP 4WD O/R 230 (W) X 355MM (DROP) 1PC

KMF413 MUDFLAP 4WD BLK 230 (W) X 355MM (DROP) 1PC

KMF600 MUDFLAP BLACK 295 (W) X 285MM (DROP) 1PC

KMF610 MUDFLAP 4X4 O/R 295 (W) X 285MM (DROP) 1PC

KMF611 MUDFLAP 4X4 BLK 295 (W) X 285MM (DROP) 1PC

KMF612 MUDFLAP 4WD O/R 295 (W) X 285MM (DROP) 1PC

KMF613 MUDFLAP 4WD BLK 295 (W) X 285MM (DROP) 1PC

KMF700 MUDFLAP BLACK 295 (W) X 355MM (DROP) 1PC

KMF710 MUDFLAP 4X4 O/R 295 (W) X 355MM (DROP) 1PC

KMF711 MUDFLAP 4X4 BLK 295 (W) X 355MM (DROP) 1PC

KMF712 MUDFLAP 4WD O/R 295 (W) X 355MM (DROP) 1PC

KMF713 MUDFLAP 4WD BLK 295 (W) X 355MM (DROP) 1PC

KMF800L MUDFLAP BLACK LH 283 (W) X 475MM (DROP) 1PC

KMF800R MUDFLAP BLACK RH 283 (W) X 475MM (DROP) 1PC

KMF810L MUDFLAP 4X4 O/R LH 283 (W) X 475MM (DROP) 1PC

KMF810R MUDFLAP 4X4 O/R RH 283 (W) X 475MM (DROP) 1PC

KMF811L MUDFLAP 4X4 BLK LH 283 (W) X 475MM (DROP) 1PC

KMF811R MUDFLAP 4X4 BLK RH 283 (W) X 475MM (DROP) 1PC

KMF812L MUDFLAP 4WD O/R LH 283 (W) X 475MM (DROP) 1PC

KMF812R MUDFLAP 4WD O/R RH 283 (W) X 475MM (DROP) 1PC

KMF813L MUDFLAP 4WD BLK LH 283 (W) X 475MM (DROP) 1PC

KMF813R MUDFLAP 4WD BLK RH 283 (W) X 475MM (DROP) 1PC
