PressLineInspectionSolution
SolutionOverview

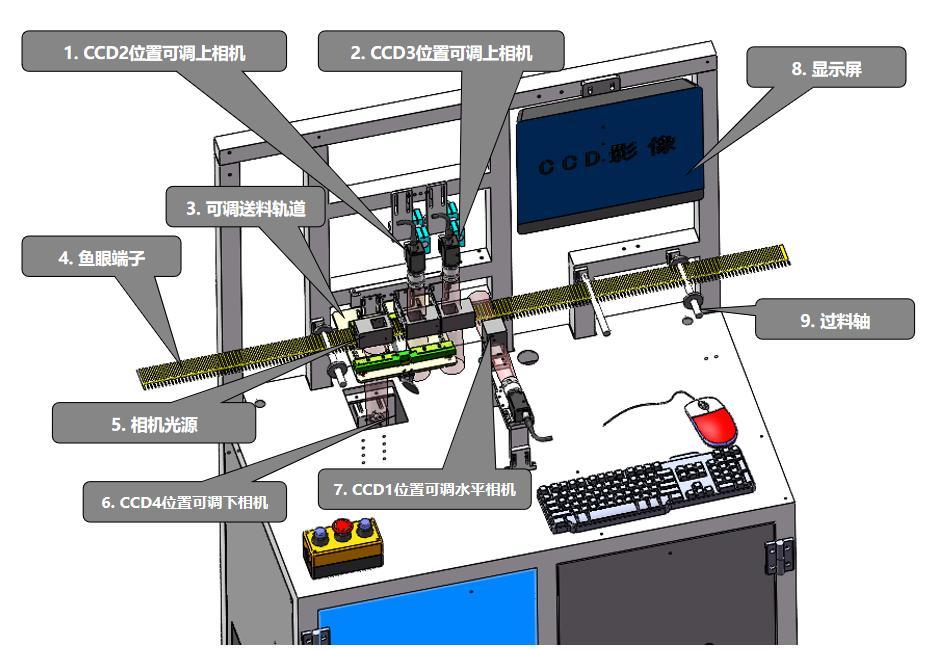

MeasuringStationSchematic Diagram
1.HardwareIntroduction
(1).TheprojectcanadopteitheranAIdeeplearning systemoraKEYENCECV-Xseriessystem.

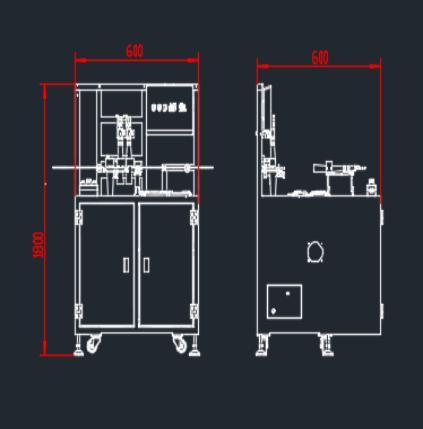

(2).MachineDimensions:Length600mm,Width 600mm,Height1800mm.
Finalspecificationssubjecttotheactualproduct.

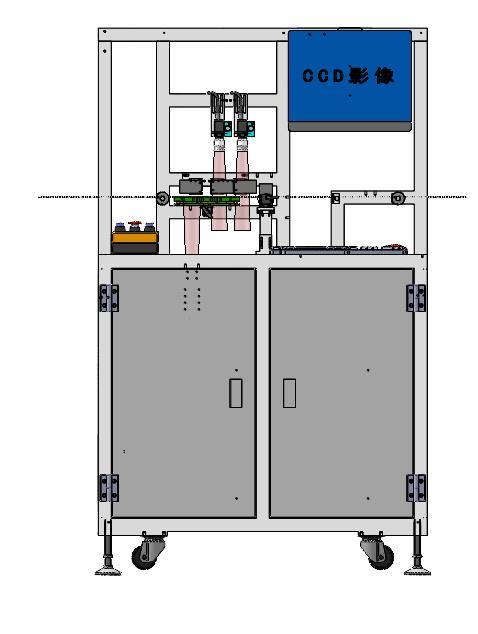

OverallMachineSchematicDiagram
InspectionPrincipleDescription
ProductsareinspectedusingCCD1(horizontal rearcamera),CCD2&CCD3(verticaltop cameras),andCCD4(verticalbottomcamera).
Whendefectiveproductsaredetected,andtheset numberofconsecutivedefectsisreached,both theinspectionmachineandthepresswillstop.
1.CCD2AdjustablePositionTopCamera
2.CCD3AdjustablePositionTopCamera

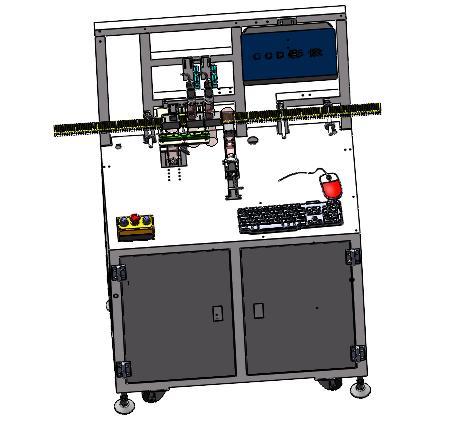

OverallMachineDiagram
HardwareConfiguration
Project 1Axis4Cameras
2.SolutionOverview

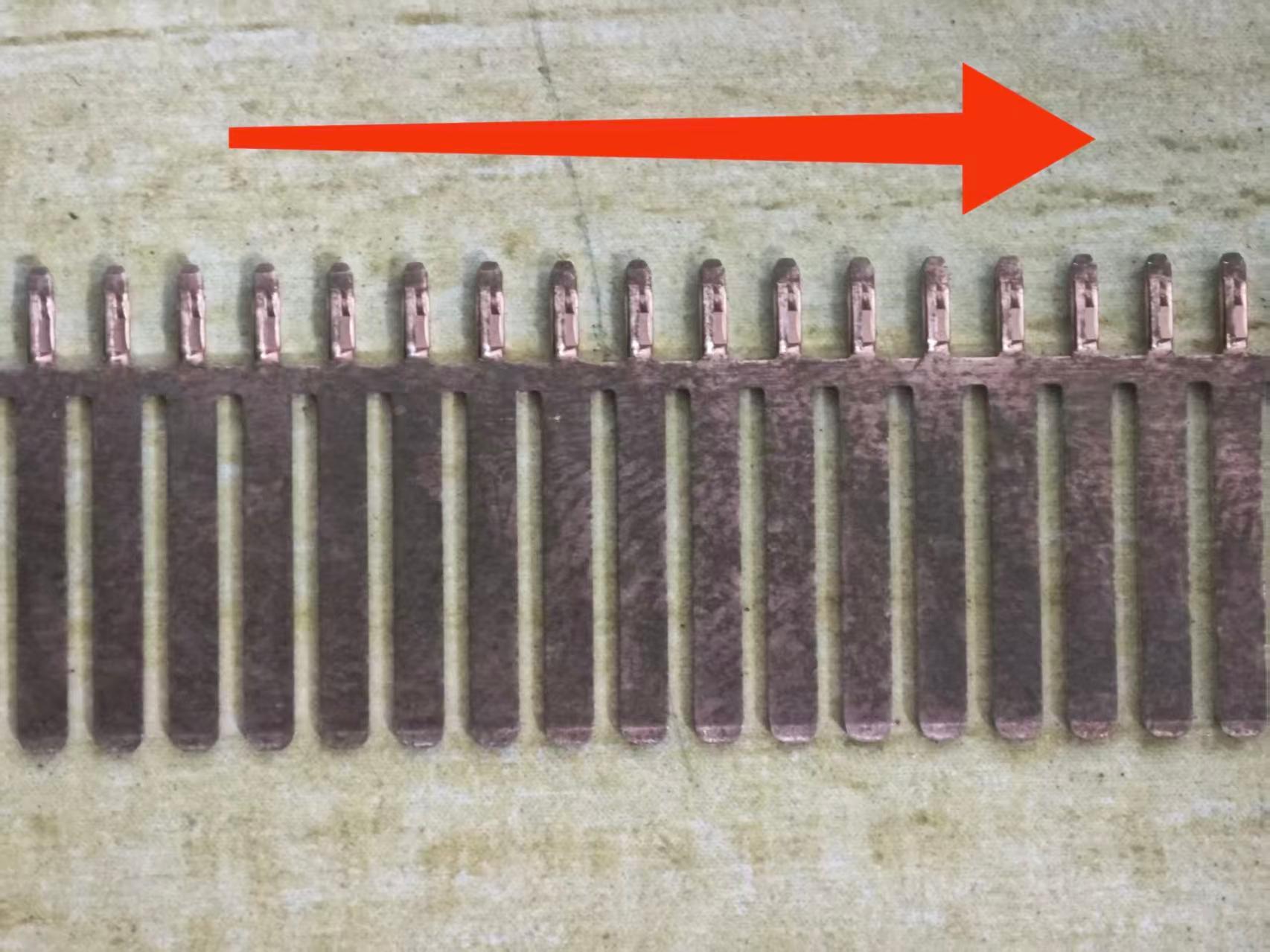

ProductEjectionDirection
InspectionRequirements
InspectionSpeed 600times/min
NumberofProductsperStripper
StampingCycle 1piece
FeedingMethod
Roller

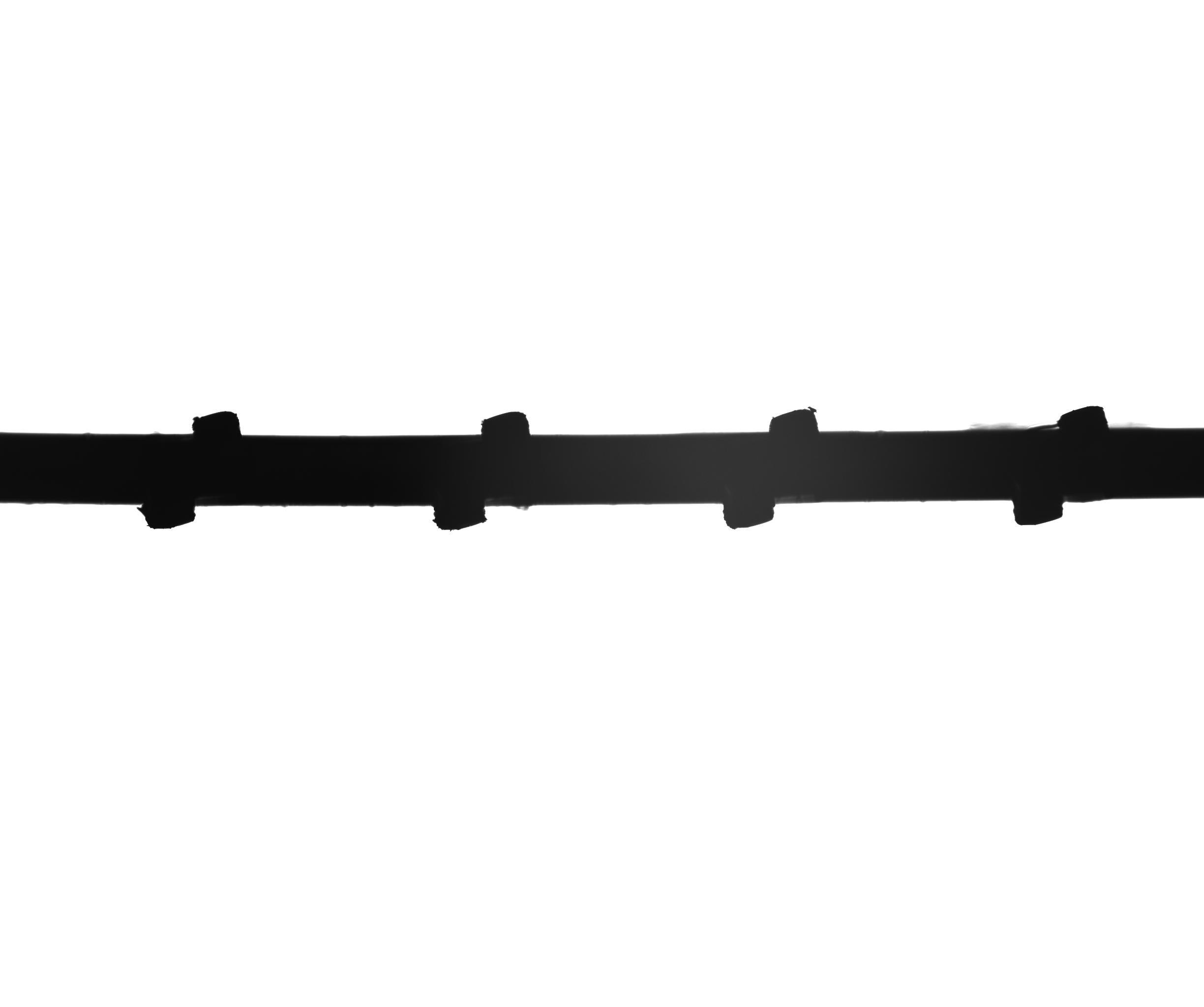

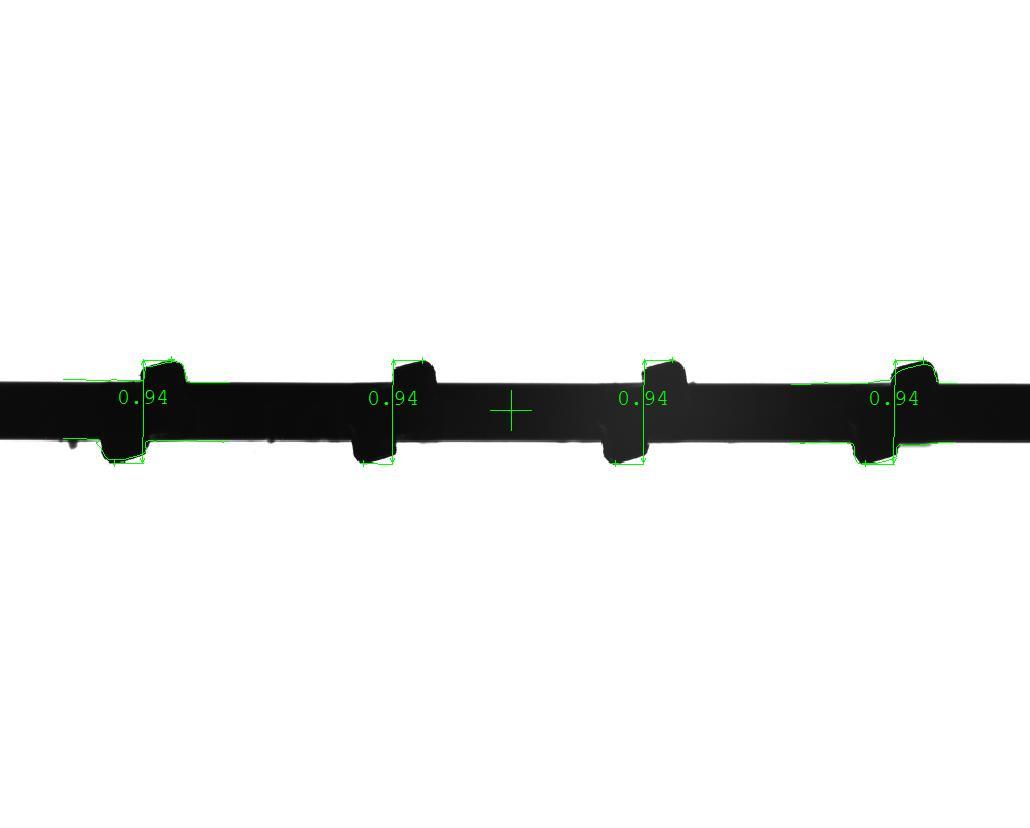

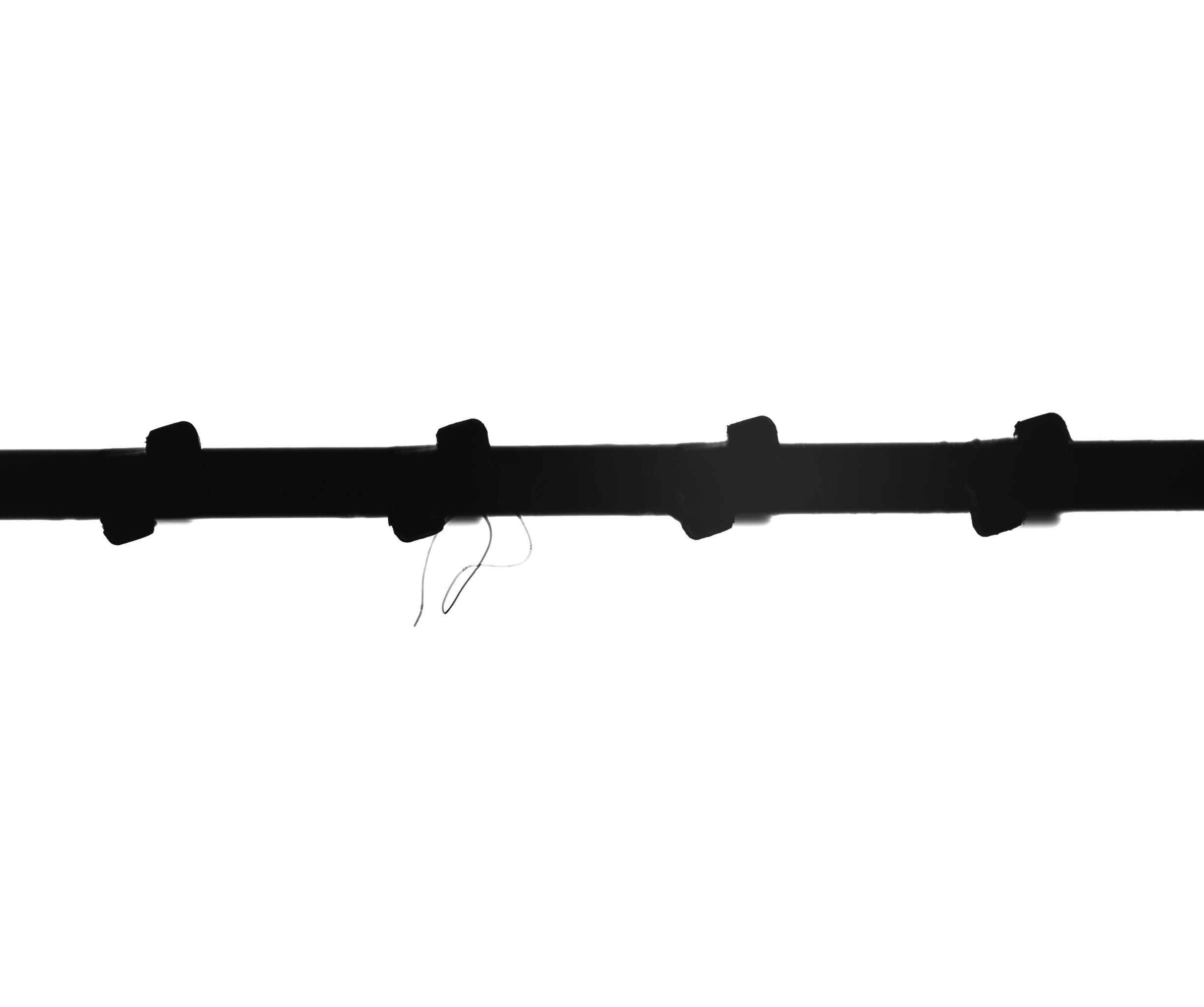

CCD1A-axisHorizontalRearCamera-EffectDiagram

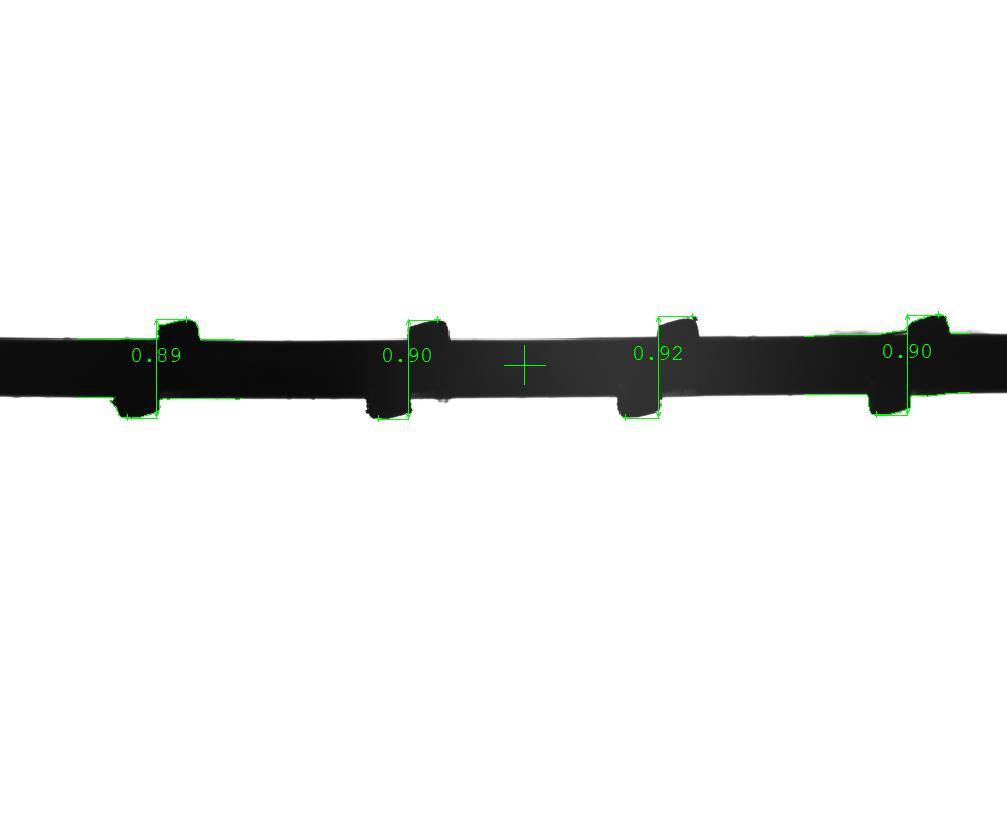

CCD1A-axisHorizontalRearCamera-EffectDiagram
