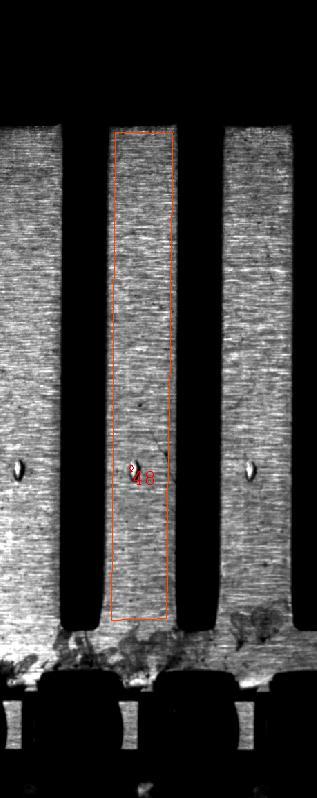

CCD2A-axisVerticalTopCamera-EffectDiagram

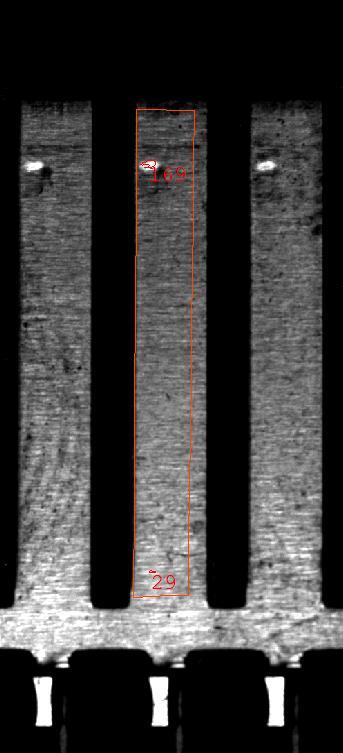

CCD3A-axisVerticalTopCamera-EffectDiagram

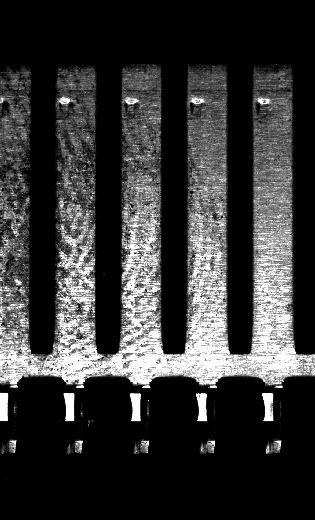

CCD4A-axisVerticalBottomCamera-EffectDiagram
3.MeasuringStationSchematicDiagram

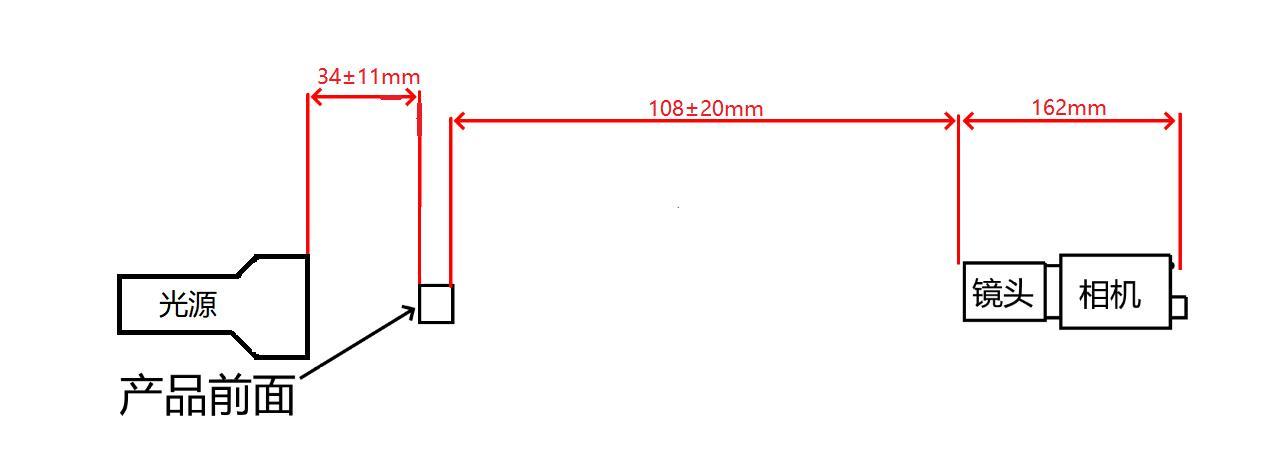

(1).HorizontalRearCamera:
BarLightSource:ZNT-26-xW-y
Distancefromlight-emittingsurfaceto
product:34±11mm
Distancefromcamerareartoproduct
plane:270±30mm
CCD2HardwareDrawing

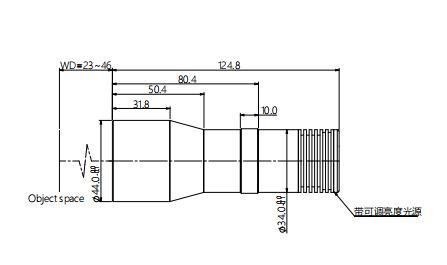

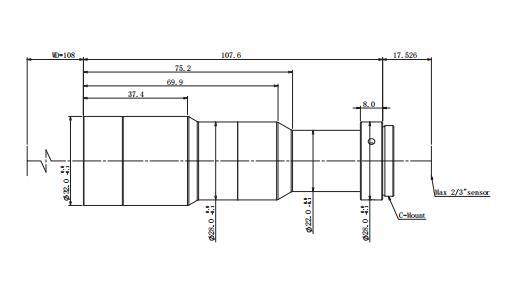

LensDrawing
LightSourceDrawing
(2).VerticalTopCamera:

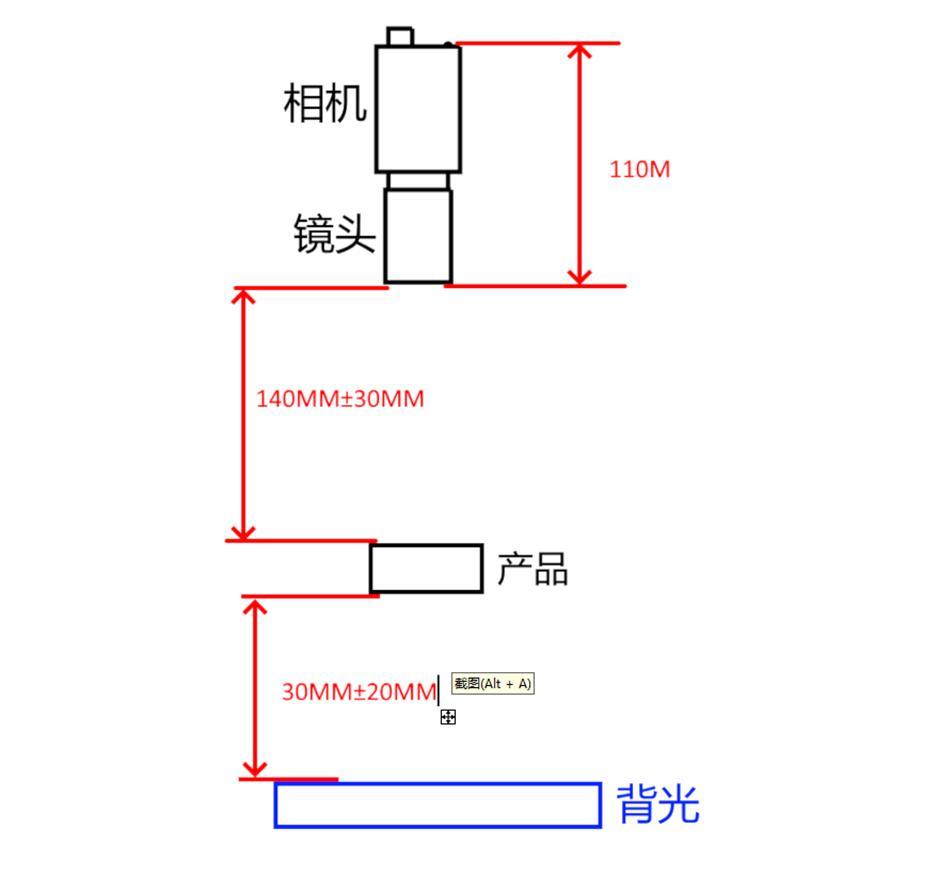

BarLightSource:ZNT-TL4030-W
Distancefromlight-emittingsurfaceto product:30±20mm
Distancefromcamerareartoproduct
plane:250±30mm
(3).VerticalTopCamera:

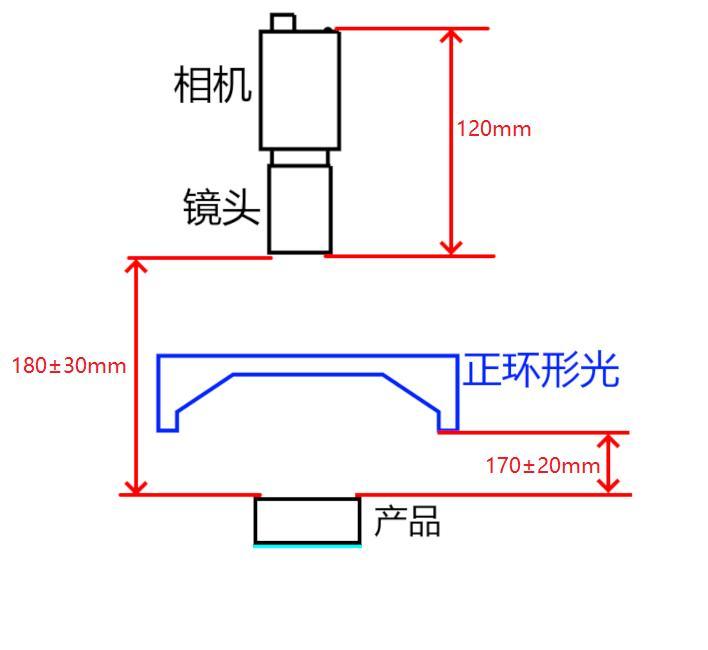

RingLightSource:ZNT-RS9070-W
Distancefromlight-emittingsurfaceto
product:170±20mm
Distancefromcamerareartoproduct
plane:300±30mm
(4).VerticalBottomCamera:

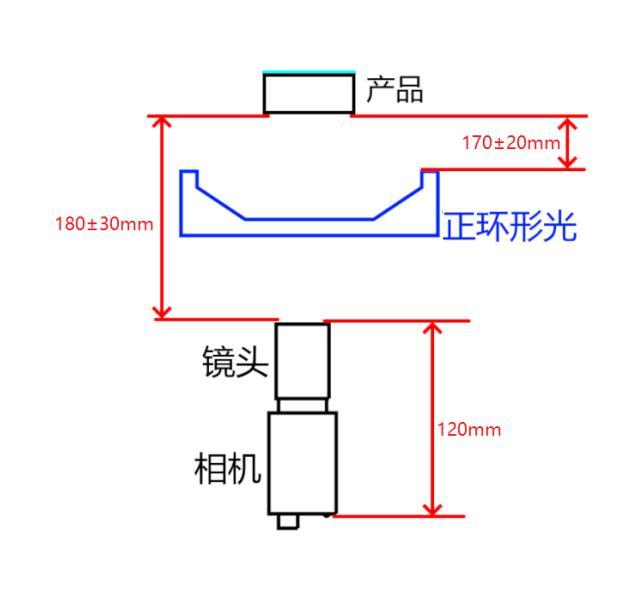

RingLightSource:ZNT-RS9070-W
Distancefromlight-emittingsurfaceto
product:170±20mm
Distancefromcamerareartoproduct
plane:300±30mm
