UNDERGROUND FAN TECHNOLOGY WORLD CLASS SOLUTIONS FOR THE GLOBAL MINING INDUSTRY

V I S I O N • I N N O VAT I O N • R E S U LT S

ABOUT MINETEK Minetek has been providing air and gas handling services to a vast range of clients in the mining, utility and oil & gas industries around the world for over 30 years. Minetek has a well-established network of operations globally that enables us to provide comprehensive site services that ensure high levels of customer satisfaction and cost-effective solutions.

After spending many years in the mining industry supplying products Minetek’s founders noticed the need for a robust solution to secondary ventilation fans. The High Output Axial fan series has been designed as a sturdy reliable fan with a broad range.

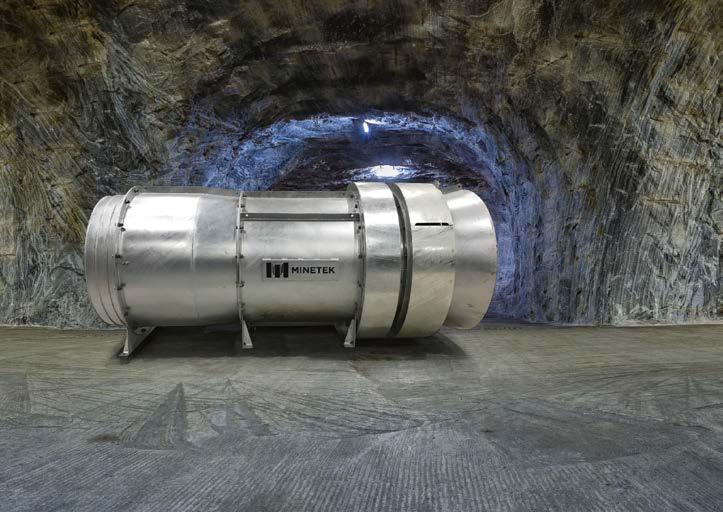

The High Output Axial Fan is engineered with the mining industry in mind. Its high-pressure steel fabricated impeller is at the forefront of technology and allows for operation at pressures previously thought impossible for an axial fan. Additionally, prolonged life in even the harshest environments.

FAN APPLICATIONS

Secondary/Auxiliary Fans Main/Primary Fans Booster/Intake Fans Multiple Heading Ventilation Bulkhead Long Duct Runs Tunnel Fans Development Fans

W W W. M I N E T E K . C O M

POWER • PRESSURE • PERFORMANCE

ON DEMAND

WHAT MAKES THIS FAN SO SPECIAL? VAST operating range SINGLE SPEED FAN – regulated by the integrated POD system NO VSD controls REDUCE power consumption BY HALF Ability to provide the correct amount of air – WHEN AND WHERE YOU NEED IT EXTREMELY robust design UNAFFECTED by blade wear NO complex or expensive VOD CONTROLS NO FAN STALL SAFETY – no loss of air REDUCE CAPITAL COSTS with less fans required

V I S I O N • I N N O VAT I O N • R E S U LT S

CASE STUDIES

AUXILLIARY FANS FAN:

MINETEK HD MODEL: S

DUTY:

70M3/S @ 3500PA

RESULT:

PERFORMANCE ON DEMAND, POWER SAVINGS. EASE OF INSTALLATION & HIGH PRESSURE CAPABILITY MEANING LESS FANS REQUIRED FOR THE DEVELOPMENT.

PRIMARY FANS FAN:

MINETEK HD MODEL: P

DUTY:

350M3/S @ 4800PA

RESULT:

PERFORMANCE ON DEMAND, POWER SAVINGS, ABILITY TO CHANGE DUTY AS MINE DEVELOPS.

W W W. M I N E T E K . C O M

TECHNICAL DETAILS SECONDARY / AUXILIARY FAN RANGE

PRIMARY/BOOSTER/MAIN FAN RANGE

POWER RANGE

90kW - 375kW

POWER RANGE

150kW - 2000kW

VOLUME

10 - 100m3/s

VOLUME

50 - 1000m3/s

PRESSURE

200Pa - 6500Pa

PRESSURE

500Pa - 12,000Pa

EFFICIENCY

>85%

EFFICIENCY

>85%

V I S I O N • I N N O VAT I O N • R E S U LT S

RANGE OF INNOVATIVE SOLUTIONS AVAILABLE: WATER

Minetek offer the world’s largest and most cost-effective water evaporation technology.

Minetek installations are worldwide, and we currently have over 250 projects completed right across the globe.

SOUND

Minetek produce the worlds quietest mining equipment. With over 1200 mining machines sound attenuated, our experienced team will travel to your site for certification and installation of noise attenuation packages.

AIR

Minetek’s ventilation solutions provide our clients with large cost savings and a guaranteed return on investment. Our state-of-the-art testing complex provides insights into a new world of ventilation.

HEAT

Minetek help you protect your workers and your assets from the risk of fire.

We design & manufacture dual skinned pipework, specialised silencers and heat protection products.
