Cladding and Material Analysis

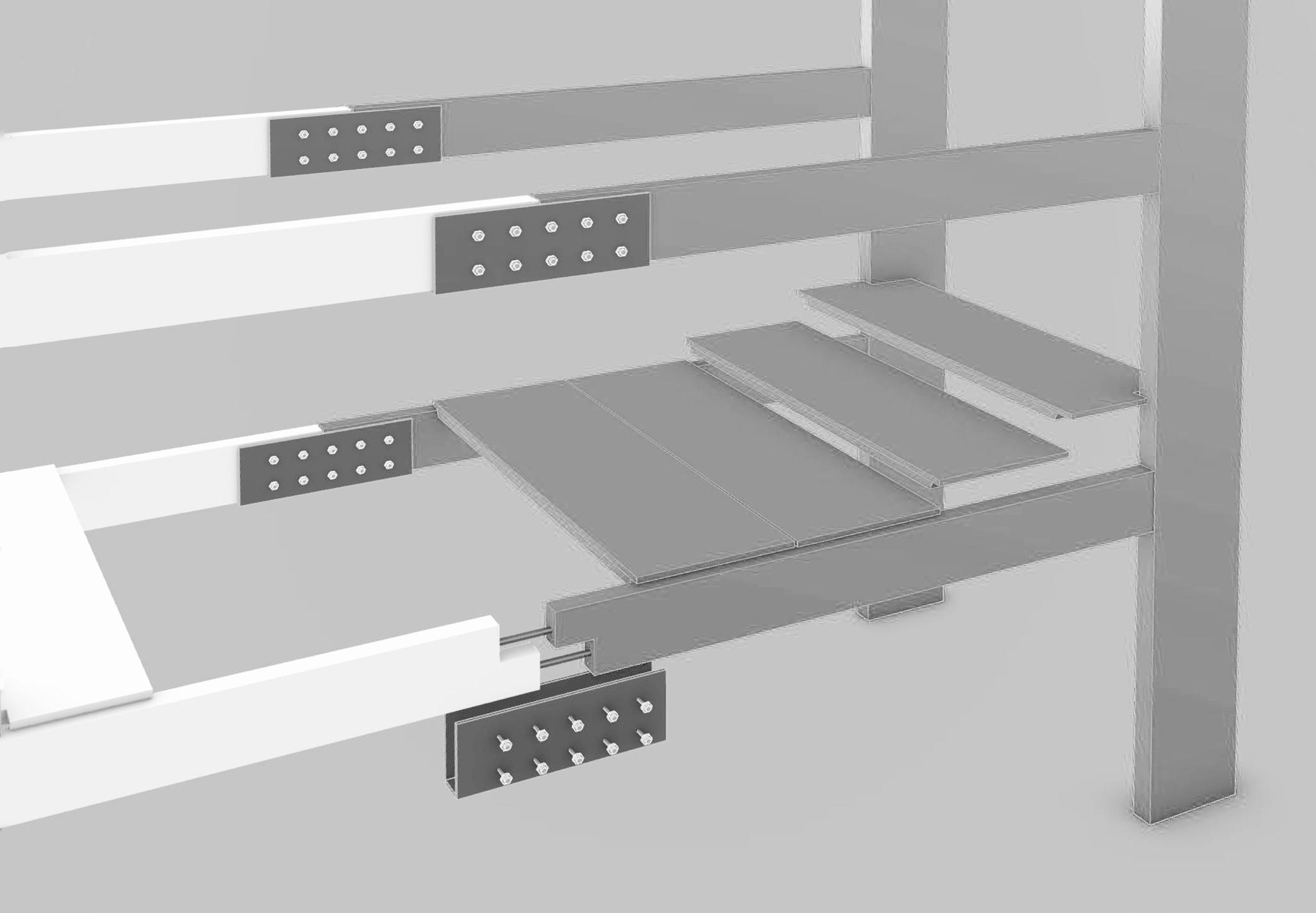

Existing Precast Structure Connection Detail

Extended Structure

Some rooms extend outwards on the ground floor and the first floor on the west facade. The material to be used for these areas is the existing materials extracted from the building. For the atrium, the precast floor slabs on the floors have been removed and added on the new precast columns and beams for the extended spaces. The roofs of these areas are the pieces taken from the metal roof removed from the building and the walls are the brick walls of the existing building.

Heating

Before the proposed design, these spaces, which were student rooms, were heated by recessed convectors on the floor by the window. Parts in the atrium were removed, the remaining system was preserved. The parts extending outwards are connected by pipes.

Back side of the building showing carrying material to the laboratory from the rear entrance
