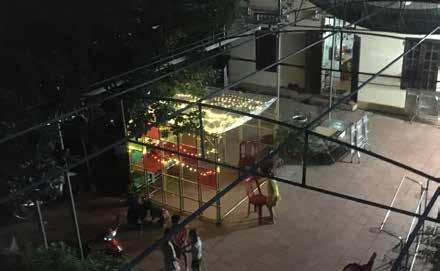

Lanter moon
Researching on Living Work shop
Projects
Self design- building project, community
Community - Self design
Experient - Realistic - Practical
Experient - Team work

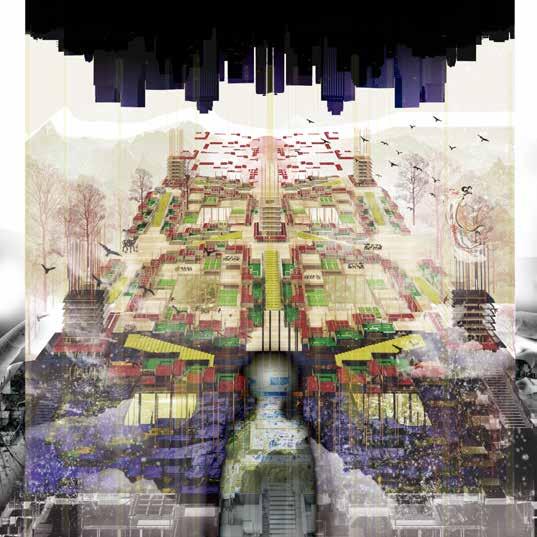

“Dream of The Lost Era”
100 Drawings That Tell Powerful Stories About Architecture in 2022- ARCHITIZER
“The world was once filled with secluded and mysterious villages. The populations of these villages each lived and died in their own immaculate beliefs, traditions, and laws, their respective cultures untouched by the outside world for eons. With what land, sea and sky would offer, they would farm, herd, weave, build and worship, all in harmony with the cycles of nature.
Nowadays, the way of life of the ancients rings in the ears and minds of new generations suffocated by modernity like echoes. Voices from the distant past, urging them to embrace again traditions that preserved human groups for thousands of years. If not for modernity, nothing would have shaken the peace of these villages until the end of times.”
“Troi”
First prize compettion_ CAMCAMA

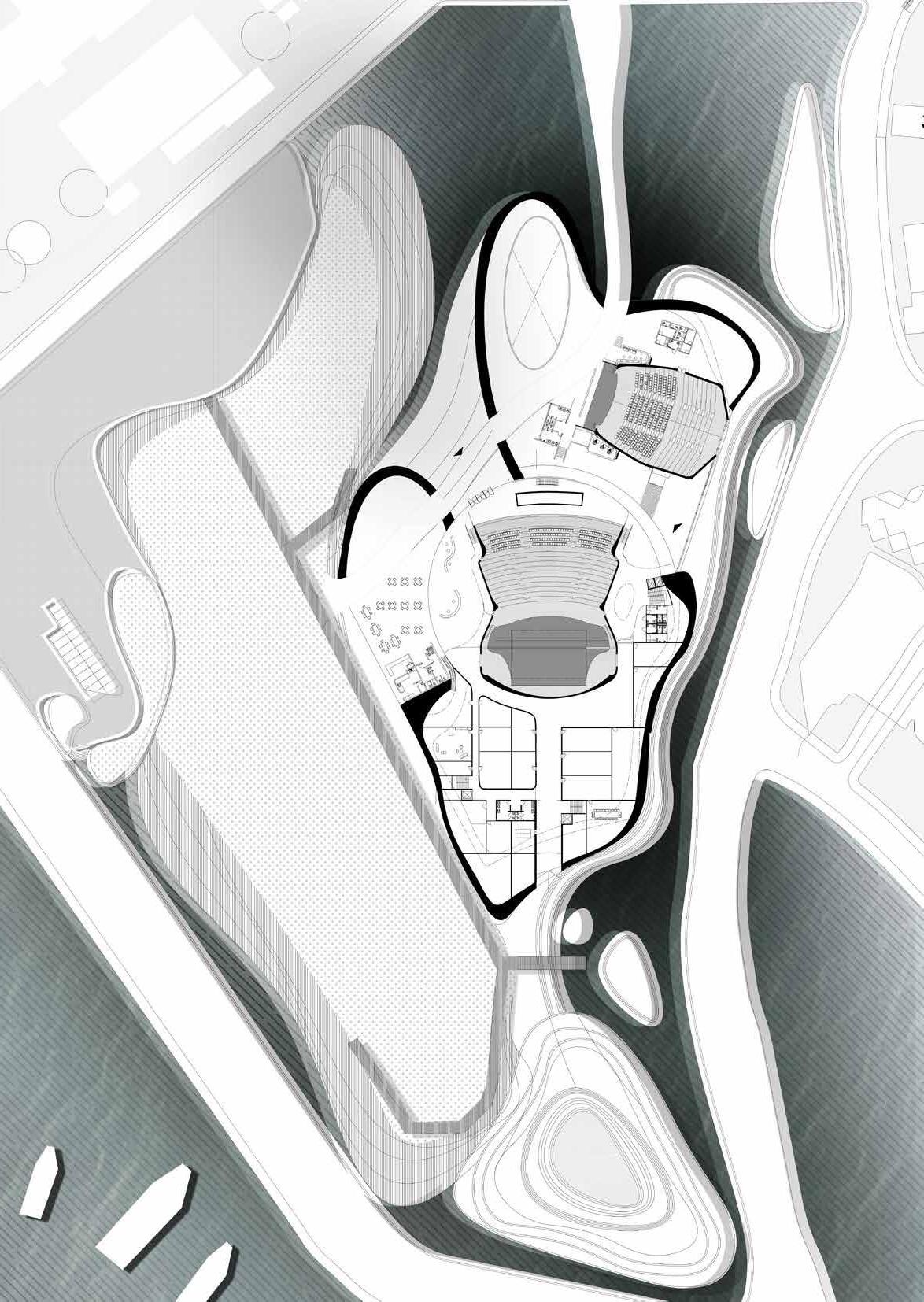

TRỒI SEN - 01
HANOI THEATER
UNIVERSITY PROJECT K9
TYPE: CULTURE
SITE: HO TAY - HANOI
SINGLE
The lotus flower is an image associated with the identity and human nature of Vietnam and is used in many works of art and architecture such as the One Pillar Pagoda, the Nine Products Lien Hoa Tower, the Tay Phuong Pagoda, ... The meaning of the lotus flower is associated with enlightenment, escaping from the dusty world, a muddy place, overcoming all temptations and greed in the middle of the ups and downs of life.

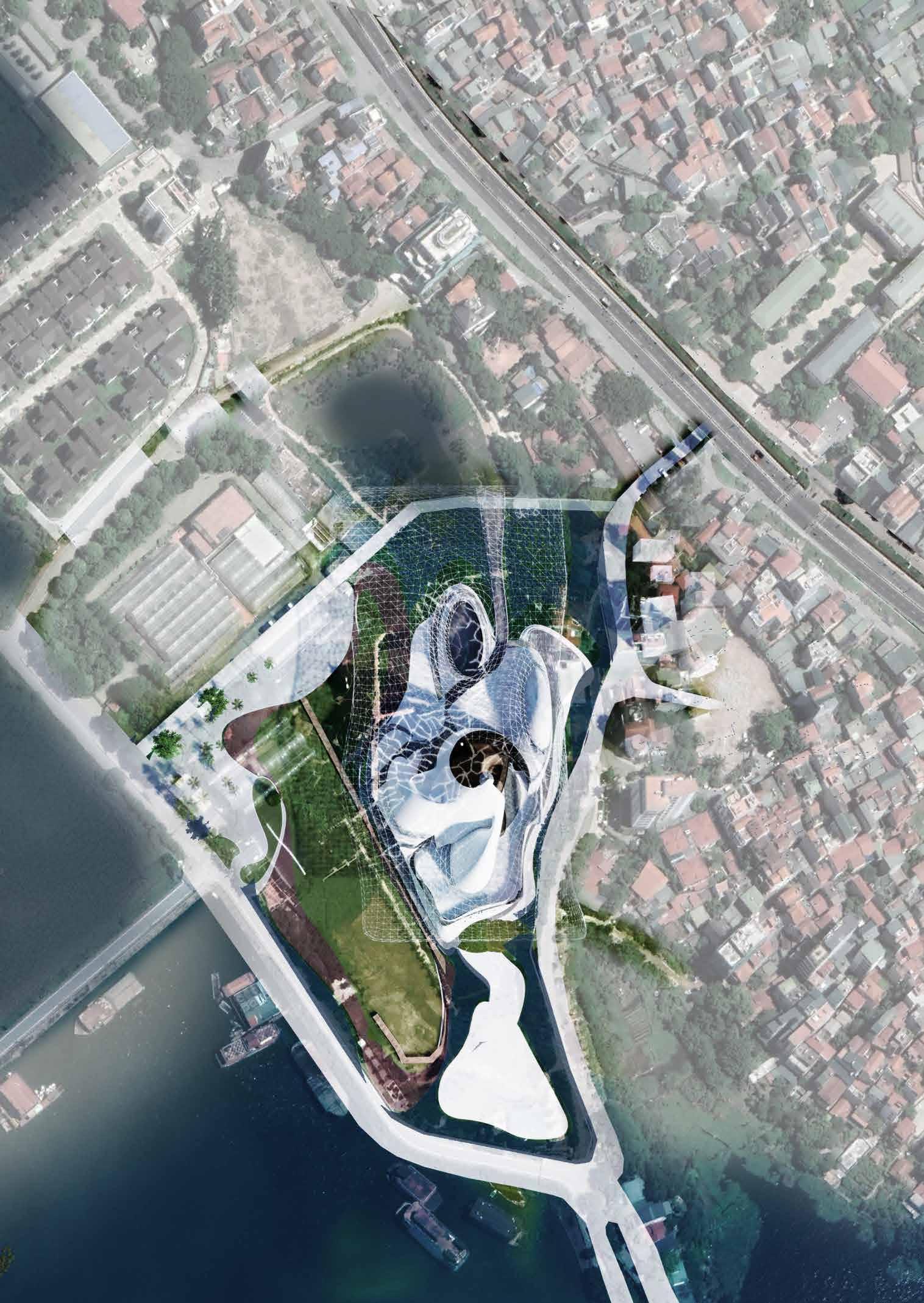

Theaters are always symbolic important works for a city or larger country, so the location of the site is also a decisive factor. The selected land is located in the West Lake area, near the Au Co road, through the process of time transformation, the land is always used for public purposes.
Derived from the representation of the changing process of time such as the reproduction of the lotus flowers that existed before on the land.

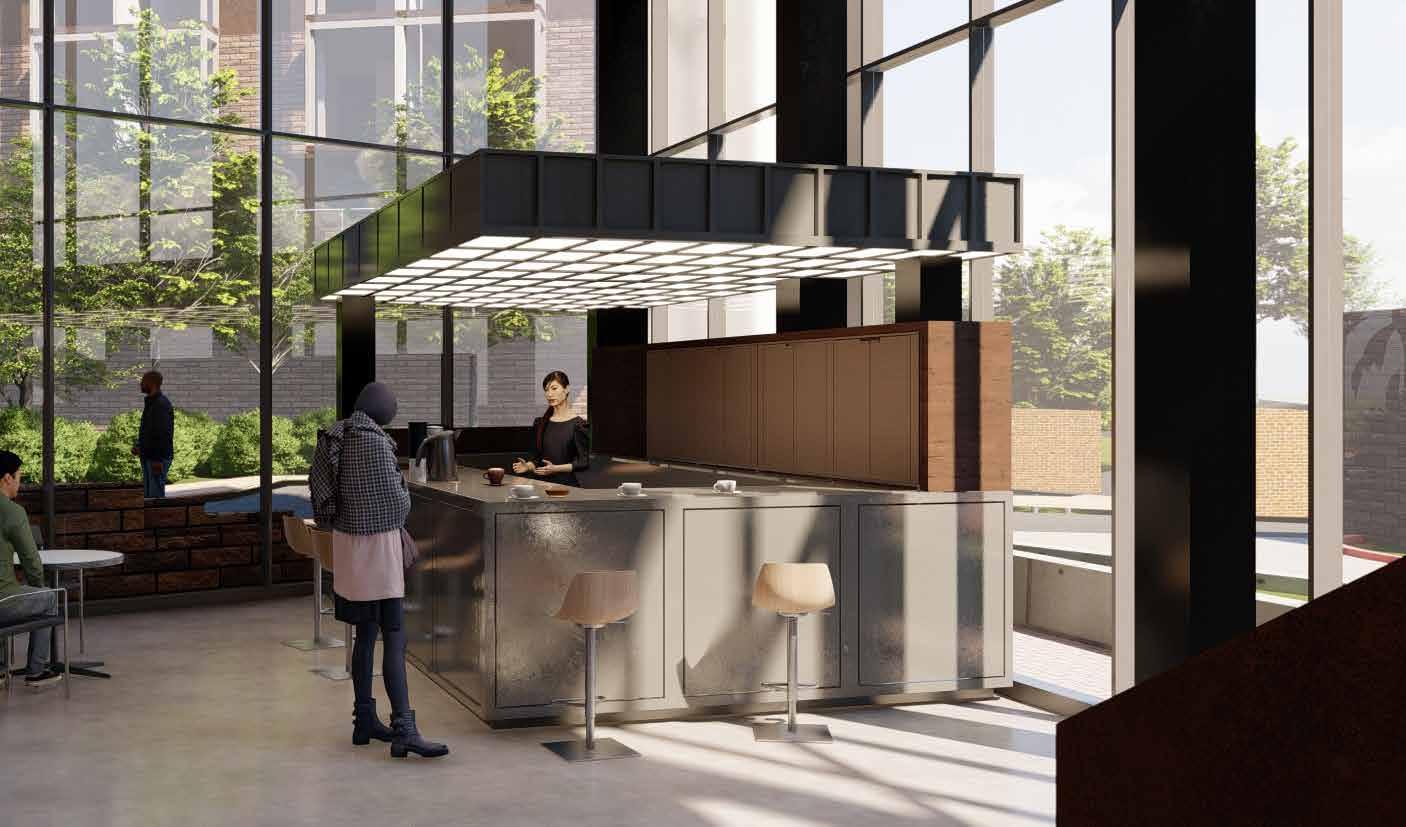

1.1 View from inside building
1.2 Collage activity around the area
SEA CULTURE MUSEUM
UNIVERSITY PROJECT K7
TYPE: CULTURE
SITE: NHA TRANG
SINGLE
The environment affects people’s lives, with each different environment producing a different culture. Human activities in the environment have partly reflected the relationship between humans and the sea.
The living space of people has a great impact from the environment, it can be seen that the difference between houses in tropical climates compared to temperate climates is in both form and materials. In Vietnam, it is still possible to see the change from the mountainous area to the coastal area, which is the transformation of the cultural process. In order to show the connection in the transition from the mountainous area to the coastal area, the plan introduces the key elements of each area so that viewers can feel the cultural change. through space

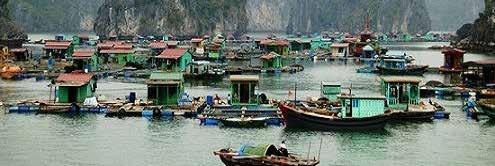

Living space, fishing village, a type of village of residents living in boats on the river, taking fishing as the main occupation, catching shrimp and fish, collecting molluscs (snails, oysters, mussels) , or pick up seaweed, moss, get sand
Clusters of houses connected to each other via rafts

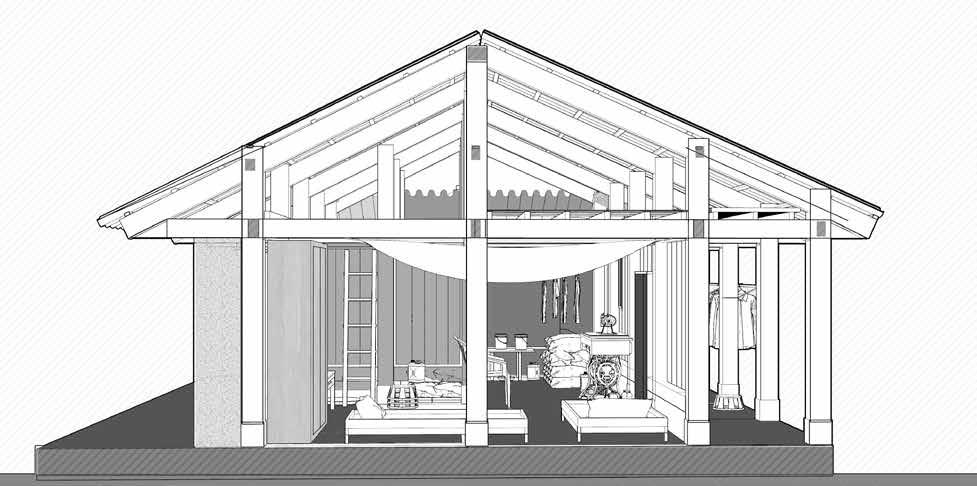

Living space, Vietnamese traditional house includes main space, auxiliary space and courtyard space (pond, garden)

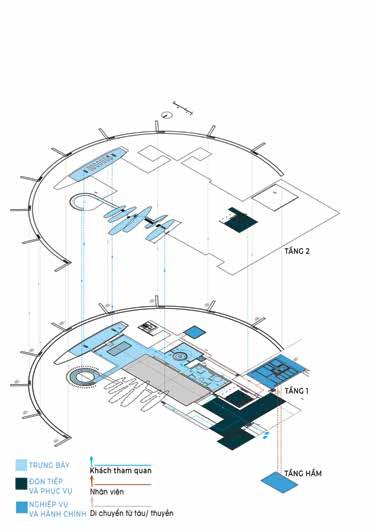

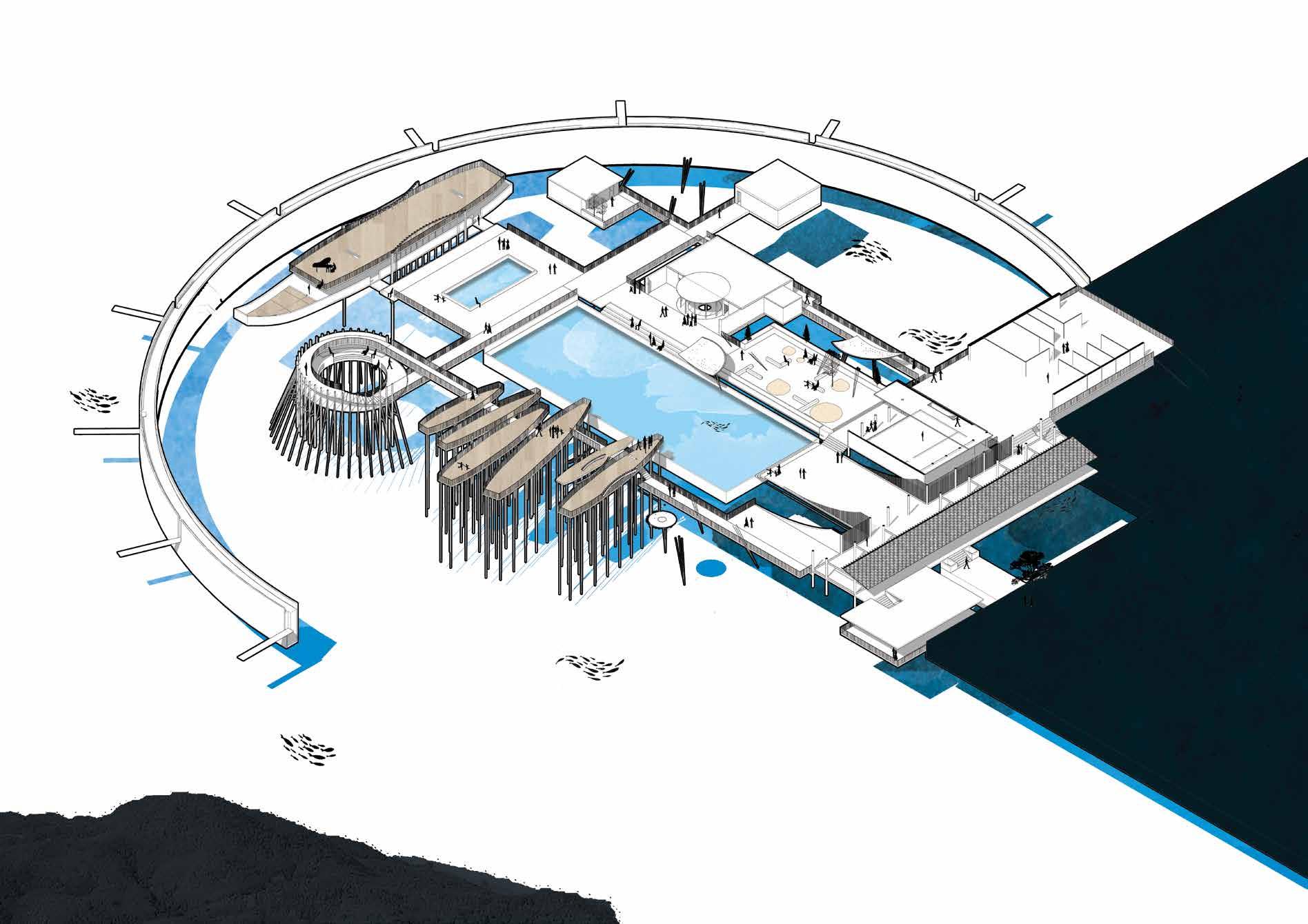

2.1 Axonametric drawing showing space inside building

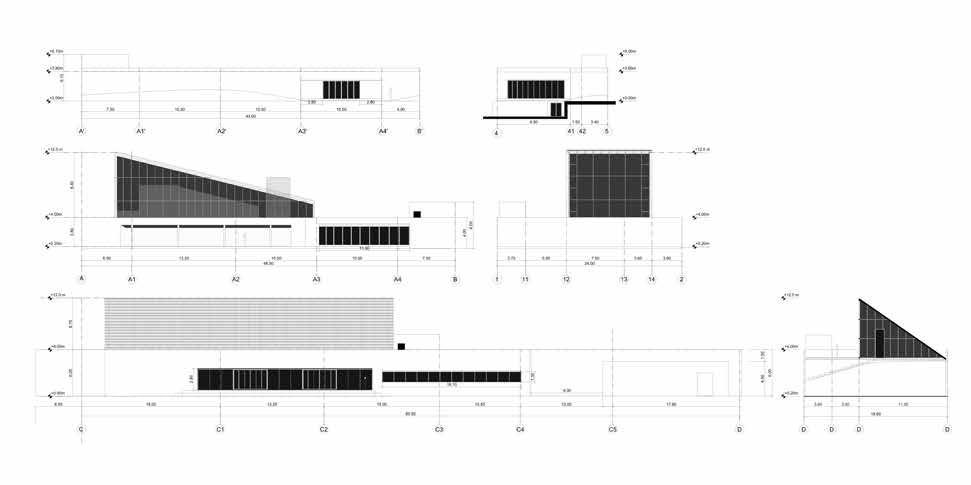

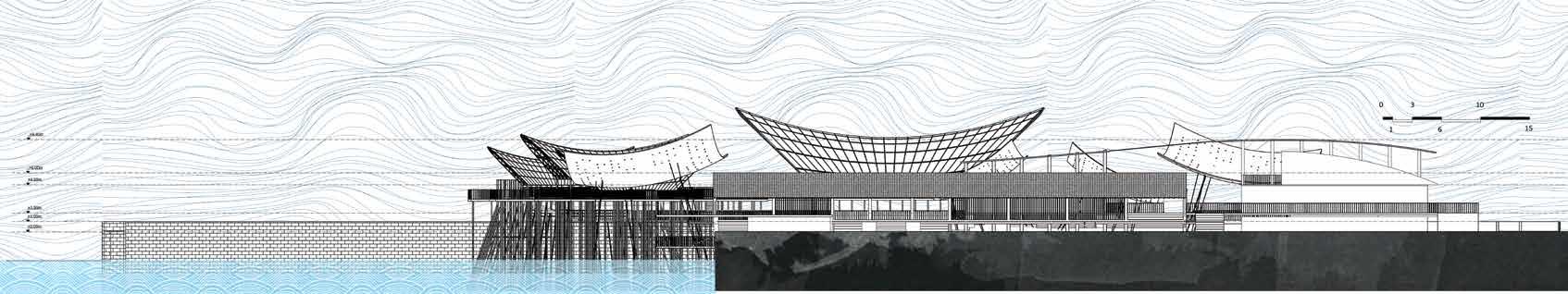

Drawing front view of tje building
ARCHITECT

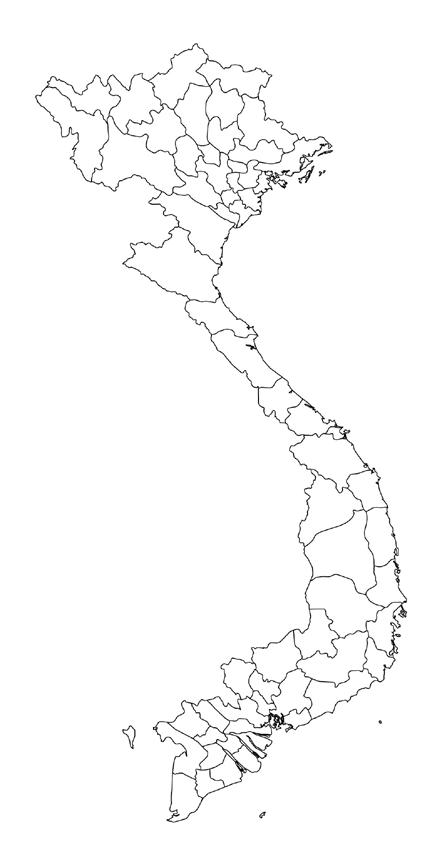

Vietnam is a coastal country located on the west bank of the East Sea, with very important geopolitics and geo-economics not all countries have. With a coastline of over 3,260km in Vietnam stretching from North to South, from Mong Cai in the North to Ha Tien in the Southwest (not to mention the coast of islands, ranking 27th out of 157 coastal countries, Along with more than 3,000 large and small islands, including the Hoang Sa and Truong Sa archipelagos, Vietnam is considered as one of the countries with great potential and advantages in Sea and island resources Along with the history of the country’s formation of 4000 civilizations, it shows that the historical value of our country’s marine culture is a treasure of knowledge, but at present Vietnam does not have a marine museum. Which means to display and store at all artifacts related to marine culture in its entirety.
Nha Trang is a coastal city, the center of Khanh Hoa province, with the goal of developing a tourist city. Currently in Nha Trang, there is a Museum of Ocean ography, but it has not yet met the needs of ar chiving marine culture

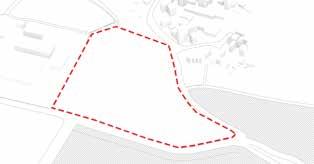

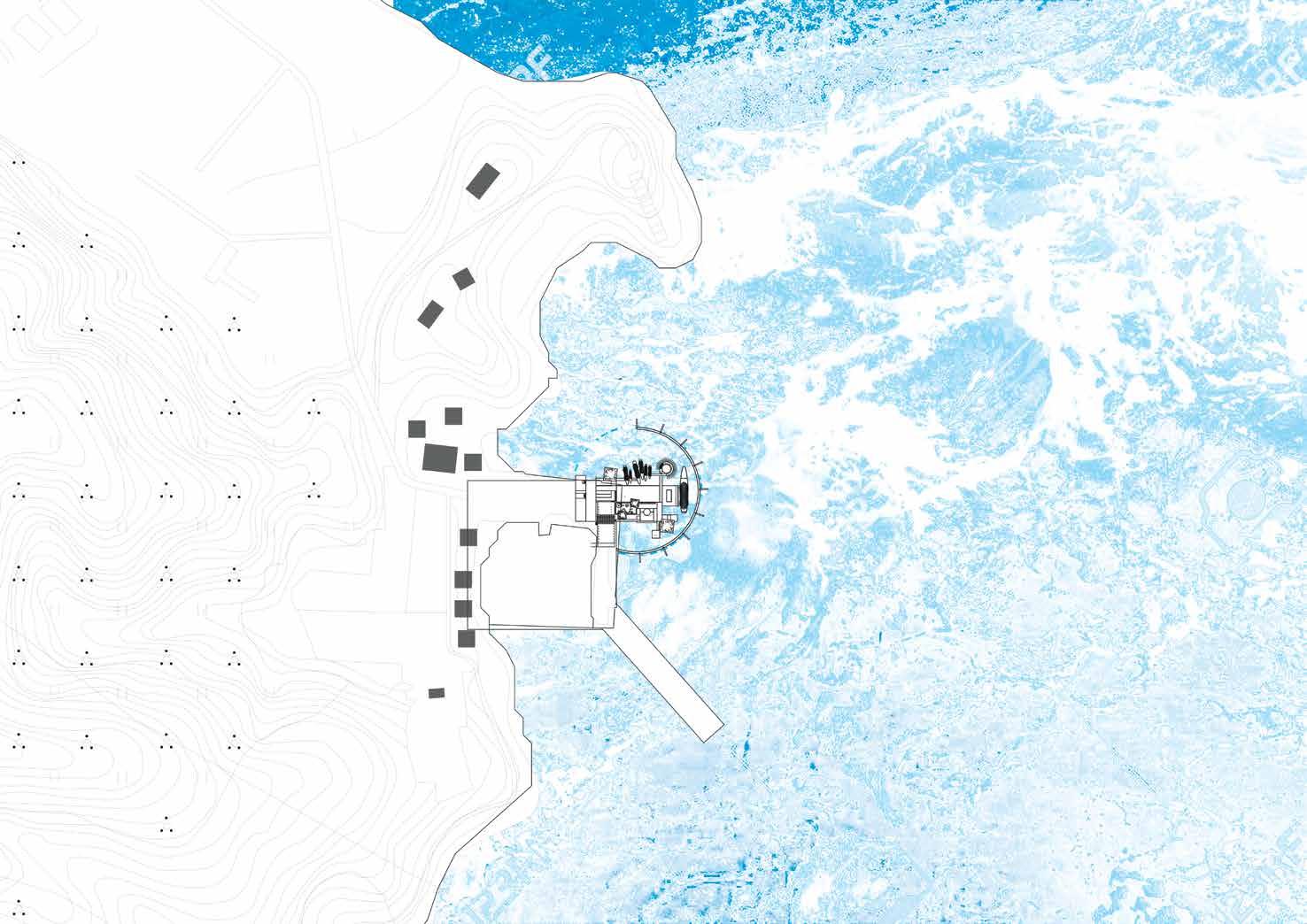

The location of the project is located at Cau Da Port, located in an airtight area, the depth in front of the wharf is not deposited, so Cau Da port in Nha Trang is full of ships, large and small boats crowded together.
The historical and cultural development process is all linked to the marine ecosystem, through which respecting the existing ecosystem values helps to create a connection between humans and nature, the ecosystem develops through that. also promote community economy

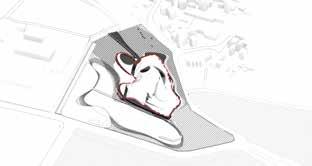

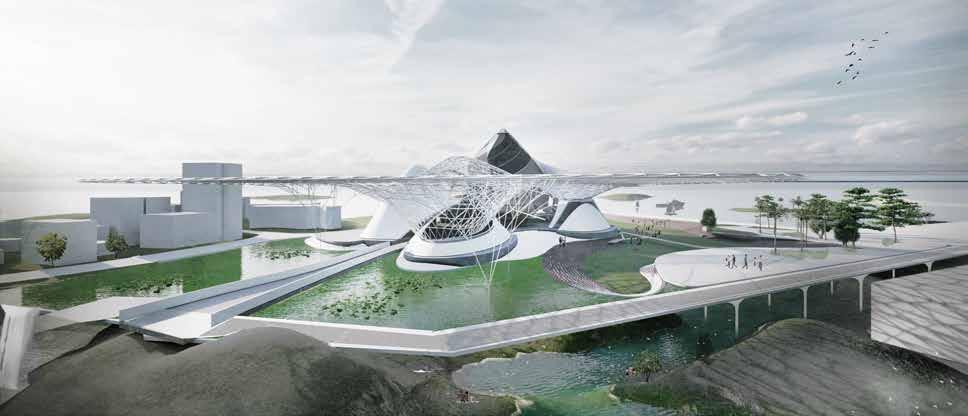

Perspective from couch view: showing relationship between the site and the building
THE ACADEMY OF OCEANOGRAPHY
BAO DAI MASION
Divide spatial content to give the museum’s exhibition space content.
From the contents of the exhibition space, the spaces with the characteristics of that content are proposed.

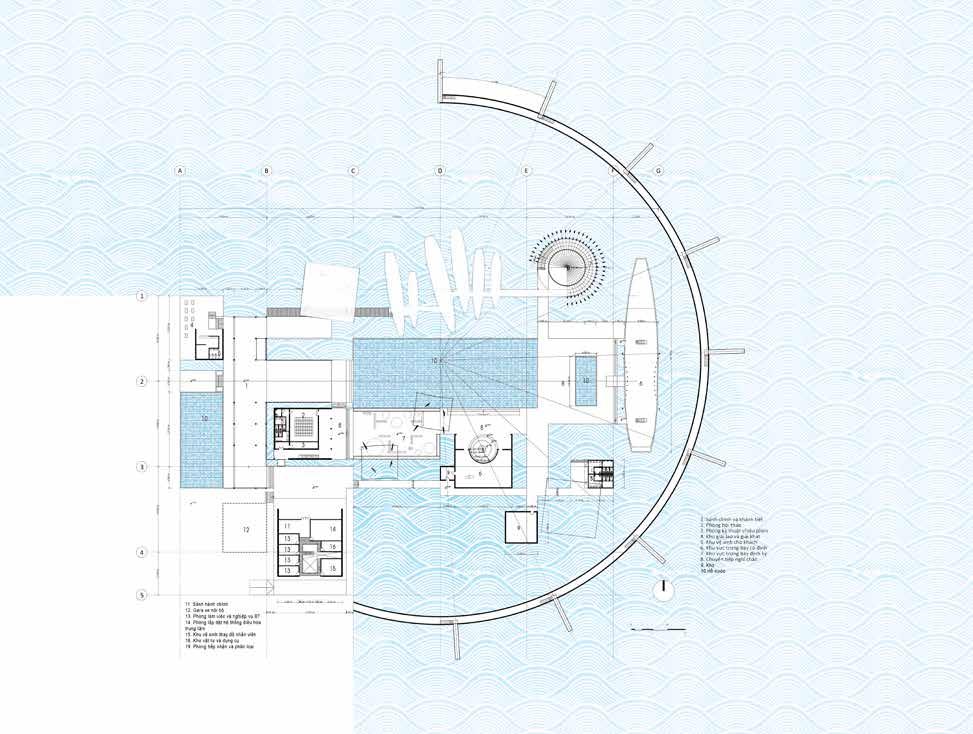

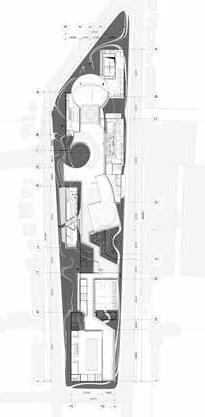

Plan forming space organize space close space change through moving process open space
In a symbiotic relationship with the sea, since ancient times the Vietnamese have had the technique of making salt from the sea, and at the same time learned how to distill fish sauce from the sea. The salt managers represent a value of the labor of the people in the border areas
The market is a place where trade and exchange activities take place Dam Market (1970) is one of the typical works in Nha Trang, marking in the human subconscious about an exchange space.
Belief space, is the space that connects people with gods Combining the religious values of the ancient Vietnamese. The ancient Vietnamese believed that the square represented the earth, the round represented the sky, and the snake image was assimilated by the water god.
Vietnamese people have put many wishes into the boat, conveying the feelings of river dwellers, even the boat is considered to have a soul like a human.
From the rustic boat of the inhabitants of Dong Son to the modern boat, although showing a level of development, it still retains eternal values. From here, many intangible cultural values have been formed and molded into the spirit of Vietnamese people, forming a continuous flow in the national culture and the culture of each sub-region.

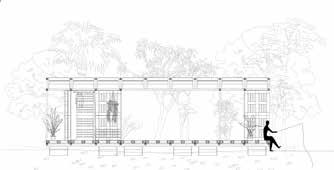

The pillar structure is often seen in the form of sea huts
A dyke is a natural or manmade earthen rampart that extends along river or coastal banks or temporary artificial dikes to prevent water from flooding a particular area. In the past, in Vietnam, dyke keeping was a very important thing for a long time. In previous dynasties, there were even dike officials who mobilized people when floodwaters threatened the dike
Reducing the impact of the sea
URBAN DEMAN Hà nội
The city’s walking street area is an effective solution that transforms living urban areas into socio-cultural experience spaces and functional buildings on the street axis are used on the street. The city contributes to promoting tourist numbers and economic development. Realizing that Hanoi needs more such spaces or quiet spaces in the city to help people experience life.
But instead of creating a non-weekend area that doesn’t serve a special status, a status that normalizes life has a number of stops for people to experience. The solution is to park and landscape constructions, creating construction complexes based on existing needs that need to be more widely replicated.
USERS OF URBAN

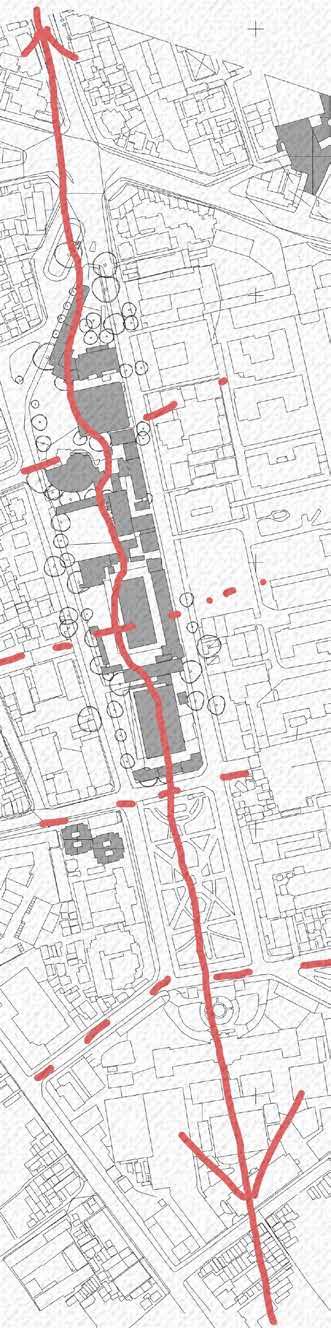

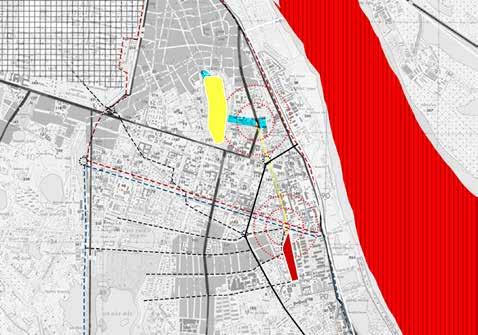

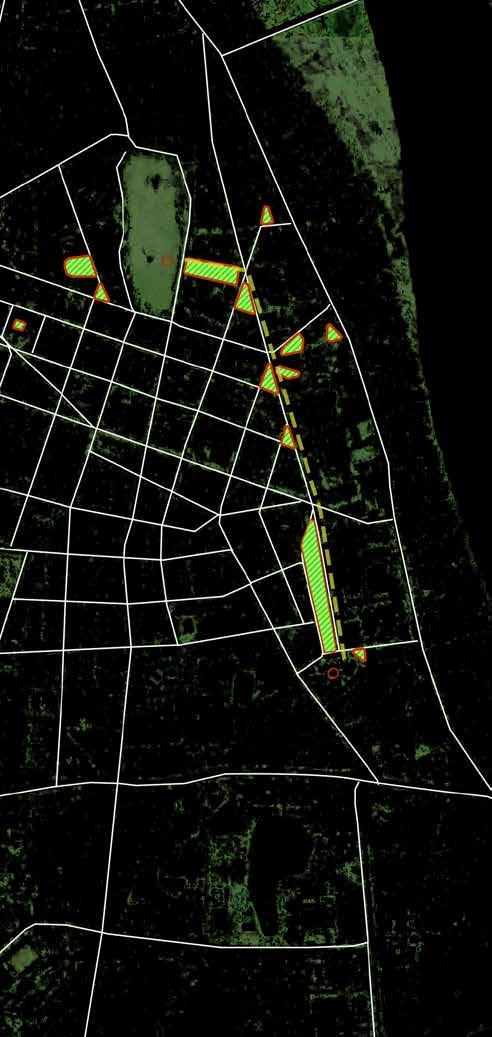

INTERCONNECTED URBAN NETWORK

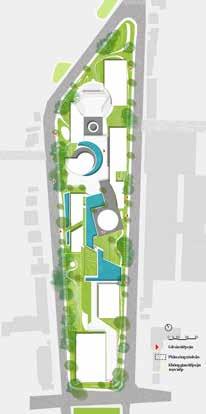

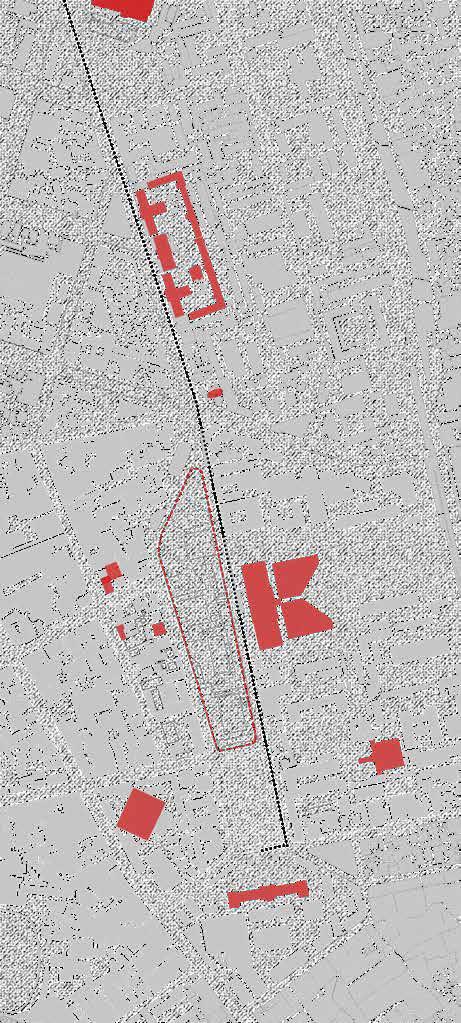

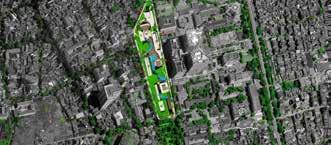

LOCATION
Tang Bat Ho Street, Tran Thanh Tong Street
Pham Dinh Ho Ward
Area: 2.3 hectares
Construction
LONG THANG
YOUTH CENTER
UNIVERSITY
View from walking street area

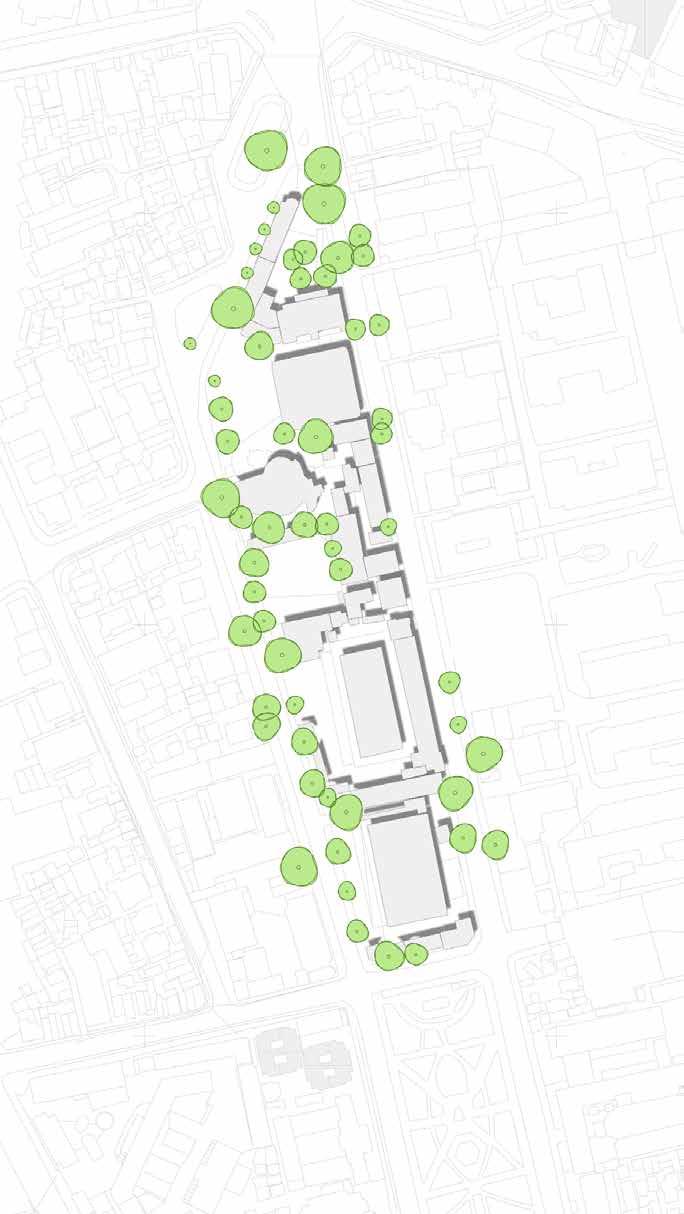

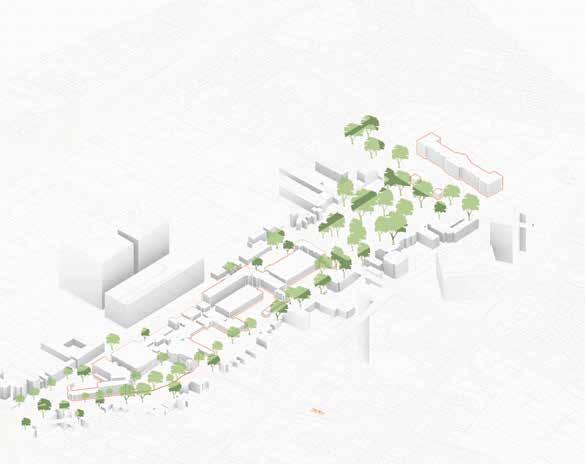

Public park, garden network of the city to the area
gardenflower
Paster Graden
Existing building and tall old tree at the site

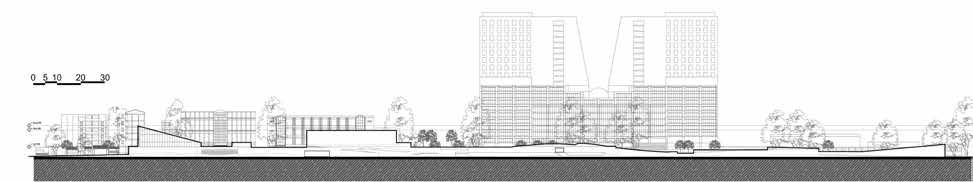

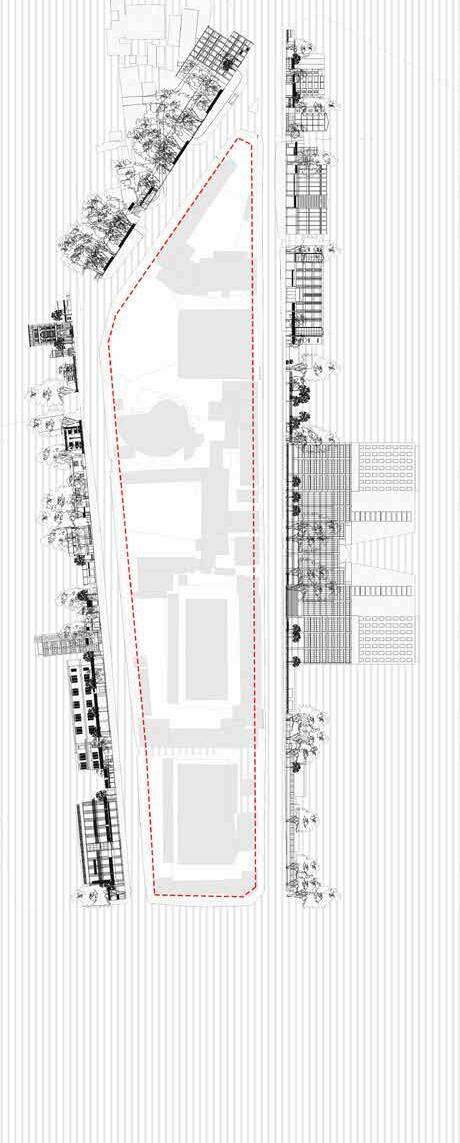

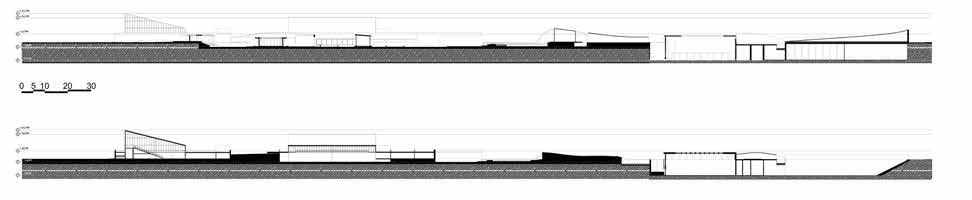

Facade front face of building around the site
Open dialogue sides with important buildings around the land, dialogue sides include green spaces with public flower gardens, open building sides
To form a sustainable space: The structure’s core helps stabilize and minimize external influences over time Through that, the shell is a form of direct dialogue with the city.
To form a structure that creates a transitional connection in space so that visitors can move along the circuit of the building. The building components are arranged along the route axis. Through buildings, through transitional spaces.
Due to the surrounding complex urban elements, it is necessary to resolve and the long axis separates the vertical connection. There needs to be a separation of divisions to solve each urban problem.

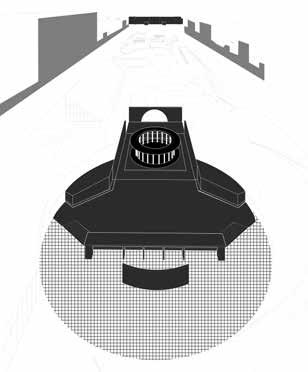

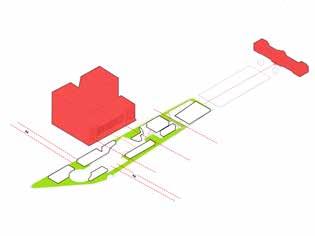

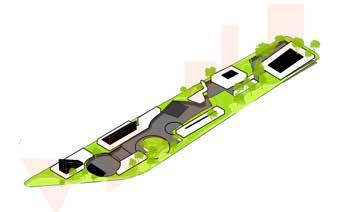

DIAGRAM

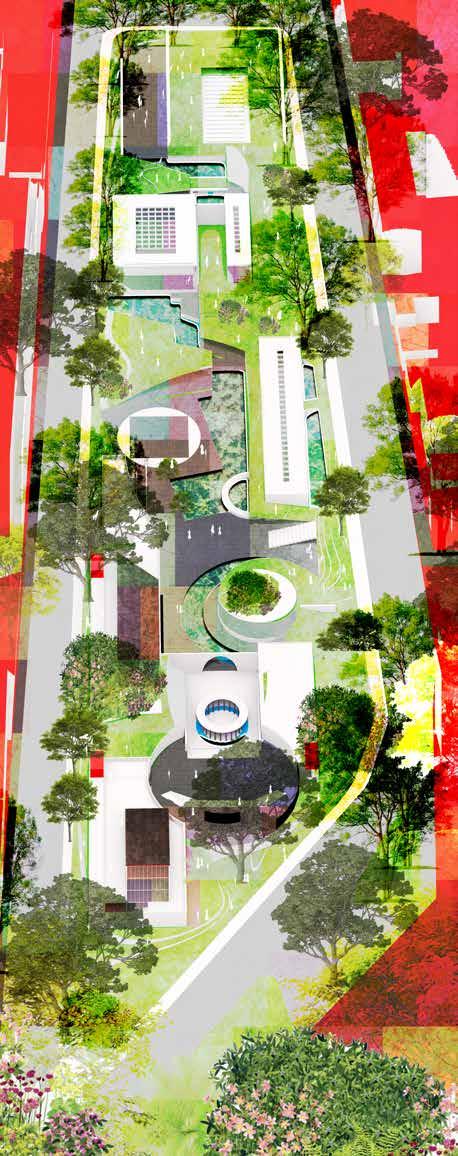

PHỐI CẢNH TRÊN CAO
