MIILEE MUKHERJEE
I am a fourth year architecture student, an ambitious and dedicated individual with a passion for architecture and design. I believe that architecture has the power to shape the world we live in, and I am committed to creating functional and aesthetically pleasing spaces that positively impact people’s lives. I am eager to contribute my creative skills and academic knowledge to an esteemed architectural firm through an internship opportunity.
CONTACT DETAILS
Phone
8383071970
Email mukherjeemiilee2002@gmail com
Linkedin
linkedin.com/in/miilee-mukherjee5887161aa
Address
South West Delhi, Delhi110043
SKILLS
Autocad
Sketchup
Lumion
Enscape
Twinmotion
Adobe Photoshop
Adobe Illustrator
Adobe Indesign
Microsoft Office
EDUCATION
2019 - 2024 2008 – 2019
EXPERIENCE
Bachelor of Architecture
University School of Architecture and PLanning, GGSIPU, Delhi
Senior Secondary
C.R.P.F. Public School, Rohini, Delhi
Intern Freelancing
Akyln Consulting
June 2022Sept 2022
December 2022January 2023
COMPETITIONS
Working Drawings, 3D Visualisation, Renders, On-site Work
Washroom Design
Concept, 3D Visualisation, Renders,
Master Peace - A Meditation & Yoga Retreat Centre Design Challenge (Participation)
2021
Architerrax Visitor Centre (Participation)
2021
NASA India Laurie Baker Trophy (Shortlisted - Top 9)
2020
Sunderbari - Search Trust, International Competition (Participation)
2020
ADDITIONAL INTERESTS
Sketching & Painting
Photography
Model Making
Digital Illustrations
CONTENTS 01 ASHIANA 02 URBAN CONNECT 03 HOSPITAL
04
RESTAURANT 05 WORKING DRAWINGS
06
MISCELLANEOUS
1 2 3 4 5 6 A B C D E F G H J 6600 4400 7000 3400 9100 3800 8100 6800 8100 5600 8100 8100 ELECTRICAL ROOM D4 D2 D7 D7 D2 D1 D1 D6 ROOM 6955 X 2765 D1 D2 D6 D6 D1 D1 D1 D3 UP DN H1 H2 STORE 15590 STORE 7795 X 7940 STORE 7945 X 7665 STORE 11140 X 7870 STORE 11140 X 7770 STORE 11140 X 13300 STORE 11305 X 11445 STORE 7350 X 11445 3950 2000 7500 4660 2000 2110 1380 4200 1550 3160 1300 1500 300 1070 1450 10460 2310 6950 11140 2400 12300 5940 13300 7770 7870 7580 11450 5820 11310 7350 2650 7500 8520 3980 3930 4220 400 1700 7660 7940 7800 7940 3980 12790 4200 16450 31240 3000 3000 7700 13590 19780 6600 6390 2130 6330 2130 4860 2470 15650 1800 1580 7380 11140 11140 25110 +750 11460 4330 4330 16270 A1 A2 X Y' 1500
01 ASHIANA
Type: Group Housing
Location: Patiala, Punjab
Year: 2022
ABOUT THE PROJECT
A housing community with shelters for women refugees or migrants and orphan girls, with opportunities for skill development and generating employment by providing a market connecting them with the outside world.
SOFTWARES
Autocad, Sketchup, Revit, Lumion, Photoshop

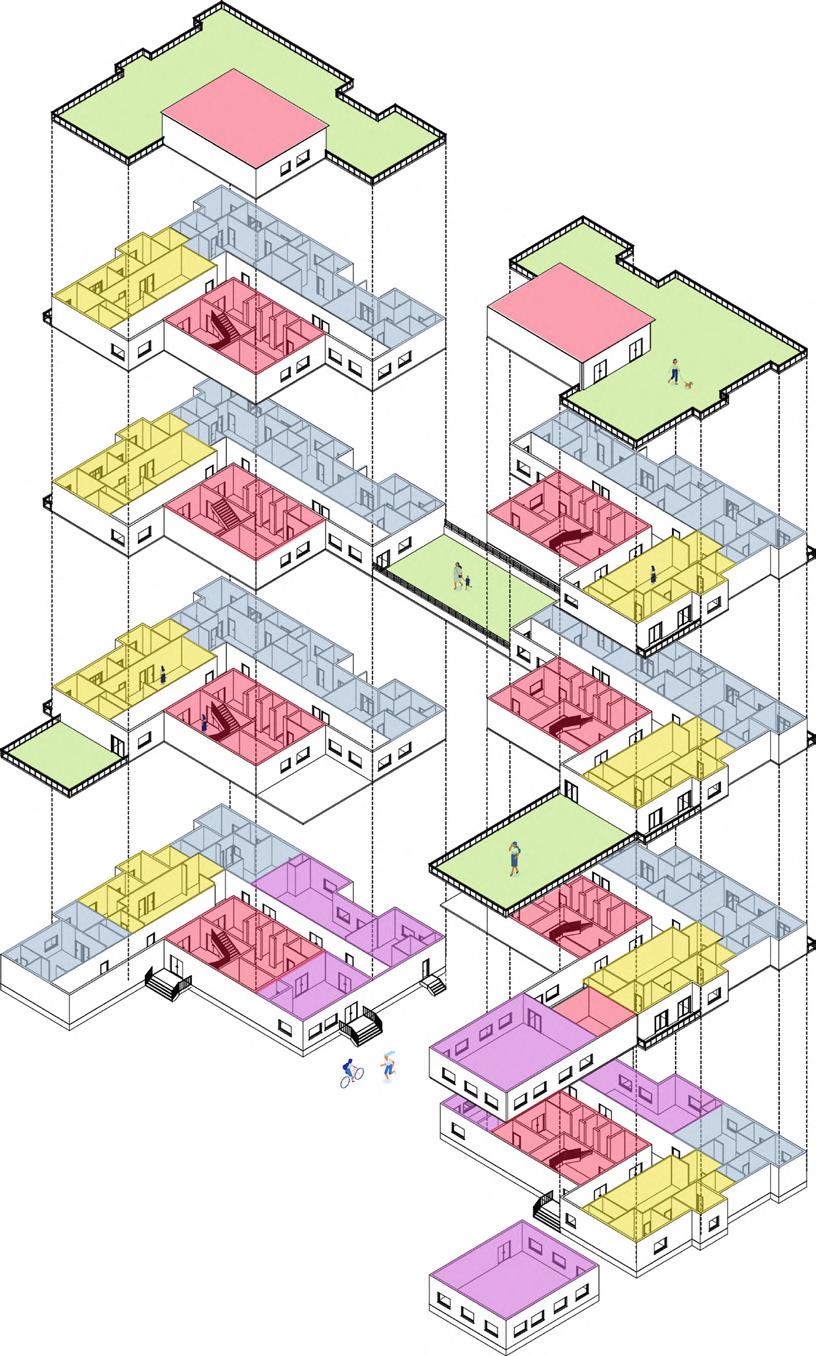

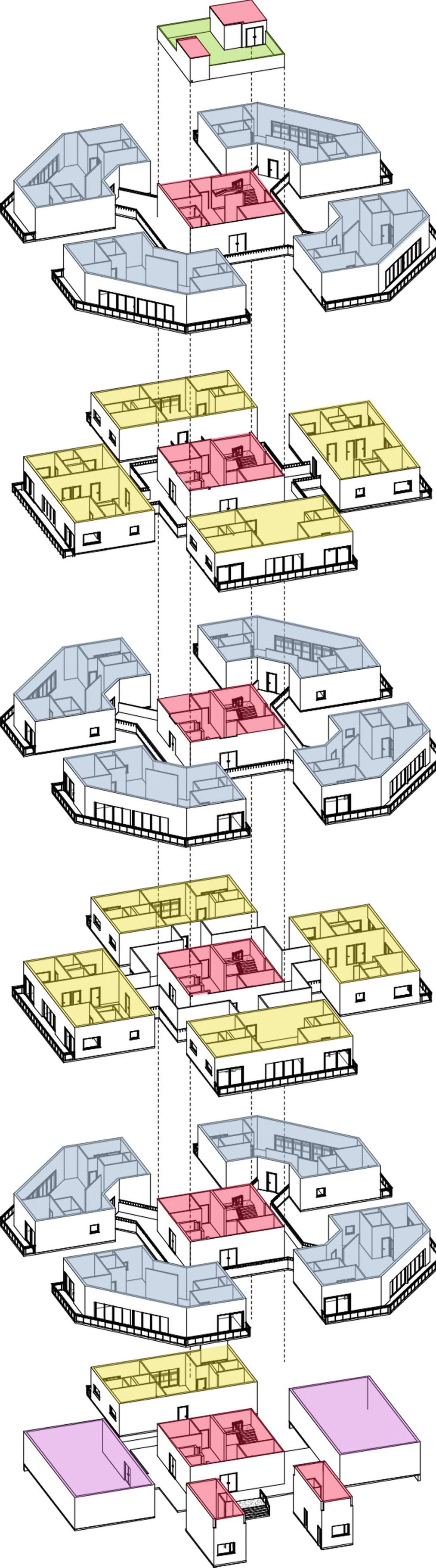

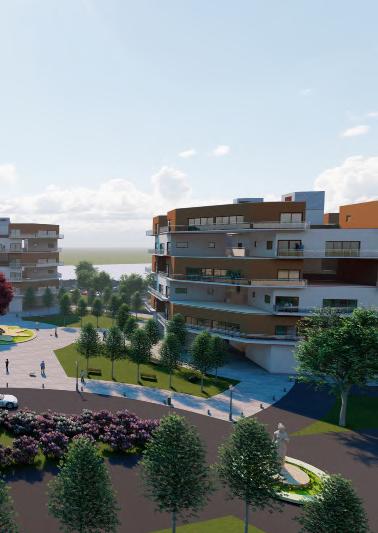

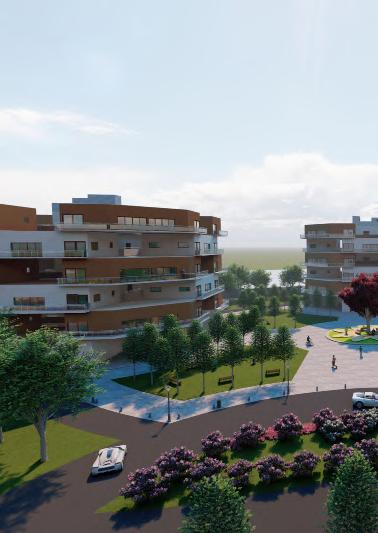

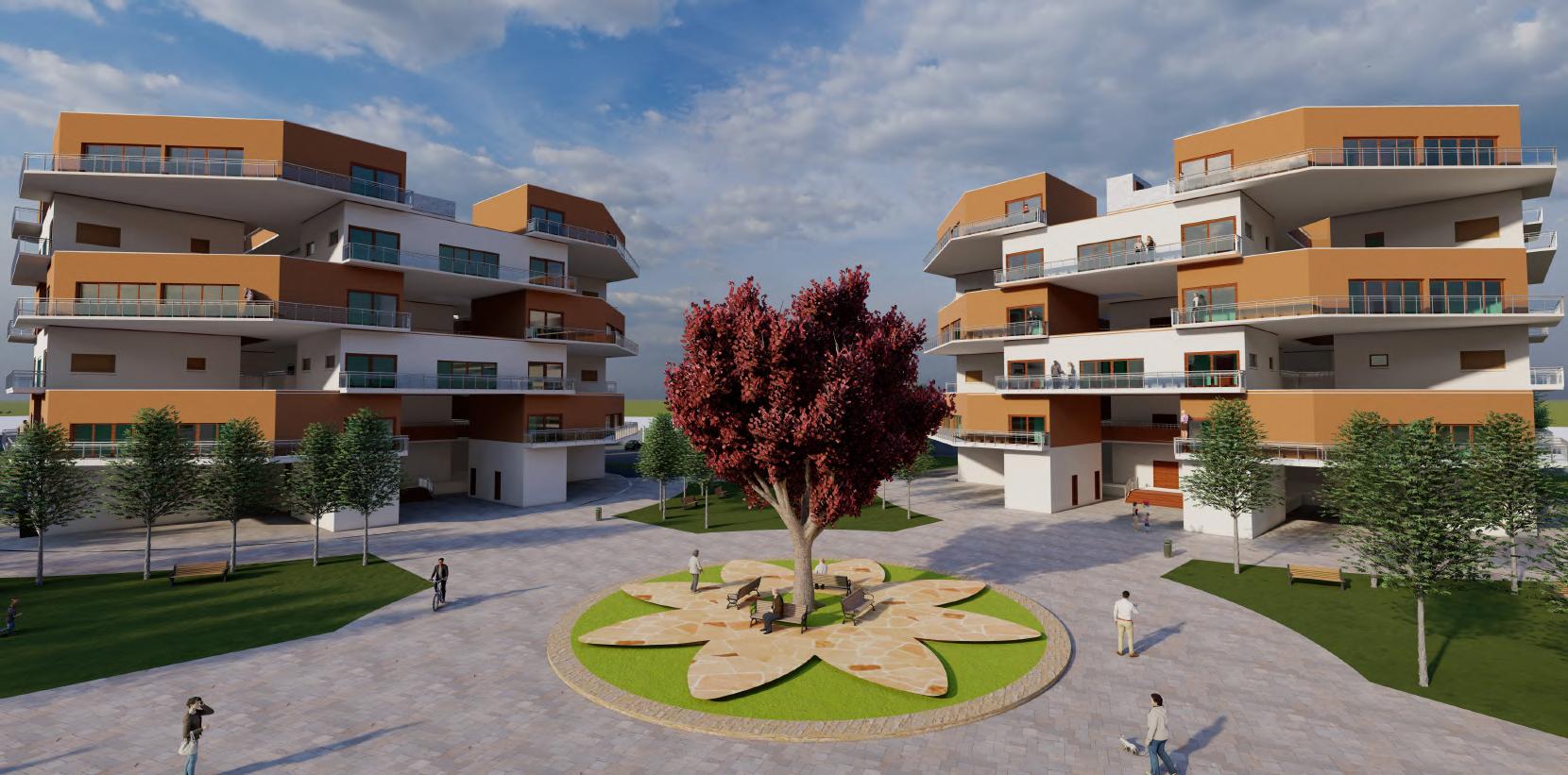

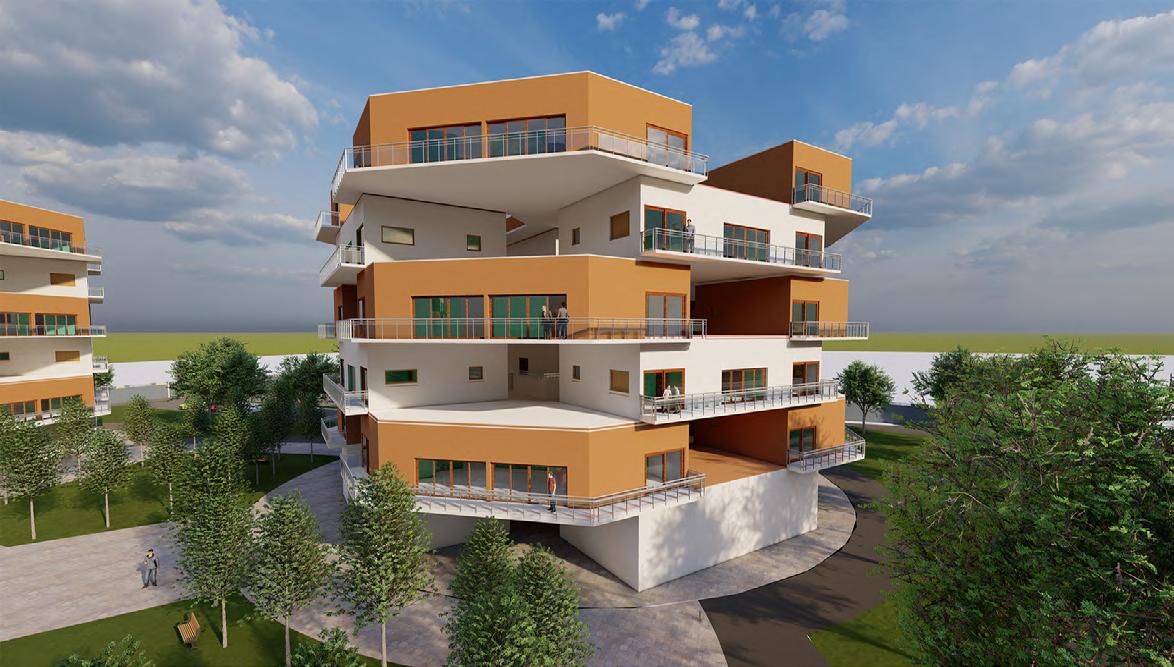

HOUSING BLOCKS

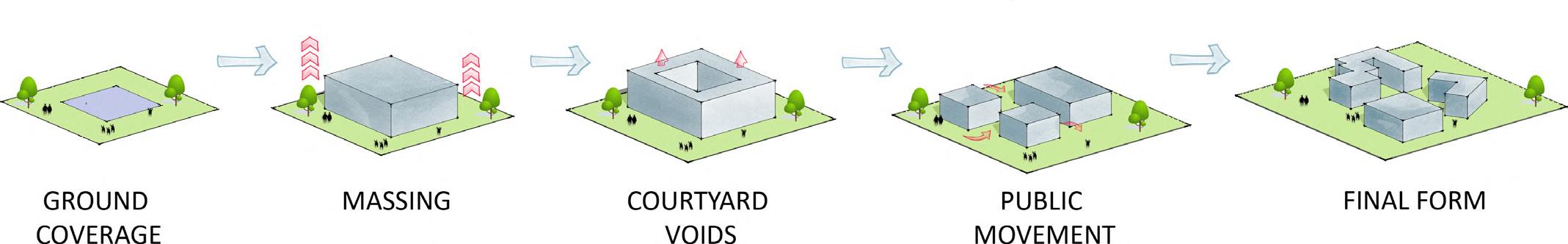

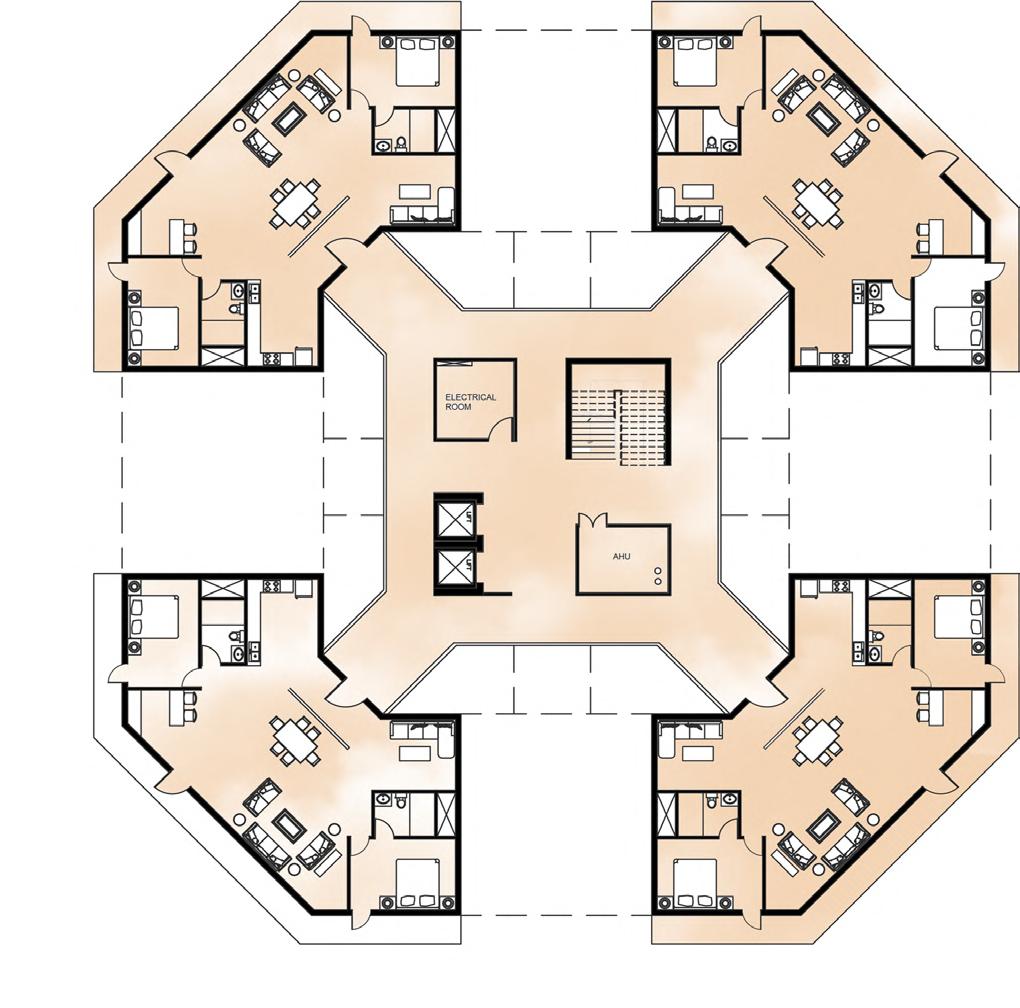

The housing blocks contains 3 blocks which accomodates 63 units of 2bhk and 3 bhk. There are alternate floors of each type of units and each floor has 4 dwelling units. The form development is done in such a manner that there is an easy circulation of wind thriught the structure

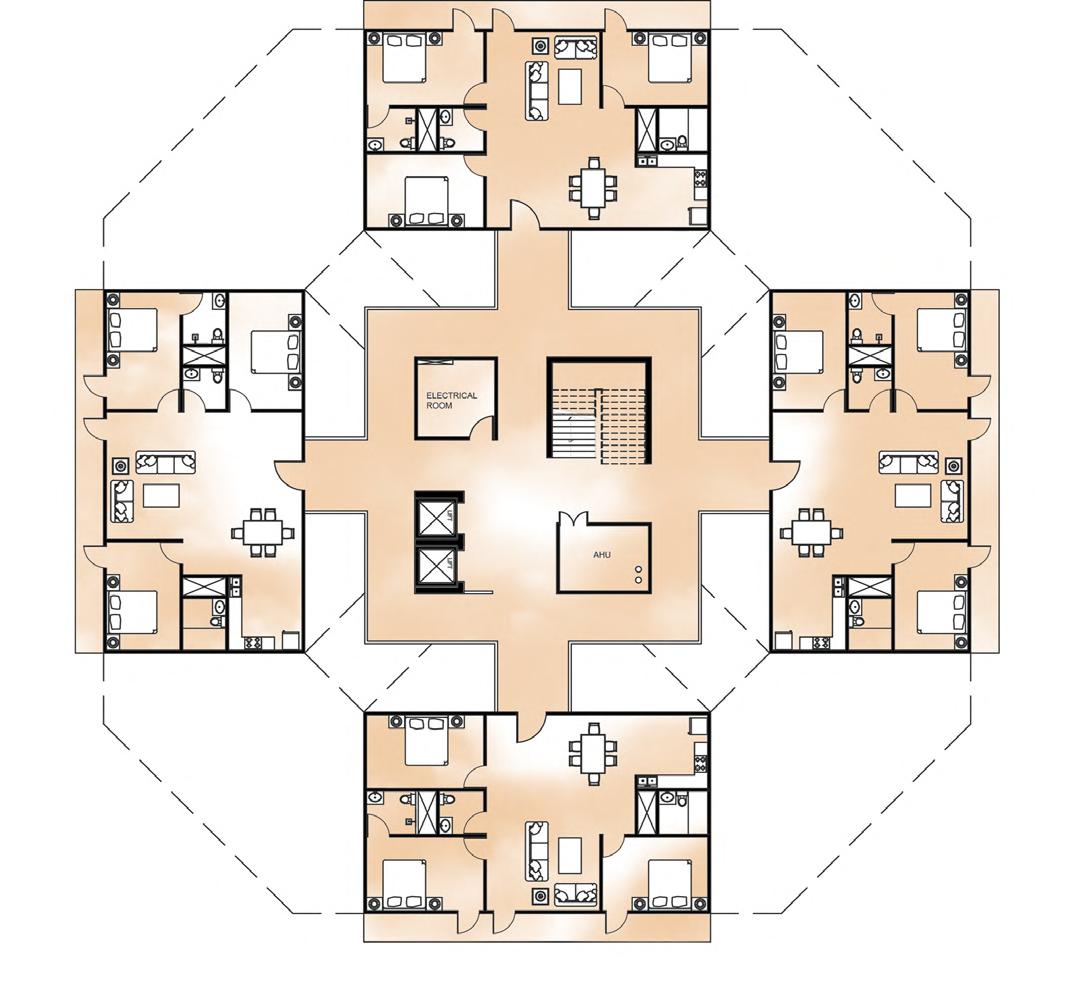

TYPICAL 3BHK PLAN
TYPICAL 2BHK PLAN

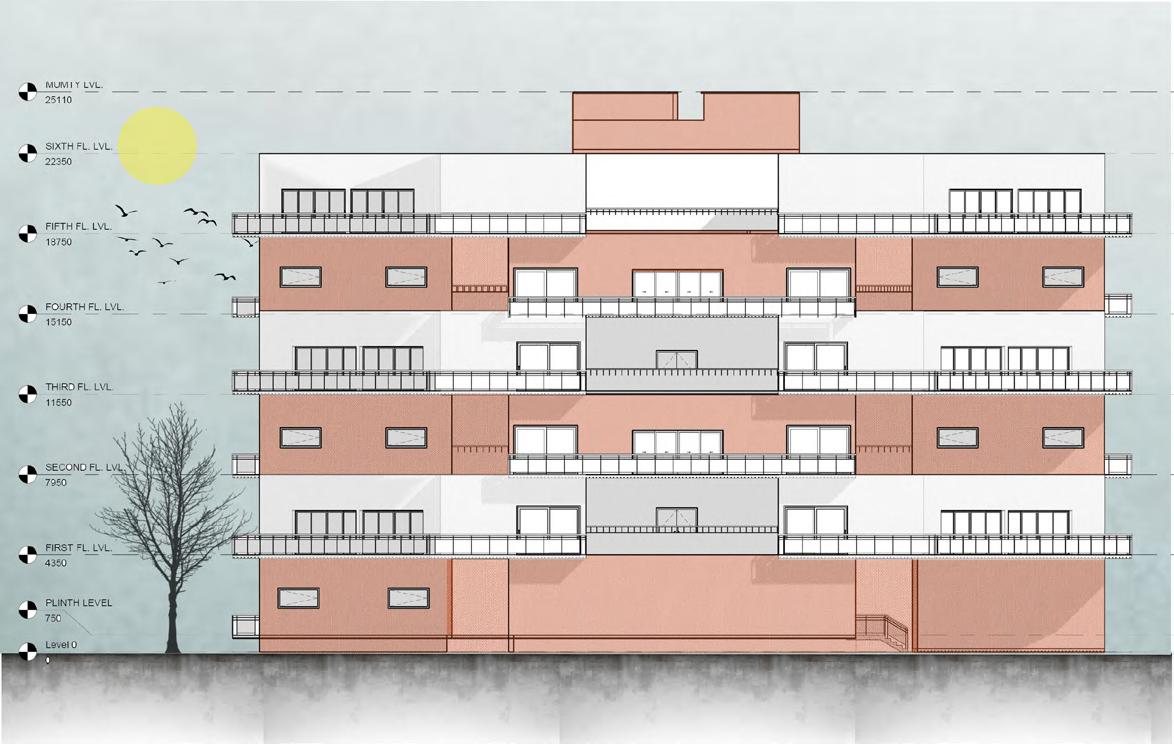

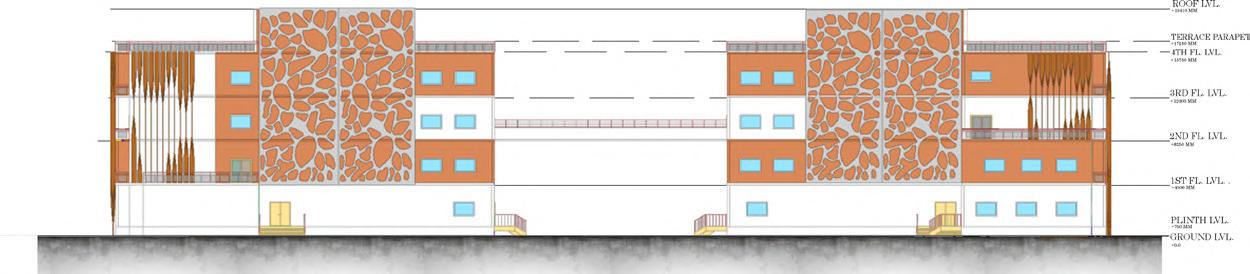

ELEVATION
LEGEND:

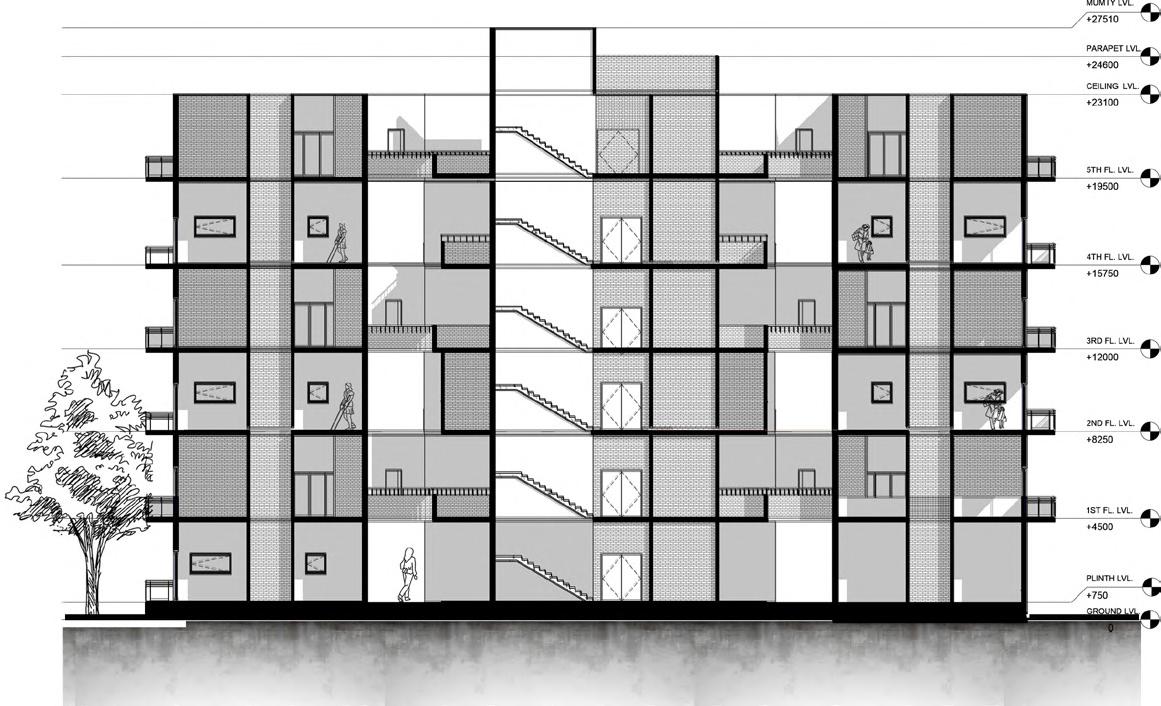

SECTION
MAYEKAA

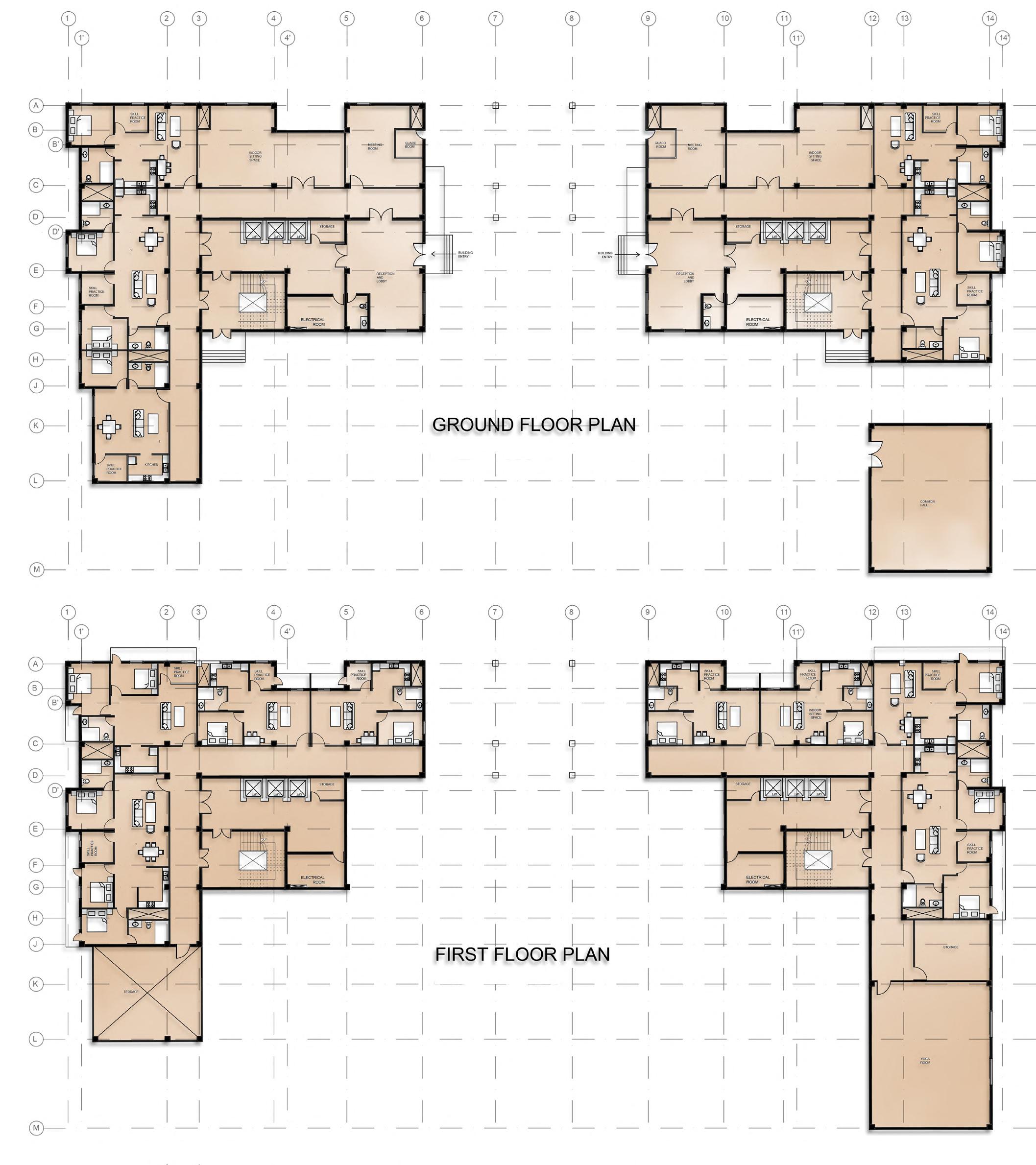

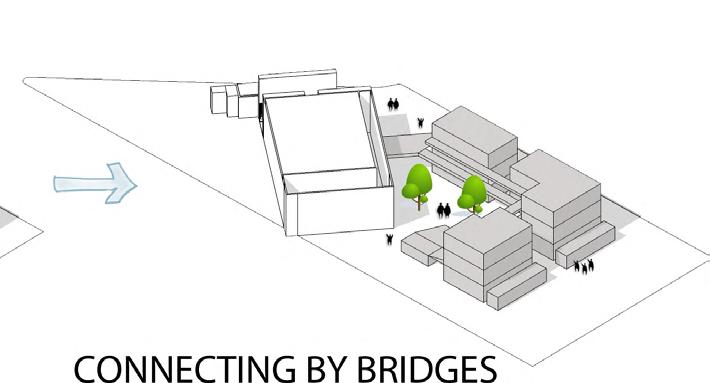

Mayekaa is a concept for women refugees or migrants facing specific challenges like domestic violence, family seperation or trauma. The form has been divided into two blocks that has been modulated in such a way that there is an interactive courtyard space connecting the two blocks.
NORTH ELEVATION
There are total 29 units of mayekaa . A common hall is given to celebrate various occassions together. A combined yoga room and a skill practice room (in each unit) is given to engage themselves in more productive activities.

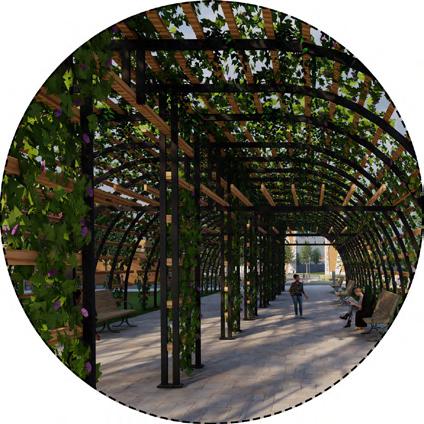

Pathway connecting women housing and orphanage to create a soothing passage for both the residents.
Jaali design Wooden louvers
CLADDING MATERIALS EAST ELEVATION

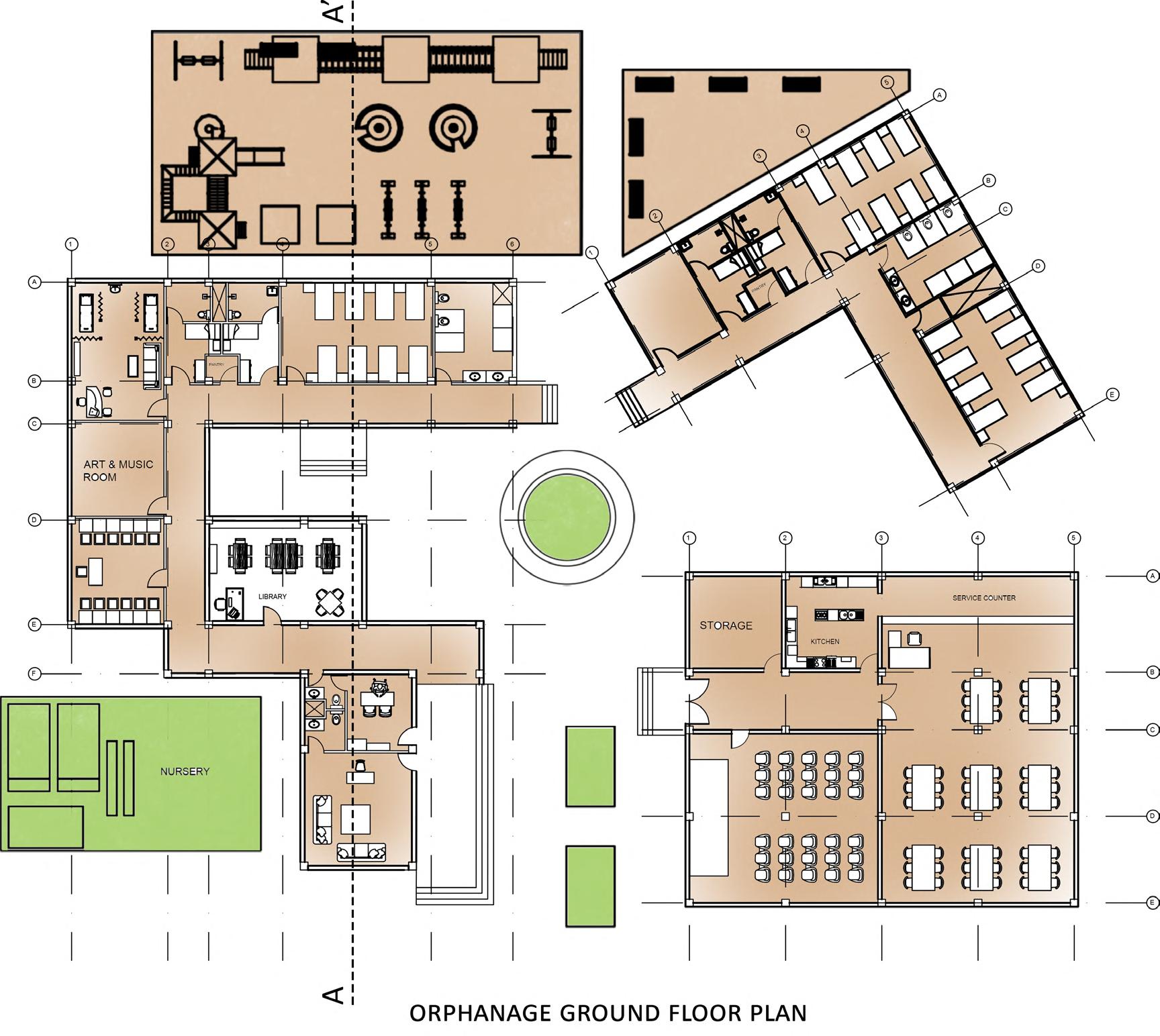

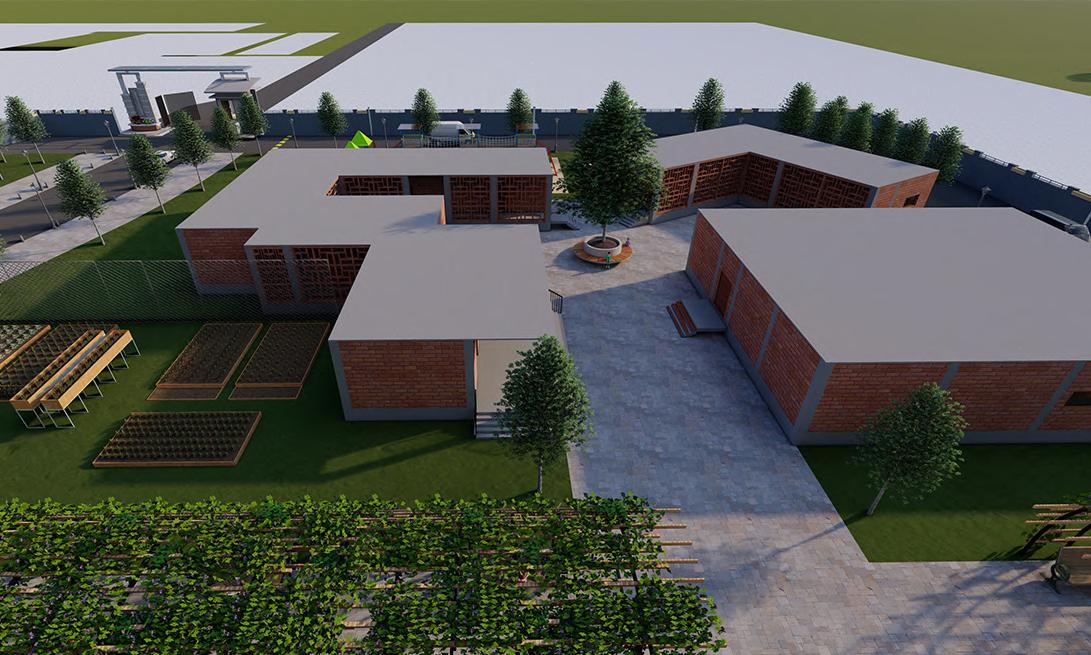

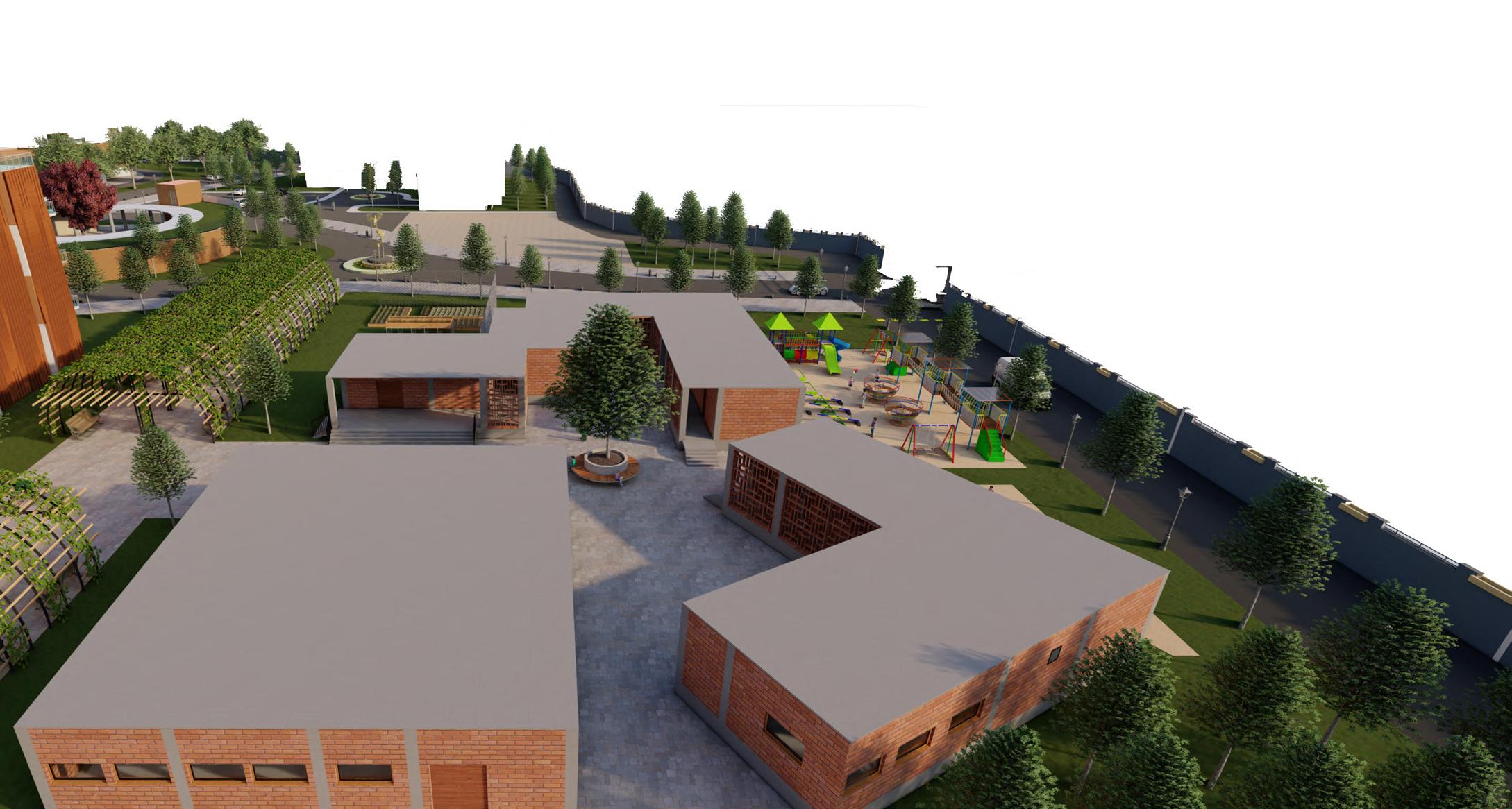

SWEET HOME ORPHANAGE
An orphanage for girls in consideration to the scarcity of girl’s orphanage in patiala is designed to accomodate 24 girls. It has various facilities like classroom, liibrary , art room, music room and computer room, required for education of girls.
NURSERY AS AN EDUCATIONAL ACTIVITY
PLAYGROUND IN BACKYARD

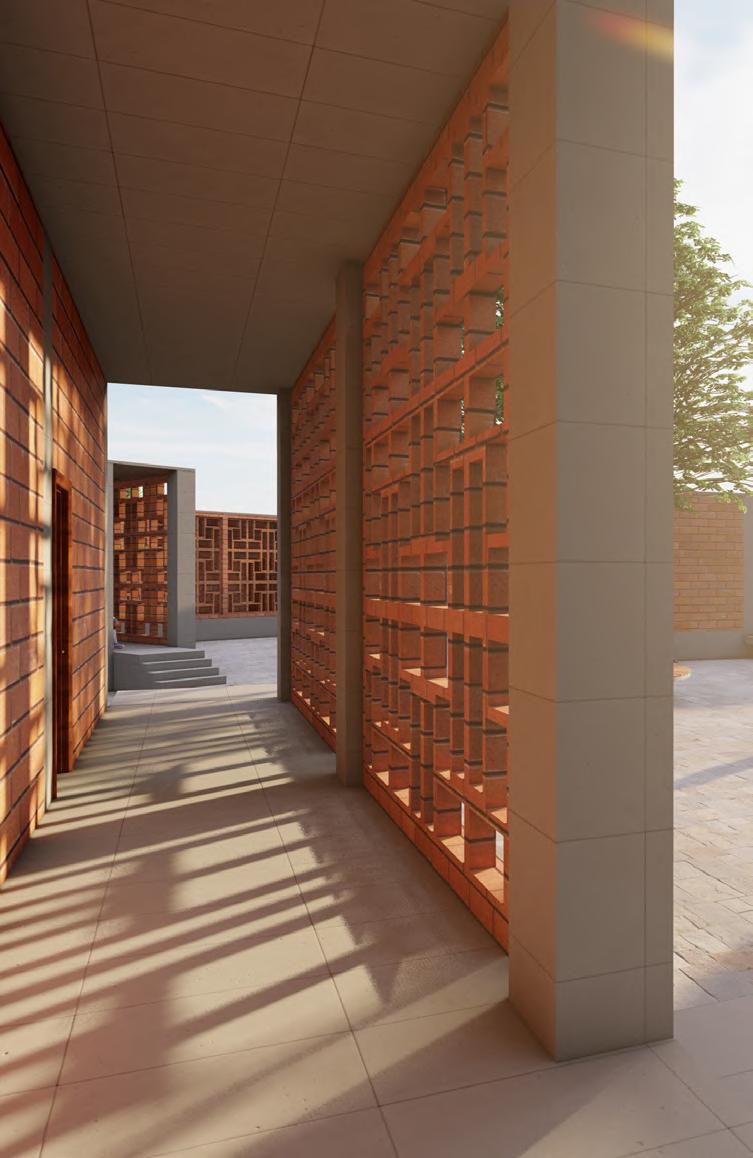

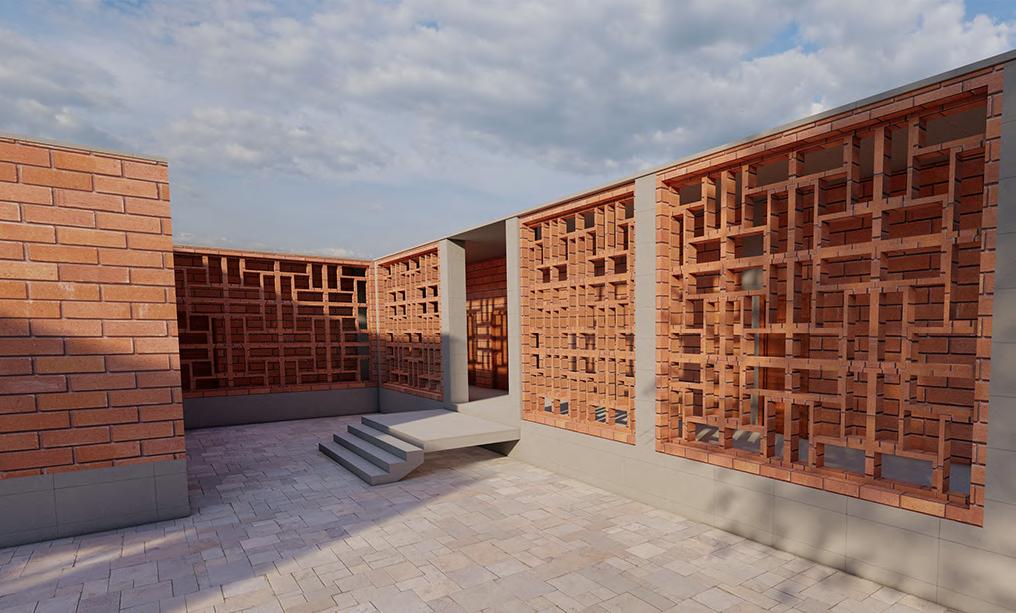

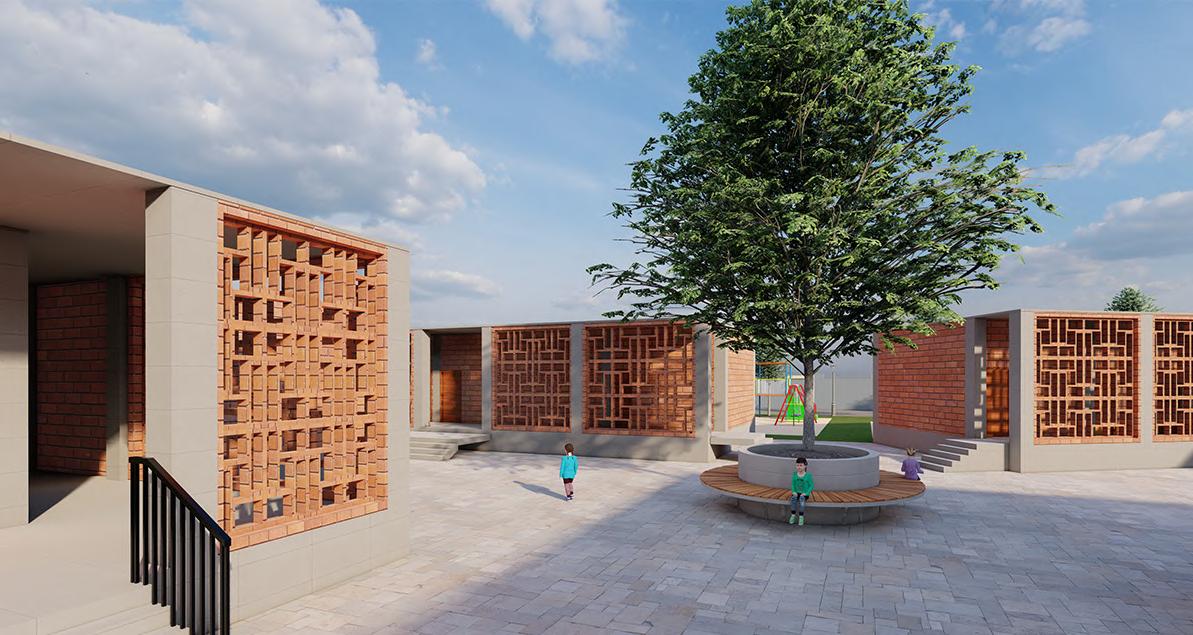

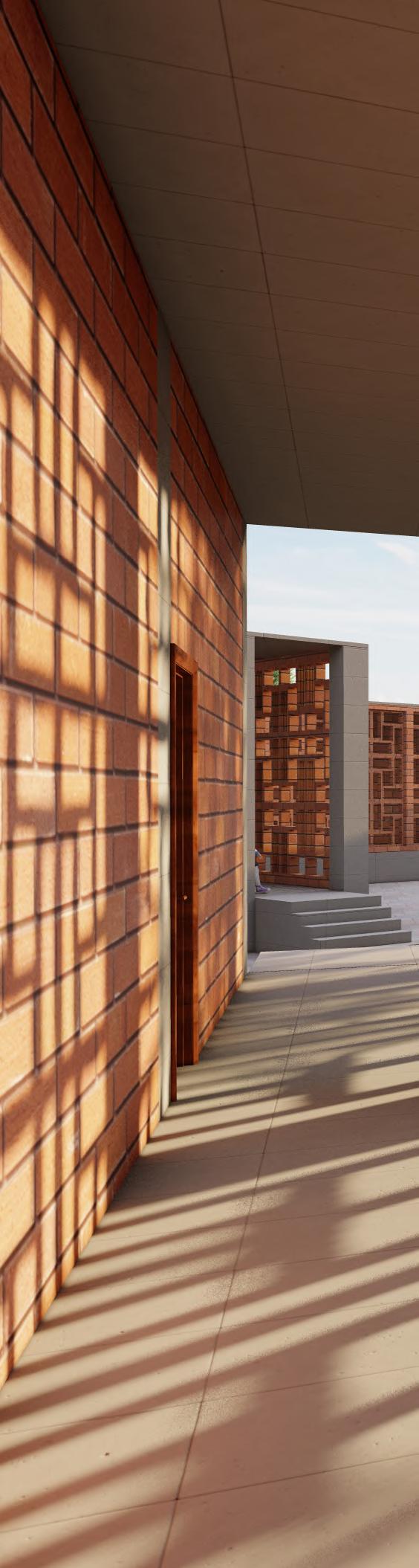

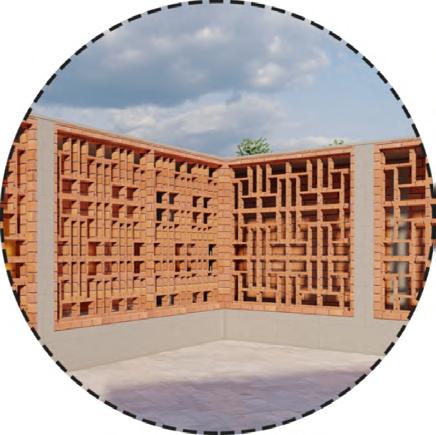

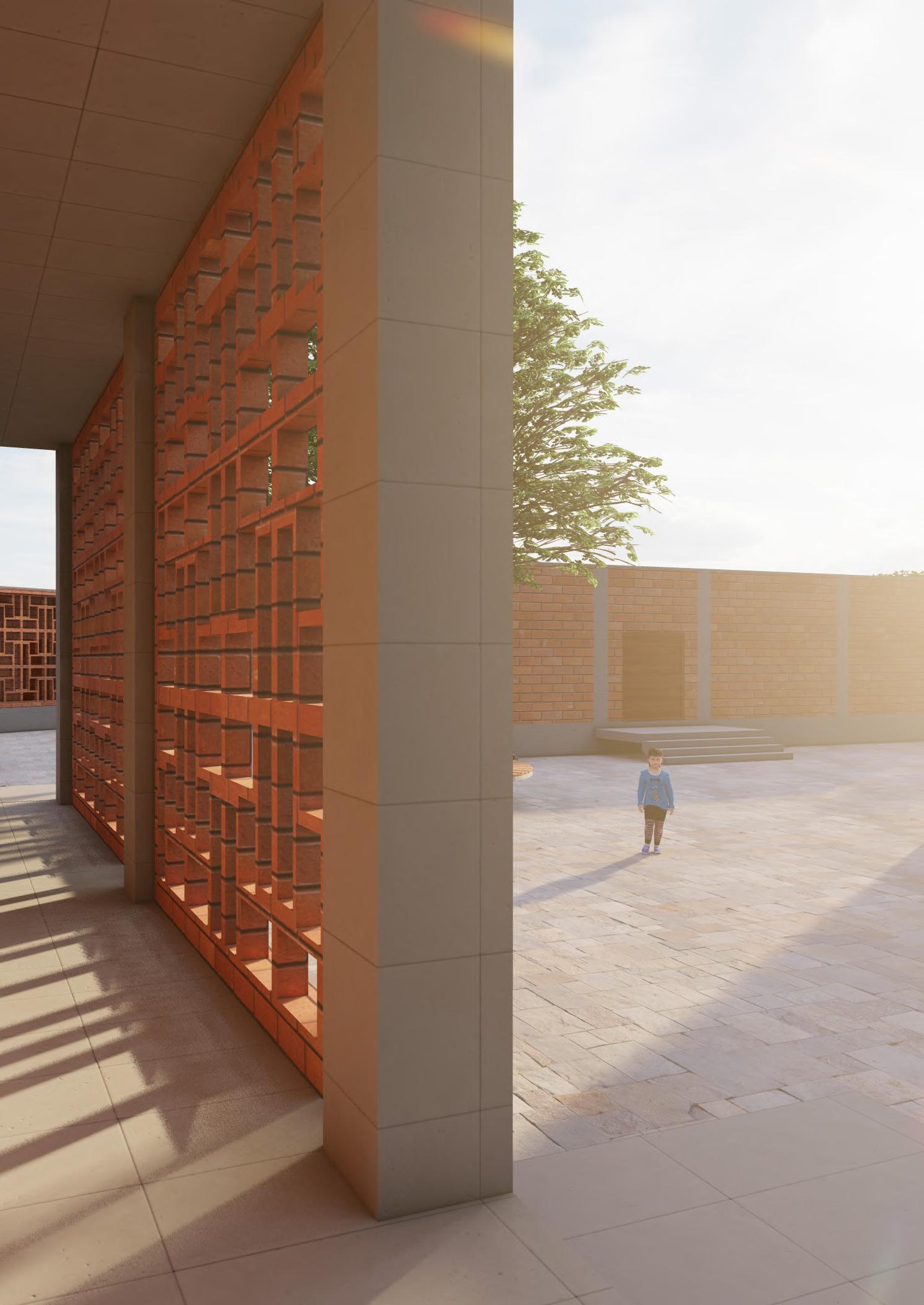

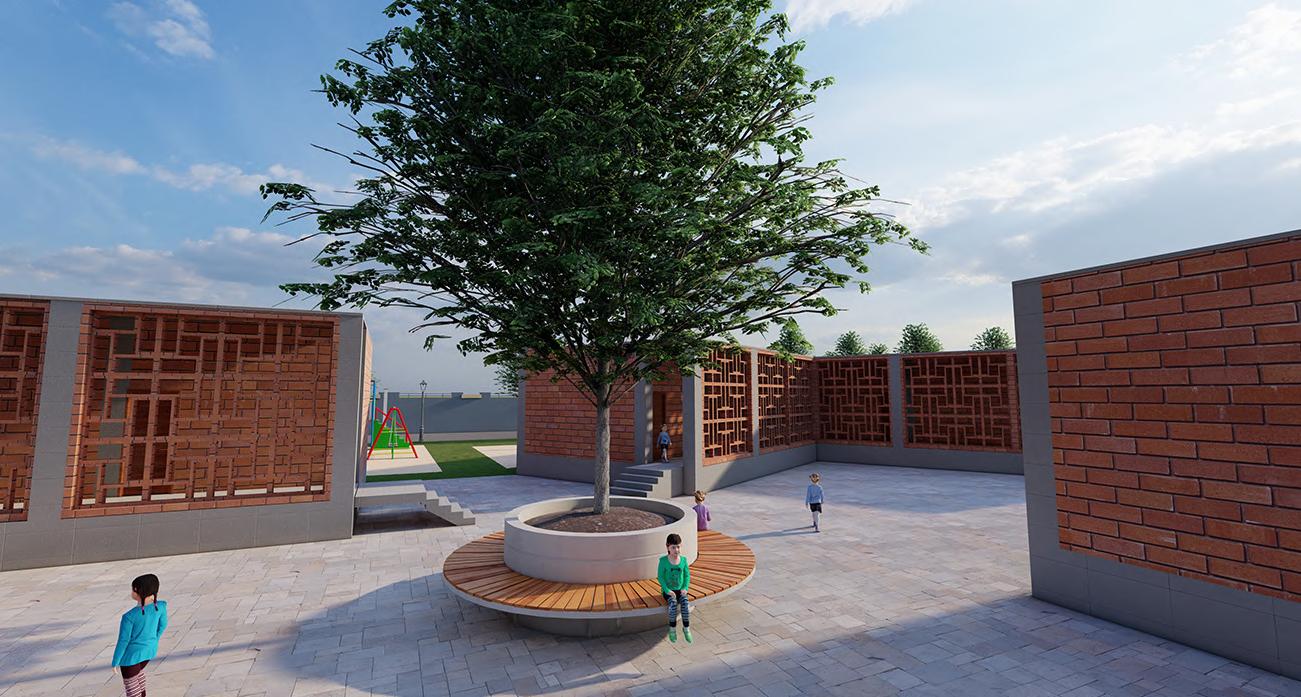

BRICK JAALIS IN CORRIDORS

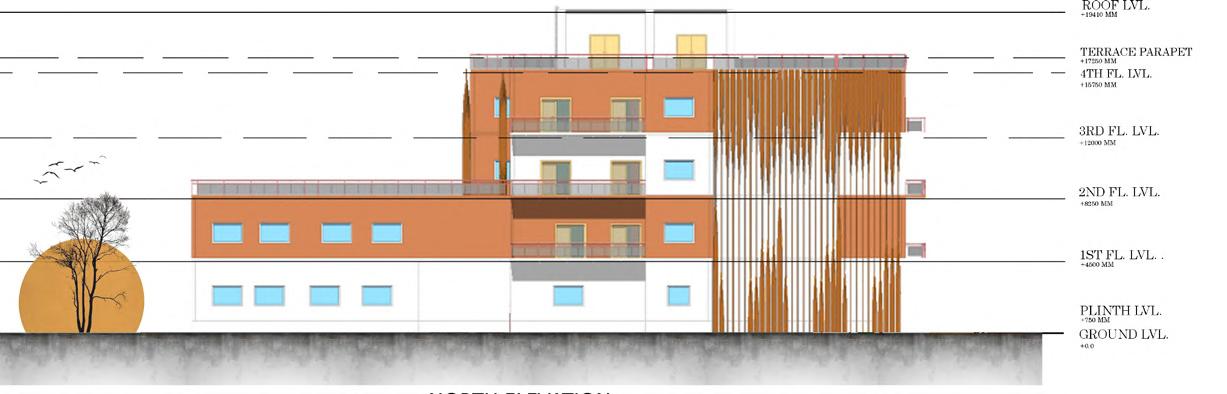

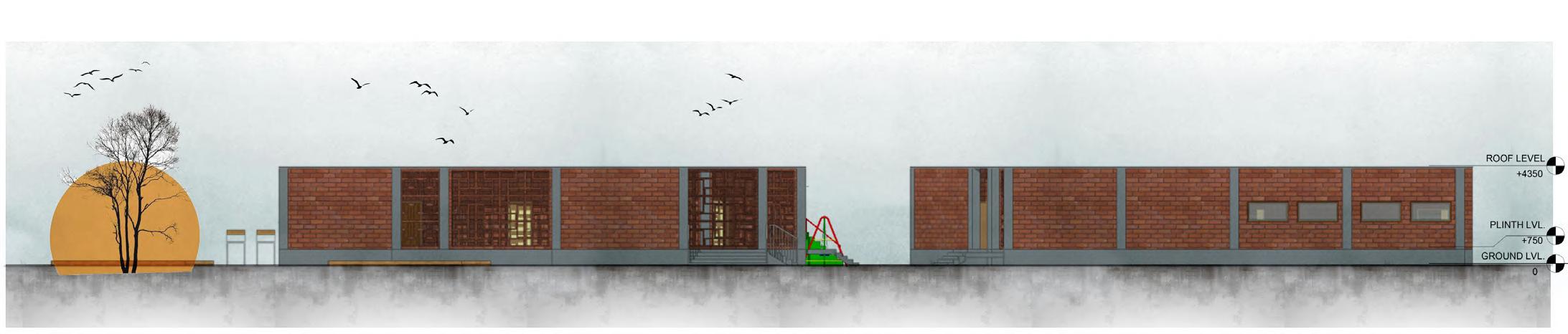

NORTH ELEVATION
02
URBAN CONNECT
Type: Urban Design
Location: Mayur Vihar, Phase-1, Delhi
Year: 2023
ABOUT THE PROJECT
To design an inclusive and social community with enhanced mobility and active engagement of people by improving the usage and interaction in open spaces, separating pedestrian and vehicular paths and providing multi utility zones and by designing a social hub which caters to different age groups, and thus enhances interaction of people.
SOFTWARES
Autocad, Sketchup, Lumion, Photoshop

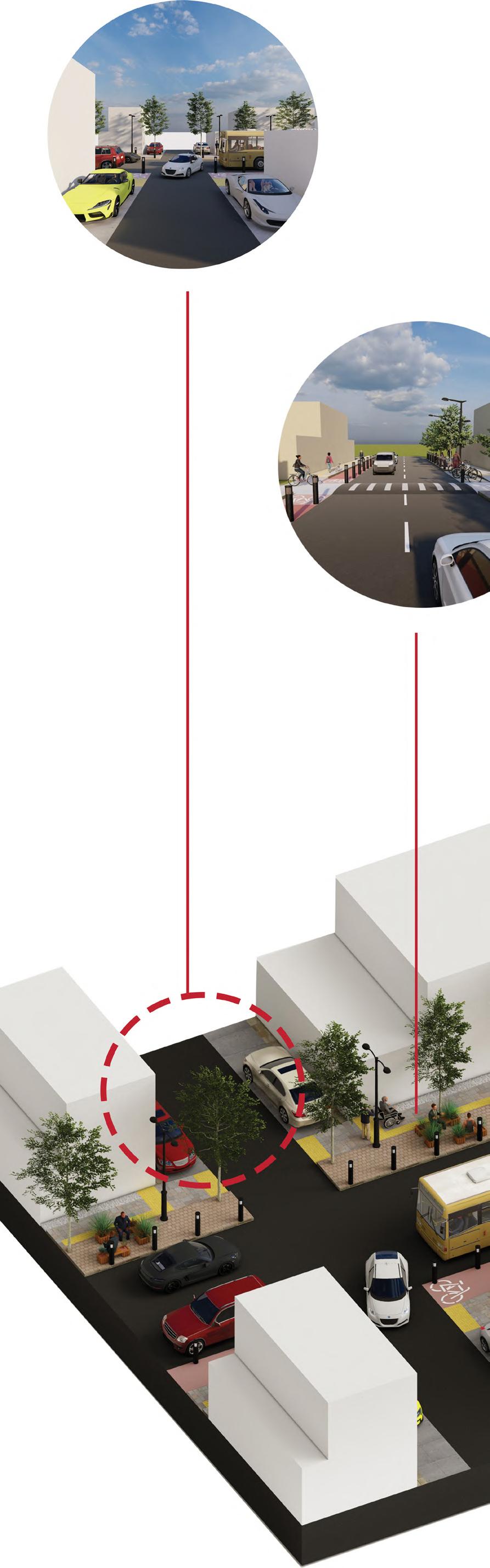

STREET INTERVENTIONS
Front lanes allow for parking infront of the house, followed by a carriageway of 4m.
Drain covers and pedway on the primary roads.

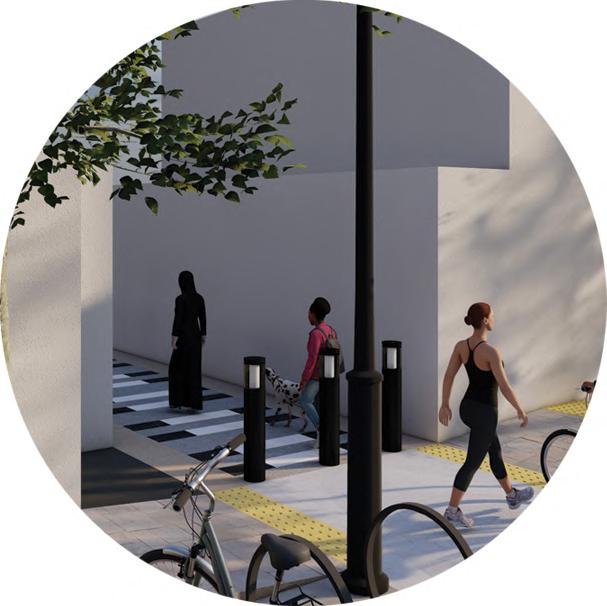

Bollard lights provided on the edge of cycle track as well as the multi utility zone, to limit the movement of vehicles on the carriageway only.

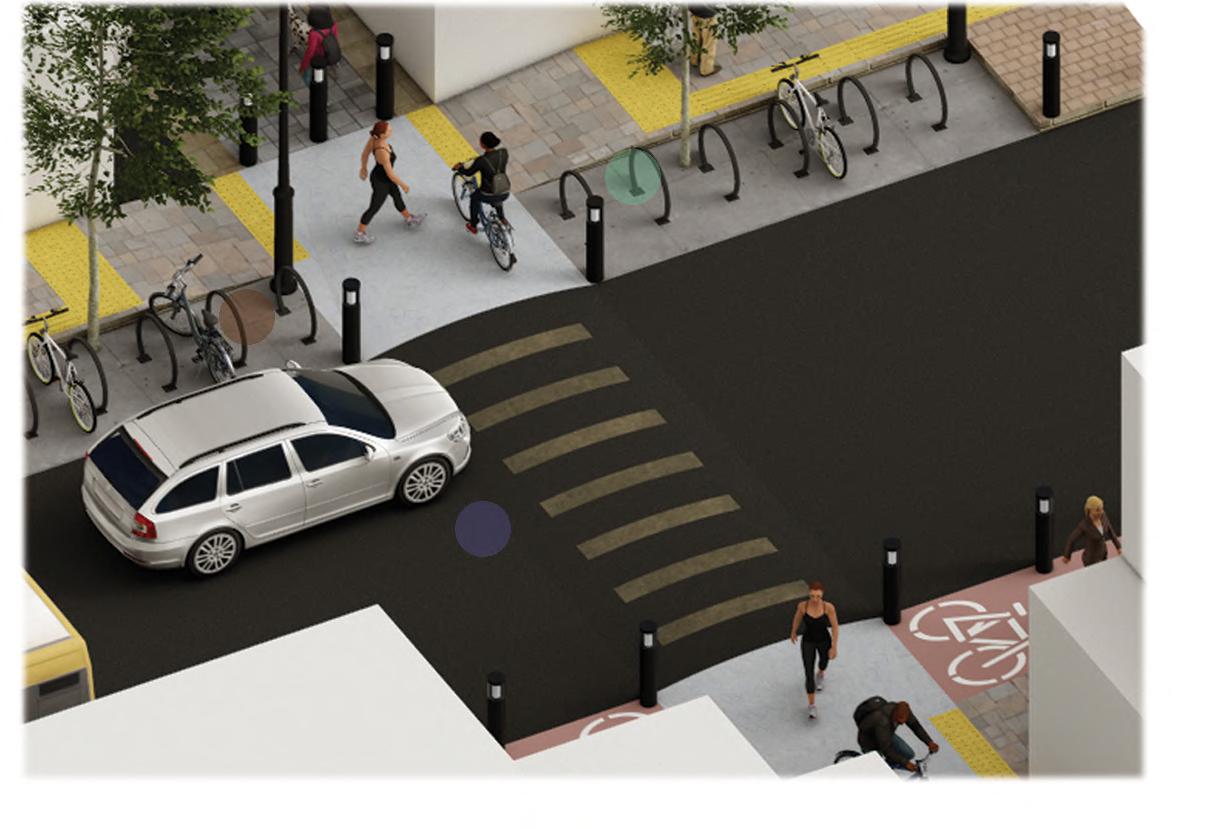

Elevated pedestrian crossings, connecting the main roads and pedway in back lanes.
Cycle stands provided in the multi utility zones on the primary roads.
FRONT LANE
GANGA PRIMARY

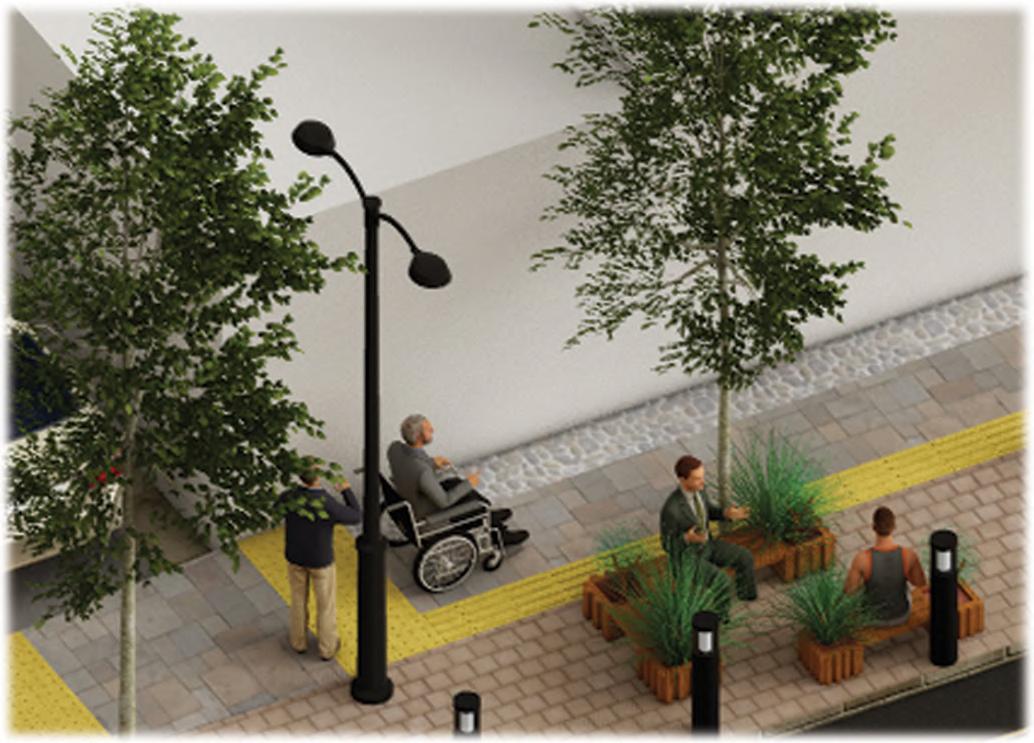

Back lanes are paved and decorated with planters to create a vibrant pedestrian walking trail the carriageway only.
A different pavement used for the pedestrian lanes that run continuously through out the site (both in vertical and horizontal direction).

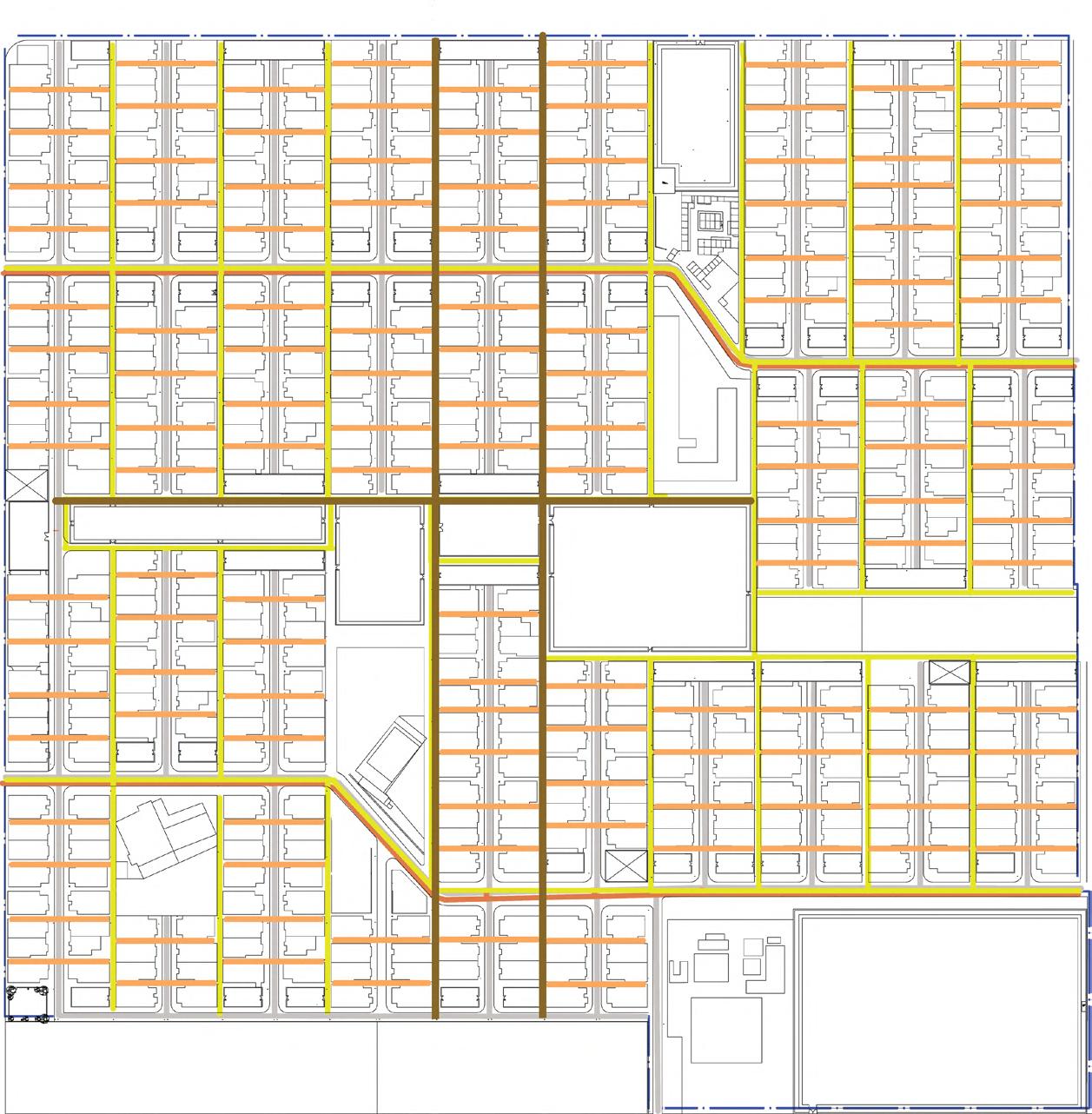

CIRCULATION PLAN
YAMUNA PRIMARY ROAD

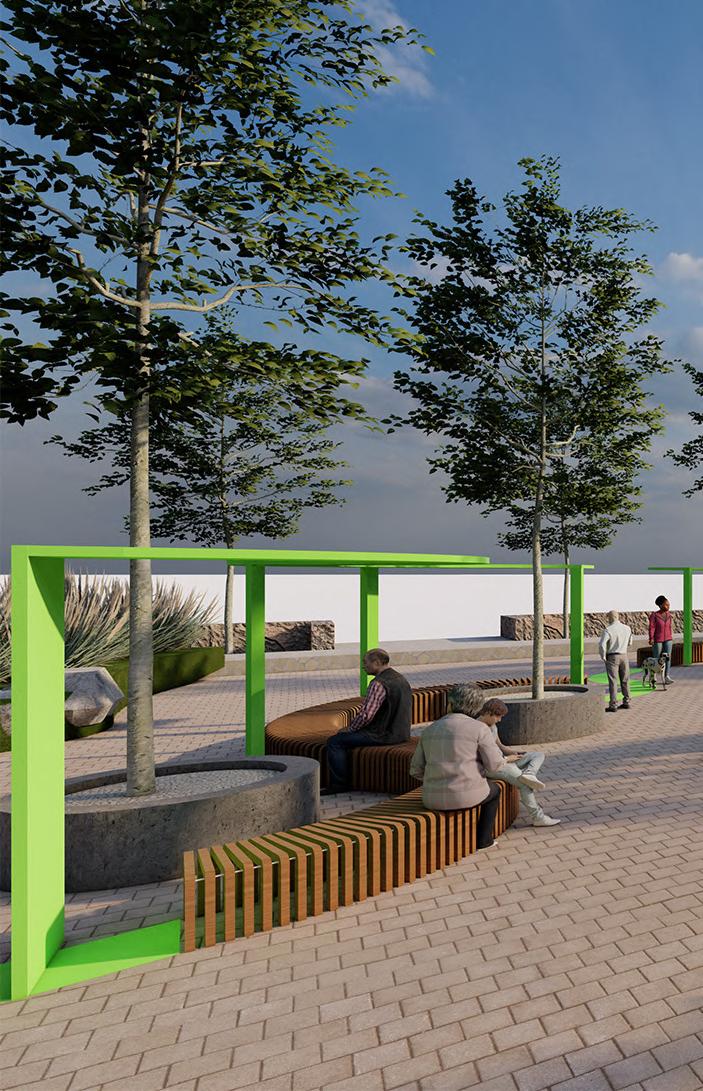

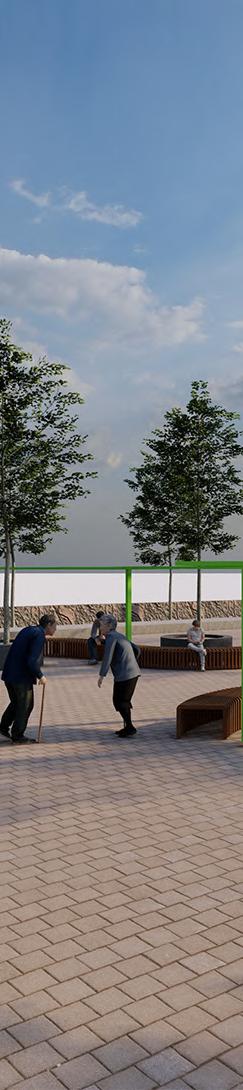

Public sitting provided in the multi utility zones on primary roads to encourage interaction and make the

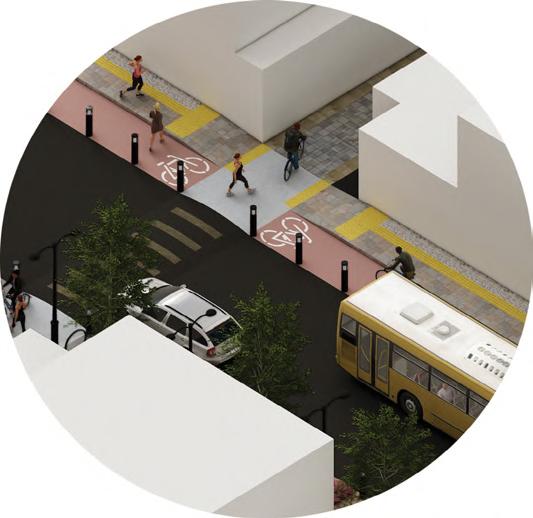

1.8m cycle track provided on primary roads (ganga and yamuna marg). A crossing provided at the junctions with front lanes.
PRIMARY ROAD
BACK LANE

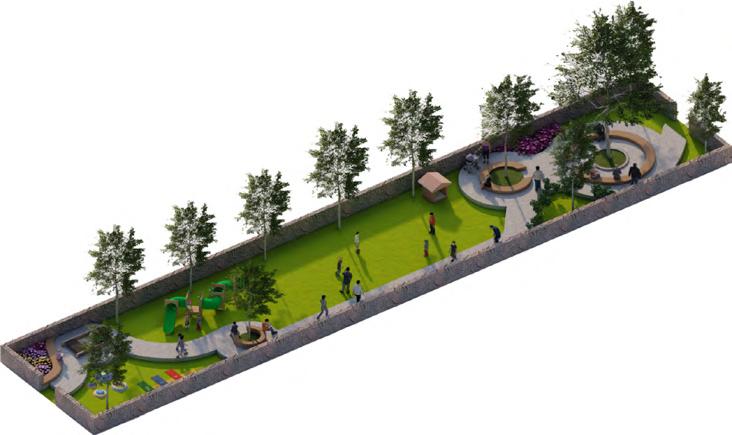

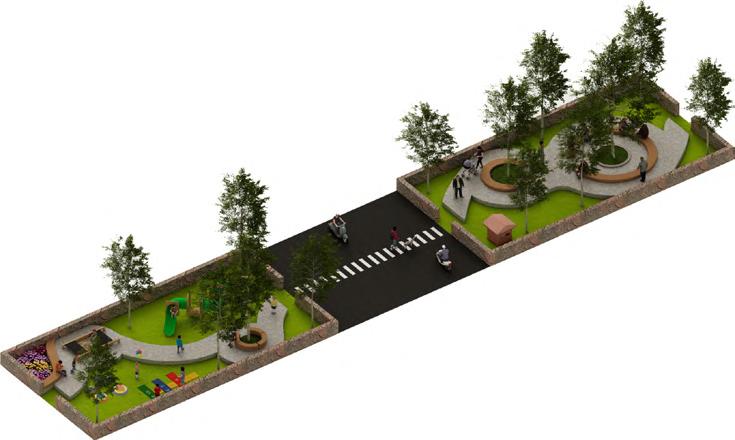

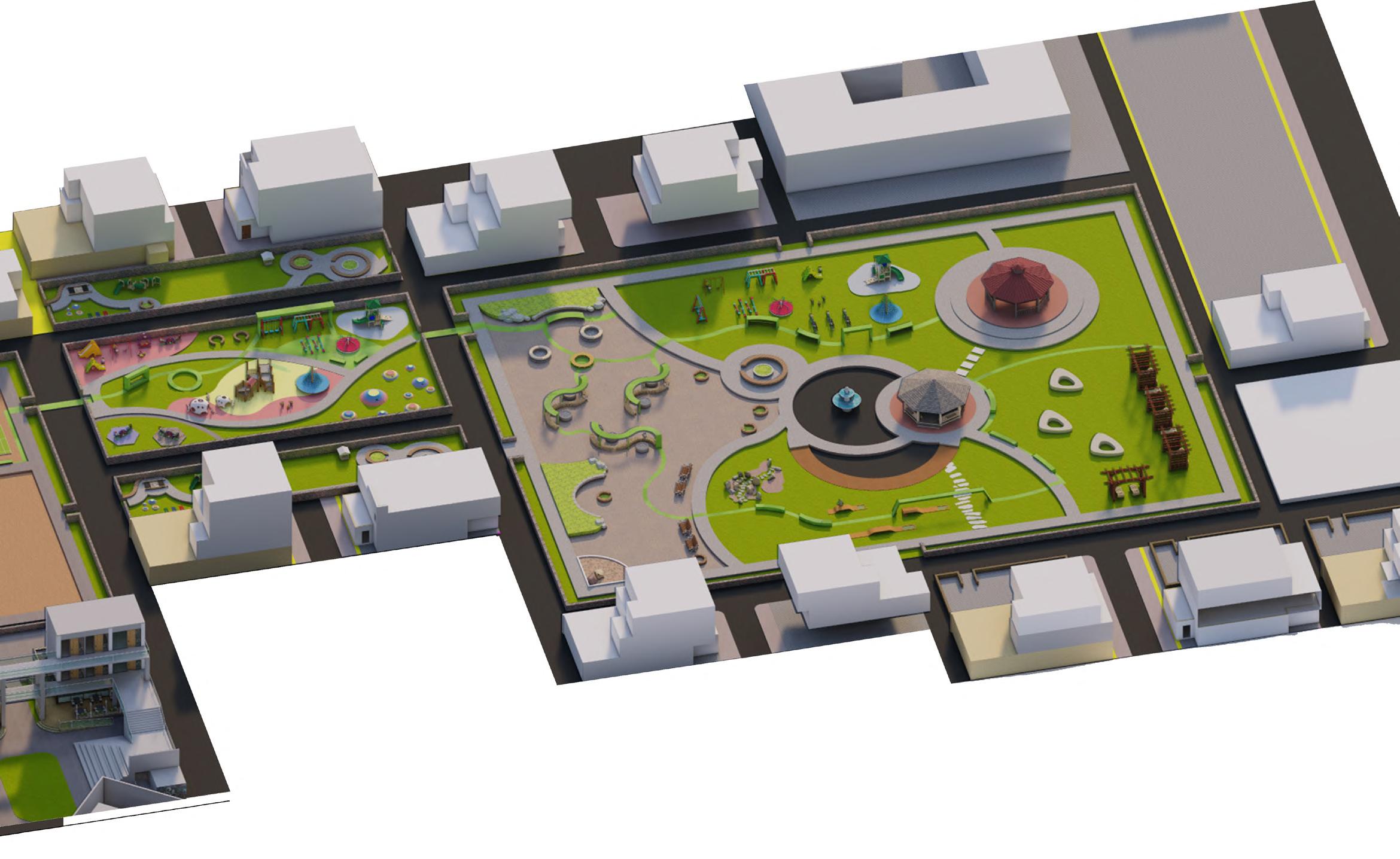

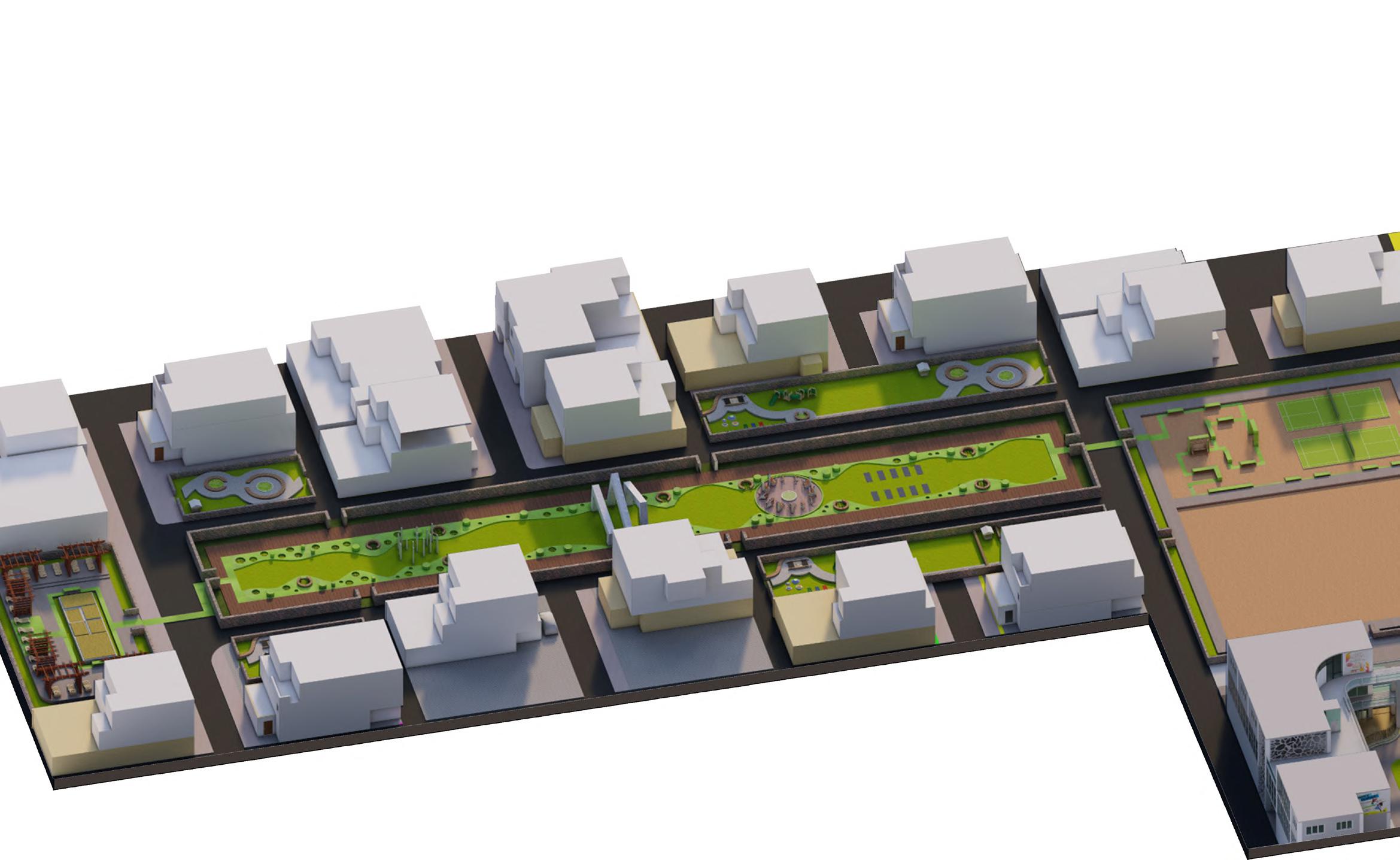

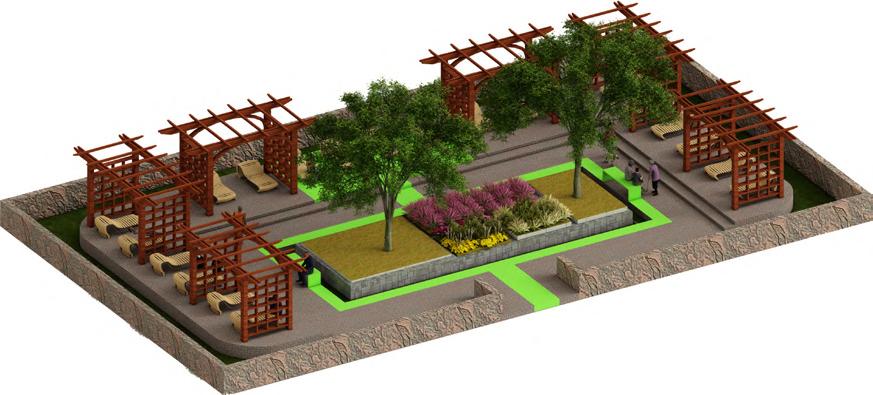

PARK INTERVENTIONS

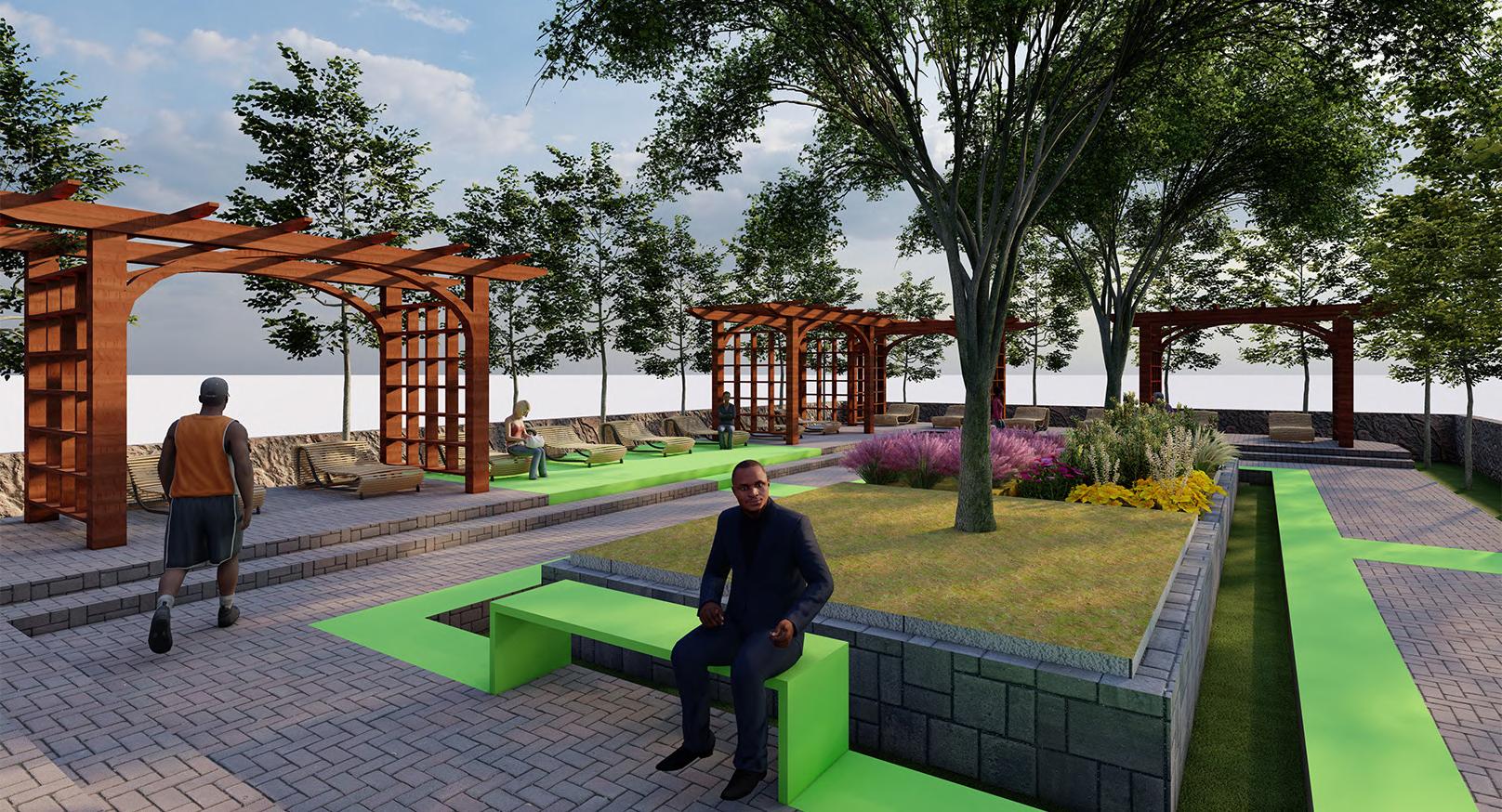

1. RESTING PARK-
It has been designed to provide a public resting place. The benches can be used for sitting or lying down, and are arranged along the periphery of the park.
1.
2. 3.

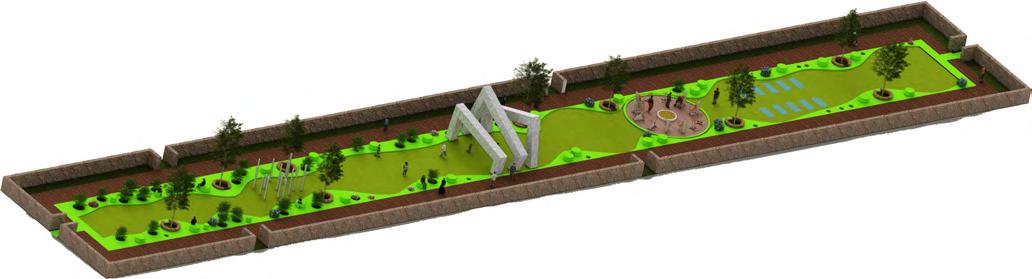

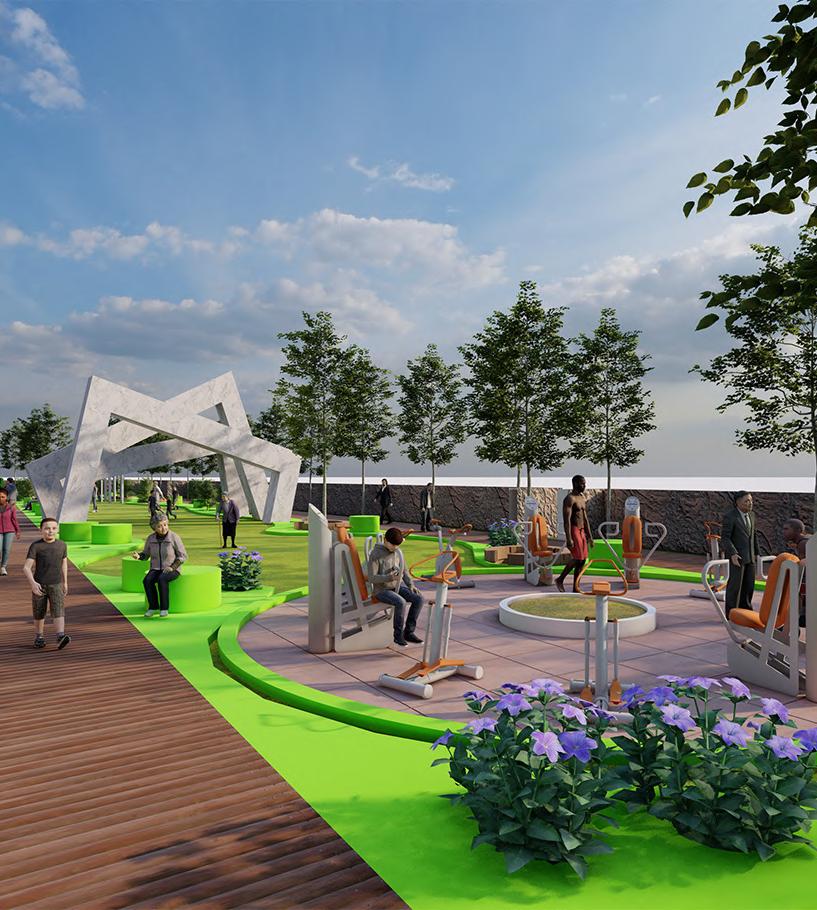

It is a long park, and hence provides good opportunity for a walking trail. Hence, a walking pathway has been designed along the perimeter, with an open gym in the centre. Several instalments and sittings have also been provided.
2. POCKET PARK-
4.
5.
6.

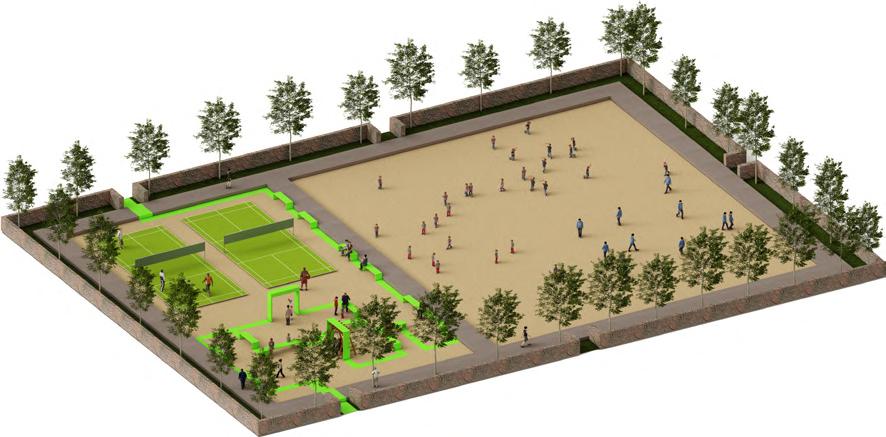

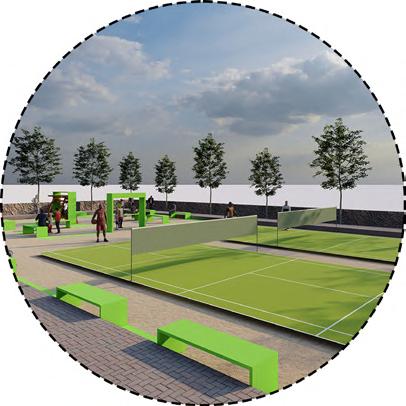

The desu playground has been divided into two zones: A badminton court with sitting and play area, and Secondly, a playfield.

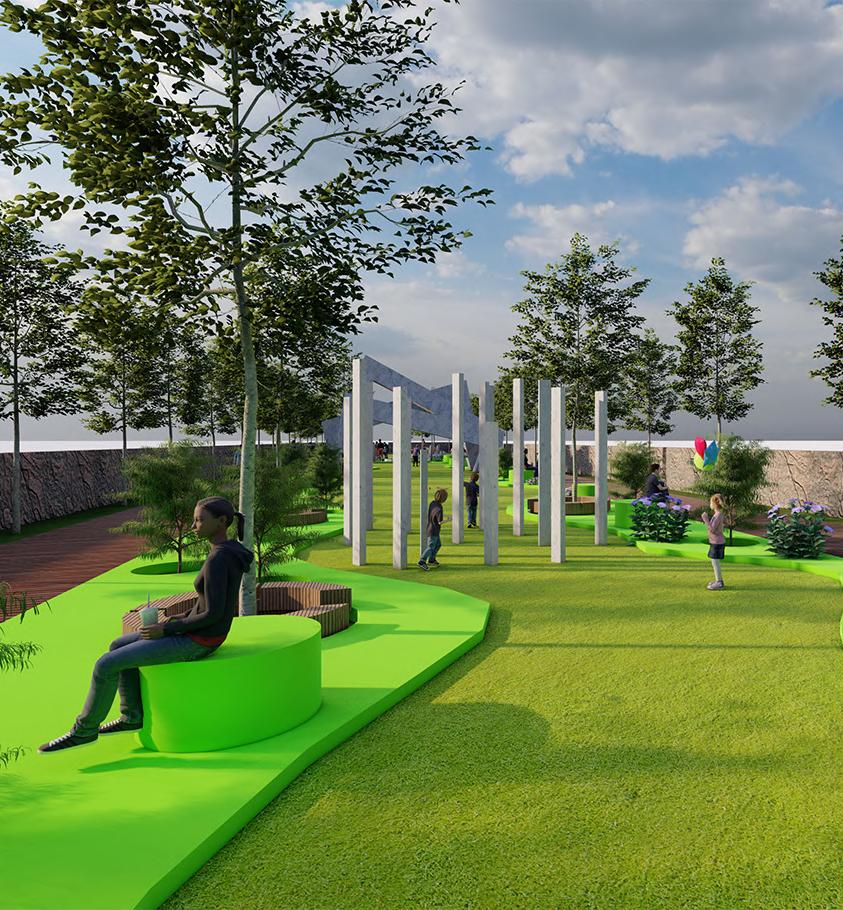

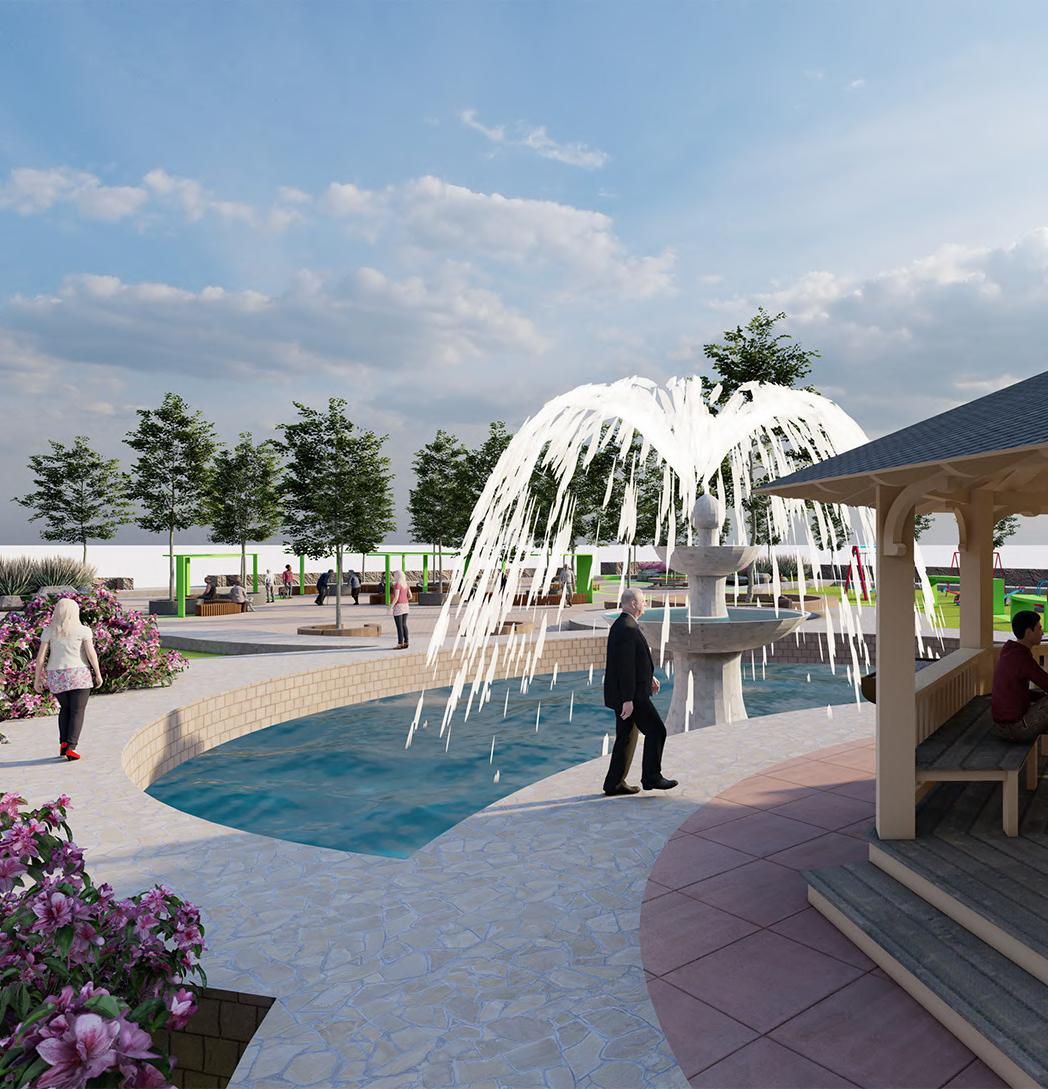

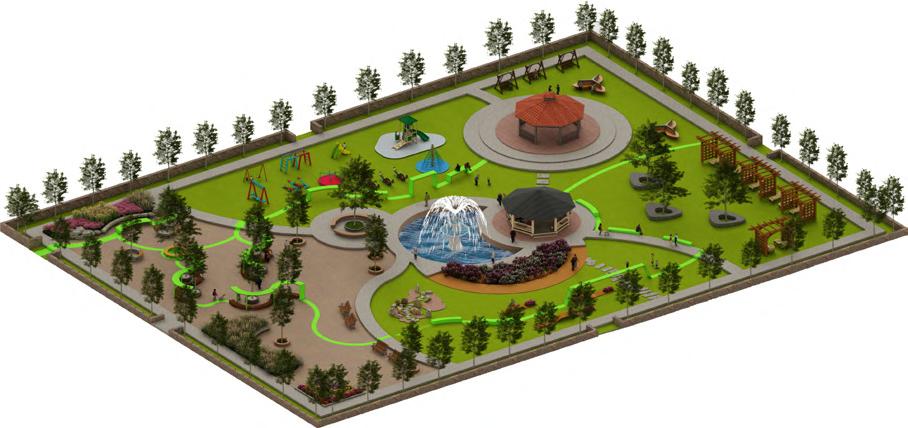

The centre park has been designed as a large lawn Havingvarious elements like the sensory garden, A water fountain in the centre, gazebos, shaded Sittings and some swings.
3. PLAYGROUND-
5. CENTRE PARK-

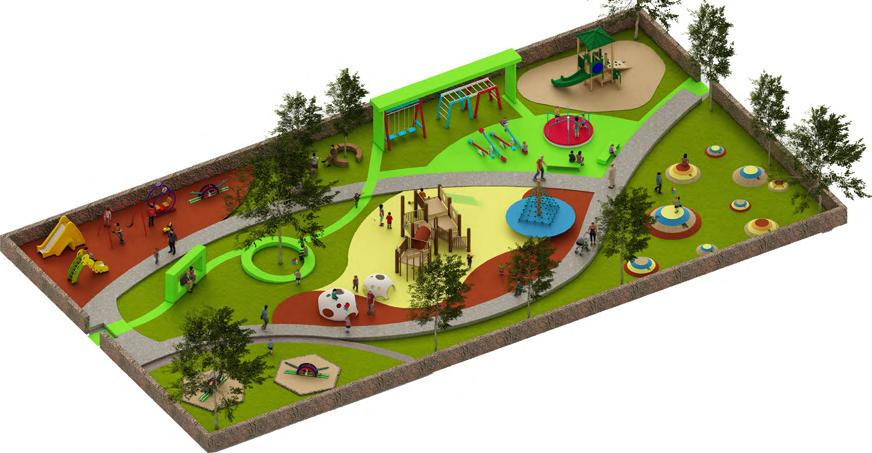

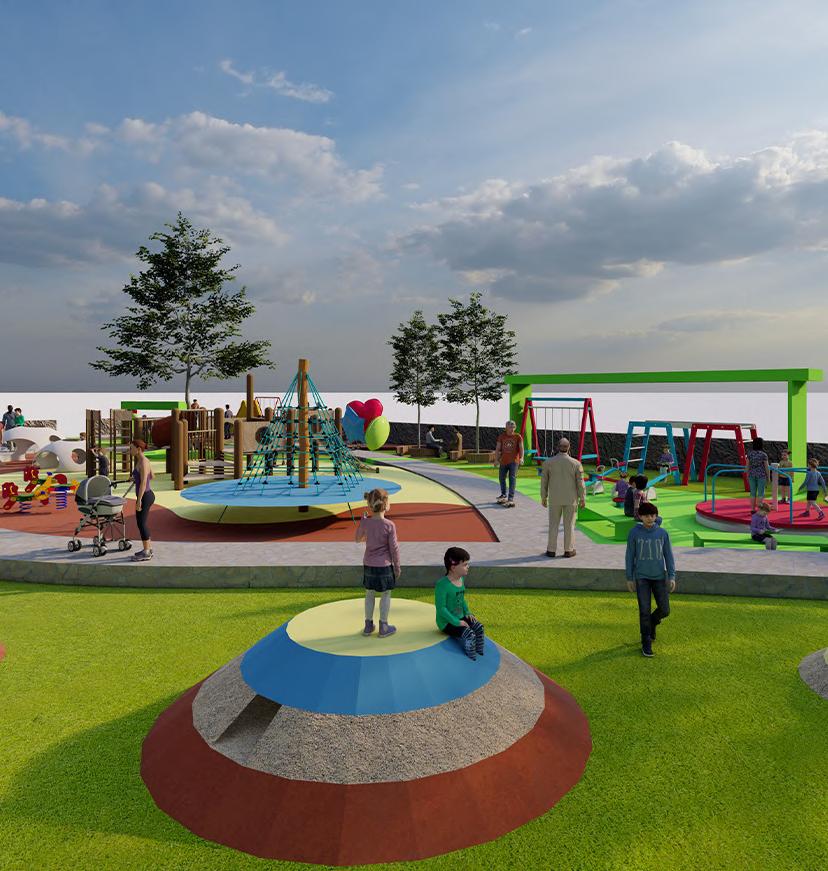

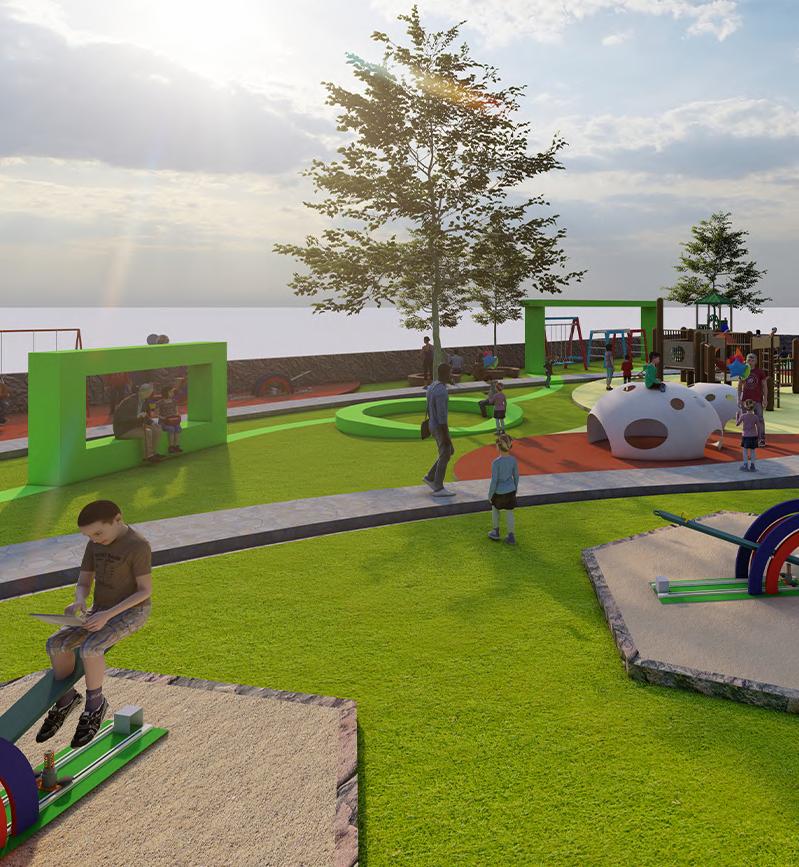

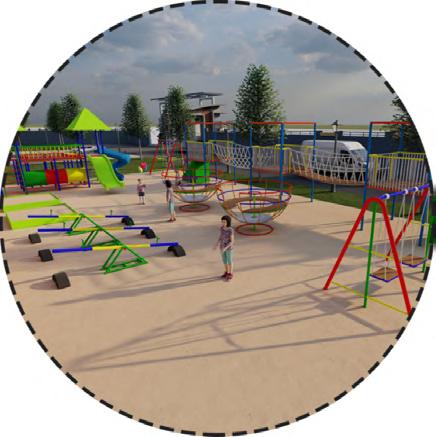

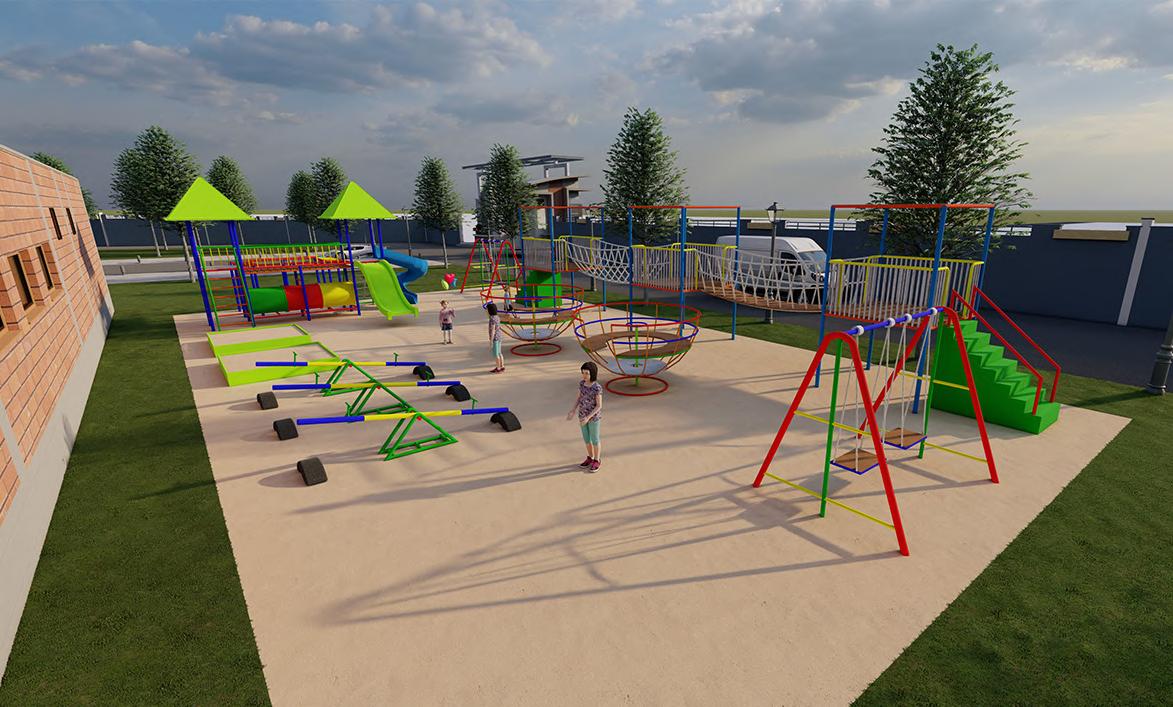

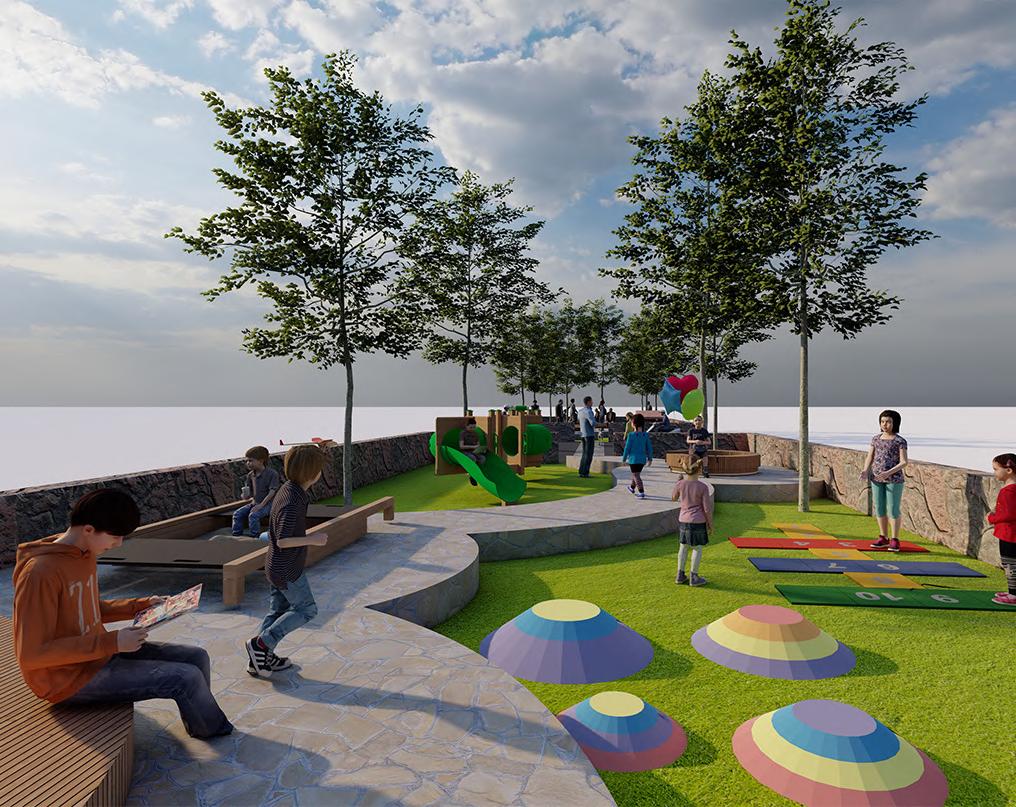

4. CHILDREN’S PARKA separate park for children has been designed At the neighbourhood level which has various Swings and play activities for them.
6. CORNER PARKS-

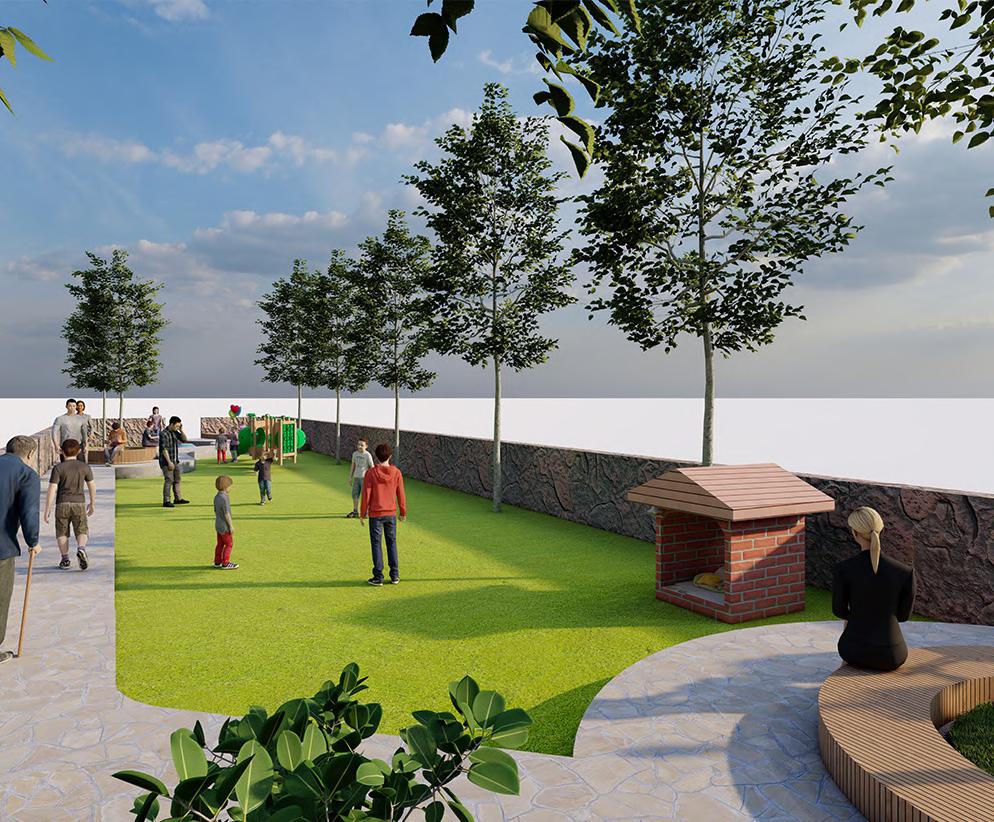

There is a set of two corner parks at the end of each row, one of which is designed for children having play activities for them. The other has sittings for elderls and dog kennels as well. At the cul-de-sacs these two parks are combined to form one large park with a lawn in the centre.

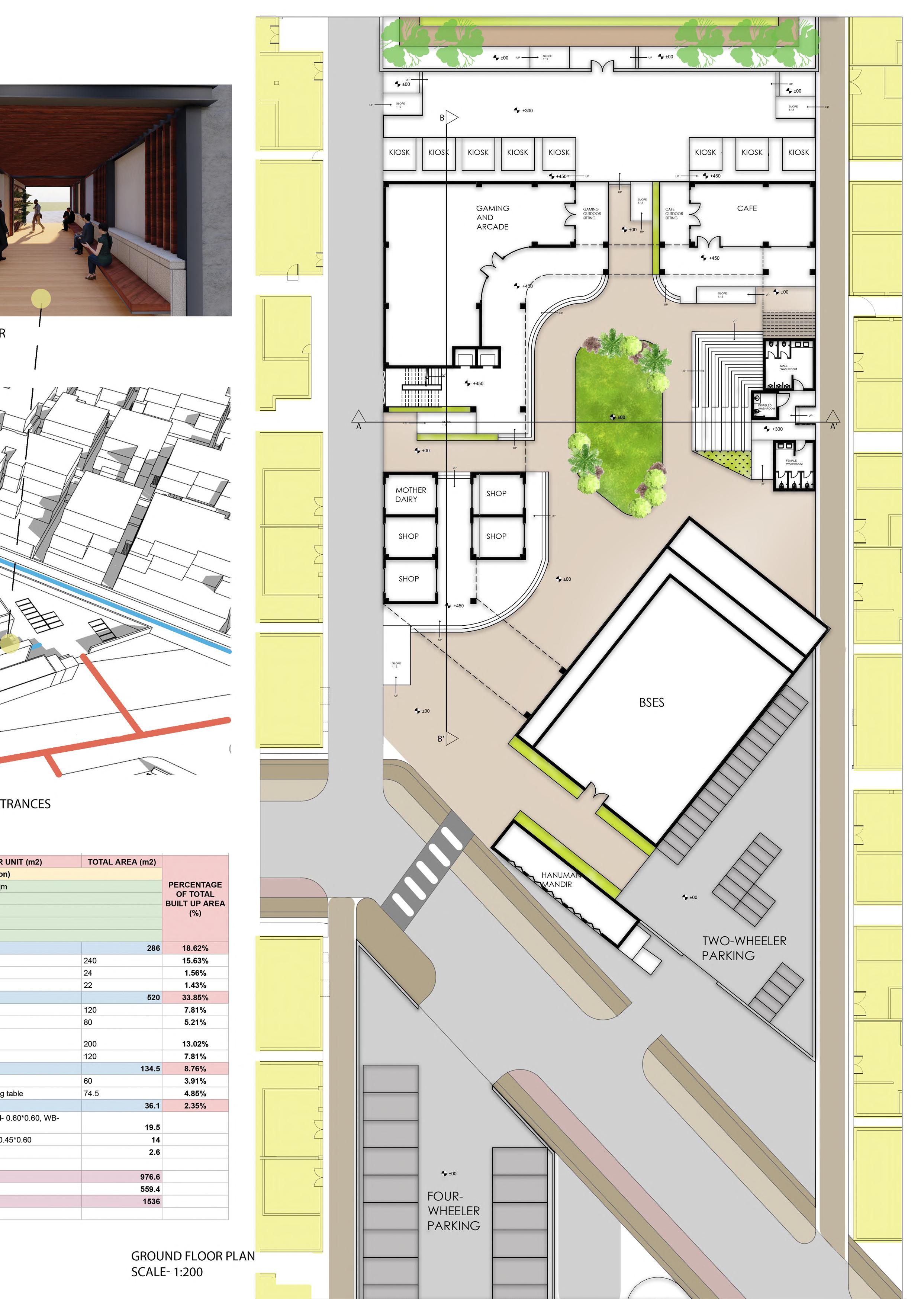

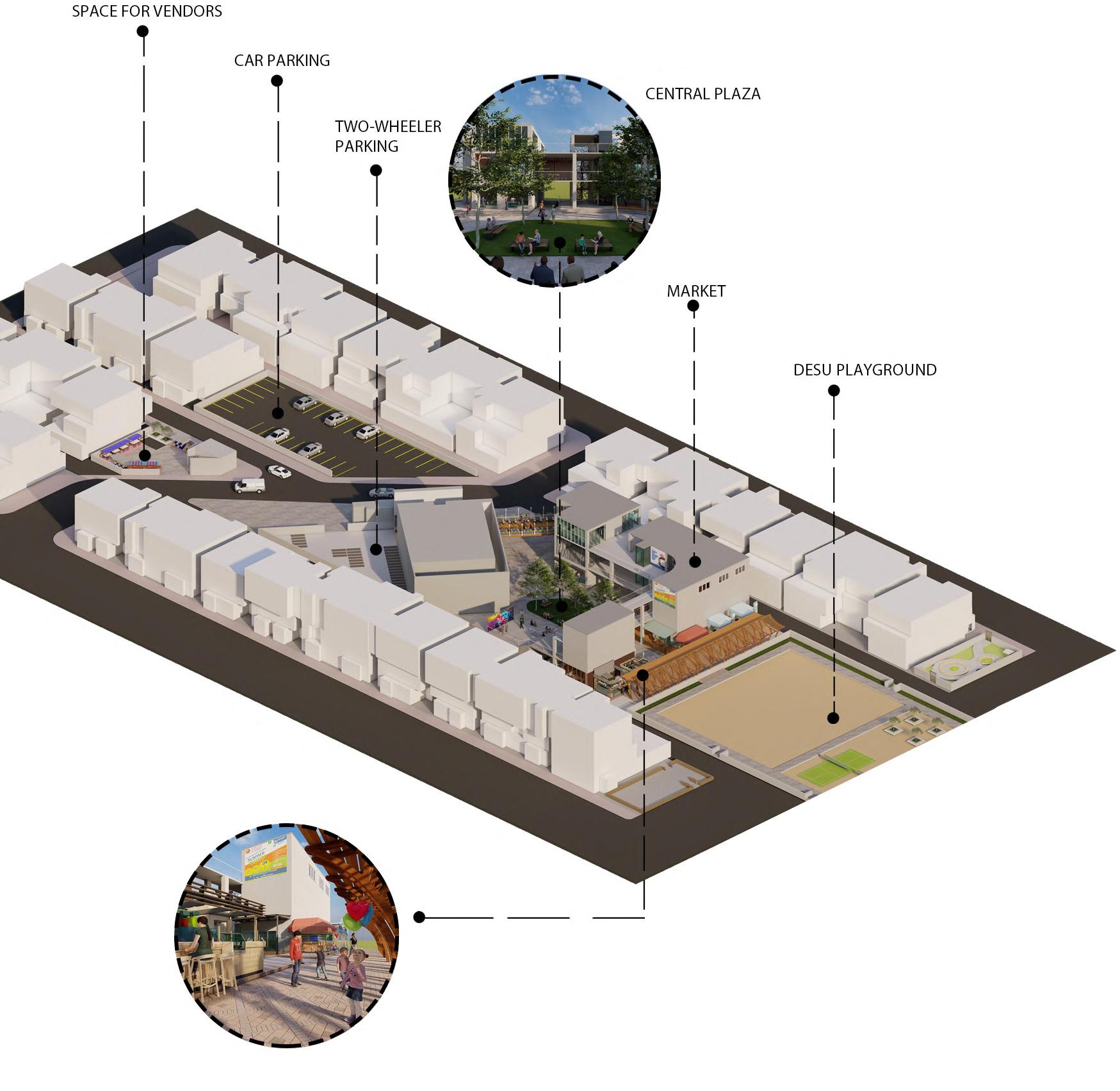

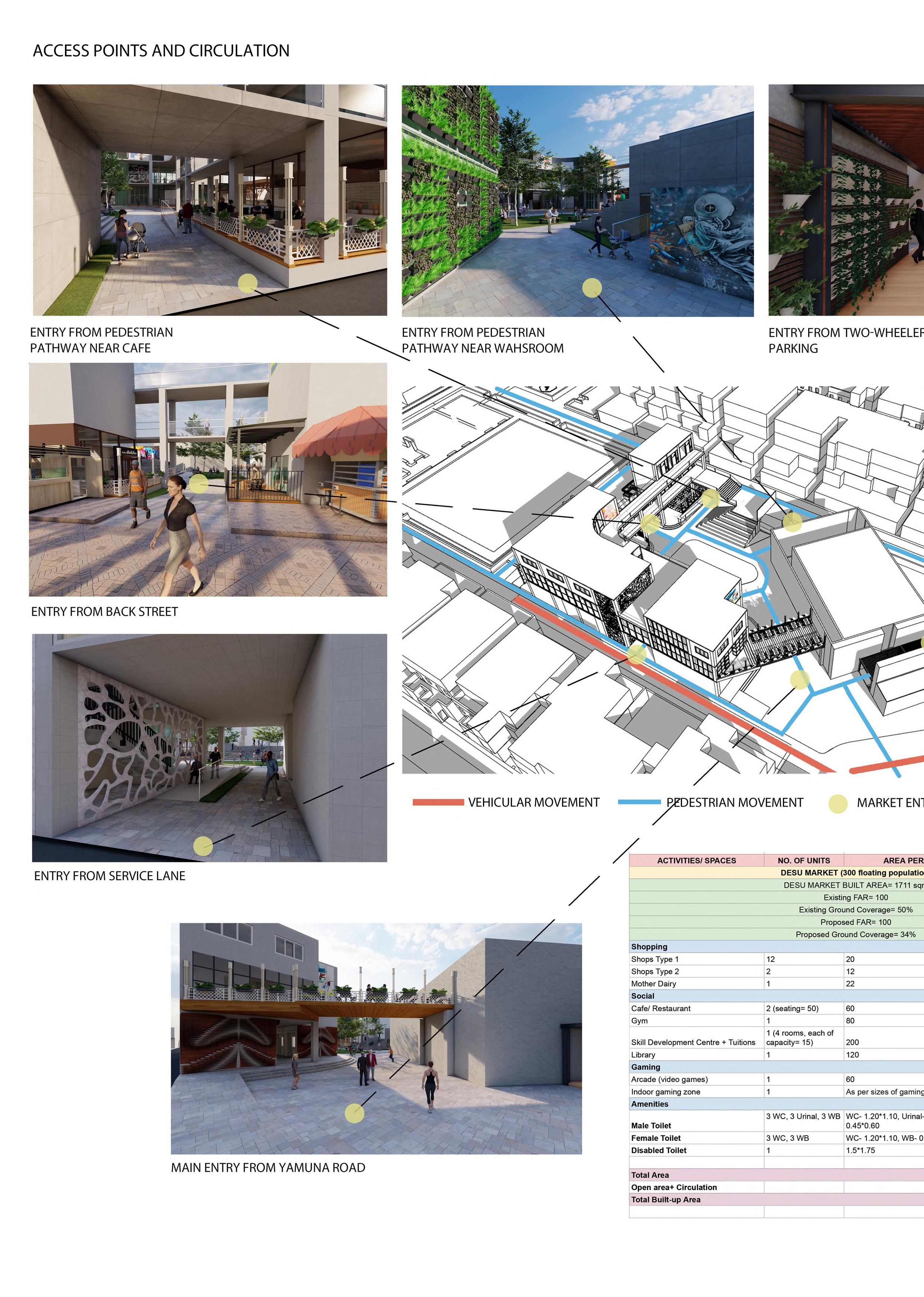

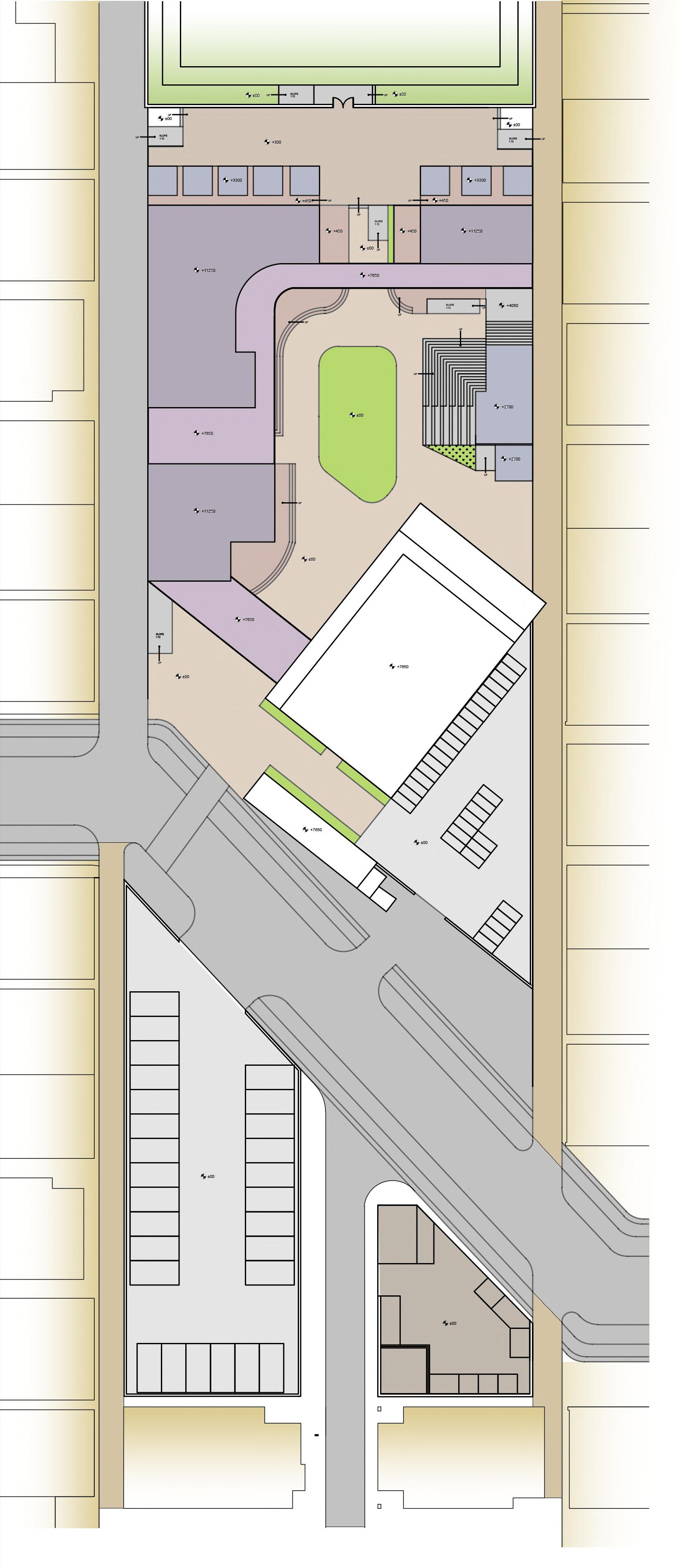

MARKET INTERVENTIONS

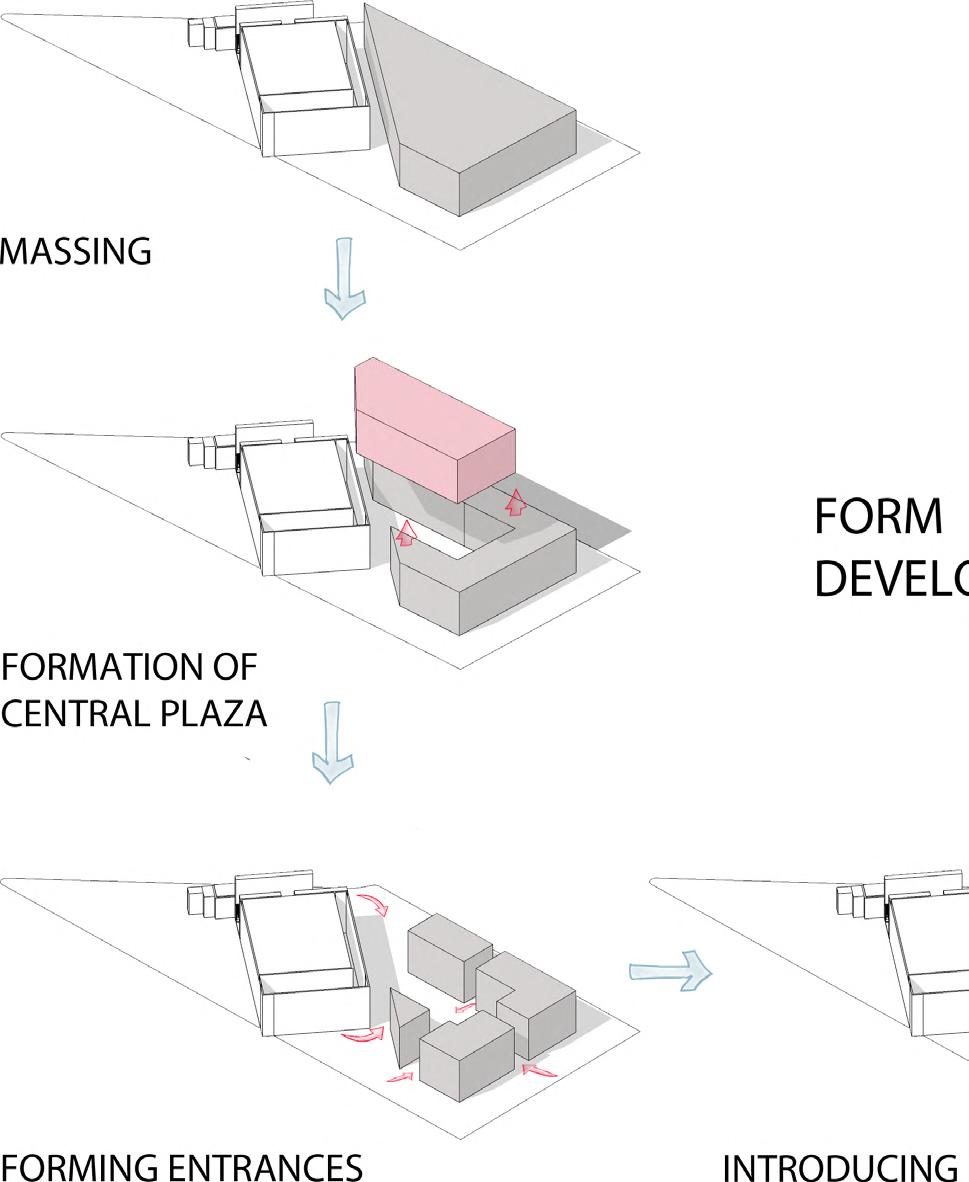

CONCEPT-
The DESU Market has been transformed to create a social hub which provides opportunities for recreation as well as active engagement by people. Different activities have been provided to cater to the various age groups and make the space more inclusive. Hierarchy of open spaces and a play of level facilitates interaction among people. Along with a central plaza, a connected back street has also been designed to create a lively ambience. This street connects directly to the desu playground, hence providing a smooth flow. The social hub promotes an inclusive community with provision of universal access and public sitting infrastructure. Thus, the main aim was to achieve an inclusive and interactive community.

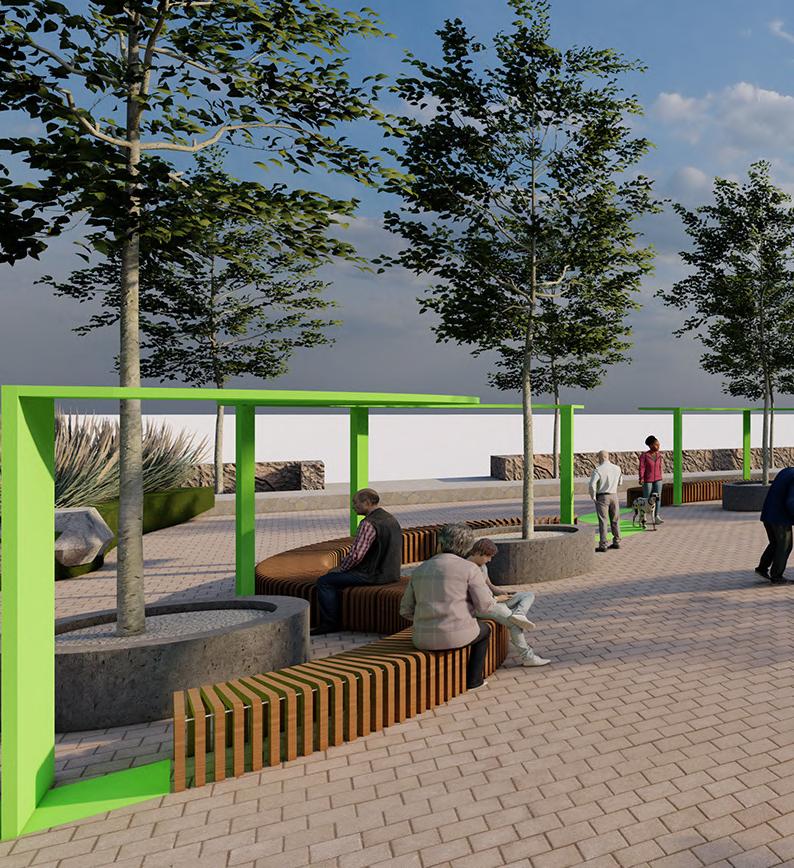

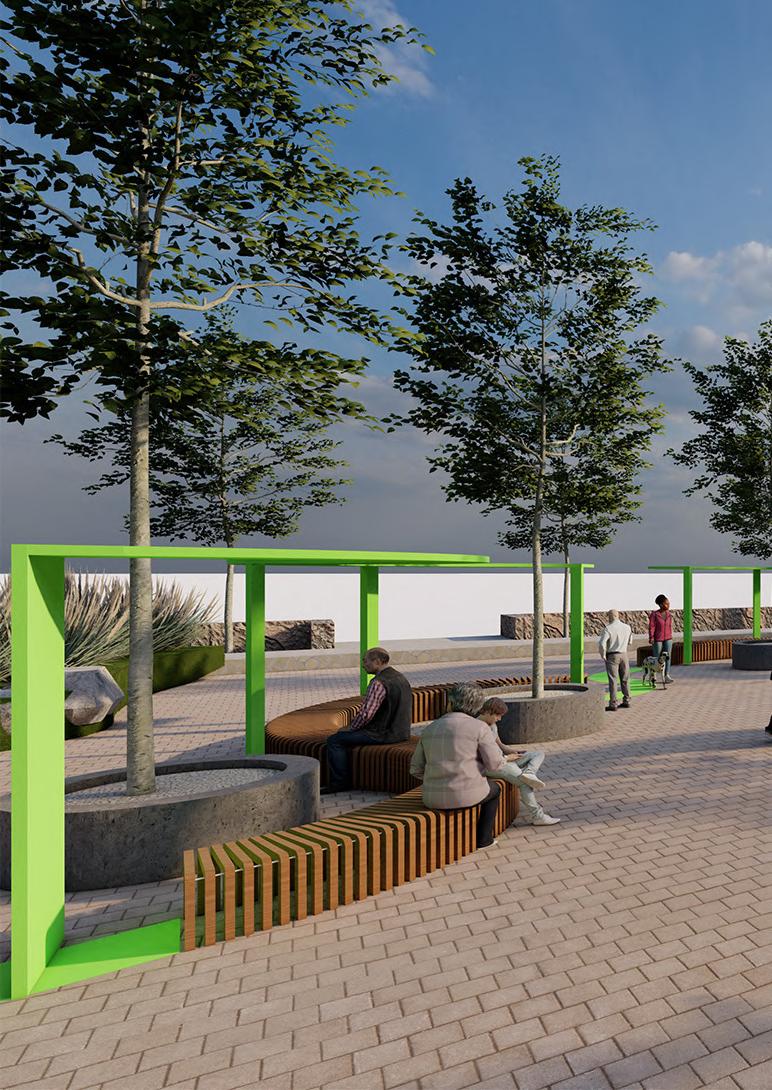

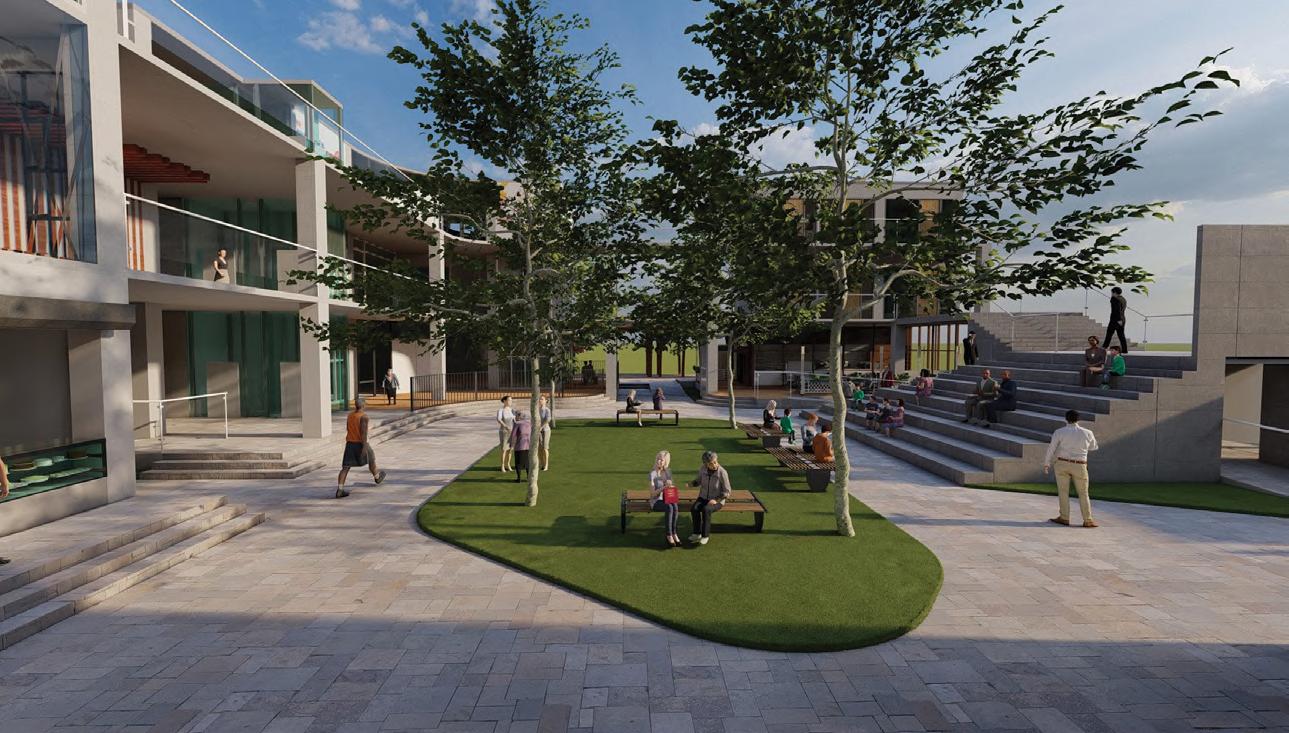

LIVELY STREET CENTRAL PLAZA
STEPPED SITTING

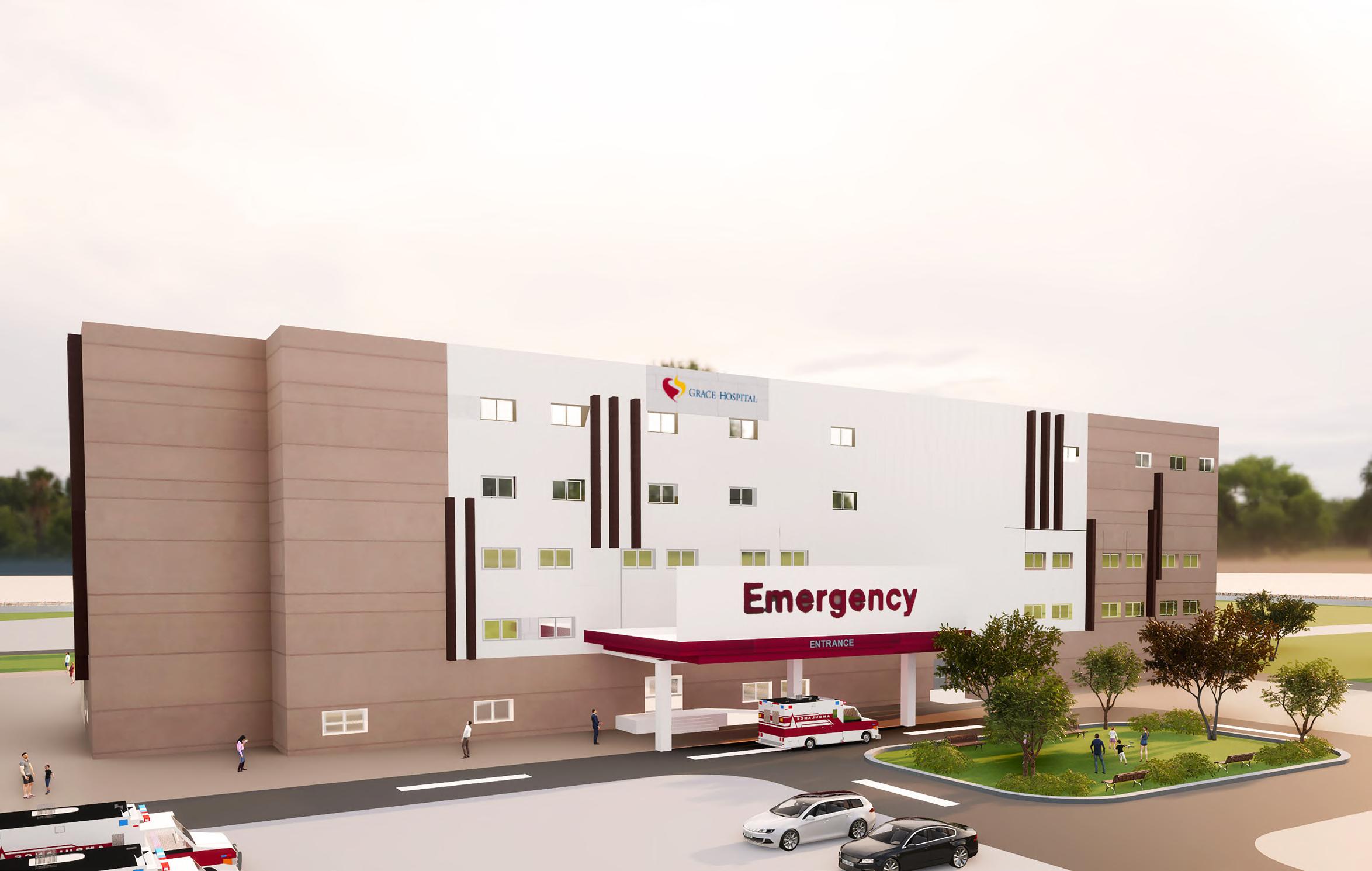

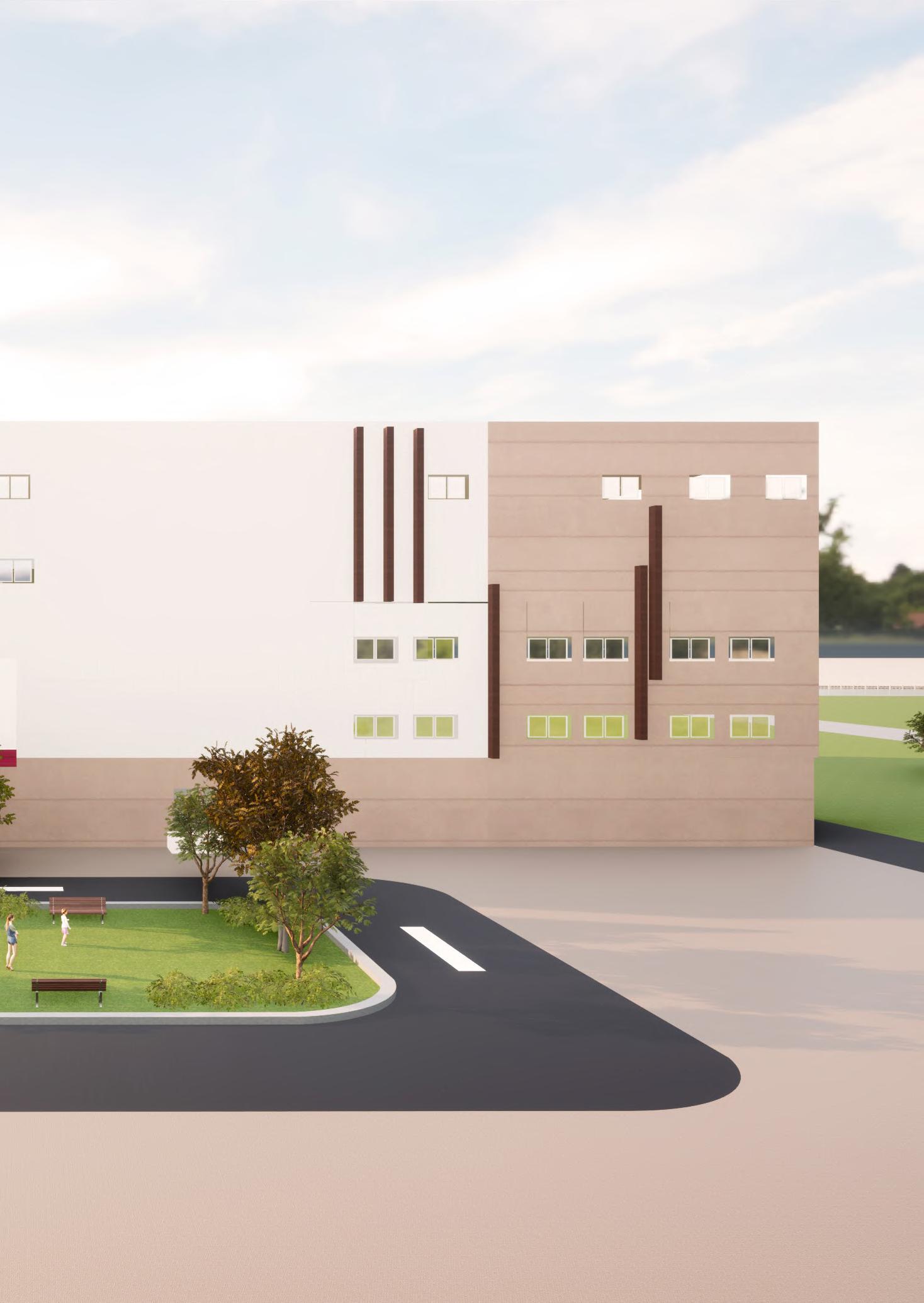

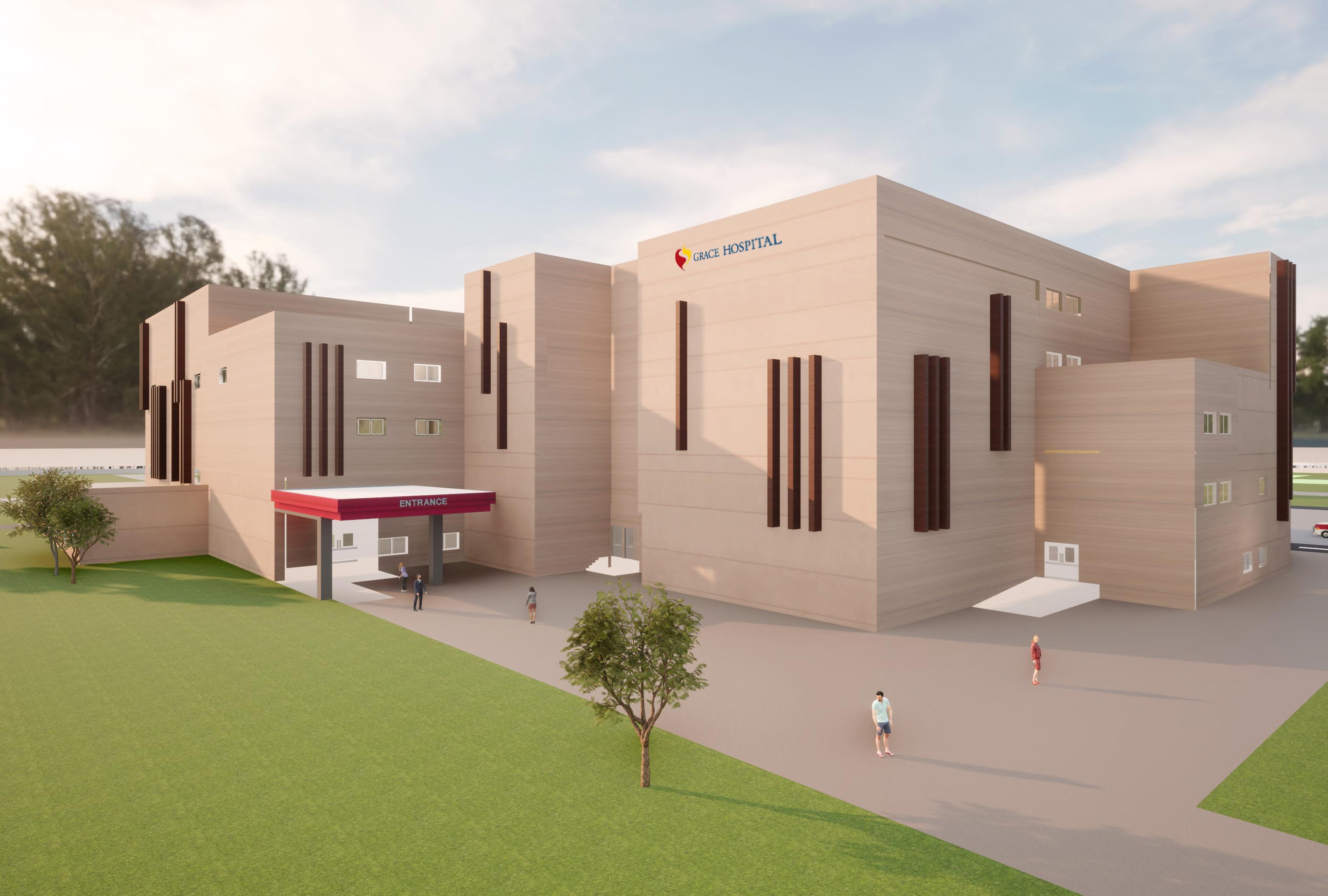

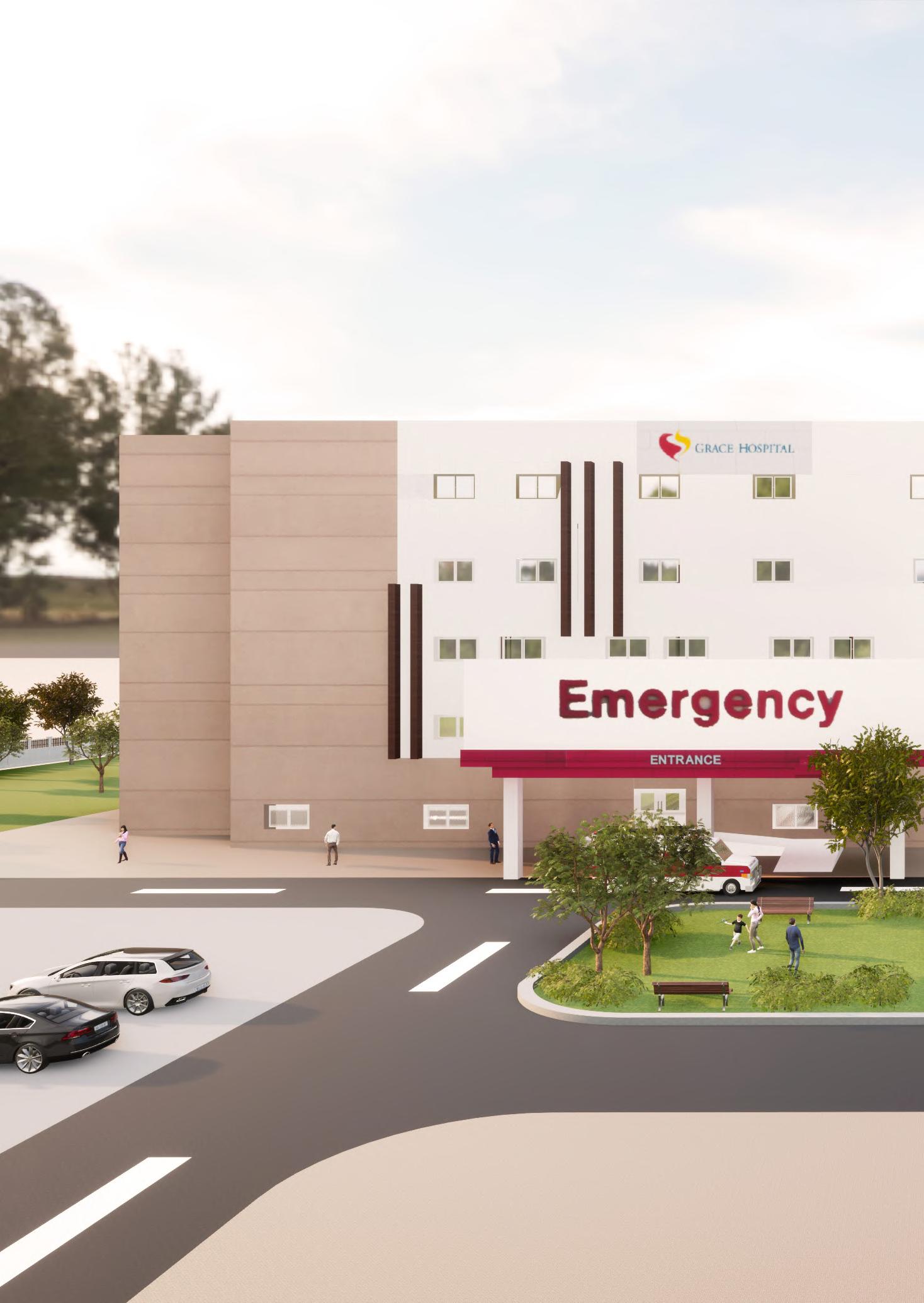

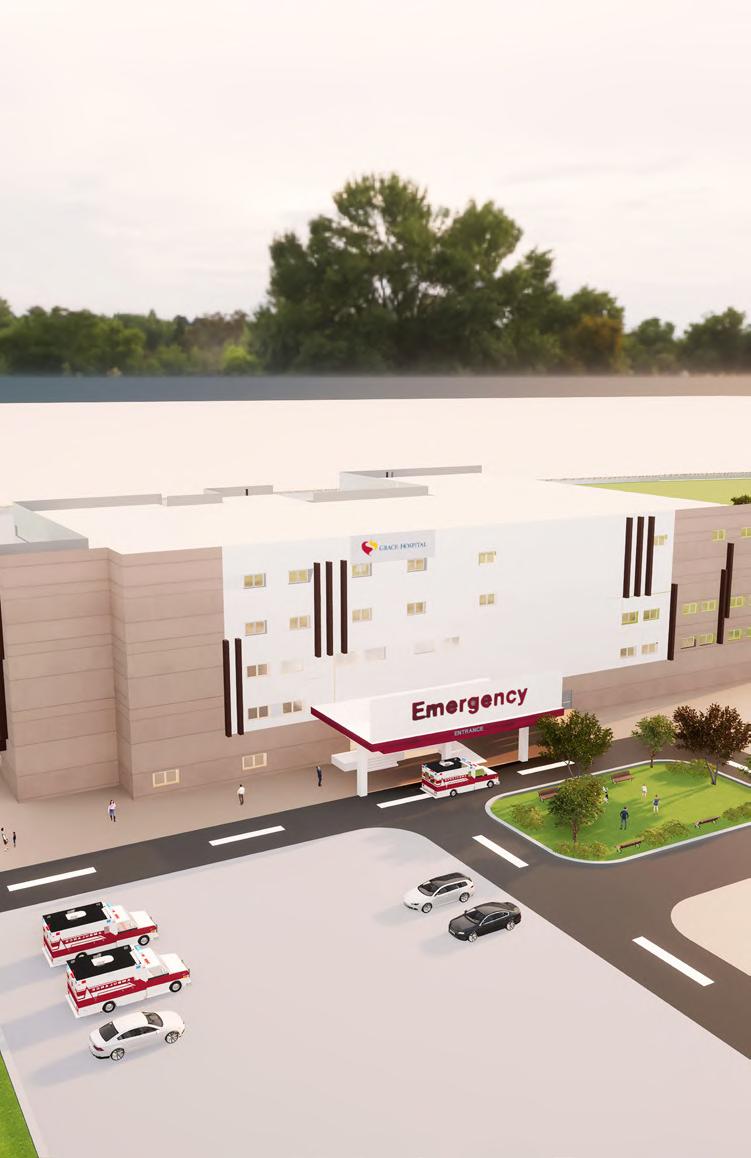

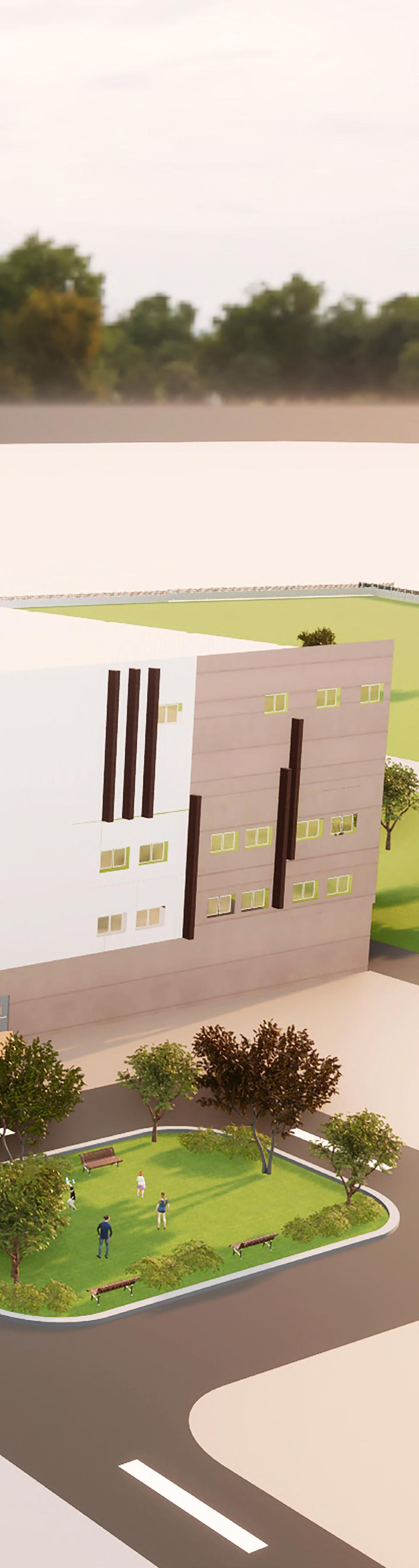

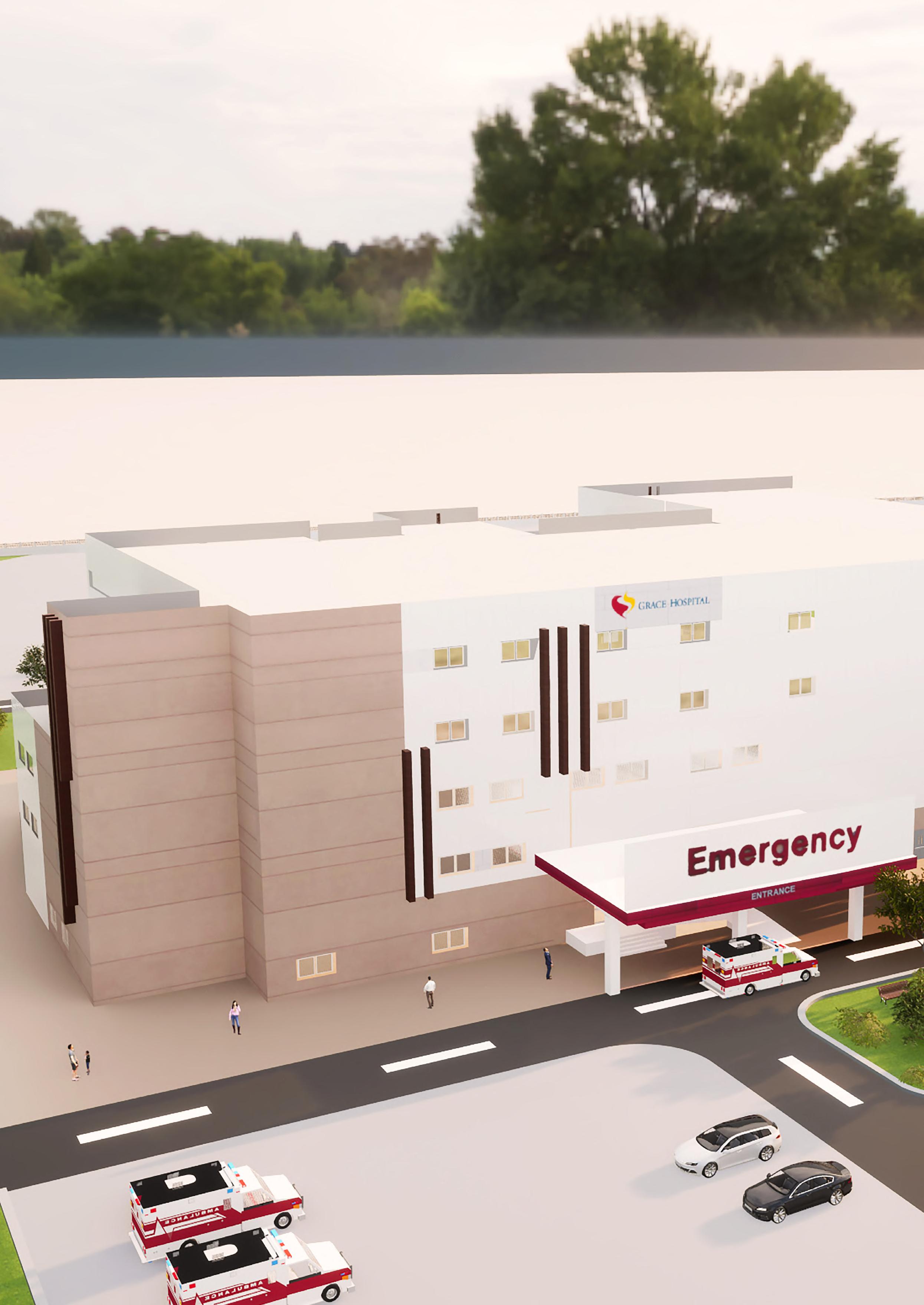

03 HOSPITAL
Type: Hospital
Location: Dwarka, Delhi
Year: 2022
ABOUT THE PROJECT
To design a 100 bedded hospital in Dwarka. The aim of the project was to design a hospital with all the facilites required, properly seggregated and yet connected throught the structure.
SOFTWARES
Autocad, Sketchup, Twinmotion, Photoshop

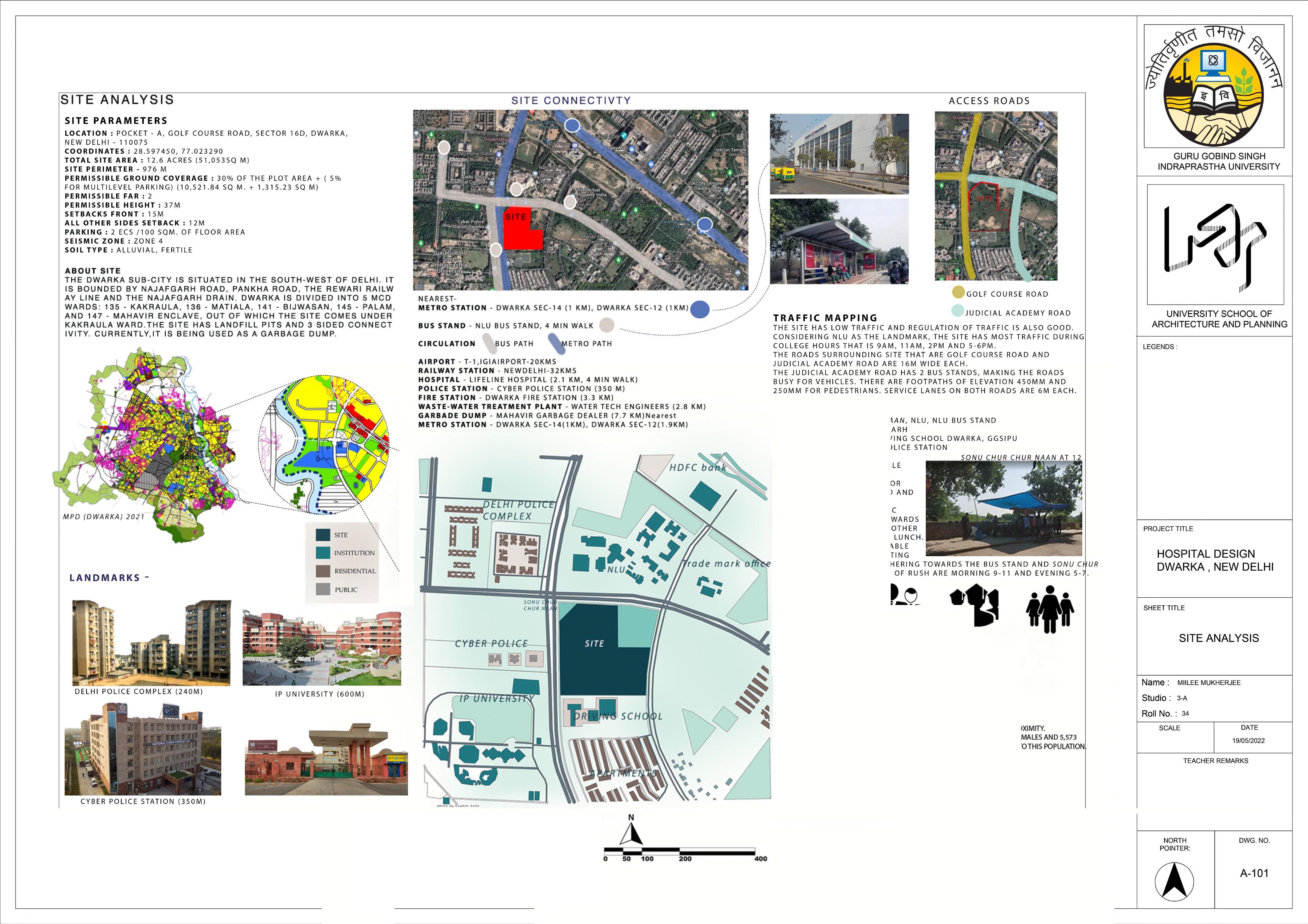

SITE PARAMETERS
Location- pocket-a, golf course road, sector 16d, dwarka, new delhi-110075
Coordinates- 28.597450, 77.023290
Total site area- 12.6 Acres
Site perimeter- 976m
Permissible ground coverage- 30% of the plot area + (5% for multi level parking)
(10,521.84 Sqm + 1,315.23 Sqm)
Permissible far- 2
Permissible height- 37m
Front setback- 15m
Other sides setback- 12m
SITE INSTITUTION RESIDENTIAL
PUBLIC

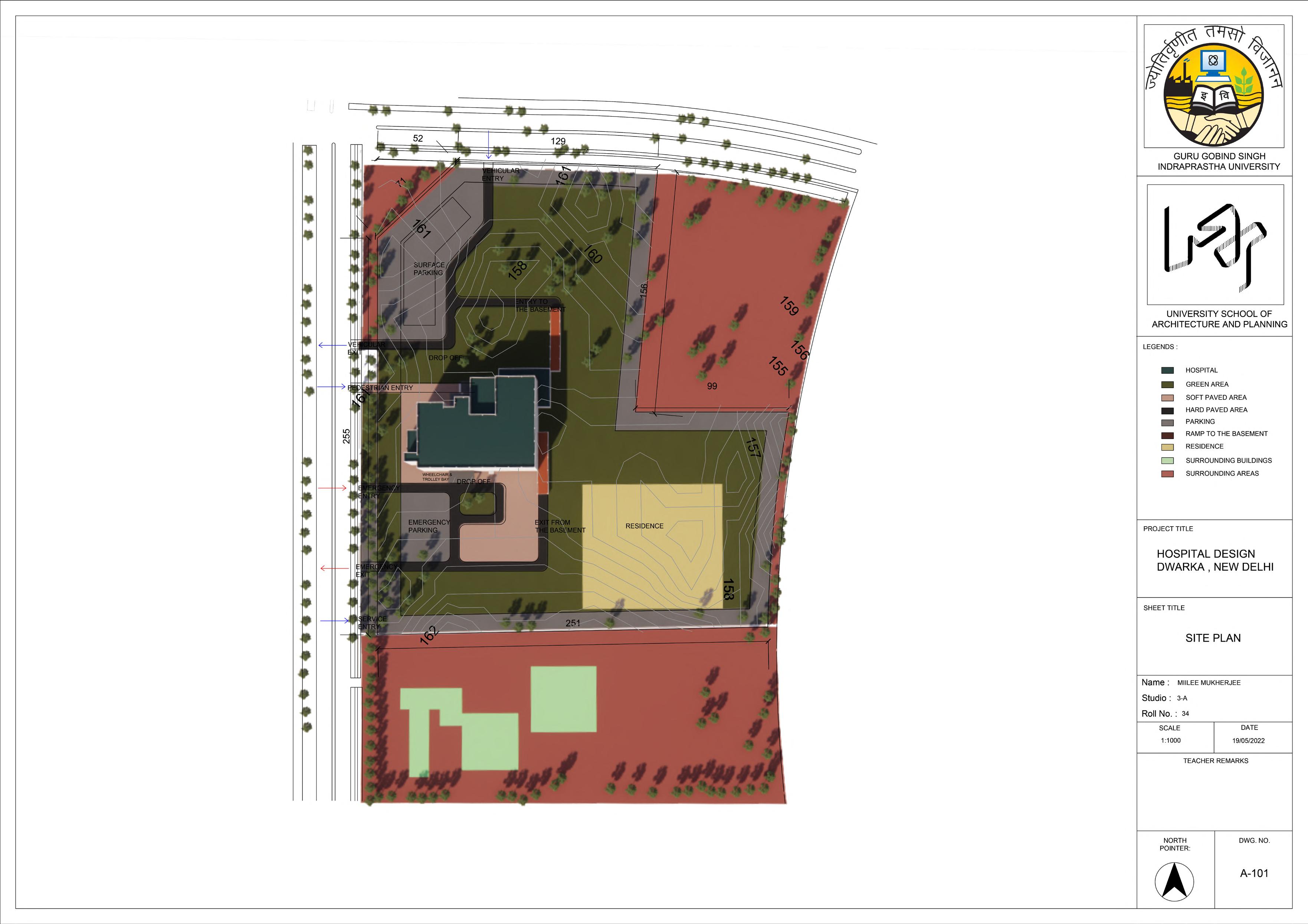

SITE PLAN

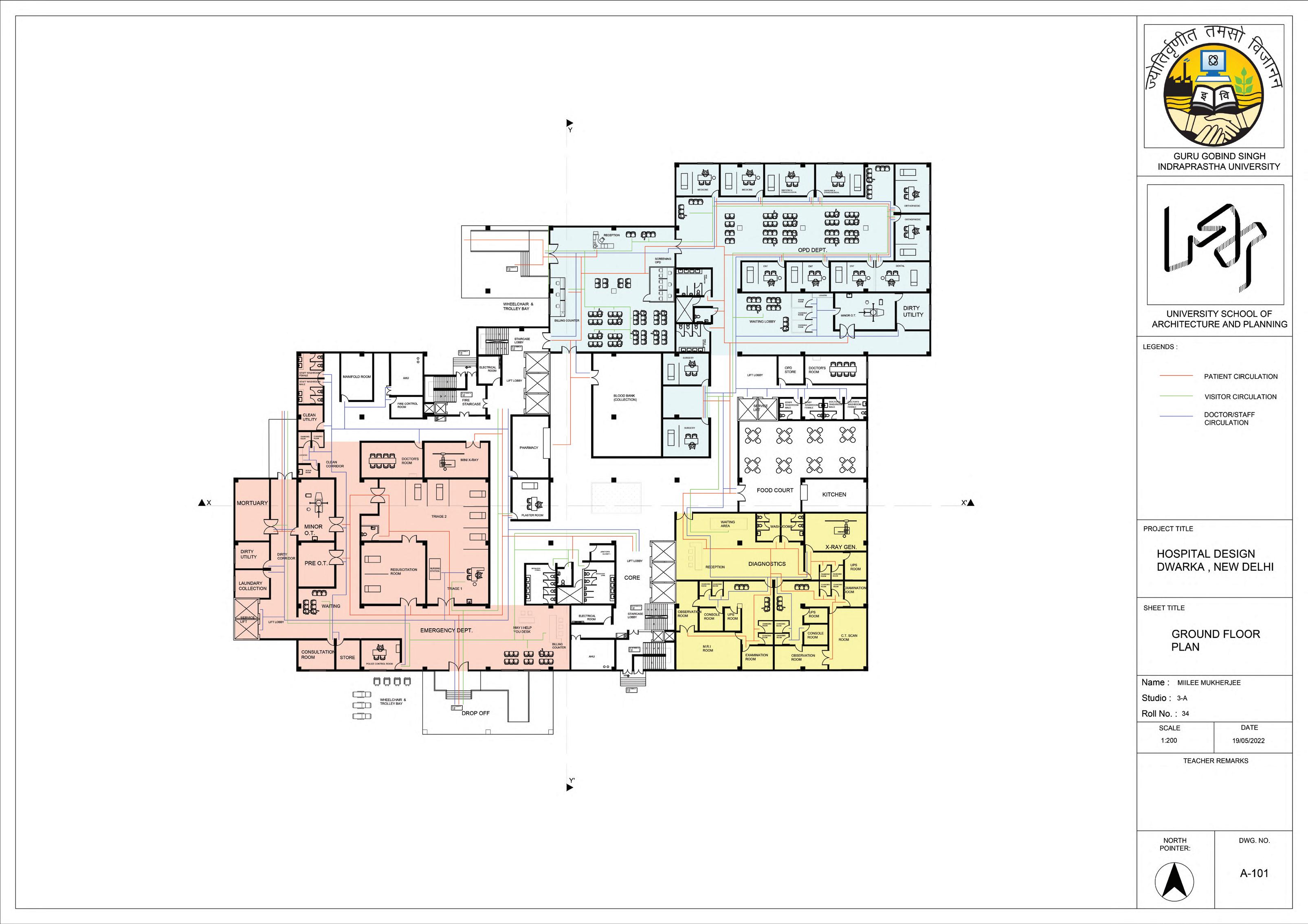

FLOOR PLANSSECTIONS-
FLOOR PLAN
GROUND

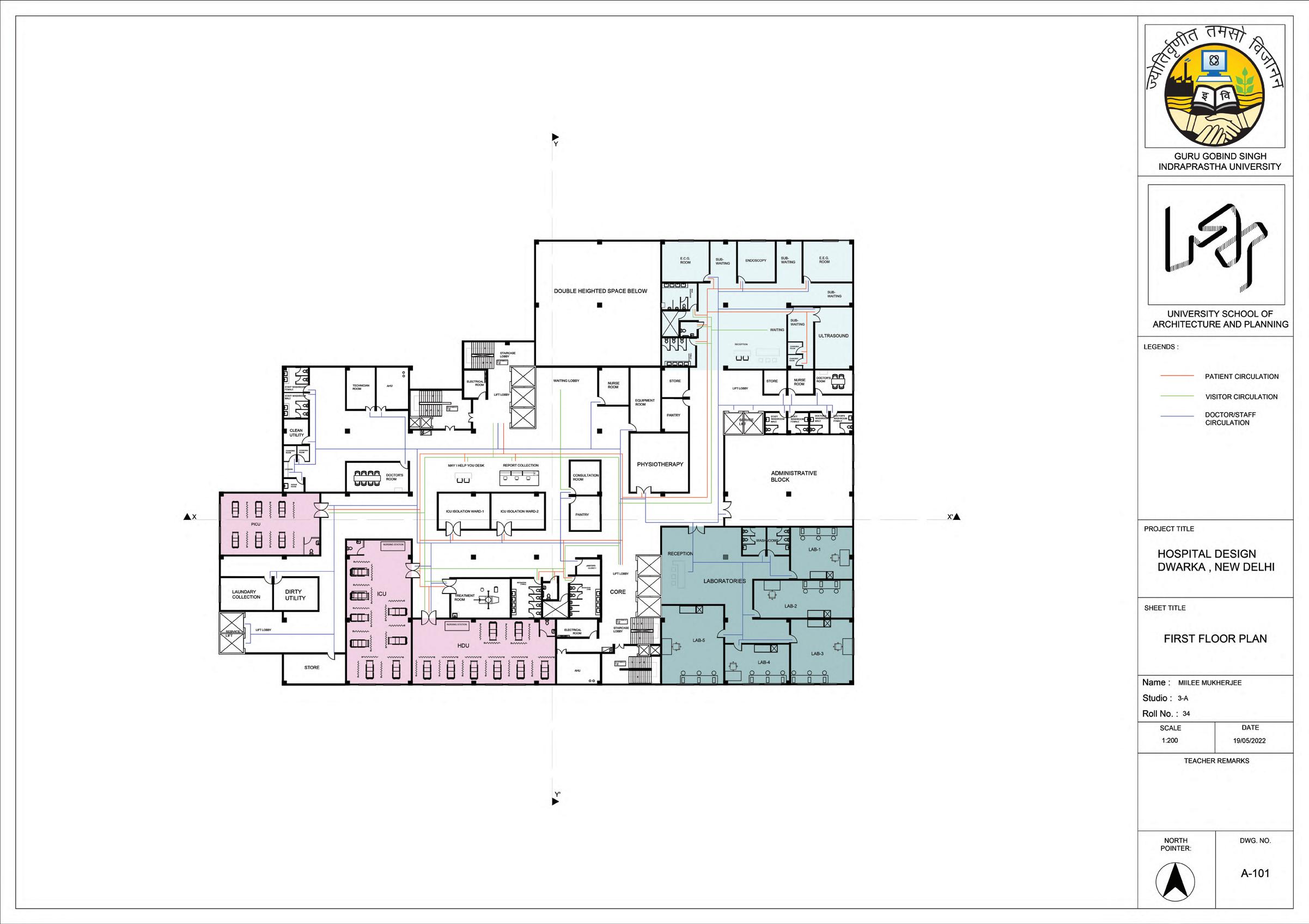

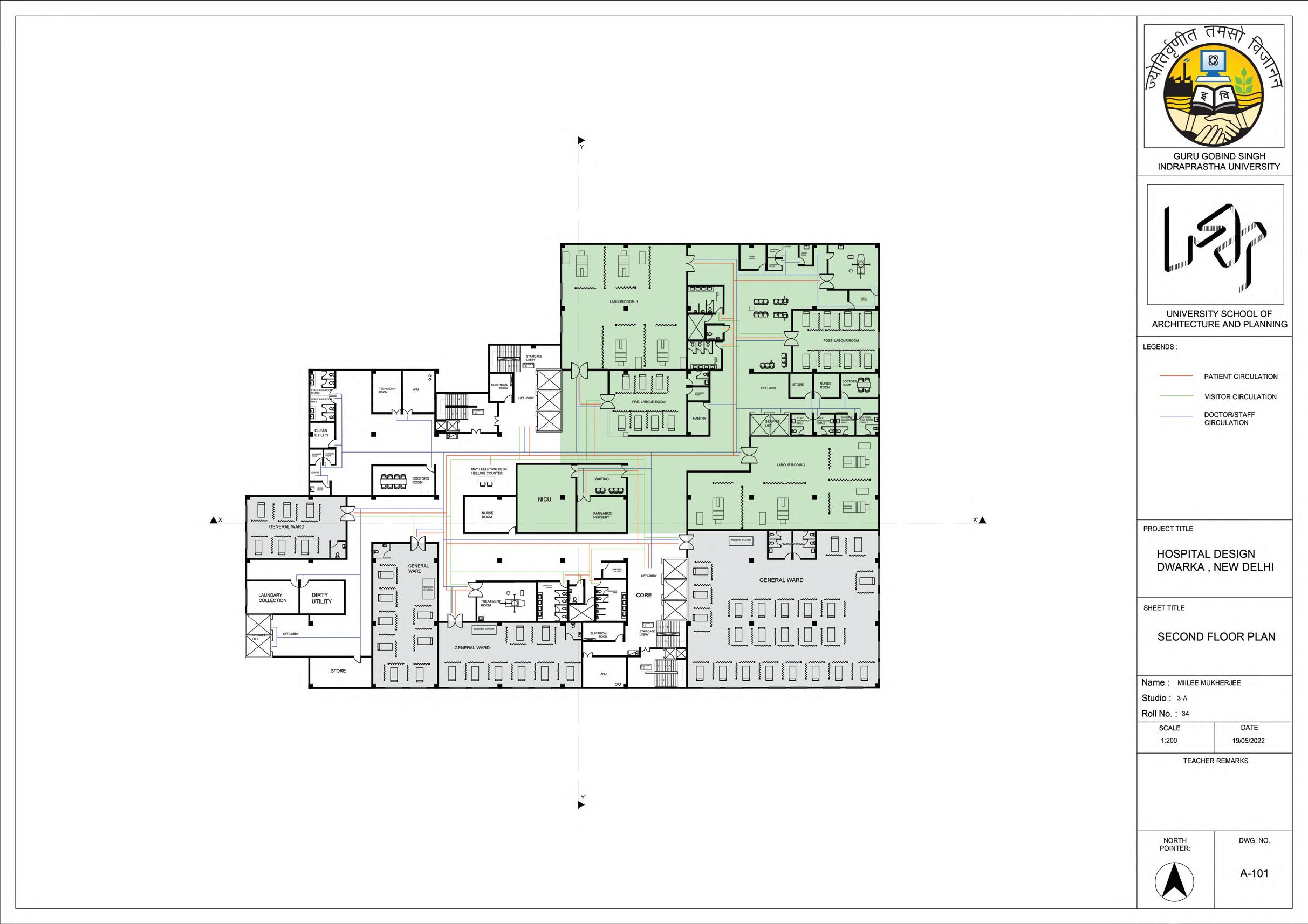

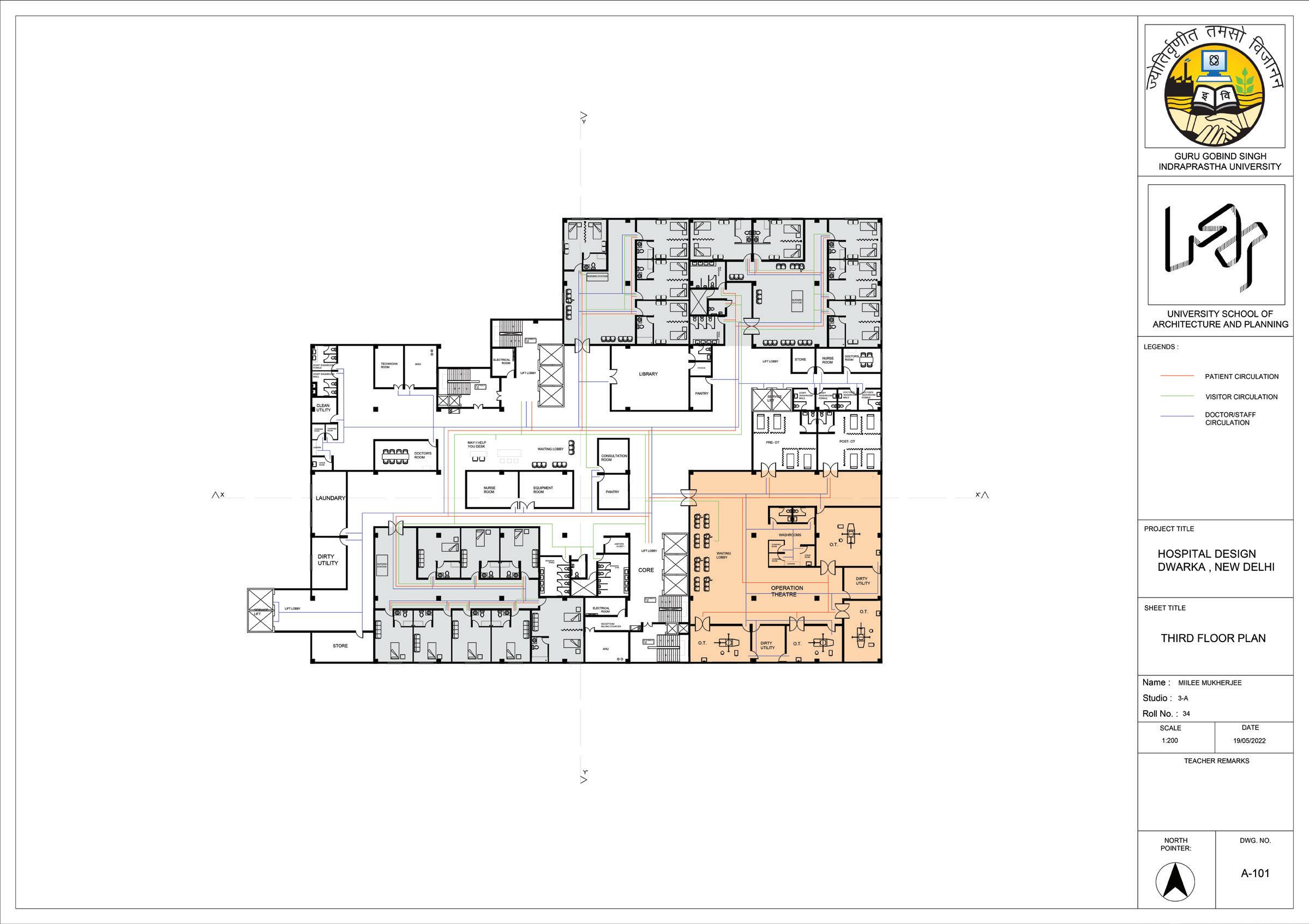

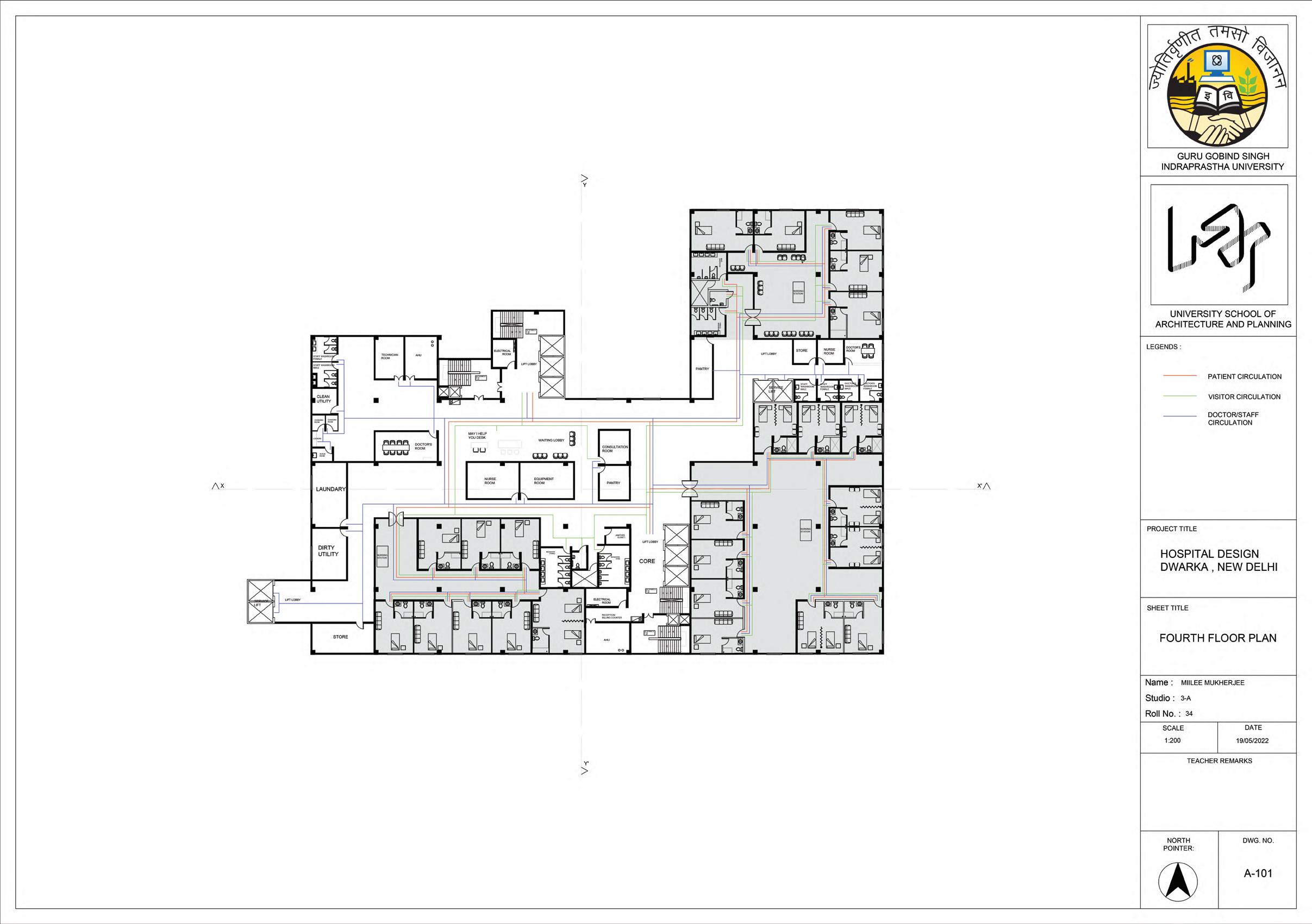

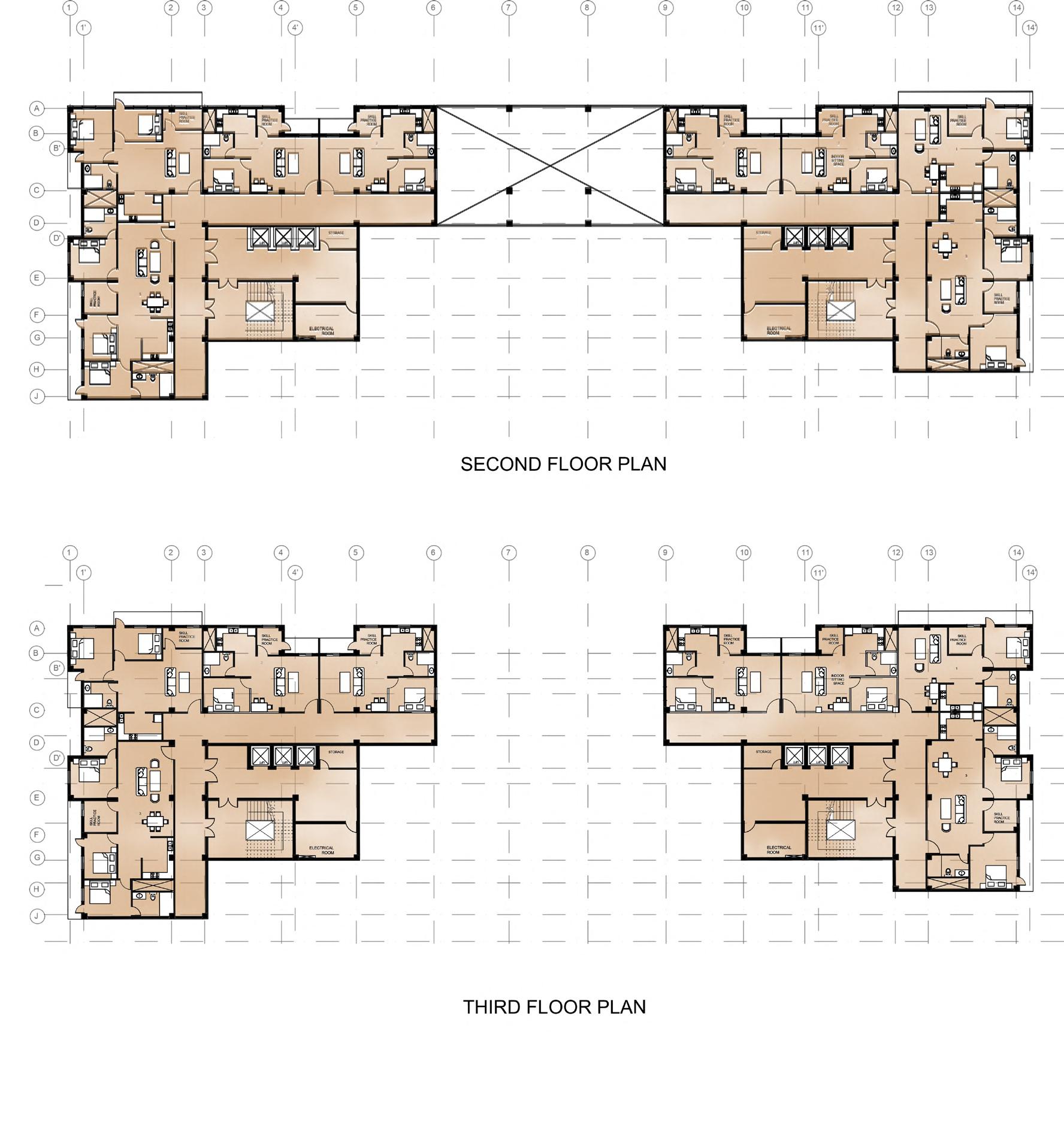

FIRST FLOOR PLAN SECOND FLOOR PLAN THIRD FLOOR PLAN FOURTH FLOOR PLAN
04
RESTAURANT
Type: Restaurant
Location: Pune, Maharashtra
Year: 2022
ABOUT THE PROJECT
Interior design project of a family restaurant on a site of 260sqm. located in a multiplex of Pune.
SOFTWARES
Autocad, Sketchup, Enscape, Photoshop
Rough textured brown matte finish emulsion paint for walls of the sitting area.
Light beige matte finish emulsion paint for walls of the kitchen and washrom.

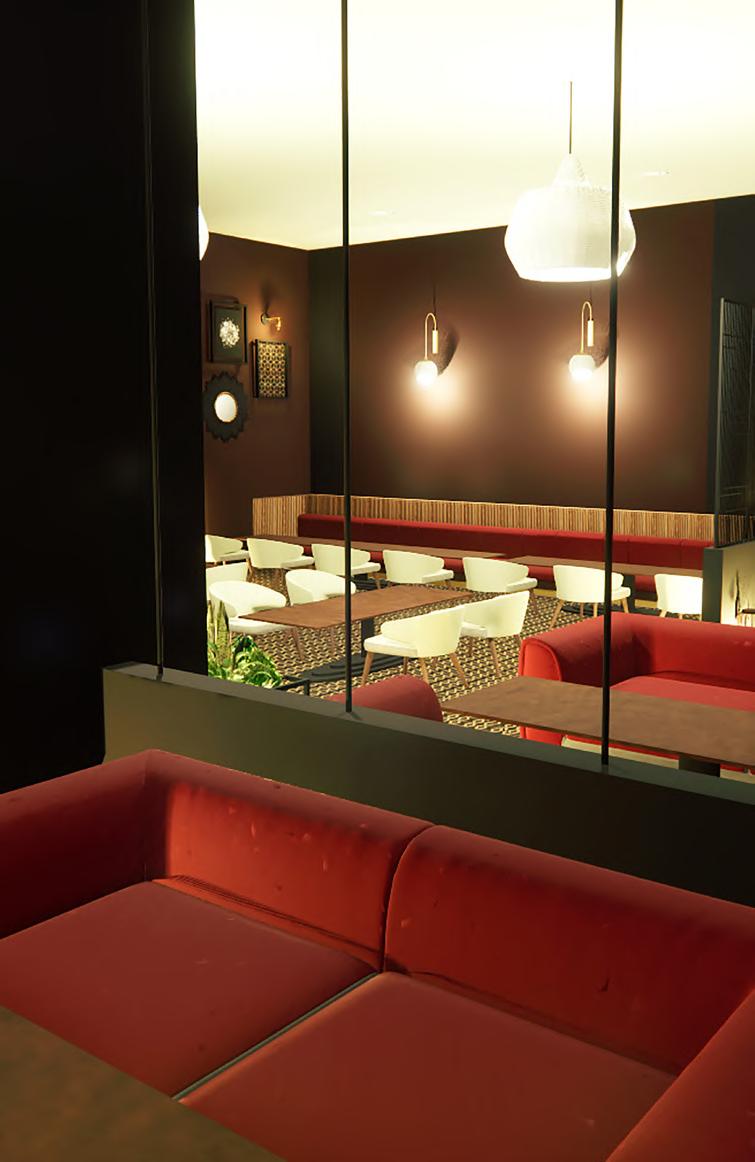

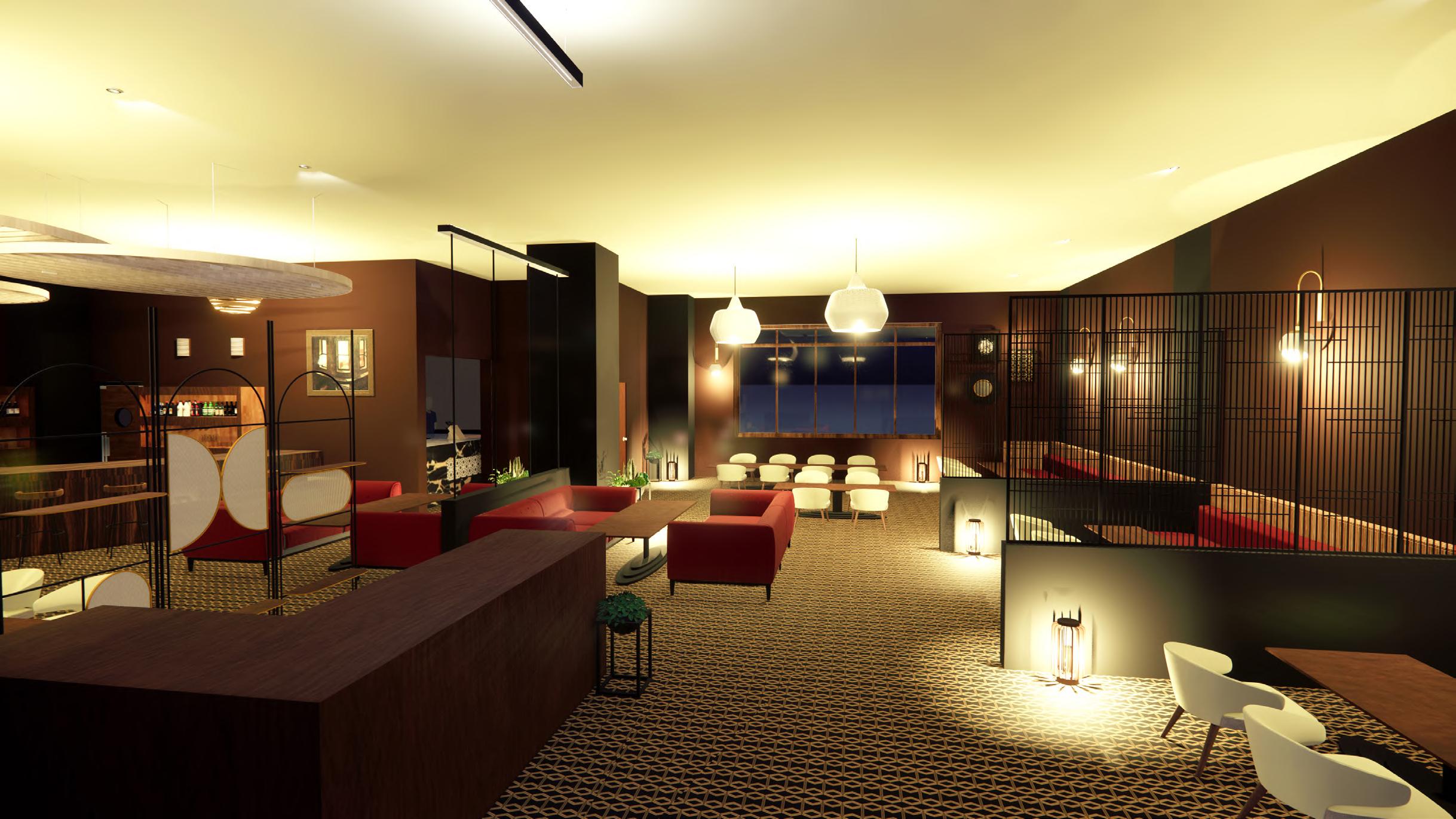

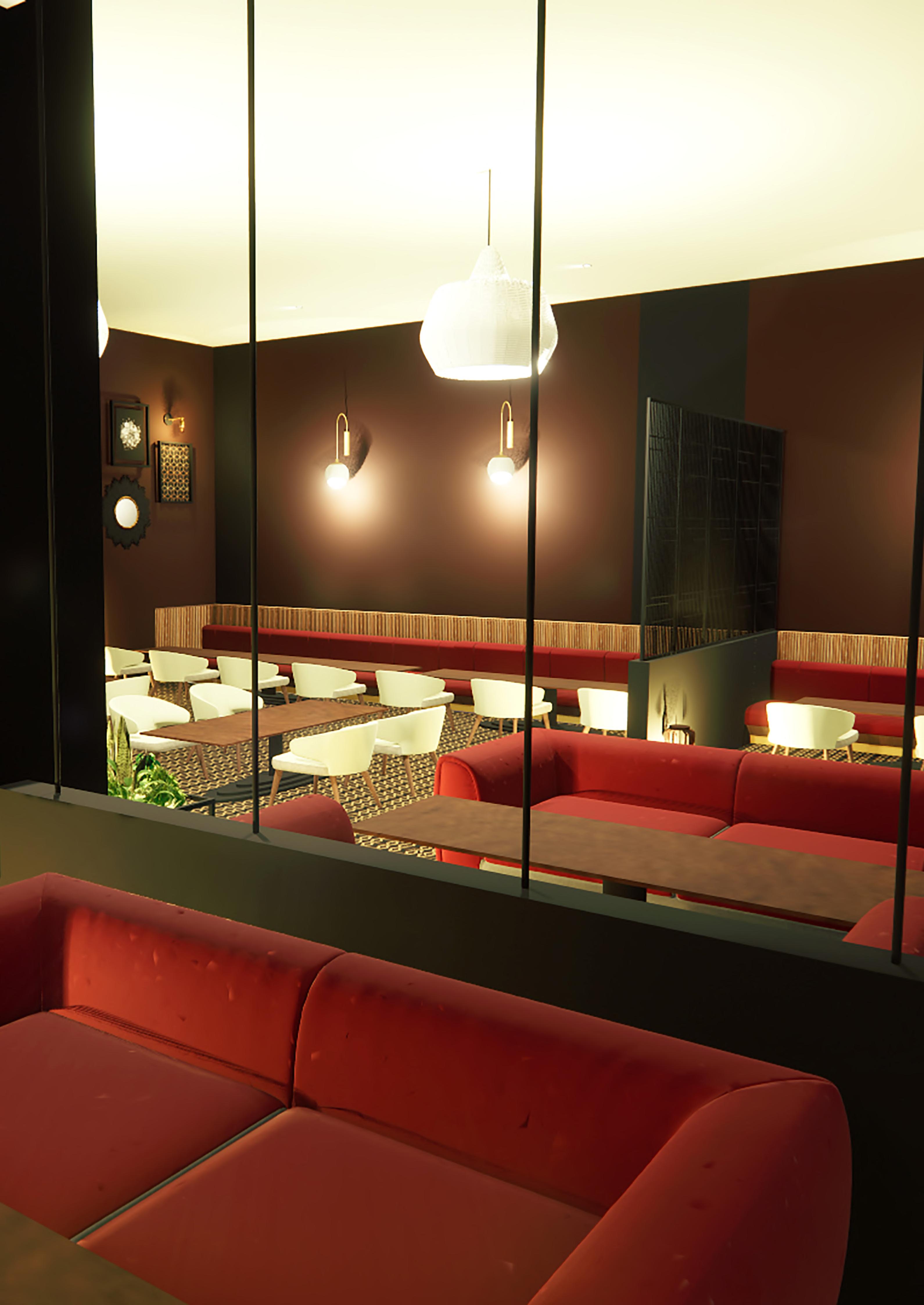

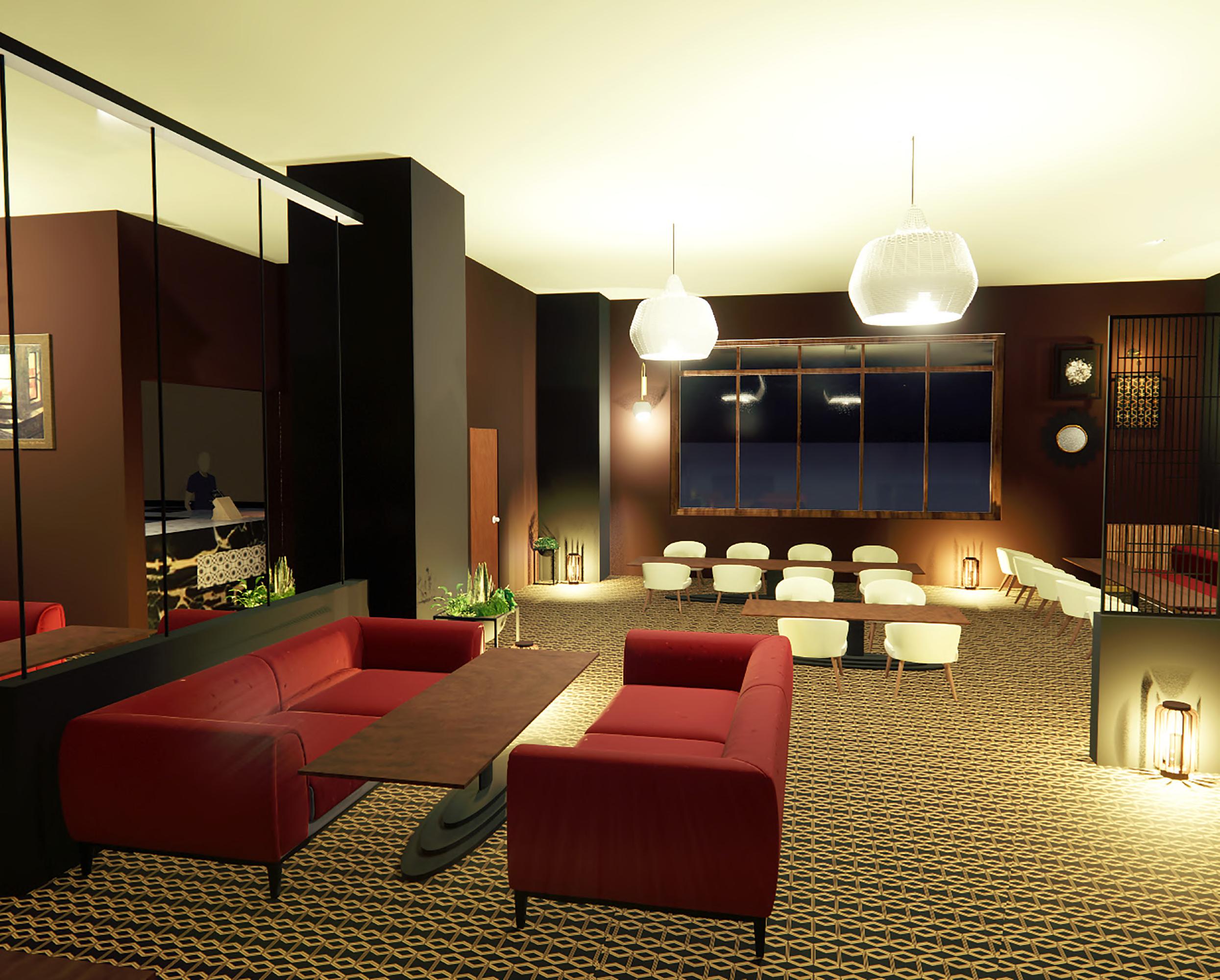

The style chosen for the projet is a rustic interior which is characterised by its earthy colours, wood textures, greenery, warm ambience, rough textures and finishes.
6500 1900 870 2300 4470 3400 6000 900 1800 760 1500 2200 2100 2000 2700 4000 3100 3300 500 4700
WASHROOM

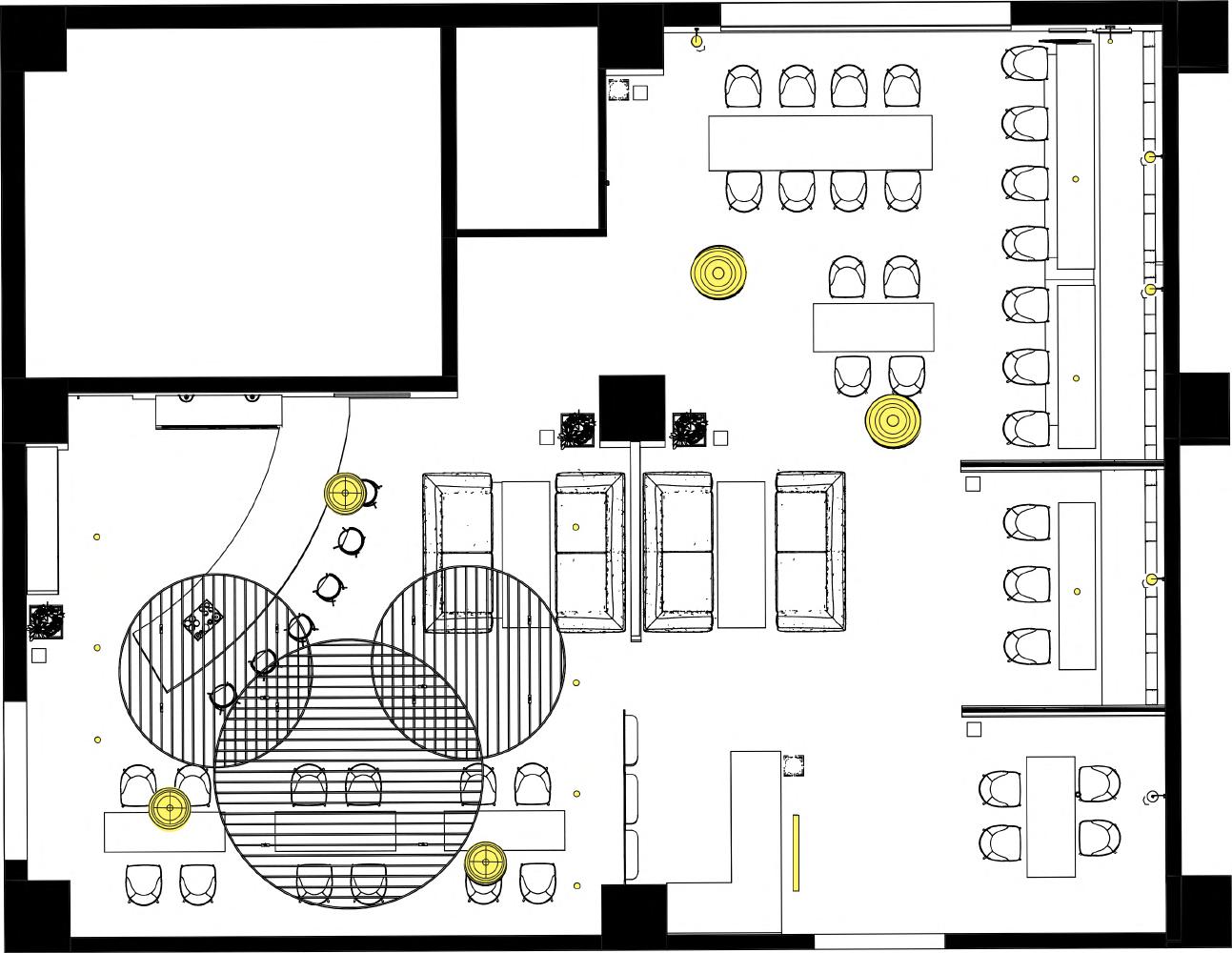

FLOOR PLANKITCHEN BAR

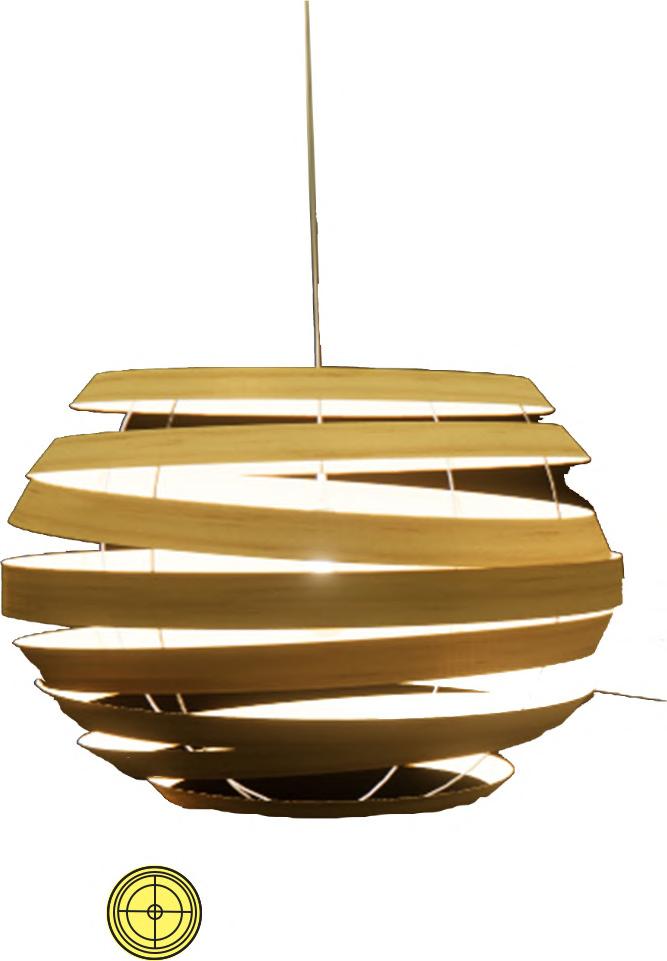

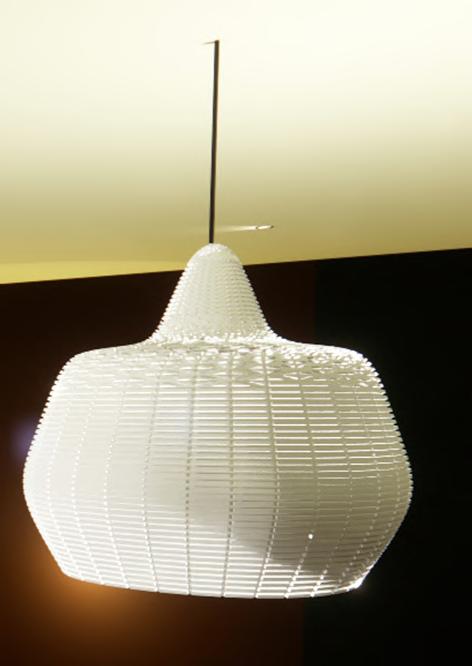

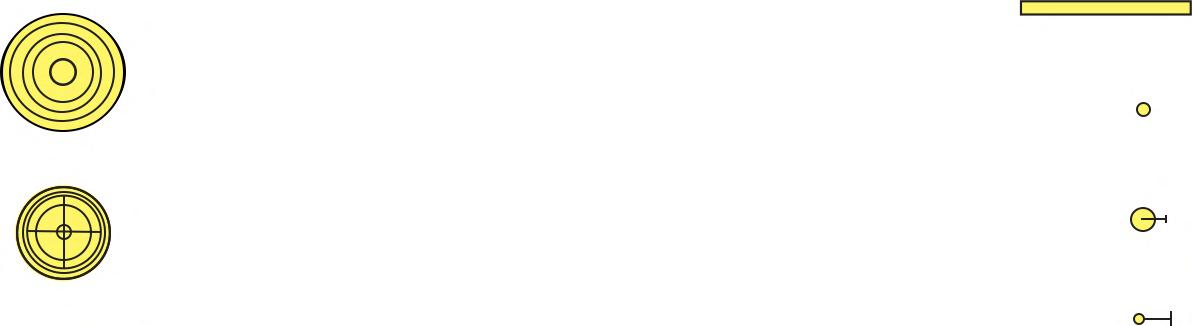

800mm dia ceiling lamp
650mm dia ceiling lamp

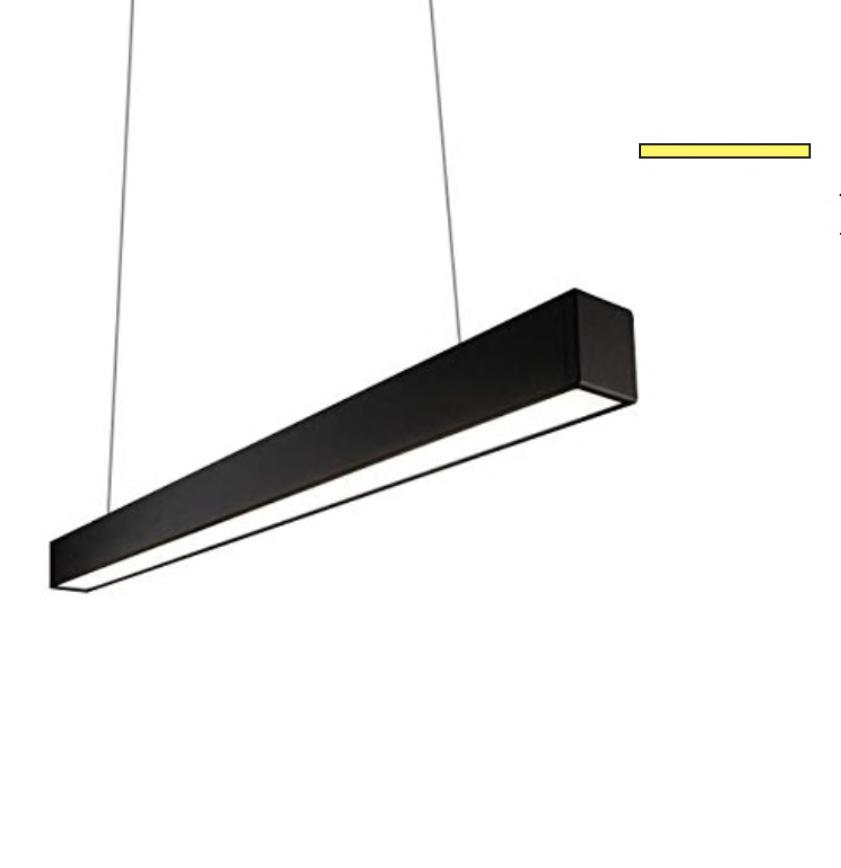

120mm wide hanging tubelight

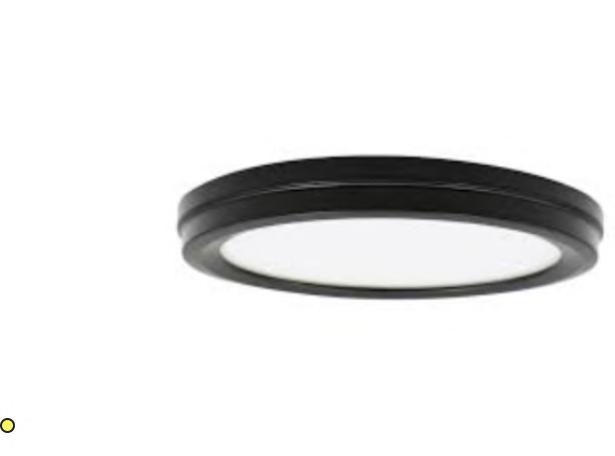

80mm dia ceiling mounted light
160mm dia wall mounted lamp
50mm dia wall mounted light
Hanging false ceiling element
120mm wide hanging tubelight
80mm dia ceiling mounted light
160mm dia wall mounted lamp
50mm dia wall mounted light
650mm dia ceiling lamp
650mm dia ceiling lamp
GROUND FLOOR PLAN
SECTION XX’
1 2 3 4 5 6 7 A B C D E F G H J 6600 4400 7000 3400 8100 8100 8100 8100 9100 3800 8100 6800 8100 5600 8100 8100 8100 8100 8100 8100 8800 ROOM AHU D4 D4 D2 STORAGE D2 ROOM D2 D2 STORAGE D2 D6 D6 D6 D6 D6 D1 D6 D6 D6 D6 D6 D6 D6 D1 D1 D1 D1 D1 D1 D1 D4 D4 UP DN H1 H2 STORE 18705 X 14915 STORE 8260 X 7400 STORE 8245 X 5675 STORE 15980 X 13585 STORE 15590 X 15770 STORE 7855 X 8325 STORE 7795 X 7940 STORE 7945 X 7665 STORE 11140 X 7870 STORE 11140 X 7770 STORE 11140 X 13300 STORE 7670 X 11445 STORE 7850 X 11445 STORE 11305 X 11445 STORE 7350 X 11445 STORE 11275 X 10355 STORE 11285 X 5250 3950 2000 7500 4660 4640 2000 1800 3200 2160 2110 2040 4200 3160 1300 570 960 530 1500 3100 1240 1500 4950 1730 1990 10810 18700 14910 8260 7120 7400 5670 8250 11270 10350 11280 5250 8080 8290 1970 7850 1350 4730 5940 2460 2120 13580 2120 4380 17390 5910 2060 1380 4660 3810 5610 24370 29200 1450 10460 2310 6950 11140 2400 12300 5940 13300 7770 7870 7580 11450 5820 6010 4510 11310 7350 7850 7670 2650 7500 8520 1500 3980 1800 3930 2760 3210 1180 2540 9230 7660 7940 7800 7940 3980 7500 3020 12790 4200 1470 5080 16450 31240 28500 7500 3860 2000 15860 3000 3000 3000 7730 56740 3810 7700 13590 6980 19780 6600 1850 3190 2130 3900 16260 8150 4440 2130 4860 2470 15650 4530 4350 1300 2450 2790 7860 8330 2710 1700 1700 230 7380 RAMP RAMP SLOPE RAMP SLOPE 11140 11140 16000 25110 +750 15600 11460 11450 11450 2760 W1 W1 D6 4330 4330 16270 A1 A2 8 9 10 11 12 13 14 15 16 X Y Y' 1740 +15150 FOURTH FLOOR LVL STORE CO-WORKING SPACE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE CO-WORKING SPACE STORE STORE STORE STORE STORE STORE CO-WORKING SPACE STORE STORE STORE STORE STORE STORE D6 D6 D6 D6 D6 D6 D6 D6 D6 D6 D6 D6 D6 D6 D6 D6 BASEMENT 1 +18750 TERRACE FLOOR LVL 05
WORKING DRAWINGS
STAIRCASE SECTIONAL DETAIL
LAST STEP OF STAIRCASE DETAIL
8100 6700 4700 D4 D4 D2 D6 D1 RESTAURANT 22990 X 13575 STORE 7215 X 8315 RESTAURANT 19035 X 11230 22990 3820 4660 2400 4660 1230 4500 8020 19030 11230 3810 5610 2000 1350 11780 2180 8310 1510 16840 6540 19940 1630 5550 4880 3840 6390 3910 6350 W1 W1 W1 W2 5550 W2 2320 17 18 19 20 X' G.L. ±00 BASEMENT 1 -4000 +4350 PLINTH LVL + 750 FIRST FLOOR LVL +7950 SECOND FLOOR LVL +11550 THIRD FLOOR LVL +19950 PARAPET LVL MEETING ROOM RESTAURANT MEETING ROOM MEETING ROOM G.L. ±00 BASEMENT 1 -4000 +4350 PLINTH LVL + 750 FIRST FLOOR LVL +7950 SECOND FLOOR LVL +11550 THIRD FLOOR LVL +15150 FOURTH FLOOR LVL +19950 PARAPET LVL STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE STORE D6 D6 D6 D6 D6 D6 D6 BASEMENT 1 STORE STORE STORE STORE STORE D6 D6 D6 +18750 TERRACE FLOOR LVL +22350 MUMTY LVL
MM NOSING
SECTION YY’ 10
R.C.C. SLAB
STONE
MM THICK CEMENT MORTAR BRICK STEPS
MM (TREAD)
MM (RISER) PCC(1:2:4) WITH WATERPROOFING ADMIXTURE 150 MM THK P.C.C(1:4:8) 300MM THK BRICK BATS 200MM THK RAMMED EARTH PCC(1:2:4) 100THK FLOOR WITH IRONITE OVER FILLER SAND WATERPROOFING MEMBRANE
6 MM THICK CEMENT PLASTER KOTA
20
300
150
TOILET LAYOUT PLAN
TOILET DRAINAGE PLAN
FEMALE WASHROOM MALE WASHROOM 1500 1000 1500 1000 A A' 11700 6500 4300 3200 4000
FEMALE WASHROOM MALE WASHROOM 100 MM DIA WASTE WATER PIPE FLOOR DRAIN 100 MM SOIL PIPE 11700 6500 4300 3200 4000 125 MM HIGH SKIRTING WASH WC

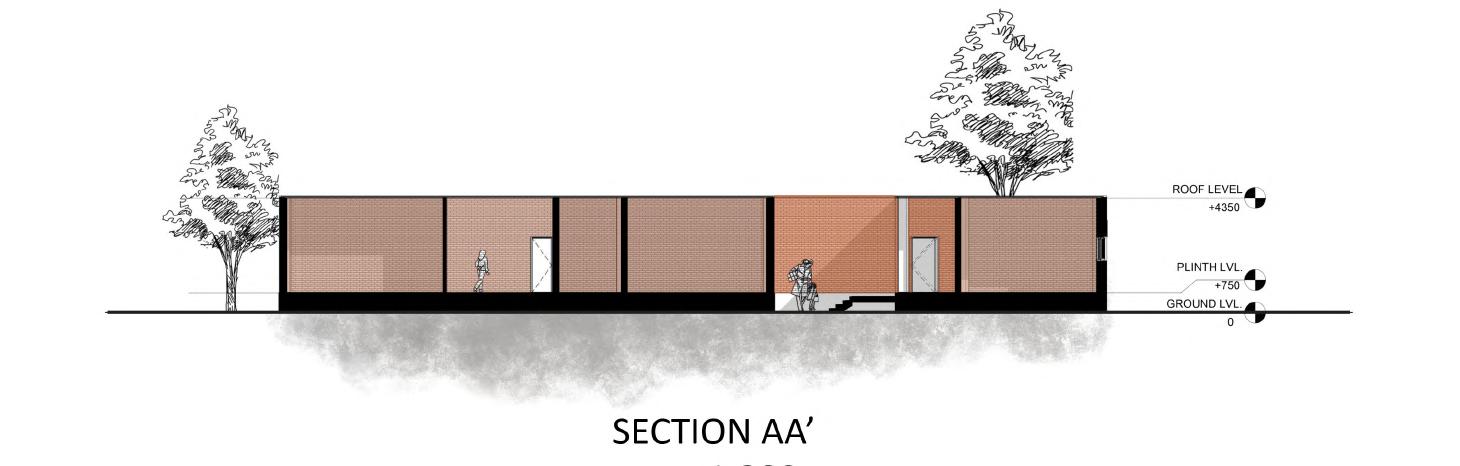

15 MM THICK MARBLE 20 MM THICK CEMENT MORTAR 75 MM THICK PCC 150 MM THICK BRICK BATS 20 MM PLASTER WITH WATER PROOFING COMPOUND 125 MM HIGH SKIRTING SECTION AA’ 15 MM THICK MARBLE 20 MM THICK CEMENT MORTAR 20 MM PLASTER WITH WATER PROOFING COMPOUND 125 MM HIGH SKIRTING 75 MM THICK PCC 150 MM THICK BRICK BATS 15 MM THICK MARBLE 20 MM THICK CEMENT MORTAR 20 MM PLASTER WITH WATER PROOFING COMPOUND 125 MM HIGH SKIRTING 1000 75 MM THICK PCC 150 MM THICK BRICK BATS SOIL PIPE 400 SOIL PIPE 125 MM HIGH SKIRTING 1200 BOTTLE TRAP WASTE PIPE 125 MM HIGH SKIRTING COUNTER 1000 BASIN SECTIONAL ELEVATON WC DETAIL URINAL DETAIL WASH BASIN DETAIL CUBICAL SECTIONAL ELEVATION 15 MM THICK MARBLE 20 MM THICK CEMENT MORTAR 20 MM PLASTER WITH WATER PROOFING COMPOUND DOOR SECTION BB' C C' B B' DOOR SECTION CC' DOOR ELEVATION 12.9964 24.9768 10.5834 17.9918 2100 800 75 MM THICK PCC 150 MM THICK BRICK BATS DOOR FRAME DETAIL
06 MISCELLANEOUS

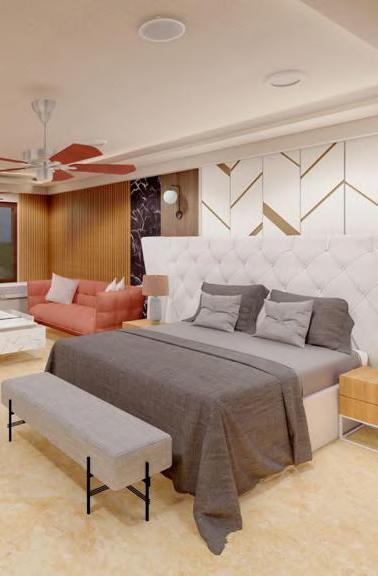

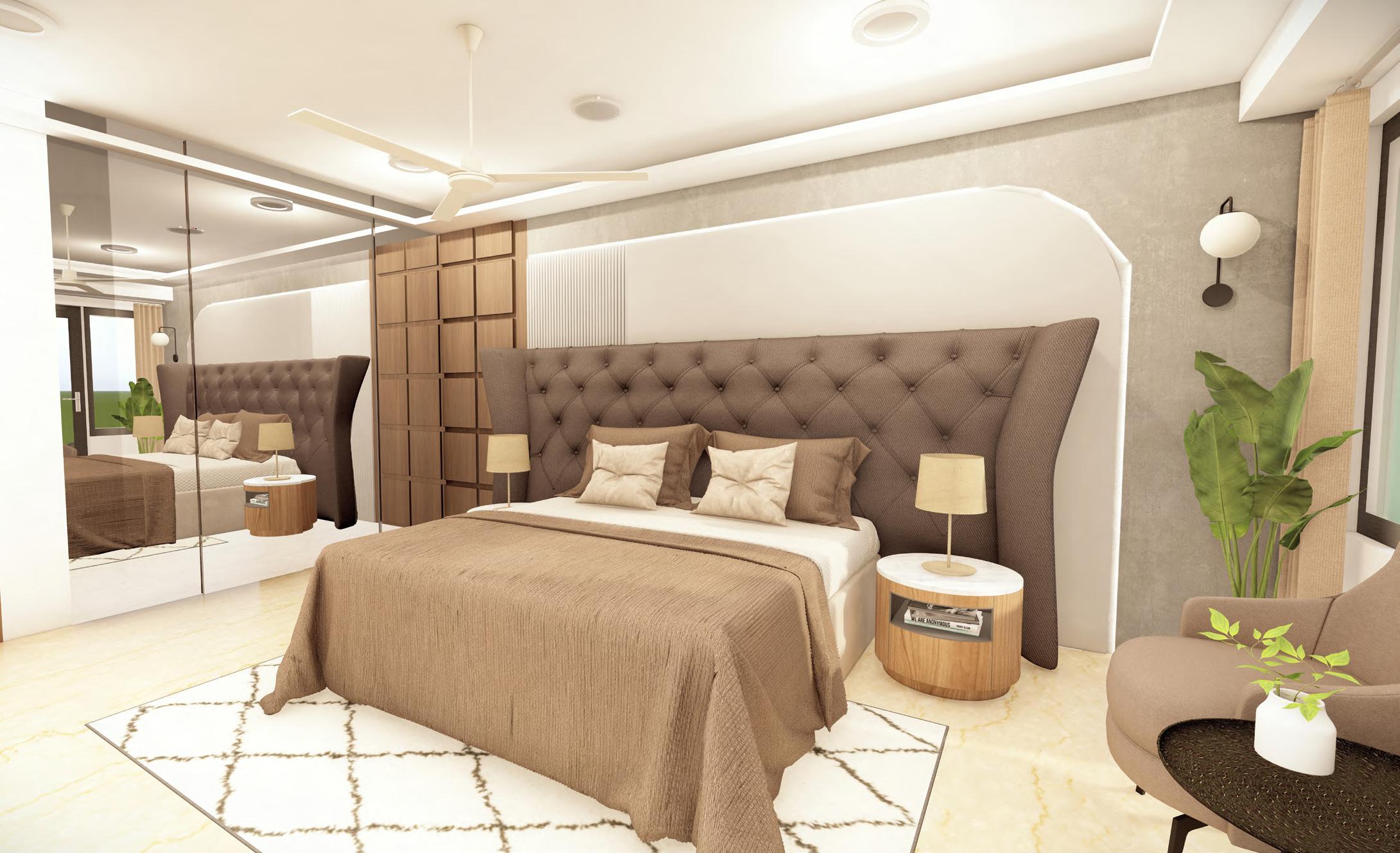

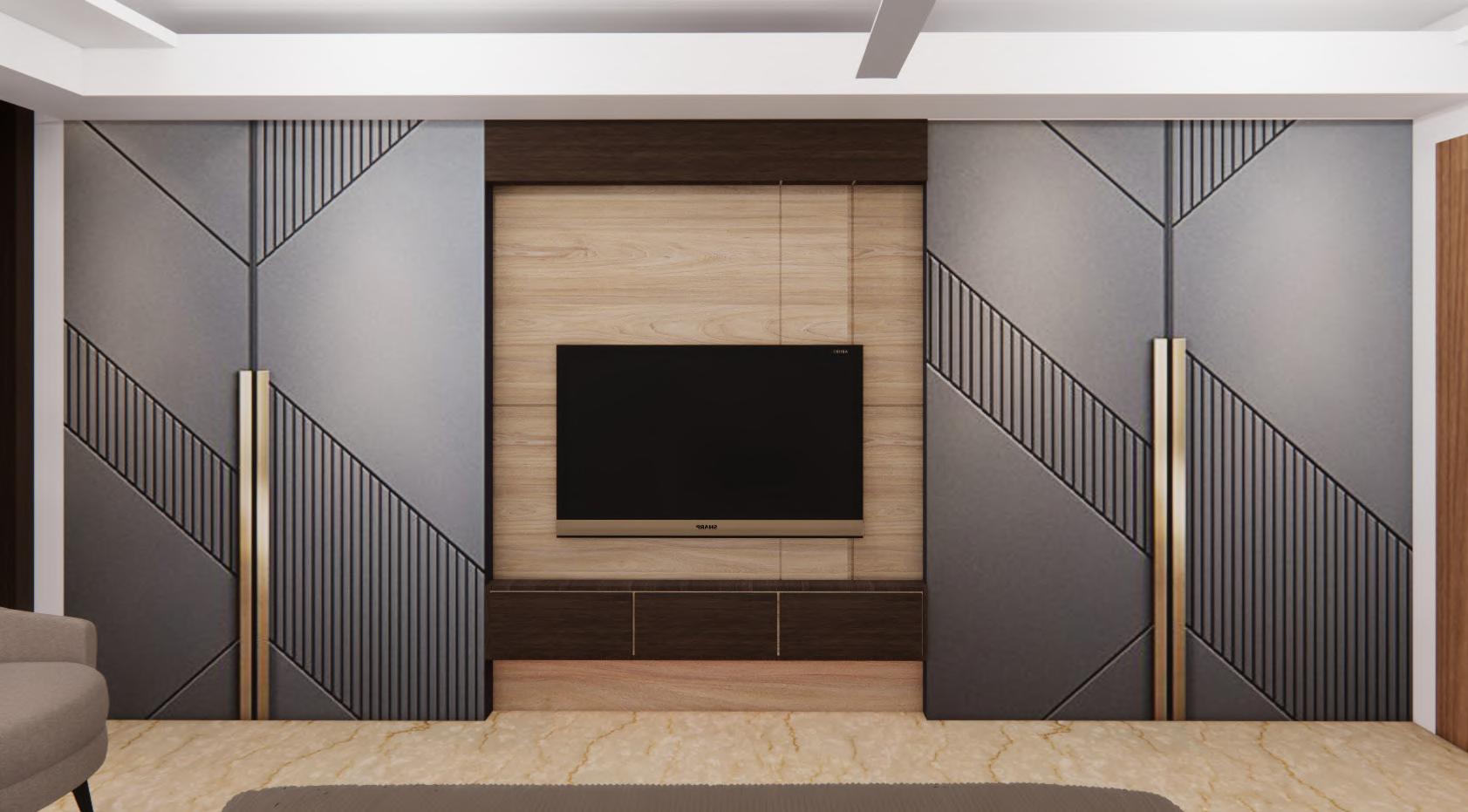

PROJECT TYPEInterior design- Residence
INTERNSHIP WORK-
PROJECT LOCATIONGurugram
1450 305 Water dispenser 210 920 Left side Storage 295 1420 High coffee table 2035 320 200 400 905 Right side Storage 600 1085 410 1615 860 750 1145 860 1350 coloumn 830 2660 2400 Huddle table 4200 900 6110 5260 M.D Room Size 12'-2'' X 14'-0" 1350 1050 1300 900 3900 2500 Room Size 16'-0'' X 6'-0" 1200 1200 4800 900 600 1485 2165 4900 Wall Cabinets 1210 1810 TV Screen Chester Chester M.D. table 8' x 3' Pantry Storage Temple Working Table 6'-8" Reception Table Honeywell Switch (floor) Switchboard under the table UPS Switchboard under the table 1000 1000 1000 1200 1200 1200 800 1000 620 805 1000 800 800 1340 760 Sofa Size 53' X 30' 47' x 23' 21' x 21' CHAIR CHAIR Size 21' X 21' CHAIR Size 21' X 21' CHAIR Size 21' X 21' CHAIR Size 21' X 21' CHAIR Size 21' X 21' CHAIR Size 27' X 26' CHAIR Size 21' X 21' CHAIR Size 21' X 21' 500 CHAIR Size 21' X 21' CHAIR Size 21' X 21' CHAIR Size 21' X 21' CHAIR Size 28' X 21' CHAIR Size 21' X 21' 1350 400 400 1350 900 565 535 CHAIR Size 21' X 22' 665 685 565 535 430 STOOL Size 17' X 20' STOOL Size 17' X 20' 500 1615 600 1080 540 640 580 1170 1725 130 865 Switchboards under the table 380 705 660 770 625 625 635 680 735 735 735 465 220 850 1165 275 1490 1160 985 490 320 1665 730 1585 485 305 1355 135 1440 860 360 605 340 630 620 645 865 1695 645 2555 1695 755 755 1180 2140 1545 680 690 270 480 255 575 1145 1060 970 575 275 130 800 565 670 1805 2150 50 660 1045 1395 195 430 430 1980 1925 1865 1600 1220

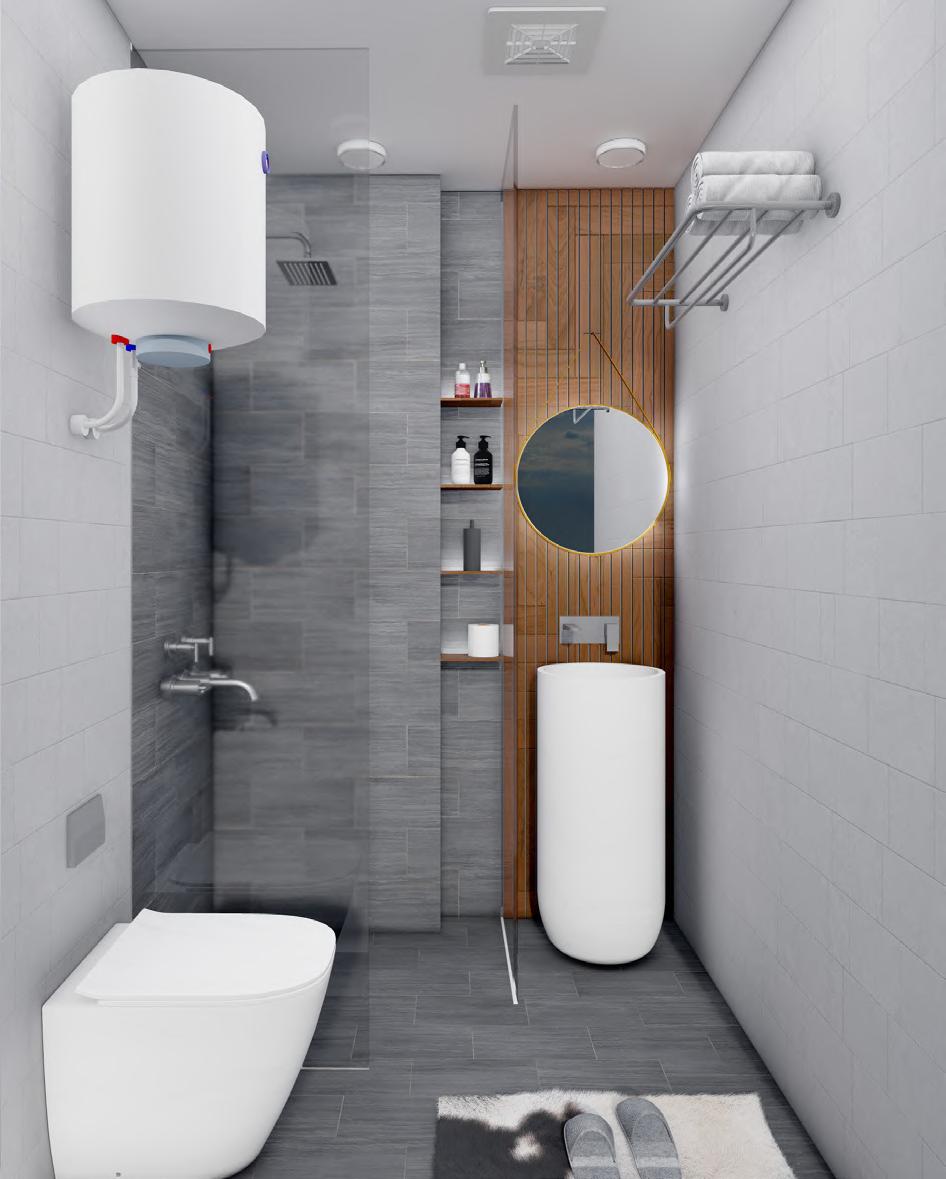

Washroom Design PROJECT
Interior
PROJECT
Gurugram SWITCH BOARD PLUG POINT- 6 Amp PLUG POINT- 16 Amp TABLE PLUG POINT- 6 Amp HONEYWELL SWITCH- 6 Amp (On Floor) COB LIGHT- 120mm DIA TRACK LIGHTS HANGING TUBELIGHT AC DUCT CABLE TRAY BULB- 80mm DIA SPOTLIGHT- 100mm DIA LEGEND ELECTRICAL LAYOUT PLAN 740 140 490 1000 690 160 2020 160 690 1000 740 140 490 1080 1830 160 160 160 720 340 457 457 1450 1305 406 PROJECTLift Lobby Design
FREELANCE WORK-
TYPE-
design- Office
LOCATION-
PHOTOGRAPHY-
ARTWORKS-
