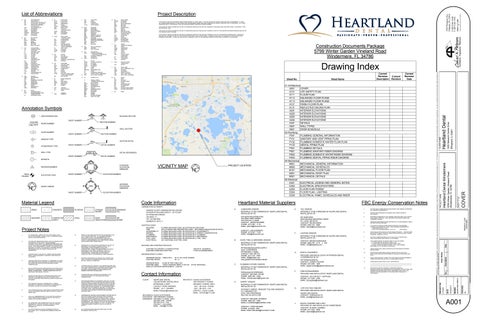

Construction Documents Package
5799 Winter Garden Vineland Road Windermere, FL 34786
VICINITY MAP
CONTACT: LISA KOERNER PHONE: (217) 857 7193 EMAIL: lisak@stevensind.com
A112ENLARGED FLOOR PLANS
A113ENLARGED FLOOR PLANS
A121FINISH FLOOR PLAN
A131REFLECTED CEILING PLAN
A201INTERIOR ELEVATIONS
A202INTERIOR ELEVATIONS
A203INTERIOR ELEVATIONS
A204INTERIOR ELEVATIONS
A301DETAILS
A501WALL TYPES
A601DOOR SCHEDULE
03 Plumbing
P001PLUMBING GENERAL INFORMATION
P101SANITARY AND VENT PIPING PLAN
P102PLUMBING DOMESTIC WATER FLOW PLAN
P103DENTAL PIPING PLAN
P501PLUMBING DETAILS
P601PLUMBING SANITARY RISER DIAGRAM
P602PLUMBING DOMESTIC WATER RISER DIAGRAM
P603PLUMBING DENTAL PIPING RISER DIAGRAM
04 Mechanical
M001MECHANICAL GENERAL INFORMATION
M002MECHANICAL SCHEDULES
M101MECHANICAL FLOOR PLAN
M201MECHANICAL ROOF PLAN
M501MECHANICAL DETAILS
05 Electrical
E001ELECTRICAL LEGEND AND GENERAL NOTES
E002ELECTRICAL SPECIFICATIONS
E003FLOOR PLAN POWER
E004FLOOR PLAN - LIGHTING
E005ELECTRICAL PANEL SCHEDULES AND RISER
E. TILE VENDOR:
ISC SURFACES 9245 DIELMAN INDUSTRIAL DRIVE ST. LOUIS, MO 63132 CONTACT: KEVIN PARDO PHONE: (636) 734 5080 EMAIL: kpardo@iscsurfaces.com
F. LIGHTING VENDOR:
CONTACT: MEGAN DONOGHUE PHONE: (860) 767 0110 x 232 EMAIL: mkd@sslighting.com
G. DENTAL EQUIPMENT:
Bill@go2ebs.com www.go2ebs.com/heartland-dental
C. PLUMBING FIXTURE VENDOR:
FERGUSON ENTERPRISES CONTACT: MICHAEL PAYNE
PHONE: (636) 300 5300
EMAIL: michael.payne@frguson.com
D. CARPET VENDOR:
PATCRAFT CARPET, RESILENT TILE AND ADHESIVE
P.O. DRAWER 2128 616 E. WALTON AVENUE
DALTON, GA 30772-2128
CONTACT: MELANIE JOHNSON
PHONE: (800) 367 5504
EMAIL:A.JOHNSON@SHAWINC.COM
CONTACT: TODD HIELMAN
PHONE: (314)640 6521
EMAIL:TODD.HIELMAN@PATCRAFT.COM
PATTERSON DENTAL CONTACT: JOSEPH TECHAR PHONE: (651) 686 1600 EMAIL: joseph.techar@pattersondental.com
F. FIRE EXTINGUISHERS:
CONTACT: HD CONTACT SUPPLIES PHONE: (217) 540 5780 EMAIL: prosupplies@heartland.com
G. LOW VOLTAGE CABLING: HEARTLAND DENTAL CONTACT: JORDAN HULTS EMAIL: jhults@heartland.com
J. DIGITAL PANOREX AND X-RAY: CONTACT: ELIZSHA DARNELL PHONE: (217) 540 5658 EMAIL: edarnell@heartland.com
General Wall Type Notes:
BATT INSULATION
5/8" GYPSUM BOARD
NOTE:
3
FOR SPANS LONGER THAN 9'-0" AND LESS THAN 12'-0", INSTALL 1/4" ALL THREAD ROD SUPPORTS AT THIRD SPAN LOCATION W/ 1" WASHER AND DOUBLE NUT. HANG FROM EXISTING JOISTS OR NEW UNISTRUT BETWEEN JOISTS (LOCATION OR CONFIGURATION VARIES). NO 2x6 COMPRESSION STUD REQUIRED.
5'-0" LONG 2x4 SECURELY FASTENED DIRECTLY TO STUDS WITH (8) #12 x 2 1/4" TEK SCREWS EACH END.
1.PROVIDE MOLD/MOISTURE RESISTANT GYPSUM BOARD AT WET WALLS TYP. FOR SPANS LESS THAN 9'-0", PROVIDE 2x6 COMPRESSION STUD. ANCHOR TO VERTICAL 2x8 w 1/4"x5" LAG SCREWS AT 12" O.C. PRE-DRILL HOLES PRIOR TO INSTALLATION.
2x4 (OFFSET FROM CENTER) VERTICAL SUPPORT AND 2x10 HORIZONTAL SPANNING WIDTH OF TREATMENT ROOM. FASTEN TOGETHER WITH 1/4"x5" LAG SCREWS AT 12" O.C. PRE-DRILL HOLES PRIOR TO INSTALLATION.
TOP OF WALL BEYOND
MONITOR ARM MOUNTING PLATE. ANCHOR TO 2"x10" PER MANUFACTURERS RECOMMENDATIONS (6 FASTENERS MINIMUM).
VERTICAL EXTENSION OF MONITOR ARM
BOTTOM OF FINISHED CEILING
WALL MOUNTING PLATE PROVIDED BY MANUFACTURER
ENTRY POINT FOR INTERCONNECTING CABLE WHEN REMOTELY MOUNTING OPERATOR CONTROL PANEL (SINGLE GANG BOX CAN BE USED) CABLE PROVIDED BY MANUFACTURER
JUNCTION BOX POSITION
MONITOR ARM MOUNTING PLATE. ANCHOR TO 2"x10" PER MANUFACTURERS RECOMMENDATIONS (LOCATION VARIES).
FOR SPANS LONGER THAN 9'-0" AND LESS THAN 12'-0", INSTALL 1/4" ALL THREAD ROD SUPPORTS AT THIRD SPAN LOCATION W/ 1" WASHER AND DOUBLE NUT. HANG FROM EXISTING JOISTS OR NEW UNISTRUT BETWEEN JOISTS (LOCATION OR CONFIGURATION VARIES). NO 2x6 COMPRESSION STUD REQUIRED.
5'-0" LONG 2x4 SECURELY FASTENED DIRECTLY TO STUDS WITH (8) #12 x 2 1/4" TEK SCREWS EACH END
SECURELY FASTEN BOTTOM 2x10 TO FIRE TREATED 2x4 WALL SUPPORT WITH (4) # 10x3" WOOD SCREWS AT EACH END.
FOR SPANS LESS THAN 9'-0", PROVIDE 2x6 COMPRESSION STUD. ANCHOR TO VERTICAL
2x8 W/ 1/4"x5" LAG SCREWS AT 12" O.C. PREDRILL HOLES PRIOR TO INSTALLATION.
2x4 (OFFSET FROM CENTER) VERTICAL SUPPORT AND 2x10 HORIZONTAL SPANNING WIDTH OF TREATMENT ROOM. FASTEN TOGETHER WITH 1/4"x5" LAG SCREWS AT 12" O.C. PRE-DRILL HOLES PRIOR TO INSTALLATION.
C.W.WD21/A6013/A601STAIN-3
4A2'-8"7'-0"SOLID C.W.WD21/A6012/A601STAIN-3
122 A 4A2'-8"7'-0"SOLID C.W.WD21/A6012/A601STAIN-3
122 B 4A3'-0"7'-0"SOLID C.W.WD21/A6012/A601STAIN-3
124 1A3'-0"7'-0"SOLID C.W.WD21/A6012/A601STAIN-3
125 1A3'-0"7'-0"SOLID C.W. HM1 1/A6012/A601
1A3'-0"7'-0"SOLID C.W.WD21/A6012/A601STAIN-2
1282A3'-0"7'-0"HOLLOW MTL4/A601 STAIN 5
