Familiar Roofs: Part 1 Precedent Structure Analysis Gas Station Canopy Micah Hook

Precedent Research

12’0”

12’0” 6’0”

24’0’

6’0”

26’0”

Floor Plan

6’0”

12’0”

6’0”

3’0” 16’0”

Section

COMPRESSION FORCES TENSION FORCES LOAD TRANSFER

TERTIARY STRUCTURE SECONDARY STRUCTURE PRIMARY STRUCTURE

Force Diagram

Structure Diagram

JUNE 21ST 9AM

DECEMBER 21ST 9AM

Rainwater Diagram

Light Diagram

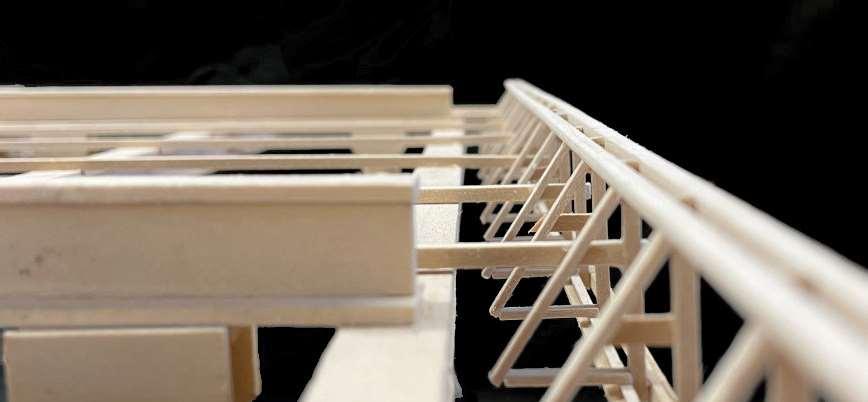

Physical Model of Typical Bays Scale: 1/2”=1’-0”

Physical Model of Typical Bays Scale: 1/2”=1’-0”

Chicago Market: Part 3 Project Micah Hook

Maxwell Roots history embedded in the local neighborhood. Since 1912 Maxwell Street has been a community rooted in music, food, and diversity, which created a distinct culture. In order to restore the neighborhood, Maxwell Roots is designed around a central courtyard to focus this idea. The materials and color palate were locally sourced to make market goers feel at home. The curves in the site were derived from movement in blues music. The roof structure compliments surrounding architecture while introducing a modern element. These components in Maxwell Roots produce a warm market feel.

Concept Diagram

Rainwater Diagram

Perspective from Maxwell Street

Perspective View NE

Perspective View in Market

Perspective View in Market

Site Plan

Section A and B

Underlying Geometry Diagram

Structural Diagram

Study Model Photos

Physical Model of Project in Site Scale: 1/16”=1’-0”

Physical Model Scale: 1/16”=1’-0”

Fundamental Design Methodology Project 03 Modulating Sequence Public Sauna at Lake Wilson Micah Hook

Centric organization Organizational Strategies

Radial organization

Linear organization

Process Work

Floor Plan

Site Section

Plan Oblique

Physical Model Scale: 1/16” = 1’-0”

Fundamental Design Methodology Project 01 Modulating Light Bruder Klaus Field-Chapel, Peter Zumthor, Mechernich, Germany, 2007 Micah Hook

Rendered Perspective

Light Box Model

Fundamental Design Methodology Project 03 Skyscraper Micah Hook

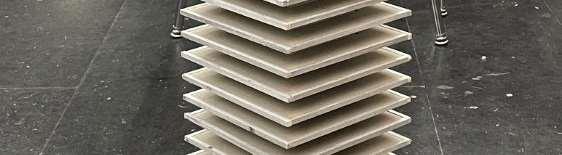

Casts of Modules

Bristol layer 1

Bristol layer 2

Other composition idea

Final painted and assembled

Sculpture exploration
