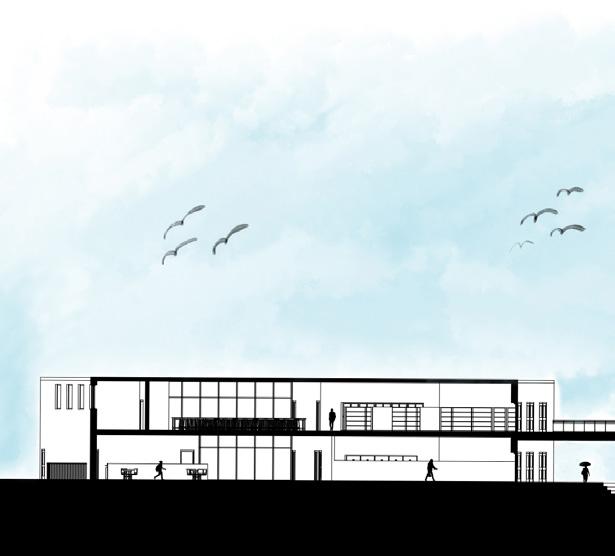

Boyer School of Music & Performing Arts Center

Port of Long Beach Boardwalk

Philadelphia Light & Energy Library

10’

12’

6’

5’

20’

53’

Occupiable Spaces Pavilion

Wissahickon Valley State Park Tower

Central Park Museum

Southeast Asian Market

Multi-Generational Rowhome

Revisioning Temple’s Campus

Drawings & Collages 3

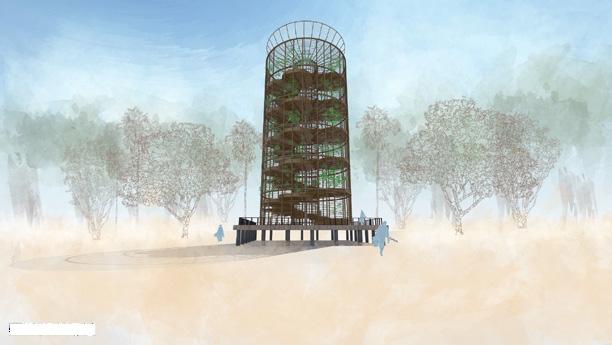

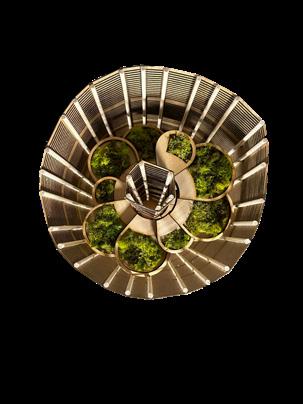

The Tuvalu Towers

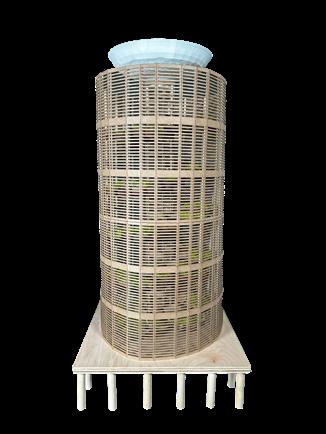

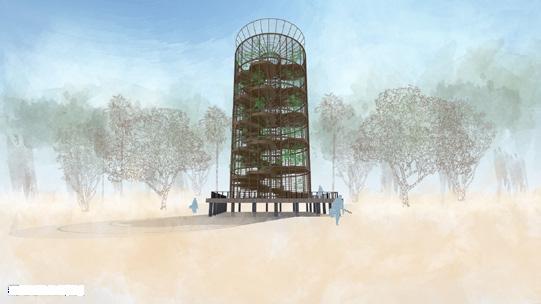

Fall 2023 Location: Tuvalu Islands Mediums: Rhino, Illustrator, Lumion, Photoshop, Chipboard, Basswood, 3D Printer Project Partners: Carly Browngardt & Olivia Filaferro Working in collaboration, the Tuvalu Towers aims to revive the limited food supply on the Tuvalu Islands. With the island dissipating due to sea level rise, the Tuvalu Towers allows for the community to harvest, collect, market and consume crops that would be grown at these towers. The petal like design soil beds allows for the maximum growth of crops while the exterior and interior bamboo structure acts as a protector from strong winds. Our design also integrates a rainwater catchment system in which rainwater is caught at the top and then funneled into water collectors dispersed throughout the tower, the water is then used to irrigate the crops. These towers are designed to be assembled, and after a few years, dissassembled and repurposed to create more towers.

4

Architecture Portfolio

HARVEST

COLLECT

MARKET

CONSUME

5

Pulley System

Wind Pattern

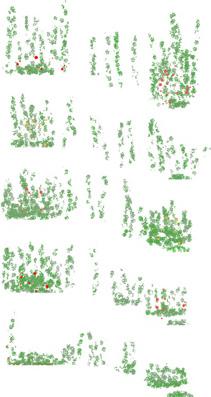

Crop Growth

Circulation Path

6

Water Flow

Architecture Portfolio

A vertical design maximizes availible space for plant growth.

A circle provides the largest circumference.

The platforms serve a dual purpose by functioning as circulation and as a space for crops to grow.

Water collection distributes into eight rain cisterns.

Petal shape allows light to filter through.

The open interior space is for the movement of water and crops.

The outer skin acts as a trellis for crops and minimizes land use.

7

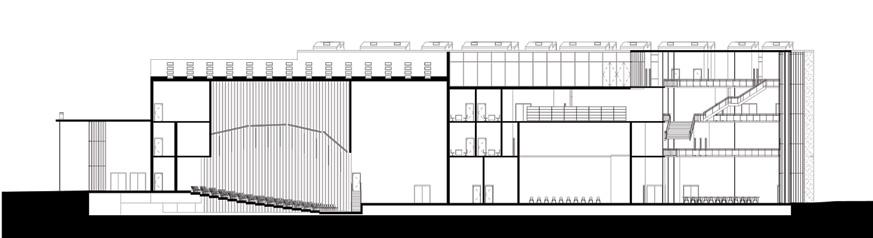

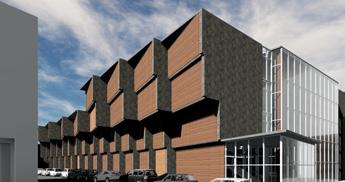

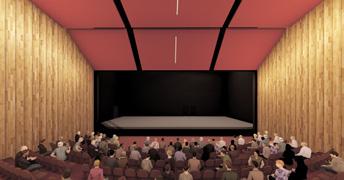

The Boyer School of Music & Performing Arts Center is an institutional building for Temple University enjoyed by both students and the public to enjoy the creation and performance of music. In collaboration with Michael Wasicko, my partner and I designed this project to fit the needs of both the students and the public. Our first analysis of the site we realized that there were two major passageways that run North and South along the site, Broad Street and Liacouras Walk. The main goals for this project were to create an “end” to Liacouras Walk for students, a public entrance along Broad Street, and an intriguing facade along Norris Street.

8

BROAD STREE

Spring 2024 Location: Broad St. & Norris St., Temple University Mediums: Rhino, Revit, Illustrator, Photoshop, Chipboard, Acyrlic, Basswood, Enscape Project Partner: Michael Wasicko

T

Boyer School of Music & Performing Arts Center

NORRIS STR

EET

Architecture Portfolio

3

2

1

0

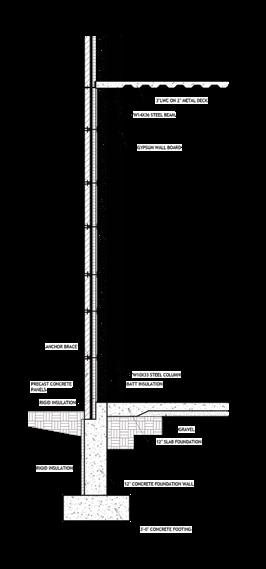

9

10

Architecture Portfolio

11

12

Architecture Portfolio

13

Port of Long Beach Boardwalk

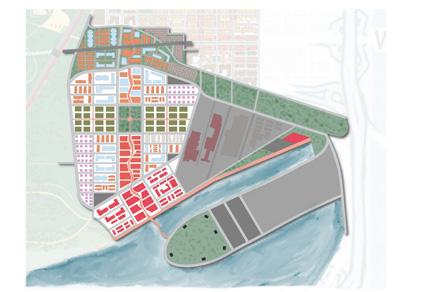

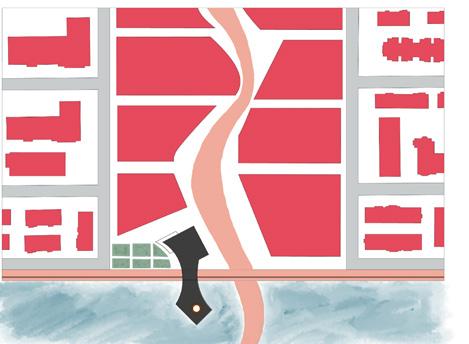

Fall 2024 Location: Port of Long Beach, California Mediums: Rhino, Illustrator, Revit, Midjourney AI Working in the LA county commuinity previously populated with several oil fields, the new Port of Long Beach has been renovated to feature a car free community and research lab advocating for environmental justice and commuity engagement. The urban design plan features a variety of density housing, commercial spaces, and agricultural fields to grow crops to be sold at the central market. The proposed museum and research lab is located along the edge of the boardwalk where visitors can learn about the rich history of the port and also the different methods being used to reduce air and water pollution.

Low Density Residential Middle Density Residential High Density Residential Commercial Light Industrial Recreational Uses, Green Space Agricultural Stage Elevated Highway Vehicular Streets Trolly Line Bike Path Pedestran Only Path Parking

14

MAJOR STREET SECTION

Architecture Portfolio

MINOR STREET SECTION 5’

4’

6’

5’

12’

6’

12’

4’

8’

62’

5’

4’

5’

11’

WATERFRONT SECTION

10’

4’

5’

34’

12’

6’

5’

20’

53’

15

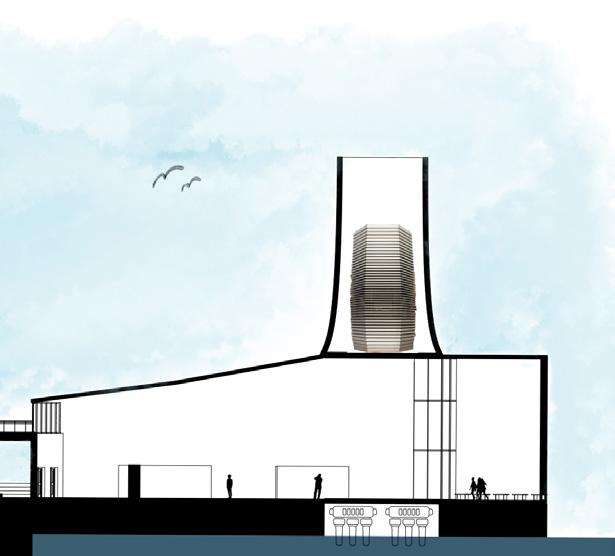

EDUCATE THE PUBLIC

HEALTH & EQUITY RESEARCH LAB & CAFE

PORT MUSEUM

AIR PURIFICATION

16

WATER PURIFICATION

Architecture Portfolio

1

2

17

18

Architecture Portfolio

19

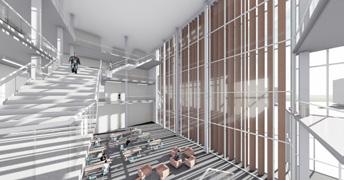

Philadelphia Light & Energy Library Spring 2021 Location: Chestnut Street, Philadelphia Mediums: Rhino, Illustrator, Lumion

In place of the abandoned Mercantile library, students were asked to construct a library for the built environment. The site is very narrow and is located on Chestnut street, Philadelphia. Program for the library included a lobby, gallery space,multiple reading spaces, an area for children, an archive/storage space, meeting space, administration office, and outdoor space. The sustainable strategy that I chose to focus my project on was light and how my building reacts to light using screens and louvers.

A’

C’

C

B’

B

A

0

20

1

2

3

Architecture Portfolio

45 ANGLED ALUMINUM LOUVERS

ALUMINUM LOUVERS

21

22

Architecture Portfolio

PROGRAM KEY ENTRANCE

CONTROL/LOBBY READING SPACE ADMIN. CHILDREN’S SPACE ARCHIVE/STORAGE GALLERY MEETING SPACE OUTDOOR SPACE

23

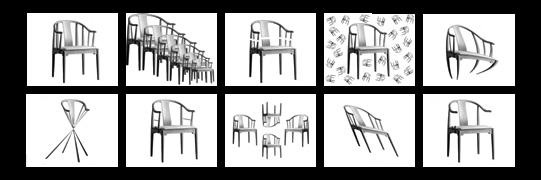

2D and 3D Pattern Investigation

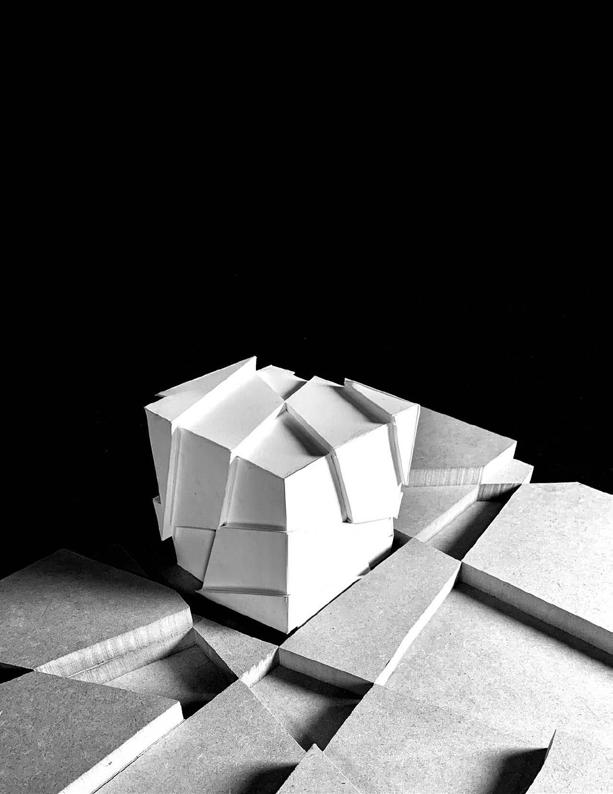

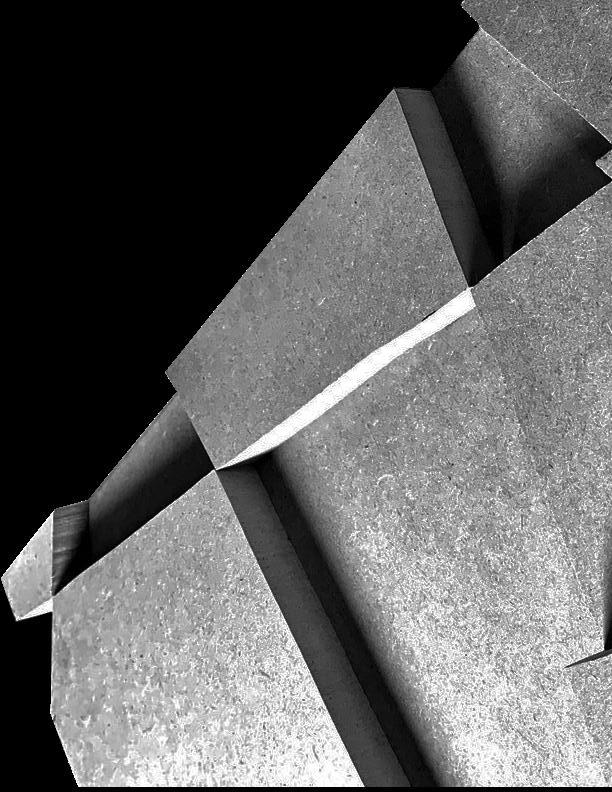

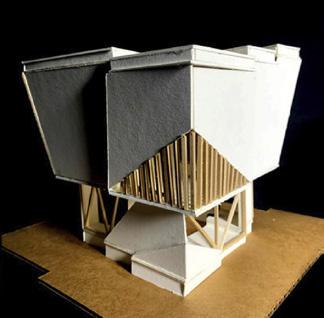

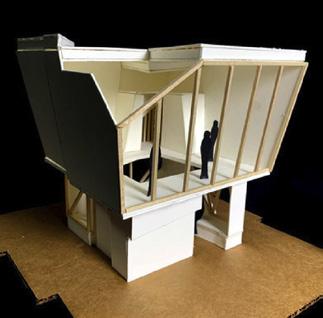

Fall 2019 Mediums: Museum Board, Bassel Wood, Arches Paper, Vellum, Pencil This pavilion design began with developing two key action words to guide the design; the two I choose were to expand and to chip.

The floorplates and roof of the pavilion sees a gradual expansion from the ground up creating a cantilever on the second floor with a leaning façade on the second level. I then chipped away corners of the volume at the roof and at the second level with an atrium as well as a lower corner connected to the floor which was then covered with wood planks to allow for minimal lighting.

24

Architecture Portfolio

25

26

Architecture Portfolio

27

Wissahickon Valley State Park Tower Spring 2022 Location: Wissahickon Valley State Park Mediums: Rhino, Illustrator, Lumion

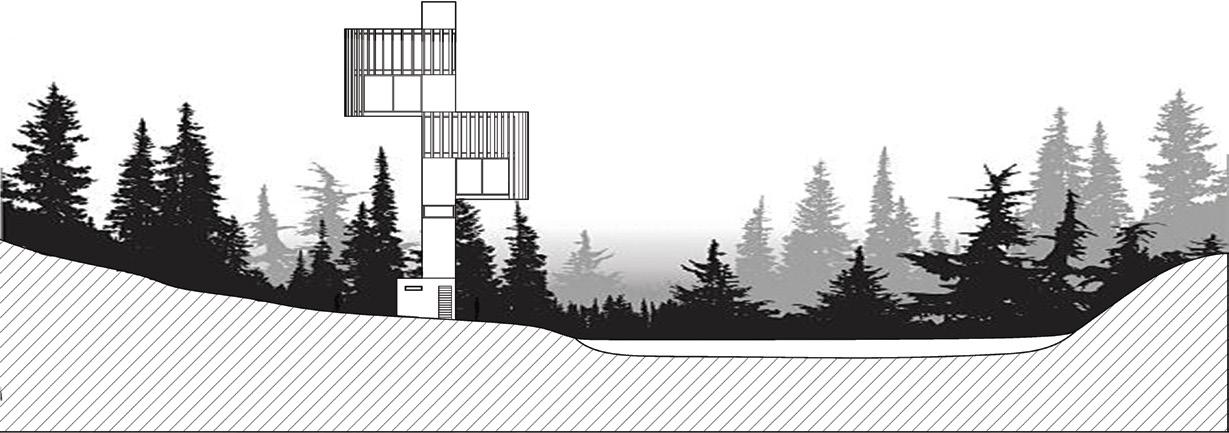

This project is located in the Wissahickon Valley State Park of Philadelphia. The site that I had chosen is located right off of the Rex Avenue Bridge on the riverfront. My idea for this project was to have this stacked tower structure to give a person views of the Wissahickon from every direction, focusing on key aspects of the park such as the river and the rock formations. With the tower being located in such an open space, it gives the sense of it being a landmark for the park itself. The program contained in this project are bathrooms and a gallery/viewing space. Horizontal louvers are wrapped around the structure of my building to prevent solar heat gain from the strong southern sun. The louvers get less dense as it wraps around to the northern side of my sturcture because it receives less sunlight.

1

2

REX AVENUE BRIDGE

3

4

28

Architecture Portfolio

N

E

SUMMER SOLSTICE

WINTER SOLSTICE

S W

29

30

Architecture Portfolio

31

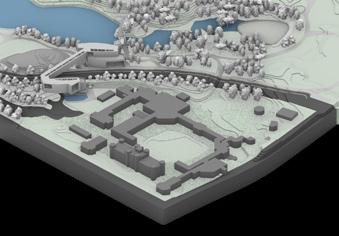

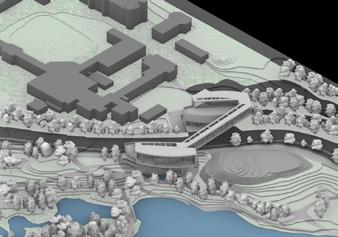

Central Park Museum

Spring 2021 Location: Central Park, New York Mediums: Rhino, Illustrator, Lumion

PARK ANS

The Central Park Museum is a proposal in which two structures are located on each side of East Drive and connected via bridge that crosses the street above. The program for the museum includes multiple gallery space, a sitdown cafe, and outdoor terraces. I wanted this project to feel like an experience that you would not typically feel in any ordinary museum. Having one of the gallery spaces be along the bridge portion of my design allows for the users to have that different experience of being conneced with the city while still being in the museum.

CENTRAL PARK ZOO

GAPS

EAST

DRIVE

OVERLOOK ROCK

THE POND

HALLET NATURE SANCTUARY

GRAND ARMY PLAZA

32

Architecture Portfolio

EAST DRIVE

65

x 50.8

INSCOPE ARCH

60 55 EAST

GAPSTOW BRIDGE

DRIVE

WOLLMAN RINK

x 31.3

x 50.0 40

45

50

35 30

OVERLOOK ROCK

35

30 40

THE POND

50

55

40

35

45

GAPSTOW BRIDGE

x 44.3

x 40.0

HALLET NATURE SANCTUARY THE POND 60

x 28.7

65

70

SCALE: 1/16”= 1’- 00”

33

34

Architecture Portfolio

35

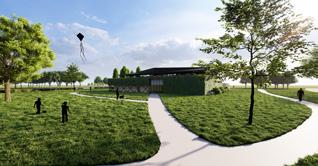

Southeast Asian Market

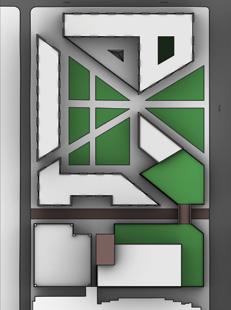

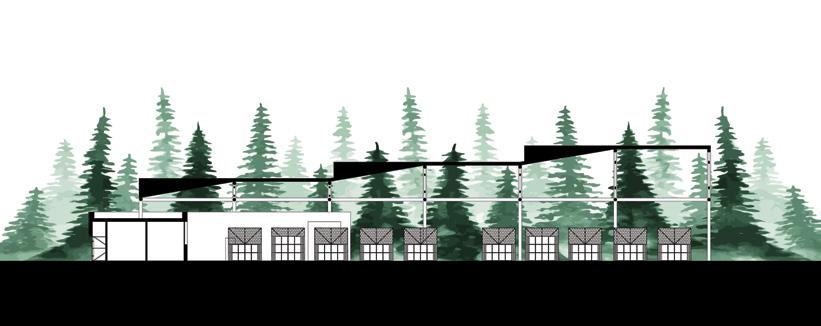

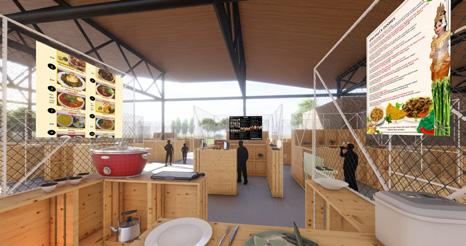

Spring 2023 Location: FDR Park, Philadelphia Mediums: Rhino, Illustrator, Lumion, Photoshop This is the proposal for the new Southeast Asian Market located at FDR Park. The SEA market is sheltered under a large roof canopy that is structured within the building of my design. For this project, I was also tasked with the creation and design of a vendor stall. These vendor stalls are 10’x10’ spaces created using recycle box crates. It is the decision of the vendor how they choose to arange them. The box crates are structured within a hemp mesh and pvc pipe assembled cage where they can hang signage and advertise their products. During the off season of the market, the vendor stalls are dissassembled and using the same materials, bleacher seats are created for the FDR Park Ice Skating Rink.

Zambo

Fi

Referee Locker Room

Locker Room

36

Architecture Portfolio

SOUTHEAST ASIAN MARKET

oni/Storage

irst Aid Comissary Kitchen

Skate Rentals/ Tickets

Locker Room

Bathroom

Lobby

Pro Shop Bathroom

37

Multi-Generational Rowhome

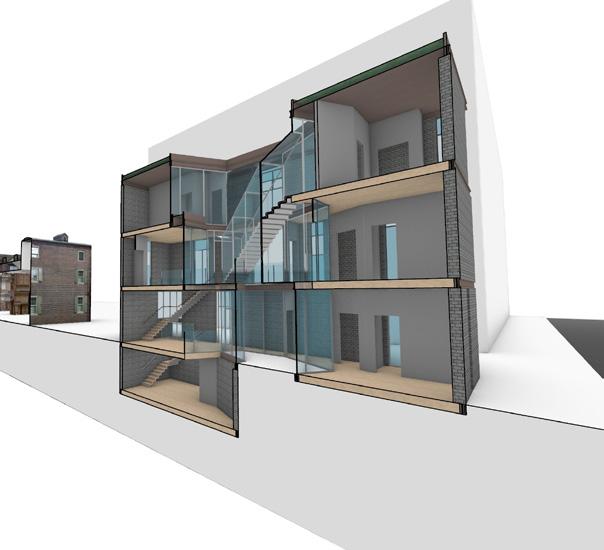

Fall 2021 Location: Elfreth’s Alley, Old City, Philadelphia Mediums: Rhino, Illustrator, Lumion The Multi-Generational Rowhome is a design built for different generation of a family to live under one structure. The subject of this project was our own families. My design fits six people including my parents, my grandma, my two siblings, and myself.

This rowhome uses materials such as glass, steel, brick, and corten steel. My design focuses on the central atrium of the building which allows for the ground floor courtyard and also the maximum amount of naural lightning.

38

Architecture Portfolio

39

GREEN ROOF

FULL BATHROOM CLOSET

CLOSET

BEDROOM PLANTER BOX

BEDROOM

HALF BATHROOM CLOSET

LIVING ROOM

FULL BATHROOM

MASTER BEDROOM

CLOSET

KITCHEN

FULL BATHROOM

MASTER BEDROOM

BASEMENT/OFFICES

HALF BATHROOM

40

Architecture Portfolio

3

2

1

0

-1

41

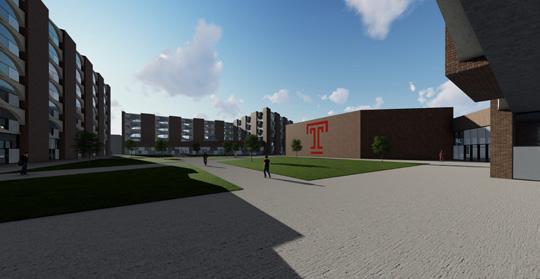

Revisioning Temple’s Campus

Fall 2022 Location: Broad St. & Norris St., Temple University Mediums: Rhino, Illustrator, Lumion

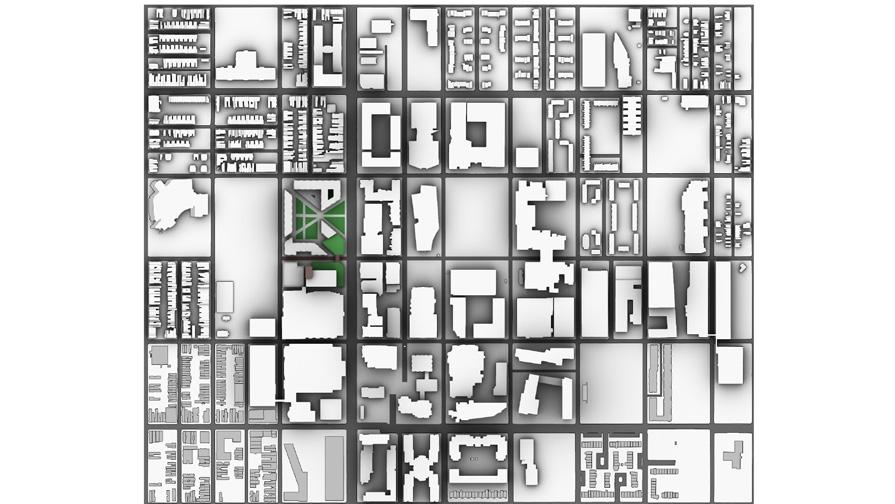

16TH

In this project, students were asked to design residence halls and other program for a block on Temple’s main campus. The site that I chose was the block on Broad Street and Norris Street. I chose this site because a lot of Temple students live off-campus West of Broad street where it does not neccessarily have that campus feel. This is a site that is relatively unactive on campus and and an expansion West of Broad Street would be beneficial in many ways.

After conducting case study research of universities around America, I designed my project to incorporate multiple programs in one structure. In my design, I have a total of four different residence halls fitting over 1,000 beds. In two of the halls, I included dining facilities within the ground level with options for either grab-n-go eating or sit down as well. I have also designed for a new gym as Temple’s current gyms are small and are typically very crowded.

The last piece of program I included was a parking garage.

With Temple planning on demolishing some of the existing parking garages, adding another along 15th street would benefit to off-campus students and keep more cars off the roads.

12TH

CAMAC

13TH

PARK

BROAD

CARLISLE

15TH

17TH

16TH

FRENCH

NORRIS

16TH

WESTMONT

17TH

DIAMOND

DIAMOND

DIAMOND

DIAMO

ND

15TH

16TH

17TH

FONTAIN

13TH

15TH

16TH

17TH

PAGE

17TH

16TH

15TH

PAGE

BROAD

BROAD

CARLISLE

FONTAIN

15TH

DIAMOND

DIAMOND

DIAMOND

DIAMOND

DIAMOND

12TH

NORRIS

WATTS

17TH

16TH

EDGLEY

NORRIS

NORRIS

NORRIS

NORRIS

NORRIS

NORRIS

12TH

13TH

LIACOURAS

BROAD

15TH

17TH

17TH

16TH

17TH

NORRIS

BERKS

BERKS

BERKS

12TH

13TH

MONTGOMERY

MONTGOMERY

12TH

BROAD

15TH

LIACOURAS

BROAD

15TH

16TH

SYDENHAM

MONTGOMERY

PARK

42

MONTGOMERY

MONTGOMERY

MONTGOMERY

MONTGOMERY

WILLINGTON

17TH

MONTGOMERY

16TH

17TH

WILLINGTON

BERKS

Architecture Portfolio

43

Drawings & Collages

Fall 2019 & Spring 2020 Mediums: Strathmore Paper, Newspaper Print, Conti Crayon, Pencil, Felt Tip Pen, Photoshop

44

Architecture Portfolio

45
