Equipment & Accessoires for Non-Destructive Testing (NDT)
We offer accessories for all common Gamma Radiography systems. We also manufacture customised products and find solutions for your challenges.
Further information, including videos, operating instructions and data sheets for individual products, can be found on our new website in the download area:
www.metritec.com
N O T E : Interactive Features
Clicking on this symbol will take you to the corresponding content on a page in the catalogue, launch your e-mail programme or provide access to further information on our website. You may need to confirm access to external content beforehand.
1. Positioning Tools
A. Ellipse Clamping Tongs
B. Magnetic Positioner
C. Centering Devices / Pipe Spiders
11
14
2. Winding Mechanism
A. Remote Controls & Spare Parts
B. Cable Hose & Drive Cable
3. Guide Tubes & Source Terminals

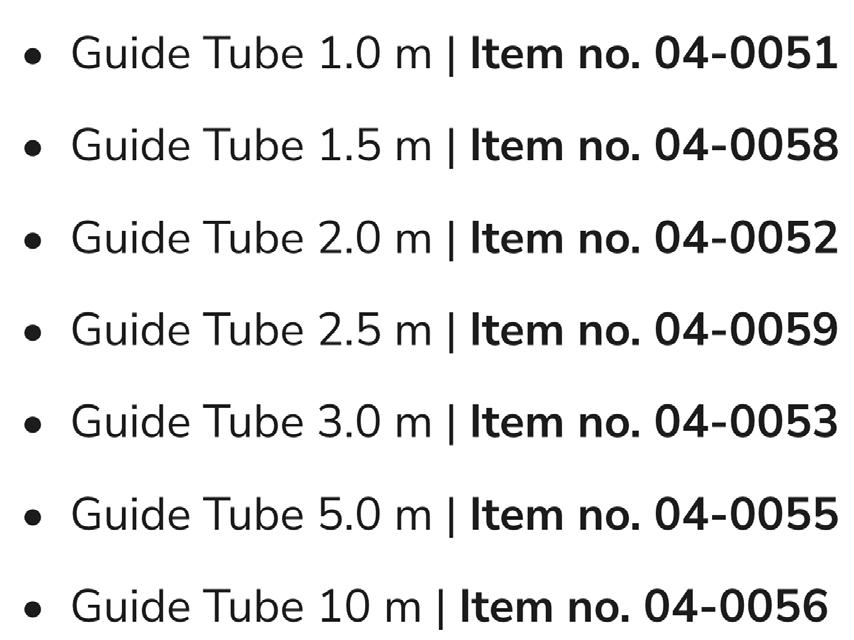

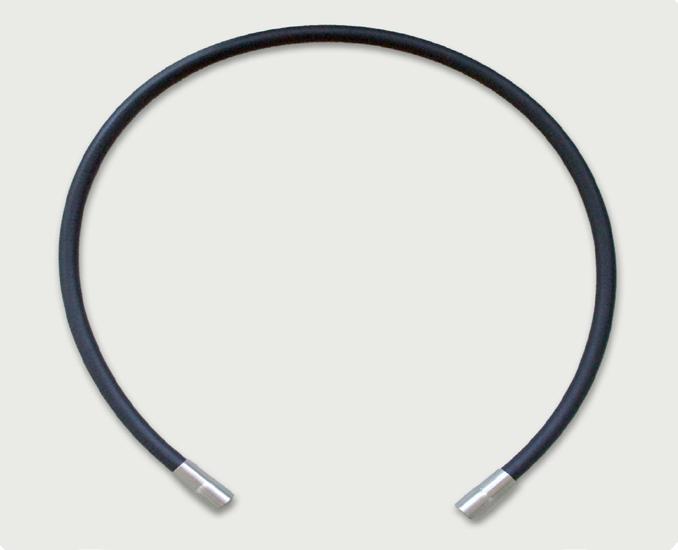

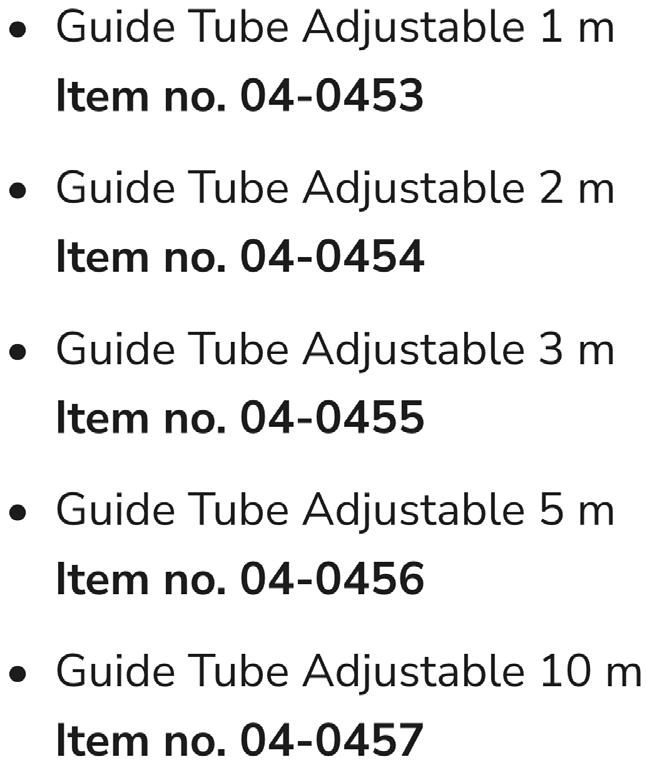

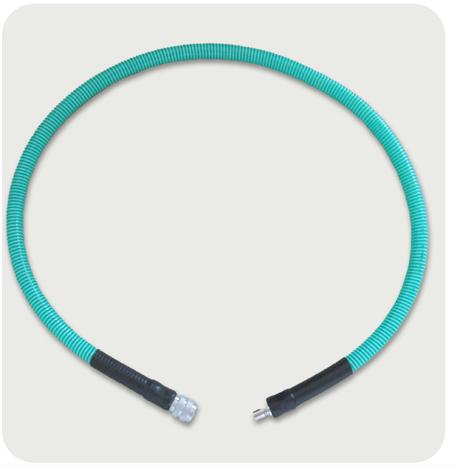

A. Guide Tubes and Connectors

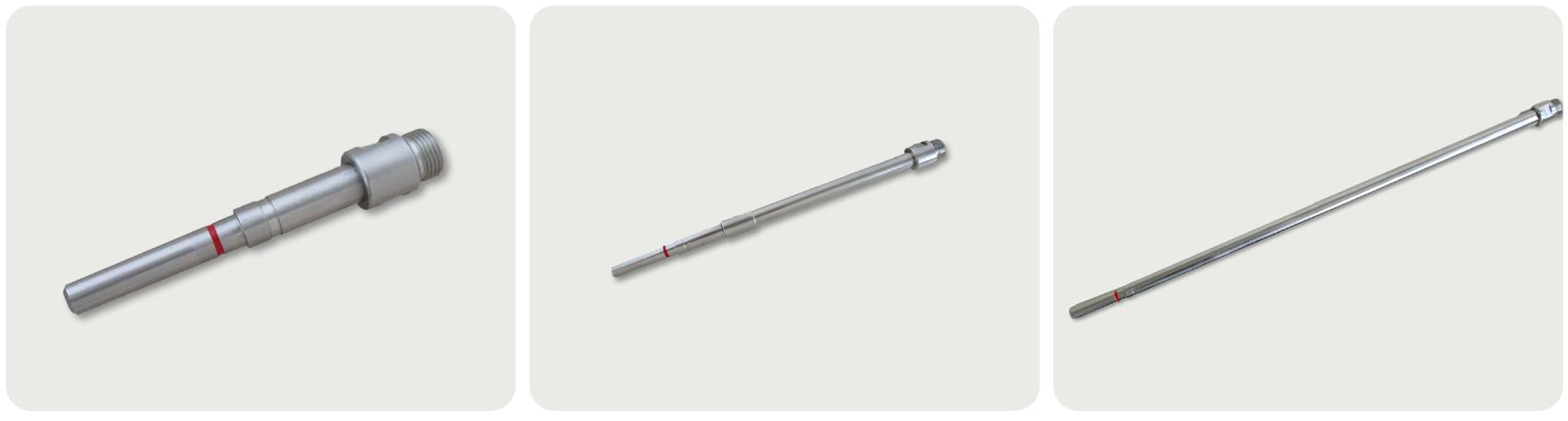

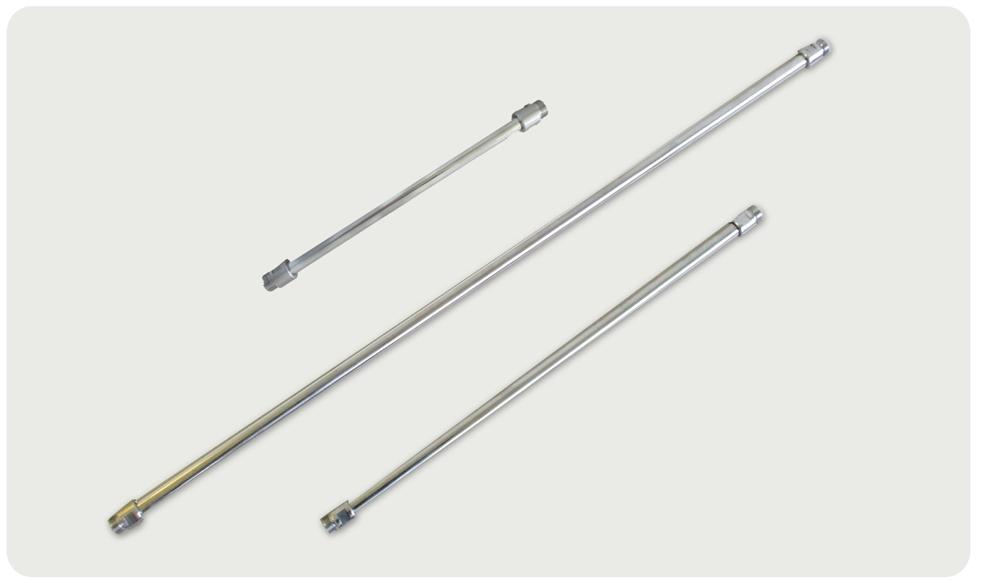

B. Guide Tube Extensions
C. Source Terminals
5. RT-Film Evaluation
Densitometer / BAM-Approved

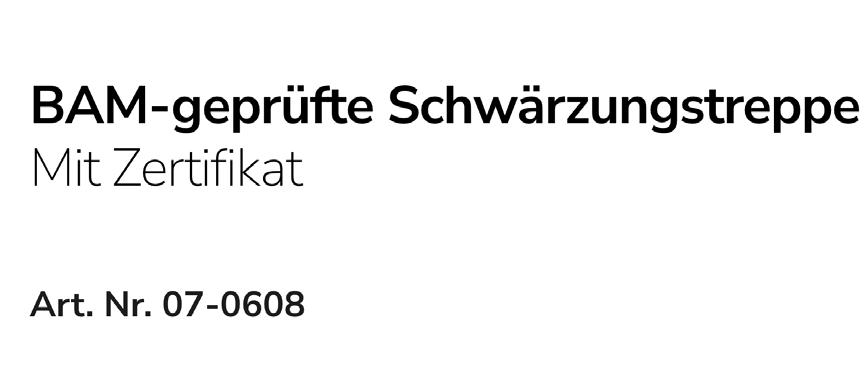

Reference Density Strip

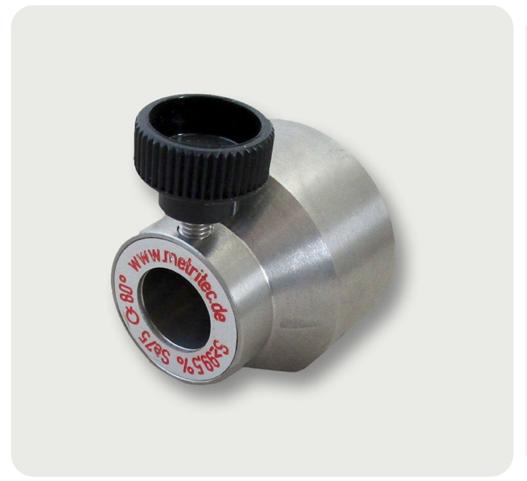

Tungsten Collimators
Tungsten Plug-on Collimators / Collimator Holder Ring
6. Radiation Safety

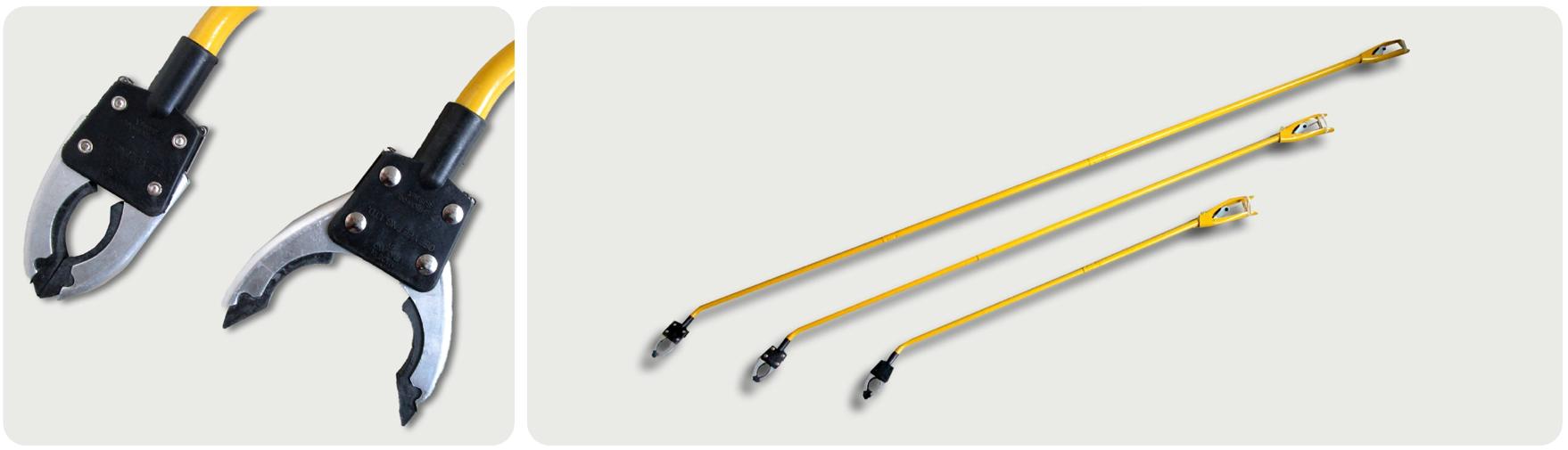

Isotope Handling Tongs
1

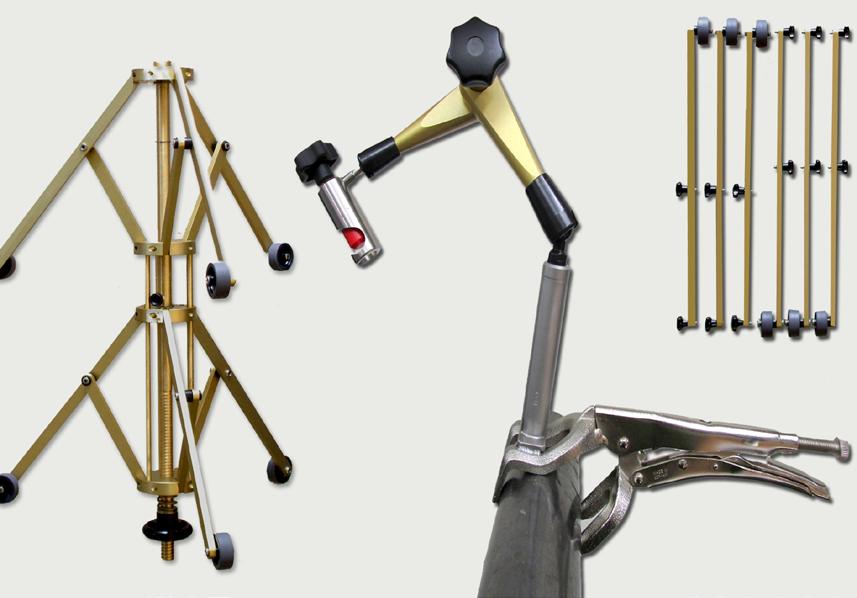

Source Positioning Tools

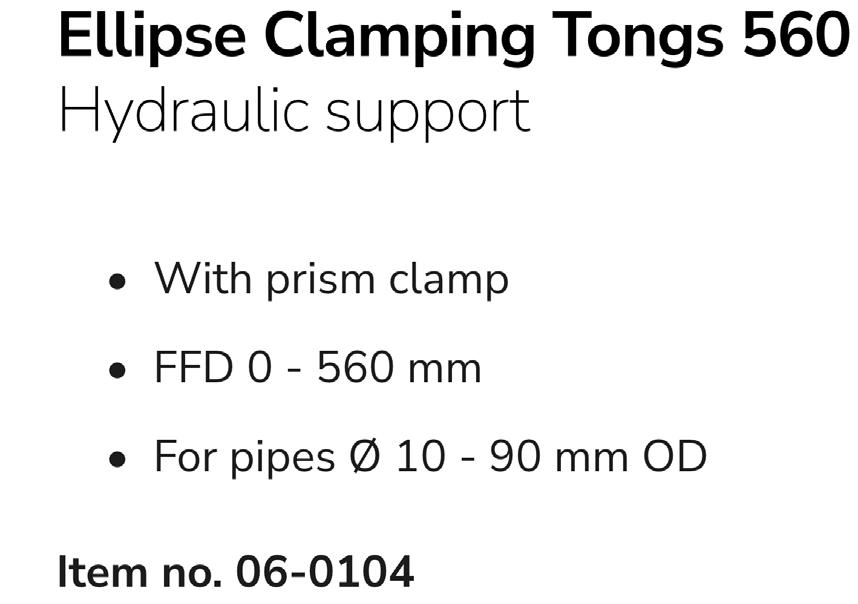

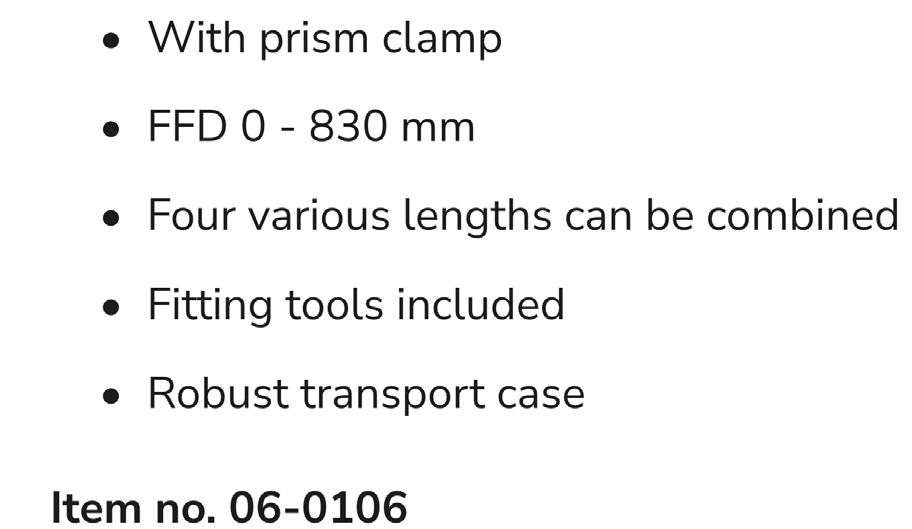

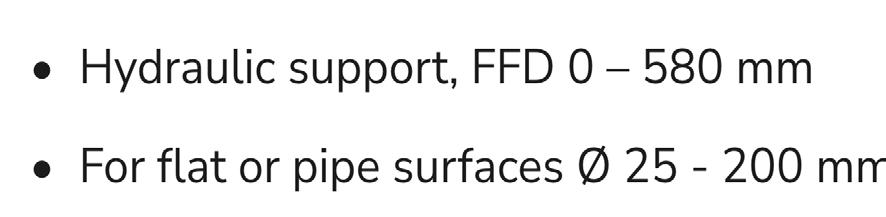

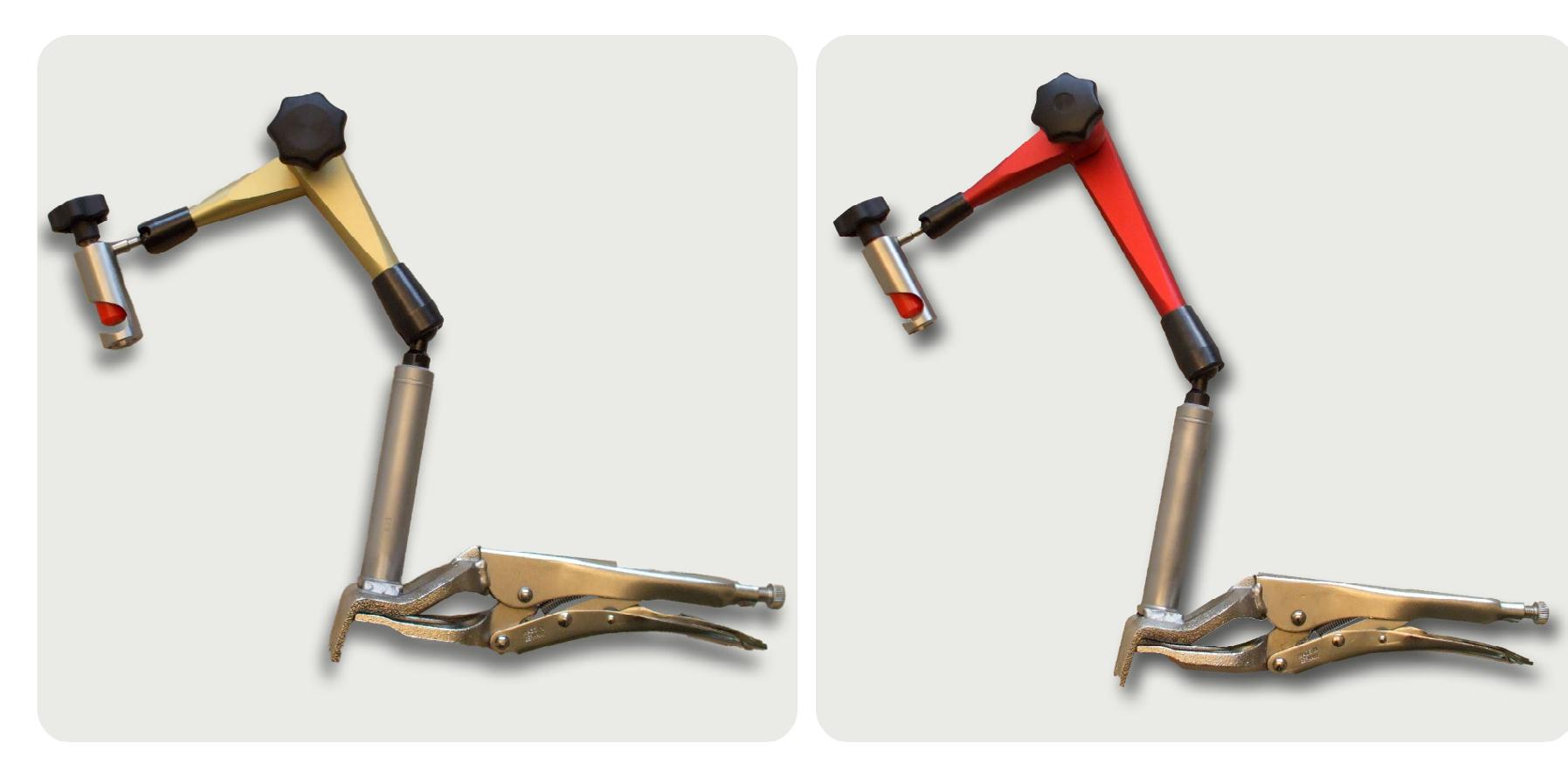

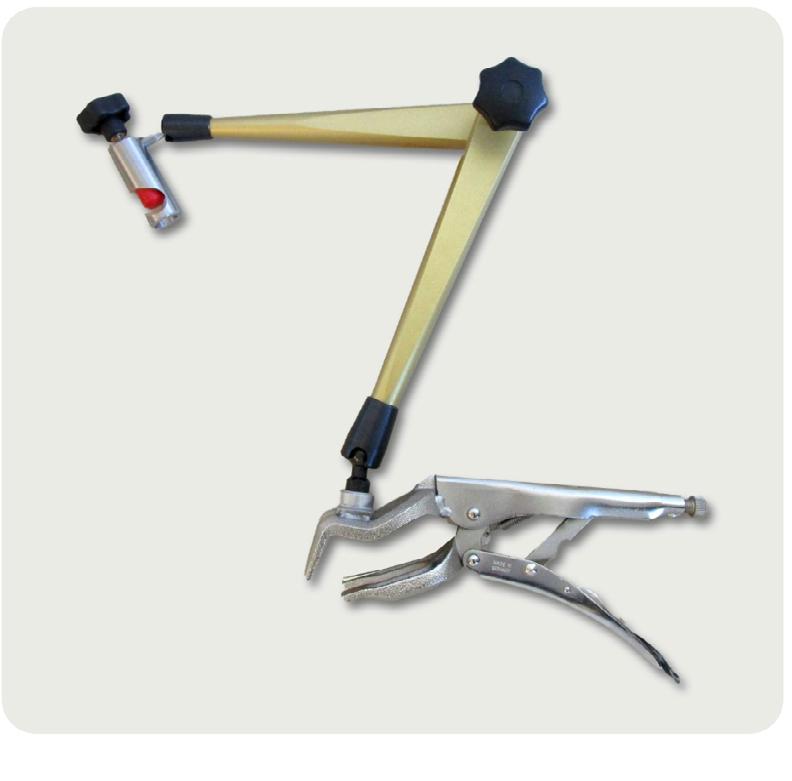

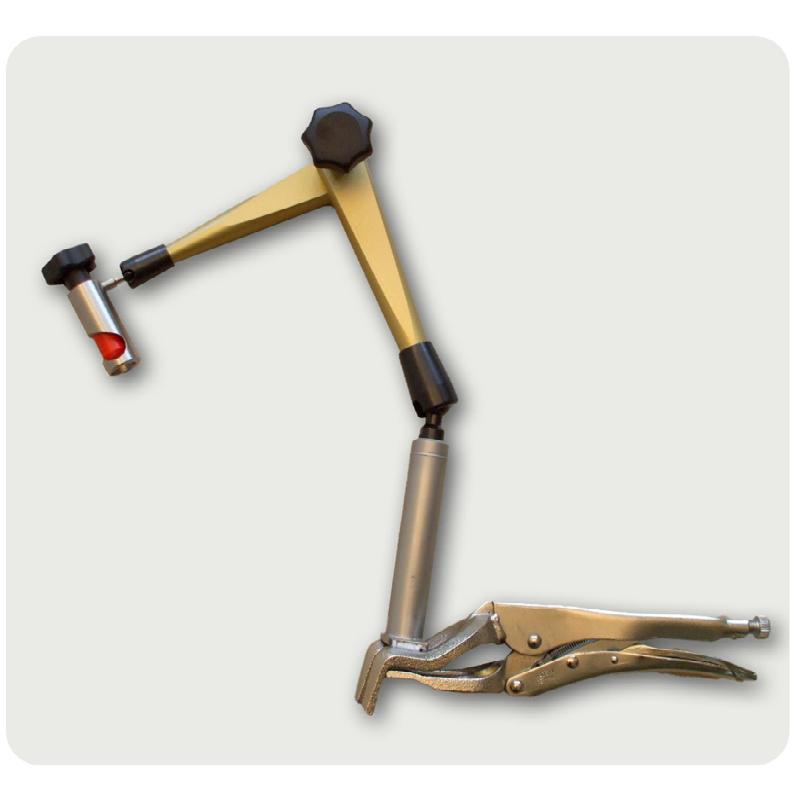

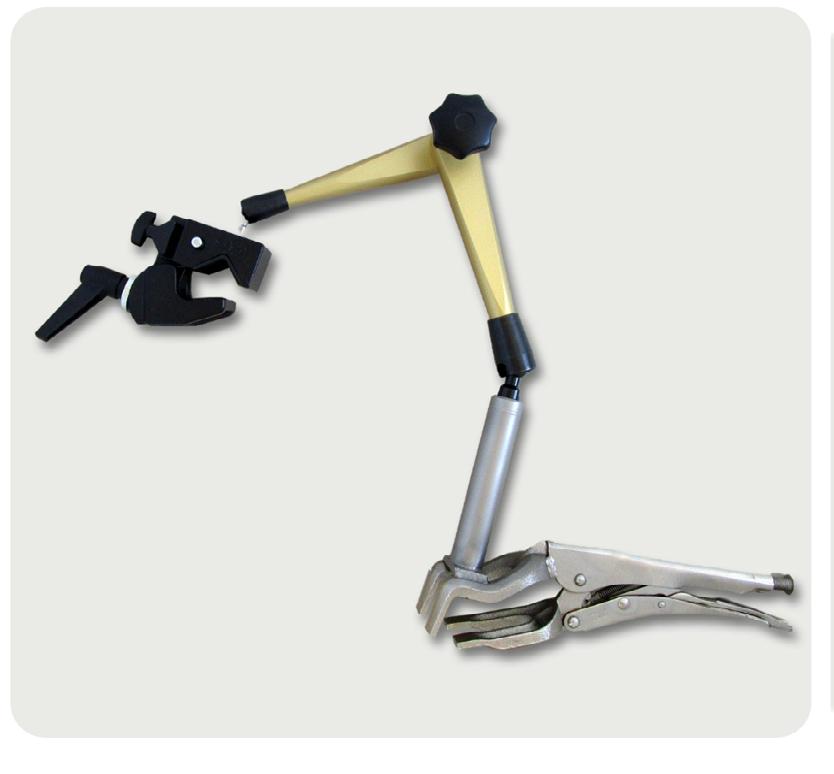

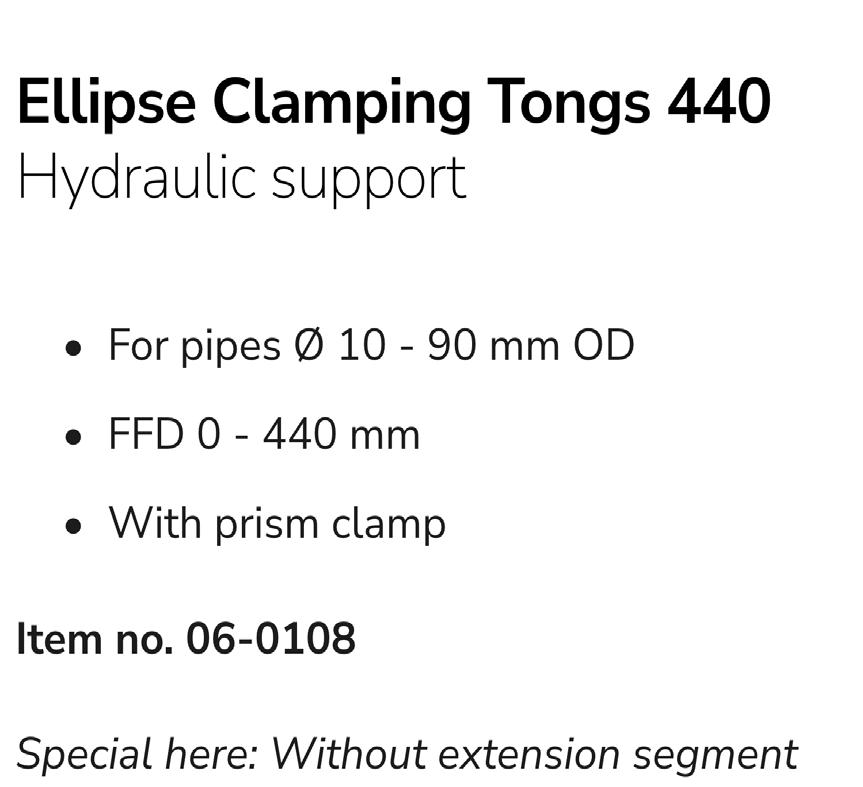

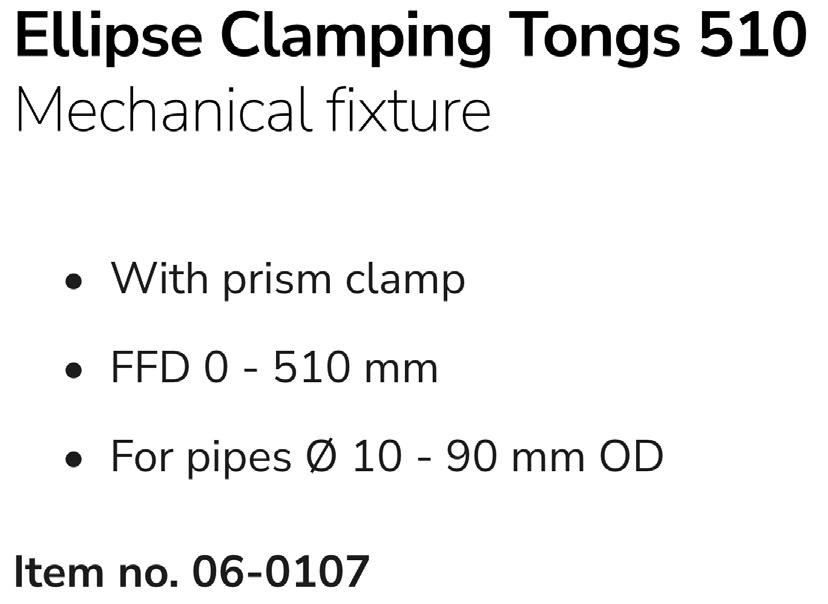

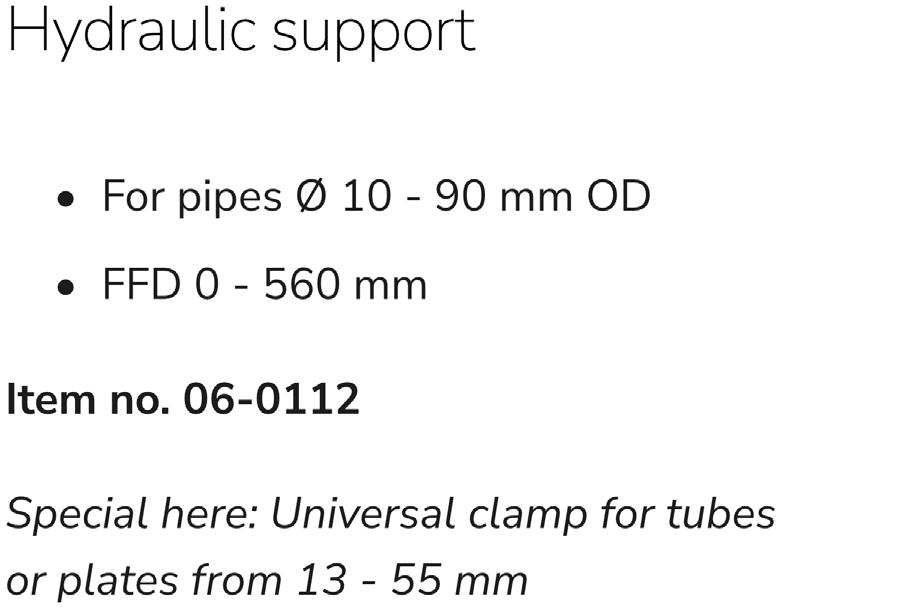

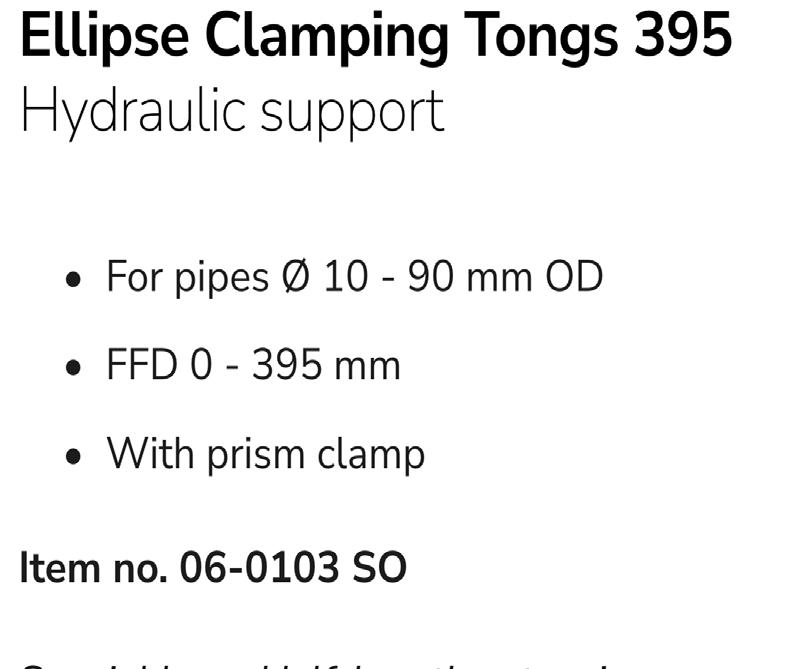

A. Ellipse Clamping Tongs by METRITEC
• Hydraulic or mechanical clamping
• Central clamping of all joints (magic arm)
• Prismatic clamp for source terminals up to Ø18.5 mm
• Or for collimators with holding rod
• Maximum clamping force approx. 7 kg
• Special requests can be considered – please contact us
Send us an e-mail or use the contact form. We will be pleased to assist you!
T I P : Hydraulic or mechanical?
The Hydraulic Arm gives you the benefit of achieving a high locking force even when the handwheel is tightened only gently, whereas the Mechanical Arm requires significantly greater manual force to tighten the joints.
On the other hand, the Mechanical Fixture requires less maintenance and can be used regardless of the ambient temperature, while the Hydraulic Clamp cannot support extreme temperature changes.

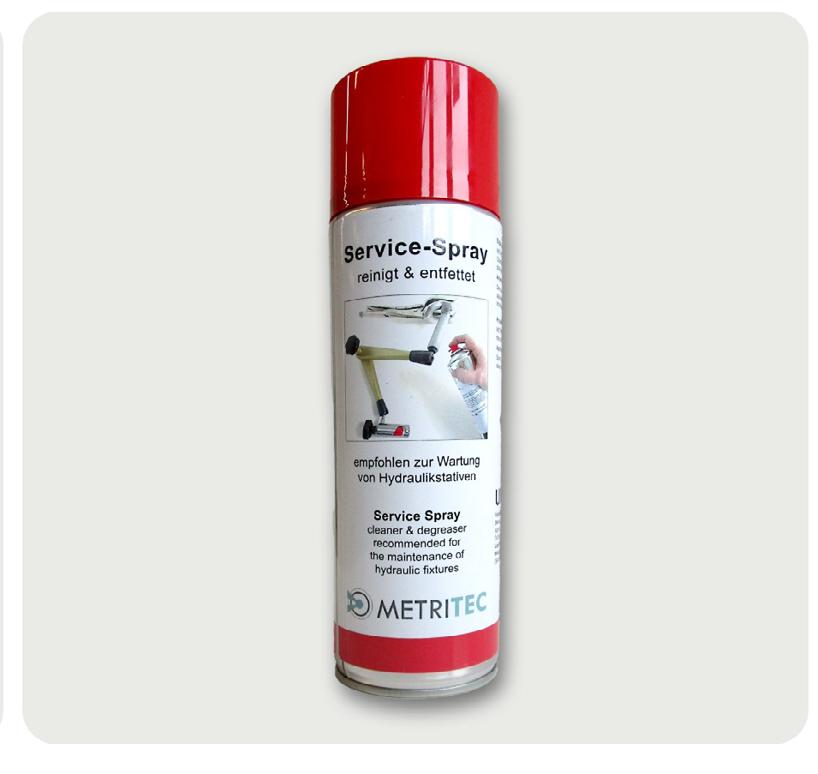

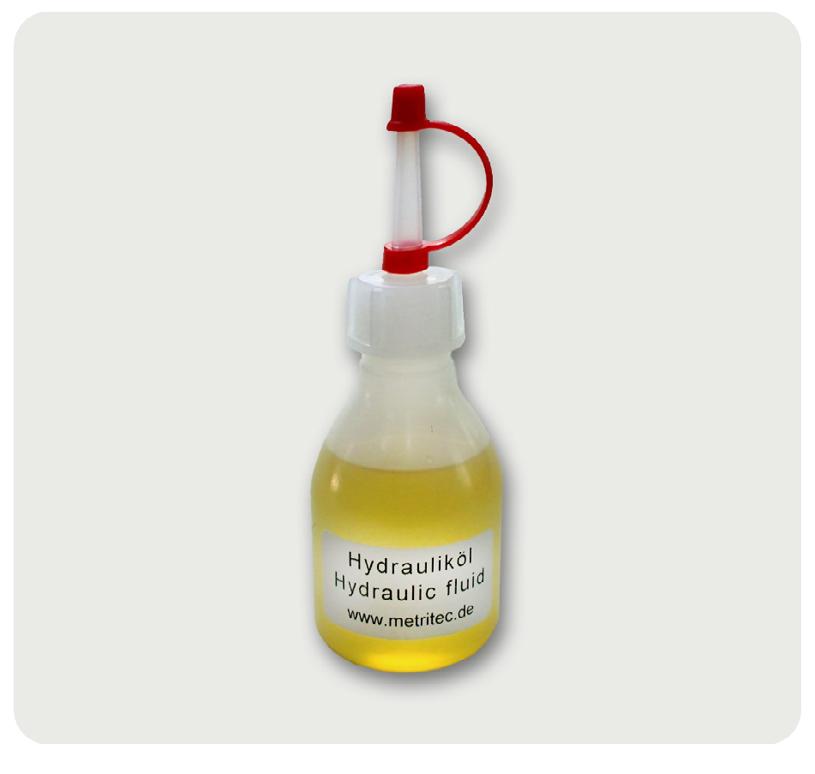

For the maintenance of hydraulic fixtures:

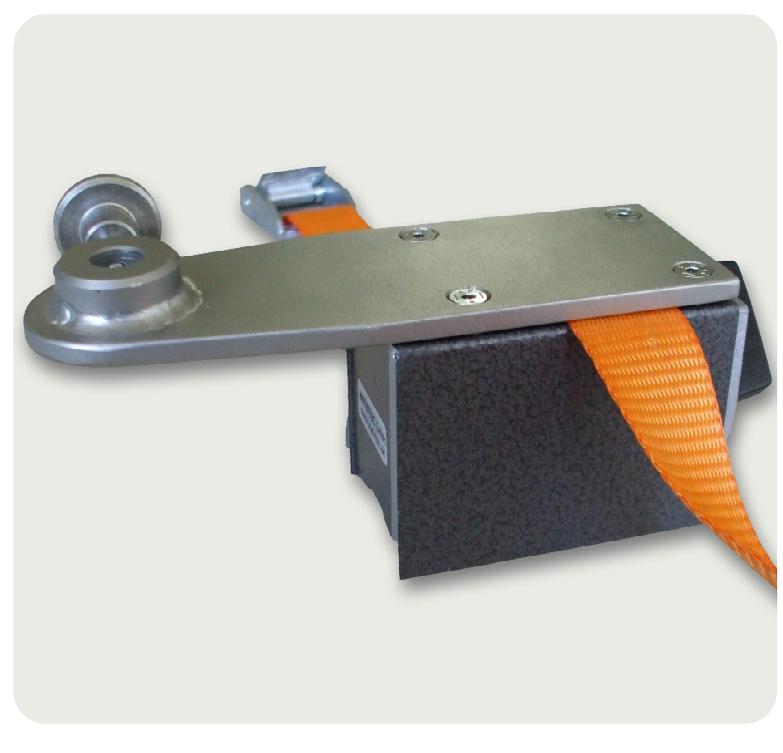

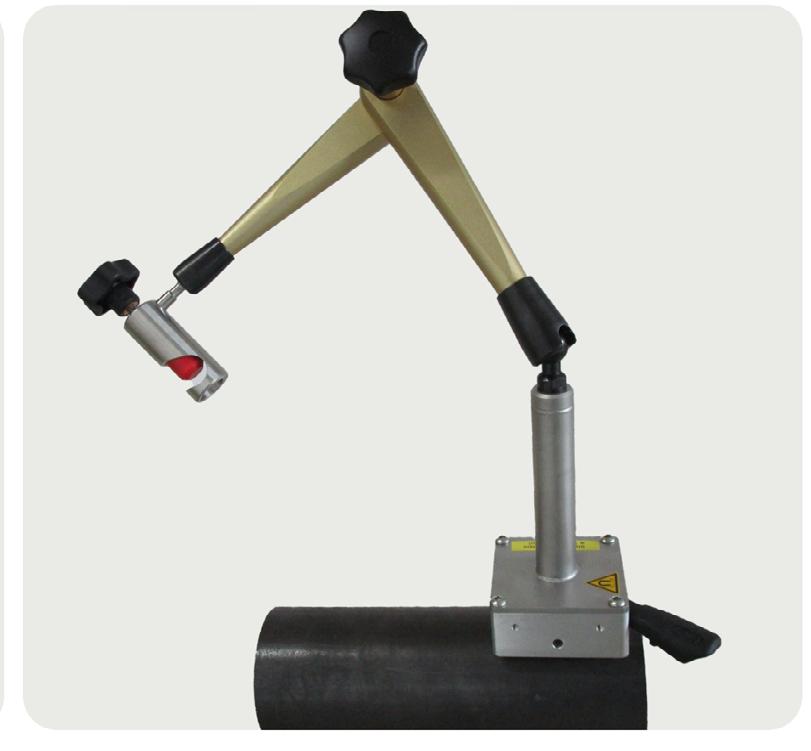

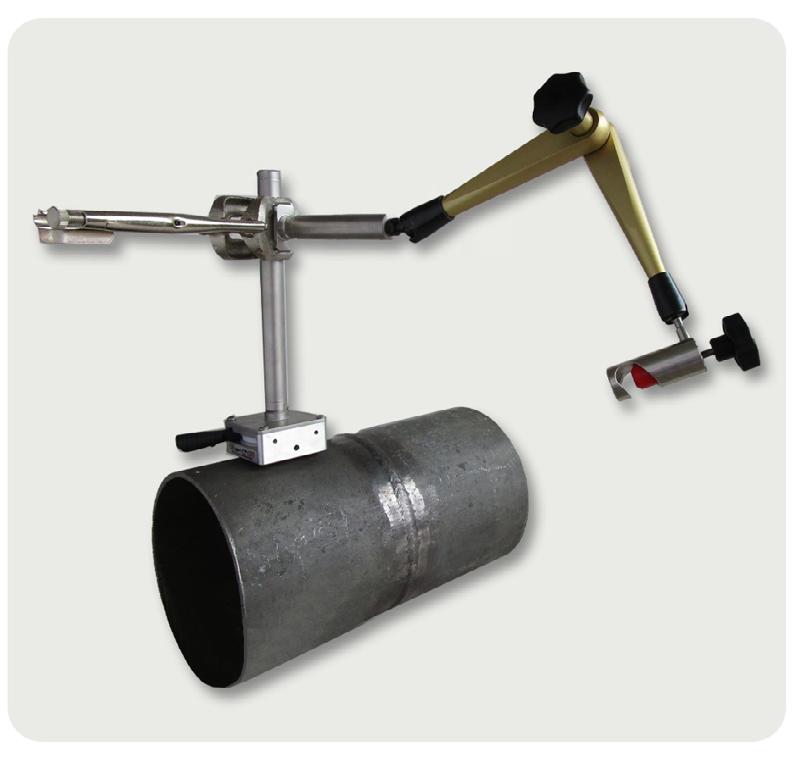

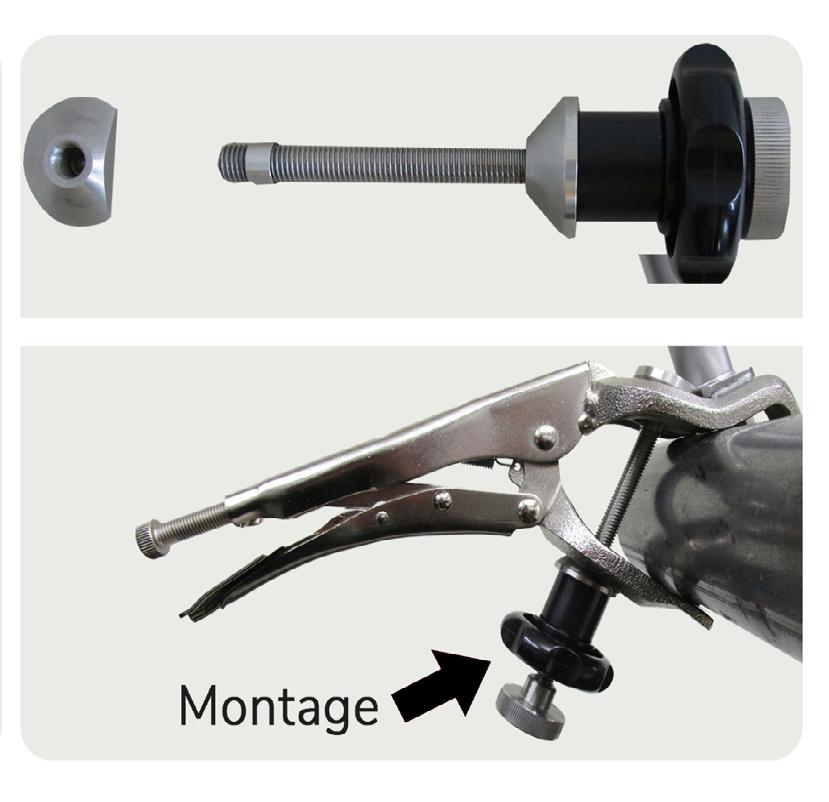

B. Magnetic Positioner by METRITEC
Figures for p. 11:

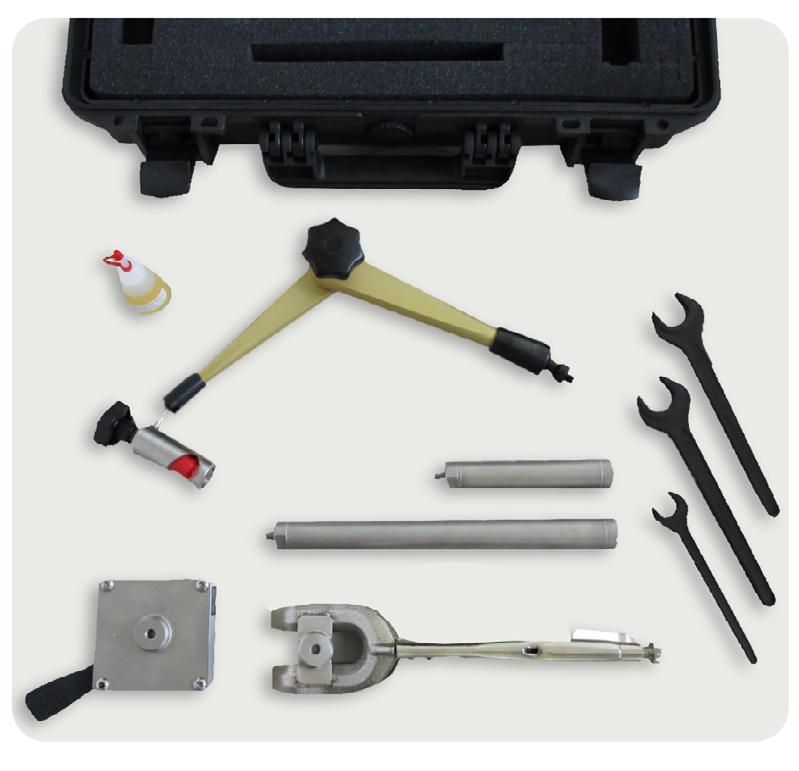

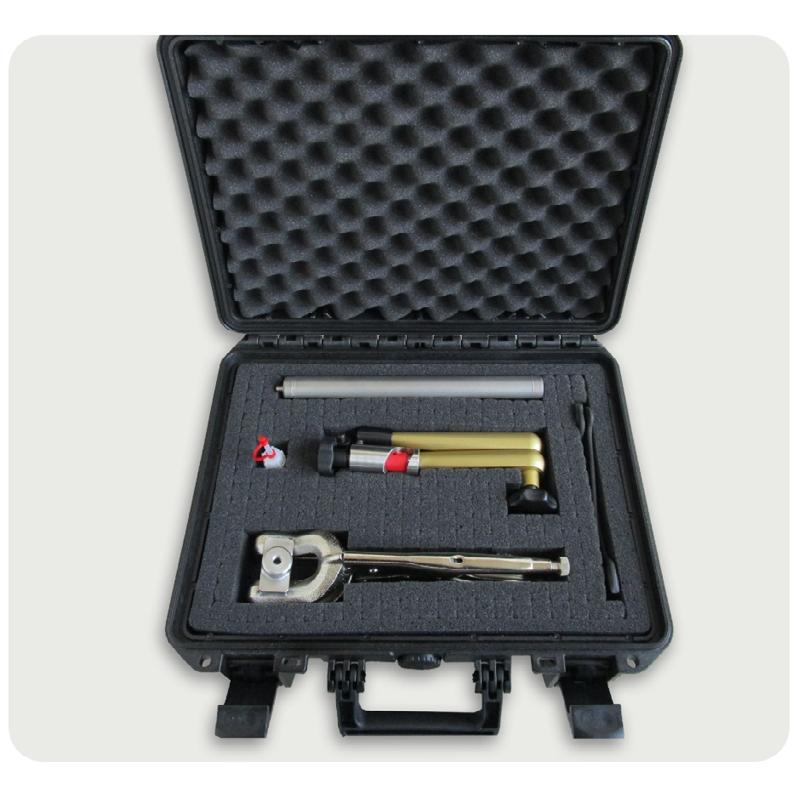

Positioning Toolkit
Strong Magnetic Base & Locking
Pipe Clamp
Art.-Nr. 06-0127
Anwendungsbeispiele
Do you have any questions about our products?
Then just give us a call or send us an e-mail. We will contact you as soon as possible.
METRITEC GmbH
Keeleng 13
D-24975 Husby
Telefon +49 (0)4634 - 931570
Telefax +49 (0)4634 - 931571
E-Mail service@metritec.de
C. Centering Devices / Pipe Spiders by METRITEC

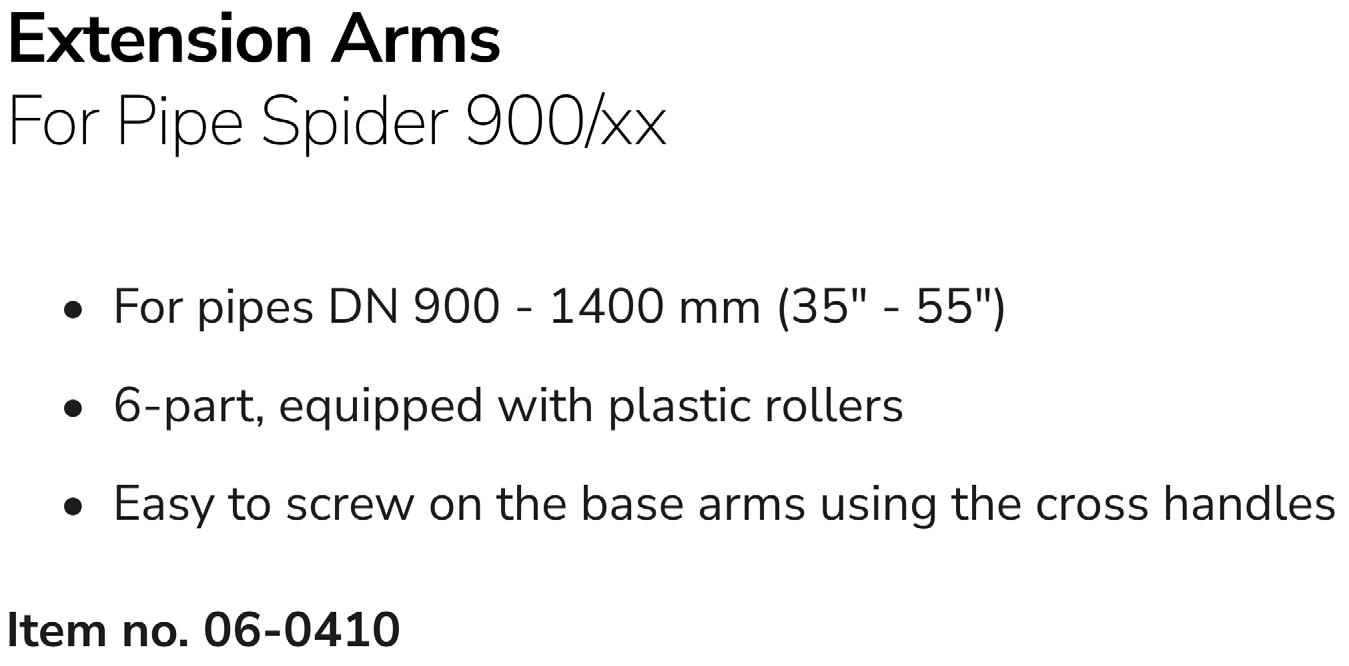

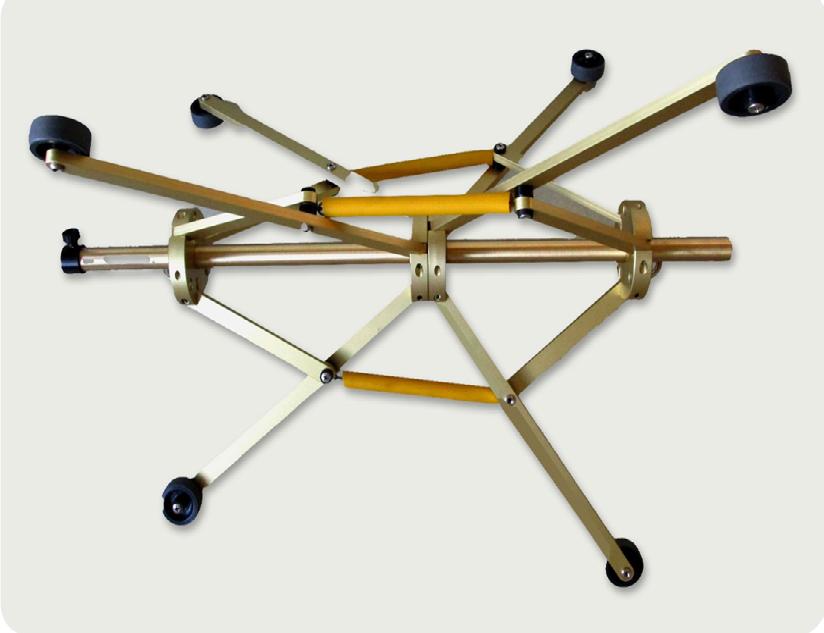

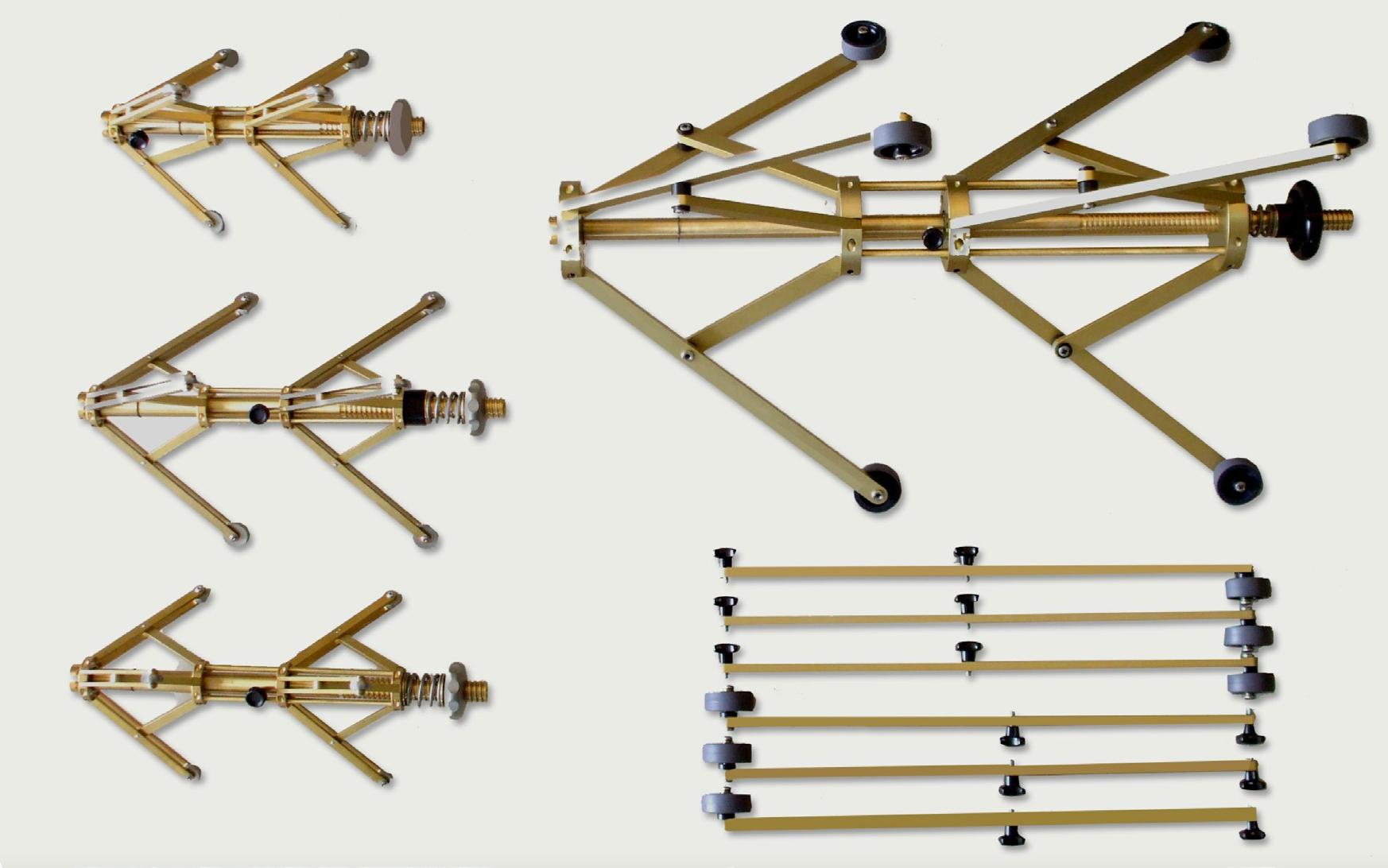

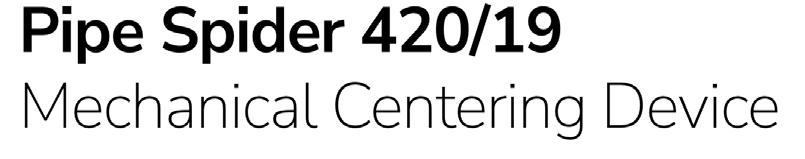

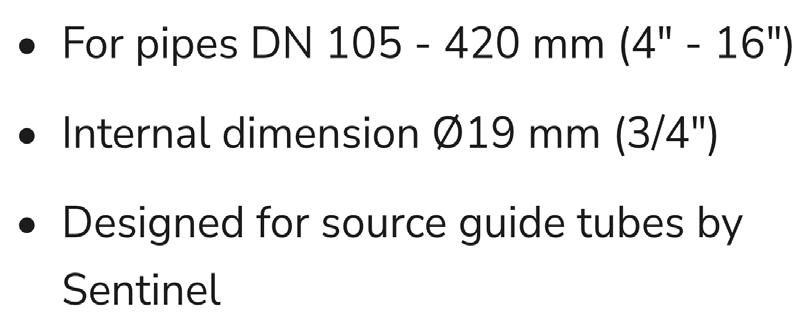

Pipe Spiders

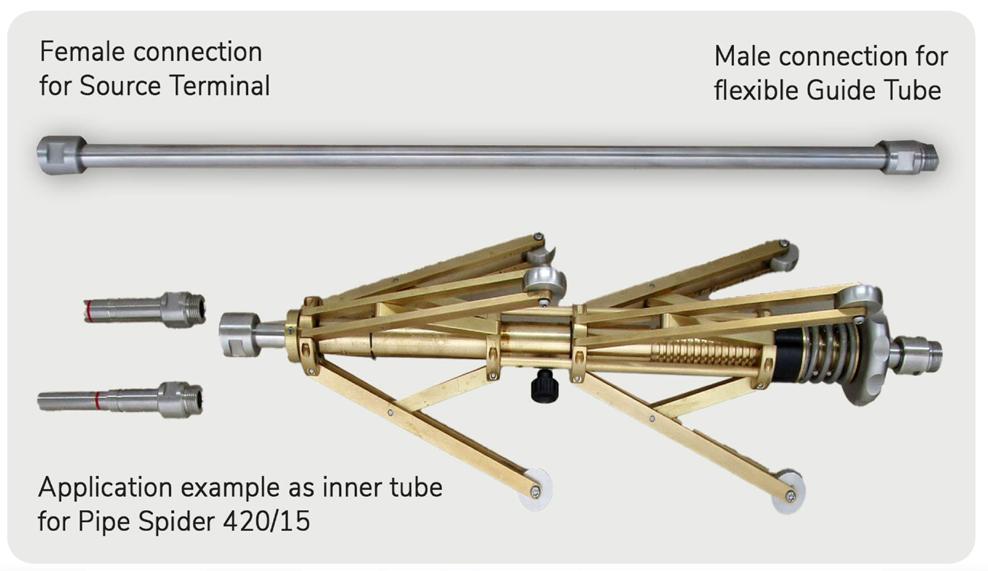

Our Pipe spiders are used as mechanical positioning tool for the centering of Gamma Radiography sources inside pipes. Our product range includes various models for the most common projector systems. The base unit is equipped without a source guiding tube and without connections. Matching equipment is also needed, which is pushed through the inner tube and clamped in place.

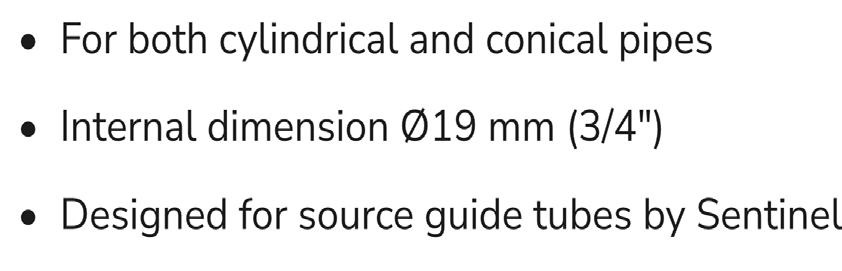

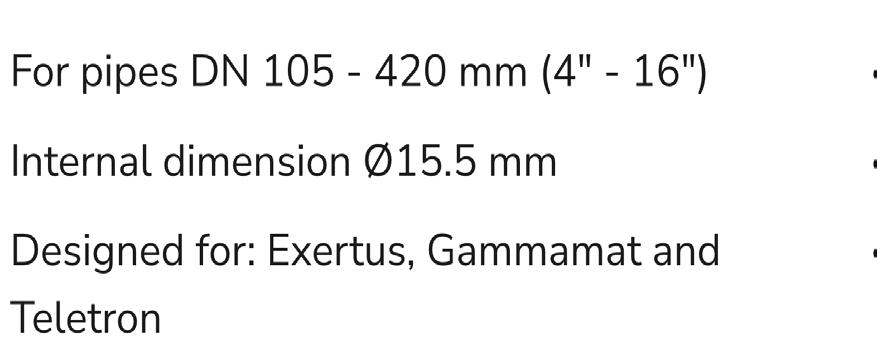

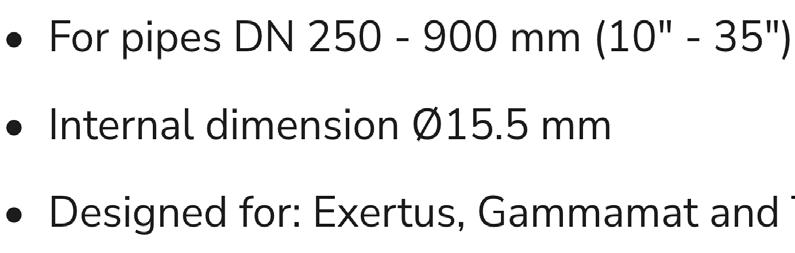

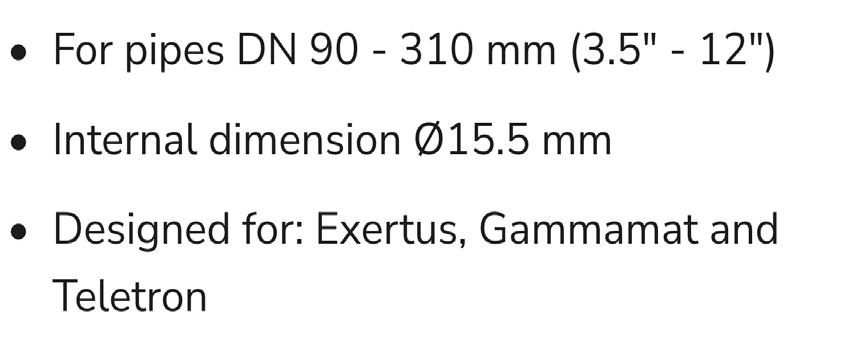

The Pipe spiders with an internal dimension of Ø15.5 mm are designed for the use with devices from Exertus, Gammamat and Teletron and can be operated together with appropriate long Source terminals or alternatively with Extension tubes (to connect source tips). Those Pipe spiders with an internal dimension of Ø19 mm are ideal for allowing complete Guide tubes with source stop to pass through, e.g. the originals from Sentinel
We will be pleased to advise you: Contact us

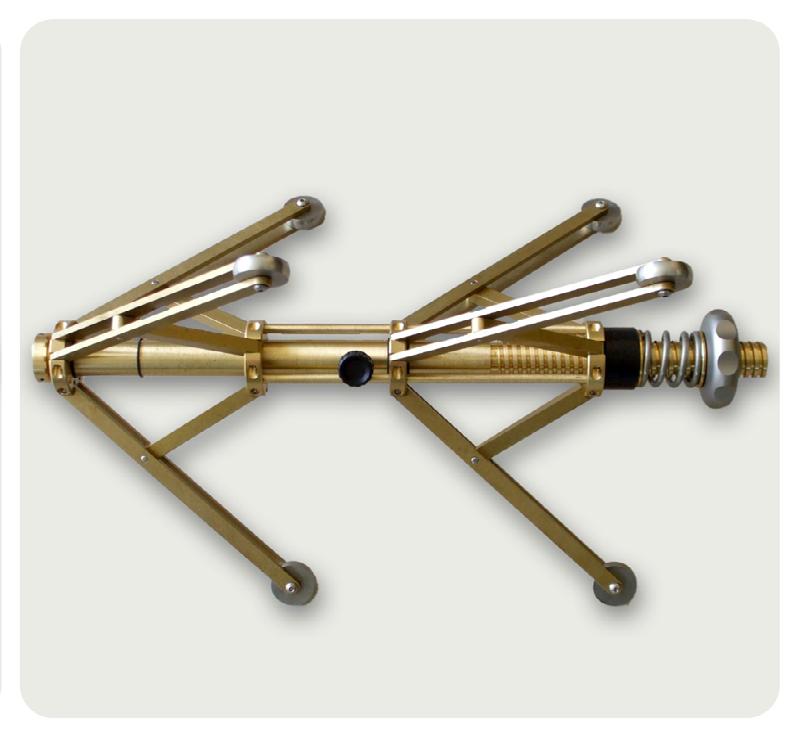

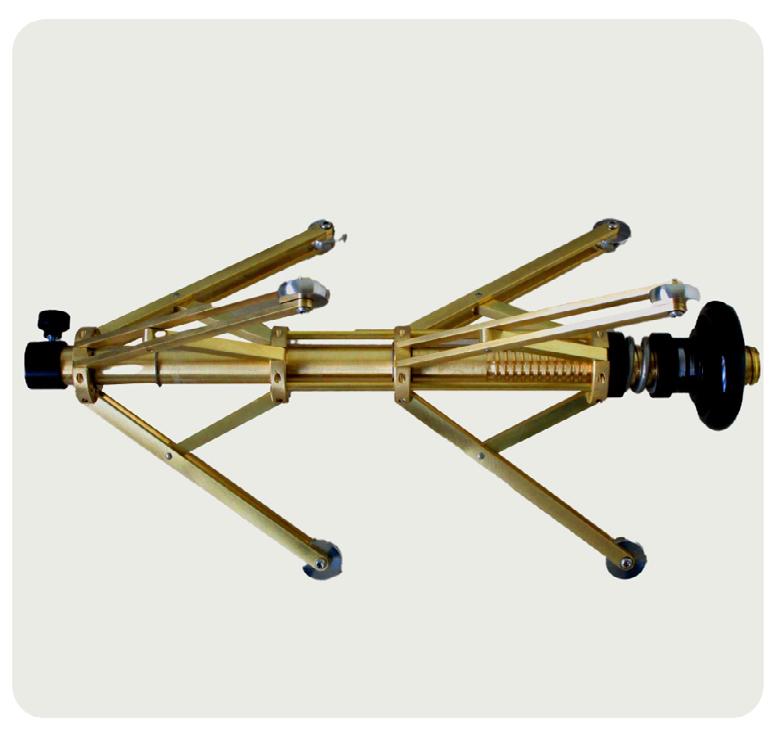

The Pipe Spider base unit without Source terminal

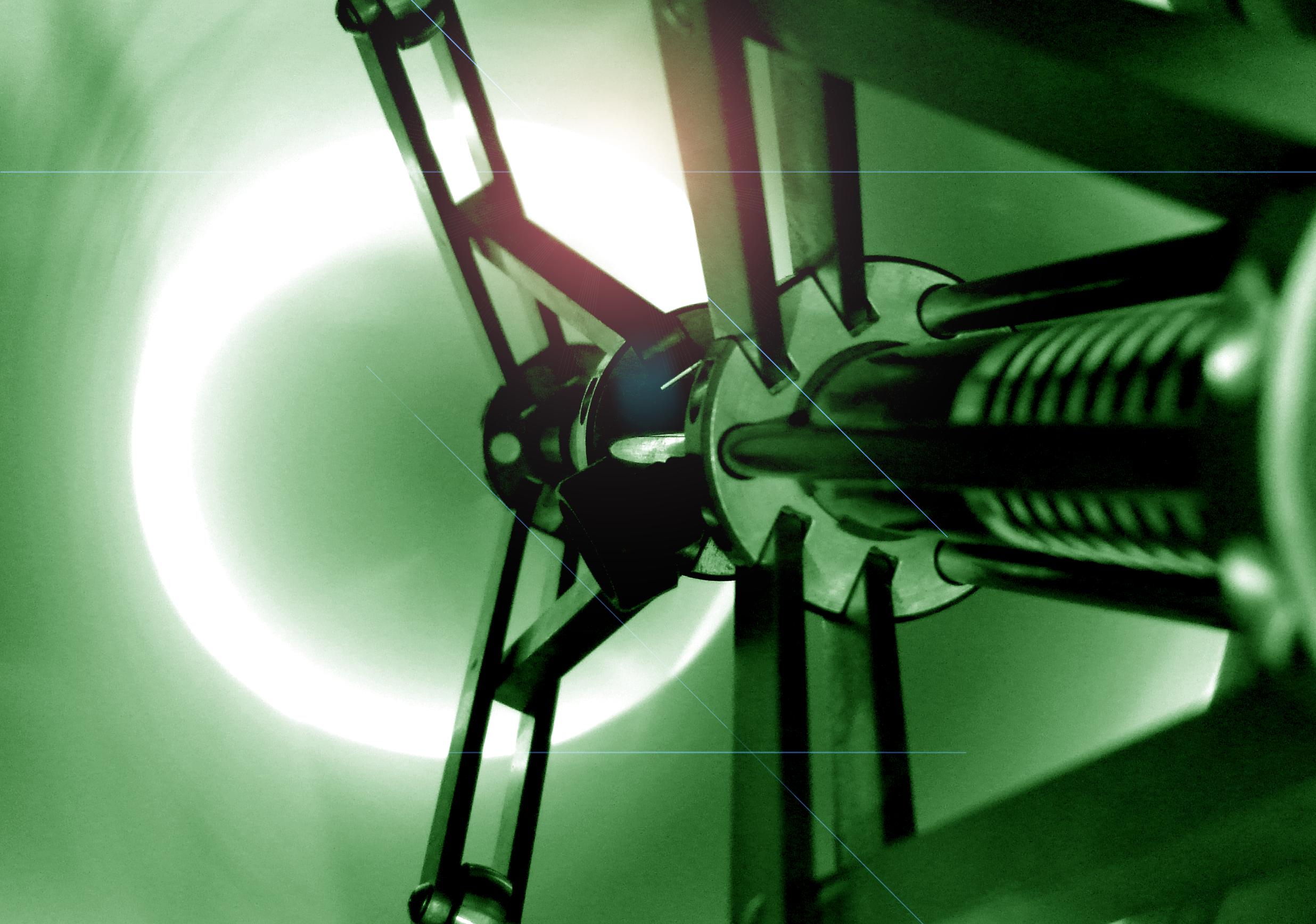

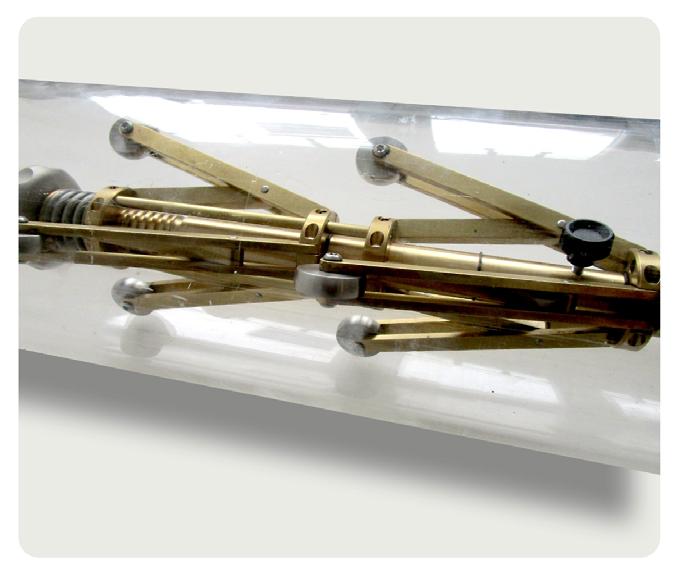

The Centering Device inside a pipe
We promise you quality
Our products are manufactured with the highest precision. Whether you need innovative elliptical forceps, magnet holders or tube trolleys for positioning gamma radiography source holders – we offer the right product or work with you to develop customised solutions.
Metrif-
Metrif-
2
Winding Mechanism

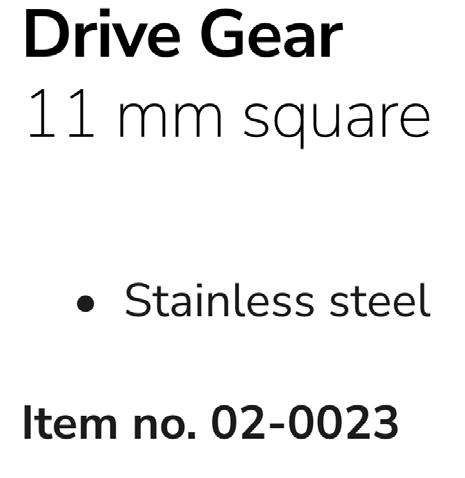

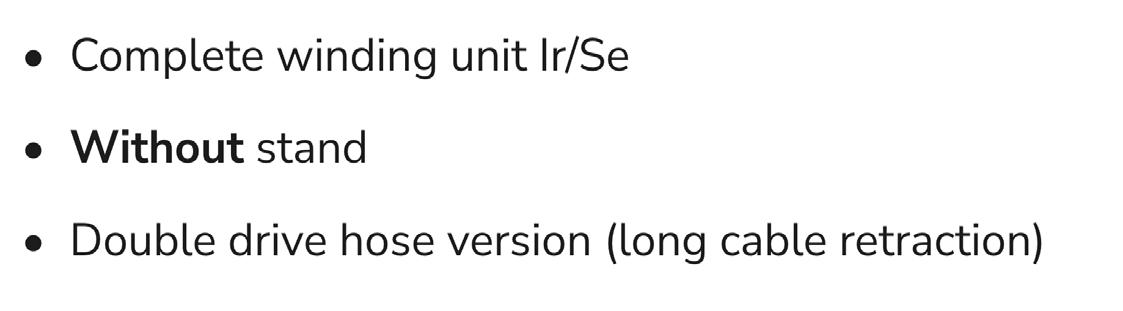

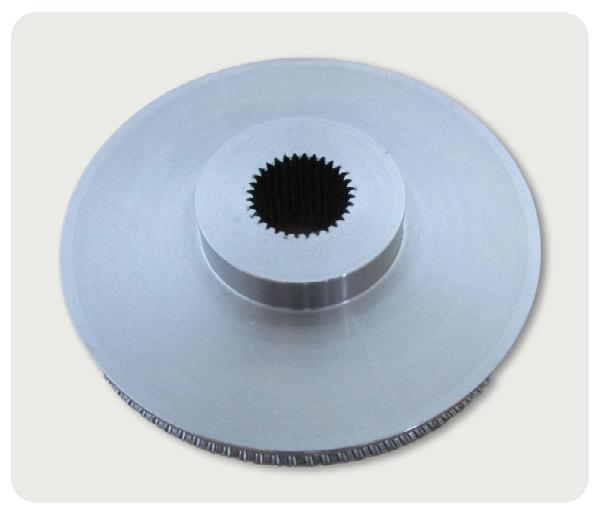

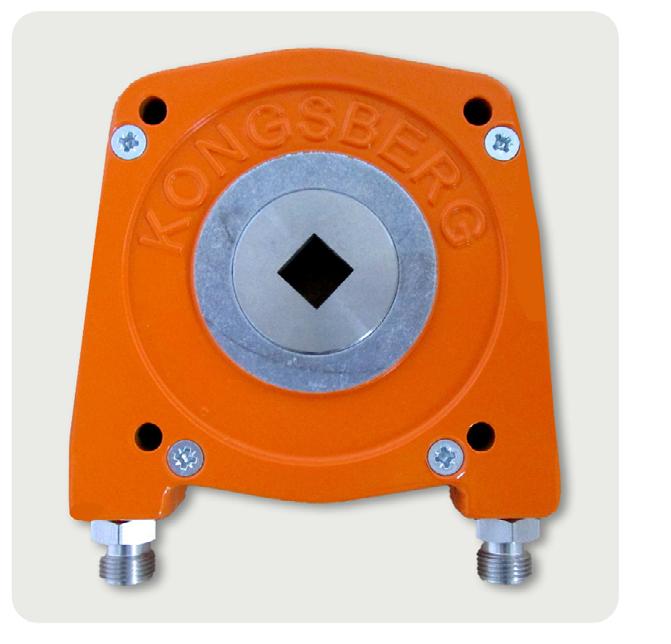

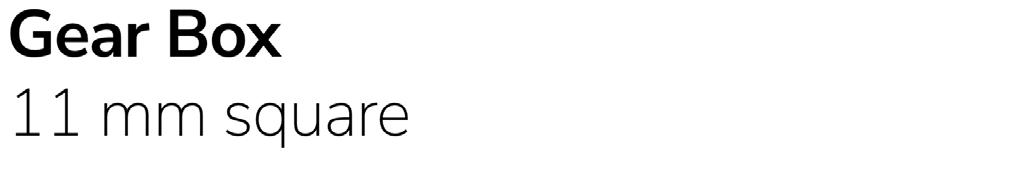

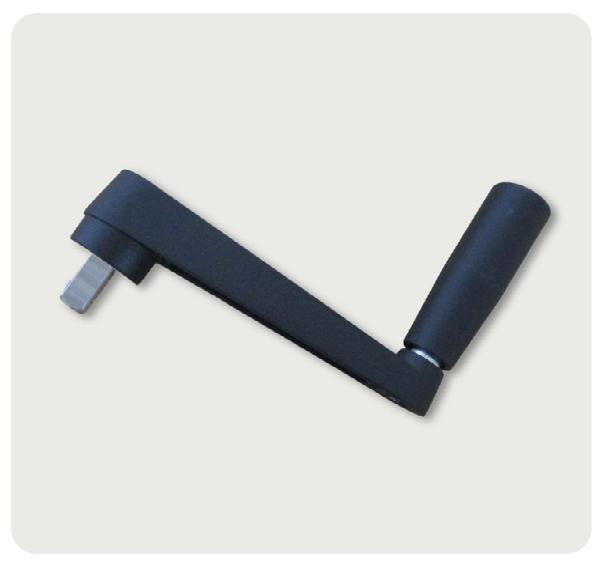

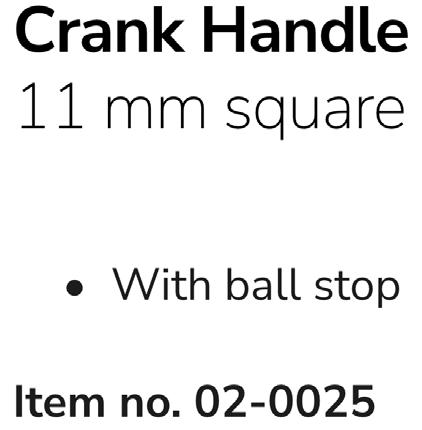

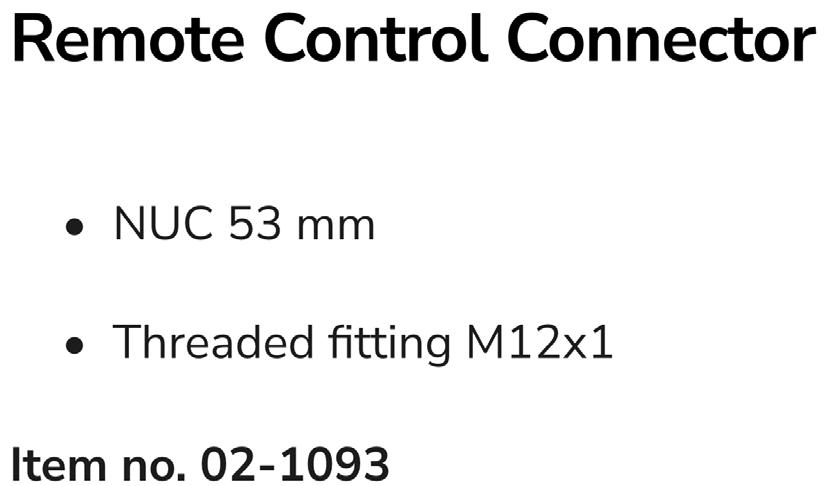

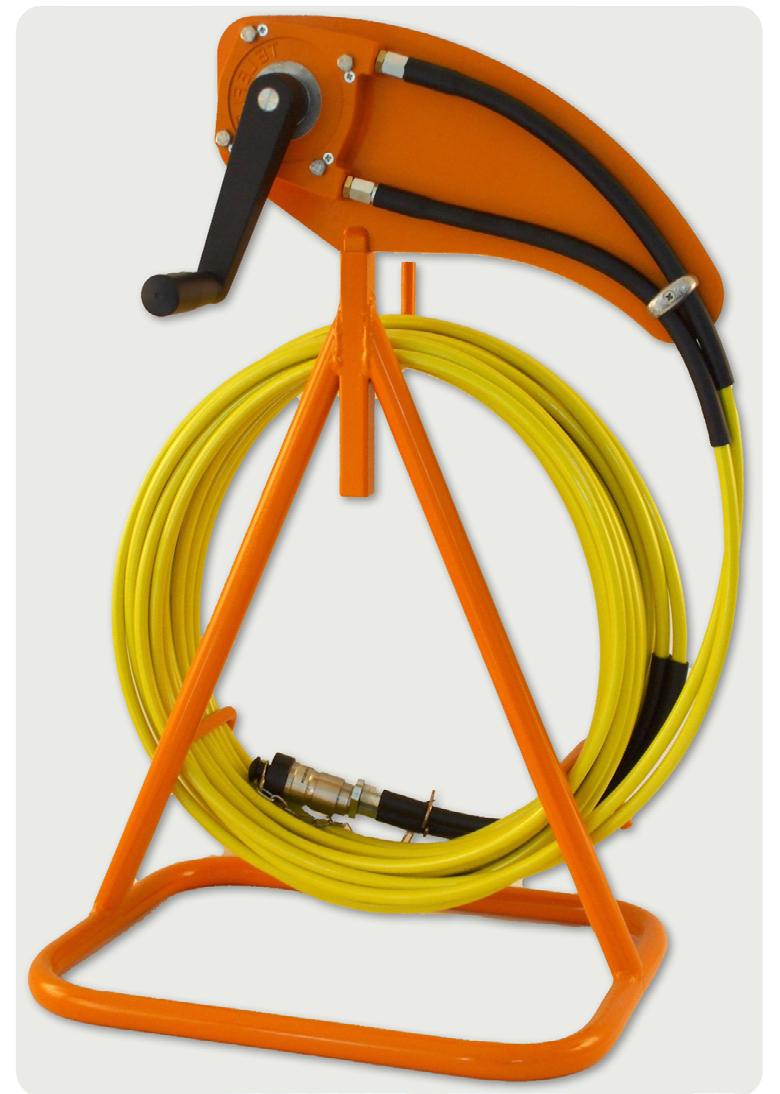

A. Remote Controls & Spare Parts by METRITEC

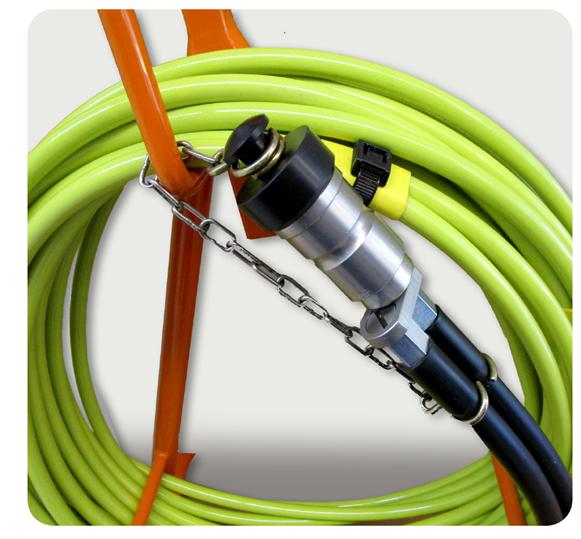

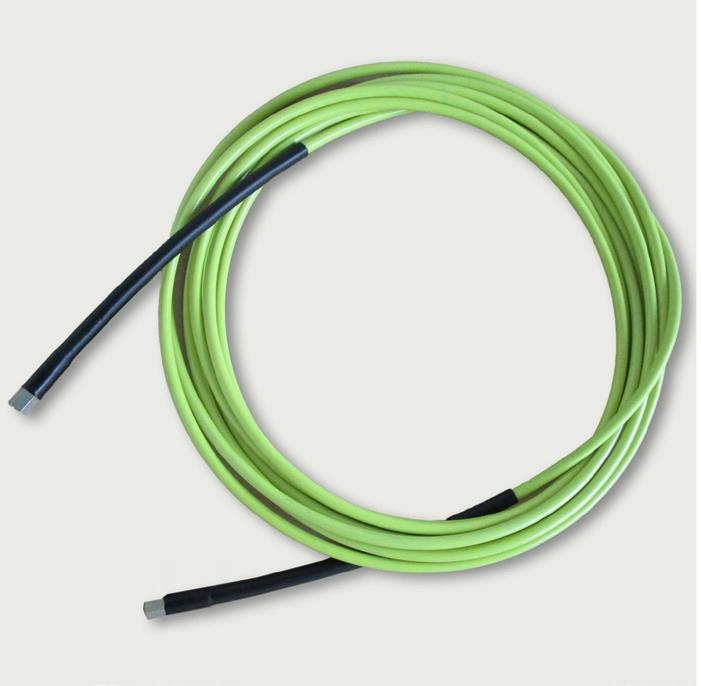

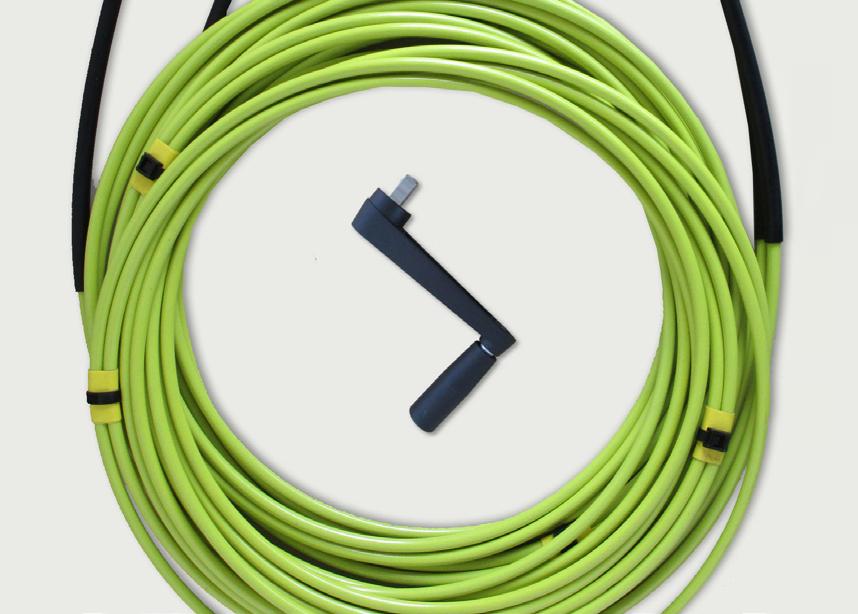

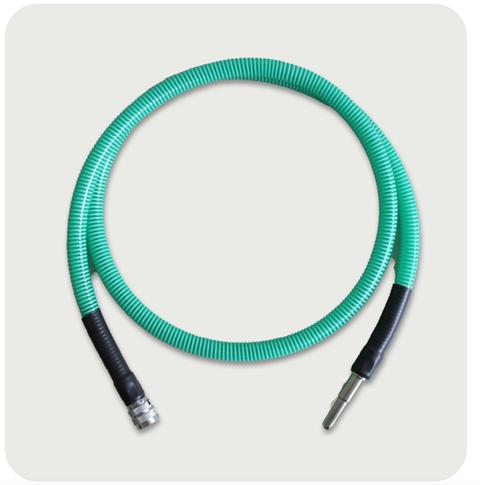

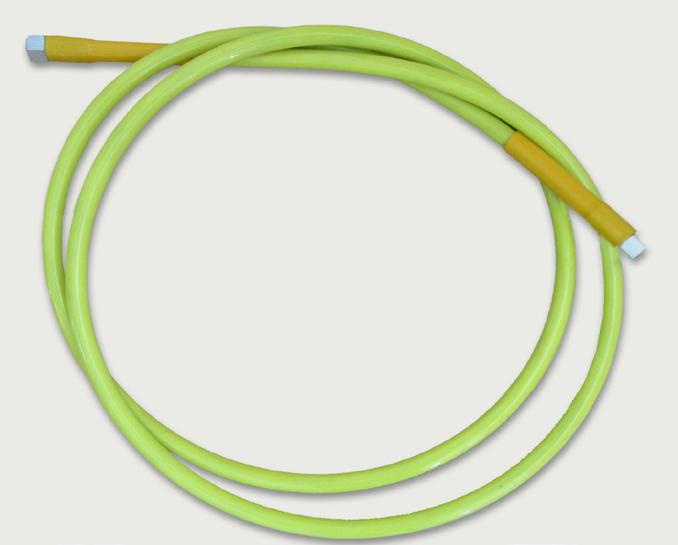

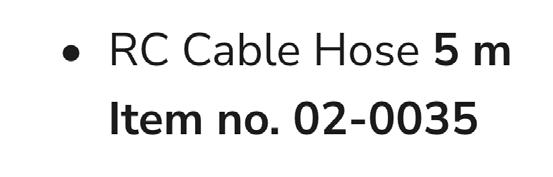

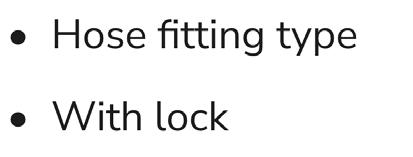

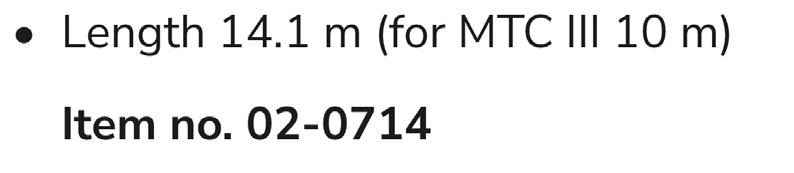

B. Cable Hose & Drive Cable

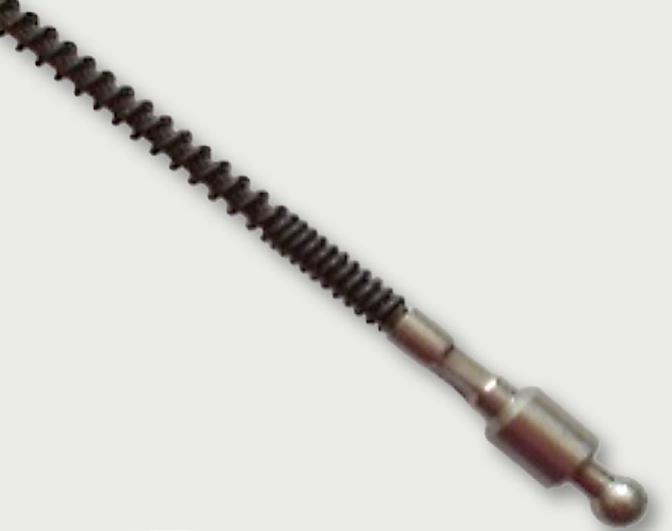

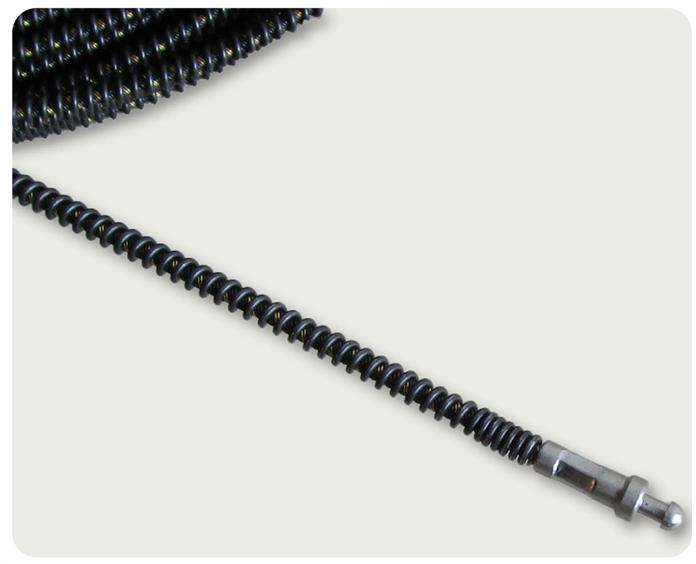

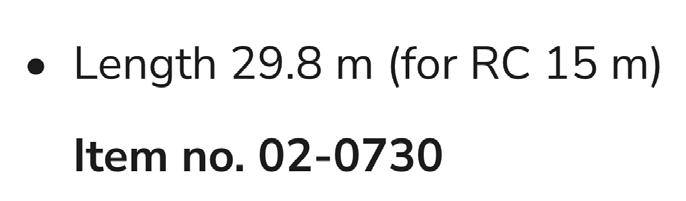

Drive Cables with ball pin and safety terminal – traction load tested to minimum 70 kg:
Do you have any questions about our products or would you like a customised quote?
Then give us a call or use our contact form.
We would also be happy to arrange an appointment at our premises if you are in the neighbourhood.
METRITEC GmbH
Keeleng 13
D-24975 Husby GERMANY
E-Mail: service@metritec.de
Telefon: +49 (0)4634 - 931570 Please,
METRITEC GmbH Husby
10 km
QUELLE: GOOGLE MAPS
3 Guide Tubes & Source Terminals

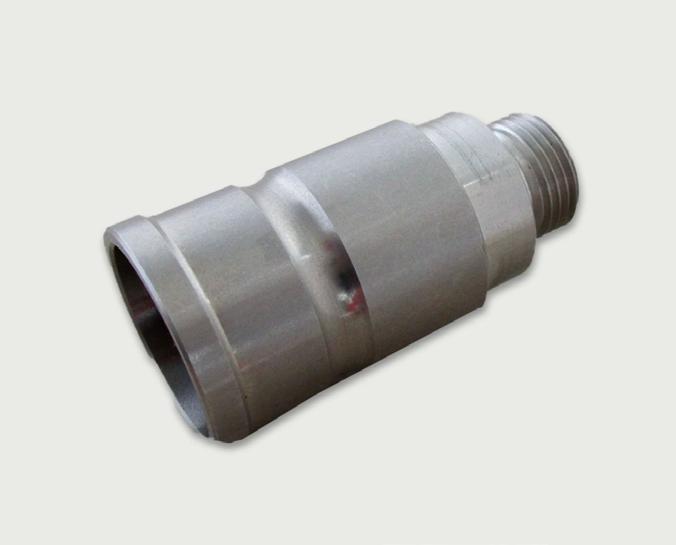

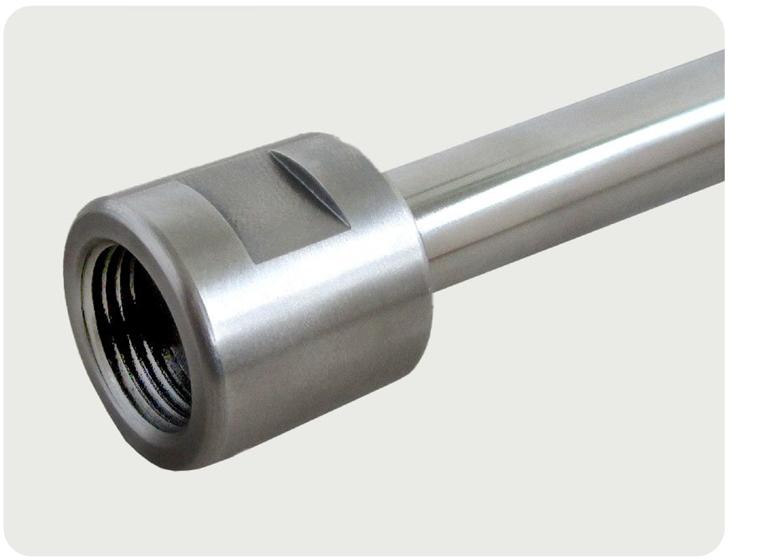

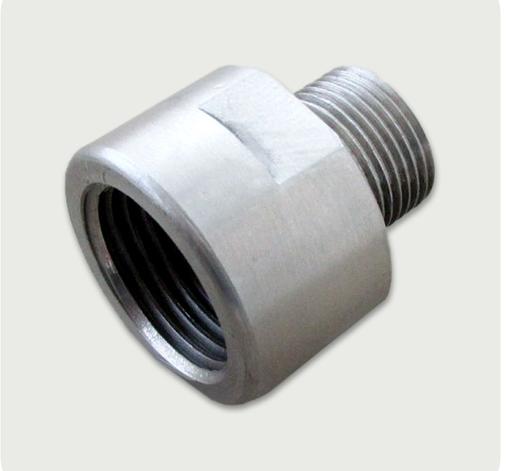

A. Guide Tubes and Connectors

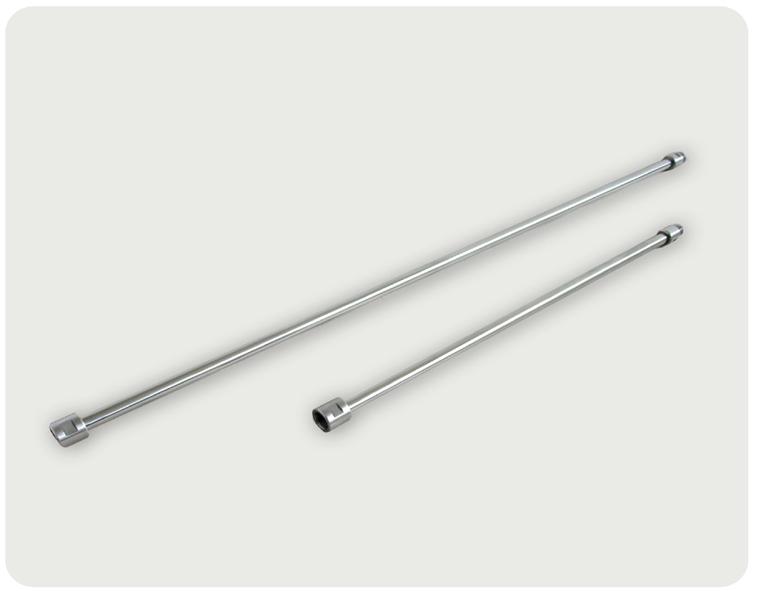

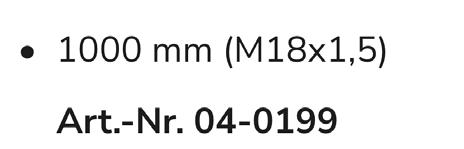

B. Guide Tube Extensions

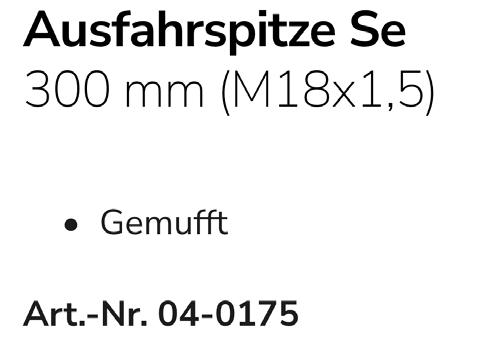

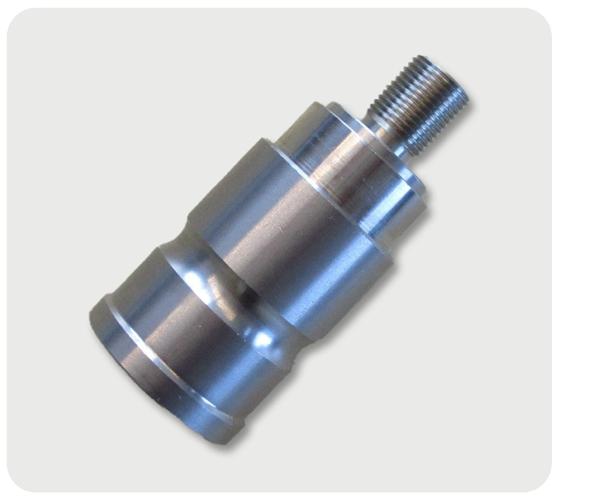

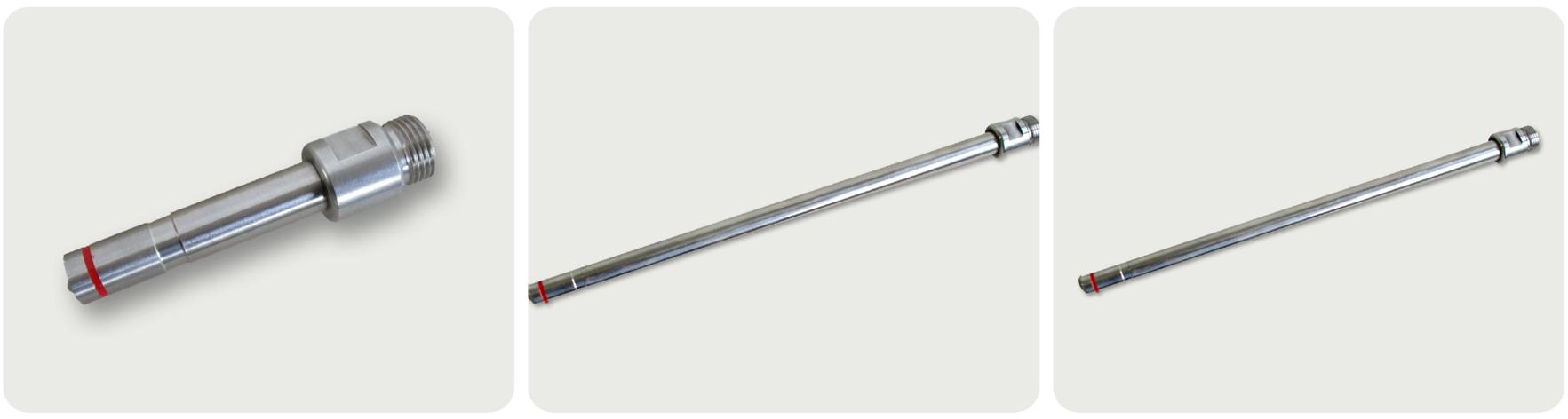

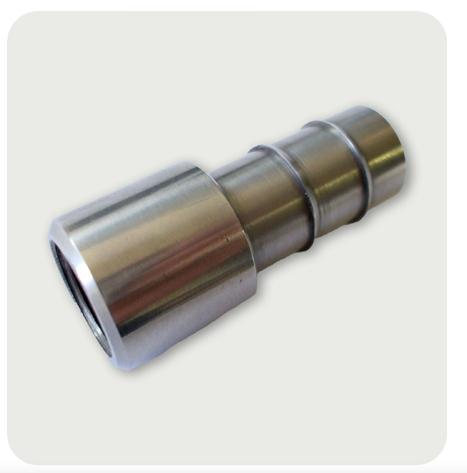

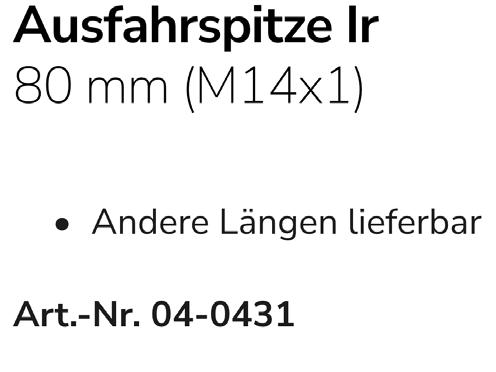

C. Source Terminals
4 Tungsten Collimators
RT-Film Evaluation
5

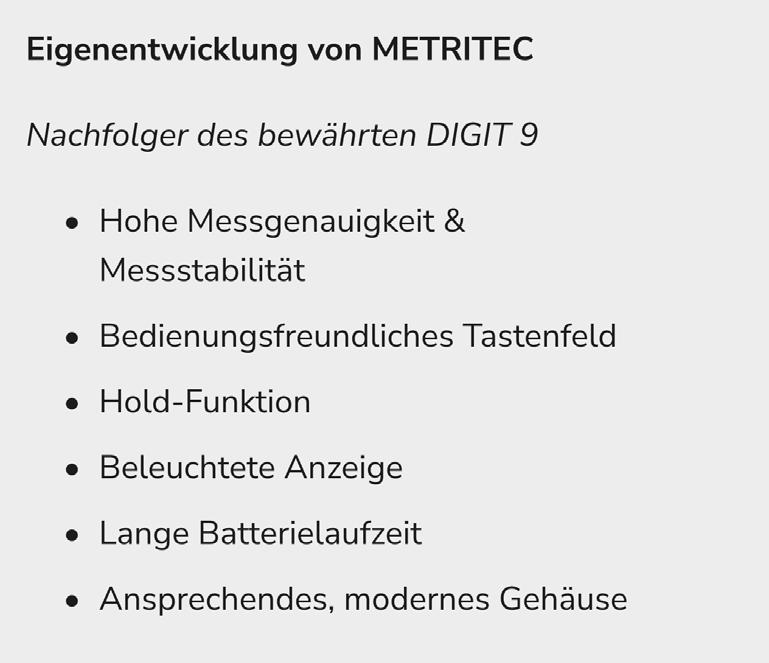

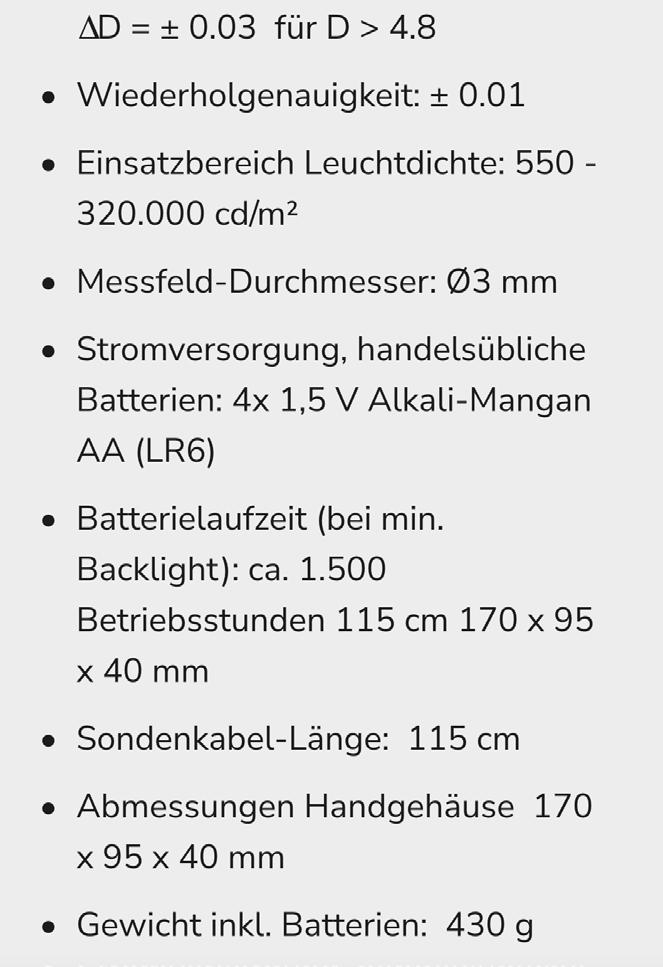

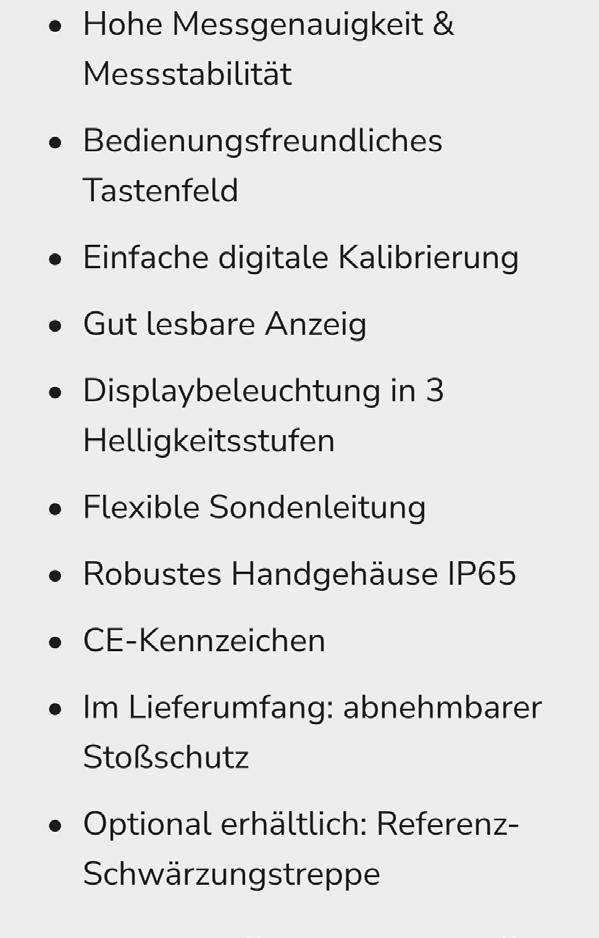

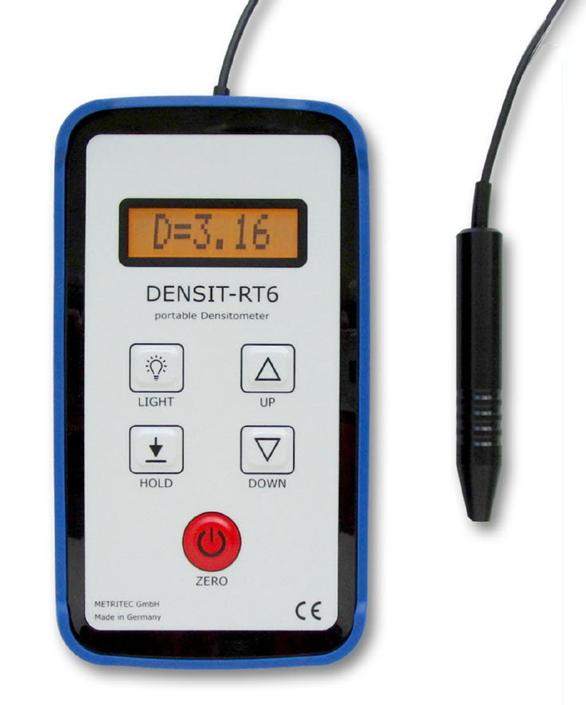

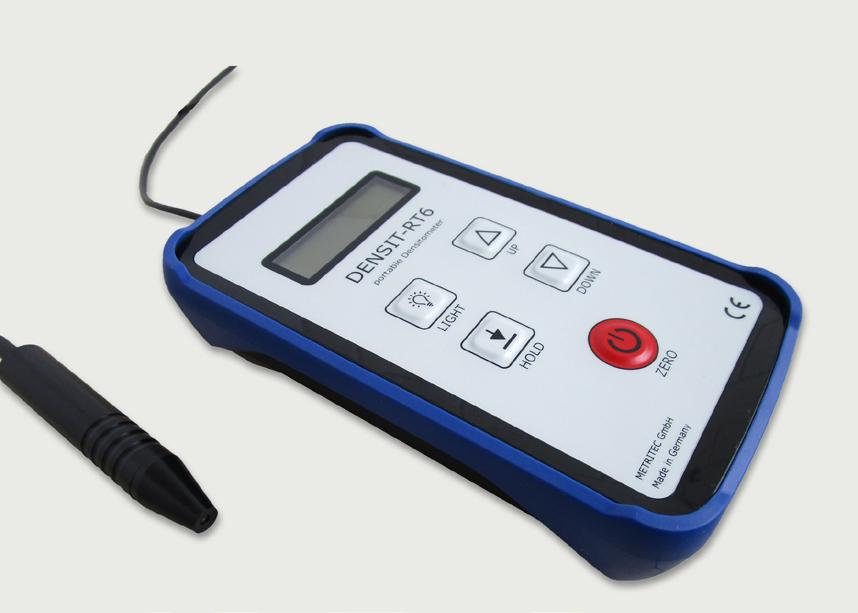

Densitometer
6 Radiation Safety

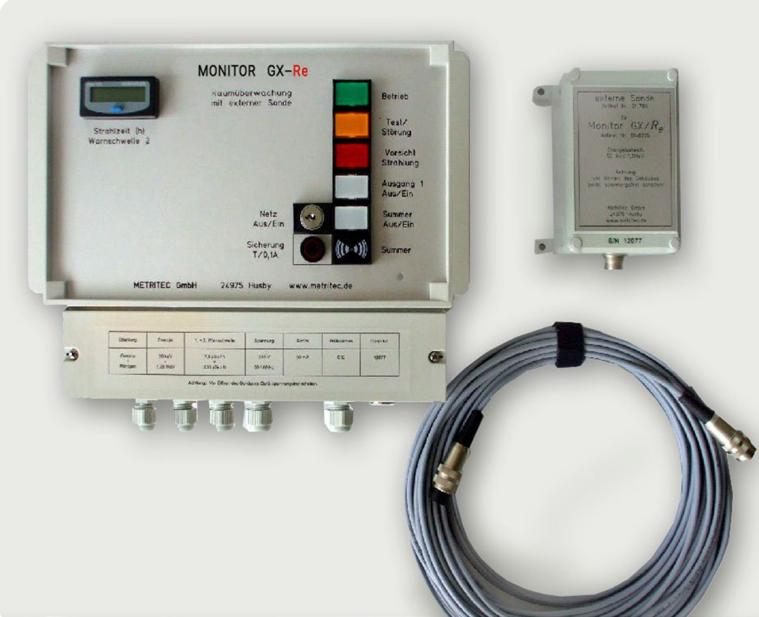

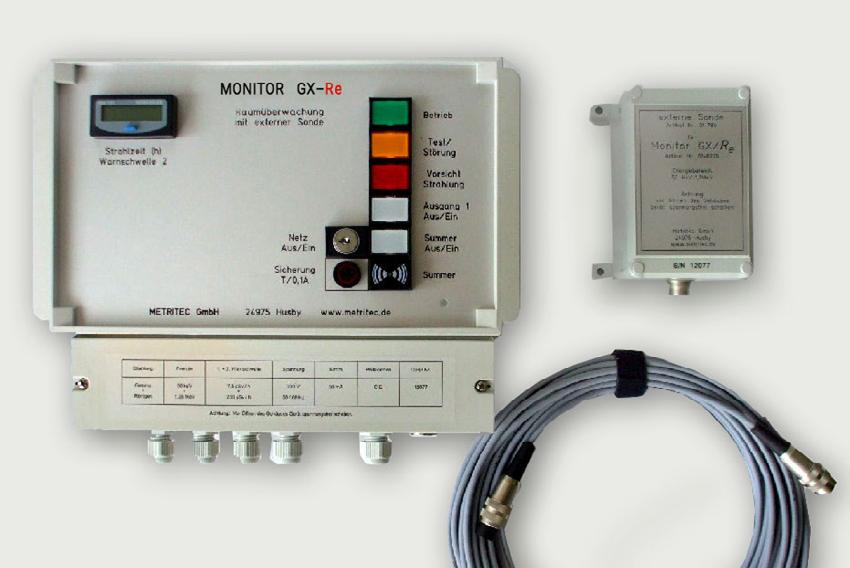

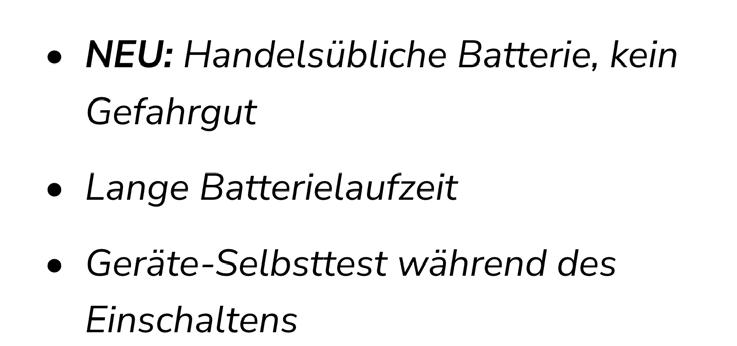

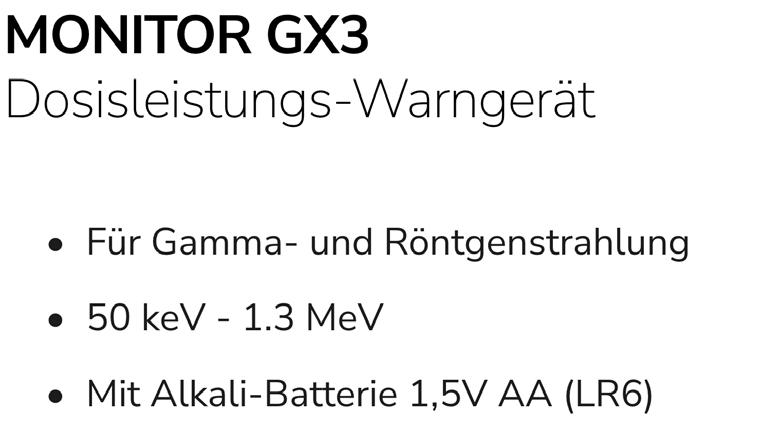

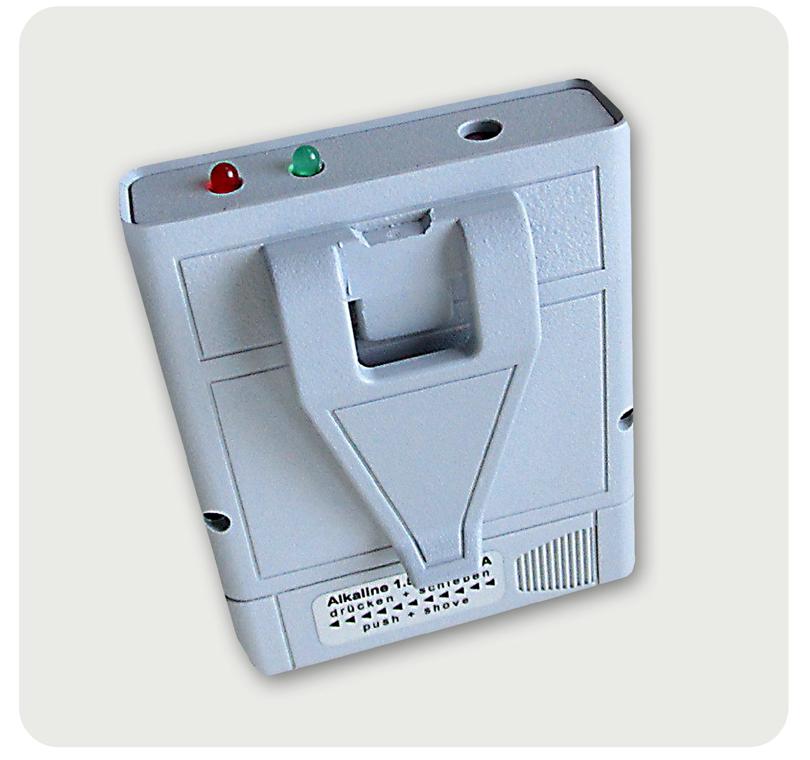

A. Strahlenwarngeräte, Personenschutz
B. Isotopen-Ferngreifzange

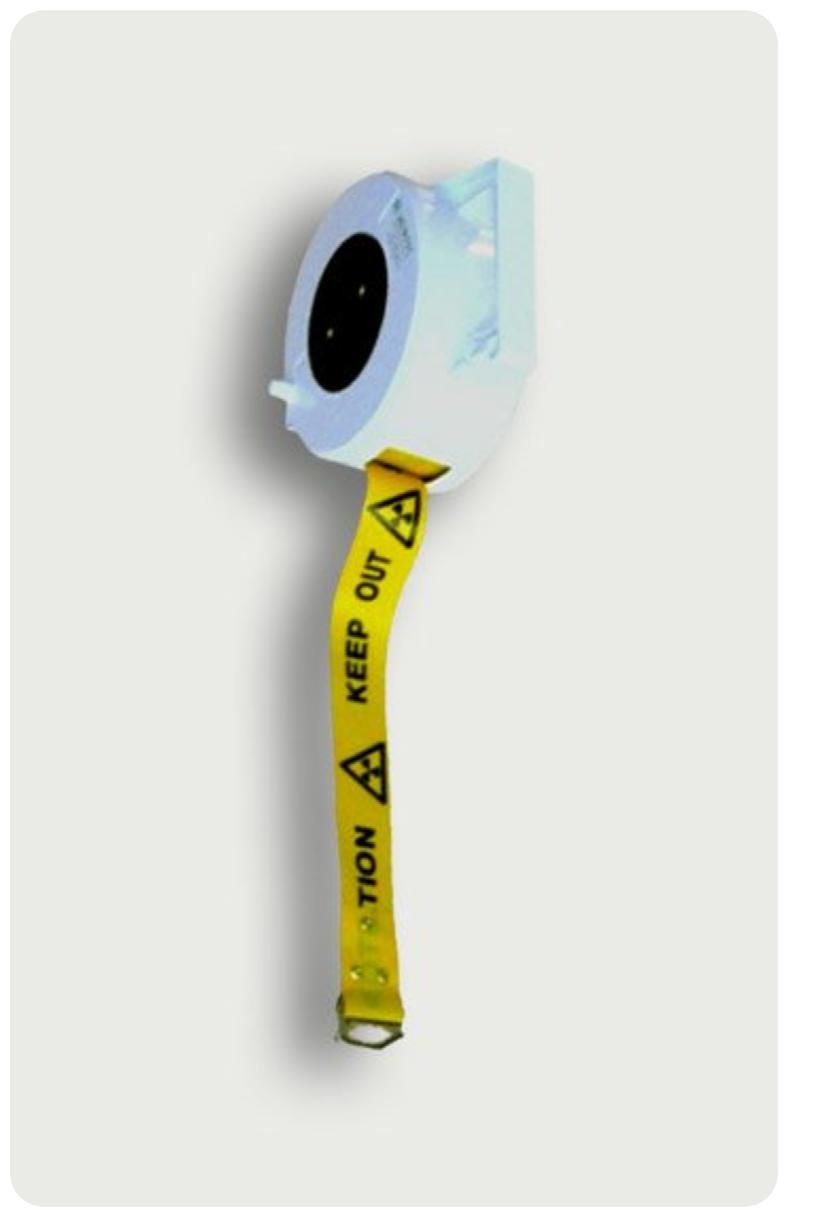

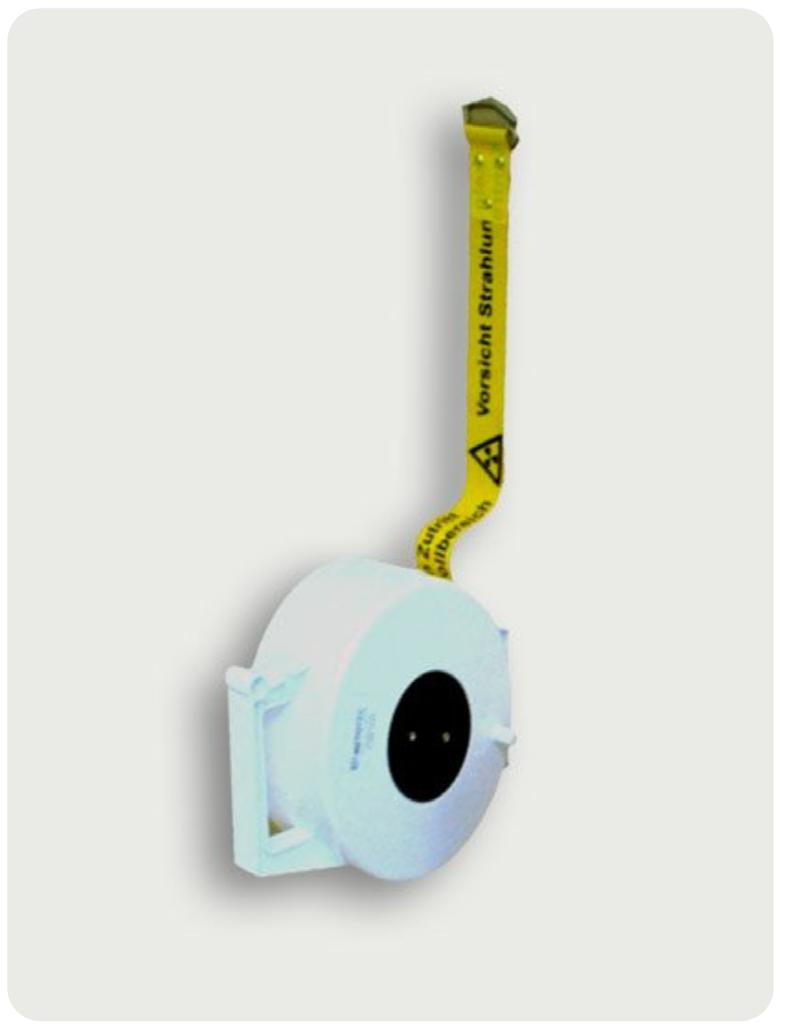

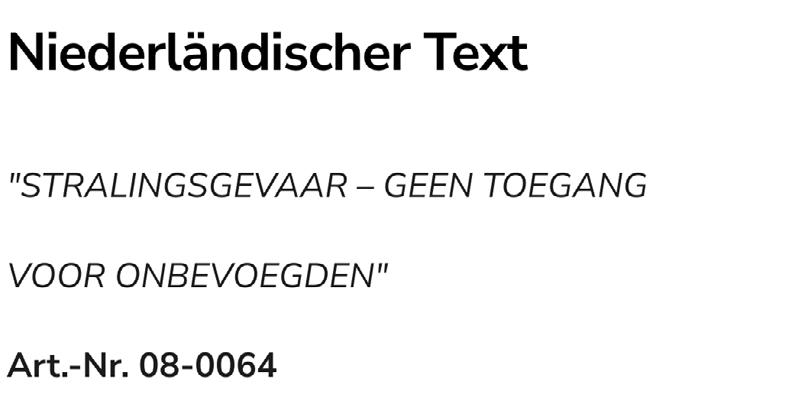

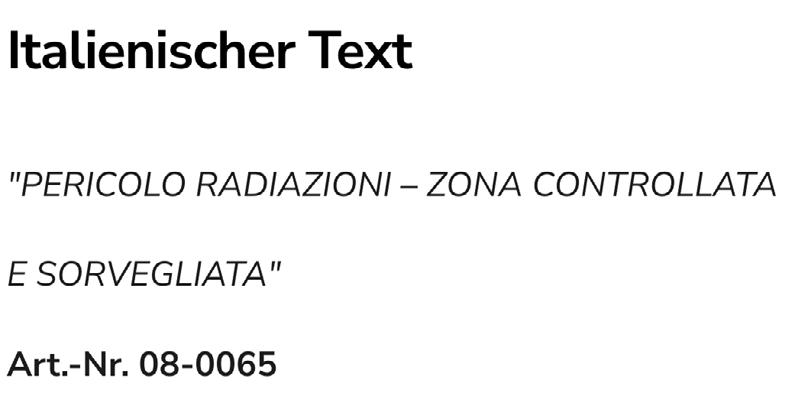

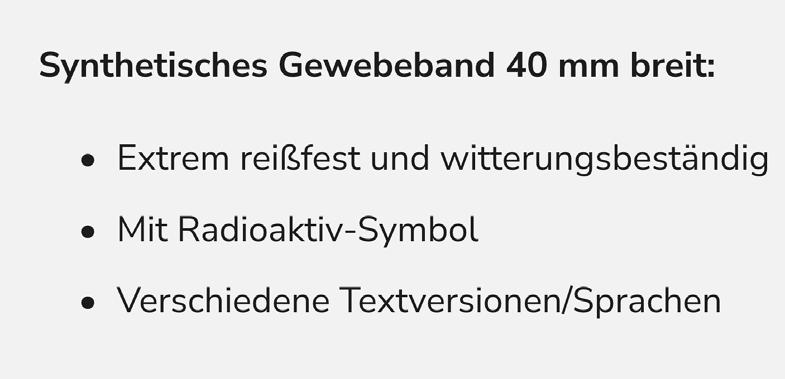

C. Warnbänder

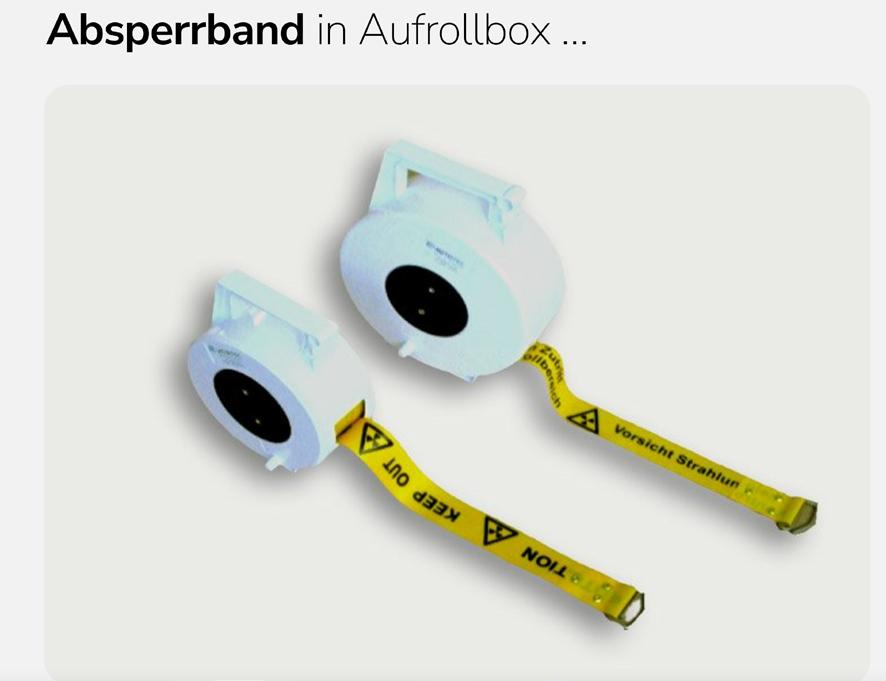

Übersicht Absperrbänder
From the Baltic Sea to the whole world: METRITEC
GmbH is based in Husby near Flensburg, right on the Danish border. From here we export our products all over the world – whether to Azerbaijan, China, India, Canada, Spain or China.
About us
METRITEC GmbH supplies you with tools and accessories for Non-Destructive Testing (NDT).
In our company we manufacture suitable accessories for the common Gamma Radiography equipment systems.
As a manufacturer, we have many years of experience in the production and design of Ellipse Clamping Tongs and Pipe Spiders in particular. Among our core products you will also find Radiation Warning Equipment and Densitometer.
• We specialise in accessories for Gamma Radiography.
• NDT service providers and dealers have been among our satisfied customers for many years.
• We manufacture and supply our own systems, also according to special customer requirements.
• Our products are reliable and easy to handle. They meet proven quality standards.
• We see continuous optimisation of our products as a response to the requirements of testing practice.
• We offer our customers comprehensive service concepts with customised solutions.
• You receive the best quality from us at the most favourable prices.
• We deliver on time to Europe and all over the world - and will be happy to deliver to you (again) soon!
Historie
1987
Founding of the ‘Gesellschaft für Mess-, Prüf- und Übermittlungsgeräte mbH’ in Heiligenhaus (NRW) by Karlheinz Henn (1947-2007).
1988
Renaming of the company to ‘METRITEC Gesellschaft für Mess, Prüf-, Übermittlungsgeräte mbH’.
2000
Relocation of the company to Husby near Flensburg (S-H) with new construction of a ‘customised’ modern production and sales facility.
2007
Shortly before the 60th birthday and the 20th company anniversary of METRITEC GmbH, the company founder and managing director Karlheinz Henn passes away, interim management by his son Marcus Henn, graduate interior designer from Hilden (NRW).
2008
The long-time employee of METRITEC GmbH, Mrs Dipl. oec.troph. Ruth Andersen, born 1967, takes over the management of the company.
