MEGAN FRANK

I am a 3rd year Interior Design student passionate about creating healthy, functional, and beautiful spaces that allow people to thrive in their work and daily life.

Outside of Studio I enjoy creating art in many mediums including drawing, painting, collaging, and fashion design

meganafrank@vt.edu

https://www.linkedin.com/in/megan-frank-ab203a286/

THERME

ARTIST ATELIER

OTHER PROJECTS

PAPER SHOOT OFFICE

PERSONAL WORKS

THERME

Retail Boutique | Los Angeles, California Spring 2023 | Individual Sketchup, Photoshop

Design a new boutique retail shop. The renovated space to be sits on a corner of two narrow streets in a neighborhood that is being revitalized. Students will choose which city to place this retail establishment. The Brand should promote sustainability and social justice.

Throughout history public pools and bath houses have brought community together regardless of class and background. Located in Rodeo Drive Los Angeles, Thermae boutique embodies the idea of community with work from an eclectic collection of local artists, including clothing, ceramics, jewelry, prints, and original artworks. Straight lines and harsh corners refer to the strict organization of ancient pools and bath houses.

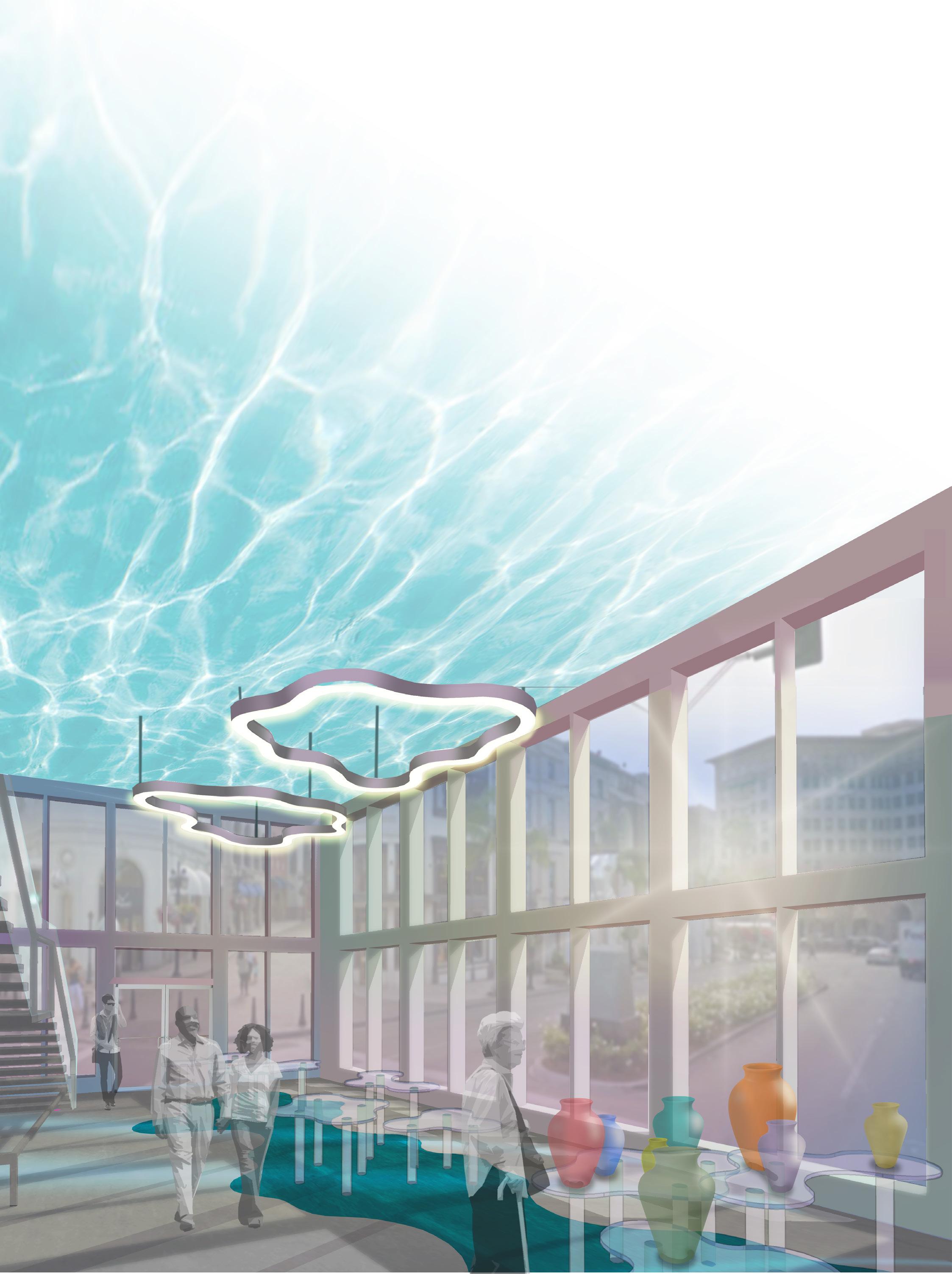

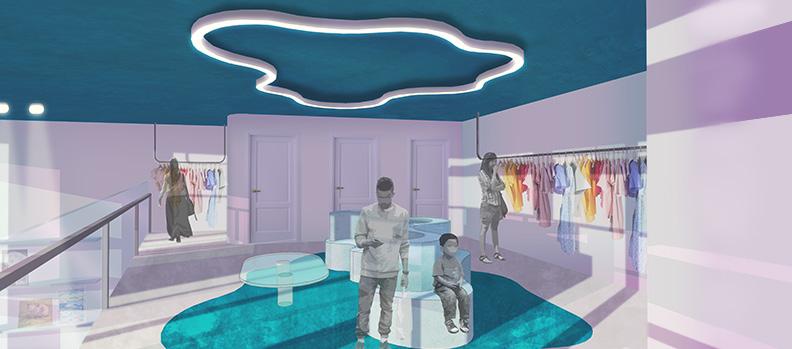

Merchandise is zoned by product to continue the concept of strict organization within the space. Organic curvilinear tables and light fixtures proved contrast to the strict organization of the shell of the space. These shapes are inspired by reflections on the water’s surface and the shadows they create on the bottom of a

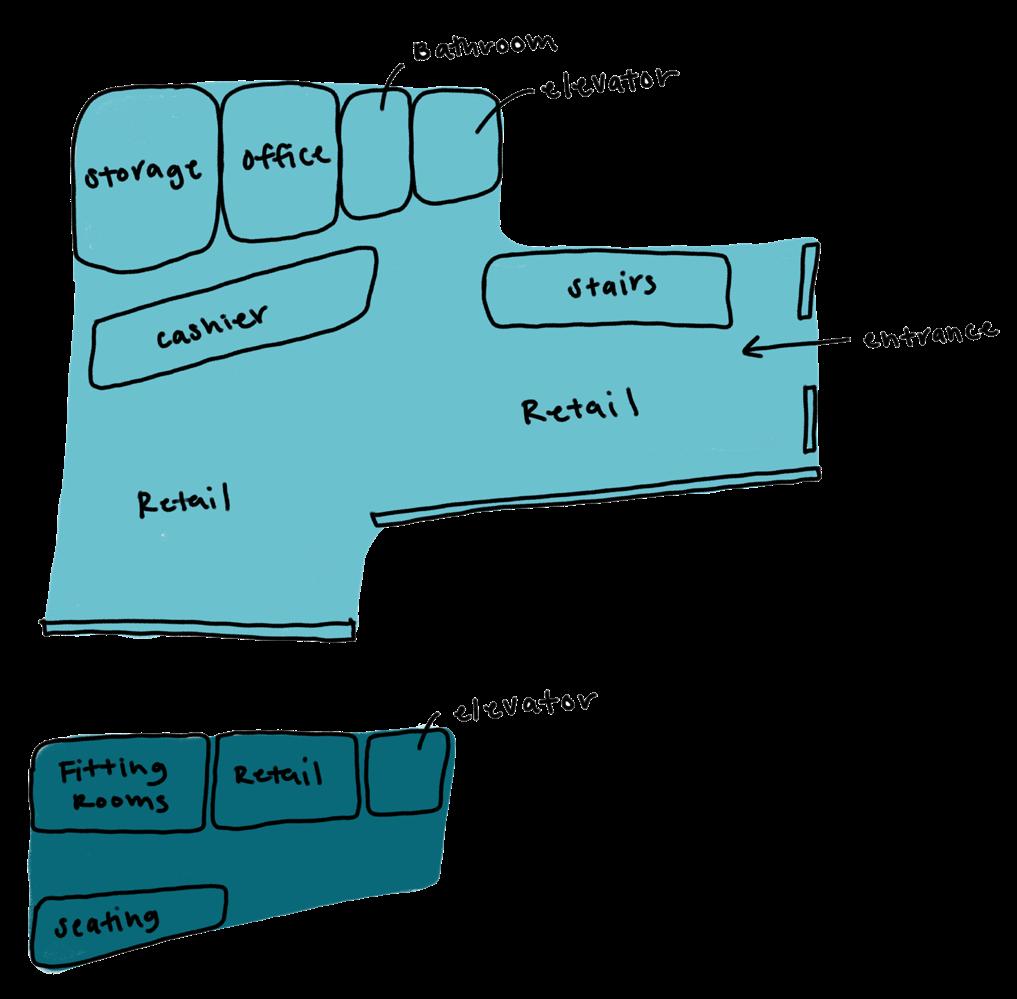

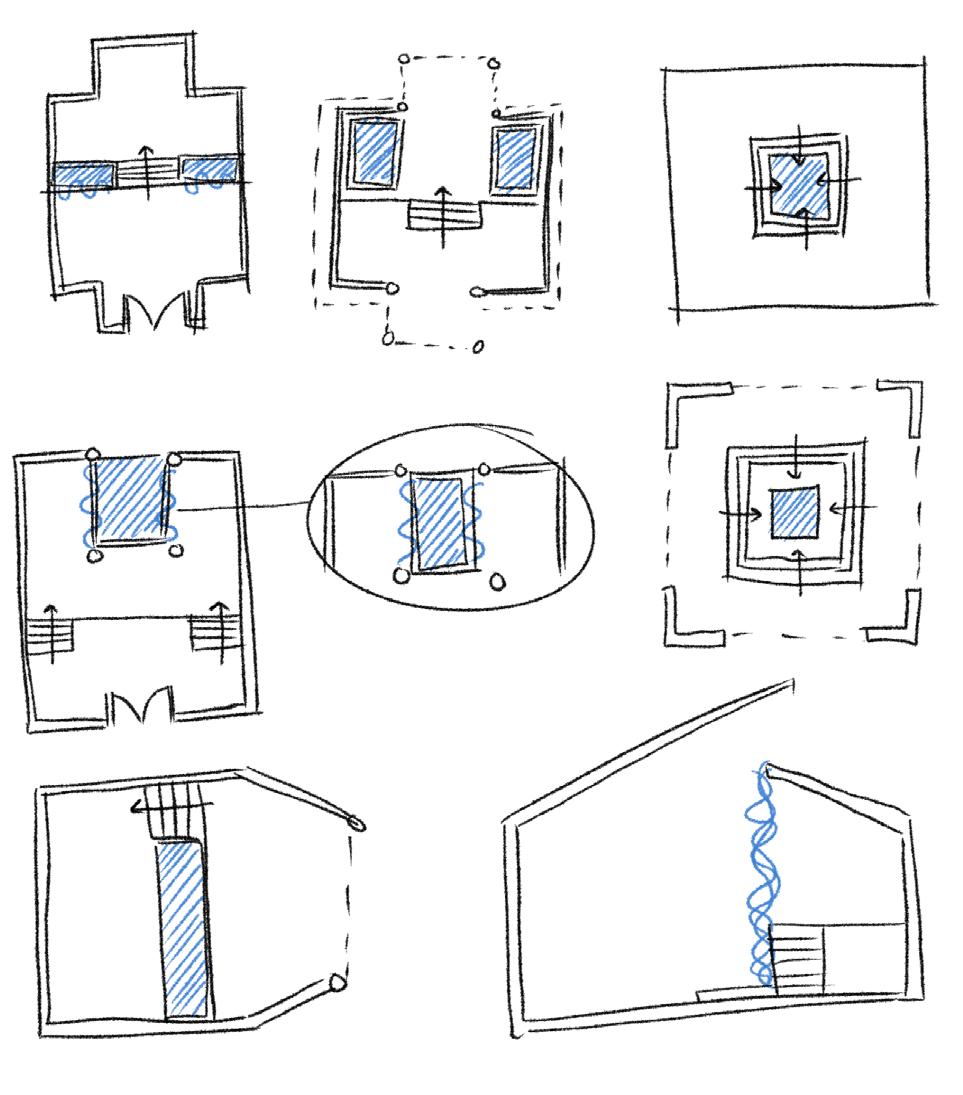

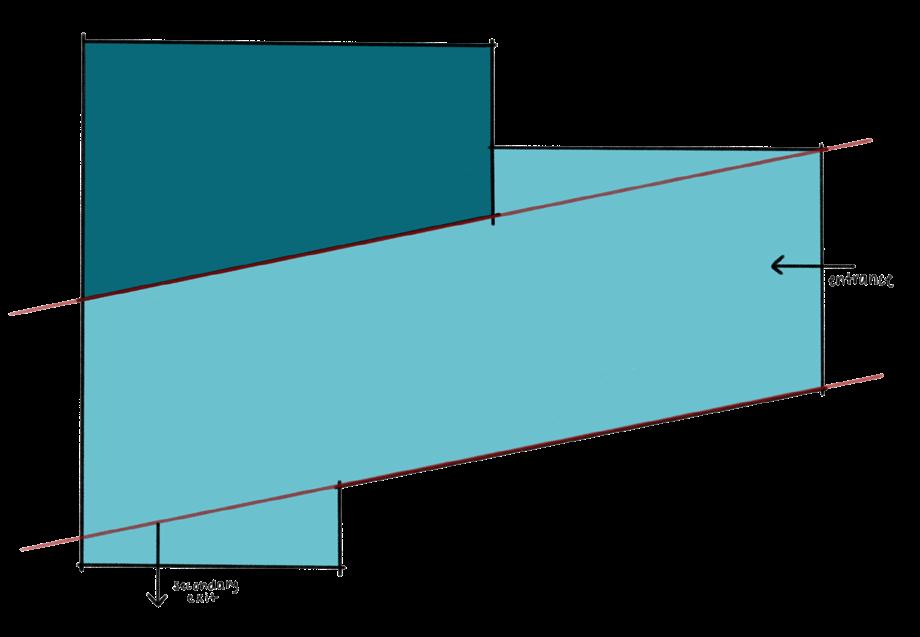

Multiple Parti diagrams were created to determine the ideal layout of the space, considering adjacency, egress, and accessibility. Ultimately the design was organized around a diagonal grid.

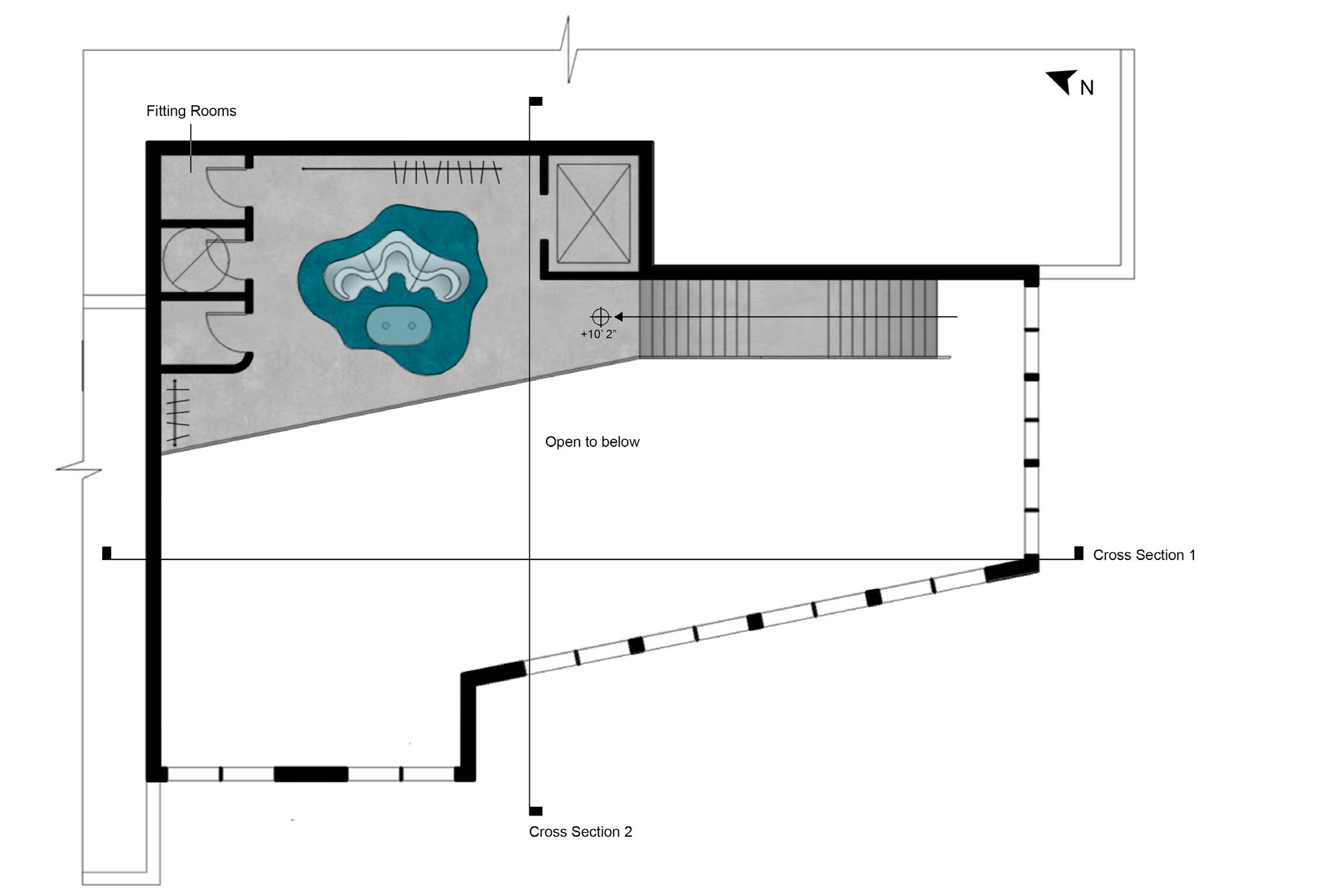

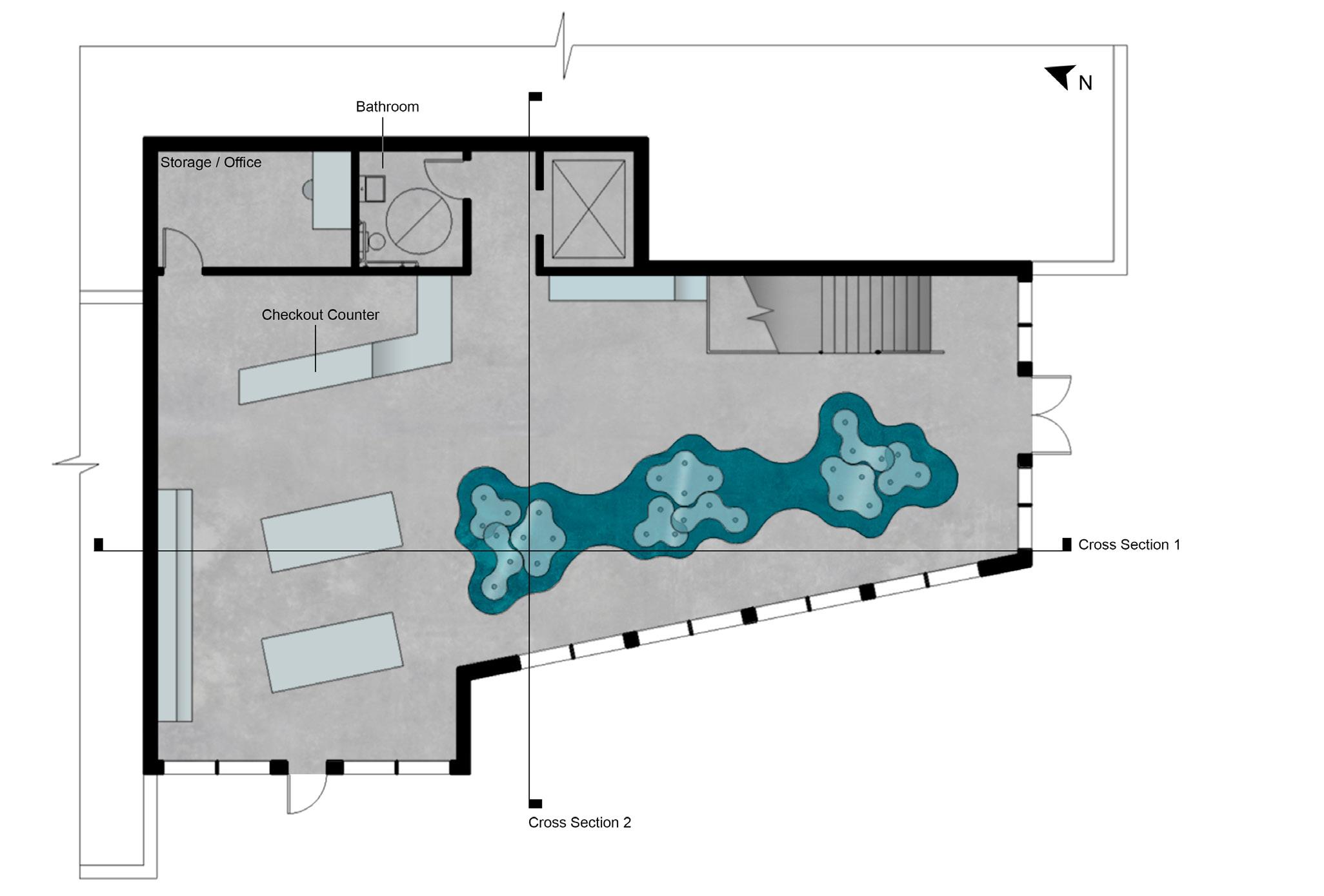

Floorplan L1 NTS Floorplan L2 NTS

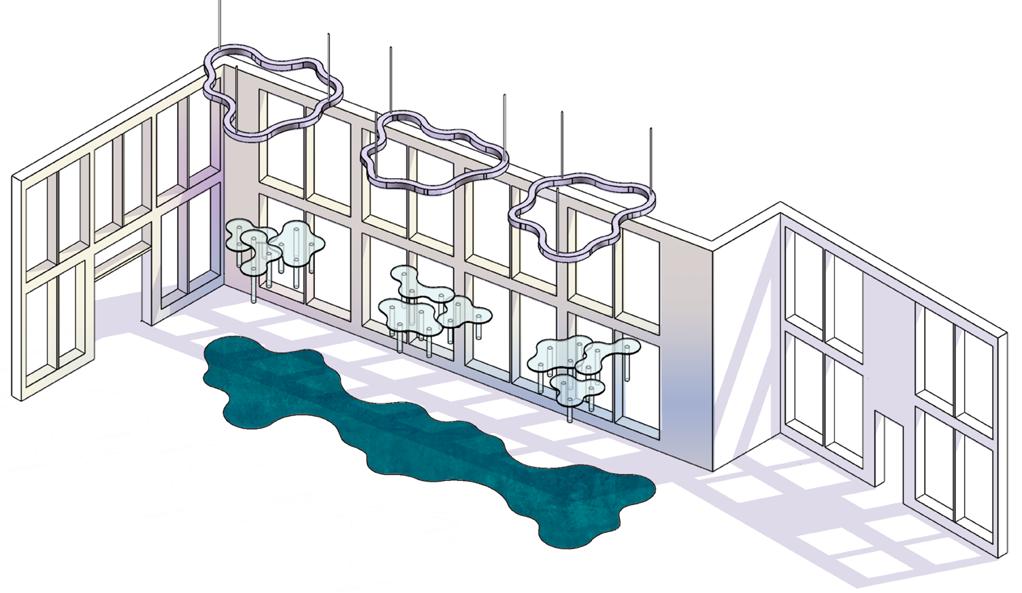

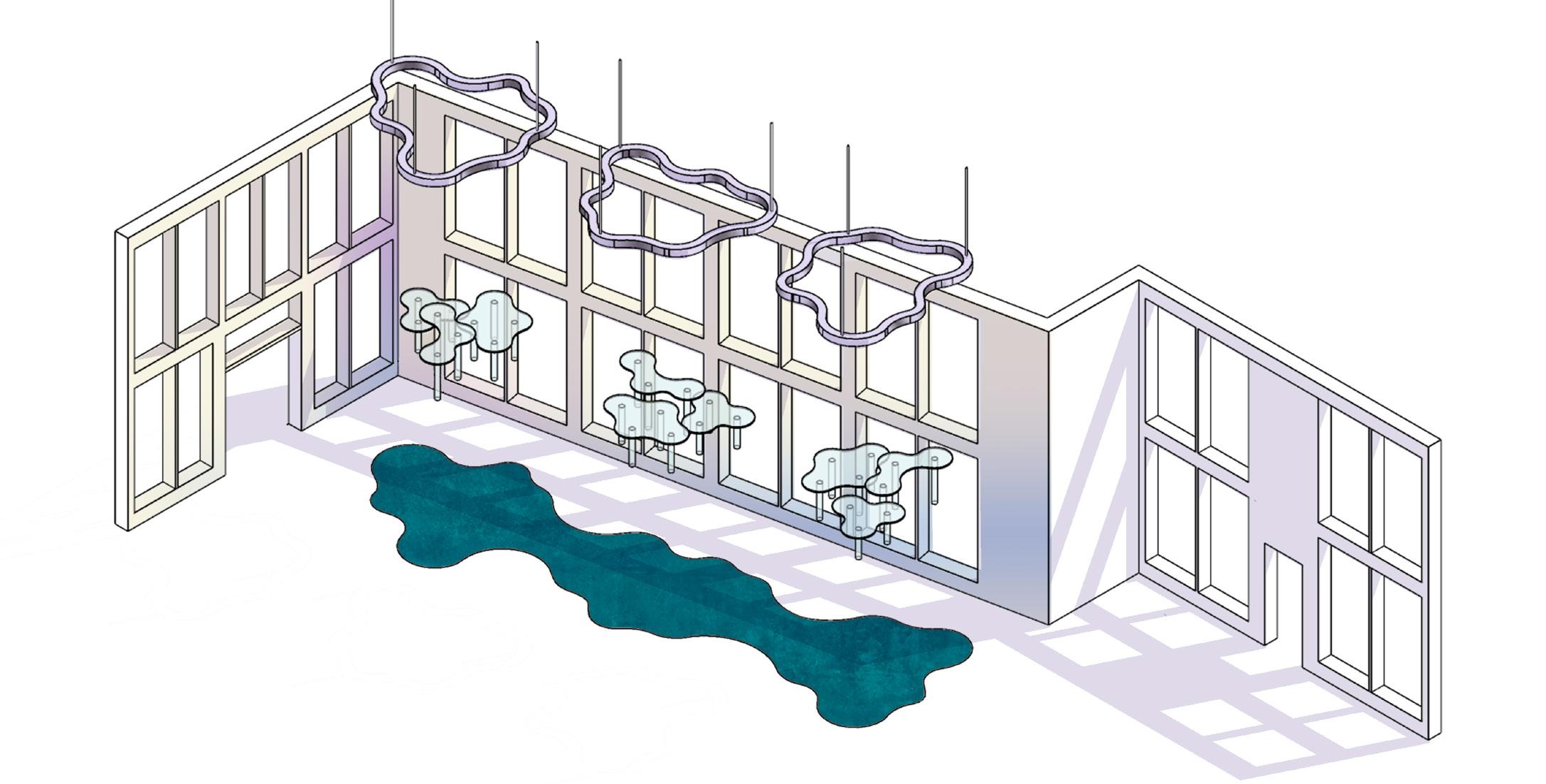

Cross Section Exploded Axonometric NTS

A: Poured polished concrete in teal blue

Applications: Flooring L1 and L2

B: Osculati flexible LED strip light

Applications: Curvilinear lighting fixtures

C: Paint samples

Applications: Walls and doors

D: Poured polished concrete in classic gray

Applications: Flooring L1 and L2

E: Cloverleaf Sofa by Verpan

Applications: Seating on L2

F: Green Cast clear acrylic

Applications: Curvilinear tables

G: Marazzi ceramic wall tile

Applications: Check out counter

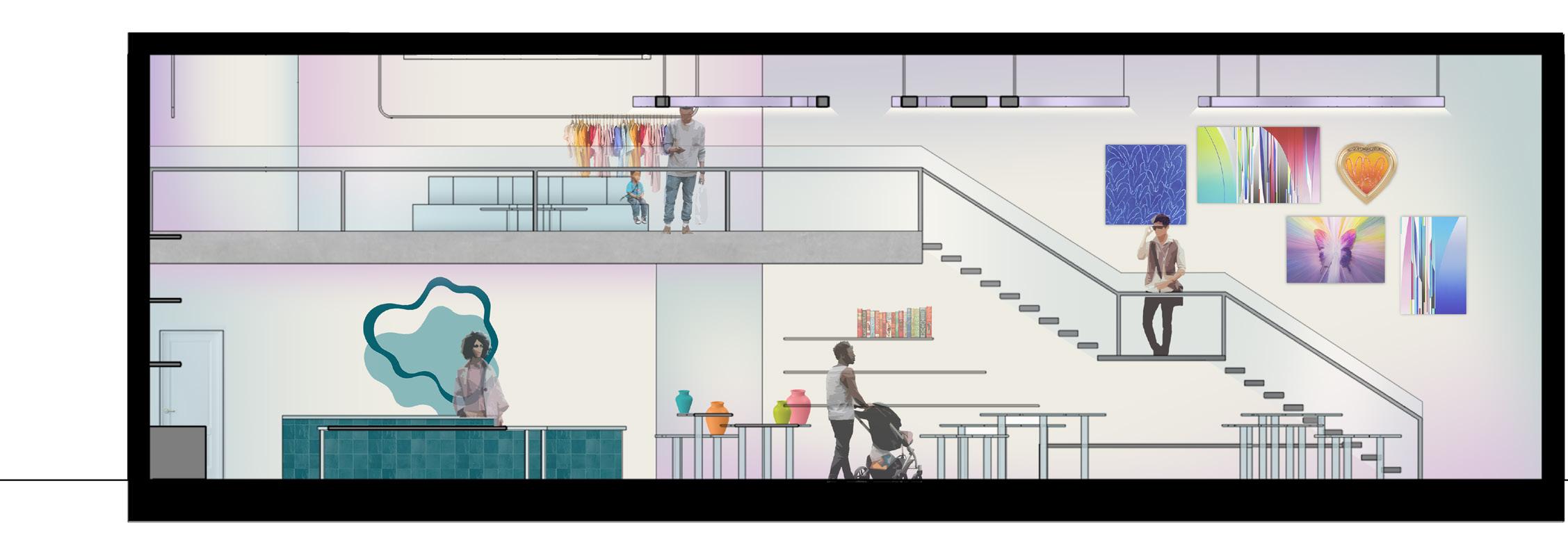

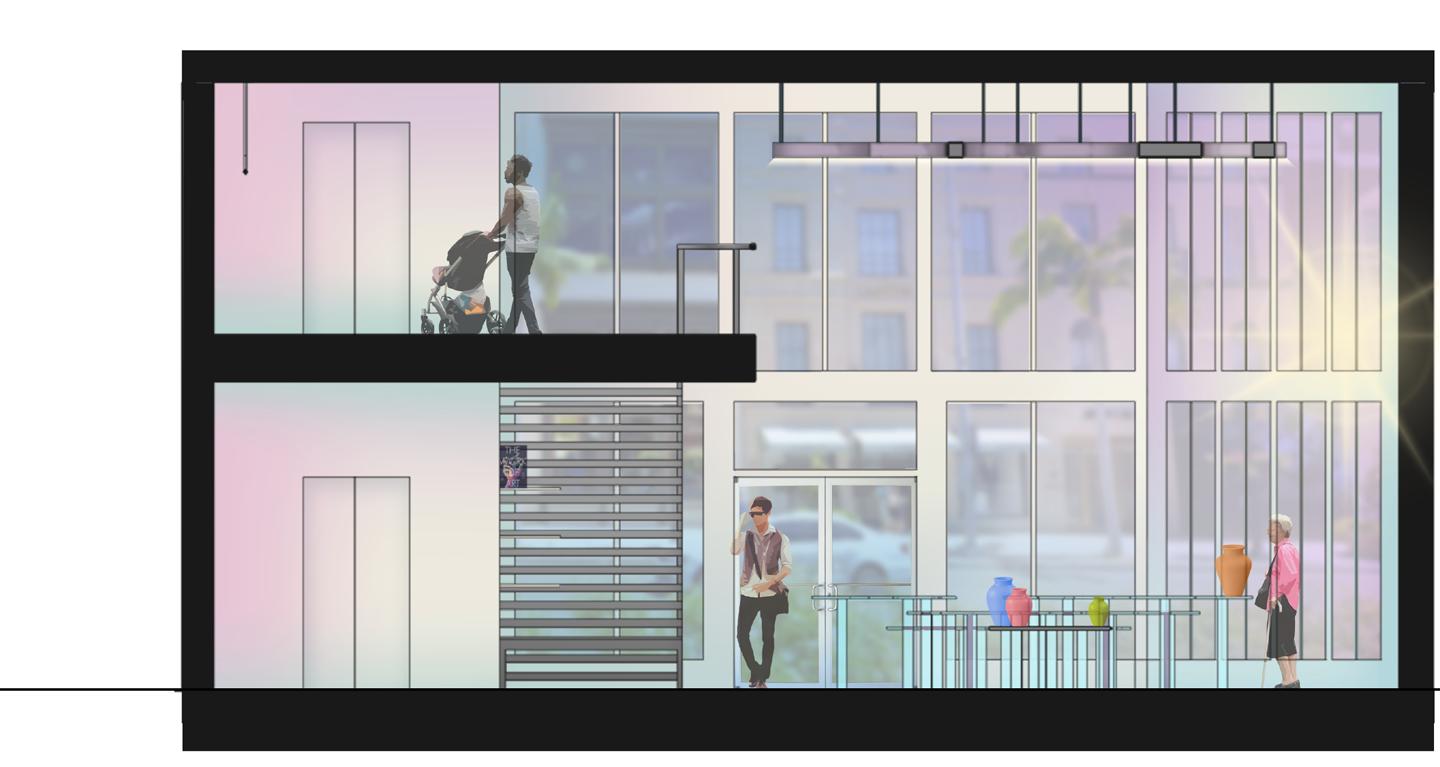

Section 2 NTS

A B C D E F G

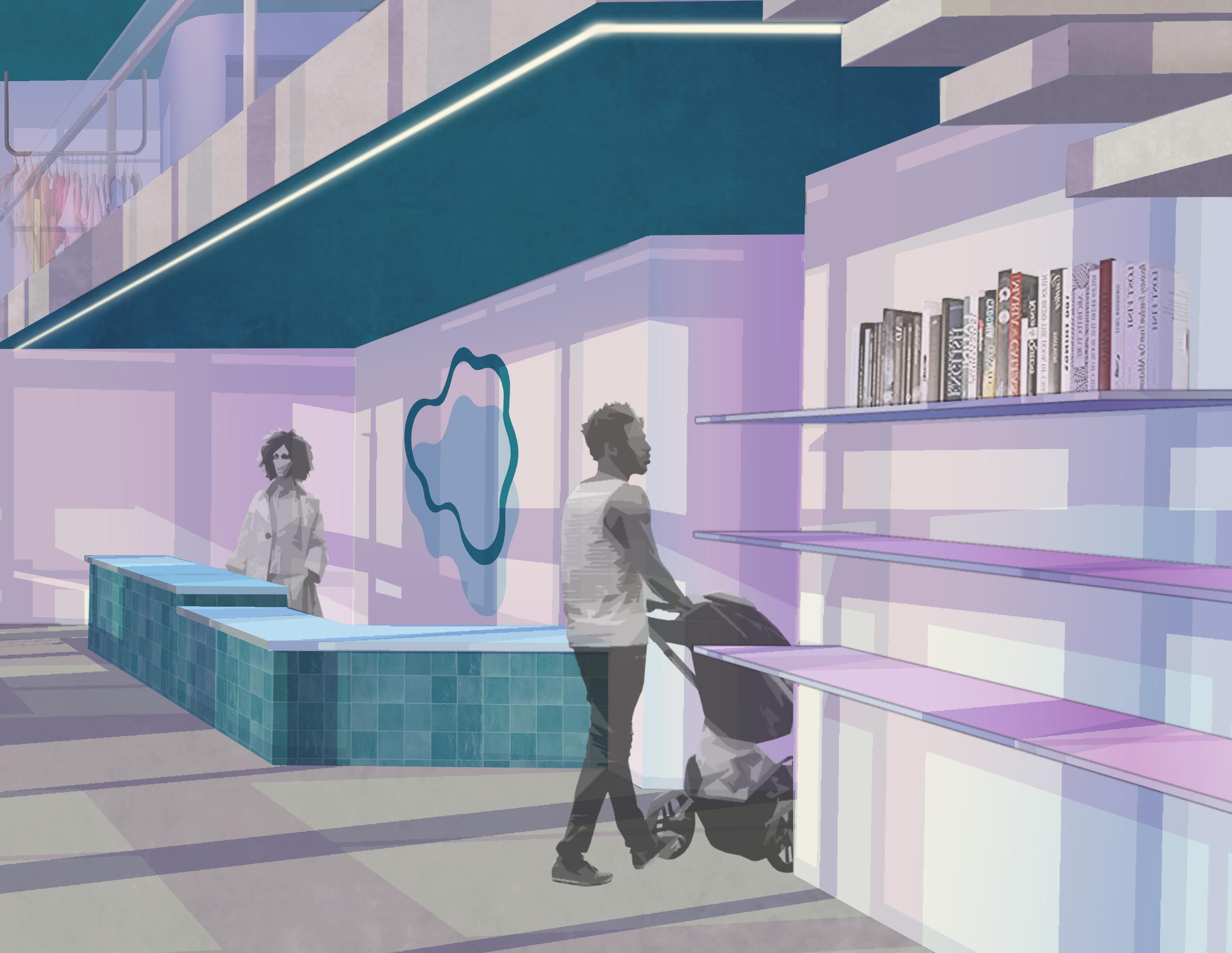

Products sold in Therme include locally handmade jewelry, pottery, prints, books, fine arts, and clothing. As seen in the perspectives and sections, the art is a part of the design of the space.

Cross Section 1 NTS Cross Section 2 NTS

PAPER SHOOT OFFICE

Workplace | Roanoke, Virginia

Fall 2023 | Individual Revit, Photoshop

Design a new and enticing workplace in downtown Roanoke, VA, which responds to the changes in the current workplace

Paper Shoot Camera is known for being “one of the most unique, affordable, and sustainable alternatives to film on the market. Their goal is to combine “the aesthetic and experience of film photography with the convenience of digital to provide an unmatched photography experience.”

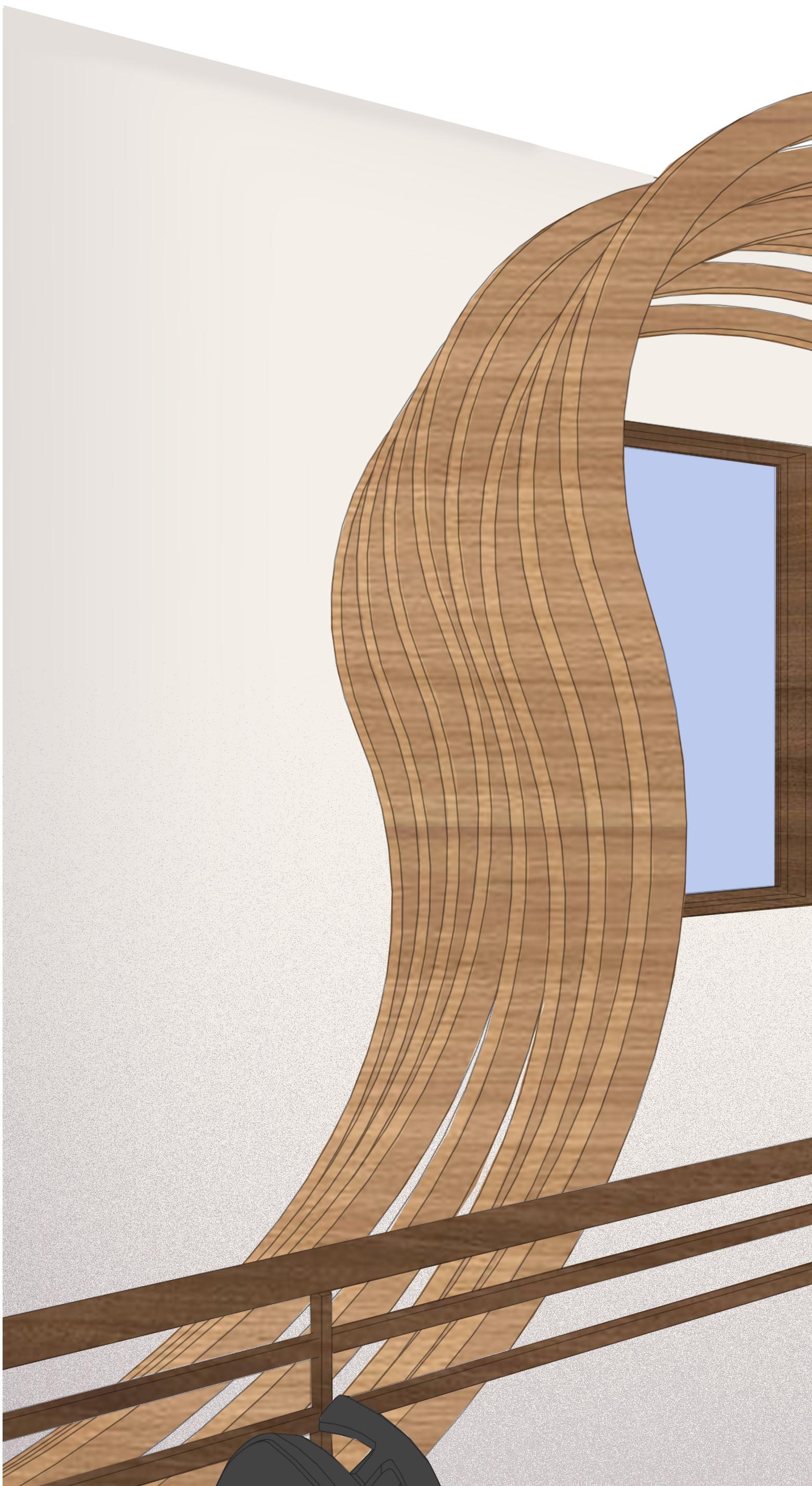

With these values in mind, this office space aims to provide a comfortable, fun and functional space to work and express creativity. The main feature of the space is a wooden ribbon structure that runs the length of the building, connecting the spaces throughout with a single element. This structure was inspired by a film roll, with the reception desk mimicking a film canister.

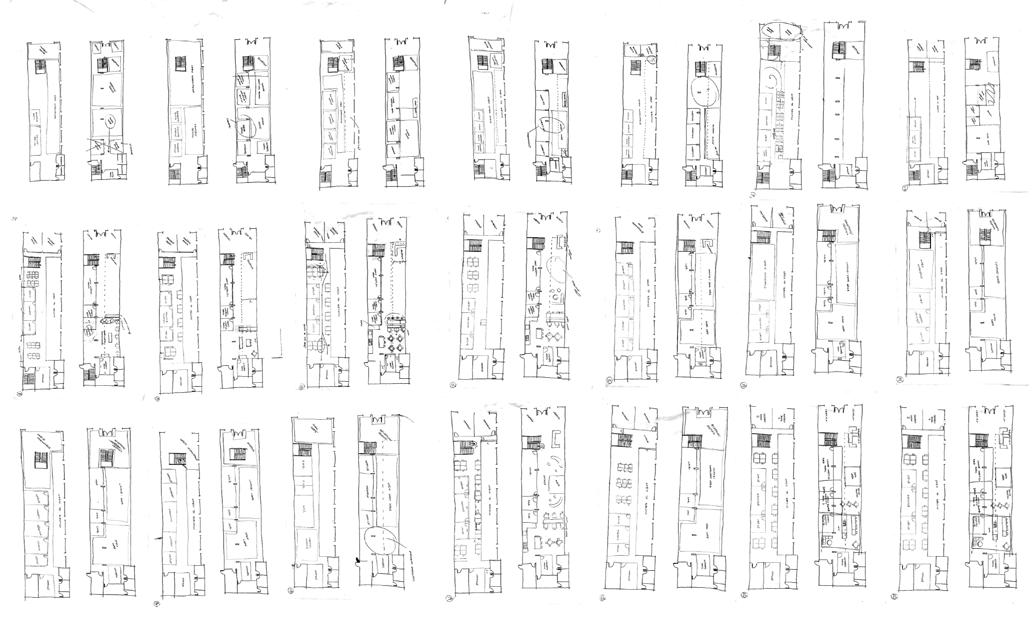

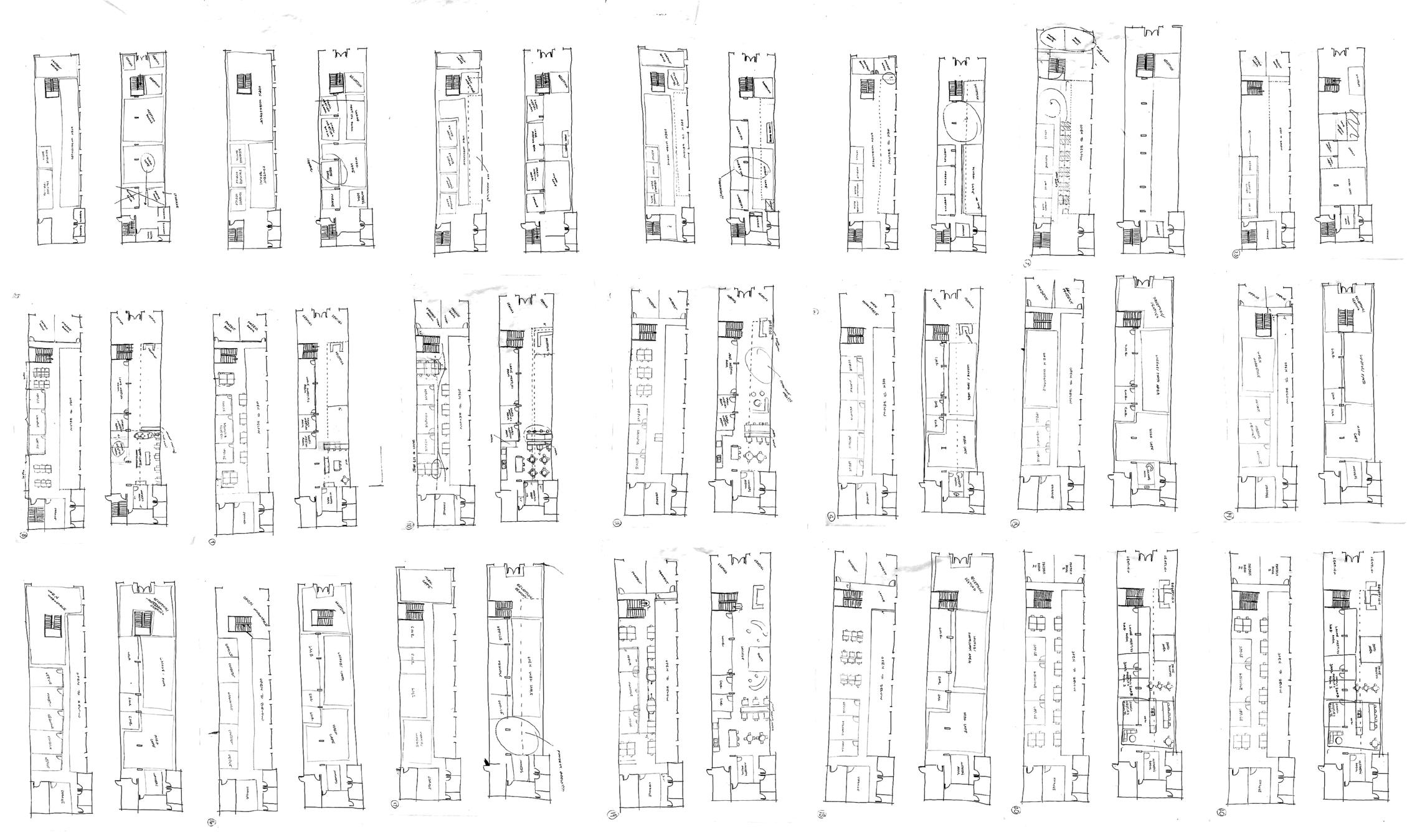

Floorplan Iterations

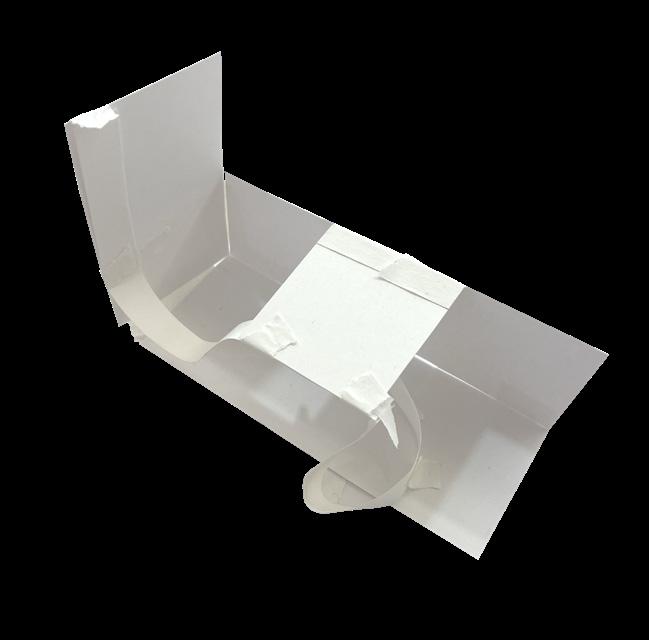

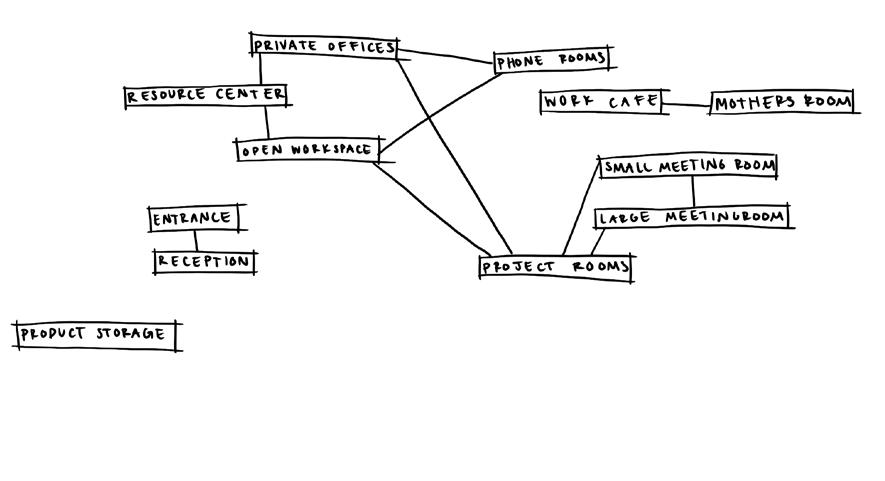

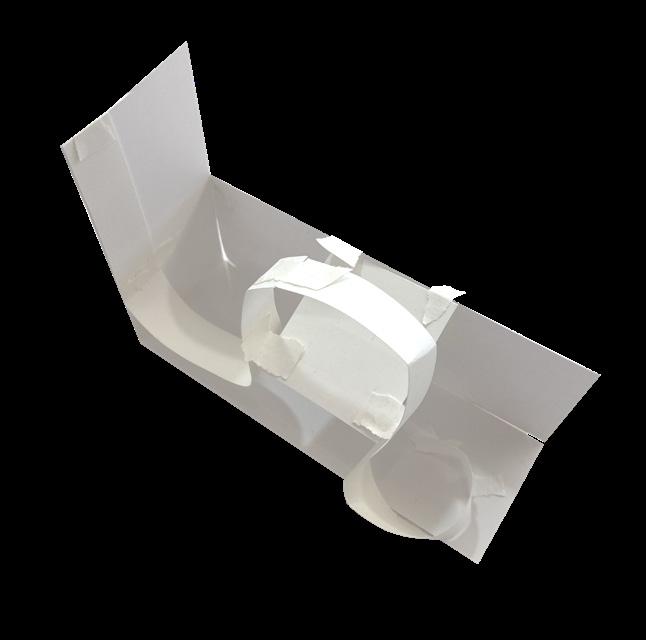

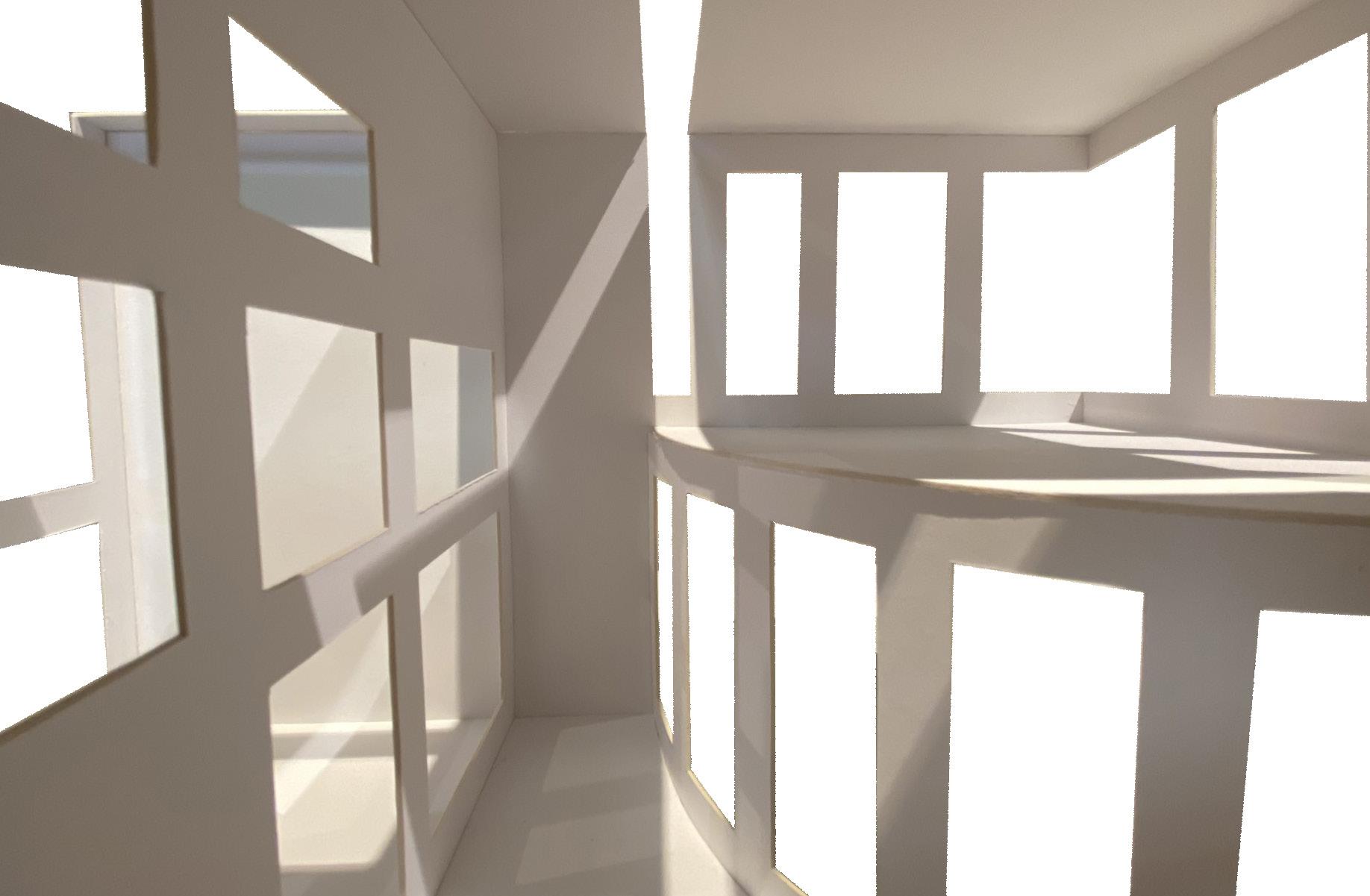

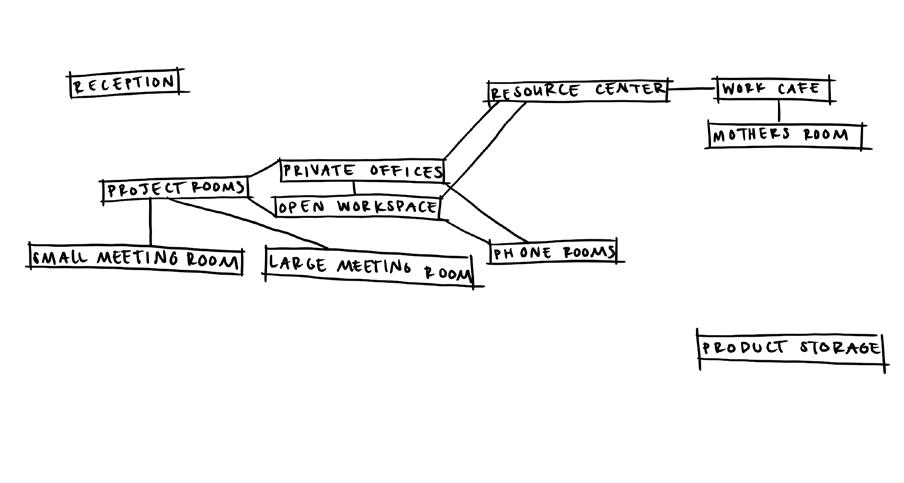

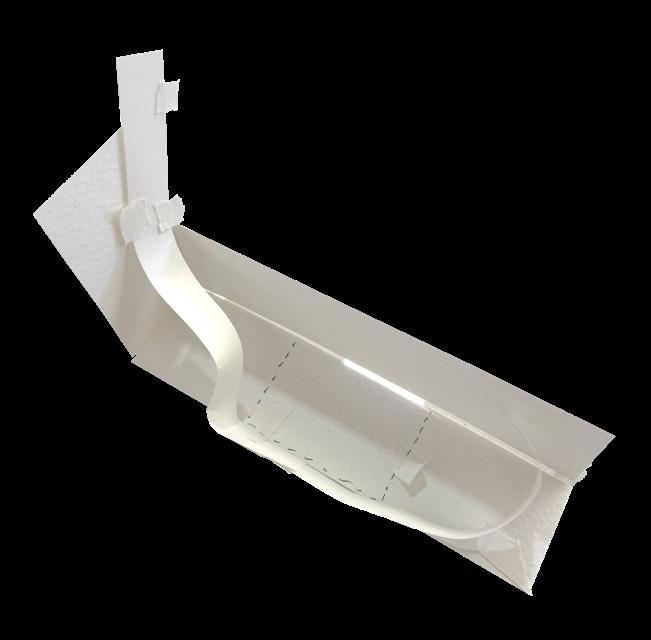

Adjacency Diagram 1 Adjacency Diagram 2 Feature Structure Process Models

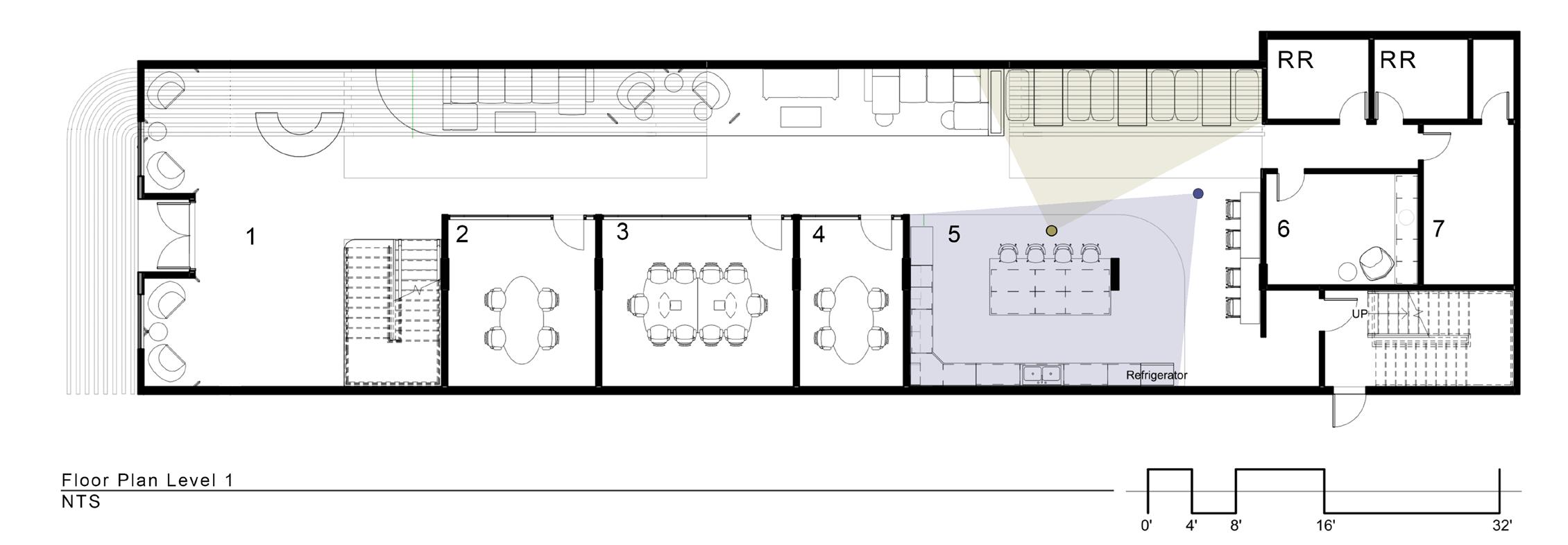

Floorplan L1 NTS

1. Reception

2. Small Meeting Room 1

3. Large Meeting Room

4. Small Meeting Room 2

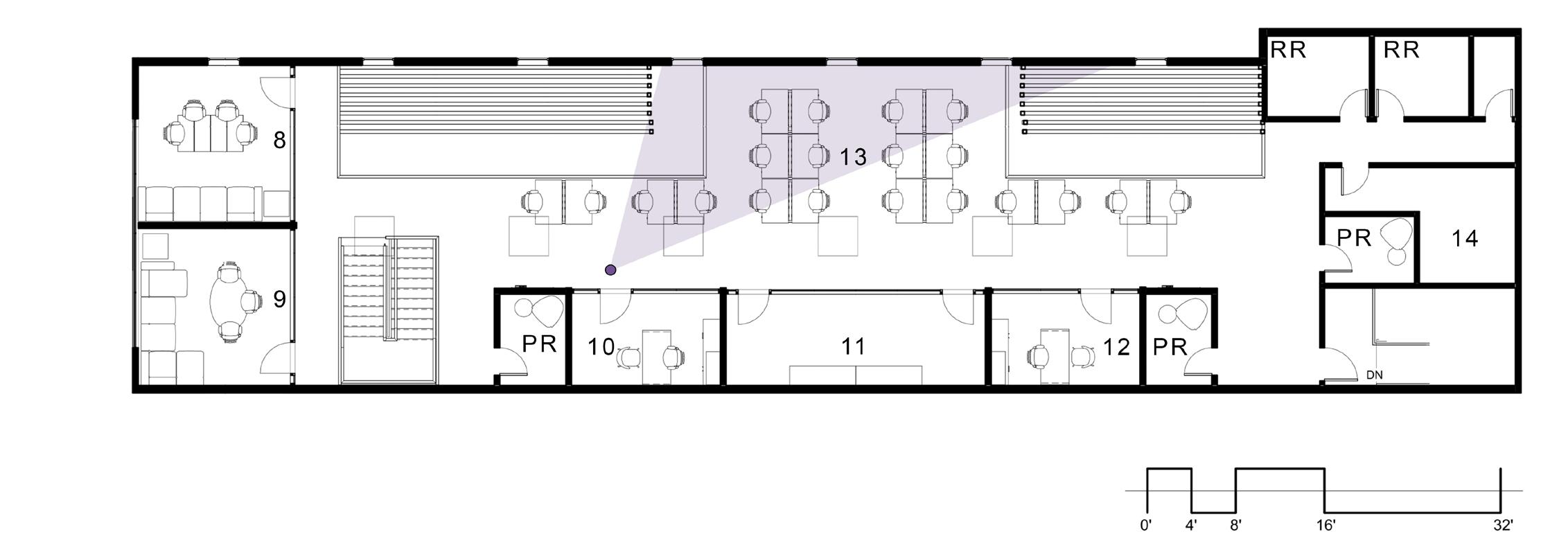

Floorplan L2 NTS

5. Work Cafe 6. Mother’s Room

7. Utility Room RR. Restrooms

8. Project Room 1 9. Project Room 2 10. Private Office 1 11. Resource Center 12. Private Office 2 13. Open Workspace 14. Storage RR. Rest Rooms PR. Phone Rooms

Steelcase Series 1

Desking Bench Open Workspace

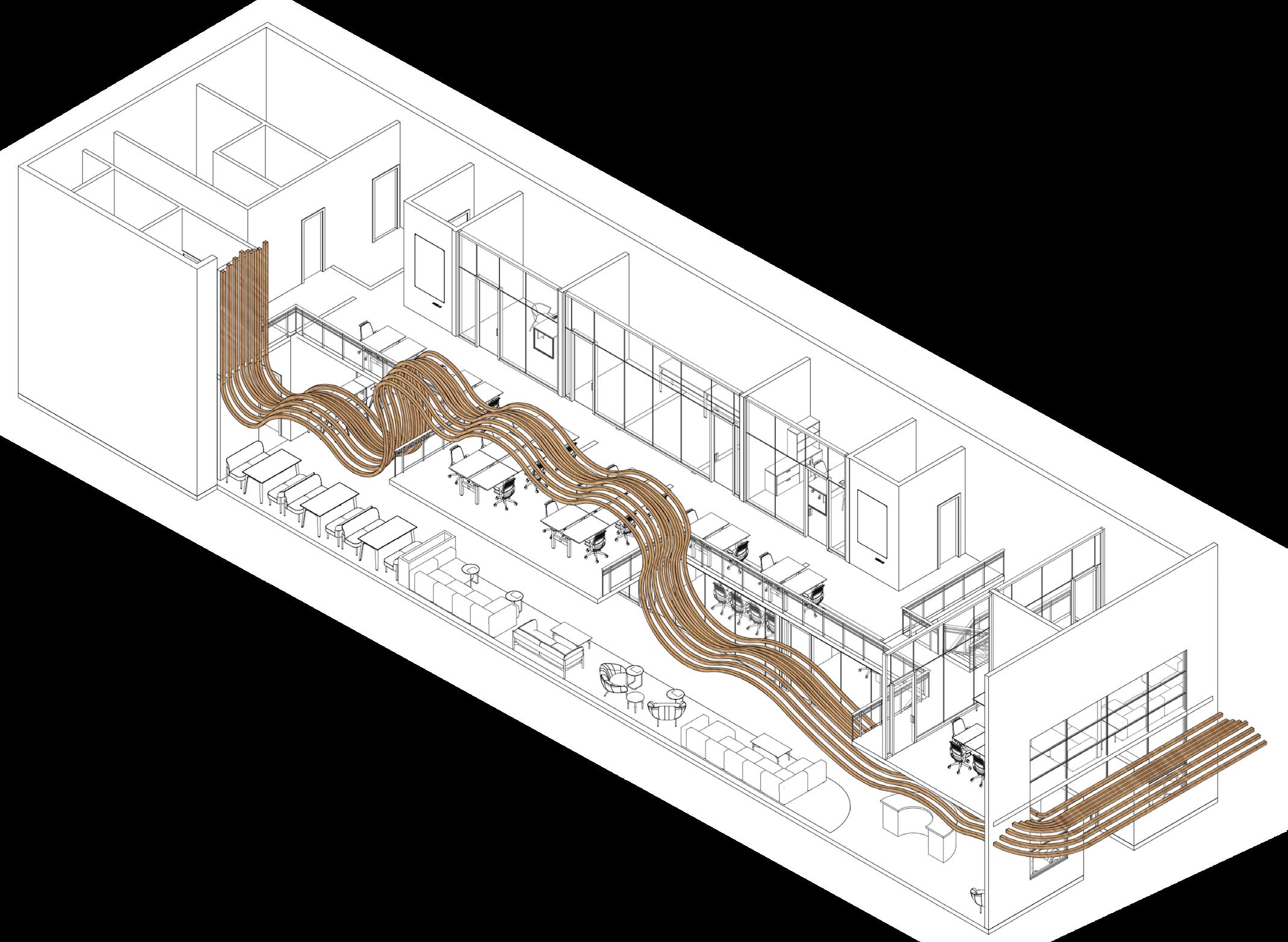

Office Chair AMQ Axonometric NTS

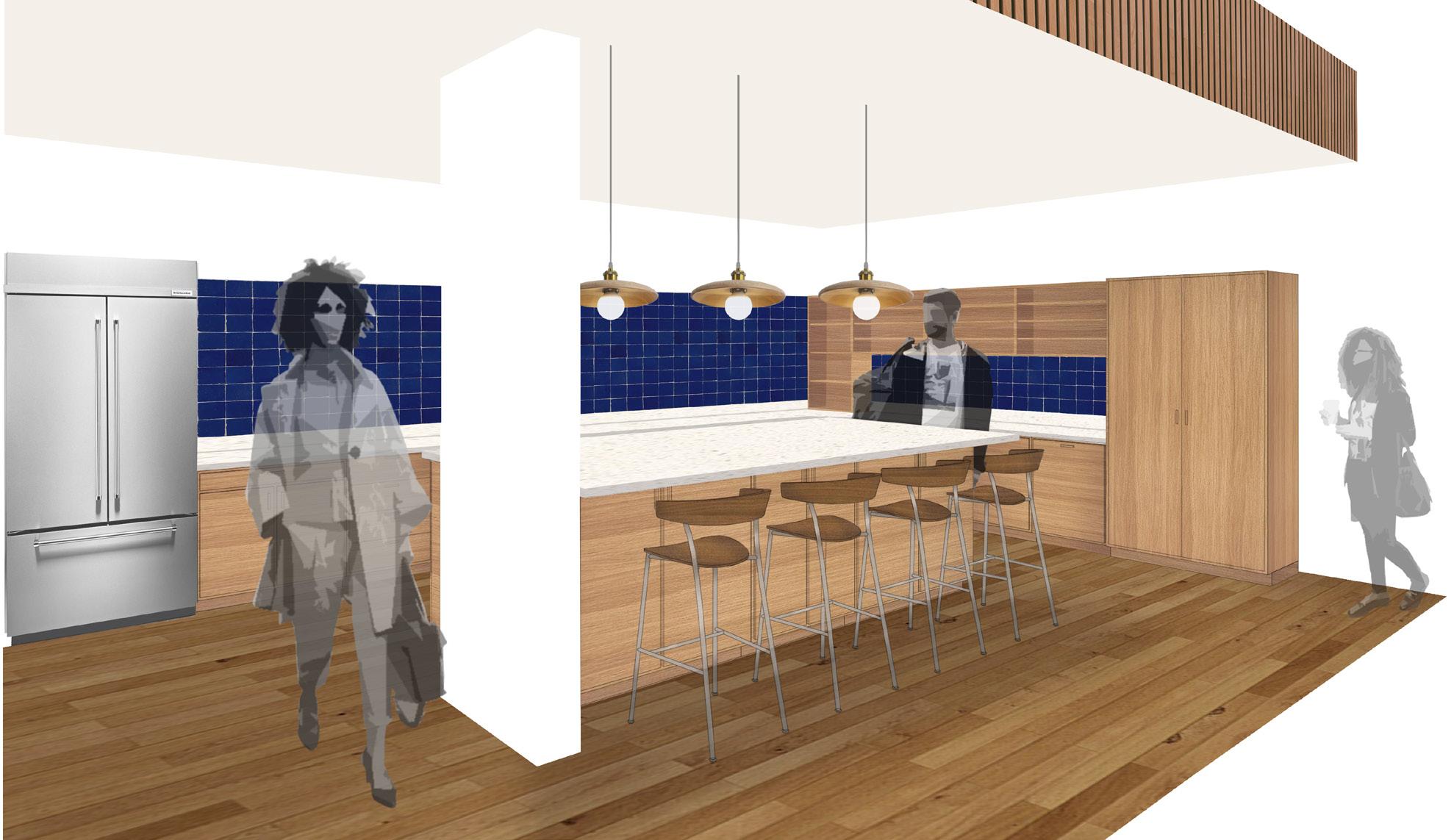

Naughtone Hue Seating Naughtone Fold Table Booth Seating Herman Miller Leeway Stool Work Cafe

ARTIST’S ATELIER

Residential, Exhibition| Madrid, Spain

Fall 2022 | Individual Sketchup, Photoshop

Create a living, work and exhibition space for an artist with a design solution using a maximum of five 12’cubes. The client is a visual artist that the student will create.

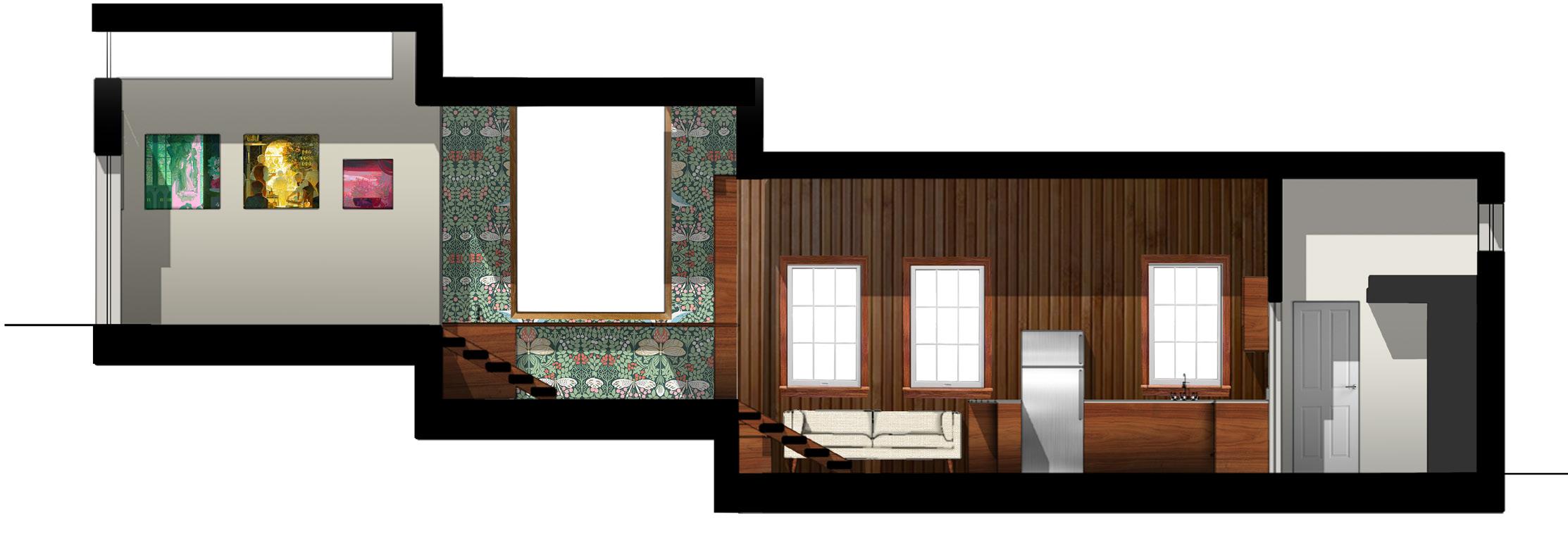

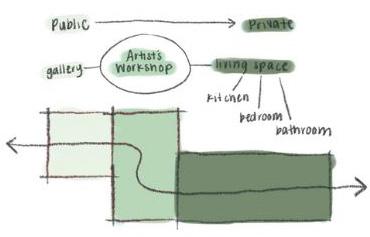

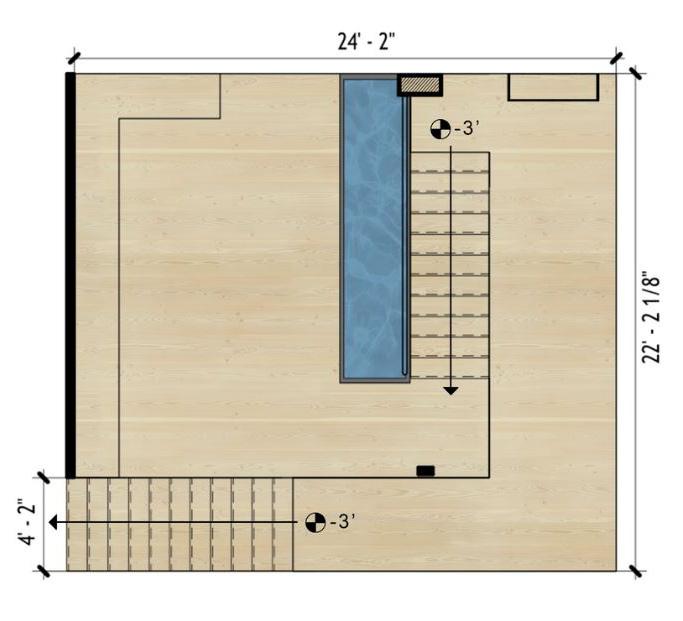

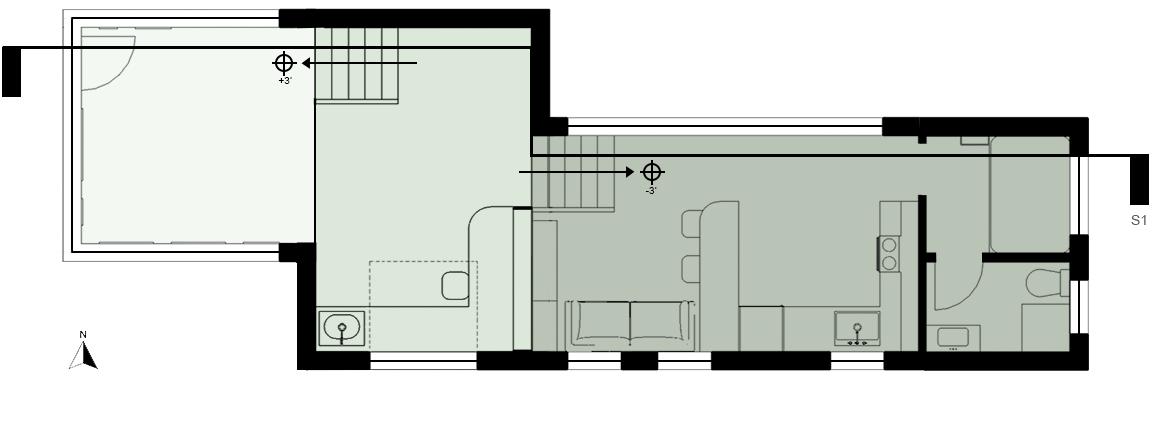

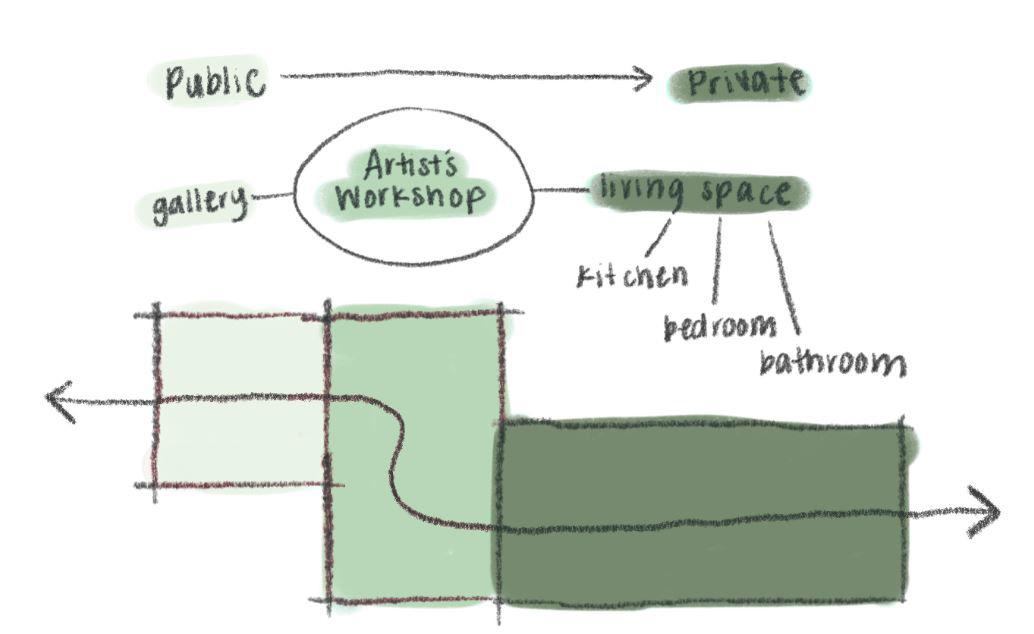

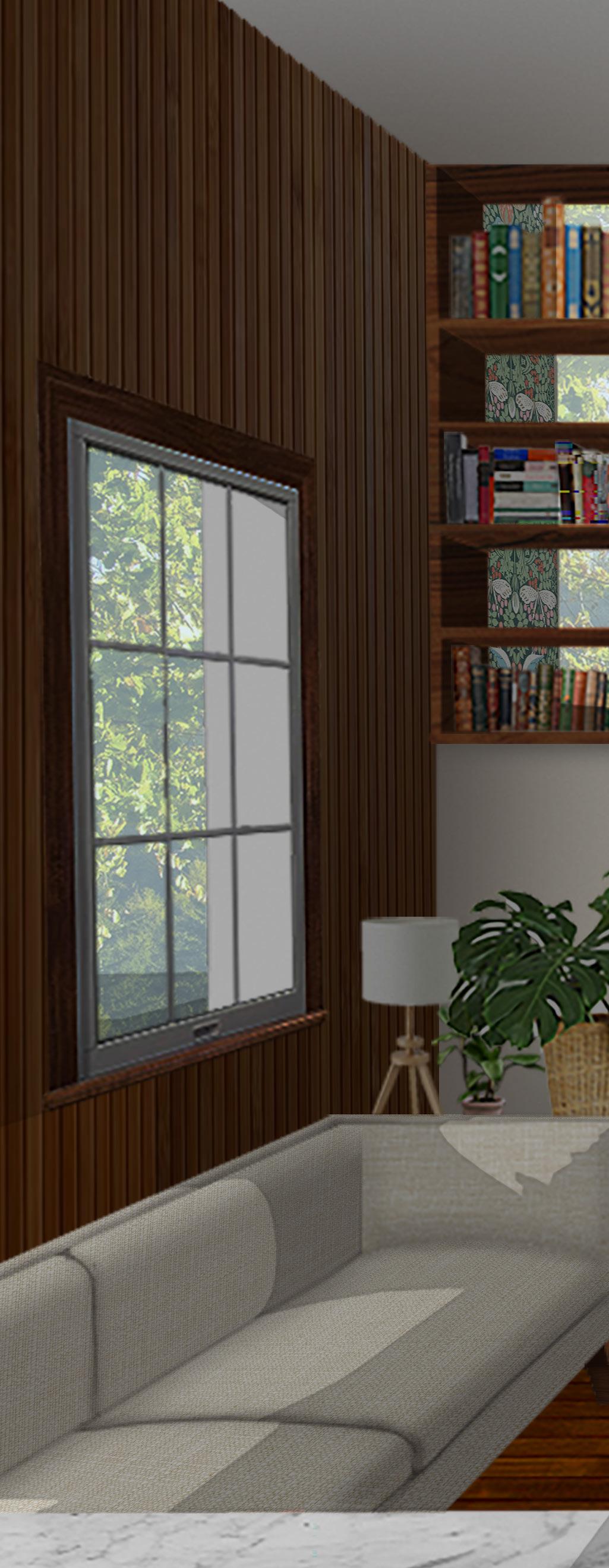

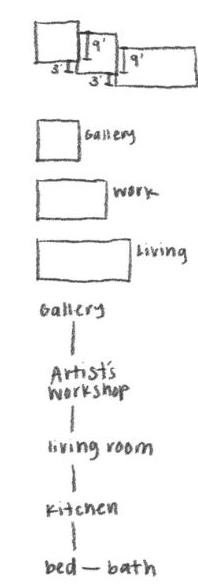

The concept of my space revolves around the progression of public to private space through movement and levels. You enter through the highest and most public space, the gallery. As you move downstairs you pass through the artist’s workshop then down again to the private living space. The floor plan is very open to make the space feel as large as possible, while still retaining privacy. The colors and materials used are neutral and natural to complement the view.

Sierra Flores is a 28 year old Peruvian American female. She was born in New York City, USA and currently resides in the mountains outside of Madrid. Her Peruvian culture is very important to her, so it was important to showcase her heritage inside the space. Flores is a mixed media artists who creates art using acrylic paint, pens, pencils, and digital means. Her hobbies include reading and horticulture. Natural light is essential to the space in order to look after her plants and keep her motivated to work throughout the day.
